LG FDV909S Eco Hybrid 9kg Heat Pump Tumble Dryer User Manual

www.lg.com

OWNER'S MANUAL

DRYER

Before beginning installation, read these instructions carefully. This will

simplify installation and ensure that the product is installed correctly and

safely. Leave these instructions near the product after installation for

future reference.

EN ENGLISH

FDV708W FDV909W

MFL71424338

Rev.00_070819

TABLE OF CONTENTS

This manual may contain images or content

that may be different from the model you

purchased.

This manual is subject to revision by the

manufacturer.

SAFETY INSTRUCTIONS ..............................................................3

READ ALL INSTRUCTIONS BEFORE USE ..................................................... 3

IMPORTANT SAFETY INSTRUCTIONS ..........................................................3

CARING FOR THE ENVIRONMENT ................................................................ 9

INSTALLATION .............................................................................10

Parts and Specifications..................................................................................10

Installation Place Requirements...................................................................... 11

Leveling the appliance ....................................................................................12

Stacking Instructions .......................................................................................14

OPERATION .................................................................................16

Operation Overview ........................................................................................16

Sorting Laundry ............................................................................................... 17

Control Panel ..................................................................................................18

Programme Table ............................................................................................ 20

Option Programmes and Extra Functions .......................................................24

SMART FUNCTIONS ....................................................................26

Using LG SmartThinQ Application ..................................................................26

Using Smart Diagnosis™ ................................................................................29

MAINTENANCE ............................................................................ 30

Cleaning after Every Dry .................................................................................30

Cleaning the Appliance Periodically ................................................................31

TROUBLESHOOTING .................................................................. 32

Before Calling for Service ...............................................................................32

OPERATING DATA .......................................................................37

Product Fiche ..................................................................................................37

SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

The following safety guidelines are intended to prevent unforeseen risks

or damage from unsafe or incorrect operation of the appliance.

The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as

described below.

Safety Messages

This symbol is displayed to indicate matters and operations

that can cause risk. Read the part with this symbol carefully

and follow the instructions in order to avoid risk.

WARNING

This indicates that the failure to follow the instructions can cause

serious injury or death.

CAUTION

This indicates that the failure to follow the instructions can cause the

minor injury or damage to the product.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of explosion, fire, death, electric shock,

injury or scalding to persons when using this product, follow

basic precautions, including the following:

Children in the Household

This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for

their safety. Children should be supervised to ensure that they do not

play with the appliance.

For use in Europe:

This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision

or instruction concerning use of the appliance in a safe way and

understand the hazards involved. Children shall not play with the

appliance. Cleaning and user maintenance shall not be made by

children without supervision.

Children of less than 3 years should be kept away unless continuously

supervised.

Installation

• Make sure the appliance is properly installed, grounded, and

adjusted by qualified service personnel according to the installation

instructions.

• Never attempt to operate the appliance if it is damaged,

malfunctioning, partially disassembled, or has missing or broken

parts, including a damaged cord or plug.

• This appliance should only be transported by two or more people

holding the appliance securely.

• Do not install the appliance in a damp and dusty place. Do not

install or store the appliance in any outdoor area, or any area that is

subject to weathering conditions such as direct sunlight, wind, rain, or

temperatures below freezing.

• Tighten the drain hose to avoid separation.

• If the power cord is damaged or the hole of the socket outlet is loose,

do not use the power cord and contact an authorized service centre.

• Do not plug multiple socket outlets, an extension power cable or

adapter with this appliance.

• Items such as foam rubber (latex foam), shower caps, waterproof

textiles, rubber backed articles and clothes or pillows fitted with foam

rubber pads should not be dried in the appliance.

• This appliance must not be installed behind a lockable door, a

sliding door or a door with a hinge on the opposite side to that of the

appliance, in such a way that a full opening of the appliance door is

restricted.

• This appliance must be grounded. In the event of malfunction or

breakdown, grounding will reduce the risk of electric shock by

providing a path of least resistance for electric current.

• This appliance is equipped with a power cord having an equipment-

grounding conductor and a grounding power plug. The power plug

must be plugged into an appropriate socket outlet that is installed and

grounded in accordance with all local codes and ordinances.

• Improper connection of the equipment-grounding conductor can

result in risk of electric shock. Check with a qualified electrician or

service personnel if you are in doubt as to whether the appliance is

properly grounded.

• Do not modify the power plug provided with the appliance. If it

does not fit the outlet, have a proper outlet installed by a qualified

electrician.

• The appliance must not be supplied through an external switching

device, such as a timer, or connected to a circuit that is regularly

switched on and off by a utility.

Operation

• Do not attempt to separate any panels or disassemble the appliance.

Do not apply any sharp objects to the control panel in order to

operate the appliance.

• Do not repair or replace any part of the appliance. All repairs

and servicing must be performed by qualified service personnel

unless specifically recommended in this Owner’s Manual. Use only

authorized factory parts.

• Keep the area underneath and around the appliance free of

combustible materials such as lint, paper, rags, chemicals, etc.

• Do not put animals, such as pets into the appliance.

• Do not leave the appliance door open. Children may hang on the

door or crawl inside the appliance, causing damage or injury.

• Never reach into the appliance while it is operating. Wait until the

drum has completely stopped.

• Do not put in, wash or dry articles that have been cleaned in, washed

in, soaked in, or spotted with combustible or explosive substances

(such as wax, oil, paint, gasoline, degreasers, drycleaning solvents,

kerosene, vegetable oil, cooking oil, etc.). Improper use can cause

fire or explosion.

• In case of flood, disconnect the power plug and contact the LG

Electronics customer information centre.

• Do not push down the door excessively, when the appliance door is

open.

• Use new hose or hose-set supplied with the appliance. Reusing old

hoses can cause a water leak and subsequent property damage.

• Do not touch the door during a high temperature programme.

• Do not use flammable gas and combustible substances (benzene,

gasoline, thinner, petroleum, alcohol, etc.) near the appliance.

• If the drain hose or inlet hose is frozen during winter, use it only after

thawing.

• Keep all washing detergents, softener and bleach away from children.

• Do not touch the power plug or the appliance controls with wet hands.

• Do not bend the power cable excessively or place a heavy object on it.

Maintenance

• Securely plug the power plug in the socket outlet after completely

removing any moisture and dust.

• Disconnect the appliance from the power supply before cleaning the

appliance. Setting the controls to the OFF or stand by position does

not disconnect this appliance from the power supply.

• Do not spray water inside or outside the appliance to clean it.

• Never unplug the appliance by pulling on the power cable. Always

grip the power plug firmly and pull straight out from the socket outlet.

Technical Safety for Using the Dryer

WARNING - To avoid a fire

Risk of Fire and Flammable Materials

• In the appliance enclosure or in the built-in structure, keep ventilation

openings clear of obstruction. If not, it can result in a fire.

• This appliance contains R290, a refrigerant that is environmentally

friendly but flammable. Do not damage the refrigerant circuit, keep

open flame and ignition sources away from the appliance.

• Do not dry unwashed items in the appliance.

• Fabric softeners, or similar products, should be used as specified by

the fabric softener instructions.

• Remove all objects from pockets such as lighters and matches.

• Never stop the appliance before the end of the drying cycle unless

all items are quickly removed and spread out so that the heat is

dissipated.

• The appliance is not to be used if industrial chemicals have been

used for cleaning.

• Items that have been soiled with substances such as cooking oil,

vegetable oil, acetone, alcohol, petroleum, kerosene, spot removers,

turpentine, waxes and wax removers should be washed in hot water

with an extra amount of detergent before being dried in the appliance.

• Do not drink the condensed water. Failure to do so may result in food-

borne illnesses.

• If the supply cord is damaged, it must be replaced by the

manufacturer or its service agents or similarly qualified person in

order to avoid a hazard.

• The lint filter has to be cleaned frequently.

• Lint must not to be allowed to accumulate around the appliance.

• Do not spray dry cleaning detergent directly onto the appliance or use

the appliance to dry clothes left with dry cleaning detergent.

• Do not dry clothes stained with oil substances. Oil substances

(including edible oils) stained on clothes cannot be completely

removed even after washing with water.

• The appliance must not be supplied through an external switching

device, such as a timer, or connected to a circuit that is regularly

switched on and off by a utility.

• Remove clothes from the appliance immediately when drying is

complete or the power is turned off during the drying process.

Leaving clothes that have been dried in the appliance unattended

could result in fire. Clothes removed from the appliance after drying

could result in fire. Remove clothes immediately after drying, and

then hang or lay the clothes flat to cool.

Disposal

• Before discarding an old appliance, unplug it. Cut off the cable

directly behind the appliance to prevent misuse.

• Dispose of all packaging materials (such as plastic bags and

styrofoam) away from children. The packaging materials can cause

suffocation.

• Remove the door before disposing of or discarding this appliance to

avoid the danger of children or small animals getting trapped inside.

CARING FOR THE ENVIRONMENT

Disposal of Your Old Appliance

• This crossed-out wheeled bin symbol indicates that waste

electrical and electronic products (WEEE) should be

disposed of separately from the municipal waste stream.

• Old electrical products can contain hazardous substances

so correct disposal of your old appliance will help prevent

potential negative consequences for the environment and

human health. Your old appliance may contain reusable

parts that could be used to repair other products, and

other valuable materials that can be recycled to conserve

limited resources.

• You can take your appliance either to the shop where you

purchased the product, or contact your local government

waste office for details of your nearest authorised WEEE

collection point. For the most up to date information for

your country please see www.lg.com/global/recycling.

This dryer contains refrigerant gases

R290 (GWP: 3): 0.145 kg Hermetically sealed.

Parts and Specifications

NOTE

• Appearance and specifications may vary without notice to improve the quality of the appliance.

Front View

Water container

Control panel

Door

Accessories

Please contact LG Electronics Customer Information Centre or visit the LG Website at http://www.lg.com for

purchase.

Condensing Drain Hose and Hose Holder

Dry Rack

Stacking Kit

INSTALLATION

Installation Place

Requirements

Before installing the appliance, check the following

information to make sure that the appliance should

be installed in a correct place.

Location

5 cm 1 cm 1 cm

• Level floor: Allowable slope under the entire

appliance is 1°.

• Power outlet: Must be within 1.5 meters of

either side of the location of the appliance.

− Do not overload the outlet with more than

one appliance.

• Additional Clearance: Should have 5 cm for

the wall and 1 cm for rear, right and left side.

− Do not place or store laundry products on top

of the appliance at any time. These products

may damage the finish or controls.

NOTE

• For better drying performance, please keep the

rear of the appliance away from wall.

• Do not install the appliance where there is a

risk of frost or dust.

• The appliance may not be able to operate

properly or may be damaged by freezing of

condensed water in the pump and drain hose.

• Do not install the appliance next to a high-

temperature appliance like refrigerator, oven

or stove etc, which can cause poor drying

performance and programme duration, and

adversely affect the proper functioning of the

compressor. The appliance performs best at a

room temperature of 23 °C.

Positioning

• Install the appliance on a flat hard floor.

• Make sure that air circulation around the

appliance is not impeded by carpets, rugs, etc.

• Never try to correct any unevenness in the

floor with pieces of wood, cardboard or similar

materials under the appliance.

• Do not install the appliance in rooms where

freezing temperatures may occur. Frozen

hoses may burst under pressure. The reliability

of the electronic control unit may be impaired at

temperatures below freezing point.

• If the appliance is delivered in winter and

temperatures are below freezing, place the

appliance at room temperature for a few hours

before putting it into operation.

Specifications

Model FDV708W FDV909W

Power supply 220 - 240 V~, 50 Hz

Size 600 mm (W) X 690 mm (D) X 850 mm (H)

Product weight 56 kg

Allowable temperature 5 - 35 °C

Max. capacity 8 kg 9 kg

• Please ensure that when the appliance is

installed, it is easily accessible for an engineer

in the event of a breakdown.

• With the appliance installed, adjust all four

feet using a spanner to ensure the appliance

is stable, and a clearance of approximately 20

mm is left between the top of the appliance and

the underside of any work-top.

Ventilation Requirement

• Alcove or under counter

− Ensure air flow of 3.17 m

/min through the

appliance

• Closet

− Closet door must have 2 (louvered)

openings, each having a minimum area of

387 cm

, located 8 cm from bottom and top

of door.

WARNING

• Avoid installing the appliance around a heat

source. The rear side of the appliance must

be well ventilated. Failure to follow these

instructions may result in problems.

• The appliance should not be installed next to a

refrigeration appliance.

• The appliance is not designed for maritime

use or for use in mobile installations such as

caravans, aircraft etc.

Electrical Connection

• Do not use an extension cord or double

adapter.

• Always unplug the appliance after use.

• Connect the appliance to an earthed socket in

accordance with current wiring regulations.

• The appliance must be positioned so that the

plug is easily accessible.

Leveling the appliance

Checking the Level

Leveling the appliance prevents unnecessary

noise and vibration. Check whether the appliance

is perfectly level after installation.

• If the appliance rocks when pushing the top

plate of the appliance diagonally, adjust the feet

again.

Adjusting and Leveling the

appliance

When the appliance is not perfectly level, turn

the adjustable feet until the appliance no longer

wobbles.

• Turn the adjustable feet clockwise to raise

or turn the adjustable feet counterclockwise

to lower from front-to-back, side-to-side and

corner-to-corner.

Reversing the door

You can reverse the door for your convenience.

WARNING

• Do not reverse the door while the appliance is

stacked on a washing machine.

• Before removing the hinge screws, have an

assistant support the weight of the door. The

door could fall on the floor due to the weight of

the door.

• For safety reasons, two or more people need to

work together to reverse the door.

NOTE

• The appearance of the screws varies and the

screws must be inserted differently depending

on the position. Make sure the screw is

properly selected before tightening.

Open the door and remove 2 screws on the

door hinge(a). After removing the screws, put

the door down carefully from the cabinet(b)

with the front side facing down to the floor.

WARNING

• Remove the lower screw first. The door may

fall on to the floor due to its weight and the door

can be damaged.

Remove 8 screws on the hinge assembly(c)

from the door.

• There are 6 screws on the front and 2

screws on the side.

Remove the 3 screws from the door latch

assembly(d) which is fixed between the door

and the hinge assembly, and then remove the

screw which is fixed on the door hook.

Switch the position between the hinge

assembly(c) and door latch assembly(d) and

then tighten the screws in reverse order.

• Tighten the screw in proper position

referring from 2 to 4 steps.

Remove the door catch(e) from the appliance

frame by removing 2 screws and then

assemble them on the opposite side.

Remove the 2 decorative screws from the

appliance frame and then assemble them on

opposite side.

Install the door with the screws removed

in step 1 and then check the door closes

properly.

Stacking Instructions

Your dryer can be placed on top of an LG washing

machine and securely fixed with a stacking kit.

This installation must be conducted by qualified

service personnel to ensure it has been installed

correctly.

Stacking Kit

In order to stack this dryer, an LG stacking kit is

required.

Dryer

LG Washing Machine

This dryer may only be stacked on top of an LG

washing machine. Do not attempt to stack this

dryer on any other washing machine, as it could

result in damage, injury or property damage.

Shape and

assembly

direction

Washing Machine Top plate size

550 mm 600 mm

Installation Procedure

WARNING

• Incorrect installation can cause serious

accidents.

• The weight of the appliance and the height of

installation make the stacking procedure too

risky for one person. This procedure should

be performed by two or more qualified service

personnel.

• The appliance is not suitable for a built-in

installation. Please do not install as a built-in

appliance.

• Do not operate if the appliance is not properly

stacked.

Place the LG dryer on the LG washing

machine.

Remove the two screws from the bottom of the

rear cover on each side as illustrated below.

Align the stacking kit holes and the rear cover

holes.

• 3-1) 600 mm

• 3-2) 550 mm

Fasten the two screws that were removed

earlier from the dryer to the stacking kit.

Use the four screws in the accessory box (16

mm) to assemble the washing machine rear

cover and stacking kit.

The procedure for the opposite side will be the

same.

Installing the Drain Hose

Normally, condensed water is pumped up to the

water container where water is collected until

manually emptied. Water can also be drained out

directly to a mains drain, especially when the dryer

is stacked on top of a washing machine. With a

connecting kit for the mains drain hose, simply

change the water path and re-route to the drainage

facility as below:

Separate the anti-backflow lid(a) and the

water container hose(b) from the connecting

kit.

Attach the anti-backflow lid(a) to the head of

the connecting kit and then connect the drain

hose(c) to the opposite side of the connecting

kit.

CAUTION

• If the hose is installed in a way that leaves it

bent or pinched, drainage may not function

properly.

NOTE

• It is possible to install the drain hose even if

the appliance is not stacked on the washing

machine.

Operation Overview

Using the Appliance

Before the first cycle, set the appliance to dry for

five minutes to warm up the drum. Open the door

between loads the first few times you use the

appliance to allow any odours from the interior of

the appliance to disperse.

Ensure the lint filter and water container are

clean.

• The lint filter is inside the door rim. It needs

to be cleaned before each drying cycle.

• Open the door and ensure the lint filter is

clean. If it is not, please clean the lint filter.

• Also check if the water container needs to

be emptied for optimum drying results.

WARNING

• Do not drink the condensed water.

NOTE

• In some instances, LED window may display

E (Empty water symbol) and the appliance may

stop because the water container is full.

Place laundry into the drum after sorting.

• The clothes should be sorted by fabric type

and dryness level and all the strings and

belts of clothes should be well tied and fixed

before being put into the drum. Push the

laundry to the back to keep it away from

the door seal. Otherwise, the door seal and

clothes may be damaged. Close the door.

CAUTION

• Be careful not to trap laundry between the door

and rubber seal.

Turn the power on.

• Press the Power button. The indicator icon

above the button will become illuminated,

indicating that the appliance is all set to run.

Select the drying programme you want.

• You can choose a programme by turning

the programme selector knob until the

required programme is indicated.

• If you press the Start/Pause button without

choosing a programme, the appliance

will proceed with the Cotton programme.

Please refer to the programme table for the

detailed information.

Press the Start/Pause button.

• When you press the Start/Pause button,

the appliance ventilates the inside of the

drum for 10 seconds in order to get the

appliance ready for drying operation.

After the cycle has finished, open the door and

remove the laundry.

Turn off the appliance.

• Press the Power button.

OPERATION

CAUTION

• Be careful! The drum inside may still be hot.

• The appliance must not be used for purposes

other than those for which it was designed.

NOTE

• The final part of a tumble dryer cycle occurs

without heat (cool down cycle) to ensure that

laundry is left at a temperature that ensures the

laundry will not be damaged.

• A high atmospheric temperature and a small

room may both increase drying time as well as

energy consumption.

Sorting Laundry

Clothes have their own wash care labels, so drying

according to the wash care label is recommended.

Not only that, the laundry must be sorted

according to size and type of fabric.

For the best drying performance and most efficient

energy usage, do not overload the appliance.

Woollens

• Dry woollens on the Wool programme. Be sure

to follow fabric care label symbols first. Wool

may not be completely dried from the cycle,

so do not repeat drying. Pull woollens to their

original shape and dry them flat.

Woven and Loopknit Materials

• Some woven and loopknit materials may

shrink, depending on quality.

Non-Iron and Synthetics

• Do not overload the appliance. Take out non-

Iron items as soon as the appliance stops to

reduce creases.

Baby Clothes and Night Gowns

• Always check fabric care labels.

Rubber and Plastics

• Do not dry any items made from or containing

rubber or plastics such as:

− Aprons, Bibs and Chair Covers

− Curtains and Table Clothes

− Bathmats

Fiberglass

• Do not dry fiberglass items in the appliance.

Glass particles left in the appliance may be

subsequently picked up by your clothes in later

cycles.

Icon Description

Dry

Tumble dry

Permanent Press /

Crease resistant

Gentle / Delicate

Do not tumble dry

Do not dry

High heating

Medium heating

Low heating

No Heating / Air

Line dry / Hang to dry

Drip dry

Dry flat

In the shade

Control Panel

Control Panel Features

Power Button

• Press the Power button to turn power on and off.

• Press the Power button to cancel the Delay End function.

Programme Selector

• Programmes are available according to the laundry type.

• The lamp will light up to indicate the selected programme.

Start/Pause Button

• This Start/Pause button is used to start or pause a dry cycle.

• When in Pause, the power is turned off automatically after 14 minutes.

Additional Programme Buttons

• Use these buttons to select the desired options for the selected programme.

• In order to use the Remote Start function, refer to SMART FUNCTIONS.

Drying Progress Indicator

• The different indicator icon lights up depending on the drying cycle progress.

− @: This icon lights up when the appliance is in drying progress.

− -: This icon lights up when the appliance is in iron drying progress.

− +: This icon lights up when the appliance is in cupboard drying progress.

− =: This icon lights up when the appliance is in cooling progress.

Display

This icon indicates that the lint filter should be cleaned or is inserted.

• Cleaning notice: When you press the Power button, the icon will become displayed.

• Missing notice: When the lint filter is not inserted, the icon will become displayed and the

appliance will not operate.

This icon indicates that the water container needs to be emptied or is full.

• Emptying notice: When you press the Power button, this icon will become displayed.

• Full water notice: The icon will become displayed and a chime will sound while the appliance is

in operation.

This icon indicates the condenser auto cleaning status. The icon will be displayed during water

sprays to the condenser.

Programme Table

Sensor Drying Programme Guide

Programme Cotton Max. Load Capacity

8 kg / 9 kg

Dry Level

• Laundry Type

• Detail

Extra

• Towels, dressing gowns and bed linen

• For thick and quilted fabrics

Cupboard

• Bath towels, tea towels, underwear and cotton socks

• For fabrics that do not need to be ironed

Iron

• Bed linen, table linen, towels, T-shirts, polo shirts and work clothes

• For fabrics that need to be ironed

Note for test institutes • Set programme at Cotton + Cupboard + Energy (Full & Half Load) for

test in accordance in conformity with EN61121 and Directive 932/2012.

• The Cotton + Cupboard + Energy is the most efficient programme in

terms of the test conditions proposed by EN61121 and Directive 932/2012.

• The test results depend on room temperature, type and amount of load,

water hardness and water inlet temperature.

*1: The maximum load capacity may vary depending on the model you purchased.

Programme Mixed Fabric Max. Load Capacity 4 kg

Dry Level

• Laundry Type

• Detail

Extra

• Bed linen, table linen, tracksuits, anoraks and blankets

• For thick and quilted fabrics that do not need to be ironed

Cupboard

• Shirts and blouses

• For fabrics that do not need to be ironed

Iron

• Trousers, dressers, skirts and blouses

• For fabrics that need to be ironed

Programme Easy Care Max. Load Capacity 3.5 kg

Dry Level

• Laundry Type

• Detail

Cupboard

• Shirts, T-shirts, trousers, under-wear and socks

• For polyamide, acrylic, and polyester that do not need to be ironed

Iron

• Shirts, T-shirts, under-wear, anoraks and socks

• For polyamide, acrylic, polyester that do need to be ironed

Programme Duvet Max. Load Capacity 2.5 kg

Laundry Type Beddings, bed sheets

Detail For bulky items

Programme Towels Max. Load Capacity 4.5 kg

Laundry Type Towels, Pillowcases

Detail For cotton fabrics which do not need to be ironed

Programme Speed 30 Max. Load Capacity 1 kg

Laundry Type Light and small items less than 3ea.

Detail For small amount of polyamide, acrylic and polyester items

Programme Allergy Care Max. Load Capacity 1 kg

Laundry Type Cotton, underwear, bed sheets and baby clothes

Detail Helps to remove allergens such as house mites

Programme Delicates Max. Load Capacity 1.5 kg

Laundry Type Silk, fine fabrics and lingerie

Detail For fabrics that are heat-sensitive, such as synthetic fabrics

Programme Wool Max. Load Capacity 1 kg

Laundry Type Wool

Detail For wool fabrics

Programme Sportswear Max. Load Capacity 2 kg

Laundry Type Soccer kit and training wear

Detail For polyester material

Timed Drying Programme Guide

Programme Rack Dry Max. Load Capacity –

Laundry Type Silk, wool, delicate lingerie

Detail Refreshes clothes without tumble drying

Programme Cool Air Max. Load Capacity –

Laundry Type All fabrics that need refreshing

Detail Tumbles without heat

Programme Warm Air Max. Load Capacity –

Laundry Type Bath towels, bath robes, dishcloths and acrylic quilted fabrics

Detail Small Items & damp clothing, Everyday items suitable for heat drying

CAUTION

• If the load is less than 1 kg, please use the Warm Air programme in Timed Drying programmes. Wool

items should be dried using the Wool programme and heat-sensitive fabrics including silk, underwear

and lingerie should be dried using the Delicates programme. Please comply with the recommended

laundry load when you select your desired programme. Otherwise, your clothes may be damaged.

NOTE

• It is suitable to dry normal wet cotton laundry and it is the most efficient programme in terms of energy

consumption for drying wet cotton laundry.

• If the appliance is installed as built under, it may cause performance degradation.

• If the laundry is not spun at a high speed during washing, energy consumption and drying time will

increase.

Selectable Drying Options

Programme EcoHybrid

Programme Dry Level Off Energy Time

Cotton

Extra

# #

Cupboard

Iron

# #

Mixed Fabric

Extra

# #

Cupboard

Iron

# #

Easy Care

Cupboard

Iron

# #

Duvet – #

Towels –

Speed 30 –

Allergy Care –

Delicates –

Wool –

Sportswear –

Rack Dry –

Cool Air –

Warm Air –

*1: This option is automatically inserted in the programme and cannot be deselected.

Option Programmes and

Extra Functions

Delay End

It allows you to delay the finishing time of drying

cycle from 3 hours to 19 hours.

Turn the appliance on.

Select a programme.

Press the Delay End button.

Set delay hour(s) by pressing the More Time,

Less Time button.

Press the Start/Pause button.

Anti Crease _

It allows you to prevent creases that are formed

when the laundry is not unloaded promptly at the

end of drying cycle.

When the option is turned on, a lamp indicated

that the anti crease option is set, lights up and

the appliance repeatedly runs for 10 seconds and

pauses for 5 minutes. The option is turned off

automatically after 2 hours at the end of drying

cycle.

To turn off the option, press the Anti Crease

button before you start a drying cycle.

NOTE

• When the option is set, a rectangle with dashed

line is displayed on the LCD screen.

• When the option is set, only the Power button

works.

Beep On/Off q

It allows you to turn a chime sound on and off.

Dry Level

It allows you to select a dryness level for the drying

programme.

Turn the appliance on.

Select a programme.

Select a dryness level by pressing the

Dry Level button repeatedly.

EcoHybrid

It allows you to offer the option of saving energy

or time.

• Energy: Energy saving option.

• Time: Time saving option.

Favorite

It allows you to store a customized dry programme

for future use.

Turn the appliance on.

Select a programme.

Select an option programme or extra

functions. (Anti Crease, EcoHybrid etc.)

Press and hold the Favorite button for 3

seconds.

The customized dry programme is now stored for

future use. To reuse the customized programme,

press the Favorite button and Start/Pause button.

Drum Light

Whilst the appliance is running, it is possible to

see inside the drum when you press and hold the

Dry Level button for 3 seconds.

• Light on: Door is opened.

• Light off: Door is closed. The light is turned off

automatically.

More Time / Less Time

It allows you to increase or decrease a drying

time when you use the Rack Dry, Cool Air and

Warm Air drying programme.

• Press the More Time button to increase a

drying time by 5 minutes.

• Press the Less Time button to decrease a

drying time by 5 minutes.

Child Lock

It allows you to control the locking and unlocking

of control panel. It prevents children from changing

cycles or operating the appliance.

Locking the Control Panel

Press and hold the Delay End and

Anti Crease button simultaneously for 3

seconds.

A chime will sound, and CL will appear on the

display.

• When the Child Lock is activated, all

buttons are locked except the Power

button.

NOTE

• Turning off the power or completing all cycles

will not reset the child lock function. You must

deactivate child lock before you can access

any other functions.

Unlocking the Control Panel

Press and hold the Delay End and Anti Crease

button simultaneously for 3 seconds.

• A chime will sound and the remaining time for

the current programme will reappear on the

display.

Rack Dry

This programme is designed for use with laundry

that must be dried flat, without tumbling, including

sweaters and delicate fabrics.

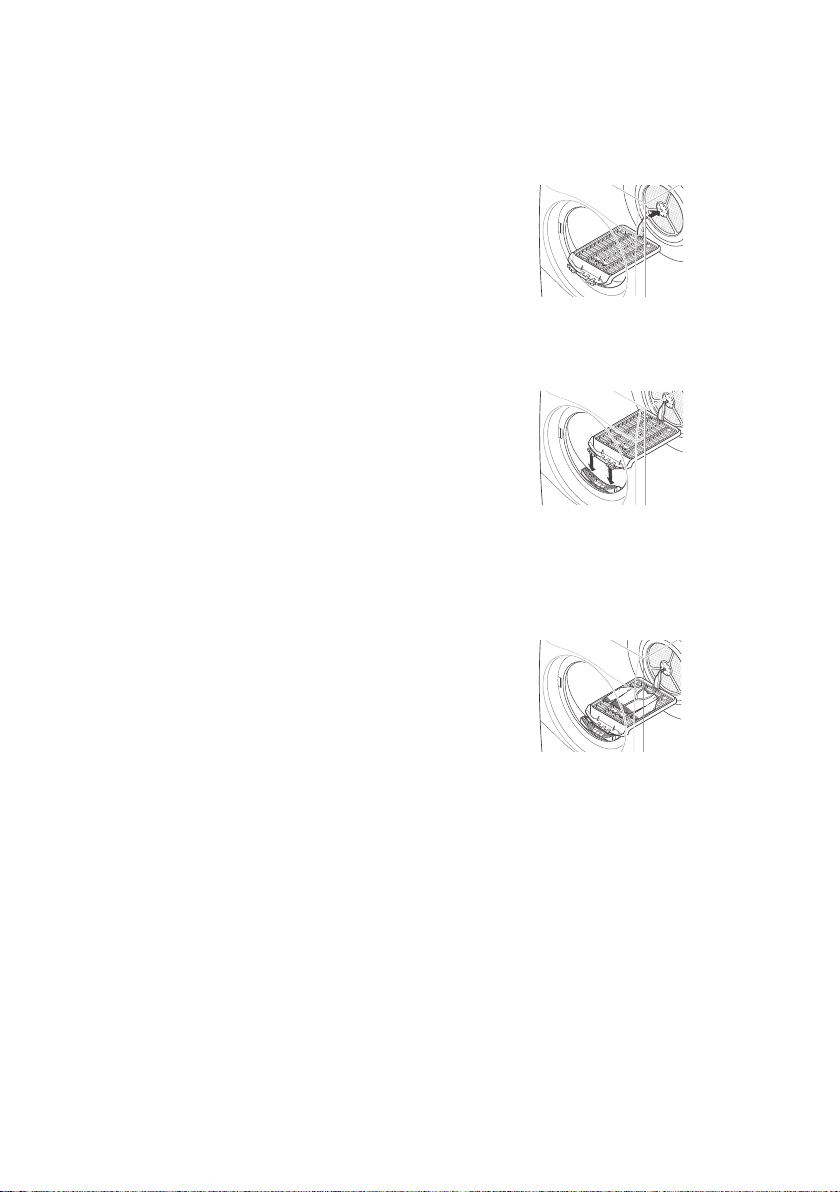

To use this programme, you need a dryer rack

that is placed inside the appliance. Before drying,

discard packing materials of the dryer rack.

Open the door.

Insert the hook to the drum centre.

Place the dryer rack on the structure above

the lint filter and press it to complete assembly.

Place wet items on top of the rack. Allow

space around items for air to circulate.

• The rack does not move, but the drum will

rotate.

Close the door.

Turn power on and select Rack Dry.

Press the Start/Pause button.

NOTE

• Check the lint filter and remove any lint

accumulated from items dried on the rack.

• The More Time / Less Time keys can be used

to finely adjust the drying time.

Using LG SmartThinQ

Application

Things to check before using LG

SmartThinQ

• For appliances with the a or b logo

Check the distance between the appliance

and the wireless router (Wi-Fi network).

• If the distance between the appliance and

the wireless router is too far, the signal

strength becomes weak. It may take a long

time to register or installation may fail.

Turn off the Mobile data or Cellular Data on

your smartphone.

Connect your smartphone to the wireless

router.

NOTE

• To verify the Wi-Fi connection, check that

Wi-Fi f icon on the control panel is lit.

• The appliance supports 2.4 GHz Wi-Fi

networks only. To check your network

frequency, contact your Internet service

provider or refer to your wireless router manual.

• LG SmartThinQ is not responsible for any

network connection problems or any faults,

malfunctions, or errors caused by network

connection.

• If the appliance is having trouble connecting

to the Wi-Fi network, it may be too far from

the router. Purchase a Wi-Fi repeater (range

extender) to improve the Wi-Fi signal strength.

• The Wi-Fi connection may not connect or may

be interrupted because of the home network

environment.

• The network connection may not work properly

depending on the Internet service provider.

• The surrounding wireless environment can

make the wireless network service run slowly.

• The appliance cannot be registered due to

problems with the wireless signal transmission.

Unplug the appliance and wait about a minute

before trying again.

• If the firewall on your wireless router is enabled,

disable the firewall or add an exception to it.

• The wireless network name (SSID) should be

a combination of English letters and numbers.

(Do not use special characters.)

• Smartphone user interface (UI) may vary

depending on the mobile operating system

(OS) and the manufacturer.

• If the security protocol of the router is set

to WEP, you may fail to set up the network.

Please change it to other security protocols

(WPA2 is recommended) and register the

product again.

SMART FUNCTIONS

Installing LG SmartThinQ

Search for the LG SmartThinQ application from

the Google Play Store or Apple App Store on a

smartphone. Follow instructions to download and

install the application.

Wi-Fi Function

• For appliances with the a or b logo

Communicate with the appliance from a

smartphone using the convenient smart features.

Dryer Cycle (Remote Start, Download

Cycle)

Set or download any preferred cycle and operate

by remote control.

Smart Pairing

This function automatically selects the best

cycle and settings for the dryer based on usage

information about the most recently completed

wash cycle.

NOTE

• To use this function, both the washer and dryer

must be connected to SmartThinQ app.

• If you enable the Smart Pairing function in the

LG SmartThinQ app and turn on the dryer after

using the washer, a recommended dryer cycle

is automatically set.

Smart Diagnosis™

This function provides useful information for

diagnosing and solving issues with the appliance

based on the pattern of use.

Push Alert

When the cycle is complete or the appliance has

problems, you have the option of receiving push

notifications on a smartphone.

Energy Monitoring

The dryer energy usage is affected by the cycle

and options so you may see some changes in

energy usage from one cycle to another.

Settings

Set the product nickname and delete product.

NOTE

• If you change your wireless router, Internet

service provider, or password, delete the

registered appliance from the LG SmartThinQ

application and register it again.

• The application is subject to change for

appliance improvement purposes without

notice to users.

• Functions may vary by model.

Using Dryer Cycle

Remote Start

Use a smartphone to control your appliance

remotely. You can also monitor your cycle

operation so you know how much time is left in the

cycle.

To Use Remote Start:

Press the Power button.

Put the laundry in drum.

Press and hold the Anti Crease button for 3

seconds to enable the Remote Start function.

Start a cycle from the LG SmartThinQ

application on your smartphone.

NOTE

• Once the Remote Start mode is enabled, you

can start a cycle from the LG SmartThinQ

smartphone application. If the cycle is not

started, the machine will wait to start the

cycle until it is turned off remotely from the

application or the Remote Start mode is

disabled.

• If the door is open, Remote Start is disabled.

To Disable Remote Start:

When Remote Start is activated, press and hold

the Anti Crease button for 3 seconds.

Download Cycle

Download new and special cycles that are not

included in the basic cycles on the appliance.

Appliances that have been successfully registered

can download a variety of specialty cycles specific

to the appliance.

Only one cycle can be stored on the appliance at

a time.

Once cycle download is completed in the

appliance, the product keeps the downloaded

cycle until a new cycle is downloaded.

Wireless LAN Module

Specifications

Model LCW-004

Frequency

Range

2412 to 2472 MHz

Output Power

(Max)

IEEE 802.11b: 17.82 dBm

IEEE 802.11g: 17.72 dBm

IEEE 802.11n: 16.61 dBm

Wireless function S/W version: V 1.0

For consideration of the user, this device should be

installed and operated with a minimum distance of

20 cm between the device and the body.

Standby Power Consumption

Standby power consumption 0.18 W

Network standby power

consumption

2.0 W

The period of time after which

the power management

function, or a similar function,

switches the equipment

automatically into standby

and/or off mode and/or

the condition providing

networked standby

20 min.

Declaration of Conformity

Hereby, LG Electronics declares that the radio

equipment type Dryer is in compliance with

Directive 2014/53/EU. The full text of the EU

declaration of conformity is available at the

following internet address:

http://www.lg.com/global/support/cedoc/cedoc#

LG Electronics European Shared Service Centre

B.V.

Krijgsman 1

1186 DM Amstelveen

The Netherlands

Open Source Software Notice

Information

To obtain the source code under GPL, LGPL, MPL,

and other open source licenses, that is contained

in this product, please visit http://opensource.lge.

com.

In addition to the source code, all referred license

terms, warranty disclaimers and copyright notices

are available for download.

LG Electronics will also provide open source code

to you on CD-ROM for a charge covering the cost

of performing such distribution (such as the cost of

media, shipping, and handling) upon email request

to [email protected].

This offer is valid for a period of three years after

our last shipment of this product. This offer is valid

to anyone in receipt of this information.

Using Smart Diagnosis™

Smart Diagnosis™ Through the

Customer Information Centre

Use this function if you need an accurate diagnosis

by an LG Electronics customer information centre

when the appliance malfunctions or fails. Use this

function only to contact the service representative,

not during normal operation.

Press the Power button to turn on the

appliance.

• Do not press any other buttons or turn the

programme selector knob.

When instructed to do so by the call centre,

place the mouthpiece of your phone close to

the Smart Diagnosis™ logo.

Max.

10 mm

Press and hold the More Time button for 3

seconds, while holding the phone mouthpiece

to the logo and Power button.

Keep the phone in place until the tone

transmission has finished. Time remaining for

data transfer is displayed.

• For best results, do not move the phone

while the tones are being transmitted.

• If the call centre agent is not able to get an

accurate recording of the data, you may be

asked to try again.

Once the countdown is over and the tones

have stopped, resume your conversation with

the call centre agent, who will then be able to

assist you using the information transmitted for

analysis.

NOTE

• The Smart Diagnosis™ function depends on

the local call quality.

• The communication performance will improve

and you can receive better service if you use

the home phone.

• If the Smart Diagnosis™ data transfer is poor

due to poor call quality, you may not receive the

best Smart Diagnosis™ service.

Cleaning after Every Dry

Cleaning the Lint Filter

Clean the lint filter after each drying cycle.

Cleaning the lint filter will reduce drying time and

energy consumption.

Open the door.

Remove the first lint filter.

Remove the second lint filter.

Open both lint filters and remove all the lint.

• Open the first lint filter.

• Open the second lint filter.

Rinse away the lint under warm, running

water.

Dry the lint filters completely, close them and

reinsert both lint filters.

NOTE

• Remove moisture from the mesh. Otherwise,

the lint filter may be clogged due to water film

and the appliance may not operate.

• If the lint filter is not in the appliance, you can

not operate the appliance.

MAINTENANCE

WARNING

• Remove the power plug when you clean the appliance. Not removing the plug may result in electric

shock.

Emptying the Water Container

Condensed water is collected in the water

container.

Empty the water container after every use. Not

doing so will affect the drying performance.

If the water container is full, the E icon glows and

a chime sounds while the appliance is operating. If

this should occur, the water container needs to be

emptied within the next hour.

Pull out the water container.

Empty the water container in the sink.

Push it back into the appliance.

Press the Start/Pause button.

Wiping the Moisture Sensor

This device senses the moisture level of the

laundry during operation, which means it must be

cleaned regularly to remove any build-up of lime

scale on the surface of the sensor.

Wipe the sensors inside the drum.

CAUTION

• Do not wipe the moisture sensor with abrasive

materials. Always clean the sensor with a

rough sponge.

Cleaning the Appliance

Periodically

Cleaning the Cool Air Inlet Grill

Vacuum the Cool Air Inlet grill 3 - 4 times a year

to make sure there is no build-up of lint or dirt that

may cause improper air flow.

NOTE

• Warm air is expelled through the ventilation

grill.

• Adequate room ventilation should be provided

to avoid the back flow of gases into the room

from units burning other fuels, such as open

fires.

TROUBLESHOOTING

Operation of your appliance can lead to errors and malfunctions. The following tables contain possible

causes and notes for resolving an error message or malfunction. It is recommended to read the tables

carefully below in order to save your time and money that may cost for calling to LG Electronics service

centre.

Before Calling for Service

Your appliance is equipped with an automatic error-monitoring system to detect and diagnose problems at

an early stage. If the appliance does not function properly or does not function at all, check the following

tables before calling to LG Electronics service centre.

Error Messages

Symptoms Possible Cause & Solution

DOOR ERROR

The door has been opened while the appliance is in operation or the

appliance is being operated without the door being closed properly.

• Close the door completely.

• If dE is not released, call for service.

dE4

DOOR ERROR

Door switch detection is not working properly.
