GE GNW128PSMWW - 2.8 cu. ft. Capacity Portable Washer

USING THE WASHER

Getting started

To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY WARNING INSTRUCTIONS before operating this appliance.

Throughout this manual, features and appearance may vary from your model.

Step 1

IMPORTANT: See the dispenser section in this manual.

• Add fabric softener to the fabric softener dispenser.

• Add the manufacturer’s recommended amount of detergent. GE Appliances recommends the use of High Efficiency detergents such as in your energy efficient washer. Place detergent pods in the bottom of the wash basket before adding clothes.

Step 2

• Loosely add items around Infusor. Overloading may negatively impact wash performance. See page 10 for suggested loading examples.

• Close lid.

NOTE: The washer will not start with lid open.

Step 3

• Select wash cycle.

• Select wash options, including Deep Rinse option when using fabric softener.

• Select options.

Step 4

• Press Start.

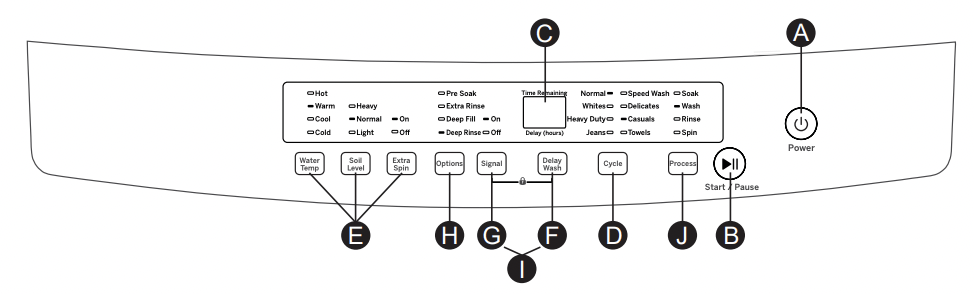

Power

Press Power to “wake up” the display. If the display is active, press Power to put the washer into idle mode.

NOTE: Pressing Power does not disconnect the appliance from the power supply.

Start/Pause

Press Start to begin the cycle. If the washer is running, pressing it once will pause the washer

Display

The display shows the approximate time remaining until the end of the cycle. NOTE: The cycle time is affected by how long it takes the washer to fill. This depends on the water pressure in your home. The size of the load being washed also significantly impacts cycle time, with larger loads taking longer.

Cycle

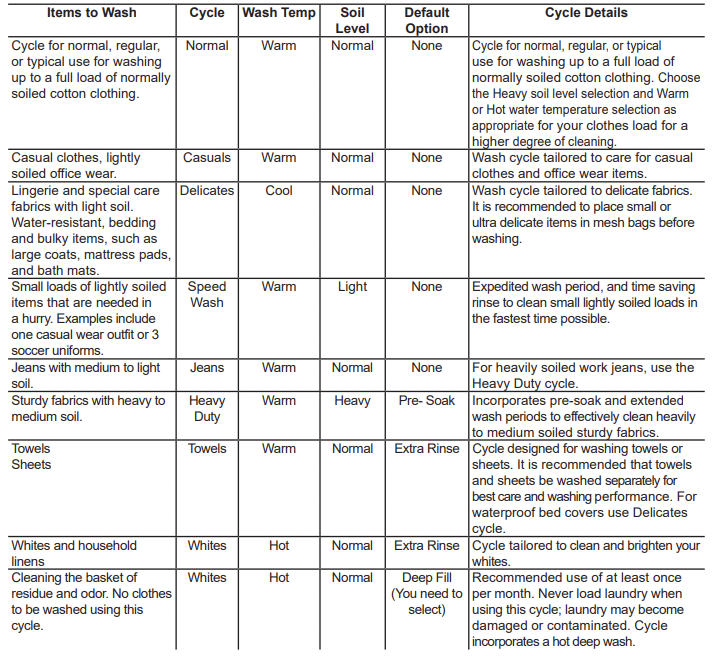

Press the Cycle button to select the desired cycle. The chart below will help you match the items to be washed with the best wash cycle settings. For optimal performance, select the cycle that most closely matches the items being washed.

Failure to follow these instructions may result in injury or property damage.

For Waterproof, Water-Resistant, or Bulky Items:

• Only use the Delicates cycle.

• Using other cycles can cause excessive vibration and may result in injury or damage to the washer, walls, or floor.

• Do not mix waterproof and non-waterproof items.

• Read the Owner’s Manual for wash cycle details.

Settings

Individual settings for agitation (Soil), water temperature (Temp), and spin (Extra Spin) can be set from the minimum (lowest in column) to maximum (highest in column). In general, the higher up the column, the more washer energy will be used. NOTE: Extra Spin typically reduces dryer time/energy usage (i.e. reduces total energy when using both a washer and a dryer).

Delay Wash

Press Delay Wash to choose the number of hours you want to delay the start of the cycle, and then press Start/Pause. The washer will count down and start automatically at the correct time.

Signal

To turn the signal sounds on/off, press Signal.

Cycle Options

Extra Spin

Set this option to increase the spin time of the cycle.

Pre-Soak

Select the Pre-Soak feature to add a soak step following the fill portion of the cycle.

Extra Rinse

When you use extra detergent or bleach to clean heavily soiled clothes, use the Extra Rinse option to better remove additional residues.

Deep Fill

Select the Deep Fill feature for loads where extra water is needed. The Deep Fill feature is recommended for special case loads only, not for typical use. NOTE: This option is not allowed for some cycles.

Deep Rinse

Set this option to provide a deep rinse or when using fabric softener.

Control Lock

Use the control lock before or during a cycle to prevent any selections from being made. To lock/unlock the washer controls, press and hold the Signal and Delay Wash buttons for 3 seconds

Process

Choose the wash processes to include in the cycle. Press Process until all the processes you want to include are lit. More than one process can be selected.

Soak

Select to set a soak process only. Washer basket will fill, soak, and drain.

Wash

Select to set a wash process only. Washer basket will fill, wash, and drain.

Rinse

Select to set a rinse process only. Washer basket will rinse and spin.

Spin

Select to set a spin process only. Washer basket will spin.

Consumer Help Indicator

Your washer is equipped with Consumer Help Indicator (CHI). CHI is our way to communicate a simple remedy for some situations that you can perform without the need to call for service. The chart below describes the helpful messages you may notice on your display when you return to start another load. These messages will provide simple remedies you can quickly perform.

• Spin light blinking If an out-of-balance condition is detected by the washer, the Spin light will blink during the remaining portion of the cycle and will stay illuminated for a short time after cycle completion. When this occurs, the washer is taking actions to correct the out-of-balance condition and complete the cycle normally. In some cases, the washer may not be able to balance the load and spin up to full speed. If you notice the load is more wet than normal at the end of the cycle, redistribute the load evenly in the wash basket and run a Spin cycle. To run a Spin cycle, select the Normal cycle and press the Process button until only the Spin light is on.
• IE Check your house water supply. Did you forget to turn on one or both supply valves after installation or coming back from vacation?
• dE Indicates the lid is open. Close the lid.
• UE Indicates the laundry load is unbalanced. Reposition laundry evenly in basket, and ensure washer is level.
• FEIndicates water has reached a critical level. Turn off water and power to the washer and call service

Detergent Dispenser

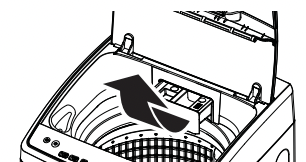

HE detergent should be added to the left side of the dispenser drawer.

For liquid detergent, leave cup in drawer.

For powder detergent, remove left cup (two parts) from drawer.

Follow the detergent manufacturer’s recommendations for the correct amount of detergent, based on load size, taking care to add detergent to the left compartment. Do not overfill or dilute detergent as this can result in additive being dispensed prematurely in the wash cycle. Your option selections will determine when detergent is automatically dispensed at its optimal time in the wash cycle. For optimal performance, especially when selecting cooler temperature and in cold weather climates, place powdered HE detergent directly in the wash basket before adding clothes.

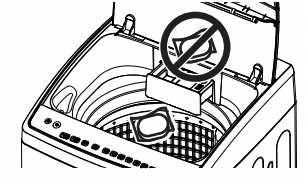

NOTE: Single-dose laundry packets should not be added to the dispenser drawer, as they will not dispense properly. Put packets in bottom of wash basket.

For liquid detergent, leave cup in drawer, and pour into left cup/compartment.

For powder detergent, remove left cup (two parts) from drawer, and pour into left compartment

Liquid Fabric Softener/Conditioner Dispenser

Deep Rinse should be selected when using fabric softener.

Liquid fabric softener/conditioner should be added to the right side of the dispenser drawer. Follow the liquid fabric softener/ conditioner manufacturer’s recommendations for the correct amount of softener/conditioner, based on load size, taking care to add softener/conditioner to the right compartment. Do not overfill or dilute softener/conditioner as this can result in additive being dispensed prematurely in the wash cycle. Your option selections will determine when liquid fabric softener/conditioner is automatically dispensed at its optimal time in the rinse cycle.

NOTE: Fabric softener crystals should NOT be added to the dispenser drawer, as they will not dispense properly.

Liquid Bleach Dispenser

Liquid chlorine bleach should be added through the bleach dispenser in the front left corner. Follow bleach manufacturer’s recommendations for the correct amount of liquid chlorine bleach based on load size, taking care to not apply or spill it directly on clothing.

NOTE: Do not use liquid chlorine bleach and laundry pretreatments such as an Oxi product in the same wash load.

LOADING

Always follow fabric manufacturer’s care label when laundering.

Automatic Load Sensing

This determines the correct agitate profile, agitate duration and amount of water suited to the size and type of load placed in the washer. The washer will not start the wash cycle or fill with water if the lid is open. When the lid is closed the machine is able to begin filling with water in order to sense the load size.

NOTE: Automatic load sensing initiates pulses of the motor at the beginning of the cycle. This is normal operation.

NOTE: This is a high efficiency washing machine. This system requires less water while providing effective cleaning action. You may notice that the water level is lower than on your previous washer. This is normal for a high efficiency washer.

Pretreatment

Place laundry pretreatments, such as an Oxi product, directly in the bottom of the wash basket before loading clothes.

NOTE: Do not use liquid chlorine bleach and laundry pretreatments such as an Oxi product in the same wash load.

Proper Use of Detergent

Using too little or too much detergent is a common cause of laundry problems.

Use less detergent if you have soft water, a smaller load or a lightly soiled load.

For spots, apply pre-treatment to items as recommended on the product label. Application should be made in the basket to prevent overspray which may cause the coloring on the lid or graphics to fade.

Place detergent pods in the bottom of the wash basket before adding clothes.

GE Appliances recommends the use of High Efficiency detergents such as in your energy efficient washer. HE detergents are formulated to work with low water wash and rinse systems. HE detergents reduce the oversudsing problems commonly associated with regular detergents.

When using high efficiency or concentrated detergents, consult the product label to determine amount required for optimum performance. Excessive detergent will negatively impact wash performance.

Sorting Wash Loads

Sort by color (whites, lights, colors), soil level, fabric type (sturdy cottons, easy care, delicates) and whether the fabric produces lint (terry cloth, chenille) or collects lint (velveteen, corduroy). Wash lint producers such as cotton towels and socks separate from lint collectors including synthetic garments and dress pants.

- Fire Hazard

DO NOT wash fabrics soiled with flammable liquids or cleaning solvents.

No washer can completely remove oil.

DO NOT wash or dry anything that has been soaked in or spotted with any type of oil (including cooking oils).

DO NOT reach into the washer until all moving parts have stopped.

Doing so can result in death, explosion, fire or amputation

Loading the Washer

Load dry items loosely in the washer basket. For best results, load items evenly and loosely around the outside of the basket, filling in towards the center on larger loads. To add items after washer has started, press Start/Pause. Lift the lid and submerge additional items around the outside of the basket. Close the lid and press Start to resume.

• Do not place large items such as sheets, blankets and towels across the Infusor. Load them around the outside of the basket.
• Do not put lawn or sofa cushions into the washer as they are too big to move. Remove outer covers and ONLY wash them.

CARE AND CLEANING

- Electrical Shock Hazard

• Disconnect power supply before servicing.

• Replace all parts and panels before operating.

• Failure to do so can result in death or electrical shock

- Shock Hazard

Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service personnel – DO NOT contact the following parts while the appliance is energized: Electrical Valve, Drain Pump, NTC, Motor Control Unit.

Exterior of the Washer

Immediately wipe off any spills with a damp cloth.

Interior of the Washer

To clean the interior of the washer, select the Whites cycle and Deep Fill option on the control panel. A basket clean cycle should be performed, at a minimum, once per month. This cycle will use more water, in addition to bleach, to control the rate at which soils and detergents may accumulate in your washer.

NOTE: Read the instructions below completely before starting the basket clean cycle.

1. Remove any garments or objects from the washer and ensure the washer basket is empty.

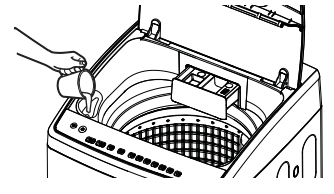

2. Open the washer lid and pour 1/2 cup or 125 ml of liquid bleach or other washing machine cleaner into the basket.

3. Close the lid, select the Whites cycle, and the Deep Fill option. Push the Start button.

4. When the basket clean cycle is working, the display will show the estimated cycle time remaining. Do not interrupt the cycle.

If interrupted, be sure to run a complete basket clean cycle before using the washer.

IMPORTANT:

• Run this cycle with 1/2 cup (125 ml) of bleach once a month.
• After the completion of a basket clean cycle, the interior of your washer may have a bleach smell

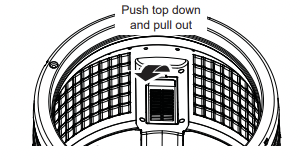

Lint Filter

Clean EVERY MONTH to remove any items that may have been caught in the filter.

1. Remove the blue lint filters from the side of the basket by unclipping.

2. Open the filter, gently remove lint, rinse filter in warm water, and close.

3. Replace by snapping filter back into its location in the washer basket.

Dispenser Drawer

After some period of use, a small amount of detergent or softener residue may be present in the dispenser drawer. The drawer can easily be removed for cleaning. To remove the drawer, pull it out until the drawer stops and then lift up on the front of the drawer. The drawer can then be removed from the dispenser box. Wash the drawer in warm, soapy water using a mild detergent. Rinse drawer with warm water. If cups are removed for cleaning, be sure to push cups fully back into place after cleaning.

The dispenser drawer and cups are not dishwasher safe. The dispenser box is not removable, but it can be wiped clean using a damp cloth if necessary. Do not attempt to remove the dispenser box for cleaning.

Inlet Water Valve Screen(s)

If the flow of entering water into the washer is slow, the inlet water valve screen(s) may be clogged. Check and clean inlet valve screens EVERY SIX MONTHS.

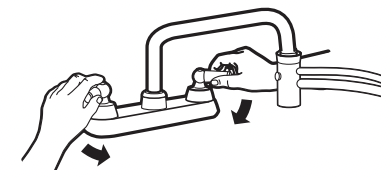

1. Turn off water valve(s).

2. Disconnect water hose(s) from the back of the washer.

3. Remove the screen(s), clean with a brush and replace.

4. Replace the hose(s).

5. Turn water valves on.

6. Check for leaks, tighten if necessary.

Water Supply Hoses

Hoses connecting washer to faucet should be replaced every 5 years.

Long Vacations

Be sure water supply is shut off at faucets. Drain all water from hoses and water filter pump area if weather will be below freezing.

Moving and Storage

Ask the service technician to remove water from drain pump and hoses. Do not store the washer where it will be exposed to the weather

Troubleshooting Tips... Before you call for service

Small amount of water remaining in dispenser (on some models) at end of cycle

Normal dispenser operation

• It is normal for a small amount of water to remain in dispenser after the cycle. To empty water from dispenser drawer, remove drawer and dump water into washer basket or sink. Empty dispenser prior to putting detergent into dispenser for next cycle.

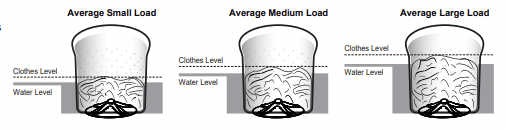

Water level seems low

This is normal

• Water may not cover the top level of the clothes. This is normal for this high efficiency washer.

Low water flow

Water valve screens are stopped up

• Turn off the water source and remove the water connection hoses from the upper back of the washer and the house water faucets. Clean both the hose screens (if so equipped) and the screens in the machine using a brush or a toothpick. Reconnect the hoses and turn the water back on. Check to ensure there are no leaks at the connections.

Water siphoning out of washer

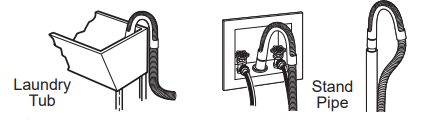

Drain standpipe is too low or hose too far into standpipe

• The drain hose must exceed 30” height at some point between the washer back and the drain pipe. Use anti-siphon clip. See the Installation Instructions.

Too many suds

Soft water

• Try less detergent.

Too much detergent

• Measure your detergent carefully. Use less soap if you have soft water, a smaller load or a lightly soiled load.

Type of detergent

• Switch to High Efficiency detergent such as .

Water leaks

Type of detergent

• Switch to High Efficiency detergent such as .

Using too much detergent in washer

• Use less detergent. Use less soap if you have soft water, a smaller load or a lightly soiled load.

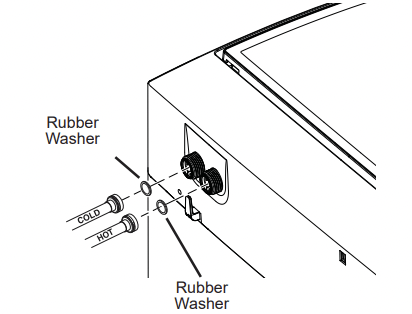

Fill hoses or drain hose is improperly connected

• Make sure hose connections are tight at faucets and rubber washers are installed. Make sure end of drain hose is correctly inserted in and secured to drain facility.

Household drain clogged

• Check household plumbing. You may need to call a plumber.

Drain hose rubs on wall

• Make sure drain hose does not make contact with the wall. May cause excessive wear on the hose.

Constant water pressure to fill hoses at water source

• Tighten hoses at the faucets. Check condition of the fill hoses; they should be replaced every 5 years.

Water temperature seems incorrect

Cooler water temperatures provide improved energy efficiency

• New laundry detergents have been formulated to work with cooler water temperatures without affecting wash performance.

Water supply is turned off or improperly connected

• Turn both hot and cold faucets fully on and make sure hoses are connected to the correct faucets. NOTE: Cold water valve inlet is blue. Hot water valve inlet is red.

Water valve screens are stopped up

• Turn off the water source and remove the water connection hoses from the upper back of the washer and the water faucets. Clean both the hose screens (if so equipped) and the screens in the machine using a brush or a toothpick. Reconnect the hoses and turn the water back on. Check to ensure there are no leaks at the connections.

Cool/Cold Water when selecting Hot

• This is normal. The washer senses water temperature (on some models) and optimizes for best results. Cold water is added periodically when hot is selected.

House water heater is not set properly

• Make sure house water heater is delivering water at 120°F–140°F (48°C–60°C).

Water pumped out before cycle is complete

Water was left in unit for hours with lid closed or minutes with lid open

• Previous cycle has been cancelled. Close lid, select new cycle, and start machine.

Water won’t drain

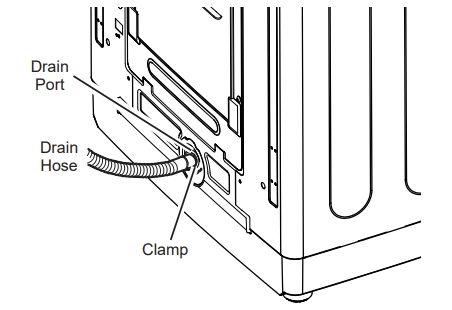

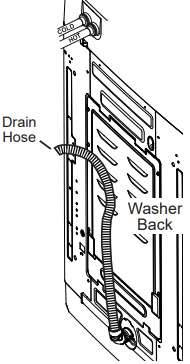

Drain hose is kinked or improperly connected

• Straighten drain hose and make sure washer is not sitting on it. Top of drain outlet should be less than 8 ft (2.44 m) above floor.

Washer spins and pauses at the beginning of cycles

This is normal

• The washer is sensing the load.

Washer pauses during wash cycle

The Soak Option was chosen

• This is normal. The washer alternates between agitate and soak during these cycles to get your clothes cleaner with less wear.

This is normal

• Many cycles incorporate as series of soaks within the agitation period to get your clothes clean with less wear.

Residual powder in dispenser or clogging of dispensers

Wash water too cold or low home water pressure

• Select a warmer wash temperature if possible to improve dissolving of detergent or use liquid detergent. Make sure siphon caps are free of debris and fully pressed into position. Remove and clean tray if clogging occurs.

Laundry additives dispensing too soon

Overfilling of dispensers

• Do not overfill or add water to dispenser. Select Deep Rinse option when using fabric softener.

Washer pauses during spin cycle

This is normal

• The washer may pause during the spin cycle to remove soapy water more efficiently.

Washer won’t operate

Washer is unplugged

• Make sure cord is plugged securely into a working outlet.

Water supply is turned off

• Turn both hot and cold faucets fully on.

Lid is open—safety feature prevents agitation and spinning when lid is up

• Close lid and press Start.

Circuit breaker/fuse is tripped/blown

• Check house circuit breakers/fuses. Replace fuses or reset breaker. Washer should have a separate outlet.

Electronics need to be reset

• Unplug washer, wait 2 minutes, plug back in and press Start if display is active or press Power if unit is in idle (display blank) mode.

Start was not pressed

• Press Start.

Detergent packets not dissolving

Laundry detergent packet placed in dispenser

• Laundry detergent packets should not be used in the dispensers. They should only be added directly to the wash basket following the manufacturer’s directions.

Unexplained time and/or settings changes

Changing options

• This is normal. Several options will change other options to maximize washer performance.

Colored spots Incorrect use of fabric softener

Check fabric softener package for instructions and follow directions for using dispenser.

• Make sure you have selected the Deep Rinse option. Pretreat stain and rewash using Speed Wash cycle before drying.

Dye transfer

• Sort whites or lightly colored items from dark colors.

Grayed or yellowed clothes

Detergent amount

• Be sure to follow detergent manufacturer’s directions.

Hard water

• Use a water conditioner or install a water softener.

Water is not hot enough

• Make sure water heater is delivering water at 120°F–140°F (48°C– 60°C).

Washer is overloaded

• Loosely load clothes no higher than the top row of holes in the washer basket. For best results, load items around the outside of the basket.

Dye transfer

• Sort clothes by color. If fabric label states wash separately, unstable dyes may be indicated.

Lint or residue on clothes

Clothes are air or line dried

• If you do not dry your clothes with a clothes dryer, your clothes may retain more lint.

Incorrect sorting

• Separate lint producers from lint collectors.

Washing too long

• Wash small loads for a shorter time using Light Soil setting.

Detergent not dissolving

• Rewash, next time: Try a liquid detergent; Use warmer water temperature.

Overloading

• Loosely load clothes in the washer basket. For best results, load items around the outside of the basket.

Incorrect use of fabric softener

• Check fabric softener package for instructions and follow directions for using dispenser. Make sure you have selected the Deep Rinse option

Clothes too wet

Incorrect cycle selected

• Make sure the cycle selected matches the load you are washing. Some fabrics will feel wetter when rinsed with cold water.

Wash load out of balance

• Redistribute load in washer and run through Spin cycle.

Blinking Spin light or Spin light on at end of cycle

Out of balance condition has been detected

• Allow cycle to continue and finish. If load is wet at the end of the cycle, even out load and run a Spin cycle.

Pilling

Result of normal wear on poly-cotton blends and fuzzy fabrics

• While this is not caused by the washer, you can slow the pilling process by washing garments inside out.

Snags, holes, tears, rips or excessive wear

Pins, snaps, hooks, sharp buttons, belt buckles, zippers and sharp objects left in pockets

• Fasten snaps, hooks, buttons and zippers. Remove loose items like pins, objects in pockets and sharp buttons. Turn knits (which snag easily) inside out.

Undiluted chlorine bleach

• Check bleach package instructions for proper amount. Never add undiluted bleach to wash or allow clothes to come in contact with undiluted bleach.

Chemicals like hair bleach or dye, permanent wave solution

• Rinse items that may have chemicals on them before washing. Use Speed Wash cycle with Extra Rinse option.

Wrinkling

Incorrect wash and dry cycles

• Match Cycle selection to the type of fabric you are washing especially for easy care loads).

Improper sorting

• Avoid mixing heavy items (like jeans) with light items (like blouses). Try a fabric softener.

Overloading

• Loosely load clothes in the washer basket.

Repeated washing in water that is too hot

• Wash in warm or cold water.

" Clicking”

Shifter mechanism is engaging or disengaging

• The drive system will engage at the start of agitate and disengage when agitate is complete. This occurs multiple times during the wash.

" Back and forth swoosh”

Electric motor reversing direction

• This sound is the motor rotating back and forth to clean your laundry.

" Clicking” behind Control during fill

Automatic Temperature Control Valve

• Two valves mix cold and hot water. The “clicking” is when either valve turns on or off to raise or lower the fill water temperature.

Water flow changes during fill

Automatic Temperature Control Valve

• Two valves mix cold and hot water. The “clicking” is when either valve turns on or off to raise or lower the fill water temperature.

Motor sounds during spin

Motor ramping up/down during spin cycle

• The motor will speed up incrementally during the spin cycle. When spin is complete, it will coast until it stops.

" Humming”

Water drain pump

• The drain pump will make a humming sound when pumping out water after agitation stops and continue until spin is complete.

Drive motor

• The drive motor will make a “humming” sound during the wash and spin phases of the cycle.

" Gurgling”

Water drain pump

• When the pump starts drawing in air, It starts to gurgle. The washer should then begin spinning and the sound will continue until it is done spinning.

Water “swishing”

Washing process

• Water swishing while the unit is agitating is normal, especially with smaller loads.

Washer rocking/ moving and/or "knocking/tapping”

Washer leveling legs uneven

• To level the washer, adjust the leveling legs by rotating the individual leg in the proper direction for up or down.

"Squeaking” sound

Washer not level and rubbing on cabinet

• To level the washer, adjust the leveling legs by rotating the individual leg in the proper direction for up or down.

Installation Instructions

LOCATION OF YOUR WASHER

DO NOT Install the Washer:

1. In an area exposed to dripping water or outside weather conditions. The ambient temperature should never be below 60°F (15.6°C) for proper washer operation.
2. In an area where it will come in contact with curtains or drapes.
3. On carpet. The floor MUST be a hard surface with a maximum slope of 1/2” per foot (1.27 cm per 30 cm). To make sure the washer does not vibrate or move. you may have to reinforce the floor.

NOTE: If floor is in poor condition. use 3/4” impregnated plywood sheet solidly attached to existing floor covering.

IMPORTANT: Minimum Installation Clearances - Alcove or Closet

• If your washer is approved for installation in an alcove or closet, there will be a label on the back of the machine describing requirements.
• Minimum clearance between washer and adjacent walls or other surfaces: 1" either side, 2" front, 4" rear, 9” top.
• Closet doors must be louvered or otherwise ventilated and have at least 60 square inches of open area. If the closet contains both a washer and a dryer, doors must contain a minimum of 120 square inches of open area.

NOTE: The clearances stated on this label are minimums. Consideration must be given to providing adequate clearances for installing and servicing.

WATER SUPPLY REQUIREMENTS

• WATER SUPPLY LINES - Purge Hot and Cold water supply lines for 30 seconds prior to installation of hoses and washing machine. Ensure inlet hose screens are also clean and free of debris.
• WATER PRESSURE - Must be 20 psi minimum to 120 psi maximum.
• WATER TEMPERATURE - Household water heater should be set to deliver water at 120° to 150°F (50° to 66°C) TO THE WASHER when hot wash is selected.
• SHUTOFF VALVES - Both hot and cold shutoff valves (faucets) should be supplied.
• DRAIN - Water should be drained into standpipe (drain hose) or sink (uni-coupler drain connection). Discharge height
• MUST NOT BE LESS THAN 30 INCHES, and no more than 8 feet above the base of the washer. Standpipe must be inches minimum inside diameter and must be open to atmosphere.

REMOVE BOTTOM PACKAGING

Remove bottom packaging from unit by placing foot on side of base, holding handles on side of washer, and lifting up.

- Electrical Shock Hazard

• Disconnect power supply before servicing.

• Replace all parts and panels before operating.

• Failure to do so can result in death or electrical shock.

- Shock Hazard

Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service personnel – DO NOT contact the following parts while the appliance is energized: Electrical Valve, Drain Pump, NTC, Motor Control Unit.

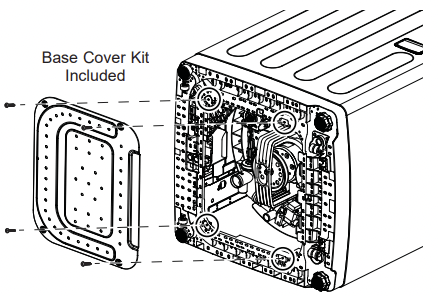

INSTALL BASE COVER

- Entanglement Hazard

• Install base cover underneath unit by sliding cover in place and attaching screws before operating.

• Failure to do so can result in serious injury

If you did not receive a base cover with your purchase, call 800.626.8774 to receive one at no cost. (In Canada, call 800.561.3344.) For installation instructions of the cover, visit: www.GEAppliances.com. (In Canada, www.GEAppliances.ca.)

Remove metal base from top foam packaging and install it on the bottom of the washer. Lay the washer on its side to install the base cover.

Install base cover underneath unit by sliding cover in place and attaching screws before operating.

Water and drain connections for Stationary Model (GNW128S) and for Portable Model (GNW128P) with two faucet connections only.

NOTE: If you have Portable Model (GNW128P), and will use with one faucet connection, then skip to Step 7.

CONNECT DRAIN HOSE TO WASHER

Connect drain hose to drain port on back of washer. Open clamp with pliers and slide onto hose end. Holding clamp open, push hose end onto drain port until fully seated.

CONNECT WATER HOSES TO WASHER

Unplug electrical cord before installing water hoses.

If not installed, install rubber washer in one end of hot water hose. Thread hot water hose onto red connection (right side). Hand tighten and use pliers to tighten hoses between 1/8 and 1/4 turn beyond hand-tight. If not installed, install rubber washer in one end of cold water hose. Thread cold water hose onto blue connection (left side). Hand tighten and use pliers to tighten hoses between 1/8 and 1/4 turn beyond hand-tight.

Move washer as close to final location as possible. leaving room for you to make water. drain. and electrical connections to your home.

CONNECT WATER HOSES TO OUTLET VALVES

Determine which is HOT water line before attaching water hoses to faucets. Traditionally, HOT faucet is on left.

If screen washers are not installed) With protruding part of screen toward you, install strainer screen/rubber washer into each of the free ends of two water hoses.

Connect hot water hose to hot water outlet valve of your home. Hand tighten and use pliers to tighten hoses between 1/4 and 1/2 turn beyond hand-tight. Open hot water valve.

Connect cold water hose to cold water outlet valve of your home. Hand tighten and use pliers to tighten hoses between 1/4 and 1/2 turn beyond hand-tight. Open cold water valve.

Check for leaks and drips at the hose couplings. Tighten as necessary.

CONNECT TO DRAIN

Attach the drain hose to the drain outlet on the rear of the washer near the washer base. End furthest from the U-bracket should be attached to washer. Install the clamp on the drain hose and tighten to prevent leakage of water

NOTE: If longer drain hose is required, order drain hose extension kit, GE Appliances part number WH49X316. Connect additional drain hose (contained in kit) to original hose with hose clamp (contained in kit).

Insert remaining end of drain hose (shorter distance from U-bracket) into drain pipe or sink.

IMPORTANT: There should be a minimum of 30” from the drain hose insertion point to the base of the unit.

NOTE: Placing the drain hose too far down the drain pipe can cause a siphoning action. No more than 5" of hose should be in the drain pipe. There must be an air gap around the drain hose. A snug fit can also cause a siphoning action.

Water and drain connections for Portable Model (GNW128P) using one faucet connection only.

NOTE: If have Stationary Model (GNW128S) or Portable Model (GNW128P), and will use with two faucet connections, then follow the connection instructions on the previous page and skip this one faucet connection section.

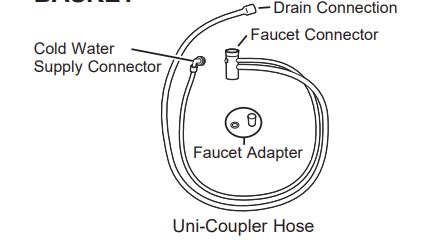

REMOVE THE UNI-COUPLE® HOSE FROM INSIDE THE WASHER BASKET

CONNECT TO WATER LINE

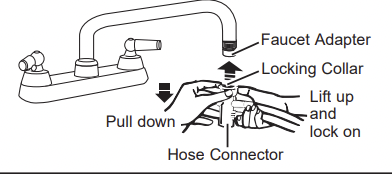

Attach the hose connector to the faucet adapter by pulling down on the locking collar while lifting up on the connector until it snaps into place. Make sure the water filter provided is in place.

CONNECT TO VALVE INLET

Unplug electrical cord before installing water hose. If not installed, install rubber washer in one end of cold water hose. Thread cold water hose onto BLUE connection (left side).

NOTE: Only the cold valve will be connected for this installation. Hot valve should NOT be connected. Hand tighten and use pliers to tighten hoses between 1/8 and 1/4 turn beyond hand tight.

TIGHTEN CONNECTOR

CONNECT DRAIN HOSE

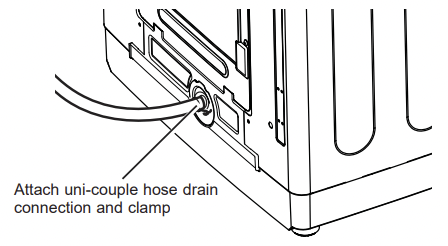

Attach the drain connection side of the uni-couple hose to the rear of the washer. Install the clamp on the drain connection and tighten to prevent leakage of water.

SET THE WASHER CONTROLS

Make sure that the Water Temp setting on the washer control panel is set to Cold since only the cold inlet is connected.

SLOWLY TURN ON THE WATER FAUCET ALL THE WAY TO THE DESIRED WASH TEMPERATURE

ELECTRICAL REQUIREMENTS

WARNING - Electrical Shock Hazard

Plug into a grounded 3-prong outlet.

DO NOT remove ground prong.

DO NOT use an adapter.

DO NOT use an extension cord.

Failure to follow these instructions can result in death, fire or electrical shock.

CIRCUIT – Individual, properly polarized and grounded or 20 amp circuit breaker or time-delay fuse.

POWER SUPPLY – 2 wire plus ground, 120 Volt, single phase, 60 Hz, alternating current.

Outlet Receptacle – Properly grounded 3-prong receptacle to be located so the power cord is accessible when the washer is in an installed position. If a 2-prong receptacle is present, it is the owner’s responsibility to have a licensed electrician replace it with a properly grounded 3-prong grounding type receptacle.

Washer must be electrically grounded in accordance with local codes and ordinances, or in the absence of local codes, with latest edition of the NATIONAL ELECTRICAL CODE, ANSI/NFPA NO. 70 or CANADIAN ELECTRICAL CODE, CSA C22.1. Check with a licensed electrician if you are not sure that the washer is properly grounded.

CONNECT POWER AND INSTALL

Insert plug of electrical cord into a 115V, 15- or 20-amp wall receptacle.

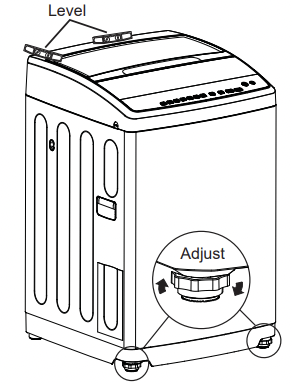

Move washer into final position. Place level on flat top side edges of washer. Adjust leveling legs until washer is level left-to-right and front-to-back. Remove level. Open tub lid. Remove and discard tub shipping material (see UNPACK THE WASHER section). Remove plastic protector film from the lid.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment- grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Improper connection of the equipmentgrounding conductor can result in a risk of electrical shock. Check with a qualified electrician, or service representative or personnel, if you are in doubt as to whether the appliance is properly grounded. DO NOT modify the plug on the power supply cord. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

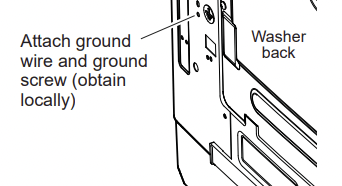

If required by local codes, an external 18 gauge or larger copper ground wire (not provided) may be added. Attach to washer cabinet with a #10-16 x 1/2” sheet metal screw (available at any hardware store) to rear of washer as illustrated.

Mobile Home Installation:

Installation must conform to Standard for Mobile Homes, ANSI A119.1 and National Mobile Home Construction and Safety Standards Act of 1974 (PL93-383).

FINAL CHECKLIST

Before starting the washer, check to make sure:

• Main power is turned on.
• The washer is plugged in.
• The water faucets are turned on.
• The unit is level and leveling legs are firmly on the floor.
• The shipping foam is removed.
• The drain hose is properly tied up.
• There are no leaks at the faucet, drain line or washer.

Run the washer through a complete cycle.

• Check for water leaks and proper operation.
• Place these instructions in a location near the washer for future reference.

Related Products
