User Manual

VENTILATION

Installation of the Discharge Hose

It is essential to use a venting hose to carry the hot moist air away from the dryer unless the dryer is situated in a open space with a good air flowaround it. Recirculation of the moist air will prevent the efficient operation of the dryer.

The hose is assembled to the machine as shown. The hose may be fitted through a wall or through an open door or window. The hose is 110mm in diameter and will extend 1.8 meters.

The following guidelines should be followed when installing the discharge hose.

  • Do not use two hoses joined together as the drying performance will be reduced.
  • Do not restrict the flow of air through the hose e.g. by kinking it or fitting a smaller diameter connector to mount to a wall opening.
  • Avoid the hose making U shaped curves as this will restrict the flow of air and increase the chance that water will collect in the hose.
  • Check the hose regularly to remove any build-up of fluff or water that may have collected in it.

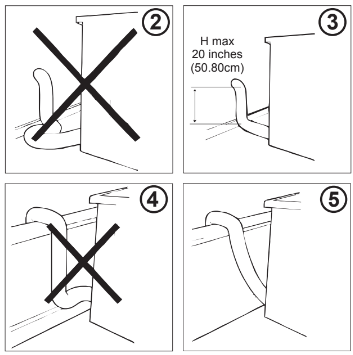

The following diagrams give examples of good and bad installations.

PREPARING THE LOAD

Before using the tumble dryer for the first time:

  • Please read this instruction book thoroughly.
  • Remove all items packed inside drum.
  • Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Clothes Preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item.

Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

PREPARING THE LOAD

Before using the tumble dryer for the first time:

  • Please read this instruction book thoroughly.
  • Remove all items packed inside drum.
  • Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Clothes Preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item. Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do Not Tumble Dry:

Silk, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings.

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).

During the last 15 minutes the load is always tumbled in cool air.

Energy Saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS

  • Check that the filter is clean before every drying cycle.

NEVER

  • Put dripping wet items into the tumble dryer, this may damage the appliance.

Sort the Load as Follows

These can be found on the collar or inside seam:

Suitable for tumble drying.

Tumble drying at high temperature.

Tumble drying at low temperature only.

Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

  • By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

  • By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

Do not overload the drum, large items when wet exceed the maximum admissible clothes load (for example: sleeping bags, duvets).

CLEANING AND ROUTINE MAINTENANCE

Cleaning the Dryer

  • Clean the filter and empty the water container after every drying cycle.
  • Regularly clean the condenser.
  • After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it.
  • Wipe the outside of the machine and the door with a soft cloth.
  • DO NOT use abrasive pads or cleaning agents.
  • To prevent the door sticking or the build up of fluff clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING! The Drum, door and load may be very hot.

IMPORTANT Always switch off and remove the plug from the electricity supply before cleaning this appliance.

For electrical data refer to the rating label on the front of the dryer cabinet (with the door open).

DOOR and FILTER

Pull on handle to open the door. To restart the dryer, close the door and press Start / Pause button.

WARNING! When the tumble dryer is in use the drum and door may be VERY HOT.

Filter

IMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.

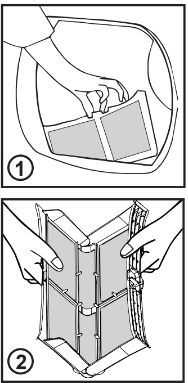

  1. Pull the filter upwards.
  2. Open filter as shown.
  3. Gently remove lint using a soft brush or your fingertips.
  4. Snap the filter together and push back into place.

Filter Care Indicator

Lights when the filter needs cleaning.

If the laundry is not drying check that the filter is not clogged.

NOTE: IF YOU CLEAN FILTER UNDER WATER, REMEMBER TO DRY IT.

OPERATION

  1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.
  2. Gently close the door pushing it slowly until you hear the door 'click' shut.
  3. Turn the Programme Selector dial to select the required drying programme (see Programme Guide).
  4. Press the button. The dryer will start automatically and the indicator above the button will be continuously lit.
  5. If the door is opened during the programme to check the laundry, it is necessary to press to recommence drying after the door has been closed.
  6. When the cycle is nearing completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.
  7. Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened.

NOTE: Do not open the door during the automatic programs in order to obtain a proper drying.

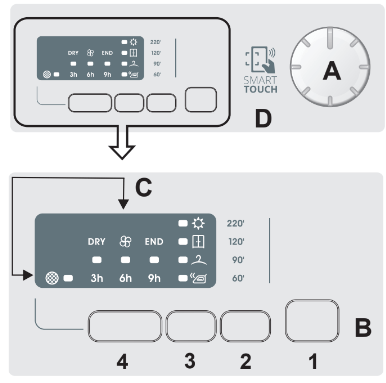

CONTROLS AND INDICATORS

A-Programme Selector -

Rotating the knob in both directions it's possible to select the desired drying program. To switch or cancel off the dryer rotate the knob on OFF.

B-Buttons -

1. Start/Pause Button

To start the selected program and/or suspend it.

2. Time cycle selection

It's possible switch a cycle from automatic to timed , up to 3 minutes after the start of the cycle. After this selection to reset the automatic dying functioning is necessary to switch off the dryer.

3. Drying Selection Button

It allows to set the desired dryness level editable option up to 5 minutes after the starting of the cycle:

- Ready to Iron : It leaves the garments slightly wet to facilitate ironing.

- Dry Hanger : To get garment ready to be hang.

- Dry wardrobe : For laundry that can be directly stored

- Extra-dry : To get completely dry garments, ideal for full load.

This appliances is equipped with Drying Manager Function. On automatic cycles,
each level of intermediate drying, prior to the reaching the selected one, is indicated by flashing the light indicator corresponding to the degree of drying reached

4. Delay Start Button

To postpone the start of the programm for h, 6h, or 9h. Opening of the porthole with delayed start set, after re-closing the porthole, press start againg to resume the counting.

Opening of the porthole with delayed start set, after re-closing the porthole, press start againg to resume the counting.

C- Led

Filter cleaning - It lights up when the cleaning of the filters is requested (the door and the lower filter.)

These control lights, light up for indicate the drying phase:

- DRY: It lights up when the drying cycle is running.

- It light up when the cycle is in the cooling phase.

- END: It light up when the cycle is done.

SMART TOUCH area -

Pressing the START/PAUSE button allows to a previously downloaded cycle to start whilst the Touch position is selected on the programme knob (for downloading cycles from the App see the relevant section of this user manual).

The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of machine washable wool products provided that the products are washed and dried according to the instructions on the garment label and those issues by the manufacturer of this machine. M1524.

In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.

Drying Guide

The standard cycle COTTON DRY ( ) is the most energy efficient and best suited for drying normal wet cotton laundry.

The table in last page shows the approximate time and energy consumption of the main drying programmes.

SELECTING THE PROGRAMME AND SET THE FUNCTION

SMART TOUCH

This appliance is equipped with Smart Touch technology that allows you to interact, via the App, with smartphones based on Android operating system and equipped with NFC (Near Field Communication) function.

  • Download on your smartphone the simply-FiApp.

FUNCTIONS

The main functions available using the App are:

  • Voice Coach - Aguide to help you choose the ideal cycle with only three voice inputs clothes/fabrics, colour, drying level).
  • Programmes – To download and launch new drying programmes.
  • Clever Care – Clever Check-up and Auto- Hygiene cycles and a troubleshooting guide.
  • Reports – Drying statistics and tips for a more efficient use of your machine.

HOW TO USE SMART TOUCH

FIRST TIME - Machine registration

Enter the "Settings" menu of your Android smartphone and activate the NFC function inside the "Wireless & Networks" menu.

Depending on the smartphone model and its Android OS version, the process of the NFC activation may be different. Refer to the smartphone manual for more details. to enable the sensor on the dashboard.

  • Turn the knob to the Smart Touch position to enable the sensor on the dashboard.
  • Open the App, create the user profile and register the appliance following the instructions on the phone display or the "Quick Guide" attached on the machine.

NEXT TIME – Regular usage

  • Every time you want to manage the machine through the App, first you have to enable the Smart Touch mode by turning the knob to the Smart Touch indicator.
  • Make sure you have unlocked your phone from stand-by mode) and you have activated the NFC function; then, follow the steps mentioned earlier.
  • If you want to start a dry cycle, load the laundry and close the door.
  • Select the desired function in the App (e.g.: starting a programme, the Clever Check- up cycle, update statistics, etc...).
  • Follow the instructions on the phone display, KEEPING IT ON the Smart Touch logo on the machine dashboard, when requested to do so by the App.

NOTES:

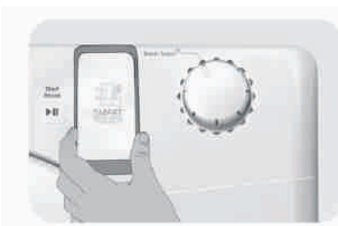

Place your smartphone so that the NFC antenna on its back matches the position of the Smart Touch logo on the appliance (as illustrate below).

If you do not know the position of your NFC antenna, slightly move the smartphone in a circular motion over the logo until the App confirms the connection. In order for the data transfer to be successful, it is essential TO KEEP THE SMARTPHONE ON THE DASHBOARD DURING THESE THE FEW SECONDS OF THE PROCEDURE; a message on the device will inform about the correct outcome of the operation and advise you when it is possible to move the smartphone away.

Thick cases or metallic stickers on your smartphone could affect or prevent the transmission of data between machine and telephone. If necessary, remove them.

The replacement of some components of the smartphone (e.g. back cover, battery, etc...) with non-original ones, could result in the NFC antenna removal, preventing the full use of the App.

The management and the control of the machine via App is only possible by proximity": it is therefore not possible to perform remote operations (e.g.: from another room; outside of the house).

TROUBLESHOOTING

FOR SMART TOUCH MODELS

The Candy simply-Fi app has a Clever Check-up function that allows you to confirm the functionality and status of the product at any time. To use the Candy simply-Fi APP you will need an Android smartphone with NFC technology.

More info can be found on the App.

If the display of the machine is showing an error (by a code or blinking LEDs), you should turn on the App on your Android smartphone, with NFC on. Place your smart phone against the Smart Touch logo on the control panel. You should now be able to read the fault directory to solve the issue.

What Might be the Cause of...

Defects you can remedy yourself

Before calling service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call Service, they may be able to assist you over the telephone.

Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time. The displayed time may increase or decrease during the cycle and this is normal.

Drying time is too long/clothes are not dry enough...

  • Have you selected the correct drying time/programme?
  • Were the clothes too wet? Were the clothes thoroughly wrung or spindried?
  • Does the filter need cleaning?
  • Is the dryer overloaded?

The dryer does not operate...

  • Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp.
  • Is the plug properly connected to the mains supply?
  • Is there a power failure?
  • Has the fuse blown?
  • Is the door fully closed?
  • Is the dryer switched on, both at the mains supply and at the machine?
  • Has the drying time or the programme been selected?
  • Has the machine been switched on again after opening the door?

The dryer is noisy...

  • Switch off the dryer and contact GIAS Service for advice.

The Indicator is on...

  • Does the filter need cleaning?
  • Is the venting hose kinked or blocked?

CUSTOMER SERVICE

Should there still be a problem with your dryer after completing all the recommended checks, please call service for advice.

They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

  • Is found to be in working order
  • Has not been installed in accordance with the installation instructions.
  • Has been used incorrectly.

Spares

Always use genuine spares, available direct from service.

Service

For service and repairs call your local service engineer.

The manufacturer declines all responsibility in the event of any printing mistakes in this book let. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.
