Innity
Continuous Flow
Hot Water
Innity Continuous
Flow Hot Water
Our Story
Rinnai revolutionised the Australian water market in the early 1990’s when we launched the rst
electronically controlled gas continuous flow hot water system. Appropriately named, the Rinnai Innity
delivered a new user experience of steady and continuous, temperature controlled hot water.
Our latest Innity products offer you unparalleled performance, user comfort, energy efciency
and water conservation features to help further reduce your household running cost.
Rinnai Continuous Flow hot water products have also been designed and engineered to withstand
tough Australian conditions whilst never running out of hot water. This, coupled with great
reliability, makes the Rinnai Innity the obvious choice for your hot water needs.
Market Leading Warranty
Our commitment to producing exceptionally
engineered, high quality products is supported by
our market leading warranty offering and ensures
your ultimate protection and peace of mind.
For Innity models the standard product
warranty is 12 years for Heat Exchangers and
3 years parts and labour. Rinnai is now offering
the option of extending the warranty on the Heat
Exchanger by a further 13 years taking it to a
total of 25 years. This is subject to the terms
and conditions outlined in the Warranty booklet.
25
YEAR WARRANTY
*
12 YEAR
STANDARD
13 YEAR
EXTENDED
HEAT EXCHANGER WARRANTY
*Made from premium materials and built to last, Rinnai provides a standard 3 year (12 Year Heat Exchanger) parts and labour warranty on all Rinnai Innity
Continuous Flow Hot Water systems plus an optional 13 years extended Heat Exchanger warranty. Visit rinnai.com.au for full terms and conditions.
Features and Benets
• Quicker commissioning and installation
• Market leading quality, Japanese design components manufactured in Rinnai’s own state of the art facility
• 1.5L/min minimum operating water flow rate
• Improved resistance to corrosion
• Modern design packaged in a slimline case construction
• 50°C compliant models available. This is adjustable to achieve a true 50°C at the point of use
#
• Compact 26L internal model available
• Enhanced electronic controlled safety monitoring
• Anti-frost protection down to -20°C
• 6 Star energy rating
• Puretemp™ temperature stability control, provides quick flow and precise outlet water temperatures.
• Enhanced Combustion Technology (ECT), ensuring maximum comfort with low flow (WELS) shower heads
• Built in status operation monitor displays set water temperatures and any system faults
• Natural gas or LPG models available
#
Adjustable upto 53°C. For 60°C plus installations a tempering valve in accordance with AS3500.4 is required.

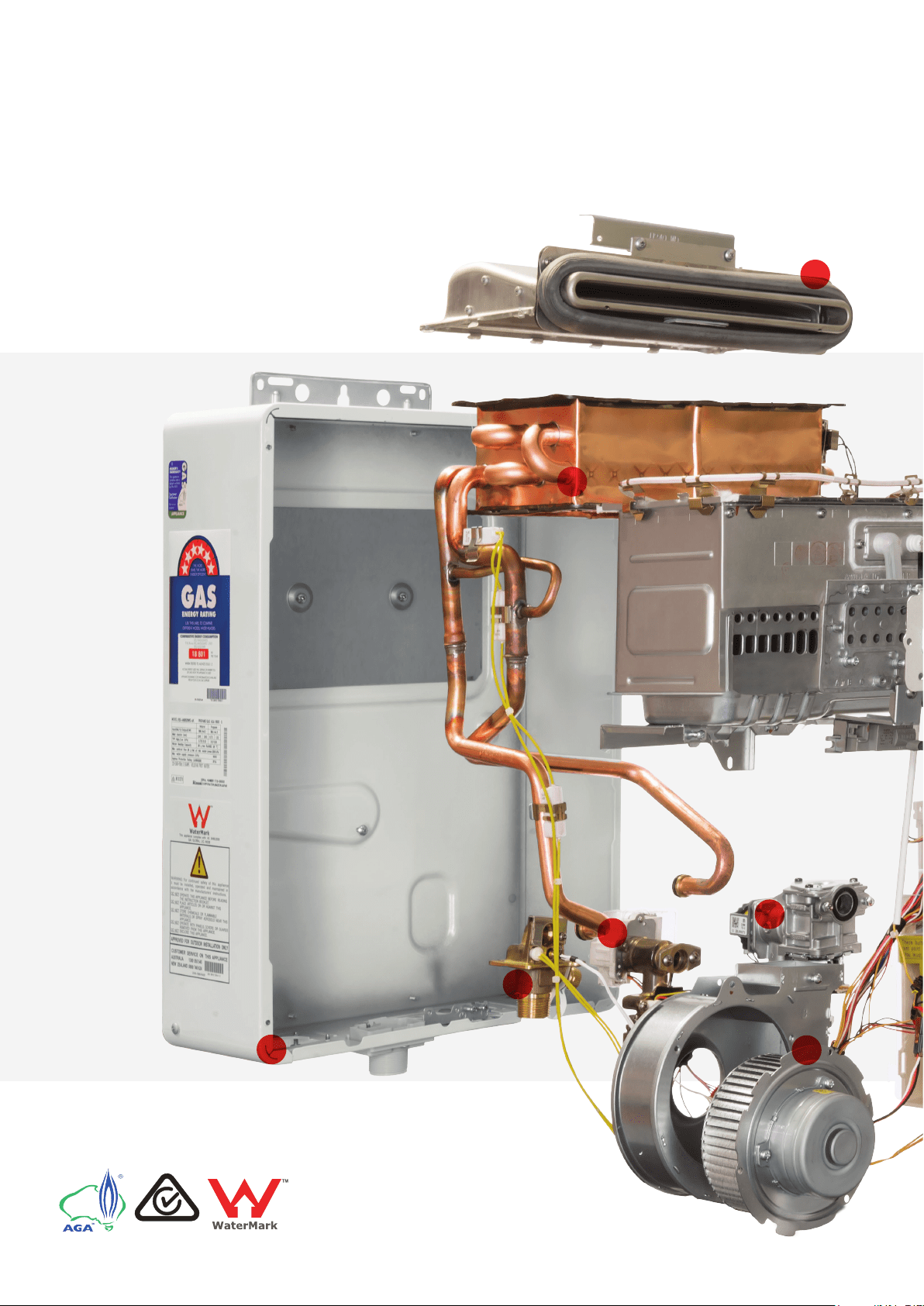

Quality and
Reliability
1
3
4
5
7
8
6
This appliance complies
with AS3498:2009
SAI Global Lic W208
N10378
1. Flue Terminal
Made from quality stainless steel our flue
terminal has been cleverly designed to expel
burner combustion products whilst trapping
heat and diverting it back into the heat exchanger.
2. Gas Burner Assembly
The firepower behind the Infinity name, our
burner designs are the envy of other continuous
flow products. Being compact and minimal in
design they play an important role in achieving
our high levels of performance whilst reducing
the weight of the overall product. These
assemblies are also engineered and built in
our state of the art manufacturing facilities.
3. Heat Exchanger
30 Years in the making and the heartbeat
of the Rinnai Infinity, our Heat Exchangers
are made from premium materials and
engineered to perform and last.
4. Hot Water Connection
Made from a high quality brass material,
our hot water outlets use multiple
measurement points to ensure precision
water temperature and safe delivery.
5. Cold Water Connection
Fast and accurate water flow control
guarantees you get optimum hot water
comfort at your required temperature.
6. Durable Case
Tough enough to withstand the harshest
Australian conditions. Our powder coated
case exteriors are built to last.
7. Gas Control Valve
Engineered and manufactured in our state of
the art facility, Rinnai’s gas valve uses multiple
safe-guards to ensure the right amount of
gas is delivered to the burners thus ensuring
unparalleled performance and energy efficiency.
8. Combustion Fan
Steel construction and balanced fins ensure
sustained performance, low dB operation and
product longevity. Other products use inferior
plastic drums and fins which severely limit
product performance and life expectancy.
9. PCB Controller
The brains behind the Infinity product, our
in-house designed and manufactured PCBs,
perform various safety checks, performance
operations, efficiency calculations and commands.
The microprocessors are encapsulated in a
special epoxy that keeps out moisture and
insects and ensures hassle free operation.
10. Infinity Front Cover
Premium design aesthetic and finished in a durable
UV stabilised powder coated finish. Our Infinity cover
is the trophy piece that adorns the Infinity brand
2
9
10
There are now in excess of 1.25
Million Rinnai Continuous Flow
hot water systems installed in
Australian homes. This equates
to filling 40 MCG’s with hot water and
creating enough energy to launch 24 space
shuttles into outer space each year.
DID YOU
KNOW?
No comparison
Sizing guide
You can select the right capacity Rinnai Innity for your current hot water needs or
for future needs as your family and demand for hot water grows.
Hot Water Operating Cost Comparison
When you consider the space savings compared to storage, eco-efciency and the continuous supply of hot
water that comes with Rinnai Innities continuous flow technology, there is no comparison. When you look
at the cost savings over the long run, well, it just keeps getting better. More comfort for less money.
Water Controllers
Rinnai offers a comprehensive range of water controllers for our Innity Continuous Flow range that enhances
your hot water experience through precision temperature control whilst optimising energy and water use.
*Sizing assumes AAA or *3 star outlets. For non WELS rated or WELS rated xtures with higher flow outlets (AA, A, 2 star or 1 star rated) a
larger size appliance or additional appliance may be required to deliver adequate performance. Consult with your hot water specialist.
#
The above annual energy costs are taken from sustainability Victoria. Refer to:
www.sustainability.vic.gov.au/You-and-Your-Home/Save-energy/Hot-water/Hot-water-running-costs for calculation methodology and more information.
Applicable Models Innity 12 Innity 16 Innity 20 Innity 26 Innity 26i Innity 32
No. of shower outlets* Warm Climate 1 1 1-2 1-3 1-3 2-4
No. of shower outlets* Cool Climate 1 1 1 1-2 1-2 2-3
Hot water system
ANNUAL ENERGY COST
1 Person (60 Litres per day)
#
2 People (90 Litres per day)
#
3 People (120 Litres per day)
#
4 People (150 Litres per day)
#
Continuous flow technology Natural Gas $160 $230 $295 $365
4 Star Gas Storage Tanks Natural Gas $285 $350 $415 $475
5 Star Gas Storage Tanks Natural Gas $230 $290 $350 $410
Wireless
The wireless controller has all the
features of the Universal Controller
but adds an element of portability
and ease of retrofitting, both unique
to Rinnai. The wireless controller
also has a child lock to ensure
safety for younger family members.
Universal
• Temperature display
• Priority transfer button
• Preheat system function
(where installed)
Deluxe
• Temperature display and clock
• Priority transfer button
• Preheat system function (where installed)
• Bath ll and Shower set function
Warm Climate
Cool Climate
Specications & Accessories
Model
INF12
INF16
INF20
INF26
INF26
Touch
INF26
Internal
INF32
Factory pre-set temps
o
C
50
60
50
60
50
60
50
60
50
60
50
60
50
60
Min operating water ow (L/min) 1.5 1.5 1.5 1.5 1.5 2.4 2.4
Min water pressure (kPa)
Max 1000 (kPa)
120 120 160 200 200 140 180
Gas rate
(mj/h)
NG
Min 16 16 19 16 16 16 14
Max 92 124 156 199 199 195 250
LPG
Min 16 16 19 16 16 16 14
Max 92 124 156 199 199 195 250
Flow rate
(L/Min)
25ºC Rise 12 16 20 26 26 26 32
20ºC Rise 15 20 24 26 26 32 37
Star rating 6.2 6.1 6.0 6.0 6.0 6.1 5.9
Width (mm) A 356 356 356 356 356 350 470
Depth (mm) (Inc brackets) B 202 202 202 202 202 274 244
Height (mm) (Inc brackets) C 571 571 571 571 571 641 644
Hot water connection (mm) 15 20 20 20 20 20 20
Cold water connection (mm) 15 20 20 20 20 20 20
Gas connection (mm) 20 20 20 20 20 20 20
Weight (kg) 13.5 13.5 14.5 15.5 15.5 21 29
Metal Recess Box
(RBOX06LW)
Built into the wall the
metal recess box is
designed to house and
hide the pipework but also
create a smooth and clean
finish to the installation.
Pipe Cover
(PCD01W)
Colour matched
to enhance the
installation by hiding
unsightly pipework
and complement its
existing surroundings.
Security Bracket (SECBKT)
Secure your investment with a quick
and easy to install security bracket.
Flue Diverter
(SFD01)
Directing the flue gases
sideways means your Rinnai
Infinity unit may be installed
into areas with restricted
ventilation like balconies.
ABS Recess Box
(SBOX)
Built into the wall the
SBOX is manufactured
from a tough ABS plastic,
the SBOX is light weight,
easy to handle, durable
and easy to install.
Hot water outlet
Cold water inlet
Gas inlet
B
C
A
TOTAL HOME COMFORT
Rinnai Australia Pty Ltd
ABN 74 005 138 769
100 Atlantic Drive,
Keysborough, Victoria 3173
For further information visit
www.rinnai.com.au
or call 1300 555 545
RA149.07.18 Rinnai Infinity Continuous Flow CF Brochure
