Please read this manual carefully before operating
your set and retain it for future reference.
CM4630 (CM4630, CMS4630F)
CM4530 (CM4530, CMS4530F, CMS4530W)
CM4430 (CM4430, CMS4530F)
CM4330 (CM4330, CMS4330F)
FOR THE WARRANTY TERMS & CONDITIONS,
PLEASE REFER TO BACK COVER OF THIS MANUAL.
OWNER’S MANUAL
Mini Hi-Fi System
ENGLISH
CM4430-DE_DGBRLLK_ENG_4223.indd 1 2013-01-31 2:50:23
1 Getting Started
Getting Started2
Getting Started
1
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead
symbol within an equilateral
triangle is intended to alert the
user to the presence of uninsulated
dangerous voltage within the
product’s enclosure that may be of
sucient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing) instructions
in the literature accompanying the
product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not
try to open the enclosure.
CAUTION concerning the Power cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. To
disconnect power from the mains, pull out the
mains cord plug. When installing the product,
ensure that the plug is easily accessible.
CM4430-DE_DGBRLLK_ENG_4223.indd 2 2013-01-31 2:50:24
Getting Started 3
Getting Started
1
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the
battery from the equipment: Remove the
old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, re or the like.
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, shall be placed on the
apparatus.
Disposal of your old appliance
1. When this crossed-out wheeled bin
symbol is attached to a product it
means the product is covered by
the European Directive 2002/96/EC.
2. All electrical and electronic products
should be disposed of separately
from the municipal waste stream
via designated collection facilities
appointed by the government or
the local authorities.
3. The correct disposal of your
old appliance will help prevent
potential negative consequences
for the environment and human
health.
4. For more detailed information about
disposal of your old appliance,
please contact your city office,
waste disposal service or the shop
where you purchased the product.
Disposal of waste batteries/accumulators
1. When this crossed-out wheeled
bin symbol is attached to batteries/
accumulators of Your product
it means they are covered by
European Directive 2006/66/EC.
2. This symbol may be combined with
chemical symbols for mercury(Hg),
cadmium(Cd) or lead(Pb) if the
battery Contains more that 0.0005%
of mercury,0.002% of cadmium or
0.004% of lead.
3. All batteries/accumulators should
be disposed separately from
the municipal waste stream via
designated collection facilities
appointed by the government or
the local authorities.
4. The correct disposal of Your old
batteries/accumulators will help
to prevent potential negative
consequences for the environment,
animal and human health.
5. For more detailed information
about disposal of Your old batteries/
accumulators, please contact Your
city office, waste disposal service or
the shop where You purchased the
product.
CM4430-DE_DGBRLLK_ENG_4223.indd 3 2013-01-31 2:50:24
Getting Started4
Getting Started
1
LG Electronics hereby declares that this/these
product(s) is/are in compliance with the essential
requirements and other relevant provisions of
Directive 2004/108/EC, 2006/95/EC, 2009/125/EC
and 2011/65/EU.
Contact oce for compliance of this product:
LG Electronics Inc.
EU Representative, Krijgsman 1,
1186 DM Amstelveen, The Netherlands
y
Please note that this is NOT a Customer
Service contact point. For Customer Service
Information, see Warranty Card or contact the
dealer that you purchased this product.
POWER: This unit operates on a mains supply
of 200-240V~, 50/60Hz.
Wiring: This unit is supplied with a BS 1363
approved main plug. When replacing the fuse,
always use of the same rating approved to BS
1362. Never use this plug with the fuse cover
omitted. To obtain a replacement fuse cover
contact your dealer. If the type of plug supplied
is not suitable for the mains sockets in your
home, then the plug should be removed and
a suitable type tted. Please refer to the wiring
instructions below:
Warning: A mains plug removed from the mains
lead of this unit must be destroyed. A mains
plug with bared wires is hazardous if inserted in
a mains socket. Do not connect either wire to
the earth pin, marked with the letter E or with
the earth symbol
6
or coloured green or green
and yellow. If any other plug is tted, use same
rating of fuse in the plug.
Important: The wires in this mains lead are
coloured in accordance with the following
codes:
- BLUE: NEUTRAL, BROWN: LIVE - As the
colours of the wires in the mains lead of this unit
may not correspond with the coloured marking
identifying the terminals in your plug, proceed
as follows: The wire which is coloured blue must
be connected to the terminal which is marked
with the letter N or coloured black. The wire
which is coloured brown must be connected to
the terminal which is marked with the letter L or
coloured red.
CM4430-DE_DGBRLLK_ENG_4223.indd 4 2013-01-31 2:50:24
Table of Contents 5
1
2
3
4
5
6
Table of Contents
1 Getting Started
2 Safety Information
6 Unique Features
6 Accesories
6 Playable file Requirement
6 – MP3/WMA music file requirement
7 – Compatible USB Devices
7 – USB device requirement

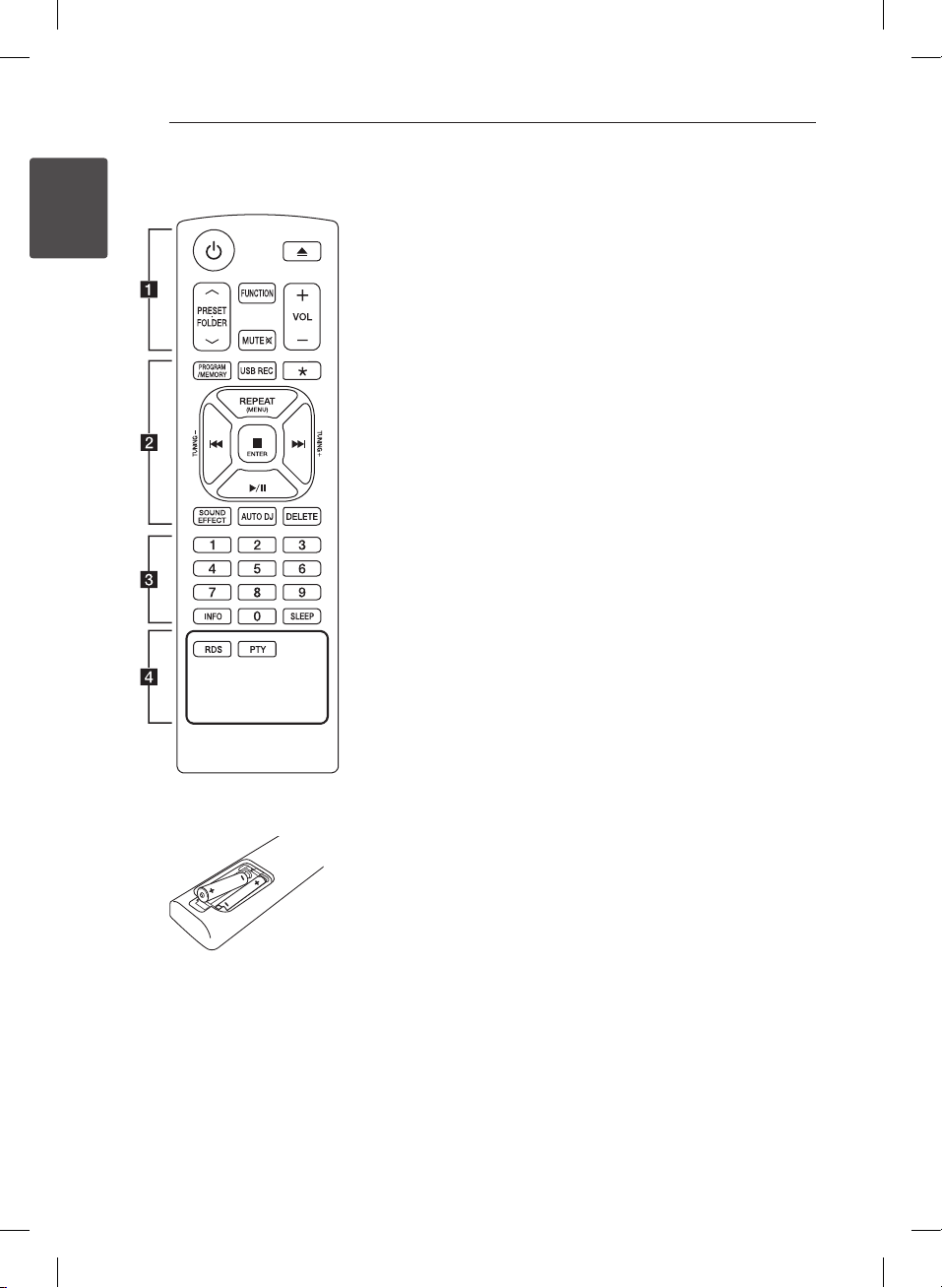

8 Remote Control

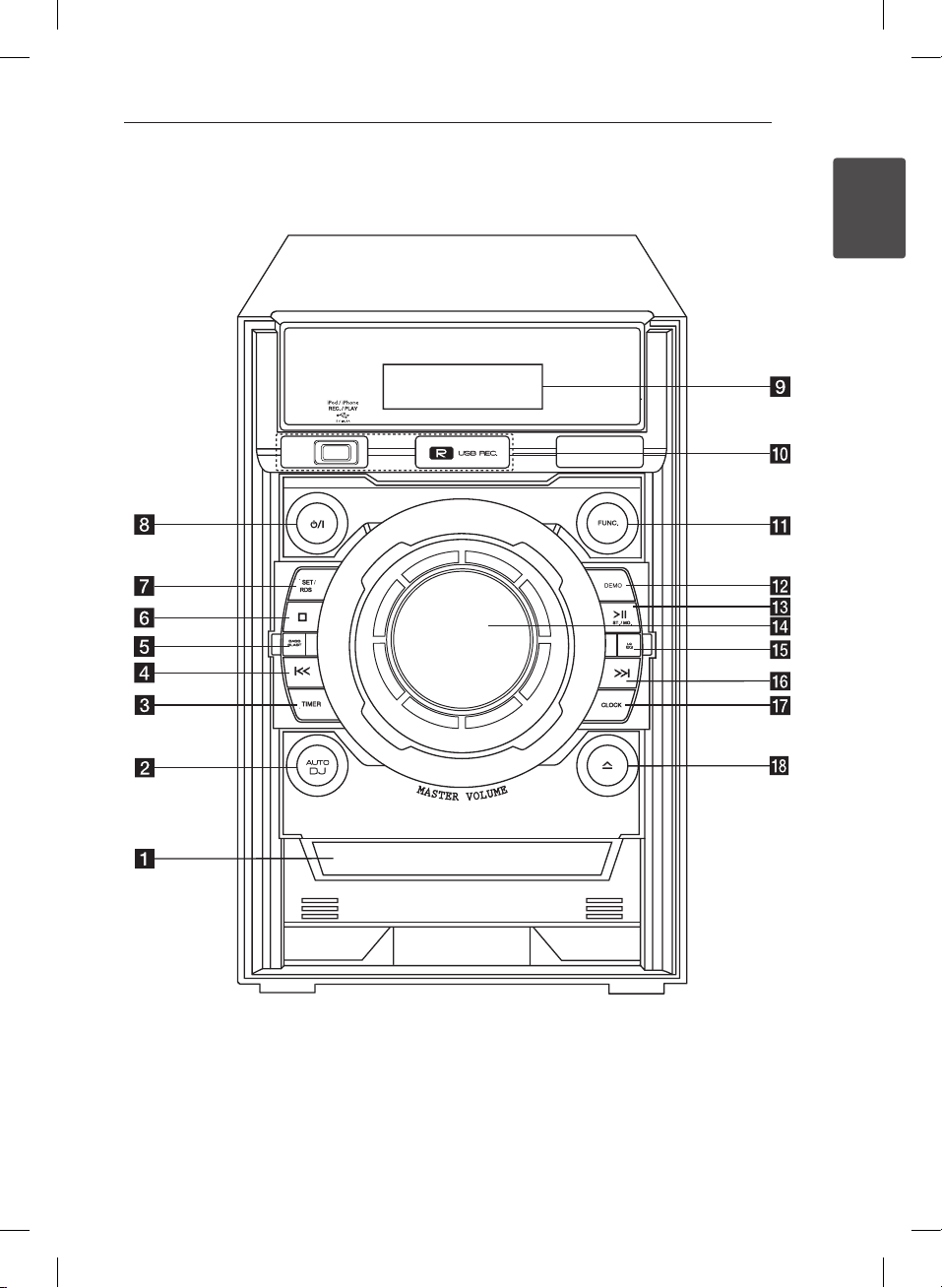

9 Front Panel

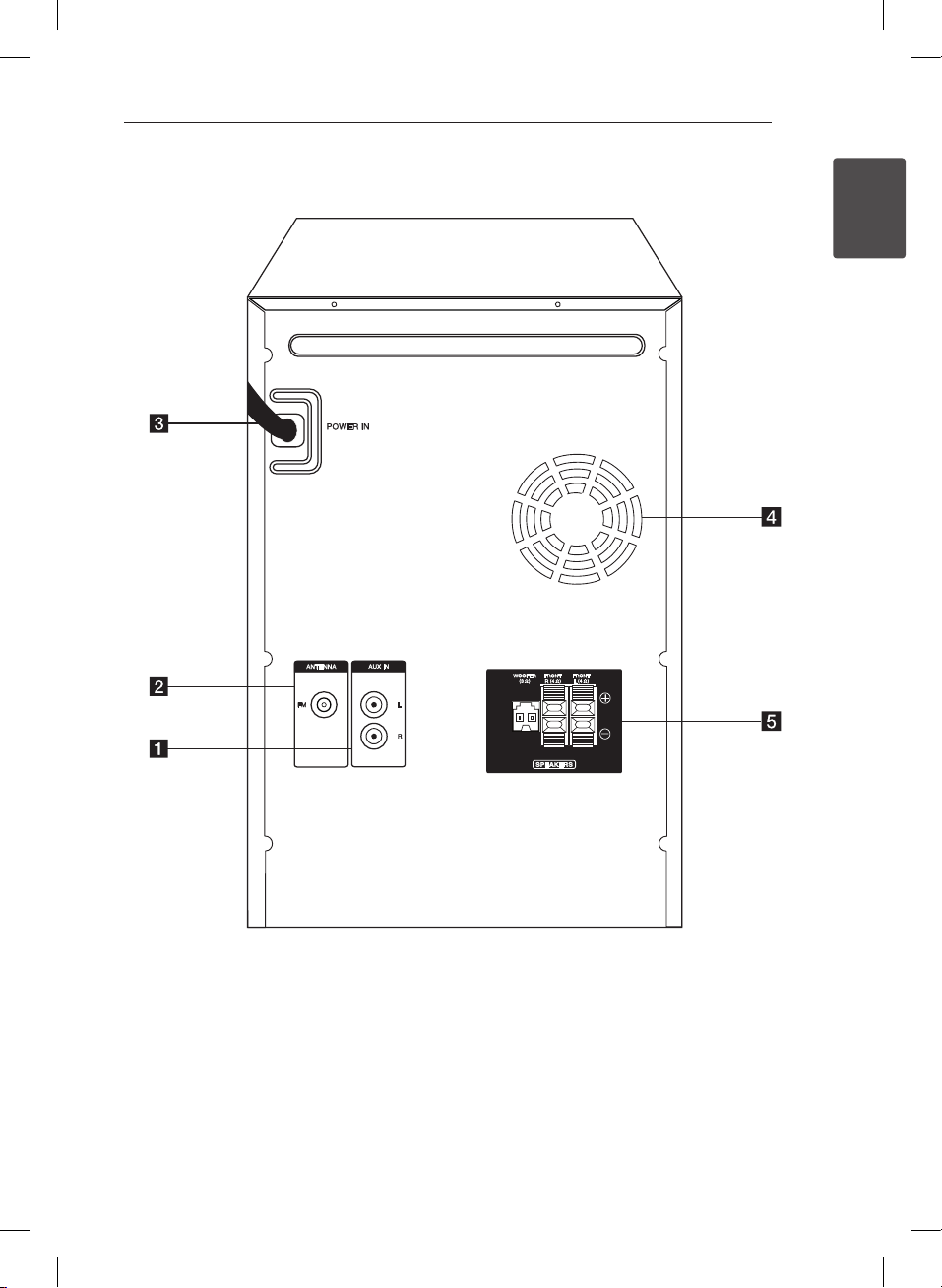

11 Rear Panel(CM4530)

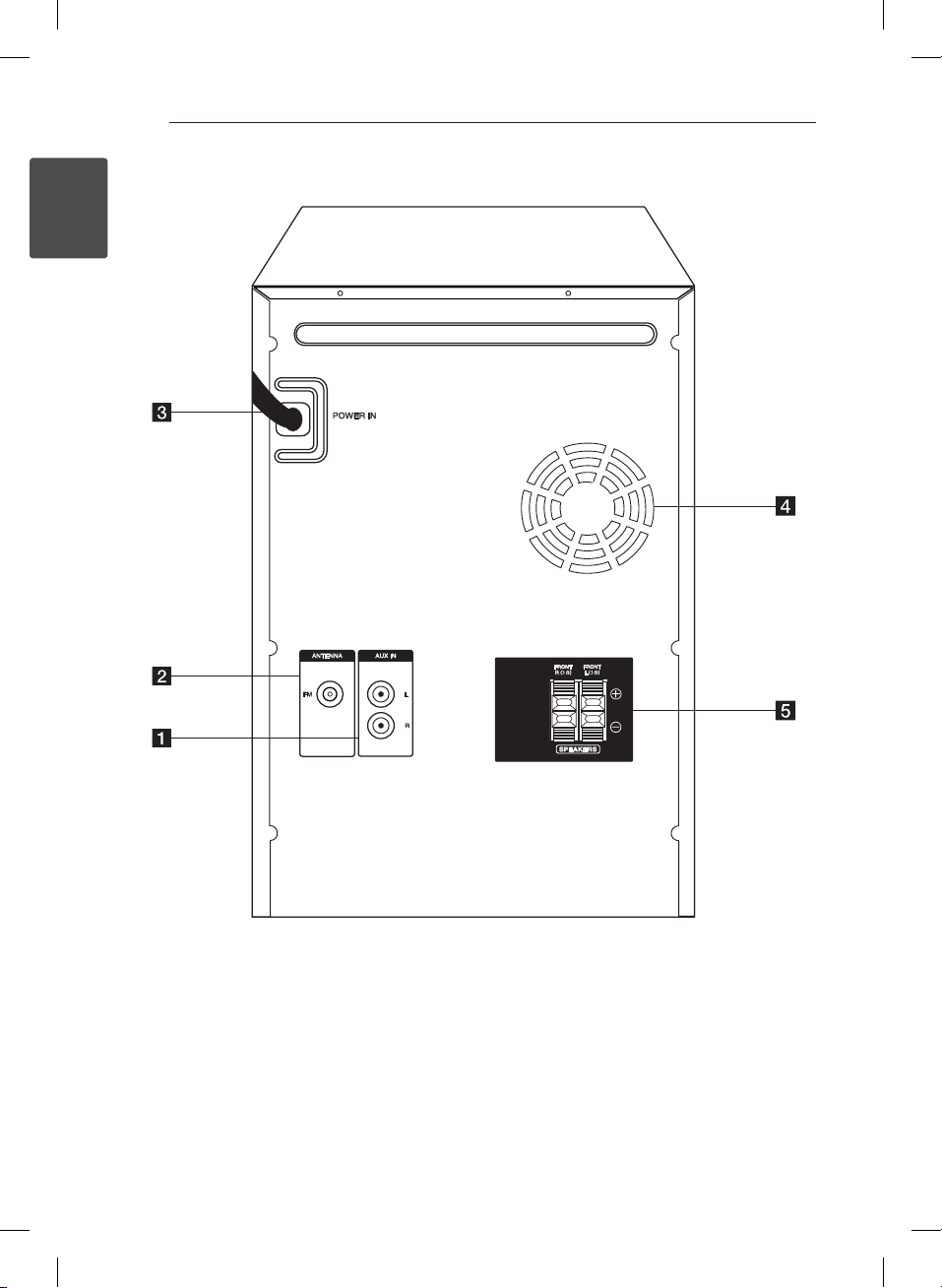

12 Rear Panel(CM4630)
13 Rear Panel(CM4430/CM4330)
2 Connecting

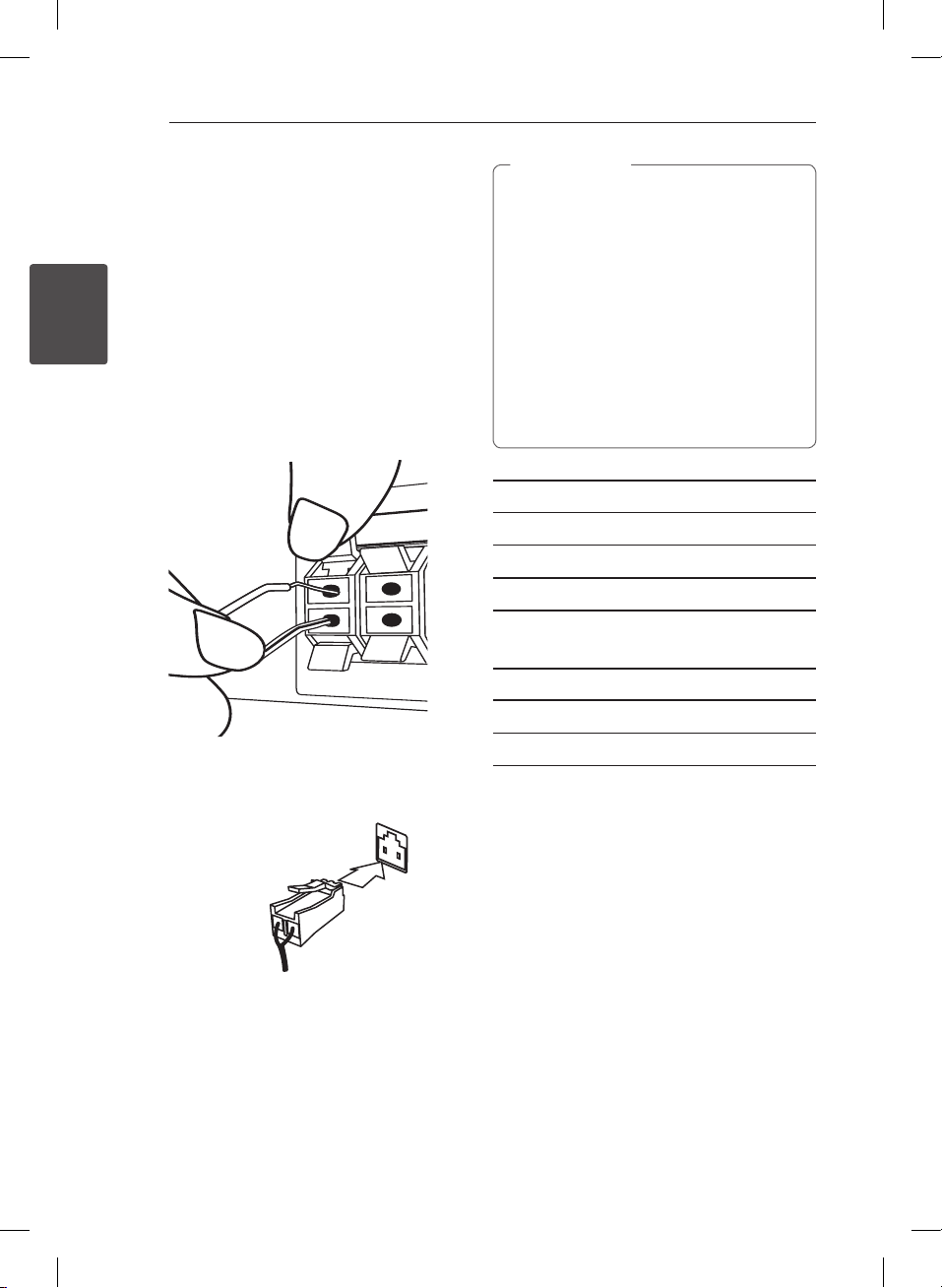

14 Connecting to speakers
14 – Attaching the speakers to the unit
15 Antenna Connection
15 Optional Equipment Connection
15 – AUX IN Connection
16 – USB Connection
3 Operating
17 Basic Operations
17 – CD/USB Operations
17 Other Operations
17 – Programmed Playback
17 – Displaying file information
17 – Searching for a folder
18 – Turn off the sound temporarily
18 – Deleting an MP3/WMA file
18 – DEMO
18 – AUTO DJ playback
19 – Listening to the sound from your
external device
19 – Auto Power Down
19 Radio Operations
19 – Listening to the radio
20 – Presetting the Radio Stations
20 – Deleting all the saved stations
20 – Improving poor FM reception
20 – Seeing information about a Radio
station
21 Sound adjustment
21 – Setting the surround mode
21 Setting the Clock
21 – Setting the alarm
22 – Sleep Timer Setting
22 – Dimmer
22 Advanced Operations

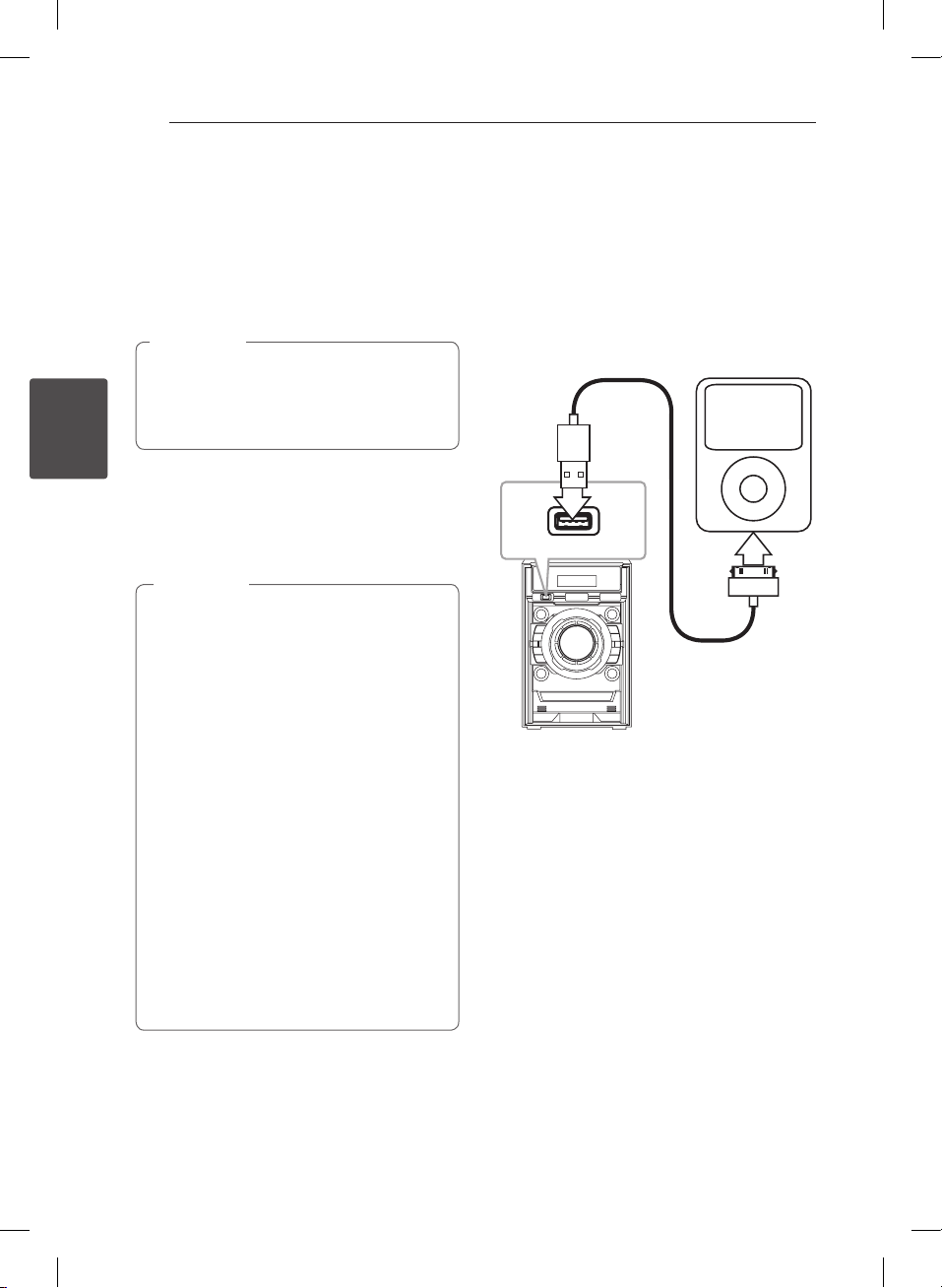

22 – Playing the iPod/iPhone
23 – Compatible iPod/iPhone
24 – Recording to USB
24 – To select recording bit rate and speed
4 Troubleshooting
26 Troubleshooting
5 Appendix
27 Specifications
28 Speaker specifications
29 – Maintenance
29 – Handling the Unit
29 – Notes on Discs
29 Trademarks and Licenses
6 Warranty
30 Warranty
CM4430-DE_DGBRLLK_ENG_4223.indd 5 2013-01-31 2:50:24
Getting Started6
Getting Started
1
Unique Features
USB Direct Recording
Records music to your USB device.
AUTO DJ
Blends the end of one song into the beginning of
another for seamless playback.
USB
Listens to music from your USB device.
Radio
Listens to the radio.
Made for iPod/iPhone
Enjoys music from iPod/iPhone with simple
connection.
Accesories
Please check and identify the supplied accessories.
Remote Control (1) Batteries (2)
FM Antenna (1)
Playable file
Requirement
MP3/WMA music file
requirement
MP3/WMA le compatibility with this unit is limited
as follows.
y
Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
y
Bit rate : within 32 to 320 kbps (MP3),
40 to 192 kbps (WMA)
y
Maximum les : Under 999
y
File extensions : “.mp3”/“.wma”
y
CD-ROM le format : ISO 9660/JOLIET
y
We recommend that you use Easy-CD Creator,
which creates an ISO 9660 le system.
y
You have to set the disc format option to
[Mastered] in order to make the discs compatible
with the LG players when formatting rewritable
discs. When setting the option to Live File
System, you cannot use it on LG players.
(Mastered/Live File System : Disc format system
for Windows Vista)
CM4430-DE_DGBRLLK_ENG_4223.indd 6 2013-01-31 2:50:25
Getting Started 7
Getting Started
1
Compatible USB Devices
y
MP3 Player : Flash type MP3 player.
y
USB Flash Drive :
Devices that support USB2.0 or USB1.1.
y
The USB function of this unit does not support
all USB devices.
USB device requirement
y
Devices which require additional program
installation when you have connected it to a
computer, are not supported.
y
Do not extract the USB device while in operation.
y
For a large capacity USB, it may take longer than
a few minute to be searched.
y
To prevent data loss, back up all data.
y
If you use a USB extension cable or USB hub, the
USB device is not recognized.
y
Using NTFS le system is not supported.
(Only FAT(16/32) le system is supported.)
y
This unit is not supported when the total
number of les is 1 000 or more.
y
External HDD, Card readers, Locked devices, or
hard type USB devices are not supported.
y
USB port of the unit cannot be connected to PC.
The unit cannot be used as a storage device.
CM4430-DE_DGBRLLK_ENG_4223.indd 7 2013-01-31 2:50:25
Getting Started8
Getting Started
1
Battery Installation
Remove the battery cover on the
rear of the Remote Control, and
insert two (size AAA) batteries
with
4
and
5
matched correctly
• • • • • •
a
• • • • • •
1
(Power) : Switches the unit ON
or OFF.
B
(Open/Close) : Opens and
closes the disc tray.
PRESETFOLDER
W
/
S
:
-
Searches for a folder of MP3/
WMA les. When a CD/USB
containing MP3/WMA les in
several folders is being played,
press PRESETFOLDER
W
/
S
to select the folder you want to
play.
-
Chooses a preset number for a
radio station.
FUNCTION : Selects the function
and input source.
MUTE
@
: Mutes the sound.
VOL +/- : Adjusts speaker volume.
• • • • • •
b
• • • • • •
PROGRAM/MEMORY :
- Stores radio stations.
- Creates a playlist you want to
listen to.
USB REC : USB direct recording.
?
: The button is not available for
any function.
REPEAT(MENU) :
- Listens to your tracks/files
repeatedly or randomly.
- Moves to the previous menu on
IPOD mode.
C
/
V
(Skip/Search) :
-
Skips Fast backward or Forward.
-
Searches for a section within a
track/le.
TUNING-/+ : Selects the radio
station.
Z
ENTER :
-
Stops playback or recording.
-
Cancels DELETE function.
-
Chooses an item on IPOD
mode.
d
/
M
(Play/Pause) :
-
Starts or pauses playback.
-
Selects STEREO/MONO.
SOUND EFFECT : Chooses sound
impressions.
AUTO DJ : Selects the AUTO DJ
mode. (For more information refer
to the page 18)
DELETE : Deletes MP3/WMA les.
• • • • • •
c
• • • • • •
0 to 9 numerical buttons : Selects
numbered tracks/les, or preset
number.
INFO : Sees informations about
your music.
SLEEP : Sets the system to turn o
automatically at a specied time.
(Dimmer : The display window will
be darkened by half.)
• • • • • •
d
• • • • • •
RDS : RDS (Radio Data System).
(Refer to page 20)
PTY : Searches radio stations by
radio type.
Remote Control
CM4430-DE_DGBRLLK_ENG_4223.indd 8 2013-01-31 2:50:26
Getting Started 9
Getting Started
1
Front Panel
CM4430-DE_DGBRLLK_ENG_4223.indd 9 2013-01-31 2:50:26
Getting Started10
Getting Started
1
a
Disc tray
Roads a disc.
b
AUTO DJ
Selects the AUTO DJ mode.
(For more informaion refer to the page 18)
c
TIMER
Uses your unit as an alarm clock.
d Y
(Skip/Search)
- Searches forward.
- Skips to the previous track/le.
e
BASS BLAST
Reinforces the treble, bass and surround eect.
f I
(Stop)
Stops playback or recording.
g
SET/RDS
- Confirms the setting.
- RDS (Radio Data System).
h 1
/
!
(Power)
Switches the unit ON or OFF.
i
Display window
j
USB
- Plays the audio les by connecting the USB
device.
- Connects iPod/iPhone by using iPod/iPhone
cable.
USB REC.
Records music to USB.
k
FUNC.
Selects the function or input source.
l
DEMO
Demonstrates each of functions.
m T
ST./MO.
- Starts or pauses playback.
- Selects Stereo/Mono.
n
Volume knob
Adjusts volume of speaker.
o
LG EQ
Chooses sound impressions.
p U
(Skip/Search)
- Searches backward.
- Skips to the next track/le.
q
CLOCK
Sets the clock and checks the time.
r R
(Open/Close)
Opens and closes the disc tray.
CM4430-DE_DGBRLLK_ENG_4223.indd 10 2013-01-31 2:50:26
Getting Started 11
Getting Started
1
a
AUX IN (L/R) connectors
b
ANTENNA (FM)
c
POWER IN
d
Cooling fan
e
SPEAKERS terminal/cord
Rear Panel(CM4530)
CM4430-DE_DGBRLLK_ENG_4223.indd 11 2013-01-31 2:50:27
Getting Started12
Getting Started
1
a
AUX IN (L/R) connectors
b
ANTENNA (FM)
c
POWER IN
d
Cooling fan
e
SPEAKERS terminal
Rear Panel(CM4630)
CM4430-DE_DGBRLLK_ENG_4223.indd 12 2013-01-31 2:50:27
Getting Started 13
Getting Started
1
a
AUX IN (L/R) connectors
b
ANTENNA (FM)
c
POWER IN
d
SPEAKERS terminal
Rear Panel(CM4430/CM4330)
CM4430-DE_DGBRLLK_ENG_4223.indd 13 2013-01-31 2:50:27
2 Connecting
Connecting14
Connecting
2
Connecting to
speakers
Attaching the speakers to the
unit
To connect the cable to the unit, press each plastic
nger pad to open the connection terminals on the
unit. Insert the wire and release the nger pad.
Connect the black stripe of each wire to the
terminals marked - (minus) and the other end to
the terminals marked + (plus).
Connect a woofer cord to the player.
When connecting a woofer cord to the player,
insert the connector until it clicks.
y
Be careful to make sure children do not put
their hands or any objects into the *speaker
duct.
*Speaker duct: A hall for plentiful bass
sound on speaker cabinet (enclosure)
y
The speakers contain magnet parts, so color
irregularity may occur on the TV screen or
PC monitor screen. Please use the speakers
far away from either TV screen or PC
monitor.
y
Do not connect any other speaker except
sub woofer speaker to the sub woofer
connection terminal on the rear of the unit.
>
Caution
CM4530
Color Speaker
Orange Sub woofer
Red Front
White Front
CM4630/CM4430/CM4330
Color Speaker
Red Front
White Front
CM4430-DE_DGBRLLK_ENG_4223.indd 14 2013-01-31 2:50:27
Connecting 15
Connecting
2
Antenna Connection
Connect the supplied FM antenna for listening to
the radio.
Connect the FM wire antenna to the FM antenna
connector.
Be sure to fully extend the FM wire antenna.
,
Note
Optional Equipment
Connection
AUX IN Connection
Connect an output of auxiliary device(Camcoder,
TV, Player, etc) to the AUX IN(L/R) connector.
If your device has only one output for audio(mono),
connect it to the left (white) audio jack on the unit.
To the audio output jacks
of your component
(TV, VCR, etc.)
Red
White
CM4430-DE_DGBRLLK_ENG_4223.indd 15 2013-01-31 2:50:28
3 Operating
Connecting16
Connecting
2
USB Connection
Connect the USB port of USB Memory (or MP3
player, etc.) to the USB port on the front of the unit.
Removing the USB Device from the unit.
1. Choose a different function/mode or
press
I
(Stop) twice in a row.
2. Remove the USB device from the unit.
,
Note
CM4430-DE_DGBRLLK_ENG_4223.indd 16 2013-01-31 2:50:28
3 Operating
Operating 17
Operating
3
Basic Operations
CD/USB Operations
1. Insert the disc by pressing
B
on the remote
control or
R
on the unit.
Connect the USB device to the USB port.
2. Select the CD or USB function by pressing
FUNCTION on the remote control or FUNC. on
the unit.
3. Select a track/file you want to play by pressing
C
/
V
on the remote control or
Y/U
on the unit.
To Do this
Stop Press
Z
ENTER or
I
.
Playback Press
d
/
M
or
T
ST./MO..
Pause
During playback, Press
d
/
M
or
T
ST./MO..
Skipping to
the next/
previous
track/le
During playback, press
C
/
V
or
Y/U
to go to the
next track/le or to return to the
beginning of the current track/le.
Playing less than 2 seconds, press
C
or
Y
to go to the previous
track/le.
Playing after 3 seconds, press
C
or
Y
to go to the beginning of
the track/le.
Selecting
a track/le
directly
Press 0 to 9 numerical buttons
to go to the desired le or track
directly.
Searching
for a section
within
a track/le
Press and hold
C
/
V
or
Y/
U
during playback and release it
at the point you want to listen to.
Playing
repeatedly or
randomly
Press REPEAT(MENU) repeatedly.
The display will be changed in the
following order.
RPT1 -> RPT *DIR (only MP3/WMA)
-> RPT ALL -> RANDOM -> OFF.
*DIR : Directory
Other Operations
Programmed Playback
The program function enables you to store your
favorite les from any disc or USB device.
A program can contain 20 tracks/les.
1. Insert a CD or connect your USB and wait for it
to be ordered.
2. Press PROGRAM/MEMORY on the remote
control in stop status.
3. Press
C
/
V
on the remote control to select
a track/file.
4. Press PROGRAM/MEMORY again to save and
select a next track/file.
5. Repeat steps 3-4 to select a next track/file.
6. Press
d
/
M
to play the programmed music
tracks/files.
7. To clear your selection, press
Z
ENTER twice.
The programs are also cleared when the disc
or USB device is removed, the unit is powered
o or the function is switched to others.
,
Note
Displaying file information
While playing an MP3 le containing le
information, you can display the information by
pressing INFO.
Searching for a folder
1. Press PRESET·FOLDER
W
/
S
on the remote
control repeatedly until a desired folder appears
in the display window.
2. Press
d
/
M
to play it. The first file of the folder
will be played.
CM4430-DE_DGBRLLK_ENG_4223.indd 17 2013-01-31 2:50:28
Operating18
Operating
3
Turn off the sound temporarily
Press MUTE
@
on the remote control to mute
your sound.
You can mute your sound, for example, to answer
the telephone, the “MUTE” will appear and blink in
the display window.
To cancel it, press MUTE
@
again or change the
volume level.
Deleting an MP3/WMA file
You can delete a le, folder or format by pressing
DELETE. (USB only)
1. Press DELETE repeatedly while selecting the
MP3/WMA file. This function is supported
only in stop status. The display changes in the
following order.
- DEL FILE : Deletes file.
- DEL DIR : Deletes folder.
- FORMAT : Formats USB.
2. To delete file/folder or format, press
d/M
on the remote control or press
T
ST./MO. on
the unit.
3. If you want to exit the current mode,
press
Z
ENTER on the remote control or
press
I
on the unit.
y
Do not extract the USB device during
operation.(play, delete, etc.)
y
Regular back up is recommended to
prevent data loss.
y
The delete function may not be supported
according to the USB status.
>
Caution
DEMO
In power o state, press DEMO on the unit once.
The unit will power on and display the each of
functions in the display window. To cancel the
DEMO function, press DEMO once more.
You can enjoy other functions during the
DEMO. Then the DEMO will pause temporarily.
- Without input key in 10 sec, the DEMO
will play back automatically.
,
Note
AUTO DJ playback
Auto DJ blends the end of one song into the
beginning of another for seamless playback. It
equalizes volume across tracks for uninterrupted
playback.
Press AUTO DJ on the remote control or unit
repeatedly, the display changes as followings.
RANDOM (AUTO DJ RANDOM) -> RPT (AUTO DJ
SEQUENTIAL) -> (AUTO DJ OFF)
Mode
Display
Window
Description
OFF
-
(AUTO DJ OFF)
-
RANDOM
RANDOM
(AUTO DJ
RANDOM)
The music is
played randomly
on this mode.
REPEAT
RPT
(AUTO DJ
SEQUENTIAL)
The music is
played repeatedly
on this mode.
y
Searching for a section within a track/le
or playing repeatedly or randomly is not
supported on the AUTO DJ mode.
y
During AUTO DJ mode, it is not available to
search le by pressing PRESETFOLDER
W
/
S
on the remote control.
y
If you move to other functions or stop the
music using
I
on the unit (or
Z
ENTER on
the remote control) on AUTO DJ mode,
AUTO DJ function will be disable.
y
AUTO DJ function is not supported in the
music le whose length is less than 60
seconds.
y
During recording, AUTO DJ function is not
available.
y
If you change a disc while the AUTO DJ
function is activated, the function is
deactivated.
,
Note
CM4430-DE_DGBRLLK_ENG_4223.indd 18 2013-01-31 2:50:29
Operating 19
Operating
3
Listening to the sound from
your external device
The unit can be used to play the sound from many
types of external device. (Refer to the page 15)
1. Connect the external device to the AUX IN(L/R)
connector of the unit.
2. Turn the power on by pressing
1
/
!
(Power).
3. Select the AUX function by pressing FUNC. on
the unit.
4. Turn the external device and start playing it
Auto Power Down
This unit will be o itself to save electronic
consumption in the case main unit is not
connected to external device and is not used for 25
minutes. So does this unit after 6 hours since Main
unit has been connected to other device using
analog input.
Radio Operations
Be sure that FM aerial is connected.
(Refer to the page 15)
Listening to the radio
1. Press FUNCTION on the remote control or
FUNC. on the unit until FM appears in the
display window.
The last received station is tuned in.
2. Auto tuning : Press TUNING -/+ on the remote
control or
Y/U
on the unit for about 2
seconds until the frequency indication starts
changing, then release. scanning stops when
the unit tunes in a station.
Manual tuning: Press TUNING -/+ on the
remote control or
Y/U
on the unit
repeatedly.
3. Adjust the volume by pressing VOL +/- on the
remote control or by rotating volume knob on
the unit repeatedly.
CM4430-DE_DGBRLLK_ENG_4223.indd 19 2013-01-31 2:50:29
Operating20
Operating
3
Presetting the Radio Stations
You can preset 50 stations for FM.
Before tuning, make sure to turn down the volume.
1. Press FUNCTION on the remote control or
FUNC. on the unit until FM appears in the
display window.
2. Select the desired frequency by pressing
TUNING-/+ on the remote control or
Y/U
on the unit.
3. Press PROGRAM/MEMORY. A preset number
will blink in the display window.
4. Press PRESET·FOLDER
W
/
S
to select the
preset number you want.
5. Press PROGRAM/MEMORY. The station is
stored.
6. Repeat steps 2 to 5 to store other stations.
7. To listen to a preset station, press
PRESET·FOLDER
W
/
S
or 0 to 9 numerical
buttons.
Deleting all the saved stations
1. Press and hold PROGRAM/MEMORY for two
seconds. “ERASEALL” will blink in the unit display.
2. Press PROGRAM/MEMORY to erase all saved
radio stations.
Improving poor FM reception
Press
d
/
M
on the remote control or
T
ST./MO.
on the unit. This will change the tuner from stereo
to mono. Then the reception will be better than
before.
Seeing information about a
Radio station
The FM tuner is supplied with the RDS (Radio Data
System) facility. This shows information about
the radio station being listened to. Press RDS
repeatedly to cycle through the various data
types:
PS (Programme Service Name)
The name of the channel will appear in
the display.
PTY (Programme Type Recognition)
The programme type (e.g. Jazz or News)
will appear in the display.
RT (Radio Text)
A text message contains special
information from the broadcast station.
This text may scroll across the display.
CT (Time controlled by the channel)
This shows the time and date as
broadcast by the station.
You can search the radio stations by programme
type by pressing RDS. The display will show the last
PTY in use. Press PTY one or more times to select
your preferred programme type. Press and hold
TUNING -/+ The tuner will search automatically.
When a station is found, the search will stop.
CM4430-DE_DGBRLLK_ENG_4223.indd 20 2013-01-31 2:50:29
Operating 21
Operating
3
Sound adjustment
Setting the surround mode
This system has a number of pre-set surround
sound elds. You can select a desired sound mode
by using SOUND EFFECT on the remote control or
LG EQ on the unit.
The displayed items for the Equalizer may be
dierent depending on sound sources and eects.
On Display Description
NATURAL
You can enjoy comfortable and
natural sound.
AUTO EQ
Realizes the sound equalizer that
is the most similar to the genre
of which is included in the MP3
ID3 tag of song les.
POP
CLASSIC
JAZZ
ROCK
This program lends an
enthusiastic atmosphere to the
sound, giving you the feeling
you are at an actual rock pop,
jazz or classic concert.
MP3 -- OPT
This function is optimized
for compressible MP3 le. It
improves the treble sound.
BASS
Reinforces the treble, bass and
surround sound eect.
LOUDNESS
Improves the bass and treble
sound.
BYPASS
You can enjoy the sound
without equalizer eect.
y
On some speakers, sound may not be heard
or heard in low sound depending on the
sound mode.
y
Maybe you need to reset the surround
mode, after switching the input, sometimes
even after the sound track changed.
y
By pressing BASS BLAST on the unit you
can directly select the BYPASS or BASS
BLAST sound.
,
Note
Setting the Clock
1. Turn the unit on.
2. Press CLOCK.
3. Choose time mode by pressing
Y/U
.
- AM 12:00 (for an AM and PM display)
or 0:00 (for a 24 hour display)
4. Press SET/RDS to confirm your selection.
5. Select the hours by pressing
Y/U
.
6. Press SET/RDS.
7. Select the minutes by pressing
Y/U
.
8. Press SET/RDS.
9. If you want to reset the clock, press and hlod
CLOCK. Then repeat steps 3-8.
Setting the alarm
You can use the unit as an alarm clock.
You have to set the clock before setting the alarm.
1. Turn the unit on.
2. Press TIMER.
3. Each of functions will blink. Press SET/RDS to
select a sound source you want.
4. “ON TIME” will be displayed. This is your desired
time to the unit turns on. Press
Y/U
to
change the hours and minutes and press
SET/RDS to save.
5. The “OFF TIME” will be displayed. This is your
desired time to the unit turns off. Press
Y/U
to change the hours and minutes and press SET/
RDS to save.
6. Press
Y/U
to change the volume and
press SET/RDS to save. The clock icon "
(
“
shows that the alarm is set.
7. Press TIMER. You can check the setting status.
8. If you want to reset the alarm, press and hlod
TIMER. Then repeat steps 3-6.
CM4430-DE_DGBRLLK_ENG_4223.indd 21 2013-01-31 2:50:29
Operating22
Operating
3
Sleep Timer Setting
Press SLEEP on the remote control repeatedly to
select delay time between 10 and 180 minutes.
After delay time, the unit will turn o. (You can see
the following order, 180 ->150 -> 120 -> 90 -> 80
-> 70 -> 60 -> 50 -> 40 -> 30 -> 20 -> 10). To cancel
the sleep function, press SLEEP repeatedly until the
display window get bright.
• Press SLEEP. The remaining time appears in
the display window.
• Sleep function will work after dimmer
function.
,
Note
Dimmer
Press SLEEP once. The display window will
be darkened by half. To cancel it, press SLEEP
repeatedly until the display window get bright.
• After setting a clock function, you can set
alarm function.
• If you set the clock and alarm, you can check
the time and alarm icon “
(
“ by pressing
CLOCK although the unit is turned o.
• During playback, press TIMER two times
when the alarm icon “
(
“ is displayed. You
can check the setting state.
• If you activate the alarm, the alarm icon “
(
“
will appear in the display window.
• If you deactivate the alarm, the alarm icon
“
(
“ will disappear in the display window.
• Alarm function only works when the unit is
turned o.
• If the time you set is up, the unit will be
turned on automatically.
• Alarm function is not supported even if
you choose USB function as an alarm clock
when iPod/iPhone is connected to USB
port.
,
Note
Advanced Operations
Playing the iPod/iPhone
You can enjoy the sound with your iPod/iPhone.
For details about iPod/iPhone, refer to the iPod/
iPhone User Guide.
1. Connect iPod/iPhone to the USB port on the
front of the unit by using the iPod/iPhone cable.
If you turn this unit on, your iPod/iPhone will be
automatically turned on and start recharging.
2. Press FUNCTION on the remote control or
FUNC. on the unit to select USB function. You
can operate your iPod/iPhone through an iPod/
iPhone’s display by using the remote control
and controlling your iPod/iPhone.
CM4430-DE_DGBRLLK_ENG_4223.indd 22 2013-01-31 2:50:29
Operating 23
Operating
3
To
Do this
ON UNIT ON REMOTE
Pause or
restart
T
ST./MO.
d
/
M
Skip
Y
/
U C
/
V
Search
Press and hold
Y
/
U
Press and hold
C
/
V
Move to the
Previous
menu
-
REPEAT
(MENU)
Move to the
desired item
-
PRESET·
FOLDER
W
/
S
Choose an
item
I
Z
ENTER
Compatible iPod/iPhone
The unit supports the models as follows.
y
iPod touch
y
iPod classic
y
iPod nano
y
iPhone 5
y
iPhone 4S
y
iPhone 4
y
iPhone 3GS
y
iPhone 3G
Depending on your iPod/iPhone’s software version,
you may not control your iPod/iPhone from the
unit.
Depending on your iPod/iPhone device, you may
not control your iPod/iPhone from the unit.
y
If this unit displays an error message “NO
USB” follow check procedure below.
- Your iPod/iPhone is not connected firmly.
- This unit recognizes your iPod/iPhone as
an unknown device.
- Your iPod/iPhone is exceptionally low in
power.
/
The battery needs to be charged.
/
If you charge the battery while iPod/
iPhone is extremely low in power,
it may take longer to be charged.
y
Depending on your iPod/iPhone’s software
version, it may not be possible to control
your iPod/iPhone from this unit. We
recommend installing the latest software
version.
y
If you use an application, make a call, or
send and receive SMS text message, etc. on
iPod touch or iPhone, disconnect it from
this unit and then use it.
y
If you have a problem with your iPod/
iPhone, please visit www.apple.com/
support.
y
You may need additional operation for iPod
touch or iPhone, for example “unlock” by
draging the slider.
,
Note
CM4430-DE_DGBRLLK_ENG_4223.indd 23 2013-01-31 2:50:29
Operating24
Operating
3
Recording to USB
You can record various sound sources to USB.
1. Connect the USB device to the unit.
2. Select a function by pressing FUNCTION on the
remote control or FUNC. on the unit.
One track/file recording - You can record to USB
after playing a track/file you want.
All tracks/files recording - You can record to USB
after stop.
Program list recording - After showing the
programmed list, you can record it to USB.
(Refer to the page 17)
3. Start the recording by pressing USB REC on the
remote control or USB REC. on the unit.
4. To stop recording, press
Z
ENTER on the
remote control or
I
on the unit.
Pausing recording
During recording, press USB REC on the remote
control or USB REC. on the unit to pause
recording. Press it again to restart recording.
(Only Radio/AUX)
To select recording bit rate
and speed
1. Press USB REC on the remote control or
USB REC. on the unit for longer than 3
seconds.
2. Use
C
/
V
on the remote control or
Y/
U
on the unit to select the bit rate.
3. Press USB REC on the remote control or
USB REC. on the unit again to select the
recording speed.
4. Press
C
/
V
on the remote control or
Y/U
on the unit to select a desired
recording speed : (AUDIO CD only)
X1 SPEED
- You can listen to music while recording it.
X2 SPEED
- You can just record the music file.
5. Press USB REC on the remote control or
USB REC. on the unit to finish the setting.
CM4430-DE_DGBRLLK_ENG_4223.indd 24 2013-01-31 2:50:29
Operating 25
Operating
3
y
You can check the recording percentage
rate for the USB record on the display
window during the recording.
(MP3/WMA CD Only)
y
During recording MP3/WMA, there is no
sound.
y
When you stop recording during playback,
the le that has been recorded at that time
will be stored. (Except MP3/WMA les)
y
Do not remove the USB device or turn
o the unit during USB recording. If not,
an incomplete le may be made and not
deleted on PC.
y
If USB recording does not work, the
message like “NO USB”, “ERROR”, “FULL” or “NO
REC” is displayed on the display window.
y
Multi card reader device or External HDD
can not be used for USB recording.
y
A le is recorded by about 512 Mbyte when
you record for a long term.
y
You may not store more than 999 les.
y
It’ll be stored as follows.
AUDIO CD MP3/WMA
The other
source*
* : TUNER, AUX and the like.
,
Note
The making of unauthorized copies of copy-
protected material, including computer
programs, les, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal oense.
This equipment should not be used for such
purposes.
Be responsible
Respect copyrights
CM4430-DE_DGBRLLK_ENG_4223.indd 25 2013-01-31 2:50:30
4 Troubleshooting
5 Appendix
Troubleshooting26
Troubleshooting
4
Troubleshooting
Problem Cause & Correction
No Power.
y
The power cord is not plugged in. Plug in the power cord.
y
Check whether electricity failed.Check the condition by operating other
electronic devices.
No sound.
y
Check whether you select a right function. Press FUNC. and check the
selected function.
y
Speaker cables are not connected correctly. Connect speaker cables correctly.
The unit does not start
playback.
y
An unplayable disc is inserted. Insert a playable disc.
y
No disc is inserted. Insert a disc.
y
The disc is dirty. Clean the disc. (Refer to the 27 page)
y
The disc is inserted upside down. Place the disc with the label or printed side
facing upwards.
Radio stations cannot be
tuned in properly.
y
The antenna is positioned or connected poorly. Connect the antenna securely.
y
The signal strength of the radio station is too weak. Tune to the station
manually.
y
No stations have been preset or preset stations have been cleared (when
being tuned by scanning preset channels). Preset some radio stations, see
page 19 for details.
The remote control does
not work properly.
y
The remote control is too far from the unit. Operate the remote control within
about 23 ft (7 m).
y
There is an obstacle in the path of the remote control and the unit. Remove
the obstacle.
y
The batteries in the remote control are exhausted. Replace the batteries with
new ones.
iPod/iPhone does not
work.
y
Check whether the player is connected to the unit correctly. Connect it to the
unit correctly.
CM4430-DE_DGBRLLK_ENG_4223.indd 26 2013-01-31 2:50:30
5 Appendix
Appendix 27
Appendix
5
Specifications
General
Model CM4630 CM4530 CM4430 CM4330
Power requirements Refer to the main label.
Power consumption Refer to the main label.
Dimensions (W x H x D) 202 x 307 x 315 mm
Net Weight (Approx.) 3.15 kg
Operating temperature 5 °C to 35 °C (41 °F to 95 °F)
Operating humidity 5 % to 90 %
Bus Power Supply DC 5 V
0
1 A
Inputs
AUX IN 2.0 Vrms (1 kHz, 0 dB), 75 Ω, RCA jack (L, R) x 1
Tuner
FM Tuning Range 87.5 to 108.0 MHz or 87.50 to 108.00 MHz
Amplier
Model CM4630 CM4530 CM4430 CM4330
Stereo mode
250 W + 250 W
(3 Ω at 1 KHz,
THD 10 %)
160 W + 160 W
(4 Ω at 1 KHz,
THD 10 %)
150 W + 150 W
(4 Ω at 1 KHz,
THD 10 %)
90 W + 90 W
(4 Ω at 1 KHz,
THD 10 %)
Surround
mode
Front
250 W + 250 W
(3 Ω at 1 KHz,
THD 10 %)
160 W + 160 W
(4 Ω at 1 KHz,
THD 10 %)
150 W + 150 W
(4 Ω at 1 KHz,
THD 10 %)
90 W + 90 W
(4 Ω at 1 KHz,
THD 10 %)
Subwoofer -
180 W
(3 Ω at 1 KHz,
THD 10 %)
- -
CD
Frequency Response 100 to 20 000 Hz
Signal-to-noise ratio 75 dB
Dynamic range 80 dB
CM4430-DE_DGBRLLK_ENG_4223.indd 27 2013-01-31 2:50:30
Appendix28
Appendix
5
Speaker specifications
Front speaker
Model CMS4630F
CMS4530F
(CM4530)
CMS4530F
(CM4430)
CMS4330F
Type 2 Way 2 Speaker
Impedance 3 Ω 4 Ω
Rated Input Power 250 W 160 W 150 W 90 W
Max. Input power 500 W 320 W 300 W 180 W
Net Dimensions (W x H x D)
245 x 452 x 275
mm
232 x 352 x 262
mm
232 x 352 x 262
mm
204 x 301 x 235
mm
Net Weight 5.55 kg 3.32 Kg 3.32 Kg 2.48 Kg
Subwoofer speaker
Model CMS4530W
Type 1 Way 1 Speaker
Impedance 3 Ω
Rated Input Power 180 W
Max. Input power 360 W
Net Dimensions (W x H x D) 250 x 352 x 327 mm
Net Weight 5.58 kg
y
Design and specications are subject to change without notice.
CM4430-DE_DGBRLLK_ENG_4223.indd 28 2013-01-31 2:50:30
Appendix 29
Appendix
5
Maintenance
Handling the Unit
When shipping the unit
Please save the original shipping carton and
packing materials. If you need to ship the unit, for
maximum protection, re-pack the unit as it was
originally packed at the factory.
Keeping the exterior surfaces clean
Do not use volatile liquids such as insecticide spray
near the unit.
Wiping with strong pressure may damage the
surface.
Do not leave rubber or plastic products in contact
with the unit for a long period of time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
unit.
Maintaining the Unit
The unit is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty
or worn, the picture quality could be diminished.
For details, please contact your nearest authorized
service center.
Notes on Discs
Handling Discs
Never stick paper or tape on the disc.
Storing Discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.
Cleaning Discs
Do not use strong solvents such as alcohol,
benzine, thinner, commercially available cleaners,
or anti-static spray intended for old vinyl records.
Trademarks and
Licenses
“Made for iPod,” and “Made for iPhone” mean
that an electronic accessory has been designed
to connect specically to iPod or iPhone,
respectively, and has been certied by the
developer to meet Apple performance standards.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards. Please note that the use
of this accessory with iPod or iPhone may aect
wireless performance.
CM4430-DE_DGBRLLK_ENG_4223.indd 29 2013-01-31 2:50:30
6 Warranty
Warranty
Warranty30
Warranty
6
Technology with the human touch
GUARANTEE
• LG Electronics U.K. Ltd. will provide the following services in order toexpedite this Guarantee.
1. All faulty components which fail due to defective manufacture will be replaced free of charge for a
period of 12 months from the original date of purchase.
2. The dealer (or his service agent) who sold the product will be
reimbursed for any labour provided in the repair of this LG equipment, for a period of 12 months from
the original date of purchase. These claims must be made in accordance with the published scale of
service charges and relevant claims procedure.
PLEASE NOTE:
A. The dealer may restrict the guarantee to the original purchaser.
B. The dealer is not obliged to carry out service under guarantee if unauthorized modifications are made
to the apparatus, or if non standard components are used or if the serial number of the apparatus is
removed, defaced, misused, or altered.
C. Any claims made under guarantee must be directed to the dealer from whom the equipment was
originally purchased. The dealer may, before carrying out service under guarantee, require a receipted
account as evidence of the date of purchase.
D. We respectfully point out that your dealer is not obligated to replace batteries if they become
exhausted or worn in use.
E. Aerial alignment and consumer control adjustments are not covered by this guarantee.
This guarantee does not affect your statutory rights.
• REQUIREMENTS TO MAINTAIN WARRANTY COVERAGE:
RETAIN YOUR RECEIPT TO PROVE DATE OF PURCHASE. A COPY OF YOUR RECEIPT MUST BE
SURRENDERED AT THE TIME GUARANTEE SERVICE IS PROVED.
• Product Registration Card :
It is helpful to complete at least your name, address, phone, model & serial numbers and return it. This
will enable LG to assist you in the future should you lose your receipt, your units be stolen, or should
modifications be necessary.
• To obtain information or assistance: Call 0870 873 5454 Monday-Friday 9.00am-4.30pm
MODEL NO.* SERIAL NO.* DATE OF PURCHASE.*
In all cases of diculty - consult your LG dealer from whom the product was purchased
LGEUK Website : www.lge.co.uk
( service website : www.lgelectronics.co.uk )
CM4430-DE_DGBRLLK_ENG_4223.indd 30 2013-01-31 2:50:30
CM4430-DE_DGBRLLK_ENG_4223.indd 31 2013-01-31 2:50:30
CM4430-DE_DGBRLLK_ENG_4223.indd 32 2013-01-31 2:50:31
