USE AND CARE GUIDE for Whirlpool WED4916FW

Table of Contents

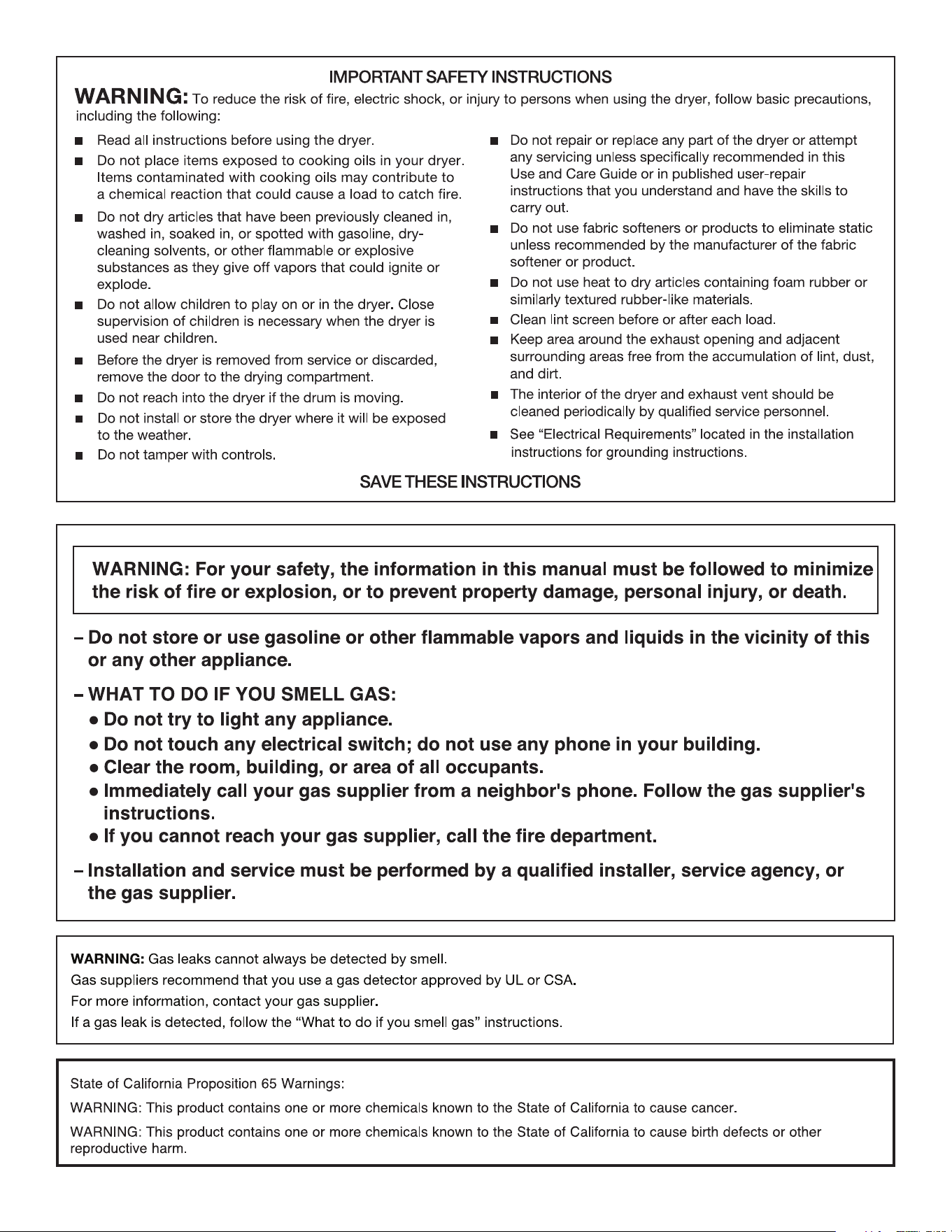

• DRYER SAFETY
• CHECK YOUR VENT SYSTEM
• FOR GOOD AIR FLOW
• USE ACCUDRY™/AUTOMATIC DRY CYCLES FOR
• BETTER FABRIC CARE AND ENERGY SAVINGS
• CONTROL PANEL & FEATURES
• CYCLE GUIDE
• USING YOUR DRYER
• DRYER CARE
• TROUBLESHOOTING
• WARRANTY
• ASSISTANCE OR SERVICE.

USING YOUR DRYER

WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this dryer.

Before using your dryer, wipe the dryer drum with a damp cloth to remove dust from storing and shipping.

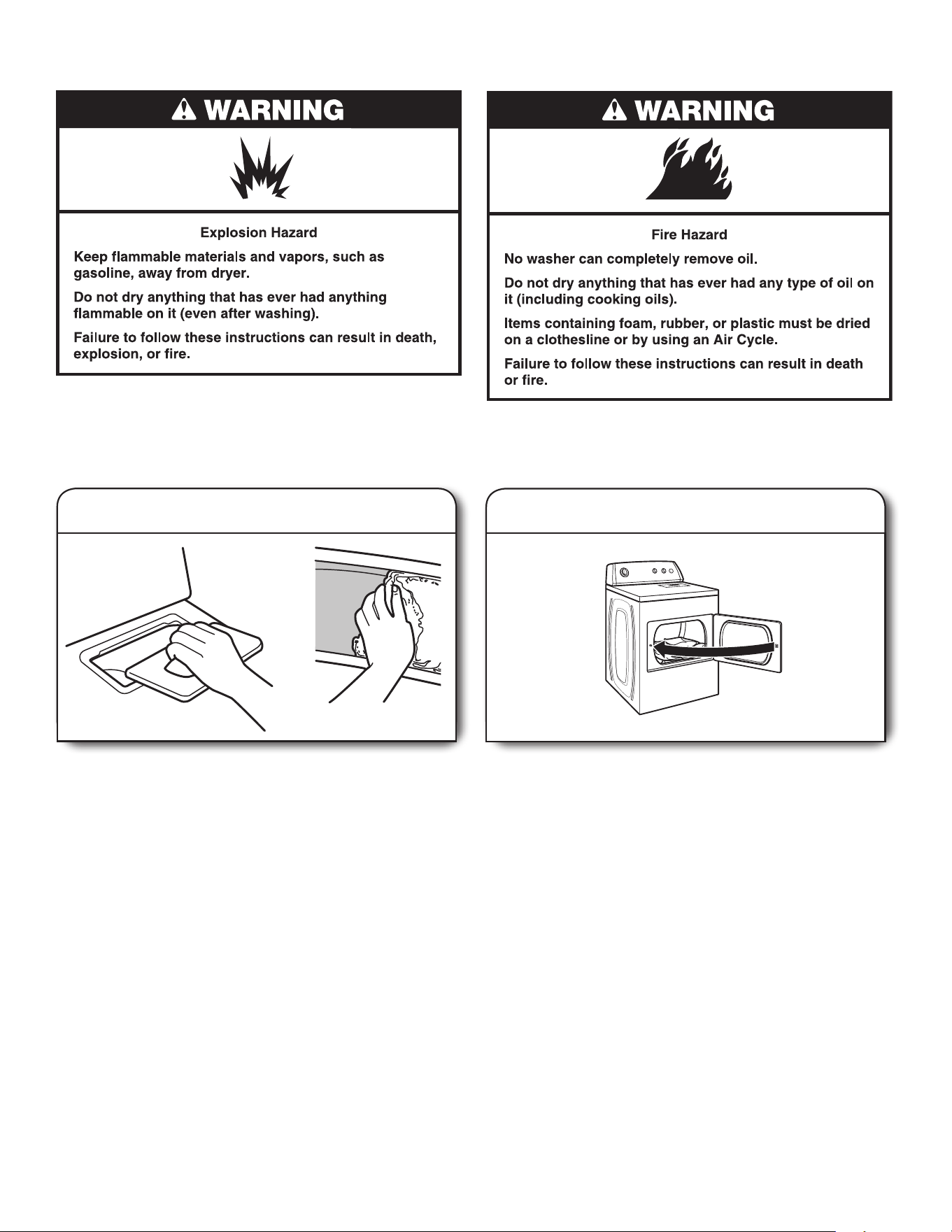

• 1. Clean the lint screen

Clean the lint screen before each load. Pull the lint screen out of its holder. Roll lint off the screen with your fingers. Do not rinse or wash screen to remove lint. Push the lint screen firmly back into place. For additional cleaning information, see “Dryer Care”.

• 2. Load the dryer

Place laundry in the dryer. Close the door.

NOTE: Your model may have a different door than the one shown. Some models have drop down doors. Do not tightly pack the dryer; clothes should be able to tumble freely

• 3. Select the desired cycle

Select the desired cycle for your load. See the Cycle Guide for more information about each cycle.

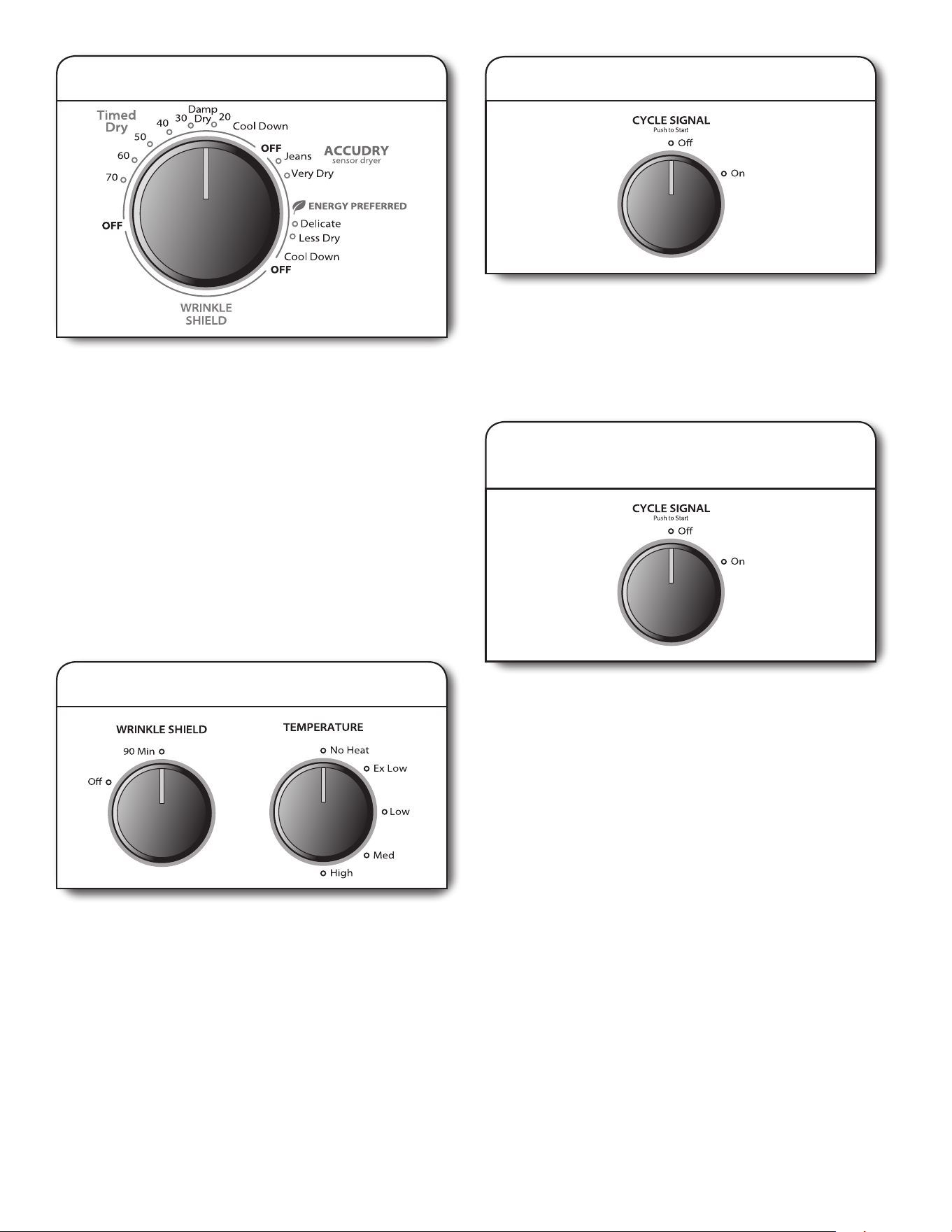

ACCUDRY™/AUTOMATIC DRY Cycles

You can select a different dryness level, depending on your load, by turning the knob to dryness level.

Selecting More or Very Dry, ENERGY PREFERRED, or Less Dry automatically adjusts the dryness level at which the dryer will shut off. Once a dry level is set, it cannot be changed without stopping the cycle.

ACCUDRY™/AUTOMATIC DRY cycles give the best drying in the shortest time. Drying time varies based on fabric type, load size, and dryness setting.

NOTE: More or Very Dry removes more load moisture.

ENERGY PREFERRED is used for a starting point for ACCUDRY™ cycles. Choose ENERGY PREFERRED for optimal energy savings. Less Dry removes less moisture and used for loads you may want to put on a hanger to complete drying.

• 4. Set cycle settings and options

Select cycle settings and options by turning the knob to the desired position.

NOTE: Not all options and settings are available with all cycles.

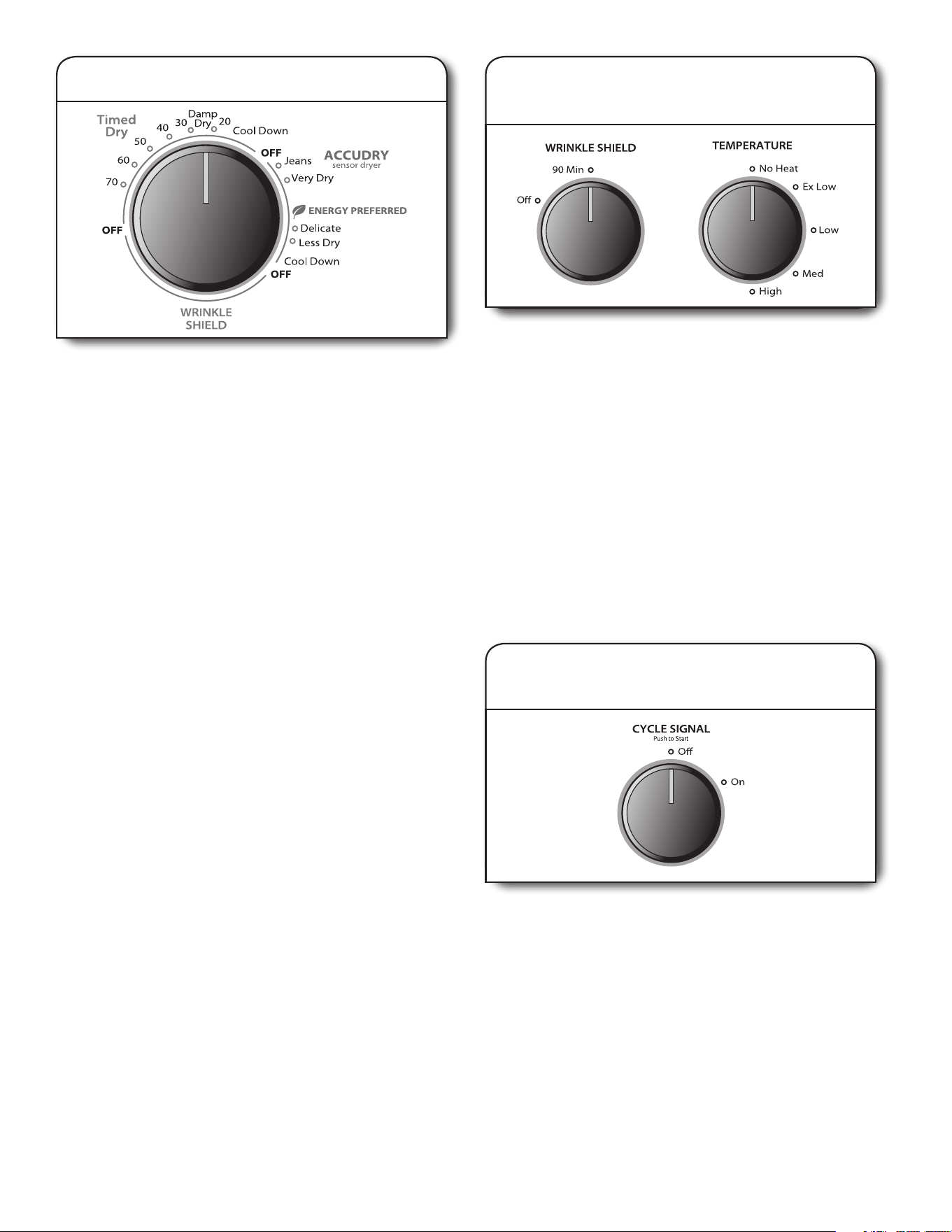

Temperature

Turn the TEMPERATURE knob to change the drying temperature setting. See “Setting the Drying Temperature”.

Wrinkle Shield™ feature (on some models)

• Get 90 minutes of heat-free, periodic tumbling at the end of a cycle. Turn the WRINKLE SHIELD™ knob to select on or off at any time before the cycle has ended.
• On some models with a WRINKLE SHIELD™ cycle will automatically get 40 minutes of heat-free, periodic tumbling at the end of a cycle.
