Table of contents

CONTROL PANEL AND FEATURES
CYCLE GUIDE
USING YOUR WASHER
WASHER MAINTENANCE
TROUBLESHOOTING

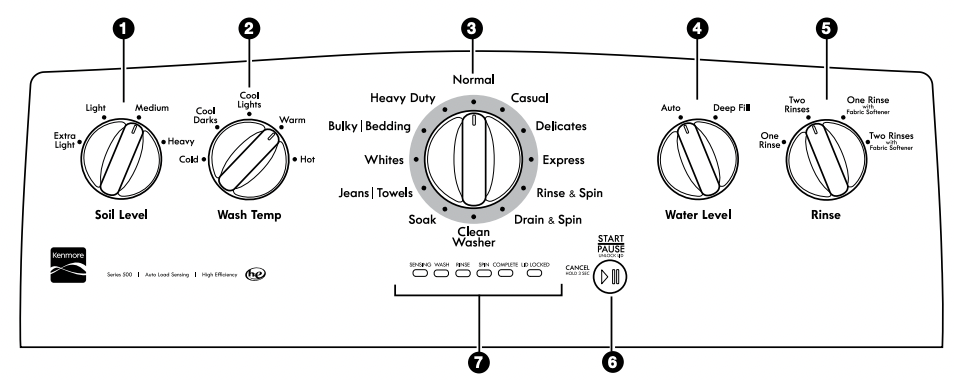

CONTROL PANEL AND FEATURES

Not all features and options are available on all models. Appearance may vary

1 SOIL LEVEL

Select the setting most suitable for your load. For heavily soiled and sturdy fabrics, select Heavy Soil Level for more wash time. For lightly soiled and delicate fabrics, select Light Soil Level for less wash time. A lighter soil-level setting will help reduce tangling and wrinkling.

2 WASH TEMP

Wash Temp senses and maintains uniform water temperatures by regulating incoming hot and cold water. Select a wash temperature based on the type of fabric and soils being washed. For best results and following the garment label instructions, use the warmest wash water safe for your fabric.

• On some models and cycles, warm and hot water may be cooler than your previous washer.

• Even in a cold and cool water wash, some warm water may be added to the washer to maintain a minimum temperature. All rinses are cold.

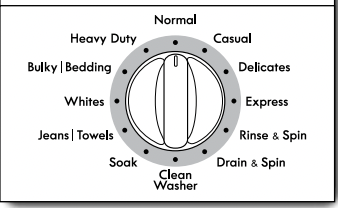

3 WASH CYCLE KNOB

Use the Wash Cycle knob to select cycles on your washer. See “Cycle Guide” for detailed descriptions of cycles.

4 WATER LEVEL

Set the Water Level knob to the Auto setting and the washer will automatically sense the appropriate water level for the load size and type. Set the Water Level knob to the Deep Fill setting and the washer will fill to the maximum water level.

NOTE: Expect longer cycles times due to extended fill times when using the Deep Fill option.

5 RINSE OPTIONS

The following options may be added to most cycles. See “Cycle Guide” for additional details.

ONE RINSE This option is used to limit a cycle to one rinse.

TWO RINSES This option can be used to automatically add a second rinse to most cycles.

ONE RINSE WITH FABRIC SOFTENER This option must be selected if using fabric softener during a cycle. It ensures that fabric softener is added at the correct time in the rinse for even distribution.

TWO RINSES WITH FABRIC SOFTENER This option turns on both the Fabric Softener and the Two Rinses option.

6 START/PAUSE/Unlock Lid BUTTON

Press to start the selected cycle; press again to pause the cycle and unlock the lid.

NOTE: If the washer is spinning, it may take several minutes to unlock the lid. Press and hold for 3 seconds to cancel a cycle.

7 CYCLE STATUS LIGHTS

The Cycle Status Lights show the progress of a cycle. At each stage of the process, you may notice sounds or pauses that are different from your previous washer.

SENSING

When the Start/Pause/Unlock Lid button is pressed, and the Water Level knob is set to Auto, the washer will fill and begin sensing to determine load size and balance. Once sensing is complete, the washer will fill to the appropriate level for the detected load size and then begin the wash phase of the cycle.

NOTE: Sensing and wash phases will be paused by opening the unlocked lid. Close the lid to resume the cycle. If the lid is left open for more than 10 minutes, the washer will cancel the cycle and pump out the water. The lid will lock after the wash phase to begin the initial spinout and remain locked for the remainder of the cycle.

WASH

The washer will fill to the correct water level based on the load size and the Water Level selection. Certain cycles may agitate during the fill process to boost cleaning. You will hear the agitator rotate followed by a pause lasting several seconds. When the wash cycle begins, you will hear the agitator increase speed. The motor sounds may change at different stages in the wash cycle while the washer performs different wash actions.

RINSE

Certain cycles use a spray rinse, which adds water to the tub while the basket spins. When a fabric softener option is selected, you will hear sounds similar to the wash cycle as the washer rinses and moves the load. You may hear the motor turning on briefly (short hum) to move the basket while filling.

SPIN

The washer spins the load at increasing speeds for proper water removal, based on the selected cycle and spin speed.

COMPLETE

Once the cycle is complete, this light will come on. Remove the load promptly for best results.

LID LOCKED

The Lid Locked feature allows for higher spin speeds. When the Lid Locked light is lit, the lid is locked and cannot be opened without pausing the cycle. When the light is off, the lid can be opened. To open the lid after it has been locked, press START/PAUSE/Unlock Lid. The lid will unlock once the washer movement has stopped. This may take several minutes if the load was spinning at high speed. Press START/PAUSE/Unlock Lid again to resume the cycle.

CYCLE GUIDE

For best fabric care, choose the cycle that best fits the load being washed. Recommended settings for best performance are shown in Bold. Not all cycles and options are available on all models.

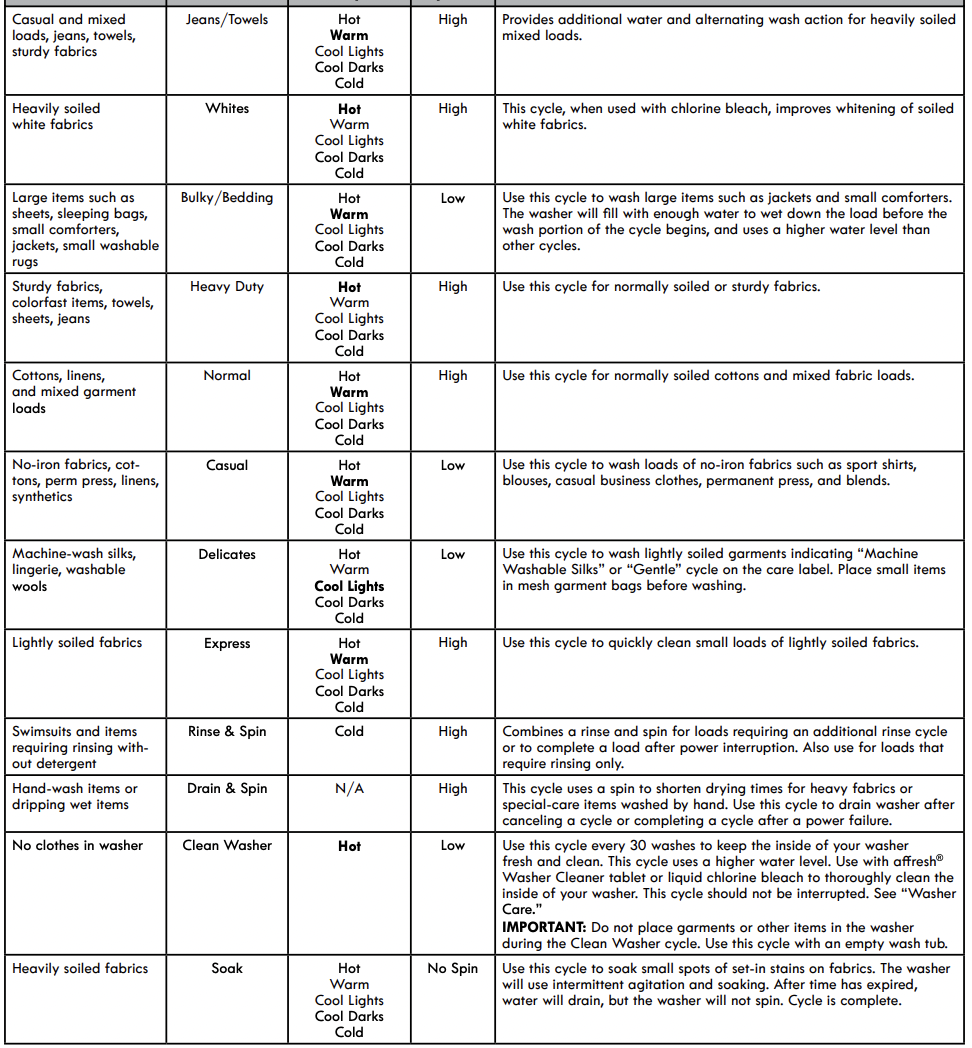

Items to wash: Cycle: Wash Temp:* Spin Speed: Cycle Details:

NOTE: If you are using fabric softener, be sure to turn the Rinse knob to either One Rinse with Fabric Softener or Two Rinses with Fabric Softener. *All rinses are cold.

USING YOUR WASHER

1. Sort and prepare your laundry

• Empty pockets. Loose change, buttons, or any small object can pass under the agitator and become trapped, causing unexpected sounds.

• Sort items by recommended cycle, water temperature, and colorfastness.

• Separate heavily soiled items from lightly soiled.

• Separate delicate items from sturdy fabrics.

• Do not dry garments if stains remain after washing, because heat can set stains into fabric.

• Treat stains promptly.

• Close zippers, fasten hooks, tie strings and sashes, and remove non-washable trim and ornaments.

• Mend rips and tears to avoid further damage to items during washing.

Helpful Tips:

• When washing waterproof or water-resistant items, load evenly.

• Use mesh garment bags to help avoid tangling when washing delicate or small items.

• Turn knits inside out to avoid pilling. Separate lint-takers from lint-givers. Synthetics, knits, and corduroy fabrics will pick up lint from towels, rugs, and chenille fabrics.

NOTE: Always read and follow fabric care label instructions to avoid damage to your garments.

2. Add laundry products

Add a measured of amount of HE detergent or single-dose laundry packet into the basket. If using Oxi-type boosters, color-safe bleach, or fabric softener crystals, add to the bottom of the washer basket before adding clothes.

IMPORTANT: Use only High Efficiency detergents. The package will be marked “HE” or “High Efficiency.” Using regular detergent will likely result in longer cycle times and reduced rinsing performance. It may also result in component failures and noticeable mold or mildew. HE detergents are made to produce the right amount of suds for the best performance. Follow the manufacturer’s instructions to determine the amount of detergent to use.

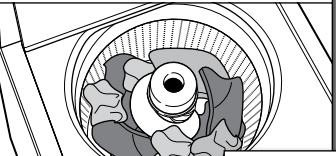

3. Load laundry into washer

Load garments in loose heaps evenly around basket wall. For best results, do not pack the load tightly. Do not wrap large items such as sheets around the agitator; load them in loose piles around the sides of the basket. Try mixing different sized items to reduce tangling.

IMPORTANT: Do not tightly pack or force items into washer. Items need to move freely for best cleaning and to reduce wrinkling and tangling.

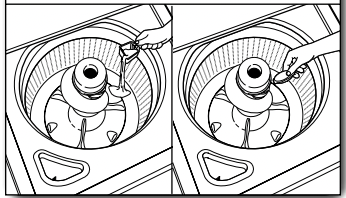

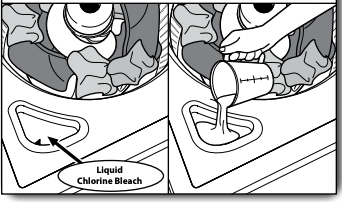

4. Add liquid chlorine bleach to dispenser

Do not overfill, dilute, or use more than 1 cup (250 mL). Do not use color-safe bleach or Oxi products in the same cycle with liquid chlorine bleach

5. Add fabric softener to dispenser

Pour a measured amount of liquid fabric softener into dispenser; always follow manufacturer’s directions for correct amount of fabric softener based on your load size. Dilute liquid fabric softener by filling the dispenser with warm water until liquid reaches the underside of the rim. See max fill line arrows.

IMPORTANT: The Rinse knob must be set to either One Rinse with Fabric Softener or Two Rinses with Fabric Softener when using fabric softener in the fabric softener dispenser. This ensures that fabric softener is added at the correct time in the rinse phase and is evenly distributed.

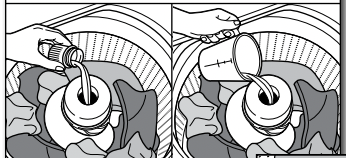

Adding Liquid Fabric Softener Manually to Wash Load

During the final rinse, wait until the washer has completed filling, then press the START/PAUSE/Unlock Lid button to pause the washer. Lift the lid and add the measured recommended amount of liquid fabric softener. Do not use more than the recommended amount. Close the lid and press the START/ PAUSE/Unlock Lid button again to start the washer.

6. Select cycle

Turn cycle knob to choose your wash cycle. For more information, see “Cycle Guide”.

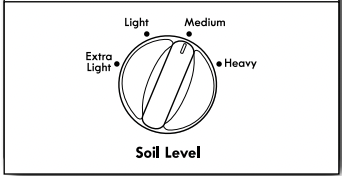

7. Select SOIL LEVEL

Once you select a cycle, select the soil level by turning the Soil Level knob to the desired setting.

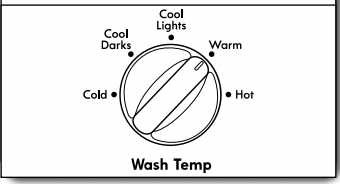

8. Select WASH TEMP

Select the Wash Temp by turning knob to desired temperature. All rinses are tap cold.

NOTE: Always read and follow fabric care label instructions to avoid damage to your garments.

Wash Temp

Hot Some cold water is added to save energy. This may be cooler than your hot water heater setting.

Suggested Fabrics

Whites and pastels
Durable garments
Heavy soils

Warm Some cold water may be added, so this will be cooler than what your previous washer provided.

Bright colors
Moderate to light soils

Cool Lights Warm water is added to assist in soil removal and to help dissolve detergents.

Cool is slightly warmer than cold.
Colors that bleed or fade Light soils

Cool Darks Warm water is added to assist in soil removal and to help dissolve detergents.

Cool is slightly warmer than cold.
Dark colors that bleed or fade Light soils

Cold Warm water may be added to assist in soil removal and to help dissolve detergents.

Dark colors that bleed or fade
Light soils

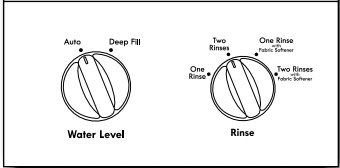

9. Select WATER LEVEL and RINSE options

Select the number of rinses by turning the Rinse knob to the desired setting.

IMPORTANT: The Rinse knob must be set to an option “with Fabric Softener” when using the fabric softener dispenser. This ensures that fabric softener is added at the correct time in the rinse for even distribution.

Set the Water Level knob to the Auto setting and the washer will automatically sense the appropriate water level for the load size and type.

Set the Water Level knob to the Deep Fill setting and the washer will fill to the maximum water level.

Note: The cycle will be longer due to extended fill times when using the Deep Fill setting.

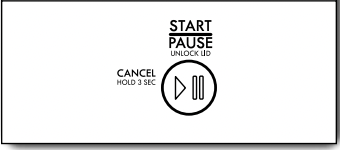

Press START/PAUSE/Unlock Lid to begin wash cycle

Press the START/PAUSE/Unlock Lid button to start the wash cycle. When the cycle has finished, the Complete status light will light. Promptly remove garments after cycle has completed to avoid odor, reduce wrinkling, and avoid rusting of metal hooks, zippers, and snaps.

Unlocking the lid to add garments

If you need to add 1 or 2 missed garments after the wash has started, simply open the lid and this will pause the cycle.

After adding the garments, simply close the lid and the cycle will resume.

If, instead, you press the START/PAUSE/Unlock Lid button to pause the cycle and then open the lid to add garments, you will need to press the START/PAUSE/Unlock Lid button after closing the lid to resume the cycle.

NOTE: Washer will not fill with the lid open.

IMPORTANT: If lid is left open for more than 10 minutes, the water will pump out automatically.

Manual soak

If you would like to manually soak your garments at any time during the wash portion of the cycle, press START/PAUSE/ Unlock Lid and leave the lid closed. Once your desired soak time has elapsed, press START/PAUSE/Unlock Lid again to continue the cycle. As long as the lid remains closed, your soak time can be longer than 10 minutes. However, if the lid is opened during the soak and remains open for more than minutes, the water will pump out automatically

WASHER MAINTENANCE

WATER INLET HOSES

Replace inlet hoses after 5 years of use to reduce the risk of hose failure. Periodically inspect and replace inlet hoses if bulges, kinks, cuts, wear, or leaks are found. When replacing your inlet hoses, mark the date of replacement on the label with a permanent marker.

NOTE: This washer does not include inlet hoses. See the “Installation Instructions” for more information.

WASHER CARE

Recommendations to Help Keep Your Washer Clean and Performing at its Best

Always use High Efficiency (HE) detergents and follow the detergent manufacturer’s instructions regarding the amount of detergent to use. Never use more than the recommended amount because that may increase the rate at which detergent and soil residue accumulate inside your washer, which in turn may result in undesirable odor.
Use warm and hot wash water settings sometimes (not exclusively cold water washes), because they do a better job of controlling the rate at which soils and detergent accumulate.
Always leave the washer lid open between uses to help dry out the washer and prevent the buildup of odor-causing residue.

Cleaning Your Top Loading Washer

Read these instructions completely before beginning the routine cleaning processes recommended below. This Washer Maintenance Procedure should be performed, at a minimum, once per month or every 30 wash cycles, whichever occurs sooner, to control the rate at which soils and detergent may otherwise accumulate in your washer.

Cleaning the Inside of the Washer

To keep your washer odor-free, follow the usage instructions provided above, and use this recommended monthly cleaning procedure:

Clean Washer Cycle

This washer has a special cycle that uses higher water volumes in combination with affresh® Washer Cleaner or liquid chlorinebleach to clean the inside of the washer.

Begin procedure

1. affresh® Washer Cleaner Cycle Procedure (Recommended for Best Performance):

a. Open the washer lid and remove any clothing or items.

b. Place an affresh® Washer Cleaner tablet in the bottom of the washer basket.

c. Do not place an affresh® Washer Cleaner tablet in the detergent dispenser.

d. Do not add any detergent or other chemical to the washer when following this procedure.

e. Close the washer lid.

f. Select the cycle recommended for cleaning the inside of the washer.

g. Press the START/PAUSE/Unlock Lid button to start the cycle.

NOTE: For best results, do not interrupt cycle. If cycle must be interrupted, press START/PAUSE/Unlock Lid once. After the cycle has stopped, run a RINSE/SPIN cycle to rinse cleaner from washer.

2. Chlorine Bleach Procedure (Alternative):

a. Open the washer lid and remove any clothing or items.

b. Add 1 cup (236 mL) of liquid chlorine bleach to the bleach compartment.

NOTE: Use of more liquid chlorine bleach than is recommended above could cause washer damage over time.

c. Close the washer lid.

d. Do not add any detergent or other chemical to the washer when following this procedure.

e. Select the cycle recommended for cleaning the inside of the washer.

f. Press the START/PAUSE/Unlock Lid button to start the cycle.

NOTE: For best results, do not interrupt cycle. If cycle must be interrupted, press START/PAUSE/Unlock Lid once. After the cycle has stopped, run a RINSE/SPIN cycle to rinse cleaner from washer.

Clean Washer Cycle Operation:

1. This cycle will fill to a water level higher than in normal wash cycles to provide rinsing at a level above the water for a normal wash cycle.

2. During this cycle, there will be some agitation and spinning to increase the removal of soils. After this cycle is complete, leave the lid open to allow for better ventilation and drying of the washer interior.

Cleaning the Dispensers

After a period of using your washer, you may find some residue buildup in the washer’s dispensers. To remove residue from the dispensers, wipe them with a damp cloth and towel dry. Do not attempt to remove the dispensers or trim for cleaning. The dispensers and trim are not removable. If your model has a dispenser drawer, however, remove the drawer and clean it before or after you run the Clean Washer cycle. Use an all-purpose surface cleaner, if needed.

Cleaning the Outside of the Washer

Use a soft, damp cloth or sponge to wipe away any spills. Use only mild soaps or cleaners when cleaning external washer surfaces.

IMPORTANT: To avoid damaging the washer’s finish, do not use abrasive products.

NON-USE AND VACATION CARE

Operate your washer only when you are home. If moving, or not using your washer for a period of time, follow these steps:

1. Unplug or disconnect power to washer.

2. Turn off water supply to washer, to avoid flooding due to water pressure surge.

WINTER STORAGE CARE

IMPORTANT: To avoid damage, install and store washer where it will not freeze. Because some water may stay in hoses, freezing can damage washer. If storing or moving during freezing weather, winterize your washer. To winterize washer:

1. Shut off both water faucets; disconnect and drain water inlet hoses.

2. Put 1 qt. (1 L) of R.V.-type antifreeze in basket and run washer on Rinse/Spin cycle for about 30 seconds to mix antifreeze and remaining water.

3. Unplug washer or disconnect power.

TRANSPORTING YOUR WASHER

1. Shut off both water faucets. Disconnect and drain water inlet hoses.

2. If washer will be moved during freezing weather, follow Winter Storage Care directions before moving.

3. Disconnect drain hose from drain system and drain any remaining water into a pan or bucket. Disconnect drain hose from back of washer.

4. Unplug power cord.

5. Place inlet hoses and drain hose inside washer basket.

6. Drape power cord over edge and into washer basket.

7. Place packing tray from original shipping materials back inside washer. If you do not have packing tray, place heavy blankets or towels into basket opening. Close lid and place tape over lid and down front of washer. Keep lid taped until washer is placed in new location. Transport washer in upright position.

REINSTALLING/USING WASHER AGAIN

To reinstall washer after non-use, vacation, winter storage, or moving:

1. Refer to “Installation Instructions” to locate, level, and connect washer.

2. Before using again, run washer through the following recommended procedure:

To use washer again:

1. Flush water pipes and hoses. Reconnect water inlet hoses. Turn on both water faucets.

2. Plug in washer or reconnect power.

3. Run washer through Bulky/Bedding cycle to clean washer and remove antifreeze, if used. Use half the manufacturer’s recommended amount for a medium-size load.

TROUBLESHOOTING

First try the solutions suggested here for assistance and to possibly avoid a service call.

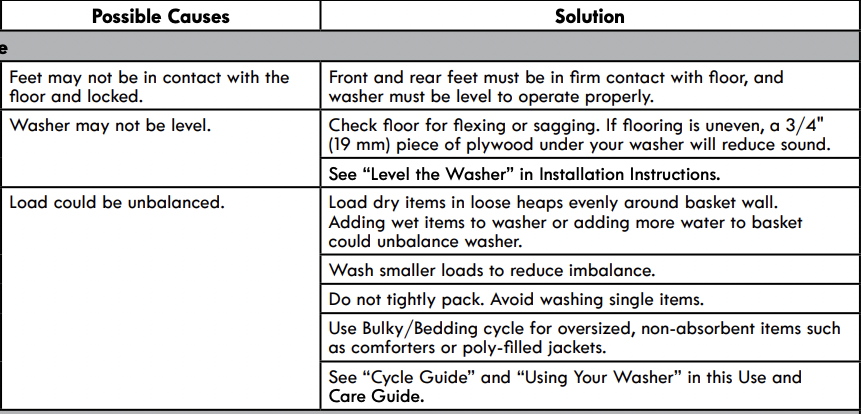

Vibration or Off-Balance

Check the following for proper installation or see “Using Your Washer” section.

Noises

Clicking or metallic noises

Gurgling or humming

Humming

Whirring

Water Leaks

Check the following for proper installation:

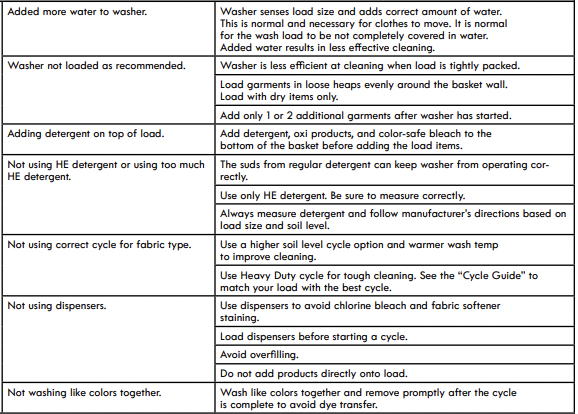

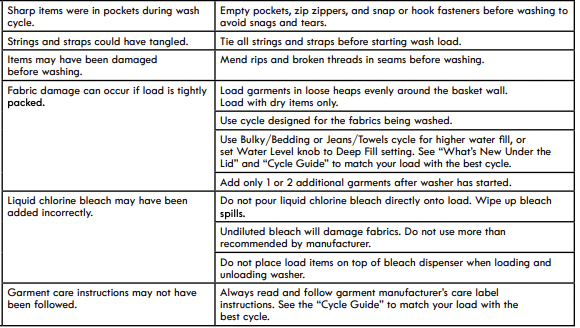

Washer Not Performing As Expected

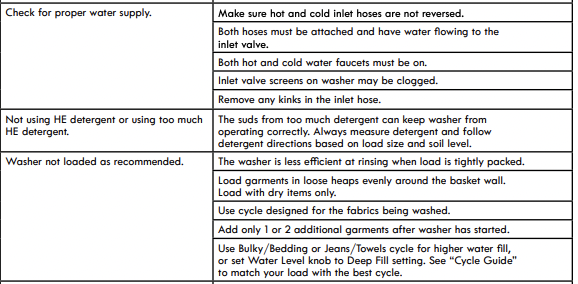

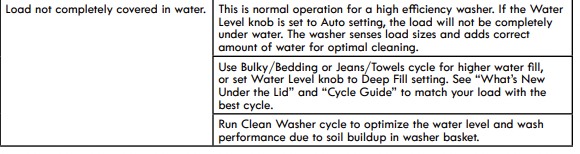

Not enough water in washer

Washer won’t run or fill, washer stops working, or wash light remains on (indicating that the washer was unable to fill appropriately)

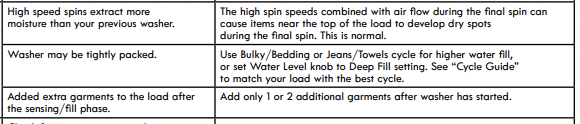

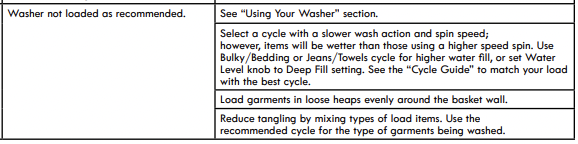

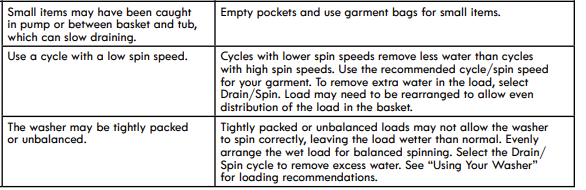

Washer not draining/ spinning, loads are still wet, or spin light remains on (indicating that the washer was unable to pump out water within 10 minutes)
