Summary of Contents for Bosch SMS63M28AU:
8 Intended use
2
Intended use
2
( Safety instructions
2
Safety instructions
2
Before you switch ON the appliance
2
Delivery
3
1. Check the packaging and dishwasher immediately for damage caused in transit. Do not switch on a damaged appliance, but contact your supplier.
3
2. Please dispose of the packaging material in an environmentally friendly manner.
3
3. Do not let children play with packaging and its parts. There is a risk of suffocation from collapsible boxes and film.
3
Installation
3
In daily use
4
Childproof lock (door lock)Door lock *
4
Childproof lock (button lock)Button lock
4
1. Start the required programme.
4
2. Hold down the button + for approx. 4 sec. until this ’– is indicated on the digital display.
4
Damage
5
Disposal
5
1. Make redundant appliances unusable to prevent subsequent accidents.
5
2. Dispose of the appliance in a n environmentally friendly manner.
5
m Warning
5
Risk of injury!
5
m Warning
5
Risk of explosion!
5
m Warning
6
Risk of scalding!
6
m Warning
6
Risks to children!
6
7 Protection of the environment
7
Protection of the environment
7
Packaging
7
Old appliances
7
* Getting to know your appliance
7
Getting to know your appliance
7
Control panel
7
Appliance interior
7
Overview of menu
8
, Rinse aid
8
Rinse aid
8
1. Open the dispenser 1j by pressing and lifting the plate on the cover.
8
2. Carefully pour rinse aid up to the max. mark in the filler opening.
8
3. Close cover until it clicks shut.
8
4. To prevent excessive foam formation during the next rinse cycle, remove any rinse aid which has run over with a cloth.
8
Setting amount of rinse aid
8
1. Close the door.
8
2. Switch on ON/OFF switch (.
8
3. Hold down programme button # and press START button ` until š:‹.... is indicated on the digital display.
8
4. Release both buttons.
8
5. Press programme button # until the factory set value §:‹† is indicated on the digital display )".
8
To change the setting:
9
1. Press programme button 3.
9
2. Press START button `.
9
Switching off rinse aid refill indicator
9
- Utensils
9
Utensils
9
Not suitable
9
Glass and utensil damage
9

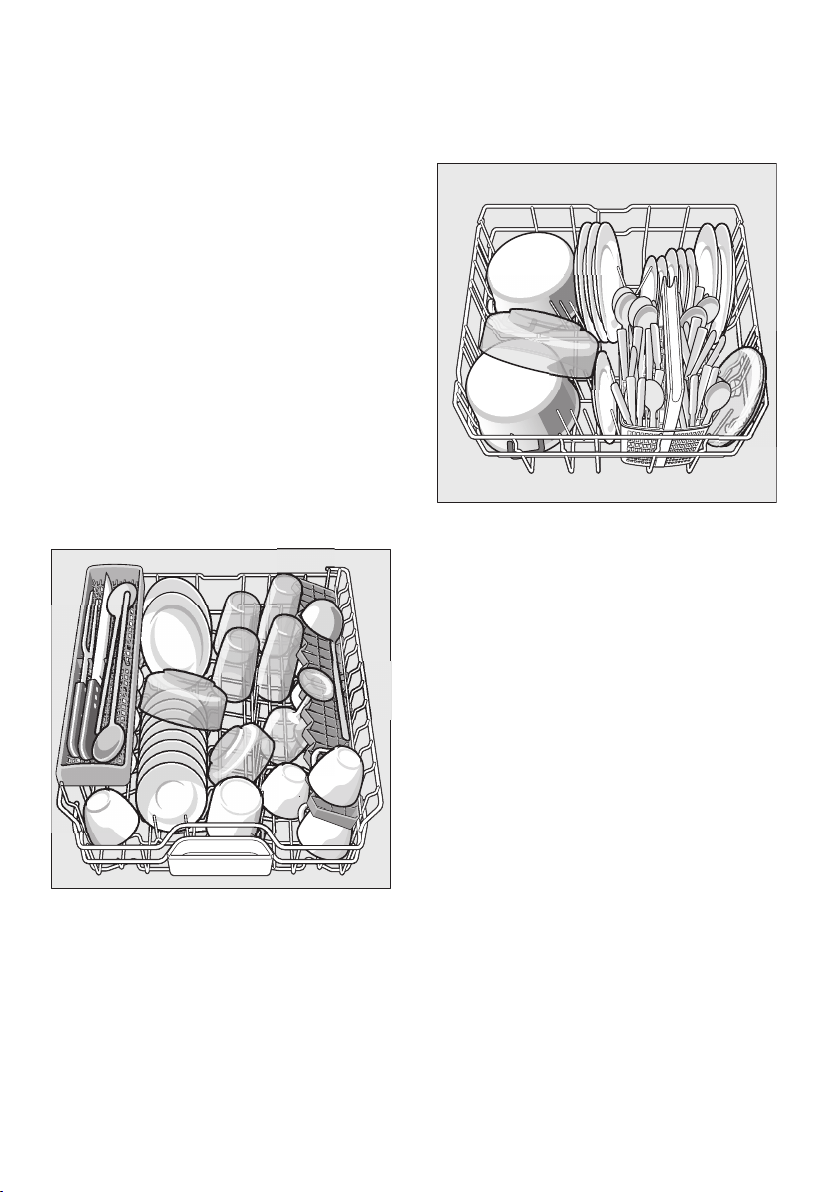

Loading the dishwasher
9
1. Remove large food remnants. It is not necessary to prerinse utensils under running water.
9
2. Place the utensils so that
9
Unloading the dishwasher
10
Note
10
Cups and glasses
10
Pans
10
Tip
10
Tip
10
Cutlery basket
11
EtagereEtagere *
11
Folding spikesFolding spikes *
11
Small accessories holder *Small accessories holder
11
Knife shelf *Knife shelf
12
Adjusting the height of the basketAdjusting the height of the basket *
12
Appliance height 81.5 cm
12
22 cm
12
30 cm
12
24.5 cm
12
27.5 cm
12
27 cm
12
25 cm
12
Appliance height 86.5 cm
12
24 cm
12
33 cm
12
26.5 cm
12
30.5 cm
12
29 cm
12
28 cm
12
Top basket with side levers
12
1. Pull out the top basket 1* out.
12
2. To lower the basket, press in the left and then the right lever on the outside of the basket. In doing so, hold the sides of the basket along the upper edge to prevent it from suddenly dropping.
12
3. To raise the basket, hold the basket on the sides of the upper edge and lift it up.
12
4. Before re-inserting the basket again, ensure that it is at the same height on both sides. Otherwise, the appliance door cannot be closed and the upper spray arm will not be connected to the water circuit.
12
Top basket with upper and lower roller pairs
12
1. Pull out the top basket 1* out.
12
2. Remove the upper basket and re- attach it to the upper (stage 3) or lower (stage 1) rollers.
12
. Detergent
13
Detergent
13
Note
13
m Warning
13
Adding detergent
13
1. If the detergent dispenser 9" is still closed, press the lock 9* to open the detergent dispenser.
13
2. Close the cover on the detergent dispenser by sliding it up until the lock engages without difficulty.
13
Tip
14
m Warning
14
m Warning
14
Notes
14
/ Overview of programmes
15
Overview of programmes
15
The max. possible number of programmes is illustrated in this overview. The corresponding programmes for your appliance can be found on the fascia. The programme data has been measured in the laboratory according to AS/NSZ 2007.
15
Type of utensils and soiling
15
Programm
15
Programme data
15
1.) Duration: hs/ mins
15
2.) Energy consumption in kWh
15
3.) Water consumption in litres
15
4.) With Aquasensor
15
Possible additional options
15
Programme sequence
15
Programme selection
16
Information for test institutes
16
0 Additional options
17
Additional options
17
Express Wash/ Speed Perfect (VarioSpeed)Ÿ Express Wash/ Speed Perfect/ (VarioSpeed) *
17
Half load§ Half load *
17
µ HygienePlus *HygienePlus
17
Ï Intensive zone *Intensive zone
17
¿ Extra drying *Extra drying
17
1 Operating the appliance
18
Operating the appliance
18
Aqua sensorAqua sensor *
18
Switching on the appliance
18
1. Turn on the tap fully.
18
2. Switch on ON/OFF switch (.
18
3. Press the START button `.
18
Programme sequence indicatorProgramme sequence indicator h
18
Remaining running time display
18
Timer programmingTimer programming *
18
1. Close the door.
18
2. Switch on ON/OFF switch (.
18
3. Press button P + until the digital display )" jumps to œ:‹‚.
18
4. Press P + or – button until the displayed time corresponds with your requirements.
18
5. Press START button `, timer programming is activated.
18
6. To delete timer programming, press the P + or – button until )" œ:‹‹ is indicated on the digital display.
18
End of programme
19
Automatic switch off after end of programme or interior light*Automatic switch off / interior light
19
1. Close the door.
19
2. Switch on ON/OFF switch (.
19
3. Hold down programme button # and press START button ` until š:‹... is indicated on the digital display.
19
4. Release both buttons.
19
5. Keep pressing programme button # until the value ˜:‹... is indicated on the numerical display )".
19
To change the setting:
19
1. Press programme button 3.
19
2. Press START button `.
19
Switching off the appliance
19
1. Switch off ON/OFF switch (.
19
2. Turn off the tap (not applicable if Aqua-Stop fitted).
19
3. Open the door.
19
4. Remove the utensils when they have cooled down.
19
Note
19
Interrupting the programme
19
1. Switch off ON/OFF switch (.
19
2. To continue the programme, switch on the ON/OFF switch ( again.
19
Terminating the programmeTerminating the programme (Reset)
20
1. Press START button ` for approx. 3 sec.
20
2. The programme sequence lasts approx. 1 min. On the digital display )" is indicated ‹:‹‹.
20
3. Switch off ON/OFF switch (.
20
Changing the programme
20
Intensive drying
20
1. Close the door.
20
2. Switch on ON/OFF switch (.
20
3. Hold down programme button # and press START button ` until the digital display )" š:‹... is indicated.
20
4. Release both buttons.
20
To change the setting:
20
1. Press the button 3 to switch the Intensive drying on š:‹‚ or off š:‹‹.
20
2. Press START button `.
20
2 Cleaning and maintenance
20
Cleaning and maintenance
20
Overall condition of the machine
20
m Warning
21
Health hazard
21
Rinse aid
21
Filters
21
1. After each washing cycle check the filters for residue.
21
2. Unscrew filter cylinder as illustrated and take out filter system.
21
3. Remove any residue and clean filters under running water.
21
4. Re-install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system.
21
Spray arms
21
1. Check outlet nozzles on the spray arms for blockages.
21
2. Unscrew the upper spray arm 1B.
21
3. Remove the lower spray arm 1J upwards.
21
4. Clean spray arms under running water.
21
5. Re-engage or screw on spray arms.
21
3 Fault, what to do?
22
Fault, what to do?
22
Note
22
m Warning
22
Waste water pump
22
m Warning
22
Risk of cuts!
22
1. First always disconnect the appliance from the power supply.
22
2. Take out top basket 1* and bottom basket 1b.
22
3. Remove the filters 1R.
22
4. Scoop out water, use a sponge if required.
22

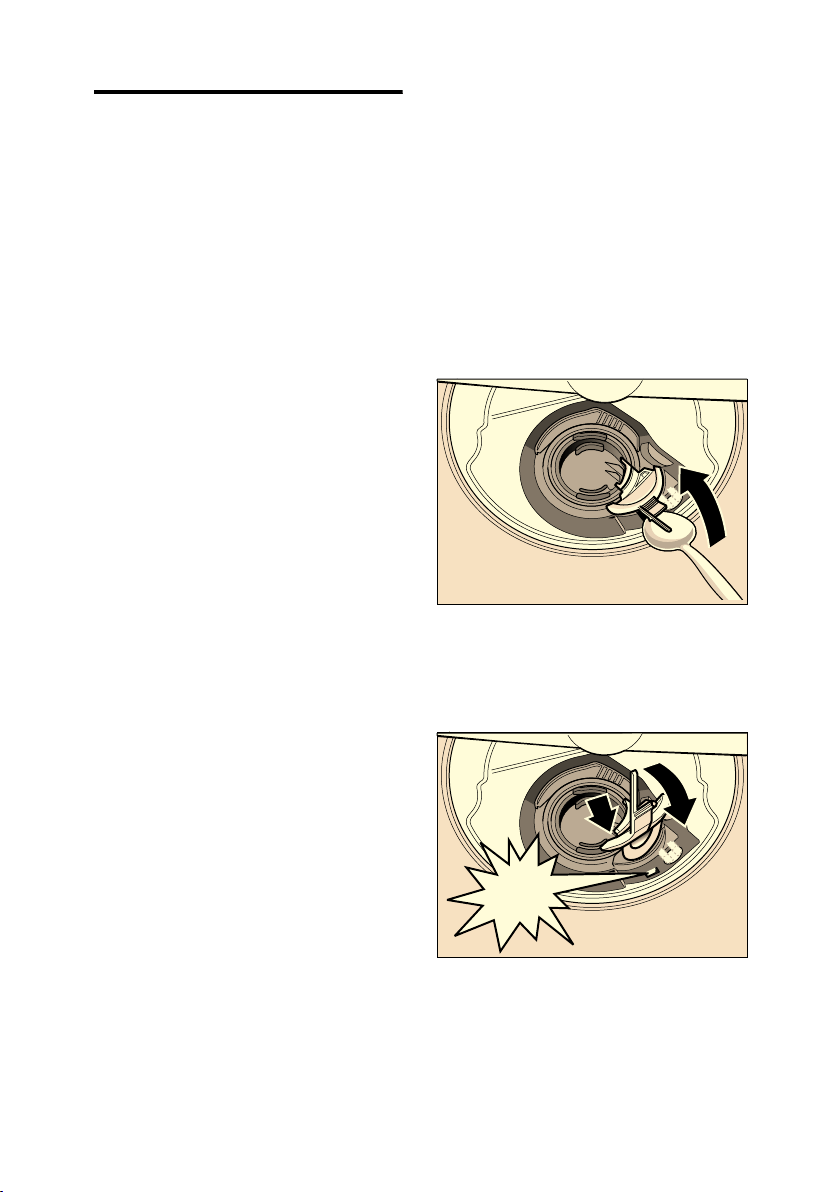

5. Prise out the white pump cover (as illustrated) using a spoon. Grip the cover on the crosspiece and lift diagonally inwards. Remove cover completely.
22
6. Check impeller wheel and remove any foreign objects.
22
7. Place cover in the original position and press down until it engages (click).
22
8. Install filters.
22
9. Re-insert baskets.
22
Fault table
23
Fault
23
Cause
23
Remedial action
23
4 Customer service
30
Customer service
30
5 Installation and connection
30
Installation and connection
30
1. Checking appliance on delivery
30
2. Installing the appliance
30
3. Waste water connection
30
4. Drinking water connection
30
5. Electrical connection
30
Product package
30
Safety instructions
30
Delivery
31
Technical specifications
31
Installation
31
Waste-water connection
31
1. The required work sequence can be found in the installation instructions. If required, fit a siphon with an drainage connection.
31
2. Connect the waste-water hose to the drainage connection of the siphon with the enclosed parts.
31
Drinking water connection
32
1. Fasten the drinking water connection to the tap according to the installation instructions using the enclosed parts.
32
2. When replacing the appliance, always use a new water supply hose.
32
Electrical connection
32
Removing the appliance
33
1. Disconnect the appliance from the power supply.
33
2. Turn off the water supply.
33
3. Undo the waste water and drinking water connection.
33
4. Loosen fastening screws for the furniture parts.
33
5. If fitted, remove the base panel.
33
6. Pull out the appliance, carefully pulling the hose behind.
33
Transportation
33
Drain the appliance according to the following steps:
33
1. Turn on the tap.
33
2. Close the door.
33
3. Switch on ON/OFF switch (.
33
4. Select programme with the highest temperature.
33
5. Press START button `.
33
6. After approx. 4 minutes press the START button ` until ‹:‹‚ is indicated on the digital display.
33
7. Switch off ON/OFF switch (.
33
8. Turn off the tap, disconnect supply hose and drain water.
33
Protection against frostProtection against frost (Emptying the appliance)
34
File type: PDF
File name: sms63m28au.pdf
File size: 2.09 MB
File Language: English
Pages: 38
Author: Bosch
Published: 2020-03-19 00:00:00
Updated: 2023-05-21
Verified by
Kailyn Rutherford
on 2023-05-21
Download File
Specifications
Brand:
Bosch
Model: SMS63M28AU
Category:
Dishwashers
View in the file:
Full Specifications
See other models:
KIF82PF30/01
KIR31AD40/01
CTL636EB1/02
SMU68M05AUSS
BGS5SL66AU
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch SMS63M38AU
Bosch SMS63M18AU
Bosch SMS68M38AU
Bosch SMS50M28AU
Bosch SMS68M22AU
Bosch SMS68M32AU
Bosch SMS63M42GB
Bosch SMS63M32GB
Bosch SMS63M22GB
Bosch SMV63M10AU
Bosch SMP63M05AU
Bosch SMS69T18AU
Bosch SMS63L18AU
Bosch SMS69P28EU/B3
Bosch SMS67MW00G
Table of Contents
×
8 Intended use
2
Intended use
2
( Safety instructions
2
Safety instructions
2
Before you switch ON the appliance
2
Delivery
3
1. Check the packaging and dishwasher immediately for damage caused in transit. Do not switch on a damaged appliance, but contact your supplier.
3
2. Please dispose of the packaging material in an environmentally friendly manner.
3
3. Do not let children play with packaging and its parts. There is a risk of suffocation from collapsible boxes and film.
3
Installation
3
In daily use
4
Childproof lock (door lock)Door lock *
4
Childproof lock (button lock)Button lock
4
1. Start the required programme.
4
2. Hold down the button + for approx. 4 sec. until this ’– is indicated on the digital display.
4
Damage
5
Disposal
5
1. Make redundant appliances unusable to prevent subsequent accidents.
5
2. Dispose of the appliance in a n environmentally friendly manner.
5
m Warning
5
Risk of injury!
5
m Warning
5
Risk of explosion!
5
m Warning
6
Risk of scalding!
6
m Warning
6
Risks to children!
6
7 Protection of the environment
7
Protection of the environment
7
Packaging
7
Old appliances
7
* Getting to know your appliance
7
Getting to know your appliance
7
Control panel
7
Appliance interior
7
Overview of menu
8
, Rinse aid
8
Rinse aid
8
1. Open the dispenser 1j by pressing and lifting the plate on the cover.
8
2. Carefully pour rinse aid up to the max. mark in the filler opening.
8
3. Close cover until it clicks shut.
8
4. To prevent excessive foam formation during the next rinse cycle, remove any rinse aid which has run over with a cloth.
8
Setting amount of rinse aid
8
1. Close the door.
8
2. Switch on ON/OFF switch (.
8
3. Hold down programme button # and press START button ` until š:‹.... is indicated on the digital display.
8
4. Release both buttons.
8
5. Press programme button # until the factory set value §:‹† is indicated on the digital display )".
8
To change the setting:
9
1. Press programme button 3.
9
2. Press START button `.
9
Switching off rinse aid refill indicator
9
- Utensils
9
Utensils
9
Not suitable
9
Glass and utensil damage
9
Loading the dishwasher
9
1. Remove large food remnants. It is not necessary to prerinse utensils under running water.
9
2. Place the utensils so that
9
Unloading the dishwasher
10
Note
10
Cups and glasses
10
Pans
10
Tip
10
Tip
10
Cutlery basket
11
EtagereEtagere *
11
Folding spikesFolding spikes *
11
Small accessories holder *Small accessories holder
11
Knife shelf *Knife shelf
12
Adjusting the height of the basketAdjusting the height of the basket *
12
Appliance height 81.5 cm
12
22 cm
12
30 cm
12
24.5 cm
12
27.5 cm
12
27 cm
12
25 cm
12
Appliance height 86.5 cm
12
24 cm
12
33 cm
12
26.5 cm
12
30.5 cm
12
29 cm
12
28 cm
12
Top basket with side levers
12
1. Pull out the top basket 1* out.
12
2. To lower the basket, press in the left and then the right lever on the outside of the basket. In doing so, hold the sides of the basket along the upper edge to prevent it from suddenly dropping.
12
3. To raise the basket, hold the basket on the sides of the upper edge and lift it up.
12
4. Before re-inserting the basket again, ensure that it is at the same height on both sides. Otherwise, the appliance door cannot be closed and the upper spray arm will not be connected to the water circuit.
12
Top basket with upper and lower roller pairs
12
1. Pull out the top basket 1* out.
12
2. Remove the upper basket and re- attach it to the upper (stage 3) or lower (stage 1) rollers.
12
. Detergent
13
Detergent
13
Note
13
m Warning
13
Adding detergent
13
1. If the detergent dispenser 9" is still closed, press the lock 9* to open the detergent dispenser.
13
2. Close the cover on the detergent dispenser by sliding it up until the lock engages without difficulty.
13
Tip
14
m Warning
14
m Warning
14
Notes
14
/ Overview of programmes
15
Overview of programmes
15
The max. possible number of programmes is illustrated in this overview. The corresponding programmes for your appliance can be found on the fascia. The programme data has been measured in the laboratory according to AS/NSZ 2007.
15
Type of utensils and soiling
15
Programm
15
Programme data
15
1.) Duration: hs/ mins
15
2.) Energy consumption in kWh
15
3.) Water consumption in litres
15
4.) With Aquasensor
15
Possible additional options
15
Programme sequence
15
Programme selection
16
Information for test institutes
16
0 Additional options
17
Additional options
17
Express Wash/ Speed Perfect (VarioSpeed)Ÿ Express Wash/ Speed Perfect/ (VarioSpeed) *
17
Half load§ Half load *
17
µ HygienePlus *HygienePlus
17
Ï Intensive zone *Intensive zone
17
¿ Extra drying *Extra drying
17
1 Operating the appliance
18
Operating the appliance
18
Aqua sensorAqua sensor *
18
Switching on the appliance
18
1. Turn on the tap fully.
18
2. Switch on ON/OFF switch (.
18
3. Press the START button `.
18
Programme sequence indicatorProgramme sequence indicator h
18
Remaining running time display
18
Timer programmingTimer programming *
18
1. Close the door.
18
2. Switch on ON/OFF switch (.
18
3. Press button P + until the digital display )" jumps to œ:‹‚.
18
4. Press P + or – button until the displayed time corresponds with your requirements.
18
5. Press START button `, timer programming is activated.
18
6. To delete timer programming, press the P + or – button until )" œ:‹‹ is indicated on the digital display.
18
End of programme
19
Automatic switch off after end of programme or interior light*Automatic switch off / interior light
19
1. Close the door.
19
2. Switch on ON/OFF switch (.
19
3. Hold down programme button # and press START button ` until š:‹... is indicated on the digital display.
19
4. Release both buttons.
19
5. Keep pressing programme button # until the value ˜:‹... is indicated on the numerical display )".
19
To change the setting:
19
1. Press programme button 3.
19
2. Press START button `.
19
Switching off the appliance
19
1. Switch off ON/OFF switch (.
19
2. Turn off the tap (not applicable if Aqua-Stop fitted).
19
3. Open the door.
19
4. Remove the utensils when they have cooled down.
19
Note
19
Interrupting the programme
19
1. Switch off ON/OFF switch (.
19
2. To continue the programme, switch on the ON/OFF switch ( again.
19
Terminating the programmeTerminating the programme (Reset)
20
1. Press START button ` for approx. 3 sec.
20
2. The programme sequence lasts approx. 1 min. On the digital display )" is indicated ‹:‹‹.
20
3. Switch off ON/OFF switch (.
20
Changing the programme
20
Intensive drying
20
1. Close the door.
20
2. Switch on ON/OFF switch (.
20
3. Hold down programme button # and press START button ` until the digital display )" š:‹... is indicated.
20
4. Release both buttons.
20
To change the setting:
20
1. Press the button 3 to switch the Intensive drying on š:‹‚ or off š:‹‹.
20
2. Press START button `.
20
2 Cleaning and maintenance
20
Cleaning and maintenance
20
Overall condition of the machine
20
m Warning
21
Health hazard
21
Rinse aid
21
Filters
21
1. After each washing cycle check the filters for residue.
21
2. Unscrew filter cylinder as illustrated and take out filter system.
21
3. Remove any residue and clean filters under running water.
21
4. Re-install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system.
21
Spray arms
21
1. Check outlet nozzles on the spray arms for blockages.
21
2. Unscrew the upper spray arm 1B.
21
3. Remove the lower spray arm 1J upwards.
21
4. Clean spray arms under running water.
21
5. Re-engage or screw on spray arms.
21
3 Fault, what to do?
22
Fault, what to do?
22
Note
22
m Warning
22
Waste water pump
22
m Warning
22
Risk of cuts!
22
1. First always disconnect the appliance from the power supply.
22
2. Take out top basket 1* and bottom basket 1b.
22
3. Remove the filters 1R.
22
4. Scoop out water, use a sponge if required.
22
5. Prise out the white pump cover (as illustrated) using a spoon. Grip the cover on the crosspiece and lift diagonally inwards. Remove cover completely.
22
6. Check impeller wheel and remove any foreign objects.
22
7. Place cover in the original position and press down until it engages (click).
22
8. Install filters.
22
9. Re-insert baskets.
22
Fault table
23
Fault
23
Cause
23
Remedial action
23
4 Customer service
30
Customer service
30
5 Installation and connection
30
Installation and connection
30
1. Checking appliance on delivery
30
2. Installing the appliance
30
3. Waste water connection
30
4. Drinking water connection
30
5. Electrical connection
30
Product package
30
Safety instructions
30
Delivery
31
Technical specifications
31
Installation
31
Waste-water connection
31
1. The required work sequence can be found in the installation instructions. If required, fit a siphon with an drainage connection.
31
2. Connect the waste-water hose to the drainage connection of the siphon with the enclosed parts.
31
Drinking water connection
32
1. Fasten the drinking water connection to the tap according to the installation instructions using the enclosed parts.
32
2. When replacing the appliance, always use a new water supply hose.
32
Electrical connection
32
Removing the appliance
33
1. Disconnect the appliance from the power supply.
33
2. Turn off the water supply.
33
3. Undo the waste water and drinking water connection.
33
4. Loosen fastening screws for the furniture parts.
33
5. If fitted, remove the base panel.
33
6. Pull out the appliance, carefully pulling the hose behind.
33
Transportation
33
Drain the appliance according to the following steps:
33
1. Turn on the tap.
33
2. Close the door.
33
3. Switch on ON/OFF switch (.
33
4. Select programme with the highest temperature.
33
5. Press START button `.
33
6. After approx. 4 minutes press the START button ` until ‹:‹‚ is indicated on the digital display.
33
7. Switch off ON/OFF switch (.
33
8. Turn off the tap, disconnect supply hose and drain water.
33
Protection against frostProtection against frost (Emptying the appliance)
34
Search:
×
Search
