– 1 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

SERVICE MANUAL

No. S6738CDC470HE

CONTENTS

Page

SAFETY PRECAUTION FOR SERVICE MANUAL .......................................................................................................... 2

IMPORTANT SERVICE NOTES (CD-C470E ONLY) ....................................................................................................... 2

SPECIFICATIONS ............................................................................................................................................................ 3

NAMES OF PARTS .......................................................................................................................................................... 4

OPERATION MANUAL ..................................................................................................................................................... 6

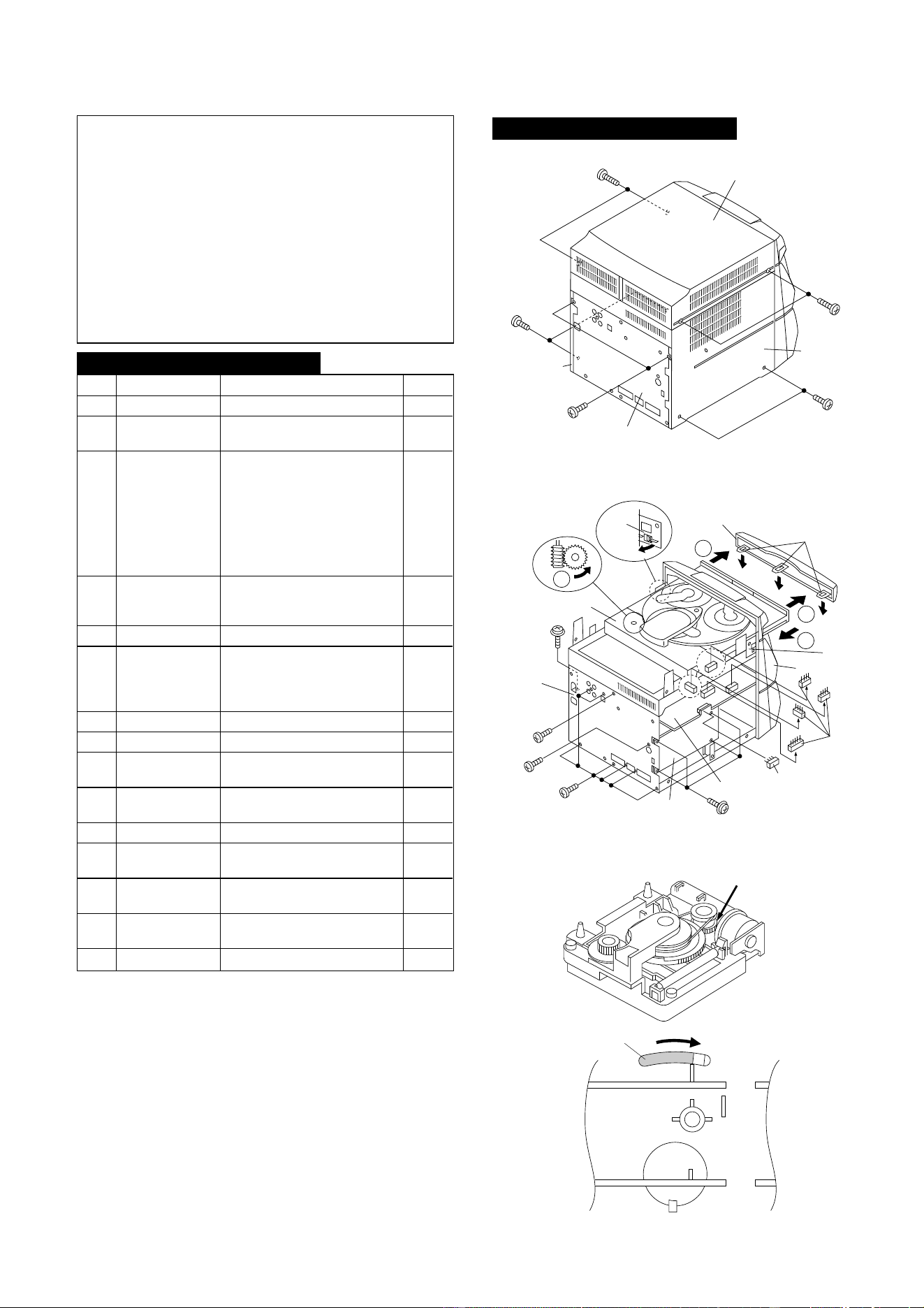

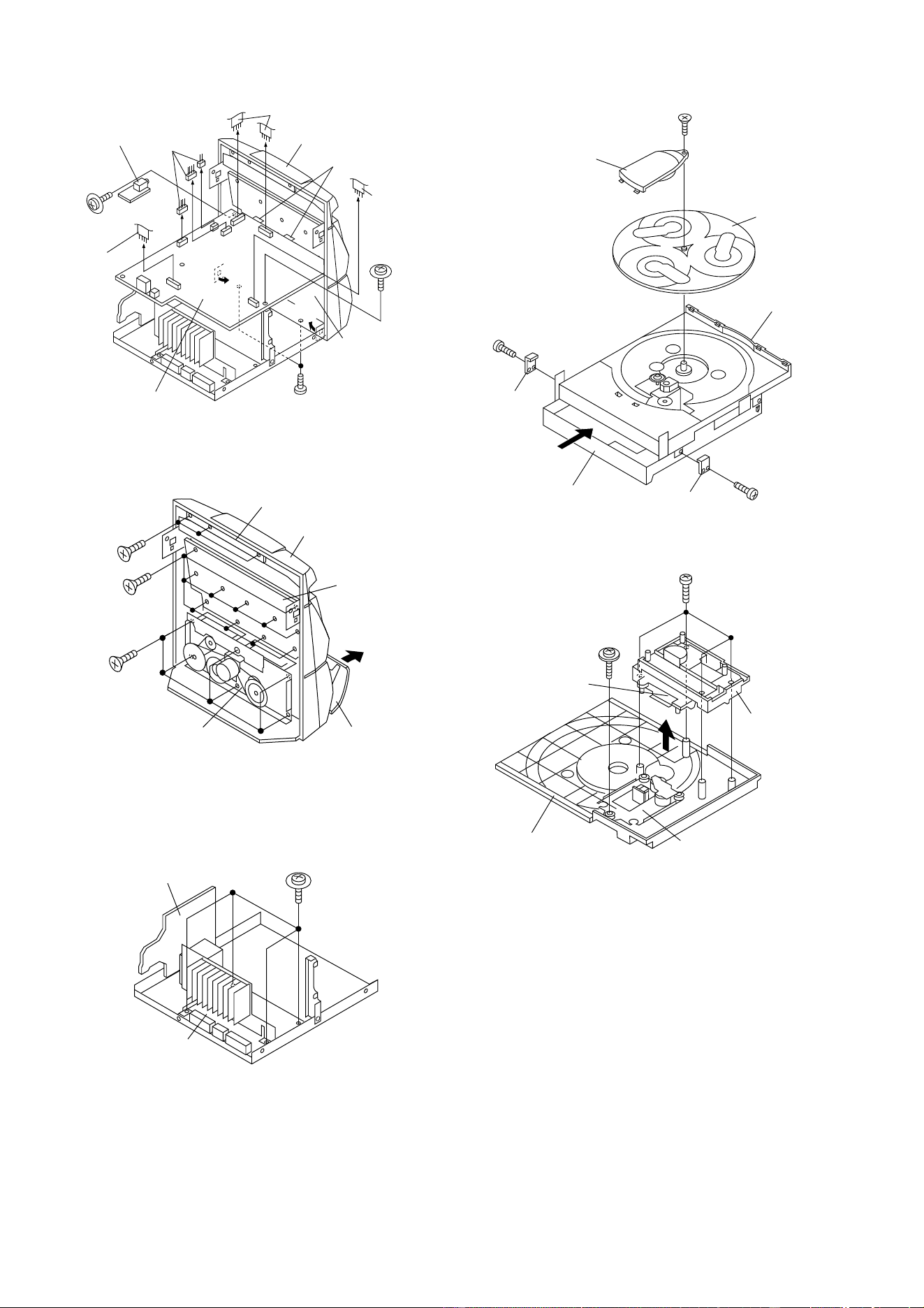

DISASSEMBLY................................................................................................................................................................. 7

REMOVING AND REINSTALLING THE MAIN PARTS.................................................................................................. 10

ADJUSTMENT ................................................................................................................................................................ 11

NOTES ON SCHEMATIC DIAGRAM ............................................................................................................................. 18

TYPE OF TRANSISTOR AND LED ................................................................................................................................ 18

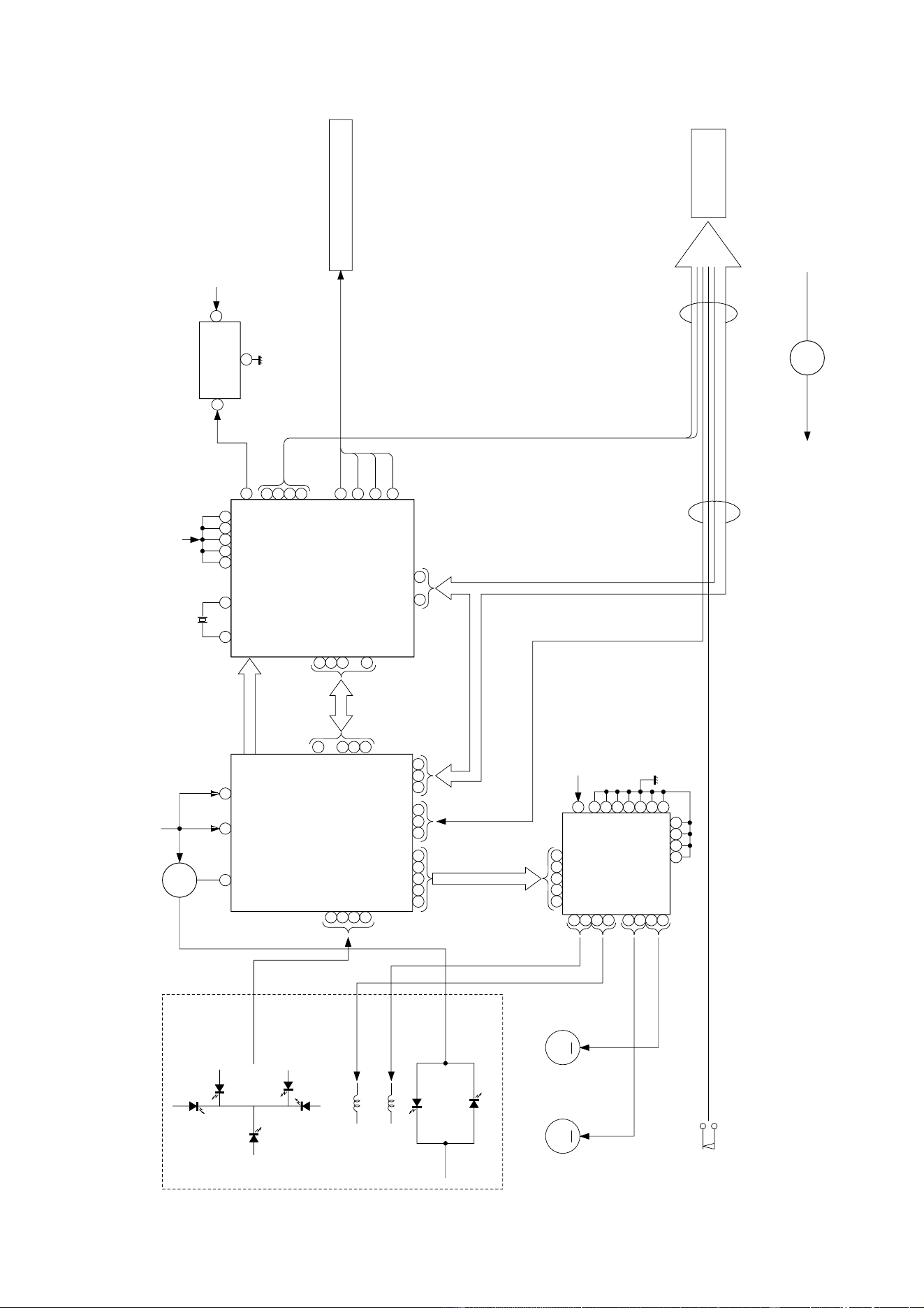

BLOCK DIAGRAM .......................................................................................................................................................... 19

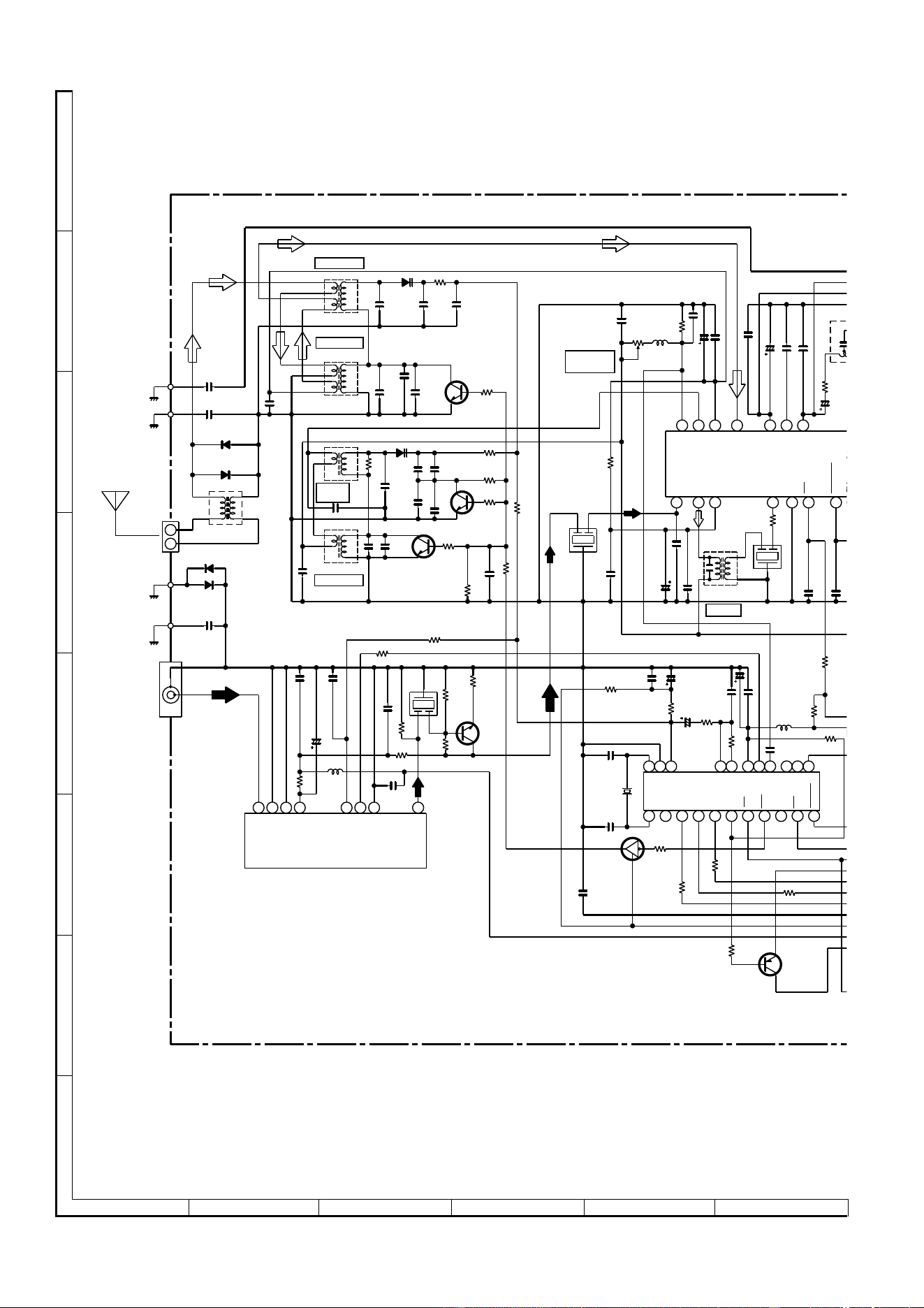

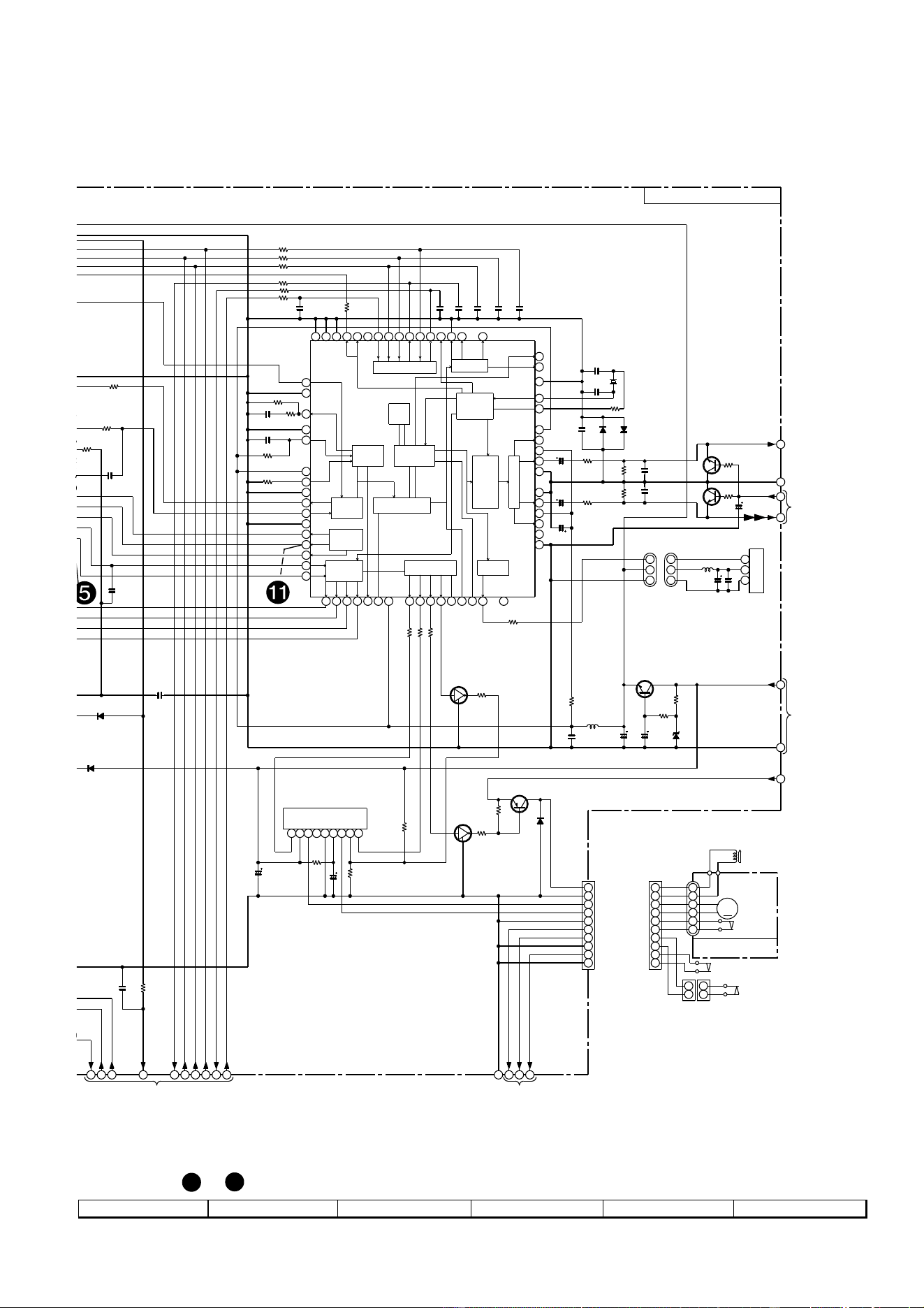

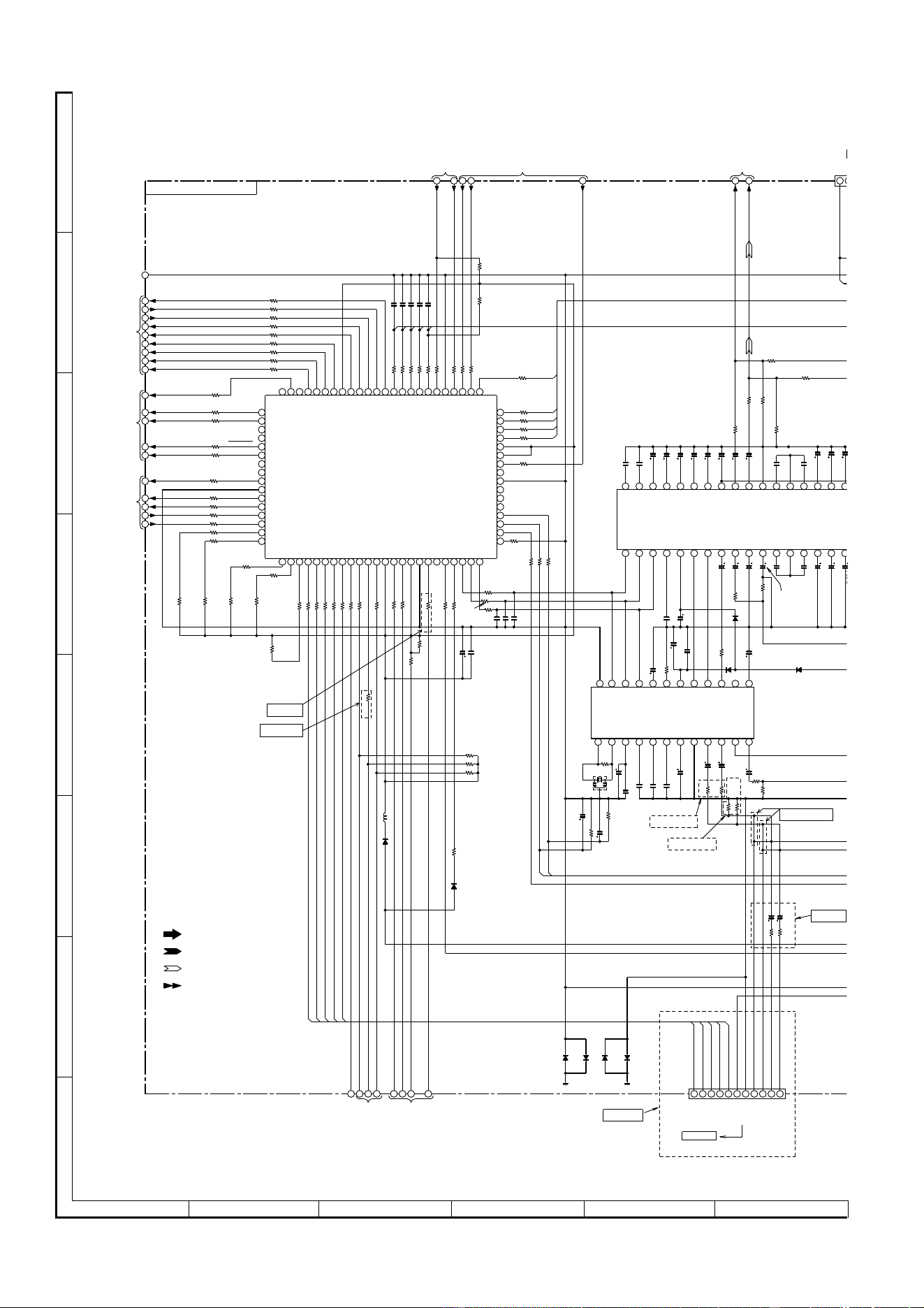

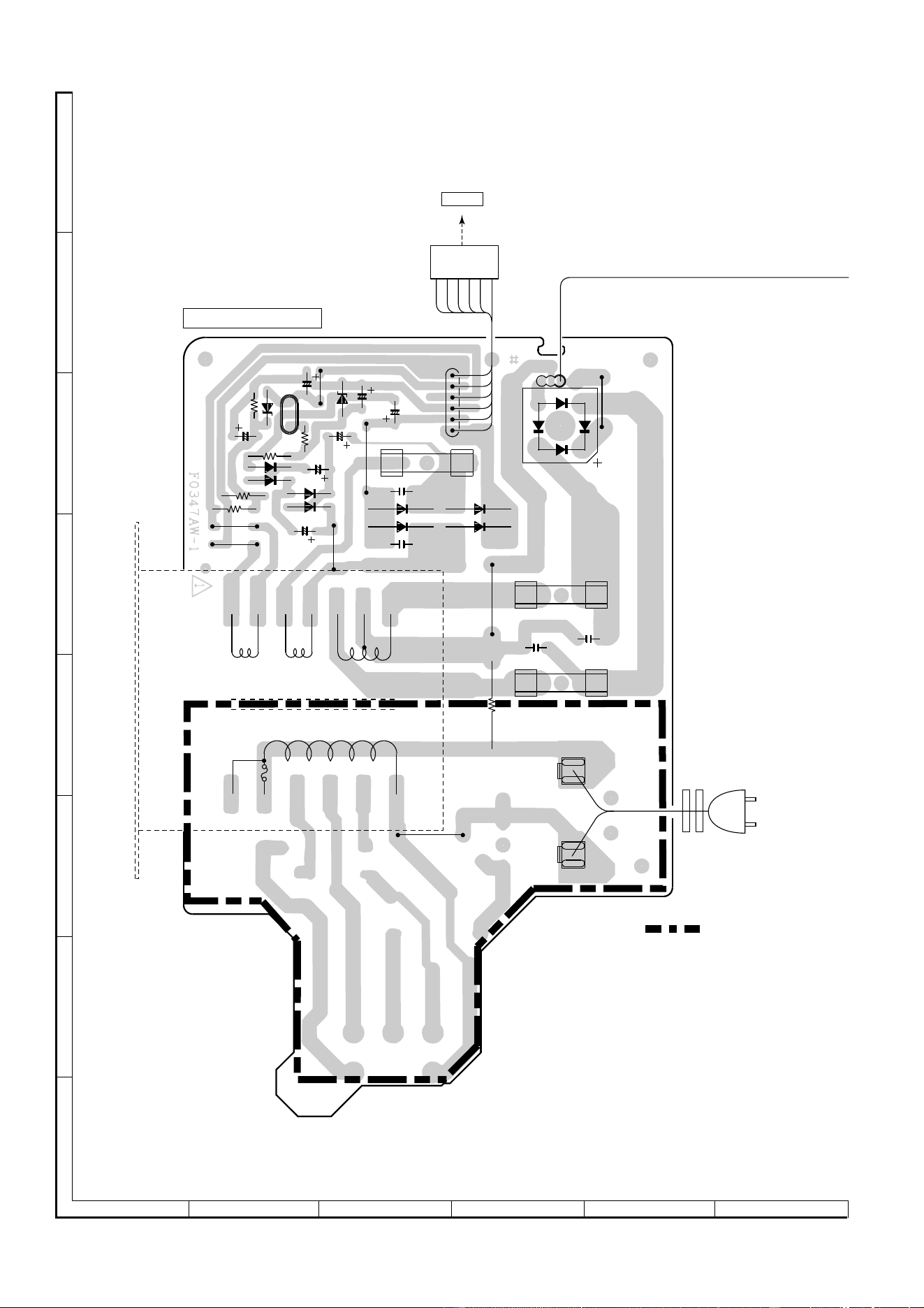

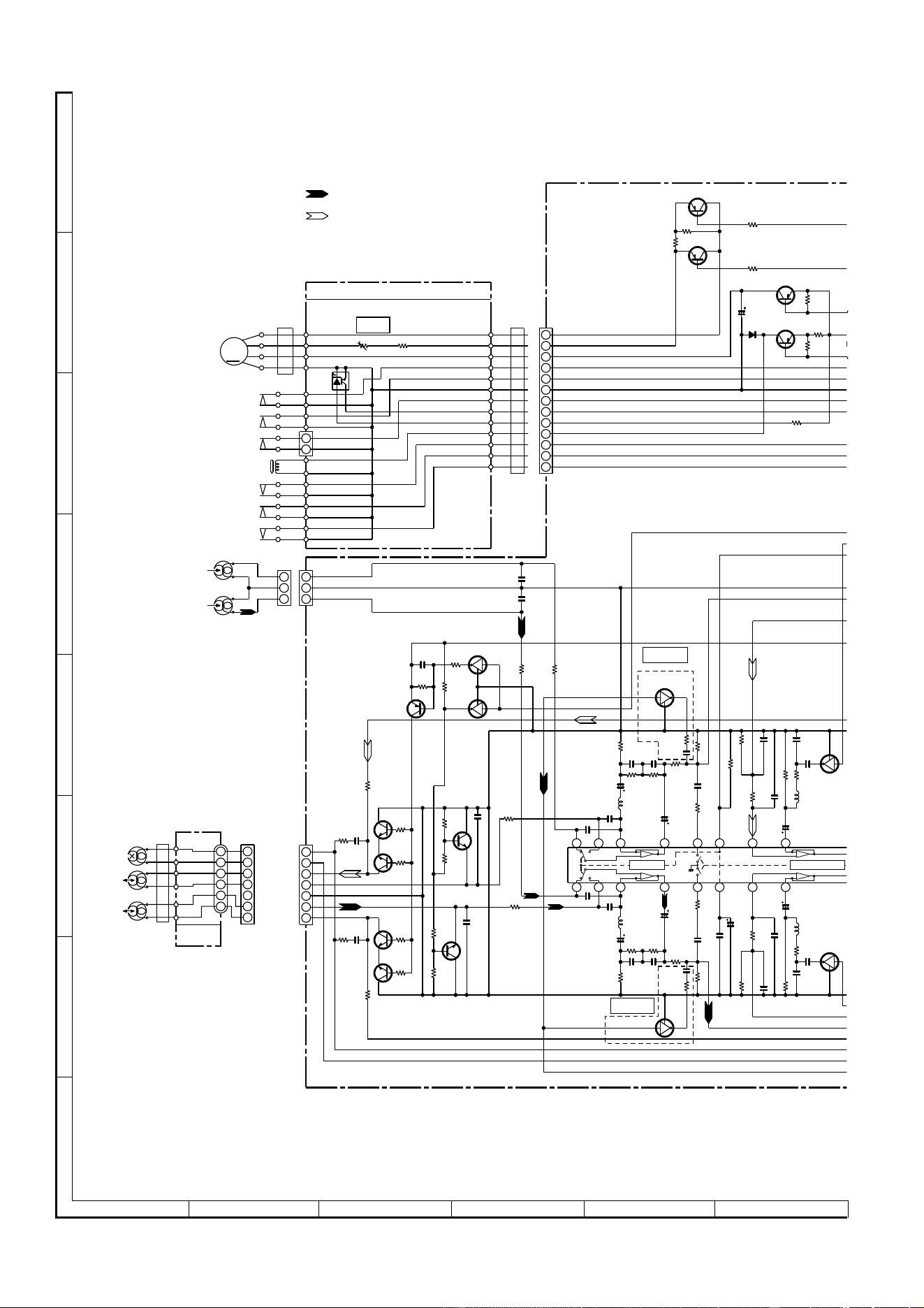

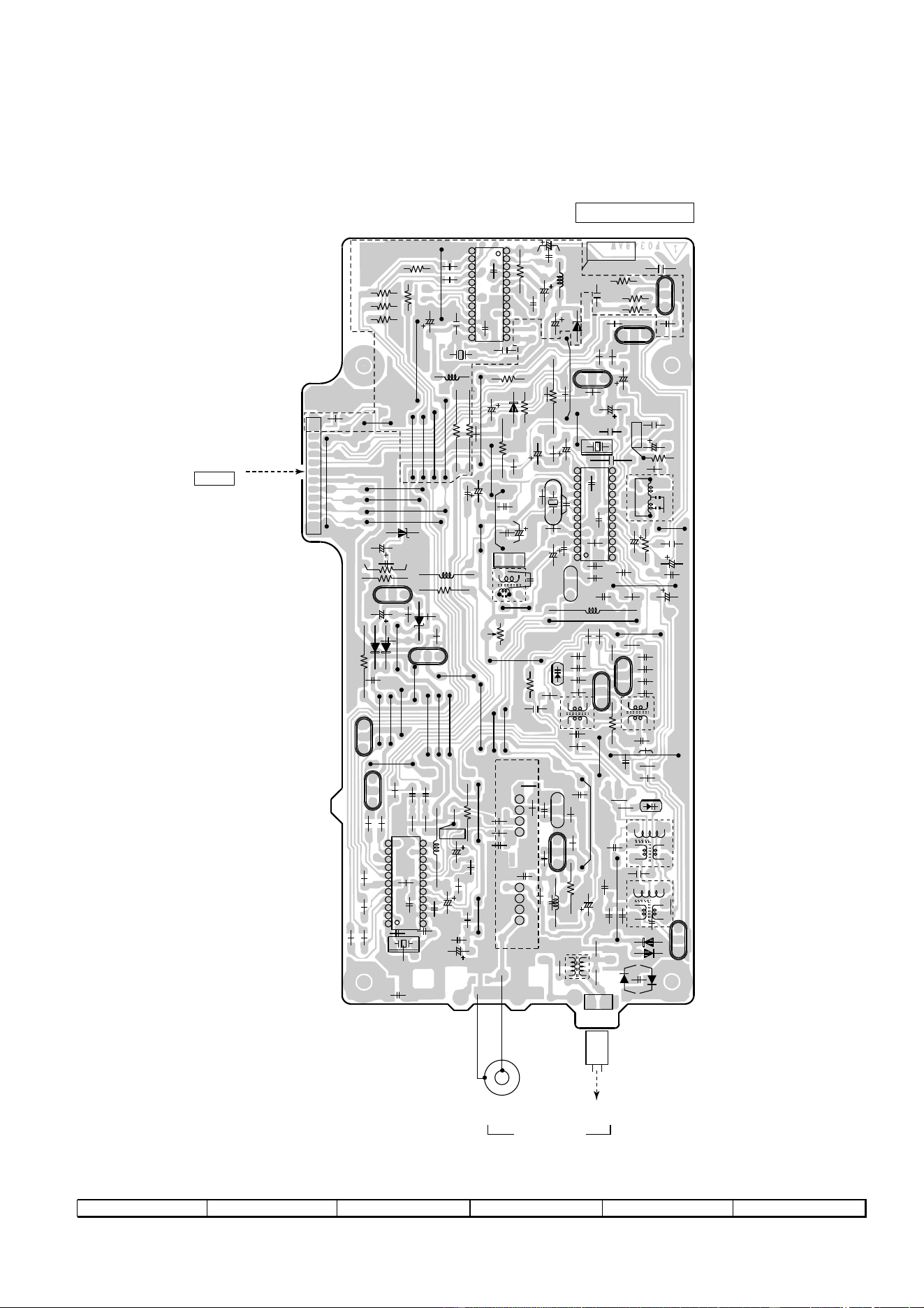

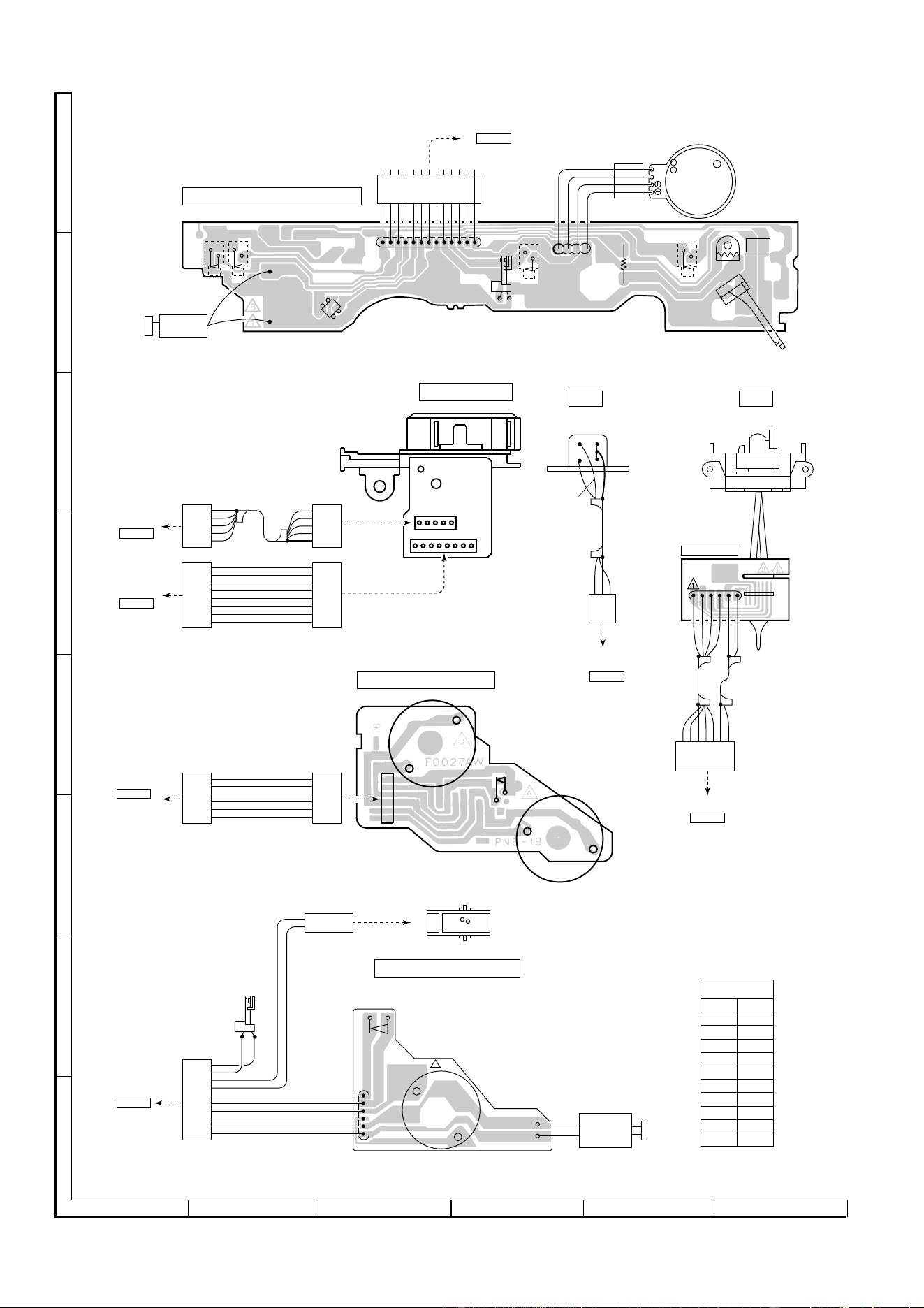

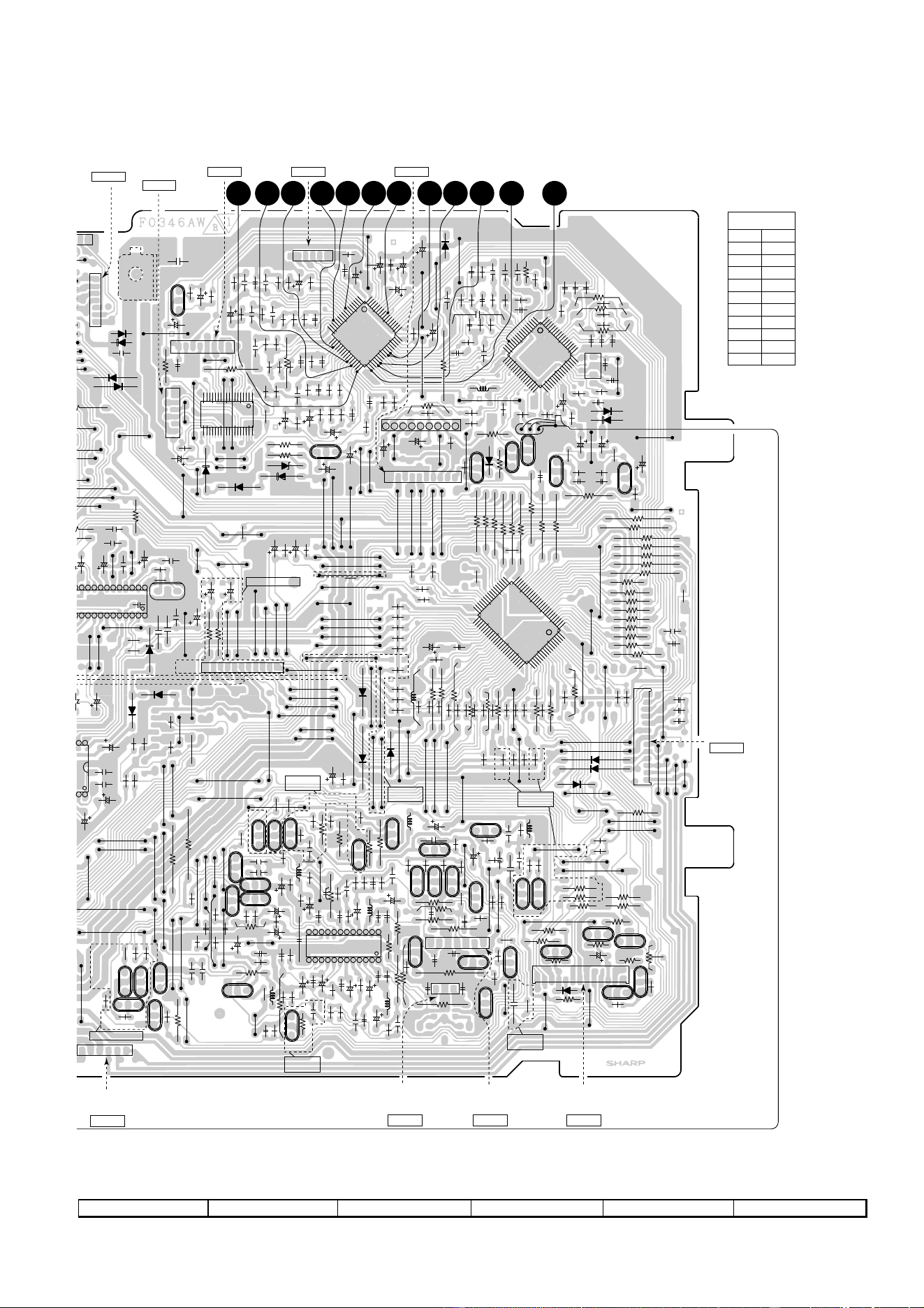

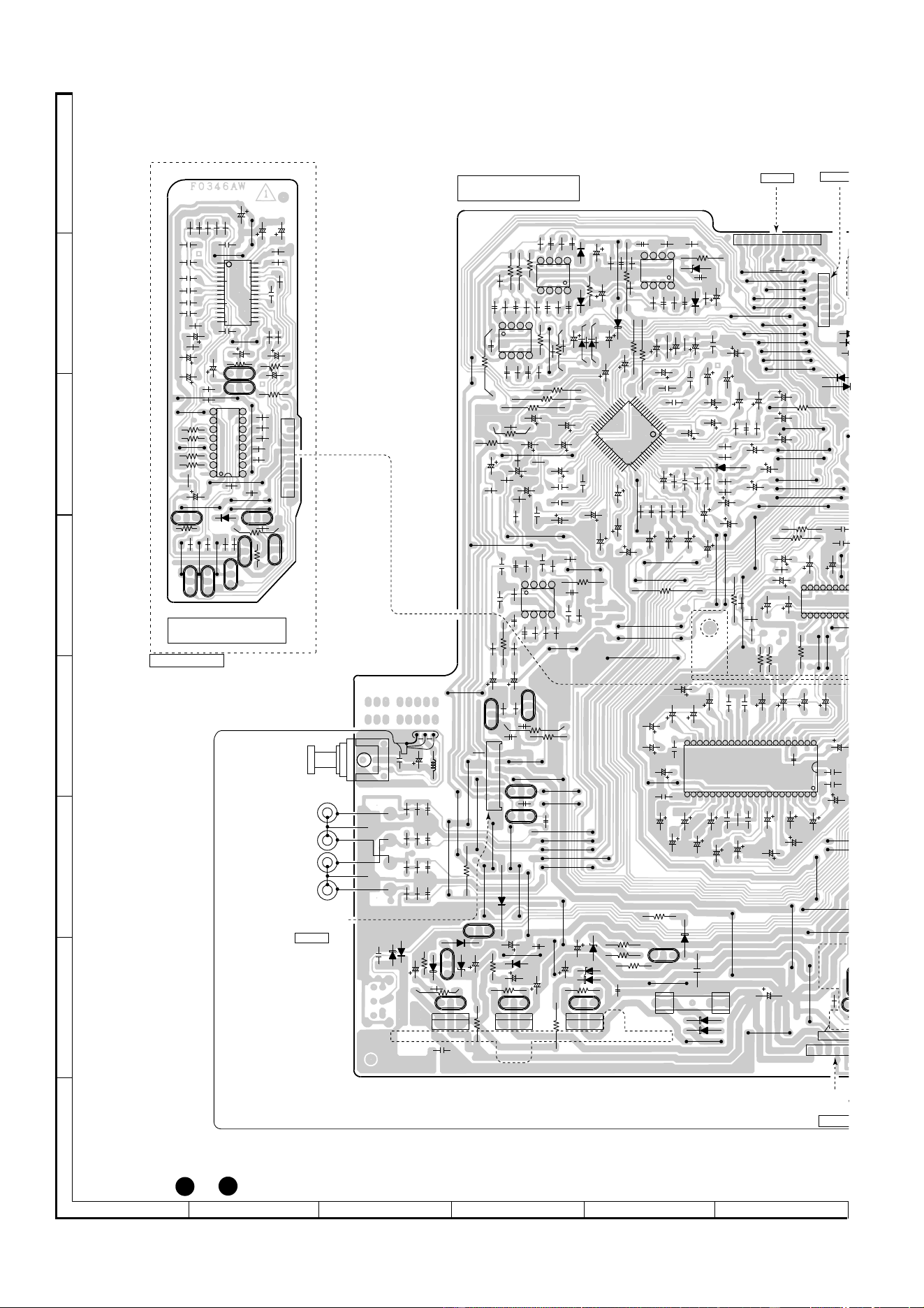

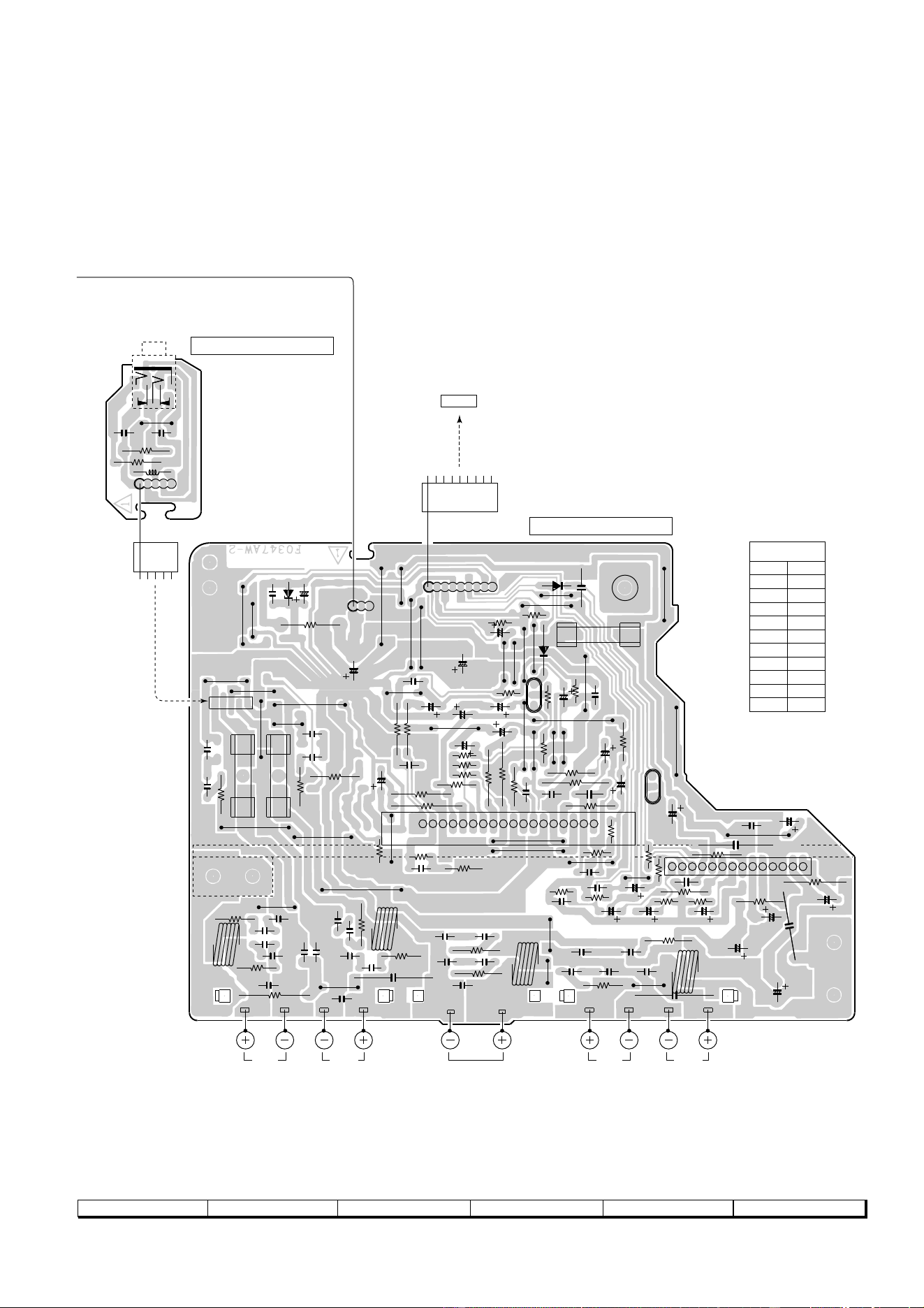

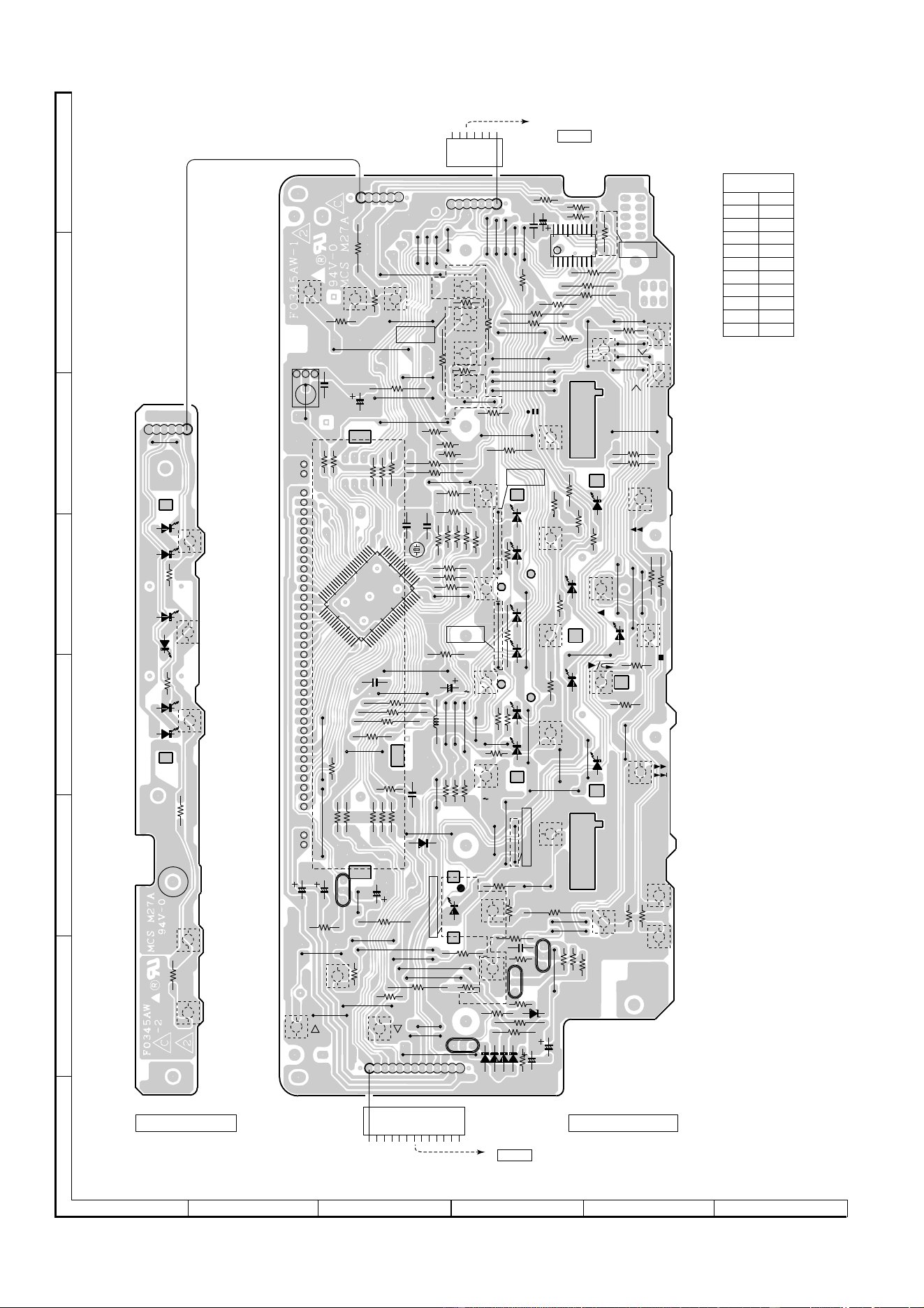

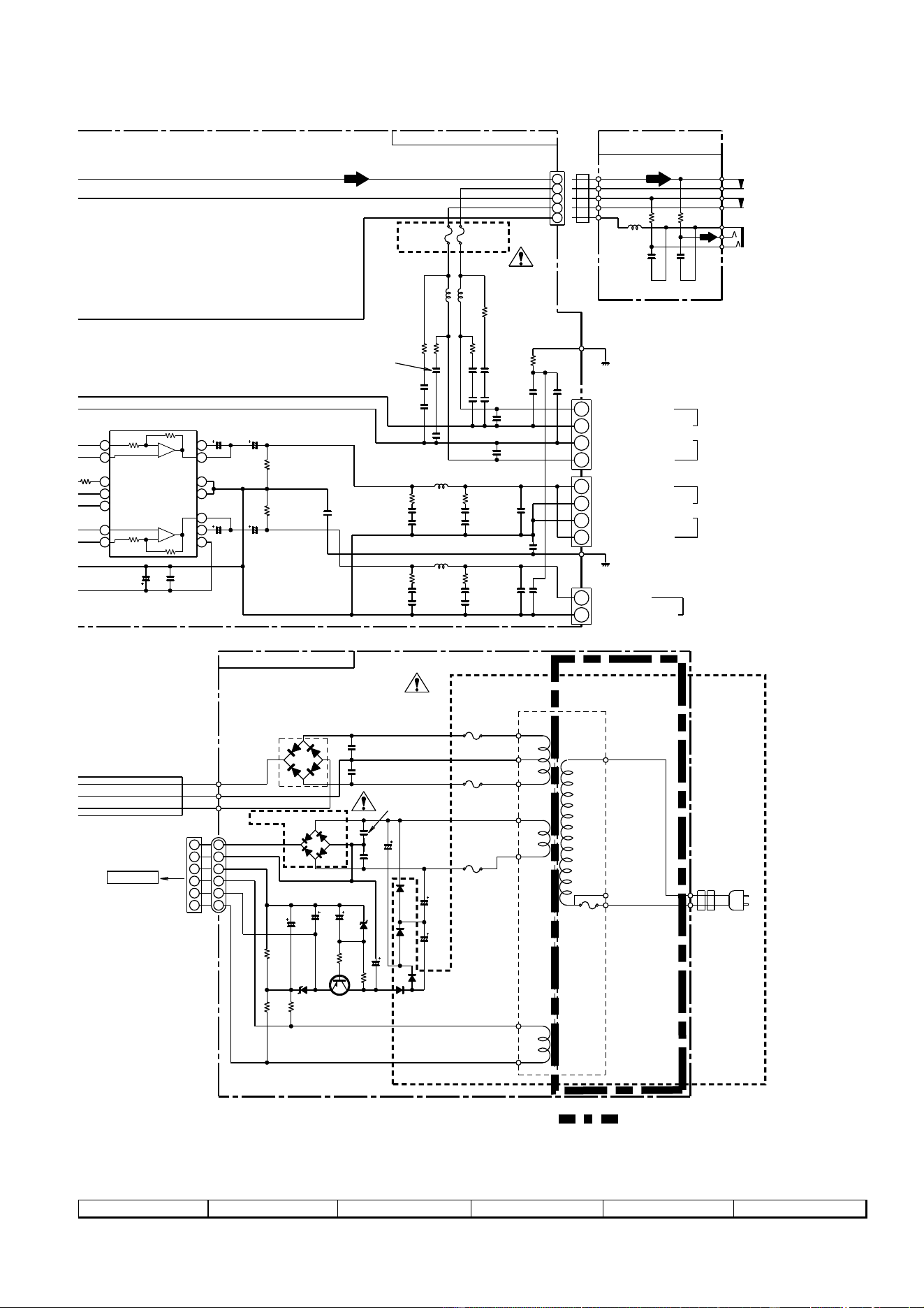

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD ............................................................................................. 22

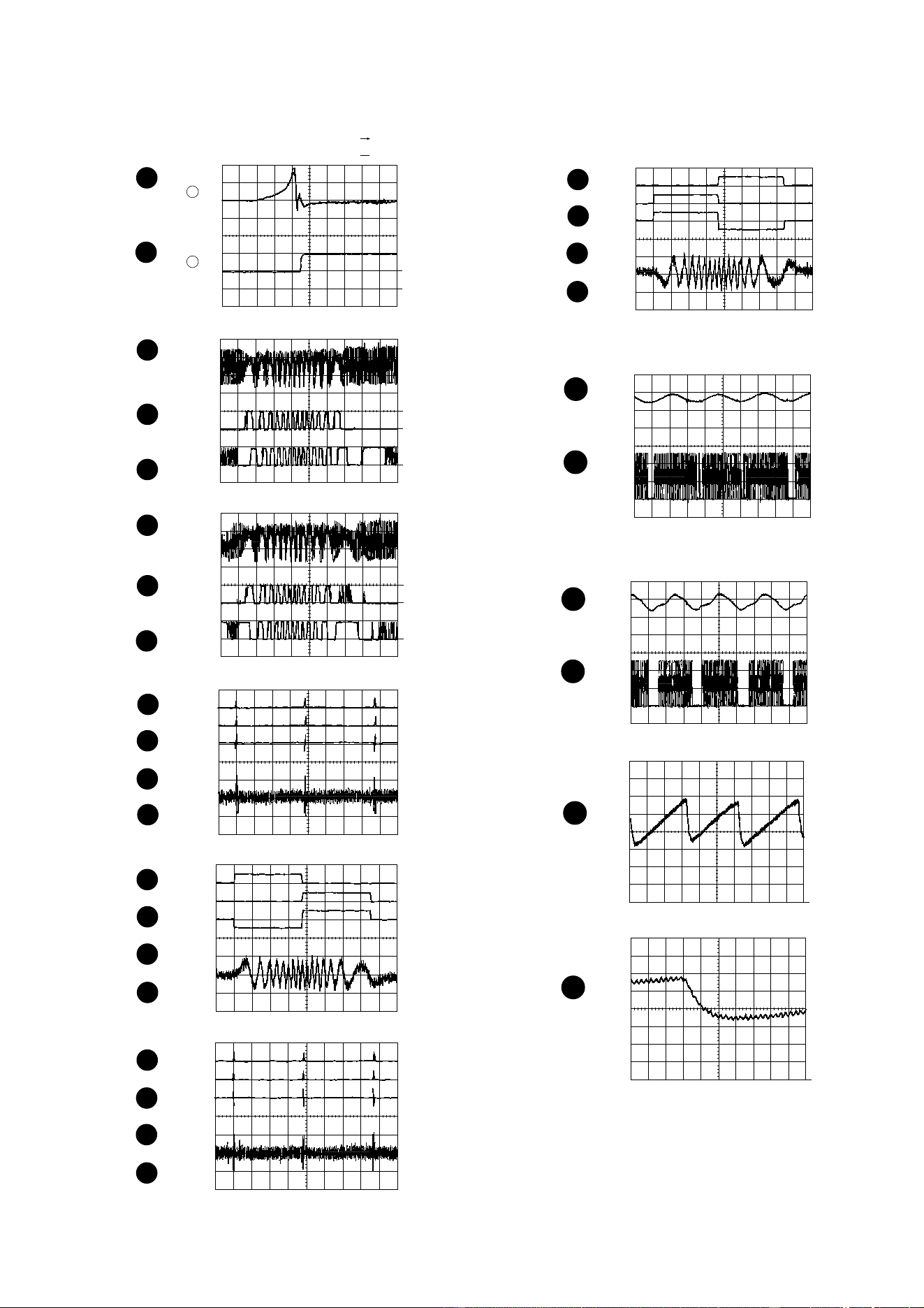

WAVEFORMS OF CD CIRCUIT..................................................................................................................................... 43

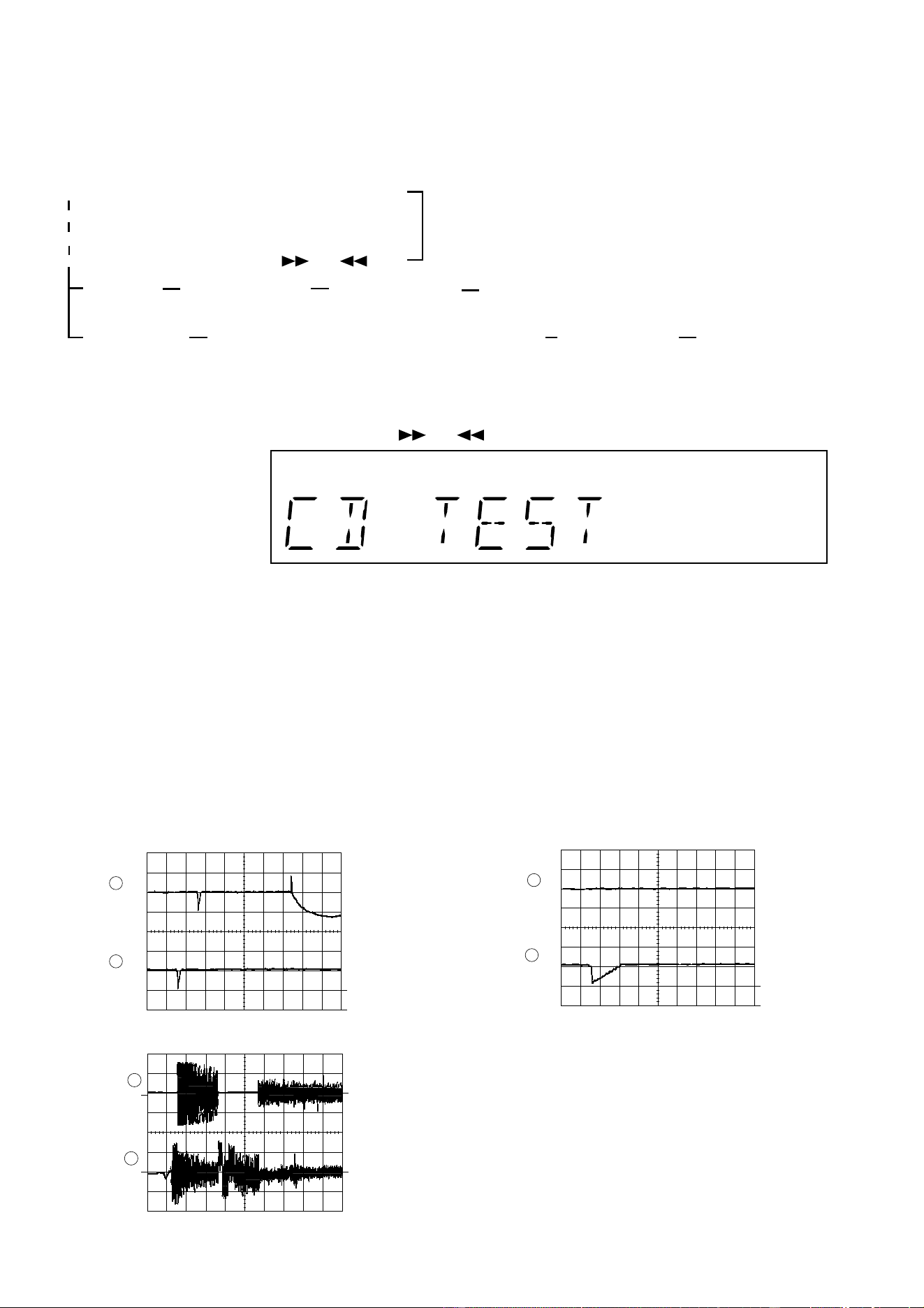

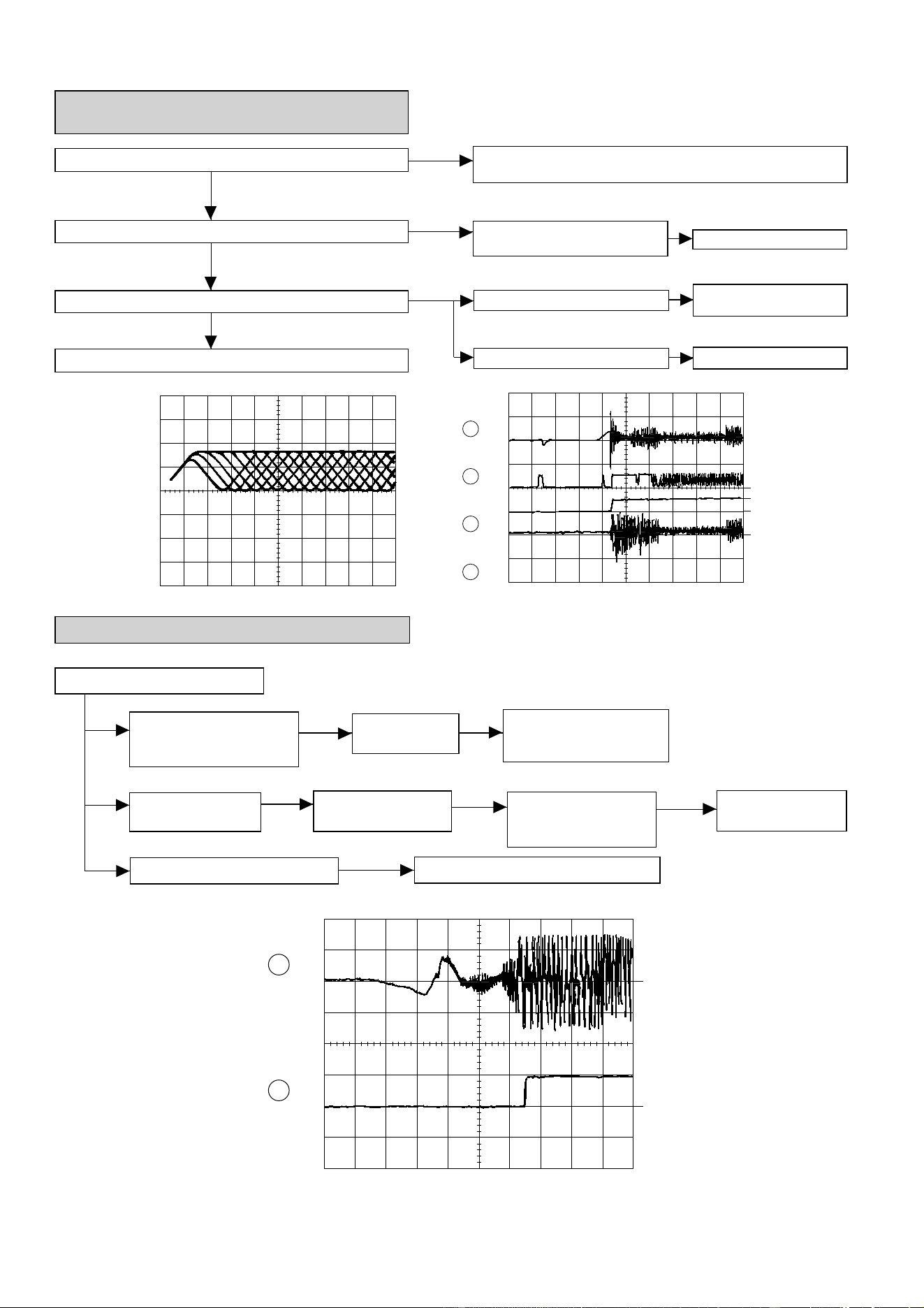

TROUBLESHOOTING (CD CHANGER CONTROL / CD SECTION)............................................................................. 44

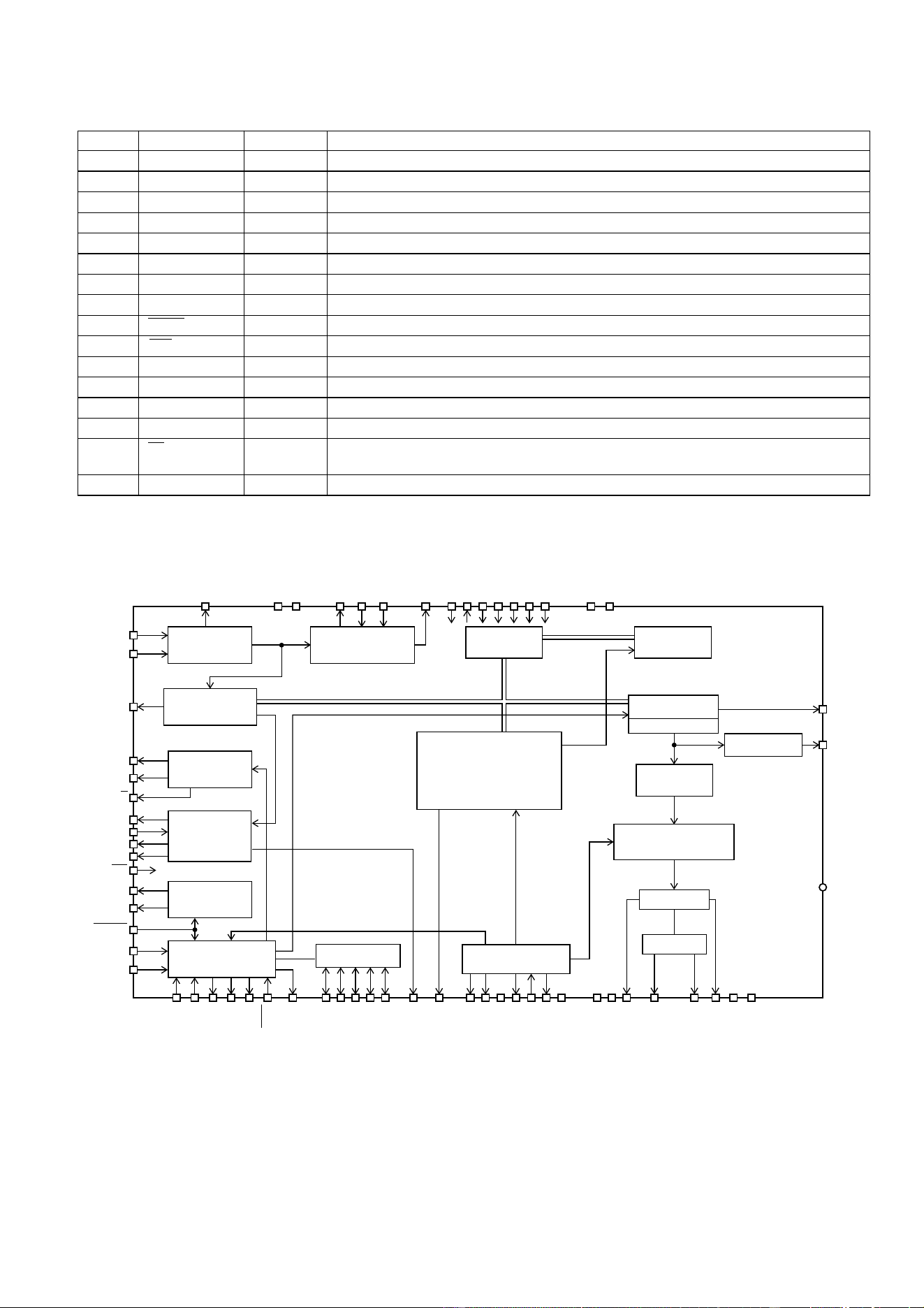

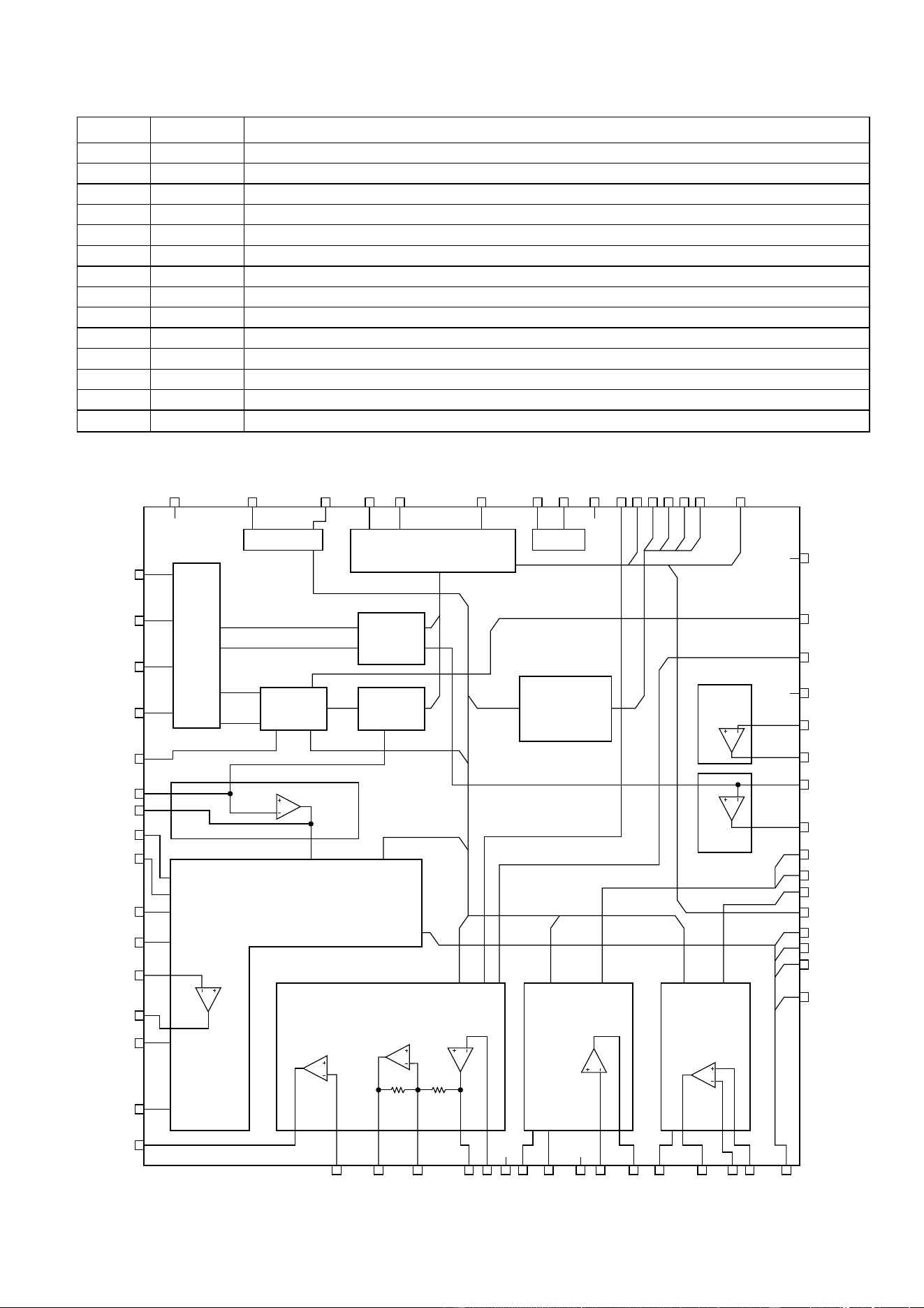

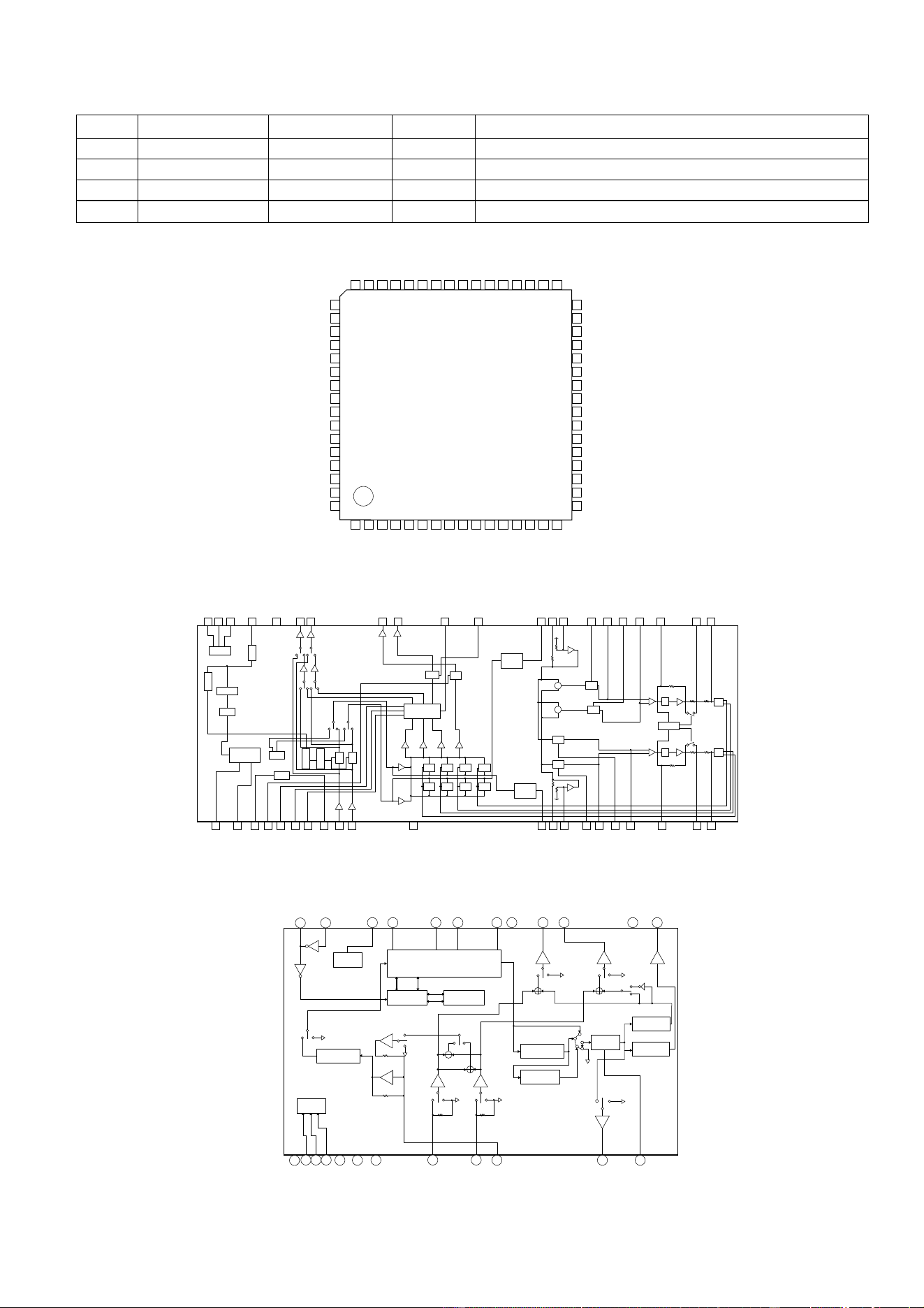

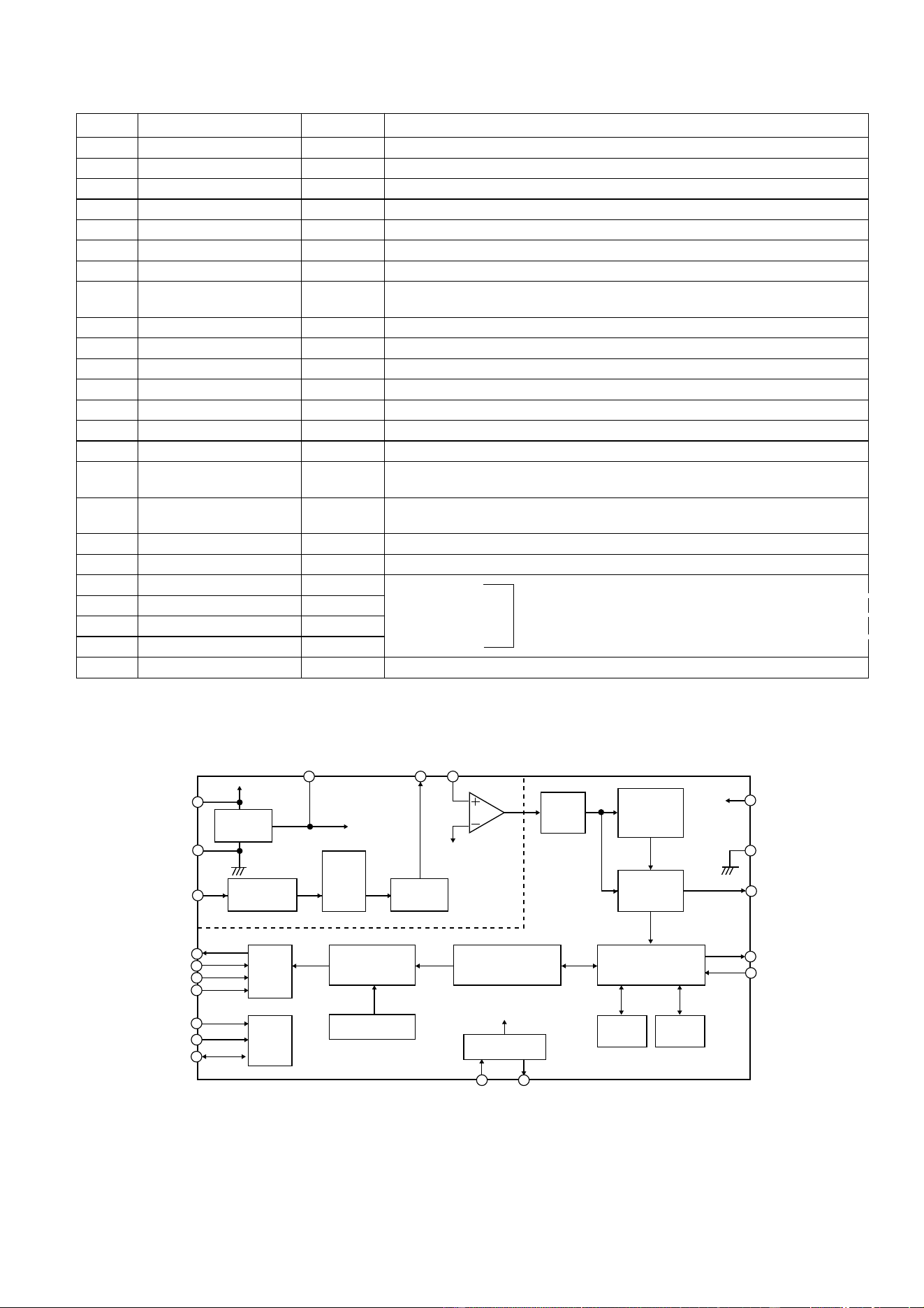

FUNCTION TABLE OF IC .............................................................................................................................................. 48

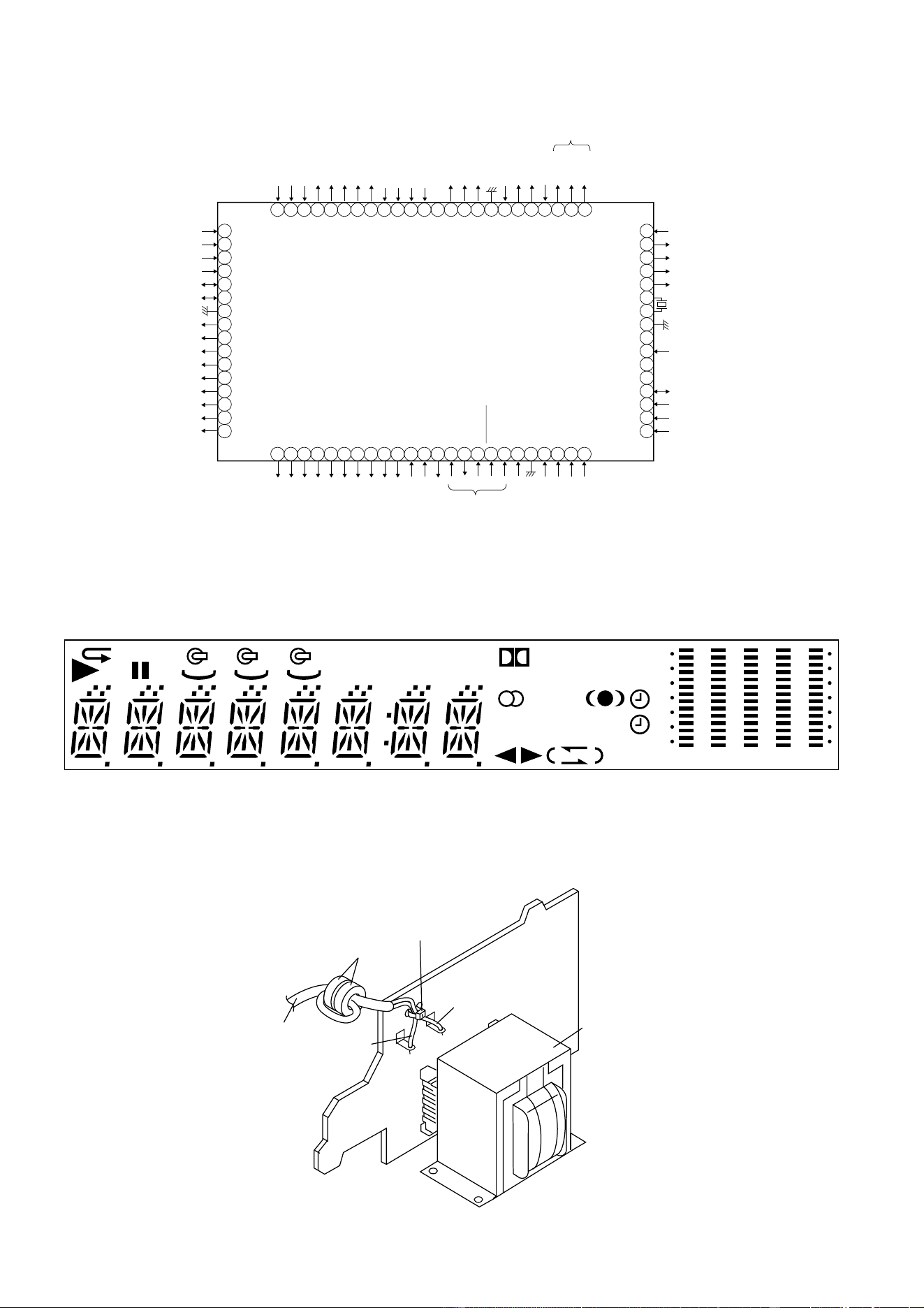

FL DISPLAY ..................................................................................................................................................................... 58

WIRING OF PRIMARILY SUPPLY LEADS (CD-C470E ONLY)..................................................................................... 58

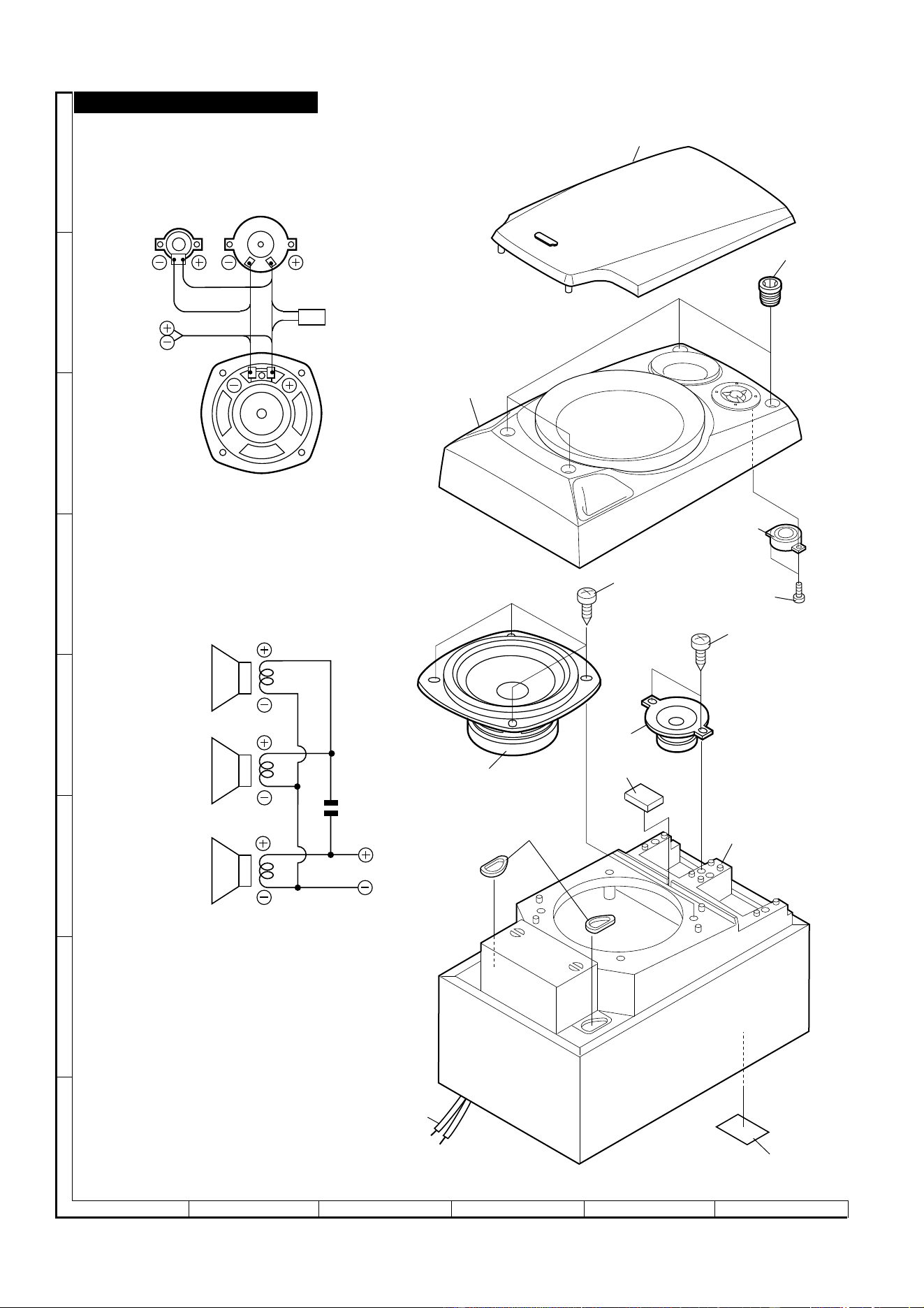

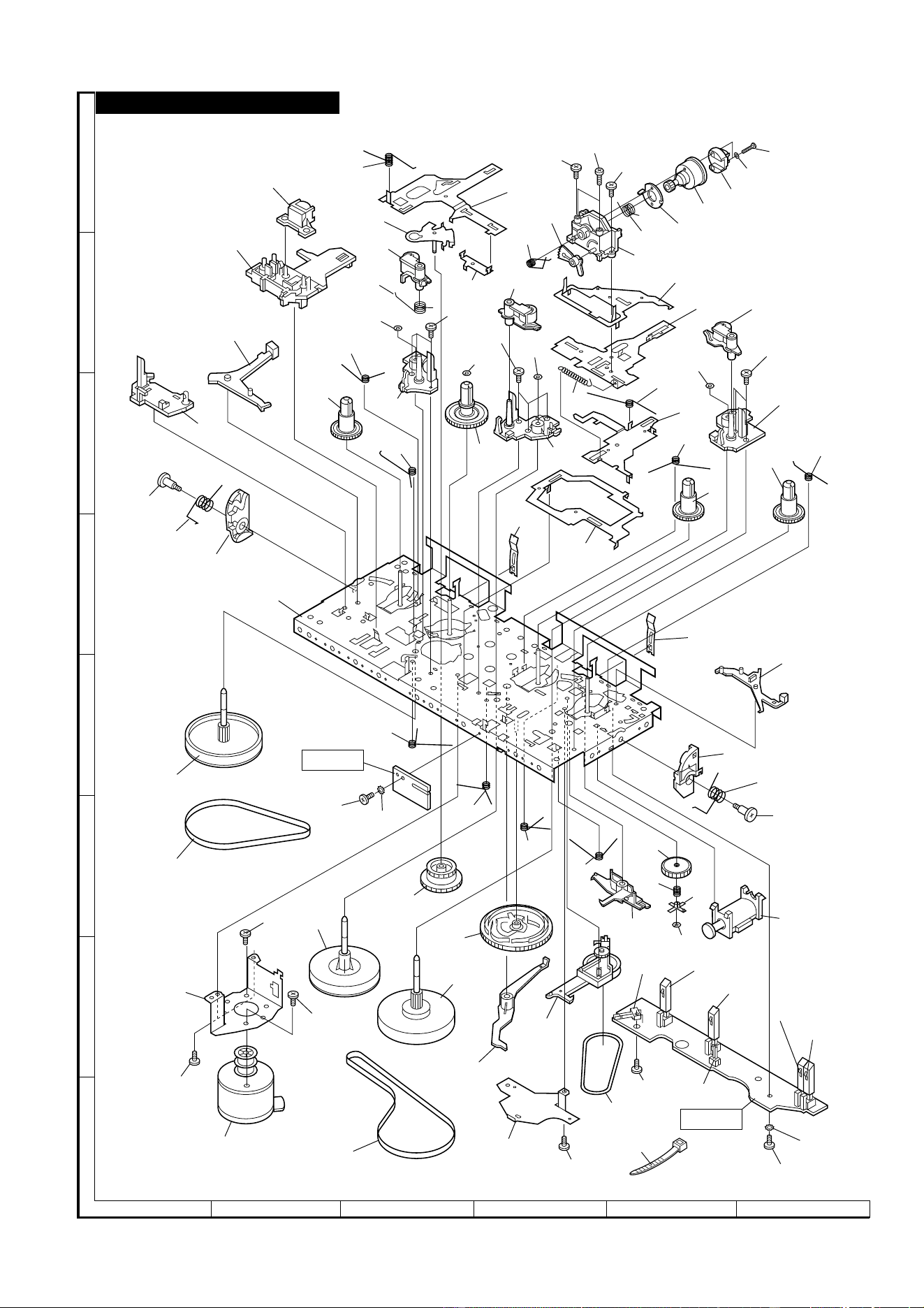

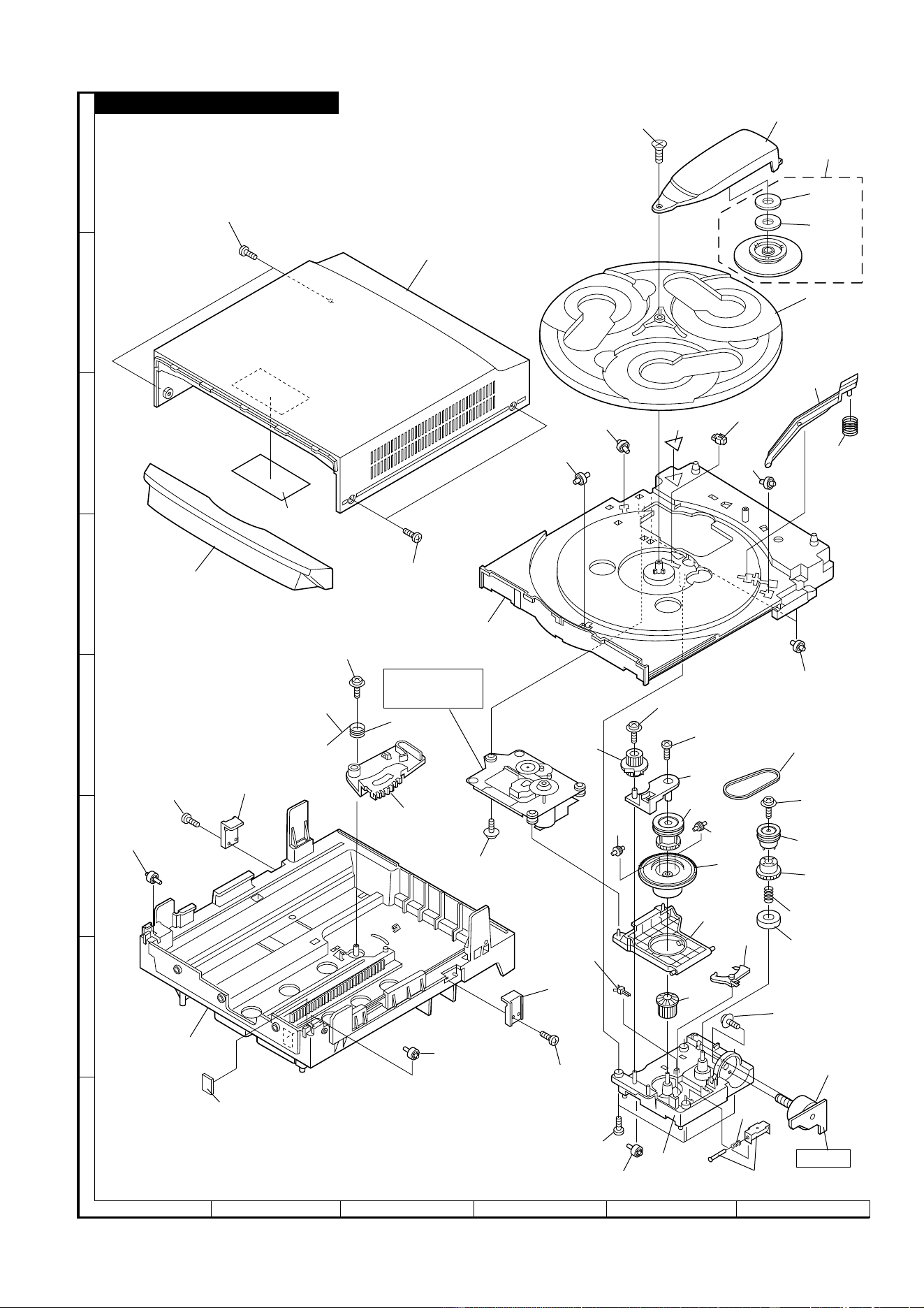

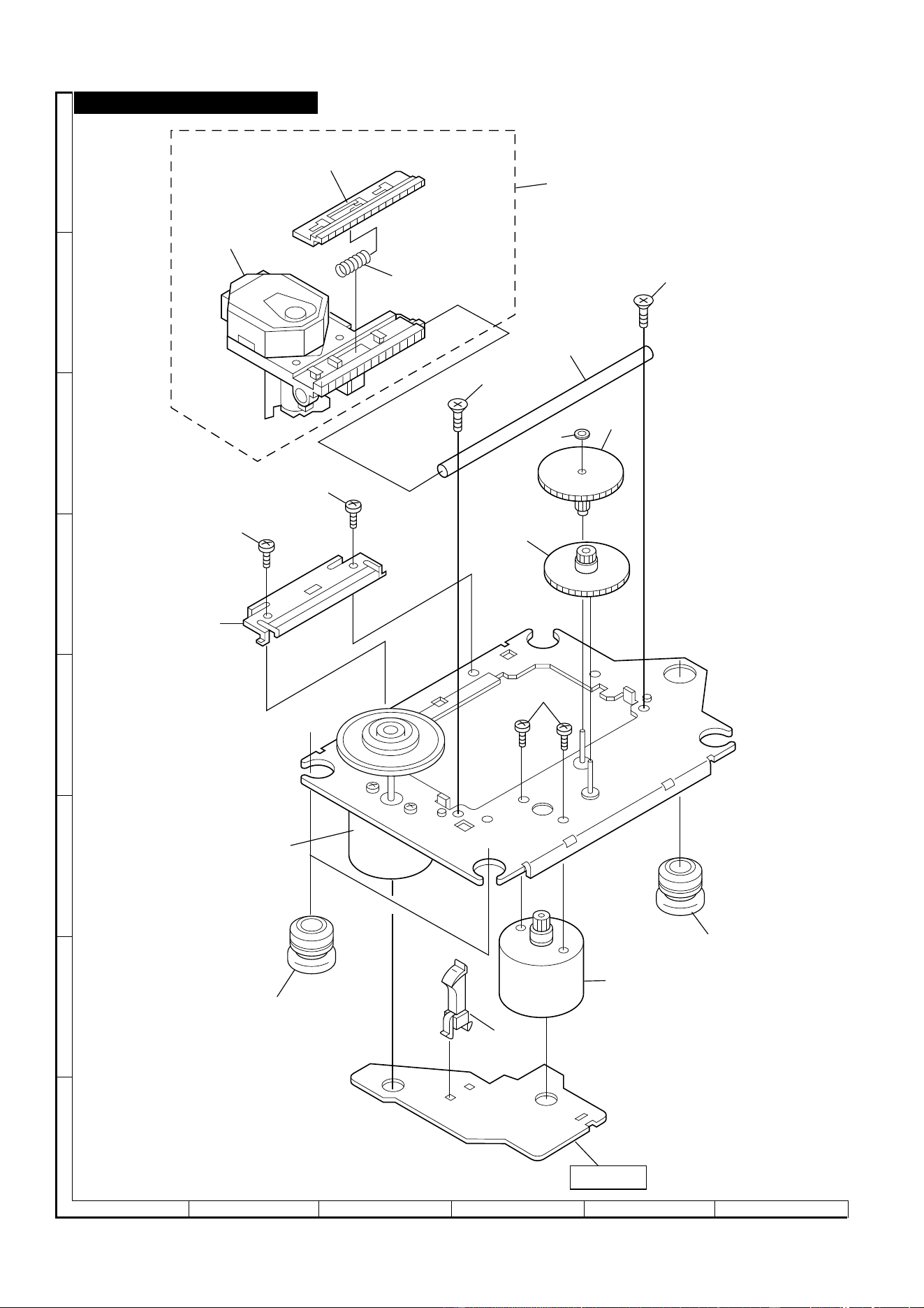

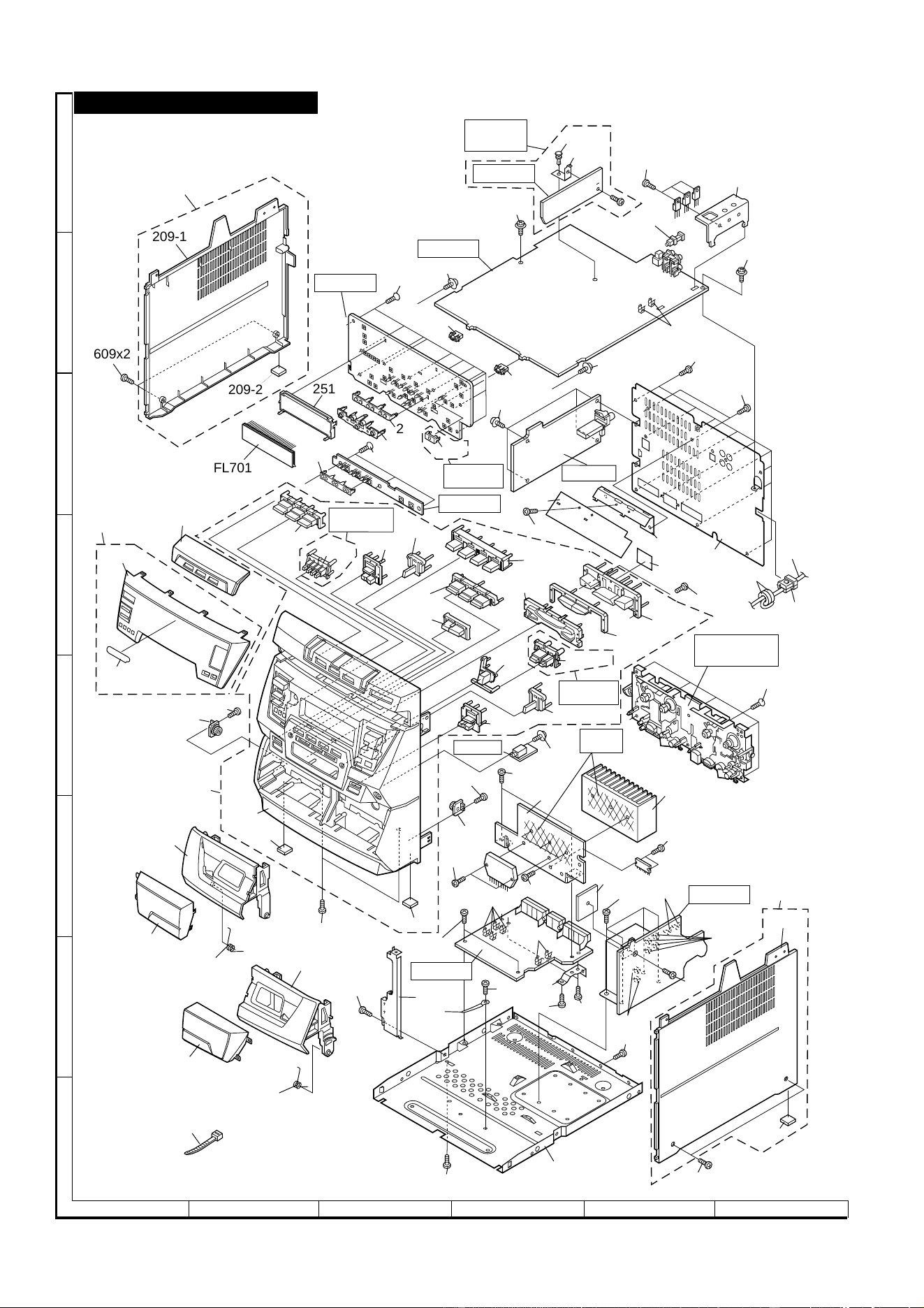

REPLACEMENT PARTS LIST/EXPLODED VIEW

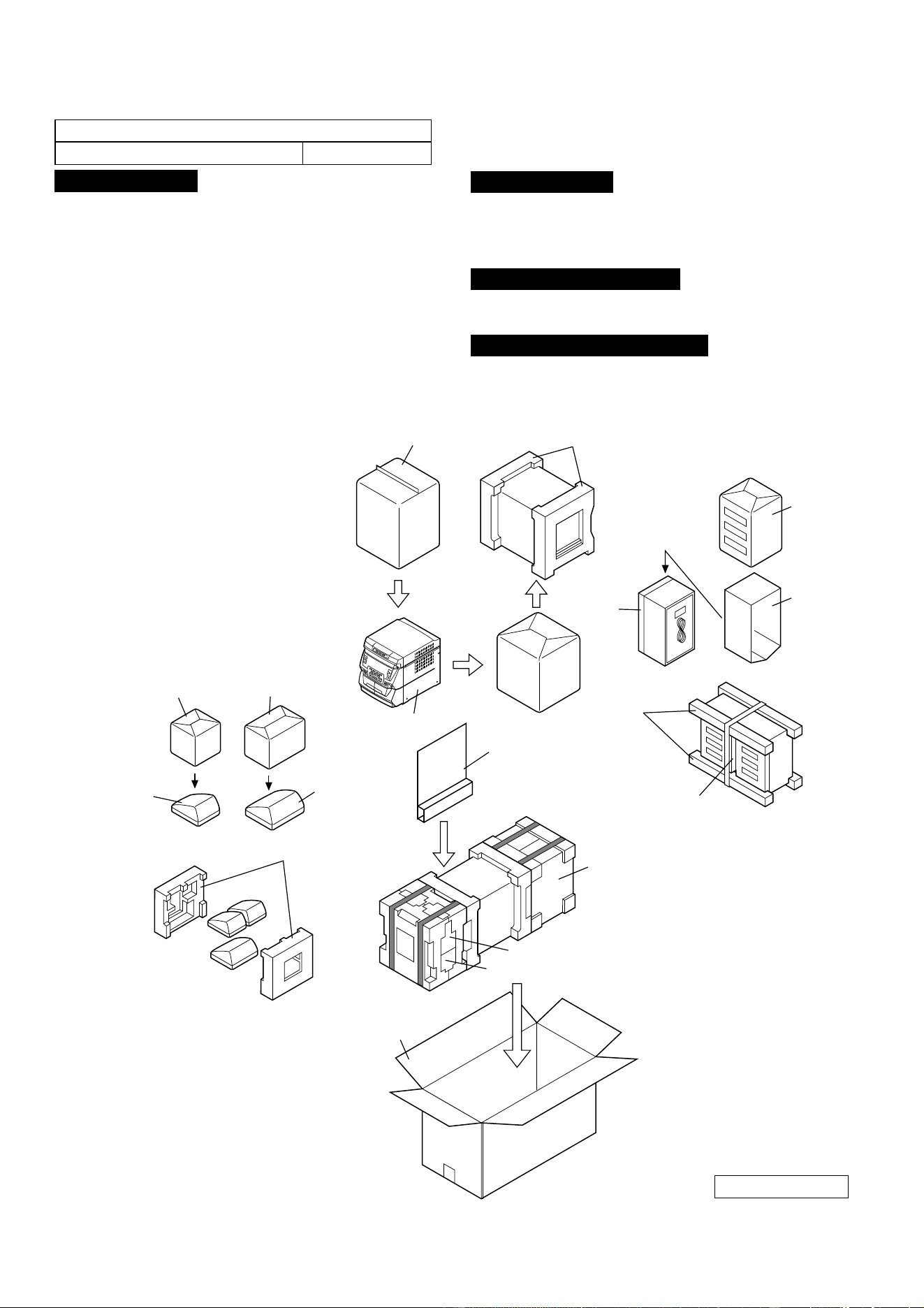

PACKING OF METHOD (FOR CD-C470E/CP-C470E ONLY)

CD-C470H

CD-C470E

CD-C480H

CP-C470H

CP-C470E

CP-C480H

CD-C470H, CP-C470H, center speaker system and surround speaker

system constitute CD-C470H.

CD-C470E, CP-C470E, center speaker system and surround speaker

system constitute CD-C470E.

CD-C480H, CP-C480H, center speaker system and surround speaker

system constitute CD-C480H.

• In the interests of user-safety the set should be restored to its

original condition and only parts identical to those specified be

used.

Manufactured under license from Dolby Laboratories Licens-

ing Corporation. DOLBY, the double-D symbol and

"PRO LOGIC" are trademarks of Dolby Laboratories Licens-

ing Corporation.

• SRS technology Licensed from SRS Labe. SRS technology holds

the follwing patents: U.S. Patent No. 4,748,669, U.S. Patent No.

4,841,572 and U.S. Patent No. 4,866,774.

• SRS the SRS Logo ( ) and the SOUND RETRIEVAL SYSTEM

are registered trademarks of SRS Labs, Inc.

Illustration: CD-C470H/CP-C470H

SHARP CORPORATION

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 2 –

SAFETY PRECAUTION FOR

SERVICE MANUAL

Precaution to be taken when replacing and servicing the

Laser Pickup.

The AEL (Accessible Emission Level) of Laser Power Output

for this model is specified to be lower than Class I Requirements.

However, the following precautions must be observed during

servicing to protect your eyes against exposure to the Laser

beam

(1) When the cabinet has been removed, the power is turned

on without a compact disc, and the Pickup is on a position

outer than the lead-in position, the Laser will light for several

seconds to detect a disc. Do not look into the Pickup Lens.

(2) The Laser Power Output of the Pickup inside the unit and

replacement service parts have already been adjusted prior

to shipping.

(3) No adjustment to the Laser Power should be attempted

when replacing or servicing the Pickup.

(4) Under no circumstances look directly into the Pickup Lens

at any time.

(5) CAUTION - Use of controls or adjustments, or performance

of procedures other than those specified herein may result

in hazardous radiation exposure.

Laser Diode Properties

Material: GaAIAs

Wavelength: 780 nm

Emission Duration: continuous

Laser Output: max. 0.6 mW

VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ

KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA

ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1

YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.

VARNING - OM APPARATEN ANVÄNDS PÅANNAT SÄTTÄN I

DENNA BRUKSANVISNING SPECIFICERAS.

KANANVÄNDAREN UTSÄTTAS FÖR OSYNLIG

LASERSTRÅLNING, SOM ÖVERSKRIDER GRÄNSEN FÖR

LASERKLASS 1.

Before returning the unit to the customer after completion of a

repair or adjustment it is necessary for the following withstand

voltage test to be applied to ensure the unit is safe for the

customer to use.

Setting of Withstanding Voltage Tester and set.

Set name set value

Withstanding Voltage Tester

Test voltage 4,240 VPEAK

3,000 VRMS

Set time 6 secs

Set current(Cutoff current) 4 mA

Unit

Judgment

OK: The “GOOD” lamp lights.

NG: The “NG” lamp lights and the buzzor sounds.

SHORT-CIRCUIT

AC POWER

SUPPLY CORD

CONNECT THE PROBE

TO GND TERMINAL

OF PHONO TERMINAL

PROBE

UNIT

WITHSTANDING

VOLTAGE TESTER

OUT

OF CHASSIS

SCREW

IMPORTANT SERVICE NOTES (CD-C470E ONLY)

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO

BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

VARNING-OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD. STIRRA

EJ IN I STRÅLEN OCH BETRAKTA EJ STRÅLEN MED OPTISKA INSTRUMENT.

ADVERSEL-USYNLIG LASERSTRÅLING VED ÅBNING. SE IKKE IND I

STRÅLEN-HELLER IKKE MED OPTISKE INSTRUMENTER.

VARO! AVATTAESSA OLET ALTTIINA NÄKYMÄTÖN LASERSÄTEILYLLE.

ÄLÄ TUIJOTA SÄTEESEEN ÄLÄKÄ KATSO SITÄ OPTISEN LAITTEEN LÄPI.

VARNING-OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD.

STIRRA EJ IN I STRÅLEN OCH BETRAKTA EJ STRÅLEN GENOM OPTISKT

INSTRUMENT.

ADVERSEL-USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES. STIRR IKKE

INN I STRÅLEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER.

LASER KLASSE 1

LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

(CD-C470H/CD-C480H)

(CD-C470E)

CHASSIS

SCREW

– 3 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

Cassette deck section

Type: Compact cassette tape

Frequency response: 50 - 14,000 Hz (Normal tape)

50 - 15,000 Hz (CrO

tape)

Motor: DC motor with electronic governor x 1

Signal/noise ratio: 55 dB (TAPE 1, playback)

50 dB (TAPE 2, recording/playback)

Bias and erasure

system: AC

Tape speed: 4.76 cm/sec. (1-7/8 ips)

Wow and flutter: 0.2 % (DIN 45 511, playback)

(CD-C470H/C480H)

Wow and flutter: 0.15 % (WRMS)

(CD-C470E)

Heads: TAPE-1: Playback x 1

TAPE-2: Record/playback x 1

Erase x 1

Type: 3-way type [130 mm (5-1/8") woofer,

50 mm (2") tweeter and super tweeter]

Maximum input power: 50 W

Impedance: 8 ohms

Dimensions: Width; 200 mm (7-7/8")

Height; 300 mm (11-13/16")

Depth; 252 mm (9-15/16")

Weight: 2.7 kg (6.0 lbs.)/each

Type: 100 mm (4") full-range speaker

Maximum input power: 20 W

Impedance: 6 ohms

Dimensions: Width; 262 mm (10-5/16")

Height; 145 mm (5-3/4")

Depth; 201 mm (7-15/16")

Weight: 1.4 kg (3.1 lbs.)/each

Type: 100 mm (4") full-range speaker

Maximum input power: 10 W

Impedance: 12 ohms

Dimensions: Width; 170 mm (6-3/4")

Height; 122 mm (4-13/16")

Depth; 176 mm (6-15/16")

Weight: 0.7 kg (1.5 lbs.)/each

General

Power source: AC 230 V, 50 Hz

Power consumption: 160 W

Dimensions: Width; 270 mm (10-5/8")

Height; 300 mm (11-13/16")

Depth; 368 mm (14-1/2")

Weight: 6.8 kg (15.0 lbs.)

Amplifier section

Output power: PMPO; 300 W (total)

(CD-C470H/C480H) (Front)

MPO; 110 W (55 W + 55 W) (DIN 45 324)

RMS; 50 W (25 W + 25 W) (DIN 45 324)

42 W (21 W + 21 W) (DIN 45 500)

(Center)

MPO; 20 W (DIN 45 324)

RMS; 10 W (DIN 45 324)

7 W (DIN 45 500)

(Surround)

MPO; 20 W (total) (DIN 45 324)

RMS; 10 W (total) (DIN 45 324)

7 W (total) (DIN 45 500)

(CD-C470E) (Front)

MPO; 110 W (50 W + 50 W) (10 % T.H.D)

RMS; 50 W (25 W + 25 W) (10 % T.H.D)

42 W (21 W + 21 W) (0.9 % T.H.D)

(Center)

MPO; 20 W (10 % T.H.D)

RMS; 10 W (10 % T.H.D)

7 W (0.9 % T.H.D)

(Surround)

MPO; 20 W (total) (10 % T.H.D)

RMS; 10 W (total) (10 % T.H.D)

7 W (total) (0.9 % T.H.D)

Input terminals: Video/Auxiliary (audio signal) x 2;

500 mV/47 kohms

Output terminals: Front speakers; 8 ohms

Center speakers; 6 ohms

Surround Speakers; 12 ohms

CD digital output (optical)

Headphones; 16-50 ohms

(recommended; 32 ohms)

Compact disc player section

Type: 3-disc multi-play compact disc player

Signal readout: Non-contact, 3-beam semi-conductor

laser pickup

D/A Converter: 1-bit D/A converter

Frequency response: 20 - 20,000 Hz

Dynamic range: 90 dB (1 kHz)

Tuner section

Frequency range: FM; 87.5 - 108 MHz

MW; 522 - 1,620 kHz

LW; 153 - 281 kHz

SPECIFICATIONS

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER

TO THE OPERATION MANUAL.

Specifications for this model are subject to change without

prior notice.

CD-C470H/CD-C470E/CD-C480H

CP-C470H/CP-C470E/CP-C480H

CENTER SPEAKER SYSTEM

SURROUND SPEAKER SYSTEM

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 4 –

NAMES OF PARTS

Front Panel

1. Disc Tray

2. Disc Number Selector Buttons

3. Disc Skip Button

4. Open/Close Button:

5. CD Play Indicator:

6. CD Repeat Indicator:

7. CD Pause Indicator:

8. Disc Number Indicator

9. RDS Indicator

10. EON Indicator

11. Traffic Announcement Indicator: TA

12. Traffic Programme Indicator:TP

13. Traffic Information Indicator: TI

14. Programme Type Indicator: PTY

15. Function/CD Track/Preset Channel/Volume/

Frequency/CD Counter/Time/Sleep Time Indicator

16. 4-Speaker Indicator: 4-SP (CD-C480H Only)

17. Dolby Pro Logic Indicator

18. Sleep Indicator

19. FM Stereo Mode Indicator: ST

20. FM Stereo Indicator:

21. SRS Indicator (CD-C480H Only)

22. Extra Bass Indicator: X-BASS

23. Memory Indicator

24. Direction Indicators

25. Reverse Mode indicator:

26. Record indicator

27. Timer Indicator

28. Spectrum Analyzer/Volume Level/Balance Indicator

29. On/Stand-by Switch

30. 3D Surround Mode Button (CD-C480H Only)

31. Extra Bass Button: X-BASS

32. Volume Up/Down Buttons:

33. 4-Speaker Surround Mode Button (CD-C480H Only)

34. Clock Button

35. Timer/Sleep Button

36. Programme Type/Traffic Information Search Button

37. EON button

38. ASPM Button

39. Display Mode Selector Button

40. Memory/Set Button

41. Tuning and Time Up/Down Buttons:

42. Edit/Beat Cancel Buttons:

NORMAL/HIGH (BEAT CANCEL)

43. Reverse Mode Button

44. Headphone Socket

45. Function Selector Buttons

46. Record Pause Button:

47. Bypass Button

48. Track Down/Review/Preset Down Button:

49. (TAPE 2) Reverse Play Button:

50. Stop Button:

51. (TAPE 1) Play Button/(TAPE 2) Forward Play Button/

(CD) Play/Repeat Button:

52. Track Up/Cue/Preset Up Button:

53. Centre Mode Buttons: NORMAL/PHANTOM

54. Equalizer Selector/Demo Mode Button

55. (TAPE 1) Cassette Compartment

56. (TAPE 2) Cassette Compartment

CD-C470H/CD-C470E/CD-C480H

1234

29 30

3132

123

X-BASS

kHz

MHz

RDS

EON

PTY

63 250 1k 4k 16k

SLEEP4-SPST

MEMORY

PRO LOGIC

REC

16 17

10 11

24 25

26 27

55 56

(Illustration: CD-C480H)

– 5 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

Rear Panel

1. CD Digital Output Socket

2. Video/Auxiliary (Audio Signal) Input Sockets

3. AC Power Lead

4. FM 75 ohms Aerial Socket

5. MW/LW Loop Aerial Input Socket

6. Front Speaker Terminals

7. Center Speaker Terminals

8. Surround Speaker Terminals

CD-C470H/CD-C470E/CD-C480H

Speaker Section

9. Tweeter

10. Super Tweeter

11. Woofer

12. Bass Reflax Duct

13. Speaker Wire

14. Full-Range Speaker

15. Speaker Wire

16. Full-Range Speaker

17. Speaker Wire

Remote Control

1. Remote Control Transmitter LED

2. Surround Level Buttons:

3. Center Level Buttons:

4. 4-Speaker Surround Mode Button (CD-C480H Only)

5. Dolby Pro Logic Button

6. Center Mode Button

7. Test Tone Button

8. Balance Control Buttons:

9. Programme Type/Traffic Information Search Button

Tuner control section

10. Preset Up/Down Buttons:

CD Control section

11. Disc Skip Button

12. Play/Repeat Button:

13. Memory Button

14. Clear Button

15. Pause Button:

16. Track Down/Review Button:

17. Track Up/Cue Button:

18. Stop Button:

19. Random Button

Tape control section

20. (TAPE 2) Reverse Play Button:

21. (TAPE 1/2) Stop Button:

22. (TAPE 1) Play Button/

(TAPE 2) Forward Play Button:

23. (TAPE 2) Record Pause Button:

24. (TAPE 2) Rewind Button:

25. (TAPE 2) Fast Forward Button:

26. 3D Surround Mode Button (CD-C480H Only)

27. Equalizer Mode Button

28. Function Selector Buttons

29. On/Stand-by Button

30. Extra Bass Button: X-BASS

31. Volume Up/Down Buttons:

CD-C470H/CD-C470E/CD-C480H

14 15 16 17 18

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 6 –

OPERATION MANUAL

ON/

STAND-BY

CLOCK

MEMORY/

SET

TUNING/TIME

( )

AM 0:00AM 12:000:00

SETTING THE CLOCK

Set the ON/STAND-BY switch to STAND-BY.

Press the CLOCK button.

Within 5 seconds, press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button to select the time

display mode.

"AM 12:00" → The 12-hour display will appear.

(AM 12:00 - PM 11:59)

"AM 0:00" → The 12-hour display will appear.

(AM 0:00 - PM 11:59)

"0:00" → The 24-hour display will appear.

(0:00 - 23:59)

Press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button to adjust the hour.

Press the TUNING/TIME button once to advance the time by

1 hour. Press for more than 0.5 seconds to advance continu-

ously.

When the 12-hour display is selected, "AM" will change auto-

matically to "PM".

Press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button to adjust the

minutes.

Press the button for at least 0.5 seconds to change the time

in 5-minute intervals.

The hour setting will not advance even if minutes advance

from "59" to "00".

Press the MEMORY/SET button.

The clock starts operating from "0" seconds. (Seconds are

not displayed.)

Note:

In the event of a power failure or when the AC power lead

is disconnected, the clock display will go out.

When the AC power supply is restored, the clock display will

flash on and off to indicate the time when the power failure

occurred or when the AC power lead was disconnected.

If this happens, follow the procedure below to change the

clock time.

To change the clock time:

When the ON/STAND-BY switch is set to STAND-BY.

When the unit is in the demonstration mode, press

the DEMO button to enter the clock mode.

Press the MEMORY/SET button.

Perform steps 6 - 9 above.

When the ON/STAND-BY switch is set to ON.

Press the CLOCK button.

Within 5 seconds, press the MEMORY/SET button.

Perform steps 6 - 9 above.

To see the time display: (When the power is ON)

Press the CLOCK button.

The time display will appear for about 5 seconds.

To switch the time display mode:

Set the ON/STAND-BY switch to STAND-BY.

Press the VOLUME button, the TUNING/TIME button

and the ON/STAND-BY switch all at the same time. Hold them

down for at least 1 second.

Perform steps 1 - 9 above.

Note:

The operation explained above will erase all data stored in

memory, such as clock and timer settings, tuner and CD pres-

ets.

In this example, the clock is set for the

24-hour (0:00) system.

PREPARATION FOR USE

Notes concerning use:

Replace the batteries if control distance decreases or oper-

ation becomes erratic.

Periodically clean the transmitter LED on the remote control

and the sensor on the main unit with a soft cloth.

Exposing the sensor on the main unit to strong light may

interfere with operation. Change the lighting or the direction

of the unit.

Keep the remote control away from moisture, excessive heat,

shock, and vibrations.

0.2 m - 6 m

(8" - 20')

1,2

RESETTING THE MICROCOMPUTER

Reset the microcomputer under the following conditions:

To erase all of the stored memory contents (clock and timer

settings, tuner and CD presets).

If the display is not correct.

If the operation is not correct.

Note:

To erase the tuner preset memory, see "To erase all of the

contents of preset memory" on page 19.

1 Press the ON/STAND-BY switch to enter the stand-by mode.

2 Press the VOLUME button, the TUNING/TIME button

and the ON/STAND-BY switch all at the same time. Hold

them down for at least 1 second.

– 7 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

DISASSEMBLY

Caution on Disassembly

Follow the below-mentioned notes when disassembling

the unit and reassembling it, to keep it safe and ensure

excellent performance:

1. Take cassette tape and compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall

outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need be

removed when disassembling the unit. After servicing

the unit, be sure to rearrange the leads where they were

before disassembling.

4. Take suffcient care on static electricity of integrated

circuits and other circuits when servicing.

Figure 7-2

Figure 7-3

1 Top Cabinet 1. Screw ..................... (A1) x4 7-1

2 Side Panel 1. Screw ..................... (B1) x6 7-1

(Left/right)

3 CD Player Unit/ 1. Turn on the power supply, 7-2

CD Tray Cover open the disc tray, take out

the CD cover, and close.

(Note 1)

2. Hook ....................... (C1) x3

3. Hook ....................... (C2) x2

4. Screw ..................... (C3) x1

5. Socket .................... (C4) x4

4 Tuner PWB 1. Screw ..................... (D1) x4 7-2

2. Screw ..................... (D2) x1

3. Socket .................... (D3) x1

5 Back Board 1. Screw ..................... (E1) x7 7-2

6 Main PWB 1. Screw ..................... (F1) x1 8-1

2. Holder .................... (F2) x2

3. Flat Wire................. (F3) x4

4. Socket .................... (F4) x3

Headphones PWB

1. Screw ..................... (G1) x1 8-1

8 Front Panel 1. Screw ..................... (H1) x2 8-1

9 Display PWB/ 1. Screw ..................... (J1) x3 8-2

Switch PWB 2. Screw ..................... (J2) x11

10 Tape Mechanism 1. Open the cassette holder. 8-2

2. Screw...................... (K1) x6

Power Amp. PWB

1. Screw ..................... (L1) x4 8-3

12 Turntable 1. Screw ..................... (M1) x1 8-4

2. Cover ..................... (M2) x1

13 Disc Tray 1. Screw ..................... (N1) x2 8-4

2. Guide ..................... (N2) x2

14 CD Changer 1. Screw ..................... (P1) x4 8-5

Mechanism

15 CD Mechanism 1. Screw ..................... (Q1) x1 8-5

STEP REMOVAL

PROCEDURE

FIGURE

Note 1:

How to open the changer manually. (Fig. 7-3)

1. Insert the tip of fine screwdriver into the hole of CD player

base, and press down the worm wheel < A > .

2. Then, turn fully the lock lever in the arrow direction through

the hole on the loading chassis bottom in this state.

After that, push forward the CD player base.

Figure 7-1

CD-C470H/CD-C470E/CD-C480H

( B1 ) x2

ø3 x8mm

( B2 ) x2

ø3 x8mm

( B1 ) x2

ø3 x8mm

Top Cabinet

Side Panel

(Right)

Rear Panel

Side Panel

(Left)

( A1 ) x2

ø3 x12mm

( A1 ) x2

ø3 x12mm

CD-C470H/CD-C470E/CD-C480H

CD Tray Cover

CD Player Unit

( D1 ) x4

ø3 x10mm

( D3 ) x1

ø3 x10mm

( E1 ) x7

ø3 x8mm

( C3 ) x1

ø3 x8mm

( D2 ) x1

ø3 x8mm

Hook

( C1) x3

( C4 ) x4

( D3 ) x1

( C2 ) x1

Back

Board

Main PWB

Tuner

PWB

Front Panel

Pull

(C2)x1

< A >

LOCK

LEVER

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 8 –

Figure 8-1

Figure 8-2

Figure 8-3

Figure 8-4

Care when installing the CD changer mechanism.

Install the CD changer mechanism on the CD player base after

the shift lever has been set in the highest position.

Figure 8-5

Main PWB

( H1 ) x2

ø3 x8mm

( G1 ) x1

ø3 x11mm

( F4 ) x3

( F3 ) x1

Front Panel

Tape

Mechanism

( F1 ) x1

ø3 x10mm

Push

Headphon

PWB

( F3 ) x2

( F3 ) x1

( F2 ) x2

Display

PWB

Switch PWB

Tape

Mechanism

Open

Cassette

Holder

(Left/Right)

Front Panel

( K1 ) x6

ø3 x10mm

( J2 ) x11

ø3 x10mm

( J1 ) x3

ø3 x10mm

Power Supply PWB

( L1 ) x4

ø3 x10mm

Power Amp.

PWB

( M1 ) x1

ø3 x10mm

( M1 ) x1

ø3 x10mm

( L1 ) x1

ø3 x10mm

Turntable

Disc Tray

( L2 ) x1

( M2 ) x1

CD Player Unit

( N1 ) x4

ø3 x14mm

( P1 ) x1

ø2.6 x10mm

CD Changer

Mechanism

CD Mechanism

Shift Lever

CD Player Base

– 9 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

Figure 9-1

Figure 9-2

STEP

REMOVAL PROCEDURE FIGURE

1 Front Speaker 1. Net........................... (A1) x1 9-1

(Left/Right) 2. Front Panel ............. (A2) x1

3. Screw ...................... (A3) x6

STEP

REMOVAL PROCEDURE FIGURE

1 Top Cabinet 1. Screw ...................... (B1) x6 9-2

STEP

REMOVAL PROCEDURE FIGURE

1 Top Cabinet 1. Screw ...................... (C1) x9 9-3

( A3 ) x2

ø4 x16mm

( A3 ) x4

ø4 x16mm

Screwdriver

Net

( A1 ) x1

Front Pael

( A2 ) x1

Tweeter

Super Tweeter

Woofer

Figure 9-3

(B1)x2

ø3x20mm

(B1)x2

ø3x20mm

(B1)x2

ø3x20mm

Woofer

(C1)x2

ø3x20mm

(C1)x3

ø3x20mm

(C1)x4

ø3x20mm

CP-C470H/CP-C470E/CP-C480H

CENTER SPEAKER SYSTEM

SURROUND SPEAKER SYSTEM

CP-C470H/CP-C470E/CP-C480H

CENTER SPEAKER SYSTEM

SURROUND SPEAKER SYSTEM

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 10 –

Figure 10-2

How to remove the pickup (See Fig. 10-2)

1. Remove the screws (B1) x 2 pcs., to remove the shaft (B2).

2. Remove the stop washer (B3) x 1 pc., to remove the gear

(B4).

3. Remove the pickup.

REMOVING AND REINSTALLING THE MAIN PARTS

CD MECHANISM SECTION

Perform steps 1, 2, 3, 14 and 15 of the disassembly method

to remove the CD mechanism.

How to remove the turntable up/down motor

(See Fig. 10-1)

1. Remove the screws (A1) x 2 pcs., to remove the turntable

up/down motor.

Figure 10-1

( B1 ) x2

2.6 x6mm

Shaft

( B2 ) x1

Stop Washer

( B3 ) x1

Gear

( B4 ) x1

CD Mechanism

Pickup

( A1 ) x2

ø2 x5mm

Turntable Up/Down Motor

– 11 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

MECHANISM SECTION

• Driving Force Check

Torque Meter

Specified Value

Play: TW-2412 Tape 1: Over 80 g

Tape 2: Over 80 g

• Torque Check

Torque Meter

Tape 2

Play: TW-2111 30 to 60 g. cm 30 to 100 g.cm

Fast forward: TW-2231 — 50 to 100 g.cm

Rewind: TW-2231 — 50 to 100 g.cm

Specified

Value

Adjusting

Point

Instrument

Connection

Test Tape

Normal MTT-111 VRM1 3,000 ± Speaker

speed 30 Hz terminal

ADJUSTMENT

Specified Value

Tape 1

• Tape Speed

fL: Low-range frequency

fH: High-renge frequency

• AM IF/RF

Signal generator: 400 Hz, 30%, AM modulated

IF 450 kHz 1,620 kHz T351 *1

MW Band — 522 kHz (fL): T306 *2

Coverage 1.1 ± 0.1 V

MW 990 kHz 990 kHz (fL): T302 *1

Tracking

LW Band — 153 kHz (fL): T305 *2

Coverage 1.5 ± 0.1 V

LW 225 kHz 225 kHz (fL): T301 *1

Tracking

Test Stage Frequency

Frequency

Display

Setting/

Adjusting

Parts

Instrument

Connection

• FM

Notes:

1: Description of the "FM IF Adjustment" is not carried on this

Manual. It is because the IF coil in the FM front end section

has been best adjusted in the factory so that its further

adjustment is not needed at the field. When replacing the

FM front end assembly, no adjustment is needed either.

2: The parts in the FM front end section are prepared in a

complete unit, so you can't obtain each part individually

Adjusting

Parts

Instrument

Connection

Frequency

Display

Frequency

• FM Mute Level

Signal generator: 1 kHz, 40 kHz dev., FM modulated

98.00 MHz 98.00 MHz VR351* Input: Antenna

(25 dBµV) Output: Speaker

Terminal

Figure 11-1 ADJUSTMENT POINTS

TUNER SECTION

*1. Input: Antenna, Output: TP302

*2. Input: Antenna, Output: TP301

VRM1

TAPE

SPEED

TAPE MECHANISM PWB

TUNER PWB

TP301

CNP301

SO301

ANTENNA

TERMINAL

FE301

TP302

R357

T351

T306

T305 T302 T301

VR351

AM IF

FM MUTE

LEVEL

MW BAND

COVERAGE

TRACKING

LW BAND

COVERAGE

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 12 –

TEST MODE

200 ms

1V/diV

IC 1 15

200 ms

1V/diV

IC 1 7

TRACKING/

ERROR

BARANCE

ADJUST

Figure 12-2

Figure 12-3

10ms

0.50 V

IC1 20 FE

10ms

0.50 V

IC1 7 TE

Enlarged

View

TRACKING

OFF-SET

ADJUST

Since this CD system incorporates the following automatic adjustment function, when the pickup is replaced, it is not necessary

to readjust it.

Since this CD unit does not need adjustment, the combination of PWB and laser pickup unit is not restricted.

• Automatic adjustment item

1. Focus offset (Fig. 12-2)

2. Tracking offset (Fig. 12-3)

3. E/F balance (tracking error balance) (Fig. 12-4)

4. RF level AGC function (HF level: constant)

5. RF level automatic follow-up of the tracking gain

This automatic adjustment is performed each time a disc is changed. Therefore,

each disc is played back using the optimal settings.

CD SECTION

Figure 12-1

Note:

Only in STOP state it is possible to slide the pickup with the ( ) or ( ) key.

VOL. --- Last memory

BAL. --- CENTER

R.GEQ. --- FLAT

X-BAS --- OFF

Canceling method - POWER OFF

• Setting the test mode

Any one of test mode can be set by pressing several keys as follows.

<REC. PAUSE> + <CD> + <POWER> TEST: CD operation test

• TEST mode

Function — CD test mode

Setting of TEST mode

Indication of CD TST mode (Fig. 12-1)

OPEN/CLOSE operation is manual operation.

The pickup can be moved by using the (

) or ( ) key.

LASER ON

<PLAY> key input Press <STOP> key.

Stop

TOC. IL is performed, and the ordinary PLAY is performed.

If the following key is pressed during PLAY, it is possible

to specify directly any Track No.

<Disc Number 1> key: Track 4

<Disc Number 2> key: Track 9

<Disc Number 3> key: Track 15

Tracking on the spot.

SERVO OFF PLAY

Tracking on the spot.

SERVO ON PLAY

STOP

0.1s

0.50 V

IC1 20 FE

0.1s

0.50 V

IC1 7 TE

FOCUS

OFF-SET

ADJUST

TRACKING

OFF-SET

ADJUST

Figure 12-4

IL is not performed.

<STOP>

– 13 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

SP out L-ch Input signal is output.

(SO901) R-ch Input signal is output.

(SO903) SP out C-ch SP cut, no output

(SO902) SP out S-ch

Almost no output (only omitting component)

SP out L-ch Almost no output (only omitting component)

(SO901) R-ch Almost no output (only omitting component)

(SO903) SP out C-ch

Input signal is output.

(SO902) SP out S-ch

Almost no output (only omitting component)

State of set Dolby Pro Logic Dolby Pro Logic On mode

Output point Bypass mode Normal mode Phantom mode

IC202 16 pin L-out Output enabled state Output enabled state Output enabled state

15 pin R-out Output enabled state Output enabled state Output enabled state

IC201 34pin C-out No output Output enabled state No output

IC202 13pin S-out No output Output enabled state Output enabled state

SP OUT L-ch Output enabled state Output enabled state Output enabled state

(SO901) R-ch Output enabled state Output enabled state Output enabled state

SP OUT C-ch No output in MUTE (Q504) state Output enabled state No output in MUTE (Q504) state

(SO903)

SP OUT S-ch No output in MUTE (Q503) state Output enabled state Output enabled state

(SO902)

EXPLANATION OF DOLBY SURROUND PRO LOGIC AND EVALUATION METHOD

Test tone output

• Pro Logic ON Normal mode

Press the remote control TEST TONE button.

→Output of only L-ch →Output of only C-ch

↑ ↓

Output of only S-ch ← Output of only R-ch

The test tone (noise) is repeatedly output for output period

(2 sec).

In this case the following indication appears repeatedly.

→TEST →L-ch →C-ch

↑ ↓

S-ch ← R-ch

• Pro Logic ON Phantom mode

Press the remote control TEST TONE button.

→Output of only L-ch →Output of only R-ch

↑ ↓

← Output of only S-ch

The test tone (noise) is repeatedly output for output period

(2 sec).

In this case the following indication appears repeatedly.

→TEST → L-ch → R-ch

↑ ↓

← S-ch←

Outline

• Namely, two speakers are connected in parallel to one

amplifier.

• In the Pro Logic BYPASS mode the amplifier for C-ch (center

channel) and the amplifier for S-ch (surround channel) are in

MUTE state. The SP output is cut.

• In the normal mode of Pro Logic ON mode the amplifiers for

C-ch and S-ch are in operative state, so that the SP output

appears.

• In the Phantom mode of Pro Logic ON mode the amplifier for

C-ch is in MUTE state, so that the SP output is cut. The

amplifier for S-ch (surround) is in operative state, so that the

SP output appears

• State of element output and terminal output in specific mode

Relation between VIDEO IN input and output in Pro Logic

ON state

(1) L-ch/R-ch same phase input into VIDEO IN input jack in

VIDEO Function mode

Output point Normal mode

Output point Phantom mode

(2) L-ch/R-ch reverse phase input into VIDEO IN input jack in

VIDEO Function mode

(Reverse phase: Phase difference between L and R is 180°)

Output point Normal mode

SP out L-ch

Almost no output (only omitting component)

(SO901) R-ch

Almost no output (only omitting component)

(SO903) SP out C-ch

Almost no output (only omitting component)

(SO902) SP out S-ch Input signal is output.

Output point Phantom mode

SP out L-ch

Almost no output (only omitting component)

(SO901) R-ch

Almost no output (only omitting component)

(SO903) SP out C-ch SP cut, no output

(SO902) SP out S-ch Input signal is output.

• Accordingly, if you want to output signal waveform to C-ch SP

out, give the same phase input into L-ch/R-ch INPUT in the

Pro Logic Normal mode.

If one of channels receives input, C-ch does not output. Only

L-ch or R-ch outputs.

• If you want to output signal waveform to S-ch SP out, you can

use either Normal mode or Phantom mode. However, 180°

reverse phase input must be given to L-ch/R-ch INPUT.

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 14 –

RDS

1. RDS Function

PI ASPM

PS STATION NAME

PTY PTY SEARCH

PTY(31)

EON TI (TA) STAND-BY MODE

EON-PTY EON-TI/PTY

EON-AF With EON-AF

TP ind.

TA ind.

2. DISPLAY and control buttons

Select and search (18 kind items) by cyclic

NEWS-AFFAIRS ------ OTHER M - ALARM - TP - TA

Select and stand-by (17 kind items) by cyclic

NEWS-AFFAIRS ------ OTHER M - ALARM - TI

RDS

EON

PTY

DISPLAY

8 character can display E1 table of EBU.

Same as CD-C75H.

Lights up when RDS with EON station is received.

Lights up when RDS station is received.

Lights up when TA station is received.

Lights up when TP station is received.

Lights up when stand-by mode and blinks during staying other network

station.

ASPM DISPLAY PTY•TI

SET

PTY•TI

SELECT

EON

PTY and TI items can be

selected when use PTY search

or EON STAND-BY

Can use for

• EON setting

• confirm stand-by item

• cancel (ON→TN)

• EON clear cancel

18 kind

(contain TP, TA)

17 kind

(contain TI)

Note:

TP and TA ind. are different from CD-C75H.

TP, TA ind. can light up individually, when TP: OFF and TA: ON, it means that EON-TI can be used, in case of TP=OFF,

TA=OFF, EON-Ti can't be used.

In case of CD-C75H, (TP: OFF and TA: ON) disregard (ignore) this case, because EON-TI is nothing.

AF: Alternative Frequencycies

– 15 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

ASPM, summary operation

Hold down the ASPM button for 3 more second.

“ASPM” blinks in the display.

Preset CH memory full over?

No operate. After displayed “END”. Return to

previous station.

SD (TUNE) DET out OK?

If count 1st OK?

If count 2nd OK?

RDS signal or not? PI—identify

Comparing PI cord same or not?

between current receiving PI and

before PI which is already memorized

by ASPM on this time.

Comparing freg. same or not?

between current receiving frequency

and (already) previously memorized

frequency.

Memorized to the lowest

vacant preset channel.

Preset CH memory become full over?

Begin to ASPM SCAN from the next

CH-SPAN again.

Repeat and continue with same format

ASPM operation untill 108 MHz.

After reached 108 MHz, displayed the

TTL quantity of memorized stations.

And return to the previous receiving

freq. automatically.

Displayed the TTL quantity of memo-

rized stations by ASPM operation on

this time. And return to the previous

receiving freq. automatically.

Yes

Effect

Pass

No effect

Pass

No effect

Pass

No effect

Pass

No effect

Yes

Compare the field strength of current

receiving signal. Is receiving signal

stronger than signal which has same PI

cord and is already memorized to

preset memory ahead of this receiving

time?

Yes

No effect

Comparing freg. same or not?

Between current receiving frequency

and (already) previously memorized

frequency.

Yes

Memorized to the lowest

vacant preset channel.

Yes

No effect

Begin to scan start 87.50 → 108.00 MHz

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 16 –

4. No adjust type (None adjusting circuit.)

5. Added EON button.

6. Need to change RDS logo due to add EON feature.

7. Added EON—TI, EON—PTY function.

3. Summary of CD-C470H/CD-C480H RDS—EON operation

EON—PTY: Select and set the desired “PTY” → stand-by → switch to ON(other network) Station at the

start of desired PTY automatically → stay and listen to PTY of ON station → switch back to TN(This net) station

automatically at the end of PTY(ON) i.e. after changing to another PTY(except AFFAIRS) or cancelling to receive PTY of ON

station midway.

EON—TI: Select and set the “TI” → stand-by → switch to ON station at the start of traffic announcement automati

cally → stay and listen to TA of ON station → switch back to TN station autmatically at the end of TA(ON).

ie after TA(ON) is over or cancelled to receive TA of ON station midway.

When switching TN → ON station.

In case of exist 2 more stations having the desired(specified) “PTY” or “TI”, the receiver will select and switch toON station

comparing field strength at the same time. But when the frequency of ON station exists in the preset-memory, then reciver

switches straight to that ON station(CH), without comparing field strength so can make a quick switching from TN—ON sta

tion. Preset memory takes priority of switching TN—ON station.

therefore ASPM is usefull not only for PTY search but also for rapid EON switching. Anyway CD-C470H/CD-C480H’s EON is

basically stand-by and receiving method, along with the Guidelines for EON implementation.

• ASPM SCAN: 87.50MHz → 108.00 MHz.

• Only RDS signal is memorized by ASPM because RDS signal has PI code and is suitable and convenient for ASPM operation.

ASPM

Comparing field strength, only one strongest RDS station is memorized of all stations (repeater relay stations) that have same

PI code.

Same PI code — freq: different

(AF’S)

PS: same

PTY: same

Each PI has AF’S list by individually.

Exa: P1 has f1, f2, f3 (same PTY).

P2 has f4, f5 (same PTY).

[For example] Pickup and memorized to preset CH.

f 1

f 2 f 3

P 1 (PI cord)

PS 1 (Station Name)

f 5 f 4

P 2

PS 2

f 6

f 7 f 8

P 3

PS 3

f 9 f 10

f 11 f 12 f13

P 4

PS 4

Select signals (f1, f5, f7, f10) are memorized in the preset memory by ASPM.

• If tentative - ASPM operation is repeated intententionally, never memorized (over write) at the same frequecy.

1st time ASPM → strongest stations of each pi are memorized.

ASPM is not only very usefull for PTY search, but also EON operation.

2nd time ASPM → 2nd strong stations of each pi are memorized and so on.

PTY search function is equal to FM band search function as a result.

1. Introduction of RDS for CD-C470H

CD-C470H/CD-C480H RDS function is equal to adding EON feature to the current CD-C75H RDS.

EON feature is EON—PTY and EON—TI.

Although PTY and TI indicators are separated, PTY contains TI in the PTY items (software) like current PTY search items.

NEWS, AFFAIRS, INFO, ALARM, TI (TTL 17 kinds)

EON—PTY EON—TI

Can select and stand-by Can select and stand-by

EON—PTY and EON—TI are basically stand-by → receive the desired program of ON station.

2.The difference point from current CD-C75H RDS. (CD-C75H — CD-C470H/CD-C480H)

1. PTY item: added TA.TTL 18 kind.

2. Each “TP”, “TA” ind. light up or go out individually.

“TA” ind. doesn’t light up on current model, CD-C75H due to none EON—TI.

3. Added 3 indicators(in FL) due to adding EON feature.

EON: Lights up only during receiving EON data (14A).

TI: During EON-TI stand-by → Light up

During receiving ON station. → blink.

PTY: During EON-PTY stanb-by → Light up

During receiving ON station. → blink.

---

↑

– 17 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

EON summary notice for reference

1. EON-TI/PTY EON stand-by can be set, only when EON ind. lights up.

While EON ind. goes out (NO EON STATION), EON stand-by can't be set.

If the EON button is pressed, then “NO EON” is indication the display.

2. EON-TI/PTY Even if switch back ON→TN station continue to keep EON stand-by.

3. EON-TI Don’t switch TN→ON during TN broadcast TA. (same item)

4. EON-TI/PTY

EON can be cancelled during receiving ON station by pressing EON button if necessary and

switch back ON

→

TN.

5. EON-TI/PTY EON stand-by is perfectly cancelled (cleared) by pressing EON button 2 times during stand-by or

powerOFF or Tun Up/ Down or change band or recall pre-set CH.

6. EON-TI/PTY After setting EON stand-by, stand-by items can be confirmed by pressing EON button one time.

7. EON-TI/PTY EON button function: •EON setting

•Confirm stand-by items

•Cancel (ON→TN)

•EON clear cancel (2 times)

8. EON-TI/PTY After setting EON-TI and EON-PTY stand-by, if when EON data is not transmitted, EON ind goes out

and EON stand-by is automatically cancelled display “NO EON”.

9. EON-TI EON-TI stand-by can't be set. When TP=0,TA=0(TN) even if EON ind. lights up and the EON button is

pressed then “NO TI” is indication the display.

10. EON-PTY Don’t switch TN→ON during TN broadcast same specified PTY. (same item of PTY)

11. EON-TI/PTY Switch TN→ON→ TN station one cycle.

Never switch TN→ON1→ON2→ Other net to other net station.

12. EON-TI/PTY After switch TN→ON station. When ON station is NO RDS, NO signal, TA=OFF or different PTY items.

The receiver switch back ON→TN displaying “NO READY”.

13. During receive ON station. when ON station become to be NO RDS, NO signal, TA=ON to OFF or

different PTY item, The receiver switch back ON→TN.

14. EON-TI/PTY Switch TN→ON in case of 2 more stations exist, comparing field strength and switch to the strongest

station, if these signals are same strength, switch to the first previous station.

If same frequency as AF'Sexists in the preset memory, then switch TN→ON (preset memory station)

straight.

In case of exist 2 more preset memories of AF’S,then switch to the preset CH which taken in EON DATA

first, also in this case no concern to field strength.

15. Even if switch TN→ON preset memory straight, that ON station is very weak signal, then search another

AF'S (ON) station comparing field strength and switch to the strongest station as a result. Of all atations

of AF'S are very weak or no good condition, then, switch back ON→TN automatically display "NO

READY".

16. EON-TI/PTY No linkage volume, power ON/OFF, and switch function.

Traffic Programme code

(TP)

Traffic Announcement code

(TA)

Applications

OFF OFF This programme does notcarry traffic announcements nor does

it refer, via EON, to a programme that does.

OFF ON This programmecarries EON information about another

programme which gives traffic information.

ON OFF This programme carries traffic announcements but none are

being broadcast at present and may also carry EON information

about other traffic announcements.

ON ON A traffic announcement is being broadcast on this programme at

present.

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 18 –

SW723 REC/PAUSE ON—OFF

SW724 TUNING UP/TIME ON—OFF

SW725 VOLUME UP ON—OFF

SW726 X-BASS ON—OFF

SW727 4-SP SURROUND ON—OFF

[CD-C470H/C480H ONLY]

SW728 STOP ON—OFF

SW729 FWD ON—OFF

SW730 FF ON—OFF

SW731 MEMORY SET ON—OFF

SW732 TUNING DOWN/TIME ON—OFF

SW733 VOLUME DOWN ON—OFF

SW734 EQUALIZER/DEMO ON—OFF

SW735 3D SURROUND

[CD-C480H ONLY]

ON—OFF

SW736 REVERSE MODE ON—OFF

SW737 REV ON—OFF

SW738 REW ON—OFF

SW739 EDIT NORMAL ON—OFF

SW740 EDIT HIGH ON—OFF

SWM 1 T1 CrO2 ON—OFF

SWM 2 T2 CrO2 ON—OFF

SWM 3 REC FWD ON—OFF

SWM 4 REC RVS ON—OFF

SWM 5 F.A.S. ON—OFF

SWM 6 CAM ON—OFF

SW1 OPEN/CLOSE ON—OFF

SW2 MWCHA UP ON—OFF

SW3 DISC NUMBER ON—OFF

SW4 PICKUP IN ON—OFF

SW701 ON/STAND-BY ON—OFF

SW702 CLOCK ON—OFF

SW703 TIME/SLEEP ON—OFF

SW704 DISC 1 ON—OFF

SW705 DISC 2 ON—OFF

SW706 DISC 3 ON—OFF

SW707 DISC SKIP ON—OFF

SW708 OPEN/CLOSE ON—OFF

SW709 CD ON—OFF

SW710 TUNER/BAND ON—OFF

SW711 TAPE ON—OFF

SW712 VIDEO ON—OFF

SW713 EON [CD-C470H/C480H ONLY] ON—OFF

SW714 PTY/TI SEARCH ON—OFF

[CD-C470H/C480H ONLY]

SW715 ASPM [CD-C470H/C480H ONLY] ON—OFF

SW716 DISPLAY MODE ON—OFF

[CD-C470H/C480H ONLY]

SW717 CENTER MODE/PHANTOM ON—OFF

SW719 CENTER MODE/NORMAL ON—OFF

SW721 DOLBY PRO LOGIC/BYPASS ON—OFF

• The indicated voltage in each section is the one measured

by Digital Multimeter between such a section and the chas-

sis with no signal given.

1. In the tuner section,

( ) indicates AM

< > indicates FM stereo

2. In the main section, a tape is being played back.

3. In the deck section, a tape is being played back.

( ) indicates the record state.

4. In the power section, a tape is being played back.

5. In the CD section, the CD is stopped.

• Parts marked with “ ” ( ) are important for

maintaining the safety of the set. Be sure to replace these

parts with specified ones for maintaining the safety and

performance of the set.

NOTES ON SCHEMATIC DIAGRAM

• Resistor:

To differentiate the units of resistors, such symbol as K and

M are used: the symbol K means 1000 ohm and the symbol

M means 1000 kohm and the resistor without any symbol is

ohm-type resistor. Besides, the one with “Fusible” is a fuse

type.

• Capacitor:

To indicate the unit of capacitor, a symbol P is used: this

symbol P means micro-micro-farad and the unit of the

capacitor without such a symbol is microfarad. As to

electrolytic capacitor, the expression “capacitance/withstand

voltage” is used.

(CH), (TH), (RH), (UJ): Temperature compensation

(ML): Mylar type

(P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board for this

model are subject to change for improvement without prior

notice.

REF. NO DESCRIPTION POSITION POSITIONREF. NO DESCRIPTION

Figure 18 TYPES OF TRANSISTOR AND LED

ECB

(S)(G)(D)

(1) (2) (3)

FRONT

VIEW

2SA2878 A

2SK246 GR

2SC2236 Y

2SC380 O

KRC102 M

KRC104 M

KRA107 M

KRC107 M

KTA1266 GR

KTC3199 GR

KTC3203 Y

2SD2012

2SC1845 F

KTA1271 Y

KTA1273 Y

FRONT

VIEW

333GTH2

333YTH2

333YTH4

5N4GTN52

5N4YTN52

LMKD515B

BCE

(D)(G)(S)

(3) (2) (1)

FRONT

VIEW

– 19 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

Figure 19 BLOCK DIAGRAM (1/3)

10 11

PU-IN SW

XL1

XIN

LD0

FIN2

JP–

CV+

SLC

SLI

FIN1

SPO

SLD

SL–

SL+

DRF

DAT

VCC1 VCC2

+4.9V

PICKUP IN

SW4

FOCUS COIL

TRACKING COIL

SPINDLE

MOTOR

SLED

MOTOR

PICKUP UNIT

IC2

LC78623E

SERVO/SIGNAL

CONTROL

+B4

IC5

M56748FP

DRIVER

IC1

LA9240M

SERVO AMP.

RES. CQCK. COIN

SQOUT. RWC. WRQ

CL, DAT, SELIAL CONTROL/CE

SL+. SL–. DRF

+4.9V

56 45 3623 43

5853

5352515431302923271615

4144

+4.9V

Q81 +7.3V (B4)

REGULATOR

TO MAIN SECTION

XOUT

EFMO

EFMIN

CLV+

JP–

CONT2

CONT1

SOL

SPH/L

RCHO

RVSS

LVSS

LCHO

VVDD

VDD

LVDD

RVDD

XVDD

TO MAIN

SECTION

TR+

TR–

FO–

FO+

SL+

SL–

SP–

SP+

3222

CONSTANT

VOLTAGE

IC99

OPTICAL

FIBER DATA

LINK

+4.9V

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 20 –

Figure 20 BLOCK DIAGRAM (2/3)

2930

4243

3536

6448

23 22

2917

15 16

5761

IC453(2/2)

FUNCTION

SELECTOR

Q461

IC453(1/2)

BU4052BC

FUNCTION

SELECTOR

IC451

SRS5250S

SRS

L-OUT

R-OUT

+B3

VDD

VCC

MODE1-5

MONO

PASS

SRS STEREO

SRS MONO

MODE

R-IN

L-IN

R NF

L NF

REC

PB MUTE

MUTING

REC MUTE

MUTING

SWITCHING

T1/T2

REC/PB

BAIS

+B2

SWM4

REC RVS

SWM3

REC FWD

SWM5

SWM6

MM1

TAPE

MOTOR

J501

C-OUT

ENEBLE

+B3

Q83

Q84

ICT21

LC72720

VDDA

VSSA

MW/LW

ANT.

MW/LW

OSC.

L341

BALUN

X352

4.5MHz

IC302

TC72131

PLL(TUNER)

FM IF DET/FM MPX/AM IF

OUT

IC303

LA1832

+B3 CF351 X351

+B3

MPX

PHASE

Q361

SOLENOID

F/R SPEED

RUN PULSE

DATA

ENEBLE

SO301

ANTENNA

TERMINAL

AM LOOP

ANTENNA

Q129

Q130

BEAT CUT

BAIS

BEAT CUT

R-OUT

L-OUT

C-I

S-IN

+B3

SRS

BALANCE

4CH SP

MAIN STB

CLEAR

MAIN SI

MAIN SO

MAIN SCK

TUNER MUTE

VOLTAGE

REGURATER

+B3

+5V

QT21

VF2

(AC)

FL701

IC601

IX0171AW

MICROCOMPUTER

+B1

R-MUTE

C-MUTE

S-MUTE

POWER

CAM SW

CLK

CAM SW

TA MOT SW

REC/PB

F.A.S

REC FWD

REC RVS

PB MUTE

T1/T2

BIAS

HI SPEED

REC MUTE

R-IN

L-IN

S-OUT

R-MIX OUT

L-MIX OUT

+B3

A-GND

IC202

LV1016

D-GND

VREF

S-IN

R-IN

L-IN

VCC

VREF

BUFFER

S-OUT

R-OUT

L-OUT

VCC

IC201

LA2786

VDD

VSS

DRIVER

RUN PULSE

SOLM1

+B2

SOLENOID

QM03

PHM1

FAS SW

CAM SW

F.A.S

REC RVS

REC FWD

SWM2

T2 CrO

SWM1

T1 CrO

T2 CrO

T1 CrO

MOTOR

DRIVER

QM02

TA MOT SW

HI SPEED

TA MOT H/L

QM05

+B2

QM04QM01

SWITCHING

Q119

Q115

Q116

HI SPEED

Q117

Q118

Q121

Q122

VIDEO2VIDEO1

FRONT

CENTER

REAR

X-BASS

RTINLTIN

VSSD

VDDD

X IN

X OUT

MPX

AMP.

FM +B

XT21

4.332MHz

XT21

T305

T306

T301

T302

CF302

P.B

+B7

REF

T1/T2

NOR/

HIGH

ALC

REC

P.B.

PLAYBACK&RECORD AMP.

IC101

AN7345K

R REC

L REC

POP REDUCE

R NF

R(T2)

L(T2)

R(T1)

L(T1)

L NF

Q124 Q126

SWITCHINGSWITCHING

CF301

FM FRONT END

FE301

Q360

MUTING

MPX

VCO

CUT

Q353

Q354

MPX

FM/AM

OUT

IF IN

FM MONO/ST

MONO/ST

AM RF IN

AFC

OUT

VR351

FM MUTE LEVEL

AM OSC

REG INOUT VCC

FM IF IN

AMP

FM IF

Q301

FM IF

OSC.

STEREO

AM IN

FM IN

FMOSC

T351

AM IF

GND

OSC.

FM IF

AM RF

CD MUTE

FROM CD UNIT

IC501

LC75396E

AUDIO PROCESSOR

TAPE 1

TAPE 2

CD-C480H

ONLY

CD-C480H

ONLY

Q128

L103

Q111

Q107

Q108

Q110

Q109

Q103,Q104

Q105,Q106

REC/PBREC

P.B

AC BIAS

P.B

REC/PB

HEAD

L-CH

R-CH

PB HEAD

L-CH

R-CH

ERASE

HEAD

AUX

TUNER

TAPE

T1/T2

H/N

RRRLLL

GRAPHIC EQUALIZER

T2 CrO

T1 CrO

– 21 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

Figure 21 BLOCK DIAGRAM (3/3)

43 47

1011

21 22

1615

1413

3348

5761

OPE AMP.

IC651

BA4558

53(2/2)

CTION

ECTOR

250S

Q460

Q458~

L-OUT

R-OUT

MODE1-5

MONO

PASS

SRS STEREO

SRS MONO

MODE

R-IN

L-IN

SRS INH

SRS B

SRS A/

SRS

PASS/

SRS

PASS

LEVEL

CONT

Q463

Q466

Q467

Q468

Q469

C-OUT

SPE1-5

IC502/503/504

–B1

IC504(1/2)

BA4558

OPE AMP.

BA4558

OPE AMP.

+B3

VF1

(AC)

IC701

IX0170AW

MICROCOMPUTER

Q704

INPUT/OUTPUT

EXPANDER

IC702

BU2092F

+B5

+B4

SW2

MEHCA UP

SW3

DISC NO

SW1

OPEN/CLOSE

T/T

UP/DOWN

IC91

LOADING MOTOR

DRIVER

+B2

SOLM2

SOLENOID

Q501

Q502

F951

T1.6A

L 250V

IC951

LA4451

POWER AMP.

IC901

STK48801

POWER AMP.

+B3

Q828

Q801

VOLTAGE

REGULATOR

F902

T2.5A

L 250V

F901

T2.5A

L 250V

F802

T4A

L 250V

F804

T1.6A

L 250V

F803

T4A

L 250V

AC 230V 50Hz

SUPPLY CORD

AC POWER

T801

POWER

TRANSFORMER

T.F

C-IN

S-IN

DOLBY P.L

SRS

BALANCE

4CH SP

+B1

SW701~SW717

SW719,SW721

SW723~SW726

SW728~SW734

SW736~SW740

KEY MATRIX

KEY0

KEY5

LED701~LED712

LED714~LED719

VDD

VSS

LCK

CLOCK

DATA

Q705

Q706

ZD701

SYS STOP

RESET

+B6

S-MUTE

POWER

REMOCON

CLK

RX701

REMOTE

SENSOR

REMOCON

TUN SD

TUN SM

TUN MUTE

CLEAR

MAIN SO

MAIN SI

MAIN SCK

MAIN STB

CLEAR

MAIN SI

MAIN SO

MAIN SCK

SPE IN

+B1

MEMORY

BACK UP

+B5

Q701

FL701

IC601

IX0171AW

ROCOMPUTER

CD O/C SW

CD D.NO

CD U/D

+B4

Q94

CD LD M–

CD LD M+

CD LD H/L

SWITCHING

DRIVER

Q93 Q91

SOL

TO CD UNIT

CD MUTE

+B1

CD MUTE

CD RES

CD SL–

CD SL+

CD CQCK

CD SQOUT

CD COIN

CD WRQ

CD RWC

CD PUIN

CD DRF

CD O/C SW

CD D.NO

CD U/D

POWER ON/STB

SWITCHING

C-MUTE

R-MUTE

S-MUTE

POWER

S-OUT

R-MIX OUT

L-MIX OUT

Q504 Q503

Q951

CENTER

REAR-IN

REAR-OUT

CENTER-OUT

SO903

CENTER

SPEAKER

TERMINAL

CENTER

SO902

REAR

SPEAKER

TERMINAL

R-CH

GND

L-CH

–

GND

–

JA901

HEADPHONES

SO901

FRONT

SPEAKER

TERMINAL

R-CH

GND

L-CH

–

Q901

+B1

–B1

Q829

R-IN

L-IN

+B1

–B1

R-OUT

L-OUT

+B4

+B3

+B2

+B1

–B1

–15V

CENTER

REAR

VOLTAGE

REGURATER

X-BASS

+12V(MOTOR)

Q826

Q827

VOLTAGE

REGULATOR

UN-SWITCHED

+5V

Q823

Q824

Q825

Q821

Q822

+7.3V(CD)

D801

D802~D805

501

396E

OCESSOR

VOLTAGE

REGULATOR

VF2

(AC)

VF1

(AC)

+12V(ANALOG)

VOLTAGE

REGULATOR

SWITCHING

VOLTAGE

REGULATOR

TO CD UNIT

OUT

CENTER

OUT

REAR

OUT

VOLUME

RRRLL

RAPHIC EQUALIZER

~~~

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 22 –

Figure 22 SCHEMATIC DIAGRAM (1/14)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 18.

192021

FOCUS/TRACKING/SPIN/

SLIDE DRIVER

SERVO AMP.

–

CV+

CV–

SLOF

HFL

TES

TOFF

TGL

JP+

JP–

RFSM

RFS–

SLC

REF

SL+

SL–

SLD

SLEO

SPO

SP–

SPG

SPI

AGND

FE–

FA–

FD–

GEN

TD–

REF

–

REF

SCI

TESI

TE–

FIN1

FIN2

VCC1

LDS

BHI

PHI

LF2

REF1

VCC2

DRF

DAT

CLK

DEF

SLI

DGND

REF

LDO

REF

–

REF

FE1

VCR

TGL1

THDL

THD

VCC

DEF

HFL

DRF

SLOF

FSTA

LATOH

TOSTA

FOSTA

S.Q.R

FSTA

8/12CM

LASER

2FREQ

JP+

JP–

CV+

CV–

REF

–

+–

–

EFBAL

FSC

FOSTA

FE1

FSC

SLOF

JPCLO

FSS

TBC

1/16

CD_SL–

CD_SL+

CD MOTOR PWB-E

PICKUP

SLIDE

DISC

TR–

TR+

FO+

FO–

GND

2200P

PICKUP UNIT

ACTUATOR

TR–

FO–

FO+

TR+

LD GND

LT0H30M1

MON

GND

+5V

F+

F–

T–

T+

TP1

CD_GND

GND

VREF

470H/480H:27K

470E:1K

TR–

TR+

FO+

FO–

GND

TR–

TR+

FO–

FO+

CD_GND

CD_PUIN

SP+

SP–

SL_+

SL_–

SW4

CNP3A

CNS3A

CNS3B

CNP3

CNS2B

CNS2A

CNS1B

CNS1A

CNP1

C31

0.0

R37

47K

R21 56K

R20 10K

CNP2

0.1/50

C21

1/50

R43

KTA1266 GR

C12

330P

R17

82K

R10

82K

1SS133

R40

22K

R39

22K

C40

0.33/50

C39

0.47/50

C38

0.01

C37

220/10

C35

0.1/50

C33

0.001

C30

2.2P

R33

5.6K

C34

0.033

R36

47K

R32

56K

C16

0.001

R22

6.8K

R23

1.2K

C17

0.47/50

R11

3.3K

12K

C10

180P

0.068

0.1/50

100

6.8K

0.033

2.2K

0.033

0.001

15K

100K

C15

0.0047

R19

39K

R16

1.5K

R14

10K

R15

47K

R13

33K

C45

4.7/50

C50

0.1

C14

0.01

R26

220K

C20

0.0033

R27

220K

C19

47/16

C18

1/50

R25

1.2K

R24

10K

R42

560

R35

470

R41

4.7K

C32

27P

R34

IC1

LA9240M

R28

R29

C24

1/50

R30

22K

R31

10K

C44

100/16

IC5

M56748FP

R12

15K

C13

0.1

RL104A

0.047

C11

0.1

47/16

C25

0.01

RL104A

C46

0.022

– 23 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

Figure 23 SCHEMATIC DIAGRAM (2/14)

8 9 10 11 12

• The numbers 1 to 12 are waveform numbers shown in page 43.

1011

12131415161718

192021

LOADING MOTOR

DRIVER

SERVO/SIGNAL

CONTROL

1BIT DAC

MUTEL

LVDD

LCHO

LVSS

RVSS

RCHO

RVDD

4FS

DIGITAL

FILTER

MUTER

XVDD

XOUT

XIN

XVSS

EFLG

SBSY

µ-COM

INTERFACE

SQOUT

TEST11

/RES

/CQCK

COIN

RWC

WRQ

FSX

SUB-CODE

X-TAL

GENERATOR

2KX8

RAM

VCO

CLOCK

OSC

CONTROL

ERROR

COERECT

FLAG

CONTROL

HLF

TES

TEST4

TEST3

DIGITAL

OUT

EXTERNAL

OUTPUT

CONTROL

LEVEL

SLICE

EFM DEMODULATE

SYNC-DETECT

CLV

DIGITAL

SERVO

COMMAND

(CH)

OPTICAL FIBER

DATA LINK

CD_SL–

CD_SL+

CD_DRF

CD_RES

CD_RWC

CD_WRQ

CD_CQCK

CD_COOUT

CD_SQIN

TO MAIN SECTION

P26 1-B

TO DECK

SECTION

P29 12-H

TO MAIN

SECTION

P26 3-H

M_12V

CD_GND

CD_7V

TO MAIN/DECK

SECTION

P27 7-H,

P29 12-B

TO MAIN

SECTION

P27 8-H

CD_GND

D_GND

SOLENOID

DISC NO

MECHA UP

TRAY MOTOR

PWB-G

T/T

UP DOWN

–

OPEN

MAIN PWB-A1(1/3)

TO DECK/MAIN

SECTION

P27 9-A,P29 12-E

TO MAIN

SECTION

P27 9-A

TO MAIN

SECTION

P27 9-A

CD_MUT

CD_R-CH

CD_L-CH

A_GND

CD_LD_M+

+7.3V

SPEED_HIGH/LO

CD_4R3V

CD_GND

SWITCHING

DRIVER

D_OUT

CDGND

D_OUT1

+4R3V

D_GND

CD_D_NO

D_GND

M+

M–

SOL

16M

TEST5

/CS

TEST1

SFSY

SBCK

DOUT

C2F

EMPH

CONT5

CONT4

CONT3

CONT2

CONT1

VDD

FSEQ

PCK

JP_

JP+

TGL

TOFF

DEF1

PDO

VVSS

ISET

VVDD

VSS

EFMO

EFMIN

TEST2

CLV+

CLV_

V/P

TA1

GND(D)

MECHA UP

GND(D)

DISC NO.

OPEN CLOSE

GND(D)

M–

M+

GND(M)

SOL

+5V

CD_LD_M–

CD_D_NO

CD_TRAYEND

CD_U/D

R38

33K

C31

0.0027

R37

47K

C90

0.01

CNS5

SW3

SW2

SW1

SOLM2

BIM05

CNS10

R73

2.7K

C67

10/50

R74

2.7K

C68

10/50

XL1

16.934MHz

C61

12P

C62

15P

R61

220

1SS133

C92

0.022

BI99A

BI99B

CNP10

R86 1K

Q93

KRC102 M

C21

1/50

1SS133

R60

C50

0.1

R87 1K

R88 1K

IC2

LC78623D

R58

680

C41

0.047

C42

0.047

R57

27K

R56

1.2K

C53

220P

C57

100P

C55

100P

C54

100P

R34

R18

3.3M

D91

1SS133

R96

10K

Q91

KTA1271 Y

ZD81

MTZJ5.6B

R81

220

R84

R92

2.2K

R82

150

0.82H

C51

0.022

R90

330

R98

6.8K

C91

47/16

R93

3.9

IC91

TA7291S

C94

47/16

Q94

KRC107 M

R94

6.8K

R97

3.9K

C56

100P

C58

100P

IC99

GP1F32T

C99

100/16

C98

0.022

L99

2.2µH

C52

100/16

C81

100/16

Q81

KTC3203 Y

C43

330/6.3

R76

390

R75

390

C69

220P

C70

220P

R80

4.7K

R79

4.7K

Q83

KTC3199 GR

Q84

KTC3199 GR

C82

1/50

R77 1K

R46 1K

R45 1K

R47 1K

C22

0.01

R48 1K

R78 1K

RL104A

C46

0.022

R49

10K

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 24 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 18.

Figure 24 SCHEMATIC DIAGRAM (3/14)

MAIN_SCK

MAIN_STB

41 40 37 36 35 34 33 32 31 30

29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10

98765 21

4142

64 63

64 63 62 61 60

59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44

212019181716151413121110

987654321

SYSTEM MICROCOMPUTER

–28.4V

4.8V

–28.4V

DISPLAY PWB-C1

–B

POWER

VF2

–VP

VF1

CLK

TUN_MUTE

TUN_SD

TUN_SM

TO MAIN PWB

P27 7-A

WT502

G11

G10

G09

G08

G07

G06

G05

G04

G03

G02

G01

S01

S02

S03

S04

S05

S06

S07

S08

S09

S10

S11

S12

S13

S14

S15

S16

S17

S18

S19

S20

S21

S22

TUN SM

TUN_SD

TUN_MUTE

10G

11G

VLOAD

P11

P10

P14

P15

P16

P17

P18

P19

P20

P21

P22

VDD

VSS

REMOCON

SYS STOP

POWER

P32/TO2

P31/TO1

P01/INTP1

P02/INTP2

P03/INTP3/CI0

P71

P72

P70

P00/INTP0/TI0

P17/ANI7

AVSS

P74

RESET

P24/BUSY

P25/SI0/SB0

P27/SCK0

P23/STB

P22/SCK1

P21/SO1

P20/SI1

P90/FIP2

P80/FIP0

P81/FIP1

P91/FIP3

P92/FIP4

P93/FIP5

P94/FIP6

P113/

FIP21

P114/

FIP22

P115/

FIP23

P127/

FIP33

P116/

FIP24

P117/

FIP25

P120/

FIP26

P121/

FIP27

P122/

FIP28

P123/

FIP29

P124/

FIP30

P125/

FIP31

P126/

FIP32

VLOAD

P97/

FIP9

P96/

FIP8

P95/

FIP7

P105/

FIP15

P104/

FIP14

P102/

FIP12

P100/

FIP10

P101/

FIP11

P103/

FIP13

P112/

FIP20

P110/

FIP18

P106/

FIP16

P107/

FIP17

P111/

FIP19

VDD

P26/SO0/SB1

P73

VDD

CLEAR

MAIN_SO

MAIN_SI

–B

CLEAR

RESET

DATA

COM

CLK

STB

CLK

P12

P13

FW702

FL701

R729 1K

R727 1K

R708 1K

IC701

IX0171AW

C702 220/6.3

R713 1K

R710 1K

R701 1K

R704 1K

R709 1K

R712 1K

R706 1K

R707 1K

R702 1K

R703 1K

R711 100

R705 1K

R778

100K

Q701

KTC3199 GR

R776

R777

C716

47/16

C712

1/50

C713

1/50

– 25 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

Figure 25 SCHEMATIC DIAGRAM (4/14)

8 9 10 11 12

18 17 16 15 14 13 12 11 10

987654321

321

4142

46 45 44 43 4142

242322212019

(CH)

INPUT/OUTPUT

EXPANDER

4.8V

–B

WT601 TO MAIN PWB

P27 7-H

MAIN_STB

MAIN_SCK

MAIN_SI

MAIN_SO

CLEAR

D_5V

D_GND

M_12V

POWER

VF2

–VP

VF1

F MUTE

LED714~LED719:

DISPLAY PWB-C2

DISK 1

DISK 2DISK 3

DISK

SKIP

OPEN

/CLOSE

DISC 1

DISC 2

DISC 3

TIMER

/SLEEP

CLOCK

ON/

STAND-BY

CD-C480H

ONLY

REV

REW

VOLUME

DOWN

EQ.

/DEMO

REVERSE

SURROUND

CD-C480H

ONLY

4-SP

SURROUND

VOLUME

X-BASS

STOP FWD

REC/

PAUSE

DOLBY

LOGIC/

BYPASS

CENTER

MODE/

NORMAL

CENTER

MODE/

PHANTOM

TAPE VIDEO EON

DISPLAY

MODE

ASPM

PTY/TI

SERCH

CD-C470H/

480H ONLY

TUNER

/BAND

TUNING

UP/TIME

MEMORY

/SET

TUNING

DOWN

EDIT

HIGH

EDIT

NORMAL

PASS PASS

MONO

PHANTOM

DOLBY

SRS ON

SRS

STEREO

REV

REW

STOP

PLAY

Q10

Q11

VDD

VSS

DATA

CLOCK

LCK

KEY-5

KEY-4

TUN_SM

TUN_SD

TUN

MUTE

SYS

STOP

POWER

F_MUTE

P32/TO2

P31/TO1

P01/INTP1

P02/INTP2

P03/INTP3/CI0

P33/

TI1

P34/TI2

P35/PCL

P36/BUZ

VSS

XT2

P04/XT1

AVREF

AVDD

P10/ANI0

P11/ANI1

P12/

ANI2

P13/

ANI3

P16/ANI6

P15/ANI5

P14/ANI4

P17/ANI7

AVSS

P73

P37

P30/TO0

VSS

AVREF

AVDD

KEY-0

KEY-1

KEY-2

KEY-3

XT2

P04

5V BACK UP

C729

47/16

R749

10K

FW703

SW707SW708

RD07

12K

SW706

RD05

3.9K

SW705

RD04

2.2K

SW704

RD06

5.6K

LED716

LED714

LED718

LED717

LED715

LMKD515B

LED719

FW701

SW735

RD30

1.2K

RD29

SW734SW733

SW727

RD22

SW726

RD23

1.2K

SW725

RD24

1.8K

LED711

333YTH4

LED709

333YTH4

LED707

333YTH4

LED706

333YTH4

LED708

333YTH4

LED710

333YTH4

LED712

333YTH4

R742

820

R743

820

R744

820

R745

D708

1SS133

C708

0.01

D706

1SS133

R766

100K

L701

100µH

R728

10K

R727 1K

R726 1K

RD36

56K

R718 1K

R722 1K

R720 1K

R717 1K

R716 1K

R721 1K

RD35

12K

RD32

2.2K

RD33

3.9K

SW739

SW737

RD34

5.6K

RD20

5.6K

SW701

SW711

SW719

RD16

1.8K

SW710

SW730

SW729

SW728

RD25

2.2K

RD26

3.9K

RD02

1.2K

SW721

RD21

12K

RD11

2.2K

RD17

2.2K

RD15

1.2K

RD08

SW714SW713

SW709

C702 220/6.3

C701 0.022

R713 1K

R714 1K

R715 1K

C704

18P

C703

15P

XL701

4.19MHz

R719 1K

R712 1K

R711

100

RD03

1.8K

SW703

RD14

12K

SW716

RD28

12K

SW732

SW731

SW738

SW740

RD27

5.6K

RD13

5.6K

SW715

RD09

1.2K

RD10

1.8K

RD18

3.9K

SW724

SW723

RD01

SW702

SW717

RD12

3.9K

SW712

RD31

1.8K

SW736

R736

8.2K

R735

8.2K

R733

8.2K

R732

8.2K

R731

8.2K

R734

8.2K

R741 1K

R740 1K

R739 1K

R737 1K

R772

R771

100

Q706

KTC3199 GR

R765

3.3K

D705

1SS133

R773

C709

100/6.3

Q704

KRC102 M

R774

150

D709

1SS133

D707

1SS133

ZD701

MTZJ3.9B

C710

220/6.3

LED701 333GTH2

LED702 333GTH2

LED703 333GTH2

LED704 333GTH2

LED705 333GTH2

IC702

BU2092F

R770

R768

10K

R767

Q705

KTC3199 GR

R769

10K

RX701

R775

2.2K

C715

0.022

R738 1K

R748

820

R747

820

R746

820

R763

C706

0.01

C707

3.3/50

RD37

R782 10K

R781 10K

R780 1.8K

R779 10K

C730

0.022

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 26 –

Figure 26 SCHEMATIC DIAGRAM (5/14)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 18.

3336383710

+B +B

26 17

29304043421821

11 10

987654321

SYSTEM MICROCOMPUTER

(ML)

DOLBY PRO LOGIC

ACTIVE DECORDER

DOLBY PRO LOGI

PASSIVE DECORD

(ML)

CD SIGNAL

RECORD SIGNAL

PLAYBACK SIGNAL

FM SIGNAL

TO SRS PWB

P34 4-H

CNS501

ONLY

CD-C480H

R-CH IN

L-CH IN

R-CH OUT

L-CH OUT

TO CD

SECTION

P23 10-H

TO DECK

SECTION

P29 12-C

TO DECK

SECTION

P29 12-D,12-B

MAIN_STB

MAIN_SCK

CLEAR

MAIN_SI

MAIN_SO

RUN PULSE

F.A.S.

D_GND

TO DECK SECTION

P29 12-D

TO DECK SECTION

P29 12-D,12-H

TO CD SECTION

P23 7-H

TO CD SECTION

P23 10-H

MAIN PWB-A1(2/3)

SPE5

MIC

D_GND

CD-C480H

ONLY

480H:10K

470H/470E:1K

T2_CrO2

TA_MOT_H/L

SOLENOID

TA_MOT_SW

CD_U/D

T1 CrO

CD_D_NO

CD_TRAYEND

BEAT CUT

HI BSPEED

REC_MUTE

P.B.EQ

REC MUTE

CD MUT

TO DECK SECTION

P29 12-D

CLK

CD-C480H

ONLY

470H/E:JUMPER

480H:NOT USE

470H/470E:1.2K

480H:2.7K

470H/470E:4.7K

480H:2.7K

SPE4

SPE3

SPE2

SPE1

CAM SW

D_GND

CD D.NO. SW

TA MOT SW

TA SOL

F/R SPEED

VSS

CD U/D SW

CD O/C SW

VDD

T2 CrO

RLY DRV

POWER

CLK

DATA

ENEBLE

SRS A

SRS B

SRS INH

T1 CrO

SPAN 9K

SRS PASS

SRS 3D

SP_DET

CD SL+

CD SL–

CD RES

C MUTE

R MUTE

SYS MUTE

P.B.MUTE

CD SQOUT

CD COIN

CD CQCK

VDD

CD RWC

CD WRQ

GND

T1/T2

BIAS

REC RVS

REC FWD

REC RVS

REC FWD

VLOAD

P33/

TI1

P12/

ANI2

P10/ANI0

AVDD

AVREF

P04/XT1

P74

P73

AVSS

RESET

P26/SO0/SB1

P25/SI0/SB0

P24/BUSY

P23/STB

P126/

FIP32

P124/

FIP30

P125/

FIP31

P17/ANI7

P16/ANI6

P15/ANI5

P14/ANI4

P101/

FIP11

P103/

FIP13

P102/

FIP12

P100/

FIP10

P31/TO1

P30/TO0

P03/INTP3/CI0

P113/

FIP21

P112/

FIP20

P110/

FIP18

P106/

FIP16

P116/

FIP24

P117/

FIP25

P114/

FIP22

P115/

FIP23

P105/

FIP15

P104/

FIP14

P02/INTP2

P71

P70

P21/SO1

P20/SI1

P00/INTP0/TI0

P01/INTP1

P122/

FIP28

P123/

FIP29

P91/FIP3

P92/FIP4

P93/FIP5

P94/FIP6

P22/SCK1

VDD

P72

XT2

VSS

P37

P36/BUZ

P35/PCL

P34/TI2

P32/TO2

P11/ANI1

P90/FIP2

VDD

P27/SCK0

P80/FIP0

P81/FIP1

P120/

FIP26

P121/

FIP27

P107/

FIP17

P111/

FIP19

P13/

ANI3

P127/

FIP33

P97/

FIP9

P96/

FIP8

P95/

FIP7

S OUT

VREF

R-MIX

OUT

L-MIX

OUT

A-GND

DC-CUT

VDD

D-GND

CLOCK

DATA

ENABLE

NR-DET

NR-IREF

VCC

L-IN

R-IN

S-IN

DELAY

OUT

DC-CUT

CLOCK

DATA

ENABLE

OSC1

VCC

L-OUT

R-OUT

S-OUT

C-OUT

CMODE

CAP

C-TRIM

DC-CUT

R-BPF1

R-BPF2

R-BPF3

DC-CUT

L-R RECT

R RECT

DC-CUT

L-BPF3

L-BPF2

L-BPF1

R-IN

L-IN

VREF-BUFEER

R-CH DC-CUT

L-CH DC-CUT

C-CH DC-CUT

S-CH DC-CUT

VREF

NS-BPF2

NS-BPF1

GND

TO CD SECTION

P23 7-H

TO DECK SECTION

P29 12-C

REC_L-CH

REC_R-CH

CD_DRF

F.A.S.

RUN PULSE

CAM SW

CD_PUIN

D_GND

BEAT_CUT

HI_SPEED

P.B_EQ

REC/PB

CD_MUT

CD_SL–

CD_SL+

CD_RES

CD_COOUT

CD_SQIN

CD_CQCK

CD_RWC

CD_WRQ

D_GND

SRS_PASS

SRS/3D

SRS_A

SRS_INH

SRS_B

SRS_INH

SRS_A

SRS/3D

A_12V

SRS_PASS

SRS_B

L_IN

R_IN

R_OUT

L_OUT

A_12V

A_GND

PASS

SRS/3D

SRS_A

SRS_B

SRS_INH

REC/P.B.

R_MUTE

C_MUTE

R456

3.9K

C452

4.7/50

CNP501

C603 150P

C605 150P

C604 150P

C606 150P

C607 150P

R203

R684

10K

D602

1SS133

R635

10K

R634

10K

R640

10K

R656

R666

R667

R670

R671

R602

C234

10/50

C233

10/50

C247

0.022

IC202

LV1016

C561

47/25

R526

22K

C253

0.022

D558

RL104A

R209

D559

RL104A

C213

0.47/50

C215

0.47/50

C214

4.7/50

R206

R207

100K

WT502

C244

0.0032

C201

0.022

C242

0.47/50

C230

0.47/50

C212

0.1

R663

R642 1K

R643 1K

R214

C251

220P

C250

220P

C248

220/10

C211

0.1

C231

10/50

R649 1K

R650 1K

C202

0.047

C204

10/50

C243

0.082

C226

0.47/50

IC601

IX0171AW

R648 1K

C228

0.1

R629 4.7K

R630 4.7K

R646

C225

4.7/50

C235

680P

C227

0.1

R527

22K

R215

100K

R628 1K

C232

10/50

R645 1K

C246

0.082

C203

220/10

C209

1/50

C240

10/50

C210

1/50

C206

10/50

C207

10/50

R654 1K

C205

10/50

R637 1K

R213

IC201

LA2786

R647 1K

R651 1K

R639 1K

X201

8MHz

R653 1K

R652 1K

C208

220/10

R202

C560

47/25

C224

C229

47/16

C252

220P

R204

R205

R208

100K

R219

R218

R609 1K

R611 1K

R612 1K

R610 1K

R608 1K

R604 1K

R606 1K

R607 1K

R605 1K

R217

R621 1K

R622 1K

R616 1K

R618 1K

R615 1K

R614 1K

R613 1K

R617 1K

R620 1K

R624 1K

R625 1K

R626 1K

R627 1K

R636 1K

R655

R661 1K

R662 12K

R658 1K

R659 1K

R660 1K

R657 1K

R623

R633 1K

L601

100µH

D601

1SS133

R679

10K

R641

C601

220/10

C602

0.022

R632

R221

R222

R216

R55

10K

R680

10K

R210

100K

C238

220/16

R212

39K

C237

2.2/50

C236

220/16

R673

10K

R675

10K

R676

47K

R674

10K

R672

10K

D562

RL104A

C239

0.33/50

R211

18K

D818

1SS133

D817

1SS133

D820

1SS133

D819

1SS133

C451

4.7/50

R455

3.9K

– 27 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

Figure 27 SCHEMATIC DIAGRAM (6/14)

8 9 10 11 12

MAIN_SO

CLEAR

POWER

M_12V

D_5V

D_GND

22 21

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

323130292827262523 24222120191817

27121110

9876543217654321

13121110

987654321

+B +B

OGIC

ORDER

(ML)

AUDIO PROCESSOR

OPE AMP.

(ML)

6.3V

8.8V

5.7V

13.5V

18.5V

12.9V

18.5V

12.3V

13.5V

18.5V

13V

12.4V

18.5V

12.4V

11.8V

7.8V

17V

7.8V

17V

7.3V

4.2V

RTIN

RF1C1

RF1C2

RF1C3

RF2C1

RF2C2

RF2C3

RF3C1

RF3C2

RF3C3

RF4C1

RF4C2

RF4C3

RF5

RTOUT

RFIN

RFCOM

1817

RFOUT

RRIN

RRCOM

RROUT

RVREF

VREF

LVREF

VSS

LROUT

LRCOM

LRIN

LFOUT

LFCOM

LFIN

LTOUT

LF5

LTIN

LF1C1

LF1C2

LF1C3

LF2C1

LF2C2

LF2C3

LF3C1

LF3C2

LF3C3

LF4C1

LF4C2

LF4C3

LSELO

LINVIN1

VDD

RINVIN1

TO DISPLAY PWB

P25 8-H

FW703

CD-C470H/480H

ONLY

–B

VF1

–VP

VF2

POWER

F_MUTE

M_12V

D_GND

D_5V

M_GND

CD_7V

CD_GND

TO CD

SECTION

P23 12-F

TO DECK

SECTION

P29 12-C

TO DISPLAY PWB

P24 6-A

FW702

TO TUNER PWB

P33 9-H

CNP303

VIDEO/AUX 1

R-CH

L-CH

CLK

TUN_MUTE

TUN_SD

TUN_SM

D_GND

CLK

A_12V

A_GND

TO CD/DECK

SECTION

P23 12-F

-C480H

DC-CUT

L-R RECT

L+R RECT

VCS-TH

VCS-1

VCS-2

VLR-2

VLR-1

VLR-TH

L RECT

R RECT

DC-CUT

CLK

–B

(1/4)

Fusible

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

SWITCHING

FW901

TO POWER AMP.PWB

P30 1-E

FRONT_L-CH

FRONT_R-CH

TO DECK

SECTION

P29 12-F

C_MUTE

R_MUTE

STAND-BY

GND2

A_12V

SPE5

SPE4

SPE1

SPE3

SPE2

VIDEO/AUX 2

R-CH

L-CH

TO CD SECTION

P23 12-C,12-D

TO DECK

SECTION

P29 12-D

TO DECK

SECTION

P29 12-D

TAPE_R-CH

CD_R-CH

A_GND

CD_L-CH

TAPE_L-CH

TUN_R-CH

TUN_L-CH

TUN_MUTE

TUN_SD

TUN_SM

VF1

–VP

VF2

CLEAR

A_12V

GND3

GND2

TO POWER

PWB

P31 7-G

CNS801

REAR_OUT

CENTER_OUT

A_GND

D_GND

STAND-BY

–15V

VF1

VF2

–VP

+B2

F_MUTE

MAIN_STB

MAIN_SCK

MAIN_SI

R575

R576

C535

0.0047

C501 1/50

C507 1/50

C502 1/50

C504 1/50

C509 1/50

C503 1/50

C510 1/50

C506 1/50

C505 1/50

C508 1/50

D556

1SS133

C583

0.022

R551

15K

R553

270K

C544

1/50

C541 2.2/50

C543 1/50

D557 1SS133

R564

1.8K

C586

390P

R561

27K

R562

27K

R563

1.8K

C585

390P

C216

4.7/50

C215

0.47/50

C219

0.15

C218

3.3/50

C214

4.7/50

C217

0.15/50

C855

330P

R574

2.2K

C852

0.1

C856

330P

WT901

J501

CNP502

502

WT601

D828

1SS133

R832

100

D824

1SS133

Q829

KRC107 M

R820

10K

C827

0.022

Q828

2SD468 C

C828

47/25

R830

D825

1SS133

D827

RL104A

R826

560

C865

0.022

F821

T500mA L 250V

CNP801

C220

0.15

C221

3.3/50

C223

4.7/50

C226

0.47/50

C222

0.15/50

C225

4.7/50

C224

0.47/50

R567

1.8K

C587

390P

R566

27K

C588

390P

R565

27K

R568

1.8K

D560

1SS133

D561

1SS133

R511 1K

C539

10/50

C546

10/50

R514 1K

R520 1K

C522

0.22/50

R503

33K

C550

330/16

C527

0.22/50

R515 1K

C537

1/50

C515

1/50

C533

0.0022

C534

0.0022

R516 1K

R513 1K

C545

10/50

C517

1/50

C518

1/50

R501

2.2K

C513

100P

R502

2.2K

IC501

LC75396E

C529

0.033

R504

33K

R517 1K

R518 1K

C532

0.015

R512 1K

R519 1K

C531

0.015

C528

0.22/50

C516

1/50

C514

100P

C512

47/16

C536

0.0047

C530

0.033

C521

0.22/50

C511

47/16

C549

0.022

C566

270P

C580

2.2/50

IC502

BA4558

R535

470K

R542

220K

R534

220K

R540

12K

C570

0.0027

R557

100K

R539

390K

D555

1SS133

D551

1SS133

D554

1SS133

R547

2.2M

D552

1SS133

R552

560K

C571

0.0082

C574

0.0068

R537

39K

C568

680P

C578

2.2/50

C565

270P

R554

100K

R549

470K

C576

2.2/50

C575

0.022

IC504

BA4558

C573

0.0068

R558

100K

R545

22K

R548

56K

D553

1SS133

R543

680K

R556

100K

R550

2.2M

R555

100K

C577

2.2/50

R532

10K

IC503

BA4558

R544

18K

R533

33K

R546

220K

R531

390K

C579

2.2/50

R536

12K

R538

220K

C569

0.0027

C572

0.0082

C567

680P

R541

68K

ZD551

MTZJ6.2C

C582

0.022

C581

0.022

R569

220K

R570

220K

R559

330

C542

2.2/50

R854

100K

IC651

BA4558

C860

0.022

R852

2.2K

C555

0.001

R855

8.2K

R853

100K

Q501

KTC3199 GR

Q502

KTC3199 GR

C851

0.1

C556

0.001

R521

2.2K

C854

0.15

R858

6.8K

R522

2.2K

R856

8.2K

R857 6.8K

C859

0.022

C853

0.15

R851

2.2K

C861

2.2/50

R862

4.7K

C862

2.2/50

R864

2.2K

R861

4.7K

R863

2.2K

Q823

2SD2012

ZD821

MTZJ8.2C

C826

47/25

C822

47/25

R823

C825

47/25

R825

33K

R824

Q821

2SD2012

D821

1SS133

C821

0.022

ZD822

MTZJ13C

R822

560

Q822

KTC3199 GR

R821

Q824

KTC3199 GR

D823

1SS133

Q825

KRA107 M

C823

4700/25

R560

330

R866

330

D831

1SS133

D829

1SS133

C864

0.022

R530 1K

R529 1K

R528 1K

C559

22/25

R525

22K

Q827

KTC3199 GR

C829

22/25

R829

C830

47/25

R831

1.2K

ZD823

MTZJ6.2C

R828

Q826

2SD2012

C591

0.022

D502

1SS133

D501

1SS133

C548

2.2/50

C547

2.2/50

R508

47K

R507

47K

R573 2.2K

C557

0.001

Q503

KTC3199 GR

C558

0.001

Q504

KTC3199 GR

R509

47K

R510

47K

R865

330

R572

2.2K

R571

2.2K

C553

47/16

C552

47/16

C551

47/16

C540

10/50

C538

1/50

D826

RL104A

C520

0.15/50

C524

0.22/50

C526

0.1/50

C519

0.15/50

C523

0.22/50

C525

0.1/50

R223

220K

D822

1SS133

C824

0.022

C831

47/25

D830

1SS133

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 28 –

Figure 28 SCHEMATIC DIAGRAM (7/14)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 18.

24 23 21

19 18 17

87654321

RECORD SIGNAL

PLAYBACK SIGNAL

TAPE1

PLAYBACK HEAD

L-CH

R-CH

TAPE1_L

A_GND

TAPE1_R

MOT L

MOT H

MOT +B

CAM SW

M_GND

F.A.S.

RUN PULSE

SOLENOID

REC RVS

REC FWD

T2 CrO

T1 CrO2

TAPE MECHANISM PWB-F

TAPE

SPEED

–

T2 CrO

T1 CrO2

REC RVS

SOLENOID

F.A.S.

CAM

REC FWD

TAPE

MOTOR

T2 CrO

T1 CrO2

REC RVS

SOLENOID

F.A.S.

M_GND

CAM SW

REC FWD

MOT +B

MOT H

MOT L

RUN PULSE

CD-C480H

ONLY

CD-C480H

ONLY

–

Hich=T1

–

SWITCHIN

REC/P.B.

DRIVER

MOTOR DRIVER

DRIVER

SWITCHING

Hich=CHROME

D_GND

TAPE2_L2

TAPE2_L1

A_GND

TAPE2_R2

TAPE2_R1

D_GND

ERASE

HEAD

PWB-H

TAPE2

RECORD/

PLAYBACK

HEAD

R-CH

L-CH

FLEXIBLE

PWB

RM11

2.2K

RM10

1.2K

RM08

10K

DM02

1SS133

QM03

KTA1271Y

RM07

CM01

QM02

KTA1273Y

RM05

10K

QM05

KTA1266GR

RM12

33K

RM03

33K

QM01

KTA1266GR

RM02

6.8K

CNS101

FWM1

VRM1

3.3K(B)

RM1

2.7K

SWM4

SWM2

SWM1

SOLM1

SWM5

CNPM2

SWM6

SWM3

FWM2

MM1

PHM1

WTM1

CNP101

C126

0.01

R130

8.2K

C121

1/50

R127

8.2K

C101

680P

C102

680P

R102

R101

R118

C136

0.022

C140

0.0033

C134

22/25

R134

68K

C130

470P

R136

1.8K

R117

C128

3.3/50

R139

560

C129

470P

R135

1.8K

C107

680P

C108

680P

R109

4.7K

Q107

KTC3199 GR

R103

2.2K

R105

3.3K

Q103

2SC1845 F

Q106

2SC1845 F

R107

47K

Q105

2SC1845 F

R104

2.2K

R106

3.3K

Q104

2SC1845 F

R111

15K

R114

10K

Q110

KRC104 M

R113

10K

R115

4.7K

Q109

KTA1266 GR

Q111

KRC104 M

C109

0.022

R129

8.2K

R123

4.7K

C119

560P

C117

0.033

R121

100K

C111

330P

C113

330P

R140

560

R138

6.8K

R132

33K

C122

1/50

R120

C116

47/16

L108

2.2µH

C133

22/25

R137

6.8K

C127

0.022

R131

33K

R119

C115

47/16

L107

2.2µH

C112

330P

C114

330P

R126

5.6K

C120

560P

R124

4.7K

R122

100K

C118

0.033

C132

0.001

R142

L102

1.8mH

L101

1.8mH

R141

C135

0.022

C131

0.001

R125

5.6K

C125

0.01

Q114

KRC104 M

Q113

KRC104 M

Q115

KRC104 M

C137

0.018

C138

0.018

Q116

KRC104 M

R112

15K

C106

330P

C105

330P

R191

C123

0.01

R128

8.2K

C124

0.01

R192

CNP102

R108

47K

Q108

KTC3199 GR

R110

4.7K

CNS102

BI102

– 29 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

Figure 29 SCHEMATIC DIAGRAM (8/14)

8 9 10 11 12

16 15 14 13

121110

PLAYBACK AND RECORD/

PLAYBACK AMP.

(ML)

TO CD

SECTION

P23 10-H

TO MAIN

SECTION

P26 1-C

TO MAIN

SECTION

P26 1-C

TO MAIN/CD

SECTION

P23 12-C

TO MAIN SECTION

P26 3-H

TO MAIN SECTION

P26 6-A,1-C

TO MAIN SECTION

P26 1-D,4-A

TO MAIN/CD

SECTION

P23 12-E

TO MAIN SECTION

P26 3-H

MAIN PWB-B1(3/3)

CAM SW

TA_MOT_H/L

F.A.S.

M_GND

REC FWD

SOLENOID

M_12V

TA_MOT_SW

T1 CrO

D_5V

REC RVS

RUN PULSE

HI_SPEED

REC_L-CH

REC_R-CH

TAPE_L-CH

TAPE_R-CH

REC/PB

T1/T2

REC_MUTE

PB_MUTE

T2 CrO

BIAS

A_12V

A_GND

PB_EQ

BEAT_CUT

Nor/

CrO2

RIPPLE

Vcc

GND

CD-C480H

ONLY

CD-C480H

ONLY

MUTING

SWITCHING

WITCHING

SWITCHING

MUTING

470H/470E:82K

480H:56K

CD-C480H

ONLY

CD-C480H

ONLY

(P.P)

(ML)

CHROME

ALC

C163

100/16

RM09

2.2K

M07

RM06

2.2K

RM05

10K

QM04

KRC104M

R157

4.7K

R184

82K

C863

0.01

RM14

10K

RM18

2.2K

RM16

10K

RM17

10K

RM15

10K

RM19

3.3K

RM20

10K

DM03

1SS133

R149

10K

R146

10K

C140

0.0033

R143

10K

R144

10K

Q117

2SC2878 A

C143

0.022

C144

0.022

C146

220/10

C147

0.022

C145

22/25

R150

10K

C142

1/50

IC101

AN7345K

R152

C141

1/50

R158

470

Q133

KRC104 M

Q131

KRC107 M

Q132

KRC107 M

R183

82K

R187

6.8K

R168

4.7

R171

4.7K

Q129

KTC3199 GR

Q128

2SC2236 Y

Q127

KRC104 M

R165

10K

Q126

KRC104 M

R164

4.7K

Q130

KTC3199 GR

C151

0.027

R167

47K

C162

0.047

R160

270

R170

3.3K

R163

10K

Q125

KTA1266 GR

R166

27K

Q124

KTA1266 GR

L103

1mH

L104

330µH

R161

270

C152

47/16

R182

R181

Q121

KTC3199 GR

R153

10K

Q122

KTC3199 GR

R154

10K

R145

10K

C139

0.0033

Q118

2SC2878 A

Q115

KRC104 M

018

Q116

KRC104 M

Q119

KRC104 M

R162

47K

C150

0.0082

C161

560P

C110

47/25

R147

10K

R155

33K

R156

33K

C155

0.022

R193

220

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 30 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 18.

Figure 30 SCHEMATIC DIAGRAM (9/14)

WT901

H:OFF

L:ON

H:O

L:O

181716151413121110

987654321

POWER AMP.

(1/2W)

(1/4W)

Fusible

(1/4W)

Fusible

(2W)

7.2V

24.2V

–B

FM SIGNAL

TO MAI

P27

–

(ML)

REAR

A_GND

CENTER

GND

–B

FRONT_L

A_GND

FRONT_R

REAR

STANDBY

CENTER

A_–15V

D_GND

TO MAIN PWB

P27 1-F

C910

47/50

C942

0.022

C941

0.022

C984

0.01

C959

220/35

R919

R920

R918

100

R923

100

IC901

STK48801

R906

C908

15P

C911

47/35

R921

220K

R922

39K

D901

1SS133

47/

C985

0.001

C954

1/50

C953

1/50

C952

0.0015

C951

0.0015

R952

100K

R951

100K

C987

0.022

FW902

F951

T1.6A L 250V

FW901

R955

180

R956

180

R953

R954

C955

47/35

C956

47/35

R902

100K

C918

0.1

R910

56K

R928

4.7

C915

100/35

R925

390

C906

47P

R913

10K

R924

2.2K

R914

150K

R916

2.2K

R911

470

C905

47P

R917

2.2K

C913

10/50

R915

2.2K

C943

100/35

C909

47/50

R903

68K

C907

15P

C917

0.1

R927

4.7

C904

0.001

C903

0.001

R905

C944

100/35

R904

68K

C919

0.1

R901

100K

R909

56K

C937

3300/35

R938

680

C938

2200/35

C939

0.022

ZD901

MTZJ13C

R907

R908

Q901

KRC107 M

D951

1SS133

R957

10K

R970

56K

Q951

KRC107 M

C901

1/50

C902

1/50

C920

0.1

C914

47/35

C940

47/25

R912

470

– 31 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

8 9 10 11 12

Figure 31 SCHEMATIC DIAGRAM (10/14)

H:ON

L:OFF

OUL_R1

OUL_L1

OUL_R

OUL_L

A_GND1

(1/2W)

POWER AMP.

–32V

–31.3V

VOLTAGE

REGULATOR

–36.7V

POWER PWB-B1

–B

(ML)

TO MAIN PWB

P27 7-H

CNP801

VF2

–B1

GND1

+B1

D802~D805:

–VP

VF1

GND3

GND2

+B2

(280)

CORE

50Hz

AC 230V

AC POWER

SUPPLY CORD

(216)

POWER

TRANSFORMER

T.F

POWER AMP. PWB-B2

FRONT SPEAKERS

REAR SPEAKERS

8 OHMS

SP_REAR_R-CH

SP_REAR_R-CH_GND

SP_REAR_L-CH_GND

SP_REAR_L-CH

HEADPHONES

PWB-A3

HEADPHONES

HP_L

HP_L1

HP_R

HP_R1

HP_GND

12 OHMS

SP_REAR_R-CH

SP_REAR_R-CH_GND

SP_REAR_L-CH_GND

SP_REAR_L-CH

–

(ML)

–

CENTER SPEAKER

6 OHMS

SP_CENTER_GND

SP_CENTER

–

(ML)

–

(1/2W)

When Servicing, pay attention as the area

enclosed by this line ( ) is directly

connected with AC main voltage.

C808

47/63

D809

RL104A

D807

RL104A

D806

RL104A

CNS801

BI801

D802

C810

100/50

C811

100/50

C809

100/50

C805

100/35

F804

T1.6A L 250V

F803

T4A L 250V

F802

T4A L 250V

T801

JA901

FW903

WT903

F901

T2.5A

L 250V

F902

T2.5A

L 250V

C930

0.022

C929

0.022

R936

6.8

R935

6.8

R934

6.8

R933

6.8

L901

0.29µH

L902

0.29µH

C932

0.022

C934

0.001

C933

0.001

C927

0.022

C931

0.022

C926

0.022

C928

0.022

SO901

C936

0.001

C935

0.001

SO902

C975

0.022

R965

6.8

C977

0.022

L951

0.29µH

C979

0.001

C969

0.1

C967

0.1

R959

4.7

C981

0.01

SO903

C978

0.022

C976

0.022

R966

6.8

L952

0.29µH

C986

0.01

C960

47/35

C961

0.022

D801

S4VB20

R806

100

R801

12K

R807

2.2K

Q801

KTA1266 GR

C807

47/50

C806

47/50

C965

1000/25

C966

2200/25

C963

47/50

C964

47/50

IC951

LA4451

D805

R802

220

R803

220

ZD801

MTZJ300C

C801

0.22

C802

0.22

C803

0.047

C804

0.047

C925

0.022

R937

C980

0.001

C982

0.001

D803

RL104A

D804

R931

330

R932

330

C923

100P

C924

100P

L903

2.2µH

R962

270

R961

270

C970

0.1

C968

0.1

R960

4.7

957

10K

R970

56K

ZD802

MTZJ5.6B

D808

RL104A

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 32 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 18.

Figure 32 SCHEMATIC DIAGRAM (11/14)

(UJ)

(12.1V)

(1.2V)

12.1V

(0V)

9.4V

0.8V

(0.7V)

(0.7V)0V

(

X IN

X OUT

VSS

AOUT

AIN

VDD

FM IN

AM IN

MO/ST

ST IND

IF IN

MW+B

(CH)

FM MUTE

LEVEL

AM IIF

FM IF DET/

FM MPX/AM IF

FM IF

AM MIX

OUT

AM OSC

OUT

REG

AFC

AM RF

VSM

CUT

AM LOW

STEREO

GND

AM IF

OUT

FM/AM

FM IF AMP.

LW ANT.

MW ANT.

(CH)

OSC.

(CH)

(UJ)

(CH)

LW OSC.

MW/LW

LOOP

ANTENNA

BALUN

75ohms

ANTENNA

TERMINAL

FM FRONTEND

IF OUT

GND

F OUT

VCC

GND

ANT

R369

Q371

KTA1266 GR

C327

680P

R382

150

C380

10/16

R373

R372

R374

R371

C350

0.022

C344

33P

C352

10/16

C351

0.022

R351

5.6K

C353

0.022

C354

0.022

R39

C364 10/16

C366 0.001

C365 0.022

C363 0.022

C343

33P

VR351

10K(B)

C333

22P

C325

220P

R335

100K

D302

1SS133

CNP301

R349

R344

470

R345

4.7K

R301

330

C346

0.022

C345

0.022

C321

100/16

L35

R379

2.2K

C382

15P

C381

12P

X352

4.5MHz

C385

0.01

R377

47K

L351

100µH

R358

8.2K

C342

0.022

LA1

CF351

C361 0.022

D304

1SS133

C301

0.001

D303

1SS133

L341

C362

3.3/50

Q362

KRA107 M

C393

1/50

R380

1.5K

R381

10K

C394

47/16

SO301

C387

0.022

C392

0.001

L353

1mH

C397

0.022

R346

330

R347

6.8K

C341

0.022

R348

680

FE301

CF301

Q301

2SC380 O

C347

0.022

C328

0.022

R334

5.6K

C334

18P

R336

4.7K

R337

470

R324

100K

T305

C324

27P

R333

5.6K

T306

C336

470P

C335

18P

VD301-2

KV1236Z23F

R323

68K

Q303

KTC3199 GR

C326

18P

Q304

KTC3199 GR

C384

0.001

CF302

T301

C322

6.8P

C323

0.022

R331

5.6K

C330

10P

T302

C332

0.022

R319

100K

C331

0.047

VD301-1

KV1236Z23F

Q302

KTC3199 GR

D301

1SS133

R352

CF352

T351

C337

0.022

C339

22P

IC302

LC72131

C338

0.001

C329

33P

C302

0.001

1/5

R35

2.7

R332

100K

R397

L342

2.2µH

– 33 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

8 9 10 11 12

Figure 33 SCHEMATIC DIAGRAM (12/14)

PLL

(TUNER)

AM:( )

FM(ST):OTHER

2.6V

(0V)

5.2V

(3.6V)

(0V)

3.9V

(12.1V)

11.3V

(0V)

11.3V

12.1V

(0V)

0.7V

RDS

VREF

SYR

RDS-ID

SYNC

VDDD

VSSD

XIN

XOUT

FLOUT

VSSA

MPXIN

CIN

VDDA

CD-C470H/

480H ONLY

AM SIGNAL

FM SIGNAL

TO MAIN PWB

P27 8-A

CNP502

CD-C470H/480H

ONLY

TUN MUTE

A GND

A+12V

CLK

D GND

DET

STEREO

VCC

IF OUT

PHASE

(FM/AM)

MO/ST

R-CH

OUT

MPX

VCO

L-CH

OUT

CD-C470H/

480H ONLY

CD-C470H/480H

ONLY

(CH)

TPTPTP

(CH)

LOW PASS

FILTER

MUTING

MPX PHASE

D351

1SS133

R385

5.6K

C391

47/16

R384

5.6K

D352

1SS133

R376

R378

82K

C386

330P

CNP303

R354 3.9K

C399

0.022

C354

0.022

R393

C358

1/50

ZD351

MTZJ5.1B

RT49

390

RT48

390

CT43

10/16

RT21

100K

RT26

RT28

RT30

LT22

0.2µH

RT37

220K

RT36

220K

R356

27P

C369

C373

0.033

C374

0.033

R357

470K

R364

2.2K

L354

R363

2.2K

R366

10K

R368

33K

R365

10K

C375

3.3/50

R367

Q353

KTC3199 GR

Q354

KTC3199 GR

X351

C368

1/50

R353

270

IC303

A1832

L352

100µH

CT23

10/16

ICT21

LC72720

C355

22P

C370

1/50

ZDT21

MTZJ5.1B

C357

2.2/50

R355

3.3K

C356

0.001

CF351

C398

100/10

RT32

10K

RT33

56K

QT21

KTC3199 GR

CT37

0.022

RT34

56K

R362

470

C372

1/50

R361

470

C371

1/50

D353

1SS133

R395

47K

R359

1.8K

R360

4.7K

C396

100/10

C395

0.022

Q360

KTA1266 GR

R383

5.6K

R392

390

R391

390

IC302

LC72131

CT24

0.022

CT25

560P

XT21

4.332MHz

CT26

22P

CT29

0.022

CT28

47/10

RT29

LT21

0.2µH

CT21

47/10

CT22

0.022

CT36

0.022

R387

22K

Q361

KRC107 M

ZD352

MTZJ3.9B

CT27

22P

C367

1/50

R350

2.7K

RT35

220K

R370

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 34 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 18.

Figure 34 SCHEMATIC DIAGRAM (13/14)

L_OUT

SRS_PASS

SRS/3D

A_GND

L_IN

R_IN

R_OUT

LEVEL CONT

(ML)

1415

(M L)

FUNCTION

SERECTOR

SRS

12V

11.4V12.2V

2.7V

5.6V

2.7V

5.7V

5.6V

4.1V

TO MAIN PWB

P26 5-H

CNP501

SRS PWB-A2

CD-C480H ONLY

VDD

21X03AB

02Y31

INH

VEE

VSS

R_IN

L_IN

C_IN

C_OUT

MODE

S_OUT

CR1

R_OUT

L_OUT

VCC

PN_IN

PN_OUT

CL4

CL3

CL2

CL1

Vref

S_IN

CR4

CR3

CR2GND

(ML)

SRS_B

SRS_INH

A_12V

SRS_A

Q459

KRC107 M

Q460

KRC107 M

Q461

KTC3203 Y

Q466

KRC107 M

R449

1.5K

R452

4.7K

Q467

KRA107 M

R494

100K

R497

100K

R481

3.9K

R482

33K

C460

0.47/50

C470 330P

C463 0.068

C466 0.0068

C464 0.022

C462 0.22

C468 0.0018

C473

0.47/50

C474

0.47/50

R492

4.7K

C458

0.047

C457

100/16

C456

100/16

D451

1SS133

R478

R468

R500

6.8K

R498

4.7K

R495

R493

CNS501

R483

100K

C471

100/16

C469

0.2 2

C475

0.22

IC451

SRS5250S

R487

100K

R488

4.7K

C461

0.0047

R479

22K

R484

1.5K

R480

47K

Q468

KTC3199 GR

IC453

BU4052BC

Q469

KTC3199 GR

R453

2.2K

R454

2.2K

R457

12K

R458

12K

R465

R466

R475

2.2K

R474

10K

R470

10K

R473

10K

R451

10K

Q463

KRC107 M

C476

0.022

C465

0.47/50

C467

0.47/50

R469

C453

2.2/50

C454

2.2/50

C472

0.33/50

R491

1.5K

R499

1.5K

R490

4.7K

Q458

KRC107 M

– 35 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

8 9 10 11 12

Figure 35 SCHEMATIC DIAGRAM (14/14)

5.6V

5.7V

5.6V

11.3V

5.6V

5.7V

5.6V

NO.

VOLTAGE

IC451

11.4V

0.2V

5.7V

12.0V

6.0V

12.0V

5.7V

6.0V

5.7V

NO.

VOLTAGE

IC453

4.9V

4.8V

3.5V

5.2V

4.9V

5.2V

2.3V

4.9V

NO.

VOLTAGE

IC601

4.9V

5.4V

4.9V

5.2V

4.9V

4.8V

12.3V

4.9V

NO.

VOLTAGE

4.9V

5.2V

4.8V

4.9V

5.2V

5.1V

5.2V

5.9V

5.2V

5.3V

5.2V

5.9V

5.1V

5.2V

5.9V

5.2V

5.9V

5.2V

10.3V

NO.

VOLTAGE

IC201

2.6V

5.3V

5.2V

10.4V

0.7V

2.0V

4.9V

5.2V

2.4V

NO.

VOLTAGE

IC202

5.5V

5.3V

5.5V

5.3V

5.5V

5.3V

5.5V

5.3V

5.5V

11.0V

5.5V

5.4V

5.3V

5.5V

5.3V

5.5V

5.3V

5.5V

NO.

VOLTAGE

IC501

–11.7V

6.4V

NO.

VOLTAGE

IC502

–11.7V

6.4V

NO.

VOLTAGE

IC503

–11.7V

6.4V

NO.

VOLTAGE

IC504

–13.2V

11.0V

NO.

VOLTAGE

IC651

3.1V

–28.4V

4.85V

4.75V

3.3V

4.7V

5.0V

4.8V

4.9V

4.8V

2.3V

2.1V

NO.

VOLTAGE

IC701

4.8V

4.9V

–22.2V

–15.9V

–25.1V

–31.3V

–18.9V

4.7V

4.9V

–22V

–28.2V

–31.3V

–22.2V

–18.9V

NO.

VOLTAGE

–28.4V

–22.1V

–31.3V

–13.0V

–31.3V

–28.2V

–31.3V

–19.0V

–31.3V

–31.4V

–31.3V

10.8V

9.4V

9.1V

1.8V

9.1V

10.6V

1.8V

1.0V

1.8V

9.3V

4.8V

NO.

VOLTAGE

IC702

0V(0V)

0.6V(0.6V)

2.8V(2.6V)

0V(0V)

0.6V(0.6V)

2.8V(2.7V)

3.6V(3.5V)

0V(0V)

2.8V(2.7V)

0V(0V)

0V [1.3V](0V) <1.3V>

0V(0V)

( ):CrO

PLAY

< >:CrO

REC

[ ]:CD NORMAL REC

OTHER:CD NORMAL PLAY

0V(0V)

0.6V(0.6V)

2.8V(2.6V)

0.6V(0.6V)

5.8V(5.6V)

0V(0V)

0V(1.0V)

0V(0V)

NO.

VOLTAGE

IC101

5.1V(5.1V)

2.5V(2.1V)

0.9V(0.9V)

2.4V(0V)

2.2V

1.4V

3.9V(1.2V)

3.9V(1.9V)

3.5V(0.3V)

5.1V

5.0V

2.2V

5.1V

2.2V

2.9V(3.6V)

4.0V

1.4V

2.4V(0.9V)

0V(1.9V)

3.6V(3.6V)

NO.

VOLTAGE

IC303

2.6V

1.9V(1.1V)

5.1V

2.5V(0V)

5.1V(5.1V)

4V(0V)

0.4V(0V)

0.3V(12.3V)

0.5V(5V)

4.8V

2.6V

( ):AM

OTHER:FM(ST)

12V(0V)

0V(2.5V)

0.9V

NO.

VOLTAGE

IC302

0V(0V)

4.8V(4.8V)

0V(5V)

5.2V(0V)

2.6V(0V)

0V(0V)

2.6V(0V)

2.6V(0.2V)

2.6V(0V)

5.2V(0V)

0V(0V)

2.7V(0V)

0V(0V)

0V(0.6V)

0V(0V)

NO.

VOLTAGE

ICT21

–30.1V

28.4V

29.9V

–30.1V

–29.2V

2.2V

–1.4V

–27.5V

–29.9V

NO.

VOLTAGE

IC901

1.3V

3.3V

28.7V

29.8V

26.7V

15.4V

26.7V

15.4V

1.3V

NO.

VOLTAGE

IC951

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 36 –

Figure 36 WIRING SIDE OF P.W.BOARD (1/7)

23456

• The numbers 1 to 12 are waveform numbers shown in page 43.

C463

C462

C464

C466

C468

C470

C472

C458

C475

C457

C471

C467

C469

C465

C454

CNS501

R457

C453

R458

R451

Q463

R481

Q469

Q468

D451

IC453

C460

C456

R499

R497

R494

R491

C474

C473

Q461

R475

Q458

Q459

Q460

Q467

R449

Q466

R483

C461

R490

R482

R484

R479

R480

IC451

R468

R469

R488

R466

R465

14 15

R500

R498

R487

R478

R495

R493

C476

R492

R453

R454

BCE

R470

R473

R474

R452

R560

R532

IC502

5678

R546

R545

R538

IC503

R540

C576

D554

D553

D551

R556D552

C579

C578

C553

C577

D556

C542

R551

R569

R570

C546

IC504

C538

C552

C532

C540

D555

ZD551

C528

R559

C536

C580

C524

C544

CNP502

WT502

D501

D502

C591

C246

R576

R215

R214

C516

C510

C508

C233

C504

C506

C502

C512

C518

C501

C503

D557

C526

C520

C507

C522

C509

C549

C505

C530

C534

C511

C550

C515

C517

C521

C519

C523

C525

C533

C545

C539

C537

C535

C531

C527

R529

R528

R530

C551

C529

C547

C541

C543

R571

R574

C548

BI99B

Q501

C861

C854

C852

R865

C862

Q502

IC651

R521

C851

R522

C853

R866

C222

C221

R575

C226

C223

C225

C227

R223

C228

R210

C229

C237

R209

C232

C234

C239

R211

C231

C240

C230

C242

IC202

C244

C236

C204

C201

C202

5101520

25 30 35 40

C203

C206

C205

C207

C208

IC201

C211

C209

C212

C210

C214

C213

C216

C220

C215

C217

C219

C218

C224

Q503Q504

D824

WT901

R820

L99

C99

C98

IC99

C864

D560

D561

C825

R825

D825

R823

Q825

C865

Q824

Q823

ZD822

D823

C826

R826

Q829

R829

R828

C831

C830

Q827

Q826

D822

C829

R822

C822

C828

R821

Q822

Q821

ZD823

D821

ZD821

R832

R831

R830

R684

Q828

D602

C827

D827

D826

F821

T500mA L 250V

C823

Q133

Q131

CD-C480

C581

C565

R533

R531

C567

C566

R535

R534

C568

R542

R536

R544

C570

C572

R537

R539

R543

R541

C569

C571

R554

R555

R557

C575

R549

R553

C583

R550

C574

R552

R547

C573

R548

R558

C582

R502

C514

R504

R520

R518

R516

R514

R512

R515

R513

R517

R511

R519

R501

C513

R503

IC501

R851

R509

R507

R510

R572

R508

R573

R861

R863

R856

C859

R862

C855

R864

C555

C856

R857

C556

R858

R852

R855

R854

C860

R853

R222

R216

R221

510

C235

C558

C557

C587 C585 C586C588

R563R567R564R568

R561R565R562R566

R824

C824

C821

R155

4321

5678

4321

123456789101112

1234

8765

1617

1234

8765

J501

12345

BCE 123

ECB

BCE

123

BCE

POWER AMP PWB

P41 10-C

FW901

TUNER PWB

P39 8-D

MAIN PWB-A1

CNP303

DISPLAY

P38 5-

FW702

POWER P

P40 3-

CNS801

SRS PWB-A2

CD-C480H ONLY

L-CH

R-CH

VIDEO/AUX 1 IN

L-CH

R-CH

VIDEO/AUX 2 IN

– 37 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

Figure 37 WIRING SIDE OF P.W.BOARD (2/7)

8 9 10 11 12

WT502

D501

D502

C591

R10

C21

C869

C24

CNP2

R29

C13

R28

CNP1

C40

C35

C37

C45

R49

C50

C90

C53

C34

C42

C41

R18

XL1

R48

R47

R46

R617

R616

R615

R622

C82

R621

Q84

C68

R79

C67

C43

Q83

R618

R620

BI99A

R91

Q94

R623

Q93

R624

R625

R92

R94

R626

D91

R627

Q91

R55

R93

CNP10

IC91

C94

C91

C52

C19

C81

Q81

C17

C11

C560

ZD81

R84

R81

C18

C561

C44

C247

CNP3

R217

C246

C243

R576

R211

C240

C230

C242

IC202

C244

D559

C248

D562

C250

D558

C251

X201

C253

C238

R455

C451

R456

C452

CNP501

D830

L601

R642

C601

R641

R643

R650

R656

R659

R666

R670

R612

R611

R607

R606

R610

R609

R608

R605

R604

R613

R614

C604

R680

WT601

RM15

RM14

D831

D828

RM16

RM18

RM17

DM03

Q130

L104

Q129

C150

C161

C151

C162

Q128

Q106

C163

Q104

C152

Q109

C109

R111

R112

Q103

Q105

L103

C116

Q124

C118

D601

R193

R161

D829

Q125

C124

R160

C559

R138

R163

C126

C134

L102

Q114

C145

C142

Q126

C136

C138

Q116

Q119

Q127

Q122

Q118

R182

R181

C236

C204

C201

C202

C203

CNP801

Q133

Q131

Q132

Q121

CD-C480H ONLY

Q115

R154

C138

C135

C110

Q117

R158

R141

L101

C146

R137

Q113

R129

C133

C125

C141

C128

IC101

C123

C122

C121

C115

L107

R102

R120

R119

C117

R117

Q107

R118

R101

R109

CNP101

R191

CNP102

Q108

Q110

Q111

C863

RM07

RM09

QM03

RM08

DM02

RM10

WTM1

QM02

RM05

CM01

RM06

QM01

QM04

RM03

12345678910111213

QM05

RM12

C25

R43

R42

R12

R14

R13

R15

R16

R11

C14

R17

C10

C12

54321

IC1

C38

R41

R34

C30

C32

C33

R37

R33

R32

R36C31

R35

R38

R56

R57

C51

R58

IC2

R60

C22

C57

C58

C55

C56

C61

R45

R78

R77

C54

C62

R80

R61

R76

C70

C92

R74

R75

C69

R73

R82

C46

R90

R633

R88

R86

R87

R96

R98

R97

R27

R26

C20

R30

C16

R23

R21

R22

R20

R25

C15

R19

R526

R24

R527

R39

R40

IC5

51015

20 25 30 35

R31

C252

2015

1234567891011

510

R213

R219

R204

R203

R202

R636

R637

R639

R645

R646

R647

R629

R634

R628

R635

R632

R630

R640

R679

R648

R649

C602

2425

6465

R651

R652

R653

R654

R655

R657

R658

R660

IC601

R661

R663

R671

C603

C605

C606

C607

RM19

RM20

R170

R673

R171

R672

R168

R674

R675

R114

R166

R167

R192

R676

R106

R113

R104R103

R122

C120

R124

R162

R126

R525

R132

R164

C130

R165

R136

R130

R140

R146

R142

R156

R218

R207

R206

R208

R205

R155

R183

R184

R187

R153

R134

C155

R144

R147

C144

R157

R149

C129

C143

R143

R135

R150

C131

R131

R152

R139

C147

C139

C140

R125

R145

C132

R123

C127

R128

R127

C119

C114

L108

C113

C112

C111

R121

R107

C102

C105

C107

C108

C101

C106

R115

R108

R110

RM02

RM11

1112

87654321

123

456789

10987654321

C39

2015

123

321

4567

123456

321

BCE

CD-C480H ONLY

CD-C480H

ONLY

CD-C480H

ONLY

CD-C480H

ONLY

ECB

BCE

ECB

123

321

ECB

321

CD-C480H

ONLY

CD-C480H

ONLY

CD MOTOR PWB

P42 1-F

CNS3A

PICKUP UNIT

P42 1-D

CNS2A

DISPLAY PWB

P38 5-A

FW702

PICKUP UNIT

P42 1-D

CNS1A

TRAY MOTOR PWB

P42 1-H

CNS10

DISPLAY PWB

P38 4-H

FW703

TAPE MECHANISM PWB

P42 4-A

FWM1

TAPE MECHANISM

P42 5-F

CNS102

TAPE MECHANISM

P42 5-E

CNS101

POWER PWB

P40 3-A

CNS801

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

9 2 3 4 5 6 118110127

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 38 –

Figure 38 WIRING SIDE OF P.W.BOARD (3/7)

23456

LED717

SW705

LED716 LED718

RD05

LED714

RD04

DISC-1

FW701-2

RD06

RD07

LED715 LED719

SW708 SW707

SW704

SW706

DISC-2

DISC-3

OPEN/CLOSE

DISC SKIP

FW703

FW702

SURROUND

TAPE

TUNER/BAND

EQUALIZER

/DEMO

R749

RD17

R744

R779

R763

TUNING DOWN

/TIME

TUNING UP

/TIME

RD21

RD27

R737

R745

R747

R748

C730

C729

R739

R743

R738

R742

R740

RD28

IC702

R746

R720

R721

R778

D705

R710

R709

C706

C701

R708

R707

R706

R705

SW734

L701

R733

R734

R735

R773

RD29

RD13

MEMORY

SET

VOLUME UP

R728

FW701-1

C703

R715

R714

R713

C704

R712

R719

XL701

Q704

R766

D706

D709

D708

D707

C709

C707

FL701

RX701

R776

RD03

RD02

R741

R780

RD10

RD20

RD19

RD11

RD14

R717

R716

R718

R732

RD01

RD12

R731

R781

R782

RD23

RD22

R771

R769

R770

R768

R765

RD16

RD25

RD26

RD34

RD33

RD15

RD37

RD31

RD30

RD32

RD35

RD24

R767

C708

R777

R703

RD09

RD08

R736

R727

R726

R722

R729

RD36

R702

R701

R711

C715

R775

R774

R772

ZD701

R704

C702

C710

LED705

LED702

LED701

Q705

Q706

C716

Q701

C713

C712

LED703

LED704

SW716 SW715

SW714

SW713

SW727

SW735

SW729

SW737

LED712

SW709

SW738

SW721

LED706

LED710

SW701

SW702

SW703

SW731

SW724

SW732

SW723

SW710

LED707

SW728

SW711

SW719

LED708

LED709

SW730

SW717

LED711

SW712

SW736

SW740

SW739

SW726

SW733

SW725

4-SP

SURROUND

EDIT NORMAL

X-BASS

VOLUME

DOWN

EDIT HIGH

REVERSE

MODE

CENTER

MODE

/PHANTOM

VIDEO/AUX

CENTER MODE/

NORMAL

STOP

REC/PAUSE

DOLBY

PRO LOGIC

BYPASS

DISPLAY MODE

PTY/TI

SERCH

TIMER/SLEEP

CLOCK

EON

ASPM

REV

FWD

REW

ON/STAND-BY

CD-C480H ONLY

IC701

123

CD-C480H

ONLY

CD-C470H/

480H ONLY

CD-C480H

ONLY

CD-C480H

ONLY

123

WT502

TO MAIN PWB

P37 7-A

WT601

TO MAIN PWB

P37 12-F

113

SWITCH PWB- DISPLAY PWB-C1

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

– 39 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

Figure 39 WIRING SIDE OF P.W.BOARD (4/7)

8 9 10 11 12

R362

C349

C341

R348

R347

C330

C333

C321

R349

C339

R346

L342

C346

R369

C347

R344

C345

R345

R301

C384

R324

TP301

C329

R337

X352

C382

R378

C387

IC302

C394

C397

C381

C301

C337

R335

T305

C324

C326

C327

C325

R333

R332

C332

R319

C336

C335

C334

R323

C328

R331

VD301-1

R334

C331

Q302

C322

T301

C323

D302

D301

D304

D303

R376

R360

R397

Q362

C392

C385

C386

C393

R379

R381

R380

L351

R336

C380

R371

R372

R373

R374

T351

C342

C354

C355

R385

R383

R387

R384

C395

C344

C352

C351

L353

R358

C343

R351

IC303

C366

C350

C353

C361

C363

C362

TP302

C364

C365

R350

C367

C369

X351

R356

R357

C368

C374

R361

C373

C371

R393

R364

R363

R355

R352

CF351

C399

C398

C358

C357

R353

C356

R359

R367

RT49

R354

LT22

RT48

RT37

RT36

RT35

RT28

RT30

CT29

CT22

1213

CT25

CT24

CT37

R366

R365

R370

RT21

RT29

ICT21

RT26

CT28

CT27

CT26

XT21

R377

D353

R368

C375

CNP303

C370

ZD351

C396

CF352

R392

L352

R391

R395

Q361

ZD352

C391

VR351

D352

D351

R382

Q360

Q371

FE301

CNP301

L341

Q301

T302

CF301

T306

Q304

Q303

VD301-2

CF302

L354

Q353

C372

Q354

CT43

ZDT21

RT34

RT33

CT36

QT21

CT21

RT32

LT21

C302

CT23

C338

CD-C470H/

480H ONLY

ECB

123

ECB

CNP502

TO MAIN PWB

P36 6-A

TUNER PWB-D

SO301

MW/LW

LOOP

ANTENNA

FM 75 OHMS

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 40 –

Figure 40 WIRING SIDE OF P.W.BOARD (5/7)

23456

FW902B

C801

K801 K802

R815

T.F

C802

C803

D802D805

D803D804

C804

D801

C808

BI801

C807

C806

ZD801

R801

ZD802

Q801

C811

C805

R806

R807

D809

C810

D808

D807

R802

D806

R803

C809

F804

T1.6A L 250V

T801

POWER TRANSFORMER

F802

T4A L 250V

F803

T4A L 250V

CNP801

CNS801

TO MAIN PWB

P37 7-H

AC POWER SUPPLY COAD(216)

AC 230V 50Hz

CORE

(280)

POWER PWB-B1

654321

When Servicing, pay attention as the area

enclosed by this line ( ) is directly

connected with AC main voltage.

– 41 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

Figure 41 WIRING SIDE OF P.W.BOARD (6/7)

8 9 10 11 12

FW90315

L903

R932

R931

C924

C923

WT903

C963

C986

C965

C964

R962

C966

C956

R956

L951

C981

R959

R955

C955

C979

C967

C954

C977

R965

R951

C969

C975

C952

L952

C978

C968

R966

R960

C980

C976

C970

R936

C982

L902

C930

R934

C926

C932

C928

C936

C934

C933

C927

R937

C931

C935

C929

C925

R935

R933

L901

C917 C919

R927

R928

C918

C920

R930

R929

C943

R905

C905

R911

C907

R909

R916

R915

C909

R918

C915

R907

C911

R921

R913

R914

R919

C914

C913

IC901

R920

R923

C941

R922

C942

R952

R912

R906

C908

C906

R924

C951

R910

C910

R908

C944

R917

C953

R957

Q951

R953

C959

R954

C984

R970

IC951

C985

C961

C960

R961

C904

C987

R904

C902

D951

R925

D901

Q901

R902

R903

C901

R901

C937

FW901

C903

C938

FW902A

C940

R938

ZD901

C939

12345

F951

T1.6A

14 13 12 11 10

987654321

F951

T1.6A L 250V

181716151413121110

987654321

123

F901

T2.5A L 250V

F902

T2.5A L 250V

SO902

REAR SPEAKERS

L-CH

R-CH

SO901

FRONT SPEAKERS

SO903

CENTER SPEAKER

L-CH

R-CH

WT901

TO MAIN PWB

P36 2-G

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

HEADPHONS PWB-A3

JA901

HEADPHONES

POWER AMP.PWB-B2

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 42 –

Figure 42 WIRING SIDE OF P.W.BOARD (7/7)

23456

PICK UP IN

SLIDE MOTOR

DISC MOTOR

CNP3A

SW4

CNPM2

SWM5

F. A. S

SWM2

T2 CrO2

SWM4

REC RVS

SWM3

REC FWD

SWM1

VRM1

TAPE

SPEED

T1 CrO2

FWM2

RM1

PHM1

SWM6

CAM

TAPE 1

PLAY BACK HEAD(55)

TAPE 2

RECORD/PLAYBACK/ERACE HEAD(56)

CNS102

CNS101

7654321

BI 102

CNP102

TO MAIN PWB

P37 10-F

TO MAIN PWB

P37 9-H

CNP101

CNS5

CNS10

BIM5

CNP10

TO MAIN PWB

P37 9-A

SW2

MECHA UP

SW1

OPEN/CLOSE

T/T UP/DOWN

SW3

DISC NUMBER

CNP1

CNS1B

CNS1A

CNS2BCNS2A

CNS3BCNS3A

CNP2

CNP3

TO MAIN PWB

P37 9-A

TO MAIN PWB

P37 8-A

TO MAIN PWB

P37 7-A

PICKUP UNIT

CD MOTOR PWB-E

TRAY MOTOR PWB-G

SOLM2

SOLENOID

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

TAPE MECHANISM PWB-F

TAPE MOTOR

MM1

WTM1

MAIN PWB

P37 11-A

SOLENOID

SOLM1

FLAXIBLE PWB

HEAD PWB-H

CNPM1

113

FWM1

– 43 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

WAVEFORMS OF CD CIRCUIT

5ms

0.50 V

IC1 20 F.E

5ms

5.0 V

IC1 54 DRF

STOP PLAY

FOCUS SERCH

0.5ms

1.00 V

0.5ms

5.0 V

HFL

0.5ms

5.0 V

TES

CUE

0.5ms

1.00 V

0.5ms

5.0 V

HFL

0.5ms

5.0 V

TES

REVIEW

50ms

10.0 V

JP+

CUE

50ms

10.0 V

JP-

50ms

0.50 V

JP

50ms

1.00 V

TE

0.5ms

10.0 V

JP+

0.5ms

10.0 V

JP-

0.5ms

0.50 V

0.5ms

1.00 V

REVIEW

50ms

10.0 V

JP+

50ms

10.0 V

JP-

50ms

0.50 V

JP

50ms

1.00 V

TE

0.5ms

10.0 V

JP+

0.5ms

10.0 V

JP-

0.5ms

0.50 V

0.5ms

1.00 V

PLAY

20ms

1.00 V

SPO

NORMAL DISC

TN0=01

20ms

2.00 V

CLV+

PLAY

TCD-712 (140mm)

TN0=01

50ms

1.00 V

SPO

50ms

2.00 V

CLV+

PLAY

TCD-712

5s

100mV

SLD

1

0.5s

100mV

SLD

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 44 –

TROUBLESHOOTING (CD SECTION)

When the CD does not function

When the CD section does not operate When the objective lens of the optical pickup is dirty,this section may not operate.Clean

the objective lens,and check the playback operation.When this section does not operate even after the above step is taken,check

the following items.

Remove the cabinet and follow the troubleshooting instructions.

"Track skipping and/or no TOC(Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup lens.

Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."

Turn the power off.

Gently clean the lens with a lens cleaning tissue and a small amount of isopropyl alcohol.

Do not touch the lens with the bare hand.

• When the turntable fails to stop.

Is from 5 V till 0V down pulse (approx. 300 ms) input

Check the SW3 and the wiring from the IC601 pin 54 to the

SW3.

into the IC601 pin 54 when the turntable is rotating?

2.5V

Yes

Check IC2 pin26 Q91 and Q93 and the periphery.

Check the SW2 MECHA UP SW and the wiring from the

IC601 pin 21 to the SW2 MECHA UP SW.

Yes

Is there following voltage input on the IC601 pin 54 in the

specific state?

When the CD mechanism is moved up: 0V

In other states: 5V

Yes

Is there following voltage input on the IC601 pin 54 in the

specific state?

In other states: 5V

When the CD mechanism is moved up: 0V

• When turntable fails to move.

Check the SW2 MECHA UP SW and the wiring from the IC601

pin 54 to the SW2 MECHA UP SW.

Is 4V output from the Q91 emitter during operation stated

above?

Yes

Check the wiring of IC2 pin 26 and Q93 BASE.

Is L output from the IC2 pin 26 during SEC when the disc skip

switch is pressed?

Yes

Check turntable motor and turntable mechanism.

Check Q91, Q93 and the periphery.

IC701 defective.

IC2 defective.

– 45 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

• When the CD tray fails to open or close.

Is there following voltage input in specific state of IC801 pin 53?

Open state: 0V

Close state: 0V

Intermediate state between open state and close state: 5V

Is H output to IC2 pin 24 or 25 for 7 seconds when the OPEN/

CLOSE key is pressed?IC91 is defective. Replace it.

Is 4V output between IC91 pins 3 and 7 during operation

stated above?

Check the loading motor (M1) and the loading mechanism.

Yes

IC2 defective.

Check the periphery of IC91.

IC91 defective.

Check the OPEN CLOSE SW and the wiring from the IC801

pin 53 to the OPEN CLOSE SW.

Check the wiring of the IC2 pins 24 and 25, IC91 pins 1 and 3.

• The CD function will not work.

The CD operating keys don't work.

Check the CD, DSP, power supply, and 16.93 MHz clock, and

reset terminal.

Check the waveform of SCK, SO (DATA) and SI (COMM).

Yes

See if the pick-up is in the pick-up in PICKUP IN SW position.

If the items mentioned above are OK, check the main

microcomputer IC801.

Yes

• The CD operating keys work.

Check the Focus - HF system.

Playback can be performed without a disc.

Focus search OK

Does the pick-up move up and down twice?

Does the output waveform of IC1(16)(FD) match that shown in

Fig. 45?

Check the IC1(50)(CLK) line, 4MHz.

Check the microcomputer data on pins (51)(CL), (52)(DAT)

and (53)CE.

Check the area around IC5-CNP2.

Yes

Figure 45

Focus search is

performed two

times when play

operation is done

without disc.

0.5s

0.50 V

IC1 16 FD

0.5s

0.50 V

IC1 7 TE

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 46 –

• Playback can only be performed when a disc is

loaded.

Is HF waveform normal (see the Fig. 46-1, 2)?

Check the tracking system.

Is the Focus servo active? (Can you hear it working?)

Check the laser diode driver.

Check the area around IC1(16) - (21) (focus servo circuit).

Yes

Does the DRF signal change from "L" to "H"?

Yes

If the disc is not turning, the DRF

should not change to "H".

Level is abnormal.

Yes

Waveform is unstable.

Check the spin system.

Yes

Check the periphery of

IC1 pins 41 and 42.

Check the spin system.

Figure 46-2

Figure 46-1

Waveform in case of

normal play-back

1.0V/DIV

0.5µsec/DIV(DC)

(When playing

back the disc)

0.5s

1.00 V

IC1 16 FD

0.5s

10.0 V

IC2 13 CLV+

0.5s

10.0 V

IC1 54 DRF

0.5s

2.00 V

IC1 7 TE

• Check the tracking system.

Check waveform of IC1 pin 7 (TE).

Play is possible in

TEST mode.

Although IL is possible,

play is impossible.

Check the periphery

of IC 1 pin 14.

Normal jump is impeded,

and the program top

cannot be reached.

Check the periphery of IC 1

pin 8 to pin 15, and IC 5 to

CNP2.

The waveform shown in Fig.

46-3 appears, and no-disc

state appears soon.

Tracking servo is

inoperative.

Yes

Data cannot be read.

Check the VCO-PLL system.

Yes

5ms

1.00 V

IC1 7 TE

5 ms

5.0 V

IC1 54 DRF

Figure 46-3

– 47 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

• Checking the spin system.

Yes

Play operation is performed without disc.

The turntable rotates a little.

The turntable fails to rotate or rotates at high speed.

Yes

The spin driver circuit is normal.

Check the periphery of IC1 pins 23 to 27, pin 39, and pin 40, IC2

pin 12 and pin 13, IC5 to CNP3.

Yes

• Checking the VCO-PLL system

Figure 47

Play operation is performed when disc exits.

Yes

Although HF waveform is normal, TOC data cannot be read.

Yes

Check PDO waveform (Fig. 47).

Abnormal

Check the IC1 pins 43 and 44, IC2 pins 3, 5, 7, 10, and 11.

Stop --> Play

As VCO freque-

ncy is locked at

4.32 M Hz, voltage

of PDO rises and

stabili- zes.

0.5s

1.00 V

IC2 3 PDO

0.5s

1.00 V

IC2 16 FD

• Although HF waveform is normal and the time

indication is normal, no sound is emitted.

Check IC 2 pin 48 (EFLG).

Check IC2 pins 37, 40.

Check IC 501 and POWER AMP IC 901.

Abnomal

Yes

Usually, the number of pulses of flawless disc is 100 pulses/sec

or less.

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 48 –

1 DEFI Input Input terminal of defect detection signal (DEF). (Connected to OV when not used.)

2 TAI Input For PLL Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.

3 PDO Output Output terminal of phase comparison for external VCO control.

4 VVSS — Ground terminal for integrated VCO. Surely connected to 0V.

5 ISET Input Resistance connection terminal for current adjustment of PDO output.

6 VVDD — Power terminal for integrated VCO.

7 FR Input VCO frequency range adjustment.

8 VSS — Ground terminal of digital system. Surely connected to 0V.

9 EFMO Output For slice level control EFM signal output terminal.

10 EFMIN Input EFM signal input terminal.

11 TEST2 Input Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.

12 CLV+ Outout Output for disk motor control. 3 values can be output with the commands.

13 CLV- Output Output for disk motor control. 3 values can be output with the commands.

14 V/P Output Monitor output terminal for automatic switch of rough servo/phase control.

"H" for rough servo, and "L" for phase servo.

15 HFL Intput Input terminal of track detection signal. Schmit input.

16 TES Input Input terminal of tracking error signal. Schmit input.

17 TOFF Output Tracking OFF output terminal.

18 TGL Output Output terminal for switch of tracking gain "L" increases the gain.

19 JP+ Output Output for track jump control. 3 values can be output with the commands.

20 JP- Output Output for track jump control. 3 values can be output with the commands.

21* PCK Output Clock monitor terminal for EFM data replay. 4,3218MHz as the phase clock.

22* FSEQ Output Output terminal synchronous signal detection. "H" is output when synchronous signal detected

by EFM signal matches synchronous signal internally generated.

23 VDD — Power terminal of digital system.

24 CONT1 Input/Output General purpose input/output terminal 1

25 CONT2 Input/Output General purpose input/output terminal 2

26 CONT3 Input/Output General purpose input/output terminal 3

27 CONT4 Input/Output General purpose input/output terminal 4

28* CONT5 Input/Output General purpose input/output terminal 5

29* EMPH Output Difference monitor terminal At "H", deemphasis disk is being replayed.

30* C2F Output C2 flag output terminal.

31 DOUT Output Output terminal of digital OUTPUT. (EIAJ format)

32* TEST3 Input Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.

33 TEST4 Input Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.

34* N.C. — Terminal not used. Open during operation.

35* MUTEL Output L channel 1 bit DAC Mute output terminal for L channel.

36 LVDD — Power terminal for L channel.

37 LCHO Output L channel output terminal.

38 LVSS — Ground terminal for L channel Surely connected to 0V.

39 RVSS — R channel 1 bit DAC Ground terminal for R channel Surely connected to 0V.

40 RCH0 Output R channel output terminal.

41 RVDD — Power terminal for R channel.

42* MUTER Output Mute output terminal for R channel.

43 XVDD — Power terminal for quartz oscillation.

44 XOUT Output Ground terminal of 16.9344 MHz quartz oscillator.

45 XIN Input Ground terminal of 16.9344 MHz quartz oscillator.

46 XVSS — Ground terminal for quartz oscillation. Surely connected to 0V.

47* SBSY Output Output terminal of synchronous signal of subcode block.

48* EFLG Output Correction monitor terminal of C1, C2, single and double.

FUNCTION TABLE OF IC

Pin No.

FunctionTerminal Name

Input/Output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Controlled with serial data command

from micro computer.

When not used, set it as the input terminal and

open it by connecting to 0V, or set it as the output

terminal and open it.

IC2 VHiLC78623E-1:Servo/Signal Control(LC78623E) (1/2) (CD-C470H/C470E)

IC2 VHiLC78623D-1:Servo/Signal Control(LC78623D) (1/2) (CD-C480H)

– 49 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

FunctionTerminal Name

Input/Output

49* PW Output Output terminal of subcodes P, A, R, S, T, U and W.

50* SFSY Output Output terminal of synchronous signal of subcode frame. It drops when subcode stands by.

51 SBCK Input Clock input terminal to read subcode. Schmit input (Connected to 0V when not used.)

52* FSX Output Output terminal of synchronous signal of 7.35kHz divided from quartz oscillation.

53 WRQ Output Output terminal to stand by output of subcode Q.

54 RWC Input Input terminal of read/write. Schmit input.

55 SQOUT Output Output terminal of subcode Q.

56 COIN Input Command input terminal from microcomputer.

57 CQCK Input Clock input terminal to fetch command input, or pick up subcode from SQOUT. Schmit input

58 RES Input Reset input terminal of LC78622. When turning on power, set it at "L".

59* TST11 Output Output terminal for test. Used in the open state ("L" output as ordinary).

60* 16M Output Output terminal of 16.9344Hz.

61 4.2M Output Output terminal of 4.2336MHz.

62 TEST5 Input Input terminal for test Pull-down resistor is integrated. Surely connected to 0V.

63 CS Input Chip selection input terminal. Pull-down resistor is integrated.

Connected to 0when not controlled.

64 TEST1 Input Input terminal for test Pull-down resistor is integrated. Surely connected to 0V.

Pin No.

Note: The same potential must be supplied to the power terminals (VDD, VVDD, LVDD, RVDD, XVDD).

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

DEFI

EFMIN

FSEQ

V/P

SBCK

SBSY

SFSY

WRQ

SQOUT

COIN

RWC

CQCK

HFL

TES

TOFF

JP-

JP+

RES

TGL

CONT1

CONT2

CONT3

CONT4

CONT5

EMPH

EFLG

16M

4.2M

XVss

FSX

XIN

XOUT

RVss

MUTER

RCHO

LCHO

MUTEL

LVss

(NC)

DOUT

C2F

EFMO

VVss

PDO

I SET

PCK

TAI

TSTI1

TEST1

TEST2

TEST3

TEST4

TEST5

Vss

CLV+

CLV-

Slice level

control

VCO colck oscillation

clock control

2Kx

8bit

RAM

RAM address

generator

Interpolation mute

Bilingual

Digital OUT

Digital

attenuator

X4 oversampling

digital filter

1bitDAC

L.P.F

XTAL system timing

generator

General-use port

Servo commander

É COM

Interface

Subcode division

QCRC

CLV

Digital servo

Sync detection

EFM demodulation

Flag processing of C1/C2

error detection and correction

Figure 49 BLOCK DIAGRAM OF IC

IC2 VHiLC78623E-1:Servo/Signal Control(LC78623E) (1/2) (CD-C470H/C470E)

IC2 VHiLC78623D-1:Servo/Signal Control(LC78623D) (1/2) (CD-C480H)

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 50 –

IC1 VHiLA9240M/-1:Servo Amp.,(LA9240M) (1/2)

1 FIN2 Connection pin for photodiode of pickup.

RF signal is generated through addition with FIN pin, and FE signal is generated through subtraction.

2 FIN1 Connection pin for photodiode of pickup.

3 E Connection pin for photodiode of pickup. TE signal is generated through subtraction with F pin.

4 F Connection pin for photodiode of pickup.

5 TB Pin for input of DC component of TE signal.

6 TE- Pin to connect gain setting resistor of TE signal to TE signal.

7 TE TE signal output pin.

8 TESI TES (Track error sense) comparator input pin. TE signal is band-passed and input.

9 SCI Input pin for shock detection.

10 TH Pin to set time constant of tracking gain.

11* TA TA amplifier output pin.

12 TD- Pin to compose tracking phase compensation constant between TD and VR pins.

13 TD Pin to set tracking phase compensation.

14 JP Pin to set amplitude of tracking jump signal (kick pulse).

15 TO Tracking control signal output pin.

16 FD Focusing control signal output pin.

17 FD- Pin to compose focusing phase compensation constant between FD and FA pins.

18 FA Pin to compose focusing phase compensation constant between FD-/FA-pins.

19 FA- Pin to compose focusing phase compensation constant between FA and FE pins.

20 FE Output pin of FE signal.

21 FE- Pin to connect gain setting resistor of FE signal across TE pin.

22 AGND GND for analog signal.

23 SP Single end output for CV+ and CV- pin input.

24 SPI Spindle amplifier input.

25 SPG Pin to connect gain setting resistor in the 12cm mode of spindle.

26 SP- Pin to connect spindle phase compensation constant together with SPD pin.

27 SPD Spindle control signal output pin.

28 SLEQ Pin to connect thread phase compensation constant.

29 SLD Thread control signal output pin.

30 SL- Input pin of thread feed signal from micro computer.

31 SL+ Input pin of thread feed signal from micro computer.

32 JP- Input pin of tracking jump signal from DSP.

33 JP+ Input pin of tracking jump signal from DSP.

34 TGL Input pin of tracking gain control signal from DSP. TGL = Gain low at "H"

35 TOFF Input pin of tracking off control signal from DSP. TOFF = Off at "H"

36 TES Output pin of TES signal to DSP.

37 HFL (HIGH FREQUENCY LEVEL) is used to judge whether main beam is positioned on the bit or on the mirror.

38 SLOF Thread servo off control input pin.

39 CV- Pin to input CLV error signal from DSP.

40 CV+ Pin to input CLV error signal from DSP.

41 RFSM RF output pin.

42 RFS- Pin to set gain of RF and set 3T compensation constant together with RFSM pin.

43 SLC (SLICE LEVEL CONTROL) is the output pin to control of the level of the data slice with RF waveform DSP.

44 SLI Input pin to control the level of data slice with DSP.

45 DGND GND pin in the digital system.

46 FSC Output pin for focus search smoothening capacitor.

47 TBC (Tracking Balance Control) Pin to set EF balance variable range.

48* NC No connect.

49 DEF Defect detection output pin of disk.

50 CLK Reference clock input pin. 4.23MHz of DSP is input.

Pin No.

Port Name

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

– 51 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

IC1 VHiLA9240M/-1:Servo Amp.,(LA9240M) (2/2)

Pin No.

Port Name

Function

51 CL Micro computer command clock input pin.

52 DAT Micro computer command data input pin.

53 CE Micro computer command chip enable input pin.

54 DRF (DETECT RF) RF level detection output.

55 FSS (Focus Serch Select) Pin to switch focus search mode. (± search/+ search for reference voltage)

56 VCC2 VCC pin for servo system and digital system.

57 REFI Pin to connect pass control for reference voltage.

58 VR Reference voltage output pin.

59 LF2 Pin to set defect detection time constant of disk.

60 PH1 Pin to connect capacitor for peak hold of RF signal.

61 BH1 Pin to connect capacitor for bottom hold of RF signal.

62 LDD APC circuit output pin.

63 LDS APC circuit output pin.

64 VCC1 RF system VCC pin.

Figure 51 BLOCK DIAGRAM OF IC

1FIN2

FIN1

TE-

TESI

SCI

TD-

FD-

FA FA-

FE FE- AGND SP SPI SPG SP- SPD SLEQ SLD SL- SL+ JP-

JP+

TGL

TOFF

TES

HFL

SLOF

CV-

CV+

RFSM

RFS-

SLC

SLI

DGND

FSC

TBC

DEFCLKCLDATCEDRFFSSVCC2REFIVRLP2PH1BH1LDDLDS

SLC

RF AMP

F.SERVO & F.LOGIC SPINDLE SERVO SLED SERVO

VCC1

17 18 19 20 21 2322 25 26 27 28 29 30 31 32

495051525354555657585961 60626364

APC

RF DET

REF

VCA

INTER FACE

BAL

µ-COM

I/V

T.SERVO & T.LOGIC

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 52 –

IC601 RH-iX0171AWZZ:System Microcomputer (IX0171AW) (1/2)

1* ———— Output —————

2 REC/PB — Record/Playback selection signal

3* ———— Output —————

4 CD MUT Output CD MUT signal

5 CD RES Output CD DSP RESET signal

6 CD SL- Output Slide return signal

7 CD SL+ Output Slide feed signal

8 VDD — Power connection terminal

9 CD CQCK Output CD IC control signal

10 CD COIN Output CD IC control signal

11 CD SQOUT Input CD IC control signal

12 CD WRQ Input CD IC control signal

13 CD RWC Output CD IC control signal

14 SCK Input Main µCOM (RH-iX0170AWZZ) control signal

15 SO Output Main µCOM (RH-iX0170AWZZ) control signal

16 SI Input Main µCOM (RH-iX0170AWZZ) control signal

17 RESET Input Main µCOM (RH-iX0170AWZZ) control signal

18 STROBE Input Main µCOM (RH-iX0170AWZZ) control signal

19 CD PU-IN SW Input Pickup position detection

20 AVSS — To be connected to GND

21 CD DRF Input CD RF level detection input H: When RF level is H

22 T1 RUN Input Tape 1: Rotation pulse input

23 T2 RUN Input Tape 2: Rotation pulse input

24 SPEANA 5 Input 63Hz BPF spectrum analyzer input

25 SPEANA 4 Input 250Hz BPF spectrum analyzer input

26 SPEANA 3 Input 1kHz BPF spectrum analyzer input

27 SPEANA 2 Input 4kHz BPF spectrum analyzer input

28 SPEANA 1 Input 16kHz BPF spectrum analyzer input

29 AVDD — A/D converter analog positive power

30 AVREF — A/D converter reference power

31 TAPE CUM SW Input Tape mechanism cam SW input terminal

32* ———— — No connected

33 VSS — To be connected to GND

34* X1 — Main clock terminal, not used

35* X2 — Main clock terminal, not used

36* LINE MUT Output Line mute output, not used

37 SURROUND MUT Output Surround mute output

38 CENTER MUT Output Center SP output mute output

39 SYSTEM MUT Output System mute output

40 MIC Input Mic input terminal (for detection)

41 EN Output DOLBY PRO logic IC control signal

42 DATA Output DOLBY PRO logic IC control signal

43 CLK Output DOLBY PRO logic IC control signal

44 SP DET Input Speaker output error detection input Occurrence of error: L

45 POWER Output Set power control output Power ON: H

46* RELAY Output Speaker output relay control output Relay ON: H

47 TAPE TS CrO SW Input Tape mechanism 2 CrO2 detection input CrO2: H

48 VSS Input Digital GND terminal

49 TAPE F/R SPEED Output Tape feed/return

50 TAPE SOL Output Tape mechanism solenoid control output Attraction: L

51 TAPE MOTOR Output Tape mechanism motor control output

Terminal Name

Pin No. Input/Output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Function

– 53 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

IC601 RH-iX0171AWZZ:System Microcomputer (IX0171AW) (2/2)

52 VDD — Positive power supply

53 CD O/C SW Input CD open-close switch input

54 DISC No. SW Input CD turntable position detection input

55 CD U/D SW Input CD mechanism UP/DOWN chucking detection input

56 T1 CrO SW Input Tape 1 CrO2 detection SW input

57 SRS INH Output SRS (surround) position selection output

58 SRS B Output SRS (surround) position selection output

59 SRS A Output SRS (surround) position selection output

60 SRS 3D Output SRS (surround) position selection output

61 SRS PASS Output SRS (surround) position selection output

62 SPAN 9K/10K Input Tuner span selector 9 kHz/10 kHz selection input

63 DOLBY Input DOLBY detection input, not applied in this machine

64 SRS Input SRS detection input, not applied in this machine

65 BALANCE Input BALANCE detection input, not applied in this machine

66 4SP Input 4SP detection input, not applied in this machine

67 TAPE A-FP SW Input Tape A side miserase preventing SW input

68 TAPE B-FP SW Input Tape B side miserase preventing SW input

69 TAPE PB MUT Output Tape playback mute output

70 TAPE T1/T2 Output Tape 1/2 selection

71 VLOAD — To be connected to GND

72 TAPE BIAS Output Tape bias circuit selection

73* ———— — Not used

74* ———— — Not used

75 TAPE BEET CUT Output Beat cancel signal control output

76 TAPE HI SPEED Output Tape mechanism High-Low speed selection

77* ———— — Not used

78* ———— — Not used

79 TAPE PB EQ Output Tape circuit playback Eq selection

80 TAPE REC MUT Output Tape circuit record muting output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Terminal Name

Pin No. Input/Output

Function

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 54 –

IC701 RH-iX0170AWZZ:System Microcomputer (IX0170AW) (1/2)

1-5 P94/FIP6-P90/FIP2 G06-G02 Output FL display tube grid drive

6,7 P81/FIP1,P80/FIP0 G01,G00 Output FL display tube grid drive

8 VDD VDD — Positive power supply

9 P27/SCK0 C

B CLK Output C

B serial clock output

10 P26/S00/SB1 C

B DO Output C

B serial data output

11 P25/SI0/SB0 C

B DI Input C

B serial data input

12 P24/BUSY C

B CE Output C

B serial CE output

13 P23/STB SUB STB Output Serial strobe output for CD/TAPE microcomputer

14 P22/SCK1 SUB SCK Output Serial clock output for CD/TAPE microcomputer

15 P21/SO1 SUB SO Output Serial data output for CD/TAPE microcomputer

16 P20/SI1 SUB SI Input Serial strobe input for CD/TAPE microcomputer

17 RESET RESET Input Reset input

18 P74 SUB RES Output Reset output for CD/TAPE microcomputer

19 P73 TUN MUTE Output Tuner TUN MUT output

20 AVSS AVSS — Analog power supply for A/D converter

21 P17/ANI7 TUN SD Input Tuner station detection input

22 P16/ANI6 TUN SM Input Tuner signal meter input

23 P15/ANI5 KEY IN5 Input Key input 37-45

24 P14/ANI4 KEY IN4 Input Key input 28-36

25 P13/ANI3 KEY IN3 Input Key input 19-27

26 P12/ANI2 KEY IN2 Input Key input 10-18

27 P11/ANI1 KEY IN1 Input Key input 1-9

28 P10/ANI0 ENF IN Input Tuner initial setting input

29 AVDD AVDD — Analog positive power supply for A/D converter

30 AVREF AVREF — Reference power supply for A/D converter

31 P04/XT1 VSS Input Sub-clock input To be connected to Vss

32* XT2 N.C — Sub-clock output OPEN

33 VSS VSS — GND power

34 X1 X1 Input Main clock 4.194304 MHz

35 X2 X2 Output Main clock 4.194304 MHz

36 P37 LED LCK Output LED IC serial clock output BU2092 LCK

37 P36/BUZ LED DATA Output LED IC serial data output BU2092 DATA

38 P35/PCL LED CLK Output LED IC serial clock output BU2092CLK

39* P34/TI2 RDS ID Input RDS RDS station detection input

40* P33/TI1 RDS SYNC Input RDS Data sync detection input

41* P32/TO2 RDS SYR Output RDS RAM reset output LC72720 SYR

42 P31/TO1 SYS MUTE Output System mute output

43 P30/TO0 POWER Output POWER output

44* P03/INTP3/CI0 Output No use

45* P02/INTP2 Output No use

46 P01/INTP1 SYS STOP Input Power failure input

47 P00/INTP0/TI0 REM IN Input Remote Control Input

48 IC VSS — Connect with GND

49* P72 Output No use

50* P71 Output No use

51* P70 Output No use

52 VDD VDD — Positive power supply

53* P127/FIP33 — No use

54-60

P126/FIP32-P120/FIP26

S21-S15 Output FL display tube segment drive

61-68

P117/FIP25-P110/FIP18

S14-S07 Output FL display tube segment drive

69,70

P107/FIP17,P106/FIP16

S06,S05 Output FL display tube segment drive

Terminal NamePin No. Input/Output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

FunctionPort Name

– 55 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

IC701 RH-iX0170AWZZ:System Microcomputer (IX0170AW) (2/2)

71 VLOAD VLOAD — Negative power supply for FL drive To be connected to -30V

72-76

P105/FIP15-P101/FIP11

S04-S00 Output FL display tube segment drive

77 P100/FIP10 G10 Output FL display tube grid drive

78-80 P97/FIP9-P95/FIP7 G09-G07 Output FL display tube grid drive

Terminal NamePin No. Input/Output

FunctionPort Name

IC501 VHiLC75396E-1:Audio Processor (LC75396E)

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

LTIN

LF1C1

LF1C2

LF1C3

LF2C1

LF2C2

LF2C3

LF3C1

LF3C2

LF3C3

LF4C1

LF4C2

LF4C3

LF5

LTOUT

LFIN

RF1C1

RF1C2

RF1C3

RF2C1

RF2C2

RF2C3

RF3C1

RF3C2

RF3C3

RF4C1

RF4C2

RF4C3

RF5

RTOUT

RFIN

RFCOM

LSELO

LINVIN1

VDD

RINVIN1

RSERO

RTIN

LFCOM

LFOUT

LRIN

LRCOM

LROUT

LVref

VSS

Vref

RVref

RROUT

RRCOM

RRIN

RFOUT

IC201 VHiLA2786//-1: Dolby Pro Logic Active Decorder (LA2786)

CONTROL

8 9

11 12 13 14 15 16 17 18 19 20 21

41 40

32 31 30 29

28 27 26 25 24 23 22

OSC

DEVIDER

NOISE

GENERAT

LPF

NOISE FILTER

BBAA

NOISE

BALANCE

CONTROL

DUAL 1

CONTROL

VREF

VCA

VCA VCA VCA

VCA

VCA VCA VCA

CMOTE

CTRIM

MUTE

LPF

VCC

RECT

LOG DIFF

P.S.

VCC

L-OUT

R-OUT

LT-IN

RT-IN

S-OUT

C-OUT

DATA

CLOCK

ENABLE

DC-OUT

S-TRIM

B-NR

7k/5k

VOL/MUTE

OUT-FILTER

L+DELAY R+DELAY

INV-PHASE



L+R

L-R

(-6dB)

50k50k

20k

DEC

VDD

40kHz

IN-FILTER

ADM-CONT

ADM

SRAM

22 21 20 19 18 17 16 15 14 13

2 3 4

5 6 7

8 9

10 11

AGND

VREF

L-MIX-OUT

R-MIX-OUT

S-OUT

VSS

CLK

DATA

B-NR

L-IN

R-IN

S-IN

DELAY-OUT

VCC

ENABLE

IC202 VHiLV1016//-1: Dolby Pro Passive Decorder (LV1016)

Figure 55 BLOCK DIAGRAM OF IC

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 56 –

IC501 VHiLC75396E-1:Audio Processor (LC75396E)

1-3 RF1C1-RF1C3 Terminal to connect capacitor of filter configuration for equalizer F1 band

Connect the capacitor between LF1C1(RF1C1) and LF1C2(RF1C2) between LF1C2 (RF1C2) and LF1C3(RF1C3).

4-6 RF2C1-RF2C3 Terminal to connect capacitor of filter configuration for equalizer F2 band

Connect the capacitor between LF2C1(RF2C1) and LF2C2(RF2C2) between LF2C2 (RF2C2) and LF2C3(RF2C3).

7-9 RF3C1-RF3C3 Terminal to connect capacitor of filter configuration for equalizer F3 band

Connect the capacitor between LF3C1(RF3C1) and LF3C2(RF3C2) between LF3C2 (RF3C2) and LF3C3(RF3C3).

10-12 RF4C1-RF4C3 Terminal to connect capacitor of filter configuration for equalizer F4 band

Connect the capacitor between LF4C1(RF4C1) and LF4C2(RF4C2) between LF4C2 (RF4C2) and LF4C3(RF4C3).

13 RF5 Terminal to connect capacitor of filter configuration for equalizer F5 band

Terminal to connect the externally provided capacitor

14 RTOUT Equalizer output terminal

15 RFIN Input terminal of Rch front side 4dB step control

16 RFCOM Common terminal of Rch front side 1dB step control

17 RFOUT Output terminal of Rch front side control

18 RRIN Input terminal of Rch rear side 4dB step control

19 RRCOM Common terminal of Rch rear side 1dB step control

20 RROUT Output terminal of Rch rear side control

21 RVREF Internal analog ground terminal

22 VREF Connect the capacitor of about several 10 uF between Vref and AVSS (VSS) so as to prevent power supply

ripple in the VDD/2 voltage generating section.

23 CL Terminal to input serial data and clock for control

24 DI Terminal to input serial data and clock for control

25 CE Chip enable terminal. Data is written in the internal latch with a timing of changing H to L, and the specific

analog switch is actuated. Data transfer is enabled on the H level.

26 VSS GND

27 LVREF Internal analog ground terminal

28 LROUT Output terminal of Lch rear side control

29 LRCOM Common terminal of Lch rear side 1dB step control

30 LRIN Input terminal of Lch rear side 4dB step control

31 LFOUT Output terminal of Lch front side control

32 LFCOM Common terminal of Lch front side 1dB step control

33 LFIN Input terminal of Lch front side 4dB step control

34 LTOUT Equalizer output terminal

35 LF5 Terminal to connect capacitor of filter configuration for equalizer F5 band

Terminal to connect the externally provided capacitor

36-38 LF4C3-LF4C1 Terminal to connect capacitor of filter configuration for equalizer F4 band

Connect the capacitor between LF4C1(RF4C1) and LF4C2(RF4C2) between LF4C2 (RF4C2) and LF4C3(RF4C3).

39-41 LF3C3-LF3C1 Terminal to connect capacitor of filter configuration for equalizer F3 band

Connect the capacitor between LF3C1(RF3C1) and LF3C2(RF3C2) between LF3C2 (RF3C2) and LF3C3(RF3C3).

42-44 LF2C3-LF2C1 Terminal to connect capacitor of filter configuration for equalizer F2 band

Connect the capacitor between LF2C1(RF2C1) and LF2C2(RF2C2) between LF2C2 (RF2C2) and LF2C3(RF2C3).

45-47 LF1C3-LF1C1 Terminal to connect capacitor of filter configuration for equalizer F1 band

Connect the capacitor between LF1C1(RF1C1) and LF1C2(RF1C2) between LF1C2 (RF1C2) and LF1C3(RF1C3).

48 LTIN Equalizer input terminal

49 LSELO Input selector output terminal

50 LINVIN1 Operational amplifier reverse input terminal for input gain setting

51-55 L5-L1 Input signal terminal

56 VDD Power terminal

57-61 R1-R5 Input signal terminal

62 RINVIN1 Operational amplifier reverse input terminal for input gain setting

63 RSELO Input selector output terminal

64 RTIN Equalizer input terminal

Pin No.

Function

Terminal Name

– 57 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

1 VREF Output Reference voltage output (Vdda/2)

2 MPXIN Input Base band (multiplex) signal input

3 Vdda — Analog system power supply (+5V)

4 Vssa — Analog system ground

5 FLOUT Output Sub-carrier input (comparator input)

6 CIN Input Sub-carrier output (filter output)

7 T1 Input Test input (to be always connected to ground)

8 T2 Input Test input (standby control)

0: Normal operation/1: Standby state (crystal oscillation stop)

9* T3 (RDCL) Input/Output Test I/O (RDS clock output)

10* T4 (RDDA) Input/Output Test I/O (RDS data output)

11 * T5 (RSFT) Input/Output Test I/O (Soft judgment control data output)

12 XOUT Output Crystal oscillation output

13 XIN Input Crystal oscillation input (external reference signal input)

14 Vddd — Digital system power supply

15 Vssd — Digital system ground

16* T6 (ERROR/57K/BE1) Input/Output Test I/O (Error existence/nonexistence output/playback carrier output/error block

number output)

17* T7 (CORREC/ARI-ID/BE0 Input/Output Test I/O (Error existence/nonexistence output/SK detection output/error block

number output)

18* SYNC Input/Output Block sync detection output

19* RDS-ID Output RDS detection output

20 DO Output Data output

21 CL Input Clock input Serial data interface (CCB)

22 DI Input Data input

23 CE Input Chip enable

24 SYR Input Sync and RAM address reset (positive logic)

ICT21 VHiLC72720/-1:Audio Processor (LC72720)

Terminal Name

Pin No.

Input/Output

Function

Figure 57 BLOCK DIAGRAM OF IC

Vdda

VREF

FLOUT

CIN

Vssa

Vddd

Vssd

RDS-ID

SYNC

SYR

XOUTXIN

MPXIN

T3~T7

REFERENCE

VOLTAGE

57kHz

BPF

(SCF)

ANTIALIASING

FILTER

CCB

TEST

SMOOTHING

FILTER

RAM

(24 BLOCK DATA)

ERROR CORRECTION

(SOFT DECISION)

PLL

(57kHz)

CLOCK

RECOVERY

(1187.5Hz)

DATA

DECODER

SYNC

DETECT-1

OSC/DIVIDER

MEMORY CONTROL

CLK(4.332MHz)

SYNC

DETECT-2

SYNC/EC CONTROLLER

156

9,10,11

16,17

13 12

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 58 –

FL701 : VVKBJ549GK/-1 FL Display

Figure 58-2 FL DISPLAY

IC601 RH-iX0171AWZZ: System Microcomputer(IX0171AW)

REC/PB

CD MUTE

CD RES

SL-

SL+

CQ CK

COIN

SQ OUT

WRQ

RWC

P94

CD/TAPE CONTROL

µPD 78045A

P93

P92

P91

P90

P81

P80

Vdd

SCK 0

SO 0

Si 0

P24

P23

SCK 1

SO 1

Si 1

RESET

P74

P73

AVss

ANi 7

ANi 6

ANi 5

ANi 4

SRS

DOLBY

SPAN 9K

SRS PASS

SRS 3D

SRS A

SRS B

SRS iNH

T1 Cro2

CD U/D SW

DISC No. SW

CD O/C SW

TA MOTOR

TA SOL

F/R SPEED

PU-IN SW

MAIN

µ COM

DRF

T1 RUN

T2 RUN

SPE 5

REC MUT

PB EQ

Hi SPEED

BEET CUT

BiAS

T1/T2

PB MUT

T2 BFP

T2 AFP

4SP

BALANCE

ANi 3

ANi 2

ANi 1

ANi 0

AVdd

AVref

P04

Vss

P37

P36

P35

P34

P33

3938373635343332

3130

2928

272625

65666768697071

72737475

7677

7980

P95

P96

P97

P100

P101

P102

P103

P104

P105

V Load

P106

P107

P110

P111

P112

P113

SPE 4

SPE 3

SPE 2

SPE 1

TACUM SW

LINE MUT

SUR MUT

CEN MUT

SYS MUT

MIC

T2CrO

RELAY

POWER

SP DET

CLK

DATA

DOLBY

PRO

P114

P115

P116

P117

P120

P121

P122

P123

P124

P125

P126

P127

Vdd

P70

P71

P72

INT 0

INT 1

INT 2

INT 3

P30

P31

P32

Figure 58-1 BLOCK DIAGRAM OF IC

WIRING OF PRIMARILY SUPPLY LEADS (CD-C470E ONLY)

Figure 58-3

If any one of the bands shown in Fig. 58-3 is removed for some

reason, be sure replace it to the original position and same

appearance as before.

Nylon Band 80mm

92LN-BAND 1318A

AC Power

Supply Cord

Core

Power

Transformer

Brown

Blue

123

X-BASS

kHz

MHz

RDS

EON

PTY

33 250 1k 4k 16k

SLEEPST 4-SP

SRS

MEMORY

PRO LOGIC

REC

– 59 –

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

PARTS GUIDE

NOTE:

Parts marked with “ ” are important for maintaining the safety of the set.

Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

MODEL

CD-C470H

CD-C470E

CD-C480H

CP-C470H

CP-C470E

CP-C480H

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the

following information.

1. MODEL NUMBER 2. REF. No.

3. PART NO. 4. DESCRIPTION

MARK: SPARE PARTS-DELIVERY SECTION

For U.S.A. only

Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor,

Please call Toll-Free;

1-800-BE-SHARP

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK........................ Ceramic type

VCT ........................ Semiconductor type

VC • • MF ............... Cylindrical type (without lead wire)

VC • • MN............... Cylindrical type (without lead wire)

VC • • TV................ Square type (without lead wire)

VC • • TQ ............... Square type (without lead wire)

VC • • CY ............... Square type (without lead wire)

VC • • CZ ............... Square type (without lead wire)

VC • • • • • • • • • J .. The 13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,

"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors, error is ±20%.

Resistors

VRD ....................... Carbon-film type

VRS........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (without lead wire)

VR • • MN............... Cylindrical type (without lead wire)

VR • • TV................ Square type (without lead wire)

VR • • TQ ............... Square type (without lead wire)

VR • • CY ............... Square type (without lead wire)

VR • • CZ ............... Square type (without lead wire)

VR • • • • • • • • • J .. The 13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts, the resistors are ±5%

carbon-film type.

PRICE

RANK

DESCRIPTIONNO.

PART CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 1 –

INTEGRATED CIRCUITS

IC1 VHILA9240M/-1 J AV Servo Amp.,LA9240M

IC2 VHILC78623D-1 J AY Servo/Signal Control,LC78623D

[CD-C480H]

IC2 VHILC78623E-1 J AX Servo/Signal Control,LC78623E

[CD-C470H/470E]

IC5 VHIM56748FP-1 J AR Focus/Tracking/Spin/Slide

Driver,M56748FP

IC91 VHITA7291S/-1 J AH Loading Motor Driver, TA7291S

IC99 VHPGP1F32T/-1 J AP Optical Fiber Data Link,

GP1F32T

IC101 VHIAN7345K/-1 J AM Playback and Record/ Playback

Amp.,AN7345K

IC201 VHILA2786//-1 J AV Dolby Pro Logic Active Decorder,

LA2786

IC202 VHILV1016//-1 J AX Dolby Pro Logic Passive

Decorder,LV1016

IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131

IC303 VHILA1832//-1 J AR FM IF Det./FM Mpx./ AM IF,

LA1832

IC451 VHISRS5250S-1 J BL SRS,SRS5250S

[CD-C480H Only]

IC453 VHIBU4052BC-1 J AH Function Serector,BU4052BC

[CD-C480H Only]

IC501 VHILC75396E-1 J AT Audio Processor,LC75396E

IC502~504 VHIBA4558//-1 J AD Ope Amp.,BA4558

IC601 RH-IX0171AWZZ J AV System Microcomputer,

IX0171AW

IC651 VHIBA4558//-1 J AD Ope Amp.,BA4558

IC701 RH-IX0170AWZZ J AW System Microcomputer,

IX0170AW

IC702 VHIBU2092F/-1 J AM Input/Output Expander,

BU2092F

IC901 VHISTK48801-1 J BD Power Amp.,STK48801

IC951 VHILA4451//-1 J AN Power Amp.,LA4451

ICT21 VHILC72720/-1 J AW RDS,LC72720

[CD-C470H/480H Only]

TRANSISTORS

Q1 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q81 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q83,84 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q91 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y

Q93 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

Q94 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q103~106 VS2SC1845F/-1 J AC Silicon,NPN,2SC1845 F

Q107,108 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q109 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q110,111 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q113,114 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

[CD-C480H Only]

Q115,116 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q117,118 VS2SC2878A/-1 J AE Silicon,NPN,2SC2878 A

Q119 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q121,122 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q124 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q125 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

[CD-C480H Only]

Q126 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q127 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

[CD-C480H Only]

Q128 VS2SC2236-Y-1 J AB Silicon,NPN,2SC2236 Y

Q129,130 VSKTC3199GR-1 J AB Digital,NPN,KTC3199 GR

Q131,132 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

[CD-C480H Only]

Q133 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

[CD-C480H Only]

Q301 VS2SC380-O/-1 J AC Silicon,NPN,2SC380 O

Q302~304 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q353,354 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q361 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q362 VSKRA107M//-1 J AE Digital,PNP,KRA107 M

Q371 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q458~460 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

[CD-C480H Only]

Q461 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

[CD-C480H Only]

Q463 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

[CD-C480H Only]

Q466 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

[CD-C480H Only]

Q467 VSKRA107M//-1 J AE Digital,PNP,KRA107 M

[CD-C480H Only]

Q468,469 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

[CD-C480H Only]

Q501~504 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q701 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q704 VSKRC102M//-1 J AC Silicon,NPN,KRC102 M

Q705,706 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q801 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q821 VS2SD2012//-1 J AD Silicon,NPN,2SD2012

Q822 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q823 VS2SD2012//-1 J AD Silicon,NPN,2SD2012

Q824 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q825 VSKRA107M//-1 J AE Digital,PNP,KRA107 M

Q826 VS2SD2012//-1 J AD Silicon,NPN,2SD2012

Q827 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q828 VS2SD468-C/-1 J AD Silicon,NPN,2SD468 C

Q829 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q901 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q951 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

QM01 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

QM02 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y

QM03 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y

QM04 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

QM05 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

QT21 VSKTC3199GR-1 J AB Digital,NPN,KTC3199 GR

[CD-C470H/480H Only]

DIODES

D2 VHD1SS133//-1 J AA Silicon,1SS133

D5,6 VHDRL104A//-1 J AB Silicon,RL104A

D7 VHDRL104A//-1 J AB Silicon,RL104A

D8,9 VHD1SS133//-1 J AA Silicon,1SS133

D91 VHD1SS133//-1 J AA Silicon,1SS133

D301~304 VHD1SS133//-1 J AA Silicon,1SS133

D351~353 VHD1SS133//-1 J AA Silicon,1SS133

D451 VHD1SS133//-1 J AA Silicon,1SS133

[CD-C480H Only]

D501,502 VHD1SS133//-1 J AA Silicon,1SS133

D551~557 VHD1SS133//-1 J AA Silicon,1SS133

D558,559 VHDRL104A//-1 J AB Silicon,RL104A

D560,561 VHD1SS133//-1 J AA Silicon,1SS133

D562 VHDRL104A//-1 J AB Silicon,RL104A

D601,602 VHD1SS133//-1 J AA Silicon,1SS133

D705~709 VHD1SS133//-1 J AA Silicon,1SS133

D801 VHDS4VB20//-1 J AG Rectifier,S4VB20

D802~809 VHDRL104A//-1 J AB Silicon,RL104A

D817~825 VHD1SS133//-1 J AA Silicon,1SS133

D826,827 VHDRL104A//-1 J AB Silicon,RL104A

D828~831 VHD1SS133//-1 J AA Silicon,1SS133

D901 VHD1SS133//-1 J AA Silicon,1SS133

D951 VHD1SS133//-1 J AA Silicon,1SS133

DM02,03 VHD1SS133//-1 J AA Silicon,1SS133

LED701~705 VHP333GTH2/-1 J AD LED,Green,333GTH2

LED706~711 VHP333YTH2/-1 J AD LED,Orange,333YTH2

LED712 VHP333YTH4/-1 J AD LED,Orange,333YTH4

[CD-C480H Only]

LED714~719 VHPLMKD515B-1 J AE LED,Green,LMKD515B

PHM1 VHPI31535CD-1 J AG Phote Interrupter

VD301 VHCKV1236Z23F J AS Variable Capacitance,

KV1236Z23F

ZD81 VHEMTZJ5R6B-1 J AD Zener,5.6V,MTZJ5.6B

ZD351 VHEMTZJ5R1B-1 J AC Zener,5.1V,MTZJ5.1B

ZD352 VHEMTZJ3R9B-1 J AC Zener,3.9V,MTZJ3.9B

ZD551 VHEMTZJ6R2C-1 J AC Zener,6.2V,MTZJ6.2C

ZD701 VHEMTZJ3R9B-1 J AC Zener,3.9V,MTZJ3.9B

ZD801 VHEMTZJ300C-1 J Zener,30V,MTZJ30C

[CD-C470H/470E]

ZD801 VHEMTZJ330C-1 J AB Zener,33V,MTZJ33V

[CD-C480H]

ZD802 VHEMTZJ5R6B-1 J AD Zener,5.6V,MTZJ5.6B

ZD821 VHEMTZJ8R2C-1 J AB Zener,8.2V,MTZJ8.2C

ZD822 VHEMTZJ130C-1 J AB Zener,13V,MTZJ13C

ZD823 VHEMTZJ6R2C-1 J AC Zener,6.2V,MTZJ6.2C

ZD901 VHEMTZJ130C-1 J AB Zener,13V,MTZJ13C

CD-C470H/CD-C470E/CD-C480H

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PART CODE

PRICE

RANK

DESCRIPTION

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

C30 VCCSMN1HL2R2C J AB 2.2 pF,50V

C31 VCTYMN1CX272K J AA 0.0027 µF,16V

C32 VCCSMN1HL270J J AA 27 pF,50V

C33 VCKYMN1HB102K J AA 0.001 µF,50V

C34 VCTYPA1CX333K J AA 0.033 µF,16V

C35 RC-GZA104AF1H J AB 0.1 µF,50V,Electrolytic

C37 RC-GZA227AF1A J AB 220 µF,10V,Electrolytic

C38 VCTYMN1CY103K J AA 0.01 µF,16V

C39 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic

C40 RC-GZA334AF1H J AA 0.33 µF,50V,Electrolytic

C41,42 VCKYPA1HF473Z J AB 0.047 µF,50V

C43 RC-GZA337AF0J J AB 330 µF,6.3V,Electrolytic

C44 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic

C45 RC-GZA475AF1H J AB 4.7 µF,50V,Electrolytic

C46 VCTYMN1EF223Z J AA 0.022 µF,25V

C50 VCTYPA1CX104K J AB 0.1 µF,16V

C51 VCTYMN1EF223Z J AA 0.022 µF,25V

C52 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic

C53 VCKYPA1HB221K J AA 220 pF,50V

C54~58 VCKYMN1HB101K J AA 100 pF,50V

C61 VCCCMN1HH120J J AA 12 pF (CH),50V

C62 VCCCMN1HH150J J AA 15 pF (CH),50V

C67,68 RC-GZA106AF1H J AB 10 µF,50V,Electrolytic

C69,70 VCKYMN1HB221K J AA 220 pF,50V

C81 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic

C82 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C90 VCTYBT1CY103M J AA 0.01 µF,16V

C91 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic

C92 VCTYMN1EF223Z J AA 0.022 µF,25V

C94 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic

C98 VCKYPA1HF223Z J AB 0.022 µF,50V

C99 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic

C101,102 VCKYMN1HB681K J AA 680 pF,50V

C105,106 VCKYMN1HB331K J AA 330 pF,50V

C107,108 VCKYMN1HB681K J AA 680 pF,50V

C109 VCTYBT1EF223Z J AA 0.022 µF,25V

C110 RC-GZA476AF1E J AB 47 µF,25V,Electrolytic

C111~114 VCKYMN1HB331K J AA 330 pF,50V

C115,116 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic

C117,118 VCTYPA1CX333K J AA 0.033 µF,16V

C119,120 VCKYMN1HB561K J AA 560 pF,50V

C121,122 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C123,124 VCTYPA1CX103K J AA 0.01 µF,16V

C125,126 VCTYPA1CX103K J AA 0.01 µF,16V [CD-C480H Only]

C127 VCTYMN1EF223Z J AA 0.022 µF,25V

C128 RC-GZA335AF1H J AB 3.3 µF,50V,Electrolytic

C129,130 VCKYMN1HB471K J AA 470 pF,50V

C131,132 VCKYMN1HB102K J AA 0.001 µF,50V

C133,134 RC-GZA226AF1E J AB 22 µF,25V,Electrolytic

C135,136 VCTYPA1CX223K J AA 0.022 µF,16V

C137,138 VCTYPA1CX183K J AA 0.018 µF,16V

C139,140 VCTYMN1CX332K J AA 0.0033 µF,16V

C141,142 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C143,144 VCTYMN1EF223Z J AA 0.022 µF,25V

C145 RC-GZA226AF1E J AB 22 µF,25V,Electrolytic

C146 RC-GZA227AF1A J AB 220 µF,10V,Electrolytic

C147 VCTYMN1EF223Z J AA 0.022 µF,25V

C150 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene

C151 RC-QZA273AFYJ J AB 0.027 µF,50V,Mylar

C152 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic

C155 VCTYMN1EF223Z J AA 0.022 µF,25V

C161 VCKYBT1HB561K J AA 560 pF,50V

C162 RC-QZA473AFYJ J AB 0.047 µF,50V,Mylar

C163 RC-GZA107AF1C J AB 100 µF,10V,Electrolytic

[CD-C470H]

C163 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic

[CD-C470E]

C201 RC-QZA223AFYJ J AB 0.022 µF,50V,Mylar

C202 RC-QZA473AFYJ J AB 0.047 µF,50V,Mylar

C203 RC-GZA227AF1A J AB 220 µF,10V,Electrolytic

C204~207 RC-GZA106AF1H J AB 10 µF,50V,Electrolytic

C208 RC-GZA227AF1A J AB 220 µF,10V,Electrolytic

C209,210 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C211,212 RC-QZA104AFYJ J AC 0.1 µF,50V,Mylar

C213 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic

C214 RC-GZA475AF1H J AB 4.7 µF,50V,Electrolytic

C215 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic

C216 RC-GZA475AF1H J AB 4.7 µF,50V,Electrolytic

C217 RC-GZA154AF1H J AA 0.15 µF,50V,Electrolytic

C218 RC-GZA335AF1H J AB 3.3 µF,50V,Electrolytic

C219,220 RC-QZA154AFYJ J AB 0.15 µF,50V,Mylar

C221 RC-GZA335AF1H J AB 3.3 µF,50V,Electrolytic

ZDT21 VHEMTZJ5R1B-1 J AC Zener,5.1V,MTZJ5.1B

[CD-C470H/480H Only]

FILTERS

CF301 RFILF0072AFZZ J AG FM IF

CF302 RFILF0072AFZZ J AG FM IF

CF351 RFILF0003AWZZ J AK FM IF

CF352 RFILA0009AWZZ J AE AM IF

TRANSFORMERS

T301 RCILA1074AFZZ J AD LW Antenna

T302 RCILA1064AFZZ J AD MW Antenna

T305 RCILB1073AFZZ J AC LW Oscillation

T306 RCILB1074AFZZ J AC MW Oscillation

T351 RCILI0011AWZZ J AD AM IF

! T801 RTRNP0124AWZZ J Power

COILS

L1 VP-XHR82K0000 J AC 0.82 µH,Choke

L99 VP-DH2R2K0000 J AB 2.2 mmH,Peaking

L101,102 VP-MK182K0000 J AC 1.8 mH,Choke

L103 VP-MK102K0000 J AB 1 mH,Choke

L104 VP-MK331K0000 J AB 330 µH,Choke

L107,108 VP-XH2R2K0000 J AB 2.2 µH,Choke

L341 RBLN-0001AWZZ J AD Balun

L342 VP-DH2R2K0000 J AB 2.2 mmH,Peaking

L351,352 VP-DH101K0000 J AB 100 µH,Choke

L353 VP-DH102K0000 J AB 1 mH,Choke

L354 RFILL0001AWZZ J AE Low Pass Filter

L601 VP-DH101K0000 J AB 100 µH,Choke

L701 VP-DH101K0000 J AB 100 µH,Choke

L901,902 RCILZ0137AFZZ J AA 0.29 µH

L903 VP-XH2R2K0000 J AB 2.2 µH,Choke

L951,952 RCILZ0137AFZZ J AA 0.29 µH

LT21,22 VP-XH2R2K0000 J AB 2.2 µH,Choke

[CD-C470H/480H Only]

VARIABLE RESISTORS

VR351 RVR-M0999AFZZ J AB 10 kohm (B),Semi-VR

[FM Mute Level]

VRM1 RVR-M0556AFZZ J AB 3,3 kohms (B),Semi-VR

[Tape Speed]

VIBRATORS

X201 RCRM-0173AFZZ J AE Ceramic,8 MHz

X351 92LCRSTL1425A J AF Crystal,456 kHz

X352 RCRSP0002AWZZ J AH Crystal,4.5 MHz

XL1 RCRSP0005AWZZ J AF Crystal,16.934 MHz

XL701 RCRSP0003AWZZ J AH Crystal,4.19 MHz

XT21 RCRSB0030AWZZ J AH

CAPACITORS

C1 VCTYMN1CY103K J AA 0.01 µF,16V

C2 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic

C3 RC-GZA104AF1H J AB 0.1 µF,50V,Electrolytic

C4 VCKYMN1HB102K J AA 0.001 µF,50V

C5,6 VCTYPA1CX333K J AA 0.033 µF,16V

C7 RC-GZA104AF1H J AB 0.1 µF,50V,Electrolytic

C8 VCTYPA1CX683K J AA 0.068 µF,16V

C9 VCTYPA1CX473K J AA 0.047 µF,16V

C10 VCKYMN1HB181K J AA 180 pF,50V

C11 VCTYPA1CX104K J AB 0.1 µF,16V

C12 VCKYMN1HB331K J AA 330 pF,50V

C13 VCTYPA1CX104K J AB 0.1 µF,16V

C14 VCTYMN1CY103K J AA 0.01 µF,16V

C15 VCTYMN1CX472K J AA 0.0047 µF,16V

C16 VCKYMN1HB102K J AA 0.001 µF,50V

C17 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic

C18 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C19 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic

C20 VCTYMN1CX332K J AA 0.0033 µF,16V

C21 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C22 VCTYBT1CY103M J AA 0.01 µF,16V [CD-C470H/470E]

C22 VCTYMN1CY103K J AA 0.01 µF,16V [CD-C480H]

C24 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C25 VCTYMN1CY103K J AA 0.01 µF,16V

– 2 –

PRICE

RANK

DESCRIPTIONNO.

PART CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

C222 RC-GZA154AF1H J AA 0.15 µF,50V,Electrolytic

C223 RC-GZA475AF1H J AB 4.7 µF,50V,Electrolytic

C224 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic

C225 RC-GZA475AF1H J AB 4.7 µF,50V,Electrolytic

C226 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic

C227,228 RC-QZA104AFYJ J AC 0.1 µF,50V,Mylar

C229 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic

C230 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic

C231~234 RC-GZA106AF1H J AB 10 µF,50V,Electrolytic

C235 VCKYMN1HB681K J AA 680 pF,50V

C236 RC-GZA227AF1C J AB 220 µF,16V,Electrolytic

C237 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic

C238 RC-GZA227AF1C J AB 220 µF,16V,Electrolytic

C239 RC-GZA334AF1H J AA 0.33 µF,50V,Electrolytic

C240 RC-GZA106AF1H J AB 10 µF,50V,Electrolytic

C241 RC-GZA475AF1H J AB 4.7 µF,50V,Electrolytic

[CD-C480H Only]

C242 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic

C243 RC-QZA823AFYJ J AC 0.082 µF,50V,Mylar

C244 RC-QZA332AFYJ J AA 0.0032 µF,6.3V,Mylar

C246 RC-QZA823AFYJ J AC 0.082 µF,50V,Mylar

C247 VCKYPA1HF223Z J AB 0.022 µF,50V

C248 RC-GZA227AF1A J AB 220 µF,10V,Electrolytic

C250,251 VCKYBT1HB221K J AA 220 pF,50V

C252 VCKYMN1HB221K J AA 220 pF,50V

C253 VCKYPA1HF223Z J AB 0.022 µF,50V

C301 VCKYMN1HB102K J AA 0.001 µF,50V

C302 VCKYBT1HB102K J AA 0.001 µF,50V

C321 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic

C322 VCCCMN1HH6R8D J AA 6.8 pF (CH),50V

C323 VCTYMN1EF223Z J AA 0.022 µF,25V

C324 VCCUMN1HJ270J J AA 27 pF (UJ),50V

C325 VCKYMN1HB221K J AA 220 pF,50V

C326 VCCCMN1HH180J J AA 18 pF (CH),50V

C327 VCKYMN1HB681K J AA 680 pF,50V

C328 VCTYMN1EF223Z J AA 0.022 µF,25V

C329 VCCSPA1HL330J J AA 33 pF,50V

C330 VCCUMN1HJ100J J AA 10 pF (UJ),50V

C331 VCKYPA1HF473Z J AB 0.047 µF,50V

C332 VCTYMN1EF223Z J AA 0.022 µF,25V

C333 VCCCMN1HH220J J AA 22 pF (CH),50V

C334 VCCUMN1HJ180J J AA 18 pF (UJ),50V

C335 VCCCMN1HH180J J AA 18 pF (CH),50V

C336 VCKYMN1HB471K J AA 470 pF,50V

C337 VCTYMN1EF223Z J AA 0.022 µF,25V

C338 VCKYMN1HB102K J AA 0.001 µF,50V

C339 VCCCMN1HH220J J AA 22 pF (CH),50V

C341,342 VCTYMN1EF223Z J AA 0.022 µF,25V

C343,344 VCCSMN1HL330J J AA 33 pF,50V

C345~347 VCTYMN1EF223Z J AA 0.022 µF,25V

C350,351 VCTYMN1EF223Z J AA 0.022 µF,25V

C352 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic

C353,354 VCTYMN1EF223Z J AA 0.022 µF,25V

C355 VCCSMN1HL220J J AA 22 pF,50V

C356 VCKYMN1HB102K J AA 0.001 µF,50V

C357 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic

C358 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C361 VCTYMN1EF223Z J AA 0.022 µF,25V

C362 RC-GZA335AF1H J AB 3.3 µF,50V,Electrolytic

C363 VCTYMN1EF223Z J AA 0.022 µF,25V

C364 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic

C365 VCTYPA1CX223K J AA 0.022 µF,16V

C366 VCKYMN1HB102K J AA 0.001 µF,50V

C367 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C368 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C369 VCCSBT1HL270J J AA 27 pF,50V

C370~372 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C373,374 VCTYPA1CX333K J AA 0.033 µF,16V

C375 RC-GZA335AF1H J AB 3.3 µF,50V,Electrolytic

C380 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic

C381 VCCCMN1HH120J J AA 12 pF (CH),50V

C382 VCCCMN1HH150J J AA 15 pF (CH),50V

C384 VCKYMN1HB102K J AA 0.001 µF,50V

C385 VCTYMN1CY103K J AA 0.01 µF,16V

C386 VCKYMN1HB331K J AA 330 pF,50V

C387 VCTYMN1EF223Z J AA 0.022 µF,25V

C391 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic

C392 VCKYMN1HB102K J AA 0.001 µF,50V

C393 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C394 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic

C395 VCTYMN1EF223Z J AA 0.022 µF,25V

C396 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic

C397 VCTYMN1EF223Z J AA 0.022 µF,25V

C398 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic

C399 VCTYMN1EF223Z J AA 0.022 µF,25V

C451,452 RC-GZA475AF1H J AB 4.7 µF,50V,Electrolytic

[CD-C480H Only]

C453,454 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic

C456,457 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic

[CD-C480H Only]

C458 RC-QZA473AFYJ J AB 0.047 µF,50V,Mylar

[CD-C480H Only]

C460 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic

[CD-C480H Only]

C461 VCTYMN1CX472K J AA 0.0047 µF,16V [CD-C480H Only]

C462 RC-QZA224AFYJ J AB 0.22 µF,50V,Mylar

[CD-C480H Only]

C463 RC-QZA683AFYJ J AB 0.068 µF,50V,Mylar

[CD-C480H Only]

C464 RC-QZA223AFYJ J AB 0.022 µF,50V,Mylar

[CD-C480H Only]

C465 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic

[CD-C480H Only]

C466 RC-QZA682AFYJ J AA 0.0068 µF,50V,Mylar

[CD-C480H Only]

C467 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic

[CD-C480H Only]

C468 RC-QZA182AFYJ J AB 0.0018 µF,50V,Mylar

[CD-C480H Only]

C469 RC-QZA224AFYJ J AB 0.22 µF,50V,Mylar

[CD-C480H Only]

C470 VCCSPA1HL331J J AA 330 pF,50V [CD-C480H Only]

C471 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic

[CD-C480H Only]

C472 RC-GZA334AF1H J AA 0.33 µF,50V,Electrolytic

[CD-C480H Only]

C473,474 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic

[CD-C480H Only]

C475 RC-QZA224AFYJ J AB 0.22 µF,50V,Mylar

[CD-C480H Only]

C476 VCTYMN1EF223Z J AA 0.022 µF,25V [CD-C480H Only]

C501~510 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C511,512 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic

C513,514 VCKYMN1HB101K J AA 100 pF,50V

C515~518 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C519,520 RC-GZA154AF1H J AA 0.15 µF,50V,Electrolytic

C521~524 RC-GZA224AF1H J AA 0.22 µF,50V,Electrolytic

C525,526 RC-GZA104AF1H J AB 0.1 µF,50V,Electrolytic

C527,528 RC-GZA224AF1H J AA 0.22 µF,50V,Electrolytic

C529,530 RC-QZA273AFYJ J AB 0.033 µF,50V,Mylar

C531,532 RC-QZA153AFYJ J AB 0.015 µF,50V,Mylar

C533,534 RC-QZA222AFYJ J AB 0.0022 µF,50V,Mylar

C535,536 RC-QZA472AFYJ J AA 0.0047 µF,50V,Mylar

C537,538 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C539,540 RC-GZA106AF1H J AB 10 µF,50V,Electrolytic

C541,542 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic

C543,544 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C545,546 RC-GZA106AF1H J AB 10 µF,50V,Electrolytic

C547,548 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic

C549 VCKYPA1EF223Z J 0.022 µF,25V [CD-C470H]

C549 VCKYPA1HF223Z J AB 0.022 µF,50V [CD-C470E/480H]

C550 RC-GZA337AF1C J AC 330 µF,16V,Electrolytic

C551~553 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic

C555~558 VCKYMN1HB102K J AA 0.001 µF,50V

C559 RC-GZA226AF1E J AB 22 µF,25V,Electrolytic

C560,561 RC-GZA476AF1E J AB 47 µF,25V,Electrolytic

C565,566 VCKYMN1HB271K J AA 270 pF,50V

C567,568 VCKYMN1HB681K J AA 680 pF,50V

C569,570 VCTYMN1CX272K J AA 0.0027 µF,16V

C571,572 VCTYMN1CY822K J AA 0.0082 µF,16V

C573,574 VCTYMN1CX682K J AA 0.0068 µF,16V

C575 VCTYMN1EF223Z J AA 0.022 µF,25V

C576~580 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic

C581,582 VCTYMN1EF223Z J AA 0.022 µF,25V

C583 VCTYMN0JY223N J AA 0.022 µF,6.3V

C585~588 VCKYMN1HB391K J AA 390 pF,50V

C591 VCKYPA1HF223Z J AB 0.022 µF,50V

C601 RC-GZA227AF1A J AB 220 µF,10V,Electrolytic

C602 VCTYMN1EF223Z J AA 0.022 µF,25V

C603 VCKYMN1HB151K J AA 150 pF,50V

C604 VCCSPA1HL151J J AA 150 pF,50V

C605~607 VCKYMN1HB151K J AA 150 pF,50V

C701 VCTYBT1EF223Z J AA 0.022 µF,25V

C702 RC-GZA227AF0J J AB 220 µF,6.3V,Electrolytic

– 3 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PART CODE

PRICE

RANK

DESCRIPTION

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

C703 VCCCBT1HH150J J AA 15 pF (CH),50V

C704 VCCCBT1HH180J J AA 18 pF (CH),50V

C706 VCTYBT1CY103M J AA 0.01 µF,16V

C707 RC-GZA335AF1H J AB 3.3 µF,50V,Electrolytic

C708 VCTYBT1CY103M J AA 0.01 µF,16V

C709 RC-GZA107AF0J J AB 100 µF,6.3V,Electrolytic

C710 RC-GZA227AF0J J AB 220 µF,6.3V,Electrolytic

C712,713 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C715 VCTYBT1EF223Z J AA 0.022 µF,25V

C716 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic

C729 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic

C730 VCTYBT1EF223Z J AA 0.022 µF,25V

C801,802 RC-QZA224AFYJ J AB 0.22 µF,50V,Mylar

C803,804 RC-QZA473AFYJ J AB 0.047 µF,50V,Mylar

C805 RC-GZA107AF1V J AB 100 µF,35V,Electrolytic

C806,807 RC-GZA476AF1H J AB 47 µF,50V,Electrolytic

C808 RC-GZA476AF1J J AC 47 µF,63V,Electrolytic

C809~811 RC-GZA107AF1H J AC 100 µF,50V,Electrolytic

C821 VCTYMN1EF223Z J AA 0.022 µF,25V

C822 RC-GZA476AF1E J AB 47 µF,25V,Electrolytic

C823 RC-GZW478AF1E J AG 4700 µF,25V,Electrolytic

C824 VCTYMN1EF223Z J AA 0.022 µF,25V

C825,826 RC-GZA476AF1E J AB 47 µF,25V,Electrolytic

C827 VCTYBT1EF223Z J AA 0.022 µF,25V

C828 RC-GZA476AF1E J AB 47 µF,25V,Electrolytic

C829 RC-GZA226AF1E J AB 22 µF,25V,Electrolytic

C830,831 RC-GZA476AF1E J AB 47 µF,25V,Electrolytic

C851,852 RC-QZA104AFYJ J AC 0.1 µF,50V,Mylar

C853,854 RC-QZA154AFYJ J AB 0.15 µF,50V,Mylar

C855,856 VCKYMN1HB331K J AA 330 pF,50V

C859,860 VCTYMN1EF223Z J AA 0.022 µF,25V

C861,862 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic

C863 VCTYBT1CY103M J AA 0.01 µF,16V

C864,865 VCKYPA1HF223Z J AB 0.022 µF,50V

C901,902 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C903,904 VCKYPA1HB102K J AA 0.001 µF,50V

C905 VCCSPA1HL470J J AA 47 pF,50V

C906 VCCSBT1HL470J J AA 47 pF,50V

C907,908 VCCSPA1HL150J J AA 15 pF,50V

C909,910 RC-GZA476AF1H J AB 47 µF,50V,Electrolytic

C911 RC-GZA476AF1V J AB 47 µF,35V,Electrolytic

C913 RC-GZA106AF1H J AB 10 µF,50V,Electrolytic

C914 RC-GZA476AF1V J AB 47 µF,35V,Electrolytic

C915 RC-GZA107AF1V J AB 100 µF,35V,Electrolytic

C917~920 RC-QZA104AFYJ J AC 0.1 µF,50V,Mylar

C923,924 VCKYPA1HB101K J AA 100 pF,50V

C925~932 VCKYPA1HF223Z J AB 0.022 µF,50V

C933~936 VCKYPA1HB102K J AA 0.001 µF,50V

C937 RC-GZW338AF1V J AH 3300 µF,35V,Electrolytic

C938 RC-GZW228AF1V J AF 2200 µF,35V,Electrolytic

C939 VCKYPA1HF223Z J AB 0.022 µF,50V

C940 RC-GZA476AF1E J AB 47 µF,25V,Electrolytic

C941,942 VCKYPA1HF223Z J AB 0.022 µF,50V

C943,944 RC-GZA107AF1V J AB 100 µF,35V,Electrolytic

C951,952 VCTYPA1EX152K J AA 0.0015 µF,25V

C953,954 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C955,956 RC-GZA476AF1V J AB 47 µF,35V,Electrolytic

C959 RC-GZA227AF1V J AD 220 µF,35V,Electrolytic

C960 RC-GZA476AF1V J AB 47 µF,35V,Electrolytic

C961 VCKYPA1HF223Z J AB 0.022 µF,50V

C963,964 RC-GZA476AF1H J AB 47 µF,50V,Electrolytic

C965 RC-GZV108AF1E J AD 1000 µF,25V,Electrolytic

C966 RC-GZV228AF1E J AE 2200 µF,25V,Electrolytic

C967,968 RC-QZA104AFYJ J AC 0.1 µF,50V,Mylar

C969,970 RC-QZA104AFYJ J AC 0.1 µF,50V,Mylar

C975~978 VCKYPA1HF223Z J AB 0.022 µF,50V

C979,980 VCKYPA1HB102K J AA 0.001 µF,50V

C981 VCKYBT1CY103M J AA 0.01 µF,16V [CD-C470H/470E]

C981 VCTYBT1CY103M J AA 0.01 µF,16V [CD-C480H]

C982 VCKYBT1HB102K J AA 0.001 µF,50V

C984 VCKYBT1CY103M J AA 0.01 µF,16V [CD-C470H/470E]

C984 VCTYBT1CY103M J AA 0.01 µF,16V [CD-C480H]

C985 VCKYBT1HB102K J AA 0.001 µF,50V [CD-C470E Only]

C986 VCTYBT1CY103M J AA 0.01 µF,16V

C987 VCTYBT1EF223Z J AA 0.022 µF,25V

CM01 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic

CT21 RC-GZA476AF1A J AB 47 µF,10V,Electrolytic

[CD-C470H/480H Only]

CT22 VCTYMN1EF223Z J AA 0.022 µF,25V

[CD-C470H/480H Only]

CT23 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic

[CD-C470H/480H Only]

CT24 VCTYMN1EF223Z J AA 0.022 µF,25V

[CD-C470H/480H Only]

CT25 VCKYMN1HB561K J AA 560 pF,50V

[CD-C470H/480H Only]

CT26,27 VCCCPA1HH220J J AA 22 pF (CH),50V

[CD-C470H/480H Only]

CT28 RC-GZA476AF1A J AB 47 µF,10V,Electrolytic

[CD-C470H/480H Only]

CT29 VCTYMN1EF223Z J AA 0.022 µF,25V

[CD-C470H/480H Only]

CT36 VCKYPA1HF223Z J AB 0.022 µF,50V

[CD-C470H/480H Only]

CT37 VCTYMN1EF223Z J AA 0.022 µF,25V

[CD-C470H/480H Only]

CT43 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic

[CD-C470H/480H Only]

RESISTORS

VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4×3.5mm,Ivory

R1 VRD-MN2BD102J J AA 1 kohm,1/8W

R2 VRD-MN2BD104J J AA 100 kohm,1/8W

R3 VRD-MN2BD153J J AA 15 kohms,1/8W

R4 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R5 VRD-MN2BD682J J AA 6.8 kohms,1/8W

R6 VRD-MN2BD101J J AA 100 ohm,1/8W

R7 VRD-MN2BD102J J AA 1 kohm,1/8W

R8 VRD-MN2BD123J J AA 12 kohms,1/8W

R9 VRD-MN2BD102J J AA 1 kohm,1/8W [CD-C470E]

R9 VRD-MN2BD273J J AA 27 kohms,1/8W

[CD-C470H/480H]

R10 VRD-ST2CD823J J AA 82 kohms,1/6W

R11 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R12 VRD-MN2BD153J J AA 15 kohms,1/8W

R13 VRD-MN2BD333J J AA 33 kohms,1/8W

R14 VRD-MN2BD103J J AA 10 kohm,1/8W

R15 VRD-MN2BD473J J AA 47 kohms,1/8W

R16 VRD-MN2BD152J J AA 1.5 kohms,1/8W

R17 VRD-MN2BD823J J AA 82 kohms,1/8W

R18 VRD-ST2CD335J J AA 3.3 Mohms,1/6W

R19 VRD-MN2BD393J J AA 39 kohms,1/8W

R20 VRD-MN2BD103J J AA 10 kohm,1/8W

R21 VRD-MN2BD563J J AA 56 kohms,1/8W

R22 VRD-MN2BD682J J AA 6.8 kohms,1/8W

R23 VRD-MN2BD122J J AA 1.2 kohms,1/8W

R24 VRD-MN2BD103J J AA 10 kohm,1/8W

R25 VRD-MN2BD122J J AA 1.2 kohms,1/8W

R26,27 VRD-MN2BD224J J AA 220 kohms,1/8W

R28,29 VRD-ST2CD102J J AA 1 kohm,1/6W

R30 VRD-MN2BD223J J AA 22 kohms,1/8W

R31 VRD-MN2BD103J J AA 10 kohm,1/8W

R32 VRD-MN2BD563J J AA 56 kohms,1/8W

R33 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R34 VRD-MN2BD102J J AA 1 kohm,1/8W

R35 VRD-MN2BD471J J AA 470 ohms,1/8W

R36,37 VRD-MN2BD473J J AA 47 kohms,1/8W

R38 VRD-MN2BD333J J AA 33 kohms,1/8W

R39,40 VRD-MN2BD223J J AA 22 kohms,1/8W

R41 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R42 VRD-MN2BD561J J AA 560 ohms,1/8W

R43 VRD-MN2BD220J J AA 22 ohms,1/8W

R45 VRD-MN2BD102J J AA 1 kohm,1/8W

R46~48 VRD-ST2CD102J J AA 1 kohm,1/6W

R49 VRD-ST2CD103J J AA 10 kohm,1/6W

R55 VRD-ST2CD103J J AA 10 kohm,1/6W

R56 VRD-MN2BD122J J AA 1.2 kohms,1/8W

R57 VRD-MN2BD273J J AA 27 kohms,1/8W

R58 VRD-MN2BD681J J AA 680 ohms,1/8W

R60 VRD-MN2BD102J J AA 1 kohm,1/8W

R61 VRD-MN2BD221J J AA 220 ohms,1/8W

R73,74 VRD-MN2BD272J J AA 2.7 kohms,1/8W

R75,76 VRD-MN2BD391J J AA 390 ohms,1/8W

R77,78 VRD-MN2BD102J J AA 1 kohm,1/8W

R79 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R80 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R81 VRD-ST2EE221J J AA 220 ohms,1/4W

R82 VRD-MN2BD151J J AA 150 ohms,1/8W

R84 VRD-ST2EE220J J AA 22 ohms,1/4W

R86~88 VRD-MN2BD102J J AA 1 kohm,1/8W

R90 VRD-MN2BD331J J AA 330 ohms,1/8W

R92 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R93 VRD-ST2EE3R9J J AA 3.9 ohms,1/4W

– 4 –

PRICE

RANK

DESCRIPTIONNO.

PART CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

R94 VRD-ST2CD682J J AA 6.8 kohms,1/6W

R96 VRD-MN2BD103J J AA 10 kohm,1/8W

R97 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R98 VRD-MN2BD682J J AA 6.8 kohms,1/8W

R101,102 VRD-ST2CD102J J AA 1 kohm,1/6W

R103,104 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R105,106 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R107,108 VRD-MN2BD473J J AA 47 kohms,1/8W

R109 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R110 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R111,112 VRD-ST2CD153J J AA 15 kohms,1/6W

R113,114 VRD-MN2BD103J J AA 10 kohm,1/8W

R115 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R117,118 VRD-ST2CD102J J AA 1 kohm,1/6W

R119,120 VRD-ST2CD560J J AA 56 ohms,1/6W

R121,122 VRD-MN2BD104J J AA 100 kohm,1/8W

R123,124 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R125,126 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R127,128 VRD-MN2BD822J J AA 8.2 kohms,1/8W

R129 VRD-ST2CD822J J AA 8.2 kohms,1/6W [CD-C480H]

R130 VRD-MN2BD822J J AA 8.2 kohms,1/8W

[CD-C480H Only]

R131,132 VRD-MN2BD333J J AA 33 kohms,1/8W

R134 VRD-MN2BD683J J AA 68 kohms,1/8W

R135,136 VRD-MN2BD182J J AA 1.8 kohms,1/8W

R137,138 VRD-ST2CD682J J AA 6.8 kohms,1/6W

R139,140 VRD-MN2BD561J J AA 560 ohms,1/8W

R141 VRD-ST2CD470J J AA 47 ohms,1/6W

R142 VRD-MN2BD470J J AA 47 ohms,1/8W

R143~147 VRD-MN2BD103J J AA 10 kohm,1/8W

R149,150 VRD-MN2BD103J J AA 10 kohm,1/8W

R152 VRD-MN2BD102J J AA 1 kohm,1/8W

R153 VRD-MN2BD103J J AA 10 kohm,1/8W

R154 VRD-ST2CD103J J AA 10 kohm,1/6W

R155,156 VRD-MN2BD333J J AA 33 kohms,1/8W

R157 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R158 VRD-ST2EE471J J AA 470 ohms,1/4W

R160,161 VRD-ST2EE271J J AA 270 ohms,1/4W

R162 VRD-MN2BD473J J AA 47 kohms,1/8W

R163 VRD-ST2CD103J J AA 10 kohm,1/6W [CD-C480H Only]

R164 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R165 VRD-MN2BD103J J AA 10 kohm,1/8W [CD-C480H Only]

R166 VRD-MN2BD273J J AA 27 kohms,1/8W

R167 VRD-MN2BD473J J AA 47 kohms,1/8W

R168 VRD-MN2BD4R7J J AA 4.7 ohms,1/8W

R170 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R171 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R181 VRD-ST2CD823J J AA 82 kohms,1/6W

[CD-C470H/470E]

R181,182 VRD-ST2CD563J J AA 56 kohms,1/6W [CD-C480H]

R182 VRD-ST2CD823J J AA 82 kohms,1/6W

[CD-C470H/470E]

R183,184 VRD-MN2BD823J J AA 82 kohms,1/8W

[CD-C480H Only]

R187 VRD-MN2BD682J J AA 6.8 kohms,1/8W

[CD-C480H Only]

R191 VRD-ST2CD102J J AA 1 kohm,1/6W

R192 VRD-MN2BD102J J AA 1 kohm,1/8W

R193 VRD-ST2EE221J J AA 220 ohms,1/4W

R202~206 VRD-MN2BD102J J AA 1 kohm,1/8W

R207,208 VRD-MN2BD104J J AA 100 kohm,1/8W

R209 VRD-ST2CD102J J AA 1 kohm,1/6W

R210 VRD-ST2CD104J J AA 100 kohm,1/6W

R211 VRD-ST2CD183J J AA 18 kohms,1/6W

R212 VRD-MN2BD393J J AA 39 kohms,1/8W

R213 VRD-MN2BD105J J AA 1 Mohm,1/8W

R214 VRD-ST2CD102J J AA 1 kohm,1/6W

R215 VRD-ST2CD104J J AA 100 kohm,1/6W

R216 VRD-MN2BD122J J AA 1.2 kohms,1/8W

[CD-C470H/470E]

R216 VRD-MN2BD272J J AA 2.7 kohms,1/8W [CD-C480H]

R217 VRD-ST2CD122J J AA 1.2 kohms,1/6W

[CD-C470H/470E]

R217 VRD-ST2CD272J J AA 2.7 kohms,1/6W [CD-C480H]

R218,219 VRD-MN2BD102J J AA 1 kohm,1/8W

R221 VRD-MN2BD472J J AA 4.7 kohms,1/8W

[CD-C470H/470E]

R221,222 VRD-MN2BD272J J AA 2.7 kohms,1/8W [CD-C480H]

R222 VRD-MN2BD472J J AA 4.7 kohms,1/8W

[CD-C470H/470E]

R223 VRD-ST2CD224J J AA 220 kohms,1/6W

R301 VRD-MN2BD331J J AA 330 ohms,1/8W

R319 VRD-MN2BD104J J AA 100 kohm,1/8W

R323 VRD-MN2BD683J J AA 68 kohms,1/8W

R324 VRD-MN2BD104J J AA 100 kohm,1/8W

R331 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R332 VRD-MN2BD104J J AA 100 kohm,1/8W

R333 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R334 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R335 VRD-MN2BD104J J AA 100 kohm,1/8W

R336 VRD-ST2CD472J J AA 4.7 kohms,1/6W

R337 VRD-ST2CD471J J AA 470 ohms,1/6W

R344 VRD-MN2BD471J J AA 470 ohms,1/8W

R345 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R346 VRD-MN2BD331J J AA 330 ohms,1/8W

R347 VRD-MN2BD682J J AA 6.8 kohms,1/8W

R348 VRD-MN2BD681J J AA 680 ohms,1/8W

R349 VRD-ST2CD330J J AA 33 ohms,1/6W

R350 VRD-ST2CD272J J AA 2.7 kohms,1/6W

R351 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R352 VRD-MN2BD102J J AA 1 kohm,1/8W

R353 VRD-MN2BD271J J AA 270 ohms,1/8W

R354 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R355 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R356 VRD-MN2BD102J J AA 1 kohm,1/8W

R357 VRD-ST2CD474J J AA 470 kohms,1/6W

R358 VRD-MN2BD822J J AA 8.2 kohms,1/8W

R359 VRD-MN2BD182J J AA 1.8 kohms,1/8W

R360 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R361 VRD-MN2BD471J J AA 470 ohms,1/8W

R362 VRD-MN2BD471J J AA 470 ohms,1/8W

R363 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R364 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R365 VRD-MN2BD103J J AA 10 kohm,1/8W

R366 VRD-MN2BD103J J AA 10 kohm,1/8W

R367 VRD-MN2BD102J J AA 1 kohm,1/8W

R368 VRD-ST2CD333J J AA 33 kohms,1/6W

R369 VRD-MN2BD820J J AA 82 ohms,1/8W

R370 VRD-MN2BD102J J AA 1 kohm,1/8W

R371~374 VRD-MN2BD102J J AA 1 kohm,1/8W

R376 VRD-MN2BD102J J AA 1 kohm,1/8W

R377 VRD-ST2CD473J J AA 47 kohms,1/6W

R378 VRD-MN2BD823J J AA 82 kohms,1/8W

R379 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R380 VRD-MN2BD152J J AA 1.5 kohms,1/8W

R381 VRD-MN2BD103J J AA 10 kohm,1/8W

R382 VRD-ST2EE151J J AA 150 ohms,1/4W

R383~385 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R387 VRD-MN2BD223J J AA 22 kohms,1/8W

R391,392 VRD-ST2EE391J J AA 390 ohms,1/4W

R393 VRD-ST2CD102J J AA 1 kohm,1/6W

R395 VRD-ST2CD473J J AA 47 kohms,1/6W

R397 VRD-MN2BD102J J AA 1 kohm,1/8W

R398 VRD-ST2EE820J J AA 82 ohms,1/4W [CD-C470E Only]

R449 VRD-ST2CD152J J AA 1.5 kohms,1/6W

[CD-C480H Only]

R451 VRD-MN2BD103J J AA 10 kohm,1/8W [CD-C480H Only]

R452 VRD-MN2BD472J J AA 4.7 kohms,1/8W

[CD-C480H Only]

R453,454 VRD-MN2BD222J J AA 2.2 kohms,1/8W

[CD-C480H Only]

R455,456 VRD-ST2CD392J J AA 3.9 kohms,1/6W

[CD-C480H Only]

R457,458 VRD-ST2CD123J J AA 12 kohms,1/6W

[CD-C480H Only]

R465,466 VRD-MN2BD102J J AA 1 kohm,1/8W [CD-C480H Only]

R468,469 VRD-MN2BD102J J AA 1 kohm,1/8W [CD-C480H Only]

R470 VRD-MN2BD103J J AA 10 kohm,1/8W [CD-C480H Only]

R473,474 VRD-MN2BD103J J AA 10 kohm,1/8W [CD-C480H Only]

R475 VRD-ST2CD222J J AA 2.2 kohms,1/6W

[CD-C480H Only]

R478 VRD-ST2CD102J J AA 1 kohm,1/6W [CD-C480H Only]

R479 VRD-MN2BD223J J AA 22 kohms,1/8W

[CD-C480H Only]

R480 VRD-MN2BD473J J AA 47 kohms,1/8W

[CD-C480H Only]

R481 VRD-ST2CD392J J AA 3.9 kohms,1/6W

[CD-C480H Only]

R482 VRD-MN2BD333J J AA 33 kohms,1/8W

[CD-C480H Only]

R483 VRD-MN2BD104J J AA 100 kohm,1/8W

[CD-C480H Only]

R484 VRD-MN2BD152J J AA 1.5 kohms,1/8W

[CD-C480H Only]

– 5 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PART CODE

PRICE

RANK

DESCRIPTION

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

R487 VRD-MN2BD104J J AA 100 kohm,1/8W

[CD-C480H Only]

R488 VRD-MN2BD472J J AA 4.7 kohms,1/8W

[CD-C480H Only]

R490 VRD-MN2BD472J J AA 4.7 kohms,1/8W

[CD-C480H Only]

R491 VRD-ST2CD152J J AA 1.5 kohms,1/6W

[CD-C480H Only]

R492 VRD-MN2BD472J J AA 4.7 kohms,1/8W

[CD-C480H Only]

R493 VRD-MN2BD102J J AA 1 kohm,1/8W [CD-C480H Only]

R494 VRD-ST2CD104J J AA 100 kohm,1/6W

[CD-C480H Only]

R495 VRD-MN2BD102J J AA 1 kohm,1/8W [CD-C480H Only]

R497 VRD-ST2CD104J J AA 100 kohm,1/6W

[CD-C480H Only]

R498 VRD-MN2BD472J J AA 4.7 kohms,1/8W

[CD-C480H Only]

R499 VRD-ST2CD152J J AA 1.5 kohms,1/6W

[CD-C480H Only]

R500 VRD-MN2BD682J J AA 6.8 kohms,1/8W

[CD-C480H Only]

R501,502 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R503,504 VRD-MN2BD333J J AA 33 kohms,1/8W

R507~510 VRD-MN2BD473J J AA 47 kohms,1/8W

R511~520 VRD-MN2BD102J J AA 1 kohm,1/8W

R521,522 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R525~527 VRD-MN2BD223J J AA 22 kohms,1/8W

R528~530 VRD-ST2CD102J J AA 1 kohm,1/6W

R531 VRD-MN2BD394J J AA 390 kohms,1/8W

R532 VRD-ST2CD103J J AA 10 kohm,1/6W

R533 VRD-MN2BD333J J AA 33 kohms,1/8W

R534 VRD-MN2BD224J J AA 220 kohms,1/8W

R535 VRD-MN2BD474J J AA 470 kohms,1/8W

R536 VRD-MN2BD123J J AA 12 kohms,1/8W

R537 VRD-MN2BD393J J AA 39 kohms,1/8W

R538 VRD-ST2CD224J J AA 220 kohms,1/6W

R539 VRD-MN2BD394J J AA 390 kohms,1/8W

R540 VRD-ST2CD123J J AA 12 kohms,1/6W

R541 VRD-MN2BD683J J AA 68 kohms,1/8W

R542 VRD-MN2BD224J J AA 220 kohms,1/8W

R543 VRD-MN2BD684J J AA 680 kohms,1/8W

R544 VRD-MN2BD183J J AA 18 kohms,1/8W

R545 VRD-ST2CD223J J AA 22 kohms,1/6W

R546 VRD-ST2CD224J J AA 220 kohms,1/6W

R547 VRD-MN2BD225J J AA 2.2 Mohms,1/8W

R548 VRD-MN2BD563J J AA 56 kohms,1/8W

R549 VRD-MN2BD474J J AA 470 kohms,1/8W

R550 VRD-MN2BD225J J AA 2.2 Mohms,1/8W

R551 VRD-ST2CD153J J AA 15 kohms,1/6W

R552 VRD-MN2BD564J J AA 560 kohms,1/8W

R553 VRD-MN2BD274J J AA 270 kohms,1/8W

R554,555 VRD-MN2BD104J J AA 100 kohm,1/8W

R556 VRD-ST2CD104J J AA 100 kohm,1/6W

R557,558 VRD-MN2BD104J J AA 100 kohm,1/8W

R559,560 VRD-ST2EE331J J AA 330 ohms,1/4W

R561,562 VRD-MN2BD273J J AA 27 kohms,1/8W

R563,564 VRD-MN2BD182J J AA 1.8 kohms,1/8W

R565,566 VRD-MN2BD273J J AA 27 kohms,1/8W

R567,568 VRD-MN2BD182J J AA 1.8 kohms,1/8W

R569,570 VRD-ST2CD224J J AA 220 kohms,1/6W

R571 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R572,573 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R574 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R575,576 VRD-ST2CD102J J AA 1 kohm,1/6W

R602 VRD-ST2CD102J J AA 1 kohm,1/6W

R604~618 VRD-ST2CD102J J AA 1 kohm,1/6W

R620~627 VRD-ST2CD102J J AA 1 kohm,1/6W

R628 VRD-MN2BD102J J AA 1 kohm,1/8W

R629,630 VRD-MN2BD472J J AA 4.7 kohms,1/8W

[CD-C470H/470E]

R632,633 VRD-MN2BD102J J AA 1 kohm,1/8W

R634,635 VRD-MN2BD103J J AA 10 kohm,1/8W

R636,637 VRD-MN2BD102J J AA 1 kohm,1/8W

R639 VRD-MN2BD102J J AA 1 kohm,1/8W [CD-C480H Only]

R640 VRD-MN2BD103J J AA 10 kohm,1/8W

R641~643 VRD-ST2CD102J J AA 1 kohm,1/6W

R645 VRD-MN2BD102J J AA 1 kohm,1/8W

R646 VRD-MN2BD102J J AA 1 kohm,1/8W [CD-C470H/470E]

R646 VRD-MN2BD103J J AA 10 kohm,1/8W [CD-C480H]

R647~649 VRD-MN2BD102J J AA 1 kohm,1/8W

R650 VRD-ST2CD102J J AA 1 kohm,1/6W

R651~653 VRD-MN2BD102J J AA 1 kohm,1/8W

R654 VRD-ST2CD102J J AA 1 kohm,1/6W

R655 VRD-MN2BD102J J AA 1 kohm,1/8W

R656 VRD-ST2CD102J J AA 1 kohm,1/6W

R657,658 VRD-MN2BD102J J AA 1 kohm,1/8W

R659 VRD-ST2CD102J J AA 1 kohm,1/6W

R660,661 VRD-MN2BD102J J AA 1 kohm,1/8W

R662 VRD-ST2CD123J J AA 12 kohms,1/6W

R663 VRD-MN2BD102J J AA 1 kohm,1/8W

R666 VRD-ST2CD102J J AA 1 kohm,1/6W

R667 VRD-MN2BD102J J AA 1 kohm,1/8W

R670 VRD-MN2BD102J J AA 1 kohm,1/8W [CD-C480H Only]

R671 VRD-MN2BD102J J AA 1 kohm,1/8W

R672 VRD-MN2BD103J J AA 10 kohm,1/8W

R673 VRD-MN2BD103J J AA 10 kohm,1/8W [CD-C480H Only]

R674 VRD-MN2BD103J J AA 10 kohm,1/8W

R675 VRD-MN2BD103J J AA 10 kohm,1/8W [CD-C480H Only]

R676 VRD-MN2BD473J J AA 47 kohms,1/8W

R679 VRD-MN2BD103J J AA 10 kohm,1/8W

R680 VRD-ST2CD103J J AA 10 kohm,1/6W

R684 VRD-ST2CD103J J AA 10 kohm,1/6W

R701~710 VRD-ST2CD102J J AA 1 kohm,1/6W

R711 VRD-ST2CD101J J AA 100 ohm,1/6W

R712~722 VRD-ST2CD102J J AA 1 kohm,1/6W

R723~725 VRD-MN2BD102J J AA 1 kohm,1/8W

R726,727 VRD-ST2CD102J J AA 1 kohm,1/6W

R728 VRD-ST2CD103J J AA 10 kohm,1/6W

R729 VRD-ST2CD102J J AA 1 kohm,1/6W

R731~736 VRD-ST2CD822J J AA 8.2 kohms,1/6W

R737~741 VRD-ST2CD102J J AA 1 kohm,1/6W

R742~744 VRD-ST2CD821J J AA 820 ohms,1/6W

R745 VRD-ST2CD102J J AA 1 kohm,1/6W [CD-C480H Only]

R746~748 VRD-ST2CD821J J AA 820 ohms,1/6W

R749 VRD-ST2CD103J J AA 10 kohm,1/6W

R763 VRD-ST2CD102J J AA 1 kohm,1/6W

R765 VRD-ST2CD332J J AA 3.3 kohms,1/6W

R766 VRD-ST2CD104J J AA 100 kohm,1/6W

R767 VRD-ST2CD820J J AA 82 ohms,1/6W

R768,769 VRD-ST2CD103J J AA 10 kohm,1/6W

R770 VRD-ST2CD102J J AA 1 kohm,1/6W

R771 VRD-ST2CD101J J AA 100 ohm,1/6W

R772 VRD-ST2CD102J J AA 1 kohm,1/6W

R773 VRD-ST2EE270J J AA 27 ohms,1/4W

R774 VRD-ST2CD151J J AA 150 ohms,1/6W

R775 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R776 VRD-ST2CD102J J AA 1 kohm,1/6W

R777 VRD-ST2CD330J J AA 33 ohms,1/6W

R778 VRD-ST2CD104J J AA 100 kohm,1/6W

R779 VRD-ST2CD103J J AA 10 kohm,1/6W

R780 VRD-ST2CD182J J AA 1.8 kohms,1/6W

R781~784 VRD-ST2CD103J J AA 10 kohm,1/6W

R801 VRD-ST2CD123J J AA 12 kohms,1/6W

R802,803 VRD-ST2EE221J J AA 220 ohms,1/4W

R806 VRD-ST2CD101J J AA 100 ohm,1/6W

R807 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R820 VRD-ST2CD103J J AA 10 kohm,1/6W

R821 VRD-ST2CD470J J AA 47 ohms,1/6W

R822 VRD-ST2EE561J J AA 560 ohms,1/4W

R823 VRD-ST2CD470J J AA 47 ohms,1/6W

R824 VRD-MN2BD102J J AA 1 kohm,1/8W

R825 VRD-ST2CD333J J AA 33 kohms,1/6W

R826 VRD-ST2EE561J J AA 560 ohms,1/4W

R828 VRD-ST2CD470J J AA 47 ohms,1/6W

R829 VRD-ST2CD102J J AA 1 kohm,1/6W

! R830 VRG-ST2EC220J J AB 22 ohms,1/4W,Fusible

R831 VRD-ST2EE122J J AA 1.2 kohms,1/4W

R832 VRD-ST2EE101J J AA 100 ohm,1/4W

R851,852 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R853,854 VRD-MN2BD104J J AA 100 kohm,1/8W

R855,856 VRD-MN2BD822J J AA 8.2 kohms,1/8W

R857,858 VRD-MN2BD682J J AA 6.8 kohms,1/8W

R861,862 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R863,864 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R865,866 VRD-ST2EE331J J AA 330 ohms,1/4W

R901,902 VRD-ST2CD104J J AA 100 kohm,1/6W

R903,904 VRD-ST2CD683J J AA 68 kohms,1/6W

R905~908 VRD-ST2CD102J J AA 1 kohm,1/6W

R909,910 VRD-ST2CD563J J AA 56 kohms,1/6W

R911,912 VRD-ST2CD471J J AA 470 ohms,1/6W

R913 VRD-ST2CD103J J AA 10 kohm,1/6W

R914 VRD-ST2CD154J J AA 150 kohms,1/6W

R915~917 VRD-ST2EE222J J AA 2.2 kohms,1/4W

– 6 –

PRICE

RANK

DESCRIPTIONNO.

PART CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

! R918 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R919,920 VRD-RT2HD102J J AA 1 kohm,1/2W

R921 VRD-ST2CD224J J AA 220 kohms,1/6W

R922 VRD-ST2CD393J J AA 39 kohms,1/6W

! R923 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R924 VRD-ST2EE222J J AA 2.2 kohms,1/4W

R925 VRD-ST2CD391J J AA 390 ohms,1/6W

R927,928 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W

R931,932 VRD-RT2HD331J J AA 330 ohms,1/2W

R933~936 VRD-ST2EE6R8J J AA 6.8 ohms,1/4W

R937 VRD-ST2CD100J J AA 10 ohm,1/6W

R938 VRS-VV3DA681J J 680 ohms,2W

R951,952 VRD-ST2CD104J J AA 100 kohm,1/6W

R953,954 VRD-ST2CD102J J AA 1 kohm,1/6W

R955,956 VRD-ST2CD181J J AA 180 ohms,1/6W

R957 VRD-ST2CD103J J AA 10 kohm,1/6W

R959,960 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W

R961,962 VRD-RT2HD271J J AA 270 ohms,1/2W

R965,966 VRD-ST2EE6R8J J AA 6.8 ohms,1/4W

R970 VRD-ST2CD563J J AA 56 kohms,1/6W

RD1 VRD-ST2CD102J J AA 1 kohm,1/6W

RD2 VRD-ST2CD122J J AA 1.2 kohms,1/6W

RD3 VRD-ST2CD182J J AA 1.8 kohms,1/6W

RD4 VRD-ST2CD222J J AA 2.2 kohms,1/6W

RD5 VRD-ST2CD392J J AA 3.9 kohms,1/6W

RD6 VRD-ST2CD562J J AA 5.6 kohms,1/6W

RD7 VRD-ST2CD123J J AA 12 kohms,1/6W

RD8 VRD-ST2CD102J J AA 1 kohm,1/6W

RD9 VRD-ST2CD122J J AA 1.2 kohms,1/6W

RD10 VRD-ST2CD182J J AA 1.8 kohms,1/6W

RD11 VRD-ST2CD222J J AA 2.2 kohms,1/6W

RD12 VRD-ST2CD392J J AA 3.9 kohms,1/6W

RD13 VRD-ST2CD562J J AA 5.6 kohms,1/6W

RD14 VRD-ST2CD123J J AA 12 kohms,1/6W

RD15 VRD-ST2CD122J J AA 1.2 kohms,1/6W

RD16 VRD-ST2CD182J J AA 1.8 kohms,1/6W

RD17 VRD-ST2CD222J J AA 2.2 kohms,1/6W

RD18 VRD-ST2CD392J J AA 3.9 kohms,1/6W

RD20 VRD-ST2CD562J J AA 5.6 kohms,1/6W

RD21 VRD-ST2CD123J J AA 12 kohms,1/6W

RD22 VRD-ST2CD102J J AA 1 kohm,1/6W

RD23 VRD-ST2CD122J J AA 1.2 kohms,1/6W

RD24 VRD-ST2CD182J J AA 1.8 kohms,1/6W

RD25 VRD-ST2CD222J J AA 2.2 kohms,1/6W

RD26 VRD-ST2CD392J J AA 3.9 kohms,1/6W

RD27 VRD-ST2CD562J J AA 5.6 kohms,1/6W

RD28 VRD-ST2CD123J J AA 12 kohms,1/6W

RD29 VRD-ST2CD102J J AA 1 kohm,1/6W

RD30 VRD-ST2CD122J J AA 1.2 kohms,1/6W

RD31 VRD-ST2CD182J J AA 1.8 kohms,1/6W

RD32 VRD-ST2CD222J J AA 2.2 kohms,1/6W

RD33 VRD-ST2CD392J J AA 3.9 kohms,1/6W

RD34 VRD-ST2CD562J J AA 5.6 kohms,1/6W

RD35 VRD-ST2CD123J J AA 12 kohms,1/6W

RD36 VRD-ST2CD563J J AA 56 kohms,1/6W

[CD-C470E Only]

RD37 VRD-ST2CD102J J AA 1 kohm,1/6W

RD38,39 VRD-ST2CD102J J AA 1 kohm,1/6W [CD-C480H Only]

RM02 VRD-MN2BD682J J AA 6.8 kohms,1/8W

RM03 VRD-ST2CD333J J AA 33 kohms,1/6W

RM05 VRD-ST2CD103J J AA 10 kohm,1/6W

RM06 VRD-ST2CD222J J AA 2.2 kohms,1/6W

RM07 VRD-RT2HD100J J AA 10 ohm,1/2W

RM08 VRD-ST2CD103J J AA 10 kohm,1/6W

RM09 VRD-ST2CD222J J AA 2.2 kohms,1/6W

RM1 VRD-ST2CD272J J AA 2.7 kohms,1/6W

RM10 VRD-ST2CD122J J AA 1.2 kohms,1/6W

RM11 VRD-MN2BD222J J AA 2.2 kohms,1/8W

RM12 VRD-ST2CD333J J AA 33 kohms,1/6W

RM14~16 VRD-ST2CD103J J AA 10 kohm,1/6W

RM17 VRD-ST2CD103J J AA 10 kohm,1/6W [CD-C480H Only]

RM18 VRD-ST2CD222J J AA 2.2 kohms,1/6W

[CD-C480H Only]

RM19 VRD-MN2BD332J J AA 3.3 kohms,1/8W

RM20 VRD-MN2BD103J J AA 10 kohm,1/8W

RT21 VRD-ST2CD104J J AA 100 kohm,1/6W

[CD-C470H/480H Only]

RT26 VRD-ST2CD102J J AA 1 kohm,1/6W

[CD-C470H/480H Only]

RT28 VRD-MN2BD102J J AA 1 kohm,1/8W

[CD-C470H/480H Only]

RT29 VRD-ST2CD102J J AA 1 kohm,1/6W

[CD-C470H/480H Only]

RT30 VRD-MN2BD102J J AA 1 kohm,1/8W

[CD-C470H/480H Only]

RT32 VRD-ST2CD103J J AA 10 kohm,1/6W

[CD-C470H/480H Only]

RT33,34 VRD-ST2CD563J J AA 56 kohms,1/6W

[CD-C470H/480H Only]

RT35~37 VRD-ST2CD224J J AA 220 kohms,1/6W

[CD-C470H/480H Only]

RT48,49 VRD-ST2EE391J J AA 390 ohms,1/4W

[CD-C470H/480H Only]

OTHER CIRCUITRY PARTS

BI99A/B QCNWN0723AWZZ J AM Connector Ass’y,3-3Pin

BI102/CNS102 QCNWN0941AWZZ J Connector Ass’y,6-7Pin

BI801/CNS801 QCNWN0904AWZZ J AE Connector Ass’y,6-6Pin

BIM5/CNS10/CNS

QCNWN0894AWZZ J AH Connector Ass’y,6-10-2Pin

CNP3A 92LCONE6P53253 J AC Plug,6Pin

CNP1 QCNCM931EAFZZ J AC Plug,5Pin

CNP2 92LCONE8P53253 J AC Plug,8Pin

CNP3 92LCONE6P53253 J AC Plug,6Pin

CNP10 QCNCM931KAFZZ J AD Plug,10Pin

CNP101 92LCONE3P5267X J AB Plug,3Pin

CNP102 92LCONE7P5267X J Plug,7Pin

CNP301 92LCONE-2P5268 J AB Plug,2Pin

CNP303 QCNCM010LAWZZ J AC Plug,10Pin [CD-C470E]

CNP303 QCNCM010MAWZZ J AC Plug,10Pin [CD-C470H/480H]

CNP501 QCNCM010LAWZZ J AC Plug,10Pin [CD-C480H Only]

CNP502 QCNCW010LAWZZ J AD Plug,12Pin [CD-C470E]

CNP502 QCNCW010MAWZZ J AD Plug,12Pin [CD-C470H/480H]

CNP801 QCNCM742FAFZZ J AB Plug,6Pin

CNPM1 QCNWN025NAWZZ J Flat Wire Holder

CNPM2 QCNCM030BAWZZ J AB Pin Header

CNS1A/B QCNWN0891AWZZ J AG Connector Ass’y,5-5Pin

CNS2A/B QCNWN0892AWZZ J AF Connector Ass’y,8-8Pin

CNS3A/B QCNWN0893AWZZ J AF Connector Ass’y,6-6Pin

CNS101 QCNWN0660AWZZ J AH Connector Ass’y,3Pin

CNS501 QCNCW010LAWZZ J AD Connector Ass’y,11Pin

[CD-C480H Only]

! F802,803 92LFUSE-T402-E J AD Fuse,T4A L 250V

! F804 92LFUSE-T162-E J AD Fuse,T1.6A L 250V

! F821 92LFUSE-T501-E J AD Fuse,T500mA L 250V

! F901,902 92LFUSE-T252-E J Fuse,T2.5A L 250V

! F951 92LFUSE-T162-E J AD Fuse,T1.6A L 250V

FE301 RTUNS0007AWZZ J AT FM Front End

FL701 VVKBJ549GK/-1 J AX FL Display

FW701 QCNWN0946AWZZ J AD Flat Wire,6Pin

FW702 QCNWN0944AWZZ J AD Flat Wire,10Pin

FW703 QCNWN0945AWZZ J AF Flat Wire,13Pin

FW901 QCNWN0969AWZZ J AE Flat Wire,9Pin

FW902 QCNWN0902AWZZ J AC Flat Wire,3Pin

FW903 QCNWN0903AWZZ J AE Flat Wire,5Pin

FWM1 QCNWN0943AWZZ J AF Flat Wire,13Pin

FWM2 QCNWN0942AWZZ J AC Flat Wire,4Pin

J501 QSOCJ0401AWZZ J AH Jack,Video/AUX

JA901 QJAKM0005AWZZ J AD Jack,Headphones

M1 92LMTR1858CASY J AS Motor with Chassis [Spindle]

M2 92LMTR1854BASY J AP Motor with Gear [Sled]

M3 92LMTR2037AS1 J AP Motor with Worm Pulley

[T/T Up/Down]

MM1 RMOTV0060AWM2 J Motor with Pulley [Tape]

RX701 VHLSPSP440/-1 J AH Remote Sensor,SPSP440

SO301 QTANC0103AWZZ J AD Terminal,Antenna

SO901,902 QTANA0404AWZZ J AF Terminal,Speaker (Front/Rear)

SO903 QTANA0201AWZZ J AD Terminal,Speaker (Center)

SOLM1,2 92LM-SOL1676A J Solenoid Ass’y

SW1 QSW-P0004AWZZ J AE Switch,Push Type [Open/Close]

SW2 QSW-F0001AWZZ J AD Switch,Leaf Type [Mecha Up]

SW3 QSW-P0005AWZZ J AD Switch,Push Type [Disc Number]

SW4 QSW-F9001AWZZ J AE Switch,Leaf Type [Pickup In]

SW701 92LSWICHT1663T J AC Switch,Key Type

[ON/STAND-BY]

SW702 92LSWICHT1663T J AC Switch,Key Type [CLOCK]

SW703 92LSWICHT1663T J AC Switch,Key Type [TIME/SLEEP]

SW704 92LSWICHT1663T J AC Switch,Key Type [DISC 1]

SW705 92LSWICHT1663T J AC Switch,Key Type [DISC 2]

SW706 92LSWICHT1663T J AC Switch,Key Type [DISC 3]

SW707 92LSWICHT1663T J AC Switch,Key Type [DISC SKIP]

SW708 92LSWICHT1663T J AC Switch,Key Type

[OPEN/CLOSE]

– 7 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PART CODE

PRICE

RANK

DESCRIPTION

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

SW709 92LSWICHT1663T J AC Switch,Key Type [CD]

SW710 92LSWICHT1663T J AC Switch,Key Type

[TUNER/BAND]

SW711 92LSWICHT1663T J AC Switch,Key Type [TAPE]

SW712 92LSWICHT1663T J AC Switch,Key Type [VIDEO]

SW713 92LSWICHT1663T J AC Switch,Key Type [EON]

[CD-C470H/480H Only]

SW714 92LSWICHT1663T J AC Switch,Key Type

[PTY/TI SERCH]

[CD-C470H/480H Only]

SW715 92LSWICHT1663T J AC Switch,Key Type [ASPM]

[CD-C470H/480H Only]

SW716 92LSWICHT1663T J AC Switch,Key Type

[DISPLAY MODE]

[CD-C470H/480H Only]

SW717 92LSWICHT1663T J AC Switch,Key Type

[CENTER MODE/PHANTOM]

SW719 92LSWICHT1663T J AC Switch,Key Type

[CENTER MODE/NORMAL]

SW721 92LSWICHT1663T J AC Switch,Key Type

[DOLBY PRO LOGIC/BYPASS]

SW723 92LSWICHT1663T J AC Switch,Key Type [REC/PAUSE]

SW724 92LSWICHT1663T J AC Switch,Key Type

[TUNING UP/TIME]

SW725 92LSWICHT1663T J AC Switch,Key Type [VOLUME UP]

SW726 92LSWICHT1663T J AC Switch,Key Type [X-BASS]

SW727 92LSWICHT1663T J AC Switch,Key Type

[4-SP SURROUND]

[CD-C480H Only]

SW728 92LSWICHT1663T J AC Switch,Key Type [STOP]

SW729 92LSWICHT1663T J AC Switch,Key Type [FWD]

SW730 92LSWICHT1663T J AC Switch,Key Type [FF]

SW731 92LSWICHT1663T J AC Switch,Key Type

[MEMORY SET]

SW732 92LSWICHT1663T J AC Switch,Key Type

[TUNING DOWN/TIME]

SW733 92LSWICHT1663T J AC Switch,Key Type

[VOLUME DOWN]

SW734 92LSWICHT1663T J AC Switch,Key Type

[EQUALIZER/DEMO]

SW735 92LSWICHT1663T J AC Switch,Key Type

[3D SURROUND]

SW736 92LSWICHT1663T J AC Switch,Key Type

[REVERSE MODE]

SW737 92LSWICHT1663T J AC Switch,Key Type [REV]

SW738 92LSWICHT1663T J AC Switch,Key Type [REW]

SW739 92LSWICHT1663T J AC Switch,Key Type

[EDIT NORMAL]

SW740 92LSWICHT1663T J AC Switch,Key Type [EDIT HIGH]

SWM1 92LM-SW1676A J AC Switch,Push Type [T1 CrO2]

SWM2 92LM-SW1676A J AC Switch,Leaf Type [T2 CrO2]

SWM3 92LM-SW1676A J AC Switch,Leaf Type [REC FWD]

SWM4 92LM-SW1676A J AC Switch,Leaf Type [REC RVS]

SWM5 QSW-F9003AWZZ J AG Switch,Leaf Type [F.A.S.]

SWM6 92LM-SW1676B J Switch,Leaf Type [CAM]

WT502 92LCONE7P52287 J AC Socket,Wire Trap,7Pin

WT601 QCNCW012NAWZZ J AE Socket,Wire Trap,13Pin

WT901 92LCONE9P52287 J AC Socket,Wire Trap,9Pin

WT903 92LCONE5P52287 J AC Socket,Wire Trap,5Pin

WTM1 QCNCW012NAWZZ J AE Socket,Wire Trap,13Pin

CASSETTE MECHANISM PARTS

1 LCHSM0039AWM1 J Main Chassis Ass’y

2 LPLTP0001AWZZ J AD Plate,Head [Tape 1]

3 LDAIH0002AWZZ J AD Plate,Head [Tape 2]

4 NDAIR0004AW01 J AG Take-Up Reel Ass’y [Tape 1]

7 NROLY0003AWM1 J AF Pinch Roller Foward Ass’y

8 NFLYC0012AWM1 J AG Flywheel Ass’y [Tape 1]

9 NFLYC0013AWM1 J AG Flywheel Foward Ass’y [Tape 2]

11 MCAMP0005AWZZ J AC Gear,Cam

13 NGERH0030AWZZ J AE Gear,Play Idler

15 NPLYB0004AWZZ J AB Sensor,Wing

16 MLEVP0060AWZZ J AB Lever,Trigger

17 MLEVP0027AWZZ J AC Lever,Lock [Tape 1]

18 MLEVP0028AWZZ J AC Lever,Eject Obstruct [Tape 1]

19 MLEVP0061AWZZ J AB Lever,Eject Obstruct [Tape 2]

20 LHLDS1001AW01 J AE Bearing Holder Ass’y

22 PGIDM0009AWZZ J AC Guide,Cassette [Tape 1]

23 MLEVF0011AWFW J AD Lever,Over Strok [Tape 1]

24 MLEVF0012AWM1 J AE Lever,Over Strok Ass’y [Tape 2]

25 MLEVF0015AWM1 J AE Lever,Mode Ass’y

26 MLEVF0007AW01 J AC Lever,Idler Ass’y [Tape 1]

28 LANGT0039AWFW J AC Blacket Motor

29 LANGT0040AWFW J AC Blacket Hold

31 MSPRP0005AWFW J AB Spring,Cassette

32 MSPRT0007AWFJ J AB Spring,Reverse Plate

33 MSPRD0031AWFJ J AB Spring,Lock Lever [Tape 1]

34 MSPRD0081AWFJ J AB Spring,Mode Lever

35 MSPRD0033AWFJ J AB Spring,Play Idler Lever

36 MSPRD0034AWFJ J AB Spring,Play Roller

37 MSPRD0035AWFJ J AB Spring,Eject Obstruct [Tape 1]

39 MSPRD0037AWFJ J AB Spring,Over Strok Lever

40 MSPRD0083AWFJ J AB Spring,Trigger Lever

42 MSPRD0082AWFJ J AB Spring,Over Stroke Lever

[Tape 2]

43 NBLTK0021AWZZ J AB Belt,Sub

44 NBLTH0003AWZZ J AC Belt,Main [Tape 1]

45 NBLTH0004AWZZ J AC Belt,Main [Tape 2]

52 92LM-LEV1756A J AB Lever,Lock [Tape 2]

53 92LM-TSPR1756C J AB Spring,Lock Lever [Tape 2]

55 92LM-RPH1746A J AM Head,Playback [Tape 1]

56 RHEDK0002AWM1 J AQ Head,Record/Playback/Erace

with Flexible PWB [Tape 2]

58 MSPRC0019AWFJ J AB Spring,Back Tension

59 92LN-BAND1318A J AA Nylon Band,80mm

60 PGIDM0020AWZZ J AB Head Bobbin

61 LPLTM0005AWZZ J AC Head Support

62 NDAIR0007AWZZ J AB Reel Table

63 NROLY0004AWM1 J AF Pinch Roller Reverse Ass’y

64 NROLY0002AWZZ J AF Pinch Roller Ass’y

65 NFLYC0014AWM1 J AF Flywheel Reverse Ass’y [Tape 2]

66 MLEVP0059AWM1 J AH Drive Lever Ass’y

67 NGERH0060AWZZ J AB Gear,FF Idlar

68 MLEVP0062AWZZ J AB Lever,H Change

69 MLEVP0063AWZZ J AB Lever,Switch

70 LHLDS1003AWM1 J AD Bearing Holder Forward Ass’y

71 LHLDS1004AWM1 J AD Bearing Holder Reverse Ass’y

72 MLEVF0013AWFW J AC Lever,Head Plate

73 MLEVF0014AWM1 J AE Reverse Plate Ass’y

74 MLEVF0016AWFW J AB Lever,Joint

75 MSPRD0084AWFJ J AB Spring,Driving Lever

76 MSPRD0085AWFJ J AB Spring,H Change

77 MSPRD0086AWFJ J AB Spring,Reel Support

78 MSPRD0087AWFJ J AB Spring,Reel Support

79 MSPRD0088AWFJ J AB Spring,Reel Support [Tape 1]

80 MSPRD0101AWFJ J AB Spring,Head Bobbin

501 LX-BZ0012AWFD J AA Screw,ø2.6×5mm

502 XHBSD20P04000 J AA Screw,ø2×4mm

503 XHBSD20P05000 J AA Screw,ø2×5mm

504 XWVSD22-03000 J AA Washer,ø2.2×0.3mm

505 LX-WZ9191AFZZ J AA Washer,ø2.3×ø3.4×0.25mm

506 LX-BZ0004AWFD J AC Screw,Lock Lever

507 LX-BZ0778AFFD J AA Screw,ø2×6mm

508 LX-WZ9064AFZZ J AA Washer,ø1.5×ø3.8×0.5mm

510 LX-WZ9230AFZZ J AA Washer,ø1.8×ø4×0.5mm

511 XSPSD14P08000 J Screw,ø1.4×8mm

513 XWSSD14-05000 J AA Washer,ø1.4×0.5mm

MM1 92LMTR2512AASY J AT Motor with Pulley [Tape]

SOLM1 92LM-SOL1676A J Solenoid Ass’y

SWM1 92LM-SW1676A J AC Switch,Leaf Type [T1 CrO2]

[CD-C480H Only]

SWM2 92LM-SW1676A J AC Switch,Leaf Type [T2 CrO2]

[CD-C480H Only]

SWM3 92LM-SW1676A J AC Switch,Leaf Type [REC FWD]

SWM4 92LM-SW1676A J AC Switch,Leaf Type [REC RVS]

SWM5 QSW-F9003AWZZ J AG Switch,Leaf Type [F.A.S.]

SWM6 92LM-SW1676B J Switch,Leaf Type [CAM]

CD MECHANISM PARTS

301 NGERH0011AWZZ J AC Gear,Middle

302 NGERH0012AWZZ J AC Gear,Drive

303 MLEVP0010AWZZ J AC Rail,Guide

304 NSFTM0002AWFW J AE Shaft,Guide

305 92LM-CUSN1524A J AC Insulator

! 306 92LHPC1MASY J BG Pickup Unit Ass’y

306- 1 ———— — Pickup Unit

(Not Replacement Item)

306- 2 NGERR0043AFZZ J AC Gear,Rack

306- 3 MSPRC0961AFZZ J AA Spring,Rack

701 92L2R6S+6CZ J AB Screw,ø2.6×6mm

702 XHBSD20P05000 J AA Screw,ø2×5mm

703 92L2S+3PZ J AA Screw,ø2×3mm

– 8 –

PRICE

RANK

DESCRIPTIONNO.

PART CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

704 92L1R5WC3R8R25 J AA Washer,ø1.5×ø3.8×0.25mm

M1 92LMTR1858CASY J AS Motor with Chassis [Spindle]

M2 92LMTR1854BASY J AP Motor with Gear [Sled]

SW4 QSW-F9001AWZZ J AE Switch,Leaf Type [Pickup In]

CABINET PARTS

201 92LCAB2512AS1 J BC Front Panel Ass’y [CD-C470H]

201 92LCAB2513AS1 J BC Front Panel Ass’y [CD-C480H]

201 92LCAB2515AS1 J BA Front Panel Ass’y [CD-C470E]

201- 1 ———— — Front Panel

(Not Replacement Item)

201- 2 PCUSG0022AWZZ J AB Cushion,Leg

201- 3 HDECQ0186AWSA J AD Operation Panel

201- 3 JKNBZ0335AWSA J AC Knob,Tuner/Memory

201- 4 JKNBZ0336AWSA J AC Knob,Open/Close,Rec./Playback

201- 5 JKNBZ0337AWSB J AD Knob,X-BASS

201- 6 JKNBZ0346AWSA J AB Knob,Graphic Equalizer

201- 7 JKNBZ0347AWSA J AB Knob,Rec Pause

201- 8 JKNBZ0348AWSA J AH Knob,RDS

[CD-C470H/480H Only]

201- 9 JKNBZ0350AWSA J AD Knob,Open/Close

201-10 JKNBZ0353AWSA J AH Knob,Operation A

201-11 JKNBZ0354AWSB1 J AF Knob,Disc Number

201-12 JKNBZ0355AWSA1 J AH Knob,Dolby Pro

201-13 JKNBZ0356AWSA J AM Knob,Operation B

201-14 JKNBZ0349AWSA J AH Knob,SRS [CD-C480H Only]

201-15 JKNBZ0391AWSA J AD Knob,Function

202 GCAB-1045AWSB J AL Top Cabinet

203 GITAR0192AWSA J AM Back Board [CD-C470H]

203 GITAR0224AWSA J AQ Back Board [CD-C470E]

203 GITAR0225AWSA J AQ Back Board [CD-C480H]

204 GDORF0038AWSB J AF Cassette Holder,Tape 1

205 92LPNL2512AS1 J AM Amp.Panel Ass’y [CD-C470H]

205 92LPNL2513AS1 J AM Amp.Panel Ass’y [CD-C480H]

205 92LPNL2515AS1 J BA Amp.Panel Ass’y [CD-C470E]

205- 1 ———— — Amp.Panel

205- 2 92LBADGE1692A J AC Badge,SHARP

206 GDORF0039AWSB J AF Cassette Holder,Tape 2

207 HDECQ0217AWSA J AF Panel,Cassette,Tape 1

208 HDECQ0218AWSA J AF Panel,Cassette,Tape 2

209 92LCAB2503BS1 J AK Side Panel Ass’y,Left

209- 1 ———— — Side Panel,Left

(Not Replacement Item)

209- 2 PCUSG0022AWZZ J AB Cushion,Leg

210 92LCAB2503CS1 J AK Side Panel Ass’y,Right

210- 1 ———— — Side Panel,Right

(Not Replacement Item)

210- 2 PCUSG0022AWZZ J AB Cushion,Leg

211 GCOVA1135AWSC J AG Cover,CD Tray

213 MLIFP0003AWZZ J AE Damper

214 MSPRD0092AWFJ J AB Spring,Cassette,Tape 1

215 LCHSM0049AWFW J AM Main Chassis

! 216 QACCB0003AW00 J BA AC Power Supply Cord

[CD-C470E]

! 216 QACCE0008AW00 J AG AC Power Supply Cord

[CD-C470H/480H]

217 92LN-BAND1318A J AA Nylon Band,80mm

219 MSPRD0093AWFJ J AB Spring,Cassette Holder Up,Tape

227 MLEVP0068AWZZ J AB Lever,Change

228 LCHSZ0011AWZZ J AG Chassis,CD Mechanism

229 NGERK0004AWZZ J AB Gear,Bevel

230 MSPRC0021AWFJ J AB Spring,Worm Wheel

231 NGERW0006AWZZ J AC Gear,Worm Wheel

232 NPLYD0001AWZZ J AB Pulley

233 NGERK0005AWZZ J AB Gear,Loading

234 MLEVP0066AWZZ J AE Lever,Shift

235 NGERH0064AWZZ J AD Gear,Cam

236 NGERK0003AWZZ J AC Gear,Drive

237 LHLDZ1141AWZZ J AB Support,Pinch

238 NGERH0065AWZZ J AB Gear,Turntable

239 NBLTK0029AWZZ J AB Belt,Drive

240 MSPRD0044AWFJ J AB Spring,Lock Lever

241 MLEVP0067AWZZ J AC Lever,Lock

242 LCHSZ0010AWZZ J AM Chassis,Loading

243 NROLP0009AWZZ J AB Roller

244 MLEVP0070AWZZ J AB Lever,T/T Lock

245 MSPRC0020AWFJ J AB Spring,T/T Lock Lever

246 GCAB-1044AWSA J AM CD Player Base

247 LHLDZ1139AWSA J AD Support,Stabilizer

248 92LHOLD2037AS1 J AK Stabilizer Ass’y

248- 1 ———— — Stabilizer

(Not Replacement Item)

248- 2 PMAGF0001AWZZ J AF Magnet

248- 3 92LSUPT1749D J AA Bracket,Magnet

249 NTNT-0018AWSA J AK Turntable

250 LHLDZ1140AWZZ J AB Guide

251 LHLDZ1143AWZZ J AD Holder,FL Display

252 PRDAR0035AWFW J AQ Heat Sink B

253 PRDAR0049AWFW J AK Heat Sink,Transistor

254 PRDAR0073AWFW J AM Heat Sink,Main

255 LHLDZ1142AWZZ J AB Holder,LED

257 PCOVQ1004AWZZ J AF Heat Plate

! 258 92LFSHOLD1652T J AB Holder,Fuse

261 HDECQ0185AWSB J AD CD Top Panel

267 LANGK0070AWFW J AD PWB Bracket A

268 LANGK0071AWFW J AC PWB Bracket B

270 LANGT0038AWFW J AE Bracket,Heat Shield

271 PCUSG0027AWZZ J AB Cushion,Worm Wheel

272 MSPRC0024AWFW J AB Spring,Solenoid

276 PCOVU9004AW00 J AB Felt,Operation Knob

277 LBSHC0002AWZZ J AD Bushing,AC Power Supply Cord

278 LHLDF1015AWZZ J AF Holder,Main PWB

279 LANGJ0005AWFW J AC Bracket,PWB Connect

[CD-C480H Only]

280 RCORF0002AWZZ J AE Core

281 PSLDM3029AWFW J AE Plate,Deck Shield

282 PSPAK0001AWZZ J AB Spacer,Power PWB

283 92LRDAT1587A J AC Heat Sink,Diode

284 92LCAUT1706A1 J AC Label,Class 3

285 92LCAUT1706B J AA Label,Class 3

286 LHLDZ1144AWZZ J AC Holder,LED

287 LHLDZ1105AWZZ1 J AD Holder,LED

288 LHLDZ1145AWZZ J AD Holder,LED [CD-C480H Only]

! 289 92LLUG1746A J AA Lug Terminal

293 PCUSG0029AWZZ J AC Cushion,CD Loading Chassis

294 92LCLMP1810P J Wire Holder

296 LHLDK9001AW00 J AB Holder,CD Digital Output

601 XESSD30P10000 J AA Screw,ø3×10mm

602 LX-JZ0022AFFD J AA Screw,ø3×8mm

603 XEBSD30P10000 J AA Screw,ø3×10mm

604 XJBSD30P06000 J AA Screw,ø3×6mm

605 XJBSD30P08000 J AA Screw,ø3×8mm

607 XJBSD30P14000 J AA Screw,ø3×14mm

608 XEBSF30P12000 J AA Screw,ø3×12mm

609 XJBSF30P08000 J AA Screw,ø3×8mm

610 LX-TZ0019AFZZ J AB Screw,Special

611 LX-HZ0082AFZZ J AA Screw,ø4×8mm

612 LX-JZ0010AFFD J AA Screw,ø3×10mm

613 LX-EZ0005AWFD J AA Screw,Special

617 LX-JZ0002AWFD J AA Screw,ø3×10mm

618 LX-LZ0002AW00 J AC Snap Rivet [CD-C480H Only]

619 XBPSD26P05JS0 J AA Screw,ø2.6×5mm

620 XEBSD26P12000 J AA Screw,ø2.6×12mm

622 XEBSD30P12000 J AA Screw,ø3×12mm

623 XJSSF30P10000 J AA Screw,ø3×10mm

624 XJBSD30P10000 J AA Screw,ø3×10mm

ACCESSORIES/PACKING PARTS

1 SPAKP0013AWZZ J AC Polyethylene Bag,Unit

2 SPAKA0132AWZZ J AK Packing Add.

3 SPAKC0490AWZZ J AT Packing Case [CD-C470H]

3 SPAKC0523AWZZ J AU Packing Case [CD-C470E]

3 SPAKC0524AWZZ J AY Packing Case [CD-C480H]

4 92LBAG1460C1 J AB Polyethylene Bag,Accessories

5 QANTL0005AWZZ J AG AM Loop Antenna

6 RRMCG0094AWSA J AS Remote Control [CD-C470H]

6 RRMCG0095AWSA J AS Remote Control [CD-C470E]

6 RRMCG0096AWSA J AX Remote Control [CD-C480H]

6- 1 92LLID1782A J AQ Battery Lid,Remote Control

7 TINSE0163AWZZ J AG Operation Manual [CD-C470E]

7 TINSZ0205AWZZ J AW Operation Manual [CD-C470H]

7 TINSZ0223AWZZ J AX Operation Manual [CD-C480H]

8 92LFANT1535A J AF FM Antenna

9 92LCARD1751A J AB Resistration Card

[CD-C470E Only]

10 92LBAG1770A J AB Polyethylene Bag,AC Plug

Adaptor [CD-C470E Only]

11 TLABZ0414AWZZ J AH Label,Feature [CD-C480H]

11 TLABZ0415AWZZ J AH Label,Feature [CD-C470H]

– 9 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PART CODE

PRICE

RANK

DESCRIPTION

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

SPEAKER BOX PARTS

701 92L121-0085 J AS Net Frame Ass’y

[CD-C470H/470E]

701 92L121-0096 J Net Frame Ass’y [CD-C480H]

702 92L351-0147 J AB Label [CD-C470H/470E]

702 92L351-0166 J Label [CD-C480H]

703 92L128-0003 J Bottom Cabinet

704 92L372-0082 J AB Screw,ø3×20mm

705 92L291-0035 J AE Speaker Cord

706 92L372-0028 J AB Screw,ø3×20mm

707 92L394-0028 J AB Leg,Cushion

SP1 VSP0010PBS96A J AW Speaker,Woofer

ACCESSORIES/PACKING PARTS

1 92L411-0072 J Polyethylene Bag,Speaker

2 92L412-0079 J AP Packing Add.,Top/Bottom

SPEAKER BOX PARTS

701 92L121-0086 J AN Net Frame Ass’y

[CD-C470H/470E]

701 92L121-0097 J Net Frame Ass’y [CD-C480H]

703 92L351-0146 J AB Label [CD-C470H/470E]

703 92L351-0168 J Label [CD-C480H]

704 92L372-0028 J AB Screw,ø3×20mm

705 92L291-0051 J AP Speaker Cord

707 92L314-0015 J AL Bottom Cabinet

SP1,2 VSP0010PBT03A J AQ Speaker,Woofer

ACCESSORIES/PACKING PARTS

1 92L411-0063 J AB Polyethylene Bag,Speaker

2 92L412-0079 J AP Packing Add.,Top/Bottom

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A1~3 92LPWB2515MAN1 J — Main/SRS/Headphones

(Combined Ass’y)

[For CD-C470E Only]

PWB-B1,2 92LPWB2515PWR1 J — Power/Power Amp.

(Combined Ass’y)

[For CD-C470E Only]

PWB-C1,2 92LPWB2515DPL1 J — Display/Switch (Combined Ass’y)

[For CD-C470E Only]

PWB-D 92LPWB2515TUN1 J — Tuner [For CD-C470E Only]

PWB-E QPWBF0027AWZZ J AD CD Motor (PWB Only)

[For CD-C470E Only]

PWB-F QPWBF0314AWZZ J AD Tape Mechanism (PWB Only)

[For CD-C470E Only]

PWB-G QPWBF0341AWZZ J AB Tray Motor (PWB Only)

[For CD-C470E Only]

PWB-H QPWBF0313AWZZ J AB Head (PWB Only)

[For CD-C470E Only]

SPEAKER BOX PARTS

701 92L200L0370010 J AT Front Panel,Left

701 92L200R0370010 J AT Front Panel,Right

702 92L10002470E10 J BC Cabinet Ass’y [CP-C470E]

702 92L10002470H10 J BC Cabinet Ass’y [CP-C470H]

702 92L10002480H10 J Cabinet Ass’y [CP-C480H]

703 92L20100330010 J AN Net Frame Ass’y

[CP-C470H/470E]

703 92L20100480H10 J AS Net Frame Ass’y [CP-C480H]

704 92L23056121000 J AD Holder,Catcher

705 92L3121C470H10 J Speaker Cord Ass’y

[CP-C470H/480H]

705 92L3121PC46010 J Speaker Cord Ass’y [CP-C470E]

706 92L411B840160P J AD Screw,ø4×16mm

707 92L44010212400 J AC Port Cushion

708 92L411B930100P J AC Screw,ø3×10mm

709 92L6000C470E00 J AD Label,Specifications [CP-C470E]

709 92L6000C470H00 J Label,Specifications [CP-C470H]

709 92L6000C480H00 J AD Label,Specifications [CP-C480H]

710 92L44210310100 J AD Wire Cushion

C1,2 92L3582710L100 J 2.7µF,100V,Electrolytic,

Non-Polar

SP1,2 92L30012002800 J AY Speaker,Woofer

SP3,4 92L30205004000 J AQ Speaker,Tweeter

SP5,6 92L303R0300100 J Speaker,Super Tweeter

ACCESSORIES/PACKING PARTS

1 92L70032000910 J AE Polyethylene Bag,Speaker

2 92L71525001900 J AG Sheet,Speaker

3 92L74031000600 J AE Shield Pad,Speaker [CP-C470E]

3 92L74031000700 J AE Shield Pad,Speaker

[CP-C470H/480H]

4 92L720PC330000 J AM Packing Add.,Top/Bottom

5 92L6100C470H0 J Label,Feature

– 10 –

CP-C470H/CP-C470E/CP-C480H

CENTER SPEAKER SYSTEM

SURROUND SPEAKER SYSTEM

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 70 –

23456

Figure 11 CD MECHANISM EXPLODED VIEW

– 11 –

CD-C470H/CD-C470E/CD-C480H

306-1

701

304

701

302

301

702

303

703

305x2

SW4

305

PWB-C

306-2

306-3

306

704

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 71 –

Figure 12 TAPE MECHANISM EXPLODED VIEW

23456

– 12 –

CD-C470H/CD-C470E/CD-C480H

503

507x2

511x2

513x2

503x3

510

508

505

506

504

508

SOLM1

501

502x2

MM1

502

503

80mm

504

503

SWM5

SWM1

SWM3

SWM2

SWM4

SWM6

506

PWB-H

PWB-F

503

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 72 –

Figure 13 CABINET EXPLODED VIEW (1/2)

23456

– 13 –

CD-C470H/CD-C470E/CD-C480H

SHARP











209-1

609x2

209-2

FL701

251

255

288

286

601x3

PWB-C1

PWB-A1

PWB-C2

PWB-A3

PWB-B1

PWB-B2

216

277

280x2

203

276

270

257

604

278

612x4

278

601x11

603x2

201-11

261

287

201-3

201-8

201-7

201-15

201-12

201-9

201-10

601x6

201-13

201-3

201-5

201-14

201-6

602

624x2

254

201-4

213

603

611x4

283

605x3

607x2

612x2

258x4

289x2

258x2

268

605

609

607

605

609x2

258x2

210-2

210-1

215

217

208

206

219

214

207

204

201-1

201-2

603

213

205-2

205-1

205

TAPE

MECHANISM

CD-C480H

Only

CD-C480H

Only

CD-C480H

Only

Silicon

Grease

201

80mm

209

618

605x3

296

612

253

612

258x2

609x9

609x2

279

602

252

605x2

267

294

605

605x2

210

PWB-D

PWB-A2

CD-C470H

/480H Only

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 73 –

23456

Figure 14 CABINET EXPLODED VIEW (2/2)

– 14 –

CD-C470H/CD-C470E/CD-C480H

603

243

250

240

617

241

242

293

243

603

250

622x4

243

228

SOLM2

272

619x2

SW2

227

233

234

235

236

237

620

610

238

239

610

232

231

230

243x2

243

SW3

246

614

247

249

608x2

202

211

MECHANISM

271

613

245

244

PWB-G

229

248-1

248-2

248-3

248

285

284

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 74 –

Figure 15 SPEAKER EXPLODED VIEW (1/2)

23456

– 15 –

703

SUPER

TWEETER

SP5 (L-CH)

SP6 (R-CH)

SUPER

TWEETER

SP5 (L-CH)

SP6 (R-CH)

TWEETER

SP3 (L-CH)

SP4 (R-CH)

C1,2

2.7µF/100V

(N.P.)

C1,2

2.7µF/100V

(N.P.)

TWEETER

SP3 (L-CH)

SP4 (R-CH)

WOOFER

SP1 (L-CH)

SP2 (R-CH)

WOOFER

SP1 (L-CH)

SP2 (R-CH)

704x4

SP5,6

SP3,4

SP1,2

702

709

705

706x4

708x2

706x2

707x2

710

701

SHARP

CP-C470H/CP-C470E/CP-C480H

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 75 –– 16 –

23456

Figure 16 SPEAKER EXPLODED VIEW (2/2)

CENTER SPEAKER SYSTEM

SHARP

701

SP1

705

703

702

WOOFER

SP1

704x4

707x2

706x1

SURROUND SPEAKER SYSTEM

SHARP

WOOFER

SP1 (L-CH)

SP2 (R-CH)

701

SP1,2

705

707

704x3

703

CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

– 76 –

PACKING OF METHOD (CD-C470E/CP-C470E ONLY)

Setting position of switches and knobs

Tape Mechanism STOP

1. Polyethylene Bag, Unit SPAKP0013AWZZ

2. Packing Add. SPAKA0132AWZZ

3. Packing Case SPAKC0523AWZZ

4. Polyethylene Bag, Accessories 92LBAG1460C1

5. AM Loop Antenna QANTL0005AWZZ

6. Remote Control RRMCG0095AWSA

7. Operation Manual TiNSE0163AWZZ

8. FM Antenna 92LFANT1535A

9. Resistration Card 92LCARD1751A

10. Polyethylene Bag,

AC Plug Adaptor 92LBAG1770A

CD-C470E

CP-C470E

4,5,6,7,8,9

TOP

FRONT

BOTTOM

FRONT

TOP

FRONT

CD-C470E

Surround Speaker System

Center Speaker System

Center Speaker

System

Surround Speaker

System

CP-C470E

SURROUND SPEAKER SYSTEM

CENTER SPEAKER SYSTEM

1. Polyethylene Bag, Speaker 92L70032000910

2. Sheet, Speaker 92L71525001900

3. Shield Pad, Speaker 92L74031000600

4. Packing Add., Top/Bottom 92L720PC330000

1. Polyethylene Bag, Speaker 92L411-0072

2. Packing Add., Top/Bottom 92L412-0079

1. Polyethylene Bag, Speaker 92L411-0063

2. Packing Add., Top/Bottom 92L412-0079

Writer and Editor: Quality & Reliability Control Center of Audio-Visual Systems Group, Sharp Corp.

A9706-4758NS•HA•M

Printed in U.K

SG • SK

Sharp CD-C470H Mini Component System

Product's Documents

Service Manual

Specifications

Sharp CD-C470H Questions and Answers

Related Products

Sharp CD-PC3500 Mini Component System

Sharp CD-MPS66 Mini Component System

Sharp CD-ES99 Mini Component System

Sharp CD-DH950P Mini Component System

Sharp XL-HP505 Mini Component System

Sharp CD-DK890N MINI COMPONENT SYSTEM
