BOTTOM FREEZER REFRIGERATOR
REFRIGERADOR CON CONGELADOR INFERIOR
......._ _'___ _ .........C _;_'i_
_;_,,, _ _,_,_,__ ...........S_"_ !/ _,_,,_,................
CONGI_LATEUR INFI_RIEUR RI_FRIGI_RATEUR
Models / Modelos / Modeles
795.6900 -k 795.7620 -k
795.7900 *k 795.6827 *k
795.7809 -k 795.7827 -k
"k = color number
\
m
z
63
"1"
m
cn
Z I
0
r"-
"11
Z
MFL63283801 Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A. www.sears.com
Printed in Mexico
English Version 2
Spanish Version 41
French Version 81
Warranty and Product Record 3 - 4
Safety Instructions 5 - 6
Grounding Requirements 6
Parts and Features 7 - 8
Refrigerator Installation 9 -21
Unpacking Your Refrigerator 9

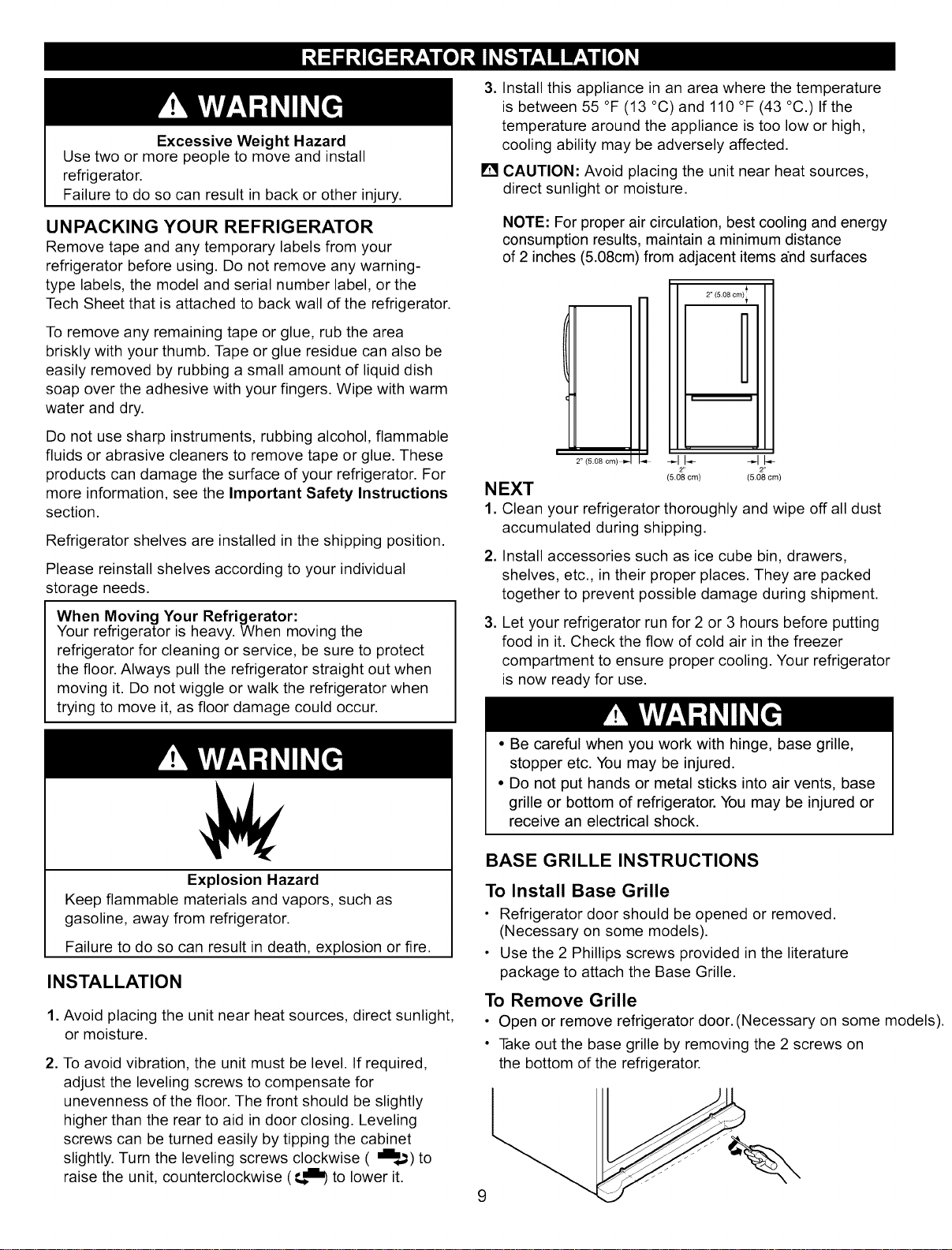

Installation 9
Base Grille 9

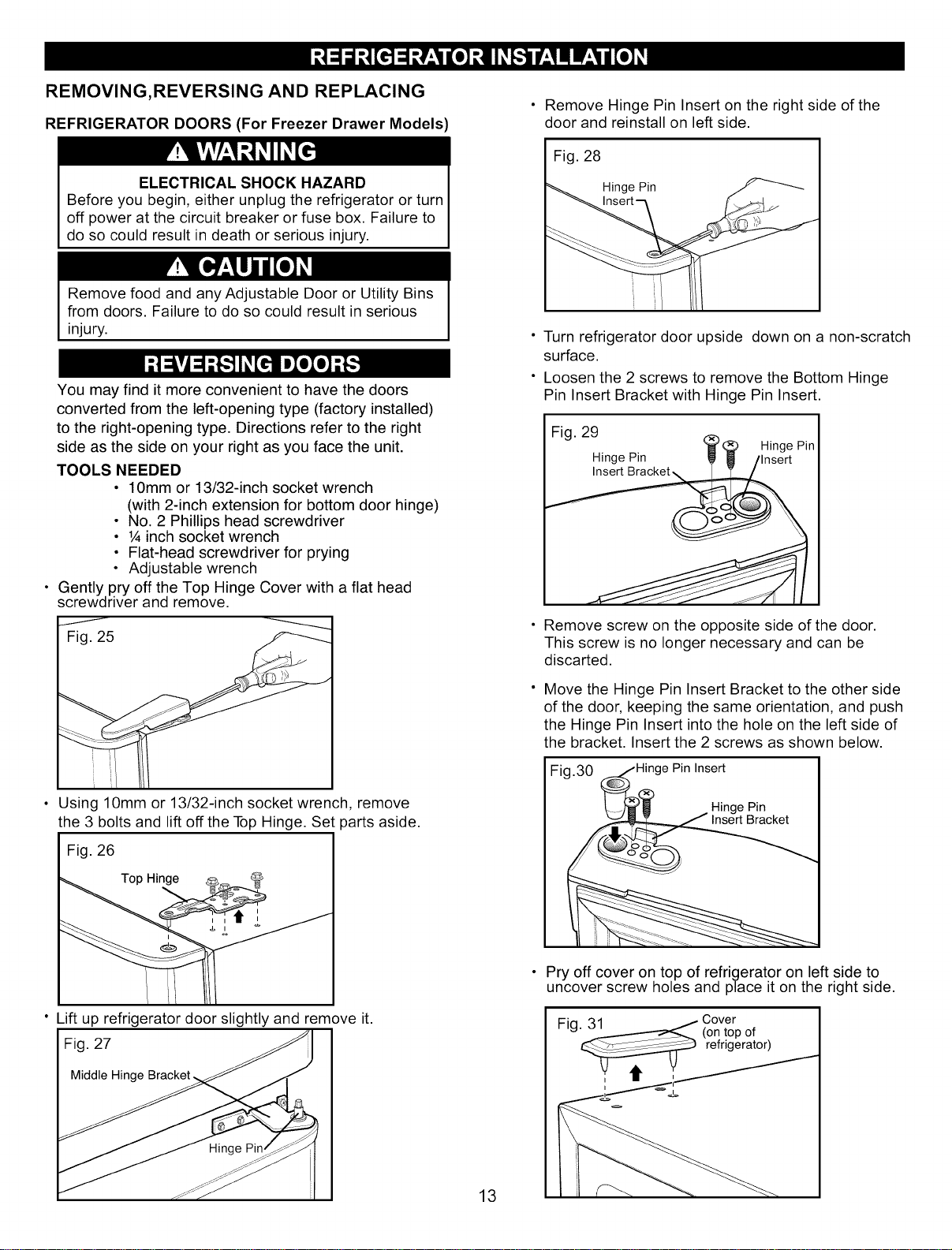

Removing Reversing and Replacing Doors
For Drawer Models 10-15
For Swing Models 16-21
Door Closing and Alignment 21
Using Your Refrigerator 22 -30
Ensuring Proper Air Circulation 22
Multi Flow 22
Door Alarm 22

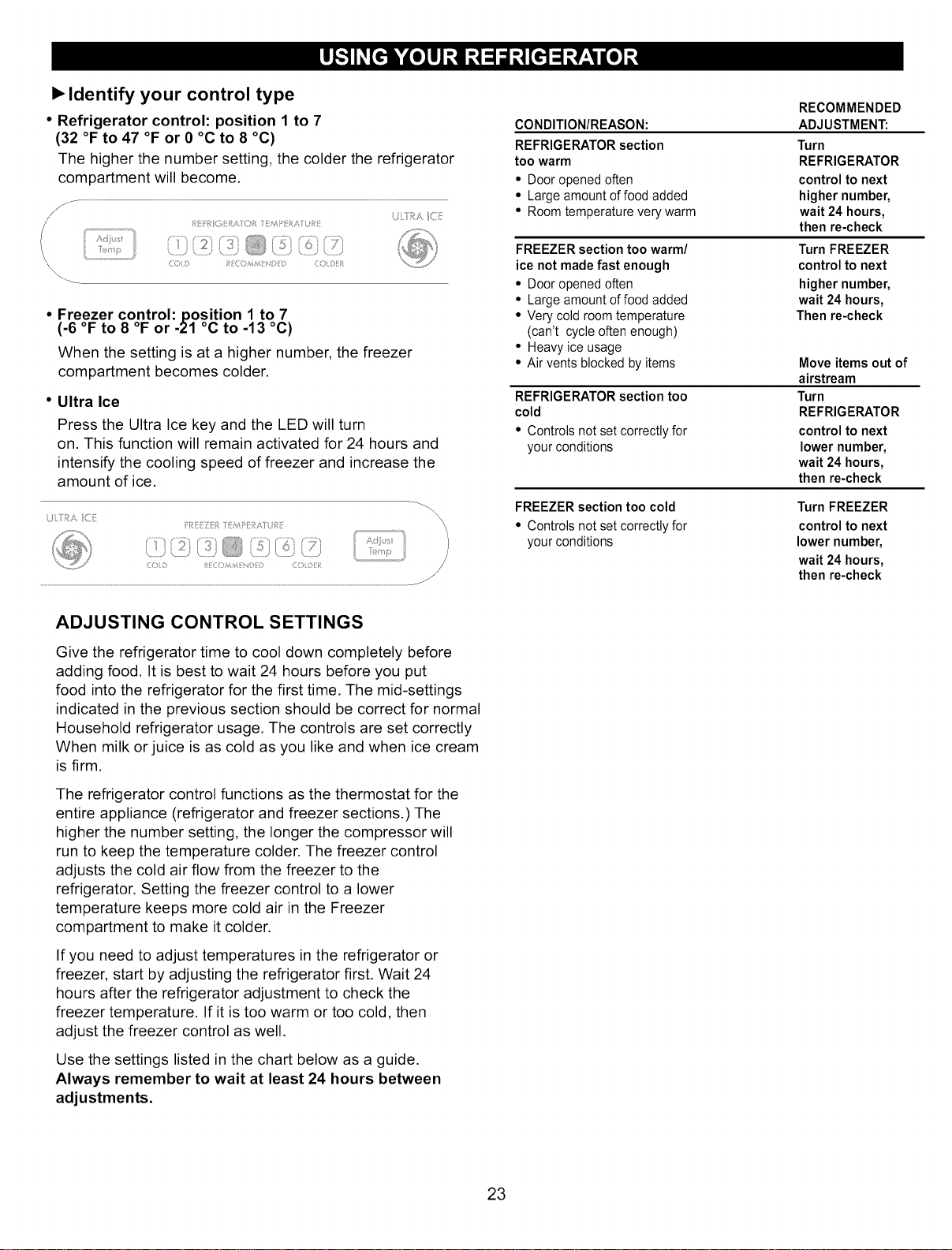

Setting the Controls 22 -23
Adjusting Control Settings 23

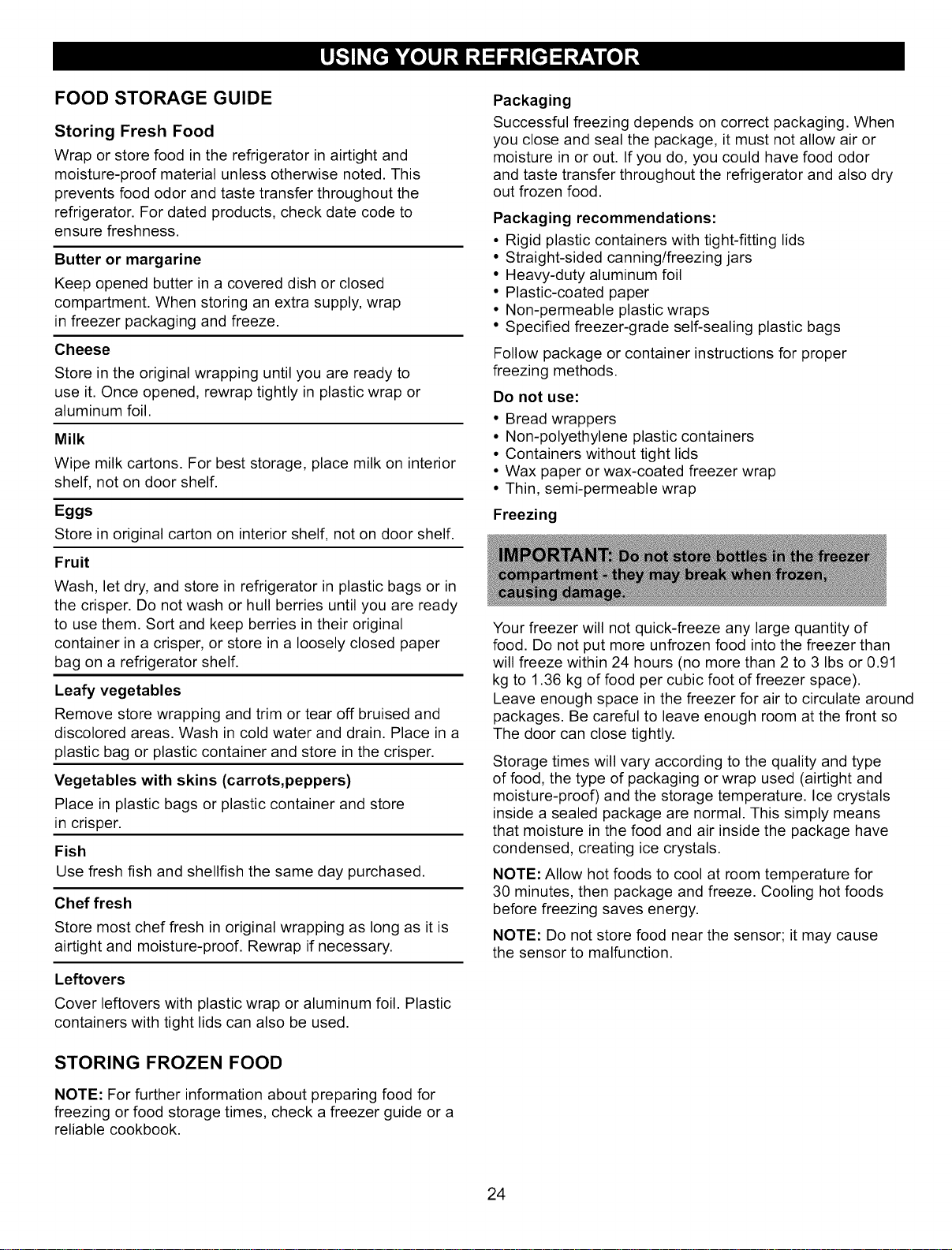

Food Storage Guide 24
Storing Frozen Food 24
Refrigerator Shelves 25
Refrigerator Features for Drawer Type Models 26
Refrigerator Features for Swing Type Models 27

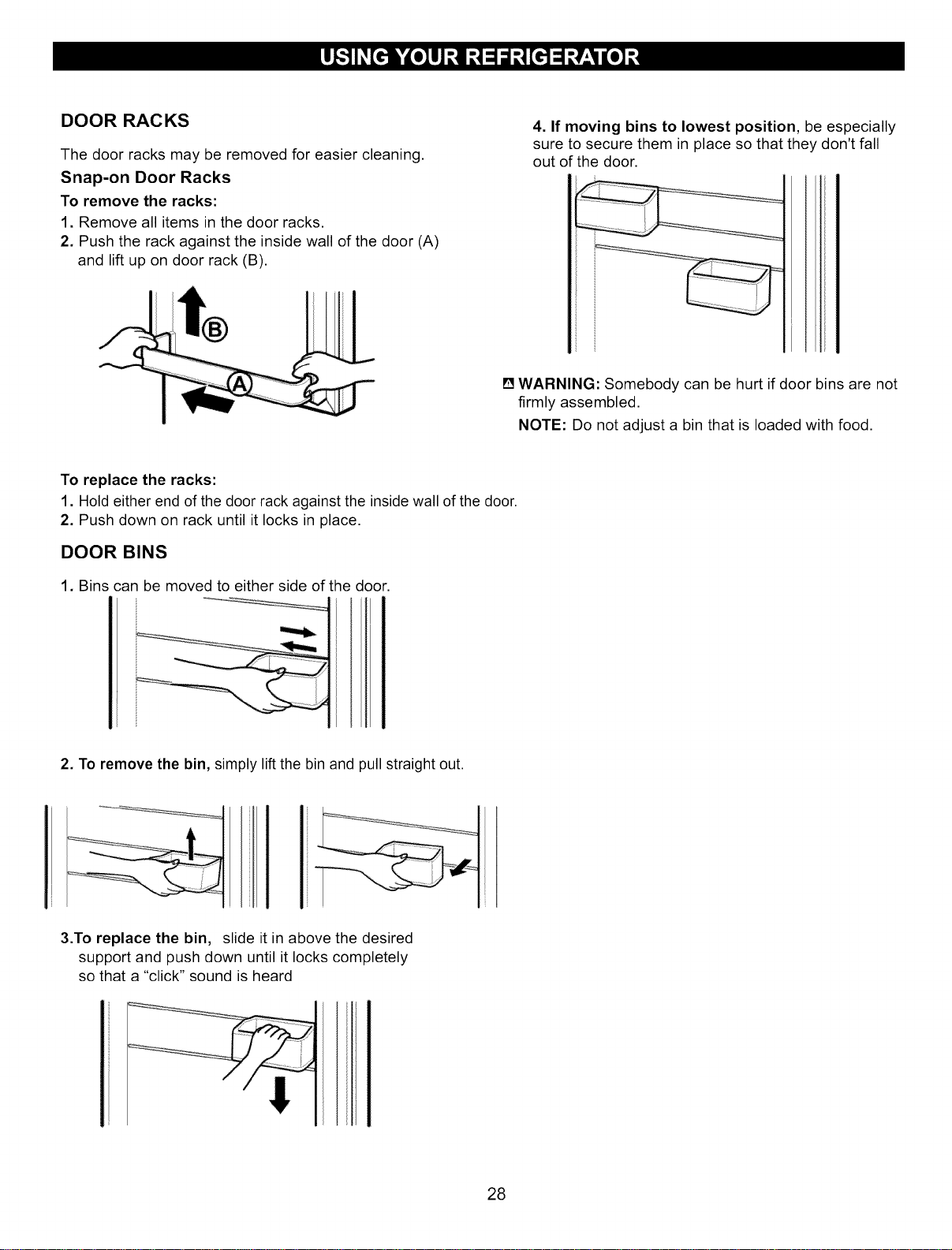

Door Racks
Door Bins
Dairy Bin
Ice Bin
DuraBase
DuraBase Divider
Guide-Out Drawer Basket
Tilting Door
Wire Durabase
Frezzer Shelf
Care and Cleaning
General Cleaning Tips
Outside
Inside Walls
Door Liner and Gaskets
Plastic Parts
Condenser Coils
Light Bulb Replacement
Power Interruptions
When you go on vacation
When you move
About the Icemaker
Connecting the Water Line

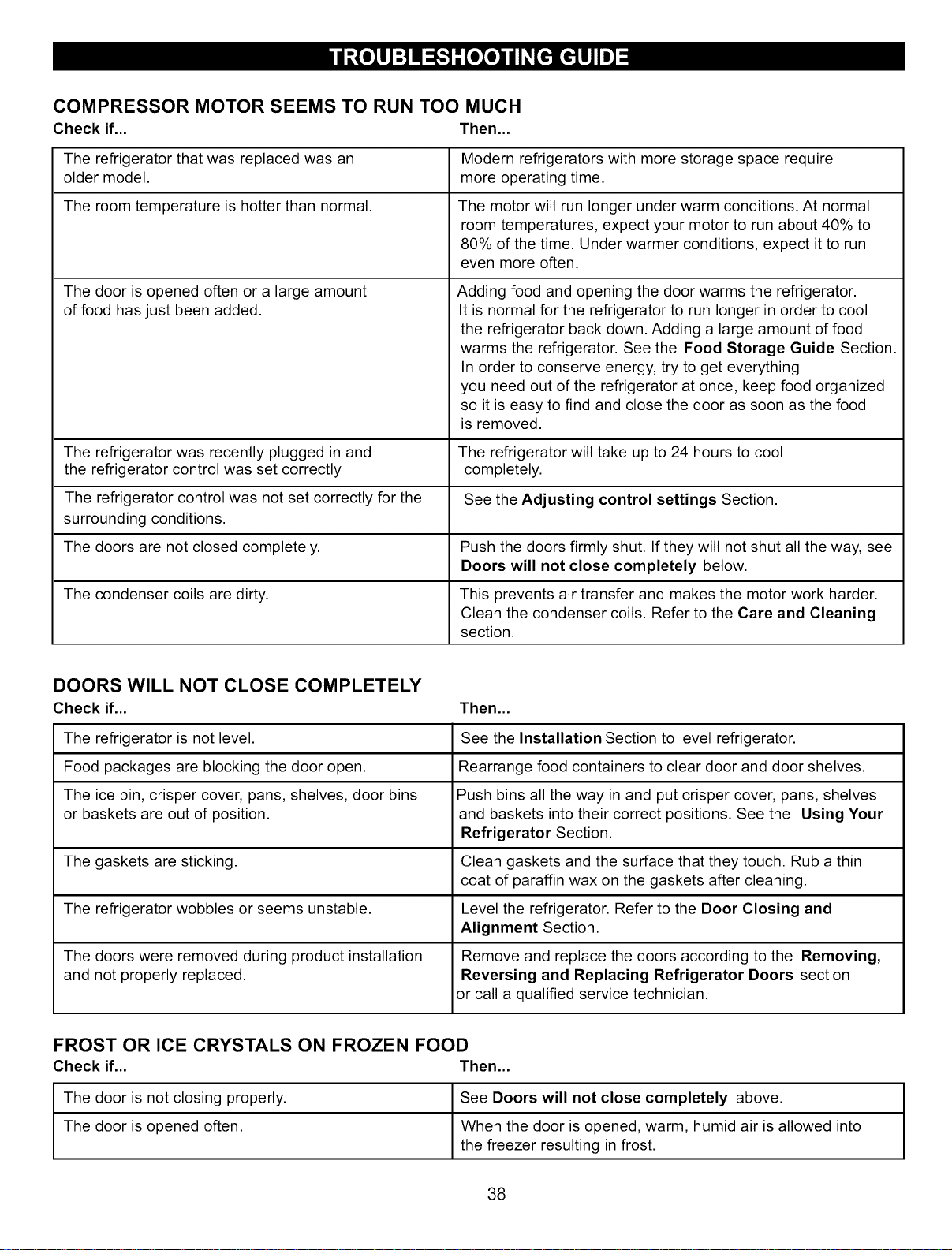

Troubleshooting Guide
26
26
27
27
27
27
30
30
30
30
31 -32
31
31
31
31
31
31
32
32
32
32
33
34 -36
37 -40
2
BOTTOM FREEZER REFRIGERATOR

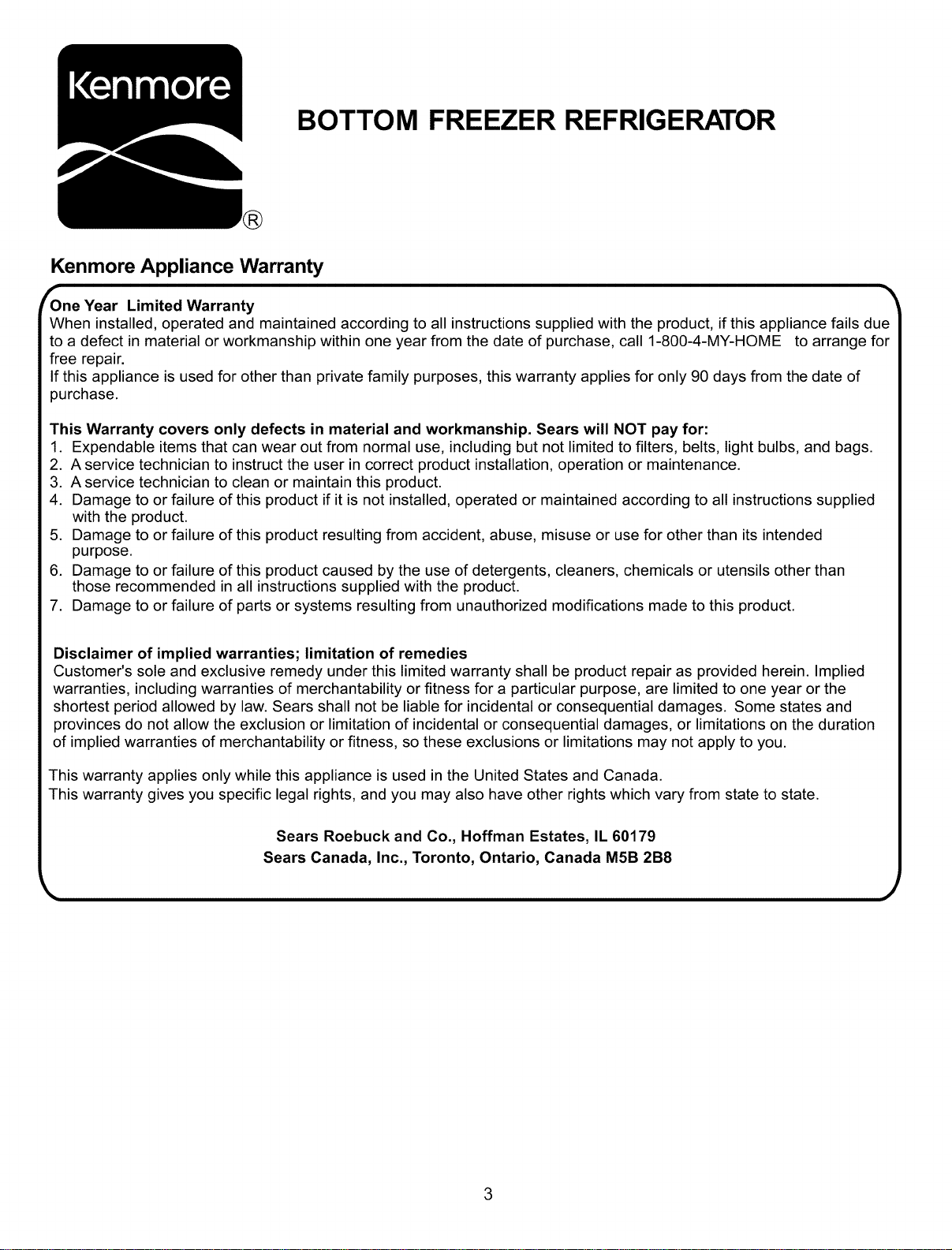

Kenmore Appliance Warranty
_One Year Limited Warranty
When installed, operated and maintained according to all instructionssupplied with the product, if this appliance fails due
to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME to arrange for
free repair.
If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of
purchase.
This Warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructionssupplied
with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended
purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than
those recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the
shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and
provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration
of impliedwarranties of merchantability or fitness, so these exclusions or limitationsmay not apply to you.
This warranty applies only while this appliance is used in the United States and Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
k,
Sears Roebuck and Co., Hoffman Estates, IL 60179
Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8
J
3

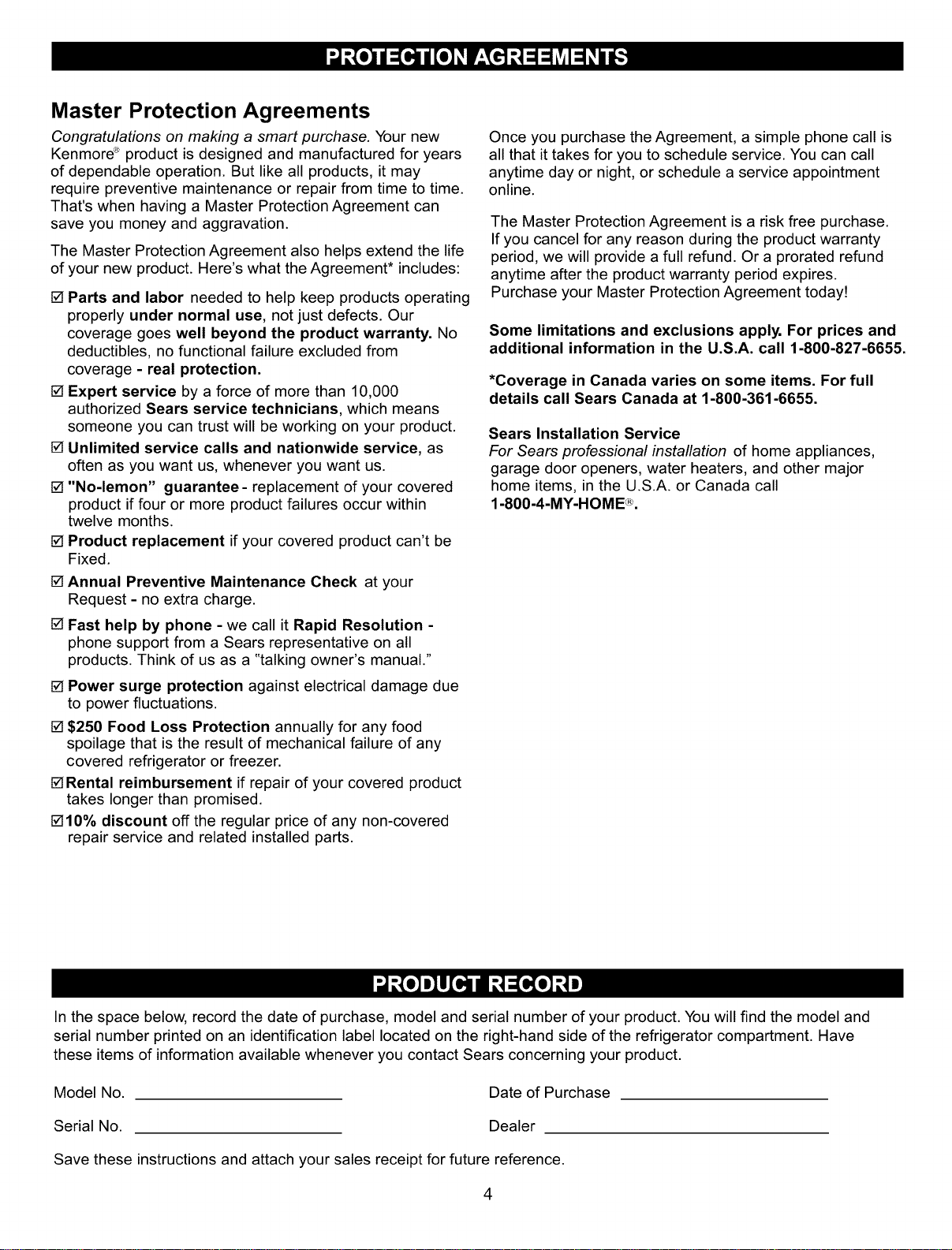

Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmor# _ product is designed and manufactured for years
of dependable operation. But like all products, it may
require preventive maintenance or repair from time to time.
That's when having a Master Protection Agreement can
save you money and aggravation.
The Master Protection Agreement also helps extend the life
of your new product. Here's what the Agreement* includes:
[] Parts and labor needed to help keep products operating
properly under normal use, not just defects. Our
coverage goes well beyond the product warranty. No
deductibles, no functional failure excluded from
coverage - real protection.
[] Expert service by a force of more than 10,000
authorized Sears service technicians, which means
someone you can trust will be working on your product.
[] Unlimited service calls and nationwide service, as
often as you want us, whenever you want us.
[] "No-lemon" guarantee- replacement of your covered
product if four or more product failures occur within
twelve months.
[] Product replacement if your covered product can't be
Fixed.
[] Annual Preventive Maintenance Check at your
Request - no extra charge.
[] Fast help by phone - we call it Rapid Resolution -
phone support from a Sears representative on all
products. Think of us as a "talking owner's manual."
[] Power surge protection against electrical damage due
to power fluctuations.
[] $250 Food Loss Protection annually for any food
spoilage that is the result of mechanical failure of any
covered refrigerator or freezer.
[] Rental reimbursement if repair of your covered product
takes longer than promised.
[]10% discount off the regular price of any non-covered
repair service and related installed parts.
Once you purchase the Agreement, a simple phone call is
all that it takes for you to schedule service. You can call
anytime day or night, or schedule a service appointment
online.
The Master Protection Agreement is a risk free purchase.
If you cancel for any reason during the product warranty
period, we will provide a full refund. Or a prorated refund
anytime after the product warranty period expires.
Purchase your Master Protection Agreement today!
Some limitations and exclusions apply. For prices and
additional information in the U.S.A. call 1-800-827-6655.
*Coverage in Canada varies on some items. For full
details call Sears Canada at 1-800-361-6655.
Sears Installation Service
For Sears professional installation of home appliances,
garage door openers, water heaters, and other major
home items, in the U.S.A. or Canada call
1-800-4-MY-HOME _R_.
In the space below, record the date of purchase, model and serial number of your product. You will find the model and
serial number printed on an identification label located on the right-hand side of the refrigerator compartment. Have
these items of information available whenever you contact Sears concerning your product.
Model No. Date of Purchase
Serial No. Dealer
Save these instructions and attach your sales receipt for future reference.
4

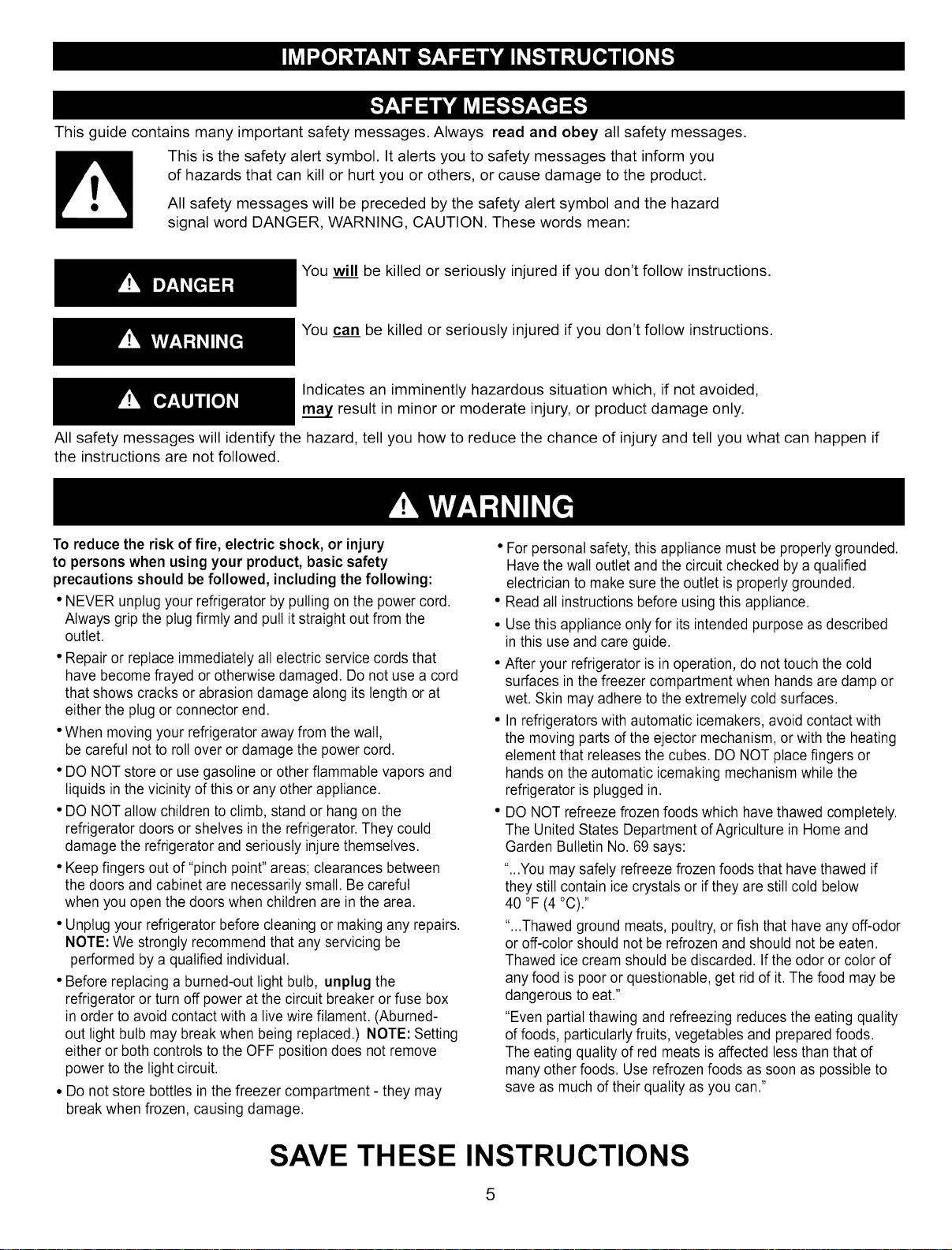

This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you
of hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word DANGER, WARNING, CAUTION. These words mean:
You will be killed or seriously injured if you don't follow instructions.
You can be killed or seriously injured if you don't follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
may result in minor or moderate injury, or product damage only.
All safety messages will identify the hazard, tell you how to reduce the chance of injury and tell you what can happen if
the instructions are not followed.
To reduce the risk offire, electric shock, or injury
to persons when using your product, basic safety
precautions should be followed, includingthe following:
• NEVER unplug your refrigerator by pulling on the power cord.
Always grip the plug firmly and pull itstraight out from the
outlet.
• Repairor replace immediately all electric service cords that
havebecomefrayed or otherwise damaged. Do notuse a cord
that shows cracks or abrasion damage along its length or at
either the plug or connector end.
•When moving your refrigerator away from the wall,
be careful notto roll over or damage the powercord.
• DO NOT store or usegasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
• DO NOTallow children to climb, stand or hang on the
refrigerator doors or shelves in the refrigerator.They could
damage the refrigerator and seriously injure themselves.
• Keepfingers out of "pinch point" areas; clearances between
the doors and cabinet are necessarily small. Be careful
when you open the doorswhen children are in the area.
• Unplugyour refrigerator before cleaning or making any repairs.
NOTE:We strongly recommend that any servicing be
performed by a qualified individual.
• Beforereplacing a burned-out light bulb, unplug the
refrigerator or turn off power at the circuit breaker or fuse box
in order to avoid contact with a livewire filament. (Aburned-
out light bulb may breakwhen being replaced.) NOTE: Setting
either or both controls to the OFF position does not remove
powerto the light circuit.
• Do not store bottles in the freezer compartment -they may
break when frozen, causing damage.
For personal safety,this appliance must be properly grounded.
Have the wall outlet and the circuit checked bya qualified
electrician to make surethe outlet is properly grounded.
Readall instructions before using this appliance.
Use this appliance only for its intended purpose as described
in this useand care guide.
After your refrigerator is in operation, do not touch the cold
surfaces in the freezer compartment when hands are damp or
wet. Skin may adhere to the extremely cold surfaces.
Inrefrigerators with automatic icemakers,avoid contact with
the moving parts of the ejector mechanism, or with the heating
element that releases the cubes. DO NOT place fingers or
handson the automatic icemakingmechanism while the
refrigerator is plugged in.
DO NOT refreeze frozen foods which havethawed completely.
The United States Department ofAgriculture inHome and
Garden Bulletin No. 69 says:
"...Youmay safely refreezefrozen foods that have thawed if
they still contain ice crystals or ifthey are still cold below
40 °F (4 °C)."
"...Thawed ground meats, poultry,or fish that have any off-odor
or off-color should not be refrozen and should not be eaten.
Thawed ice cream should be discarded. If the odor or color of
any food is poor or questionable, get rid of it. The food may be
dangerous to eat."
"Even partial thawing and refreezing reduces the eating quality
of foods, particularlyfruits, vegetables and preparedfoods.
The eating quality of red meats isaffected less than that of
many otherfoods. Use refrozenfoods as soon as possible to
save as much of their quality as you can."
SAVE THESE INSTRUCTIONS
5
This appliance is not intended for use by persons (including children) with reduce physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the
appliance by person responsible for their safety. Children should be supervised to ensure that they do not play with the
appliance.
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous.., even if they will sit for "just a few days". If
you are getting rid of your old refrigerator, please follow
the instructions at right to help prevent accidents.
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER
• Take off the doors.
• Leave the shelves in place so that
children may not easily climb inside.
Your old refrigerator may have a cooling system that used
CFC's (chlorofluorocarbons). CFC's are believed to harm
stratospheric ozone.
If you are throwing away your old refrigerator, make sure
the CFC refrigerant is removed for proper disposal by a
qualified servicer. If you intentionally release this CFC
refrigerant, you can be subject to fines and imprisonment
under provisions of environmental legislation.
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
Electrical Shock Hazard
FOR PERSONAL SAFETY, this appliance must be
properly grounded. Have the wall outlet and the
circuit checked by a qualified electrician to make sure
the outlet is properly grounded.
3-prong
grounding
plug
3-prong
grounding type
wall receptacle
Ensur_ proper
ground exists
before use.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, we strongly recommend against the use of
an extension cord. However, if you still elect to use an
extension cord, it is absolutely necessary that it be a
UL-listed (in the United States), 3-wire grounding type
appliance extension cord having a grounding type plug
and outlet, and that the electrical rating of the cord be
15 amperes (minimum) and 120 volts.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator. If the supply cord
is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order
to avoid any hazard.
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 volts, 60Hz, AC only and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a
fire hazard from overheated wires. It is recommended
that a separate circuit serving only this appliance be
provided. Use a receptacle which cannot be turned off
with a switch or pull chain. Do not use an extension cord.
Where a standard two-prong wall outlet is encountered,
it is your personal responsibility and obligation to have
it replaced with a properly grounded three-prong wall
outlet. Do not, under any circumstances, cut or remove
the third (Ground) prong from the power cord.
NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, turn the control
(Thermostat, Refrigerator Control or Freezer Control,
depending on the model) to OFF and then disconnect
the refrigerator from the electrical source. When you
are finished, reconnect the refrigerator to the electrical
source and reset the control (thermostat, refrigerator
control or freezer control, depending on the model) to
the desired setting.
6

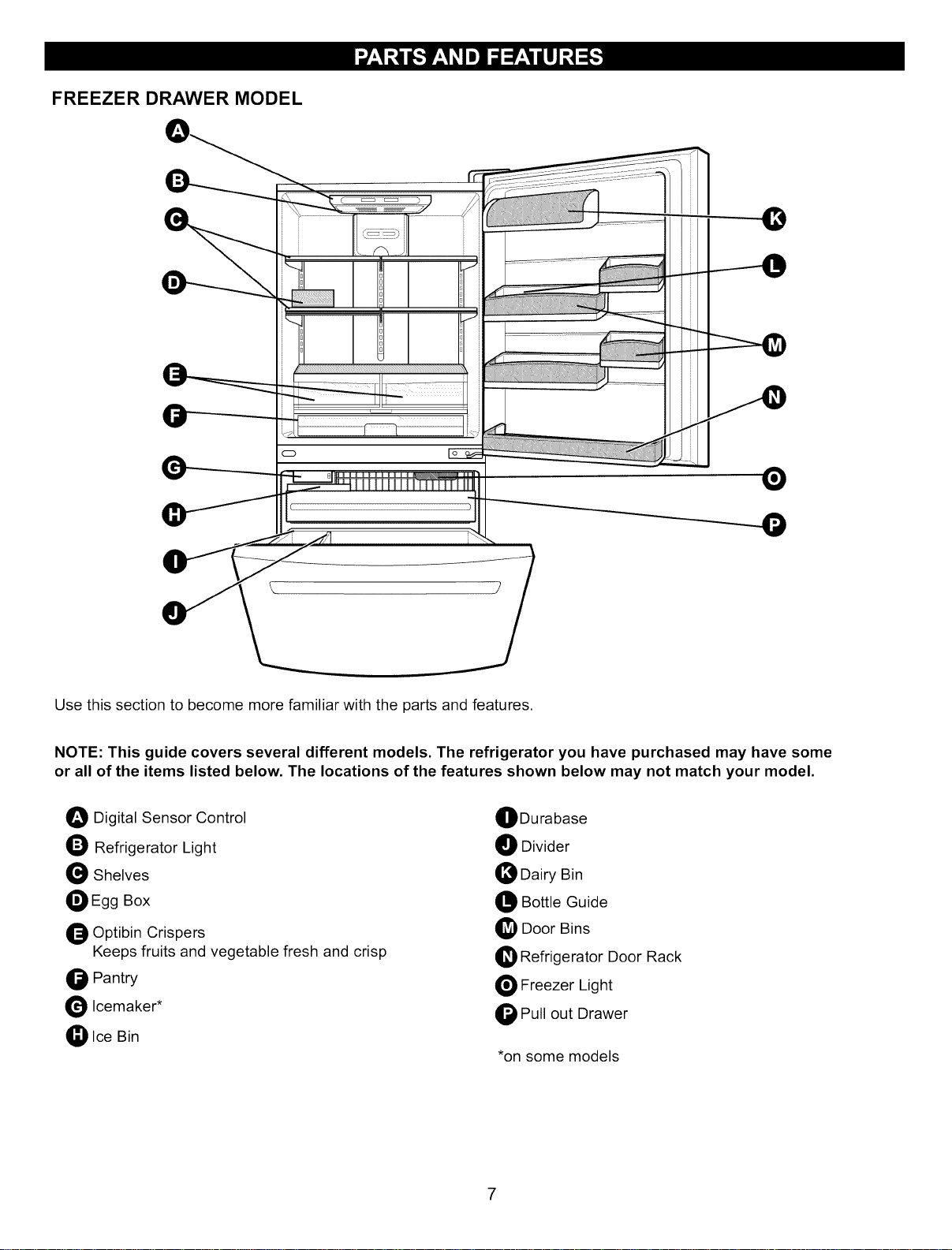

FREEZER DRAWER MODEL
Use this section to become more familiar with the parts and features.
NOTE: This guide covers several different models. The refrigerator you have purchased may have some
or all of the items listed below. The locations of the features shown below may not match your model.
O Digital Sensor Control
O Refrigerator Light
Shelves
O Egg Box
0ptibin Crispers
Keeps fruits and vegetable fresh and crisp
0 Pantry
Icemaker*
0 Ice Bin
ODurabase
O Divider
O Dairy Bin
O Bottle Guide
@ Door Bins
@ Refrigerator Door Rack
Freezer Light
Pull out Drawer
*on some models

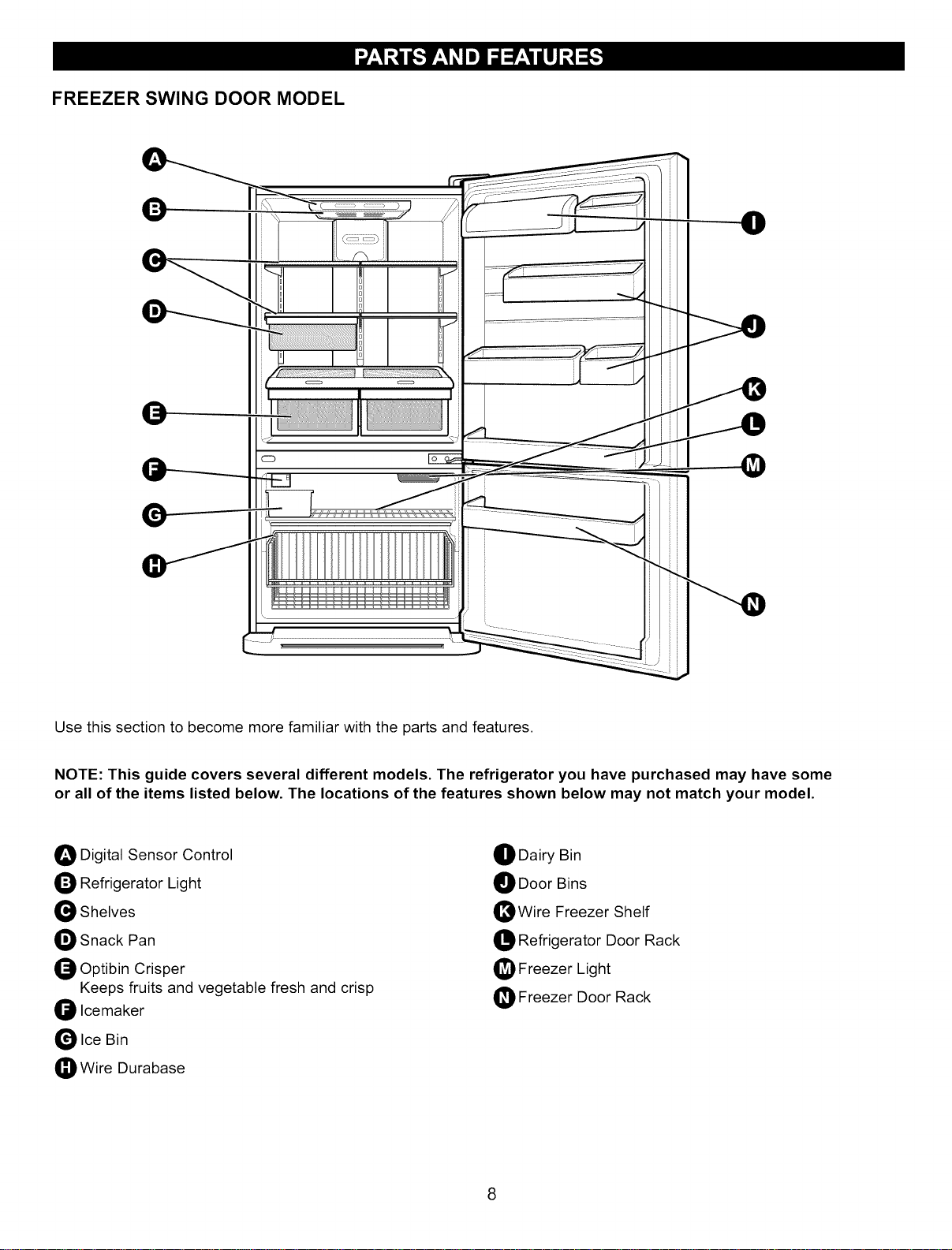

FREEZER SWING DOOR MODEL
Use this section to become more familiar with the parts and features.
NOTE: This guide covers several different models. The refrigerator you have purchased may have some
or all of the items listed below. The locations of the features shown below may not match your model.
O Digital Sensor Control
O Refrigerator Light
G Shelves
O Snack Pan
Qptibin Crisper
Keeps fruits and vegetable fresh and crisp
Icemaker
Ice Bin
_1 Wire Durabase
ODairy Bin
O Door Bins
OWire Freezer Shelf
O Refrigerator Door Rack
@ Freezer Light
O Freezer Door Rack
8
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning-
type labels, the model and serial number label, or the
Tech Sheet that is attached to back wall of the refrigerator.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also be
easily removed by rubbing a small amount of liquid dish
soap over the adhesive with your fingers. Wipe with warm
water and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see the Important Safety Instructions
section.
Refrigerator shelves are installed in the shipping position.
Please reinstall shelves according to your individual
storage needs.
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to protect
the floor. Always pull the refrigerator straight out when
moving it. Do not wiggle or walk the refrigerator when
trying to move it, as floor damage could occur.
3. Install this appliance in an area where the temperature
is between 55 °F (13 °C)and 110 °F (43 °C.)If the
temperature around the appliance is too low or high,
cooling ability may be adversely affected.
[] CAUTION: Avoid placing the unit near heat sources,
direct sunlight or moisture.
NOTE: For proper air circulation, best cooling and energy
consumption results, maintain a minimum distance
of 2 inches (5.08cm) from adjacent items and surfaces
2"(5,08 cm) I
z'(5.o8cml _1I_ _1I--
2" 2"
(5.08 cm) (5.08 cm)
NEXT
1. Clean your refrigerator thoroughly and wipe off all dust
accumulated during shipping.
2. Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during shipment.
.
Let your refrigerator run for 2 or 3 hours before putting
food in it. Check the flow of cold air in the freezer
compartment to ensure proper cooling. Your refrigerator
is now ready for use.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion or fire.
INSTALLATION
1. Avoid placing the unit near heat sources, direct sunlight,
or moisture.
2. To avoid vibration, the unit must be level. If required,
adjust the leveling screws to compensate for
unevenness of the floor. The front should be slightly
higher than the rear to aid in door closing. Leveling
screws can be turned easily by tipping the cabinet
slightly. Turn the leveling screws clockwise ("_'_) to
raise the unit, counterclockwise (_ to lower it.
9
• Be careful when you work with hinge, base grille,
stopper etc. You may be injured.
° Do not put hands or metal sticks into air vents, base
grille or bottom of refrigerator. You may be injured or
receive an electrical shock.
BASE GRILLE INSTRUCTIONS
To Install Base Grille
• Refrigerator door should be opened or removed.
(Necessary on some models).
• Use the 2 Phillips screws provided in the literature
package to attach the Base Grille.
To Remove Grille
• Open or remove refrigerator door. (Necessary on some models).
• Take out the base grille by removing the 2 screws on
the bottom of the refrigerator.
ELECTRICAL SHOCK HAZARD
Before you begin, either unplug the refrigerator or turn off
power at the circuit breaker or fuse box. Failure to do so
could result in death or serious injury.
Remove food and any Adjustable Door or Utility Bins from
doors. Failure to do so could result in serious injury.
Remove washer and set aside.
Use a 10mm or 13/32 inch socket wrench to remove
the 2 bolts in Middle Hinge Bracket. Remove
screws. Set Middle Hinge Bracket and other parts
aside.
(For Freezer Drawer Models)
If entrance is less than 35-inches wide, the refrigerator door
and freezer drawer will need to be removed.
TOOLS NEEDED:
• 10mm or 13/32-inch socket wrench
(with 2-inch extension for bottom door hinge)
° No. 2 Phillips head screwdriver
• Flat-head screwdriver for prying
• Adjustable wrench
Before removing the doors, remove the Base Grille.
See BASE GRILLE INSTALLATION for reference.

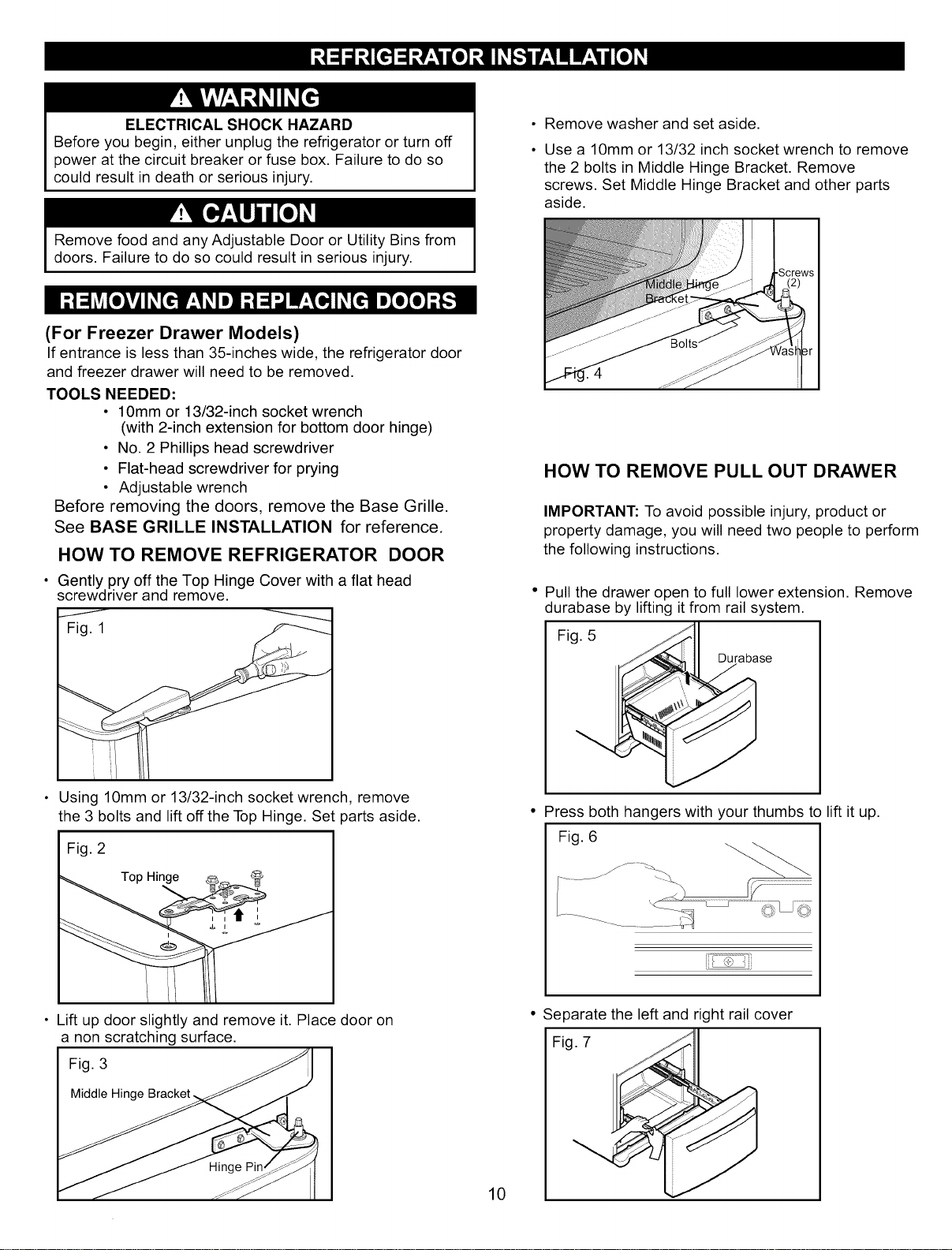

HOW TO REMOVE REFRIGERATOR DOOR
Gently pry off the Top Hinge Cover with a flat head
screwdriver and remove.
J
Fig. 1 ____
Using 10mm or 13/32-inch socket wrench, remove
the 3 bolts and lift off the Top Hinge. Set parts aside.
Fig. 2
Top Hinge
HOW TO REMOVE PULL OUT DRAWER
IMPORTANT: To avoid possible injury, product or
property damage, you will need two people to perform
the following instructions.
• Pull the drawer open to full lower extension. Remove
durabase by lifting it from rail system.
Fig. 5
Durabase
• Press both hangers with your thumbs to lift it up.
Fig. 6
Lift up door slightly and remove it. Place door on
a non scratching surface.
Fig. 3
Middle Hinge
10
• Separate the left and right rail cover
Fig. 7
• Remove the screws of the rail on both sides.
Fig. 8
screw
[] CAUTION:When removing drawer door, do not hold it by
the handle. Door could fall down and you may be injured.
Grasp door with both hands as pictured below when
removing.
[] CAUTION: When laying down the drawer, be careful
not to damage the floor or hurt your feet with the sharp
edges on hinge side.
• With both hands, hold both sides of the door and pull it
up to separate it from the rails.
Fig. 9 _ ::i
ql . ,jOoor
Fig.IOz MI supports
a,,ta es
• Push rails back into drawer cavity. With both hands,
hold the center of the bar and push it in so that both
rails go back simultaneously.
Fig. 11

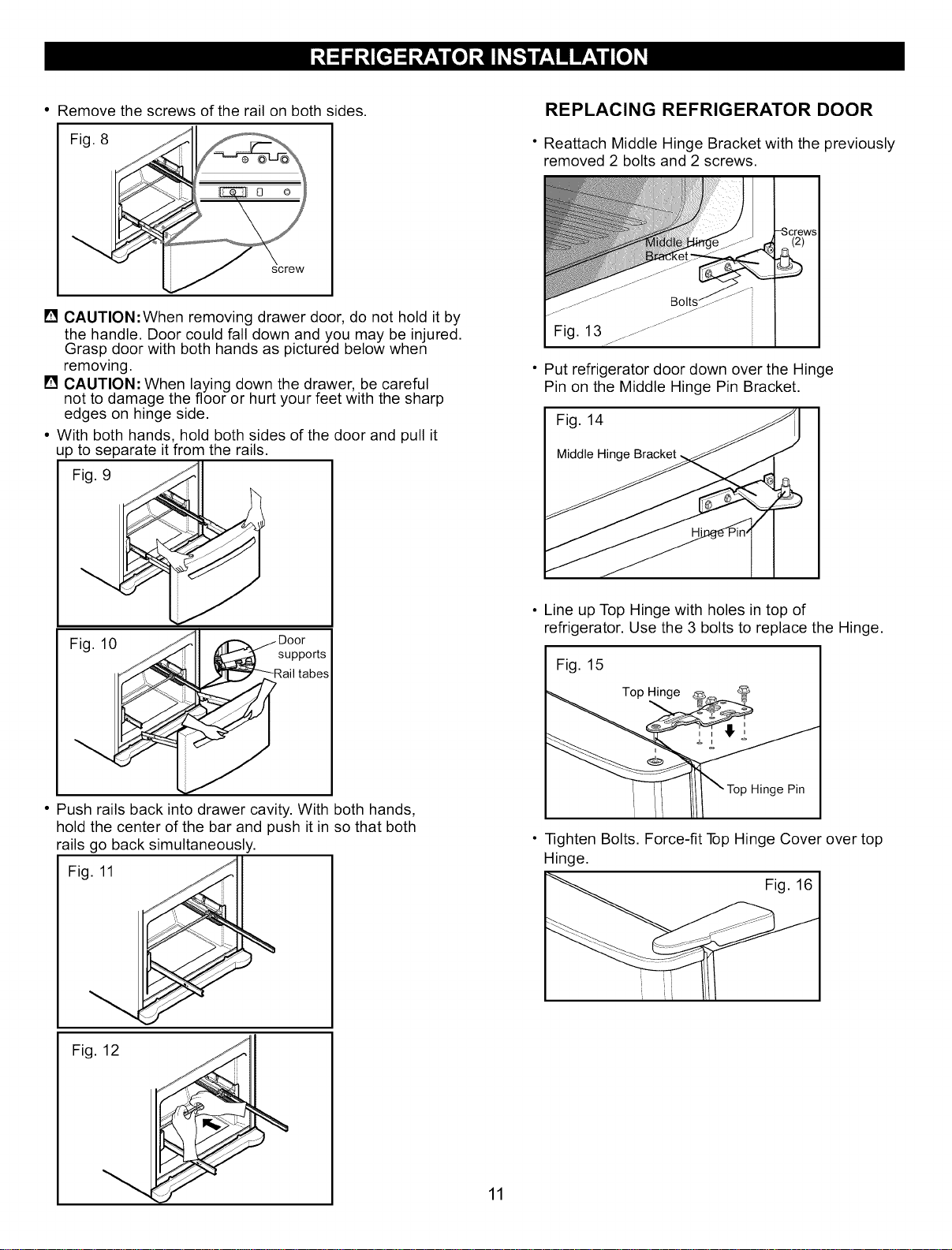

REPLACING REFRIGERATOR DOOR
• Reattach Middle Hinge Bracket with the previously
removed 2 bolts and 2 screws.
-Screws
(2)
Fig. 13
• Put refrigerator door down over the Hinge
Pin on the Middle Hinge Pin Bracket.
Fig. 14
Middle Hinge
• Line up Top Hinge with holes in top of
refrigerator. Use the 3 bolts to replace the Hinge.
Fig. 15
Top
• Tighten Bolts. Force-fit Top Hinge Cover over top
Hinge.
Fig. 16
11
HOW TO INSTALL PULL OUT DRAWER
IMPORTANT: To avoid possible injury, product or
property damage, you will need two people to perform
the following instructions.
• With both hands, hold the center of the bar and pull it
out to let both rails out to full extension simultaneously.
• Hook door supports into rail tabs.
Fig. 1._ipp°rts _
• Align the top holes of the rail cover with the top holes
of the door supports to assemble the rail cover.
Fig. 21
• Verify the hole's alignment.
Fig. 22 _,_
• Lower door into final position and tighten the screws.
Fig. 19
Screws
• Make sure you have the correct rail cover for each side.
Right
Rail cover
Fig. 23
• With the rails pulled out to full extension, insert the
Durabase drawer in the rail assembly.
Fig. 24
Durabase
[] WARNING: To prevent accidental child and pet
entrapment or suffocation risk, DO NOT allow them to
play inside of drawer.
[] WARNING: DO NOT step or sit down on Freezer Door.
12
REMOVING,REVERSING AND REPLACING
REFRIGERATOR DOORS (For Freezer Drawer Models)
ELECTRICAL SHOCK HAZARD
Before you begin, either unplug the refrigerator or turn
off power at the circuit breaker or fuse box. Failure to
do so could result in death or serious injury.
Remove food and any Adjustable Door or Utility Bins
from doors. Failure to do so could result in serious
injury.
You may find it more convenient to have the doors
converted from the left-opening type (factory installed)
to the right-opening type. Directions refer to the right
side as the side on your right as you face the unit.
TOOLS NEEDED
• 10ram or 13/32-inch socket wrench
(with 2-inch extension for bottom door hinge)
• No. 2 Phillips head screwdriver
• 1Ainch socket wrench
• Flat-head screwdriver for prying
• Adjustable wrench
Gently pry off the Top Hinge Cover with a flat head
screwdriver and remove.
Fig. 25
Using 10mm or 13/32-inch socket wrench, remove
the 3 bolts and lift off the Top Hinge. Set parts aside.
Fig. 26
Top Hinge
• Lift up refrigerator door slightly and remove it.
Fig. 27
Middle Hinge
13
Remove Hinge Pin Insert on the right side of the
door and reinstall on left side.
Fig. 28
Hinge Pin
• Turn refrigerator door upside down on a non-scratch
surface.
• Loosen the 2 screws to remove the Bottom Hinge
Pin Insert Bracket with Hinge Pin Insert.
Fig. 29
Hinge Pin
Insert
Hinge Pin
• Remove screw on the opposite side of the door.
This screw is no longer necessary and can be
discarted.
Move the Hinge Pin Insert Bracket to the other side
of the door, keeping the same orientation, and push
the Hinge Pin Insert into the hole on the left side of
the bracket. Insert the 2 screws as shown below.
Fig.30 Pin Insert I
Hinge Pin
Insert Bracket
Pry off cover on top of refrigerator on left side to
uncover screw holes and place it on the right side.
Fig. 31 Cover
(on top of
refrigerator)

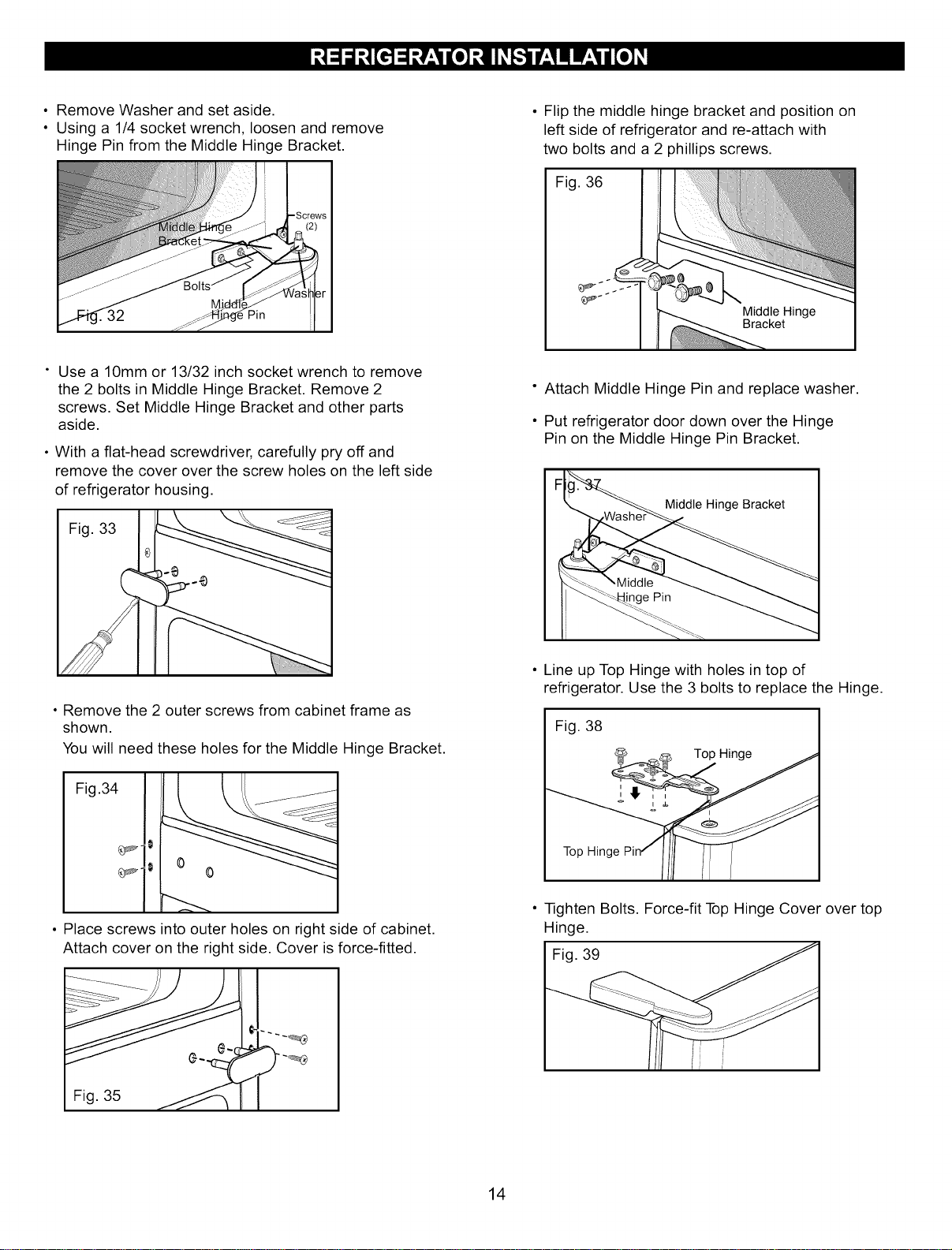

• Remove Washer and set aside.
• Using a 1/4 socket wrench, loosen and remove
Hinge Pin from the Middle Hinge Bracket.
Pin
• Flip the middle hinge bracket and position on
left side of refrigerator and re-attach with
two bolts and a 2 phillips screws.
Fig. 36
ge
Bracket
• Use a 10mm or 13/32 inch socket wrench to remove
the 2 bolts in Middle Hinge Bracket. Remove 2
screws. Set Middle Hinge Bracket and other parts
aside.
• With a fiat-head screwdriver, carefully pry off and
remove the cover over the screw holes on the left side
of refrigerator housing.
Fig. 33
• Remove the 2 outer screws from cabinet frame as
shown.
You will need these holes for the Middle Hinge Bracket.
F 34
• Place screws into outer holes on right side of cabinet.
Attach cover on the right side. Cover is force-fitted.
Fig. 35 ,_J_ [_ I
• Attach Middle Hinge Pin and replace washer.
• Put refrigerator door down over the Hinge
Pin on the Middle Hinge Pin Bracket.
Middle Hinge Bracket
• Line up Top Hinge with holes in top of
refrigerator. Use the 3 bolts to replace the Hinge.
Fig. 38
Top Hinge
Top Hinge
• Tighten Bolts. Force-fit Top Hinge Cover over top
Hinge.
Fig. 39
14
• Install the handle mounting fasteners
on the right side. Turn handle upside down.

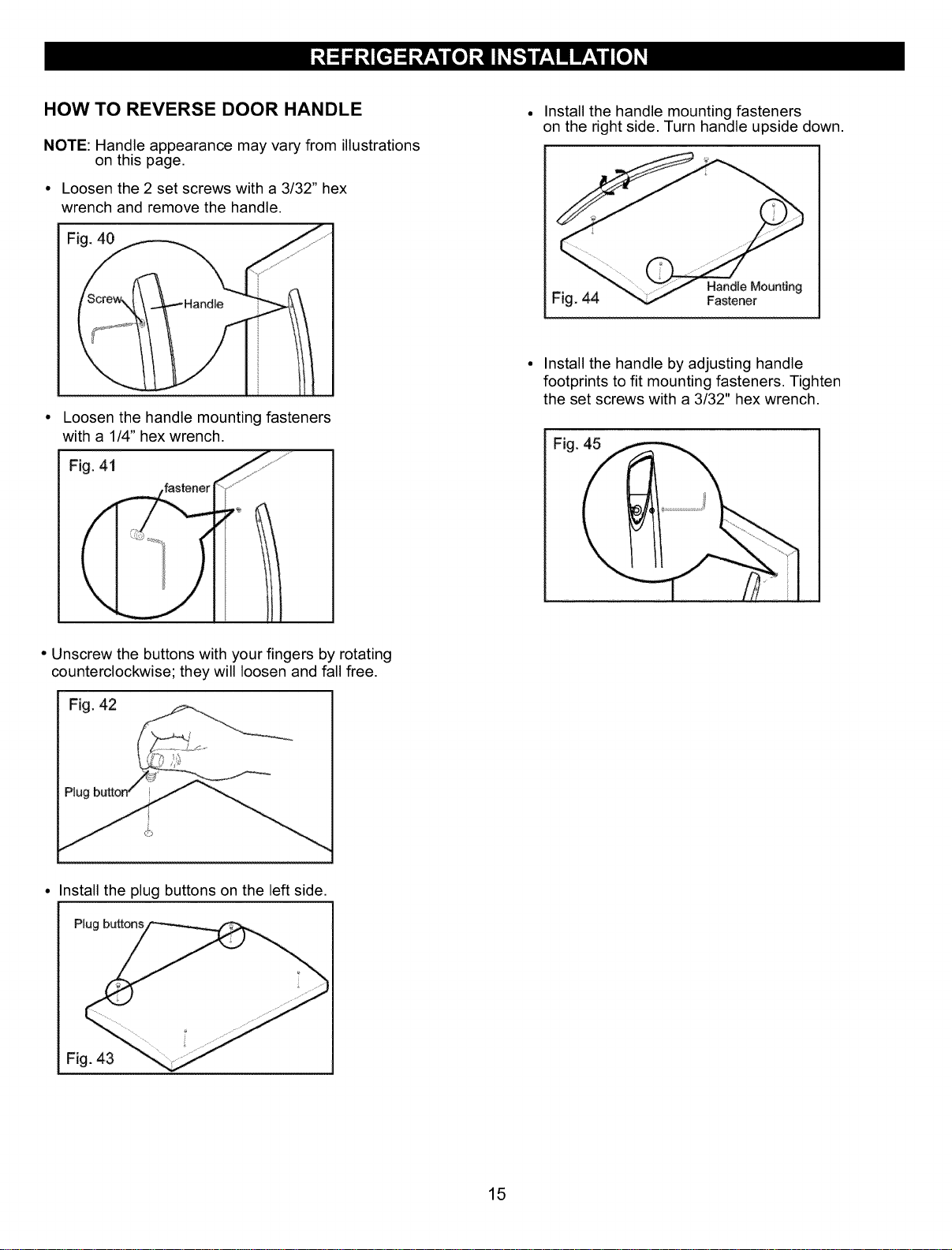

HOW TO REVERSE DOOR HANDLE
NOTE: Handle appearance may vary from illustrations
on this page.
• Loosen the 2 set screws with a 3/32" hex
wrench and remove the handle.
F
Loosen the handle mounting fasteners
with a 1/4" hex wrench.
Fig. 41
Handle MounUng
Fig. 44 Fastener
Install the handle by adjusting handle
footprints to fit mounting fasteners. Tighten
the set screws with a 3/32" hex wrench.
• Unscrew the buttons with your fingers by rotating
counterclockwise; they will loosen and fall free.
• Install the plug buttons on the left side.
Plug
Fig. 43
15

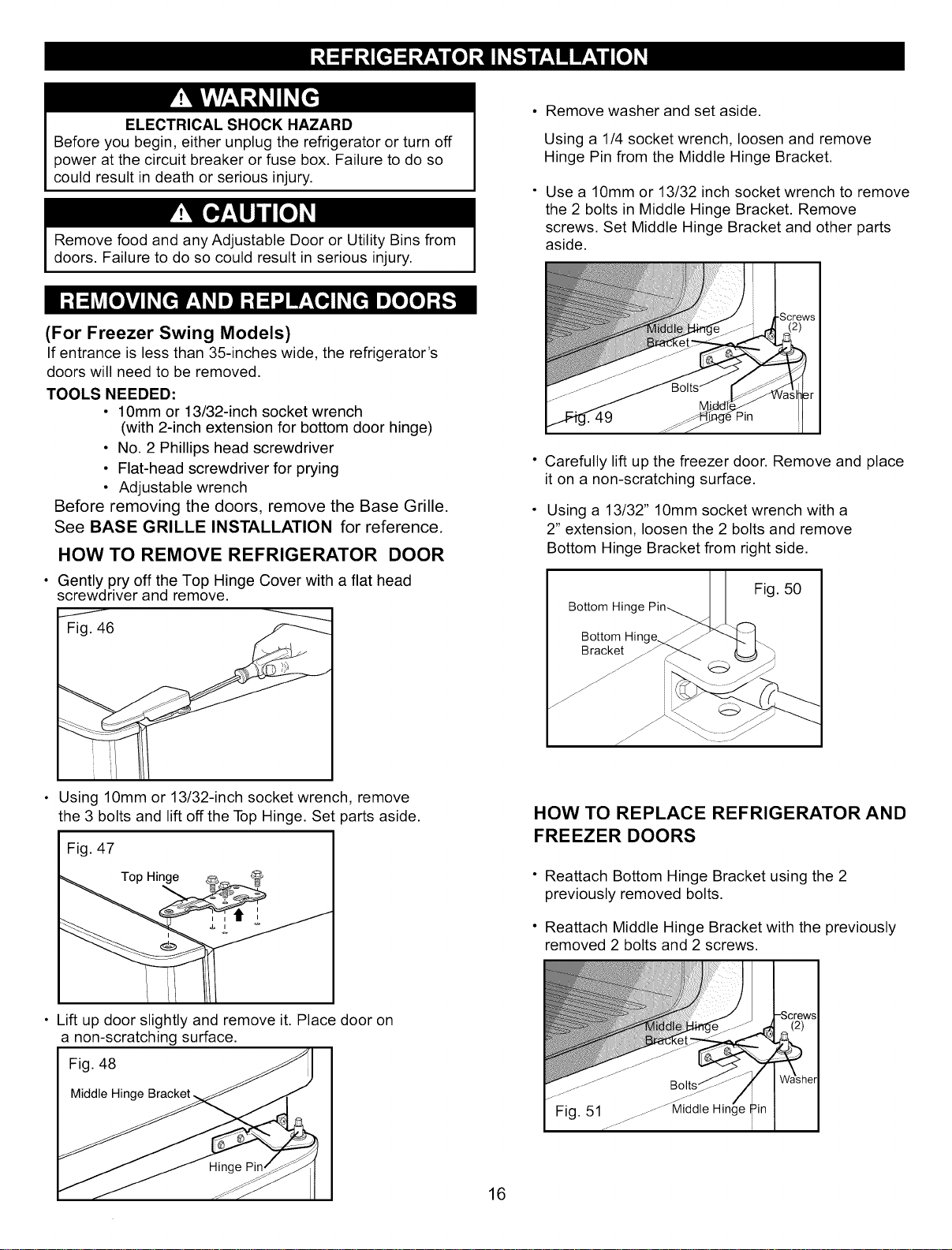

ELECTRICAL SHOCK HAZARD
Before you begin, either unplug the refrigerator or turn off
power at the circuit breaker or fuse box. Failure to do so
could result in death or serious injury.
Remove food and any Adjustable Door or Utility Bins from
doors. Failure to do so could result in serious injury.
Remove washer and set aside.
Using a 1/4 socket wrench, loosen and remove
Hinge Pin from the Middle Hinge Bracket.
Use a 10mm or 13/32 inch socket wrench to remove
the 2 bolts in Middle Hinge Bracket. Remove
screws. Set Middle Hinge Bracket and other parts
aside.
(For Freezer Swing Models)
If entrance is less than 35-inches wide, the refrigerator's
doors will need to be removed.
TOOLS NEEDED:
• 10mm or 13/32-inch socket wrench
(with 2-inch extension for bottom door hinge)
° No. 2 Phillips head screwdriver
• Flat-head screwdriver for prying
• Adjustable wrench
Before removing the doors, remove the Base Grille.
See BASE GRILLE INSTALLATION for reference.
HOW TO REMOVE REFRIGERATOR DOOR
Gently pry off the Top Hinge Cover with a flat head
screwdriver and remove.
J
Fig. 46
Using 10mm or 13/32-inch socket wrench, remove
the 3 bolts and lift off the Top Hinge. Set parts aside.
Fig. 47
Top Hinge
Pin
• Carefully lift up the freezer door. Remove and place
it on a non-scratching surface.
• Using a 13/32" 10mm socket wrench with a
2" extension, loosen the 2 bolts and remove
Bottom Hinge Bracket from right side.
Bottom Hinge
Fig. 50
Bracket
HOW TO REPLACE REFRIGERATOR AND
FREEZER DOORS
• Reattach Bottom Hinge Bracket using the 2
previously removed bolts.
• Reattach Middle Hinge Bracket with the previously
removed 2 bolts and 2 screws.
Lift up door slightly and remove it. Place door on
a non-scratching surface.
Fig. 48
Middle Hinge
16

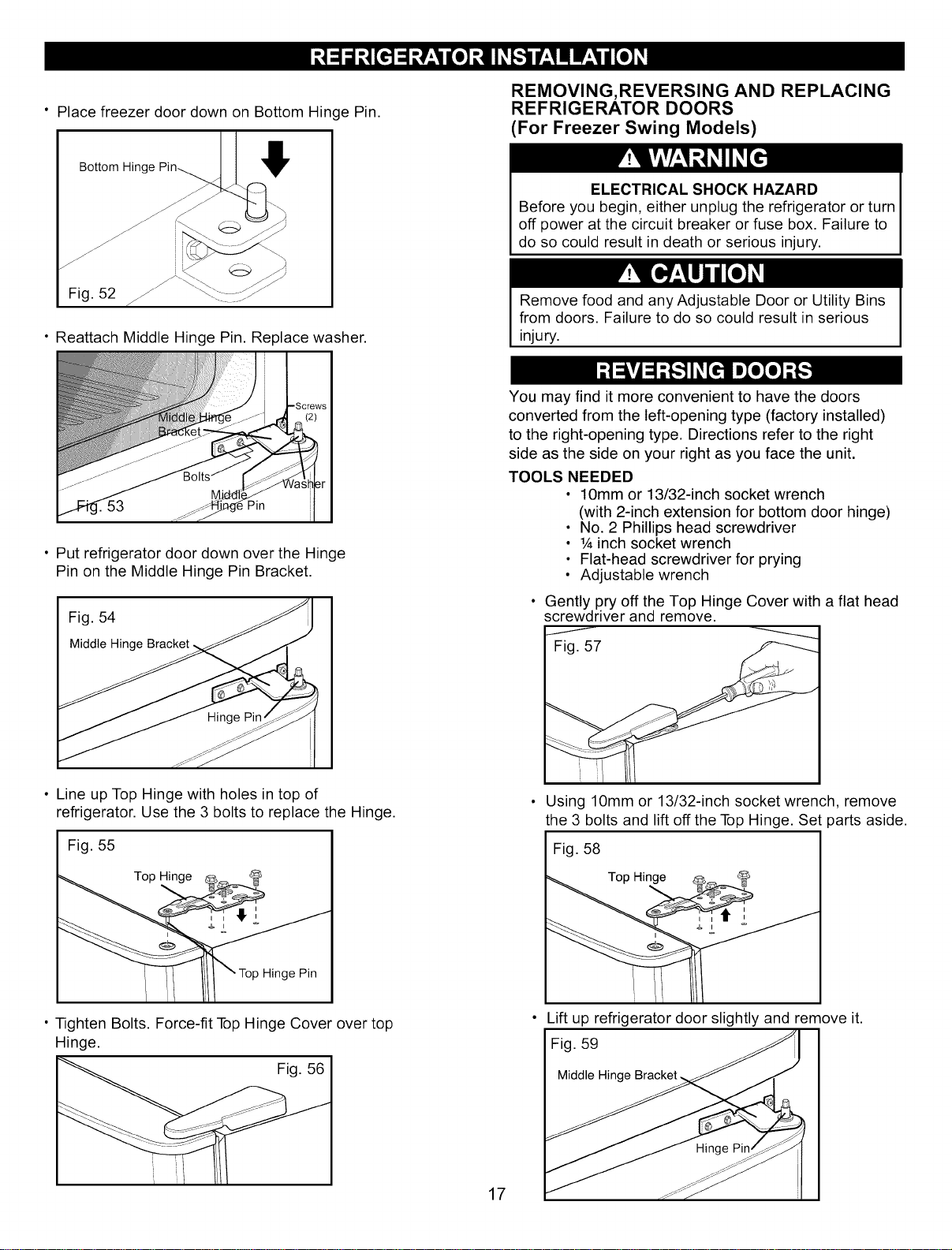

Place freezer door down on Bottom Hinge Pin.
Bottom Hinge '_
Fig. 52
• Reattach Middle Hinge Pin. Replace washer.
REMOVING,REVERSING AND REPLACING
REFRIGERATOR DOORS
(For Freezer Swing Models)
ELECTRICAL SHOCK HAZARD
Before you begin, either unplug the refrigerator or turn
off power at the circuit breaker or fuse box. Failure to
do so could result in death or serious injury.
Remove food and any Adjustable Door or Utility Bins
from doors. Failure to do so could result in serious
injury.
Pin
• Put refrigerator door down over the Hinge
Pin on the Middle Hinge Pin Bracket.
Fig. 54
Middle Hinge
• Line up Top Hinge with holes in top of
refrigerator. Use the 3 bolts to replace the Hinge.
Fig. 55
Top Hinge
You may find it more convenient to have the doors
converted from the left-opening type (factory installed)
to the right-opening type. Directions refer to the right
side as the side on your right as you face the unit.
TOOLS NEEDED
• 10mm or 13/32-inch socket wrench
(with 2-inch extension for bottom door hinge)
• No. 2 Phillips head screwdriver
• 1/4inch socket wrench
• Flat-head screwdriver for prying
• Adjustable wrench
• Gently pry off the Top Hinge Cover with a flat head
screwdriver and remove.
Fig. 57
• Using 10mm or 13/32-inch socket wrench, remove
the 3 bolts and lift off the Top Hinge. Set parts aside.
Fig. 58
Top Hinge
• Tighten Bolts. Force-fit Top Hinge Cover over top
Hinge.
Fig. 56
17
• Lift up refrigerator door slightly and remove it.
Fig. 59
Middle Hin(
Remove Hinge Pin Insert on the right side of the
door and reinstall on left side of door.
Fig. 60
Hinge Pin

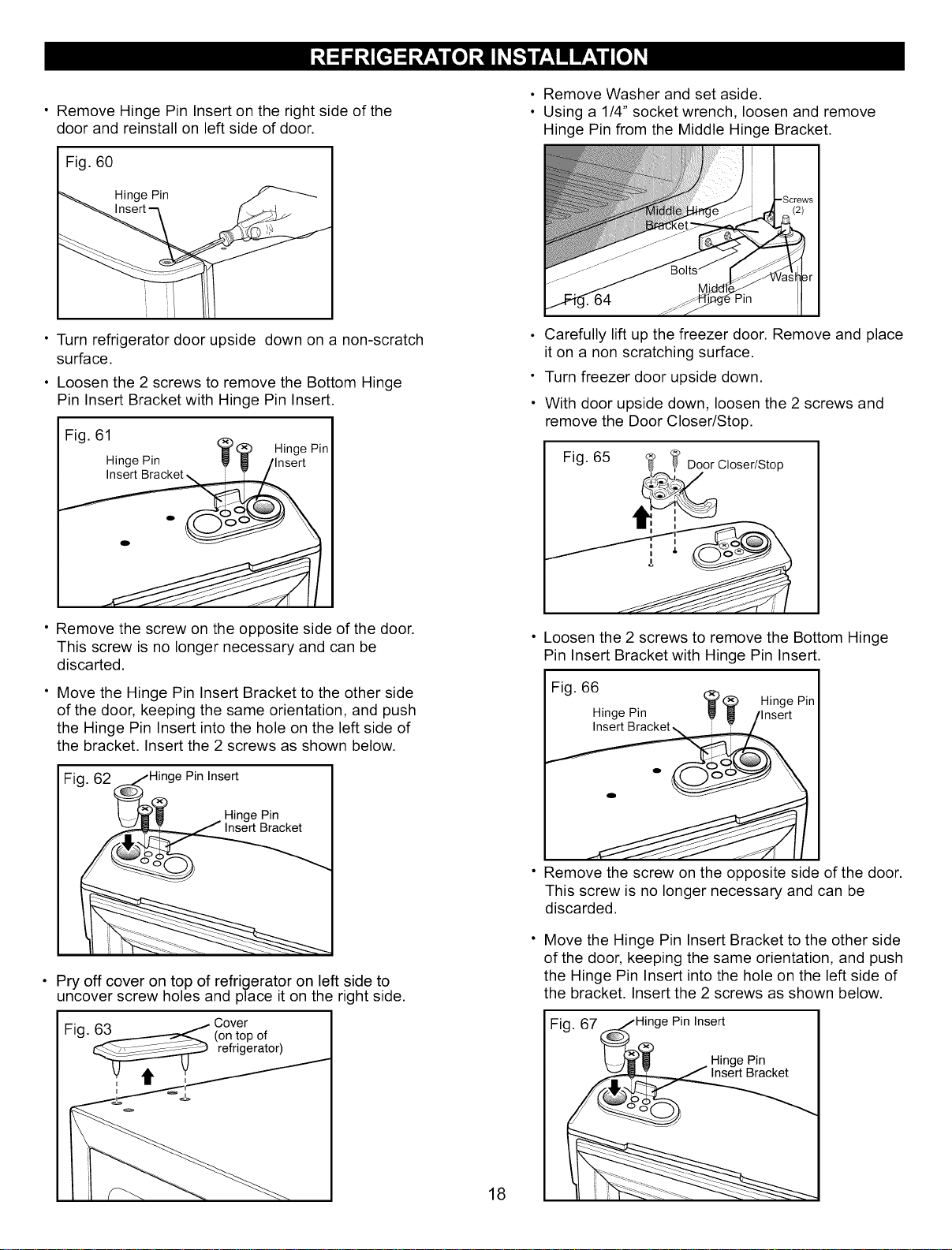

• Turn refrigerator door upside down on a non-scratch
surface.
• Loosen the 2 screws to remove the Bottom Hinge
Pin Insert Bracket with Hinge Pin Insert.
Fig. 61
Hinge
Pin
Hinge Pin W
• Remove Washer and set aside.
• Using a 1/4" socket wrench, loosen and remove
Hinge Pin from the Middle Hinge Bracket.
Pin
Carefully lift up the freezer door. Remove and place
it on a non scratching surface.
Turn freezer door upside down.
With door upside down, loosen the 2 screws and
remove the Door Closer/Stop.
Fig. 65
Door Closer/Stop
• Remove the screw on the opposite side of the door.
This screw is no longer necessary and can be
discarted.
Move the Hinge Pin Insert Bracket to the other side
of the door, keeping the same orientation, and push
the Hinge Pin Insert into the hole on the left side of
the bracket. Insert the 2 screws as shown below.
Fig. Pin Insert
Hinge Pin
• Pry off cover on top of refrigerator on left side to
uncover screw holes and place it on the right side.
Fi'_ 63 _ Cover
u.u_ (on top of
refrigerator)
I 1
18
• Loosen the 2 screws to remove the Bottom Hinge
Pin Insert Bracket with Hinge Pin Insert.
Fig. 66 I
Hinge Pin
Hinge Pin
Insert
• Remove the screw on the opposite side of the door.
This screw is no longer necessary and can be
discarded.
Move the Hinge Pin Insert Bracket to the other side
of the door, keeping the same orientation, and push
the Hinge Pin Insert into the hole on the left side of
the bracket. Insert the 2 screws as shown below.
Fig. 67 Pin Insert I
Hinge Pin
Insert Bracket

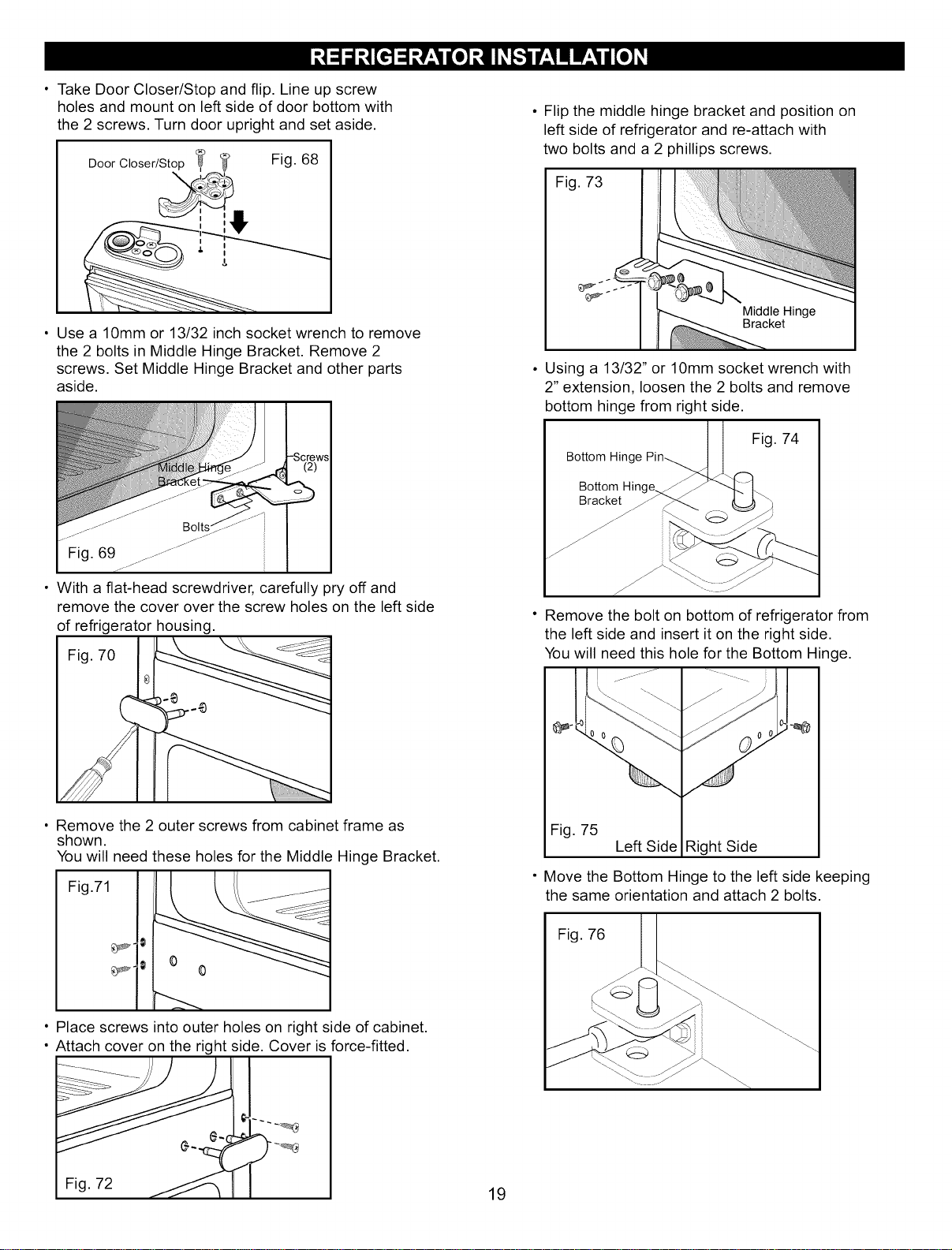

• Take Door Closer/Stop and flip. Line up screw
holes and mount on left side of door bottom with
the 2 screws. Turn door upright and set aside.
Fig. 68
Use a 10mm or 13/32 inch socket wrench to remove
the 2 bolts in Middle Hinge Bracket. Remove 2
screws. Set Middle Hinge Bracket and other parts
aside.
• With a flat-head screwdriver, carefully pry off and
remove the cover over the screw holes on the left side
of refrigerator housing.
Fig. 70
• Flip the middle hinge bracket and position on
left side of refrigerator and re-attach with
two bolts and a 2 phillips screws.
Fig. 73
ge
Bracket
• Using a 13/32" or 10mm socket wrench with
2" extension, loosen the 2 bolts and remove
bottom hinge from right side.
Fig. 74
Bottom Hinge
Bracket
• Remove the bolt on bottom of refrigerator from
the left side and insert it on the right side.
You will need this hole for the Bottom Hinge.
• Remove the 2 outer screws from cabinet frame as
shown.
You will need these holes for the Middle Hinge Bracket.
Fig711:_t_
• Place screws into outer holes on right side of cabinet.
• Attach cover on the right side. Cover is force-fitted.
Fig. 75
Left Sid{ _,ightSide
• Move the Bottom Hinge to the left side keeping
the same orientation and attach 2 bolts.
Fig. 76
19

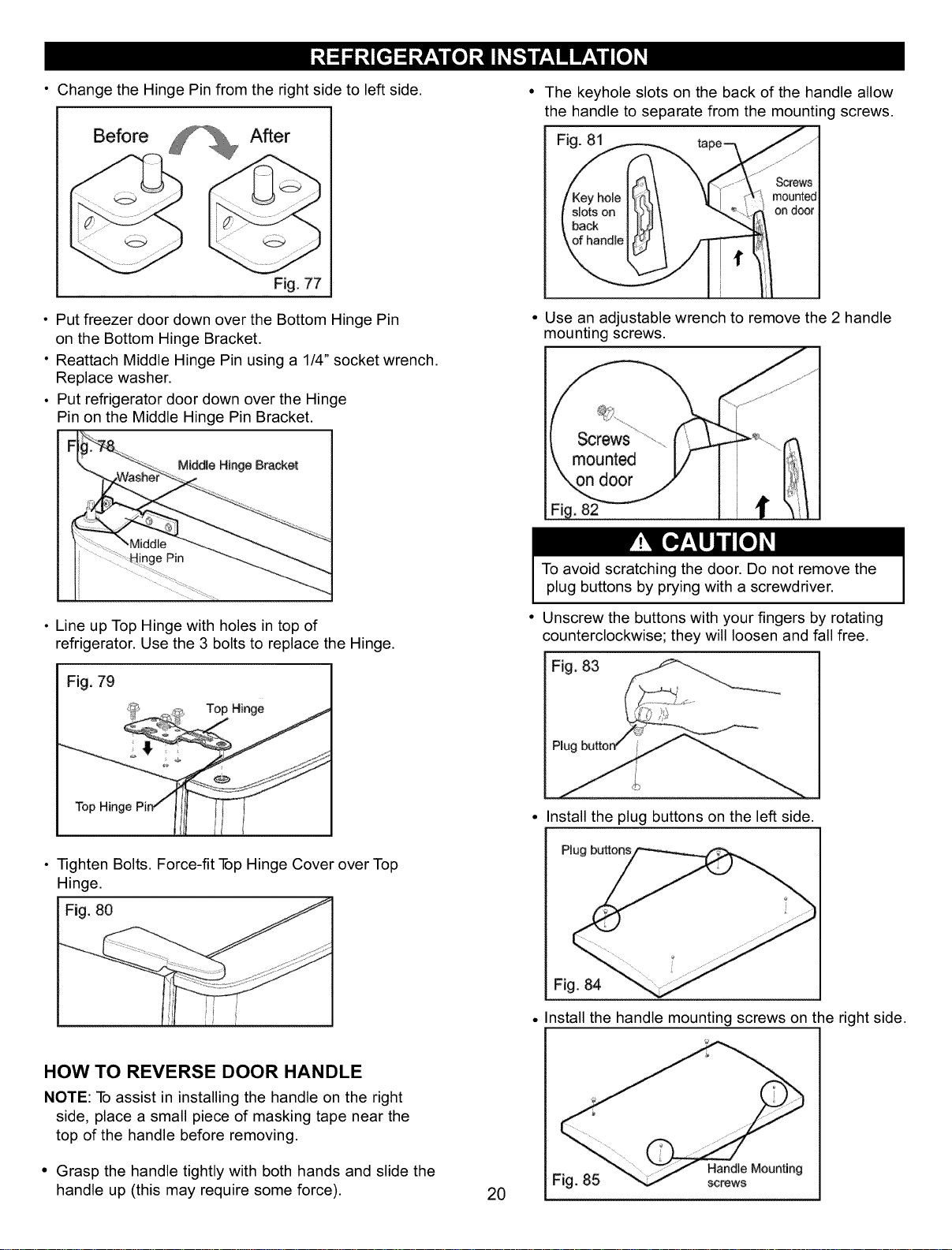

• Change the Hinge Pin from the right side to left side.
After
Fig. 77
• Put freezer door down over the Bottom Hinge Pin
on the Bottom Hinge Bracket.
• Reattach Middle Hinge Pin using a 1/4" socket wrench.
Replace washer.
• Put refrigerator door down over the Hinge
Pin on the Middle Hinge Pin Bracket.
The keyhole slots on the back of the handle allow
the handle to separate from the mounting screws.
• Use an adjustable wrench to remove the 2 handle
mounting screws.
Mille Hinge Bracket
• Line up Top Hinge with holes in top of
refrigerator. Use the 3 bolts to replace the Hinge.
Fig, 79
Top Hinge
Top Hinge
• Tighten Bolts. Force-fit Top Hinge Cover over Top
Hinge.
Fig, 80
To avoid scratching the door. Do not remove the
plug buttons by prying with a screwdriver.
• Unscrew the buttons with your fingers by rotating
counterclockwise; they will loosen and fall free.
• Install the plug buttons on the left side.
Plug
Fig. 84
• Install the handle mounting screws on the right side.
HOW TO REVERSE DOOR HANDLE
NOTE: To assist in installing the handle on the right
side, place a small piece of masking tape near the
top of the handle before removing.
• Grasp the handle tightly with both hands and slide the
handle up (this may require some force).
2O
Handle Mounting
Fig. 85 screws

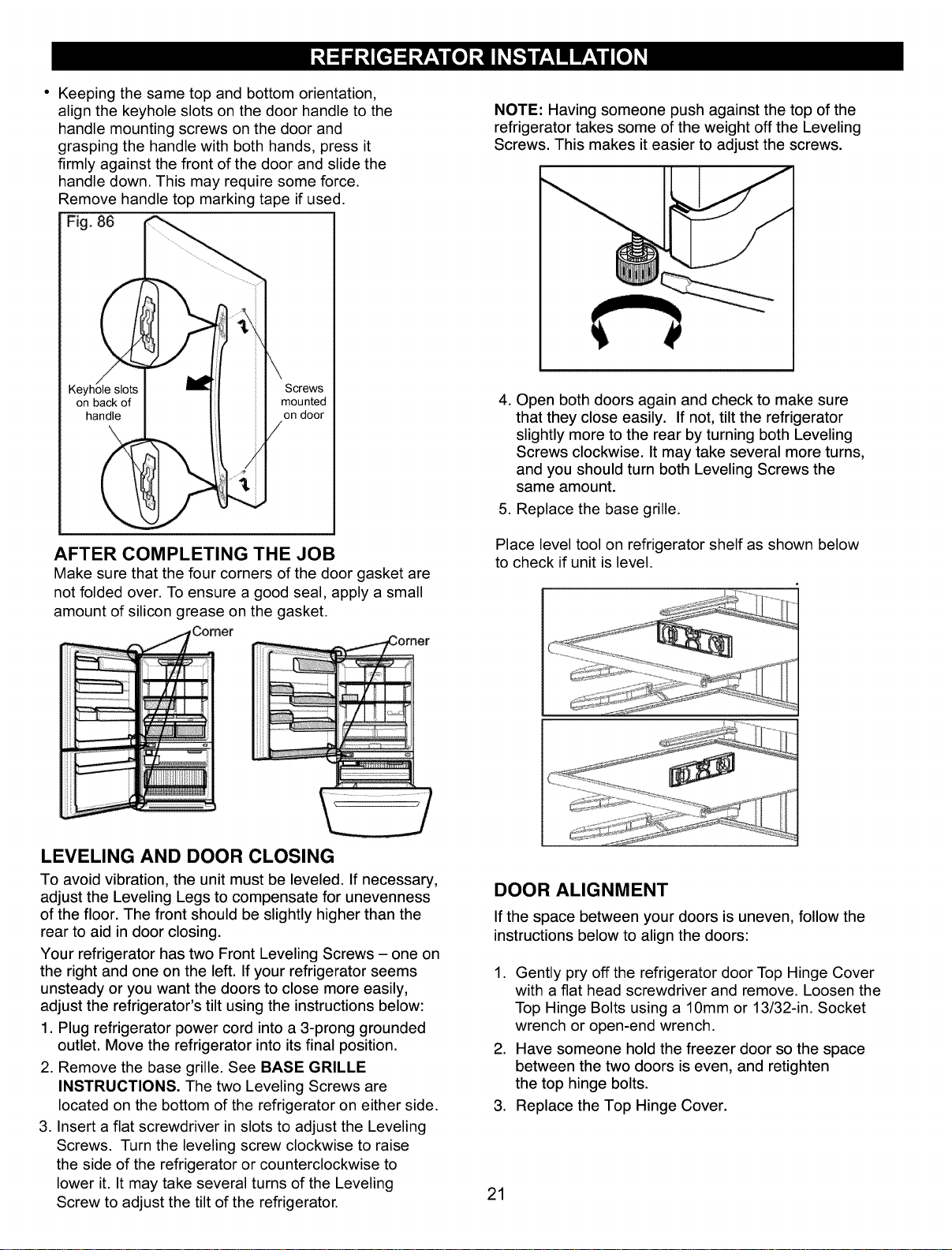

• Keeping the same top and bottom orientation,
align the keyhole slots on the door handle to the
handle mounting screws on the door and
grasping the handle with both hands, press it
firmly against the front of the door and slide the
handle down. This may require some force.
Remove handle top marking tape if used.
Fig. 86
on back of
handle
\
Screws
mounted
on door
/
AFTER COMPLETING THE JOB
Make sure that the four corners of the door gasket are
not folded over. To ensure a good seal, apply a small
amount of silicon grease on the gasket.
.................... i
iiii
!i i
ii
Comer
er
NOTE: Having someone push against the top of the
refrigerator takes some of the weight off the Leveling
Screws. This makes it easier to adjust the screws.
4. Open both doors again and check to make sure
that they close easily. If not, tilt the refrigerator
slightly more to the rear by turning both Leveling
Screws clockwise. It may take several more turns,
and you should turn both Leveling Screws the
same amount.
5. Replace the base grille.
Place level tool on refrigerator shelf as shown below
to check if unit is level.
LEVELING AND DOOR CLOSING
To avoid vibration, the unitmust be leveled. Ifnecessary,
adjust the Leveling Legs to compensate for unevenness
of the floor. The front should be slightly higher than the
rear to aid in door closing.
Your refrigerator has two Front Leveling Screws - one on
the right and one on the left. If your refrigerator seems
unsteady or you want the doors to close more easily,
adjust the refrigerator's tilt using the instructionsbelow:
1. Plug refrigerator power cord into a 3-prong grounded
outlet. Move the refrigerator into itsfinal position.
2. Remove the base grille. See BASE GRILLE
INSTRUCTIONS. The two Leveling Screws are
located on the bottom of the refrigerator on either side.
3. Insert a flat screwdriver in slots to adjust the Leveling
Screws. Turn the leveling screw clockwise to raise
the side of the refrigerator or counterclockwise to
lower it. It may take several turns of the Leveling
Screw to adjust the tilt of the refrigerator.
DOOR ALIGNMENT
If the space between your doors is uneven, follow the
instructionsbelow to align the doors:
1. Gently pry off the refrigerator door Top Hinge Cover
with a fiat head screwdriver and remove. Loosen the
Top Hinge Bolts using a 10mm or 13/32-in. Socket
wrench or open-end wrench.
2. Have someone hold the freezer door so the space
between the two doors is even, and retighten
the top hinge bolts.
3. Replace the Top Hinge Cover.
21

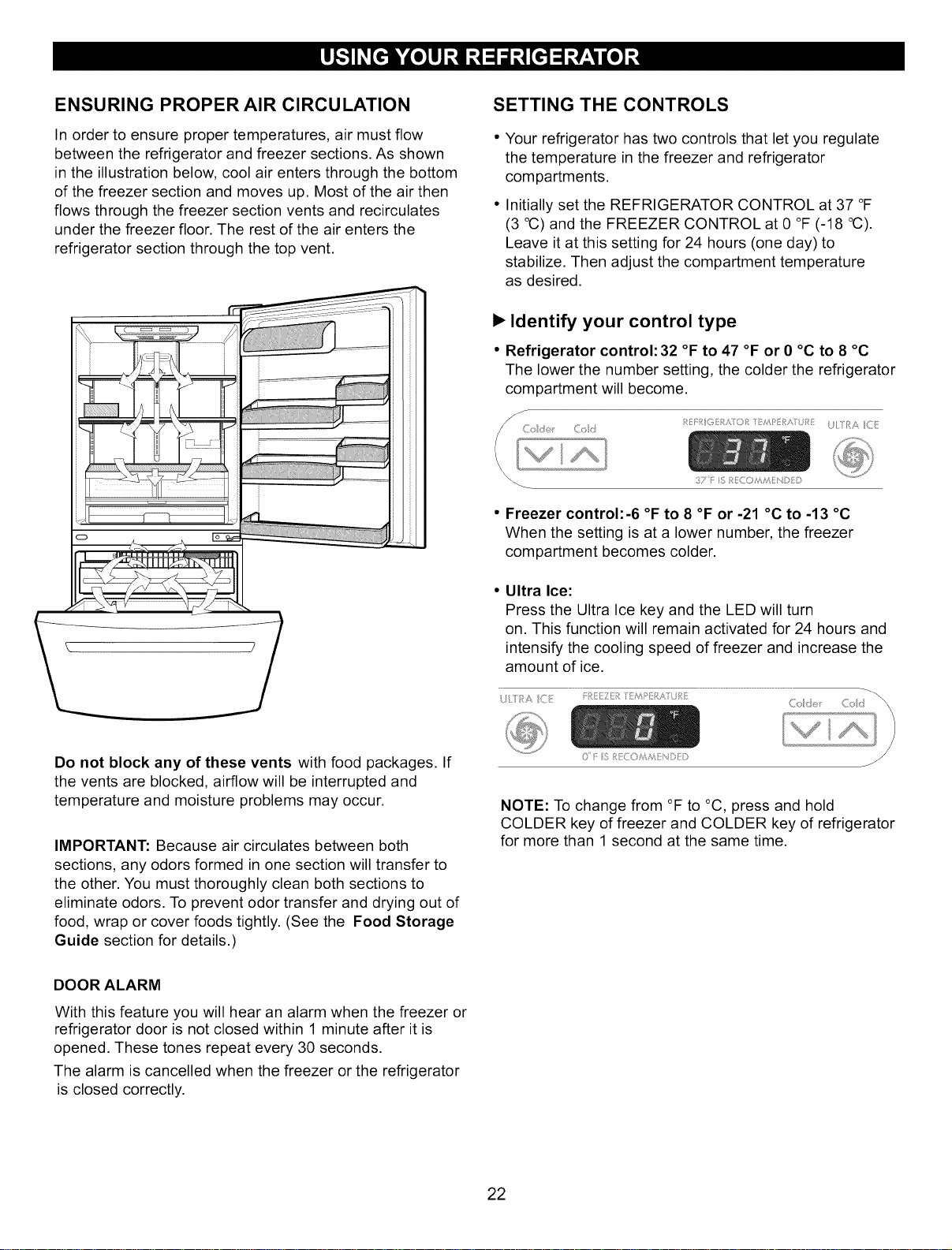

ENSURING PROPER AIR CIRCULATION
In order to ensure proper temperatures, air must flow
between the refrigerator and freezer sections. As shown
in the illustration below, cool air enters through the bottom
of the freezer section and moves up. Most of the air then
flows through the freezer section vents and recirculates
under the freezer floor. The rest of the air enters the
refrigerator section through the top vent.
Do not block any of these vents with food packages. If
the vents are blocked, airflow will be interrupted and
temperature and moisture problems may occur.
IMPORTANT: Because air circulates between both
sections, any odors formed in one section will transfer to
the other. You must thoroughly clean both sections to
eliminate odors. To prevent odor transfer and drying out of
food, wrap or cover foods tightly. (See the Food Storage
Guide section for details.)
SETTING THE CONTROLS
Your refrigerator has two controls that let you regulate
the temperature in the freezer and refrigerator
compartments.
Initially set the REFRIGERATOR CONTROL at 37 °F
(3 %) and the FREEZER CONTROL at 0 °F (-18 °C).
Leave it at this setting for 24 hours (one day) to
stabilize. Then adjust the compartment temperature
as desired.
I_ Identify your control type
• Refrigerator control: 32 °F to 47 °F or 0 °C to 8 °C
The lower the number setting, the colder the refrigerator
compartment will become.
%//\}
tTF SR (_ MM t4?,,J
(/
• Freezer control:-6 °F to 8 °F or -21 °C to -13 °C
When the setting is at a lower number, the freezer
compartment becomes colder.
Ultra Ice:
Press the Ultra Ice key and the LED will turn
on. This function will remain activated for 24 hours and
intensify the cooling speed of freezer and increase the
amount of ice.
,_ i;:A CE F :Z?, MP kA_ JR
0 :: Sk;/COMM 'D ;
Code_ Cod \
l)
/
NOTE: To change from °F to °C, press and hold
COLDER key of freezer and COLDER key of refrigerator
for more than 1 second at the same time.
DOORALARM
With this feature you will hear an alarm when the freezer or
refrigerator door is not closed within 1 minute after it is
opened. These tones repeat every 30 seconds.
The alarm is cancelled when the freezer or the refrigerator
is closed correctly.
22
I_ Identify your control type
• Refrigerator control: position 1 to 7
(32 °F to 47 °F or 0 °C to 8 °C)
The higher the number setting, the colder the refrigerator
compartment will become.
f
/
_,! t( fii_A ;&(
o I
.JR CE
• Freezer control: position 1 to 7
(-6 °F to 8 °F or -21 °C to -13 °C)
When the setting is at a higher number, the freezer
compartment becomes colder.
• Ultra Ice
Press the Ultra Ice key and the LED will turn
on. This function will remain activated for 24 hours and
intensify the cooling speed of freezer and increase the
amount of ice.
ADJUSTING CONTROL SETTINGS
Give the refrigerator time to cool down completely before
adding food. It is best to wait 24 hours before you put
food into the refrigerator for the first time. The mid-settings
indicated in the previous section should be correct for normal
Household refrigerator usage. The controls are set correctly
When milk or juice is as cold as you like and when ice cream
is firm.
The refrigerator control functions as the thermostat for the
entire appliance (refrigerator and freezer sections.) The
higher the number setting, the longer the compressor will
run to keep the temperature colder. The freezer control
adjusts the cold air flow from the freezer to the
refrigerator. Setting the freezer control to a lower
temperature keeps more cold air in the Freezer
compartment to make it colder.
If you need to adjust temperatures in the refrigerator or
freezer, start by adjusting the refrigerator first. Wait 24
hours after the refrigerator adjustment to check the
freezer temperature. If it is too warm or too cold, then
adjust the freezer control as well.
Use the settings listed in the chart below as a guide.
Always remember to wait at least 24 hours between
adjustments.
CONDITION/REASON:
REFRIGERATORsection
too warm
• Dooropened often
• Largeamount of food added
• Roomtemperature very warm
FREEZER section too warm/
ice not made fast enough
• Dooropened often
• Largeamount of food added
• Very cold roomtemperature
(can't cycle often enough)
• Heavy ice usage
• Air vents blocked by items
REFRIGERATORsection too
cold
• Controls not set correctly for
your conditions
FREEZER section too cold
• Controls not set correctly for
your conditions
RECOMMENDED
ADJUSTMENT:
Turn
REFRIGERATOR
control to next
higher number,
wait 24 hours,
then re-check
Turn FREEZER
control to next
higher number,
wait 24 hours,
Then re-check
Moveitems out of
airstream
Turn
REFRIGERATOR
control to next
lower number,
wait 24 hours,
then re-check
Turn FREEZER
control to next
lower number,
wait 24 hours,
then re-check
23
FOOD STORAGE GUIDE
Storing Fresh Food
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date code to
ensure freshness.
Butter or margarine
Keep opened butter in a covered dish or closed
compartment. When storing an extra supply, wrap
in freezer packaging and freeze.
Cheese
Store in the original wrapping until you are ready to
use it. Once opened, rewrap tightly in plastic wrap or
aluminum foil.
Milk
Wipe milk cartons. For best storage, place milk on interior
shelf, not on door shelf.
Eggs
Store in original carton on interior shelf, not on door shelf.
Fruit
Wash, let dry, and store in refrigerator in plastic bags or in
the crisper. Do not wash or hull berries until you are ready
to use them. Sort and keep berries in their original
container in a crisper, or store in a loosely closed paper
bag on a refrigerator shelf.
Leafy vegetables
Remove store wrapping and trim or tear off bruised and
discolored areas. Wash in cold water and drain. Place in a
plastic bag or plastic container and store in the crisper.
Vegetables with skins (carrots,peppers)
Place in plastic bags or plastic container and store
in crisper.
Fish
Use fresh fish and shellfish the same day purchased.
Chef fresh
Store most chef fresh in original wrapping as long as it is
airtight and moisture-proof. Rewrap if necessary.
Leftovers
Cover leftovers with plastic wrap or aluminum foil. Plastic
containers with tight lids can also be used.
STORING FROZEN FOOD
NOTE: For further information about preparing food for
freezing or food storage times, check a freezer guide or a
reliable cookbook.
Packaging
Successful freezing depends on correct packaging. When
you close and seal the package, it must not allow air or
moisture in or out. If you do, you could have food odor
and taste transfer throughout the refrigerator and also dry
out frozen food.
Packaging recommendations:
• Rigid plastic containers with tight-fitting lids
• Straight-sided canning/freezing jars
• Heavy-duty aluminum foil
• Plastic-coated paper
• Non-permeable plastic wraps
• Specified freezer-grade self-sealing plastic bags
Follow package or container instructions for proper
freezing methods.
Do not use:
• Bread wrappers
• Non-polyethylene plastic containers
• Containers without tight lids
• Wax paper or wax-coated freezer wrap
• Thin, semi-permeable wrap
Freezing
Your freezer will not quick-freeze any large quantity of
food. Do not put more unfrozen food into the freezer than
will freeze within 24 hours (no more than 2 to 3 Ibs or 0.91
kg to 1.36 kg of food per cubic foot of freezer space).
Leave enough space in the freezer for air to circulate around
packages. Be careful to leave enough room at the front so
The door can close tightly.
Storage times will vary according to the quality and type
of food, the type of packaging or wrap used (airtight and
moisture-proof) and the storage temperature. Ice crystals
inside a sealed package are normal. This simply means
that moisture in the food and air inside the package have
condensed, creating ice crystals.
NOTE: Allow hot foods to cool at room temperature for
30 minutes, then package and freeze. Cooling hot foods
before freezing saves energy.
NOTE: Do not store food near the sensor; it may cause
the sensor to malfunction.
24

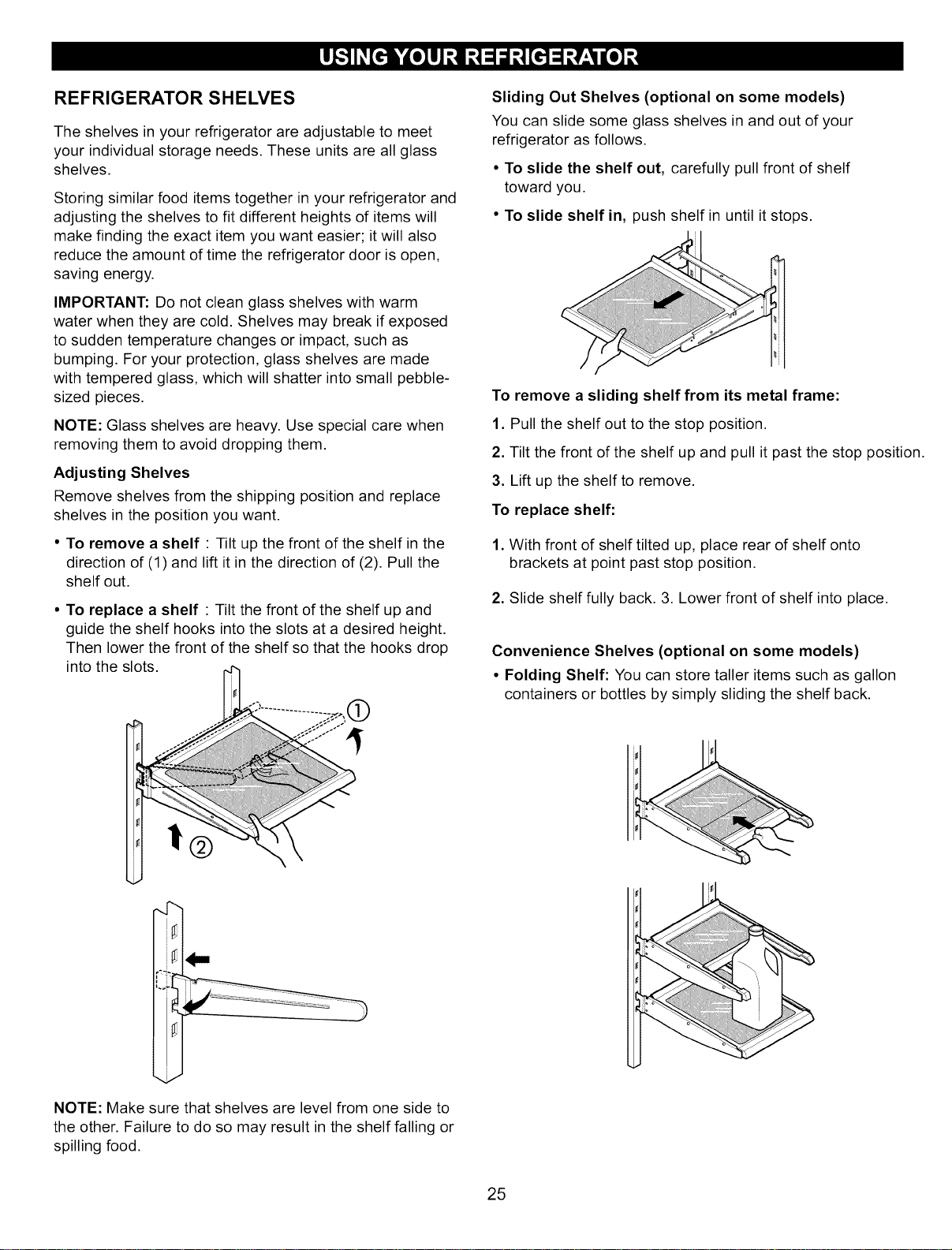

REFRIGERATOR SHELVES
The shelves in your refrigerator are adjustable to meet
your individual storage needs. These units are all glass
shelves.
Storing similar food items together in your refrigerator and
adjusting the shelves to fit different heights of items will
make finding the exact item you want easier; it will also
reduce the amount of time the refrigerator door is open,
saving energy.
IMPORTANT: Do not clean glass shelves with warm
water when they are cold. Shelves may break if exposed
to sudden temperature changes or impact, such as
bumping. For your protection, glass shelves are made
with tempered glass, which will shatter into small pebble-
sized pieces.
NOTE: Glass shelves are heavy. Use special care when
removing them to avoid dropping them.
Adjusting Shelves
Remove shelves from the shipping position and replace
shelves in the position you want.
• To remove a shelf : Tilt up the front of the shelf in the
direction of (1) and lift it in the direction of (2). Pull the
shelf out.
• To replace a shelf : Tilt the front of the shelf up and
guide the shelf hooks into the slots at a desired height.
Then lower the front of the shelf so that the hooks drop
into the slots.
Sliding Out Shelves (optional on some models)
You can slide some glass shelves in and out of your
refrigerator as follows.
• To slide the shelf out, carefully pull front of shelf
toward you.
• To slide shelf in, push shelf in until it stops.
To remove a sliding shelf from its metal frame:
1. Pull the shelf out to the stop position.
2. Tilt the front of the shelf up and pull it past the stop position.
3. Lift up the shelf to remove.
To replace shelf:
1. With front of shelf tilted up, place rear of shelf onto
brackets at point past stop position.
2. Slide shelf fully back. 3. Lower front of shelf into place.
Convenience Shelves (optional on some models)
• Folding Shelf: You can store taller items such as gallon
containers or bottles by simply sliding the shelf back.
NOTE: Make sure that shelves are level from one side to
the other. Failure to do so may result in the shelf falling or
spilling food.
25

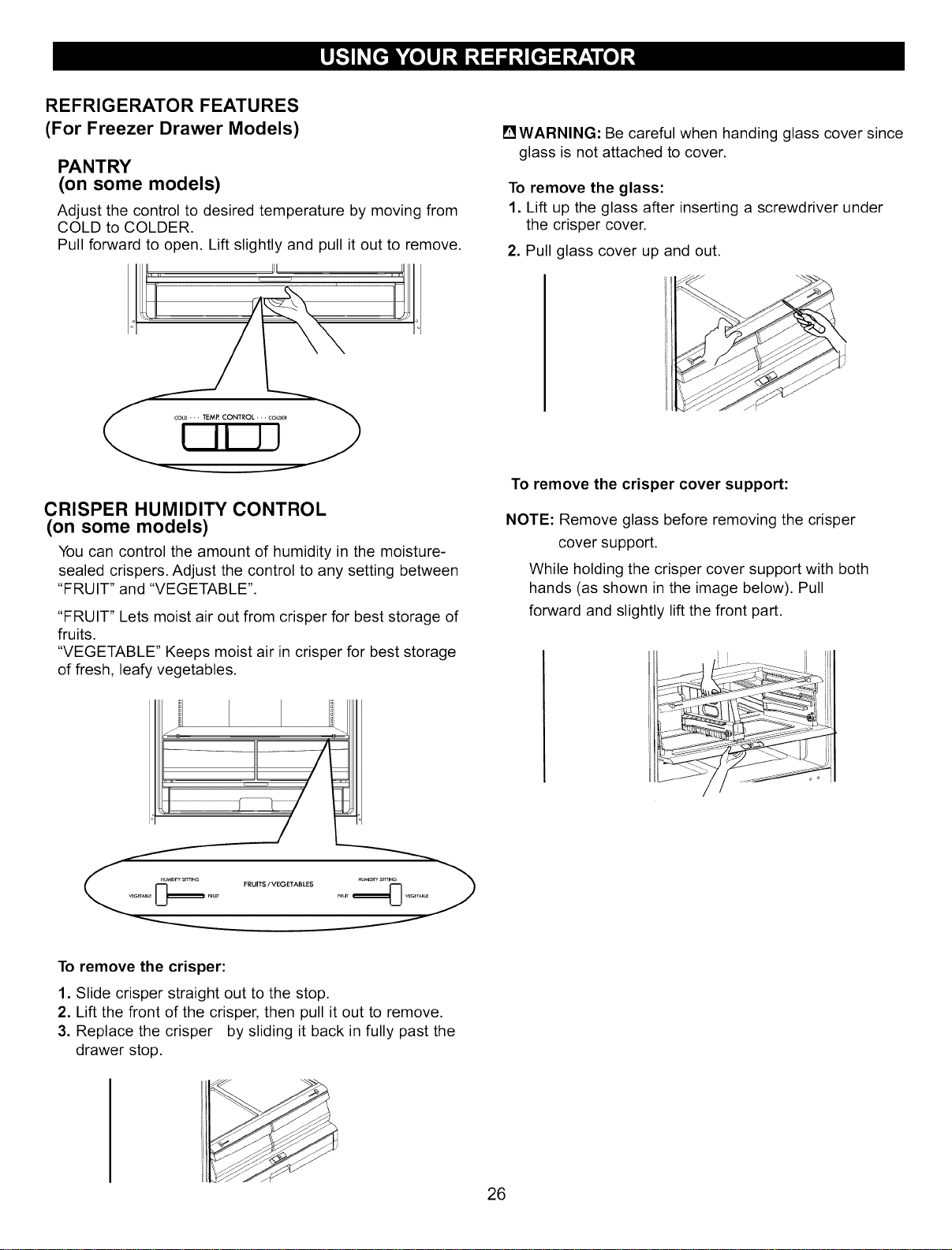

REFRIGERATOR FEATURES
(For Freezer Drawer Models)
PANTRY
(on some models)
Adjust the control to desired temperature by moving from
COLD to COLDER.
Pull forward to open. Lift slightly and pull it out to remove.
CRISPER HUMIDITY CONTROL
(on some models)
You can control the amount of humidity in the moisture-
sealed crispers. Adjust the control to any setting between
"FRUIT" and "VEGETABLE".
"FRUIT" Lets moist air out from crisper for best storage of
fruits.
"VEGETABLE" Keeps moist air in crisper for best storage
of fresh, leafy vegetables.
_uMl_r¥ _ TTING FRUITS / VEGETABLES
E_WARNING: Be careful when handing glass cover since
glass is not attached to cover.
To remove the glass:
1. Lift up the glass after inserting a screwdriver under
the crisper cover.
2. Pull glass cover up and out.
To remove the crisper cover support:
NOTE: Remove glass before removing the crisper
cover support.
While holding the crisper cover support with both
hands (as shown in the image below). Pull
forward and slightly lift the front part.
To remove the crisper:
1. Slide crisper straight out to the stop.
2. Lift the front of the crisper, then pull it out to remove.
3. Replace the crisper by sliding it back in fully past the
drawer stop.
26

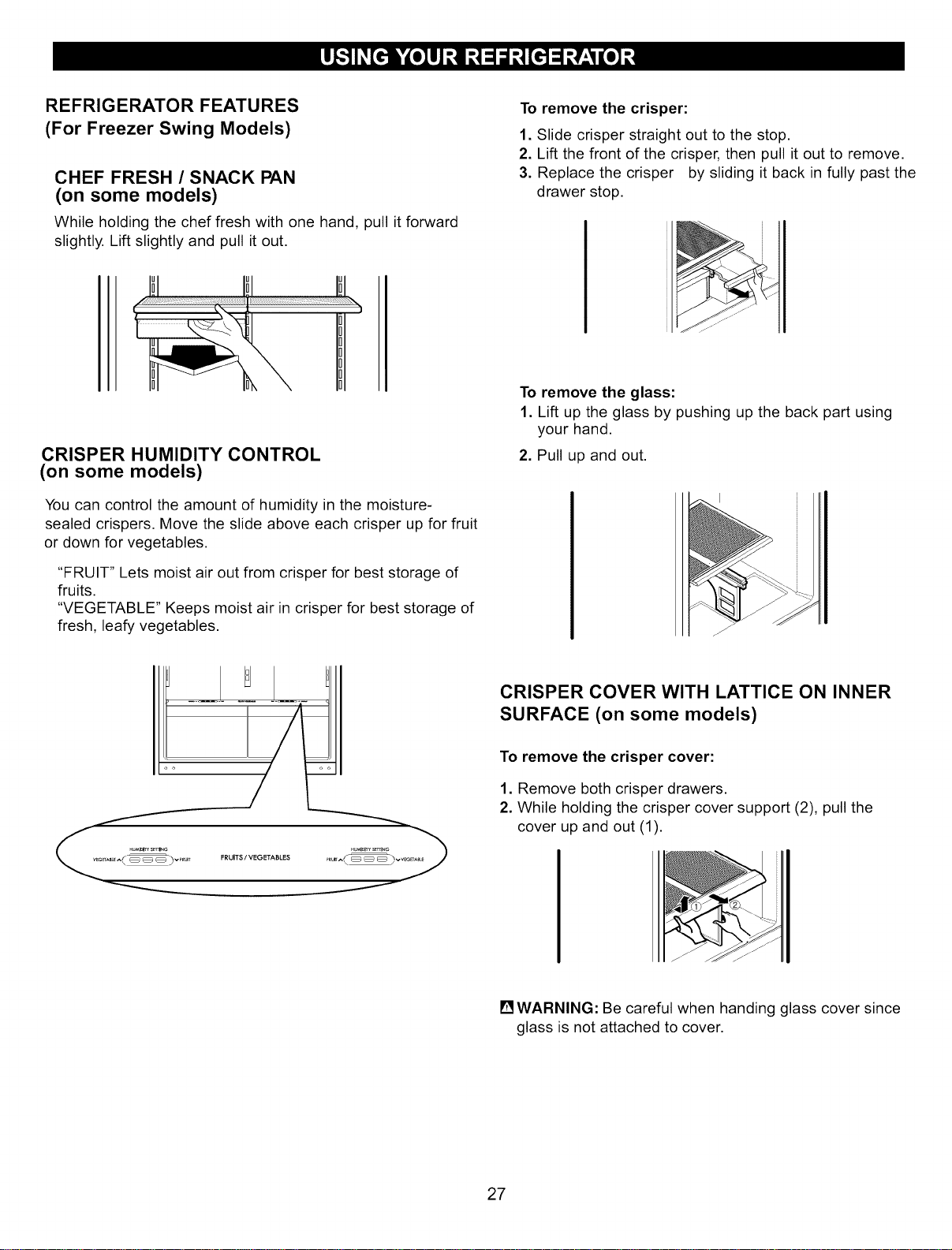

REFRIGERATOR FEATURES
(For Freezer Swing Models)
CHEF FRESH / SNACK PAN
(on some models)
While holding the chef fresh with one hand, pull it forward
slightly. Lift slightly and pull it out.
To remove the crisper:
1. Slide crisper straight out to the stop.
2. Lift the front of the crisper, then pull it out to remove.
3. Replace the crisper by sliding it back in fully past the
drawer stop.
CRISPER HUMIDITY CONTROL
(on some models)
You can control the amount of humidity in the moisture-
sealed crispers. Move the slide above each crisper up for fruit
or down for vegetables.
"FRUIT" Lets moist air out from crisper for best storage of
fruits.
"VEGETABLE" Keeps moist air in crisper for best storage of
fresh, leafy vegetables.
To remove the glass:
1. Lift up the glass by pushing up the back part using
your hand.
2. Pull up and out.
CRISPER COVER WITH LATTICE ON INNER
SURFACE (on some models)
To remove the crisper cover:
1. Remove both crisper drawers.
2. While holding the crisper cover support (2), pull the
cover up and out (1).
F_WARNING: Be careful when handing glass cover since
glass is not attached to cover.
27
DOOR RACKS
The door racks may be removed for easier cleaning.
Snap-on Door Racks
To remove the racks:
1. Remove all items in the door racks.
2. Push the rack against the inside wall of the door (A)
and lift up on door rack (B).
4. If moving bins to lowest position, be especially
sure to secure them in place so that they don't fall
out of the door.
[] WARNING: Somebody can be hurt if door bins are not
firmly assembled.
NOTE: Do not adjust a bin that is loaded with food.
To replace the racks:
1. Hold either end of the door rack against the inside wall of the door.
2. Push down on rack until it locks in place.
DOOR BINS
1. Bins can be moved to either side of the door.
2. To remove the bin, simply lift the bin and pull straight out.
3.To replace the bin, slide it in above the desired
support and push down until it locks completely
so that a "click" sound is heard
28

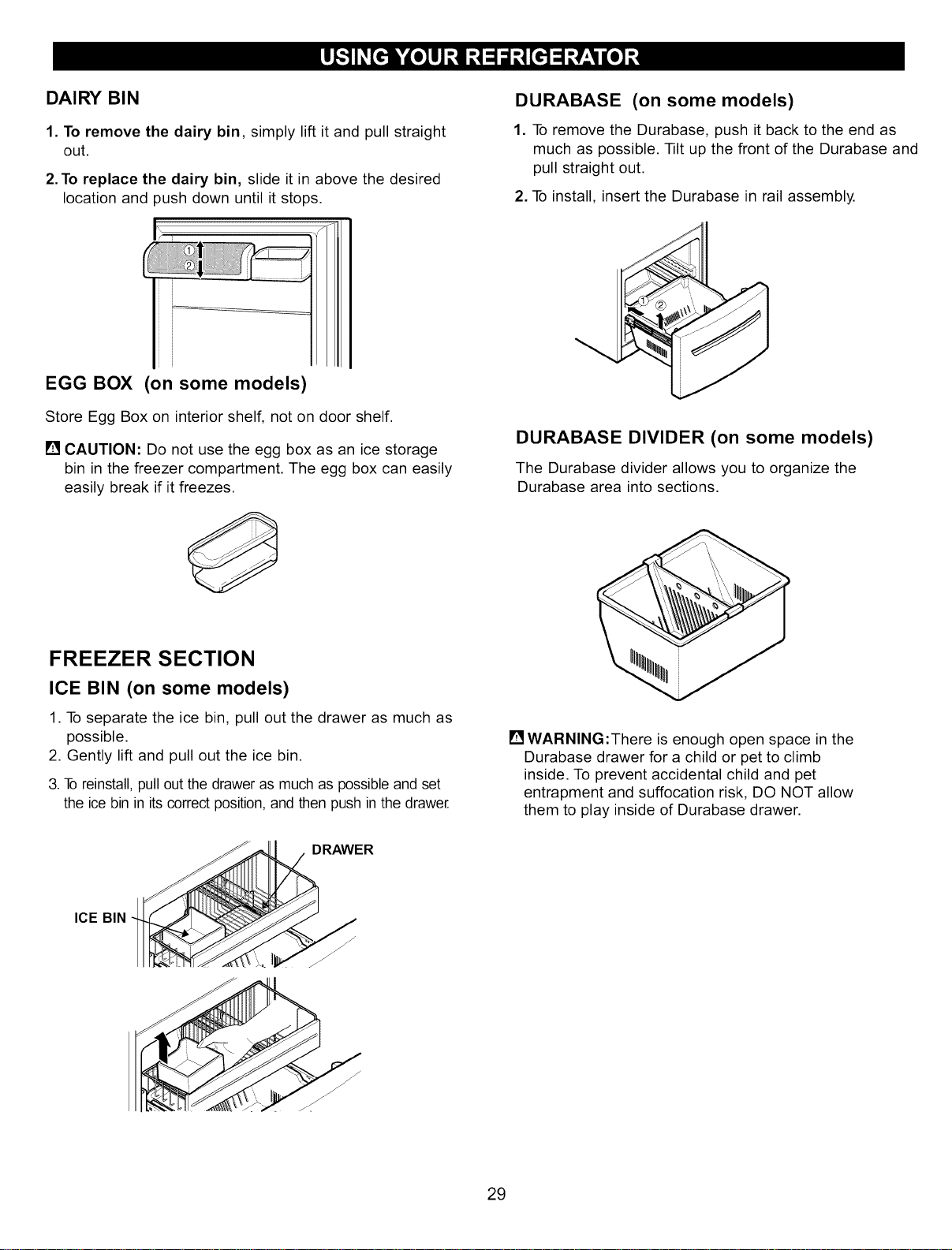

DAIRY BIN
1. To remove the dairy bin, simply lift it and pull straight
out.
2.To replace the dairy bin, slide it in above the desired
location and push down until it stops.
DURABASE (on some models)
1. To remove the Durabase, push it back to the end as
much as possible. Tilt up the front of the Durabase and
pull straight out.
2. To install, insert the Durabase in rail assembly.
EGG BOX (on some models)
Store Egg Box on interior shelf, not on door shelf.
[] CAUTION: Do not use the egg box as an ice storage
bin in the freezer compartment. The egg box can easily
easily break if it freezes.
DURABASE DIVIDER (on some models)
The Durabase divider allows you to organize the
Durabase area into sections.
FREEZER SECTION
ICE BIN (on some models)
1. Toseparate the ice bin, pull out the drawer as much as
possible.
2. Gently lift and pull out the ice bin.
3. Toreinstall,pull out the drawer as much as possible and set
the ice bin in its correct position,and then push in the drawer.
DRAWER
[]WARNING:There is enough open space in the
Durabase drawer for a child or pet to climb
inside. To prevent accidental child and pet
entrapment and suffocation risk, DO NOT allow
them to play inside of Durabase drawer.
ICE BIN
J
f
j-
29

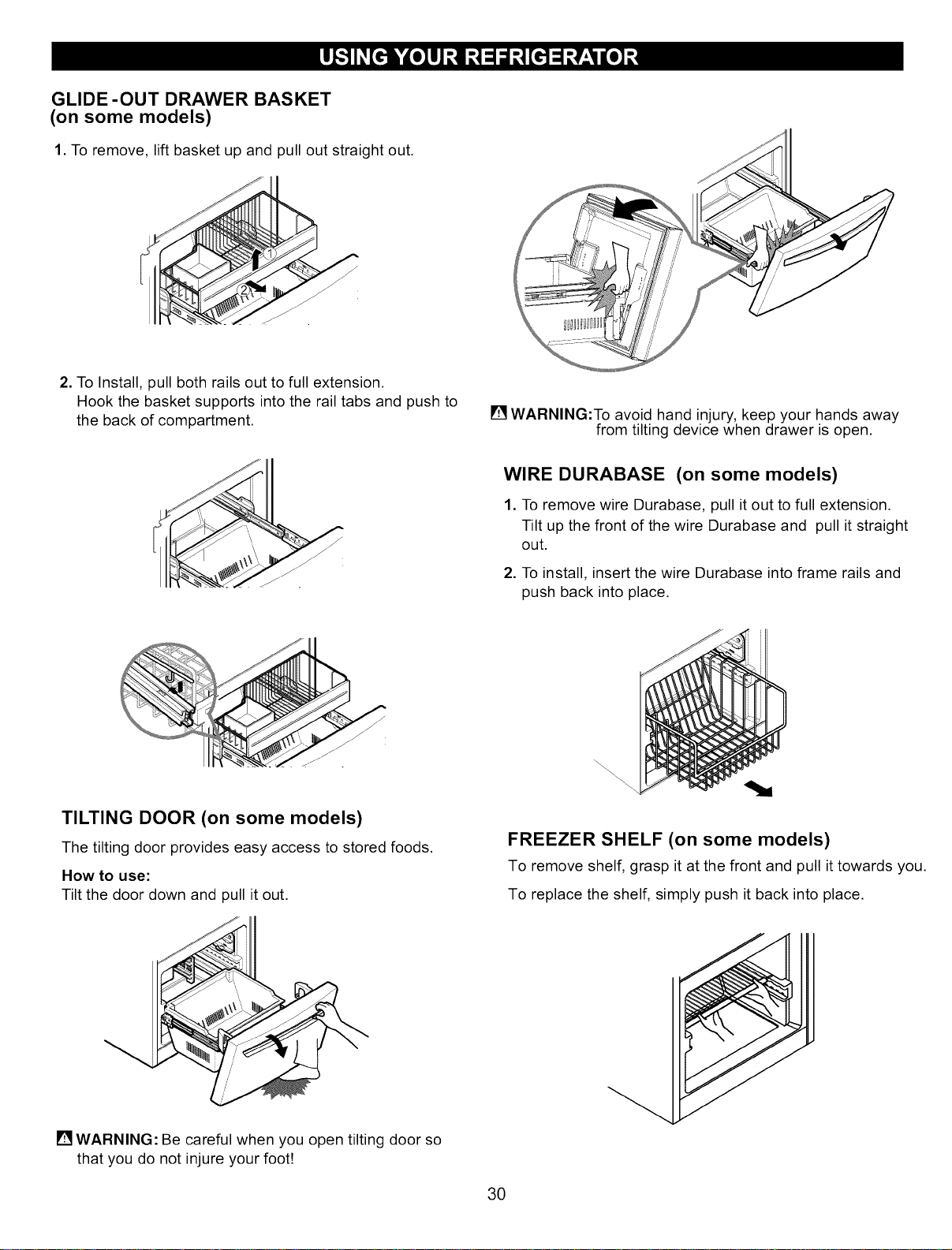

GLIDE-OUT DRAWER BASKET
(on some models)
1. To remove, lift basket up and pull out straight out.
J
2. To Install, pull both rails out to full extension.
Hook the basket supports into the rail tabs and push to
the back of compartment.
[] WARNING:To avoid hand injury, keep your hands away
from tilting device when drawer is open.
WIRE DURABASE (on some models)
1. To remove wire Durabase, pull it out to full extension.
Tilt up the front of the wire Durabase and pull it straight
out.
2. To install, insert the wire Durabase into frame rails and
push back into place.
/
/-
TILTING DOOR (on some models)
The tilting door provides easy access to stored foods.
How to use:
Tilt the door down and pull it out.
\\\\\\\\\\\\\\
FREEZER SHELF (on some models)
To remove shelf, grasp it at the front and pull it towards you.
To replace the shelf, simply push it back into place.
[] WARNING: Be careful when you open tilting door so
that you do not injure your foot!
3O

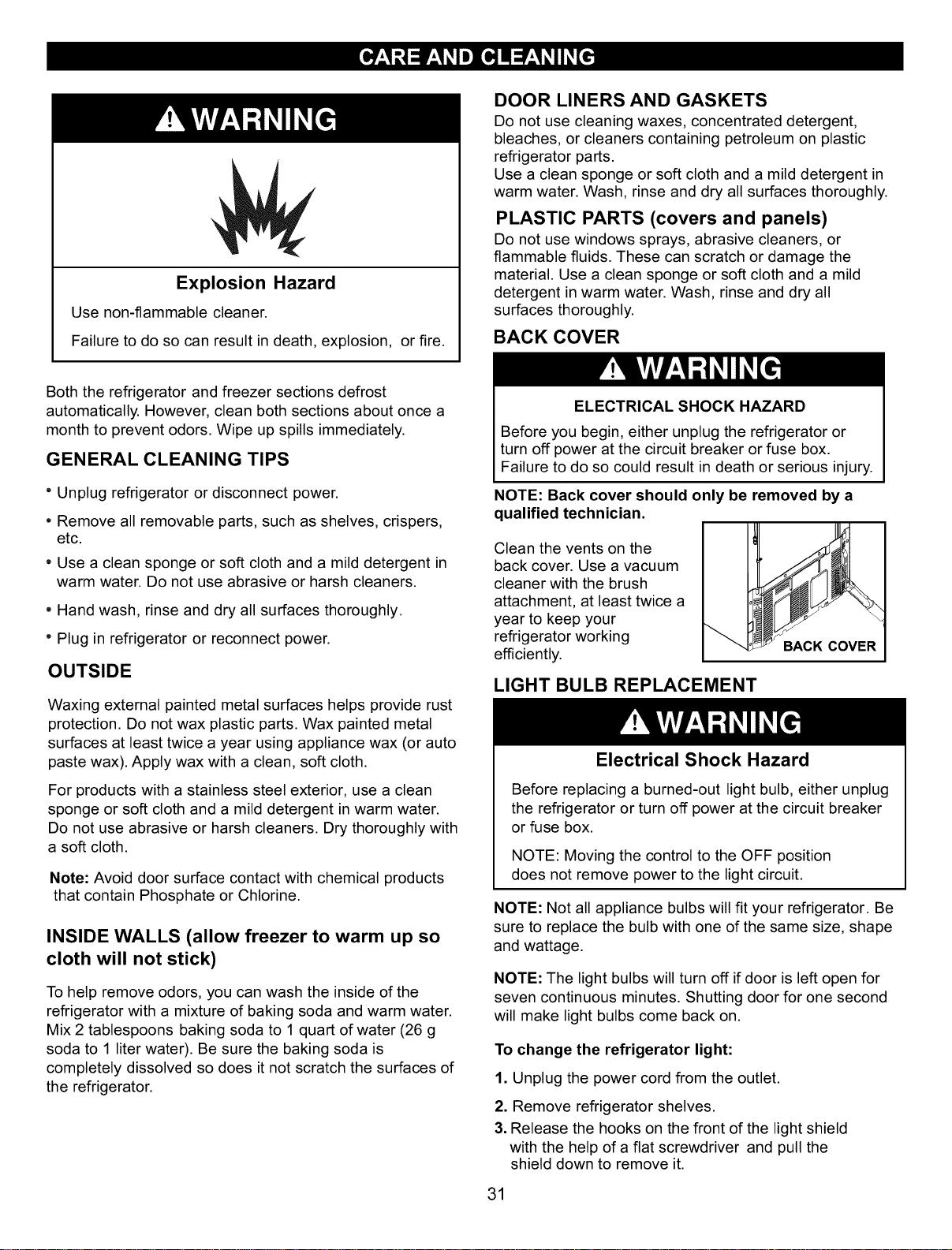

Explosion Hazard
Use non-flammable cleaner.
Failure to do so can result in death, explosion, or fire.
DOOR LINERS AND GASKETS
Do not use cleaning waxes, concentrated detergent,
bleaches, or cleaners containing petroleum on plastic
refrigerator parts.
Use a clean sponge or soft cloth and a mild detergent in
warm water. Wash, rinse and dry all surfaces thoroughly.
PLASTIC PARTS (covers and panels)
Do not use windows sprays, abrasive cleaners, or
flammable fluids. These can scratch or damage the
material. Use a clean sponge or soft cloth and a mild
detergent in warm water. Wash, rinse and dry all
surfaces thoroughly.
BACK COVER
Both the refrigerator and freezer sections defrost
automatically. However, clean both sections about once a
month to prevent odors. Wipe up spills immediately.
GENERAL CLEANING TIPS
• Unplug refrigerator or disconnect power.
=Remove all removable parts, such as shelves, crispers,
etc.
• Use a clean sponge or soft cloth and a mild detergent in
warm water. Do not use abrasive or harsh cleaners.
, Hand wash, rinse and dry all surfaces thoroughly.
• Plug in refrigerator or reconnect power.
OUTSIDE
Waxing external painted metal surfaces helps provide rust
protection. Do not wax plastic parts. Wax painted metal
surfaces at least twice a year using appliance wax (or auto
paste wax). Apply wax with a clean, soft cloth.
For products with a stainless steel exterior, use a clean
sponge or soft cloth and a mild detergent in warm water.
Do not use abrasive or harsh cleaners. Dry thoroughly with
a soft cloth.
Note: Avoid door surface contact with chemical products
that contain Phosphate or Chlorine.
INSIDE WALLS (allow freezer to warm up so
cloth will not stick)
To help remove odors, you can wash the inside of the
refrigerator with a mixture of baking soda and warm water.
Mix 2 tablespoons baking soda to 1 quart of water (26 g
soda to 1 liter water). Be sure the baking soda is
completely dissolved so does it not scratch the surfaces of
the refrigerator.
ELECTRICAL SHOCK HAZARD
Before you begin, either unplug the refrigerator or
turn off power at the circuit breaker or fuse box.
Failure to do so could result in death or serious injury.
NOTE: Back cover should only be removed by a
qualified technician.
Clean the vents on the
back cover. Use a vacuum
cleaner with the brush
attachment, at least twice a
year to keep your
refrigerator working
efficiently.
LIGHT BULB REPLACEMENT
BACK COVER
Electrical Shock Hazard
Before replacing a burned-out light bulb, either unplug
the refrigerator or turn off power at the circuit breaker
or fuse box.
NOTE: Moving the control to the OFF position
does not remove power to the light circuit.
NOTE: Not all appliance bulbs will fit your refrigerator. Be
sure to replace the bulb with one of the same size, shape
and wattage.
NOTE: The light bulbs will turn off if door is left open for
seven continuous minutes. Shutting door for one second
will make light bulbs come back on.
To change the refrigerator light:
1. Unplug the power cord from the outlet.
2. Remove refrigerator shelves.
3. Release the hooks on the front of the light shield
with the help of a flat screwdriver and pull the
shield down to remove it.
31

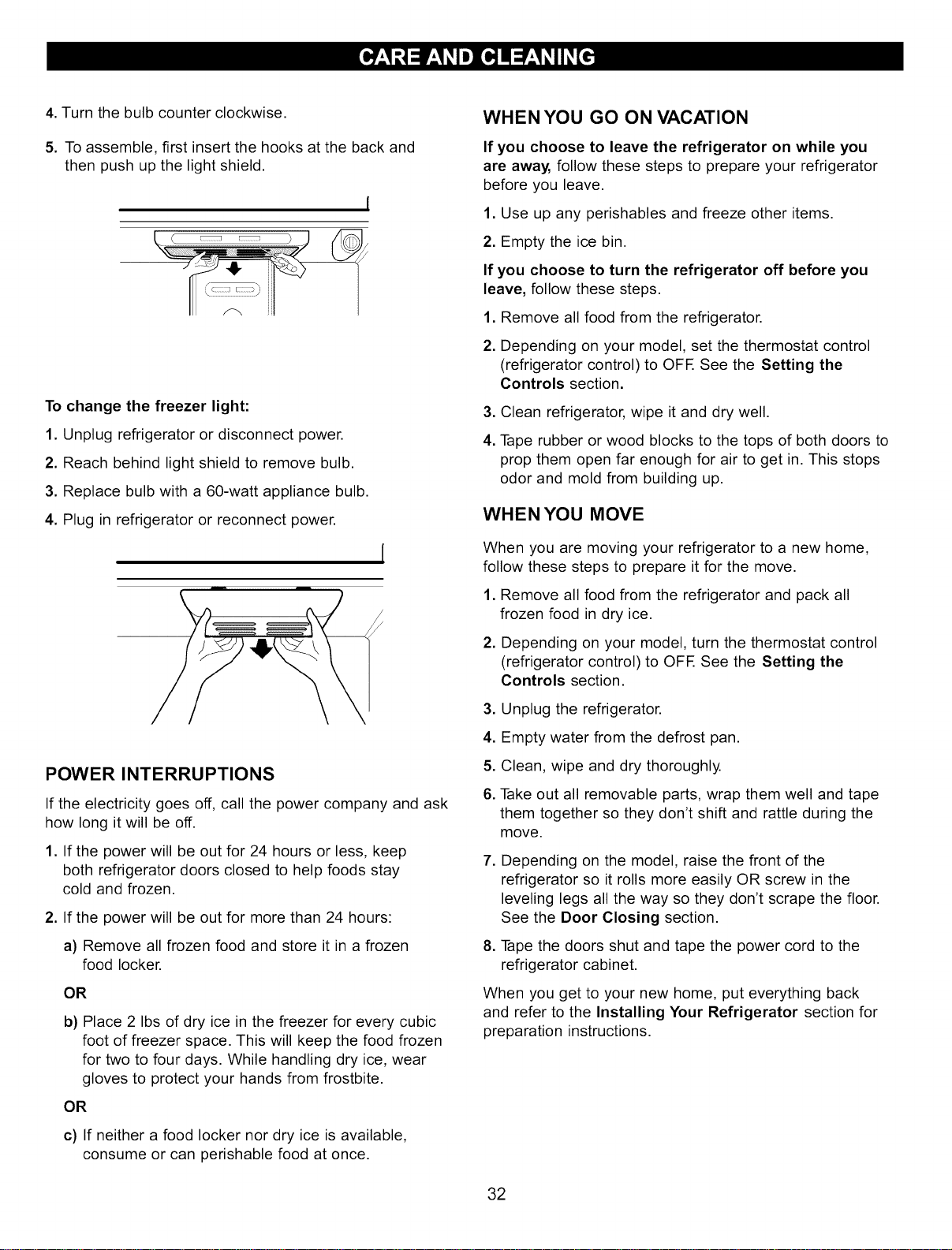

4. Turn the bulb counter clockwise.
5. To assemble, first insert the hooks at the back and
then push up the light shield.
I
To change the freezer light:
1. Unplug refrigerator or disconnect power.
2. Reach behind light shield to remove bulb.
3. Replace bulb with a 60-watt appliance bulb.
4. Plug in refrigerator or reconnect power.
POWER INTERRUPTIONS
If the electricity goes off, call the power company and ask
how long it will be off.
1. If the power will be out for 24 hours or less, keep
both refrigerator doors closed to help foods stay
cold and frozen.
2. If the power will be out for more than 24 hours:
a) Remove all frozen food and store it in a frozen
food locker.
OR
b) Place 2 Ibs of dry ice in the freezer for every cubic
foot of freezer space. This will keep the food frozen
for two to four days. While handling dry ice, wear
gloves to protect your hands from frostbite.
OR
c) If neither a food locker nor dry ice is available,
consume or can perishable food at once.
WHEN YOU GO ON VACATION
If you choose to leave the refrigerator on while you
are away follow these steps to prepare your refrigerator
before you leave.
1. Use up any perishables and freeze other items.
2. Empty the ice bin.
If you choose to turn the refrigerator off before you
leave, follow these steps.
1. Remove all food from the refrigerator.
2. Depending on your model, set the thermostat control
(refrigerator control to OFF. See the Setting the
Controls section.
.
4.
Clean refrigerator, wipe it and dry well.
Tape rubber or wood blocks to the tops of both doors to
prop them open far enough for air to get in. This stops
odor and mold from building up.
WHEN YOU MOVE
When you are moving your refrigerator to a new home,
follow these steps to prepare it for the move.
.
.
Remove all food from the refrigerator and pack all
frozen food in dry ice.
Depending on your model, turn the thermostat control
(refrigerator control) to OFF. See the Setting the
Controls section.
3. Unplug the refrigerator.
4. Empty water from the defrost pan.
5. Clean, wipe and dry thoroughly.
6. Take out all removable parts, wrap them well and tape
them together so they don't shift and rattle during the
move.
.
.
Depending on the model, raise the front of the
refrigerator so it rolls more easily OR screw in the
leveling legs all the way so they don't scrape the floor.
See the Door Closing section.
Tape the doors shut and tape the power cord to the
refrigerator cabinet.
When you get to your new home, put everything back
and refer to the Installing Your Refrigerator section for
preparation instructions.
32

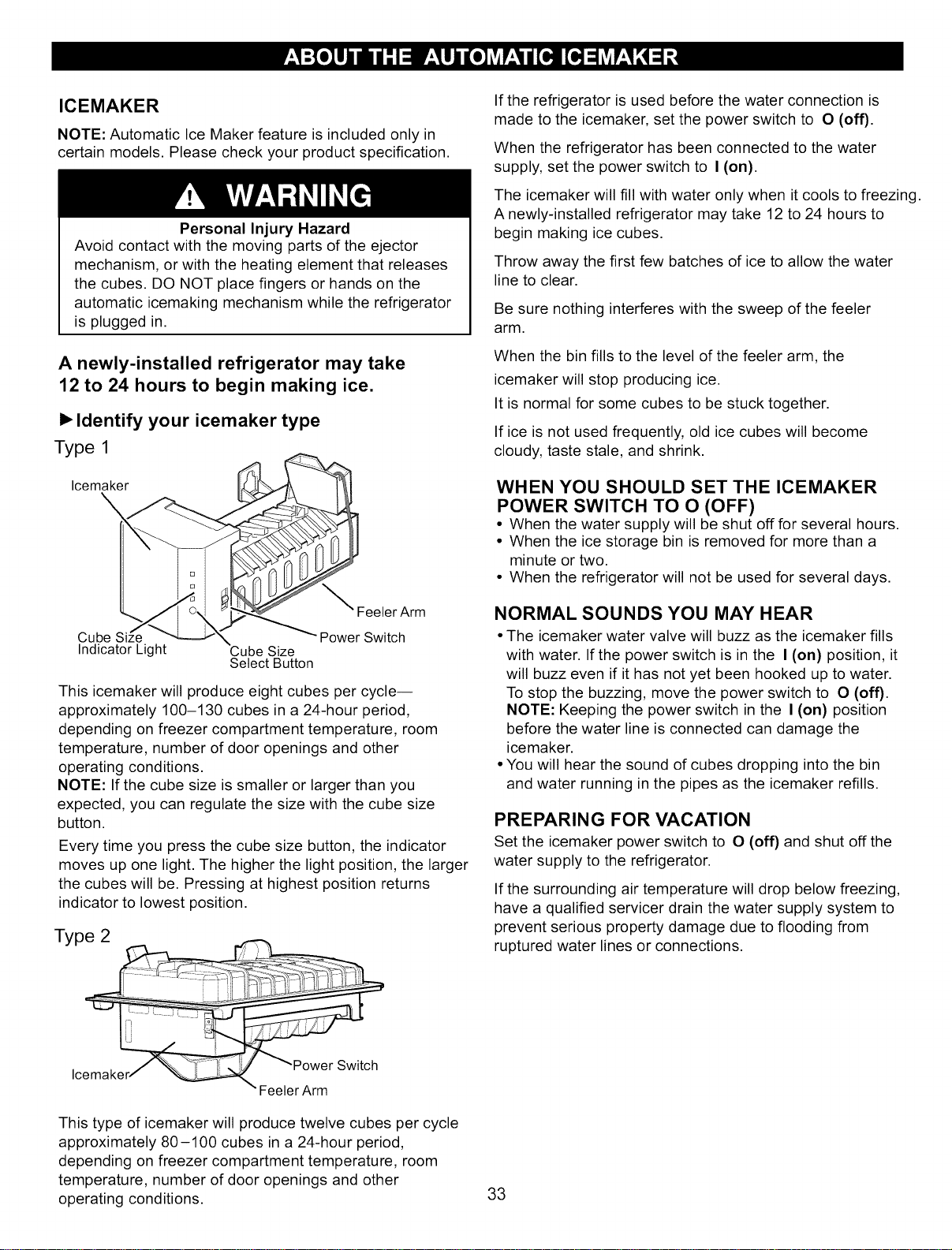

ICEMAKER
NOTE: Automatic Ice Maker feature is included only in
certain models. Please check your product specification.
Personal Injury Hazard
Avoid contact with the moving parts of the ejector
mechanism, or with the heating element that releases
the cubes. DO NOT place fingers or hands on the
automatic icemaking mechanism while the refrigerator
is plugged in.
A newly-installed refrigerator may take
12 to 24 hours to begin making ice.
I_ Identify your icemaker type
Type 1
Icemaker
Cube Siz"_e
Indicator Light Cube Size
Select Button
t
Feeler Arm
Power Switch
This icemaker will produce eight cubes per cycle--
approximately 100-130 cubes in a 24-hour period,
depending on freezer compartment temperature, room
temperature, number of door openings and other
operating conditions.
NOTE: If the cube size is smaller or larger than you
expected, you can regulate the size with the cube size
button.
Every time you press the cube size button, the indicator
moves up one light. The higher the light position, the larger
the cubes will be. Pressing at highest position returns
indicator to lowest position.
Type 2
Ic
•FeelerArm
If the refrigerator is used before the water connection is
made to the icemaker, set the power switch to 0 (off}.
When the refrigerator has been connected to the water
supply, set the power switch to I (on}.
The icemaker will fill with water only when it cools to freezing.
A newly-installed refrigerator may take 12 to 24 hours to
begin making ice cubes.
Throw away the first few batches of ice to allow the water
line to clear.
Be sure nothing interferes with the sweep of the feeler
arm.
When the bin fills to the level of the feeler arm, the
icemaker will stop producing ice.
It is normal for some cubes to be stuck together.
If ice is not used frequently, old ice cubes will become
cloudy, taste stale, and shrink.
WHEN YOU SHOULD SET THE ICEMAKER
POWER SWITCH TO O (OFF)
• When the water supply will be shut off for several hours.
• When the ice storage bin is removed for more than a
minute or two.
• When the refrigerator will not be used for several days.
NORMAL SOUNDS YOU MAY HEAR
• The icemaker water valve will buzz as the icemaker fills
with water. If the power switch is in the I (on) position, it
will buzz even if it has not yet been hooked up to water.
To stop the buzzing, move the power switch to O (off).
NOTE: Keeping the power switch in the I (on) position
before the water line is connected can damage the
icemaker.
• You will hear the sound of cubes dropping into the bin
and water running in the pipes as the icemaker refills.
PREPARING FOR VACATION
Set the icemaker power switch to O (off) and shut off the
water supply to the refrigerator.
If the surrounding air temperature will drop below freezing,
have a qualified servicer drain the water supply system to
prevent serious property damage due to flooding from
ruptured water lines or connections.
This type of icemaker will produce twelve cubes per cycle
approximately 80-100 cubes in a 24-hour period,
depending on freezer compartment temperature, room
temperature, number of door openings and other
operating conditions.
33

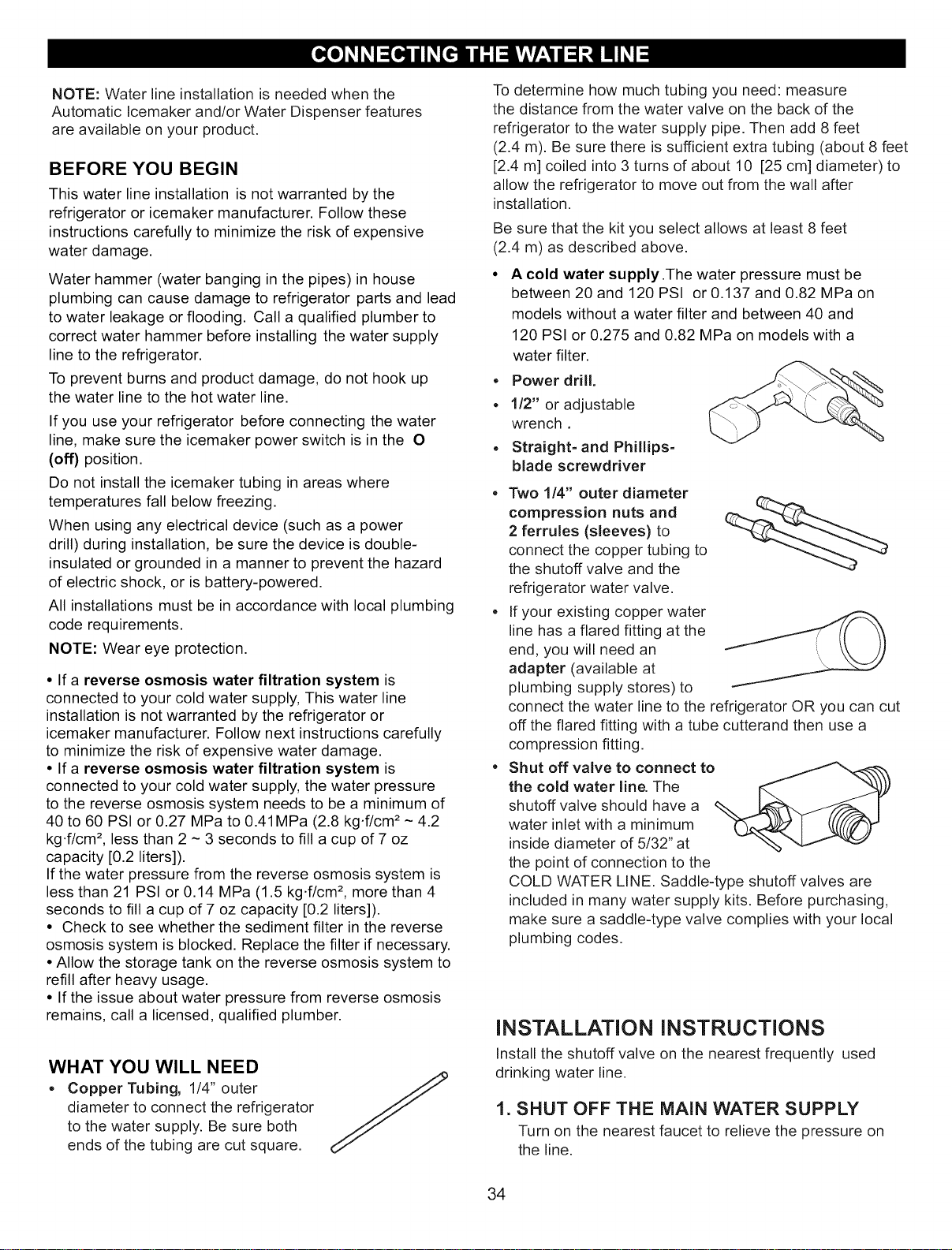

NOTE: Water line installation is needed when the
Automatic Icemaker and/or Water Dispenser features
are available on your product.
BEFORE YOU BEGIN
This water line installation is not warranted by the
refrigerator or icemaker manufacturer. Follow these
instructions carefully to minimize the risk of expensive
water damage.
Water hammer (water banging in the pipes) in house
plumbing can cause damage to refrigerator parts and lead
to water leakage or flooding. Call a qualified plumber to
correct water hammer before installing the water supply
line to the refrigerator.
To prevent burns and product damage, do not hook up
the water line to the hot water line.
If you use your refrigerator before connecting the water
line, make sure the icemaker power switch is in the O
(off) position.
Do not install the icemaker tubing in areas where
temperatures fall below freezing.
When using any electrical device (such as a power
drill) during installation, be sure the device is double-
insulated or grounded in a manner to prevent the hazard
of electric shock, or is battery-powered.
All installations must be in accordance with local plumbing
code requirements.
NOTE: Wear eye protection.
• If a reverse osmosis water filtration system is
connected to your cold water supply, This water line
installation is not warranted by the refrigerator or
icemaker manufacturer. Follow next instructions carefully
to minimize the risk of expensive water damage.
• If a reverse osmosis water filtration system is
connected to your cold water supply, the water pressure
to the reverse osmosis system needs to be a minimum of
40 to 60 PSI or 0.27 MPa to 0.41MPa (2.8 kg.f/cm 2- 4.2
kg.f/cm 2,less than 2 - 3 seconds to fill a cup of 7 oz
capacity [0.2 liters]).
If the water pressure from the reverse osmosis system is
less than 21 PSI or 0.14 MPa (1.5 kg.f/cm 2,more than 4
seconds to fill a cup of 7 oz capacity [0.2 liters]).
• Check to see whether the sediment filter in the reverse
osmosis system is blocked. Replace the filter if necessary.
•Allow the storage tank on the reverse osmosis system to
refill after heavy usage.
• If the issue about water pressure from reverse osmosis
remains, call a licensed, qualified plumber.
WHAT YOU WILL NEED
• Copper Tubing, 1/4" outer
diameter to connect the refrigerator
to the water supply. Be sure both
ends of the tubing are cut square.
To determine how much tubing you need: measure
the distance from the water valve on the back of the
refrigerator to the water supply pipe. Then add 8 feet
(2.4 m). Be sure there is sufficient extra tubing (about 8 feet
[2.4 m] coiled into 3 turns of about 10 [25 cm] diameter) to
allow the refrigerator to move out from the wall after
installation.
Be sure that the kit you select allows at least 8 feet
(2.4 m) as described above.
A cold water supply.The water pressure must be
between 20 and 120 PSI or 0.137 and 0.82 MPa on
models without a water filter and between 40 and
120 PSI or 0.275 and 0.82 MPa on models with a
water filter.
• Power drill.
= 1/2" or adjustable
wrench.
Straight= and Phillips=
blade screwdriver
Two 1/4" outer diameter
compression nuts and
2 ferrules (sleeves) to
connect the copper tubing to
the shutoff valve and the
refrigerator water valve.
If your existing copper water
line has a flared fitting at the
end, you will need an
adapter (available at
plumbing supply stores) to
connect the water line to the refrigerator OR you can cut
off the flared fitting with a tube cutterand then use a
compression fitting.
Shut off valve to connect to j......1"-,_<_
the cold water line. The
shutoff valve should have a
water inlet with a minimum
inside diameter of 5/32" at
the point of connection to the
COLD WATER LINE. Saddle-type shutoff valves are
included in many water supply kits. Before purchasing,
make sure a saddle-type valve complies with your local
plumbing codes.
INSTALLATION INSTRUCTIONS
Install the shutoff valve on the nearest frequently used
drinking water line.
1. SHUT OFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the pressure on
the line.
34
INSTALLATION INSTRUCTIONS
(CONTINUED)
2. CHOOSE THE VALVE LOCATION
Choose a location for the valve
that is easily accessible. It is best
to connect into the side of a
vertical water pipe. When it is
necessary to connect into a
horizontal water pipe, make the
connection to the top or side,
rather than at the bottom, to avoid
drawing off any sediment from the water pipe.
3. DRILL THE HOLE FOR THE VALVE
Drill a 1/4" hole in the water
pipe (even if using a self-
piercing valve) using a
sharp bit. Remove any burrs
resulting from drilling the
hole in the pipe. Take care
not to allow water to drain
into the drill. Failure to drill a 1/4 hole may result in
reduced ice production or smaller cubes.
4. FASTEN THE SHUT OFF VALVE
Fasten the shutoff valve to the cold water pipe with
the pipe clamp.
Pipe Clamp
Saddle-Type J
Shutoff Valve
-Vertical Cold
Water Pipe
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
5. TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing washer
begins to swell.
NOTE: Do not overtighten or you may crush
the tubing. Washer
Pipe Clamp End
Clamp Screw
6. ROUTE THE TUBING
Route the tubing between the cold water line and the
refrigerator.
Route the tubing through a hole drilled in the wall or
floor (behind the refrigerator or adjacent base cabinet)
as close to the wall as possible.
NOTE: Be sure there is sufficient extra tubing (about
8 feet coiled into 3 turns of about 10 diameter) to
allow the refrigerator to move out from the wall after
installation.
7. CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule (sleeve)
for copper tubing onto the end of the tubing and
connect it to the shutoff valve. Make sure the tubing is
fully inserted into the valve. Tighten the compression
nut securely.
Saddle-Type
Shutoff Valve
Packing
Nut
Outlet
Valve
Compression
/.ut
_rule (sleeve)
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
8. FLUSH OUT THE TUBING
Turn the main water supply on
and flush out the tubing until the
water is clear.
Shut the water off at the water
valve after about one quart of
water has been flushed through
the tubing.
35

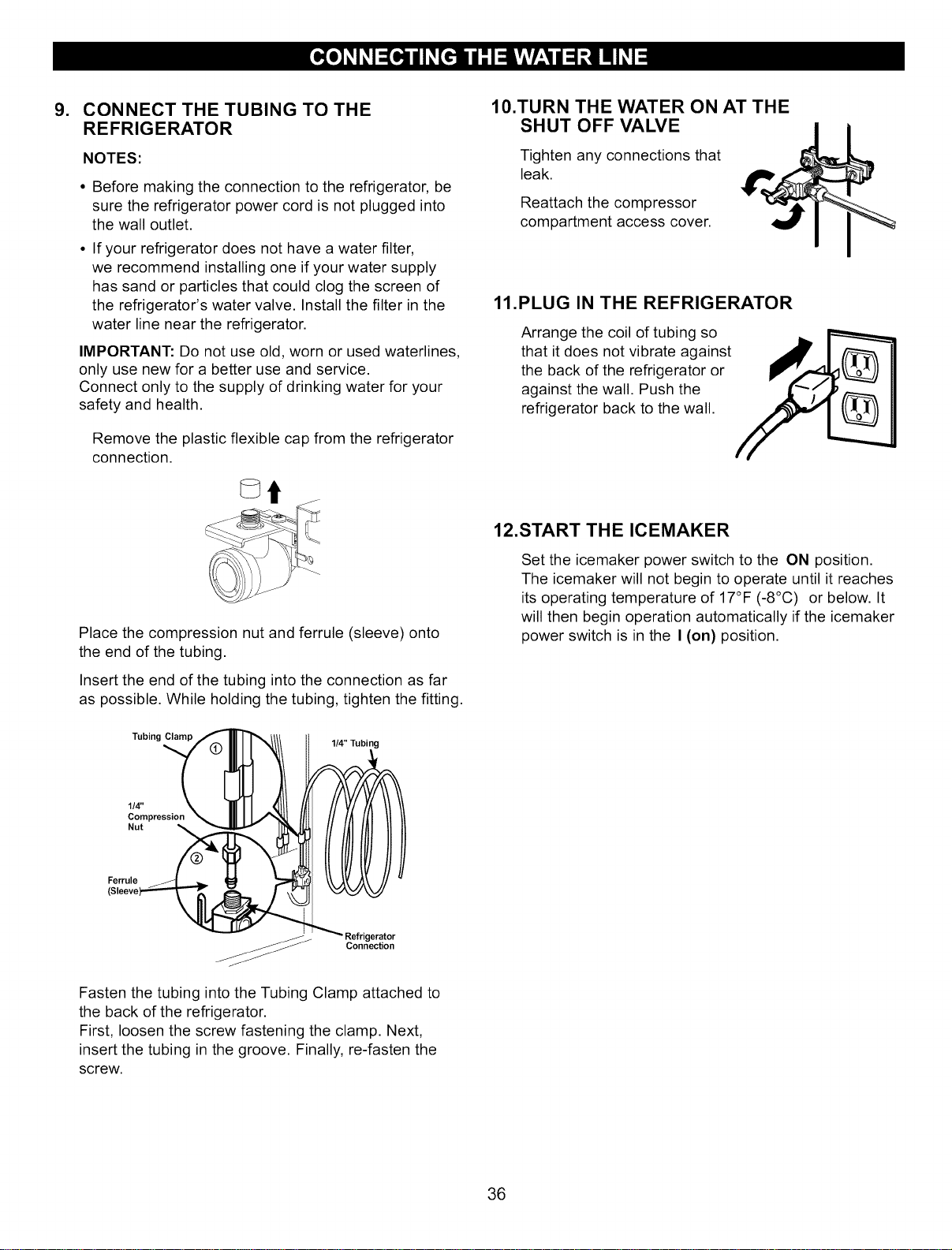

, CONNECT THE TUBING TO THE
REFRIGERATOR
NOTES:
• Before making the connection to the refrigerator, be
sure the refrigerator power cord is not plugged into
the wall outlet.
• If your refrigerator does not have a water filter,
we recommend installing one if your water supply
has sand or particles that could clog the screen of
the refrigerator's water valve. Install the filter in the
water line near the refrigerator.
IMPORTANT: Do not use old, worn or used waterlines,
only use new for a better use and service.
Connect only to the supply of drinking water for your
safety and health.
Remove the plastic flexible cap from the refrigerator
connection.
©t
Place the compression nut and ferrule (sleeve) onto
the end of the tubing.
Insert the end of the tubing into the connection as far
as possible. While holding the tubing, tighten the fitting.
Tubing Clamp
1/4" Tubing
10.TURN THE WATER ON AT THE
SHUT OFF VALVE
Tighten any connections that
leak.
Reattach the compressor
compartment access cover.
11.PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so
that it does not vibrate against
the back of the refrigerator or
against the wall. Push the
refrigerator back to the wall.
12.START THE ICEMAKER
Set the icemaker power switch to the ON position.
The icemaker will not begin to operate until it reaches
its operating temperature of 17°F (-8°C) or below. It
will then begin operation automatically if the icemaker
power switch is in the I (on) position.
1/4"
Compression
Nut
Ferrule
Connec_on
Fasten the tubing into the Tubing Clamp attached to
the back of the refrigerator.
First, loosen the screw fastening the clamp. Next,
insert the tubing in the groove. Finally, re-fasten the
screw.
36

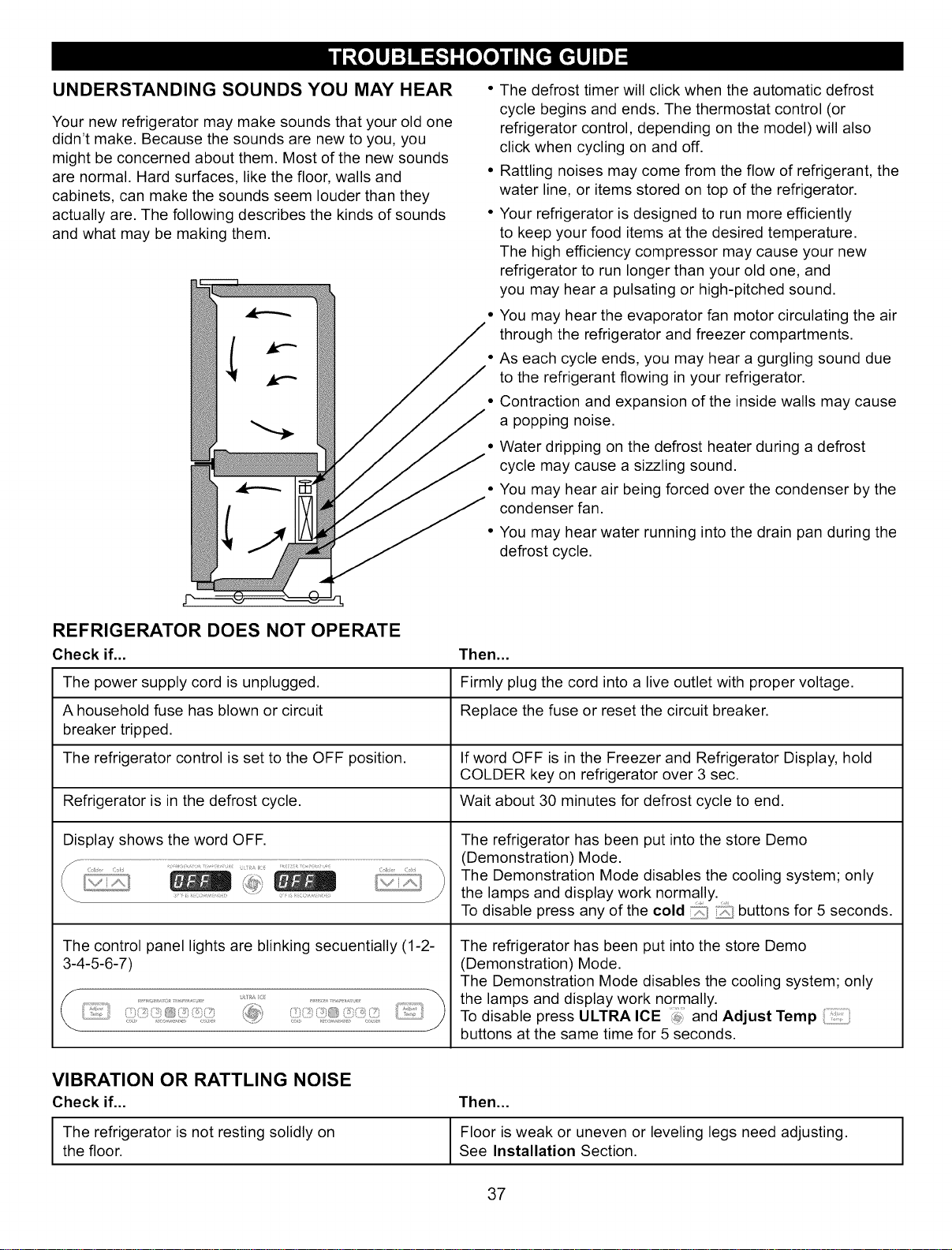

UNDERSTANDING SOUNDS YOU MAY HEAR
Your new refrigerator may make sounds that your old one
didn't make. Because the sounds are new to you, you
might be concerned about them. Most of the new sounds
are normal. Hard surfaces, like the floor, walls and
cabinets, can make the sounds seem louder than they
actually are. The following describes the kinds of sounds
and what may be making them.
• The defrost timer will click when the automatic defrost
cycle begins and ends. The thermostat control (or
refrigerator control, depending on the model) will also
click when cycling on and off.
• Rattling noises may come from the flow of refrigerant, the
water line, or items stored on top of the refrigerator.
• Your refrigerator is designed to run more efficiently
to keep your food items at the desired temperature.
The high efficiency compressor may cause your new
refrigerator to run longer than your old one, and
you may hear a pulsating or high-pitched sound.
• You may hear the evaporator fan motor circulating the air
through the refrigerator and freezer compartments.
• As each cycle ends, you may hear a gurgling sound due
to the refrigerant flowing in your refrigerator.
• Contraction and expansion of the inside walls may cause
a popping noise.
• Water dripping on the defrost heater during a defrost
cycle may cause a sizzling sound.
• You may hear air being forced over the condenser by the
condenser fan.
You may hear water running into the drain pan during the
defrost cycle.
REFRIGERATOR DOES NOT OPERATE
Check if...
The power supply cord is unplugged.
A household fuse has blown or circuit
breaker tripped.
The refrigerator control is set to the OFF position.
Then...
Firmly plug the cord into a live outlet with proper voltage.
Replace the fuse or reset the circuit breaker.
If word OFF is in the Freezer and Refrigerator Display, hold
COLDER key on refrigerator over 3 sec.
Refrigerator is in the defrost cycle. Wait about 30 minutes for defrost cycle to end.
Display shows the word OFF.
The control panel lights are blinking secuentially (1-2-
3-4-5-6-7)
/
: :o,_ : , ,J :
The refrigerator has been put into the store Demo
(Demonstration) Mode.
The Demonstration Mode disables the cooling system; only
the lamps and display work normally.
To disable press any of the cold _ _/buttons for 5 seconds.
The refrigerator has been put into the store Demo
(Demonstration) Mode.
The Demonstration Mode disables the cooling system; only
the lamps and display work normally.
To disable press ULTRA ICE _h_and Adjust Temp
buttons at the same time for 5 seconds.
VIBRATION OR RATTLING NOISE
Check if...
The refrigerator is not resting solidly on
the floor.
Then...
Floor is weak or uneven or leveling legs need adjusting.
See Installation Section.
I
37
COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH
Check if... Then...
The refrigerator that was replaced was an
older model.
The room temperature is hotter than normal.
The door is opened often or a large amount
of food has just been added.
Modern refrigerators with more storage space require
more operating time.
The motor will run longer under warm conditions. At normal
room temperatures, expect your motor to run about 40% to
80% of the time. Under warmer conditions, expect it to run
even more often.
Adding food and opening the door warms the refrigerator.
It is normal for the refrigerator to run longer in order to cool
the refrigerator back down. Adding a large amount of food
warms the refrigerator. See the Food Storage Guide Section.
In order to conserve energy, try to get everything
you need out of the refrigerator at once, keep food organized
so it is easy to find and close the door as soon as the food
is removed.
The refrigerator was recently plugged in and The refrigerator will take up to 24 hours to cool
the refrigerator control was set correctly completely.
The refrigerator control was not set correctly for the See the Adjusting control settings Section.
surrounding conditions.
The doors are not closed completely. Push the doors firmly shut. If they will not shut all the way, see
Doors will not close completely below.
The condenser coils are dirty. This prevents air transfer and makes the motor work harder.
Clean the condenser coils. Refer to the Care and Cleaning
section.
DOORS WILL NOT CLOSE COMPLETELY
Check if... Then...
The refrigerator is not level. See the Installation Section to level refrigerator.
Food packages are blocking the door open. Rearrange food containers to clear door and door shelves.
The ice bin, crisper cover, pans, shelves, door bins Push bins all the way in and put crisper cover, pans, shelves
or baskets are out of position, and baskets into their correct positions. See the Using Your
Refrigerator Section.
The gaskets are sticking. Clean gaskets and the surface that they touch. Rub a thin
coat of paraffin wax on the gaskets after cleaning.
The refrigerator wobbles or seems unstable. Level the refrigerator. Refer to the Door Closing and
Alignment Section.
The doors were removed during product installation Remove and replace the doors according to the Removing,
and not properly replaced. Reversing and Replacing Refrigerator Doors section
or call a qualified service technician.
FROST OR ICE CRYSTALS ON FROZEN FOOD
Check if... Then...
The door is not closing properly. See Doors will not close completely above.
The door is opened often. When the door is opened, warm, humid air is allowed into
the freezer resulting in frost.
38

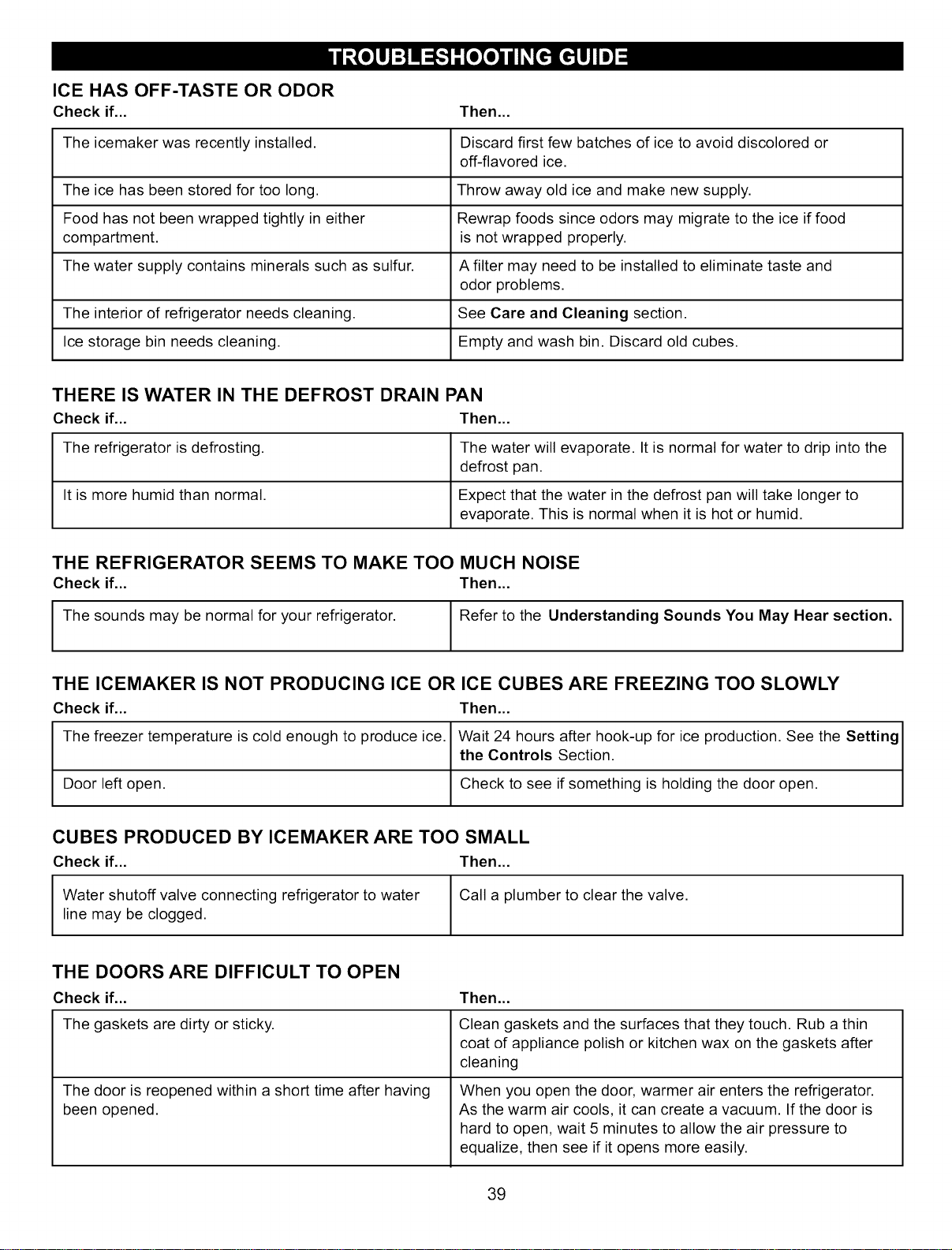

ICE HAS OFF-TASTE OR ODOR
Check if... Then...
The icemaker was recently installed. Discard first few batches of ice to avoid discolored or
off-flavored ice.
The ice has been stored for too long. Throw away old ice and make new supply.
Food has not been wrapped tightly in either Rewrap foods since odors may migrate to the ice if food
compartment, is not wrapped properly.
The water supply contains minerals such as sulfur. A filter may need to be installed to eliminate taste and
odor problems.
The interior of refrigerator needs cleaning. See Care and Cleaning section.
Ice storage bin needs cleaning. Empty and wash bin. Discard old cubes.
THERE IS WATER IN THE DEFROST DRAIN PAN
Check if... Then...
The refrigerator is defrosting. The water will evaporate. It is normal for water to drip into the
defrost pan.
It is more humid than normal. Expect that the water in the defrost pan will take longer to
evaporate. This is normal when it is hot or humid.
THE REFRIGERATOR SEEMS TO MAKE TOO
Check if...
The sounds may be normal for your refrigerator. I
I
MUCH NOISE
Then...
Refer to the Understanding Sounds You May Hear section. I
I
THE ICEMAKER IS NOT PRODUCING ICE OR ICE CUBES ARE FREEZING TOO SLOWLY
Check if...
The freezer temperature is cold enough to produce ice.
Door left open.
Then...
Wait 24 hours after hook-up for ice production. See the Setting /
the Controls Section.
t
Check to see if something is holding the door open.
CUBES PRODUCED BY ICEMAKER ARE TOO SMALL
Check if... Then...
Water shutoff valve connecting refrigerator to water I Call a plumber to clear the valve.
i
line may be clogged.
I
I
THE DOORS ARE DIFFICULT TO OPEN
Check if...
The gaskets are dirty or sticky.
The door is reopened within a short time after having
been opened.
Then...
Clean gaskets and the surfaces that they touch. Rub a thin
coat of appliance polish or kitchen wax on the gaskets after
cleaning
When you open the door, warmer air enters the refrigerator.
As the warm air cools, it can create a vacuum. If the door is
hard to open, wait 5 minutes to allow the air pressure to
equalize, then see if it opens more easily.
39

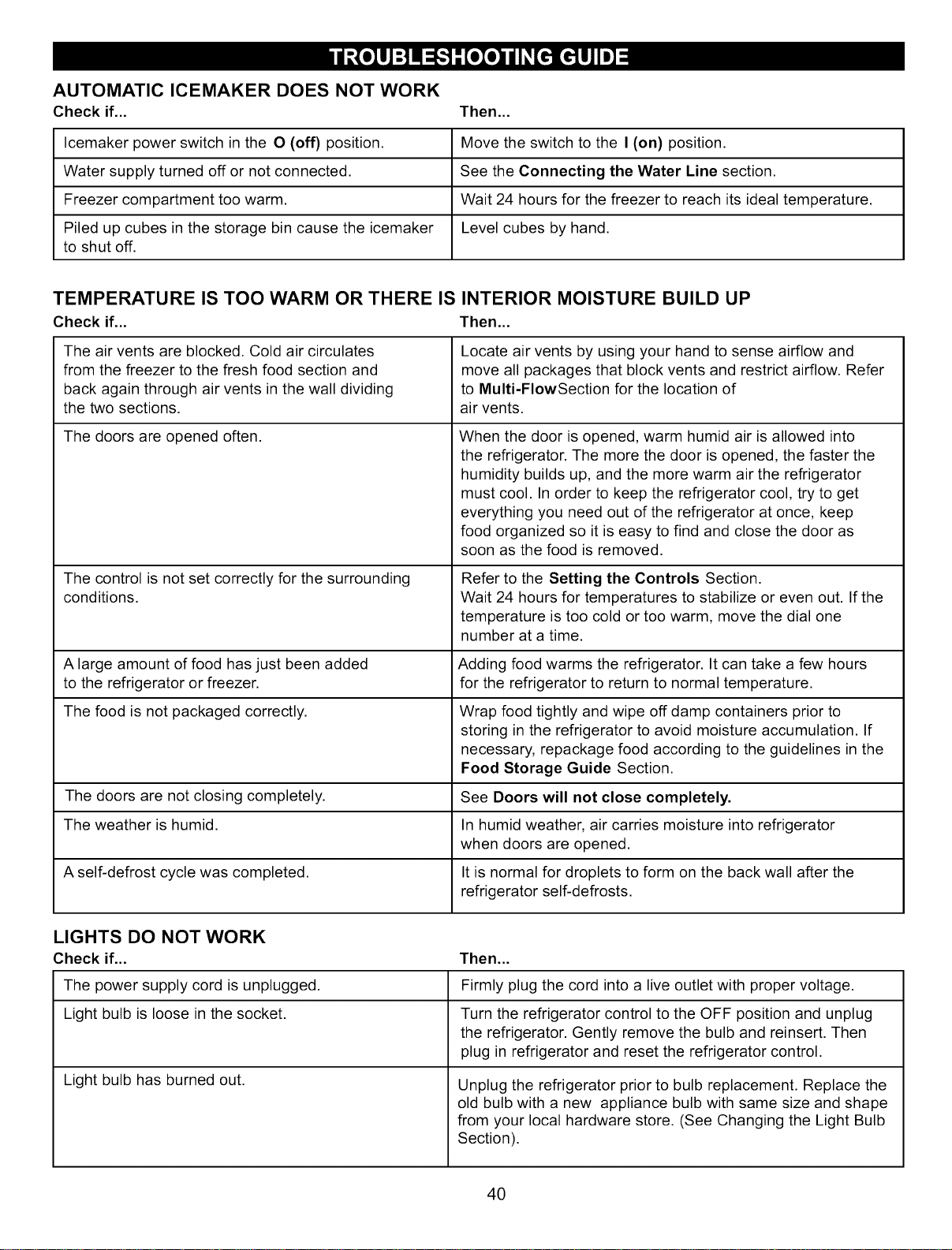

AUTOMATIC ICEMAKER DOES NOT WORK
Check if... Then...
Icemaker power switch in the O (off) position. Move the switch to the I (on) position.
Water supply turned off or not connected. See the Connecting the Water Line section.
Freezer compartment too warm. Wait 24 hours for the freezer to reach its ideal temperature.
Piled up cubes in the storage bin cause the icemaker Level cubes by hand.
to shut off.
TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILD UP
Check if... Then...
The air vents are blocked. Cold air circulates
from the freezer to the fresh food section and
back again through air vents in the wall dividing
the two sections.
The doors are opened often.
Locate air vents by using your hand to sense airflow and
move all packages that block vents and restrict airflow. Refer
to Multi-FlowSection for the location of
air vents.
When the door is opened, warm humid air is allowed into
the refrigerator. The more the door is opened, the faster the
humidity builds up, and the more warm air the refrigerator
must cool. In order to keep the refrigerator cool, try to get
everything you need out of the refrigerator at once, keep
food organized so it is easy to find and close the door as
soon as the food is removed.
The control is not set correctly for the surrounding Refer to the Setting the Controls Section.
conditions. Wait 24 hours for temperatures to stabilize or even out. If the
temperature is too cold or too warm, move the dial one
number at a time.
A large amount of food has just been added Adding food warms the refrigerator. It can take a few hours
to the refrigerator or freezer, for the refrigerator to return to normal temperature.
The food is not packaged correctly. Wrap food tightly and wipe off damp containers prior to
storing in the refrigerator to avoid moisture accumulation. If
necessary, repackage food according to the guidelines in the
Food Storage Guide Section.
The doors are not closing completely. See Doors will not close completely.
The weather is humid. In humid weather, air carries moisture into refrigerator
when doors are opened.
A self-defrost cycle was completed. It is normal for droplets to form on the back wall after the
refrigerator self-defrosts.
LIGHTS DO NOT WORK
Check if... Then...
The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.
Light bulb is loose in the socket. Turn the refrigerator control to the OFF position and unplug
the refrigerator. Gently remove the bulb and reinsert. Then
plug in refrigerator and reset the refrigerator control.
Light bulb has burned out.
Unplug the refrigerator prior to bulb replacement. Replace the
old bulb with a new appliance bulb with same size and shape
from your local hardware store. (See Changing the Light Bulb
Section).
40
iiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiii_i>
iiiiiiiiiiiiiiiiiiiiiiii_'_
iiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiii
Your Home
For expert troubleshooting and home solutions advice:
www.managemyhome.com
For repair - in your home - of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it !
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® Call anytime, day or night
(1-800-469-4663) (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of the nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
www.sears.com www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (u.sA.) 1-800-361-6665 (Canada)
Para pedir servicio de reparaciSn
a domicilio, y para ordenar piezas:
Au Canada pour service en franc..ais:
1-800-LE-FOYER Mc
© Sears Brands,LLC
® Registered Trademark / TMTrademark / SMService Mark of Sears Brands, LLC
® Marca Registrada / TMMarca de Fabrica / SMMarca de Servicio de Sears Brands, LLC
MD
MCMarque de commerce / Marque depos6e de Sears Brands, LLC
