USER’S GUIDE
Model No: RHM2064S/RHM2064R/RHM2064C
RHM2064MB/RHM2064D/RHM2064P
Contents
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit
us at www.productcareuk.com
Page
Safety instructions …………………………….……….. 3
Product Overview ………………………………....….. 12
About this microwave oven ……………………………….…….. 13
Unpacking the microwave ……………………………………… 14
Microwave oven installation ……………………………………… 15
Turn table installation ……………………………………… 16
Control panel ……………………………………… 17
Using the microwave oven ……………………………………… 18
Cleaning and care ……………………………………… 25
Important utensil information ……………………………………… 26
Connection to the mains supply ……………………………………… 27
Problem solving & plug ……………………………………… 29
Guarantee ………………………………….….. 30
Technical specification ……………………………………... 31
Spare parts ……………………………………… 32
2
Safety instructions
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING: This appliance can be used by children aged
from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of the
glass.
Cleaning and user maintenance shall not be made by
children unless they are aged from 8 years and above
and supervised.
WARNING: Do not use the microwave when it is empty.
This could damage the oven.
For Grill and combination models
WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements.
3
Safety instructions
WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
WARNING: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
WARNING: Liquids and other foods must not be heated
in sealed containers since they are liable to explode.
WARNING: Only allow children to use the oven without
supervision when adequate instructions have been given
so that the child is able to use the oven in a safe way and
understands the hazards of improper use.
4
Safety instructions
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard. When heating food in
plastic or paper containers, keep an eye on the oven due
to the possibility of ignition.
Only use utensils that are suitable for use in microwave
ovens.
You should clean the outside of the oven with a damp
cloth. Do not allow water to seep into the ventilation
openings.
Do not allow the control panel to become wet. Clean
with a soft, damp cloth. Do not use detergents, abrasives
or spray-on cleaners on the control panel.
If steam builds up inside or around the outside of the
oven door, wipe with a soft cloth. This may happen when
the microwave oven is used in humid conditions.
Regularly remove the glass turntable to clean it, and
wash it in warm soapy water. Regularly clean the
turntable support and oven floor. Simply wipe the
bottom surface of the oven with mild detergent and
water, then dry. You can wash the turntable support in
mild soapy water.
5
Safety instructions
The rear surface of appliance may be placed against a
wall. Leave a minimum clearance of 30cm above the
oven, a minimum clearance of 20cm is required between
the oven and any adjacent walls.
The microwave oven should be used freestanding only
and must not be built-in or used in a cabinet.
If smoke is emitted , switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
Microwave heating of beverages can result in delayed
eruptive boiling, therefore care must be taken when
handling the container.
6
Safety instructions
Eggs in their shell and whole hard-boiled eggs should not
be heated in microwave ovens since they may explode,
even after microwave heating has ended.
The oven should be cleaned regularly and any food
deposits removed. Failure to maintain the oven in a clean
condition could lead to deterioration of the surface that
could adversely affect the life of the appliance and
possibly result in a hazardous situation.
Before you clean the oven, turn it off and unplug it.
Keep the inside of the oven clean. When food or liquids
stick to the oven walls, wipe with a damp cloth. We
recommend that you do not use harsh detergent or
abrasives.
The contents of feeding bottles and baby food jars shall
be stirred or shaken and the temperature checked before
consumption in order to avoid burns.
7
Safety instructions
Do Not obstruct the ventilation
from the microwave
Only use thermometers that are approved for microwave
ovens.
8
Safety instructions
• Food containing a mixture of fat and water (for example, stock) should
stand for 30 to 60 seconds in the oven after it has been turned off. This
is to allow the mixture to settle and to prevent it from bubbling when a
spoon is placed in it, or a stock cube is added.
• When heating or cooking food or liquid, remember that there are
certain foods (such as, jam, Christmas puddings and mincemeat) which
heat up very quickly.
• When heating or cooking foods that contain a lot of fat or sugar, do not
use plastic containers.
• Always have the glass tray and turntable support in place when using
the oven.
• Never remove parts from the oven such as the feet, screws and so on.
• Do not cook food directly on the glass tray. Put food on a suitable plate
or in a bowl before putting it in the oven.
To reduce the risk of fire in the oven cavity:
• Do not overcook food.
• Do not leave the microwave oven unattended while you are using it
and if using paper or plastic containers check regularly to ensure they
do not ignite.
• Remove wire twist-ties from bags before putting the bag in the oven.
• If materials inside the oven smoke or catch fire, keep the oven door
closed to stifle the flames, turn the oven off at the wall switch, or shut
the power off at the fuse or circuit-breaker panel.
9
Safety instructions
• The microwave is intended for heating food and beverages. Drying of
food or clothing and heating of warming pads, wheat bags, slippers,
sponges, damp cloth and similar may lead to risk of injury, ignition or
fire.
• Heat from the contents of a container may be transmitted to the
container itself, so please be careful when removing it from the oven.
Please remember that the food or liquid inside may be releasing some
steam or may be spitting. Never cover any container fully, always leave
a gap for steam to escape.
• Cooking utensils may become hot because of heat transferred from the
heated food. This is especially true if plastic wrap has been covering the
top and handles of the utensil. You may need oven gloves to handle
the utensil.
• Ensure you do not use any corrosive chemicals or vapours in the
appliance. It is not designed for industrial or laboratory use.
• Never put any objects into the openings on the outer case.
• On the right hand side wall of the cavity is the wave guide cover,
microwaves are passed through this to enable your food to cook. It is
important that this wave guide cover is kept clean at all times. To do
this wipe with mild detergent and water, then dry.
• When removing the turntable support of the oven, make sure you put
it back properly.
• If the inside of the oven smells, put a cup of water with the juice and
skin of one lemon in a deep microwave bowl. Microwave it for three
minutes, wipe thoroughly and then dry with a soft cloth.
• Do not try to deep-fry foods in this oven.
10
• Do not use metal pans or dishes with metal handles.
• Do not use anything with a metal trim.
• Do not use paper covered wire twist-ties on plastic bags.
• Do not use melamine dishes as they contain a material which will
absorb microwave energy. This may cause the dishes to crack or burn,
and will slow down the cooking speed.
• Use only cookware that is approved to be used in a microwave oven.
• Do not cook using containers with restricted openings, such as bottles,
as they may explode.
• Do not heat baby bottles with the teat left on. Remove it if replacing
the bottle back into the oven.
• Do not use the microwave oven for heating utensils.
• Do not use the oven for any reason other than preparing food, such as
for drying clothes, paper or any other non-food items, or for sterilising
purposes.
• Do not store anything in the oven, such as paper, or cook books .
• Do not cook any food surrounded by a membrane, such as egg yolks,
potatoes, chicken livers, sausages, ready meals and so on without
piercing them several times with a fork.
• Never put any objects into the openings on the outer case.
• You should use microwave utensils only in line with these instructions.
• Only use the accessories supplied by the manufacturer.
This appliance is intended to be used in the household and similar
applications. It is not intended to be used in the following:
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential environments;
• bed and breakfast type environments.
Safety instructions
11
Product overview
A. Control panel (including door release button)
B. Turntable shaft
C. Turntable ring assembly
D. Glass turntable
E. Observation window
F. Door assembly
G. Safety interlock latches
H. Waveguide cover
I. Oven cavity
J. Ventilation slots
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
H
I
J
F
G
A
C
B
E
D
12
About this microwave oven
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
Microwaves are high-frequency electromagnetic waves similar to radio waves. While
radio waves may vary in length from one metre to many kilometres, microwaves are
very short (less than 12.5 centimetres). Microwaves do not make any heat
themselves but only cause water molecules in food to vibrate. This vibration produces
heat that cooks the food. This is why your food will come out of the microwave piping
hot, when your utensils inside the oven stay much cooler. The microwaves do not stay
in the air or in the food when you open the microwave oven door.
The microwave oven will work using an ordinary household electrical socket. Inside
the microwave oven is the magnetron, which turns the electrical energy into
microwaves.
Microwaves cannot go through metal, so the inside of the oven is lined with metal.
The door is lined with a fine metal mesh which stops microwaves getting through.
This means that when the microwave oven door is shut, there is no possibility that
microwaves can be released. This is why the microwave oven has been made so that
it will not work when the door is open.
13
Unpacking the microwave
Before you use your microwave oven
1. Remove all the packaging. Do not remove the small piece of card from
the right hand side of the cavity wall. This is called a wave-guide cover
and allows the microwaves to pass through to cook the food.
Please ensure you keep this cover clean at all times.
2. Check the oven after unpacking for any visual damage such as:
● A misaligned door
● Damage to the door
● Dents or holes in the door window and screen
● Dents in the inside
● If you can see any damage do not use the oven
This microwave oven weighs approximately kg so you must put it on
is strong enough to support this weight.
The oven must be placed away from high temperatures and steam.
Do not put anything on the top of the microwave oven.
10.6
a horizontal surface that
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
14
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
Microwave oven installation
• Select a level surface that provides enough space for the outlet vents.
•
A minimum clearance of is required between the oven and any
adjacent walls. Leave a minimum clearance of
20cm
30cm above the oven.
• Place the oven as far away from radios and TV's as possible. Using the
oven may cause interference with the reception.
• Plug the oven into a suitable 13 amp mains socket, make sure the
voltage is the same as on the rating label (do not use extension cables
or mains socket adaptors).
• The microwave oven should be used freestanding only and must not be
built-in or used in a cabinet.
Warning: do not install the oven over a cooker or other heat producing
appliance. This will damage the oven.
The minimum installation height is 85cm.
Do Not obstruct
The ventilation
From the microwave
20cm
30cm
20cm
min85cm
0cm
15
Turn table installation
• Before first use, check that any securing tape has been removed from
the glass tray and turntable ring assembly. These parts must never be
restricted from rotating.
• Never place the glass tray upside down.
• Both the glass tray and turntable ring assembly must always be used
during cooking.
• Do not place the food directly onto the glass tray, always place on or in
a suitable microwaveable cookware.
• If the glass tray or turntable ring assembly has been damaged in
anyway, please contact the spares helpline number detailed on the
back of this instruction manual.
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com

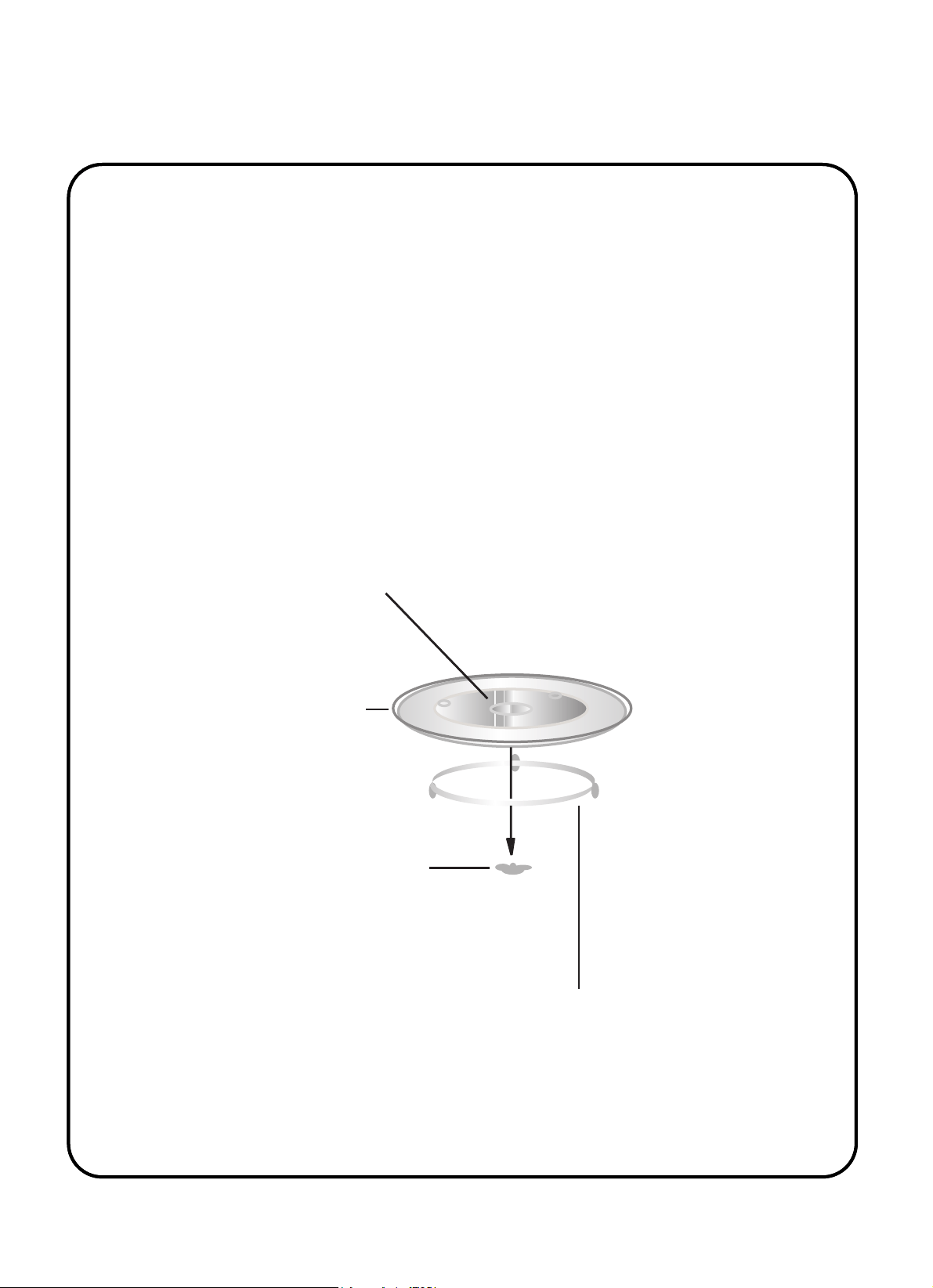

Hub (underside)
Glass tray
T
urntable ring assembly
Turntable shaft
16
Control panel
MENU ACTION SCREEN Cooking time, power,
auto, and the clock time are displayed.
POWER Press to select the power level for
microwave cooking. Press the Left Hand Side
of the button.
WEIGHT/TIME DEFROST Press this button to
input weight for defrosting. Press the Right
Hand Side of the button.
CLOCK/PRE-SET Press this button to set the
clock and use the preset function. Press the
LHS.
STOP/CLEAR Press to stop the cooking
process, press the RHS.
TIMER/WEIGHT/AUTO MENU Rotate to
select the cooking time and the auto menus.
START/+30SEC/CONFIRM Press this button to
start the cooking process and confirm when
programming.
DOOR BUTTON Push the button to release
the door.
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
Power
17
Using the microwave oven
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
Clock Setting
When the microwave oven is first turned on, the oven will display "0:00",
the buzzer will ring once.
1) Press -SET" to choose hours or minutes for alteration. The
hour figures will flash. When altering the hours the "0" on the Left Hand
Side will flash.
2) Turn the dial to adjust the hour figures,
0 - 23(this is a 24-hour clock).
3) Press "CLOCK/PRE-SET" button again and the minute figures will flash.
4) Turn the dial to adjust the minute
0 - 59 (60-minutes).
5) Press "CLOCK/PRE-SET" to finish the clock setting procedure. The ":" will
then flash.
Note:
1) If the clock is not set, the will not function when powered.
2) During the process of clock setting, if you press " STOP/CLEAR ", the
oven will go back to the previous status.
the input time should be within
figures, the input time should be within
"TIMER/WEIGHT/AUTO MENU"
"TIMER/WEIGHT/AUTO MENU"
"CLOCK/PRE
clock
18
Microwave Cooking
1) Press the button once, and and flash.
2) Turn the to select the microwave
P80", "P50", "P30", "P10" will display in order.
or
Press the button to scroll through the power levels.
3) Press /+30SEC/CONFIRM" to confirm.
4)Turn the dial to adjust the cooking time.
between 0:05- 95:00.)
5) Press "START/+30SEC/CONFIRM" to start the cooking process.
power. "P100", "
(The time setting should be
"POWER"
"TIMER/WEIGHT/AUTO MENU"
"P100" will display
"POWER"
"START
"TIMER/WEIGHT/AUTO MENU"
Using the microwave oven
Press power
button
Cooking power
Equivalent
power rating
P100 100%
800 W
P80 80%
640 W
P50 50%
400 W
P30 30%
240 W
P10 10%
80 W
To stop the cooking process at anytime press the . "STOP/CLEAR" button
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
19
Using the microwave oven
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
Speedy Cooking
Press the "START/+30SEC/CONFIRM" button to microwave cook at 100%
power level for 30 seconds.
The microwave will start cooking immediately.
Each press on the same key will increase the cooking time by 30 seconds.
The maximum cooking time is 95 minutes.
Note: this function does not work for defrost and auto menu
.
or
Turn the dial to adjust the desired cooking
"START/+30SEC/CONFIRM". The oven will start cooking
Defrosting by Weight
1) Press "
button once, the oven will display
dEF1".
2) Turn the dial to select the weight of the
weight should be set between 100-2000g.
3) Press "START/+30SEC/CONFIRM" button to start defrosting.
Defrosting by Time
1) Press " WEIGHT/TIME DEFROST " button twice, the oven will display
"dEF2".
2) Turn the dial to select the defrosting
time is 95 minutes.
3) Press "START/+30SEC/CONFIRM" button to start defrosting.
The defrosting power is 30%, and cannot be changed.
weig
cooking
ht
for the selected length of time at 100% power.
time, then press
"
"
"TIMER/WEIGHT/AUTO MENU"
food in grams. The
time, the maximum
"TIMER/WEIGHT/AUTO MENU"
"TIMER/WEIGHT/AUTO MENU"
WEIGHT/TIME DEFROST
20
Using the microwave oven
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
Multi-Stage Cooking
To set a maximum of two different stages. For instance, to defrost an
item and the follow it with the cooking cycle.
Note: The auto menu cannot be set as one of the multi-stage cooking
functions.
Example: if you want to defrost 500g of food, then cook it at 80%
microwave power for 7 minutes. The steps are as follows:
1) Press button once, the screen will display
“dEF1”
2) Turn the dial to adjust the defrost
;
3) Press the button once;
4) Turn the dial to choose 80% microwave
5) Press "START/+30SEC/CONFIRM" to confirm;
6) Turn the dial to adjust the cooking time
to 7 minutes;
7) Press the "START/+30SEC/CONFIRM button to start the cooking
process.
weight to 500g
power till "P80" display ;s
"WEIGHT/TIME DEFROST"
.
"TIMER/WEIGHT/AUTO MENU"
"POWER"
"TIMER/WEIGHT/AUTO MENU"
"TIMER/WEIGHT/AUTO MENU"
"
21
Using the microwave oven
Pre-set time to start functions
Set the clock first. (Consult the instructions for setting the clock)
Input the cooking program. It’s possible to input a maximum of 2 cooking
stages. Do not use the defrost function in the pre-set function. The auto
menu can be set for a single stage only.
Example: if you want to cook with 80% microwave power for 7 minutes, to
start at a given time.
1) Press the button once; "POWER"
2) Turn the dial to choose 80%
is displayed; microwave power till "P80"
"TIMER/WEIGHT/AUTO MENU"
3) Press "START/+30SEC/CONFIRM" button to confirm;
4) Turn the dial to adjust the cooking
time to 7 minutes;
"TIMER/WEIGHT/AUTO MENU"
5) After the above steps, DO NOT press " START/+30SEC/CONFIRM "
button, but do as follows :
6) Press the "CLOCK/PRE-SET“ button, the current time displays and the
hour figures flash.
7) Turn dial to adjust the hours, the input
-23. Press "CLOCK/PRE-SET" button and the
minute figures will flash. Turn the dial
- 59. This sets
the start time.
time should be within 0
to adjust the minutes, the input time should be within 0
"TIMER/WEIGHT/AUTO MENU"
"TIMER/WEIGHT/AUTO MENU"
8) Press "START/+30SEC/CONFIRM" to finish setting.
The ":" will illuminate, the buzzer will ring twice when the time to start
arrives, and then cooking will start automatically.
Note: The clock must be set first. Otherwise, the pre-set function will not
work.
22
Using the microwave oven
In all cases allow the food to stand in the microwave for 1-2 minutes after the
cooking cycle is complete.
Auto Menu
The microwave can automatically calculate the cooking time based on
the type of food and weight.
1) Turn the "TIMER/WEIGHT MENU dial clockwise, "A-1" will
display on the screen. Continue to rotate the dial to access the other
auto selections, up to A-8.
/AUTO "
2) Press the "START/+30SEC/CONFIRM" button to select the chosen
auto, A-1 - A-8.
3) Turn the "TIMER/WEIGHT/AUTO MENU dial to choose the food
weight, these are pre-set and listed below.
"
4) Press "START/+30SEC/CONFIRM" button to start cooking.
Please see the table below for the various settings.
Display Auto Menu Weight (g) on the Display Power
A -1 Reheat 200 100%
400
600
A -2 Vegetable
Add water.
200 100%
300
400
A -3 Fish 250 80%
350
450
A -4 Meat 250 100%
350
450
A -5 Pasta 50(add 450ml water) 80%
100(add 800ml water)
A -6 Potato 200 100%
400
600
A -7 Pizza 200 100%
400
A -8 Soup 200 80%
400
23
Using the microwave oven
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
Checking Functions
1) During the cooking cycle, press the button and the current
power will be displayed for 2-3 seconds.
"POWER"
2) In pre-set state, press the " CLOCK/PRE-SET button to check the time
when the cooking will start. The pre-set time will flash for 2-3 seconds,
then the oven will turn back to the clock display.
"
3) During the cooking cycle, press the "CLOCK/PRE-SET" button to check
the current time. It will be displayed for 2-3 seconds.
Child lock
Lock on: In standby, when nothing is operating, Press "STOP/CLEAR"
button for 3 seconds, there will be a long "beep" as the lock activates. A
rectangle will illuminate in the display.
Lock off: In locked state, press "STOP/CLEAR" button for 3 seconds, there
will be a long "beep".
The current time will continue to display.
When the child lock is on, no functions can be activated.
General information
• The buzzer will sound once when turning the knob at the beginning;
• The "START/+30SEC/CONFIRM" button must be pressed again to
continue cooking if the door is opened during a cooking cycle.
• Once the cooking programme has been set ,if the
"START/+30SEC/CONFIRM" button is not pressed in 1 minute. The
current time will display and the setting will be cancelled.
• The buttons will beep if they are pressed correctly, if not pressed
correctly they will not beep.
• The buzzer will sound five times to remind you when cooking is
finished.
24
Cleaning and care
• Before you clean the oven, turn it off and unplug it.
• Keep the inside of the oven clean. When food or liquids stick to the
oven walls, wipe with a damp cloth. We recommend that you do not
use harsh detergent or abrasives.
• On the right hand side wall of the cavity is the wave guide cover,
microwaves are passed through this to enable your food to cook. It is
important that this wave guide cover is kept clean at all times. To do
this wipe with mild detergent and water, then dry.
• You should clean the outside of the oven with a damp cloth. Don’t
allow water to seep into the ventilation openings.
• Do not allow the control panel to become wet. Clean with a soft, damp
cloth. Do not use detergents, abrasives or spray-on cleaners on the
control panel.
• If steam builds up inside or around the outside of the oven door, wipe
with a soft cloth. This may happen when the microwave oven is used in
humid conditions.
• Regularly remove the glass turntable to clean it, and wash it in warm
soapy water. Regularly clean the turntable support and oven floor.
Simply wipe the bottom surface of the oven with mild detergent and
water, then dry. You can wash the turntable support in mild soapy
water.
• When removing the turntable support of the oven, make sure you put
it back properly.
• If the inside of the oven smells, put a cup of water with the juice and
skin of one lemon in a deep microwave bowl. Microwave it for three
minutes, wipe thoroughly and then dry with a soft cloth.
• Failure to maintain the oven in a clean condition, especially if liquid is
left under the turntable, could lead to deterioration of the surface that
will adversely affect the life of the appliance that may result in a
hazardous condition.
25
Important utensil information
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
• Do not use metal pans or dishes with metal handles.
• Do not use anything with a metal trim.
• Do not use paper covered wire twist-ties on plastic bags.
• Do not use melamine dishes as they contain a material which will
absorb microwave energy. This may cause the dishes to crack or burn,
and will slow down the cooking speed.
• Use only cookware that is approved to be used in a microwave oven.
• Do not cook using a container with a restricted opening, such as
bottles, as they may explode.
• Do not heat baby bottles with the teat left on. Remove it if replacing
the bottle back into the oven.
• Only use thermometers that are approved for microwave ovens.
• Do not use the microwave oven for heating utensils.
26
Connection to the mains supply
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
WARNING- THIS APPLIANCE MUST BE EARTHED
This appliance is designed to operate from a mains supply of
Check that the voltage marked on the product corresponds with your
supply voltage.
This product is fitted with a 13A plug complying with BS1363.
If this plug is unsuitable or needs to be replaced, please note the following:
Important: The wires in the mains lead are coloured in accordance with
the following code:
GREEN/YELLOW-EARTH
BLUE-NEUTRAL
BROWN-LIVE
230-240V
~
50Hz.
DANGER
Electric
Shock Risk
27
Connection to the mains supply
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
For UK use only – Plug fitting details (where applicable):
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your
plug, proceed as follows:
The GREEN/YELLOW wire is the EARTH and must be connected to the
terminal which
is marked with the letter E or by the earth symbol or coloured GREEN or
GREEN/YELLOW.
The BLUE wire is the NEUTRAL and must be connected to
the terminal marked with the letter N or coloured BLACK.
The BROWN wire is the LIVE wire and must be connected to
the terminal marked with the letter L or coloured RED.
Always ensure that the plug cord grip is fastened correctly.
If a 13A (BS1363) fused plug is used it must be fitted with a
13amp fuse conforming to BS1362 and be BSI or ASTA approved.
28
Problems solving & plug
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
Plug
If your appliance is supplied with a non-rewireable plug fitted to the
mains lead you will find that it incorporates a fuse, the value of which is
indicated either on the base of the plug or on the fuse carrier.
Should the fuse need replacing, you must use an ASTA approved fuse
(conforming to BS1362) of the same rating.
If the fuse cover is lost the plug must not be used until a replacement is
obtained from an electrical supplier.
If you need to remove the plug, cut it from the mains lead and dispose of
it. Never attempt to re-use this plug or insert it into a socket outlet, as
there is a very great risk of an electric shock.
Problem solving
The microwave oven may cause interference to your radio, TV or
similar equipment. If it does, you can get rid of the interference by
moving the radio, TV or equipment as far away from your microwave
oven as possible.
If the oven doesn’t work -
• Make sure the mains plug is plugged in securely. If it is not, remove
the plug from the socket, wait 10 seconds and plug it in again
securely.
• Check the premises for a blown circuit fuse or a tripped main circuit
breaker. If these seem to be working properly, test the socket with
another appliance that you know works.
If the microwave power will not work –
• Check to see whether the timer is set, or the child lock is on.
• Make sure the door is securely closed. Otherwise, the microwave
energy will not flow into the oven
29
Guarantee
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
This product is guaranteed for 12 months from the date of the original
purchase. If any defect arises due to faulty materials or workmanship
the faulty product must be returned to the place of purchase.
Refund or replacement is at the discretion of the store.
The following conditions apply:
• The product must be returned to the retailer with the original
proof of purchase.
• The product must be installed and used in accordance with the
instructions contained in this instruction guide and any other
instructions for use which has been supplied.
• It must be used for domestic purposes only and for its intended
use.
• This guarantee does not cover wear and tear, damage, misuse or
consumable parts.
This does not affect your statutory rights.
Produced for;
G2S Ltd.
Bolton
BL6 5HY
30
Technical Specification
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
Rated Voltage
230V – 240V ~ 50Hz
Rated Input Power(Microwave)
1200 -1270 W
Rated Output Power(Microwave)
750-800 W
Oven Capacity
20 L
Turntable Diameter
255 mm
External Dimensions(HxWxD)
258mm x 440mm x 34 mm 0
Net Weight
10.6 kg
31
Notes
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
33
Notes
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
34
Notes
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
35
Revision 5
For Customer Services &
Spare Parts please call
0845 209 7461
Opening times: Monday -
Friday
8am – 6pm & Saturday 9am –
1pm or visit us at
www.productcareuk.com
This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is
marked on a product/batteries, it means that the product/batteries should not be
disposed of with your general household waste. Only discard
electrical/electronic/battery items in separate collection schemes, which cater for the
recovery and recycling of materials contained within. Your co-operation is vital to make
sure the success of these schemes and for the protection of the environment. For your
nearest disposal facility, visit www.recycle-more.co.uk or ask in store for details.
We reserve the right due to possible changes to design to alter the instruction manual
without prior notice.
PN: 261800315168
