Please read the safety information carefully before using the product.
IPS LED Monitor (LED Monitor) Model List
Owner's Manual
IPS LED MONITOR
(LED MONITOR*)
*LG LED Monitors are LCD Monitors with LED Backlighting.
34UM61
2
ENG
ENGLISH
CONTENTS
24 TROUBLESHOOTING
26 SPECIFICATIONS
26 34UM61
27 Factory Support Mode (Preset Mode, PC)
27 HDMI
27 HDMI Timing (Video)
27 Power Indicator
3 LICENSE
4 ASSEMBLING AND PREPARING
4 Product Components
5 Supported Drivers and Software
6 Component and Button Description
6 - How to Use the Joystick Button
7 Input Connector
8 Moving and Lifting the Monitor
9 Installing the Monitor
9 - Assembling the stand base
10 - Using the cable holder
11 - Installing onto a table
12 - Adjusting the angle
13 - Using the Kensington lock
13 - Detaching the Stand Body
13 - Installing the wall mount plate
14 - Installing to a wall
15 USING THE MONITOR

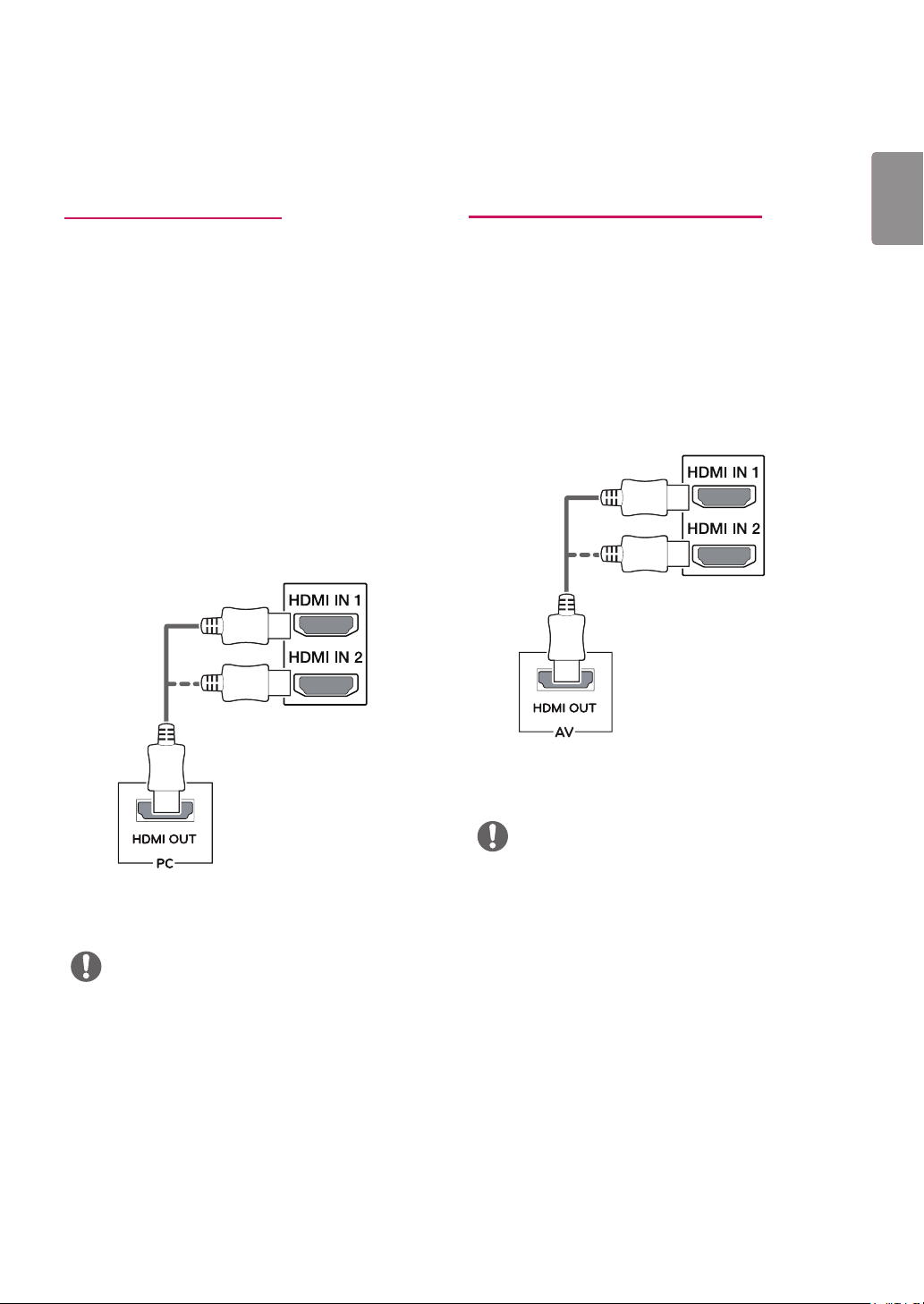

15 Connecting to a PC
15 - HDMI connection
15 Connecting to AV Devices
15 - HDMI connection

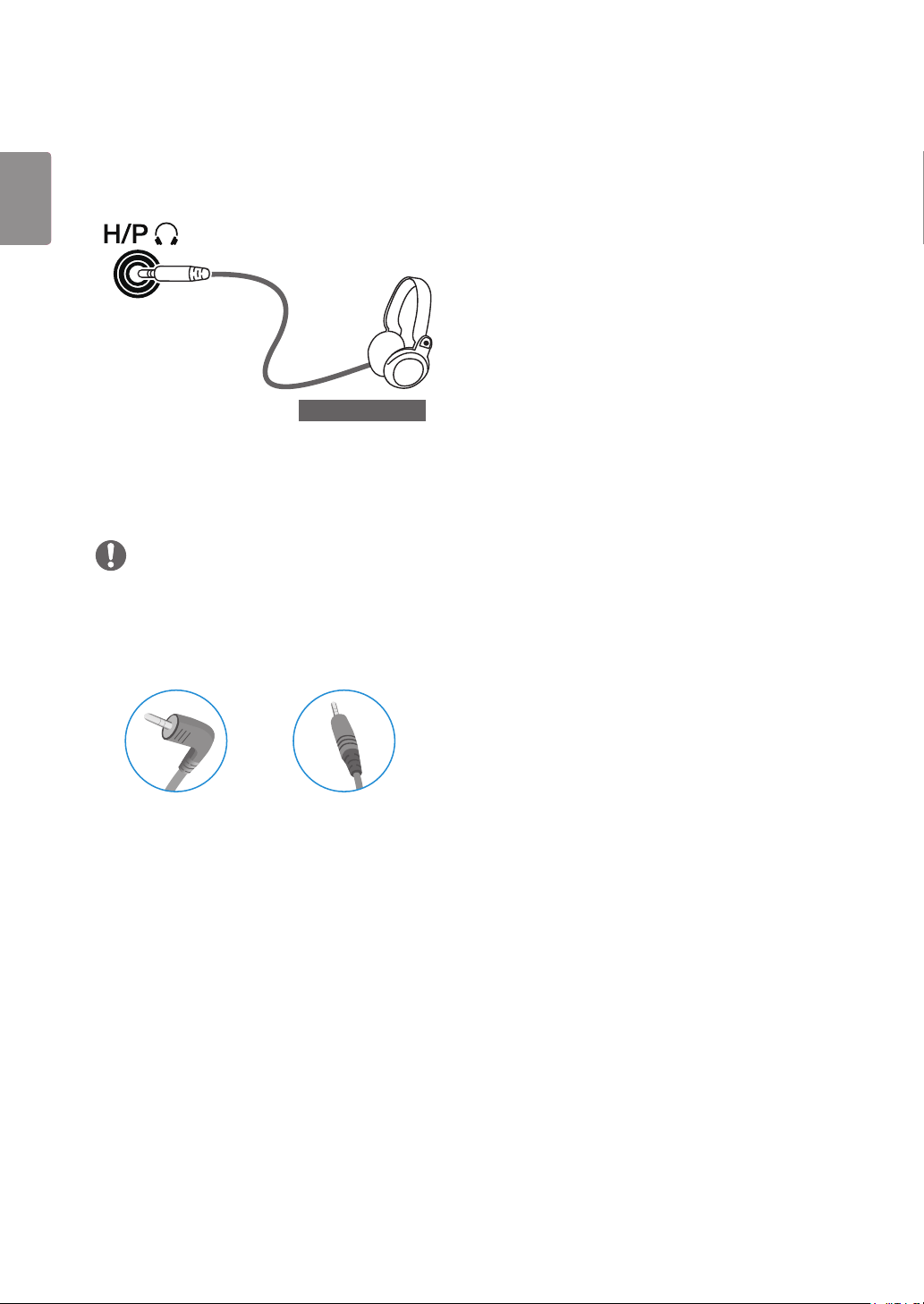

16 - Connecting Headphones
17 CUSTOMIZING SETTINGS
17 Activating the Main Menu
18 Customizing settings
18 - Menu Settings
18 - -Quick Settings
19 - -Picture

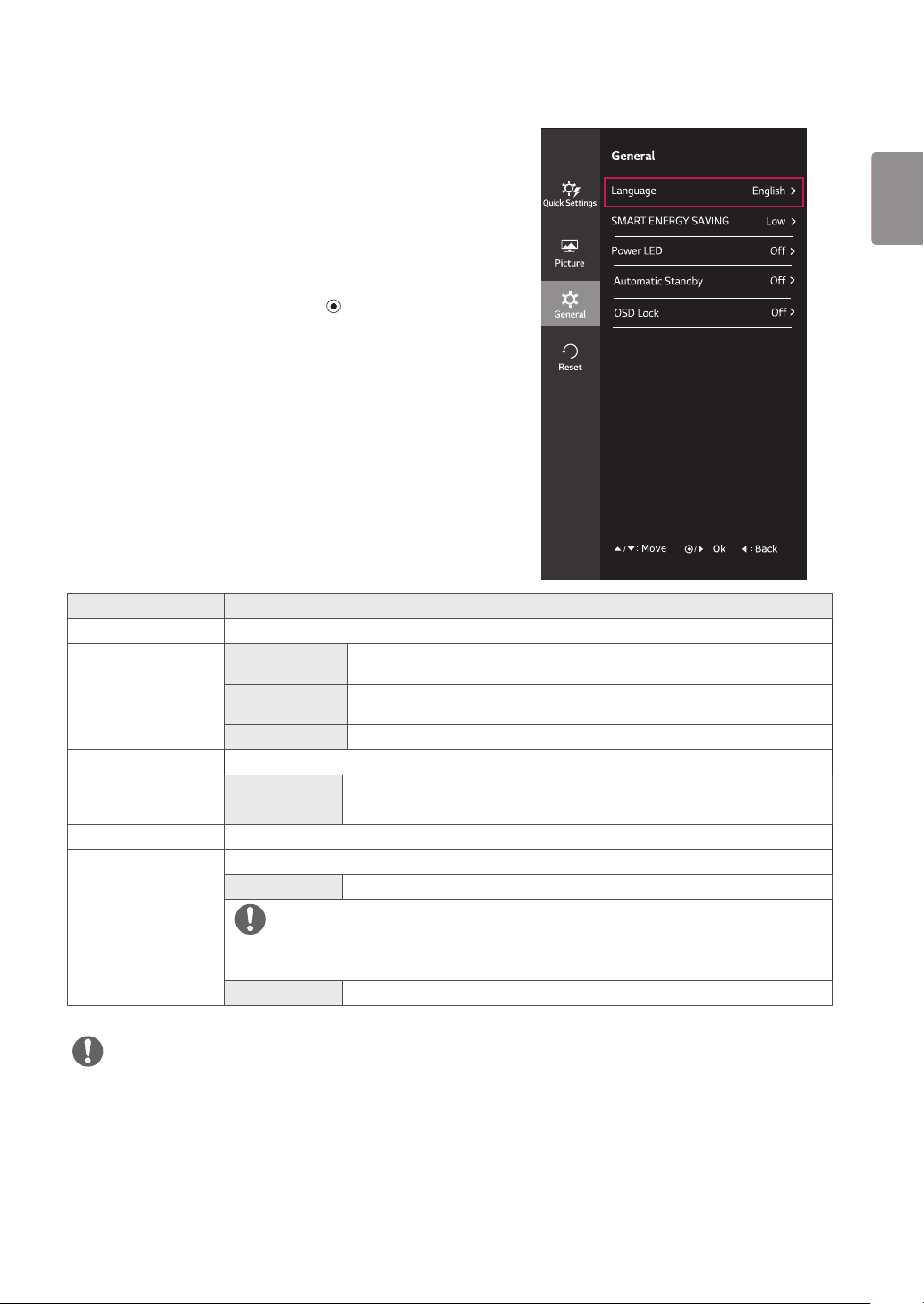

21 - -General
22 - -Reset
23 - -Picture Mode
3
ENG
ENGLISH
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the
United States and other countries.
The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP
Directive:
* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to
display.
* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.
4
ENG
ENGLISH
(Depending on the country)
ASSEMBLING AND PREPARING

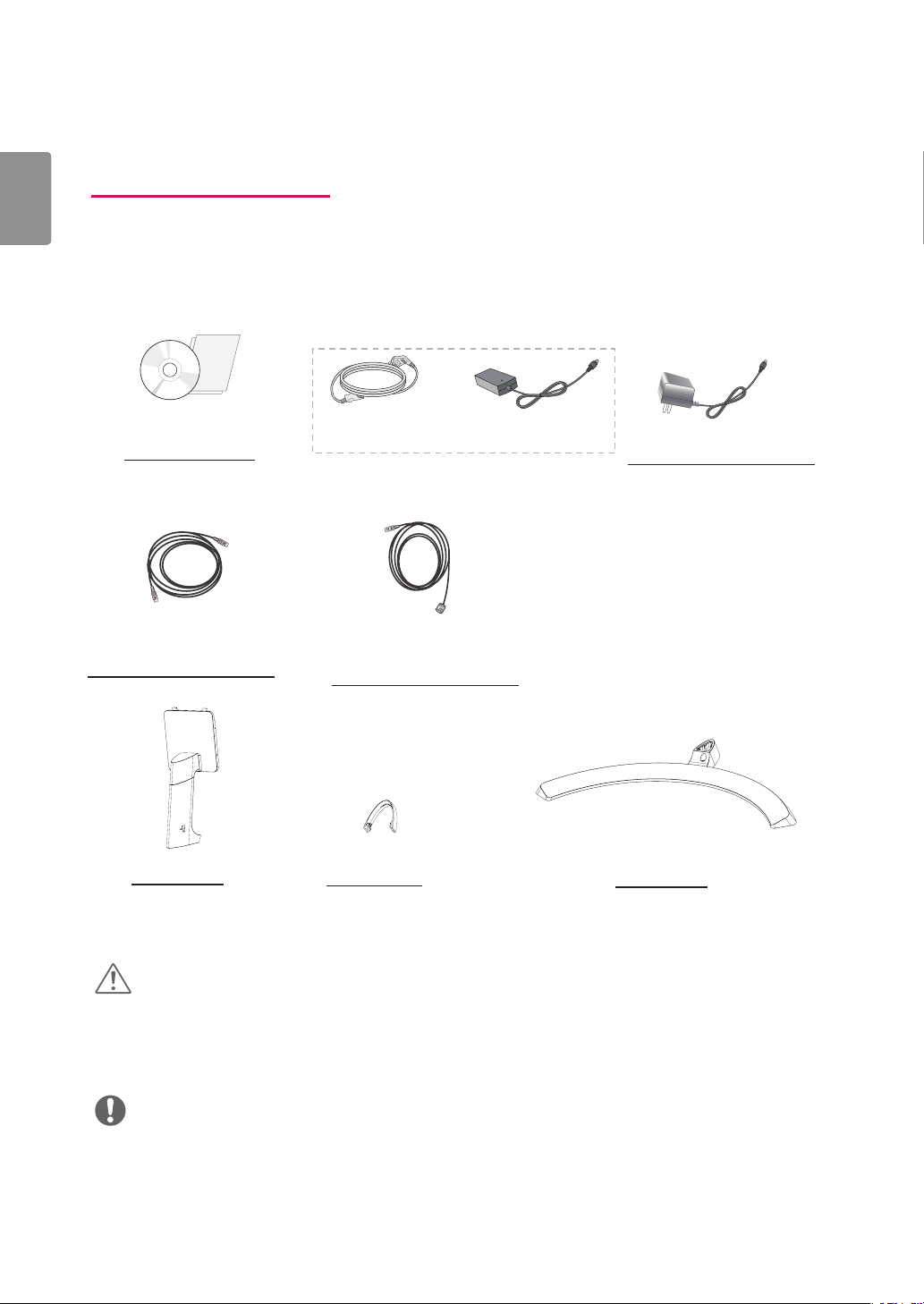

Product Components
Please check whether all the components are included in the box before using the product. If there are missing com-
ponents, contact the retail store where you purchased the product. Note that the product and components may look
different from those shown here.
y
Always use genuine components to ensure safety and product performance.
y
The product warranty will not cover damage or injury caused by the use of counterfeit components.
y
It is recommend that use the supplied components.
y
If you use generic cables not certified by LG, the screen may not display or there may be image noises.
y
Note that the components may look different from those shown here.
y
Without prior notice, all information and specifications in this manual are subject to change to improve the
performance of the product.
y
To purchase optional accessories, visit an electronics store or online shopping site or contact the retail store
where you purchased the product.
CAUTION
NOTE
CD(Owner's Manual) /
Card
Stand BaseStand Body
HDMI Cable
HDMI-DVI Cable
Power Cord
AC-DC Adapter
AC-DC Adapter
Cable Holder
or
or
(Depending on the country)
(This cable is not included in all
countries. )
(This cable is not included in all
countries. )
5
ENG
ENGLISH
Supported Drivers and Software
Check the drivers and software supported by your product and refer to the manuals on the CD enclosed in the product
package.
y
Required and Recommended: You can download and install the latest version from the enclosed CD or from the
LGE website
(www.lg.com)
.
y
Optional: You can download and install the latest version from the LGE website
(www.lg.com)
.
Drivers and Software Installation Priority 34UM61
Monitor Driver Recommended O
OnScreen Control Recommended O
Dual Controller Optional O
6
ENG
ENGLISH
Component and Button Description
Power LED
y
On: power is on
y
Off: power is off
Joystick Button
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your
finger.
Basic Functions
Power on
Press the joystick button once with your finger to turn on the
monitor.
Power off
Press and hold the joystick button once with your finger to turn
off the monitor.
◄/►
Volume
Control
You can control the volume by moving the joystick button left/
right.
y
The joystick button is located at the bottom of the monitor.
NOTE
7
ENG
ENGLISH

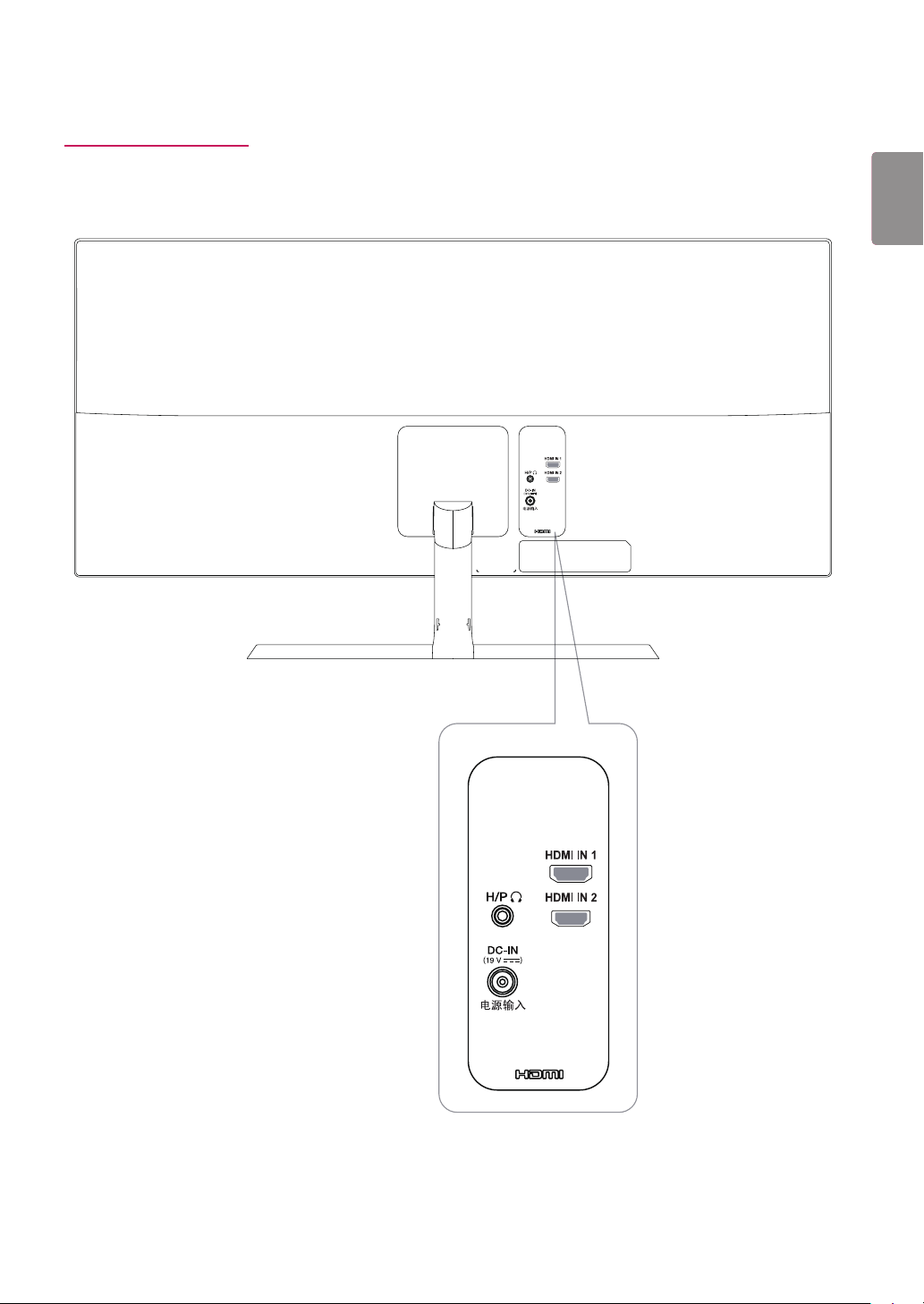

Input Connector
8
ENG
ENGLISH
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these in-
structions to prevent the monitor from being scratched
or damaged and to ensure safe transportation regard-
less of its shape or size.
y
As far as possible, avoid touching the monitor
screen. This may result in damage to the screen or
some of the pixels used to create images.
y
It is advisable to place the monitor in the original
box or packing material before attempting to
move it.
y
Before moving or lifting the monitor, disconnect
the power cord and all cables.
y
Hold the top and bottom of the monitor frame
firmly. Do not hold the panel itself.
y
When holding the monitor, the screen should face
away from you to prevent it being scratched.
y
When moving the monitor, avoid any strong shock
or vibrations to the product.
y
When moving the monitor, keep it upright, never
turn the monitor on its side or tilt it sideways.
CAUTION
y
If you use the monitor panel without the stand
base, its joystick button may cause the monitor to
become unstable and fall, resulting in damage to
the monitor or human injury. In addition, this may
cause the joystick button to malfunction.
9
ENG
ENGLISH
Installing the Monitor
Assembling the stand base
y
To protect the screen from scratches, cover the
surface with a soft cloth.
y
Press the stand until the button reaches the
top.
CAUTION
1
3
2
Stand Body
Stand Base
4
NOTE
10
ENG
ENGLISH
y
Illustrations in this document represent typical
procedures, so they may look different from the
actual product.
y
Applying excessive force when tightening screws
may cause damage to the monitor. Damage
caused in this way will not be covered by the
product warranty.
y
Do not carry the monitor upside down by just
holding the base. This may cause the monitor
to fall off the stand and could result in personal
injury.
y
When lifting or moving the monitor, do not touch
the monitor screen. The force applied to the moni-
tor screen may cause damage to it.
CAUTION
Using the cable holder
Cable Holder
Arrange the cables using the cable holder as shown in
the illustration.
NOTE
y
You can disassemble the stand in the reverse
order of the assembly.
11
ENG
ENGLISH
2
1
3
Installing onto a table
1
Lift the monitor and place it on the table in an up-
right position.
Place at least 100 mm (3.94 inches) away from
the wall to ensure sufficient ventilation.
2
Connect the power adapter to the monitor and then
plug the power cord into the wall outlet.
y
Unplug the power cord prior to moving or install-
ing the monitor. There is risk of electric shock.
CAUTION
3
Press the joystick button on the bottom of the
monitor to turn on the monitor.
100-240 V ~
Cautions When Connecting Power Cord
y
Make sure to use the power cord that is pro-
vided in the product package and connect it to a
grounded power outlet.
y
If you need another power cord, please contact
your local dealer or the nearest retail store.
or
100 mm
(3.94 inches)
100 mm
(3.94 inches)
100 mm
(3.94 inches)
100 mm
(3.94 inches)
12
ENG
ENGLISH
Adjusting the angle
1
Place the monitor in an upright position, mounted
on the stand base.
2
Adjust the angle of the screen. The angle of the
screen can be adjusted forwards or backwards for a
comfortable viewing experience.
Front SideRear Side
y
To avoid injury to the fingers when adjusting the
screen, do not hold the lower part of the moni-
tor's frame as illustrated below.
WARNING
y
Be careful not to touch or press the screen area
when adjusting the angle of the monitor.
y
The left or right side of the monitor head can be
slightly rotated up or down (up to 3°). Adjust the
horizontal level of the monitor head.
Monitor head
NOTE
13
ENG
ENGLISH
y
Use of the Kensington lock is optional. The acces-
sories can be purchased at your local electronics
store.
Installing the wall mount plate
This monitor supports the specification of the standard
wall mount plate or compatible device.
1
Place the screen face down. To protect the screen
from scratches, cover the surface with a soft cloth.
2
Place the wall mount plate onto the monitor and
align it with the screw holes.
3
Tighten the four screws to fix the plate to the moni-
tor using a screwdriver.
y
The wall mount plate is sold separately.
y
For more information on installation, refer to the
wall mount plate's installation guide.
y
Be careful not to use excessive force when
mounting the wall mount plate, as this can dam-
age the monitor's screen.
NOTE
NOTE
Using the Kensington lock
The Kensington security system connector is located at
the back of the Monitor set.
For more information on installation and usage, refer to
the Kensington lock user manual or visit the website at
http://www.kensington.com.
Connect the Kensington security system cable between
the Monitor set and a table.
1
Place the monitor’s screen face down. To protect the
screen from scratches, cover the surface with a soft
cloth.
2
Remove the stand from the monitor by pressing
the button on the bottom center of the back of the
monitor.
Detaching the Stand Body
14
ENG
ENGLISH
To install the monitor to a wall, attach a wall mounting
bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed
to the monitor and to the wall.
1 If you use screw longer than standard, the monitor
might be damaged internally.
2 If you use improper screw, the product might be dam-
aged and drop from mounted position.
In this case, LG Electronics is not responsible for it.
Installing to a wall
Install the monitor at least 100 mm (3.94 inches) away
from the wall and leave about 100 mm (3.94 inches)
of space at each side of the monitor to ensure suf-
ficient ventilation. Detailed installation instructions can
be obtained from your local retail store. Please refer to
the manual to install and set up a tilting wall mounting
bracket.
y
Unplug the power cord before moving or install-
ing the monitor to avoid electric shocks.
y
Installing the monitor on the ceiling or on a
slanted wall may result in the monitor falling off,
which could lead to injury. Please use the genu-
ine LG wall mounting bracket. For more informa-
tion, contact your local retail store or a qualified
installer.
y
Applying excessive force when fastening screws
may cause damage to the monitor. Damage
caused in this way will not be covered by the
product warranty.
y
Use the wall mounting bracket and screws
that conform to the VESA standard. Damage
caused by the use or misuse of inappropriate
components will not be covered by the product
warranty.
y
Screw length from outer surface of back cover
should be under 8mm.
y
Use the screws specified by the VESA standard.
y
The wall mount kit includes the installation guide
and all necessary parts.
y
The wall mounting bracket is optional. The acces-
sories can be purchased at your local retail store.
y
The length of the screw may differ for each wall
mounting bracket. Ensure the correct length
screw is used.
y
For more information, please refer to the user
manual for the wall mounting bracket.
CAUTION
NOTE
Wall mount Pad
Wall mount Pad
Back Cover
Back Cover
Standard screw:
Max.8mm
y
Wall Mount (A x B)
A
B
Wall Mount (A x
B)
100 x 100
Standard screw M4 x L10
Number of
screws
4
Wall Mount
Plate
(Optional)
RW120
100 mm
(3.94 inches)
100 mm
(3.94 inches)
100 mm
(3.94 inches)
100 mm
(3.94 inches)
15
ENG
ENGLISH
USING THE MONITOR
Connecting to a PC
y
This monitor supports the *Plug and Play
feature.
*Plug and Play: A feature that allows you to
add a device to your computer without having
to reconfigure anything or install any manual
drivers.
HDMI connection
Transmits the digital video and audio signals from your
PC and A/V devices to the monitor. Connect your PC
and AV device to the monitor with the HDMI cable as
illustrated below.
Press the menu button and then select the input option
from the input menu.
NOTE
y
If you use HDMI PC, it can cause compatibility
problem.
y
Use a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the
screen may not display or a connection error may
occur.
y
Recommended HDMI cable types
- High-Speed HDMI
®
/
TM
Cable
- High-Speed HDMI
®
/
TM
Cable with Ethernet
Connecting to AV Devices
HDMI connection
Transmits the digital video and audio signals from your
PC and A/V devices to the monitor. Connect your PC
and AV device to the monitor with the HDMI cable as
illustrated below.
Press the menu button and then select the input option
from the input menu.
NOTE
y
If you use HDMI PC, it can cause compatibility
problem.
y
Use a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the
screen may not display or a connection error may
occur.
y
Recommended HDMI cable types
- High-Speed HDMI
®
/
TM
Cable
- High-Speed HDMI
®
/
TM
Cable with Ethernet
16
ENG
ENGLISH
(sold separately)
Connecting Headphones
Connect peripherals to the monitor via the headphones
port. Connect as illustrated.
y
Peripheral devices are sold separately.
y
If you use angled earphones, it may cause a prob-
lem with connecting another external device to
the monitor. Therefore, it is recommended to use
straight earphones.
Angled Straight
y
Depending on the audio settings of the PC and
external device, headphones and speaker functions
may be limited.
NOTE
17
ENG
ENGLISH
Button Menu Status Description
Main menu disabled Enables the main menu.
Main menu enabled
Exits the main menu.
(Holding down the button to turn off the monitor: You can turn
off the monitor this way at any time, including when the OSD is
on.)
◄
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the menu features.
►
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Operates the Input change.
▲
Main menu disabled Enables the main menu.
Main menu enabled Enters the picture mode feature.
▼
Main menu disabled Enables the main menu.
Main menu enabled Turns off the monitor.
Main Menu Features
Main Menu Description
Menu Configures the screen settings.
Picture Mode
Select picture mode to achieve the best display
effect.
Input
You can choose the input signal.
• When two input signals are connected, you
can select the input signal you want.
Monitor off Turns off the monitor.
Exit Exits the main menu.
CUSTOMIZING SETTINGS
Activating the Main Menu
1
Press the joystick button on the bottom of the monitor.
2
Move the joystick up/down (
▲/▼
) and left/right(
◄/►
) to set the options.
3
Press the joystick button once more to exit the main menu.
Joystick Button
Power Indicator
18
ENG
ENGLISH
Each option is described below.
Customizing settings
Menu Settings
-Quick Settings
1
To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2
Go to Quick Settings >
Brightness
by moving the joy-
stick.
3
Configure the options following the instructions that ap-
pear in the bottom right corner.
4
To return to the upper menu or set other menu items,
move the joystick to
◄
or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to
◄
until you exit.
NOTE
y
The display may look the same for Wide, Original options at the recommended resolution (2560 x 1080).
y
The ratio is disabled in the interlaced signal.
Menu > Quick Settings Description
Brightness
Adjusts the color contrast and brightness of the screen.
Contrast
Volume Adjusts the volume.
NOTE
y
Jog joystick button down (
) in the Volume menu will enable/disable the Mute
function.
Input Selects the input mode.
Ratio Adjusts the screen ratio.
Wide Displays the video in wide-screen, regardless of the video signal input.
Original Displays a video according to the input video signal aspect ratio.
19
ENG
ENGLISH
Each option is described below.
-Picture
1
To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2
Go to
by moving the joystick.
3
Configure the options following the instructions that ap-
pear in the bottom right corner.
4
To return to the upper menu or set other menu items,
move the joystick to
◄
or pressing (
/ OK) it.
5
If you want to exit the OSD menu, move the joystick to
◄
until you exit.
Menu > Picture Description
Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can be
ad-
justed.
Reader It is a mode that the screen is adjusted to the best for the newspaper. If you want
screen more bright, you can control brightness in Menu OSD.
Photo Optimizes the screen to view photos.
Cinema Optimizes the screen to improve the visual effects of a video.
FPS1 This mode is optimized for FPS games.
FPS2 It has a higher Black Stabilizer value than FPS Game 1. It is suitable for very dark
FPS games.
RTS This mode is optimized for RTS Game.
Custom
(Game)
In this mode, users can customize various elements including game-related options.
Picture Adjust Sharpness Adjusts the sharpness of the screen.
Black
Level
Sets the offset level (for HDMI only).
y
Offset: as a reference for a video signal, this is the darkest color the monitor can
display.
High Keeps the current contrast ratio of the screen.
Low Lowers the black levels and raises the white levels from the current con-
trast ratio of the screen.
DFC Adjusts the brightness automatically according to the screen.
20
ENG
ENGLISH
Game Adjust Black Stabilizer Black Stabilizer
: You can control the black contrast to have better visibility in dark
scenes.
Increasing the Black Stabilizer value brightens the low gray level
area on the screen. (You can easily distinguish objects on dark
game screens.)
Reducing the Black Stabilizer value darkens the low gray level area
and increases the dynamic contrast on the screen.
Response Time Sets a response time for displayed pictures based on the speed of
the screen. For a normal environment, it is recommended that you
use Middle. For a fast-moving picture, it is recommended that you
use High.
Setting to High may cause image sticking.
High Sets the response time to High.
Middle Sets the response time to Middle.
Low Sets the response time to Low.
Off Sets the response time to Off.
FreeSync
Provides seamless and natural images by synchronizing the vertical
frequency of the input signal with that of the output signal.
NOTE
y
To use the FreeSync feature, a graphic card that supports FreeSync is
necessary.
y
Supported Interface: HDMI
y
For more information, refer to AMD website at http://www.amd.com/
FreeSync
On FreeSync function on.
Off FreeSync function off.
Color Adjust Gamma The higher the gamma value, the darker the image becomes.
Likewise, the lower the gamma value, the lighter the image
becomes. If you do not need to adjust the gamma settings, select
Off.
Color Temp Selects the factory default picture color.
Warm: Sets the screen color to a reddish tone.
Medium: Sets the screen color between a red and blue tone.
Cool: Sets the screen color to a bluish tone.
Custom
Red
Green
Blue
You can customize the picture color using Red, Green,
and Blue colors.
Six Color Meets the user requirements for colors through adjusting the color
and saturation of the six colors(Red_Hue, Red_Saturation, Green_
Hue, Green_Saturation, Blue_Hue, Blue_Saturation, Cyan_Hue,
Cyan_Saturation, Magenta_Hue, Magenta_Saturation, Yellow_
Hue, Yellow_Saturation) and saving the settings.
*Hue: Adjusts tone of the screen.
*Saturation: Adjusts the saturation of the screen colors. The lower
the value, less saturated and bright the colors become. The higher
the value, the more saturated and dark the colors become.
Reset Returns the color settings to the default settings.
21
ENG
ENGLISH
-General
1
To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2
Go to
General
by moving the joystick.
3
Configure the options following the instructions that ap-
pear in the bottom right corner.
4
To return to the upper menu or set other menu items,
move the joystick to
◄
or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to
◄
until you exit.
Each option is described below.
NOTE
y
SMART ENERGY SAVING: Conserve energy by using luminance compensation algorithm.
y
Saving Data depends on the Panel. So,those values should be different from each panel and panel vendor.
If option of SMART ENERGY SAVING is High or Low, monitor luminance become higher or lower depend on
source.
Menu > General Description
Language To choose the language in which the control names are displayed.
SMART ENERGY
SAVING
High
Enables SMART ENERGY SAVING you can save energy with this energy- high
efficient function.
Low
Enables SMART ENERGY SAVING you can save energy with this energy- low
efficient function.
Off Disables SMART ENERGY SAVING .
Power LED Turns the power indicator on the front side of the monitor on/off.
On The power indicator is automatically turned on.
Off The power indicator is automatically turned on.
Automatic Standby The monitor will automatically switch to standby mode after a certain period.
OSD Lock Prevents incorrect key input.
On Key input is disabled.
NOTE
All functions except for the OSD Lock mode and the Exit button for Brightness, Contrast,
Volume, Input, and
General
are disabled.
Off Key input is enabled.
22
ENG
ENGLISH
-Reset
1
To view the OSD menu, press the joystick button at the
bottom of the monitor and then enter the Menu.
2
Go to
Reset
by moving the joystick.
3
Configure the options following the instructions that ap-
pear in the bottom right corner.
4
To return to the upper menu or set other menu items,
move the joystick to
◄
or pressing ( / OK) it.
5
If you want to exit the OSD menu, move the joystick to
◄
until you exit.
Each option is described below.
Menu > Reset Description
Do you want to reset your settings?
Reset Returns to the default settings.
Cancel Cancel the select.
23
ENG
ENGLISH
-Picture Mode
1
Press the joystick button on the bottom of the monitor.
2
Go to Picture mode by moving the joystick button to
▲.
3
Configure the options following the instructions that appear in the bot-
tom.
Menu > Picture Mode Description
Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can
be adjusted.
Reader It is a mode that the screen is adjusted to the best for the newspaper. If you
want screen more bright, you can control brightness in Menu OSD.
Photo Optimizes the screen to view photos.
Cinema Optimizes the screen to improve the visual effects of a video.
FPS1 This mode is optimized for FPS games.
FPS2 It has a higher Black Stabilizer value than FPS Game 1. It is suitable for very
dark FPS games.
RTS This mode is optimized for RTS Game.
Custom
(Game)
In this mode, users can customize various elements including game-related op-
tions.
Each option is described below.
24
ENG
ENGLISH
TROUBLESHOOTING
Nothing is displayed on the screen.
Is the monitor's power cord plugged
in?
y
Check if the power cord is correctly plugged into the power outlet.
Is the power LED on?
y
Check the power cable connection and press the power button.
Is the power on and the power LED
displaying white?
y
Check that the connected input is enabled (Menu > Quick Settings >
Input).
Is the power LED blinking?
y
If the monitor is in sleep mode, move the mouse, or press any key on the
keyboard, to switch the display on.
y
Check if the computer is turned on.
Is the OUT OF RANGE message
being displayed?
y
This occurs when signals transferred from the PC (graphics card) are out
of the horizontal or vertical frequency range of the monitor. Please see
the Product Specification section of this manual to set the appropriate
frequency.
Is the No Signal message being
displayed?
y
This is displayed when the signal cable between the PC and the monitor is
missing or disconnected. Check the cable and reconnect it.
The OSD lock message is being displayed.
Are some functions not avail-able
when you press the Menu button?
y
The OSD is locked. Go to Menu > General and set OSD Lock to Off.
The screen retains an image.
Does image sticking occur even
when the monitor is turned off?
y
Displaying a still image for a prolonged time may cause damage to the
screen, resulting in the retention of the image.
y
To extend the lifetime of the monitor, use a screensaver.
Screen display is unstable and shaky / Images displayed on the monitor leave shadow trails.
Did you select the appropriate
resolution?
y
If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the screen
may be flickering. Change the resolution to 1080P or the recommended
resolution.
NOTE
y
Vertical frequency In order to display an image, the screen must be refreshed dozens of times per second, like a
fluorescent lamp. The number of times the screen is refreshed per second is called vertical frequency, or refresh
rate, and is represented by Hz.
y
Horizontal frequency The time it takes to display one horizontal line is called the horizontal cycle. If 1 is divided
by the horizontal interval, the result is the number of horizontal lines displayed per second. This is called horizon-
tal frequency and is represented by kHz.
25
ENG
ENGLISH
The display color is abnormal.
Does the display appear discol-ored
(16 colors)?
y
Set the color to 24 bit (true color) or higher. In Windows, go to Con-trol
Panel > Display > Settings > Color Quality.
Does the display color appear
unstable or monochrome?
y
Check if the signal cable is connected properly. Reconnect the cable or
reinsert the PC's graphics card.
Are there spots on the screen?
y
When using the monitor, pixilated spots (red, green, blue, white, or black)
may appear on the screen. This is normal for an LCD screen. It is not an
error, nor is it related to the monitor's performance.
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display
driver?
y
Be sure to install the display driver from the display driver CD (or diskette)
that comes with your display. Or, you can also download the driver from
our web site: http://www.lg.com.
y
Make sure to check if the video card supports Plug&Play function.
y
Check if the graphics card's resolution or frequency is within the range allowed by the monitor and set it to the
recommended (optimal) resolution in Control Panel > Display > settings.
y
Not setting the graphics card to the recommended (optimal) resolution may result in blurred text, a dimmed
screen, a truncated display area, or misalignment of the display.
y
The setting methods may be different depending on the computer or operating system, and some resolutions
may not be available depending on the performance of the graphics card. If this is the case, contact the
manufacturer of the computer or graphics card for assistance.
y
Some graphics cards may not support 2560 × 1080 resolution. If the resolution cannot be displayed, contact the
manufacturer of your graphics card.
NOTE
26
ENG
ENGLISH
SPECIFICATIONS
34UM61
LCD Screen Type TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Pixel Pitch 0.312 mm x 0.310 mm
Resolution Maximum Resolution 2560 × 1080 @ 60 Hz
Recommended Resolution 2560 × 1080 @ 60 Hz
Video Signal
Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency 56 Hz to 75 Hz
Input Connector HDMI IN1, HDMI IN2, H/P
Power Voltage 19 V 2.0 A
Power consumption (Typ.) On mode: 27.3 W Typ. ( ENERGY STAR® standard ) *
34.6 W Typ. ( Outgoing condition ) **
Sleep Mode ≤ 0.5 W
Off Mode ≤ 0.3 W
AC/DC adaptor Type ADS-45SN-19-3 19040G, SHENZHEN HONOR ELECTRONIC production
Or type LCAP21C, LIEN CHANG ELECTRONIC ENTERPRISE production
Or type LCAP26B-E, LIEN CHANG ELECTRONIC ENTERPRISE production
Or type LCAP26B-A, LIEN CHANG ELECTRONIC ENTERPRISE production
Output: 19 V 2.1 A
Environmental
Conditions
Operating Conditions
Temperature 0 °C to 40 °C
Humidity Less than 80 %
Storing Condition
Temperature -20 °C to 60 °C
Humidity Less than 85 %
Stand Angle Ad-
justment
Forwards/Backwards: -5° to 15° (Head)
Dimension Monitor Size (Width x Depth x Height)
With Stand 828.5 mm x 222.4 mm x 460.2 mm
Without Stand 828.5 mm x 41.5 mm x 370.2 mm
Weight (Without
Packaging)
With Stand 7.1 kg
Without Stand 6.1 kg
The specifications are subject to change without notice.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR® test standard.
**The On mode power consumption is measured with LGE test standard(Full White pattern,Maximumresolution).
27
ENG
ENGLISH
Factory Support Mode (Preset Mode, PC)
HDMI
Preset Mode
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Polarity (H/V) Remarks
720 x 400 31.468 70.08 -/+
640 x 480 31.469 59.94 -/-
640 x 480 37.5 75 -/-
800 x 600 37.879 60.317 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.123 75.029 +/+
1152 x 864 67.5 75 +/+
1280 x 720
45 60 +/+
1280 x 1024 63.981 60.02 +/+
1280 x 1024 79.976 75.025 +/+
1600 x 900 60 60 +/+
1680 x 1050 65.290 59.954 -/+
1920 x 1080 67.5 60 +/-
2560 x 1080 66.7 60 -/+
HDMI Timing (Video)
Preset Mode
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
Remarks
480P 31.50 60
576P 31.25 50
720P 37.50 50
720P 45.00 60
1080P 56.25 50
1080P 67.50 60
Power Indicator
Mode LED Color
On Mode Light On
Power-saving Blinking
Off Mode Off
This device meets the EMC requirements for home
appliances (Class B) and is intended for home usage.
This device can be used in all regions. Read the owner's
manual (CD) carefully and keep it at hand. Please
note that the label attached to the product provides
information for technical support.
MODEL
SERIAL
ENERGY STAR® is a set of power-saving guidelines issued
by the U.S.Environmental Protection Agency (EPA).
As an ENERGY STAR® Partner LGE U. S. A., Inc. has
determined that this product meets the ENERGY STAR®
guidelines for energy efficiency.
Refer to ENERGYSTAR.gov for more information on the ENERGY STAR® program.
Supplier’s Declaration of Conformity
Trade Name LG
Responsible Party LG Electronics USA, Inc.
Address 1000 Sylvan Ave Englewood Cliffs,
NJ 07632
Telephone (201)266-2215
