Asko D5646SSXXL Under Bench Dishwasher

User Manual

For D5646SSXXL.

PDF File Manual, 28 pages, Read Online | Download pdf file

D5646SSXXL photo
background
Dear Customer,
Thank you for choosing this quality product from ASKO.
We hope it will meet your expectations and fulfil your needs for many years to
come. Scandinavian design combines clean lines, everyday functionality and
high quality. These are key characteristics of all our products and the reason
they are greatly appreciated throughout the world.
To get the most from your new dishwasher, we recommend that you read the
operating instructions before using the dishwasher. The operating instructions
also include information on how you can help protect the environment.
Operating Instructions
Dishwasher
ASKO D5646 XXL
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...
Loading page 17...
Loading page 18...
Loading page 19...
Loading page 20...
Loading page 21...
Loading page 22...
Loading page 23...
Loading page 24...
Loading page 25...
Loading page 26...
Loading page 27...
Loading page 28...

Other documents for Asko D5646SSXXL

The following documents are available:
User Manual Other Documents
  • Asko Dishwasher D5646SSXXL Specifications Sheet - (English) Download
Photos

Specifications

User Manual - Transcript

  • Page 1 - English - : Dear Customer Thank you for choosing this quality product from ASKO We hope it will meet your expectations and fulfil your needs for many years to come Scandinavian design combines clean lines everyday functionality and high quality These are key characteristics of all our products and the reason they are greatly appreciated throughout the world To get the most from your new dishwasher we recommend that you read the operating instructions before using the dishwasher The operating instructions also include information on how you can help protect the environment Operating Instructions Dishwasher ASKO D5646 XXL
  • Page 2 - English - : Contents 2Front panel 3Safety instructions 4Before washing for the first time 4Loading the dishwasher 7Using the dishwasher 10Settings 12Care and cleaning 14Troubleshooting 17Technical information 19Installation 23Service 24Program chart 25Your notes Front panel 1 32 5 6 7 8 9 10 11 1 OnLefton mode 2 Program selector 3 Program symbol 4 Display 5 Rinse aid indicator 6 Child lock button lock 7 High temperature 8 Long dry 9 Delayed start 10 Set time for the Time program 11 StartStop The panel is fitted with touch buttons with audible feedback see the chapter Settings NOTE Two minutes after pressing any button the control panel enters energysaving mode Close and reopen the door or press the OnLefton mode button to reactivate the panel
  • Page 3 - English - : Safety instructions General Read the operating instructions and keep them in a safe place Never use the dishwasher for any purpose other than that specified in these operating instructions Do not load the dishwasher door or dishwasher baskets with anything other than dishes Never leave the dishwasher door open as someone may trip on it Use only dishwasher detergent This appliance is not intended for use by persons including children with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appli ance by a person responsible for their safety Damaged mains cables must only be replaced by a qualified electrician This dishwasher is for household or similar use such as staff kitchens in shops offices and other workplaces farms for guests at hotels motels and other types of accommo dation bed amp breakfast hotels Never place dishes with solvent residues in the dishwasher due to the risk of explosion Nor may dishes that contain ash wax or lubricants be washed in the dishwasher WARNING Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets Installation See the section Installation Child safety Always close the door and start the program immediately after you have added the detergent Keep children away from the dishwasher when the door is open Some detergent may remain inside Do not allow children to use or play with the dishwasher Be especially vigilant when the door is open WARNING Dishwasher detergents are strongly alkaline They can be ex tremely dangerous if swallowed Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open Check that the detergent compartment is empty after comple tion of the wash cycle Activate the child safety lock Kid Lock only certain models A child safety lock is fitted to prevent children from opening the dishwasher door To activate the child safety lock press in the door latch and use a screwdriver to turn the screw slot top left hand corner to a vertical position To open the door you must press the white plastic catch illustrated below to the left while pressing the door latch up Reset by turning the screw slot back to a horizontal position Locked Open Activate child lock Kid Safe You can activate the child lock button lock to prevent children from starting the dishwasher see the section Settings Winter storageTransport Store the dishwasher where the temperature remains above freezing Avoid long transport distances in very cold weather Transport the dishwasher upright or laying on its back Overflow guard function The overflow protection starts pumping out the machine and turns off the water supply if the water level in the dishwasher exceeds the normal level If the overflow protection is triggered turn off the water supply and call the service division Cleaning When cleaning the edge around the door use only a slightly damp cloth Do not spray water around the edge Moisture can make its way into the lock which contains electrical components Packing material Sort waste materials in accordance with local guidelines Disposal When the dishwasher has reached the end of its service life and is to be disposed of it should immediately be made un usable Pull out the power cable and cut it as short as possi ble The dishwasher is manufactured and labelled for recycling Contact your local authority for information about where and how your dishwasher should be correctly recycled
  • Page 4 - English - : Before washing for the first time Program key Some dishwashers include program keys in different languages Attach the program key in the desired language to the top of the door Checking water hardness Contact the local water utility to check the water hardness in your area This is important with regard to how much detergent and rinse aid to use Top up with rinse aid By using rinse aid you will improve your drying result You will also achieve a better dishwashing result with glassware and dishes 1 Open the rinse aid compartment lid 2 Carefully top up with rinse aid Only add rinse aid to the level marked max 3 Wipe up any splashes of rinse aid around the compartment 4 Close the lid firmly Refill rinse aid indicator When the rinse aid needs topping up the above symbol lights on the display NOTE After topping up it may take a while before the symbol goes out Setting the rinse aid dosage The section Settings describes how to set the rinse aid dosage Rinse aid dispensing can be set from Off to High dose Factory settings Increase the rinse aid dosage If the dishes have water marks Decrease the rinse aid dosage If the dishes have a sticky whiteblue film If the dishes are streaked Buildup of foam If you have very soft water the rinse aid can be diluted 5050 with water For water with a hardness greater than 1012 dH you ought to use rinse aid with citric acid known as acid rinse aid Loading the dishwasher Economic dishwashing Run programs only with a full load Wait to run a program until the dishwasher is full This way you save energy Use the Rinse amp Hold program to rinse the dishes if there are any unpleasant odours while you wait for the dishwash er to become fully loaded Run programs at a lower temperature If the dishes are only slightly dirty you can select a lower temper ature with certain programs See also the section Selecting Op tions in the chapter Using the dishwasher Select a program with the option Short dry To save energy use Short dry The drying result will be better if once the program is finished you leave the door slightly open Do not rinse under running water Simply scrape off large food particles before loading the dish washer Choose a green detergent Read the environmental declaration on the packaging Connect to cold water If you use oil or electricity to heat your home Connect to hot water max 70 C If you use district heating solar power or geothermal power to heat your home Choosing a hot water connection cuts program times and reduces the dishwashers electricity consumption Fragile dishes Some cookware is not dishwasher safe This can be for several reasons Some materials cannot withstand strong heat others can be damaged by dishwashing detergent Fragile decoration Porcelain with decoration on top of the glazing the items feel rough should not be washed in a dishwasher CrystalGlass Place items so that they do not touch each other during the wash Use a short program with the lowest possible wash temperature Select Short dry Delicate and very fragile items should not be washed in a dishwasher Glassware washed in a dishwasher at high temperatures can gradually develop a grey film that cannot be removed Wash fine glassware at a low temperature and with a small amount of deter gent Silver Silver and stainless steel items should not come into contact as the silver can become discoloured Cutlery with glued handles Some types of glue are not dishwasher safe In such cases the handles may loosen Wood Wooden items should only be washed in a dishwasher if marked dishwasher safe Aluminium Aluminium can lose its shine if washed in a dishwasher However good quality aluminium pans can be washed in a dishwasher even if some of the shine will be lost Plastic items Avoid washing plastic items that cannot withstand high tempera tures

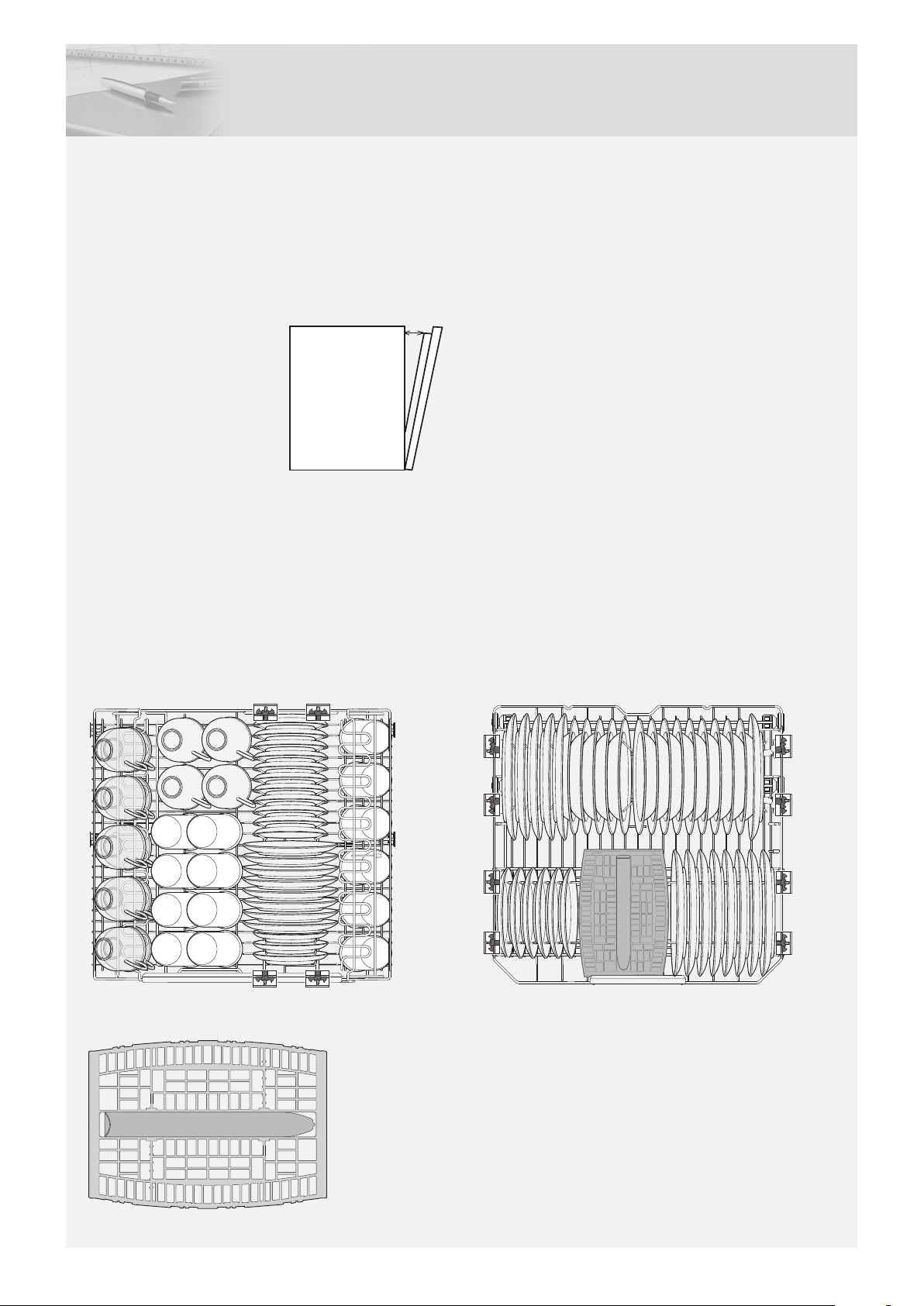

  • Page 5 - English - : The dishwashers baskets The dishwasher is equipped with a top cutlery tray an upper basket and a lower basket with cutlery basket The appearance of the baskets may differ depending on the dishwasher setup Top cutlery tray The top cutlery tray has space for cutlery ladles whisks serving cutlery and similar items Raising the top cutlery tray 1 Pull out the top cutlery tray 2 Pull the two locking handles on either side forward to raise the top cutlery tray Lowering the top cutlery tray 1 Make sure the upper basket is in the lowest position 2 Pull out the top cutlery tray 3 Slide the two locking handles on either side downwards and backwards to lower the top cutlery tray Upper basket Place glasses cups bowls side plates and saucers in the upper basket All dirty surfaces should face inwards and downwards Wine glasses are placed on the wine glass shelf and knives are placed in the knife stand on the right if fitted Foldable tines The foldable tines can be folded up or down to make it easier to load pots bowls and glasses Release the foldable tines by pressing the catch inwards before adjusting their position Raising the upper basket 1 Pull out the upper basket 2 Grab the sides of the upper basket with both hands and lift it up Lowering the upper basket 1 Pull out the upper basket 2 Pull out the two locking handles on either side to lower the upper basket
  • Page 6 - English - : Lower basket Place plates side plates serving dishes pots and cutlery in the cutlery basket in the lower basket Place pots and pans in the rear right part of the lower basket to achieve the best dishwashing results from the rear of the two spray nozzles WideSpray which are intended for these types of dishes Foldable tines Lower the foldable tines plate supports when washing pots and pans Release the foldable tines by pressing the catch inwards before adjusting their position In the righthand rear part of the lower basket half the foldable tines can be lowered for washing stoneware or a deep pan for example Vase and bottle holder Washing large plates Move the foldable tines and their mounts to widen the distance between the tine rows to adapt the lower basket to plates with a diameter greater than 25 cm Cutlery basket Place cutlery with the handles facing down except for knives and spread them out as much as possible Ensure that spoons do not stack inside each other The cutlery basket is best placed in the middle at the front of the lower basket to best utilise dishwashing performance from the unique spray nozzle Power Zone Cutlery which is intended for the cutlery basket WARNING Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets Folddown section for small items The cutlery basket has a folddown section in the middle for small items or small shafts such as electric whisk attachments a c b Cutlery basket with lid a c b Positioning of cutlery basket lid in upper basket The cutlery basket lid can be removed and used for example as an extra cutlery basket in the upper basket see below a b NOTE Check that the spray arms can rotate freely
  • Page 7 - English - : Using the dishwasher Add detergent 1 Prewash detergent compartment 2 Main wash detergent compartment Detergent is added according to water hardness Follow the instructions on the detergent packaging Too much detergent can result in less effective dishwashing and also entails greater environmental impact Add the detergent to the detergent compartment There is a compartment for the prewash and one for the main wash If powder and liquid dishwasher detergents are used add a small amount of the detergent to the prewash compartment Contact the detergent manufacturer if you have any questions about the detergent WARNING Children must be supervised dishwasher detergent is corro sive NOTE Use only dishwasher detergent Washing up liquid must not be used as the foam that forms prevents the dishwasher from operating effectively Dishwasher tablets Halve the tablet if it is difficult to close the dispenser lid There is a risk that the detergent will not be released properly if the lid is tight and will not open correctly NOTE Dishwasher tablets are not recommended for short programs less than 75 minutes Use powder or liquid dishwasher deter gent instead 3in1Allinone detergent Read through the directions for these products carefully If any thing is unclear contact the detergent manufacturer OnLefton mode Press and hold the OnLefton mode button until the display lights up Program selection Press the Program selector one or more times until the desired program symbol appears on the display Auto wash The dishwasher can measure how dirty the dishes are and adjust water consumption and temperature accordingly When newly installed the program needs to be run five times before it is fully adapted and can provide the best results Time program The program adapts to the specified running time or finish time With this program it is important to choose a time suited to how dirty the dishes are Slightly dirty dishes030115 Normally dirty dishes130200 Very dirty dishes215300 To set the program time see the section Selecting Options Heavy wash Program for very dirty dishes such as pans casserole dishes and oven dishes If these dishes do not completely fill the dish washer you can add plates and the like Normal program Use to wash normally dirty dishes such as plates serving dishes cups glasses and so on Daily wash A program suitable for daytoday dishwashing This program can also clean dried leftovers but is not intended for burnt food such as on oven dishes Quick wash This program is used for glasses and porcelain that is slightly dirty such as coffee cups Hyg Hygiene wash This program is designed to meet strict hygiene demands Delicate wash If the dishes are not very dirty you can select Delicate wash This program is intended for glasses and porcelain that have just been used and as such do not require such a powerful program This program can be used for delicate dishes Select Short dry if you want to be especially cautious See also the section Fragile dishes in Chapter Loading the dishwasher Eco wash Use when you want to save water For normally dirty dishes
  • Page 8 - English - : Upper half wash You can use this program if you only have cups and glasses that need washing in the upper basket Slightly dirty dishes can also be placed in the lower basket Lower half wash You can use this program when you only want to wash plates and cutlery in the lower basket Slightly dirty dishes can also be placed in the upper basket Rinse amp Hold Used to rinse dishes while you wait for the dishwasher to become fully loaded Selecting Options To select an option press one of the option buttons The field under the button lights when the option is activated The available options depend on the selected program Once you have started the program the options you selected are saved for the next time you use the same program An exception is the Delayed start option High temperature Activate this option for improved dishwashing results The ma chine then uses a higher temperature for the main wash If you want to use the lower temperature press again so that the field under the button turns off You can vary the temperature as shown below 60 C 70 CHeavy wash 48 C 65 CNormal program 60 C 65 CDaily wash 30 C 60 CQuick wash 40 C 50 CDelicate wash 53 C 60 CEco wash 55 C 65 CUpper half wash 55 C 65 CLower half wash Long dry The higher temperature in the final rinse and longer drying im proves the drying result if you activate the Long dry option This causes a slight increase in energy consumption This option can be used with all programs except Time program Hygiene wash and Rinse amp Hold If you want a program with Short dry press again so that the field under the button turns off Delayed start When you select Delayed start the dishwasher will start 124 hours after you press the StartStop button 1 Press the button once to activate Delayed start Press the button several times or hold it in to set the desired number of hours 2 Press StartStop and the dishwasher counts down 1 hour at a time and starts after the selected delay Press and hold StartStop for three seconds if you want to cancel the Delayed start option NOTE Remember to press the StartStop button to start the program Set time Press the option button several times or hold it in to set the desired program time for Time program You can choose a pro gram time between 30 minutes and 3 hours Start the dishwasher Press and hold StartStop until the display shows the door open symbol This indicates that the dishwasher is ready to start Close the door properly otherwise the dishwasher will not start The display flashes three times with the remaining time to indicate that the program has started NOTE If the machine does not start within 2 minutes of the last button press the display returns to showing the last program run Time remaining Once you have selected a program and options the display indi cates how long the program took the last time it was used Once you have started the dishwasher the display indicates how much program time remains The remaining time is updated after the water for the final rinse has been heated This may differ somewhat from time to time depending on the temperature of the water supply the amount of dishes the ambi ent temperature and other factors While the program is running the time counts down and the re maining program time is shown on the display The remaining time is shown for example as 115 which means the program will run for another 1 hour and 15 minutes NOTE During the first run of each program the remaining time dis played can be slightly misleading as the dishwasher is estimat ing the time When you run the program a second time the dishwasher will calculate the remaining time based on the previous duration of the program Stopping or changing a program If you want to change program after starting the dishwasher open the door then press and hold StartStop for three seconds Add more detergent if the lid of the detergent dispenser has opened Then choose a new program press StartStop and close the door Do you want to add more dishes Open the door The dishwasher stops automatically Add the dishes close the door and the dishwasher continues the program
  • Page 9 - English - : If the dishwasher is turned off using the OnLefton mode button or due to a power failure If the dishwashing program was not finished the interrupted program continues when power is restored NOTE During drying the program is interrupted if the power is cut or the door is open for more than 2 minutes Once the program has finished Once the program has finished End appears on the display At the end of the program you will hear a short beep Chapter Settings describes how to change this function Once the dishwasher has finished it only uses standby power Drying For additional drying the door should be opened 35 mm upon completion of the drying cycle For more information see page 17 in the chapter Technical information
  • Page 10 - English - : Settings Do as follows to open the settings menu First open the door Turn off the dishwasher using the OnLefton mode button press and hold Release the button1 Press and hold the OnLefton mode button until the display lights up2 Within five seconds press and hold the Program selector and the Long dry button3 Release the buttons when the display shows 4 TIP Be sure to press right on the symbols so as not to inadvertently activate any other button Try again if you fail to open the settings menu the first time Press to save the set value and continue to the next setting Current setting Current setting value Press to browse between setting values You can now adjust the following settings DescriptionSettingsOptionsButton press You can activate the child lock button lock option to prevent children from starting the dishwasher Child lock Kid Safe Off On Press the High temperature and Long dry buttons simultaneously to temporarily deactivate the button lock when you want to start the dishwasher The button lock is automatically reactivated after 2 minutes Press StartStop to save the setting value and continue to the next setting If you do not want to change any other settings keep pressing StartStop to step through the entire settings menu The dishwasher uses a buzzer to indicate when a program is finished or when a fault has occurred Buzzer volume Off Low High Press StartStop to save the setting value and continue to the next setting
  • Page 11 - English - : DescriptionSettingsOptionsButton press This sound is used to confirm each button pressOperation volume Off Low High Press StartStop to save the setting value and continue to the next setting For adjusting the contrast of the display on the front door LCD contrast Display on the front of the door Press StartStop to save the setting value and continue to the next setting For adjusting the contrast of the display on the panel LCD contrast Display on the panel Low High Press StartStop to save the setting value and continue to the next setting Rinse aid dosage settingRinse aid Off Low dosage High dosage Press StartStop to exit the settings menu

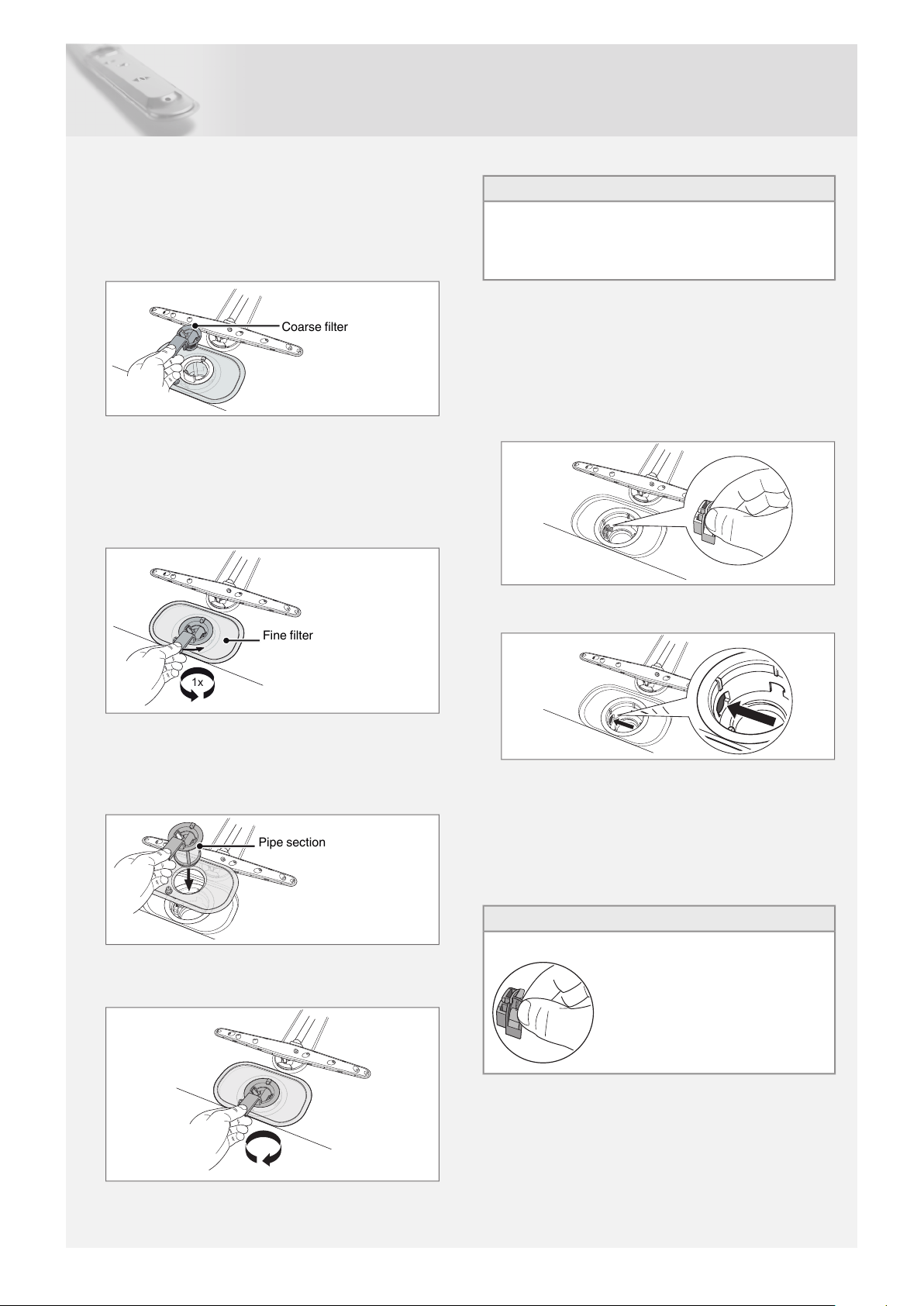

  • Page 12 - English - : Care and cleaning Coarse filter The coarse filter traps larger food particles which cannot get past the drainage pump Empty the coarse filter as necessary 1 Lift the coarse filter by the handle 2 Empty the coarse filter Remember to replace it Coarse filter Fine filter Debris that collects on the fine filter is automatically rinsed away during each wash However the fine filter and its pipe section should be cleaned a couple of times a year 1 Turn the handle anticlockwise once 1x Fine filter 2 Lift the pipe section straight up by the handle Free the coarse filter to clean the pipe section 3 Remove and clean the fine filter 4 Replace in reverse order Check that the edges seal properly when replacing the fine filter Pipe section 5 Lock the filter in place by turning the handle clockwise to the stop position The handle should point straight out from the dishwasher 1x NOTE The dishwasher must not be used without the filter in place Diswashing efficiency can be affected if the course filter is in correctly fitted After cleaning ensure that filter handle is fully locked with the handle pointing out of the dishwasher Drainage pump The pump can be accessed from inside the dishwasher 1 Cut the power to the dishwasher by pulling out the plug from the wall socket 2 Remove the coarse filter and pipe section 3 Remove the small yellow fitted piece at the left of the bottom drain see illustration below 4 By inserting your finger into the hole you can turn the pump blade to release anything blocking it 5 Reinstall the fitted piece and filters 6 Plug the machine in again If the dishwasher still does not start and a whirring sound is heard the overflow protection has been activated Shut off the water Remove the plug from the wall socket Call the service division NOTE Do not forget to reinstall the fitted piece Spray arms Holes and bearings can sometimes become blocked Remove any debris using a pin or something similar The spray arms also have holes on their undersides To facilitate cleaning you can remove the spray arms Remember to screw them firmly back into place afterwards
  • Page 13 - English - : Lower spray arm Pull the lower spray arm straight up to release it Upper spray arm Pull out the upper basket Unscrew the spray arm bearings counterclockwise to remove the spray arm from the upper basket Top spray arm The upper basket must be removed before the top spray arm can be released Pull out the upper basket and turn the basket catch on each runner outwards see illustration The basket can now be removed Pull out the top cutlery tray Press the top spray arm up and unscrew the spray arm bearings counterclockwise to remove the spray arm Door When cleaning the edge around the door use only a slightly damp cloth with a little cleaner if necessary WARNING Do not use a spray bottle or the like around the door lock This is to ensure that water does not penetrate the door catch and come into contact with the electrical components Limescale deposits The dishwasher tub is made of stainless steel and is kept clean through normal use However if you have hard water limescale deposits may form in the dishwasher If this happens run the Normal program program with high temperature and two table spoons of citric acid in the detergent compartment with no dishes in the machine Front panel Keep the touch buttons clean and free from grease Wipe them clean with a dry or slightly damp cloth Never use cleaners they can scratch the surface Use the OnLefton mode button to turn off the dishwasher before cleaning the touch buttons to avoid activating any buttons unintentionally
  • Page 14 - English - : Troubleshooting ActionType of faultDisplay Call the service divisionOverfilling See quotWater remains in the dishwasherquot in the table below Water outlet fault Check that the water tap is onWater inlet fault Check whether dishwasher inlet hose is connected to a pressure limiting valve some pressure limiting valves may restrict the supply of water to the dishwasher Turn off the water tap and call the service divisionInlet valve leakage Turn off the machine with the OnLefton mode button and then turn it on again to clear the error message from the display ActionPossible causesProblem Remove the arms and clean themThe spray arms do not rotateThe dishes are not clean Check that the dishes are not blocking the spray arms Avoid large packagesOld detergent Detergent is a perishable product Dose according to water hardness Far too much or far too little detergent results in poorer dishwashing results Incorrect detergent dosage Select a higher temperature or a more pow erful program Dishwashing program too weak Do not cover porcelain with large bowls or the like Avoid placing very tall glasses in the corners of the baskets Dishes loaded incorrectly Place dishes to sit steadyGlasses and cups have toppled over during the program Screw the filter firmly into place See the section Care and cleaning The filter is not correctly fitted See the sections Before washing for the first time and Settings Incorrect rinse aid dosage settingSpots or films on the dishes Wash crystal at a low temperature and with a conservative amount of detergent Contact the detergent manufacturer Too high temperature andor too much deter gent can cause etching on crystal Unfortu nately this cannot be repaired only prevent ed Reduce the amount See the sections Before washing for the first time and Settings If you have very soft water you may want to dilute the rinse aid 5050 with water Rinse aid dosage setting too highThe dishes have a sticky whiteblue film Rinse off these types of foodstuffs if not starting the dishwasher immediately Why not use the Rinse amp Hold program Some foodstuffs such as mustard mayon naise lemon vinegar salt and dressings can mark stainless steel if left for too long Spots on stainless steel or silver Silver and stainless steel items should not come into contact during dishwashing All stainless steel can cause spots on silver if they come into contact during dishwashing Aluminium can also cause spots on dishes Use a detergent with a bleaching agentLipstick and tea can be difficult to wash offSpots left after washing
  • Page 15 - English - : ActionPossible causesProblem Check that the dishes are placed securely Spin the spray arms to make sure they can rotate The dishes are not correctly placed or the spray arms are not rotating Rattling sound when dishwashing Press and hold StartStop until the display shows the door open symbol This indicates that the dishwasher is ready to start The StartStop start button has not been pressed for long enough The dishwasher does not start CheckThe door is not properly closed CheckA fusecircuit breaker has been tripped CheckThe plug is not plugged into the wall socket CheckThe water tap is turned off CheckOverflowleaks Turn off the water tap Pull out the plug and call the service division A whirring sound the drainage pump is heard from the dishwasher and does not stop when the power is cut with the OnLefton mode button Press and hold StartStop for three seconds if you want to cancel the Delayed start option Check that the Delayed start option has not been selected None next time the program is run the cor rected time will be displayed The program is taking longer than estimated1 minute appears in the display Loosen the drainage hose where it connects to the sink units water trap Check that no debris has fastened Is the coneshaped part of the pipe cut to an inner diameter of at least 14 mm Blocked drainage hoseWater remains in the dishwasher Check that the hose is free from kinks and sharp bends Kink in drainage hose Clean the coarse and fine filtersThe filters are blocked Ensure filter is completely locked with handle pointing towards the door The filter is not locked in completely Clean the drainage pump See the section Care and cleaning Debris in the drainage pump Clean with washingup brush and low foam ing cleaner Dirt around the seals and in cornersBad odour in dishwasher Run a program with a higher temperature about once a month Low temperature programs have been select ed for a prolonged period Activate the Long dry optionDrying power too lowThe dishes are not dry enough Fully load the dishwasherThe dishwasher is not fully loaded Top up with rinse aid or increase the rinse aid dosage See the sections Before washing for the first time and Settings Rinse aid needs topping up or dosage is set too low Open the door a little once the program has finished
  • Page 16 - English - : ActionPossible causesProblem Check that the baskets are correctly posi tioned horizontally The baskets are not correctly positionedCannot close door Check that the dishes are not blocking the baskets from sliding properly into place Wait a moment then try againYou have pressed the touch buttons too soon after opening the door The touch buttons do not react when pressed Clean with a dry or slightly damp clothDirt on the touch buttons Open the door until the display lights up Al ternatively close the door and wait 30 sec onds Then open the door again If this symbol appears on the display the door is not open enough See the section SettingsChild lock button lock activated
  • Page 17 - English - : Technical information Information for test institute Energy labelling ASNZS 2007Australian standard 14Number of place settings Normal program Low temperature Short dry no optionsDishwashing programs The door should be opened upon completion of the drying cycle a distance of 35 mm at V V 220 hoursminutesProgram time Cold water 20 CConnection IEC 6070423Test method for noise measurement Dosages during testing In accordance with ASNZS 2007Detergent 75 gramPrewash 25 gramMain wash In accordance with ASNZS 2007Rinse aid 5Rinse aid dosage Loading the dishwasher Make sure the upper basket is in the lowest position See the sec tion Upper basket in the chapter Loading the dishwasher 1 Teaspoons 2 Dessertspoons 3 Soupspoons 4 Forks 5 Knives 3 4 5 5 1 1 1 1 1 1 1 1 1 1 1 1 2 2 55 5 Remove the top cutlery tray
  • Page 18 - English - : Technical data 857912 mmHeight 596 mmWidth 550 mmDepth 50 kg 1 Weight 14 Place settings 2 Capacity 00310 MPaWater pressure 0310 kpcm 3100 Ncm See type plateElectrical connection See type plateRated power 1 Weight can vary due to different specifications 2 In accordance with standard ASNZS 2007

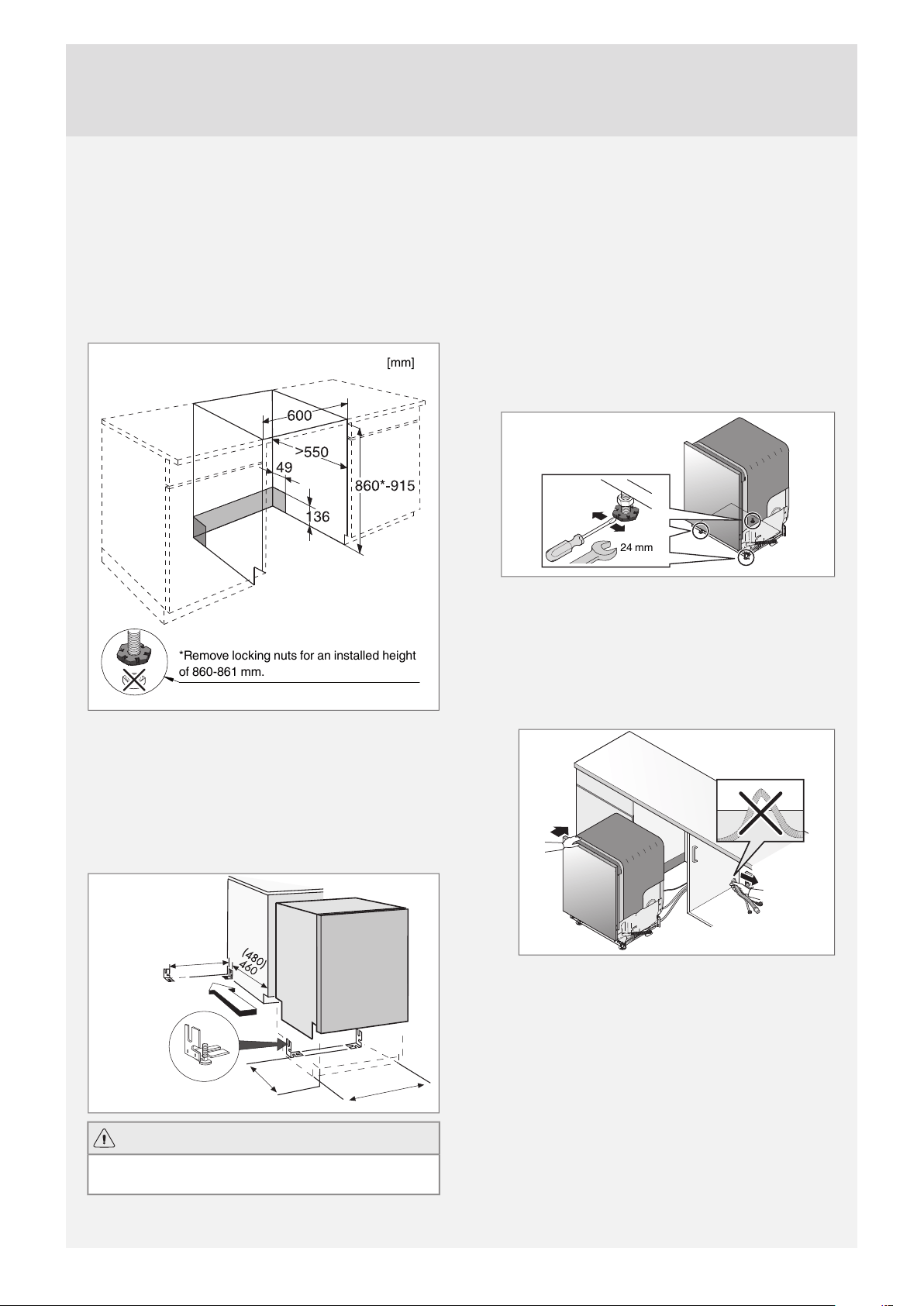

  • Page 19 - English - : Installation 30 94 133183 861 912 mm Remove locking nuts for an installed height of 860861 mm Safety instructions Connections to electricity water and drainage must be per formed by a qualified professional Always follow applicable regulations for water drainage and electricity An incorrect or flawed installation can result in higher consump tion of energy water and detergent which can result in in creased costs and poor dishwashing results In order to min imise noise it is important that you follow the instructions Take care during installation Wear protective gloves There must always be two people Before screwing the dishwasher into place test the dishwasher by running the Rinse amp Hold program Check that the dish washer fills with water and drains Check also that none of the connections leak WARNING Turn off the water supply when installing the dishwasher WARNING The plug must be disconnected or power to the socket turned off while the work is carried out Transport protection for the door Do not forget to remove the transport protection for the door when unpacking the dishwasher 2x
  • Page 20 - English - : Suggested machine installations The dishwasher can be installed builtin completely freestanding or partially builtin A Builtin The dishwasher is intended for installation under a worktop The recess dimensions are illustrated Holes for wirescables need not be larger than 38 mm in diameter Make sure the edges of such holes are even to prevent damage to the drainage and inlet hoses and the power cable Remove locking nuts for an installed height of 860861 mm mm B Freestanding A freestanding dishwasher must be fitted with antitip brackets This comprises two brackets which are screwed into place as illustrated The dishwasher is then pushed in so that the brackets engage the rear feet Now the dishwasher will not topple if pressure is put on the open door If the dishwasher is installed completely on its own side panels and a worktop must both be fitted Acces sories can be purchased where you bought the dishwasher 455475 WARNING A completely freestanding dishwasher must be fitted with anti tip brackets C Partially builtin If the dishwasher is located so that one of its sides is visible a side panel must be fitted Accessories can be purchased where you bought the dishwasher Adjust the height and slide the dishwasher into place 1 Start by measuring the height from the floor to the bottom edge of the worktop 2 Measure the height from the floor to the top edge of the dish washer 3 Adjust all feet by turning them clockwise to raise or anticlock wise to lower the dishwasher 24 mm 4 Check that there is an air gap of at least 3 mm between the underside of the worktop and the top edge of the dishwasher 5 Tighten the lock nuts lock nut on the rear feet 6 Slide the dishwasher into place Pull through the drainage and supply hoses when the ma chine is slid into place Check that the hoses have no kinks or sharp bends and check that there is nothing that can damage the hoses 7 Make any final adjustments to the front feet the dishwasher may lean no more than 5 mm and tighten the lock nuts If you want to install your dishwasher freestanding skip steps 1 2 and 4 above Drainage connection When the drainage hose is routed to a connection nipple on the sink units water trap see illustration 1 please note that the hose must be attached at the same height as the underside of the sink unit otherwise dishwater from the sink may flow back into the dishwasher The drainage hose is threaded onto the coneshaped connection pipe on the sink units water trap The coneshaped pipe must be cut to an internal diameter of at least 14 mm For other connection alternatives see illustrations 2 and 3

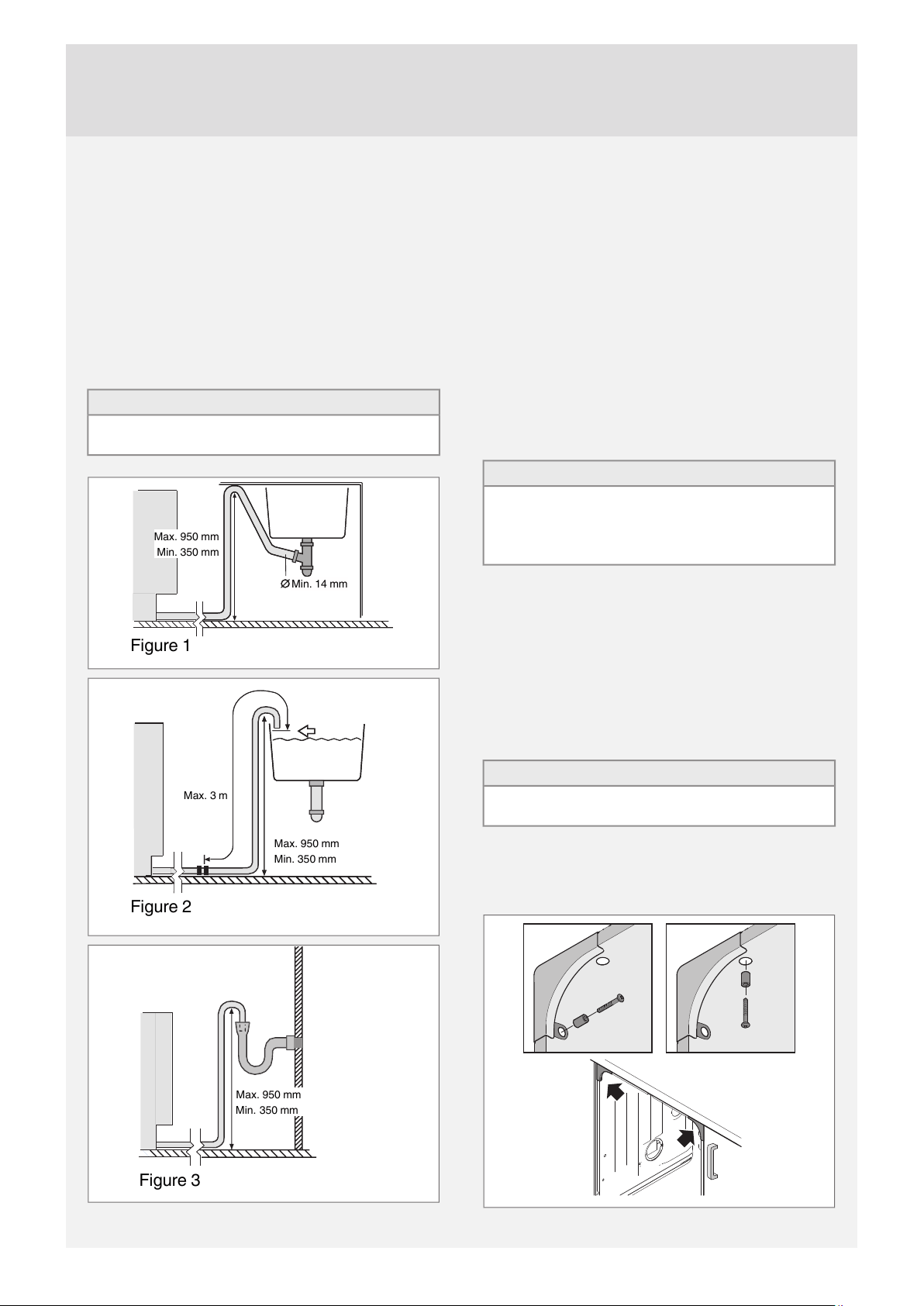

  • Page 21 - English - : The drainage hose may be extended by a maximum of 3 m the total length of the drainage hose must not exceed 45 m Any joins and connecting pipes must have an internal diameter of at least 14 mm However the drainage hose should ideally be re placed with a new hose without joins No part of the drainage hose may be more than 950 mm above the bottom of the dishwasher The hose must not be routed direct ly to a floor drain or the like In such cases the hose can act as a siphon and empty the dishwasher The hose must always discharge at least 350 mm above the bottom of the machine Ensure that the drainage hose has no kinks NOTE The hose must be attached at the same height as the underside of the sink Max 950 mm Min 350 mm Min 14 mm Figure 1 Max 950 mm Min 350 mm Max 3 m Figure 2 Max 950 mm Min 350 mm Figure 3 Connection to water supply Use only the supply hose provided with the dishwasher Do not reuse old hoses or other spare supply hoses The supply pipe must be fitted with a stopcock The stopcock must be easily accessible so that the water can be shut off if the dishwasher has to be moved Once the installation is complete the stopcock should be opened to allow the pressure to settle for a while and to check that all connections are tight Connect to cold water If you use oil or electricity to heat your home Connect to hot water max 70 C If you use district heating solar power or geothermal power to heat your home Choosing a hot water connection cuts program times and reduces the dishwashers electricity consumption NOTE Connecting a dishwasher to the water supply via certain types of pressure limiting valves may restrict the water supply This may cause F12 error code Water inlet fault to be dis played Electrical connection Information about the electrical connection can be found on the serial number plate This specification must match the electricity supply Dishwashers fitted with a plug must be connected to an earthed socket The electric wall socket must be placed outside of the installation area to be easily accessible after installing the dishwasher Do not use an extension cord NOTE Repairs and maintenance must be carried out by a qualified professional Screwing the dishwasher into place After fastening the machine check that the front feet still touch the floor Alt 2Alt 1
  • Page 22 - English - : Adjusting the plinth only when using toe kick accessory The dishwasher is supplied with one or two toe kicks depending on the model The table shows which toe kick you should use depending on the recess height and plinth depth Plinth depth mmRecess height mm HHHHLLLL860 HHHHHHHH870 HHHHHHHH880 HHHHHHHH890 HHHHHHHH900 HHHHHHHH910 Low toe kick height90 mm article number 80 735 66L High toe kick height120 mm article number 80 735 67H Recess height Plinth depth Set the correct plinth depth as follows Not applicable to all models
  • Page 23 - English - : x x Service Read chapter Troubleshooting before contacting the service department Note down the details on the rating plate positioned on the right inside the dishwasher Note down the item number 1 and serial number 2 SERIAL NO ART NO
  • Page 24 - English - : Program chart Consumption values 1 Final rinse temperature C Number of rinses Main wash CPrewashesOptionsProgram Water con sumption liter Hot water 3 Cold water 2 Energy approx kWh Dishwashing time approx hrsmin Energy approx kWh Dishwashing time approx hrsmin 132507 1020024011 1621025065 C244065 C13Auto wash 111904120152300516015230max 65 C23max 65 C02Time program 19103001531560 C260 C2Heavy wash 1270420507322045 C248 C2 Normal program 4 13072101322565 C260 C1Daily wash 10010200202030 C230 CQuick wash 10090501512070 C270 C Hyg Hygiene wash 14051350915050 C240 C1Delicate wash 11052150823050 C255 CEco wash 14062051222560 C255 C1Upper half wash 14062051222560 C255 C1Lower half wash 3001006001006 C1Rinse amp Hold 1 Consumption values vary depending on the temperature of the incoming water room temperature load size selected additional functions and more 2 Connection to cold water approx 20 C 3 Connection to hot water approx 60 C 4 The energy label performance figures are based on this program
  • Page 28 - English - : Quick guide Load the baskets See page 4 Do not rinse dishes under running water before loading them in the dishwasher Simply scrape off large food particles before loading the dishwasher Check that the spray arms can rotate freely Check also that the water tap is on Add detergent The detergent compartment has one smaller compartment for the prewash and one for the main wash See page 7 Press and hold in the OnLefton mode button until the display lights up CheckAdd rinse aid Use rinse aid to achieve good washing and drying results See page 4 Refill rinse aid indicator Select a program and any options See page 7 Press and hold in StartStop close the door Art No 495579 Rev 02 We reserve the right to make changes ASKO APPLIANCES AB SOCKERBRUKSGATAN 3 SE531 40 LIDKÖPING SWEDEN WWWASKOCOM en 0315
