C
The TV remote should feel right at home in your
hand. It was designed to be incredibly intuitive for
watching TV and navigating on-screen menus.
Step 4 Complete guided setup
Step 1 Set up your TV
Hi! Let’s get started.
What’s in the box
What you need
For optional support, please see Owner’s Guide at: www.hitachi.us/tv
**Limitations apply for the Roku mobile app. Please see support.roku.com for device
compatibility information.
Get to know your TV
SIDE
TV FRONT
TV BACK
A
D
A
STATUS LIGHT Glows when the TV is in standby,
flashes when the TV is busy, flashes once with
each button press of the remote control.
IR RECEIVER Receives signal from the TV remote.
B
POWER BUTTON Press and hold for power on/off.
C
DIGITAL AUDIO OUT Connect an optical cable to
an external digital audio system.
D
HEADPHONE OUT Connect headphones or other
external speakers.
E
RESET BUTTON Press and hold for factory reset.
Careful, you will lose all your settings!
F
2 HDMI PORTS Connect cable box, Blu-ray player,
gaming console, or other devices to your TV using
HDMI cables.
Ready for the step-by-step? You’re only minutes away from TV bliss!
Remove your TV from the box
Be careful, it’s heavy!
To mount on a wall
*
Follow the instructions that come with the wall mount.
*
Wall mount sold separately.
To use the stand
To prevent damage to the screen, carefully
place your TV on a soft, cushioned surface.
Put the stands into the TV, align the stands
with the screw holes located on the TV.
Secure the stands to the TV with four (4) screws.
A
B
C
Step 2 Power up
In this step, we’ll make sure all systems are GO!
Power your TV remote by inserting the included
batteries carefully matching (+) and (-) indicated inside
the battery compartment.
Connect your power cord to the TV, then plug it in to
the wall outlet.
Power Tip! Always replace dead batteries with two brand-new batteries
from the same manufacturer. Never use damaged batteries.
If your remote gets warm/hot during use, discontinue use and
contact customer support immediately at www.hitachi.us/tv.
It’s the final stretch—hurray!
Let’s Connect
Your TV will automatically detect wireless networks in your area. Have your network name and password handy and
follow the easy on-screen instructions.
Once you’re connected, your TV will automatically update with the latest software—plus you can start streaming the
entertainment you know and love. Your new Roku TV automatically receives regular software updates in the background
when it’s connected to the internet. This gives you a better experience.
If you aren’t ready to connect your TV to a wireless network, you can still use it as a regular TV.
And setup is done…congratulations!
Continue using the remote to personalize your Home screen and channel line-up, stream movies, and so much more.
If you have an antenna connected, just click the tuner tile to watch broadcast TV channels. The fun has just begun!

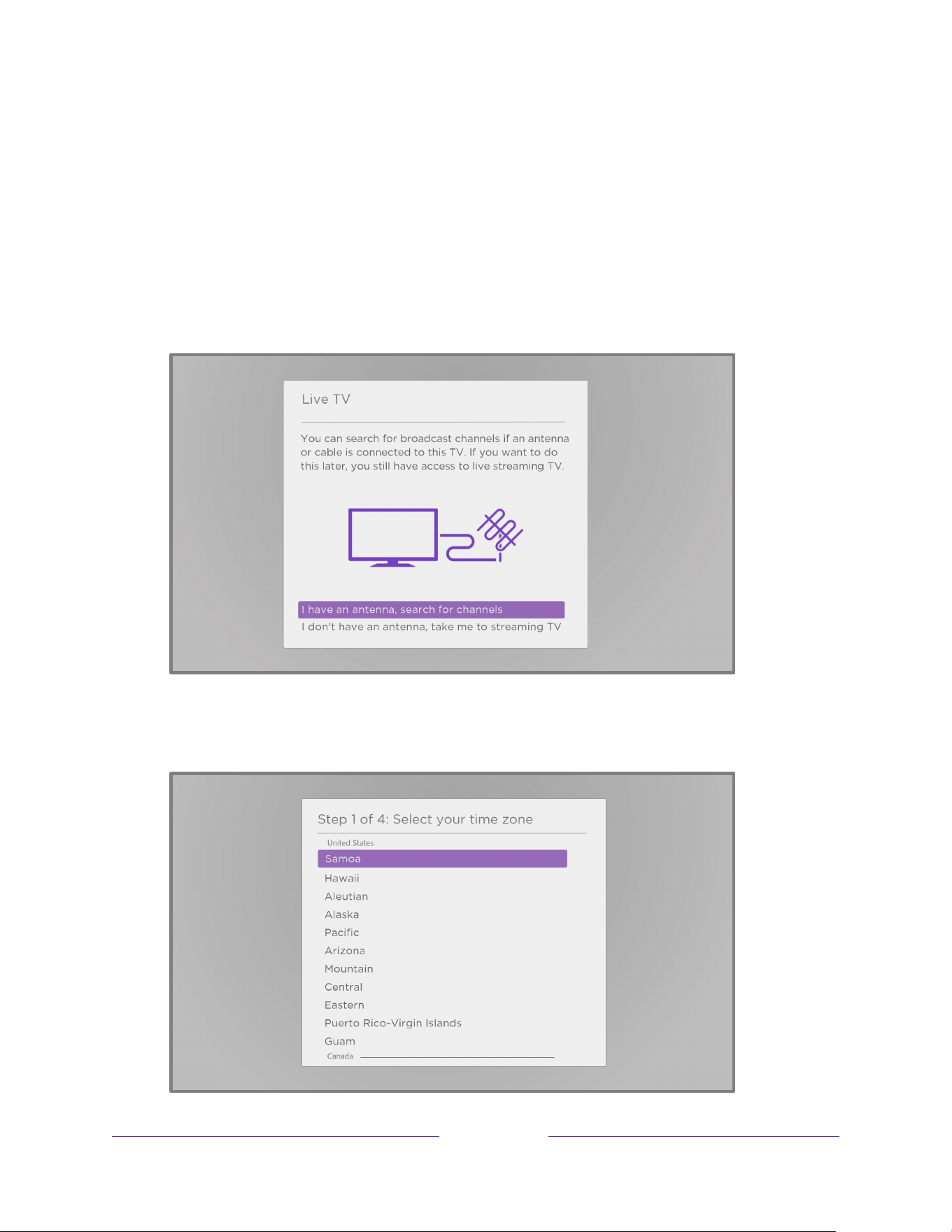

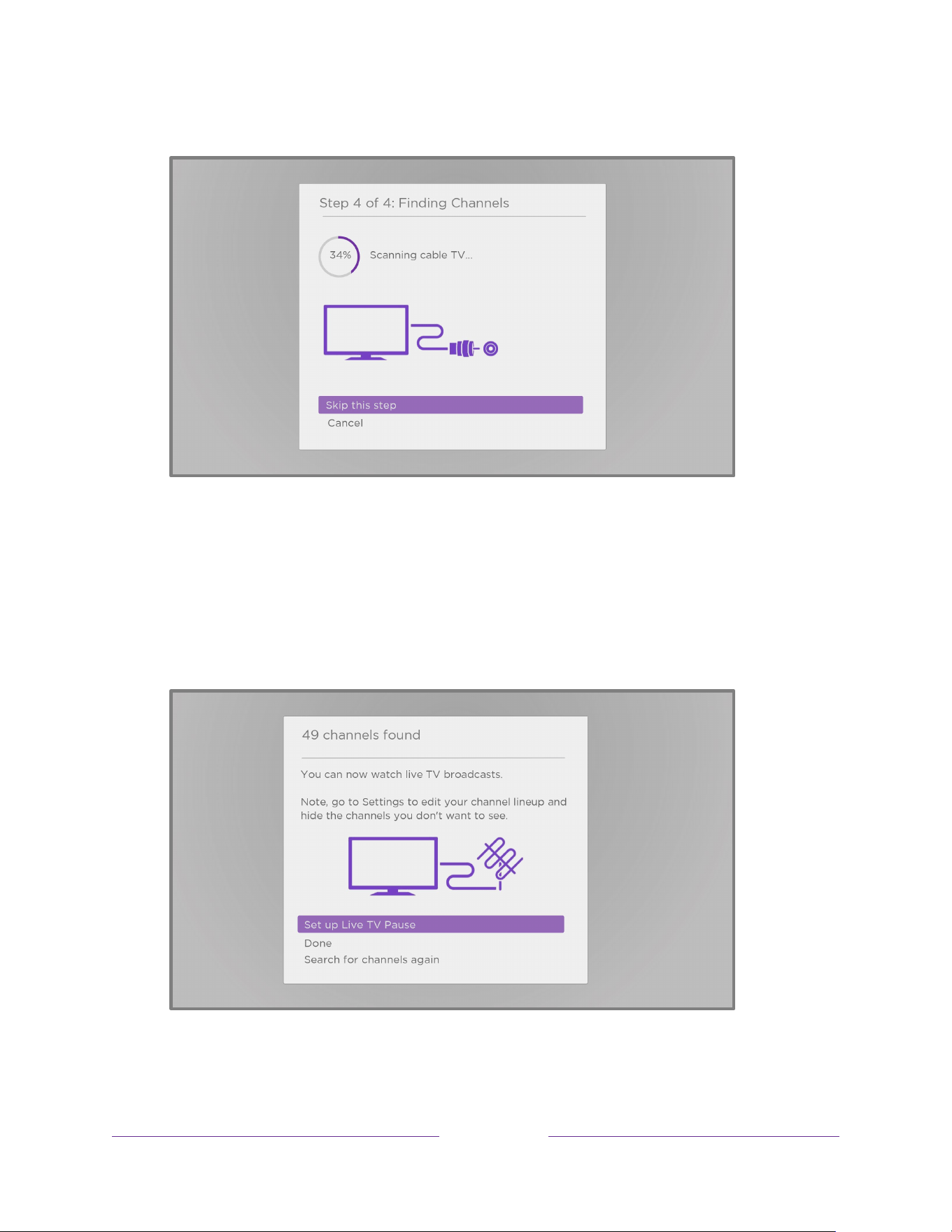

Watching local broadcast TV? How do you scan for channels?
If you connected your TV to an antenna or cable wall jack (no box):
1) When the setup wizard is complete, select the ANTENNA icon from the home screen.
2) Follow the on-screen instructions.
3) Whenever you want to watch local broadcast TV, select ANTENNA icon .
4) Connect a USB memory stick to enjoy photos, music, and movies, or to enable Live TV Pause. Live TV Pause is only
available on the Antenna input of your Roku TV and requires a dedicated USB 2.0 compatible flash drive with at least
16 GB of storage to record video. The Live TV Pause feature requires a Roku account and active internet connection.

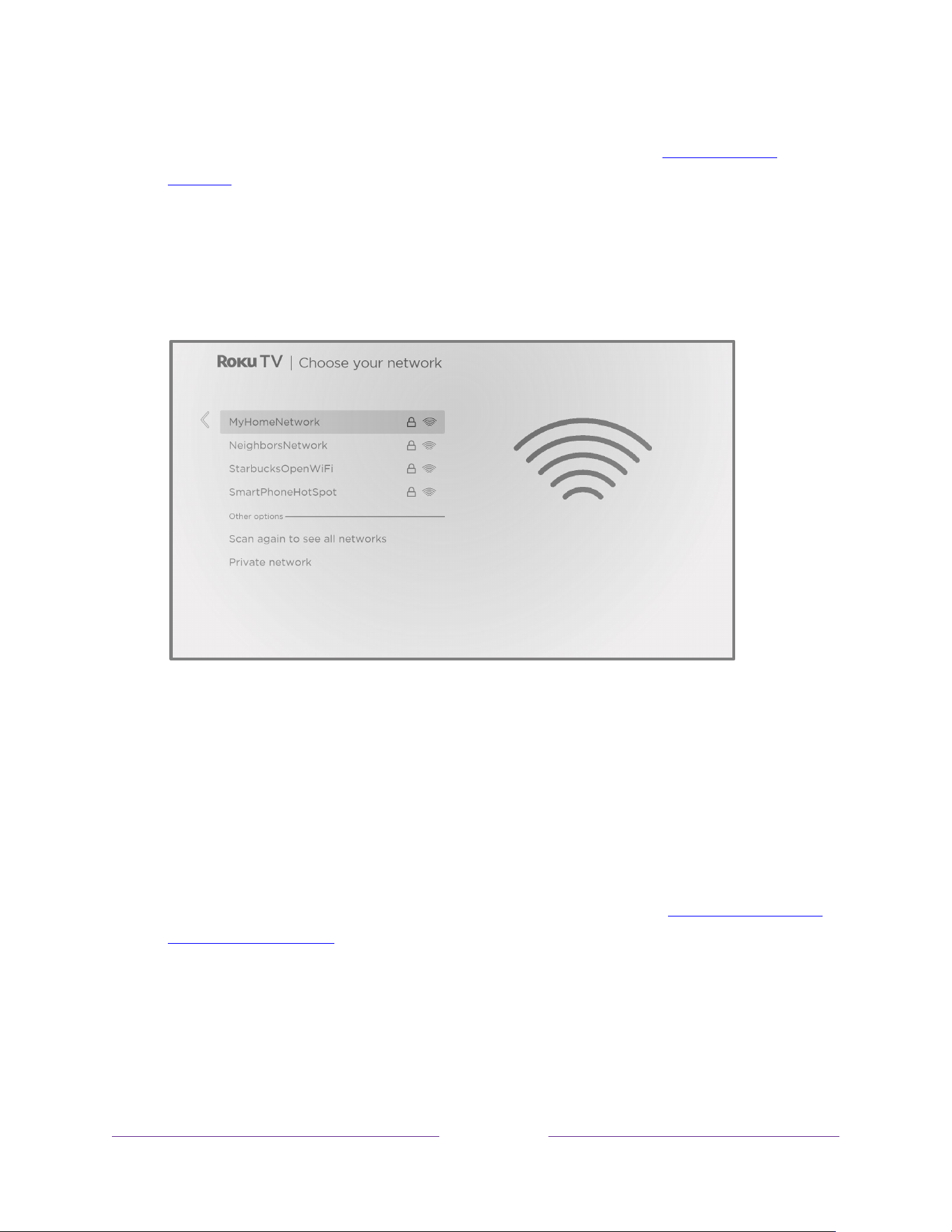

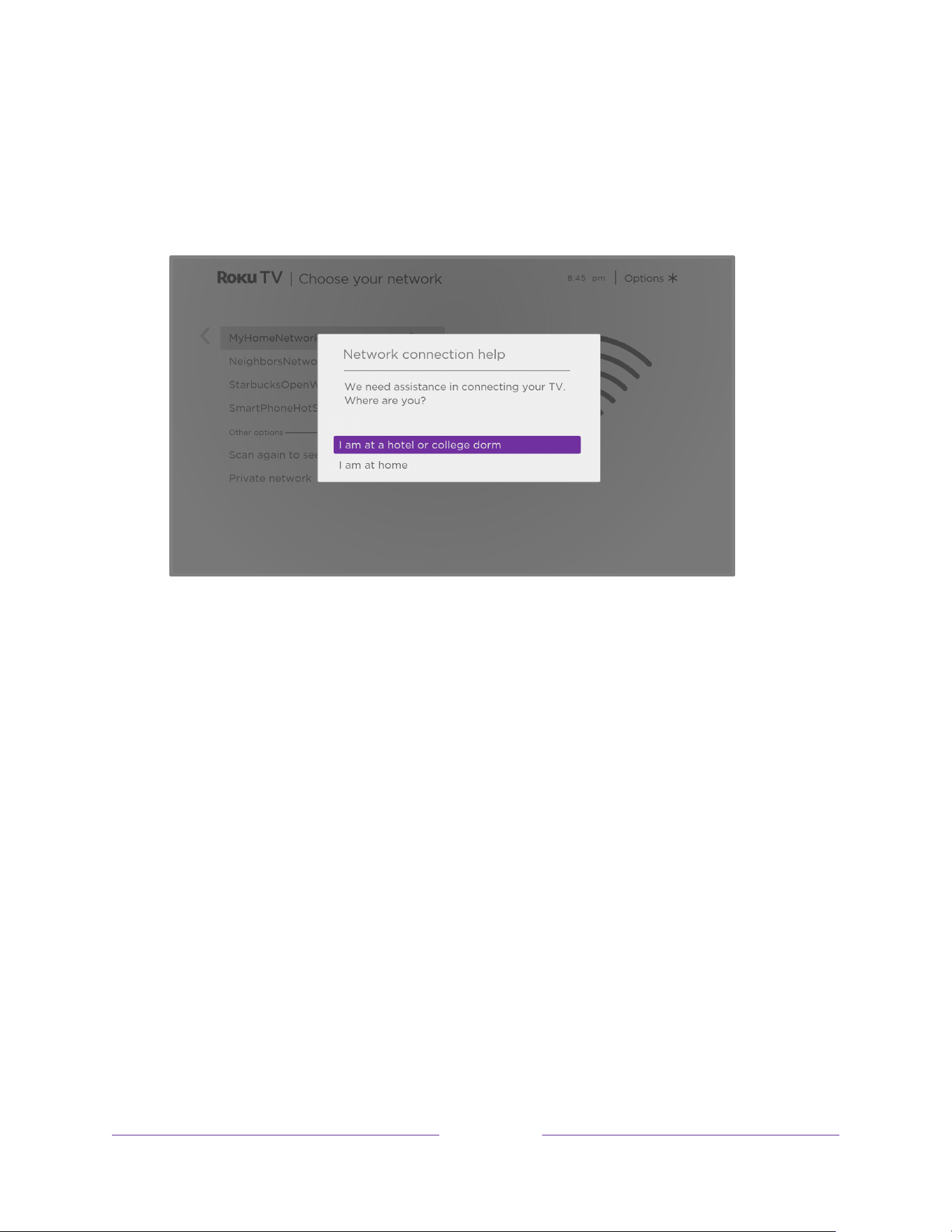

Establish your network connection
Step 3 Grab your remote
B
A
C
D
F
POWER Turn TV on and off
BACK Return to previous screen
HOME Return to Roku Home screen
VOLUME Raise and lower volume
INSTANT REPLAY Replay the last few seconds of streaming video
OPTIONS View more options
RWD SCAN Rewind streaming video, scroll left one page at a time
FWD SCAN Fast forward streaming video, scroll right one page at a time
LIVE TV PAUSE Activate and use the Live TV Pause when a 16 GB USB drive is attached to the TV.

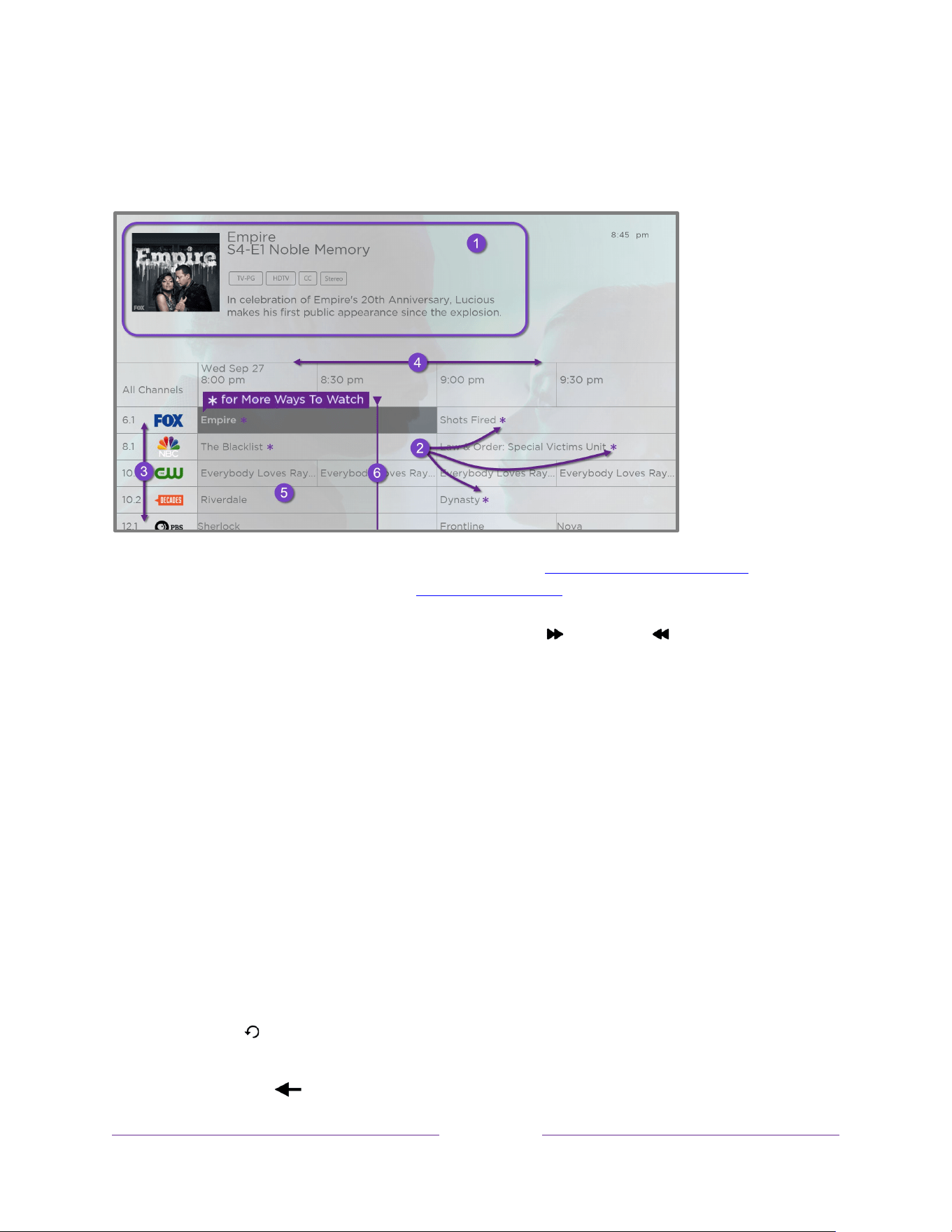

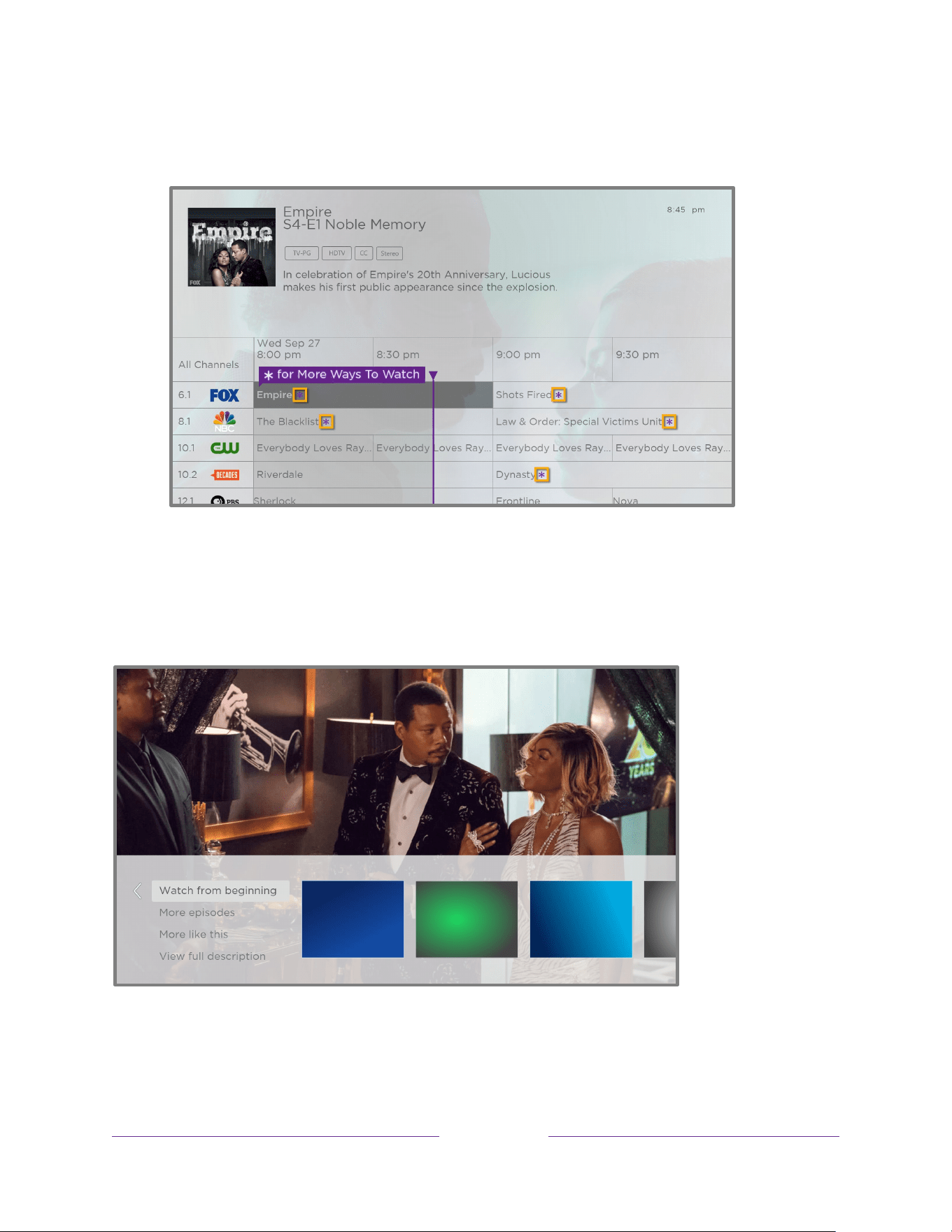

D-PAD LEFT Brings up the Smart Guide (EPG) while watching Antenna TV.
A
B
D
E
C
Your Roku account: During Guided Setup, you’ll be prompted to create your Roku account online at
roku.com/link. Your TV will generate a unique code that links your TV to your new account.
Roku accounts are free, and while a valid credit card is recommended, it is not required. Saving a
payment method makes it easy to rent/buy movies on demand or subscribe to popular services. Charges will not be
made without your authorization.
IMPORTANT: Make sure you type the roku.com/link into the browser being careful not to misspell or add extra
characters. Typing this incorrectly may take you to fraudulent websites.
Troubleshooting
Connecting brings out your TV’s full potential!
Your easy way to endless entertainment
Problems connecting my cable/satellite box
• For best performance, use the HDMI connection.
• Make sure the cable connections to the TV
and your device are securely fastened.
• Select the corresponding HDMI input.
Problems connecting an antenna through a
coaxial cable
• Securely connect the coaxial cable from your antenna.
• Select Antenna TV input. Then Select “Start
finding channels
” and follow the on-screen
instructions to perform a full channel scan.
Cannot connect to wireless network (Wi-Fi)
• Select the correct wireless network name and
verify the password entered (case sensitive).
• Relocate the router from objects that interfere with
performance (cordless phones, baby monitors, etc. ).
• Reboot the router by disconnecting the power
for more than 2 minutes and reconnect.
Having trouble completing the guided setup? Don’t worry, it’s usually an easy fix.
My picture is too small
(black bars on the side)
• Play your movie/video and press the
asterisk button.
• Select Picture size, select the picture size of your
preference.
If the TV remote control isn’t working
• Remove any obstruction and point the remote at
the TV’s IR receiver (see Get to know your TV).
• Try a fresh set of batteries.
• If the status light on the front of your TV flashes once
each time you press a remote button, the problem
is not with the remote. Unplug the TV power cord
from the wall outlet and then plug it back in.
Need more help? www.hitachi.us/tv 800.HITACHI (800.448.2244)
To better support you, please have your model and serial number ready.
© 2018 Hitachi America, Ltd. and Roku, Inc.
All material in this Quick Start Guide is provided by Hitachi America, Ltd. and Roku, Inc. and their respective subsidiaries, affiliates and licensors and is
protected under U.S. and international copyright and/or other intellectual property laws. Reproduction or transmission of the materials, in whole or in part,
in any manner, electronic, print, or otherwise, without the prior written consent of Hitachi America, Ltd. and Roku, Inc. is a violation of the rights of Hitachi
America, Ltd. and Roku, Inc. under the aforementioned laws.
© 2018 Roku, Inc. All rights reserved. ROKU, ROKU TV and the ROKU logo are the trademarks or registered trademarks of Roku, Inc. All other trademarks
and logos herein are the property of their respective owners.
Wireless router
(needed for streaming)
Phillips head
screwdriver
Make any night a movie night
Choose from over 500,000+ movies and
TV episodes, across all major streaming
movie channels like Netflix, Amazon
Video, Google Play, VUDU, and more.
Stream sports on the big screen
Choose from over 140 sports channels like
WatchESPN, FOX Sports Go, NBA, NFL,
MLB, WWE, CBS Sports, and more.
Explore your passions
In addition to popular streaming channels like HBO
NOW, SHOWTIME, PBS Kids, and FOX NOW, your Roku
TV also offers hundreds of streaming channels to fuel
your passions – including fitness, cooking, religion,
outdoors, international programming, and much more.
Hundreds of free channels
Watch free Hollywood hits on The Roku Channel—no
subscriptions or logins required. Plus, channels like
Crackle, YouTube, PBS KIDS, and CBS News offer
even more free movies, news, and TV shows.
Here are some buttons you should know about.
Connect now to get the most out of your Hitachi Roku TV
Tip! The button gives
you easy access to picture
settings, display options, and
more. Try it on every screen!
Hitachi Roku TV
TV remote
TV stand
2 x AAA batteries
for remote
4 Screws
F
H
E
G
G
H
E
F
G
H
I
HITACHI Roku TV
*A paid subscription or other payments may be required for some channels. Channel availability subject to change and varies by country.
Check with individual channel provider for Internet connection speeds required to stream or access 720p content.
You’ll have access to thousands of streaming channels*.
A
B
C
Stands
Screws
R
L
Model: 43RZ5/32RZ21
SIDE
G
COMPOSITE AV IN If your device isn’t able to
connect using HDMI
®
, connect to your TV using
standard red/white/yellow cables.
H
AIR/CABLE IN Connect Cable TV feed or an
outdoor VHF/UHF antenna.
I
HDMI ARC PORT Connect HDMI ARC (audio return
channel) capable audio devices like sound bars or
AV receivers.
J
USB PORT Connect a USB device for browsing
photos, music and movies.
Free mobile app for iOS and
Android
Control with included remote or free Roku
Mobile app. Use your tablet or smart phone
as a remote, plug in headphones for private
listening, or use your voice for search. **
Simple, Intuitive Interface
Start streaming* your favorite shows.
Access your cable box or HDTV
antenna. Even fire up your gaming
console - all from your home screen.
Send to the big screen
Easily share photos, videos, and
music from your compatible
smartphone or tablet right
to your Roku TV. **
Fast and easy search
Search for movies, TV shows,
actors, and directors across
top streaming channels and
quickly compare viewing
and price options.
Internet connection
(needed for streaming)
Computer, tablet,
or smart phone
(needed for setup)
*A paid subscription or other payments may be required for some channels. Channel
availability subject to change and varies by country. Check with individual channel
provider for Internet connection speeds required to stream or access HD content.
I
I
.
Hitachi America, Ltd.
Step 5 Optional
J
D-Pad Left: Brings up the Smart Guide (EPG) white watching Antenna TV.
Play/Pause: Pauses and resumes Live TV while watching Antenna TV.
REW: Rewinds the paused Live TV Pause buffer.
D-Pad Left and D-Pad Right: Choose scenes while using Live TV Pause.
J
Live TV
RESET
SPDIF
HEADPHONE
USB
I
B
J
