USE AND CARE MANUAL
LRG4807U/ULP | LRG3601U/ULP
LRG3001U/ULP | LRG2401U/ULP
1. WARNINGS................................................................................................................... 3
2. WELCOME.................................................................................................................... 4
3. BEFORE YOU START.................................................................................................... 5
4. SAFETY AND WARNINGS............................................................................................ 6
SAFETY SYMBOLS...................................................................................................... 6
ELECTRICAL SHOCK HAZARD..................................................................................... 7
TIPPING HAZARD......................................................................................................... 7
EXPLOSION HAZARD.................................................................................................... 8
FIRE HAZARD............................................................................................................... 8
POISONING HAZARD.................................................................................................... 9
HOT SURFACE HAZARD................................................................................................ 9
OTHER SAFETY TIPS.................................................................................................... 9

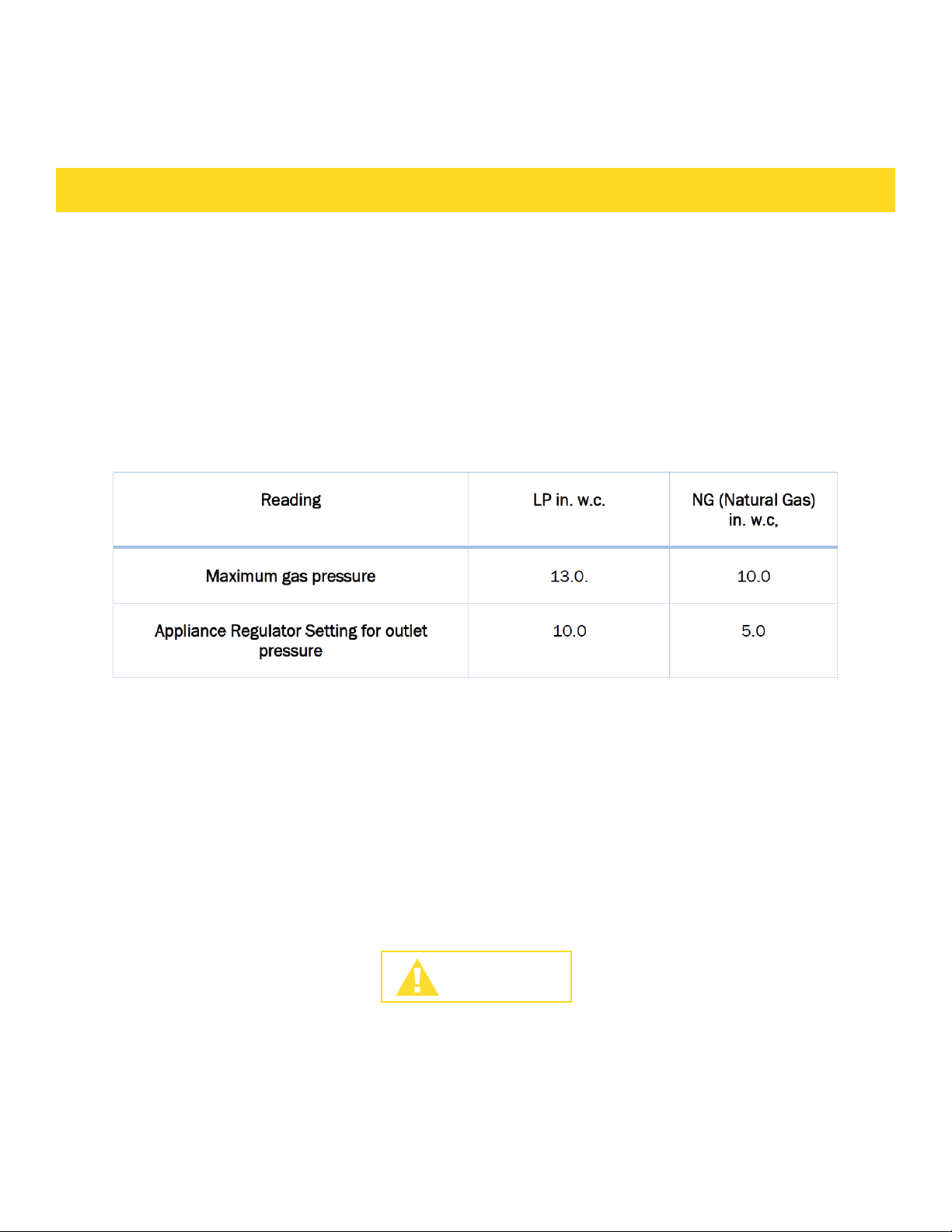

5. GAS SUPPLY REQUIREMENTS.................................................................................. 12
SAFETY TIPS FOR GAS OPERATION............................................................................ 12

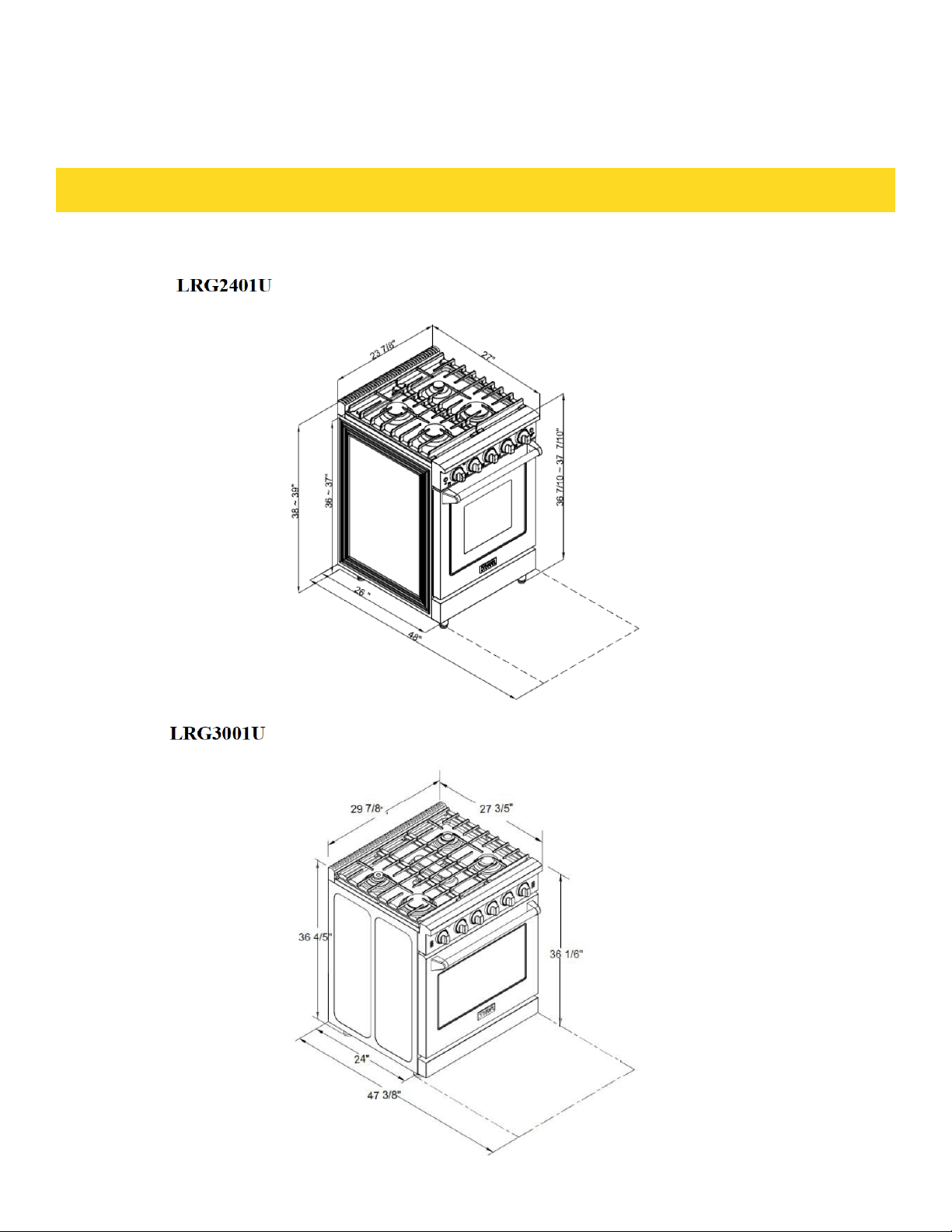

6. DIMENSIONS AND CLEARANCES............................................................................... 13

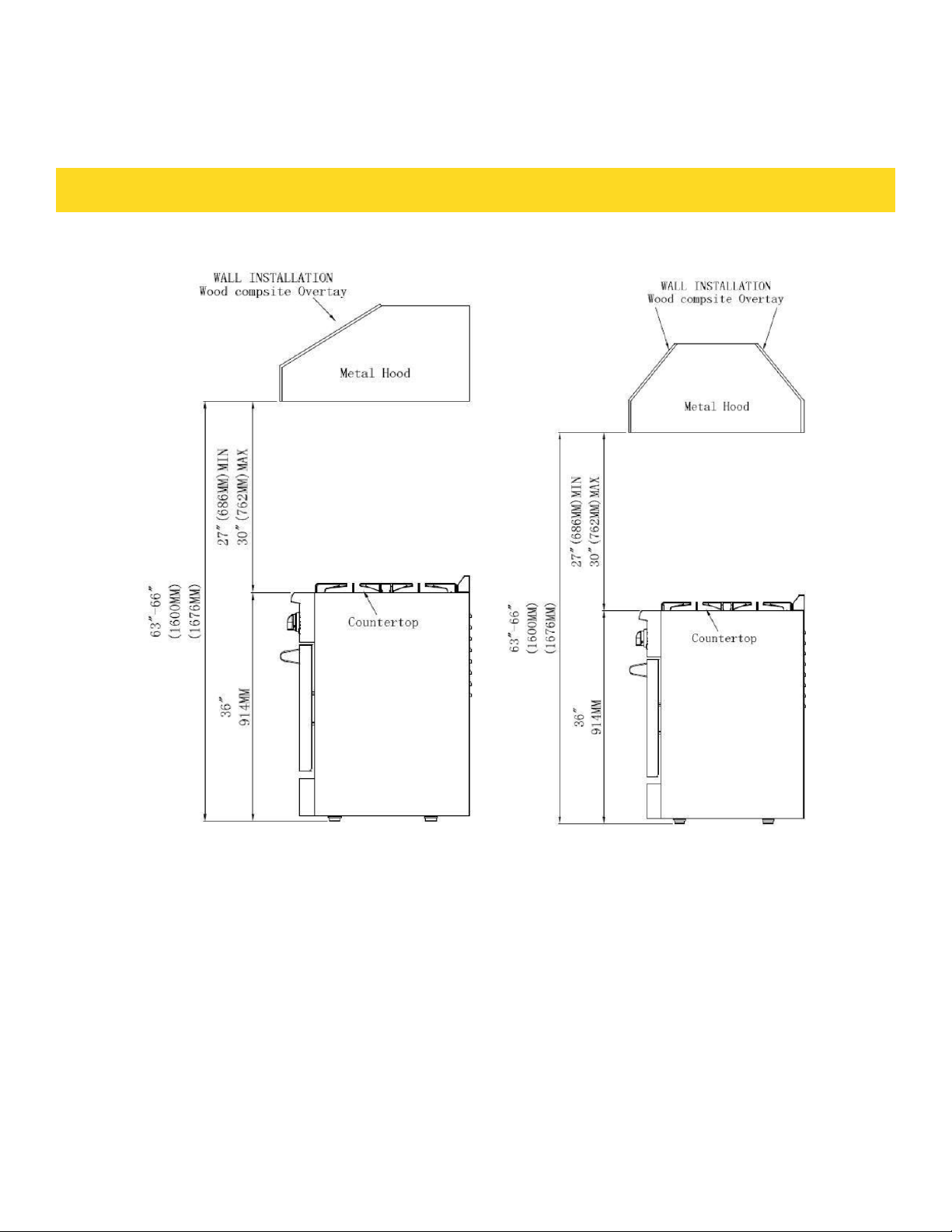

TOP HOOD AND CABINET SPECIFICATIONS............................................................... 22
7. ELECTRIC POWER SUPPLY REQUIREMENTS............................................................. 23
8. ELECTRICAL GROUNDING INSTRUCTIONS................................................................28
9. CONNECT RANGE TO GAS SUPPLY............................................................................ 28
AFTER INSTALLATION.............................................................................................. 29
10. FIRST USE.................................................................................................................. 30
CONDITIONING THE OVEN....................................................................................... 30
11. COOKTOP SAFETY GUIDELINES................................................................................ 30

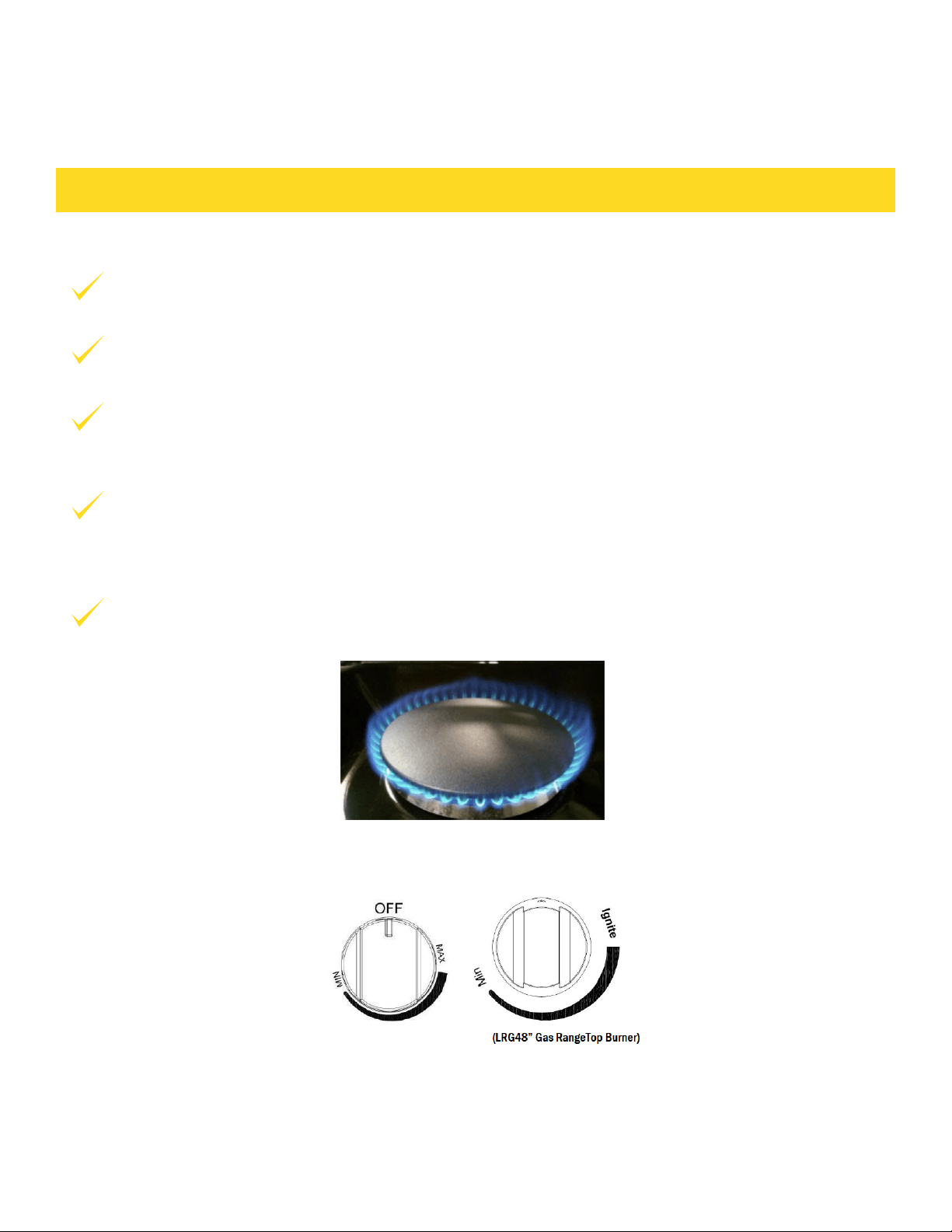

SURFACE BURNER IGNITION.................................................................................. 31
SIMMER AND BOIL................................................................................................... 32
FLAME SIZE.............................................................................................................. 32
POWER FAILURE...................................................................................................... 32
COOKTOP.................................................................................................................. 32
BURNER GRATES..................................................................................................... 32
OVEN BURNER USE................................................................................................. 33
BROIL BURNER USE................................................................................................ 33
OVEN COOKING GUIDELINES................................................................................... 33
12. OVEN FUNCTION....................................................................................................... 35
NATURAL AIRFLOW BAKE........................................................................................ 35
INFRARED BROIL..................................................................................................... 35
CONVECTION BAKE................................................................................................. 35
CONVECTION ROAST................................................................................................ 36
CONVECTION DEFROST........................................................................................... 36
TABLE OF CONTENTS
DEFROSTING............................................................................................................ 36
CONVECTION DEHYDRATION................................................................................... 36
13. BROILER OPERATION............................................................................................... 37
PREHEATING............................................................................................................ 37
TO BROIL.................................................................................................................. 37
SETTING BROIL........................................................................................................ 37
BROILING GUIDELINES............................................................................................ 38
14. CLEANING INSTRUCTIONS....................................................................................... 40
DO’S.......................................................................................................................... 40
DON’TS..................................................................................................................... 40
CLEANING BURNER CAPS AND BRASS FLAME SPREADERS................................ 40
CLEANING SIDE RACKS........................................................................................... 41
CLEANING OVEN SHELVES...................................................................................... 41
CLEANING BROIL/ROAST PAN AND SLOTTED GRID............................................... 41
CLEANING BAKE AND BROIL BURNERS................................................................. 42
CLEANING PORCELAIN SURFACES......................................................................... 42
CLEANING THE OVEN GLASS WINDOW................................................................... 42
CLEANING THE OVEN DOOR GASKET...................................................................... 42
CLEANING STAINLESS STEEL SURFACES............................................................... 42
15. REMOVING AND REPLACING THE OVEN DOOR....................................................... 43
REMOVING THE OVEN DOOR................................................................................... 44
REPLACING THE OVEN DOOR.................................................................................. 44
16. TROUBLESHOOTING GUIDE...................................................................................... 45
COOKTOP.................................................................................................................. 45
OVEN........................................................................................................................ 47
17. WARRANTY & SERVICE............................................................................................ 49
18. Appendix 1 Oven Knob Installation.......................................................................... 50
Appendix 2 Oven Handle Installation...................................................................... 52
Appendix 3 Rubber Pad Installation on Back Panel............................................... 55
TABLE OF CONTENTS
WARNINGS
These are the most critical warnings summarized below.
• If the instructions in this manual are not followed exactly, a
fire or explosion may result, causing property damage,
personal injury or death.
• Do not store or use gasoline or other flammable substances
and liquids near this or other appliance,
• Never use this appliance as a space heater to warm a room.
• Installation of this appliance must be done by a qualified,
service agency or gas supplier.
What to do if you smell gas
• Do not light any appliance
• Do not touch an electrical switch
• Immediately call the gas supplier from a neighbor’s phone
• Open a window and leave the area
• Follow the gas supplier’s instructions
• If you cannot reach the gas supplier, call the fire department
SAFETY AND WARNINGS
WARNING
3
Thank you for purchasing a THOR range. We appreciate your business and we recommend
that you read this entire User’s Manual before operating your new appliance for the first
time. This manual contains instructions on how to properly install and set up your new
range, as well as insights into the unique features that our product offers. Please keep
this manual for future reference, as it contains answers to questions that you might have
as you begin to cook.
Thank you,
THOR Group
WELCOME
SAFETY & WARNINGS
4
• Make sure that the anti-tip of the range has been properlyinstalled.
• Find the model and serial numbers on the CSA label in the bottom right-hand corner
of the backboard. Note these numbers down for future reference in the space provided
in section ‘Warranty and service’.
• Read this guide, taking special note of the ‘Safety and warnings’ section.
• Remove all the packaging from the oven(s) and cooktop. Recycle items that you can. If
any adhesive residue is left on surfaces, remove this using dish washing liquid on a soft
cloth.Do not use any harsh or abrasive cleaners.
• Make sure you follow the instructions under ‘First use’ before using your range
forcooking.
• To reduce the risk of fire, electrical shock, injury to persons, or damage when using
the appliance, follow the important safety instructions listedbelow:
BEFORE YOU START
SAFETY AND WARNINGS
5
SAFETY & WARNINGS
WARNING
CAUTION
CAUTION
IMPORTANT

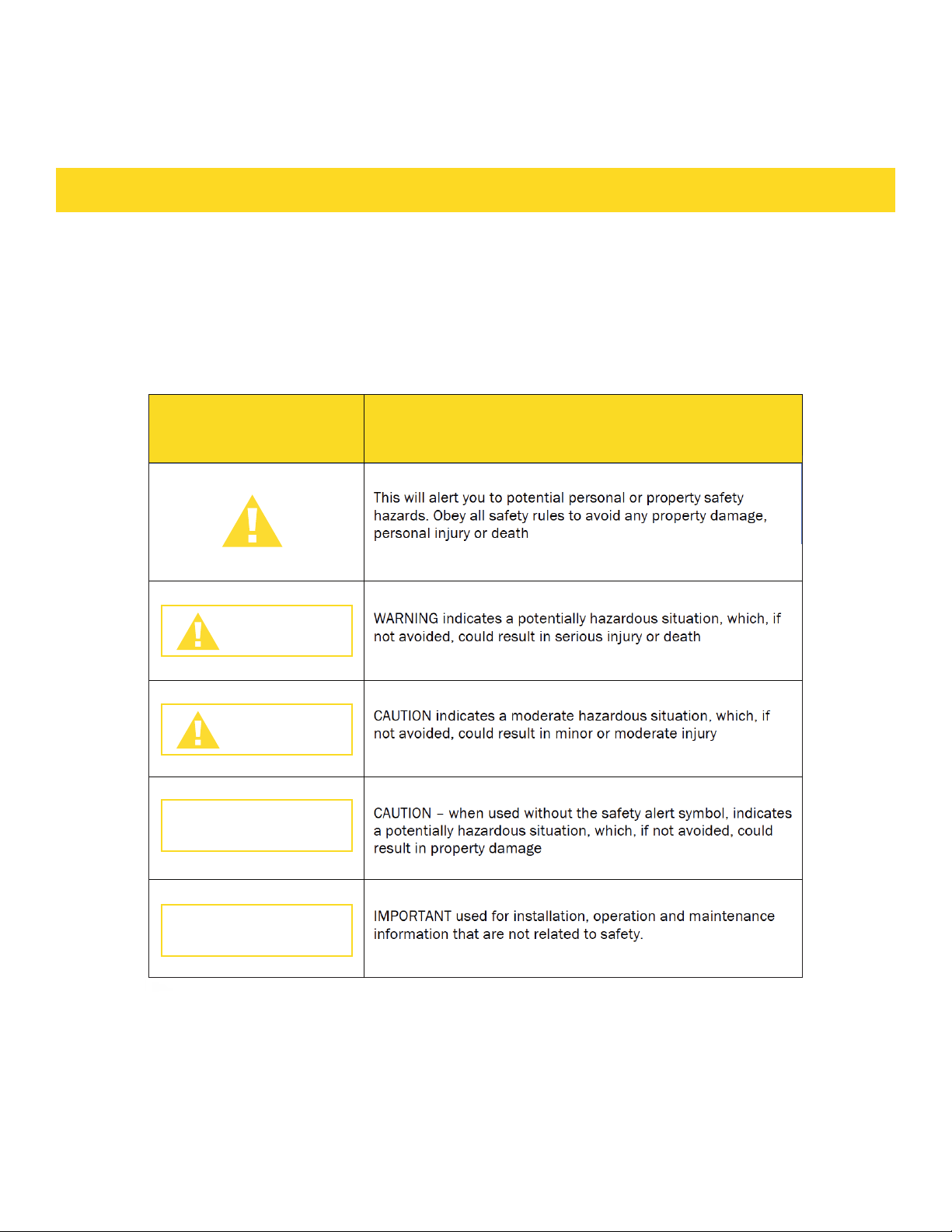

SYMBOL DEFINITION
SAFETY SYMBOLS
6
SAFETY AND WARNINGS
Before removing a faulty oven light bulb, make sure you turn OFF
the power to the range at the main fuse or circuit breaker panel.
If you don’t know how to do this, contact an electrician.
Do not remove the kick panel or the back panel. Due to electrical
wires behind it, both panels should only be removed by a
qualified technician.
This appliance is equipped with a three-prong grounding plug
for your protection against shock hazard and should be plugged
directly into a properly grounded power outlet. Do not under any
circumstances cut or remove the grounding prong from this plug.
Failure to follow this advice may result in death or electrical
shock.
TIPPING HAZARD
All ranges can tip and cause injuries to adults and children. To
prevent tipping, install the anti-tip device supplied with your
range. Follow all installation instructions.
Even after the safety device is installed, do not step, lean or sit
on the oven door or place any heavy objects on it. Doing so may
result in personal injury.
Make sure anti-tip device is installed as follows:
1. Slide the range forward.
2. Install the anti-tip device as described in the instruction sheet
3. Safely tilt the front section of the range and slide the range
slowly back against the wall.
4. The rear pins should slide under the bracket.
Do not use the appliance until it has been secured.
Failure to follow this advice may result in serious injury.
ELECTRICAL SHOCK HAZARD
7
If you smell gas, do not use the appliance. Open a window or door to
let the gas escape, then follow the instructions on the inside front
cover of this manual.
Do not use water on grease fires. A violent steam explosion may
result.
Turn all burners off, then smother fire or flame with a dry chemical
or foam-type extinguisher. Do not try to smother with flammable
blankets.
Do not heat unopened food containers such as cans. Build-up of
pressure may cause container to burst and result in injury.
Failure to follow this advice may result in injury or death
FIRE HAZARD
Never use your appliance as a space heater. Persons could be
injured or a fire could start.
Keep the area around the appliance free from combustible
materials (e.g. wall coverings, curtains, drapes), gasoline and other
flammable vapors and liquids.
Clean the stove and burners regularly.
Do not let cooking grease or other flammable materials accumulate
on the surfaces or near the appliance.
Do not hang any articles (e.g. dish towels) off the oven handle. Some
fabrics may ignite or melt from the heat.
Never leave the cooktop burners unattended when in use. Boil
over causes smoking and greasy spillovers that may ignite.
Never spray an aerosol cleaner on or around the appliance while
burners are lit, Be sure all the controls are turned off and the
appliance is cool. The aerosol gas and chemicals in such cleaners
could, in the presence of heat, ignite or cause metal parts to
corrode.
Do not store flammables near cooktop
Flammable materials should not be stored in an oven or near the
cooktop. An accident could cause a serious fire.
EXPLOSION HAZARD
SAFETY & WARNINGS
8
Never cover any slots, holes or passages in the oven bottom or cover an
entire rack or the oven floor with materials such as aluminum foil. Doing
so blocks airflow through the oven and may cause carbon monoxide
poisoning. Aluminum foil linings may also trap heat, causing a fire
hazard.
Clean the appliance with caution. If a wet sponge or cloth is used to
wipe spills on a hot cooking area, be careful to avoid steam burn. Some
cleaners can produce noxious fumes if applied to a hot surface. Follow
the directions of the cleaner manufacturer.
Never use this appliance as a space heater to heat or warm the room.
Doing so may result in carbon monoxide poisoning and overheating of the
appliance. Failure to follow this advice may result in poisoning or death.
POISONING HAZARD
HOT SURFACE HAZARD
Accessible parts may become hot during use.
Do not touch burners, areas near burners, the grill, griddle, grease
drippans, heating elements or interior surfaces of oven. These may be
hot enough to cause burns even though they are dark in color. During
and after use, do not touch, or let clothing or other flammable materials
contact these parts and surfaces until they have had sufficient time to
cool. Other parts and surfaces of the appliance may become hot enough
to cause burns - among these areas are the grates, back trim and oven
vents at the back of the cooktop, front edge, surfaces adjacent to the
cooktop, and the oven door.
Use only dry potholders. Moist or damp potholders on hot surfaces
may result in burns from steam. Do not let potholder touch hot heating
elements. Do not use a towel or other bulky cloth.
Let hot grease cool before attempting to handle it. Failure to follow this
advice could result in burns and scalds.
OTHER SAFETY TIPS
Read instructions before use
Read all the instructions before using
the appliance. Use the appliance only
for its intended purpose as described in
these instructions.
Install the stove properly
Be sure your stove is properly
installed and grounded by a
qualified technician
SAFETY AND WARNINGS
9
Do not install or operate stove if damaged.
Do not operate the appliance if it is damaged
or not working properly. If you received a
damaged product, contact your dealer or
installer immediately.
Know how to turn off power in emergency
Be sure to have the installer show you where
and how to turn off the power supply to the
range (i.e. location of the main fuse or circuit
breaker panel) and where and how to turn off
the gas supply to the range in an emergency.
Do not leave children alone near stove
Children should not be left alone or unattended
in the area where the appliance is in use.
They should never be allowed to play with the
appliance or to sit or stand on any part of the
appliance.
Don’t wear lose clothing that could catch fire
Loose-fitting or hanging garments should
never be worn while using the appliance.
Do not repair or replace parts yourself (unless
recommended) Do not repair or replace
any part of the appliance unless specifically
recommended in the manual. All other
servicing should be referred to a qualified
technician. Technicians must disconnect the
appliance from the power supply before any
servicing.
Careful opening oven door Use care when
opening the oven door by allowing warm air
or steam escape before removing or replacing
food
Keep oven vent ducts unobstructed.
Do not touch hot oven shelves
Protect your hands from burning by making
sure the oven is cool before sliding oven
shelves into oven. If a shelf must be removed
while the oven is hot, do not let oven mitts or
potholder contact the base of the oven or hot
heating elements in the oven.
Protect oven gasket
Do not clean the oven gasket or use any
ovencleaning products on it. It is essential
for a good seal, which ensures that the oven
operates efficiently. Care should be taken not
to rub, damage or move it.
Protect glass oven doors Do not use harsh/
abrasive cleaners, scourers or
sharp metal scrapers to clean the oven door
glass since they scratch the surface, which
may result in the glass shattering.
Never step on oven door or place a heavy
object (like a Turkey) on it
Check for gas leaks When the appliance
installed, check for gas leaks according to the
instruction before use.
Ventilation hood is mandatory This appliance
should not be operated without a properly
sized and operational ventilation hood.
Use proper gas conversion kit This stove
only uses natural gas. For LP gas, please use
conversion kit (not included with the stove).
Please have a certified technician install the
unit and kit. If planning to resell unit, please
indicate whether it is natural gas or has LP
kit installed.
Do not reach for items over the stove when
it is lit Be careful when reaching for items
stored in cabinets above the appliance.
Read all instructions before using the
product to ensure proper and safe operation.
Install or locate the product only in
accordance with the provided
Installation Instructions.
Do not attempt to adjust, repair, service or
replace any part of your appliance unless it is
specifically recommended in this guide.
Do not use the range as a space heater.
SAFETY AND WARNINGS
10
SAFETY AND WARNINGS
Do not leave children unattended in the area
where the range is in use. Never allow children
to sit or stand on any part of the range. Do not
let children play with the range.
All servicing should be referred to a qualified
technician.
Have the technician show you the location of
the gas shut off valve and how to shut it off in
an emergency
Always disconnect power to appliance
before any type of servicing.
Do not use abrasive or caustic cleaners
or detergents on this appliance. They may
cause permanent damage to the surface.
When cooking, set the burner controls so
that the flame heats only the bottom of the
utensil and does not overlap at the sides of
the utensil.
Utensils (pots and pans) that conduct heat
slowly, i.e. glass pots, should be used in
conjunction with burner flames at a low or
medium setting.
Turn off all controls and wait for appliance
parts to cool down before touching
them. Do not touch the burner grates or
surrounding areas until cool.
Do not use water on grease fires.
Clean appliance with caution.
Always turn pot handles to the side or back
of the range. Do not turn handles towards
the area where they are easily burned.
Handles should not extend over the Do
not use abrasive or caustic cleaners or
adjacent burners.
Use the range only for cooking tasks as
outlined in this manual. When using the
range, do not touch the grates, burner
caps, burner bases, or any other parts in
proximity to the flame. These components
may be hot enough to cause burns.
Use dry pot holders. Moist or damp pot
holders on hot surfaces may result in
burns from steam
Do not use a towel or other bulky cloth.
Do not heat unopened food containers.
Buildup of pressure may cause the
container to explode and result in injury.
During and after use, do not touch interior
surfaces Clean appliance with caution. of
the oven until cool
Do not let pot holder touch hot surface
areas
11
DIMENSION AND CLEARANCE
Installation of this range must conform with local codes, or in the absence of local
codes, with national Fuel Gas Code, ANSIZ223.1 / NFPA 54.
In Canada, installation must conform to the current natural Gas Installation /code, CAN
1-1.1-M81 and with local codes where applicable.
This range has been design-certified according to ANSIZ21.1a, latest edition.
SAFETY TIPS FOR GAS OPERATION
Keep appliance area clear and free from combustible materials, gasoline, and other
flammable vapors.
Do not obstruct the flow of combustion air into the range and ventilation air away from
the range.
Ventilation: it is recommended that the unit be set under a powered, vented exhaust
hood of sufficient size and capacity.
Before installing the range, you must locate and secure the included anti-tip bracket to
the wall for your range.
The use of cabinets for storage above the appliance may result in a potential burn
hazard. Combustible items may ignite; metallic items may become hot and cause
burns. If a cabinet storage is to be provided, the risk can be reduced by installing a
range hood that projects horizontally a minimum of 5" (12.7cm) beyond the bottom of
the cabinets.
GAS SUPPLY REQUIREMENTS
CAUTION
12
The appliance shall not be used for space heating. This information is based on safety
considerations.
All openings in the wall behind the appliance and in the floor under the appliance shall
be sealed.
The range may be installed flush to the rear wall.
You may install a non-combustible material, such as tile, on the rear wall above the
range and up the vent hood.
It is not necessary to install non-combustible materials behind the range below the
counter top height.
The minimum distance from the side of the range above the counter top to combustible
sidewalls must be at least 10 inches.
DIMENSIONS AND CLEARANCES
WARNING
DIMENSION AND CLEARANCE
13

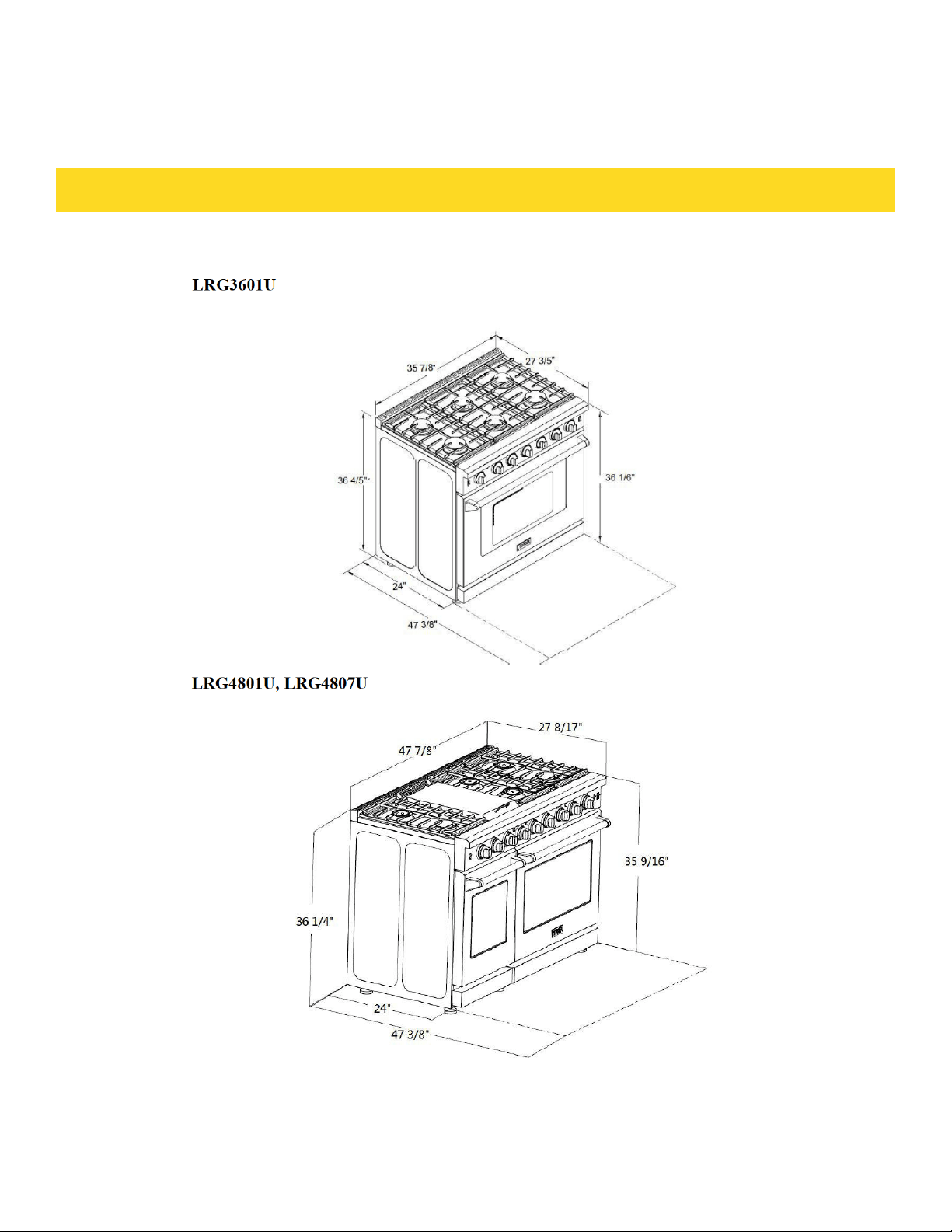

DIMENSION AND CLEARANCE

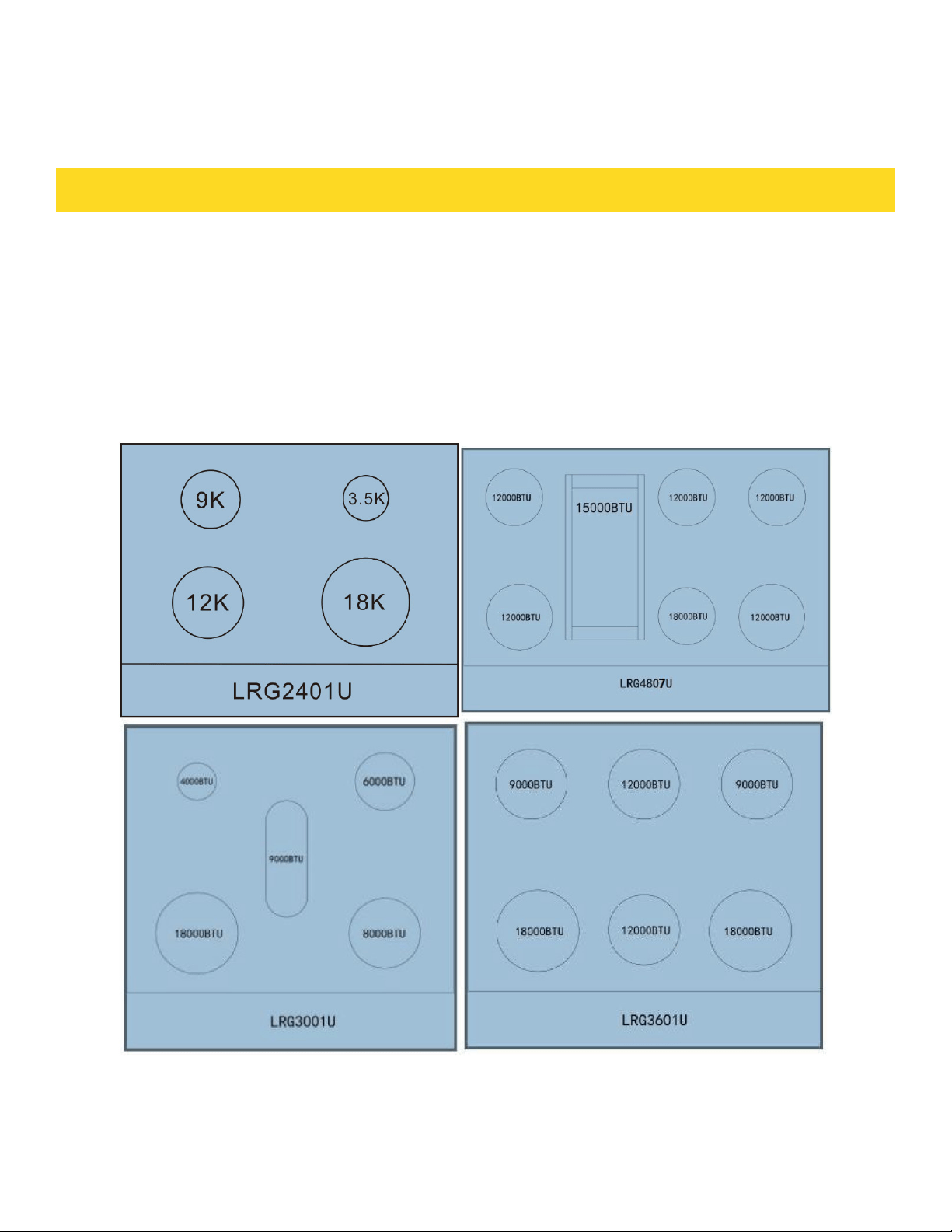

BTU DESIGN
14
DIMENSION AND CLEARANCE
15
DIMENSION AND CLEARANCE
16
DIMENSION AND CLEARANCE
The maximum depth of cabinets installed above cooking tops be 13 in (330mm).
17
DIMENSION AND CLEARANCE

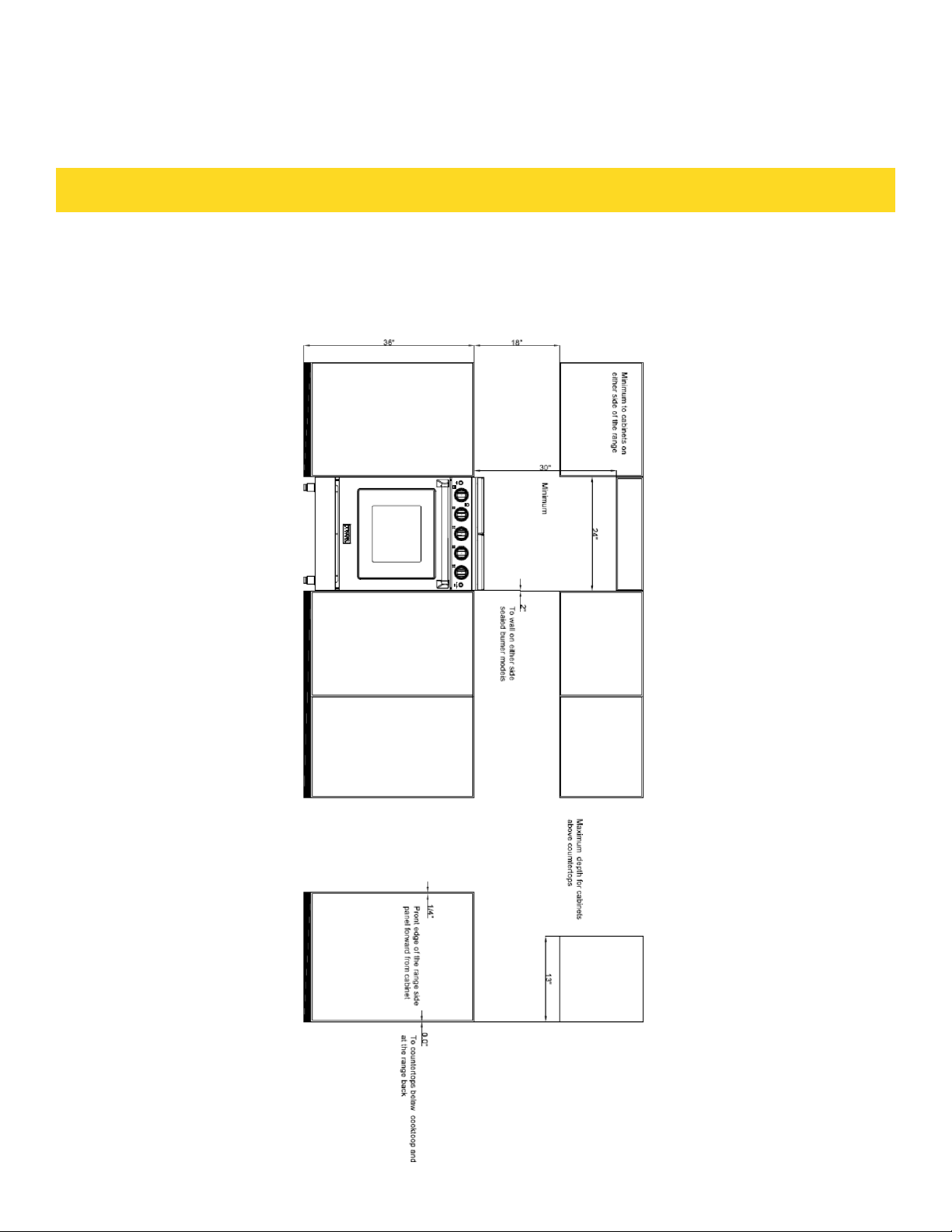

24” Gas Range Clearance
18
DIMENSION AND CLEARANCE
30” Gas Range Clearance
19
36” Gas Range Clearance
DIMENSION AND CLEARANCE
20
DIMENSION AND CLEARANCE
48” Gas Range Clearance
21
TOP HOOD AND CABINET SPECIFICATIONS
DIMENSION AND CLEARANCE
22
DIMENSION AND CLEARANCE
Your range must be electrically grounded in accordance with local codes or, in the absence of
local codes, in accordance with the National Electrical Code (ANSI/NFPA 70, latest edition).
In Canada, electrical grounding must be in accordance with the current CSA C22.1 Canadian
Electrical Code Part 1 and/or local codes. A copy of this standard may be obtained from: National
Fire Protection Association, 1 Battery march Park, Quincy, Massachusetts 02269-9101.
e power supply must be the correct polarity. Reverse polarity will result in continuous sparking
of the electrodes, even aer ame ignition. If there is any doubt as to whether the power supply
has the correct polarity or grounded, have it checked by a qualied electrician.
Use 120V, 60Hz, and properly grounded branch circuit protected by a 15-amp or 20-amp circuit
ELECTRIC POWER SUPPLY REQUIREMENTS
23
DIMENSION AND CLEARANCE

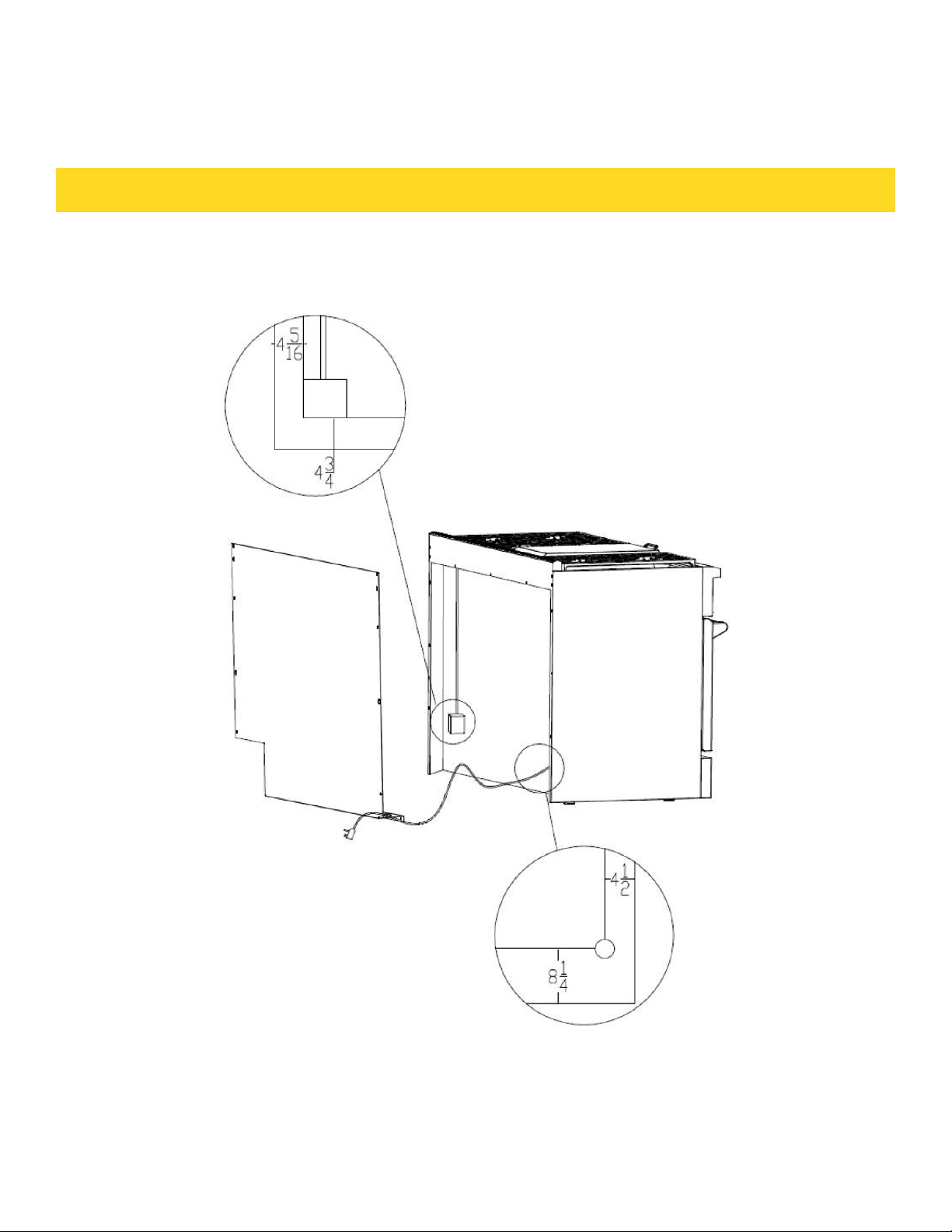

Installation for LRG 24 inches Gas Range
24
DIMENSION AND CLEARANCE

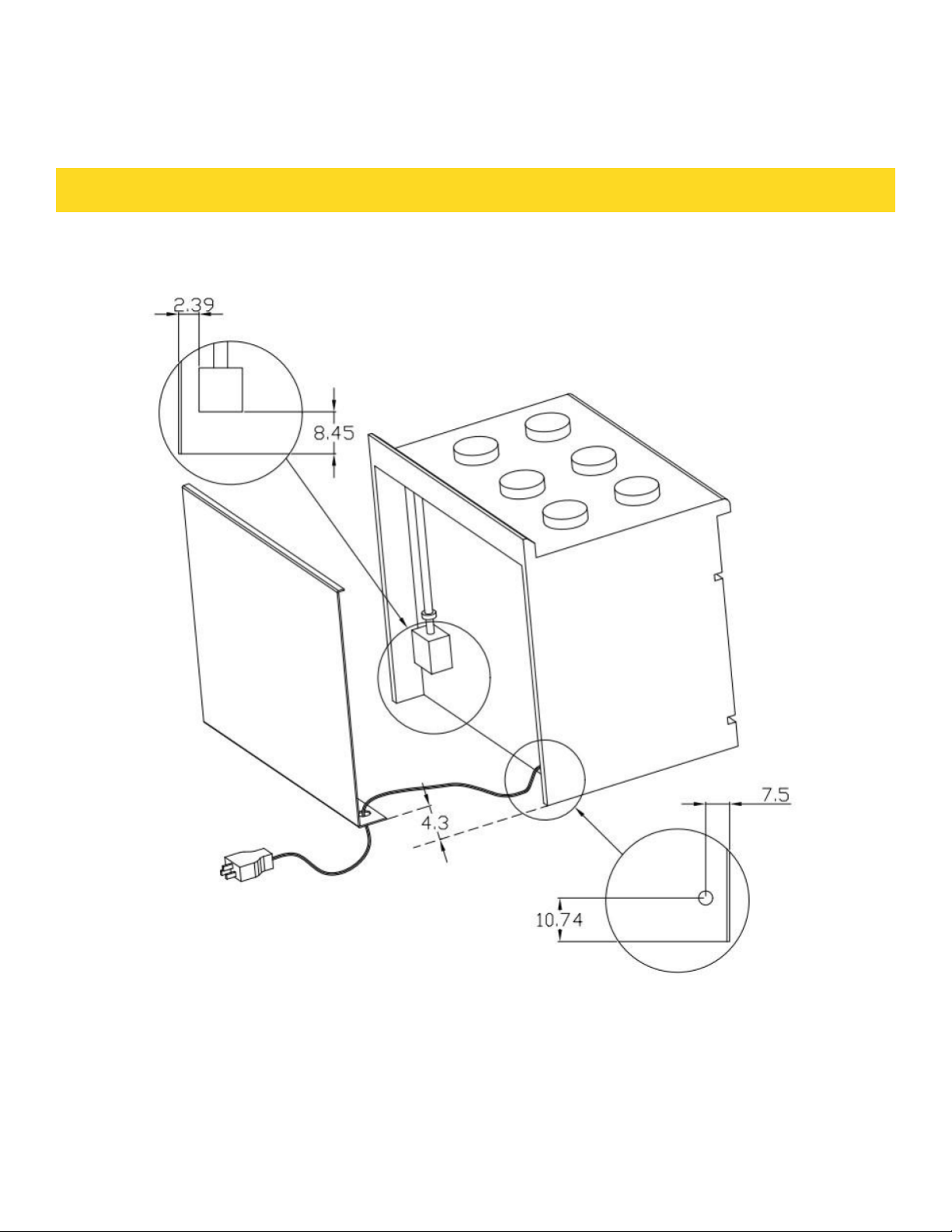

Installation for LRG 30 and 36 inches Gas Range
25
DIMENSION AND CLEARANCE
Back Layout for LRG 48 inches Gas Range
26
DIMENSION AND CLEARANCE
GAS LINE CONNECTION
27
This indoor gas cooking appliance is equipped with a three-prong (grounding) plug for
your protection against shock hazard and should be plugged directly into a properly
grounded threepronged receptacle.
Where a standard two-prong wall receptacle is encountered, it is the responsibility and
obligation of the customer to have it replaced with a properly grounded three-prong
wall receptacle.
Do not cut or remove the grounding prong from the power cord.
Before connecting plug to the cord, disconnect the electrical supply.
Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation. Verify proper operation after servicing.
CONNECT RANGE TO GAS SUPPLY
Most localities will require that the stove shutoff valve and gas connections be installed
by a certified technician or plumber. These instructions are for a professional. Gas
installation specifications and regulations may vary so please consult your local codes
before proceeding.
1. Install a manual gas line shut-off valve in the gas line as follows:
• in an easily accessed location outside the range
• in the gas piping external to the appliance
2. Install male 1/2” flare union adapter to 1/2” NPT internal thread elbow at inlet of
regulator.
On models equipped with standard twin burners, install the male pipe thread end
of the 1/2” flare union adapter to the 1/2” NPT internal thread at inlet of pressure
regulator.
Use a wrench on the regulator fitting to avoid damage.
ELECTRICAL GROUNDING INSTRUCTIONS
WARNING
CAUTION
CONNECT RANGE TO GAS SUPPLY
28
CONNECT RANGE TO GAS SUPPLY
1. Install male 1/2” or 3/4” (3/4” refers to 48-inch gas range) flare union adapter to the
NPT internal thread of the manual shut-off valve, taking care to secure the shut-off
valve to keep it from turning.
2. The gas supply pressure for checking the regulator setting is 6 in.w.c. (Nature Gas
and 11 inch.w.c. (LP gas) connect flexible gas line connector to the regulator on the
range. Position range to permit connection at the shut-off valve.
3. When all connections have been made, make sure all range controls are in the
positionand turn on main gas supply valve.
4. Leak testing of the appliance shall be conducted according to the manufacturer’s
instructions. Use some soap water (50% water and 50% soap) or a leak detector at
all joints and connections to check for leaks in the system. Do not use a flame to
check for gasleaks.
5. The appliance must be isolated from the building’s gas supply piping system by
closing its individual manual shut-off valve during any pressure testing of the gas
supply piping system at test pressure equal to or less than 1/2 psig(3.5kPa).
AFTER INSTALLATION:
1. Check ignition of cooktop burners.
2. Check ignition of oven burner.
3. Visually check tubular burner (oven burner) re-ignition to be sure both rows of
burner ports are relighting each time.
4. Check for gas leaks at all gas connections (using a gas detector, never aflame).
5. Check oven bake and convection bake function.
29
Conditioning the oven
Conditioning will burn off any manufacturing residues and ensure that you get the best
results right from the start.
Follow these steps to condition your new stove’s oven:
1. Insert all the shelves. See ‘Positioning the shelves’ for instructions.
2. Turn on the ventilation hood above your range on high.
3. Heat the empty oven at the highest temperature for:
a. 30 minutes using BAKE
b. 30 minutes using BROIL (some ovens only).
4. There will be a distinctive smell while you are conditioning the oven. This is normal,
but make sure the kitchen is well ventilated during the conditioning.
5. Once cooled, wipe out the oven with a damp cloth and mild detergent, and
drythoroughly.
6. Positioning the shelves
7. Both the sides panel and shelves with safety stop to keep them sliding out of the
ovenwhen pulled forward;
8. And the front stop prevents the shelves from against hitting the back of theoven
COOKTOP SAFETY GUIDELINES
There are dual burners have the same low turn-down setting (SIM) for gentle
simmering (620 BTU/hr.). Use the SIM setting for melting chocolate and butter, cooking
rice and delicate sauces, simmering soups and stews, and keeping cooked food hot.
Never leave the cooktop unattended when in use. Boil over causes smoking and
greasy spills that may ignite.
Never allow flames to extend beyond cookware or curl up on sides. This could
discolor and damage the utensil and you may get burned touching the hothandle.
COOK TOP SAFETY GUIDELINES
FIRST USE
30
COOK TOP SAFETY GUIDELINES
Keep handles out of the way. Turn handles so that they don’t extend over the edge of
the range or on a burner that is on.
Take care when deep-frying. Oil or fat can overheat very quickly, particularly on a high
setting.
Make sure that all burner parts are properly in place. Incorrectly or incompletely as-
sembled burners may produce dangerous flames. See ‘Replacing the burner parts’ in
‘Care and cleaning’.
Keep the burners clean, especially after a spill or boil over, make sure you clean the
affected burners before using them again. Food residue may clog the igniter and the
notches of the flame spreader, stopping the burner from functioning correctly. See
‘Care and cleaning’ for instructions.
Check that the burner flames. They should be blue with no yellow tipping, and burn
without fluttering all around the burner cap. If not, see ‘Troubleshooting’ for advice.
SURFACE BURNER IGNITION
To light the top burners, push and turn the appropriate control knob counter clockwise
to the “HI” position. You will hear a clicking noise – the sound of the electric spark ig-
niting the burner. Once burner ignition has been achieved, then turn the burner control
knob to adjust the desired heat setting.
31
NOTE: When one burner is turned to the “HI” position, the burner igniters will park. Do
not attempt to disassemble or clean around any burner while another burner is on. Do
not touch any burner cap, burner base, or igniter while the igniters are sparking.
SIMMER AND BOIL
A smaller flame will give the best simmer results. Small flames offer precise cooking
performance for delicate foods, keeping food warm, melting chocolate or butter, and
for cooking that need to cook over low heat for a long time.
The highest flame settings provides the maximum heat that is available on your range.
This setting should be used for heavy cooking loads such as water boiling or pasta
cooking.
FLAME SIZE
When you select the flame size, watch the flame when you turn the knob.
Any flame larger than the bottom of the cookware is wasted.The flame should be
steady and blue in color. Foreign material in the gas line may cause an orange flame
during initial operation.
POWER FAILURE
If the gas does not ignite within four seconds, turn off the valve and allow at least five
minutes for any gas to dissipate. Repeat the lighting procedure.
If the power fails, it is not capable of being safely placed in operation and user that no
attempt should be made to operate during power failure.
COOKTOP
To prevent the cooktop from discoloring or staining, clean cooktop after each use, and
wipe up acidic or sugary spills as soon as the cooktop has cooled.
The sealed burners of your range are not sealed to your cooktop and are designed to be
removed. Boil overs or spills will not seep underneath the cooktop. The burners should
be cleaned after each use.
BURNER GRATES
The grates must be properly positioned before cooking. Improper installation of the
grates may result in scratching of the cooktop and / or poor combustion.
COOK TOP SAFETY GUIDELINES
32
COOK TOP SAFETY GUIDELINES
OVEN BURNER USE
To light the oven burner, push and turn the appropriate control knob counter clockwise to the
(150~500) position. You will hear a clicking noise – the sound of the electric spark igniting the
burner. Once burner ignition has been achieved, then turn the burner control knob to adjust the
desired heat setting.
BROIL BURNER USE
To light the broiler burner, push and turn the appropriate control knob clockwise to the
broil position. You will hear a clicking noise – the sound of the electric spark igniting
the burner. Keep pressing about 4 seconds until the burner ignition has been achieved.
OVEN COOKING GUIDELINES
Do not block the ducts on the rear of the range when cooking in the oven. It is
important that the flow of warm air from the oven and fresh air into the oven burner
never be interrupted. Avoid touching the vent opening or nearby surfaces during oven
or broiler operation because they are hot.
Use all the oven modes with the oven door closed.
Never use aluminum foil to cover the oven shelves or to line the floor of the oven. The
trapped heat can irreversibly damage the enamel and may even cause fire.
CAUTION
33
Do not place water, ice, or any dish or tray directly on the oven floor, as this will
irreversibly damage the enamel.
Do not cover the slotted grid of the broil/roast pan with aluminum foil. This will catch
the grease and could cause fire.
Do not use plastic wrap or wax paper in the oven.
For food safety reasons, do not leave food in the oven for longer than two hours before
and after cooking or defrosting. This is to avoid contamination by organisms which may
causefood
poisoning. Take care during warmer weather.
According to the United Sates Department of Agriculture: DO NOT hold foods at
temperatures
between 40ºF to 140ºF more than 2 hours. Cooking raw foods below 275ºF is not
recommended.
Never cover any slots, holes or passages in the oven bottom or cover an entire rack
with materials
such as aluminum foil. Doing so blocks air flow through the oven and may cause
carbon monoxide poisoning.
Aluminum foil lining may also trap heat, causing a fire hazard.
COOK TOP SAFETY GUIDELINES
WARNING
WARNING
34
OVEN FUNCTION
Natural Airflow Bake
Occurs when heat is transferred into the oven from the bake burners in the bottom
of the oven cavity. Heat is then circulated by natural airflow. This is a traditional bake
setting.
Infrared Broil
The broil burner is located at the top of the oven. This burner heats the metal screen
until it glows. The glowing screen produces the infrared heat, searing the outside of
broiled foods and sealing in juices.
Convection Bake
The oven convection fan circulates and distributes the heat in the oven for faster and
even cooking. Convection cooking allows you to bake more items on multiple racks.
To bake using the convection fan:
1. Position the oven bottom cover and the oven shelves before using oven.
2. Remove any unused shelves and baking utensils from the oven.
3. Preheat the oven to the temperature stated in the recipe. Depending on the tempera-
ture and the size of the oven, preheating will take around 15-20minutes.
4. Arrange pans and food items evenly on the shelves. Make sure pans do not touch
each other or the sides of the oven. When baking a single item, always center the item
on the oven shelf. If baking on multiple shelves, make sure you stagger items on the
shelves so that one is never directly above another.
5. When baking using convection, either reduce the temperature stated in the recipe
and leave the baking time unchanged, or reduce the baking time by several minutes
and leave the temperature unchanged. For foods with a baking time of over an hour,
reducing both the temperature and time slightly may give the best results.
6. Dark metal baking pans or those with a dull finish absorb heat faster than shiny
pans, andare excellent for pies and breads, or anything that needs browning or a crisp-
ercrust.
7. A shiny finish may work best for foods that require lighter, delicate browning (e.g.
cakes and cookies), as it reflects some heat and gives a less intense bakingsurface.
8. Avoid opening the oven door frequently during baking.
35
CONVECTION ROAST
For best results use the broiler pan. The pan is used to catch grease spills and has a
cover to prevent grease splatter.
The convection fan circulates heated air over the around the food being roasted, seal-
ing juices quickly for a moist and tender product while, at the same time, creating a
rich golden-brown exterior.
Use the broil/roast pan and slotted grid supplied with the range when roasting in order
to elevate the meat on a metal roasting rack. This allows hot air to circulate around the
meat, browning it more evenly like a rotisserie. A suitable roasting rack can be pur-
chased through your HRG by the distributer or Customer Care.
When roasting larger items like a whole turkey, use only the pan and grid for greater
stability.
CONVECTION DEFROST
With temperature control off, a motorized fan in the rear of the oven circulates air. The
fan accelerates natural defrosting of the food without heat. To avoid illness and food
waste, do not allow defrost food to remain in the oven for more than two hours without
being cooked.
DEFROSTING
To thaw uncooked frozen food, set the oven temperature to 100-150°F . Once thawed,
cook the food immediately and do not refreeze.
To prevent liquid from thawing food dripping on the oven floor, be sure any uncooked
food is tightly wrapped in foil and/or placed in a container.
CONVECTION DEHYDRATION
With the temperature control on 175 F warm air is radiated from the bake burners
on the bottom of the oven cavity and is circulated by a motorized fan in the rear of the
oven.
Over a period of time, the water is removed from the food by evaporation. Removal of
water increases growth of microorganisms and detains the activity of enzymes.
OVEN FUNCTION
36
BROILER FUNCTION
Note: Door must be closed during broiler operation.
Broiling is a method of cooking tender cuts of meat directly under the infrared broiler
in the oven. Broiling in the oven is accomplished with the oven door closed. It is normal
and necessary for some smoke to be present to give the food a broiled flavor.
If you open the oven door to check the food, have it open for as short a time as possible.
This is to prevent the control panel from overheating and prevents melted knobs.
Use both the broil/roast pan and slotted grid supplied. The grid helps to reduce smok-
ing andsplatter by letting grease drip into the bottom of the pan, away from intense
h eat. To prevent foodsticking, spray the grid with a light coating of non-stick cooking
spray.
PREHEATING
Preheating is suggested when searing rare steaks (Remove the broiler pan before
preheating with the infrared broiler. Foods will stick to hard metal). To preheat, turn the
“Oven” selector knob to the “Broil” position. Wait for the burner to become hot, approx-
imately 2 minutes. Preheating is not necessary when broiling meat well-done.
TO BROIL
Broil one side until the food is browned; turn and cook on the second side. Season and
serve. Always pull the rack out to the “stop” position before turning or removing food.
SETTING BROIL
The “Oven” selector knob controls the Broil feature. When broiling, heat radiates down-
ward from
the oven broiler for even coverage. The Broil feature temperature is 500 F (260).
The broil pan and insert used together allow dripping grease to drain and be kept away
from the high heat of the oven broiler. DO NOT use the broil pan without the insert.
DO NOT cover the broil pan insert with foil. The exposed grease could catch fire.
37
BROILER FUNCTION
To set the oven to Broil:
1. Place the broiler pan insert on the broiler pan. Then place the food on the broiler pan
insert.
2. Arrange the interior oven rack and place the broiler pan on the rack. Be sure to
center the broilerpan and position directly under the broil burner. If preheating the
broil burner first, position the broiler pan after the broil burner is preheated.
3. Turn selector knob to Broil. The oven indicator light will remain on until the selector
knob is turned to the off position or the temperature control cycles off.
BROILING GUIDELINES
Choose a suitable shelf position. To ensure that meat is cooked through rather than
just browned on the outside, broil thick pieces of meat and poultry on shelf positions
2 or 3. Use shelf position 4 for thinner items that need less cooking time like steaks,
chops, or hamburger patties.
When finishing off meals by browning the top under the broiler, use metal or glass
ceramic bakeware. Do not use heatproof glass or earthenware, as these cannot
withstand the intense heat of the broiler.
Center the item in the oven, so that it is directly under the broiler.
38
BROILER FUNCTION
FOR THE MODELS WITH GRIDDLE
Before Using the Griddle
1. Clean the griddle thoroughly with warm, soapy water to remove dust or any
protectivecoating.
2. Rinse with clean water and wipe off to dry with soft, clean, lint-free cloth.
3. A stainless-steel cover when the griddle is not being used is provided. Please note
that the cover must be removed before turning the griddle on.
4. Make sure the grease tray is under the front edge of the griddle. Position the tray
under the griddle overhang to catch grease or foodresidue.
Use of the griddle

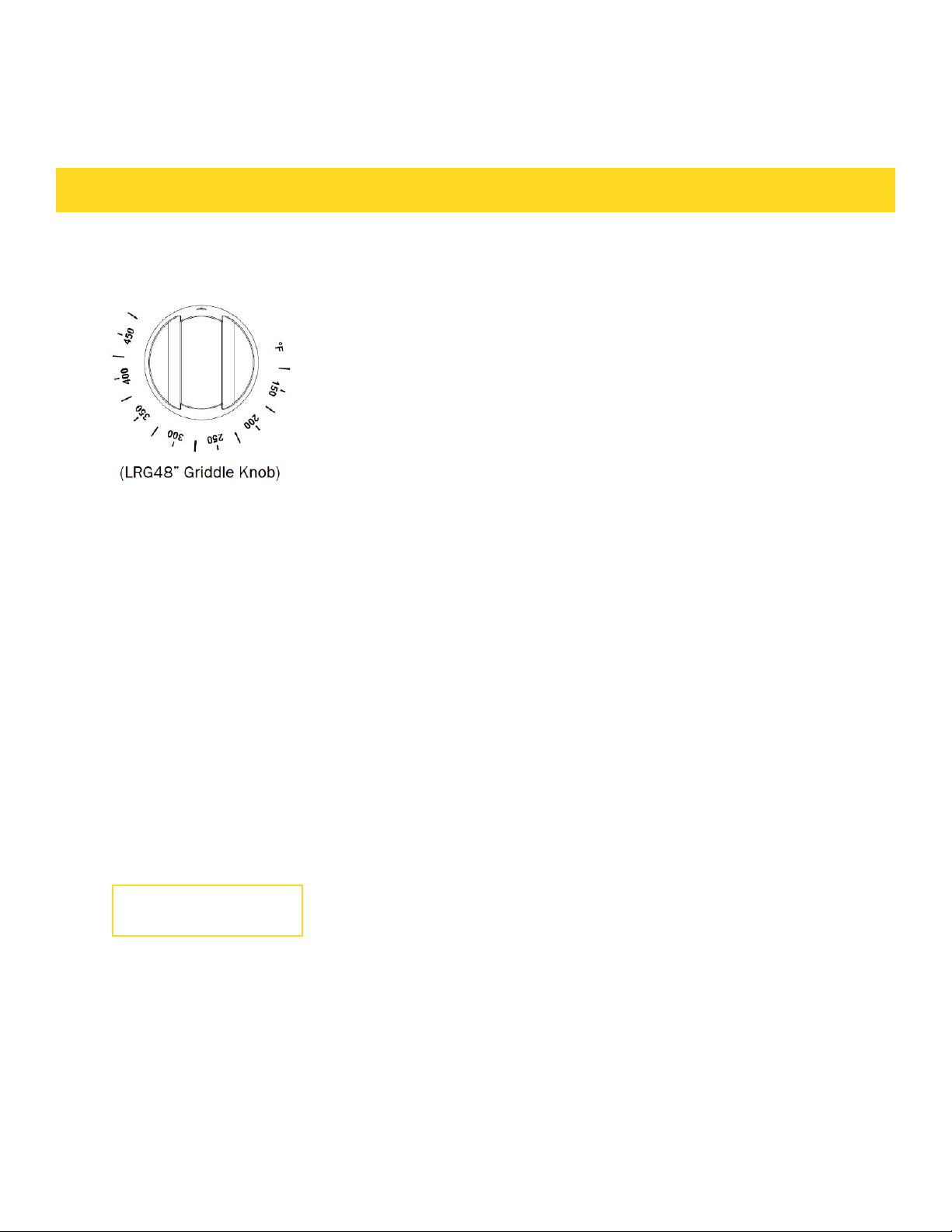

1. Push and turn the control knob counter-clockwise to the preferred
cookingtemperature.
2. Preheat the griddle for 10-12minutes.
3. When the griddle is preheated to the desired temperature, the indicator light will
turn on.
4. Butter or cooking oil can may be added.
The surface of the griddle is hot after use. Please allow sufficient time for the griddle to
cool prior to cleaning.
When using the appliance or the first time. The oven and broiler burners should be
turned on to burn off the manufacturing oils. Turn the oven on to 450 F(230 C) for 20 to
30minutes. Then turn the oven control knob to “Broil” for the same length of time. It is
recommended to turn on the ventilator above the range at this time.
Must disconnect the electrical supply before servicing or cleaning the appliance.
Failure to follow this advice may result in injury or death.
CAUTION
39
DO’S
Read these cleaning instructions and the ‘Safety and warnings’ section before youstart
cleaning your range.
Before cleaning or removing any part, make sure that everything on the range has
beenturned off.
Unless suggested otherwise in the following chart, allow any part to cool to a safe
temperature before cleaning. If you do need to handle a warm or hot part (e.g. grill or
griddle), take extreme care. Wear long protective mitts to avoid burns from steam or
hotsurfaces.
Try using any cleaner on a small area first, to ensure it does notstain.
See the pages following this chart for instructions on removing and replacing various
parts of the range for cleaning or maintenance.
To help you identify any parts, see illustrations in section ‘Introduction’ and after
thiscleaning chart.
DON’TS
Do not use aerosol cleaners until the range has completely cooled. The propellant
substance in these cleaners could catch fire in the presence of heat.
Do not let soiling or grease accumulate anywhere in or on the range. This will
makefuture cleaning more difficult and may present a fire hazard.
Do not use any abrasive or harsh cleaners, cloths, scouring pads or steel wool.
Thesewill scratch your range and damage its appearance.
Do not use a steam cleaner to clean any part of the range.
Do not lift the black grill and griddle frames off thecooktop.
CLEANING BURNER CAPS AND BRASS FLAME
SPREADERS
1. Check that the burner is turned OFF and allow it to cool. Lift off the burner cap and
brass flame spreader. Wash them in hot soapy water, rinse, and dry.
2. Use a stiff nylon brush or straight-ended paper clip to clear the notches of a flame
spreader. Replace the flame spreader and burner cap correctly.
CLEANING INSTRUCTIONS
40
CLEANING INSTRUCTIONS
3. Before cleaning the cooktop, ensure that all burners are turned off and that all
components are cool enough to safely touch
4. To avoid electrical shock or burns, turn off controls and ensure the cooktop is cool
before cleaning.
5. Do not use harsh or abrasive cleaning detergents, waxes, polishes, or commercial
cooktop cleaners to clean the cooktop.
6. Use only a sponge, soft cloth, fibrous or plastic brush, and nylon pad forcleaning.
7. Always dry components completely before using the cooktop.
8. Control Panel, Door Handle, ControlHousing
Clean the control panel, door handle and control housing with a solution of mild
detergent and warm water.
9. Do not use abrasive cleaners or scrubbers; they may permanently damage thefinish.
10. Dry the components with a soft, lint-free cloth.
CLEANING SIDE RACKS
1. Pre-soak any stubborn, burnt-on soiling, then clean with a solution of mild detergent
and hot water and wipe dry with a microfiber cloth.
2. Alternatively, clean these in the dishwasher.
CLEANING OVEN SHELVES
1. To remove stubborn or ‘baked-on’ soiling, scrub with a dampened, soap-filled, non-
2. metal, non-abrasive pad, then wipe dry.
3. Apply a chrome cleaner with a damp sponge or cloth following manufacturer’s
instructions.
4. Wipe and dry.
CLEANING BROIL/ROAST PAN AND SLOTTED GRID
Pre-soak any stubborn soiling in a solution of mild detergent and hotwater.
Wash by hand or in a dishwasher.
41
CLEANING BAKE AND BROIL BURNERS
Do not clean these parts. They self-clean during normal use.
CLEANING PORCELAIN SURFACES
Clean oven interior and inner door liners with a solution of mild detergents and hot wa-
ter. Rinse and dry with a soft, lint-free cloth. Do not use abrasives or commercial oven
cleaners.
CLEANING THE OVEN GLASS WINDOW
Clean all glass surfaces with a solution of mild detergent and hot water. Use a mild
glass cleaner to remove fingerprint or smears.
Dry completely with a soft, lint-free cloth.
CLEANING THE OVEN DOOR GASKET
Avoid cleaning this part. If you need to remove large food particles off it, proceed as
follows:
1. Dampen a sponge with clean hot water.
2. Gently wipe off the soiling, but do not rub.
3.Press a dry towel gently on the gasket to dry.
Do not use any cleaning detergents on the gasket. The gasket is essential for a good
seal.
CAUTION: Do not scratch, displace, or damage it.
CLEANING STAINLESS STEEL SURFACES
Do not use any cleaning product with chlorine bleach.
Do not use a steel wool pad; it will scratch the surface.
Use a hot, damp cloth with a mild detergent.
Use a clean, hot, damp cloth to remove soap. Dry with a dry, clean cloth.
CLEANING INSTRUCTIONS
42
Do not lift the oven door by its handle. Doing so may damage the door.
Make sure the oven and the door are cool before you begin to remove the door.
Before removing the door, make sure there is a large enough clear, protected surface in
the kitchen to rest the door on.
The oven door is heavy!
REMOVING & REPLACING THE OVEN DOOR
REMOVING THE OVEN DOOR
REMOVING THE OVEN DOOR
WARNING
43
REPLACING THE OVEN DOOR
REMOVING & REPLACING THE OVEN DOOR
44
If you can’t find an answer to your problem in the chart below, or if the problem cannot
be fixed, you will need technical help. Contact your Authorized Service Center or
Customer Care.
TROUBLESHOOTING GUIDE
TROUBLESHOOTING GUIDE
45
TROUBLESHOOTING GUIDE
46
TROUBLESHOOTING GUIDE
47
TROUBLESHOOTING GUIDE
48
WARRANTY
This product has been manufactured by Thor Group, 4651 E Airport Drive, California 91761
For Customer Service, please call (877) 288 - 8099
For the most up to date warranty and service policy, please refer to our website
WWW.THORKITCHEN.COM/WARRANTY-REGISTRATION
For in-warranty service requests, please visit our website at
WWW.THORKITCHEN.COM/SERVICE
Please Note: You must provide proof of purchase or installation date for any in-warranty
service requests
WARRANTY & SERVICE
49
OVEN KNOB INSTALLATION
APPENDIX 1
1. Check the sheet for the quantity of each knobs
*For any parts damage or missing, please contact 877-288-809,
or send email to service@thorgroup.us
2. Find the right knob for each shaft on the range. Push the knob in to fully attach the
shaft and make sure there’s no friction between knobs and bezels.
(Incorrect knob caused broken thermostat shaft)
****In correct Knob Installation will cause the damage of the oven
thermostat / burner valve****
50
APPENDIX 1
51
YOUR RANGE MIGHT HAVE A KD HANDLE THAT
NEEDS TO BE INSTALLED. PLEASE FOLLOW UP THE
FOLLOWING PROCEDURES FOR THE OVEN DOOR
HANDLE INSTALLATION.
APPENDIX 2
52
APPENDIX 2
53
APPENDIX 2
54
APPENDIX 3

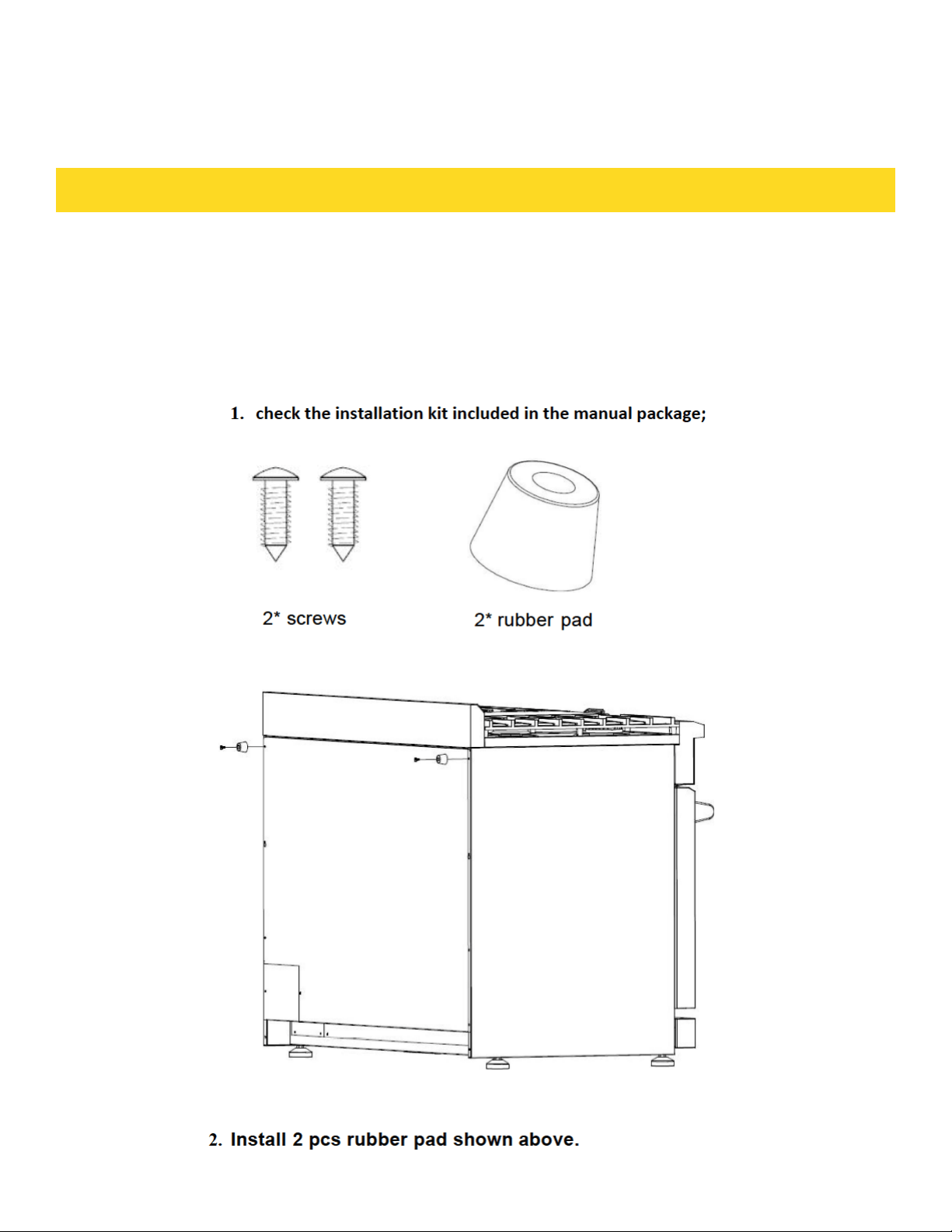

In order to meet the requirement for the clearance for the back of you Thor Kitchen
Range, please install 2 pcs Rubber Pad provided in the manual package Please find the
accessories and follow the below steps:
RUBBER PAD INSTALLATION ON BACK PAN
55
WARRANTY REGISTRATION
Scan theQR code or visit
thorkitchen.com/warranty
Input your product info
and select register
You’re done.
Let’s get cookin’.
You chose THOR Kitchen to enhance your culinary journey and
we’re stoked to have you in the club. Think of it as a secret
society of really savvy people, such as yourself, choosing
professional power and performance at an affordable price.
Register your product by following the steps below.
WELCOME
TO THE CLUB
WARRANTY NEED PARTS?
