OWNER'S MANUAL
WASHING
MACHINE
Before beginning installation, read these instructions carefully.
This will simplify installation and ensure that the product is
installed correctly and safely. Leave these instructions near the
product after installation for future reference.
EN ENGLISH
FH2J3TDN0 FH4J3TDN0
F4MT08W F14WM8MC0
F14WM8KG
MFL70561471
Rev.04_083019
Copyright © 2018-2019 LG Electronics Inc. All Rights Reserved.
TABLE OF CONTENTS
This manual may contain images or
content different from the model you
purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS .................................................................3
IMPORTANT SAFETY INSTRUCTIONS .................................................................3
Disposal of Your Old Appliance ...............................................................................8
INSTALLATION ..................................................................................9
Parts ........................................................................................................................9
Accessories .............................................................................................................9
Specifications ........................................................................................................10
Installation Place Requirements ............................................................................ 11
Unpacking and Removing Transit Bolts .................................................................12
Using Anti-Slip Sheets (Optional) ..........................................................................13
Wooden Floors (Suspended Floors) ...................................................................... 13
Leveling the Appliance ...........................................................................................14
Connecting the Water Supply Hose.......................................................................14
Installing the Drain Hose .......................................................................................17
OPERATION .....................................................................................18
Using the Washing Machine .................................................................................. 18
Sorting Laundry .....................................................................................................19
Adding Cleaning Products .....................................................................................20
Control Panel ......................................................................................................... 22
Programme Table ..................................................................................................23
Option Programme ................................................................................................27
SMART FUNCTIONS .......................................................................29
Using Smart Diagnosis™ ......................................................................................29
MAINTENANCE ................................................................................ 30
Cleaning Your Washing Machine ...........................................................................30
Cleaning the Water Inlet Filter ...............................................................................30
Cleaning the Drain Pump Filter .............................................................................31
Cleaning the Dispenser Drawer .............................................................................32
Tub Clean (Optional) .............................................................................................32
Caution on Freezing During Winter .......................................................................33
TROUBLESHOOTING .....................................................................35
Diagnosing Problems ............................................................................................35
Error Messages .....................................................................................................38
WARRANTY ......................................................................................40
OPERATING DATA ..........................................................................43
3
SAFETY INSTRUCTIONS
EN
The following safety guidelines are intended to prevent
unforeseen risks or damage from unsafe or incorrect
operation of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’
as described below.
This symbol is displayed to indicate matters and
operations that can cause risk. Read the part with this
symbol carefully and follow the instructions in order to
avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, fire, death, electric shock,
injury or scalding to persons when using this product,
follow basic precautions, including the following:
Technical Safety
•This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
•Children of less than 3 years should be kept away unless
continuously supervised.
•If the power cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
•Ventilation openings must not be obstructed by a carpet.
4
EN
•This appliance is intended to be used in household only and not in
applications such as:
- Staff kitchen areas in shops, offices and other working
environments;
- Farm houses;
- By clients in hotels, motels and other residential type
environments;
- Bed and breakfast type environments;
- Areas for communal use in blocks of flats or in launderettes
•Use a new hose or hose-set supplied with the appliance. Reusing
old hoses can cause a water leak and subsequent property
damage.
•The water pressure must be between 100 and 1000 kPa.
•The maximum capacity in some cycles for dry clothes to be
washed is:
FH2J3TDN0 FH4J3TDN0
F14WM8MC0 F4MT08W
F14WM8KG
8kg
Installation
•Never attempt to operate the appliance if it is damaged,
malfunctioning, partially disassembled, or has missing or broken
parts, including a damaged cord or plug.
•This appliance should only be transported by two or more people
holding the appliance securely.
•Do not install the appliance in a damp and dusty place. Do not
install or store the appliance in any outdoor area, or any area that
is subject to weathering conditions such as direct sunlight, wind,
or rain or temperatures below freezing.
•Tighten the drain hose to avoid separation.
•If the power cord is damaged or the hole of the socket outlet is
loose, do not use the power cord and contact an authorized
service centre.
5
EN
•Do not plug multiple socket outlets, an extension power cable or
adapter with this appliance.
•This appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that of
the appliance, in such a way that a full opening of the appliance
door is restricted.
•This appliance must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current.
•This appliance is equipped with a power cord having an
equipment-grounding conductor and a grounding power plug. The
power plug must be plugged into an appropriate socket outlet that
is installed and grounded in accordance with all local codes and
ordinances.
•Improper connection of the equipment-grounding conductor can
result in risk of electric shock. Check with a qualified electrician or
service personnel if you are in doubt as to whether the appliance
is properly grounded.
•Do not modify the power plug provided with the appliance. If it
does not fit the outlet, have a proper outlet installed by a qualified
electrician.
Operation
•Do not attempt to separate any panels or disassemble the
appliance. Do not apply any sharp objects to the control panel in
order to operate the appliance.
•Do not repair or replace any part of the appliance. All repairs and
servicing must be performed by qualified service personnel unless
specifically recommended in this Owner’s Manual. Use only
authorized factory parts.
6
EN
•Do not put animals, such as pets into the appliance.
•Keep the area underneath and around the appliance free of
combustible materials such as lint, paper, rags, chemicals, etc.
•Do not leave the appliance door open. Children may hang on the
door or crawl inside the appliance, causing damage or injury.
•Use new hose or hose-set supplied with the appliance. Reusing
old hoses can cause a water leak and subsequent property
damage.
•Do not put in, wash or dry articles that have been cleaned in,
washed in, soaked in, or spotted with combustible or explosive
substances (such as waxes, wax removers, oil, paint, gasoline,
degreasers, drycleaning solvents, kerosene, petrol, spot removers,
turpentine, vegetable oil, cooking oil, acetone, alcohol, etc.).
Improper use can cause fire or explosion.
•Never reach into the appliance while it is operating. Wait until the
drum has completely stopped.
•In case of flood, disconnect the power plug and contact the LG
Electronics customer information centre.
•Do not push down the door excessively, when the appliance door
is open.
•Do not touch the door during a high temperature programme.
•Do not use flammable gas and combustible substances (benzene,
gasoline, thinner, petroleum, alcohol, etc.) near the appliance.
•If the drain hose or inlet hose is frozen during winter, use it only
after thawing.
•Keep all washing detergents, softener and bleach away from
children.
7
EN
•Do not touch the power plug or the appliance controls with wet
hands.
•Do not bend the power cable excessively or place a heavy object
on it.
•Do not wash rugs, mats, shoes or pet blankets, or any other items
other than clothes or sheets, in this machine.
•This appliance must only be used for domestic household
purposes and should not be used in mobile applications.
•If there is a gas leakage (isobutane, propane, natural gas, etc.),
do not touch the appliance or power plug and ventilate the area
immediately.
Maintenance
•Securely plug the power plug in the socket outlet after completely
removing any moisture and dust.
•Disconnect the appliance from the power supply before cleaning
the appliance. Setting the controls to the OFF or stand by position
does not disconnect this appliance from the power supply.
•Do not spray water inside or outside the appliance to clean it.
•Never unplug the appliance by pulling on the power cable. Always
grip the power plug firmly and pull straight out from the socket
outlet.
Disposal
•Before discarding an old appliance, unplug it. Cut off the cable
directly behind the appliance to prevent misuse.
•Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can
cause suffocation.
•Remove the door before disposing of or discarding this appliance
to avoid the danger of children or small animals getting trapped
inside.
8
EN
Disposal of Your Old Appliance
• This crossed-out wheeled bin symbol indicates that waste electrical and electronic
products (WEEE) should be disposed of separately from the municipal waste stream.
• Old electrical products can contain hazardous substances so correct disposal of your
old appliance will help prevent potential negative consequences for the environment
and human health. Your old appliance may contain reusable parts that could be used
to repair other products, and other valuable materials that can be recycled to
conserve limited resources.
• You can take your appliance either to the shop where you purchased the product, or
contact your local government waste office for details of your nearest authorised
WEEE collection point. For the most up to date information for your country please
see www.lg.com/global/recycling.
9

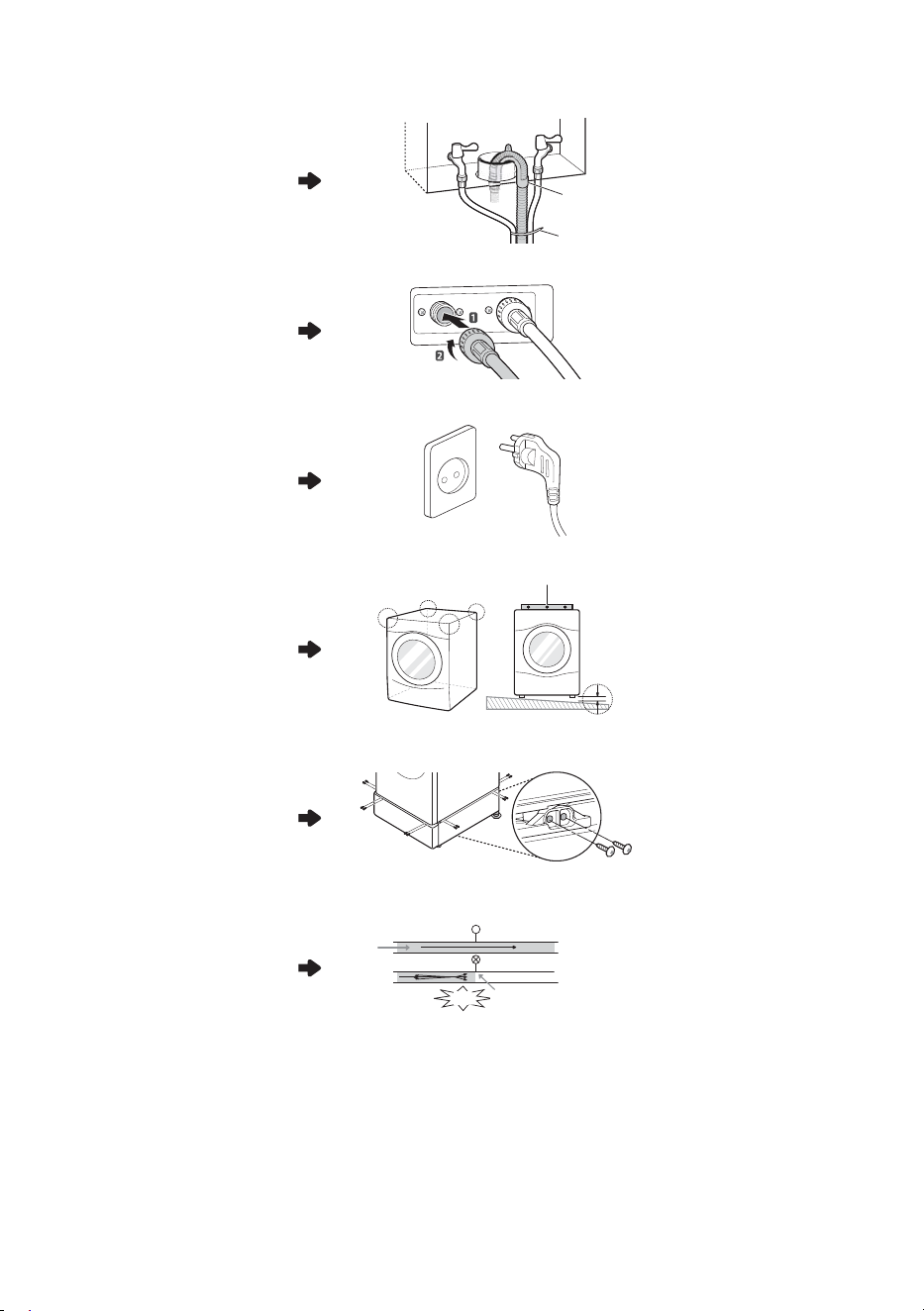

INSTALLATION
EN

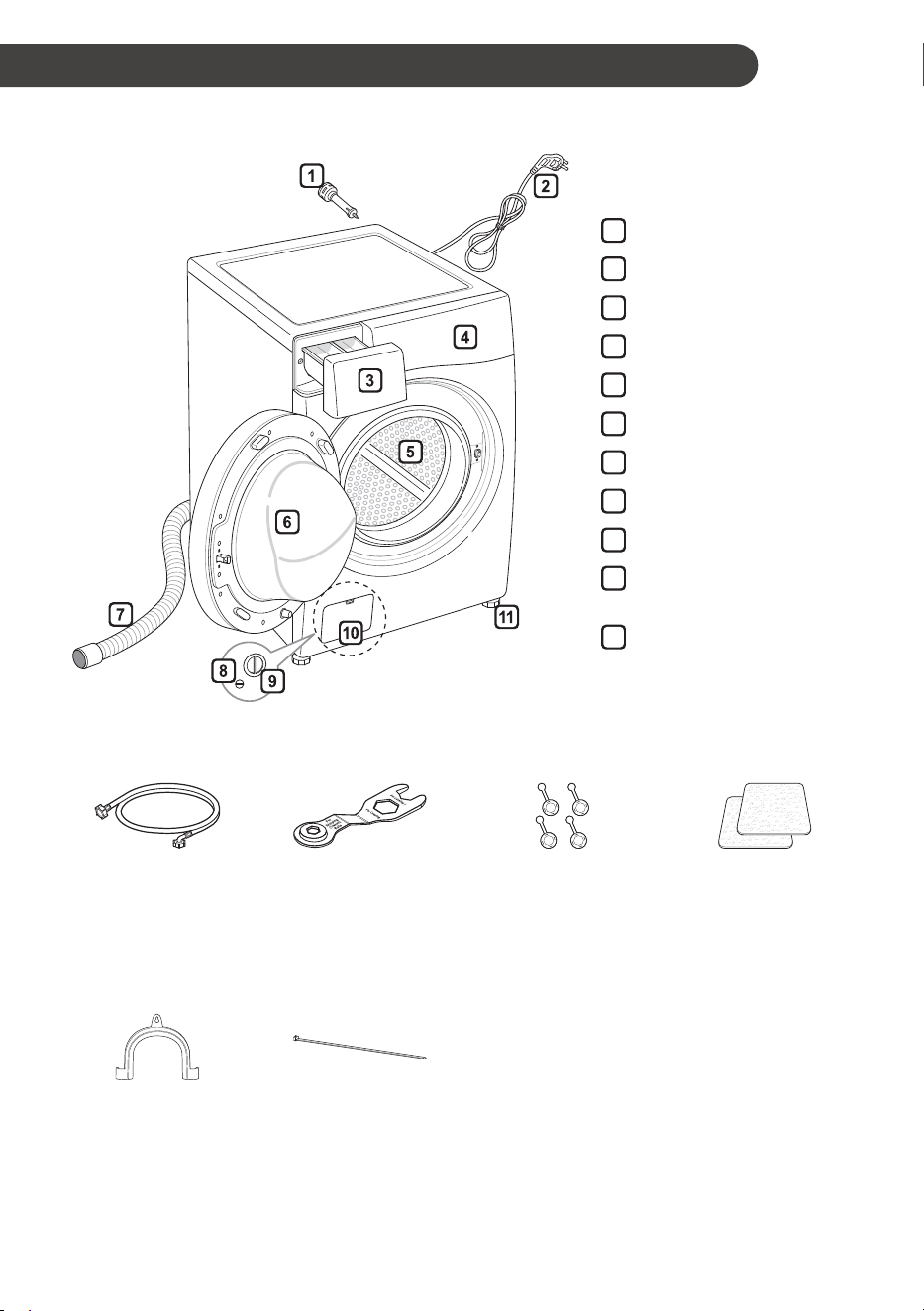

Parts
Transit bolts
Power plug
Drawer
Control panel
Drum
Door
Drain hose
Drain plug
Drain pump filter
Cover cap (Location may
vary depending on products)
Adjustable feet
1
2
3
4
5
6
7
8
9
10
11
Accessories
Cold supply hose (1
EA) (Option: Hot (1
EA))
Spanner Caps for covering
transit bolt holes
(Optional)
Anti–slip sheets (2 EA)
(Optional)
Elbow bracket for
securing drain hose
(Optional)
Tie strap (Optional)
10
EN
Specifications
Model
FH2J3TDN0
FH4J3TDN0
F14WM8MC0
F4MT08W
F14WM8KG
Wash Capacity 8kg
Power Supply 220 - 240 V~, 50 Hz
Size 600 mm(W) x 550mm(D) x 850mm(H)
Product Weight 60 kg
Permissible Water pressure 0.1 - 1.0 MPa (1.0 - 10.0 kgf / cm²)
• Appearance and specifications may change without notice to improve the quality of the product.
• No further backflow protection required for connection to the water supply.
11
EN
Installation Place
Requirements
Location
2 cm
0.5 cm
2 cm10 cm
Level floor: Allowable slope under the entire
appliance is 1°.
Power outlet: Must be within 1.0 meter of
either side of the location of the appliance.
• Do not overload the outlet with more than one
appliance.
Additional Clearance: For the wall, 10 cm:
rear/2 cm: right & left side
• Do not place or store laundry products on top
of the appliance at any time. These products
may damage the finish or controls.
WARNING
• The plug must be plugged into an appropriate
outlet that is properly installed and grounded
in accordance with all local codes and
ordinances.
Positioning
• Install the appliance on a flat hard floor.
• Make sure that air circulation around the
appliance is not impeded by carpets, rugs,
etc.
• Never try to correct any unevenness in the
floor with pieces of wood, cardboard or similar
materials under the appliance.
• If it is impossible to avoid positioning the
appliance next to a gas cooker or coal burning
stove, an insulation (85x60 cm) covered with
aluminum foil on the side facing the cooker or
stove must be inserted between the two
appliances.
• Do not install the appliance in rooms where
freezing temperatures may occur. Frozen
hoses may burst under pressure. The
reliability of the electronic control unit may be
impaired at temperatures below freezing point.
• Ensure that when the appliance is installed, it
is easily accessible for an engineer in the
event of a breakdown.
• With the appliance installed, adjust all four
feet using the transit bolt spanner provided to
ensure the appliance is stable, and a
clearance of approximately 5 mm is left
between the top of the appliance and the
underside of any worktop
• If the appliance is delivered in winter and
temperatures are below freezing, place the
appliance at room temperature for a few hours
before putting it into operation.
WARNING
• This equipment is not designed for maritime
use or for use in mobile installations such as
caravans, aircraft etc.
Electrical Connection
• Do not use an extension cord or double
adapter.
• Always unplug the appliance and turn off the
water supply after use.
• Connect the appliance to an earthed socket in
accordance with current wiring regulations.
• The appliance must be positioned so that the
plug is easily accessible.
• Repairs to the appliance must only be carried
out by qualified personnel. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Contact your local
service centre.
12
EN
Unpacking and Removing
Transit Bolts
1
Lift the appliance off the foam base.
• After removing the carton and shipping
material, lift the appliance off the foam
base. Make sure the tub support comes
off with the base and is not stuck to the
bottom of the appliance.
• If you must lay the appliance down to
remove the carton base, always protect
the side of the appliance and lay it
carefully on its side. Do not lay the
appliance on its front or back.
Tub Support
(Optional)
Carton base
2
Remove the bolt assemblies.
• Starting with the bottom two transit bolts,
use the spanner (included) to fully loosen
all transit bolts by turning them
counterclockwise. Remove the bolt
assemblies by wiggling them slightly while
pulling them out.
Transit
bolt
Retainer
3
Install the hole caps.
• Locate the hole caps included in the
accessory pack or attached on the back.
Cap
NOTE
• Save the bolt assemblies for future use. To
prevent damage to internal components, Do
not transport the washing machine without
reinstalling the transit bolts.
• Failure to remove transit bolts and retainers
may cause severe vibration and noise, which
can lead to permanent damage to the washing
machine. The cord is secured to the back of
the washing machine with a transit bolt to help
prevent operation with transit bolts in place.
13
EN
Using Anti-Slip Sheets
(Optional)
If you install the appliance on a slippery
surface, it may move because of excessive
vibration. Incorrect leveling may cause
malfunction through noise and vibration. If this
occurs, install the anti-slip sheets under the
leveling feet and adjust the level.
1
Clean the floor to attach the anti-slip sheets.
• Use a dry rag to remove and clean foreign
objects and moisture. If moisture remains,
the anti-slip sheets may slip.
2
Adjust the level after placing the appliance
in the installation area.
3
Place the adhesive side of the anti-slip
sheets on the floor.
• It is most effective to install the anti-slip
sheets under the front feet. If it is difficult
to place the pads under the front feet,
place them under the back feet.
This side up
Adhesive side
4
Ensure the appliance is level.
• Push or rock the top edges of the
appliance gently to make sure that the
appliance does not rock. If the appliance
rocks, level the appliance again.
NOTE
• You can obtain anti-slip sheets from the LG
Service Centre.
Wooden Floors (Suspended
Floors)
• Wooden floors are particularly susceptible to
vibration.
• To prevent vibration we recommend you place
rubber cups at least 15 mm thick of the each
foot of the appliance, secured to at least two
floor beams with screws.
Rubber Cup
• If possible install the appliance in one of the
corners of the room, where the floor is more
stable.
• Fit the rubber cups to reduce vibration.
NOTE
• Proper placement and leveling of the washing
machine will ensure long, regular, and reliable
operation.
• The washing machine must be 100%
horizontal and stand firmly in position.
• It must not ‘Seesaw’ across corners under the
load.
• The installation surface must be clean, free
from floor wax and other lubricant coatings.
• Do not let the feet of the washing machine get
wet. Failure to do so may cause vibration or
noise.
• You can obtain rubber cups
(p/no.4620ER4002B) from the LG Service
Centre.
14
EN
Leveling the Appliance
If the floor is uneven, turn the adjustable feet as
required (Do not insert pieces of wood etc.
under the feet). Make sure that all four feet are
stable and resting on the floor and then check
that the appliance is perfectly level (Use a spirit
level).
• Once the appliance is level, tighten the lock
nuts up towards the base of the appliance. All
lock nuts must be tightened.
Raise Lower
Lock nut
Tighten all 4
lock nuts securely
Diagonal Check
• When pushing down the edges of the top
plate diagonally, the appliance should not
move up and down at all (check both
directions). If the appliance rocks when
pushing the machine top plate diagonally,
adjust the feet again.
NOTE
• Timber or suspended type flooring may
contribute to excessive vibration and
unbalance.
• If the washing machine is installed on a raised
platform, it must be securely fastened in order
to eliminate the risk of falling off.
Connecting the Water Supply
Hose
• Water pressure must be between 0.1 MPa
and 1.0 MPa (1.0‒10.0 kgf/cm
2
).
• Do not strip or crossthread when connecting
supply hose to the valve.
• If the water pressure is more than 1.0 MPa, a
decompression device should be installed.
• Periodically check the condition of the hose
and replace the hose if necessary.
Checking the Rubber Seal on the
Water Supply Hose
Two rubber seals are supplied with the water
inlet hoses. They are used for preventing water
leaks. Make sure the connection to taps is
sufficiently tight.
Hose connector
Rubber seal
Hose connector
Rubber seal
15
EN

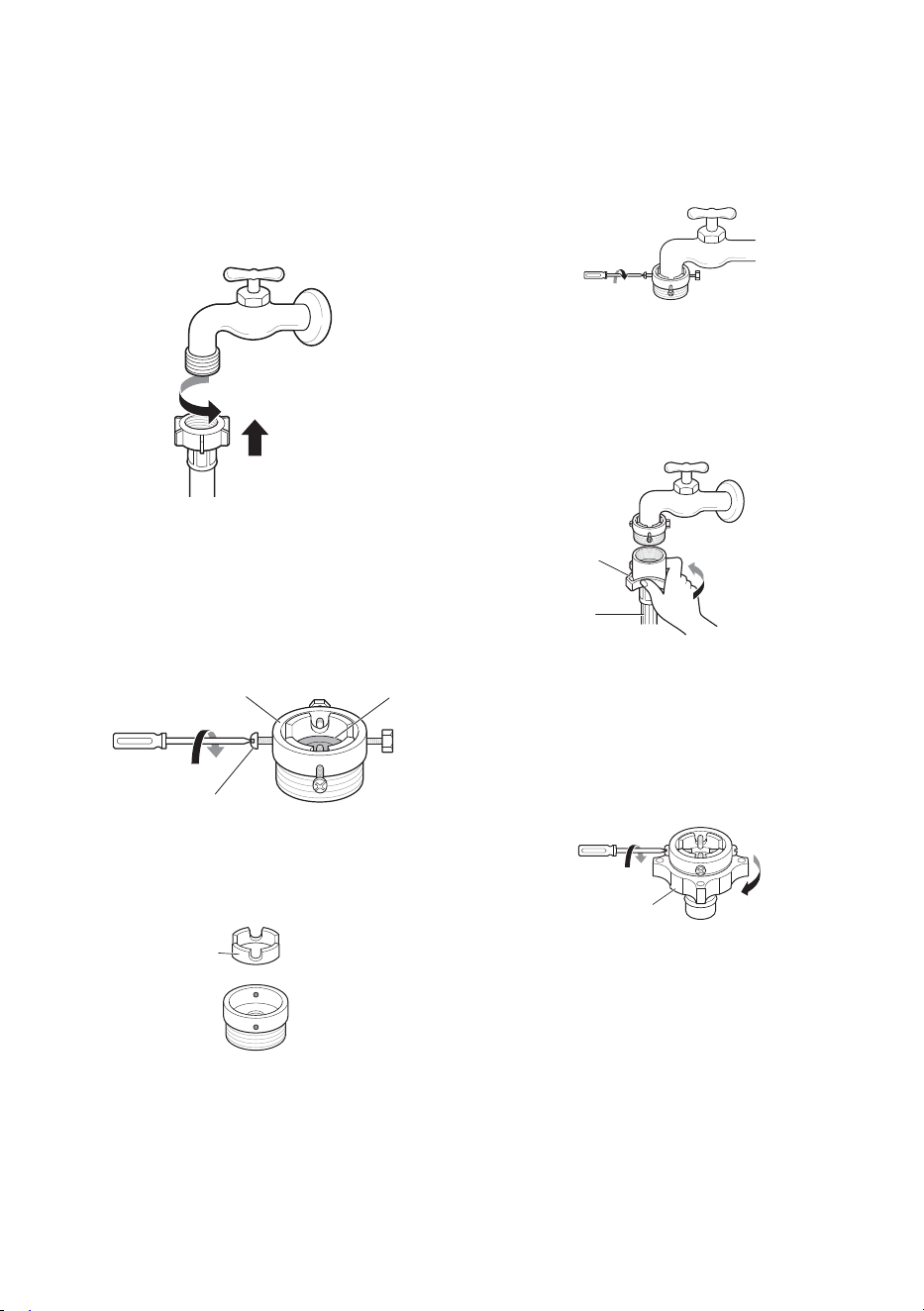

Connecting Hose to Water Tap
Connecting Screw-Type Hose to Tap
with Thread
Screw the hose connector onto the water
supply tap.
Connecting Screw-Type Hose to Tap
Without Thread
1
Loose the four fixing screws.
Upper
connector
Rubber
seal
Fixing screw
2
Remove the guide plate if the tap is too
large to fit the adapter.
Guide plate
3
Push the adapter onto the end of the tap so
that the rubber seal forms a watertight
connection. Tighten the four fixing screws.
4
Push the supply hose vertically upwards so
that the rubber seal within the hose can
adhere completely to the tap and then
tighten it by screwing it to the right.
Plate
Supply
hose

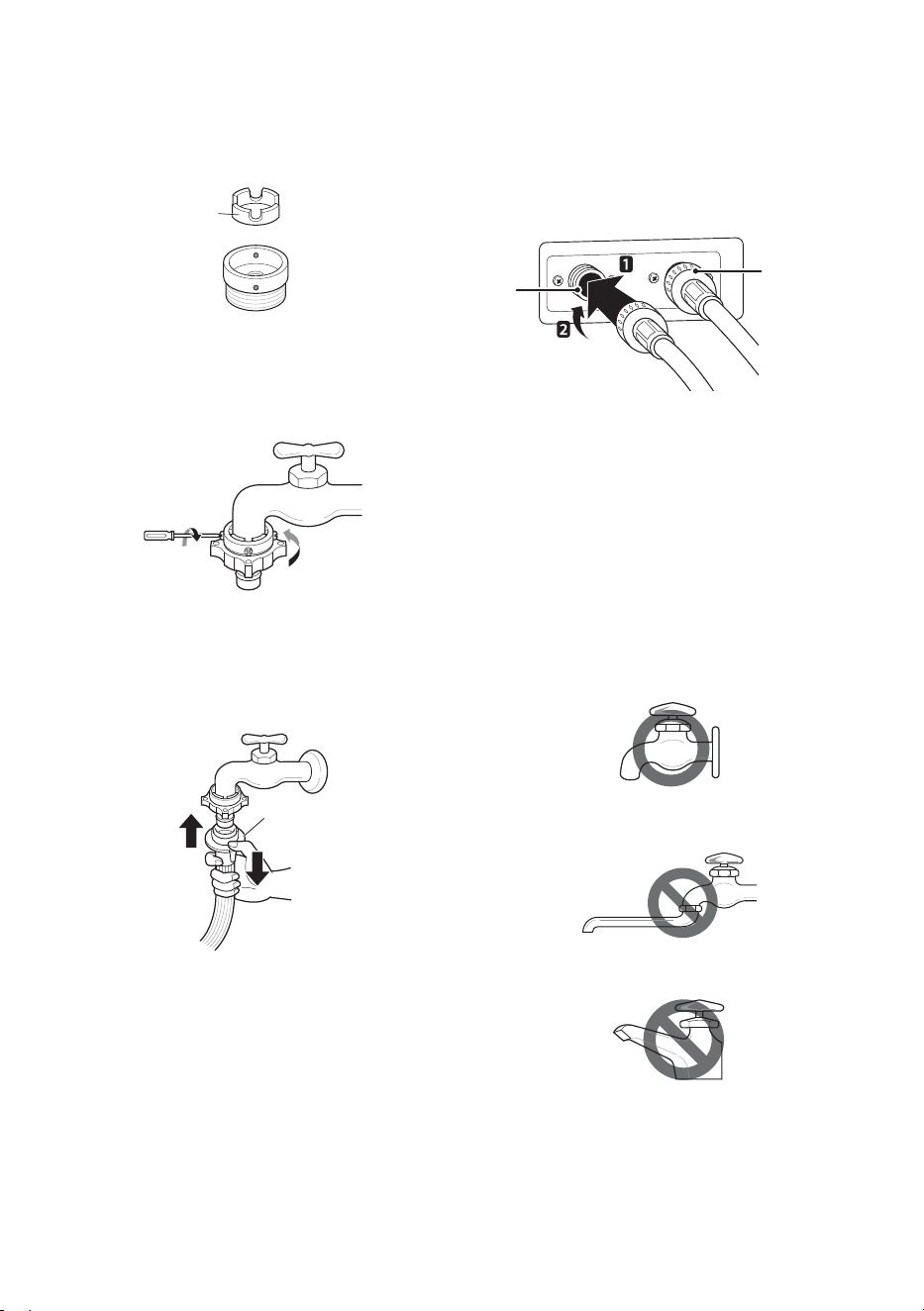

Connecting One Touch Type Hose to
Tap Without Thread
1
Unscrew the adapter ring plate and loose
the four fixing screws.
Ring plate
16
EN
2
Remove the guide plate if the tap is too
large to fit the adapter.
Guide plate
3
Push the adapter onto the end of the tap so
that the rubber seal forms a watertight
connection. Tighten the four fixing screws
and the adapter ring plate.
4
Pull the connector latch plate down, push
the supply hose onto the adapter, and
release the connector latch plate. Make
sure the adapter locks into place.
Latch plate
NOTE
• Before connecting the supply hose to the
water tap, turn on the water tap to flush out
foreign substances (dirt, sand, sawdust, and
etc.) in the water lines. Let the water drain into
a bucket, and check the water temperature.
Connecting Hose to Appliance
Attach the hot water line to the hot water supply
on the back of the washer. Attach the cold
water line to the cold water supply on the back
of the washer.
Cold water
supply
Hot water
supply
(optional)
NOTE
• After completing connection, if water leaks
from the hose, repeat the same steps. Use
the most conventional type of tap for the water
supply. In case the tap is square or too big,
remove the guide plate before inserting the
tap into the adaptor.
Using the Horizontal Tap
Horizontal tap
Extension tap
Square tap
17
EN
Installing the Drain Hose
• The drain hose should not be placed higher
than 100 cm above the floor. Water in the
appliance may not drain or may drain slowly.
• Securing the drain hose correctly will protect
the floor from damage due to water leakage.
• If the drain hose is too long, do not force it
back into the appliance. This will cause
abnormal noise.
max. 100 cm
~ 100 cm
~ 145 cm
~ 105 cm
• When installing the drain hose to a sink,
secure it tightly with string.
• Securing the drain hose correctly will protect
the floor from damage due to water leakage.
max. 100 cm
max. 100 cm
Laundry tub Hose retainer
Tie strap
18
OPERATION
EN
Using the Washing Machine
Before the first wash, select a washing
programme, allow the washing machine to wash
without clothing. This will remove residue and
water from the drum that may have been left
during manufacturing.
1
Sort laundry and load items.
• Sort laundry by fabric type, soil level,
colour and load size as needed. Open the
door and load items into the washing
machine.
2
Add cleaning products and/or detergent and
softener.
• Add the proper amount of detergent to the
detergent dispenser drawer. If desired,
add bleach or fabric softener to the
appropriate areas of the dispenser.
3
Turn on the washing machine.
• Press the Power button to turn on the
washing machine.
4
Choose the desired washing cycle.
• Press the programme button repeatedly or
turn the cycle selector knob until the
desired cycle is selected.
• Press the cycle button repeatedly until the
desired cycle is selected.
5
Begin cycle.
• Press the Start/Pause button to begin the
cycle. The washing machine will agitate
briefly without water to measure the
weight of the load. If the Start/Pause
button is not pressed within 5 minutes, the
washing machine will shut off and all
settings will be lost.
6
End of cycle.
• When the cycle is finished, a melody will
sound. Immediately remove your clothing
from the washing machine to reduce
wrinkling. Check around the door seal
when removing the load for small items
that may be caught in the seal.
19
EN
Sorting Laundry
1

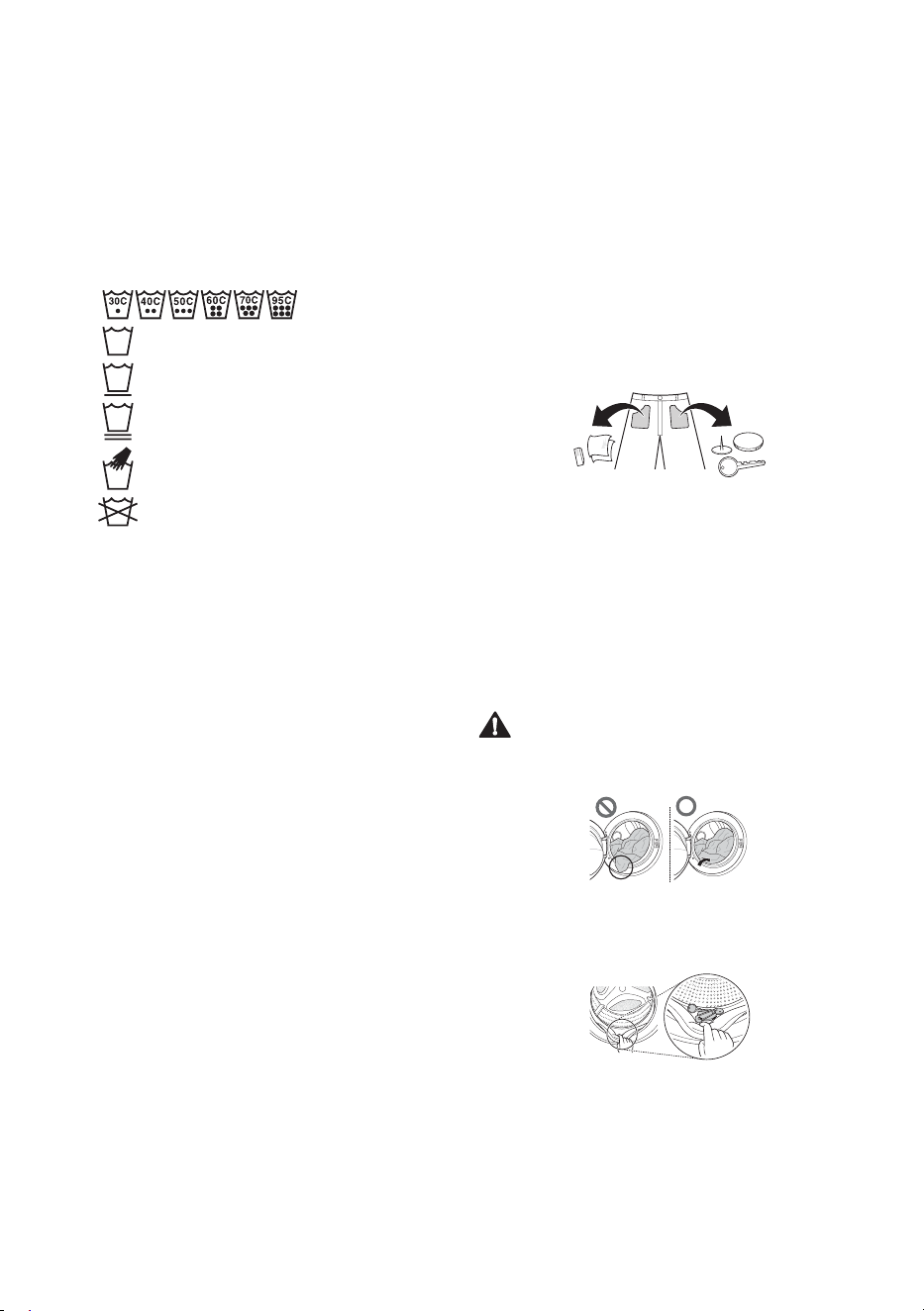

Look for a care label on your clothes.
• This will tell you about the fabric content
of your garment and how it should be
washed.
• Symbols on the care labels.
Wash temperature
Normal machine wash
Permanent press
Delicate
Hand wash
Do not wash
2
Sorting laundry.
• To get the best results, sort clothes into
loads that can be washed with the same
wash cycle.
• Different fabrics need to be washed at
varying temperatures and spin speeds.
• Always sort dark colours from pale colours
and whites. Wash separately as dye and
lint transfer can occur causing
discolouration of white and pale garments.
If possible, do not wash heavily soiled
items with lightly soiled ones.
− Soil (Heavy, Normal, Light) :
Separate clothes according to amount of
soil.
− Colour (White, Lights, Darks):
Separate white fabrics from coloured
fabrics.
− Lint (Lint producers, Collectors):
Wash lint producers and lint collectors
separately.
3
Caring before loading.
• Combine large and small items in a load.
Load large items first.
• Large items should not be more than half
the total wash load. Do not wash single
items. This may cause an unbalanced
load. Add one or two similar items.
• Check all pockets to make sure that they
are empty. Items such as nails, hair clips,
matches, pens, coins and keys can
damage both your washing machine and
your clothes.
• Close zippers, hooks and strings to make
sure that these items don’t snag on other
clothes.
• Pre-treat dirt and stains by brushing a
small amount of detergent dissolved water
onto stains to help lift dirt.
• Check the folds of the flexible gasket
(gray) and remove any small articles.
CAUTION
• Check inside the drum and remove any items
from a previous wash.
• Remove any clothing or items from the flexible
gasket to prevent clothing and gasket
damage.
20
EN
Adding Cleaning Products
Detergent Dosage
• Detergent should be used according to the
instruction of the detergent manufacturer and
selected according to type, colour, soiling of
the fabric and washing temperature.
• If too much detergent is used, too many suds
can occur and this will result in poor washing
results or cause heavy load to the motor.
• If you wish to use liquid detergent follow the
guidelines provided by the detergent
manufacturer.
• You can pour liquid detergent directly into the
main detergent drawer if you are starting the
cycle immediately.
• Do not use liquid detergent if you are using
Time delay, or if you have selected Pre Wash,
as the liquid may harden.
• If too many suds occur, reduce the detergent
amount.
• Detergent usage may need to be adjusted for
water temperature, water hardness, size and
soil level of the load. For best results, avoid
oversudsing.
• Refer to the label of the clothes, before
choosing the detergent and water
temperature.
• When using the washing machine, use
designated detergent for each type of clothing
only:
− General powdered detergents for all types of
fabric
− Powdered detergents for delicate fabric
− Liquid detergents for all types of fabric or
designated detergents only for wool
• For better washing performance and
whitening, use detergent with the general
powdered bleach.
• Detergent is flushed from the dispenser at the
beginning of the cycle.
NOTE
• Do not let the detergent harden. Doing so may
lead to blockages, poor rinse performance or
odour.
• Full load : According to manufacturer’s
recommendation.
• Part load : 3/4 of the normal amount
• Minimum load : 1/2 of full load
Adding Detergent and Fabric
Softener
Adding Detergent
• Main wash only →
• Pre wash+Main wash →
NOTE
• Too much detergent, bleach or softener may
cause an overflow.
• Be sure to use the appropriate amount of
detergent.
Adding Fabric Softener
• Do not exceed the maximum fill line.
Overfilling can cause early dispensing of the
fabric softener, which may stain clothes. Close
the dispenser drawer slowly.
21
EN
• Do not leave the fabric softener in the
detergent drawer for more than 2 days (Fabric
softener may harden).
• Softener will automatically be added during
the last rinse cycle.
• Do not open the drawer when water is being
supplied.
• Solvents (benzene, etc.) must not be used.
NOTE
• Do not pour fabric softener directly on the
clothes.
Adding Water Softener
• A water softener, such as anti-limescale can
be used to cut down on the use of detergent
in areas with high water hardness level.
Dispense according to the amount specified
on the packaging. First add detergent and
then the water softener.
• Use the quantity of detergent required for soft
water.
Using Tablet
1
Open the door and put tablets into the
drum.
2
Load the laundry into the drum and close
the door.
22
EN
Control Panel
Power Button
• Press the Power button to turn the
washing machine on.
Start/Pause Button
• This Start/Pause button is used to start
the wash cycle or pause the wash cycle.
• If a temporary stop of the wash cycle is
needed, press the Start/Pause button.
Display
• The display shows the settings, estimated
time remaining, options, and status
messages. When the product is turned on,
the default settings in the display will
illuminate.
• The display shows estimate time
remaining. While the size of the load is
being calculated automatically, blinking
or ‘Detecting’ appears.
• The RPM may differ depending on the
models.
1
2
3
Programme Knob
• Programmes are available according to
the laundry type.
• The lamp will light up to indicate the
selected programme.
Options
• This allows you to select an additional
programme and will light when selected.
• Use these buttons to select the desired
programme options for the selected cycle.
4
5
23
EN
Programme Table
Washing Programme
Programme Description Fabric Type Proper Temp.
Maximum
Load
Cotton
Provides better
performance by
combining various
drum motions.
Coloured fast garments
(shirts, nightdresses,
pajamas, etc.) and
normally soiled cotton
load (underwear).
40 °C
(0 °C to 95 °C)
Rating
Cotton
Large
Provides optimised
washing performance
for large amount of
laundry with less
energy consumption.
60 °C
(0 °C to 60 °C)
Easy Care
Suitable for casual
shirts that do not need
ironing after washing.
Polyamide, acrylic,
polyester.
40 °C
(0 °C to 60 °C)
4.0 kg
Mix
Enables various fabrics
to be washed
simultaneously.
Various kind of fabrics
except special
garments (silk/delicate,
sports wear, dark
clothes, wool, duvet/
curtains).
40 °C
(0 °C to 40 °C)
Sports Wear
Suitable for sports
wear such as jogging
clothes and running
wear.
Coolmax, gore-tex,
fleece and sympatex
40 °C
(0 °C to 40 °C)
2.0 kg
Delicate
For delicate clothes
such as underwear,
blouses, etc.
Delicate, easily
damaged laundry.
20 °C
(0 °C to 40 °C)
3.0 kg
Quick 30
Provides fast washing
time for small loads
and lightly soiled
clothes.
Lightly soiled colour
laundry.
Wool
Enables to wash wool
fabrics. (Please use
detergent for
machinewashable
woolens).
Machine washable
woolens with pure new
wool only.
40 °C
(0 °C to 40 °C)
2.0 kg
Rinse+Spin
Use for laundry that
need rinsing only or to
add rinse-added fabric
softener to laundry.
Normal fabrics which
can be washable.
– Rating
Baby Care
Remove solid and
protein stain and
provide better rinse
performance.
Lightly soiled baby
wear.
60 °C
(60 °C to 95 °C)
4.0 kg
24
EN
• Water Temperature: Select the appropriate water temperature for chosen wash programme. Always
follow garment manufacturer’s care label or instructions when washing.
• Set program at “Cotton Large 40 °C + Intensive (Half Load)”, “Cotton Large 60 °C + Intensive (Half
Load)”, “Cotton Large 60 °C + Intensive (Full Load)” option for test in conformity with EN60456 and
Regulation 1015/2010.
− Standard 60 °C cotton program : Cotton Large +
60°C
+
Intensive
(Full Load)
− Standard 60 °C cotton program : Cotton Large +
60°C
+
Intensive
(Half Load)
− Standard 40 °C cotton program : Cotton Large +
40°C
+
Intensive
(Half Load)
− (They are suitable to clean normally soiled cotton laundry.)
− (They are the most efficient programmes in terms of combined energy and water consumptions
for washing that type of cotton laundry.)
• Actual water temperature may differ from the declared cycle temperature.
• The test results depend on water pressure, water hardness, water inlet temperature, room
temperature, type and amount of load, degree of soiling utilized detergent, fluctuations in the main
electricity supply and chosen additional options.
• Actual maximum spin speed may vary depending on the model, programme, and load conditions.
NOTE
• Neutral detergent is recommended.
25
Extra Options
Programme Intensive Pre Wash Time Delay
Cotton ● ● ●
Cotton Large ● ● ●
Mix ● ● ●
Easy Care ● ● ●
Baby Care ● ●
**
●
Sports Wear ● ●
Delicate ● ●
Wool ● ●
Quick 30 ● ● ●
Rinse+Spin ●
**
: This option is automatically included in the cycle and can be deleted.
EN
26
Operating Data
Programme
FH2J3TDN0
Default Temp.
Max RPM Default RPM
Cotton 1200 1200
40℃
Cotton Large 1200 1200
60℃
Mix 1200 1200
40℃
Easy Care 800 800
40℃
Baby Care 800 800
60℃
Sports Wear 800 800
40℃
Delicate 800 800
20℃
Wool 800 800
40℃
Quick 30 1200 800
20℃
Rinse+Spin 1200 1200 -
Programme
FH4J3TDN0
F14WM8MC0
F4MT08W
F14WM8KG
Default Temp.
Max RPM Default RPM
Cotton 1400 1400
40℃
Cotton Large 1400 1400
60℃
Mix 1400 1400
40℃
Easy Care 800 800
40℃
Baby Care 800 800
60℃
Sports Wear 800 800
40℃
Delicate 800 800
20℃
Wool 800 800
40℃
Quick 30 1400 800
20℃
Rinse+Spin 1400 1400 -
EN
27
EN
Option Programme
Time Delay
You can set a time delay so that the washing
machine will start automatically and finish after
a specified time interval.
1
Press the Power button.
2
Select a washing programme.
3
Press the Time Delay button to set time
required.
4
Press the Start/Pause button.
NOTE
• The delay time is the time to the end of the
programme, not the start. The actual running
time may vary due to water temperature, wash
load and other factors.
• To cancel the function, the power button
should be pressed.
• Avoid using liquid detergent for this option.
Pre Wash
If the laundry is heavily soiled, the Pre Wash
programme is recommended.
1
Press the Power button.
2
Select a washing programme.
3
Press the Pre Wash button for three
seconds.
4
Press the Start/Pause button.
Temp.
The Temp. button selects the wash and rinse
temperature combination for the selected cycle.
Press this button until the desired setting is lit.
All rinses use cold tap water.
• Select the water temperature suitable for the
type of load you are washing.Press the Temp.
button to select Temp., the temp, will show on
the LED display for 3s.Follow the garment
fabric care labels for best results.
Spin
• Spin speed level can be selected by pressing
the Spin button repeatedly.
• Spin Only
1
Press the Power button.
2
Press the Spin button to select RPM,the
Rpm will show on the LED display for 3s.
3
Press the Start/Pause button.
NOTE
• When you select 0, it will still rotate for a short
time to drain quickly.
28
EN
Child Lock
Use this option to disable the controls. This
feature can prevent children from changing
cycles or operating the appliance
Locking the Control Panel
1
Press and hold the Spin+Temp. button for
three seconds.
2
A beeper will sound, and will appear on
the display.
When the Child Lock is set, all buttons are
locked except the Power button.
NOTE
• Turning off the power will not reset the child
lock function. You must deactivate child lock
before you can access any other functions.
Unlocking the Control Panel
Press and hold the Spin+Temp. button for
three seconds.
• A beeper will sound and the remaining time
for the current programme will reappear on
the display.
Beep On / Off
1
Press the Power button.
2
Press the Start/Pause button.
3
Press and hold the Time Delay and Temp.
button simultaneously for 3 seconds to set
the Beep on/off function.
NOTE
• Once the Beep on/off function is set, the
setting is memorized even after the power is
turned off.
• If you want to turn the Beeper off, simply
repeat this process.
Intensive
If the laundry is normal and heavily soiled,
Intensive option is effective.
1
Press the Power button.
2
Select a washing programme.
3
Press the Intensive button.
4
Press the Start/Pause button.
29
SMART FUNCTIONS
EN
Smart Diagnosis™ Using a Smart
Phone
• For appliances with the or logo
Use this function if you need an accurate
diagnosis by an LG Electronics customer
information centre when the appliance
malfunctions or fails.
Smart Diagnosis™ can not be activated unless
the appliance is connected to power. If the
appliance is unable to turn on, then
troubleshooting must be done without using
Smart Diagnosis™.
Using Smart Diagnosis™
Smart Diagnosis™ Through the
Customer Information Centre
Use this function if you need an accurate
diagnosis by an LG Electronics customer
information centre when the appliance
malfunctions or fails. Use this function only to
contact the service representative, not during
normal operation.
1
Press the Power button to turn on the
washing machine. Do not press any other
buttons or turn the programme selector
knob.
2
When instructed to do so by the call centre,
place the mouthpiece of your phone close
to the Power button.
Max.
10 mm
3
Press and hold the Temp. button for three
seconds, while holding the phone
mouthpiece to the icon or Power button.
4
Keep the phone in place until the tone
transmission has finished. Time remaining
for data transfer is displayed.
• For best results, do not move the phone
while the tones are being transmitted.
• If the call centre agent is not able to get
an accurate recording of the data, you
may be asked to try again.
5
Once the countdown is over and the tones
have stopped, resume your conversation
with the call centre agent, who will then be
able to assist you using the information
transmitted for analysis.
NOTE
• The Smart Diagnosis™ function depends on
the local call quality.
• The communication performance will improve
and you can receive better service if you use
the home phone.
• If the Smart Diagnosis™ data transfer is poor
due to poor call quality, you may not receive
the best Smart Diagnosis™ service.
Hereby, LG Electronics declares that the radio
equipment type Washing machine is in
compliance with Directive 2014/53/EU. The
full text of the EU declaration of conformity is
available at the following internet address:
http://www.lg.com/global/support/cedoc/cedoc#
LG Electronics European Shared Service
Center B.V.
Krijgsman 1, 1186 DM Amstelveen, The
Netherlands
Declaration of Conformity
30
MAINTENANCE
EN
WARNING
• Unplug the washing machine before cleaning
to avoid the risk of electric shock. Failure to
follow this warning may result in serious injury,
fire, electric shock, or death.
• Never use harsh chemicals, abrasive
cleaners, or solvents to clean the washing
machine. They may damage the finish.
Cleaning Your Washing
Machine
Care After Wash
• After the cycle is finished, wipe the door and
the inside of the door seal to remove any
moisture.
• Leave the door open to dry the drum interior.
• Wipe the body of the washing machine with a
dry cloth to remove any moisture.
Cleaning the Exterior
Proper care of your washing machine can
extend its life.
Door:
• Wash with a damp cloth on the outside and
inside and then dry with a soft cloth.
Exterior:
• Immediately wipe off any spills.
• Wipe with a damp cloth.
• Do not press the surface or the display with
sharp objects.
Cleaning the Interior
• Use a towel or soft cloth to wipe around the
washing machine door opening and door
glass.
• Always remove items from the washing
machine as soon as the cycle is complete.
Leaving damp items in the washing machine
can cause wrinkling, colour transfer, and
odour.
• Run the Tub Clean programme once a month
(or more often if needed) to remove detergent
buildup and other residue
Cleaning the Water Inlet Filter
• Turn off the supply taps to the machine if the
washing machine is to be left for any length of
time (e.g. holiday), especially if there is no
floor drain (gully) in the immediate vicinity.
• icon will be displayed on the control panel
when water is not entering the detergent
drawer.
• If water is very hard or contains traces of lime
deposit, the water inlet filter may become
clogged. It is therefore a good idea to clean it
occasionally.
1
Turn off the water tap and unscrew the
water supply hose.
2
Clean the filter using a hard bristle brush.
31
EN
Cleaning the Drain Pump
Filter
• The drain filter collects threads and small
objects left in the laundry. Check regularly that
the filter is clean to ensure smooth running of
your washing machine.
• Allow the water to cool down before cleaning
the drain pump, carrying out emergency
emptying, or opening the door in an
emergency.

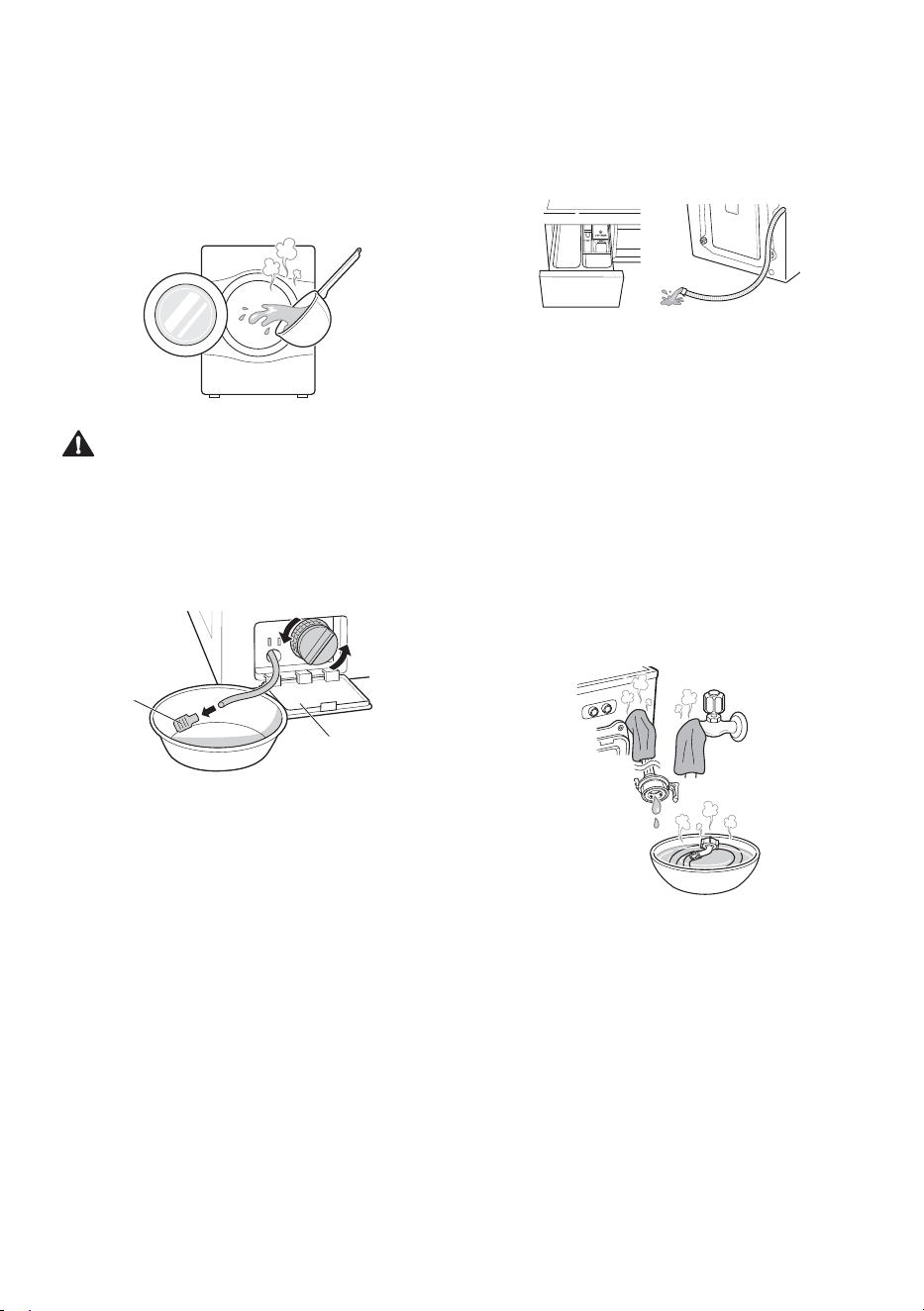

1
Open the cover cap and pull out the hose.
2
Unplug the drain plug and open the filter by
turning it to the left.
1
2
Container to collect the
drained water.
3
Remove any extraneous matter from the
pump filter.
4
After cleaning, turn the pump filter and
insert the drain plug.
5
Close the cover cap.
CAUTION
• First drain using the drain hose and then open
the pump filter to remove any threads or
objects.
• Be careful when draining, as the water may
be hot.
32
EN
Cleaning the Dispenser
Drawer
Detergent and fabric softener may build up in
the dispenser drawer. Remove the drawer and
inserts and check for buildup once or twice a
month.
1
Remove the detergent dispenser drawer by
pulling it straight out until it stops.
• Press down hard on the disengage button
and remove the drawer.
2
Remove the inserts from the drawer.
• Rinse the inserts and the drawer with
warm water to remove buildup from
laundry products. Use only water to clean
the dispenser drawer. Dry the inserts and
drawer with a soft cloth or towel.
3
To clean the drawer opening, use a cloth or
small, non-metal brush to clean the recess.
• Remove all residue from the upper and
lower parts of the recess.
4
Wipe any moisture off the recess with a soft
cloth or towel.
5
Return the inserts to the proper
compartments and replace the drawer.
EN
Caution on Freezing During
Winter
• When frozen, the product does not operate
normally. Make sure to install the product
where it will not freeze during winter.
• In case the product must be installed outside
on a porch or in other outdoor conditions,
make sure to check the following.
How to Keep the Product from
Freezing
• After washing, remove water remaining inside
the pump completely with the opening hose
plug used for removal of residual water. When
the water is removed completely, close the
hose plug used for removal of residual water
and cover cap.
Drain plug
Cover cap
• Hang down drain hose to pull out water inside
the hose completely.
Drain hose
CAUTION
• When the drain hose is installed in a curved
shape, the inner hose may freeze.
• After closing the tap, disconnect the cold
supply hose from the tap, and remove water
while keeping the hose facing downwards.
Supply hose
Check for Freezing
• If water does not drain when opening the hose
plug used for removal of residual water, check
the drainage unit.
Drain plug
Cover cap
• Turn the power on, choose a washing
programme, and press the Start/Pause
button.
Drain hose
Detergent drawer
• When ' ' is shown in display window while
the product is in operation, check water supply
unit and drainage unit (Some models do not
have an alarm function that indicates
freezing).
NOTE
• Check that water is coming into the detergent
drawer while rinsing, and water is draining
through the drain hose while spinning.
Tub Clean (Optional)
Tub Clean is a special programme to clean the
inside of the washing machine.
A higher water level is used in this programme
at higher spin speed. Perform this programme
regularly.
1
Remove any clothing or items from the
washing machine and close the door.
2
Open the dispenser drawer and add
anti-limescale to the main wash
compartment.
• For tablets put into the drum.
3
Close the dispenser drawer slowly.
4
Power on and then press and hold Time
Delay and Pre Wash button for 3 seconds.
Then will be displayed on the display.
5
Press the Start/Pause button to start.
6
After the programme is complete, leave the
door open to allow the washing machine
door opening, flexible gasket and door glass
to dry.
CAUTION
• If there is a child, be careful not to leave the
door open for too long.
NOTE
• Do not add any detergent to the detergent
compartments. Excessive suds may generate
and leak from the washing machine.
33
EN
Caution on Freezing During
Winter
• When frozen, the product does not operate
normally. Make sure to install the product
where it will not freeze during winter.
• In case the product must be installed outside
on a porch or in other outdoor conditions,
make sure to check the following.
How to Keep the Product from
Freezing
• After washing, remove water remaining inside
the pump completely with the opening hose
plug used for removal of residual water. When
the water is removed completely, close the
hose plug used for removal of residual water
and cover cap.
Drain plug
Cover cap
• Hang down drain hose to pull out water inside
the hose completely.
Drain hose
CAUTION
• When the drain hose is installed in a curved
shape, the inner hose may freeze.
• After closing the tap, disconnect the cold
supply hose from the tap, and remove water
while keeping the hose facing downwards.
Supply hose
Check for Freezing
• If water does not drain when opening the hose
plug used for removal of residual water, check
the drainage unit.
Drain plug
Cover cap
• Turn the power on, choose a washing
programme, and press the Start/Pause
button.
Drain hose
Detergent drawer
• When ' ' is shown in display window while
the product is in operation, check water supply
unit and drainage unit (Some models do not
have an alarm function that indicates
freezing).
NOTE
• Check that water is coming into the detergent
drawer while rinsing, and water is draining
through the drain hose while spinning.
34
EN
How to Handle Freezing
• Make sure to empty the drum, pour warm
water of 50–60 °C up to the rubber part inside
the drum, close the door, and wait for 1–2
hours.
50-60 °C
CAUTION
• When the drain hose is installed in a curved
shape, the inner hose may freeze.
• Open the cover cap and hose plug used for
removal of residual water to extract water
completely.
Drain plug
Cover cap
NOTE
• If water does not drain, this means the ice is
not melted completely. Wait more.
• When water is removed completely from the
drum, close the hose plug used for removal of
residual water, choose a washing programme,
and press the Start/Pause button.
Drain hose
Detergent drawer
NOTE
• Check that water is coming into the detergent
drawer while rinsing, and water is draining
through the drain hose while spinning.
• When water supply problems occur, take the
following measures.
− Turn off the tap, and thaw out the tap and
both connection areas of inlet hose of the
product using a hot water cloth.
− Take out inlet hose and immerse in warm
water below 50–60 °C.
Supply hose
50-60 °C
35
TROUBLESHOOTING
EN
• Your washing machine is equipped with an automatic error-monitoring system to detect and
diagnose problems at an early stage. If your washing machine does not function properly or does
not function at all, check the following before you call for service:
Diagnosing Problems
Symptoms Reason Solution
Rattling and
clanking noise
Foreign objects such as coins or
safety pins may be in drum or
pump.
• Check all pockets to make sure that
they are empty. Items such as clips,
matches, pens, coins, and keys can
damage both your washer and your
clothes.
• Close zippers, hooks, and
drawstrings to prevent these items
from snagging or tangling on other
clothes.
Thumping sound
Heavy wash loads may produce a
thumping sound. This is usually
normal.
• If sound continues, washing machine
is probably out of balance. Stop and
redistribute wash load.
Vibrating noise
Have all the transit bolts and tub
support been removed?
• If not removed during installation,
refer to Installation guide for
removing transit bolts.
Are all the feet resting firmly on the
ground?
• Make sure the washing machine is
level and tighten the lock nuts up
towards the base of the appliance.
Water leaks
Supply hoses or drain hose are
loose at tap or washing machine.
• Check and tighten hose connections.
House drain pipes are clogged.
• Unclog drain pipe. Contact plumber
if necessary.
Oversudsing
Too much detergent or unsuitable
detergent may cause excessive
foaming which may result in water
leaks.
• Make sure that the suggested
amount of detergent is used per the
manufacturer's recommendations.
Water does not
enter washing
machine or it
enters slowly
Water supply is not adequate in
that location.
• Check another tap in the house.
Water supply tap is not completely
open.
• Fully open tap.
Water supply hose(s) are kinked. • Straighten hose.
The filter of the supply hose(s)
clogged.
• Check the filter of the supply hose.
36
EN
Symptoms Reason Solution
Water in the
washing machine
does not drain or
drains slowly
Drain hose is kinked or clogged. • Clean and straighten the drain hose.
The drain filter is clogged. • Clean the drain filter.
Washing
machine does
not start
Electrical power cord may not be
plugged in or connection may be
loose.
• Make sure plug fits tightly in wall
outlet.
House fuse blown, circuit breaker
tripped,or a power outage has
occurred.
• Reset circuit breaker or replace fuse.
Do not increase fuse capacity. If
problem is a circuit overload, have it
corrected by a qualified electrician.
Water supply tap is not turned on. • Turn on water supply tap.
Washing
machine will not
spin
Check that the door is firmly shut.
• Close the door and press the Start/
Pause button. After pressing the
Start/Pause button, it may take a
few moments before the washing
machine begins to spin. The door
must be locked before spin can be
achieved. Add 1 or 2 similar items to
help balance the load. Rearrange
load to allow proper spinning.
Door does not
open
Once washing machine has started,
the door cannot be opened for
safety reasons.
• Check if the ‘Door Lock’ icon is
illuminated. You can safely open the
door after the ‘Door Lock’ icon turns
off.
Wash cycle time
delayed
If an imbalance is detected or if the
suds removing programme is on,
the wash time will increase.
• This is normal. The time remaining
shown in the display is only an
estimate. Actual time may vary.
Fabric softener
overflow
Too much softener may cause an
overflow.
• Follow softener guidelines to ensure
appropriate amount is used. Do not
exceed the maximum fill line.
Softeners
dispensed too
early
Too much softener may cause an
premature dispensing.
• Follow the guidelines provided by the
detergent manufacturer.
• Close the dispenser drawer slowly.
Do not open the drawer during the
wash cycle.
The buttons may
not function
properly.
The button cannot be recognized
when the door is open.
• Press again after closing the door.
Dry problem Check water supply tap.
• Do not overload. Check that the
washing machine is draining properly
to extract adequate water from the
load. Clothes load is too small to
tumble properly. Add a few towels.
• Turn off water supply tap.
37
EN
Symptoms Reason Solution
Odor
This odor is caused by the rubber
attached to the washing machine.
• It is the normal odor of new rubber
and will disappear after the machine
has been run a few times.
If the rubber door gasket and door
seal area are not cleaned regularly,
odors can occur from mold or
foreign substances.
• Be sure to clean the gasket and door
seal regularly and check under the
door seal for small items when
unloading the washer.
Odors can occur if foreign
substances are left in the drainage
pump filter.
• Be sure to clean the drainage pump
filter regularly.
Odors can occur if the drainage
hose is not properly installed,
causing siphoning (water flowing
back inside the washing machine).
• When installing the drainage hose,
be sure that it doesn’t become
kinked or blocked.
Using the dry function, odors can
occur from lint and other laundry
matter sticking to the heater. (Dryer
model only)
• This is not a malfunction.
A particular odor can occur from
drying wet clothes with hot air.
(Dryer model only)
• The odor will disappear after a short
while.
38
EN
Error Messages
Symptoms Reason Solution
Water supply is not adequate in area.
• Check another tap in
the house.
Water supply taps are not completely open. • Fully open tap.
Water supply hose(s) are kinked. • Straighten hose(s).
The filter of the supply hose(s) are clogged.
• Check the filter of
the supply hose.
If water leakage occurred in the aqua stop
supply hose, indicator will become red.
May vary depending on the model.
• Use the aqua stop
supply hose.
Load is too small.
• Add 1 or 2 similar
items to help balance
the load.
Load is out of balance.
• Add 1 or 2 similar
items to help balance
the load.
The appliance has an imbalance detection
and correction system. If individual heavy
articles are loaded (e.g. bath mat, bath robe,
etc.) this system may stop spinning or even
interrupt the spin cycle altogether.
• Rearrange load to
allow proper
spinning.
If the laundry is still too wet at the end of
the cycle, add smaller articles of laundry to
balance the load and repeat the spin cycle.
• Rearrange load to
allow proper
spinning.
39
EN
Symptoms Reason Solution
Drain hose is kinked or clogged. • Clean and straighten the drain hose.
The drain filter is clogged. • Clean the drain filter.
Ensure door is not open.
• Close the door completely. If , , is
not released, call for service.
Control error. • Unplug the power plug and call for service.
Water overfills due to the faulty
water valve.
• Close the water tap.
• Unplug the power plug.
• Call for service.
Malfunction of water level
sensor.
• Close the water tap.
• Unplug the power plug.
• Call for service.
Over load in motor.
• Allow the washing machine to stand for 30
minutes to allow the motor to cool, then
restart the cycle.
Is supply/drain hose or drain
pump frozen?
• Supply warm water into the drum and
unfreeze drain hose and drain pump. Wet a
towel in warm water and apply to supply
hose.
40
WARRANTY
EN
THIS LIMITED WARRANTY DOES NOT COVER:
• Service trips to deliver, pick up, or install or repair the product; instruction to the customer on
operation of the product; repair or replacement of fuses or correction of wiring or plumbing, or
correction of unauthorized repairs/installation.
• Failure of the product to perform during power failures and interruptions or inadequate electrical
service.
• Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines,
inadequate or interrupted water supply or inadequate supply of air.
• Damage resulting from operating the Product in a corrosive atmosphere or contrary to the
instructions outlined in the Product’s owner’s manual.
• Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts
of God.
• Damage or failure caused by unauthorized modification or alteration, or if it is used for other than
the intended purpose, or any water leakage where the product was not properly installed.
• Damage or failure caused by incorrect electrical current, voltage, or plumbing codes, commercial or
industrial use, or use of accessories, components, or consumable cleaning products that are not
approved by LG.
• Damage caused by transportation and handling, including scratches, dents, chips, and/or other
damage to the finish of your product, unless such damage results from defects in materials or
workmanship.
• Damage or missing items to any display, open box, discounted, or refurbished Product.
• Products with original serial numbers that have been removed, altered, or cannot be readily
determined. Model and Serial numbers, along with original retail sales receipt, are required for
warranty validation.
• Increases in utility costs and additional utility expenses.
• Repairs when your Product is used in other than normal and usual household use or contrary to
the instructions outlined in the Product’s owner’s manual.
• Costs associated with removal of your Product from your home for repairs.
• The removal and reinstallation of the Product if it is installed in an inaccessible location or is not
installed in accordance with published installation instructions, including LG’s owner’s and
installation manuals.
• Damage resulting from misuse, abuse, improper installation, repair, or maintenance. Improper
repair includes use of parts not approved or specified by LG.
41
EN
Strange vibration or noise
caused by not removing
transit bolts or tub support.
Tub
support
Carton
base
Transit
bolt
Remove the transit bolts
& tub support.
Leakage caused by dirt (hair,
lint) on gasket and door
glass.
Clean the gasket & door
glass.
Not draining caused by
clogging of pump filter.
Clean the pump filter.
Water is not coming because
water inlet valve filters are
clogged or water supply
hoses are kinked.
Inlet Filter
Clean the inlet valve
filter or reinstall the
water supply hoses.
Water is not coming because
too much detergent use.
Dispenser
Clean the detergent
disperser drawer.
Laundry is hot or warm after
finished washing because
the supply hoses are
installed in reverse.
Cold Water supply
Hot Water supply
Cold
Hot
Reinstall the supply
hoses.
Water is not supplied
because the water tap is not
turned on.
Water tap
Turn on the water tap.
42
EN
Leakage caused by improper
installation of drain hose or
clogged drain hose.
Elbow Bracket
Tie Strap
Reinstall the drain hose.
Leakage caused by improper
installation of water supply
hose or using other brand
supply hoses.
Reinstall the supply
hose.
No power problem caused by
loose connection of power
cord or electrical outlet
problem.
Reconnect the power
cord or change the
electrical outlet.
Service trips to deliver, pick
up, install the product or for
instruction on product use.
The removal and
reinstallation of the product.
Level
The warranty covers
manufacturing defects
only. Service resulting
from improper
Installation is not
covered.
If all screws are not installed
properly, it may cause
excessive vibration (Pedestal
model only).
Install 4 screws at each
corner (Total 16EA).
Water hammering (banging)
noise when washing machine
is filling with water.
High pressure
water
Hit
Loud noise
Natural water flow
Sudden stopping
water flow
Adjust the water
pressure by turning
down the water valve or
water tap in the home.
43
OPERATING DATA
EN
Product fiche_Commission Delegated Regulation(EU) No 1061/2010
Supplier’s trade mark LG
Supplier’s model identifier FH2J3TDN0
FH4J3TDN0
F14WM8MC0
F4MT08W
F14WM8KG
Rated capacity 8 8 kg
Energy efficiency class A+++ A+++
Awarded an “EU Ecolabel award” under Regulation (EC) No
66/2010
No No
Energy consumption “X” kWh per year, based on 220
standard washing cycles for cotton programmes at 60 °C
and 40 °C at full and partial load, and the consumption of
the low-power modes. Actual energy consumption will
depend on how the appliance is used.
137 137
kWh/
year
The energy consumption
the standard 60 °C cotton programme at full load.
the standard 60 °C cotton programme at partial load.
the standard 40 °C cotton programme at partial load.
0.730
0.570
0.450
0.730
0.570
0.450
kWh
kWh
kWh
Weighted power consumption of the off-mode and of the
left-on mode.
0.50 0.50 W
Water consumption “X” litres per year, based on 220
standard washing cycles for cotton programmes at 60 °C
and 40 °C at full and partial load. Actual water consumption
will depend on how the appliance is used.
10500 10500
litres/
year
Spin-drying efficiency class “X” on a scale from G (least
efficient) to A (most efficient)
B A
Maximum spin speed attained for the standard 60 °C cotton
programme at full load or the standard 40 °C cotton
programme at partial load, whichever is the lower, and
remaining moisture content attained for the standard 60 °C
cotton programme at full load or the standard 40 °C cotton
programme at partial load, whichever is the greater.
1200 1370 rpm
53 44 %
Standard washing programmes to which the information in
the label and the fiche relates, that these programmes are
suitable to clean normally soiled cotton laundry and that
they are the most efficient programmes in terms of
combined energy and water consumption;
"Cotton Large, 60 °C/40 °C
+ Intensive"
The programme time
the standard 60 °C cotton programme at full load.
the standard 60 °C cotton programme at partial load.
the standard 40 °C cotton programme at partial load.
312
259
254
312
259
254
min.
min.
min.
The duration of the left-on mode (Tl) 10 10 min.
Airborne acoustical noise emissions expressed in dB(A) re
1 pW and rounded to the nearest integer during the
washing and spinning phases for the standard 60 °C cotton
programme at full load.
53/74 53/75 dB(A)
Free-Standing
,UX;1)[YZUSKX
);9:53+89+8</)+9:KR ;1
/+
2-+;19+8</)+=+(9/:+ ]]]RMIUS[Q
