OWNER’S MANUAL
DLP PROJECTOR
BX327
Please read this manual carefully before operating
your set and retain it for future reference.
www.lg.com
DLP PROJECTOR
DLP PROJECTOR
Warning - Class B
(b) For a Class B Digital device or peripheral, the instructions furnished the user shall include the fol-
lowing or similar statement, placed in a prominent location in the text of the manual:
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec-
tion against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
Contents
3
Contents
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the
European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream
through designated collection facilities appointed by your government or your local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environ-
ment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste dis-
posal service or the shop where you purchased the product.
5. The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this product
with general household waste. Disposal of this product must be carried out in accordance to the regulations of
your local authority.
Safety Instructions ....................................................... 4
Names of parts
Main Body ..........................................................................................7
Control Panel .....................................................................................7
Connecting Part .............................................................................. 8
Remote Control .............................................................................. 9
Installing Batteries ........................................................................... 9
Projector Status Indicators ..........................................................10
Accessories .......................................................................................11
Optional Extras ...............................................................................11
Installing and Composition
Installation Precautions .................................................................12
Basic Operation of the Projector ...............................................13
Kensington Security System .......................................................14
Turning on the Projector ..............................................................14
Turning off the Projector ..............................................................14
Focus and Position of the Screen Image ................................15
Selecting input mode ...................................................................15
Connection
Connecting to a Notebook PC ...................................................16
Connecting to a Video Source ...................................................16
Connecting to a DVD Player ....................................................... 17
Connecting to a D-TV Set-Top Box .......................................... 17
3D Video function.
Before watch 3D image ................................................................18
To watch 3D image ........................................................................19
How to watch 3D image ...............................................................19
Function
PICTURE Menu Options
Picture mode ...................................................................................21
Adjusting Picture Mode ................................................................21
Advanced Control Function ........................................................22
Color Temperature Function .......................................................23
Picture Reset Function .................................................................23
SCREEN Menu Options
To Change PJT Mode ..................................................................24
Using Aspect Ratio Function .....................................................24
Using Keystone Function ............................................................24
Auto Configure Function .............................................................24
RGB Config. Function ..................................................................25
Using Digital Zoom Function .....................................................25
Using the Still Function ...............................................................25
AUDIO Menu Options
Adjusting Volume ..........................................................................26
Function Audio ...............................................................................26
Adjusting Speaker Balance ........................................................26
Adjusting Treble .............................................................................26
Adjusting Bass ...............................................................................26
TIME Menu Options
Sleep time Function ..................................................................... 27
Auto Off Function ......................................................................... 27
Presentation timer Function .......................................................28
OPTION Menu Options
Selecting Language .....................................................................29
Using Blank Function ...................................................................29
Selecting Blank image .................................................................29
Screen Capture Function ............................................................30
To adjust the brightness of the screen ...................................30
Using Monitor out Function .......................................................30
SET ID ...............................................................................................31
How to connect external control equipment ..........................31
Network Setup ............................................................................... 37
High Altitude Mode ......................................................................38
INFORMATION Menu Options
To See The Projector Information .............................................38
USB
To use the USB device
Connecting the USB device .......................................................39
Eject USB ........................................................................................39
Precautions when using the USB device ...............................39
PHOTO LIST
Screen Components ....................................................................40
Photo Selection and Popup Menu ...........................................40
Full Screen Menu ...........................................................................41
MUSIC LIST
Screen Components ....................................................................42
Music Selection and Popup Menu ...........................................42
MOVIE LIST
Supported Movie File ...................................................................43
Precautions when playing the DivX ........................................44
Screen Components ....................................................................45
Movie Selection and Popup Menu ...........................................45
Playing the Movie ..........................................................................46
Option Menu Selection................................................................46
To See The DivX Registration Code......................................... 47
Deactivation Function ................................................................... 47
FILE VIEWER
Screen Components ....................................................................48
View File ...........................................................................................48
Information
Supported Monitor Display .........................................................49
Maintenance ...................................................................................49
Replacing the Lamp .....................................................................50
How to fix the lens cap to the projector .................................52
MEMO...............................................................................................53
Specifications .................................................................................54
Open Source Software Notice ...................................................55
Safety Instructions
4
Safety Instructions
Please take note of the safety instructions to prevent any potential accident or misuse of the projector.
ꔈ Safety Instructions are given in two forms as detailed below.
WARNING : The violation of this instruction may cause serious injuries and even death.
NOTES : The violation of this instruction may cause injuries or damage to the projector.
ꔈ
After reading this manual, keep it in the place that you can access easily.
Indoor Installation WARNING
Do not place the Projector in direct
sunlight or near heat sources such
as radiators, fires, stove etc.
This may cause a fire hazard or product
defect.
Do not place flammable materi-
als in, on or near the projector.
This may cause a fire hazard or prod-
uct defect.
Do not hang on an installed
projector.
It may cause the projector to fall,
causing injury or death.
Power WARNING
Indoor Installation NOTES
Earth wire should be connected.
Ensure that you connect the earth ground
wire to prevent possible electric shock (That
is a Projector with a three-prong grounded
AC plug must be connected to a three-
prong grounded AC outlet).
If grounding methods are not possible, have
a qualified electrician install a separate circuit
breaker.
Do not try to ground the unit by connecting
it to telephone wires, lightening rods, or gas
pipes.
The power cord should be inserted
fully into the power outlet to avoid
a fire hazard!
This may cause a fire hazard or damage
the unit.
Do not place heavy objects on
the power cord.
This may cause a fire or an electric
shock hazard!
Do not place the projector close
to sources of steam or oil such
as a humidifier.
This may create a fire hazard or an
electric shock hazard!
Do not place the projector where
it might be exposed to dust.
This may cause a fire hazard or
damage to the unit!
Do not block the vents of the pro-
jector or restrict air-flow in any way.
This would cause the internal tempera-
ture to increase and could cause a fire
hazard or damage to the unit!
Ensure good ventilation around the
projector. The distance between
the projector and the wall should
be more than 30 cm.
An excessive increase in its internal
temperature may cause a fire hazard or
damage to the unit!
Do not use the projector in a
damp place such as a bathroom
where it is likely to get wet.
This may cause a fire or an electric
shock hazard!
Do not place the projector direct-
ly on a carpet, rug or place where
ventilation is restricted.
This would cause its internal tempera-
ture to increase and might create a
fire hazard or damage the unit.
When installing the projector on
a table, be careful not to place it
near the edge.
The projector could fall causing injury
and damage to the projector.
Only use a suitable stand.
Only use the projector on a level
and stable surface.
It may fall and cause injury and/or
damage to the unit.
Disconnect from the power sup-
ply and remove all connections
before moving, or cleaning.
Safety Instructions
5
Using WARNING
If water is spilt into the projector unplug it from the power supply
immediately and consult your Service Agent.
This may cause an electric shock hazard or damage to the unit!
Dispose of used batteries
carefully and safely.
In the case of a battery being
swallowed by a child please consult
a doctor immediately.
CAUTION concerning the Power Cord
It is recommend that most appliances be placed on a dedicated circuit; that is, a single outlet circuit
which powers only that appliance and has no additional outlets or branch circuits.Check the specification
page of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords,
frayed power cords, or damaged or cracked wire insulation are dangerous.Any of these conditions could
result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance
indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord
replaced with an exact replacement part by authorized service personnel.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched,
closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the
cord exits the appliance.
Do not remove any covers. High
risk of Electric Shock!
Don’t look directly into the lens
when the projector is in use. Eye
damage may occur!
Do not touch metal parts during
or soon after operation since the
vents will remain very hot!
Power WARNING
Power NOTES
Do not plug-in too many items
into one power outlet.
It may result in overheating of the out-
let and create a fire hazard!
Never touch the power plug with
a wet hand.
This may cause an electric shock
hazard!
Prevent dust from collecting on
the power plug pins or outlet.
This may cause a fire hazard!
Hold the plug firmly when
unplugging. If you pull the cord,
it may be damaged.
This may cause a fire hazard!
Do not use if the power cord or
the plug is damaged or any part
of the power outlet is loose.
This may cause a fire or an electric
shock hazard or damage to the unit!
Ensure the power cord does not
come into contact with sharp or
hot objects.
This may cause a fire or an electric
shock hazard or damage to the unit!
Place the projector where people
will not trip or tread on the power
cord.
This may cause a fire or an electric
shock hazard or damage to the unit!
Do not turn the projector On/Off by plugging-in or unplugging the
power plug to the wall outlet.
(Allow the unit to cool before removing power.)
It may cause mechanical failure or could cause an electric shock.
Do not place anything containing
liquid on top of the projector
such as flowerpot, cup, cosmet-
ics or candle.
This may cause a fire hazard or
damage to the unit!
In case of impact shock or damage
to the projector switch it off and
unplug it from the power outlet and
contact an authorized service center.
This may cause a fire or an electric shock
hazard or damage to the unit!
Do not allow any objects to fall
into the projector.
This may cause an electric shock haz-
ard or damage to the unit!
Safety Instructions
6
Using NOTES
Do not place heavy objects on
top of projector.
This may cause mechanical failure or
personal injury!
Take care not to impact the lens
particularly when moving the
projector.
Do not touch the lens of the pro-
jector. It is delicate and easily
damaged.
Others NOTES
Cleaning NOTES
Contact the Service
Center once a year to
clean the internal
parts of the projector.
Accumulated dust can
cause mechanical failure.
When cleaning the plastic parts such as projector case, unplug the power and
wipe it with a soft cloth. Do not use cleanser, spray water or wipe with a wet
cloth. Especially, never use cleanser (glass cleaner), automobile or industrial
shiner, abrasive or wax, benzene, alcohol etc., which can damage the product.
Use an air spray or soft cloth that is moist with a neutral detergent and water
for removing dust or stains on the projection lens.
It can cause fire, electric shock or product damage (deformation, corrosion and damage).
Cleaning WARNING
Do not use water while cleaning
the projector.
This may cause damage to the pro-
jector or an electric shock hazard.
In the unlikely event of smoke or
a strange smell from the projec-
tor, switch it off, unplug it from
the wall outlet and contact your
dealer or service center.
This may cause a fire or an electric
shock hazard or damage to the unit!
Use an air spray or soft cloth that
is moist with a neutral detergent
and water for removing dust or
stains on the projection lens.
Others WARNING
Do not attempt to service the projector yourself. Contact your dealer or service center.
This may cause damage to the projector and could give an electric Shock as well as invalidating the warranty!
Using WARNING
If the projector is in a room that experiences a gas leak, do not touch
the projector.
It can cause a fire or a burn by a spark.
Always open the lens door or
remove the lens cap when the
projector lamp is on.
Do not use any sharp tools on
the projector as this will damage
the casing.
In the event that an image does
not appear on the screen please
switch it off and unplug it from the
power outlet and contact your
Service Agent.
This may cause a fire or an electric
shock hazard or damage to the unit!
Do not drop the projector or
allow impact shock.
This may cause mechanical failure or
personal injury!
Be sure to unplug if the projector is
not to be used for a long period.
Accumulated dust may cause a fire haz-
ard or damage to the unit!
Only use the specified type
of battery.
This could cause damage to the
remote control.
Do not mix new batteries with old
batteries.
This may cause the batteries to over-
heat and leak.
Names of parts
7
AUTO Button
It automatically corrects the
position and the shaking of the
image at the RGB mode.
Front remote control sensor
Foot adjusting button
Names of parts
Main Body
* The projector is manufactured using high-precision technology. You may, however, see on the Projector screen tiny black
points and/or bright points (red, blue, or green). This can be a normal result of the manufacturing process and does not
always indicate a malfunction.
Control panel
Lamp cover
POWER Button
Focus ring
Zoom ring
Control Panel
MENU Button
Displays or closes menus.
∧/∨/＜/＞ Button
Adjusts functions of menus.
INPUT Button
Switches to RGB1, RGB2, Component1,
Component2, HDMI, Video mode.
◉OK Button
Checks present mode and saves the
change of functions.
POWER Button
Turns ON/OFF the projector.
Names of parts
8
USB
AC IN
Kensington Security
System Connector
(Refer to page 14)
VIDEO
HDMI/DVI
RGB OUT
RGB 2 IN
RGB 1 IN
IR (Remote control sensor)
*
Do not block the IR port for normal
operation of remote control.
RS-232C
LAN
AUDIO IN
Connecting Part
* When using HDMI/USB connector, if the size of the jack connecting
to the connector is too big, they may not be connected. Please use
standard size jack.
Headphone port
Names of parts
9
3D
Button
SLEEP Button
L/R
Button
TIMER Button
Zoom Button
Remote Control
INPUT Button
KEYSTONE Button
MENU
Button
AUTO Button
BACK Button
OK◉, ∧/∨/＜/＞ Button
STILL Button
( Functions as the STILL button in
any mode other than DivX.)
BLANK Button
USB Button
Q.MENU Button
PAGE ∧/∨ Button
MARK Button
VOLUME ∧/∨ Button
RATIO Button
MUTE Button
POWER Button
Installing Batteries
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED WITH AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
• Open the battery compartment cover on the back of the remote control.
• Insert the specified type of batteries with correct polarity, match “+” with “+”,
and match “-” with “-”.
• Install two 1.5V AAA batteries. Don’t mix used batteries with new batteries.
Names of parts
10
Operation Indicator
/ Temperature
Indicator
Lamp Indicator
Red
Green(flashing)
Green
Orange(flashing)
Off
Orange
Red(flashing)
Red
Red(flashing)
Green (flashing)
Orange(flashing)
Standby.
Lamp is starting up.
Unit is in operation (Lamp is turned on)
The lamp is cooling (10 seconds).
The projector has been turned off due to excessive heat
(1 minute and 30 seconds).
Power off.
Standby-This mode cools the projector naturally for 4
minutes after it is turned off.
This is the warning message of excessive heat when the
projector is on. Turn the projector off and check the ventilator.
Power has turned off due to problem with the internal
cooling fan. Contact your service center.
Projector lamp is reaching the end of its life and needs
to be replaced with a new lamp.
An error has occurred in the projector lamp. Turn the projector
on again after sufficient amount of time. If this indicator
flashes red again, contact your local service center.
The lamp cover is open.
This indicates Color Wheel Motor or Color Wheel Index problem.
Please contact your local service center.
Projector Status Indicators
* Lamp indicator, operation indicator and temperature indicator at the top of the projector show the user the operating status
of the projector.
Lamp indicators
Operation Indicator
/ Temperature
Indicator
Names of parts
11
Remote Control
AAA Battery
Owner’s manual
Lens cap and Strap
Computer CablePower Cord
Projection Screen
Lamp
Component Cable
HDMI Cable
RS-232CCable
RCA to D-Sub Adapter
Video Cable
Ceiling mount for projector
LAN
Cable
Accessories
CD Owner’s manual
Optional Extras
* Contact your dealer to purchase these items.
* Optional parts can be changed without notice to improve the quality of the product, and new optional parts can be added.
eZ-Net Manager CD
3D Glasses
(DLP-LINK or
DLP-Ready Type)
* Please use M4xL10 MACHINE
SCREW to tighten up the set if
other product than recommended
ceiling mount is used
Installing and Composition
12
Provide proper ventilation for this projector.
• The projector is equipped with ventilation holes(intake) on
the bottom and ventilation holes(exhaust) on the front. Do
not block or place anything near these holes. Internal heat
build-up may occur, causing picture degradation or dam-
age to the projector.
ꔈ
Do not place the projector on a carpet, rug or other simi-
lar surface. It may prevent a adequate ventilation of the
projector bottom. This product should be mounted to a
wall or ceiling only.
• Never push projector or spill any kind of liquid into the
projector.
• Leave an adequate distance (30 cm or more) around the
projector.
Installing and Composition
Installation Precautions
Place this projector in adequate temperature and humidity conditions.
• Install this projector only in a location where adequate temperature and humidity is available. (refer page 54)
Don’t place the projector where it can be covered with dust.
• This may cause overheating of the projector.
This projector is manufactured using high-precision technology. You may, however, see tiny black points and/or bright
points (red, blue or green) that continuously appear on the projector Screen. This is a normal result of the manufacturing
process and does not indicate a malfunction.
To display DTV programs, it is necessary to purchase a DTV receiver (Set-top Box) and connect it to the projector.
The remote control may not work when a lamp equipped with electronic ballast or a three-wavelength lamp is installed.
Replace those lamps with international standard products to use the remote control normally.
Do not obstruct the slots and openings of the projector. This may cause overheating and create a fire hazard.
Installing and Composition
13
1. Place the projector on a sturdy and horizontal surface with the PC or AV source.
2. Place the projector with the desired distance from the screen. The distance between the projector and the
screen determines the actual size of the image.
3. Position the projector so that the lens is set at a right angle to the screen. If the projector is not set at a right
angle, the screen image will be crooked. Although, slight angles can be counteracted using the Keystone
adjustement. (Refer to page 24.)
4. Connect the power cable to the projector and the wall outlet after placing the projector in its desired location.
projection distance based on the picture format
Projection distance (D)
Projection offset ratio: 115%
59mm
Projection distance (D)
Basic Operation of the Projector
Screen height (X)
Screen
Screen Width (Y)
4 : 3 Scale
Image(mm)
Diagonal Size
Horizontal
Size
Vertical Size
H
H
Screen
Projection Distance(mm)
Wide Distance Tele Distance
Installing and Composition
14
Turning on the Projector
1. Connect power cord correctly.
2. Remove the lens cap. If it is left on, it could become deformed due to the heat produced by the projection lamp.
3. Press the POWER button on the remote control or top cover.
(Green operation indicator flashes if lamp is in start-up cycle.)
ꔈ An image will appear after the operation indicator light turns (Green).
ꔈ Select the source mode with the INPUT button.
Turning off the Projector
* Do not disconnect the power cord during the suction/discharge fan in operation. If the power cord is disconnected during the
suction/ discharge fan in operation, it may takes longer to activate the lamp after turning on the power and the lifespan of the
lamp may be shortened.
ꔈ If the operation indicator LED is orange and blinking, the power button on the top cover or on the remote control will not operate.
ꔈ This projector features the Quick Power On/Off function that allows a user to turn it on and off quickly.
1. Press the POWER button on the top cover or remote control.
2. Press the POWER button on the top cover or remote control again to turn off the power.
3.
If the operation indicator LED is orange and blinking, do not disconnect(30 sec.) the supply until the operation
indicator LED is lit constantly (orange).
* What is the Quick Power On/Off function?
The projector enters into Standby mode without waiting it is cooled.
When standby mode is maintained for about 4 minutes after turning off the projector, it operates immediately without cooling when
the set is turned on.
• This projector has a Kensington Security System Connector on
the side panel. Connect the Kensington Security System cable as
below.
• For the detailed installation and use of the Kensington Security
System, refer to the user’s guide included with the Kensington
Security System set. And for further information, contact http://
www.kensington.com, the internet homepage of the Kensington
company that deals with expensive electronic equipment such as
notebook PCs or projectors.
• The Kensington Security System is an optional item.
Kensington Security System
Please Press
Power Key again.
i
Power off?
Installing and Composition
15
When an image appears on the screen, check if it is in focus and fits well to the screen.
ꔈ To adjust the focus of the image, rotate the focus ring which is the outer ring on the lens.
ꔈ To adjust the size of the image, rotate the zoom ring which is the inner ring on the lens.
Focus and Position of the Screen Image
To raise or lower the image on the screen, extend or retract the foot at the bottom of the projector
by pushing foot adjusting button as below.
1. While pressing the foot adjusting button, raise or lower the projector to place the screen image in the proper position.
2. Release the button to lock the foot in its new position.
3. Turn the foot at the back left or right to make a fine tune of the length of the projector.
4. After raising the front foot, do not press down on the projector.
Focus ring
Zoom ring
Foot adjusting button
Selecting input mode
1. Press the INPUT button on the remote control.
2. Selecting an input signal with the INPUT button will only change the projector only to connected inputs. You
can change it to any inputs with the ＜, ＞ button.
• The component input is always active, and it does not support plug &play function.
Input
Component1Video RGB2 HDMI
RGB1
Component2
Connection
16
Connection
Connecting to a Notebook PC
* You can connect the projector to a computer with VGA, SVGA, XGA, SXGA, UXGA output.
* Refer to page 49 for resolutions the projector supports.
< How to connect >
1. Connect the RGB 1 IN of the projector and the computer
output port with a computer cable.
2. Connect the AUDIO IN RGB 1 of the projector and the
computer audio output port with an audio cable.
* You may have to change the resolution that your PC exports to
one supported by the projector. (Refer to page 49.) This pro-
jector may not support output from laptops when the laptop
screen is on.
Connecting to a Video Source
< How to connect >
1. Connect the VIDEO IN of the projector to the output
jack of the video source with a video cable.
2. Connect the AUDIO IN VIDEO of the projector to the
output jack of the audio source with an audio cable.
* You can connect a VCR, a camcorder or any other compatible video image source to the projector.
Audio Cable
Computer Cable
LAN
<VCR>
Audio Cable
Video Cable
* You can also connect to the RGB 2 IN port.
* Please activate HDMI sound by changing Windows setting on desktop PC to play sound using PC-HDMI through projector
speaker.
Connection
17
Connecting to a DVD Player
< How to connect a Component source >
1. After connecting the Component cable of DVD Player
to the RGB to Component cable, connect it to the
RGB 1 IN terminal of the projector.
* When connecting the component cable, match the jack
colors with the component cable.(Y=green, PB=blue, PR
=red)
2. Connect the AUDIO IN RGB 1 of the projector to the
output jacks of the audio source with an audio cable.
< How to connect a HDMI source >
1. Connect the HDMI of the projector and the HDMI
output port of the DVD Player with an HDMI cable.
2. Set the DVD Player's resolution to one of the following:
480p(576p)/720p/1080i/1080p mode.
LAN
AUDIO
IN
* Depending on the equipment, the component output jacks (Y, PB, PR) of the DVD Player may be labeled as Y, Pb, Pr/Y, B-Y, R-Y/Y, Cb, Cr.
<DVD Player>
Component cable
Component cable
Connecting to a D-TV Set-Top Box
< How to connect a HDMI source >
1. Connect the HDMI of the projector and the HDMI output
port of the DTV set-top box with an HDMI cable.
2. Set the DTV receiver's resolution to one of the following:
480p(576p)/720p/1080i/1080p mode.
LAN
AUDIO
IN
* To receive Digital TV (D-TV) programs, it is necessary to purchase a D-TV receiver (Set-Top Box) and connect it to
the projector.
* Please refer to the owner's manual of the D-TV Set-Top Box for the connection between the projector and D-TV
Set-Top Box.
< How to connect a Component source >
1. Connect the D-TV Set-Top Box Component cable with
RGB to Component cable and than connect it to
RGB 1 IN of the projector.
* When connecting the component cable, match the jack
colors with the component cable.(Y=green, PB=blue, PR
=red)
2. Connect the AUDIO IN RGB 1 of the projector to the
output jacks of the audio source with an audio cable.
LAN
AUDIO
IN
<D-TV Set-Top Box>
<D-TV Set-Top Box>
RGB to Component
Cable
RGB to Component
Cable
LAN
AUDIO
IN
<DVD Player>
HDMI Cable
HDMI Cable
Audio Cable
Audio Cable
* You can also connect to the RGB 2 IN port.
* You can also connect to the RGB 2 IN port.
Component cable
3D Video Function
18
3D Video function.
* 3D image is a technology that utilizes parallax of both eyes to make an image to be perceived solid.
Before watch 3D image
► Do not watch 3D image at a close distance for a long time. It might impair visual acuity.
► It might cause dizziness if one watch projector screen or play video game while wearing 3D glasses for a
long time.
► Please refrain from watching it if you are one of the following: a pregnant, an elderly, one who has a weak
heart, one who often get nausea, or one who is drunk.
► 3D image can be misunderstood as a reality and cause astonishment or excitement.
► Do not put objects that are easily broken or can cause harm when watching 3D image.
► 3D image can be misunderstood as a reality and cause damage to the objects or human.
► Please prevent children under 5 from watching 3D image. It might hinder development of visual acuity.
► Warning of photosensitive seizure.
Some people might experience seizure when watching a specific image in the video game, a blinking image
or an image with specific pattern. If you or your family have history of epilepsy or seizure, please consult with
doctor before watch 3D image. If you feel the following symptoms while watching 3D image, please stop
watching right away and take a rest.
- Fuzz feeling, sight change, instability in eye or face, unconscious motion, convulsions, loss of consciousness,
confusion, loss of a sense of direction, or nausea. If one or more of these persist, please consult with doctor.
Following precautionary measure might reduce the risk of seizure due to watching 3D image.
- Take 5 to 15 minute rest after an hour of watching.
- Watch it after eyesight correction if each eye has different vision.
- Watch it on the line of eye and at the front side.
- If you feel headache, fatigue, or nausea, please stop watching and take a rest.
- Do not watch for a long time when sleepy, tired or sick.
While watching 3D image
Warning
While watching 3D image
Caution
► Please put extra care when children are watching
Check these when watching 3D image
► Please watch the image within effective angle and distance.
► It might not be seen in 3D if it is out of effective angle or distance. It will not be seen when lay down.
► There might be more image overlap during initial operation after turning on the power. It needs time for
optimization.
► If you stare other spot and gaze back to 3D image, you might need some time to watch it in 3D.
► If you watch it under fluorescent light (50Hz ~ 60Hz), trichromatic light, or near a window, there can be
blinking of the image. In this case, use curtains to block the sunlight and darken the lighting.
► Use DLP-LINK(DLP Ready) Type 3D glasses.
► If there are obstacles between the projector and 3D glasses, 3D image might not be fully appreciated.
► Please install the projector as far as possible from other devices.
3D Video Function
19
How to watch 3D image
1. While watching 3D image from the projector, press a button on the glasses.
2. When it is pressed, it will blink and synchronize with 3D image.
(Blinking is operating method of DLP-LINK Type 3D glasses and it varies by its variety.)
3. If it blinks or has other trouble while watching, turn off the light in the room. Please contact seller
for questions regarding 3D glasses.
How to use DLP-LINK(DLP-Ready) Type 3D glasses
To watch 3D image
* Effective watching angle: 9° up and down and left and right.
Suggested watching distance: 5m ~ 10m
5 m ~ 10 m
▪ Some menu might not work while watching 3D image
▪ Choose correct and supported 3D image format to fully enjoy 3D image.
* 3D watching condition is based on a darkroom
1. Play contents produced in 3D image. Please refer the following for 3D image input support format.
Signal Resolution Vertical Frequency(Hz) Playable 3D video format
HDMI
720p 1280x720
60
HDMI(V1.4 with HDMI 3D) Frame Packing, Side by Side,
Top & Bottom, Frame Sequential
50
HDMI(V1.4 with HDMI 3D) Frame Packing, Side by Side,
Top & Bottom
1080i 1920x1080 50/60 Side by Side, Top & Bottom
1080p 1920x1080
24/30
HDMI(V1.4 with HDMI 3D) Frame Packing, Side by Side,
Top & Bottom
60
HDMI(V1.4 with HDMI 3D) Frame Packing, Side by Side,
Top & Bottom, Frame Sequential
50
HDMI(V1.4 with HDMI 3D) Frame Packing, Side by Side,
Top & Bottom.
HDMI-PC
RGB-PC
XGA 1024x768 60 Side by Side, Top & Bottom, Frame Sequential
ꔈ To play 3D image input in frame packing format, media contents and player should support HDMI
(1.4 version 3D) frame packing format.
ꔈ Image input in HDMI (1.4 version 3D) frame packing format is automatically converted into 3D image.
Function
20
O
X
O
O
O
O
X
X
X
X
X
X
X
X
O
X
X
X
X
O
X
O
O
O
O
X
X
X
X
X
X
X
X
O
X
X
X
X
O
X
O
O
O
O
X
X
X
X
X
X
X
X
O
X
X
X
X
O
O
X
O
O
O
X
X
X
X
X
X
X
X
O
X
X
X
X
< Remote Controller Function only operational in 3D mode >
3D Mode Top & Bottom Side by Side Frame Sequential Frame Packing
POWER
INPUT
3D
L/R
VOL ∧/∨
MUTE
USB
PAGE ∧/∨
RATIO
MENU
AUTO
Q.MENU
MARK
SLEEP
BACK
STILL
KEYSTONE
ZOOM
TIMER
2. RGB-PC should press auto correction button on remote controller before watch 3D image. (Please refer “PC
connection”on page 17 for HDMI-PC sound output)
3. When watching 3D image with HDMI-PC or RGB-PC, non 3D part (wall paper, explorer, etc) will be shown in dual phase
(overlap phenomenon). So it needs to play the image in “full screen” mode of the video player.
3D part
Non 3-D part
ABCDFG
ABCDFG
ABCDFG
ABCDFG
Full screen
3D part
4. Press 3D image button
5. Press ＜, ＞ button to select same shape on the projector screen and wear the 3D glasses.
To turn on 3D Mode, select this icon.
ꔁ Move ꔉ OK ꕉ Exit
Top & Bottom Side by Side
Frame Sequential
6. While watching 3D image from the projector, press a button on the glasses.
7. You can convert left/right image by pressing L/R selection button. Select the image that is seen better.
ꔈ Pressing 3D image button while watching 3D image will convert to image to normal.
8. 3D image only supports 4:3 aspect ratio
Function
21
PICTURE Menu Options
1. Press the MENU button. Then, move to PICTURE with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨ buttons to move to a desired function and
press the ◉OK button.
3. Press the ＜, ＞ buttons to make a desired adjustment and
then press the ◉OK button.
• You can set image values differently for each input and Picture Mode.
• Saving after making adjustments will display (User) in adjusted Picture Mode. (except Expert 1/2)
• Execute Picture Reset for Picture Mode to restore back to default factory settings.
• Press the BACK button to exit the menu screen.
Adjusting Picture Mode
Function
* The On-Screen Display (OSD) in this manual may be slightly different from your projector.
* This operating guide explains operation of RGB(PC) mode mainly.
1. Press the Q.MENU button on the remote control.
2. Press the ＜, ＞ buttons to move to Picture mode.
3. Press the ∧, ∨ button to toggle through the preset picture settings.
Picture mode
* Use the Picture mode function to set the projector for the best picture appearance.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
ꔂMove ꔉOK
Picture Mode : Standard
• Contrast 50
• Brightness 50
• Sharpness 5
• Color 70
• Tint 0
• Advanced Control
• Picture Reset
G
Vivid
Standard
Cinema
Sport
Expert2
Expert1
Game
Picture Mode
Standard
Function
22
Color Temperature
- This function enables Vivid/Standard/Cinema/Sport/Game.
ꔈSet to warm to enhance hotter colors such as red, or set to cool to make picture bluish.
Dynamic Contrast
ꔈAdjusts the contrast to keep it at the best level according to the brightness of the screen.
The picture is improved by making bright parts brighter and dark parts darker.
Dynamic Color
- This function enables Vivid/Standard/Cinema/Sport/Game.
ꔈAdjusts screen colors so that they look livelier, richer and clearer. This feature enhances
hue, saturation and luminance so that red, blue, green and white look more vivid.
Noise Reduction
ꔈReduces screen noise without compromising video quality.
Gamma
Low : Make dark and middle gray level area of the picture brighter.
Medium: Express original picture levels.
High: Make dark and middle gray level area of the picture darker.
ꔈYou can adjust brightness of dark area and middle gray level area of the picture.
Black Level
Low: The reflection of the screen gets darker.
High: The reflection of the screen gets brighter.
ꔈSet black level of the screen to proper level.
ꔈThis feather is disables in RGB mode.
Brilliant Color
TM
This function increases the entire brightness of the screen or decreases it a little to
make the rich grayscale color.
White peaking
- The default value may change depending on input mode.
- White peaking can be adjusted from 0 to 10.
- Adjust to higher setting to achieve brighter picture. Adjust to lower setting for darker
picture.
Film Mode
ꔈMakes video clips recorded in film look more natural by eliminating judger effect.
ꔈDVD and Blu-ray movies are filmed at 24 frames per second.
1. Press the MENU button. Then, move to PICTURE with
the ∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨ buttons to move to Advanced Control
and press the ◉OK button.
3. Move to a desired item with the ∧, ∨ buttons.
4. Press the ＜, ＞ buttons to make a desired adjustment
and then press the ◉OK button.
• You can set image values differently for each input and Picture
Mode.
• Execute Picture Reset for Picture Mode to restore back to default
factory settings.
• Press the BACK button to exit the menu screen.
Advanced Control Function
OK
Move
Picture Mode : Standard
• Contrast 50
• Brightness 50
• Sharpness 5
• Color 70
• Tint 0
• Advanced Control
• Picture Reset
R G
OK
Move
Picture Mode : Standard
• Contrast 50
• Brightness 50
• Sharpness 5
• Color 70
• Tint 0
• Advanced Control
• Picture Reset
R G
< When Picture Mode is Vivid/Standard/Cinema/Sport/
Game >
< When Picture Mode is Expert 1/2 >
ꔗ
Medium
ꔃ
High
High
Medium
Medium
High
On
10
Off
Close
Color Temperature
Dynamic Contrast
Dynamic Color
Noise Reduction
Gamma
Black Level
Brilliant Color
TM
White Peaking
Film Mode
ꔗ
High
ꔃ
High
High
High
On
Standard
Wide
On
Cool
Close
Dynamic Contrast
Noise Reduction
Gamma
Black Level
Film Mode
Color Standard
Color Gamut
Edge Enhancer
White Balance
ꔍ
Function
23
1. Press the MENU button. Then, move to PICTURE with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨ buttons to move to Picture Reset and press
the ◉OK button.
3. Press the ＜, ＞ buttons to move to Yes and press the ◉OK
button.
• Press the BACK button to exit the menu screen.
Picture Reset Function
* Settings of the selected PICTURE function for each input and Picture Mode return to the default factory settings.
ꔂMove ꔉOK
Picture Mode : Standard(User)
• Contrast 50
• Brightness 50
• Sharpness 5
• Color 70
• Tint 0
• Advanced Control
• Picture Reset
R G
1. Press the Q.MENU button on the remote control.
2. Press the ＜, ＞ buttons to move to Color Temperature.
3. Press the ∧, ∨ button to toggle through the preset picture settings.
Color Temperature Function
• This function enables Vivid/Standard/Cinema/Sport/Game.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
Color Temperature
Cool
Medium
Warm
Cool
Natural
Color Gamut
Standard: Displays standard color area.
Wide: Mode to use and set the rich color area of the display.
ꔈMaximize the utilization of color to increase color quality.
Edge Enhancer
ꔈShow clearer and distinctive yet natural corners of the video.
Color Standard
ꔈConvert the color of a different video to HD color.
White Balance
- This function enables Expert 1/2.
ꔈThis is the function to adjust the overall color of the screen to the feeling you want.
a. Method : 2 Points
- Pattern: Inner, Outer
- Red/Green/Blue Contrast, Red/Green/Blue Brightness: The adjustment range is -50 ~
+50.
b. Method : 20 Points IRE
- Pattern: Inner, Outer
- IRE (Institute of Radio Engineers) is the unit to display the size of the video signal and
can be set among 5, 10, 15 - 95, 100. You can adjust Red, Green or Blue according to
each setting.
- Red/Green/Blue: The adjustment range is -50 - +50.
Color Management
System
- This function enables Expert 1/2.
ꔈAs the tool used by the experts to make adjustments by using the test patterns, this does
not affect other colors but can be used to selectively adjust the 6 color areas (Red/Green/
Blue/Cyan/Mgt/Yellow).
Color difference may not be distinctive even when you make the adjustments for the gen-
eral video.
Adjusts Red/Green/Blue/Yellow/Cyan, Magenta.
- Red/Green/Blue/Yellow/Cyan, Magenta Color: The adjustment range is -30 ~ +30.
- Red/Green/Blue/Yellow/Cyan, Magenta Tint: The adjustment range is -30 ~ +30.
- This feature is disable in PC mode.
Function
24
SCREEN Menu Options
• Select Rear when projecting from the back of the transparent screen purchased
separately.
• Select Ceiling when installing the product on the ceiling.
• When PJT Mode is Rear/Ceiling, the left/right of the speaker changes automatically.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
To Change PJT Mode
* This function turns the projected image upside down or flips horizontal.
Press the RATIO button to select a desired screen size.
Using Aspect Ratio Function
• Some options may not be available depending on input signals.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
4:3
Just Scan
Set By Program
Cinema Zoom1
Zoom
16:9
1. Press the KEYSTONE button of remote control.
2. Press the ＜, ＞ button to adjust the screen condition as you want.
• Keystone can be adjusted from -40 to 40.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
Using Keystone Function
* Use this function when the screen is not at a right angle to the projector and the image is a trapezoid shape.
* Only use the Keystone function when you can’t get the best angle of projection.
•Keystone 0
ꔗ
ꔃ
ꔉOK
- +
PJT Mode
Front
Aspect Ratio
16:9
1. Press the Q.MENU button on the remote control.
2. Press the ＜, ＞ buttons to move to PJT Mode.
3. Press the ∧, ∨ button to select a desired item.
Press the AUTO button of the remote control.
• If you execute screen adjustment for a video from PC graphic signal, optimal
state may not be found. Execute the Auto Config. function for a still image.
• You can use this function through the MENU button.
Auto Configure Function
* This function assures you of getting the best video quality by automatically adjusting the horizontal size and
synchronization of the image.
* Auto configure function works in RGB PC input only.
Auto config.
Function
25
RGB Config. Function
RGB Config.
Auto Config.
Position
Resolution ꔃ
Size
Phase
Reset
ꔐ 1024 x 768
1280 x 768
1360 x 768
ꔂMove ꕉPrev.
1. Press the MENU button. Then, move to SCREEN with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨ buttons to move to RGB Config. and press
the ◉OK button.
3. Move to a desired item with the ∧, ∨ buttons and then
press the ＞ button.
4. Press the ∧, ∨, ＜, ＞ button to adjust the screen condi-
tion as you want and then press the ◉OK button.
• Resolution can be chosen between 768 resolution (1024x768/1280x768/1360x768, 60Hz) and 1050
resolution (1400x1050/1600x1050, 60Hz).
• Press the BACK button to exit the menu screen.
1. Press the STILL button on the remote control.
* You can freeze the moving image.
2. To exit STILL, press any button.
* The STILL function will release automatically after approximately 10 minutes.
Using the Still Function
< Moving Image >
< Still Image >
Using Digital Zoom Function
* This function is available only in RGB input mode. The Zoom -/+and Position values return to their defaults when
you change the SOURCE or input signal,or turn the power off.
Adjusting the Zoom
1. Press the ZOOM button on the remote control.
2. Press the ∧, ∨ button to select Zoom item.
3. Press the ＜, ＞ button to adjust Zoom to your choice.
• You can adjust Zoom -/+ in 5%increments from 100% to 250%.
• Press the BACK button to exit the menu screen.
Adjusting the Position
1. Press the ZOOM button on the remote control.
2. Press the ∧, ∨ button to select Position item.
3. Press the ◉OK button. When the window below appears at the bottom right corner of the screen,
press the ∧, ∨, ＜, ＞ to adjust the position. When the arrow turns black, maximum adjustment has been
reached and no further adjustment can be made.
• Position is activated only when Zoom is set to more
• than 105%. Press the BACK button to exit the menu screen.
Function
26
Adjusting Treble
AUDIO
Volume 10
Balance 0
Treble 50
Bass 50
L R
1. Press the MENU button. Then, move to AUDIO with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨ buttons to move to Treble and press
the ◉OK button.
3. Press the ＜, ＞ buttons to adjusting audio treble and press the
◉OK button.
• Press the BACK button to exit the menu screen.
* Adjust the treble your taste and room situations.
ꔂMove ꔉOK
Adjusting Bass
AUDIO
Volume 10
Balance 0
Treble 50
Bass 50
L R
1. Press the MENU button. Then, move to AUDIO with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨ buttons to move to Bass and press the
◉OK button.
3. Press the ＜, ＞ buttons to adjusting audio treble and press the
◉OK button.
• Press the BACK button to exit the menu screen.
* Adjust the treble your taste and room situations.
ꔂMove ꔉOK
Adjusting Volume
Function Audio
Press the VOLUME ∧, ∨ button on the remote control.
1. Press the Q.MENU button on the remote control.
2. Press the ＜, ＞ buttons to move to Audio.
3. Press the ∧, ∨ button to select a desired item.
Adjusting Speaker Balance
AUDIO
Volume 10
Balance 0
Treble 50
Bass 50
L R
1. Press the MENU button. Then, move to AUDIO with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨ buttons to move to Balance and press
the ◉OK button.
3. Press the ＜, ＞ buttons to adjusting audio balance and
press the ◉OK button.
• Press the BACK button to exit the menu screen.
* Adjust the left/right sound of speaker to suit your taste and room situations.
ꔂMove ꔉOK
Audio
L+R
• This function enables if connected a headphone.
• Press the BACK button to exit the menu screen.
L+R
R+R
L+L
AUDIO Menu Options
Function
27
* The sleep timer turns the projector off at the preset time.
1. Press the Q.MENU button on the remote control.
2. Press the ＜, ＞ buttons to move to Sleep Timer.
3. Press the ∧, ∨ buttons to select a desired preset time.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
Sleep time Function
Auto Off Function
TIME Menu Options
1. Press the MENU button. Then, move to TIME with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨ buttons to move to Auto Off and
press the ◉OK button.
3. Move to a desired item with the ∧, ∨ buttons and
then press the ◉OK button.
• Press the BACK button to exit the menu screen.
* This function turns the projector off automatically after the preset time is passed when there is no signal.
Off
10 Min.
20 Min.
30 Min.
240 Min.
180 Min.
120 Min.
90 Min.
60 Min.
TIME
Sleep Timer : Off
Auto Off : 60 Min.
Presentation timer
ꔂMove ꔉOK
Sleep Timer
Off
Function
28
Presentation timer Function
1. Press the TIMER button of remote control.
2. Press the ∧, ∨ button to select Time alarm or Time keeper item.
3. Press the ＜, ＞ button to select the desired preset time.
4. The timer starts to operate if you select specific time.
• Time alarm function : If you select a specific time, it is displayed in minute units. After 1 minute, the remaining time is
displayed at the bottom right of the screen, and then disappears after 5 seconds. When the remaining time is dis-
played, other OSD windows are closed. When the set time is reached, ‘0 minute’ flickers 10 times at 1 second intervals,
and then disappears.
• Time keeper function : If you select a specific time, it continues to be displayed in minute(‘) and second(“) units. Even
though other OSD windows appear, the remaining time is displayed again after the windows are closed. When the set
time is reached. 0’ 00” flickers 10 times at 1 second intervals, and then disappears.
5. If the set time disappears because of the use of other menus, press the TIMER button on a remote to display
the set time again.
• The Time alarm function and the Time keeper function cannot be used at the same time.
• The Time alarm function can be set from 5 to 60 minutes at 5 minute intervals (Off, 5, 10, 15, 20, ......,55, 60 minutes).
• The Time keeper function can be set from 1 to 10 minutes at 1 minute intervals, and from 10 to 60 minutes at
5 minute intervals (Off, 1, 2, 3, 4, .............., 8, 9, 10, 15, 20, 25, .............., 55, 60 minutes).
• Press the BACK button to exit the menu screen.
Time Alarm
Time Keeper
Off
Off
Close
Function
29
OPTION Menu Options
1. Press the MENU button. Then, move to OPTION with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨ buttons to move to Menu Language and
press the ◉OK button.
3. Move to a desired item with the ∧, ∨, ＜, ＞ buttons and
then press the ◉OK button.
• On-Screen-Display (OSD) is displayed in the selected language.
• Press the BACK button to exit the menu screen.
Selecting Language
1. Press the BLANK button on the remote control.
• The screen turns off to a background color.
• You can choose the background color.
(Refer to ‘Selecting Blank image’)
2. Press any button to cancel the blank function.
• To temporarily turn off the lamp, press BLANK on the remote control. Do not block the projection lens with any
objects when the projector is under operation as this could cause the objects to become heated and deformed or
even cause a fire.
Using Blank Function
* This function may be effective if you need to get the attention of the audience during presentations, meetings or briefings.
1. Press the MENU button. Then, move to OPTION with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨ buttons to move to Blank Image and
press the ◉OK button.
3. Move to a desired item with the ∧, ∨ buttons and then
press the ◉OK button.
• Background image will be altered to the selected Blank function image.
• If there is no Screen Captured, selecting Captured Image will display the Logo.
• Press the BACK button to exit the menu screen.
Selecting Blank image
OPTION
Menu Language : English
Blank Image : Blue
Screen Capture
Lamp Mode : Normal
Monitor Out : RGB1
Set ID : 1
Network Setting
High Altitude : Off
3D Mode
OPTION
Menu Language : English
Blank Image : Blue
Screen Capture
Lamp Mode : Normal
Monitor Out : RGB1
Set ID : 1
Network Setting
High Altitude : Off
3D Mode
ꔂMove ꔉOK
ꔂMove ꔉOK
Function
30
1. Press the MENU button. Then, move to OPTION with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨ buttons to move to Monitor Out and
press the ◉OK button.
3. Press the ＜, ＞ button to select RGB1, RGB2 or Auto.
• Auto mode is the mode to output an image of currently seeing input
among RGB1 or RGB2 input.
• Press the BACK button to exit the menu screen.
Using Monitor out Function
1. Press the Q.MENU button on the remote control.
2. Press the ＜, ＞ buttons to move to Lamp mode.
3. Press the ＜, ＞ button to select Normal or Economic.
• This function is not available in 3D mode or when the lamp is over 35°C.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
To adjust the brightness of the screen
OPTION
Menu Language : English
Blank Image : Blue
Screen Capture
Lamp Mode : Normal
Monitor Out : RGB1
Set ID : 1
Network Setting
High Altitude : Off
3D Mode
ꔂMove ꔉOK
Lamp mode
Normal
1. Press the MENU button. Then, move to OPTION with
the ∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨ buttons to move to Screen Capture
and press the ◉OK button.
• It can only be elected when there is an input signal.
• It takes up to 2 minutes when capturing screen.
• Press the BACK button to exit the menu screen.
Screen Capture Function
OPTION
Menu Language : English
Blank Image : Blue
Screen Capture
Lamp Mode : Normal
Monitor Out : RGB1
Set ID : 1
Network Setting
High Altitude : Off
3D Mode
ꔂMove ꔉOK
* You can select either of the two RGB inputs.
Function
31
1. Press the MENU button. Then, move to OPTION with the ∧, ∨,
＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨ buttons to move to Set ID and press the ◉OK
button.
3. Press the ＜, ＞ button to select your desired number. Press the
◉OK button to save the selected number.
• The adjustment range of Set ID is 1~99.
• Only the projector with the specified ID number will operate from the
remote control.
• Press the BACK button to exit the menu screen.
OPTION
Menu Language : English
Blank Image : Blue
Screen Capture
Lamp Mode : Normal
Monitor Out : RGB1
Set ID : 1
Network Setting
High Altitude : Off
3D Mode
ꔂMove ꔉOK
SET ID
* Connect the serial port of the PC to the RS-232C jack on the projector back panel.
* RS-232C cable is not supplied with the projector.
* Use the RS232C cable to control the projector externally (Refer to Fig.1).
<Fig.1, RS-232 Interface Cable>
* 1, 9 Pin No Connection
2
3
4
5
6
7
8
RXD
TXD
DTR
GND
DSR
RTS
CTS
RXD
TXD
DTR
GND
DSR
RTS
CTS
2
3
4
5
6
7
8
PC
Projector
Communication Parameter Setup
•
Baud Rate : 9600bps(UART)
•
Data Length : 8bit
•
Parity : none
•
Stop bit : 1bit
•
Flow Control : none
•
Communication code : ASCII code
9 6
15
How to connect external control equipment
Function
32
Command Reference List
01.Power k a 0 ~ 1
02.Aspect Ratio k c *
03.Blank Image k d 0 ~ 1
04. Contrast k g 0 ~ 64
05. Brightness k h 0 ~ 64
06. Color k i 0 ~ 64
07.Tint k j 0 ~ 64
08. Sharpness k k 0 ~ 64
09. OSD Select k l 0 ~ 1
10. Remote Control Lock / Key Lock k m 0 ~ 1
11. Color Temp. k u 0 ~ 3
12.Lamp Mode n p 0 ~ 1
13. Auto Configure j u 1
14. Input Select x b *
15. Key m c Key code
Command 1 Command 2
Data
(Hexadecimal)
- Refer to the detailed information for data with [*] mark.
Communication Protocol
* Real data mapping 1
* Real data mapping 1
Real data mapping
-
-
-
1
1
1
2
1
-
-
-
-
-
-
-
Function
33
Transmission
[k] [a] [ ] [Set ID] [ ] [Data] [Cr]
Data 0 : Power Off
1 : Power On
Ack
[a] [ ] [Set ID] [ ] [OK] [Data] [x]
Data 0 : Power Off
1 : Power On
Data 0 : Power Off
1 : Power On
→ To show Power On/Off status.
Transmission
[k] [a] [ ] [Set ID] [ ] [FF] [Cr]
Ack
[a] [ ] [Set ID] [ ] [OK] [Data] [x]
* In like manner, if other functions transmit ‘0xFF’ data based
on this format, Acknowledgement data feed back presents
status about each function.
→ To control Power On/Off of the Projector.
Transmission
[k] [c] [ ] [Set ID] [ ] [Data] [Cr]
Data 1 : 4:3 2 : 16:9
4 : Zoom 6 : Set by Program
9: Just Scan 10: Cinema Zoom1
11: Cinema Zoom2 12: Cinema Zoom3
13: Cinema Zoom4 14: Cinema Zoom5
15: Cinema Zoom6 16: Cinema Zoom7
17: Cinema Zoom8 18: Cinema Zoom9
19: Cinema Zoom10 1A: Cinema Zoom11
1B: Cinema Zoom12 1C: Cinema Zoom13
1D: Cinema Zoom14 1E: Cinema Zoom15
1F: Cinema Zoom16
Ack
[c] [ ] [Set ID] [ ] [OK] [Data] [x]
→ To adjust the screen format.
01. Power (Command:ka)
02. Aspect Ratio
(Command:kc)
Data 1 : 4:3 2 : 16:9
4 : Zoom 6 : Set by Program
9: Just Scan 10: Cinema Zoom1
11: Cinema Zoom2 12: Cinema Zoom3
13: Cinema Zoom4 14: Cinema Zoom5
15: Cinema Zoom6 16: Cinema Zoom7
17: Cinema Zoom8 18: Cinema Zoom9
19: Cinema Zoom10 1A: Cinema Zoom11
1B: Cinema Zoom12 1C: Cinema Zoom13
1D: Cinema Zoom14 1E: Cinema Zoom15
1F: Cinema Zoom16
1. Transmission
*
[Command 1] : First command to control the set.(k, j, x, ASCII code, 1 Character)
*
[Command 2] : Second command to control the set..(ASCII code, 1 Character)
*
[Set ID] : You can adjust the set ID to choose desired projector ID number in special menu. See previous page.
Adjustment range is 1 ~ 99. When selecting Set ID ‘0’, every connected projector set is controlled.
Refer to ‘Real data mapping 1’.
*
[DATA] : To transmit command data. Transmit 2 character when organized ASCII code.
* Transmit ‘FF’ data to read status of command.
*
[Cr] : Carriage Return
ASCII code ‘0x0D’
*
[ ] : ASCII code character correspond to “Space Bar” which is in order to classify command, set ID and Data.
[Command1][Command2][ ][Set ID][ ][Data][Cr]
* The Projector transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is
data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.
[Command2] [ ] [Set ID] [ ] [OK] [Data] [x]
[Command2] [ ] [Set ID] [ ] [NG] [Data] [x]
3. Error Acknowledgement
2. OK Acknowledgement
* The Projector transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable
functions or communication errors.
Data : [1] : illegal code(This command is not supported.)
[2] : not support function(This function doesn’t work.)
[3] : wait and retry(Try again a few minute later.)
Function
34
Transmission
[k] [d] [ ] [Set ID] [ ] [Data] [Cr]
Data 0 : Screen Mute Off (Picture On)
1 : Screen Mute On (Picture Off)
Ack
[d] [ ] [Set ID] [ ] [OK] [Data] [x]
Data 0 : Screen Mute Off (Picture On)
1 : Screen Mute On (Picture Off)
→ To select screen mute on/off.
Transmission
[k] [g] [ ] [Set ID] [ ] [Data] [Cr]
Data Min : 0 ~ Max : 64
Ack
[g] [ ] [Set ID] [ ] [OK] [Data] [x]
Data Min : 0 ~ Max : 64
*
Refer to ‘Real data mapping 1’.
→ To adjust screen contrast.
Transmission
[k] [h] [ ] [Set ID] [ ] [Data] [Cr]
Data Min : 0 ~ Max : 64
Ack
[h] [ ] [Set ID] [ ] [OK] [Data] [x]
Data Min : 0 ~ Max : 64
*
Refer to ‘Real data mapping 1’.
→ To adjust screen brightness.
Transmission
[k] [ i ] [ ] [Set ID] [ ] [Data] [Cr]
Data Min : 0 ~ Max : 64
Ack
[ i ] [ ] [Set ID] [ ] [OK] [Data] [x]
Data Min : 0 ~ Max : 64
*
Refer to ‘Real data mapping 1’.
→ To adjust the screen color. (Video/Component)
03. Screen Mute
(Command:kd)
04. Contrast (Command:kg)
05. Brightness (Command:kh)
06. Color (Command:ki)
Transmission
[k] [k] [ ] [Set ID] [ ] [Data] [Cr]
Data Min : 0 ~ Max : 64
Ack
[k] [ ] [Set ID] [ ] [OK] [Data] [x]
Data Min : 0 ~ Max : 64
*
Refer to ‘Real data mapping 1’.
→ To adjust the screen sharpness.(Video/Component)
08. Sharpness (Command:kk)
Transmission
[k] [ j ] [ ] [Set ID] [ ] [Data] [Cr]
Data Red : 0 ~ Green : 64
Ack
[ j ] [ ] [Set ID] [ ] [OK] [Data] [x]
Data Red : 0 ~ Green : 64
*
Refer to ‘Real data mapping 1’.
→ To adjust the screen tint.(Video/Component 60Hz or
NTSC signal)
07. Tint (Command:kj)
Function
35
Transmission
[k] [m] [ ] [Set ID] [ ] [Data] [Cr]
Data 0 : Lock Off
1 : Lock On
Ack
[m] [ ] [Set ID] [ ] [OK] [Data] [x]
Data 0 : Lock Off
1 : Lock On
→ To lock the front panel controls on the
projector and remote control.
* If you're not using the remote control, use this mode.
When main power is On/Off, external control lock is
released.
Transmission
[k] [u] [ ] [Set ID] [ ] [Data] [Cr]
Data 0 : Normal 1 : Cool 2:Warm 4 : Natural
Ack
[u] [ ] [Set ID] [ ] [OK] [Data] [x]
Data 0 : Normal 1 : Cool 2:Warm 4 : Natural
→ Adjust the color temperature. But, color temperature cannot
be adjusted if video mode is set to bright or golf.
Transmission
[k] [ l ] [ ] [Set ID] [ ] [Data] [Cr]
Data 0 : OSD Select Mode Off
1 : OSD Select Mode On
Ack
[ l ] [ ] [Set ID] [ ] [OK] [Data] [x]
Data 0 : OSD Select Mode Off
1 : OSD Select Mode On
→ To select OSD On/Off.
09. OSD Select
(Command:kl)
10. Remote Control Lock/Key Lock
(Command:km)
11. Color Temperature (Command:ku)
Transmission
[ n ] [p] [ ] [Set ID] [ ] [Data] [Cr]
Data 0: Low Power Off
1 : Low Power On
Ack
[p] [ ] [Set ID] [ ] [OK] [Data] [x]
Data 0: Low Power Off
1 : Low Power On
→ To reduce the power consumption of the projector.
Transmission
[ j ] [u] [ ] [Set ID] [ ] [Data] [Cr]
Data 1: To set
Ack
[u] [ ] [Set ID] [ ] [OK] [Data] [x]
Data 1: To set
→ To adjust picture position and minimize image shaking
automatically. It works only in RGB mode.
Transmission
[x] [b] [ ] [Set ID] [ ] [Data] [Cr]
Data 20 : Video 40 : Component1
41 : Component2 60 : RGB1
61 : RGB2 90 : HDMI
Ack
[b] [ ] [Set ID] [ ] [OK] [Data] [x]
Data 20 : Video 40 : Component1
41 : Component2 60 : RGB1
61 : RGB2 90 : HDMI
→ To select input source for the Set.
12.
Lamp Mode
(Command:np)
13. Auto Configure
(Command:ju)
14. Input Select
(Command:xb)
Function
36
Transmission
[m] [c] [ ] [Set ID] [ ] [Data] [Cr]
Data Key code
Ack
[c] [ ] [Set ID] [ ] [OK] [Data] [x]
→
To send Key code of IR romote control.
15.Key (Command:mc)
POWER
INPUT
3D
L/R
∧
∨
＞
＜
◉
OK
VOL ∧
VOL ∨
MUTE
USB
PAGE ∧
PAGE ∨
RATIO
MENU
AUTO
Q.MENU
MARK
SLEEP
BACK
STILL
KEYSTONE
ZOOM
TIMER
BLANK
AD
EF
DC
DD
40
41
06
07
44
02
03
09
7C
00
01
79
43
92
45
1E
0E
28
BC
A4
5C
26
84
Function
37
Network Setup
< NOTICE >
▪ Use a standard LAN cable with this Projector. Cat5 or better with a RJ45 connector.
▪ Many network connection problems during set up can often be fixed by re-setting the router or modem. After con-
necting the player to the home network, quickly power off and/or disconnect the power cable of the home network
router or cable modem. Then power on and/or connect the power cable again.
▪ A 10 Base-T or 100 Base-TX LAN port is required for connection to this Projector. If your internet service does not
allow for such a connection, you will not be able to connect the Projector.
▪ To connect to the wireless router, a router that supports wireless connection is necessary, and the wireless connection
function of the corresponding router must be activated.
▪ To connect to a wireless router, verify the SSID and security setting of the wireless router. Please refer to the user
guide of the corresponding router for SSID and security setting of the wireless router.
▪ When Ad-hoc is used, it may not be able to connect according to the device (for example : notebook computer) that
is connected.
▪ The connection method may vary according to the manufacturer of the wireless router.
< How to connect >
Connect the LAN of the projector and the LAN port
of the PC or network with a LAN cable (Cross cable).
LAN Cable
LAN
AUDIO
IN
LAN
AUDIO
IN
< PC >
LAN Cable
< Router >
Connecting PC
USB
38
INFORMATION Menu Options
1. Press the MENU button. Then, move to INFORMATION with
the ∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2. You can see the current information of the projector.
• Press the BACK button to exit the menu screen.
To See The Projector Information
INFORMATION
Model Name : BX327-JD
Lamp Time : 12 Hr
Input : RGB1
Resolution : 1024 x 768
Fh/Fv : 48.36 Khz/60 Hz
IP Address : 223.212.145.0
1. Press the MENU button. Then, move to OPTION with the ∧,
∨, ＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨ buttons to move to High Altitude and press
the ◉OK button.
3. Press the ＜, ＞ buttons to move to On and press the ◉OK
button.
• Press the BACK button to exit the menu screen.
High Altitude Mode
* High Altitude Mode is used when the environment is higher than 1200 meters.
OPTION
Menu Language : English
Blank Image : Blue
Screen Capture
Lamp Mode : Normal
Monitor Out : RGB1
Set ID : 1
Network Setting
High Altitude : Off
3D Mode
ꔂMove ꔉOK
< How to use >
1. Press the MENU button. Then, move to OPTION with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨ buttons to move to Network Setting and
press the ◉OK button.
3. Press the ＜, ＞ buttons to move to On of LAN option.
4. Press the ∧, ∨ buttons to move to IP Auto Setting or IP Manual Setting
press the ◉OK button.
• In most cases, you should select Auto. If you are using a router it will automatically
set the IP address.
• Select IP Manual Setting for ordinary PC.
- Setting PC: Set the Internet Protocol (TCP/IP) of the PC at your own discretion.
Setting Projector: Set IP Address as the IP Address format of PC, and select Close
after entering the Gateway as the same Gateway of PC. Please refer to eZ-Net
Manager Guide for details of network setting.
:: example ::
IP Address Subnet Mask Gateway
PC 192.168.0.10 255.255.255.0 192.168.0.1
Projector 192.168.0.254 255.255.255.0 192.168.0.1
• If Network Setting is not working, check your network conditions. Check the LAN cable connection.
• If the Network Setting is not completed, network functions may not operate normally.
• IP Auto Setting: Select it if there is a DHCP (Dynamic Host Configuration Protocol) server on the local area network
(LAN) via wired connection, the Projector will automatically be allocated an IP address. The IP
address will automatically be determined. Connection to DHCP may not be possible when the fire-
wall is installed or according to the model of the computer.
IP Manual Setting: Select it if there is no DHCP server on the network and you want to set the IP address manually.
• Press the BACK button to exit the menu screen.
< When select IP Manual Setting >
IP Address
ꔌ
1 9 2 1 6 8 0 0 0 2 5 4
ꔍ
Subnet Mask
2 5 5 2 5 5 2 5 5 0 0 0
Gateway
1 9 2 1 6 8 0 0 0 0 0 1
Close
ꔁMove ꔉOK
OPTION
Menu Language : English
Blank Image : Blue
Screen Capture
Lamp Mode : Normal
Monitor Out : RGB1
Set ID : 1
Network Setting
High Altitude : Off
3D Mode
ꔂMove ꔉOK
Close
IP Auto Setting
IP Manual Setting
Network does not exist.
Do you want to reset?
LAN
ꔗ
Off
ꔃ
USB
39
* When you connect a USB device, this screen is displayed, automatically.
In USB device, you can not add a new folder or delete the existing folder.
Connecting the USB device
1. Connect the USB device to the USB jack on the back of the set.
2. It turns automatically to DivX Home Menu.
* Select “Eject” in order to eject a USB device.
Eject USB
Precautions when using the USB device
USB memory stick
PHOTO LIST
MUSIC LIST
MOVIE LIST FILE VIEWER
1. Press the Q.MENU button on the remote control.
2. Press the ＜, ＞ buttons to move to USB Device.
3. Press the ◉OK button on the remote control.
• After Eject USB, USB memory cannot be read. Remove USB memory, and connect
again.
• Press the BACK button to exit the menu screen.
USB Device
Eject ꔉ
► Only a USB storage device is recognizable.
► If the USB storage device is connected through a USB hub, the device is not recognizable.
► A USB storage device using an automatic recognition programmed may not be recognized.
► A USB storage device which uses its own driver may not be recognized.
► The recognition speed of a USB storage device may depend on each device.
► Please do not turn off the projector or unplug the USB device when the connected USB storage device is working. When
such device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged.
► Please do not connect the USB storage device which was artificially maneuvered on the PC. The device may cause the
product to malfunction or fail to be played. Never forget to use only a USB storage device which has normal music files,
image files, movie files or text files.
► Please use only a USB storage device which was formatted as a FAT16, FAT32 and NTFS file system provided with the
Windows operating system. In case of a storage device formatted as a different utility programmed which is not support-
ed by Windows, it may not be recognized.
► Please connect power to a USB storage device which requires an external power supply. If not, the device may not be rec-
ognized.
► Please connect a USB storage device with cable is offered by USB maker. If connected with cable is not offered by USB
maker or an excessively long cable, the device may not be recognized.
► Some USB storage devices may not be supported or operated smoothly.
► If the name of a folder or file is too long, it will not be displayed or recognized.
► File alignment method of USB storage device is similar to Window XP and filename can recognize up to 100 English
characters.
► Please backup the important file because a data of USB device may be damaged. Data management is consumer's
responsibility and in consequence the manufactures does not cover the product bearing data damage.
► The recommended capacity is 1TB or less for a USB external hard disk and 32GB or less for USB memory. Any device
with more than the recommended capacity may not work properly.
► Only the FAT32 file system supports the delete function.
► If the USB memory device does not work properly, disconnect and reconnect it.
► If a USB external hard disk with a “Energy Saving” function does not work, turn the hard disk off and on again to make it
work properly.
► USB storage devices below USB 2.0 are supported as well. But they may not work properly in the movie list.
► If your USB memory device has multiple partitions, or if you use a USB multi-card reader, you can use up to 4 partitions
or USB memory devices.
► How fast a USB memory device is detected differs from device to device.
► If the USB is connected in Standby Mode, specific hard disk will automatically be loaded when the projector is turned on.
► Some USB storage devices may not be supported or operated smoothly.
USB
To use the USB device
* Image shown may differ from your projector.
USB
40
ꔂ
Navigation
ꔉ
PopUp Menu
꘧
Page Change
ꘁ
Mark
ꕉ
Exit

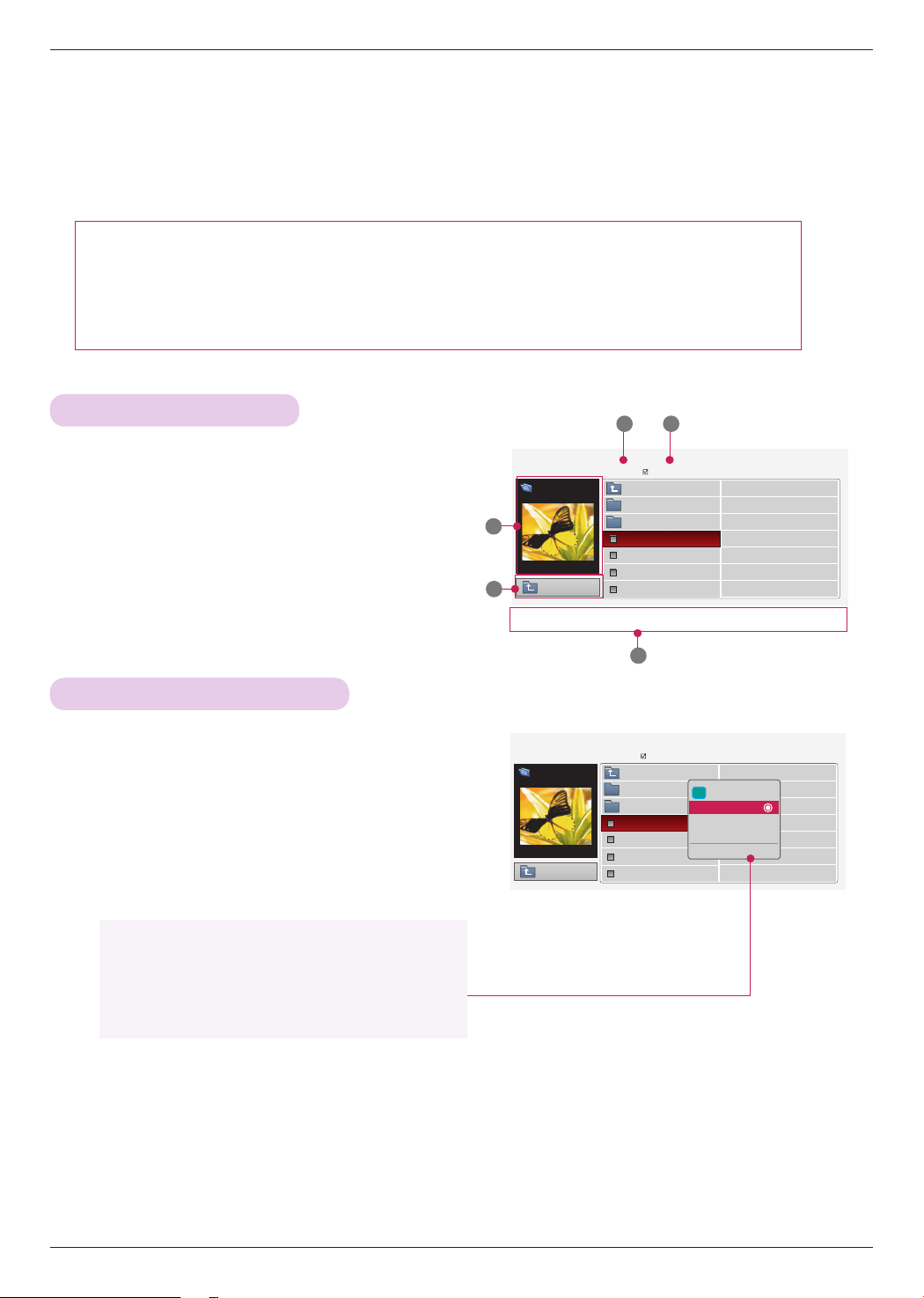

PHOTO LIST
* It is available to playback the photo file(*.jpg) in the USB device.
The On Screen Display may be different from your set. Images are an example to assist with the projector operation.
PHOTO(*.JPEG) supporting file
Baseline : 64 x 64 ~ 15360 x 8640
Progressive : 64 x 64 ~ 1920 x 1440
• You can play JPEG files only.
• Non-supported files are displayed in the form of predefined icon.
Screen Components
Photo Selection and Popup Menu
1. Moves to upper level file
2. Preview: Display the thumbnail/folder name of the photo
in the selected folder
3. Current page/Total pages
4. Total number of marked photos
5. Corresponding buttons on the remote control
1. Press the USB button. Then, move to PHOTO LIST with
the ＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨, ＜, ＞ buttons to move to a desired
photo file and press the ◉OK button.
3. Move to a desired item with the ∧, ∨ buttons and then
press the ◉OK button.
• If the picture file is damaged, it may not be displayed properly.
• High resolution pictures may take longer time to display on the entire screen.
Page 1/1
No Marked
PHOTO LIST
1366
x
768 125KB
ꔂ
Navigation
ꔉ
PopUp Menu
꘧
Page Change
ꘁ
Mark
ꕉ
Exit
Butterfly
Up Folder
X.Box
DSC0001
DSC0002
DSC0003
DSC0004
2
1
3 4
5
Page 1/1
No Marked
PHOTO LIST
Up Folder
1366
x
768 125KB
[090704]
Butterfly
Up Folder
X.Box
DSC0001
DSC0002
DSC0003
DSC0004
i 1366x768, 125KB
View
Mark All
Delete
Close
• View: Display the selected item.
• Mark All: Mark all photos on the screen.
• Delete: Delete the selected photo item.
• Close: Close the pop-up menu.
[090704]
Up Folder
USB
41
Full Screen Menu
1. Press the USB button. Then, move to PHOTO LIST with the
＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨, ＜, ＞ buttons to move to desired photo and
press the ◉OK button.
3. Press the ∧, ∨ buttons to move to View and press the ◉OK
button.
4. The selected photo is displayed in full size and show up the
menu.
5. Use ∧, ∨, ＜, ＞ button to select and control the menu on
the full-sized screen.
Slideshow BGM Delete Option Hide
• Use ＜, ＞ button to select the previous or next photo.
• Slideshow: Selected photos are displayed during the slide show. If no photo is selected, all photos in
the current folder are displayed during slide show.
- Set the time interval of the slide show in Option.
• BGM: Listen to music while viewing photos in full size.
- Set the BGM device and album in Option.
•
(Rotate): Rotate photos.
• Delete: Delete photos.
• Option: Set values for Slide Speed and Music Folder.
- You cannot change Music Folder while BGM is playing.
• Hide: Hide the menu on the full-sized screen.
- To see the menu again on the full-sized screen, press ◉OK button to display.
USB
42
ꔂ
Navigation
ꔉ
PopUp Menu
꘧
Page Change
ꘁ
Mark
ꕉ
Exit
MUSIC LIST
* You can use the Music List menu to play MP3 files form a USB storage device.
The On Screen Display on your model may be slightly different.
1. Moves to upper level file
2. Preview: Display the title/folder name of the music in
the selected folder
3. Current page/Total pages
4. Total number of marked music
5. Corresponding buttons on the remote control
Page 1/1
No Marked
MUSIC LIST
ꔛ 00:00 / 05:42
Drive 1
Flower
Up Folder
Oblivious
Flower
05:24
05:42
2
1
3 4
MUSIC (*.MP3) supporting file
Bit rate range 32 Kbps ~ 320 Kbps
• Sampling rate MPEG1 Layer3 : 32kHz, 44.1kHz, 48kHz
• Sampling rate MPEG2 Layer3 : 16kHz, 22.05kHz, 24kHz
• Sampling rate MPEG2.5 Layer3 : 8kHz, 11.025kHz, 12kHz
5
Up Folder
Music Selection and Popup Menu
1. Press the USB button. Then, move to MUSIC LIST with
the ＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨, ＜, ＞ buttons to move to a desired
music file and press the ◉OK button.
3. Move to a desired item with the ∧, ∨ buttons and then
press the ◉OK button.
Page 1/1
No Marked
MUSIC LIST
Up Folder
ꔛ 00:00 / 05:42
Drive 1
Arirang
Up Folder
Good Bye
Arirang
05:30
04:12
i
3945 KB,128 Kbps
Play
Play with Photo
Mark All
Delete
Close
• Play: Once a song finishes playing, the next selected one will be played. When there are no selected
music to play, the next one in the current folder will be played. If you go to a different folder and
press the ◉OK button, the current music in playback will stop.
When music is playing,
is displayed in front of the music play time.
After certain time elapsed,the full music list screen disappears and the playback information
screen which is on the top of the music list runs as a screen saver. Press ◉OK, ▇ , or BACK
button to stop the screen saver.
A damaged or corrupted music file that does not play displays 00:00 as the play time.
Music files with copy-protection will not play.
• Play with Photo: Start playing the selected music and then move to the PHOTO LIST.
• Mark All: Mark all music in the folder.
• Delete: Delete the selected music.
• Close: Close the pop-up menu.
ꔂ
Navigation
ꔉ
PopUp Menu
꘧
Page Change
ꘁ
Mark
ꕉ
Exit
Title Duration
Title Duration
Screen Components
USB
43
MOVIE LIST
* The movie list is activated once USB is detected. It is used when playing movie files on projector.
Supported Movie File
Extension name Video Codec Audio Codec
Max Resolution
mpg, mpeg, vob MPEG1, MPEG2 Dolby Digital,MPEG,MP3,LPCM
1920x1080
@30p
dat MPEG1 Dolby Digital,MPEG,MP3,LPCM
ts,trp,tp MPEG2, H.264/AVC Dolby Digital,AAC,MPEG
mp4
MPEG4 SP, MPEG4 ASP, Divx 3.11, Dvix 4.12, Dvix 5.x
Dvix 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03
Xvid 1.10–beta 1, Xvid 1.10-beta 2, H.264/AVC
Dolby Digital,HEAAC,
AAC,MPEG,MP3,LPCM
avi
MPEG 2, MPEG 4 SP, MPEG4 ASP, Divx 3.11, Divx 4
Divx 5, Divx 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03
Xvid 1.10–beta 1, Xvid 1.10–beta 2, H.264/AVC
Dolby Digital,HEAAC,AAC,MPEG,
MP3,LPCM
mkv H.264/AVC, MPEG 1, MPEG 2, MPEG 4 SP, MPEG4 ASP Dolby Digital,HEAAC,AAC,MPEG,MP3,LPCM
divx
MPEG 2, MPEG 4 SP, MPEG4 ASP, Divx 3.11, Divx 4
Divx 5, Divx 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03
Xvid 1.10–beta 1, Xvid 1.10–beta 2, H.264/AVC
Dolby Digital,HEAAC,AAC,MPEG,
MP3,LPCM
Bit rate range : within 32 kbps ~ 320 kbps (MP3)
Subtitle format : *.smi/*.srt/*.sub(MicroDVD, SubViewer1.0/2.0)/*.ass/*.ssa/*.txt(TMPlayer)/*.psb(PowerDivx)
USB
44
Precautions when playing the DivX
► A DivX movie file and its subtitle file must be located in the same folder.
► At this time, a movie file name and its subtitle file name must be identical for it to be displayed.
► Specific subtitles created by the user may not be operated normally.
► Some special characters are not supported in subtitles.
► HTML tags are not supported in subtitles.
► Subtitles in languages other than the supported languages are not available.
► Time information in an external subtitle file should be arranged in ascending order to be played.
► Damaged movie files may not be played, and certain functions could be limited during the playback.
► Certain video files created with an encoder may not be played.
► If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.
► Video with resolution higher than maximum resolution supported for each frame, cannot be guaranteed for smooth
playback.
► DTS Audio codec is not supported.
► Playback for movie file exceeding 30 GB (Giga Byte) is not supported.
► Playing a video through a USB connection that doesn’t support high speed may not work properly.
► When watching a video using MOVIE LIST, the function to ajdust screen deos not work.
► The screen may suffer temporary interruptions (image stoppage, faster playback, etc.) when the audio language is
changed.
► Movie files other than the specified types and formats may not work properly.
► Max bitrate of playable movie file is 20Mbps.
► Files encoded with GMC(Global Motion Compensation) may not be played.
► When you are watching the movie by Movie List function, user setup for each image mode does not operate.
► Only the files saved in ASCII CODE is supported for the external subtitles of the movie.
► Only 500 alphabets and 500 numbers are supported for each line of the subtitle.
► Only 10000 of sync blocks can be supported within the subtitle file.
ꔈ ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that
plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.
ꔈ ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-
Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go
to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.
ꔈ "DivX Certified® to play DivX® video up to HD 1080p, including premium content"
ꔈ "Pat. 7,295,673; 7,460,688; 7,519,274
Manufactured under license from Dolby Laboratories. “Dolby “and the double-D symbol are trademarks of
Dolby Laboratories.
USB
45
1. Moves to upper level folder
2. Preview: Display the title/folder name of the movie in the
selected folder
3. Current page/Total pages
4. Total number of marked movies
5. Corresponding buttons on the remote control
Up Folder
Page 1/1
No Marked
MUSIC LIST
704 x 396 668 MB
Movie
Up Folder
Up Folder
Page 1/1
No Marked
MUSIC LIST
704 x 396 668 MB
Movie
Up Folder
Movie Selection and Popup Menu
Screen Components
2
3 4
5
1
i
704 x 396 668 MB
Play
Mark All
Delete
Close
1. Press the USB button. Then, move to MOVIE LIST with
the ＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨, ＜, ＞ move to a desired movie file and
press the ◉OK button.
3. Move to a desired item with the ∧, ∨ buttons and then
press the ◉OK button.
• Play: Play the selected movie titles.
- In the case of files not supported, a message regarding non-supported file is displayed.
- The screen is played, but when the audio file is not supported, the following message shows.
• Mark All: Mark all movies in the folder.
• Delete: Delete the selected movie.
• Close: Close the pop-up menu.
i
This file is invalid.
i
Unsupported Audio.
ꔂ
Navigation
ꔉ
PopUp Menu
꘧
Page Change
ꘁ
Mark
ꕉ
Exit
ꔂ
Navigation
ꔉ
PopUp Menu
꘧
Page Change
ꘁ
Mark
ꕉ
Exit
Title Duration
Title Duration
USB
46
Option Menu Selection
Playing the Movie
1. Press the USB button. Then, move to MOVIE LIST with
the ＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨, ＜, ＞ move to a desired movie file and
press the ◉OK button.
3. Press the ∧, ∨ buttons to move to Play and press the
◉OK button.
On MOVIE LIST play mode.
Press the (RED) button on the remote control.
* You can adjust various method during the movie play.
◆ Use of remote control
ꔈ
Press the ▶II (Play/Pause) button to play/pause the screen.
ꔈ
Press the ▇ (Stop) button to stop.
ꔈ
Press the I◀◀ (Skip -) button to play the previous movie.
ꔈ
Press the ▶▶I (Skip +) button to play the next movie.
ꔈPicture Size: Select the Full or Original screen size.
ꔈPicture Mode: Select the Vivid, Standard, Cinema, Sport or Game.
ꔈ Audio Language: Select Language Group of the audio during movie play.
ꔈ Subtitle Language: Select Language Group of the subtitle during movie play. Subtitle
language option can be differ according to choice of the language
for menu.
- Sync: When the video is not synchronized with the caption, it can be adjusted by the
unit of 0.5 second.
- Position: Move the location of the subtitle.
Picture Size
Picture Mode
Audio Language
Subtitle Language
Sync
Position
ꔗ
Full
ꔃ
Standard
Latin1
0
0
Close
Full
Option
Subtitle Language Group Supported Language
Latin1
French, Spanish, Catalan Basque, Portuguese, Italian, Albanian, Rhaeto-Romanic, Dutch, German,
Danish, Swedish, Norwegian, Finnish, Faeroese, Icelandic, Irish, Scottish, English
Latin2
Czech, Hungarian, Polish, Romanian, Croatian, Slovak, Slovenian, Servian
Latin4
Estonian, the Baltic languages Latvian(Lettish)and Lithuanian, Greenlandic and Lappish
Latin5
English, Turkish
Cyrillic
Bulgarian, Byelorussian, Macedonian, Russian, Serbian and pre-1990 (no ghe with upturn)Ukrainian
Greek
English, modern Greek
Hebrew
English, modern Hebrew
Chinese
Chinese
Korean
English, Korean
Arabic
English, Arabic
USB
47
To See The DivX Registration Code
1. Press the MENU button. Then, move to USB with the ∧, ∨, ＜, ＞
buttons and press the ◉OK button.
2. Press the ∧, ∨ buttons to move to DivX Reg. Code and press the
◉OK button.
3. You can see the DivX registration code of the projector.
• With a DivX registration code from other projector, playback of rented
or purchased DivX file is not allowed. (Only DivX files matched with the
registration code of the purchased projector are playable.)
• The video or audio of a file converted based on a standard other than the DivX codec standard may be corrupted
or unable to be played.
• Press the BACK button to exit the menu screen.
* Confirm the DivX registration code number of the projector.
Using the registration number, movies can be rented or purchased at www.divx.com/vod.
Deactivation Function
1. Press the MENU button. Then, move to USB with the ∧, ∨, ＜, ＞
buttons and press the ◉OK button.
2. Press the ∧, ∨ buttons to move to Deactivation and press the
◉OK button.
3. Move to a desired item with the ＜, ＞ buttons and then press the
◉OK button.
• DRM (Digital Rights Management) function:
These are the technology and the service that prevents the illegal use of digital contents to protect the copyrights
owners’ benefits and rights. File can be played after the license is cleared through the methods of online, etc.
• Press the BACK button to exit the menu screen.
* Delete the existing authentication information to receive a new DivX user authentication for projector. Once this function is
executed, a DivX user authentication is required again to see DivX DRM files.
USB
PHOTO LIST
MUSIC LIST
MOVIE LIST
FILE VIEWER
DivX Reg. Code
Deactivation
USB
PHOTO LIST
MUSIC LIST
MOVIE LIST
FILE VIEWER
DivX Reg. Code
Deactivation
ꔂMove ꔉOK
ꔂMove ꔉOK
USB
48
FILE VIEWER
Screen Components
1. Moves to upper level file
2. Preview: Display the title/folder name of the file in
the selected folder
3. Current page/Total pages
4. Corresponding buttons on the remote control
Page 1/1
FILE VIEWER
Drive 1
Requiem 2 story.txt
Title Date
Up Folder
information.ppt
Requiem 2 story.txt
2
1
3
4
Up Folder
ꔂ
Navigation
ꔉ
PopUp Menu
꘧
Page Change
ꕉ
Exit
Supported File : XLS, DOC, PPT, TXT, XLSX, PPTX, DOCX, PDF
• Microsoft Office Version 97 / 2000 / 2002 / 2003 / 2007
• Adobe PDF Version 1.0 / 1.1 / 1.2 / 1.3 / 1.4
- File Viewer realigns the document, so it may look different from the PC.
- For the documents that include images, the resolution may look lower during the realigning process.
- If the document volume is big or it has many pages, the loading may take long time.
- For some fonts that are not supported, they may be replaced with other fonts.
View File
1. Press the USB button. Then, move to FILE VIEWER
with the ＜, ＞ buttons and press the ◉OK button.
2. Press the ∧, ∨, ＜, ＞ move to a desired file and press
the ◉OK button.
Menu Go Page Zoom Hide
• Use Page
∧, ∨
button to move the previous or next page.
• Go Page: Move to a desired page.
1. Move to Go Page with ＜, ＞ buttons and press ∧ button.
2. Press the ∧, ∨, ＜, ＞ buttons select a desired page and press the ◉OK button.
• Zoom: Zoom in or zoom out.
1. Move to Zoom with ＜, ＞ buttons and press ∧ button.
2. Press the ＜, ＞ buttons select a desired page and press the ◉OK button.
• Hide: Close the menu.
- To see the menu again on the full-sized screen, press MENU button to display.
0 3 /14 page
100 % - + horizontal array vertical array
◉OK
Information
49
Supported Monitor Display
* The following table lists the display formats supported by the projector.
* If the projector does not support the input signal, “Invalid Format”
message appears on the screen.
* The projector supports DDC1/2B type as Plug & Play function. (Auto
recognition of PC monitor)
* PC synchronization signal types supported :Separate type synchroni-
zation.
* To get the the best picture quality, adjust the PC graphics card to
1024x768.
* Cable type
1- RGB to Component Cable
2- HDMI Cable
< DVD/DTV Input >
Information
Signal Component-*1 HDMI-*2
NTSC (60 Hz)
480i O X
480p O O
720p O O
1080i O O
1080p O O
PAL (50 Hz)
576i O X
576p O O
720p O O
1080i O O
1080p O O
24 / 30 Hz 1080p
O O
50 / 60 Hz 1080p
O O
Cleaning the lens
If there is any dust or stain on the surface of the lens, you must always clean the lens. Use an air spray or cleaning cloth
to lightly clean the product. Please use a recommended air spray or lens cleaning product.To clean lens, small amount of
cleaning agent on a swab or a soft cloth and rub on the lens. Please be aware that liquid may flow pass through the lens
if the product is sprayed on lens directly.
Cleaning the Projector Case
To clean the projector case, first unplug the power cable. To remove dirt or dust, wipe the casing with a soft, dry, lint-free cloth.
To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral detergent and then wipe the casing.
Do not use alcohol, benzene, thinners or other chemical detergents as these can cause the casing to be warped or discolored.
* The projector needs little maintenance. You should keep the lens clean because any dirt or stains may appear on the
screen. If any parts need to be replaced, contact your dealer. When cleaning any part of the projector, always turn the
power off and unplug the projector first.
Maintenance
Format
Vertical Freq.(Hz) Horizontal Freq.(kHz)
Information
50
The change interval of lamp may depend on the use environment of
Projector. You can see the used lamp time in the Lamp Time section of
the Menu.
You must replace the lamp when:
* The projected image gets darker or starts to deteriorate.
* The lamp indicator is red.
* The message “Replace the lamp” appears on the screen when
turning the projector on.
- Press the POWER button on the control panel or remote control to turn off power.
- If the operation indicator LED is orange and blinking, do not disconnect the main supply until the operation
indicator LED
is lit up constantly (orange).
- Allow the lamp to cool for 1 hour before replacing it.
- Replace only with the same type lamp from an LG Electronics Service Center. Using another manufacturers lamp
may cause damage to the Projector and lamp.
- Pull out the lamp only when replacing the lamp.
- Keep the lamp unit out of reach of children. Keep the Lamp away from heat sources such as radiators, stoves etc.
- To reduce the risk of fire do not expose the lamp to liquids or foreign materials.
- Do not place the lamp near any heat source.
- Make sure the new lamp is securely tightened with screws. If not, the image may be dark or there could be an
increased risk of fire.
- Never touch the lamp unit glass otherwise image quality may be compromised or lamp life maybe reduced.
Dispose of the used lamp by returning it to the LG Electronics Service Center.
Lamp model number is on page 54. Check the lamp model and then purchase it from an LG
Electronics Service Center.
Using another manufacturers lamp may cause damage to the projector.
Lamp indicators
<Front panel of the Projector>
Lamp Replacement
Be careful when replacing lamp
To obtain a replacement Lamp unit
Lamp unit disposal
Operation Indicator
/ Temperature
Indicator
Replacing the Lamp
Information
51
Turn off the projector and unplug the power cable.
Carefully place on a cushioned surface.
(Allow the lamp to cool for 1 hour before
removing the used lamp from the projector.)
After lifting the lamp cover off, remove the two
retaining screws on the lamp case with a
screwdriver.
1
3
2
6
Insert the new lamp gently into the correct
position.
Make sure it is inserted correctly.
7
Tighten the screws you removed in step 3.
(Make sure they are fixed firmly.)
8
Close the lamp cover and install the screws
from step 2 to install the cover.
(If the lamp cover is not installed correctly the
unit will not power on.)
Screws
Lift the lamp up from the projector.
4
Using another manufacturers lamp may cause damage to the projector or lamp.
Make sure the lamp cover is securely fastened. If the lamp cover is not installed correctly the
unit will not power on. If this fault persists contact an LG Authorized Service Center.
Knob
5
Pull out the handle slowly and remove the lamp
case.
Unscrew the screw from the lamp cover using
a screwdriver.
Lamp case screw
Information
52
Prepare the lens cap and the strap supplied as
accessories.
Insert the non-knot end of the strap into the
hole at the bottom of the lens section of the
projector.
Fix the strap at the hole of the projector into the
hole of the lens cap, and then pass the lens cap
through the strp lasso.
1
3
2
They are completely assembled as shown at
the below figure.
4
How to fix the lens cap
Regarding the projector lamp control
* Don’t turn off the projector at least in 5 minutes after activating it.
- The frequent On/Off changes may cause the lamp function to deteriorate.
* Don’t pull out the power cord while activating the projector and the cooling fan.
- It may cause the lamp life-span to shorten and get damaged.
* The life-span of projector may considerably depend on the use environment and treatment conditions.
* The projector uses the high pressure mercury lamp so that the serious caution is essential. The shock or
abuse while using may cause lamp to blow off with explosion.
* When you continue to use the projector after an interval of lamp replacement, the lamp may be blown off with
explosion.
* The following treatment should be done, in case of lamp blow-off.
- Pull off the power cord immediately.
- Let some fresh air in immediately (Ventilation).
- Check the product condition at the nearer service center and replace it with new lamp, if necessary.
- Don’t try to disassemble the product without the authorized technician.
WARNING
How to fix the lens cap to the projector
Information
53
MEMO
Information
54
Specifications
MODEL
BX327 (BX327-JD)
Resolution 1024 (Horizontal) x 768 (Vertical) pixel
Horizontal / Vertical Ratio 4:3 (horizontal:vertical)
Panel size (mm) 13.97
Projection distance
(Screen size)
1.6m ~ 10m (101.6cm ~ 635.0cm)
Projection Offset 115 %
Remote control distance 6 m
Video compatibility NTSC/PAL/SECAM/NTSC4.43/PAL-M/PAL-N/PAL-60
Power AC 100 - 240V~50/60Hz, 3.0A
Audio Output 5W + 5W
Height (mm) 90.5 (with foot), 80 (without foot)
Width (mm) 291.5
Length (mm) 260
Weight (kg) 3.5
USB Device 5 V, 0.5 A (max)
Operating Condition
Temperature
In operation : 0°C ~ 40°C
In storage and transit : -20°C ~ 60°C
Humidity
In operation : 0 % ~ 80% relative humidity
Not in operation : 0 % ~ 85% relative humidity
Projector Lamp
Lamp model
AJ-LBX3A
Lamp power consumption
230W
Information
55
Open Source Software Notice
The following GPL executables and LGPL, MPL libraries used in this product are subject to the
GPL2.0/LGPL2.1/MPL1.1 License Agreements:
GPL EXECUTABLES:
Linux kernel 2.6, busybox, lzo, u-boot
LGPL LIBRARIES:
uClibc
MPL LIBRARIES:
nanox
LG Electronics offers to provide source code to you on CD-ROM for a charge covering the cost of
