Model Name/Nombre de Modelo **= color number/número de color
LBC20514**
LBC22520**
P/No. MFL61944134
OWNER’S MANUAL
BOTTOM FREEZER
REFRIGERATOR
Please read this manual carefully before operating
your set and retain it for future reference.
MANUAL DE USUARIO
REFRIGERADOR
CON CONGELADOR INFERIOR
Lea detenidamente este manual antes
de empezar a utilizar el refrigerador y guárdelo
como referencia para el futuro.
LDC22720**
LRBC20512**
ENGLISH ESPAÑOL
www.lg.com
1
Visit our web site http://www.lg.com LG Electronics
LIMITED WARRANTY
United States of America
LG Electronics will repair or at its option replace, without charge, your product which proves to be defective
in material or workmanship under normal use during the warranty period listed below from the date of original
purchase.
This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the
U.S. including Alaska, Hawaii, and U.S. Territories.
LG Refrigerator / Freezer Warranty Period
Product Parts Labor
Refrigerator / Freezer 1 year 1 year [In-Home Service (Except Model GR-051)]
Sealed System
(Compressor, Condenser, Evaporator)
7 years 1 year [In-Home Service (Except Model GR-051)]
No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING
THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY
HEREIN. LG ELECTRONICS SHALL NOT BE LIABLE FOR THE LOSS OF USE OF THE PRODUCT, INCONVENIENCE
OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF OR INABILITY TO USE
THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED
WARRANTY OF MERCHANTABILITY APPLICABLE TO THIS PRODUCT.
Some States do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an
implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specic legal rights
and you may also have other rights which vary from state to state.
THE ABOVE WARRANTY DOES NOT APPLY TO:
1. Service trips to your home to deliver and pickup, install, instruct, or replace house fuses or correct house wiring or
plumbing, or correction of unauthorized repairs.
2. Damage to the product caused by accident, pests, re, oods, or acts of God.
3. Repairs when your LG product is used in other than normal, single-family household use.
4. Damage resulting from accident, alteration, misuse, abuse, or improper installation.
5. Damages caused during and/or after delivery.
6. Display, discount, or refurbished units purchased with scratches, dents, or defects.
Proof of purchase is required and must be provided to LG in order to validate warranty.
Therefore, these costs are paid by the consumer.
If the product is installed outside the normal service area, any cost of transportation involved in the repair of the product,
or the replacement of defective parts, shall be borne by the owner.
CUSTOMER ASSISTANCE NUMBERS:
To obtain Warranty Coverage: Retain your Bill of Sale to prove date of purchase.
A Copy of your Sales Receipt must be submitted at the time warranty service is
provided.
To obtain Product or Customer: Call 1-800-243-0000 (24 hrs a day, 7 days per week, 365 days per year).
Service Assistance: Press the appropriate menu option, and have your product type (Refrigerator),
model number, serial number, and ZIP/Postal Code ready.
To obtain the nearest Authorized
Service Center:
Call 1-800-243-0000 (24 hrs a day, 7 days per week, 365 days per year)
Press the appropriate option, and have your product type (Refrigerator), model
number, serial number, and ZIP/Postal Code ready.
WARRANTY
2
Visite nuestro sitio web http://www.lg.com LG Electronics
GARANTÍA LIMITADA
Estados Unidos de América
LG Electronics reparará o en su defecto reemplazará sin cargo, el producto defectuoso en material o mano de
obra bajo uso normal durante el período de garantía que se menciona a continuación desde la fecha original de
compra.
Esta garantía es válida solo para el comprador original del producto durante el período de garantía mientras
permanezca en los E.E. U.U. Incluyendo Alaska, Hawaii y otros territorios de E.E.U.U.
Período de Garantía del Refrigerador/Congelador LG
Producto Partes Mano de Obra
Refrigerador / Congelador 1 año 1 año [Servicio a Domicilio (Except Model GR-051)]
Sistema Sellado
(Compresor,Condensador, Evaporador)
7 años 1 año [Servicio a Domicilio (Except Model GR-051)]
No se aplicará otro tipo de garantía a este producto. LA DURACIÓN DE OTRAS GARANTÍAS, INCLUYENDO LA DE
COMPRA, ESTÁN LIMITADAS A LA DURACIÓN DE ÉSTA GARANTÍA. LG ELECTRONICS NO SE HACE RESPONSABLE
POR LA PÉRDIDA EN EL USO DEL PRODUCTO, POR INCONVENIENCIA O CUALQUIER OTRO DAÑO DIRECTO O
CONSECUENTE QUE PROVENGA DEL USO Y/O NO USO DE ESTE PRODUCTO O POR ALGUNA VIOLACIÓN A LAS
GARANTÍAS IMPLEMENTADAS INCLUYENDO LA GARANTÍA DE COMPRA APLICADA A ESTE PRODUCTO.
Algunos estados no permiten la exclusión o limitación de daños incidentales o consecuenciales o limitaciones en cuanto
al tiempo que dura una garantía implícita; por lo que algunas de estas limitaciones o exclusiones pueden no aplicarse a
usted. Esta garantía le otorga derechos legales especícos y usted puede además tener otros derechos los cuales varían
de Estado a Estado.
LA GARANTIA ANTERIOR NO APLICA A :
1. Servicio a su casa para entregar, recoger, instalar o reemplazar fusibles caseros, corregir cableado casero o plomería,
corrección de reparaciones no autorizadas.
2. Daño al producto causado por accidente, plagas, incendios, inundaciones o actos por naturaleza.
3. Reparaciones cuando su producto LG sea usado diferente a lo normal.
4. Daño resultante de accidente, alteración, mal uso o instalación inadecuada.
5. Daños causados durante y después de la entrega.
6. Reemplazo, descuento o restauración de unidades compradas con rayones, abolladuras o defectos.
La prueba de la compra se requiere y se debe proporcionar a LG para validar la garantía.
Por lo tanto, estos costos serán pagados por el consumidor.
Si el producto es instalado fuera del área normal de servicio, cualquier costo de transportación relacionado en la reparación
del producto, o el reemplazo de partes defectuosas, serán cargados al propietario.
NÚMEROS DE ASISTENCIA AL CLIENTE:
Para obtener cobertura de la
Garantía:
Conserve su factura para comprobar la fecha de compra. Una copia de su
recibo de compra debe ser entregada cuando se le proporcione el servicio de
garantía.
Para obtener información: Llame al 1-800-243-0000 (24 hrs al día, 7 días por semana, 365 días al año)
Servicio de Asistencia: Presione la opción de menú apropiado, y tenga su tipo de producto (Refrigerador),
número de modelo, número de serie, y ZIP / Código Postal listos.
Para obtener el Centro de
Servicio Autorizado más
cercano:
Llame al 1-800-243-0000 (24 hrs al día, 7 días por semana, 365 días al año).
Presione la opción adecuada, y tenga su tipo de producto (Refrigerador), número
de modelo, número de serie, y ZIP /código Postal listos.
GARANTÍA
3
ALEJANDRA
Warranty 1-2
English Version 3
Spanish Version 34
Important Safety Instructions 4-5
Requirements for Ground Connection 5
Parts and Features 6-7
Refrigerator Installation 8-17
Unpacking 8
Installation 8
Installation of Base Grille 8
Refrigerator Doors: How to remove
and reverse 9-16
For Models with Pull-out Drawer 9-10
For Models with Swinging Door 13-16

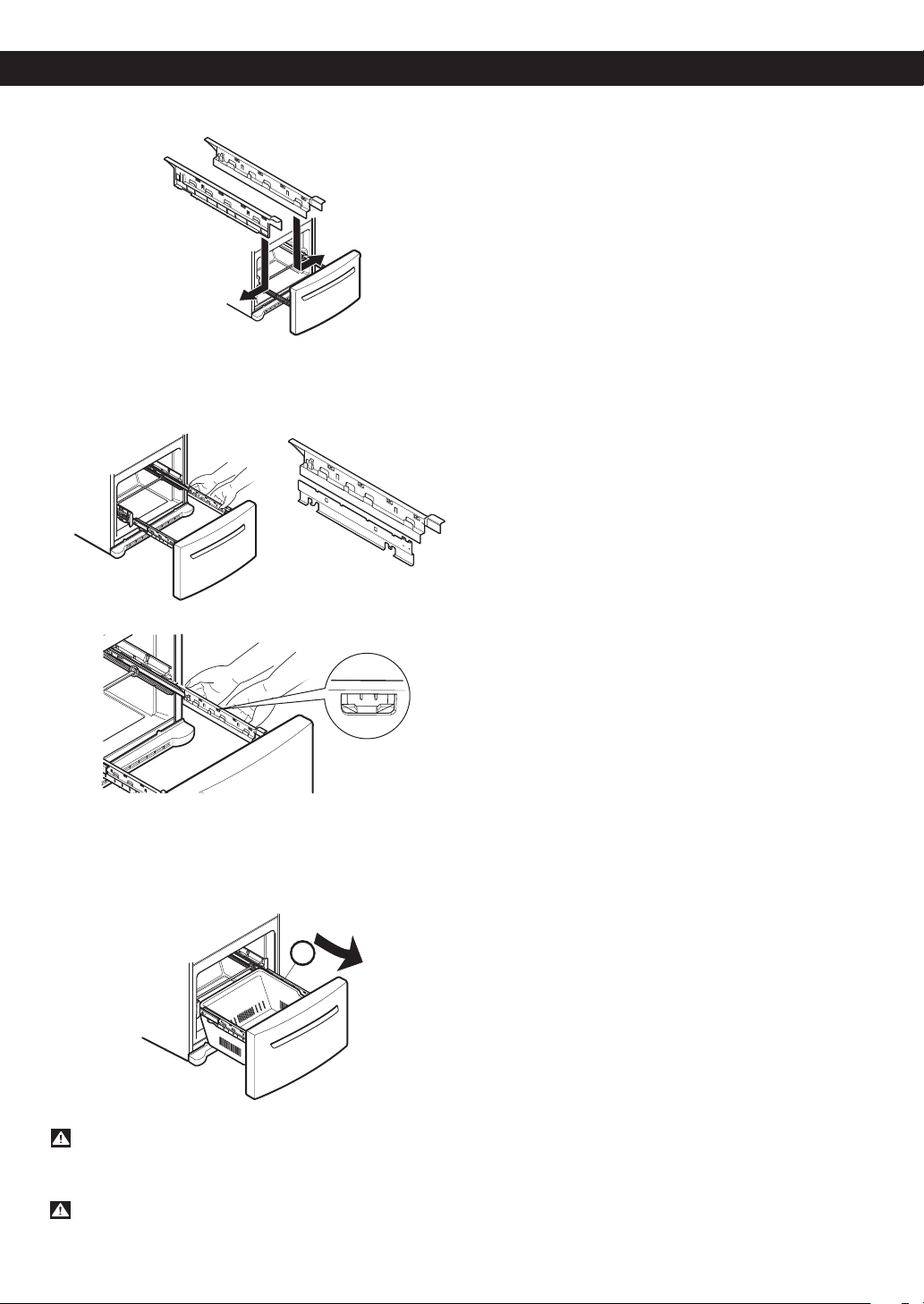

How to remove and Install Pull-Out Drawer 11-12
Closing and Aligning the doors 16-17
Using your Refrigerator 18-24
Ensuring Proper Air Circulation 18
Multi Flow 18
Door Alarm 18
Adjusting the Controls 18
Adjusting Control Settings 19
Food Storage Guide 19
Storing Frozen Food 19-20
Refrigerator Section 20-23
Refrigerator Shelves 20-21
Frozen Meat Compartment
(Chef Fresh/Snack Pan) 21
Crisper Humidity Control 21
Optibin Crispers 21
Crisper cover with interior lattice 22
Fixed Refrigerator Rack 22
Door Racks 22-23
Dairy Compartment 23
Egg Compartment 23

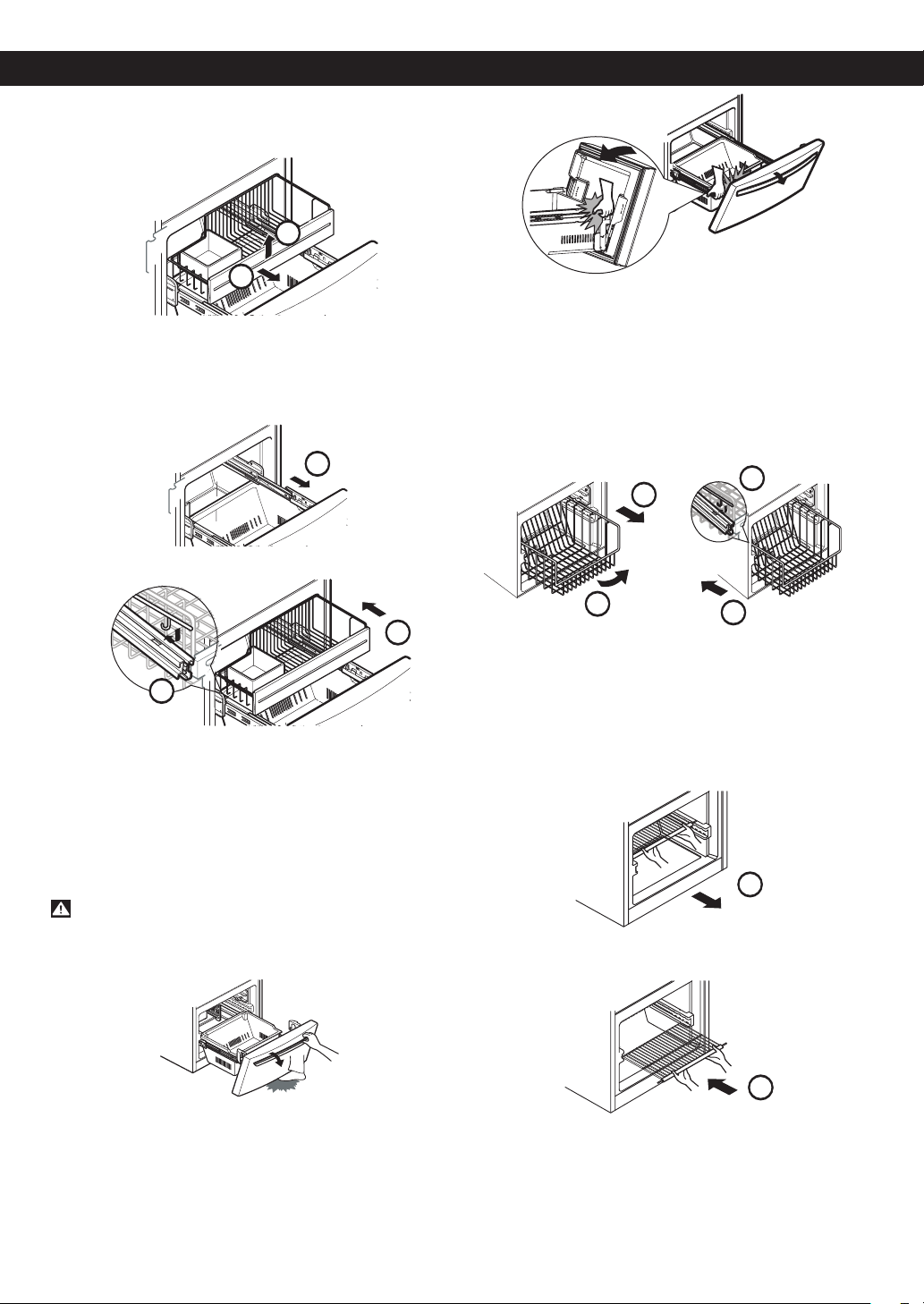

Freezer Section 23-24
Ice Bin 23
DuraBase 23
Durabase Divider 23
Glide Out Drawer 24
Tilting Door 24
Wired Durabase (Swing Models) 24
Freezer Shelf 24
Refrigerator Care and Cleaning 25-26
Refrigerator Cleaning 25
Outside 25
Inside Walls 25
Door Lining & Gaskets 25
Plastic Parts (Covers and Panel) 25
Back Cover 25

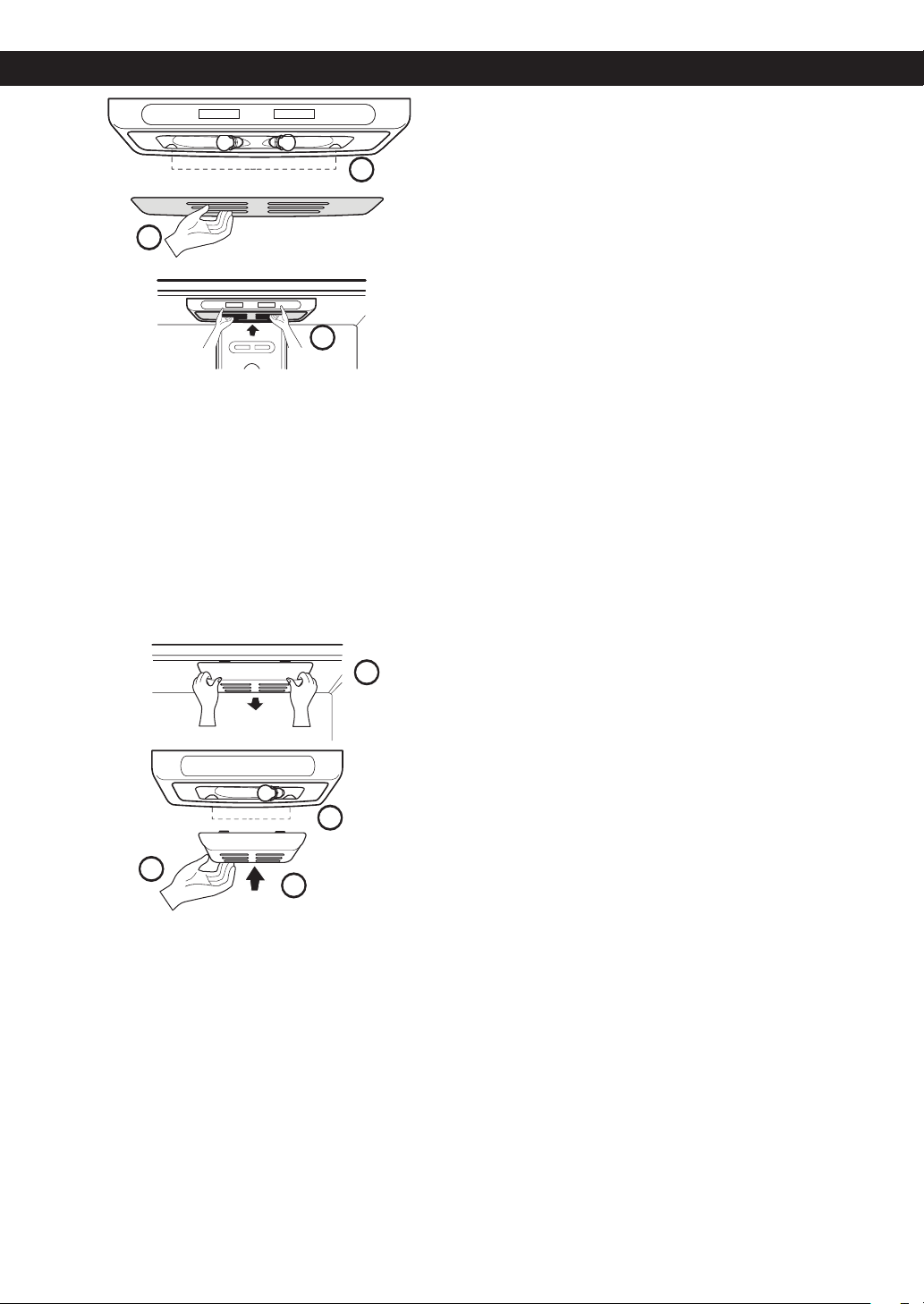

Replacing Refrigerator Lights 25-26
Power Interruptions 26
When Going on Vacation 26
When Moving 26

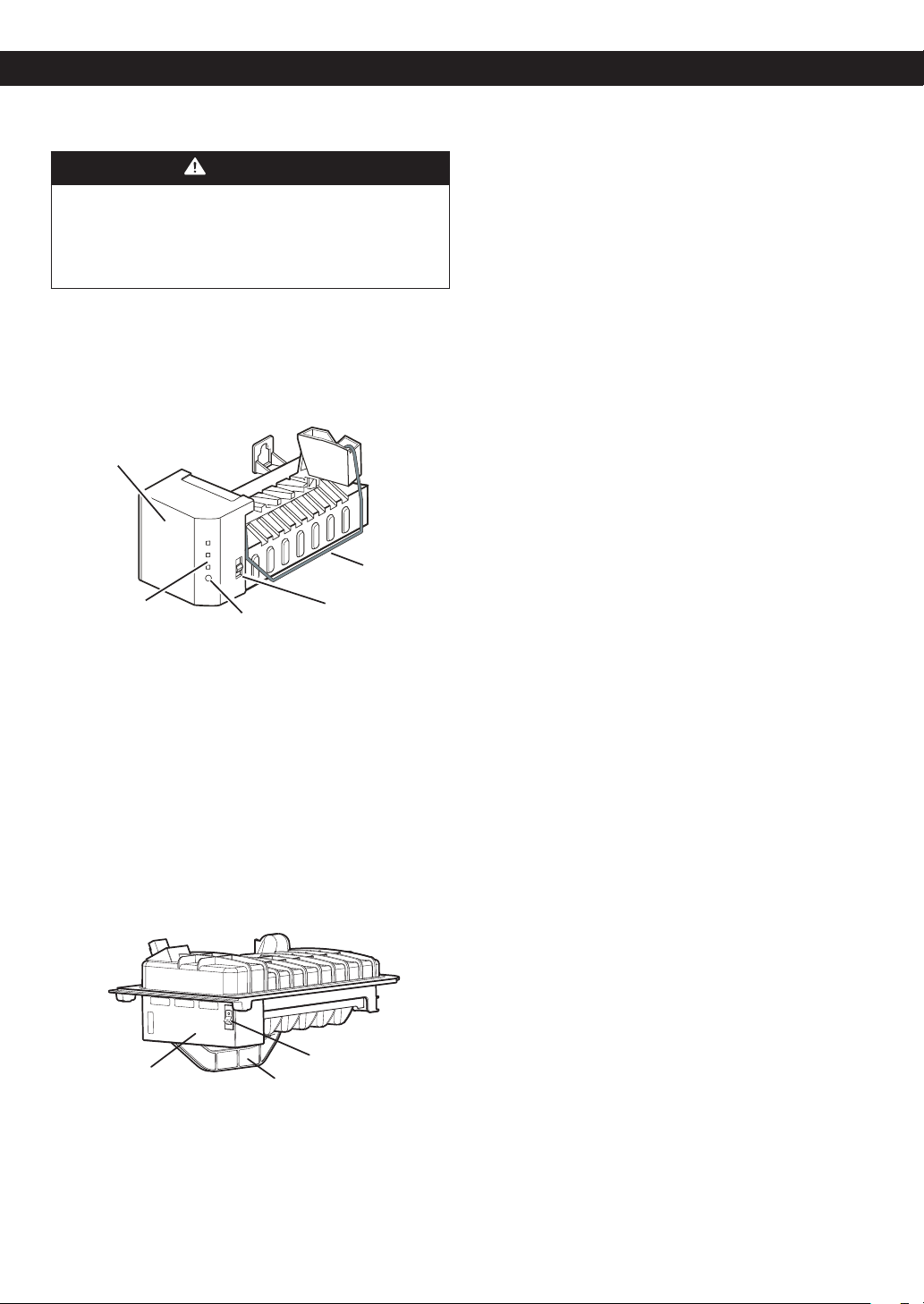

About the Automatic Ice Maker 27

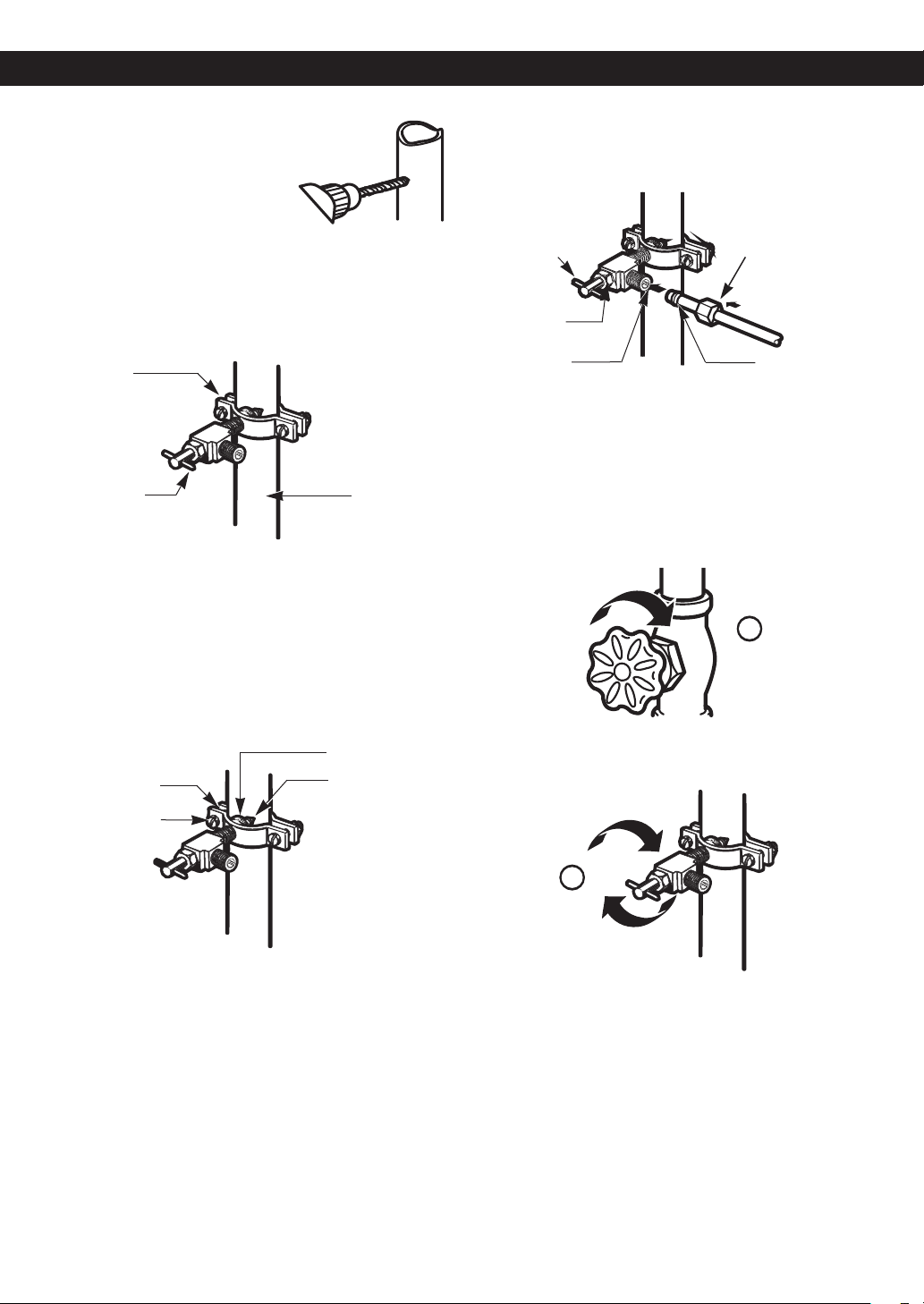

Connecting the Water Line 28-30
Troubleshooting Guide 31-33
TABLE OF CONTENTSGARANTÍA
4
This manual contains several important safety notices. Always read and obey all of the following safety messages.
This is the safety alert symbol. This symbol is a warning to potential dangers that could cause death, injury
or damage to you, others or the product. All safety messages will follow after this warning symbol and the
word “DANGER”, “CAUTION” or “WARNING”. These words mean:
You may be killed or suffer fatal damage if you do not follow instructions.
You may be killed or seriously injured if you do not follow instructions.
Indicates a potentially hazardous situation which, if not avoided, may result in minor injury
or damage to the product.
All safety messages inform you of potential danger, advise you on how to reduce the risk of injury and tell you what
can occur if the instructions are not followed.
To reduce the risk of fire, electrical shock or personal
injury, the following precaution measures should be
followed:
•NEVER disconnect the refrigerator by pulling the
power cord, always grip the plug firmly and disconnect
it directly from the outlet.
•Immediately repair or replace all faulty or damaged
service cables. Do not use cords that have cracks or
abrasion damage on the length of the cord or on the
plug.
•When moving your refrigerator, take care not to roll
over the electrical cord.
•DO NOT store or use gasoline or other combustible
liquids or vapors in proximity with this or any other
electrical appliance.
•DO NOT permit children to climb, stand or swing from
the doors or shelves of the refrigerator. This can cause
serious injury to them and damage to the product.
•Keep your fingers away from areas in which they
can become caught, such as the doors, hinges and
cabinets. Be careful closing the doors when children
are near.
•Unplug the refrigerator before cleaning or repairing.
NOTE: We strongly recommend that any repair
services be performed by a qualified professional.
•Before replacing a burned-out light bulb, unplug the
refrigerator or shut down the circuit breaker to avoid
contact with a live wire (the bulb could break while
being replaced). NOTE: Setting the control to the OFF
position does not disconnect the power from the light
bulb circuit.
•Do not keep bottles in the freezer compartment, they
could explode after freezing and cause damage.
•For your safety, this product should be properly
grounded. Have a qualified professional check the
electrical circuit and outlet to ensure a proper ground
connection.
•Read all instructions before utilizing the product. Use
this product only as explicitly expressed in this guide.
•Once the refrigerator is operating, avoid touching cold
surfaces of the freezer with damp or wet hands; the
skin could become adhered to these surfaces.
•In refrigerators with an automatic ice dispenser, avoid
contact with moving parts of the ejector mechanism
or with the heating mechanism that discharges the
cubes. DO NOT place your fingers or hands in the
ice dispenser mechanism while the refrigerator is
connected.
•DO NOT refreeze foods which have already thawed.
The Department of Agriculture of the United States, in
your Bulletin of Home and Gardens No. 69 establishes
that:
“...You can refreeze food that has thawed if they contain
ice crystals or are cold and below 40 °F (4 °C)”.
“...Ground beef, perishable food or seafood that is
discolored or has an unpleasant odor should not be
frozen or consumed. Consumption of melted ice cream
should also be avoided. If the odor or color of food is
questionable, discard it. The food may be dangerous to
consume”.
“Partial thawing or refreezing reduces the quality of the
food, especially fruit, vegetables and prepared meals.
The quality of red meat is less affected than other foods.
Use refrozen products as soon as possible in order to
maintain their quality”.
KEEP THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
SAFETY MESSAGES
WARNING
DANGER
WARNING
CAUTION
5
This appliance is not intended for use by children, persons with physical or mental disabilities, persons with reduced
sensory or mental capacity, or persons with lack of experience or know-how, unless they have supervision or instruction
in relation to the use of the appliance by the person responsible for their safety. Children should be supervised to
assure that they do not play with the appliance.
Children becoming trapped or suffocated is not
a problem of the past. Discarded and abandoned
refrigerators are a hazard, even if they remain there
“for just a few days”. If you would like to dispose of your
old refrigerator, please follow the instructions below to
prevent any accidents.
BEFORE DISPOSING YOUR REFRIGERATOR
OR FREEZER WHEN NO LONGER IN USE:
•Remove the doors.
•Leave the shelves in place so that children
cannot easily become stuck in them.
Your old refrigerator may have a cooling system that
uses CFC’s (chlorofluorocarbons). CFC affects the
stratospheric layer of the ozone.
If you decide to throw out your old refrigerator, ensure
that CFC contaminants are properly disposed of by a
qualified professional. If you intentionally remove the
CFC refrigerant, you could be subject to fines or prison
in accordance with environmental legislation in effect.
IMPORTANT: Attentively read the following.
TO CONNECT ELECTRICITY
WARNING
ELECTRICAL SHOCK HAZARD
FOR YOUR PERSONAL SAFETY, this appliance must
be properly grounded. Have a qualified electrician
check your wall outlet to ensure that the plug is
grounded properly.
3 prong
grounding type
wall receptacle
3 prong Ensure proper
grounding ground exists
plug before use
RECOMMENDED GROUNDING METHOD
Your refrigerator must always be plugged to its own
outlet which is adequately grounded. The energy current
should only be 115 V, 60 Hz, A. C. and fused at 15 or 20
A. This provides the best performance and prevents an
overload which could cause a fire from the overheating
of the cables. It is recommended that a separate circuit
be used for this appliance, as well as a receptacle that
cannot be disconnected with a switch.
Do not use an extension cable.
It is your responsibility and obligation to replace two-
prong outlets with that of an adequately grounded three-
prong outlet.
Do not, under any circumstance, cut or extract the third
prong from the plug.
NOTE: Before installation, cleaning or replacing light
bulbs, you must disconnect the appliance from the
power source. When finished, plug the appliance back in
and adjust the thermostat to the desired position.
USE OF EXTENSION CABLES
We do not recommend the use of extension cables.
However, if you still choose to utilize an extension cable,
it is absolutely necessary that it is listed in the UL (in
the United States) or CSA (in Canada), that it supports
three-pronged plugs and that the electrical current
support a minimum of 15 A and 120 V.
The use of an extension cable will increase the amount
of space needed behind the refrigerator.
WARNING
REPLACING ELECTRICAL CABLE
If the power cord is damaged, it must be replaced by
our service center or qualified LG technician to avoid
any risk.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
DANGER: CHILDREN MAY BECOME TRAPPED
CFC DISPOSAL
REQUIREMENTS FOR GROUND CONNECTION
6
Drawer Model
Read this section to familiarize yourself with the parts and features of your new refrigerator.
NOTE: This guide covers different models. Your refrigerator could have some or all of the features and parts listed
below. The location of some of the parts may not correspond to that of your model.
Digital Sensor Control
Refrigerator Light
Shelves
Frozen Meat Compartment
(Chef Fresh/Snack Pan) *
Optibin Crisper
Keeps fruits and vegetable fresh and crisp
Ice Bin
Ice Tray (Inside H) *
Durabase
Divider
Dairy Compartment
Door Racks
Fixed Refrigerator Rack
Freezer Light
Pull Out Drawer
Ice maker *
* On some models
J
K
L
O
N
M
A
B
A
B
C
H
I
F
G
E
D
A
B
C
H
F
G
E
D
J
K
L
O
N
M
I
PARTS AND FEATURES PARTS AND FEATURES
7
Swing Model
Read this section to familiarize yourself with the parts and features of your new refrigerator.
NOTE: This guide covers different models. Your refrigerator could have some or all of the features and parts listed
below. The location of some of the parts may not correspond to that of your model.
Digital Sensor Control
Refrigerator Light
Shelves
Frozen Meat Compartment
(Chef Fresh/Snack Pan)*
Optibin Crisper
Keeps fruits and vegetables fresh and crisp
Ice Tray *
Ice Bin
Wired Durabase
Dairy Compartment
Door Racks
Freezer Light
Fixed Refrigerator Rack
Wire Freezer Shelf
Freezer Door Rack
A
B
C
H
I
F
G
E
D
J
K
L
N
M
A
B
C
H
F
G
E
D
I
N
M
J
K
L
PARTS AND FEATURES PARTS AND FEATURES
* On some models
8
WARNING
EXCESSIVE WEIGHT HAZARD
Use the assistance of two or more persons to move or
install the refrigerator. Not following these instructions
may cause injury to the back and other parts of the
body.
UNPACKING
Before installing your refrigerator, remove any tape
or temporary stickers. Do not remove any stickers
that feature warnings, the model serial number or the
technical label of the product located on the back of the
refrigerator.
To remove adhesive tape residue, rub it well with your
fingers and a little liquid detergent. Clean with warm
water and let dry.
Do not use sharp instruments, rubbing alcohol, flammable
liquids or abrasive cleaning products to remove the
adhesive tape or glue. These products can damage the
surface of your refrigerator. For more information, see
the section on “Important Safety Instructions”.
The shelves come already installed in their factory
position. Remove the shelves and replace them
according to your spacing needs.
Moving Your Refrigerator:
Your refrigerator is extremely heavy. Make sure you
protect the floor when moving your refrigerator for
cleaning or servicing. Always pull your refrigerator
straight out when moving it. Do not shift from side
to side or “walk” the refrigerator when attempting
to move it as this can cause damage to the floor.
WARNING
EXPLOSION HAZARD
Keep all flammable materials and vapors (such as
gasoline) away from the refrigerator. Not following
these instructions may cause death, explosion or fire.
INSTALLATION
1. Avoid placing the unit near heat sources, direct
sunlight, or humidity.
2. To avoid vibration, the unit should be leveled. If needed,
adjust the leveling screws to compensate for an
unleveled floor. The front should be slightly taller than
the rear to ensure that the doors close properly. The
leveling screws can easily be turned by slightly tilting
the front of the refrigerator, turning the leveling screws
clockwise ( ) to raise it and counter-clockwise
( ) to lower it.
3. Install the refrigerator in an area between 55 °F
(13 °C) and 110 °F (43 °C). If the surrounding temperature
is lower or higher than previously mentioned, it can
adversely affect the unit.
CAUTION: Avoid placing the unit near heat
sources, direct sunlight or humidity.
ONCE INSTALLED
1. Carefully clean your refrigerator and remove and dust
accumulated during shipping.
2. Install accessories such as the ice bin, door racks,
shelves, etc., in their proper places. These are already
packed to prevent any possible damage during
shipping.
3. Leave your refrigerator on for 2 to 3 hours before
storing food inside. Verify that there is a flow of cold air
in the freezer compartment to ensure proper cooling.
Your refrigerator is now ready for use.
WARNING:
•Take care when working with the hinges, base cover
and stops, etc. You may injure yourself.
•DO not place your hands or any tools in the air vents,
the base cover or in the bottom of the refrigerator. This
may cause injury or electrical shock.
INSTALLATION OF BASE GRILLE
Uninstalling or Replacing the Base Grille
1. Remove the 2 screws from the bottom front part of
your refrigerator (see Figure A).
2. Take off the cover.
Figure A
Installing the Base Grille
1. Align the bottom cover and place in position. Insert
the 2 screws and twist in place (see Figure B).
Figure B
Keep a Proper Distance from Adjacent
Objects
Please keep the refrigerator at an
adequate distance from other objects.
Insufficient spacing can reduce the
refrigerator’s freezing efficiency and
increase electricity consumption.
(5.08 cm) 2”
REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION
9
REFRIGERATOR DOORS: HOW TO REMOVE AND REVERSE (Optional) For models with Pull Out Drawer
You may find it more convenient to have the doors converted from the left-opening type (factory installed) to the
right-opening type. Directions refer to the right side as your right when facing the unit.
TOOLS YOU MIGHT NEED OR USE
10 mm
1/4 in 1/4 in
3/8 in 3/32 in
Hex Socket Wrench Phillips Screwdriver Flat Head Screwdriver Allen Wrench
Other necessary tools are:
•1/4 inch socket wrench.
•Adjustable Wrench.
•10 mm open-end wrench
•Flat 2 inch putty knife
IMPORTANT: Before you begin, unplug the refrigerator or disconnect the power source. Remove all food and any
adjustable racks from the refrigerator doors.
HOW TO REVERSE DOOR SWING (when converting from left-opening side mode to right-opening mode).
1. Removing Refrigerator Door
•Gently pry the top hinge cover with a flat head
screwdriver and remove it (1).
•Using 10 mm socket wrench, remove the three bolts
and lift off the top hinge. Set parts aside (2).
•Remove the pivot (3) and the cap (4) and place them
in the opposite side.
•Gently lift the refrigerator door (5) and remove it.
•Once the door has been removed, remove the screws
(6), the stopper (7) and the hinge pin (8) located below
the door and remove the hinge (9).
•Install the hinge (10) on the opposite side of the door,
replace the screws (11), the stopper (12) and hinge pin
(13).
•Using the 1/4 inch socket wrench, loosen the pin (14)
and remove it.
•Remove the four screws (15 & 16) and remove the
hinge (17).
5
1
2
3
4
6
7
8
9
10
13
12
11
REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION
14
15
16
17
10
2. Installing Refrigerator Door
•Remove the cover (1) using a flat head screwdriver (this requires a little force), loosen the two screws (2) and place
on the opposite side.
•Place the hinge (3) on the opposite side and install the four screws (4 & 5).
•Insert the pin (6) in the hinge (3).
•Remove the cover (7) and install it on the right side.
•Place the door and line up with the pin holes (8), making sure that both parts are aligned.
•Place the top hinge (9) and insert the three screws (10).
•Position the cover of the hinge over this (11).
•Check that the door has been installed correctly.
HOW TO REMOVE THE DOOR HANDLES
NOTE: The appearance of the handle may appear
different.
3. Removing the Refrigerator Handle
•Loosen the fixation screws (1) with a 3/32 inch Allen
Wrench and remove the handle (2).
•Remove the assembly screws (3) with a 1/4 inch Allen
Wrench.
•Carefully remove the plug buttons from the door (4).
The buttons can be unscrewed using your fingers,
turning counter-clockwise. Continue turning until the
screw is loose and falls out.
•Install the buttons (4) on the left side.
4. Replacing the Refrigerator Handle
•Rotate handle upside down (1).
•Insert the assembly screws on the opposite side of the
door (2).
•Hold the handle in place with the holes lined up with
the screw holes (3) and tighten the screws (4) in place
with the 3/32 inch Allen Wrench.
1
2
3
4
3
2
4
4
Assembly
Screws
Fixation
Screws
Allen
Wrench
REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION
2
5
1
6
3
4
8
11
10
9
7
1
11
HOW TO REMOVE AND INSTALL THE PULL OUT
DRAWER
IMPORTANT: To avoid possible injury or damage to
the product or your property, please use two people to
perform the following instructions:
1. Removing the Pull Out Drawer
•Pull the drawer out to maximum extension. Remove
the bottom rack (1) by tilting it back a little and then
lifting it off the railing tracks.
•Put pressure on the two hangers (2) with your thumbs
in order to lift it up.
•Separate the left and right rail cover.
•Remove the screws (3) from both sides of the rail track.
•With both hands, hold both sides of the door and pull
up to separate it.
•With both hands, hold the center of the bar and push
it in so that it is fit to both rails simultaneously.
CAUTION: When removing the drawer, do not hold
the handle. If it comes off, it could cause personal
injury.
CAUTION: To place the drawer on the floor, take
care not to damage the floor or hurt your feet with
the sharp edges on the side with the hinges.
2. Installing the Pull Out Drawer
•With both hands, hold the center of the bar and pull it
outward so that the two rails extend out at the same
time.
•Mount door supports (1) into the tabs on the railing
track (2), starting in the back first and then connecting
the part in the front last, as shown in the figure.
•Push the drawer down into position and tighten the
screws (3).
1
2
3
1
2
REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION
3
12
•Compare the left and right rail covers on each side.
Right Rail
Left Rail
•Align the top holes of the rail cover with the top holes
of the door supports to mount the cover.
Verify the
hole’s alignment
•With the drawer fully extended, insert the lower basket
over the front part of the rail assembly and then the
back part (4).
WARNING: To prevent entrapment risk and
accidental child or animal suffocation, DO NOT
permit them to play inside of the drawer.
WARNING: DO NOT step or sit on the Freezer Door.
4
REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION
13
REFRIGERATOR DOORS: HOW TO REMOVE AND REVERSE (Optional) For Swing models
You may find it more convenient to have the doors converted from the left-opening type (factory installed) to the
right-opening type. Directions refer to the right side as your right when facing the unit.
TOOLS YOU MIGHT NEED OR USE
10 mm
1/4 in 1/4 in
3/8 in 3/32 in
Hex Socket Wrench Phillips Screwdriver Flat Head Screwdriver Allen Wrench
Other necessary tools are:
•1/4 inch socket wrench.
•Adjustable Wrench.
•10 mm open-end wrench.
•Flat 2 inch putty knife.
IMPORTANT: Before you begin, unplug the refrigerator or disconnect the power source. Remove all food and any
adjustable racks from the refrigerator doors.
REVERSING DOOR OPENING DIRECTION FROM LEFT TO RIGHT (when you prefer the door to open from the
right instead of the left)
1. Removing and Installing the Refrigerator Handles
NOTE: To assist in the installation of the handles on the right side, place a piece of masking tape near the top of the
handle before removing it.
•Grasp the handle firmly with both hands and slide the
handle up (1) (this might require some force).
•The keyhole slots (2) on the back of the handle allow
the handle to separate from the screws in the door.
•Use the 10 mm open-end wrench to remove the
mounting screws in the door (3).
•Carefully loosen the plug buttons (4) with your fingers.
The buttons can be unscrewed with the fingers by
rotating them counter-clockwise and continuing until
they loosen and fall out The buttons were installed
without pressure, and for this reason, they can be
unscrewed using your index finger, thumb or both.
•Install the plug buttons (5) on the left side.
•Install the mounting screws (6) on the right side.
•Hold the handle so that the masking tape is at the
bottom.
•Align the keyhole slots (7) on the top and bottom of
the back of the handle with the screws on the front of
the door.
•Press the handle against the front of the door, ensuring
that the screws are inside of the keyhole slots of the
handle (8).
•Grasp the handle with both hands and slide the handle
downward (9) (this may require some force).
Mounting Keyhole slots
screws in in the back of
the door the handle
Alignment of
the keyhole slots
with the screws
1
3
2
6
8
9
7
5
4
REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION
14
2. Removing and Installing the Freezer Handle
NOTE: Before beginning, check the handle type of your
model.
Handle Type 1
•Remove the cap (1) and two screws (2) with a flat head
screwdriver.
•Loosen the two screws (3), remove the handle (4) and
install all on the right side.
•Attach the cap and the two screws (that were previously
removed) on the left side (5).
Handle Type 2
It is not necessary to remove this type of handle.
Handle Type 1 Handle Type 2
3. Removing the Refrigerator Door
•Gently remove the top hinge cover with a flat head
screwdriver (1).
•Using the 10 mm open-end wrench, remove the three
bolts and raise the top hinge and place aside (2).
•Remove the pivot (3) and the cap (4), place them in
the opposite side (the cap will be placed in the right
side and the pivot on the left side).
•Slightly raise the refrigerator door (5) and remove it.
•Once the door has been taken off, remove the screws
(6), the bolt (7) and the pivot (8) located below this
and remove the hinge (9).
•Install the hinge (10) on the opposite side of the door,
replacing the screws (11), the bolt (12) and the pivot
(13).
•Take off the washer (14).
•Using the 1/4 inch hex socket wrench loosen the pin
(15) and remove.
•Remove the screws (16 & 17) and the hinge (18).
2
3
1
5
4
5
1
2
3
4
6
7
8
9
10
13
12
11
REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION
14
16
17
18
15
15
4. Removing the Freezer Door
•Before beginning, make sure you completely remove
the refrigerator door.
•Loosen the two screws from the base grille and remove
(1).
•Loosen and remove the two screws (2) and the pin (3).
•Raise and remove the freezer door (4) and set aside.
5. Installing the Freezer Door
•On the bottom left side, you will find a screw, remove
it and re-screw it in on the right side. In the remaining
space, place the hinge (1) and connect it with the two
screws (2) and the bolt (3).
•Install the base grille (4).
•On the bottom right side of the door, you will find two
screws (5), a bolt (6) and 1 pivot (7). Remove them.
•Reinstall the pivot (8), the bolt (9) and screws (10) on
the bottom left side of the door.
•On the top part of the door, you will find a cap (11) and
a pivot (12). Remove them with a flat head screwdriver
and install them on the opposite side (the cap stays on
the right and the pivot on the left).
Pivot
Cap
•In the middle section of the refrigerator, you will find a
screw (13) and a cover (14). Remove them and reinstall
them on the right side (15).
•Place the hinge in the middle part of the refrigerator
and install the four screws into the hinge (16 & 17).
4
3
2
1
6
5
7
8
10
9
11
12
17
16
REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION
4
3
2
1
13
14
15
16
•Take the freezer door and align the pivot holes up with
the bolt holes and assemble them (18).
•Insert the pin into the hinge (19). (Ensure that it is
between the pivot and the freezer door).
•Replace the washer over the pin (20).
Pin Washer
6. Installing the Refrigerator Door
•Insert the door over the axis of the pin (1).
•Remove the cover (2) and place on the opposite side.
•Install the hinge (3), assemble the three screws (4)
and replace the hinge cover (5).
•Check to make sure that both doors close correctly.
AFTER COMPLETING INSTALLATION
Make sure that the corners of the door seals are not
folded over. To ensure a good seal, apply a little silicon
grease on them.
Corners
Corners
18
19
20
1
2
3
5
4
REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION
17
CLOSING AND ALIGNING THE DOORS
Closing the Doors
Your refrigerator has two front leveling screws, one on
the right and one on the left. If your refrigerator seems
unstable or if you would like the doors to close more
easily, simply adjust the inclination of the refrigerator by
following the instructions below:
1. Plug the refrigerator into a 3 prong grounded outlet.
Move the refrigerator into its final position.
2. Remove the base grille (Refer to the section on
“Installation of Base Grille”).
3. Use a flat head screwdriver to adjust the leveling screws,
turning clockwise to raise the side of the refrigerator
and counter-clockwise to lower it. It may take several
turns to adjust it to the inclination you would like.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling screws.
This will make it easier to adjust the screws.
4. Open both doors again and check to make sure that
they close easily. If not, slightly tilt the refrigerator
further back by turning both leveling screws clockwise.
It may take several more turns. Make sure that you turn
both leveling screws the same amount.
5. Ensure that the refrigerator is even by using a level.
6. Replace the base grille.
Aligning the Doors
If the spacing between the doors is uneven, follow the
instructions below to align them:
1. Pry off the top hinge cover.
2. Loosen the screws from the top hinge using a 10 mm
socket or wrench.
3. Have someone help you hold the door in place or
place a spacer between the doors while tightening the
top hinge screws.
4. Replace the top hinge cover.
REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION
18
ENSURING PROPER AIR CIRCULATION
In order to obtain stable temperature, the air must flow
between the freezer and refrigerator sections. As shown
in the illustration below, the cold air enters through
the bottom part and circulates upward. This air returns
below the freezer floor and the rest of the air enters the
refrigerator section through the top vent.
MULTI FLOW
The cooling fan operates more powerful and effective
than when in normal operation. This is especially
noticeable when new food is placed in the refrigerator
compartment. If the lining is damaged, water or other
substances could enter through the cool air vent causing
decreased efficiency.
Do not block any of these vents with packages of food.
This can interrupt the flow of air and cause temperature
and moisture problems.
IMPORTANT: Because air circulates between both
sections, any odors formed in one section will transfer
to the other. You must thoroughly clean both sections to
eliminate odors. To prevent odor transfer and drying out
of food, make sure you wrap or cover foods tightly (See
the “Food Storage Guide” section for details).
DOOR ALARM
With this feature you will hear an alarm when the freezer
or refrigerator door is ajar for more than 1 minute.
These tones will repeat every 30 seconds. The alarm is
cancelled when the door is properly shut.
ADJUSTING THE CONTROLS
•Your refrigerator has two controls that allow you to
regulate the temperature the freezer and refrigerator
compartments.
•Initially set the REFRIGERATOR CONTROL and the
FREEZER CONTROL at position number “4”. Leave it
on these settings for 24 hours (one day) in order to
stabilize the refrigerator. After this you may adjust the
compartments to your desired temperature.
•Refrigerator Control: Position 1 to 7 (32 °F to 47 °F
or 0 °C to 8 °C)
The lower the degree, the colder the refrigerator
compartment will become.
•Freezer Control: Position 1 to 7 (-6 °F to 9 °F or
-21 °C to -13 °C)
The lower the degree, the colder the freezer compartment
will become. Despite this, the compartment of the
refrigerator will be less cold because air flows in smaller
quantities.
•Ice Plus
Press the button Ice Plus. The LED light will turn on.
This function will remain activated for 24 hours and
intensify the cooling speed of the freezer and increase
ice production.
USING YOUR REFRIGERATOR USING YOUR REFRIGERATOR
19
ADJUSTING CONTROL SETTINGS
Give the refrigerator time to cool down completely before
adding food. It is best to wait 24 hours before adding
food to the refrigerator. The mid-settings indicated in the
previous section should be correct for normal household
refrigerator usage. The controls are set correctly when
milk or juice is cold to your liking and ice cream is firm.
The refrigerator control functions as the thermostat for
the entire appliance. The higher the number setting, the
longer the compressor will run to keep the temperature
colder. The freezer control adjusts the cold air flow from
the freezer to the refrigerator. Setting the freezer control
to a lower temperature keeps more cold air in the freezer
compartment to make it colder.
If you need to adjust the temperature in the refrigerator
or freezer, begin by adjusting the refrigerator first. Wait
24 hours after the refrigerator adjustment to check the
freezer temperature. If it is too warm or too cold, then
adjust the freezer control as well.
Use the settings listed in the table below as a guide.
CONDITION/REASON: RECOMMENDED
ADJUSTMENT:
REFRIGERATOR section
is too warm
•Opening the door often
•Adding a large amount
of food
•Room temperature is
very warm
Adjust the
REFRIGERATOR setting
to the next highest
number and wait 24
hours, then check.
FREEZER section is too
warm/ ice is made too
slowly
•Opening the door often
•Adding a large amount
of food
•Room temperature is
very low (not cycling
often enough)
•Using ice frequently
•Air vents blocked by
objects
Adjust the FREEZER
setting to the next
highest number and wait
24 hours, then check.
Remove any objects
blocking air flow.
REFRIGERATOR section
is too cold
•Controls not set
correctly for your
conditions
Adjust the
REFRIGERATOR setting
to the next lowest
number and wait 24
hours, then check.
FREEZER section is too
cold
•Controls not set
correctly for your
conditions
Adjust the FREEZER
setting to the next lowest
number and wait 24
hours, then check.
FOOD STORAGE GUIDE
ITEMS HOW TO STORE
Storing Fresh Food Wrap or store food in the
refrigerator in airtight and
moisture-proof material unless
otherwise noted. This prevents
food odor and taste transfer
throughout the refrigerator. For
dated products, check date code
to ensure freshness.
Butter or
margarine
Store opened butter in a covered
dish or in a closed compartment.
When storing a larger quantity,
wrap in freezer packing and
freeze.
Cheese Store in original packaging until
you are ready to use it. Once
opened, tightly rewrap with
plastic wrap or aluminum foil.
Vegetables with
skins (carrots,
peppers)
Place in bags or plastic containers
inside the crisper.
Fruit Wash and let dry; store in plastic
bags in the refrigerator. Do not
wash or pit berries until you
are ready to eat them. Berries
should be selected and kept in
their original packaging (if there
is any) or in a paper bag closed
halfway and set on a shelf.
Leafy Vegetables Remove original packaging and
trim any dirty or discolored parts.
Wash in cold water and drain.
Place in a plastic bag or plastic
container and store in the crisper.
Fish Consume fish or seafood the
same day purchased.
Chef Fresh Store any meat in original airtight,
moisture-proof packaging.
Rewrap if necessary.
Leftovers Cover leftovers with plastic
wrap or aluminum foil. Plastic
containers with airtight lids can
also be used.
STORING FROZEN FOOD
NOTE: For more information on how to prepare food to
be frozen such in a way to see the period they can be
stored consult a frozen food guide or cook book.
Packaging
A great freezing depends on how great you package the
food. When you seal the package make sure you remove
all excess air and do not allow humidity. A package that
is incorrectly sealed will result in the transmission of bad
odors, contaminants inside your refrigerator and will
cause your foods to dry.
USING YOUR REFRIGERATOR USING YOUR REFRIGERATOR
20
Packaging Recommendations:
• Use sealed plastic containers.
• Use plastic containers with a smooth surface.
• Package with aluminum foil of high resistance.
• Wrap with paper layered with plastic.
• Use water proof plastic.
• Use recommended plastic bags to store frozen foods.
Follow these packaging or container instructions in order
to reach the best freezing.
Do not use:
• Bread Wrapping.
• Plastic container not safe for storing.
• Containers without lids or seals.
• Waxed paper or waxed plastic.
• Thin wrapping paper or not water proof.
Freezing
IMPORTANT: Do not keep bottles in the freezer
compartment, they may explode after freezing and
cause damage.
For the maximum use of your freezer do not store excess
food. Do not introduce a large amount of unfrozen foods
that cannot be frozen within 24 hours (no more than
2 – 3 pounds or ,91 kg - 1,36 kg of food per square
inch of space in the freezer). Sufficient space must be
left in order for the air to circulate properly around the
packages. Leave enough space in order to close your
refrigerator with out difficulty.
Storage times can vary depending on the type and
quality of the food, the way its package, or packaging
container used, (in comparison to air and humidity), and
the temperature it being stored in. Ice crystals formed
inside your package are normal it indicates the air and
humidity inside your package have condensed.
NOTE: Let warm foods cool off at room temperature
for approximately 30 min, then wrap accordingly with
the methods mention above and freeze. By letting your
warm foods cool off before you introduce them to your
freezer it will save you energy.
WARNING
SUFFOCATING DANGER
Adequate ventilation is required when using dry ice.
Dry ice is Carbon Dioxide. When it evaporates it
produces oxygen, causing dizziness, slight headaches,
unconsciousness or death. Do not inhale these vapors
and properly ventilate the room while you use dry ice.
REFRIGERATOR SECTION
REFRIGERATOR SHELVES
The shelving of your refrigerator can be adjusted to
comply with your storage necessities; depending on
the model you have in can include glass shelving or
wired shelving. The storing of your foods together and
adjusting the shelving to different heights will ease to
help you locate what you need. This also helps your
refrigerator to stay shut longer which will save you energy.
IMPORTANT: While your refrigerator glass shelving are
cold do not clean with hot or warm water. The glass
shelving may break if exposed to rapid temperature
changes or hard impacts. For your safety the glass
shelving are made out of tempered glass so when at
breaking they will fracture into tiny fragments.
NOTE: Be careful while moving or relocating the shelves
they are heavy. If moving the shelves is required keep in
mind to locate them in a safe environment to prevent
them from breaking.
Adjusting Shelves
Remove the shelves and adjust them to your convenience.
•Removing Shelves
Incline the front of the shelf in the direction indicated by
figure 1 and lift in the direction indicated by figure 2. Pull
the shelf towards you.
• Replacing Shelves
Incline the frontal part of the shelf (1) and guide the
shelf hooks towards the openings at the height desired.
Then lower the front of the shelf (2) so the hooks can be
inserted (3) in the shelf supports.
NOTE: Make sure that the shelf is installed in the
horizontal manner. If not secured it can cause the shelves
to fall, which will cause your stored food to spill.
1
2
3
1
2
USING YOUR REFRIGERATOR USING YOUR REFRIGERATOR
21
Sliding Shelves (in some models)
You can slide some of the shelves in your refrigerator
towards inside or outside like explained below.
•To slide the shelf towards the outside: Pull towards you,
figure A.
•To slide the shelf towards the inside: Push until it
stops, figure B.
Figure A Figure B
In order to remove a shelf from a metal frame
•Pull the shelf until it stops.
•Incline the front of the shelf towards the top and pull
forward.
•Lift the shelf in the manner it moves across the
support openings.
To put back into place just reverse these steps.
Functional Shelves (Folding Shelves, in some models)
You can store tall articles like gallons or bottles just by
simply folding the shelf in half.
FROZEN MEAT COMPARTMENT/ CHEF FRESH
SNACK PAN (in some models)
To remove the Frozen Meat Compartment
•Pull the frozen meat compartment forward while
holding it with your other hand, slightly lift and pull.
•To replace the frozen meat compartment just follow
the steps in reverse.
On some models
applies an independent
temperature control
CRISPER HUMIDITY CONTROL
You can adjust the humidity inside the drawers by
adjusting the control in a position between and .
For better preservation of the fruits allow air to leave
the vegetable drawer.
For a better conservation of vegetables allow the
maximum air in the drawer.
OPTIBIN CRISPERS
The OptiBin crisper maintains fruits and vegetables fresh
allowing you to easily control the humidity inside the
drawers. The Optibin crispers include 1) a front humidity
control and 2) a system that allows you to preserve or
avoid humidity.
Removing the glass
• Lift the opening of the drawers and use a flat head
screw driver (1).
• Pull towards the top and then out (2).
Removing the Vegetable Drawer / Crisper
• Slip out the drawer towards the outside until it stops
(1).
• Slightly lift the front part and pull the rest (2), in order
to completely remove the drawer.
• To relocate the drawer slip out towards the front until
it stops.
1
2
2
1
USING YOUR REFRIGERATOR USING YOUR REFRIGERATOR
1
2
22
CRISPER COVER WITH INTERIOR LATTICE (in
some models)
Removing the Vegetable Drawer Cover:
•Remove both drawers (see “Removing the Vegetable
Drawer/Crisper”).
•Hold onto the support (1) and pull towards the top and
then towards the outside (2).
Installing the Vegetable Drawer Cover
•Put the cover over the supports (1).
•Slightly lift the cover (2) while introducing it to the
support (3).
•Put the inferior piece of the cover in the superior
support (4).
CAUTION: Be careful when you handle the glass
cover because it could loose.
Removing the Interior Lattice
• Remove the cover (See “Removing the Vegetable
Drawer Cover”).
• Hold the glass and spin the drawer cover (1).
• Hold the rack and pull the sides of the drawer cover
out to take them off (2).
Replacing the Interior Lattice
• For each rack insert the central edge 1 (near the glass
cover) and pull the cover sides to insert it.
FIXED REFRIGERATOR RACK
The fixed refrigerator racks is removable for easy cleaning
and adjusting.
Removing the Fixed Refrigerator Rack
• Remove the content from the rack.
• Press the rack against the door’s inner wall (1) and
then pull it up (2).
Replacing the Fixed Refrigerator Rack
•Hold the rack’s edge against the door’s inner wall.
•Press the rack until it stays in its position.
DOOR RACKS
•The racks can be moved along the door.
•To remove the rack, raise it (1) and pull it (2).
1
2
3
4
2
1
USING YOUR REFRIGERATOR USING YOUR REFRIGERATOR
1
2
1
2
23
•To replace the rack again, slide it on the desirable
guide (1) and push it down (2) until it is tighten (You
will listen a “tick”).
•To move it to the last position, make sure all the racks
are well assembled and that they are not loosen.
(Correct)
(Incorrect)
WARNING: Somebody can be hurt if door racks
are not firmly assembled.
CAUTION: DO NOT allow children to play with
baskets. Sharp corners on baskets could cause
injury.
NOTE: DO NOT adjust a rack that is loaded with food.
DAIRY COMPARTMENT
•Take out the Dairy Compartment, take it from the
down side, raise it (1) and pull it out (2) (See Figure A).
•Put the Dairy Compartment, slide it into the selected
rail and push down (1) until it is in place (See Figure B).
Figure A Figure B
EGG COMPARTMENT (in some models)
Keep the eggs compartment in an interior shelf, not in
a door rack.
CAUTION: Do not use the
eggs compartment as a
container for keeping ice in
the freezer compartment. If it
freezes, it could break easily.
FREEZER SECTION
ICE BIN (in some models)
•Pull the drawer as much as possible (1).
•Raise the ice box and take it out carefully (2).
•Take the drawer off as much as possible and put the
ice bin in the right position (3).
Drawer
Ice Bin
DURABASE (in some models)
•To remove the Durabase, push it back, raise the front
part and pull it up (1).
•To put it back, insert the Durabase in the rail assembly
(2).
DURABASE DIVIDER (in some models)
The Durabase Divider allows organizing the Durabase
area in 2 sections.
For moving the divider, just move
it in the direction that you want.
WARNING: There is enough space for the children
to play.
WARNING: In order to prevent accidents, such
as suffocation, DO NOT let children and pets play
inside the durabase.
11
2
12
3
2
1
1
2
USING YOUR REFRIGERATOR USING YOUR REFRIGERATOR
24
GLIDE-OUT DRAWER BASKET (in some models)
• Pull the box as much as possible, pick up the basket a
bit (1) and pull it out (2).
• To install, pull the cords to their fullest (1). Lock the
supports of the basket into the slides of the cords (2)
and push it all the way through (3).
TILTING DOOR (in some models)
The tilting door provides an easy access to the frozen
food.
How to use:
Incline the door downwards and pull it out.
WARNING: Be careful when opening the door, do
not place your feet under the door or your hands
inside the freezer; you may hurt them in doing so.
WIRED DURABASE (in some models)
• To take the wired durabase off, pull it to its maximum
extension (1) incline the frontal part of it a bit (2) and
then pull it out (see figure A).
• To install it again, insert the wired database in the
frame of rails (1) and push it until the end (2) (see
figure B).
Figure A Figure B
FREEZER SHELF (in some models)
•To take the shelf off, hold on to the front part of it and
pull it towards you (1).
•To put it back in, just push it back (2).
2
1
1
3
2
1
1
2
2
1
2
USING YOUR REFRIGERATOR REFRIGERATOR CARE AND CLEANING
25
WARNING
EXPLOSION HAZARD
Do not use flammable cleaners. Not following these
instructions can cause death, explosion or fire.
The refrigerator, as well as the freezer, do their own
de-freezing. This process does not prevent the build
up of contaminants, therefore it is suggested that you
clean both parts once a month; clean spilled liquids
immediately.
REFRIGERATOR CLEANING
•Unplug your refrigerator.
•Pull out all of the removable parts (such as the
vegetable and doors racks).
•Use a clean sponge (or a soft rag) and use it with
lukewarm water mixed with detergent. Do not use
abrasive or concentrated cleaners.
•Hand wash it, and dry it thoroughly.
•Plug the refrigerator back in.
OUTSIDE
Wax the outside in order to create better protection. Make
sure you use a product specifically design to be used
for electro-domestic products (car wax is acceptable).
Use a clean, soft rag, and perform this task twice a year.
For metal-made refrigerators, do not wax, simply clean
it with water and detergent. Do not use concentrated or
abrasive products.
NOTE: Avoid the usage of chemical products that
contain phosphates or bleach.
INSIDE (Allow freezer to slightly warm up a small
degree to prevent cloth from sticking)
In order to eliminate bad odors, clean the inside of
the refrigerator with a mixture of baking powder and
lukewarm water (one teaspoon of baking powder per cup
of water). Ensure that the powder dissolves thoroughly, in
order to prevent any sort of damage.
DOOR LINING AND GASKETS
Use only a mild detergent (such as dish soap).
PLASTIC PARTS (Covers and Panels)
Do not use abrasive, paper or rough products. These
could damage the product.
BACK COVER
WARNING
ELECTRICAL SHOCK HAZARD
Before you begin, either unplug the refrigerator or turn
off power at the circuit breaker or fuse box.
NOTE: Back Cover should only
be removed by a qualified
technician.
In order to get an efficient
performance of your
refrigerator, clean the back
cover of it at least twice a year.
REPLACING REFRIGERATOR LIGHTS
WARNING
ELECTRIC SHOCK HAZARD
Before replacing a burned-out light bulb, either unplug
the refrigerator or turn off power at the circuit breaker
or fuse box.
NOTE: Moving the control to the OFF position does
not remove power to the light circuit.
NOTE: Not all light bulbs for electric-domestic products
will fit your refrigerator. When replacing them, make sure
they are the same size, shape, and of a potency of 40
watts.
NOTE: The light bulbs will turn off, if the door of the
refrigerator is left open for seven minutes. If the door is
closed, the bulbs will turn on again.
Replacing the Refrigerator Light:
•Unplug your refrigerator.
•Pull out all of the shelves.
•Slide a flat screwdriver (1) into the opening of the light
bulb, and pull it downwards (2).
•Turn the bulb counter clockwise and remove it.
•Install the new light bulb.
•Take the cover (1), lock the hooks (2) from the rear
part of the light bulb and push it upwards (3).
BACK
COVER
11
1
2
REFRIGERATOR CARE AND CLEANING
26
Replacing the Freezer light
•Unplug the refrigerator.
•Unlock the cover of the light bulb using your thumbs
(1).
•Remove the light bulb and replace it with a new one.
•Take the cover (2), lock the hooks of it (3) and push it
upwards (4).
•Plug the refrigerator back in.
POWER INTERRUPTIONS
1. In case of a black out, call your electric company and
ask how long it will last.
2. In case of a 24 hour or less black out, do not open the
refrigerator; this will keep the food fresh.
3. In case of a longer black out, do one of the following
options:
• Pull out all of the frozen food and keep them in an ice
chest.
• Put 2 lbs (907 g) of frozen ice (make sure you use
gloves) for each square foot (28 L) inside the freezer.
This task will preserve the food fro 2 to 4 days.
• In case you do not possess neither ice chest or dry ice,
consume your food as soon as possible.
REMEMBER: In a power failure, a full freezer stays cold
longer than a partially filled one. A freezer full of meat
stays cold longer than a freezer full of baked goods. If
you see that food contains ice crystals, it may be safely
refrozen, although the quality and flavor may be affected.
If the condition of the food is poor or if you feel it unsafe,
dispose of it.
WHEN GOING ON VACATION
If you decide to leave your refrigerator on when going
away, consider these steps:
1. Consume all of the perishable items and freeze the
rest.
2. Empty the ice bin.
If you decide to leave your refrigerator off:
1. Remove all of the food.
2. Unplug your refrigerator.
3. Clean and dry it well.
4. Make sure the doors stay open (use blocks or tape) in
order to prevent bad odors and fungi from happening.
WHEN MOVING
If you decide to take your refrigerator with you when
moving, consider the following:
1. Remove all of the food from it, and place the frozen
food in an ice chest with dry ice.
2. Unplug your refrigerator.
3. Empty the water from its tray.
4. Clean and dry it with a rag.
5. Pull out all of the removable parts, and wrap them with
adhesive tape.
6. Depending on the model of the refrigerator, lift the top
part of the refrigerator so it can roll with ease, or screw
the levelers so it will not scratch the floor. Consult to
the section “Closing and Aligning Doors”.
7. Keep the doors closed with the cable glued to the
refrigerator cabinet with an adhesive tape.
When your refrigerator arrives to your home, put
everything back into place and read the section
“Refrigerator Installation” in order to obtain installation
preparation. In case your refrigerator has a factory ice
maker, remember you have to reconnect the water
supply.
2
1
3
1
2
3
4
REFRIGERATOR CARE AND CLEANING
27
NOTE: The automatic Ice maker is only included in some
models. Check your specifications of your refrigerator.
WARNING
PERSONAL INJURY HAZARD
Avoid contact with any moving parts of the ejector
mechanism or with the heater that releases the ice
cubes. DO NOT place your fingers in the automatic ice
maker when the refrigerator is plugged in.
OPERATING INSTRUCTIONS
After turning on your refrigerator, the ice will start to be
made between 12 and 24 hours.
Identify your ice maker type.
Type 1
Ice Maker
Sensor
Cube Size Light Switch
Cube Size Button
The ice maker produces 8 per cycle (in between 100
and 130 cubes in a 24 hour period), depending on the
temperature of the freezer, the times in which the door
opens, and other using conditions (amount of food in
the freezer, etc).
NOTE: If the size of the ice cube is smaller or bigger
than what you desire, you can adjust its size by pushing
the selective button. This button changes the pressure of
the water, which can give considerable results.
Each time you push the selective button, a light will turn
on. The bigger the amount that turns on, the bigger the
size of the cubes will be.
Type 2
Switch
Ice maker Sensor
The ice maker produces 12 cubes per cycle (in between
80 and 100 cubes in a 24 hour period), depending on
the temperature of the freezer, the times in which the
door opens, and other using conditions (amount of food
in the freezer, etc).
If the refrigerator is used before the connection of water
to the ice maker was performed, you must turn its dial
to O (off).
When the water connections are performed, turn its dial
to I (on).
The ice maker will fill up (and start making ice) between
12 and 24 hours after the refrigerator is turned on.
Throw away the first batch of ice. Make sure that nothing
interferes with the sensor.
When the ice reaches the sensor, the ice maker will stop
to make ice immediately.
It’s normal that some ice gets stuck. If the ice is not used
frequently, the older cubes of ice will be opaque in color,
smaller, and with a strange flavor.
YOU MUST TURN THE SWITCH TO O (OFF)
• When the water supply is interrupted for many hours.
• When the ice container is left out of its place for more
than one or two minutes.
• When the refrigerator will not be in use for various
days.
NORMAL SOUNDS
• The valve will emit a buzzing sound when the ice maker
is full of water. If the switch is placed in the off position
the buzz will still be heard even when the water pipe
has not been connected. To avoid this sound, move
switch to O (off) position.
NOTE: The ice maker can get damaged if the switch is
kept in the ON position before the water pipe has been
connected.
• While the ice maker is filling up with water and
producing ice, you will hear the sound of the ice falling
and water flowing through the pipes.
PREPARING FOR VACATIONS
Move the ice maker switch to the O (off) position and cut
the flow of water going into the refrigerator.
If room temperature is at freezing point, have a
specialized technician drain the flow of water from the
inner pipes (certain models) to avoid broken pipe related
damage.
REFRIGERATOR CARE AND CLEANING ABOUT THE AUTOMATIC ICE MAKER
28
NOTE: It is necessary to have a water source when both
water and/or ice dispensers are available in your product.
BEFORE START
The water source is not guaranteed by the refrigerator
manufacturer. Follow instructions carefully in order to
reduce damage.
Air located inside the water pipes can cause hammering
or tapping causing damage to the inner pipes or water
spillage in the inside of the refrigerator. Call a qualified
plumber to fix such hammering on the connections
before installing the water pipe.
To avoid burn damage or such, never connect refrigerator
to hot water pipes.
If you are to use the refrigerator before connecting it
to the water source, make sure the ice maker is the off
position.
Never attempt to install the ice maker pipes in areas
where room temperature is below freezing point.
When using any electrical device (like a drill) during
the installation, make sure device is doubly isolated or
making ground to prevent risk of electrical surge or
discharge.
All installations should be done considering local water
and drainage requirements.
• If an inverted osmosis water filtration system is
connected to the cold water source, the water hose
installation is not assured or guaranteed by the
refrigerator or automated ice maker manufacturer.
Follow the next instructions carefully to minimize costly
water related damages.
• When having an inverted osmosis water filtration
system connected to the cold-water flow, the water
pressure for such system must be at least between
40-60 PSI or 0,27 MPa (2,8 kg · f / cm ² ~ 4,2 kg · f
/ cm ², (2,8 kg · f / cm ² ~ 4,2 kg · f / cm ², less than
2 ~ 3 seconds to fill a 7 oz of capacity cup [0,2 liters]).
• If the inverted osmosis water filtration system pressure
is less than 21 PSI or 0,14 MPa (1,5 kg · f / cm ², more
than four (4) seconds to fill a 7 oz of capacity cup [0,2
liters]):
a) Identify if the sediments filter in the inverted osmosis
system is being blocked. Replace filter if necessary.
b) Allow inverted osmosis system storage tank to refill
after extensive usage.
c) Call a qualified plumber if the inverted osmosis water
pressure problem continues.
REQUIREMENTS
• 1/4” (6,35 mm) in diameter copper pipe to
connect refrigerator to the water pipe.
Make sure both terminals are cut in a
squared manner.
To determine how much pipe material is needed,
measures the distances between the valves located
behind the refrigerator and the source of water and add
to that 8 feet (2,4 m). Make sure there is sufficient pipe
material to allow the free movement of the refrigerator
from the wall
• A cold water source. Water pressure should be between
0,138 and 0,82 MPa or 20 and 120 PSI for models not
containing water filter and between 0,276 and 0,82
MPa or 40 and 120 PSI for models containing water
filter.
• A drill.
• Adjustable 1/2” (12,7 mm) key.
• Flat and Phillips style (star) screwdriver.
• Two 1/4” (6,35 mm) diameter
compression nuts with two
sides to connect the copper
pipe to the refrigerator valve.
If your current copper pipe has some
reduction on the ends, it will be
necessary to get and adaptor (found
in hardware stores) to connect the
water line to the refrigerator. It is also
possible to cut such reductions with a pipe cutter and
use the compression connections mentioned above.
• Bypass valve to connect to the cold water line. The
valve must have a water opening with an interior 5/32”
(3,46 mm) diameter in the cold-water connection
point. These valves can
be located in any cold-
water connection package.
Before buying make
sure such valve meets
local standards and
requirements.
INSTALLATION INSTRUCTIONS
Install the valve to the pipe that you use to drink water.
(Connect only to a potable water source).
CAUTION: Connect to potable water supply only.
1. CLOSE THE MAIN WATER SOURCE
Open the nearest water faucet to let water flow and
empty pipes.
2. SELECT THE LOCATION OF THE VALVE
Select the location of the valve that will
provide a better access. It is best to
connect to a vertical pipeline. When
connecting to a horizontal pipeline
is necessary, make the connection in
the lateral or upper area instead of the
lower area to prevent accumulation of
sediment.
CONNECTING THE WATER LINE CONNECTING THE WATER LINE
29
3. DRILL A HOLE FOR THE VALVE
Drill a 1/4” (6,35 mm) diameter
hole in the water pipeline.
Remove jagged edges produces
after perforation. Make sure water
does not reach the drill. Not
performing the 1/4” (6,35 mm)
perforation can lead to a low or
smaller ice production.
4. TIGHTEN THE VALVE
Tight the valve into the cold water pipeline with a tube
trap.
Pipe Clamp
Saddle Type Vertical Cold
Shutoff Valve Water Pipe
NOTE: Codes for 248 CMR pipelines of the state of
Massachusetts must be attached to the connection.
Valves of this type are banned in Massachusetts. Call an
authorized plumber.
5. TIGHTEN THE TRAP
Tighten the trap until the sealing ring begins to grow.
NOTE: Make sure it is not too tight, this can break the
pipe.
Washer
Pipe Clamp Inlet End
Clamp Screw
6. PLACE THE PIPELINE
Place the pipeline between the cold water pipe and the
refrigerator. Place it through a hole in the wall or floor
(behind the refrigerator or next to the cabinet) as close
to the wall as possible.
NOTE: Make sure there is a sufficient amount of extra
pipeline (8 feet [244 mm] coiled up three times with a
10” [25 cm] in diameter) to allow free movement of the
refrigerator from the wall after installation was made.
7. CONNECT PIPELINE TO VALVE
Place the compression nut and the copper pipe ferule at
the end of the pipe and connect to the valve. Make sure
the pipe is completely inserted into the valve. Tighten
nut carefully.
Saddle Type
Shutoff Valve Compression Nut
NOTE: Codes for 248 CMR pipelines of the state of
Massachusetts must be attached to the connection.
Valves of this type are banned in Massachusetts. Call an
authorized plumber.
8. DRAIN THE PIPE
Open the main water source (1) and drain the pipe until
water comes out clear.
Allow water flow from the bypass valve (2) and close after
draining 1/4 of a gallon (1L) of water.
9. CONNECT PIPE TO REFRIGERATOR
NOTES:
• Before making connection to refrigerator, make sure
it is not connected to any energy source. If your
refrigerator does not have a water filter, it is advised
to install one.
• If your water source contains sand or related particles
that can travel to the valve, install a water filter near the
refrigerator.
1
2
CONNECTING THE WATER LINE CONNECTING THE WATER LINE
Packing Nut
Outlet Valve Ferule (sleeve)
30
IMPORTANT: Never use old or used hoses. Always use
new ones to have a better use and experience. Connect
always to a potable water source to avoid security and
health issues.
• Remove the ring plug (1) from the valve located at the
top of such device.
• Place compression nut and the ferule at the end of the
pipeline. Insert pipeline into the connection valve as far
as possible. Hold tightly while holding pipeline.
Compression
Nut 1/4”
Ferule
Hold on to the pipe from the handles or grabbers located
behind the refrigerator, loosing first the bolt holding the
handle. Afterwards, insert pipe into the hole and tighten
bolt to finalize.
10. OPEN THE BYPASS VALVE
Tighten all connections
containing leaks. Place
access cover back on
compressor.
11. CONNECT TO REFRIGERATOR
Fix pipeline in a way that
it does not vibrate on the
refrigerator or wall. Push
refrigerator against wall.
12. TURN ICE MAKER ON
Turn ice maker switch into the ON position. Ice maker
will start only after reaching its operating temperature
of 15 °F (-9 °C) or less. It will automatically begin the ice
production if switch is located in the ON position.
1
CONNECTING THE WATER LINE TROUBLESHOOTING GUIDE
31
UNDERSTANDING SOUNDS YOU MAY HEAR
Your new refrigerator might produce certain noises that
your previous refrigerator did not. It is normal if you worry.
Most of the new sounds you will be hearing are actually
normal and expected. Hard surfaces like walls or floor
can increase sounds and make them sound louder than
they really are. The following list has a description of such
sounds along with their causes.
•The thawing timer will make a “click” sound when such
timer will start and finish. Temperature controlling
device will also make a “click” sound at the beginning
and ending of the refrigerator cycle.
•You will hear a bell sound caused by the flow of the
refrigerant, water pipe or objects located on the
superior part of the refrigerator.
•Your refrigerator is designed to work efficiently to
preserve your food at the desired temperature using
the least of energy. You will be able to hear a pulsing
sound coming from the ventilators and the evaporator.
The speed of the ventilator can speed up when you
open the refrigerator door.
•After each cycle you will hear a dripping sound due to
the refrigerant liquid in your refrigerator.
•Contraction and expansion of the inner walls can
cause a slight popping sound.
•You will hear a dripping sound caused during the
thawing cycle.
•During the defrosting cycle the water might cause a
dripping sound.
•You can hear some tight air sound over the capacitor
caused by the fan.
•Running water can be heard during the defrosting
cycle.
•Due to its low energy consumption design of the
refrigerator; the fans will remain of, while the on-off
switch activated the internal light of bin.
Problem Possible Causes Solutions
THE
REFRIGERATOR
WON´T TURN ON
•The plug is correctly positioned.
•A fuse has gone bad or the circuit
presents failures.
•The refrigerator is in the defrosting
cycle.
•Firmly plug the cord into a live outlet with proper
voltage.
•Replace the fuse or reset the circuit breaker.
•Wait about 30 minutes for defrost cycle to end.
STRANGE SOUNDS
OR SNOOZING/
VIBRATIONS
•The refrigerator is not correctly
positioned.
•You need to adjust the leveling screws due the
floor is unleveled or weak. Read the Installation
section.
THE LIGHT WON’T
TURN ON
•The refrigerator is plugged.
•The light bulbs are loose.
•A light bulb has gone bad.
•Plug the refrigerator in a right voltage plug.
•Unplug the refrigerator. Unscrew the Light bulb
and screw it again (Read the section Refrigerator
Care and Cleaning). Plug again.
•Unplug the refrigerator before changing the light
bulb. Replace the bulb with a same 40 watts bulb
for your local store. (Read the section Replacing
Refrigerator Lights).
CONNECTING THE WATER LINE TROUBLESHOOTING GUIDE
32
Problem Possible Causes Solutions
IT LOOKS LIKE
THE COMPRESSOR
MOTOR STAYS ON
TOO LONG
•The replaced refrigerator was an
older model.
•The room temperature is hotter
than usual.
•The door is being opened very often
or there has been a big amount of
food in storage.
•The refrigerator is plugged and the
control has been adjusted correctly.
•Doors won’t close correctly.
•The condenser pipes are dirty.
•Modern refrigerators with a bigger storage
capacity require longer periods of operation.
•The motor will continue working when the room
temperature is high. The motor might be on
between 40% or 80% of the time. In high
temperature conditions, the capacitor might run
on periods of time.
•When adding or opening the door of the
refrigerator, it warms it up. It’s normal that the
refrigerator to run more that usual in order to cool
the bins. (Read the section Food Storage Guide).
To save energy, take what you need at once, order
your food in order so it can be easily found and
close the door immediately soon after you took
out the food.
•The refrigerator will take 24 hours to cool down
completely.
•Push firmly the Doors. If they don’t close. Read
Doors will not close completely below.
•This will stop the air transfer and marked the
motor to work longer and harder. Clean the pipes
of the condenser.
DOORS WILL
NOT CLOSE
COMPLETELY
•The refrigerator is not leveled.
•The food packages are blocking the
doors.
•The ice bin, the vegetable bin, the
panels and the shelves from the
door are out of place or position.
•The gaskets are sticking.
•The refrigerator wobbles or looks
instable.
•The doors were removed during
the installation and they weren’t
properly setup.
•Read Refrigerator Installation section to level
refrigerator.
•Adjust the food bins in order to free space
between the doors and the shelves.
•Push the containers and place the vegetable cover
lid, the panels, shelves and any other container or
bin in their right positions. Read the section Using
your Refrigerator.
•Clean the seal rings and the surface they might be
in contact with. Use a piece of cloth with a small
amount of paraffin and apply it over the seal rings.
•Level the refrigerator. Read the section Closing
and Aligning the Doors.
•Remove and place again the door according to
the section Refrigerator Doors: How to remove
and reverse.
THERE´S ICE ON
THE FOOD
•The door hasn’t been closed
completely.
•The door is frequently opened.
•Read Doors Will not Close Completely already
mentioned.
•When the door is opened, warm, humid air is
allowed in the freezer resulting in frost.
THERE IS A WEIRD
TASTE AND SMELL
IN THE ICE
•The ice maker has been installed
correctly.
•The ice has been on storage too
long.
•The food hasn’t been packed in the
correct way.
•The water supply contains mineral
and sulfur.
•The inside of the refrigerator need
cleaning.
•The ice bin needs cleaning.
•Don’t use the first ices made.
•Dispose of that old ice and make new.
•Pack again the food because it can transfer odors
and tastes to the ice.
•You might need to install a filter in order to
eliminate the odors and taste problems.
•Read the section Refrigerator Care and Cleaning.
•Empty the bin and discard the old ice cubes.
THERE´S WATER IN
THE DRAINING BIN
•The refrigerator is in defrosting
cycle.
•It’s more humid than usual.
•The water will evaporate. It is normal that some
water falls on the bin.
•It might take a while for the water to evaporate.
This is normal when the weather is hot and humid.
TROUBLESHOOTING GUIDE
33
Problem Possible Causes Solutions
THE
REFRIGERATOR
SEEMS TO MAKE
TOO MUCH NOISE
•The sounds may be normal for your
refrigerator.
•Refer to the Understanding Sounds You May Hear
section.
THE ICE MAKER IS
NOT PRODUCING
ICE OR ICE CUBES
ARE FREEZING
TOO SLOWLY
•The smallest size of ice cubes is
selected.
•Door left open.
•Wait 24 hours after hook-up for ice production.
See the Adjusting the Controls section.
•Check to see if something is holding the door
open.
THE ICE CUBES
ARE TOO SMALL
•Smaller cube size level is selected.
•The water supply valve is blocked.
•Select a bigger size for the ice cubes.
•Call a plumber to clean the valve.
THE DOORS ARE
HARD TO OPEN
•The gaskets are dirty or sticky.
•The door opens itself as soon as
you close it.
•Clean the gaskets and surface that they are in
contact with. Use a damp cloth with paraffin also
apply over the seal rings.
•When you open the door, the warm air enters
in the refrigerator. When this air is cooled down
it occupies less volume and creates a vacuum
effect. If it is difficult to open wait 5 minutes then
check.
THE ICE MAKER
DOES NOT WORK
•The ice maker is off.
•The water supply is down or not
plugged.
•The freezer temperature is warm.
•The ice cubes turn off the ice maker.
•Turn the ice maker to the position on (I).
•Read the section Connecting the Water Line.
•Wait 24 hrs for the freezer to reach its ideal
temperature.
•Hand level the ice cubes.
THE TEMPERATURE
IS TOO HOT
OR THERE´S
HUMIDITY FORMED
INSIDE THE
REFRIGERATOR
•The air vents are blocked. The
cool air flows from freezer to the
refrigerator and returns thru the
vents that dive this section.
•The doors open very easily.
•The refrigerator control has not been
adjusted for the room conditions.
•A large amount of food is just been
placed inside the refrigerator.
•The food has not been well packed
in each bin.
•The doors haven’t been closed
correctly.
•The weather is humid.
•The auto-defrosting cycle is over.
•With your hand find the vents and move and
package that might be blocking the air flow. See
the Multi Flow Section.
•When the doors are opened the warm and humid
air enters. To keep your refrigerator cool, take what
you need once and you’re your food organized to
make it easy to find. Close the door a soon as
you can.
•Wait 24 hours to stabilize the temperature. If the
temperature is cold or hot, move the control until
the desire temperature is reached.
•After adding food to the refrigerator this will warm
up. It might take some hours for the refrigerator to
reach its temperature.
•Wrap the food evenly and before packing anything
dry all the bins to avoid humidity. If it is necessary,
pack the food according to the section Food
Storage Guide.
•Read Doors will not Close Correctly section.
•In humid weathers, the air contains humidity,
which introduces it self if the doors are opened.
•It’s normal that some water props get formed
after the defrosting cycle is completed.
TROUBLESHOOTING GUIDE
1-800-243-0000
1-888-865-3026
1-888-542-2623
USA, Consumer User
USA, Commercial User
CANADA
LG Customer Information Center
www.lg.com
Register your Product Online!
