– 1 –
CD-C440H/CP-C440H
SERVICE MANUAL
No. S6745CDC440H/
CONTENTS
Page
SAFETY PRECAUTION FOR SERVICE MANUAL .......................................................................................................... 2
IMPORTANT SERVICE NOTES (FOR UK ONLY) ........................................................................................................... 3
SPECIFICATIONS ............................................................................................................................................................ 3
NAMES OF PARTS .......................................................................................................................................................... 4
OPERATION MANUAL ..................................................................................................................................................... 6
DISASSEMBLY................................................................................................................................................................. 7
REMOVING AND REINSTALLING THE MAIN PARTS.................................................................................................... 9
ADJUSTMENT ................................................................................................................................................................ 10
NOTES ON SCHEMATIC DIAGRAM ............................................................................................................................. 16
TYPES OF TRANSISTOR AND LED ............................................................................................................................. 16
BLOCK DIAGRAM .......................................................................................................................................................... 17
SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD .............................................................................................20
WAVEFORMS OF CD CIRCUIT..................................................................................................................................... 41
TROUBLESHOOTING (CD SECTION) .......................................................................................................................... 42
FUNCTION TABLE OF IC .............................................................................................................................................. 46
FL DISPLAY ..................................................................................................................................................................... 56
WIRING OF PRIMARILY SUPPLY LEADS (FOR UK ONLY) ........................................................................................ 56
REPLACEMENT PARTS LIST/EXPLODED VIEW
PACKING OF METHOD (FOR UK ONLY)
CD-C440H
CP-C440H
CD-C440H, CP-C440H constitute CD-C440H.
• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
Manufactured under license from Dolby Laboratories Licens-
ing Corporation. DOLBY, the double-D symbol and
"PRO LOGIC" are trademarks of Dolby Laboratories Licens-
ing Corporation.
• SRS technology Licensed from SRS Labe. SRS technology holds
the follwing patents: U.S. Patent No. 4,748,669, U.S. Patent No.
4,841,572 and U.S. Patent No. 4,866,774.
• SRS the SRS Logo ( ) and the SOUND RETRIEVAL SYSTEM
are registered trademarks of SRS Labs, Inc.
SHARP CORPORATION
• Note for users in UK
Recording and playback of any material may require consent
which SHARP is unable to give. Please refer particularly to the
provisions of Copyright Act 1956, the Dramatic and Musical
Performers Protection Act 1956, the Performers Protection Acts
1963 and 1972 and to any subsequent statutory enactments and
orders.
background
CD-C440H/CP-C440H
– 2 –

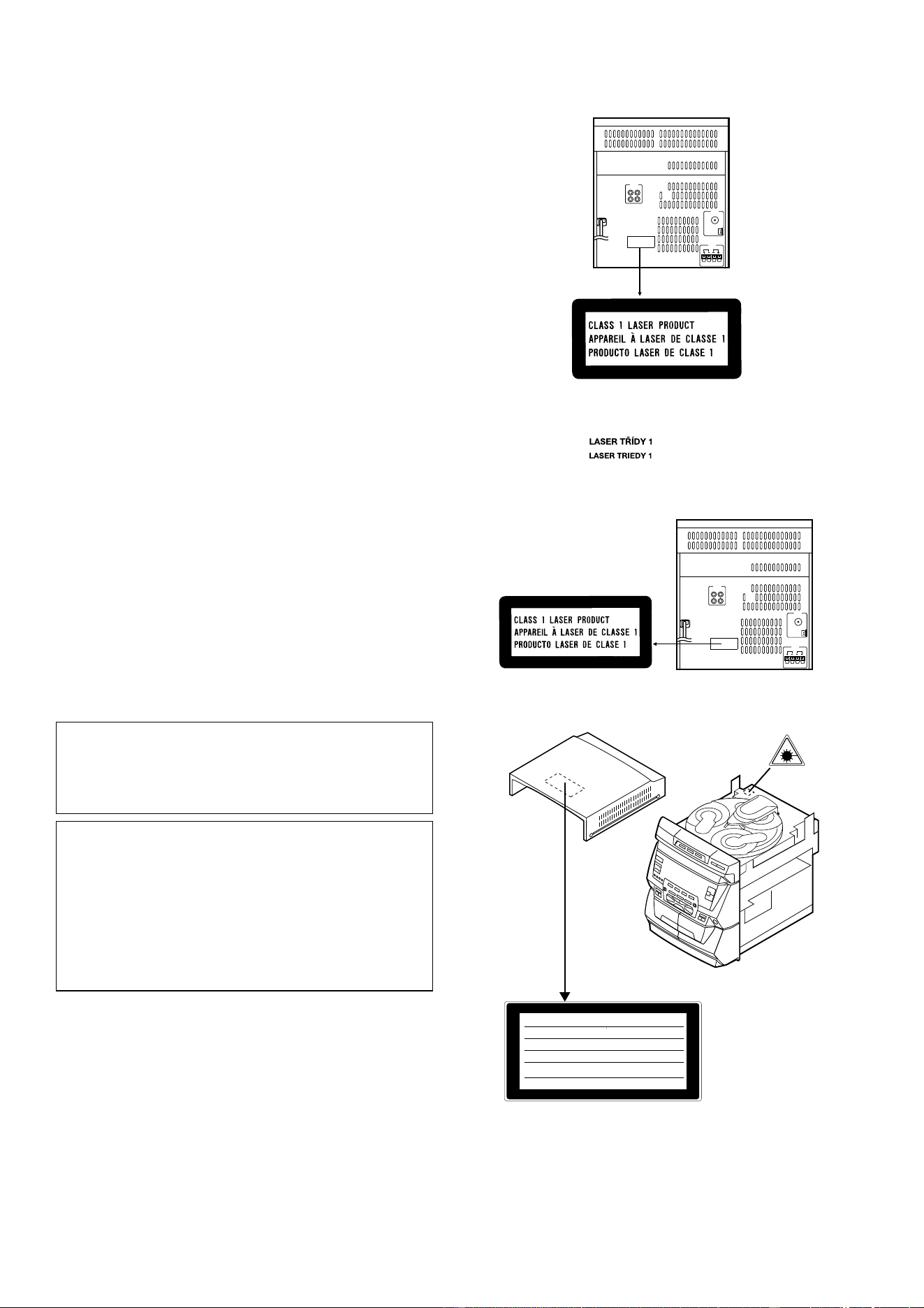

SAFETY PRECAUTION FOR
SERVICE MANUAL
Precaution to be taken when replacing and servicing the
Laser Pickup.
The AEL (Accessible Emission Level) of Laser Power Output
for this model is specified to be lower than Class I Requirements.
However, the following precautions must be observed during
servicing to protect your eyes against exposure to the Laser
beam.
(1) When the cabinet has been removed, the power is turned
on without a compact disc, and the Pickup is on a position
outer than the lead-in position, the Laser will light for several
seconds to detect a disc. Do not look into the Pickup Lens.
(2) The Laser Power Output of the Pickup inside the unit and
replacement service parts have already been adjusted prior
to shipping.
(3) No adjustment to the Laser Power should be attempted
when replacing or servicing the Pickup.
(4) Under no circumstances look directly into the Pickup Lens
at any time.
(5) CAUTION - Use of controls or adjustments, or performance
of procedures other than those specified herein may result
in hazardous radiation exposure.
Laser Diode Properties
Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ
KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA
ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1
YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.
VARNING - OM APPARATEN ANVÄNDS PÅANNAT SÄTTÄN I
DENNA BRUKSANVISNING SPECIFICERAS.
KANANVÄNDAREN UTSÄTTAS FÖR OSYNLIG
LASERSTRÅLNING, SOM ÖVERSKRIDER GRÄNSEN FÖR
LASERKLASS 1.
LASER KLASSE 1
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
(For Europe)
(For UK)
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO
BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
VARNING-OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD. STIRRA
EJ IN I STRÅLEN OCH BETRAKTA EJ STRÅLEN MED OPTISKA INSTRUMENT.
ADVERSEL-USYNLIG LASERSTRÅLING VED ÅBNING. SE IKKE IND I
STRÅLEN-HELLER IKKE MED OPTISKE INSTRUMENTER.
VARO! AVATTAESSA OLET ALTTIINA NÄKYMÄTÖN LASERSÄTEILYLLE.
ÄLÄ TUIJOTA SÄTEESEEN ÄLÄKÄ KATSO SITÄ OPTISEN LAITTEEN LÄPI.
VARNING-OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD.
STIRRA EJ IN I STRÅLEN OCH BETRAKTA EJ STRÅLEN GENOM OPTISKT
INSTRUMENT.
ADVERSEL-USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES. STIRR IKKE
INN I STRÅLEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER.
background
– 3 –
CD-C440H/CP-C440H
General
Power source: AC 230 V, 50 Hz
Power consumption: 200 W
Dimensions: Width; 270 mm (10-5/8")
Height; 300 mm (11-13/16")
Depth; 368 mm (14-1/2")
Weight: 6.9 kg (15.2 lbs.)
Amplifier section
Output power: PMPO; 380 W (total)
MPO; 192 W (96 W + 96 W) (DIN 45 324)
RMS; 100 W (50 W + 50 W) (DIN 45 324)
Input terminals: Video/Auxiliary (audio signal) x 2;
500 mV/47 kohms
Output terminals: Speakers; 6 ohms
Headphones; 16-50 ohms
(recommended; 32 ohms)
Compact disc player section
Type: 3-disc multi-play compact disc player
Signal readout: Non-contact, 3-beam semi-conductor
laser pickup
D/A Converter: 1-bit D/A converter
Frequency response: 20 - 20,000 Hz
Dynamic range: 90 dB (1 kHz)
Tuner section
Frequency range: FM; 87.5 - 108 MHz
MW; 522 - 1,620 kHz
LW; 153 - 281 kHz
SPECIFICATIONS
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
Before returning the unit to the customer after completion of a
repair or adjustment it is necessary for the following withstand
voltage test to be applied to ensure the unit is safe for the
customer to use.
Setting of Withstanding Voltage Tester and set.
Set name set value
Withstanding Voltage Tester
Test voltage 4,240 VPEAK
3,000 VRMS
Set time 6 secs
Set current(Cutoff current) 4 mA
Unit
Judgment
OK: The “GOOD” lamp lights.
NG: The “NG” lamp lights and the buzzor sounds.
SHORT-CIRCUIT
AC POWER
SUPPLY CORD
CONNECT THE PROBE
TO GND TERMINAL
OF PHONO TERMINAL
PROBE
AC
UNIT
WITHSTANDING
VOLTAGE TESTER
+
-
OUT
OF CHASSIS
SCREW
IMPORTANT SERVICE NOTES (FOR UK ONLY)
Specifications for this model are subject to change without
prior notice.
CD-C440H
CHASSIS
SCREW
CP-C440H
Cassette deck section
Type: Compact cassette tape
Frequency response: 50 - 14,000 Hz (Normal tape)
Motor: DC motor with electronic governor x 1
Signal/noise ratio: 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Bias and erasure
system: AC
Tape speed: 4.76 cm/sec. (1-7/8 ips)
Wow and flutter: 0.2 % (DIN 45 511, playback)
Heads: TAPE-1: Playback x 1
TAPE-2: Record/playback x 1
Erase x 1
Type: 2-way 160 mm (6-1/2") woofer and
50 mm (2") tweeter type
Maximum input power: 100 W
Impedance: 6 ohms
Dimensions: Width; 200 mm (7-7/8")
Height; 300 mm (11-13/16")
Depth; 247 mm (9-3/4")
Weight: 3.4 kg (7.5 lbs.)/each
background
CD-C440H/CP-C440H
– 4 –

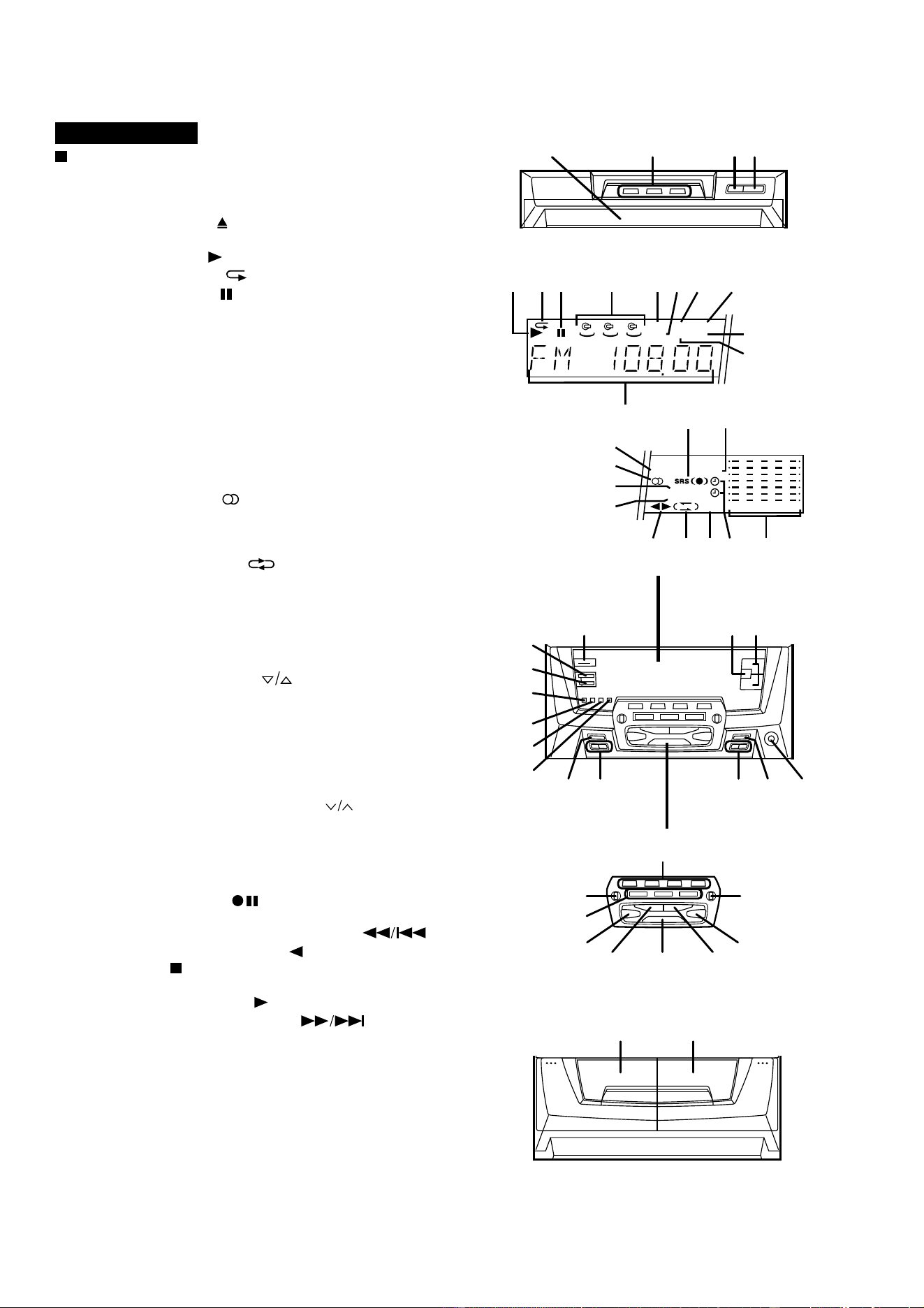

NAMES OF PARTS
Front Panel
1. Disc Tray
2. Disc Number Selector Buttons
3. Disc Skip Button
4. Open/Close Button:
5. CD Play Indicator:
6. CD Repeat Indicator:
7. CD Pause Indicator:
8. Disc Number Indicator
9. RDS Indicator
10. EON Indicator
11. Traffic Announcement Indicator: TA
12. Traffic Programme Indicator:TP
13. Traffic Information Indicator: TI
14. Programme Type Indicator: PTY
15. Function/CD Track/Preset Channel/Volume/
Frequency/CD Counter/Time/Sleep Time Indicator
16. 3D Surround Indicator
17. Sleep Indicator
18. FM Stereo Mode Indicator: ST
19. FM Stereo Indicator:
20. Extra Bass Indicator: X-BASS
21. Memory Indicator
22. Direction Indicators
23. Reverse Mode indicator:
24. Record indicator
25. Timer Indicator
26. Spectrum Analyzer/Volume Level/Balance Indicator
27. On/Stand-by Switch
28. Extra Bass Button: X-BASS
29. Volume Up/Down Buttons:
30. Clock Button
31. Timer/Sleep Button
32. Programme Type/Traffic Information Search Button
33. EON button
34. ASPM Button
35. Display Mode Selector Button
36. Memory/Set Button
37. Tuning and Time Up/Down Buttons:
38. Edit/Beat Cancel Buttons:
NORMAL/HIGH (BEAT CANCEL)
39. Reverse Mode Button
40. Headphone Socket
41. Function Selector Buttons
42. Record Pause Button:
43. 3D Surround Mode Buttons: PASS/MONO/STEREO
44. Track Down/Review/Preset Down Button:
45. (TAPE 2) Reverse Play Button:
46. Stop Button:
47. (TAPE 1) Play Button/(TAPE 2) Forward Play Button/
(CD) Play/Repeat Button:
48. Track Up/Cue/Preset Up Button:
49. Equalizer Selector/Demo Mode Button
50. (TAPE 1) Cassette Compartment
51. (TAPE 2) Cassette Compartment
CD-C440H
1
2
34
123
X-BASS
kHz
MHz
RDS
EON
TA
PTY
TP
63 250 1k 4k 16k
SLEEPST
MEMORY
REC
TI
5
7
8
9
1011
12
13
14
15
16 17
18
19
20
21
22232425
26
6
27
28 29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
background
– 5 –
CD-C440H/CP-C440H

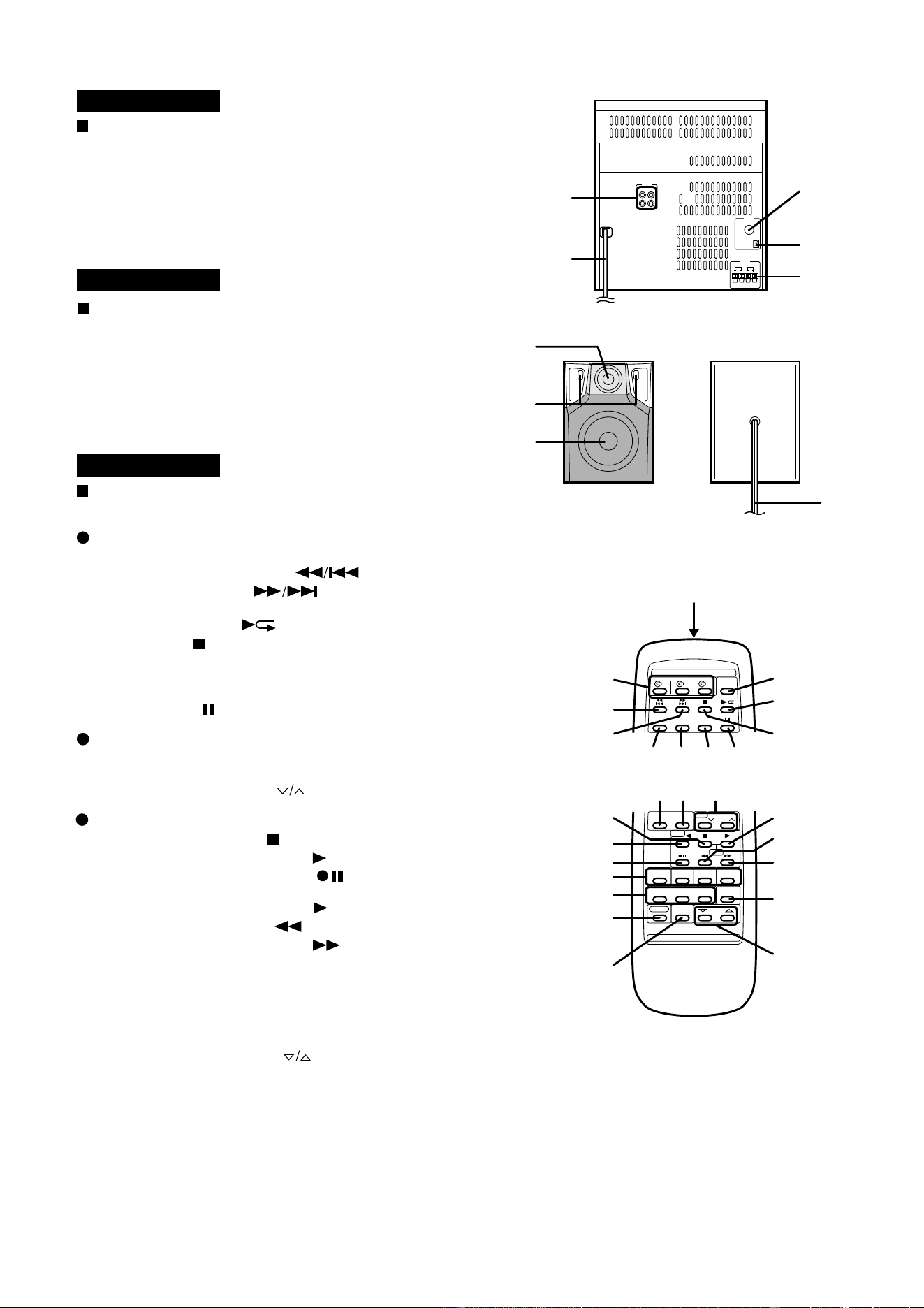

Rear Panel
1. Video/Auxiliary (Audio Signal) Input Sockets
2. AC Power Lead
3. FM 75 ohms Aerial Socket
4. MW/LW Loop Aerial Input Socket
5. Speaker Terminals
Speaker Section
6. Tweeter
7. Bass Reflax Duct
8. Woofer
9. Speaker Wire
Remote Control
1. Remote Control Transmitter LED
CD Control section
2. Disc Number Select Button
3. Track Down/Review Button:
4. Track Up/Cue Button:
5. Disc Skip Button
6. Play/Repeat Button:
7. Stop Button:
8. Memory Button
9. Clear Button
10. Random Button
11. Pause Button:
Tuner control section
12. Programme Type/Traffic Information Search Button
13. Display Mode Selector Button
14. Preset Up/Down Buttons:
Tape control section
15. (TAPE 1/2) Stop Button:
16. (TAPE 2) Reverse Play Button:
17. (TAPE 2) Record Pause Button:
18. (TAPE 1) Play Button/
(TAPE 2) Forward Play Button:
19. (TAPE 2) Rewind Button:
20. (TAPE 2) Fast Forward Button:
21. Function Selector Buttons
22. 3D Surround Mode Button: PASS/MONO/STEREO
23. Equalizer Mode Button
24. On/Stand-by Button
25. Extra Bass Button: X-BASS
26. Volume Up/Down Buttons:
CD-C440H
CP-C440H
CD-C440H
1
3
4
5
2
6
7
8
9
1
2
3
4
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
5
background
CD-C440H/CP-C440H
– 6 –
OPERATION MANUAL
ON/
STAND-BY
CLOCK
MEMORY/
SET
TUNING/TIME
( )
AM 12:00AM 0:000:00
2
3
4
7
6
5
8
9
SETTING THE CLOCK
1
Press the ON/STAND-BY switch to enter the stand-by mode.
2
Press the CLOCK button.
3
Within 5 seconds, press the MEMORY/SET button.
4
Press the TUNING/TIME ( or ) button to select the time
display mode.
"0:00" → The 24-hour display will appear.
(0:00 - 23:59)
"AM 0:00" → The 12-hour display will appear.
(AM 0:00 - PM 11:59)
"AM 12:00" → The 12-hour display will appear.
(AM 12:00 - PM 11:59)
Note that this can only be set when the unit is first installed
or it has been reset (see below).
5
Press the MEMORY/SET button.
6
Press the TUNING/TIME ( or ) button to adjust the hour.
Press the TUNING/TIME button once to advance the time by
1 hour. Press for more than 0.5 seconds to advance continu-
ously.
When the 12-hour display is selected, "AM" will change auto-
matically to "PM".
7
Press the MEMORY/SET button.
8
Press the TUNING/TIME ( or ) button to adjust the
minutes.
Press the button for at least 0.5 seconds to change the time
in 5-minute intervals.
The hour setting will not advance even if minutes advance
from "59" to "00".
9
Press the MEMORY/SET button.
The clock starts operating from "0" seconds. (Seconds are
not displayed.)
Note:
In the event of a power failure or when the AC power lead
is disconnected, the clock display will go out.
When the AC power supply is restored, the clock display will
flash on and off to indicate the time when the power failure
occurred or when the AC power lead was disconnected.
If this happens, follow the procedure below to change the
clock time.
To change the clock time:
When the ON/STAND-BY switch is set to STAND-BY.
When the unit is in the demonstration mode, press the DEMO
button to enter the clock mode.
Press the MEMORY/SET button.
Perform steps 6 - 9 above.
When the ON/STAND-BY switch is set to ON.
Press the CLOCK button.
Within 5 seconds, press the MEMORY/SET button.
Perform steps 6 - 9 above.
To see the time display: (When the power is ON)
Press the CLOCK button.
The time display will appear for about 5 seconds.
To switch the time display mode:
1
Press the ON/STAND-BY switch to enter the stand-
by mode.
2
Press the VOLUME button, the TUNING/TIME
button and the ON/STAND-BY switch all at the same
time. Hold them down for at least 1 second.
(Refer to RESETTING THE MICROCOMPUTER on
page 27.)
3
Perform steps 1 - 9 above.
Note:
The operation explained above will erase all data
stored in memory, such as clock and timer settings,
tuner and CD presets.
In this example, the clock is set for the
24-hour (0:00) system.
1
2
1
2
3
PREPARATION FOR USE
Notes concerning use:
Replace the batteries if control distance decreases or oper-
ation becomes erratic.
Periodically clean the transmitter LED on the remote control
and the sensor on the main unit with a soft cloth.
Exposing the sensor on the main unit to strong light may
interfere with operation. Change the lighting or the direction
of the unit.
Keep the remote control away from moisture, excessive heat,
shock, and vibrations.
15
15
0.2 m - 6 m
(8" - 20')
RESETTING THE MICROCOMPUTER
Reset the microcomputer under the following conditions:
To erase all of the stored memory contents (clock and timer
settings, tuner and CD presets).
If the display is not correct.
If the operation is not correct.
Note:
To erase the tuner preset memory, see "To erase all of the
contents of preset memory" on page 15.
1
Press the ON/STAND-BY switch to enter the stand-by mode.
2
Press the VOLUME button, the TUNING/TIME button
and the ON/STAND-BY switch all at the same time. Hold
them down for at least 1 second.
1
2
2
background
– 7 –
CD-C440H/CP-C440H

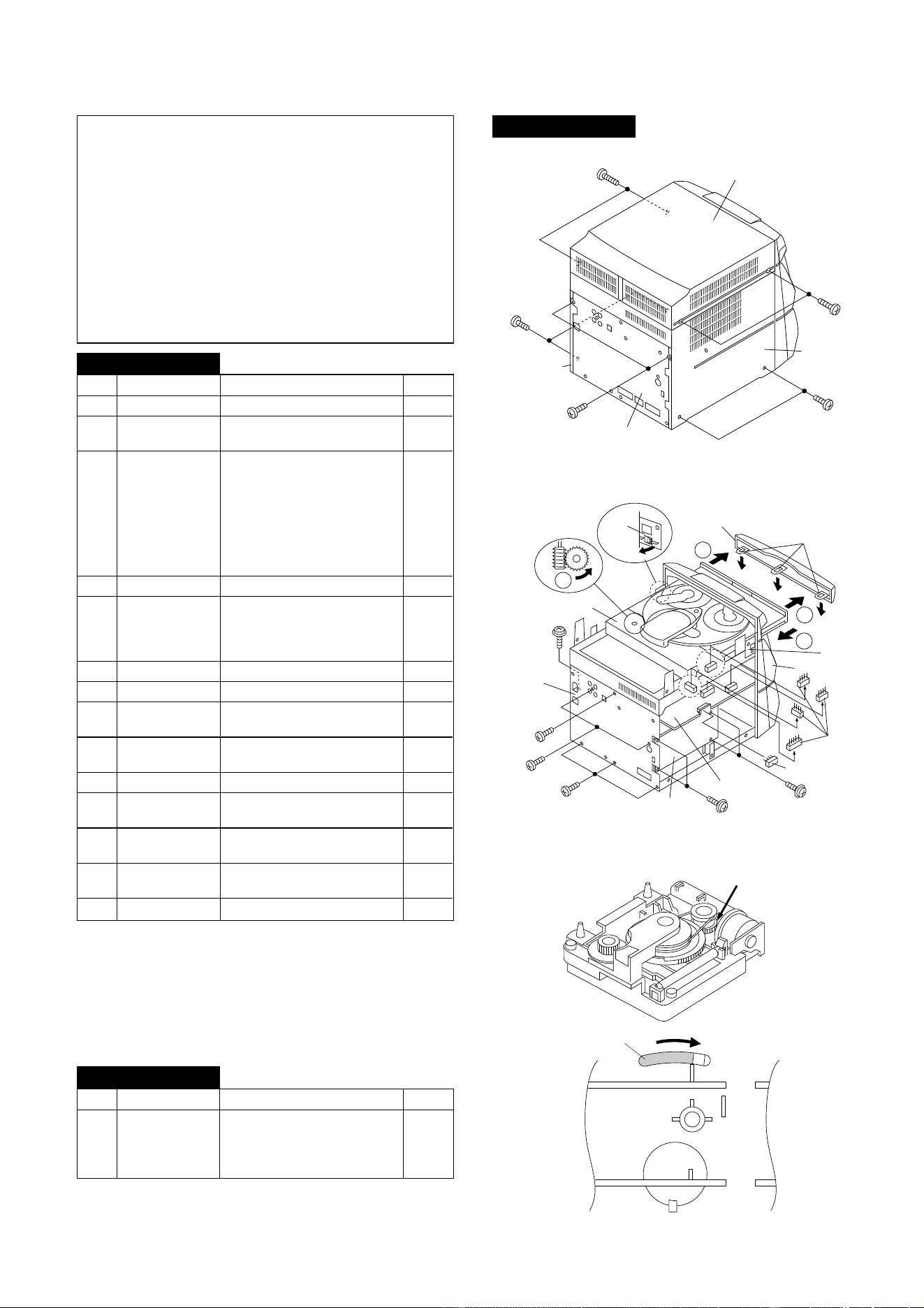

DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need be
removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.
4. Take suffcient care on static electricity of integrated
circuits and other circuits when servicing.
Figure 7-2
Figure 7-3
1 Top Cabinet 1. Screw ..................... (A1) x4 7-1
2 Side Panel 1. Screw ..................... (B1) x6 7-1
(Left/right)
3 CD Player Unit/ 1. Turn on the power supply, 7-2
CD Tray Cover open the disc tray, take out
the CD cover, and close.
(Note 1)
2. Hook ....................... (C1) x3
3. Hook ....................... (C2) x2
4. Screw ..................... (C3) x1
5. Socket .................... (C4) x4
4 Back Board 1. Screw ..................... (D1) x8 7-2
5 Main PWB/ 1. Screw ..................... (E1) x5 8-1
Tuner PWB 2. Holder .................... (E2) x2
3. Flat Wire................. (E3) x4
4. Socket .................... (E4) x4
6
Headphones PWB
1. Screw ..................... (F1) x1 8-1
7 Front Panel 1. Screw ..................... (G1) x2 8-1
8 Display PWB/ 1. Screw ..................... (H1) x3 8-2
Switch PWB 2. Screw ..................... (H2) x11
9 Tape Mechanism 1. Open the cassette holder. 8-2
2. Screw...................... (J1) x6
10
Power Amp. PWB
1. Screw ..................... (K1) x4 8-3
11 Turntable 1. Screw ..................... (L1) x1 8-4
2. Cover ..................... (L2) x1
12 Disc Tray 1. Screw ..................... (M1) x2 8-4
2. Guide ..................... (M2) x2
13 CD Changer 1. Screw ..................... (N1) x4 8-5
Mechanism
14 CD Mechanism 1. Screw ..................... (P1) x1 8-5
STEP REMOVAL
PROCEDURE
FIGURE
Note 1:
How to open the changer manually. (Fig. 7-3)
1. Insert the tip of fine screwdriver into the hole of CD player
base, and press down the worm wheel < A > .
2. Then, turn fully the lock lever in the arrow direction through
the hole on the loading chassis bottom in this state.
After that, push forward the CD player base.
Figure 7-1
( B1 ) x2
ø3 x8mm
( B1 ) x2
ø3 x8mm
( B1 ) x2
ø3 x8mm
Top Cabinet
Side Panel
(Right)
Rear Panel
Side Panel
(Left)
( A1 ) x2
ø3 x12mm
( A1 ) x2
ø3 x12mm
CD Tray Cover
CD Player Unit
( D1 ) x2
ø3 x10mm
( E1 ) x2
ø3 x10mm
( D1 ) x1
ø3 x10mm
( D1 ) x3
ø3 x8mm
( C3 ) x1
ø3 x8mm
( D1 ) x2
ø3 x8mm
Hook
( C1) x3
( C4 ) x4
( E4 ) x1
( C2 ) x1
Back
Board
Main PWB
Tuner
PWB
Front Panel
1
1
2
Pull
A
(C2)x1
< A >
LOCK
LEVER
CD-C440H
CD-C440H
STEP REMOVAL
PROCEDURE
FIGURE

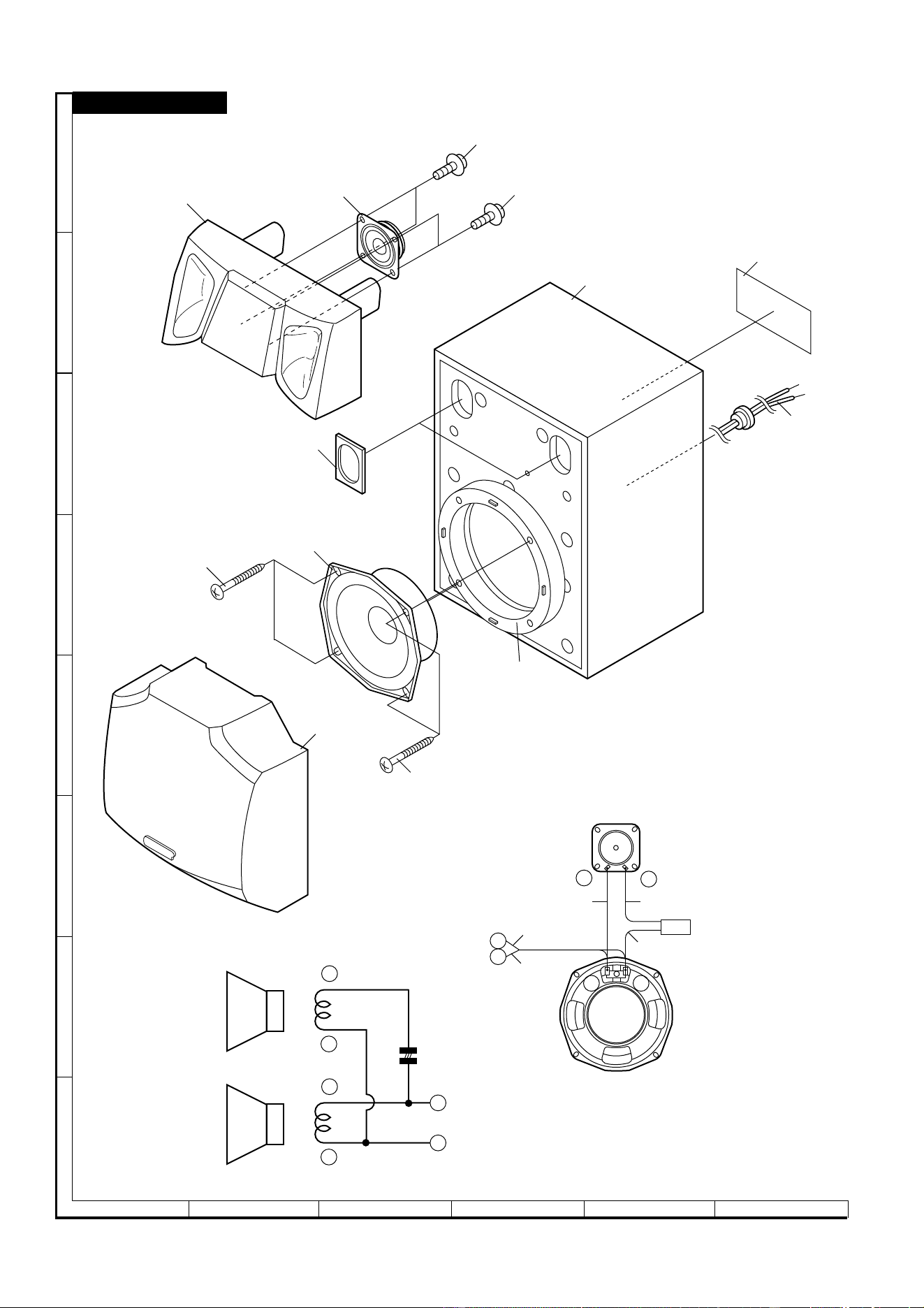

1 Speaker 1. Net Frame Ass'y ..... (A1) x1 8-6
2. Duct Front Panel .... (A2) x1
3. Screw ...................... (A3) x4 8-7
4. Screw ...................... (A4) x4
CP-C440H
background
CD-C440H/CP-C440H
– 8 –

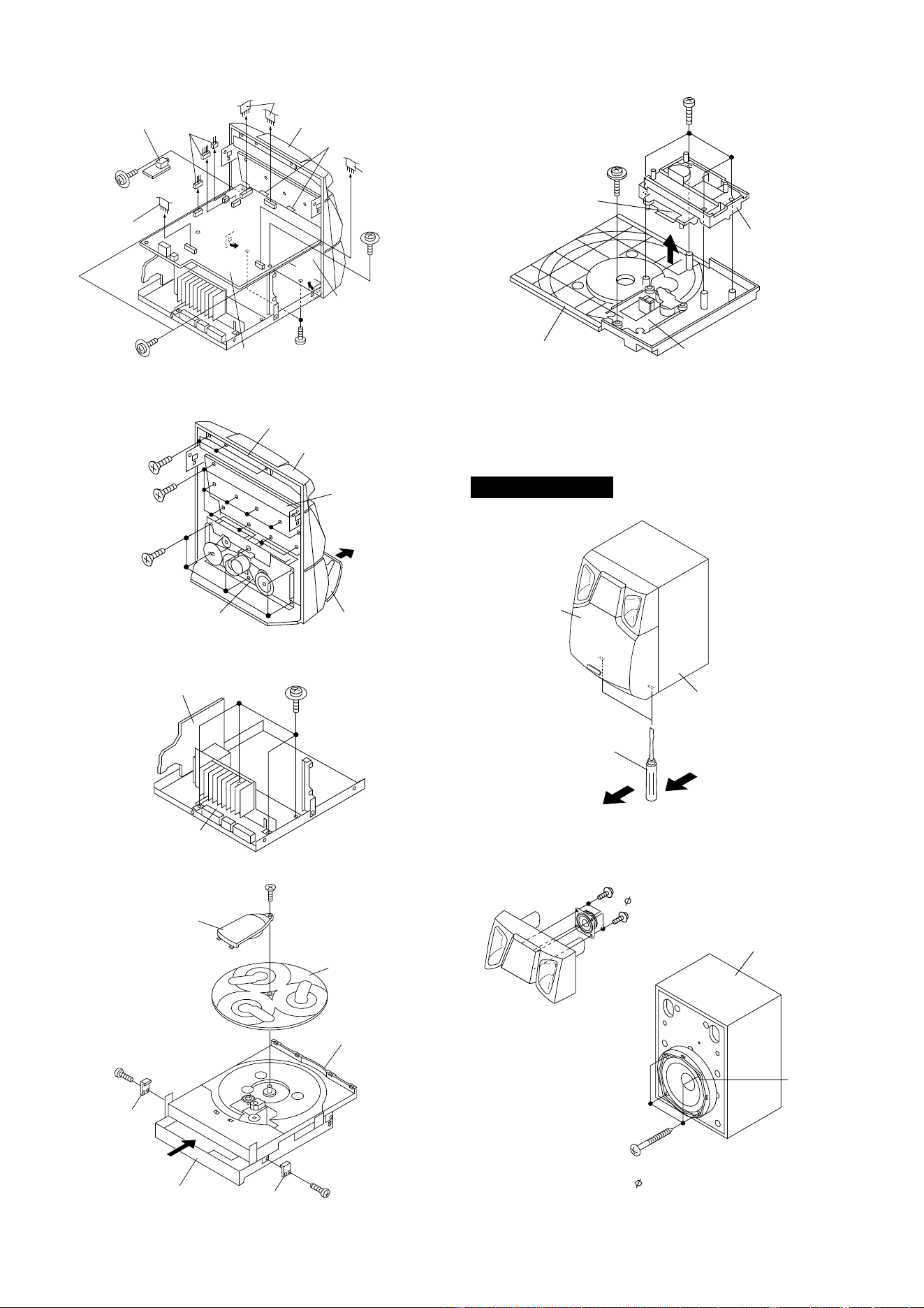

Figure 8-1
Figure 8-2
Figure 8-3
Figure 8-4
Care when installing the CD changer mechanism.
Install the CD changer mechanism on the CD player base after
the shift lever has been set in the highest position.
Figure 8-5
Figure 8-6
Figure 8-7
Main PWB
( G1 ) x2
ø3 x8mm
( F1 ) x1
ø3 x10mm
( E1 ) x2
ø3 x12mm
( E4 ) x3
( E3 ) x1
Front Panel
Tape
Mechanism
( E1 ) x1
ø3 x10mm
Push
Push
Headphon
PWB
( E3 ) x2
( E3 ) x1
( E2 ) x2
Display
PWB
Switch PWB
Tape
Mechanism
Open
Cassette
Holder
(Left/Right)
Front Panel
( J1 ) x6
ø3 x10mm
( H2 ) x11
ø3 x10mm
( H1 ) x3
ø3 x10mm
Power Supply PWB
( K1 ) x4
ø3 x10mm
Power Amp.
PWB
( M1 ) x1
ø3 x10mm
( M1 ) x1
ø3 x10mm
( L1 ) x1
ø3 x10mm
Turntable
Disc Tray
( L2 ) x1
( M2 ) x1
( M2 ) x1
CD Player Unit
( N1 ) x4
ø3 x14mm
( P1 ) x1
ø2.6 x10mm
CD Changer
Mechanism
CD Mechanism
Shift Lever
CD Player Base
CP-C440H
SHARP
Front Panel
(A1) x1
Speaker Box
Screw
driver
Driver should be pried
away from speaker Box.
Direction of handle
Speaker Box
(A2) x4
4 x12mm
(A2) x4
3 x10mm
Woofer
background
– 9 –
CD-C440H/CP-C440H
Figure 9-2
How to remove the pickup (See Fig. 9-2)
1. Remove the screws (B1) x 2 pcs., to remove the shaft (B2).
2. Remove the stop washer (B3) x 1 pc., to remove the gear
(B4).
3. Remove the pickup.
REMOVING AND REINSTALLING THE MAIN PARTS
CD MECHANISM SECTION
Perform steps 1, 2, 3, 14 and 15 of the disassembly method
to remove the CD mechanism.
How to remove the turntable up/down motor
(See Fig. 9-1)
1. Remove the screws (A1) x 2 pcs., to remove the turntable
up/down motor.
Figure 9-1
( B1 ) x2
2.6 x6mm
Shaft
( B2 ) x1
Stop Washer
( B3 ) x1
Gear
( B4 ) x1
CD Mechanism
Pickup
( A1 ) x2
ø2 x5mm
Turntable Up/Down Motor
background
CD-C440H/CP-C440H
– 10 –
MECHANISM SECTION
• Driving Force Check
Torque Meter
Specified Value
Play: TW-2412 Tape 1: Over 80 g
Tape 2: Over 80 g
• Torque Check
Torque Meter
Tape 2
Play: TW-2111 30 to 60 g. cm 30 to 100 g.cm
Fast forward: TW-2231 — 50 to 100 g.cm
Rewind: TW-2231 — 50 to 100 g.cm
Specified
Value
Adjusting
Point
Instrument
Connection
Test Tape
Normal MTT-111 VRM01 3,000 ± Speaker
speed 30 Hz terminal
ADJUSTMENT
Specified Value
Tape 1
• Tape Speed
fL: Low-range frequency
fH: High-renge frequency
• AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
IF 450 kHz 1,620 kHz T351 *1
MW Band — 522 kHz (fL): T306 *2
Coverage 1.1 ± 0.1 V
MW 990 kHz 990 kHz (fL): T302 *1
Tracking
LW Band — 153 kHz (fL): T305 *2
Coverage 1.5 ± 0.1 V
LW 225 kHz 225 kHz (fL): T301 *1
Tracking
Test Stage Frequency
Frequency
Display
Setting/
Adjusting
Parts
Instrument
Connection
• FM
Notes:
1: Description of the "FM IF Adjustment" is not carried on this
Manual. It is because the IF coil in the FM front end section
has been best adjusted in the factory so that its further
adjustment is not needed at the field. When replacing the
FM front end assembly, no adjustment is needed either.
2: The parts in the FM front end section are prepared in a
complete unit, so you can't obtain each part individually
Adjusting
Parts
Instrument
Connection
Frequency
Display
Frequency
• FM Mute Level
Signal generator: 1 kHz, 40 kHz dev., FM modulated
98.00 MHz 98.00 MHz VR351* Input: Antenna
(25 dBµV) Output: Speaker
Terminal

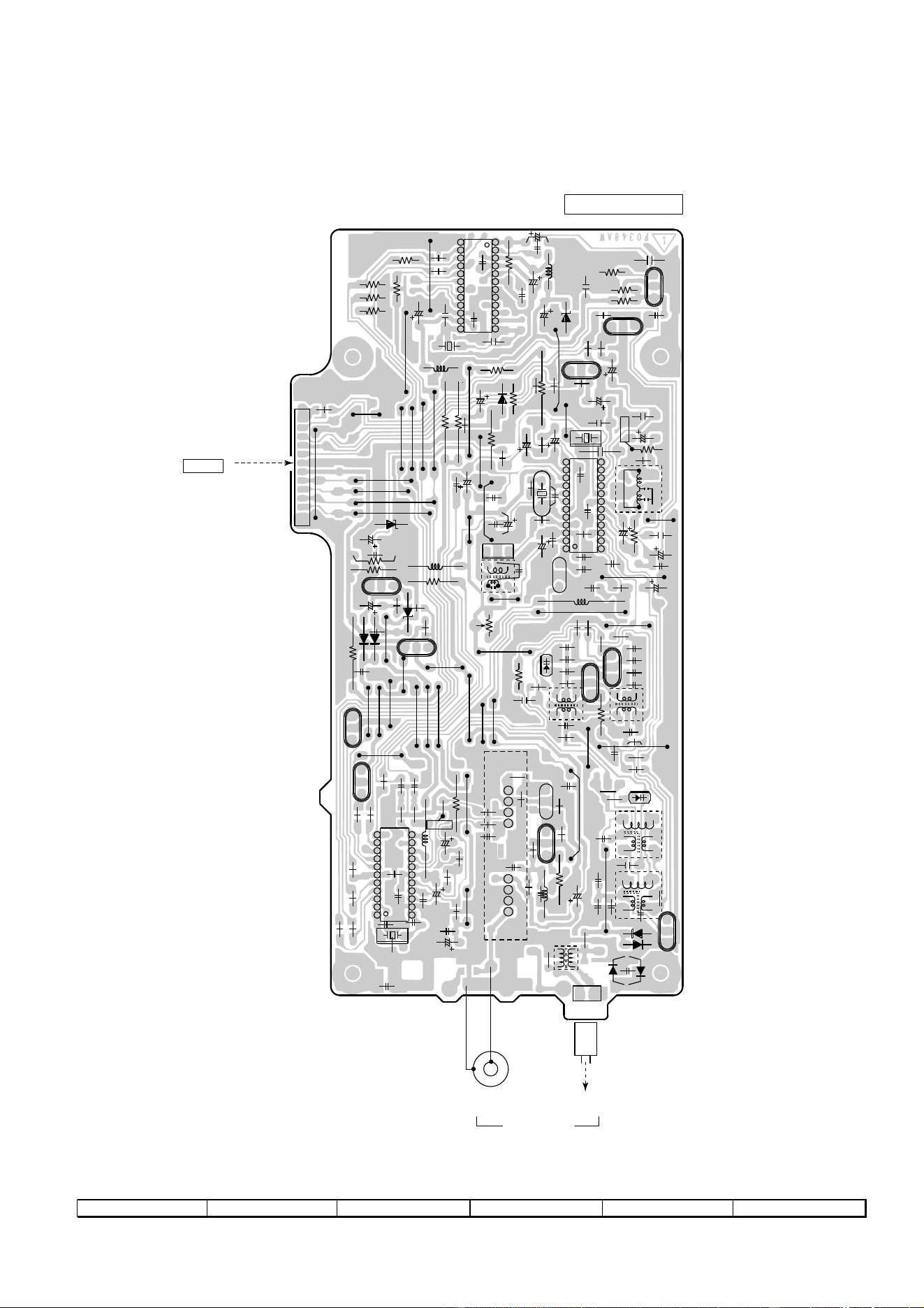

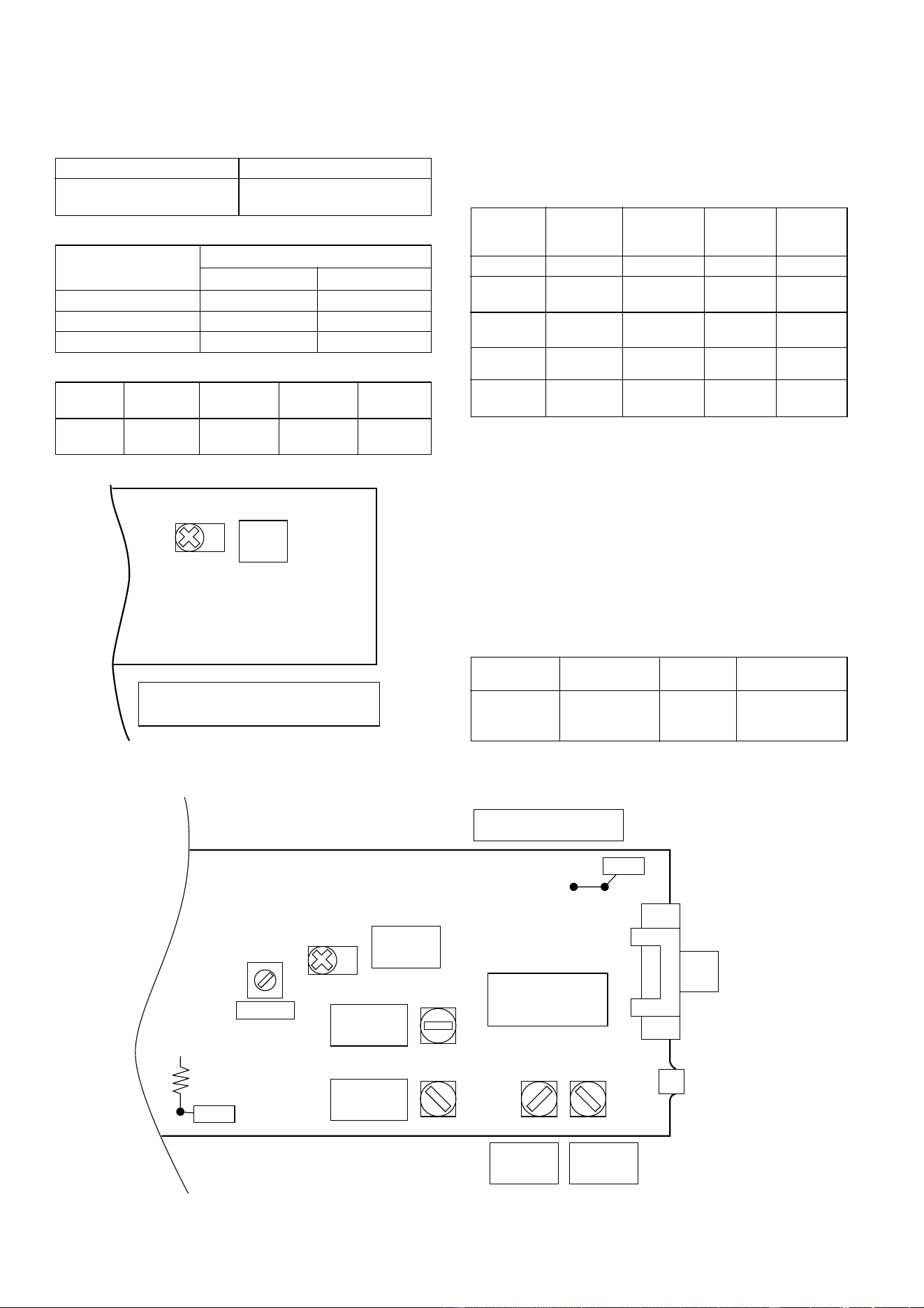

Figure 10-1 ADJUSTMENT POINTS
TUNER SECTION
*1. Input: Antenna, Output: TP302
*2. Input: Antenna, Output: TP301
VRM1
TAPE
SPEED
TAPE MECHANISM PWB
TUNER PWB
TP301
CNP301
SO301
ANTENNA
TERMINAL
FE301
TP302
T351
T306
T305 T302 T301
VR351
AM IF
FM MUTE
LEVEL
MW BAND
COVERAGE
MW
TRACKING
LW
TRACKING
LW BAND
COVERAGE
background
– 11 –
CD-C440H/CP-C440H
TEST MODE
2
1
TO
TE
200 ms
1V/diV
IC 1 15
200 ms
1V/diV
IC 1 7
TRACKING/
ERROR
BARANCE
ADJUST
Figure 11-2
Figure 11-3
2
1
10ms
0.50 V
IC1 20 FE
10ms
0.50 V
IC1 7 TE
Enlarged
View
TRACKING
OFF-SET
ADJUST
Since this CD system incorporates the following automatic adjustment function, when the pickup is replaced, it is not necessary
to readjust it.
Since this CD unit does not need adjustment, the combination of PWB and laser pickup unit is not restricted.
• Automatic adjustment item
1. Focus offset (Fig. 11-2)
2. Tracking offset (Fig. 11-3)
3. E/F balance (tracking error balance) (Fig. 11-4)
4. RF level AGC function (HF level: constant)
5. RF level automatic follow-up of the tracking gain
This automatic adjustment is performed each time a disc is changed. Therefore,
each disc is played back using the optimal settings.
CD SECTION
Figure 11-1
Note:
Only in STOP state it is possible to slide the pickup with the ( ) or ( ) key.
VOL. --- Last memory
BAL. --- CENTER
R.GEQ. --- FLAT
X-BAS --- OFF
Canceling method - POWER OFF

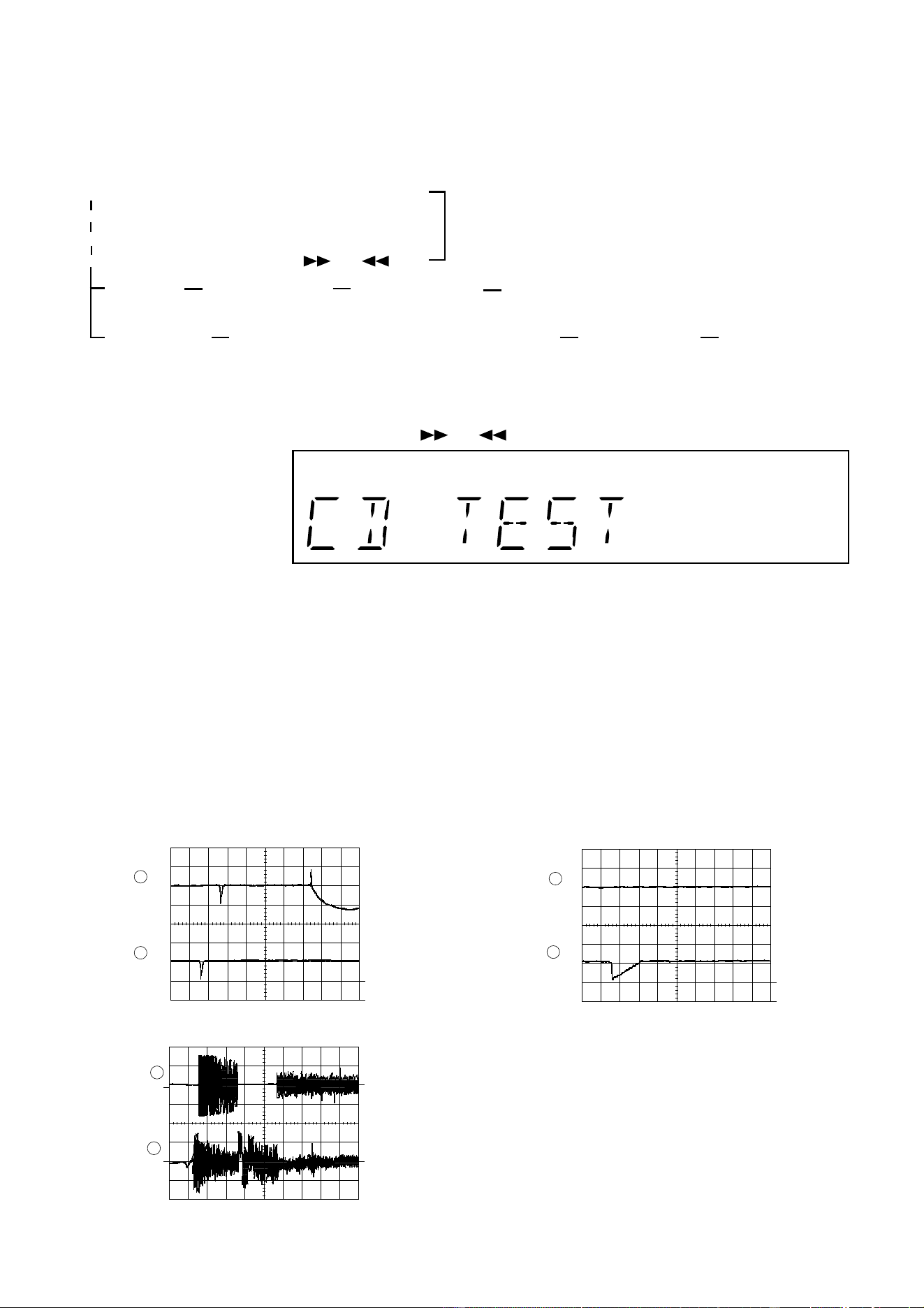

• Setting the test mode
Any one of test mode can be set by pressing several keys as follows.
<REC. PAUSE> + <CD> + <POWER> TEST: CD operation test
• TEST mode
Function — CD test mode
Setting of TEST mode
Indication of CD TST mode (Fig. 11-1)
OPEN/CLOSE operation is manual operation.
The pickup can be moved by using the (
) or ( ) key.
<MEMORY>
LASER ON
<PLAY> key input Press <STOP> key.
Stop
TOC. IL is performed, and the ordinary PLAY is performed.
If the following key is pressed during PLAY, it is possible
to specify directly any Track No.
<Disc Number 1> key: Track 4
<Disc Number 2> key: Track 9
<Disc Number 3> key: Track 15
<MEMORY>
Tracking on the spot.
SERVO OFF PLAY
<MEMORY>
Tracking on the spot.
SERVO ON PLAY
STOP
2
0.1s
0.50 V
IC1 20 FE
0.1s
0.50 V
IC1 7 TE
1
FOCUS
OFF-SET
ADJUST
TRACKING
OFF-SET
ADJUST
Figure 11-4
IL is not performed.
<STOP>
background
CD-C440H/CP-C440H
– 12 –
RDS
1. RDS Function
PI ASPM
PS STATION NAME
PTY PTY SEARCH
PTY(31)
EON TI (TA) STAND-BY MODE
EON-PTY EON-TI/PTY
EON-AF With EON-AF
TP ind.
TA ind.
2. DISPLAY and control buttons
Select and search (18 kind items) by cyclic
NEWS-AFFAIRS ------ OTHER M - ALARM - TP - TA
Select and stand-by (17 kind items) by cyclic
NEWS-AFFAIRS ------ OTHER M - ALARM - TI
RDS
EON
TA TP
PTY
TI
DISPLAY
8 character can display E1 table of EBU.
Same as CD-C75H.
Lights up when RDS with EON station is received.
Lights up when RDS station is received.
Lights up when TA station is received.
Lights up when TP station is received.
Lights up when stand-by mode and blinks during staying other network
station.
ASPM DISPLAY PTY•TI
SEARCH
SET
PTY•TI
SELECT
EON
PTY and TI items can be
selected when use PTY search
or EON STAND-BY
Can use for
• EON setting
• confirm stand-by item
• cancel (ON→TN)
• EON clear cancel
18 kind
(contain TP, TA)
17 kind
(contain TI)
Note:
TP and TA ind. are different from CD-C75H.
TP, TA ind. can light up individually, when TP: OFF and TA: ON, it means that EON-TI can be used, in case of TP=OFF,
TA=OFF, EON-Ti can't be used.
In case of CD-C75H, (TP: OFF and TA: ON) disregard (ignore) this case, because EON-TI is nothing.
AF: Alternative Frequencycies
background
– 13 –
CD-C440H/CP-C440H
No

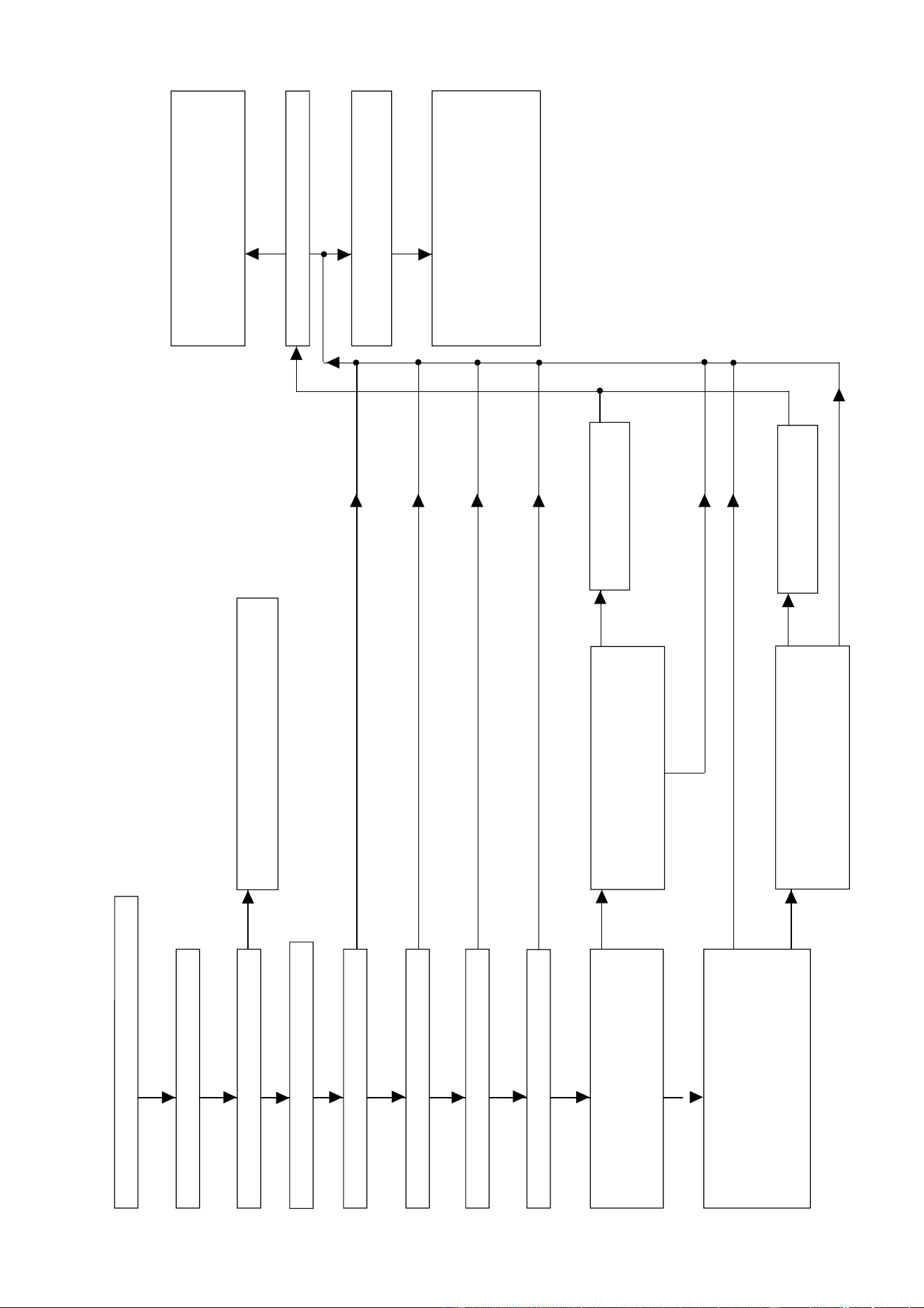

ASPM, summary operation
Hold down the ASPM button for 3 more second.
“ASPM” blinks in the display.
Preset CH memory full over?
No operate. After displayed “END”. Return to
previous station.
SD (TUNE) DET out OK?
If count 1st OK?
If count 2nd OK?
RDS signal or not? PI—identify
Comparing PI cord same or not?
between current receiving PI and
before PI which is already memorized
by ASPM on this time.
Comparing freg. same or not?
between current receiving frequency
and (already) previously memorized
frequency.
Memorized to the lowest
vacant preset channel.
Preset CH memory become full over?
Begin to ASPM SCAN from the next
CH-SPAN again.
Repeat and continue with same format
ASPM operation untill 108 MHz.
After reached 108 MHz, displayed the
TTL quantity of memorized stations.
And return to the previous receiving
freq. automatically.
Displayed the TTL quantity of memo-
rized stations by ASPM operation on
this time. And return to the previous
receiving freq. automatically.
Yes
No
Yes
Yes
Yes
Yes
No
No
No
No
No
No
Effect
Pass
No effect
Pass
No effect
Pass
No effect
Pass
No effect
Yes
No
Yes
Compare the field strength of current
receiving signal. Is receiving signal
stronger than signal which has same PI
cord and is already memorized to
preset memory ahead of this receiving
time?
Yes
No effect
No
No effect
Comparing freg. same or not?
Between current receiving frequency
and (already) previously memorized
frequency.
Yes
Memorized to the lowest
vacant preset channel.
Yes
No effect
Begin to scan start 87.50 → 108.00 MHz
background
CD-C440H/CP-C440H
– 14 –
4. No adjust type (None adjusting circuit.)
5. Added EON button.
6. Need to change RDS logo due to add EON feature.
7. Added EON—TI, EON—PTY function.
3. Summary of CD-C470H/CD-C480H RDS—EON operation
EON—PTY: Select and set the desired “PTY” → stand-by → switch to ON(other network) Station at the
start of desired PTY automatically → stay and listen to PTY of ON station → switch back to TN(This net) station
automatically at the end of PTY(ON) i.e. after changing to another PTY(except AFFAIRS) or cancelling to receive PTY of ON
station midway.
EON—TI: Select and set the “TI” → stand-by → switch to ON station at the start of traffic announcement automati
cally → stay and listen to TA of ON station → switch back to TN station autmatically at the end of TA(ON).
ie after TA(ON) is over or cancelled to receive TA of ON station midway.
When switching TN → ON station.
In case of exist 2 more stations having the desired(specified) “PTY” or “TI”, the receiver will select and switch toON station
comparing field strength at the same time. But when the frequency of ON station exists in the preset-memory, then reciver
switches straight to that ON station(CH), without comparing field strength so can make a quick switching from TN—ON sta
tion. Preset memory takes priority of switching TN—ON station.
therefore ASPM is usefull not only for PTY search but also for rapid EON switching. Anyway CD-C470H/CD-C480H’s EON is
basically stand-by and receiving method, along with the Guidelines for EON implementation.
• ASPM SCAN: 87.50MHz → 108.00 MHz.
• Only RDS signal is memorized by ASPM because RDS signal has PI code and is suitable and convenient for ASPM operation.
ASPM
Comparing field strength, only one strongest RDS station is memorized of all stations (repeater relay stations) that have same
PI code.
Same PI code — freq: different
(AF’S)
PS: same
PTY: same
Each PI has AF’S list by individually.
Exa: P1 has f1, f2, f3 (same PTY).
P2 has f4, f5 (same PTY).
[For example] Pickup and memorized to preset CH.
f 1
f 2 f 3
P 1 (PI cord)
PS 1 (Station Name)
f 5 f 4
P 2
PS 2
f 6
f 7 f 8
P 3
PS 3
f 9 f 10
f 11 f 12 f13
P 4
PS 4
Select signals (f1, f5, f7, f10) are memorized in the preset memory by ASPM.
• If tentative - ASPM operation is repeated intententionally, never memorized (over write) at the same frequecy.
1st time ASPM → strongest stations of each pi are memorized.
ASPM is not only very usefull for PTY search, but also EON operation.
2nd time ASPM → 2nd strong stations of each pi are memorized and so on.
PTY search function is equal to FM band search function as a result.
1. Introduction of RDS for CD-C470H
CD-C470H/CD-C480H RDS function is equal to adding EON feature to the current CD-C75H RDS.
EON feature is EON—PTY and EON—TI.
Although PTY and TI indicators are separated, PTY contains TI in the PTY items (software) like current PTY search items.
NEWS, AFFAIRS, INFO, ALARM, TI (TTL 17 kinds)
EON—PTY EON—TI
Can select and stand-by Can select and stand-by
EON—PTY and EON—TI are basically stand-by → receive the desired program of ON station.
2.The difference point from current CD-C75H RDS. (CD-C75H — CD-C470H/CD-C480H)
1. PTY item: added TA.TTL 18 kind.
2. Each “TP”, “TA” ind. light up or go out individually.
“TA” ind. doesn’t light up on current model, CD-C75H due to none EON—TI.
3. Added 3 indicators(in FL) due to adding EON feature.
EON: Lights up only during receiving EON data (14A).
TI: During EON-TI stand-by → Light up
During receiving ON station. → blink.
PTY: During EON-PTY stanb-by → Light up
During receiving ON station. → blink.
---
---
↑
↑
background
– 15 –
CD-C440H/CP-C440H
EON summary notice for reference
1. EON-TI/PTY EON stand-by can be set, only when EON ind. lights up.
While EON ind. goes out (NO EON STATION), EON stand-by can't be set.
If the EON button is pressed, then “NO EON” is indication the display.
2. EON-TI/PTY Even if switch back ON→TN station continue to keep EON stand-by.
3. EON-TI Don’t switch TN→ON during TN broadcast TA. (same item)
4. EON-TI/PTY
EON can be cancelled during receiving ON station by pressing EON button if necessary and
switch back ON
→
TN.
5. EON-TI/PTY EON stand-by is perfectly cancelled (cleared) by pressing EON button 2 times during stand-by or
powerOFF or Tun Up/Down or change band or recall pre-set CH.
6. EON-TI/PTY After setting EON stand-by, stand-by items can be confirmed by pressing EON button one time.
7. EON-TI/PTY EON button function: •EON setting
•Confirm stand-by items
•Cancel (ON→TN)
•EON clear cancel (2 times)
8. EON-TI/PTY After setting EON-TI and EON-PTY stand-by, if when EON data is not transmitted, EON ind goes out
and EON stand-by is automatically cancelled display “NO EON”.
9. EON-TI EON-TI stand-by can't be set. When TP=0,TA=0(TN) even if EON ind. lights up and the EON button is
pressed then “NO TI” is indication the display.
10. EON-PTY Don’t switch TN→ON during TN broadcast same specified PTY. (same item of PTY)
11. EON-TI/PTY Switch TN→ON→ TN station one cycle.
Never switch TN→ON1→ON2→ Other net to other net station.
12. EON-TI/PTY After switch TN→ON station. When ON station is NO RDS, NO signal, TA=OFF or different PTY items.
The receiver switch back ON→TN displaying “NO READY”.
13. During receive ON station. when ON station become to be NO RDS, NO signal, TA=ON to OFF or
different PTY item, The receiver switch back ON→TN.
14. EON-TI/PTY Switch TN→ON in case of 2 more stations exist, comparing field strength and switch to the strongest
station, if these signals are same strength, switch to the first previous station.
If same frequency as AF'Sexists in the preset memory, then switch TN→ON (preset memory station)
straight.
In case of exist 2 more preset memories of AF’S,then switch to the preset CH which taken in EON DATA
first, also in this case no concern to field strength.
15. Even if switch TN→ON preset memory straight, that ON station is very weak signal, then search another
AF'S (ON) station comparing field strength and switch to the strongest station as a result. Of all atations
of AF'S are very weak or no good condition, then, switch back ON→TN automatically display "NO
READY".
16. EON-TI/PTY No linkage volume, power ON/OFF, and switch function.
Traffic Programme code
(TP)
Traffic Announcement code
(TA)
Applications
OFF OFF This programme does notcarry traffic announcements nor does
it refer, via EON, to a programme that does.
OFF ON This programmecarries EON information about another
programme which gives traffic information.
ON OFF This programme carries traffic announcements but none are
being broadcast at present and may also carry EON information
about other traffic announcements.
ON ON A traffic announcement is being broadcast on this programme at
present.
background
CD-C440H/CP-C440H
– 16 –
SW721 DOLBY PRO LOGIC/BYPASS ON—OFF
SW723 REC/PAUSE ON—OFF
SW724 TUNING UP/TIME ON—OFF
SW725 VOLUME UP ON—OFF
SW726 X-BASS ON—OFF
SW728 STOP ON—OFF
SW729 FWD ON—OFF
SW730 FF ON—OFF
SW731 MEMORY SET ON—OFF
SW732 TUNING DOWN/TIME ON—OFF
SW733 VOLUME DOWN ON—OFF
SW734 EQUALIZER/DEMO ON—OFF
SW735 3D SURROUND ON—OFF
SW736 REVERSE MODE ON—OFF
SW737 REV ON—OFF
SW738 REW ON—OFF
SW739 EDIT NORMAL ON—OFF
SW740 EDIT HIGH ON—OFF
SWM 3 REC FWD ON—OFF
SWM 4 REC RVS ON—OFF
SWM 5 F.A.S. ON—OFF
SWM 6 CAM ON—OFF
SW1 OPEN/CLOSE ON—OFF
SW2 MWCHA UP ON—OFF
SW3 DISC NUMBER ON—OFF
SW4 PICKUP IN ON—OFF
SW701 ON/STAND-BY ON—OFF
SW702 CLOCK ON—OFF
SW703 TIME/SLEEP ON—OFF
SW704 DISC 1 ON—OFF
SW705 DISC 2 ON—OFF
SW706 DISC 3 ON—OFF
SW707 DISC SKIP ON—OFF
SW708 OPEN/CLOSE ON—OFF
SW709 CD ON—OFF
SW710 TUNER/BAND ON—OFF
SW711 TAPE ON—OFF
SW712 VIDEO ON—OFF
SW713 EON ON—OFF
SW714 PTY/TI SEARCH ON—OFF
SW715 ASPM ON—OFF
SW716 DISPLAY MODE ON—OFF
SW717 CENTER MODE/PHANTOM ON—OFF
SW719 CENTER MODE/NORMAL ON—OFF
• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas-
sis with no signal given.
1. In the tuner section,
( ) indicates AM
< > indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
NOTES ON SCHEMATIC DIAGRAM
• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolytic capacitor, the expression “capacitance/withstand
voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.
REF. NO DESCRIPTION POSITION POSITIONREF. NO DESCRIPTION
Figure 16 TYPES OF TRANSISTOR AND LED
ECB
(S)(G)(D)
(1) (2) (3)
FRONT
VIEW
2SA2878 A
2SK246 GR
2SC2236 Y
2SC380 O
KRC102 M
KRC104 M
KRA107 M
KRC107 M
KTA1266 GR
KTC3199 GR
KTC3203 Y
2SD2012
2SC1845 F
KTA1271 Y
KTA1273 Y
FRONT
VIEW
333GTH2
333YTH2
333YTH4
5N4GTN52
5N4YTN52
LMKD515B
BCE
(D)(G)(S)
(3) (2) (1)
FRONT
VIEW
background
– 17 –
CD-C440H/CP-C440H
Figure 17 BLOCK DIAGRAM (1/3)
1
2
3
4
5
9
8
6
7
20
12
13
24
25
30
31
3222
34
35
36
10 11
27
26
28
29
PU-IN SW
XL1
XIN
LD0
FIN2
JP–
CV+
SLC
SL1
FIN1
E
F
TO
FD
SPO
SP
SLD
SL–
SL+
DRF
CL
DAT
CE
VCC1
6
+4.9V
PICKUP IN
SW4
FOCUS COIL
TRACKING COIL
M1
SPIN
MOTOR
M
M
M2
SLIDE
MOTOR
PICKUP UNIT
9
IC2
LC78623E
SERVO/SIGNAL
CONTROL
+B4
IC5
M56748FP
DRIVER
IC1
LA9240M
SERVO AMP.
RES. CQCK. COIN
SQOUT. RWC. WRQ
~
~
~
CL, DAT, SELIAL CONTROL/CE
SL+. SL–. DRF
+4.9V
62
64 45 3623 43
37
38
39
40
24
25
5853
10
12
20
32
40
43
44
5352515431302923271615
4144
Q1
+4.9V
Q81 +7.3V (B4)
REGULATOR
TO MAIN SECTION
XOUT
EFMO
EFMIN
CLV+
JP–
CONT2
CONT1
27
26
SOL
SPH/L
RCHO
RVSS
LVSS
LCHO
VVDD
VDD
LVDD
RVDD
XVDD
TO MAIN
SECTION
background
CD-C440H/CP-C440H
– 18 –

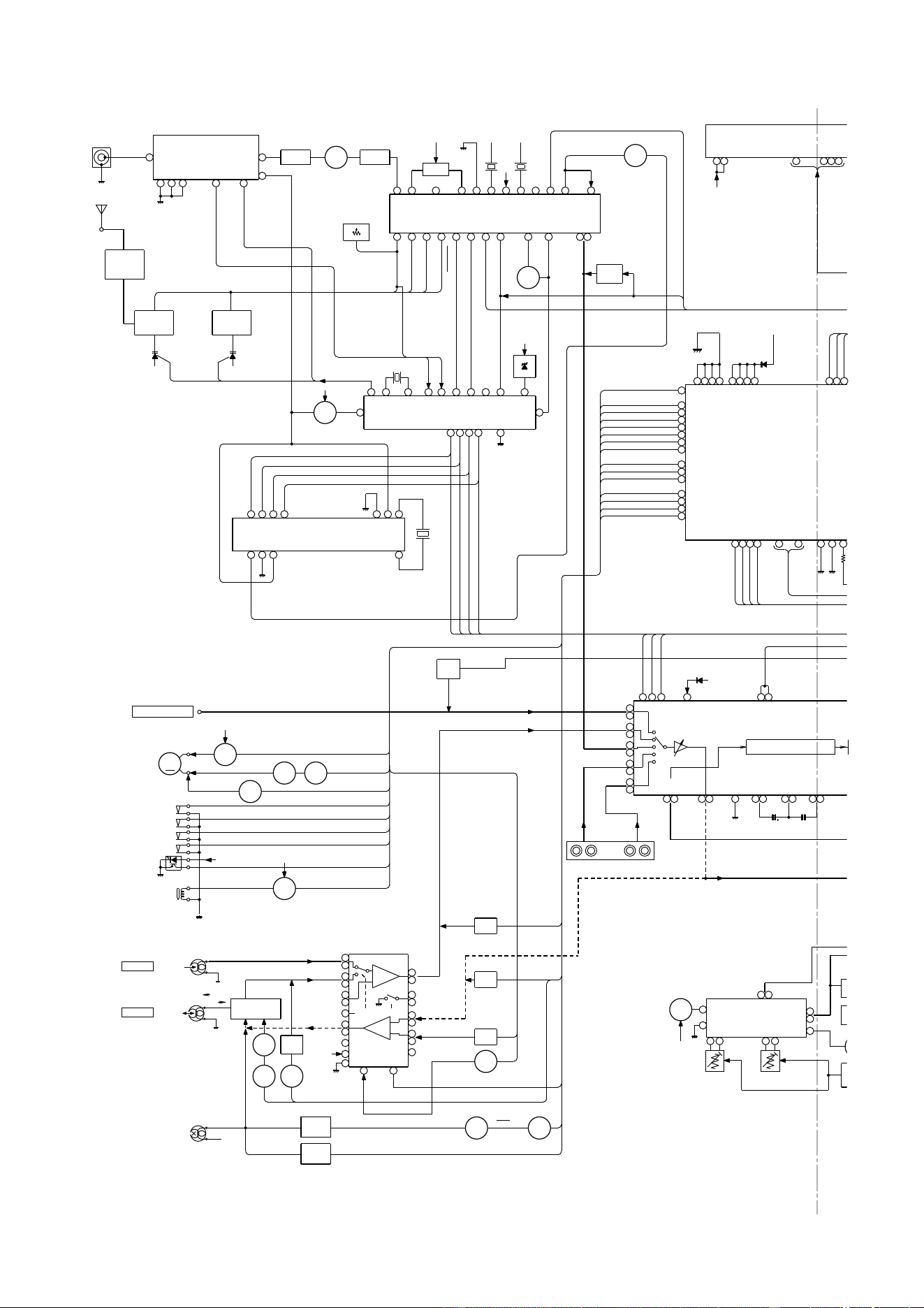

Figure 18 BLOCK DIAGRAM (2/3)
17
18
15
1
10
11
24
25
26
27
28
14
34
43
22
7
75
64
65
14
15
16
37
8
6
5
40
41
33
20
48
71
8
2930
52
44
46
39
45
2
22
23
31
49
50
51
67
68
69
70
72
76
80
56
25
24
23
61
51
60
52
54
59
53
57
55
63
49
42
6
43
5
42
4
26
6448
2
15
14
20
21
23 22
13
12
4
5
1
3
7
6
8
14
13
19
15
10
12
16
9
8
18
17
7
6
20
5
21
4
4
3
23
2
24
1
17
15
14
11
12
16
18
12
10
13
6
13
10
7
21
22
23
24
20
3
2917
98
5
42
7
5
43
6
21
1
20
11
15 16
1
2
58
5761
IC453(2/2)
FUNCTION
SELECTOR
Q461
IC453(1/2)
BU4052BC
FUNCTION
SELECTOR
IC451
SRS5250S
SRS
Q
Q
L-OUT
R-OUT
+B3
VDD
VCC
MODE1-5
MONO
PASS
SRS STEREO
SRS MONO
MODE
R-IN
L-IN
Q
Q
Q
Q
Q
R NF
L NF
R
L
REC
PB MUTE
MUTING
REC MUTE
MUTING
SWITCHING
T1/T2
REC/PB
BAIS
+B2
SWM4
REC RVS
SWM3
REC FWD
SWM5
SWM6
MM1
TAPE
MOTOR
M
J501
+B3
Q83
Q84
ICT21
LC72720
RDS
VDDA
VSSA
MW/LW
ANT.
MW/LW
OSC.
L341
BALUN
X352
4.5MHz
IC302
TC72131
PLL(TUNER)
FM IF DET/FM MPX/AM IF
IF
OUT
IC303
LA1832
+B3 CF351 X351
+B3
MPX
PHASE
Q361
SOLENOID
F/R SPEED
RUN PULSE
~
~
SO301
ANTENNA
TERMINAL
AM LOOP
ANTENNA
Q129
Q130
BEAT CUT
BAIS
BEAT CUT
R-OUT
L-OUT
+B3
SRS
BALANCE
66
4CH SP
SRS PASS
SRS INH
MAIN SI
MAIN SO
MAIN SCK
SM
TUNER MUTE
SD
VOLTAGE
REGURATER
+B3
+5V
QT21
VF2
(AC)
FL701
IC601
IX0171AW
MICROCOMPUTER
+B1
PROT
RELAY
S-MUTE
POWER
TA CAM SW
TA CAM SW
TA MOT SW
REC/PB
F.A.S
REC FWD
REC RVS
PB MUTE
T1/T2
BIAS
HI SPEED
REC MUTE
VDD
VSS
CL
CE
DI
DRIVER
RUN PULSE
SOLM1
+B2
SOLENOID
SOLENOID
QM03
PHM1
FAS SW
CAM SW
F.A.S
REC RVS
REC FWD
MOTOR
DRIVER
DRIVER
DRIVER
QM02
TA MOT SW
HI SPEED
TA MOT H/L
QM05
+B2
QM04QM01
SWITCHING
SWITCHING
Q119
Q115
Q116
HI SPEED
Q117
Q118
Q121
Q122
L
R
VIDEO2VIDEO1
RL
IN
RL
L
R
R
L
L
R
R
L
FRONT
IN
X-BASS
RTINLTIN
VSSD
VDDD
X IN
X OUT
MPX
IN
AMP.
FM +B
DO
CL
DI
CE
XT21
4.332MHz
XT21
VT
T305
T306
T301
T302
CF302
P.B
+B7
REF
T1/T2
NOR/
HIGH
ALC
REC
P.B.
PLAYBACK&RECORD AMP.
IC101
AN7345K
R REC
L REC
POP REDUCE
R
L
R NF
R(T2)
L(T2)
R(T1)
L(T1)
L NF
Q124 Q126
SWITCHINGSWITCHING
DO
CE
CL
DI
CF301
FM FRONT END
FE301
Q360
MUTING
MPX
VCO
CUT
RL
Q353
Q354
MPX
IN
FM/AM
OUT
IF IN
SD
FM MONO/ST
MONO/ST
AM RF IN
AFC
IN
OUT
VR351
FM MUTE LEVEL
AM OSC
REG INOUT VCC
FM IF IN
AMP
FM IF
Q301
FM IF
FM
OSC.
STEREO
AM IN
FM IN
FMOSC
T351
AM IF
GND
OSC.
FM
FM IF
AM RF
CD MUTE
FROM CD UNIT
IC501
LC75396E
AUDIO PROCESSOR
TAPE 1
TAPE 2
Q128
L103
Q111
Q107
Q108
Q110
Q109
Q103,Q104
Q105,Q106
REC/PBREC
P.B
AC BIAS
P.B
REC/PB
HEAD
L-CH
R-CH
PB HEAD
L-CH
R-CH
ERASE
HEAD
AUX
AUX
TUNER
TAPE
CD
T1/T2
H/N
RRRLLL
GRAPHIC EQUALIZER
background
– 19 –
CD-C440H/CP-C440H

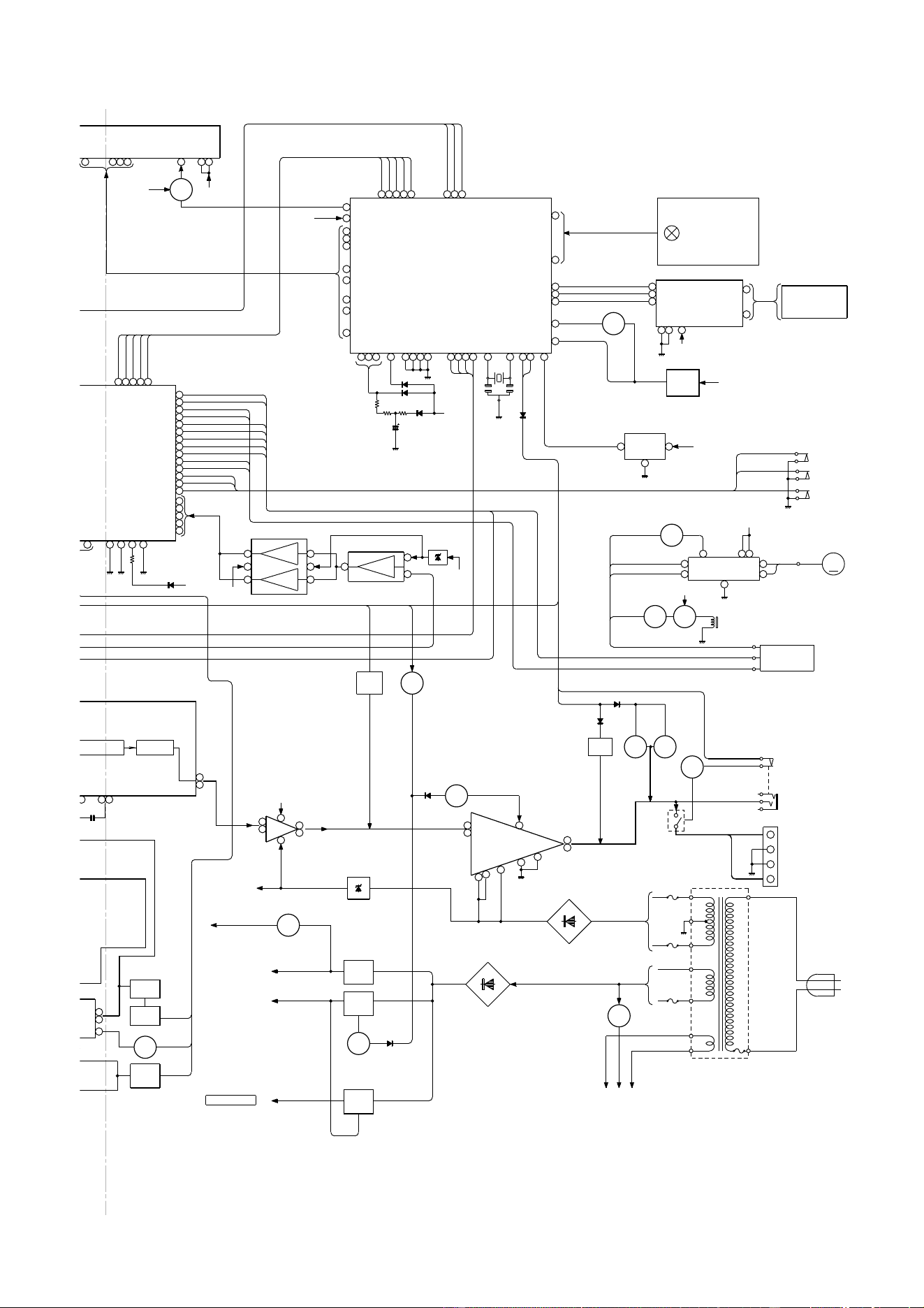

Figure 19 BLOCK DIAGRAM (3/3)
26
27
28
4
7
1
8
6
2
63
64
65
23
28
5
16
18
17
1
4
3
2
36
38
37
46
17
35
34
42
43 47
9
1011
12
32
1
19
21 22
18
1615
1413
14
15
16
17
18
20
31
3348
30
8
29
52
71
54
70
72
80
1
4
6
7
5
37
8
6
5
7
21
1
9
7
3
2
5
8
6
9
10
11
12
13
19
21
53
54
55
24
25
26
27
28
4
5
6
7
8
6
7
18
6
13
11
14
9
3
16
1
10
7
1
4
8
5
3
17
31
42
6
43
57
OPE AMP.
IC651
BA4558
Q460
Q458~
UT
UT
MODE1-5
MONO
PASS
S STEREO
RS MONO
ODE
R-IN
L-IN
SRS INH
SRS B
SRS A/
SRS
PASS/
3D
SRS
PASS
LEVEL
CONT
Q463
Q466
Q467
Q468
Q469
SPE1-5
IC502/503/504
–B1
IC504(1/2)
BA4558
OPE AMP.
BA4558
OPE AMP.
+B3
VF1
(AC)
~
IC701
IX0170AW
MICROCOMPUTER
~
~
Q701
INPUT/OUTPUT
EXPANDER
IC702
BU2092F
~
+B5
+B5
+B4
SW2
MEHCA UP
SW3
DISC NO
SW1
OPEN/CLOSE
M3
T/T
UP/DOWN
M
IC91
LOADING MOTOR
DRIVER
+B2
SOLM2
SOLENOID
Q501
Q502
IC901
STK488-020
POWER AMP.
+B3
Q828
Q801
VOLTAGE
REGULATOR
F802
T4A
L 250V
F804
T1.6A
L 250V
F803
T4A
L 250V
AC 230V 50Hz
SUPPLY CORD
AC POWER
T801
POWER
TRANSFORMER
T.F
DOLBY P.L
SRS
BALANCE
66
4CH SP
SRS INH
+B1
SW701~SW717
SW719,SW721
SW723~SW726
SW728~SW734
SW736~SW740
KEY MATRIX
KEY0
KEY5
LED701~LED712
LED714~LED719
VDD
VSS
LCK
CLOCK
DATA
Q705
Q706
ZD701
SYS STOP
RESET
+B6
S-MUTE
POWER
REMOCON
DI
CLK
DO
CE
RX701
REMOTE
SENSOR
REMOCON
TUN SD
TUN SM
TUN MUTE
CLEAR
MAIN SO
MAIN SI
MAIN SCK
MAIN STB
MAIN STB
CLEAR
MAIN SI
MAIN SO
MAIN SCK
SPE IN
+B1
MEMORY
BACK UP
+B5
VP
VP
Q701
FL701
01
1AW
MPUTER
CD O/C SW
CD D.NO
CD U/D
+B4
Q94
CD LD M–
CD LD M+
CD LD H/L
SWITCHING
DRIVER
Q93 Q91
Q997
Q903
Q904
Q998
Q999
RELAY
SOL
RELAY
PORT
TO CD UNIT
CD MUTE
CD MUTE
CD RES
CD SL–
CD SL+
CD CQCK
CD SQOUT
CD COIN
CD WRQ
CD RWC
CD PUIN
CD DRF
CD O/C SW
CD D.NO
CD U/D
POWER ON/STB
SWITCHING
S-MUTE
POWER
JA901
HEADPHONES
SO901
FRONT
SPEAKER
TERMINAL
R-CH
GND
GND
L-CH
+
–
–
+
Q996
Q829
R-IN
L-IN
+B1
–B1
R-OUT
L-OUT
+B4
+B3
+B2
+B1
–B1
–15V
VOLTAGE
REGURATER
SS
+12V(MOTOR)
Q826
Q827
VOLTAGE
REGULATOR
UN-SWITCHED
+5V
Q823
Q824
Q825
Q821
Q822
+7.3V(CD)
D801
D802~D805
OR
VOLTAGE
REGULATOR
VP
VF2
(AC)
VF1
(AC)
+12V(ANALOG)
VOLTAGE
REGULATOR
SWITCHING
VOLTAGE
REGULATOR
TO CD UNIT
OUT
IN
R
L
R
L
VOLUME
RRL
QUALIZER
L
R
~~~
background
CD-C440H/CP-C440H
– 20 –
Figure 20 SCHEMATIC DIAGRAM (1/14)
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 16.
12021
M
M
6
5
4
3
2
1
6
5
4
3
2
1
6
5
4
3
2
1
11
8
7
2
3
4
5
6
8
7
2
3
4
5
6
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
8
7
1
5
4
3
2
1
6
5
4
3
2
+B
+B
+B
+B
+B
+B
+B
+B
8
7
6
5
4
3
2
1
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
17
18
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
11
10
9
8
7
6
5
4
3
2
1
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
12
13
14
15
16
FOCUS/TRACKING/SPIN/
SLIDE DRIVER
SERVO AMP.
+
–
+
–
+
–
+
–
–
+
–
+
+
–
+
–
+
–
+
–
+
–
–
+
+
–
–
CV+
CV–
SLOF
HFL
TES
TOFF
TGL
JP+
JP–
RFSM
RFS–
SLC
RF
REF
OR
REF
REF
REF
REF
SL+
SL–
SLD
SLEO
SPO
SP–
SPG
SPI
SP
AGND
FE–
FE
FA
FA–
FD–
GEN
GEN
GEN
FD
TO
JP
TD–
TD
TH
REF
JP
REF
TO
REF
REF
REF
REF
REF
+
+
+
+
+
+
+
–
–
–
–
–
–
–
–
+
REF
REF
REF
REF
REF
REF
SCI
TESI
TE
TE–
TB
F
E
FIN1
FIN2
VCC1
LDS
BHI
PHI
LF2
VR
REF1
VCC2
DRF
CE
DAT
CL
CLK
DEF
SLI
DGND
REF
LDO
RF
REF
+
–
–
–
–
+
+
+
+
–
REF
FE1
VCR
VCR
VCR
VCR
TGL1
THDL
GL
THD
VCC
DEF
HFL
DRF
CE
CL
SLOF
FSTA
LATOH
TOSTA
FOSTA
S.Q.R
FSTA
8/12CM
LASER
2FREQ
JP+
JP–
CV+
CV–
REF
REF
JP
REF
–
–
+
+
+
+–
–
EFBAL
FSC
FOSTA
FE1
FSC
SLOF
SLOF
SLOF
JPCLO
+
FSS
TBC
NC
TE
K
B
F
1/16
CD_SL–
CD_SL+
CD MOTOR PWB-E
PICKUP
IN
SLIDE
DISC
PD
VR
LD
TR–
TR+
FO+
FO–
GND
E
K
A
F
E
B
K
2200P
1M
2200P
1M
PICKUP UNIT
ACTUATOR
TR–
FO–
FO+
TR+
LD GND
LT0H30M1
C
F
A
B
E
K
LD
MON
VR
LD
GND
PD
F+
F–
T–
E
A
B
F
K
T+
TP1
HF
CD_GND
GND
VREF
TR–
TR+
FO+
FO–
GND
TR–
TR+
FO–
FO+
CD_GND
CD_PUIN
CD_PUIN
SP+
SP–
SL_+
SL_–
PD
PD
VR
LD
LD
SW4
M1
M2
CNP3A
CNS3B
CNS3A
CNP3
CNS2B
CNS2A
CNS1B
CNS1A
CNP1
R
3
C
0.
R3
7
47
K
R21 56K
R20 10K
CNP2
C3
0.1/50
C21
1/50
R43
22
Q1
KTA1266 GR
C12
330P
R17
82K
R10
82K
D2
1SS13
3
R40
22K
R39
22K
C40
0.33/50
C39
0.47/50
C38
0.01
C37
220/10
C35
0.1/50
C33
0.001
C30
2.2P
R33
5.6K
C34
0.033
R36
47K
R32
56K
C16
0.001
R22
6.8K
R23
1.2K
C17
0.47/50
R11
3.3K
R8
12K
C10
180P
C8
0.068
C7
0.1/50
R6
100
R5
6.8K
C6
0.033
R4
2.2K
C5
0.033
C4
0.001
R3
15K
R2
100K
C15
0.0047
R19
39K
R16
1.5K
R14
10K
R15
47K
R13
33K
C45
4.7/50
C50
0.1
C14
0.01
R26
220K
C20
0.0033
R27
220K
C19
47/16
C18
1/50
R25
1.2K
R24
10K
R42
560
R35
470
R41
4.7K
C32
27P
R34
1K
IC1
LA9240M
R28
1K
R29
1K
C24
1/50
R30
22K
R31
10K
C44
100/16
IC5
M56748FP
R12
15K
C13
0.1
D6
RL104A
D5
RL104A
C9
0.047
R7
1K
R9
27K
C11
0.1
R1
1K
C2
47/16
C25
0.01
C1
0.01
D7
RL104A
C
4
0.0
2
6
5
4
3
2
1
background
– 21 –
CD-C440H/CP-C440H
Figure 21 SCHEMATIC DIAGRAM (2/14)
7
8 9 10 11 12
• The numbers 1 to 12 are waveform numbers shown in page 41.
89
1011
12131415161718
192021
7
6
5
B
M
+B
+B
+B
+B
+B
+B
4
3
2
1
+B
+B
+B
+B
+B
22
11
6
5
4
3
2
1
10
9
8
7
6
5
4
3
2
1
10
9
8
7
6
5
4
3
2
1
9
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
43
44
45
46
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
LOADING MOTOR
DRIVER
SERVO/SIGNAL
CONTROL
1BIT DAC
MUTEL
LVDD
LCHO
LVSS
RVSS
RCHO
RVDD
4FS
DIGITAL
FILTER
MUTER
XVDD
XOUT
XIN
XVSS
EFLG
SBSY
PW
µ-COM
INTERFACE
SQOUT
TEST11
/RES
/CQCK
COIN
RWC
WRQ
FSX
SUB-CODE
X-TAL
GENERATOR
2KX8
RAM
VCO
CLOCK
OSC
CONTROL
ERROR
COERECT
FLAG
CONTROL
HLF
TES
TEST4
TEST3
DIGITAL
OUT
EXTERNAL
OUTPUT
CONTROL
LEVEL
SLICE
EFM DEMODULATE
SYNC-DETECT
CLV
DIGITAL
SERVO
SERVO
COMMAND
CD_SL–
CD_SL+
CD_DRF
CD_RES
CD_RWC
CD_WRQ
CD_CQCK
CD_COOUT
CD_SQIN
TO MAIN SECTION
P24 1–B
TO DECK
SECTION
P27 12–H
TO MAIN
SECTION
P24 3–H
M_12V
CD_GND
CD_7V
REGULATOR
SWITCHING
DRIVER
TO MAIN/DECK
SECTION
P25 7–H
P27 12–B
TO MAIN
SECTION
P25 8–H
CD_GND
N
D_GND
SOLENOID
DISC NO
MECHA UP
TRAY MOTOR
PWB-G
T/T
UP DOWN
+
–
OPEN
CLOSE
MAIN PWB-A1(1/3)
TO DECK
SECTION
P27 12–E
TO MAIN
SECTION
P25 9–A
TO MAIN
SECTION
P24 1–B
P25 9–A
CD_MUT
CD_R-CH
CD_L-CH
A_GND
CD_LD_M+
32
1
+7.3V
32
1
SPEED_HIGH/LO
CD_4R3V
D_GND
CD_D_NO
D_GND
D_GND
M+
M–
SOL
16M
4M
TEST5
/CS
TEST1
SFSY
SBCK
NC
DOUT
C2F
EMPH
CONT5
CONT4
CONT3
CONT2
CONT1
VDD
FSEQ
PCK
JP_
JP+
TGL
TOFF
DEF1
PDO
VVSS
ISET
VVDD
FR
VSS
EFMO
EFMIN
TEST2
CLV+
CLV_
V/P
TA1
GND(D)
MECHA UP
GND(D)
DISC NO.
OPEN CLOSE
GND(D)
M–
M+
GND(M)
SOL
+5V
CD_LD_M–
CD_D_NO
CD_TRAYEND
CD_U/D
R38
33K
C31
0.0027
R37
47K
C90
0.01
CNS5
SW3
SW2
SW1
M3
SOLM2
BIM05
CNS10
R73
2.7K
C67
10/50
R74
2.7K
C68
10/50
R61
220
XL1
16.93MHz
D8
1SS133
D9
1SS133
C92
0.022
CNP10
R86 1K
Q93
KRC102 M
C
21
/
50
D2
1SS133
R60
1K
3
3
C
50
0
.1
R87 1K
R88 1K
IC2
LC78623E
R58
680
C41
0.047
C42
0.047
R57
27K
R56
1.2K
C53
220P
C57
100P
C55
100P
C54
100P
R34
1K
R18
3.3M
D91
1SS133
R96
10K
Q91
KTA1271 Y
ZD81
MTZJ5.6B
R81
220
R84
22
R92
2.2K
A
R82
150
L1
0.82H
C51
0.022
R98
6.8K
C91
47/16
R93
3.9
IC91
TA7291S
C94
47/16
Q94
KRC107 M
R94
6.8K
R97
3.9K
A
C56
100P
C58
100P
C52
100/16
C81
100/16
Q81
KTC3203 Y
C43
330/6.3
R76
390
R75
390
C69
220P
C70
220P
R80
4.7K
R79
4.7K
Q83
KTC3199 GR
Q84
KTC3199 GR
C82
1/50
R77 1K
R46 1K
R45 1K
R47 1K
C22
0.01
R48 1K
R78 1K
D7
R
L104A
C46
0.022
R49
10K
background
CD-C440H/CP-C440H
– 22 –
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 16.

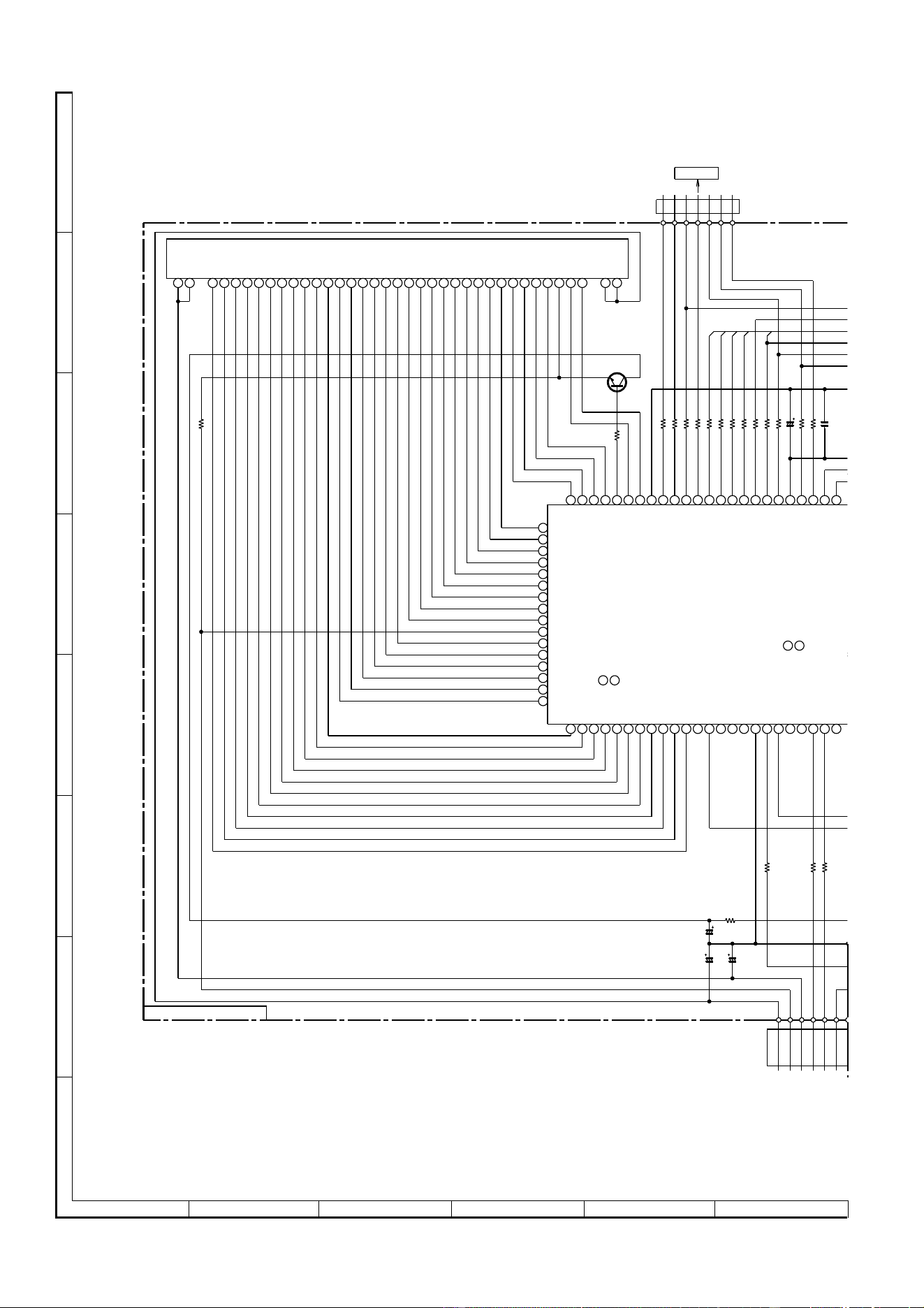

Figure 22 SCHEMATIC DIAGRAM (3/14)
MAIN_SCK
MAIN_STB
+B
41 40 37 36 35 34 33 32 31 30
29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10
98765 21
+B
+B
4142
64 63
80
73
74
75
76
77
78
79
72
71
70
69
68
67
66
65
64 63 62 61 60
59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 4142
242322212019181716151413121110
987654321
SYSTEM MICROCOMPUTER
–28.4V
4.8V
–28.4V
DISPLAY PWB-C1
–B
–B
–B
WT
6
D_GND
M_12V
POWER
VF2
–VP
VF1
F MUTE
13
7
1
CLK
DO
DI
CE
TUN_MUTE
TUN_SD
TUN_SM
TO MAIN PWB
WT502
F
F
F
F
G11
G10
G09
G08
G07
G06
G05
G04
G03
G02
G01
S01
S02
S03
S04
S05
S06
S07
S08
S09
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S21
S22
KEY-5
KE
Y
TUN_SM
TUN_SD
TUN_MUTE
8G
9G
P1
10G
11G
P2
P3
P4
P5
VLOAD
P11
P6
P7
P8
P9
P10
P14
P15
P16
P17
P18
P19
P20
P21
P22
VDD
VSS
REMOCON
SYS STOP
POWER
F_MUTE
P32/TO2
P31/TO1
IC
P01/INTP1
P02/INTP2
P03/INTP3/CI0
P71
P72
P70
P00/INTP0/TI0
P3
T
P34/T
P35/P
C
P36/B
U
V
S
X
T
P04/X
T
AVR
E
AV
D
P10/AN
P11/AN
P1
AN
P1
AN
P16/ANI6
P15/ANI5
P14/ANI4
P17/ANI7
AVSS
P74
RESET
P24/BUSY
P25/SI0/SB0
P27/SCK0
P23/STB
P22/SCK1
P21/SO1
P20/SI1
P90/FIP2
P80/FIP0
P81/FIP1
P91/FIP3
P92/FIP4
P93/FIP5
P94/FIP6
P113/
FIP21
P114/
FIP22
P115/
FIP23
P127/
FIP33
P116/
FIP24
P117/
FIP25
P120/
FIP26
P121/
FIP27
P122/
FIP28
P123/
FIP29
P124/
FIP30
P125/
FIP31
P126/
FIP32
VLOAD
P97/
FIP9
P96/
FIP8
P95/
FIP7
P105/
FIP15
P104/
FIP14
P102/
FIP12
P100/
FIP10
P101/
FIP11
P103/
FIP13
P112/
FIP20
P110/
FIP18
P106/
FIP16
P107/
FIP17
P111/
FIP19
VDD
P26/SO0/SB1
P73
P
3
P30/TO0
VDD
CLEAR
MAIN_SO
MAIN_SI
–B
–B
4G
3G
2G
1G
7G
6G
5G
CLEAR
RESET
DATA
COM
CLK
STB
CE
DI
DO
CLK
P12
P13
P25 7–A
FW702
FL701
R729 1K
R727 1K
R726 1K
R708 1K
IC701
IX0170AW
C702 220/6.3
C701 0.022
R713 1K
R710 1K
R701 1K
R704 1K
R709 1K
R712 1K
R706 1K
R707 1K
R702 1K
R703 1K
R711 100
R705 1K
R778
100K
Q701
KTC3199 GR
R776
1K
R777
33
C716
47/16
C712
1/50
C713
1/50
background
– 23 –
CD-C440H/CP-C440H
Figure 23 SCHEMATIC DIAGRAM (4/14)
7
8 9 10 11 12
Q7
+B
+B
+B
+B
+B
+B
+B
+B
+B
18 17 16 15 14 13 12 11 10
987654321
+B
321
+B
+B
+B
+B
+B
+B
+B
+B
+B
4142
48 47 46 45 44 43 4142
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
2423222120191817
(CH)
(CH)
INPUT/OUTPUT
EXPANDER
T
ER
0V
0V
0V
0V
4.8V
0V
5V
0V
0V
–B
WT601 TO MAIN PWB
MAIN_STB
MAIN_SCK
MAIN_SI
MAIN_SO
CLEAR
CE
CL
DI
DO
CLEAR
D_5V
D_GND
M_12V
POWER
VF2
–VP
VF1
F MUTE
13 1
A
IN PWB
LED714~LED719:
DISPLAY PWB-C2
6
1
DISK 1
DISK 2DISK 3
DISK
SKIP
OPEN
/CLOSE
DISC 1
DISC 2
DISC 3
61
TIMER
/SLEEP
CLOCK
ON/
STAND-BY
REV
REW
VOLUME
DOWN
EQ.
/DEMO
REVERSE
3D
SURROUND
VOLUME
UP
X-BASS
STOP FWD
FF
REC/
PAUSE
DOLBY
LOGIC/
BYPASS
CENTER
MODE/
NORMAL
CENTER
MODE/
PHANTOM
TAPE VIDEO EON
DISPLAY
MODE
ASPM
PTY/TI
SERCH
TUNER
/BAND
TUNING
UP/TIME
MEMORY
/SET
TUNING
DOWN
EDIT
HIGH
EDIT
NORMAL
CD
NORMAL
PASS PASS
MONO
PHANTOM
DOLBY
SRS ON
SRS
STEREO
REV
REW
STOP
FF
PLAY
Q5
Q6
Q7
Q8
Q9
Q10
Q11
OE
VDD
VSS
DATA
CLOCK
LCK
Q0
Q1
Q2
Q3
Q4
32
1
KEY-5
KEY-4
TUN_SM
TUN_SD
TUN_MUTE
VSS
REMOCON
SYS STOP
POWER
F_MUTE
P32/TO2
P31/TO1
IC
P01/INTP1
P02/INTP2
P03/INTP3/CI0
P00/INTP0/TI0
P33/
TI1
P34/TI2
P35/PCL
P36/BUZ
VSS
XT2
P04/XT1
AVREF
AVDD
P10/ANI0
P11/ANI1
P12/
ANI2
P13/
ANI3
P16/ANI6
P15/ANI5
P14/ANI4
P17/ANI7
AVSS
P74
RESET
P73
P37
P30/TO0
CLEAR
DI
CE
CL
X1
X2
VSS
AVREF
AVDD
KEY-0
KEY-1
KEY-2
KEY-3
XT2
P04
CLEAR
RESET
5V BACK UP
Q7
Q6
Q5
Q5
Q6
5
7–A
P25 7–H
C729
47/16
R749
10K
FW703
W
702
SW707SW708
RD07
12K
SW706
RD05
3.9K
SW705
RD04
2.2K
SW704
RD06
5.6K
LED716
LED714
LED718
LED717
LED715
LMKD515B
LED719
FW701
SW735
RD30
1.2K
RD29
1K
SW734SW733
RD22
1K
SW726
RD23
1.2K
SW725
RD24
1.8K
LED711
5NYTN52
LED709
5NYTN52
LED707
5NYTN52
LED706
5NYTN52
LED708
5NYTN52
LED710
5NYTN52
R742
820
R743
820
R744
820
R745
1K
D708
1SS133
C708
0.01
D706
1SS133
R766
100K
L701
100µH
R728
10K
R729 1K
R727 1K
R726 1K
R718 1K
R722 1K
R720 1K
R717 1K
R716 1K
R721 1K
RD35
12K
RD32
2.2K
RD33
3.9K
SW739
SW737
RD34
5.6K
RD20
5.6K
SW701
SW711
SW719
RD16
1.2K
SW710
SW730
SW729
SW728
RD25
2.2K
RD26
3.9K
RD02
1.2K
SW721
RD21
12K
RD11
2.2K
RD17
1.8K
RD15
1K
RD08
1K
SW714SW713
SW709
C702 220/6.3
C701 0.022
R713 1K
R714 1K
R715 1K
C704
18P
C703
15P
XL701
R719 1K
R710 1K
R709
1K
R712 1K
R711 100
RD03
1.8K
SW703
RD14
12K
SW716
RD28
12K
SW732
SW731
SW738
SW740
RD27
5.6K
RD13
5.6K
SW715
RD09
1.2K
RD10
1.8K
RD18
2.2K
RD19
3.9K
SW724
SW723
RD01
1K
SW702
SW717
RD12
3.9K
SW712
RD31
1.8K
SW736
R736
8.2K
R735
8.2K
R733
8.2K
R732
8.2K
R731
8.2K
R734
8.2K
R741 1K
R740 1K
R739 1K
R737 1K
R772
1K
R771
100
Q706
KTC3199 GR
R765
3.3K
D705
1SS133
R773
27
C709
100/6.3
Q704
KRC102 M
R774
150
D709
1SS133
D707
1SS133
ZD701
MTZJ3.9B
C710
220/6.3
LED701 5NGTN52
LED702 5NGTN52
LED703 5NGTN52
LED704 5NGTN52
LED705 5NGTN52
IC702
BU2092F
R770
1K
R768
10K
R767
82
Q705
KTC3199 GR
R769
10K
RX701
R775
2.2K
C715
0.022
R738 1K
R748
820
R747
820
R746
820
R763
1K
C706
0.01
C707
3.3/50
R781 10K
R780 1.8K
R779 10K
1
3
0
C730
0.022
background
CD-C440H/CP-C440H
– 24 –

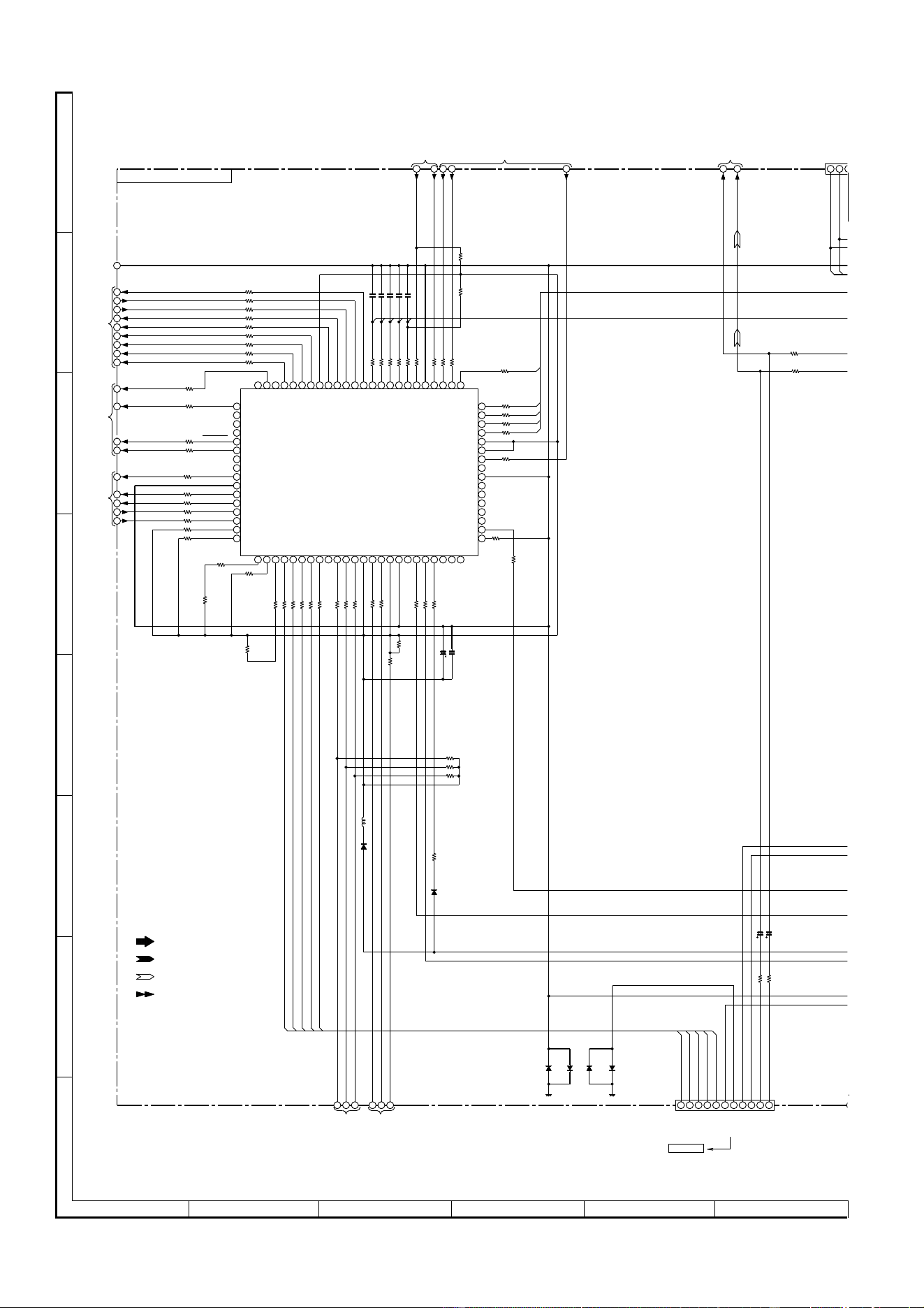

Figure 24 SCHEMATIC DIAGRAM (5/14)
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 16.
+B
36383710
98
+B
+B
7
+B +B
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
47
46
45
44
43
48
41
42
55
54
53
52
51
56
49
50
57
64
63
62
61
60
58
59
16
14
15
13
12
11
10
23
24
21
22
20
19
18
17
9
8
7
6
5
4
3
2
1
3
21
29304043421821
11
14
13
17
16
15
19
20
12
3
22
26
23
34
32
24
25
44
39
11 10
987654321
SYSTEM MICROCOMPUTER
CD SIGNAL
RECORD SIGNAL
PLAYBACK SIGNAL
FM SIGNAL
TO SRS PWB
P32 4–H
CNS501
R-CH IN
L-CH IN
R-CH OUT
L-CH OUT
TO CD
SECTION
P21 10–H
TO DECK
SECTION
P27 12–B
MAIN_STB
MAIN_SCK
CLEAR
MAIN_SI
MAIN_SO
RUN PULSE
F.A.S.
D_GND
P27 12–D
TO DECK SECTION
P27 12–D
TO DECK SECTION
P21 7–H
TO CD SECTION
P27 12–H
TO DECK SECTION
MAIN PWB-A1(2/3)
SPE5
MIC
D_GND
TA_MOT_H/L
SOLENOID
TA_MOT_SW
CD_U/D
CD_D_NO
CD_TRAYEND
BEAT CUT
HI BSPEED
REC_MUTE
REC MUTE
CD MUT
P
2
TO DIS
F
W
TO DECK SECTION
CLK
DO
DI
TO C
D
SEC
T
P21
P27
1
SPE4
SPE3
SPE2
SPE1
CAM_SW
D_GND
CD D.NO. SW
TA MOT SW
TA SOL
F/R SPEED
VSS
CD U/D SW
CD O/C SW
VDD
RLY DRV
POWER
CLK
DATA
ENEBLE
SRS A
SRS B
SRS INH
SPAN 9K
SRS PASS
SRS 3D
SP_DET
CD SL+
CD SL–
CD RES
SYS MUTE
P.B.MUTE
CD SQOUT
CD COIN
CD CQCK
VDD
CD RWC
CD WRQ
GND
T1/T2
BIAS
REC RVS
REC FWD
VLOAD
P33/
TI1
P12/
ANI2
P10/ANI0
AVDD
AVREF
P04/XT1
P74
P73
AVSS
RESET
P26/SO0/SB1
P25/SI0/SB0
P24/BUSY
P23/STB
P126/
FIP32
X1
P124/
FIP30
P125/
FIP31
P17/ANI7
P16/ANI6
P15/ANI5
P14/ANI4
P101/
FIP11
P103/
FIP13
P102/
FIP12
P100/
FIP10
P31/TO1
P30/TO0
P03/INTP3/CI0
P113/
FIP21
P112/
FIP20
P110/
FIP18
P106/
FIP16
P116/
FIP24
P117/
FIP25
P114/
FIP22
P115/
FIP23
P105/
FIP15
P104/
FIP14
P02/INTP2
P71
P70
P21/SO1
P20/SI1
P00/INTP0/TI0
P01/INTP1
P122/
FIP28
P123/
FIP29
P91/FIP3
P92/FIP4
P93/FIP5
P94/FIP6
P22/SCK1
VDD
P72
IC
XT2
VSS
X2
P37
P36/BUZ
P35/PCL
P34/TI2
P32/TO2
P11/ANI1
P90/FIP2
VDD
P27/SCK0
P80/FIP0
P81/FIP1
P120/
FIP26
P121/
FIP27
P107/
FIP17
P111/
FIP19
P13/
ANI3
P127/
FIP33
P97/
FIP9
P96/
FIP8
P95/
FIP7
TO CD SECTION TO DECK SECTION
REC_L-CH
REC_R-CH
CD_DRF
F.A.S.
RUN PULSE
CAM SW
CD_PUIN
D_GND
REC RVS
REC FWD
BEAT_CUT
HI_SPEED
REC/PB
CD_MUT
CD_SL–
CD_SL+
CD_RES
CD_COOUT
CD_SQIN
CD_CQCK
CD_RWC
CD_WRQ
D_GND
SRS_PASS
SRS/3D
SRS_A
SRS_INH
SRS_B
SRS_INH
SRS_A
SRS/3D
A_12V
SRS_PASS
SRS_B
L_IN
R_IN
R_OUT
L_OUT
A_12V
A_GND
PASS
SRS/3D
SRS_A
SRS_B
SRS_INH
REC/P.B.
P21 7–H P27 12–C
P27 12–D
R456
3.9K
C452
4.7/50
CNP501
C603 150P
C605 150P
C604 150P
C606 150P
C607 150P
R684
10K
D602
1SS133
R635
10K
R634
10K
R640
10K
R656
1K
R666
1K
R667
1K
R671
1K
R602
1K
WT502
R663
1K
R642 1K
R643 1K
R649 1K
R650 1K
IC601
IX0171AW
R646 1K
R628
1K
R645 1K
R654 1K
R637 1K
R647 1K
R651 1K
R638 1K
R653 1K
R652 1K
R219
1K
R218
1K
R609 1K
R611 1K
R612 1K
R610 1K
R608 1K
R604 1K
R606 1K
R607 1K
R605 1K
R621 1K
R622 1K
R616 1K
R618 1K
R615 1K
R614 1K
R613 1K
R617 1K
R620 1K
R624 1K
R625 1K
R626 1K
R627 1K
R636 1K
R655
1K
R661 1K
R662 12K
R658 1K
R659 1K
R660 1K
R657 1K
R623
1K
R633 1K
L601
100µH
D601
1SS133
R679
10K
R641
1K
C601
220/10
C602
0.022
R632
1K
R55
10K
R680
10K
R675
10K
R676
47K
D818
1SS133
D817
1SS133
D820
1SS133
D819
1SS133
C451
4.7/50
R455
3.9K
background
– 25 –
CD-C440H/CP-C440H
Figure 25 SCHEMATIC DIAGRAM (6/14)
7
8 9 10 11 12
MAIN_SO
CLEAR
POWER
M_12V
D_5V
D_GND
+B
+B
+B
+B
+B
+B
+B
65
41
7
8
76
5
4
3
2
1
8
7
6
5
4
3
2
1
8
76
5
4
3
2
1
16
14
15
13
12
11
10
9
8
7
6
5
4
3
2
1
64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49
47
46
45
44
43
48
33
34
35
36
37
38
39
40
41
42
323130292827262523 24222120191817
8
7
6
5
4
3
2
1
+B
31
2
28
41
27121110
9876543217654321
1
2
3
4
5
6
7
8
13121110
987654321
+B
+B
+B
+B +B
6
5
4
3
2
1
(ML)
(ML)
(ML)
(ML)
(ML)
(ML)
(ML)
(ML)
AUDIO PROCES
OPE AMP.
OPE AMP.
OPE AMP.
OPE AMP.
(ML)
(ML)
(ML)
(ML)
0V
0V
0V
0V
0V
0V
6.3V
8.8V
5.7V
13.5V
18.5V
12.9V
12.9V
18.5V
12.3V
13.5V
13.5V
0V
18.5V
13V
12.4V
18.5V
12.4V
11.8V
7.8V
17V
7.8V
7.8V
17V
7.3V
0V
0V
4.2V
RTIN
RF1C1
RF1C2
RF1C3
RF2C1
RF2C2
RF2C3
RF3C1
RF3C2
RF3C3
RF4C1
RF4C2
RF4C3
RF5
RTOUT
RFIN
RFCOM
1817
RFOUT
RRIN
RRCOM
RROUT
RVREF
VREF
LVREF
CE
DI
CL
VSS
LROUT
LRCOM
LRIN
LFOUT
LFCOM
LFIN
LTOUT
LF5
LTIN
LF1C1
LF1C2
LF1C3
LF2C1
LF2C2
LF2C3
LF3C1
LF3C2
LF3C3
LF4C1
LF4C2
LF4C3
LSELO
LINVIN1
L5
L4
L3
L2
L1
VDD
R1
R2
R3
R4
R5
RINVIN1
TO DISPLAY PWB
P23 8–H
FW703
–B
–B
–B
–B
VF1
–VP
VF2
POWER
F_MUTE
M_12V
D_GND
D_5V
M_GND
CD_7V
CD_GND
TO CD
SECTION
P21 12–E
TO DECK
SECTION
P27 12–C
P23 7–A
TO DISPLAY PWB
FW702
P31 9–H
TO TUNER PWB
CNP303
VIDEO/AUX 1
R-CH
L-CH
CLK
DO
DI
CE
TUN_MUTE
TUN_SD
TUN_SM
D_GND
CLK
DO
CE
DI
A_12V
A_GND
TO CD/DECK
SECTION
P21 12–F
P27 12–B
CE
DO
CLK
–B
FW901
TO POWER AMP.PWB
P28 2–E
FRONT_L-CH
FRONT_R-CH
TO DECK
SECTION
P27 12–E
STAND-BY
GND2
A_12V
SPE5
SPE4
SPE1
SPE3
SPE2
VIDEO/AUX 2
R-CH
L-CH
P21 12–C
TO CD SECTION
P27 12–D
TO DECK
SECTION
P21 12–D
TO DECK
SECTION
TAPE_R-CH
CD_R-CH
A_GND
CD_L-CH
TAPE_L-CH
TUN_R-CH
TUN_L-CH
TUN_MUTE
TUN_SD
TUN_SM
VF1
–VP
VF2
CL
DI
DO
CLEAR
CE
A_12V
POWER ON/STB
SWITCHING
VOLTAGE
REGULATOR
VOLTAGE
REGULATOR
VOLTAGE
REGULATOR
VOLTAGE
REGULATOR
SWITCHING
VOLTAGE
REGULATOR
3
2
1
2
3
1
GND3
GND2
TO POWER
PWB
CNS801
+12V(M)
RELAY
A_GND
D_GND
STAND-BY
–15V
VF1
VF2
–VP
+B2
F_MUTE
MAIN_STB
MAIN_SCK
MAIN_SI
P28 5–G
R575
1K
R576
1K
C535
0.0047
C501 1/50
C507 1/50
C502 1/50
C504 1/50
C509 1/50
C503 1/50
C510 1/50
C506 1/50
C505 1/50
C508 1/50
D556
1SS133
C583
0.022
R551
15K
R553
270K
C541
2.2/50
D557 1SS133
R564
1.8K
C586
390P
R561
27K
R562
27K
R563
1.8K
C585
390P
C855
330P
C852
0.1
C856
330P
WT901
J501
CNP502
WT502
WT601
D828
1SS133
R832
100
D824
1SS133
Q829
KRC107 M
R820
10K
C827
0.022
Q828
2SD468 C
C828
47/25
R830
22
D825
1SS133
R826
560
C865
0.022
F821
T500mA L 250V
CNP801
R567
1.8K
C587
390P
R566
27K
C588
390P
R565
27K
R568
1.8K
D560
1SS133
D561
1SS133
R511 1K
C539
10/50
C546
10/50
R514 1K
R520 1K
C522
0.22/50
R503
15K
C550
330/16
C527
0.22/50
R515 1K
C537
1/50
C515
1/50
C533
0.0022
C534
0.0022
R516 1K
R513 1K
C545
10/50
C517
1/50
C518
1/50
R501
2.2K
C513
100P
1
9
K
8
R502
2.2K
IC501
LC75396E
C529
0.033
R504
15K
R517 1K
R518 1K
C532
0.015
R512 1K
R519 1K
C531
0.015
C528
0.22/50
C516
1/50
C514
100P
C512
47/16
C536
0.0047
C530
0.033
C521
0.22/50
C511
47/16
C549
0.022
C566
270P
C580
2.2/50
IC502
BA4558
R535
470K
R542
220K
R534
220K
R540
12K
C570
0.0027
R557
100K
R539
390K
D555
1SS133
D551
1SS133
D554
1SS133
R547
2.2M
D552
1SS133
R552
560K
C571
0.0082
C574
0.0068
R537
39K
C568
680P
C578
2.2/50
C565
270P
R554
100K
R549
470K
C576
2.2/50
C575
0.022
IC504
BA4558
C573
0.0068
R558
100K
R545
22K
R548
56K
D553
1SS133
R543
680K
R556
100K
R550
2.2M
R555
100K
C577
2.2/50
R532
10K
IC503
BA4558
R544
18K
R533
33K
R546
220K
R531
390K
C579
2.2/50
R536
12K
R538
220K
C569
0.0027
C572
0.0082
C567
680P
R541
68K
ZD551
MTZJ6.2C
C582
0.022
C581
0.022
R569
220K
R570
220K
R559
330
C542
2.2/50
R854
100K
IC651
BA4558
C860
0.022
R852
2.2K
C555
0.001
R855
8.2K
R853
100K
Q501
KTC3199 GR
Q502
KTC3199 GR
C851
0.1
C556
0.001
R521
2.2K
C854
0.15
R858
6.8K
R522
2.2K
R856
8.2K
R857 6.8K
C859
0.022
C853
0.15
R851
2.2K
C861
2.2/50
R862
3.9K
C862
2.2/50
R864
2.2K
R861
3.9K
R863
2.2K
Q823
2SD2012
ZD821
MTZJ8.2C
C826
47/25
C822
47/25
R823
47
C825
47/25
R825
33K
R824
1K
Q821
2SD2012
D821
1SS133
C821
0.022
ZD822
MTZJ13C
R822
560
Q822
KTC3199 GR
R821
47
Q824
KTC3199 GR
D823
1SS133
Q825
KRA107 M
C823
4700/25
R560
330
R866
330
D831
1SS133
D829
1SS133
C864
0.022
R530 1K
R529 1K
R528 1K
C559
22/25
R525
22K
Q827
KTC3199 GR
C829
22/25
R829
1K
C830
47/25
R831
1.2K
ZD823
MTZJ6.2C
R828
47
Q826
2SD2012
C591
0.022
D502
1SS133
D501
1SS133
R509
47K
R510
47K
R865
330
R572
2.2K
R571
2.2K
C553
47/16
C552
47/16
C551
47/16
C540
10/50
C538
1/50
C520
0.1/50
C524
0.22/50
C526
0.068/50
C519
0.1/50
C523
0.22/50
C525
0.068/50
R223
220K
D822
1SS133
C824
0.022
C831
47/25
D830
1SS133
background
CD-C440H/CP-C440H
– 26 –
Figure 26 SCHEMATIC DIAGRAM (7/14)
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 16.
+B
+B
+B
7
6
5
4
3
2
1
6
5
4
3
2
1
3
2
1
M
13
12
11
10
9
8
7
6
5
4
3
2
1
3
2
1
+B
+B
24 23 21
20
22
19 18 17
87654321
7
6
5
4
3
2
1
RECORD SIGNAL
PLAYBACK SIGNAL
2
ERACE
HEAD
HEAD
PWB-H
TAPE2
RECORD/
PLAYBACK
HEAD
R-CH
L-CH
TAPE1
PLAYBACK HEAD
L-CH
R-CH
TAPE1_L
A_GND
TAPE1_R
1
13
MOT L
MOT H
MOT +B
CAM SW
M-GND
F.A.S.
RUN PULSE
+B
SOLENOID
REC RVS
REC FWD
TAPE MECHANISM PWB-F
TAPE
SPEED
–
+
H
L
4
1
REC RVS
SOLENOID
F.A.S.
CAM
REC FWD
TAPE
MOTOR
REC RVS
SOLENOID
+B
F.A.S.
M_GND
CAM SW
REC FWD
MOT +B
MOT H
MOT L
RUN PULSE
3
32
2
1
1
32
1
+
–
–
+
Hich=T1
–
+
+
–
3
2
1
Hich=CHROME
SWITCHING
SWITCHING
D_GND
TAPE2_L2
TAPE2_L1
A_GND
TAPE2_R2
TAPE2_R1
D_GND
ERASE
MOTOR DRIVER
S
W
DRIVER
DRIVER
DRIVER
FLEXIBLE
PWB
C
4
RM11
2.2K
RM10
1.2K
RM08
10K
RM0
9
2.2
K
DM02
1SS133
QM03
KTA1271Y
RM07
10
CM01
47/16
QM02
KTA1273Y
RM
0
2.2
K
RM05
10K
QM05
KTA1266GR
RM12
33K
RM03
33K
QM01
KTA1266GR
RM02
6.8K
CNS102
BI102
CNS101
FWM1
VRM1
3.3K(B)
RM1
2.7K
SWM4
SOLM1
SWM5
CNPM2
SWM6
SWM3
FWM2
MM1
PHM1
WTM1
CNP101
C121
1/50
R127
8.2K
C101
680P
C102
680P
R102
1K
R101
1K
R118
1K
C136
0.022
C140
0.0033
C134
22/25
R134
68K
C130
470P
R136
1.8K
R117
1K
C128
3.3/50
R139
560
C129
470P
R135
1.8K
C107
680P
C108
680P
R109
4.7K
Q107
KTC3199 GR
R103
2.2K
R105
3.3K
Q103
2SC1845 F
Q106
2SC1845 F
R107
47K
Q105
2SC1845 F
R104
2.2K
R106
3.3K
Q104
2SC1845 F
R111
15K
R114
10K
Q110
KRC104 M
R113
10K
R115
4.7K
Q109
KTA1266 GR
Q111
KRC104 M
C109
0.022
R123
4.7K
C119
560P
C117
0.033
R121
100K
C111
330P
C113
330P
R140
560
R138
6.8K
R132
33K
C122
1/50
R120
56
C116
47/16
L108
2.2µH
C133
22/25
R137
6.8K
C127
0.022
R131
33K
R119
56
C115
47/16
L107
2.2µH
C112
330P
C114
330P
R126
5.6K
C120
560P
R124
4.7K
R122
100K
C118
0.033
C132
0.001
R142
47
L102
1.8mH
C139
L101
1.8mH
R141
47
C135
0.022
C131
0.001
R125
5.6K
Q115
KRC104 M
C138
0.018
C138
0.018
Q116
KRC104 M
R112
15K
C106
330P
C105
330P
R191
1K
C123
0.01
R128
8.2K
C124
0.01
R192
1K
CNP102
R108
47K
Q108
KTC3199 GR
R110
4.7K
background
– 27 –
CD-C440H/CP-C440H
Figure 27 SCHEMATIC DIAGRAM (8/14)
7
8 9 10 11 12
11
34
32
31
2
30
29
28
27
26
25
24
23
22
46
44
43
42
41
40
39
38
7
37
36
+B
+B
+B
+B
+B
+B
SWITCHING
MUTING
MUTING
MUTING
MUTING
SWITCHING
SWITCHING
+B
16 15 14 13
121110
9
PLAYBACK AND RECORD/
PLAYBACK AMP.
(ML)
TO CD
SECTION
P21 10–H
TO MAIN
SECTION
P24 1–C
TO MAIN
SECTION
P21 12–C
P25 12–E
TO MAIN SECTION
P25 8–H
TO MAIN SECTION
P24 4–A
TO MAIN/CD
SECTION
P21 12–F
P25 7–H
TO MAIN SECTION
P24 3–H
MAIN PWB-B1(3/3)
CAM SW
TA_MOT_H/L
F.A.S.
M_GND
REC FWD
SOLENOID
M_12V
TA_MOT_SW
D_5V
REC RVS
RUN PULSE
HI_SPEED
REC_L-CH
REC_R-CH
TAPE_L-CH
TAPE_R-CH
REC/PB
T1/T2
REC_MUTE
PB_MUTE
BIAS
A_12V
A_GND
BEAT_CUT
32
1
32
1
32
1
Nor/
CrO2
RIPPLE
Vcc
GND
3
2
1
32
1
(P.P)
(ML)
=
CHROME
W
ITCHING
SWITCHING
ALC
ALC
D
R
SWITCHING
C163
47/16
0
8
K
RM09
2.2K
R
M07
10
RM06
2.2K
RM05
10K
QM04
KRC104M
R157
4.7K
C863
0.01
RM14
10K
RM16
10K
RM15
10K
RM19
3.3K
RM20
10K
DM03
1SS133
R149
10K
R146
10K
C140
0.0033
R143
10K
R144
10K
Q117
2SC2878 A
C143
0.022
C144
0.022
C146
220/10
C147
0.022
C145
22/25
R150
10K
C142
1/50
IC101
AN7345K
R152
1K
C141
1/50
R158
470
R168
4.7
R171
4.7K
Q129
KTC3199 GR
Q128
2SC2236 Y
Q126
KRC104 M
R164
4.7K
Q130
KTC3199 GR
C151
0.027
R167
47K
C162
0.047
R160
270
R170
3.3K
R166
27K
Q124
KTA1266 GR
L103
1mH
L104
330µH
R161
270
C152
47/16
R182
39K
R181
39K
Q121
KTC3199 GR
R153
10K
Q122
KTC3199 GR
R154
10K
4
2
0
2
m
H
R145
10K
C139
0.0033
0
1
8
mH
35
0
22
Q118
2SC2878 A
Q115
KRC104 M
0
.
018
3
8
1
8
Q116
KRC104 M
Q119
KRC104 M
R162
47K
C150
0.0082
C161
560P
C110
47/25
R147
10K
R155
33K
R156
33K
C155
0.022
R193
220
background
CD-C440H/CP-C440H
– 28 –
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 16.

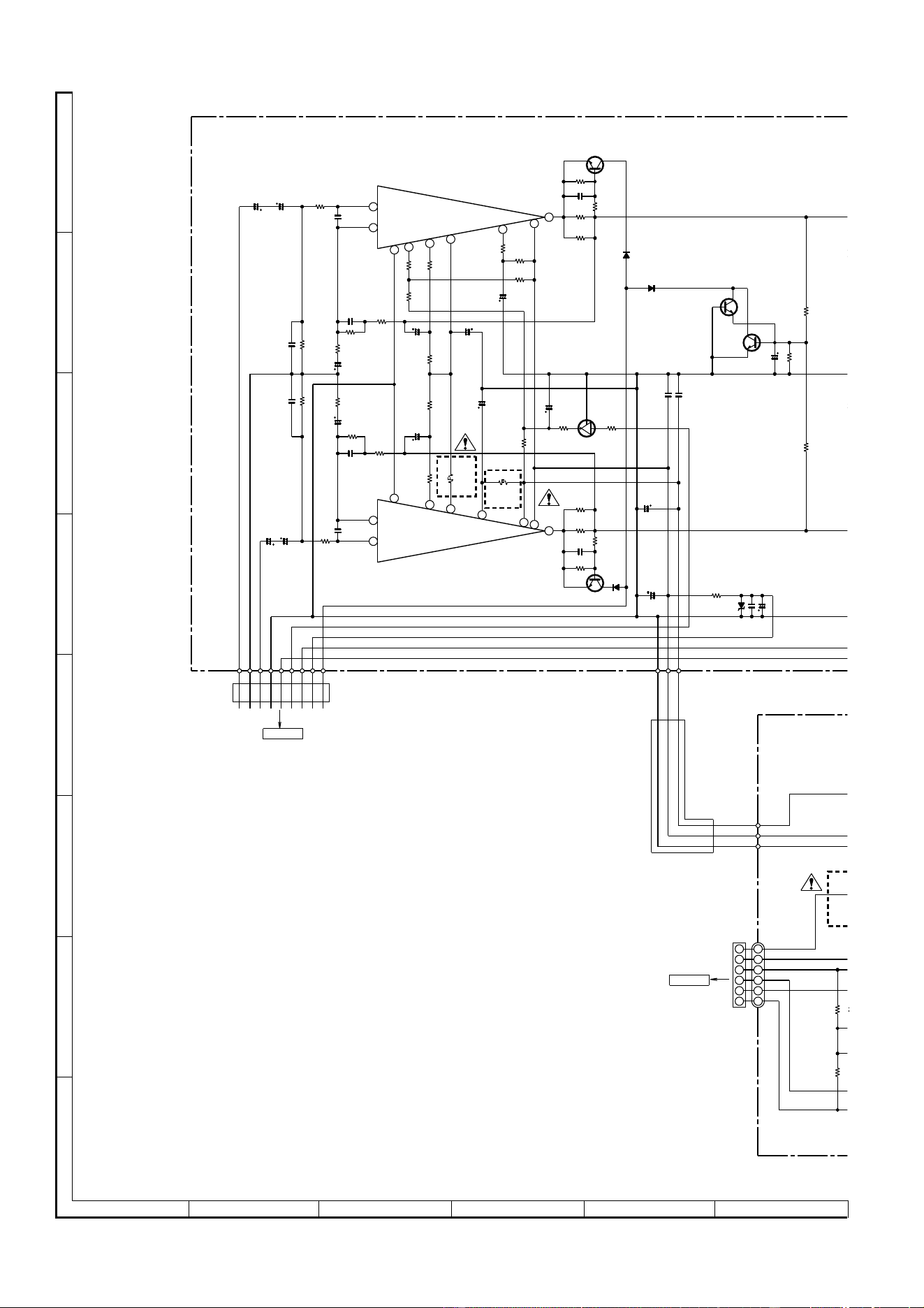

Figure 28 SCHEMATIC DIAGRAM (9/14)
10
9
8
4
5
6
3
2
1
18
17
16
15
7
12
11
14
13
6
5
4
3
2
1
6
5
4
3
2
1
3
1
SWITCHING
(ML)
32
1
0V
0V
5.1V
0V
0V
5.1V
5.1V
0V
0V
0V
0.3V
5.1V
0V
0V
2.81V
GND(A)
R-CH
L-CH
91
(1/2W)
(1/2W)
POWER AMP.
(1/2)
IC901
(2/2)
(1/4W)
(1/4W)
Fusible
Fusible
31
(ML
FW902B
FW902A
R995
22K
D998
1SS133
FW901
R909
1K
R913
470
C935
47/50
C995
4700/50
R985
820
BI801
CNS801
R914
470
C936
47/50
R92
7
4.
7
C921
0.1
C92
2
0.
1
R908
56K
C910
470P
R907
56K
C909
470P
C906
2.2/50
R925
56K
C989
47/25
C990
0.022
ZD901
MTZJ15A
C996
4700/50
C920
0.022
C919
0.022
R801
12K
R802
220
D
RL1
D
RL1
D801
S4VB20
Q997
KTC3199GR
Q998
KTC3199GR
C997
47/50
R998
56K
R926
56K
C994
100/35
R919
10K
Q903
KTC3199GR
R920
10K
Q904
KTC3199GR
D902
1SS133
R994
390
Q996
KRC102M
C908
2.2/50
C907
2.2/50
C905
2.2/50
R924
0.2
R991
1K
R986
1K
R918
2.2K
R917
2.2K
R910
1K
C917
0.022
C918
0.022
R940
1K
C911
47P
C912
47P
C913
15P
C914
15P
R939
1K
R990
220K
R992
39K
R989
150K
R988
10K
R912
56K
R911
56K
R915
1K
C991
47/50
R937
2.2K
C915
100/35
D901
1SS133
R938
2.2K
C992
47/50
C916
100/35
R916
1K
R987
100
R993
100
R922
0.2
R923
0.2
R921
0.2
C993
10/50
IC901
STK48802
TO MAIN PWB
P25 12–F
WT901
P25 12–H
TO MAIN PWB
CNP801
background
– 29 –
CD-C440H/CP-C440H
7
8 9 10 11 12

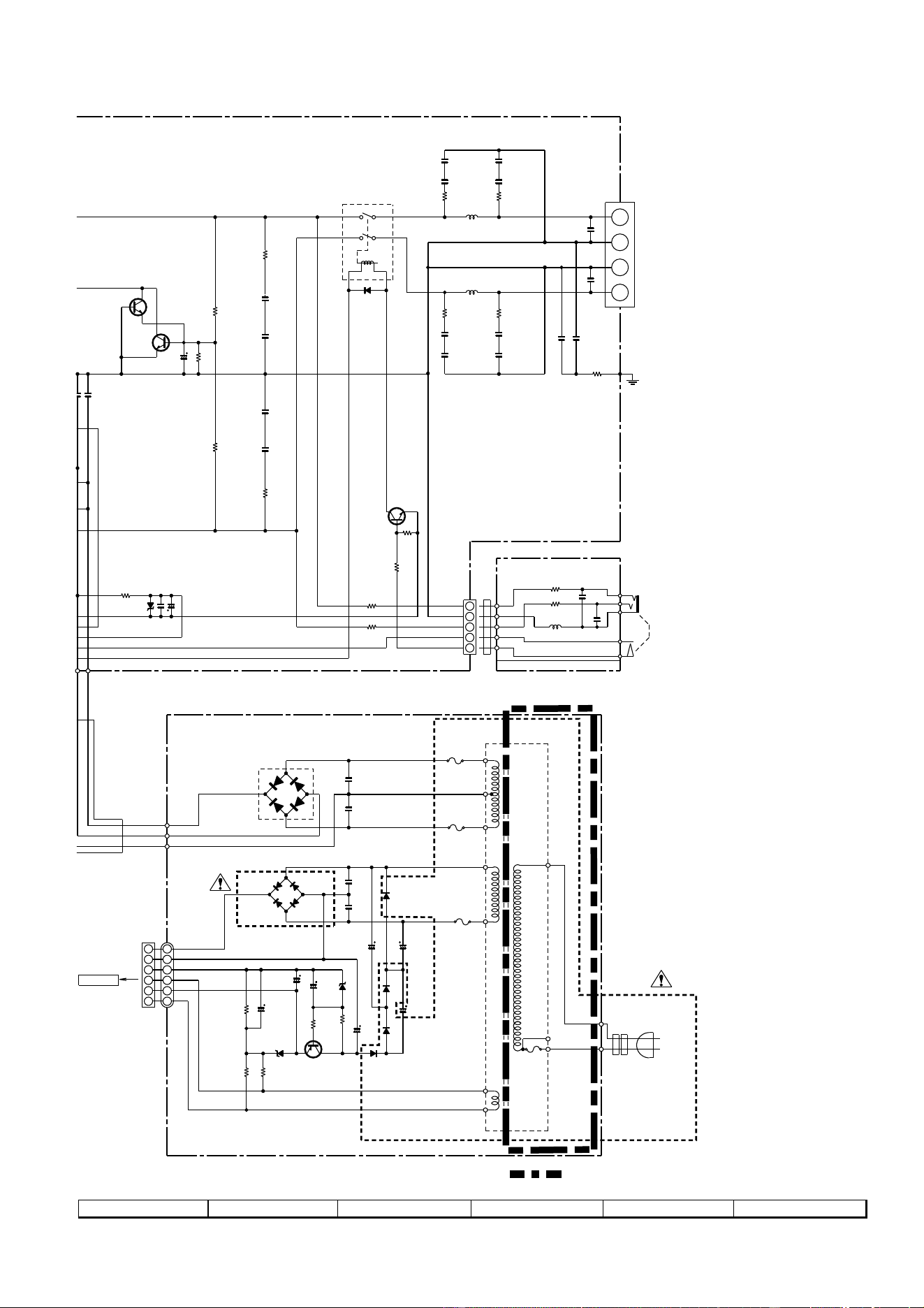

Figure 29 SCHEMATIC DIAGRAM (10/14)
5
4
3
2
1
6
5
4
3
2
1
6
5
4
3
2
1
3
1
SPEAKER
TERMINAL
+
–
–
+
R-CH
L-CH
RELAY
(ML)
(ML)
0V
5.1V
5.1V
0V
0V
0V
0V
0V
0.8V
3
(ML)
(ML)
(1/2)
(1/2)
HEADPHONES PWB-A3
HEADPHONES
(1/2)
(1/2)
HP-R-CH
HP-L-CH
5
1
VOLTAGE
REGULATOR
POWER
TRANSFORMER
50Hz
AC 230V
AC POWER
SUPPLY CORD
(216)
CORE
(280)
T.F
(ML)
(ML)
(ML)
(ML)
GND(A)
RELAY
RELAY
–41.4V
32.9V
–32.4V
C933
0.001
FW902B
FW902A
0
R985
820
R997
3.3K
C938
100P
C937
100P
FW903
WT903
BI801
CNS801
K801
K802
T801
F804
T1.6A L 250V
F803
T5A L 250V
F802
T5A L 250V
D806
RL104A
C810
100/50
R927
4.7
C923
0.1
C921
0.1
R928
4.7
C924
0.1
C922
0.1
C802
0.22
R934
180
R933
180
R935
180
R936
180
L903
2.2µH
R925
56K
C989
47/25
C990
0.022
ZD901
MTZJ15A
C920
0.022
R996
47K
Q999
K TC3199GR
C801
0.22
D807
RL104A
C809
100/50
C811
100/50
R807
2.2K
C808
47/63
D808
RL104A
R801
12K
C805
100/35
R806
100
D809
RL104A
Q801
KTA1266GR
ZD802
MTZJ5.6B
R802
220
R803
220
C804
0.047
C803
0.047
D802
RL104A
D804
RL104A
D805
RL104A
D803
RL104A
D801
S4VB20
C806
47/50
C807
47/50
ZD801
MTZJ33C
JA901
Q997
KTC3199GR
Q998
KTC3199GR
C997
47/50
R998
56K
R926
56K
R999
10
C999
0.001
C998
0.001
R930
3.9
R932
5.6
C928
0.022
C932
0.022
C926
0.022
C930
0.022
L902
0.29µH
C925
0.022
C929
0.022
R931
5.6
C931
0.022
C927
0.022
R929
3.9
L901
0.29µH
RL901
D999
1SS133
SO901
C934
0.001
When Servicing, pay attention as the area
enclosed by this line ( ) is directly
connected with AC main voltage.
P25 12–H
O
MAIN PWB
CNP801
background
CD-C440H/CP-C440H
– 30 –
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 16.

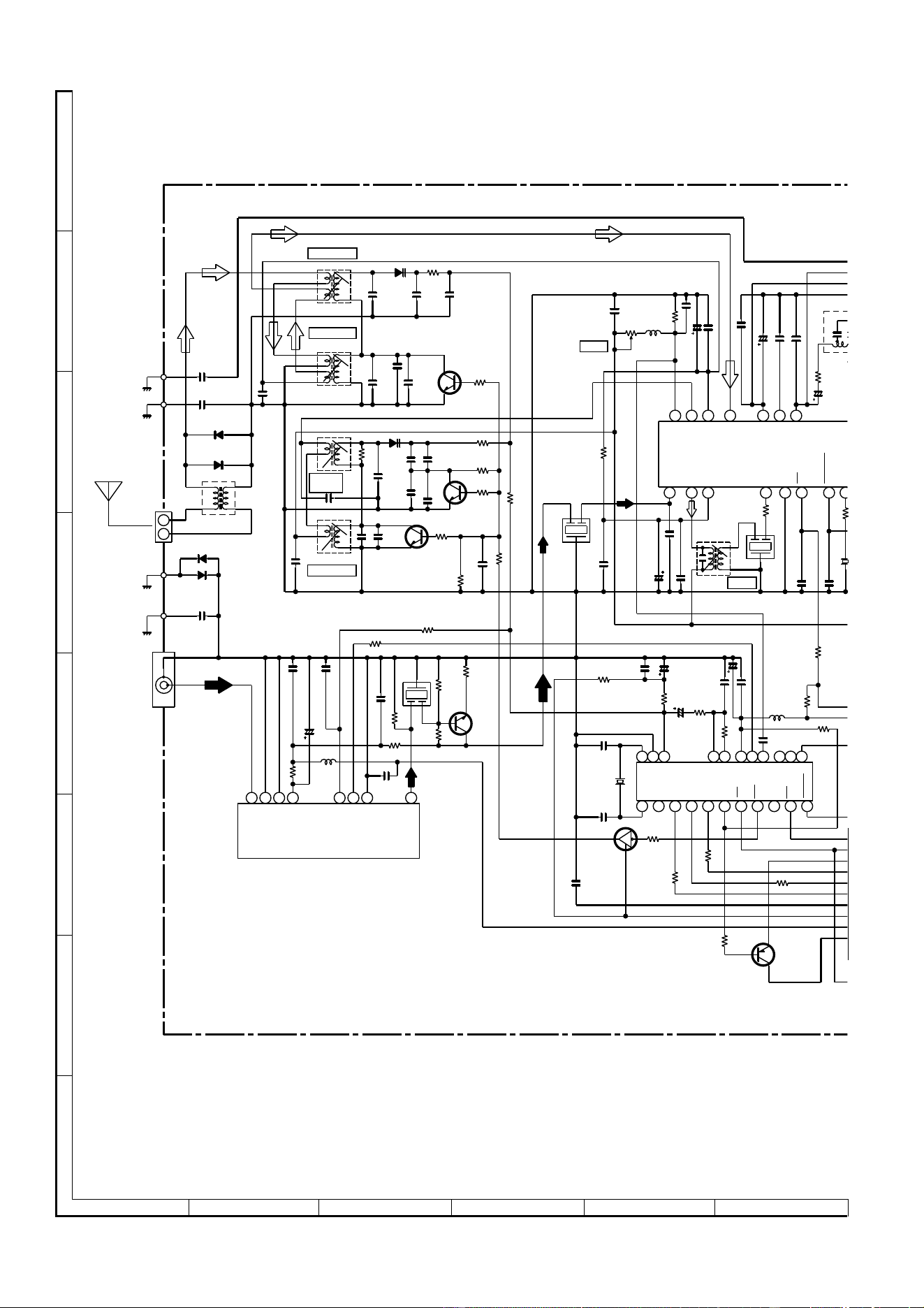

Figure 30 SCHEMATIC DIAGRAM (11/14)
(UJ)
(UJ)
2
1
8
7
6
5
4
3
2
1
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
24
23
22
21
20
19
18
8
7
6
5
4
3
2
1
+B
+B
+B
+B
+B
0V
2
(12.1V)
(1.2V)
12.1V
3
12.1V
(0V)
(0V)
9.4V
0.8V
0V
(0.7V)
0V
0V
0V
(0.7V)
0V
0V
0V
(0.7V)0V
0V
0V
(0
V
3.9
V
X IN
X OUT
FM IF AMP.
VSS
AOUT
AIN
PD
VDD
FM IN
MW
AM IN
FM
MO/ST
ST IND
IF IN
CE
DI
CL
DO
FM
MW+B
(CH)
1
(CH)
VCO
3
2
1
FM IF DET/
FM MPX/AM IF
FM
DET
FM IF
IN
AM MIX
OUT
AM OSC
IN
AM OSC
OUT
REG
FM
AFC
AM RF
IN
VSM
CUT
AM LOW
STEREO
SD
GND
AM IF
IN
OUT
FM/AM
LOW
FIL
T
LW ANT.
MW ANT.
(CH)
MW
OSC.
(CH)
(CH)
3
2
1
(CH)
(UJ)
(CH)
LW OSC.
MW/LW
LOOP
ANTENNA
BALUN
FM
75ohms
3
2
1
FM FRONTEND
IF OUT
GND
F OUT
VT
VCC
GND
GND
ANT
R369
82
Q371
KTA1266 GR
C327
680P
R382
150
C380
10/16
R37
8
82K
R373
1K
R372
1K
R374
1K
R371
1K
C350
0.022
C344
33P
C352
10/16
C351
0.022
R351
5.6K
C353
0.022
C354
0.022
R393
1K
C364 10/16
C366 0.001
C365 0.022
C363 0.022
C343
33P
VR351
10K(B)
C333
22P
C325
220P
R335
100K
D302
1SS133
CNP301
R349
33
R344
470
R345
4.7K
R301
330
C346
0.022
C345
0.022
C321
100/16
L354
R379
2.2K
C382
15P
C381
12P
X352
C385
0.01
R377
47K
L351
100µH
R358
8.2K
C342
0.022
IC3
0
LA18
3
CF351
C361 0.022
D304
1SS133
C301
0.001
D303
1SS133
L341
C362
3.3/50
Q362
KRA107 M
C393
1/50
R380
1.5K
R381
10K
C394
47/16
SO301
C387
0.022
C392
0.001
L353
1mH
C397
0.022
R346
330
R347
6.8K
C341
0.022
R348
680
FE301
CF301
Q301
2SC380 O
C347
0.022
C328
0.022
R334
5.6K
C334
18P
R336
4.7K
R337
470
R324
100K
T305
C324
27P
R333
5.6K
T306
C336
470P
C335
18P
VD301-2
KV1236Z23F
R323
68K
Q303
KTC3199 GR
C326
18P
Q304
KTC3199 GR
C384
0.001
CF302
T301
C322
6.8P
C323
0.022
R331
5.6K
C330
10P
T302
C332
0.022
R319
100K
C331
0.047
VD301-1
KV1236Z23F
Q302
KTC3199 GR
D301
1SS133
R352
1K
CF352
T351
AM IF
C337
0.022
C339
22P
IC302
LC72131
C338
0.001
C329
33P
C302
0.001
C367
1/50
R350
2.7K
R332
100K
R397
1K
L342
2.2µH
background
– 31 –
CD-C440H/CP-C440H
7
8 9 10 11 12

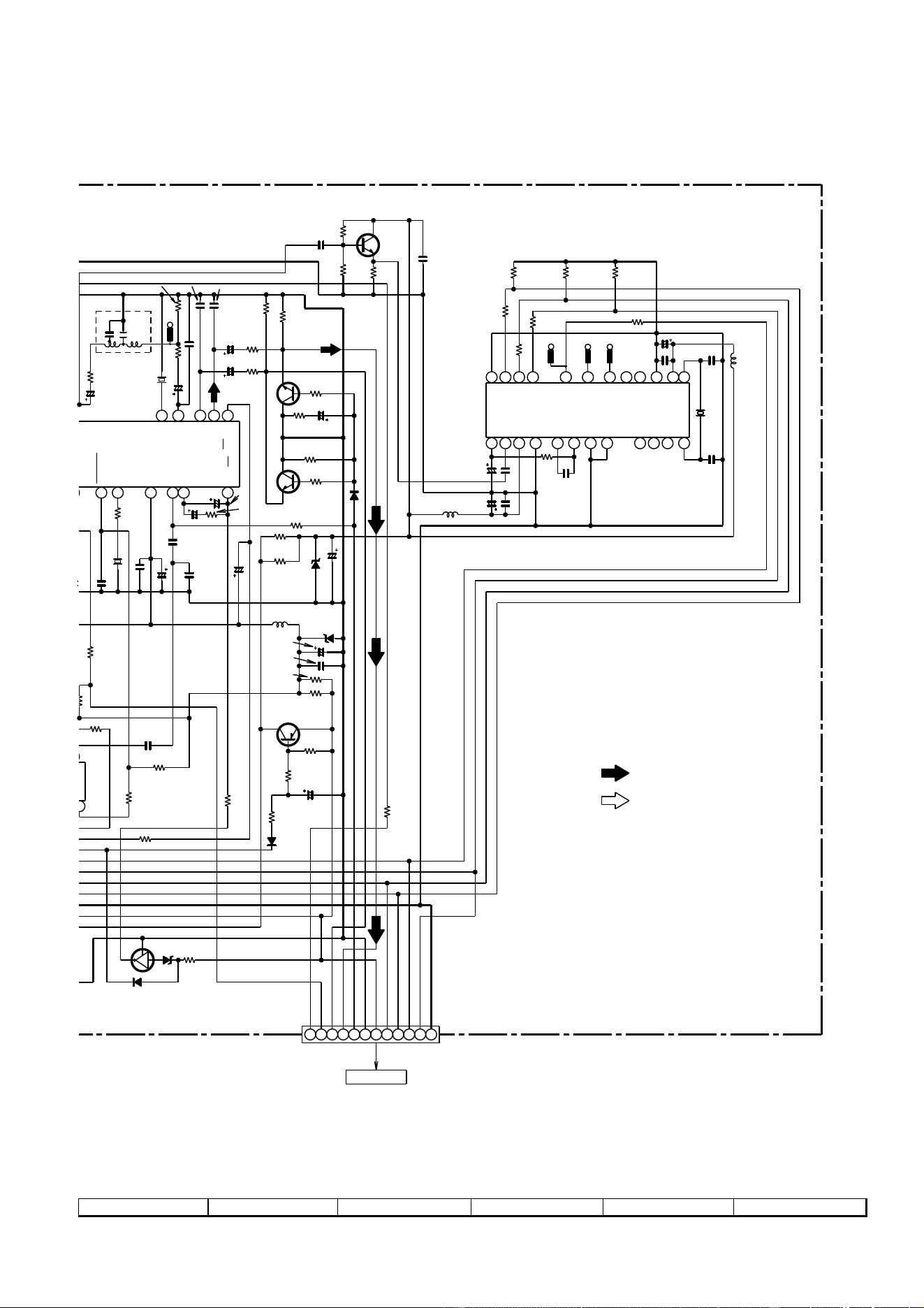

Figure 31 SCHEMATIC DIAGRAM (12/14)
12
11
10
9
8
7
6
5
4
3
2
1
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
7
6
5
4
3
2
1
8
11
17
16
15
14
13
12
11
10
9
8
7
6
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
PLL
(TUNER)
AM:( )
FM(ST):OTHER
2.6V
(0V)
(0V)
2V
(0V)
MUTING
MUTING
AMP.
5.2V
(3.6V)
0V
(0V)
3.9V
0V
(12.1V)
11.3V
(0V)
11.3V
12.1V
(0V)
(0V)
0.7V
0.7V
0V
0V
0V
0V
RDS
VREF
SYR
CE
DI
CL
DO
RDS-ID
SYNC
VDDD
VSSD
XIN
XOUT
FLOUT
VSSA
MPXIN
CIN
T1
T2
VDDA
S
T IND
AM SIGNAL
FM SIGNAL
TO MAIN PWB
P25 8–A
CNP502
SD
SM
R
L
TUN MUTE
A GND
A+12V
DI
CE
DO
CLK
D GND
3
2
1
FM
DET
STEREO
VCC
IF OUT
PHASE
PHASE
(FM/AM)
MO/ST
R-CH
OUT
MPX
IN
MPX
VCO
L-CH
OUT
(CH)
TPTPTP
(CH)
LOW PASS
FILTER
TP
D351
1SS133
R385
5.6K
C391
47/16
R384
5.6K
D352
1SS133
R376
1K
R378
82K
C386
330P
CNP303
7
3
R354 3.9K
C399
0.022
C354
0.022
R393
1K
C358
1/50
ZD351
MTZJ5.1B
RT49
390
RT48
390
CT43
10/16
RT21
100K
RT26
1K
RT28
1K
RT30
1K
LT22
2.2µH
RT37
220K
RT36
220K
R356
1K
27P
C369
C373
0.033
C374
0.033
R357
470K
R364
2.2K
L354
R363
2.2K
R366
10K
R368
33K
R365
10K
C375
3.3/50
R367
1K
Q353
KTC3199 GR
Q354
KTC3199 GR
X351
C368
1/50
R353
270
IC303
LA1832
L352
100µH
CT23
10/16
ICT21
LC72720
C355
22P
C370
1/50
ZDT21
MTZJ5.1B
C357
2.2/50
R355
3.3K
C356
0.001
CF351
C398
100/10
RT32
10K
RT33
56K
QT21
KTC3199 GR
CT37
0.022
RT34
56K
R362
470
C372
1/50
R361
470
C371
1/50
D353
1SS133
R395
47K
R359
1.8K
R360
4.7K
C396
100/10
C395
0.022
Q360
KTA1266 GR
R383
5.6K
R392
390
R391
390
IC302
LC72131
CT24
0.022
CT25
560P
XT21
4.332MHz
CT26
22P
CT29
0.022
CT28
47/10
RT29
1K
LT21
2.2µH
CT21
47/10
CT22
0.022
CT36
0.022
R387
22K
Q361
KRC107 M
ZD352
MTZJ3.9B
CT27
22P
C367
1/50
R350
2.7K
RT35
220K
R370
1K
background
CD-C440H/CP-C440H
– 32 –
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 16.

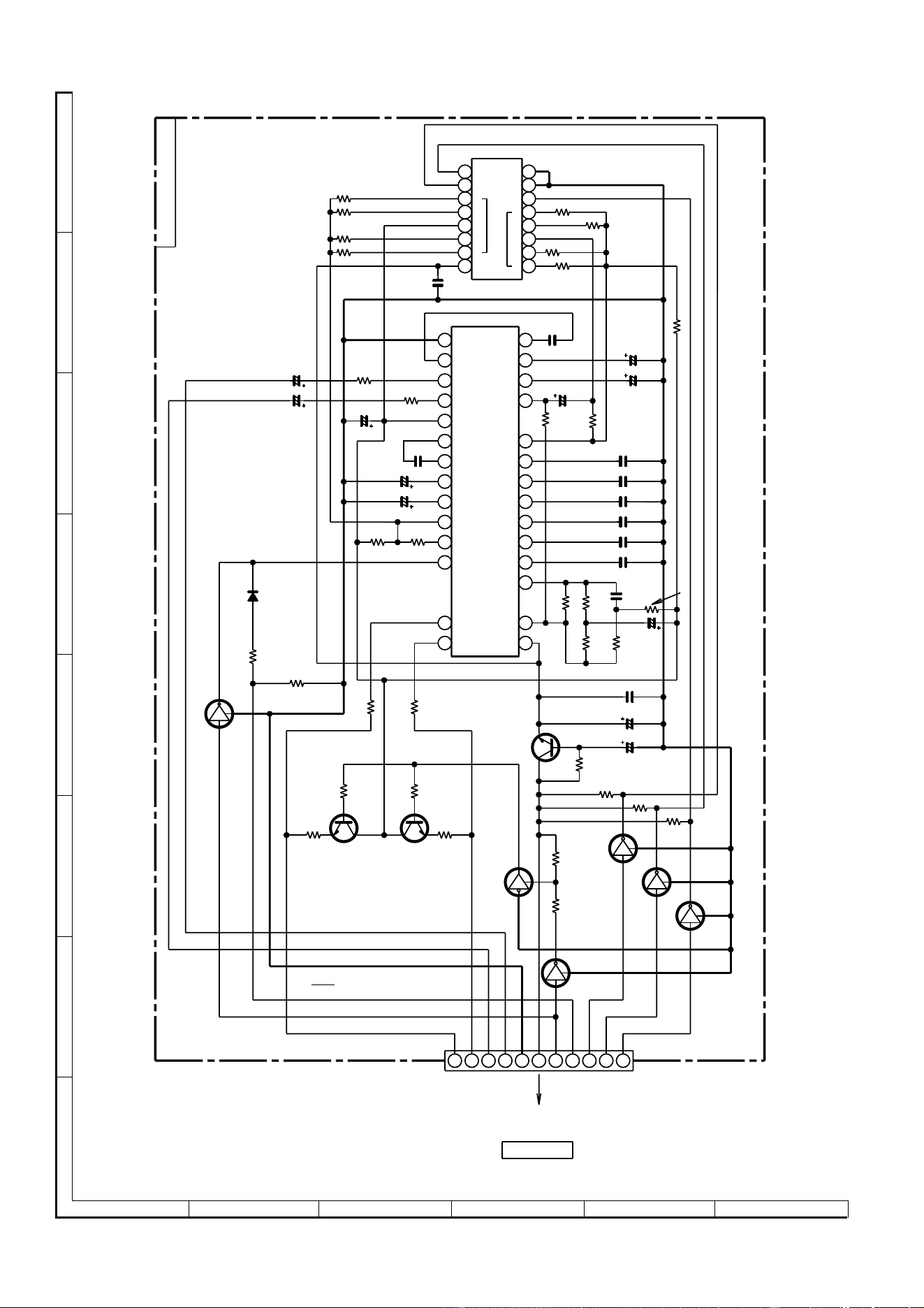

Figure 32 SCHEMATIC DIAGRAM (13/14)
1
L_OUT
SRS_PASS
SRS/3D
A_GND
L_IN
R_IN
R_OUT
LEVEL CONT
LEVEL CONT
32
1
(ML)
+B
+B
+B
+B
+B
11
10
9
8
7
6
5
4
3
2
1
1
2
3
4
5
6
7
8
9
10
11
12
13
1415
16
17
18
19
20
21
22
23
24
25
26
7
2
8
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
(M L)
FUNCTION
SERECTOR
SRS
0V
0V
0V
12V
12V
12V
0V
0V
0V
0V
0V
0V
12V
11.4V12.2V
2.7V
2.7V
0V
5.6V
2.7V
5.7V
5.7V
5.6V
4.1V
0V
0V
TO MAIN PWB
P24 5-H
CNP501
SRS PWB-A2
VDD
21X03AB
02Y31
INH
VEE
VSS
R_IN
L_IN
C_IN
C_OUT
MODE
S_OUT
CR1
R_OUT
L_OUT
VCC
PN_IN
PN_OUT
C1
C2
C3
C4
C5
C6
CL4
CL3
CL2
CL1
Vref
S_IN
CR4
CR3
CR2GND
(ML)
(ML)
(ML)
(ML)
(ML)
(ML)
32
1
3
2
1
32
1
SRS_B
SRS_INH
32
1
A_12V
SRS_A
3
2
Q459
KRC107 M
Q460
KRC107 M
Q461
KTC3203 Y
Q466
KRC107 M
R449
1.5K
R452
4.7K
Q467
KRA107 M
R494
100K
R497
100K
R481
3.9K
R482
33K
C460
0.47/50
C470 330P
C463 0.068
C466 0.0068
C464 0.022
C462 0.22
C468 0.0018
C473
0.47/50
C474
0.47/50
R492
4.7K
C458
0.047
C457
100/16
C456
100/16
D451
1SS133
R478
1K
R468
1K
R500
6.8K
R498
4.7K
R495
1K
R493
1K
CNS501
R483
100K
C471
100/16
C469
0.2 2
C475
0.22
IC451
SRS5250S
R487
100K
R488
4.7K
C461
0.0047
R479
22K
R484
1.5K
R480
47K
Q468
KTC3199 GR
IC453
BU4052BC
Q469
KTC3199 GR
R453
2.2K
R454
2.2K
R457
12K
R458
12K
R465
1K
R466
1K
R475
2.2K
R474
10K
R470
10K
R473
10K
R451
10K
Q463
KRC107 M
C476
0.022
C465
0.47/50
C467
0.47/50
R469
1K
C453
2.2/50
C454
2.2/50
C472
0.33/50
R491
1.5K
R499
1.5K
R490
4.7K
Q458
KRC107 M
background
– 33 –
CD-C440H/CP-C440H
7
8 9 10 11 12
Figure 33 SCHEMATIC DIAGRAM (14/14)
5.6V
5.6V
5.6V
5.7V
5.7V
5.6V
5.6V
5.6V
5.6V
5.6V
5.6V
5.6V
5.6V
5.6V
5.6V
11.3V
5.6V
5.6V
5.6V
5.6V
5.6V
0V
5.6V
5.6V
5.7V
5.7V
5.6V
5.6V
9
8
7
6
5
4
3
2
1
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
PIN
NO.
VOLTAGE
IC451
11.4V
0V
0.2V
5.7V
12.0V
12.0V
6.0V
12.0V
5.7V
5.7V
5.7V
5.7V
5.7V
6.0V
5.7V
0V
9
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
PIN
NO.
VOLTAGE
IC453
0V
0V
0V
4.9V
0V
4.9V
4.9V
0V
0V
4.9V
4.9V
4.9V
0V
0V
0V
4.8V
0V
0V
4.8V
3.5V
0V
0V
0V
5.2V
5.2V
0V
0V
0V
0V
4.9V
4.9V
5.2V
0V
0V
2.3V
2.3V
4.9V
4.9V
4.9V
4.9V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
40
39
38
37
36
35
34
33
32
31
PIN
NO.
VOLTAGE
IC601
4.9V
4.9V
5.4V
4.9V
4.9V
4.9V
4.9V
0V
0V
0V
5.2V
4.9V
4.8V
0V
0V
12.3V
12.3V
4.9V
0V
4.9V
0V
0V
4.9V
4.9V
50
49
48
47
46
45
44
43
42
41
PIN
NO.
VOLTAGE
51
64
63
62
61
60
59
58
57
56
55
54
53
52
4.9V
0V
0V
0V
4.9V
0V
4.9V
4.9V
5.2V
5.2V
4.8V
4.9V
0V
0V
0V
0V
68
67
66
65
69
80
79
78
77
76
75
74
73
72
71
70
4.9V
4.9V
4.9V
5.2V
5.1V
5.1V
5.1V
5.1V
5.2V
5.9V
5.2V
5.2V
0V
5.2V
5.2V
5.2V
5.2V
5.2V
5.3V
5.2V
5.2V
5.2V
5.2V
5.2V
5.2V
5.9V
5.1V
5.2V
5.9V
5.2V
5.9V
5.2V
5.2V
5.2V
5.2V
5.2V
5.2V
5.2V
5.2V
5.2V
10.3V
0V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
42
41
40
39
38
37
36
35
34
33
32
31
PIN
NO.
VOLTAGE
IC201
2.6V
5.3V
5.2V
5.2V
0V
5.2V
5.2V
5.2V
5.2V
5.2V
5.2V
10.4V
0.7V
2.0V
0V
4.9V
4.9V
4.9V
5.2V
5.2V
5.2V
5.2V
5.2V
2.4V
9
8
7
6
5
4
3
2
1
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
PIN
NO.
VOLTAGE
IC202
5.5V
5.3V
5.5V
5.3V
5.3V
5.5V
5.5V
0V
5.5V
5.5V
5.5V
5.5V
5.5V
5.5V
5.3V
5.5V
5.3V
5.3V
5.3V
5.3V
5.5V
5.5V
5.5V
5.5V
5.5V
5.5V
11.0V
5.5V
5.5V
5.4V
5.3V
5.5V
5.5V
5.5V
5.5V
5.5V
0V
0V
0V
5.5V
5.5V
5.5V
5.5V
5.5V
5.5V
5.5V
5.5V
5.3V
5.5V
5.3V
5.3V
5.3V
5.5V
5.5V
5.5V
5.5V
5.5V
5.5V
5.5V
5.5V
5.5V
5.5V
5.5V
5.5V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
PIN
NO.
VOLTAGE
51
64
63
62
61
60
59
58
57
56
55
54
53
52
IC501
0V
0V
0V
0V
0V
–11.7V
0V
6.4V
8
7
6
5
4
3
2
1
PIN
NO.
VOLTAGE
IC502
0V
0V
0V
0V
0V
–11.7V
0V
6.4V
8
7
6
5
4
3
2
1
PIN
NO.
VOLTAGE
IC503
0V
0V
0V
0V
0V
–11.7V
0V
6.4V
8
7
6
5
4
3
2
1
PIN
NO.
VOLTAGE
IC504
0V
0V
0V
0V
0V
–13.2V
0V
11.0V
8
7
6
5
4
3
2
1
PIN
NO.
VOLTAGE
IC651
0V
3.1V
–28.4V
–28.4V
–28.4V
–28.4V
–28.4V
–28.4V
–28.4V
4.85V
4.85V
0V
4.75V
0V
3.3V
4.7V
0V
0V
5.0V
4.8V
4.8V
0V
4.8V
4.8V
4.8V
4.8V
4.8V
4.8V
4.8V
4.9V
4.8V
0V
4.8V
0V
2.3V
2.1V
0V
0V
0V
0V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
40
39
38
37
36
35
34
33
32
31
PIN
NO.
VOLTAGE
IC701
4.8V
0V
4.9V
0V
0V
–22.2V
–15.9V
–25.1V
–31.3V
–31.3V
–18.9V
0V
4.7V
0V
0V
0V
0V
4.9V
4.9V
–22V
–28.2V
–31.3V
–22.2V
–18.9V
50
49
48
47
46
45
44
43
42
41
PIN
NO.
VOLTAGE
51
64
63
62
61
60
59
58
57
56
55
54
53
52
–28.4V
–28.4V
–28.4V
–28.4V
–22.1V
–31.3V
–13.0V
–31.3V
–28.2V
–31.3V
–19.0V
–31.3V
–31.4V
–31.3V
–31.3V
–31.3V
68
67
66
65
69
80
79
78
77
76
75
74
73
72
71
70
0V
10.8V
9.4V
9.1V
1.8V
9.1V
10.6V
1.8V
1.8V
0V
0V
1.0V
1.0V
1.0V
1.8V
1.8V
9.3V
4.8V
9
8
7
6
5
4
3
2
1
18
17
16
15
14
13
12
11
10
PIN
NO.
VOLTAGE
IC702
0V(0V)
0.6V(0.6V)
2.8V(2.6V)
0V(0V)
0.6V(0.6V)
2.8V(2.7V)
3.6V(3.5V)
0V(0V)
0V(0V)
2.8V(2.7V)
2.8V(2.7V)
0V(0V)
0V [1.3V](0V) <1.3V>
0V(0V)
0V(0V)
( ):CrO
2
PLAY
< >:CrO
2
REC
[ ]:CD NORMAL REC
OTHER:CD NORMAL PLAY
0V(0V)
0.6V(0.6V)
2.8V(2.6V)
0.6V(0.6V)
5.8V(5.6V)
0V(0V)
0V(0V)
0V(1.0V)
0V(0V)
9
8
7
6
5
4
3
2
1
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
PIN
NO.
VOLTAGE
IC101
5.1V(5.1V)
2.5V(2.1V)
2.5V(2.1V)
0.9V(0.9V)
2.4V(0V)
2.2V
1.4V
3.9V(1.2V)
3.9V(1.9V)
3.5V(0.3V)
5.1V
5.1V
5.0V
0V
2.2V
5.1V
2.2V
2.2V
2.9V(3.6V)
4.0V
1.4V
2.4V(0.9V)
0V(1.9V)
3.6V(3.6V)
9
8
7
6
5
4
3
2
1
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
PIN
NO.
VOLTAGE
IC303
2.6V
0V
1.9V(1.1V)
5.1V
2.5V(0V)
0V
0V
5.1V(5.1V)
4V(0V)
0.4V(0V)
0.3V(12.3V)
0.5V(5V)
4.8V
2.6V
( ):AM
OTHER:FM(ST)
0V
0V
0V
12V(0V)
0V
0V(2.5V)
0.9V
0.9V
9
8
7
6
5
4
3
2
1
22
21
20
19
18
17
16
15
14
13
12
11
10
PIN
NO.
VOLTAGE
IC302
0V(0V)
0V(0V)
4.8V(4.8V)
0V(5V)
0V
0V
5.2V(0V)
2.6V(0V)
0V
0V
0V
0V(0V)
2.6V(0V)
2.6V(0V)
2.6V(0.2V)
2.6V(0V)
5.2V(0V)
0V(0V)
0V(0V)
2.7V(0V)
0V(0V)
0V
0V(0.6V)
0V(0V)
9
8
7
6
5
4
3
2
1
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
PIN
NO.
VOLTAGE
ICT21
0V
0V
–34.9V
33.2V
34.9V
0V
–34.9V
–34V
2.7V
–1.3V
0V
0V
0V
–31.9V
–34.6V
0V
–1.3V
0V
9
8
7
6
5
4
3
2
1
18
17
16
15
14
13
12
11
10
PIN
NO.
VOLTAGE
IC901
1.3V
3.3V
0V
28.7V
0V
29.8V
26.7V
15.4V
26.7V
15.4V
0V
0V
1.3V
0V
9
8
7
6
5
4
3
2
1
14
13
12
11
10
PIN
NO.
VOLTAGE
IC951
background
CD-C440H/CP-C440H
– 34 –

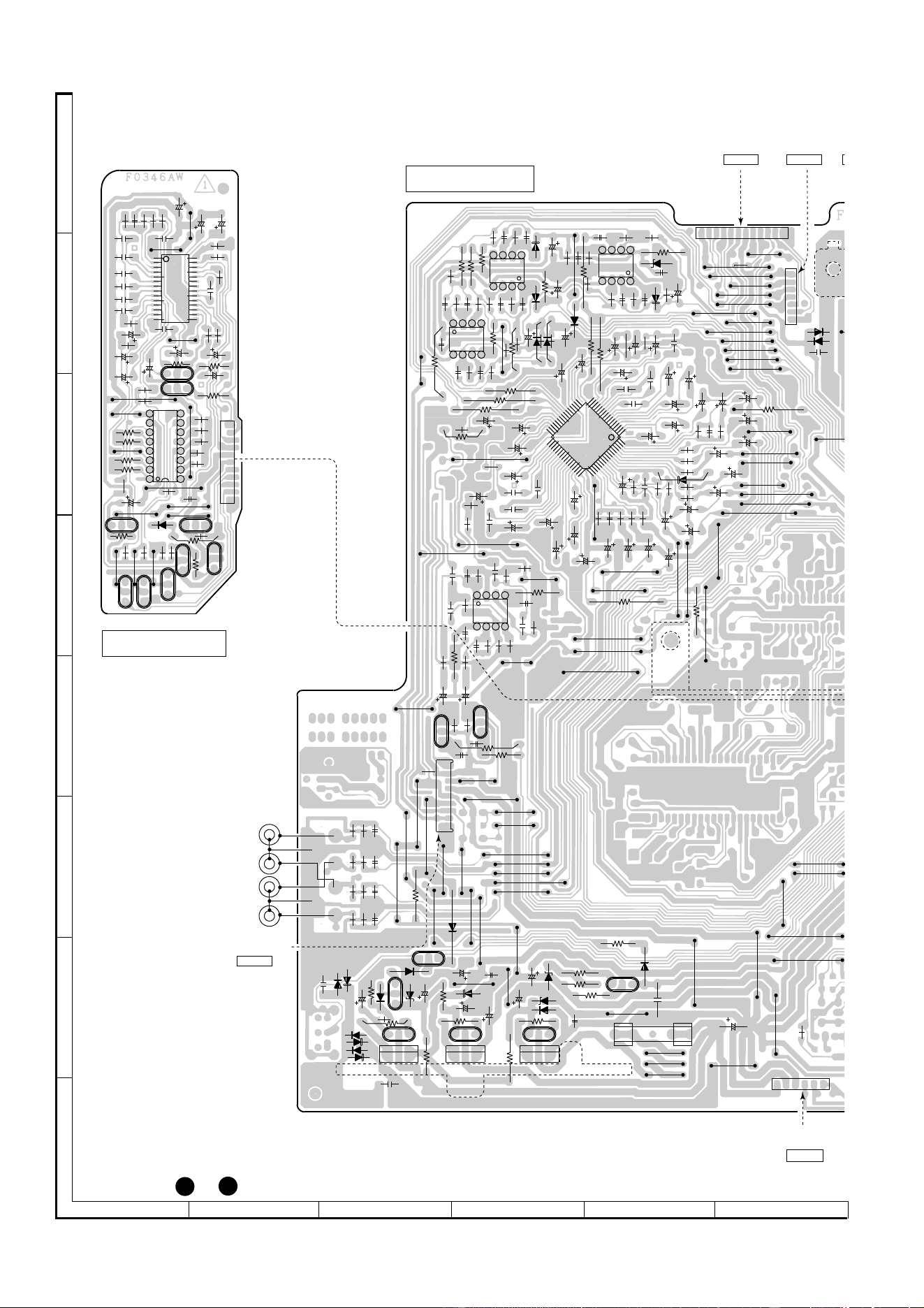

Figure 34 WIRING SIDE OF P.W.BOARD (1/7)
A
B
C
D
E
F
G
H
1
23456
• The numbers 1 to 12 are waveform numbers shown in page 41.
C463
C462
C464
C466
C468
C470
C472
C458
C475
C457
C471
C467
C469
C465
C454
CNS501
R457
C453
R458
R451
Q463
R481
Q469
Q468
D451
IC453
C460
C456
R499
R497
R494
R491
C474
C473
Q461
R475
Q458
Q459
Q460
Q467
R449
Q466
R483
C461
R490
R482
R484
R479
R480
IC451
R468
R469
R488
R466
R465
1
5
10
14 15
20
25
28
R500
1
2
3
4
5
6
7
8
9
10
11
R498
R487
R478
R495
R493
C476
R492
R453
R454
8
9
BCE
BCE
10
15
16
1
5
R470
R473
R474
R452
R560
R532
IC502
5678
R546
R545
R538
IC503
R540
C576
D554
D553
D551
R556D552
C579
C578
C553
C577
D556
C542
R551
R569
R570
C546
IC504
C538
C552
C532
C540
D555
ZD551
C528
R559
C536
C580
C524
CNP502
WT502
D501
1
2
3
4
5
6
7
D502
C591
R576
C516
C510
C508
C504
C506
C502
C512
C518
C501
C503
D557
C526
C520
C507
C522
C509
C549
C505
C530
C534
C511
C550
C515
C517
C521
C519
C523
C525
C533
C545
C539
C537
C535
C531
C527
R529
R528
R530
C551
C529
C541
R571
Q501
C861
C854
C852
R865
C862
Q502
IC651
R521
C851
R522
C853
R866
R575
R223
D824
WT901
R820
C864
D560
D561
C825
R825
D825
R823
D817
D818
D819
D820
Q825
C865
Q824
Q823
ZD822
D823
C826
R826
Q829
R829
R828
C831
C830
Q827
Q826
D822
C829
R822
C822
C828
R821
Q822
Q821
ZD823
D821
ZD821
R832
R831
R830
R684
Q828
D602
C827
F821
T500mA L 250V
C823
CNP
8
C581
C565
R533
R531
C567
C566
R535
R534
C568
R542
R536
R544
C570
C572
R537
R539
R543
R541
C569
C571
R554
R555
R557
C575
R549
R553
C583
R550
C574
R552
R547
C573
R548
R558
C582
R502
C514
R504
R520
R518
R514
R516
R512
R515
R513
R517
R511
R519
R501
C513
R503
IC501
R851
R509
R510
R572
R861
R863
R856
C859
R862
C855
R864
C555
C856
R857
C556
R858
R852
R855
R854
C860
R853
1
2
3
4
5
6
7
8
9
C587 C585 C586C588
R563R567R564R568
R561R565R562R566
R824
C824
C821
R155
4321
5678
4321
123456789101112
1234
8765
1
5
10
15
1617
20
25
30
32
33
35
40
45
48
49
50
55
60
64
1234
8765
123456
BCE 123
3
2
1
3
2
1
1
2
3
3
2
1
3
2
1
B
C
E
B
C
E
BCE
123
BCE
BCE
BCE
BCE
BCE
1
2
3
TO
POWER AMP PWB
FW901
P37 8–C
TO
TUNER PWB
MAIN PWB-A1
CNP303
CD
P36 4–A
TO
DISPLAY PWB
FW702
TO
POWER PWB
CNS801
SRS PWB-A2
L-CH
R-CH
VIDEO/AUX 1 IN
L-CH
R-CH
VIDEO/AUX 2 IN
J501
P39 10–C
P38 4–A
background
– 35 –
CD-C440H/CP-C440H

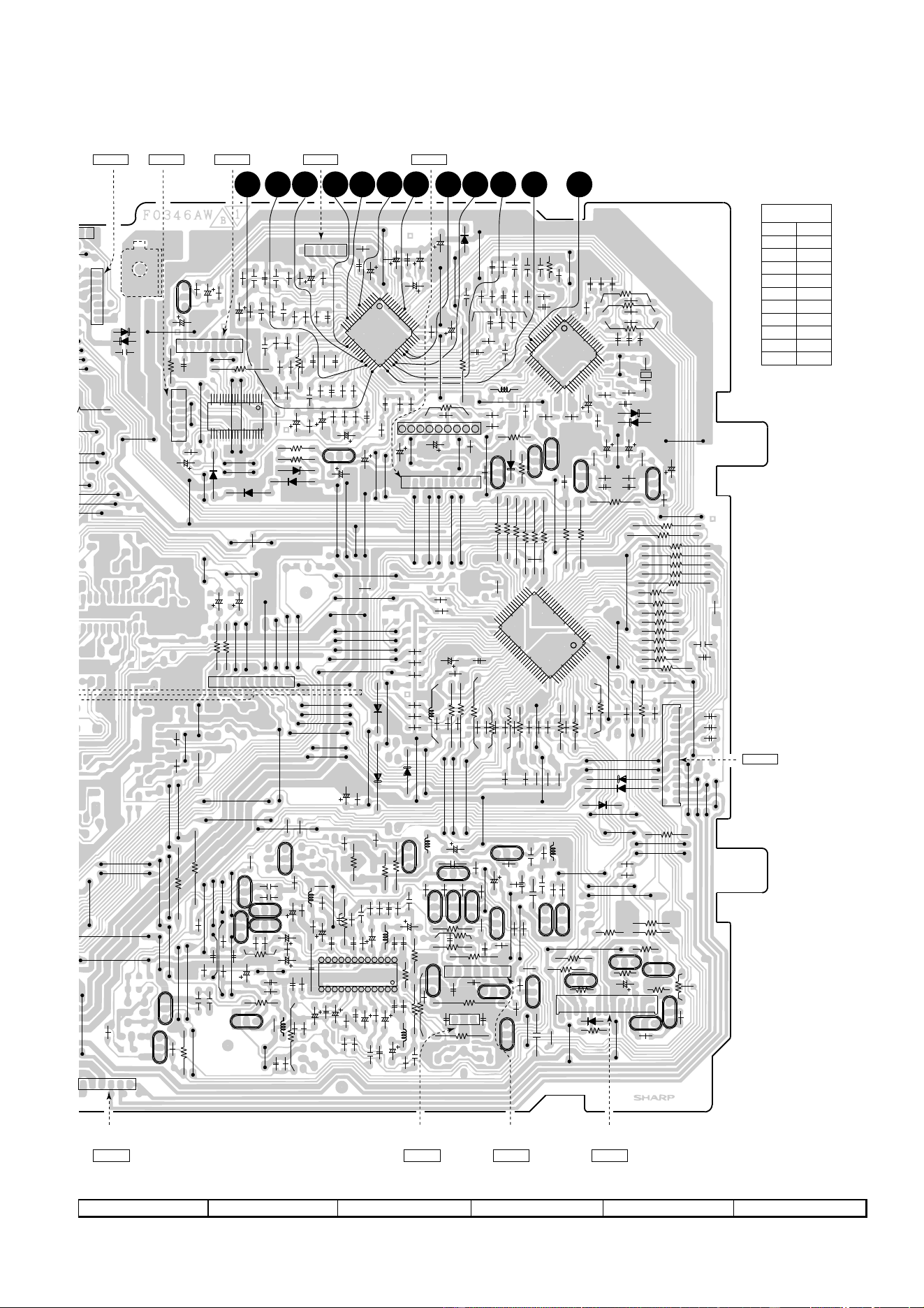

Figure 35 WIRING SIDE OF P.W.BOARD (2/7)
7
8 9 10 11 12
WT502
D501
1
2
3
4
5
6
7
D502
C591
R10
Q1
C21
C24
CNP2
C7
R29
C6
C9
C13
C5
C8
R28
C3
CNP1
C2
C40
C35
C37
C45
R49
D2
C50
C90
C53
C34
C42
C41
R18
XL1
R48
R47
R46
R617
R616
R615
R622
C82
R621
Q84
D8
D9
C68
R79
C67
C43
Q83
R618
R620
Q94
R623
Q93
R624
R625
R92
R94
R626
D91
R627
L1
Q91
R55
R93
CNP10
IC91
C94
C91
C52
C19
C81
Q81
C17
C11
ZD81
R84
R81
C18
D7
D6
D5
C44
CNP3
R576
R455
C451
R456
C452
CNP501
D830
L601
R642
C601
R641
R643
R650
R656
R659
R666
R667
R612
R611
R607
R606
R610
R609
R608
R605
R604
R613
R614
C604
R680
WT601
RM15
RM14
D831
1
2
3
4
5
6
7
8
9
10
11
12
13
D828
RM16
DM03
Q130
L104
Q129
C150
C161
C151
C162
Q128
Q106
C163
Q104
C152
Q109
C109
R111
R112
Q103
Q105
R105
L103
C116
Q124
C118
D601
R193
R161
D829
C124
R160
C559
R138
C134
L102
C145
C142
Q126
C136
C138
Q116
Q119
Q122
Q118
R182
R181
CNP801
Q121
Q115
R154
C137
C135
C110
Q117
R158
R141
L101
C146
R137
C133
C141
C128
IC101
C123
C122
C121
C115
L107
R102
R120
R119
C117
R117
Q107
R118
R101
R109
CNP101
R191
CNP102
Q108
Q110
Q111
C863
RM07
RM09
QM03
RM08
DM02
RM10
WTM1
QM02
RM05
CM01
RM06
QM01
QM04
RM03
12345678910111213
QM05
RM12
C25
R43
R42
R5
R6
C4
R7
R12
R14
R13
R4
R15
R9
R2
R16
R11
C14
R8
R3
R17
C10
C12
C1
R1
54321
IC1
C38
R41
R34
C30
C32
C33
R37
R33
R32
R36C31
R35
R38
R56
R57
C51
R58
IC2
1
5
10
15
16
17
20
25
30
32
33
35
40
45
48
49
50
55
60
64
R60
C22
C57
C58
C55
C56
R45
R78
R77
C54
R80
R61
R76
C70
C92
R74
R75
C69
R73
R82
C46
R90
R633
R88
R86
R87
R96
R98
R97
R27
R26
C20
R30
C16
R23
R21
R22
R20
R25
C15
R19
R24
R39
R40
IC5
1
51015
18
19
20 25 30 35
36
R31
1234567891011
R219
R636
R637
R638
R645
R646
R647
R634
R628
R635
R632
R640
R679
R649
C602
1
80
5
10
15
20
2425
30
35
40
41
45
50
55
60
6465
70
75
R651
R652
R653
R654
R655
R657
R658
R660
IC601
R662
R602
R661
R663
R671
C603
C605
C606
C607
RM19
RM20
R170
R171
R168
R675
R114
R166
R167
R192
R676
R106
R113
R104R103
R122
C120
R124
R162
R126
R525
R132
R164
C130
R136
R140
R146
R142
R156
R218
R155
R153
R134
C155
R144
R147
C144
R157
R149
C129
C143
R143
R135
R150
C131
R131
R152
R139
C147
C139
C140
R125
R145
C132
R123
C127
R128
R127
C119
C114
L108
C113
C112
C111
R121
R107
C102
C105
C107
C108
C101
C106
R115
R108
R110
RM02
RM11
1112
87654321
1
2
3
4
5
6
123456789
10987654321
1
5
10
15
16
17
20
25
30
32
33
35
40
45
48
49
50
C39
55
60
64
24
2015
13
12
1
5
123
321
4567
10
123456
E
C
B
3
2
1
B
C
E
BCE
1
2
3
B
C
E
B
C
E
B
C
E
3
2
1
ECB
ECB
ECB
BCE
ECB
ECB
123
1
2
3
1
2
3
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
B
C
E
B
C
E
B
C
E
1
2
3
321
ECB
321
P40 1–F
TO
CD MOTOR PWB
CNP3A
P40 1–D
TO
PICKUP UNIT
CNS2A
P36 4–A
TO
DISPLAY PWB
FW702
P40 1–D
TO
PICKUP UNIT
CNS1A
P40 1–H
TO
TRAY MOTOR PWB
CNS10
TO
DISPLAY PWB
FW703
TO
TAPE MECHANISM PWB
FWM1
TO
TAPE MECHANISM
CNS102
TO
TAPE MECHANISM
CNS101
TO
POWER PWB
CNS801
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
P36 4–H
P40 4–AP40 5–FP40 5–EP38 4–A
9 2 3 4 5 6 118110127
background
CD-C440H/CP-C440H
– 36 –

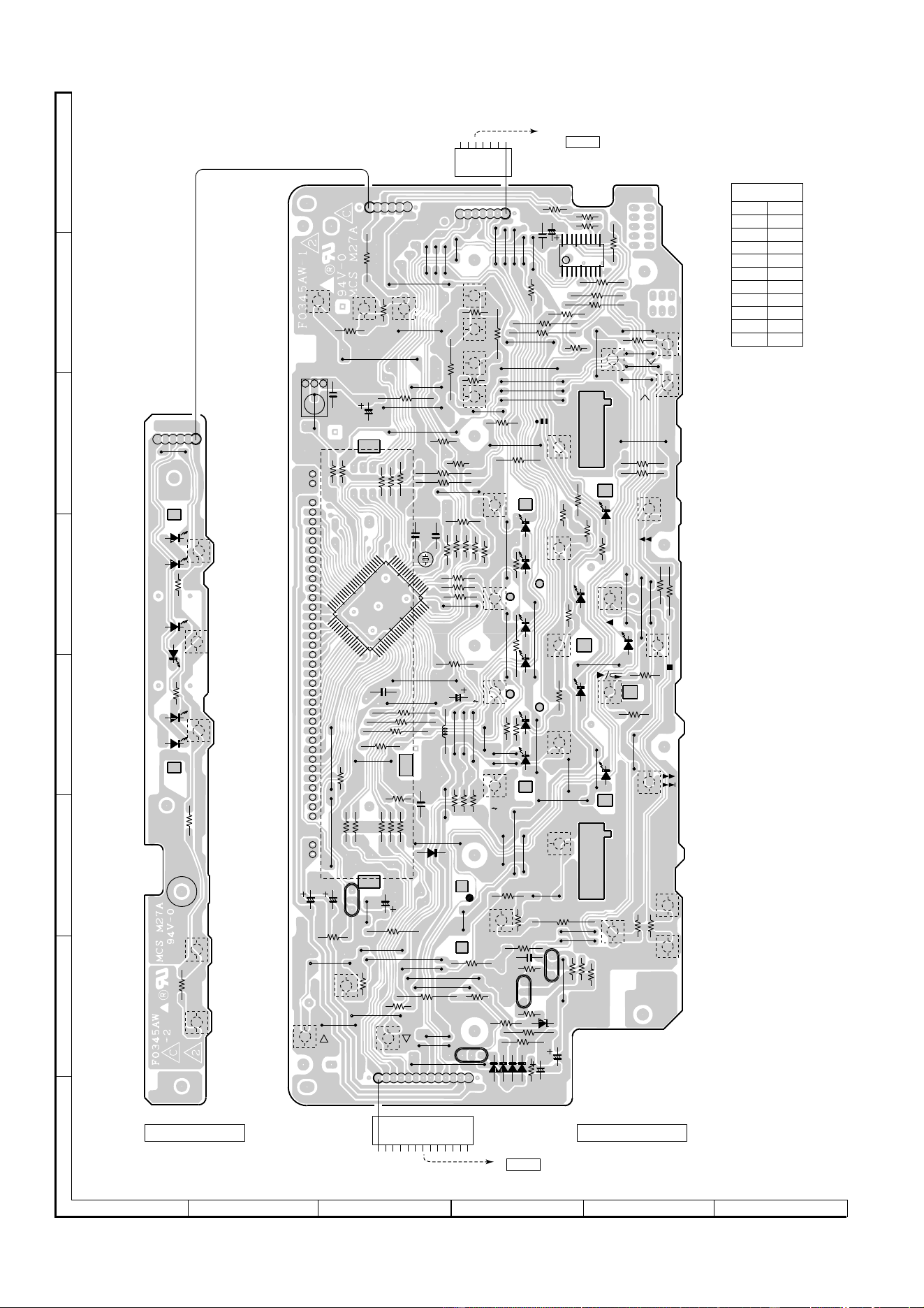

Figure 36 WIRING SIDE OF P.W.BOARD (3/7)
A
B
C
D
E
F
G
H
1
23456
LED716
SW705
LED717 LED718
RD05
LED714
RD04
DISC-1
FW701-2
RD06
RD07
LED715 LED719
SW708 SW707
SW704
SW706
DISC-2
DISC-3
OPEN/CLOSE
DISC SKIP
FW703
FW702
3D
SURROUND
TAPE
TUNER/BAND
EQUALIZER
/DEMO
R749
RD17
R744
R779
R763
TUNING DOWN
/TIME
TUNING UP
/TIME
RD21
RD27
R737
R745
R747
R748
C730
C729
R739
R743
R738
R742
R740
RD28
IC702
1
5
9
10
15
18
R746
R720
R721
R778
D705
R710
R709
C706
C701
R708
R707
R706
R705
SW734
L701
R733
R734
R735
R773
RD29
RD13
MEMORY
SET
VOLUME UP
R728
FW701-1
C703
R715
R714
R713
C704
R712
R719
XL701
Q704
R766
D706
D709
D708
D707
C709
C707
FL701
RX701
R776
RD03
RD02
R741
R780
RD10
RD20
RD19
RD18
RD11
RD14
R717
R716
R718
R732
RD01
RD12
R731
R781
RD23
RD22
R771
R769
R770
R768
R765
RD16
RD25
RD26
RD34
RD33
RD15
RD31
RD30
RD32
RD35
RD24
R767
C708
R777
R703
RD09
RD08
R736
R727
R726
R722
R729
R702
R701
R711
C715
R775
R774
R772
ZD701
R704
C702
12
C710
LED705
LED702
LED701
Q705
Q706
C716
Q701
C713
C712
LED703
LED704
SW716 SW715
SW714
SW713
SW735
SW729
SW737
SW709
SW738
SW721
LED706
LED710
SW701
SW702
SW703
SW731
SW724
SW732
SW723
SW710
LED707
SW728
SW711
SW719
LED708
LED709
SW730
SW717
LED711
SW712
SW736
SW740
SW739
SW726
SW733
SW725
EDIT NORMAL
X-BASS
VOLUME
DOWN
EDIT HIGH
REVERSE
MODE
CENTER
MODE
/PHANTOM
VIDEO/AUX
CENTER MODE/
NORMAL
STOP
FF
REC/PAUSE
DOLBY
PRO LOGIC
BYPASS
CD
DISPLAY MODE
PTY/TI
SERCH
TIMER/SLEEP
CLOCK
EON
ASPM
REV
FWD
REW
ON/STAND-BY
1
6
1
13
IC701
25
24
1
5
10
15
20
30
35
45
50
55
60
70
75
80
65
40
41
40
41
35
37
30
25
20
15
10
5
1
64
123
1
7
6
1
12
E
C
B
E
C
B
B
C
E
123
WT502
P34 6–A
TO MAIN PWB
71
WT601
TO MAIN PWB
113
SWITCH PWB- DISPLAY PWB-C1
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
P35 12–F
background
– 37 –
CD-C440H/CP-C440H
Figure 37 WIRING SIDE OF P.W.BOARD (4/7)
7
8 9 10 11 12
R362
C341
R348
R347
C330
C333
C321
R349
C339
R346
L342
C346
R369
C347
R344
C345
1
R345
R301
C384
R324
TP301
C329
R337
X352
C382
1
5
10
12
15
20
22
R378
C387
IC302
C394
C397
C381
C301
C337
R335
T305
C324
C326
C327
C325
R333
R332
C332
R319
C336
C335
C334
R323
C328
R331
VD301-1
R334
C331
Q302
C322
T301
C323
D302
D301
D304
D303
R376
R360
R397
Q362
C392
C385
C386
C393
R379
R381
R380
L351
R336
C380
R371
R372
R373
R374
T351
C342
C354
C355
R385
R383
R387
R384
C395
C344
C352
C351
L353
R358
C343
R351
IC303
C366
C350
C353
C361
C363
C362
TP302
C364
C365
R350
C367
C369
X351
R356
R357
C368
C374
R361
C373
C371
R393
R364
R363
R355
R352
CF351
C399
C398
C358
C357
R353
C356
R359
R367
RT49
R354
LT22
12
11
10
9
8
7
6
5
4
3
2
1
RT48
RT37
RT36
RT35
RT28
RT30
CT29
CT22
1
5
10
1213
15
20
24
CT25
CT24
CT37
R366
R365
R370
RT21
RT29
ICT21
RT26
CT28
CT27
CT26
XT21
R377
D353
R368
C375
CNP303
C370
ZD351
C396
CF352
R392
L352
R391
R395
Q361
ZD352
C391
VR351
D352
D351
R382
Q360
Q371
FE301
CNP301
21
L341
Q301
T302
CF301
T306
Q304
Q303
VD301-2
CF302
L354
Q353
C372
Q354
CT43
ZDT21
RT34
RT33
CT36
QT21
CT21
RT32
LT21
C302
CT23
13
15
20
24
1
10
12
11
C338
2
3
4
5
6
7
8
B
C
E
ECB
ECB
1
2
3
123
123
ECB
B
C
E
3
2
1
E
C
B
E
C
B
3
2
1
E
C
B
B
C
E
CNP502
P34 6–A
TO MAIN PWB
TUNER PWB-D
SO301
MW/LW
LOOP
ANTENNA
FM 75 OHMS
21
background
CD-C440H/CP-C440H
– 38 –

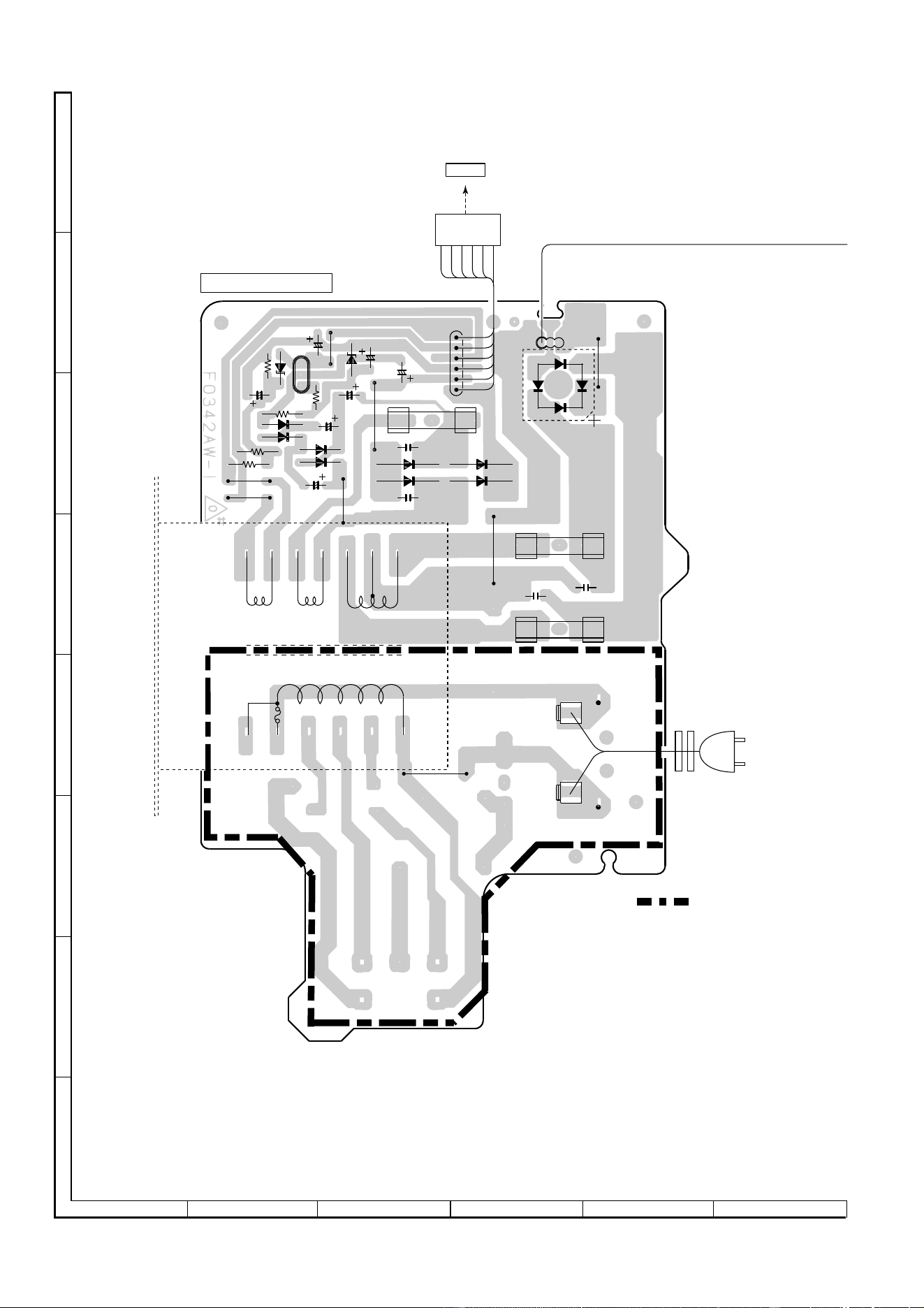

Figure 38 WIRING SIDE OF P.W.BOARD (5/7)
A
B
C
D
E
F
G
H
1
23456
T1.6A L 250V
F804
T4A L 250V
F802
F803
T4A L 250V
BROWN
BLUE
D801
C802
C801
K801
K802
C809
C811
C810
R801
ZD802
C805
R807
R802
R803
C803
C804
C807
C808
C806
ZD801
D807
D806
D808
D809
D804
D805
D803
D802
R806
Q801
FW902B
13
BI801
E
C
B
6
1
T.F
T801
POWER TRANSFORMER
When Servicing, pay attention as the area
enclosed by this line ( ) is directly
connected with AC main voltage.
CNP801
CNS801
P34 6–H
TO MAIN PWB
AC POWER SUPPLY COAD(216)
AC 230V 50Hz
CORE
(280)
POWER PWB-B1
123456
WH
GY
WH
GY
WH
RD
background
– 39 –
CD-C440H/CP-C440H

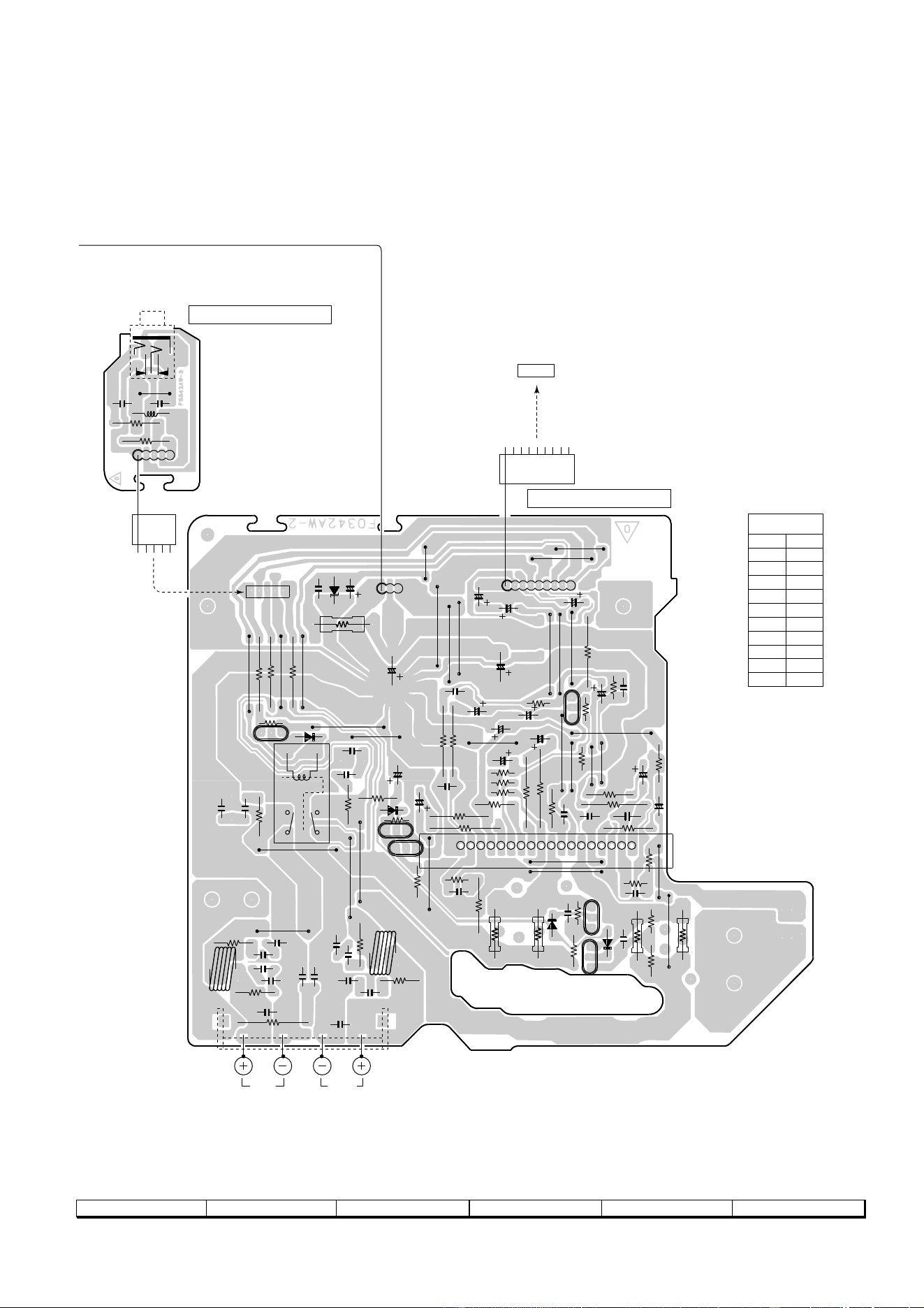

Figure 39 WIRING SIDE OF P.W.BOARD (6/7)
7
8 9 10 11 12
R935
R936
L903
C937
JA901
C938
C912
R909
R913
R924
R923
R940
R918
R910
C916
R938
C936
R914
C919
R908
C910
C926
C928
R932
C932
C930
R912
C914
E
C
B
E
C
B
C991
C935
Q996
C994
R989
R988
R990
R987
C993
R986
R991
C907
R930
R916
R997
R933
R992
R921
R919
C917
Q903
D901
D902
C918
R920
C989
C990
L901
R929
C927
C925
C931
C929
R931
L902
C998
C999
C909
R985
C934
C933
C922
C924
C921
C923
R925
R911
C913
C911
R937
R994
R995
C908
R907
C906
C996
ZD901
R915
C905
R928
R927
RL901
D999
R934
R996
Q999
R926
C997
R998
Q998
D998
BCE
ECB
BCE
Q997
C992
C995
R917
C915
R993
C920
R999
R939
Q904
R922
FW90315
FW902A
31
FW901
19
WT903
1234512345
3
2
1
3
2
1
IC901
181716151413121110
987654321
SO901
SPEAKER TERMINAL
L-CH
R-CH
WT901
P34 2–G
TO MAIN PWB
1
15
9
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
HEADPHONS PWB-A3
JA901
HEADPHONES
POWER AMP.PWB-B2
background
CD-C440H/CP-C440H
– 40 –

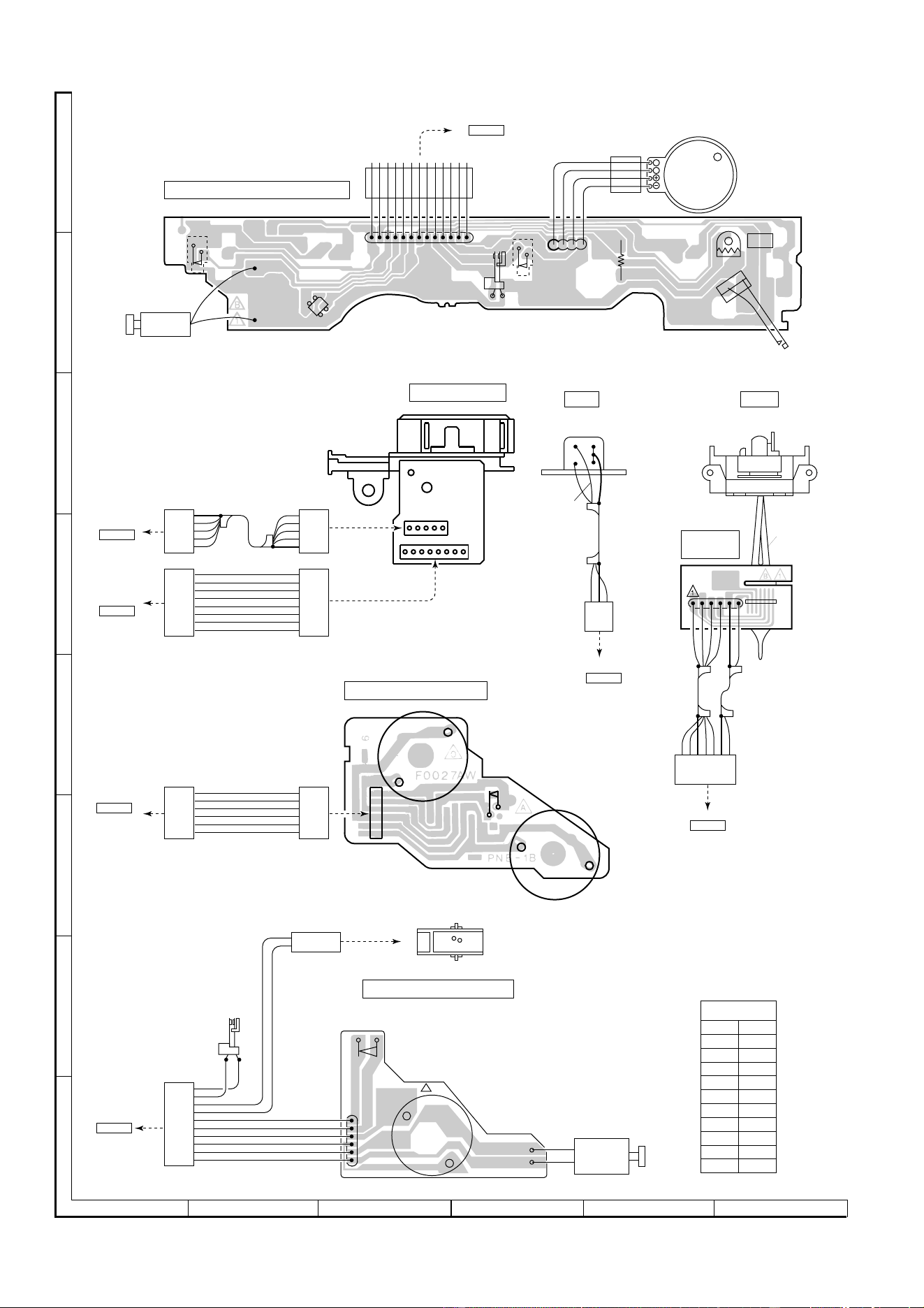

Figure 40 WIRING SIDE OF P.W.BOARD (7/7)
A
B
C
D
E
F
G
H
1
23456
+
-
+
-
PICK UP IN
SLIDE MOTOR
DISC MOTOR
M2
CNP3A
SW4
M1
+
-
1
2
3
4
5
6
CNPM2
SWM5
F. A. S
SWM4
REC RVS
SWM3
REC FWD
VRM1
TAPE
SPEED
CNPM1
1
13
1
FWM2
4
RM1
3
4
2
1
PHM1
SWM6
CAM
BI102
61
WH
PK
BK
TAPE 1
PLAY BACK HEAD(55)
GY
CNS101
231
WH
BK
PK
TO MAIN PWB
CNP101
CNS5
2
1
2
1
CNS10
WH
RD
GY
WH
BR
WH
GY
OR
WH
GY
10
1
BIM5
6
9
8
7
6
5
4
3
2
1
CNP10
P35 9–A
TO MAIN PWB
SW2
MECHA UP
SW1
OPEN/CLOSE
M3
T/T UP/DOWN
SW3
DISC NUMBER
CNP1
CNS1B
CNS1A
CNS2BCNS2A
CNS3BCNS3A
BL
YL
PK
WH
BK
GY
RD
WH
GY
WH
GY
WH
GY
WH
RD
WH
GY
WH
GY
WH
BL
PK
WH
YL
BK
CNP2
CNP3
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
1
2
3
4
5
P35 8–A
TO MAIN PWB
P35 8–A
TO MAIN PWB
TO MAIN PWB
P35 7–A
PICKUP UNIT
CD MOTOR PWB-E
TRAY MOTOR PWB-G
SOLM2
SOLENOID
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
TAPE MECHANISM PWB-F
TAPE MOTOR
MM1
WTM1
P35 10–H
TO
MAIN PWB
FWM1
1
H
L
13
SOLENOID
SOLM1
TAPE 2
GY
GY
WH
CNS102
YL
BK
BL
PK
WH
BK
7654321
CNP102
TO MAIN PWB
WH
YL
BL
PK
WH
BK
TAPE 2
RECORD/PLAY BACK/ERACE HEAD(56)
FLEXIBLE PWB
HEAD
PWB-H
P35 9–H
P35 10–H
background
– 41 –
CD-C440H/CP-C440H

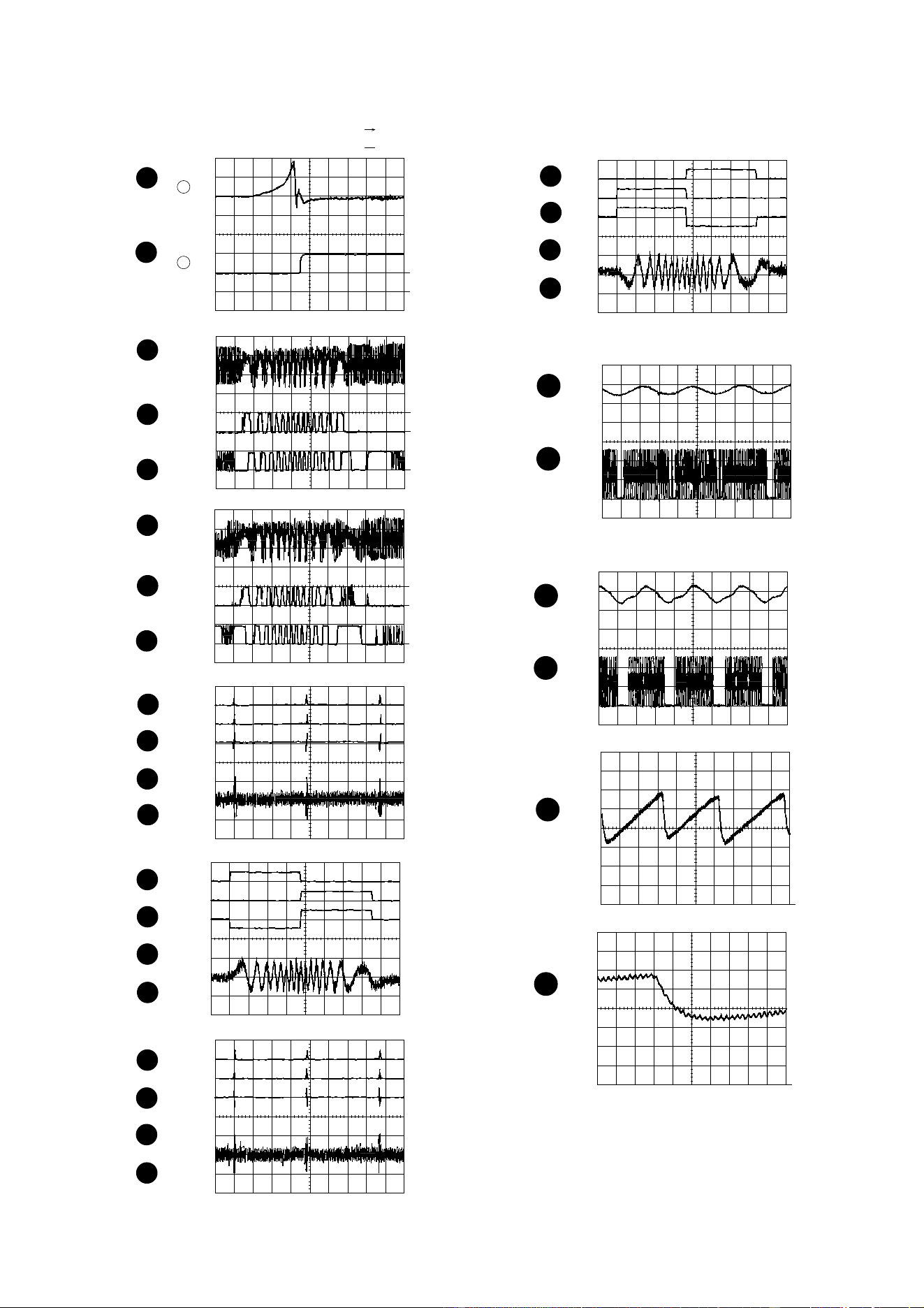

WAVEFORMS OF CD CIRCUIT
3
5ms
0.50 V
IC1 20 F.E
1
5ms
5.0 V
IC1 54 DRF
STOP PLAY
FOCUS SERCH
1
3
5
4
2
6
7
8
9
10
11
3
4
5
6
7
8
9
6
7
8
10
11
12
9
6
7
8
9
12
0.5ms
1.00 V
HF
0.5ms
5.0 V
HFL
0.5ms
5.0 V
TES
1
2
3
CUE
0.5ms
1.00 V
HF
1
2
3
0.5ms
5.0 V
HFL
0.5ms
5.0 V
TES
REVIEW
50ms
10.0 V
JP+
CUE
50ms
10.0 V
JP-
50ms
0.50 V
JP
50ms
1.00 V
TE
0.5ms
10.0 V
JP+
0.5ms
10.0 V
JP-
0.5ms
0.50 V
JP
0.5ms
1.00 V
TE
REVIEW
50ms
10.0 V
JP+
50ms
10.0 V
JP-
50ms
0.50 V
JP
50ms
1.00 V
TE
0.5ms
10.0 V
JP+
0.5ms
10.0 V
JP-
0.5ms
0.50 V
JP
0.5ms
1.00 V
TE
PLAY
20ms
1.00 V
SPO
NORMAL DISC
TN0=01
20ms
2.00 V
CLV+
PLAY
TCD-712 (140mm)
TN0=01
50ms
1.00 V
SPO
50ms
2.00 V
CLV+
PLAY
TCD-712
5s
100mV
SLD
1
0.5s
100mV
SLD
1
background
CD-C440H/CP-C440H
– 42 –
TROUBLESHOOTING (CD SECTION)
When the CD does not function
When the CD section does not operate When the objective lens of the optical pickup is dirty,this section may not operate.Clean
the objective lens,and check the playback operation.When this section does not operate even after the above step is taken,check
the following items.
Remove the cabinet and follow the troubleshooting instructions.
"Track skipping and/or no TOC(Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup lens.
Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."
Turn the power off.
Gently clean the lens with a lens cleaning tissue and a small amount of isopropyl alcohol.
Do not touch the lens with the bare hand.
• When the turntable fails to stop.
Is from 5 V till 0V down pulse (approx. 300 ms) input
Check the SW3 and the wiring from the IC601 pin 54 to the
SW3.
No
No
into the IC601 pin 54 when the turntable is rotating?
5V
0V
Yes
Check IC2 pin26 Q91 and Q93 and the periphery.
Check the SW2 (MECHA UP SW) and the wiring from the
IC601 pin 54 to the SW2 (MECHA UP SW).
No
Yes
Is there following voltage input on the IC601 pin 54 in the
specific state?
When the CD mechanism is moved up: 0V
In other states: 5V
Yes
Is there following voltage input on the IC601 pin 54 in the
specific state?
In other states: 5V
When the CD mechanism is moved up: 0V
• When turntable fails to move.
Check the SW2 (MECHA UP SW) and the wiring from the
IC601 pin 54 to the SW2 (MECHA UP SW).
Is 4V output from the Q91 emitter during operation stated
above?
Yes
Yes
Check the wiring of IC2 pin 26 and Q93 BASE.
OK
No
No
Is L output from the IC2 pin 26 during SEC when the disc skip
switch is pressed?
Yes
Check turntable motor and turntable mechanism.
Check Q91, Q93 and the periphery.
IC601 defective.
IC2 defective.
background
– 43 –
CD-C440H/CP-C440H
• When the CD tray fails to open or close.
Is there following voltage input in specific state of IC801 pin 53?
Open state: 0V
Close state: 0V
Intermediate state between open state and close state: 5V
Is H output to IC2 pin 24 or 25 for 7 seconds when the OPEN/
CLOSE key is pressed?IC91 is defective. Replace it.
Is 4V output between IC91 pins 3 and 7 during operation
stated above?
Check the loading motor (M1) and the loading mechanism.
Yes
Yes
Yes
No
No
IC2 defective.
No
Check the periphery of IC91.
IC91 defective.
OK
OK
Check the OPEN CLOSE SW and the wiring from the IC801
pin 53 to the OPEN CLOSE SW.
Check the wiring of the IC2 pins 24 and 25, IC91 pins 1 and 3.
• The CD function will not work.
The CD operating keys don't work.
Check the CD, DSP, power supply, and 16.93 MHz clock, and
reset terminal.
Check the waveform of SCK, SO (DATA) and SI (COMM).
Yes
Yes
See if the pick-up is in the pick-up in PICKUP IN SW position.
If the items mentioned above are OK, check the main
microcomputer IC801.
Yes
Yes
No
Yes
No
• The CD operating keys work.
Check the Focus - HF system.
Playback can be performed without a disc.
Focus search OK
Does the pick-up move up and down twice?
Does the output waveform of IC1(16)(FD) match that shown in
Fig. 43?
Check the IC1(50)(CLK) line, 4MHz.
Check the microcomputer data on pins (51)(CL), (52)(DAT)
and (53)CE.
Check the area around IC5-CNP2.
Yes
Yes
Figure 43
Focus search is
performed two
times when play
operation is done
without disc.
0.5s
0.50 V
IC1 16 FD
2
1
0.5s
0.50 V
IC1 7 TE
background

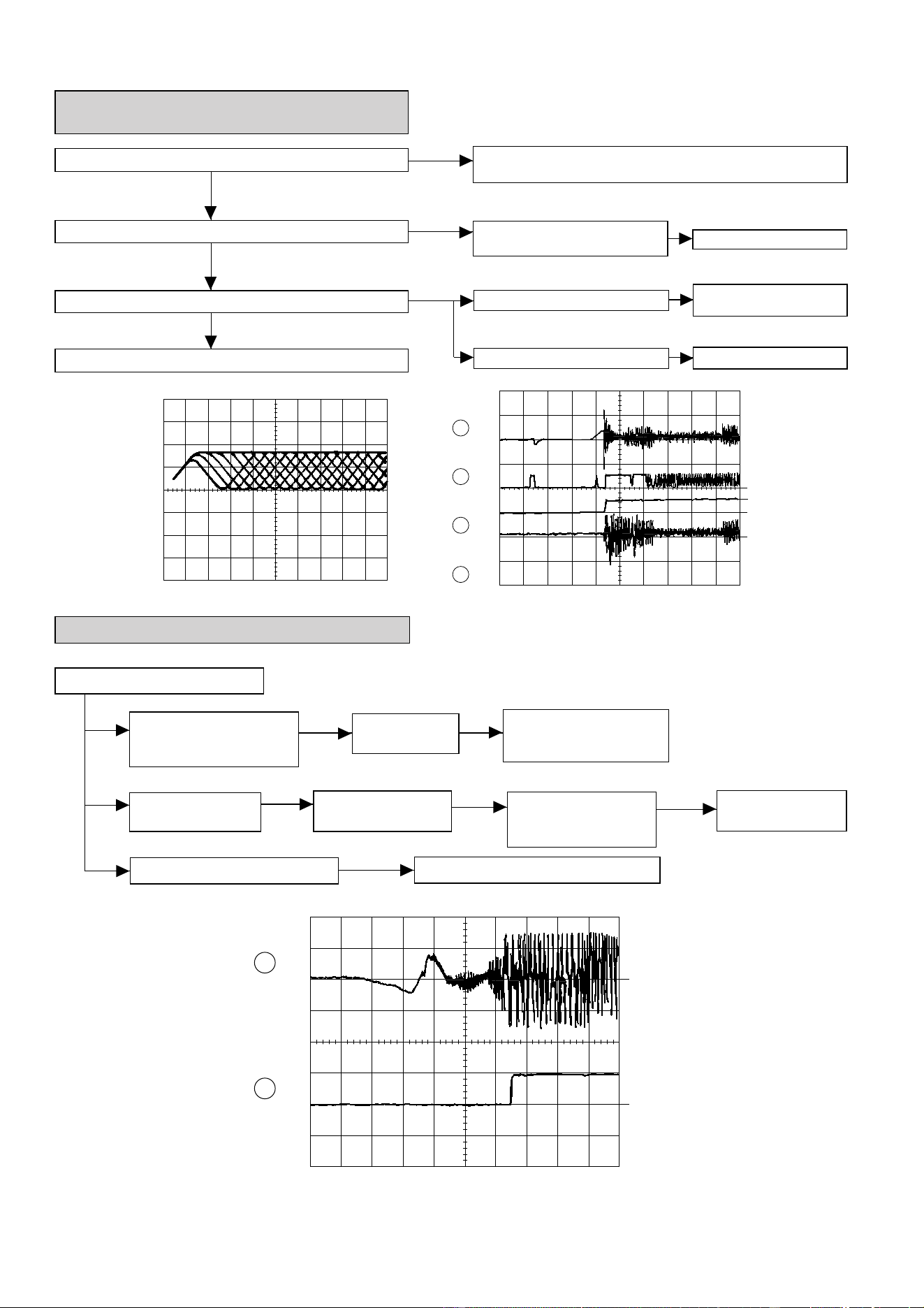

CD-C440H/CP-C440H
– 44 –
• Playback can only be performed when a disc is
loaded.
Is HF waveform normal (see the Fig. 44-1, 2)?
Check the tracking system.
Is the Focus servo active? (Can you hear it working?)
Check the laser diode driver.
Check the area around IC1(16) - (21) (focus servo circuit).
No
Yes
Yes
Yes
Does the DRF signal change from "L" to "H"?
No
Yes
If the disc is not turning, the DRF
should not change to "H".
Level is abnormal.
No
Yes
Waveform is unstable.
Check the spin system.
Yes
Check the periphery of
IC1 pins 41 and 42.
Check the spin system.
Figure 44-2
Figure 44-1
Waveform in case of
normal play-back
HF
1.0V/DIV
0.5µsec/DIV(DC)
(When playing
back the disc)
3
2
1
4
0.5s
1.00 V
IC1 16 FD
0.5s
10.0 V
IC2 13 CLV+
0.5s
10.0 V
IC1 54 DRF
0.5s
2.00 V
IC1 7 TE
• Check the tracking system.
Check waveform of IC1 pin 7 (TE).
Play is possible in
TEST mode.
Although IL is possible,
play is impossible.
Check the periphery
of IC 1 pin 14.
Normal jump is impeded,
and the program top
cannot be reached.
Check the periphery of IC 1
pin 8 to pin 15, and IC 5 to
CNP2.
The waveform shown in Fig.
44-3 appears, and no-disc
state appears soon.
Tracking servo is
inoperative.
Yes
Yes
Yes
Yes
Yes
Data cannot be read.
Check the VCO-PLL system.
Yes
3
4
5ms
1.00 V
IC1 7 TE
5 ms
5.0 V
IC1 54 DRF
Figure 44-3
background
– 45 –
CD-C440H/CP-C440H
• Checking the spin system.
Yes
No
Play operation is performed without disc.
The turntable rotates a little.
The turntable fails to rotate or rotates at high speed.
Yes
The spin driver circuit is normal.
Check the periphery of IC1 pins 23 to 27, pin 39, and pin 40, IC2
pin 12 and pin 13, IC5 to CNP3.
Yes
• Checking the VCO-PLL system
Figure 45
Play operation is performed when disc exits.
Yes
Although HF waveform is normal, TOC data cannot be read.
Yes
Check PDO waveform (Fig. 45).
Abnormal
Check the IC1 pins 43 and 44, IC2 pins 3, 5, 7, 10, and 11.
Stop --> Play
As VCO freque-
ncy is locked at
4.32 M Hz, voltage
of PDO rises and
stabili- zes.
2
3
0.5s
1.00 V
IC2 3 PDO
0.5s
1.00 V
IC2 16 FD
• Although HF waveform is normal and the time
indication is normal, no sound is emitted.
Check IC 2 pin 48 (EFLG).
Check IC2 pins 37, 40.
Check IC 501 and POWER AMP IC 901.
Abnomal
Yes
Usually, the number of pulses of flawless disc is 100 pulses/sec
or less.
No
background
CD-C440H/CP-C440H
– 46 –
1 DEFI Input Input terminal of defect detection signal (DEF). (Connected to OV when not used.)
2 TAI Input For PLL Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.
3 PDO Output Output terminal of phase comparison for external VCO control.
4 VVSS — Ground terminal for integrated VCO. Surely connected to 0V.
5 ISET Input Resistance connection terminal for current adjustment of PDO output.
6 VVDD — Power terminal for integrated VCO.
7 FR Input VCO frequency range adjustment.
8 VSS — Ground terminal of digital system. Surely connected to 0V.
9 EFMO Output For slice level control EFM signal output terminal.
10 EFMIN Input EFM signal input terminal.
11 TEST2 Input Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.
12 CLV+ Outout Output for disk motor control. 3 values can be output with the commands.
13 CLV- Output Output for disk motor control. 3 values can be output with the commands.
14 V/P Output Monitor output terminal for automatic switch of rough servo/phase control.
"H" for rough servo, and "L" for phase servo.
15 HFL Intput Input terminal of track detection signal. Schmit input.
16 TES Input Input terminal of tracking error signal. Schmit input.
17 TOFF Output Tracking OFF output terminal.
18 TGL Output Output terminal for switch of tracking gain "L" increases the gain.
19 JP+ Output Output for track jump control. 3 values can be output with the commands.
20 JP- Output Output for track jump control. 3 values can be output with the commands.
21* PCK Output Clock monitor terminal for EFM data replay. 4,3218MHz as the phase clock.
22* FSEQ Output Output terminal synchronous signal detection. "H" is output when synchronous signal detected
by EFM signal matches synchronous signal internally generated.
23 VDD — Power terminal of digital system.
24 CONT1 Input/Output General purpose input/output terminal 1
25 CONT2 Input/Output General purpose input/output terminal 2
26 CONT3 Input/Output General purpose input/output terminal 3
27 CONT4 Input/Output General purpose input/output terminal 4
28* CONT5 Input/Output General purpose input/output terminal 5
29* EMPH Output Difference monitor terminal At "H", deemphasis disk is being replayed.
30* C2F Output C2 flag output terminal.
31* DOUT Output Output terminal of digital OUTPUT. (EIAJ format)
32* TEST3 Input Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.
33 TEST4 Input Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.
34* N.C. — Terminal not used. Open during operation.
35* MUTEL Output L channel 1 bit DAC Mute output terminal for L channel.
36 LVDD — Power terminal for L channel.
37 LCHO Output L channel output terminal.
38 LVSS — Ground terminal for L channel Surely connected to 0V.
39 RVSS — R channel 1 bit DAC Ground terminal for R channel Surely connected to 0V.
40 RCH0 Output R channel output terminal.
41 RVDD — Power terminal for R channel.
42* MUTER Output Mute output terminal for R channel.
43 XVDD — Power terminal for quartz oscillation.
44 XOUT Output Ground terminal of 16.9344 MHz quartz oscillator.
45 XIN Input Ground terminal of 16.9344 MHz quartz oscillator.
46 XVSS — Ground terminal for quartz oscillation. Surely connected to 0V.
47* SBSY Output Output terminal of synchronous signal of subcode block.
48* EFLG Output Correction monitor terminal of C1, C2, single and double.
FUNCTION TABLE OF IC
Pin No.
FunctionTerminal Name
Input/Output
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Controlled with serial data command
from micro computer.
When not used, set it as the input terminal and
open it by connecting to 0V, or set it as the output
terminal and open it.
IC2 VHiLC78623E-1:Servo/Signal Control(LC78623E) (1/2)
background

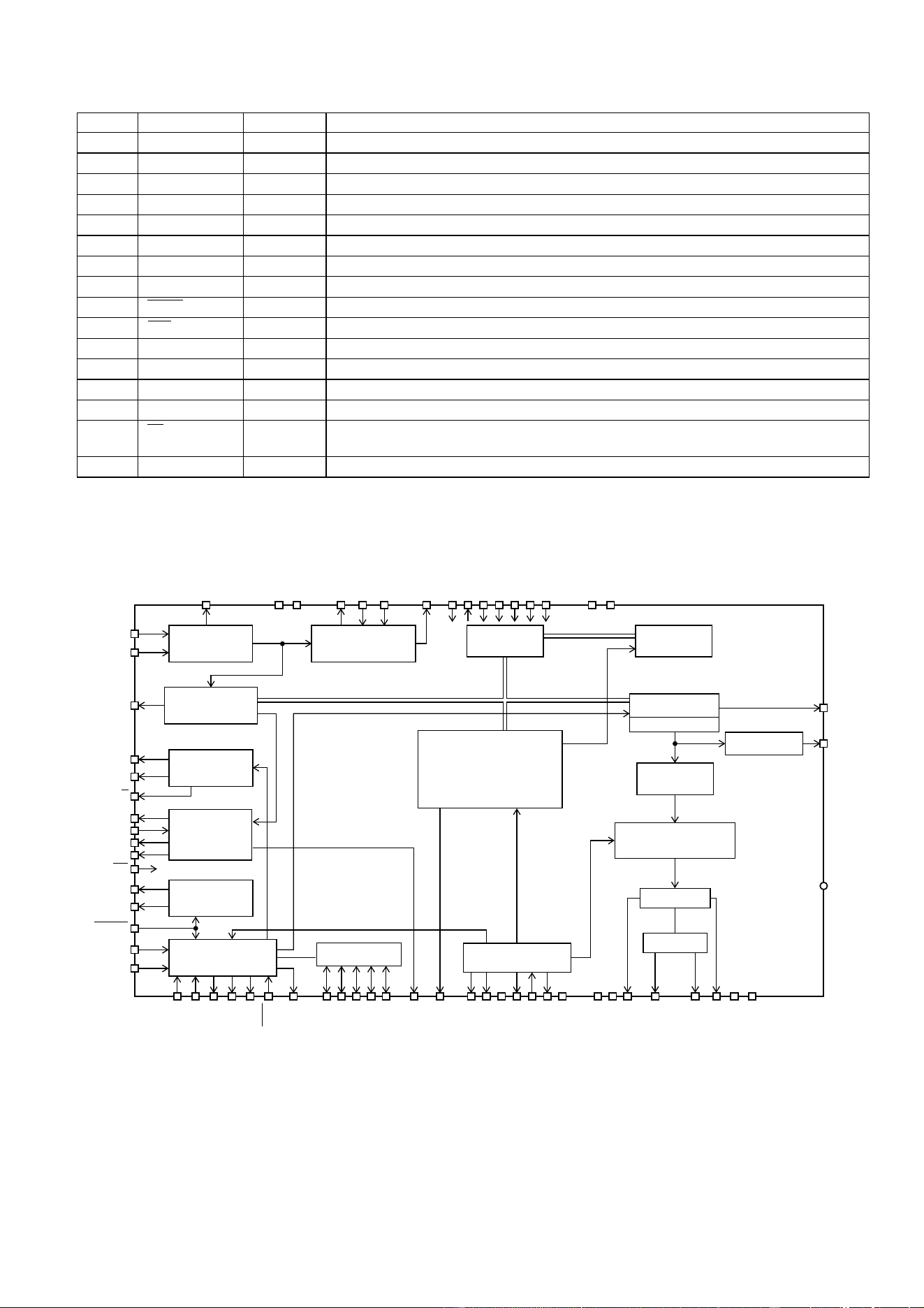

– 47 –
CD-C440H/CP-C440H
FunctionTerminal Name
Input/Output
49* PW Output Output terminal of subcodes P, A, R, S, T, U and W.
50* SFSY Output Output terminal of synchronous signal of subcode frame. It drops when subcode stands by.
51 SBCK Input Clock input terminal to read subcode. Schmit input (Connected to 0V when not used.)
52* FSX Output Output terminal of synchronous signal of 7.35kHz divided from quartz oscillation.
53 WRQ Output Output terminal to stand by output of subcode Q.
54 RWC Input Input terminal of read/write. Schmit input.
55 SQOUT Output Output terminal of subcode Q.
56 COIN Input Command input terminal from microcomputer.
57 CQCK Input Clock input terminal to fetch command input, or pick up subcode from SQOUT. Schmit input
58 RES Input Reset input terminal of LC78622. When turning on power, set it at "L".
59* TST11 Output Output terminal for test. Used in the open state ("L" output as ordinary).
60* 16M Output Output terminal of 16.9344Hz.
61 4.2M Output Output terminal of 4.2336MHz.
62 TEST5 Input Input terminal for test Pull-down resistor is integrated. Surely connected to 0V.
63 CS Input Chip selection input terminal. Pull-down resistor is integrated.
Connected to 0when not controlled.
64 TEST1 Input Input terminal for test Pull-down resistor is integrated. Surely connected to 0V.
Pin No.
Note: The same potential must be supplied to the power terminals (VDD, VVDD, LVDD, RVDD, XVDD).
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
DEFI
EFMIN
FSEQ
V/P
PW
SBCK
SBSY
SFSY
CS
WRQ
SQOUT
COIN
RWC
CQCK
HFL
TES
TOFF
JP-
JP+
RES
TGL
CONT1
CONT2
CONT3
CONT4
CONT5
EMPH
EFLG
16M
4.2M
XVss
FSX
XIN
XOUT
XV
DD
RVss
RV
DD
MUTER
RCHO
LCHO
MUTEL
LVss
LV
DD
(NC)
DOUT
C2F
EFMO
VV
DD
VVss
PDO
I SET
FR
PCK
TAI
TSTI1
TEST1
TEST2
TEST3
TEST4
TEST5
V
DD
Vss
CLV+
CLV-
Slice level
control
VCO colck oscillation
clock control
2Kx
8bit
RAM
RAM address
generator
Interpolation mute
Bilingual
Digital OUT
Digital
attenuator
X4 oversampling
digital filter
1bitDAC
L.P.F
XTAL system timing
generator
General-use port
Servo commander
É COM
Interface
Subcode division
QCRC
CLV
Digital servo
Sync detection
EFM demodulation
Flag processing of C1/C2
error detection and correction
Figure 47 BLOCK DIAGRAM OF IC
IC2 VHiLC78623E-1:Servo/Signal Control(LC78623E) (2/2)
background
CD-C440H/CP-C440H
– 48 –
IC1 VHiLA9240M/-1:Servo Amp. (LA9240M) (1/2)
1 FIN2 Connection pin for photodiode of pickup.
RF signal is generated through addition with FIN pin, and FE signal is generated through subtraction.
2 FIN1 Connection pin for photodiode of pickup.
3 E Connection pin for photodiode of pickup. TE signal is generated through subtraction with F pin.
4 F Connection pin for photodiode of pickup.
5 TB Pin for input of DC component of TE signal.
6 TE- Pin to connect gain setting resistor of TE signal to TE signal.
7 TE TE signal output pin.
8 TESI TES (Track error sense) comparator input pin. TE signal is band-passed and input.
9 SCI Input pin for shock detection.
10 TH Pin to set time constant of tracking gain.
11* TA TA amplifier output pin.
12 TD- Pin to compose tracking phase compensation constant between TD and VR pins.
13 TD Pin to set tracking phase compensation.
14 JP Pin to set amplitude of tracking jump signal (kick pulse).
15 TO Tracking control signal output pin.
16 FD Focusing control signal output pin.
17 FD- Pin to compose focusing phase compensation constant between FD and FA pins.
18 FA Pin to compose focusing phase compensation constant between FD-/FA-pins.
19 FA- Pin to compose focusing phase compensation constant between FA and FE pins.
20 FE Output pin of FE signal.
21 FE- Pin to connect gain setting resistor of FE signal across TE pin.
22 AGND GND for analog signal.
23 SP Single end output for CV+ and CV- pin input.
24 SPI Spindle amplifier input.
25 SPG Pin to connect gain setting resistor in the 12cm mode of spindle.
26 SP- Pin to connect spindle phase compensation constant together with SPD pin.
27 SPD Spindle control signal output pin.
28 SLEQ Pin to connect thread phase compensation constant.
29 SLD Thread control signal output pin.
30 SL- Input pin of thread feed signal from micro computer.
31 SL+ Input pin of thread feed signal from micro computer.
32 JP- Input pin of tracking jump signal from DSP.
33 JP+ Input pin of tracking jump signal from DSP.
34 TGL Input pin of tracking gain control signal from DSP. TGL = Gain low at "H"
35 TOFF Input pin of tracking off control signal from DSP. TOFF = Off at "H"
36 TES Output pin of TES signal to DSP.
37 HFL (HIGH FREQUENCY LEVEL) is used to judge whether main beam is positioned on the bit or on the mirror.
38 SLOF Thread servo off control input pin.
39 CV- Pin to input CLV error signal from DSP.
40 CV+ Pin to input CLV error signal from DSP.
41 RFSM RF output pin.
42 RFS- Pin to set gain of RF and set 3T compensation constant together with RFSM pin.
43 SLC (SLICE LEVEL CONTROL) is the output pin to control of the level of the data slice with RF waveform DSP.
44 SLI Input pin to control the level of data slice with DSP.
45 DGND GND pin in the digital system.
46 FSC Output pin for focus search smoothening capacitor.
47 TBC (Tracking Balance Control) Pin to set EF balance variable range.
48* NC No connect.
49 DEF Defect detection output pin of disk.
50 CLK Reference clock input pin. 4.23MHz of DSP is input.
Pin No.
Port Name
Function
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
background

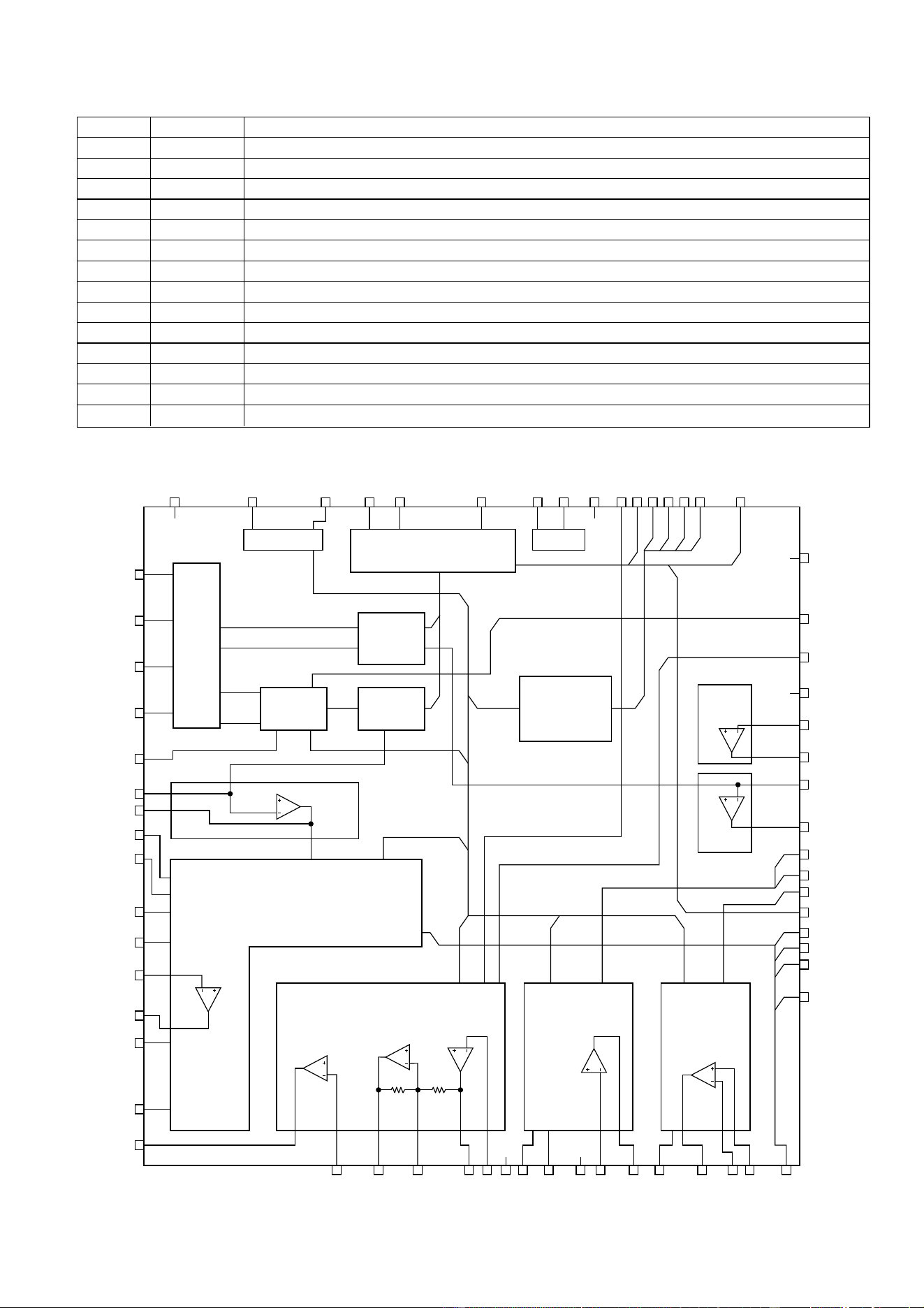

– 49 –
CD-C440H/CP-C440H
IC1 VHiLA9240M/-1:Servo Amp. (LA9240M) (2/2)
Pin No. Port Name
Function
51 CL Micro computer command clock input pin.
52 DAT Micro computer command data input pin.
53 CE Micro computer command chip enable input pin.
54 DRF (DETECT RF) RF level detection output.
55 FSS (Focus Serch Select) Pin to switch focus search mode. (± search/+ search for reference voltage)
56 VCC2 VCC pin for servo system and digital system.
57 REFI Pin to connect pass control for reference voltage.
58 VR Reference voltage output pin.
59 LF2 Pin to set defect detection time constant of disk.
60 PH1 Pin to connect capacitor for peak hold of RF signal.
61 BH1 Pin to connect capacitor for bottom hold of RF signal.
62 LDD APC circuit output pin.
63 LDS APC circuit output pin.
64 VCC1 RF system VCC pin.
Figure 49 BLOCK DIAGRAM OF IC
1FIN2
FIN1
E
F
TB
TE-
TE
TESI
SCI
TH
TA
TD-
TD
JP
TO
FD
FD-
FA FA-
FE FE- AGND SP SPI SPG SP- SPD SLEQ SLD SL- SL+ JP-
JP+
TGL
TOFF
TES
HFL
SLOF
CV-
CV+
RFSM
RFS-
SLC
SLI
DGND
FSC
TBC
NC
DEFCLKCLDATCEDRFFSSVCC2REFIVRLP2PH1BH1LDDLDS
SLC
RF AMP
TE
F.SERVO & F.LOGIC SPINDLE SERVO SLED SERVO
VCC1
2
3
4
6
7
5
8
9
10
11
12
13
14
15
16
17 18 19 20 21 2322 25 26 27 28 29 30 31 32
33
34
35
36
37
38
39
40
41
42
43
44
46
47
48
495051525354555657585961 60626364
45
24
APC
RF DET
REF
VCA
VCA
INTER FACE
BAL
µ-COM
I/V
T.SERVO & T.LOGIC
background
CD-C440H/CP-C440H
– 50 –
IC601 RH-iX0171AWZZ:System Microcomputer (IX0171AW) (1/2)
1* ———— Output —————
2 REC/PB — Record/Playback selection signal
3* ———— Output —————
4 CD MUT Output CD MUT signal
5 CD RES Output CD DSP RESET signal
6 CD SL- Output Slide return signal
7 CD SL+ Output Slide feed signal
8 VDD — Power connection terminal
9 CD CQCK Output CD IC control signal
10 CD COIN Output CD IC control signal
11 CD SQOUT Input CD IC control signal
12 CD WRQ Input CD IC control signal
13 CD RWC Output CD IC control signal
14 SCK Input Main µCOM (RH-iX0170AWZZ) control signal
15 SO Output Main µCOM (RH-iX0170AWZZ) control signal
16 SI Input Main µCOM (RH-iX0170AWZZ) control signal
17 RESET Input Main µCOM (RH-iX0170AWZZ) control signal
18 STROBE Input Main µCOM (RH-iX0170AWZZ) control signal
19 CD PU-IN SW Input Pickup position detection
20 AVSS — To be connected to GND
21 CD DRF Input CD RF level detection input H: When RF level is H
22 T1 RUN Input Tape 1: Rotation pulse input
23 T2 RUN Input Tape 2: Rotation pulse input
24 SPEANA 5 Input 63Hz BPF spectrum analyzer input
25 SPEANA 4 Input 250Hz BPF spectrum analyzer input
26 SPEANA 3 Input 1kHz BPF spectrum analyzer input
27 SPEANA 2 Input 4kHz BPF spectrum analyzer input
28 SPEANA 1 Input 16kHz BPF spectrum analyzer input
29 AVDD — A/D converter analog positive power
30 AVREF — A/D converter reference power
31 TAPE CUM SW Input Tape mechanism cam SW input terminal
32* ———— — No connected
33 VSS — To be connected to GND
34* X1 — Main clock terminal, not used
35* X2 — Main clock terminal, not used
36* LINE MUT Output Line mute output, not used
37* SURROUND MUT Output Surround mute output
38* CENTER MUT Output Center SP output mute output
39 SYSTEM MUT Output System mute output
40 MIC Input Mic input terminal (for detection)
41* EN Output DOLBY PRO logic IC control signal
42* DATA Output DOLBY PRO logic IC control signal
43* CLK Output DOLBY PRO logic IC control signal
44 SP DET Input Speaker output error detection input Occurrence of error: L
45 POWER Output Set power control output Power ON: H
46* RELAY Output Speaker output relay control output Relay ON: H
47 TAPE TS CrO SW Input Tape mechanism 2 CrO2 detection input CrO2: H
48 VSS Input Digital GND terminal
49 TAPE F/R SPEED Output Tape feed/return
50 TAPE SOL Output Tape mechanism solenoid control output Attraction: L
51 TAPE MOTOR Output Tape mechanism motor control output
Terminal Name
Pin No. Input/Output
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Function
background
– 51 –
CD-C440H/CP-C440H
IC601 RH-iX0171AWZZ:System Microcomputer (IX0171AW) (2/2)
52 VDD — Positive power supply
53 CD O/C SW Input CD open-close switch input
54 DISC No. SW Input CD turntable position detection input
55 CD U/D SW Input CD mechanism UP/DOWN chucking detection input
56 T1 CrO SW Input Tape 1 CrO2 detection SW input
57 SRS INH Output SRS (surround) position selection output
58 SRS B Output SRS (surround) position selection output
59 SRS A Output SRS (surround) position selection output
60 SRS 3D Output SRS (surround) position selection output
61 SRS PASS Output SRS (surround) position selection output
62 SPAN 9K/10K Input Tuner span selector 9 kHz/10 kHz selection input
63 DOLBY Input DOLBY detection input, not applied in this machine
64 SRS Input SRS detection input, not applied in this machine
65 BALANCE Input BALANCE detection input, not applied in this machine
66 4SP Input 4SP detection input, not applied in this machine
67 TAPE A-FP SW Input Tape A side miserase preventing SW input
68 TAPE B-FP SW Input Tape B side miserase preventing SW input
69 TAPE PB MUT Output Tape playback mute output
70 TAPE T1/T2 Output Tape 1/2 selection
71 VLOAD — To be connected to GND
72 TAPE BIAS Output Tape bias circuit selection
73* ———— — Not used
74* ———— — Not used
75 TAPE BEET CUT Output Beat cancel signal control output
76 TAPE HI SPEED Output Tape mechanism High-Low speed selection
77* ———— — Not used
78* ———— — Not used
79* TAPE PB EQ Output Tape circuit playback Eq selection
80 TAPE REC MUT Output Tape circuit record muting output
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Terminal Name
Pin No. Input/Output
Function
background
CD-C440H/CP-C440H
– 52 –
IC701 RH-iX0170AWZZ:System Microcomputer (IX0170AW) (1/2)
1-5 P94/FIP6-P90/FIP2 G06-G02 Output FL display tube grid drive
6,7 P81/FIP1,P80/FIP0 G01,G00 Output FL display tube grid drive
8 VDD VDD — Positive power supply
9 P27/SCK0 C
2
B CLK Output C
2
B serial clock output
10 P26/S00/SB1 C
2
B DO Output C
2
B serial data output
11 P25/SI0/SB0 C
2
B DI Input C
2
B serial data input
12 P24/BUSY C
2
B CE Output C
2
B serial CE output
13 P23/STB SUB STB Output Serial strobe output for CD/TAPE microcomputer
14 P22/SCK1 SUB SCK Output Serial clock output for CD/TAPE microcomputer
15 P21/SO1 SUB SO Output Serial data output for CD/TAPE microcomputer
16 P20/SI1 SUB SI Input Serial strobe input for CD/TAPE microcomputer
17 RESET RESET Input Reset input
18 P74 SUB RES Output Reset output for CD/TAPE microcomputer
19 P73 TUN MUTE Output Tuner TUN MUT output
20 AVSS AVSS — Analog power supply for A/D converter
21 P17/ANI7 TUN SD Input Tuner station detection input
22 P16/ANI6 TUN SM Input Tuner signal meter input
23 P15/ANI5 KEY IN5 Input Key input 37-45
24 P14/ANI4 KEY IN4 Input Key input 28-36
25 P13/ANI3 KEY IN3 Input Key input 19-27
26 P12/ANI2 KEY IN2 Input Key input 10-18
27 P11/ANI1 KEY IN1 Input Key input 1-9
28 P10/ANI0 ENF IN Input Tuner initial setting input
29 AVDD AVDD — Analog positive power supply for A/D converter
30 AVREF AVREF — Reference power supply for A/D converter
31 P04/XT1 VSS Input Sub-clock input To be connected to Vss
32* XT2 N.C — Sub-clock output OPEN
33 VSS VSS — GND power
34 X1 X1 Input Main clock 4.194304 MHz
35 X2 X2 Output Main clock 4.194304 MHz
36 P37 LED LCK Output LED IC serial clock output BU2092 LCK
37 P36/BUZ LED DATA Output LED IC serial data output BU2092 DATA
38 P35/PCL LED CLK Output LED IC serial clock output BU2092CLK
39* P34/TI2 RDS ID Input RDS RDS station detection input
40* P33/TI1 RDS SYNC Input RDS Data sync detection input
41* P32/TO2 RDS SYR Output RDS RAM reset output LC72720 SYR
42 P31/TO1 SYS MUTE Output System mute output
43 P30/TO0 POWER Output POWER output
44* P03/INTP3/CI0 Output Not used
45* P02/INTP2 Output Not used
46 P01/INTP1 SYS STOP Input Power failure input
47 P00/INTP0/TI0 REM IN Input Remote Control Input
48 IC VSS — Connect with GND
49* P72 Output Not used
50* P71 Output Not used
51* P70 Output Not used
52 VDD VDD — Positive power supply
53* P127/FIP33 — Not used
54-60
P126/FIP32-P120/FIP26
S21-S15 Output FL display tube segment drive
61-68
P117/FIP25-P110/FIP18
S14-S07 Output FL display tube segment drive
69,70
P107/FIP17,P106/FIP16
S06,S05 Output FL display tube segment drive
Terminal NamePin No. Input/Output
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
FunctionPort Name
background
– 53 –
CD-C440H/CP-C440H
IC701 RH-iX0170AWZZ:System Microcomputer (IX0170AW) (2/2)
71 VLOAD VLOAD — Negative power supply for FL drive To be connected to -30V
72-76
P105/FIP15-P101/FIP11
S04-S00 Output FL display tube segment drive
77 P100/FIP10 G10 Output FL display tube grid drive
78-80 P97/FIP9-P95/FIP7 G09-G07 Output FL display tube grid drive
Terminal NamePin No. Input/Output
FunctionPort Name
IC501 VHiLC75396E-1:Audio Processor (LC75396E)
48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
LTIN
LF1C1
LF1C2
LF1C3
LF2C1
LF2C2
LF2C3
LF3C1
LF3C2
LF3C3
LF4C1
LF4C2
LF4C3
LF5
LTOUT
LFIN
RF1C1
RF1C2
RF1C3
RF2C1
RF2C2
RF2C3
RF3C1
RF3C2
RF3C3
RF4C1
RF4C2
RF4C3
RF5
RTOUT
RFIN
RFCOM
49
LSELO
50
LINVIN1
51
L5
52
L4
53
L3
54
L2
55
L1
56
VDD
57
R1
58
R2
59
R3
60
R4
61
R5
62
RINVIN1
63
RSERO
64
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
RTIN
LFCOM
LFOUT
LRIN
LRCOM
LROUT
LVref
VSS
CE
DI
CL
Vref
RVref
RROUT
RRCOM
RRIN
RFOUT
Figure 53 BLOCK DIAGRAM OF IC
background
CD-C440H/CP-C440H
– 54 –
IC501 VHiLC75396E-1:Audio Processor (LC75396E)
1-3 RF1C1-RF1C3 Terminal to connect capacitor of filter configuration for equalizer F1 band
Connect the capacitor between LF1C1(RF1C1) and LF1C2(RF1C2) between LF1C2 (RF1C2) and LF1C3(RF1C3).
4-6 RF2C1-RF2C3 Terminal to connect capacitor of filter configuration for equalizer F2 band
Connect the capacitor between LF2C1(RF2C1) and LF2C2(RF2C2) between LF2C2 (RF2C2) and LF2C3(RF2C3).
7-9 RF3C1-RF3C3 Terminal to connect capacitor of filter configuration for equalizer F3 band
Connect the capacitor between LF3C1(RF3C1) and LF3C2(RF3C2) between LF3C2 (RF3C2) and LF3C3(RF3C3).
10-12 RF4C1-RF4C3 Terminal to connect capacitor of filter configuration for equalizer F4 band
Connect the capacitor between LF4C1(RF4C1) and LF4C2(RF4C2) between LF4C2 (RF4C2) and LF4C3(RF4C3).
13 RF5 Terminal to connect capacitor of filter configuration for equalizer F5 band
Terminal to connect the externally provided capacitor
14 RTOUT Equalizer output terminal
15 RFIN Input terminal of Rch front side 4dB step control
16 RFCOM Common terminal of Rch front side 1dB step control
17 RFOUT Output terminal of Rch front side control
18* RRIN Input terminal of Rch rear side 4dB step control
19 RRCOM Common terminal of Rch rear side 1dB step control
20* RROUT Output terminal of Rch rear side control
21 RVREF Internal analog ground terminal
22 VREF Connect the capacitor of about several 10 uF between Vref and AVSS (VSS) so as to prevent power supply
ripple in the VDD/2 voltage generating section.
23 CL Terminal to input serial data and clock for control
24 DI Terminal to input serial data and clock for control
25 CE Chip enable terminal. Data is written in the internal latch with a timing of changing H to L, and the specific
analog switch is actuated. Data transfer is enabled on the H level.
26 VSS GND
27 LVREF Internal analog ground terminal
28* LROUT Output terminal of Lch rear side control
29 LRCOM Common terminal of Lch rear side 1dB step control
30 LRIN Input terminal of Lch rear side 4dB step control
31 LFOUT Output terminal of Lch front side control
32 LFCOM Common terminal of Lch front side 1dB step control
33 LFIN Input terminal of Lch front side 4dB step control
34 LTOUT Equalizer output terminal
35 LF5 Terminal to connect capacitor of filter configuration for equalizer F5 band
Terminal to connect the externally provided capacitor
36-38 LF4C3-LF4C1 Terminal to connect capacitor of filter configuration for equalizer F4 band
Connect the capacitor between LF4C1(RF4C1) and LF4C2(RF4C2) between LF4C2 (RF4C2) and LF4C3(RF4C3).
39-41 LF3C3-LF3C1 Terminal to connect capacitor of filter configuration for equalizer F3 band
Connect the capacitor between LF3C1(RF3C1) and LF3C2(RF3C2) between LF3C2 (RF3C2) and LF3C3(RF3C3).
42-44 LF2C3-LF2C1 Terminal to connect capacitor of filter configuration for equalizer F2 band
Connect the capacitor between LF2C1(RF2C1) and LF2C2(RF2C2) between LF2C2 (RF2C2) and LF2C3(RF2C3).
45-47 LF1C3-LF1C1 Terminal to connect capacitor of filter configuration for equalizer F1 band
Connect the capacitor between LF1C1(RF1C1) and LF1C2(RF1C2) between LF1C2 (RF1C2) and LF1C3(RF1C3).
48 LTIN Equalizer input terminal
49 LSELO Input selector output terminal
50 LINVIN1 Operational amplifier reverse input terminal for input gain setting
51-55 L5-L1 Input signal terminal
56 VDD Power terminal
57-61 R1-R5 Input signal terminal
62 RINVIN1 Operational amplifier reverse input terminal for input gain setting
63 RSELO Input selector output terminal
64 RTIN Equalizer input terminal
Pin No.
Function
Terminal Name
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

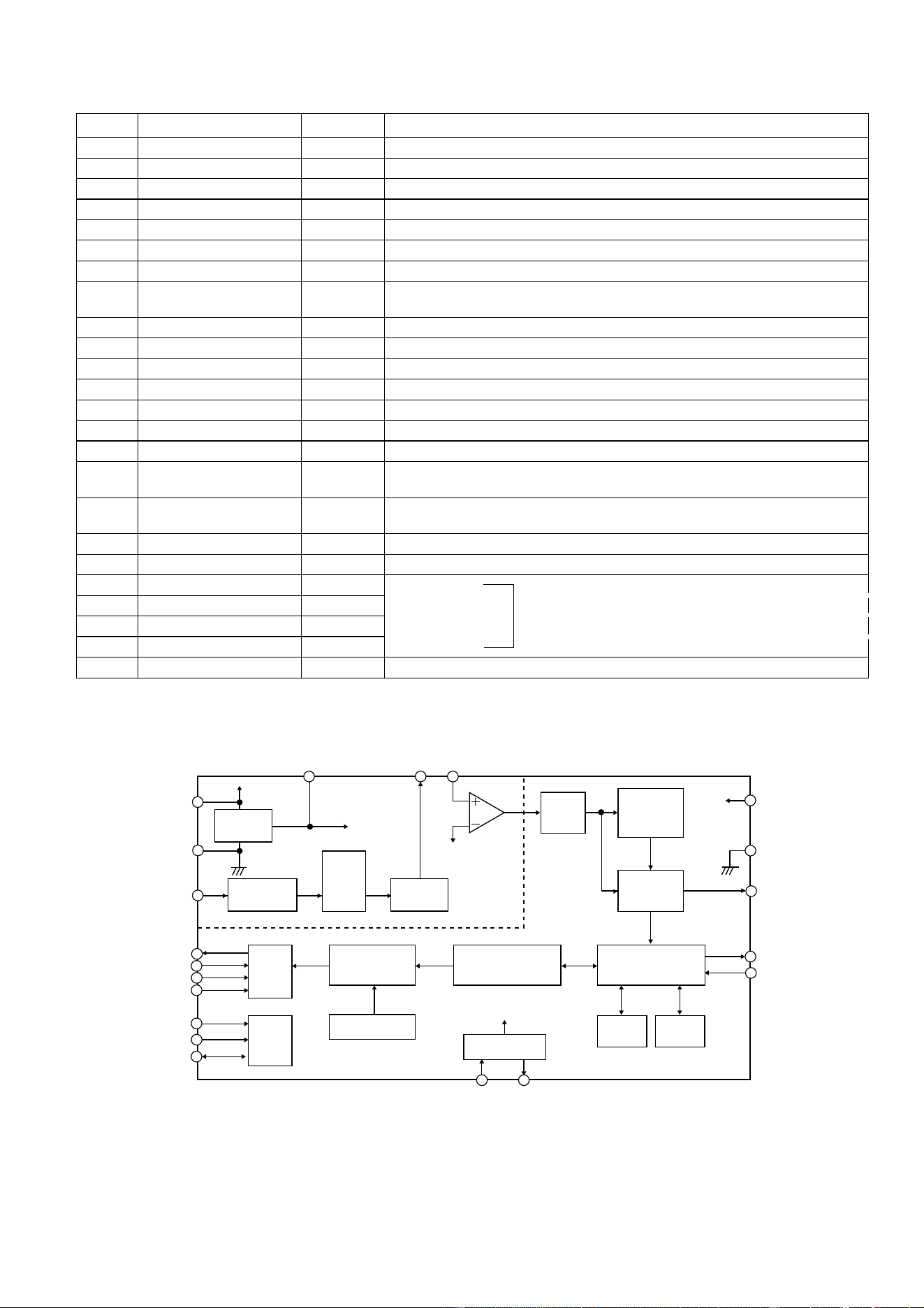

background
– 55 –
CD-C440H/CP-C440H
1 VREF Output Reference voltage output (Vdda/2)
2 MPXIN Input Base band (multiplex) signal input
3 Vdda — Analog system power supply (+5V)
4 Vssa — Analog system ground
5 FLOUT Output Sub-carrier input (comparator input)
6 CIN Input Sub-carrier output (filter output)
7 T1 Input Test input (to be always connected to ground)
8 T2 Input Test input (standby control)
0: Normal operation/1: Standby state (crystal oscillation stop)
9* T3 (RDCL) Input/Output Test I/O (RDS clock output)
10* T4 (RDDA) Input/Output Test I/O (RDS data output)
11 * T5 (RSFT) Input/Output Test I/O (Soft judgment control data output)
12 XOUT Output Crystal oscillation output
13 XIN Input Crystal oscillation input (external reference signal input)
14 Vddd — Digital system power supply
15 Vssd — Digital system ground
16* T6 (ERROR/57K/BE1) Input/Output Test I/O (Error existence/nonexistence output/playback carrier output/error block
number output)
17* T7 (CORREC/ARI-ID/BE0 Input/Output Test I/O (Error existence/nonexistence output/SK detection output/error block
number output)
18* SYNC Input/Output Block sync detection output
19* RDS-ID Output RDS detection output
20 DO Output Data output
21 CL Input Clock input Serial data interface (CCB)
22 DI Input Data input
23 CE Input Chip enable
24 SYR Input Sync and RAM address reset (positive logic)
ICT21 VHiLC72720/-1:RDS Decorder (LC72720)
Terminal Name
Pin No.
Input/Output
Function
Figure 55 BLOCK DIAGRAM OF IC
Vdda
VREF
VREF
FLOUT
CIN
Vssa
Vddd
Vssd
RDS-ID
SYNC
SYR
XOUTXIN
MPXIN
DO
CL
DI
CE
T1
T2
T3~T7
REFERENCE
VOLTAGE
57kHz
BPF
(SCF)
ANTIALIASING
FILTER
CCB
TEST
SMOOTHING
FILTER
RAM
(24 BLOCK DATA)
ERROR CORRECTION
(SOFT DECISION)
PLL
(57kHz)
CLOCK
RECOVERY
(1187.5Hz)
DATA
DECODER
SYNC
DETECT-1
OSC/DIVIDER
MEMORY CONTROL
CLK(4.332MHz)
SYNC
DETECT-2
SYNC/EC CONTROLLER
156
3
4
2
20
21
22
23
7
8
9,10,11
16,17
13 12
24
18
19
15
14
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

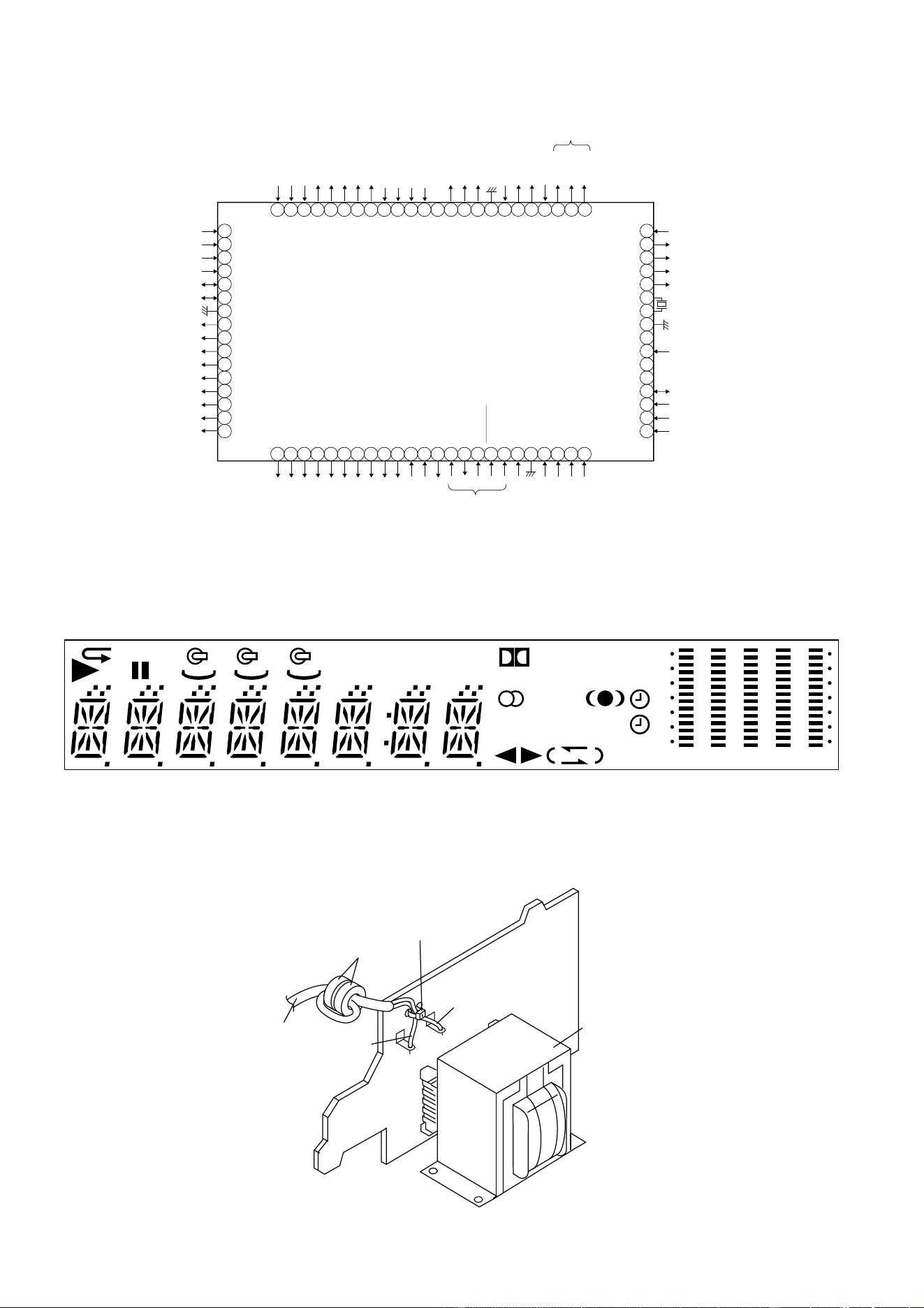

background
CD-C440H/CP-C440H
– 56 –
FL701 : VVKBJ549GK/-1 FL Display
Figure 56-2 FL DISPLAY
IC601 RH-iX0171AWZZ: System Microcomputer(IX0171AW)
1
REC/PB
CD MUTE
CD RES
SL-
SL+
CQ CK
COIN
SQ OUT
WRQ
RWC
P94
CD/TAPE CONTROL
µPD 78045A
P93
P92
P91
P90
P81
P80
Vdd
SCK 0
SO 0
Si 0
P24
P23
SCK 1
SO 1
Si 1
RESET
P74
P73
AVss
ANi 7
ANi 6
ANi 5
ANi 4
SRS
DOLBY
SPAN 9K
SRS PASS
SRS 3D
SRS A
SRS B
SRS iNH
T1 Cro2
CD U/D SW
DISC No. SW
CD O/C SW
TA MOTOR
TA SOL
F/R SPEED
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
PU-IN SW
MAIN
µ COM
DRF
T1 RUN
T2 RUN
SPE 5
17
18
19
20
21
22
23
24
REC MUT
PB EQ
Hi SPEED
BEET CUT
BiAS
T1/T2
PB MUT
T2 BFP
T2 AFP
4SP
BALANCE
ANi 3
ANi 2
ANi 1
ANi 0
AVdd
AVref
P04
Vss
X1
X2
P37
P36
P35
P34
P33
40
3938373635343332
3130
2928
272625
65666768697071
72737475
7677
78
7980
P95
P96
P97
P100
P101
P102
P103
P104
P105
V Load
P106
P107
P110
P111
P112
P113
SPE 4
SPE 3
SPE 2
SPE 1
TACUM SW
LINE MUT
SUR MUT
CEN MUT
SYS MUT
MIC
T2CrO
RELAY
POWER
SP DET
CLK
DATA
DOLBY
PRO
EN
48
47
46
45
44
43
42
41
P114
P115
P116
P117
P120
P121
P122
P123
P124
P125
P126
P127
Vdd
P70
P71
P72
iC
INT 0
INT 1
INT 2
INT 3
P30
P31
P32
Figure 56-1 BLOCK DIAGRAM OF IC
WIRING OF PRIMARILY SUPPLY LEADS (FOR UK ONLY)
Figure 56-3
If any one of the bands shown in Fig. 55-3 is removed for some
reason, be sure replace it to the original position and same
appearance as before.
Nylon Band 80mm
92LN-BAND 1318A
AC Power
Supply Cord
Core
Power
Transformer
Brown
Blue
123
X-BASS
kHz
MHz
RDS
EON
TA
PTY
TP
33 250 1k 4k 16k
SLEEPST 4-SP
SRS
MEMORY
PRO LOGIC
REC
TI
background
– 57 –
CD-C440H/CP-C440H
PARTS GUIDE
NOTE:
Parts marked with “ ” are important for maintaining the safety of the set.
Be sure to replace parts with specified ones for maintaining the safety and performance of the set.
MODEL
CD-C440H
CP-C440H
“HOW TO ORDER REPLACEMENT PARTS”
To have your order filled promptly and correctly, please furnish the
following information.
1. MODEL NUMBER 2. REF. No.
3. PART NO. 4. DESCRIPTION
MARK: SPARE PARTS-DELIVERY SECTION
For U.S.A. only
Contact your nearest SHARP Parts Distributor to order.
For location of SHARP Parts Distributor,
Please call Toll-Free;
1-800-BE-SHARP
Explanation of capacitors/resistors parts codes
Capacitors
VCC ....................... Ceramic type
VCK........................ Ceramic type
VCT ........................ Semiconductor type
VC • • MF ............... Cylindrical type (without lead wire)
VC • • MN............... Cylindrical type (without lead wire)
VC • • TV................ Square type (without lead wire)
VC • • TQ ............... Square type (without lead wire)
VC • • CY ............... Square type (without lead wire)
VC • • CZ ............... Square type (without lead wire)
VC • • • • • • • • • J .. The 13th character represents capacity difference.
("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,
"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)
If there are no indications for the electrolytic capacitors, error is ±20%.
Resistors
VRD ....................... Carbon-film type
VRS........................ Carbon-film type
VRN ....................... Metal-film type
VR • • MF ............... Cylindrical type (without lead wire)
VR • • MN............... Cylindrical type (without lead wire)
VR • • TV................ Square type (without lead wire)
VR • • TQ ............... Square type (without lead wire)
VR • • CY ............... Square type (without lead wire)
VR • • CZ ............... Square type (without lead wire)
VR • • • • • • • • • J .. The 13th character represents error.
("J" ±5%, "F" ±1%, "D" ±0.5%.)
If there are no indications for other parts, the resistors are ±5%
carbon-film type.
background
PRICE
RANK
DESCRIPTIONNO.
PART CODE NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-C440H/CP-C440H
– 1 –
INTEGRATED CIRCUITS
IC1 VHILA9240M/-1 J AV Servo Amp.,LA9240M
IC2 VHILC78623E-1 J AX Servo/Signal Control,LC78623E
IC5 VHIM56748FP-1 J AR Focus/Tracking/Spin/Slide
Driver,M56748FP
IC91 VHITA7291S/-1 J AH Loading Motor Driver, TA7291S
IC101 VHIAN7345K/-1 J AM Playback and Record/ Playback
Amp.,AN7345K
IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131
IC303 VHILA1832//-1 J AR FM IF Det./FM Mpx./ AM IF,
LA1832
IC451 VHISRS5250S-1 J BL SRS,SRS5250S
IC453 VHIBU4052BC-1 J AH Function Serector,BU4052BC
IC501 VHILC75396E-1 J AT Audio Processor,LC75396E
IC502~504 VHIBA4558//-1 J AD Ope Amp.,BA4558
IC601 RH-IX0171AWZZ J AV System Microcomputer,
IX0171AW
IC651 VHIBA4558//-1 J AD Ope Amp.,BA4558
IC701 RH-IX0170AWZZ J AW System Microcomputer,
IX0170AW
IC702 VHIBU2092F/-1 J AM Input/Output Expander,
BU2092F
IC901 VHISTK48802-1 J BA Power Amp.,STK48802
ICT21 VHILC72720/-1 J AW RDS Decorder,LC72720
TRANSISTORS
Q1 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q81 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q83,84 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q91 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y
Q93 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q94 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
Q103~106 VS2SC1845F/-1 J AC Silicon,NPN,2SC1845 F
Q107,108 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q109 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q110,111 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q115,116 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q117,118 VS2SC2878A/-1 J AE Silicon,NPN,2SC2878 A
Q119 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q121,122 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q124 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q126 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q128 VS2SC2236-Y-1 J AB Silicon,NPN,2SC2236 Y
Q129,130 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q301 VS2SC380-O/-1 J AC Silicon,NPN,2SC380 O
Q302~304 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q353,354 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q361 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
Q362 VSKRA107M//-1 J AE Digital,PNP,KRA107 M
Q371 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q458~460 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
Q461 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q463 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
Q466 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
Q467 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
Q468,469 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q501,502 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q701 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q704 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q705,706 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q801 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q821 VS2SD2012//-1 J AD Silicon,NPN,2SD2012
Q822 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q823 VS2SD2012//-1 J AD Silicon,NPN,2SD2012
Q824 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q825 VSKRA107M//-1 J AE Digital,PNP,KRA107 M
Q826 VS2SD2012//-1 J AD Silicon,NPN,2SD2012
Q827 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q828 VS2SD468-C/-1 J AD Silicon,NPN,2SD468 C
Q829 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
Q903,904 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q996 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q997~999 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
QM01 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
QM02 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y
QM03 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y
QM04 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
QM05 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
QT21 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
DIODES
D2 VHD1SS133//-1 J AA Silicon,1SS133
D5,6 VHDRL104A//-1 J AB Silicon,RL104A
D7 VHDRL104A//-1 J AB Silicon,RL104A
D8,9 VHD1SS133//-1 J AA Silicon,1SS133
D91 VHD1SS133//-1 J AA Silicon,1SS133
D301~304 VHD1SS133//-1 J AA Silicon,1SS133
D351~353 VHD1SS133//-1 J AA Silicon,1SS133
D451 VHD1SS133//-1 J AA Silicon,1SS133
D501,502 VHD1SS133//-1 J AA Silicon,1SS133
D551~557 VHD1SS133//-1 J AA Silicon,1SS133
D560,561 VHD1SS133//-1 J AA Silicon,1SS133
D601,602 VHD1SS133//-1 J AA Silicon,1SS133
D705~709 VHD1SS133//-1 J AA Silicon,1SS133
D801 VHDS4VB20//-1 J AG Rectifier,S4VB20
! D802~809 VHDRL104A//-1 J AB Silicon,RL104A
D817~825 VHD1SS133//-1 J AA Silicon,1SS133
D828~831 VHD1SS133//-1 J AA Silicon,1SS133
D901 VHD1SS133//-1 J AA Silicon,1SS133
D902 VHD1SS133//-1 J AA Silicon,1SS133
D998,999 VHD1SS133//-1 J AA Silicon,1SS133
DM02,03 VHD1SS133//-1 J AA Silicon,1SS133
LED701~705 VHP5N4GTN52-1 J AD LED,Green,5N4GTN52
LED706~711 VHP5N4YTN52-1 J AC LED,Orange,5N4YTN52
LED714~719 VHPLMKD515B-1 J AE LED,Green,LMKD515B
PHM1 VHPI31535CD-1 J AG Phote Interrupter
VD301 VHCKV1236Z23F J AS Variable Capacitance,
KV1236Z23F
ZD81 VHEMTZJ5R6B-1 J AD Zener,5.6V,MTZJ5.6B
ZD351 VHEMTZJ5R1B-1 J AC Zener,5.1V,MTZJ5.1B
ZD352 VHEMTZJ3R9B-1 J AC Zener,3.9V,MTZJ3.9B
ZD551 VHEMTZJ6R2C-1 J AC Zener,6.2V,MTZJ6.2C
ZD701 VHEMTZJ3R9B-1 J AC Zener,3.9V,MTZJ3.9B
ZD801 VHEMTZJ330C-1 J AB Zener,33V,MTZJ33V
ZD802 VHEMTZJ5R6B-1 J AD Zener,5.6V,MTZJ5.6B
ZD821 VHEMTZJ8R2C-1 J AB Zener,8.2V,MTZJ8.2C
ZD822 VHEMTZJ130C-1 J AB Zener,13V,MTZJ13C
ZD823 VHEMTZJ6R2C-1 J AC Zener,6.2V,MTZJ6.2C
ZD901 VHEMTZJ150A-1 J AA Zener,15V,MTZJ15A
ZDT21 VHEMTZJ5R1B-1 J AC Zener,5.1V,MTZJ5.1B
FILTERS
CF301 RFILF0072AFZZ J AG FM IF
CF302 RFILF0072AFZZ J AG FM IF
CF351 RFILF0003AWZZ J AK FM Detection
CF352 RFILA0009AWZZ J AE AM IF
TRANSFORMERS
T301 RCILA1074AFZZ J AD LW Antenna
T302 RCILA1064AFZZ J AD MW Antenna
T305 RCILB1073AFZZ J AC LW Oscillation
T306 RCILB1074AFZZ J AC MW Oscillation
T351 RCILI0011AWZZ J AD AM IF
! T801 RTRNP0126AWZZ J BG Power
COILS
L1 VP-XHR82K0000 J AC 0.82 µH,Choke
L101,102 VP-MK182K0000 J AC 1.8 mH,Choke
L103 VP-MK102K0000 J AB 1 mH,Choke
L104 VP-MK331K0000 J AB 330 µH,Choke
L107,108 VP-XH2R2K0000 J AB 2.2 µH,Choke
L341 RBLN-0001AWZZ J AD Balun
L342 VP-DH2R2K0000 J AB 2.2 mmH,Peaking
L351,352 VP-DH101K0000 J AB 100 µH,Choke
L353 VP-DH102K0000 J AB 1 mH,Choke
L354 RFILL0001AWZZ J AE Low Pass Filter
L601 VP-DH101K0000 J AB 100 µH,Choke
L701 VP-DH101K0000 J AB 100 µH,Choke
L901,902 RCILZ0137AFZZ J AA 0.29 µH
L903 VP-XH2R2K0000 J AB 2.2 µH,Choke
LT21,22 VP-XH2R2K0000 J AB 2.2 µH,Choke
CD-C440H
background
NO.
PRICE
RANK
DESCRIPTIONPARTS CODE
NO. PART CODE
PRICE
RANK
DESCRIPTION
CD-C440H/CP-C440H
C131,132 VCKYMN1HB102K J AA 0.001 µF,50V
C133,134 RC-GZA226AF1E J AB 22 µF,25V,Electrolytic
C135,136 VCTYPA1CX223K J AA 0.022 µF,16V
C137,138 VCTYPA1CX183K J AA 0.018 µF,16V
C139,140 VCTYMN1CX332K J AA 0.0033 µF,16V
C141,142 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C143,144 VCTYMN1EF223Z J AA 0.022 µF,25V
C145 RC-GZA226AF1E J AB 22 µF,25V,Electrolytic
C146 RC-GZA227AF1A J AB 220 µF,10V,Electrolytic
C147 VCTYMN1EF223Z J AA 0.022 µF,25V
C150 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene
C151 RC-QZA273AFYJ J AB 0.027 µF,50V,Mylar
C152 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic
C155 VCTYMN1EF223Z J AA 0.022 µF,25V
C161 VCKYBT1HB561K J AA 560 pF,50V
C162 RC-QZA473AFYJ J AB 0.047 µF,50V,Mylar
C163 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic
C301 VCKYMN1HB102K J AA 0.001 µF,50V
C302 VCKYBT1HB102K J AA 0.001 µF,50V
C321 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic
C322 VCCCMN1HH6R8D J AA 6.8 pF (CH),50V
C323 VCTYMN1EF223Z J AA 0.022 µF,25V
C324 VCCUMN1HJ270J J AA 27 pF (UJ),50V
C325 VCKYMN1HB221K J AA 220 pF,50V
C326 VCCCMN1HH180J J AA 18 pF (CH),50V
C327 VCKYMN1HB681K J AA 680 pF,50V
C328 VCTYMN1EF223Z J AA 0.022 µF,25V
C329 VCCSPA1HL330J J AA 33 pF,50V
C330 VCCUMN1HJ100J J AA 10 pF (UJ),50V
C331 VCKYPA1HF473Z J AB 0.047 µF,50V
C332 VCTYMN1EF223Z J AA 0.022 µF,25V
C333 VCCCMN1HH220J J AA 22 pF (CH),50V
C334 VCCUMN1HJ180J J AA 18 pF (UJ),50V
C335 VCCCMN1HH180J J AA 18 pF (CH),50V
C336 VCKYMN1HB471K J AA 470 pF,50V
C337 VCTYMN1EF223Z J AA 0.022 µF,25V
C338 VCKYMN1HB102K J AA 0.001 µF,50V
C339 VCCCMN1HH220J J AA 22 pF (CH),50V
C341,342 VCTYMN1EF223Z J AA 0.022 µF,25V
C343,344 VCCSMN1HL330J J AA 33 pF,50V
C345~347 VCTYMN1EF223Z J AA 0.022 µF,25V
C350,351 VCTYMN1EF223Z J AA 0.022 µF,25V
C352 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic
C353,354 VCTYMN1EF223Z J AA 0.022 µF,25V
C355 VCCSMN1HL220J J AA 22 pF,50V
C356 VCKYMN1HB102K J AA 0.001 µF,50V
C357 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic
C358 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C361 VCTYMN1EF223Z J AA 0.022 µF,25V
C362 RC-GZA335AF1H J AB 3.3 µF,50V,Electrolytic
C363 VCTYMN1EF223Z J AA 0.022 µF,25V
C364 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic
C365 VCTYPA1CX223K J AA 0.022 µF,16V
C366 VCKYMN1HB102K J AA 0.001 µF,50V
C367 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C368 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C369 VCCSBT1HL270J J AA 27 pF,50V
C370~372 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C373,374 VCTYPA1CX333K J AA 0.033 µF,16V
C375 RC-GZA335AF1H J AB 3.3 µF,50V,Electrolytic
C380 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic
C381 VCCCMN1HH120J J AA 12 pF (CH),50V
C382 VCCCMN1HH150J J AA 15 pF (CH),50V
C384 VCKYMN1HB102K J AA 0.001 µF,50V
C385 VCTYMN1CY103K J AA 0.01 µF,16V
C386 VCKYMN1HB331K J AA 330 pF,50V
C387 VCTYMN1EF223Z J AA 0.022 µF,25V
C391 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic
C392 VCKYMN1HB102K J AA 0.001 µF,50V
C393 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C394 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic
C395 VCTYMN1EF223Z J AA 0.022 µF,25V
C396 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic
C397 VCTYMN1EF223Z J AA 0.022 µF,25V
C398 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic
C399 VCTYMN1EF223Z J AA 0.022 µF,25V
C451,452 RC-GZA475AF1H J AB 4.7 µF,50V,Electrolytic
C453,454 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic
C456,457 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic
C458 RC-QZA473AFYJ J AB 0.047 µF,50V,Mylar
C460 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic
C461 VCTYMN1CX472K J AA 0.0047 µF,16V
VARIABLE RESISTORS
VR351 RVR-M0999AFZZ J AB 10 kohm (B),Semi-VR
[FM Mute Level]
VRM1 RVR-M0556AFZZ J AB 3.3 kohms (B),Semi-VR
[Tape Speed]
VIBRATORS
X351 92LCRSTL1425A J AF Crystal,456 kHz
X352 RCRSP0002AWZZ J AH Crystal,4.5 MHz
XL1 RCRM-0008AWZZ J AF Ceramic,16.93 MHz
XL701 RCRSP0003AWZZ J AH Crystal,4.19 MHz
XT21 RCRSB0030AWZZ J AH Crystal,4.332 MHz
CAPACITORS
C1 VCTYMN1CY103K J AA 0.01 µF,16V
C2 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic
C3 RC-GZA104AF1H J AB 0.1 µF,50V,Electrolytic
C4 VCKYMN1HB102K J AA 0.001 µF,50V
C5,6 VCTYPA1CX333K J AA 0.033 µF,16V
C7 RC-GZA104AF1H J AB 0.1 µF,50V,Electrolytic
C8 VCTYPA1CX683K J AA 0.068 µF,16V
C9 VCTYPA1CX473K J AA 0.047 µF,16V
C10 VCKYMN1HB181K J AA 180 pF,50V
C11 VCTYPA1CX104K J AB 0.1 µF,16V
C12 VCKYMN1HB331K J AA 330 pF,50V
C13 VCTYPA1CX104K J AB 0.1 µF,16V
C14 VCTYMN1CY103K J AA 0.01 µF,16V
C15 VCTYMN1CX472K J AA 0.0047 µF,16V
C16 VCKYMN1HB102K J AA 0.001 µF,50V
C17 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic
C18 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C19 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic
C20 VCTYMN1CX332K J AA 0.0033 µF,16V
C21 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C22 VCTYMN1CY103K J AA 0.01 µF,16V
C24 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C25 VCTYMN1CY103K J AA 0.01 µF,16V
C30 VCCSMN1HL2R2C J AB 2.2 pF,50V
C31 VCTYMN1CX272K J AA 0.0027 µF,16V
C32 VCCSMN1HL270J J AA 27 pF,50V
C33 VCKYMN1HB102K J AA 0.001 µF,50V
C34 VCTYPA1CX333K J AA 0.033 µF,16V
C35 RC-GZA104AF1H J AB 0.1 µF,50V,Electrolytic
C37 RC-GZA227AF1A J AB 220 µF,10V,Electrolytic
C38 VCTYMN1CY103K J AA 0.01 µF,16V
C39 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic
C40 RC-GZA334AF1H J AA 0.33 µF,50V,Electrolytic
C41,42 VCKYPA1HF473Z J AB 0.047 µF,50V
C43 RC-GZA337AF0J J AB 330 µF,6.3V,Electrolytic
C44 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic
C45 RC-GZA475AF1H J AB 4.7 µF,50V,Electrolytic
C46 VCTYMN1EF223Z J AA 0.022 µF,25V
C50 VCTYPA1CX104K J AB 0.1 µF,16V
C51 VCTYMN1EF223Z J AA 0.022 µF,25V
C52 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic
C53 VCKYPA1HB221K J AA 220 pF,50V
C54~58 VCKYMN1HB101K J AA 100 pF,50V
C67,68 RC-GZA106AF1H J AB 10 µF,50V,Electrolytic
C69,70 VCKYMN1HB221K J AA 220 pF,50V
C81 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic
C82 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C90 VCTYBT1CY103M J AA 0.01 µF,16V
C91 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic
C92 VCTYMN1EF223Z J AA 0.022 µF,25V
C94 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic
C101,102 VCKYMN1HB681K J AA 680 pF,50V
C105,106 VCKYMN1HB331K J AA 330 pF,50V
C107,108 VCKYMN1HB681K J AA 680 pF,50V
C109 VCKYPA1HF223Z J AB 0.022 µF,50V
C110 RC-GZA476AF1E J AB 47 µF,25V,Electrolytic
C111~114 VCKYMN1HB331K J AA 330 pF,50V
C115,116 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic
C117,118 VCTYPA1CX333K J AA 0.033 µF,16V
C119,120 VCKYMN1HB561K J AA 560 pF,50V
C121,122 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C123,124 VCTYPA1CX103K J AA 0.01 µF,16V
C127 VCTYMN1EF223Z J AA 0.022 µF,25V
C128 RC-GZA335AF1H J AB 3.3 µF,50V,Electrolytic
C129,130 VCKYMN1HB471K J AA 470 pF,50V
– 2 –
background
PRICE
RANK
DESCRIPTIONNO.
PART CODE NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-C440H/CP-C440H
C462 RC-QZA224AFYJ J AB 0.22 µF,50V,Mylar
C463 RC-QZA683AFYJ J AB 0.068 µF,50V,Mylar
C464 RC-QZA223AFYJ J AB 0.022 µF,50V,Mylar
C465 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic
C466 RC-QZA682AFYJ J AA 0.0068 µF,50V,Mylar
C467 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic
C468 RC-QZA182AFYJ J AB 0.0018 µF,50V,Mylar
C469 RC-QZA224AFYJ J AB 0.22 µF,50V,Mylar
C470 VCCSPA1HL331J J AA 330 pF,50V
C471 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic
C472 RC-GZA334AF1H J AA 0.33 µF,50V,Electrolytic
C473,474 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic
C475 RC-QZA224AFYJ J AB 0.22 µF,50V,Mylar
C476 VCTYMN1EF223Z J AA 0.022 µF,25V
C501~510 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C511,512 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic
C513,514 VCKYMN1HB101K J AA 100 pF,50V
C515~518 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C519,520 RC-GZA104AF1H J AB 0.1 µF,50V,Electrolytic
C521~524 RC-GZA224AF1H J AA 0.22 µF,50V,Electrolytic
C525,526 RC-QZA683AFYJ J AB 0.068 µF,50V,Mylar
C527,528 RC-GZA224AF1H J AA 0.22 µF,50V,Electrolytic
C529,530 RC-QZA333AFYJ J AB 0.033 µF,50V,Mylar
C531,532 RC-QZA153AFYJ J AB 0.015 µF,50V,Mylar
C533,534 RC-QZA222AFYJ J AB 0.0022 µF,50V,Mylar
C535,536 RC-QZA472AFYJ J AA 0.0047 µF,50V,Mylar
C537,538 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C539,540 RC-GZA106AF1H J AB 10 µF,50V,Electrolytic
C541,542 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic
C545,546 RC-GZA106AF1H J AB 10 µF,50V,Electrolytic
C549 VCKYPA1HF223Z J AB 0.022 µF,50V
C550 RC-GZA337AF1C J AC 330 µF,16V,Electrolytic
C551~553 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic
C555,556 VCKYMN1HB102K J AA 0.001 µF,50V
C559 RC-GZA226AF1E J AB 22 µF,25V,Electrolytic
C565,566 VCKYMN1HB271K J AA 270 pF,50V
C567,568 VCKYMN1HB681K J AA 680 pF,50V
C569,570 VCTYMN1CX272K J AA 0.0027 µF,16V
C571,572 VCTYMN1CY822K J AA 0.0082 µF,16V
C573,574 VCTYMN1CX682K J AA 0.0068 µF,16V
C575 VCTYMN1EF223Z J AA 0.022 µF,25V
C576~580 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic
C581,582 VCTYMN1EF223Z J AA 0.022 µF,25V
C583 VCTYMN0JY223N J AA 0.022 µF,6.3V
C585~588 VCKYMN1HB391K J AA 390 pF,50V
C591 VCKYPA1HF223Z J AB 0.022 µF,50V
C601 RC-GZA227AF1A J AB 220 µF,10V,Electrolytic
C602 VCTYMN1EF223Z J AA 0.022 µF,25V
C603 VCKYMN1HB151K J AA 150 pF,50V
C604 VCCSPA1HL151J J AA 150 pF,50V
C605~607 VCKYMN1HB151K J AA 150 pF,50V
C701 VCTYBT1EF223Z J AA 0.022 µF,25V
C702 RC-GZA227AF0J J AB 220 µF,6.3V,Electrolytic
C703 VCCCBT1HH150J J AA 15 pF (CH),50V
C704 VCCCBT1HH180J J AA 18 pF (CH),50V
C706 VCTYBT1CY103M J AA 0.01 µF,16V
C707 RC-GZA335AF1H J AB 3.3 µF,50V,Electrolytic
C708 VCTYBT1CY103M J AA 0.01 µF,16V
C709 RC-GZA107AF0J J AB 100 µF,6.3V,Electrolytic
C710 RC-GZA227AF0J J AB 220 µF,6.3V,Electrolytic
C712,713 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic
C715 VCTYBT1EF223Z J AA 0.022 µF,25V
C716 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic
C729 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic
C730 VCTYBT1EF223Z J AA 0.022 µF,25V
C801,802 RC-QZA224AFYJ J AB 0.22 µF,50V,Mylar
C803,804 RC-QZA473AFYJ J AB 0.047 µF,50V,Mylar
C805 RC-GZA107AF1V J AB 100 µF,35V,Electrolytic
C806,807 RC-GZA476AF1H J AB 47 µF,50V,Electrolytic
C808 RC-GZA476AF1J J AC 47 µF,63V,Electrolytic
C809~811 RC-GZA107AF1H J AC 100 µF,50V,Electrolytic
C821 VCTYMN1EF223Z J AA 0.022 µF,25V
C822 RC-GZA476AF1E J AB 47 µF,25V,Electrolytic
C823 RC-GZW478AF1E J AG 4700 µF,25V,Electrolytic
C824 VCTYMN1EF223Z J AA 0.022 µF,25V
C825,826 RC-GZA476AF1E J AB 47 µF,25V,Electrolytic
C827 VCTYBT1EF223Z J AA 0.022 µF,25V
C828 RC-GZA476AF1E J AB 47 µF,25V,Electrolytic
C829 RC-GZA226AF1E J AB 22 µF,25V,Electrolytic
C830,831 RC-GZA476AF1E J AB 47 µF,25V,Electrolytic
C851,852 RC-QZA104AFYJ J AC 0.1 µF,50V,Mylar
C853,854 RC-QZA154AFYJ J AB 0.15 µF,50V,Mylar
C855,856 VCKYMN1HB331K J AA 330 pF,50V
C859,860 VCTYMN1EF223Z J AA 0.022 µF,25V
C861,862 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic
C863 VCTYBT1CY103M J AA 0.01 µF,16V
C864,865 VCKYPA1HF223Z J AB 0.022 µF,50V
C905~908 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic
C909,910 VCCSPA1HL471J J AA 470 pF,50V
C911 VCCSPA1HL470J J AA 47 pF,50V
C912 VCCSBT1HL470J J AA 47 pF,50V
C913,914 VCCSPA1HL150J J AA 15 pF,50V
C915,916 RC-GZA107AF1V J AB 100 µF,35V,Electrolytic
C917~920 VCKYPA1HF223Z J AB 0.022 µF,50V
C921~924 RC-QZA104AFYJ J AC 0.1 µF,50V,Mylar
C925~932 VCKYPA1HF223Z J AB 0.022 µF,50V
C933,934 VCTYPA1EX102K J AA 0.001 µF,25V
C935,936 RC-GZA476AF1H J AB 47 µF,50V,Electrolytic
C937,938 VCCSPA1HL101J J AA 100 pF,50V
C989 RC-GZA476AF1E J AB 47 µF,25V,Electrolytic
C990 VCKYPA1HF223Z J AB 0.022 µF,50V
C991,992 RC-GZA476AF1H J AB 47 µF,50V,Electrolytic
C993 RC-GZA106AF1H J AB 10 µF,50V,Electrolytic
C994 RC-GZA107AF1V J AB 100 µF,35V,Electrolytic
C995,996 RC-EZ1632AFZZ J AL 4700 µF,50V,Electrolytic
C997 RC-GZA476AF1H J AB 47 µF,50V,Electrolytic
C998,999 VCKYPA1HB102K J AA 0.001 µF,50V
CM01 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic
CT21 RC-GZA476AF1A J AB 47 µF,10V,Electrolytic
CT22 VCTYMN1EF223Z J AA 0.022 µF,25V
CT23 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic
CT24 VCTYMN1EF223Z J AA 0.022 µF,25V
CT25 VCKYMN1HB561K J AA 560 pF,50V
CT26,27 VCCCPA1HH220J J AA 22 pF (CH),50V
CT28 RC-GZA476AF1A J AB 47 µF,10V,Electrolytic
CT29 VCTYMN1EF223Z J AA 0.022 µF,25V
CT36 VCKYPA1HF223Z J AB 0.022 µF,50V
CT37 VCTYMN1EF223Z J AA 0.022 µF,25V
CT43 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic
RESISTORS
VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4×3.5mm,Ivory
R1 VRD-MN2BD102J J AA 1 kohm,1/8W
R2 VRD-MN2BD104J J AA 100 kohm,1/8W
R3 VRD-MN2BD153J J AA 15 kohms,1/8W
R4 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R5 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R6 VRD-MN2BD101J J AA 100 ohm,1/8W
R7 VRD-MN2BD102J J AA 1 kohm,1/8W
R8 VRD-MN2BD123J J AA 12 kohms,1/8W
R9 VRD-MN2BD273J J AA 27 kohms,1/8W
R10 VRD-ST2CD823J J AA 82 kohms,1/6W
R11 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R12 VRD-MN2BD153J J AA 15 kohms,1/8W
R13 VRD-MN2BD333J J AA 33 kohms,1/8W
R14 VRD-MN2BD103J J AA 10 kohm,1/8W
R15 VRD-MN2BD473J J AA 47 kohms,1/8W
R16 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R17 VRD-MN2BD823J J AA 82 kohms,1/8W
R18 VRD-ST2CD335J J AA 3.3 Mohms,1/6W
R19 VRD-MN2BD393J J AA 39 kohms,1/8W
R20 VRD-MN2BD103J J AA 10 kohm,1/8W
R21 VRD-MN2BD563J J AA 56 kohms,1/8W
R22 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R23 VRD-MN2BD122J J AA 1.2 kohms,1/8W
R24 VRD-MN2BD103J J AA 10 kohm,1/8W
R25 VRD-MN2BD122J J AA 1.2 kohms,1/8W
R26,27 VRD-MN2BD224J J AA 220 kohms,1/8W
R28,29 VRD-ST2CD102J J AA 1 kohm,1/6W
R30 VRD-MN2BD223J J AA 22 kohms,1/8W
R31 VRD-MN2BD103J J AA 10 kohm,1/8W
R32 VRD-MN2BD563J J AA 56 kohms,1/8W
R33 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R34 VRD-MN2BD102J J AA 1 kohm,1/8W
R35 VRD-MN2BD471J J AA 470 ohms,1/8W
R36,37 VRD-MN2BD473J J AA 47 kohms,1/8W
R38 VRD-MN2BD333J J AA 33 kohms,1/8W
R39,40 VRD-MN2BD223J J AA 22 kohms,1/8W
R41 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R42 VRD-MN2BD561J J AA 560 ohms,1/8W
R43 VRD-MN2BD220J J AA 22 ohms,1/8W
R45 VRD-MN2BD102J J AA 1 kohm,1/8W
R46~48 VRD-ST2CD102J J AA 1 kohm,1/6W
– 3 –
background
NO.
PRICE
RANK
DESCRIPTIONPARTS CODE
NO. PART CODE
PRICE
RANK
DESCRIPTION
CD-C440H/CP-C440H
R49 VRD-ST2CD103J J AA 10 kohm,1/6W
R55 VRD-ST2CD103J J AA 10 kohm,1/6W
R56 VRD-MN2BD122J J AA 1.2 kohms,1/8W
R57 VRD-MN2BD273J J AA 27 kohms,1/8W
R58 VRD-MN2BD681J J AA 680 ohms,1/8W
R60 VRD-MN2BD102J J AA 1 kohm,1/8W
R61 VRD-MN2BD221J J AA 220 ohms,1/8W
R73,74 VRD-MN2BD272J J AA 2.7 kohms,1/8W
R75,76 VRD-MN2BD391J J AA 390 ohms,1/8W
R77,78 VRD-MN2BD102J J AA 1 kohm,1/8W
R79 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R80 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R81 VRD-ST2EE221J J AA 220 ohms,1/4W
R82 VRD-MN2BD151J J AA 150 ohms,1/8W
R84 VRD-ST2EE220J J AA 22 ohms,1/4W
R86~88 VRD-MN2BD102J J AA 1 kohm,1/8W
R92 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R93 VRD-ST2EE3R9J J AA 3.9 ohms,1/4W
R94 VRD-ST2CD682J J AA 6.8 kohms,1/6W
R96 VRD-MN2BD103J J AA 10 kohm,1/8W
R97 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R98 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R101,102 VRD-ST2CD102J J AA 1 kohm,1/6W
R103,104 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R105,106 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R107,108 VRD-MN2BD473J J AA 47 kohms,1/8W
R109 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R110 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R111,112 VRD-ST2CD153J J AA 15 kohms,1/6W
R113,114 VRD-MN2BD103J J AA 10 kohm,1/8W
R115 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R117,118 VRD-ST2CD102J J AA 1 kohm,1/6W
R119,120 VRD-ST2CD560J J AA 56 ohms,1/6W
R121,122 VRD-MN2BD104J J AA 100 kohm,1/8W
R123,124 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R125,126 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R127,128 VRD-MN2BD822J J AA 8.2 kohms,1/8W
R131,132 VRD-MN2BD333J J AA 33 kohms,1/8W
R134 VRD-MN2BD683J J AA 68 kohms,1/8W
R135,136 VRD-MN2BD182J J AA 1.8 kohms,1/8W
R137,138 VRD-ST2CD682J J AA 6.8 kohms,1/6W
R139,140 VRD-MN2BD561J J AA 560 ohms,1/8W
R141 VRD-ST2CD470J J AA 47 ohms,1/6W
R142 VRD-MN2BD470J J AA 47 ohms,1/8W
R143~147 VRD-MN2BD103J J AA 10 kohm,1/8W
R149,150 VRD-MN2BD103J J AA 10 kohm,1/8W
R152 VRD-MN2BD102J J AA 1 kohm,1/8W
R153 VRD-MN2BD103J J AA 10 kohm,1/8W
R154 VRD-ST2CD103J J AA 10 kohm,1/6W
R155,156 VRD-MN2BD333J J AA 33 kohms,1/8W
R157 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R158 VRD-ST2EE471J J AA 470 ohms,1/4W
R160,161 VRD-ST2EE271J J AA 270 ohms,1/4W
R162 VRD-MN2BD473J J AA 47 kohms,1/8W
R164 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R166 VRD-MN2BD273J J AA 27 kohms,1/8W
R167 VRD-MN2BD473J J AA 47 kohms,1/8W
R168 VRD-MN2BD4R7J J AA 4.7 ohms,1/8W
R170 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R171 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R181,182 VRD-ST2CD393J J AA 39 kohms,1/6W
R191 VRD-ST2CD102J J AA 1 kohm,1/6W
R192 VRD-MN2BD102J J AA 1 kohm,1/8W
R193 VRD-ST2EE221J J AA 220 ohms,1/4W
R218,219 VRD-MN2BD102J J AA 1 kohm,1/8W
R223 VRD-ST2CD224J J AA 220 kohms,1/6W
R301 VRD-MN2BD331J J AA 330 ohms,1/8W
R319 VRD-MN2BD104J J AA 100 kohm,1/8W
R323 VRD-MN2BD683J J AA 68 kohms,1/8W
R324 VRD-MN2BD104J J AA 100 kohm,1/8W
R331 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R332 VRD-MN2BD104J J AA 100 kohm,1/8W
R333 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R334 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R335 VRD-MN2BD104J J AA 100 kohm,1/8W
R336 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R337 VRD-ST2CD471J J AA 470 ohms,1/6W
R344 VRD-MN2BD471J J AA 470 ohms,1/8W
R345 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R346 VRD-MN2BD331J J AA 330 ohms,1/8W
R347 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R348 VRD-MN2BD681J J AA 680 ohms,1/8W
R349 VRD-ST2CD330J J AA 33 ohms,1/6W
R350 VRD-ST2CD272J J AA 2.7 kohms,1/6W
R351 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R352 VRD-MN2BD102J J AA 1 kohm,1/8W
R353 VRD-MN2BD271J J AA 270 ohms,1/8W
R354 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R355 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R356 VRD-MN2BD102J J AA 1 kohm,1/8W
R357 VRD-ST2CD474J J AA 470 kohms,1/6W
R358 VRD-MN2BD822J J AA 8.2 kohms,1/8W
R359 VRD-MN2BD182J J AA 1.8 kohms,1/8W
R360 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R361 VRD-MN2BD471J J AA 470 ohms,1/8W
R362 VRD-MN2BD471J J AA 470 ohms,1/8W
R363 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R364 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R365 VRD-MN2BD103J J AA 10 kohm,1/8W
R366 VRD-MN2BD103J J AA 10 kohm,1/8W
R367 VRD-MN2BD102J J AA 1 kohm,1/8W
R368 VRD-ST2CD333J J AA 33 kohms,1/6W
R369 VRD-MN2BD820J J AA 82 ohms,1/8W
R370 VRD-MN2BD102J J AA 1 kohm,1/8W
R371~374 VRD-MN2BD102J J AA 1 kohm,1/8W
R376 VRD-MN2BD102J J AA 1 kohm,1/8W
R377 VRD-ST2CD473J J AA 47 kohms,1/6W
R378 VRD-MN2BD823J J AA 82 kohms,1/8W
R379 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R380 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R381 VRD-MN2BD103J J AA 10 kohm,1/8W
R382 VRD-ST2EE151J J AA 150 ohms,1/4W
R383~385 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R387 VRD-MN2BD223J J AA 22 kohms,1/8W
R391,392 VRD-ST2EE391J J AA 390 ohms,1/4W
R393 VRD-ST2CD102J J AA 1 kohm,1/6W
R395 VRD-ST2CD473J J AA 47 kohms,1/6W
R397 VRD-MN2BD102J J AA 1 kohm,1/8W
R449 VRD-ST2CD152J J AA 1.5 kohms,1/6W
R451 VRD-MN2BD103J J AA 10 kohm,1/8W
R452 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R453,454 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R455,456 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R457,458 VRD-ST2CD123J J AA 12 kohms,1/6W
R465,466 VRD-MN2BD102J J AA 1 kohm,1/8W
R468,469 VRD-MN2BD102J J AA 1 kohm,1/8W
R468,469 VRD-MN2BD102J J AA 1 kohm,1/8W
R470 VRD-MN2BD103J J AA 10 kohm,1/8W
R473,474 VRD-MN2BD103J J AA 10 kohm,1/8W
R475 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R478 VRD-ST2CD102J J AA 1 kohm,1/6W
R479 VRD-MN2BD223J J AA 22 kohms,1/8W
R480 VRD-MN2BD473J J AA 47 kohms,1/8W
R481 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R482 VRD-MN2BD333J J AA 33 kohms,1/8W
R483 VRD-MN2BD104J J AA 100 kohm,1/8W
R484 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R487 VRD-MN2BD104J J AA 100 kohm,1/8W
R488 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R490 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R491 VRD-ST2CD152J J AA 1.5 kohms,1/6W
R492 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R493 VRD-MN2BD102J J AA 1 kohm,1/8W
R494 VRD-ST2CD104J J AA 100 kohm,1/6W
R495 VRD-MN2BD102J J AA 1 kohm,1/8W
R497 VRD-ST2CD104J J AA 100 kohm,1/6W
R498 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R499 VRD-ST2CD152J J AA 1.5 kohms,1/6W
R500 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R501,502 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R503,504 VRD-MN2BD153J J AA 15 kohms,1/8W
R509,510 VRD-MN2BD473J J AA 47 kohms,1/8W
R511~520 VRD-MN2BD102J J AA 1 kohm,1/8W
R521,522 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R525 VRD-MN2BD223J J AA 22 kohms,1/8W
R528~530 VRD-ST2CD102J J AA 1 kohm,1/6W
R531 VRD-MN2BD394J J AA 390 kohms,1/8W
R532 VRD-ST2CD103J J AA 10 kohm,1/6W
R533 VRD-MN2BD333J J AA 33 kohms,1/8W
R534 VRD-MN2BD224J J AA 220 kohms,1/8W
R535 VRD-MN2BD474J J AA 470 kohms,1/8W
R536 VRD-MN2BD123J J AA 12 kohms,1/8W
R537 VRD-MN2BD393J J AA 39 kohms,1/8W
R538 VRD-ST2CD224J J AA 220 kohms,1/6W
– 4 –
background
PRICE
RANK
DESCRIPTIONNO.
PART CODE NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-C440H/CP-C440H
R539 VRD-MN2BD394J J AA 390 kohms,1/8W
R540 VRD-ST2CD123J J AA 12 kohms,1/6W
R541 VRD-MN2BD683J J AA 68 kohms,1/8W
R542 VRD-MN2BD224J J AA 220 kohms,1/8W
R543 VRD-MN2BD684J J AA 680 kohms,1/8W
R544 VRD-MN2BD183J J AA 18 kohms,1/8W
R545 VRD-ST2CD223J J AA 22 kohms,1/6W
R546 VRD-ST2CD224J J AA 220 kohms,1/6W
R547 VRD-MN2BD225J J AA 2.2 Mohms,1/8W
R548 VRD-MN2BD563J J AA 56 kohms,1/8W
R549 VRD-MN2BD474J J AA 470 kohms,1/8W
R550 VRD-MN2BD225J J AA 2.2 Mohms,1/8W
R551 VRD-ST2CD153J J AA 15 kohms,1/6W
R552 VRD-MN2BD564J J AA 560 kohms,1/8W
R553 VRD-MN2BD274J J AA 270 kohms,1/8W
R554,555 VRD-MN2BD104J J AA 100 kohm,1/8W
R556 VRD-ST2CD104J J AA 100 kohm,1/6W
R557,558 VRD-MN2BD104J J AA 100 kohm,1/8W
R559,560 VRD-ST2EE331J J AA 330 ohms,1/4W
R561,562 VRD-MN2BD273J J AA 27 kohms,1/8W
R563,564 VRD-MN2BD182J J AA 1.8 kohms,1/8W
R565,566 VRD-MN2BD273J J AA 27 kohms,1/8W
R567,568 VRD-MN2BD182J J AA 1.8 kohms,1/8W
R569,570 VRD-ST2CD224J J AA 220 kohms,1/6W
R571 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R572 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R575,576 VRD-ST2CD102J J AA 1 kohm,1/6W
R602 VRD-ST2CD102J J AA 1 kohm,1/6W
R604~618 VRD-ST2CD102J J AA 1 kohm,1/6W
R620~627 VRD-ST2CD102J J AA 1 kohm,1/6W
R628 VRD-MN2BD102J J AA 1 kohm,1/8W
R632,633 VRD-MN2BD102J J AA 1 kohm,1/8W
R634,635 VRD-MN2BD103J J AA 10 kohm,1/8W
R636,637 VRD-MN2BD102J J AA 1 kohm,1/8W
R638 VRD-MN2BD102J J AA 1 kohm,1/8W
R640 VRD-MN2BD103J J AA 10 kohm,1/8W
R641~643 VRD-ST2CD102J J AA 1 kohm,1/6W
R645~647 VRD-MN2BD102J J AA 1 kohm,1/8W
R649 VRD-MN2BD102J J AA 1 kohm,1/8W
R650 VRD-ST2CD102J J AA 1 kohm,1/6W
R651~653 VRD-MN2BD102J J AA 1 kohm,1/8W
R654 VRD-ST2CD102J J AA 1 kohm,1/6W
R655 VRD-MN2BD102J J AA 1 kohm,1/8W
R656 VRD-ST2CD102J J AA 1 kohm,1/6W
R657,658 VRD-MN2BD102J J AA 1 kohm,1/8W
R659 VRD-ST2CD102J J AA 1 kohm,1/6W
R660,661 VRD-MN2BD102J J AA 1 kohm,1/8W
R662 VRD-ST2CD123J J AA 12 kohms,1/6W
R663 VRD-MN2BD102J J AA 1 kohm,1/8W
R666 VRD-ST2CD102J J AA 1 kohm,1/6W
R667 VRD-MN2BD102J J AA 1 kohm,1/8W
R671 VRD-MN2BD102J J AA 1 kohm,1/8W
R675 VRD-MN2BD103J J AA 10 kohm,1/8W
R676 VRD-MN2BD473J J AA 47 kohms,1/8W
R679 VRD-MN2BD103J J AA 10 kohm,1/8W
R680 VRD-ST2CD103J J AA 10 kohm,1/6W
R684 VRD-ST2CD103J J AA 10 kohm,1/6W
R701~710 VRD-ST2CD102J J AA 1 kohm,1/6W
R711 VRD-ST2CD101J J AA 100 ohm,1/6W
R712~722 VRD-ST2CD102J J AA 1 kohm,1/6W
R726,727 VRD-ST2CD102J J AA 1 kohm,1/6W
R728 VRD-ST2CD103J J AA 10 kohm,1/6W
R729 VRD-ST2CD102J J AA 1 kohm,1/6W
R731~736 VRD-ST2CD822J J AA 8.2 kohms,1/6W
R737~741 VRD-ST2CD102J J AA 1 kohm,1/6W
R742~744 VRD-ST2CD821J J AA 820 ohms,1/6W
R745 VRD-ST2CD102J J AA 1 kohm,1/6W
R746~748 VRD-ST2CD821J J AA 820 ohms,1/6W
R749 VRD-ST2CD103J J AA 10 kohm,1/6W
R763 VRD-ST2CD102J J AA 1 kohm,1/6W
R765 VRD-ST2CD332J J AA 3.3 kohms,1/6W
R766 VRD-ST2CD104J J AA 100 kohm,1/6W
R767 VRD-ST2CD820J J AA 82 ohms,1/6W
R768,769 VRD-ST2CD103J J AA 10 kohm,1/6W
R770 VRD-ST2CD102J J AA 1 kohm,1/6W
R771 VRD-ST2CD101J J AA 100 ohm,1/6W
R772 VRD-ST2CD102J J AA 1 kohm,1/6W
R773 VRD-ST2EE270J J AA 27 ohms,1/4W
R774 VRD-ST2CD151J J AA 150 ohms,1/6W
R775 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R776 VRD-ST2CD102J J AA 1 kohm,1/6W
R777 VRD-ST2CD330J J AA 33 ohms,1/6W
R778 VRD-ST2CD104J J AA 100 kohm,1/6W
R779 VRD-ST2CD103J J AA 10 kohm,1/6W
R780 VRD-ST2CD182J J AA 1.8 kohms,1/6W
R781 VRD-ST2CD103J J AA 10 kohm,1/6W
R801 VRD-ST2CD123J J AA 12 kohms,1/6W
R802,803 VRD-ST2EE221J J AA 220 ohms,1/4W
R806 VRD-ST2CD101J J AA 100 ohm,1/6W
R807 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R820 VRD-ST2CD103J J AA 10 kohm,1/6W
R821 VRD-ST2CD470J J AA 47 ohms,1/6W
R822 VRD-ST2EE561J J AA 560 ohms,1/4W
R823 VRD-ST2CD470J J AA 47 ohms,1/6W
R824 VRD-MN2BD102J J AA 1 kohm,1/8W
R825 VRD-ST2CD333J J AA 33 kohms,1/6W
R826 VRD-ST2EE561J J AA 560 ohms,1/4W
R828 VRD-ST2CD470J J AA 47 ohms,1/6W
R829 VRD-ST2CD102J J AA 1 kohm,1/6W
! R830 VRG-ST2EC220J J AB 22 ohms,1/4W,Fusible
R831 VRD-ST2EE122J J AA 1.2 kohms,1/4W
R832 VRD-ST2EE101J J AA 100 ohm,1/4W
R851,852 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R853,854 VRD-MN2BD104J J AA 100 kohm,1/8W
R855,856 VRD-MN2BD822J J AA 8.2 kohms,1/8W
R857,858 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R861,862 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R863,864 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R865,866 VRD-ST2EE331J J AA 330 ohms,1/4W
R907,908 VRD-ST2CD563J J AA 56 kohms,1/6W
R909,910 VRD-ST2CD102J J AA 1 kohm,1/6W
R911,912 VRD-ST2CD563J J AA 56 kohms,1/6W
R913,914 VRD-ST2CD471J J AA 470 ohms,1/6W
R915,916 VRD-ST2CD102J J AA 1 kohm,1/6W
R917,918 VRD-ST2EE222J J AA 2.2 kohms,1/4W
R919,920 VRD-ST2CD103J J AA 10 kohm,1/6W
R921~924 VRS-VV3AAR20J J AB 0.2 ohms,1W
R925,926 VRD-ST2CD563J J AA 56 kohms,1/6W
R927,928 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W
R929,930 VRD-ST2EE3R9J J AA 3.9 ohms,1/4W
R931,932 VRD-ST2EE5R6J J AA 5.6 ohms,1/4W
R933~936 VRD-RT2HD181J J AA 180 ohms,1/2W
R937,938 VRD-ST2EE222J J AA 2.2 kohms,1/4W
R939,940 VRD-ST2CD102J J AA 1 kohm,1/6W
R985 VRS-VV3DA821J J AC 820 ohms,2W
R986 VRD-RT2HD102J J AA 1 kohm,1/2W
! R987 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible
R988 VRD-ST2CD103J J AA 10 kohm,1/6W
R989 VRD-ST2CD154J J AA 150 kohms,1/6W
R990 VRD-ST2CD224J J AA 220 kohms,1/6W
R991 VRD-RT2HD102J J AA 1 kohm,1/2W
R992 VRD-ST2CD393J J AA 39 kohms,1/6W
! R993 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible
R994 VRD-ST2CD391J J AA 390 ohms,1/6W
R995 VRD-ST2CD223J J AA 22 kohms,1/6W
R996 VRD-ST2CD473J J AA 47 kohms,1/6W
R997 VRD-ST2CD332J J AA 3.3 kohms,1/6W
R998 VRD-ST2CD563J J AA 56 kohms,1/6W
R999 VRD-ST2CD100J J AA 10 ohm,1/6W
RD1 VRD-ST2CD102J J AA 1 kohm,1/6W
RD2 VRD-ST2CD122J J AA 1.2 kohms,1/6W
RD3 VRD-ST2CD182J J AA 1.8 kohms,1/6W
RD4 VRD-ST2CD222J J AA 2.2 kohms,1/6W
RD5 VRD-ST2CD392J J AA 3.9 kohms,1/6W
RD6 VRD-ST2CD562J J AA 5.6 kohms,1/6W
RD7 VRD-ST2CD123J J AA 12 kohms,1/6W
RD8 VRD-ST2CD102J J AA 1 kohm,1/6W
RD9 VRD-ST2CD122J J AA 1.2 kohms,1/6W
RD10 VRD-ST2CD182J J AA 1.8 kohms,1/6W
RD11 VRD-ST2CD222J J AA 2.2 kohms,1/6W
RD12 VRD-ST2CD392J J AA 3.9 kohms,1/6W
RD13 VRD-ST2CD562J J AA 5.6 kohms,1/6W
RD14 VRD-ST2CD123J J AA 12 kohms,1/6W
RD15 VRD-ST2CD102J J AA 1 kohm,1/6W
RD16 VRD-ST2CD122J J AA 1.2 kohms,1/6W
RD17 VRD-ST2CD182J J AA 1.8 kohms,1/6W
RD18 VRD-ST2CD222J J AA 2.2 kohms,1/6W
RD19 VRD-ST2CD392J J AA 3.9 kohms,1/6W
RD20 VRD-ST2CD562J J AA 5.6 kohms,1/6W
RD21 VRD-ST2CD123J J AA 12 kohms,1/6W
RD22 VRD-ST2CD102J J AA 1 kohm,1/6W
RD23 VRD-ST2CD122J J AA 1.2 kohms,1/6W
RD24 VRD-ST2CD182J J AA 1.8 kohms,1/6W
RD25 VRD-ST2CD222J J AA 2.2 kohms,1/6W
– 5 –
background
NO.
PRICE
RANK
DESCRIPTIONPARTS CODE
NO. PART CODE
PRICE
RANK
DESCRIPTION
CD-C440H/CP-C440H
RD26 VRD-ST2CD392J J AA 3.9 kohms,1/6W
RD27 VRD-ST2CD562J J AA 5.6 kohms,1/6W
RD28 VRD-ST2CD123J J AA 12 kohms,1/6W
RD29 VRD-ST2CD102J J AA 1 kohm,1/6W
RD30 VRD-ST2CD122J J AA 1.2 kohms,1/6W
RD31 VRD-ST2CD182J J AA 1.8 kohms,1/6W
RD32 VRD-ST2CD222J J AA 2.2 kohms,1/6W
RD33 VRD-ST2CD392J J AA 3.9 kohms,1/6W
RD34 VRD-ST2CD562J J AA 5.6 kohms,1/6W
RD35 VRD-ST2CD123J J AA 12 kohms,1/6W
RM01 VRD-ST2CD272J J AA 2.7 kohms,1/6W
RM02 VRD-MN2BD682J J AA 6.8 kohms,1/8W
RM03 VRD-ST2CD333J J AA 33 kohms,1/6W
RM05 VRD-ST2CD103J J AA 10 kohm,1/6W
RM06 VRD-ST2CD222J J AA 2.2 kohms,1/6W
RM07 VRD-RT2HD100J J AA 10 ohm,1/2W
RM08 VRD-ST2CD103J J AA 10 kohm,1/6W
RM09 VRD-ST2CD222J J AA 2.2 kohms,1/6W
RM10 VRD-ST2CD122J J AA 1.2 kohms,1/6W
RM11 VRD-MN2BD222J J AA 2.2 kohms,1/8W
RM12 VRD-ST2CD333J J AA 33 kohms,1/6W
RM14~16 VRD-ST2CD103J J AA 10 kohm,1/6W
RM19 VRD-MN2BD332J J AA 3.3 kohms,1/8W
RM20 VRD-MN2BD103J J AA 10 kohm,1/8W
RT21 VRD-ST2CD104J J AA 100 kohm,1/6W
RT26 VRD-ST2CD102J J AA 1 kohm,1/6W
RT28 VRD-MN2BD102J J AA 1 kohm,1/8W
RT29 VRD-ST2CD102J J AA 1 kohm,1/6W
RT30 VRD-MN2BD102J J AA 1 kohm,1/8W
RT32 VRD-ST2CD103J J AA 10 kohm,1/6W
RT33,34 VRD-ST2CD563J J AA 56 kohms,1/6W
RT35~37 VRD-ST2CD224J J AA 220 kohms,1/6W
RT48,49 VRD-ST2EE391J J AA 390 ohms,1/4W
OTHER CIRCUITRY PARTS
BI102/CNS102 QCNWN0941AWZZ J AK Connector Ass’y,6-7Pin
BI801/CNS801 QCNWN0904AWZZ J AE Connector Ass’y,6-6Pin
BIM5/CNS10/CNS5
QCNWN0894AWZZ J AH Connector Ass’y,6-10-2Pin
CNP3A 92LCONE6P53253 J AC Plug,6Pin
CNP1 QCNCM931EAFZZ J AC Plug,5Pin
CNP2 92LCONE8P53253 J AC Plug,8Pin
CNP3 92LCONE6P53253 J AC Plug,6Pin
CNP10 QCNCM931KAFZZ J AD Plug,10Pin
CNP101 92LCONE3P5267X J AB Plug,3Pin
CNP102 92LCONE7P5267X J Plug,7Pin
CNP301 92LCONE-2P5268 J AB Plug,2Pin
CNP303 QCNCM010MAWZZ J AC Plug,10Pin
CNP501 QCNCM010LAWZZ J AC Plug,11Pin
CNP502 QCNCW010MAWZZ J AD Plug,12Pin
CNP801 QCNCM742FAFZZ J AB Plug,6Pin
CNPM1 QCNCW025NAWZZ J AB Flat Wire Holder
CNPM2 QCNCM030BAWZZ J AB Pin Header
CNS1A/B QCNWN0891AWZZ J AG Connector Ass’y,5-5Pin
CNS2A/B QCNWN0892AWZZ J AF Connector Ass’y,8-8Pin
CNS3A/B QCNWN0893AWZZ J AF Connector Ass’y,6-6Pin
CNS101 QCNWN0660AWZZ J AH Connector Ass’y,3Pin
CNS501 QCNCW010LAWZZ J AD Connector Ass’y,11Pin
! F802,803 92LFUSE-T502-E J AD Fuse,T5A L 250V
! F804 92LFUSE-T162-E J AD Fuse,T1.6A L 250V
! F821 92LFUSE-T501-E J AD Fuse,T500mA L 250V
FE301 RTUNS0007AWZZ J AT FM Front End
FL701 VVKBJ549GK/-1 J AX FL Display
FW701 QCNWN0946AWZZ J AD Flat Wire,6Pin
FW702 QCNWN0944AWZZ J AD Flat Wire,10Pin
FW703 QCNWN0945AWZZ J AF Flat Wire,13Pin
FW901 QCNWN0969AWZZ J AE Flat Wire,9Pin
FW902 QCNWN0902AWZZ J AC Flat Wire,3Pin
FW903 QCNWN0903AWZZ J AE Flat Wire,5Pin
FWM1 QCNWN0943AWZZ J AF Flat Wire,13Pin
FWM2 QCNWN0942AWZZ J AC Flat Wire,4Pin
J501 QSOCJ0401AWZZ J AH Jack,Video/AUX
JA901 QJAKM0005AWZZ J AD Jack,Headphones
M1 92LMTR1858CASY J AS Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
M3 92LMTR2037AS1 J AP Motor with Worm Pulley
[T/T Up/Down]
MM1 92LMTR2512AASY J AT Motor with Pulley [Tape]
RL901 RRLYD0004AWZZ J AP Relay
RX701 VHLSPSP440/-1 J AH Remote Sensor,SPSP440
SO301 QTANC0103AWZZ J AD Terminal,Antenna
SO901 QTANA0404AWZZ J AF Terminal,Speaker
SOLM1,2 92LM-SOL1676A J Solenoid Ass’y
SW1 QSW-P0004AWZZ J AE Switch,Push Type [Open/Close]
SW2 QSW-F0001AWZZ J AD Switch,Leaf Type [Mecha Up]
SW3 QSW-P0005AWZZ J AD Switch,Push Type [Disc Number]
SW4 QSW-F9001AWZZ J AE Switch,Leaf Type [Pickup In]
SW701 92LSWICHT1663T J AC Switch,Key Type
[ON/STAND-BY]
SW702 92LSWICHT1663T J AC Switch,Key Type [CLOCK]
SW703 92LSWICHT1663T J AC Switch,Key Type [TIME/SLEEP]
SW704 92LSWICHT1663T J AC Switch,Key Type [DISC 1]
SW705 92LSWICHT1663T J AC Switch,Key Type [DISC 2]
SW706 92LSWICHT1663T J AC Switch,Key Type [DISC 3]
SW707 92LSWICHT1663T J AC Switch,Key Type [DISC SKIP]
SW708 92LSWICHT1663T J AC Switch,Key Type
[OPEN/CLOSE]
SW709 92LSWICHT1663T J AC Switch,Key Type [CD]
SW710 92LSWICHT1663T J AC Switch,Key Type
[TUNER/BAND]
SW711 92LSWICHT1663T J AC Switch,Key Type [TAPE]
SW712 92LSWICHT1663T J AC Switch,Key Type [VIDEO]
SW713 92LSWICHT1663T J AC Switch,Key Type [EON]
SW714 92LSWICHT1663T J AC Switch,Key Type
[PTY/TI SERCH]
SW715 92LSWICHT1663T J AC Switch,Key Type [ASPM]
SW716 92LSWICHT1663T J AC Switch,Key Type
[DISPLAY MODE]
SW717 92LSWICHT1663T J AC Switch,Key Type
[CENTER MODE/PHANTOM]
SW719 92LSWICHT1663T J AC Switch,Key Type
[CENTER MODE/NORMAL]
SW721 92LSWICHT1663T J AC Switch,Key Type
[DOLBY PRO LOGIC/BYPASS]
SW723 92LSWICHT1663T J AC Switch,Key Type [REC/PAUSE]
SW724 92LSWICHT1663T J AC Switch,Key Type
[TUNING UP/TIME]
SW725 92LSWICHT1663T J AC Switch,Key Type [VOLUME UP]
SW726 92LSWICHT1663T J AC Switch,Key Type [X-BASS]
SW728 92LSWICHT1663T J AC Switch,Key Type [STOP]
SW729 92LSWICHT1663T J AC Switch,Key Type [FWD]
SW730 92LSWICHT1663T J AC Switch,Key Type [FF]
SW731 92LSWICHT1663T J AC Switch,Key Type
[MEMORY SET]
SW732 92LSWICHT1663T J AC Switch,Key Type
[TUNING DOWN/TIME]
SW733 92LSWICHT1663T J AC Switch,Key Type
[VOLUME DOWN]
SW734 92LSWICHT1663T J AC Switch,Key Type
[EQUALIZER/DEMO]
SW735 92LSWICHT1663T J AC Switch,Key Type
[3D SURROUND]
SW736 92LSWICHT1663T J AC Switch,Key Type
[REVERSE MODE]
SW737 92LSWICHT1663T J AC Switch,Key Type [REV]
SW738 92LSWICHT1663T J AC Switch,Key Type [REW]
SW739 92LSWICHT1663T J AC Switch,Key Type
[EDIT NORMAL]
SW740 92LSWICHT1663T J AC Switch,Key Type [EDIT HIGH]
SWM3 92LM-SW1676A J AC Switch,Leaf Type [REC FWD]
SWM4 92LM-SW1676A J AC Switch,Leaf Type [REC RVS]
SWM5 QSW-F9003AWZZ J AG Switch,Leaf Type [F.A.S.]
SWM6 92LM-SW1676B J Switch,Leaf Type [CAM]
WT502 92LCONE7P52287 J AC Socket,Wire Trap,7Pin
WT601 QCNCW012NAWZZ J AE Socket,Wire Trap,13Pin
WT901 92LCONE9P52287 J AC Socket,Wire Trap,9Pin
WT903 92LCONE5P52287 J AC Socket,Wire Trap,5Pin
WTM1 QCNCW012NAWZZ J AE Socket,Wire Trap,13Pin
CASSETTE MECHANISM PARTS
1 LCHSM0039AWM1 J Main Chassis Ass’y
2 LPLTP0001AWZZ J AD Plate,Head [Tape 1]
3 LDAIH0002AWZZ J AD Plate,Head [Tape 2]
4 NDAIR0004AW01 J AG Take-Up Reel Ass’y [Tape 1]
7 NROLY0003AWM1 J AF Pinch Roller Foward Ass’y
8 NFLYC0012AWM1 J AG Flywheel Ass’y [Tape 1]
9 NFLYC0013AWM1 J AG Flywheel Foward Ass’y [Tape 2]
11 MCAMP0005AWZZ J AC Gear,Cam
13 NGERH0030AWZZ J AE Gear,Play Idler
15 NPLYB0004AWZZ J AB Sensor,Wing
16 MLEVP0060AWZZ J AB Lever,Trigger
17 MLEVP0027AWZZ J AC Lever,Lock [Tape 1]
18 MLEVP0028AWZZ J AC Lever,Eject Obstruct [Tape 1]
– 6 –
background
PRICE
RANK
DESCRIPTIONNO.
PART CODE NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-C440H/CP-C440H
– 7 –
19 MLEVP0061AWZZ J AB Lever,Eject Obstruct [Tape 2]
20 LHLDS1001AW01 J AE Bearing Holder Ass’y
22 PGIDM0009AWZZ J AC Guide,Cassette [Tape 1]
23 MLEVF0011AWFW J AD Lever,Over Strok [Tape 1]
24 MLEVF0012AWM1 J AE Lever,Over Strok Ass’y [Tape 2]
25 MLEVF0015AWM1 J AE Lever,Mode Ass’y
26 MLEVF0007AW01 J AC Lever,Idler Ass’y [Tape 1]
28 LANGT0039AWFW J AC Blacket Motor
29 LANGT0040AWFW J AC Blacket Hold
31 MSPRP0005AWFW J AB Spring,Cassette
32 MSPRT0007AWFJ J AB Spring,Reverse Plate
33 MSPRD0031AWFJ J AB Spring,Lock Lever [Tape 1]
34 MSPRD0081AWFJ J AB Spring,Mode Lever
35 MSPRD0033AWFJ J AB Spring,Play Idler Lever
36 MSPRD0034AWFJ J AB Spring,Play Roller
37 MSPRD0035AWFJ J AB Spring,Eject Obstruct [Tape 1]
39 MSPRD0037AWFJ J AB Spring,Over Strok Lever
40 MSPRD0083AWFJ J AB Spring,Trigger Lever
42 MSPRD0082AWFJ J AB Spring,Over Strok Lever [Tape 2]
43 NBLTK0021AWZZ J AB Belt,Sub
44 NBLTH0003AWZZ J AC Belt,Main [Tape 1]
45 NBLTH0004AWZZ J AC Belt,Main [Tape 2]
52 92LM-LEV1756A J AB Lever,Lock [Tape 2]
53 92LM-TSPR1756C J AB Spring,Lock Lever [Tape 2]
55 92LM-RPH1746A J AM Head,Playback [Tape 1]
56 RHEDK0002AWM1 J AQ Head,Record/Playback/Erace
with Flexible PWB [Tape 2]
58 MSPRC0019AWFJ J AB Spring,Back Tention
59 92LN-BAND1318A J AA Nylon Band,80mm
60 PGIDM0020AWZZ J AB Head Bobbin
61 LPLTM0005AWZZ J AC Head Support
62 NDAIR0007AWZZ J AB Reel Table
63 NROLY0004AWM1 J AF Pinch Roller Reverse Ass’y
64 NROLY0002AWZZ J AF Pinch Roller Ass’y
65 NFLYC0014AWM1 J AF Flywheel Reverse Ass’y [Tape 2]
66 MLEVP0059AWM1 J AH Drive Lever Ass’y
67 NGERH0060AWZZ J AB Gear,FF Idlar
68 MLEVP0062AWZZ J AB Lever,H Change
69 MLEVP0063AWZZ J AB Lever,Switch
70 LHLDS1003AWM1 J AD Bearing Holder Forward Ass’y
71 LHLDS1004AWM1 J AD Bearing Holder Reverse Ass’y
72 MLEVF0013AWFW J AC Lever,Head Plate
73 MLEVF0014AWM1 J AE Reverse Plate Ass’y
74 MLEVF0016AWFW J AB Lever,Joint
75 MSPRD0084AWFJ J AB Spring,Driving Lever
76 MSPRD0085AWFJ J AB Spring,H Change
77 MSPRD0086AWFJ J AB Spring,Reel Support
78 MSPRD0087AWFJ J AB Spring,Reel Support
79 MSPRD0088AWFJ J AB Spring,Reel Support [Tape 1]
80 MSPRD0101AWFJ J AB Spring,Head Bobbin
501 LX-BZ0012AWFD J AA Screw,ø2.6×5mm
502 XHBSD20P04000 J AA Screw,ø2×4mm
503 XHBSD20P05000 J AA Screw,ø2×5mm
504 XWVSD22-03000 J AA Washer,ø2.2×0.3mm
505 XWHJZ23-02034 J AA Washer,ø2.3×ø3.4×0.25mm
506 LX-BZ0004AWFD J AC Screw,Lock Lever
507 LX-BZ0778AFFD J AA Screw,ø2×6mm
508 LX-WZ9064AFZZ J AA Washer,ø1.5×ø3.8×0.5mm
510 LX-WZ9230AFZZ J AA Washer,ø1.8×ø4×0.5mm
511 XSPSD14P08000 J Screw,ø14×8mm
513 XWSSD14-05000 J AA Washer,ø1.4×0.5mm
MM1 92LMTR2512AASY J AT Motor with Pulley [Tape]
SOLM1 92LM-SOL1676A J Solenoid Ass’y
SWM3 92LM-SW1676A J AC Switch,Leaf Type [REC FWD]
SWM4 92LM-SW1676A J AC Switch,Leaf Type [REC RVS]
SWM5 QSW-F9003AWZZ J AG Switch,Leaf Type [F.A.S.]
SWM6 92LM-SW1676B J Switch,Leaf Type [CAM]
CD MECHANISM PARTS
301 NGERH0011AWZZ J AC Gear,Middle
302 NGERH0012AWZZ J AC Gear,Drive
303 MLEVP0010AWZZ J AC Rail,Guide
304 NSFTM0002AWFW J AE Shaft,Guide
305 92LM-CUSN1524A J AC Insulator
! 306 92LHPC1MASY J BG Pickup Unit Ass’y
306- 1 ———— — Pickup Unit
(Not Replacement Item)
306- 2 NGERR0043AFZZ J AC Gear,Rack
306- 3 MSPRC0961AFZZ J AA Spring,Rack
701 92L2R6S+6CZ J AB Screw,ø2.6×6mm
702 XHBSD20P05000 J AA Screw,ø2×5mm
703 XBBSD20P03000 J AA Screw,ø2×3mm
704 92L1R5WC3R8R25 J AA Washer,ø1.5×ø3.8×0.25mm
M1 92LMTR1858CASY J AS Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
SW4 QSW-F9001AWZZ J AE Switch,Leaf Type [Pickup In]
CABINET PARTS
201 92LCAB2514AS1 J BA Front Panel Ass’y
201- 1 ———— — Front Panel
(Not Replacement Item)
201- 2 PCUSG0022AWZZ J AB Cushion,Leg
201- 3 HDECQ0186AWSB J AE Operation Panel
201- 4 JKNBZ0335AWSA J AC Knob,Tuner/Memory
201- 5 JKNBZ0336AWSA J AC Knob,Open/Close,Rec./Playback
201- 6 JKNBZ0337AWSB J AD Knob,X-BASS
201- 7 JKNBZ0346AWSA J AB Knob,Graphic Equalizer
201- 8 JKNBZ0347AWSA J AB Knob,Rec.Pause
201- 9 JKNBZ0348AWSA J AH Knob,RDS
201-10 JKNBZ0350AWSA J AD Knob,Open/Close
201-11 JKNBZ0353AWSA J AH Knob,Operation A
201-12 JKNBZ0354AWSB1 J Knob,Disc Number
201-13 JKNBZ0356AWSA J AM Knob,Operation B
201-14 JKNBZ0383AWSA J AG Knob,SRS
201-15 JKNBZ0391AWSA J AD Knob,Function
202 GCAB-1045AWSB J AL Top Cabinet
203 GITAR0203AWSA J AQ Back Board
204 GDORF0038AWSB J AF Cassette Holder,Tape 1
205 92LPNL2514AS1 J AM Amp.Panel Ass’y
205- 1 ———— — Amp.Panel
(Not Replacement Item)
205- 2 92LBADGE1692A J AC Badge,SHARP
206 GDORF0039AWSB J AF Cassette Holder,Tape 2
207 HDECQ0217AWSA J AF Panel,Cassette,Tape 1
208 HDECQ0218AWSA J AF Panel,Cassette,Tape 2
209 92LCAB2503BS1 J AK Side Panel Ass’y,Left
209- 1 ———— — Side Panel,Left
(Not Replacement Item)
209- 2 PCUSG0022AWZZ J AB Cushion,Leg
210 92LCAB2503CS1 J AK Side Panel Ass’y,Right
210- 1 ———— — Side Panel,Right
(Not Replacement Item)
210- 2 PCUSG0022AWZZ J AB Cushion,Leg
211 GCOVA1135AWSC J AG Cover,CD Tray
213 MLIFP0003AWZZ J AE Damper
214 MSPRD0092AWFJ J AB Spring,Cassette,Tape 1
215 LCHSM0032AWFW J AR Main Chassis
! 216 QACCB0003AW00 J BA AC Power Supply Cord [For UK]
! 216 QACCE0008AW00 J AG AC Power Supply Cord
[For Europe]
217 92LN-BAND1318A J AA Nylon Band,80mm
219 MSPRD0093AWFJ J AB Spring,Cassette,Tape 2
227 MLEVP0068AWZZ J AB Lever,Change
228 LCHSZ0011AWZZ J AG Chassis,CD Mechanism
229 NGERK0004AWZZ J AB Gear,Bevel
230 MSPRC0021AWFJ J AB Spring,Worm Wheel
231 NGERW0006AWZZ J AC Gear,Worm Wheel
232 NPLYD0001AWZZ J AB Pulley
233 NGERK0005AWZZ J AB Gear,Loading
234 MLEVP0066AWZZ J AE Lever,Shift
235 NGERH0064AWZZ J AD Gear,Cam
236 NGERK0003AWZZ J AC Gear,Drive
237 LHLDZ1141AWZZ J AB Support,Pinch
238 NGERH0065AWZZ J AB Gear,Turntable
239 NBLTK0029AWZZ J AB Belt,Drive
240 MSPRD0044AWFJ J AB Spring,Lock Lever
241 MLEVP0067AWZZ J AC Lever,Lock
242 LCHSZ0010AWZZ J AM Chassis,Loading
243 NROLP0009AWZZ J AB Roller
244 MLEVP0070AWZZ J AB Lever,T/T Lock
245 MSPRC0020AWFJ J AB Spring,T/T Lock Lever
246 GCAB-1044AWSA J AM CD Player Base
247 LHLDZ1139AWSA J AD Support,Stabilizer
248 92LHOLD2037AS1 J AK Stabilizer Ass’y
248- 1 ———— — Stabilizer
(Not Replacement Item)
248- 2 PMAGF0001AWZZ J AF Magnet
248- 3 92LSUPT1749D J AA Bracket,Magnet
249 NTNT-0018AWSA J AK Turntable
250 LHLDZ1140AWZZ J AB Guide
251 LHLDZ1143AWZZ J AD Holder,FL Display
252 PRDAR0035AWFW J AQ Heat Sink B
background
NO.
PRICE
RANK
DESCRIPTIONPARTS CODE
NO. PART CODE
PRICE
RANK
DESCRIPTION
CD-C440H/CP-C440H
253 PRDAR0049AWFW J AK Heat Sink Transistor
254 PRDAR0084AWFW J Heat Sink Main
255 LHLDZ1142AWZZ J AB Holder,LED
257 PCOVQ1005AWZZ J AC Heat Plate
! 258 92LFSHOLD1652T J AB Holder,Fuse
260 HDECQ0185AWSB J AD CD Top Panel
267 LANGK0070AWFW J AD PWB Bracket A
270 LANGT0038AWFW J AE Bracket,Heat Shield
271 PCUSG0027AWZZ J AB Cushion,Worm Wheel
272 MSPRC0024AWFW J AB Spring,Solenoid
276 PCOVU9004AW00 J AB Felt,Operation Knob
277 LBSHC0002AWZZ J AD Bushing,AC Power Supply Cord
278 LHLDF1015AWZZ J AF Holder,Main PWB
279 LANGJ0005AWFW J AC Bracket,PWB Connect
280 RCORF0002AWZZ J AE Core
281 PSLDM3029AWFW J AE Plate,Deck Shield
282 PSPAK0001AWZZ J AB Spacer,Power PWB
283 92LRDAT1587A J AC Heat Sink,Diode
284 92LCAUT1706A1 J AC Label,Class 3
285 92LCAUT1706B J AA Label,Class 3
286 LHLDZ1144AWZZ J AC Holder,LED
287 LHLDZ1105AWZZ1 J Holder,LED
288 LHLDZ1142AWZZ J AB Holder,LED
! 289 92LLUG1746A J AA Lug Terminal
293 PCUSG0029AWZZ J AC Cushion,CD Loading Chassis
294 92LCLMP1810P J Wire Holder
601 XESSD30P10000 J AA Screw,ø3×10mm
602 LX-JZ0022AFFD J AA Screw,ø3×8mm
603 XEBSD30P10000 J AA Screw,ø3×10mm
604 XJBSD30P06000 J AA Screw,ø3×6mm
605 XJBSD30P08000 J AA Screw,ø3×8mm
607 XJBSD30P14000 J AA Screw,ø3×14mm
608 XEBSF30P12000 J AA Screw,ø3×12mm
609 XJBSF30P08000 J AA Screw,ø3×8mm
610 LX-TZ0019AFZZ J AB Screw,Special
611 LX-HZ0082AFZZ J AA Screw,ø4×8mm
612 LX-JZ0010AFFD J AA Screw,ø3×10mm
613 LX-EZ0005AWFD J AA Screw,Special
617 LX-JZ0002AWFD J AA Screw,ø3×10mm
618 LX-LZ0002AW00 J AC Snap Rivet
619 XBPSD26P05JS0 J AA Screw,ø2.6×5mm
620 XEBSD26P12000 J AA Screw,ø2.6×12mm
622 XEBSD30P12000 J AA Screw,ø3×12mm
623 XJSSF30P10000 J AA Screw,ø3×10mm
624 XJBSD30P10000 J AA Screw,ø3×10mm
ACCESSORIES/PACKING PARTS
1 SPAKP0013AWZZ J AC Polyethylene Bag,Unit
2 SPAKA0156AWZZ J AQ Packing Add.
3 SPAKC0525AWZZ J AL Packing Case
4 92LBAG1460C1 J AB Polyethylene Bag,Accessories
5 QANTL0005AWZZ J AG AM Loop Antenna
6 RRMCG0091AWSA J AX Remote Control
6- 1 92LLID1782A J AQ Battery Lid,Remote Control
7 TINSE0180AWZZ J AG Operation Manual [For UK]
7 TINSZ0224AWZZ J AW Operation Manual [For Europe]
8 92LFANT1535A J AF FM Antenna
9 92LCARD1751A J AB Warranty Card [For UK Only]
10 92LBAG1770A J AB Polyethylene Bag,AC Plug
Adaptor
11 TLABS0076AWZZ J AB Label,BEAB
12 TLABZ0417AWZZ J Label,Feature
P.W.B. ASSEMBLY (Not Replacement Item)
PWB-A1~3 92LPWB2515MAN1 J — Main/SRS/Headphones
(Combined Ass’y)
[For UK Only]
PWB-B1,2 92LPWB2515PWR1 J — Power/Power Amp.
(Combined Ass’y)
[For UK Only]
PWB-C 92LPWB2515DPL1 J — Display [For UK Only]
PWB-D 92LPWB2515TUN1 J — Tuner [For UK Only]
PWB-E QPWBF0027AWZZ J AD CD Motor (PWB Only)
[For UK Only]
PWB-F QPWBF0314AWZZ J AD Tape Mechanism (PWB Only)
[For UK Only]
PWB-G QPWBF0341AWZZ J AB Sensor (PWB Only)
[For UK Only]
PWB-H QPWBF0313AWZZ J AB Head (PWB Only) [For UK Only]
SPEAKER BOX PARTS
701 92L1210093 J Net Frame Ass’y
702 92L3160041 J Duct Panel
703 92L0510029 J Speaker Box Ass’y
704 92L3940029 J Port Cushion
706 92L2910038 J Speaker Cord
707 92L3510175 J Label,Specification
708 92L3720025 J Screw,ø4×12mm
709 92L3720026 J Screw,ø3×10mm
710 92L3020009 J Support,Woofer
SP1,2 VSP0050TBH26A J AS Tweeter
SP3,4 VSP0016WBE46A J BD Woofer
ACCESSORIES/PACKING PARTS
1 92L4110075 J Polyethylene Bag,Speaker
2 92L4140012 J Mirror Mat
3 92L4120078 J Packing Add.,Speaker
(Top/Bottom)
4 92L4160008 J Pad,Speaker
5 92L3530059 J Label,Feature
– 8 –
CP-C440H
background
CD-C440H/CP-C440H
– 66 –
A
B
C
D
E
F
G
H
1
23456
Figure 9 CD MECHANISM EXPLODED VIEW
– 9 –
CD-C440H
306-1
701
304
701
302
301
702
702
303
M1
703
305x2
SW4
M2
305
PWB-E
306-2
306-3
306
704
background
CD-C440H/CP-C440H
– 67 –
Figure 10 TAPE MECHANISM EXPLODED VIEW
A
B
C
D
E
F
G
H
1
23456
– 10 –
CD-C440H
39
23
503
503
507x2
61
60
56
80
511x2
513x2
3
76
68
73
72
7
503x3
503x3
503x3
70
42
510
510
24
77
78
62
62
25
71
508
505
4
20
79
62
36
64
2
55
18
22
506
33
17
74
26
63
37
8
35
504
44
34
75
40
16
67
58
15
508
SOLM2
13
11
65
501
501
502x2
MM1
45
69
9
29
502
43
503
59
80mm
504
503
SWM5
SWM3
SWM4
SWM6
52
53
506
1
19
31
31
PWB-H
PWB-F
503
32
66
28
background
CD-C440H/CP-C440H
– 68 –
Figure 11 CABINET EXPLODED VIEW (1/2)
A
B
C
D
E
F
G
H
1
23456
– 11 –
SHARP






276
209-1
609x2
209-2
FL701
251
255
288
286
601x3
PWB-C1
PWB-A1
PWB-C2
PWB-A3
PWB-B1
PWB-B2
216
277
280x2
203
270
257
604
278
612x4
278
601x11
603x2
201-12
260
287
201-4
201-9
201-8
201-15
201-14
201-10
201-11
601x6
201-13
201-3
201-6
201-7
602
624x2
254
201-5
213
603
611x4
283
605x3
607x2
612x2
258x4
289x2
605
609
x2
609
607
605
609x2
258x2
210-2
210-1
215
217
208
206
219
214
207
204
201-1
201-2
201-2
603
213
205-2
205-1
TAPE
MECHANISM
Silicon
Grease
201
80mm
209
618
605x3
612
253
612
258x2
609x9
609x2
279
602
602
252
205
267
294
605
605x2
210
PWB-D
PWB-A2
CD-C440H
background
CD-C440H/CP-C440H
– 69 –
A
B
C
D
E
F
G
H
1
23456
Figure 12 CABINET EXPLODED VIEW (2/2)
– 12 –
CD-C440H
603
243
250
240
617
241
242
243
603
250
622x4
243
228
SOLM1
272
M3
619x2
SW2
227
233
234
235
236
237
620
610
238
239
610
232
231
230
243x2
243
243
243
SW3
246
614
247
249
608x2
608x2
202
211
CD
MECHANISM
271
613
245
244
PWB-G
229
229
248-1
248-2
248-3
248
284
285
293
background
CD-C440H/CP-C440H
– 70 –
Figure 13 SPEAKER EXPLODED VIEW
A
B
C
D
E
F
G
H
1
23456
– 13 –
CP-C440H
SHARP
-
-
-
- +
+
+
+
-
-
+
+
SP1,2
TWEETER
C1,2
3.3µF/100V
(N.P.)
C1,2
3.3µF/100V
(N.P.)
SP1,2
TWEETER
SP3,4
WOOFER
SP3,4
WOOFER
702
701
703
707
706
710
SP3,4
709x2
709x2
704x2
708x2
708x2
SP1,2
BLACK
BLACK
RED
RED
RED
background
CD-C440H/CP-C440H
– 71 –
PACKING OF METHOD (FOR UK ONLY)
Setting position of switches and knobs
Tape Mechanism STOP
1. Polyethylene Bag, Unit SPAKP0013AWZZ
2. Packing Add. SPAKA0156AWZZ
3. Packing Case SPAKC0525AWZZ
4. Polyethylene Bag, Accessories 92LBAG1460C1
5. AM Loop Antenna QANTL0005AWZZ
6. Remote Control RRMCG0091AWSA
7. Operation Manual TiNSE0180AWZZ
8. FM Antenna 92LFANT1535A
9. Warranty Card 92LCARD1751A
10. Polyethylene Bag,
AC Plug Adaptor 92LBAG1770A
11. Label, BEAB TLABS0076AWZZ
12. Label, Feature TLABZ0417AWZZ
CD-C440H
CP-C440H
1
2
4,5,6,7,8,9,
10,11,12
3
TOP
FRONT
BOTTOM
FRONT
TOP
FRONT
1
2
5
3
4
1. Polyethylene Bag, Speaker 92L4110075
2. Mirror Mat 92L4140012
3. Packing Add., Speaker 92L4120078
4. Pad, Speaker 92L4160008
5. Label, Feature 92L3530059
CP-C440H
– 14 –
background
CD-C440H/CP-C440H
– 72 –
Writer and Editor: Quality & Reliability Control Center of Audio-Visual Systems Group, Sharp Corp.
A9706-4778NS•HA•M
Printed in U.K
SG • SK

Specifications

Indexed Terms: Mini Component System, Cd Player

Sharp CD-C440H Questions and Answers

Find answers or ask new question.
Questions and Answers

Related Products

Product Sharp CD PC3500 image
Sharp CD-PC3500 Mini Component System
2021-03-30 2 docs
Product Sharp CD MPS66 image
Sharp CD-MPS66 Mini Component System
2021-03-08 1 docs
Product Sharp CD ES99 image
Sharp CD-ES99 Mini Component System
2021-03-07 1 docs
Product Sharp CD DH950P image
Sharp CD-DH950P Mini Component System
2020-11-17 2 docs
Product Sharp XL HP505 image
Sharp XL-HP505 Mini Component System
2020-10-22 1 docs
Product Sharp CD DK890N image
Sharp CD-DK890N MINI COMPONENT SYSTEM
2020-10-15 1 docs
