FT41BXE
EN
1
Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and checked
under the most meticulous quality control procedures, will provide you an effective service.
For this, we recommend you to carefully read the entire manual of your product before
using it and keep it at hand for future references.
This manual
• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
C Important information or useful tips.
A Warning against dangerous conditions for life and property.
B Warning against electric voltage.
This product is supplied with the selective sorting symbol for waste electrical
and electronic equipment (WEEE).
This means that this product must be handled pursuant to European Directive
2002/96/EC in order to be recycled or dismantled to minimise its impact on
the environment. For further information, please contact your local or regional
authorities.
Electronic products not included in the selective sorting process are potentially
dangerous for the environment and human health due to the presence of
hazardous substances.
Recycling
EN
2
CONTENTS
1 Refrigerator 3
2 Important Safety Warnings 4
Intended use .....................................4
For products with a water dispenser; .6
Child safety ........................................6
HCA Warning ....................................6
Things to be done for energy saving ..6
Reccomendations for freshfood
compartment .....................................7
3 Installation 8
Points to be considered when re-
transporting your refrigerator .............8
Before operating your refrigerator ......8
Electric connection ............................9
Disposing of the packaging ...............9
Disposing of your old refrigerator .......9
Placing and Installation ......................9
Adjusting the legs ..............................9
4 Preparation 10
5 Using your refrigerator 11
Indicator Panel .................................11
Freezing fresh food ..........................16
Door Open Warning .........................16
Recommendations for preservation of
frozen food ......................................17
Placing the food ..............................17
Water Dispenser ..............................18
Egg holder .......................................20
Blue light .........................................20
Sliding storage container .................20
Deep-freeze information ..................21
Cool Control Storage Compartment 21
Telescopic Drawer ..........................22
Description and cleaning of odor
filter: ................................................22
6 Maintenance and
cleaning 23
Protection of plastic surfaces ..........23
7 Troubleshooting 24
EN
3
1 Refrigerator
1. Egg holder
2. Fridge compartment shelf
3. Sliding and Rotary storage containers
4. Bottle shelf
5. Coolcontrol Compartment's drawer
6. Freezer Compartment's drawer
7. Crisper (Snack Compartment)
8. Bottle holder
C Figures that take place in this instruction manual are schematic and may not correspond
exactly with your product. If the subject parts are not included in the product you have
purchased, then it is valid for other models.
1
2
11
15
14
10
*8
9
7
*3
4
5
6
13
13
12
9. Illumination lens
10. Adjustable glass shelves
11. Fan
12. Ice container
13. Separators
14. Freezer compartment
15. Fridge compartment
*OPTIONAL
EN
4
2 Important Safety Warnings
Please review the following information.
Failure to observe this information may cause
injuries or material damage. Otherwise, all
warranty and reliability commitments will
become invalid.
The usage life of the unit you purchased is
10 years. This is the period for keeping the
spare parts required for the unit to operate
as described.
Intended use
This product is intended to be used
– indoors and in closed areas such as
homes;
– in closed working environments such as
stores and offices;
– in closed accommodation areas such as
farm houses, hotels, pensions.
• This product should not be used
outdoors.
General safety
• When you want to dispose/scrap the
product, we recommend you to consult
the authorized service in order to learn
the required information and authorized
bodies.
• Consult your authorized service for all
your questions and problems related to
the refrigerator. Do not intervene or let
someone intervene to the refrigerator
without notifying the authorised services.
• For products with a freezer compartment;
Do not eat cone ice cream and ice cubes
immediately after you take them out of the
freezer compartment! (This may cause
frostbite in your mouth.)
• For products with a freezer compartment;
Do not put bottled and canned liquid
beverages in the freezer compartment.
Otherwise, these may burst.
• Do not touch frozen food by hand; they
may stick to your hand.
• Unplug your refrigerator before cleaning or
defrosting.
• Vapor and vaporized cleaning materials
should never be used in cleaning and
defrosting processes of your refrigerator. In
such cases, the vapor may get in contact
with the electrical parts and cause short
circuit or electric shock.
• Never use the parts on your refrigerator
such as the door as a means of support
or step.
• Do not use electrical devices inside the
refrigerator.
• Do not damage the parts, where the
refrigerant is circulating, with drilling or
cutting tools. The refrigerant that might
blow out when the gas channels of the
evaporator, pipe extensions or surface
coatings are punctured causes skin
irritations and eye injuries.
• Do not cover or block the ventilation holes
on your refrigerator with any material.
• Electrical devices must be repaired by only
authorised persons. Repairs performed by
incompetent persons create a risk for the
user.
• In case of any failure or during a
maintenance or repair work, disconnect
your refrigerator’s mains supply by either
turning off the relevant fuse or unplugging
your appliance.
• Do not pull by the cable when pulling off
the plug.
• Place the beverage with higher proofs
tightly closed and vertically.
• Never store spray cans containing
flammable and explosive substances in
the refrigerator.
• Do not use mechanical devices or other
means to accelerate the defrosting
EN
5
process, other than those recommended
by the manufacturer.
• This product is not intended to be used by
persons with physical, sensory or mental
disorders or unlearned or inexperienced
people (including children) unless they
are attended by a person who will be
responsible for their safety or who will
instruct them accordingly for use of the
product
• Do not operate a damaged refrigerator.
Consult with the service agent if you have
any concerns.
• Electrical safety of your refrigerator shall be
guaranteed only if the earth system in your
house complies with standards.
• Exposing the product to rain, snow, sun
and wind is dangerous with respect to
electrical safety.
• Contact authorized service when there is a
power cable damage to avoid danger.
• Never plug the refrigerator into the wall
outlet during installation. Otherwise, risk of
death or serious injury may arise.
• This refrigerator is intended for only storing
food items. It must not be used for any
other purpose.
• Label of technical specifications is located
on the left wall inside the refrigerator.
• Never connect your refrigerator to
electricity-saving systems; they may
damage the refrigerator.
• If there is a blue light on the refrigerator, do
not look at the blue light with optical tools.
• For manually controlled refrigerators,
wait for at least 5 minutes to start the
refrigerator after power failure.
• This operation manual should be handed
in to the new owner of the product when it
is given to others.
• Avoid causing damage on power cable
when transporting the refrigerator.
Bending cable may cause fire. Never
place heavy objects on power cable. Do
not touch the plug with wet hands when
plugging the product.
• Do not plug the refrigerator if the wall outlet
is loose.
• Water should not be sprayed directly on
inner or outer parts of the product for
safety purposes.
• Do not spray substances containing
inflammable gases such as propane
gas near the refrigerator to avoid fire and
explosion risk.
• Never place containers filled with water on
top of the refrigerator, otherwise this may
cause electric shock or fire.
• Do not overload your refrigerator with
excessive amounts of food. If overloaded,
the food items may fall down and hurt you
and damage refrigerator when you open
the door. Never place objects on top of
the refrigerator; otherwise, these objects
may fall down when you open or close the
refrigerator's door.
• As they require a precise temperature,
vaccines, heat-sensitive medicine and
scientific materials and etc. should not be
kept in the refrigerator.
• If not to be used for a long time,
refrigerator should be unplugged. A
possible problem in power cable may
cause fire.
• The plug's tip should be regularly cleaned;
otherwise, it may cause fire.
• The plug’s tip should be cleaned regularly
with a dry cloth; otherwise, it may cause
fire.
EN
6
• Refrigerator may move if adjustable legs
are not properly secured on the floor.
Properly securing adjustable legs on the
floor can prevent the refrigerator to move.
• When carrying the refrigerator, do not hold
it from door handle. Otherwise, it may be
snapped.
• When you have to place your product
next to another refrigerator or freezer, the
distance between devices should be at
least 8cm. Otherwise, adjacent side walls
may be humidified.
For products with a water
dispenser;
Pressure of water mains should be
minimum 1 bar. Pressure of water mains
should be maximum 8 bars.
• Use only potable water.
Child safety
• If the door has a lock, the key should be
kept away from reach of children.
• Children must be supervised to prevent
them from tampering with the product.
HCA Warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential fire
sources that can cause the product catch a
fire and ventilate the room in which the unit
is placed.
Ignore this warning if your product's
cooling system contains R134a.
Type of gas used in the product is stated in
the type plate which is on the left wall inside
the refrigerator.
Never throw the product in fire for disposal.
Things to be done for energy
saving
• Do not leave the doors of your refrigerator
open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
• Do not install your refrigerator under direct
sunlight or near heat emitting appliances
such as ovens, dishwashers or radiators.
• Pay attention to keep your food in closed
containers.
• For products with a freezer compartment;
You can store maximum amount of
food items in the freezer when you
remove the shelf or drawer of the freezer.
Energy consumption value stated for
your refrigerator has been determined
by removing freezer shelf or drawer and
under maximum load. There is no harm
to use a shelf or drawer according to the
shapes and size of food to be frozen.
• Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.
EN
7
Reccomendations for
freshfood compartment
* OPTIONAL
• Please do not let any foodstuff to come
to contact with the temperature sensor in
freshfood compartment.In order to maintain
freshfood compartment at ideal storage
temperature, the sensor must not be
blocked by fodstuffs.
• Do not place hot foodstuff in your
appliance.
temperature
sensor
food
MILK
juice
etc.
temperature
sensor
temperature
sensor
food
MILK
juice
etc.
temperature
sensor
EN
8
3 Installation
B Please remember that the manufacturer
shall not be held liable if the information
given in the instruction manual is not
observed.
Points to be considered
when re-transporting your
refrigerator
1. Your refrigerator must be emptied and
cleaned prior to any transportation.
2. Shelves, accessories, crisper and etc. in
your refrigerator must be fastened securely
by adhesive tape against any jolt before
repackaging.
3. Packaging must be tied with thick
tapes and strong ropes and the rules of
transportation printed on the package
must be followed.
Please do not forget…
Every recycled material is an indispensable
source for the nature and for our national
resources.
If you wish to contribute to recycling the
packaging materials, you can get further
information from the environmental bodies
or local authorities.
Before operating your
refrigerator
Before starting to use your refrigerator
check the following:
1. Is the interior of the refrigerator dry and
can the air circulate freely in the rear of it?
2. Please install the 2 plastic wedges as
illustrated in the figure. Plastic wedges will
provide the required distance between
your refrigerator and the wall in order to
allow the air circulation. (The illustrated
figure is only an example and does not
match exactly with your product.)
3. Clean the interior of the refrigerator as
recommended in the “Maintenance and
cleaning” section.
4. Plug the refrigerator into the wall outlet.
When the fridge door is open, the fridge
compartment interior light will come on.
5. You will hear a noise as the compressor
starts up. The liquid and gases sealed
within the refrigeration system may also
give rise to noise, even if the compressor
is not running and this is quite normal.
6. Front edges of the refrigerator may
feel warm. This is normal. These areas
are designed to be warm to avoid
condensation.
EN
9
Electric connection
Connect your product to a grounded
socket which is being protected by a fuse
with the appropriate capacity.
Important:
• The connection must be in compliance
with national regulations.
• The power cable plug must be easily
accessible after installation.
• The specified voltage must be equal to
your mains voltage.
• Extension cables and multiway plugs must
not be used for connection.
B A damaged power cable must be
replaced by a qualified electrician.
B Product must not be operated before it is
repaired! There is danger of electric shock!
Disposing of the packaging
The packing materials may be dangerous
for children. Keep the packing materials out
of the reach of children or dispose of them
by classifying them in accordance with the
waste instructions. Do not dispose of them
along with the normal household waste.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator without
giving any harm to the environment.
• You may consult your authorised dealer
or waste collection center of your
municipality about the disposal of your
refrigerator.
Before disposing of your refrigerator, cut
out the electric plug and, if there are any
locks on the door, make them inoperable in
order to protect children against any danger.
Placing and Installation
A If the entrance door of the room where
the refrigerator will be installed is not wide
enough for the refrigerator to pass through,
then call the authorised service to have
them remove the doors of your refrigerator
and pass it sideways through the door.
1. Install your refrigerator to a place that
allows ease of use.
2. Keep your refrigerator away from heat
sources, humid places and direct sunlight.
3. There must be appropriate air ventilation
around your refrigerator in order to achieve
an efficient operation. If the refrigerator is to
be placed in a recess in the wall, there must
be at least 5 cm distance with the ceiling
and at least 5 cm with the wall. If the floor
is covered with a carpet, your product must
be elevated 2.5 cm from the floor.
4. Place your refrigerator on an even floor
surface to prevent jolts.
5. Do not keep your refrigerator in ambient
temperatures under 10°C.
Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning its front legs as illustrated in the
figure. The corner where the leg exists is
lowered when you turn in the direction of
black arrow and raised when you turn in
the opposite direction. Taking help from
someone to slightly lift the refrigerator will
facilitate this process.
EN
10
4 Preparation
C Your refrigerator should be installed at
least 30 cm away from heat sources such
as hobs, ovens, central heater and stoves
and at least 5 cm away from electrical
ovens and should not be located under
direct sunlight.
C The ambient temperature of the room
where you install your refrigerator
should at least be 10°C. Operating your
refrigerator under cooler conditions is not
recommended with regard to its efficiency.
C Please make sure that the interior of your
refrigerator is cleaned thoroughly.
C If two refrigerators are to be installed side
by side, there should be at least 2 cm
distance between them.
C When you operate your refrigerator for
the first time, please observe the following
instructions during the initial six hours.
- The door should not be opened
frequently.
- It must be operated empty without any
food in it.
- Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
C Original packaging and foam materials
should be kept for future transportations
or moving.
EN
11
Indicator Panel
Indicator panel aids in using your refrigerator with its audio and visual functions.
1.
Ioniser Indicator
2.
Fridge Compartment Indicator
3.
Error Status Indicator
4.
Temperature Indicator
5.
Temperature Setting / Vacation Button
1. Ioniser Indicator
Indicator light lights up continuously.
This light indicates that your refrigerator is
protected against the bacteria.
2. Fridge Compartment Indicator
Fridge compartment light illuminates
when adjusting the fridge compartment
temperature.
5 Using your refrigerator
Indicator panels may vary depending on your product's model.
1 2 3 4
56789
6. Refrigerator Compartment Selection
Button
7.
Cool Control Compartment Indicator
8.
Freezer Compartment Indicator
9.
Economy Mode Indicator
3. Error Status Indicator
If your refrigerator does not cool
adequately or if there is a sensor failure,
this indicator will be activated. When this
indicator is active, temperature indicator
will display "e" and the numbers 1,2,3...
These numbers on the indicator provide
information about the error to the service
personnel.
C Figures that take place in this instruction manual are schematic and may not correspond
exactly with your product. If the subject parts are not included in the product you have
purchased, then it is valid for other models.
EN
12
4. Temperature Indicator
Indicates the temperature of the fridge,
freezer and Cool Control compartment.
5. Temperature Setting / Vacation
Button
After selecting the compartment for which
you will set the temperature, perform the
temperature setting by means of pressing
this button.
Press and hold the same button for 3
seconds to activate the Vacation function for
the fridge compartment. Press this button
again to deactivate the selected function.
If this function is active, "- -" appears on
the indicator of the fridge compartment
and no cooling is performed in the fridge
compartment. Other compartments will be
cooled in accordance with the temperature
set for them.
6. Refrigerator Compartment Selection
Button
Press Refrigerator Compartment Selection
Button to switch between fridge, freezer
and Cool Control compartments.
7. Cool Control Compartment Indicator
Cool Control compartment light
illuminates when adjusting the Cool Control
temperature.
8. Freezer Compartment Indicator
Freezer compartment light illuminates
when adjusting the freezer compartment
temperature.
9. Economy Mode Indicator
Indicates that the refrigerator is running
in energy-efficient mode. This indicator
will be active if the temperature of Freezer
Compartment is set to -18 and energy
efficient cooling is being performed.
EN
13
1. Freezer compartment setting button
2. Multizone compartment setting button
3. Fridge compartment setting button
4. Error status indicator
5. Key lock indicator
6. Eco Extra Function indicator
7. Eco Extra / Vacation Button
8. Vacation function indicator
9. Economic usage indicator
10. Quick fridge function indicator
11. Quick fridge function button
12. Freezer compartment temperature setting
indicator
13. Multizone compartment temperature
setting indicator
14. Fast freeze function button
15. Fridge compartment temperature setting
indicator
16. Fast Freeze Function Indicator
10
9
8
7
16
15
14
12
13
11
1
3
2
4
5
6
C Figures that take place in this instruction manual are schematic and may not correspond
exactly with your product. If the subject parts are not included in the product you have
purchased, then it is valid for other models.
EN
14
1. Setting the freezer compartment
This function allows you to set the freezer
compartment temperature. Press this
button to set the temperature of the freezer
compartment to -18,-19, -20,-21,-22,-23
and -24, respectively.
2. Multi Zone Storage Compartment
Temperature Setting Button
You can set the Multi Zone Storage
Compartment either as a Freezer or a
Cooler. Press and hold this button for 3
seconds to set the Multi Zone Storage
Compartment either as a Freezer or a
Cooler. This compartment is set as a
Freezer Compartment at factory.
If the Multi Zone Storage Compartment
is set as a Freezer, then the temperature of
the Multi Zone Storage Compartment will
change as -18,-19,-20,-21,-22,-23 -24,
-18... respectively each time you press this
button. If the Multi Zone Compartment is
set as a Fridge, then the temperature of the
Multi Zone Compartment will change as 10,
8, 6, 4, 2, 0, -6, ... respectively each time
you press this button.
3. Fridge Compartment Setting Button
This function allows you to make the
fridge compartment temperature setting.
Press this button to set the temperature
of the fridge compartment to 8,7,6,5,4,3,
2,respectively.
4. Error Status Indicator
If your refrigerator does not cool
adequately or if there is a sensor failure,
this indicator will be activated. When this
indicator is active, Freezer Compartment
Temperature indicator will display “E” and
Fridge Compartment Temperature Indicator
will display numbers such as “1,2,3…”.
These numbers on the indicator provide
information about the error to the service
personnel.
When you place hot food into the freezer
compartment or if you leave the door open
for a long time, exclamation mark can
illuminate for some time. This is not a failure;
this warning will disappear when the food
cools down.
5. Key Lock Indicator
Use this function if you do not want your
refrigerator temperature setting changed.
To activate this function, you should press
and hold Fast Freeze and Quick Fridge
buttons together for 3 seconds.
6. Eco Extra Function Indicator
It indicates that the Eco-Extra function is
active.
If this function is active, your refrigerator
will automatically detect the least usage
periods and energy-efficient cooling will be
performed during those times. Economy
indicator will be active while energy-efficient
cooling is performed.
Press the relevant button again to
deactivate this function.
7. Eco Extra/Vacation Button
Press this button briefly to activate the Eco
Extra function. Press and hold this button
for 3 sec. to activate the Vacation function.
Press this button again to deactivate the
selected function.
8. Vacation Function Indicator
Indicates that the vacation function is
active.
If this function is active, “- -” appears
on the temperature indicator of the
fridge compartment and no cooling is
performed in the fridge compartment. Other
compartments will be cooled in accordance
with the temperature set for them.
Press the relevant button again to
deactivate this function.
9. Economy Mode Indicator
Indicates that the refrigerator is running
in energy-efficient mode. Freezer
Compartment temperature
EN
15
This indicator will be active if the function
is set to -18 or the energy efficient cooling is
being performed due to Eco-Extra function.
10. Quick Fridge Indicator
This icon flashes in an animated style
when the Quick Fridge function is active.
11. Quick Fridge Function
When you press the Quick Fridge button,
the temperature of the compartment will be
colder than the adjusted values.
This function can be used for food placed
in the fridge compartment and required to
be cooled down rapidly.
If you want to cool large amounts of fresh
food, it is recommended to activate this
feature before putting the food into the
fridge.
Quick Fridge indicator turns on when the
Quick Fridge function is on. To cancel this
function, press Quick Fridge button again.
If you do not cancel it, Quick Fridge will
cancel itself automatically after 2 hours or
when the fridge compartment reaches to
the required temperature.
This function is not recalled when power
restores after a power failure.
12. Freezer Compartment Temperature
Setting Indicator
Indicates the temperature set for the
Freezer Compartment.
13. Multi Zone Storage Compartment
Temperature Indicator
Indicates the temperature set for Multi
Zone storage compartment.
14. Quick Freeze Function
Fast Freeze indicator turns on when the
Fast Freeze function is active. To cancel
this function, press Fast Freeze button
again. Fast Freeze indicator will turn off
and return to its normal settings. If you
do not cancel it, Fast Freeze will cancel
itself automatically after 8 hours or when
the freezer compartment reaches to the
required temperature.
If you want to freeze large amounts of
fresh food, press the Fast Freeze button
before putting the food into the freezer
compartment.
If you press the Fast Freeze button
repeatedly with short intervals, the electronic
circuit protection will be activated and the
compressor will not start up immediately.
This function is not recalled when power
restores after a power failure.
15. Fridge Compartment Temperature
Setting Indicator
Indicates the temperature set for the
Fridge Compartment.
16. Quick Freeze Indicator
This icon flashes in an animated style
when the Fast Freeze function is active.
EN
16
Freezing fresh food
• Wrap or cover the food before placing
them in the refrigerator.
• Hot food must cool down to the room
temperature before putting them in the
refrigerator.
• The foodstuff that you want to freeze must
be fresh and in good quality.
• Foodstuff must be divided into portions
according to the family’s daily or meal
based consumption needs.
• The foodstuff must be packaged in an
airtight manner to prevent them from
drying even if they are going to be kept for
a short time.
• Materials to be used for packaging
must be tear-proof and resistant to cold,
humidity, odor, oils and acids and they
must also be airtight. Moreover, they
must be well closed and they must be
made from easy-to-use materials that are
suitable for deep freeze usage.
• Frozen food must be used immediately
after they are thawed and they should
never be re-frozen.
• Please observe the following instructions
to obtain the best results.
1. Do not freeze too large quantities of food
at one time. The quality of the food is best
preserved when it is frozen right through
to the core as quickly as possible.
2. Placing warm food into the freezer
compartment causes the cooling system
to operate continuously until the food is
frozen solid.
3. Take special care not to mix already frozen
food and fresh food.
Freezer
Compartment
Setting
Fridge
Compartment
Setting
Explanations
-18°C 4°C This is the normal recommended setting.
-20,-22 or -24°C 4°C These settings are recommended when the ambient temperature exceeds 30°C.
Quick Freeze 4°C
Use when you wish to freeze your food in a short time. Your refrigerator will return to its
previous mode when the process is over.
-18°C or colder 2°C
If you think that your fridge compartment is not cold enough because of the hot
conditions or frequent opening and closing of the door.
-18°C or colder Quick Fridge
You can use it when your fridge compartment is overloaded or if you wish to cool
down your food rapidly. It is recommended that you activate quick fridge function 4-8
hours before placing the food.
Door Open Warning
(This feature may vary depending
on the door of the product and may
not exist in some models.)
An audio warning signal will be given when
the door of your product is left open for at
least 1 minute. This warning will be muted
when the door is closed or any of the display
buttons (if any) are pressed.
EN
17
Recommendations for
preservation of frozen food
• Prepacked commercially frozen food
should be stored in accordance with the
frozen food manufacturer's instructions
for a ( 4 star) frozen food storage
compartment.
• To ensure that the high quality achieved by
the frozen food manufacturer and the food
retailer is maintained, the following should
be remembered:
1. Put packages in the freezer as quickly as
possible after purchase.
2. Ensure that contents are labeled and
dated.
3. Do not exceed "Use By", "Best Before"
dates on the packaging.
Defrosting
The freezer compartment defrosts
automatically.
Placing the food
Freezer compartment
shelves
Various frozen food such
as meat, fish, ice cream,
vegetables and etc.
Egg holder Egg
Fridge compartment
shelves
Food in pans, covered plates
and closed containers
Fridge compartment door
shelves
Small and packaged food or
drinks (such as milk, fruit juice
and beer)
Crisper Vegetables and fruits
Freshzone compartment
Delicatessen products (cheese,
butter, salami and etc.)
EN
18
Water Dispenser
(in some models)
Water dispenser is a very useful feature
based on reaching cold water without
opening the door of your refrigerator. As you
will not have to open your refrigerator door
frequently, you will have saved energy.
Filling the water dispenser's tank
Water tank filling reservoir is located inside
the door rack. Open the reservoir cover and
fill in clean potable water. And then, close
the lid.
Using the water spring
Push the arm of the water dispenser
with your glass. The dispenser will cease
operating once you release the arm.
When operating the water dispenser,
maximum flow can be obtained by pressing
the arm fully. Please remember that the
amount of flow from the dispenser is subject
to the degree you press the arm.
As the level of the water in your glass/
container rises, slightly lessen the pressure
on the arm to prevent the overspill. If you
slightly press the arm, the water will drip;
this is quite normal and not a failure.
Warning!
• Do not fill the water tank with any other
liquid except for water such as fruit
juices, carbonated beverages or alcoholic
drinks which are not suitable to use in
the water dispenser. Water dispenser will
be irreparably damaged if these kinds of
liquids are used. Warranty does not cover
such usages. Some chemical substances
and additives contained in these kinds of
drinks/liquids may damage the water tank.
EN
19
• Use clean and pure potable water only.
• Capacity of the water tank is 3 liters; do
not overfill.
• Push the arm of the water dispenser with
a rigid glass. If you are using disposable
plastic glasses, push the arm with your
fingers from behind the glass.

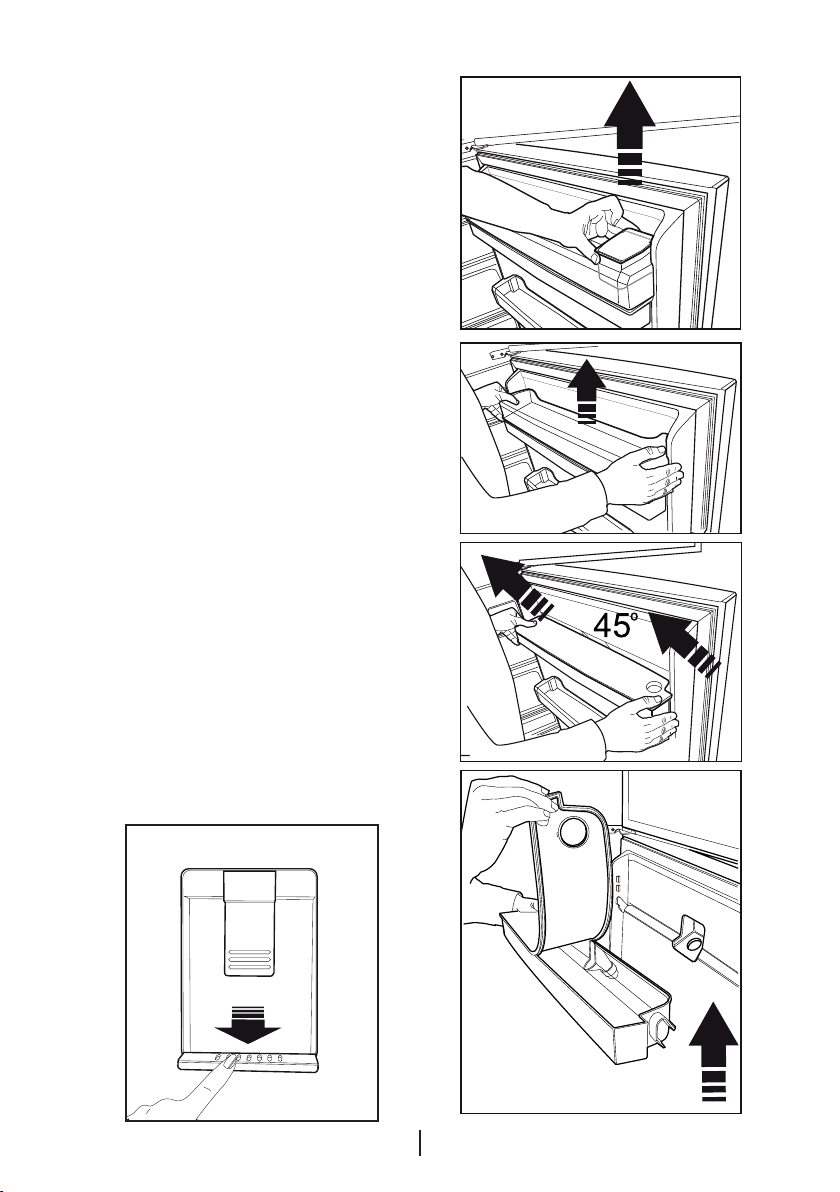

Cleaning the water tank
• Remove the water filling reservoir inside
the door rack.
• Remove the door rack by holding from
both sides.
• Grab the water tank from both sides and
remove it with an angle of 45°C.
• Clean the water tank by removing its lid.
Important:
Components of the water tank and
water dispenser should not be washed in
dishwasher.
Water tray
Water that dripped while using the water
dispenser accumulates in the spillage tray.
Take out the plastic strainer as shown in
the figure.
With a clean and dry cloth, remove the
water that has accumulated
CAUTION: Connect only to a potable
water line.
EN
20
Egg holder
You can install the egg holder to the
desired door or body shelf.
Never store the egg holder in the freezer
compartment
Blue light
(in some models)
Foodstuff stored in the crispers that are
enlightened with a blue light continue their
photosynthesis by means of the wavelength
effect of blue light and thus, preserve
their freshness and increase their vitamin
content.
Sliding storage container
(in some models)
This accessory is designed to increase the
usage volume of the door shelves. It allows
you to easily place the tall bottles, jars and
tins to the lower bottle shelf thanks to its
ability to move right or left.
(The illustrated figure is only an example
and does not match exactly with your
product.)
EN
21
Deep-freeze information
Food must be frozen as rapidly as possible
when they are put in a refrigerator in order to
keep them in good quality.
The TSE norm requires (according to
certain measurement conditions) the
refrigerator to freeze at least 4.5 kg of
foodstuff at 32°C ambient temperature to
-18°C or lower within 24 hours for every
100-liters of freezer volume.
It is possible to keep the food for a long
time only at -18°C or lower temperatures.
You can keep the freshness of food
for many months (at -18°C or lower
temperatures in the deep freeze).
A CAUTION!
• Foodstuff must be divided into portions
according to the family’s daily or meal based
consumption needs.
• Foodstuff must be packaged in an
airtight manner to prevent them from drying
even if they are going to be kept for a short
time.
Materials necessary for packaging:
• Cold resistant adhesive tape
• Self adhesive label
• Rubber rings
• Pen
Materials to be used for packaging the
foodstuff must be tear-proof and resistant
to cold, humidity, odor, oils and acids.
Foodstuff to be frozen should not be
allowed to come in contact with the
previously frozen items to prevent their
partial thawing.
Frozen food must be used immediately
after they are thawed and they should never
be re-frozen.
Cool Control Storage
Compartment
The Cool Control Storage Compartment
of your refrigerator may be used in any
desired mode by adjusting it to fridge
(2/4/6/8 °C) or freezer (-18/-19/-20/-
21/-22/-23/-24) temperatures. You can
keep the compartment in the desired
temperature with the Cool Control Storage
Compartment's Temperature Setting
Button. The temperature of Cool Control
Storage Compartment can be adjusted
to -6, -2, 0 and 10 in addition to fridge
compartment temperatures. "0" degree is
used to store the deli products longer, and
-6 degree is used to keep the meat up to 2
weeks in an easily cuttable condition.
EN
22
Description and cleaning of
odor filter:
Odor filter prevents unpleasant odor build-
up in your refrigerator.
Pull the cover, into which the odor filter
is installed, downwards and remove as
illustrated. Leave the filter under sunlight
for one day. Filter will be cleaned during this
time. Install the filter back to its place.
Odor filter must be cleaned once in a year.
Telescopic Drawer
Pay attention not to squeeze any parts
of your body such as hands, feet and etc.
between the movable parts while the drawer
is in use in order to avoid any injury.
You can remove the partition in the drawer
as illustrated when you want to clean it.
You can remove the drawers only for
cleaning. It is not possible to group the
drawers in their places after loading them
with food when they are removed.
EN
23
6 Maintenance and cleaning
A Never use gasoline, benzene or similar
substances for cleaning purposes.
B We recommend that you unplug the
appliance before cleaning.
B Never use any sharp abrasive instrument,
soap, household cleaner, detergent and
wax polish for cleaning.
C Use lukewarm water to clean the cabinet
of your refrigerator and wipe it dry.
C Use a damp cloth wrung out in a solution
of one teaspoon of bicarbonate of soda to
one pint of water to clean the interior and
wipe it dry.
B Make sure that no water enters the lamp
housing and other electrical items.
B If your refrigerator is not going to be used
for a long period of time, unplug the power
cable, remove all food, clean it and leave
the door ajar.
C Check door seals regularly to ensure they
are clean and free from food particles.
A To remove door racks, remove all the
contents and then simply push the door
rack upwards from the base.
Protection of plastic
surfaces
C Do not put the liquid oils or oil-cooked
meals in your refrigerator in unsealed
containers as they damage the plastic
surfaces of your refrigerator. In case of
spilling or smearing oil on the plastic
surfaces, clean and rinse the relevant part
of the surface at once with warm water.
EN
24
7 Troubleshooting
Please review this list before calling the service. It will save your time and money. This list
includes frequent complaints that are not arising from defective workmanship or material
usage. Some of the features described here may not exist in your product.
The refrigerator does not operate.
• The plug is not inserted into the socket correctly. >>> Insert the plug into the
socket securely.
• The fuse of the socket which your refrigerator is connected to or the main fuse have
blown out. >>> Check the fuse.
Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and
FLEXI ZONE).
• Ambient is vey cold. >>> Do not install the refrigerator in places where the
temperature falls below 10 °C.
• Door has been opened frequently. >>> Do not open and close the door of
refrigerator frequently.
• Ambient is vey humid. >>> Do not install your refrigerator into highly humid
places.
• Food containing liquid is stored in open containers. >>> Do not store food with
liquid content in open containers.
• Door of the refrigerator is left ajar. >>> Close the door of the refrigerator.
• Thermostat is set to a very cold level. >>> Set the thermostat to a suitable level.
Compressor is not running
C Protective thermic of the compressor will blow out during sudden power failures or
plug-out/plug-ins as the refrigerant pressure in the cooling system of the refrigerator
has not been balanced yet. The refrigerator will start running approximately after 6
minutes. Please call the service if the refrigerator does not startup at the end of this
period.
• The fridge is in defrost cycle. >>> This is normal for a full-automatically
defrosting refrigerator. Defrosting cycle occurs periodically.
• The refrigerator is not plugged into the socket. >>> Make sure that the plug is fit
into the socket.
• Temperature settings are not made correctly. >>> Select the suitable
temperature value.
• There is a power failure. >>> Refrigerator returns to normal operation when
the power restores.
EN
25
The operation noise increases when the refrigerator is running.
C The operating performance of the refrigerator may change due to the changes in
the ambient temperature. It is normal and not a fault.
The refrigerator is running frequently or for a long time.
C New product may be wider than the previous one. Larger refrigerators operate for a
longer period of time.
• The ambient room temperature may be high. >>> It is normal that the product
operates for longer periods in hot ambient.
• The refrigerator might have been plugged in recently or might have been loaded
with food. >>> When the refrigerator is plugged in or loaded with food
recently, it will take longer for it to attain the set temperature. This is normal.
• Large amounts of hot food may have been put in the refrigerator recently. >>> Do
not put hot food into the refrigerator.
• Doors might have been opened frequently or left ajar for a long time. >>>The
warm air that has entered into the refrigerator causes the refrigerator to run
for longer periods. Do not open the doors frequently.
• Freezer or fridge compartment door might have been left ajar. >>> Check if the
doors are closed completely.
• The refrigerator is adjusted to a very low temperature. >>> Adjust the refrigerator
temperature to a warmer degree and wait until the temperature is achieved.
• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly
seated. >>> Clean or replace the seal. Damaged/broken seal causes the
refrigerator to run for a longer period of time in order to maintain the current
temperature.
Freezer temperature is very low while the fridge temperature is sufficient.
• The freezer temperature is adjusted to a very low value. >>> Adjust the freezer
temperature to a warmer degree and check.
Fridge temperature is very low while the freezer temperature is sufficient.
• The fridge temperature is adjusted to a very low value. >>> Adjust the fridge
temperature to a warmer degree and check.
EN
26
Food kept in the fridge compartment drawers is frozen.
• The fridge temperature is adjusted to a very high value. >>> Adjust the fridge
temperature to a lower value and check.
Temperature in the fridge or freezer is very high.
• The fridge temperature is adjusted to a very high value. >>> Fridge compartment
temperature setting has an effect on the temperature of the freezer.
Change the temperatures of the fridge or freezer and wait until the relevant
compartments attain a sufficient temperature.
• Doors are opened frequently or left ajar for a long time. >>> Do not open the
doors frequently.
• Door is ajar. >>> Close the door completely.
• The refrigerator is plugged in or loaded with food recently. >>> This is normal.
When the refrigerator is plugged in or loaded with food recently, it will take
longer for it to attain the set temperature.
• Large amounts of hot food may have been put in the refrigerator recently. >>> Do
not put hot food into the refrigerator.
Vibrations or noise.
• The floor is not level or stable. >>> If the refrigerator rocks when moved slowly,
balance it by adjusting its legs. Also make sure that the floor is strong
enough to carry the refrigerator, and level.
• The items put onto the refrigerator may cause noise. >>> Remove the items on
top of the refrigerator.
There are noises coming from the refrigerator like liquid flowing or spraying.
C Liquid and gas flows happen in accordance with the operating principles of your
refrigerator. It is normal and not a fault.
Whistle comes from the refrigerator.
C Fans are used in order to cool the refrigerator. It is normal and not a fault.
Condensation on the inner walls of refrigerator.
C Hot and humid weather increases icing and condensation. It is normal and not a
fault.
• Doors are opened frequently or left ajar for a long time. >>> Do not open the
doors frequently. Close them if they are open.
• Door is ajar. >>> Close the door completely.
EN
27
Humidity occurs on the outside of the refrigerator or between the doors.
C There may be humidity in the air; this is quite normal in humid weather. When the
humidity is less, condensation will disappear.
Bad odor inside the refrigerator.
• No regular cleaning is performed. >>> Clean the inside of the refrigerator
regularly with a sponge, lukewarm water or sodium bicarbonate diluted in
water.
• Some containers or package materials might cause the smell. >>> Use a different
container or different brand packaging material.
• Food is put into the refrigerator in uncovered containers. >>> Keep the food
in closed containers. Microorganisms spreading out from uncovered
containers can cause unpleasant odors.
C Remove the foods that have expired best before dates and spoiled from the
refrigerator.
The door is not closing.
• Food packages are preventing the door from closing. >>> Replace the packages
that are obstructing the door.
• The refrigerator is not completely even on the floor. >>> Adjust the legs to
balance the refrigerator.
• The floor is not level or strong. >>> Make sure that the floor is level and
capable to carry the refrigerator.
Crispers are stuck.
• The food is touching the ceiling of the drawer. >>> Rearrange food in the drawer.
