operation manual&installation instructions
R-1210
Read all
instructions
carefully before
using the oven.
models
R-1211
R-1214
over the counter microwave oven
2
To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial
number located on the unit. We also suggest you record all the information listed and retain for future reference.
MODEL NUMBER _______________________ SERIAL NUMBER _____________
DATE OF PURCHASE ______________________
DEALER ___________________________ TELEPHONE ________________
SERVICER ___________________________ TELEPHONE ________________
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can result
in harmful exposure to microwave energy. It is important not to defeat or tamper with the
safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close
properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken
or loosened), (3) door seals and sealing surfaces.
(d) Theovenshouldnotbeadjustedorrepairedbyanyoneexceptproperlyqualiedservice
personnel.
TO PHONE:
DIAL 1-800-BE-SHARP ( 237-4277 ) for :
SERVICE (for your nearest Sharp Authorized Servicer)
PARTS (for your authorized parts distributor)
ADDITIONAL CUSTOMER INFORMATION
ACCESSORIES and COOKBOOK
TO WRITE:
Sharp Electronics Corporation
Customer Assistance Center
Sharp Plaza Blvd.
Memphis, Tennessee 38193
TO ACCESS INTERNET:
www.sharpusa.com
FOR CUSTOMER ASSISTANCE
Please provide the following information when you write or call: model number, serial number, date of purchase,
your complete mailing address (including zip code), your daytime telephone number (including area code) and
description of the problem.
3
CONTENTS
For Customer Assistance .......................... 2
Precautions to Avoid Possible
Exposure to Excessive
Microwave Energy .................................. 2
Contents ...................................................... 3
Consumer Limited Warranty ..................... 4
Product Information Card .......................... 4
Important Safety Instructions .................... 5
Unpacking and Installation Instructions .. 6-11
Unpacking and Examining Your Oven ....... 6
Installation Instructions .............................. 6-10
Optional Accessories ................................. 11
Checklist for Installation ............................ 11
Information You Need to Know ................. 12-14
About Your Oven ....................................... 12
About Food ................................................ 12
About Utensils and Coverings ................... 13
About Children and the Microwave ............ 13
About Microwave Cooking......................... 14
About Safety ............................................. 14
Part Names .................................................. 15-16
Before Operating ....................................... 16
To Set the Clock ........................................ 16
Stop/Clear ................................................ 16
Standby Mode .......................................... 16
Manual Operation ....................................... 17
Time Cooking ............................................ 17
To Set Power Level ................................... 17
Manual Defrost .......................................... 17
Special Features ........................................ 18-24
Sensor Cook.............................................. 18
Reheat ....................................................... 19
Sensor Cook Center .................................. 20
Sensor Cook Recipes................................ 21
Defrost Center ........................................... 22
Instant Sensor ........................................... 23
Keep Warm Plus ....................................... 24
Other Convenient Features ...................... 25-26
Custom Help.............................................. 25
Demonstration Mode ................................. 25
Help ........................................................... 25
Multiple Sequence Cooking ...................... 26
Minute Plus................................................ 26
More or Less Time Adjustment .................. 26
Timer ......................................................... 26
Accent Light and Task Light ...................... 26
Cleaning and Care ...................................... 27
Replacing Parts .......................................... 27
Service Call Check ..................................... 28
Specications ............................................. 28
Guia Auto-Touch ......................................... 30-31
Auto-Touch Guide ...................... 31-Back Cover
4
SHARPELECTRONICSCORPORATIONwarrantstotherstconsumerpurchaserthatthisSharpbrand
product (the “Product”), when shipped in its original container, will be free from defective workmanship
and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product
or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor
for the period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s)
set forth below nor to any Product the exterior of which has been damaged or defaced, which has been
subjectedtomisuse,abnormalserviceorhandling,orwhichhasbeenalteredormodiedindesignor
construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth
below and provide proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be grant-
edbto purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF
PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other
than those described herein, or to extend the duration of any warranties beyond the time period described
above on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall
be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for
theperiodoftimedescribedherein,shallconstitutecompletefulllmentofallliabilitiesandresponsibilities
of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims,
whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in
any way responsible, for any damages or defects in the Product which were caused by repairs or attempted
repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way
responsible for any incidental or consequential economic or property damage. Some states do not allow
the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE.
Your Product Model Number
& Description:
Warranty Period for this Product:
Additional Item(s) Excluded from
Warranty Coverage (if any):
Where to Obtain Service:
R-1210, R-1211 or R-1214 Home Use Carousel
™
Microwave Oven.
(Be sure to have this information available when you need service
for your Product.)
One (1) year parts and labor in-home service. The warranty
period continues for an additional six (6) years, for a total of seven
(7) years, with respect to the magnetron tube in the Product for
parts only. Labor and the servicer trip charge are not provided free
of charge for this additional period.
Non-functional accessories, turntable and light bulbs.
From a Sharp Authorized Servicer located In the United States. Be
sure to have Proof of Purchase available. For in-home service, the
servicerwillcometotheunit’slocation.Ifitisnecessarytoremove
the unit for repair, the servicer will reinstall the unit at no extra charge,
provideditwasinstalledaccordingtoSharp’sInstallationInstructions.
TondthelocationofthenearestSharpAuthorizedServicer,call
Sharp toll free at 1-800-BE-SHARP (1-800-237-4277).
PRODUCT INFORMATION CARD
The product information card should be completed within ten days of purchase and returned. It is necessary to
write the model and serial numbers, found on the nameplate in the oven cavity, on the product information card. We
willkeepitonleandhelpyouaccesstheinformationincaseofloss,damageortheft.Thiswillalsoenableusto
contactyouintheunlikelyeventthatanyadjustmentsormodicationsareeverrequiredforyouroven.
TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP OR VISIT www.sharpusa.com.
SAVE THE PROOF OF PURCHASE AS IT IS NEEDED SHOULD YOUR OVEN EVER REQUIRE WARRANTY SERVICE.
CONSUMER LIMITED WARRANTY
5
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using electrical appliances basic safety precautions should be followed, including the following:
WARNING -
Toreducetheriskofburns,electricshock,re,injurytopersonsorexposuretoexcessivemicrowave
energy:
1. READ ALL INSTRUCTIONS BEFORE USING
THE APPLIANCE.
2.Readandfollowthespecic“PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” on inside front cover.
3. This appliance must be grounded. Connect only
to properly grounded outlet. See “GROUNDING
INSTRUCTIONS” on page 7.
4. Install or locate this appliance only in accordance
with the provided installation instructions.
5. Some products such as whole eggs and sealed
containers—for example, closed glass jars—are
able to explode and should not be heated in
this oven.
6. Use this appliance only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This type
ofovenisspecicallydesignedtoheat,cookordry
food. It is not designed for industrial or laboratory
use.t is not designed for industrial or laboratory use.
7. As with any appliance, close supervision is neces
-
sary when used by children.
8. Do not operate this appliance if it has a damaged
cord or plug, if it is not working properly or if it
has been damaged or dropped.
9. This appliance should be serviced only by
qualified service personnel. Contact nearest
Sharp Authorized Servicer for examination, repair
or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not store or use this appliance outdoors. Do
not use this product near water—for example,
near a kitchen sink, in a wet basement or near a
swimming pool, or similar locations.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not let cord hang over edge of table or counter.
15. See door surface cleaning instructions on page 27.
16.Toreducetheriskofreintheovencavity:
a. Do not overcook food. Carefully attend appli
-
ance when paper, plastic or other combustible
materials are placed inside the oven to facilitate
cooking.
b. Remove wire twist-ties from paper or plastic
bags before placing bag in oven.
c. If materials inside the oven should ignite,
keep oven door closed, turn oven off and dis
-
connect the power cord or shut off power
at the fuse or circuit breaker panel.
d. Do not use the cavity for storage purposes.
Do not leave paper products, cooking utensils
or food in the cavity when not in use.
17. Liquids, such as water, coffee or tea are able to
be overheated beyond the boiling point without
appearing to be boiling. Visible bubbling or boiling
when the container is removed from the microwave
oven is not always present. THIS COULD RESULT
IN VERY HOT LIQUIDS SUDDENLY BOILING
OVER WHEN A SPOON OR OTHER UTENSIL
IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
a. Do not overheat the liquid.
b. Stir the liquid both before and halfway through
heating it.
c. Do not use straight-sided containers with narrow
necks. Use a wide-mouthed container
.
d. After heating, allow the container to stand in
the microwave oven at least for 20 seconds
before removing the container.
e. Use extreme care when inserting a spoon or
other utensil into the container.
18. For a wall mounted oven, observe the following
instructions:
a. Do not operate any heating or cooking appliance
beneath this appliance.
b. Do not mount unit directly above a heating or
cooking appliance.
c. Do not mount over a sink.
19. If the oven light fails, consult a SHARP AUTHO
-
RIZED SERVICER.
6
Open the bottomof the carton,bend the carton aps back and tilt theoven over
to rest on plastic foam pad. Lift carton off oven and remove all packing materials,
WALL and TOP CABINET TEMPLATE, Turntable, and Turntable Support. SAVE THE
CARTON AS IT MAY MAKE INSTALLATION EASIER.
1. Remove the feature sticker from the outside of the door, if there is one.
2. DO NOT REMOVE THE WAVEGUIDE COVER, which is located on the right side
wall of the oven cavity. Check to see that there is a WALL TEMPLATE and TOP
CABINET TEMPLATE. Read enclosures and SAVE the Operation Manual.
Check the oven for any damage, such as misaligned or bent door, damaged door
seals and sealing surfaces, broken or loose door hinges and latches and dents inside the cavity or on the door.
If there is any damage, do not operate the oven and contact your dealer or SHARP AUTHORIZED SERVICER.
UNPACKING AND INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
Please read all instructions thoroughly before installing the Over the Counter Microwave Oven. Two
people are recommended to install this product.
If a new electrical outlet is required, its installation should be completed by a qualified electrician
before the Microwave Oven is installed. See 3 ELECTRICAL GROUNDING INSTRUCTIONS on page 7.
1 MOUNTING SPACE
This Microwave Oven requires a mounting
space on a wall as shown in Figure 1. It is
designed to be used under standard 24-inch
wide wall cabinets.
2 WALL CONSTRUCTION
ThisMicrowaveOvenshouldbemountedagainstandsupportedbyaatverticalwall.Thewallmustbeatfor
properinstallation.Ifthewallisnotat,usespacerstollinthegaps.Wallconstructionshouldbeaminimumof
2” x 4” wood studding and 3/8” or more thick dry wall or plaster/lath. The mounting surfaces must be capable of
supporting weight of 110 pounds—the oven and contents—AND the weight of all items which would normally be
stored in the top cabinet above the unit.
The unit should be attached to a minimum of one 2” x 4” wall stud.
Tondthelocationofthestuds,oneofthefollowingmethodsmaybeused:
A. Useastudnder,amagneticdevicewhichlocatesthenailsinthestud.
B. Useahammertotaplightlyacrossthemountingsurfacetondasolidsound.Thiswillindicatestudlocation.
Thecenterofthestudcanbelocatedbyprobingthewallwithasmallnailtondtheedgesofthestudandthen
placing a mark halfway between the edges. The center of any adjacent studs will normally be 16” or 24” to either
side of this mark.
Figure 1
UNPACKING AND EXAMINING YOUR OVEN
24"
7
UNPACKING AND INSTALLATION INSTRUCTIONS
3 ELECTRICAL GROUNDING INSTRUCTIONS
This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug.
It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the National
Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding reduces risk
of electric shock by providing an escape wire for the electric current.
WARNING - Improper use of the grounding plug can result in a risk of electric shock.
Electrical Requirements
The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. or more
protected electrical supply. It is recommended that a separate circuit serving
only the oven be provided.
The oven is equipped with a 3-prong grounding plug. It must be plugged into a
wall receptacle that is properly installed and grounded. DO NOT UNDER
ANY CIRCUMSTANCES CUT OR REMOVE THE GROUNDING PIN FROM
THE PLUG.
The single grounded receptacle should be located inside the cabinet directly
above the Microwave Oven mounting location as shown in Figure 2.
NOTE:
1. If you have any questions about the grounding or electrical
instructions,consultaqualiedelectricianorserviceperson.
2. Neither Sharp nor the dealer can accept any liability for
damage to the oven or personal injury resulting from failure to
observe the correct electrical connection procedures.
Radio or TV Interference
Should there be any interference caused by the microwave oven
to your radio or TV, check that the microwave oven is on a different
electrical circuit, relocate the radio or TV as far away from the oven
as feasible or check position and signal of receiving antenna.
• Phillips Screwdriver
• Electric Drill
• 1/2”, 5/8” and 3/32” Drill Bits
• 1-1/2” Wood Bit or Metal Hole
Cutter (if metal cabinet is used)
• Saw to cut exhaust opening
(if needed)
• Protective Drop Cloth for product
and range - you may also use
carton for protection
• Scissors
• Pencil
• Measure
• Tape
4 TOOLS RECOMMENDED FOR INSTALLATION
Figure 2
Ground
Receptacle
Opening for
Power Cord
8
UNPACKING AND INSTALLATION INSTRUCTIONS
6 PREPARATION OF THE OVEN
1. Turn oven on the side. See Figure 4.
2. Follow steps (A)-(D) to remove mounting plate from the back of the oven as shown in Figure 4.
(A) Release mounting plate by pulling out the lever that is on the bottom of the oven. See Figure 5.
(B) When lever is out, pull that side of the mounting plate away from the oven. See Figure 4.
(C) Repeat step (A) on other side.
(D) Repeat step (B) on other side
.
Figure 4
Figure 3
Parts shown not to common scale.

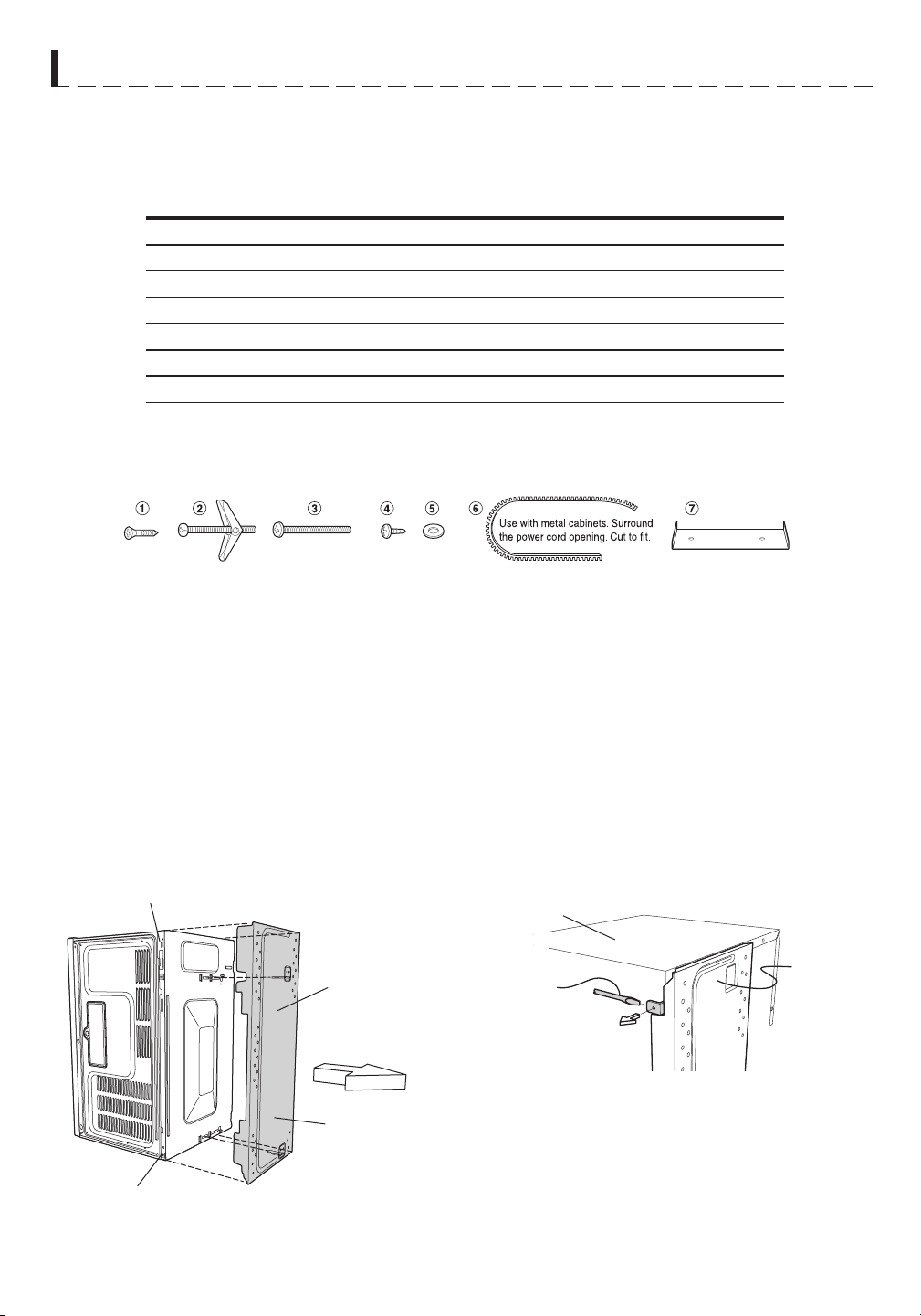

ITEM NAME QUANTITY PART CODE
1 Wood Screw 5 X 30 mm 6 XTSSD50P35000
2 Toggle Bolt with nuts #10 - 24 X 50 mm 4 LX-BZ0195WRE0
3 Top Cabinet Screw 5 X 60 mm 2 XBRSD50P60000
4 Tapping Screw 4 x 12 mm 3 XOTSD40P12000
5 Flat Washer 30 mm diameter 2 XWHSD50-16300
6 Grommet 1 LBSHC0040MRE0
7 Scale Plate 2 LANG-B003MRP0
5 INSTALLATION HARDWARE
The INSTALLATION HARDWARE items 1 - 7 are in a small bag. Item 8 is packed separately. All items are in a
small carton packed below the oven.
(C)
(D)
(B)
(A)
Figure 5
Use screwdriver to
assist in releasing
mounting plate.
Mounting Plate
Bottom of
Microwave
(A)
9
UNPACKING AND INSTALLATION INSTRUCTIONS
7 OVEN INSTALLATION
THIS OVEN CANNOT BE PROPERLY INSTALLED WITHOUT REFERRING TO THE MOUNTING INSTRUCTIONS
FOUND ON WALL AND TOP CABINET TEMPLATES.
THE NEXT STEP IS TO READ AND FOLLOW MOUNTING INFORMATION ON WALL AND TOP CABINET
TEMPLATES. THIS OVEN MUST BE ATTACHED TO AT LEAST ONE WALL STUD. SEE WALL CONSTRUCTION
ON PAGE 6.
WHEN DONE WITH TEMPLATES, PROCEED TO MOUNTING SCALE PLATE SECTION.
MOUNTING SCALE PLATE
Attach 2 Scale Plates 7 with tape (not included). See
Figure 6 and WALL TEMPLATE for locations.
NOTE:
This Microwave Oven may not be built-in directly over gas or
electricovensorcooktops.Toreducetheriskofreorelec-
trical shock, install at least 13 3/16" above the countertop.
Figure 6
MOUNTING PLATE
1. Separate 4 Toggle Bolts 2, packed in the INSTALLATION HARDWARE, from the Toggle Nuts.
2. Match 5/8” holes (not in studs), drilled through WALL AND TOP CABINET TEMPLATE into wall to corresponding
holes on Mounting Plate.
3. Insert Toggle Bolts into matched openings on Mounting Plate. Put Toggle Nuts on Toggle Bolts. See Figure 7.
4. Position the Mounting Plate with the Toggle Bolts attached at the wall location and insert Toggle Nuts and Bolts
through the holes in the wall with the Toggle Nuts closed. Figure 8. Use Wood Screws 1 to attach the Mounting
Plate to studs.
NOTE: Before insertion, be sure you leave a space more than the thickness of the wall between the Mounting
Plate and the end of each of the Toggle Nuts (in the closed position). If you do not leave enough space, the
Toggle Nut will not be able to open on the other side of the wall. Also, once a Toggle Nut opens, it cannot
be withdrawn from the hole; therefore make sure all of the Toggles are in the correct position before
insertion.
5. Align the Mounting Plate carefully and hold in position while tightening Toggle Bolts. Pull Toggle Bolt toward you
and turn clockwise to tighten. Figure 9.
Figure 7
Figure 8
Figure 9
Wall
Mounting
Plate
Space more than
wall thickness
Mounting Plate
Scale Plates
10
3
5
UNPACKING AND INSTALLATION INSTRUCTIONS

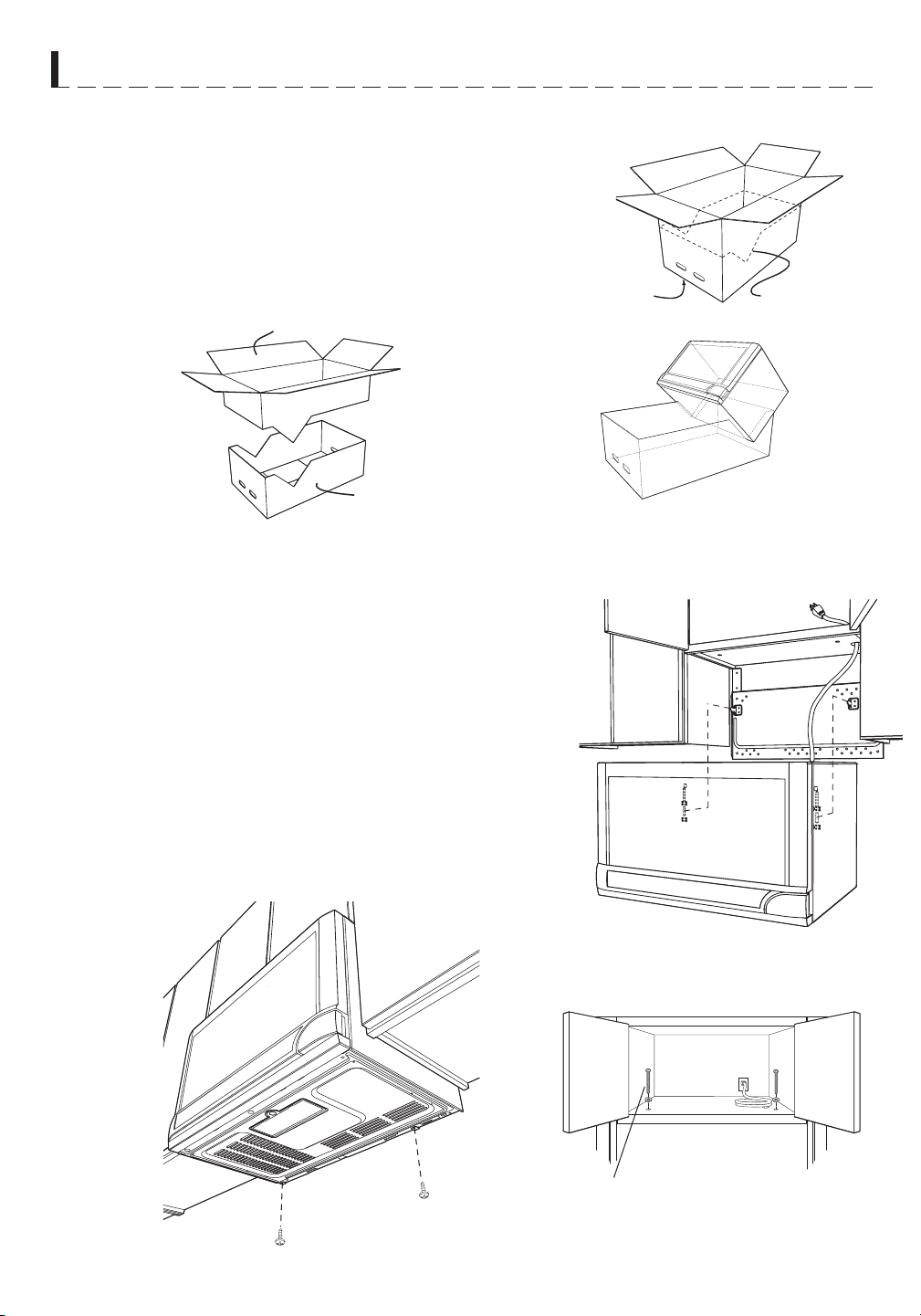

8 PREPARATION AND USE OF THE CARTON TO ASSIST
IN THE INSTALLATION OF THE MICROWAVE OVEN
Utilization of the carton may make installation easier.
1. Place carton upside down. See Figure 10.
2. Using cutting line around the carton, cut into two pieces (A) and (B).
See Figure 11.
3. Position oven to assist in mounting to the wall. See Figure 12.
Figure 11
Figure 10
Figure 12
MOUNTING OVEN TO THE WALL
Two people are recommended to attach the Microwave Oven to the
Mounting Plate.
1. Thread the Power Supply Cord through the hole made in the
bottom of the top cabinet. Install the oven by snapping it onto the
Mounting Plate. See Figure 13.
2. Use two Tapping Screws 4 to secure the levers that are on the
bottom of the oven. See Figure 14.
3. Use two Top Cabinet Screws 3 and two Flat Washers 5, supplied
in the INSTALLATION HARDWARE, to attach the unit to the top
cabinet. See Figure 15.
Figure 13
Figure 14
Figure 15
NOTE:
Screw length has been designed to accom-
modate 3/8" and above cabinet depth. If less,
screw must be cut to required length.
(A)
(B)
Top Side
Cutting Line
11
UNPACKING AND INSTALLATION INSTRUCTIONS
CHECKLIST FOR INSTALLATION
1. Make sure the unit has been installed according to all of the Installation Instructions, the Wall and Top Cabinet
Templates.
2. Plug in the power cord.
3. Keep the Operation Manual and Installation Instructions.

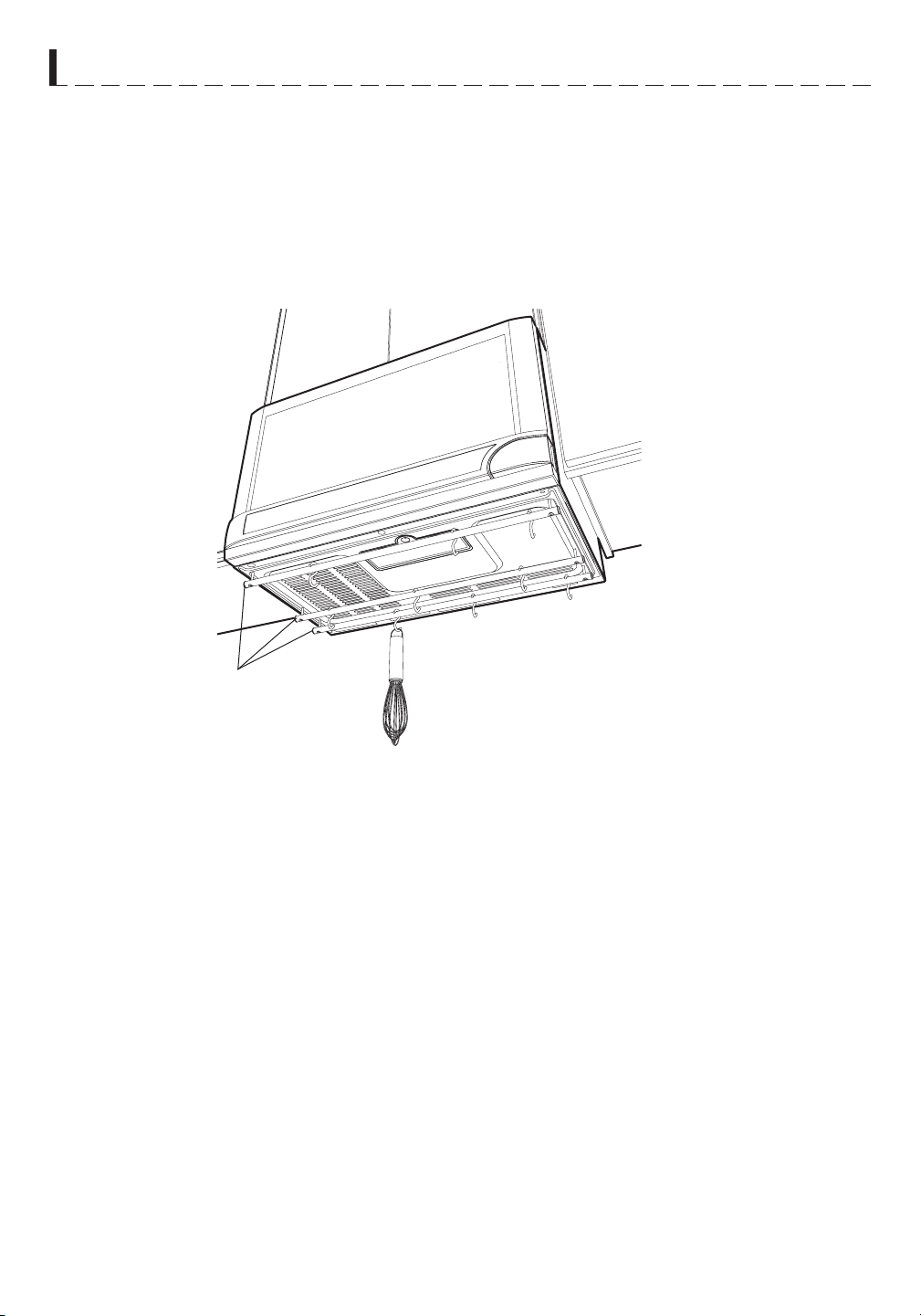

OPTIONAL ACCESSORIES
Optional Accessory Bars (RK-OTC120) with "S" hooks can be ordered directly from the Sharp Accessories and
Supplies Center. Each kit contains 2 bars and 8 "S" hooks. Have your credit card number available and call
toll-free: 1-800-BE-SHARP (237-4277) to have the Accessory Bars sent to your address.
WARNING: WHEN HANGING UTENSILS FROM "S" HOOKS, DO NOT HANG ITEMS SUCH AS DISHTOWELS
THAT MAY BLOCK THE OVEN VENTS. THE TOTAL UTENSIL WEIGHT SHOULD NOT EXCEED 5 POUNDS
PER BAR.
2 BARS PER KIT
8 "S" HOOKS
3 AVAILABLE
POSITIONS
12
INFORMATION YOU NEED TO KNOW
ABOUT YOUR OVEN
This Operation Manual is valuable: read it carefully
and always save it for reference.
NEVER use the oven without the turntable and support
nor turn the turntable over so that a large dish could
be placed in the oven. The turntable will turn both
clockwise and counterclockwise.
ALWAYS have food in the oven when it is on to absorb
the microwave energy.
When using the oven at power levels below 100%, you
may hear the magnetron cycling on and off. It is normal
for the exterior of the oven to be warm to the touch
when cooking or reheating.
Condensation is a normal part of microwave cooking.
Roomhumidityandthemoistureinfoodwillinuence
the amount of moisture that condenses in the oven.
Generally, covered foods will not cause as much con-
densation as uncovered ones. Vents on the oven back
must not be blocked.
The oven is for food preparation only. It should not be
used to dry clothes or newspapers.
All ovens are rated 1100 watts by using the IEC Test
Procedure. In using recipes or package directions,
check food a minute or two before the minimum time
and add time accordingly.
ABOUT FOOD
FOOD DO DON'T
Eggs, sausages,
nuts, seeds, fruits
& vegetables
• Puncture egg yolks before cooking to
prevent “explosion”.
• Pierce skins of potatoes, apples, squash,
hot dogs and sausages so that steam
escapes.
• Cook eggs in shells.
• Reheat whole eggs.
• Dry nuts or seeds in shells.
Popcorn • Use specially bagged popcorn for the
microwave oven.
• Listen while popping corn for the popping
to slow to 1 or 2 seconds or use special
POPCORN pad.
• Pop popcorn in regular brown bags
or glass bowls.
• Exceed maximum time on popcorn
package.
Baby food • Transfer baby food to small dish and heat
carefully, stirring often. Check temperature
before serving.
• Put nipples on bottles after heating and
shake thoroughly. “Wrist” test before
feeding.
• Heat disposable bottles.
• Heat bottles with nipples on.
• Heat baby food in original jars.
General • Cutbakedgoodswithllingafterheating
to release steam and avoid burns.
• Stir liquids briskly before and after heating
to avoid “eruption”.
• Use deep bowl, when cooking liquids or
cereals, to prevent boilovers.
• Heat or cook in closed glass jars or
air tight containers.
• Can in the microwave as harmful
bacteria may not be destroyed.
• Deep fat fry.
• Dry wood, gourds, herbs or wet
papers.
13
ABOUT UTENSILS AND COVERINGS
The following coverings are ideal:
• Paper towels are good for covering foods for
reheating and absorbing fat while cooking bacon.
• Wax paper can be used for cooking and
reheating.
• Plastic wrap that is specially marked for micro-
wave use can be used for cooking and reheating.
DO NOT allow plastic wrap to touch food. Vent
so steam can escape.
• Lids that are microwave-safe are a good choice
because heat is kept near the food to hasten
cooking.
• Oven cooking bags are good for large meats or
foods that need tenderizing. DO NOT use metal
twist ties. Remember to slit bag so steam can
escape.
How to use aluminum foil in your microwave
oven:
• Smallatpiecesofaluminumfoilplacedsmooth-
ly on the food can be used to shield areas that
are either defrosting or cooking too quickly.
• Foil should not come closer than one inch to any
surface of the oven.
Should you have questions about utensils or coverings,
check a good microwave cookbook or follow recipe
suggestions.
ACCESSORIES There are many microwave accesso-
ries available for purchase. Evaluate carefully before
you purchase so that they meet your needs. A micro-
wave-safe thermometer will assist you in determining
correct doneness and assure you that foods have been
cooked to safe temperatures. Sharp is not responsible
for any damage to the oven when accessories are used.
Children should be taught all safety precautions: use
potholders, remove coverings carefully, pay special
attention to packages that crisp food because they
may be extra hot.
Don’tassumethatbecauseachildhasmasteredone
cooking skill he/she can cook everything.
Children need to learn that the microwave oven is not
a toy. See page 25 for Child Lock feature.
It is not necessary to buy all new cookware. Many
pieces already in your kitchen can be used successfully
in your new microwave oven. Make sure the utensil
does not touch the interior walls during cooking.
Use these utensils for safe microwave cooking
and reheating:
• glass ceramic (Pyroceram
®
), such as
Corningware
®
.
• heat-resistant glass (Pyrex
®
)
• microwave-safe plastics
• paper plates
• microwave-safe pottery, stoneware and
porcelain
• browning dish (Do not exceed recommended
preheating time. Follow manufacturer's
directions.)
These items can be used for short time reheat-
ing of foods that have little fat or sugar in them:
• wood, straw, wicker
DO NOT USE
• metal pans and bakeware
• dishes with metallic trim
• non-heat-resistant glass
• non-microwave-safe plastics (margarine tubs)
• recycled paper products
• brown paper bags
• food storage bags
• metal twist-ties
Should you wish to check if a dish is safe for microwav-
ing, place the empty dish in the oven and microwave
on HIGH for 30 seconds. A dish which becomes very
hot should not be used.
ABOUT CHILDREN AND THE MICROWAVE
Children below the age of 7 should use the microwave
oven with a supervising person very near to them.
Between the ages of 7 and 12, the supervising person
should be in the same room.
The child must be able to reach the oven comfortably;
if not, he/she should stand on a sturdy stool.
At no time should anyone be allowed to lean or swing
on the oven door.
INFORMATION YOU NEED TO KNOW
14
ABOUT MICROWAVE COOKING
• Arrange food carefully. Place thickest areas towards
outside of dish.
• Watch cooking time. Cook for the shortest amount
of time indicated and add more as needed. Food
severely overcooked can smoke or ignite.
• Cover foods while cooking. Check recipe or cook-
book for suggestions: paper towels, wax paper,
microwave plastic wrap or a lid. Covers prevent
spattering and help foods to cook evenly.
• Shield with small at pieces of aluminum foil any
thin areas of meat or poultry to prevent overcooking
before dense, thick areas are cooked thoroughly.
• Stir foods from outside to center of dish once or twice
during cooking, if possible.
• Turn foods over once during microwaving to
speed cooking of such foods as chicken and ham-
burgers. Large items like roasts must be turned over
at least once.
• Rearrange foods such as meatballs halfway
through cooking both from top to bottom and from
the center of the dish to the outside.
• Add standing time. Remove food from oven and
stir, if possible. Cover for standing time which allows
thefoodtonishcookingwithoutovercooking.
• Check for doneness. Look for signs indicating that
cooking temperatures have been reached.
Doneness signs include:
- Food steams throughout, not just at edge.
- Center bottom of dish is very hot to the touch.
- Poultry thigh joints move easily.
- Meat and poultry show no pinkness.
- Fishisopaqueandakeseasilywithafork.
• Check foods to see that they are cooked to the
United States Department of Agriculture's recom-
mended temperatures.
To test for doneness, insert a meat thermometer in a
thick or dense area away from fat or bone. NEVER leave
the thermometer in the food during cooking, unless it is
approved for microwave oven use.
• ALWAYS use potholders to prevent burns when
handling utensils that are in contact with hot food.
Enough heat from the food can transfer through
utensils to cause skin burns.
• Avoid steam burns by directing steam away from
the face and hands. Slowly lift the farthest edge of
a dish's covering and carefully open popcorn and
oven cooking bags away from the face.
• Stay near the oven while it's in use and check
cooking progress frequently so that there is no
chance of overcooking food.
• NEVER use the cavity for storing cookbooks or
other items.
• Select, store and handle food carefully to pre-
serve its high quality and minimize the spread of
foodborne bacteria.
• Keep waveguide cover clean. Food residue can
causearcingand/orres.
•
Use care when removing items from the oven so
that the utensil, your clothes or accessories do not
touch the safety door latches.
ABOUT SAFETY
... for fresh pork, ground meat, bone-
lesswhitepoultry,sh,seafood,
egg dishes and frozen prepared
food.
... for leftover, ready-to-reheat re-
frigerated, and deli and carry-out
“fresh” food.
... white meat of poultry.
... dark meat of poultry.
160°F
TEMP FOOD
165°F
170°F
180°F
INFORMATION YOU NEED TO KNOW
15
PART NAMES
1 Oven door with see-through window
Be careful with the edge of the oven door
as it is glass and could chip or break.
2 Door hinges
3 Waveguide cover:
DO NOT REMOVE.
4 Turntable motor shaft
5 Oven light
It will light when oven is operating or door is open.
6 Safety door latches
The oven will not operate unless the door is
securely closed.
7 Feature Guide Reference Panel
8 One touch DOOR OPEN button
Push to open door.
9 Nameplate
10 Removable turntable
The turntable will rotate clockwise or counter-
clockwise. Only remove for cleaning.
11 Removable turntable support
First, carefully place the turntable support in the
motorshaftinthecenteroftheovenoor.Then,
place the turntable on the turntable support
securely.
12 Light cover
BOTTOM VIEW
(Front of Microwave)
(Rear of Microwave)
FRONT VIEW
12
16
2
34 5
10
11
6
8
9
7
16

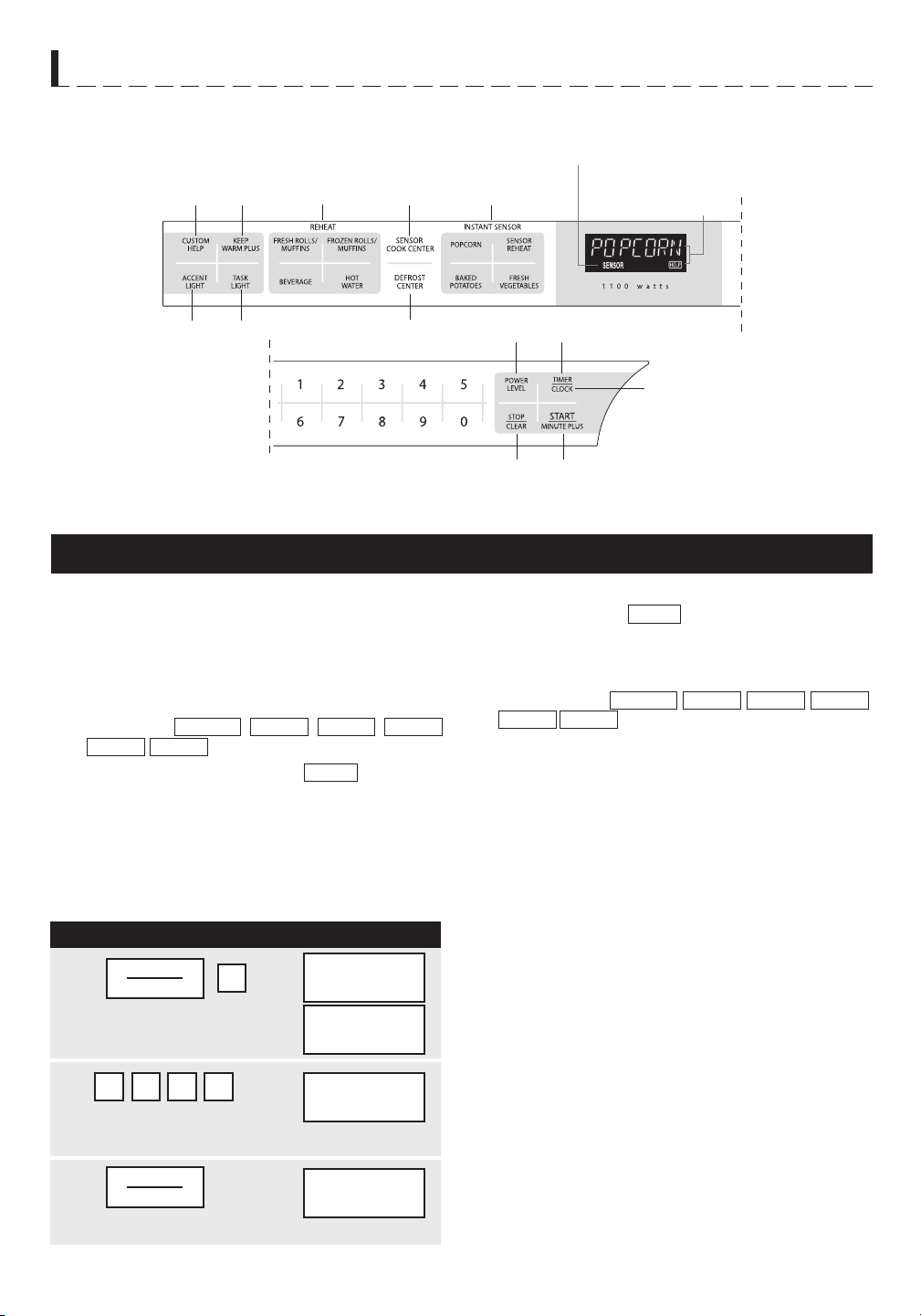

CONTROL PANEL
PART NAMES
Number indicates pages on which there are feature descriptions and usage information.
Words in the lower portion of the display will light to indicate what function is in progress.
Indicators
19
2325 24
17 26
16
22
2626
BEFORE OPERATING
• Before operating your new microwave oven make
sure you read and understand this operation manual
completely.
• Before the oven can be used, follow these proce-
dures:
1. Plug in the oven. Close the door. The oven display
will show
WELCOME
PRESS
CLEAR
AND
PRESS
CLOCK
.
2. Touch the STOP/CLEAR pad.
:
will appear.
3. Set clock.
TO SET THE CLOCK
• Suppose you want to enter the correct time of day
12:30 (A.M. or P.M.).
PROCEDURE DISPLAY
1
2
3
Touch CLOCK pad and
number 2.
Touch CLOCK pad again.
Enter the correct time of
day by touching the numbers in sequence.
TIMER
CLOCK
TIMER
CLOCK
2
1 3 02
ENTER
12:30
12:30
T I ME
20
16
26
This is a 12 hour clock. If you attempt to enter an
incorrect clock time,
ERROR
will appear in the display.
Touch the STOP/CLEAR pad and re-enter the time.
• If the electrical power supply to your microwave
oven should be interrupted, the display will inter-
mittently show
WELCOME
PRESS
CLEAR
AND
PRESS
CLOCK
after the power is reinstated. If this
occurs during cooking, the program will be erased.
The time of day will also be erased. Simply touch
STOP/CLEAR pad and reset the clock for the correct
time of day.
STOP/CLEAR
Touch the STOP/CLEAR pad to:
1. Erase if you make a mistake during programming.
2. Cancel timer.
3. Stop the oven temporarily during cooking.
4. Return the time of day to the display.
5. Cancel a program during cooking, touch twice.
STANDBY MODE
This microwave will go into standby mode after a period
of inactivity. The backlight of the display will automat-
ically dim after 3 minutes if the unit has not been in
operation. If the display is in standby mode, simply touch
the control panel or open/close the door to return the
backlight to maximum brightness.
17
PROCEDURE DISPLAY
1
3
2
Touch POWER LEVEL pad eight times
or hold down until the desired power
level appears.
POWER
LEVEL
MANUAL OPERATION
TO SET POWER LEVEL
There are eleven preset power levels.
Using lower power levels increases the cooking time
which is recommended for foods such as cheese, milk
and long slow cooking of meats. Consult cookbook or
recipesforspecicrecommendations.
APPROXIMATE
PERCENTAGE
OF POWER
COMMON WORDS
FOR
POWER LEVELS
TOUCH POWER
LEVEL PAD NUMBER OF TIMES
FOR DESIRED POWER
POWER LEVEL x 1 100% High
POWER LEVEL x 2 90%
POWER LEVEL x 3 80%
POWER LEVEL x 4 70% Medium High
POWER LEVEL x 5 60%
POWER LEVEL x 6 50% Medium
POWER LEVEL x 7 40%
POWER LEVEL x 8 30% Med Low/ Defrost
POWER LEVEL x 9 20%
POWER LEVEL x 10 10% Low
POWER LEVEL x 11 0%
Touch START/MINUTE PLUS pad.
Enter defrosting time.
5 0 0
15.00
1P-30
15.00
MANUAL DEFROST
If the food that you wish to defrost is not listed on
the DEFROST CENTER CHART or is above or below
the limits in the “Amount” column on the DEFROST
CENTER CHART (see page 22), you need to defrost
manually.
You can defrost any frozen food, either raw or previously
cooked, by using Power Level for 30%. Follow the exact
4-step procedure found under TO SET POWER LEVEL.
Estimate defrosting time and press POWER LEVEL pad
eight times for 30% power.
For either raw or previously cooked frozen food the
rule of thumb is approximately 4 minutes per pound.
For example, defrost 4 minutes for 1 pound of frozen
spaghetti sauce.
Always stop the oven periodically to remove or separate
the portions that are defrosted. If food is not de-
frosted at the end of the estimated defrosting time,
program the oven in 1 minute increments on Power
Level 30% until totally defrosted.
When using plastic containers from the freezer, defrost
only long enough to remove from the plastic in
order to place in a microwave-safe dish.
• Suppose you want to defrost for 5 minutes at 30%.
x 8
4
When the defrost time is complete, a long tone
will sound and
END
will appear in the display.
COOK DEFROST
TIME COOKING
Your oven can be programmed for 99 minutes 99 seconds
(99.99). Always enter the seconds after the minutes,
even if they are both zeros.
• Suppose you want to cook for 5 minutes at 100%.
PROCEDURE DISPLAY
1
2
Touch START/MINUTE PLUS pad.
Enter cooking time.
5 0 0
15.00
START
MINUTE PLUS
START
MINUTE PLUS
15.00
COOK DEFROST
18
SPECIAL FEATURES
SENSOR COOK
Sharp's Sensor is a semi-conductor device that detects
the vapor (moisture and humidity) emitted from the food
as it heats. The sensor adjusts the cooking times and
power level for various foods and quantities.
Using Sensor Settings:
1. After oven is plugged in, wait 2 minutes before using
Sensor Cook.
2. Be sure the exterior of the cooking container and the
interior of the oven are dry. Wipe off any moisture
with a dry cloth or paper towel.
3. The oven works with foods at normal storage tem-
perature. For example, popcorn would be at room
temperature.
4. Any Sensor Cook selection can be programmed
with More or Less Time Adjustment. See page 26.
5. More or less food than the quantity listed in the
chart should be cooked following the guidelines in
any microwave cookbook.
6. DuringtherstpartofSensorCook,thefoodname
will appear on the display. Do not open the oven door
or touch STOP/CLEAR during this part of the cooking
cycle. The measurement of vapor will be interrupt-
ed. If this occurs, an error message will appear. To
continue cooking, touch the STOP/CLEAR pad and
cook manually.
When the sensor detects the vapor emitted from
the food, remainder of cooking time will appear.
Door may be opened when remaining cooking
time appears on the display. At this time, you may
stir or season food, as desired.
7. If the sensor does not detect vapor properly when
popping popcorn, the oven will turn off, and the
correct time of day will be displayed. If the sensor
does not detect vapor properly when cooking other
foods,
ERROR will be displayed, and the oven will
turn off.
8. Check food for temperature after cooking. If additional
time is needed, continue to cook manually.
9. Each food has a cooking hint. Touch CUSTOM
HELP pad when the HELP indicator is lighted in the
display.
Covering Foods:
Some foods work best when covered. Use the cover
recommended in the INSTANT SENSOR and SENSOR
COOK CENTER for these foods.
1. Casserole lid.
2. Plastic wrap: Use plastic wrap recommended for
microwave cooking. Cover dish loosely; allow
approximately 1/2 inch to remain uncovered to
allow steam to escape. Plastic wrap should not
touch food.
3. Wax paper: Cover dish completely; fold excess
wrap under dish to secure. If dish is wider than paper,
overlap two pieces at least one inch to cover.
Be careful when removing any covering to allow
steam to escape away from you.
19
SPECIAL FEATURES
REHEAT
Reheat allows you to heat four of your favorite foods
by touching just one pad.
• Supposeyouwanttoheat2freshrollsormufns.
PROCEDURE DISPLAY
Select desired setting.
Touch FRESH ROLLS/MUFFINS pad 2 times.
The oven starts automaticallly.
FRESH ROLLS/
MUFFINS
2 PCS
COOK LBS HELP
NOTE:
1. To increase quantity, touch chosen pad until number
in display is same as desired quantity to cook. Ex:
touch BEVERAGE three times for 1.5 cups. More or
less food than the quantity listed in the chart should
be heated following the guidelines in any microwave
cookbook.
2. Reheat can be programmed with More or Less Time
Adjustment. See page 26.
3. Thenalresultwillvaryaccordingtothefoodcondi-
tion (e.g. initial temperature, shape, quality). Check
food for temperature after heating. If additional time
is needed, continue to heat manually.
4. To use any Reheat setting, touch pad within 3 min-
utes after cooking, closing the door or touching the
STOP/CLEAR pad.
x 2
REHEAT CHART
FOOD
AMOUNT
PROCEDURE
Usethispadtowarmrolls,mufns,biscuits,bagelsetc.Largeitemsshould
be considered as 2 or 3 regular size. Arrange on plate; cover with paper
towel.Forrefrigeratedrollsormufns,itmaybenecessarytodoublethe
entered amount to ensure the proper serving temperature. For example,
enterquantityof2for1refrigeratedmufn.
FRESH ROLLS/
MUFFINS
1 - 8
BEVERAGE
Use this pad to warm rolls, mufns, biscuits, bagels etc. Large items
should be considered as 2 or 3 regular size. Arrange on plate; cover with
paper towel.
FROZEN ROLLS/
MUFFINS
1 - 8
.5 - 2.0 cups
Press the pad for amount (cups).
Once .5
Twice 1.0
3 times 1.5
4 times 2.0
This setting is good for restoring cooled beverage to a better drinking
temperature. Stir liquid briskly before and after heating to avoid “eruption”.
Touch BEVERAGE pad.
HOT WATER 1 - 6 cups Use this pad to heat water for preparing coffee, tea, bouillon and instant
soup as well as heat the water to cook pasta. When preparing individual
cups, place instant coffee, tea or bouillon in cup and stir before heating.
Allow to stand 20 seconds after heating before stirring and drinking.
Stir
carefully after removing from the oven. When heating 4 to 6 cups of water,
place in large casserole and cover with lid or plastic wrap. When oven
signals, add pasta and continue cooking according to package directions.
Touch HOT WATER pad once for each cup up to six.
20
SPECIAL FEATURES
2. Rice
Rice Water Size of casserole dish
.5 cup 1 cup 1.5 quart
1 cup 2 cups 2 quart
1.5 cups 3 cups 2.5 or 3 quart
2 cups 4 cups 3 quart or larger
SENSOR COOK CENTER
You can cook many foods by touching the SENSOR
COOK CENTERpadandthefoodnumber.Youdon’t
need to calculate cooking time or power level.
• Suppose you want to cook ground meat.
PROCEDURE
Touch SENSOR COOK
CENTER pad and
number 1.
When the sensor detects the vapor emitted from
the food, remainder of cooking time will appear.
1
SENSOR COOK CENTER CHART
FOOD AMOUNT PROCEDURE
1
2
Touch START/
MINUTE PLUS pad.
START
MINUTE PLUS
NOTE:
1. Sensor Cook Center can be programmed with
More or Less Time Adjustment. See page 26.
2. Thenalresultwillvaryaccordingtothefoodcondi-
tion (e.g. initial temperature, shape, quality). Check
food for temperature after heating. If additional time
is needed, continue to heat manually.
1. Ground meat
3. Fish/seafood
4. Frozen entrees
5. Chicken breast
6. Frozen
vegetables
.5 - 2.0 cups
.25 - 2.0 lb
.25 - 2.0 lb
6 - 17 oz
.25 - 2.0 lb
.25 - 1.25 lb
Place rice into a deep casserole dish and add double quantity of water.
Cover with lid or plastic wrap. After cooking, stir, cover and let stand 3 to
5 minutes or until all liquid has been absorbed.
Use this setting to cook ground beef or turkey as patties or in a casse-
role to be added to other ingredients. Place patties on a microwave-safe
rack and cover with wax paper. Place ground meat in a casserole and cover
with wax paper or plastic wrap. When oven stops, turn patties over or stir
meat in casserole to break up large pieces. Re-cover and touch START/
MINUTE PLUS. After cooking, let stand, covered, for 2 to 3 minutes.
Arrange in ring around shallow glass dish (roll fillet with edges
underneath). Cover with plastic wrap. After cooking, let stand, covered,
3 minutes.
Use this setting for frozen, convenience foods. It will give satisfactory
results for most brands. You may wish to try several and choose your favor-
ite. Remove package from outer wrapping and follow package directions
for covering. After cooking, let stand, covered for 1 to 3 minutes.
Cover with vented plastic wrap. After cooking, let stand, covered 3 to 5
minutes. Chicken should be 160°F.
Do not add water. Cover with lid or plastic wrap. After cooking, stir and let
stand, covered, for 3 minutes.
SENSOR
COOK CENTER
21
SPECIAL FEATURES
SENSOR COOKING RECIPES
Mexican Seasoned Potatoes
Makes 6 to 8 servings
4 medium baking potatoes (8 ounces each)
1
/2 teaspoon oregano leaves
1
/4 cup olive oil
1
/4 teaspoon ground cumin
1 tablespoon instant minced onion
1
/2 teaspoon salt
1
/2 teaspoon chili powder
1
Cut each potato lengthwise into 4 equal wedges. Place potato wedges into 10-inch square casserole. Toss
potatoes with oil to coat well.
2
In small bowl, combine remaining ingredients. Sprinkle over potatoes.
3
Cover potatoes with wax paper. Microwave using INSTANT SENSOR BAKED POTATOES setting. Rearrange
potatoes when time appears on display. Let stand, covered, 5 minutes.
Hearty Turkey Chili
Makes 6 servings
1 pound ground turkey
1 large onion, chopped
2 garlic cloves, minced
2 tablespoons chili powder
1 tablespoon cumin
1
In 3-quart casserole, place ground turkey, onion, garlic, chili powder and cumin. Mix thoroughly.
2
Cover and microwave using SENSOR COOK CENTER - 1.Ground meat. Stir and drain.
3
To meat mixture, add zucchini, tomatoes with their liquid, tomato paste, beans and corn. Microwave, covered,
using INSTANT SENSOR REHEAT.
Creole Corn
Makes 6 servings
2 teaspoons oil
1
/2 cup chopped celery
1
/2 cup chopped green pepper
16 ounce can tomatoes
4 ounce can mushroom stem and pieces, drained
1
In 2-quart casserole, combine oil, celery, green pepper, tomatoes, mushrooms, sugar, onion powder, garlic
powder, salt and pepper.
2
Microwave using INSTANT SENSOR REHEAT. Set aside.
3
In covered, 1-quart casserole, microwave corn using SENSOR COOK CENTER - 6.Frozen vegetables. Drain.
4
Combine corn and vegetable-seasoning mixture. Stir and serve immediately.
Savory Flounder Fillets
Makes 4 servings
3
/4 cupofcornakecrumbs
3 tablespoons chopped parsley
2 teaspoons grated lemon peel
1
Onwaxedpaper,combinecornakecrumbs,parsley,lemonpeelandpaprika.Diplletsinbeatenegg,then
coat with crumb mixture.
2
Placeshinacovered,microwave-safe,bakingdish.MicrowaveusingSENSOR COOK CENTER - 3.Fish/
seafood.
3
Serve with tartar or cocktail sauce or melted cheese.
1
/2 teaspoon paprika
1 poundounderllets
1 egg, slightly beaten
1 medium zucchini, cut into 1 inch cubes
1 28 ounce can of tomatoes
1
/3 cup tomato paste
1 15
1
/4 to 19 ounce can red kidney beans, drained
8 ounces frozen corn, thawed
1 teaspoon brown sugar
1
/2 teaspoon onion powder
1
/4 teaspoon garlic powder
salt and pepper to taste
1 package (16 ounces) frozen corn
22
SPECIAL FEATURES
DEFROST CENTER
Defrost Center automatically defrosts all the foods
shown in the DEFROST CENTER CHART below.
Round the weight to the nearest tenth of a pound.
Touch DEFROST CENTER pad and the desired
number for food selection. Then enter weight in .1 lb
increments.
• Suppose you want to defrost a 3.0 pound steak.
PROCEDURE DISPLAY
1
Touch DEFROST CENTER pad and press
number 2 for Steaks/chops. Enter weight 3.0 lb.
Touch START/MINUTE PLUS pad.
The oven will stop and directions will be displayed.
2
4
After defrost cycle ends, cover and let stand
as indicated in chart below.
NOTE:
Checkfoodswhenovensignals.Afternalstage,smallsectionsmaystillbeicy.Letstandtocontinue
thawing. Do not defrost until all ice crystals are thawed.
Shielding prevents cooking from occurring before the center of the food is defrosted. Use small smooth strips of
aluminum foil to cover edges and thinner sections of the food.
DEFROST CENTER CHART
1. Ground
meat
PROCEDURE
3. Boneless
poultry
.5 - 2.0 lb
.5 - 2.0 lb
2. Steaks/
chops
.5 - 3.0 lb
3.0
NO.
Lb
CUPS
OZ.
COOK DEFROST
After the 1st stage, open the door, turn steak
over and shield any warm portions. Close the
door.
Touch START/
MINUTE PLUS pad.
AMOUNT
3
After the 2nd stage, open the door and shield
any warm portions. Close the door.
Touch START/
MINUTE PLUS pad.
DEFROST
CENTER
4. Bone-in
poultry
.5 - 3.0 lb
Pull apart and remove any thawed pieces after each stage. Let stand, covered, for
5 to 10 minutes.
After each stage, rearrange and if there are warm or thawed portions, shield with
smallatpiecesofaluminumfoil.Removeanymeatorshthatisnearlydefrosted.
Let stand, covered, for 10 to 20 minutes.
Use boneless breast of chicken or turkey. After each stage, if there are warm or
thawed portions, rearrange or remove. Let stand, covered, for 10 to 20 minutes.
Arrange pieces with meatiest portions toward outside of glass dish or microwave
safe rack. After each stage, if there are warm or thawed portions, rearrange or
remove. Let stand, covered, for 10 to 20 minutes.
START
MINUTE PLUS
START
MINUTE PLUS
2
NOTE:
1. Any Defrost Center choice can be programmed
with More or Less Time Adjustment. Touch the
POWER LEVEL pad once or twice after selecting
the amount. See page 26.
2. To defrost other foods or foods above or below the
weights allowed on the DEFROST CENTER CHART,
use time and 30% power. See MANUAL DEFROST
on page 17.
If you attempt to enter more or less than the allowed
amount as indicated in the chart below,
ERROR
will
appear in the display.
23
SPECIAL FEATURES
INSTANT SENSOR
Instant Sensor allows you to cook or reheat many of
your favorite foods by touching just one pad.
• Suppose you want to cook 2 baked potatoes.
INSTANT SENSOR CHART
NOTE:
1. Instant Sensor can be programmed with More or
Less Time Adjustment. See page 26.
2. Thenalresultwillvaryaccordingtothefoodcondi-
tion (e.g. initial temperature, shape, quality). Check
food for temperature after heating. If additional time
is needed, continue to heat manually.
3. To use any Instant Sensor pad, touch pad within
3 minutes after cooking, closing the door or touching
the STOP/CLEAR pad.
PROCEDURE
Touch BAKED POTATOES pad.
The oven starts automatically.
BAKED
POTATOES
FOOD AMOUNT PROCEDURE
SENSOR
REHEAT
4 - 36 oz
BAKED
POTATOES
1 - 6 med.
POPCORN
2.85 - 3.5 oz bag
(Regular)
1.5 - 1.75 oz bag
(Snack)
FRESH VEGETABLES: Soft
Broccoli
Brussels sprouts
Cabbage
Caulif.(owerets)
Cauliower(whole)
Spinach
Zucchini
Baked apples
.25 - 2.0 lb
.25 - 2.0 lb
.25 - 2.0 lb
.25 - 2.0 lb
1 med.
.25 - 1.0 lb
.25 - 2.0 lb
2 - 4 med.
FRESH VEGETABLES: Hard
Carrots, sliced
Corn on the cob
Green beans
Winter squash:
diced
halves
.25 - 1.5 lb
2 - 4
.25 - 1.5 lb
.25 - 1.5 lb
1 - 2
Place in dish or casserole slightly larger than amount to be reheated.
Flatten, if possible. Cover with lid, plastic wrap or wax paper. Use
covers such as plastic wrap or lids with larger quantities of more dense
foods such as stews. After reheating, stir well, if possible. Re-cover
and allow to stand 2 to 3 minutes. Foods should be very hot. If not,
continue to heat with variable power and time.
Pierce. Place on paper-towel-lined turntable. After cooking, remove
from oven, wrap in aluminum foil and let stand 5 to 10 minutes.
Use only popcorn packaged for the microwave. Try several brands
to decide which you like. Do not try to pop unpopped kernels.
Touch POPCORN pad once for regular size, touch again for
snack size.
Wash and place in casserole. Add no water if vegetables have just
been washed. Cover with lid for tender vegetables. Use plastic
wrap for tender-crisp vegetables. Touch FRESH VEGETABLES
pad. After cooking, stir, if possible. Let stand, covered, for 2 to
5 minutes.
Place in casserole. Add 1-4 tbsp water. Cover with lid for tender
vegetables. Use plastic wrap cover for tender-crisp vegetables.
Touch FRESH VEGETABLES pad twice. After cooking, stir, if
possible. Let stand, covered, for 2 to 5 minutes.
24
The operation will start. When the cooking time is
complete, a long tone will sound and Keep Warm Plus
will start.
KEEP
WARM
will appear in the display
every 10 seconds and count down for 15 minutes.
SPECIAL FEATURES
KEEP WARM PLUS
Keep Warm Plus allows you to keep food warm for
30 minutes.
DIRECT USE
• Suppose you want to keep a cup of soup warm for
30 minutes.
PROCEDURE
PROCEDURE
1
Enter cooking time.
2
Touch POWER LEVEL pad
4 times for 70% power.
5
Touch START/
MINUTE PLUS pad.
POWER
LEVEL
x 4
3
Touch KEEP WARM PLUS
pad.
WITH MANUAL COOKING
• Suppose you want to cook a cup of soup for 2 minutes
at 70% and keep the soup warm for 15 minutes.
3
Touch START/
MINUTE PLUS pad.
1
Touch KEEP WARM PLUS
pad.
START
MINUTE PLUS
START
MINUTE PLUS
KEEP WARM
PLUS
2
Enter the desired time.
2 0 0
3 0 0
0
You can program Keep Warm Plus with manual cooking
to keep food warm continuously after cooking.
KEEP WARM
PLUS
4
Enter the desired time.
1 5 0
0
NOTE:
Keep Warm Plus cannot be programmed
with special features.
The oven will start. The display will show
30.00
and
count down.
KEEP
WARM
will be displayed during
the countdown.
25
OTHER CONVENIENT FEATURES
CUSTOM HELP
Custom Help provides 4 features that make using
your oven easy because specific instructions are
provided in the interactive display.
1. CHILD LOCK
The Child Lock prevents unwanted oven operation
such as by small children. The oven can be set so
that the control panel is deactivated or locked. To
set, touch CUSTOM HELP, the number 1 and then
touch the START/MINUTE PLUS pad. Should a pad
be touched,
CHILD
LOCK ON
will appear in the display.
To cancel, touch CUSTOM HELP and STOP/CLEAR
pad.
2. AUDIBLE SIGNAL ELIMINATION
If you wish to have the oven operate with no audible
signals, touch CUSTOM HELP, the number 2 and
STOP/CLEAR.
To cancel and restore the audible signal, touch
CUSTOM HELP, the number 2 and START/MINUTE
PLUS.
3. AUTO START
If you wish to program your oven to begin cooking
automatically at a designated time of day, follow this
procedure:
• Suppose you want to start cooking a stew for
20 minutes on 50% at 4:30. Before setting, check
to make sure the clock is showing the correct
time of day.
PROCEDURE
1
Touch number 3.
2
Touch CUSTOM
HELP pad.
Enter the start time.
3
4 3 0
3
Touch CLOCK pad.
4
CLOCK
Enter cooking
program.
5
POWER
LEVEL
2 0 0 0
Touch START/
MINUTE PLUS pad.
6
NOTE:
1. Auto Start can be used for manual cooking if clock
is set.
2. If the oven door is opened after programming
Auto Start, it is necessary to touch the START pad
LANGUAGE
STANDARD
OF WEIGHT
NUMBER
DISPLAY
HELP
Each setting of INSTANT SENSOR, SENSOR COOK
CENTER, REHEAT and DEFROST CENTER has a
cooking hint. If you wish to check, touch CUSTOM
HELP whenever HELP is lighted in the Interactive
Display for these and other manual operation hints.
CUSTOM
HELP
x 6
Once English LBS ENGLISH
Lb
Twice English KG ENGLISH
KG
3 times Spanish LBS ESPANOL
Lb
4 times Spanish KG ESPANOL
KG
5 times French LBS FRANC.
Lb
6 times French KG FRANC.
KG
START
MINUTE PLUS
To demonstrate, touch TIMER/CLOCK, the number 0
and then touch the START pad and hold for three sec-
onds.
DEMO
ON
will appear in the display. Cooking
operationsandspecicspecialfeaturescannowbe
demonstrated with no power in the oven. For example,
touch MINUTE PLUS pad and the display will show
1.00
and count down quickly to
END
.
To cancel, touch TIMER/CLOCK, the number 0 and
STOP/CLEAR pads. If easier, unplug the oven from the
electrical outlet and replug.
DEMONSTRATION MODE
for Auto Start time to appear in the readout so that the
oven will automatically begin programmed cooking
at the chosen Auto Start time.
3. Be sure to choose foods that can be left in the oven
safely until the Auto Start time. Acorn or butternut
squash are often a good choice.
4. If you wish to know the time of day, simply touch the
CLOCK pad.Aslongasyourngeristouchingthe
CLOCK pad, the time of day will be displayed.
4. LANGUAGE / WEIGHT SELECTION
The oven comes set for English and U.S. Customary
Unit-pounds. To change, touch CUSTOM HELP and
the number 4. Continue to touch the number 4 until
your choice is selected from the table below. Then,
touch START.
Touch number 4 for language and standard of weight.
26
OTHER CONVENIENT FEATURES
NOTE:
1. If POWER LEVEL pad is touched,
HIGH
will be
displayed.
2. If100%isselectedasthenalsequence,itisnot
necessary to touch the POWER LEVEL pad.
3. Keep Warm Plus can be programmed even if 4
cooking sequences have been set.
MULTIPLE SEQUENCE
COOKING
Your oven can be programmed for up to 4 automatic
cooking sequences, switching from one power level
setting to another automatically.
Sometimes cooking directions tell you to start on one
power level and then change to a different power level.
Your oven can do this automatically.
• Suppose you want to cook roast beef for 5 minutes
at 100% and then continue to cook for 30 minutes
at 50%.
PROCEDURE
1
2
3
First enter cooking time.
Then touch POWER
LEVEL once for 100%
power.
Then enter second cook-
ing time.
Touch POWER LEVEL
pad 6 times for 50%
power.
Touch START/
MINUTE PLUS pad.
5 0 0
3 0 0 0
POWER
LEVEL
POWER
LEVEL
x 6
x 1
START
MINUTE PLUS
Should you discover that you like any of the Cook Center,
Defrost Center, Reheat, Popcorn or Hot Water settings
slightly more done, touch the POWER LEVEL pad once
after touching your choice of pads or before touching
START pad. The display will show
MORE
.
Should you discover that you like any of the Cook Center,
Defrost Center, Reheat, Popcorn or Hot Water settings
slightly less done, touch the POWER LEVEL pad twice
after touching your choice of pads or before touching
START pad. The display will show
LESS
.
MORE OR LESS TIME
ADJUSTMENT
PROCEDURE
NOTE:
1. To use Minute Plus, touch pad within 3 minutes
after cooking, closing the door or touching the
STOP/CLEAR pad.
2. Minute Plus cannot be used with special features.
Touch START/
MINUTE PLUS pad.
MINUTE PLUS
Minute Plus allows you to cook for a minute at 100%
by simply touching the START/MINUTE PLUS pad. You
can also extend cooking time in multiples of 1 minute by
repeatedly touching the START/MINUTE PLUS pad
during manual cooking.
• Suppose you want to heat a cup of soup for one minute.
START
MINUTE PLUS
PROCEDURE
1
2
• Suppose you want to time a 3-minute long distance
phone call.
TIMER
Enter time.
Touch TIMER/CLOCK
and number 1 pad.
3
Touch TIMER/
CLOCK pad.
3 0 0
TIMER
CLOCK
1
To cancel the timer, touch the
STOP/CLEAR pad once.
STOP
CLEAR
TIMER
CLOCK
ACCENT LIGHT AND
TASK LIGHT
To operate the Accent Light and Task Light, follow the
procedures in the chart below:
Touch ACCENT LIGHT once
Touch ACCENT LIGHT twice
Touch ACCENT LIGHT 3 times
PROCEDURE
DISPLAY
Accent light on (LOW)
OFF
Accent light on (LOW)
Touch TASK LIGHT once
Touch TASK LIGHT twice
Touch TASK LIGHT 3 times
Task light on (HIGH)
OFF
Task light on (HIGH)
Touch ACCENT LIGHT once
Touch TASK LIGHT once
Touch TASK LIGHT twice
Accent light on (LOW)
Task light on (HIGH)
OFF
27
Exterior
The outside surface is precoated steel and plastic.
Clean the outside with mild soap and water; rinse and
dry with a soft cloth. Do not use any type of household
or abrasive cleaner.
Door
Be careful with the edge of the oven door as it is glass
and could chip or break. Wipe the window on both sides
with a damp cloth to remove any spills or spatters. Metal
parts will be easier to maintain if wiped frequently with
a damp cloth. Avoid the use of spray and other harsh
cleaners as they may stain, streak or dull the door
surface.
Stainless Steel Trim (R-1214)
The exterior should be wiped often with a damp cloth
and polished with a soft dry cloth to maintain its beauty.
There are also a variety of products designed especially
for cleaning and shining the stainless exterior of the
oven. We recommend that the cleaner be applied to a
soft cloth and then carefully used on the stainless exte-
rior rather than sprayed directly onto it. Follow package
directions carefully.
Touch Control Panel
Wipe the panel with a cloth dampened slightly with
water only. Dry with a soft cloth. Do not scrub or use
any sort of chemical cleaners. Close door and touch
STOP/CLEAR.
Interior
Cleaning is easy because little heat is generated to the
interior surfaces; therefore, there is no baking and set-
ting of spills or spattering. To clean the interior surfaces,
CLEANING AND CARE
wipe with a soft cloth and warm water. DO NOT USE
ABRASIVE OR HARSH CLEANERS OR SCOURING
PADS. For heavier soil, use baking soda or a mild soap;
rinse thoroughly with hot water. The rack can be cleaned
with hot soapy water, rinsed and dried.
Odor Removal
Occasionally, a cooking odor may remain in the oven.
To remove, combine 1 cup water, grated peel and juice
of 1 lemon and several whole cloves in a 2-cup glass
measuring cup. Boil for several minutes using 100%
power. Allow to set in oven until cool. Wipe interior with
a soft cloth.
Turntable/Turntable Support
The turntable and turntable support can be removed
for easy cleaning. Wash them in mild, sudsy water; for
stubborn stains use a mild cleanser and non-abrasive
scouring sponge. They are also dishwasher-proof. Use
upper rack of dishwasher. The turntable motor shaft is
not sealed, so excess water or spills should be wiped
up immediately.
Waveguide Cover
The waveguide cover is located on the right side wall of
the oven cavity. It is made from mica so requires special
care. Keep the waveguide cover clean to assure good
oven performance. Carefully wipe with a damp cloth any
food spatters from the surface of the cover immediately
after they occur. Built-up splashes may overheat and
causesmokeorpossiblycatchre.DO NOT REMOVE
THE WAVEGUIDE COVER.
Disconnect the power cord before cleaning or leave the door open to inactivate the oven during cleaning.
Light cover
Screw
Light bulbs
REPLACING PARTS
ACCENT LIGHT AND
TASK LIGHT
1. Toreplacelightbulbs,rstdisconnectpowertothe
oven at the circuit breaker panel or by unplugging.
2. To release cover, remove the screw on the light cover.
(See illustration.)
3. Replace light bulbs with equivalent watt bulb
available from your Sharp Authorized Servicer or
parts distributor. Bulbs are also available at most
hardware stores or lighting centers. DO NOT USE
A BULB LARGER THAN 30 WATTS.
4. Close light cover and secure with screw removed in
step 2.
CAUTION: Light cover may become very hot. Do not
touch glass when light is on.
28
R-1210, R-1211, R-1214
SPECIFICATIONS
Please check the following before calling for service:
Place one cup of water in a glass measuring cup in the oven and close the door securely.
Operate the oven for one minute at HIGH 100%.
A
Does the oven light come on? YES _______ NO _______
B
Does the cooling fan work? YES _______ NO _______
(Put your hand over the bottom ventilation openings.)
C
Does the turntable rotate? YES _______ NO _______
(It is normal for the turntable to turn in either direction.)
D
Is the water in the oven warm? YES _______ NO _______
If “NO” is the answer to any of the above questions, please check electrical outlet, fuse and/or circuit
breaker. If they are functioning properly, CONTACT YOUR NEAREST SHARP AUTHORIZED SERVICER.
A microwave oven should never be serviced by a “do-it-yourself” repair person.
NOTE:
If time appearing in the display is counting down very rapidly, check Demonstration Mode on page 25
and cancel.
SERVICE CALL CHECK
★ The International Electrotechnical Commission’s standardized method for measuring output wattage. This
test method is widely recognized.
★★ Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding
food is less.
In compliance with standards set by:
FCC – Federal Communications Commission Authorized.
DHHS – Complies with Department of Health and Human Services (DHHS) rule, CFR, Title 21, Chapter I,
Subchapter J.
– This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc.
AC Line Voltage:
AC Power Required:
Output Power:*
Frequency:
Outside Dimensions:
Cavity Dimensions:
Oven Capacity:**
Cooking Uniformity:
Weight:
Single phase 120V, 60Hz, AC only
1530 watts, 13.0 amps.
1100 watts
2450 MHz
23
7
/8"(W) x 14
1
/16"(H) x 15
9
/16"(D)
17
1
/2"(W) x 9
7
/8"(H) x 14
15
/16"(D)
1.5 Cu. Ft.
Turntable system, diameter 14
1
/8"
Approx. 55 lb
29
30
DEFROST CENTER TABLA
TIPO DE COMIDA CANTIDAD
1. Ground meat 0,5 a 2,0 libras
2. Steaks/chops 0,5 a 3,0 libras
3. Boneless poultry 0,5 a 2,0 libras
4. Bone-in poultry 0,5 a 3,0 libras
GUIA AUTO-TOUCH
Para mayor informacion y precauciones de seguridad, consulte el Manual de Operaciones.
START
MINUTE PLUS
DEFROST CENTER
1
Pulse la tecla DEFROST CEN-
TER y el numero 2 para
Bistec/Costillas.
2
Introduzca el peso de 3.0
lb. Pulse la tecla START/
MINUTE PLUS.
El horno se detendrá automáti-
camente y en la pantalla podrá
observar diversas indicaciones.
Siga los mensajes indicados.
3
Después de concluir la 1ra eta-
pa, abra la puerta y levante el
bistec, limpie el agua, coloque
nuevamente el bistec. Cierre la
puerta. Pulse la tecla START/
MINUTE PLUS.
4
Después de la 2da etapa, abra
la puerta y repita el proceso del
paso 2. Cierre la puerta. Pulse
la tecla START/MINUTE PLUS.
5
Después que el ciclo de des-
congelamiento concluya, deje
reposar el alimento.
START
MINUTE PLUS
START
MINUTE PLUS
DEFROST
CENTER
2
TIPO DE COMIDA CANTIDAD
SENSOR REHEAT
POPCORN
BAKED POTATOES
FRESH VEGETABLES
Suave
Firme
4 a 36 onzas
Bolsa de 2,85 a 3,5 onzas
Bolsa de 1,5 a 1,75 onzas
1 a 6 med.
0,25 a 2,0 libras
0,25 a 1,5 libras
INSTANT SENSOR
Pulse el botón BAKED
POTATOES.
INSTANT SENSOR TABLA
Carousel
®
es una marca registrada de Sharp Corporation.
PONER LA HORA
OPERACION MANUAL
Cocimiento con Alta Energia
1
Marque el tiempo de cocimiento
al oprimir los numeros.
(Ej: 1 min. 30 sec.)
2
Pulse la tecla START/
MINUTE PLUS.
Energia de Cocimiento Variable
1
Después de realizar el primer paso
(Num. 1 arriba), oprima el POWER
LEVEL ocho veces para 30%.
2
Pulse la tecla START/
MINUTE PLUS.
1 3 0
POWER
LEVEL
x 8
START
MINUTE PLUS
START
MINUTE PLUS
KEEP WARM PLUS
START
MINUTE PLUS
1
Pulse la tecla KEEP WARM
PLUS.
2
Introduzca un tiempo de 15
minutos.
3
Pulse la tecla START/MIN-
UTE PLUS.
MINUTE PLUS
Oprima START/MINUTE PLUS
para obtener un minuto al 100% de
energia o para agregar otro minuto
durante el cocimiento manual.
Vuelva a oprimirlo para obtener
minutos adicionales.
KEEP WARM
PLUS
1
Toque el botón que dice CLOCK y
número 2.
2
Ajuste el reloj en la hora correcta
oprimiendo los botones numéricos
en el orden respectivo. (Ej: 12:30)
3
Toque nuevamente el botón que
dice CLOCK.
Si en la pantalla se lee
WELCOME
PRESS
CLEAR
AND
PRESS
CLOCK
toque primero STOP/CLEAR.
CLOCK
2
1 3 02
CLOCK
BAKED
POTATOES
START
MINUTE PLUS
3 0
1 5 0 0
31
FOOD
AMOUNT
Pulse la tecla FRESH ROLLS
& MUFFINS 2 veces para calen-
tar 2 roles o mantecadas frescas.
El horno comenzara automatica-
mente.
FRESH ROLLS
& MUFFINS
REHEAT TABLA
TIPO DE COMIDA
CANTIDAD
FRESH ROLLS/MUFFINS
FROZEN ROLLS/MUFFINS
BEVERAGE
HOT WATER
1 a 8
1 a 8
0,5 a 2,0 tazas
1 a 6 tazas
REHEAT
COOK CENTER
FOOD
AMOUNT
SENSOR COOK CENTER TABLA
TIPO DE COMIDA
CANTIDAD
1. Ground meat
2. Rice
3. Fish/seafood
4. Frozen entrees
5. Chicken breast
6. Frozen vegetables
0,25 a 2,0 libras
0,5 a 2,0 tazas
0,25 a 2,0 libras
6 a 17 onzas
0,25 a 2,0 libras
0,25 a 1,25 libras
SENSOR COOK CENTER
START
MINUTE PLUS
1
Pulse la tecla SENSOR
COOK CENTER y el numero
1 para albondigas.
2
Pulse la tecla START/MIN-
UTE PLUS.
SENSOR
COOK
CENTER
1
AUTO-TOUCH GUIDE
Continued from back cover.
GUIA AUTO-TOUCH
Continuado de la página 30.
FOOD
AMOUNT
COOK CENTER
1
Touch SENSOR COOK CEN-
TER pad and number 1 for
ground meat.
2
Touch START/
MINUTE PLUS pad.
SENSOR
COOK
CENTER
1
SENSOR COOK CENTER CHART
FOOD
AMOUNT
1. Ground meat
2. Rice
3. Fish/seafood
4. Frozen entrees
5. Chicken breast
6. Frozen vegetables
.25 - 2.0 lb
.5 - 2.0 cups
.25 - 2.0 lb
6 - 17 oz
.25 - 2.0 lb
.25 - 1.25 lb
SENSOR COOK CENTER
FOOD
AMOUNT
Touch FRESH ROLLS & MUF-
FINS pad 2 times to heat 2
freshrollsormufns.Theoven
starts automatically.
FRESH ROLLS
& MUFFINS
REHEAT CHART
FOOD
AMOUNT
FRESH ROLLS/MUFFINS
FROZEN ROLLS/MUFFINS
BEVERAGE
HOT WATER
1 - 8
1 - 8
.5 - 2.0 cups
1 - 6 cups
REHEAT
x 2
x 2
START
MINUTE PLUS
TINSEB390WRRZ _ Rev.2 Apr 19, 2017
®
SHARP ELECTRONICS CORPORATION
100 Paragon Drive, Suite #100 • Montvale, New Jersey 07645
AUTO-TOUCH GUIDE
For more complete information and safety precautions, refer to your Operation Manual.
START
MINUTE PLUS
Touch START/MINUTE PLUS
for one minute at 100% power
or to add a minute during manu-
al cooking. Continue to touch for
additional minutes.
FOOD
AMOUNT
FOOD
AMOUNT
FOOD
AMOUNT
SENSOR REHEAT
POPCORN
BAKED POTATOES
FRESH VEGETABLES
4 - 36 oz
2.85 - 3.5 oz bag (reg.)
1.5 - 1.75 oz bag (snack)
1 - 6 med.
.25 - 2.0 lb (soft)
.25 - 1.5 lb (hard)
INSTANT SENSOR CHART
INSTANT SENSOR
Touch BAKED POTATOES pad.
The oven starts automatically.
BAKED
POTATOES
SET CLOCK
High Power Cooking
1
Enter cooking time by touching
number pads. (Ex: 1 min. 30 sec.)
2
Touch START/MINUTE PLUS
pad.
Variable Power Cooking
1
After Step 1 above, touch POWER
LEVEL pad eight times for 30%.
2
Touch START/
MINUTE PLUS pad.
POWER
LEVEL
x 8
START
MINUTE PLUS
START
MINUTE PLUS
MANUAL OPERATION
3 0
1
Touch TIMER/CLOCK pad
and number 2.
2
Enter correct time of the day by
touching numbers in sequence.
(Ex: 12:30)
3
Touch TIMER/CLOCK pad
again.
If
WELCOME
PRESS
CLEAR
AND
PRESS
CLOCK
isinthedisplay,rsttouchSTOP/CLEAR.
1 2 3 0
TIMER
CLOCK
TIMER
CLOCK
1
MINUTE PLUS
Carousel
®
is a registered trademark of Sharp Corporation.
Continued on page 31.
START
MINUTE PLUS
DEFROST CENTER
DEFROST
CENTER
START
MINUTE PLUS
DEFROST CENTER CHART
FOOD AMOUNT
.5 - 2.0 lb
.5 - 3.0 lb
.5 - 2.0 lb
.5 - 3.0 lb
1. Ground meat
2. Steaks/chops
3. Boneless poultry
4. Bone-in poultry
START
MINUTE PLUS
2
2
3
KEEP WARM PLUS
START
MINUTE PLUS
KEEP WARM
PLUS
0
1 5 0 0
1
Touch DEFROST CENTER
pad and number 2 for
Steaks/Chops.
2
Enter weight 3.0 lb.
Touch START/MINUTE PLUS
pad. The oven will stop and
directions will be displayed.
Follow the indicated message.
3
After the 1st stage, open the
door, turn steak over and
shield any warm portions.
Close the door. Touch START/
MINUTE PLUS pad.
4
After the 2nd stage, open the
door and shield any warm
portions. Close the door. Touch
START/MINUTE PLUS pad.
5
After defrost cycle ends, cover
and let stand.
1
Touch KEEP WARM
PLUS pad.
2
Enter time 15 minutes.
3
Touch START/
MINUTE PLUS pad.
