XG-NV5XU(Hyoushi) 98/11/10/18:00
MODEL
XG
-
NV5XU
LCD PROJECTOR
OPERATION MANUAL
E-1
Important
Information
IMPORTANT
For your assistance in reporting the loss or theft of your
Color LCD Projector, please record the Serial Number
located on the bottom of the projector and retain this
information. Before recycling the packaging, please be
sure that you have checked the contents of the carton
thoroughly against the list of “Supplied Accessories”
on page 7.
Before using the LCD projector, please read this operation manual carefully.
OPERATION MANUAL ENGLISH
Model No.: XG
-
NV5XU
Serial No.:
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT REMOVE SCREWS
EXCEPT SPECIFIED USER
SERVICE SCREW.
There are two important reasons for prompt warranty registration of your new SHARP LCD Projector,
using the REGISTRATION CARD packed with the projector.
1. WARRANTY
This is to assure that you immediately receive the full benefit of the parts, service and labor
warranty applicable to your purchase.
2. CONSUMER PRODUCT SAFETY ACT
To ensure that you will promptly receive any safety notification of inspection, modification, or
recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE
READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE.
U.S.A. ONLY
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk or electric shock to
persons.
The exclamation point within a triangle is
intended to alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
INFORMATION
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter-
ference when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the operation manual,
may cause harmful interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be required to correct the interference at his own
expense.
U.S.A. ONLY
U.S.A. ONLY
The enclosed computer cable and Macintosh adaptor must be used with the device. The cable and adaptor
are provided to ensure that the device complies with FCC Class A verification.
U.S.A. ONLY
WARNING: High brightness light source. Do not stare into the beam of light, or view directly. Be especially
careful that children do not stare directly into the beam of light.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not
expressly approved by the manufacturer could void the user’s authority to operate this equip-
ment.
XG-NV5XU (E)-a 98.11.20, 9:51 PM1
E-2
Important
Information
Important Information
Contents
Important Safeguards …………………………… 3
Usage Guidelines ………………………………… 4
Outstanding Features …………………………… 5
How to Access the PDF Operation Manuals
(for Windows and Macintosh) ……………… 6

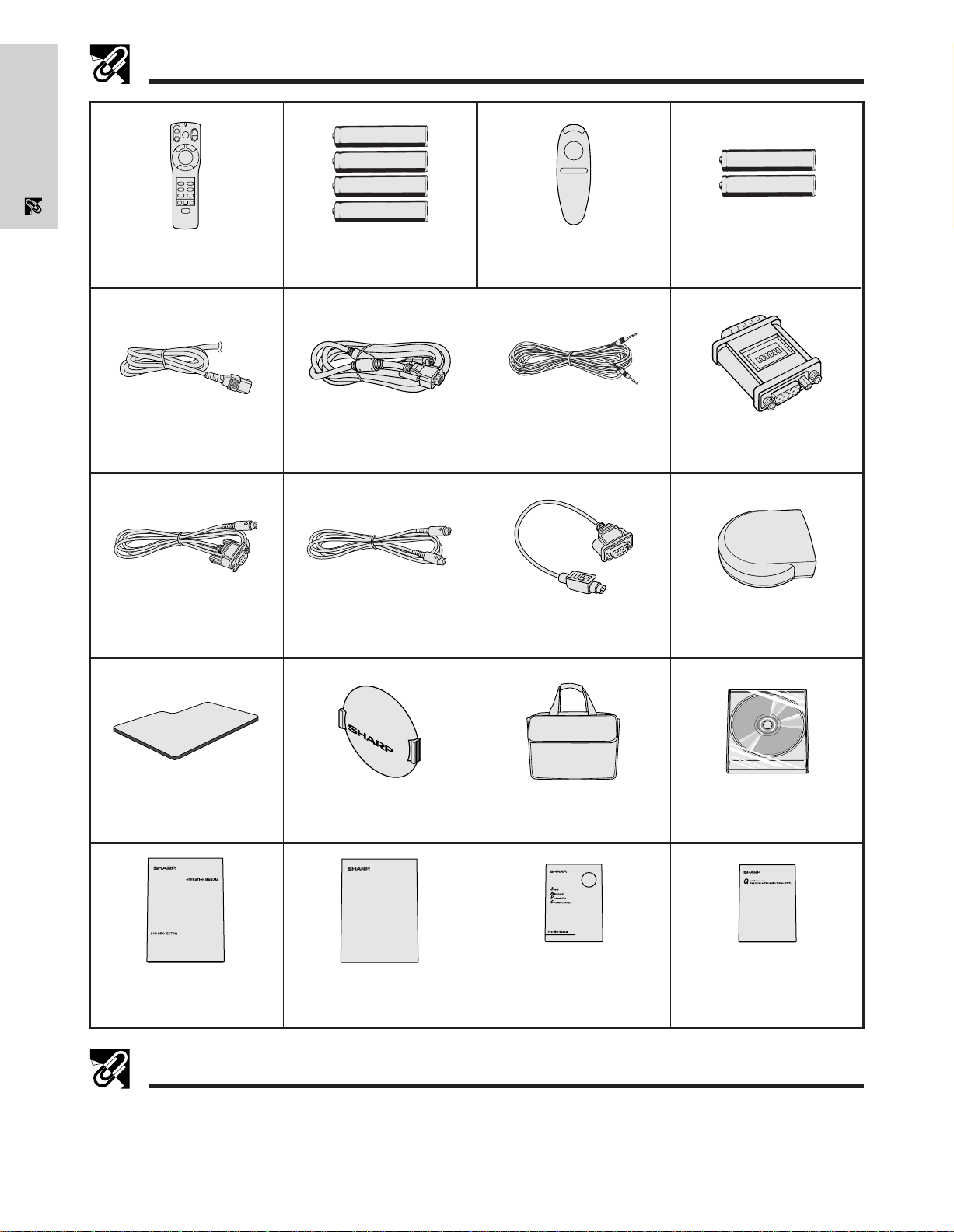

Supplied Accessories …………………………… 7
For SHARP Assistance (U.S.A. only) ………… 7

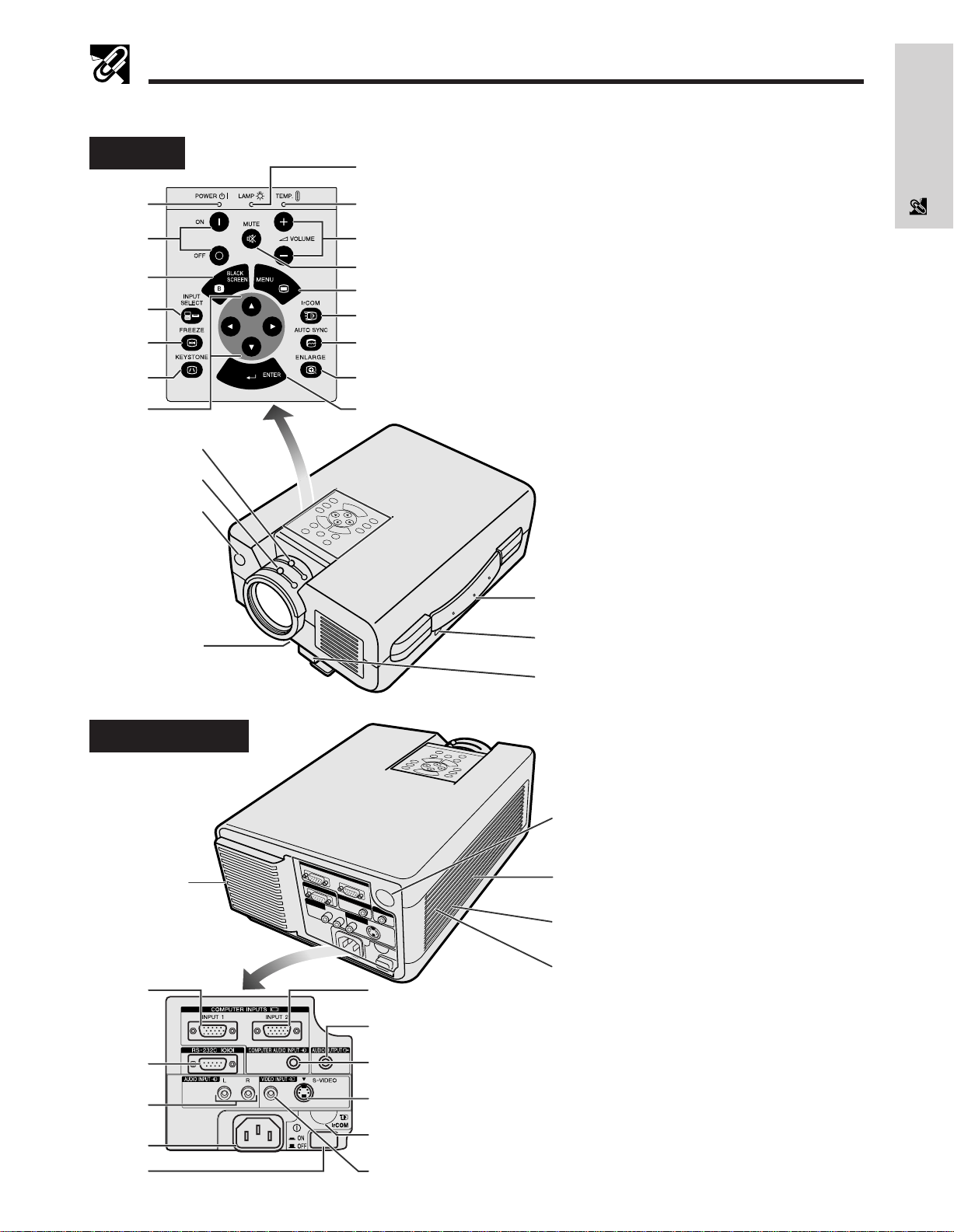

Part Names ………………………………………… 8
Remote Control/Mouse Receiver
Positioning …………………………………… 10
Operating the Wireless Mouse from
the “Power” Remote Control ……………… 11
Useful Features

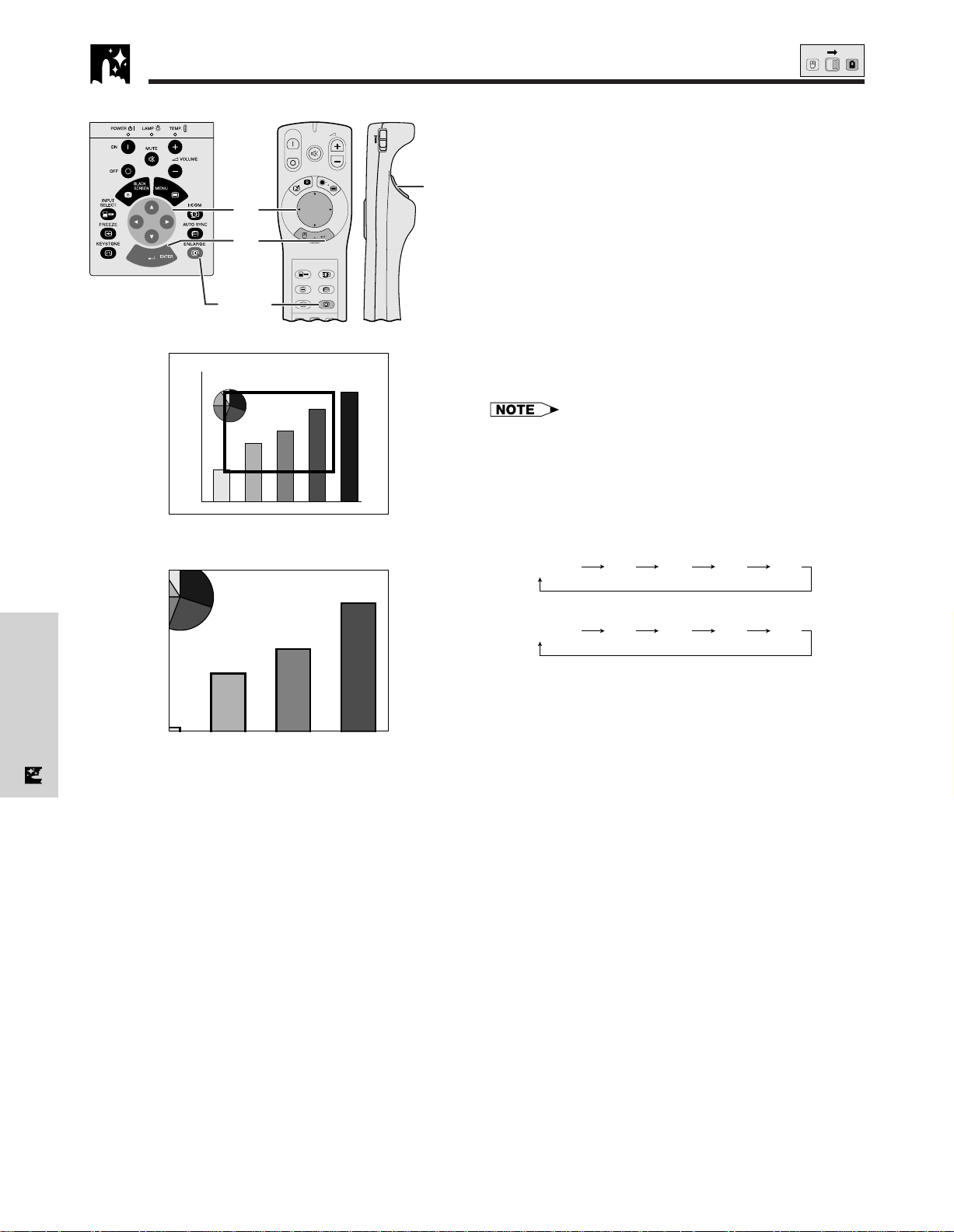

Digital Image Magnification and Reduction … 29

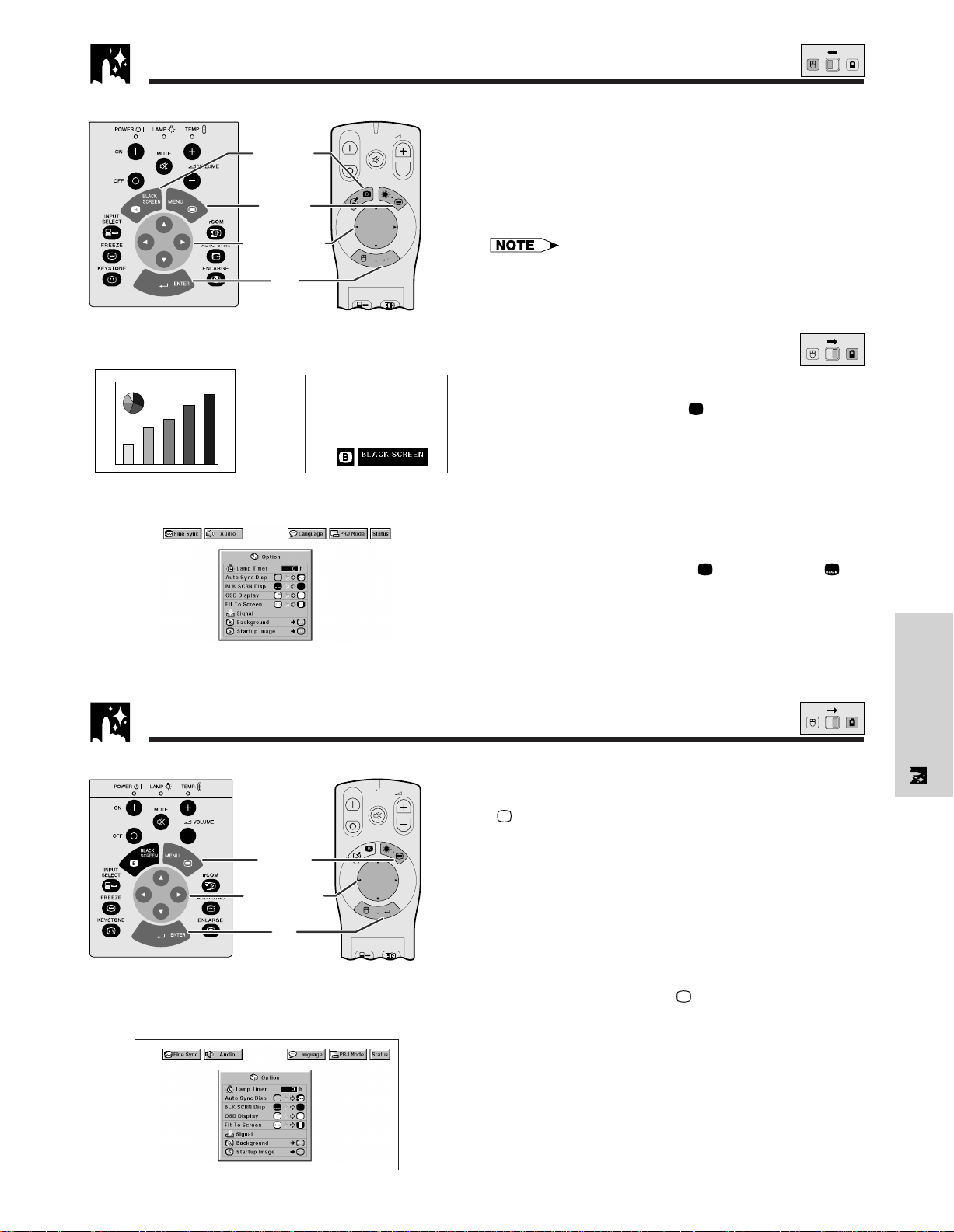

Black Screen Function …………………………… 30
On-screen Display Override Function ………… 30
Fit to Screen Function …………………………… 31
I/P Conversion (VIDEO mode only) …………… 31
Checking the Input Signal and

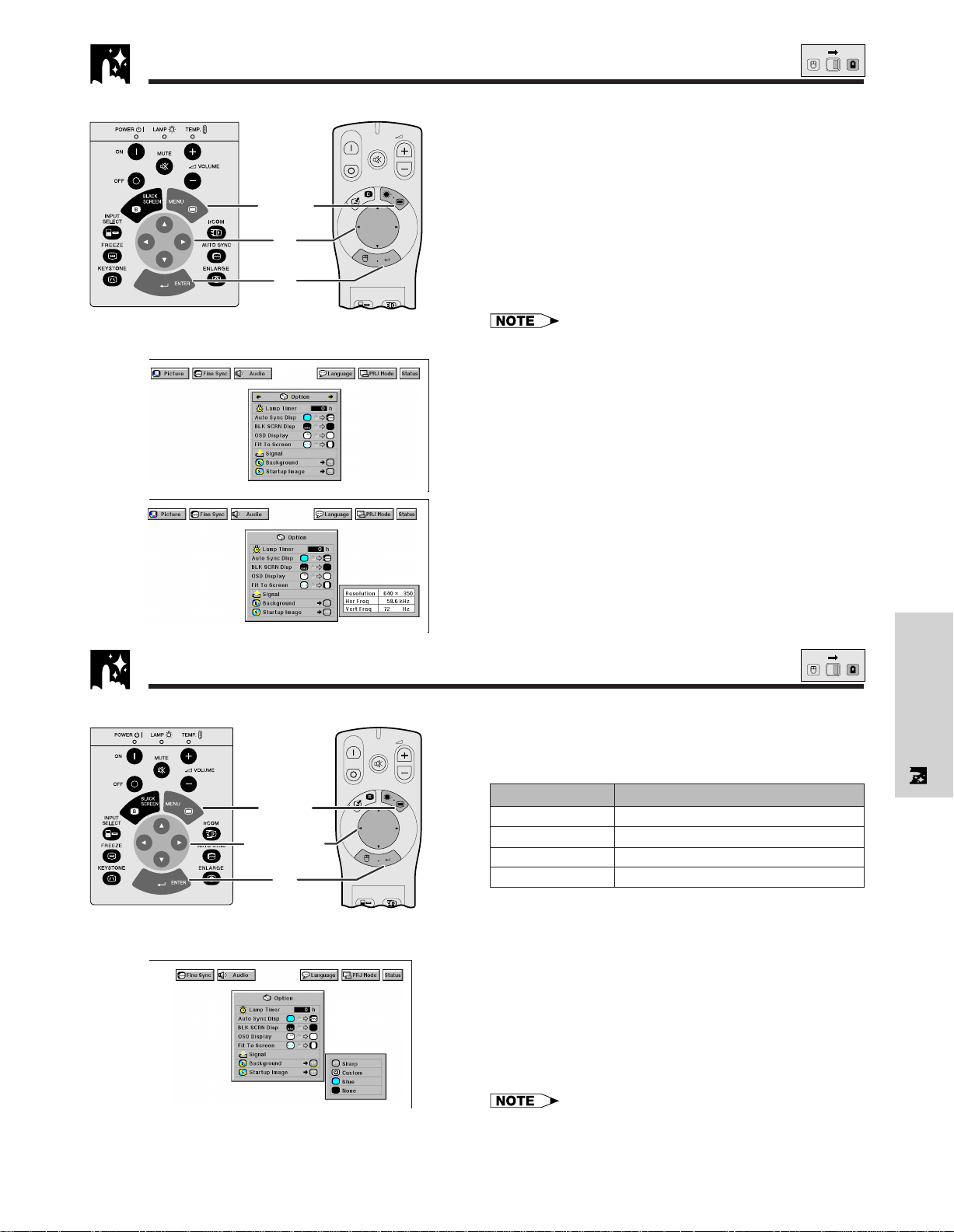

Lamp Usage Time …………………………… 32
Setting a Background Image …………………… 32
Selecting a Startup Image ……………………… 33

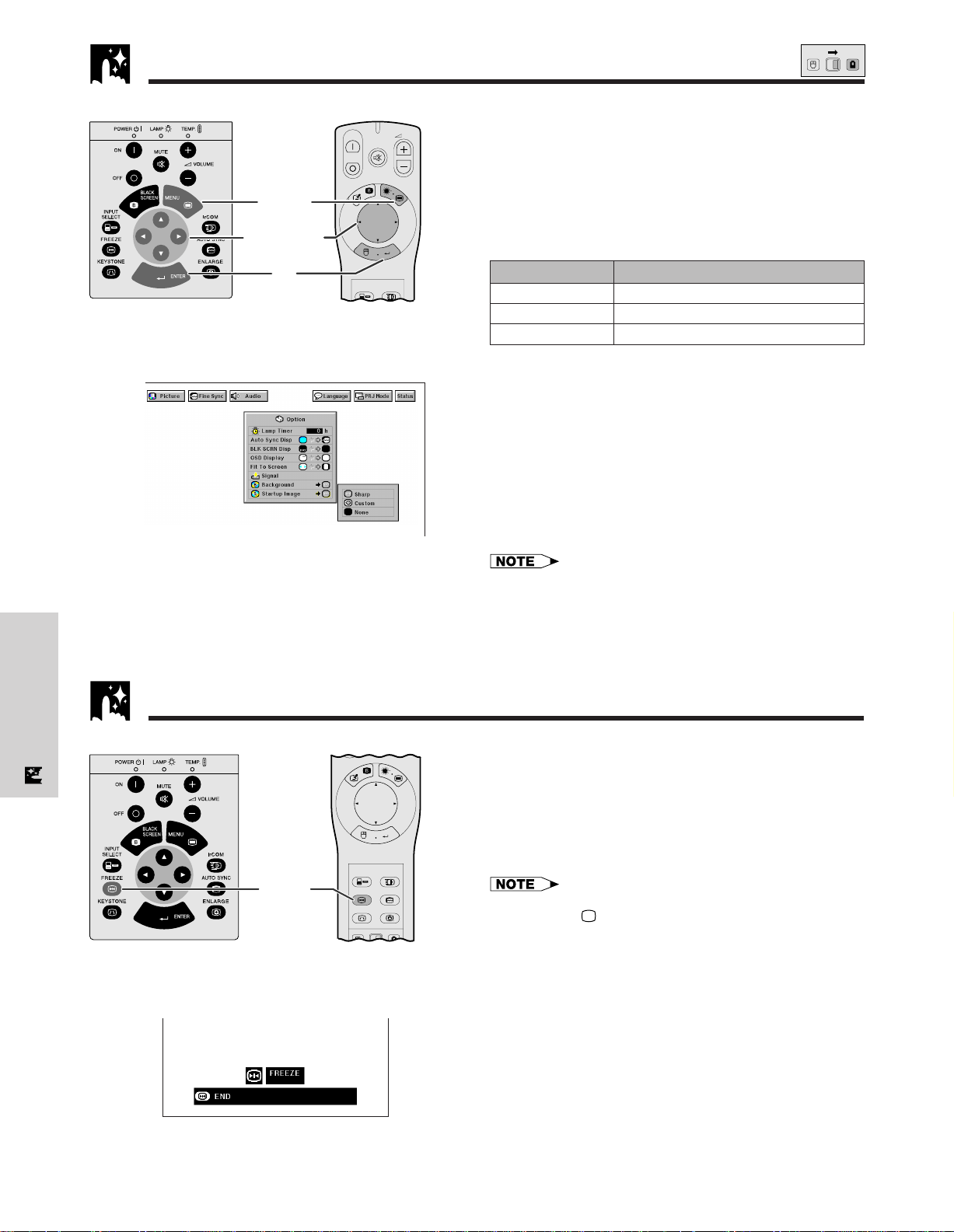

Freeze Function …………………………………… 33
Reverse/Invert Image Function ………………… 34
Using the Presentation Tools …………………… 35
Checking the Adjustment Status ……………… 36

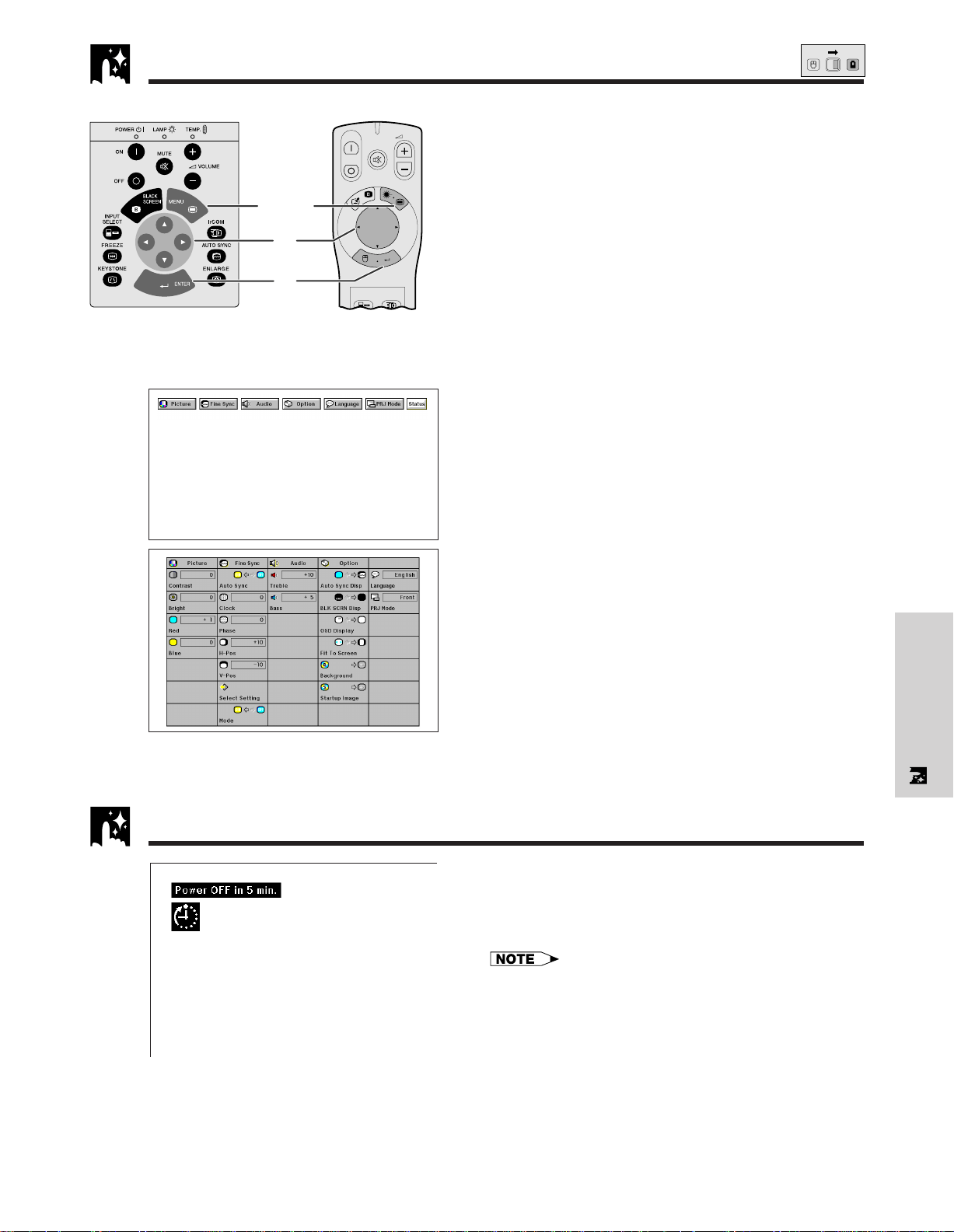

Automatic Power Shutoff Function …………… 36
Setup & Connections
Operation
Useful Features
Maintenance &
Troubleshooting
Appendix
Setup & Connections

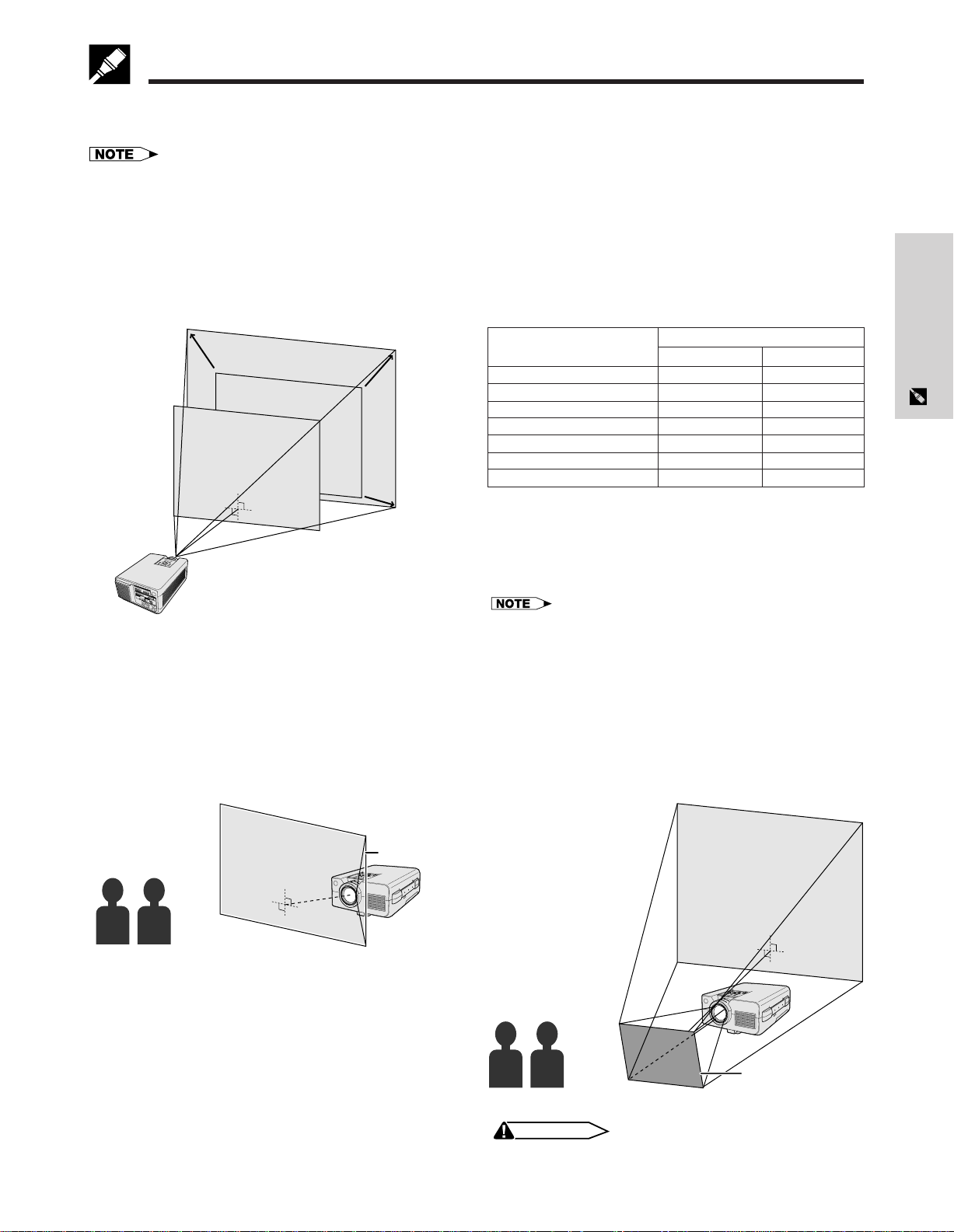

Setting Up the Projector and Screen ………… 12
Standard Setup (Front Projection) …………… 12

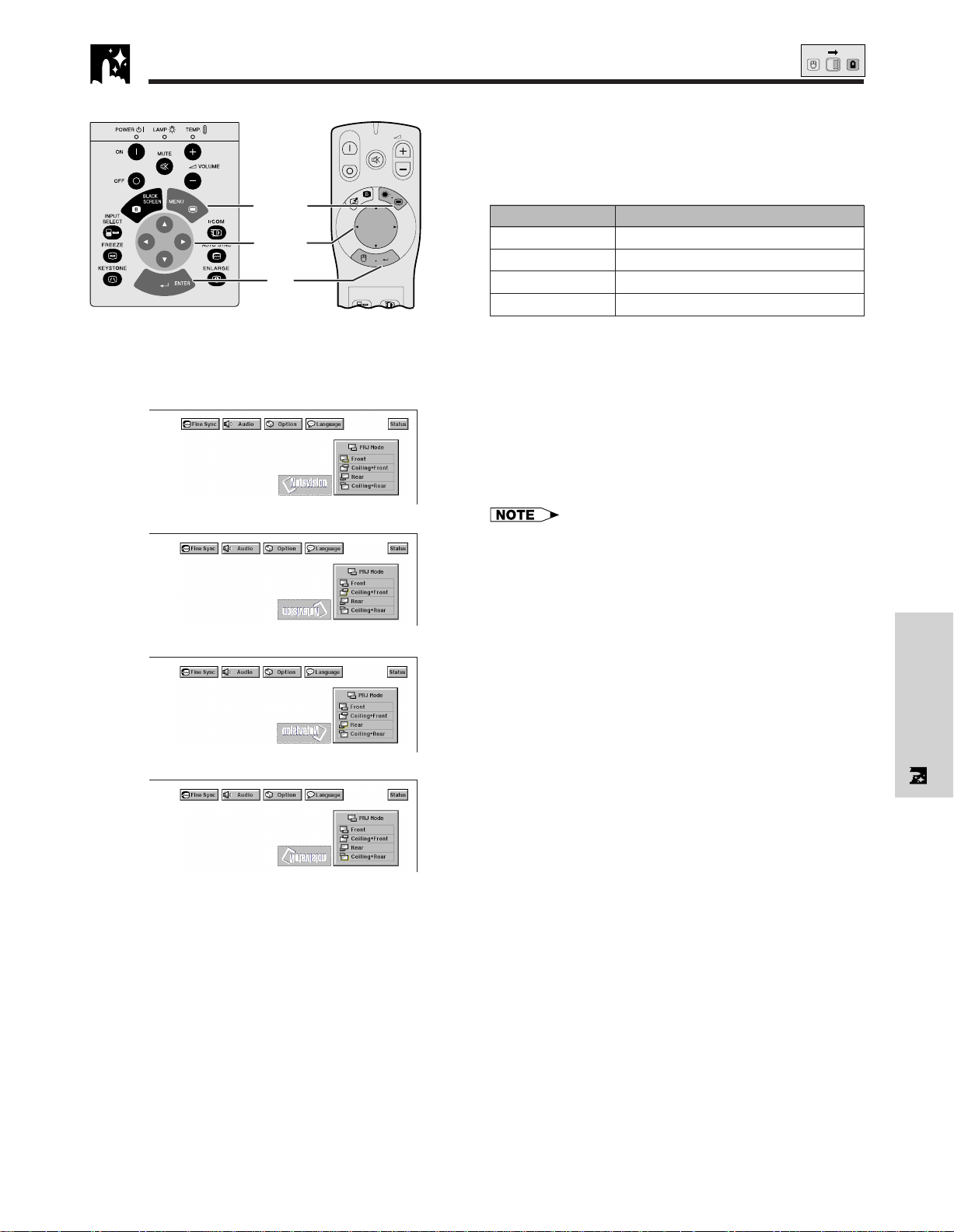

Reversed Image Setup………………………… 12
Ceiling-mount Setup …………………………… 13
Adjusting the Height of the Image …………… 13
Height of Image ………………………………… 13

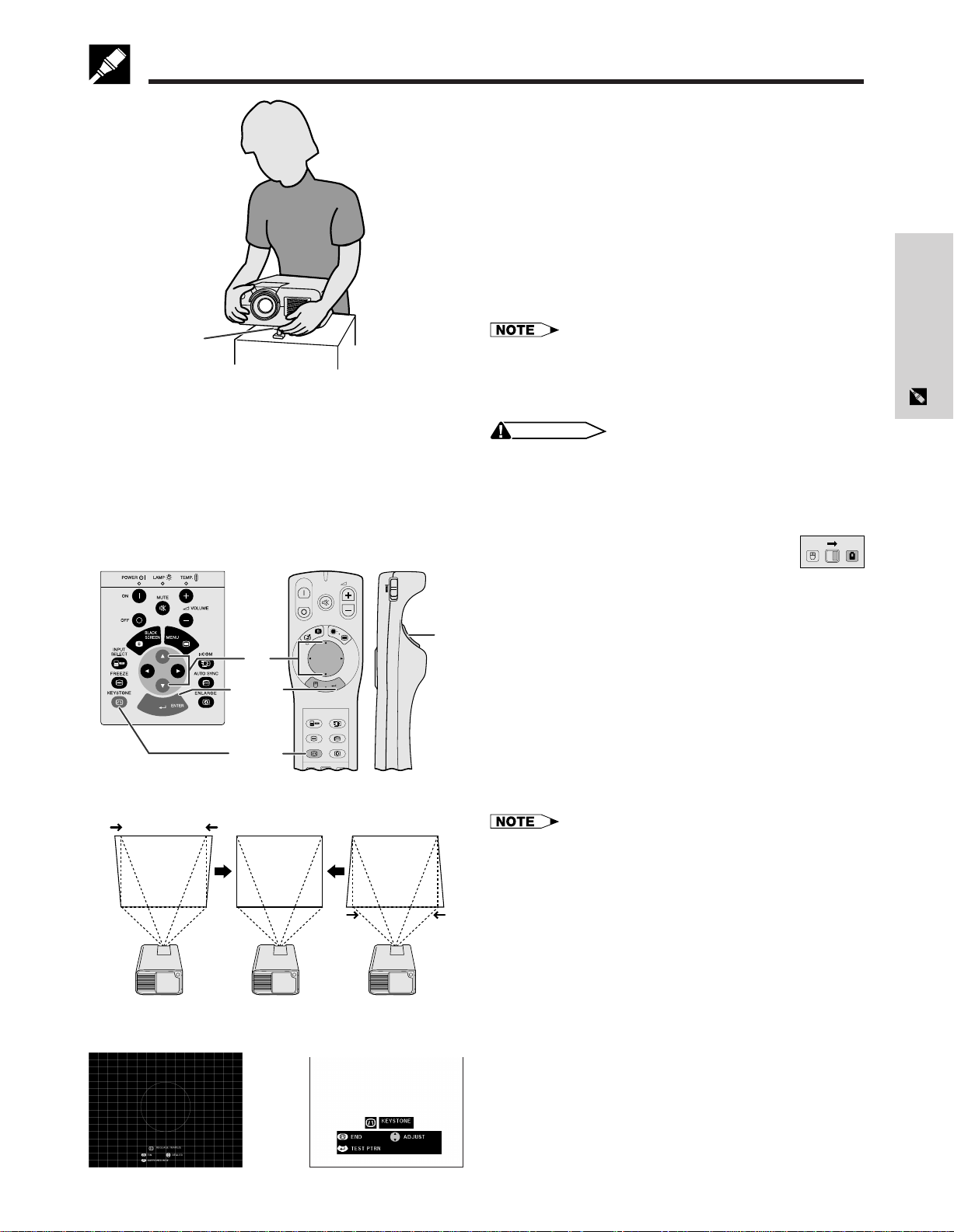

Using the Adjustment Foot …………………… 14
Digital Keystone Correction…………………… 14

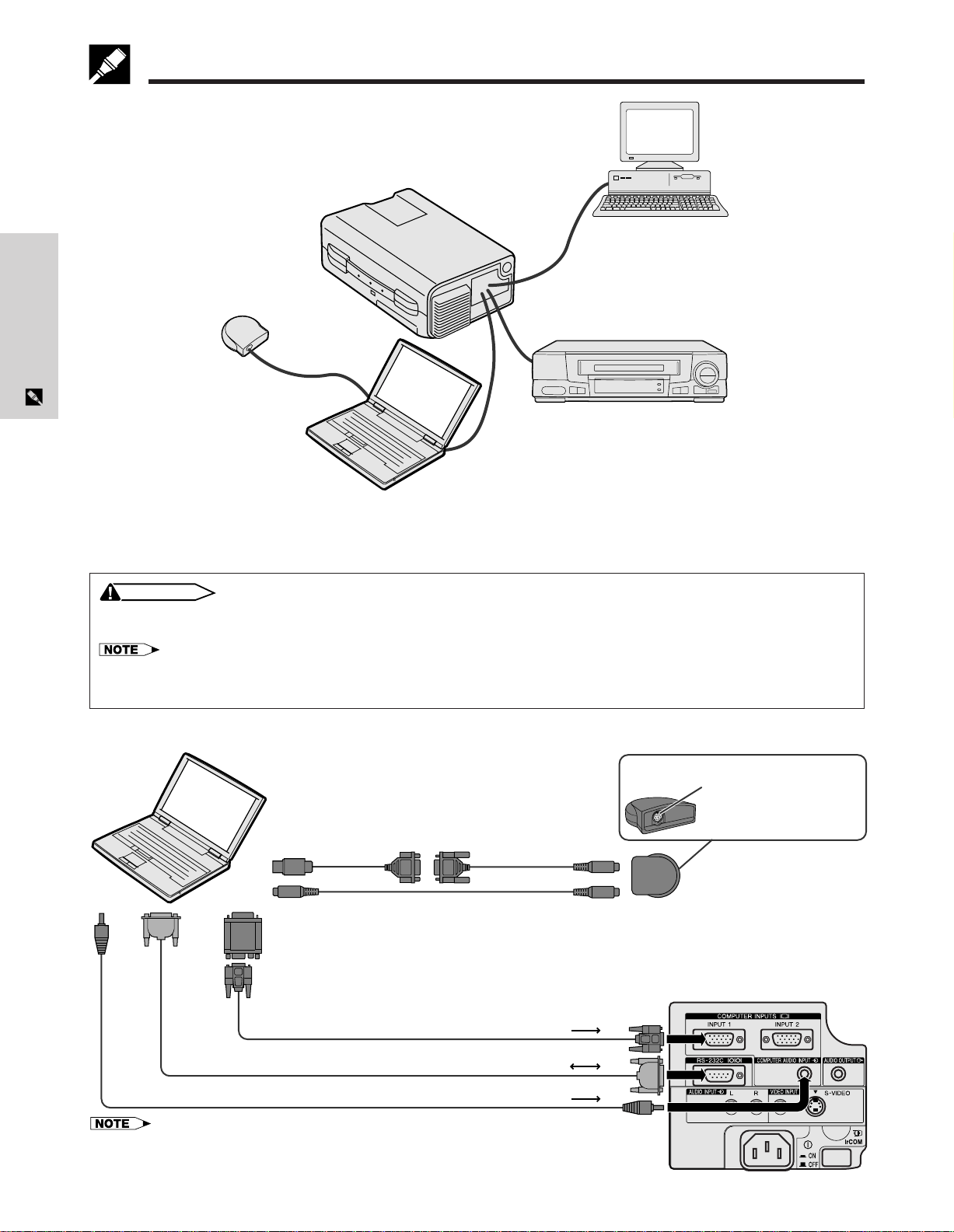

Connecting the Projector ……………………… 15

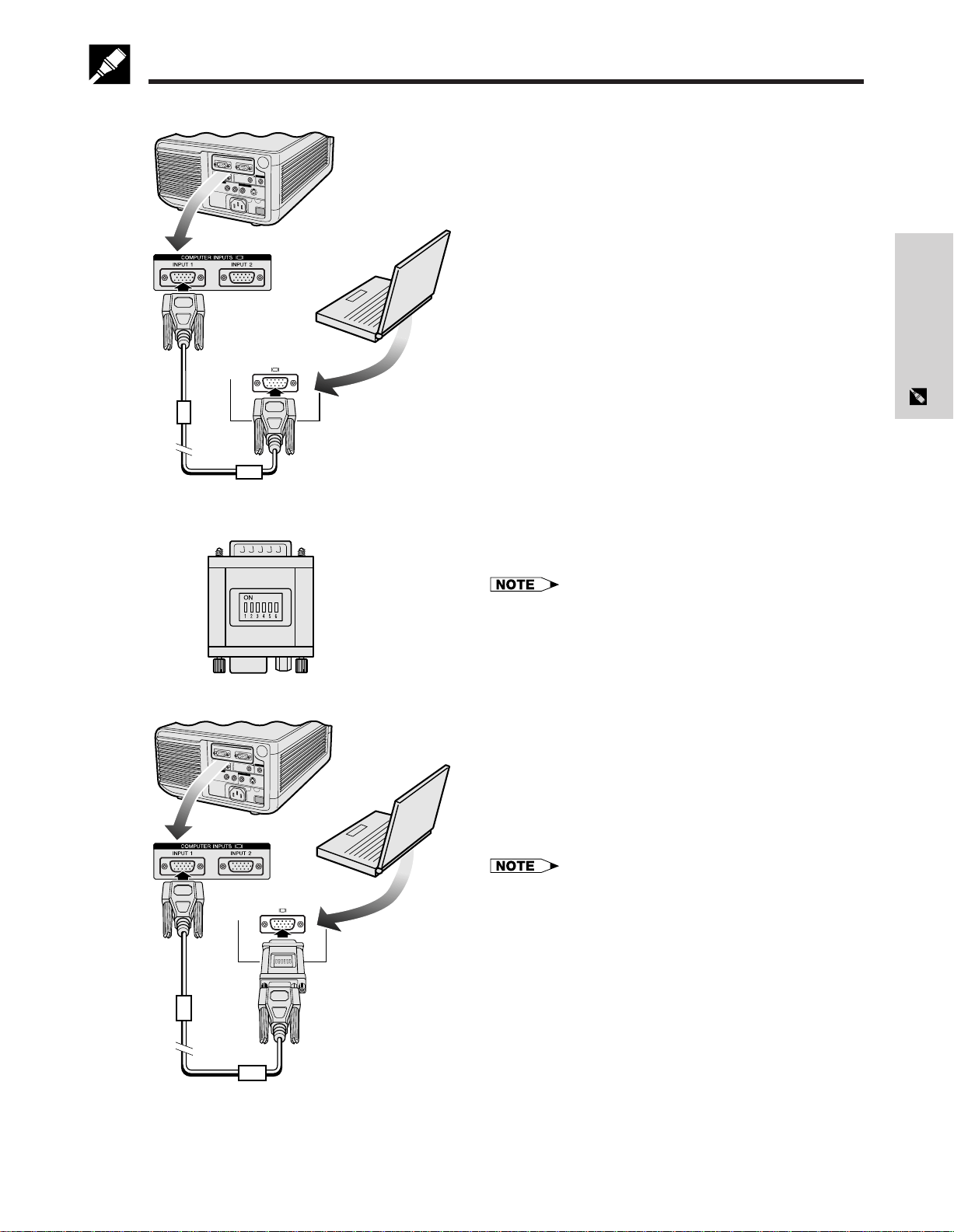

Connecting the Projector to a Computer …… 15
“Plug and Play” Function ……………………… 17
Using the Remote Mouse Receiver and
RS-232C Port ……………………………… 17

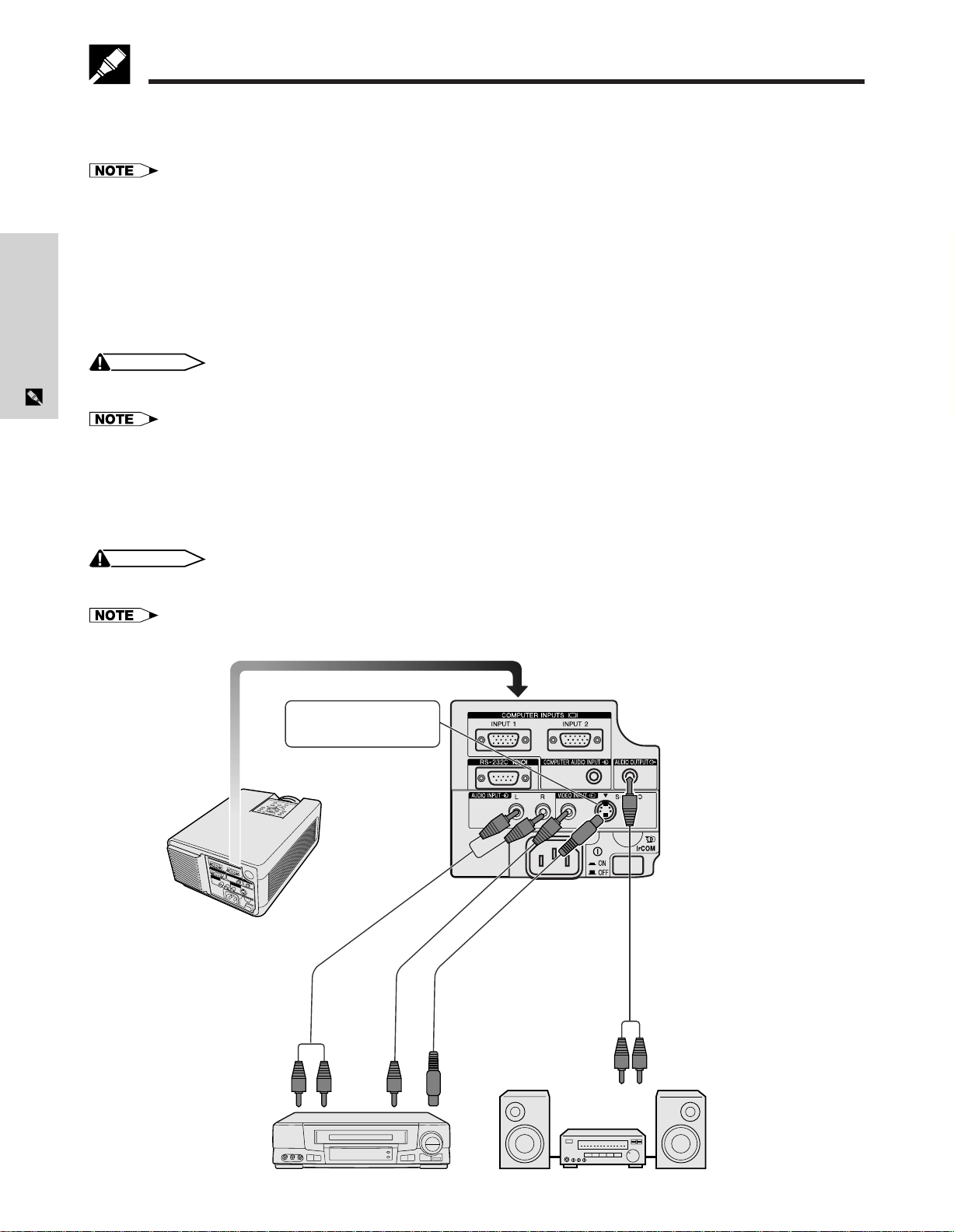

Connecting the Projector to
Video Equipment…………………………… 17
Operation

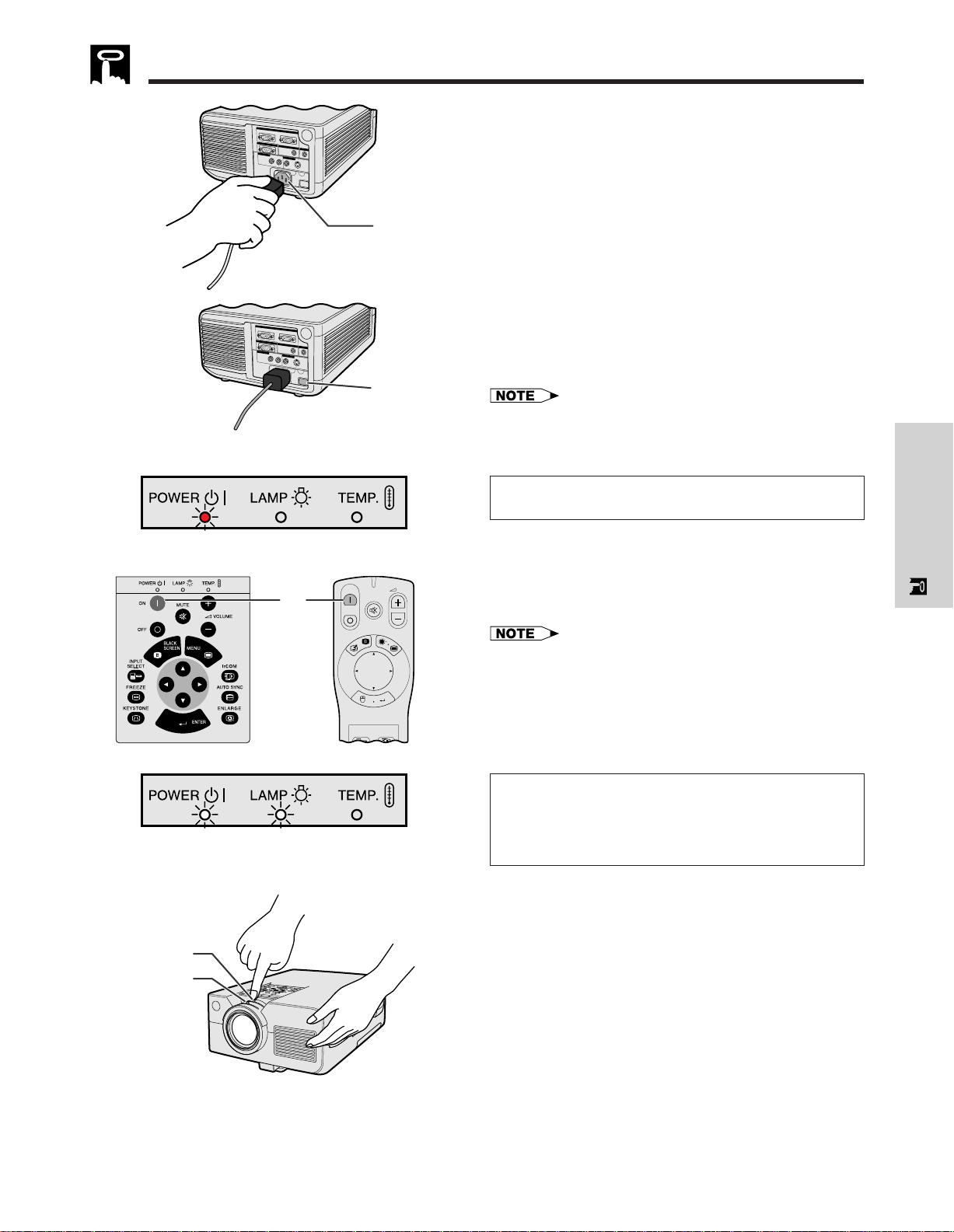

Basic Operations ………………………………… 18
Connect the Power Cord ……………………… 18
Turn on the Main Power ……………………… 18
Turn on the Lamp Power ……………………… 18
Adjusting Focus ………………………………… 18
Adjusting Zoom ………………………………… 18
Selecting and Checking the Input Mode …… 19
Adjusting the Volume ………………………… 19
Turning off the Power ………………………… 19

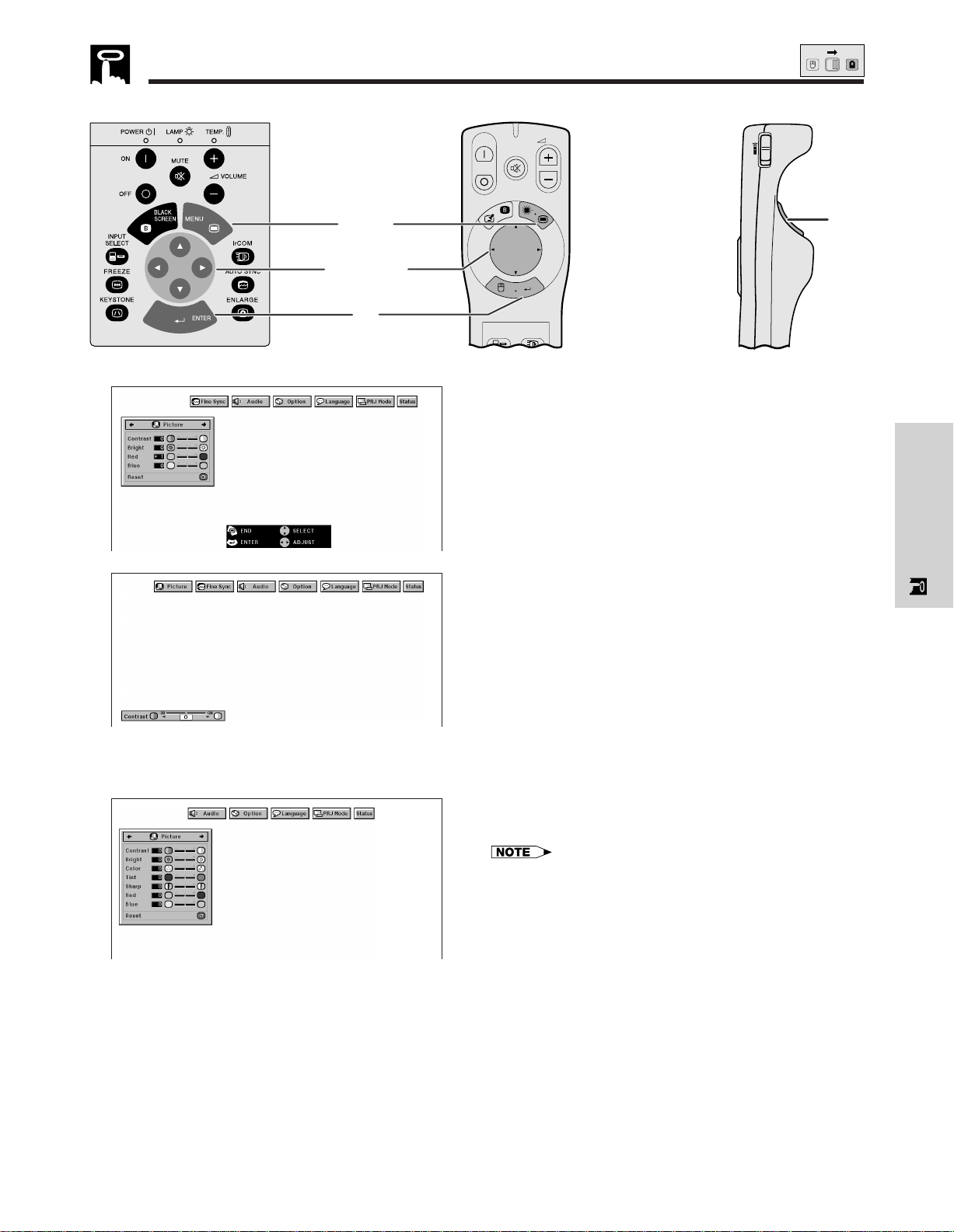

Using the GUI (Graphical User Interface)
Menu Screens ………………………………… 20

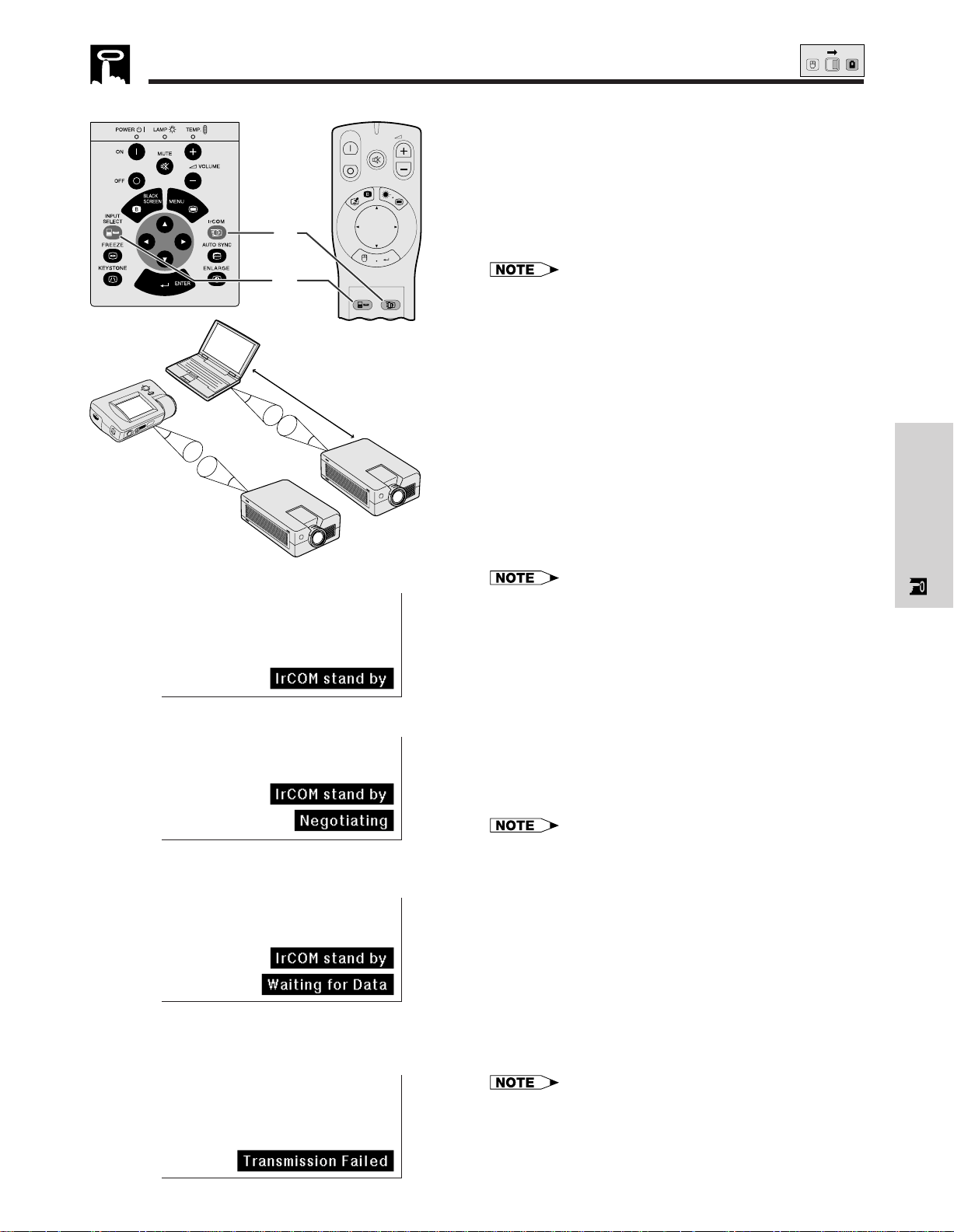

Using IrCOM for Wireless Presentations……… 22

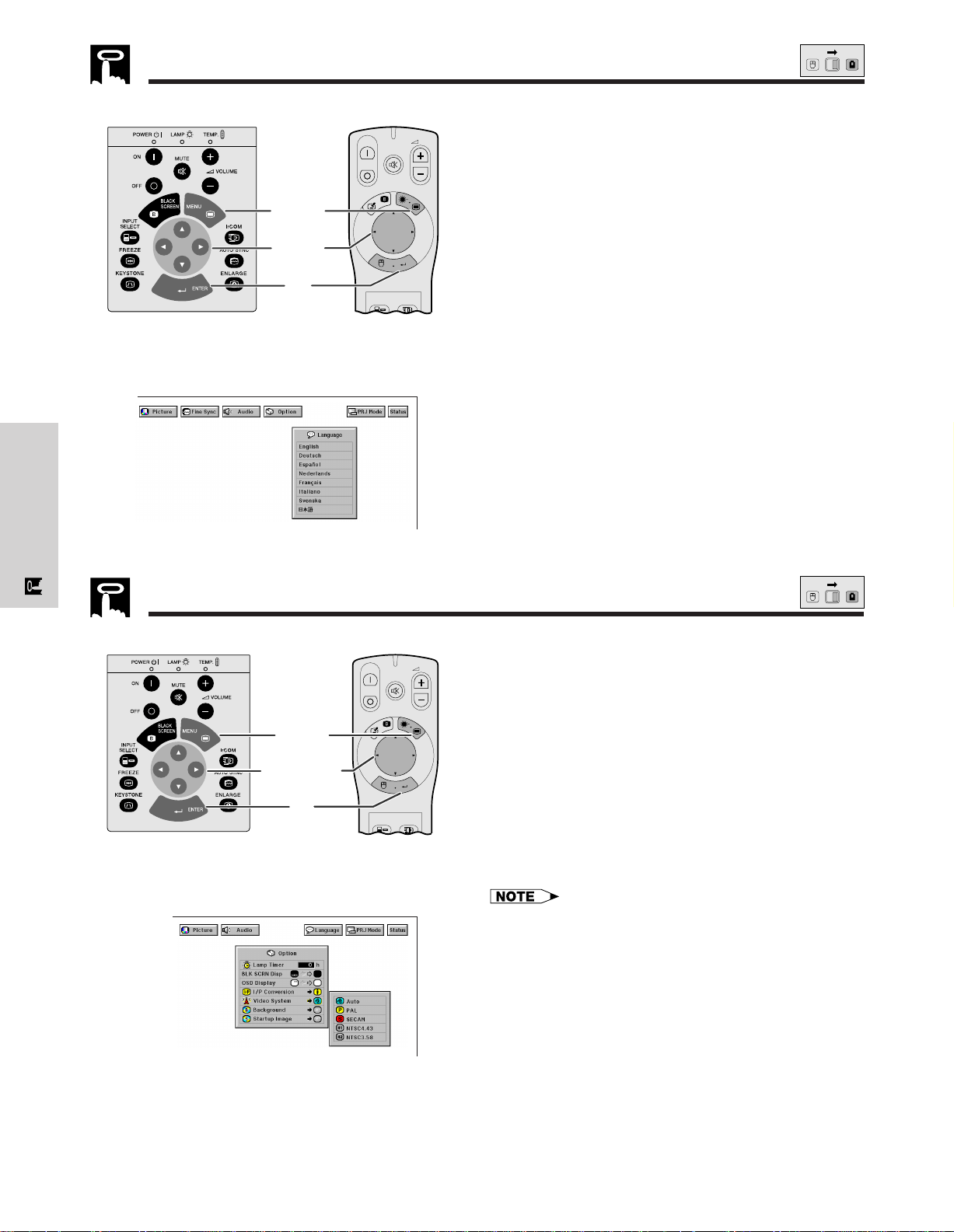

Selecting the On-screen Display Language … 23
Selecting the Video Input System Mode
(VIDEO mode only) …………………………… 23

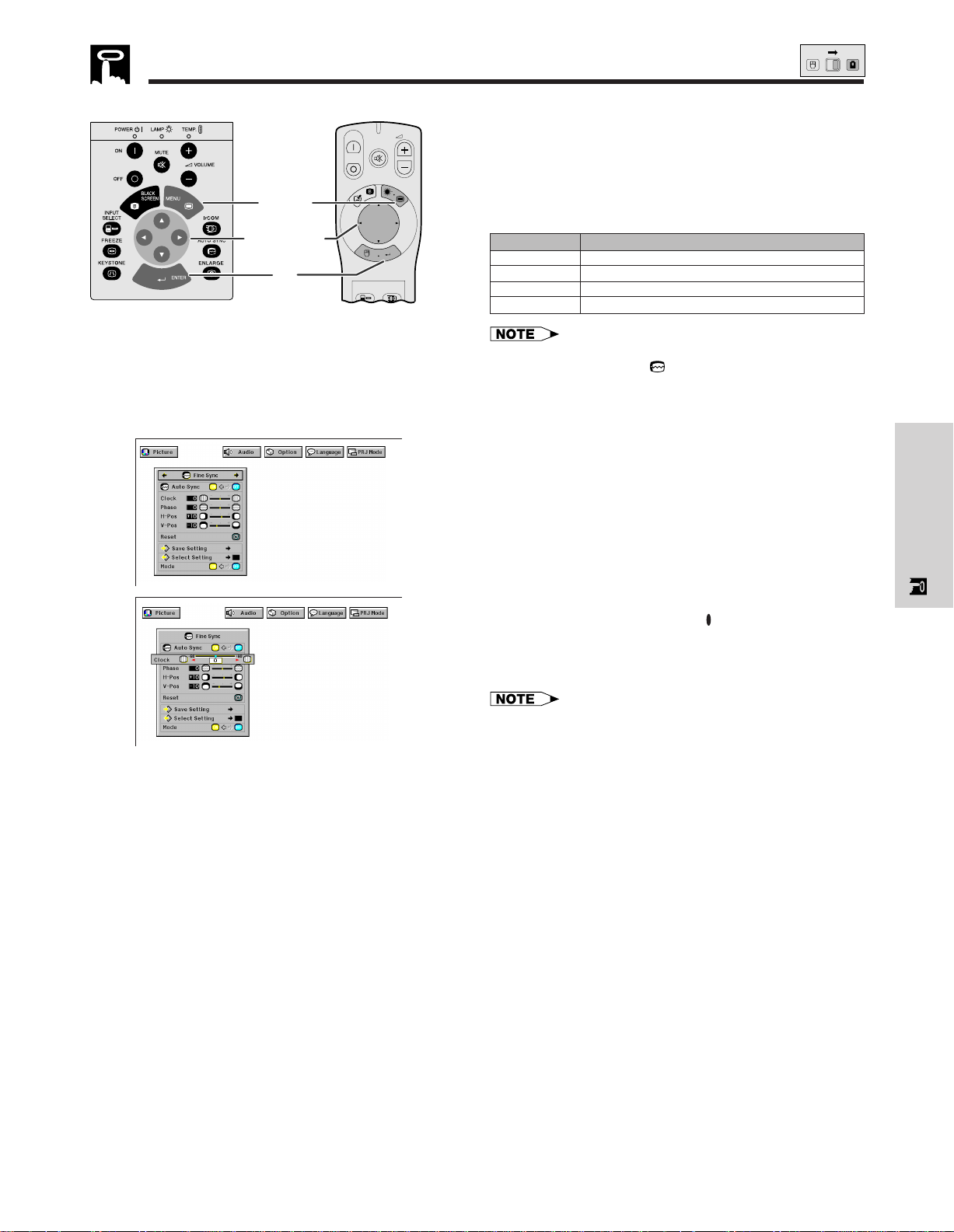

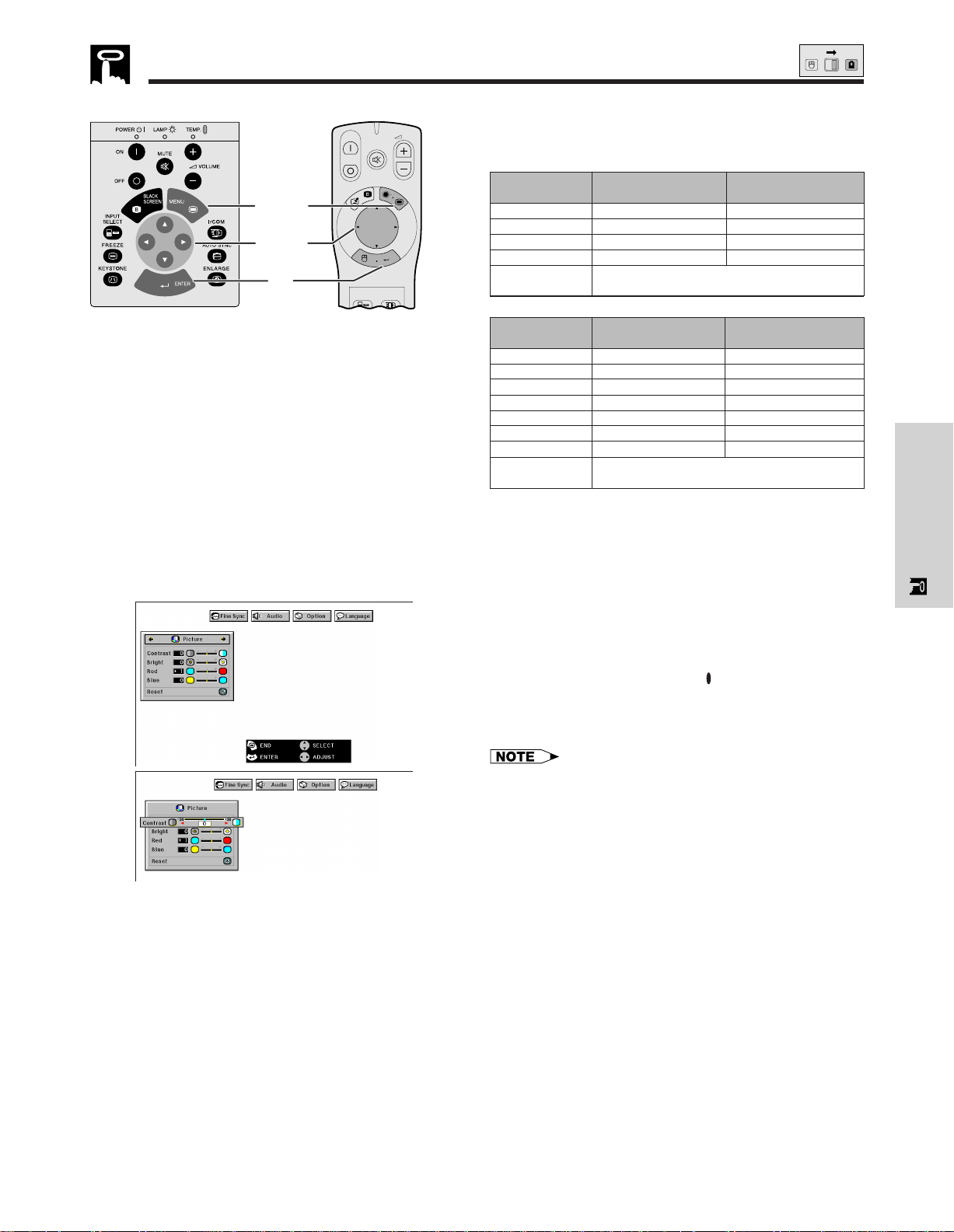

Picture Adjustments ……………………………… 24
Audio Adjustments ……………………………… 25

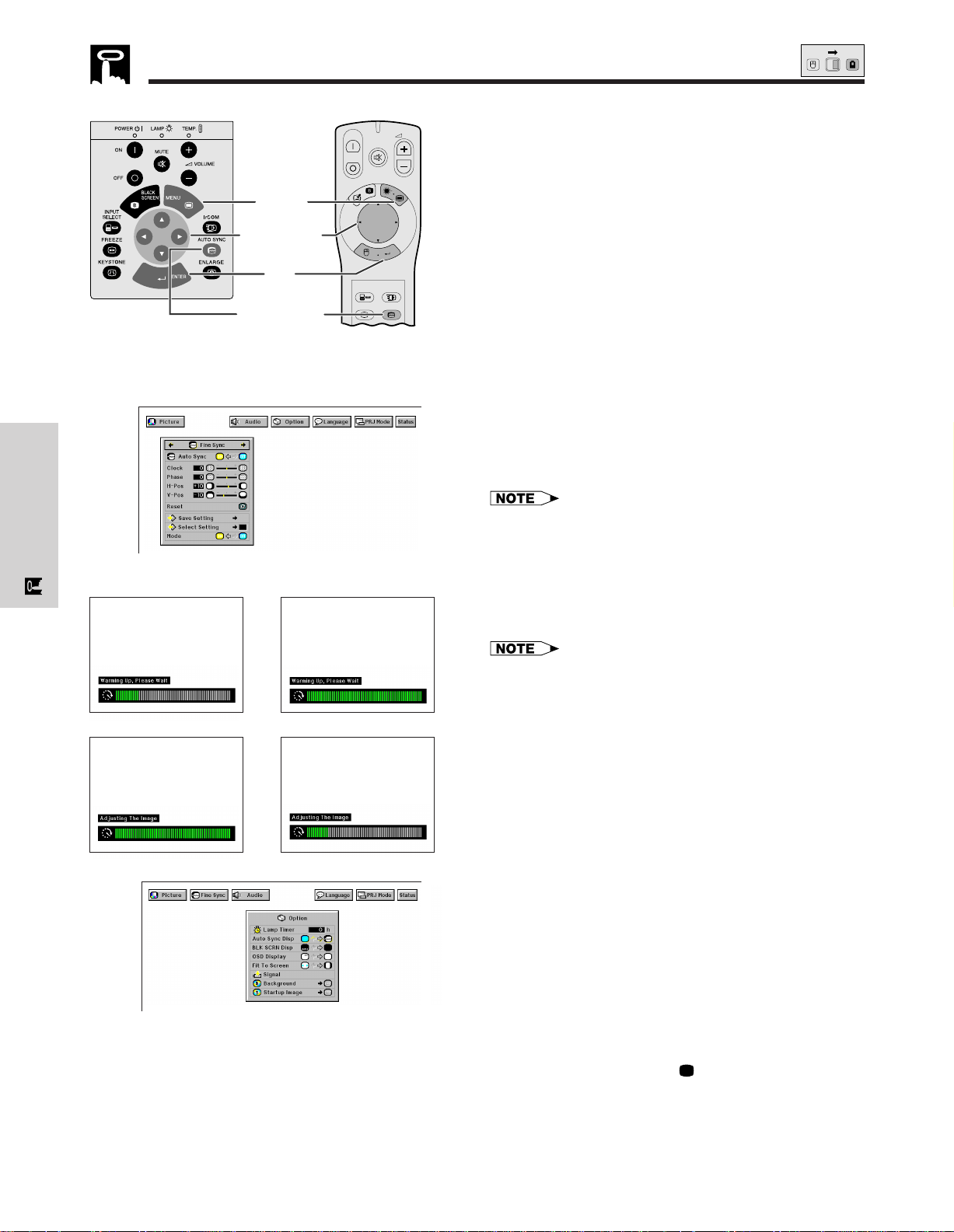

Computer Image Adjustments ………………… 26
Auto Sync Adjustment ………………………… 27
Auto Sync Display Function…………………… 27

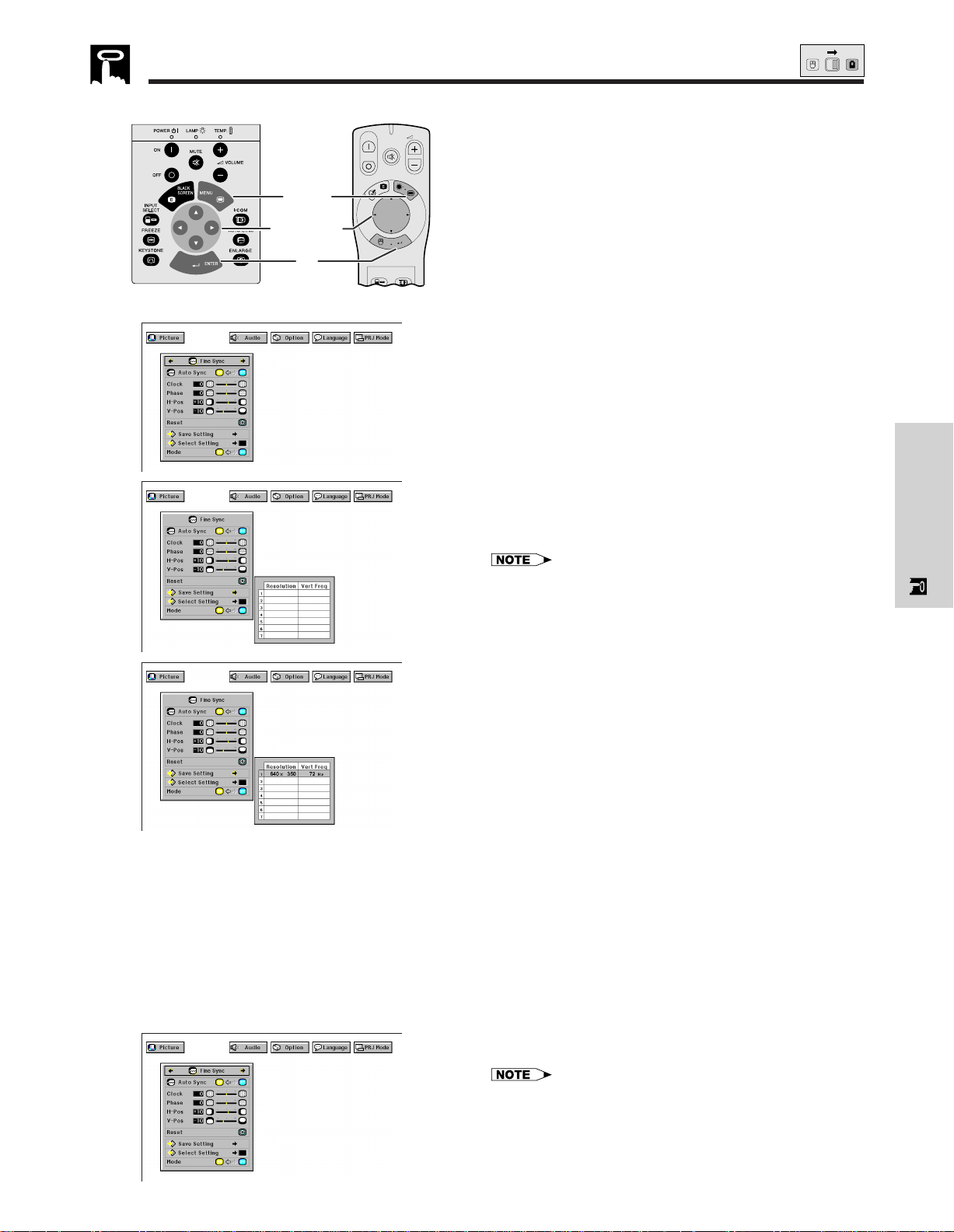

Saving and Selecting Adjustment Settings … 28
Mode Adjustment ……………………………… 28
Maintenance & Troubleshooting

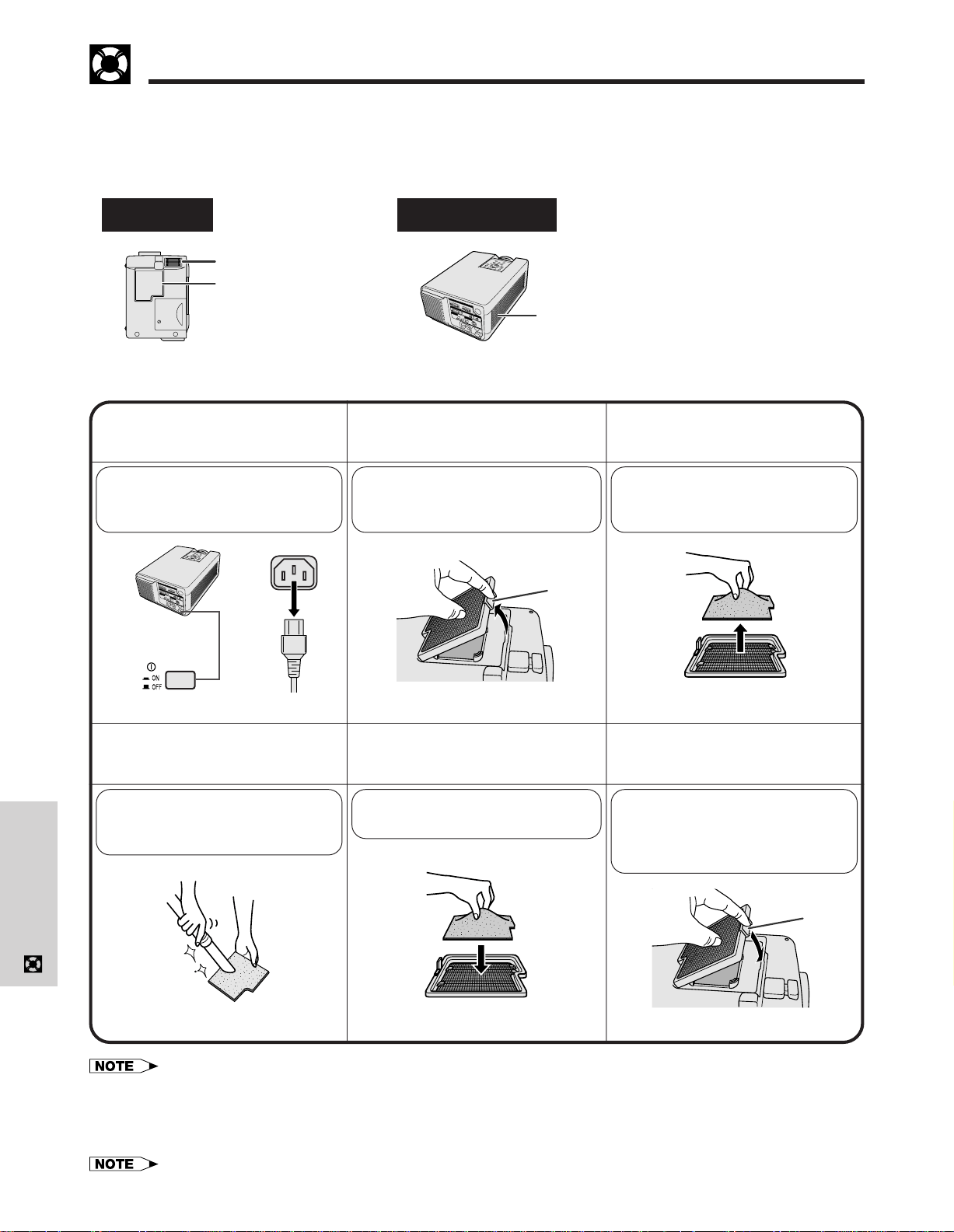

Air Filter Maintenance …………………………… 37

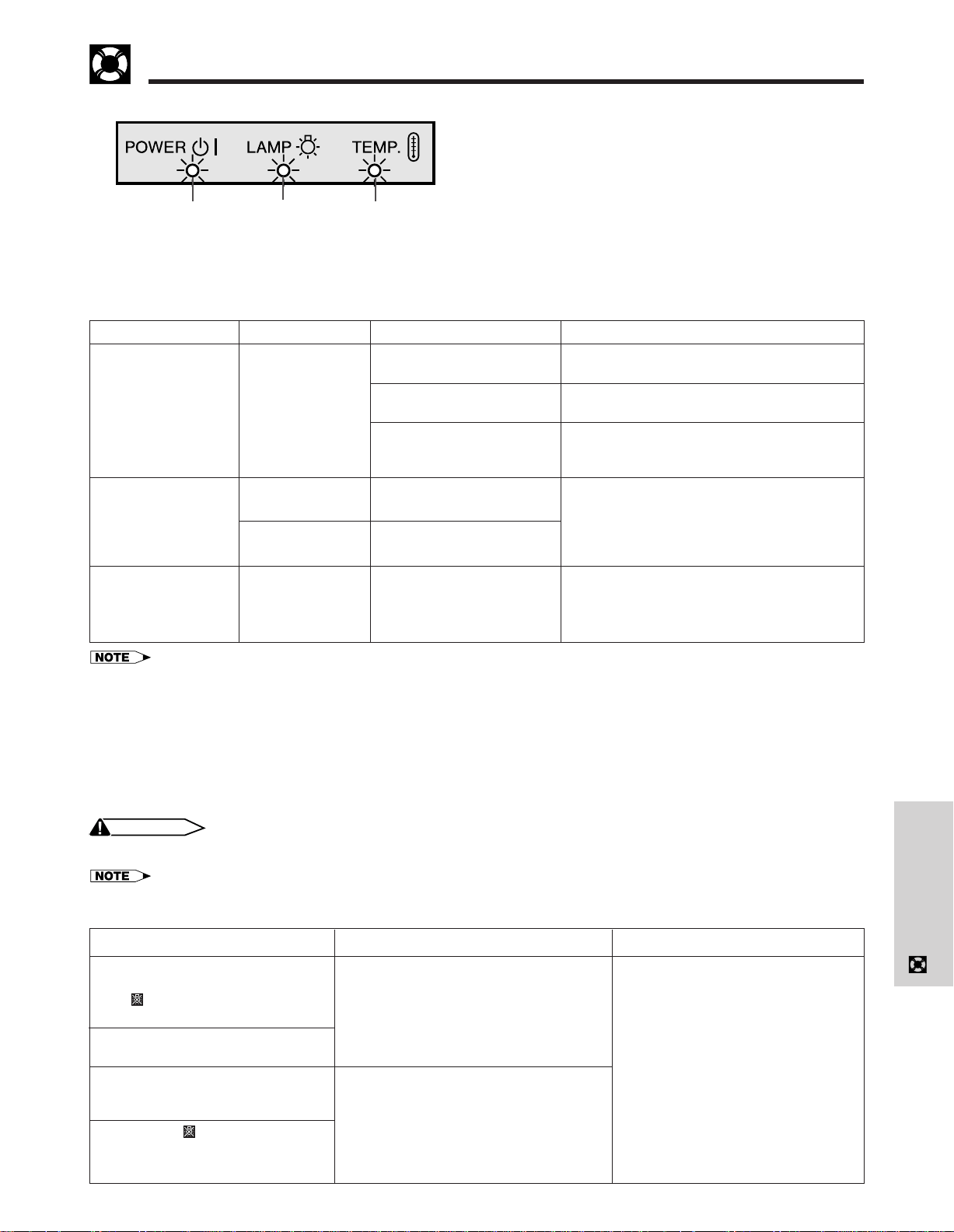

Lamp/Maintenance Indicators ………………… 38
Replacing the Projection Lamp ………………… 39
Using the Kensington Lock …………………… 40

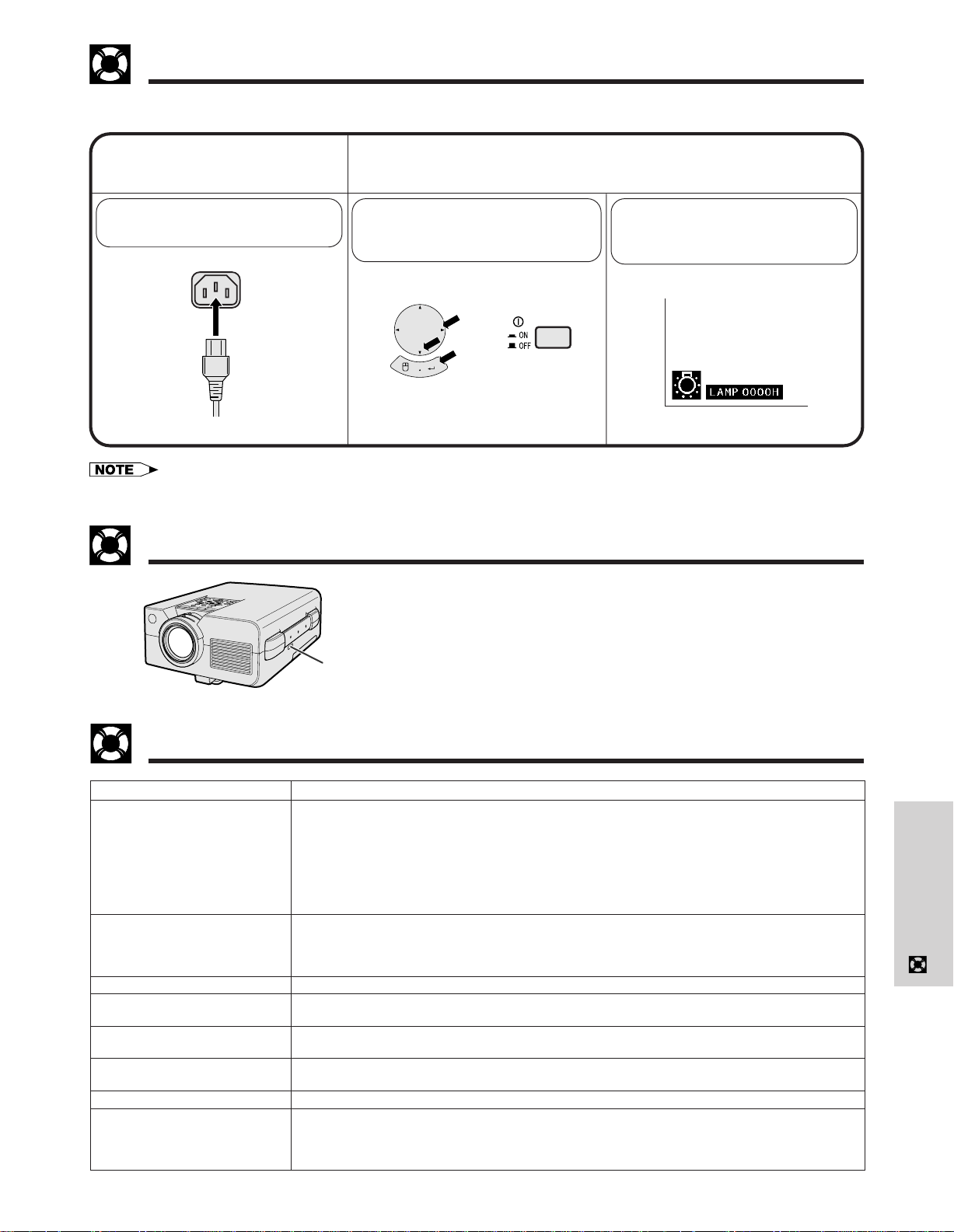

Troubleshooting …………………………………… 40
Appendix

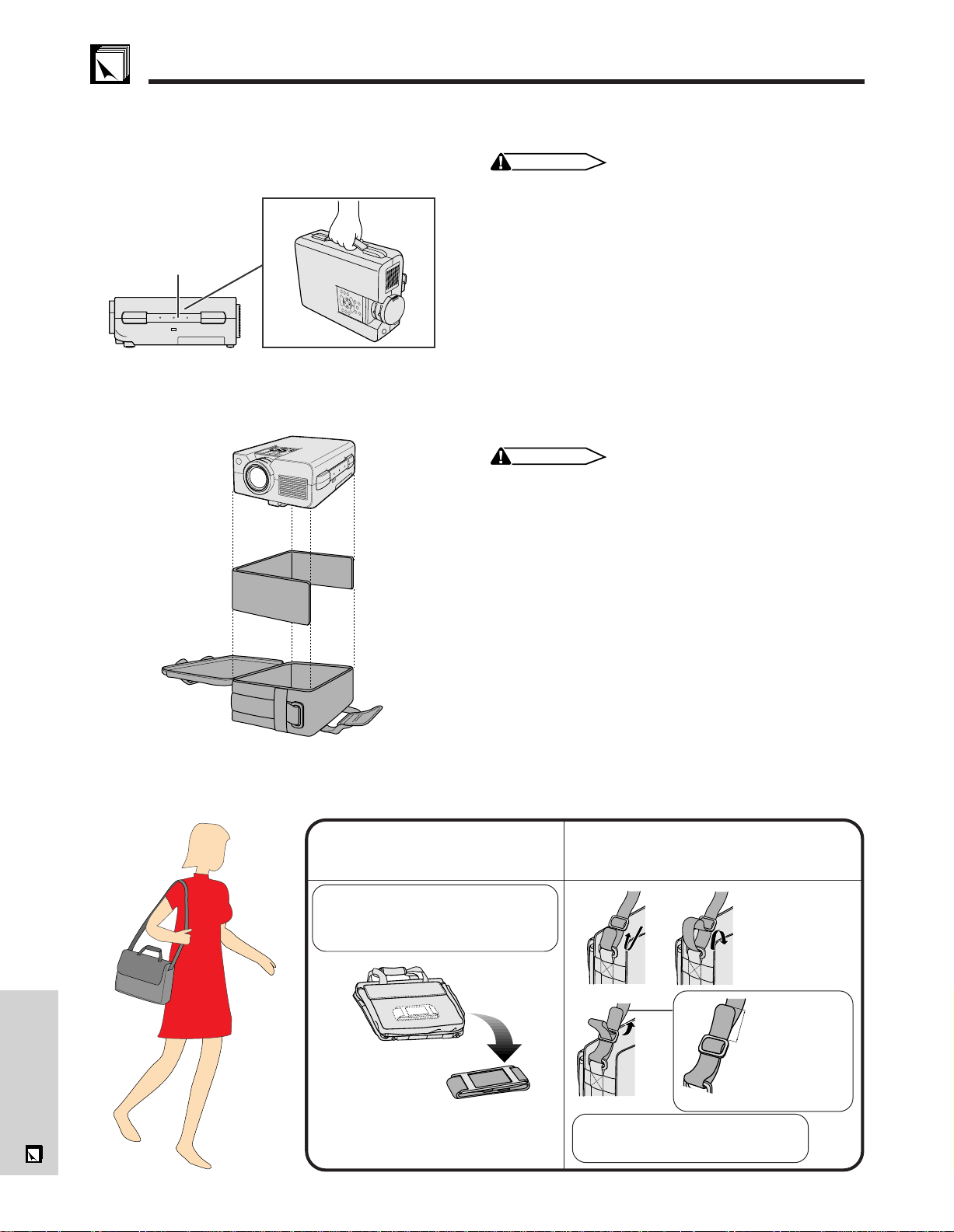

Transporting the Projector ……………………… 41
Connection Pin Assignments…………………… 42
RS-232C Port Specifications …………………… 42
Input Signals (Recommended Timing)………… 44
Specifications ……………………………………… 45

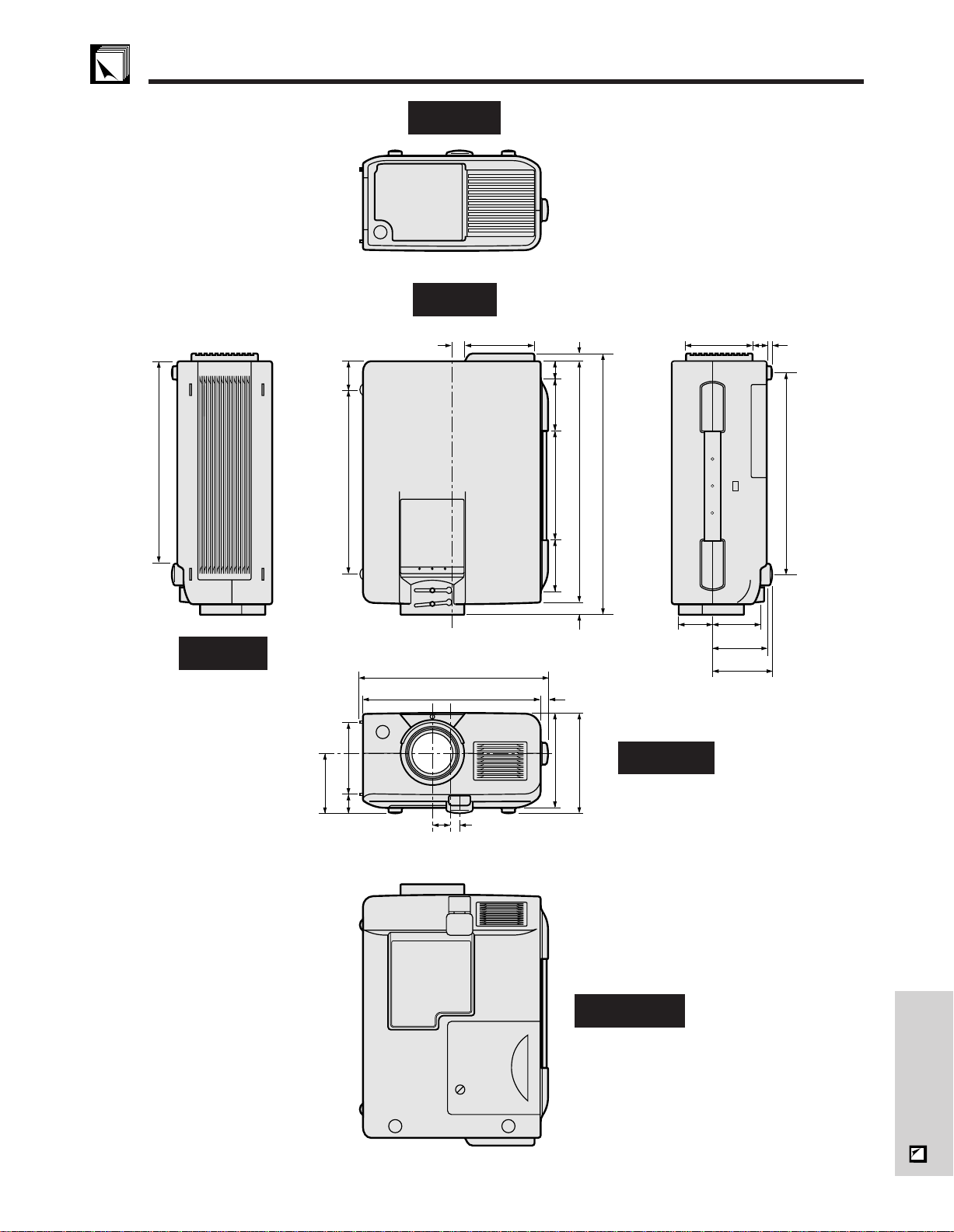

Dimensions ………………………………………… 46

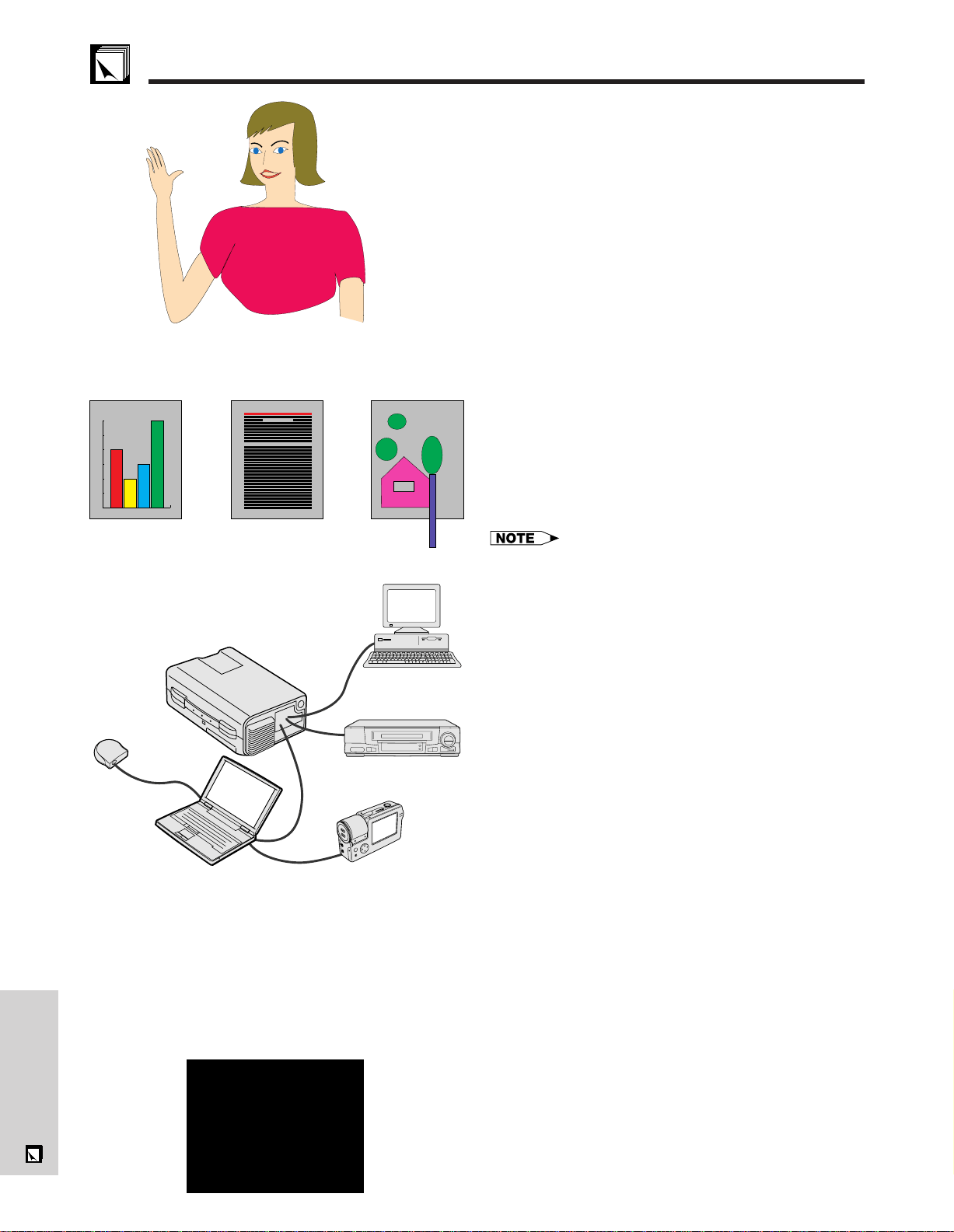

Guide to Effective Presentations ……………… 47
Glossary …………………………………………… 51
Index ………………………………………………… 52
XG-NV5XU (E)/Contents 98.11.24, 4:24 PM2
E-3
Important
Information
Important Safeguards
Electrical energy can perform many useful functions. This product has been engineered and manufactured to ensure your
personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to
defeat the safeguards incorporated into this LCD Projector, observe the following basic rules for its installation, use and
servicing. For your own protection and reliable usage of your LCD Projector, please be sure to read these “Important Safe-
guards” carefully before use.
1. Read Instructions—All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions—The safety and operating instructions should be retained for future reference.
3. Heed Warnings—All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions—All operating and use instructions should be followed.
5. Cleaning—Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use
a damp cloth for cleaning.
6. Attachments—Do not use attachments not recommended by the product manufacturer as they may cause hazards.
7. Water and Moisture—Do not use this product near water – for example, near a bathtub, wash bowl, kitchen sink, or
laundry tub; in a wet basement; or near a swimming pool; and the like.
8. Accessories—Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall,
causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod,
bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should
follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.
9. A product and cart combination should be moved with care. Quick stops, excessive force, and
uneven surfaces may cause the product and cart combination to overturn.
10. Ventilation—Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product
and to protect it from overheating. The openings should never be covered or blocked by placing the product on a bed,
sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or
rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
11. Power Sources—This product should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For
products intended to operate from battery power, or other sources, refer to the operating instructions.
12. Grounding or Polarization—This product is equipped with a three-wire grounding-type plug, a plug having a third
(grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose
of the grounding-type plug.
13. Power-Cord Protection—Power-supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the
point where they exit from the product.
14. Lightning—For added protection for this product during a lightning storm, or when it is left unattended and unused for
long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the
product due to lightning and power-line surges.
15. Overloading—Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a
risk of fire or electric shock.
16. Object and Liquid Entry—Never push objects of any kind into this product through openings as they may touch dangerous
voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
17. Servicing—Do not attempt to service this product yourself as opening or removing covers may expose you to danger-
ous voltage or other hazards. Refer all servicing to qualified service personnel.
18. Damage Requiring Service—Unplug this product from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
a. If the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only those controls that
are covered by the operating instructions, as an improper adjustment of other controls may result in damage and
will often require extensive work by a qualified technician to restore the product to normal operation.
e. If the product has been dropped or damaged in any way.
f. If the product exhibits a distinct change in performance—this indicates a need for service.
19. Replacement Parts—When replacement parts are required, be sure the service technician has used replacement
parts specified by the manufacturer or with the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
20. Safety Check—Upon completion of any service or repairs to this product, ask the service technician to perform safety
checks to determine that the product is in proper operating condition.
21. Wall or Ceiling Mounting—This product should be mounted to a wall or ceiling only as recommended by the manu-
facturer.
22. Heat—This product should be situated away from heat sources such as radiators, heat registers, stoves, or other
products (including amplifiers) that produce heat.
XG-NV5XU (E)-a 98.11.20, 9:52 PM3
E-4
Important
Information

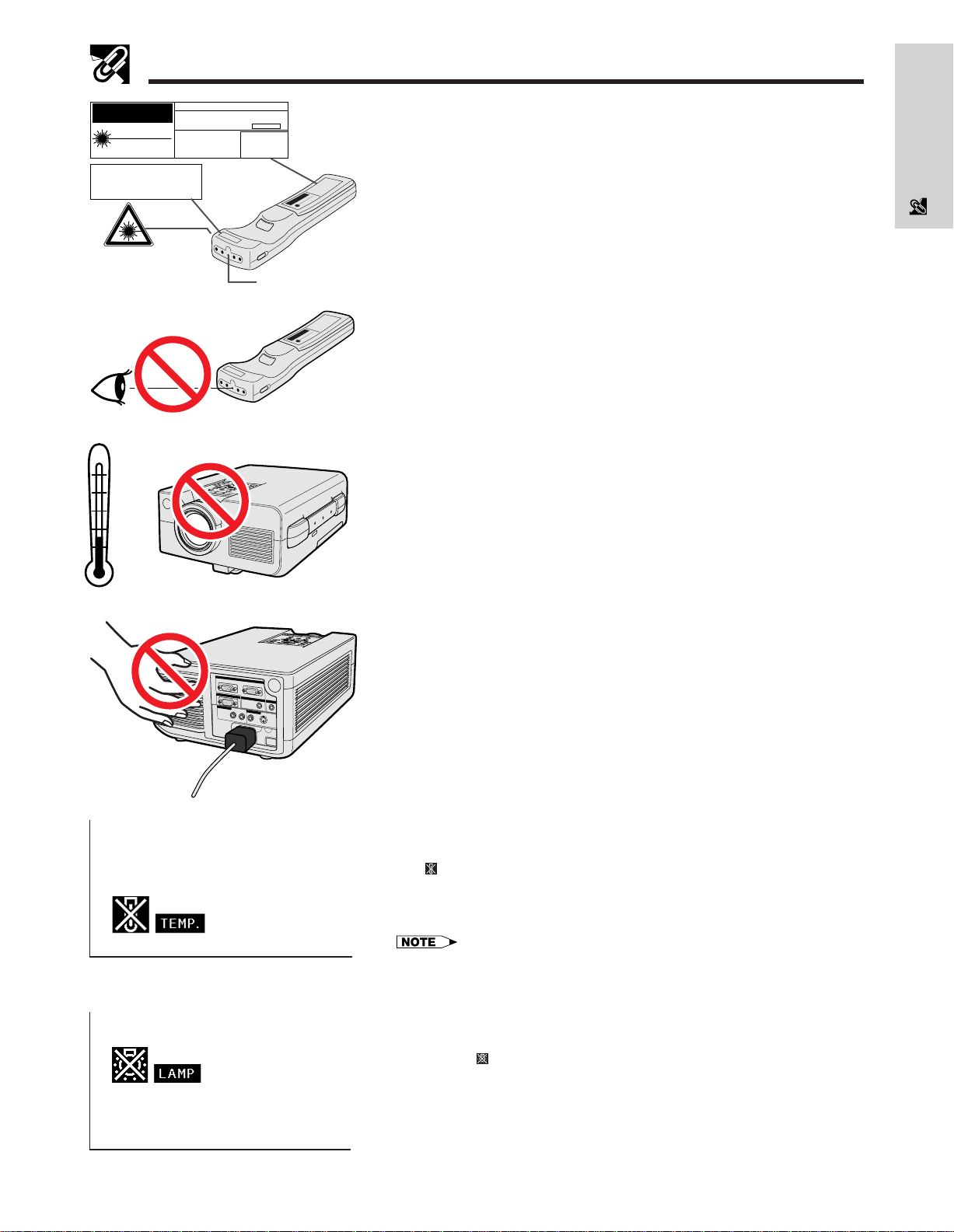

Usage Guidelines
Cautions Concerning the Laser Pointer
The laser pointer on the “Power” remote control emits a laser beam from the
laser pointer window. This is a Class II laser which may impair your sight if
directed into the eyes. The three marks shown on the left are caution labels
for the laser beam.
• Do not look into the laser pointer window or shine the laser beam on yourself or
others. (The laser beam used in this product is harmless when directed onto
the skin. However, be careful not to project the beam directly into the eyes.)
• Always use the laser pointer at temperatures between 41°F and 104°F (Ⳮ5°C
and Ⳮ40°C).
• Use of controls or adjustments, or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
CAUTION
LASER RADIATION-
DO NOT STARE INTO BEAM
WAVE LENGTH : 670nm
MAX. OUTPUT : 1mW
CLASS II LASER PRODUCT
"COMPLIES WITH 21 CFR SUBCHAPTER J"
SHARP ELECTRONICS CORPORATION
SHARP PLAZA, MAHWAH, NEW JERSEY 07430
TEL : 1-800-BE-SHARP
U.S.A. ONLY
REMOTE CONTROL
MODEL NO. : G1462CESA
DC6V (1.5VX4PCS.)
MADE IN JAPAN
FABRIQUÉ AU JAPON
AVOID EXPOSURE
-
LASER
RADIATION IS EMITTED
FROM THIS APERTURE.
Laser pointer
window
Cautions Concerning the Setup of the Projector
For minimal servicing and to maintain high image quality, SHARP recommends
that this projector be installed in an area free from humidity, dust and cigarette
smoke. When the projector is subjected to these environments, the lens and
filter must be cleaned more often. Periodically the filter should be replaced
and the projector should be cleaned internally. As long as the projector is
properly maintained in this manner, use in these environments will not reduce
the overall operation life. Please note that all internal cleaning must be
performed by an Authorized Sharp Industrial LCD Products Dealer or Service
Center.
104˚F
(Ⳮ40˚C)
41˚F
(Ⳮ5˚C)
• The exhaust vent, the lamp cage cover and adjacent areas may be extremely
hot during projector operation. To prevent injury, do not touch these areas until
they have sufficiently cooled.
• Allow at least 4 inches (10 cm) of space between the cooling fan (exhaust vent)
and the nearest wall or obstruction.
• If the cooling fan becomes obstructed, a protection device will automatically
turn off the projector lamp. This does not indicate a malfunction. Remove the
projector power cord from the wall outlet and wait at least 10 minutes. Then
turn on the power by plugging the power cord back in. This will return the
projector to the normal operating condition.
Notes on Operation
Temperature Monitor Function
If the projector starts to overheat due to setup problems or a dirty air filter, “TEMP.”
and “
” will flash in the lower-left corner of the picture. If the temperature continues
to rise, the lamp will turn off, the TEMPERATURE WARNING indicator on the
projector will flash, and after a 90-second cooling-off period the power will shut
off. Refer to “Lamp/Maintenance Indicators” on page 38, for details.
• The cooling fan regulates the internal temperature, and its performance is
automatically controlled. The sound of the fan may change during projector operation
due to changes in the fan speed.
Lamp Monitor Function
When the projector is turned on after the lamp has been used for 1,900 hours,
“LAMP” and “
” will flash in the lower-left corner of the picture to advise you to
replace the lamp. See pages 39 and 40 for lamp replacement. If the lamp has
been used for 2,000 hours, the projector power will automatically turn off and the
projector will enter standby mode. Refer to “Lamp/Maintenance Indicators” on
page 38, for details.
XG-NV5XU (E)-a 98.11.20, 9:54 PM4
E-5
Important
Information
Outstanding Features
1. WIRELESS PRESENTATIONS WITH IrCOM
The IrCOM function allows for wireless transmission of digital images via infrared communication, from a PC,
handheld PC or digital camera to the projector.
2. ADVANCED COMPATIBILITY WITH HIGH-END WORKSTATIONS AND PCS
Compatible with up to 100 Hz vertical refresh rate, Sync on Green and Composite Sync signals for use with a wide
variety of high-end PCs and Workstations.
3. XGA RESOLUTION FOR HIGH RESOLUTION PRESENTATIONS
With XGA (1,024 ⳯ 768) resolution, this projector can display very detailed presentation information.
4. INTELLIGENT COMPRESSION AND EXPANSION
By using intelligent resizing technology, this projector can display higher and lower resolution images in detail
without compromising quality.
5. UXGA COMPATIBLE
The projector can display compressed UXGA (1,600 ⳯ 1,200) images.
6. DIGITAL KEYSTONE CORRECTION
Digitally adjusts an image that is projected at an angle while maintaining image quality and brightness.
7. EASY-TO-USE GRAPHIC USER INTERFACE
A multi-color, icon based menu system allows for simple image adjustments.
8. AUTO SYNC TECHNOLOGY FOR AUTOMATIC IMAGE PERFECTION
Automatically makes any necessary adjustments for perfectly synced computer images.
9. BUILT-IN PRESENTATION TOOLS
A variety of helpful presentation utilities are incorporated to enhance presentations. These include “Stamp” functions,
“Break Timer”, and “Digital Enlarge”.
10. USER-FRIENDLY DESIGN
The two-color design along with an intuitive User Interface makes this projector very easy to set up and adjust.
11. CUSTOMIZABLE STARTUP SCREEN
Allows you to load a custom startup image (i.e. your company logo) to be displayed while the projector is warming
up.
XG-NV5XU (E)-a 98.11.20, 9:56 PM5
E-6
Important
Information
How to Access the PDF Operation Manuals (for Windows and Macintosh)
PDF operation manuals in all languages are included in the CD-ROM. To utilize these manuals, you need to install
Adobe Acrobat Reader on your PC (Windows or Macintosh). If you have not installed Acrobat Reader yet, you can
download it from the Internet (http://www.adobe.com) or install it from the CD-ROM.
To Install Acrobat Reader (English version) from the CD-ROM
For Windows:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click on the “My Computer” icon.
3 Double click on the “CD-ROM” drive.
4 Double click on the “manuals” folder.
5 Double click on the “acrobat” folder.
6 Double click on the “windows” folder.
7 Double click on the installation program and follow
the instructions on the screen.
For Macintosh:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click on the “CD-ROM” icon.
3 Double click on the “manuals” folder.
4 Double click on the “acrobat” folder.
5 Double click on the “mac” folder.
6 Double click on the installation program and follow
the instructions on the screen.
For other operating systems:
Please download Acrobat Reader from the Internet (http://www.adobe.com).
For other languages:
If you prefer using Acrobat Reader for other languages, please download the appropriate version from the Internet.
(Please note that you do not have to have Acrobat Reader in your own language. You can read any pdf file using
the English version of Acrobat Reader.)
Accessing the PDF Manuals
For Windows:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click on the “My Computer” icon.
3 Double click on the “CD-ROM” drive.
4 Double click on the “manuals” folder.
5 Double click on the “nv5” folder to access the
projector manuals.
Double click on the “saps” folder to access the
Sharp Advanced Presentation Software manual.
6 Double click on the language (name of the folder)
that you want to view.
7 Double click on the pdf file.
For Macintosh:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click on the “CD-ROM” icon.
3 Double click on the “manuals” folder.
4 Double click on the “acrobat” folder.
5 Double click on the “nv5” folder to access the
projector manuals.
Double click on the “saps” folder to access the
Sharp Advanced Presentation Software manual.
6 Double click on the language (name of the folder)
that you want to view.
7 Double click on the pdf file.
• If the desired pdf file cannot be opened by double clicking the mouse, please start Acrobat Reader first, then specify the
desired file using the “File”, “Open” menu.
CD-ROM Structure
PDF files
nv5us.pdf
nv5f.pdf
nv5sp.pdf
saps1us.pdf
saps1f.pdf
saps1sp.pdf
Acrobat Reader (English) installation program
Acrobat Reader (English) installation program
Third folder
american
french
spanish
american
french
spanish
windows
mac
Second folder/programs
nv5
saps
acrobat
saps programs
nv5demo
First folder
manuals
saps
Root
CD-ROM
XG-NV5XU (E)-a 98.11.20, 9:56 PM6
E-7
Important
Information
Supplied Accessories
Computer cable
QCNW-5108CEZZ
Macintosh adaptor
QPLGJ1512CEZZ
Mouse control cable for IBM
PS/2
QCNW-5113CEZZ
Carrying bag
GCASN0001CESA
CD-ROM
UDSKA0001CE01
Mouse control cable for Mac
QCNW-5114CEZZ
Lens cap
GCOVH1307CESA
“Power” remote control
RRMCG1470CESA
Simple presentation
remote control
RRMCG1480CESA
Four AA size batteries
UBATU0025GEZZ
Two AAA size batteries
UBATU0026GEZZ
Extra air filter
PFILD0076CEZZ
Mouse control serial cable
QCNW-5112CEZZ
Power cord
CACCU5013CE01
Sharp Advanced
Presentation Software
operation manual
TINS-6601CEZZ
Sharp Advanced
Presentation Software
quick reference
TINS-6676CEZZ
LCD projector
quick reference
TINS-6598CEZZ
LCD projector
operation manual
TINS-6583CEZZ
For SHARP Assistance (U.S.A. only)
If you encounter any problems during setup or operation of this projector, first refer to the “Troubleshooting”
section on page 40. If this operation manual does not answer your question, please call toll free 1-800-BE-SHARP
(1-800-237-4277) for further assistance. Or, send us an e-mail at [email protected] .
Our World Wide Web address is http://www.sharp-usa.com/ .
Quick Reference to XG-NV5X
Computer audio cable
QCNW-4870CEZZ
Remote mouse receiver
RUNTK0648CEZZ
XG-NV5XU (E)-a 98.11.25, 2:25 PM7
E-8
Important
Information
Part Names
Projector
Front View
1 POWER indicator [pp. 18, 19, 38]
2 POWER buttons (ON/OFF)
[pp. 18, 19, 39]
3 BLACK SCREEN button [p. 30]
4 INPUT SELECT button
[pp. 19, 26]
5 FREEZE button [p. 33]
6 KEYSTONE button [p. 14]
7 ADJUSTMENT buttons (∂ /ƒ/
ß / ©) [pp. 14, 20–36, 40]
8 LAMP REPLACEMENT indicator
[pp. 18, 19, 38]
9 TEMPERATURE WARNING indi-
cator [pp. 4, 38]
0 VOLUME buttons (Ⳮ/ⳮ) [p. 19]
q MUTE button [p. 19]
w MENU button [pp. 20–36]
e IrCOM button [p. 22]
r AUTO SYNC button [pp. 26, 27]
t ENLARGE button [p. 29]
y ENTER button
[pp. 14, 20–36, 40]
u Zoom knob [p. 18]
i Focus knob [p. 18]
o Remote control sensor [p. 10]
p Air filter [p. 37]/Cooling fan
(Intake vent)
a Carrying handle [p. 41]
s Kensington Security Standard
connector [p. 40]
d Foot release [p. 14]
f Cooling fan (Exhaust vent)
g Remote control sensor [p. 10]
h Speaker
j Cooling fan (Intake vent)
k Air filter [p. 37]
l COMPUTER INPUT 1 port
(HD-15) [pp. 15, 16, 42]
; RS-232C port (9-pin D-sub)
[pp. 15, 17, 42, 43]
J AUDIO INPUT terminals: RCA
[p. 17]
K AC socket
L MAIN POWER switch
[pp. 11, 18, 37, 39, 40]
: COMPUTER INPUT 2 port
(HD-15) [pp. 15, 16, 42]
a AUDIO OUTPUT terminal
(3.5 mm stereo minijack) [p. 17]
s COMPUTER AUDIO INPUT
terminal (3.5 mm stereo minijack)
[p. 15]
d S-VIDEO INPUT terminal: 4-pin
mini DIN [p. 17]
f IrCOM sensor [p. 22]
g VIDEO INPUT terminal: RCA
[p.17]
1
2
3
4
5
6
7
u
i
o
p
a
s
d
9
8
0
q
w
e
r
t
y
f
l
;
J
K
L
g
h
j
k
:
a
s
d
f
g
Side and Rear View
XG-NV5XU (E)-a 98.11.25, 3:00 PM8
E-9
Important
Information
Part Names
Top View
o
p
Front View
Simple Presentation Remote Control
Side ViewFront View
f
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
MOUSE
LIGHT
LCD PROJECTOR
ADJ.
IrCOM
FREEZE
AUTO SYNC
KEYSTONE
ENLARGE
MENU
LASER
BLACK
SCREEN
VOL
OFF
1
2
3
4
5
6
7
8
e
w
q
0
9
r
t
y
“Power” Remote Control
Side View
R
/C
O
F
F
O
N
u
i
a
s
d
1 MUTE button [p. 19]
2 POWER buttons (ON/OFF) [pp. 18, 19, 39]
3 BLACK SCREEN/TOOLS button [pp. 30, 35]
4 RIGHT-CLICK/ENTER button
[pp. 11, 14, 20–36]
5 INPUT button [pp. 19, 26]
6 FREEZE button [p. 33]
7 KEYSTONE button [p. 14]
8 MOUSE/ADJUSTMENT switch
[pp. 11, 14, 20–36, 40]
9 TRANSMISSION indicator
0 VOLUME buttons (Ⳮ/ⳮ) [p. 19]
q LASER POINTER/MENU button
[pp. 11, 20–36]
w MOUSE/ADJUSTMENT buttons (∂/ƒ/ß/©)
[pp. 14, 20–36]
e IrCOM button [p. 22]
r AUTO SYNC button [pp. 26, 27]
t ENLARGE button [p. 29]
y BACKLIGHT button [p. 11]
u MAIN POWER switch [p. 11]
i LEFT-CLICK (BACK) button [pp. 11, 20–36]
o Remote control signal transmitter
p Laser pointer window [p. 4]
a TRANSMISSION indicator
s MOUSE button [p. 11]
d RIGHT-CLICK button [p. 11]
f LEFT-CLICK button [p. 11]
XG-NV5XU (E)-a 98.11.20, 9:59 PM9
E-10
Important
Information
20⬘ (6 m)
30˚
30˚
30˚
45˚
Part Names
Inserting the batteries
13
Press in and downward
on the arrow to remove
the battery cover.
2
I
nsert four AA size batteries
for the “Power” remote
control and two AAA size
batteries for the simple
presentation remote control
making sure their polarities
match the Ⳮ and ⳮ marks
inside the battery
compartment.
Insert the side tabs of
the battery cover into
their slots and press the
cover in until it is
properly seated.
Battery
cover
Battery
compartment
Battery
cover
Battery
cover
Battery
compartment
Battery
cover
Remote Control/Mouse Receiver Positioning
Controlling the Projector
• The “Power” remote control can be used to control the projector within the ranges shown below.
• The remote mouse receiver can be used with the “Power” remote control or the simple presentation remote
control to control the mouse functions of a connected computer within the ranges shown below. (See page 15
for details.)
• The signal from the remote controls can be reflected off a screen for easy operation. However, the effective distance of the
signal may differ due to the screen material.
Simple
presentation
remote control
“Power” remote control
30˚
30˚
30˚
45˚
23⬘ (7 m)
45˚
“Power”
remote
control
“Power”
remote
control
Remote
mouse
receiver
Using the Wireless Mouse
XG-NV5XU (E)-a 98.11.20, 10:00 PM10
E-11
Important
Information
Operating the Wireless Mouse from the “Power” Remote Control
The “Power” remote control has the following three func-
tions:
• Operation of projector controls
• Operation of wireless mouse
• Use of laser pointer
Slide the MOUSE/ADJUSTMENT switch to the MOUSE
or ADJ. position for use of the function.
1 Connect the projector to a computer
See pages 15 and 16 for details.
2 Wireless mouse operation
1. After connecting the projector and the computer, turn
the projector on first. The computer should always be
turned on last.
2. Slide the MAIN POWER switch on the “Power” remote
control to ON.
3 Selecting the operation mode
To use the “Power” remote control as a wireless mouse, slide
the MOUSE/ADJUSTMENT switch to the MOUSE position.
• To use the “Power” remote control to operate the projector, slide
the MOUSE/ADJUSTMENT switch to the ADJ. position.
• The wireless mouse or RS-232C function may not operate if your
computer serial port is not correctly set up. Please refer to the
computer’s operation manual for details on setting up/installing the
correct mouse driver.
4 Moving the mouse cursor
Press ∂/ƒ/ß/© on the “Power” remote control to move the
mouse cursor around the screen.
• The supplied simple presentation remote control can also be used
for wireless mouse operation.
5 Using the mouse buttons for two-button mouse
systems
The wireless mouse is configured to be used as a standard
two-button mouse (desktop mouse).
1. Use LEFT-CLICK on the back of the “Power” remote
control as the “Left Click” of a standard desktop mouse.
2. Use RIGHT-CLICK on the front of the “Power” remote
control as the “Right Click” of a standard desktop
mouse.
• For one-button mouse systems, use either the LEFT-CLICK or
RIGHT-CLICK button.
Using the laser pointer
Slide the MOUSE/ADJUSTMENT switch to the MOUSE
position, and then press LASER POINTER (
) to activate
the laser pointer. When the button is released, the light
automatically goes off.
• For safety reasons, the laser pointer automatically goes off after
1 minute of continuous use. To turn it on again, press LASER
POINTER ( ) one more time.
Using the “Power” remote control in a dark
room
The “Power” remote control has a backlight function. When
BACKLIGHT is pressed, the remote buttons light up. Green
light refers to mouse operations, and red light to projector
adjustments.
• If the MAIN POWER switch on the “Power” remote control is left on
for more than 10 minutes without operation, the power will
automatically turn off. To turn the power back on, press any button
on the remote control for more than one second.
When operating the
projector controls or
using the laser pointer
MOUSE
ADJ.
When operating the
wireless mouse
MOUSE
ADJ.
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
MOUSE
LIGHT
LCD PROJECTOR
ADJ.
IrCOM
FREEZE
AUTO SYNC
KEYSTONE
ENLARGE
MENU
LASER
BLACK
SCREEN
VOL
OFF
4
5 2
MOUSE
ADJ.
R/C
OFF
ON
2 2
5 1
Mouse cursor
Position of MOUSE/ADJUSTMENT switch
ON (RED)
MOUSE
LASER POINTER (GREEN)
BLACK SCREEN (GREEN)
RIGHT-CLICK (GREEN)
MOUSE (NOT LIT)
LEFT-CLICK (NOT LIT)
ADJ.
MENU (RED)
TOOLS (RED)
ENTER (RED)
ADJUSTMENT (NOT LIT)
BACK (NOT LIT)
Button name
LASER POINTER/MENU
BLACK SCREEN/TOOLS
RIGHT-CLICK/ENTER
MOUSE/ADJUSTMENT
LEFT-CLICK/BACK
POWER ON/OFF
VOLUME Ⳮ/ⳮ
MUTE
INPUT
IrCOM
FREEZE
AUTO SYNCHRONIZATION
KEYSTONE
ENLARGE
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
MOUSE
LIGHT
LCD PROJECTOR
ADJ.
IrCOM
FREEZE
AUTO SYNC
KEYSTONE
ENLARGE
MENU
LASER
BLACK
SCREEN
VOL
OFF
MOUSE
ADJ.
LASER POINTER button
BACKLIGHT button
XG-NV5XU (E)-a 98.11.20, 10:00 PM11
E-12
Setup & Connections
Setting Up the Projector and Screen
The formula for picture size and projection distance
y
1
= (0.1982x ⳮ 0.219) ⳯ 3.28
y
2
= (0.1333x ⳮ 0.21) ⳯ 3.28
x: Picture size (diag.) (inches)
y
1
: Maximum projection distance (feet)
y
2
: Minimum projection distance (feet)
• There is an error of Ⳳ4 inches (Ⳳ10 cm) in the formula above.
Position the projector perpendicular to the screen with all feet flat and level to achieve optimal image.
Move the projector forward or backward if the edges of the image are distorted.
• The projector lens should be centered in the middle of the screen. If the lens center is not perpendicular to the screen, the
image will be distorted, making viewing difficult.
• Position the screen so that it is not in direct sunlight or room light. Light falling directly onto the screen washes out colors,
making viewing difficult. Close the curtains and dim the lights when setting up the screen in a sunny or bright room.
• A polarizing screen cannot be used with this projector.
Standard Setup (Front Projection)
Place the projector at the required distance from the screen according to the desired picture size (see the table
below).
Maximum
59⬘ 2⬙ (18.1 m)
39⬘ 4⬙ (12.0 m)
29⬘ 5⬙ (9.0 m)
19⬘ 6⬙ (6.0 m)
15⬘ 6⬙ (4.8 m)
11⬘ 7⬙ (3.6 m)
7⬘ 7⬙ (2.4 m)
Minimum
39⬘ 8⬙ (12.1 m)
26⬘ 5⬙ (8.1 m)
19⬘ 8⬙ (6.0 m)
13⬘ 1⬙ (4.0 m)
10⬘ 4⬙ (3.2 m)
7⬘ 8⬙ (2.4 m)
5⬘ 1⬙ (1.6 m)
Projection distance
Picture size
(diag.)
300⬙ (240⬙ W ⳯ 180⬙ H)
200⬙ (160⬙ W ⳯ 120⬙ H)
150⬙ (120⬙ W ⳯ 90⬙ H)
100⬙ (80⬙ W ⳯ 60⬙ H)
80⬙ (64⬙ W ⳯ 48⬙ H)
60⬙ (48⬙ W ⳯ 36⬙ H)
40⬙ (32⬙ W ⳯ 24⬙ H)
90˚
Reversed Image Setup
Rear projection
• Place a translucent screen between the projector and
the audience.
• Use the projector’s menu system to reverse the
projected image. (See page 34 for use of this
function.)
Projection using a mirror
• Place a mirror (normal flat type) in front of the lens.
• Use the projector’s menu system to reverse the
projected image. (See page 34 for use of this
function.)
• The image reflected from the mirror is projected onto
the screen.
CAUTION
• When using a mirror, be sure to carefully position both the
projector and the mirror so the light does not shine into the
eyes of the audience.
90˚
Mirror
90˚
Translucent
screen
XG-NV5XU (E)-b 98.11.20, 9:36 PM12
E-13
Setup & Connections
Setting Up the Projector and Screen
Ceiling-mount Setup
• Use the optional Sharp ceiling-mount bracket for this installation.
• Before mounting the projector, contact your nearest Authorized Sharp Industrial LCD Products dealer or Service
Center to obtain the recommended ceiling-mount bracket (sold separately). (AN-XGCM50 ceiling-mount bracket,
AN-EP101AP extension tube for AN-XGCM50.)
• When the projector is in the inverted position, use the upper edge of the screen as the base line.
• Use the projector’s menu system to select the appropriate projection mode. (See page 34 for use of this function.)
Adjusting the Height of the Image
300⬙ (240⬙ W ⳯ 180⬙ H)
200⬙ (160⬙ W ⳯ 120⬙ H)
150⬙ (120⬙ W ⳯ 90⬙ H)
100⬙ (80⬙ W ⳯ 60⬙ H)
80⬙ (64⬙ W ⳯ 48⬙ H)
60⬙ (48⬙ W ⳯ 36⬙ H)
40⬙ (32⬙ W ⳯ 24⬙ H)
18⬙ (45.8 cm)
12⬙ (30.5 cm)
9⬙ (22.9 cm)
6⬙ (15.3 cm)
4
51
⁄64⬙ (12.2 cm)
3
19
⁄32⬙ (9.2 cm)
2
25
⁄64⬙ (6.1 cm)
Distance from the lens center to the
bottom of the image (H)
Picture size
(diag.)
90˚
H
Height of Image
See the table below for exact distances from the lens
center to the bottom of the image.
90˚
XG-NV5XU (E)-b 98.11.20, 9:36 PM13
E-14
Setup & Connections
Adjusting the Height of the Image
1 Press the foot release and lift the projector to the
desired angle.
2 Remove your hand from the foot release. Once
the adjustment foot has locked in position, release
the projector.
Returning the projector to its original position
While holding the projector, press the foot release and slowly
lower the projector to its original position.
• The projector is adjustable up to approximately 5° from the
standard position.
• When an adjustment is made, the image may become
distorted (keystoned), depending on the relative positions
of the projector and the screen.
CAUTION
• Do not press the foot release when the adjustment foot is
extended without firmly holding the projector.
• Do not hold the lens when lifting or lowering the projector.
• When lowering the projector, be careful not to get your
fingers caught in the area between the adjustment foot and
the projector.
Using the Adjustment Foot
You can adjust the height of the image by raising
the projector with the foot release.
Foot release
Digital Keystone Correction
When the image is distorted due to the projection
angle, the Digital Keystone Correction function
allows you to correct it.
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press KEYSTONE.
2 Press ∂ to compress the upper part of the image.
Press ƒ to compress the lower part of the image.
3 Press ENTER to display a test pattern.
4 Press ENTER to clear the test pattern.
5 To exit, press KEYSTONE.
6 To reset, press LEFT-CLICK.
Pressing
ƒƒ
ƒƒ
ƒ
in Step 2
g
44
44
4
Pressing
∂∂
∂∂
∂
in Step 2
Projector
• Straight lines or the edges of the displayed image may
become jagged.
33
33
3
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
MOUSE
LIGHT
ADJ.
IrCOM
FREEZE
AUTO SYNC
KEYSTONE
ENLARGE
MENU
LASER
BLACK
SCREEN
VOL
OFF
R
/C
O
F
F
O
N
3, 4
1, 5
2
6
MOUSE
ADJ.
Test Pattern
XG-NV5XU (E)-b 98.11.20, 9:38 PM14
E-15
Setup & Connections
Connecting the Projector
Connecting the Projector to a Computer
You can connect your projector to a computer for projection of full color computer images. See the next page for
details on the connections.
CAUTION
• Before connecting, be sure to turn both the projector and the computer off. After making all connections, turn the projector
on first. The computer should always be turned on last.
• Please read the computer’s operation manual carefully.
• Refer to page 44 “Input Signals (Recommended Timing)” for a list of computer signals compatible with the projector. Use with computer
signals other than those listed may cause some of the functions not to work.
Mouse control serial cable
(supplied)
Mouse control cable for
Mac (supplied)
Mouse control cable for IBM PS/2 (supplied)
Computer cable (supplied)
RS-232C cable (cross type, sold separately)
Computer audio cable (3.5 mm stereo minijack cable, supplied)
Use this terminal to con-
nect the supplied mouse
control cable to the remote
mouse receiver.
Macintosh adaptor
(supplied)
Rear terminals
• The arrows (→, ↔) indicate the direction of the signals.
• When connecting to a Macintosh computer, use the supplied Macintosh adaptor.
Remote mouse receiver (supplied)
Computer
XG-NV5XU (E)-b 98.11.20, 9:39 PM15
E-16
Setup & Connections
Computer
cable
(supplied)
Connecting the Projector
1 Connecting an IBM-PC
1. Plug one end of the supplied computer cable into
the COMPUTER INPUT port on the projector.
2. Plug the other end into the Monitor output port on
the computer.
3. Secure the plugs by tightening the thumb screws.
2 Connecting a Macintosh computer
1. Set the proper switches on the supplied Macintosh
adaptor to the desired resolution. Some examples
are as follows:
• For 640 ⳯ 480 resolution, set switches 1 and 2
to “ON” and 3, 4, 5 and 6 to “OFF”.
• For 832 ⳯ 624 resolution, set switches 2 and 4
to “ON” and 1, 3, 5 and 6 to “OFF”.
• For 1,024 ⳯ 768 resolution, set switches 2 and
3 to “ON” and 1, 4, 5 and 6 to “OFF”.
2. Connect the supplied Macintosh adaptor to the
supplied computer cable.
3. Connect the other end of the Macintosh adaptor
to the Monitor output port on your Macintosh
computer.
4. Plug the other end of the supplied computer cable
into the COMPUTER INPUT port on the projector.
5. Secure the plugs by tightening the thumb screws.
• Once the adaptor is connected to a computer and the
computer is turned on, the display mode cannot be changed
even if the switches on the adaptor are reset.
• The supplied Macintosh adaptor is only for use with H-SYNC
and V-SYNC output. When connecting a Macintosh
computer that only outputs C-SYNC, use a C-SYNC output
adaptor (sold separately).
3 Connecting other compatible com-
puters
When connecting the projector to a compatible com-
puter other than an IBM-PC (VGA/SVGA/XGA/SXGA/
UXGA) or Macintosh (i.e. Workstation), a separate cable
may be needed. Please contact your dealer for more
information.
• Connecting computers other than the recommended types
may result in damage to the projector, the computer, or both.
4 Turning on the power of the projector
and the computer
Once the connections are made, first turn on the
projector (see page 18), then your computer.
Connect your projector to a computer for projection of full-color computer images.
Macintosh
adaptor
(supplied)
Computer
cable
(supplied)
Macintosh adaptor (supplied)
ON
佢
佣
OFF
1
1
3
2
3
2
1
4
5
3
2
5
XG-NV5XU (E)-b 98.11.20, 9:40 PM16
E-17
Setup & Connections
Connecting the Projector
“Plug and Play” Function
This projector is compatible with VESA-standard DDC 1/DDC 2B. The projector and a VESA DDC compatible
computer will communicate their setting requirements, allowing for quick and easy setup.
• The DDC, Plug and Play function of this projector operates only when used in conjunction with a VESA DDC compatible
computer.
Using the Remote Mouse Receiver and RS-232C Port
• The remote mouse receiver can be used with the “Power” remote control or the simple presentation remote
control to operate the computer’s mouse. Plug the supplied mouse control cable from the remote mouse receiver
to the computer. (See page 16.)
• When the RS-232C port on the projector is connected to a computer with an RS-232C cable (cross type, sold
separately), the computer can be used to control the projector and check the status of the projector. See pages
42 and 43 for details.
CAUTION
• Do not connect or remove the mouse control cables or RS-232C cable to or from the computer while it is on. This may
damage your computer.
• The wireless mouse functions can operate computers compatible with IBM PS/2, serial (RS-232C) or Apple ADB type mouse
systems.
• The wireless mouse or RS-232C function may not operate if your computer port is not correctly set up. Please refer to the
operation manual of the computer for details on setting up/installing the correct mouse driver.
Connecting the Projector to Video Equipment
You can connect your projector to a VCR, laser disk player or external audio components.
CAUTION
• Always turn off the projector while connecting to video equipment, in order to protect both the projector and the equipment
being connected.
• By using external audio components, the volume can be amplified for better sound.
Rear terminals
Use this terminal when the audio-
visual equipment to be connected has
an S-VIDEO output terminal.
VCR Amplifier
To S-video
output
terminal
To audio
input
terminals
To audio
output
terminals
To video
output
terminal
XG-NV5XU (E)-b 98.11.20, 9:40 PM17
E-18
Operation
1
Basic Operations
1 Connect the Power Cord
Plug the supplied power cord into the AC socket on the
back of the projector.
2 Turn on the Main Power
Press the MAIN POWER switch on the back of the
projector. The POWER indicator lights up red and the
projector enters standby mode.
• If the bottom filter cover is not securely installed, the POWER
indicator flashes.
• When the main power is not on, the “Power” remote control
cannot be used.
3 Turn on the Lamp Power
Press POWER ON on the projector or the “Power”
remote control.
• The flashing green LAMP REPLACEMENT indicator shows
that the lamp is warming up. Wait until the indicator stops
flashing before operating the projector.
• If the power is turned off and then immediately turned on
again, it may take a short while before the lamp turns on.
• After the projector is unpacked and turned on for the first
time, a slight odor may be emitted from the exhaust vent.
This odor will soon disappear with use.
5
4
2
When the main power is on, the POWER indicator lights up
red.
When the power is on, the LAMP REPLACEMENT indicator
lights indicating the status of the lamp.
Green: Lamp is ready.
Flashing green: Warming up.
Red: Change the lamp.
4 Adjusting Focus
Slide the focus knob until the image on the screen
becomes clear.
5 Adjusting Zoom
Slide the zoom knob. The image can be adjusted to the
desired size within the zoom range.
Projector
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
MENU
LASER
BLACK
SCREEN
VOL
OFF
3
XG-NV5XU (E)-c 98.11.20, 10:29 PM18
E-19
Operation
Basic Operations
6 Selecting and Checking the Input
Mode
Press INPUT SELECT on the projector or INPUT on
the “Power” remote control to select the desired input
mode. Press it again to change the mode as shown on
the left.
• When no signal is being received, “No Signal” will be
displayed. When a signal that the projector is not preset to
receive is being received, “Not Reg.” will be displayed.
• The picture size and aspect ratio differ in “Computer”, “Pal”,
“Secam” and “Ntsc” modes.
7 Adjusting the Volume
a. Press VOLUME Ⳮ/VOLUME ⳮ on the projector
or the “Power” remote control to adjust the volume.
b. Press MUTE on the projector or the “Power”
remote control to temporarily turn off the sound.
Press MUTE again to turn the sound back on.
8 Turning off the Power
1. Press POWER OFF on the projector or the
“Power” remote control. The screen on the left will
appear.
2. Press POWER OFF again while the screen is
displayed.
• If you accidentally pressed POWER OFF and do not want
to turn off the power, wait until the power off screen shown
on the left disappears.
When POWER OFF is pressed twice, the POWER indicator
will light up red and the cooling fan will run for about 90
seconds. The projector will then enter standby mode.
The power can be turned on again by pressing POWER
ON on the projector or the “Power” remote control. When
the power is turned on, the POWER indicator and the LAMP
REPLACEMENT indicator light green.
Projector
7b
8
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
MENU
LASER
BLACK
SCREEN
VOL
OFF
7a
7b
8
6
To view the image from a
source connected to:
COMPUTER INPUT 1
COMPUTER INPUT 2
VIDEO INPUT
On-screen Display
s
f
f
7a
• The POWER indicator flashes if the bottom filter cover is
not securely installed.
XG-NV5XU (E)-c 98.11.24, 2:35 PM19
E-20
Operation
Using the GUI (Graphical User Interface) Menu Screens
Menu bar in COMPUTER Mode
This projector has two sets of menu screens (Computer/
Video) that allow you to adjust the image and various
projector settings. These menu screens can be
operated from the projector or the “Power” remote
control with the following buttons.
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU to display the COMPUTER or VIDEO
mode menu bar.
2 Press ß/© to select an adjustment menu on the
menu bar.
3 Press ∂/ƒ to select a specific adjustment item.
4 To display only the adjustment item, press ENTER
after selecting the item. Only the menu bar and
the selected adjustment item will appear.
5 Press ß/© to adjust the item.
6 Press LEFT-CLICK to return to the previous
screen.
7 Press MENU to exit from the GUI.
• For details on items on the menu screen, see the tree charts
on the next page.
Menu bar in VIDEO Mode
MOUSE
ADJ.
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
MENU
LASER
BLACK
SCREEN
VOL
OFF
4
2, 3, 5
1, 7
R
/C
O
F
F
O
N
6
1
4
1
Projector
XG-NV5XU (E)-c 98.11.26, 5:17 PM20
E-21
Operation
Items on the COMPUTER1 or COMPUTER2
Mode Menu Bar
Items on the VIDEO Mode Menu Bar
Using the GUI (Graphical User Interface) Menu Screens
CONTRASTPICTURE
AUTO SYNCFINE SYNC
AUDIO
Ⳮ30ⳮ30
CLOCK Ⳮ90ⳮ90
TREBLE
OPTION LAMP TIMER
LANGUAGE ENGLISH
PRJ MODE
STATUS
CEILINGⳭFRONT
CEILINGⳭREAR
DEUTSCH
ESPAÑOL
NEDERLANDS
FRANÇAIS
ITALIANO
SVENSKA
FRONT
REAR
AUTO SYNC DISP
BLK SCRN DISP
OSD DISPLAY
FIT TO SCREEN
[ON/OFF]
[ON/OFF]
[ON/OFF]
[ON/OFF]
[ON/OFF]
SIGNAL
BACKGROUND SHARP
RESOLUTION
VERT FREQ
HOR FREQ
1024⳯768
48 KHz
60 Hz
STARTUP IMAGE SHARP
CUSTOM
CUSTOM
BLUE
NONE
NONE
Ⳮ30ⳮ30
BASS Ⳮ30ⳮ30
PHASE Ⳮ60ⳮ60
H-POS Ⳮ90ⳮ90
V-POS
RESET
RESET
SAVE SETTING
SELECT SETTING
1
2
•
•
7
RESOLUTION
800⳯600
1024⳯768
VERT FREQ
60 Hz
75 Hz
MODE
Ⳮ60ⳮ60
BRIGHT Ⳮ30ⳮ30
RED Ⳮ30ⳮ30
BLUE
RESET
Ⳮ30ⳮ30
1
2
•
•
7
RESOLUTION
800⳯600
1024⳯768
VERT FREQ
60 Hz
75 Hz
CONTRASTPICTURE
AUDIO
Ⳮ30ⳮ30
I/P CONVERSION
OPTION
VIDEO SYSTEM
LANGUAGE ENGLISH
PRJ MODE
STATUS
CEILINGⳭFRONT
CEILINGⳭREAR
DEUTSCH
ESPAÑOL
NEDERLANDS
FRANÇAIS
ITALIANO
SVENSKA
FRONT
REAR
BACKGROUND
STARTUP IMAGE
INTERLACED
PROGRESSIVE
AUTO
PAL
SECAM
NTSC4.43
NTSC3.58
SHARP
CUSTOM
BLUE
NONE
SHARP
CUSTOM
NONE
LAMP TIMER
BLK SCRN DISP
OSD DISPLAY
[ON/OFF]
[ON/OFF]
BRIGHT Ⳮ30ⳮ30
COLOR Ⳮ30ⳮ30
TINT Ⳮ30ⳮ30
SHARP Ⳮ30ⳮ30
RED Ⳮ30ⳮ30
BLUE Ⳮ30ⳮ30
TREBLE Ⳮ30ⳮ30
BASS Ⳮ30ⳮ30
RESET
RESET
• Only the items highlighted in the tree charts above can be adjusted.
• To adjust the items under the sub menu, press © after entering the sub menu.
Main menu
Sub menu Main menu Sub menu
XG-NV5XU (E)-c 98.11.20, 10:40 PM21
E-22
Operation
• The IrCOM function can be used to wirelessly transfer
still images from a computer, handheld P/C or digital
camera to the projector via infrared communication.
This function is used with the supplied Sharp
Advanced Presentation Software. See the operation
manual of the software for installation and operating
instructions.
• Position the projector and the IrCOM transmitting
device within the range shown on the left.
• To avoid transmission errors or changes in the image, ensure
the following when setting up the projector and transmitting
device.
• The IrCOM sensors on both the projector and transmitting
device are protected from direct sunlight or strong
ambient light.
• The transmitting device has sufficient battery power.
• The projector and transmitting device are positioned
within the designated operating range.
• The IrCOM sensors on the projector and transmitting
device are correctly aligned.
1 Before setting up the projector and transmitting
device, install the Sharp Advanced Presentation
Software in the supplied CD-ROM on the com-
puter. See the operation manual of the software
for installation details.
• The distance between the projector and transmitting device
may have to be less than 10 cm depending on the
transmitting device.
• When using the digital still camera, set it to the image
transmission mode and set the computer to the image
reception mode.
2 Align the projector and transmitting device at the
same height and angle at a distance of 4⬙ (10 cm)
to 3⬘ 3⬙ (1 meter) with an unobstructed line of view.
3 Press IrCOM on the projector or the “Power”
remote control to enter the IrCOM mode. The On-
screen Display changes as shown on the left.
• To use the “Power” remote control to operate this function,
slide the MOUSE/ADJUSTMENT switch to the ADJ. position
before pressing IrCOM.
• If the On-screen Display does not change as shown on the
left, the projector may not be within the reception range
from the IrCOM transmitting device.
4 Press INPUT SELECT on the projector or INPUT
on the “Power” remote control to exit the IrCOM
mode.
• If the projector is unable to receive images from the IrCOM
transmitting device, the On-screen display on the left will
appear.
Using IrCOM for Wireless Presentations
ff
ff
f
ff
ff
f
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
MOUSE
LIGHT
LCD PROJECTOR
ADJ.
IrCOM
FREEZE
AUTO SYNC
KEYSTONE
ENLARGE
MENU
LASER
BLACK
SCREEN
VOL
OFF
4
3
Projector
MOUSE
ADJ.
On-screen Display
15˚
15˚
4ⴖ (10 cm)–3ⴕ 3ⴖ (1 m)
15˚
15˚
Digital
camera
PC
XG-NV5XU (E)-c 98.11.20, 10:48 PM22
E-23
Operation
Selecting the On-screen Display Language
English is the preset language for the On-screen
Display. It can be changed to English, German, Spanish,
Dutch, French, Italian, Swedish or Japanese.
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU.
2 Press ß/© to select “Language”.
3 Press ∂/ƒ to select the desired language .
4 Press ENTER to save the setting. The On-screen
Display is now programed to display in the
language selected.
5 To exit from the GUI, press MENU.
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
MENU
LASER
BLACK
SCREEN
VOL
OFF
4
2, 3
1, 5
Projector
(GUI) On-screen Display
Selecting the Video Input System Mode (VIDEO mode only)
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
MENU
LASER
BLACK
SCREEN
VOL
OFF
5
2, 3, 4
1, 6
Projector
MOUSE
ADJ.
MOUSE
ADJ.
The video input system mode is preset to “Auto”;
however, it can be changed to a specific system mode,
if the selected system mode is not compatible with the
connected audiovisual equipment.
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU.
2 Press ß/© to select “Option”.
3 Press ∂/ƒ to select “Video System”.
4 Press ∂/ƒ to select the desired video system
mode.
5 Press ENTER to save the setting.
6 To exit from the GUI, press MENU.
• When the system mode is set to “Auto”, you may not receive
a clear picture due to signal differences. Should this occur,
switch to the video system you are viewing.
XG-NV5XU (E)-c 98.11.20, 10:49 PM23
E-24
Operation
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
MENU
LASER
BLACK
SCREEN
VOL
OFF
4
2, 3
1, 5
Picture Adjustments
You can adjust the projector’s picture to your prefer-
ences with the following picture settings.
Description of Adjustment Items
For less contrast
For less brightness
For weaker red
For weaker blue
Selected item in
COMPUTER mode
Contrast
Bright
Red
Blue
Reset
For more contrast
For more brightness
For stronger red
For stronger blue
ß button © button
All computer adjustment items are returned to the factory
preset settings.
For less contrast
For less brightness
For less color intensity
Skin tones become purplish
For less sharpness
For weaker red
For weaker blue
Selected item in
VIDEO mode
Contrast
Bright
Color
Tint
Sharp
Red
Blue
Reset
For more contrast
For more brightness
For more color intensity
Skin tones become greenish
For more sharpness
For stronger red
For stronger blue
ß button © button
All video adjustment items are returned to the factory preset
settings.
(The following steps are used as an example in adjusting
the picture in “COMPUTER” mode.)
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU. Menu bar and “Picture” menu
screen appears. GUI Operation guide is also
displayed.
2 Press ∂/ƒ to select a specific adjustment item.
3 Press ß/© to move the mark of the selected
adjustment item to the desired setting.
4 Press ENTER to save the setting.
5 To exit from the GUI, press MENU.
• To reset all adjustment items, select “Reset” on the “Picture”
menu screen and press ENTER.
• The adjustments can be stored separately in the
“COMPUTER1”, “COMPUTER2” and “VIDEO” modes.
• “Tint” appears only in “NTSC3.58” and “NTSC4.43” modes.
Projector
(GUI) On-screen Display
MOUSE
ADJ.
2
1
XG-NV5XU (E)-c 98.11.24, 2:37 PM24
E-25
Operation
Audio Adjustments
This projector’s audio is factory preset to standard
settings. However, you can adjust it to suit your own
preferences by adjusting the following audio settings.
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU. Menu bar and “Picture” menu
screen appears. GUI Operation guide is also dis-
played.
2 Press ß/© to select “Audio”.
3 Press ∂/ƒ to select a specific adjustment item.
4 Press ß/© to move the mark of the selected
adjustment item to the desired setting.
5 Press ENTER to save the setting.
6 To exit from the GUI, press MENU.
• To reset all adjustment items, select “Reset” on the “Audio”
menu screen and press ENTER.
(GUI) On-screen Display
ß button
For weaker treble
For weaker bass
Selected item
Treble
Bass
Reset
© button
For stronger treble
For stronger bass
All audio adjustment items are returned to the factory preset
settings.
Description of Adjustment Items
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
MENU
LASER
BLACK
SCREEN
VOL
OFF
5
2, 3, 4
1, 6
Projector
MOUSE
ADJ.
2
3
XG-NV5XU (E)-c 98.11.20, 11:04 PM25
E-26
Operation
Computer Image Adjustments
When displaying computer patterns which are very
detailed (tiling, vertical stripes, etc.), interference may
occur between the LCD pixels, causing flickering,
vertical stripes, or contrast irregularities in portions of
the screen. Should this occur, adjust “Clock”, “Phase”,
“H-Pos” and “V-Pos” for optimum computer image.
• Computer image adjustment can be made easily by
pressing AUTO SYNC (
) on the projector or the “Power”
remote control. See the next page for details.
(GUI) On-Screen Display
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
MENU
LASER
BLACK
SCREEN
VOL
OFF
5
2, 3, 4
1, 6
Projector
Description
Adjusts vertical noise.
Adjusts horizontal noise (similar to tracking on your VCR).
Centers the on-screen image by moving it to the left or right.
Centers the on-screen image by moving it up or down.
Selected item
Clock
Phase
H-Pos
V-Pos
Description of Adjustment Items
(Select the desired computer input mode with INPUT
SELECT on the projector or INPUT on the “Power”
remote control.)
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU. Menu bar and “Picture” menu
screen appears. GUI Operation guide is also
displayed.
2 Press ß/© to select “Fine Sync”.
3 Press ∂/ƒ to select a specific adjustment item.
4 Press ß/© to move the mark of the selected
adjustment item to the desired setting.
5 Press ENTER to save the setting.
6 To exit from the GUI, press MENU.
• To reset all adjustment items, select “Reset” on the “Fine
Sync” menu screen and press ENTER.
MOUSE
ADJ.
2
3
XG-NV5XU (E)-c 98.11.20, 11:05 PM26
E-27
Operation
Auto Sync Adjustment
• Used to automatically adjust a COMPUTER image.
• Auto Sync adjustment can be made manually by
pressing AUTO SYNC on the projector or the “Power”
remote control, or automatically by setting “Auto Sync”
to “ON” in the projector’s GUI menu.
When “Auto Sync” is set to “ON”:
• The sync adjustment is automatically made each time
the projector is turned on while connected to a com-
puter or the input selection is changed.
• The Auto Sync adjustment setting previously made is
cleared when the projector’s setting is changed.
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU.
2 Press ß/© to select “Fine Sync”.
3 Press ∂/ƒ to select “Auto Sync”.
4 Press ß/© to select “ON”.
5 Press ENTER to save the setting.
6 To exit from the GUI, press MENU.
• Automatic adjustments can be made by pressing AUTO
SYNC on the projector or the “Power” remote control.
• When the optimum image cannot be achieved with Auto
Sync adjustment, use manual adjustments. (See the
previous page.)
During Auto Sync adjustment, the On-screen Display
changes as shown on the left.
• Auto Sync adjustment may take some time to complete,
depending on the image of the computer connected to the
projector.
g
s
f
(GUI) On-screen Display
Computer Image Adjustments
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
KEYSTONE
ENLARGE
MENU
LASER
BLACK
SCREEN
VOL
OFF
5
2, 3, 4
1, 6
Projector
Auto Sync Display Function
By default a Sharp image is superimposed during Auto
Sync adjustment. You can choose not to have this
superimposed image during Auto Sync adjustment.
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU.
2 Press ß /© to select “Option”.
3 Press ∂/ƒ to select “Auto Sync Disp”.
4 Press ß /© to select “ ” to remove the auto sync
display during Auto Sync adjustment.
5 Press ENTER to save the setting.
6 To exit from the GUI, press MENU.
AUTO SYNC
button
MOUSE
ADJ.
XG-NV5XU (E)-c 98.11.24, 2:38 PM27
E-28
Operation
Saving and Selecting Adjustment Settings
This projector allows you to store up to seven adjustment
settings for use with various computers. Once these
settings are stored, they can be easily selected each
time you connect the computer to the projector.
Saving the adjustment setting
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU.
2 Press ß/© to select “Fine Sync”.
3 Press ∂/ƒ to select “Save Setting”, and then press
©.
4 Press ∂/ƒ to select the desired memory location of
the setting.
5 Press ENTER to save the setting.
6 To exit from the GUI, press ENTER.
Selecting a saved setting
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU.
2 Press ß/© to select “Fine Sync”.
3 Press ∂/ƒ to select “Select Setting”, and then press
©.
4 Press ∂/ƒ to select the desired memory setting.
5 Press ENTER to select the setting.
6 To exit from the GUI, press MENU.
• If the memory position has not been set, the resolution and frequency
will not be displayed.
• When selecting the stored adjustment setting with “Select Setting”, the
computer system should match the stored setting.
Mode Adjustment
Used to display image in the text and graphic modes.
C
ONNECTING TO IBM-PC COMPUTERS
• Ordinarily, the type of input signal is detected and the
correct resolution mode (Text or Graphics) is
automatically selected. However, for the following
signals, set “Mode” on the “Fine Sync” menu screen to
“ON” or “OFF” to select the projector’s resolution mode
to match the computer display mode properly.
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU.
2 Press ß/© to select “Fine Sync”.
3 Press ∂/ƒ to select “Mode”.
4 Press ß/© to select “ON” for text mode (720 dots
⳯ 350 lines, 720 dots ⳯ 400 lines or 1,152 dots
⳯ 864 lines, 60 Hz) or “OFF” for graphic mode (640
dots ⳯ 350 lines, 640 dots ⳯ 400 lines or 1,024
dots ⳯ 864 lines, 60 Hz). (For IBM-PC)
Press ß/© to select “ON” when connecting to a
Macintosh II with 35 kHz dot frequency or “OFF”
when connecting to a Macintosh LC Series computer
with 34.79 kHz dot frequency. (For Macnitosh LC
Series)
5 Press ENTER to save the setting.
6 To exit from the GUI, press MENU.
• When connecting third party video cards and other Macintosh computers,
set “Mode” on the “Fine Sync” menu screen to “ON” or “OFF” to select the
correct display mode.
• When the input signal is automatically detected or when there is no input
signal, “Mode (---)” appears on the screen and the display mode cannot
be changed.
• Avoid displaying computer patterns which repeat every other line (hori-
zontal stripes). (Flickering may occur, making the image hard to see.)
Computer Image Adjustments
(GUI) On-screen Display
Projector
2
3
4
MOUSE
ADJ.
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
MENU
LASER
BLACK
SCREEN
VOL
OFF
5
2, 3, 4
1, 6
Mode Adjustment
XG-NV5XU (E)-c 98.11.20, 11:09 PM28
E-29
Useful Features
Digital Image Magnification and Reduction
This function allows you to magnify or reduce a specific
portion of an image. This is useful when you want to
display a detailed portion of the image or display it in
its native resolution.
(To use the “Power” remote control to operate this
function, slide the MOUSE/ADJUSTMENT switch to
the ADJ. position before pressing ENLARGE.)
1 Press ENLARGE. A rectangle appears on the
screen.
2 Press ∂/ƒ/ß/© to select the area of the image
you want to enlarge or reduce.
3 Press ENTER to enlarge the area of the image.
4 Press LEFT-CLICK on the “Power” remote control
to reduce the area of the image.
5 Press ENLARGE again to turn off the rectangular
on the screen.
• Picture reduction can only be made with the “Power” remote
control.
• If the image has an SXGA or UXGA resolution, you can
scroll the image on the screen by using ∂/ƒ/ß/© .
• Each time ENTER or LEFT-CLICK is pressed, image
magnification and reduction patterns toggle as shown
below.
Pressing ENTER
Dot by dot @1 @2 @4 @8
Pressing LEFT-CLICK
Dot by dot @8 @4 @2 @1
Dot by dot mode display
This mode displays images in their native resolution and
not expanded to fit the LCD resolution. See the steps
and the third note above to display an image in dot by
dot mode.
Projector
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
MOUSE
LIGHT
LCD PROJECTOR
ADJ.
IrCOM
FREEZE
AUTO SYNC
KEYSTONE
ENLARGE
MENU
LASER
BLACK
SCREEN
VOL
OFF
R/C
OFF
ON
1, 5
3
2
4
sg
MOUSE
ADJ.
XG-NV5XU (E)-d 98.11.20, 10:12 PM29
E-30
Useful Features
Black Screen Function
This function can be used to superimpose a black
screen over the projected image.
Blacking out the Projected Image
Press BLACK SCREEN. “BLACK SCREEN” is dis-
played on the screen. To return to the original projected
image, press BLACK SCREEN again.
• To use the “Power” remote control to operate this function,
slide the MOUSE/ADJUSTMENT switch to the MOUSE
position before pressing BLACK SCREEN.
Turning off the On-screen Display
The On-screen Display (“BLACK SCREEN”) that
appears during black screen can be turned off. When
“BLK SCRN Disp” is set to “ ” in the projector’s GUI
menu, “BLACK SCREEN” will not be displayed during
function.
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU.
2 Press ß /© to select “Option”.
3 Press ∂/ƒ to select “BLK SCRN Disp”.
4 Press ß/© to select “ ” to turn on or “ ” to
turn off the function.
5 Press ENTER to save the setting.
6 To exit from the GUI, press MENU.
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
MENU
LASER
BLACK
SCREEN
VOL
OFF
5
2, 3, 4
1, 6
Projector
This function allows you to turn off the on-screen
messages that appear during “input select”, “IrCOM”
and “FREEZE” functions. Once “OSD Display” is set to
“ ” in the projector’s GUI menu, the on-screen
messages will not appear when INPUT, IrCOM and
FREEZE on the projector or the “Power” remote control
are pressed.
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU.
2 Press ß/© to select “Option”.
3 Press ∂/ƒ to select “OSD Display”.
4 Press ß/© to select “ ” to turn off the On-screen
Display.
5 Press ENTER to save the setting.
6 To exit from the GUI, press MENU.
On-screen Display Override Function
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
MENU
LASER
BLACK
SCREEN
VOL
OFF
5
2, 3, 4
1, 6
Projector
BLACK
SCREEN
button
MOUSE
ADJ.
(GUI) On-screen Display
sg
Projected Image
MOUSE
ADJ.
MOUSE
ADJ.
XG-NV5XU (E)-d 98.11.26, 2:04 PM30
E-31
Useful Features
Fit to Screen Function
This function can be used to expand or compress
images which are not native 4:3 aspect ratio (i.e. 1,152
⳯ 864 resolution).
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU.
2 Press ß/© to select “Option”.
3 Press ∂/ƒ to select “Fit To Screen”.
4 Press ß/© to select “ ” to display the image in
its native resolution or “ ” to expand the image,
to fill the screen.
5 Press ENTER to save the setting.
6 To exit from the GUI, press MENU.
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
MENU
LASER
BLACK
SCREEN
VOL
OFF
5
2, 3, 4
1, 6
Projector
(GUI) On-screen Display
MOUSE
ADJ.
I/P Conversion (VIDEO mode only)
This function allows you to select either an interlaced
display or a progressive display of a video signal. The
progressive display projects a smooth video image.
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU.
2 Press ß/© to select “Option”.
3 Press ∂/ƒ to select “I/P Conversion” and then
press ©.
4 Press ∂/ƒ to select “Interlaced” or “Progressive”.
5 Press ENTER to save the setting.
6 To exit from the GUI, press MENU.
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
MENU
LASER
BLACK
SCREEN
VOL
OFF
5
2, 3, 4
1, 6
Projector
MOUSE
ADJ.
XG-NV5XU (E)-d 98.11.24, 2:49 PM31
E-32
Useful Features
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU.
2 Press ß/© to select “Option”. The lamp usage
time will be displayed.
3 Press ∂/ƒ to select “Signal” to display the
current input signal.
4 To exit from the GUI, press MENU.
• It is recommended that the lamp be replaced after 1,900
hours of usage. See pages 39 and 40 for lamp replacement.
• In VIDEO mode, the resolution and frequency settings will
not be displayed.
Checking the Input Signal and Lamp Usage Time
This function allows you to check the current input signal
information and accumulated lamp usage time.
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
MENU
LASER
BLACK
SCREEN
VOL
OFF
3
2
1, 4
(GUI) On-screen Display
Setting a Background Image
This function allows you to select the image displayed
when no signal is being sent to the projector.
Description of Background Images
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU.
2 Press ß/© to select “Option”.
3 Press ∂/ƒ to select “Background”, and then press
©.
4 Press ∂/ƒ to select the background image you want
to display on the screen.
5 Press ENTER to save the setting.
6 To exit from the GUI, press MENU.
• By selecting “Custom”, the projector can display a custom
image (i.e. your company logo) as the background image.
Please see the Sharp Advanced Presentation Software’s
operation manual for how to save (or change) a custom
image.
Selected item
Sharp
Custom
Blue
None
Background image
SHARP default image
User customized image
Blue screen
Black screen
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
MENU
LASER
BLACK
SCREEN
VOL
OFF
5
2, 3, 4
1, 6
Projector
Projector
MOUSE
ADJ.
MOUSE
ADJ.
XG-NV5XU (E)-d 98.11.20, 10:34 PM32
E-33
Useful Features
Selecting a Startup Image
• This function allows you to specify the image to be
displayed upon the projector’s startup.
• A custom image (i.e. your company logo) can be
loaded on the projector via IrCOM or an RS-232C
cable. See pages 15 and 22 in this operation manual,
and also the supplied Sharp Advanced Presentation
Software’s operation manual for detailed instructions.
Description of Startup Images
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU.
2 Press ß/© to select “Option”.
3 Press ∂/ƒ to select “Startup Image”, and then press
©.
4 Press ∂/ƒ to select the startup image you want to
display on the screen.
5 Press ENTER to save the setting.
6 To exit from the GUI, press MENU.
• By selecting “Custom”, the projector can display a custom
image (i.e. your company logo) as the startup image. Please
see the Sharp Advanced Presentation Software’s operation
manual for how to save (or change) a custom image.
Selected item
Sharp
Custom
None
Startup image
SHARP default image
User customized image
Black screen
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
MOUSE
LIGHT
LCD PROJECTOR
ADJ.
IrCOM
FREEZE
AUTO SYNC
KEYSTONE
ENLARGE
MENU
LASER
BLACK
SCREEN
VOL
OFF
5
2, 3, 4
1, 6
Projector
(GUI) On-screen Display
MOUSE
ADJ.
Freeze Function
This function allows you to instantly freeze a moving
image. This is useful when you want to display a still
image of a video, giving you more time to explain the
image to the audience.
1 Press FREEZE to freeze the image.
2 Press FREEZE again to return to the moving
image.
• To turn off the “FREEZE” On-screen Display, set “OSD
Display” to “ ” in the projector’s GUI menu system. (See
page 30 for details.)
Projector
TOOLS
R-CLICK ENTER
INPUT
MOUSE
LIGHT
ADJ.
IrCOM
FREEZE
AUTO SYNC
KEYSTONE
ENLARGE
MENU
LASER
BLACK
SCREEN
1, 2
XG-NV5XU (E)-d 98.11.20, 10:37 PM33
E-34
Useful Features
Reverse/Invert Image Function
This projector is equipped with a reverse/invert image
function which allows you to reverse or invert the pro-
jected image for various applications.
Description of Projected Images
(GUI) On-screen Display
Selected item
FRONT
CEILING`FRONT
REAR
CEILING`REAR
Projected image
Normal image
Inverted image
Reversed image
Reversed and inverted image
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU.
2 Press ß/© to select “PRJ Mode”.
3 Press ∂/ƒ to select the desired projection mode.
4 Press ENTER to save the setting.
5 To exit from the GUI, press MENU.
• This function is used for the reversed image and ceiling-
mount setups. See pages 12 and 13 for these setups.
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
MENU
LASER
BLACK
SCREEN
VOL
OFF
4
2, 3
1, 5
Projector
MOUSE
ADJ.
When Selecting “Front”
When Selecting “Ceiling ` Front”
When Selecting “Rear”
When Selecting “Ceiling ` Rear”
XG-NV5XU (E)-d 98.11.20, 11:07 PM34
E-35
Useful Features
This projector is equipped with presentation tools, which
can be accessed from the “Power” remote control.
These will help you emphasize keypoints within your
presentation.
1 Slide the MOUSE/ADJUSTMENT switch to the
ADJ. position.
2 Press TOOLS to display the presentation tools
menu window on the screen.
3 Press ∂/ƒ/ß/© to select the desired tool and
color.
4 Press ENTER to select it.
5 Once the tool is displayed on the screen, press
∂/ƒ/ß/© to move it around the screen.
6 Press ENTER to stamp the tool on the screen.
7 To remove the menu from the screen, press
TOOLS.
8 To clear the stamped tool on the screen, press
LEFT-CLICK.
• You can stamp each tool as many times as you want on the
screen.
• To clear all the stamped presentation tools on the screen,
press ∂/ƒ/ß/© to select “
” and ENTER, or simply use
LEFT-CLICK on the “Power” remote control.
Using the Presentation Tools
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
MENU
LASER
BLACK
SCREEN
VOL
OFF
2, 7
3, 5
4, 6
On-screen Display
R/C
OFF
ON
8
Red Green Blue Yellow Orange White Black
Menu Window
Displaying the break time
1 Slide the MOUSE/ADJUSTMENT switch to the
ADJ. position.
2 Press TOOLS to display the presentation tools
menu window on the screen.
3 Press ∂/ƒ/ß/© to select “ ” in the menu
window.
4 Press ENTER to start counting down the break
time.
5 Press ∂ to increase or ƒ to decrease the break
time.
6 To clear the break time from the screen, press
LEFT-CLICK.
MOUSE
ADJ.
When selecting Sharp default image
R/C
OFF
ON
6
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
MENU
LASER
BLACK
SCREEN
VOL
OFF
2
3, 4
5
MOUSE
ADJ.
• The break time is displayed against the background image
selected in “Setting a Background Image”. (See page 32.)
XG-NV5XU (E)-d 98.11.20, 11:09 PM35
E-36
Useful Features
Automatic Power Shutoff Function
When no input signal is detected for more than 15
minutes, the projector will automatically shut down. The
on-screen message on the left will appear five minutes
before the power is automatically turned off.
• When “None” is selected in the “Background Image” setting,
the Automatic Power Shutoff function does not operate.
Checking the Adjustment Status
This function can be used to display all the adjusted
settings on the screen simultaneously.
(For use with the “Power” remote control, slide the
MOUSE/ADJUSTMENT switch to the ADJ. position.)
1 Press MENU.
2 Press ß/© to select “Status”.
3 Press ENTER to display all the adjusted settings.
4 To exit from the GUI, press MENU.
ON
MUTE
TOOLS
R-CLICK ENTER
INPUT
IrCOM
FREEZE
AUTO SYNC
MENU
LASER
BLACK
SCREEN
VOL
OFF
3
2
1, 4
Projector
(GUI) On-screen display
MOUSE
ADJ.
XG-NV5XU (E)-d 98.11.21, 0:08 AM36
E-37
Maintenance &
Troubleshooting
Air Filter Maintenance
• This projector is equipped with three air filters to ensure the optimal operating condition of the projector.
• The air filters should be cleaned every 100 hours of use. Clean the filters more often when the projector is used
in a dusty or smoky location.
• Have your nearest Authorized Sharp Industrial LCD Products Dealer or Service Center exchange the filter
(PFILD0076CEZZ) when it is no longer possible to clean it.
Air filter
46
Clean the air filter.
5
Replace the air filter.
1 3
Turn off the main
power.
2
Remove the bottom
filter cover.
Grasp the air filter between your
fingers and lift it out of the filter
cover.
Turn over the projector. Press the
tab and lift open the filter cover
in the direction of the arrow.
Remove the air filter.
Replace the filter
cover.
Insert the tab on the end of the
filter cover into the filter cover
opening and press the filter
cover into position.
Place the air filter underneath
the tabs on the filter frame.
Clean the dust off the air filter
and cover with a vacuum
cleaner extension hose.
Turn off the MAIN POWER
switch. Then unplug the power
cord.
佡
Tab
Tab
Cleaning and replacing the bottom air filter
Bottom View
• Be sure the filter cover is securely installed. The power will not turn on unless it is correctly installed.
Cleaning the side and bottom air filters (not removable)
If dust or dirt has collected inside the air filters, clean the filters with a vacuum cleaner extension hose.
• The side and bottom air filters cannot be removed.
Side and Rear View
Air filter (not removable)
Air filter (not removable)
XG-NV5XU (E)-e 98.11.20, 9:16 PM37
E-38
Maintenance &
Troubleshooting
Problem
• Blocked air intake.
• Clogged air filter.
• Cooling fan breakdown.
• Internal circuit failure.
• Burnt-out lamp.
• Lamp circuit failure.
• Lamp has been used for
over 1,900 hours.
• The bottom filter cover is
open.
Lamp/Maintenance Indicators
• The warning lights on the projector indicate problems
inside the projector.
• There are two warning lights: a TEMPERATURE
WARNING indicator which warns that the projector is
too hot, and a LAMP REPLACEMENT indicator which
lets you know when to change the lamp.
• If a problem occurs, either the TEMPERATURE
WARNING indicator or the LAMP REPLACEMENT
indicator will light up red, and the power will shut off.
After turning off the power, follow the procedures given
below.
Maintenance Indicator
The internal
temperature is
abnormally high.
TEMPERATURE
WARNING indicator
LAMP REPLACE-
MENT indicator
The lamp does not
light up.
The lamp requires
replacement.
The POWER indicator
flashes in red when
POWER ON is
pressed.
Condition Possible Solution
• Relocate the projector to an area with
proper ventilation.
• Clean the filter.
(See page 37.)
• Take the projector to your nearest Autho-
rized Sharp Industrial LCD Products Dealer
or Service Center for repair.
• Carefully replace the lamp. (See pages 39
and 40.)
• Take the projector to your nearest Autho-
rized Sharp Industrial LCD Products Dealer
or Service Center for repair.
• Securely install the bottom filter cover.
Maintenance Indicators
POWER indicator
• If the TEMPERATURE WARNING indicator lights up, follow the above possible solutions and then wait until the projector has cooled down
completely before turning the power back on. (At least 5 minutes.)
• If the power is turned off and then turned on again, as during a brief rest, the LAMP REPLACEMENT indicator may be triggered, preventing
the power from going on. Should this occur, take the power cord out of the wall outlet and put it back in again.
Problem
• Lamp has been used for over 1,900
hours.
• Lamp has been used for over 2,000
hours.
Possible Solution
• Purchase a replacement lamp unit
(lamp cage/module) of the current
type BQC-XGNV5XU/1 from your
nearest Authorized Sharp Industrial
LCD Products Dealer or Service
Center.
• Replace the lamp. (See pages 39
and 40.) If you wish, you may have
the lamp replaced at your nearest
Authorized Sharp Industrial LCD
Products Dealer or Service Center.
Condition
The LAMP REPLACEMENT
indicator lights up red, and “LAMP”
and “
” will flash in yellow in the
lower-left corner of the picture.
A significant deterioration of the
picture and color quality occurs.
The power will automatically turn
off and the projector will enter
standby mode.
“LAMP” and “
” will flash in red in
the lower-left corner of the picture,
and the power will turn off.
Lamp
The lamp in this projector operates for approximately 2,000 cumulative hours, depending on the usage environ-
ment. It is recommended that the lamp be replaced after 1,900 cumulative hours of use or when you notice a
significant deterioration of the picture and color quality.
CAUTION
• Intense light hazard. Do not attempt to look into the aperture and lens while the projector is operating.
• The lamp usage time can be checked with the On-screen Display (see page 32).
• As the usage environment can vary significantly, the projector lamp may not operate for 2,000 hours.
TEMPERATURE
WARNING
indicator
LAMP
REPLACEMENT
indicator
POWER
indicator
XG-NV5XU (E)-e 98.11.20, 9:16 PM38
E-39
Maintenance &
Troubleshooting
Replacing the Projection Lamp
46
Remove the lamp
cage.
5
Replace the lamp cage
(after changing the lamp).
1 3
Turn off the main
power.
2
Disconnect the power
cord.
Unplug the power cord from the
AC socket.
Slide the lamp cage
cover out.
Slide the lamp cage
cover in.
Slide the lamp cage cover in the
direction of the arrow. Then
fasten the user service screw.
Remove the securing screws
from the lamp cage. Hold the
lamp cage by the handle and
pull it towards you.
Turn over the projector and un-
fasten the user service screw
that secures the lamp cage
cover. Then slide the cover in the
direction of the arrow.
Press POWER OFF. After the
cooling fan stops, turn off the
MAIN POWER switch.
Press the lamp cage firmly into
the lamp cage compartment.
Fasten the securing screws.
佡
User service
screw
Securing
screw
Securing
screw
User service
screw
It is recommended that the lamp be replaced after 1,900 cumulative hours of use or when you notice a significant
deterioration of the picture and color quality. Carefully change the lamp by following the steps below.
If the new lamp does not light after replacement, take your projector to the nearest Authorized Sharp Industrial
LCD Products Dealer or Service Center for repair.
IMPORTANT NOTE TO U.S. CUSTOMERS:
The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service of this
projector under warranty, including lamp replacement, must be obtained through an Authorized Sharp Industrial LCD
Products Dealer or Service Center. For the name of the nearest Authorized Sharp Industrial LCD Products Dealer or
Service Center, please call toll-free: 1-800-BE-SHARP (1-800-237-4277).
U.S.A. ONLY
Removing and installing the lamp unit
CAUTION
• Do not remove the lamp cage directly after operation of the projector. The lamp may be extremely hot. Wait at least one
hour after the power cord is disconnected to allow the surface of the lamp cage to fully cool before removing the lamp
cage.
• Be sure to remove the lamp cage by the handle. Be sure not to touch the glass surface of the lamp cage or the inside of
the projector.
• To avoid injury to yourself and damage to the lamp, be sure to carefully follow the steps below.
• Before or after replacing the lamp, be sure to clean the air filters. See page 37 for cleaning the air filters.
OFF
or
XG-NV5XU (E)-e 98.11.20, 9:17 PM39
E-40
Maintenance &
Troubleshooting
Replacing the Projection Lamp
Using the Kensington Lock
This projector has a Kensington Security Standard
connector for use with a Kensington MicroSaver Security
System. Refer to the information that came with the
system for instructions on how to use it to secure the
projector.
1
Connect the power
cord.
2
Reset the lamp timer.
While pressing ƒ, © and
ENTER on the projector, turn on
the MAIN POWER switch.
“LAMP 0000H” is displayed, in-
dicating that the lamp timer is
reset.
Plug the power cord into the AC
socket of the projector.
Resetting the lamp timer
Check
• Projector power cord is not plugged into the wall outlet.
• MAIN POWER switch is not on.
• The bottom filter cover is not securely installed.
• Input is wrong. (See pages 19.)
• Cables improperly connected to rear panel of the projector. (See pages 15, 16 and 17.)
• “Power” remote control batteries have run down. (See page 10.)
• Main power of the “Power” remote control is not turned on.
• “Power” remote control’s MOUSE/ADJUSTMENT switch is set to MOUSE.
• Cables improperly connected to rear panel of the projector. (See pages 15, 16 and 17.)
• “Contrast” and “Bright” adjustments are set to minimum position. (See page 24.)
• On-screen Display (“BLACK SCREEN”) is turned off and Black Screen function is turned on,
creating a black image. (See page 30.)
• “Color” and “Tint” adjustments are not correct. (See page 24.)
• Adjust the focus. (See page 18.)
• Projection distance is too long or too short to allow for proper focus. (See page 12.)
• Cables improperly connected to rear panel of the projector. (See pages 15, 16 and 17.)
• Volume is set to minimum. (See page 19.)
• If the picture is normal, the sound is due to cabinet shrinkage caused by temperature changes.
This will not affect operation or performance.
• Refer to “Lamp/Maintenance Indicators” on page 38.
• Distance and angle between the projector and transmitting device are out of the designated range.
(See page 22.)
• Refer to the operation manual of the transmitting device.
• Refer to the section “Troubleshooting” in the operation manual of the supplied software.
Problem
No picture and no sound.
Sound is heard but no picture
appears.
Color is faded or poor.
Picture is blurred.
Picture appears but no sound is
heard.
An unusual sound is occasionally
heard from the cabinet.
Maintenance indicator lights up.
Data cannot be received via
IrCOM.
Troubleshooting
Kensington Security
Standard connector
佡
• Reset the lamp timer only after replacing the lamp.
XG-NV5XU (E)-e 98.11.20, 9:17 PM40
E-41
Appendix
Transporting the Projector
When transporting the projector, carry it by the carrying handle on the side. A soft-side carrying bag is also
provided to transport the projector.
Using the Carrying Handle
Using the Carrying Bag
CAUTION
• Always put on the lens cap to prevent damage to the lens
when transporting the projector.
• Do not lift or carry the projector by the lens or the lens cap
as this may damage the lens.
Before placing the projector into the carrying bag, set up
the inner pad inside the bag as shown.
CAUTION
• The supplied carrying bag is made exclusively for the
projector and its supplied accessories. Do not place other
items into the carrying bag with the projector or use the
bag to transport items other than the projector and its
accessories.
• This bag is provided merely to transport the projector and
its accessories, not to protect these products from damage
as a result of rough handling. Do not expose these products
to shocks or impact when transported in the carrying bag.
• Wait until the projector has sufficiently cooled before placing
it into the carrying bag. If the projector is placed into the
bag while it is still hot, the heat may damage the bag lining.
Carrying bag
Carrying handle
Attaching the shoulder strap to the carrying bag
Projector
Inner pad
1
Take the shoulder strap
out.
2
Fasten the shoulder strap
to the carrying bag.
The shoulder strap is stored in
the pocket located in front of
the carrying bag.
Follow the same procedure for the
other end of the strap.
The strap should
extend at least
2
1
⁄2 ⬙ (6 cm) from
the buckle.
2
1
/
2
⬙ (6 cm)
XG-NV5XU (E)-f 98.11.20, 10:14 PM41
E-42
Appendix
Connection Pin Assignments
Analog Computer 1 and 2 Signal Input
Ports: 15-pin mini D-sub female connector
Computer Input
Analog
1. Video input (red)
2. Video input
(green/sync on green)
3. Video input (blue)
4. Reserve input 1
5. Composite sync
6. Earth (red)
7. Earth (green/sync on green)
8. Earth (blue)
9. Not connected
10. GND
11. GND
12. Bi-directional data
13. Horizontal sync signal
14. Vertical sync signal
15. Data clock
1
15
5
6
11
10
RS-232C Port: 9-pin
D-sub male connector
Pin No. Signal Name I/O Reference
1 CD Not connected
2 RD Receive Data Input Connected to internal circuit
3 SD Send Data Output Connected to internal circuit
4 ER Not connected
5 SG Signal Ground Connected to internal circuit
6 DR Data Set Ready Output Not connected
7 RS Request to Send Output Connected to internal circuit
8 CS Not connected
9 CI Not connected
1
5
6
9
PC control
A computer can be used to control the projector by connecting an RS-232C cable (cross type, sold separately) to
the projector. (See page 15 for connection.)
Communication conditions
Set the serial port settings of the computer to match that of the table on the next page.
Signal format: Conforms to RS-232C standard.
Baud rate: 9,600 bps
Data length: 8 bits
Parity bit: NON
Stop bit: 1 bit
Flow control: None
Basic format
Commands from the computer are sent in the following order: command, parameter, and return code. After the
projector processes the command from the computer, it sends a response code to the computer.
RS-232C Port Specifications
Return code (0DH)
C1 C2 C3 C4 P1 P2 P3 P4
Response code format
Normal response
O K
Return code (0DH)
Problem response (communication error or incorrect command)
E R R
Return code (0DH)
Command 4-digits Parameter 4-digits
Command format
When more than one code is being sent, send each command only after the OK response code for the previous
command from the projector is verified.
• When using the computer control function of the projector, the projector operating status cannot be read to the computer.
Therefore, confirm the status by transmitting the display commands for each adjustment menu and checking the status with
the On-screen Display. If the projector receives a command other than a menu display command, it will execute the com-
mand without displaying the On-screen Display.
XG-NV5XU (E)-f 98.11.20, 10:14 PM42
E-43
Appendix
Commands
EXAMPLE
• When “Bright” of COMPUTER 1 IMAGE ADJUSTMENT is set to ⳮ10.
RS-232C Port Specifications
→
←
RABR 1 0_ ⳮ OK
ProjectorComputer
CONTROL ITEM
COMMAND
C1
P
P
I
I
I
I
I
M
