• Page 1 - English - : Operating and Installation Instructions Refrigerator To prevent accidents and appliance damage read these instructions before installation or use MNr 10 101 850en US CA
• Page 2 - English - : IMPORTANT SAFETY INSTRUCTIONS4 Guide to the refrigerator 7 Before use 9 Turning the appliance OnOff 9 Settings10 Turning the button sound OnOff 11 Turning off for longer periods of time 12 Temperature and door alarm 13 Temperature alarm 13 Door alarm 13 Setting the temperature14 Setting the temperature in the refrigerator14 SmartFresh drawers 16 Storage temperatures 16 Humidity16 Using the SmartFresh drawers 16 Using the refrigerator efficiently 18 SuperCool19 Automatic defrost 20 Adjusting the interior fittings 21 Moving the shelves 21 Removing the storage shelf from above the deli drawer23 To remove the shelf above the SmartFresh drawers 23 Cleaning and care 24 Cleaning the interior and accessories 25 Humidity filters 26 Ventilation slits 27 Door seals 27 Changing the light bulb 28 Frequently asked questions 30 Noises 32 After sales service 33 Warranty 33 Caring for the environment36 Contents
• Page 3 - English - : Installation 37 Climate Range 37 Installation site 37 Stainless steel panels 40 Custom door panels 40 Installation options 40 Adjusting the door opening angle optional accessory 43 Dimensions44 Niche dimensions 46 Installing the appliance 50 Before you begin 50 Preparing the installation niche 53 Sliding the appliance into the installation space 56 Aligning the appliance57 Attaching the appliance to the installation niche58 Preparing the custom door 60 Attaching and aligning the custom door front 62 Electrical connection66 Contact details 71 Contents
• Page 4 - English - : When using the appliance follow basic safety precautions including the following Read all instructions before installation and use to prevent accidents and machine damage This appliance is intended for residential use only Use only as described in this Operating manual Only use the appliance for its intended purpose This appliance complies with current safety requirements Improper use of the appliance can lead to personal injury and material damage Keep these operating instructions in a safe place and pass them on to any future user IMPORTANT SAFETY INSTRUCTIONS Electrical Safety Before installation make sure that the voltage and frequency listed on the data plate correspond with the household electrical supply This data must correspond to prevent injury and machine damage Consult a qualified electrician if in doubt Before installation or service disconnect the power supply to the work area by unplugging the unit quottrippingquot the circuit breaker or removing the fuse Do not connect the appliance to the electric al supply with a power bar or extension cord These are a fire hazard and do not guarantee the required safety of the appliance Be certain your appliance is properly installed and grounded by a qualified technician To guarantee the electrical safety of this appliance continuity must exist between the appliance and an effective grounding system It is imperative that this basic safety requirement be met If there is any doubt have the electrical system of the house checked by a qualified electrician Only connect power to the appliance when all installation work is complete
• Page 5 - English - : Installation This appliance is topheavy and must be secured to prevent the possibility of tipping forward Keep the door closed until the appliance is completely installed and secured per the installation instructions This appliance must be installed and connected in compliance with the installation instructions Installation and repair work should be performed by a Miele authorized service technician Work by unqualified persons could be dangerous and may void the warranty Installation must comply with local regulations and state laws Do not operate any appliance with a damaged cord or plug or if the appliance has been damaged in any manner Contact Mieles Technical Ser vice Department This appliance must not be used in a nonstationary location eg on a ship Do not install the refrigerator in a room with too low an ambient temperature eg a garage as this may lead to the appliance switching off for longer periods so that it cannot maintain the required temperature Use This appliance is not designed for commercial use It is intended for use in domestic households and in similar working and residential environments such as shops offices and similar work environments by customers in hotels motels Bed amp Breakfasts or similar residential environments This appliance is not intended for outdoor use Persons who lack physical sensory or mental abilities or experience with the machine should not use it without supervision or instruction by a responsible person To reduce the risk of injury do not allow children to play in on or near the appliance especially in the door hinge area After your refrigerator is in operation do not touch the cold surfaces in the refrigerator compartment particularly when hands are damp or wet Skin may adhere to these extremely cold surfaces Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance Do not use any oils or grease on the door seal as these will cause the seal to deteriorate and become porous with time IMPORTANT SAFETY INSTRUCTIONS
• Page 6 - English - : Do not block the ventilation gaps in the plinth or the top of the appliance housing unit as this can impair the efficiency of the appliance increase the electricity consumption and cause damage to the appliance Never use a steam cleaner to clean the appliance Pressurized steam could damage electrical components and cause a short circuit The following applies to stainless steel appliances Do not use sticky notes transparent adhesive tape masking tape or other types of adhesive on the coated surface of the appliance door These will damage the surface causing it to lose its soil resistant protective coating The highquality surface coating of the appliance door is susceptible to scratches Even a magnet can cause damage Disposal of your old appliance Before disposing of an old appliance first make the door latch or lock unusable Take off the door Leave the shelves in place so that children may not easily climb inside Consult with your municipal policy on recycling Be careful not to damage any part of the pipework while awaiting disposal by puncturing the refrigerant channels in the evaporator bending any pipework scratching the surface coating Splashes of refrigerant can damage the eyes Your old refrigerator may have a cooling system that used CFCs chlorofluorocarbons CFCs are believed to harm stratospheric ozone If you intentionally release this CFC refrigerant you can be subject to fines and imprisonment under provisions of environmental legislation Make sure the CFC refrigerant is removed and disposed of by a qualified technician SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS California Proposition 65 This product can expose you to chemicals including vinyl chloride which is known to the State of California to cause cancer and birth defects or other reproductive harm For more information go to wwwP65Warningscagov
• Page 7 - English - : a Hinged door shelf b Shelves height adjustable c Door shelves height adjustable d Deli drawer e Control panel f Main switch g Humidity filters h SmartFresh drawers Guide to the refrigerator
• Page 8 - English - : Control panel a Access button quotpquot activates the control panel b Refrigerator c Upper SmartFresh drawer d Lower SmartFresh drawer e Temperature display X colder Y warmer Allows you to set the desired temperature in the refrigerator f Food types to be stored in the SmartFresh drawers left high humidity right lower humidity g OnOff sensor button for the SuperCool function h Sensor button for the temperature and door alarm Only visible when the relevant function is activated Guide to the refrigerator
• Page 9 - English - : Before using for the first time Clean the inside of the appliance and the accessories with a mild solution of warm water and liquid dish soap Dry with a soft cloth If the appliance was transported or laid horizontally for any reason allow it to stand vertical for at least 8 hours before turning it on Failure to do so will affect the functioning of the appliance Turning the appliance OnOff Open the appliance door Turn the appliance OnOff with the main switch The main switch is located on the rightside underneath the control panel All zones are switched on or off together Once on the appliance begins cooling When the door is open the interior lights come on The access button will light in the control panel The preset temperatures factory settings are reached after a few hours Do not put any food in the appliance until the preset temperatures are reached Switching the appliance off with the main switch does not safely isolate it from the power supply Before use
• Page 10 - English - : Using the settings This appliance is operated with the use of touch keys activated by a finger An available button will appear white A selected button will appear yellow Touch the access button quotpquotsoit turns yellow On the control panel you will now see the sensor buttons for the three appliance zones To change settings eg to set the temperature etc touch the sensor button for the appliance zone you wish to set The selected sensor button appears yellow and depending on the zone selected additional sensor buttons will appear on the control panel Depending on the zone selected you can now adjust the temperature select the SuperCool function or select settings for the SmartFresh drawers by food type For additional information see the corresponding sections in the manual To deselect a zone touch the sensor button for that particular zone so that it turns white or select another sensor button To leave the settings menu touch the access button quotpquot so it turns white The last settings entered are stored If the access button is not pressed the display will go out after approx 30 secs The sensor buttons for the three appliance zones now disappear from the control panel Settings
• Page 11 - English - : Custom settings In the custom settings mode you can select and change functions The function possibilities are described in the respective chapters of this manual Function Display text Temperature unit CF see quotSetting the temperaturequot Button sound onoff see quotSettingsquot To enter and exit the Settings mode c Turning the button sound OnOff If you prefer the buttons to be silent when touched the button sound can be turned off Touch the access button quotpquotsoit turns yellow Touch the sensor button for the refrigerator so it turns yellow Note the position of the X button but do not touch Touch the access button quotpquot again so it turns white Only the access button quotpquot is visible Place one finger on the position of the X button and hold the X button will not be visible While holding down the X button press the access button quotpquot once Keep holding the X button down until the following appears in the display approx 5 seconds Tap the X button until appears in the display Touch the access button quotpquotto confirm Settings
• Page 12 - English - : By touching the X button you can choose between 0 Button sound is off 1 Button sound is on Return to menu Touch the access button quotpquotto confirm the setting Tap the X button until you see in the display Touch the access button quotpquot You have now left the Custom settings mode When you are in the Custom settings mode the door alarm is turned off automatically Once the door is closed it is reactivated Turning off for longer periods of time If the appliance is not going to be used for an extended time for example during a vacation some precautions should be taken Take all food out of the appliance Turn the appliance off at the main switch Unplug the appliance Clean the interior Leave the door open to prevent odors Settings
• Page 13 - English - : The appliance is equipped with an alarm system to ensure that the temperature does not rise unnoticed because of energy loss or an open door The alarm system is always operational it does not need to be switched on Temperature alarm If the temperature becomes too warm an alarm sounds the quotalarmquot indicator turns red and flashes At the same time the affected zone flashes in the display The alarm will sound and the display will flash if too much warm air flows into the appliance for example when food is being loaded rearranged or taken out large amounts of food are loaded at once the power fails Turning the temperature alarm Off As soon as the alarm condition is corrected the alarm signal turns off and the affected zone stops flashing in the display The quotalarmquot indicator goes out To turn the alarm off early press the quotalarmquot sensor button The alarm signal turns off The quotalarmquot indicator remains red and the corresponding appliance zone continues to flash until the alarm condition is corrected Door alarm If the appliance door is left open an alarm signal will sound and the quotalarmquot indicator will turn red after five minutes Turning the door alarm Off Once the door is closed the alarm turns off and the quotalarmquot indicator goes out If the door has not been closed properly the alarm will sound again after five minutes To turn the alarm off early press the quotalarmquot sensor button The quotalarmquot indicator and signal will turn off Temperature and door alarm
• Page 14 - English - : Setting the temperature in the refrigerator Touch the access button quotpquotsoit turns yellow Touch the sensor button for the refrigerator so it turns yellow Use the X and Y buttons next to the temperature display to set the temperature warmer or colder Tap the X and Y sensor buttons to raiselower the temperature 1 or hold it down to move through the temperature range more quickly Temperature display The temperature display on the operating panel always shows the required temperature The display will flash if a different temperature is being set the temperature in the appliance has risen by several degrees indicating that the appliance is warming up too much The loss of coldness is no cause for concern if it is due to the door being left open for a while eg for removing or storing a large amount of food Temperature range The temperature can be selected within the following ranges Refrigerator 35 to 46 F 2C to 8C A temperature of 37F 4C in the refrigerator section is recommended The room temperature and the installation location can affect the time it takes for the appliance to get to the desired temperature If the room temperature is too high it may not be possible for the appliance to reach the lowest temperature Setting the temperature
• Page 15 - English - : Temperature unit FahrenheitCelsius The temperature can be displayed in degrees Fahrenheit F or Celsius C Touch the access button quotpquotsoit turns yellow Touch the sensor button for the refrigerator section so it turns yellow Note the position of the X button but do not touch Touch the access button quotpquot again so it turns white Only the access button quotpquot is visible Place one finger on the position of the X button and hold the X button will not be visible While holding down the X button press the access button quotpquot once Keep holding the X button down until the following appears in the display approx 5 seconds Tap the X button until appears in the display Touch the access button quotpquotto confirm By touching the X button you can select either Fahrenheit or Celsius for the temperature display 0 Fahrenheit 1 Celsius return to menu Touch the access button quotpquotto confirm the setting Tap the X button until a appears in the display Touch the access button quotpquot You have left the Custom settings mode When you are in the Custom settings mode the door alarm is turned off automatically Once the door is closed it is reactivated Setting the temperature
• Page 16 - English - : The SmartFresh drawers provide the right combination of temperature and humidity The result is freshness up to three times longer than in the other zones of the refrigerator Storage temperatures For fresh foods that are not adversely affected by cold the best range is 32 37F 0 3C This helps to keep the food fresh considerably longer than in the rest of the refrigerator spoiling is minimal The temperature is set to approx 35F 15C Humidity The closer the humidity in the appliance matches the moisture content of the food the more moisture the food will retain and the fresher and crisper it will stay over a longer period of time The optimal humidity is determined on the basis of the food stored in the appliance Proper humidity is assisted by 2 humidity filters located above the SmartFresh drawers These filters allow air to pass through yet retain moisture Using the SmartFresh drawers Use the sensor button to select the desired drawer The selected sensor button turns yellow and the sensor buttons for the food choices appear The most recently selected food types appear yellow Use the sensor buttons to select the food types Several food types can be selected at the same time To delete a food type simply press it again Depending on the food types selected the optimal humidity is determined for the SmartFresh drawers The quotdeliquot and quotdairyquot settings are the most energy efficient Touch the access button to confirm the settings Place the food in the drawer Repeat the process above to additional food types SmartFresh drawers
• Page 17 - English - : Tips for storing food in the SmartFresh drawers For optimal storage conditions it is always best to store similar foods together in one drawer The upper SmartFresh drawer is the best place to store moisture sensitive foods Be sure the drawers are clean and dry before placing food in them Foods that are best stored under dry conditions fresh fish and shellfish meats poultry sausage dairy products and deli salads Foods that are best stored under moist conditions fresh produce eg vegetables lettuce herbs mushrooms cabbage fruit Remember that higher moisture levels can only be attained when the food is stored unpacked so air can circulate freely SmartFresh drawers
• Page 18 - English - : Different storage zones Due to the natural circulation of air in the appliance there are different temperature zones in the refrigerator Cold heavy air sinks to the lowest section of the appliance Make use of these different zones when placing food in the appliance This appliance uses a dynamic cooling feature to establish a constant temperature during cooling As a result the differences between temperature zones are less pronounced Leave some space between items so air can circulate freely around them Make sure the ventilation slits are not covered this is important for the cooling performance Warmest area The warmest area is in the top section of the door Use this area to store items such as butter and cheese Coldest area The coldest area in the refrigerator is directly above the SmartFresh drawers The temperature in the drawers themselves is even colder Use these cold areas in the refrigerator for all highly perishable foods such as fish meat poultry deli meats storebought meals dishes or baked goods containing eggs or cream fresh bread dough pastry dough cake batters dairy products If storing highproof alcohol make sure it is tightly closed and stored upright Do not store cooking oil in the refrigerator door Traces of oil can cause stress cracks to occur in the plastic components in the door Do not allow food to touch the rear wall of the appliance it may freeze to the wall Using the refrigerator efficiently
• Page 19 - English - : When the SuperCool function is activated the appliance is cooled as cold and quickly as possible to a factorypreset temperature The SuperCool function is ideal for the rapid cooling of drinks and for refrigerating large quantities of foods Switching on SuperCool Touch the sensor button for the refrigerator so it turns yellow Touch the SuperCool sensor button so it turns yellow In the temperature display for the refrigerator zone the new temperature setting appears 35F 2C The temperature in the appliance now begins to fall with maximum cooling in the refrigerator zone Switching off SuperCool The SuperCool function automatically switches off after approx 6 hours The sensor button turns white and the appliance continues running at normal power To save energy the SuperCool function can be switched off early once the food andor drinks are sufficiently chilled Touch the SuperCool sensor button so that it turns white The temperature display for the zone selected returns to the original temperature setting The appliance now continues running at normal power SuperCool
• Page 20 - English - : Refrigerator and SmartFresh drawers The refrigerator and SmartFresh drawers defrost automatically During normal operation condensate and frost can form on the rear wall of the refrigerator and drawers You do not need to remove this buildup it will defrost and evaporate automatically with the heat generated by the appliance Automatic defrost
• Page 21 - English - : Moving the shelves The shelves can be adjusted according to the height of the food Using both hands grasp the shelf from underneath and lift slightly so that the rear of the shelf is slightly above the mountings Pull the shelf forward Move the shelf to the desired height then insert the rear hooks into place Make sure the shelf is level Deli drawer This drawer is set on telescopic tracks It can be pulled in and out for loading and unloading or removed for cleaning Open the drawer On both sides of the drawer pull the latches see arrow upward and lift the drawer out of the refrigerator Push the tracks back into the refrigerator to avoid injury Replacing the drawer Completely extend the telescopic tracks Lay the drawer onto the tracks so that it connects in the front and back Slide the drawer in Adjusting the interior fittings
• Page 22 - English - : SmartFresh drawer These drawers are set on telescopic tracks They can be pulled in and out for loading and unloading or removed for cleaning Open the drawer On the hinged side of the door is a safety lock which must be turned to a horizontal position before the drawer can be removed Using a suitable object eg coin turn the safety lock to a horizontal position a On both sides of the drawer pull the latches b upward and lift the drawer out of the refrigerator Push the tracks back into the refrigerator to avoid injury Replacing the drawer Completely extend the telescopic tracks Lay the drawer onto the tracks so that it connects in the front and back Turn the safety lock back to the vertical position Slide the drawer in Adjusting the interior fittings
• Page 23 - English - : Adjusting the door shelves For easier loading unloading and cleaning the door shelves can be shifted or completely removed Using both hands grasp the door shelf by the frame and tip it slightly forward Slide the tipped shelf up or down along the sliderails and click it into place with the lower hooks Make sure the shelf is level Removing a door shelf Slide it upward all the way to the top of the sliderails until it can be removed Replacing a door shelf Start at the top of the sliderails and slide the shelf down into the desired position Removing the hinged door shelf Pull the stops upward and out of the shelf and remove the shelf lid upward Now remove the hinged container upward and out Removing the storage shelf from above the deli drawer Lift the shelf up and out When replacing the shelf make sure that the lugs on the corners at the back are correctly engaged To remove the shelf above the SmartFresh drawers Remove the deli drawer Remove the filler strip at the back push back the glass shelf slightly then lift it carefully up and out Replace the deli drawer Adjusting the interior fittings
• Page 24 - English - : To reduce the risk of electrical shock disconnect the appliance from the power supply by shutting off the power main tripping the circuit breaker or unplugging the power cord before maintenance Never use cleaning agents containing abrasive substances such as sand soda acids chlorides or chemical solvents Nonabrasive cleaning agents are also unsuitable as they can cause matte areas to appear Only use a mild solution of warm water and liquid dish soap to clean this appliance Do not use a steam cleaner to clean this appliance Pressurized steam could penetrate electrical components and cause a short circuit Do not allow water to get into the electronic unit or lights The data plate located inside the appliance must not be removed It contains information which is required in the event of a service call To better maintain your appliance avoid the following cleaners containing soda ammonia thinners or chlorides cleaners containing descaling agents or lime removers abrasive cleaners stainless steel cleaners dishwasher soap powder caustic oven cleaners scouring pads steel wool hard brushes glass cleaners metal scrapers eraser sponges steam cleaning products Glass cleaners may be used to clean the exterior However do not allow them to sit or quotpuddlequot this can cause damage to the surface Remove the cleaner promptly Cleaning and care
• Page 25 - English - : Before cleaning Use the main switch to turn the appliance off completely The main switch is located on the rightside underneath the control panel Unplug the power cord Remove any food from the appliance and store it in a cool place Take out any removable parts eg shelves drawers Cleaning the interior and accessories Use a mild solution of warm water and liquid dish soap Wash all accessories and drawers by hand Do not wash in a dishwasher Clean the appliance as needed After washing wipe down the interior and accessories with a clean wet cloth then dry with a soft cloth Leave the appliance door open for a short time so the moisture can evaporate Aluminum frames The shelf frames are made of aluminum Clean the frames with a mild solution of warm water and liquid dish soap Aluminum is susceptible to scratches and nicks treat with care The aluminum frames may become discolored or otherwise altered if soiling is not cleaned away promptly Do not use stainless steel cleaners lime removers scouring pads such as pot scrubbers or used sponges that still contain abrasive cleanser residue to clean the frames Cleaning and care

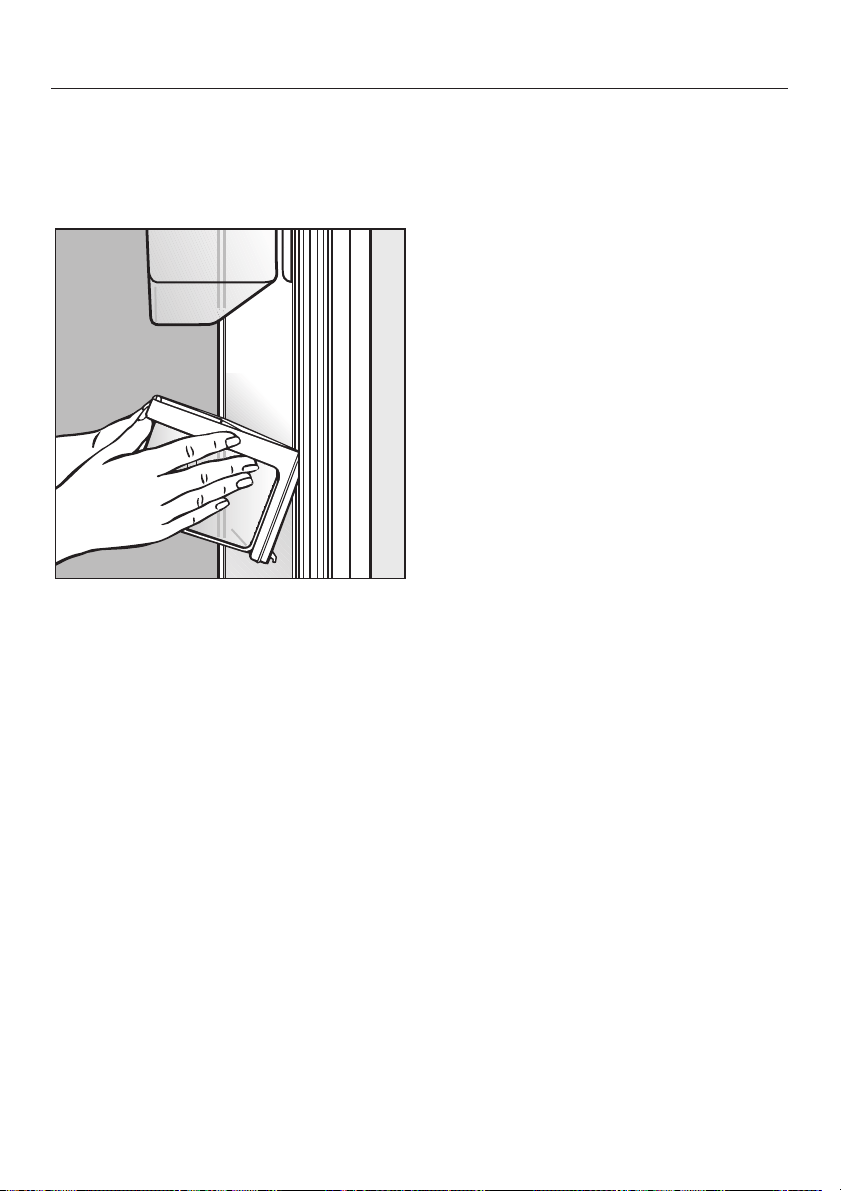

• Page 26 - English - : Humidity filters The two humidity filters located above the SmartFresh drawers must be removed for cleaning Remove the SmartFresh drawer Unhook the filter cover a in each side of the drawer and remove them along with the filters downwards starting from b Remove the filter mat Clean the filters by rinsing them with lukewarm water Do not clean in a dishwasher or washing machine This will damage the filter Airdry the filters Place the filters back in the filter cover Put the filter cover back in place inserting the rear hooks first Reinsert the SmartFresh drawer Cleaning and care
• Page 27 - English - : Ventilation slits Check the ventilation slits in the base panel regularly Remove any dirtdust with a vacuum cleaner or brush Clean as needed Door seals Do not use oil or grease on the door seals This may cause the seals to deteriorate and become porous over time Clean the door seals with water and dry thoroughly After cleaning Return all shelves and accessories Place food back in the refrigerator and drawers Close the appliance door Insert the plug in the socket and switch the appliance on Cleaning and care
• Page 28 - English - : Changing the light bulb The lighting automatically switches off after the door has been open for approx 5 minutes This is not a fault After the bulb has cooled for a short time it will turn on again If the light does not come on when the door is opened briefly the light bulb should be changed Use the main switch to turn the appliance off To reduce the risk of electric shock disconnect the appliance from the power supply by unplugging or tripping the circuit breaker Upper lighting Grasp the front of the light cover with both hands and slide it back Carefully pull the cover forward and out Never touch a halogen bulb with bare fingers When inserting a glass halogen bulb always hold with a soft cloth Remove the defective light bulb Place the new bulb in the socket Halogen bulb type 20 W12 Vsocket GY 635 Slip the rear of the light cover back into position then pull it forward and into place Cleaning and care
• Page 29 - English - : Side lighting Turn the light cover counterclockwise and pull out Never touch a halogen bulb with bare fingers When inserting a glass halogen bulb always hold with a soft cloth Pull the defective light bulb from the socket Place the new bulb in the socket Halogen bulb type 5 W12 Vsocket G 4 Put the light cover back on and turn clockwise into place Restore power to the appliance Cleaning and care
• Page 30 - English - : With the aid of the following guide minor problems can be corrected without a ser vice call Repairs should only be carried out by a qualified and trained person in strict accordance with local and national safety regulations Unauthorized repairs could cause personal injury or machine damage and may void the warranty Issue Possible fault Solution The refrigerator does not get cold The machine is not turned on Check whether the appliance is switched on at the main switch The temperature display must be lit up The machine is not plugged in Check that the plug is correctly inserted in the power outlet Check that the fuse has not tripped Reset the circuit breaker If the breaker trips again the appliance or the outlet may be defective Contact Miele or a qualified electrician The temperature is set incorrectly Check the display Issue Possible fault Solution The temperature in the refrigerator is too low Select a warmer temperature See quotSelecting the correct temperaturequot The SuperCool function is still on If nessary turn off the SuperCool function The door is not closed Check that the door has been closed properly A large amount of food is put in the refrigerator at the same time This makes the compressor run longer causing the temperature to fall automatically Frequently asked questions
• Page 31 - English - : Issue Possible fault Solution The compressor kicks on very frequently and for too long The ventilation slits are covered or dusty Clean with a vacuum or brush The door has been opened too frequently or a large amount of fresh food has been put in at once Once the fridge gets down to the set temperature the compressor will turn off The door is not closed Check that the door has been closed properly Issue Possible fault Solution The alarm is ringing The appliance door has been open for longer than 5 minutes Close the door Issue Possible fault Solution The alarm is ringing and the quotalarmquot indicator is flashing The door is not closed Once the alarm condition has been corrected the alarm will turn off and the quotalarmquot indicator will stop flashing A large amount of food was loaded at the same time There has been a power failure Frequently asked questions
• Page 32 - English - : Normal noises What causes them Brrrrr This noise may get louder for brief periods when the motor kicks on Blub blub A gurgling noise can be heard when the refrigerant circulates through the pipes Click Clicking sounds occur whenever the thermostat turns the motor on or off Sssrrrrr In multisection and frostfree appliances the movement of air circulating through the appliance can sometimes just barely be heard In appliances with a water tank a humming noise can be heard when the water pump is running Crack A cracking noise can be heard when the appliance materials expand Keep in mind that a certain amount of noise is unavoidable from the compressor and the refrigerant circulating through the system Noises that you can easily eliminate Possible cause Solution Rattling clinking The appliance is not level Realign the appliance using a level by raising or lowering the screw feet underneath the appliance The appliance is touching another appliance or piece of furniture Move it away Drawers baskets or shelves are jiggling or are stuck Check all removable items and refit them correctly Bottles or containers are touching Separate them The transport cord clips are still hanging on the back of the appliance Remove the cord clips Noises
• Page 33 - English - : In the event of a fault which you cannot correct yourself please contact your Miele dealer or Miele Technical Service See back cover of the this manual contact details When contacting Miele Technical Ser vice please quote the model and serial number of your appliance This information is given on the data plate inside your appliance Warranty For additional information please refer to your warranty booklet See the end of these operating and installation instructions for this telephone number MieleCare USA only MieleCare our Extended Service Contract program gives you the assurance of knowing that your appliance investment is covered by 5 years of worryfree ownership MieleCare is the only Extended Service Contract in the industry that guarantees repairs by a Miele Authorized Service Provider using genuine Miele parts Only genuine Miele parts installed by factorytrained professionals can guarantee the safety reliability and longevity of your Miele appliance Please note that unless expressly approved in writing by the Miele Ser vice department Extended Service Contracts offered by other providers for Miele products will not be recognized by Miele Our goal is to prevent unauthorized and untrained service personnel from working on your Miele products possibly doing further damage to them you andor your home To learn more about MieleCare Extended Service Contracts please contact your appliance dealer or visit us online at httpwwwmieleusacomSer viceExtendedContracts After sales service
• Page 35 - English - : Installation Instructions Information is subject to change Please refer to our website to obtain the most current product specification technical amp warranty information To prevent accidents and machine damage read these instructions before installation or use
• Page 36 - English - : Disposing of the packaging materials The packaging is designed to protect the appliance from damage during transportation The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled Ensure that any plastic wrappings bags etc are disposed of safely and kept out of the reach of children Return the packaging to your dealer Disposal of your old appliance Old appliances may contain materials that can be recycled Please contact your local recycling authority about the possibility of recycling these materials Please take care not to damage the pipework while the appliance is being stored for transport to a waste disposal facility By protecting the pipework you help keep the coolants and compressor oil from contaminating the environment Before discarding an old appliance disconnect it from the electrical supply and cut off the power cord to prevent it from becoming a hazard Caring for the environment
• Page 37 - English - : Have the appliance installed by a qualified technician according to the enclosed installation instructions WARNING This appliance is topheavy and must be secured to prevent it from tipping forward Keep the door closed until the appliance is completely installed and secured as per the installation instructions Empty weight of your machine K 18x3 Vi 419lbs189 kg K 19x3 Vi 452lbs205 kg Climate Range The appliance is designed for use within certain climate ranges ambient temperatures and should not be used outside this range The climate range of this appliance is stated on the data plate inside the appliance Climate range Ambient room temperature SN N ST T 50F 10 C to 90F 32 C 60F 16 C to 90F 32 C 60F 16 C to 100F 38 C 60F 16 C to 110F 43 C Operating in a room which is too cold will cause the compressor to switch off for too long causing the internal temperature in the appliance to rise with the risk of food deteriorating and going off Installation site The appliance should be installed in a dry well ventilated room Do not install the appliance outdoors in an environment with dripping water in rooms which are at risk of frost The installation location should not be exposed to direct sunlight nor near a heat source such as an oven radiator etc The ambient temperature should not drop below 55F 13C or rise above 110F 43C otherwise malfunctions may occur If installation next to a heat source is unavoidable observe the following minimum distances from the heat source 1 quot 3 cm from an electric cooktop or electric oven 12quot 30 cm from a gas or oil cooktop range or oven The following should also be taken into consideration The electrical outlet must be easily accessible in case of an emergencynot concealed behind the appliance The plug and cord must not touch the rear of the appliance as they could be damaged by vibrations from the appliance Do not plug in other devices behind this appliance Installation
• Page 38 - English - : Important When there is high humidity a buildup of condensation on the outer surfaces of the appliance can occurThis can cause the surfaces to corrodeTo prevent this it is advisable to install the appliance in a dry andor an airconditioned room with sufficient ventilationPlease ensure that doors close and seal properly after installation and that the appliance is installed in accordance with these installation instructions and and with the required ventilation openings If the room is too cold it will cause the cooling system in the appliance to remain off for too longThis can cause the temperature in the appliance to rise resulting in damage Installation
• Page 39 - English - : Base A fully loaded appliance is very heavy The loadbearing capacity of your floor must meet the following requirements K 18x3 Vi 996lbs452 kg K 19x3 Vi 1191 lbs 540 kg To ensure that the appliance is installed securely and functions properly the base must be flat level and made of a hard rigid material If in doubt contact Miele Furniturefixtures The new appliance will be mounted securely to adjacent and overhead furniturefixtures For this reason it is essential that all attachable furniturefixtures are connected securely to the base or the wall by suitable means Ventilation The air intake and outlet must not be blocked or covered in any way They also need to be dustedcleaned on a regular basis Installation niche To ensure safe troublefree installation and the best possible cosmetic result check to be sure that the installation space complies with the installation dimensions See quotNiche dimensionsquot The side walls of the installation cavity must be plumb The minimum thickness of the side walls and the top wall must be quot 16 mm The minimum thickness of the toekick panel must be ½quot 13 mm A thickness of quot 19 mm is recommended Installation

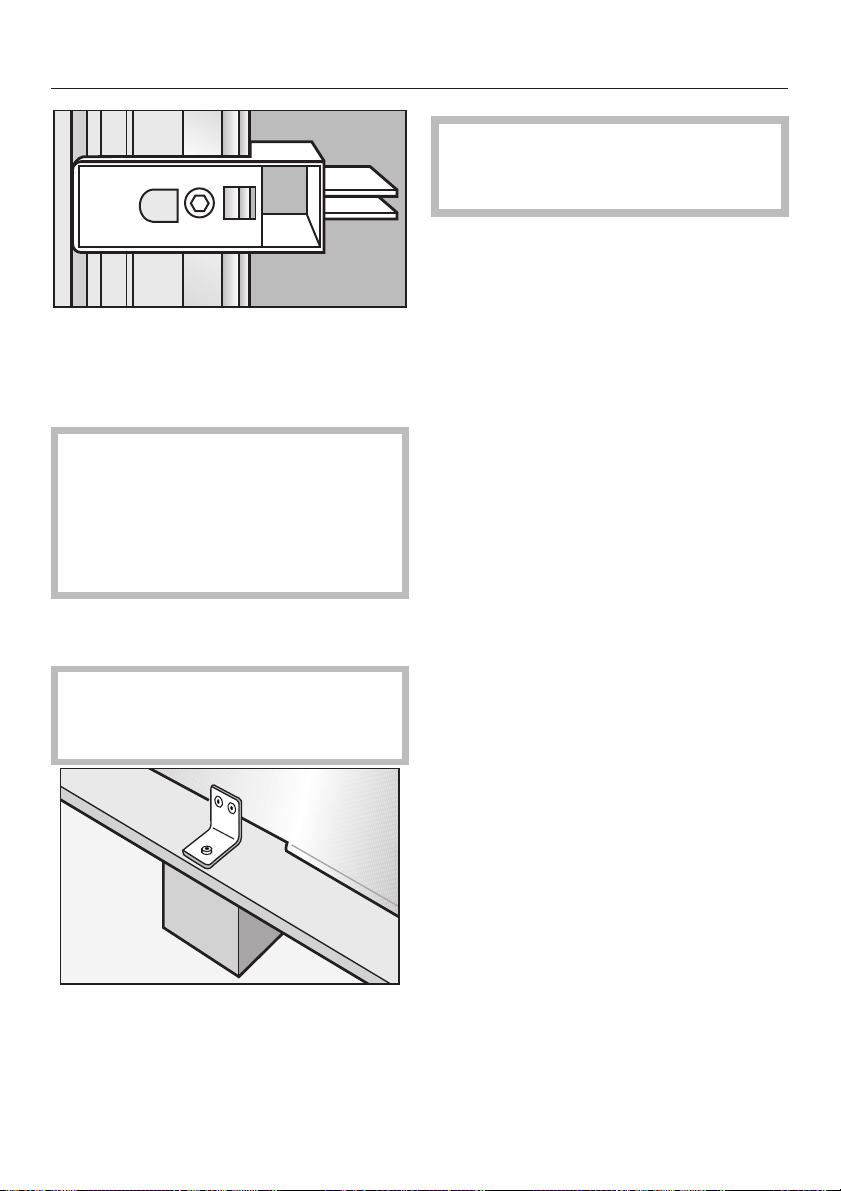

• Page 40 - English - : Stainless steel panels Stainless steel door panels and toekick covers are available from Miele Custom door panels This appliance is compatible with all styles and designs of kitchen cabinetry The total weight of the decorative panels must not exceed the following K 18x3 Vi110lbs50kg K 19x3 Vi81lbs37kg Installation options There are many different installation options These are limited only by the design of the kitchen The door hinge cannot be exchanged Single column The appliance can be installed at any preferred location in the kitchen However be sure the door will open and close properly in the chosen location Sidebyside This appliance can be installed quotsidebysidequot with another fridgefreezer using a quotMerging Kitquot The quotMerging Kitquot is available from Miele Contact Miele or your dealer for specific information about which combinations will work with your appliance For instructions on how to attach the appliances and install the heating mat please refer to the instructions included with the quotMerging Kitquot available from Miele Installation without a partition using the quotMerging Kitquot If the appliances are installed directly next to each other without a partition they need to be attached together using the quotMerging Kitquot Installation

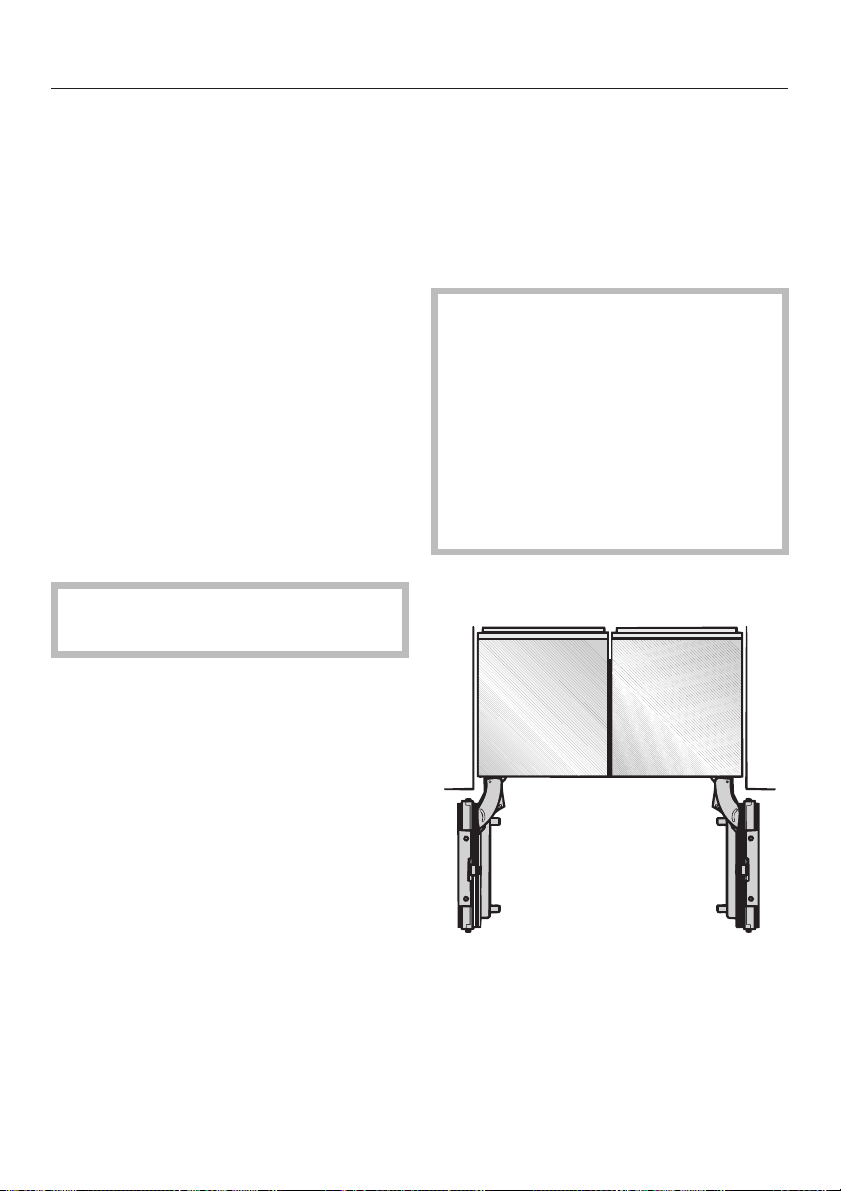

• Page 41 - English - : Installation with partition using the quotMerging Kitquot The minimum thickness of the partition is quot 16 mm If there is a partition with a thickness from quot 16 mm to 6 quot 160 mm between the adjacent appliances then each appliance should be individually installed within its own niche using the mounting accessories included The quotMerging Kitquot will also be needed The quotMerging Kitquot is available from Miele Installation with partition without using the quotMerging Kitquot If there is a partition with a thickness of more than 6 quot 160 mm between the adjacent appliances then each appliance should be individually installed within its own niche using the mounting accessories included the quotMerging Kitquot is not necessary Installation Side panels If one side of the appliance is visible a side panel must be used The side panel must be firmly secured to the wall the floor and the overhead furniturefixtures before the appliance is placed in the cavity The dimensions of the side panel are taken from the opposite wall of the installation space During installation ensure that the cavity is square and the measurements are correct

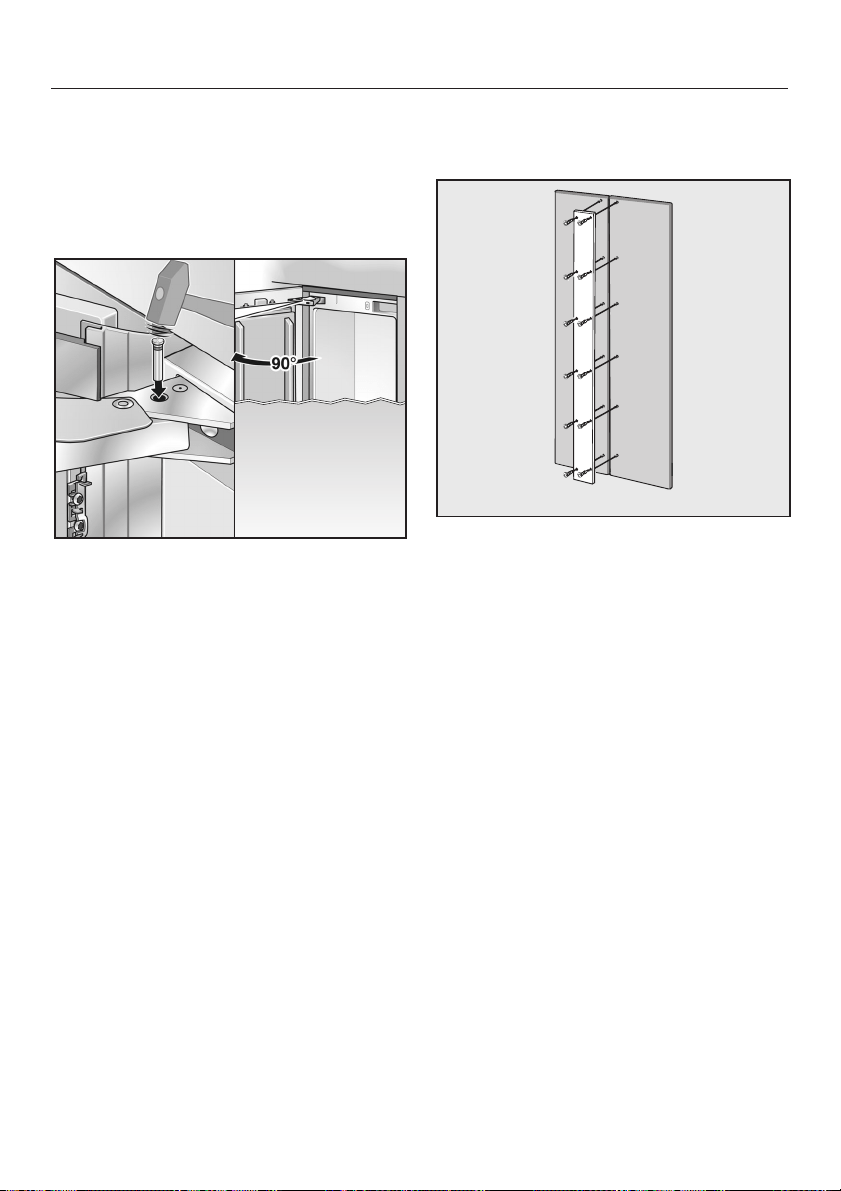

• Page 42 - English - : Adjusting the door opening angle optional accessory Depending on the installation site it may be necessary to adjust the door opening angle to 90 Open the door Insert the banking pin through the holes and drive in with a hammer The door opening angle is now limited to 90 Front panel gap kit optional accessory Two adjacent furniture doors can be attached instead of one large door To connect these furniture doors on the rear a metal strip can be purchased as an optional accessory Contact Miele When attaching the metal strip to the furniture doors observe the maximum length of the screws and the position of the drill holes Always screw into the best possible loadbearing material of the custom doors Installation
• Page 43 - English - : Door dimensions open min 90 K 18x3 Vi The dimensions of the door fronts and handles will vary according to each individual kitchen K 19x3 Vi The dimensions of the door fronts and handles will vary according to each individual kitchen Dimensions

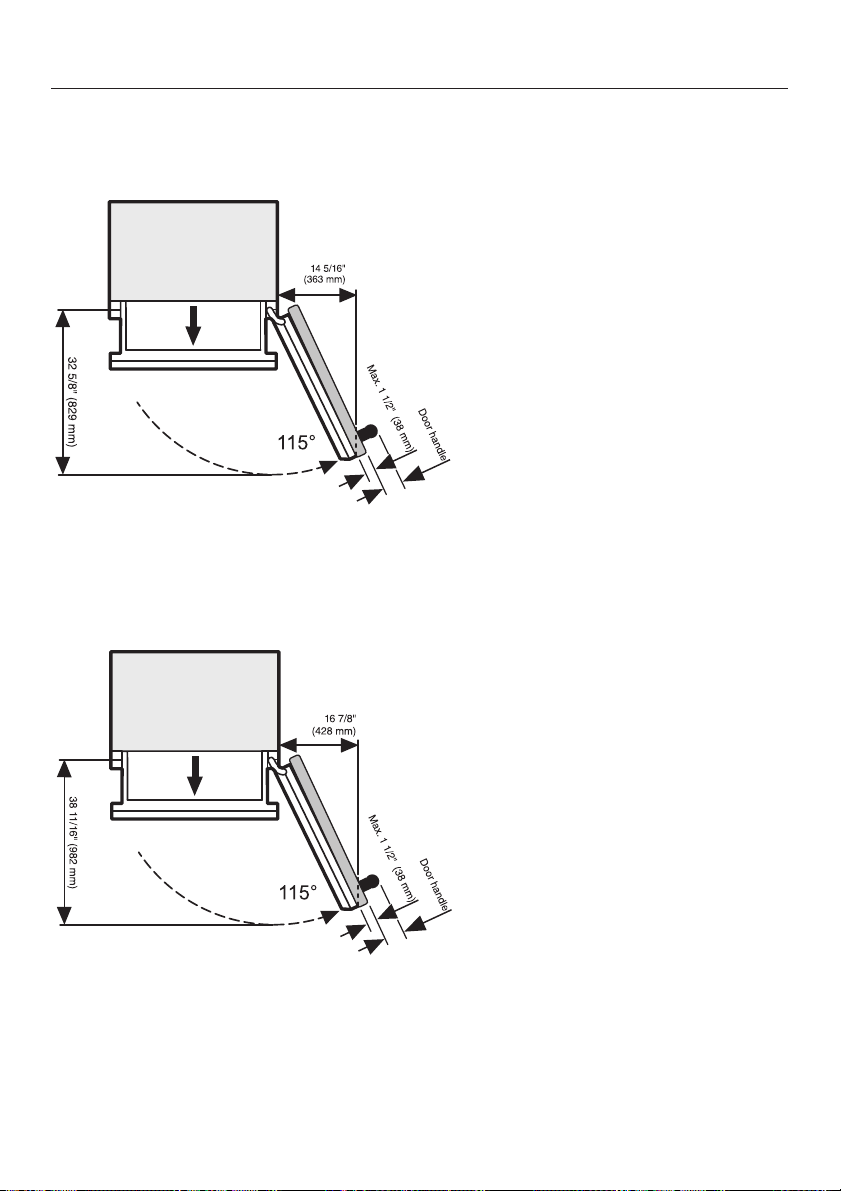

• Page 44 - English - : Door dimensions open min 115C K 18x3 Vi The dimensions of the door fronts and handles will vary according to each individual kitchen K 19x3 Vi The dimensions of the door fronts and handles will vary according to each individual kitchen Dimensions

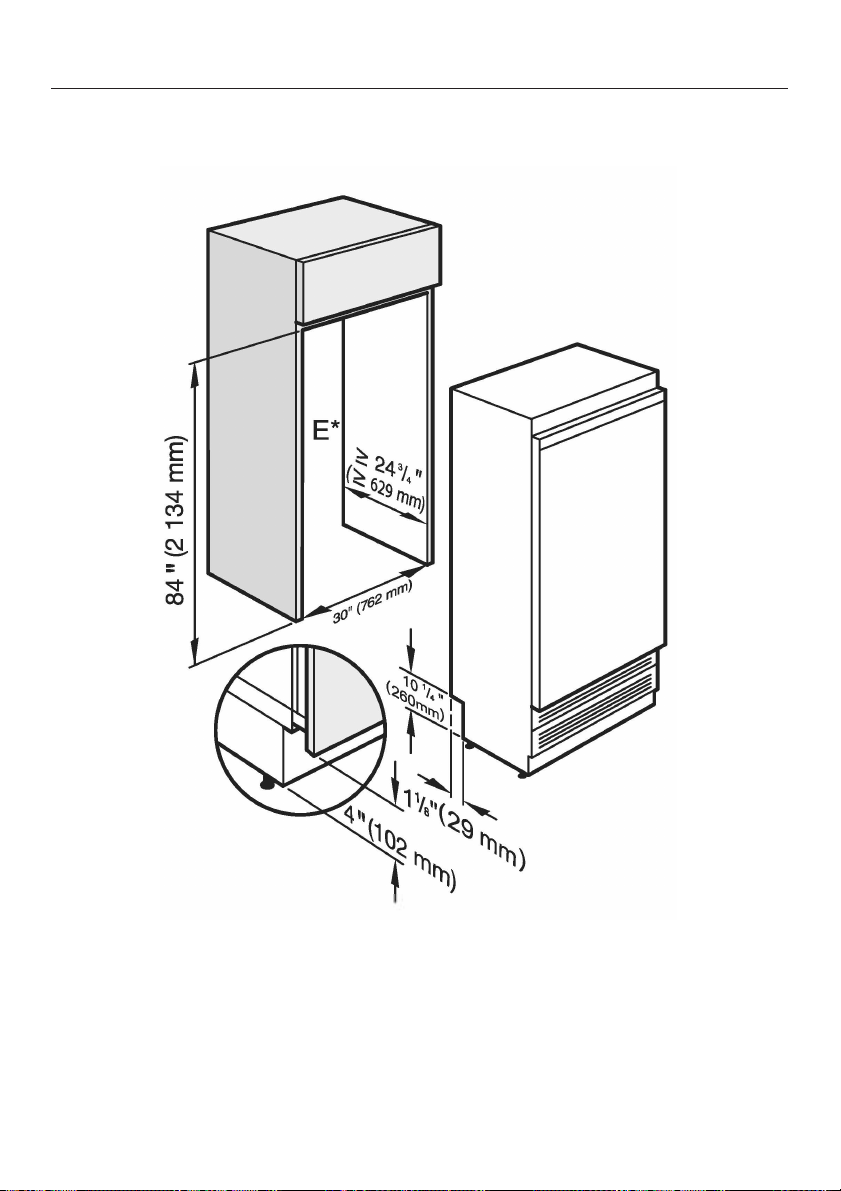

• Page 45 - English - : Niche dimensions K 18x3 Vi Dimensions E The position of the electrical connection should not be higher than 9quot from the floor Please notice Miele recommends to place the electrical outlet next to the appliance The electrical outlet must be easily accessible in case of an emergency
• Page 46 - English - : K 19x3 Vi Dimensions E The position of the electrical connection should not be higher than 9quot from the floor Please notice Miele recommends to place the electrical outlet next to the appliance The electrical outlet must be easily accessible in case of an emergency
• Page 47: Door front dimensions K 18x3 Vi K 19x3 Vi Dimensions 44quot 5 316quot 44quot 5 316quot
• Page 48 - English - : Before you begin Read these instructions completely and carefully Have the appliance installed by a qualified technician according to the enclosed installation instructions To reduce the risk of injury or damage to the product two people should be used for installation These installation instructions are intended for use by qualified installers In addition to these instructions the appliance must be installed in accordance with all local codes In the absence of a local code the following should be used In the USA the National Electric Code ANSINFPA 70 latest editionState and Municipal codes andor local codes In Canada the Canadian Electric code C221 latest editionProvincial and Municipal codes andor local codes Tools needed for installation Cordless screwdriver Torx screwdriver TX 20 Hammer drill Wood drills in different sizes Hammer Rachet 516quot 8 mm Adhesive tape Multigrip pliers Level Tape measure Square When fastening the cabinet to the wall behind it see quotInstalling the appliancequot use suitable plugsscrews depending on the type of wall several mounting brackets if required Other Stepladder Dolly hand truck Wooden beam cross section min 3quot x 4quot 75 mm x 100 mm as an alternative tilt protection length depends on the width of the installation cavity Wood screws in different sizes Optional accessories quotMerging Kitquot for s idebyside installation Front panel gap kit Installing the appliance
• Page 49 - English - : Aligning the housing unit The housing unit must be carefully aligned using a spirit level before installing the appliance The unit corners must be at right angles as otherwise the furniture door will not align correctly with the 4 corners of the appliance The side panels of the housing must be even The housing unit panels must be at least 58quot 16 mm thick The plinth facing must be at least 12quot 13 mm thick preferably 34quot 19 mm Check the installation niche To ensure a safe troublefree installation and the best possible cosmetic result check to be sure that the installation space complies with the installation requirements Check the base see quotInstallationquot Check the dimensions of the cavity Check that the cavity is square Check the location of the power outlet Check that all furniture parts in the vicinity of the appliance are securely connected to the wall Check that the adjacent furniturefixtures do not collide with the open door Before installation Caution the appliance is very heavy Use caution when unpacking and opening the door danger of tipping To protect the base from damage during installation attach a hard board linoleum etc to the floor in front of the intended installation location Remove any cable clips from the back of the appliance Take the supplied accessories out of the protective packaging Installing the appliance

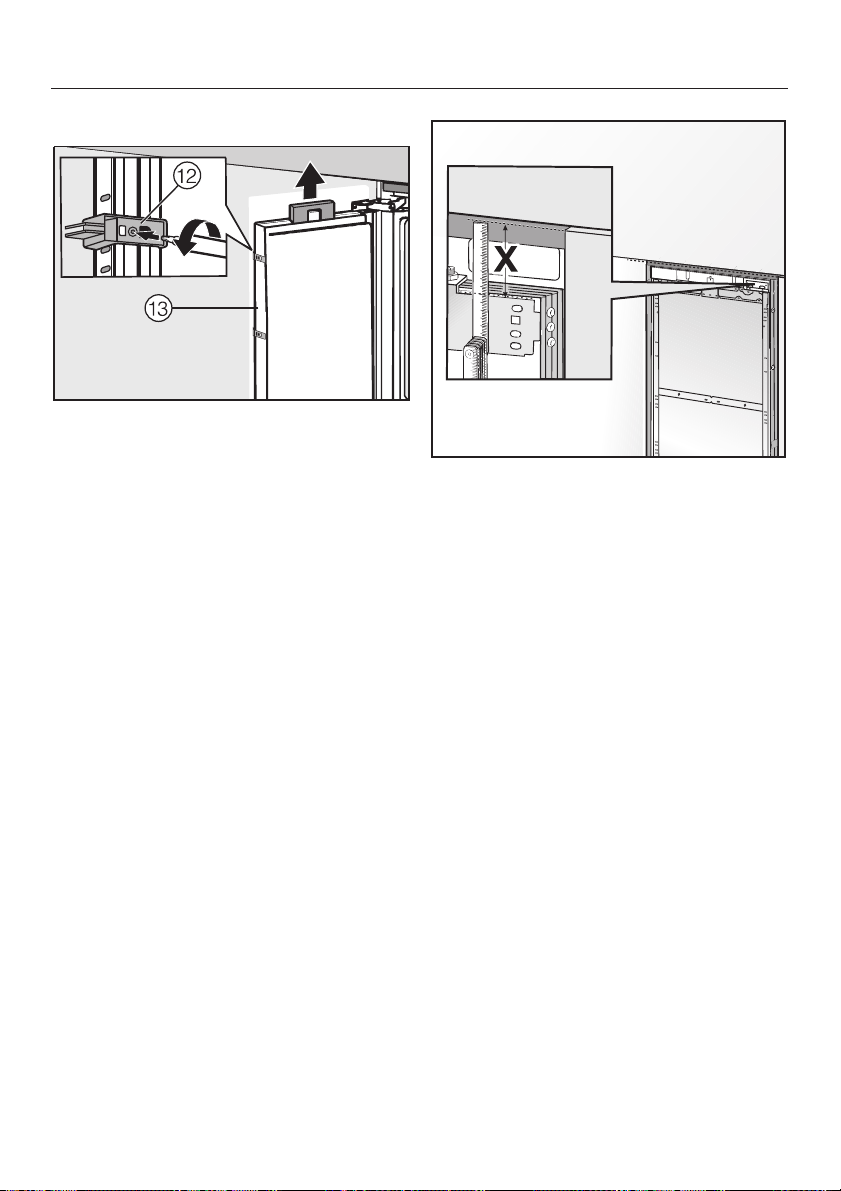

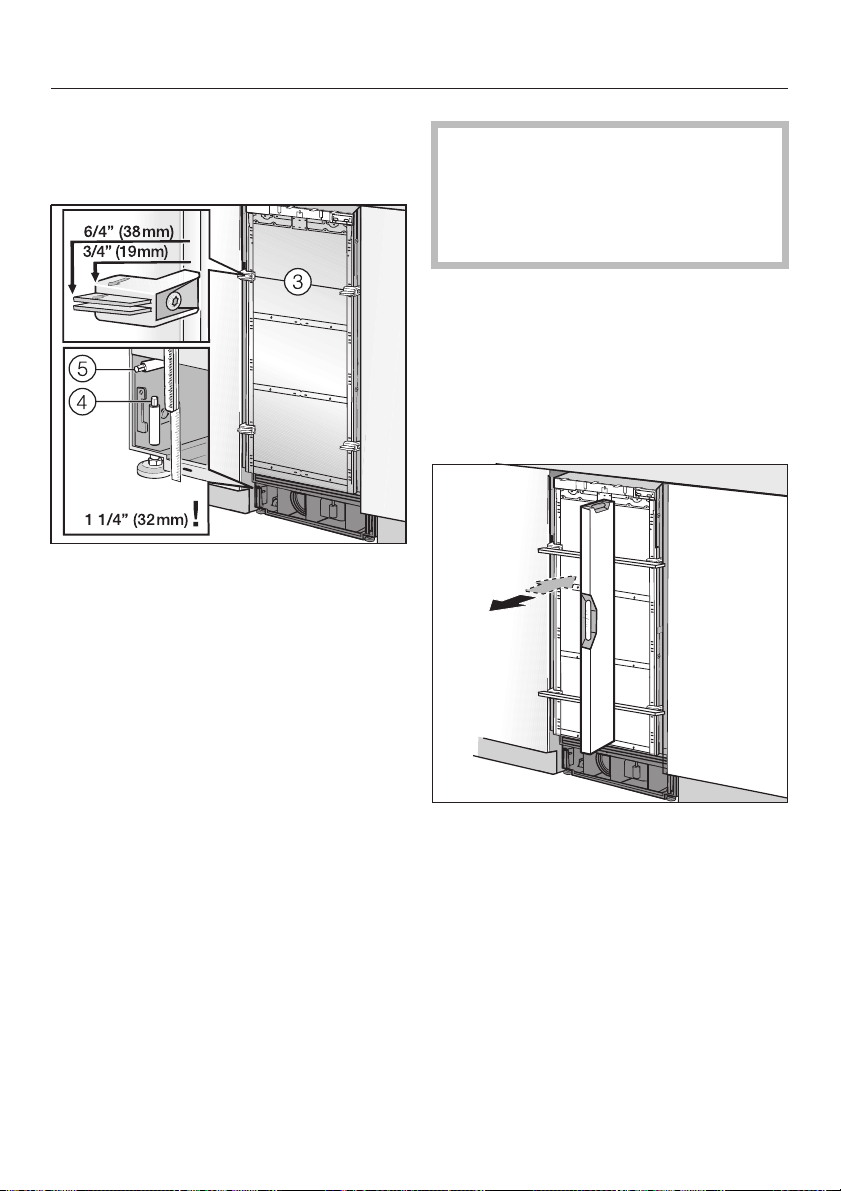

• Page 50 - English - : Do not remove the installation supports from the appliance door They will be used later in the installation niche There are transportation safety devices inside the appliance to protect the shelves and storage compartments until installation is complete Do not remove themor parts may be damaged Check the appliance for damage in transit Do not install the appliance if it is visibly damaged If in doubt contact your dealer Loosen the bracket that holds the appliance to the pallet Caution The appliance is no longer secured and may be unstable From the rear of the appliance carefully lift it from the pallet Once the appliance is on the ground it can be wheeled around Installing the appliance

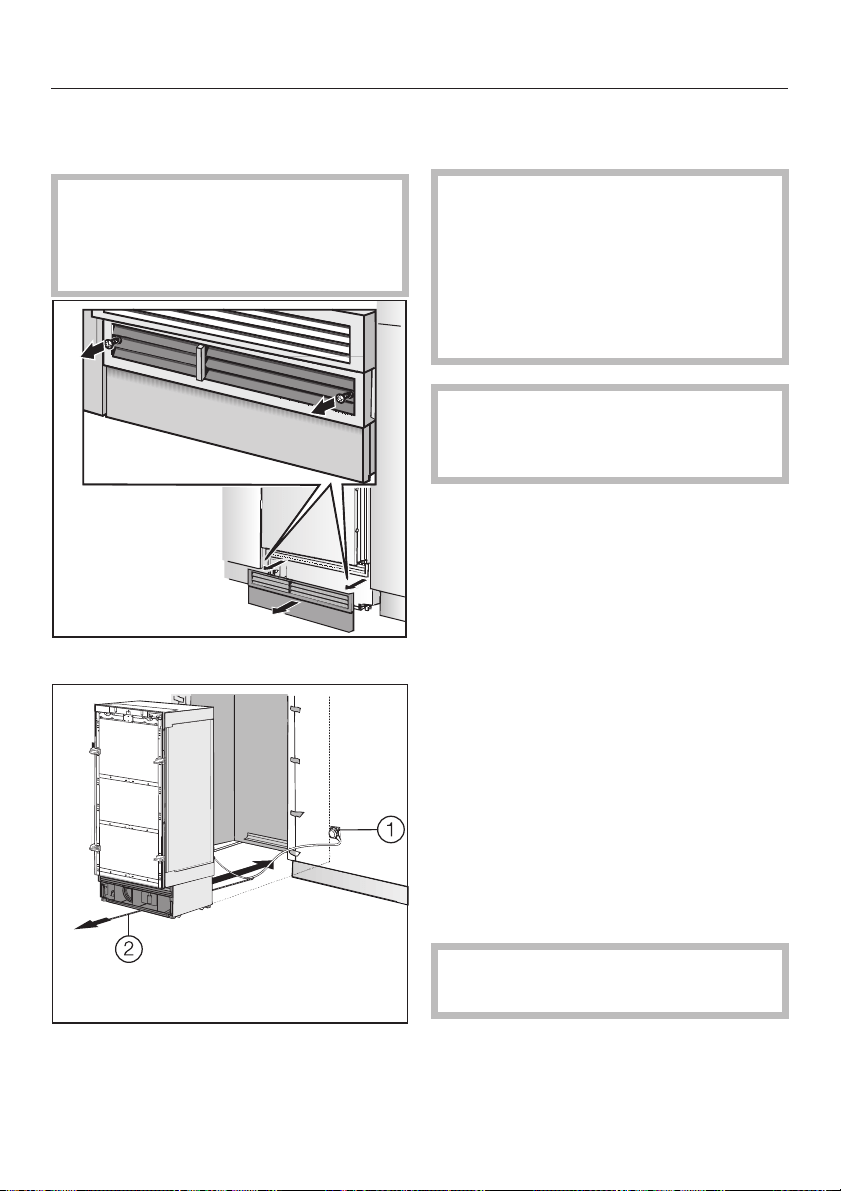

• Page 51 - English - : Preparing the installation niche Keep the appliance door closed until it is securely fastened in the niche Tipping hazard Because of the size and weight of the appliance it is essential to ensure that the appliance cannot tip over once it has been mounted in the niche Installing the appliance
