LG Electronics UP970 4K Ultra HD Blu-ray Disc™ Player User Manual

OWNER’S MANUAL

Ultra HD

Blu-ray Disc™

Player

Please read this manual carefully before operating

your set and retain it for future reference.

MODEL

UP970

www.lg.com

1 Getting Started

Getting Started2

Getting Started

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning ash with arrowhead

symbol within an equilateral

triangle is intended to alert the

user to the presence of uninsulated

dangerous voltage within the

product’s enclosure that may be of

sufcient magnitude to constitute

a risk of electric shock to persons.

The exclamation point within an

equilateral triangle is intended

to alert the user to the presence

of important operating and

maintenance (servicing)

instructions in the literature

accompanying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK

HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR MOISTURE.

WARNING: Do not install this equipment in a

conned space such as a book case or similar unit.

NOTICE: For safety marking information including

product identication and supply ratings, please refer

to the main label on the bottom or the other surface

of the product.

CAUTION: The apparatus shall not be exposed to

water (dripping or splashing) and no objects lled

with liquids, such as vases, shall be placed on the

apparatus.

CAUTION: Do not use high voltage products around

this product. (ex. Electrical swatter) This product may

malfunction due to electrical shock.

CAUTION: No naked ame sources, such as lighted

candles, should be placed on the apparatus.

CAUTION: Do not block any ventilation openings.

Install in accordance with the manufacturer’s

instructions.

Slots and openings in the cabinet are provided

for ventilation and to ensure reliable operation of

the product and to protect it from over heating.

The openings shall be never be blocked by placing

the product on a bed, sofa, rug or other similar

surface. This product shall not be placed in a built-

in installation such as a bookcase or rack unless

proper ventilation is provided or the manufacturer’s

instruction has been adhered to.

CAUTION: This product employs a Laser System.

To ensure proper use of this product, please read

this owner’s manual carefully and retain it for future

reference. Shall the unit require maintenance, contact

an authorized service center.

Use of controls, adjustments or the performance of

procedures other than those specied herein may

result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try

to open the enclosure.

CAUTION concerning the Power Cord

Check the specication page of this owner’s manual

to be certain of the current requirements. Do not

overload wall outlets. Overloaded wall outlets, loose

or damaged wall outlets, extension cords, frayed

power cords, or damaged or cracked wire insulation

are dangerous. Any of these conditions could result

in electric shock or re. Periodically examine the

cord of your device, and if its appearance indicates

damage or deterioration, unplug it, discontinue use of

the device, and have the cord replaced with an exact

replacement part by an authorized service center.

Protect the power cord from physical or mechanical

abuse, such as being twisted, kinked, pinched, closed

in a door, or walked upon. Pay particular attention to

plugs, wall outlets, and the point where the cord exits

the device.

The Power Plug is the disconnecting device. In case

of an emergency, the Power Plug must remain readily

accessible.

Getting Started 3

Getting Started

This device is equipped with a portable battery or

accumulator.

Safety way to remove the battery or the battery

from the equipment: Remove the old battery

or battery pack, follow the steps in reverse order

than the assembly. To prevent contamination of

the environment and bring on possible threat

to human and animal health, the old battery or

the battery put it in the appropriate container at

designated collection points. Do not dispose of

batteries or battery together with other waste. It is

recommended that you use local, free reimbursement

systems batteries and accumulators. The battery

shall not be exposed to excessive heat such as

sunshine, re or the like.

Notes on Copyrights

y Because AACS (Advanced Access Content

System) is approved as content protection system

for Blu-ray Disc format, similar to use of CSS

(Content Scramble System) for DVD format,

certain restrictions are imposed on playback,

analog signal output, etc., of AACS protected

contents. The operation of this product and

restrictions on this product may vary depending

on your time of purchase as those restrictions

may be adopted and/or changed by AACS after

the production of this product.

y Furthermore, BD-ROM Mark and BD+ are

additionally used as content protection systems

for Blu-ray Disc format, which imposes certain

restrictions including playback restrictions for

BD-ROM Mark and/or BD+ protected contents. To

obtain additional information on AACS, BD-ROM

Mark, BD+, or this product, please contact an

authorized Customer Service Center.

y Many BD-ROM/DVD discs are encoded with

copy protection. Because of this, you should only

connect your player directly to your TV, not to a

VCR. Connecting to a VCR results in a distorted

picture from copy-protected discs.

y This product incorporates copyright protection

technology that is protected by U.S. patents

and other intellectual property rights. Use of

this copyright protection technology must be

authorized by Rovi Corporation, and is intended for

home and other limited viewing uses only unless

otherwise authorized by Rovi Corporation. Reverse

engineering or disassembly is prohibited.

y Under the U.S. Copyright laws and Copyright

laws of other countries, unauthorized recording,

use, display, distribution, or revision of television

programs, videotapes, BD-ROM discs, DVDs, CDs

and other materials may subject you to civil and/or

criminal liability.

y Watching a 3D content for a long period time

may cause dizziness or tiredness.

y It is not recommended to watch a movie

in 3D mode for inrm, child and pregnant

woman.

y If you are experiencing headache, tiredness

or dizziness while viewing content in 3D, it is

strongly recommended to stop the playback

and rest until you feel normal.

Caution

Table of Contents4

Table of Contents

1 Getting Started

2 Safety Information

6 Introduction

6 – Playable Discs and symbols used in this

manual

7 – About the “7” Symbol Display

7 – Regional Code

8 Remote Control

9 Front Panel

9 Rear Panel

2 Connecting

10 Connecting to Your TV

11 – About HDR (High Dynamic Range)

11 – What is SIMPLINK?

11 – Resolution Setting

12 Connecting to an Amplifier

12 – Connecting to an Amplifier via HDMI Output

13 – Connecting to an Amplifier via Digital Audio

Output

14 Connecting to your Home Network

14 – Wired network connection

14 – Wired Network Setup

16 – Wireless network connection

16 – Wireless network setup

3 System Setting

19 Initial Setup

20 Settings

20 – Adjust the Setup Settings

20 – [NETWORK] Menu

21 – [DISPLAY] Menu

22 – [LANGUAGE] Menu

23 – [AUDIO] Menu

24 – [LOCK] Menu

25 – [OTHERS] Menu

4 Operating

28 Home Menu Display

28 – Using [HOME] menu

28 Playing the Linked Devices

28 – Playing a disc

29 – Playing Blu-ray 3D disc

29 – Playing a file on disc/USB device

30 – Playing a file on Android device

32 General Playback

32 – Basic operations for video and audio content

32 – Basic operations for photo content

32 – Using the disc menu

33 – Resume playback

33 – Last Scene Memory

34 On-Screen Display

34 – To control video playback

35 – To control photo view

36 Advanced Playback

36 – Repeat playback

36 – Repeating a specific portion

36 – Playing from selected time

37 – Selecting a subtitle language

37 – Hearing a different audio

37 – Watching from a different angle

37 – Changing the TV Aspect Ratio

38 – Changing subtitle Code Page

38 – Changing the Picture Mode

39 – Viewing content information

39 – Changing content list view

39 – Selecting a subtitle file

40 – Listening to music during slide show

40 – Playing file encoded in 3D

41 Advanced Features

41 – Enjoying BD-Live™

41 Using the Premium

5 Troubleshooting

42 Troubleshooting

42 – General

43 – Network

44 – Picture

44 – Customer support

44 – Open source software notice

Table of Contents 5

6 Appendix

45 Controlling a TV with the Supplied Remote

Control

45 – Setting up the remote to control your TV

46 Network Software Update

46 – Network update notification

46 – Software update

48 Additional Information

48 – File requirement

50 – AVCHD (Advanced Video Codec High

Definition)

51 – Certain system requirements

51 – Compatibility notes

52 Audio Output Specifications

53 Area Code List

54 Language Code List

55 Trademarks and Licenses

57 Specifications

58 Maintenance

58 – Handling the unit

58 – Notes on discs

59 Important Information Relating to Network

Services

Some of the content in this manual may differ from your player depending on the software of the

player or your service provider.

Getting Started6

Getting Started

Introduction

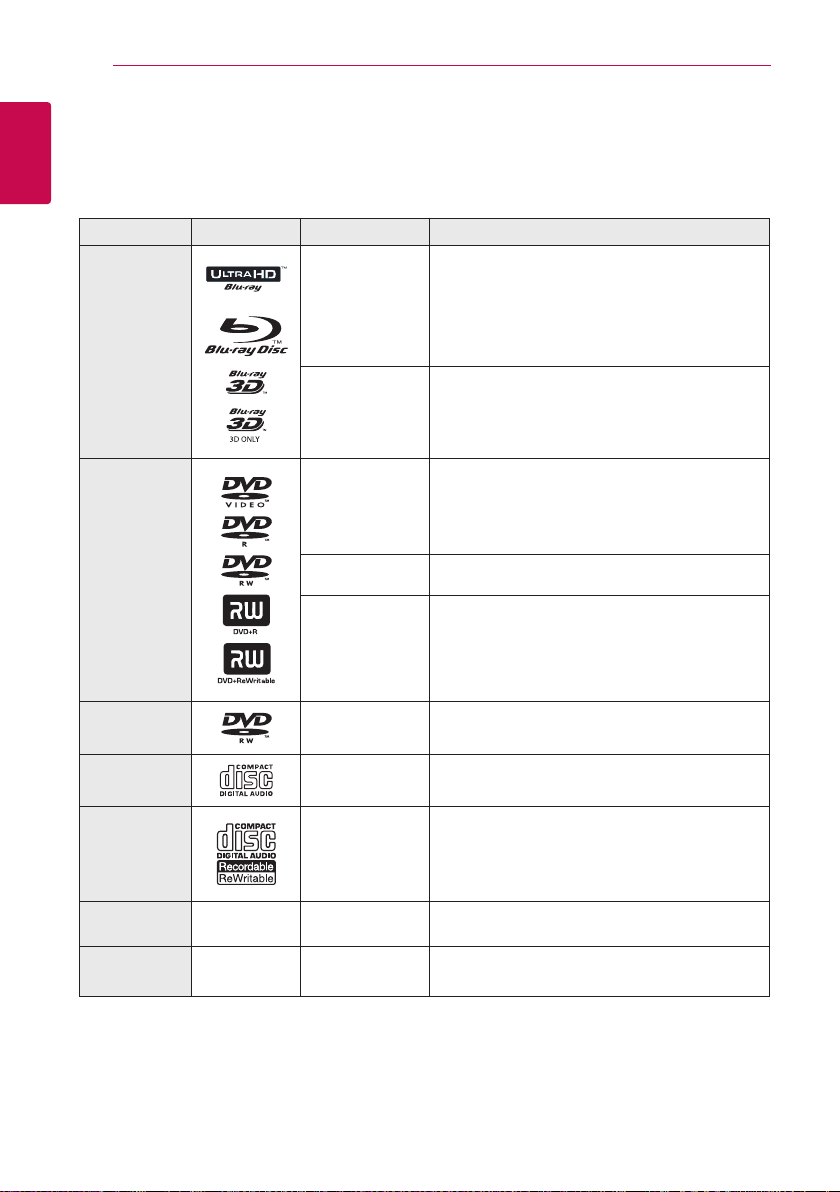

Playable Discs and symbols used in this manual

Media/Term Logo Symbol Description

Blu-ray

y Ultra HD BD-ROM format.

y Discs such as movies that can be purchased or

rented.

y “Blu-ray 3D” discs and “Blu-ray 3D ONLY” discs.

y BD-R/RE discs that are recorded in BDAV format.

y BD-R/RE discs that contain Movie, Music or

Photo les.

y ISO 9660+JOLIET, UDF and UDF Bridge format

DVD-ROM

DVD-R

DVD-RW

DVD+R

DVD+RW

(8 cm, 12 cm)

y Discs such as movies that can be purchased or

rented.

y Movie mode and nalized only

y Supports the dual layer disc also

Finalized AVCHD format

y DVD±R/RW discs that contain Movie, Music or

Photo les.

y ISO 9660+JOLIET, UDF and UDF Bridge format

DVD-RW (VR)

(8 cm, 12 cm)

VR mode and nalized only

Audio CD

(8 cm, 12 cm)

Audio CD

CD-R/RW

(8 cm, 12 cm)

y CD-R/RW discs that contain Movie, Music or

Photo les.

y ISO 9660+JOLIET, UDF and UDF Bridge format

Note –

Indicates special notes and operating features.

Caution –

Indicates cautions for preventing possible damages

from abuse.

Getting Started 7

Getting Started

y Depending on the conditions of the recording

equipment or the CD-R/RW (or DVD±R/RW)

disc itself, some CD-R/RW (or DVD±R/RW)

discs cannot be played on the unit.

y Depending on the recording software & the

nalization, some recorded discs (CD-R/RW,

DVD±R/RW, BD-R/RE) may not be playable.

y BD-R/RE, DVD±R/RW and CD-R/RW discs

recorded using a personal computer or a

DVD or CD Recorder may not play if the

disc is damaged or dirty, or if there is dirt or

condensation on the player’s lens.

y If you record a disc using a personal computer,

even if it is recorded in a compatible format,

there are cases in which it may not play

because of the settings of the application

software used to create the disc. (Check with

the software publisher for more detailed

information.)

y This player requires discs and recordings to

meet certain technical standards in order to

achieve optimal playback quality.

y Pre-recorded DVDs are automatically set to

these standards. There are many different

types of recordable disc formats (including

CD-R containing MP3 or WMA les) and

these require certain pre-existing conditions

to ensure compatible playback.

y Customers should note that permission

is required in order to download MP3 /

WMA les and music from the Internet.

Our company has no right to grant such

permission. Permission should always be

sought from the copyright owner.

y You have to set the disc format option

to [Mastered] in order to make the discs

compatible with the LG players when

formatting rewritable discs. When setting the

option to Live System, you cannot use it on

LG player. (Mastered/Live File System : Disc

format system for windows Vista)

Note

About the “7” Symbol Display

“7” may appear on your TV display during operation

and indicates that the function explained in this

owner’s manual is not available on that specic

media.

Regional Code

This unit has a regional code printed on the rear of

the unit. This unit can play only BD-ROM or DVD discs

labelled same as the rear of the unit or “ALL”.

Getting Started8

Getting Started

CAPTION

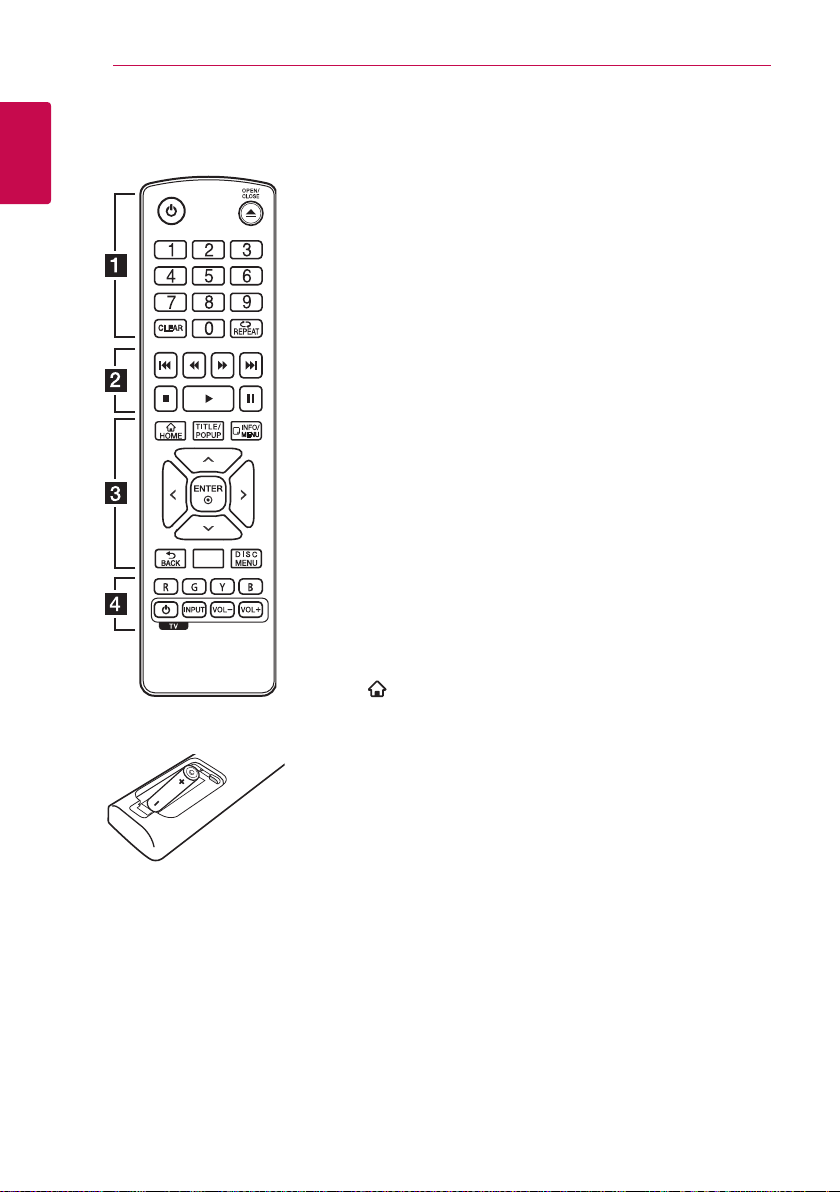

Battery Installation

Remove the battery cover on the

rear of the remote control, and

insert a R03 (size AAA) battery

with 4 and 5 matched correctly.

• • • • • • • • • a • • • • • • • •

1 (Standby): Switches the player

ON or OFF.

B (OPEN/CLOSE): Opens and

closes the disc tray.

0-9 numerical buttons: Selects

numbered options in a menu.

CLEAR: Removes a number when

setting the password or network

connection.

REPEAT (h): Repeats a desired

section or sequence.

• • • • • • • • • b • • • • • • •

c/v (SCAN): Searches

backward or forward.

C/V (SKIP): Goes to the

next or previous chapter / track

/ le.

Z (STOP): Stops playback.

d (PLAY): Starts playback.

M (PAUSE): Pauses playback.

• • • • • • • • • c • • • • • • •

HOME (

): Displays or exits the

[Home].

TITLE/POPUP: Displays the DVD

title menu or BD-ROM’s pop-up

menu, if available.

INFO/MENU (m): Displays or

exits On-Screen Display.

Direction buttons (W/S/

A/D): Selects an option in the

menu.

ENTER (b): Acknowledges menu

selection.

BACK (1): Exits the menu or

returns to the previous screen.

CAPTION: Turns on or off closed

caption function.

DISC MENU: Accesses menu on

a disc.

• • • • • • • • • d • • • • • • •

Colored (R, G, Y, B) buttons: Use

to navigate BD-ROM menus. They

are also used as shortcut buttons

for specic menus.

TV Control Buttons: See page

45.

Remote Control

Getting Started 9

Getting Started

Front Panel

ab cdabdc

a Disc Tray

b R (Open/Close)

Disc Tray Open / Close

T (Play/Pause)

Starts / Pauses playback

I (Stop)

Stops playback

1 (Standby)

Power On / Off

c Power Indicator

d USB Port

Connect a USB device.

Rear Panel

ab cdabdc

a LAN port

Connect to Internet.

b HDMI1 OUT TO TV

Connect to TV.

c HDMI2 AUDIO ONLY

Connect to digital audio device.

d OPTICAL AUDIO OUT

Connect to digital audio device.

2 Connecting

Connecting10

Connecting

Connecting to Your TV

If you have a HDMI TV or monitor, you can connect it

to this player using a HDMI cable (Type A, High Speed

HDMI™ Cable). Connect the HDMI (HDMI1 OUT TO

TV) jack on the player to the HDMI jack on a HDMI

compatible TV or monitor.

Rear of the unit

HDMI cable

Set the TV’s source to HDMI (Refer to TV’s Owner’s

manual).

y Please refer to the manuals of your TV,

Stereo System or other devices as necessary

to make the best connections.

y The HDMI 2 AUDIO ONLY jack does not

output a video signal.

Note

Additional Information for HDMI

y When you connect a HDMI or DVI compatible

device make sure of the following:

- Try switching off the HDMI/DVI device and this

player. Next, switch on the HDMI/DVI device

and leave it for around 30 seconds, then

switch on this player.

- The connected device’s video input is set

correctly for this unit.

- The connected device is compatible with

720 x 576p (or 480p), 1280 x 720p,

1920 x 1080i, 1920 x 1080p, 3840 x 2160P

video input

y Not all HDCP-compatible HDMI or DVI devices will

work with this player.

- The picture will not be displayed properly with

non-HDCP device.

y If a connected HDMI device does not accept

the audio output of the player, the HDMI

device’s audio sound may be distorted or may

not output.

y When you use HDMI connection, you can

change the resolution for the HDMI output.

(Refer to “Resolution Setting” on page 11)

y Select the type of video output from the

HDMI OUT jack using [HDMI Color Setting]

option on the [Settings] menu (see page

22).

y Changing the resolution when the connection

has already been established may result in

malfunctions. To solve the problem, turn off

the player and then turn it on again.

y When the HDMI connection with HDCP is not

veried, TV screen is changed to black screen.

In this case, check the HDMI connection, or

disconnect the HDMI cable.

y If there are noises or lines on the screen,

please check the HDMI cable (length is

generally limited to 4.5 m, 14.76 feet).

Note

Connecting 11

Connecting

About HDR (High Dynamic

Range)

This player supports the HDR function. High Dynamic

Range is a technique used in imaging to reproduce a

greater dynamic range of luminosity than is possible

with conventional imaging devices.

y Make sure your TV supports the HDR function.

y Connect an HDMI cable (Type A, High Speed

HDMI™ Cable) between the player’s HDMI output

and TV’s HDMI input.

y Activate the HDR related function on your TV’s

menu. For further information, refer to the TV’s

user manual.

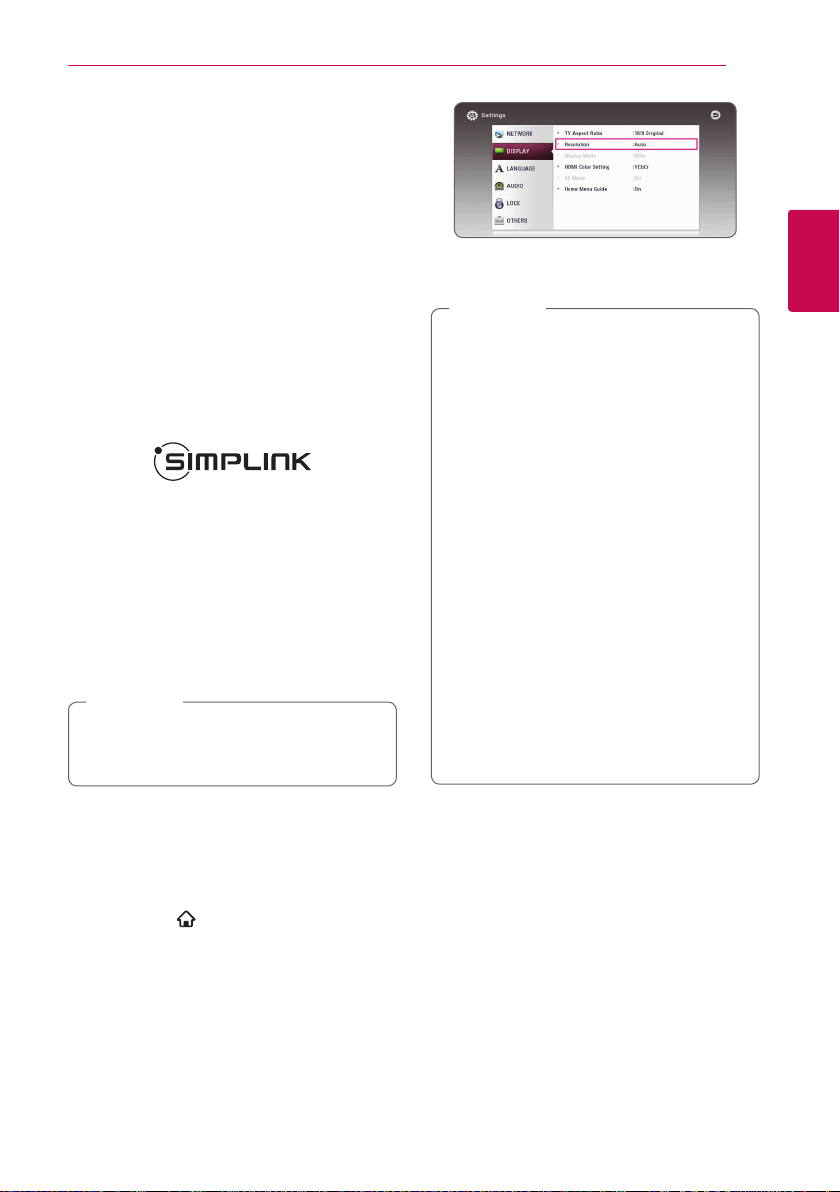

What is SIMPLINK?

Some functions of this unit are controlled by the

TV’s remote control when this unit and LG TV’s with

SIMPLINK are connected through HDMI connection.

Controllable functions by LG TV’s remote control;

Play, Pause, Scan, Skip, Stop, Power Off, etc.

Refer to the TV owner’s manual for the details of

SIMPLINK function.

LG TV’s with SIMPLINK function has the logo as

shown above.

Depending on the disc type or playing status,

some SIMPLINK operation may differ from your

purpose or not work.

Note

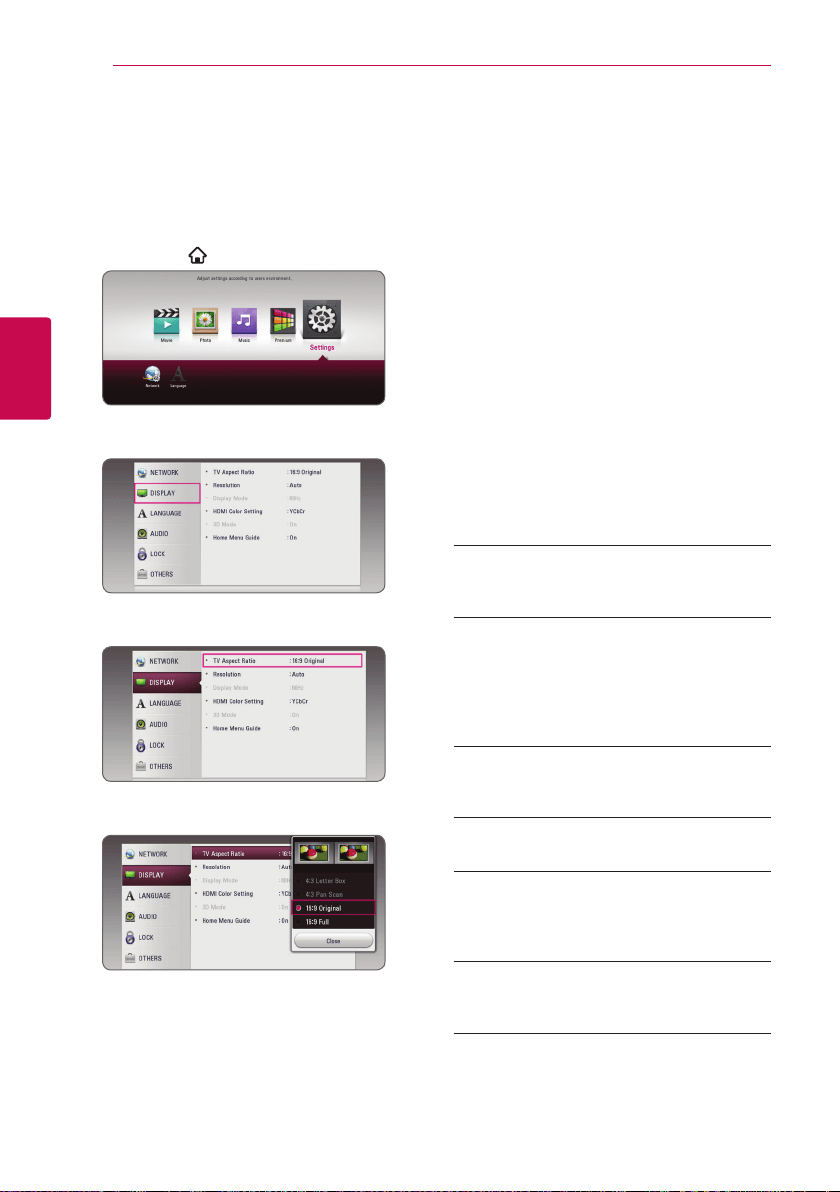

Resolution Setting

The player provides several output resolutions for

HDMI OUT jack. You can change the resolution using

[Settings] menu.

1. Press HOME (

2. Use A/D to select the [Settings] and press

ENTER (b). The [Settings] menu appears.

3. Use W/S to select [DISPLAY] option then press

D to move to the second level.

4. Use W/S to select the [Resolution] option then

press ENTER (b) to move to the third level.

5. Use W/S to select the desired resolution then

press ENTER (b) to confirm your selection.

y If your TV does not accept the resolution you

have set on the player, you can set resolution

to 480p as follows:

1. Press B to open the disc tray.

2. Press Z (STOP) for more than 5 seconds.

y If you select a resolution manually and then

connect the HDMI jack to TV and your TV

does not accept it, the resolution setting is

set to [Auto].

y If you select a resolution that your TV does

not accept, the warning message will appear.

After resolution change, if you cannot see

the screen, please wait 20 seconds and the

resolution will automatically revert back to

the previous resolution.

y The 1080p or 2160p video output frame

rate may be automatically set to either 24 Hz

or 60 Hz depending both on the capability

and preference of the connected TV and

based on the native video frame rate of the

content on the BD-ROM disc.

Note

Connecting12

Connecting

Connecting to an

Amplifier

Make one of the following connections, depending on

the capabilities of your existing equipment.

y HDMI Audio connection (page 12)

y Digital Audio connection (page 13)

Since many factors affect the type of audio output,

see “Audio Output Specications” for details (page

52).

About Digital Multi-channel sound

A digital multi-channel connection provides the best

sound quality. For this, you need a multi-channel

Audio/Video Receiver that supports one or more of

the audio formats supported by your player. Check

the logos on the front of the Audio/Video receiver

and the manual. (PCM Stereo, PCM Multi-Ch, Dolby

Digital, Dolby Digital Plus, Dolby TrueHD, DTS and/or

DTS-HD)

Connecting to an Amplifier via

HDMI Output

It is recommended to connection by Case 1.

Case 1 : HDMI1 OUT TO TV and

HDMI2 AUDIO ONLY connection

Connect the player’s HDMI OUT (HDMI1 OUT TO TV)

jack to the HDMI jack on a HDMI compatible TV or

monitor, and connect the player’s HDMI OUT (HDMI2

AUDIO ONLY) jack to the corresponding in jack on

your amplier using another HDMI cable.

HDMI cable

Receiver/Amplier

Rear of the unit

Connecting 13

Connecting

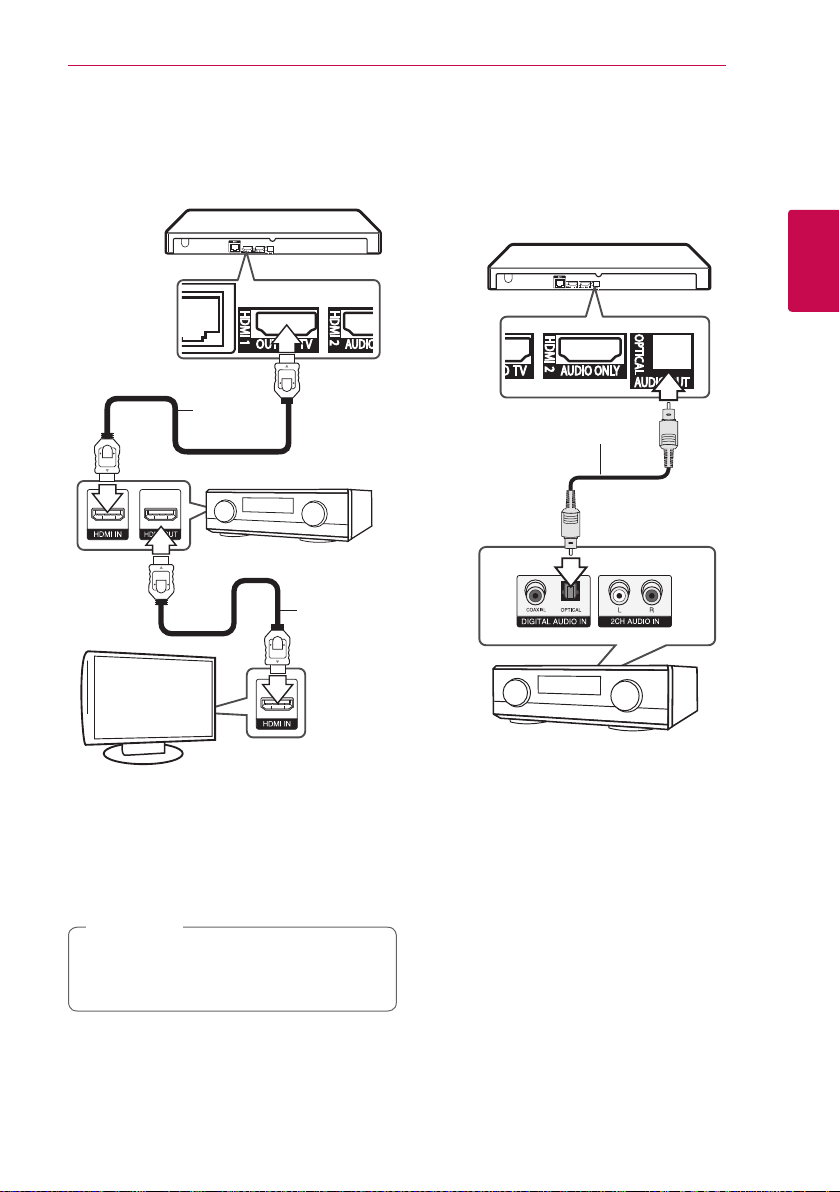

Case 2 : HDMI1 OUT TO TV connection

Connect the player’s HDMI OUT (HDMI1 OUT TO TV)

jack to the corresponding in jack on your amplier

using a HDMI cable.

HDMI cable

HDMI

cable

Receiver/Amplier

Rear of the unit

Connect the amplier’s HDMI output jack to HDMI

input jack on your TV using a HDMI cable if your

amplier has HDMI output jack. (Refer to amplier’s

owner’s manual.)

You will need to activate the player’s digital output.

(See “[AUDIO] Menu” on page 23)

Depending on the supported resolution of the

TV or Amplier, the picture may not be output.

Connect to Case 1.

Note

Connecting to an Amplifier via

Digital Audio Output

Connect the player’s OPTICAL AUDIO OUT jack to the

corresponding in jack on your amplier using a optical

digital audio cable.

Optical cable

Receiver/Amplier

Rear of the unit

You will need to activate the player’s digital output.

(See “[AUDIO] Menu” on page 23.)

Connecting14

Connecting

Connecting to your

Home Network

This player can be connected to a local area network

(LAN) via the LAN port on the rear panel or the

internal wireless module.

By connecting the unit to a broadband home

network, you have access to services such as

software updates, BD-Live interactivity and on-line

content services.

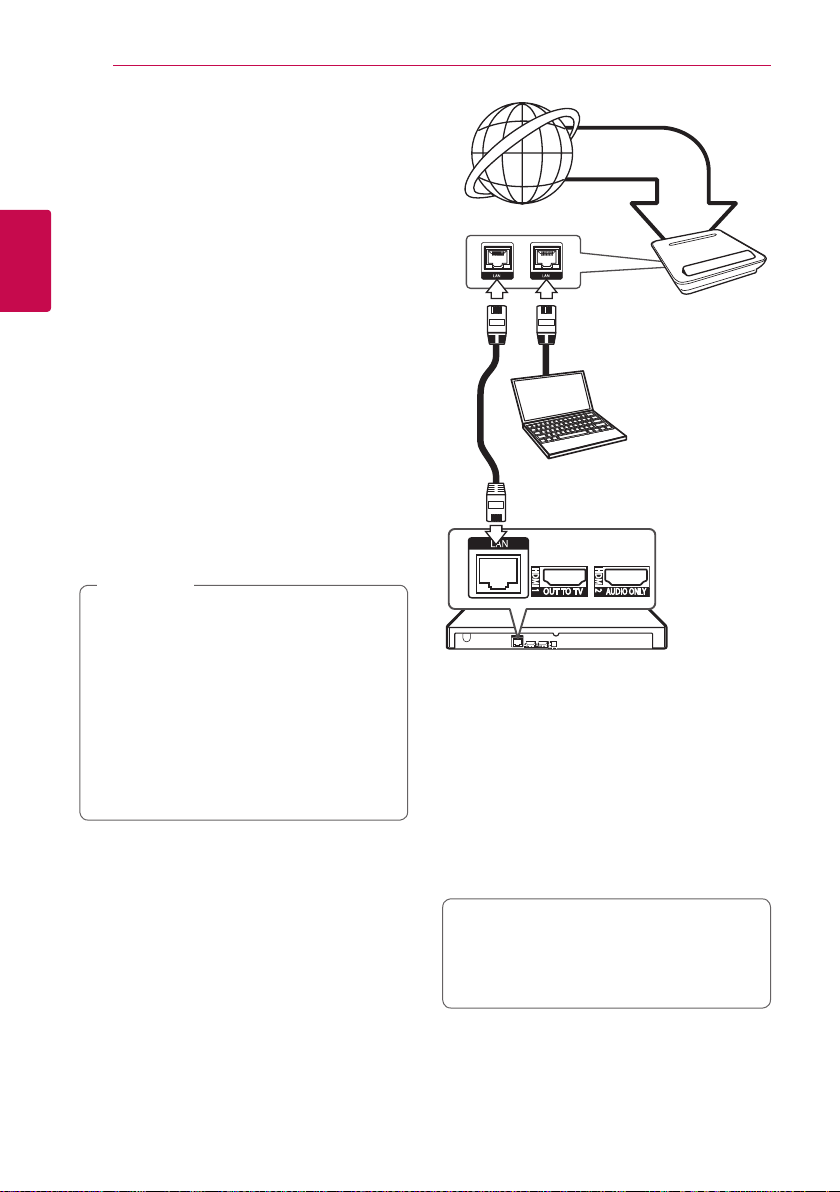

Wired network connection

Using a wired network provides the best

performance, because the attached devices connect

directly to the network and are not subject to radio

frequency interference.

Please refer to the documentation for your network

device for further instructions.

Connect the player’s LAN port to the corresponding

port on your Modem or Router using a commercially

available LAN or Ethernet cable.

y When plugging or unplugging the LAN cable,

hold the plug portion of the cable. When

unplugging, do not pull on the LAN cable but

unplug while pressing down on the lock.

y Do not connect a modular phone cable to the

LAN port.

y Since there are various connection

congurations, please follow the

specications of your telecommunication

carrier or internet service provider.

Note

Rear of the unit

Router

Broadband

service

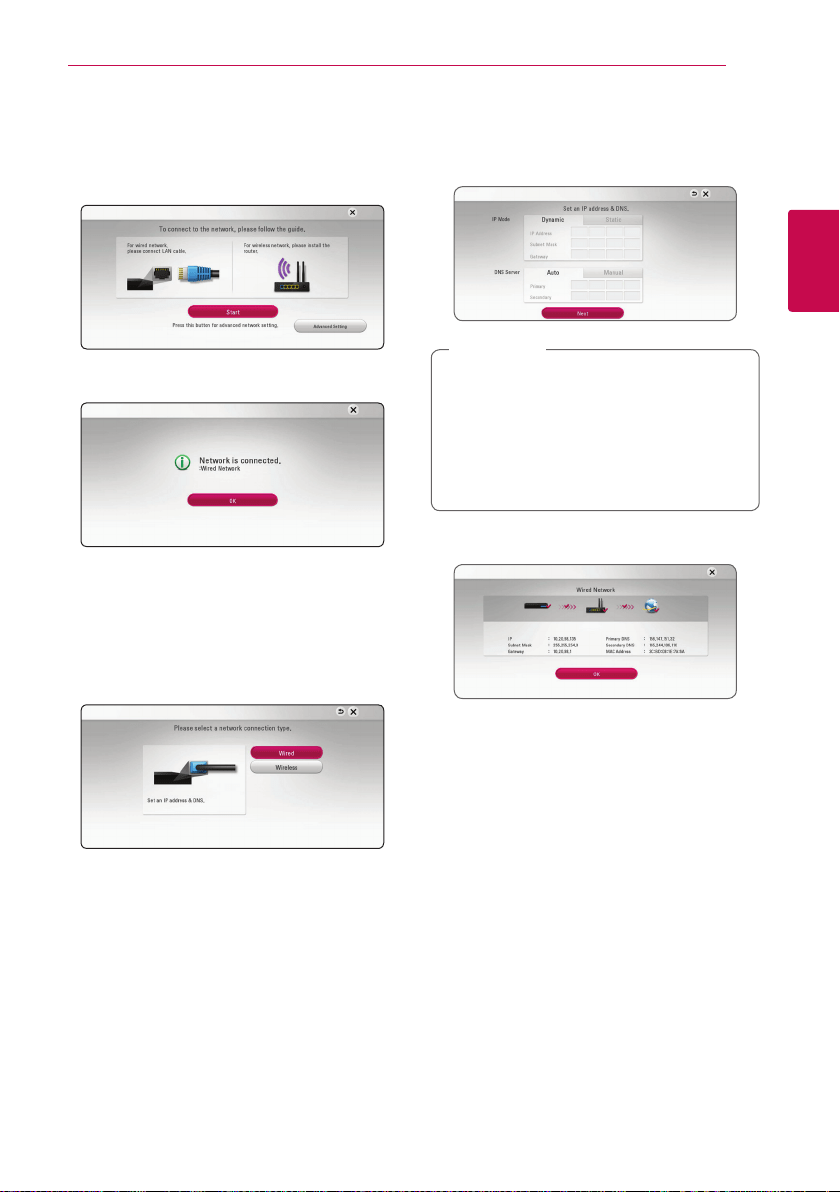

Wired Network Setup

If there is a DHCP server on the local area network

(LAN) via wired connection, this player will

automatically be allocated an IP address. After

making the physical connection, a small number of

home networks may require the player’s network

setting to be adjusted. Adjust the [NETWORK]

setting as follow.

Preparation

Before setting the wired network, you need to

connect the broadband internet to your home

network.

Connecting 15

Connecting

1. Select [Connection Setting] option in the

[Settings] menu then press ENTER (b).

2. Read the preparations for the network settings

and then press ENTER (b) while [Start] is

highlighted.

Network will automatically be connected to the

unit.

Advanced Setting

If you want to set the network settings manually,

use W/S to select [Advanced Setting] on the

[Network Setting] menu and press ENTER (b).

1. Use W/S to select [Wired] and press

ENTER (b).

2. Use W/S/A/D to select the IP mode

between [Dynamic] and [Static].

Normally, select [Dynamic] to allocate an IP

address automatically.

If there is no DHCP server on the network and

you want to set the IP address manually, select

[Static] then set [IP Address], [Subnet Mask],

[Gateway] and [DNS Server] using

W/S/A/D and numerical buttons. If you

make a mistake while entering a number, press

CLEAR to clear the highlighted part.

Note

3. Select [Next] and press ENTER (b) to apply

network settings.

Network connection status is displayed on the

screen.

4. Press ENTER (b) while [OK] is highlighted to

finish the wired network settings.

Connecting16

Connecting

Wireless network connection

Another connection option is to use an Access Point

or a wireless router. The network conguration and

connection method may vary depending on the

equipment in use and the network environment.

Wireless

Communication

Access Point or

Wireless Router

Broadband

service

Refer to the setup instructions supplied with

your access point or wireless router for detailed

connection steps and network settings.

For best performance, a direct wired connection from

this player to your home network’s router or cable/

DSL modem is always the best option.

If you do chose to use the wireless option, note that

performance can sometimes be affected by other

electronic devices in the home.

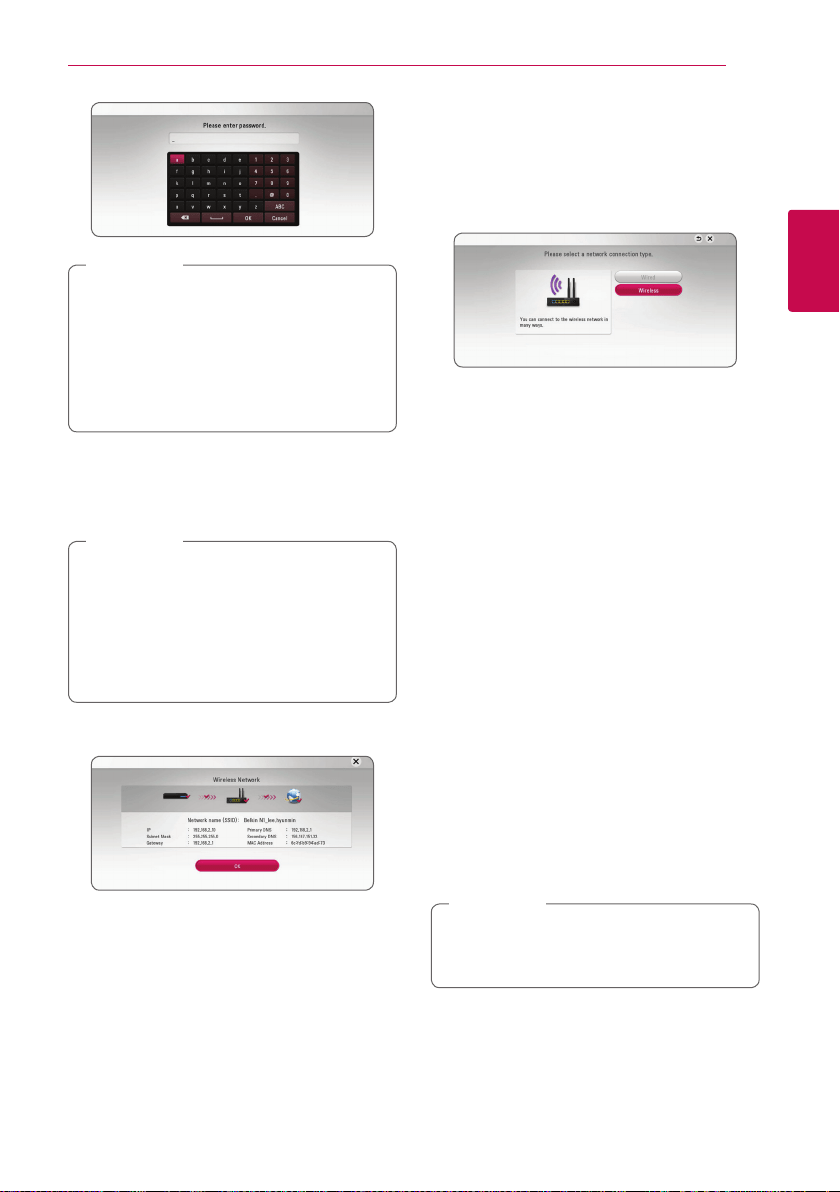

Wireless network setup

For the wireless network connection, the player

needs to be set up for network communication. This

adjustment can be done from the [Settings] menu.

Adjust the [NETWORK] setting as follow. Setting up

the access point or the wireless router is required

before connecting the player to the network.

Preparation

Before setting the wireless network, you need

to:

- Connect the broadband internet to the

wireless home network.

- Set the access point or wireless router.

- Note the SSID and security code of the

network.

1. Select [Connection Setting] option in the

[Settings] menu then press ENTER (b).

2. Read the preparations for the network settings

and then press ENTER (b) while [Start] is

highlighted.

If a wired network is not connected to the unit, all

available networks are displayed on the screen.

3. Use W/S to select a desired SSID of wireless

network and press ENTER (b).

If you have security on your access point, you

need to input the security code as necessary.

If you use other characters than the english

alphabet or digits for the SSID name of your

access point or wireless router, it may be

displayed differently.

Note

Connecting 17

Connecting

y WEP security mode generally have 4 keys

available on an access point setting. If your

access point or wireless router use WEP

security, enter the security code of the key

“No.1” to connect on your home network.

y An Access Point is a device that allows you to

connect to your home network wirelessly.

Note

4. Use W/S/A/D to select the IP mode

between [Dynamic] and [Static].

Normally, select [Dynamic] to allocate an IP

address automatically.

If there is no DHCP server on the network and

you want to set the IP address manually, select

[Static] then set [IP Address], [Subnet Mask],

[Gateway] and [DNS Server] using W/S/

A/D and numerical buttons. If you make a

mistake while entering a number, press CLEAR

to clear the highlighted part.

Note

5. Select [Next] and press ENTER (b) to apply

network settings.

Network connection status is displayed on the

screen.

6. Select [OK] and press ENTER (b) to complete

the network connection.

Advanced Setting

If you want to set the network settings manually,

use W/S to select [Advanced Setting] on the

[Network Setting] menu and press ENTER (b).

1. Use W/S to select [Wireless] and press

ENTER (b).

[AP List] - Scans all available access points or

wireless routers within range and display them

as a list.

[Network name (SSID)] – Your access point may

not be broadcasting its network name (SSID).

Check your access point settings through your

computer and either set your access point to

broadcast SSID, or manually enter the network

name in [Network name(SSID)].

[PBC] – If your access point or wireless

router that supports the PBC (Push Button

Configuration) method, select this option and

press the Push Button on your access point

within 120 counts. You do not need to know the

network name (SSID) and security code of your

access point.

[PIN] – If your access point supports the PIN

Code configuration method based on WPS (Wi-

Fi Protected Setup), select this option and note

the code number on the screen. And then, enter

the PIN number on a setting menu of your access

point to connect. Refer to the documentation for

your network device.

2. Follow the instructions of each connection

method on the screen.

To use PBC and PIN network connection,

security mode of your access point must be set

to OPEN or AES.

Note

Connecting18

Connecting

Notes on Network Connection

y Many network connection problems during set

up can often be xed by re-setting the router or

modem. After connecting the player to the home

network, quickly power off and/or disconnect the

power cable of the home network router or cable

modem. Then power on and/or connect the power

cable again.

y Depending on the internet service provider (ISP),

the number of devices that can receive internet

service may be limited by the applicable terms of

service. For details, contact your ISP.

y Our company is not responsible for any

malfunction of the player and/or the internet

connection feature due to communication errors/

malfunctions associated with your broadband

internet connection, or other connected

equipment.

y The features of BD-ROM discs made available

through the Internet Connection feature are not

created or provided by our company, and our

company is not responsible for their functionality

or continued availability. Some disc related

material available by the Internet Connection may

not be compatible with this player. If you have

questions about such content, please contact the

producer of the disc.

y Some internet contents may require a higher

bandwidth connection.

y Even if the player is properly connected and

congured, some internet contents may not

operate properly because of internet congestion,

the quality or bandwidth of your internet service,

or problems at the provider of the content.

y Some internet connection operations may not

be possible due to certain restrictions set by the

Internet service provider (ISP) supplying your

broadband Internet connection.

y Any fees charged by an ISP including, without

limitation, connection charges are your

responsibility.

y A 10 Base-T or 100 Base-TX LAN port is required

for wired connection to this player. If your internet

service does not allow for such a connection, you

will not be able to connect the player.

y You must use a Router to use xDSL service.

y A DSL modem is required to use DSL service and

a cable modem is required to use cable modem

service. Depending on the access method of and

subscriber agreement with your ISP, you may not

be able to use the internet connection feature

contained in this player or you may be limited to

the number of devices you can connect at the

same time. (If your ISP limits subscription to one

device, this player may not be allowed to connect

when a PC is already connected.)

y The use of a “Router” may not be allowed or its

usage may be limited depending on the policies

and restrictions of your ISP. For details, contact

your ISP directly.

y The wireless network operate at 2.4 GHz radio

frequencies that are also used by other household

devices such as cordless telephone, Bluetooth®

devices, microwave oven, and can be affected by

interference from them.

y Turn off all unused network equipment in your

local home network. Some devices may generate

network trafc.

y For the purpose of the better transmission,

placing the player from the access point as close

as possible.

y In some instances, placing the access point or

wireless router at least 0.45 m above the oor

may improve the reception.

y Move closer to the access point if possible or

re-orient the player so there is nothing between it

and the access point.

y The reception quality over wireless depends on

many factors such as type of the access point,

distance between the player and access point, and

the location of the player.

y Set your access point or wireless router to

Infrastructure mode. Ad-hoc mode is not

supported.

3 System Setting

System Setting 19

System Setting

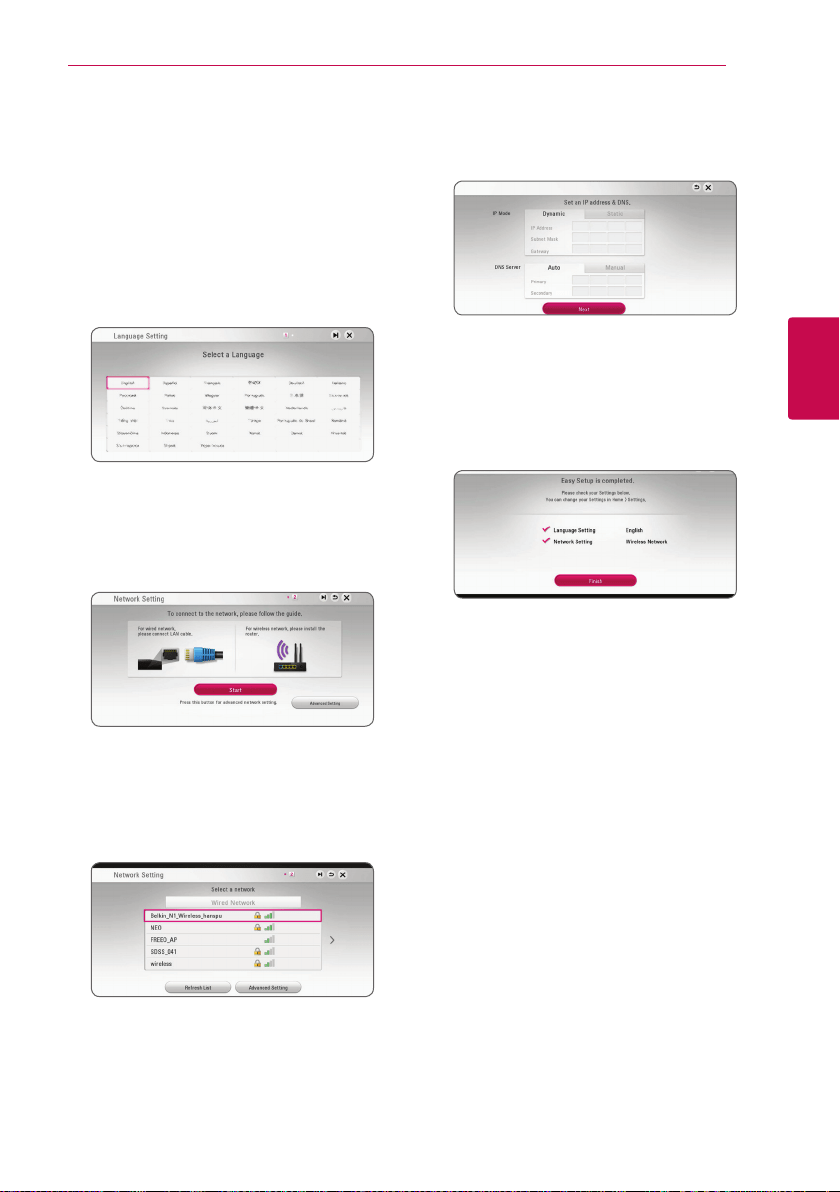

Initial Setup

When you turn on the unit for the rst time, the

initial setup wizard appears on the screen. Set the

display language and network settings on the initial

setup wizard.

1. Press 1 (Standby).

The initial setup wizard appears on the screen.

2. Use W/S/A/D to select a display language

and press ENTER (b).

3. After checking the Terms of Service, select

[Agree] to use the Premium Service and SW

Updates.

Read and prepare the preparations for the

network settings and then press ENTER (b)

while [Start] is highlighted.

If a wired network is connected, the network

connection setting will automatically be finished.

4. All available networks are displayed on the

screen. Use W/S to select [Wired Network]

or desired SSID of wireless network and press

ENTER (b).

If you have security on your access point, you

need to input the security code as necessary.

5. Use W/S/A/D to select the IP mode

between [Dynamic] and [Static].

Normally, select [Dynamic] to allocate an IP

address automatically.

6. Select [Next] and press ENTER (b) to apply

network settings. Network connection status is

displayed on the screen. For details on network

settings, refer to “Connecting to your Home

Network” on page 14.

7. Check all the settings that you have set in the

previous steps.

Press ENTER (b) while [Finish] is highlighted

to finish the initial setup settings. If there is any

settings to be changed, use W/S/A/D to

select 1 and press ENTER (b).

System Setting20

System Setting

Settings

Adjust the Setup Settings

You can change the settings of the player in the

[Settings] menu.

1. Press HOME (

2. Use A/D to select the [Settings] and press

ENTER (b). The [Settings] menu appears.

3. Use W/S to select the first setup option, and

press ENTER (b) to move to the second level.

4. Use W/S to select a second setup option, and

press ENTER (b) to move to the third level.

5. Use W/S to select a desired setting, and press

ENTER (b) to confirm your selection.

[NETWORK] Menu

The [NETWORK] settings are needed to use the

software update, BD-Live and on-line content

services.

Connection Setting

If your home network environment is ready to

connect the player, the player needs to be set the

wired or wireless network connection for network

communication. (See “Connecting to your Home

Network” on page 14.)

Connection Status

If you want to check the network status on this

player, select the [Connection Status] options and

press ENTER (b) to check whether a connection to

the network and the internet have been established.

BD-LIVE connection

You can restrict Internet access when BD-Live

functions are used.

[Permitted]

Internet access is permitted for all BD-Live

contents.

[Partially permitted]

Internet access is permitted only for BD-Live

contents which have content owner certicates.

Internet access and AACS Online functions are

prohibited for all BD-Live contents without a

certicate.

[Prohibited]

Internet access is prohibited for all BD-Live

contents.

Netflix

[Netix ESN]

Display its unique Netix ESN (Electronic Serial

Number) that allows you to use the Netix

streaming.

[Deactivate Netix]

Deactivates your player. To activate the Netix

again, contact to the service provider.

System Setting 21

System Setting

[DISPLAY] Menu

TV Aspect Ratio

Select a TV aspect ratio option according to your TV

type.

[4:3 Letter Box]

Select when a standard 4:3 TV is connected.

Displays theatrical images with masking bars

above and below the picture.

[4:3 Pan Scan]

Select when a standard 4:3 TV is connected.

Displays pictures cropped to ll your TV screen.

Both sides of the picture are cut off.

[16:9 Original]

Select when a 16:9 wide TV is connected. The

4:3 picture is displayed with an original 4:3

aspect ratio, with black bars appearing at the left

and right sides.

[16:9 Full]

Select when a 16:9 wide TV is connected. The

4:3 picture is adjusted horizontally (in a linear

proportion) to ll the entire screen.

You cannot select [4:3 Letter Box] and

[4:3 Pan Scan] option when the resolution is set

to higher than 720p.

Note

Resolution

Sets the output resolution of the HDMI video signal.

Refer to page 11 for details about the resolution

setting.

[Auto]

If the HDMI OUT jack is connected to

TVs providing display information (EDID),

automatically selects the resolution best suited

to the connected TV.

[480p]

Outputs 480 lines of progressive video.

[720p]

Outputs 720 lines of progressive video.

[1080i]

Outputs 1080 lines of interlaced video.

[1080p]

Outputs 1080 lines of progressive video.

[2160p]

Outputs 2160 lines of progressive video.

Display Mode

When the resolution is set to 1080p or 2160p,

select [24 Hz] for smooth presentation of lm

material (1080p or 2160p/24 Hz) with a HDMI-

equipped display compatible with 1080p or

2160p/24 Hz input.

y When you select [24 Hz], you may

experience some picture disturbance when

the video switches video and lm material. In

this case, select [60 Hz].

y Even when [Display Mode] is set to [24 Hz],

if your TV is not compatible with 1080p or

2160p/24 Hz, the actual frame frequency of

the video output will be 60 Hz to match the

video source format.

Note

System Setting22

System Setting

HDMI Color Setting

Select the type of output from the HDMI OUT jack.

For this setting, please refer to the manuals of your

display device.

[YCbCr]

Select when connecting to a HDMI display

device.

[RGB]

Select when connecting to a DVI display device.

3D Mode

Select the type of output mode for Blu-ray 3D disc

playback. (This function is activated only when 3D TV

is connected.)

[On]

Blu-ray 3D disc playback will output as 3D mode.

[Off]

Blu-ray 3D disc playback will output as 2D mode

like a normal BD-ROM disc playback.

Home Menu Guide

This function allows you to display or delete the

guide bubble on the Home Menu. Set this option to

[On] for displaying guide.

[LANGUAGE] Menu

Display Menu

Select a language for the [Settings] menu and on-

screen display.

Disc Menu/Disc Audio/

Disc Subtitle

Select the language you prefer for the audio track

(disc audio), subtitles, and the disc menu.

[Original]

Refers to the original language in which the disc

was recorded.

[Other]

Press ENTER (b) to select another language.

Use number buttons then press ENTER (b)

to enter the corresponding 4-digit number

according to the language code list on page

54.

[Off] (Disc Subtitle only)

Turn off Subtitle.

Depending on the disc, your language setting

may not work.

Note

System Setting 23

System Setting

[AUDIO] Menu

Each disc has a variety of audio output options. Set

the player’s Audio options according to the type of

audio system you use.

Since many factors affect the type of audio

output, see “Audio Output Specications” on

page 52 for details.

Note

Digital Output

[Auto]

Select if you connect this unit’s DIGITAL AUDIO

OUT and HDMI OUT jack to a device with LPCM,

Dolby Digital, Dolby Digital Plus, Dolby TrueHD,

DTS and DTS-HD decoder.

[PCM]

Select if you connect this unit’s HDMI OUT

jack to a device with digital decoder or DIGITAL

AUDIO OUT jack to a device with two channel

digital stereo decoder.

[DTS Re-Encode]

Select if you connect this unit’s HDMI OUT or

DIGITAL AUDIO OUT jack to a device with DTS

decoder.

y When [Digital Output] option is set to

[Auto], the audio may output as bitstream.

If the Bitstream information is not detected

from HDMI device with EDID, the audio may

output as PCM.

y If the [Digital Output] option is set to [DTS

Re-Encode], the DTS Re-Encode audio is

outputted for BD-ROM discs with secondary

audio and the original audio is output for the

other discs (like [Auto]).

y If [Audio Guidance] is set to [On], the audio is

output in PCM without reference to [Digital

Output] option.

Note

Sampling Freq.

(Digital Audio Output)

[48 kHz]

Select this if your A/V Receiver or Amplier

is not capable of handling 192 kHz and 96

kHz signal. When this choice is made, this unit

automatically converts any 192 kHz and 96 kHz

signals to 48 kHz so your system can decode

them.

[96 kHz]

Select this if your A/V Receiver or Amplier is

not capable of handling 192 kHz signals. When

this choice is made, this unit

automatically converts any 192 kHz signals to

96 kHz so your system can decode them.

[192 kHz]

Select this if your A/V Receiver or Amplier is

capable of handling 192 kHz signals.

Check the documentation for your A/V Receiver or

Amplier to verify its capabilities.

DRC (Dynamic Range Control)

This function allows you to listen to a movie at a

lower volume without losing clarity of sound.

[Auto]

The dynamic range of the Dolby TrueHD audio

output is specied by itself.

And the dynamic range of the Dolby Digital and

Dolby Digital Plus are operated as same as the

[On] mode.

[On]

Compress the dynamic range of the Dolby

Digital, Dolby Digital Plus or Dolby TrueHD audio

output.

[Off]

Turns off this function.

The DRC setting can be changed only when a

disc is not inserted or the unit is in complete

stop mode.

Note

System Setting24

System Setting

HDMI Audio Setting

Set the audio output via HDMI1 or HDMI2.

[Auto]

Audio output will be set automatically based on

the devices connected to HDMI1 and HDMI2.

[HDMI1]

Audio will be output to the component

connected to HDMI1.

[HDMI2]

Audio will be output to the component

connected to HDMI2.

DTS Neo:6

If the player is connected to the multi-channel Audio

Receiver by HDMI connection, set this option to

enjoy the multi-channel surround sound with the

2-channel audio source.

[Off]

Outputs the stereo sound via front speakers.

[Music]

Outputs the multi-channel sounds that are

optimized for listening to music.

[Cinema]

Outputs the multi-channel sounds that are

optimized for watching movie.

y This function is not available on an on-line

service.

y Only the audio source with less than 48

kHz sampling frequency is available for this

function.

y This function is availabe only when [Digital

Output] option is set to [PCM].

Note

[LOCK] Menu

The [LOCK] settings affect only BD-ROM and DVD

playback.

To access the any features in [LOCK] settings, you

must enter the 4-digit security code you have

created.

If you have not entered a password yet, you are

prompted to do so. Enter a 4-digit password twice,

and press ENTER (b) to create a new password.

Password

You can create or change the password.

[None]

Enter a 4-digit password twice, and press

ENTER (b) to create a new password.

[Change]

Enter the current password and press

ENTER (b). Enter a 4-digit password twice, and

press ENTER (b) to create a new password.

If you forget your password

If you forget your password, you can clear it using the

following steps:

1. Remove any disc that might be in the player.

2. Highlight [Password] option in the [Settings]

menu.

3. Use Number buttons to enter “210499”.

The password is cleared.

If you make a mistake before pressing

ENTER (b), press CLEAR. Then input the

correct password.

Note

System Setting 25

System Setting

DVD Rating

Blocks playback of rated DVD based on their content.

(Not all discs are rated.)

[Rating 1-8]

Rating one (1) has the most restrictions and

rating eight (8) is the least restrictive.

[Unlock]

If you select [Unlock], parental control is not

active and the disc plays in full.

Blu-ray Disc Rating

Set an age limit of BD-ROM play. Use number

buttons to input an age limit for BD-ROM viewing.

[255]

All BD-ROM can be played.

[0-254]

Prohibits play of BD-ROM with corresponding

ratings recorded on them.

y The [Blu-ray Disc Rating] will be applied

only for the Blu-ray disc that containing the

Advanced Rating Control.

y For the region using MPAA rating level, refer

to the table below as an example.

Blu-ray Disc Rating

MPAA Rating

0 G

8 PG

13 PG-13

17 R

18 NC-17

255 Not restricted

Note

Area Code

Enter the code of the area whose standards were

used to rate the DVD video disc, based on the list on

page 53.

[OTHERS] Menu

Network Standby

The player automatically turns on by the Youtube or

the Netix App.

[On]

When you operate the Youtube and Netix App

of the smart device on the same network with

the player, the player is turned on.

[Off]

Turns off this function.

Auto Power Off

The screen saver appears when you leave the player

in Stop mode for about 5 minutes. If you set this

option to [On], the unit automatically turns off within

15 minutes since the Screen Saver is displayed. Set

this option to [Off] to leave the screen saver until the

unit is operated by the user.

Initialize

[Factory Set]

You can reset the player to its original factory

settings.

[Blu-ray Storage Clear]

Initializes the BD-Live contents from the

connected USB storage.

If you reset the player to its original factory

settings using [Factory Set] option, you have to

set all the activation for the on-line services and

network settings again.

Note

System Setting26

System Setting

Software

[Information]

Displays the current software version.

[OSS Notice]

LGE Open Source Software Notice is displayed.

[Update]

You can update the software by connecting the

unit directly to the software update server (see

page 46).

Closed Caption

Closed caption (CC) is the process of displaying text

on a screen to provide additional or interpretive

information for the hearing impaired.

This function allows you to adjust various settings of

closed caption.

[CC Display]

Turns on or off this function.

[CC Type]

Selects the closed caption type between

[Analog] and [Digital].

[Analog] : Select this when you play a disc or

some video les that support [Analog] CC type.

[Digital] : Select this when you play Online

content or some video les that support

[Digital] CC type.

[Analog CC]

(When [CC Type] is selected to [Analog])

Displays the audio portion of a movie as text

on the screen. CC1 is the most common mode

in use.

[Digital CC]

(When [CC Type] is selected to [Digital])

The language option of the online content

can be selected here. (but language option

will be supported fully or partially according to

contents)

[CC Mode]

(When [CC Type] is selected to [Digital])

Selects the closed caption mode between

[Custom] and [Auto].

[Digital Option]

(When [CC Mode] is selected to [Custom])

You can adjust detail settings of closed caption.

Adjusting the [Digital Option]

When [CC Mode] is selected to [Custom], you can

adjust detail settings of closed caption.

Selects a typeface for the text.

Font1 : Default / Font2 : Courier

Font3 : TimesNewRoman / Font4 : Helvetica

Font5 : Arial / Font6 : Casual

Font7 : Cursive / Font8 : SmallCapital

Selects the font size.

Selects a color for the text.

Adjusts the opacity for the text color.

Selects an edge type.

Selects a color for the edges.

Selects a background color.

Adjusts the opacity for the background color.

Selects a window color.

Adjusts the opacity for the window color.

System Setting 27

System Setting

y On disc jacket or description page, a CC logo

will appear if closed captioning is supported.

y If online contents include closed caption of its

own, this setting may not work.

y Some disc and online content support closed

caption function, if you want to use closed

caption, go to [Settings] > [OTHERS] >

[Closed Caption].

Note

User Agreements

To use the Premium Service and SW Updates, select

[Agree].

Audio Guidance

The unit narrates some content displayed on the

screen. This function allows the visually impaired to

control the playback or adjust various settings.

[Audio Guidance]

Turns on or off this function.

[Speed]

Select the speed

[Volume]

Select the volume of audio guidance

[Pitch]

Select the pitch of audio guidance

y When you use Audio guidance function,

control the unit after listening to the audio

guidance.

y The Audio Guidance may not be supported

depending on some Contents Providers.

y This function is activated only when Display

Menu is set to [English].

Note

4 Operating

Operating28

Operating

Home Menu Display

Using [HOME] menu

The home menu appears when you press HOME ( ).

Use A/D to select a category and press ENTER (b).

[Movie] - Plays video content.

[Photo] - Plays photo content.

[Music] - Plays audio content.

[Premium] - Displays the Premium home

screen. (page 41)

[Settings] - Adjusts the system settings.

Playing the Linked

Devices

Playing a disc

erot

1. Press B (OPEN/CLOSE), and place a disc on the

disc tray.

2. Press B (OPEN/CLOSE) to close the disc tray.

For the most Audio CD, BD-ROM and

DVD-ROM discs, playback starts automatically.

3. Press HOME (

4. Select [Movie] or [Music], and select disc icon.

y Playback functions described in this manual

are not always available in every les and

media. Some functions can be restricted

depending on many factors.

y Depending on the BD-ROM titles, a USB

device connection may be needed for the

proper playback.

y Unnalized DVD-VR format discs may not be

played in this player.

y Some DVD-VR discs are made with CPRM

data by DVD RECORDER. This unit cannot

support these kinds of discs.

Note

Preparation

In order to playback UHD Blu-ray title, you need

to:

y Check your TV is UHD capable and has HDMI

input(s).

y Check whether the BD-ROM title is the UHD

Blu-ray disc or not.

y Connect an HDMI cable (Type A, High Speed

HDMI™ Cable) between the player’s HDMI

output and TV’s HDMI input.

Operating 29

Operating

Playing Blu-ray 3D disc

This player can play the Blu-ray 3D discs which

contains separate views for the left and right eyes.

Preparation

In order to playback Blu-ray 3D title in

stereoscopic 3D mode, you need to:

y Check your TV is 3D capable and has HDMI

input(s).

y Wear 3D glasses to enjoy the 3D experience

if it is necessary.

y Check whether the BD-ROM title is the Blu-

ray 3D disc or not.

y Connect an HDMI cable (Type A, High Speed

HDMI™ Cable) between the player’s HDMI

output and TV’s HDMI input.

1. Press HOME ( ), and set the [3D Mode] option

on the [Settings] menu to [On] (page 22).

2. Press B (OPEN/CLOSE), and place a disc on the

disc tray.

3. Press B (OPEN/CLOSE) to close the disc tray.

The playback starts automatically.

4. Refer to the owner’s manual of your 3D-ready TV

for the further instruction.

You may need to adjust the display settings and

focus on your TV’s setting for the improved 3D

effect.

y Watching a 3D content for a long period time

may cause dizziness or tiredness.

y It is not recommended to watch a movie

in 3D mode for inrm, child and pregnant

woman.

y If you are experiencing headache, tiredness

or dizziness while viewing contents in 3D, it is

strongly recommended to stop the playback

and rest until you feel normal.

Caution

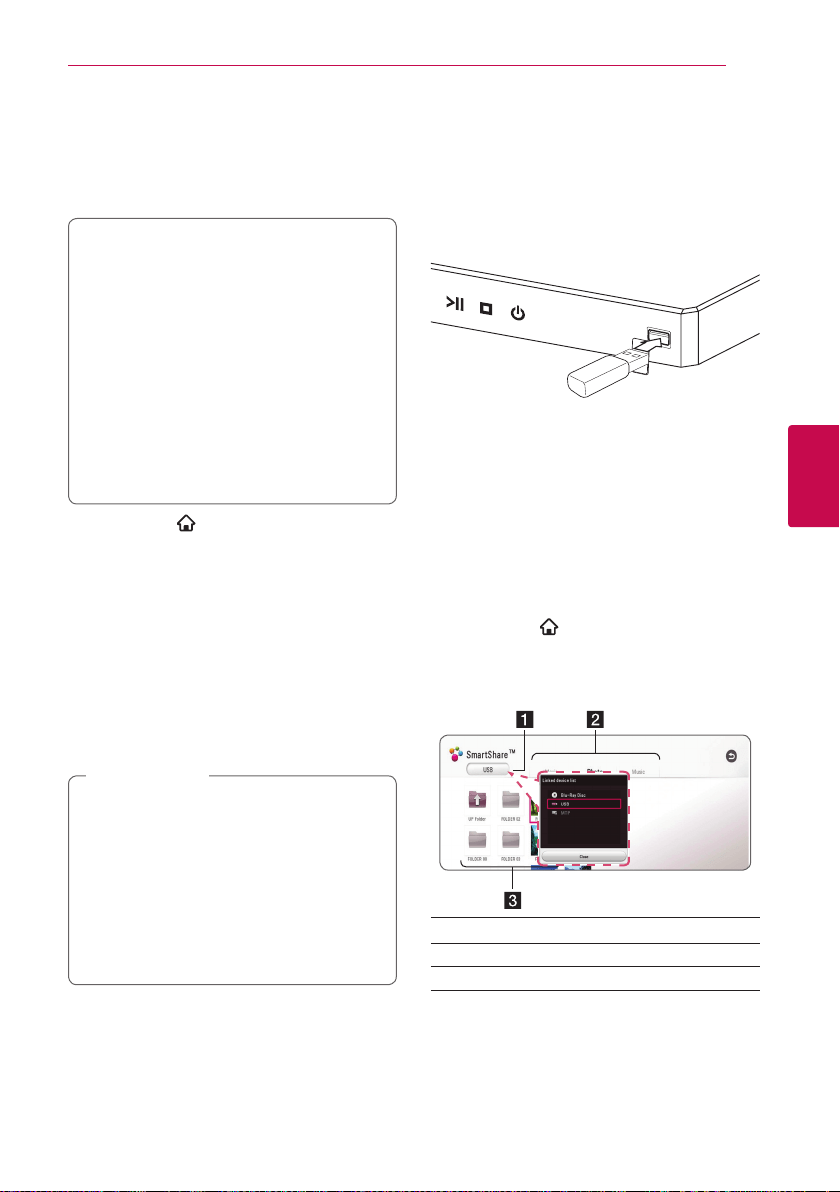

Playing a file on disc/USB device

yui

This player can play video, audio and photo les

contained in the disc or USB device.

1. Insert a data disc on the tray or connect a USB

device.

When you connect the USB device on the HOME

menu, the player plays an audio le contained in the

USB storage device automatically. If the USB storage

device is containing various types of les, a menu for

the le type selection will appear.

File loading may take few minutes depending on the

number of content stored in the USB storage device.

Press ENTER (b) while [Cancel] is selected to stop

2. Press HOME (

3. Select [Movie], [Photo] or [Music] using A/D,

and press S.

4. Select Disc or USB and press ENTER (b).

Displays all linked devices.

Displays video, photo or audio content.

Displays the le or folder on linked device.

5. Select a file using W/S/A/D, and press d

(PLAY) or ENTER (b) to play the file.

Operating30

Operating

Notes on USB device

y This player supports USB ash drive/external HDD

formatted in FAT32 and NTFS when accessing

les (music, photo, movie). However, for BD-Live,

use the USB ash drive / external HDD formatted

in FAT32.

y This unit can support up to 4 partitions of the

USB device.

y Do not extract the USB device during operation

(play, etc.).

y A USB device which requires additional program

installation when you have connected it to a

computer, is not supported.

y USB device: USB device that supports USB1.1 and

USB2.0.

y Video, audio and photo les can be played. For

details of playing each le type, refer to the

relevant pages.

y Regular back up is recommended to prevent data

loss.

y If you use a USB extension cable, USB HUB or

USB Multi-reader, the USB device may not be

recognized.

y Some USB device may not work with this unit.

y Some digital cameras and mobile phones are not

supported.

y USB Port of the unit cannot be connected to PC.

The unit cannot be used as a storage device.

Playing a file on Android device

yui

This player can play video, audio and photo les

contained in Android device.

1. Connect Android device to the unit with USB

cable. Make sure that MTP is activated on

Android device.

If the Android device is locked, unlock it and

connect it.

2. Press HOME ( ).

3. Select [Movie], [Photo] or [Music] using A/D,

and press S.

4. Select [MTP] using A/D and press

ENTER (b).

File loading may take few minutes depending on the

number of content stored in Android device.

5. Select a file using W/S/A/D, and press d

(PLAY) or ENTER (b) to play the file.

Operating 31

Operating

Notes on Connecting Android device

y This unit can support only MTP (Media Transfer

Protocol) Android (4.0 or later is recommended)

devices.

y Do not extract Android device during operation

(play, etc.).

y Video, audio and photo les can be played. For

details of playing each le type, refer to the

relevant pages.

y Regular back up is recommended to prevent data

loss.

y If you use a USB extension cable, USB HUB or

USB Multi-reader, Android device may not be

recognized.

y Some Android devices may not work with this unit.

y When you use MTP, playing some music, photo,

movie, or subtitle les may not work depending on

Android device.

Operating32

Operating

General Playback

Basic operations for video and

audio content

To stop playback

Press Z (STOP) during playback.

To pause playback

Press M (PAUSE) during playback.

Press d (PLAY) to resume playback.

To play frame-by-frame (Video)

Press M (PAUSE) during video playback.

Press M (PAUSE) repeatedly to play Frame-by-Frame

playback.

To scan forward or backward

Press c or v to play fast forward or fast

reverse during playback.

You can change the various playback speeds by

pressing c or v repeatedly.

To slow down the playing speed

(Video)

While the playback is paused, press v repeatedly

to play various speeds of slow motion.

To skip to the next/previous

chapter/track/file

During playback, press C or V to go to the

next chapter/track/le or to return to the beginning

of the current chapter/track/le.

Press C twice briey to step back to the previous

chapter/track/le.

Basic operations for photo

content

To play a slide show

Press d (PLAY) to start slide show.

To stop a slide show

Press Z (STOP) while slide show.

To pause a slide show

Press M (PAUSE) while slide show.

Press d (PLAY) to re-start the slide show.

To skip to the next/previous photo

While viewing a photo in full screen, press A or D to

go to the previous or next photo.

Using the disc menu

ero

To display the disc menu

The menu screen may be displayed rst after loading

a disc which contains a menu. If you want to display

the disc menu during playback, press DISC MENU.

Use W/S/A/D buttons to navigate through

menu items.

To display the Pop-up menu

Some BD-ROM discs contain Pop-up menu that

appears during playback.

Press TITLE/POPUP during playback, and use

W/S/A/D buttons to navigate through menu

items.

Operating 33

Operating

Resume playback

eroyt

The unit records the point where you pressed the Z

(STOP) depending on the disc.

If “MZ (Resume Stop)” appears on the screen briey,

press d (PLAY) to resume playback (from the scene

point).

If you press Z (STOP) twice or unload the disc,

“Z(Complete Stop)” appears on the screen. The unit

will clear the stopped point.

y The resume point may be cleared when a

button is pressed (for example; 1 (Standby),

B (OPEN/CLOSE), etc).

y On BD-ROM discs with BD-J, the resume

playback function does not work.

y If you press Z (STOP) once during BD-ROM

interactive title playback, the unit will be in

Complete Stop mode.

Note

Last Scene Memory

This unit memorizes the last scene from the last disc

that is viewed. The last scene remains in memory

even if you remove the disc from the unit or switch

off the unit. If you load a disc that has the scene

memorized, the scene is automatically recalled.

y Last Scene Memory function for a previous

disc is erased once a different disc is played.

y This function may not work depending on

the disc.

y On BD-ROM discs with BD-J, the last scene

memory function does not work.

y This unit does not memorize settings of

a disc if you switch off the unit before

commencing to play it.

Note

Operating34

Operating

On-Screen Display

You can display and adjust various information and

settings about the content.

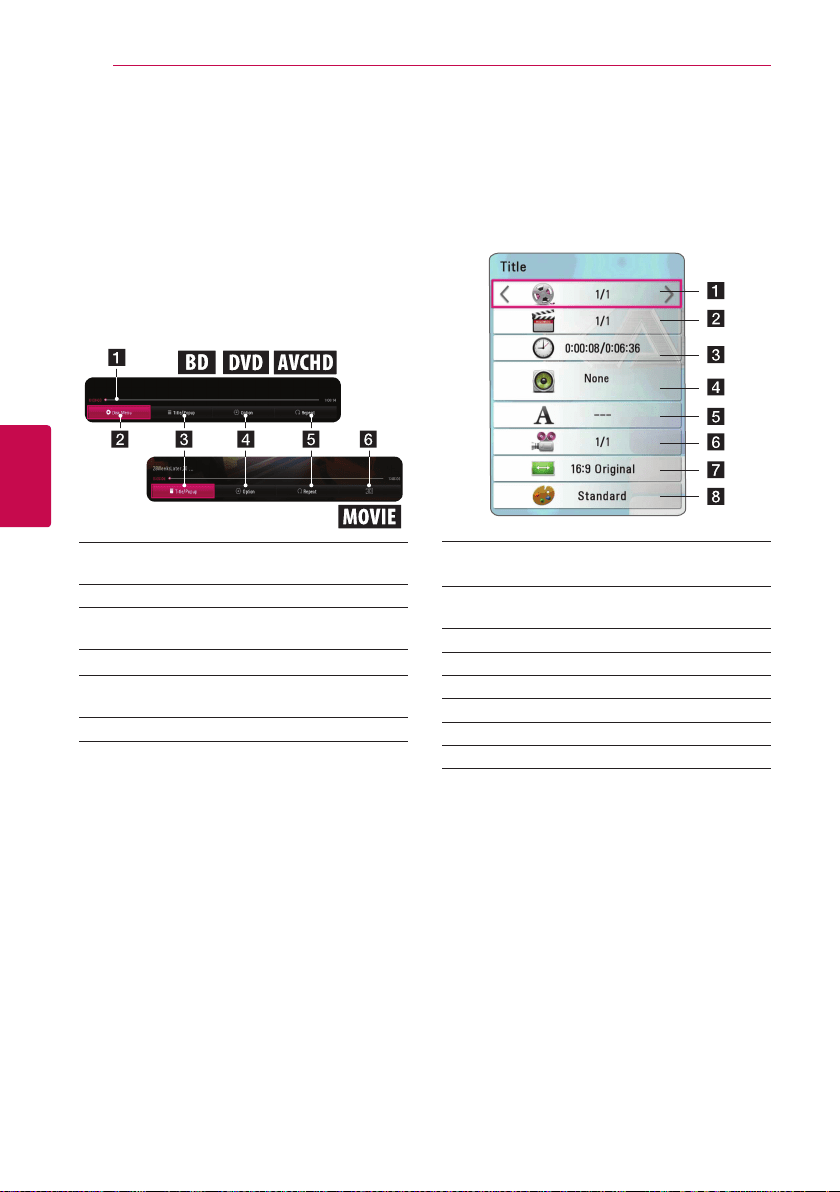

To control video playback

eroy

You can control playback and set options while

watching videos.

During playback, press INFO/MENU (m).

Progress bar - Displays the current position

and total playing time.

[Disc Menu] - Accesses menu on a disc.

[Title/Popup] - Displays the DVD title menu or

BD-ROM’s pop-up menu, if available.

[Option] - Displays playback information.

[Repeat] - Repeats a desired section or

sequence. (page 36)

[3D] - Adjusts the 3D setting. (page 40)

Displaying content information on-

screen

eroy

1. During playback, press INFO/MENU (m).

2. Select an [Option] using A/D, and press

ENTER (b).

Title – Current title number/total number of

titles

Chapter – Current chapter number/total

number of chapters

Time – Elapsed playing time/total playback time

Audio – Selected audio language or channel

Subtitle – Selected subtitle.

Angle – Selected angle/total number of angles

TV Aspect Ratio – Selected TV aspect ratio

Picture Mode – Selected picture mode

Operating 35

Operating

y If no button is pressed for a few seconds, the

on-screen display disappears.

y A title number cannot be selected on some

discs.

y Available items may differ depending on discs

or titles.

y If an interactive Blu-ray Disc is playing back,

some setting information is displayed on the

screen but prohibited to be changed.

Note

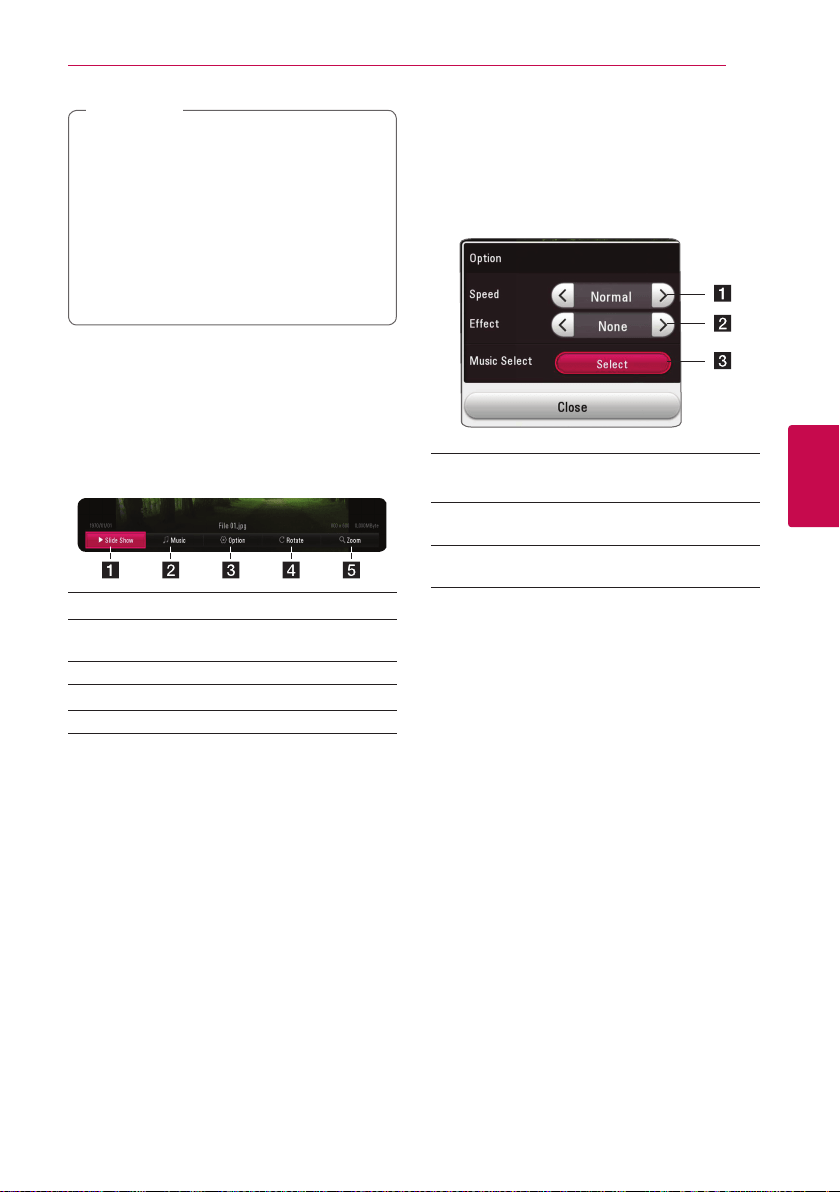

To control photo view

Controls playback and sets options while viewing

pictures in full screen.

You can control playback and set options while

viewing pictures in full screen.

While viewing pictures, press INFO/MENU (m).

[Slideshow] - Starts or pause slide show.

[Music] - Select the background music for the

slide show

[Option] - Displays slide show options.

[Rotate] - Rotates the photo clockwise.

[Zoom] - Displays the [Zoom] menu.

Setting the slide show option

You can use various options during viewing a photo

in full screen.

1. While viewing pictures, press INFO/MENU (m).

2. Select an [Option] using A/D, and press

ENTER (b).

a [Speed] - Use A/D to select a delaying

speed between photos in a slide show.

b [Effect] - Use A/D to select a transition

effect between photos in a slide show.

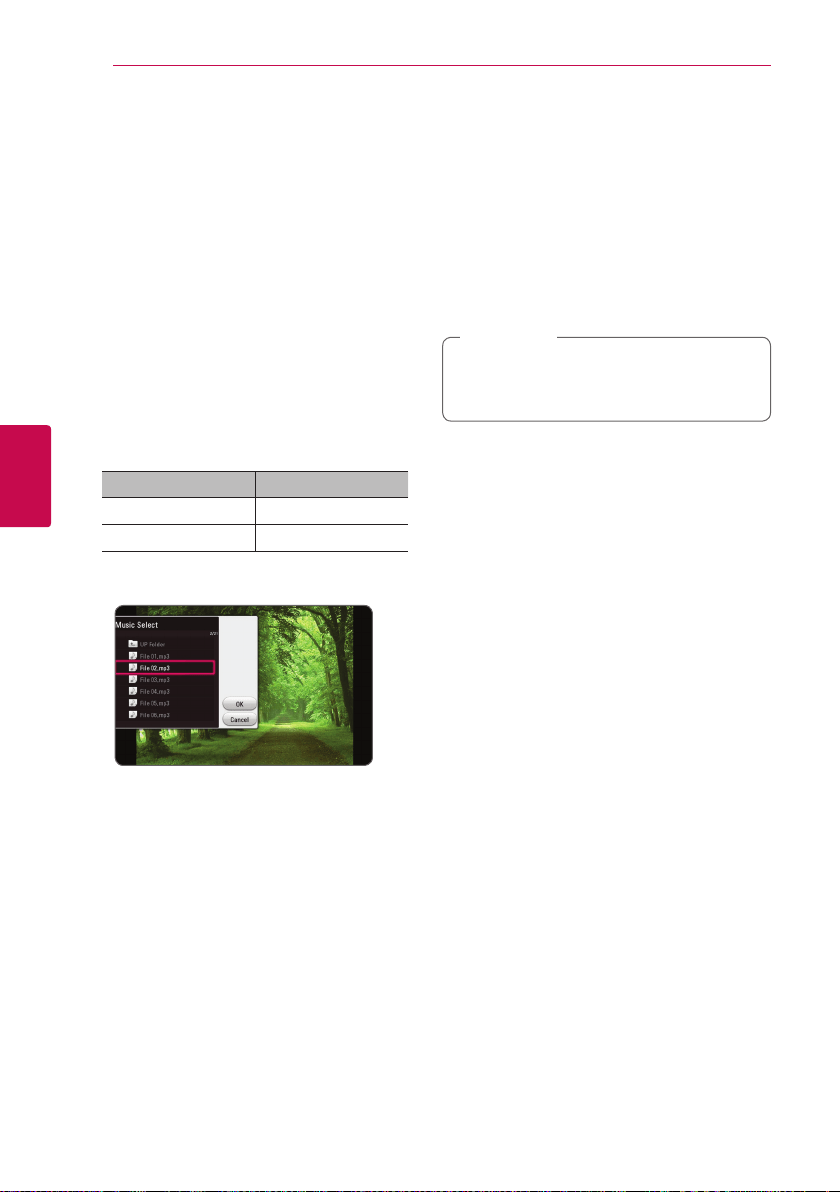

[Music Select] – Select the background music

for the slide show (page 40).

Operating36

Operating

Advanced Playback

Repeat playback

erotu

Blu-ray Disc / DVD / Video les

During playback, press REPEAT (h) to select a

desired repeat mode.

A-B – Selected portion will be repeated continually.

Chapter – The current chapter will be played back

repeatedly. (BD / DVD only)

Title – The current title will be played back repeatedly.

All – All the titles or les will be played back

repeatedly. (Movie le only)

Off – Returns to normal playback.

To return to normal playback, press CLEAR.

Audio CDs/Audio les

During playback, press REPEAT (h) repeatedly to

select a desired repeat mode.

– Selected portion will be repeated continually.

(Audio CD only)

– The current track or le will be played back

repeatedly.

– All the tracks or les will be played back

repeatedly.

– All the tracks or les will be played back

repeatedly in random order.

– The tracks or les will be played back in

random order.

To return to normal playback, press CLEAR.

This function may not work on some disc or

title.

Note

Repeating a specific portion

eroty

This player can repeat a portion you have selected.

1. During playback, press REPEAT (h).

2. Select [A-B], and press ENTER (b).

3. Press ENTER (b) at the beginning of the portion

you wish to repeat.

4. Press ENTER (b) at the end of the portion. Your

selected portion will be repeated continually.

5. To return to normal playback, press CLEAR.

y You cannot select a portion less than 3

seconds.

y This function may not work on some disc or

title.

Note

Playing from selected time

eroy

1. During playback, press INFO/MENU (m).

2. Select an [Option] using A/D, and press

ENTER (b).

3. Select the [Time] option and then input the

required start time in hours, minutes, and

seconds from left to right.

For example, to nd a scene at 2 hours, 10

minutes, and 20 seconds, enter “21020”.

Press A/D to skip the playback 60 seconds

forward or backward.

4. Press ENTER (b) to start playback from selected

time.

This function may not work on some disc or

titles.

Note

Operating 37

Operating

Selecting a subtitle language

eroy

1. During playback, press INFO/MENU (m).

2. Select an [Option] using A/D, and press

ENTER (b).

3. Use W/S to select the [Subtitle] option.

4. Use A/D to select desired subtitle language.

By pressing ENTER (b), you can set various

subtitle options.

5. Press BACK (1) to exit the On-Screen display.

Some discs allow you to change subtitle

selections only via the disc menu. If this is the

case, press TITLE/POPUP or DISC MENU button

and choose the appropriate subtitle from the

selections on the disc menu.

Note

Hearing a different audio

eroy

1. During playback, press INFO/MENU (m).

2. Select an [Option] using A/D, and press

ENTER (b).

3. Use W/S to select the [Audio] option.

4. Use A/D to select desired audio language,

audio track or audio channel.

5. Press BACK (1) to exit the On-Screen display.

y Some discs allow you to change audio

selections only via the disc menu. In this case,

press TITLE/POPUP or DISC MENU button

and choose the appropriate audio from the

selections on the disc menu.

y Immediately after you have switched sound,

there may be a temporary discrepancy

between the display and actual sound.

y On BD-ROM disc, the multi audio format

(5.1CH or 7.1CH) is displayed with [MultiCH]

in the on-screen display.

Note

Watching from a different angle

If the disc contains scenes recorded at different

camera angles, you can change to a different camera

angle during playback.

1. During playback, press INFO/MENU (m).

2. Select an [Option] using A/D, and press

ENTER (b).

3. Use W/S to select the [Angle] option.

4. Use A/D to select desired angle.

5. Press BACK (1) to exit the On-Screen display.

Changing the TV Aspect Ratio

eoy

You can change the TV aspect ratio setting during

playback.

1. During playback, press INFO/MENU (m).

2. Select an [Option] using A/D, and press

ENTER (b).

3. Use W/S to select the [TV Aspect Ratio]

option.

4. Use A/D to select desired option.

5. Press BACK (1) to exit the On-Screen display.

Even if you change the value of the [TV Aspect

Ratio] option in On-Screen display, the [TV

Aspect Ratio] option in the [Settings] menu is

not changed.

Note

Operating38

Operating

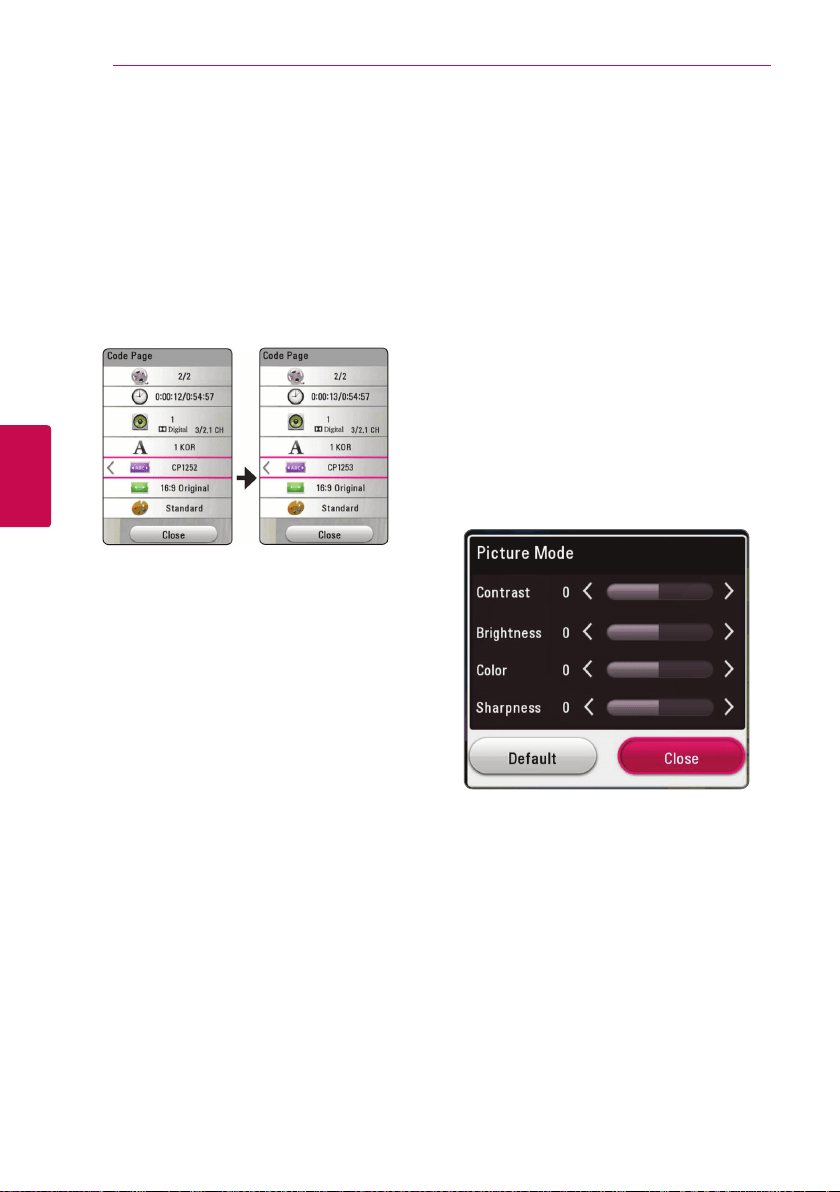

Changing subtitle Code Page

If the subtitle is displayed in broken letter, you can

change the subtitle code page to view the subtitle

le properly.

1. During playback, press INFO/MENU (m).

2. Select an [Option] using A/D, and press

ENTER (b).

3. Use W/S to select the [Code Page] option.

4. Use A/D to select desired code option.

5. Press BACK (1) to exit the On-Screen display.

Changing the Picture Mode

eroy

You can change the [Picture mode] option during

playback.

1. During playback, press INFO/MENU (m).

2. Select an [Option] using A/D, and press

ENTER (b).

3. Use W/S to select the [Picture Mode] option.

4. Use A/D to select desired option.

5. Press BACK (1) to exit the On-Screen display.

Setting the [User setting] option

1. During playback, press INFO/MENU (m).

2. Select an [Option] using A/D, and press

ENTER (b).

3. Use W/S to select the [Picture Mode] option.

4. Use A/D to select the [User setting] option,

and press ENTER (b).

5. Use W/S/A/D to adjust the [Picture Mode]

options.

Select [Default] option then press ENTER (b) to

reset the all video adjustments.

6. Use W/S/A/D to select the [Close] option,

and press ENTER (b) to nish setting.

Operating 39

Operating

Viewing content information

The player can display the content information.

1. Select a le using W/S/A/D.

2. Press INFO/MENU (m). The le information

appears on the screen.

During video playback, you can display the le

information by pressing TITLE/POPUP.

The information displayed on the screen

may not correct comparing actual content

information.

Note

Changing content list view

yui

In the [Movie], [Photo] or [Music] menu, you can

change the content list view.

Press red (R) colored button repeatedly.

Selecting a subtitle le

If the subtitle le name is different from the video

le name, you need to select the subtitle le on the

[Movie] menu before playing the movie.

1. Use W/S/A/D to select the subtitle le you

wish to play in the [Movie] menu.

2. Press ENTER (b).

Press ENTER (b) again to deselect the subtitle

le. Selected subtitle le will be displayed when

you play the video le.

If you press Z (STOP) during playback, the

subtitle selection is cancelled.

Note

Operating40

Operating

Listening to music during slide

show

You can display photo les while listening to audio

les.

1. While viewing a photo in full screen, press INFO/

MENU (m) to display the option menu.

2. Select an [Option] using A/D, and press

ENTER (b).

3. Use W/S to select [Music Select] option, and

press ENTER (b) to display the [Music Select]

menu.

4. Use W/S to select a device, and press

ENTER (b).

Available device may differ depending on the

location of the current photo file.

Photo location Available Device

Disc, USB Disc, USB

MTP MTP

5. Use W/S to select a file or a folder you wish to

play.

Select g and press ENTER (b) to display the

upper directory.

6. Use D to select [OK], and press ENTER (b) to

complete music selection.

Playing file encoded in 3D

This function allows you to play 3D content in case of

le encoded in 3D.

1. During playback, press INFO/MENU (m).

2. Select [3D] using A/D, and press ENTER (b).

3. Select suitable mode (side by side, top and

bottom) which is same way as le encoded in 3D

by using W/S/A/D.

If the subtitle is displayed abnormally, set the

TV’s 3D option to off and the unit’s 3D option

to on.

Note

Operating 41

Operating

Advanced Features

Enjoying BD-Live™

BD-ROM supporting BD-Live that has a network

extension function allows you to enjoy more

functions such as downloading new movie trailers by

connecting this unit to the internet.

1. Check the network connection and settings

(page 14).

2. Insert a USB storage device to the USB port on

the front panel.

A USB storage device is needed to download

bonus content.

3. Press HOME (

), and set the [BD-LIVE

connection] option on the [Settings] menu (page

20).

Depending on a disc, the BD-Live function may

not be operated if [BD-LIVE connection] option is

set to [Partially Permitted].

4. Insert a BD-ROM with BD-Live.

The operations may differ depending on the disc.

Refer to the manual supplied with the disc.

Do not extract the connected USB device while

content is being downloaded or a Blu-ray disc

is still in the disc tray. Doing so may damage the

connected USB device and BD-Live features may

not operate properly with the damaged USB

device anymore. If the connected USB device

seems damaged from such an action, you can

format the connected USB device from the PC

and reuse it with this player.

Caution

y Some BD-Live content may be restrictively

accessed in some territories by content

provider’s own decision.

y It may take up to several minutes to load and

start enjoying BD-Live content.

y For BD-Live, use the USB ash drive /

external HDD formatted in FAT32 only.

Note

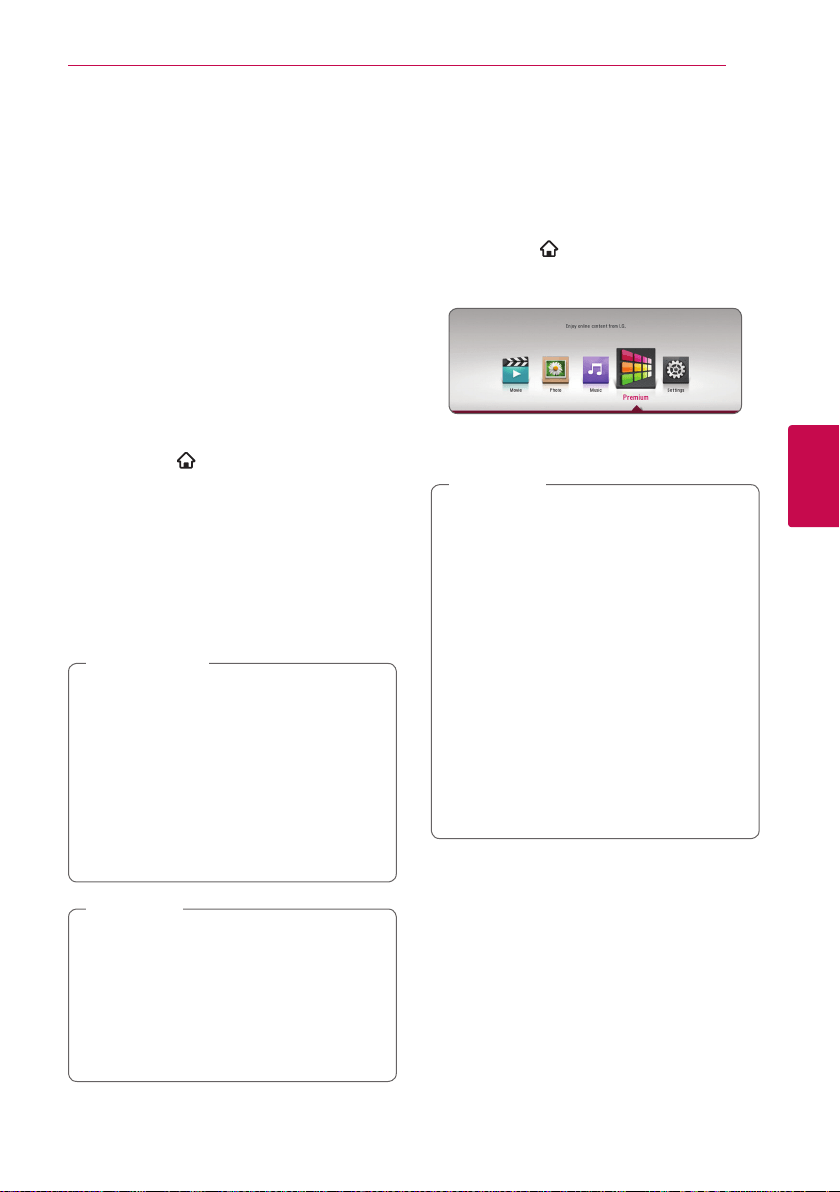

Using the Premium

You can use content services via Internet with the

Premium feature.

1. Check the network connection and settings

(page 14).

2. Press HOME (

3. Select the [Premium] using A/D, and press

ENTER (b).

4. Select an online service using W/S/A/D, and

press ENTER (b).

y If the update menu appears on the screen

when you select the premium service, update

the software and use it.

y For detailed information of each service,

contact the content provider or visit the

support link of the service.

y The content of Premium services and service

related information, including user interface,

is subject to changes. Please refer to the

web site of each service for most up-to-date

information.

y Using Premium features with wireless

network connection may result in improper

streaming speed by interference from

household devices that are using radio

frequencies.

Note

5 Troubleshooting

Troubleshooting42

Troubleshooting

General

Symptom Cause & Solution

The unit does not work properly. y Turn off the power of this unit and the connected external device (TV,

Woofer, DVD-player, Amplier, etc.) and turn it on again.

y Disconnect the power cord of this unit and the connected external

device (TV, Woofer, DVD-player, Amplier, etc.) and then try connecting

again.

The Power does not turn on. y Plug the power cord into the wall outlet securely.

y Be sure that the AC adaptor is connected to the unit securely.

The unit does not start

playback.

y Insert a playable disc. (Check the disc type, color system, and regional

code.)

y Place the disc with the playback side down.

y Place the disc on the disc tray correctly inside the guide.

y Clean the disc.

y Cancel the Rating function or change the rating level.

The connected USB storage

device is not recognized.

y Try using different USB cable, some USB cables may not support

enough current for normal USB operation.

y If you use a USB extension cable or USB HUB, the USB devices may not

be recognized.

y A USB device which requires additional program installation when you

have connected it to a computer is not supported.

y This unit supports only USB Flash Drive and USB External HDD with

FAT32 or NTFS format.

The angle cannot be changed. y Multi-angles are not recorded on the DVD Video being played.

Cannot play movie, photo or

music les.

y The les are not recorded in a format that the unit can play.

y The unit does not support the codec of the movie le.

The remote control does not

work properly.

y The remote control is not pointed at the remote sensor of the unit.

y The remote control is too far from the unit.

y There is an obstacle in the path of the remote control and the unit.

y The batteries in the remote control are exhausted.

The unit is plugged in, but the

power will not turn on or off.

You can reset the unit as follows.

y Unplug the power cord, wait at least ve seconds, and then plug it in

again.

The unit is not operating

normally.

Troubleshooting 43

Troubleshooting

Network

Symptom Cause & Solution

BD-Live feature does not work. y The connected USB storage may not have enough space. Connect the

USB storage with at least 1GB free space.

y Ensure that the unit is correctly connected to the local area network

and can access the internet (page 14).

y Your broadband speed may not fast enough to use the BD-Live

features. Contact your Internet Service Provider (ISP) and increase the

broadband speed is recommended.

y The [BD-LIVE connection] option in the [Settings] menu is set to

[Prohibited]. Set the option to [Permitted].

Streaming video services (such

as YouTube™, etc.) are often

stopped or “buffer” during

playback.

y Your broadband service speed may not be fast enough to stream video

services. Contact your Internet Service Provider (ISP) and increase the

broadband speed is recommended.

Cannot connect the player to

the access point or wireless

LAN router.

y The wireless communication may be interrupted from household

devices that are using radio frequencies. Move the player away from

them.

Access point is not displayed on

the “Access point name” list.

y The access point or wireless LAN router may not broadcast its SSID. Set

your access point to broadcast its SSID through your computer.

y Your network device such as access point may not set with available

frequency range and channel that this player can support.

Try setting the frequency range and channel on the network device

setting.

Troubleshooting44

Troubleshooting


Symptom Cause & Solution

There is no picture. y Select the appropriate video input mode on the TV so the picture from

the unit appears on the TV screen.

y Connect the video connection securely.

y Check the [HDMI Color Setting] in the [Settings] menu is set to the

appropriate item that conforms to your video connection.

y Your TV may not support the resolution you have set on the player.

Change the resolution that your TV accepts.

y The player’s HDMI OUT jack is connected to a DVI device that does not

support copyright protection.

Picture noise appears. y You are playing a disc recorded in a color system that is different from

your TV.

y Set the resolution which your TV accepts.

Blu-ray 3D disc playback does

not output 3D views.

y Connect the player to your TV with HDMI cable (Type A, High Speed

HDMI™ Cable).

y Your TV may not support “HDMI 3D mandatory format”.

y The [3D Mode] option in the [Settings] menu is set to [Off].

Set the option to [On].

Customer support

You can update the Player using the latest software to enhance the products operation and/or add new

features. To obtain the latest software for this player (if updates have been made), please visit

http://www.lg.com or contact LG Electronics customer care center.

Open source software notice

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this

product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available

for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of

performing such distribution (such as the cost of media, shipping and handling) upon email request to

opensourc[email protected]. This offer is valid for three (3) years from the date on which you purchased the product.

6 Appendix

Appendix 45

Appendix

Controlling a TV with

the Supplied Remote

Control

You can control your TV using the buttons below.

CAPTION

By pressing You can

1 (TV POWER)

Turn the TV on or off.

INPUT

Switch the TV’s input source

between the TV and other

input sources.

VOL +/– Adjust the volume of the TV

Depending on the unit being connected, you

may not be able to control your TV using some

of the buttons.

Note

Setting up the remote to control

your TV

You can operate your TV with the supplied remote

control.

If your TV is listed in the table below, set the

appropriate manufacturer code.

1. While holding down 1 (TV POWER) button, and

press the manufacturer code for your TV with the

numerical buttons (see the table below).

Manufacturer Code Number

LG 1(Default), 2

Zenith 1, 3, 4

GoldStar 1, 2

Samsung 6, 7

Sony 8, 9

Hitachi 4

2. Release the 1 (TV POWER) button to complete

setting.

Depending on your TV, some or all buttons may not

function on the TV, even after entering the correct

manufacturer code. When you replace the batteries

of the remote, the code number you have set may be

reset to the default setting. Set the appropriate code

number again.

Appendix46

Appendix

Network Software

Update

Network update notification

From time to time, performance improvements

and/or additional features or services may be made

available to units that are connected to a broadband

home network. If there is new software available

and the unit is connected to a broadband home

network, the player will inform you about the update

as follows.

Option 1:

1. The update menu will appear on the screen when

you turn on the player.

2. Use A/D to select a desired option and then

press ENTER (b).

[OK] Starts the software update.

[Cancel]

Exits the update menu and the

home menu appears.

Option 2:

If the software update is available from the update

server, the “Update” icon appears in the Home menu.

Press blue (B) colored button to start the update

procedure.

Software update

You can update the player using the latest software

to enhance the products operation and/or add new

features. You can update the software by connecting

the unit directly to the software update server.

y Before updating the software in your player,

remove any disc and USB Device from the

player.

y Before updating the software in your player,

turn the player off and then turn it back on.

y During the software update procedure, do

not turn off the player or disconnect AC

power, or do not press any button.

y If you cancel the update, turn off the power

and turn it on for stable performance.

y This unit cannot be updated to previous

software version.

Note

1. Check the network connection and settings

(page 14).

2. Select [Software] option in the [Settings] menu

then press ENTER (b).

3. Select [Update] option, and press ENTER (b).

The player will check for the newest update.

y Pressing ENTER (b) while checking for the

update will end the process.

y If there is no update available, the Message,

“No update is found.” appears. Press

ENTER (b) to return to the [Home Menu].

Note

Appendix 47

Appendix

4. If newer version exists, the message “A new

update was found. The update takes a few

minutes. Do you want to update?” appears.

5. Select [OK] to start update. (Selecting [Cancel]

will end the update.)

6. The player starts downloading the newest update

from the server. (Downloading will takes several

minutes depending on your home network

condition.)

7. To update software the next time, the software

update procedure has to be started from the

beginning again.

Do not turn off the power during the software

update.

Caution

If the software includes the driver update, disc

tray may open during the process.

Note

8. When update is completed, the power will be

turned off automatically in a few seconds.

9. Turn the power back on. The system now

operates with the new version.

The Software Update function may not

work properly depending on your internet

environment. In this case, you can obtain

the latest software from the authorized LG

Electronics Service Center then update your

player. Refer to “Customer Support” on page

44.

Note

Appendix48

Appendix

Additional Information

File requirement

Video files

File

Extension

Codec Format

Audio

Format

Subtitle

“.avi”, “.mpg”, “.mpeg”, “.mkv”,

“.mp4”, “.asf”, “.wmv”, “.m4v”

(DRM free), “.vob”, “.3gp”,

“.mov”, “.trp”, “.m2t”, “.mpe”,

“.m1v”, “.m2v”, “.wm”, ”.v”,

“.ts”, “.dat”

XVID, MPEG1 SS, H.264/

MPEG-4 AVC, MPEG2

PS, MPEG2 TS, VC-1 SM

(WMV3), HEVC

Dolby Digital,

DTS, MP3,

WMA, AAC,

AC3

SubRip (.srt / .txt), SAMI (.smi),

SubStation Alpha (.ssa/.txt),

MicroDVD (.sub/.txt), VobSub (.sub),

SubViewer 1.0 (.sub), SubViewer

2.0 (.sub/.txt), TMPlayer (.txt), DVD

Subtitle System (.txt)

Audio files

Codec Name Sampling Frequency Bitrate Note

MP3 8 kHz/16 kHz/32 kHz 8 kbps ~ 320 kbps

Some wav

les are not

supported on

this player.

11 kHz/22 kHz/44 kHz

12 kHz/24 kHz/48 kHz

WMA 32 kHz/44.1 kHz/48 kHz 1 kbps ~ 355 kbps

Vorbis (Ogg) 8 kHz/11 kHz/12 kHz/16 kHz/22 kHz/

24 kHz/32 kHz/44.1 kHz/48 kHz/64 kHz/

88.2 kHz/96 kHz

unlimited

WAV (PCM) 8 kHz/16 kHz/32 kHz 64 kbps ~ 36 mbps

11 kHz/22 kHz/44 kHz/88.2 kHz/176.4 kHz

12 kHz/24 kHz/48 kHz

48 kHz/96 kHz/192 kHz

FLAC 88.2 kHz/176.4 kHz/192 kHz 64 kbps ~ 16.2 mbps

8 kHz/16 kHz/22.05 kHz/11.025 kHz

24 kHz/32 kHz/44.1 kHz

48 kHz/96 kHz/12 kHz

AAC (m4a) 8 kHz/11 kHz/12 kHz/16 kHz/22 kHz/

24 kHz/32 kHz/44.1 kHz/48 kHz/64 kHz/

88.2 kHz/96 kHz

less than 320 kbps

AIFF (PCM) 8 kHz/16 kHz/32 kHz 64 kbps ~ 36 mbps

11 kHz/22 kHz/44 kHz/88.2 kHz/176.4 kHz

12 kHz/24 kHz/48 kHz

48 kHz/96 kHz/192 kHz

Appendix 49

Appendix

Photo files

File

Extension

Recommended

Size

Note

“.jpg”, “.jpeg”, “.png”,

“.gif”, “.mpo”, “.jps”

Less than 4,000 x 3,000 x 24 bit/pixel

Less than 3,000 x 3,000 x 32 bit/pixel

Progressive and lossless compression

photo image les are not supported.

Appendix50

Appendix

y The le name is limited to 180 characters.

y Maximum les/Folder: Less than 2000 (total

number of les and folders)

y Depending on the size and number of the

les, it may take several minutes to read the

content on the media.

y The total playback time of audio le indicated

on the screen may not correct for VBR les.

y HD video les contained on the CD/DVD or

USB 1.0/1.1 may not played properly.

Blu-ray Disc or USB 2.0 are recommended to

play back HD video les.

y This player supports H.264/MPEG-4 AVC

prole Main, High at Level 4.1. A le with

higher level may not be supported.

y This player does not support les that are

recorded with GMC

or Qpel*

*1 GMC – Global Motion Compensation

*2 Qpel – Quarter pixel

Note

y A “avi” le which is encoded “WMV 9 codec”

is not supported.

y This player supports UTF-8 les even it

contains Unicode subtitle content. This player

can not support the pure Unicode subtitle

les.

y Depending on the types of le or ways of

recording, it may not play back.

y A disc which was recorded by multi-session

on normal PC is not supported on this player.

y To playback a video le, video le name and

Subtitle le name must be the same.

y When you play a video le with a extension

such as “.ts”, “.m2ts”, “.mts”, “.tp”, “.Trp” or “.m2t”,

your player may not support subtitle les.

y The total playback time of audio le indicated

on the screen may not correct for VBR les.

y Video / Audio codec compatibility may differ

depending on video le.

Note

AVCHD (Advanced Video Codec

High Definition)

y This player can playback AVCHD format discs.

These discs are normally recorded and used in

camcorders.

y The AVCHD format is a high denition digital video

camera format.

y The MPEG-4 AVC/H.264 format is capable of

compressing images at higher efciency than that

of the conventional image compressing format.

y This player can playback AVCHD discs using

“x.v.Color” format.

y Some AVCHD format discs may not play

depending on the recording condition.

y AVCHD format discs need to be nalized.

y “x.v.Color” offers a wider color range than normal

DVD camcorder discs.

Appendix 51

Appendix

Certain system requirements

For high denition video playback:

y High denition display that has HDMI input jack.

y BD-ROM disc with high denition content.

y HDMI or HDCP capable DVI input on your display

device is required for some content (as specied

by disc authors).

For Dolby® Digital Plus, Dolby TrueHD and DTS-HD

multi-channel audio playback:

y An amplier/receiver with a built-in (Dolby Digital,

Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD)

decoder.

y Main, center, surround speakers and subwoofer as

necessary for chosen format.

Compatibility notes

y Because BD-ROM is a new format, certain disc,

digital connection and other compatibility issues

are possible. If you experience compatibility

problems, please contact an authorized Customer

Service Center.

y This unit allows you to enjoy functions such

as picture-in-picture, secondary audio and

Virtual packages, etc., with BD-ROM supporting

BONUSVIEW (BD-ROM version 2 Prole 1 version

1.1). Secondary video and audio can be played

from a disc compatible with the picture-in-picture

function. For the playback method, refer to the

instructions in the disc.

y Viewing high-denition content and up-converting

standard DVD content may require a HDMI-

capable input or HDCP-capable DVI input on your

display device.

y Some BD-ROM and DVD discs may restrict the use

of some operation commands or features.

y Dolby TrueHD, Dolby Digital Plus and DTS-HD are

supported with maximum 7.1 channels if you use

HDMI connection for the audio output of the unit.

y You can use a USB device to store some disc

related information, including downloaded online

content. The disc you are using will control how

long this information is retained.

Appendix52

Appendix

Audio Output Specifications

Jack/Setting

Source

OPTICAL (DIGITAL AUDIO OUT) *3

PCM DTS Re-encode

Auto

Dolby Digital PCM 2ch DTS Dolby Digital

Dolby Digital Plus PCM 2ch DTS Dolby Digital

Dolby TrueHD PCM 2ch DTS Dolby Digital

DTS PCM 2ch DTS DTS

DTS-HD PCM 2ch DTS DTS

Linear PCM 2ch PCM 2ch DTS PCM 2ch

Linear PCM 5.1ch PCM 2ch DTS PCM 2ch

Linear PCM 7.1ch PCM 2ch DTS PCM 2ch

Jack/Setting

Source

HDMI OUT

PCM DTS Re-encode

Auto

Dolby Digital PCM Up to 7.1ch DTS Dolby Digital

Dolby Digital Plus PCM Up to 7.1ch DTS Dolby Digital Plus

Dolby TrueHD PCM Up to 7.1ch DTS Dolby TrueHD

DTS PCM Up to 6.1ch DTS DTS

DTS-HD PCM Up to 7.1ch DTS DTS-HD

Linear PCM 2ch PCM 2ch DTS Linear PCM 2ch

Linear PCM 5.1ch PCM 5.1ch DTS Linear PCM 5.1ch

Linear PCM 7.1ch PCM 7.1ch DTS Linear PCM 7.1ch

*1 The secondary and interactive audio may not

be included in the output bitstream if [Digital

Output] option is set to [AUTO]. (Except LPCM

Codec: The output always includes interactive and

secondary audio.)

*2 This player automatically selects the HDMI

audio according to the decoding capability of

the connected HDMI device even though [Digital

Output] option is set to [AUTO].

*3 On the PCM audio output, the sampling

frequency of DIGITAL AUDIO OUT is limited to 96

kHz.

*4 If the [Digital Output] option is set to [DTS re-

encode], the audio output is limited to 48 kHz

and 5.1Ch. If the [Digital Output] option is set

to [DTS re-encode], the DTS Re-encode audio

is outputted for BD-ROM discs, and the original

audio is outputted for the other discs (like

[AUTO]).

Appendix 53

Appendix

Area Code List

Choose an area code from this list.

Area Code Area Code Area Code Area Code

Afghanistan AF

Argentina AR

Australia AU

Austria AT

Belgium BE

Bhutan BT

Bolivia BO

Brazil BR

Cambodia KH

Canada CA

Chile CL

China CN

Colombia CO

Congo CG

Costa Rica CR

Croatia HR

Czech Republic CZ

Denmark DK

Ecuador EC

Egypt EG

El Salvador SV

Ethiopia ET

Fiji FJ

Finland FI

France FR

Germany DE

Great Britain GB

Greece GR

Greenland GL

Hong Kong HK

Hungary HU

India IN

Indonesia ID

Israel IL

Italy IT

Jamaica JM

Japan JP

Kenya KE

Kuwait KW

Libya LY

Luxembourg LU

Malaysia MY

Maldives MV

Mexico MX

Monaco MC

Mongolia MN

Morocco MA

Nepal NP

Netherlands NL

Antilles AN

New Zealand NZ

Nigeria NG

Norway NO

Oman OM

Pakistan PK

Panama PA

Paraguay PY

Philippines PH

Poland PL

Portugal PT

Romania RO

Russian

Federation RU

Saudi Arabia SA

Senegal SN

Singapore SG

Slovak Republic SK

Slovenia SI

South Africa ZA

South Korea KR

Spain ES

Sri Lanka LK

Sweden SE

Switzerland CH

Taiwan TW

Thailand TH

Turkey TR

Uganda UG

Ukraine UA

United States US

Uruguay UY

Uzbekistan UZ

Vietnam VN

Zimbabwe ZW

Appendix54

Appendix

Language Code List

Use this list to input your desired language for the following initial settings: [Disc Audio],

[Disc Subtitle] and [Disc Menu].

Language Code Language Code Language Code Language Code

Afar 6565

Afrikaans 6570

Albanian 8381

Amharic 6577

Arabic 6582

Armenian 7289

Assamese 6583

Aymara 6588

Azerbaijani 6590

Bashkir 6665

Basque 6985

Bengali; Bangla 6678

Bhutani 6890

Bihari 6672

Breton 6682

Bulgarian 6671

Burmese 7789

Byelorussian 6669

Chinese 9072

Croatian 7282

Czech 6783

Danish 6865

Dutch 7876

English 6978

Esperanto 6979

Estonian 6984

Faroese 7079

Fiji 7074

Finnish 7073

French 7082

Frisian 7089

Galician 7176

Georgian 7565

German 6869

Greek 6976

Greenlandic 7576

Guarani 7178

Gujarati 7185

Hausa 7265

Hebrew 7387

Hindi 7273

Hungarian 7285

Icelandic 7383

Indonesian 7378

Interlingua 7365

Irish 7165

Italian 7384

Japanese 7465

Kannada 7578

Kashmiri 7583

Kazakh 7575

Kirghiz 7589

Korean 7579

Kurdish 7585

Laotian 7679

Latin 7665

Latvian, Lettish 7686

Lingala 7678

Lithuanian 7684

Macedonian 7775

Malagasy 7771

Malay 7783

Malayalam 7776

Maori 7773

Marathi 7782

Moldavian 7779

Mongolian 7778

Nauru 7865

Nepali 7869

Norwegian 7879

Oriya 7982

Panjabi 8065

Pashto, Pushto 8083

Persian 7065

Polish 8076

Portuguese 8084

Quechua 8185

Rhaeto-Romance 8277

Rumanian 8279

Russian 8285

Samoan 8377

Sanskrit 8365

Scots Gaelic 7168

Serbian 8382

Serbo-Croatian 8372

Shona 8378

Sindhi 8368

Singhalese 8373

Slovak 8375

Slovenian 8376

Spanish 6983

Sudanese 8385

Swahili 8387

Swedish 8386

Tagalog 8476

Tajik 8471

Tamil 8465

Telugu 8469

Thai 8472

Tonga 8479

Turkish 8482

Turkmen 8475

Twi 8487

Ukrainian 8575

Urdu 8582

Uzbek 8590

Vietnamese 8673

Volapük 8679

Welsh 6789

Wolof 8779

Xhosa 8872

Yiddish 7473

Yoruba 8979

Zulu 9085

Appendix 55

Appendix

Trademarks and

Licenses

All other trademarks are trademarks of their

respective owners.

Blu-ray Disc™, Blu-ray™, Ultra HD Blu-ray Disc™,

Ultra HD Blu-ray™, Blu-ray 3D™, BD-Live™,

BONUSVIEW™ and the logos are trademarks of

the Blu-ray Disc Association.

“DVD Logo” is a trademark of DVD Format/Logo

Licensing Corporation.

Java is a trademark of Oracle and/or its afliates.

The terms HDMI, HDMI High-Denition Multimedia

Interface, and the HDMI Logo are trademarks

or registered trademarks of HDMI Licensing

Administrator, Inc.

“x.v.Color” is a trademark of Sony Corporation.

Manufactured under license from Dolby

Laboratories. Dolby, Dolby Audio, and the double-D

symbol are Trademarks of dolby Laboratories.

For DTS patents, see http://patents.dts.com.

Manufactured under license from DTS Licensing

Limited. DTS, DTS-HD, the Symbol, & DTS and the

Symbol together are registered trademarks, and

DTS-HD Master Audio is a trademark of DTS, Inc.

The Wi-Fi CERTIFIED Logo is a certication mark

of the Wi-Fi Alliance.

The Wi-Fi Protected Setup Mark is a trademark of

the Wi-Fi Alliance.

“AVCHD” and the “AVCHD” logo are trademarks of

Panasonic Corporation and Sony Corporation.

Appendix56

Appendix

Cinavia Notice

This product uses Cinavia technology to limit the

use of unauthorized copies of some commercially-

produced lm and videos and their soundtracks.

When a prohibited use of an unauthorized copy is

detected, a message will be displayed and playback

or copying will be interrupted.

More information about Cinavia technology is

provided at the Cinavia Online Consumer Information

Center at http://www.cinavia.com. To request

additional information about Cinavia by mail, send

a postcard with your mailing address to: Cinavia

Consumer Information Center, P.O. Box 86851, San

Diego, CA, 92138, USA.

This product incorporates proprietary technology

under license from Verance Corporation and is

protected by U.S. Patent 7,369,677 and other U.S.

and worldwide patents issued and pending as well

as copyright and trade secret protection for certain

aspects of such technology. Cinavia is a trademark of

engineering or disassembly is prohibited.

Appendix 57

Appendix

Specifications

General

Power requirements Refer to main label.

Power consumption Refer to main label.

Dimensions (W x H x D)

Approx. 430 mm x 45.5 mm x 205 mm

(16.9 inches x 1.7 inches x 8.0 inches)

Operating temperature 41 °F - 95 °F

Operating humidity 5 % - 90 %

Outputs

HDMI out (Video/ Audio)

(HDMI1 OUT TO TV)

19 pin (Type A, HDMI™ Connector) x 1

HDMI out (Audio)

(HDMI2 AUDIO ONLY)

19 pin (Type A, HDMI™ Connector) x 1

Digital audio out

(OPTICAL AUDIO OUT)

3 V (p-p), Optical jack x 1

System

Laser Semiconductor laser

wavelength 405 nm / 650 nm

Signal system Standard NTSC Color TV system

LAN port Ethernet jack x 1, 10BASE-T / 100BASE-TX

Wireless LAN (internal antenna)

Integrated IEEE 802.11n/ac (5 GHz and 2.4 GHz bands) wireless

networking access, compatible with 802.11b/g/n/ac Wi-Fi networks.

Bus Power Supply (USB)

5 V 0 500 mA

y Design and specications are subject to change without notice.

Appendix58

Appendix

Maintenance

Handling the unit

When shipping the unit

Please save the original shipping carton and packing

materials. If you need to ship the unit, for maximum

protection, re-pack the unit as it was originally

packed at the factory.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the

surfaces are extremely dirty, use a soft cloth lightly

moistened with a mild detergent solution. Do not use

strong solvents such as alcohol, benzine, or thinner,

as these might damage the surface of the unit.

Keeping the exterior surfaces clean

y Do not use volatile liquids such as insecticide spray

near the unit.

y Wiping with strong pressure may damage the

surface.

y Do not leave rubber or plastic products in contact

with the unit for a long period of time.

Maintaining the unit

The unit is a high-tech, precision device. If the optical

pick-up lens and disc drive parts are dirty or worn,

the picture quality could be diminished. For details,

please contact your nearest authorized service

center.

Notes on discs

Handling discs

Do not touch the playback side of the disc. Hold the

disc by the edges so that ngerprints do not get on

the surface. Never stick paper or tape on the disc.

Storing discs

After playing, store the disc in its case. Do not

expose the disc to direct sunlight or sources of heat

and never leave it in a parked car exposed to direct

sunlight.

Cleaning discs

Fingerprints and dust on the disc can cause poor

picture quality and sound distortion. Before playing,

clean the disc with a clean cloth. Wipe the disc from

the center to outer edge.

Do not use strong solvents such as alcohol, benzine,

thinner, commercially available cleaners, or anti-static

spray intended for older vinyl records.

Appendix 59

Appendix

Important Information

Relating to Network

Services

All information, data, documents, communications,

downloads, les, text, images, photographs, graphics,

videos, webcasts, publications, tools, resources,

software, code, programs, applets, widgets,

applications, products and other content (“Content”)

and all services and offerings (“Services”) provided or

made available by or through any third party (each

a “Service Provider”) is the sole responsibility of the

Service Provider from whom it originated.

The availability of and access to Content and

Services furnished by the Service Provider through

the LGE Device are subject to change at any time,

without prior notice, including, but not limited to the

suspension, removal or cessation of all or any part of

the Content or Services.

Should you have any inquiry or problem related

to the Content or Services, you may refer to the

Service Provider’s website for the most up-to-date

information. LGE is neither responsible nor liable

for customer service related to the Content and

Services. Any question or request for service relating

to the Content or Services should be made directly

to the respective Content and Service Providers.

Please note that LGE is not responsible for any

Content or Services provided by the Service Provider

or any changes to, removal of, or cessation of

such Content or Services and does not warrant or

guaranty the availability of or access to such Content

or Services.
