22

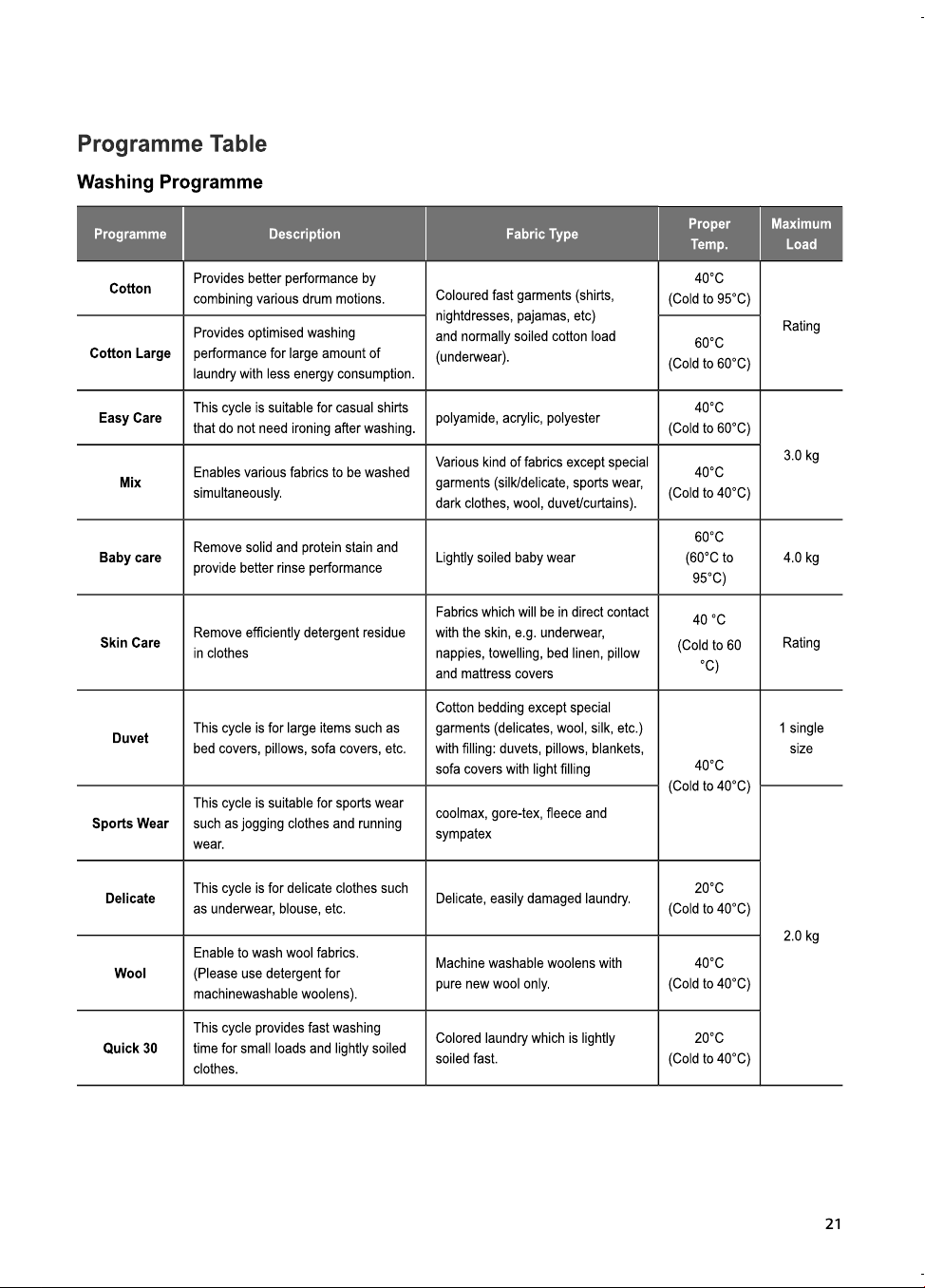

Programme Description Fabric Type
Proper
Temp.
Maximum
Load
Intensive 60
Within 60mins provide better washing
performance and energy efficiency.
Cotton and mix fabrics.
(Special PROGRAM within 60 mins
for normally soiled laundry).
60°C
(Cold to 60°C)
4.0 kg
Rinse+Spin
Use for laundy that need rinsing only
or to add rinse-added fabric softener
to laundry.
Normal fabrics which can be
washable.
- Rating
•
Water Temperature: Select the appropriate water temperature for chosen wash cycle. Always follow garment
manufacturer’s care label or instructions when washing.
•
Set program at "Cotton Large 40°C + Intensive (Half Load)", "Cotton Large 60°C + Intensive (Half Load)",
"Cotton Large 60°C + Intensive (Full Load)"
option for test in conformity with EN60456 and Regulation 1015/2010.
- Standard 60°C cotton program : Cotton Large
+ 60°C + Intensive (Full Load)
- Standard 60°C cotton program : Cotton Large + 60°C + Intensive (Half Load)
- Standard 40°C cotton program : Cotton Large + 40°C + Intensive (Half Load)
(They are suitable to clean normally soiled cotton laundry
.)
(They are the most efficient programmes in terms of combined energy and water consumptions for washing that
type of cotton laundry
.)
* Actual water temperature may differ from the declared cycle temperature.
•
The test results depend on water pressure, water hardness, water inlet temperature, room temperature, type and
amount of load, degree of soiling utilized detergent, fluctuations in the main electricity supply and chosen additional
options.
NoTE
•
Neutral detergent is recommended.
•
The wool cycle features gentle tumbling and low-speed spin for garment care.
41
ENGLISH

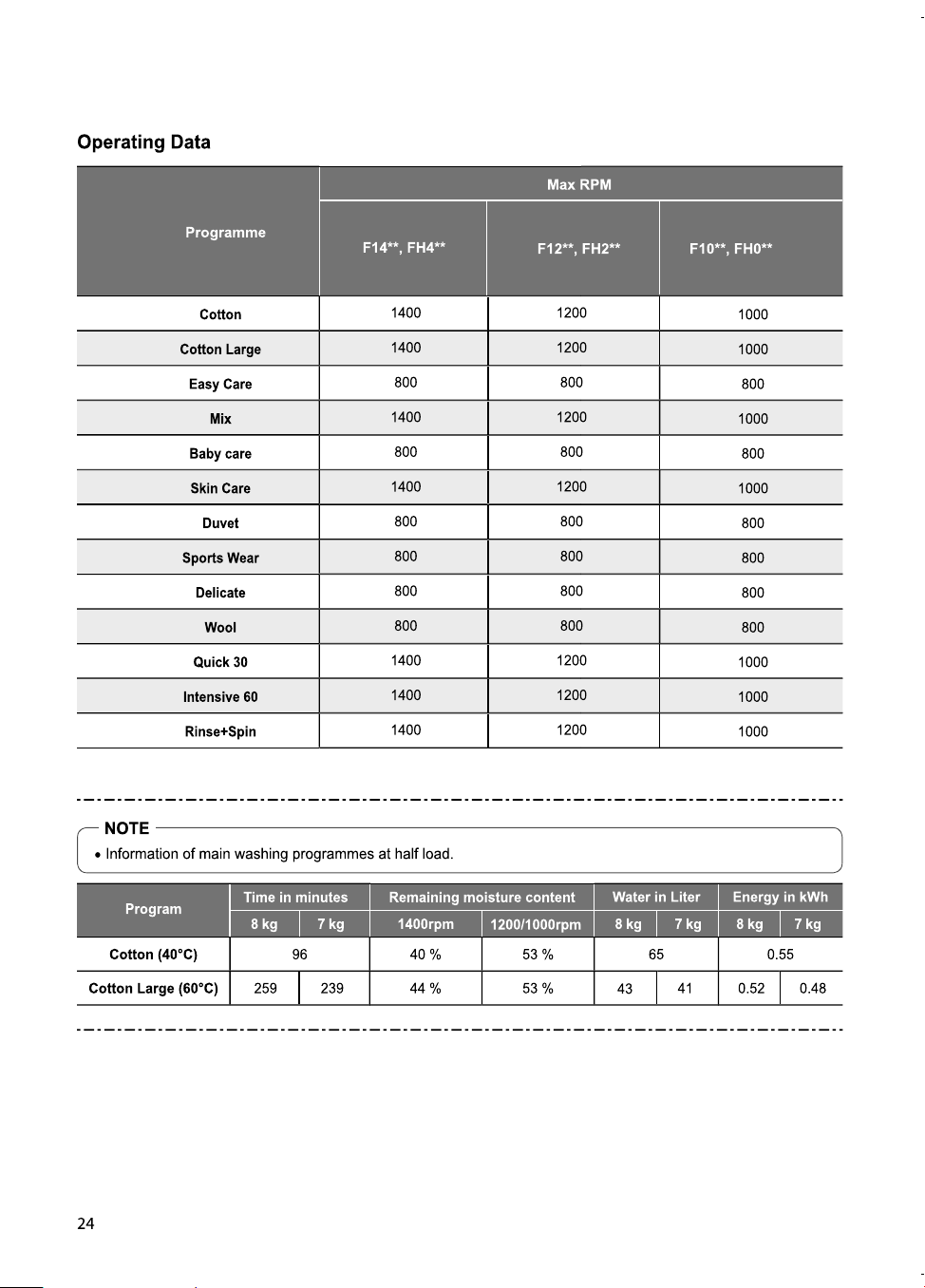

OPERATING DATA
Product fiche_Commission Delegated Regulation(EU) No 1061/2010
Supplier’s name or trade mark
Supplier’s model
Rated capacity
Energy efficiency class
Awarded an “EU Ecolabel award” under Regulation (EC) No 66/2010
Weighted annual energy consumption (AEC) in kWh per year based on 220 standard washing
cycles for cotton programmes at 60 °C and 40 °C at full and partial load, and the consumption of
the low-power modes. Actual energy consumption will depend on how the appliance is used.
The energy consumption
the standard 60 °C cotton programme at full load
the standard 60 °C cotton programme at partial load
the standard 40 °C cotton programme at partial load.
Weighted power consumption of the off-mode and of the left-on mode.
Weighted annual water consumption (AWC) in litres per year based on 220 standard washing
cycles for cotton programmes at 60 °C and 40 °C at full and partial load. Actual water consumption
will depend on how the appliance is used.
Spin-drying efficiency class on a scale from G (least efficient) to A (most efficient).
Maximum spin speed attained for the standard 60 °C cotton program at full load or the standard
40 °C cotton programme at partial load, whichever is the lower, and remaining moisture content
attained for the standard 60 °C cotton program at full load or the standard 40 °C cotton program at
partial load, whichever is the greater.
Standard washing programmes to which the information in the label and the fiche relates, that
these programmes are suitable to clean normally soiled cotton laundry and that they are the most
efficient programmes in terms of combined energy and water consumption;
The programme time
the standard 60 °C cotton programme at full load
the standard 60 °C cotton programme at partial load
the standard 40 °C cotton programme at partial load.
The duration of the left-on mode (Tl)
Airborne acoustical noise emissions expressed in dB(A) re 1 pW and rounded to the nearest
integer during the washing and spinning phases for the standard 60 °C cotton programme at full
load
Free-Standing
LG
8/7
A+++
A+++
No No
137/122
0.70/0.60
0.52/0.48
0.42/0.39
0.45
10500/
9300
A
1400 1000
53
53
312/292
259/239
254/234
10 10
52 / 75
8/7 8/7
A+++
No
137/122 137/122
0.70/0.60
0.52/0.48
0.42/0.39
0.70/0.60
0.52/0.48
0.42/0.39
10500/
9300
10500/
9300
B
B
1200
44
312/292
259/239
254/234
312/292
259/239
254/234
10
52 / 74
52 / 74
F H/1 4 B8/96
Q/T D(N)(W)
(A)(0~9)
"Cotton Large 60 °C/40 °C
+ intensive"
kg
kWh/
year
kWh
W
litres/
year
rpm
%
dB(A)
kWh
kWh
min.
min.
min.
min.
F H/1 2 B8/96
Q/T D(N)(W)
(A)(0~9)
F H/1 0 B8/96
Q/T D(N)(W)
(A)(0~9)
