Westinghouse PHN768U 600mm Electric Cooktop

User Manual

For PHN768U. Additionally, the document applies to other Westinghouse models: PHN798U

PDF File Manual, 20 pages, Read Online | Download pdf file

PHN768U photo
background
user manual
Ceramic glass hob
PHN768U, PHN798U
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...
Loading page 17...
Loading page 18...
Loading page 19...
Loading page 20...

User Manual - Transcript

  • Page 1: user manual Ceramic glass hob PHN768U PHN798U
  • Page 2 - English - : Electrolux Thinking of you Westinghouse We are part of the Electrolux family Share more of our thinking at wwwelectroluxcom Contents Safety instructions 2 Description of the Appliance 3 Operating of the appliance 5 Tips on cooking and frying 9 Cleaning and Care 10 What to do if 11 Technical data 12 Disposal 12 Installation Instructions 12 Assembly 14 Warranty 15 Service 17 Subject to change without notice Safety instructions Warning Please comply with these instructions If you do not any damage resulting is not covered by the warranty Correct use This appliance is not intended for use by persons including children with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or in struction concerning use of the appliance by a person responsible for their safety Do not leave the appliance unattended during operation This appliance should be used only for normal domestic cooking and frying of food The appliance must not be used as a work surface or as a storage surface Additions or modifications to the appliance are not permitted Do not place or store flammable liquids highly inflammable materials or fusible ob jects eg plastic film plastic aluminium on or near the appliance Childrens safety The cooking zones will become hot when you cook Therefore always keep small children away from the appliance The appliance is not intended for use by young children or infirm persons without supervision Children should be supervised to ensure that they do not play with the appliance Warning Accessible parts will become hot during use To avoid burns young children should be kept away General Safety The appliance may only be installed and connected by trained registered service engineers Builtin appliances may only be used after they have been built into suitable builtin units and work surfaces that meet stand ards In the event of faults with the appliance or damage to the glass ceramic cracks scratches or splits the appliance must be switched off and disconnected from the electrical supply to prevent the possibility of an electric shock Repairs to the appliance must only be car ried out by trained registered service engi neers Safety during use Remove stickers and film from the glass ceramic There is the risk of burns from the appli ance if used carelessly Cables from electrical appliances must not touch the hot surface of the appliance or hot cookware Overheated fats and oils can ignite very quickly Warning Fire hazard 2 westinghouse
  • Page 3 - English - : Switch the cooking zones off after each use Warning If the surface is cracked switch off the appliance to avoid possibility of electric shock Safety when cleaning For cleaning the appliance must be switched off and cooled down For safety reasons the cleaning of the ap pliance with steam jet or high pressure cleaning equipment is not permitted How to avoid damage to the appliance The glass ceramic can be damaged by objects falling onto it The edge of the glass ceramic can be damaged by being knocked by the cook ware Cookware made of cast iron cast aluminium or with damaged bottoms can scratch the glass ceramic if pushed across the surface Before spillage can become burnt on to the cooking surface remove it with a damp cloth To avoid damaging cookware and glass ceramics do not allow saucepans or frying pans to boil dry Do not use the cooking zones with empty cookware or without cookware Description of the Appliance Cooking surface layout PHN 768U 1 2 120175210 mm 1 Single cooking zone 1200W 2 Single cooking zone 1800W 3 Single cooking zone 1200W 4 Control panel 5 Triple cooking zone 23001600800W westinghouse 3

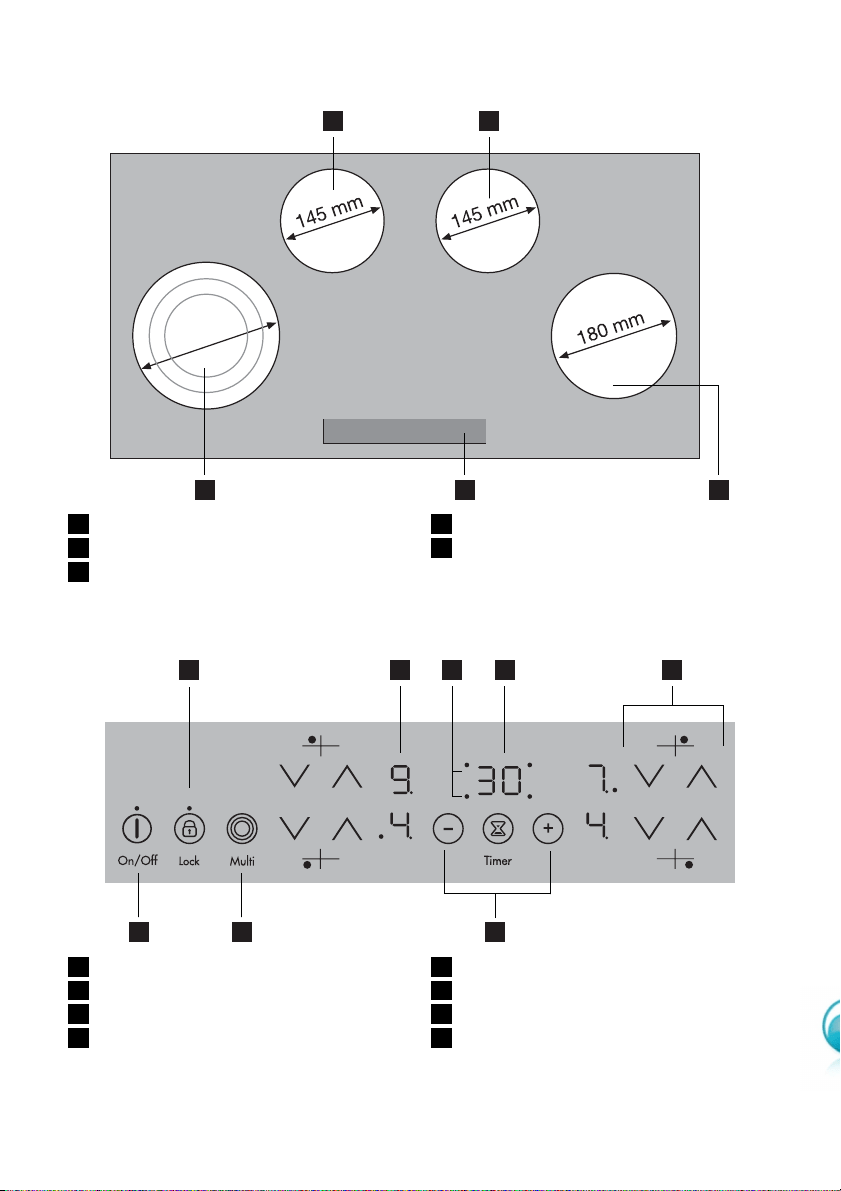

  • Page 4 - English - : PHN 798U 1 2 120175210 mm 1 Single cooking zone 1200W 2 Single cooking zone 1200W 3 Single cooking zone 1800W 4 Control panel 5 Triple cooking zone 23001600800W Control panel layout PHN 768U and PHN 798U 1 2 3 4 68 7 1 Lock with pilot light 2 Display 3 Cooking zone indicators of Timer 4 Timer display 5 Heat setting selection 6 Timer 7 Triple ring cooking zone 8 OnOff with power indicator Touch Control sensor fields The appliance is operated using Touch Control sensor fields Functions are controlled by touching sensor fields and confirmed by displays and acoustic signals Touch the sensor fields from below without covering other sensor fields 4 westinghouse
  • Page 5 - English - : Sensor field Function On Off To switch the appliance on and off Increase settings To increase heat settings Reduce settings To reduce heat settings Timer To select timer settings Increase settings To increase Timer time Reduce settings To reduce Timer time Lock To lockunlock the control panel Triple ring switch To switch outer rings on and off Displays Display Description Cooking zone is switched off Keep warm setting Keep warm setting is set Heat settings Heat setting is set Automatic warm up function Automatic warmup function is activated Error Malfunction has occurred Residual heat Cooking zone is still hot Child safety device Lockchild safety device is activated Automatic switch off Switch off is active Residual heat indicator Warning Risk of burns from residual heat After being switched off the cooking zones need some time to cool down Look at the residual heat indicator Residual heat can be used for melting and keeping food warm Operating of the appliance Switching the appliance on and off Control panel Display Pilot light Switch on Touch for 2 seconds lights up Switch off Touch for 2 seconds none goes out After switching on within approx 10 seconds a heat setting or a function must be set otherwise the appliance automatically switches itself off Setting the heat setting Control panel Indicator To increase Touch to To decrease Touch to To switch off Touch and at the same time westinghouse 5
  • Page 6 - English - : The keep warm setting lies between and It is used to keep food warm Switching the outside ring on and off By switching the outside rings on or off the effective heating surface can be matched to the size of the cookware Before an outside ring can be switched on the inside ring must be switched on Triple cooking zone Sensor panel Power indicator To switch on the middle ring Touch for 12 seconds One power indicator is lit To switch on the outside ring Touch for 12 seconds Two power indicators are lit To switch off the outside ring Touch for 12 seconds The second power indi cator goes out To switch off the middle ring Touch for 12 seconds The first power indicator goes out Lockingunlocking the control panel The control panel with the exception of the OnOff sensor field can be locked at any time in order to prevent the settings being changed eg by wiping over the panel with a cloth Control panel Display Switch on Touch for 5 seconds Switch off Touch the previously set heat setting When you switch the appliance off the locking function is automatically switched off Using the automatic warmup function All cooking zones are equipped with an automatic warm up function When setting a heat setting using when starting from the cooking zone switches to full power for a certain amount of time and then automatically switches back to the heat setting set Control panel Possible heat settings Display Switch on only when starting at Touch to after 5 seconds Switch off Touch to to Not used Touch to to If during the automatic warm up a higher heat setting is selected eg from to the automatic warm up is adjusted If there is still residual heat on the cooking zone display the automatic warm up is not performed The length of time that the automatic warm up function operates depends on the heat setting selected Heat setting Length of the automatic warm up minsec 030 100 140 450 6 westinghouse
  • Page 7 - English - : Heat setting Length of the automatic warm up minsec 630 1010 200 330 430 Using the child safety device The child safety device prevents unintentional use of the appliance Switching on the child safety device Step Control panel DisplaySignal Switch the appliance on Do not set a heat setting Touch for 4 seconds The child safety device is switched on Switching off the child safety device Step Control panel DisplaySignal Switch the appliance on Do not set a heat setting Touch for 4 seconds lights up Switch the appliance off The child safety device is switched off The child safety device can only be switched on and off if no heat setting is set Overriding the child safety device The child safety device can be switched off in this way for a single cooking session it remains activated afterwards Step Control panel DisplaySignal Switch the appliance on Touch for 4 seconds lights up Until the appliance is next switched off it can used as normal After switching off the appliance the child safety device is active again After overriding the child safety device a heat setting or a function must be set within approx 10 seconds otherwise the appliance automatically switches itself off Using the timer Function Condition Outcome after the time has elapsed Automatic cutout a heat setting is set acoustic signal flashes Cooking zone switches off Countdown timer cooking zones not in use acoustic signal flashes If a heat setting is set on this cooking zone in addition to a countdown timer the cooking zone is switched off after the time set has elapsed westinghouse 7

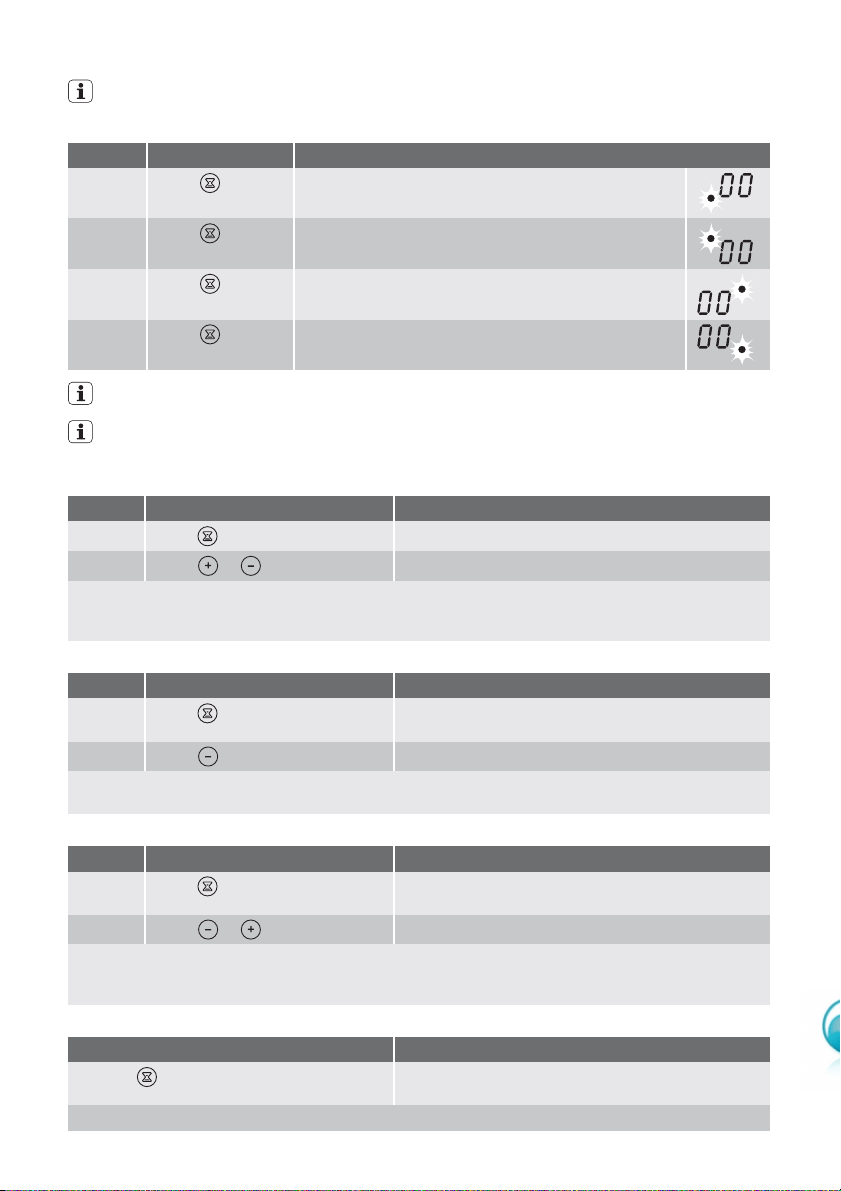

  • Page 8 - English - : If a cooking zone is switched off the timer function set is also switched off Selecting a cooking zone Step Control panel Display Touch once Pilot light of the first cooking zone flashes Touch once Pilot light of the second cooking zone flashes Touch once Pilot light of the third cooking zone flashes Touch once Pilot light of the fourth cooking zone flashes If the pilot light is flashing more slowly the heat setting can be set or modified If other timer functions are set after a few seconds the shortest remaining time of all the timer functions is displayed and the corresponding pilot light flashes Setting the time Step Control panel Indicator Select cooking zone Pilot light for the cooking zone selected flashes Touch or to minutes After a few seconds the pilot light flashes more slowly The time is set The time counts down Switching off the timer function Step Control panel Indicator Select cooking zone Pilot light of cooking zone selected flashes faster Time remaining is displayed Touch The time remaining counts backwards to The pilot light goes out The Timer function for the selected cooking zone is switched off Changing the time Step Control panel Indicator Select the cooking zone Pilot light of the selected cooking zone flashes faster Time remaining is displayed Touch or to minutes After a few seconds the pilot light flashes more slowly The time is set The time counts down Displaying the time remaining for a cooking zone Control panel field Display 1 Select the cooking zone Pilot light of the cooking zone selected flashes faster The time remaining is displayed After a few seconds the pilot light flashes more slowly 8 westinghouse
  • Page 9 - English - : Switching off the acoustic signal Control panel field Acoustic signal 1 Touch The acoustic signal to acknowledge The acoustic signal stops Automatic switch off Cooking surface If after switching on the cooking surface a heat setting is not set for a cooking zone within approx 10 seconds the cooking surface automatically switches itself off If one or more sensor fields are covered by objects a pan cloths etc for longer than approx 10 seconds a signal sounds and the cooking surface switches off automatically If all cooking zones are switched off the cooking surface automatically switches it self off after approx 10 seconds Control panel When the appliance is switched off if one or more of the sensor fields on the control panel are covered for more that 10 sec onds an acoustic signal sounds The acoustic signal switches itself off automatically when the sensor fields are no longer covered Cooking zones If one of the cooking zones is not switched off after a certain time or if the heat setting is not modified the relevant cooking zone switches off automatically is displayed Before being used again the cooking zone must be set to Heat setting Switches off after 6 hours 5 hours 4 hours 15 hours Tips on cooking and frying Information on acrylamides According to the latest scientific knowl edge intensive browning of food especially in products containing starch can constitute a health risk due to acryla mides Therefore we recommend cook ing at the lowest possible temperatures and not browning foods too much Cookware You can recognise good cookware from the bottoms of the pans The bottom should be as thick and flat as possible Cookware made of enamelled steel or with aluminium or copper bottoms can leave discolorations on the glass ceramic sur face which are difficult or impossible to remove Energy saving Always place cookware on the cooking zone before it is switched on Switch cooking zones off before the end of the cooking time to take advantage of residual heat If possible always place lids on the pans westinghouse 9

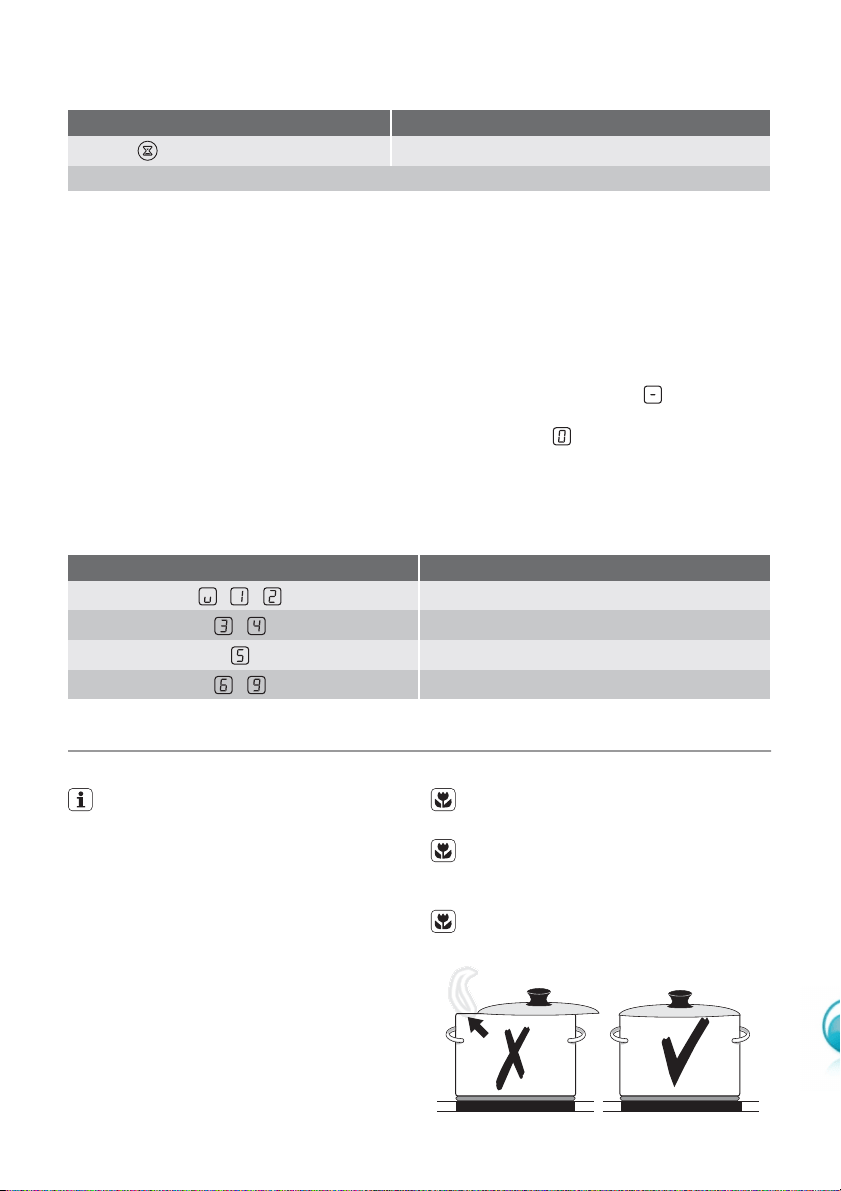

  • Page 10 - English - : Bottom of pans and cooking zones should be the same size Cleaning and Care Warning Watch out Risk of burns from residual heat Warning Sharp objects and abrasive cleaning materials will damage the appliance Clean with water and washing up liquid Warning Sharp cleaning agents will damage the appliance Remove residues with water and washing up liquid Cleaning the appliance after each use 1 Wipe the appliance with a damp cloth and a little washing up liquid 2 Rub the appliance dry using a clean cloth Removing deposites Remove Type of dirt at once when the appliance has cooled down using sugar food containing sugar yes a scraper 1 plastics tin foil yes a scraper 1 limescale and water rings yes cleaner for glass ceramic or stainless steel 1 fat splashes yes cleaner for glass ceramic or stainless steel 1 shiny metallic discoloration yes cleaner for glass ceramic or stainless steel 1 1 Scrapers and cleaners for glass ceramic and stainless steel can be purchased in specialized shops Removing deposites 1 Place a scraper on the glass ceramic sur face at an angle 2 Remove residues by sliding the blade over the surface 3 Wipe the appliance with a damp cloth and a little washing up liquid 4 Rub the appliance dry using a clean cloth Remove stubborn residues with a cleaner for glass ceramic or stain less steel Scratches or dark stains on the glass ceramic that cannot be re moved do not however affect the functioning of the appliance Warning Residues from cleaning agents will damage the appliance Remove residues with water and washing up liquid 10 westinghouse
  • Page 11 - English - : What to do if Problem Possible cause Remedy The cooking zones will not switch on or are not func tioning More than 10 seconds have passed since the appliance was switched on Switch the appliance on again The child safety device is switched on Deactivate the child safety device See the section Child safety de vice Several sensor fields were touched at the same time Only touch one sensor field Automatic switch off has been trig gered Remove any objects pan cloths etc that are lying on the control panel Switch the appliance on again The lock is switched on Switch off the lock See the section Lockingunlocking the control panel Acoustic signal sounds when appliance is switched off The control panel is wholly or partly covered by objects Remove objects The residual heat indicator is not displaying anything The cooking zone was only on for a short time and is therefore not hot If the cooking zone is supposed to be hot call the Customer Service Department The automatic warm up function is not switching it self on There is still residual heat on the cooking zone Let the cooking zone cool down The highest heat setting is set The highest heat setting has the same power as the automatic warm up function The heat setting was set using the sensor field 1 Switch off the cooking zone 2 Set the cooking zone using the sensor field Acoustic signal sounds and appliance switches it self on and then off again after 5 seconds another acoustic signal sounds The OnOff sensor field has been covered up eg by a cloth Do not place any objects on the control panel is lit Overheating protection for the cooking zone has been triggered Switch off the cooking zone Switch the cooking zone on again Automatic switch off has been trig gered Switch off the cooking zone Switch the cooking zone on again and number are dis played Electronics fault Disconnect the appliance from the electrical supply for a few minutes Take the fuse out of the houses wiring system If after switching on again is displayed again call the customer service department If you are unable to remedy the problem by following the above suggestions please contact your dealer or the Customer Care Department Warning Repairs to the appliance are only to be carried out by qualified service engineers Considerable danger to the user may result from improper repairs westinghouse 11
  • Page 12 - English - : If the appliance has been wrongly operated the visit from the customer service technician or dealer may not take place free of charge even during the warranty period Technical data Model PHN 768U PHN 798U PNC 949 163 048 949 163 049 Product dimensions w x d mm 610 x 515 930 x 520 Cutout dimensions w x d mm 560 x 490 485 880 x 490 485 Voltage volts 230 230 Cycles Hz 50 50 Service Cord Not fitted Not fitted Elements No zones Watts No zones Watts Left front 3 23001600800 3 23001600800 Left rear 1 1200 1 1200 Right front 1 1200 1 1800 Right rear 1 1800 1 1200 Total 6500 6500 Disposal The symbol on the product or on its packaging indicates that this product may not be treated as household waste Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment By ensuring this product is disposed of correctly you will help prevent potential negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of this product For more detailed information about recycling of this product please contact your local council your household waste disposal service or the shop where you purchased the product Packaging material The packaging materials are environmentally friendly and can be recycled The plastic components are identified by markings e g gtPElt gtPSlt etc Please use mark ings to dispose of the packaging materials in the appropriate container at the community waste disposal facilities Installation Instructions Warning Safety instructions Warning This must be read The laws ordinances directives and standards in force in the country of use are to be followed safety regulations proper recycling in accordance with the regulations etc Important Installation may only be carried out by a qualified electrician The minimum distances to other appliances and units are to be observed Antishock protection must be provided by the installation for example drawers may only be installed with a protective floor directly underneath the appliance The cut surfaces of the worktop are to be protected against moisture using a suitable 12 westinghouse
  • Page 13 - English - : sealant The sealant seals the appliance to the work top with no gap Do not use silicon sealant between the appliance and the work top Avoid installing the appliance next to doors and under windows Otherwise hot cook ware may be knocked off the rings when doors and windows are opened Caution Warning Risk of injury from electrical current The electrical mains terminal is live Make electrical mains terminal free of volt age Follow connection schematic Observe electrical safety rules Ensure antishock protection by installing correctly The appliance must be connected to the electrical supply by a qualified electrician Loose and inappropriate plug and socket connections can make the terminal over heat Have the clamping connections correctly installed by a qualified electrician Use strain relief clamp on cable Caution The surface temperature exceeds 95C To avoid a hazard underbench access must be restric ted Electrical Connection Before connecting check that the nominal voltage of the appliance that is the voltage stated on the rating plate corresponds to the available supply voltage Also check the power rating of the appliance and ensure that the wire is suitably sized in accordance with local wiring rules to suit the appliance power rating The rating plate is located on the lower casing of the hob The heating element volt age is AC230V The appliance also works perfectly on networks with AC220V or AC240V Means for disconnection must be incorporated in the fixed wiring in accord ance with local wiring rulesThe hob is to be connected to the mains using a device that allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm eg automatic line protecting cutout earth leak age tripsorfuse If this appliances mains ca ble is damaged it must be replaced by a special cable type H05BBF Tmax 90C or higher The latter is available from the Customer Care Department The connection must be carried out as shown in the diagram The connecting links should be fitted accord ing to the appropriate connection diagram The earth lead is connected to terminal The earth lead must be longer than leads carrying electric current The cable con nections must be made in accordance with regulations and the terminal screws tightened securely Finally the connecting cable is to be secured with the mains cable cleat and the covering closed by pressing firmly lock into place Before switching on for the first time any protective foil or stickers must be removed from the glass ceramic surface Warning Once connected to the mains supply check that all cooking zones are ready for use by briefly switching each on in turn at the maximum setting A duplicate rating label is supplied with this unit For easy identification of this unit after installation stick it to a readily available surface adjacent to the cooktop Sticking on the seal Clean the worktop around the cutout area Stick the singlesided adhesive sealing tape provided on the underside of the hob around the outside edge ensuring that it is not stretched The two ends of the tape should join in the middle of one side After trimming the tape allow it to overlap by 23 mm press the two ends together The cutout section in the worktop is illustrated in the drawing with the dimensions 560 x 490 880 x 490 mm The appliance can also be built into a shorter cutout section with the dimensions 560 x 485 880 x 485 mm westinghouse 13
  • Page 14 - English - : Assembly PHN 768U PHN 798 Warning Surface temperatures of base exceed 95C under bench access must be restricted by use of noncombustible barrier on installation 14 westinghouse
  • Page 15 - English - : Rating plates PNC Made in China Model PHN768U APP NO55HAD GL A0 AU APP NOS91 S NO 80200946 50Hz 65 KW 220 240 V AC 220 240 V PNC Made in China Model PHN798U APP NO55HCD GL A0 AU APP NOS91 S NO 80200948 50Hz 65 KW 220 240 V AC 220 240 V Warranty FOR SALES IN AUSTRALIA AND NEW ZEA LAND This document sets out the terms and conditions of product warranties for Electrolux branded appliances It is an important document Please keep it with your proof of purchase documents in a safe place for future reference should you require service for your Electrolux appliance General Terms and Condi tions 1 In this warranty Electrolux means Electrolux Home Products Pty Ltd ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux NZ Limited in respect of Appliances purchased in New Zealand Appliance means any Electrolux product purchased by you accompa nied by this document Warranty Period means i where you use the Appliance for personal domestic or household pur poses in Australia the period of 24 months and in New Zealand the period of 24 months ii where you use the Appliance for commercial purposes in Australia the period of 3 months and in New Zea land the period of 3 months if the period stated is 0 months you are not covered by this product warranty fol lowing the date of original purchase of the Appliance you means the purchaser of the Ap pliance not having purchased the ap pliance for resale and your has a corresponding meaning 2 This warranty only applies to Appliances purchased and used in Australia or New Zealand and is in addition to and does not exclude restrict or modify in any way any nonexcludable statutory war ranties in Australia or New Zealand 3 Electrolux warrants that when dispatched from an Electrolux ware house the Appliance is free from defects in materials and workmanship for the Warranty Period 4 During the Warranty Period Electrolux or its Authorised Service Centre will at no extra charge if your appliance is readily accessible without special equipment westinghouse 15
  • Page 16 - English - : and subject to these terms and condi tions repair or replace any parts which it considers to be defective You agree that any replaced Appliances or parts be come the property of Electrolux This warranty does not apply to light globes batteries filters or similar perishable parts 5 Parts and Appliances not supplied by Electrolux are not covered by this warranty 6 Where you are within an Electrolux serv ice area this warranty covers the cost of transport of the Appliance to and from Authorised Service Centres of Electrolux and travelling costs for representatives of the Authorised Service Centre to and from your home or business If you are outside an Electrolux service area you will bear these costs For information about whether you are within an Electro lux service area please phone 13 13 49 in Australia or 0800 10 66 10 in New Zealand 7 Proof of purchase is required before you can make a claim under this warranty 8 You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or work manship Electrolux is not liable in the following situations which are not ex haustive The Appliance is damaged by i accident ii misuse or abuse including failure to properly maintain or service iii normal wear and tear iv power surges electrical storm damage or incorrect power supply v incomplete or improper installation vi incorrect improper or inappropriate operation vii insect or vermin infestation The Appliance is modified without authority from Electrolux in writing The Appliances serial number or warranty seal has been removed or defaced The Appliance was serviced or re paired by anyone other than Electrolux or its Authorised Service Centres 9 This warranty the contract to which it relates and the relationship between you and Electrolux are governed by the law applicable in the Australian State where the Appliance was purchased or the law applicable in New Zealand if the Appli ance was purchased in New Zealand Where the Appliance was purchased in New Zealand for business purposes the Consumer Guarantee Act does not ap ply Limitation of Liability 10 To the extent permitted by law Electrolux excludes all warranties other than as contained in this docu ment Electrolux shall not be liable for any loss or damage whether direct or in direct or consequential arising from your purchase use or nonuse of the Appliance 11 Provisions of the Trade Practices Act and State consumer legislation in Australia and the Consumer Guaran tees Act the Sale of Goods Act and the Fair Trading Act in New Zealand imply warranties or conditions or impose ob ligations upon Electrolux which cannot be excluded restricted or modified To the extent permitted by law the liability of Electrolux if any arising out of or in relation to the Appliance or any services supplied by Electrolux shall be limited where it is fair and reasonable to do so in the case of Appliances at its option to the replacement or repair of the Ap pliances or the supply of equivalent products or the payment of the cost of replacing the Appliances or having the Appliances repaired or of acquiring equivalent Appliances Upon being re placed parts and Appliances become the property of Electrolux or in the case of services at its option to the supply of the services again or the payment of the cost of having the services resupplied and in the case of Appliances or services supplied in New Zealand loss or dam age whether direct or indirect or conse quential that is reasonably foreseeable Privacy You acknowledge that in the event that you make a warranty claim it will be necessary for Electrolux and its Authorised Service Centres to exchange information in relation to you to 16 westinghouse
  • Page 17 - English - : enable Electrolux to meet its obligations un der this warranty Important Notice Before Calling a Service Technician please check carefully the operating instructions service booklet and the warranty terms and conditions FOR SERVICE OR TO FIND THE ADDRESS OF YOUR NEAREST STATE SERV ICE CENTRE IN AUSTRALIA Please call 13 13 4 9 For the cost of a local call Australia only SERVICE AUSTRALIA ELECTROLUX HOME PROD UCTS FOR SPARE PARTS OR TO FIND THE ADDRESS OF YOUR NEAREST STATE SPARE PARTS CENTRE IN AUSTRALIA Please call 13 13 50 For the cost of a local call Australia only FOR SERVICE OR TO FIND THE ADDRESS OF YOUR NEAREST AUTHORISED SERVICE CENTRE IN NEW ZEALAND Free call 0800 10 66 10 SERVICE NEW ZEALAND ELECTROLUX HOME PROD UCTS FOR SPARE PARTS OR TO FIND THE ADDRESS OF YOUR NEAREST SPARE PARTS CENTRE IN NEW ZEA LAND Free call 0800 10 66 20 Service In the event of technical faults please first check whether you can remedy the problem yourself with the help of the operating in structions section What to do if If you were not able to remedy the problem yourself please contact the Customer Care Department or one of our service partners In order to be able to assist you quickly we require the following information Model description Product number PNC Serial number S No see rating plate Type of fault Any error messages displayed by the appliance three digit letternumber combination for glass ceramic westinghouse 17
  • Page 20: 892930000B032008 wwwelectroluxcom wwwwestinghousecomau
