Owner 's Manual for Washing Machine

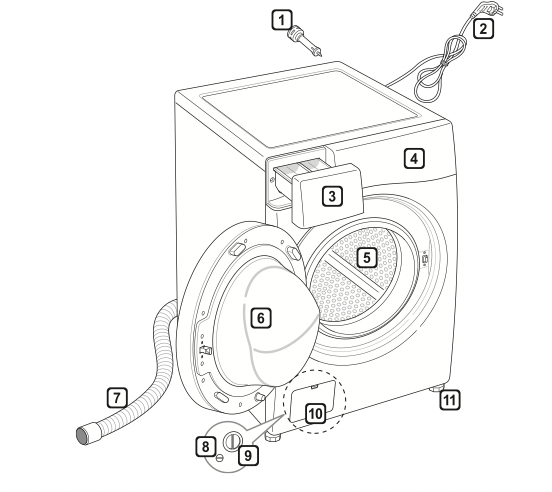

Parts

1. Transit bolts

2. Power plug

3. Drawer

4. Control panel

5. Drum

6. Door

7. Drain hose

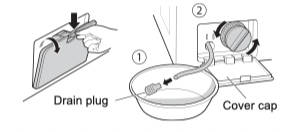

8. Drain plug

9. Drain pump filter

10. Cover cap (Location may vary depending on products)

11. Adjustable feet

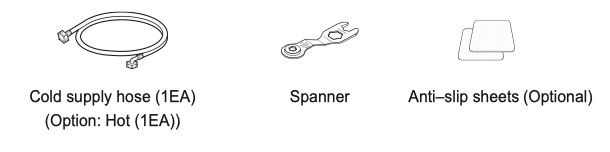

Accessories

OPERATION

Using the Washing Machine

Before the first wash, select a washing programme, allow the washing machine to wash without clothing. This will remove residue and water from the drum that may have been left during manufacturing.

1. Sort laundry and load items.

• Sort laundry by fabric type, soil level, colour and load size as needed. Open the door and load items into the washing machine.

2. Add cleaning products and/or detergent and softener.

• Add the proper amount of detergent to the detergent dispenser drawer. If desired, add bleach or fabric softener to the appropriate areas of the dispenser.

3. Turn on the washing machine.

• Press the Power button to turn on the washing machine.

4. Choose the desired washing cycle.

• Press the cycle button repeatedly or turn the cycle selector knob until the desired cycle is selected.

5. Begin cycle.

• Press the Start/Pause button to begin the cycle. The washing machine will agitate briefly without water to measure the weight of the load. If the Start/Pause button is not pressed within 5 minutes, the washing machine will shut off and all settings will be lost.

6. End of cycle.

• When the cycle is finished, a melody will sound. Immediately remove your clothing from the washing machine to reduce wrinkling. Check around the door seal when removing the load for small items that may be caught in the seal.

Sorting Laundry

1. Look for a care label on your clothes.

• This will tell you about the fabric content of your garment and how it should be washed.

• Symbols on the care labels.

2. Sorting laundry.

• To get the best results, sort clothes into loads that can be washed with the same wash cycle.

• Different fabrics need to be washed at varying temperatures and spin speeds.

• Always sort dark colours from pale colours and whites. Wash separately as dye and lint transfer can occur causing discolouration of white and pale garments. If possible, do not wash heavily soiled items with lightly soiled ones.

− Soil (Heavy, Normal, Light) :

Separate clothes according to amount of soil.

− Colour (White, Lights, Darks):

Separate white fabrics from coloured fabrics.

− Lint (Lint producers, Collectors):

Wash lint producers and lint collectors separately.

3. Caring before loading.

• Combine large and small items in a load. Load large items first.

• Large items should not be more than half the total wash load. Do not wash single items. This may cause an unbalanced load. Add one or two similar items.

• Check all pockets to make sure that they are empty. Items such as nails, hair clips, matches, pens, coins and keys can damage both your washing machine and your clothes.

• Close zippers, hooks and strings to make sure that these items don’t snag on other clothes.

• Pre-treat dirt and stains by brushing a small amount of detergent dissolved water onto stains to help lift dirt.

• Check the folds of the flexible gasket (gray) and remove any small articles.

CAUTION

• Check inside the drum and remove any items from a previous wash.

• Remove any clothing or items from the flexible gasket to prevent clothing and gasket damage.

Adding Cleaning Products

Detergent Dosage

• Detergent should be used according to the instruction of the detergent manufacturer and selected according to type, colour, soiling of the fabric and washing temperature.

• If too much detergent is used, too many suds can occur and this will result in poor washing results or cause heavy load to the motor.

• If you wish to use liquid detergent follow the guidelines provided by the detergent manufacturer.

• You can pour liquid detergent directly into the main detergent drawer if you are starting the cycle immediately.

• Do not use liquid detergent if you are using Time delay, or if you have selected Pre Wash, as the liquid may harden.

• If too many suds occur, reduce the detergent amount.

• Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load. For best results, avoid oversudsing.

• Refer to the label of the clothes, before choosing the detergent and water temperature.

• When using the washing machine, use designated detergent for each type of clothing only:

− General powdered detergents for all types of fabric

− Powdered detergents for delicate fabric

− Liquid detergents for all types of fabric or designated detergents only for wool

• For better washing performance and whitening, use detergent with the general powdered bleach.

• Detergent is flushed from the dispenser at the beginning of the cycle.

NOTE

• Do not let the detergent harden. Doing so may lead to blockages, poor rinse performance or odour.

• Full load : According to manufacturer’s recommendation.

• Part load : 3/4 of the normal amount

• Minimum load : 1/2 of full load

Adding Detergent and Fabric Softener

Adding Detergent

• Main wash only

• Pre wash+Main wash

NOTE

• Too much detergent, bleach or softener may cause an overflow.

• Be sure to use the appropriate amount of detergent.

Adding Fabric Softener

• Do not exceed the maximum fill line. Overfilling can cause early dispensing of the fabric softener, which may stain clothes. Close the dispenser drawer slowly.

• Do not leave the fabric softener in the detergent drawer for more than 2 days (Fabric softener may harden).

• Softener will automatically be added during the last rinse cycle.

• Do not open the drawer when water is being supplied.

• Solvents (benzene, etc.) must not be used.

NOTE

• Do not pour fabric softener directly on the clothes.

Adding Water Softener

• A water softener, such as anti-limescale (e.g. Calgon) can be used to cut down on the use of detergent in extremely hard water areas. Dispense according to the amount specified on the packaging. First add detergent and then the water softener.

• Use the quantity of detergent required for soft water.

Using Tablet

1. Open the door and put tablets into the drum.

2. Load the laundry into the drum and close the door.

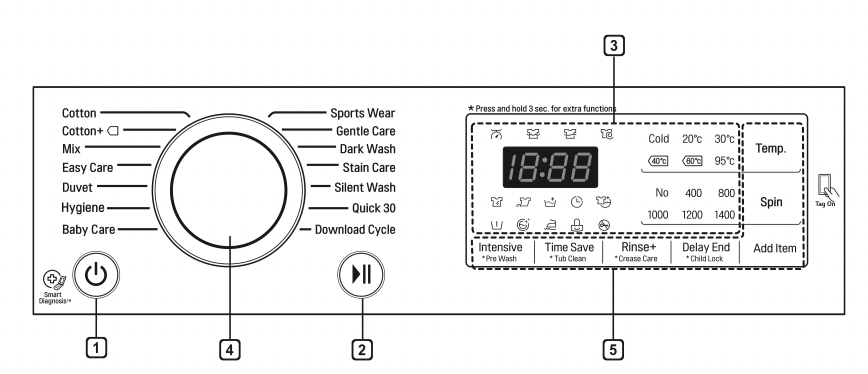

Control Panel

1. Power Button

• Press the Power button to turn the washing machine on.

2. Start/Pause Button

• This Start/Pause button is used to start the wash cycle or pause the wash cycle.

• If a temporary stop of the wash cycle is needed, press the Start/Pause button.

3. Display

• The display shows the settings, estimated time remaining, options, and status messages. When the product is turned on, the default settings in the display will illuminate.

• The display shows estimate time remaining. While the size of the load is being calculated automatically, blinking or ‘Detecting’ appears.

4. Programme Knob

• Programmes are available according to laundry type.

• Lamp will light up to indicate the selected programme.

5. Options

• This allows you to select an additional programme and will light when selected.

• Use these buttons to select the desired programme options for the selected cycle.

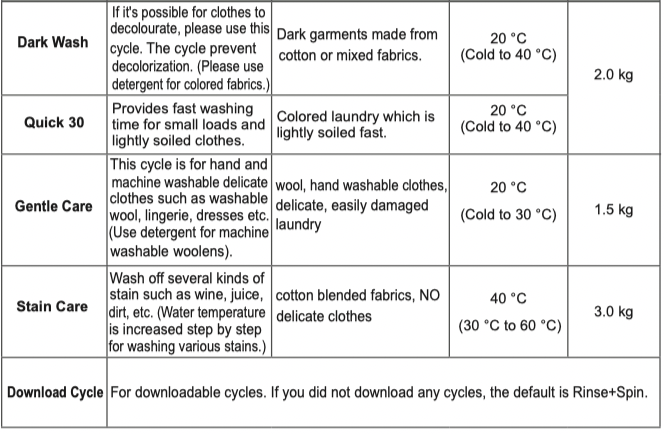

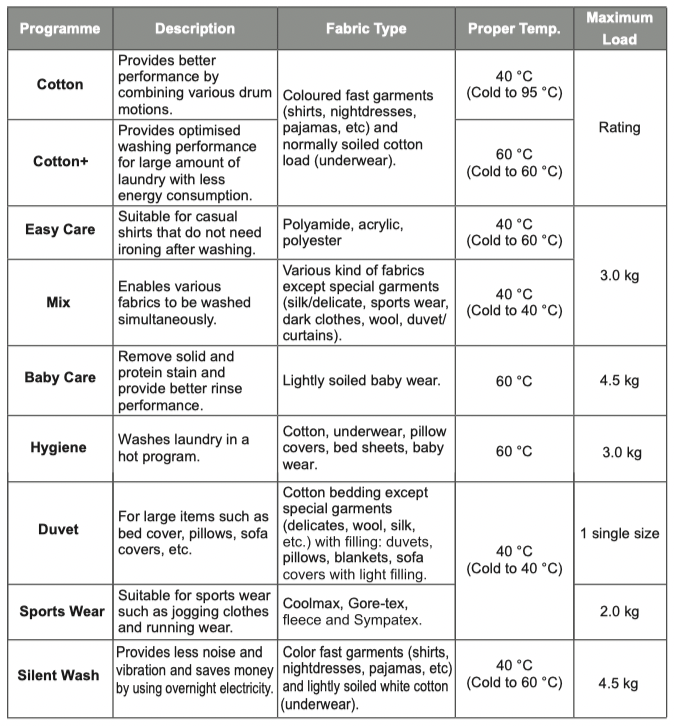

Programme Table

Washing Programme

• Water Temperature: Select the appropriate water temperature for chosen wash programme. Always follow garment manufacturer’s care label or instructions when washing.

• Set program at "Cotton+ 40 °C (Half Load)", "Cotton+ 60 °C (Half Load)", "Cotton+ 60 °C (Full Load)" option for test in conformity with EN60456 and Regulation 1015/2010.

− Standard 60 °C cotton program : Cotton+ + 60°C (Full Load)

− Standard 60 °C cotton program : Cotton+ + 60°C (Half Load)

− Standard 40 °C cotton program : Cotton+ + 40°C (Half Load)

− (They are suitable to clean normally soiled cotton laundry.)

—(They are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry.)

• Actual water temperature may differ from the declared cycle temperature.

• The test results depend on water pressure, water hardness, water inlet temperature, room temperature. type and amount of load. degree of soiling utilized detergent. fluctuations in the main electricity supply and chosen additional options.

NOTE

• Neutral detergent is recommended.

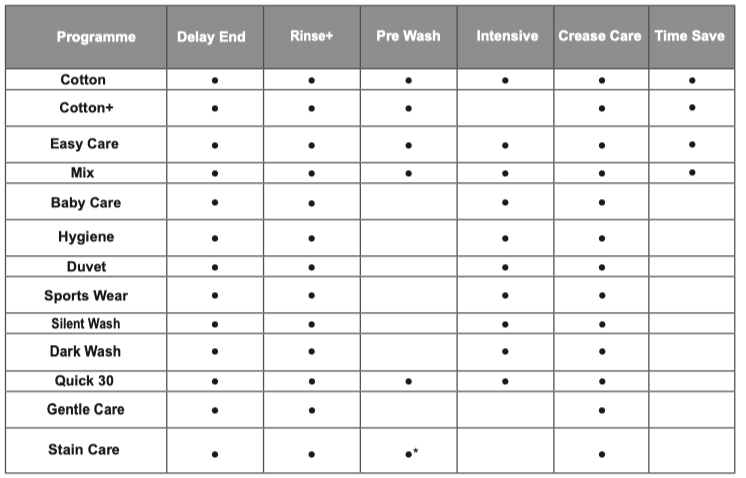

Extra Options

*: This option is automatically included in the cycle and can not be deleted.

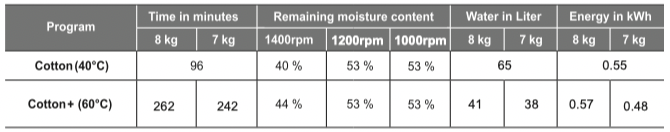

Operating Data

NOTE

• Information of main washing programmes at half load.

Option Programme

Delay End

You can set a time delay so that the washing machine will start automatically and finish after a specified time interval.

1. Press the Power button.

2. Select a washing programme.

3. Press the Delay End button to set time required.

4. Press the Start/Pause button.

NOTE

• The delay time is the time to the end of the programme, not the start. The actual running time may vary due to water temperature, wash load and other factors.

• To cancel the Delay End function, the power button should be pressed.

• Avoid using liquid detergent for this option.

Pre Wash

If the laundry is heavily soiled, the Pre Wash programme is recommended.

1. Press the Power button.

2. Select a washing programme.

3. Press the Pre Wash button.

4. Press the Start/Pause button.

Intensive

If the laundry is normal and heavily soiled, Intensive option is effective.

1. Press the Power button.

2. Select a cycle.

3. Press the Intensive button.

4. Press the Start/Pause button.

Crease Care

If you want to prevent creasing, the Crease Care programme is recommended.

1. Press the Power button.

2. Select a washing programme.

3. Press the Crease Care button.

4. Press the Start/Pause button.

Time Save

This option can be used to reduce the time of a wash programme. It is best used on lightly s oiled loads.

1. Press the Power button.

2. Select a washing programme.

3. Press the Time Save button.

4. Press the Start/Pause button.

Temp.

The Temp. button selects the wash and rinse temperature combination for the selected programme. Press this button until the desired setting is lit. All rinses use cold tap water.

• Select the water temperature suitable for the type of load you are washing. Follow the garment fabric care labels for best results.

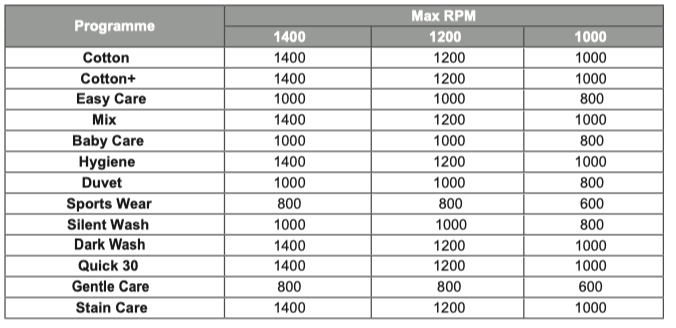

Spin

• Spin speed level can be selected by pressing the Spin button repeatedly.

• Spin Only

1. Press the Power button.

2. Press the Spin button to select RPM.

3. Press the Start/Pause button.

NOTE

• When you select No Spin, it will still rotate for a short time to drain quickly.

Rinse

Rinse+

Add rinse once.

Add Item

Laundry can be added or removed after the washing programme is started.

1. Press the Add Item button when the LED is turned on.

2. Add or remove laundry.

3. Close the door and Press the Start/Pause button.

NOTE

• For safety reasons, the door remains locked when the water level or temperature is high. It is not possible to add laundry during this time.

• If the water temperature in the drum is high, wait until it cools down.

CAUTION

• When adding laundry, make sure to completely push it into the drum. If laundry gets stuck in the door latch hole, the rubber packing may be damaged, causing water leakage and malfunction.

• Forcing the door open may cause part damage, destruction, or safety problems.

• If you open the door while there are a lot of suds and water in the drum, the suds or water may flow. causing burn injury or wet floor.

Child Lock ()

Beep On / Off

Use this option to disable the controls. This feature can prevent children from changing cycles or operating the appliance

Locking the Control Panel

1. Press and hold the Child Lock button for three seconds.

2. A beeper will sound, and will appear on the display. When the Child Lock is set, all buttons are locked except the Power button.

NOTE

• Turning off the power will not reset the child lock function. You must deactivate child lock before you can access any other functions.

Unlocking the Control Panel

Press and hold the Child Lock button for three seconds.

• A beeper will sound and the remaining time for the current programme will reappear on the display.

Beep On / Off

1. Press the Power button.

2. Press the Start/Pause button.

3. Press and hold the Temp. and Delay End button simultaneously for 3 seconds to set the Beep on/off function.

NOTE

• Once the Beep on/off function is set, the setting is memorized even after the power is turned off.

• If you want to turn the Beeper off, simply repeat this process.

SMART FUNCTIONS

Using the Tag On Function

Conveniently use the Smart Diagnosis™ to communicate with the appliance directly from a smart phone.

• The Tag On function can only be used with most smart phones equipped with the NFC (Near Field Communication) function and based on the Android OS (operating system).

Installation of the Application

• Search LG Smart Laundry&DW Global on the Google Play Store from your smart phone.

Using the Application

LG Smart Laundry&DW Global application allows you to use various features for your convenience.

• Cycle Download

• Smart Diagnosis™

• Tag On Cycle Set

• Laundry Stats

NOTE

• Press in the LG Smart Laundry&DW Global application for a more detailed guide on how to use the Tag On function.

• Depending on the smart phone manufacturer and Android OS version, the NFC activation process may differ. Refer to the manual of your smart phone for details.

• Because of the characteristics of NFC, if the transmission distance is too far, or if there is a metal sticker or a protective case on the phone, transmission will not be good. In some cases, NFC-equipped phones may be unable to transmit successfully.

• The content found in this manual may differ depending on the version of LG Smart Laundry&DW Global application, and it may be modified without customers informed.

Using the Smart Diagnosis™ Function

Use this function if you need an accurate diagnosis by an LG Electronics service centre when the product malfunctions or fails. Use this function only to contact the service representative, not during normal operation.

1. Press the Power button to turn on the washing machine. Do not press any other buttons or turn the programme selector knob.

2. When instructed to do so by the call centre, place the mouthpiece of your phone close to the Power button.

3. Press and hold the Temp. button for three seconds, while holding the phone mouthpiece to the icon or Power button.

4. Keep the phone in place until the tone transmission has finished. Time remaining for data transfer is displayed.

• For best results, do not move the phone while the tones are being transmitted.

• If the call centre agent is not able to get an accurate recording of the data, you may be asked to try again.

5. Once the countdown is over and the tones have stopped, resume your conversation with the call centre agent, who will then be able to assist you using the information transmitted for analysis.

NOTE

• The Smart Diagnosis™ function depends on the local call quality.

• The communication performance will improve and you can receive better service if you use the home phone.

• If the Smart Diagnosis™ data transfer is poor due to poor call quality, you may not receive the best Smart Diagnosis™ service.

MAINTENANCE

WARNING

• Unplug the washing machine before cleaning to avoid the risk of electric shock. Failure to follow this warning may result in serious injury, fire, electric shock, or death.

• Never use harsh chemicals, abrasive cleaners, or solvents to clean the washing machine. They may damage the finish.

Cleaning Your Washing Machine

Care After Wash

• After the cycle is finished, wipe the door and the inside of the door seal to remove any moisture.

• Leave the door open to dry the drum interior.

• Wipe the body of the washing machine with a dry cloth to remove any moisture.

Cleaning the Exterior

Proper care of your washing machine can extend its life.

Door:

• Wash with a damp cloth on the outside and inside and then dry with a soft cloth.

Exterior:

• Immediately wipe off any spills.

• Wipe with a damp cloth.

• Do not press the surface or the display with sharp objects.

Cleaning the Interior

• Use a towel or soft cloth to wipe around the washing machine door opening and door glass.

• Always remove items from the washing machine as soon as the cycle is complete. Leaving damp items in the washing machine can cause wrinkling, colour transfer, and odour.

• Run the Tub Clean programme once a month (or more often if needed) to remove detergent buildup and other residue

Cleaning the Water Inlet Filter

• Turn off the supply taps to the machine if the washing machine is to be left for any length of time (e.g. holiday), especially if there is no floor drain (gully) in the immediate vicinity.

• IE icon will be displayed on the control panel when water is not entering the detergent drawer.

• If water is very hard or contains traces of lime deposit, the water inlet filter may become clogged. It is therefore a good idea to clean it occasionally.

1. Turn off the water tap and unscrew the water supply hose.

2. Clean the filter using a hard bristle brush.

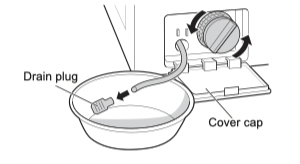

Cleaning the Drain Pump Filter

• The drain filter collects threads and small objects left in the laundry. Check regularly that the filter is clean to ensure smooth running of your washing machine.

• Allow the water to cool down before cleaning the drain pump, carrying out emergency emptying, or opening the door in an emergency.

1. Open the cover cap and pull out the hose.

2. Unplug the drain plug and open the filter by turning it to the left.

3. Remove any extraneous matter from the pump filter.

4. After cleaning, turn the pump filter and insert the drain plug.

5. Close the cover cap.

CAUTION

• First drain using the drain hose and then open the pump filter to remove any threads or objects.

• Be careful when draining, as the water may be hot.

Cleaning the Dispenser Drawer

Detergent and fabric softener may build up in the dispenser drawer. Remove the drawer and inserts and check for buildup once or twice a month.

1. Remove the detergent dispenser drawer by pulling it straight out until it stops.

• Press down hard on the disengage button and remove the drawer.

2. Remove the inserts from the drawer.

• Rinse the inserts and the drawer with warm water to remove buildup from laundry products. Use only water to clean the dispenser drawer. Dry the inserts and drawer with a soft cloth or towel.

3. To clean the drawer opening, use a cloth or small, non-metal brush to clean the recess.

• Remove all residue from the upper and lower parts of the recess.

4. Wipe any moisture off the recess with a soft cloth or towel.

5. Return the inserts to the proper compartments and replace the drawer.

Tub Clean ( ) (Optional)

Tub Clean is a special programme to clean the inside of the washing machine.

A higher water level is used in this programme at higher spin speed. Perform this programme regularly.

1.Remove any clothing or items from the washing machine and close the door.

2. Open the dispenser drawer and add antilimescale (e.g. Calgon) to the main wash compartment.

• For tablets put into the drum.

3. Close the dispenser drawer slowly.

4. Power on and then press and hold Tub Clean button for 3 seconds. Then will be displayed on the display.

5. Press the Start/Pause button to start.

6. After the programme is complete, leave the door open to allow the washing machine door opening, flexible gasket and door glass to dry.

CAUTION

• If there is a child, be careful not to leave the door open for too long.

NOTE

• Do not add any detergent to the detergent compartments. Excessive suds may generate and leak from the washing machine.

Caution on Freezing During Winter

• When frozen, the product does not operate normally. Make sure to install the product where it will not freeze during winter.

• In case the product must be installed outside on a porch or in other outdoor conditions, make sure to check the following.

How to Keep the Product from Freezing

• After washing, remove water remaining inside the pump completely with the opening hose plug used for removal of residual water. When the water is removed completely, close the hose plug used for removal of residual water and cover cap.

• Hang down drain hose to pull out water inside the hose completely.

CAUTION

• When the drain hose is installed in a curved shape, the inner hose may freeze.

• After closing the tap, disconnect the cold supply hose from the tap, and remove water while keeping the hose facing downwards.

Check for Freezing

• If water does not drain when opening the hose plug used for removal of residual water, check the drainage unit.

• Turn the power on, choose a washing programme, and press the Start/Pause button.

• When is shown in display window while the product is in operation, check water supply unit and drainage unit (Some models do not have an alarm function that indicates freezing).

NOTE

• Check that water is coming into the detergent drawer while rinsing, and water is draining through the drain hose while spinning.

How to Handle Freezing

• Make sure to empty the drum, pour warm water of 50–60 °C up to the rubber part inside the drum, close the door, and wait for 1–2 hours.

CAUTION

• When the drain hose is installed in a curved shape, the inner hose may freeze.

• Open the cover cap and hose plug used for removal of residual water to extract water completely.

NOTE

• If water does not drain, this means the ice is not melted completely. Wait more.

• When water is removed completely from the drum, close the hose plug used for removal of residual water, choose a washing programme, and press the Start/Pause button.

NOTE

• Check that water is coming into the detergent drawer while rinsing, and water is draining through the drain hose while spinning.

• When water supply problems occur, take the following measures.

− Turn off the tap, and thaw out the tap and both connection areas of inlet hose of the product using a hot water cloth.

− Take out inlet hose and immerse in warm water below 50–60 °C.

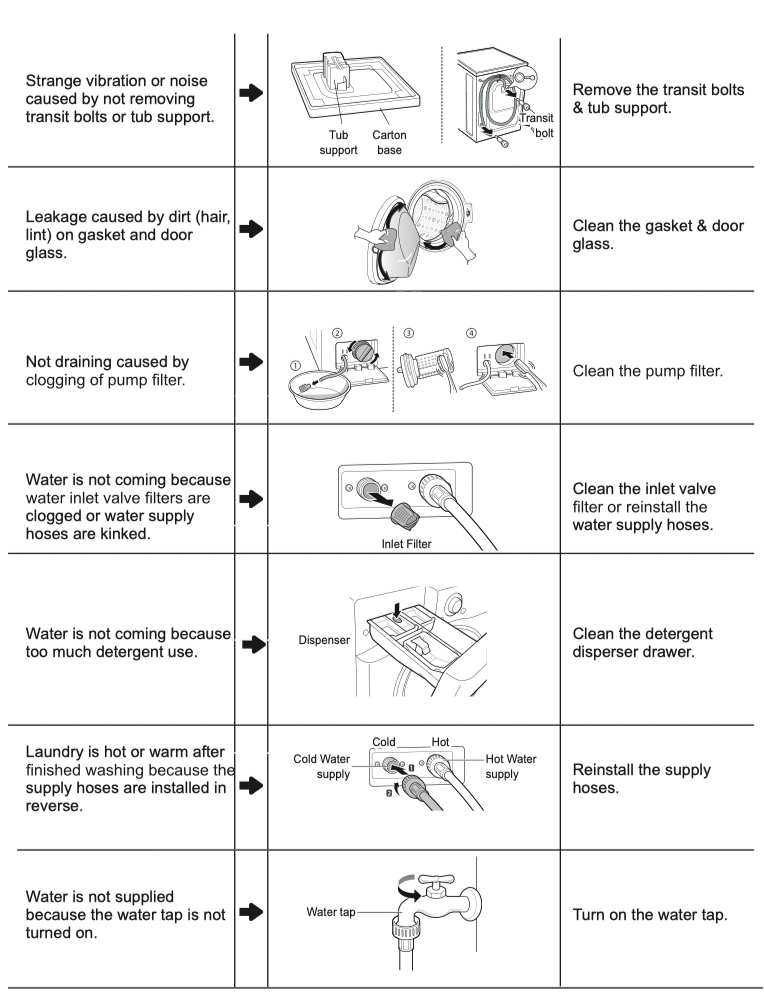

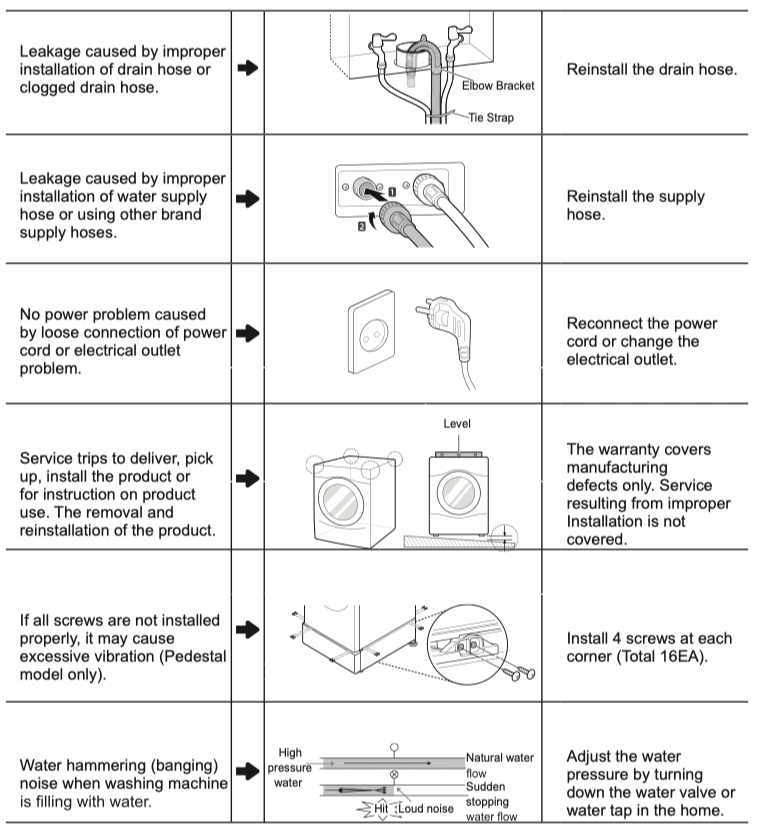

TROUBLESHOOTING

• Your washing machine is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If your washing machine does not function properly or does not function at all, check the following before you call for service:

Diagnosing Problems

Symptoms

Reason

Solution

Rattling and clanking noise

Foreign objects such as coins or safety pins may be in drum or pump.

• Check all pockets to make sure that they are empty. Items such as clips, matches, pens, coins, and keys can damage both your washer and your clothes.

• Close zippers, hooks, and drawstrings to prevent these items from snagging or tangling on other clothes.

Thumping sound

Heavy wash loads may produce a thumping sound. This is usually normal.

• If sound continues, washing machine is probably out of balance. Stop and redistribute wash load.

Vibrating noise

Have all the transit bolts and tub support been removed?

• If not removed during installation, refer to Installation guide for removing transit bolts.

Are all the feet resting firmly on the ground?

• Make sure the washing machine is level and tighten the lock nuts up towards the base of the appliance.

Water leaks

Supply hoses or drain hose are loose at tap or washing machine.

• Check and tighten hose connections.

House drain pipes are clogged.

• Unclog drain pipe. Contact plumber if necessary.

Oversudsing

Too much detergent or unsuitable detergent may cause excessive foaming which may result in water leaks.

• Make sure that the suggested amount of detergent is used per the manufacturer's recommendations.

Water does not enter washing machine or it enters slowly

Water supply is not adequate in that location.

• Check another tap in the house.

Water supply tap is not completely open.

• Fully open tap.

Water supply hose(s) are kinked.

• Straighten hose.

The filter of the supply hose(s) clogged.

• Check the filter of the supply hose.

Water in the washing machine does not drain or drains slowly

Drain hose is kinked or clogged.

• Clean and straighten the drain hose.

The drain filter is clogged.

• Clean the drain filter.

Washing machine does not start

Electrical power cord may not be plugged in or connection may be loose.

• Make sure plug fits tightly in wall outlet.

House fuse blown, circuit breaker tripped,or a power outage has occurred.

• Reset circuit breaker or replace fuse. Do not increase fuse capacity. If problem is a circuit overload, have it corrected by a qualified electrician.

Water supply tap is not turned on.

• Turn on water supply tap.

Washing machine will not spin

Check that the door is firmly shut.

• Close the door and press the Start/ Pause button. After pressing the Start/Pause button, it may take a few moments before the washing machine begins to spin. The door must be locked before spin can be achieved. Add 1 or 2 similar items to help balance the load. Rearrange load to allow proper spinning.

Door does not open

Once washing machine has started, the door cannot be opened for safety reasons.

• Check if the ‘Door Lock’ icon is illuminated. You can safely open the door after the ‘Door Lock’ icon turns off.

Wash cycle time delayed

If an imbalance is detected or if the suds removing programme is on, the wash time will increase.

• This is normal. The time remaining shown in the display is only an estimate. Actual time may vary.

Fabric softener overflow

Too much softener may cause an overflow.

• Follow softener guidelines to ensure appropriate amount is used. Do not exceed the maximum fill line.

Softeners dispensed too early

Too much softener may cause an premature dispensing.

• Follow the guidelines provided by the detergent manufacturer.

• Close the dispenser drawer slowly. Do not open the drawer during the wash cycle.

Dry problem

Check water supply tap.

• Do not overload. Check that the washing machine is draining properly to extract adequate water from the load. Clothes load is too small to tumble properly. Add a few towels.

• Turn off water supply tap.

Error Messages

Symptoms

Reason

Solution

Water supply is not adequate in area. • Check another tap in the house.
Water supply taps are not completely open. • Fully open tap.
Water supply hose(s) are kinked. • Straighten hose(s).
The filter of the supply hose(s) are clogged. • Check the filter of the supply hose.

If water leakage occurred in the aqua stop supply hose, indicator A will become red.

May vary depending on the model.

• Use the aqua stop supply hose.
Load is too small. • Add 1 or 2 similar items to help balance the load.
Load is out of balance. • Add 1 or 2 similar items to help balance the load.
The appliance has an imbalance detection and correction system. If individual heavy articles are loaded (e.g. bath mat, bath robe, etc.) this system may stop spinning or even interrupt the spin cycle altogether. • Rearrange load to allow proper spinning.
If the laundry is still too wet at the end of the cycle, add smaller articles of laundry to balance the load and repeat the spin cycle. • Rearrange load to allow proper spinning.
Drain hose is kinked or clogged. • Clean and straighten the drain hose.
The drain filter is clogged. • Clean the drain filter.

Ensure door is not open. • Close the door completely. If is not released, call for service.
Control error. • Unplug the power plug and call for service.
Water overfills due to the faulty water valve.

• Close the water tap.

• Unplug the power plug.

• Call for service.

Malfunction of water level sensor.

• Close the water tap.

• Unplug the power plug.

• Call for service.

Over load in motor. • Allow the washing machine to stand for 30 minutes to allow the motor to cool, then restart the cycle.
Water leaks. • Call for service.
Does not dry • Call for service.



See other models: FH4G1JCS2W GBB60PZDZS GBF60NSFZB GSL560PZXV GM6140PZQV

LG Electronics F2J6TN8S | File type: PDF | Filename: LG Electronics F2J6TN8S 8KG Washing Machine with multiple Wash Programs and Smart ThinQ connectivity.pdf | Size: 7.51 MB | Language: English

Download User Manual

Product Infomation and Reviews - F2J6TN8S photo

F2J6TN8S Photo

View more photos

LG Electronics in United States

(800) 243-0000 Consumer (7am-midnight CST) (888) 865-3026 Commercial (8am-6pm CST)

LG Electronics F2J6TN8S Questions and Answers

Find answers or Ask a question.
  • Total questions: 1
  • Questions unAnswered : 1

Q: Where do you put the HE liquid detergent? There seem to be two places Reply
