EN
DETAILED
INSTRUCTIONS
HOW TO USE YOUR
DRYER
www.gorenje.com
We thank you for the
confidence you have shown us by
purchasing this dryer. Your new
dryer complies with the requirements
of modern laundry care; it will
dry your laundry quickly, leaving
it soft and smooth, while use of
special programs will not deform
it. SenzoCare technology will allow
simple operation of the dryer with
very low power consumption.
This appliance is designed exclusively
for household use for clothes which
may be drying in a dryer.
3
TABLE OF CONTENTS
349780
DRYING
STEPS
CLEANING
AND
MAINTANCE
OF THE
APPLIANCE
INTRODUCTION
TROUBLE-
SHOOTING
GETTING
STARTED
OTHER
4 APPLIANCE
5 Technical information
6 Front panel description
8 SAFETY PRECAUTIONS
10 INSTALLATION AND CONNECTION
10 Selecting the room
13 Installation
14 Condensate discharge
15 Electrical connections
16 Moving and transport
16 Subsequent transport
17 Emptying the steam generator tank
18 Steam generator system
19 BEFORE THE FIRST USE
22 DRYING STEPS (1 - 6)
22 1. Step: Check the tags on your laundry
23 2. Step: Preparing the laundry
26 3. Step: Selecting a program
29 4. Step: Additional functions
32 5. Step: Program start-up
32 6. Step: End of drying cycle
33 CLEANING AND MAINTENANCE
34 Cleaning the filter on the lower side of the door opening
35 Cleaning the net filter in the door
36 Cleaning the foam filter in the door
37 Cleaning the heat pump filter
38 Cleaning the steam generator tank filter
39 Emptying the condensate tank
40 Cleaning the dryer
41 INTERRUPTING AND CHANGING THE PROGRAM
42 What to do...?
44 TIPS AND RECOMMENDATIONS FOR DRYING AND ECONOMIC
USE OF YOUR DRYER
45 DISPOSAL
46 TYPICAL CONSUMPTION TABLE
4
APPLIANCE
(DRYER DESCRIPTION)
1
2
3
5
4
6
7
8
9
1
2
3
3
3
3
349780
FRONT
1 Program selector dial
2 Front panel
3 Condensate tank
4 Door
5 Net filter
6 Filter on the lower side of the
door opening
7 Condenser
8 Air vent
9 Rating plate
BACK
1 Condensate discharge pipe
2 Power cord
3 Adjustable feet
5
TECHNICAL INFORMATION
(DEPENDING ON THE MODEL)
TYPE: SP10/XXX
Art.No.: XXXXXX
AC 220-240V 50 Hz
Pmax.: XXXXW
10A
MADE IN SLOVENIA
MODEL: XXXXXX
Ser.No.: XXXXXX
X
kg
IPX4
349780
The rating plate with the basic information on the dryer is located under the door frame.
Width
600mm
Height
850mm
Depth
600mm
Depth with door
open
1100mm
Weight
XX/YY kg
(depending on the
model)
Rated voltage
See rating plate
Fuse
See rating plate
Nominal power
See rating plate
Maximum load
See rating plate
The rating plate
6
FRONT PANEL DESCRIPTION
FOR MODELS A) WITH A STEAM GENERATOR AND
B) WITHOUT A STEAM GENERATOR
START|PAUSE
90'
30'
1
3
5c
6
2c
2b
2a
4
5b
5a
349780
1
START/ PAUSE key,
use this key to start or
stop the program. When
selected, the signal light on
the key will flash. When the
program has started it will
be lit continuously.
2
a, b, c: SIGNAL
LIGHTS are on: when
it is necessary to clean the
filter, empty the condensate
tank or when the child lock
is on.
3
START DELAY key,
to select the delayed
start of the drying program.
4
DISPLAY of delay TIME
or remaining time until
the end of the drying cycle
A) WITH A STEAM GENERATOR
7
START|PAUSE
90'
30'
1
3
5c
6
2c
2b
2a
4
5b
5a
START|PAUSE
30'
90'
60'
1
3
5c
6
2
4
5b
5a
349780
5

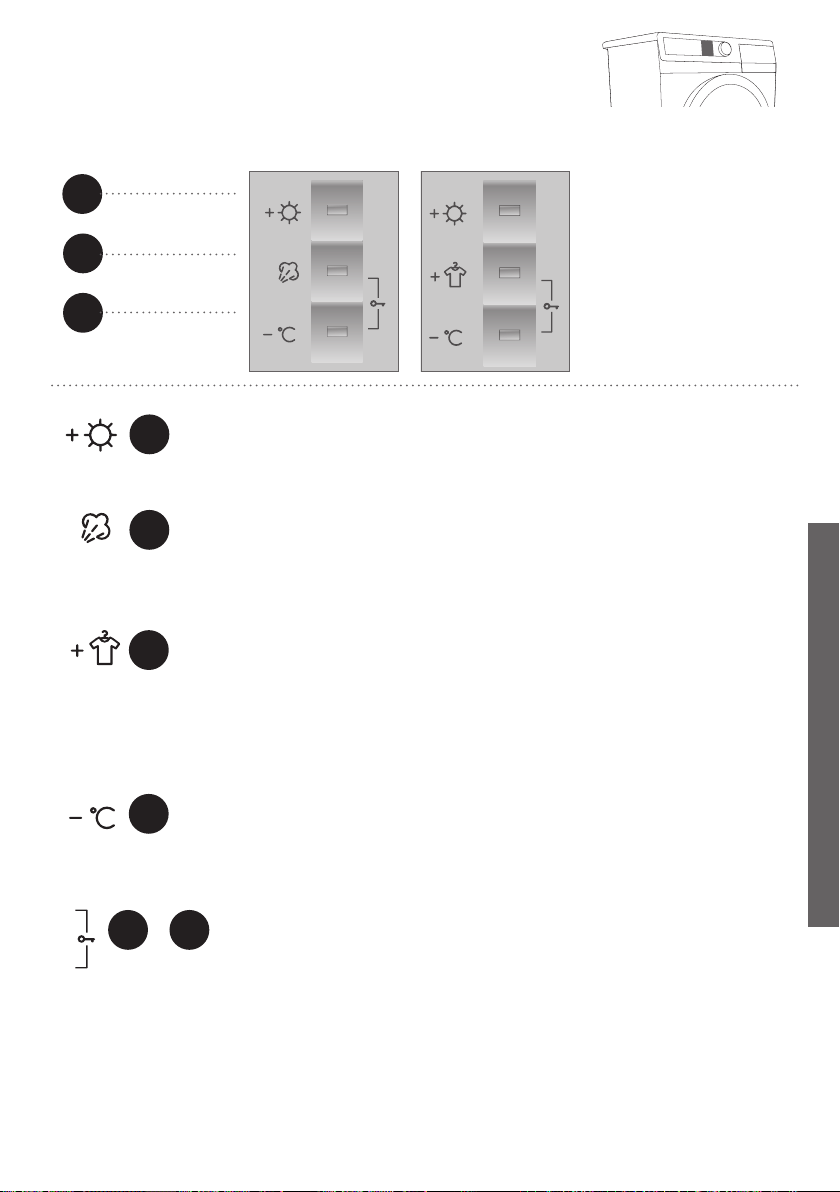

a, b, c: ADDITIONAL
FUNCTION keys, to
extend or adjust the basic
programs.
6
ON/OFF and PROGRAM
SELECTOR dial
MOST USED PROGRAMS
B) WITHOUT A STEAM
GENERATOR
8
SAFETY PRECAUTIONS
349780
Please don´t use the appliance unless you
have studied and understood the instruction
manual.
Your dryer is intended solely for household
use.
If the dryer is used for professional, for-profit
purpose or purpose exceeding normal use
in a household, or if the dryer is used by a
person who is not a consumer, the warranty
period shall be equal to the shortest warranty
period required by relevant legislation.
Before connecting the dryer to the power
mains, please read carefully the instructions
for use which describe the dryer and its
correct and safe use. The instructions apply
for several appliance types/models; thus,
settings or equipment may be described
herein which is not available in your dryer.
Failure to observe instructions or incorrect
use of the dryer, can lead to damage of
laundry, dryer or the user.
Store the instruction manual nearby the
dryer.
Do not allow the children to play with the
appliance.
Prevent your children and pets to enter the
dryer drum.
Air in the dryer environment should not
contain dust particles.
The air where the dryer is installed, should
be well ventilated to prevent feedback of
gases released from the gas appliances with
open fire (e.g. fireplace).
Final drying cycle includes cooling; be
careful not to extract excessively hot
laundry from the drum.
Clean the filters after each drying cycle. If
you have removed the filters, replace them
before the next drying cycle.
After each cleaning insert the condenser
back into the air duct. Operation of the
appliance without condenser, or with
damaged condenser is extremely dangerous
and may cause fire.
Always switch off the dryer after use (the
program selector switch should be in the
"OFF" position) and unplug the power cord
from the wall outlet (to prevent the hazard of
lightning or voltage overload).
Leave any repairs and similar tasks on the
dryer to an expert.
Unprofessional repair may result in an
accident or major malfunction. Call the
authorized service department (see list of
service departments attached).
The warranty does not cover (consumables
(light bulbs), minor deviations in colour,
increased noise which is a consequence of
the appliance age and does not affect the
functionality of the appliance, and aesthetic
defects on components that do not affect
the functionality and safety of the appliance.
The appliance is manufactured in
compliance with all effective safety
standards.
Nevertheless, we recommend it is not used
by persons with impaired physical or mental
9
349780

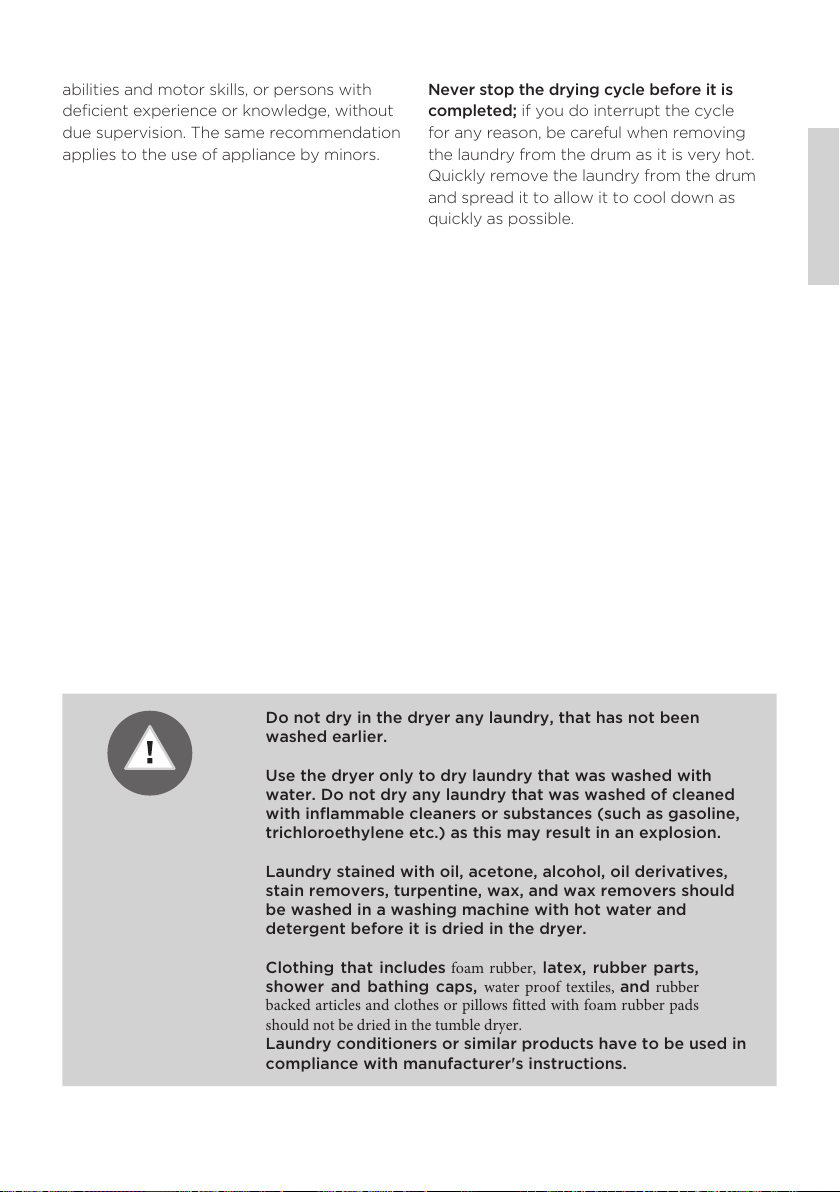

TO REDUCE FIRE HAZARD, PLEASE READ THE
FOLLOWING INSTRUCTIONS:
Do not dry in the dryer any laundry, that has not been
washed earlier.
Use the dryer only to dry laundry that was washed with
water. Do not dry any laundry that was washed of cleaned
with inflammable cleaners or substances (such as gasoline,
trichloroethylene etc.) as this may result in an explosion.
Laundry stained with oil, acetone, alcohol, oil derivatives,
stain removers, turpentine, wax, and wax removers should
be washed in a washing machine with hot water and
detergent before it is dried in the dryer.
Clothing that includes foam rubber, latex, rubber parts,
shower and bathing caps, water proof textiles, and
rubber
backed articles and clothes or pillows fitted with foam rubber pads
should not be dried in the tumble dryer.
Laundry conditioners or similar products have to be used in
compliance with manufacturer's instructions.
abilities and motor skills, or persons with
deficient experience or knowledge, without
due supervision. The same recommendation
applies to the use of appliance by minors.
The dryer back wall can be hot danger of
burns.
Never stop the drying cycle before it is
completed; if you do interrupt the cycle
for any reason, be careful when removing
the laundry from the drum as it is very hot.
Quickly remove the laundry from the drum
and spread it to allow it to cool down as
quickly as possible.
10
INSTALLATION AND
CONNECTION
SELECTING THE ROOM
10 cm
10 cm
5 cm
349780

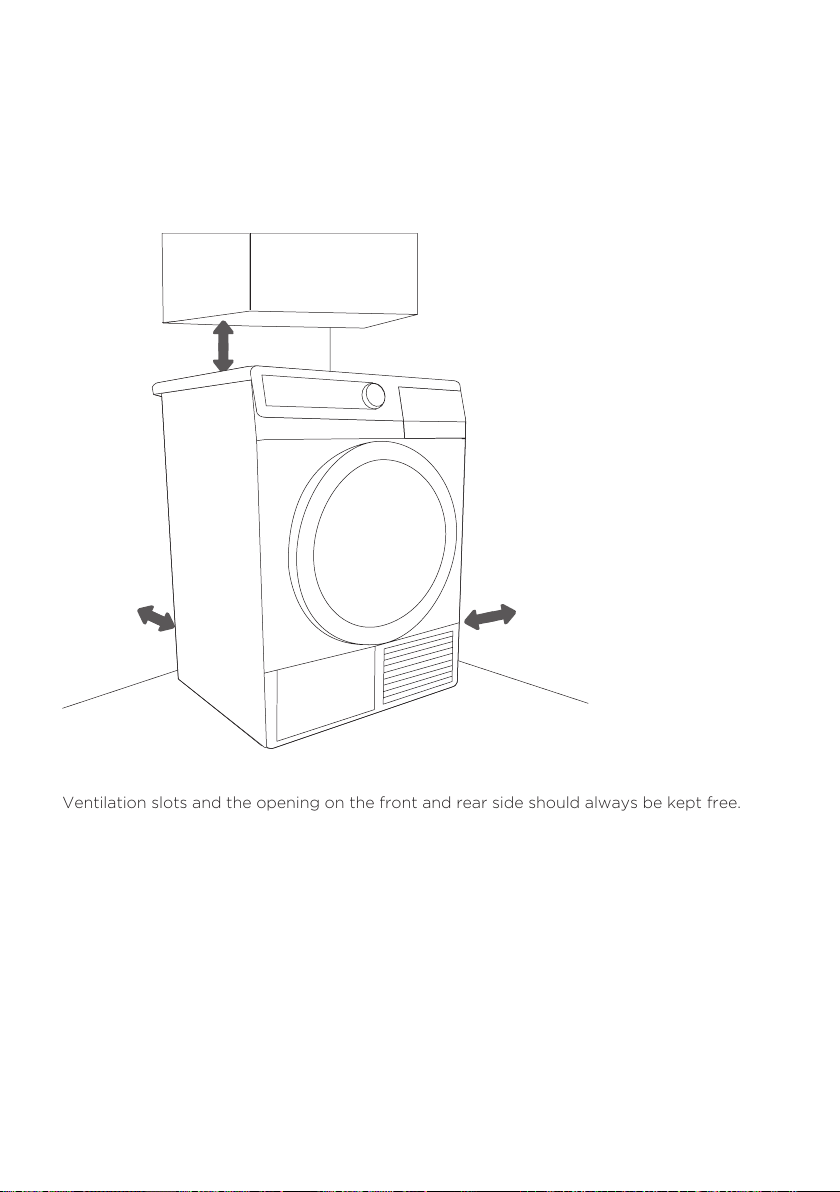

Ventilation slots and the opening on the front and rear side should always be kept free.
Do not install the appliance in a room where there is danger of frost.
The room in which the appliance is installed should be adequately ventilated, with
temperature between 10°C and 25°C. When the dryer is operated at a lower ambient
temperature, condensate can accumulate in the appliance interior.Frozen water in the
condensate tank or pump may damage the dryer.
The surrounding illumination in the installation room should be adequate to read the front
panel properly.
When installing the dryer in a room, note the required clearance as indicated in the image.
In case of failure to heed the required minimum clearance, the dryer may overheat.
11
POSITIONING THE APPLIANCE
4X
349780
Positioning the appliance on top of the washing machine by using the vacuum feets or
side by side.
Dryer can be stand freely on the floor or on a washing machine of the same dimensions
– minimum width 517 mm, minimum depth 476 mm. The surface on which the dryer is
placed should be clean and level.
Use the vacuum feet attached; they are designed to prevent the dryer from sliding.
(Vacuum feet are attached or can be purchased (depending on model))
Washing machine on which you wish to install the dryer must be able to bear the weight
of the dryer (see washing machine's rating plate or technical information).
12
349780
Do not place the dryer behind lockable or sliding door or door
with a hinge opposite the dryer. Install the dryer in such way
that the door can always be freely opened.
Never block the cool air opening (see dryer description).
Drying machine on top should be placed by at least two
persons.
Do not place the dryer on a carpet with long fibres as this may
impede air circulation.
The appliance may not be in contact with a wall or adjacent
furniture.
Lint must not be allowed to accumulate around the tumble
dryer
13
INSTALLATION
349780

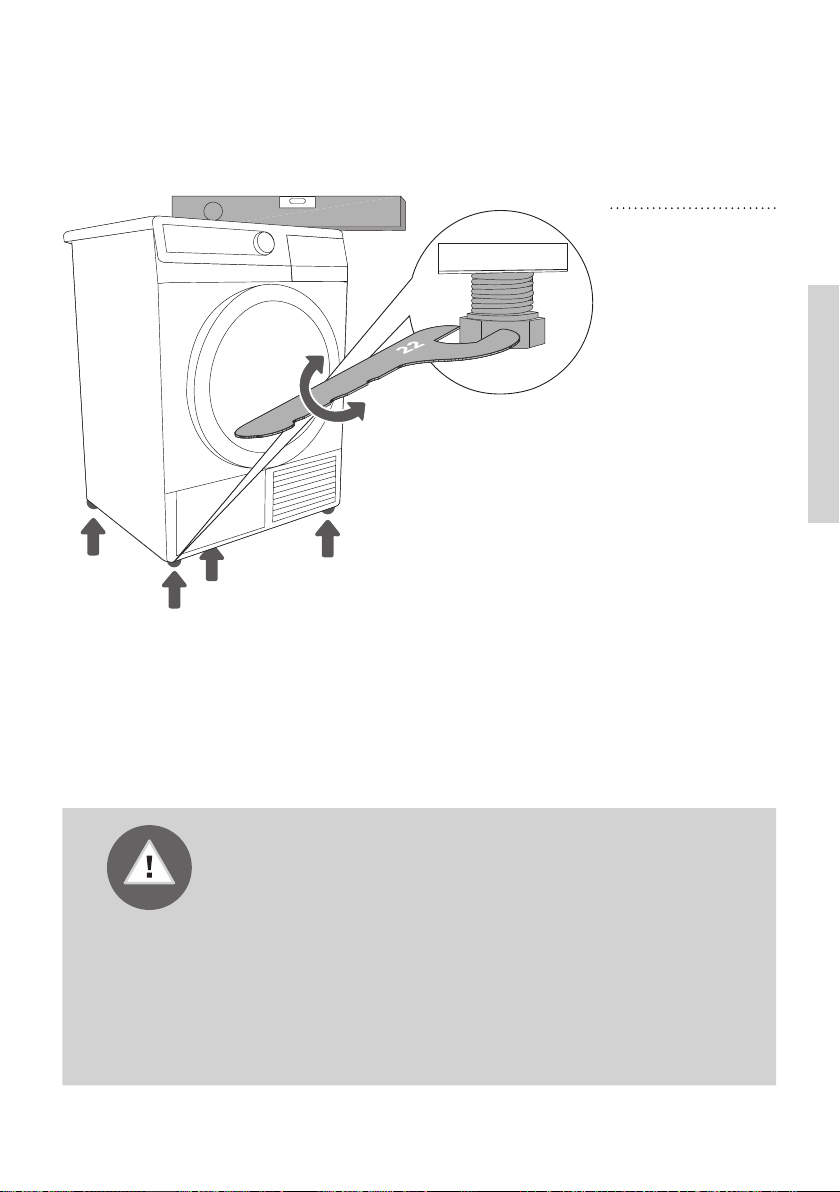

Level the dryer in
longitudinal and
traverse direction
by rotating the
adjustable feet
which allow levelling
by +/- 1 cm. Use
key nr. 22 and spirit
level.
Floor on which the machine is placed must have a concrete
base. They must be clean and dry; otherwise, the machine may
slide. Also clean the adjustable feet.
The appliance must stand level and stable on a solid base.
Vibrations, moving of the appliance across the room, or loud
operation due to improperly adjusted feet are not covered by
the warranty.
Sometimes, unusual or loud noise may appear during
appliance operation; these are mostly the result of improper
installation.
14
CONDENSATE DISCHARGE
max 80 cm
349780
The moisture from the laundry is extracted in the condenser unit
and accumulated in the condensate tank.
During the drying process, a control light will warm you of a full
condensate tank which has to be emptied.
Interruption of the drying cycle due to full condensate tank can be
avoided by running the condensate discharge tube found at the
back of the appliance directly into a drain.
If the condensate discharge tube is run into a drain, make sure
the tube is firmly secured. This will prevent any water spillage
which could result in unexpected damage.
In this case, the steam generator tank will not be filled
automatically. It will always require manual filling (see section
Filling and replenishing the steam generator tank).
1
Pull the tube to
remove it with
flat screw-driver,
from the holder on
the appliance back
wall (on the left
hand side under the
cover).
2
Install tube into
the drain, at
a height of 80 cm
from the ground.
15
ELECTRICAL CONNECTIONS
2h
349780

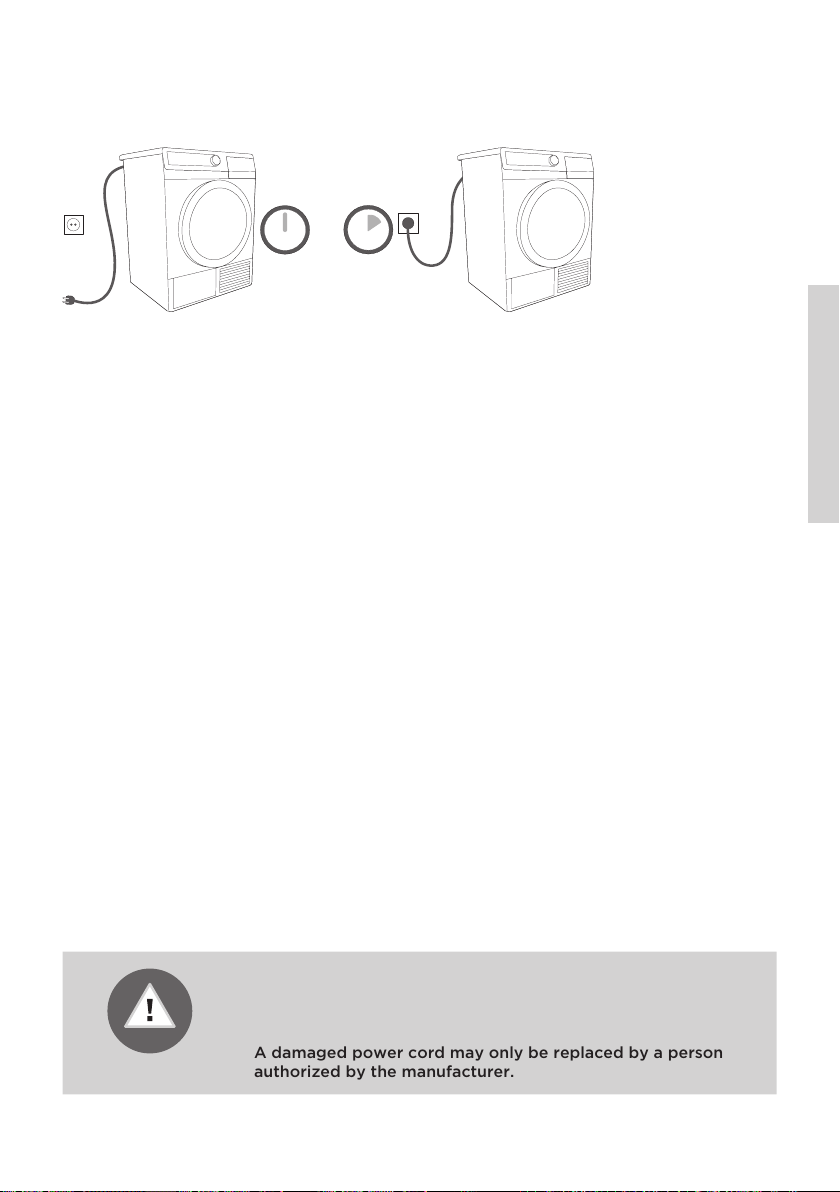

The dryer should be left to stand still for at least two hours
before it is connected to the power mains to allow the system to
stabilize.
Use the power cord to connect the dryer to the power mains
through a power outlet. The dryer may not be connected to the
power mains through an extension cable (danger of overheating
and fire). Nominal voltage and other information is given on the
rating plate located under the door frame.
To prevent from damage by excess voltage on the mains due
to lightning strike we recommend to use a class I over-voltage
protector between the machine and the mains.
After installation, the wall outlet should be freely accessible.
The outlet should be fitted with an earth contact (in
compliance with the relevant regulations).
A damaged power cord may only be replaced by a person
authorized by the manufacturer.
16
SUBSEQUENT TRANSPORT
MOVING AND TRANSPORT
349780
After each drying certain amount of condensed water is retained
in the appliance. Switch on the appliance and choose one of the
programs, then let the appliance operate for approximately half
a minute. This will pump out the remaining water and prevent
damage to the dryer during transport.
After transport, the dryer should be left to stand still for at
least two hours before it is connected to the power mains to
allow the system to stabilize. We recommend that installation
and connection should be done by a qualified person.
If the appliance was not transported in compliance with the
instructions, the dryer should be left to stand still at least two
hours before it is reconnected to the power mains.
Before connecting the appliance, read the instructions for
use. Repair or any warranty claim resulting from incorrect
connection or use of the appliance shall not be covered by the
warranty.
The belt can be replaced by a servising engineer only, who
incorporates an original spare part with the marking OPTIBELT
EPH 1906, code 104265, OPTIBELT 8 EPH 1941, code 160165
(depending on model).
17

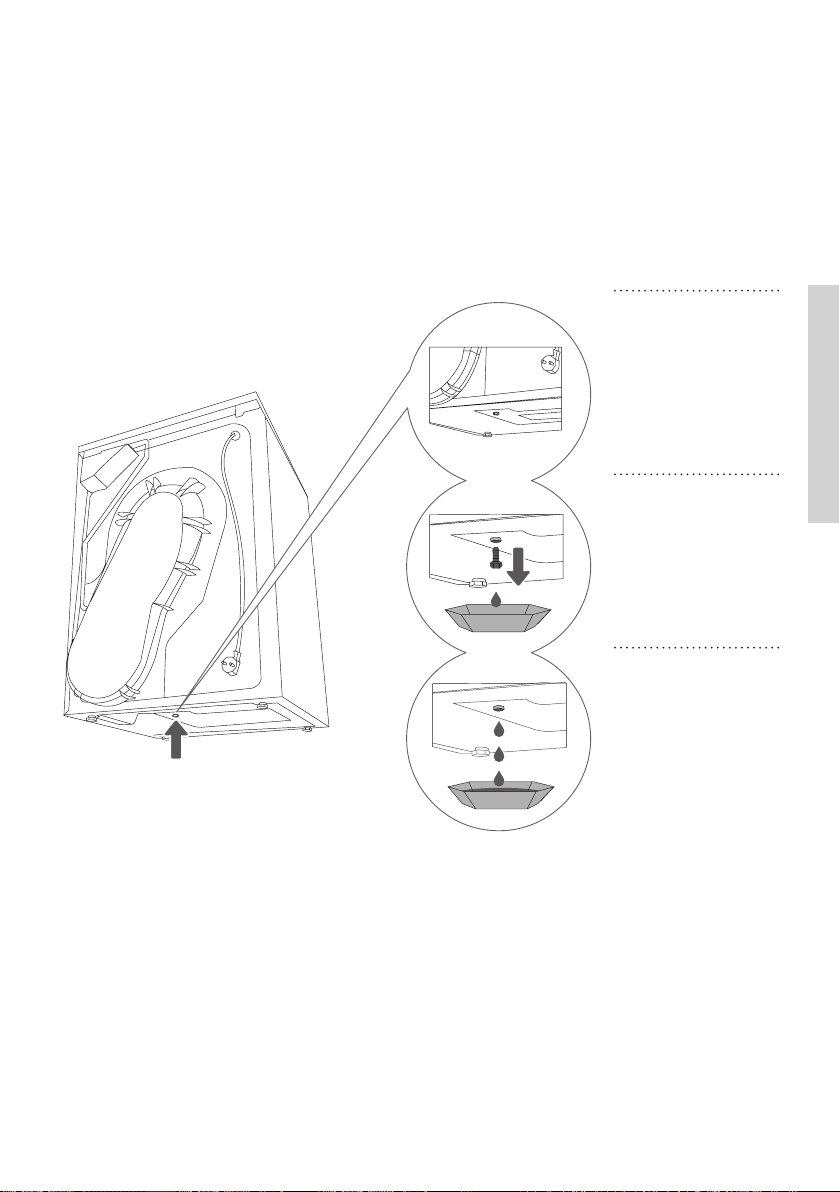

EMPTYING THE STEAM GENERATOR TANK
(ONLY FOR MODELS WITH STEAM GENERATOR)
349780
Before transporting a dryer that has been previously used, the
steam generator tank must also be emptied. Otherwise, water
from the tank may spill into the dryer interior. Move the dryer
approximately 40 cm away from the wall and tilt it backwards.
1
The steam
generator tank
emptying plug is
located on the front
side (lower right
hand side).
2
Place an empty
vessel under the
plug (approximately
2 l) and pull out the
plug
3
When the water
is discharged,
replace the plug
(if the plug is not
replaced, water will
spill from the dryer
during the next
drying cycle).
18
STEAM GENERATOR SYSTEM
(DEPENDING ON THE MODEL)
349780
After the end of the drying program, immediately remove the
laundry from the dryer to prevent it from creasing again.
Care and treatment of your laundry with steam.
Use steam to straighten the creases and refresh the laundry. The
laundry will become soft and smooth, making ironing much easier
19
BEFORE THE FIRST USE
1 2
349780
Clean the dryer
drum before using
the dryer for the first
time. Use a damp
cloth and a mild
cleaning agent.
Open the disconnected dryer by pressing the door on the left side.
20
349780
BEFORE USING THE APPLIANCE FOR THE FIRST
TIME
(MODEL WITH STEAM GENERATOR)
If you select one of the steam programs as the first program to be run with your dryer,
first add distilled water to the steam generator tank; the dryer needs the distilled water to
generate steam.
If the steam generator tank is empty, none of the steam programs will be available.
"LO" (steam generator tank empty) will appear on the display. Later, the system is
automatically filled with condensed water accumulated during the drying process.
Only use distilled water. Do not use regular tap water or any
additives. Limescale may damage the heater. Malfunction or
failure due to accumulation of limescale is not covered by the
warranty.
Add distilled water when the appliance is switched on and one
of the steam programs is selected (but before starting any
drying program). Otherwise, the level sensor will not operate
and water may overflow to the dryer interior.
21
FILLING AND REPLENISHING THE STEAM
GENERATOR TANK
(MODEL WITH STEAM GENERATOR)
1
2
349780
By slowly pouring, you will prevent the water from flowing
down the front wall of the appliance. (Steam generator tank is
not visible as it is located in the dryer interior; only the steam
generator tank filter is visible.
When the steam generator tank is full, "FULL" will be displayed
on the screen and an acoustic alarm will be emitted.
1

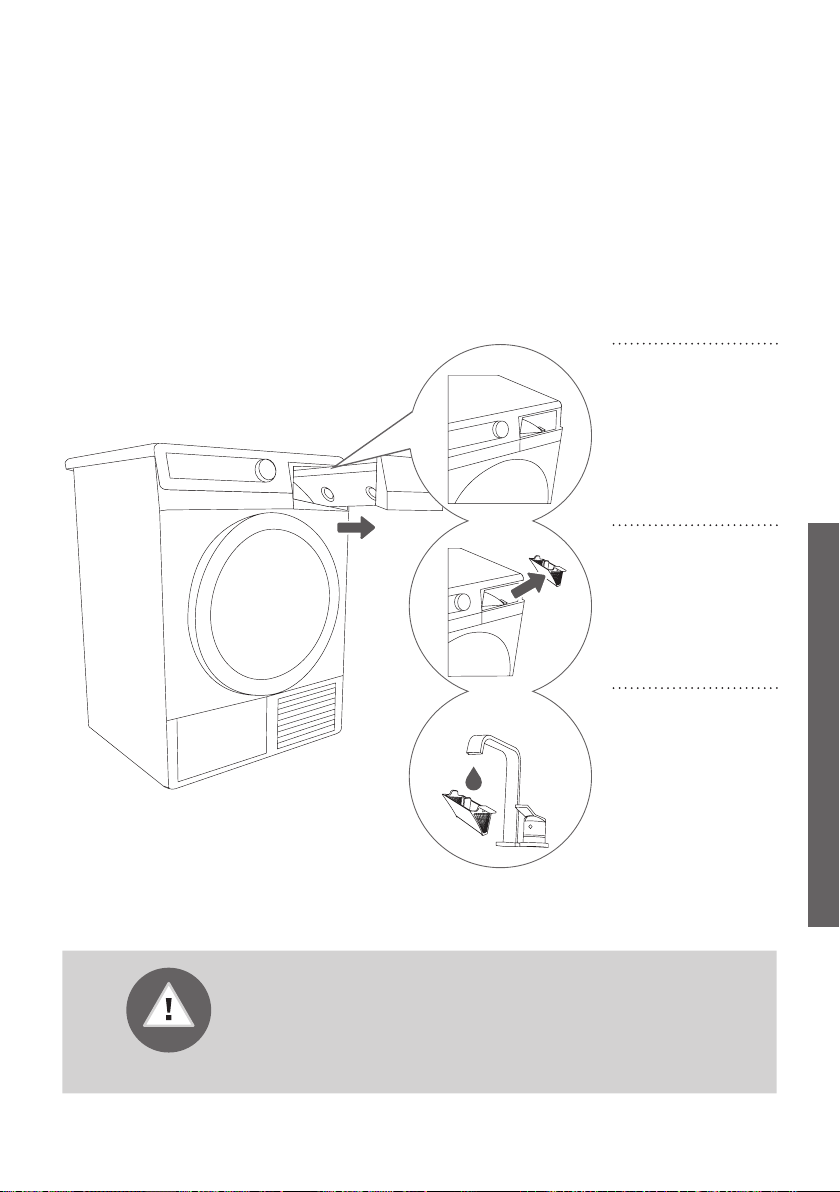

Remove the
condensate tank.
2
Slowly add
distilled water to
the steam generator
tank filter.
22
DRYING STEPS (1 - 6)
349780
1. STEP: CHECK THE TAGS ON YOUR LAUNDRY
Normal wash
Delicate wash
Max.
washing
95°C
95
95
Max.
washing
60°C
60
60
Max.
washing
40°C
40
40
Max.
washing
30°C
30
30
Manual
washing
Washing
not
allowed
Whitening Whitening in cold water
c1
Whitening not allowed
Dry cleaning Dry cleaning in
all solvents
A
Perchloret-
yhlene R11, R113,
Petrolej
P
Dry cleaning in
kerosene, in pure
alcohol and in
R 113
F
Dry cleaning
not allowed
Ironing Hot iron max.
200°C
Hot iron max.
150°C
Hot iron max.
110°C
Ironing not
allowed
Drying Place on flat
surface
Hang wet
Hang
High temp.
Low temp.
Tumble drying
not allowed
23
2. STEP: PREPARING THE LAUNDRY
349780
1. Sort the laundry by type and thickness of the fabric (see Program Table).
2. Close the buttons and zips, tie any ribbons, and turn the pockets inside out.
3. Place very sensitive clothes in a special-purpose laundry washing bag.
The following types of laundry may not be dried in the dryer
as this may cause your garments to deform:
• leather garments and other leather products;
• garments that are waxed or treated in any other way;
• garments with major wooden, plastic, or metal parts;
• garments with spangles;
• garments with metal parts subject to rusting.
The final part of a tumble dryer cycle occurs without heat
(cool down cycle) to ensure that the items are left at a
temperature that ensures that the items will not be damaged.
Remove all objects from pockets such as lighters and matches.
Oil-affected items can ignite spontaneously, especially when
exposed to heat sources such as in a tumble dryer. The
items become warm, causing an oxidation reaction in the oil.
Oxidation creates heat. If the heat cannot escape, the items
can become hot enough to catch fire. Piling, stacking or
storing oil-affected items can prevent heat from escaping and
so create a fire hazard.
If it is unavoidable that fabrics that contain vegetable or
cooking oil or have been contaminated by hair care products
be placed in a tumble dryer they should first be washed in hot
water with extra detergent - this will reduce, but not eliminate,
the hazard
24
DRYING IN A BASKET (ONLY WITH SOME MODELS)
349780
Prior to first drying remove the basket and any wrappings
from the drum.
1
Before installing
the basket, it is
necessary to remove
the filter situated on
the lower side of the
door opening.
Drying in a basket may be selected only at time defined drying.
Mount the basket in the opposite order of the procedure for its
removal, but without the transport packaging.
The basket drying function is used to dry sneakers or other things
which you want to prevent from tumbling within the drum (max.
load: 2,5 kg).
Dry only clean sneakers. Wring them after washing to such extent
that they do not drip water prior inserting into the dryer.
During this function the basket remains still. Be careful to avoid
things which are being dried to touch the drum as they may get
stuck and thus damaged.
After the drying is over, replace the filter again.
25
SWITCHING ON THE DRYER
LOADING THE DRYER
1 2
349780
Connect the appliance to the power mains by plugging in the
power cord.
To light up the drum, rotate the program selector dial to any
position.

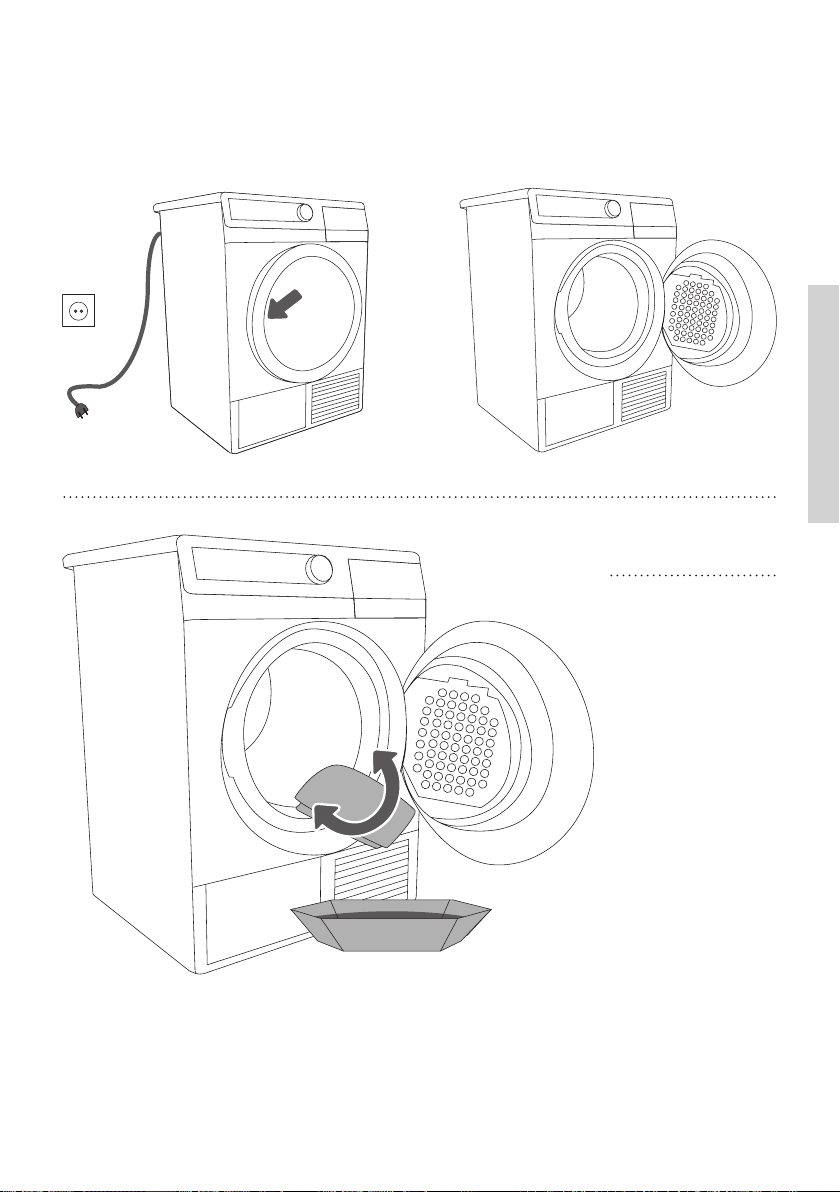

Open the dryer door by pressing it on the left side towards the
dryer.
Insert the laundry into the drum (make sure the drum is empty).
Do not insert laundry into the dryer if it has not been wrung or
spun (recommended minimum spinning cycle: 800 rpm).
Close the dryer door.
26
3. STEP: SELECTING A PROGRAM
START|PAUSE
90'
30'
1
3
5c
6
2c
2b
2a
4
5b
5a
6
START|PAUSE
30'
90'
60'
6
349780
During operation, the dial will not rotate automatically.
To select a program, rotate the program selector dial (6) to the left
or to the right (according to the type of desired level of dryness of
the laundry).
Model a)
with Steam generator
Model b)
without Steam generator
27
PROGRAM TABLE
MODEL WITH STEAM GENERATOR
349780
Program
Dryness levels
Max.
load
Laundry Extra functions
Cotton
Ultra
Storage
Standard*
Iron
7.5 kg
D754BJ
D754BJ(*)
Non-delicate cotton laundry (towels,
terry towels, stockinette, T-shirts,
trousers, kitchen cloths etc.)
NOTE: Cotton Ultra, Extra dry level 1
is the program for drying a normal
load at rated capacity
• Low temperature
• Start delay
• Extra dry
• Steam (only with cotton
– storage dry)
Mix
Storage
Iron
3,5 kg/
3,5 kg
Clothing made of a mixture of fibres
(trousers, T-shirts, suits etc.)
• Low temperature
• Start delay
• Extra dry
• Steam (only with mix –
storage dry)
Timed program
Duration:
30´/90´
3,5 kg/
4 kg
Laundry that needs to be thoroughly
dried, or a small amount of laundry, or
individual garments.
• Low temperature
• Start delay
• Extra dry
Bedlinen
5 kg/
5 kg
Larger pieces of laundry (bedding, large
tablecloths, large towels etc.) – prevents
the laundry from forming into a bulk.
• Low temperature
• Start delay
• Extra dry
• Steam
Refresh steam
2 kg/
2 kg
Clothing that you wish to treat with
steam (seasonal clothing, preparing the
laundry for easier ironing etc.)
• Start delay
Wool softening
2 kg/
2 kg
Wool garments and garments with
mixed fibres containing wool, which you
wish to soften (sweaters, scarves, shawls
etc.)
Shirts
2 kg/
2 kg
Shirts and blouses • Low temperature
• Start delay
• Extra dry
• Steam
Synthetics
Dry
Ultra
3,5 kg/
3,5 kg
Garments made of or containing with
synthetic fibres (T-shirts, trousers, suits,
socks and stockings, gowns etc.)
• Low temperature
• Start delay
• Extra dry
• Steam (only for
synthetics – dry)
Sensitive
2 kg/
2 kg
Laundry that requires drying at lower
temperatures (blouses, delicate
underwear, shirts with additional décor
etc.) - Use of special-purpose laundry
washing bag is recommended.
• Start delay
• Extra dry
Program Cotton Ultra, Extra dry level 1, anticrease turned off, at rated load capacity was used for the testing for energy according to AS/
NZS 2442. The cool down cycle commences when 9min is noted on the control panel display.
28
349780
PROGRAM TABLE
MODEL WITHOUT STEAM GENERATOR
Program
Dryness levels
Max.
load
Laundry Extra functions
Cotton
Ultra
Storage
Standard*
Iron
7
.5 kg/
Non-delicate cotton laundry (towels,
terry towels, stockinette, T-shirts,
trousers, kitchen cloths etc.)
NOTE: Cotton Ultra, Extra dry level 1
is the program recomended for a
normal load at rated capacity -
Anticrease turned off.
• Low temperature
• Start delay
• Extra dry
• Anticrease extra
Mix
Storage
Iron
3,5 kg/
3,5 kg
Clothing made of a mixture of fibres
(trousers, T-shirts, suits etc.)
• Low temperature
• Start delay
• Extra dry
• Anticrease extra
Timed program
Duration:
30´/60´/90´
3,5 kg/
4 kg
Laundry that needs to be thoroughly
dried, or a small amount of laundry,
or individual garments.
• Low temperature
• Start delay
• Anti-crease
Bedlinen
5 kg/
5 kg
Larger pieces of laundry (bedding,
large tablecloths, large towels etc.)
• Low temperature
• Start delay
• Extra dry
• Anticrease extra
Wool softening
2 kg/
2 kg
Wool garments and garments
with mixed fibres containing wool
(sweaters, scarves, shawls etc.)
Shirts
2 kg/
2 kg/
2 kg
Shirts and blouses • Low temperature
• Start delay
• Extra dry
• Anticrease extra
Synthetics
Dry
Ultra
3,5 kg/
3,5 kg
Garments made of or containing
with synthetic fibres (T-shirts,
trousers, suits, socks and stockings,
gowns etc.)
• Low temperature
• Start delay
• Extra dry
• Anticrease extra
Sensitive
2 kg/
2 kg
Laundry that requires drying at
lower temperatures (blouses,
delicate underwear, shirts with
additional décor etc.) - Use of
special-purpose laundry washing
bag is recommended.
• Start delay
• Extra dry
• Anticrease extra
*
Program Cotton Ultra, Extra dry level 1, anticrease turned off, at rated load capacity was used for the testing for energy according to
AS/
NZS 2442. The cool down cycle commences when 9min is noted on the control panel display.
29
4. STEP: ADDITIONAL FUNCTIONS
(EXTRA)
START|PAUSE
30'
90'
60'
START|PAUSE
90'
30'
349780
Activate/deactivate
the function by
pressing the relevant
key (before pressing
the START/PAUSE
key).
Extra dry
Each time the key is pressed (three levels), the final level of laundry
dryness and drying time will change.
Steam (depending on the model),
for straightening the creases and refreshing the laundry with
steam, only for programs in which steam treatment is possible.
(next to the program is symbol)
Anticrease Extra
To prevent creasing if the laundry is not taken from the dryer
immediately after the end of the drying cycle.
Default setting is two hours. Duration can be set from zero to a
maximum of four hours. The most recent setting is stored. The
function is deactivated when the dryer door is opened.
Lower temperature
Used for delicates. Reduced temperature depends upon the
program where this function is applied. After the program is
completed the option is not memorized.
Child lock
To activate the child lock by simultaneously pressing the (5b) and
(5c) keys and holding them for at least three seconds. The signal
light will light up to confirm the selection.
Follow the same procedure to deactivate the child lock. As long as
the child lock is activated, program or additional functions cannot
be changed. The appliance can only be switched off by rotating
the program selector dial to the "OFF" position. Child lock will
remain activated even after the appliance is switched off. In order
to select a new program, it has to be switched off.
5a
5b
5b
5c
5b 5c
+
5a
5b
5c
30
349780
Start delay
Use this function to start the drying cycle after a certain amount of
time has elapsed.
Delay time can be set to up to five hours in 30-minute steps and
up to 24 hours in 1-hour steps.
The function is activated when the START/PAUSE key is pressed.
Time is counted down by minutes. When the countdown reaches
zero, the selected drying program will start automatically.
To interrupt or change the program delay time press the START/
PAUSE key. Press the (3) key to select a new delay time. To
confirm the new setting, press the START/PAUSE key.
To quickly cancel the delayed start setting, press the (3) key and
hold it for 3 seconds.
In case of a power supply failure before the delay time has elapsed,
press the START/PAUSE key to resume the countdown.
3
Some functions cannot be selected with some programs; an
acoustic signal and a flashing light will remind you of such
cases (see Program Table).
START|PAUSE
90'
30'
1
3
5c
6
2c
2b
2a
4
5b
5a
31
349780
After disconnecting the appliance from the power mains, all
settings will be reset to their default factory values, except for
the acoustic signal loudness, anti-crease, and child lock setting.
SOUND SIGNAL LEVEL
Select the acoustic signal loudness by simultaneously pressing a
key (5a) and rotating the program selector dial clockwise to the
initial position.
Each time the key (5a) is pressed, the final loudness level is
changed (three levels). Loudness level is indicated on the display
unit. The most recent setting is stored.
As a result of low mains voltage or different laundry loads,
drying time can change. This is regularly updated on the
display.
STANDBY MODE
If no program is selected and started and no other action is taken
within five minutes after turning on the machine, the display will be
automatically turned off to save energy. Signal light on the START/
PAUSE key will flash.
The display will turn on again when you rotate the program selector
dial or press any button. If no action is taken after the end of the
program, the display will also be turned off after five minutes. Signal
light on the START/PAUSE key will flash.
P o = weighted power in ‘off mode’ [W] 0,02
P I = weighted power in the ‘left on mode’ [W] 0,5
T I = time in ‘left on mode’ [min] 10,0
32
349780
5. STEP: PROGRAM START-UP
Press the START/PAUSE key.
Start delay time (if selected), or the time remaining until the end
of the program and counting down will be indicated on the display
unit.
Signal lights next to the selected functions will be lit.
START|PAUSE
90'
30'
1
3
5c
4
5b
5a
2c
2b
2a
6
6. STEP: END OF DRYING CYCLE
An acoustic signal will indicate the end of the drying cycle. Signal
lights will light up and the light on the START/STOP key will flash.
1. Open the dryer door.
2. Clean the filters (see section Cleaning ...).
3. Take the laundry from the drum.
4. Close the door.
5. Switch off the appliance (rotate the program selector dial (6)
to the "OFF" position).
6. Empty the condensate tank.
7. Unplug the power cord from the outlet.
Drying time indicated is based on tests according to the
EN 61121 standard and it may change in steps during the
drying process, depending on the load and initial moisture of
thelaundry.
33
CLEANING AND MAINTENANCE
1
3
2
349780

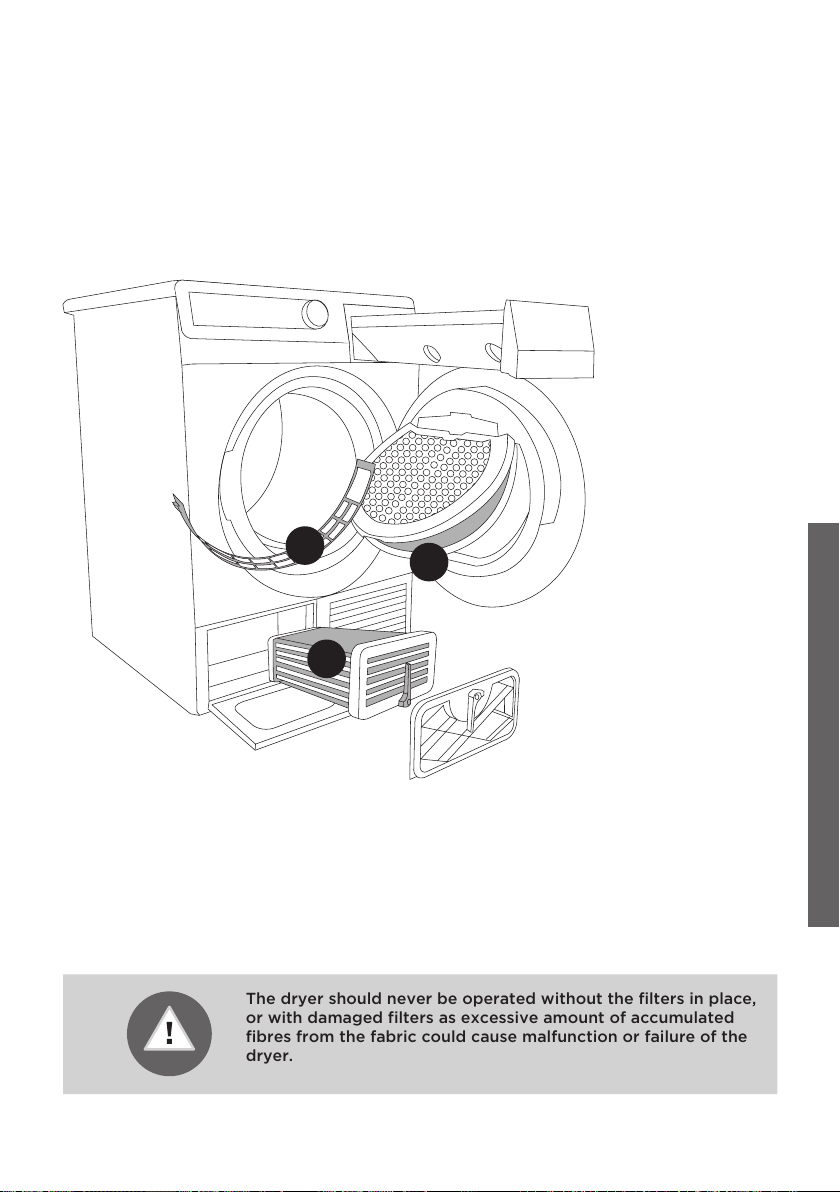

The dryer should never be operated without the filters in place,
or with damaged filters as excessive amount of accumulated
fibres from the fabric could cause malfunction or failure of the
dryer.
Dryer is fitted with the filtering system containing several filters.
1
Net filter
2
Filter on the
lower side of
the door opening
3
Condenser
34

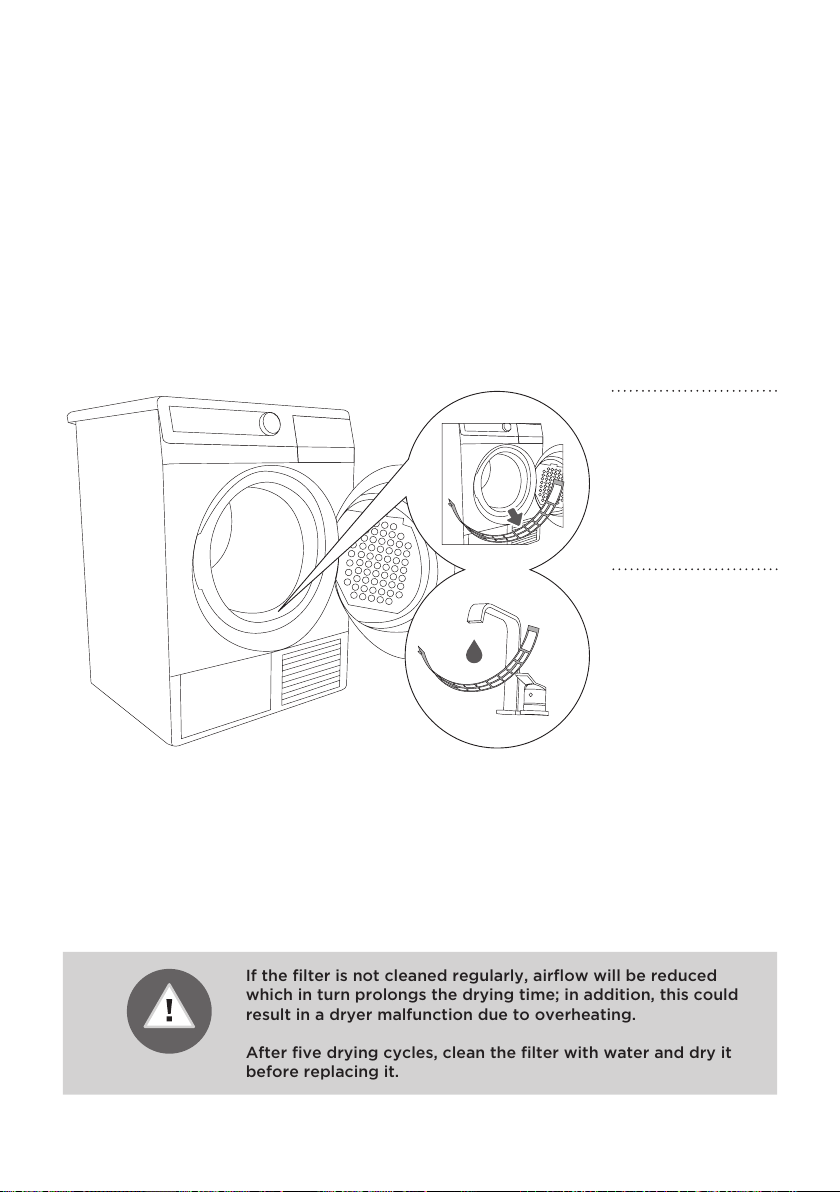

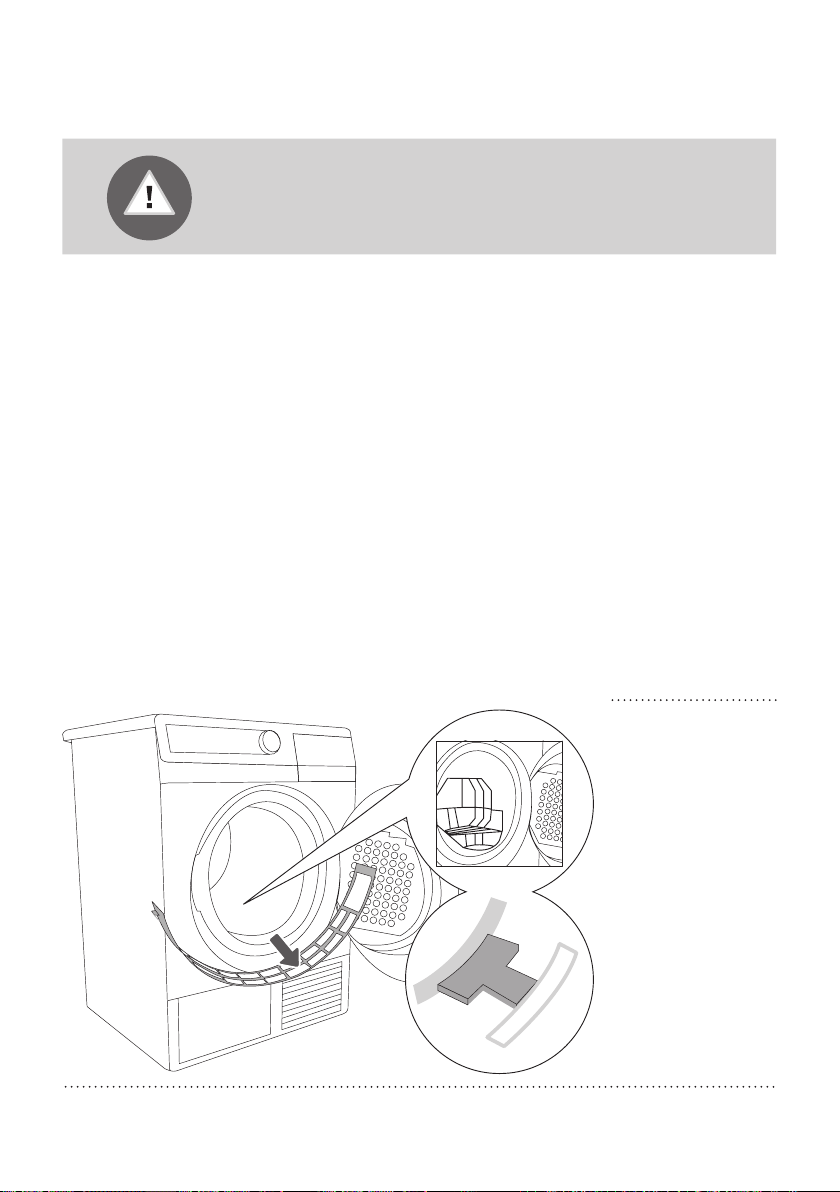

CLEANING THE FILTER ON THE LOWER SIDE OF
THE DOOR OPENING
349780
Before emptying the drum, clean the filter on the lower door
opening using your hand or a damp cloth
If the filter is not cleaned regularly, airflow will be reduced
which in turn prolongs the drying time; in addition, this could
result in a dryer malfunction due to overheating.
After five drying cycles, clean the filter with water and dry it
before replacing it.
1
If the filter is
clogged and
requires washing,
remove it from the
support bed.
2
Rinse it under
running water,
and dry it. Make sure
the filter snaps back
into place before
you close the filter
cover.
35

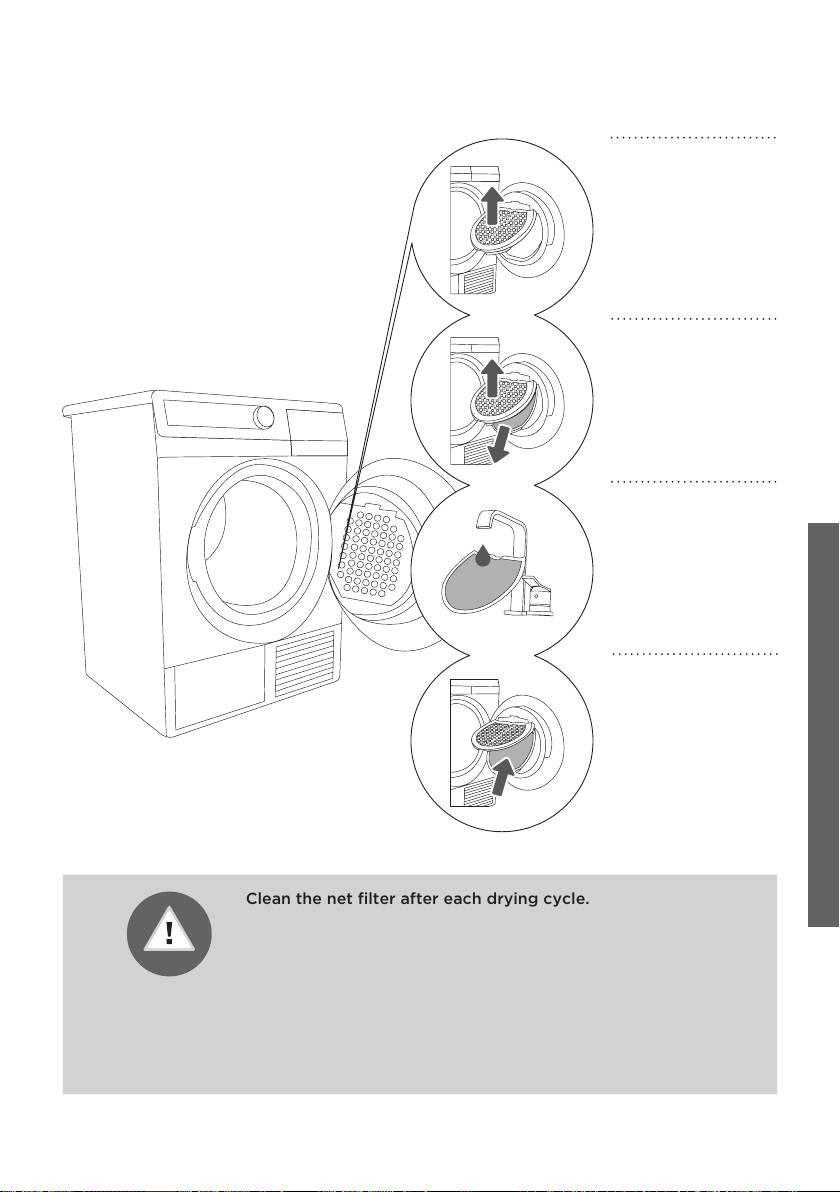

CLEANING THE NET FILTER IN THE DOOR
349780
» CLICK «
1
Lift the filter
cover.
Gently scrape the
filter to remove the
lining of fibres and
threads.
2
Remove the net
filter from the
support bed
3
Wash it under
running water
and dry it.
4
«Click« the
filter back to its
place.
Clean the net filter after each drying cycle.
Make sure the net filter snaps back into place before you
close the filter cover. (Otherwise, the filter will not perform its
function, which may result in clogging of the system.)
Close the filter cover in the door always carefully not to crush
your fingers.
If necessary, clean the filter housing and door gasket as well.
36

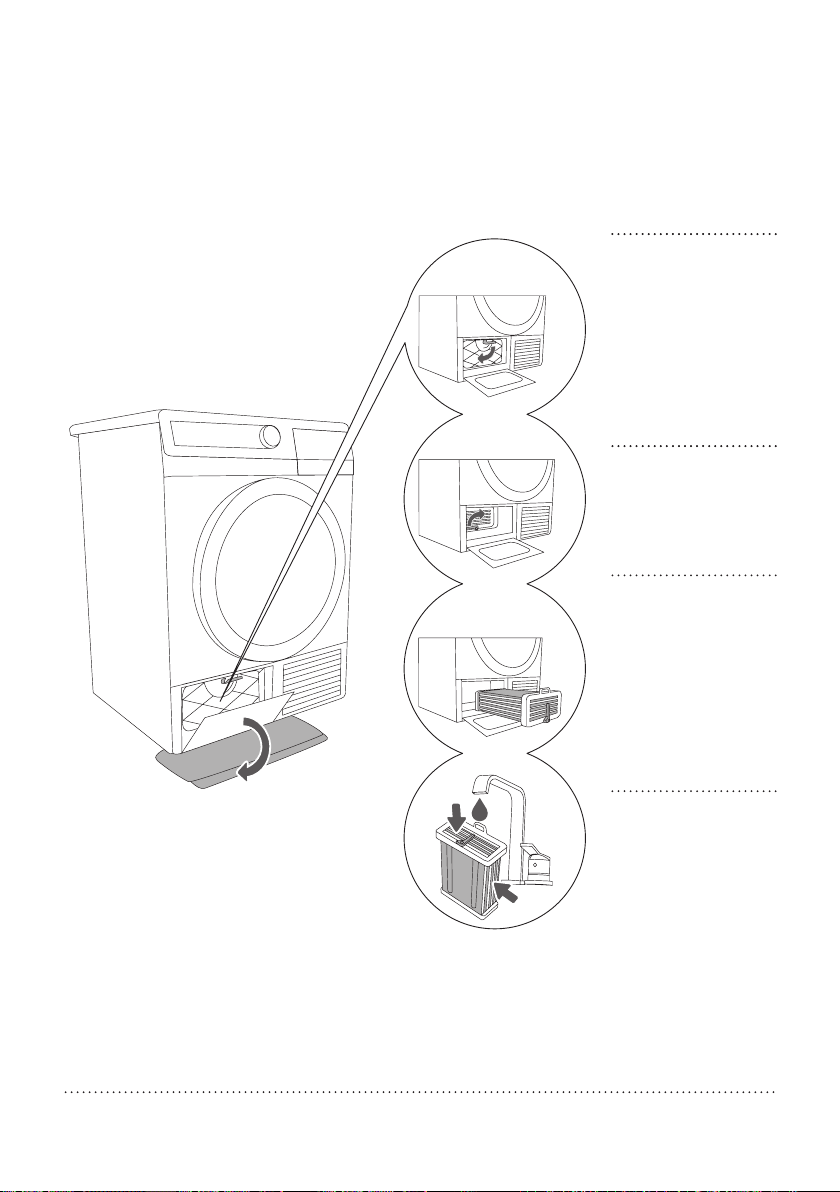

CLEANING OF WATER CONDENSER
349780
Certain amount of water may drip out from the condenser,
so it is advisable to spread absorbent cloth on the floor prior
commencement of cleaning.
1
Open exterior lid,
grab the handle
on the left and pull
downwards. Remove
interior lid by
turning the handle
downwards.
2
Turn the
condenser
handle upwards.
3
Use the handle
to pull the
condenser out.
4
Rinse the
interior of the
condenser on both
sides with lukewarm
jet of water, and let
dry thoroughly.
37
349780
After five drying cycles:
1
Extract, wash
and reinstall
water condenser
(see »Cleaning of
water condenser« on
preceding page).
2
Use damp cloth
to clean the
water condenser
cavity;
2a
Wipe
thoroughly
the back of the
condenser cavity
(reach deeply into
the cavity to be able
to touch the rear
wall with your hand),
2b
use damp
cloth to wipe
and clean all seals
and sealing surfaces
of the condenser
cavity and door.
38
EMPTYING THE CONDENSATE TANK
349780
Empty the condensate tank after each drying cycle.
1
Remove the
condensate tank
and turn it.
2
Pour out the
water and put
the tank back to its
place.
Water from the condensate tank is not potable. If thoroughly
filtered, it can be used for ironing.
Never add any chemical means or scents or perfumes into the
condensate tank.
Make sure you disconnect the appliance from the power
mains before cleaning. Set the program selector dial to "0FF"
position and unplug the power cord from the outlet.
(2)
Pull out
the spout
for easier emptying
(only some models)
39
CLEANING THE STEAM GENERATOR TANK
FILTER
(MODEL WITH STEAM GENERATOR)
349780
Each time you empty the condensate tank, clean the steam
generator tank filter as well.
The filter is located in the tank housing (visible when the
condensate tank is removed).
1
Remove the
condensate tank.
2
Remove the
filter from the
support bed in the
condensate tank
housing.
3
Clean the filter
thoroughly
under running water.
If necessary, clean
the filter support
bed as well.
Make sure the remains of the fibres accumulated during
operation do not enter the dryer as this may clog the system).
Insert the filter correctly back into the support bed (otherwise,
the filter will not perform its function, which may result in
clogging of the system).
40
CLEANING THE DRYER
2h
349780
Wipe the dryer exterior using a damp cloth and mild detergent.
Do not use detergents or cleaners that could damage the dryer (heed the
recommendations and warnings by the cleaner/detergent manufacturers).
Use a soft cloth to wipe dry all parts of the dryer.
Always disconnect the dryer from the power mains before
cleaning.
Additional equipment and facilities for maintenance can be seen on: www.gorenje.com
41
INTERRUPTING AND CHANGING
THE PROGRAM
349780
INTERRUPTIONS
Interrupting the program process
Press the START/PAUSE key to pause/
resume and the program.
Open door
If the dryer door is opened during the
drying process, the drying cycle will be
interrupted.
When the door is closed and the START/
PAUSE key is pressed, the drying will
resume from the point at which it was
interrupted.
Full condensate tank
When the condensate tank is full, the drying
program will be interrupted (signal light 2b
will flash).
Empty the condensate tank (see section
Cleaning and Maintenance).
Press the START/PAUSE key to resume the
drying cycle from the point at which it was
interrupted.
Power supply failure
When power supply is resumed, the signal
light on the START/PAUSE key will flash.
To resume the drying process, press the
START/PAUSE key.
CHANGING THE PROGRAM/
FUNCTIONS
Press the START/PAUSE key and rotate the
program selector dial to the "OFF" position.
Select another program/function and press
the START/PAUSE key again.
SAVING PERSONAL SETTINGS
Initial settings may be changed. When
the program and additional functions are
selected, you may store such combination
by pressing the START/ PAUSE key and
holding it for five seconds.
A signal light on the START/PAUSE key
and an acoustic signal will confirm your
selection.
S C (settings changed) will be displayed
briefly on the display.
Press the START/PAUSE key to start the
drying process.
The changed combination will appear every
time you switch on the dryer.
Follow the same procedure to change a
previously saved combination.
42
WHAT TO DO...?
349780
Disturbances from the environment (e.g.
the power grid) may result in various error
reports (see Table on the next page) In
such case:
• switch off the appliance and wait at
least one minute;
• switch on the appliance and restart the
drying program.
• If the error persists, call an authorized
service unit.
• You will be able to solve most of
the problems in dryer operation by
yourself.
• Repairs may only be carried out by an
adequately trained person.
• Repair or any warranty claim resulting
from incorrect connection or use of
the dryer shall not be covered by the
warranty. In such cases, the costs of
repair shall be charged to the user.
The warranty does not cover the errors or failures resulting
from disturbances from the environment (lightning strike,
power grid failures, natural disasters etc.).
43
349780
Problem/error Cause What to do ...?
The dryer does
not work.
•No voltage in the power outlet. •Check if the power cord plug is
correctly inserted into the power
outlet.
•Check the fuse.
There is voltage
in the outlet, but
the drum does
not spin and the
dryer does not
work.
•Program was not started
in accordance with the
instructions.
•The door is not properly
closed.
•Condensate tank is full.
•Delayed start function has
been selected.
•Reread the instructions for use again.
•Push the door towards the appliance.
•Empty the condensate tank (see
section Cleaning and Maintenance).
•Wait until the time indicated on the
display elapses.
Laundry is not
dried, or drying
temperature is
longer than 4h.
•Filters are not clean. The room
is not sufficiently ventilated.
•Inappropriate temperature in
the room.
•Laundry was not sufficiently
wrung or spun.
•Amount of laundry dried in
the appliance is too large or
insufficient.
•Clean the filters.
•Check whether water condenser is
cleaned.
•Install the dryer in an appropriate
room (see section Installation ...).
•Check if the temperature in the room
where the dryer is installed is too
high (over 25°C) or too low (below
5°C).
•Laundry inserted into the dryer was
not sufficiently wrung or spun, or an
inappropriate drying program was
selected.
•Use an appropriate program or use
the timed program. Increase the
final level of dryness for the selected
program (intensive drying function).
Poor
condensation
•Inadequate location of the
dryer.
•Check whether the ambient
temperature of the room is not too
high.
•Check whether the condenser is clean.
Unevenly dried
laundry.
•The amount of laundry dried at
a time is too large.
•Drying the pieces of different
thicknesses.
•Drying the different types of
laundry.
•Make sure the laundry is sorted by
type and size of items given the
selected program (see section Drying
– Preparing the Laundry and the
Program Table).
Error in the drum
lighting.
•There is no lighting when the
dryer door is opened.
•Disconnect the dryer from the power
mains and call an authorized service
unit.
On display: F3 •Full condensate tank.
•If the condensate tank is
empty, there is a pump failure.
•Empty the condensate tank (see
section Cleaning and Maintenance).
•Disconnect the appliance and call the
nearest service unit.
On display:F4 •Clogged filters.
•If the filters are clean, there
may be a compressor failure.
•Clean the filters.
•Disconnect the appliance and call the
nearest service unit.
On display:"LO" •Steam generator tank is empty •Add distilled water.
Write down the failure/error code: F0, F1, or F2, disconnect the appliance and call the
nearest authorized service (call center).
44
TIPS AND RECOMMENDATIONS
FOR DRYING AND ECONOMIC
USE OF YOUR DRYER
349780
The most economical way of drying is to dry the recommended
amount of laundry in each batch (see Program Table).
Drying laundry made of particularly delicate fabrics that may be
deformed is not recommended.
Use of conditioner in the washing cycle is not necessary as the
laundry is soft and smooth after drying in the dryer. Drying
time will be shorter and power consumption will be lower if the
garments are thoroughly wrung or spun before drying. By selecting
the appropriate drying program, you will avoid overdrying your
laundry and problems with ironing or shrinkage of fabric.
Regular cleaning of the filters will lead to optimum drying time and
minimum power consumption.
When drying smaller amounts of laundry or individual garments,
the sensor may not perceive the actual level of moisture in the
laundry. In such cases, it is recommended to dry smaller items
or amounts with programs for dryer laundry or with the timed
program.
45
DISPOSAL
349780
Packaging is made of environmentally friendly materials that can
be recycled, disposed of, or destroyed without any hazard to
the environment. To this end, packaging materials are labelled
appropriately.
The symbol on the product or its packaging indicates that the
product should not be treated as normal household waste. The
product should be taken to an authorized collection center for
waste electric and electronic equipment processing.
When disposing of an obsolete appliance, make sure you remove
the power cord and destroy the door switch and latch to prevent
the door from closing (children safety).
Disposing the product in the correct manner will help prevent
any negative consequences and effects on the environment and
human health which could occur in case of inappropriate product
disposal. For detailed information on disposal and processing of
the product, contact your relevant municipal authorities in charge
of waste management, waste management service, or the store at
which you bought the product.
SP10 CLASS en (11-13)
