OWNER'S MANUAL
IPS LED MONITOR
(LED MONITOR)
27MB85Z
27MB85R
Please read the safety information carefully before using the product.
IPS LED Monitor (LED Monitor) Model List
2
ENG
ENGLISH
Contents
CONTENTS
3 LICENSE
4 ASSEMBLING AND
PREPARING
4 Product Composition
5 Component and Button Description
6 Moving and Lifting the Monitor
7 Installing the Monitor
7 - Assembling the Stand Base
8 - Detaching the Stand Base
8 - Installing on to a Table
9 - Adjusting the Stand Height
10 - Adjusting the Angle
10 - Tidying Cables
11 - Pivot Feature
12 - Using the Kensington Lock
12 - Detaching the Stand Body
13 - Installing the Wall Mount Plate
13 - Installing on the Wall
15 USING THE MONITOR
15 Connecting to a PC
15 - HDMI Connection
16 - DVI Connection
16 - DisplayPort Connection
17 - Thunderbolt ( ) Connection
17 Connecting AV Devices
17 - HDMI Connection
18 Connecting Peripherals
18 - USB Cable Connection - PC
19 - Headphone Port Connection
20 INSTALLING LG MONITOR
SOFTWARE
23 CUSTOMIZING SETTINGS
23 Activating the Main Menu
24 Customizing Settings
24 - Menu Settings
25 - Ratio Settings
26 - Super Energy Saving (SES) Settings
27 - Mode Settings
28 - PIP settings
30 - Picture
31 - Color
32 - Settings
33 TROUBLESHOOTING
35 SPECIFICATIONS
37 Factory Support Mode (Preset Mode PC)
37 HDMI Timing (Video)
37 Power Indicator
38 PROPER POSTURE
3
ENG
ENGLISH
LICENSE
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
VESA, VESA logo, Display Port Compliance Logo and Display Port
Compliance Logo for dual-mode source are all registered trademarks of the
Video Electronics Standards Association.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in
the United States and other countries.
4
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
y
Note that the components may look different from those shown here.
y
Without prior notice, all information and specifications in this manual are subject to change to improve
the performance of the product.
y
Separate purchase are not included for all models. To purchase optional accessories, visit an elec-
tronics store or online shopping site or contact the retail store where you purchased the product.
NOTE
Product Composition
Please check whether all the components are included in the box before using the product. If there are
missing components, contact the retail store where you purchased the product. Note that the product and
components may look different from those shown here.
y
Always use genuine components to ensure safety and product performance.
y
The product warranty will not cover damage or injury caused by the use of unauthorized components.
CAUTION
Separate Purchase
Calibrator
(ACB8300)
(Depending upon
Country)
CD(Owner's Manual/
SW) / Guides / Card
Power Cord
Cable Holder /
Screw
DVI-D Dual Cable
or
Stand Base A-B Type USB 3.0 Cable
Display Port Cable
(Depending upon
Country)
5
ENG
ENGLISH
ASSEMBLING AND PREPARING
Component and Button Description
y
Before turning on the monitor, please make sure that the switch on the rear side of product is On.
NOTE
5 V 0.9 A
DVI-D IN
DP IN
HDMI IN
H/P
USB IN 1
USB IN 2 USB IN 3
USB UP
AC-IN
5 V 0.9 A
DVI-D IN
DP IN
HDMI IN
USB IN 1
USB IN 2 USB IN 3
USB UP
Mini DP IN
H/P
27MB85Z
Touch buttons
Input Connector
(Power Button)
27MB85R
Switch
On
6
ENG
ENGLISH
ASSEMBLING AND PREPARING

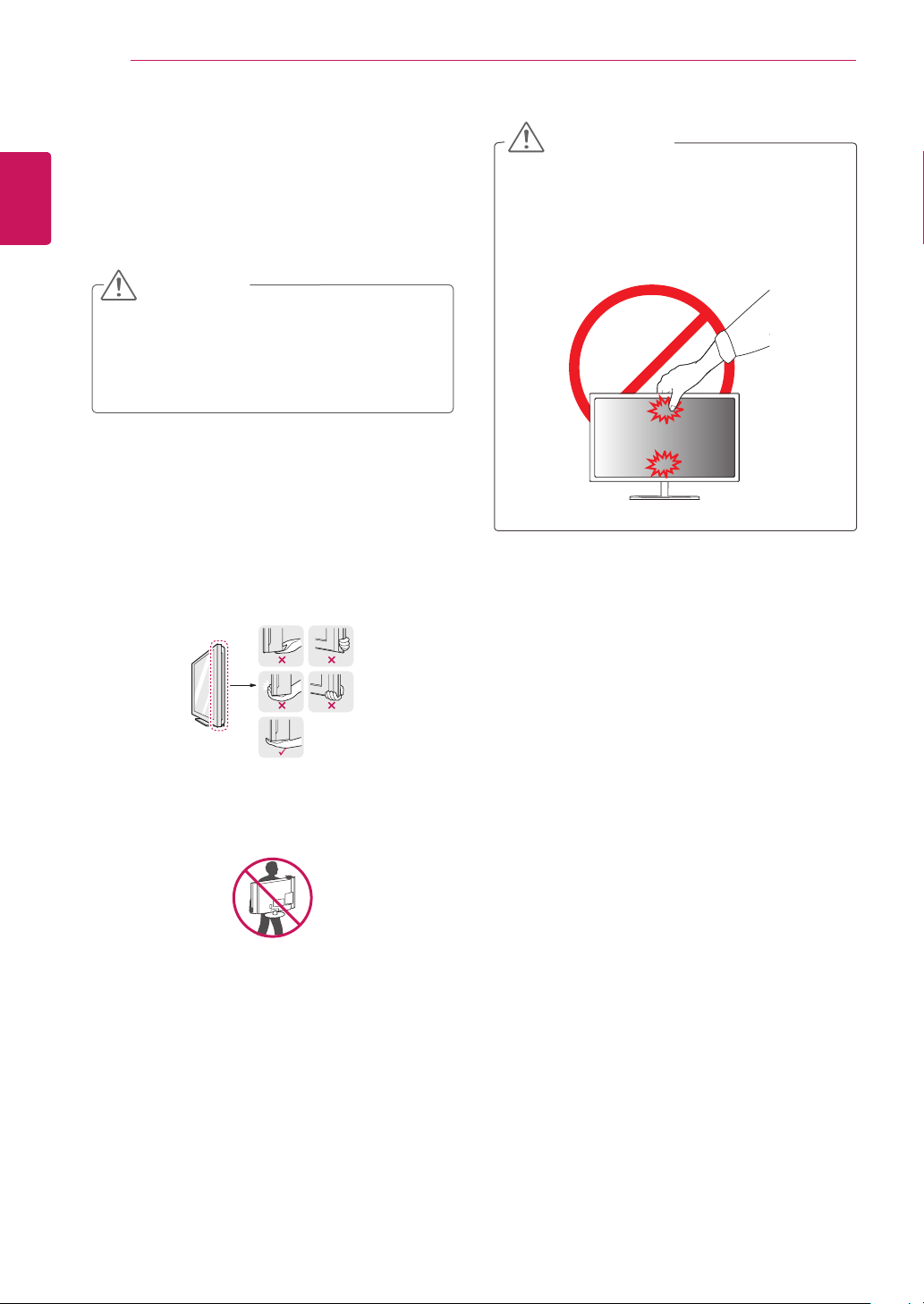

Moving and Lifting the Monitor
When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe trans-
portation regardless of its shape or size.
y
As much as possible, avoid touching the
monitor screen. This may result in damage
to the screen or some of the pixels used to
create images.
CAUTION
y
It is advisable to place the monitor in the
original box or packing material before
attempting to move it.
y
Before moving or lifting the monitor,
disconnect the power cord and all cables.
y
Hold the top and bottom of the monitor frame
firmly. Do not hold the panel itself.
y
When holding the monitor, the screen should
face away from you to prevent it being
scratched.
y
When transporting the monitor, do not ex-
pose the monitor to jolts or excessive vibra-
tion.
y
When moving the monitor, keep it upright;
never turn the monitor on its side or tilt it
sideways.
y
Avoid touching the monitor screen as much
as possible.
- This may result in damage to the screen or
some of the pixels used to create images.
CAUTION
7
ENG
ENGLISH
ASSEMBLING AND PREPARING
Installing the Monitor
Assembling the Stand Base
1
Place the screen face down.
2
Rotate the Stand Body 90˚ counter clockwise.
y
To protect the screen from scratches, cover
the surface with a soft cloth.
y
To avoid scratching the head, make sure that
when rotating the Stand Body, the stand
body does not make contact with the head.
y
Applying excessive force when tightening
screws may cause damage to the monitor.
Damage caused in this way will not be cov-
ered by the product warranty.
CAUTION
CAUTION
3
Align the hole on the Stand Base with the
Stand Body and push it all the way up.Turn
the screws on the Stand Base to the right.
Stand Body
Head
Stand Base
8
ENG
ENGLISH
ASSEMBLING AND PREPARING

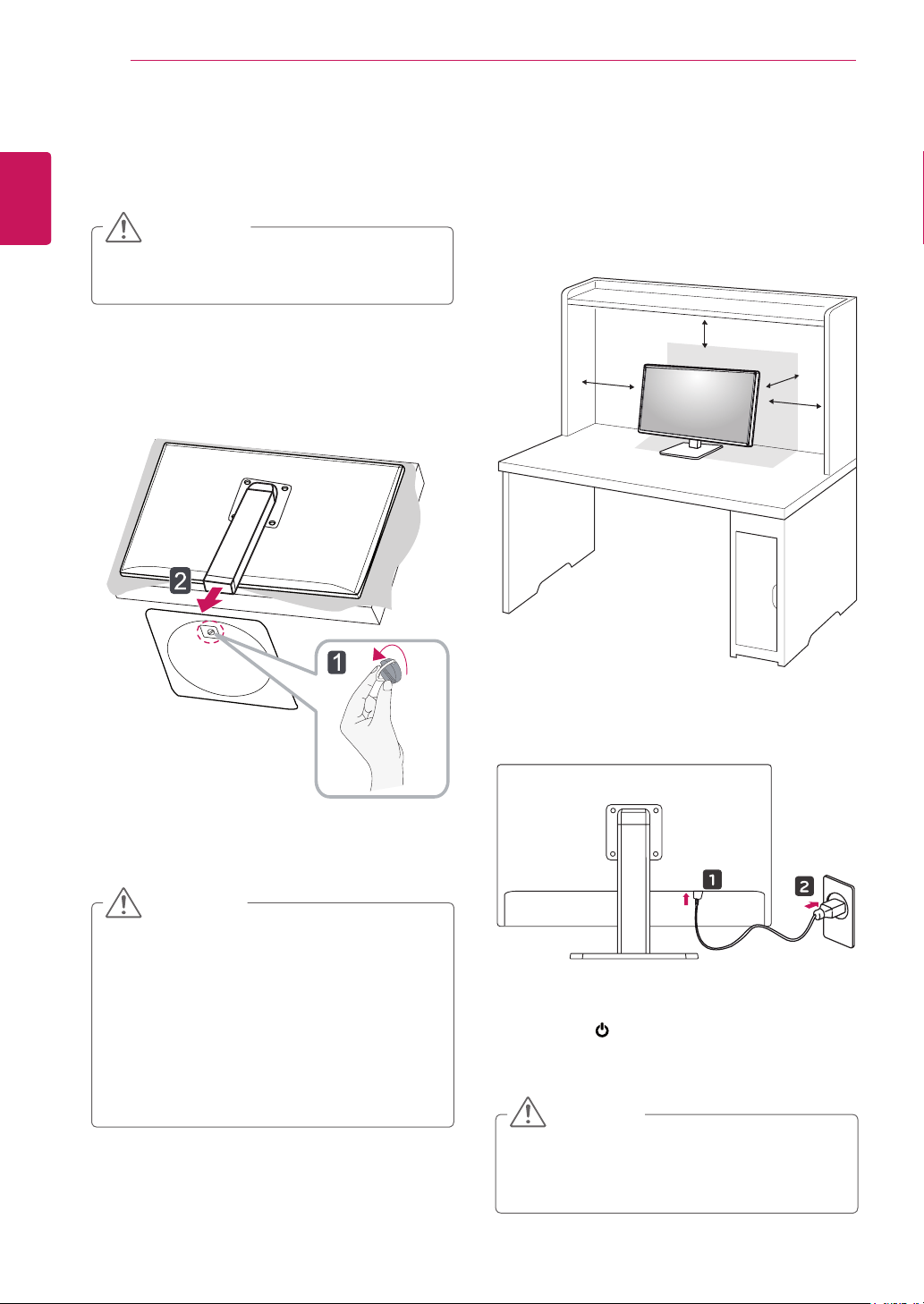

Detaching the Stand Base
1
Place the screen face down.
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
Installing on to a Table
1
Lift the monitor and place it on the table in an
upright position.
Place at least 10 cm away from the wall to
ensure sufficient ventilation.
2
Connect the Power Cord to a wall outlet.
3
Press the (Power) button on the bottom of
the monitor to turn it on.
y
Disconnect the power cord first, and then
move or install the monitor. There is risk of
electric shock.
CAUTION
y
The components in the illustrations may differ
from the actual product.
y
Do not carry the monitor upside down, as this
may cause it to fall off its stand and result in
damage or injury.
y
To avoid damaging the screen when lifting
or moving the monitor, only hold the stand
or the plastic cover. This avoids putting
unnecessary pressure on the screen.
CAUTION
2
BodyTurn the screws on the Stand Base to the
left to detach the Stand Base from the Stand
Body.
10 cm
10 cm
10 cm
10 cm
9
ENG
ENGLISH
ASSEMBLING AND PREPARING
y
Once the pin is removed, it is not necessary
to re-insert it to adjust the height.
Adjusting the Stand Height
1
Place the monitor mounted on the stand base
in an upright position.
2
Push the Head downward and pull out the
Locking Pin.
3
Handle the monitor with both hands for safety.
4
The height can be adjusted up to 130.0 mm.
y
Do not put your fingers or
hand between the screen
and the base (chassis) when
adjusting the screen's height.
CAUTION
WARNING
Head
Locking pin
130.0 mm
10
ENG
ENGLISH
ASSEMBLING AND PREPARING
Adjusting the Angle
1
Place the monitor in an upright position, mount-
ed on the stand base.
2
Adjust the angle of the screen. The angle of
the screen can be adjusted forwards or back-
wards from -5° to 35° for a comfortable viewing
experience.
Front SideRear Side
-535
y
Do not put your fingers or hand between the
screen and the base (chassis) when adjust-
ing the screen's height.
y
Be careful not to touch or press the screen
area when adjusting the angle of the moni-
tor.
WARNING
-535
-535
Tidying Cables
1
Use the screw provided to attach the cable
holder to the stand body as illustrated.
2
Gather and bind the cables with the supplied
cable holder.
11
ENG
ENGLISH
ASSEMBLING AND PREPARING

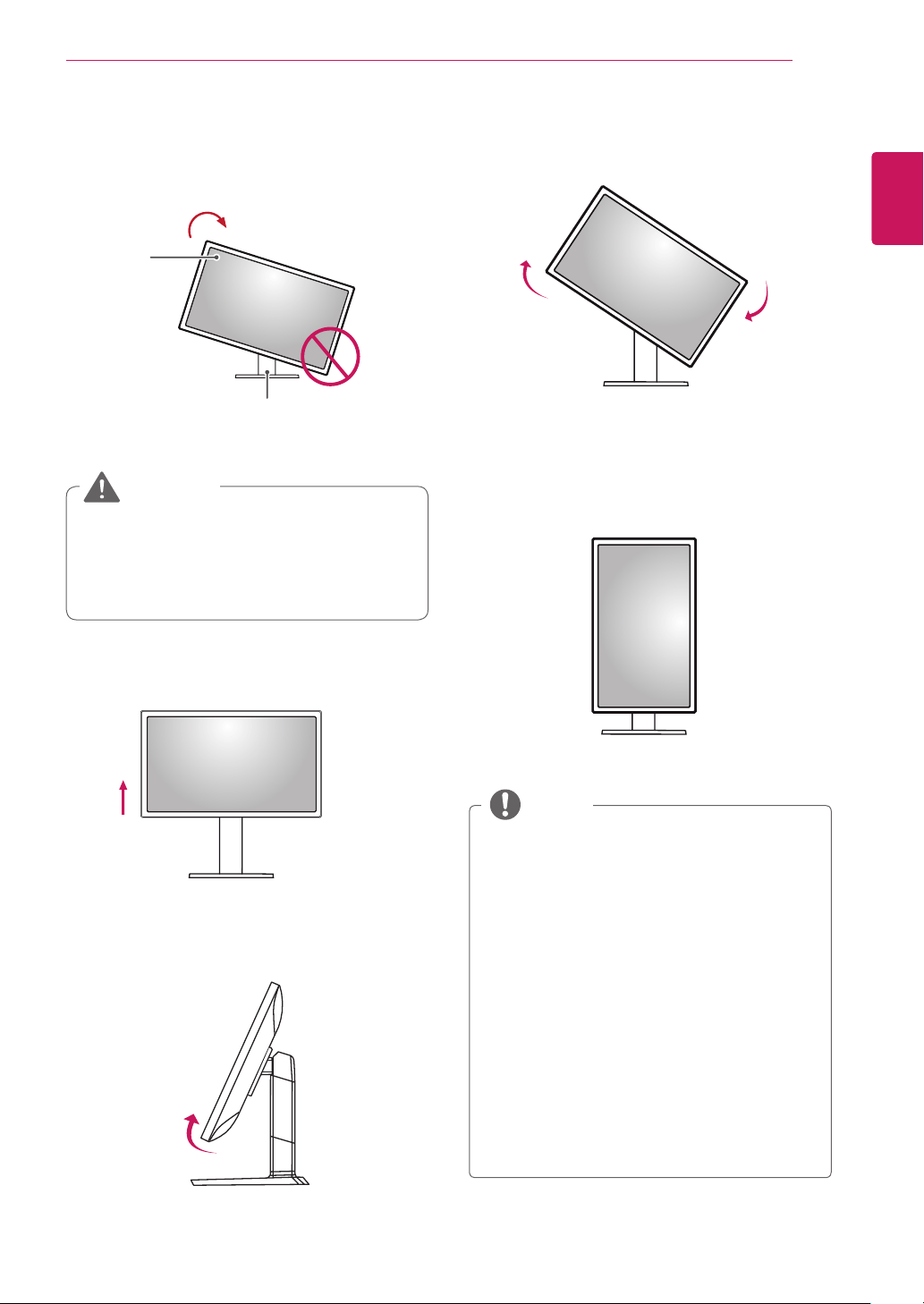

Pivot Feature
The pivot feature allows the monitor to rotate 90°
clockwise.
Head
Stand
y
To avoid scratching the stand base, make
sure that when rotating the monitor using
the pivot feature, the stand does not make
contact with the monitor.
WARNING
1
Raise the monitor to the maximum height.
3
Rotate the monitor clockwise as shown in the
figure.
2
Adjust the angle of the monitor in the direction
of the arrow as shown in the figure.
4
Complete the installation by rotating the moni-
tor 90° as shown below.
y
Auto Pivot feature of the display is not
supported.
y
The screen can be rotated easily using the
screen pivot shortcut key provided with your
Windows operating system. Note that some
Windows versions may use different settings
for the screen pivot key or may not support
the pivot key at all.
y
Supported Windows versions: Windows 7
and Windows 8
y
Windows screen pivot shortcut keys
- 0°: Ctrl + Alt + Up arrow key (↑)
- 90°: Ctrl + Alt + Left arrow key (←)
- 180°: Ctrl + Alt + Down arrow key (↓)
- 270°: Ctrl + Alt + Right arrow key (→)
NOTE
12
ENG
ENGLISH
ASSEMBLING AND PREPARING
Using the Kensington Lock
The Kensington security system connector is locat-
ed at the back of the Monitor set.
For more information on installation and usage,
refer to the Kensington lock user manual or visit
the website at http://www.kensington.com.
Connect the Kensington security system cable
between the Monitor and a table.
y
The Kensington security system is optional.
You can obtain additional accessories from
most electronics stores.
NOTE
y
Take care when rotating the monitor if the
cable is connected.
y
To avoid injury when rotating the display, do
not place your fingers between the display
and the stand base.
WARNING
Detaching the Stand Body
1
Place the monitor's screen face down. To
protect the screen from scratches, cover the
surface with a soft cloth.
2
Using a screwdriver, remove the four screws
and detach the stand from the monitor.
13
ENG
ENGLISH
ASSEMBLING AND PREPARING

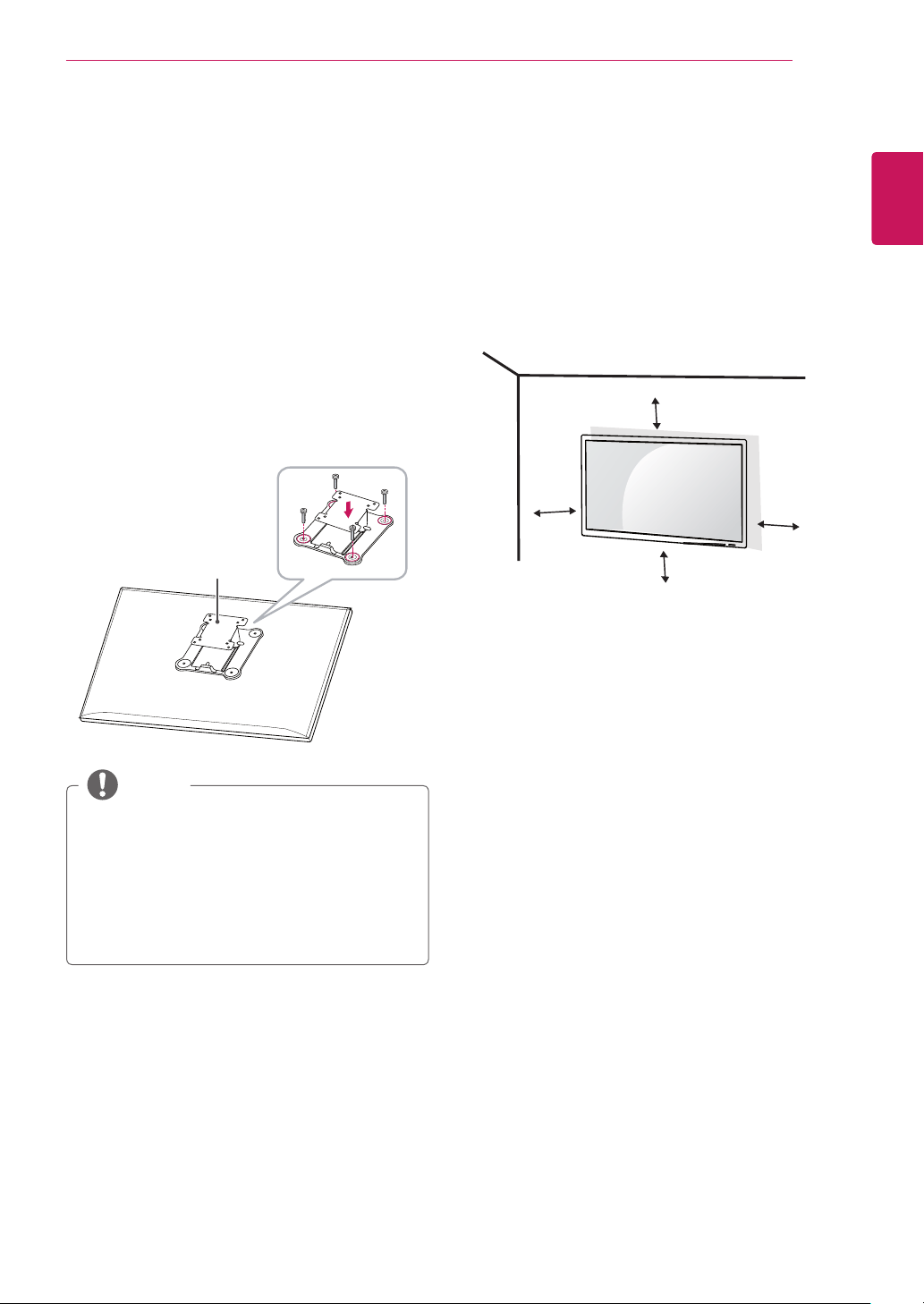

Installing the Wall Mount Plate
This monitor meets the specifications for the wall
mount plate or other compatible devices.
1
Place the screen face down. To protect the
screen from scratches, cover the surface with a
soft cloth.
2
Place the wall mount plate onto the monitor
and align it with the screw holes.
3
Tighten the four screws to fix the plate to the
monitor using a screwdriver.
Installing on the Wall
Install the monitor at least 10 cm away from the
wall and leave about 10 cm of space at each side
of the monitor to ensure sufficient ventilation.
Detailed installation instructions can be obtained
from your local retail store. Alternatively, please
refer to the manual for how to install and set up a
tilting wall mounting bracket.
Wall mount plate
y
The wall mount plate is sold separately.
y
For more information on installation, refer to
the wall mount plate's installation guide.
y
Be careful not to apply too much force while
mounting the wall mount plate as it may
cause damage to the screen.
NOTE
10 cm
10 cm
10 cm
10 cm
To install the monitor to a wall, attach a wall
mounting bracket (optional) to the back of the
monitor.
Make sure that the wall mounting bracket is
securely fixed to the monitor and to the wall.
1
Use the screws and wall mounting bracket that
conform to VESA standards.
2
If you use screws longer than the standard
length, it may damage the inside of the product.
3
A non-VESA standard screw may damage
the product and cause the monitor to fall.
LG Electronics is not liable for any accidents
relating to the use of non-standard screws.
4
VESA compatible only with respect to screw
mounting interface dimensions and mounting
screw specifications.
5
Use the wall mount plate and fixing screws that
conform to VESA standards as specified below.
y
784.8 mm or less
* Thickness of the wall mount plate: 2.6 mm
* Fixing screw: Diameter 4.0 mm x Pitch 0.7
mm x Length 10 mm
y
787.4 mm or more
* Use the wall mount plate and screws that
conform to VESA standards.
14
ENG
ENGLISH
ASSEMBLING AND PREPARING
Model
27MB85Z
27MB85R
VESA (A x B)
100 x 100
Stand Screw
M4 x L10
Required Screws
4
Wall Mount Plate
(Optional)
RW120
y
VESA (A x B)
A
B
y
Unplug the power cord before moving or
installing the monitor to avoid electric shock.
y
Installing the monitor on the ceiling or on a
slanted wall may result in the monitor falling
off, which could lead to injury. Use an autho-
rized LG wall mount and contact the local
dealer or qualified personnel.
y
Applying excessive force when tightening
screws may cause damage to the monitor.
Damage caused in this way will not be cov-
ered by the product warranty.
y
Use the wall mounting bracket and screws
that conform to VESA standards. Damage
caused by the use or misuse of inappropri-
ate components will not be covered by the
product warranty.
y
To prevent injury, this apparatus must be
securely attached to the wall in accordance
with the instrallation instructions. (This only
pertains to Australia and New Zealand.)
y
When measured from the back of the moni-
tor, the length of each installed screw must
be 8 mm or less.
CAUTION
y
Use the screws specified by VESA stan-
dards.
y
The wall mount kit includes the installation
guide and all necessary parts.
y
The wall mounting bracket is optional. You
can obtain optional accessories from your
local dealer.
y
The length of the screw may differ for each
wall mounting bracket. Be sure to use the
proper length.
y
For more information, please refer to the
user manual for the wall mounting bracket.
NOTE
Wall Mount Plate
Back of the Monitor
Screw
Dimensions
: M4 x L10
Wall Mount Plate
Back of the Monitor
Max 8 mm
15
ENG
ENGLISH
USING THE MONITOR
USING THE MONITOR
Connecting to a PC
y
This monitor supports the *Plug and Play
feature.
*Plug and Play: A feature that allows you to
add a device to your computer without having
to reconfigure anything or install any manual
drivers.
HDMI Connection
Transmits digital video and audio signals from your
PC to the monitor. Connect your PC to the monitor
using the HDMI cable as shown in the illustration
below.
y
Do not press on the screen for a prolonged
period of time. This may cause image distor-
tion.
y
Do not display a still image on the screen for
a prolonged period of time. This may cause
image retention. Use a screensaver if pos-
sible.
y
Connecting your PC to the monitor using the
HDMI cable may cause device compatibility
issues.
y
Using a DVI to HDMI / DP(DisplayPort) to
HDMI) cable may cause compatibility issues.
CAUTION
CAUTION
y
When connecting the power cord to the out-
let, use a grounded (3-hole) multi-socket or a
grounded power outlet.
y
The monitor may flicker when turned on in an
area of low temperature. This is normal.
y
Sometimes red, green, or blue spots may ap-
pear on the screen. This is normal.
NOTE
DVI-I(D) OUT
PC
AUDIO OUT
DP OUT
5 V 0.9 A
USB IN 1
USB IN 2 USB IN 3
USB UP
DP IN
DVI-D IN
Mini DP IN
HDMI IN
HDMI IN
H/P
DP OUT
5 V 0.9 A
USB IN 1
USB IN 2 USB IN 3
(Sold Separately)
16
ENG
ENGLISH
USING THE MONITOR
DisplayPort Connection
Transmits digital video and audio signals from your
PC to the monitor. Connect the monitor to your
PC using the display port cable as shown in the
illustration below:
y
There may be no video or audio output
depending on the DP (DisplayPort) version of
the PC.
y
When using a Mini DP to DP (Mini
DisplayPort to DisplayPort) cable, a cable
with DisplayPort 1.1a specifications or above
is recommended.
NOTE
DVI Connection
Transmits digital video signals to the monitor.
Connect the monitor using the DVI cable as
illustrated below.
DVI-I(D) OUT
PC
AUDIO OUT
DP OUT
5 V 0.9 A
USB IN 1
USB IN 2 USB IN 3
USB UP
DP IN
DVI-D IN
Mini DP IN
HDMI IN
HDMI IN
H/P
DP OUT
5 V 0.9 A
USB IN 1
USB IN 2 USB IN 3
(Sold Separately)
y
Connect the input signal cable
and turn in the direction of the
arrow. To prevent disconnection
secure the cable tightly.
CAUTION
(Sold Separately)
27MB85Z 27MB85R
27MB85R
DVI-I(D) OUT
PC
AUDIO OUT
DP OUT
5 V 0.9 A
USB IN 1
USB IN 2 USB IN 3
USB UP
DP IN
DVI-D IN
Mini DP IN
HDMI IN
HDMI IN
H/P
DP OUT
5 V 0.9 A
USB IN 1
USB IN 2 USB IN 3
DVI-I(D) OUT
PC
AUDIO OUT
DP OUT
5 V 0.9 A
USB IN 1
USB IN 2 USB IN 3
USB UP
DP IN
DVI-D IN
Mini DP IN
HDMI IN
HDMI IN
H/P
DP OUT
5 V 0.9 A
USB IN 1
USB IN 2 USB IN 3
y
Using a DVI to HDMI cable may cause
compatibility issues.
y
If you connect a DVI signal cable, use the
DVI-D dual cable.
NOTE
17
ENG
ENGLISH
USING THE MONITOR
Thunderbolt ( ) Connection
27MB85Z
You can connect your high-resolution display or
high-performance data device to the monitor via
a Thunderbolt port. Connect your external device
to the monitor using the Thunderbolt cable as
illustrated below.
DVI-I(D) OUT
PC
AUDIO OUT
DP OUT
5 V 0.9 A
USB IN 1
USB IN 2 USB IN 3
USB UP
DP IN
DVI-D IN
Mini DP IN
HDMI IN
HDMI IN
H/P
DP OUT
5 V 0.9 A
USB IN 1
USB IN 2 USB IN 3
y
The maximum data transmission rate of each
port is 20 Gb/s.
y
Make sure to use a Thunderbolt ( ) certified
cable. Otherwise, this may cause the device
to malfunction.
y
Thunderbolt ( ) is supported in such
environments as Windows 7, Windows 8 and
New Mac Pro (Mac OS 10.9).
y
To use the Thunderbolt ( ) port, the ASM
driver in the User Manual CD must be
installed.
y
Dual monitor connection using Thunderbolt
( ) daisy-chain may not be supported
depending on performance of the graphics
card.
y
Connecting the Thunderbolt ( ) cables using
the daisy-chain method may cause delays in
screen display.
y
Using a DVI to HDMI / DP(DisplayPort to
HDMI) cable may cause compatibility issues.
NOTE
NOTE
Connecting AV Devices
HDMI Connection
HDMI transmits digital video and audio signals
from your AV device to the monitor. Connect your
AV device to the monitor using the HDMI cable as
shown in the illustration below.
DVI-I(D) OUT
PC
AUDIO OUT
DP OUT
5 V 0.9 A
USB IN 1
USB IN 2 USB IN 3
USB UP
DP IN
DVI-D IN
Mini DP IN
HDMI IN
HDMI IN
H/P
DP OUT
5 V 0.9 A
USB IN 1
USB IN 2 USB IN 3
(Sold Separately)
(Sold Separately)
18
ENG
ENGLISH
USING THE MONITOR
DVI-I(D) OUT
PC
AUDIO OUT
DP OUT
5 V 0.9 A
USB IN 1
USB IN 2 USB IN 3
USB UP
DP IN
DVI-D IN
Mini DP IN
HDMI IN
HDMI IN
H/P
DP OUT
5 V 0.9 A
USB IN 1
USB IN 2 USB IN 3
Connecting Peripherals
USB Cable Connection - PC
The USB port on the product functions as a USB
hub.
y
Make sure to install the most recent Windows
OS service pack before using the product.
y
Peripheral devices are sold separately.
y
A keyboard, mouse, or USB device can be
connected to the USB port.
NOTE
Cautions When Using a USB Device
y
A USB device with an automatic recognition
program installed or that uses its own driver
may not be recognized.
y
Some USB devices may not be supported or
may not work properly.
y
It is recommended to use a USB hub or hard
disk drive with power supplied. (If the power
supply is not adequate, the USB device may
not be recognized properly.)
CAUTION
HDMI/DP (DisplayPort) Connection
To use USB 3.0, connect the A-B type USB 3.0
cable of the product to the PC.
Peripheral devices connected to the USB IN port
can be controlled from the PC.
Thunderbolt ( ) Connection
27MB85Z
Peripheral devices connected to the USB IN port
can be controlled from the PC.
If you change the input on the menu while a device
is in connection via the Thunderbolt port, then the
device in connection via the USB port may not
work properly.
DVI-I(D) OUT
PC
AUDIO OUT
DP OUT
5 V 0.9 A
USB IN 1
USB IN 2 USB IN 3
USB UP
DP IN
DVI-D IN
Mini DP IN
HDMI IN
HDMI IN
H/P
DP OUT
5 V 0.9 A
USB IN 1
USB IN 2 USB IN 3
(Sold Separately)
(Sold
Separately)
(Sold Separately)
19
ENG
ENGLISH
USING THE MONITOR
y
Peripheral devices are sold separately.
y
For an angle plug earphone, it is difficult
connect it with a peripheral device, so use a
straight type.
NOTE
Angle Type Straight Type
Headphone Port Connection
Use the headphone port to connect a peripheral
device to the monitor. Connect as illustrated.
DVI-I(D) OUT
PC
AUDIO OUT
DP OUT
5 V 0.9 A
USB IN 1
USB IN 2 USB IN 3
USB UP
DP IN
DVI-D IN
Mini DP IN
HDMI IN
HDMI IN
H/P
DP OUT
5 V 0.9 A
USB IN 1
USB IN 2 USB IN 3
(Sold Separately)
y
Depending on the audio settings of the PC
and external device, headphone and speaker
functions may be limited.
20
ENG
ENGLISH
INSTALLING LG MONITOR SOFTWARE
INSTALLING LG MONITOR SOFTWARE
1
Set the default Web browser to Internet Explorer.
Insert the Software CD included in the product packaging into your PC's CD drive and install the LG Monitor
Software.
The installation screen images are for reference only. The actual installation screen images may vary
depending on the model.
2
Click the LG Monitor Software on the CD's
main screen. When the file download window
appears, click the Run button. (The file
download window may vary depending on the
operating system and the Internet Explorer
version, but the installation procedures are
same.)
y
Service Pack 1 or higher is required for
Window 7.
3
Follow the instructions to proceed with the
installation.
4
Check I accept the terms of the agreement
on the License Agreement screen and then
click the Next button.
5
Select the program that you want to install.
CAUTION
21
ENG
ENGLISH
INSTALLING LG MONITOR SOFTWARE
y
Screen Split: This program automatically
splits the program window as desired.
y
True Color Finder/ True Color Pro: This
program calibrates the precise color output of
the monitor to suit your needs.
NOTE
6
The LG Monitor Software installation starts as
shown below.
9
The program you selected on the Select
Features page will install automatically.
10
When the installation is complete, restart your
system.
8
If the TUSB3410 driver has not been installed,
it will install automatically. Select Install this
driver software anyway (I) if the Windows
security message is displayed as below.
7
If the ASM driver has not been installed, the
driver will be installed automatically. (Only
27MB85Z model)
22
ENG
ENGLISH
INSTALLING LG MONITOR SOFTWARE
When you run the True Color Finder/ True Color
Pro software, the True Color Finder/ True Color
Pro icon [ ] appears in the system tray at the
right bottom of the PC screen.
Right-click the True Color Finder icon and
select Start Program to start the program.
y
Once you have completed the monitor
calibration with the True Color Finder/ True
Color Pro software, remove the calibrator
from the monitor and store it at room
temperature away from direct sunlight or put
it in the box.
- If the calibrator's measuring part is exposed
to direct sunlight for a long time, this may
cause damage to the calibrator.
- Do not store it in an environment with too
low/high temperature and high humidity.
y
If any third-party calibration application is
already installed on your PC, the image
quality may be affected by a conflict
between the two applications. For the best
performance, it is recommended to uninstall
the other calibration application.
y
To use the True Color Finder/ True Color Pro
function, you must purchase the supported
calibrator.
y
For details on supported calibrators and
graphic cards, see the True Color Finder/
True Color Pro user guide.
y
If you have changed the input port, it is
recommend that you calibrate the monitor's
picture quality again.
NOTE
NOTE
NOTE
CAUTION
If you run Screen Split, the Screen Split icon
[ ] appears in the system tray at the right
bottom of the PC screen.
Right-click the Screen Split icon and select a
layout you want.
23
ENG
ENGLISH
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
Activating the Main Menu
1
Press the Menu ( ) button.
2
Use the < > button to adjust the options.
To return to the upper menu or set other menu items, use the Menu ( ) button.
3
Press and hold the Menu ( ) button to exit the OSD menu.
NOTE
y
All of the buttons are touch sensitive and can be operated by simply touching them on the bottom
front of the monitor with your finger.
Button Description
Menu ( )
If the menu is inactive
Activates the main menu.
If the menu is active
Returns to the previous menu.
If the menu is inactive
Activates/deactivates a picture mode.
If the menu is active Left directional key
If the menu is inactive
Activates/deactivates the Super Energy Saving (SES) mode.
If the menu is active Right directional key
OK
If the menu is inactive
Confirms the selection.
If the menu is active
Pressing OK shows the resolution of the current signal (only when there is
input signal).
(Power
Button)
Powers on or off.
Power Indicator When the monitor is in operating mode, the power indicator will turn white
(on mode).
When the monitor is in power-saving mode, the power indicator will blink
white.
Monitor buttons
24
ENG
ENGLISH
CUSTOMIZING SETTINGS
Each option is described below.
Customizing Settings
Menu Settings
1
To view the menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Use the < or > button to set the options.
3
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
Menu Description
Brightness
Adjusts the brightness and contrast of the screen.
Contrast
Volume Adjusts the volume.
NOTE
y
The volume is disabled in the DVI input mode.
y
Selecting the OK button in the Volume menu will enable/disable the Mute
function.
Input Selects the current input mode.
Wide/Original Adjusts the screen ratio.
Super Energy Sav-
ing (SES)
Enables or disables the Super Energy Saving function.
Mode
Sets to Custom, sRGB, Adobe RGB (Only 27MB85Z model), DCM Slim., Reader or Calibration.
PIP Displays the screens of two input modes on one monitor.
Picture Adjusts the sharpness, black level, and response time of the screen.
Color
Adjusts the gamma, color temperature and color balance of the screen
Settings
Sets the language, main audio, button tone, power indicator, Automatic Standby and OSD lock.
Reset
Resets to the default settings as of the day of purchase.
Exit Exits the OSD menu.
Brightness
Contrast Volume Input Ratio
SES
Mode
100 70 30 DVI Wide Off Custom
PIP Picture Color Settings Reset Exit
All
25
ENG
ENGLISH
CUSTOMIZING SETTINGS
Each option is described below.
Menu > Ratio Description
Wide Displays the video in wide-screen, regardless of the video signal input.
Original Displays a video according to the input video signal aspect ratio.
1:1
The aspect ratio is not adjusted from the original.
Back
Moves to the previous OSD screen.
Exit
Exits the OSD menu.
Ratio Settings
1
To view the menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or > to go to Ratio.
3
Press OK to select Ratio.
4
Use the < or > button to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
Ratio
NOTE
y
The display may look the same for Wide, Original, and 1:1 options at the recommended resolution
(2560 x 1440).
y
The ratio is disabled in the interlaced signal.
Sub Menu
Wide Original 1:1 Back Exit
Wide
26
ENG
ENGLISH
CUSTOMIZING SETTINGS
Super Energy Saving (SES) Settings
1
To view the menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or > to go to Super Energy Saving (SES).
3
Press OK to select Super Energy Saving (SES).
4
Use the < or > button to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
Each option is described below.
Menu > SES Description
Super Energy Saving (SES) On Enables the Super Energy Saving (SES) function, which allows you to save
energy according to the Super Energy Saving (SES) efficiency level.
Off Disables the Super Energy Saving (SES) function.
SES
Off
Sub Menu
On Off Back Exit
27
ENG
ENGLISH
CUSTOMIZING SETTINGS
Mode Settings
1
To view the menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or > to go to Mode.
3
Press OK to select Mode.
4
Use the < or > button to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
Mode
Custom
Menu > Mode Description
Custom Allows the user to adjust each element. The color mode of the main menu can be adjusted.
sRGB A standard RGB color space for the monitor and printer.
AdobeRGB
(Only 27MB85Z
model)
A much larger color space than sRGB. This option is suitable for printing pictures.
DCM Slim.
Optimizes the screen for viewing X-ray images. You can brighten the screen in the OSD menu.
NOTE
y
This product has been approved as an IT device and not as a medical device.
It is intended for office use only. (It may be used for education and reference
purposes but not for medical diagnosis.)
Reader Optimizes the screen for viewing documents.You can brighten the screen in the OSD menu.
Calibration Applies the value calibrated by True Color Pro / True Color Finder.
NOTE
y
Run the True Color Pro / True Color Finder program.
y
Calibration settings for DVI / HDMI / DP(DisplayPort) & Thunderbolt will be saved
separately. (Only 27MB85Z model)
y
Calibration settings for DVI / HDMI / DP(DisplayPort) & miniDP(Mini DisplayPort)
will be saved separately. (Only 27MB85R model)
Back Moves to the previous OSD screen.
Exit Exits the OSD menu.
Each option is described below.
Sub Menu
Custom sRGB
AdobeRGB
Calibration
Back ExitDCM Slim. Reader
28
ENG
ENGLISH
CUSTOMIZING SETTINGS

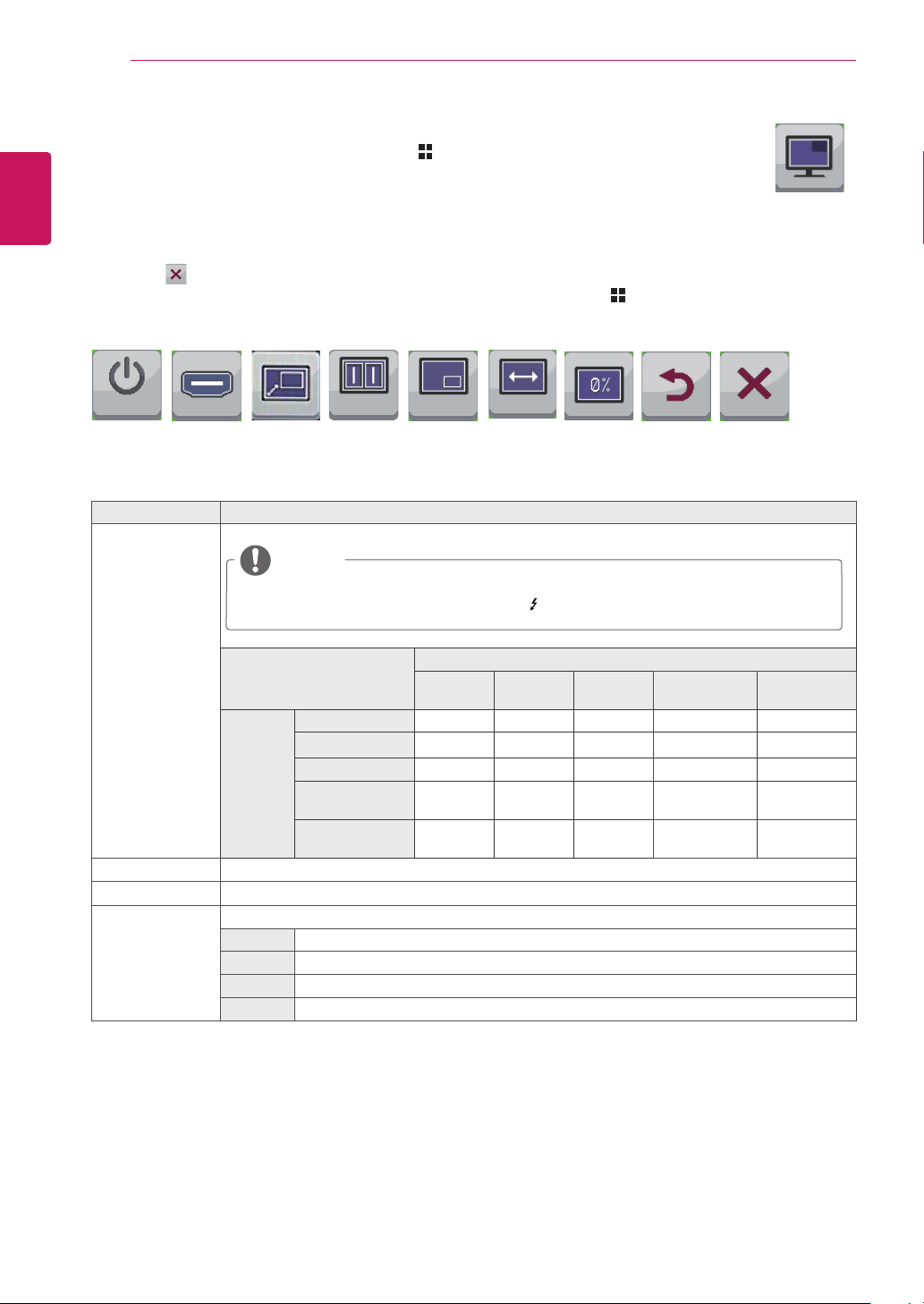

PIP settings
1
To view the Menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or > to go to PIP.
3
Press OK to select PIP.
4
Use the < or > buttons to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
PIP
Each option is described below.
Menu > PIP Description
PIP Displays the screens of two input modes on one monitor.
NOTE
y
DP : DisplayPort / TBT : Thunderbolt( ) / mDP : Mini DisplayPort
PIP Connection
Sub screen (Right)
DVI-D HDMI DP
TBT
(27MB85Z)
mDP
(27MB85R)
Main
screen
(Left)
DVI-D - X O O O
HDMI X - O O O
DP O O - X X
TBT
(27MB85Z)
O O X - X
mDP
(27MB85R)
O O X X -
Main Audio Changes the audio output in PIP mode.
Swap Toggles between the main screen and sub screen in PIP mode.
Size Adjusts the size of the secondary screen.
Balanced Uses a balanced size for the secondary screen.
Small
Shows the secondary screen in a small size display.
Medium Shows the secondary screen in a normal size display.
Large
Shows the secondary screen in a large size display.
Sub Menu
Off
PIP
Main Audio
Swap Size Position Ratio Trasp. Back Exit
Balanced Bottom R Wide
29
ENG
ENGLISH
CUSTOMIZING SETTINGS
NOTE
y
If PIP mode is set to Off, the Main Audio, Swap, Size, Position, Ratio, and Transparency menus are dis-
abled.
If Size is set to Balanced, the Position and Transparency menus are disabled.
The Ratio menu is only enabled in Balanced mode, and is disabled if there is no PIP input signal.
Menu > PIP Description
Position Adjusts the position of the secondary screen.
The default value is Bottom Right.
Bottom Right Shows the secondary screen in the bottom right of the display.
Bottom Left Shows the secondary screen in the bottom left of the display.
Top Left Shows the secondary screen in the top left of the display.
Top Right Shows the secondary screen in the top right of the display.
Ratio Adjusts the aspect ratio of the sub screen.
y
Only applicable when Size is set to Balanced.
Wide Displays the video to fit the PIP screen, regardless of the video signal input.
Original Displays the video in the input video signal aspect ratio on the PIP screen.
Transparency Sets the transparency for the sub screen.
y
Only applicable when Size is set to either Small, Medium or Large.
Off Transparency menu is disabled.
25%
Sets the transparency to 25%.
50% Sets the transparency to 50%.
75% Sets the transparency to 75%.
Back Moves to the previous OSD screen.
Exit Exits the OSD menu.
30
ENG
ENGLISH
CUSTOMIZING SETTINGS
1
To view the menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or > to go to Picture.
3
Press OK to select Picture.
4
Use the < or > button to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
Each option is described below.
Sub Menu
Sharpnes Black Level
Uniformity
Low5 Middle On
Reset Back Exit
Menu > Picture Description
Sharpness Adjusts the sharpness of the screen.
Black Level Sets the offset level (for HDMI only).
y
Offset: as a reference for a video signal, this is the darkest color the monitor can display.
High The picture of the screen gets brighter.
Low The picture of the screen gets darker.
Response Time Sets a response time for displayed pictures based on the speed of the screen. For a middle envi-
ronment, it is recommended that you use Middle. For a fast-moving picture, it is recommended that
you use High.
Setting to High may cause image sticking.
High
Sets the response time to High.
Middle Sets the response time to Middle.
Low Sets the response time to Low.
Uniformity Adjusts uniformity of the image.
NOTE
y
The Uniformity menu is activated only in sRGB and Adobe RGB (supported
by 27MB85Z only) modes. Enabling Uniformity may reduce the overall
brightness of the image.
Reset Resets the picture function to the default settings.
Back Moves to the previous OSD screen.
Exit Exits the OSD menu.
Response
Time
31
ENG
ENGLISH
CUSTOMIZING SETTINGS
Color
1
To view the menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or >to go to Color.
3
Press OK to select Color.
4
Use the < or > button to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
Each option is described below.
Menu > Color Description
Gamma Custom gamma setting: When using the gamma 2.0, gamma 2.2, and gamma 2.4 monitor set-
tings, higher gamma settings mean a brighter image is displayed and vice versa.
Color Temp Adjusts the color temperature in 500K increments.
(Note that 9300K is supported instead of 9500K.)
Red You can customize the picture color using Red, Green, and Blue colors.
Green
Blue
Six Color Meets the user requirements for colors through adjusting the color and saturation of the six colors
(red, green, blue, cyan, magenta, yellow) and saving the settings.
Hue Adjusts tone of the screen.
Saturation Adjusts the saturation of the screen colors. The lower the value, less saturated and
bright the colors become. The higher the value, the more saturated and dark the
colors become.
Reset Returns the color settings to the default settings.
Back Moves to the previous OSD screen.
Exit Exits the OSD menu.
Color
Sub Menu
Gamma
Color Temp
Red Green Blue
Six Color
6500
Gamma 2.2
50 50 50 Color
Reset Back Exit
32
ENG
ENGLISH
CUSTOMIZING SETTINGS

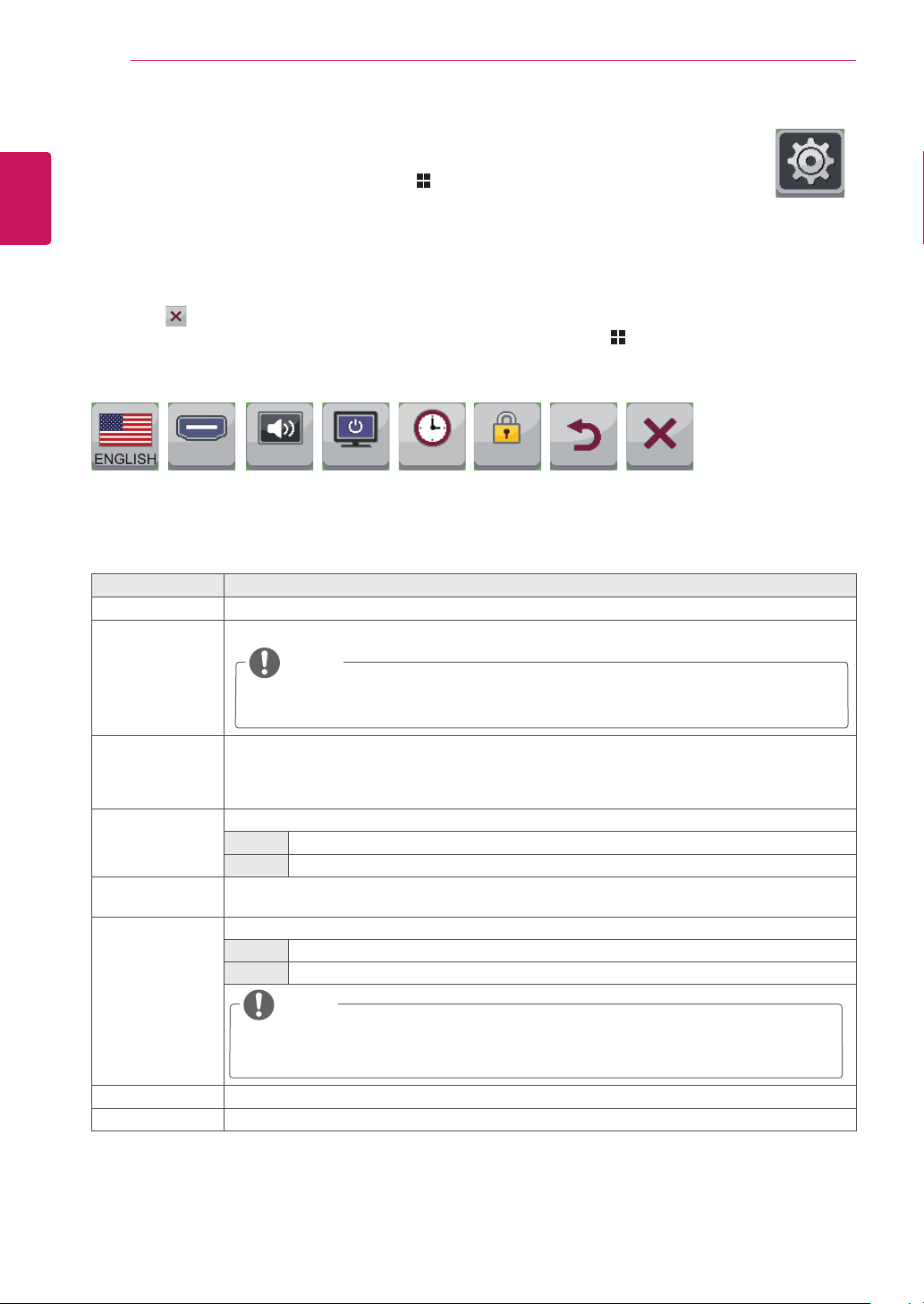

Settings
1
To view the menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or > to go to Settings.
3
Press OK to select Settings.
4
Use the < or > button to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
Each option is described below.
Settings
Sub Menu
Menu > Settings Description
Language Sets the menu screen to the desired language.
Main Audio Outputs the sound through the monitor's headset connected the digital input (except for DVI).
Button Sound Controls the button tone.
The button tone is heard for the following actions.
y
DC Power On/Off
y
Menu OSD On/Off
Power LED Turns the power indicator on the front side of the monitor on/off.
On The power indicator is turned on.
Off The power indicator is turned off.
Automatic
Standby
Feature that automatically turns off the monitor when there is no movement on the screen for a
period of time. You can set a timer for the auto-off function. (Off, 4 H, 6 H, and 8 H)
OSD Lock Prevents incorrect key input.
On Key input is disabled.
Off Key input is enabled.
NOTE
y
All functions except for the OSD Lock mode and the Exit button for
Brightness, Contrast, Volume, Input, and Settings are disabled.
Back Moves to the previous OSD screen.
Exit Exits the OSD menu.
NOTE
y
This option is available only when the PIP option is set to HDMI + DP, HDMI +
TBT (Mini DP), DP + HDMI, or TBT (Mini DP) + HDMI.
Language
Button
Sound
Main Audio
Power LED
OSD Lock
On Off Off
Back
Exit
HDMI
Automatic
standby
4 H
33
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
Nothing is displayed on the screen.
Is the monitor's power cord plugged
in?
y
Check if the power cord is correctly plugged in to the power outlet.
Is the power indicator on?
y
Check the power indicator.
Is the power indicator displaying
red?
y
Check that the connected input is enabled (Menu - Input).
Is the power indicator blinking?
y
If the monitor is in power-saving mode, move the mouse or press any
key on the keyboard to switch the display on.
y
Check if the computer is turned on.
Is the OUT OF RANGE message
displayed?
y
This occurs when signals transferred from the PC (video card) are out
of the horizontal or vertical frequency range of the monitor. Please see
the Product Specification section of this manual to set the appropri-
ate frequency.
Is the CHECK SIGNAL CONNEC-
TION message is displayed?
y
This is displayed when the signal cable between the PC and the moni-
tor is missing or disconnected. Check the cable and reconnect.
The OSD LOCKED message is displayed.
Are some functions unavailable
when pressing the Menu button?
y
The OSD is locked. Go to Menu > Settings and set OSD Lock to Un-
lock.
The screen retains an image.
Does image sticking occur even
when the monitor is turned off?
y
Displaying a still image for a prolonged time may cause damage to the
screen, resulting in the retention of the image.
y
Use a screen saver to protect the screen when using the monitor for a
prolonged period of time.
y
Vertical Frequency: In order to display an image, the screen must be refreshed dozens of times per
second like a fluorescent lamp.
The number of times the screen is refreshed per second is called vertical frequency or refresh rate
and is represented by Hz.
y
Horizontal Frequency: The time it takes to display one horizontal line is called the horizontal cycle.
The number of horizontal lines displayed in one second can be calculated by dividing one by the
horizontal cycle. This is called horizontal frequency and is represented by kHz.
NOTE
34
ENG
ENGLISH
TROUBLESHOOTING
y
Check if the video card's resolution or frequency is within the range allowed by the monitor and set to
the recommended (optimal) resolution in Control Panel > Display > Settings.
y
Failing to set the video card to the recommended (optimal) resolution may result in blurred text, a
dimmed screen, a truncated display area or misalignment of the display.
y
The configuration procedure may differ depending on your computer and/or operating system. Also,
some video cards may not support certain resolutions. If this is the case, contact the manufacturer of
the computer or video card for assistance.
y
Some video cards may not support 2560 x 1440 resolution. If the resolution cannot be displayed,
contact the manufacturer of your video card.
NOTE
The display color is abnormal.
Does the display appear discolored
(16 color)?
y
Set the color to 24 bit (true color) or higher. In Windows, go to Control
Panel > Display > Settings > Color Quality.
Does the display color appear un-
stable or in monochrome?
y
Check if the signal cable is connected properly. Reconnect the cable
or reinsert the PC's video card.
Are there spots on the screen?
y
When using the monitor, pixilated spots (red, green, blue, white or
black) may appear on the screen. This is normal for the LCD screen.
It is not an error nor is it related to the monitor's performance.
35
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
27MB85Z
LCD Screen Type 68 cm TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Diagonal length of the screen: 68 cm
Pixel Pitch 0.2331 mm x 0.2331 mm
Color Depth
Thunderbolt( )
8-bit color is supported.
DVI-D
DP(DisplayPort) 10-bit color is supported.
HDMI
Resolution Maximum Resolution 2560 x 1440 @ 60 Hz
Recommended Resolution 2560 x 1440 @ 60 Hz
Video Signal
(Video Signal)
Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency 57 Hz to 75 Hz
Synchronization Separate Sync.
Input Connector
USB IN 1, 2, 3, USB UP, Thunderbolt( ), DP(DisplayPort) IN, DVI-D IN,
HDMI IN, H/P OUT
Power Voltage AC 100-240 V~ 50 / 60 Hz 1.4 A
Power consumption (Typ.) On Mode: 80 W
Power Saving Mode ≤ 1.2 W
Off Mode Power Button ≤ 0.5 W
Switch 0 W
Stand Angle Forward/Backward: -5° to 35° (Head)
Environmental
Conditions
Operating Condition Temperature: 10°C to 35°C; Humidity: 20% to 80%
Storing Condition Temperature: -10°C to 60°C; Humidity: 5% to 90%
Dimension Monitor Size (Width x Height x Depth)
With stand 643 mm x 417 mm x 258.6 mm
Without Stand 643 mm x 417 mm x 55.6 mm
Weight (Without
Packaging)
7.6 kg
The specifications are subject to change without notice.
36
ENG
ENGLISH
SPECIFICATIONS
27MB85R
LCD Screen Type 68 cm TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Diagonal length of the screen: 68 cm
Pixel Pitch 0.2331 mm x 0.2331 mm
Color Depth 8-bit color is supported.
Resolution Maximum Resolution 2560 x 1440 @ 60 Hz
Recommended Resolution 2560 x 1440 @ 60 Hz
Video Signal
(Video Signal)
Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency 57 Hz to 75 Hz
Synchronization Separate Sync.
Input Connector USB IN 1, 2, 3, USB UP, Mini DP(Mini DisplayPort) IN, DP(DisplayPort) IN, DVI-D IN,
HDMI IN, H/P OUT
Power Voltage AC 100-240 V~ 50 / 60 Hz 1.3 A
Power consumption (Typ.) On Mode: 60 W
Power Saving Mode ≤ 1.2 W
Off Mode Power Button ≤ 0.5 W
Switch 0 W
Stand Angle Forward/Backward: -5° to 35° (Head)
Environmental
Conditions
Operating Condition Temperature: 10°C to 35°C; Humidity: 20% to 80%
Storing Condition Temperature: -10°C to 60°C; Humidity: 5% to 90%
Dimension Monitor Size (Width x Height x Depth)
With stand 643 mm x 417 mm x 258.6 mm
Without Stand 643 mm x 417 mm x 55.6 mm
Weight (Without
Packaging)
6.7 kg
The specifications are subject to change without notice.
37
ENG
ENGLISH
SPECIFICATIONS
Factory Support Mode (Preset Mode PC)
Preset Mode, PC Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks
720 x 400 31.468 70.08 -/+
640 x 480 31.469 59.94 -/-
640 x 480 37.5 75 -/-
800 x 600 37.879 60.317 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.123 75.029 +/+
1152 x 864 67.5 75 +/+
1280 x 1024 63.981 60.02 +/+
1280 x 1024 79.976 75.025 +/+
1680 x 1050 65.29 59.954 -/+
1600 x 1200 75 60 +/+
1920 x 1080 67.5 60 +/-
1920 x 1200 74.038 59.950 +/-
2560 x 1440 88.79 59.95 +/- Recommended Mode
* D-SUB/DVI DTV modes (interlace mode) are not supported.
HDMI Timing (Video)
Preset Mode, PC Horizontal Frequency (kHz) Vertical Frequency (Hz) Remarks
480P 31.50 60
576P 31.25 50
720P 37.50 50
720P 45.00 60
1080i 28.12 50
1080i 33.75 60
1080P 56.25 50
1080P 67.50 60
Power Indicator
Mode LED Color
On Mode Illuminates white and then dims
Power-saving Blinking in white
Off Mode Off
38
ENG
ENGLISH
PROPER POSTURE
PROPER POSTURE
Adjust the screen so that you can comfortably look at it at a slight downward angle from your natural eye
level.
y
Take a break for approximately 10 minutes every hour to reduce any fatigue caused by long-time
usage.
y
The stand of the touch monitor allows the product to be used in the optimum position.
Adjust the stand angle from -5° to 35° to obtain the best view of the screen.
You should be looking
slightly down at the
screen.
Place your hands gently
on the keyboard,
keeping your arms bent
at the elbows
and extended
horizontally in front of
you.
Adjust the angle
-5° to 35°
So that there is no
reflection or glare from
the screen.
This device meets the EMC requirements
for home appliances (Class B) and is in-
tended for home usage. This device can
be used in all regions. Read the owner's
manual (CD) carefully and keep it at
hand. Please note that the label attached
to the product provides information for
technical support.
Model
Serial No.
As an ENERGY STAR Partner LGE
U. S. A., Inc. has determined that
this product meets the ENERGY
STAR guidelines for energy
efficiency.
ENERGY STAR is a set of power-saving
guidelines issued by the U.S.Environmental
Protection Agency(EPA).
Refer to ENERGY STAR.gov for more infor-
mation on the ENERGY STAR program.
