Contents
45
EN
1Instructions 46
1.1 General safety instructions 46
1.2 Appliance purpose 49
1.3 Manufacturer’s liability 49
1.4 This user manual 49
1.5 Identification plate 49
1.6 Disposal 49
1.7 How to read the user manual 50
2 Description 51
2.1 General Description 51
2.2 Control panel 52
2.3 Other parts 52
2.4 Available accessories 53
3Use 54
3.1 Instructions 54
3.2 First use 54
3.3 Using the accessories 55
3.4 Using the oven 56
3.5 Cooking advice 63
3.6 Special functions 65
3.7 Automatic programs 68
3.8 Secondary menu 71
4 Cleaning and maintenance 74
4.1 Instructions 74
4.2 Cleaning the surfaces 74
4.3 Cleaning the door 74
4.4 Cleaning the oven cavity 76
4.5 Vapor Clean 77
4.6 Extraordinary maintenance 80
5Installation 82
5.1 Electrical connection 82
5.2 Positioning 83
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
Instructions
46
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when moving food
inside the oven.
• Never try to put out a fire or flames
with water: Turn off the appliance
and smother the flames with a fire
blanket or other appropriate
cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, provided
that they are supervised or
instructed by adults who are
responsible for their safety.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless they
are constantly supervised.
• Keep children under the age of 8
away from the appliance when it
is in use.
• Cleaning and maintenance must
not be carried out by unsupervised
children.
• The cooking process must always
be monitored. A short cooking
process must be continuously
monitored.
• Never leave the appliance
unattended during cooking
operations where fats or oils could
be released, as these could then
heat up and catch fire. Be very
careful.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed during
cooking.
• If you need to move food or at the
end of cooking, open the door 5 cm
for a few seconds, let the steam
come out, then open it fully.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in
the appliance.
• Switch off the appliance
immediately after use.
Instructions
47
EN
• DO NOT USE OR STORE
FLAMMABLE MATERIALS NEAR
THE APPLIANCE.
•DO NOT USE AEROSOLS IN
THE VICINITY OF THIS
APPLIANCE WHILST IT IS IN
USE.
• DO NOT MODIFY THIS
APPLIANCE.
• Have qualified personnel carry out
installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• Do not pull the cable to remove
the plug.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
Use wooden or plastic utensils.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
• Racks and trays should be inserted
as far as they will go into the side
guides. The mechanical safety
locks that prevent them from being
removed must face downwards
and towards the back of the oven
cavity.
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not spray any spray products
near the appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave objects on the
cooking surface.
• DO NOT FOR ANY REASON
USE THE APPLIANCE AS A
SPACE HEATER.
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or
containers in the oven.
Instructions
48
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays directly
on the bottom of the oven cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.
• Do not use the open door to rest
pans or trays on the internal glass
pane.
• Never use the oven door to lever
the appliance into place when
fitting.
• Avoid exerting too much pressure
on the oven door when open.
• Do not use the handle to lift or
move the appliance.
Installation and maintenance
• THIS APPLIANCE MUST NOT BE
INSTALLED IN BOATS OR
CARAVANS.
• The appliance must not be
installed on a pedestal.
• Position the appliance into the
cabinet cut-out with the help of a
second person.
• To avoid potential overheating, the
appliance must not be installed
behind a decorative door or a
panel.
• Have qualified personnel carry out
installation and assistance
interventions according to the
standards in force.
• Have the electrical connection
performed by authorised technical
personnel.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90 °C.
• The tightening torque of the screws
of the terminal supply wires must
be 1.5 - 2 Nm.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
Instructions
49
EN
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Before performing any work on
the appliance, switch off the
power supply.
For this appliance
• Ensure that the appliance is
switched off before replacing the
bulb.
• Do not rest any weight or sit on the
open door of the appliance.
• Take care that no objects are stuck
in the doors.
• Do not install / use the appliance
outdoors.
1.2 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.3 Manufacturer’s liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• Use of the appliance other than
that specified
• Failure to comply with the
instructions in the user manual
• Tampering with any part of the
appliance
• The use of non-original spare
parts.
1.4 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user’s reach for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.5 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.6 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
Instructions
50
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packaged in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice
Description
51
EN
2 Description
2.1 General Description
1 Control panel
2 Oven light
3 Seal
4 Door
5 Fan
6 Rack/tray support frames
Frame shelf
Description
52
2.2 Control panel
1 Temperature knob
This knob allows you to select the cooking
time and temperature, set programmed
cooking and the current time as well as turn
the light inside the oven on and off.
2 Display
Displays the current time, the selected
cooking temperature and function and any
time set.
3 Function knob
This knob allows you to turn the appliance
on and off and select the cooking function.
2.3 Other parts
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Cooling fan
The fan cools the appliance and comes into
operation during cooking.
The fan causes a steady outflow of air from
above the door which may continue for a
brief period of time even after the appliance
has been turned off.
Description
53
EN
Interior lighting
The appliance’s interior lighting comes on:
• When the door is opened.
• When any function is started, apart from
the ECO and Vapor Clean
functions.
• When the temperature knob is briefly
turned to the right (manual activation and
deactivation).
2.4 Available accessories
Rack
Useful for supporting containers with food
during cooking.
Tray rack
To be placed over the top of the oven tray;
for cooking foods which may drip.
Tray
Useful for collecting fat from foods placed
on the rack above.
When the door is open, it is not
possible to turn off the interior
lighting.
Some models are not provided
with all accessories.
The oven accessories intended to
come into contact with food are
made of materials that comply with
the provisions of current legislation.
Original supplied and optional
accessories can be requested to
Authorised Assistance Centres.
Use only original accessories
supplied by the manufacturer.
Description
54
3 Use
3.1 Instructions
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not pour water directly onto very hot
trays.
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands by wearing oven
gloves when moving food inside the
oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Do not allow children to approach the
appliance when it is in operation.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the appliance.
• Do not use or leave flammable materials
near the appliance.
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.
Description
55
EN
3.3 Using the accessories
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being taken out
accidentally have to face downwards
and towards the oven back.
Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.
Description
56
3.4 Using the oven
Display
Eco-logic indicator light
Showroom indicator light
Minute minder timer indicator light
Timed cooking indicator light
Programmed cooking indicator light
Clock indicator light
Child lock indicator light
Temperature level reached
Operating modes
Stand-by: When no function is selected, the
display shows the current time
.
ON: When a function is activated, the
display shows the parameters set such as
temperature, duration and temperature
reached.
Each time the temperature knob is pressed
during a function, the parameters will be
cycled through in the following order.
Temperature
Minute minder timer duration
Function duration
Programmed cooking duration (if timed
cooking has been selected)
Time display
In all modes it is possible to modify the
value by turning the temperature knob to the
left or right. Keep the knob turned to
produce a faster increase or decrease.
Description
57
EN
Setting the time
When using the appliance for the first time,
or after a power failure, the
symbol will flash on the display. To be able
to start any cooking function, the current
time must be set.
1. Turn the temperature knob to set the
displayed time (keep the knob turned to
produce a faster increase or decrease).
2. Press the temperature knob.
3. Turn the temperature knob to set the
minutes (keep the knob turned to
produce a faster increase or decrease).
4. Press the temperature knob to finish
adjustment.
Cooking functions
1. Select a cooking function with the
function knob.
2. Press and turn the temperature knob to
modify the cooking temperature.
3. Press the function knob to start traditional
cooking.
Preheating stage
Cooking itself is preceded by a preheating
stage, which allows the appliance to heat
to the cooking temperature more quickly.
The temperature reached flashes to
indicate that this stage is in progress.
When the preheating stage is
complete, temperature level reached
indication will remain lit steadily and a
buzzer sounds to indicate that the food
can be placed inside the oven.
It may become necessary to
change the current time, for
example for daylight saving time.
From the stand-by position, keep
the temperature knob turned to the
right or left until the hours flash.
It is not possible to change the time
if the oven is ON.
A function can be interrupted at
any time by pressing and holding
the function knob for at least 3
seconds.
Use
58
Functions list
ECO
This function is particularly suitable
for cooking on a single shelf with
low energy consumption.
Ideal for cooking meat, fish and
vegetables. It is not recommended
for leavened foods.
To obtain maximum energy savings
and reduce cooking times, it is
recommended to place food in the
oven without preheating.
When using the ECO function,
avoid opening the door during
cooking.
Cooking (and preheating) times
are longer with the ECO function.
Static
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes, and in any case,
particularly suitable for fatty meats
such as goose and duck.
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and, in combination
with the rotisserie (where fitted),
gives the food an even browning at
the end of cooking. Perfect for
sausages, spare ribs and bacon.
This function enables large
quantities of food, particularly meat,
to be grilled evenly.
Lower element
The heat coming just from the
bottom allows you to complete the
cooking of foods that require a
higher bottom temperature, without
affecting their browning. Perfect for
cakes, pies, tarts and pizzas.
Fan assisted
The operation of the fan, combined
with traditional cooking, ensures
consistent cooking even with
complex recipes. Perfect for biscuits
and cakes, even when
simultaneously cooked on several
levels. (For multiple-level cooking,
we recommend using the 2
nd
and
4
th
shelf).
Use
59
EN
Fan with grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. shin of pork).
Fan + lower element
The combination of the fan with just
the lower heating element allows
cooking to be completed more
rapidly. This system is
recommended for sterilising or for
finishing off the cooking of foods
which are already well-cooked on
the surface, but not inside, which
therefore need a little more heat.
Perfect for any type of food.
Circulaire
The combination of the fan and the
circulaire heating element
(incorporated in the rear of the oven
cavity) allows you to cook different
foods on several levels, as long as
they require the same temperature
and type of cooking. Hot air
circulation ensures instant and even
distribution of heat. It will be
possible, for instance, to cook fish,
vegetables and biscuits
simultaneously (on different levels)
without odours and flavours
mingling.
Turbo
The combination of fan assisted
cooking and traditional cooking
allows different foods to be cooked
on several levels extremely quickly
and efficiently, without odours and
flavours mingling. Perfect for large
volumes that call for intense
cooking.
Use
60

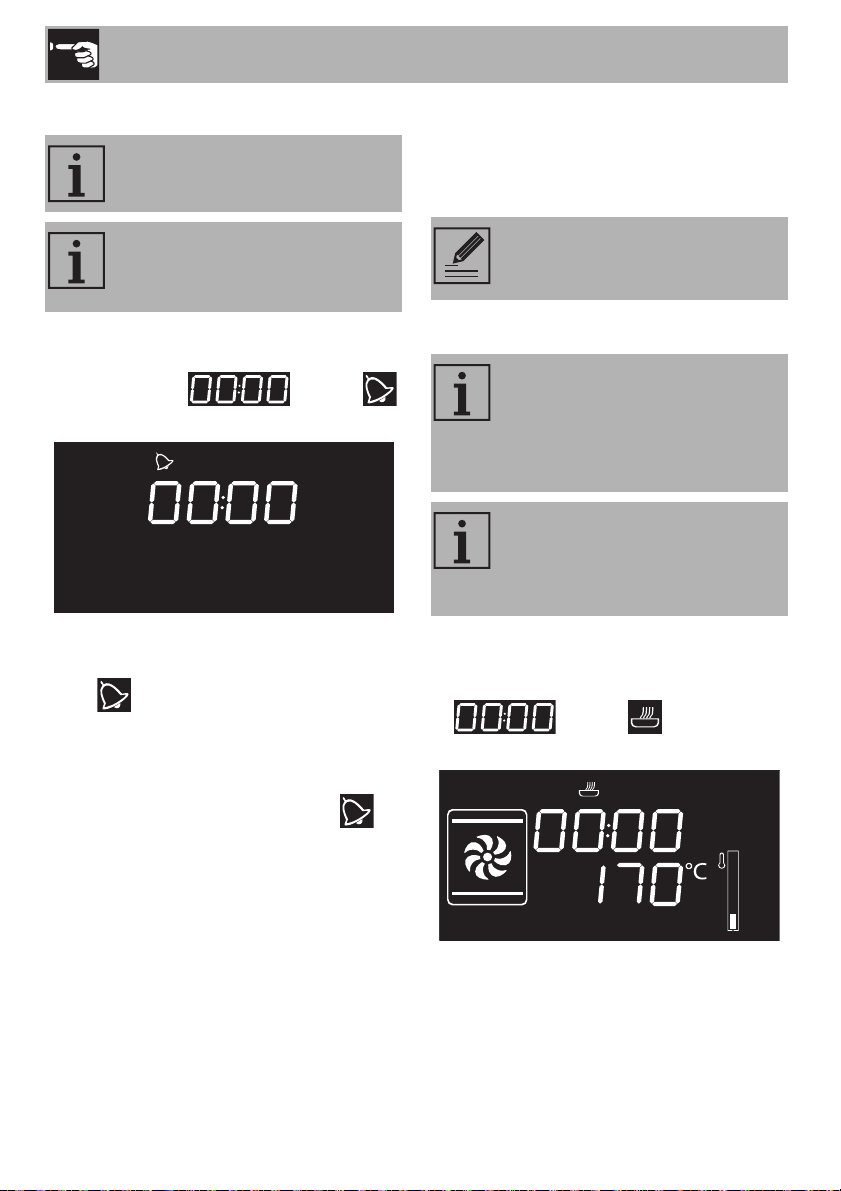

Timer
1. Press the temperature knob once (twice if
cooking is already in progress). The
display shows and the
indicator light flashes.
2. Turn the knob to set the duration (from 1
minute to 4 hours). After a few seconds,
the indicator light stops flashing and
the countdown starts.
3. Select the required cooking function and
wait for the buzzer to sound, indicating
that the cooking time is over. The
indicator light flashes.
4. To deactivate the buzzer, press or turn
one of the two knobs.
5. To select a further minute minder, turn the
temperature knob.

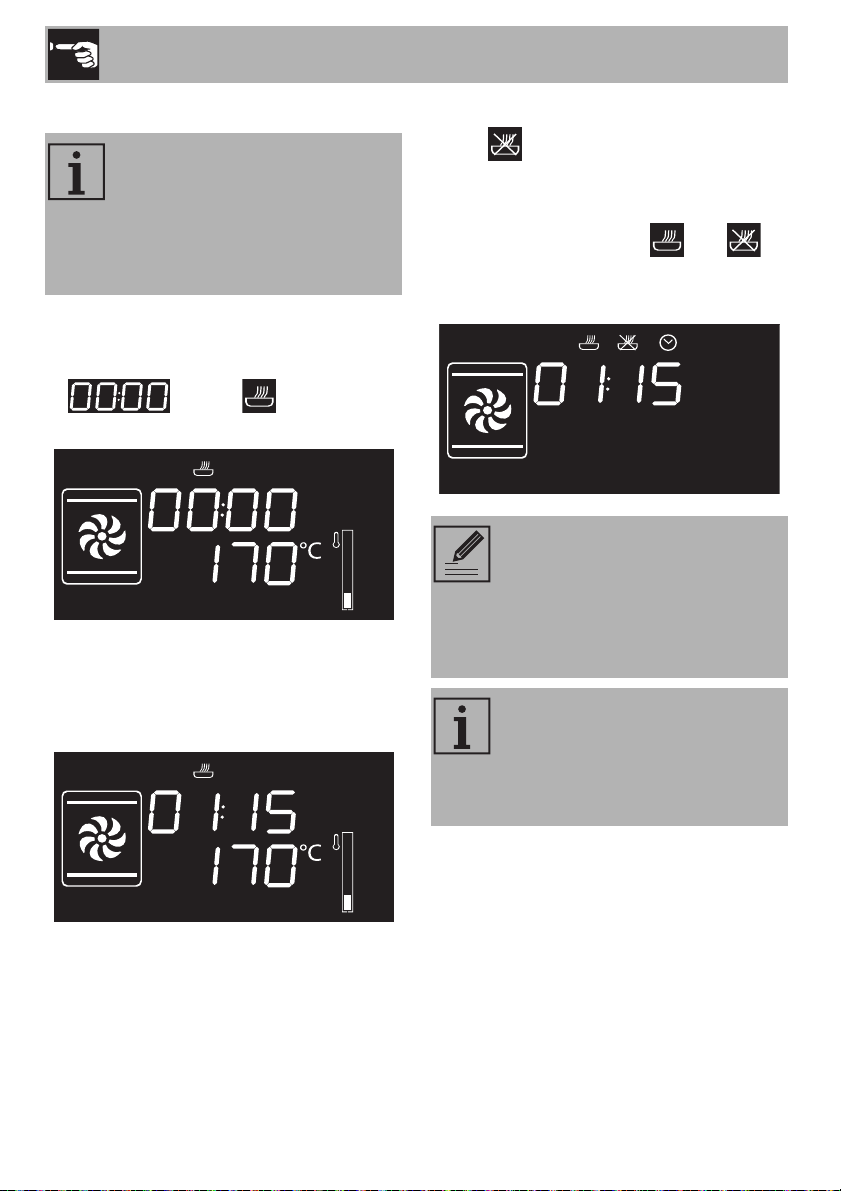

Timed cooking
1. After selecting a cooking function and
temperature, press the temperature knob
three times. The display shows
and the indicator light
flashes.
This function only activates the
buzzer, without stopping cooking.
The minute minder can be
activated both during cooking and
when the appliance is in standby.
You must set the value to zero to
remove the minute minder timer.
Timed cooking is the function
which allows a cooking operation
to be started and then ended after
a specific length of time set by the
user.
Activation of timed cooking
cancels any minute minder timer
which may previously have been
set.
Use
61
EN
2. Turn the temperature knob right or left to
set the cooking duration from 00:01 to
12:59. Keep the knob turned to produce
a faster increase or decrease.
3. A few seconds after the required
duration is set, the indicator light
stops flashing and timed cooking starts.
4. At the end of cooking, is
shown on the display and a buzzer
sounds.
5. To deactivate the buzzer, press or turn
one of the two knobs or open the door.
Modifying the data set during timed
cooking
During operation, it is possible to modify
timed cooking duration:
1. When the indicator light is steady
and cooking is in progress inside the
appliance, press the temperature knob
twice. The indicator light starts
flashing.
2. Turn the temperature knob right or left to
change the previously set cooking
duration.
To extend the cooking time
manually, press the temperature
knob again. The appliance will
resume its normal operation with
the previously selected cooking
settings.
To deactivate the buzzer and
select a further timed cooking, turn
the temperature knob to the right.
To deactivate the buzzer and
select a different cooking function,
turn the function knob to the right or
left.
Press and hold the function knob
down to switch off the appliance.
Use
62
Programmed cooking
1. After selecting a cooking function and
temperature, press the temperature knob
three times. The display shows
and the indicator light
flashes.
2. Turn the knob right or left to set the
cooking duration from 00:01 to 12:59.
Keep the knob turned to increase or
decrease it more quickly.
3. Press the temperature knob a fourth time.
The indicator light flashes. Turn the
knob right or left to set the cooking end
time.
4. After a few seconds the and
indicator lights stop flashing. The
appliance waits for the set start time.
Programmed cooking is the
function which allows cooking to
be stopped at an established time
depending on the time set by the
user, after which the appliance will
switch off automatically.
To extend the cooking time
manually, press the temperature
knob again. The appliance will
resume its normal operation with
the previously selected cooking
settings.
With programmed cooking, the
oven is switched on ten minutes in
advance to allow the appliance to
reach the cooking temperature
(preheating).
Use
63
EN
5. At the end of cooking, is
shown on the display and a buzzer
sounds.
6. To deactivate the buzzer, press or turn
one of the two knobs or open the door.
Modifying the data set during
programmed cooking
During operation, it is possible to modify
programmed cooking duration:
1. When the and indicator lights
are lit steadily and the appliance is
waiting for cooking to start, press the
temperature knob twice. The
indicator light starts flashing.
2. Turn the temperature knob right or left to
change the previously set cooking
duration.
3. Press the temperature knob again. The
indicator light switches off and the
indicator light starts flashing. The
display shows the cooking end time.
4. Turn the temperature knob right or left to
delay the cooking end time.
5. After a few seconds the and
indicator lights stop flashing and
programmed cooking resumes its
operation with the new settings.
3.5 Cooking advice
General advice
• Use a fan assisted function to achieve
consistent cooking at several levels.
• It is not possible to shorten cooking times
by increasing the temperature (the food
could be overcooked on the outside and
undercooked on the inside).
Press and hold the function knob
down to switch off the appliance.
For safety reasons, it is not possible
to set the end of cooking time by
itself without setting the cooking
duration.
After modifying the cooking
duration, the end of cooking time
must be re-set.
Use
64
Advice for cooking meat
• Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
• Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is hard, it is ready; If not, it
needs another few minutes cooking.
Advice for cooking with the Grill and the
Fan with grill
• Meat can be grilled even when it is put
into the cold oven or into the preheated
oven if you wish to change the effect of
the cooking.
• With the Fan with grill function, we
recommend that you preheat the oven
before grilling.
• We recommend placing the food at the
centre of the rack.
Advice for cooking desserts/pastries and
biscuits
• Use dark metal moulds: They help to
absorb the heat better.
• The temperature and the cooking time
depend on the quality and consistency
of the dough.
• To check whether the dessert is cooked
right through: At the end of the cooking
time, put a toothpick into the highest point
of the dessert. If the dough does not stick
to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes out
of the oven, on the next occasion reduce
the set temperature by about 10°C,
selecting a longer cooking time if
necessary.
Advice for defrosting and proving
• Place frozen foods without their
packaging in a lidless container on the
first shelf of the oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on
the second level and a tray on the first
level. In this way, the liquid from the
defrosting food drains away from the
food.
• The most delicate parts can be covered
with aluminium foil.
• For successful proving, a container of
water should be placed in the bottom of
the oven.
To save energy
• Stop cooking a few minutes before the
time normally used. Cooking will
continue for the remaining minutes with
the heat which has accumulated inside
the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the inside of the appliance clean at
all times.
• (Where fitted) When it is not being used,
remove the pizza stone and put the
cover back in its slot.
Use
65
EN
3.6 Special functions

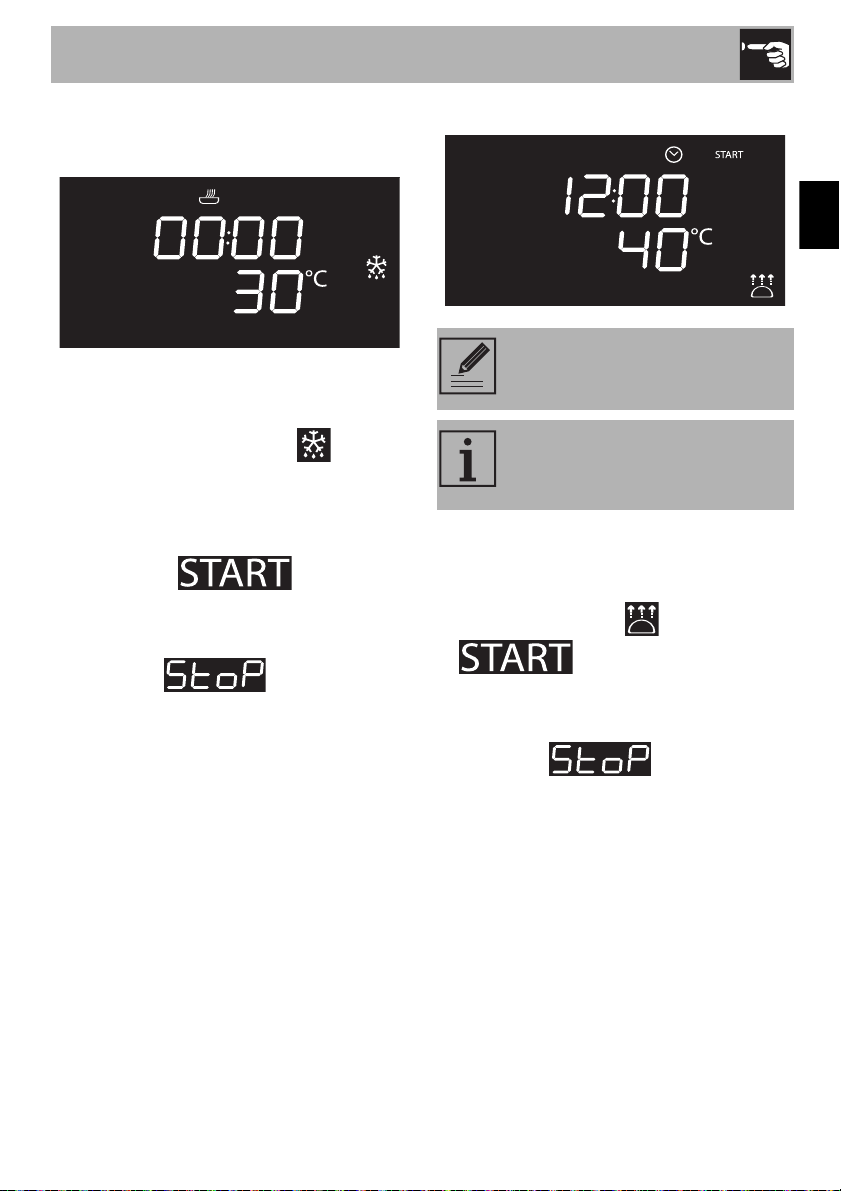

Defrost by time
1. Place the food inside the oven.
2. Press and turn the function knob to select
the defrost by time function .
3. Turn the temperature knob to set the
duration (from 1 to 99 minutes).
4. Press the temperature knob to confirm the
set duration. flashes.
5. Press the function knob to start the defrost
by time function.
6. At the end, is displayed and
a buzzer sounds.
7. To deactivate the buzzer, press or turn
one of the two knobs or open the door.
8. Press and hold the function knob for at
least 3 seconds to exit the function.
Proving
1. Position the dough for proving on the
second shelf.
2. Press and turn the function knob to select
the proving function .
flashes.
3. Press the function knob to start the
proving function.
4. At the end, is displayed and
a buzzer sounds.
5. To deactivate the buzzer, press or turn
one of the two knobs or open the door.
6. Press and hold the function knob for at
least 3 seconds to exit the function.
When using the proving function
the temperature cannot be altered.
For successful proving, a container
of water should be placed in the
bottom of the oven.
Use
66
Sabbath
1. Press and turn the function knob to select
the Sabbath function .
2. Press and turn the temperature knob to
modify the temperature of the function.
3. Press the temperature knob to confirm the
set temperature. flashes.
4. Press the function knob to start the
Sabbath function.
5. Press and hold the function knob for at
least 3 seconds to exit the function.
This function allows food to be
cooked in accordance with the
provisions of the Jewish religion
day of rest.
This function results in the
appliance operating in a particular
way:
• Cooking can proceed
indefinitely, it is not possible to
set any time.
• No preheating will be
performed.
• The cooking temperature which
can be selected varies between
60-100 °C.
• Oven light disabled, any
operation such as opening the
door or manual activation with
the knob will not activate the
light.
• The internal fan remains turned off.
• Knob illumination and audible
prompts remain disabled.
After activating the Sabbath
function the settings cannot be
altered.
Any action on the knobs will
produce no effect; only the
function knob remains active to
allow the appliance to be turned
off.
Use
67
EN
Defrost by weight
1. Place the food inside the oven.
2. Press and turn the function knob to select
defrost by weight, marked by
and the illuminated food
symbols .
3. Press the function knob to confirm the
defrost by weight function.
4. Turn the function knob to select the type
of food to defrost.
5. Turn the temperature knob to select the
weight (in grams) of the food to defrost.
6. Press the function knob to confirm the set
parameters and start defrosting.
7. At the end, is displayed and
a buzzer sounds.
8. To deactivate the buzzer, press or turn
one of the two knobs or open the door.
9. Press and hold the function knob for at
least 3 seconds to exit the function.
Pre-set parameters
* Defrosting times may vary according to
the shape and size of the food to be
defrosted.
This function defrosts foods on the
basis of the type and weight of the
frozen products.
dE Type
Weight
(g)
Time
(min)*
01 Meat 500 120
02 Fish 300 55
03 Fruit 300 35
04 Bread 300 25
Use
68
3.7 Automatic programs
The automatic cooking programs are
divided up according to the type of dish to
be cooked.
1. Press and turn the function knob to select
cooking with automatic programs,
marked by and the
illuminated food symbols
.
2. Press the function knob to confirm
cooking with automatic programs.
3. Turn the function knob to select the
preferred program (see Automatic
programs table).
4. Turn the temperature knob to select the
weight (in grams) of the food to cook.
5. When preheating has finished,
will flash. Introduce the
food and then press the function knob to
start cooking.
6. At the end, is displayed and
a buzzer sounds.
7. To deactivate the buzzer, press or turn
one of the two knobs or open the door.
8. Press and hold the function knob for at
least 3 seconds to exit the function.
It is possible to set programmed
cooking in automatic programs.
A function can be interrupted at
any time by pressing and holding
the function knob for at least 3
seconds.
Use
69
EN
Automatic programs table
MEAT (01 - 05)
FISH (06 - 07)
VEGETABLES (08 - 10)
(1)
When grilling, it is recommended to cook foods on both sides, making reference to the
times given in the table. The greater time always refers to the first side to be cooked, starting
with raw foodstuffs.
Pr Subcategory
Weight
(g)
Level Function
Temperature
(°C)
Time
(minutes)
01 Roast beef (medium)
1000 2 200 40
02 Roast pork
1000 2 190 75
03 Lamb (well done)
1000 2 190 110
04 Veal
1000 2 190 65
05 Whole roast chicken
1000 2 200 64
Pr Subcategory
Weight
(g)
Level Function
Temperature
(°C)
Time
(minutes)
06 Fresh fish (whole)
500 2 160 35
07 Frozen fish
500 2 160 45
Pr Subcategory
Weight
(g)
Level Function
Temperature
(°C)
Time
(minutes)
08 Mixed grilled
500 4 250
15 + 10
(1)
09 Roasted
1000 2 200 45
10 Roasted potatoes
1000 2 220 40
Use
70
DESSERTS/PASTRIES (11 - 13)
BREAD - PIZZA - PASTA (14-20)
(2)
(Models without Pizza stone) The stone must be placed on the bottom of the oven.
Frozen pizza cooked on the stone does not require different cooking times depending on
weight.
Pr Subcategory
Weight
(g)
Level Function
Temperature
(°C)
Time
(minutes)
11 Biscuits
600 2 160 18
12 Muffins
500 2 160 18
13 Tart
800 2 170 40
Pr Subcategory
Weight
(g)
Level Function
Temperature
(°C)
Time
(minutes)
14 Leavened bread (loaf)
1000 2 200 30
15 Pan baked pizza
1000 1 280 7
16 Stone baked pizza
500
1
(2)
280 4
17 Pasta bake
2000 1 220 40
18 Lasagne
2000 1 230 35
19 Paella
500 2 190 25
20 Quiche
1000 1 200 40
The times indicated in the tables do
not include preheating times and
refer to cooking whole pieces. If
the foodstuffs are cut into smaller
portions, the cooking times will
decrease.
Use
71
EN
3.8 Secondary menu
The appliance has a drop-down secondary
menu allowing the user to:
• Activate or deactivate the Child lock.
• Activate or deactivate Showroom mode
(which disables all the heating elements
so that only the control panel works).
• Activate or deactivate Low Power (Eco-
Logic) mode.
• Activate or deactivate Keep warm
mode.
• Activate or deactivate Timed light (Eco-
light) mode.
With the appliance in Stand-By
1. Activate the internal light by turning the
temperature knob quickly.
2. Press and hold the temperature knob
down for at least 5 seconds.
3. Turn the temperature knob right or left to
change the setting status (ON/OFF).
4. Press the temperature knob to move to
the next mode.
Child lock mode
This mode allows the appliance to lock the
controls automatically after one minute of
normal operation without any intervention
from the user.
During normal operation it is indicated by
the
indicator light coming on.
To release the lock temporarily during
cooking, hold the temperature knob down
for 5 seconds. One minute after the last
setting the lock will become active again.
When the position of the knobs is
changed, the display will show
for a few seconds.
It is still possible to turn the
appliance off instantaneously by
pressing and holding the function
knob down for 3 seconds when in
child lock mode.
Use
72
Showroom mode (for exhibitors only)
This mode allows the appliance to
deactivate all heating elements, while
keeping the control panel active.
To use the appliance normally, set this
mode to OFF.
Low Power (Eco-logic) mode
This mode allows the appliance to limit the
power used.
Suitable for simultaneous use with further
home appliances.
HI: normal power.
LO: low power.
If the mode is active, the
indicator light lights up on the
display.
Activating eco-logic mode means
that preheating and cooking times
may be extended.
If the mode is active, the
indicator light lights up on the
display.
Use
73
EN
Keep warm mode
This mode allows the appliance to keep
cooked food warm (at low temperatures)
for around an hour after cooking finishes
with a cooking cycle for which a duration
has been set (if this is not manually
interrupted).
Timed light (Eco-light) mode
For greater energy savings, the light is
automatically deactivated one minute from
the start of cooking.
To stop the appliance from automatically
deactivating the light after one minute, set
this mode to OFF.
The manual off/on control is
always available with both settings
by turning the temperature knob to
the right.
Cleaning and maintenance
74
4 Cleaning and maintenance
4.1 Instructions
4.2 Cleaning the surfaces
To keep the surfaces in good condition,
they should be cleaned regularly after use.
Let them cool first.
Ordinary daily cleaning
Always and only use specific products that
do not contain abrasives or chlorine-based
acids.
Pour the product onto a damp cloth and
wipe the surface, rinse thoroughly and dry
with a soft cloth or a microfibre cloth.
Food stains or residues
Do not use steel sponges and sharp
scrapers as they will damage the surface.
Use normal, non-abrasive products and a
wooden or plastic tool, if necessary. Rinse
thoroughly and dry with a soft cloth or a
microfibre cloth.
Do not allow residues of sugary foods (such
as jam) to set inside the oven. If left to set for
too long, they might damage the enamel
lining of the oven.
4.3 Cleaning the door
Removing the door
For easier cleaning it is recommended to
remove the door and place it on a tea
towel.
To remove the door proceed as follows:
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the
appliance.
• Do not use cleaning products containing
chlorine, ammonia or bleach on parts
made of steel or that have metallic
surface finishes (e.g. anodizing, nickel-
or chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring powders, stain
removers and metallic sponges) on
glass parts.
• Do not use rough or abrasive materials
or sharp metal scrapers.
We recommend the use of
cleaning products distributed by
the manufacturer.
Cleaning and maintenance
75
EN
1. Open the door completely and insert two
pins into the holes on the hinges
indicated in the figure.
2. Grasp the door on both sides with both
hands, lift it so that it forms an angle of
around 30° and remove it.
3. To reassemble the door, put the hinges in
the relevant slots in the oven, making sure
that grooved sections A are resting
completely in the slots. Lower the door
and once it is in place remove the pins
from the holes in the hinges.
Cleaning the door glazing
The glass in the door should always be kept
thoroughly clean. Use absorbent kitchen
roll. In case of stubborn dirt, wash with a
damp sponge and an ordinary detergent.
Removing the internal glass panes
For easier cleaning the internal glass panes
of the door can be removed.
1. Remove the internal glass pane by
pulling the rear part gently upwards,
following the movement indicated by the
arrows (1).
2. Then, pull the front part upwards (2). This
way, the 4 pins attached to the glass
detach from their housings in the oven
door.
We recommend the use of
cleaning products distributed by
the manufacturer.
Cleaning and maintenance
76
3. Some models have an intermediate glass
pane. Remove the intermediate glass
pane by lifting it upwards.
4. Clean the external glass pane and the
panes removed previously. Use
absorbent kitchen roll. In case of
stubborn dirt, wash with a damp sponge
and neutral detergent.
5. Refit the panes in the reverse order in
which they were removed.
6. Reposition the internal glass pane. Take
care to centre and insert the 4 pins into
their housings in the oven door by
applying slight pressure.
4.4 Cleaning the oven cavity
In order to keep your oven in the best
possible condition, clean it regularly after
letting it cool down.
Avoid letting food residue dry inside the
oven cavity, as this could damage the
enamel.
Take out all removable parts before
cleaning.
For easier cleaning, we recommend
removing:
•The door
• The rack/tray support frames
•The oven seal.
In the event you are using specific
cleaning products, we recommend
running the oven at maximum
temperature for 15-20 minutes in
order to eliminate any residue.
Cleaning and maintenance
77
EN
Removing rack/tray support frames
Removing the guide frames enables the
sides to be cleaned more easily.
To remove the guide frames:
• Pull the frame towards the inside of the
oven to unhook it from its groove A, then
slide it out of the seats B at the back.
• When cleaning is complete, repeat the
above procedures to put the guide
frames back in.
4.5 Vapor Clean
Preliminary operations
Before starting the Vapor Clean cycle:
• Completely remove all accessories from
inside the oven.
• Pour approx. 40 cc of water onto the
floor of the oven. Make sure it does not
overflow out of the cavity.
Vapor Clean is an assisted
cleaning procedure which
facilitates the removal of dirt.
Thanks to this process, it is possible
to clean the inside of the oven very
easily. The dirt residues are
softened by the heat and water
vapour for easier removal
afterwards.
Improper use
Risk of damage to surfaces
• Remove any food residues or large spills
from previous cooking operations from
the inside of the oven.
• Carry out assisted oven cleaning
operations only when the oven is cold.
Cleaning and maintenance
78
• Spray a water and washing up liquid
solution inside the oven using a spray
nozzle. Direct the spray against the side
walls, upwards, downwards and
towards the deflector.
• Close the door.
• During the assisted cleaning cycle, wash
the self-cleaning panels (where fitted),
which were previously removed,
separately in warm water and a small
amount of detergent.
Vapor Clean cycle setting
1. Press and turn the function knob to select
the Vapor Clean function . The
duration and temperature of the cleaning
cycle will appear on the display.
2. Press the function knob to start the
automatic cleaning cycle.
We recommend spraying approx.
20 times at the most.
If the internal temperature is
greater than that required for the
Vapor Clean cycle, the cycle will
be stopped immediately and the
message will appear
on the display. Let the appliance
cool down before activating the
assisted cleaning cycle.
The temperature and time
parameters cannot be modified by
the user.
Cleaning and maintenance
79
EN
Programmed Vapor Clean cycle
Like for the normal cooking functions, it is
also possible to set an end time for the
Vapor Clean function.
1. After selecting the Vapor Clean function,
press the temperature knob. The
indicator light starts flashing. The display
shows the function end time.
2. Turn the temperature knob right or left to
delay the cooking end time.
3. Press the temperature knob to confirm the
function end time.
4. Press the function knob. The appliance
waits for the set start time.
End of the Vapor Clean cycle
When finished, appears on
the display and a buzzer will sound that
can be deactivated by pressing the
temperature knob.
1. Press and hold the function knob for at
least 3 seconds to exit the function.
2. Open the door and wipe away the less
stubborn dirt with a microfibre cloth.
3. Use a non-scratch sponge with brass
filaments on hard to remove deposits.
4. In case of grease residues use specific
oven cleaning products.
5. Remove the residual water inside the
oven.
For improved hygiene and to avoid food
being affected by any unpleasant odours,
we recommend that the oven is dried using
a fan-assisted function at 160°C for
approximately 10 minutes.
We recommend wearing rubber
gloves for these operations.
We recommend removing the
door in order to make the manual
cleaning of the parts that are
difficult to reach easier.
Cleaning and maintenance
80
4.6 Extraordinary maintenance
Installing and removing the oven seal
To remove the oven seal:
• Unhook the clips in the 4 corners and in
the centre, then pull the oven seal
outward.
To install the oven seal:
• Hook the clips located in the 4 corners
and in the centre onto the oven seal.
Oven seal maintenance tips
The seal should be soft and elastic.
• To keep the oven seal clean, use a non-
abrasive sponge and wash with
lukewarm water.
Replacing the internal light bulb
1. Unscrew protective cover 1,
anticlockwise.
2. Replace the bulb 2 with one of the same
type (25W). Use only oven bulbs
(T 300°C).
3. Re-fit protective cover 1.
Live parts
Danger of electrocution
• Unplug the oven.
Cleaning and maintenance
81
EN
What to do if...
The display is completely off:
• Check the mains power supply.
• Check whether an omnipolar switch
upstream of the appliance supply line is
in the “ON” position.
The appliance does not heat up:
• Check whether it has been set to
“showroom” mode (for further details see
“Secondary menu”).
The controls do not respond:
• Check whether “child lock” mode has
been set (for further details see
“Secondary menu”).
The cooking times are longer than those
indicated in the table:
• Check whether it has been set in “low
power (eco-logic)” mode (for further
details see “Secondary menu”).
After the (pyrolytic) automatic cleaning
cycle it is not possible to select a function:
• Verify whether the door lock has
deactivated. If it has not, the oven has a
safety device that does not allow
functions to be selected while the door
lock is active. This is because the
temperature inside the oven is still too
high to permit any type of cooking.
The display shows “ERR4”:
• The door lock has not properly attached
to the door. This might be because the
door was accidentally opened during
the door lock activation. Switch the
appliance off and on again, waiting a
few minutes before selecting a new
cleaning cycle.
If the door is opened during a fan assisted
function, the fan stops:
• This is not a fault. It is a normal operation
of the appliance, useful when cooking
foods in order to avoid excessive heat
escaping. When the door is closed, the
oven will return to normal operation.
If the problem has not been
resolved or in the case of other
types of fault, contact your local
technical support centre.
If other ERRx error messages are
indicated:
Note down the error message,
function and set temperature and
contact your local technical
support centre.
Installation
82
5 Installation
5.1 Electrical connection
General information
Check the grid characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
The appliance operates at 220-240 V~.
Use a three-core cable (3 x 1.5 mm
2
internal conductors).
Perform the ground connection using a wire
that is 20 mm longer than the other wires.
Fixed connection
Fit the power line with an omnipolar circuit
breaker in compliance with installation
regulations.
The circuit breaker should be located near
the appliance and in an easily reachable
position.
Connection with plug and socket
Make sure that the plug and socket are of
the same type.
Avoid using adapters and shunts as these
could cause overheating and a risk of
burns.
Position of the power cable
(rear view)
Power voltage
Danger of electrocution
• Have the electrical connection
performed by authorised technical
personnel.
• The appliance must be connected to
earth in compliance with electrical
system safety standards.
• Disconnect the mains power supply.
Installation
83
EN
Cable replacement
1. Unscrew the rear casing screws and
remove the casing to access the terminal
board.
2. Replace the cable.
3. Make sure that the cables (for the oven
or any hob) follow the best route in order
to avoid any contact with the appliance.
5.2 Positioning
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
Heavy appliance
Crushing hazard
• Position the appliance into the cabinet
cut-out with the help of a second person.
Pressure on the open door
Risk of damage to the appliance
• Never use the oven door to lever the
appliance into place when fitting.
• Avoid exerting too much pressure on the
oven door when open.
Heat production during appliance
operation
Risk of fire
• Check that the carcase material is heat
resistant.
• Check that the carcase has the required
openings.
• Do not install the appliance in a recess
which can be closed with a door, or in a
cupboard.
Installation
84
Front panel seal
Glue the supplied seal to the rear part of
the front panel to avoid water or other
liquids from leaking in.
Mounting
Mount the appliance into the recess.
Secure the appliance to the carcase using
the screws.
Appliance overall dimensions (mm)
(front view)
(side view)
(top view)
Installation
85
EN

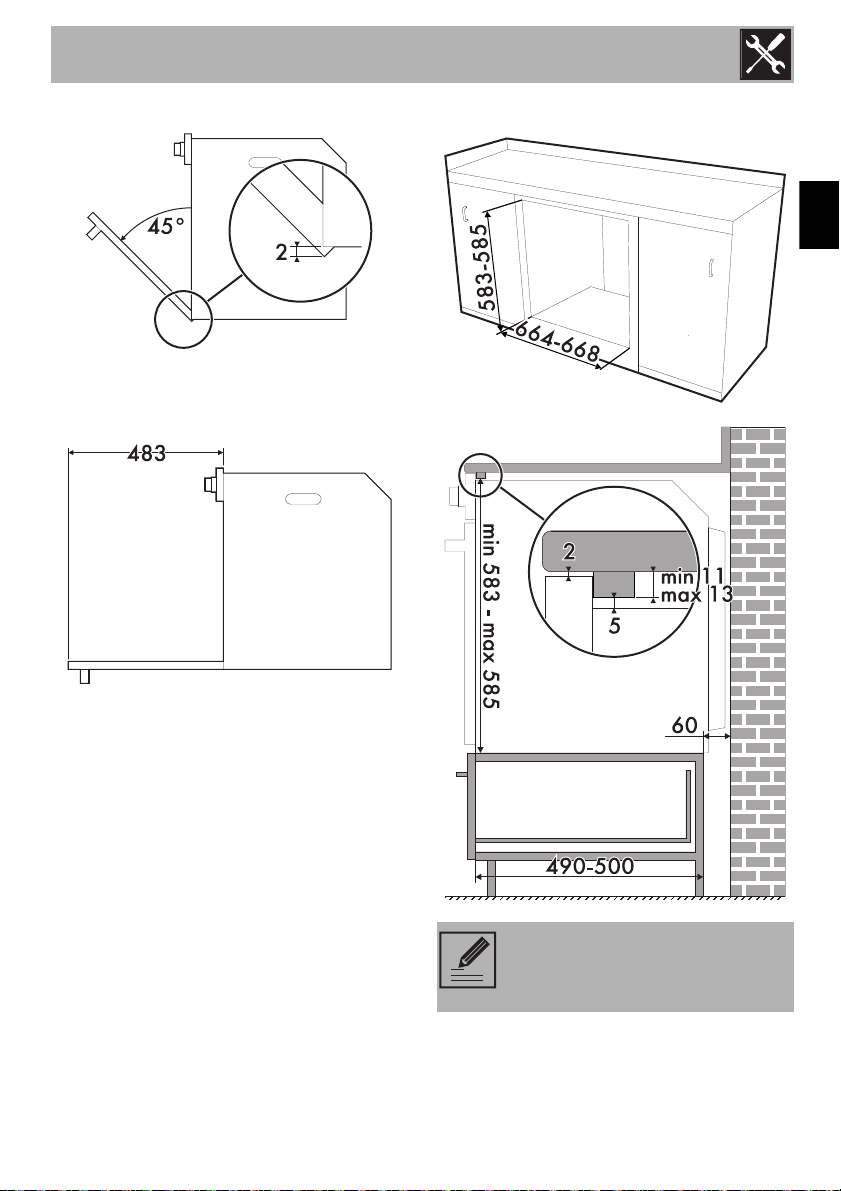

(side view)
(side view)
Mounting under worktops (mm)
Make sure that the carcase rear/
bottom section has an opening of
approx. 60 mm.
Installation
86

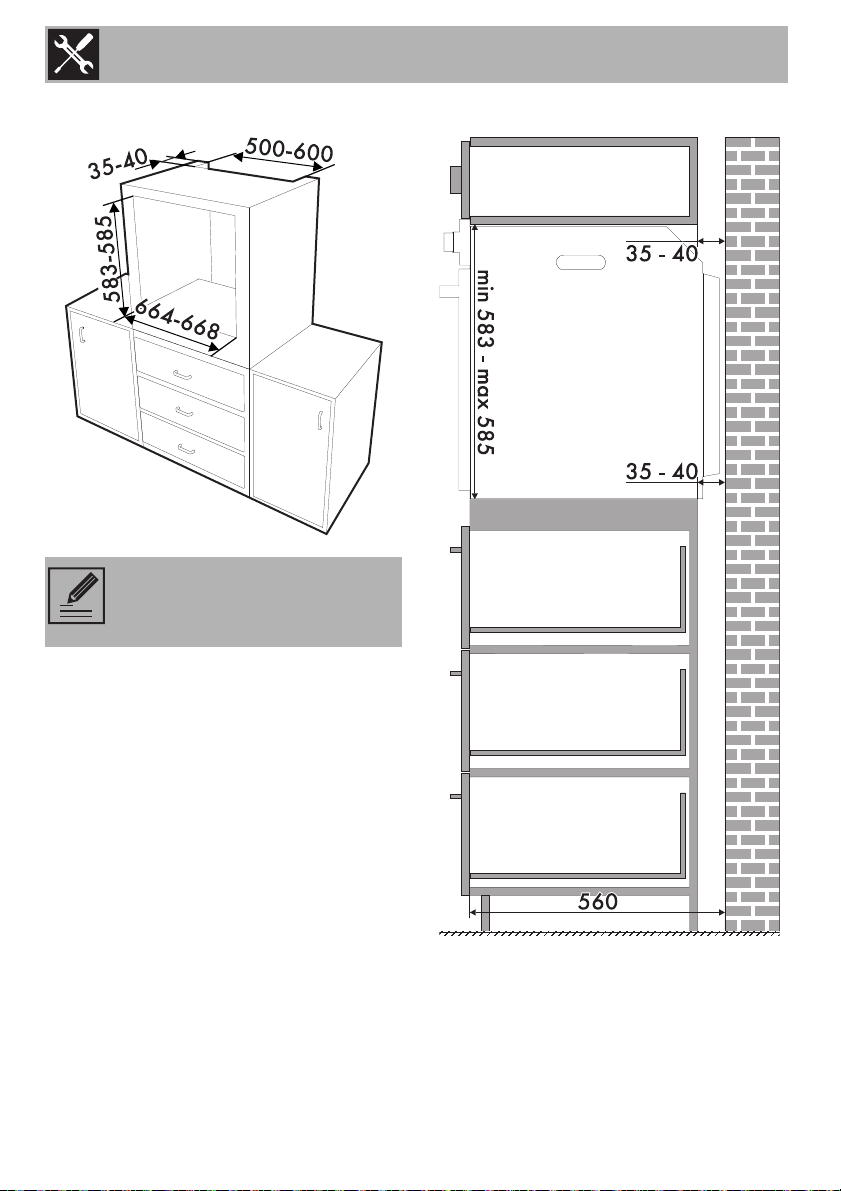

Mounting into a column (mm)
Make sure that the carcase top/
rear section has an opening
approx. 35-40 mm deep.
