DVD Micro Theatre
MCD735
Thank you for choosing Philips.
Need help fast?
Philips vous remercie de
votre confiance.
Besoin d'une aide
rapide?
Gracias por escoger Philips
Necesita ayuda
inmediata?
Read your Quick Use Guide and/or
Owner's Manual first for quick tips
that make using your Philips product
more enjoyable.
If you have read your instructions
and still need assistance,
you may access our online help at
www.philips.com/usasupport
or call
1-888-PHILIPS (744-5477)
while with your product.
(and Model / Serial number)
Les Guide d'utilisation rapide et Manuel de
l'utilisateur regorgent d'astuces destinées à
simplifier l'utilisation de votre produit Philips.
Toutefois, si vous ne parvenez pas à résoudre
votre probléme, vous pouvez accéder à
notre aide en ligne à l'adresse
www.philips.com/usasupport
ou formez le
1-800-661-6162 (Francophone)
1-888-PHILIPS (744-5477) (English speaking)
Veillez à avoir votre produit à
portée de main.
(et model / serial nombre)
Lea primero la Guía de uso rápido o el
Manual del usuario, en donde encontrará
consejos que le ayudarán a disfrutar
plenamente de su producto Philips.
Si después de leerlo aún necesita ayuda,
consulte nuestro servicio de
asistencia en línea en
www.philips.com/usasupport
o llame al teléfono
1-888-PHILIPS (744-5477)
y tenga a mano el producto.
(y número de model / serial)
pg001-043_MCD735_37_Eng 2006.7.20, 15:131
2
Canada
English:
This digital apparatus does not exceed
the Class B limits for radio noise
emissions from digital apparatus as set
out in the Radio Interference
Regulations of the Canadian
Department of Communications.
Français:
Cet appareil numérique n'emet pas
de bruits radioélectriques dépassant
les limites applicables aux appareils
numériques de Class B prescrites dans
le Règlement sur le Brouillage
Radioélectrique édicté par le Ministère
des Communications du Canada.
CAUTION
Use of controls or adjustments or
performance of procedures other
than herein may result in hazardous
radiation exposure or other unsafe
operation.
ATTENTION
L'utilisation des commandes ou
réglages ou le non-respect des
procédures ci-incluses peuvent se
traduire par une exposition
dangereuse à l'irradiation.
ATENCIÓN
El uso de mando o ajustes o la
ejecucción de métodos que no sean
los aquí descritos puede ocasionar
peligro de exposición a radiación.
BAND
BAND
pg001-043_MCD735_37_Eng 2006.7.20, 15:132
3
pg001-043_MCD735_37_Eng 2006.7.20, 15:133
4

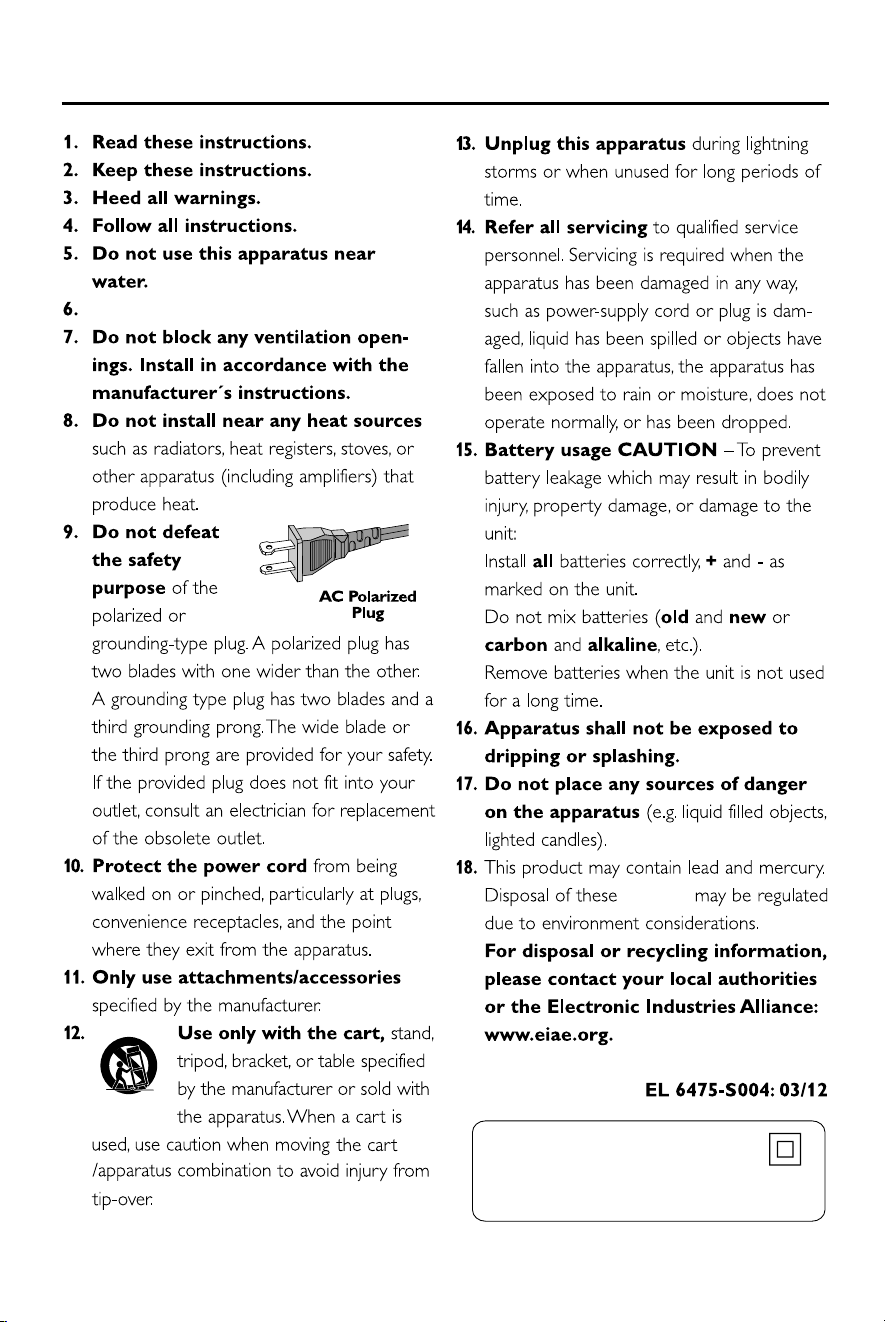

IMPORTANT SAFETY INSTRUCTIONS
Class II equipment symbol
This symbol indicates that the unit has
a double insulation system
Clean only with dry cloth.
materials
pg001-043_MCD735_37_Eng 2006.7.20, 15:134
English
Français
Español
5
Index
English ------------------------------------------------ 6
Français -------------------------------------------- 46
Español --------------------------------------------- 86
Manufactured under license from Dolby
Laboratories.
"Dolby", "Pro-logic" and the double-D symbol are
trademarks of Dolby Laboratories.
MANUFACTURED UNDER LICENSE FROM
DIGITAL THEATER SYSTEMS, INC. US PAT. NO
5,451,942,5,956,674, 5,974,380, 5,978,762 AND
OTHER WORLDWIDE
PATENTS ISSUED AND PENDING. "DTS" AND
"DTS DIGITAL SURROUND" ARE RESISTERED
TRADEMARKS OF DIGITAL THEATER
SYSTEMS, INC. COPYRIGHT 1996, 2000
DIGITAL THEATER SYSTEMS, INC. ALL RIGHTS
RESERVED.
This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents and other intellectual
property rights owned by Macrovision
Corporation and other rights owners. Use of this
copyright protection technology must be
authorized by Macrovision Corporation, and is
intended for home and other limited viewing
uses only unless otherwise authorized by
Macrovision Corporation. Reserve engineering
or disassembly is
prohibited.
DivX, DivX Certified,
and associated logos
are trademarks of
DivXNetworks, Inc and
are used under license.
Windows Media is a
trademark of Microsoft Corporation.
pg001-043_MCD735_37_Eng 2006.7.20, 15:135
6
English
General Information
Features .................................................................. 8
Supplied accessories ............................................ 8
Environment information ................................... 8
Installation .............................................................. 9
Maintenance .......................................................... 9
Connections
Step 1: Placing the speakers and subwoofer .....
................................................................................ 10
Step 2: Connecting speakers and subwoofer ....
................................................................................ 10
Step 3: Connecting the control cable ............ 10
Step 4: Connecting a TV ............................. 11~12
Step 5: Connecting FM/AM antennas ............. 12
Step 6: Connecting the power cord ............... 13
Optional: Connecting additional equipment .....
................................................................................ 13
Functional Overview
DVD player and power amplifier ............. 14~15
Remote control ........................................... 16~17
Getting Started
Step 1: Inserting batteries into the Remote
Control ................................................................. 18
Using the Remote Control to operate the
Player
Step 2: Setting up the TV ........................... 18~19
Setting up Progressive Scan feature
To deactivate Progressive manually
Step 3: Setting the speakers ............................. 19
Step 4: Setting language preference ................ 20
Setting the OSD Language
Setting the Audio, Subtitle and Disc Menu
language
Basic Functions
Switching on/off the system ............................. 21
Volume control ................................................... 21
Sound Control ............................................. 21~22
DBB (Dynamic Bass Boost)
DSC (Digital Sound Control)
LOUDNESS
Selecting surround sound
Dimming the display screen ............................. 22
Disc Operations
Playable Discs ...................................................... 23
Playing discs ......................................................... 23
Using the Disc Menu ......................................... 24
Basic playback controls .............................. 24~26
Pausing playback (DVD/VCD/CD/MP3/DivX/
WMA)
Selecting a track/chapter/title (DVD/VCD/
CD/MP3/DivX/WMA)
Resuming playback from the last stopped
point (DVD/VCD/CD/MP3/WMA)
Zoom (DVD/VCD/DivX/JPEG)
Repeat (DVD/VCD/CD/MP3/DivX/WMA)
Repeat A-B (DVD/VCD/CD/MP3/DivX/
WMA)
Slow Motion (DVD/VCD)
Program (not for Picture CD)
Forward/Reverse Searching (DVD/VCD/CD/
MP3/DivX/WMA)
Time search & search by chapter/track
number (DVD/VCD/CD/MP3/WMA)
Information display during playback (not for
Picture CD)
Special disc features ........................................... 26
Playing a Title (DVD)
Camera Angle (DVD)
Changing the Audio Language (for DVD
recorded with multiple languages)
Changing the Audio Channel (for VCD/DivX
only)
Subtitles (DVD)
Playing MP3/WMA/JPEG Picture disc ............ 26
Playing MP3/WMA disc .............................. 26~27
General operation
Playback selection
Playing JPEG Picture CD ................................... 27
General operation
Playback selection
Special JPEG features .................................. 27~28
Preview function (JPEG)
Zoom picture (JPEG)
Slide show playback modes (JPEG)
Playback with multi-angles (JPEG)
Playing a DivX disc ............................................. 28
Contents
pg001-043_MCD735_37_Eng 2006.7.20, 15:136
7
English
Contents
System Menu Options
Basic Operations ................................................ 29
General Setup Page ..................................... 29~30
TV Display
OSD Lang
Closed Captions
Screen Saver
DIVX(R) VOD registration code
Audio Setup Page ........................................ 30~33
Speaker Setup
SPDIF Output
Dolby Digital Setup
3D Processing
HDCD
Night Mode
Video Setup Page................................................ 33
Component
TV Mode
Quality
Preference Page ........................................... 33~34
Parental
Default
Password Setup Page .................................. 34~35
Password mode
Password
Other Functions
Radio reception .................................................. 36
Tuning to radio stations
Presetting radio stations
Listening to preset radio stations
Setting the clock ................................................. 36
Setting sleep/wake-up timer ..................... 36~37
Sleep timer setting
Wake-up timer setting
Specifications ........................................... 38
Tr oubleshooting ............................. 39~41
Glossary ......................................................... 42
pg001-043_MCD735_37_Eng 2006.7.20, 15:137
8
English
Features
Your DVD Micro Theatre with 5.1-channel full
digital amplifier creates the same dynamic sound
qualities that you find in full-fledged cinemas and
incorporates some of the best features in home
theater technology.
Other features include:
Built-in DTS and Dolby Digital decoder,
supporting Incredible Surround and DSC sound
setting.
Additional Component Connections
Lets you connect other audio and audio/visual
components to the DVD micro theatre.
Night mode
Lets you compress the dynamic range, reducing
the difference in loudness between different
sounds in Dolby Digital mode.
Parental Control (Rating Level)
Lets you set a ratings level so that your children
cannot watch a DVD that has a rating higher
than you set.
Sleep/Wake-up Timer
Enables the system to switch on/off automatically
at a preset time.
Progressive Scan
Provides high quality flicker-free images for film
based sources. When a picture refreshes, its
ver tical resolution can double to 525 lines.
Note:
To fully enjoy the progressive scan feature, you
need a progressive scan TV.
Supplied accessories
– Remote control with two AAA batteries
– AM antenna
– FM wire antenna
–5 satellite speakers
–1 passive subwoofer including 1 subwoofer
cable
– A/V cord (R/W/Y)
– Control cable
– Stand
If any item is damaged or missing, contact
your retailer or Philips.
Environmental information
All unnecessary packaging has been omitted. We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags,
protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialised company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
General Information
pg001-043_MCD735_37_Eng 2006.7.20, 15:138
9
English
Installation
● Place the player on a flat, hard, and stable surface.
● In a cabinet, allow about 10cm (4 inches) of free
space all around the player for adequate
ventilation.
● Do not expose your player to extreme
temperatures or humidity.
● The apparatus shall not be exposed to dripping
or splashing and that no objects filled with liquid
such as vase shall be placed on the apparatus.
● No naked flame sources, such as lighted candles,
shall be placed on the apparatus.
● Install this unit near the AC outlet and where the
AC power plug can be reached easily.
● The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers, table-cloths, curtains, etc.
General Information
DVD Player
Power Amplifier
Stand
Maintenance
● When a disc becomes dirty,
clean it with a cleaning cloth.
Wipe the disc from the center
out, in a straight line.
● Do not expose the player,
batteries or discs to humidity,
rain, sand or excessive heat
(caused by heating equipment or direct sunlight).
Always keep the disc tray closed to avoid dust
on the lens.
● Do not use solvents such as benzene, thinner,
commercially available cleaners, or anti-static
spray intended for colour discs.
● The lens may cloud over when the player is
suddenly moved from cold to warm
surroundings, making it impossible to play a disc.
Leave the player in the warm environment until
the moisture evaporates.
pg001-043_MCD735_37_Eng 2006.7.20, 15:139
10
English
Connections
IMPORTANT!
– The type plate is located at the
bottom of the system.
– Before connecting the AC power cord
to the wall outlet, ensure that all
other connections have been made.
–Never make or change any
connections with the power switched on.
Step 1: Placing the speakers and
subwoofer
1
3
3
1
4
2
Center speaker and
DVD system
Surround
Subwoofer
Speaker (Left)
Surround
Speaker (Right)
Front speaker with
stand (Left)
Front speaker with
stand (Right)
For best possible surround sound, all the
speakers (except subwoofer) should be placed
at the same distance from the listening position.
1 Place the front left and right speakers at equal
distances from the TV and at an angle of
approximately 45 degrees from the listening
position.
2 Place the center speaker above the TV or the
DVD system so that the center channel's sound
is localized.
3 Place the rear speakers at normal listening ear
level facing each other or hang on the wall.
4 Place the subwoofer on the floor near the TV.
Notes:
–To avoid magnetic interference, do not position
the front speakers too close to your TV.
– Allow adequate ventilation around the DVD
system.
Step 2: Connecting speakers
and subwoofer
1 Connect the supplied front, rear and center
speakers using the fixed speaker cables by
matching the colors of the jacks and speaker
cable connectors.
2 Connect the passive subwoofer to the
WOOFER (4Ω) terminal with the supplied
subwoofer cable by matching the plug types.
Note:
– Ensure that the speaker cables are correctly
connected. Improper connections may damage the
system due to short-circuit.
Step 3: Connecting the control
cable
Connect the serial port marked “CONTROL
CABLE” at the rear of the DVD player to the
same port at the rear of the power amplifier
with the supplied flat control cable.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1310
11
English
Connections
Step 4: Connecting a TV
IMPORTANT!
–You only need to make one video
connection from the following options,
depending on the capabilities of your TV.
– Connect the DVD system directly to
the TV.
Using AV OUT jack
1
2
1 Connect the end of the supplied A/V cord with
only one connector to the A/V OUT jack of
the DVD system.
2 For the other end, connect the video output
connector (yellow) to the video input jack (or
labeled as A/ V In, CVBS, Composite or
Baseband) on the TV. To hear the sound of this
DVD system through your TV, connect the audio
connectors (white/ red) to the audio input jacks
on the TV.
Using Component Video jacks (Y Pb Pr)
IMPORTANT!
– The progressive scan video quality is
only possible when using Y Pb Pr, and a
progressive scan TV is required.
1
2
1 Use component video cables (red/blue/green -
not supplied) to connect the DVD system's Y Pb
Pr jacks to the corresponding Component video
input jacks (or labeled as Y Pb/Cb Pr/Cr or YUV)
on the TV.
2 To hear the TV channels through this DVD
system, use the audio cables (white/red) to
connect AUX IN jacks to the corresponding
AUDIO OUT jacks on the TV.
3 If you are using a Progressive Scan TV (TV must
indicate Progressive Scan or ProScan capability),
to activate TV Progressive Scan, please refer to
your TV user manual. For DVD system
Progressive Scan function, see “Getting Started-
Setting up Progressive Scan feature”.
Note:
– If your TV does not support Progressive Scan, you
will not be able to view the picture.
Press SYSTEM on the remote to exit the system
menu and then DISC and “1” to exit progressive
scan.
Option 2
Option 1
pg001-043_MCD735_37_Eng 2006.7.20, 15:1311
12
English
Using S-Video jack
IMPORTANT!
– If S-Video is used for DVD playback
connection, the system’s VIDEO OUT
setting will need to be changed
accordingly.
1
2
1 Use an S-Video cable (not supplied) to connect
the DVD system’s S-VIDEO jack to the S-Video
input jack (or labeled as Y/C or S-VHS) on the
TV.
2 To hear the TV channels through this DVD
system, use the audio cables (white/red) to
connect AUX IN jacks to the corresponding
AUDIO OUT jacks on the TV.
Connections
Step 5: Connecting FM/AM
antennas
1
2
FM
antenna
AM
antenna
fix the claw into
the slot
1 Connect the supplied AM loop antenna to the
AM jack. Place the AM loop antenna on a shelf
or attach to a stand or wall.
2 Connect the supplied FM antenna to the FM (75
Ω) jack. Extend the FM antenna and fix its end to
the wall.
For better FM stereo reception, connect an
external FM antenna (not supplied).
Note:
– Adjust the position of the antennas for optimal
reception.
–Position the antennas as far as possible from
your TV, VCR or other radiation source to prevent
unwanted interference.
Option 3
pg001-043_MCD735_37_Eng 2006.7.20, 15:1312
13
English
Connections
Step 6: Connecting the power
cord
1
~ AC MAINS
P
o
wer Outlet
After everything is connected properly,
plug in the AC power cord to the power
outlet.
Never make or change any connection with the
power switched on.
Optional: Connecting additional
equipment
IMPORTANT!
– Some discs are copy-protected. You
cannot record the disc through a VCR or
digital recording device.
–When making connections, make sure
the colour of cables matches the colour
of jacks.
–Always refer to the owner’s manual of
the other equipment for complete
connection and usage details.
AUDIO OUT
L
R
AUDIO IN
L
R
VIDEO IN
VCR
A
B
C
Television
Viewing and listening to the playback of
other equipment A
● Connect the system's AUX IN (R/L) jacks to
the AUDIO OUT jacks on the other audio/visual
device (such as a TV, VCR, Laser Disc player or
cassette deck).
Before starting operation, press SOURCE on
the system to select AUX or press AUX on the
remote in order to activate the input source.
Recording (digital) B
● Connect the system's COAXIAL jack to the
DIGITAL IN jack on a digital recording device
(such as DTS-Digital Theatre compatible, with
Dolby Digital decoder).
Before starting operation, set the DIGITAL OUT
according to the audio connection. (See
"DIGITAL OUT".)
Using the VCR for recording DVDs C
● Connect the system's A/V OUT jacks to the
corresponding VIDEO IN jack and AUDIO IN
jacks on the VCR with the supplied A/V cable by
matching the connector types. This will allow you
to make analogue stereo (two channel, right and
left) recordings.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1313
14
English
Functional Overview
DVD player and power amplifier
1 ECO POWER/STANDBY ON B
– to switch the system on or to Eco power/normal
standby mode.
2 IR SENSOR
– point the remote control towards this sensor.
3 Control knob
4 / ¢
Disc ....................... press the control knob to the
left/right to skip to the previous/
next chapter/title/track.
Tuner .................... press the control knob to the
left/right to tune to a higher/
lower radio frequency.
................................. press and hold, then release the
key to start automatic search for
a radio frequency downward/
upward.
PROGRAM
DVD/VCD/CD press the control knob upward
to enter the program menu.
MP3/WMA-CD
................................. press the control knob upward
to add/delete a programmed
track to/from the program list.
Picture CD ........ during playback, press the
control knob upward to select a
slide show mode.
Tuner .................... press the control knob upward
to program preset radio stations.
REPEAT•STEREO
Disc ....................... press the control knob
downward to repeat a track or
disc.
FM .......................... press the control knob
downward to set stereo or
mono sound mode.
4 Display
– shows the current status of the DVD player.
5 SOURCE
– selects the respective sound source: DVD/
AUX1/AUX2/TUNER.
– switches the system on.
6 PRESET/ÉÅ
– Disc: starts or interrupts disc playback
– TUNER: selects a preset radio station
5 6 7 8
0
9
4
3
1
2
pg001-043_MCD735_37_Eng 2006.7.20, 15:1314
15
English
7 BAND/9
– Disc: stops disc playback or erases a program.
– TUNER: switches between AM and FM.
– Demo mode (on the system only): activates/
deactivates the demonstration.
8 OPEN•CLOSE
– opens or closes the disc compartment.
9 VOLUME -/+
– adjusts the volume upward/downward.
– adjusts the hours and minutes in clock/timer
setting mode.
– switches the set timer ON or OFF.
0 n
– connect a headphone
Functional Overview
1
3
6
8
0
@
%
&
*
¡
∞
ª
º
§
™
(
2
5
7
9
!
$
^
)
•
¤
⁄
≥
≤
£
#
4
pg001-043_MCD735_37_Eng 2006.7.20, 15:1315
16
English
Remote control
1 B
– to switch the system on or to Eco power/normal
standby mode.
2 0
– opens or closes the disc compartment
3 Numeric Keypad (0-9)
– inputs a track/title/chapter number of the disc.
4 PROG
– DVD/VCD/CD: enters the program menu.
– MP3/WMA-CD: adds/deletes a programmed
track to/from the program list.
– Picture CD: during playback, to select a slide
show mode.
– Tuner: programs preset radio stations.
5 GOTO/ST
– Disc: fast searches in a disc by entering a time,
title, chapter or track.
– FM: sets stereo or mono sound mode.
6 SYSTEM (disc mode only)
– enters or exits the system menu.
7 DISC MENU (disc mode only)
–DVD/VCD: enters or exits the disc contents
menu.
– VCD2.0: switches the playback control mode on
or off .
– MP3/WMA: switches between Album and Filelist.
8 4 / 3 / 2 / 1
– selects an item in a menu.
–moves an enlarged picture up/down/left/right.
9 OK
– confirms a selection.
0 ZOOM
–DVD/VCD/Picture CD: enlarges or reduces a
picture or active image on the TV screen.
! MUTE
– disables or enables sound output.
@ TU +/- (à / á )
Tuner
– press to tune to a lower/higher radio frequency
gradually.
– press and hold, then release the key to start
automatic search for a radio frequency
downward/upward.
Disc
– searches backward/forward in a disc at different
speeds.
# VOLUME +/-
– adjusts the volume upward/downward.
– adjusts the hours and minutes in clock/timer
setting mode.
– switches the set timer ON or OFF.
$ CH +/- (¡ / ™)
– Disc: skips to the previous/next chapter/title/
track
– Tuner: selects a preset radio station.
% ÉÅ
– starts or interrupts disc playback.
^ 9
– stops disc playback or erases a program.
& DISC/TUNER/AUX
– selects the respective sound source for DVD/
TUNER/AUX1/AUX2.
– exits P-SCAN (progressive scan). (for DISC
only)
* SLEEP/TIMER
Standby mode
– sets a time for switching on the system
automatically.
Power-on mode
– sets the sleep timer function (auto off).
( CLOCK
Standby mode
– sets the system clock.
Playback mode
– displays the system clock.
) DIM
– selects different levels of brightness for the
display screen in standby mode.
Functional Overview
pg001-043_MCD735_37_Eng 2006.7.20, 15:1316
17
English
Functional Overview
¡ SUBTITLE
– selects a subtitle language.
™ ANGLE
– selects a DVD camera angle.
£ DISPLAY
– displays information on TV screen during
playback
≤ AUDIO
for VCD/DivX
– sets Stereo, Mono-Left or Mono-Right sound
mode.
for DVD
– selects an audio language.
∞ A-B
– repeats playback of a specific section on a disc.
§ MODE
– selects various repeat modes or the shuffle play
mode for a disc.
≥ SLOW
– selects different slow playback modes for a
DivX/VCD/SVCD/DVD.
• DBB
– enables or disables bass enhancement.
ª SURROUND
– selects 2.1 channel output (2.1CH) or 5.1
channel output (Pro Logic II or 5.1CH).
º VOL.SEL
– adjusts volume level for individual speakers.
⁄ DSC
– selects different types of preset sound equalizer
settings (CLASSIC, JAZZ, POP or ROCK).
¤ LOUDNESS (unavailable for this
version)
– enables or disables automatic loudness
adjustment.
Notes for remote control:
– First, select the source you wish to
control by pressing one of the source select
keys on the remote control (DISC or
TUNER, for example).
– Then select the desired function ( 2;, í,
ë for example).
pg001-043_MCD735_37_Eng 2006.7.20, 15:1317
18
English
Step 1: Inserting batteries into
the Remote Control
1
3
2
1 Open the battery compartment.
2 Insert two AAA batteries following the
indications (+/-) inside the compartment.
3 Close the cover.
Using the Remote Control to operate
the Player
1 Aim the Remote Control
directly at the remote sensor
(IR) on the front panel.
2 Do not put any objects
between the Remote Control
and the DVD Player while
operating the DVD Player.
CAUTION!
– Remove batteries if they
are exhausted or if the Remote Control
is not being used for a long time.
– Do not use old and new or different
types of batteries in combination.
– Batteries contain chemical substances,
so they should be disposed of properly.
Step 2: Setting up the TV
IMPORTANT!
– Make sure you have completed all the
necessary connections. (See
“Connecting TV”).
– In order for a DVD disc to play on this
Player, the colour system of the Disc, the
TV and the DVD Player should match.
1 Switch the DVD system on and then select
DISC source. (See “Switching the system
on/off”).
2 Turn on the TV and set to the correct video-in
channel. You should see the blue Philips DVD
background screen on the TV.
➜ Usually these channels are between the
lowest and highest channels and may be called
FRONT, A/V IN, or VIDEO. See your TV manual
for more details.
➜ Or, you may go to channel 1 on your TV, then
press the Channel down button repeatedly until
you see the Video In channel.
➜ Or, the TV Remote Control may have a
button or switch that chooses different video
modes.
➜ Or, set the TV to channel 3 or 4 if you are
using an RF modulator.
Setting up Progressive Scan feature (for
Progressive Scan TV only)
The progressive scan display twice the number
of frames per seconds than interlaced scanning
(ordinary normal TV system). With nearly double
the number of lines, progressive scan offers
higher picture resolution and quality.
IMPORTANT!
Before enabling the progressive scan
feature, you must ensure:
1) Your TV can accept progressive signals, a
progressive scan TV is required.
2) You have connected the DVD player to your
TV using Y Pb Pr (see “Step 4: Connecting a TV-
Using Component Video jacks (Y Pb Pr)”.)
1 Tu rn on your TV.
2 Tu rn off your TV progressive scan mode or turn
on interlaced mode (refer to your TV user
manual).
3 Press ECO POWER/STANDBY ON B (B
on the remote) to turn on the DVD player.
4 Select the correct Video Input channel.
➜ The DVD background screen appears on the
TV.
5 Press SYSTEM.
Getting Started
STANDBY-ON
IR SENSOR
pg001-043_MCD735_37_Eng 2006.7.20, 15:1318
19
English
Getting Started
6 Press 1 2 repeatedly to select "VIDEO
SETUP PAGE".
7 Select "TV MODE" to "P-SCAN", then OK to
confirm.
➜ The instruction menu appears on the TV.
1. ENSURE TV HAS P-SCAN.
2. CONNECT YPRPB CABLE.
3. IF TV ABNORMAL:
WAIT 15 SEC RECOVERY.
8 Press 1 2 to highlight OK in the menu and
press OK to confirm.
There will be a distorted picture on your
TV at this state until you turn on the
progressive scan mode on your TV.
9 Tu rn on your TV progressive scan mode (refer
to your TV user manual).
➜ The below menu appears on the TV.
CONFIRM TO USE P-SCAN,
IF PICTURE IS GOOD,
PRESS OK BUTTON ON REMOTE.
TIME LAST 01 SECOND
0 Press 1 2 to highlight OK in the menu and
press OK to confirm.
➜ The setup is complete now and you can start
enjoy the high quality picture.
To deactivate Progressive manually
● When the distorted sign still appears on
the TV, it may be due to the connected TV
does not accept progressive signals, and
progressive is set by mistake. You must reset the
unit to interlace format.
1 Tu rn off your TV progressive scan mode or turn
on to interlaced mode (refer to your TV user
manual).
2 Press SYSTEM on the remote to exit the
system menu and then DISC and “1” to exit
progressive scan.
➜ The DVD blue background screen will appear
on the TV.
Step 3: Setting the speakers
You can adjust the volume level for individual
speakers. These adjustments let you optimize the
sound according to your surroundings and setup.
● Press VOL.SEL on the remote repeatedly to
select HIGH LEVEL, MID LEVEL and LOW
LEVEL.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1319
20
English
Getting Started
Step 4: Setting language
preference
You can select your own preferred language
settings. This DVD system will automatically
switch to the selected language whenever you
load a disc. If the language selected is not
available on the disc, the disc’s default language
will be used instead. The OSD language in the
system menu will remain once selected.
Setting the OSD Language
1 Press SYSTEM.
2 Press 1 2 to select “General Setup Page”.
3 Use 1 2 3 4 on the remote to navigate in
the menu.
Move to “OSD Language” and press 2.
4 Select a language and press OK.
To exit from the menu
● Press SYSTEM again.
Setting the Audio, Subtitle and Disc
Menu language
1 Press SYSTEM in stop mode.
2 Press 1 2 to select “Preference Page”.
3 Press 3 4 to highlight the following in the
Preference Page.
– “Audio” (disc’s soundtrack)
– “Subtitle” (disc’s subtitles)
– “Disc Menu” (disc’s menu)
4 Enter its submenu by pressing 2.
5 Select a language and press OK.
6 Repeat steps 3~5 for other language settings.
To exit from the menu
● Press SYSTEM again.
If you choose OTHERS in Audio, Subtitle
or Disc Menu,
1 Press 3 4 to highlight “Others”.
2 Press OK.
3 When you are asked to enter a language code,
input a language code by using the Numeric
Keypad (0-9).
4 Press OK to confirm.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1320
21
English
Switching the system on/off
● Press ECO POWER/STANDBY-ON B (B
on the remote).
➜ “HELLO” is displayed briefly. The system will
switch to the last selected source.
● Press DISC, TUNER or AUX on the remote.
➜ The system will switch to the selected source.
To switch the system to standby mode
● Press ECO POWER/STANDBY-ON B (B
on the remote).
➜ “BYE BYE” is displayed briefly. The interactive
sound settings, last selected source and tuner
presets will be retained in the player’s memory.
Switching the system to Eco
Power Standby mode
● Press ECO POWER/STANDBY-ON B in
the active mode.
➜ The system enters Eco power standby (the
ECO POWER LED is on) or normal standby
with clock display.
● The volume level (up to a maximum volume
level of 12), interactive sound settings, last
selected mode, source and tuner presets will be
retained in the player's memory.
● If the system is normal standby with clock display,
press and hold ECO POWER/STANDBY-
ON Bfor 3 seconds or more to switch to Eco
power standby or vice versa.
Volume control
Tur n VOLUME (-/+) clockwise or anticlockwise
(or press VOLUME +/- on the remote) to
increase or decrease the volume level.
➜ ”VOL XX” is displayed on the display panel.
“XX” denotes the volume level.
To listen through the headphone
● Connect the headphone plug to the n socket
at the front of the amplifier.
➜ The speakers will be muted.
To switch off the volume temporarily
● Press MUTE on the remote.
➜ Playback will continue without sound and
“MUTING” flashes.
● To activate sound reproduction, you can:
– press MUTE again;
– adjust the volume controls;
– change source.
Sound Control
DBB, DSC and LOUDNESS sound features
cannot be activated at the same time.
DBB (Dynamic Bass Boost)
DBB enhances the bass response.
● Press DBB on the remote to enable/disable
DBB feature.
➜ Some discs might be recorded in high
modulation, which causes a distortion at high
volume. If this occurs, switch off DBB or reduce
the volume.
DSC (Digital Sound Control)
DSC provides a different type of preset sound
equalizer setting.
● Press DSC on the remote repeatedly to select:
CLASSIC, JAZZ, POP or ROCK.
Selecting surround sound
IMPORTANT!
For proper surround sound, make sure
the speakers and subwoofer are
connected (see Connections-Step 3:
Connecting speakers and subwoofer.)
● Press SURROUND to select surround or
stereo mode.
➜ The availability of the various surround sound
modes depends on the number of speakers used
and the sound available on the disc.
➜ The center and surround speakers operate
only in Multi-channel surround mode.
➜ The available output modes for multichannel
include: Dolby Digital, Dolby Pro Logic or Dolby
Pro Logic II surround sound.
➜ Stereo broadcasts or recordings will produce
some surround channel effects when played in a
surround mode. However, monaural (single
channel sound) sources will not produce any
sound from the rear speakers.
Basic Operations
pg001-043_MCD735_37_Eng 2006.7.20, 15:1321
22
English
Dimming the display screen
● In standby mode only, press DIM repeatedly to
select different levels of brightness for the display
screen.
Demonstration mode
The system has a demonstration mode that
shows the various features offered by the system.
To activate the demonstration
● In standby mode, press BAND/9 on the system
to activate the demo mode.
➜ Demonstration will begin.
To deactivate the demonstration
● Press BAND/9 on the system again.
➜ “DEMO OFF” is displayed.
Note:
– Even if you remove the AC power cord and
reconnect it to the wall socket, the demonstration
will remain off until you activate it again.
Basic Operations
pg001-043_MCD735_37_Eng 2006.7.20, 15:1322
23
English
IMPORTANT!
– Depending on the DVD or VIDEO CD,
some operations may be different or
restricted.
– Do not push on the disc tray or put
any objects other than disc on the disc
tray. Doing so may cause the disc player
malfunction.
– If the inhibit icon (ø) appears on the
TV screen when a button is pressed, it
means the function is not available on
the current disc or at the current time.
Playable Discs
Your DVD Player will play:
– Digital Video Discs (DVDs)
– Video CDs (VCDs)
– Super Video CDs (SVCDs)
– Digital Video Discs + Rewritable (DVD+RW)
– Compact Discs (CDs)
– Picture (Kodak, JPEG) files on CDR(W)
– DivX(R) disc on CD-R(W):
– DivX 3.11, 4.x and 5.x
– WMA
– Supported MP3-CD format.
• ISO 9660 / UDF format
• Max. title/album name –12 characters
Max. title number plus album is 255.
• Max. nested directory is 8 levels.
• The max. album number is 32.
• The max. MP3 track number is 999.
• Supported sampling frequencies for MP3 disc:
32 kHz, 44.1 kHz, 48 kHz.
• Supported Bit-rates of MP3 disc are: 32, 64,
96, 128, 192, 256 (kbps).
– Following formats can’t be supported
• The files like *.VMA, *.AAC, *.DLF, *.M3U,
*.PLS, *.WAV
• Non-English Album/Title name
• The discs recorded under Joliet format
• MP3 Pro and MP3 with ID3 tag
Disc Operations
1
ALL
Region Codes
DVDs must be labeled as shown below in order
to play on this DVD system. You cannot play
discs that are labeled for other regions.
Note:
– If you are having trouble playing a certain disc,
remove the disc and try a different one. Improper
formatted disc will not play on this DVD Player.
Playing discs
1 Connect the power cords of the system and TV
(or any optional stereo or AV receiver) to a
power outlet.
2 Tu rn on the TV power and set to the correct
Video In channel. (See “Setting up the TV”).
3 Press ECO POWER/STANDBY-ONB on
the DVD Player front panel or B on the
remote.
➜ You should see the blue Philips DVD
background screen on the TV.
4 Press OPEN•CLOSE to open the disc tray
and load in a disc, then press the same button
again to close the disc tray.
➜ Make sure the label side is facing up.
5 Playback will start automatically (depending on
the disc type).
➜ If a disc menu appears on the TV, see “Using
the Disc Menu”.
➜ If the disc is locked by parental control, you
must enter your four-digit password. (See
“Password Setup Page”).
6 At any time, simply press BAND/9 (or 9 on
the remote) to stop playback.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1323
24
English
Disc Operations
Using the Disc Menu
Depending on the disc, a menu may appear on
the TV screen once you load the disc.
To select a playback feature or item
● Use 1 2 3 4 and OK or Numeric Keypad
(0-9) on the remote.
➜ Playback will start automatically.
To access or exit from the menu
● Press DISC MENU on the remote.
For VCD with Playback Control (PBC)
feature (version 2.0 only)
PBC playback allows you to play Video CDs
interactively, following the menu on the display.
● During playback, press DISC MENU.
➜ If PBC was ON, it will switch to OFF and
continue playback.
➜ If PBC was OFF, it will switch to ON and
return to menu screen.
Basic playback controls
Pausing playback (DVD/VCD/CD/MP3/
DivX/WMA)
1 During playback, press PRESET/ÉÅ (or
ÉÅ on the remote).
➜ Playback will pause and sound will be muted.
2 Press PRESET/ÉÅ (or ÉÅ on the remote)
again to resume.
Selecting a track/chapter/title (DVD/
VCD/DivX/CD)
1 Press the control knob to the right
(corresponding to T) or press CH + ™ on
the remote during playback to go to the next
chapter/track
2 Press the control knob to the left
(corresponding to S) or press CH - ¡ on
the remote to go to the previous chapter/track.
3 To go directly to any chapter/track/title, enter the
chapter/track/title number using the Numeric
Keypad (0-9).
Resuming playback from the last
stopped point (DVD/VCD/CD/MP3/
WMA)
● In stop mode and when a disc has not been
removed, press PRESET/ÉÅ (or ÉÅ on the
remote).
To cancel resume mode
● In stop mode, press BAND/9 (or 9 on the
remote) again.
Zoom (DVD/VCD/DivX/JPEG)
Zooming allows you to enlarge or reduce the
video image during playback.
1 Press ZOOM repeatedly to enlarge or reduce
the playback video image.
2 Press 1 2 3 4 to pan across the TV screen.
Repeat (DVD/VCD/CD/MP3/DivX/
WMA)
For DVD/VCD/CD
● Press the control knob downward
(corresponding to REPEAT•STEREO) or
press MODE repeatedly to choose a repeat
mode during playback.
CHAPTER (DVD)
– to repeat playback of the current chapter.
TRACK (CD/VCD)/TITLE (DVD)
– to repeat playback of the current track (CD/
SVCD/VCD)/title (DVD).
ALL
– to repeat playback of all the disc.
SHUFFLE
– to repeat playback at random order.
For MP3/WMA/DivX
● Press the control knob downward
(corresponding to REPEAT•STEREO) or
press MODE continuously to access different
repeat modes.
➜ Shuffle: play all files in the selected folder in
random order.
➜ Repeat One: play an MP3/WMA file
repeatedly.
➜ Repeat All: play all files repeatedly.
➜ Off: switches off the shuffle or repeat mode.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1424
25
English
Disc Operations
Repeat A-B (DVD/VCD/CD/MP3/DivX/
WMA)
1 Press A-B at your chosen starting point.
2 Press A-B again at your chosen end point.
➜ The section A and B can be set only within
the same chapter/track.
➜ The section will now repeat continuously.
3 To exit the sequence, press A-B again.
Slow Motion (DVD/VCD)
1 Press SLOW during playback to select the
required speed: 1/2, 1/4, 1/8 or 1/16 (backward
or forward).
➜ Sound will be muted.
2 To return to normal speed, press PRESET/
ÉÅ (orÉÅ on the remote).
Note:
– Slow backward is not possible on VCDs.
Program (not for Picture CD)
To select favourite tracks/chapters for playback in
preferred sequence.
For DVD/VCD/CD
(DVD program for example)
1 Press the control knob upward (corresponding
to PROGRAM) or press PROG on the
remote to enter the program mode.
2 Use the Numerical Keypad (0-9) to directly
input the tracks or chapters (single track number
with digit “0” in front, for example “05”).
3 Move the cursor by pressing 1 2 3 4 to
select START.
4 Press OK to start playback.
For MP3/WMA
1 In Stop mode, press PRESET/ÉÅ (or DISC
MENU on the remote) to switch the menu
between Album and Filelist.
2 When Filelist is on the screen, press 3 4 to
select the files and press the control knob
upward (corresponding to PROGRAM) or
press PROG on the remote to add the files to
the program list.
3 Press DISC MENU to display the program list.
4 Press the control knob upward (corresponding
to PROGRAM) or press PROG on the
remote to delete unwanted files from the
program list.
Forward/Reverse Searching (DVD/VCD/
CD/MP3/DivX/WMA)
1 Press TU +/- (à á) during playback to select
the required speed: 2X, 4X, 8X, 16X or 32X
(backward or forward).
➜ Sound will be muted.
2 To return to normal speed, press PRESET/
ÉÅ (or ÉÅ on the remote).
Time search & search by chapter/track
number (DVD/VCD/CD/MP3/WMA)
1 Press GOTO/ST until the time or chapter/track
edit box appears.
2 Enter hours, minutes and seconds from left to
right in the time edit box using remote control
numerical keypad.
OR
Enter your desired chapter/track number in the
chapter/track edit box using remote control
numerical keypad.
Information display during playback
(not for Picture CD)
● During playback, press DISPLAY to show disc
information on the TV screen.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1425
26
English
Disc Operations
For DVD
➜ Title/Chapter Elapsed: displays the
elapsed time of the current title/chapter.
➜ Title/Chapter Remain: displays the
remaining time of the current title/chapter.
➜ Display Off: switches time display off.
For Super VCD/VCD/DivX/CD
➜ Single/Total Elapsed: displays the elapsed
time of the current single/total track.
➜ Single/Total Remain: displays the
remaining time of the current single/total track.
➜ Display Off: switches time display off.
Special disc features
Playing a Title (DVD)
1 Press DISC MENU.
➜ The disc title menu appears on the TV screen.
2 Use 1 2 3 4 or Numeric Keypad (0-9) to
select a play option.
3 Press OK to confirm.
Camera Angle (DVD)
● Press ANGLE repeatedly to select different
desired angle.
Changing the Audio Language (for
DVD recorded with multiple languages)
● Press AUDIO repeatedly to select different
audio languages.
Changing the Audio Channel (for VCD/
DivX only)
● Press AUDIO to select the available audio
channels provided by the disc (Mono Left, Mono
Right or Stereo).
Subtitles (DVD)
● Press SUBTITLE repeatedly to select different
subtitle languages.
Playing MP3/WMA/JPEG Picture
CD
IMPORTANT!
You have to turn on your TV and set to
the correct Video In channel. (See
“Setting up the TV”).
Playing MP3/WMA disc
IMPORTANT!
For DRM protected WMA files, use
Windows Media Player 10 (or later) for
CD burning/conversion. Visit
www.microsoft.com for details about
Windows Media Player and WM DRM
(Windows Media Digital Rights
Management).
General operation
1 Load an MP3/WMA disc.
➜ The data disc menu appears on the TV
screen.
2 Use 3 4 to select an album and press OK to
open the album.
3 Press 3 4 or use the Numeric Keypad (0-
9) to highlight a track.
4 Press OK to confirm.
➜ The playback will start from the selected
track to the end of the album.
Note:
– The disc reading time may exceed 10 seconds
due to large number of songs compiled onto the
disc.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1426
27
English
Disc Operations
Playback selection
During playback, you can:
● Press the control knob to the left/right
(corresponding to S/T) or press CH +/-
(¡ / ™) on the remote to select another track
in the current album.
● Press PRESET/ÉÅ (or ÉÅ on the remote)
repeatedly to pause/resume playback.
● Press DISC MENU on the remote to switch
between Album and Filelist.
Playing JPEG Picture CD
General operation
1 Load a JPEG Picture CD.
➜ The data disc menu appears on the TV
screen.
2 Use 3 4 to select a folder and press OK to
open the folder.
3 Press 3 4 or use the Numeric Keypad (0-
9) to highlight a picture file.
4 Press OK to confirm.
➜ The playback will start from the selected
picture to the end of the folder.
Playback selection
During playback, you can:
● Press the control knob to the left/right
(corresponding to S/T) or press CH +/-
(¡ / ™) on the remote to select another file in
the current folder.
● Use 1 2 3 4 on the remote to rotate/flip the
picture files.
● Press PRESET/ÉÅ (or ÉÅ on the remote)
repeatedly to pause/resume playback.
● Press DISC MENU on the remote to switch
between Folder and Filelist.
Special JPEG features
Preview function (JPEG)
This function shows the content of the current
folder or the whole disc.
1 Press BAND/9 (or 9 on the remote) during
playback.
➜ Thumbnails of 12 pictures appears on the TV
screen.
2 Use 1 2 3 4 to highlight one of the pictures/
”Slide Show” and press OK to start playback/
slide show.
To enter the remote key function menu
● Use 1 2 3 4 to highlight “Menu” and press
OK.
To display the other pictures on the
previous/next page
● Press the control knob to the left/right
(corresponding to S/T ) or press CH +/-
(¡ / ™) on the remote.
● Use 1 2 3 4 to highlight “Prev” or “Next”
and press OK.
Zoom picture (JPEG)
● During playback, press ZOOM repeatedly to
display the picture with different scales.
● Use 1 2 3 4 to view the zoomed picture.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1427
28
English
Disc Operations
Slide show playback modes (JPEG)
● During playback, press the control knob upward
(corresponding to PROGRAM) or press
PROG on the remote repeatedly to select
different slide-show playback modes:
Mode 0: None
Mode 1: Wipe Top
Mode 2: Wipe Bottom
Mode 3: Wipe Left
Mode 4: Wipe Right
Mode 5: Diagonal Wipe Left Top
Mode 6: Diagonal Wipe Right Top
Mode 7: Diagonal Wipe Left Bottom
Mode 8: Diagonal Wipe Right Bottom
Mode 9: Extend From Center H
Mode 10: Extend From Center V
Mode 11: Compress To Center H
Mode 12: Compress To Center V
Mode 13: Window H
Mode 14: Window V
Mode 15: Wipe From Edge To Center
Mode 16: Move In From Top
Playback with multi-angles (JPEG)
● During playback, press 1 2 3 4 to rotate the
picture on the TV screen.
3: flip the picture vertically.
4: flip the picture horizontally.
1: rotate the picture anti-clockwise.
2: rotate the picture clockwise.
Playing a DivX disc
This DVD player supports the DivX movie
playback that you download from your
computer onto a CD-R/RW (see “System Menu
Options-DIVX(R) VOD registration code” for
more information).
1 Load a DivX disc.
➜ Playback will start automatically. If not press
ÉÅ.
2 If the DivX movie contains external
subtitles, the subtitle menu will appear on
the TV screen for your selection.
● In this case, pressing SUBTITLE on the
remote control will turn on or off the
subtitle.
● If multilingual subtitles are embedded on
the DivX disc, pressing SUBTITLE will
change the subtitle language during
playback.
Note:
– Subtitle files with the following filename
extensions (.srt, .smi, .sub, .ssa, .ass) are
supported but do not appear on the file
navigation menu.
– The subtitle filename have to be the same
as the filename of the movie.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1428
29
English
System Menu Options
Basic operations
1 Press SYSTEM to enter the Setup Menu.
2 Press 1 2 to select a page to be set.
3 Press 3 4 to highlight an option.
4 Enter its submenu by pressing 2 or OK.
5 Move the cursor by pressing 3 4 to highlight
the selected item.
➜ In cases of value setting, press 1 2 to adjust
values.
6 Press OK to confirm.
To return to the upper-level menu
● Press 1 or OK (in cases of value adjustment).
To exit from the menu
● Press SYSTEM again.
➜ The settings will be stored in the player’s
memory even if the player is switched off.
Note:
– Some of the features in the System Menu
Options are described in “Getting Started”.
General Setup Page
The options included in General Setup page are:
“TV Display”, “OSD Lang”, “Closed Captions”,
“Screen Saver”and “DIVX(R) VOD”.
DIVX(R) VOD
Closed Captions Off
TV Display
Set the aspect ratio of the DVD Player according
to the TV you have connected.
➜ Normal/PS (panscan): If you have a normal
TV and want both sides of the picture to be
trimmed or formatted to fit your TV screen.
➜ Normal/LB (letterbox): If you have a
normal TV. In this case, a wide picture with black
bands on the upper and lower portions of the
TV screen will be displayed.
➜ Wide: If you have a wide-screen TV.
OSD Lang
See “Getting Started-Step 4: Setting language
preference”.
Screen Saver
This function is used to turn the screen saver on
or off.
Closed Captions Off
➜ On: In STOP, PAUSE or No DISC mode, if no
actions are performed about 3 minutes, the
screen saver will be activated.
➜ Off: Screen saver is disabled.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1429
30
English
Closed Captions
Closed captions are data that are hidden in the
video signal of some discs. Captions are different
from subtitles because captions hearing are
impaired by showing the sound effects (e.g.,
"phone ringing" and "footsteps"), while subtitles
do not.
Before you select this function, please ensure
that the disc contains closed captions
information and your TV set also has this
function.
1 Press 3 4 to highlight 'Closed Captions'.
2 Enter its submenu by pressing 2.
3 Move the cursor by pressing 3 4 to highlight
the selected item.
➜ On: Enable Closed Captions.
➜ Off: Disable Closed Captions.
DIVX(R) VOD registration code
Philips provides you the DivX
®
VOD (Video On
Demand) registration code that allows you to
rent and purchase videos using the DivX
®
VOD
service.
For more information, visit us at www.divx.com/
vod.
1 In ‘General Setup Page’, press 3 4 to highlight
DIVX(R) VOD, then press 2 or OK to ener its
submenu and press OK again to confirm.
➜ The registration code will appear.
System Menu Options
2 Press OK to exit.
3 Use the registration code to purchase or rent
the videos from DivX
®
VOD service at
www.divx.com/vod. Follow the instructions and
download the video onto a CD-R for playback
on this DVD player.
Notes:
– All the downloaded videos from DivX
®
VOD
can only be played back on this DVD player.
– Time search feature is not available during
DivX movie playback.
Audio Setup Page
The options included in Audio Setup page are:
“Speaker Setup”, “SPDIF Setup”, “Dolby Digital
Setup”, “3D Processing”, “HDCD” and “Night
Mode”.
Speaker Setup
The options included in Speaker Setup page are:
"Downmix", "Front Speaker", "Center Speaker",
"Rear Speaker", "Subwoofer" and "Test Tone".
pg001-043_MCD735_37_Eng 2006.7.20, 15:1430
31
English
System Menu Options
Downmix
This option allows you to set the stereo analog
output of your DVD Player.
● In 'Speaker Setup Page', press 3 4 to highlight
'Downmix', then press 2 or OK.
➜ LT/RT: Select this option if your DVD Player
is connected to a Dolby Pro Logic decoder.
➜ Stereo: Select this option when output
delivers sound from only the two front speakers.
➜ V SURR: Allows the DVD player to use
virtual surround sound effects.
➜ 5.1CH: Select this option for 5.1-channel
sound output.
Front Speaker
Adjusts the volume levels for front speakers.
Options include "Large" and "Small".
Center Speaker
Adjusts the volume level for the center speaker.
Options include "Large", "Small" and "Off".
Note:
– This option is available only when you select
"5.1CH" under "Downmix".
Rear Speaker
Adjusts the volume levels for rear speakers.
Options include Options include "Large", "Small"
and "Off".
Note:
– This option is available only when you select
"5.1CH" under "Downmix".
Subwoofer
Selects ON/OFF for the subwoofer.
Test Tone
The test tone will be automatically generated.
Note:
– This option is available only when you select
"5.1CH" under "Downmix" and the disc tray is
open.
SPDIF Output
The options included in SPDIF (Sony/Phillips
Digital Interface Format) Setup Page are: “SPDIF
Off”, “SPDIF/Raw” and “SPDIF/PCM”.
➜ SPDIF Off: Tu rns off the SPDIF output.
➜ SPDIF/Raw: If you have connected your
DIGITAL OUT (COAXIAL or OPTICAL) to a
multi-channel decoder/receiver.
➜ SPDIF/PCM: Only if your receiver is not
capable of decoding multi-channel audio.
Dolby Digital Setup
The option included in Digital Audio Setup is:
“Dual Mono”.
Dual Mono
Select the setting that matches the number of
speakers you have connected.
➜ Stereo: Left mono sound will send output
signals to Left speaker and Right mono sound
will send output signals to Right speaker.
➜ L-Mono: Left mono sound will send output
signals to Left speaker and Right speaker.
➜ R-Mono: Right mono sound will send output
signals to Left speaker and Right speaker.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1431
32
English
3D Processing
The options included in 3D Processing are: “Pro
Logic II” and “Reverb Mode”.
Off
Concert
Livingroom
Hall
Bathroom
Cave
Arena
Church
Pro Logic II
The options included in Pro Logic II Config page
are: "Pro Logic II", "Mode", "Panorama",
"Dimension" and "Center Width".
Pro Logic II
This function provides a convincing three-
dimensional sound field on conventional stereo
music recordings.
➜ On: Tu r ns on the Pro Logic II effect.
➜ Off: Tu r ns off the Pro Logic II effect. In this
case, all options below "Pro Logic II" will be
unavailable.
➜ Auto: Allows automatic selection of the Pro
Logic II effect depending on the discs being
played back.
Mode
You can select your desired Pro Logic II mode
here.
➜ Music: When listening to music, you can
experience sound effects as if you were listening
to the actual performance. The options below
"Mode" will be available only when this option is
selected.
➜ Movie: Is mainly intended for use with DTS
discs. It can add realism to movie sound tracks.
➜ Pro Logic: After selecting this, you will
experience a realistic multi-channel effect even
with just the front left and right speakers.
System Menu Options
➜ Auto: Allows automatic selection of the Pro
Logic II mode depending on the discs being
played back.
Panorama
Extends the front stereo image to include the
surround speakers for a wraparound effect.
➜ On: Enables this function.
➜ Off: Disables this function.
Dimension
Incrementally adjusts the sound field either
towards the front or towards the rear speakers.
The adjustable range is from -3 (towards the
rear) to +3 (towards the front).
Center Width
Adjusts the center image from all front speakers
to varying degrees. A larger value adjusts the
center image towards the front left and right
speakers. The adjustable range is from 0 (center
channel sound is output only from center
speaker) to 7 (center channel sound is output
only from front left and right speakers).
Reverb Mode
Reverb mode provides a virtual surround sound
experience using just two speakers.
➜ Off, Concert, Living Room, Hall,
Bathroom, Cave, Arena and Church.
HDCD
The option included in HDCD (High Definition
Compatible Digital) is: “Filter”.
Filter
Sets the audio output cutoff frequency point
when playing an HDCD disc.
➜ Off, 44.1K and 88.2K.
Night mode
In this mode, the high volume outputs are
softened and low volume outputs are brought
upward to an audible level. It is useful for
watching your favourite action movie without
disturbing others at night.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1432
33
English
System Menu Options
➜ On: Select this to level out the volume. This
feature is only available for movies with Dolby
Digital mode.
➜ Off: Select this when you want to enjoy the
surround sound with its full dynamic range.
Video Setup Page
The options included in Video Setup page are:
“Component”, “TV Mode” and “Quality”.
Component
Sets the video output according to your video
connection. This setting is not required if you are
using the VIDEO OUTPUT jack (yellow) to
connect the DVD micro system to your TV.
➜ Ypbpr: Select this if you have connected the
DVD micro system to your TV using Component
video jacks.
➜ S-Video: Select this if you have connected
the DVD micro system to your TV using S-Video
jack.
TV Mode
Selects interlace or P-SCAN video output mode
when Ypbpr is selected.
➜ P-SCAN and Interlace.
In the progressive scan mode, you can enjoy the
high quality picture with less flickers. It only
works when you have connected the DVD
player's Y Pb Pr jacks to your TV that supports
the progressive video input. Otherwise, a
distorted picture will appear on the TV. For
proper progressive scan set up, see “Getting
Started-Setting up Progressive Scan feature”.
Quality
This menu helps you to set the video quality.
1 Press 3 4 to highlight “Quality”.
2 Press 2 or OK to enter Video Quality Setup.
The options included in Video Quality Setup
page are: “Sharpness”, “Brightness”, “Contrast”,
“Gamma”, “Hue”, “Saturation” and “Luma Delay”.
Sharpness
Adjusts the sharpness level.
➜ High, Medium and Low.
Brightness
Adjusts the brightness level. Range: -20-+20.
Contrast
Adjusts the contrast level. Range: -16-+16.
Gamma
Adjusts the gamma level.
➜ High, Medium, Low and None.
Hue
Adjusts the hue level. Range: -9-+9.
Saturation
Adjusts the saturation level. Range: -9-+9.
Luma Delay
Adjusts the luma delay.
➜ 0 T and 1 T.
Preference Page
The options included in Preference page are: “TV
Type”, “Audio”, “Subtitle”, “Disc Menu”, “Parental”
and “Default”.
Note:
–Preference features can be selected only during
“No Disc” condition or full STOP mode.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1433
34
English
System Menu Options
Parental
Some DVDs may have a parental level assigned
to the complete disc or to certain scenes on the
disc. This feature lets you set a playback limitation
level.
The rating levels are from 1 to 8 and are country
dependent. You can prohibit the playing of
certain discs that are not suitable for your
children or have certain discs played with
alternative scenes.
● VCD, SVCD and CD have no level indication, so
parental control function has no effect on those
kinds of discs. This applies to most illegal DVD
discs.
1 Press 3 4 to highlight “Parental”.
2 Enter its submenu by pressing 2.
3 Use 3 4 to highlight a rating level for the disc
inserted.
➜ DVDs that are rated above the level you
selected will not play unless you enter your four-
digit password and choose a higher level rating.
Note:
– Some DVDs are not encoded with a rating
though the movie rating may be printed on the
Disc cover. The rating level feature does not work
for such Discs.
Rating explanations
1 KID SAF
– Kids material; recommended especially for
children and viewers of all ages.
2 G
– General Audience; recommended as
acceptable for viewers of all ages.
3 PG
–Parental Guidance suggested.
4 PG 13
– Material is unsuitable for children under age
13.
5-6 PGR, R
–Parental Guidance - Restricted;
recommended that parents restrict children
under 17 from viewing or allow to view only
when supervised by a parent or adult guardian.
7 NC-17
– No children under age 17; not recommended
viewing for children under age 17.
8 Adult
– Mature materials; should be viewed only by
adults due to graphic sexual material, violence or
language.
Default
Setting the “Default” function will reset all
options and your personal settings to the factory
defaults and all your personal settings will be
erased.
Caution!
– When this function is activated, all
settings will be reset to factory defaults.
Password Setup Page
The options included in Password Setup page
are: “Password Mode” and “Password”.
Password Mode
This feature is used to enable/disable password
by selecting “ON”/”OFF”.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1434
35
English
System Menu Options
Password
Enter your four digit password when a hint is
displayed on the screen. The default password is
1234.
1 Press 3 4 to highlight “Password”.
2 Enter its submenu by pressing 2.
3 Press OK to open the page for inputting a new
password.
4 Enter the existing 4-digit code.
5 Enter the new 4-digit code.
6 Enter the new 4-digit code a second time to
confirm.
➜ The new 4-digit code will take effect.
7 Press OK to exit.
Notes:
– If the password has been changed, the parental
and disc lock code will also be changed.
– The default password (1234) is always active
even the password has been changed.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1435
36
English
Radio Reception
Tuning to radio stations
1 Press ECO POWER/STANDBY-ONy (or y
on the remote) to switch on the last selected
source.
2 Press SOURCE (or TUNER on the remote)
to select TUNER mode.
3 Press BAND/9 (or TUNER on the remote)
again to select the desired band: FM or AM.
4 Press and hold the control knob to the left/right
(corresponding to S/T) or TU +/- à /
á on the remote until the frequency indication
starts to change, then release.
➜ The system automatically tunes to the next
strong radio station.
● To tune to a weak station, press the control
knob to the left/right (corresponding to S/
T) or TU +/- à / á on the remote
briefly and repeatedly until an optimal reception
is found.
5 Repeat Step 4 if necessary until you find the
desired radio station.
Presetting radio stations
You can preset up to 40 stations (20 in each
band) regardless of the reception.
1 Tune to your desired radio station (refer to
“Tuning to radio stations”).
2 Press the control knob upward (corresponding
to PROGRAM) or press PROG on the
remote.
➜ ”PROG” icon flashes.
3 Press CH +/- (¡ / ™) on the remote to select
the desired preset number.
➜ If “PROG” icon goes off before you select the
desired preset number, press the control knob
upward (corresponding to PROGRAM) or press
PROG on the remote.
4 Press the control knob upward (corresponding
to PROGRAM) or press PROG on the
remote again to store the radio station.
● Repeat steps 1-4 to store other radio stations.
Other Functions
Listening to preset radio stations
● In tuner mode, press PRESET/ÉÅ (or CH +/
- (¡ / ™) on the remote) to select the desired
preset number.
➜ The preset number, radio frequency, and
waveband are displayed.
Setting the clock
1 In Standby mode, press and hold CLOCK on
the remote until the time flashes on the display.
➜ ”CLOCK SET” is displayed briefly. Then, the
hour digits flash on the display screen.
2 Tu r n VOLUME -/+ clockwise or anticlockwise
or press VOLUME +/- on the remote to set
the hours.
3 Press CLOCK to confirm.
➜ The minute digits flash on the display screen.
4 Tu r n VOLUME -/+ clockwise or anticlockwise
or press VOLUME +/- on the remote to set
the minutes.
5 Press CLOCK again to confirm the clock
setting.
Notes:
– This system only supports 12-hour mode.
– The clock setting will be erased when the system
is disconnected from the power supply.
– The system will exit clock setting mode if no
button is pressed within 30 seconds.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1436
37
English
Other Functions
Setting sleep/wake-up timer
Sleep timer setting
In power-on mode, the sleep setting enables
the system to switch to standby mode
automatically at a preset time.
1 In power-on mode, press SLEEP/TIMER on
the remote repeatedly to select a preset time.
➜ The selections are as follows (time in
minutes):
SLEEP OFF ➜ SLEEP 15 ➜ SLEEP 30 ➜ SLEEP
45 ➜ SLEEP 60 ➜ SLEEP 75 ➜ SLEEP 90 ➜
SLEEP 105 ➜ SLEEP 120 ➜ SLEEP OFF
2 When you reach the desired length of time, stop
pressing SLEEP/TIMER.
➜ ”SLEEP” appears.
To deactivate the sleep timer
● Press SLEEP/TIMER repeatedly until “00” is
displayed, or press STANDBY ONB (B on
the remote).
In standby mode, the timer setting enables
the system to switch on automatically at a set
time.
Wake-up timer setting
IMPORTANT!
– Before setting the timer, ensure that
the clock is set correctly.
1 Press and hold SLEEP/TIMER until the time
flashes on the display.
➜ ”TIME SET” is displayed briefly. Then, the
hour digits flash on the display screen.
2 Tu r n VOLUME -/+ clockwise or anticlockwise
or press VOLUME -/+ on the remote to set
the hours.
3 Press SLEEP/TIMER to confirm.
➜ The minute digits flash on the display screen.
4 Tu r n VOLUME -/+ clockwise or anticlockwise
or press VOLUME -/+ on the remote to set
the minutes.
5 Press SLEEP/TIMER to confirm the time
setting.
➜ ”OFF” flashes on the display screen.
6 Tu r n VOLUME -/+ clockwise or anticlockwise
or press VOLUME -/+ on the remote to select
“ON”.
➜ icon appears on the display screen.
To deactivate the timer
● Select “OFF” at Step 6.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1437
38
English
SYSTEM
AC Power ................................................. 120 V / 60 Hz
Rated working power consumption (1/8 rated
output power) ........................................................ ≤ 55W
AUX input sensitivity ..................................... ≤ 350mV
Channel Separation ............................................. ≥ 40dB
Distortion ....................................................................... 0.7%
DVD
Frequency response ........... 125Hz-20kHz (±1dB)
Video output ................................................................ 1 V
P-P
Video system ............................................................. NTSC
Horizontal definition................................... ≥ 500 (TV)
Dimensions 208 (W) x 61.7 (H) x 244 (D) mm
Weight ......................................................................... 3.1 kg
AMPLIFIER
FTC output power
L, R main channel ..................................................................
........................................ 10W x 2 at 1KHz, THD =1%
L, R surround channel .........................................................
........................................ 10W x 2 at 1KHz, THD =1%
Center ................................. 10W at 1KHz, THD =1%
Subwoofer ......................... 30W at 63Hz, THD =1%
Rated output power (RMS THD = 10%)
L, R main channel .......................... 20W x 2 at 1KHz
L, R surround channel .................... 20Wx2 at 1KHz
Center .......................................................... 20W at 1KHz
Subwoofer .................................................. 50W at 63Hz
Frequency response
L, R, Center ......... 125Hz -5/+2dB - 20kHz ± 3dB
Subwoofer ........................................................... 20-200Hz
S/N Ratio ................................................................... ≥ 65dB
Loaded impedance ..................................................... 8 Ω
Dimensions 208 (W) x 56.9 (H) x 244 (D) mm
Weight ............................................................................ 2.4 kg
TUNER
FM Frequency range .......................... 87.5-108 MHz
FM Noise limit sensitivity ........................... ≤ 20µ V/M
FM S/N ........................................................................ ≥ 46dB
AM Frequency range ..................... 520 - 1710 kHz
AM Noise limit sensitivity ......................... ≤ 3.0mV/M
AM S/N ...................................................................... ≥ 40dB
Specifications
SPEAKER
Front Speakers
System .......................................................... 2-way shielded
Impedance.......................................................................... 8 Ω
Speaker drivers .................... 1x 3” woofer, ribbon tw
Dimensions (w x h x d) ......................................................
....................................... 131 mm x 154 mm x 156 mm
Weight ........................................................................... 1.25 kg
Center Speaker
System .......................................................... 2-way shielded
Impedance.......................................................................... 8 Ω
Speaker drivers ...................... 4 x 2” woofer, 1.75” tw
Dimensions (w x h x d) ......................................................
......................................... 284mm x 133 mm x 156 mm
Weight .............................................................................. 2.0 kg
Surround Speakers
System .......................................................... 2-way shielded
Impedance.......................................................................... 8 Ω
Speaker drivers ............................. 1 x 3” woofer, Pieze
Dimensions (w x h x d) ......................................................
....................................... 131 mm x 154 mm x 156 mm
Weight ........................................................................... 1.25 kg
SUBWOOFER
Subwoofer (not magnetically shielded design).......
.................................................................................................. 6.5”
Impedance.......................................................................... 4 Ω
Dimensions (w x h x d) ......................................................
....................................... 180 mm x 276 mm x 330 mm
Weight ........................................................................... 4.45 kg
REMOTE
Distance ............................................................................. 6 m
..................................................................................... 19.7 feet
Angle ............................................................................... ± 30
0
Specifications and external appearance are
subject to change without notice.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1438
39
English
WARNING
Under no circumstances should you try to repair the system yourself, as this will invalidate the
warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you
are unable to remedy a problem by following these hints, consult your dealer or Philips for
help.
Tr oubleshooting
No power.
No picture.
Distorted or poor picture.
Completely distorted picture or black/
white picture.
✔ Check if the AC power cord is properly
connected.
✔ Press STANDBY ONB on the top of the DVD
micro system or B on the remote to turn on
the power.
✔ Check if the TV is switched on.
✔ Check the video connection.
✔ Press SOURCE on the top of the DVD player
repeatedly to select “DVD” or press DISC on
the remote.
✔ Set your TV to the correct Video In channel. This
channel is usually near channel 00. Or, you may
have a button on the TV remote control that
selects Auxiliary or A/V IN channel. See your TV
owner’s manual for details. Or, change channels
at the TV until you see DVD screen on the TV.
✔ If the progressive scan feature is activated but
the connected TV does not support progressive
signals or the cables are not connected
accordingly, see “Getting Started-Setting up
Progressive Scan feature” for proper progressive
scan setup or deactivate the progressive scan
feature as below:
1) Turn off your TV progressive scan mode or
turn on to interlaced mode.
2) Press SYSTEM on the remote to exit the
system menu and then DISC and “1” to exit
progressive scan.
✔ Sometimes a small amount of picture distortion
may appear. This is not a malfunction.
✔ Clean the disc.
✔ TV has a colour system standard. If the disc’s or
DVD system’s colour system is different than
your TV’s colour system, the picture may be
distorted or colourless.
Problem
Solution
pg001-043_MCD735_37_Eng 2006.7.20, 15:1439
40
English
The aspect ratio of the screen cannot be
changed even though you have set the TV
shape.
No sound or distorted sound.
The micro DVD player does not start
playback.
The DVD micro system does not respond
when the buttons are pressed.
Cannot activate some features, such as
Angles, Subtitles, or multi-language
Audio.
Considerable noise in radio broadcasts.
Sound cannot be heard or is of poor
quality.
✔ The aspect ratio is fixed on the DVD disc.
✔ Depending on the TV, it may not be possible to
change the aspect ratio.
✔ Adjust the volume.
✔ Check that the speakers are connected
correctly.
✔ Replace the speaker cables.
✔ Disconnect the headphones.
✔ The system is in pause, slow motion or fast
forward/reverse mode, press PRESET/ÉÅ (or
ÉÅ on the remote) to resume normal play
mode.
✔ Insert a readable disc with the playback side
facing down.
✔ Check the disc type, colour system and regional
code. Check for any scratches or smudges on
the disc.
✔ Press SYSTEM MENU to turn off the setup
menu screen.
✔ Cancel the parental control rating function or
change the rating level.
✔ Moisture has condensed inside the system.
Remove the disc and leave the system turned
on for about an hour.
✔ Disconnect the power plug from the outlet and
insert again.
✔ Multi-language sound or subtitle is not
recorded on the DVD.
✔ Changing the language for the sound or subtitle
is prohibited on the DVD.
✔ The features may not be available on the disc.
✔ Tune in to the correct frequency.
✔ Connect the antennas.
✔ Fully extend the FM wire antenna. Position for
best reception and secure to a wall.
✔ Connect an outdoor FM or AM antenna.
✔ Adjust the direction and position for best
reception.
✔ Place the antenna farther away from any
equipment that may be causing the noise.
✔ Increase the distance between the system and
your TV or other equipment.
Troubleshooting
pg001-043_MCD735_37_Eng 2006.7.20, 15:1440
41
English
The remote control does not function.
The display is dark.
Low hum or buzz sound.
Low bass response.
Unable to select Progressive Scan
✔ Select the correct source (DISC or TUNER, for
example) before pressing the function button.
✔ Point the remote control at the remote sensor
of the unit.
✔ Reduce the distance to the player.
✔ Remove any possible obstacles.
✔ Replace the batteries with new ones.
✔ Check that the batteries are loaded correctly.
✔ Press DIM again.
✔ Place the DVD micro system as far away as
possible from electrical devices that may be
causing interference.
✔ Check all speakers for correct polarity.
✔ Check that the output of the video signal is
switched to 'Ypbpr'.
Tr oubleshooting
pg001-043_MCD735_37_Eng 2006.7.20, 15:1441
42
English
Glossary
Analog: Sound that has not been turned into
numbers. Analog sound varies, while digital sound
has specific numerical values. These jacks send
audio through two channels, the left and right.
Aspect ratio: The ratio of vertical and
horizontal sizes of a displayed image. The
horizontal vs. vertical ratio of conventional TVs. is
4:3, and that of wide-screens is 16:9.
AUDIO OUT Jacks: Jacks on the back of the
DVD System that send audio to another system
(TV set, Stereo, etc.).
Bit Rate: The amount of data used to hold a
given length of music; measured in kilobits per
second, or kbps. Or, the speed at which you
record. Generally, the higher the bit rate the
better the sound quality. However, higher bit
rates use more space on a Disc.
Chapter: Sections of a picture or a music
piece on a DVD that are smaller than titles. A
title is composed of several chapters. Each
chapter is assigned a chapter number enabling
you to locate the chapter you want.
Component Video Out Jacks: Jacks on the
back of the DVD System that send high-quality
video to a TV set that has Component Video In
jacks (R/G/B, Y/Pb/Pr, etc.).
Disc menu: A screen display prepared for the
selection of images, sound, subtitles, multi-angles,
etc recorded on a DVD.
Digital: Sound that has been converted into
numerical values. Digital sound is available when
you use the DIGITAL AUDIO OUT COAXIAL
or OPTICAL jacks. These jacks send audio
through multiple channels, instead of just two
channels as analog does.
Dolby Digital: A surround sound system
developed by Dolby Laboratories containing up
to six channels of digital audio (front left and
right, surround left and right and center).
DTS: Digital Theater Systems. This is a surround
sound system, but different from Dolby Digital.
The formats were developed by different
companies.
JPEG: A still-picture data compression system
proposed by the Joint Photographic Expert
Group, which features small decrease in image
quality in spite of its high compression ratio.
MP3: A file format with a sound data
compression system, “MPE” is the abbreviation of
Motion Picture Experts Group 1 (or MPEG-1)
Audio Layer 3. Through the MP3 format, one
CD-R or CD-RW can contain about 10 times as
much data volume as a regular CD can.
Multichannel: DVD is specified to have all
sound tracks constitute one sound field.
Multichannel refers to a structure of sound
tracks having three or more channels.
Parental control: A function of the DVD to
limit playback of the disc by the age of the users
according to the limitation level in each country.
The limitation varies from disc to disc; when it is
activated, playback will be prohibited if the
software’s level is higher than the user-set level.
PCM (Pulse Code Modulation): A system
for converting analog sound signal to digital
signal for later processing without data
compression.
Playback control (PBC): Refers to the signal
recorded on video CDs or SVCDs for
reproduction control. By using screen menus
recorded on a Video CD or SVCD that supports
PBC, you can enjoy interactive-type software as
well as software having a search function.
Progressive Scan (P-Scan): It displays all the
horizontal lines of a picture at one time, as a
signal frame. This system can convert interlaced
video from DVD into progressive format for
connection to a progressive display. It
dramatically increases the vertical resolution. A
progressive scan TV set is needed to receive
progressive scan output from the system.
Region code: A system allowing discs to be
played only in preset regions. This unit will only
play discs that have compatible region codes. You
can find the region code of your unit from the
product label. Some discs are compatible with
more than one region (or ALL regions).
S-Video: Produces a clear picture by sending
separate signals for luminance and the color. You
can use S-Video only if your TV set has S-Video
In jack.
Sampling Frequency: Frequency of data
sampling when analog data is converted to
digital data. Sampling frequency numerically
represents how many times the original analog
signal is sampled per second.
Surround: A system for users to create
realistic three-dimensional sound fields full of
realism by arranging multiple speakers around
the listener.
Title: The longest section of a picture or music
feature on DVD, music, etc., in video software, or
the entire album in audio software. Each title is
assigned a title number enabling you to locate
the title you want.
VIDEO OUT jack: Jack on the back of the
DVD System that sends video to TV.
pg001-043_MCD735_37_Eng 2006.7.20, 15:1442
43
pg001-043_MCD735_37_Eng 2006.7.20, 15:1443
