SIENNA_OM_OM08035U_(U)
Pictorial index
Search by illustration
1
For safety
and security
Make sure to read through them
2
Instrument
cluster
How to read the gauges and meters, the variety of
warning lights and indicators, etc.
3
Operation of
each component
Opening and closing the doors and windows,
adjustment before driving, etc.
4
Driving
Operations and advice which are necessary for
driving
5
Interior features
Usage of the interior features, etc.
6
Maintenance
and care
Caring for your vehicle and maintenance
procedures
7
When trouble
arises
What to do in case of malfunction or emergency
8
Vehicle
specifications
Vehicle specifications, customizable features, etc.
9
For owners
Reporting safety defects for U.S. owners, and seat
belt and SRS airbag instructions for Canadian
owners
Index
Search by symptom
Search alphabetically
TABLE OF CONTENTS
2
SIENNA_OM_OM08035U_(U)
For your information....................... 8
Reading this manual.................... 12
How to search.............................. 13
Pictorial index .............................. 14
1-1. For safe use
Before driving...................... 26
For safe driving ................... 28
Seat belts ............................ 30
SRS airbags........................ 38
Front passenger occupant
classification system ......... 52
Safety information
for children ........................ 57
Child restraint systems........ 58
Installing child restraints...... 62
Exhaust gas precautions..... 76
1-2. Theft deterrent system
Engine immobilizer
system............................... 77
Alarm................................... 79
2. Instrument cluster
Warning lights and
indicators ...........................84
Gauges and meters.............89
Multi-information display......92
Fuel consumption
information.........................99
3-1. Key information
Keys...................................104
3-2. Opening, closing and
locking the doors
Front doors ........................110
Sliding doors......................121
Back door ..........................133
Smart key system..............143
3-3. Adjusting the seats
Front seats.........................149

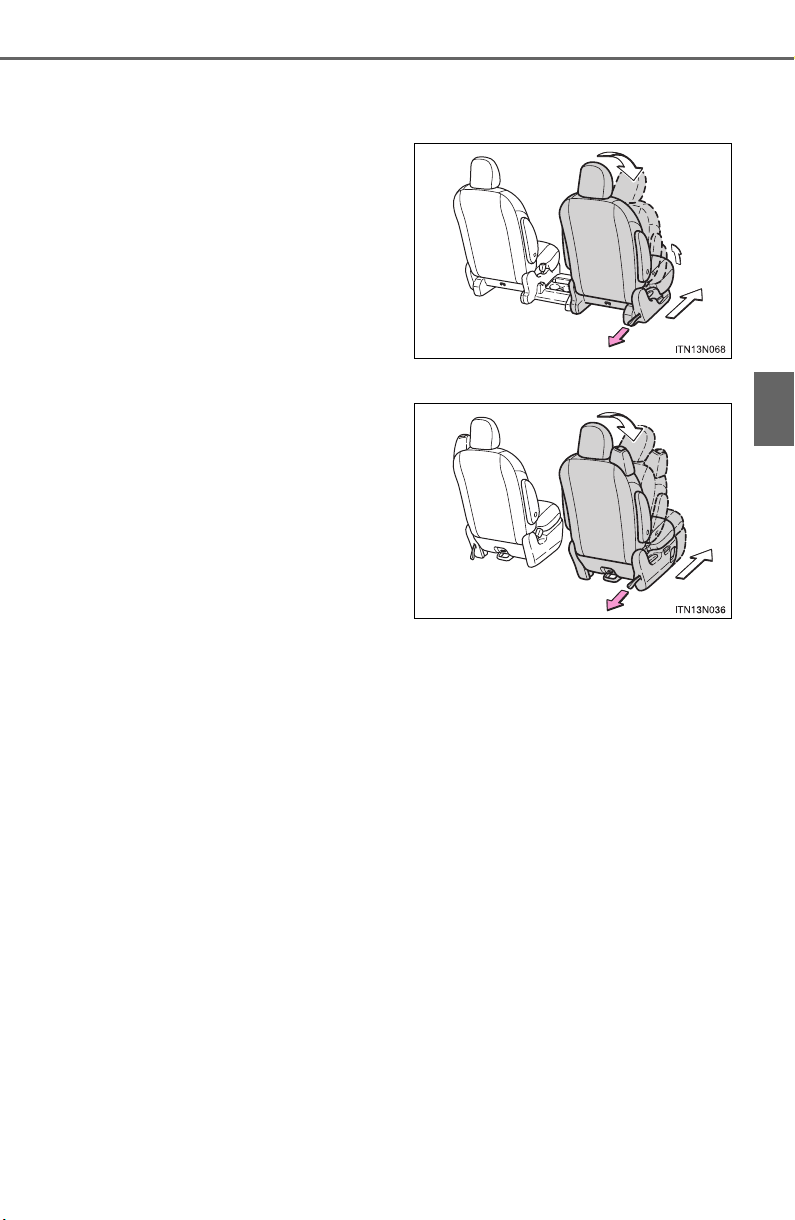

Rear seats .........................152
Driving position memory ....169

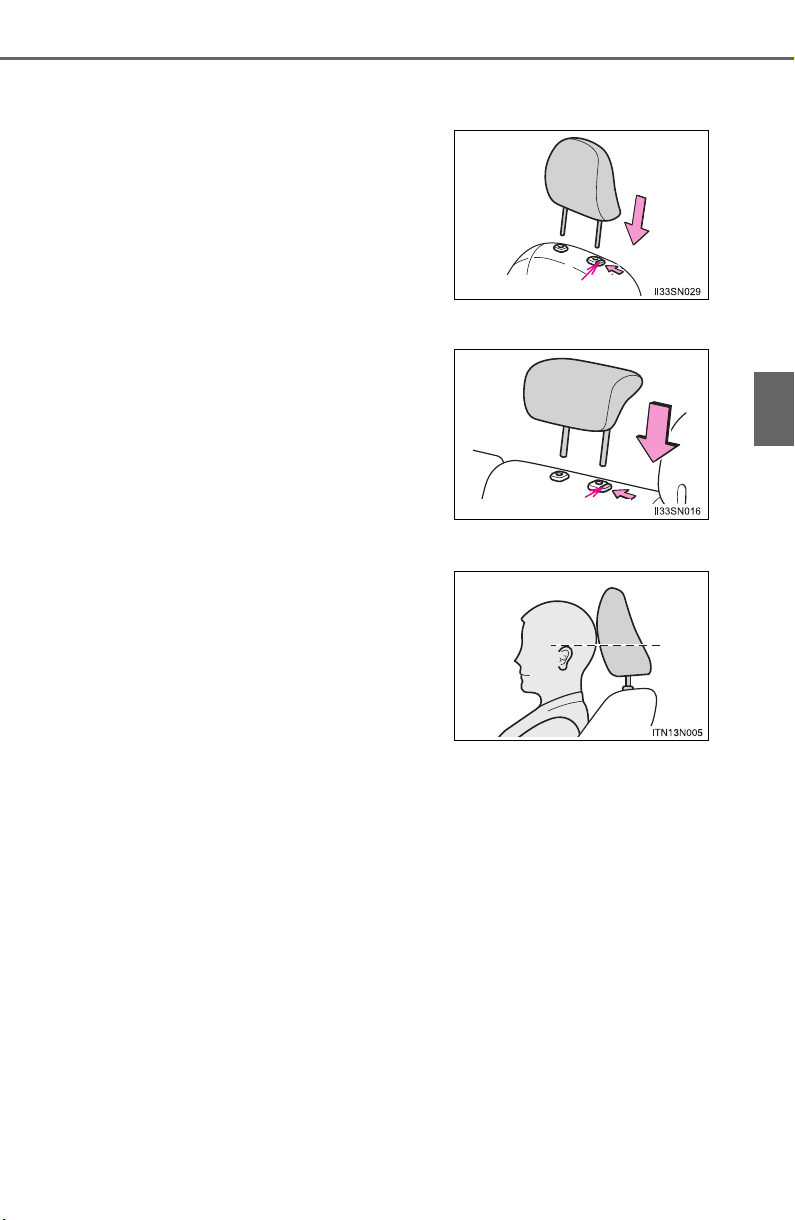

Head restraints ..................173
1
For safety and security
2
Instrument cluster
3
Operation of each
component
3
1
8
7
6
5
4
3
2
SIENNA_OM_OM08035U_(U)
9
3-4. Adjusting the steering
wheel and mirrors
Steering wheel .................. 177
Inside rear view mirror....... 179
Outside rear view
mirrors............................. 181
3-5. Opening, closing the
windows and moon roof
Power windows ................. 184
Quarter windows ............... 187
Moon roof.......................... 189
4-1. Before driving
Driving the vehicle............. 194
Cargo and luggage............ 203
Vehicle load limits ............. 209
Trailer towing
(with towing package) ..... 210
Dinghy towing.................... 224
4-2. Driving procedures
Engine (ignition) switch
(vehicles without a
smart key system)........... 225
Engine (ignition) switch
(vehicles with a smart
key system)..................... 228
Automatic transaxle........... 233
Turn signal lever................ 239
Parking brake.................... 240
4-3. Operating the lights
and wipers
Headlight switch ................241
Automatic High Beam........246
Fog light switch..................251
Windshield wipers and
washer.............................252
Rear window wiper and
washer.............................256
4-4. Refueling
Opening the fuel tank
cap...................................257
4-5. Using the driving support
systems
Toyota Safety Sense P......260

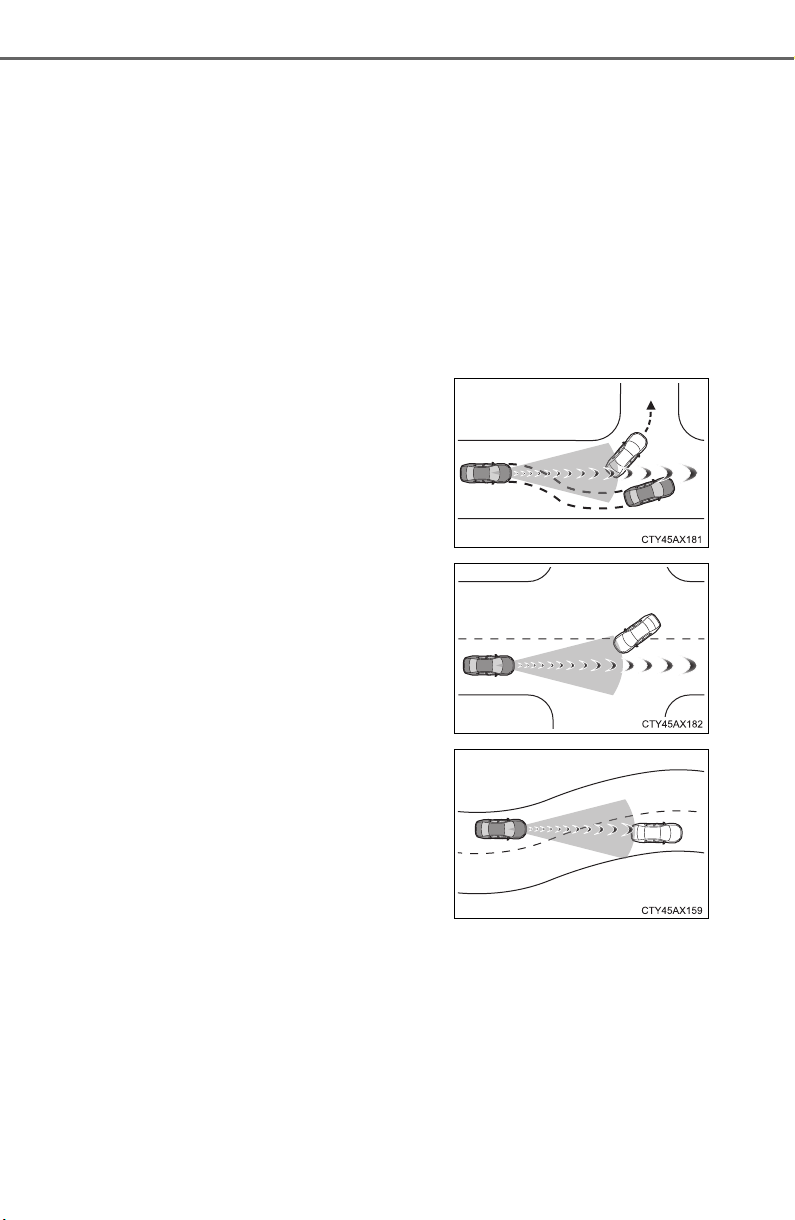

PCS (Pre-Collision
System) ...........................266
LDA (Lane Departure Alert
with steering control) .......278
Dynamic radar cruise
control..............................288
BSM (Blind Spot
Monitor) ...........................302
• The Blind Spot Monitor
function..........................306
• The Rear Cross Traffic
Alert function .................309
Intuitive parking assist .......314
Driving assist systems.......322
4-6. Driving tips
Winter driving tips ..............327
4
Driving
TABLE OF CONTENTS
4
SIENNA_OM_OM08035U_(U)
5-1. Using the air conditioning
system and defogger
Front automatic air
conditioning system ........ 332
Rear automatic air
conditioning system ........ 341
Heated steering
wheel/seat heaters.......... 344
• Heated steering
wheel ............................ 345
• Seat heaters ................. 346
5-2. Using the interior lights
Interior lights list ................ 347
• Personal/interior light
main switch ................... 348
• Personal/interior
lights ............................. 348
• Rear ceiling lights ......... 349
5-3. Using the storage features
List of storage features...... 350
• Glove boxes.................. 351
• Console box.................. 352
• Cup holders .................. 354
• Bottle holders................ 356
• Door pockets................. 357
• Auxiliary boxes.............. 358
Luggage compartment
features ........................... 361
5-4. Using the other interior
features
Other interior features........363
• Sun visors .....................363
• Vanity mirrors ................363
• Conversation mirror.......364
• Power outlets ................365
• USB charging ports .......368
• Armrests........................370
• Assist grips....................371
• Rear side sunshades ....372
• Grocery bag hooks........373
Garage door opener ..........374
Compass ...........................381
Safety Connect..................385
6-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ..........392
Cleaning and protecting
the vehicle interior ...........395
6-2. Maintenance
Maintenance
requirements ...................398
General maintenance ........401
Emission inspection and
maintenance (I/M)
programs .........................404
5
Interior features
6
Maintenance and care
5
1
8
7
6
5
4
3
2
SIENNA_OM_OM08035U_(U)
9
6-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ..................... 405
Hood.................................. 407
Positioning a floor jack ...... 409
Engine compartment......... 410
Tires .................................. 420
Tire inflation pressure........ 429
Wheels .............................. 432
Air conditioning filter.......... 434
Wireless remote control/
electronic key battery ...... 436
Checking and replacing
fuses ............................... 439
Light bulbs......................... 442
7-1. Essential information
Emergency flashers .......... 462
If your vehicle has to
be stopped in an
emergency ...................... 463
7-2. Steps to take in an
emergency
If your vehicle needs to
be towed ......................... 465
If you think something is
wrong .............................. 469
Fuel pump shut off
system............................. 470
If a warning light turns on
or a warning buzzer
sounds ............................ 471
If a warning message is
displayed......................... 481
If you have a flat tire
(vehicles with a compact
spare tire)........................ 485
If you have a flat tire
(vehicles with
run-flat tires) ....................499
If the engine will not
start .................................501
If the electronic key does
not operate properly
(vehicles with a smart
key system) .....................503
If the battery is
discharged.......................505
If your vehicle
overheats.........................509
If the vehicle becomes
stuck ................................512
8-1. Specifications
Maintenance data
(fuel, oil level, etc.) ..........516
Fuel information.................526
Tire information..................529
8-2. Customization
Customizable features.......540
8-3. Initialization
Items to initialize................550
7
When trouble arises
8
Vehicle specifications
TABLE OF CONTENTS
6
SIENNA_OM_OM08035U_(U)
Reporting safety defects
for U.S. owners........................ 552
Seat belt instructions for
Canadian owners
(in French) ............................... 553
SRS airbag instructions for
Canadian owners
(in French) ............................... 555
What to do if...
(Troubleshooting) .................... 566
Alphabetical index...................... 570
9
For owners
Index
For vehicles with an Entune Audio, Entune Audio Plus or Entune
Premium Audio, refer to the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL” for information regarding the equip-
ment listed below.
• Navigation system
• Rear view monitor system
• Audio/visual system
• Panoramic view monitor
• Hands-free system (for cellu-
lar phone)
For details about AUTO ACCESS SEAT, refer to the “AUTO
ACCESS SEAT OWNER’S MANUAL”.
7
1
8
7
6
5
4
3
2
SIENNA_OM_OM08035U_(U)
9
8
SIENNA_OM_OM08035U_(U)
For your information
Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations for equipment
not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Approximately five hours after the engine is turned off, you may hear sound
coming from under the vehicle for several minutes. This is the sound of a fuel
evaporation leakage check and, it does not indicate a malfunction.
A wide variety of non-genuine spare parts and accessories for Toyota vehi-
cles are currently available in the market. You should know that Toyota does
not warrant these products and is not responsible for their performance,
repair, or replacement, or for any damage they may cause to, or adverse
effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non-genuine Toyota products. Modi-
fication with non-genuine Toyota products could affect its performance, safety
or durability, and may even violate governmental regulations. In addition,
damage or performance problems resulting from the modification may not be
covered under warranty.
The installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as:
● Multiport fuel injection system/sequential multiport fuel injection system
● Anti-lock brake system
● SRS airbag system
● Seat belt pretensioner system
● Toyota Safety Sense P
Be sure to check with your Toyota dealer for precautionary measures or spe-
cial instructions regarding installation of a mobile two-way radio system.
Main Owner’s Manual
Noise from under vehicle after turning off the engine
Accessories, spare parts and modification of your Toyota
Installation of a mobile two-way radio system
SIENNA_OM_OM08035U_(U)
9
The vehicle is equipped with sophisticated computers that will record certain
data, such as:
The recorded data varies according to the vehicle grade level and options
with which it is equipped.
These computers do not record conversations or sounds, and only record
images outside of the vehicle in certain situations.
• Engine speed / Electric motor speed (traction motor speed)
• Accelerator status
• Brake status
• Vehicle speed
• Operation status of the driving assist systems, such as the ABS and pre-
collision system
• Images from the front camera (available only when certain safety sys-
tems are activated, which varies depending on the vehicle specifica-
tions).
● Data Transmission
Your vehicle may transmit the data recorded in these computers to Toyota
without notification to you.
● Data usage
Toyota may use the data recorded in this computer to diagnose malfunc-
tions, conduct research and development, and improve quality.
Toyota will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the lessee if
the vehicle is leased
• In response to an official request by the police, a court of law or a govern-
ment agency
• For use by Toyota in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or
vehicle owner
● Recorded image information can be erased by your Toyota dealer.
The image recording function can be disabled. However, if the function is
disabled, data from when the pre-collision system operates will not be avail-
able.
● To learn more about the vehicle data collected, used and shared by
Toyota, please visit www.toyota.com/privacyvts/
.
If your Toyota has Safety Connect and if you have subscribed to those ser-
vices, please refer to the Safety Connect Telematics Subscription Service
Agreement for information on data collected and its usage.
● To learn more about the vehicle data collected, used and shared by
Toyota, please visit www.toyota.com/privacyvts/
.
Vehicle data recording
Usage of data collected through Safety Connect (U.S. mainland
only)
10
SIENNA_OM_OM08035U_(U)
This vehicle is equipped with an event data recorder (EDR). The main pur-
pose of an EDR is to record, in certain crash or near crash-like situations,
such as an air bag deployment or hitting a road obstacle, data that will assist
in understanding how a vehicle’s systems performed. The EDR is designed to
record data related to vehicle dynamics and safety systems for a short period
of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fas-
tened;
• How far (if at all) the driver was depressing the accelerator and/or brake
pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situ-
ation occurs; no data are recorded by the EDR under normal driving condi-
tions and no personal data (e.g., name, gender, age, and crash location) are
recorded. However, other parties, such as law enforcement, could combine
the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access
to the vehicle or the EDR is needed. In addition to the vehicle manufacturer,
other parties, such as law enforcement, that have the special equipment, can
read the information if they have access to the vehicle or the EDR.
● Disclosure of the EDR data
Toyota will not disclose the data recorded in an EDR to a third party except
when:
• An agreement from the vehicle’s owner (or the lessee for a leased vehi-
cle) is obtained
• In response to an official request by the police, a court of law or a govern-
ment agency
• For use by Toyota in a lawsuit
However, if necessary, Toyota may:
• Use the data for research on vehicle safety performance
• Disclose the data to a third party for research purposes without disclosing
information about the specific vehicle or vehicle owner
Event data recorder
SIENNA_OM_OM08035U_(U)
11
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota dealer
before you scrap your vehicle.
Special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote con-
trol batteries.
Scrapping of your Toyota
Perchlorate Material
WARNING
■ General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your
vehicle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof, or other features of the vehicle. In addition,
heat build-up or extremely cold temperatures inside the vehicle can be fatal
to children.
12
SIENNA_OM_OM08035U_(U)
Reading this manual
WARNING:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (push-
ing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this hap-
pen”.
1
2
3
13
SIENNA_OM_OM08035U_(U)
How to search
■ Searching by name
• Alphabetical index.......P. 570
■ Searching by installation
position
• Pictorial index................P. 14
■ Searching by symptom or
sound
• What to do if...
(Troubleshooting) ........P. 566
■ Searching by title
• Table of contents.............P. 2
14
Pictorial index
SIENNA_OM_OM08035U_(U)
Pictorial index
■
Exterior
Vehicles without daytime running lights or with bulb type daytime
running lights
15
Pictorial index
SIENNA_OM_OM08035U_(U)
Vehicles with LED type daytime running lights
16
Pictorial index
SIENNA_OM_OM08035U_(U)
Front doors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
Opening/closing the front side windows . . . . . . . . . . . . . . . . . P. 184
Locking/unlocking by using the mechanical key
*
. . . . . . . . . . P. 503
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 481
Sliding doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 121
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 121
Opening from outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 122
Opening/closing the rear side windows . . . . . . . . . . . . . . . . . . P. 184
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 481
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 133
Opening from outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 134
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 481
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181
Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181
Driving position memory
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 169
Defogging the mirrors
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 336
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 252
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 327
To prevent freezing (windshield wiper de-icer)
*
. . . . . . . . . . . . P. 336
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 394
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 257
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 257
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 518
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 420
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 522
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 327
Checking/rotation/tire pressure warning system . . . . . . . . . P. 420
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . P. 485, 499
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 407
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 407
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 518
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 509
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 481
1
2
3
4
5
6
7
8
17
Pictorial index
SIENNA_OM_OM08035U_(U)
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Headlights/daytime running lights
*. . . . . . . . . . . . . . . . . . . P. 241
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239, 241
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Turn signal lights/parking lights/side marker lights. . . . . . P. 241
Parking lights/daytime running lights . . . . . . . . . . . . . . . . . P. 241
Fog lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 251
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Back-up lights
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Light bulbs of the exterior lights for driving
(Replacing method: P. 442, Watts: P. 525)
*: If equipped
9
10
11
12
13
14
15
16
17
18
18
Pictorial index
SIENNA_OM_OM08035U_(U)
■Instrument panel
Engine switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225, 228
Starting the engine/changing the modes . . . . . . . . . . . . . P. 225, 228
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 463
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 501
Warning messages
*
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 481
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 465
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . P. 237
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 89
Reading the meters/adjusting the instrument panel light. . . . . . P. 89
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . P. 84
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 471
1
2
3
19
Pictorial index
SIENNA_OM_OM08035U_(U)
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 92
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 92
When the warning messages are displayed . . . . . . . . . . . . . . P. 481
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 328
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 481
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Headlights/parking lights/tail lights/
daytime running lights
*
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Fog lights
*
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 251
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 252
Rear window wiper and washer switch . . . . . . . . . . . . . . . . P. 256
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 252, 256
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 419
Warning lights/warning messages . . . . . . . . . . . . . . . . . . P. 474, 481
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 462
Fuel filler door opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 257
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 407
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 177
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 332
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 332
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 336
Multimedia system
*
1, 2
Blu-ray disc/DVD player*
1, 2
*
1
: If equipped
*
2
: For vehicles with an Entune Audio, Entune Audio Plus or Entune Premium
Audio, refer to “NAVIGATION AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
4
5
6
7
8
9
10
11
12
13
14
20
Pictorial index
SIENNA_OM_OM08035U_(U)
■Switches
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 184
Window lock switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 184
Driving position memory switches
*
1
. . . . . . . . . . . . . . . . . . P. 169
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 181
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 114
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 114, 122
Power quarter window switch
*
1
. . . . . . . . . . . . . . . . . . . . . . P. 187
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 323
Intuitive parking assist switch
*
1
. . . . . . . . . . . . . . . . . . . . . P. 314
Panoramic view monitor switch
*
1, 2
Heated steering wheel switch*
1
. . . . . . . . . . . . . . . . . . . . . . P. 345
Manual headlight leveling dial
*
1
. . . . . . . . . . . . . . . . . . . . . P. 243
Power sliding door main switch
*
1
. . . . . . . . . . . . . . . . . . . . P. 124
Power back door main switch
*
1
. . . . . . . . . . . . . . . . . . . . . . P. 136
Seat heater dials
*
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 344
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . P. 421
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
21
Pictorial index
SIENNA_OM_OM08035U_(U)
Audio remote control switches
*
2
Talk switch*
2
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 93
Vehicle-to-vehicle distance switch. . . . . . . . . . . . . . . . . . . . P. 288
Cruise control switch
Dynamic radar cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . P. 288
LDA (Lane Departure Alert with steering control)
switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 278
Telephone switches
*
2
1
2
3
4
5
6
7
*
1
: If equipped
*
2
: For Entune Audio, Entune Audio Plus or Entune Premium Audio,
refer to “NAVIGATION AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
22
Pictorial index
SIENNA_OM_OM08035U_(U)

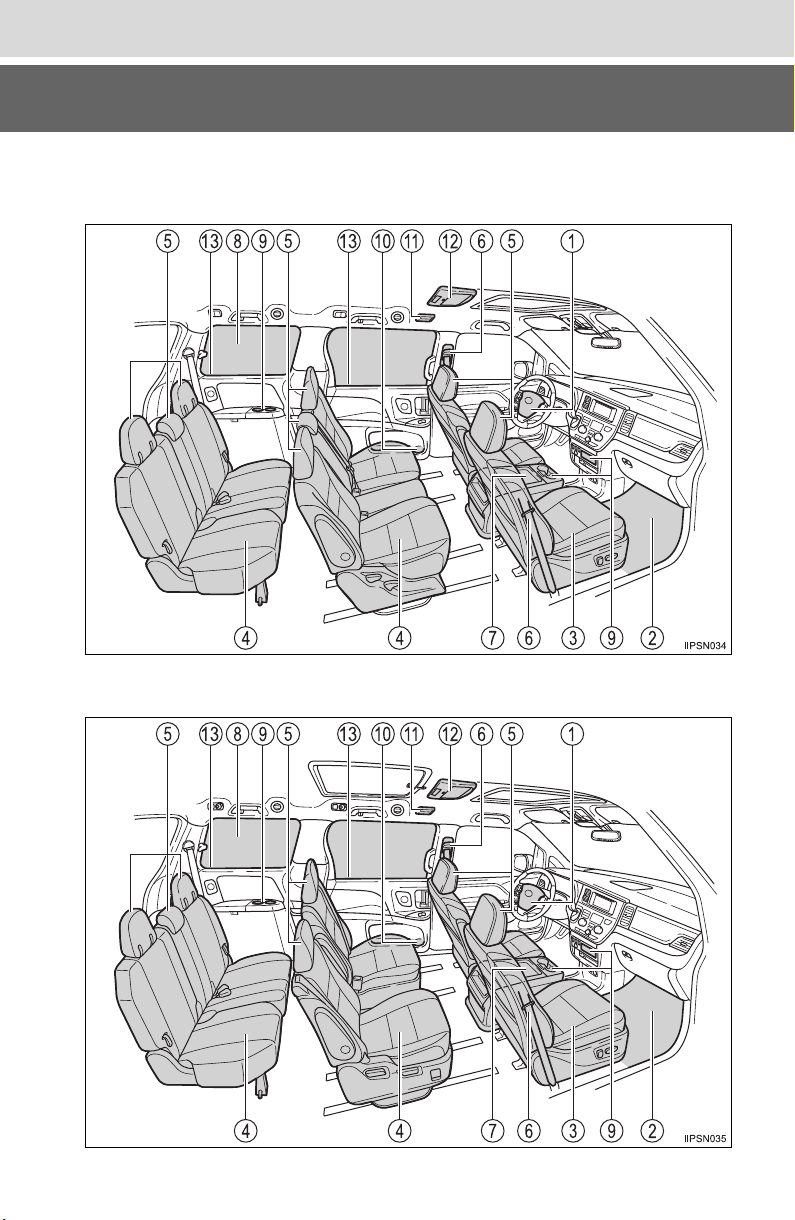

■Interior
8-passenger models
7-passenger models
23
Pictorial index
SIENNA_OM_OM08035U_(U)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 26
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 149
Second seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 152
Third seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 152
Head restraints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 173
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30
Console box
*
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 352
Quarter windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 187
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 354
Bottle holders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 356
Door pockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 357
Rear automatic air conditioning system . . . . . . . . . . . . . . . P. 341
Rear seat entertainment system
*
1, 2
Rear side sunshades
*
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 372
*
1
: If equipped
*
2
: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
1
2
3
4
5
6
7
8
9
10
11
12
13
24
Pictorial index
SIENNA_OM_OM08035U_(U)
Moon roof switches
*
1
. . . . . . . . . . . . . . . . . . . . . . . . . . P. 189, 190
Power sliding door switches
*
1
. . . . . . . . . . . . . . . . . . . . . . . P. 123
Personal/interior lights
*
2
. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 347
Rear ceiling light switch
*
1
. . . . . . . . . . . . . . . . . . . . . . . . . . P. 349
Power back door switch
*
1
. . . . . . . . . . . . . . . . . . . . . . . . . . P. 134
“SOS” button
*
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 385
Personal/interior light main switch . . . . . . . . . . . . . . . . . . . P. 348
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 358
Conversation mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 364
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 371
Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 363
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 363
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 179
Garage door opener switches
*
1
. . . . . . . . . . . . . . . . . . . . . . P. 374
Compass
*
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 381
*
1
: If equipped
*
2
: The illustration shows the front, but they are also equipped in the rear.
1
2
3
4
5
6
7
8
9
10
11
12
25
SIENNA_OM_OM08035U_(U)
For safety and security
1
1-1. For safe use
Before driving...................... 26
For safe driving ................... 28
Seat belts............................ 30
SRS airbags........................ 38
Front passenger occupant
classification system ......... 52
Safety information
for children ........................ 57
Child restraint systems........ 58
Installing child restraints...... 62
Exhaust gas precautions..... 76
1-2. Theft deterrent system
Engine immobilizer
system .............................. 77
Alarm................................... 79
26
1-1. For safe use
SIENNA_OM_OM08035U_(U)
Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in
the illustration.
Floor mat
1
*
2
27
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
● Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.
28
1-1. For safe use
SIENNA_OM_OM08035U_(U)
For safe driving
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 149)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. (P. 149)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. (P. 173)
Wear the seat belt correctly. (P. 30)
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. (P. 30 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
(P. 58)
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. (P. 179, 181)
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4
29
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
● Always observe the legal speed limit when driving on public roads.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.
30
1-1. For safe use
SIENNA_OM_OM08035U_(U)
Seat belts
● Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with the neck or slide off the
shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the seat-
back. Sit up straight and well
back in the seat.
● Do not twist the seat belt.
To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press
the release button.
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt (except for the third center
seat)
Release button
1
2
31
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
Take the plate out of the holder,
and then pull down the seat
belt.
Push plate “A” into buckle “A”
until a click sound is heard.
Push plate “B” into buckle “B”
until a click sound is heard.
Fastening the seat belt (for the third center seat)
1
Plate “A”
Buckle “A”
2
Plate “B”
Buckle “B”
3
32
1-1. For safe use
SIENNA_OM_OM08035U_(U)
To release plate “B”, press the
release button on buckle “B”.
To release plate “A”, insert the
key (P. 104) or plate “B” into
the hole on buckle “A”.
Retract the belt slowly when
releasing and stowing the seat
belt.
Insert the seat belt plates into
the holder on the roof as
shown.
Releasing and stowing the seat belt (for the third center seat)
Buckle “B”
Release
button
Plate “B”
1
Buckle “A”
Plate “A”
Plate “A”
Plate “B”
Buckle “A”
2
Plate “A”
Plate “B”
3
33
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
Push the seat belt shoulder
anchor down while pressing the
release button.
Push the seat belt shoulder
anchor up.
Move the height adjuster up and
down as needed until you hear a
click.
The pretensioners help the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal or
side collision or a vehicle rollover.
The pretensioners do not activate
in the event of a minor frontal
impact, a side impact or a rear
impact.
Adjusting the seat belt shoulder anchor height (front and second
outside Tip-up seats)
Release button
1
2
Seat belt pretensioners (front seats)
34
1-1. For safe use
SIENNA_OM_OM08035U_(U)
■ Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■ Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted
even slightly, the belt is locked in that position and cannot be extended. This
feature is used to hold the child restraint system (CRS) firmly. To free the belt
again, fully retract the belt and then pull the belt out once more. (P. 62)
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
● Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. (P. 5 8)
● When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions regarding seat belt usage. (P. 3 0 )
■ Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for
the first collision, but will not activate for the second or subsequent collisions.
■ Seat belt extender
If your seat belts cannot be fastened
securely because they are not long
enough, a personalized seat belt extender
is available from your Toyota dealer free
of charge.
35
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
WARNING
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failing to do so may cause death or severe injury.
■ Wearing a seat belt
● Ensure that all passengers wear a seat belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
● Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
● To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
● Do not wear the shoulder belt under your arm.
● Always wear your seat belt low and snug across your hips.
● Always wear the belt with the shoulder portion over the outside armrest
and the lap portion under the outside armrest.
■ Pregnant women
■ People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (P. 3 0 )
Obtain medical advice and wear the seat
belt in the proper way. (P. 30)
Women who are pregnant should posi-
tion the lap belt as low as possible over
the hips in the same manner as other
occupants, extending the shoulder belt
completely over the shoulder and avoid-
ing belt contact with the rounding of the
abdominal area.
If the seat belt is not worn properly, not
only a pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.
36
1-1. For safe use
SIENNA_OM_OM08035U_(U)
WARNING
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ Seat belt pretensioners (front seats)
● Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor
from detecting the passenger’s weight properly. As a result, the seat belt
pretensioner for the front passenger’s seat may not activate in the event of
a collision.
● If the pretensioner has activated, the SRS warning light will come on. In
that case, the seat belt cannot be used again and must be replaced at
your Toyota dealer.
■ Adjustable shoulder anchor (front and second outside Tip-up seats)
Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be kept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop,
sudden swerve or accident. (P. 3 3)
■ Seat belt damage and wear
● Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
● Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belts cannot protect an occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Toyota
dealer.
● Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
● Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by your Toyota dealer.
Inappropriate handling may lead to incorrect operation.
37
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
WARNING
■ Using a seat belt extender
● Do not wear the seat belt extender if you can fasten the seat belt without
the extender.
● Do not use the seat belt extender when installing a child restraint system
because the belt will not securely hold the child restraint system, increas-
ing the risk of death or serious injury in the event of an accident.
● The personalized extender may not be safe on another vehicle, when
used by another person, or at a different seating position other than the
one originally intended.
■ When using the third center seat belt
NOTICE
■ When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the
extender, not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.
Do not use the third center seat belt with
either buckle released. Fastening only
one of the buckles may result in death or
serious injury in case of sudden braking,
sudden swerving or an accident.
38
1-1. For safe use
SIENNA_OM_OM08035U_(U)
SRS airbags
◆ SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front pas-
senger from impact with interior components
SRS driver’s knee airbag
Can help provide driver protection
SRS front passenger’s seat cushion airbag
Can help restrain the front passenger
The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to the
occupants. They work together with the seat belts to help reduce
the risk of death or serious injury.
1
2
3
39
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
◆ SRS side and curtain shield airbags
SRS side airbags
Can help protect the torsos of the front seat occupants
SRS curtain shield airbags
● Can help protect primarily the heads of occupants in the outer
seats
● Can prevent the occupants from being thrown from the vehicle
in the event of vehicle rollover
4
5
40
1-1. For safe use
SIENNA_OM_OM08035U_(U)
SRS airbag system components
Front passenger airbag
Curtain shield airbags
Side airbags
Seat belt pretensioners and
force limiters
Front passenger occupant clas-
sification system (ECU and
sensors)
Side impact sensors (rear)
Front passenger’s seat belt
buckle switch
SRS warning light
Driver airbag
Side impact sensors (front
door)
Driver’s seat belt buckle
switch
Driver’s seat position sensor
Driver’s knee airbag
Front impact sensors
Airbag sensor assembly
“AIR BAG ON” and “AIR BAG
OFF” indicator lights
Front passenger’s seat cush-
ion airbag
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
41
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
Your vehicle is equipped with ADVANCED AIRBAGS designed based
on the US motor vehicle safety standards (FMVSS208). The airbag
sensor assembly (ECU) controls airbag deployment based on infor-
mation obtained from the sensors etc. shown in the system compo-
nents diagram above. This information includes crash severity and
occupant information. As the airbags deploy, a chemical reaction in
the inflators quickly fills the airbags with non-toxic gas to help restrain
the motion of the occupants.
WARNING
■ SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
● The driver and all passengers in the vehicle must wear their seat belts
properly.
The SRS airbags are supplemental devices to be used with the seat belts.
● The SRS driver airbag deploys with considerable force, and can cause
death or serious injury especially if the driver is very close to the airbag.
The National Highway Traffic Safety Administration (NHTSA) advises:
Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm)
of inflation, placing yourself 10 in. (250 mm) from your driver airbag pro-
vides you with a clear margin of safety. This distance is measured from
the center of the steering wheel to your breastbone. If you sit less than 10
in. (250 mm) away now, you can change your driving position in several
ways:
• Move your seat to the rear as far as you can while still reaching the ped-
als comfortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many drivers can achieve the 10 in. (250
mm) distance, even with the driver seat all the way forward, simply by
reclining the back of the seat somewhat. If reclining the back of your
seat makes it hard to see the road, raise yourself by using a firm, non-
slippery cushion, or raise the seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the
airbag toward your chest instead of your head and neck.
The seat should be adjusted as recommended by NHTSA above, while
still maintaining control of the foot pedals, steering wheel, and your view
of the instrument panel controls.
42
1-1. For safe use
SIENNA_OM_OM08035U_(U)
WARNING
■ SRS airbag precautions
● The SRS front passenger airbag also deploys with considerable force, and
can cause death or serious injury especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the
airbag as possible with the seatback adjusted, so the front passenger sits
upright.
● Improperly seated and/or restrained infants and children can be killed or
seriously injured by a deploying airbag. An infant or child who is too small
to use a seat belt should be properly secured using a child restraint
system. Toyota strongly recommends that all infants and children be
placed in the rear seats of the vehicle and properly restrained. The rear
seats are safer for infants and children than the front passenger seat. (P.
58)
● If the seat belt extender has been con-
nected to the front seat belt buckles but
the seat belt extender has not also been
fastened to the latch plate of the seat
belt, the SRS front airbags will judge
that the driver and front passenger are
wearing the seat belt even though the
seat belt has not been connected. In
this case, the SRS front airbags may
not activate correctly in a collision,
resulting in death or serious injury in the
event of a collision. Be sure to wear the
seat belt with the seat belt extender.
43
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
WARNING
■ SRS airbag precautions
● Do not sit on the edge of the seat or
lean against the dashboard.
● Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
● Do not allow the front seat occupants to
hold items on their knees.
● Do not lean against the door, the roof
side rail or the front, side and rear pil-
lars.
● Do not allow anyone to kneel on the
passenger seat toward the door or put
their head or hands outside the vehicle.
44
1-1. For safe use
SIENNA_OM_OM08035U_(U)
WARNING
■ SRS airbag precautions
● Do not attach anything to or lean any-
thing against areas such as the dash-
board, steering wheel pad and lower
portion of the instrument panel.
These items can become projectiles
when the SRS driver, front passenger
and driver’s knee airbags deploy.
● Do not attach anything to areas such as
a door, windshield glass, side door
glass, front or rear pillar, roof side rail
and assist grip.
● Vehicles without a smart key system:
Do not attach any heavy, sharp or hard
objects such as keys and accessories
to the key. The objects may restrict the
SRS knee airbag inflation or be thrust
into the driver’s seat area by the force
of the deploying airbag, thus causing a
danger.
45
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
WARNING
■ SRS airbag precautions
● Do not hang coat hangers or other hard objects on the coat hooks. All of
these items could become projectiles and may cause death or serious
injury, should the SRS curtain shield airbags deploy.
● If a vinyl cover is put on the area where the SRS knee airbag will deploy,
be sure to remove it.
● Do not use seat accessories which cover the parts where the SRS side
airbags and SRS seat cushion airbag inflate as they may interfere with
inflation of the SRS airbags. Such accessories may prevent the side
airbags and seat cushion airbag from activating correctly, disable the
system or cause the side airbags and seat cushion airbag to inflate acci-
dentally, resulting in death or serious injury.
● Do not strike or apply significant levels of force to the area of the SRS
airbag components.
Doing so can cause the SRS airbags to malfunction.
● Do not touch any of the component parts immediately after the SRS
airbags have deployed (inflated) as they may be hot.
● If breathing becomes difficult after the SRS airbags have deployed, open a
door or window to allow fresh air in, or leave the vehicle if it is safe to do
so. Wash off any residue as soon as possible to prevent skin irritation.
● If the areas where the SRS airbags are stored, such as the steering wheel
pad and front and rear pillar garnishes, are damaged or cracked, have
them replaced by your Toyota dealer.
● Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor
from detecting the passenger’s weight properly. As a result, the SRS front
airbags for the front passenger may not deploy in the event of a collision.
46
1-1. For safe use
SIENNA_OM_OM08035U_(U)
WARNING
■ Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications
without consulting your Toyota dealer.
The SRS airbags may malfunction or deploy (inflate) accidentally, causing
death or serious injury.
● Installation, removal, disassembly and repair of the SRS airbags
● Repairs, modifications, removal or replacement of the steering wheel,
instrument panel, dashboard, seats or seat upholstery, front, side and rear
pillars or roof side rails
● Repairs or modifications of the front fender, front bumper, or side of the
occupant compartment
● Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows,
winches or roof luggage carrier
● Modifications to the vehicle’s suspension system
● Installation of electronic devices such as mobile two-way radios and CD
players
● Modifications to your vehicle for a person with a physical disability
47
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
■ If the SRS airbags deploy (inflate)
● Slight abrasions, burns, bruising etc., may be sustained from SRS airbags,
due to the extremely high speed deployment (inflation) by hot gases.
● Bruising and slight abrasions may result from contact with a deploying
(inflating) SRS airbag.
● A loud noise and white powder will be emitted.
● Parts of the airbag module (steering wheel hub, airbag cover and inflator) as
well as the front seats, parts of the front and rear pillars, and roof side rail,
may be hot for several minutes. The airbag itself may also be hot.
● The windshield may crack.
● For Safety Connect subscribers, if the SRS airbags deploy or in the event of
a severe rear-end collision, the system is designed to send an emergency
call to the response center, notifying them of the vehicle’s location (without
needing to push the “SOS” button) and an agent will attempt to speak with
the occupants to ascertain the level of emergency and assistance required.
If the occupants are unable to communicate, the agent automatically treats
the call as an emergency and helps to dispatch the necessary emergency
services. (P. 385)
■ SRS airbag deployment conditions (SRS front airbags)
● The SRS front airbags will deploy in the event of an impact that exceeds the
set threshold level (the level of force corresponding to an approximately 12 -
18 mph [20 - 30 km/h] frontal collision with a fixed wall that does not move or
deform).
However, this threshold velocity will be considerably higher in the following
situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole,
which can move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in
which the front of the vehicle “underrides”, or goes under, the bed of a
truck
● Depending on the type of collision, it is possible that only the seat belt pre-
tensioners will activate.
● The SRS front airbags for the front passenger will not activate if there is no
passenger sitting in the front passenger seat. However, the SRS front air-
bags for the front passenger may deploy if luggage is put in the seat, even if
the seat is unoccupied. (P. 5 2 )
● The SRS seat cushion airbag on the front passenger’s seat will not operate
if the occupant is not wearing a seat belt.
48
1-1. For safe use
SIENNA_OM_OM08035U_(U)
■ SRS airbag deployment conditions (SRS side and curtain shield airbags)
● The SRS side and curtain shield airbags will deploy in the event of an
impact that exceeds the set threshold level (the level of force corresponding
to the impact force produced by an approximately 3300 lb. [1500 kg] vehicle
colliding with the vehicle cabin from a direction perpendicular to the vehicle
orientation at an approximate speed of 12 - 18 mph [20 - 30 km/h]).
● The SRS curtain shield airbags will deploy in the event of vehicle rollover.
● The SRS side and curtain shield airbags may also deploy in the event of a
severe frontal collision.
■ Conditions under which the SRS airbags may deploy (inflate), other than
a collision
The SRS front airbags and SRS side and curtain shield airbags may also
deploy if a serious impact occurs to the underside of your vehicle. Some
examples are shown in the illustration.
The SRS curtain shield airbags may also deploy under the situations shown
in the illustration.
● Hitting a curb, edge of pavement or hard
surface
● Falling into or jumping over a deep hole
● Landing hard or falling
● The angle of vehicle tip-up is marginal.
● The vehicle skids and hits a curb stone.
49
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
■ Types of collisions that may not deploy the SRS airbag (SRS front air-
bags)
The SRS front airbags do not generally inflate if the vehicle is involved in a
side or rear collision, if it rolls over, or if it is involved in a low-speed frontal
collision. But, whenever a collision of any type causes sufficient forward
deceleration of the vehicle, deployment of the SRS front airbags may occur.
■ Types of collisions that may not deploy the SRS airbags (SRS side and
curtain shield airbags)
The SRS side and curtain shield airbags may not activate if the vehicle is
subjected to a collision from the side at certain angles, or a collision to the
side of the vehicle body other than the passenger compartment.
The SRS side airbags do not generally inflate if the vehicle is involved in a
rear collision, if it rolls over, or if it is involved in a low-speed side collision or
low-speed frontal collision.
● Collision from the side
● Collision from the rear
● Vehicle rollover
● Collision from the side to the vehicle
body other than the passenger compart-
ment
● Collision from the side at an angle
● Collision from the rear
● Vehicle rollover
50
1-1. For safe use
SIENNA_OM_OM08035U_(U)
The SRS curtain shield airbags do not generally inflate if the vehicle is
involved in a rear collision, if it pitches end over end, or if it is involved in a
low-speed side or low-speed frontal collision.
■ When to contact your Toyota dealer
In the following cases, the vehicle will require inspection and/or repair. Con-
tact your Toyota dealer as soon as possible.
● Any of the SRS airbags have been inflated.
● Collision from the rear
● Pitching end over end
● The front of the vehicle is damaged or
deformed, or was involved in an acci-
dent that was not severe enough to
cause the SRS front airbags to inflate.
● A portion of a door or its surrounding
area is damaged or deformed, or the
vehicle was involved in an accident that
was not severe enough to cause the
SRS side and curtain shield airbags to
inflate.
● The pad section of the steering wheel,
dashboard near the front passenger
airbag or lower portion of the instrument
panel is scratched, cracked, or other-
wise damaged.
51
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
● The front passenger’s seat cushion sur-
face is scratched, cracked, or otherwise
damaged.
● The surface of the seats with the side
airbag is scratched, cracked or other-
wise damaged.
● The portion of the front pillars, rear pil-
lars or roof side rail garnishes (padding)
containing the curtain shield airbags
inside is scratched, cracked or otherwise
damaged.
52
1-1. For safe use
SIENNA_OM_OM08035U_(U)
Front passenger occupant classification
system
SRS warning light
Seat belt reminder light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
Your vehicle is equipped with a front passenger occupant classi-
fication system. This system detects the conditions of the front
passenger seat and activates or deactivates the devices for the
front passenger.
U.S.A. Canada
1
2
3
4
53
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
■ Adult*
1
■ Child*
4
or child restraint system*
5
Condition and operation in the front passenger occupant classi-
fication system
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
“AIR BAG ON”
SRS warning light Off
Seat belt reminder light
Off
*
2
or
flashing
*
3
Devices
Front passenger airbag
Activated
Side airbag on the front passenger seat
Curtain shield airbag in the front
passenger side
Front passenger’s seat cushion airbag
Activated
*
2
or
deactivated
*
3
Front passenger’s seat belt pretensioner
and force limiter
Activated
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
“AIR BAG
OFF”
*
6
SRS warning light Off
Seat belt reminder light
Off
*
2
or
flashing
*
3
Devices
Front passenger airbag Deactivated
Side airbag on the front passenger seat
Activated
Curtain shield airbag in the front
passenger side
Front passenger’s seat cushion airbag Deactivated
Front passenger’s seat belt pretensioner
and force limiter
Activated
54
1-1. For safe use
SIENNA_OM_OM08035U_(U)
■
Unoccupied
■ There is a malfunction in the system
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
Not illuminated
SRS warning light
Off
Seat belt reminder light
Devices
Front passenger airbag Deactivated
Side airbag on the front passenger seat
Activated
Curtain shield airbag in the front
passenger side
Front passenger’s seat cushion airbag Deactivated
Front passenger’s seat belt pretensioner
and force limiter
Activated
*
7
or
deactivated
*
8
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
“AIR BAG
OFF”
SRS warning light On
Seat belt reminder light Off
Devices
Front passenger airbag Deactivated
Side airbag on the front passenger seat
Activated
Curtain shield airbag in the front
passenger side
Front passenger’s seat cushion airbag Deactivated
Front passenger’s seat belt pretensioner
and force limiter
Activated
55
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
*
1
: The system judges a person of adult size as an adult. When a smaller
adult sits in the front passenger seat, the system may recognize him/her
as a child depending on his/her physique and posture.
*
2
: In the event the front passenger is wearing a seat belt.
*
3
: In the event the front passenger does not wear a seat belt.
*
4
: When a larger child who has outgrown a child restraint system sits in the
front passenger seat, the system may recognize him/her as an adult
depending on his/her physique or posture.
*
5
: Never install a rear-facing child restraint system on the front passenger
seat. A forward-facing child restraint system should only be installed on
the front passenger seat when it is unavoidable. (P. 5 9 )
*
6
: In case the indicator light is not illuminated, consult this manual on how to
install the child restraint system properly. (P. 62)
*
7
: In the event of a side collision.
*
8
: In the event of a frontal collision or rollover.
WARNING
■ Front passenger occupant classification system precautions
Observe the following precautions regarding the front passenger occupant
classification system.
Failure to do so may cause death or serious injury.
● Wear the seat belt properly.
● Make sure the front passenger’s seat belt plate has not been left inserted
into the buckle before someone sits in the front passenger seat.
● Make sure the “AIR BAG OFF” indicator light is not illuminated when using
the seat belt extender for the front passenger seat. If the “AIR BAG OFF”
indicator light is illuminated, disconnect the extender tongue from the seat
belt buckle, and reconnect the seat belt. Reconnect the seat belt extender
after making sure the “AIR BAG ON” indicator light is illuminated. If you
use the seat belt extender while the “AIR BAG OFF” indicator light is illumi-
nated, the SRS airbags for the front passenger will not activate, which
could cause death or serious injury in the event of a collision.
● Do not apply a heavy load to the front passenger seat or equipment (e.g.
seatback pocket or armrest).
● Do not put weight on the front passenger seat by putting your hands or
feet on the front passenger seat seatback from the rear passenger seat.
● Do not let a rear passenger lift the front passenger seat with their feet or
press on the seatback with their legs.
● Do not put objects under the front passenger seat.
56
1-1. For safe use
SIENNA_OM_OM08035U_(U)
WARNING
■ Front passenger occupant classification system precautions
● Do not recline the front passenger seatback so far that it touches a rear
seat. This may cause the “AIR BAG OFF” indicator light to be illuminated,
which indicates that the SRS airbags for the front passenger will not acti-
vate in the event of a severe accident. If the seatback touches the rear
seat, return the seatback to a position where it does not touch the rear
seat. Keep the front passenger seatback as upright as possible when the
vehicle is moving. Reclining the seatback excessively may lessen the
effectiveness of the seat belt system.
● If an adult sits in the front passenger seat, the “AIR BAG ON” indicator
light is illuminated. If the “AIR BAG OFF” indicator is illuminated, ask the
passenger to sit up straight, well back in the seat, feet on the floor, and
with the seat belt worn correctly. If the “AIR BAG OFF” indicator still
remains illuminated, either ask the passenger to move to the rear seat, or
if that is not possible, move the front passenger seat fully rearward.
● When it is unavoidable to install a forward-facing child restraint system on
the front passenger seat, install the child restraint system on the front pas-
senger seat in the proper order. (P. 62)
● Do not modify or remove the front seats.
● Do not kick the front passenger seat or subject it to severe impact. Other-
wise, the SRS warning light may come on to indicate a malfunction of the
front passenger occupant classification system. In this case, contact your
Toyota dealer immediately.
● Child restraint systems installed on the rear seat should not contact the
front seatbacks.
● Do not use a seat accessory, such as a cushion and seat cover, that cov-
ers the seat cushion surface.
● Do not modify or replace the upholstery of the front seat.
57
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
Safety information for children
● It is recommended that children sit in the rear seats to avoid acci-
dental contact with the shift lever, wiper switch etc.
● Use the sliding door child-protector lock or the window lock switch
to avoid children opening the door while driving or operating the
power window accidentally. (P. 125, 184)
● Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, back door,
seats etc.
Observe the following precautions when children are in the
vehicle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.
WARNING
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof (if equipped) or other features of the vehicle. In
addition, heat build-up or extremely cold temperatures inside the vehicle
can be fatal to children.
58
1-1. For safe use
SIENNA_OM_OM08035U_(U)
Child restraint systems
Studies have shown that installing a child restraint system on a rear
seat is much safer than installing one on the front passenger seat.
● Choose a child restraint system that suits your vehicle and is appro-
priate to the age and size of the child.
● For installation details, follow the instructions provided with the child
restraint system.
General installation instructions are provided in this manual.
(P. 62)
A child restraint system for a small child or baby must itself be
properly restrained on the seat with the LATCH anchors or the
lap portion of the lap/shoulder belt.
The laws of all 50 states of U.S.A. and Canada now require the
use of child restraint systems.
Points to remember
59
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
Child restraint systems are classified into the following 3 types
according to the age and size of the child:
■ Selecting an appropriate child restraint system
● Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
● If the child is too large for a child restraint system, sit the child on a rear seat
and use the vehicle’s seat belt. (P. 30 )
Types of child restraints
Rear facing Infant seat/con-
vertible seat
Forward facing Convertible
seat
Booster seat
60
1-1. For safe use
SIENNA_OM_OM08035U_(U)
WARNING
■ Child restraint precautions
● For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
● Never install a rear-facing child restraint system on the front passenger
seat even if the “AIR BAG OFF” indicator light is illuminated. In the event
of an accident, the force of the rapid inflation of the front passenger airbag
can cause death or serious injury to the child if the rear-facing child
restraint system is installed on the front passenger seat.
● A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top tether strap should not be used in the front passenger seat
since there is no top tether strap anchor for the front passenger seat.
Adjust the seatback as upright as possible and always move the seat as
far back as possible even if the “AIR BAG OFF” indicator light is illumi-
nated, because the front passenger airbag could inflate with considerable
speed and force. Otherwise, the child may be killed or seriously injured.
● Do not use the seat belt extender when installing a child restraint system
on the front or rear passenger seat. If installing a child restraint system
with the seat belt extender connected to the seat belt, the seat belt will not
securely hold the child restraint system, which could cause death or seri-
ous injury to the child or other passengers in the event of a sudden stop,
sudden swerve or an accident.
61
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
WARNING
■ Child restraint precautions
● Do not allow the child to lean his/her head or any part of his/her body
against the side door or the area of the seat, front and side pillars or roof
side rail from which the SRS side airbags or curtain shield airbags deploy
even if the child is seated in the child restraint system. It is dangerous if
the SRS side airbags and curtain shield airbags inflate, and the impact
could cause death or serious injury to the child.
● Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or an accident.
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ When the child restraint system is not in use
● Keep the child restraint system properly secured on the seat even if it is
not in use.
Do not store the child restraint system unsecured in the passenger com-
partment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of a sudden stop, sudden swerve or
an accident.
62
1-1. For safe use
SIENNA_OM_OM08035U_(U)
Installing child restraints
Child restraint LATCH anchors
Second seats (8-passenger models)
LATCH anchors are provided for
second outboard seats. (Buttons
displaying the location of the
anchors are attached to the seats.)
Second seats (7-passenger models)
LATCH anchors are provided for
both second seats. (Buttons dis-
playing the location of the anchors
are attached to the seats.)
Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the rear seats using the LATCH
anchors or a seat belt. Attach the top tether strap when installing
a child restraint.
The lap/shoulder belt can be used if your child restraint system
is not compatible with the LATCH (Lower Anchors and Tethers
for Children) system.
63
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
Third seats
LATCH anchors are provided for
the right outboard seat and center
seat. (Buttons displaying the loca-
tion of the anchors are attached to
the seats.)
Seat belts equipped with a child
restraint locking mechanism
(ALR/ELR belts except driver’s
seat belt) (P. 34)
Anchor brackets (for top tether strap)
Second seats (8-passenger models)
Anchor brackets are provided for
second outboard seats.
64
1-1. For safe use
SIENNA_OM_OM08035U_(U)
Second seats (7-passenger models)
Anchor brackets are provided for
both second seats.
Third seats
An anchor brackets are provided
for the right outboard seat and cen-
ter seat.
Fold the seatback while pulling
the lever and move to the rear-
most recline position.
Widen the gap between the seat cushion and seatback slightly.
Installation with LATCH system (second seat)
1
2
65
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
Type A
Latch the hooks of the lower
straps onto the LATCH
anchors. If the child restraint
has a top tether strap, the top
tether strap should be latched
onto the top tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence
of a lower connector system.
Type B
Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether strap,
the top tether strap should be
latched onto the top tether strap
anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence
of a lower connector system.
Canada only
3
Canada only
3
66
1-1. For safe use
SIENNA_OM_OM08035U_(U)
Manual seat
Fold the seatback while pulling
the strap. Return the seatback
and secure it at the 1st lock
position (most upright posi-
tion). Adjust the seatback to the
11th lock position.
1st lock position
11th lock position
Power seat
Fold down the seatback by
pressing the folding/returning
switch (P. 161). Raise the
seatback by pressing the same
switch, the returning switch
(P. 164) or the seatback angle
adjustment switch (P. 154).
(The seatback will automatically
stop.) Do not touch the switch
while the seatback is moving,
because the operation will stop.
Widen the gap between the seat cushion and seatback slightly.
Installation with LATCH system (third seat)
1
1
2
1
2
67
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
Type A
Latch the hooks of the lower
straps onto the LATCH
anchors. If the child restraint
has a top tether strap, the top
tether strap should be latched
onto the top tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence
of a lower connector system.
Type B
Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether strap,
the top tether strap should be
latched onto the top tether strap
anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence
of a lower connector system.
Canada only
3
Canada only
3
68
1-1. For safe use
SIENNA_OM_OM08035U_(U)
■
Rear facing Infant seat/convertible seat
Place the child restraint sys-
tem on the rear seat facing
the rear of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
While pushing the child
restraint system down into
the rear seat, allow the
shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
Installing child restraints using a seat belt (child restraint lock
function belt)
1
2
3
4
69
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
■ Forward facing Convertible seat
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
While pushing the child
restraint system into the rear
seat, allow the shoulder belt
to retract until the child
restraint system is securely
in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. (P. 71, 72)
1
2
3
4
5
70
1-1. For safe use
SIENNA_OM_OM08035U_(U)
■
Booster seat
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is correctly positioned over the child’s
shoulder and that the lap belt is as low as possible. (P. 30 )
Push the buckle release button
and fully retract the seat belt.
1
2
Removing a child restraint installed with a seat belt
71
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
Secure the child restraint sys-
tem using the seat belt or
LATCH anchors, and adjust the
head restraint to the uppermost
position.
*: Ottoman seat only
Latch the hook onto the anchor
bracket and tighten the top
tether strap.
Make sure the top tether strap is
securely latched.
Adjust the head restraint to the
downmost lock position.
Child restraint systems with a top tether strap (second seat)
*
1
2
3
72
1-1. For safe use
SIENNA_OM_OM08035U_(U)
■
Center seat
Secure the child restraint
system using the seat belt or
LATCH anchors. Adjust the
head restraint to the upper-
most position.
Latch the hook onto the
anchor bracket and tighten
the top tether strap.
Make sure the top tether strap is
securely latched.
Adjust the head restraint to
the downmost position.
■
Right outboard seat
Latch the hook onto the anchor
bracket and tighten the top
tether strap.
Make sure the top tether strap is
securely latched.
Pull the head restraint up to use.
Child restraint systems with a top tether strap (third seat)
1
2
3
73
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
■ Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to the SAE J1819.
WARNING
■ When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This could cause
injury or discomfort to the child. (P. 34)
■ When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat.
● Adjust the front passenger seat or sec-
ond seats so that it does not interfere
with the child restraint system.
● Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint system on the front pas-
senger seat, move the seat as far back
as possible even if the “AIR BAG OFF”
indicator light is illuminated. Failure to
do so may result in death or serious
injury if the airbags deploy (inflate).
74
1-1. For safe use
SIENNA_OM_OM08035U_(U)
WARNING
■ When installing a child restraint system
● When installing a child restraint system on the third center seat, adjust
both seatbacks at the same angle. Otherwise, the child restraint system
cannot be securely restrained and this may cause death or serious injuries
in the event of sudden braking, sudden swerving or an accident.
● When using the LATCH anchors for a child restraint system, move the seat
as far back as possible (second seat only), with the seatback close to the
child restraint system.
● When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
● When securing some types of child restraint systems in second (8-passen-
ger models) or third row seats, it may not be possible to properly use the
seat belts in positions next to the child restraint without interfering with it or
affecting seat belt effectiveness. Be sure your seat belt fits snugly across
your shoulder and low on your hips. if it dose not, or if it interferes with the
child restraint, move to a different position. Failure to do so may result in
death or serious injury.
75
1-1. For safe use
SIENNA_OM_OM08035U_(U)
1
For safety and security
WARNING
■ When installing a child restraint system to the AUTO ACCESS SEAT
(if equipped)
■ Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of sud-
den braking, sudden swerving or an accident.
■ To correctly attach a child restraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in
the event of a sudden braking, sudden swerving or an accident.
● Do not operate the AUTO ACCESS
SEAT while a child restraint system is
fixed to the seat by the child restraint
lock function belt.
If you force the seat operation, the seat,
seat belt or child restraint system may
be damaged, or may cause an injury.
● If a child restraint system is fixed to the
AUTO ACCESS SEAT by the LATCH
system, be careful that the child’s head,
hands and legs do not hit the body of
the vehicle when operating the seat.
Injuries may be caused.
76
1-1. For safe use
SIENNA_OM_OM08035U_(U)
Exhaust gas precautions
Harmful substance to the human body is included in exhaust
gases if inhaled.
WARNING
Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to
an accident caused by light-headedness, or may lead to death or a serious
health hazard.
■ Important points while driving
● Keep the back door closed.
● If you smell exhaust gases in the vehicle even when the back door is
closed, open the windows and have the vehicle inspected at your Toyota
dealer as soon as possible.
■ When parking
● If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the engine.
● Do not leave the vehicle with the engine on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.
● Do not leave the engine running in an area with snow build-up, or where it
is snowing. If snowbanks build up around the vehicle while the engine is
running, exhaust gases may collect and enter the vehicle.
■ Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by your Toyota dealer.
77
1-2. Theft deterrent system
SIENNA_OM_OM08035U_(U)
1
For safety and security
Engine immobilizer system
Vehicles without a smart key
system
The indicator light flashes after
the key has been removed from
the engine switch to indicate that
the system is operating.
The indicator light stops flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
Vehicles with a smart key system
The indicator light flashes after the engine switch has been turned off
to indicate that the system is operating.
The indicator light stops flashing after the engine switch has been
turned to ACCESSORY or IGNITION ON mode to indicate that the
system has been canceled.
The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the
vehicle.
This system is designed to help prevent vehicle theft but does not
guarantee absolute security against all vehicle thefts.
78
1-2. Theft deterrent system
SIENNA_OM_OM08035U_(U)
■ System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■ Conditions that may cause the system to malfunction
● If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
■ Certifications for the engine immobilizer system
For vehicles sold in the U.S.A.
Vehicles without a smart key system
FCC ID: WRKRI-44BTY
Vehicles with a smart key system
FCC ID: NI4TMIMB-1
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
WARNING
■ Certifications for the engine immobilizer system
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
79
1-2. Theft deterrent system
SIENNA_OM_OM08035U_(U)
1
For safety and security
Alarm
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
● A locked door is unlocked or opened in any way other than using
the entry function (vehicles with a smart key system) or wireless
remote control. (The doors will lock again automatically.)
● The hood is opened.
Close the doors and hood, and
lock all the doors using the entry
function (vehicles with a smart key
system) or wireless remote con-
trol. The system will be set auto-
matically after 30 seconds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Do one of the following to deactivate or stop the alarm:
● Unlock the doors using the entry function (vehicles with a smart key
system) or wireless remote control.
● Vehicles without a smart key system: Turn the engine switch to the
“ACC” or “ON” position, or start the engine.
Vehicles with a smart key system: Turn the engine switch to
ACCESSORY or IGNITION ON mode, or start the engine.
(The alarm will be deactivated or stopped after a few seconds.)
: If equipped
The alarm
Setting the alarm system
Deactivating or stopping the alarm
80
1-2. Theft deterrent system
SIENNA_OM_OM08035U_(U)
■ System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
● Nobody is in the vehicle.
● The windows and moon roof (if equipped) are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
■ Triggering of the alarm
The alarm may be triggered in the following situations.
(Stopping the alarm deactivates the alarm system.)
● The doors are unlocked using the key.
● A person inside the vehicle opens a door
or hood.
● The battery is recharged or replaced
when the vehicle is locked. (P. 505)
81
1-2. Theft deterrent system
SIENNA_OM_OM08035U_(U)
1
For safety and security
■ Alarm-operated door lock
In the following cases, depending on the situations, the door may automati-
cally lock to prevent improper entry into the vehicle:
● When a person left in the vehicle triggers the alarm by unlocking a door or
the back door.
● When a person left in the vehicle unlocks a door or the back door while the
alarm is operating.
● When recharging or replacing the battery.
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
82
1-2. Theft deterrent system
SIENNA_OM_OM08035U_(U)
83
SIENNA_OM_OM08035U_(U)
Instrument cluster
2
2. Instrument cluster
Warning lights and
indicators .......................... 84
Gauges and meters ............ 89
Multi-information display ..... 92
Fuel consumption
information ........................ 99
84
SIENNA_OM_OM08035U_(U)
2. Instrument cluster
Warning lights and indicators
The units used on the meters and some indicators may differ depending on
the target region.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays the instrument cluster with all warning lights and
indicators illuminated.
SIENNA_OM_OM08035U_(U)
85
2. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*
1
(U.S.A.)
Brake system warning
light (P. 471)
*
1, 2
PCS warning light
(P. 472)
*
1
(Canada)
Brake system warning
light (P. 471)
*
3
(Amber)
LDA indicator (P. 472)
*
3
Charging system
warning light (P. 471)
*
1
Slip indicator (P. 473)
*
3
Low engine oil pressure
warning light (P. 471)
Low fuel level warning
light (P. 473)
*
1
(U.S.A.)
Malfunction indicator
lamp (P. 471)
Seat belt reminder light
(P. 473)
*
1
(Canada)
Malfunction indicator
lamp (P. 471)
*
3
Low engine oil level
warning light (P. 473)
*
1
SRS warning light
(P. 472)
*
1
Master warning light
(P. 473)
*
1
(U.S.A.)
ABS warning light
(P. 472)
*
1
Tire pressure warning
light (P. 474)
*
1
(Canada)
ABS warning light
(P. 472)
*
3
Low windshield
washer fluid level
warning light
(P. 474)
*
1 Electric power steering
system warning light
(P. 472)
*
4
Third seat warning light
(P. 474)
86
SIENNA_OM_OM08035U_(U)
2. Instrument cluster
*
1
: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer.
*
2
: The light comes on or flashes to indicate a malfunction.
*
3
: This light illuminates on the multi-information display.
*
4
: If equipped
The indicators inform the driver of the operating state of the vehicle’s
various systems.
*
3
Brake Override System
warning light (P. 474)
*
3 High coolant
temperature warning
light (P. 474)
Indicators
Turn signal indicator
(P. 239)
*
2
Cruise control indicator
(P. 288)
(U.S.A.)
Headlight indicator
(P. 241)
*
2
Dynamic radar cruise
control indicator
(P. 288)
(Canada)
Tail light indicator
(P. 241)
*
2
Cruise control “SET”
indicator (P. 288)
Headlight high beam
indicator (P. 242)
*
2
(White)
LDA indicator (P. 278)
Automatic High Beam
indicator (P. 246)
*
2
(Green)
LDA indicator (P. 278)
*
1
Fog light indicator
(P. 251)
*
2, 4
(Amber)
LDA indicator (P. 278)
SIENNA_OM_OM08035U_(U)
87
2. Instrument cluster
2
Instrument cluster
*
1
: If equipped
*
2
: This light illuminates on the multi-information display.
*
3
: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer.
*
4
: The light flashes to indicate that the system is operating.
*
5
: The light comes on when the system is turned off.
*
3, 4
Slip indicator (P. 323)
*
3, 8
Eco Driving Indicator
Light (P. 8 8 )
*
3, 5
VSC OFF indicator
(P. 323)
*
2
Low outside
temperature indicator
(P. 9 1)
*
3, 5
PCS warning light
(P. 266)
*
3, 9
(U.S.A.)
“AIR BAG ON/OFF”
indicator (P. 52)
*
1, 6, 7
BSM (Blind Spot
Monitor) outside rear
view mirror indicators
(P. 302)
*
1, 2
“BSM” (Blind Spot
Monitor) indicator
(P. 302)
*
3, 9
(Canada)
“AIR BAG ON/OFF”
indicator (P. 52)
*
1, 2
“RCTA” (Rear Cross
Traffic Alert) indicator
(P. 302)
Security indicator
(P. 77, 79)
*
2
“ECT PWR” indicator
(P. 234)
88
SIENNA_OM_OM08035U_(U)
2. Instrument cluster
*
6
: In order to confirm operation, the BSM outside rear view mirror indicators
illuminate in the following situations:
• When the engine switch is turned to the “ON” position (vehicles without a
smart key system) or IGNITION ON mode (vehicles with a smart key sys-
tem) while the BSM function is turned on.
• When the BSM function is turned on while the engine switch is in the
“ON” position (vehicles without a smart key system) or IGNITION ON
mode (vehicles with a smart key system).
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota dealer.
*
7
: This light illuminates on the outside rear view mirrors.
*
8
: The light does not turn on when the system is disabled.
*
9
: This light illuminates on the center panel.
■ Eco Driving Indicator Light
● The vehicle is set to power mode. (P. 234)
● The vehicle speed is approximately 80 mph (130 km/h) or higher.
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on. When the acceleration pedal is
depressed excessively, or when the
vehicle is stopped, the light turns off.
Eco Driving Indicator Light will not operate
in the following conditions:
● The shift lever is in anything other than
D.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.
89
SIENNA_OM_OM08035U_(U)
2. Instrument cluster
2
Instrument cluster
Gauges and meters
The displayed content may differ depending on the type of
meter.
90
SIENNA_OM_OM08035U_(U)
2. Instrument cluster
Tachometer
Displays the engine speed in revolutions per minute
Multi-information display
Presents the driver with a variety of driving-related data (P. 92 )
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Odometer/trip meter display change button
Outside temperature
P. 91
Odometer and trip meter display
Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.
Shift position and range
P. 233
Meter panel lights control button
P. 91
Engine coolant temperature gauge
Displays the engine coolant temperature
Pressing this button switches
among the odometer, trip meter
“A” and trip meter “B” displays.
When the trip meter is displayed,
pressing and holding the button
will reset the trip meter.
Changing the trip meter display
1
2
3
4
5
6
7
8
9
10
SIENNA_OM_OM08035U_(U)
91
2. Instrument cluster
2
Instrument cluster
The brightness of the meter panel lights can be adjusted.
Pressing the button will adjust the
brightness of the meter panel
lights.
The brightness level of the meters
when the surroundings are bright
(day mode) and dark (night mode)
can be adjusted individually. How-
ever, when in day mode, adjusting
the brightness level will also
change the brightness level of
night mode.
■ Outside temperature display
● In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● The temperature range that can be displayed is from -40°F (-40°C) to 122°F
(50°C).
When the outside temperature drops below 37°F (3°C), the Low outside
temperature indicator will be displayed on the multi-information display.
(P. 8 6 )
● When “--” or “E” is displayed, the system may be malfunctioning. Take your
vehicle to your Toyota dealer.
Meter panel light control
NOTICE
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (P. 509)
92
SIENNA_OM_OM08035U_(U)
2. Instrument cluster
Multi-information display
The multi-information display
presents the driver with a variety
of vehicle data.
● Menu icons
Displays the following information when an icon is selected.
(P. 93)
Some of the information may be displayed automatically depending
on the situation.
Drive information
Select to display various drive data. (P. 94)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio/visual system-linked display
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Dynamic radar cruise control display
Select to display the information and operation procedures of the
dynamic radar cruise control. (P. 288)
The tab will change to when the vehicle is in constant
speed control mode. (P. 297)
Display contents
SIENNA_OM_OM08035U_(U)
93
2. Instrument cluster
2
Instrument cluster
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. (P. 481)
When there is a warning message that can be displayed, the color of
changes to Amber.
Settings display
Select to change the meter display settings. (P. 540)
● Intuitive parking assist display (if equipped)
Automatically displayed when the system is used (P. 314)
● Power mode (P. 234)
The multi-information display is
operated using the meter control
switches.
Enter/Set
Select an item/Change pages
Return to the previous screen
Press: Displays the screen reg-
istered as the top screen
When no screen has been registered, the drive information screen will be
displayed.
Press and hold: Registers the currently displayed screen as the top
screen
When the confirmation screen is displayed, select yes to register the
screen. If the selected screen cannot be registered, a registration failure
message will be shown.
Operating the meter control switches
1
2
3
4
94
SIENNA_OM_OM08035U_(U)
2. Instrument cluster
● Average fuel economy*
1, 2
Displays the average fuel consumption since the function was
reset.
*
3
● Tank average fuel economy*
1, 2
Displays the average fuel consumption since the vehicle was refu-
eled.
● Trip average fuel economy
*
1, 2
Displays the average fuel consumption since the engine was
started.
● Current fuel economy
*
1, 2
Displays the current rate of fuel consumption.
● Distance to empty
*
1
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consump-
tion. As a result, the actual distance that can be driven may differ
from that displayed.
• When only a small amount of fuel is added to the tank, the dis-
play may not be updated.
When refueling, turn the engine switch off. If the vehicle is refu-
eled without turning the engine switch off, the display may not be
updated.
● Trip distance
*
1
Displays the driving distance after the engine was started.
● Distance
*
1
Displays the driving distance since the function was reset.*
3
● Trip elapsed time*
1
Displays the elapsed time since the function was reset.*
3
● Elapsed time*
1
Displays the elapsed time since the engine was started.
● Trip average speed
*
1
Displays the average vehicle speed since the function was reset.*
3
● Average speed*
1
Displays the average vehicle speed since the engine was started.
Drive information
SIENNA_OM_OM08035U_(U)
95
2. Instrument cluster
2
Instrument cluster
● AWD control (if equipped)
Displays the torque distribution between the front and rear axles of
the AWD control system
● Digital speedometer
*
1
● Display off
A blank screen is displayed.
*
1
: Can be registered to Drive information 1 through 3. (P. 9 6 )
*
2
: Use the displayed fuel consumption as a reference.
*
3
: Resetting procedures:
• Select a function to be reset using the meter control switches and then
press and hold to reset.
• If there is more than one function that can be reset, check boxes will be
displayed next to those functions.
96
SIENNA_OM_OM08035U_(U)
2. Instrument cluster
The settings of the following items can be changed, refer to P. 540
● Language
Select to change the language on the display.
● Units
Select to change the unit for measure of the fuel consumption and
outside temperature.
● Drive information 1 through 3
Select to select up to 2 items that will be displayed on a Drive infor-
mation screen, up to 3 Drive information screens can be set.
● Eco Driving Indicator Light
Select to activate/deactivate the Eco Driving Indicator Light.
(
P. 8 8)
● switch settings
You can register 1 screen as the top screen. To register, press and
hold while the desired screen is displayed.
● Pop-up display
Select to set the following pop-up displays, which may appear in
some situations, on/off.
• Instrument panel brightness adjustment display
• Route guidance display of the navigation system-linked system
(if equipped)
• Incoming call display of the hands-free phone system
• Shift position display
Settings display
SIENNA_OM_OM08035U_(U)
97
2. Instrument cluster
2
Instrument cluster
● Speed limit display (if equipped)
Select to set the display of speed limit information stored in the nav-
igation system to on with the speed limit caution indicator (yellow)
enabled, on with the speed limit caution not enabled, or off. If
enabled, the speed limit caution indicator will come on if the vehicle
speed exceeds the displayed speed limit.
The display may not be available for some regions.
● BSM (Blind Spot Monitor) (if equipped)
The brightness of the outside rear view mirror indicators can be
adjusted. (P. 548)
● RCTA (Rear Cross Traffic Alert buzzer) (if equipped)
The buzzer sound volume can be adjusted. (P. 548)
● Maintenance Reset
Select to reset the maintenance data (P. 399)
● Initialization
Registered or changed meter settings will be deleted or returned to
their default setting.
■ Pop-up display
In some situations, such as when a switch operation is performed, a pop-up
display, such as the operating shift position, will be temporarily displayed on
the multi-information display.
The pop-up display function can be set on/off. (P. 540)
■ Setting display automatic cancelation
In the following situations, setting display in which the settings can be
changed through the meter control switch will automatically be turned off.
● If a warning message appears while the setting display is displayed
● When the vehicle begins to move while the setting display is displayed
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
98
SIENNA_OM_OM08035U_(U)
2. Instrument cluster
WARNING
■ The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to
downshift again, causing rapid and excessive engine braking and possibly
an accident resulting in death or injury.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.
99
SIENNA_OM_OM08035U_(U)
2. Instrument cluster
2
Instrument cluster
Fuel consumption information
Entune Audio or Entune Audio Plus (vehicles without Data Commu-
nication Module)
Press the “MENU” button.
Select “Info” on the “Menu”
screen.
If the “History” screen is displayed,
select “Trip Information”.
Fuel consumption information can be displayed on the audio/
visual system screen.
Trip information
1
2
100
SIENNA_OM_OM08035U_(U)
2. Instrument cluster
Entune Audio or Entune Audio Plus (vehicles with Data Communi-
cation Module)/Entune Premium Audio
Press the “MENU” button.
Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.
If the “History” screen is displayed, select “Trip Information”.
Resetting the consumption data
Average vehicle speed since
the engine was started
Elapsed time since the engine
was started
Fuel consumption in the past 15
minutes
Cruising range (P. 102)
Current fuel consumption
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the engine switch was
last turned to IGNITION ON mode. Use the displayed average fuel
consumption as a reference.
This image is an example only.
1
2
3
1
2
3
4
5
6
SIENNA_OM_OM08035U_(U)
101
2. Instrument cluster
2
Instrument cluster
Entune Audio or Entune Audio Plus (vehicles without Data Commu-
nication Module)
Press the “MENU” button.
Select “Info” on the “Menu”
screen.
If the “Trip Information” screen is
displayed, select “History”.
Entune Audio or Entune Audio Plus (vehicles with Data Communi-
cation Module)/Entune Premium Audio
Press the “MENU” button.
Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.
If the “Trip Information” screen is displayed, select “History”.
Resetting the past record data
Best recorded fuel consumption
Current fuel economy
Previous fuel consumption
record
Entune Audio and Entune
Audio Plus
Displays the daily average fuel consumption. (Instead of the date,
“Trip 1” through “Trip 5” will be displayed.)
Entune Premium Audio
Displays the daily average fuel consumption.
Updating the average fuel consumption data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
This image is an example only.
History
1
2
1
2
3
1
2
3
4
5
102
SIENNA_OM_OM08035U_(U)
2. Instrument cluster
■ Updating the past record data
Update the average fuel consumption by selecting “Clip” to measure the cur-
rent fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.
103
SIENNA_OM_OM08035U_(U)
3
Operation of
each component
3-1. Key information
Keys.................................. 104
3-2. Opening, closing and
locking the doors
Front doors........................ 110
Sliding doors ..................... 121
Back door.......................... 133
Smart key system ............. 143
3-3. Adjusting the seats
Front seats ........................ 149
Rear seats......................... 152
Driving position memory ... 169
Head restraints.................. 173
3-4. Adjusting the steering
wheel and mirrors
Steering wheel .................. 177
Inside rear view mirror ...... 179
Outside rear view
mirrors............................. 181
3-5. Opening, closing the
windows and moon roof
Power windows ................. 184
Quarter windows ............... 187
Moon roof.......................... 189
104
SIENNA_OM_OM08035U_(U)
3-1. Key information
Keys
The following keys are provided with the vehicle.
Vehicles without a smart key system
Master keys (black)
Valet key (gray)
Key number plate
Vehicles with a smart key system
Electronic keys
• Operating the smart key system
(P. 143)
• Operating the wireless remote
control function
Mechanical keys
Key number plate
The keys
1
2
3
1
2
3
SIENNA_OM_OM08035U_(U)
105
3-1. Key information
3
Operation of each component
Vehicles without a smart key system (type A)
Locks all doors (P. 111)
Unlocks all doors (P. 111)
Sounds the alarm (P. 106)
Vehicles without a smart key system (type B)
Locks all doors (P. 111)
Unlocks all doors (P. 111)
Opens and closes the left side
power sliding door (P. 124)
Opens and closes the right side
power sliding door (P. 124)
Opens and closes the power
back door
* (P. 135)
Sounds the alarm (P. 106)
*: If equipped
Vehicles with a smart key system
Locks all doors (P. 111)
Unlocks all doors (P. 111)
Opens and closes the left side
power sliding door (P. 124)
Opens and closes the right side
power sliding door (P. 124)
Opens and closes the power
back door
* (P. 135)
Sounds the alarm (P. 106)
*: If equipped
Wireless remote control
1
2
3
1
2
3
4
5
6
1
2
3
4
5
6
106
SIENNA_OM_OM08035U_(U)
3-1. Key information
To take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key bat-
tery is depleted or the entry function does not operate properly, you will
need the mechanical key. (P. 503)
■ Panic mode
Vehicles without a smart key system
Vehicles with a smart key system
Using the mechanical key (vehicles with a smart key system)
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
wireless remote control.
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.
SIENNA_OM_OM08035U_(U)
107
3-1. Key information
3
Operation of each component
■ When required to leave the vehicle’s key with a parking attendant
Lock the glove box as circumstances demand. (P. 351)
On vehicles without the smart key system, provide the attendant with the
valet key.
On vehicles with the smart key system, remove the mechanical key for your
own use and provide the attendant with the electronic key only.
■ If you lose your keys
New genuine keys can be made by your Toyota dealer using a master key
(vehicles without a smart key system) or the other key (vehicles with a smart
key system) and the key number stamped on your key number plate. Keep
the plate in a safe place such as your wallet, not in the vehicle.
■ When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
■ Conditions affecting the operation of the smart key system or wireless
remote control
P. 11 8
■ Key battery depletion
Vehicles without a smart key system
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 436)
Vehicles with a smart key system
● The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin when the engine
stops. (P. 436, 481)
● As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. (P. 436)
• The smart key system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
● To avoid serious deterioration, do not leave the electronic key within 3 ft.
(1 m) of the following electrical appliances that produce a magnetic field.
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Induction cookers
• Table lamps
108
SIENNA_OM_OM08035U_(U)
3-1. Key information
■ When the key battery is fully depleted
P. 436
■ Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer for details.
■ Certification for wireless remote control (vehicles without a smart key
system)
This device complies with Part 15 of the FCC Rules and with RSS-210 of
Industry Canada. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired
operation.
■ Certification for wireless remote control (vehicles with a smart key sys-
tem)
For vehicles sold in the U.S.A.
FCC ID: HYQ14ADR FCC ID: HYQ14AEH
FCC ID: HYQ13CZM FCC ID: HYQ13CZN
FCC ID: NI4TMLF8-20
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
■ Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: P. 543, 544)
SIENNA_OM_OM08035U_(U)
109
3-1. Key information
3
Operation of each component
NOTICE
■ To prevent key damage
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the electronic key.
● Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cookers, or medical electrical equip-
ment, such as low-frequency therapy equipment.
■ Carrying the electronic key on your person (vehicles with a smart key
system)
Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart key system malfunction or other key-related prob-
lems (vehicles with a smart key system)
Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.
■ When a vehicle key is lost (vehicles with a smart key system)
If the key remains lost, the risk of vehicle theft increases significantly. Visit
your Toyota dealer immediately with all remaining electronic keys that were
provided with your vehicle.
110
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
Front doors
◆ Entry function (vehicles with a smart key system)
Carry the electronic key to enable this function.
Grip the driver’s door handle
to unlock the door. Grip the
passenger’s door handle to
unlock all the doors.
*
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
*: The door unlock settings can be changed. (P. 117)
Touch the lock sensor (the indentation on the upper part of the
door handle) to lock all the doors.
Check that the door is securely locked.
Unlocking and locking the doors from the outside
1
2
SIENNA_OM_OM08035U_(U)
111
3-2. Opening, closing and locking the doors
3
Operation of each component
◆ Wireless remote control
Vehicles without a smart key system (type A)
Locks all doors
Check that the door is securely
locked.
Unlocks all doors
Pressing the button unlocks the
driver’s side doors. Pressing the
button again within 3 seconds
unlocks the other doors.
Vehicles without a smart key system (type B)
Locks all doors
Check that the door is securely
locked.
Unlocks all doors
Pressing the button unlocks the
driver’s side doors. Pressing the
button again within 3 seconds
unlocks the other doors.
Vehicles with a smart key system
Locks all doors
Check that the door is securely
locked.
Unlocks all doors
Pressing the button unlocks the
driver’s side doors. Pressing the
button again within 3 seconds
unlocks the other doors.
1
2
1
2
1
2
112
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
◆ Key
Vehicles without a smart key system
Locks all the doors
Unlocks all the doors
Turning the key unlocks the
driver’s side doors. Turning the
key again within 3 seconds
unlocks the other doors.
Vehicles with a smart key system
The doors can also be locked and unlocked with the mechanical
key. (P. 503)
1
2
SIENNA_OM_OM08035U_(U)
113
3-2. Opening, closing and locking the doors
3
Operation of each component
■ Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
■ Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ When the door cannot be locked by the lock sensor on the upper part of
the front door handle
■ Door lock buzzer
If an attempt to lock the doors (except for power sliding doors or power back
door) is made when a door is not fully closed, a buzzer sounds continuously.
Fully close the door to stop the buzzer, and lock the vehicle once more.
■ Alarm (if equipped)
Using the wireless remote control to lock the doors will set the alarm system.
(P. 79)
■ If the smart key system or the wireless remote control does not operate
properly
Vehicles with a smart key system: Use the mechanical key to lock and unlock
the doors. (P. 503)
Replace the key battery with a new one if it is depleted. (P. 436)
Touch both lock sensors on the upper and
lower part of the front door handle simul-
taneously.
114
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
◆ Door lock switch
Locks all the doors
Unlocks all the doors
◆ Inside lock button
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
Move the inside lock button to the lock position.
Close the door.
Vehicles without a smart key system
The doors cannot be locked if either of the front doors is open and the
key is in the engine switch.
Vehicles with a smart key system
The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
Unlocking and locking the doors from the inside
1
2
1
2
Locking the front doors from the outside without a key
1
2
SIENNA_OM_OM08035U_(U)
115
3-2. Opening, closing and locking the doors
3
Operation of each component
The following functions can be set or canceled:
For instructions on customizing, refer to P. 543
Automatic door locking and unlocking systems
Function Operation
Shift position linked door
locking function
Shifting the shift lever out of P locks all the
doors.
Shift position linked door
unlocking function
Shifting the shift lever to P unlocks all the
doors.
Speed linked door locking
function
All the doors are locked when the vehicle
speed is approximately 12 mph (20 km/h) or
higher.
Driver’s door linked door
unlocking function
Vehicles without a smart key system:
All the doors are unlocked when the driver’s
door is opened within approximately 45 sec-
onds after turning the engine switch to “ACC”
or “LOCK”.
Vehicles with a smart key system:
All the doors are unlocked when the driver’s
door is opened within approximately 45 sec-
onds after turning the engine switch off.
116
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
■ Setting and canceling the functions
To switch between set and canceled, follow the procedure below:
Close all the doors and turn the engine switch to the “ON” posi-
tion (vehicles without a smart key system) or IGNITION ON
mode (vehicles with a smart key system). (Perform step within
10 seconds.)
Shift the shift lever to P or N,
and press and hold the door
lock switch (
or ) for
approximately 5 seconds and
then release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set are
shown in the following table.
Use the same procedure to cancel the function.
When the setting or canceling operation is complete, all the doors are
locked and then unlocked.
1
2
2
Function
Shift lever
position
Door lock switch
position
Shift position linked door locking
function
P
Shift position linked door unlock-
ing function
Speed linked door locking function
N
Driver’s door linked door unlocking
function
SIENNA_OM_OM08035U_(U)
117
3-2. Opening, closing and locking the doors
3
Operation of each component
■ Switching the door unlock function (vehicles with a smart key system)
It is possible to set which doors the entry function unlocks using the wireless
remote control.
Turn the engine switch off.
When the indicator on the key surface is not on, press and hold ,
, , or for about 5 seconds while pressing and holding
.
The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at least
5 seconds, and repeat step .)
For vehicles equipped with an alarm, to prevent unintended triggering of the
alarm, unlock the doors using the wireless remote control and open and close
a door once after the settings have been changed. (If a door is not opened
within 60 seconds after is pressed, the doors will be locked again and
the alarm will automatically be set.)
In case that the alarm is triggered, immediately stop the alarm. (P. 7 9 )
1
2
2
Multi-information
display
Unlocking function Beep
Holding the driver’s door
handle unlocks only the
driver’s door and driver side
power sliding door.
Exterior: Beeps three
times
Interior: Pings once
Holding the front passen-
ger’s door handle or pulling
either power sliding door
handle unlocks all doors.
Holding either front door
handle or pulling either
power sliding door handle
unlocks all doors.
Exterior: Beeps twice
Interior: Pings once
118
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
■ When all the doors are locked with the wireless remote control or key
The doors cannot be unlocked with the door lock switch.
The door lock switch can be reset by unlocking all the doors with the wireless
remote control or key.
■ Using the mechanical key (vehicles with a smart key system)
The doors can also be locked and unlocked with the mechanical key.
(P. 503)
■ Conditions affecting the operation of the smart key system or wireless
remote control
Vehicles without a smart key system
The wireless remote control function may not operate normally in the follow-
ing situations:
● Near a TV tower, radio station, electric power plant, airport or other facility
that generates strong radio waves
● When carrying a portable radio, cellular phone or other wireless communi-
cation devices
● When multiple wireless keys are in the vicinity
● When the wireless key is in contact with, or is covered by, a metallic object
● When a wireless key (that emits radio waves) is being used nearby
● When the wireless key has been left near an electrical appliance such as a
personal computer
● If window tint with a metallic content or metallic objects is attached to the
rear window
● Vehicles with AUTO ACCESS SEAT: If the wireless remote control of the
AUTO ACCESS SEAT is operated simultaneously, the AUTO ACCESS
SEAT may not operate properly.
For details, refer to “AUTO ACCESS SEAT OWNER’S MANUAL”.
SIENNA_OM_OM08035U_(U)
119
3-2. Opening, closing and locking the doors
3
Operation of each component
Vehicles with a smart key system
The smart key system uses weak radio waves. In the following situations, the
communication between the electronic key and the vehicle may be affected,
preventing the smart key system and wireless remote control from operating
properly. (Way of coping P. 503)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
● When carrying a portable radio, cellular phone, cordless phone or other
wireless communication devices
● When the electronic key is in contact with, or is covered by the following
objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When multiple electronic keys are in the vicinity
● When another wireless key (that emits radio waves) is being used nearby
● When carrying or using the electronic key together with the following
devices that emit radio waves
• Another vehicle’s electronic key
• A wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
● If window tint with a metallic content or metallic objects are attached to the
rear window
● Vehicles with AUTO ACCESS SEAT: If the wireless remote control of the
AUTO ACCESS SEAT is operated simultaneously, the AUTO ACCESS
SEAT may not operate properly.
For details, refer to “AUTO ACCESS SEAT OWNER’S MANUAL”.
■ Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: P. 543)
120
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
WARNING
■ To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Ensure that all doors are properly closed and locked.
● Do not pull the inside handle of the doors while driving.
Be especially careful of the front doors, as the doors may be opened even
if the inside lock buttons are in the locked position.
121
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
3
Operation of each component
Sliding doors
◆ Entry function (vehicles with a smart key system)
Carry the electronic key to enable this function.
Pull the handle to unlock all the
doors.
There is no touch type sensor in
slide door handle. You must pull
the handle to activate the opera-
tion.
◆ Wireless remote control
P. 111
Vehicles without power sliding doors
The sliding doors can be opened and closed using the sliding
door handle. The sliding door can be locked and unlocked using
the wireless remote control, door lock switch or inside lock
knob.
Vehicles with power sliding doors
The power sliding doors can be opened and closed using the
sliding door handle, power sliding door switches or wireless
remote control. The power sliding doors can be locked and
unlocked using the wireless remote control, door lock switch or
inside lock knob.
Locking/unlocking the sliding door from outside
122
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
◆ Door lock switch
P. 114
◆ Inside lock knobs
Unlocks
Locks
◆ Sliding door handle
Open/close
Vehicles with power sliding
doors: The sliding door will be
automatically and completely
opened and closed by the fol-
lowing.
• Pulling the outside handle.
• Sliding the inside handle for-
ward to close or backward to
open.
Locking/unlocking the sliding door from inside
1
2
Opening/closing the sliding door
SIENNA_OM_OM08035U_(U)
123
3-2. Opening, closing and locking the doors
3
Operation of each component
◆ Power sliding door switches (vehicles with power sliding
doors)
Press and hold the switch to open and close each sliding door.
Left side power sliding door
Right side power sliding door
Pressing the switch again while the door is operating will cause the opera-
tion to reverse. However, the reverse operation cannot be performed for
the first second after automatic operation starts, even if the switch is
pressed and held again.
From front seats From second seats
1
2
124
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
◆ Wireless remote control (vehicles with power sliding doors)
Press and hold the switch to open/close the power sliding door.
Left side power sliding door
Right side power sliding door
Pressing the switch again while the power sliding door is operating will
cause the operation to reverse. However, the reverse operation cannot be
performed for the first second after automatic operation starts, even if the
switch is pressed again.
Turn the main switch off to disable
the power sliding door system.
Off
The sliding doors can only be
opened and closed manually.
On*
The power sliding door can be
opened and closed with the power
sliding door switches for the front
occupants or wireless remote con-
trol even if the sliding door child-
protectors are locked.
*: Orange mark on the switch should be visible when the switch is on.
Vehicles without a smart key
system
Vehicles with a smart key
system
Canceling the power sliding door system (vehicles with power
sliding doors)
1
2
1
2
SIENNA_OM_OM08035U_(U)
125
3-2. Opening, closing and locking the doors
3
Operation of each component
Move the inside lock knob to the lock position.
Close the sliding door.
The sliding door cannot be
opened by the inside door handle
and the second seat sliding door
switch when the lock is set.
Unlock
Lock
These locks can be set to prevent
children from opening the sliding
doors. Push down on each sliding
door switch to lock that sliding
door.
■ The power sliding door can be operated when (vehicles with power slid-
ing doors)
● Open operation: The shift lever is in P.
Close operation: The vehicle is stopped.
● The power sliding door system main switch is on.
● The power sliding door is unlocked. (Except for the wireless remote control
operation or smart key system operation.)
● The sliding door child-protector lock is not set. (However, the switch for the
front occupants and the outside handle still operate the power sliding door.)
Locking the sliding doors from the outside without the wireless
remote control
Sliding door child-protector locks
1
2
1
2
126
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
■ Power sliding doors
● If the power sliding door outside handle is pulled while the power sliding
door is opening or closing, the door will reverse the operation direction.
● During opening operation:
Stroking the power sliding door handle forward will reverse the direction and
start closing.
Stroking the handle backward will continue opening.
During closing operation:
Stroking the power sliding door handle backward will reverse the direction
and start opening.
Stroking the handle forward will continue closing.
● The power sliding doors can be opened/closed manually when the power
sliding door function is canceled with the main switch.
● A buzzer sounds if you put the shift lever out of P with the engine switch in
the “ON” position (vehicles without a smart key system) or IGNITION ON
mode (vehicles with a smart key system) and the sliding door not completely
closed.
● Vehicles with AUTO ACCESS SEAT: If the AUTO ACCESS SEAT has not
been locked in place after being stowed, the right-hand sliding door will not
close and a beep will sound twice.
For details, refer to “AUTO ACCESS SEAT OWNER’S MANUAL”.
● In an emergency, power slide door operation can be stopped by any of the
following:
• Pulling the outside handle three consecutive times
• During opening operation, sliding the inside handle forward three consec-
utive times
• During closing operation, sliding the inside handle backward three con-
secutive times
• Pressing the power sliding door switch three consecutive times
• Pressing the power sliding door button on wireless remote control three
consecutive times (P. 124)
After stopping, power sliding door brake function will be activated (P. 127)
■ The situations in which the sliding door does not open completely
The left side sliding door does not open
completely when the fuel filler door is
opened.
SIENNA_OM_OM08035U_(U)
127
3-2. Opening, closing and locking the doors
3
Operation of each component
■ Jam protection function (vehicles with power sliding doors)
● If anything obstructs the power sliding door while it is closing or opening, the
power sliding door will automatically operate in the opposite direction.
● If the jam protection function operates during two consecutive operations,
the power sliding door will be stopped at that position and the power sliding
door system will be canceled.
■ Power sliding door brake function (vehicles with power sliding doors)
When the power sliding door detects an abnormality and stops operating,
power sliding door brake function may be activated. When brake function is
activated, door movement is restricted by the brake and motion may appear
to be not smooth. This is not malfunction. Move the door to fully closed posi-
tion to reset the system and normal power sliding door function will resume.
■ Sliding door closer (if equipped)
In the event that the sliding door is left slightly open, the sliding door closer
will automatically close it to the fully closed position.
■ Power sliding door operation (vehicles with power sliding door)
Wireless remote control: Even if the door is locked, pressing and holding the
sliding door buttons will unlock all doors and start open operation.
■ If the power sliding door is inoperative (vehicles with power sliding
doors)
When the power sliding door detects an abnormality and stops opening and
can not be completely closed manually, cancel the function as follows and
close the door manually.
After that, have the vehicle inspected and repaired by your Toyota dealer.
Unplug the plug from the rear edge of
the sliding door.
Insert a key in the hole and push the
mechanical cancel lever.
1
2
128
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
■ When the battery is disconnected (vehicles with power sliding doors)
The power sliding door system must be initialized in order to ensure proper
operation. To initialize it, close the sliding doors completely by hand.
■ Conditions affecting the operation of the smart key system or wireless
remote control
P. 11 8
■ Customization
Settings (e.g. opening and closing operation) can be changed.
(Customizable features: P. 545)
WARNING
■ To prevent an accident
Observe the following precautions while driving.
Failure to do so may cause a door to open unexpectedly and an occupant to
fall out of the vehicle, resulting in death or serious injury.
● Ensure that all doors are properly closed and locked.
● Set the sliding door child-protector locks when children are seated in the
vehicle.
● Do not operate the inside handle of the doors while driving.
■ When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not leave children alone in the vehicle.
If a child is accidentally locked in the vehicle, they could have heat
exhaustion or other injuries.
● Do not allow a child to open or close the sliding door.
Doing so may cause the sliding door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the moving sliding door.
■ Operating the sliding doors
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
● When opening or closing a sliding door, thoroughly check to make sure the
surrounding area is safe.
SIENNA_OM_OM08035U_(U)
129
3-2. Opening, closing and locking the doors
3
Operation of each component
WARNING
● When opening or closing the sliding doors with windows open, keep all
body parts clear of the windows.
● If anyone is in the vicinity, make sure they are safe and let them know that
the sliding door is about to open or close.
● Do not leave the sliding door at half-opened position because the sliding
door is not latched at this position. The sliding door may move unexpect-
edly on an incline.
● When the vehicle is stopped on a slope,
the door will slide faster when opening
or closing, so be especially careful that
the passengers do not get hit or
pinched by the door.
● Open the sliding door fully while pas-
sengers are getting on or off on a down-
ward slope. Do not operate the outside
handle or inside handle while the door
is open as the door could suddenly
close by itself causing injury.
● When closing the sliding door, take
extra care to prevent your fingers etc.
from being caught.
130
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
WARNING
■ Sliding door closer (if equipped)
● Use caution when using the sliding door closer. The sliding door closer
operates even when the power sliding door system is canceled.
■ Power sliding doors (vehicles with power sliding doors)
Observe the following precautions when the power sliding door system is
on.
Failure to do so may cause death or serious injury.
● When using the door handle to open or close the power sliding door,
remove your hand from the door handle immediately after starting power
sliding door operation. If you leave your hand on the door handle during
operation, your hand, fingers, wrist etc. may be subjected to an excessive
amount of force.
● Check the safety of the surrounding area to make sure there are no obsta-
cles or anything that could cause any of your belongings to get caught.
● In the event that the sliding door is left
slightly open, the sliding door closer will
automatically close it to the fully closed
position. It takes several seconds
before the sliding door closer begins to
operate. Be careful not to catch fingers
or anything else in the sliding door, as
this may cause bone fractures or other
serious injuries.
● Do not get in and out of the vehicle
while the power sliding door is being
operated.
● If anyone is in the vicinity, make sure
they are safe and let them know that the
sliding door is about to open or close.
Also, do not operate the power sliding
door if anyone inside or outside the
vehicle is leaning against the vehicle in
the area around the sliding door.
SIENNA_OM_OM08035U_(U)
131
3-2. Opening, closing and locking the doors
3
Operation of each component
WARNING
● If the power sliding door system is turned off with the main switch while the
sliding door is operating automatically, the automatic operation is stopped.
The sliding door then has to be operated manually. Take extra care when
on an incline, as the sliding door may open or close unexpectedly.
● If the operating conditions of the power sliding door are no longer met, a
buzzer may sound and the sliding door may stop opening or closing. The
sliding door then has to be operated manually. Take extra care when on an
incline, as the sliding door may open or close abruptly.
● On an incline, a sliding door may close by itself after it opens automati-
cally. Make sure the sliding door is fully open and secure.
● In the following situations, the power sliding door may detect an abnormal-
ity and automatic operation may be stopped. In this case, the sliding door
has to be operated manually. Take extra care when on an incline, as the
sliding door may open or close abruptly.
• When the sliding door contacts an obstacle
• When the battery voltage suddenly drops, such as when the engine
switch is turned to the “ON” position (vehicles without a smart key
system) or IGNITION ON mode (vehicles with a smart key system) or
the engine is started during automatic operation
● Do not attach any accessories other than genuine Toyota parts to the
power sliding door. The power sliding door may not operate, causing itself
to malfunction, or the power sliding door may close again after it is
opened.
● When the child-protector locks are set, make sure to turn off the power
sliding door system with the main switch in order to totally disable the
system.
■ Jam protection function (vehicles with power sliding doors)
Observe the following precautions.
Failure to do so may cause death or serious injury.
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the power sliding door fully closes. Be careful not to catch fingers or
anything else.
● The jam protection function may not work depending on the shape of the
object that is caught. Be careful not to catch fingers or anything else.
132
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
NOTICE
■ Sliding door
■ To prevent damage to your vehicle
● Vehicles with the power sliding door:
• Do not apply excessive force when the sliding door is operating.
• Do not place your hand or foot near door hinges or rollers when the slid-
ing door is operating.
• Avoid forcibly opening the left side sliding door fully when the fuel filler
door is opened. Otherwise, the fuel filler door may be damaged.
• Take care not to damage the sensors (installed on the front edge of the
power sliding door) with a knife or other sharp object.
● Make sure there is nothing in the doorway before closing.
● Do not close the sliding door by applying the brakes. Doing so could cause
the sliding door to be damaged.
Make sure magazines are not bent or
protruding from the sliding door pockets.
Do not insert anything too big so that the
shape of the sliding door pockets is dis-
torted. Such objects may obstruct the
opening/closing of the sliding doors,
damage the sliding door pockets or the
vehicle body, and may result in a mal-
function.
133
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
3
Operation of each component
Back door
◆ Entry function (vehicles with a smart key system)
Carry the electronic key to enable this function.
Press the unlock button to
unlock all the doors.
The door cannot be unlocked for
3 seconds after the door is
locked.
Lock the back door again when
you leave the vehicle. The back
door will not lock automatically
after it has been opened and
then closed.
Press the lock button to lock all the doors.
Check that the door is securely locked.
◆ Wireless remote control
P. 111
◆ Door lock switch
P. 114
The back door can be locked/unlocked and opened/closed by
the following procedures.
Locking and unlocking the back door
1
2
134
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
Press and hold the switch to open/
close the back door.
Pressing the switch again while the
power back door is operating will
cause the operation to reverse.
However, the reverse operation
cannot be performed for the first
second after automatic operation
starts even if the switch is pressed
again.
◆ Back door opener
Raise the back door while
pressing the back door opener
to release the lock to open the
back door.
Opening/closing the back door from inside the vehicle (vehicles
with power back door)
Opening the back door from outside the vehicle
SIENNA_OM_OM08035U_(U)
135
3-2. Opening, closing and locking the doors
3
Operation of each component
◆ Wireless remote control (vehicles with power back door)
Press and hold the switch to open/close the power back door.
Pressing the switch again while the power back door is operating will
cause the operation to reverse. However, the reverse operation cannot be
performed for the first second after automatic operation starts, even if the
wireless remote control switch is pressed again.
Press the switch to close the back
door.
Pressing the switch again while the
power back door is closing will
cause it to open again.
However, the reverse operation
cannot be performed for the first
second after automatic operation
starts even if the switch is pressed
again.
Vehicles without a smart key
system
Vehicles with a smart key
system
Power back door switch (if equipped)
136
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
Lower the back door using the
back door handle, and make sure
to push the back door down from
the outside to close it.
Turn the main switch off to disable
the power back door system.
Off
On
*
*
: The orange line at the top of the
switch indicates that the power
back door system is on.
When closing the back door
Canceling the power back door system (vehicles with power
back door)
1
2
SIENNA_OM_OM08035U_(U)
137
3-2. Opening, closing and locking the doors
3
Operation of each component
■ Luggage compartment light
■ If the back door opener is inoperative
The back door can be operated from the inside.
Move the lever.
The luggage compartment light turns on
when the back door is opened with the
luggage compartment light switch on.
On
Off
Remove the inside panel.
Vehicles without power back door
Vehicles with power back door
1
2
1
2
138
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
■ The power back door can be operated when (vehicles with power back
door)
● The shift lever is in P.
● The back door is unlocked.
■ Power back door operation (vehicles with power back door)
● A buzzer sounds and the emergency flashers flash twice to indicate that the
back door is opening/closing.
● The back door can be opened and closed manually even when the power
back door main switch is off.
■ Jam protection function (vehicles with power back door)
● If anything obstructs the power back door while it is closing or opening, the
back door will automatically operate in the opposite direction.
● If the jam protection function operates during two consecutive closing oper-
ations, the back door will be stopped at that position.
■ Back door closer (if equipped)
In the event that the back door is left slightly open, the back door closer will
automatically close it to the fully closed position.
■ When the battery is disconnected
● The back door will be automatically locked after the battery is reconnected.
● The power back door (if equipped) must be initialized in order to ensure
proper operation.
Unlock the back door with the wireless remote control or door lock switch.
Close the back door completely by hand.
■ Conditions affecting the operation of the smart key system or wireless
remote control
P. 11 8
1
2
SIENNA_OM_OM08035U_(U)
139
3-2. Opening, closing and locking the doors
3
Operation of each component
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ Before driving
● Make sure that the back door is fully closed. If the back door is not fully
closed, it may open unexpectedly while driving and hit near-by objects or
luggage in the luggage compartment may be thrown out, causing an acci-
dent.
● Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
■ Important points while driving
Never let anyone sit in the luggage compartment. In the event of sudden
braking, sudden swerving or a collision, they are susceptible to death or
serious injury.
■ Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
● Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.
● When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
● The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
140
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
WARNING
● Do not place your hands on the back door damper stay to close the back
door, and do not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
● If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Toyota part is recommended.
■ Back door closer (if equipped)
● Use caution when using the back door closer as it still operates when the
power back door system is canceled.
■ Power back door (vehicles with power back door)
Observe the following precautions when operating the power back door.
Failure to do so may cause death or serious injury.
● Check the safety of the surrounding area to make sure there are no obsta-
cles or anything that could cause any of your belongings to get caught.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● If the operating conditions of the power back door are no longer met, a
buzzer may sound and the back door may stop opening or closing. The
back door then has to be operated manually. Take extra care when on an
incline, as the back door may open or close abruptly.
● On an incline, the back door may suddenly shut after it opens. Make sure
the back door is fully open and secure.
● When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
● When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.
● In the event that the back door is left
slightly open, the back door closer will
automatically close it to the fully closed
position. It takes several seconds
before the back door closer begins to
operate. Be careful not to catch fingers
or anything else in the back door, as this
may cause bone fractures or other seri-
ous injuries.
SIENNA_OM_OM08035U_(U)
141
3-2. Opening, closing and locking the doors
3
Operation of each component
WARNING
● In the following situations, the power back door may detect an abnormality
and automatic operation may be stopped. In this case, the back door has
to be operated manually. Take extra care when on an incline, as the back
door may open or close abruptly.
• When the back door contacts an obstacle
• When the battery voltage suddenly drops, such as when the engine
switch is turned to the “ON” position (vehicles without a smart key
system) or IGNITION ON mode (vehicles with a smart key system) or
the engine is started during automatic operation
● If a bicycle carrier or similar heavy object is attached to the back door, the
power back door may not operate, causing itself to malfunction, or the
back door may move in the closing direction after being opened, causing
someone’s hands, head or neck to be caught and injured. When installing
an accessory part to the back door, ask your Toyota dealer for details.
■ Jam protection function (vehicles with power back door)
Observe the following precautions.
Failure to do so may cause death or serious injury.
● Although the back door stops closing when the jam protection function
detects an object, take extra care as you may still be injured if part of your
body is already caught.
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the back door fully closes. Be careful not to catch fingers or any-
thing else.
● The jam protection function may not work depending on the shape of the
object that is caught. Be careful not to catch fingers or anything else.
142
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
NOTICE
■ Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
● Do not place your hand on the damper stay or apply lateral forces to it.
■ To prevent back door closer malfunction
Do not apply excessive force to the back door while the back door closer is
operating.
■ To prevent damage to the power back door
● Make sure that there is no ice between the back door and frame that
would prevent movement of the back door. Operating the power back door
when excessive load is present on the back door may cause a malfunc-
tion.
● Do not apply excessive force to the back door while the power back door
is operating.
● Take care not to damage the sensors (installed on the right and left edges
of the power back door) with a knife or other sharp object. If the sensor is
disconnected, the power back door will not operate in automatic operation.
● Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
● Do not touch the damper stay rod with
gloves or other fabric items.
● Do not attach any accessories other
than genuine Toyota parts to the back
door.
Damper stays
143
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
3
Operation of each component
Smart key system
● Locks and unlocks the doors
• Front door handles (P. 110)
• Sliding door handles (P. 121)
• Back door (P. 133)
● Starts and stops the engine (P. 228)
■ Antenna location
: If equipped
The following operations can be performed simply by carrying
the electronic key on your person, for example in your pocket.
The driver should always carry the electronic key.
Antennas outside cabin
Antennas inside cabin
Antenna outside luggage compartment
1
2
3
144
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
■ Effective range (areas within which the electronic key is detected)
The system can be operated when the electronic key is inside the vehi-
cle.
■ Alarms and warning indicators
An alarm sounds and warning messages are displayed on the multi-informa-
tion display are used to protect against unexpected accidents or theft of the
vehicle resulting from erroneous operation. When a warning message is dis-
played, take appropriate measures based on the displayed message.
(P. 481)
When only an alarm sounds, circumstances and correction procedures are as
follows.
When locking or unlocking the doors
The system can be operated when
the electronic key is within about
2.3 ft. (0.7 m) of either of the front out-
side door handles. (Only the doors
detecting the key can be operated.)
When starting the engine or changing
engine switch modes
Alarm Situation Correction procedure
Exterior alarm
sounds once for 10
seconds
An attempt was made to
lock the vehicle while a door
is open
Close all of the doors
and lock the doors
again
Interior alarm pings
continuously
The engine switch was
turned to ACCESSORY
mode while the driver’s door
was open (or the driver’s
door was opened while the
engine switch was in
ACCESSORY mode)
Turn the engine switch
off and close the
driver’s door
SIENNA_OM_OM08035U_(U)
145
3-2. Opening, closing and locking the doors
3
Operation of each component
■ Battery-saving function
In the following circumstances, the entry function is disabled in order to pre-
vent the vehicle battery from discharging and the electronic key battery from
discharging.
● When the entry function has not been used for 5 days or more
● When the electronic key has been left within approximately 6 ft. (2 m) of the
vehicle for 10 minutes or more
● If the entry function has not been used for 14 days or more, the vehicle can-
not be unlocked by a door other than the driver’s door. To unlock the vehicle,
grip the driver’s door handle or use the wireless remote control or the
mechanical key.
The system will resume operation when...
● The vehicle is locked using the lock sensor when carrying the electronic key
on your person.
● The vehicle is locked/unlocked using the wireless remote control. (P. 111)
● The vehicle is locked/unlocked using the mechanical key. (P. 503)
■ Conditions affecting operation
P. 11 9
■ Notes for the entry function
● Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases.
• The electronic key is too close to the window or outside door handle, near
the ground, or in a high place when the doors are locked or unlocked.
• The electronic key is on the instrument panel, floor or in the glove box
when the engine is started or engine switch modes are changed.
● Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
door will become lockable from the outside, possibly trapping the electronic
key inside the vehicle.
● As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. However, only the doors detecting the elec-
tronic key can be used to unlock the vehicle.
● The doors may unlock or lock if a large amount of water splashes on the
door handle, such as in the rain or in a car wash when the electronic key is
within the effective range. (The doors will automatically be locked after
approximately 60 seconds if the doors are not opened and closed.)
● If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the smart key system. (Use the wireless remote control to
unlock the doors.)
● If power slide door is unable to operate due to prohibition by the power slid-
ing door main switch, the door unlock and open operation will not be per-
formed. (P. 124)
146
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
■ Note for locking the doors
● Touching the door lock sensor while wearing gloves may delay or prevent
lock operation. Remove the gloves and touch the lock sensor again.
● When the lock operation is performed using the lock sensor, recognition sig-
nals will be shown up to two consecutive times. After this, no recognition
signals will be given.
● If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. Place the key in a posi-
tion 6 ft. (2 m) or more separate from the vehicle while the vehicle is being
washed. (Take care to ensure that the key is not stolen.)
● If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a message may be shown on the multi-information dis-
play and a buzzer will sound outside the vehicle. To turn off the alarm, lock
all the doors.
● The lock sensor may not work properly if it comes into contact with ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again, or
use the lock sensor on the lower part of the door handle.
● Fingernails may scrape against the door during operation of the door han-
dle. Be careful not to injure fingernails or damage the surface of the door.
■ Notes for the unlocking function
● Gripping the front door handle when wearing a glove may not unlock or lock
the door.
● A sudden approach to the effective range or door handle operation may pre-
vent the doors from being unlocked. In this case, return the door handle to
the original position and check that the doors have unlocked before pulling
the door handle.
● If there is another electronic key in the detection area, it may take slightly
longer to unlock the doors after one of the front door handles is gripped or
one of sliding door handles is pulled.
■ When the vehicle is not driven for extended periods
● To prevent theft of the vehicle, do not leave the electronic key within 6 ft.
(2 m) of the vehicle.
● The smart key system can be deactivated in advance. (P. 544)
SIENNA_OM_OM08035U_(U)
147
3-2. Opening, closing and locking the doors
3
Operation of each component
■ To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from the
outside of the vehicle.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention may not operate.)
■ If the smart key system does not operate properly
● Locking and unlocking the doors: Use the mechanical key. (P. 503)
● Starting the engine (P. 503)
■ Certification for the smart key system
For vehicles sold in the U.S.A.
FCC ID: HYQ14ADR FCC ID: HYQ14AEH
FCC ID: HYQ13CZM FCC ID: HYQ13CZN
FCC ID: NI4TMLF8-20
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
148
SIENNA_OM_OM08035U_(U)
3-2. Opening, closing and locking the doors
■ Customization
Settings (e.g. smart key system) can be changed.
(Customizable features: P. 543, 544)
■ If the smart key system has been deactivated in a customized setting
● Locking and unlocking the doors:
Use the wireless remote control or mechanical key. (P. 111, 503)
● Starting the engine and changing engine switch modes: P. 503
● Stopping the engine: P. 229
WARNING
■ Caution regarding interference with electronic devices
● People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should keep
away from the smart key system antennas. (P. 143)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask your Toyota dealer for details, such
as the frequency of radio waves and timing of the emitted radio waves.
Then, consult your doctor to see if you should disable the entry function.
● Users of any electrical medical device other than implantable cardiac
pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should consult the manufacturer of
the device for information about its operation under the influence of radio
waves. Radio waves could have unexpected effects on the operation of
such medical devices.
Ask your Toyota dealer for details for disabling the entry function.
149
SIENNA_OM_OM08035U_(U)
3-3. Adjusting the seats
3
Operation of each component
Front seats
Manual seat
Seat position adjustment lever
Seatback angle adjustment lever
Vertical height adjustment lever (driver’s side only)
Lumbar support adjustment switch (driver’s side only)*
*: If equipped
Power seat
Seat position adjustment switch
Seatback angle adjustment switch
Seat cushion (front) angle adjustment switch (driver’s side only)
Vertical height adjustment switch (driver’s side only)
Lumbar support adjustment switch (driver’s side only)
Adjustment procedure
1
2
3
4
1
2
3
4
5
150
SIENNA_OM_OM08035U_(U)
3-3. Adjusting the seats
When the occupant’s lower back
presses against the seatback
during a rear-end collision, the
head restraint moves slightly for-
ward and upward to help reduce
the risk of whiplash on the seat
occupant.
■ Active head restraints
Even small forces applied to the seatback may cause the head restraint to
move. When a locked head restraint is pushed up forcibly, the head restraint
inner structure may appear. This does not indicate a problem.
Active head restraints
ITN13N065
During
rear-end
collision
Inner structure
SIENNA_OM_OM08035U_(U)
151
3-3. Adjusting the seats
3
Operation of each component
WARNING
■ When adjusting the seat position
● Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.
● Make sure to leave enough space around the feet so they do not get stuck.
■ Seat adjustment
● Be careful that the seat does not hit passengers or luggage.
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is reclined too far, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● Manual seat: After adjusting the seat, make sure that the seat is locked in
position.
152
SIENNA_OM_OM08035U_(U)
3-3. Adjusting the seats
Rear seats
■ Second seat
Tip-up seat (7-passenger models)
Seat position adjustment
lever
Seatback angle adjustment
lever
Tip-up seat (8-passenger models)
Seat position adjustment
lever
Seatback angle adjustment
lever
Adjustment procedure
1
2
1
2
SIENNA_OM_OM08035U_(U)
153
3-3. Adjusting the seats
3
Operation of each component
Ottoman seat
Seat position adjustment
lever
Seatback angle adjustment
lever
Ottoman angle adjustment
lever
AUTO ACCESS SEAT
Refer to “AUTO ACCESS SEAT OWNER’S MANUAL”.
■ Third seats
Manual seat
Seatback angle adjustment
strap
1
2
3
154
SIENNA_OM_OM08035U_(U)
3-3. Adjusting the seats
Power seat
Seatback angle adjustment
switch
■ Getting in the vehicle
Tip-up seats
Pull the seatback angle adjust-
ment lever and fold down the
seatback. The cushion will tip
up. The seat can slide forward.
Move the seat to the frontmost
position.
Ottoman seats
Pull the seatback angle adjust-
ment lever and fold down the
seatback. The seat can slide
forward.
Move the seat to the frontmost
position.
Moving a second seat for third seat access
SIENNA_OM_OM08035U_(U)
155
3-3. Adjusting the seats
3
Operation of each component
■ Getting out of the vehicle
Tip-up seats
Pull the strap and fold down the
seatback. The cushion will tip
up. The seat can slide forward.
Move the seat to the frontmost
position.
Make sure that no passenger is
seated on the second seat
before pulling the strap.
Ottoman seats
Pull the strap and fold down the
seatback. The seat can slide
forward.
Move the seat to the frontmost
position.
Make sure that no passenger is
seated on the second seat
before pulling the strap.
■
After passengers have entered/exited the vehicle
Lift up the seatback and slide the seat backward until it locks.
156
SIENNA_OM_OM08035U_(U)
3-3. Adjusting the seats
■ Removing the second outside seats (Tip-up seats)
Pull the armrests up.
Pull the seatback adjustment
lever and fold down the seat-
back. The cushion will tip up.
Slide the seat forward to a lock position.
Pull the release lever under
the cushion and simultane-
ously lift the seat to remove.
■ Removing the second seats (Ottoman seats)
Pull the armrests up.
Pull the seatback adjustment
lever and fold down the seat-
back.
Slide the seat to a forward lock position.
Pull the release lever behind
the seatback straight back,
then up. While moving the
lever up, simultaneously lift
the seat to remove.
Removing the second seats
1
2
3
1
2
3
SIENNA_OM_OM08035U_(U)
157
3-3. Adjusting the seats
3
Operation of each component
■ Removing the second center seat (if equipped)
Pull the lock release strap
and fold down the second
center seatback.
Make sure that the head
restraint is in the lowest position.
Pull the lock release strap
under the seat to remove the
seat.
Retract the cushion leg.
Stow the seat in the storage
box of the luggage room
(cushion side first).
Engage the stow latch buckle
to hold the seat and tighten
the latch strap.
1
2
3
158
SIENNA_OM_OM08035U_(U)
3-3. Adjusting the seats
■ Installing the second outside seats
Align the marking on the seat side cover to the marking on the
rail cover and align the marking on the seat front/back cover to
the rail.
Lower the seat and engage the latches.
If you locked the seat latches unintentionally before installing securely,
pull the release lever to unlock the latches.
Make sure the seat is locked in place by trying to shake the seatback
and lift up the seat cushion.
Installing the second seats
1
Tip-up seat Ottoman seat
2
SIENNA_OM_OM08035U_(U)
159
3-3. Adjusting the seats
3
Operation of each component
■ Installing the second center seats (if equipped)
Engage the rear pins with the
hooks.
Unfold the cushion leg and
push down on the seat to
engage the front lock.
Unfold the seatback and lock
it.
Make sure the seat is locked in
place by trying to shake the
seatback and lift up the seat
cushion.
■
Before folding the third seats
Fold the outside head
restraints and lower the cen-
ter head restraint to the low-
est position (P. 173), and
stow the seat belt buckles.
Stow the center seat belt. (P. 3 2)
1
2
3
Folding down the third seats (manual seats)
1
2
160
SIENNA_OM_OM08035U_(U)
3-3. Adjusting the seats
■ Folding down the third seatbacks
Pull the “TO FOLD/LIFT SEAT-
BACK” strap and fold down the
seatback.
■ Returning the third seatbacks
Pull the “TO FOLD/LIFT SEAT-
BACK” strap, and raise the
seatback and the outside head
restraints.
You can operate the power third seats when the shift lever is in P.
■ Before folding the third seats
Lower the center head
restraint to the lowest posi-
tion (P. 173) and stow the
seat belt buckles.
Stow the center seat belt. (P. 3 2)
ITN13N047
Folding down the third seats (power seats)
1
2
SIENNA_OM_OM08035U_(U)
161
3-3. Adjusting the seats
3
Operation of each component
■ Folding down the third seatbacks
Press the folding/returning
switch.
■ Returning the third seatbacks
Press the folding/returning switch, returning switch (P. 164) or
seatback angle adjustment switch (P. 154).
Before stowing or returning third seat, remove any items from the floor
area to prevent interference with moving parts.
■ Before stowing the third seats
Lower the center head
restraint to the lowest posi-
tion (P. 173), and stow the
seat belt buckles.
Stow the center seat belt. (P. 3 2)
Stowing the third seats (manual seats)
1
2
162
SIENNA_OM_OM08035U_(U)
3-3. Adjusting the seats
■ Stowing the third seats
Pull the handle to move the
seat rearward. Then push the
seat down.
The outside head restraints are
folded automatically.
Push the seat against the
floor.
Open the flaps.
■ Before returning the third seats
Be sure to move the second seats forward from the rearmost posi-
tion, as they may interfere with the third seats returning operation.
1
2
SIENNA_OM_OM08035U_(U)
163
3-3. Adjusting the seats
3
Operation of each component
■ Returning the third seats
Return the flaps.
Pull the handle and lift up the
seat rearward.
Push the seat forward and
then engage the front leg
locks.
Make sure the front and rear
legs are locked securely.
Raise the seatback and the outside head restraints. (P. 159)
You can operate the power third seats when the shift lever is in P.
Before stowing or returning third seat, remove any items from the floor
area to prevent interference with moving parts.
■ Before stowing the third seats
Lower the center head
restraint to the lowest posi-
tion (P. 173) and stow the
seat belt buckles.
Stow the center seat belt. (P. 3 2)
1
2
Stowing the third seats (power seats)
3
1
2
164
SIENNA_OM_OM08035U_(U)
3-3. Adjusting the seats
■ Stowing the third seats
Press and hold the stowing
switch.
A beep sounds twice to indicate
the start of the operation. The
beep sounds again twice when
the operation is completed.
Open the flaps.
■ Before returning the third seats
Be sure to move the second seats forward from the rearmost posi-
tion, as they may interfere with the third seats returning operation.
■ Returning the third seats
Return the flaps.
Press and hold the returning
switch until the seat cushion
is locked.
A beep sounds twice to indicate
the start of the operation. The
beep sounds again twice when
the seats are locked in folded-
down position. Make sure the
front and rear legs are locked
securely.
Raise the outside head restraints.
1
ITN13N056
2
1
2
SIENNA_OM_OM08035U_(U)
165
3-3. Adjusting the seats
3
Operation of each component
■ Power third seat (vehicles with power third seat)
● If the indicator light above the switches flashes three times when the folding/
returning switch is pressed, the folding operation will not start. Make sure
the shift lever is in P.
● If any of the following conditions occur while the seat is operating, the seat
operation will stop. The indicator light above the switches will flash three
times and a beep will sound for about 10 seconds:
• An object is caught between the seatback and seat cushion.
• The stowing switch is released.
• Other power third seat switch is pushed while operating the stowing
switch.
• The shift lever is moved from P when the engine switch is turned to the
“ON” position (vehicles without a smart key system) or IGNITION ON
mode (vehicles with a smart key system).
If the engine is started during operating, the seat operation may also be
stopped.
To continue the folding operation, the seatback must be returned to its orig-
inal position first.
■ AUTO ACCESS SEAT (if equipped)
The AUTO ACCESS SEAT cannot be removed.
■ “3RD SEAT” warning light (vehicles with power third seat)
The warning light comes on if the third
seat operation is not yet complete when
the engine switch is turned to the “ON”
position (vehicles without a smart key
system) or IGNITION ON mode (vehicles
with a smart key system).
166
SIENNA_OM_OM08035U_(U)
3-3. Adjusting the seats
WARNING
■ When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P.
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
● Be careful not to get any part of your body pinched by a seat.
■ Seat adjustment
● Be careful that the seat does not hit passengers or luggage.
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is reclined too far, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
■ After returning the rear seatbacks or installing seats
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Make sure the seatback is securely locked by pushing it forward and rear-
ward on the top.
● Check that the seat belts are not twisted or caught in the seatback.
● Make sure the seat is locked in place by trying to shake the seatback and
lift up the seat cushion.
■ Removing the second seats
● Do not leave a seat in the vehicle if it has been disengaged from the floor.
● Do not sit on or place anything on a seat that has been removed from the
vehicle.
SIENNA_OM_OM08035U_(U)
167
3-3. Adjusting the seats
3
Operation of each component
WARNING
■ Stowing the third seats
● Make sure that the seat path is clear before moving the seat. Otherwise,
injury may result from contact with, or by being pinched by parts of the
seat.
● Manual third seats: Do not sit on the third seat when it is in the stowed
position with the seatback upright.
● Power third seats: Do not continue the stowing operation when the indica-
tor above the stowing switch and returning switch comes on or flashes. An
object or a person may be caught in the seat.
● Power third seats: During the stowing operation, to prevent the vehicle
from moving, do not shift the shift lever out of P with the engine switch in
the “ON” position (vehicles without a smart key system) or IGNITION ON
mode (vehicles with a smart key system).
■ When adjusting the seat position or the ottoman (vehicles with Otto-
man seats)
Make sure to leave enough space around the feet so as not to get them
caught.
■ When using the ottoman (vehicles with Ottoman seats)
● Do not sit on the ottoman. Seat belts may not be properly worn which may
result in death or serious injury.
● Stow the ottoman when you get in and out of the vehicle or when the otto-
man is not in use to avoid stumbling over it.
● Do not use the ottoman feature when the vehicle is in motion. The ottoman
feature should only be used when the vehicle is stationary. If the ottoman
feature is in use during an accident the lap belt may slide past the hips.
This could also result in restraint forces being applied to the abdomen or
your neck may contact the shoulder belt, increasing the risk of death or
serious injury.
168
SIENNA_OM_OM08035U_(U)
3-3. Adjusting the seats
NOTICE
■ To prevent damage to the seat
● Avoid putting heavy loads on a folded seat that is being used as a tempo-
rary table.
● Do not sit on or put heavy loads on a second seat that has been removed
from the vehicle. The metal tips of the seat leg may be damaged, prevent-
ing reinstallation of the seat.
● The second seats must be reinstalled in their original positions. If they are
installed in the wrong position, the seat locks or bezels will be damaged.
● Make sure that the path the seat will move through is clear before stowing
or returning the third seat.
● 8-passenger models: Be sure to raise the stowed second center seat
above the outer trim, when removing from the storage box of the luggage
room.
■ Stowing the seat belt
The seat belts and the buckles must be stowed before you fold down the
rear seatbacks.
■ To prevent an ottoman malfunction (vehicles with Ottoman seats)
● Do not place any objects in the second passenger footwell that could pre-
vent the operation of the ottoman.
● Do not place heavy luggage on the ottoman.
● Do not place anything under the ottoman when in use. There is a possibil-
ity that something may get caught and cause damage when stowing the
ottoman.
169
SIENNA_OM_OM08035U_(U)
3-3. Adjusting the seats
3
Operation of each component
Driving position memory
The seat is automatically adjusted to allow the driver to enter and exit
the vehicle easily.
When all of the following have
been performed, the driver’s seat
is automatically adjusted to a
position that allows driver to enter
and exit the vehicle easily.
• The shift lever has been shifted
to P.
• The engine switch has been
turned off.
• The driver’s seat belt has been unfastened.
When any of the following has been performed, the driver’s seat will
automatically return to their original positions.
• The engine switch has been turned to ACCESSORY mode.
• The driver’s seat belt has been fastened.
■ Operation of the power easy access system
When exiting the vehicle, the power easy access system may not operate if
the seat is already close to the rearmost position, etc.
: If equipped
This feature automatically adjusts the driver’s seat and outside
rear view mirrors to make entering and exiting the vehicle easier
or to suit your preferences.
Power easy access system
170
SIENNA_OM_OM08035U_(U)
3-3. Adjusting the seats
Your preferred driving position (the position of the driver’s seat and
outside rear view mirrors) can be recalled by pressing a button.
Two different driving positions can be recorded into memory.
■ Recording procedure
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Adjust the driver’s seat and outside rear view mirrors to the
desired positions.
While pressing the “SET”
button, or within 3 seconds
after the “SET” button is
pressed, press button “1” or
“2” until the signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
■
Recall procedure
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Press one of the buttons for
the driving position you want
to recall until the signal
beeps.
Driving position memory
1
2
3
4
1
2
3
SIENNA_OM_OM08035U_(U)
171
3-3. Adjusting the seats
3
Operation of each component
■ To stop the position recall operation part-way through
Perform any of the following:
● Press the “SET” button.
● Press button “1” or “2”.
● Operate any of the seat adjustment switches (only cancels seat position
recall).
■ Operating the driving position memory after turning the engine switch
off
Recorded seat positions can be activated up to 180 seconds after the driver’s
door is opened and another 60 seconds after it is closed again.
■ In order to correctly use the driving position memory function
If a seat position is already in the furthest possible position and the seat is
operated in the same direction, the recorded position may be slightly different
when it is recalled.
Each electronic key can be registered to recall your preferred driving
position.
■ Registering procedure
Record your driving position to button “1” or “2” before performing
the following:
Carry only the key you want to register, and then close the driver’s
door.
If 2 or more keys are in the vehicle, the driving position cannot be
recorded properly.
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Recall the driving position that you want to record.
While pressing the recalled
button, press and hold the
door lock switch (either lock
or unlock) until the signal
beeps.
Memory recall function
1
2
3
4
172
SIENNA_OM_OM08035U_(U)
3-3. Adjusting the seats
■ Recall procedure
Make sure that the doors are locked before recalling the driving
position. Carry the electronic key that has been registered to the
driving position, and then unlock and open the driver’s door using
the smart key system or wireless remote control.
The driving position will move to the recorded position.
If the driving position is in a position that has already been recorded, the
seat and outside rear view mirrors will not move.
■
Cancelation procedure
Carry only the key you want to cancel and then close the driver’s
door.
If 2 or more keys are in the vehicle, the driving position cannot be
canceled properly.
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
While pressing the “SET” button, press and hold the door lock
switch (either lock or unlock) until the signal beeps twice.
If the button could not be canceled, the signal beeps continuously for
approximately 3 seconds.
■ Recalling the driving position using the memory recall function
● Different driving positions can be registered for each electronic key. There-
fore, the driving position that is recalled may be different depending on the
key being carried.
● If a door other than the driver’s door is unlocked with the smart key system,
the driving position cannot be recalled. In this case, press the driving posi-
tion button which has been set.
■ Customization
The unlock door settings of the memory recall function can be customized.
(Customizable features: P. 545)
WARNING
■ Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear
passenger or squeeze your body against the steering wheel.
1
2
3
173
SIENNA_OM_OM08035U_(U)
3-3. Adjusting the seats
3
Operation of each component
Head restraints
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
*: 8-passenger models only
To use
Pull the head restraints up.
To fold
Press the button.
Head restraints are provided for all seats.
Front and second outside seats
Lock release button
1
2
Second center* and third center seats
Lock release button
1
2
Third outside seats
1
2
174
SIENNA_OM_OM08035U_(U)
3-3. Adjusting the seats
■ Removing the head restraints
Front and second outside seats
Second center* and third center seats
Third outside seats
The head restraint cannot be removed.
Pull the head restraint up while pressing
the lock release button.
Pull the head restraint up while pressing
the lock release button.
*: 8-passenger models only
Lock release button
Lock release button
SIENNA_OM_OM08035U_(U)
175
3-3. Adjusting the seats
3
Operation of each component
■ Installing the head restraints
Front and second outside seats
Second center* and third center seats
■ Adjusting the height of the head restraints
■ Adjusting the center seat head restraints
Always raise the head restraint one level from the stowed position when
using.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
*: 8-passenger models only
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Lock release button
Lock release button
176
SIENNA_OM_OM08035U_(U)
3-3. Adjusting the seats
WARNING
■ Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
● Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
177
3-4. Adjusting the steering wheel and mirrors
3
Operation of each component
SIENNA_OM_OM08035U_(U)
Steering wheel
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
Adjustment procedure
1
2
Horn
178
3-4. Adjusting the steering wheel and mirrors
SIENNA_OM_OM08035U_(U)
WARNING
■ Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident and resulting in death or serious injury. Also, the horn may not
sound if the steering wheel is not securely locked.
179
3-4. Adjusting the steering wheel and mirrors
3
Operation of each component
SIENNA_OM_OM08035U_(U)
Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
1
2
180
3-4. Adjusting the steering wheel and mirrors
SIENNA_OM_OM08035U_(U)
Auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
On/off
When the automatic anti-glare
function is in on mode, the indica-
tor illuminates.
The function will set to on mode
each time the engine switch is
turned to “ON” position (vehicles
without a smart key system) or
IGNITION ON mode (vehicles with
a smart key system).
Pressing the button turns the function to off mode. (The indicator also turns
off.)
■ To prevent sensor error (vehicles with auto anti-glare inside rear view
mirror)
Indicator
To ensure that the sensors operate prop-
erly, do not touch or cover them.
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
181
3-4. Adjusting the steering wheel and mirrors
3
Operation of each component
SIENNA_OM_OM08035U_(U)
Outside rear view mirrors
To select a mirror to adjust, turn
the switch.
Left
Right
To adjust the mirror, move the
switch.
Up
Right
Down
Left
Manual type
Push the mirror back in the direc-
tion of the vehicle’s rear.
Adjustment procedure
1
1
2
2
1
2
3
4
Folding and extending the mirrors
182
3-4. Adjusting the steering wheel and mirrors
SIENNA_OM_OM08035U_(U)
Power type
Press the switch.
Folding
Extending
When the mirror select switch is in the L or R position, the outside rear
view mirrors will automatically angle downwards when the vehicle is
reversing in order to give a better view of the ground.
To disable this function, move the mirror select switch to the neutral
position (between L and R).
1
2
Linked mirror function when reversing (if equipped)
183
3-4. Adjusting the steering wheel and mirrors
3
Operation of each component
SIENNA_OM_OM08035U_(U)
■ Mirror angle can be adjusted when
Vehicles without a smart key system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart key system
The engine switch is in ACCESSORY or IGNITION ON mode.
■ When the mirrors are fogged up (vehicles with outside rear view mirror
defoggers)
The outside rear view mirrors can be cleared using the mirror defoggers. Turn
on the rear window defogger to turn on the outside rear view mirror defog-
gers. (P. 336)
■ Automatic adjustment of the mirror angle (vehicles with driving position
memory)
A desired mirror face angle can be entered to memory and recalled automati-
cally by the driving position memory. (P. 169)
■ Auto anti-glare function (vehicles with auto anti-glare inside rear view
mirror)
When the anti-glare inside rear view mirror is set to automatic mode, the out-
side rear view mirrors will activate in conjunction with the anti-glare inside
rear view mirror to reduce reflected light. (P. 179)
WARNING
■ When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
● Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are operating (vehicles with outside rear
view mirror defoggers)
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.
184
SIENNA_OM_OM08035U_(U)
3-5. Opening, closing the windows and moon roof
Power windows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
One-touch closing
*
Opening
One-touch opening
*
*
: To stop the window partway, oper-
ate the switch in the opposite direc-
tion.
Press the switch down to lock the
passenger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
Opening and closing procedures
1
2
3
4
Window lock switch
SIENNA_OM_OM08035U_(U)
185
3-5. Opening, closing the windows and moon roof
3
Operation of each component
■ The power windows can be operated when
The engine switch is in the “ON” position (vehicles without a smart key sys-
tem) or IGNITION ON mode (vehicles with a smart key system).
■ Operating the power windows after turning the engine off
Vehicles without a smart key system
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They can-
not, however, be operated once either front door is opened.
Vehicles with a smart key system
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to ACCESSORY mode or turned off. They
cannot, however, be operated once either front door is opened.
■ Jam protection function
If an object becomes caught between the window and the window frame, win-
dow travel is stopped and the window is opened slightly.
■ When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot be
closed, perform the following operations using the power window switch on
the relevant door.
● After stopping the vehicle, the window can be closed by holding the power
window switch in the one-touch closing position while the engine switch is
turned to the “ON” position (vehicles without a smart key system) or IGNI-
TION ON mode (vehicles with a smart key system).
● If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position. Continue
holding the switch for 4 seconds or more after the window has closed.
Hold the power window switch in the one-touch opening position. Con-
tinue holding the switch for 1 second or more after the window has
opened completely.
Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for 1 second or more after the window
has closed.
If you release the switch while the window is moving, start again from the
beginning. If the window continues to close but then re-open slightly even
after performing the above procedure correctly, have the vehicle inspected by
your Toyota dealer.
1
2
3
186
SIENNA_OM_OM08035U_(U)
3-5. Opening, closing the windows and moon roof
WARNING
Observe the following precautions.
Failing to do so may result in death or serious injury.
■ Closing the windows
● The driver is responsible for all the power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window. Also, when riding with a child, it is recommended to use
the window lock switch. (P. 184)
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● When exiting the vehicle, turn the engine switch to the “LOCK” position
(vehicles without a smart key system) or off (vehicles with a smart key
system), carry the key and exit the vehicle along with the child. There may
be accidental operation, due to mischief, etc., that may possibly lead to an
accident.
■ Jam protection function
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the window fully closes.
● The jam protection function is disabled if the switch is pulled and held
during one-touch closing operation.
187
SIENNA_OM_OM08035U_(U)
3-5. Opening, closing the windows and moon roof
3
Operation of each component
Quarter windows
Manual type
Pull the handle and swing the win-
dow fully out to open.
Power type
Opening
Closing
Both the left and right quarter win-
dows move.
The quarter windows can be opened to bring in fresh outside air
for additional ventilation.
Opening and closing procedures
1
2
188
SIENNA_OM_OM08035U_(U)
3-5. Opening, closing the windows and moon roof
■ The windows can be operated when (power type)
The engine switch is in the “ON” position (vehicles without a smart key sys-
tem) or IGNITION ON mode (vehicles with a smart key system).
■ Operating the windows after turning the engine off (power type)
Vehicles without a smart key system
The power type windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They can-
not, however, be operated once either front door is opened.
Vehicles with a smart key system
The power type windows can be operated for approximately 45 seconds even
after the engine switch is turned to ACCESSORY mode or turned off. They
cannot, however, be operated once either front door is opened.
WARNING
■ Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● Power type: Do not allow children to operate the quarter windows.
189
SIENNA_OM_OM08035U_(U)
3-5. Opening, closing the windows and moon roof
3
Operation of each component
Moon roof
■ Front moon roof
Opens the moon roof
*
The moon roof will stop at the tilt up position once.
To tilt down, press the opposite side of the switch.
Press the switch again to open.
Closes the moon roof*
*
: Lightly press either of the roof switches to stop the moon roof partway.
■
Rear moon roof (if equipped)
Opens the moon roof
*
The moon roof stops just before
it is opened fully. Press the
switch again to open fully.
Closes the moon roof*
*
: Lightly press either of the roof
switches to stop the moon roof
partway.
: If equipped
Use the overhead switches to open and close the moon roof.
Opening and closing
Vehicles without a rear moon
roof
Vehicles with a rear moon roof
1
2
1
2
190
SIENNA_OM_OM08035U_(U)
3-5. Opening, closing the windows and moon roof
Press the switch to disable the
rear moon roof operation from the
rear seat.
Pressing the switch again will
enable the operation again.
■ The moon roof can be operated when
The engine switch is in the “ON” position (vehicles without a smart key sys-
tem) or IGNITION ON mode (vehicles with a smart key system).
■ Operating the moon roof after turning the engine off
Vehicles without a smart key system
The moon roof can be operated for approximately 45 seconds after the
engine switch is turned to the “ACC” or “LOCK” position. It cannot, however,
be operated once either front door is opened.
Vehicles with a smart key system
The moon roof can be operated for approximately 45 seconds after the
engine switch is turned to ACCESSORY mode or turned off. It cannot, how-
ever, be operated once either front door is opened.
■ Jam protection function
If an object is detected between the moon roof and the frame while the moon
roof is closing, travel is stopped and the moon roof opens slightly.
■ Sunshade
The sunshade can be opened and closed manually. However, both front and
rear sunshades open automatically when the moon roof is opened.
■ When the moon roof does not close normally
Stop the vehicle.
Press and hold the close switch.
*
The moon roof will start moving after pausing for about 10 seconds. Con-
tinue to hold the switch.
Release the button when the moon roof stops moving.
Within 4 seconds, press and hold the close switch again. Continue to hold
the switch as the moon roof opens and closes.
Release the close switch when the moon roof completely stops.
*: If the switch is released at the incorrect time, the procedure will have to be
performed again from the beginning.
Canceling the rear moon roof operation (vehicles with the rear
moon roof)
1
2
3
4
SIENNA_OM_OM08035U_(U)
191
3-5. Opening, closing the windows and moon roof
3
Operation of each component
WARNING
Observe the following precautions.
Failing to do so may cause death or serious injury.
■ Opening the moon roof
● Do not allow any passengers to put their hands or heads outside the
vehicle while it is moving.
● Do not sit on top of the moon roof.
■ Closing the moon roof
● The driver is responsible for moon roof opening and closing operations.
In order to prevent accidental operation, especially by a child, do not let a
child operate the moon roof. It is possible for children and other passen-
gers to have body parts caught in the moon roof. Also, when riding with a
child, it is recommended to use for vehicles with a rear moon roof.
(P. 190)
● Check to make sure that all passengers do not have any part of their bod-
ies in a position where it could be caught when the moon roof is being
operated.
● When exiting the vehicle, turn the engine switch to the “LOCK” position
(vehicles without a smart key system) or off (vehicles with a smart key
system), carry the key and exit the vehicle along with the child. There may
be accidental operation, due to mischief, etc., that may possibly lead to an
accident.
■ Jam protection function
● Never use any part of your body intentionally to activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the moon roof fully closes.
192
SIENNA_OM_OM08035U_(U)
3-5. Opening, closing the windows and moon roof
193
SIENNA_OM_OM08035U_(U)
4
Driving
4-1. Before driving
Driving the vehicle............. 194
Cargo and luggage ........... 203
Vehicle load limits ............. 209
Trailer towing
(with towing package) ..... 210
Dinghy towing ................... 224
4-2. Driving procedures
Engine (ignition) switch
(vehicles without a
smart key system)........... 225
Engine (ignition) switch
(vehicles with a smart
key system)..................... 228
Automatic transaxle........... 233
Turn signal lever................ 239
Parking brake.................... 240
4-3. Operating the lights
and wipers
Headlight switch................ 241
Automatic High Beam ....... 246
Fog light switch ................. 251
Windshield wipers and
washer ............................ 252
Rear window wiper and
washer ............................ 256
4-4. Refueling
Opening the fuel tank
cap .................................. 257
4-5. Using the driving support
systems
Toyota Safety Sense P ..... 260
PCS (Pre-Collision
System)........................... 266
LDA (Lane Departure Alert
with steering control)....... 278
Dynamic radar cruise
control ............................. 288
BSM (Blind Spot
Monitor)........................... 302
• The Blind Spot Monitor
function ......................... 306
• The Rear Cross Traffic
Alert function................. 309
Intuitive parking assist....... 314
Driving assist systems ...... 322
4-6. Driving tips
Winter driving tips ............. 327
194
SIENNA_OM_OM08035U_(U)
4-1. Before driving
Driving the vehicle
P. 225, 228
With the brake pedal depressed, shift the shift lever to D. (P. 233)
Release the parking brake. (P. 240)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to P or N. (P. 233)
With the shift lever in D, depress the brake pedal.
Set the parking brake. (P. 240), and shift the shift lever to P.
(P. 233)
Vehicles without a smart key system:
Turn the engine switch to the “LOCK” position and stop the engine.
Vehicles with a smart key system:
Press the engine switch to stop the engine.
Lock the door, making sure that you have the key on your person.
If parking on a hill, block the wheels as needed.
Make sure that the parking brake is set and shift the shift lever to D.
Gently depress the accelerator pedal.
Release the parking brake.
The following procedures should be observed to ensure safe
driving:
Starting the engine
Driving
Stopping
Parking the vehicle
Starting off on a steep uphill
1
2
3
1
2
1
2
3
4
1
2
3
SIENNA_OM_OM08035U_(U)
195
4-1. Before driving
4
Driving
■ When starting off on a uphill
The hill-start assist control is available. (P. 322)
■ Driving in the rain
● Drive carefully when it is raining, because visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
● Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
● Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-
face, preventing the steering and brakes from operating properly.
■ Engine speed while driving
In the following conditions, the engine speed may become high while driving.
This is due to automatic up-shifting control or down-shifting implementation to
meet driving conditions. It does not indicate sudden acceleration.
● The vehicle is judged to be driving uphill or downhill
● When the accelerator pedal is released
■ Restraining the engine output (Brake Override System)
● When the accelerator and brake pedals are depressed at the same time, the
engine output may be restrained.
● A warning message is displayed on the multi-information display while the
system is operating. (P. 474, 481)
■ Breaking in your new Toyota
To extend the life of the vehicle, observing the following precautions is recom-
mended:
● For the first 200 miles (300 km):
Avoid sudden stops.
● For the first 500 miles (800 km):
Do not tow a trailer.
● For the first 1000 miles (1600 km):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in low gears.
• Do not drive at a constant speed for extended periods.
■ Drum-in-disc type parking brake system
Your vehicle has a drum-in-disc type parking brake system. This type of brake
system needs bedding-down of the brake shoes periodically or whenever the
parking brake shoes and/or drum are replaced. Have your Toyota dealer per-
form the bedding down operation.
■ Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. (P. 518)
196
SIENNA_OM_OM08035U_(U)
4-1. Before driving
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When starting the vehicle
Always keep your foot on the brake pedal while stopped with the engine
running. This prevents the vehicle from creeping.
■ When driving the vehicle
● Do not drive if you are unfamiliar with the location of the brake and accel-
erator pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake
pedal will result in sudden acceleration that may lead to an accident.
• When backing up, you may twist your body around, leading to a diffi-
culty in operating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the
vehicle only slightly. This allows you to depress the brake and accelera-
tor pedals properly.
• Depress the brake pedal using your right foot. Depressing the brake
pedal using your left foot may delay response in an emergency, result-
ing in an accident.
● Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. These hot
parts may cause a fire if there is any flammable material nearby.
SIENNA_OM_OM08035U_(U)
197
4-1. Before driving
4
Driving
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When driving the vehicle
● During normal driving, do not turn off the engine. Turning the engine off
while driving will not cause loss of steering or braking control, but the
power assist to these systems will be lost. This will make it more difficult to
steer and brake, so you should pull over and stop the vehicle as soon as it
is safe to do so.
However, in the event of an emergency, such as if it becomes impossible
to stop the vehicle in the normal way: P. 463
● Use engine braking (downshift) to maintain a safe speed when driving
down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose
effectiveness. (P. 233)
● Do not adjust the position of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so may result in a loss of vehicle control.
● Always check that all passengers’ arms, heads or other parts of their body
are not outside the vehicle.
● AWD models: Do not drive the vehicle off-road.
This is not an AWD vehicle designed for off-road driving. Proceed with all
due caution if it becomes unavoidable to drive off-road.
● AWD models: Do not drive across a river or through other bodies of water.
This may cause electric/electronic components to short circuit, damage
the engine or cause other serious damage to the vehicle.
● Do not drive in excess of the speed limit. Even if the legal speed limit per-
mits it, do not drive over 85 mph (140 km/h) unless your vehicle has high-
speed capability tires. Driving over 85 mph (140 km/h) may result in tire
failure, loss of control and possible injury. Be sure to consult a tire dealer
to determine whether the tires on your vehicle are high-speed capability
tires or not before driving at such speeds.
198
SIENNA_OM_OM08035U_(U)
4-1. Before driving
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When driving on slippery road surfaces
● Sudden braking, acceleration and steering may cause tire slippage and
reduce your ability to control the vehicle.
● Sudden acceleration, engine braking due to shifting, or changes in engine
speed could cause the vehicle to skid.
● After driving through a puddle, lightly depress the brake pedal to make
sure that the brakes are functioning properly. Wet brake pads may prevent
the brakes from functioning properly. If the brakes on only one side are wet
and not functioning properly, steering control may be affected.
■ When shifting the shift lever
● Do not let the vehicle roll backward while the shift lever is in a driving posi-
tion, or roll forward while the shift lever is in R. Doing so may cause the
engine to stall or lead to poor brake and steering performance, resulting in
an accident or damage to the vehicle.
● Do not shift the shift lever to P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle
control.
● Do not shift the shift lever to R while the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
● Do not shift the shift lever to a driving position while the vehicle is moving
backward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
● Moving the shift lever to N while the vehicle is moving will disengage the
engine from the transmission. Engine braking is not available when N is
selected.
● Be careful not to shift the shift lever with the accelerator pedal depressed.
Shifting the shift lever to a gear other than P or N may lead to unexpected
rapid acceleration of the vehicle that may cause an accident and result in
death or serious injury. Doing so can damage the transmission and may
result in a loss of vehicle control.
SIENNA_OM_OM08035U_(U)
199
4-1. Before driving
4
Driving
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ If you hear a squealing or scraping noise (brake pad wear limit
indicators)
Have the brake pads checked and replaced by your Toyota dealer as soon
as possible.
Rotor damage may result if the pads are not replaced when needed.
It is dangerous to drive the vehicle when the wear limits of the brake pads
and/or those of the brake discs are exceeded.
■ When the vehicle is stopped
● Do not race the engine.
If the vehicle is in any gear other than P or N, the vehicle may accelerate
suddenly and unexpectedly, causing an accident.
● In order to prevent accidents due to the vehicle rolling away, always keep
depressing the brake pedal while the engine is running, and apply the
parking brake as necessary.
● If the vehicle is stopped on an incline, in order to prevent accidents caused
by the vehicle rolling forward or backward, always depress the brake pedal
and securely apply the parking brake as needed.
● Avoid revving or racing the engine.
Running the engine at high speed while the vehicle is stopped may cause
the exhaust system to overheat, which could result in a fire if combustible
material is nearby.
■ When the vehicle is parked
● Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in
the vehicle when it is in the sun.
Doing so may result in the following:
• Gas may leak from a cigarette lighter or spray can, and may lead to a
fire.
• The temperature inside the vehicle may cause the plastic lenses and
plastic material of glasses to deform or crack.
• Soft drink cans may fracture, causing the contents to spray over the
interior of the vehicle, and may also cause a short circuit in the vehicle’s
electrical components.
200
SIENNA_OM_OM08035U_(U)
4-1. Before driving
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When the vehicle is parked
● Do not leave cigarette lighters in the vehicle. If a cigarette lighter is in a
place such as the glove box or on the floor, it may be lit accidentally when
luggage is loaded or the seat is adjusted, causing a fire.
● Do not attach adhesive discs to the windshield or windows. Do not place
containers such as air fresheners on the instrument panel or dashboard.
Adhesive discs or containers may act as lenses, causing a fire in the
vehicle.
● Do not leave a door or window open if the curved glass is coated with a
metallized film such as a silver-colored one. Reflected sunlight may cause
the glass to act as a lens, causing a fire.
● Always apply the parking brake, shift the shift lever to P, stop the engine
and lock the vehicle.
Do not leave the vehicle unattended while the engine is running.
● If the vehicle is parked with the shift lever in P but the parking brake is not
set, the vehicle may start to move, possibly leading to an accident.
● Do not touch the exhaust pipe while the engine is running or immediately
after turning the engine off.
Doing so may cause burns.
■ When taking a nap in the vehicle
Always turn the engine off. Otherwise, if you accidentally move the shift
lever or depress the accelerator pedal, this could cause an accident or fire
due to engine overheating. Additionally, if the vehicle is parked in a poorly
ventilated area, exhaust gases may collect and enter the vehicle, leading to
death or a serious health hazard.
SIENNA_OM_OM08035U_(U)
201
4-1. Before driving
4
Driving
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When braking
● When the brakes are wet, drive more cautiously.
Braking distance increases when the brakes are wet, and this may cause
one side of the vehicle to brake differently than the other side. Also the
parking brake may not securely hold the vehicle.
● If the brake booster device does not operate, do not follow other vehicles
closely and avoid hills or sharp turns that require braking.
In this case, braking is still possible, but the brake pedal should be
depressed more firmly than usual. Also, the braking distance will increase.
Have your brakes fixed immediately.
● Do not pump the brake pedal if the engine stalls.
Each push on the brake pedal uses up the reserve for the power-assisted
brakes.
● The brake system consists of 2 individual hydraulic systems: If one of the
systems fails, the other will still operate. In this case, the brake pedal
should be depressed more firmly than usual and the braking distance will
increase. Have your brakes fixed immediately.
■ If the vehicle becomes stuck (AWD models)
Do not spin the wheels excessively when any of the tires is up in the air, or
the vehicle is stuck in sand or mud, etc. This may damage the driveline
components or unexpectedly propel the vehicle forward or backward, caus-
ing an accident.
202
SIENNA_OM_OM08035U_(U)
4-1. Before driving
NOTICE
■ When driving the vehicle
● Do not depress the accelerator and brake pedals at the same time during
driving, as this may restrain the engine output.
● Do not use the accelerator pedal or depress the accelerator and brake
pedals at the same time to hold the vehicle on a hill.
■ When parking the vehicle
Always set the parking brake, and shift the shift lever to P. Failure to do so
may cause the vehicle to move or the vehicle may accelerate suddenly if
the accelerator pedal is accidentally depressed.
■ Avoiding damage to vehicle parts
● Do not turn the steering wheel fully in either direction and hold it there for
an extended period of time.
Doing so may damage the power steering motor.
● When driving over bumps in the road, drive as slowly as possible to avoid
damaging the wheels, underside of the vehicle, etc.
■ If you get a flat tire while driving
A flat or damaged tire may cause the following situations.
● It may be difficult to control your vehicle.
● The vehicle will make abnormal sounds or vibrations.
● The vehicle will lean abnormally.
Hold the steering wheel firmly and gradually depress the brake pedal to
slow down the vehicle.
Information on what to do in case of a flat tire. (P. 485, 499)
■ When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may
cause the following serious damage to the vehicle:
● Engine stalling
● Short in electrical components
● Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have your Toyota dealer check the following:
● Brake function
● Changes in quantity and quality of oil and fluid used for the engine,
transaxle, transfer (AWD models), rear differential (AWD models), etc.
● Lubricant condition for the bearings and suspension joints (where possi-
ble) and the function of all joints, bearings, etc.
203
SIENNA_OM_OM08035U_(U)
4-1. Before driving
4
Driving
Cargo and luggage
Cargo capacity depends on the total weight of the occupants.
(Cargo capacity) = (Total load capacity) - (Total weight of occupants)
Steps for Determining Correct Load Limit
(1) Locate the statement “The combined weight of occupants and
cargo should never exceed XXX kg or XXX lbs.” on your vehicle’s
placard.
(2) Determine the combined weight of the driver and passengers that
will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers from
XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and lug-
gage load capacity.
For example, if the “XXX” amount equals 1400 lbs. and there will be
five 150 lb passengers in your vehicle, the amount of available
cargo and luggage load capacity is 650 lbs. (1400 - 750 (5150) =
650 lbs.)
(5) Determine the combined weight of luggage and cargo being loaded
on the vehicle. That weight may not safely exceed the available
cargo and luggage load capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will be
transferred to your vehicle. Consult this manual to determine how
this reduces the available cargo and luggage load capacity of your
vehicle. (P. 516)
Take notice of the following information about storage
precautions, cargo capacity and load:
Capacity and distribution
204
SIENNA_OM_OM08035U_(U)
4-1. Before driving
Cargo capacity
Total load capacity (vehicle
capacity weight) (P. 516)
When 2 people with the combined weight of A lb. (kg) are riding in
your vehicle, which has a total load capacity (vehicle capacity weight)
of B lb. (kg), the available amount of cargo and luggage load capacity
will be C lb. (kg) as follows:
B
*
2
lb. (kg) - A*
1
lb. (kg) = C*
3
lb. (kg)
*
1
: A = Weight of people
*
2
: B = Total load capacity
*
3
: C = Available cargo and luggage load
In this condition, if 3 more passengers with the combined weight of
D lb. (kg) get on, the available cargo and luggage load will be reduced
E lb. (kg) as follows:
C lb. (kg) - D*
4
lb. (kg) = E*
5
lb. (kg)
*
4
: D = Additional weight of people
*
5
: E = Available cargo and luggage load
As shown in the example above, if the number of occupants
increases, the cargo and luggage load will be reduced by an amount
that equals the increased weight due to the additional occupants. In
other words, if an increase in the number of occupants causes an
excess of the total load capacity (combined weight of occupants plus
cargo and luggage load), you must reduce the cargo and luggage on
your vehicle.
Calculation formula for your vehicle
1
2
SIENNA_OM_OM08035U_(U)
205
4-1. Before driving
4
Driving
■ Roof luggage carrier components
Roof rails
Cross rails
■ Adjusting the position of cross rails
Turn the knobs counterclock-
wise to release the cross
rails.
Slide the cross rails to the
appropriate position for load-
ing luggage and turn the
knobs clockwise to tighten
the cross rails securely.
Roof luggage carrier (if equipped)
1
2
1
2
206
SIENNA_OM_OM08035U_(U)
4-1. Before driving
Cargo capacity
Weight of the removed second
seat
If removing the second seats, it is possible to load extra cargo equal
to the weight of the removed seats.
(Cargo capacity) = (Total load capacity) - (Total weight of occupants) +
(Weight of the removed second seats)
Second seats weight:
7-passenger models
Tip-up seat, fabric: 47.2 lb. (20.5 kg)
Tip-up seat, leather: 49.5 lb. (21.5 kg)
Ottoman seat: 71.4 lb. (32.2 kg)
8-passenger models
Right side, fabric: 47.2 lb. (20.5 kg)
Right side, leather: 49.5 lb. (21.5 kg)
Left side, fabric: 97.1 lb. (42.2 kg)
Left side, leather: 100.3 lb. (43.6 kg)
Seating configuration variation
1
2
SIENNA_OM_OM08035U_(U)
207
4-1. Before driving
4
Driving
WARNING
■ Things that must not be carried in the luggage compartment
The following things may cause a fire if loaded in the luggage compart-
ment:
● Receptacles containing gasoline
● Aerosol cans
■ Storage precautions
Observe the following precautions.
Failure to do so may prevent the pedals from being depressed properly,
may block the driver’s vision, or may result in items hitting the driver or
passengers, possibly causing an accident.
● Stow cargo and luggage in the luggage compartment whenever possi-
ble.
● Do not stack cargo and luggage in the luggage compartment higher
than the seatbacks.
● Do not place cargo or luggage in or on the following locations.
• Driver’s feet
• Front passenger or rear seats (when stacking items)
• Instrument panel
• Dashboard
• Auxiliary box or tray that has no lid
● Secure all items in the occupant compartment.
● When you fold down the rear seats, long items should not be placed
directly behind the front seats.
● Never allow anyone to ride in the luggage compartment. It is not
designed for passengers. They should ride in their seats with their seat
belts properly fastened. Otherwise, they are much more likely to suffer
death or serious bodily injury, in the event of sudden braking, sudden
swerving or an accident.
■ Capacity and distribution
● Do not exceed the maximum axle weight rating or the total vehicle
weight rating.
● Even if the total load of occupant’s weight and the cargo load is less
than the total load capacity, do not apply the load unevenly.
Improper loading may cause deterioration of steering or braking con-
trol which may cause death or serious injury.
208
SIENNA_OM_OM08035U_(U)
4-1. Before driving
WARNING
■ Cross rail adjustment
Make sure the cross rails are locked securely by pushing forward and
rearward on them.
Failure to do so may cause an unexpected accident.
■ When loading cargo
To use the roof rails as a roof luggage carrier, you must fit the roof rails
with two or more genuine Toyota cross rails or their equivalent.
When you load cargo on the roof luggage carrier, observe the following:
● Place the cargo so that its weight is distributed evenly between the
front and rear axles.
● If loading long or wide cargo, never exceed the vehicle overall length
or width. (P. 516)
● Before driving, make sure the cargo is securely fastened on the roof
luggage carrier.
● Loading cargo on the roof luggage carrier will make the center of grav-
ity of the vehicle higher. Avoid high speeds, sudden starts, sharp turns,
sudden braking or abrupt maneuvers, otherwise it may result in loss of
control or vehicle rollover due to failure to operate this vehicle correctly
and result in death or serious injury.
● If driving for a long distance, on rough roads, or at high speeds, stop
the vehicle now and then during the trip to make sure the cargo
remains in its place.
● Do not exceed 150 lb. (68 kg) cargo weight on the roof luggage carrier.
NOTICE
■ When loading cargo (vehicles with moon roof)
Be careful not to scratch the surface of the moon roof.
209
SIENNA_OM_OM08035U_(U)
4-1. Before driving
4
Driving
Vehicle load limits
◆ Total load capacity (vehicle capacity weight): P. 5 1 6
Total load capacity means the combined weight of occupants, cargo
and luggage.
◆ Seating capacity
Without second center seat: 7 occupants (Front 2, Rear 5)
With second center seat: 8 occupants (Front 2, Rear 6)
Seating capacity means the maximum number of occupants whose
estimated average weight is 150 lb. (68 kg) per person.
◆ TWR (Trailer Weight Rating): P. 214, 516
TWR means the maximum gross trailer weight (trailer weight plus
its cargo weight) that your vehicle is able to tow.
◆ Cargo capacity
Cargo capacity may increase or decrease depending on the weight
and the number of occupants.
■ Total load capacity and seating capacity
These details are also described on the tire and loading information label.
(P. 429)
Vehicle load limits include total load capacity, seating capacity,
TWR (Trailer Weight Rating) and cargo capacity.
WARNING
■ Overloading the vehicle
Do not overload the vehicle.
It may not only cause damage to the tires, but also degrade steering
and braking ability, resulting in an accident.
210
SIENNA_OM_OM08035U_(U)
4-1. Before driving
Trailer towing (with towing package)
Contact your Toyota dealer for further information about additional
requirements such as a towing kit, etc.
■ GCWR (Gross Combination Weight Rating)
The maximum allowable gross
combination weight. The gross
combination weight is the sum
of the total vehicle weight
(including the occupants, cargo
and any optional equipment
installed on the vehicle) and the
weight of the trailer being towed
(including the cargo in the
trailer).
Your vehicle is designed primarily as a passenger-and-load-car-
rying vehicle. Towing a trailer can have an adverse impact on
handling, performance, braking, durability, and fuel
consumption. For your safety and the safety of others, you must
not overload your vehicle or trailer. You must also ensure that
you are using appropriate towing equipment, that the towing
equipment has been installed correctly and used properly, and
that you employ the requisite driving habits.
Vehicle-trailer stability and braking performance are affected by
trailer stability, brake performance and setting, trailer brakes,
the hitch and hitch systems (if equipped).
To tow a trailer safely, use extreme care and drive the vehicle in
accordance with your trailer’s characteristics and operating
conditions.
Toyota warranties do not apply to damage or malfunction
caused by towing a trailer for commercial purposes.
Towing related terms
SIENNA_OM_OM08035U_(U)
211
4-1. Before driving
4
Driving
■ GVWR (Gross Vehicle Weight Rating)
The maximum allowable gross
vehicle weight. The gross vehi-
cle weight is the total weight of
the vehicle. When towing a
trailer, it is the sum of the vehi-
cle weight (including the occu-
pants, cargo and any optional
equipment installed on the vehi-
cle) and the tongue weight.
■ GAWR (Gross Axle Weight Rating)
The maximum allowable gross
axle weight. The gross axle
weight is the load placed on
each axle (front and rear).
Front GAWR
Rear GAWR
212
SIENNA_OM_OM08035U_(U)
4-1. Before driving
■ TWR (Trailer Weight Rating)
The maximum allowable gross
trailer weight. The gross trailer
weight is the sum of the trailer
weight and the weight of the
cargo in the trailer.
TWR is calculated assuming
base vehicle with one driver,
one front passenger, towing
package, hitch and hitch sys-
tems (if required).
Additional optional equipment, passengers and cargo in the vehicle will
reduce the trailer weight rating so as not to exceed GCWR, GVWR and
GAWR.
If the gross trailer weight exceeds 3000 lb. (1360 kg), it is recommended
to use a trailer with 2 or more axles.
■
Unbraked TWR (Unbraked Trailer Weight Rating)
The trailer weight rating for tow-
ing a trailer without a trailer ser-
vice brake system.
■ Tongue Weight
The load placed on the trailer
hitch ball. (P. 215)
(With brakes)
(Without brakes)
SIENNA_OM_OM08035U_(U)
213
4-1. Before driving
4
Driving
● The gross trailer weight must never exceed 3500 lb. (1585 kg).
● The gross combination weight must never exceed the GCWR
described below.
2WD models: 8900 lb. (4037 kg)
AWD models: 8990 lb. (4078 kg)
● The gross vehicle weight must
never exceed the GVWR indi-
cated on the Certification Label.
● The gross axle weight on each
axle must never exceed the
GAWR indicated on the Certifi-
cation Label.
● If the gross trailer weight is over the unbraked TWR, trailer service
brakes are required.
● If the gross trailer weight is over 2000 lbs. (907 kg), a sway control
device with sufficient capacity is required.
Weight limits
: The towing package is required.
Toyota does not recommend towing with this vehicle without the towing
package.
214
SIENNA_OM_OM08035U_(U)
4-1. Before driving
Confirm that the gross trailer weight, gross combination weight, gross
vehicle weight, gross axle weight and tongue weight are all within the
limits.
■ GCWR
2WD models: 8900 lb. (4037 kg)
AWD models: 8990 lb. (4078 kg)
■ TWR
3500 lb. (1585 kg)
■ Unbraked TWR
1000 lb. (450 kg)
GCWR, TWR and Unbraked TWR
: These models meet the tow-vehicle trailering requirement of SAE Interna-
tional per SAE J2807.
The towing package is required.
Toyota does not recommend towing with this vehicle without the towing
package.
SIENNA_OM_OM08035U_(U)
215
4-1. Before driving
4
Driving
● A recommended tongue weight varies in accordance with the types
of trailers or towing as described below.
● To ensure the recommended values shown below, the trailer must
be loaded by referring to the following instructions.
• Tongue Weight
The gross trailer weight should be distributed so that the tongue
weight is 9% to 11%.
(Tongue weight / Gross trailer weight 100 = 9% to 11%)
Gross trailer weight
Tongue weight
The gross trailer weight, gross axle weight and tongue weight can
be measured with platform scales found at a highway weighing sta-
tion, building supply company, trucking company, junk yard, etc.
Trailer hitch assemblies have different weight capacities. Toyota rec-
ommends the use of Toyota hitch/bracket for your vehicle. For details,
contact your Toyota dealer.
● If you wish to install a trailer hitch, contact your Toyota dealer.
● Use only a hitch that conforms to the gross trailer weight require-
ment of your vehicle.
● Follow the directions supplied by the hitch manufacturer.
● Lubricate the hitch ball with a light coating of grease.
● Remove the hitch ball whenever you are not towing a trailer.
Remove the trailer hitch if you do not need it. After removing the
hitch, seal any mounting holes in the vehicle body to prevent entry
of any substances into the vehicle.
Trailer Tongue Weight
1
2
Hitch
216
SIENNA_OM_OM08035U_(U)
4-1. Before driving
Use the correct trailer ball for your application.
Trailer ball load rating
Matches or exceeds the gross
trailer weight rating of the trailer.
Ball diameter
Matches the size of the trailer cou-
pler. Most couplers are stamped
with the required trailer ball size.
Shank length
Protrudes beyond the bottom of the lock washer and nut by at least 2
threads.
Shank diameter
Matches the ball mount hole diameter size.
■ Matching trailer ball height to trailer coupler height
Selecting trailer ball
Trailer class
Typical trailer ball
size
IV
2 5/16 in.
II and III
2 in.
I
1 7/8 in.
1
2
No matter which class of tow hitch
applies, for a safe trailer hookup, the
trailer ball setup on must be proper height
for the coupler on the trailer.
Coupler
Trailer ball
3
4
1
2
SIENNA_OM_OM08035U_(U)
217
4-1. Before driving
4
Driving
Hitch receiver pin hole position:
37.3 in. (949.8 mm)
Please consult your dealer when installing trailer lights, as incorrect
installation may cause damage to the vehicle’s lights. Please take
care to comply with your state’s laws when installing trailer lights.
Your vehicle will handle differently when towing a trailer. Help to avoid
an accident, death or serious injury, keep the following in mind when
towing:
● Speed limits for towing a trailer vary by state or province. Do not
exceed the posted towing speed limit.
● Toyota recommends that the vehicle-trailer speed limit is 65 mph
(104 km/h) on a flat, straight, dry road. Do not exceed this limit, the
posted towing speed limit or the speed limit for your trailer as set
forth in your trailer owner’s manual, whichever is lowest. Instability
of the towing vehicle-trailer combination (trailer sway) increases as
speed increases. Exceeding speed limits may cause loss of control.
● Before starting out, check the trailer lights, tires and the vehicle-
trailer connections. Recheck after driving a short distance.
● Practice turning, stopping and reversing with the trailer attached in
an area away from traffic until you become accustomed to the feel
of the vehicle-trailer combination.
Positions for towing hitch receiver
1
Connecting trailer lights
Trailer towing tips
218
SIENNA_OM_OM08035U_(U)
4-1. Before driving
● Reversing with a trailer attached is difficult and requires practice.
Grip the bottom of the steering wheel and move your hand to the
left to move the trailer to the left. Move your hand to the right to
move the trailer to the right. (This is generally opposite to reversing
without a trailer attached.) Avoid sharp or prolonged turning. Have
someone guide you when reversing to reduce the risk of an acci-
dent.
● As stopping distance is increased when towing a trailer, vehicle-to-
vehicle distance should be increased. For each 10 mph (16 km/h)
of speed, allow at least one vehicle and trailer length.
● Avoid sudden braking as you may skid, resulting in the trailer jack-
knifing and a loss of vehicle control. This is especially true on wet or
slippery surfaces.
● Avoid jerky starts or sudden acceleration.
● Avoid jerky steering and sharp turns, and slow down before making
a turn.
● Note that when making a turn, the trailer wheels will be closer than
the vehicle wheels to the inside of the turn. Compensate by making
a wider than normal turning radius.
● Slow down before making a turn, in crosswinds, on wet or slippery
surfaces, etc.
Increasing vehicle speed can destabilize the trailer.
● Take care when passing other vehicles. Passing requires consider-
able distance. After passing a vehicle, do not forget the length of
your trailer, and be sure you have plenty of room before changing
lanes.
● To maintain engine braking efficiency and charging system perfor-
mance when using engine braking, do not put the transmission in
D. If in the S mode, transmission shift range position must be in 6 or
lower.
● Instability happens more frequently when descending steep or long
downhill grades. Before descending, slow down and downshift. Do
not make sudden downshifts while descending steep or long down-
hill grades.
● Avoid holding the brake pedal down too long or applying the brakes
too frequently. This could cause the brakes to overheat and result in
reduced braking efficiency.
SIENNA_OM_OM08035U_(U)
219
4-1. Before driving
4
Driving
● Due to the added load of the trailer, your vehicle’s engine may over-
heat on hot days (at temperatures over 85°F [30°C]) when driving
up a long or steep grade. If the Engine coolant temperature gauge
overheating, immediately turn off the air conditioning (if in use), pull
your vehicle off the road and stop in a safe spot. (P. 509)
● Always place wheel blocks under both the vehicle’s and the trailer’s
wheels when parking. Apply the parking brake firmly, and put the
transmission in P. Avoid parking on a slope, but if unavoidable, do
so only after performing the following:
Apply the brakes and keep them applied.
Have someone place wheel blocks under both the vehicle’s and
trailer’s wheels.
When the wheel blocks are in place, release the brakes slowly
until the blocks absorb the load.
Apply the parking brake firmly.
Shift into P and turn off the engine.
● When restarting after parking on a slope:
With the transmission in P, start the engine. Be sure to keep the
brake pedal pressed.
Shift into a forward gear. If reversing, shift into R.
Release the parking brake and brake pedal, and slowly pull or
back away from the wheel blocks. Stop and apply the brakes.
Have someone retrieve the blocks.
1
2
3
4
5
1
2
3
4
220
SIENNA_OM_OM08035U_(U)
4-1. Before driving
■ Before towing
Check that the following conditions are met:
● Ensure that your vehicle’s tires are properly inflated. (P. 522)
● Trailer tires are inflated according to the trailer manufacturer’s recommen-
dation.
● All trailer lights work as required by law.
● All lights work each time you connect them.
● The trailer ball is set at the proper height for the coupler on the trailer.
● The trailer is level when it is hitched.
Do not drive if the trailer is not level, and check for improper tongue weight,
overloading, worn suspension, or other possible causes.
● The trailer cargo is securely loaded.
● The rear view mirrors conform to all applicable federal, state/provincial or
local regulations. If they do not, install rear view mirrors appropriate for tow-
ing purposes.
■ Break-in schedule
If your vehicle is new or equipped with any new power train components
(such as an engine, transmission, differential or wheel bearing), Toyota rec-
ommends that you do not tow a trailer until the vehicle has been driven for
over 500 miles (800 km).
After the vehicle has been driven for over 500 miles (800 km), you can start
towing. However, for the next 500 miles (800 km), drive the vehicle at a speed
of less than 50 mph (80 km/h) when towing a trailer, and avoid full throttle
acceleration.
SIENNA_OM_OM08035U_(U)
221
4-1. Before driving
4
Driving
■ Maintenance
● If you tow a trailer, your vehicle will require more frequent maintenance due
to the additional load. (See “Scheduled Maintenance Guide” or “Owner’s
Manual Supplement”.)
● Retighten the fixing bolts of the towing ball and bracket after approximately
600 miles (1000 km) of trailer towing.
■ If trailer sway occurs
One or more factors (crosswinds, passing vehicles, rough roads, etc.) can
adversely affect handling of your vehicle and trailer, causing instability.
● If trailer swaying occurs:
• Firmly grip the steering wheel. Steer straight ahead.
Do not try to control trailer swaying by turning the steering wheel.
• Begin releasing the accelerator pedal immediately but very gradually to
reduce speed.
Do not increase speed. Do not apply vehicle brakes.
If you make no extreme correction with the steering or brakes, your vehicle
and trailer should stabilize.
● After the trailer swaying has stopped:
• Stop in a safe place. Get all occupants out of the vehicle.
• Check the tires of the vehicle and the trailer.
• Check the load in the trailer.
Make sure the load has not shifted.
Make sure the tongue weight is appropriate, if possible.
• Check the load in the vehicle.
Make sure the vehicle is not overloaded after occupants get in.
If you cannot find any problems, the speed at which trailer swaying occurred
is beyond the limit of your particular vehicle-trailer combination.
Drive at a lower speed to prevent instability. Remember that swaying of the
towing vehicle-trailer increases as speed increases.
222
SIENNA_OM_OM08035U_(U)
4-1. Before driving
WARNING
■ Trailer towing precautions
To tow a trailer safely, use extreme care and drive the vehicle in accordance
with the trailer’s characteristics and operating conditions. Failure to do so
could cause an accident resulting in death or serious injury. Vehicle stability
and braking performance are affected by trailer stability, brake setting and
performance, and the hitch. Your vehicle will handle differently when towing
a trailer.
■ To avoid accident or injury
● Do not exceed the TWR, unbraked TWR, GCWR, GVWR or GAWR.
● If the gross trailer weight is over 2000 lb. (907 kg), a sway control device
with sufficient capacity is required.
● Adjust the tongue weight within the appropriate range. Place heavier loads
as close to the trailer axle as possible.
● Do not exceed 65 mph (104 km/h), the posted towing speed limit or the
speed limit for your trailer as set forth in your trailer owner’s manual,
whichever is lowest. Slow down sufficiently before making a turn, in cross-
winds, on wet or slippery surface, etc. to help avoid an accident. If you
experience a vehicle-trailer instability from reducing a certain speed, slow
down and make sure you keep your vehicle speed under the speed of
which you experience the instability.
● Do not make jerky, abrupt or sharp turns.
● Do not apply the brakes suddenly as you may skid, resulting in jackknifing
and loss of vehicle control. This is especially true on wet or slippery sur-
faces.
● Do not exceed the trailer hitch assembly weight, gross vehicle weight,
gross axle weight and trailer tongue weight capacities.
SIENNA_OM_OM08035U_(U)
223
4-1. Before driving
4
Driving
WARNING
■ To avoid accident or injury
● Do not use cruise control when towing.
● Slow down and downshift before descending steep or long downhill
grades. Do not make sudden downshifts while descending steep or long
downhill grades.
● Vehicle-trailer instability is more likely on steep long downhills. Before
descending steep or long downhill grades, slow down and downshift. Do
not make sudden downshifts when descending steep or long downhill
grades. Avoid holding the brake pedal down too long or applying the
brakes too frequently. This could cause the brakes to overheat and result
in reduced braking efficiency.
● Vehicles with compact spare tire: Do not tow a trailer when the compact
spare tire is installed on your vehicle.
■ Hitch
Trailer hitch assemblies have different weight capacities established by the
hitch manufacturer. Even though the vehicle may be physically capable of
towing a higher weight, the operator must determine the maximum weight
rating of the particular hitch assembly and never exceed the maximum
weight rating specified for the trailer-hitch. Exceeding the maximum weight
rating set by the trailer-hitch manufacturer can cause an accident resulting
in death or serious personal injuries.
■ When towing a trailer
Toyota recommends trailers with brakes that conform to any applicable fed-
eral and state/provincial regulations.
● If the gross trailer weight exceeds unbraked TWR, trailer brakes are
required. Toyota recommends trailers with brakes that conform to all appli-
cable federal and state/provincial regulations.
● Never tap into your vehicle’s hydraulic system, as this will lower the
vehicle’s braking effectiveness.
● Never tow a trailer without using a safety chain securely attached to both
the trailer and the vehicle. If damage occurs to the coupling unit or hitch
ball, there is danger of the trailer wandering into another lane.
NOTICE
■ When installing a trailer hitch
Use only the position recommended by your Toyota dealer. Do not install
the trailer hitch on the bumper; this may cause body damage.
■ Do not directly splice trailer lights
Do not directly splice trailer lights. Directly splicing trailer lights may damage
your vehicle’s electrical system and cause a malfunction.
224
SIENNA_OM_OM08035U_(U)
4-1. Before driving
Dinghy towing
Your vehicle is not designed to be dinghy towed (with 4 wheels
on the ground) behind a motor home.
NOTICE
■ To avoid serious damage to your vehicle
■ To prevent causing serious damage to the transaxle and Active Torque
Control 4WD system (AWD models)
Do not tow your vehicle with four wheels
on the ground.
ITN25N009
2WD models: Never tow this vehicle from
the rear with the front wheels on the
ground. This may cause serious damage
to the transaxle.
AWD models: Never tow this vehicle with
any of the wheels on the ground. This
may cause serious damage to the
transaxle and Active Torque Control 4WD
system.
ITN25N010
ITN25N011
225
SIENNA_OM_OM08035U_(U)
4-2. Driving procedures
4
Driving
Engine (ignition) switch (vehicles without a
smart key system)
Check that the parking brake is set.
Check that the shift lever is set in P.
Firmly depress the brake pedal.
Turn the engine switch to the “START” position to start the engine.
“LOCK”
The steering wheel is locked and
the key can be removed. (The key
can be removed only when the
shift lever is in “P”.)
“ACC”
Some electrical components such
as the audio/visual system can be
used.
“ON”
All electrical components can be
used.
“START”
For starting the engine.
Starting the engine
Changing the engine switch positions
1
2
3
4
1
2
3
4
226
SIENNA_OM_OM08035U_(U)
4-2. Driving procedures
■ Turning the key from “ACC” to “LOCK”
Shift the shift lever to P. (P. 233)
■ If the engine does not start
The engine immobilizer system may not have been deactivated. (P. 77)
Contact your Toyota dealer.
■ When the steering lock cannot be released
■ Key reminder function
A buzzer sounds if the driver’s door is opened while the engine switch is in
the “LOCK” or “ACC” position to remind you to remove the key.
Push in the key and turn it to the
“LOCK” position.
When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while turn-
ing the steering wheel slightly left and
right.
WARNING
■ When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Caution when driving
Do not turn the engine switch to the “LOCK” position while driving. If, in an
emergency, you must turn the engine off while the vehicle is moving, turn
the engine switch only to the “ACC” position to stop the engine. An accident
may result if the engine is stopped while driving. (P. 463)
1
2
SIENNA_OM_OM08035U_(U)
227
4-2. Driving procedures
4
Driving
NOTICE
■ To prevent battery discharge
Do not leave the engine switch in the “ACC” or “ON” position for long peri-
ods of time without the engine running.
■ When starting the engine
● Do not crank the engine for more than 30 seconds at a time. This may
overheat the starter and wiring system.
● Do not race a cold engine.
● If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.
228
SIENNA_OM_OM08035U_(U)
4-2. Driving procedures
Engine (ignition) switch (vehicles with a
smart key system)
Check that the parking brake is set.
Check that the shift lever is set in P.
Firmly depress the brake pedal.
The engine switch indicator will turn green. If the indicator does not turn
green, the engine cannot be started.
Press the engine switch shortly
and firmly.
When operating the engine switch,
one short, firm press is enough. It
is not necessary to press and hold
the switch.
The engine will crank until it starts
or for up to 30 seconds, whichever
is less.
Continue depressing the brake
pedal until the engine is completely
started.
The engine can be started from
any engine switch mode.
Performing the following operations when carrying the elec-
tronic key on your person starts the engine or changes engine
switch modes.
Starting the engine
1
2
3
4
SIENNA_OM_OM08035U_(U)
229
4-2. Driving procedures
4
Driving
Stop the vehicle.
Set the parking brake. (P. 240), and shift the shift lever to P.
Press the engine switch.
Release the brake pedal and check that the indicator on the engine
switch is off.
Modes can be changed by pressing the engine switch with the brake
pedal released. (The mode changes each time the switch is pressed.)
Off
*
Emergency flashers can be used.
ACCESSORY mode
Some electrical components such
as the audio/visual system can be
used.
The engine switch indicator turns
amber.
IGNITION ON mode
All electrical components can be
used.
The engine switch indicator turns
amber.
*: If the shift lever is in a position
other than P when turning off the
engine, the engine switch will be
turned to ACCESSORY mode, not
to off.
Stopping the engine
Changing engine switch modes
1
2
3
4
1
2
3
230
SIENNA_OM_OM08035U_(U)
4-2. Driving procedures
If the engine is stopped with the shift lever in a position other than P,
the engine switch will not be turned off but instead be turned to
ACCESSORY mode. Perform the following procedure to turn the
switch off:
Check that the parking brake is set.
Shift the shift lever to P.
Check that the indicator on the engine switch is illuminated in
amber and then press the engine switch once.
Check that the indicator on the engine switch is off.
■ Auto power off function
If the vehicle is left in ACCESSORY mode for more than 20 minutes or
IGNITION ON mode (the engine is not running) for more than an hour with
the shift lever in P, the engine switch will automatically turn off. However, this
function cannot entirely prevent battery discharge. Do not leave the vehicle
with the engine switch in ACCESSORY or IGNITION ON mode for long peri-
ods of time when the engine is not running.
■ Electronic key battery depletion
P. 107
■ Conditions affecting operation
P. 11 9
■ Note for the entry function
P. 145
■ If the engine does not start
The engine immobilizer system may not have been deactivated. (P. 77)
Contact your Toyota dealer.
When stopping the engine with the shift lever in a position other
than P
1
2
3
4
SIENNA_OM_OM08035U_(U)
231
4-2. Driving procedures
4
Driving
■ Steering lock
After turning the engine switch off and opening and closing the doors, the
steering wheel will be locked due to the steering lock function.
Operating the engine switch again automatically cancels the steering lock.
■ When the steering lock cannot be released
■ Steering lock motor overheating prevention
To prevent the steering lock motor from overheating, the motor may be sus-
pended if the engine is turned on and off repeatedly in a short period of time.
In this case, refrain from operating the engine. After about 10 seconds, the
steering lock motor will resume functioning.
■ When the engine switch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by your
Toyota dealer immediately.
■ If the electronic key battery is depleted
P. 436
■ Operation of the engine switch
● If the switch is not pressed shortly and firmly, the engine switch mode may
not change or the engine may not start.
● If attempting to restart the engine immediately after turning the engine
switch off, the engine may not start in some cases. After turning the engine
switch off, please wait a few seconds before restarting the engine.
The green indicator light on the engine
switch will flash and “Steering Lock
Active” will be shown on the multi-
information display. Press the engine
switch while turning the steering wheel left
and right.
232
SIENNA_OM_OM08035U_(U)
4-2. Driving procedures
WARNING
■ When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Caution while driving
If the vehicle begins to slide due to engine failure or other circumstances, do
not lock or open the doors until the vehicle reaches a safe and complete
stop. Activation of the steering lock in this circumstance may lead to an
accident, resulting in death or serious injury.
■ Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle,
press and hold the engine switch for more than 2 seconds, or press it briefly
3 times or more in succession. (P. 463)
However, do not touch the engine switch while driving except in an emer-
gency. Turning the engine off while driving will not cause loss of steering or
braking control, but the power assist to these systems will be lost. This will
make it more difficult to steer and brake, so you should pull over and stop
the vehicle as soon as it is safe to do so.
NOTICE
■ To prevent battery discharge
● Do not leave the engine switch in ACCESSORY or IGNITION ON mode
for long periods of time without the engine running.
● If the indicator on the engine switch is illuminated, the engine switch is not
off. When exiting the vehicle, always check that the engine switch is off.
● Do not stop the engine when the shift lever is in a position other than P. If
the engine is stopped in another shift lever position, the engine switch will
not be turned off but instead be turned to ACCESSORY mode. If the
vehicle is left in ACCESSORY mode, battery discharge may occur.
■ When starting the engine
● Do not race a cold engine.
● If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.
■ Symptoms indicating a malfunction with the engine switch
If the engine switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction.
Contact your Toyota dealer immediately.
233
SIENNA_OM_OM08035U_(U)
4-2. Driving procedures
4
Driving
Automatic transaxle
While the engine switch is in the “ON” position (vehicles without a
smart key system) or IGNITION ON mode (vehicles with a smart
key system), move the shift lever with the brake pedal
depressed.
When shifting the shift lever between P and D, make sure that the vehi-
cle is completely stopped.
*
1
: Shifting to the D position allows the system to select a gear suitable for
the driving conditions. Setting the shift lever to the D position is recom-
mended for normal driving.
*
2
: Selecting shift ranges using S mode restricts the upper limit of the possi-
ble gear ranges, controls engine braking forces, and prevents unneces-
sary upshifting.
Shifting the shift lever
Shift position purpose
Shift position Function
P Parking the vehicle/starting the engine
R Reversing
N Neutral
D Normal driving*
1
S S mode driving*
2
(P. 235)
234
SIENNA_OM_OM08035U_(U)
4-2. Driving procedures
Use when high levels of response and feeling are desirable, such as
when driving in mountainous regions or when overtaking.
Press or of the meter control switches, select on the
multi-information display.
Press or of the meter control switches and select “ECT
PWR”.
Press to change to “ON”.
The “ECT PWR” indicator will be displayed.
Each time is pressed, the system will be enabled/disabled.
Selecting power mode
1
2
3
4
SIENNA_OM_OM08035U_(U)
235
4-2. Driving procedures
4
Driving
To enter S mode, shift the shift lever to the S position. The shift ranges
can be selected by operating the shift lever. Changing the shift range
allows restriction of upper limit of the gears to be used, preventing
unnecessary upshifting and enabling the level of engine braking force
to be selected.
Upshifting
Downshifting
■ Shift ranges and their functions
A lower shift range will provide greater engine braking forces than a
higher shift range.
Changing shift ranges in S mode
1
2
Meter display Function
S2 - S8
A gear in the range between 1 and the selected
gear is automatically chosen depending on
vehicle speed and driving conditions
S1 Setting the gear at 1
236
SIENNA_OM_OM08035U_(U)
4-2. Driving procedures
■ S mode
● When the shift range is 7 or lower, holding the shift lever toward “+” sets the
shift range to 8.
● To prevent excessive engine speed, a function was adopted that automati-
cally selects a higher shift range before the engine speed becomes too high.
● To protect the automatic transaxle, a function is adopted that automatically
selects a higher shift range when the fluid temperature is high.
■ Downshift restriction warning buzzer (S mode)
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever is operated. (A buzzer will sound twice.)
■ Deactivation of power mode
Power mode will be canceled if the engine is turned off after driving in power
mode.
■ When driving with the dynamic radar cruise control activated
Even when performing the following actions with the intent of enabling engine
braking, engine braking will not activate because dynamic radar cruise con-
trol will not be canceled.
● While driving in S mode, downshifting to 7, 6, 5 or 4. (P. 235)
● When switching the driving mode to power mode while driving in D.
(P. 234)
■ Shift lock system
The shift lock system is a system to prevent accidental operation of the shift
lever in starting.
The shift lever can be shifted from P only when the engine switch is in the
“ON” position (vehicles without a smart key system) or IGNITION ON mode
(vehicles with a smart key system) and the brake pedal is being depressed.
SIENNA_OM_OM08035U_(U)
237
4-2. Driving procedures
4
Driving
■ If the shift lever cannot be shifted from P
● First, check whether the brake pedal is being depressed.
If the shift lever cannot be shifted with your foot on the brake pedal, there
may be a problem with the shift lock system. Have the vehicle inspected by
your Toyota dealer immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Releasing the shift lock:
Set the parking brake.
Turn the engine switch to the “LOCK” position (vehicles without a smart
key system) or off (vehicles with a smart key system).
Depress the brake pedal.
● Vehicles with AUTO ACCESS SEAT: If the AUTO ACCESS SEAT has not
been locked in place after being stowed, the shift lever cannot be shifted
from P.
For details, refer to “AUTO ACCESS SEAT OWNER’S MANUAL”.
Pry the cover up with a flathead
screwdriver or equivalent tool.
To prevent damage to the cover,
cover the tip of the screwdriver with a
rag.
Press the shift lock override button.
The shift lever can be shifted while
the button is pressed.
1
2
3
4
5
238
SIENNA_OM_OM08035U_(U)
4-2. Driving procedures
■ If the beep sounds continuously when the shift lever is shifted from P
(vehicles with an AUTO ACCESS SEAT)
The AUTO ACCESS SEAT may not be locked in place.
For details, refer to “AUTO ACCESS SEAT OWNER’S MANUAL”.
■ If “S” does not come on even after shifting the shift lever to S
This may indicate a malfunction in the automatic transaxle system. Have the
vehicle inspected by your Toyota dealer immediately. (In this situation, the
transaxle will operate in the same manner as when the shift lever is in D.)
■ AI-SHIFT
AI-SHIFT automatically selects the suitable gear according to driver perfor-
mance and driving conditions.
AI-SHIFT automatically operates when the shift lever is in the D position.
(Shifting the shift lever to the S position cancels the function.)
WARNING
■ When driving on slippery road surfaces
Do not accelerate or shift gears suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.
■ To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking
brake and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal
when the shift lock override button is pressed and the shift lever is shifted
out of P, the vehicle may suddenly start, possibly leading to an accident
resulting in death or serious injury.
239
SIENNA_OM_OM08035U_(U)
4-2. Driving procedures
4
Driving
Turn signal lever
Right turn
Left turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
■ Turn signals can be operated when
The engine switch is in the “ON” position (vehicles without a smart key sys-
tem) or IGNITION ON mode (vehicles with a smart key system).
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
■ If the turn signals stop flashing before a lane change has been per-
formed
Operate the lever again.
■ To discontinue flashing of the turn signals during a lane change
Operate the lever in the opposite direction.
Operating instructions
1
2
3
4
240
SIENNA_OM_OM08035U_(U)
4-2. Driving procedures
Parking brake
To set the parking brake, fully
depress the parking brake pedal
with your left foot while depress-
ing the brake pedal with your right
foot.
(Depressing the pedal again
releases the parking brake.)
■ Parking the vehicle
P. 194
■ Usage in winter time
P. 327
Operating instructions
U.S.A.
Canada
NOTICE
■ Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
241
SIENNA_OM_OM08035U_(U)
4-3. Operating the lights and wipers
4
Driving
Headlight switch
Operating the switch turns on the lights as follows:
The illustration is intended as an example.
The headlights can be operated manually or automatically.
Operating instructions
U.S.A. Canada
The headlights, side marker, parking lights, daytime running
lights (if equipped) (P. 244) and so on turn on and off
automatically (when the engine switch is in the “ON” posi-
tion [vehicles without a smart key system] or IGNITION ON
mode [vehicles with a smart key system]).
The side marker, parking, tail, license plate, instrument panel
lights, and daytime running lights (if equipped) (P. 244)
turn on.
The headlights and all lights listed above (except daytime
running lights) turn on.
1
2
3
242
SIENNA_OM_OM08035U_(U)
4-3. Operating the lights and wipers
*
1
: Vehicles without a daytime running light system
*
2
: Vehicles with a daytime running light system
With the headlights on, push
the lever away from you to turn
on the high beams.
When the light switch is in
position, the Automatic High Beam
system will be activated. (P. 246)
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and release it to flash the high beams
once.
You can flash the high beams with the headlights on or off.
*
1
(U.S.A.)
Off.
*
2
(U.S.A.)
Off.
(Canada)
The daytime running lights turn on. (P. 244)
Turning on the high beam headlights
4
1
2
SIENNA_OM_OM08035U_(U)
243
4-3. Operating the lights and wipers
4
Driving
The level of the headlight aim can be adjusted according to the num-
ber of passengers and the loading condition of the vehicle.
Raises the level of the head-
lights
Lowers the level of the head-
lights
■ Guide to dial settings
Manual headlight leveling dial (vehicles with discharge head-
lights)
1
2
Occupancy and luggage load conditions Dial position
Occupants Luggage load
2WD
models
AWD
models
Driver None 0 0
Driver and front
passenger
None 0 0
Driver, front passenger
and all passengers in
the second seat
None 0 0
All seats occupied None 1 0.5
All seats occupied Full luggage loading 1 1
Driver Full luggage loading 0 0
244
SIENNA_OM_OM08035U_(U)
4-3. Operating the lights and wipers
■ Daytime running light system (if equipped)
● Bulb type: The daytime running lights illuminate using the same lights as the
headlights and illuminate dimmer than the headlights.
● LED type: The daytime running lights illuminate using the same lights as the
parking lights and illuminate brighter than the parking lights.
● To make your vehicle more visible to other drivers during daytime driving,
the daytime running lights turn on automatically when all of the following
conditions are met. (The daytime running lights are not designed for use at
night.)
• The engine is running
• The parking brake is released
• The headlight switch is in the (Canada only), or “AUTO”
*
position
*: When the surroundings are bright
The daytime running lights remain on after they illuminate, even if the parking
brake is set again.
● For the U.S.A.: Daytime running lights can be turned off by operating the
headlight switch.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help improve
fuel economy.
■ Headlight control sensor
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the
windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight
system to malfunction.
SIENNA_OM_OM08035U_(U)
245
4-3. Operating the lights and wipers
4
Driving
■ Automatic light off system
Vehicles without a smart key system
● When the headlights are on: The headlights and tail lights turn off 30 sec-
onds after a door is opened and closed if the engine switch is turned to the
“ACC” or “LOCK” position. (The lights turn off immediately if on the
key is pressed after all the doors are locked.)
● When only the tail lights are on: The tail lights turn off automatically if the
engine switch is turned to the “ACC” or “LOCK” position and the driver’s
door is opened.
To turn the lights on again, turn the engine switch to the “ON” position, or turn
the light switch off once and then back to the
or .
Vehicles with a smart key system
● When the headlights are on: The headlights and tail lights turn off 30 sec-
onds after a door is opened and closed if the engine switch is turned to
ACCESSORY mode or turned off. (The lights turn off immediately if
on the key is pressed after all the doors are locked.)
● When only the tail lights are on: The tail lights turn off automatically if the
engine switch is turned to ACCESSORY mode or turned off and the driver’s
door is opened.
To turn the lights on again, turn the engine switch to IGNITION ON mode, or
turn the light switch off and then back to or .
■ Light reminder buzzer
Vehicles without a smart key system
A buzzer sounds when the engine switch is turned to the “LOCK” position, the
key is removed and the driver’s door is opened while the lights are turned on.
Vehicles with a smart key system
A buzzer sounds when the engine switch is turned off and the driver’s door is
opened while the lights are turned on.
■ Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: P. 546)
NOTICE
■ To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not
running.
■ Headlight leveling
When the vehicle is loaded, headlight level should be adjusted to appropri-
ate dial setting. (P. 243)
246
SIENNA_OM_OM08035U_(U)
4-3. Operating the lights and wipers
Automatic High Beam
Push the lever away from you with
the headlight switch in the
position.
The Automatic High Beam indica-
tor will come on when the head-
lights are turned on automatically
to indicate that the system is
active.
When all of the following conditions are fulfilled, high beam will be
automatically turned on (after approximately 1 second):
● Vehicle speed is above approximately 20 mph (32 km/h).
● The area ahead of the vehicle is dark.
● There are no oncoming or preceding vehicles with headlights or tail
lights turned on.
If any of the following conditions are fulfilled, high beam will be auto-
matically turned off:
● Vehicle speed drops below approximately 20 mph (32 km/h).
● The area ahead of the vehicle is not dark.
● Oncoming or preceding vehicles have headlights or tail lights
turned on.
The Automatic High Beam uses an in-vehicle camera sensor to
assess the brightness of streetlights, the lights of oncoming and
preceding vehicles, etc., and automatically turns high beam on
or off as necessary.
Activating the Automatic High Beam system
High beam automatic turning on or off conditions
SIENNA_OM_OM08035U_(U)
247
4-3. Operating the lights and wipers
4
Driving
■ Switching to low beam
Pull the lever to the original
position.
■ Switching to high beam
Turn the light switch to the
position.
Turning the high beam on/off manually
248
SIENNA_OM_OM08035U_(U)
4-3. Operating the lights and wipers
■ The Automatic High Beam can be operated when
The engine switch is in the “ON” position (vehicles without a smart key sys-
tem) or IGNITION ON mode (vehicles with a smart key system).
■ Camera sensor detection information
● High beam may not be automatically turned off in the following situations:
• When oncoming vehicles suddenly appear from a curve.
• When the vehicle is cut in front of by another.
● High beam may be turned off if an oncoming vehicle that is using fog lights
without using the headlights is detected.
● Houselights, streetlights, red traffic signals, and illuminated billboards or
signs may cause the high beam to turn off.
● The following factors may affect the amount of time taken to turn high beam
on or off:
• The brightness of headlights, fog lights, and tail lights of oncoming and
preceding vehicles
• Road conditions (wetness, ice, snow etc.)
• The number of passengers and amount of baggage
● High beam may be turned on or off when unexpected by the driver.
SIENNA_OM_OM08035U_(U)
249
4-3. Operating the lights and wipers
4
Driving
● In the situations below, the system may not be able to correctly detect the
surrounding brightness levels, and may flash or expose nearby pedestrians
to the high beam. Therefore, you should consider turning the high beam on
or off manually rather than relying on the Automatic High Beam system.
• In bad weather (rain, snow, fog, sandstorms etc.)
• The windshield is obscured by fog, mist, ice, dirt etc.
• The windshield is cracked or damaged.
• The camera sensor is deformed or dirty.
• Surrounding brightness levels are equal to those of headlights, tail lights
or fog lights.
• Vehicles ahead have headlights that are either switched off, dirty, are
changing color, or are not aimed properly.
• When driving through an area of intermittently changing brightness and
darkness
• When frequently and repeatedly driving ascending/descending roads, or
roads with rough, bumpy or uneven surfaces (such as stone-paved
roads, gravel tracks etc.)
• When frequently and repeatedly taking curves or driving on a winding
road
• There is a highly reflective object ahead of the vehicle, such as a sign or
a mirror.
• The vehicle’s headlights are damaged or dirty.
• The vehicle is lifting or tilting, due to a flat tire, a trailer being towed etc.
• The high beam and low beam are repeatedly being switched between in
an abnormal manner.
• The driver believes that the high beam may be causing problems or dis-
tress to other drivers or pedestrians nearby.
■ Customization
The Automatic High Beam can be turned off.
(Customizable features: P. 546)
250
SIENNA_OM_OM08035U_(U)
4-3. Operating the lights and wipers
WARNING
■ Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Always drive safely, taking care to
observe your surroundings and turning high beam on or off manually if nec-
essary.
NOTICE
■ Camera sensor
● Do not touch the camera sensor.
● Do not subject the inside rear view mirror or the camera sensor to a strong
impact.
● Do not disassemble the camera sensor.
● Do not spill liquid onto the inside rear view mirror or the camera sensor.
● Do not apply window tinting or stickers to the camera sensor or the area of
windshield near the camera sensor.
● Do not place items on the dashboard. There is a possibility that the cam-
era sensor will mistake items reflected in the windshield for streetlights,
the headlights of other vehicles, etc.
● Do not install a parking tag or any other accessories near or around the
inside rear view mirror and the camera sensor.
● Do not overload the vehicle.
● Do not modify the vehicle.
● Do not replace windshield with a non-genuine windshield.
Contact your Toyota dealer.
■ Headlight leveling
When the vehicle is loaded, headlight level should be adjusted to appropri-
ate dial setting. (P. 243)
Observe the following to ensure that the
Automatic High Beam functions correctly.
251
SIENNA_OM_OM08035U_(U)
4-3. Operating the lights and wipers
4
Driving
Fog light switch
The illustration is intended as an example.
Turns the fog lights on
*
1
or *
2
Turns the fog lights off
*
1
:For U.S.A.
*
2
: For Canada
■ Fog lights can be used when
The headlights are on in low beam.
: If equipped
The fog lights offer improved visibility in difficult driving condi-
tions, such as in rain and fog.
1
2
252
SIENNA_OM_OM08035U_(U)
4-3. Operating the lights and wipers
Windshield wipers and washer
Operating the lever operates the wipers or washer as follows:
The illustration is intended as an example.
Intermittent windshield wipers with interval adjuster
*
1
or *
2
Intermittent windshield
wiper operation
*
1
or *
2
Low speed windshield
wiper operation
*
1
or *
2
High speed windshield
wiper operation
*
1
or *
2
Temporary operation
*
1
or *
2
Off
*
1
:For U.S.A.
*
2
: For Canada
Wiper intervals can be adjusted when intermittent operation is
selected.
Increases the intermittent wind-
shield wiper frequency
Decreases the intermittent
windshield wiper frequency
Operating the wiper lever
1
2
3
4
5
6
7
SIENNA_OM_OM08035U_(U)
253
4-3. Operating the lights and wipers
4
Driving
Washer/wiper dual oper-
ation
Pulling the lever operates the wip-
ers and washer.
The wipers will automatically oper-
ate a couple of times after the
washer squirts.
Rain-sensing windshield wipers (if equipped)
Rain-sensing wiper
operation (“AUTO”)
When “AUTO” is selected,
the wipers will operate
automatically when the
sensor detects falling rain.
The system automatically
adjusts wiper timing in
accordance with rain vol-
ume.
*
1
or *
2
Low speed wiper opera-
tion
*
1
or *
2
High speed wiper oper-
ation
*
1
or *
2
Temporary operation
*
1
or *
2
Off
*
1
:For U.S.A.
*
2
: For Canada
8
1
2
3
4
5
254
SIENNA_OM_OM08035U_(U)
4-3. Operating the lights and wipers
The sensor sensitivity can be adjusted when “AUTO” is selected.
Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual oper-
ation
Pulling the lever operates the
wipers and washer.
The wipers will automatically
operate a couple of times after
the washer squirts.
■ The windshield wipers and washer can be operated when
The engine switch is in the “ON” position (vehicles without a smart key sys-
tem) or IGNITION ON mode (vehicles with a smart key system).
■ Raindrop sensor (vehicles with rain-sensing windshield wipers)
● If the wiper switch is turned to “AUTO” position while the engine switch is in
IGNITION ON mode, the wiper will operate once to show that “AUTO” mode
is activated.
● If the temperature of the raindrop sensor is 185°F (85°C) or higher, or 14°F
(-10°C) or lower, automatic operation may not occur. In this case, operate
the wipers in any mode other than “AUTO”.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
6
7
8
● The raindrop sensor judges the amount
of raindrops.
SIENNA_OM_OM08035U_(U)
255
4-3. Operating the lights and wipers
4
Driving
WARNING
■ Caution regarding the use of windshield wipers in “AUTO” mode
The windshield wipers may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in “AUTO” mode. Take care that your
fingers etc. do not become caught in the windshield wipers.
■ Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
■ When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
256
SIENNA_OM_OM08035U_(U)
4-3. Operating the lights and wipers
Rear window wiper and washer
Operating the switch operates the rear wiper as follows:
The illustration is intended as an example.
*
1
or *
2
Intermittent window
wiper operation
*
1
or *
2
Normal window wiper
operation
Washer/wiper dual oper-
ation
Washer/wiper dual oper-
ation
*
1
or *
2
Off
*
1
:For U.S.A.
*
2
: For Canada
■ The rear window wiper and washer can be operated when
The engine switch is in the “ON” position (vehicles without a smart key sys-
tem) or IGNITION ON mode (vehicles with a smart key system).
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
Operating the wiper lever
1
2
3
4
5
NOTICE
■ When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
257
SIENNA_OM_OM08035U_(U)
4-4. Refueling
4
Driving
Opening the fuel tank cap
● Close all the doors and windows, and turn the engine switch to the
“LOCK” position (vehicles without a smart key system) or off (vehi-
cles with a smart key system).
● Confirm the type of fuel.
■ Fuel type
P. 526
■ Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle
WARNING
■ When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.
● After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
● Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap.
In hot weather, pressurized fuel may spray out of the filler neck and cause
injury.
● Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
● Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
● Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
● Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
258
SIENNA_OM_OM08035U_(U)
4-4. Refueling
Pull up the opener to open the
fuel filler door.
Turn the fuel tank cap slowly to
remove it and hang it on the
back of the fuel filler door.
WARNING
■ When refueling
Observe the following precautions to prevent fuel overflowing from the fuel
tank:
● Securely insert the fuel nozzle into the fuel filler neck.
● Stop filling the tank after the fuel nozzle automatically clicks off.
● Do not top off the fuel tank.
NOTICE
■ Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
systems to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.
Opening the fuel tank cap
1
2
SIENNA_OM_OM08035U_(U)
259
4-4. Refueling
4
Driving
After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
Closing the fuel tank cap
WARNING
■ When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.
260
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
Toyota Safety Sense P
◆ PCS (Pre-Collision System)
P. 2 66
◆ LDA (Lane Departure Alert with steering control)
P. 2 78
◆ Automatic High Beam
P. 2 46
◆ Dynamic radar cruise control
P. 2 88
The Toyota Safety Sense P consists of the following drive assist
systems and contributes to a safe and comfortable driving expe-
rience:
WARNING
■ Toyota Safety Sense P
The Toyota Safety Sense P is designed to operate under the assumption
that the driver will drive safely, and is designed to help reduce the impact to
the occupants and the vehicle in the case of a collision or assist the driver in
normal driving conditions.
As there is a limit to the degree of recognition accuracy and control perfor-
mance that this system can provide, do not overly rely on this system. The
driver is always responsible for paying attention to the vehicle’s surround-
ings and driving safely.
SIENNA_OM_OM08035U_(U)
261
4-5. Using the driving support systems
4
Driving
The pre-collision system is equipped with a sophisticated computer
that will record certain data, such as:
• Accelerator status
• Brake status
• Vehicle speed
• Operation status of the pre-collision system functions
• Information (such as the distance and relative speed between your
vehicle and the vehicle ahead or other objects)
• Images from the camera sensor (available only when the pre-colli-
sion braking function or the pre-collision brake assist function was
operating)
The pre-collision system does not record conversations, sounds or
images of the inside of the vehicle.
● Data usage
Toyota may use the data recorded in this computer to diagnose
malfunctions, conduct research and development, and improve
quality.
Toyota will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the
lessee if the vehicle is leased
• In response to an official request by the police, a court of law or a
government agency
• For use by Toyota in a lawsuit
• For research purposes where the data is not tied to a specific
vehicle or vehicle owner
● Recorded images can be erased using a specialized device.
The image recording function can be disabled. However, if the func-
tion is disabled, data from when the pre-collision system operates
will not be available.
Vehicle data recording
262
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
Two types of sensors, located behind the front grille and windshield,
detect information necessary to operate the drive assist systems.
Radar sensor
Camera sensor
Sensors
1
2
WARNING
■ To avoid malfunction of the radar sensor
Observe the following precautions.
Otherwise, the radar sensor may not operate properly, possibly leading to
an accident resulting in death or serious injury.
● Keep the radar sensor and front grille emblem clean at all times.
● Do not attach accessories, stickers (including transparent stickers) or
other items to the radar sensor, front grille emblem or surrounding area.
● Do not subject the radar sensor or surrounding area to a strong impact.
If the radar sensor, front grille, or front bumper has been subjected to a
strong impact, have the vehicle inspected by your Toyota dealer.
● Do not disassemble the radar sensor.
● Do not modify or paint the radar sensor, front grille emblem or surrounding
area.
● If the radar sensor, front grille, or front bumper needs to be removed and
installed, or replaced, contact your Toyota dealer.
Radar sensor
Front grille emblem
If the front of the radar sensor or the
front or back of the front grille emblem
is dirty or covered with water droplets,
snow, etc., clean it.
Clean the radar sensor and front grille
emblem with a soft cloth so you do not
mark or damage them.
1
2
SIENNA_OM_OM08035U_(U)
263
4-5. Using the driving support systems
4
Driving
WARNING
■ To avoid malfunction of the camera sensor
Observe the following precautions.
Otherwise, the camera sensor may not operate properly, possibly leading to
an accident resulting in death or serious injury.
● Keep the windshield clean at all times.
• If the windshield is dirty or covered with an oily film, water droplets,
snow, etc., clear the windshield.
• If a glass coating agent is applied to the windshield, it will still be neces-
sary to use the windshield wipers to remove water droplets, etc. from
the area of the windshield in front of the camera sensor.
• If the inner side of the windshield where the camera sensor is installed
is dirty, contact your Toyota dealer.
● If the part of the windshield in front of the camera sensor is fogged up or
covered with condensation or ice, use the windshield defogger to remove
the fog, condensation or ice. (P. 336)
● If water droplets cannot be properly removed from the area of the wind-
shield in front of the camera sensor by the windshield wipers, replace the
wiper insert or wiper blade.
If the wiper inserts or wiper blades need to be replaced, contact your
Toyota dealer.
● Do not attach window tinting to the windshield.
● Replace the windshield if it is damaged or cracked.
If the windshield needs to be replaced, contact your Toyota dealer.
● Do not get the camera sensor wet.
● Do not allow bright lights to shine into the camera sensor.
● Do not attach objects, such as stickers,
transparent stickers, and so forth, to the
outer side of the windshield in front of
the camera sensor (shaded area in the
illustration).
A: From the top of the windshield to
approximately 0.4 in. (1 cm) below the
bottom of the camera sensor
B: Approximately 7.9 in. (20 cm)
(Approximately 4.0 in. (10 cm) to the
right and left from the center of the cam-
era sensor)
264
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
■ Certification
WARNING
● Do not dirty or damage the camera sensor.
When cleaning the inside of the windshield, do not allow glass cleaner to
contact the lens. Also, do not touch the lens. If the lens is dirty or dam-
aged, contact your Toyota dealer.
● Do not subject the camera sensor to a strong impact.
● Do not change the installation position or direction of the camera sensor or
remove it.
● Do not disassemble the camera sensor.
● Do not modify any components of the vehicle around the camera sensor
(inside rear view mirror, etc.) or ceiling.
● Do not attach any accessories that may obstruct the camera sensor to the
hood, front grille or front bumper. Contact your Toyota dealer for details.
● If a surfboard or other long object is to be mounted on the roof, make sure
that it will not obstruct the camera sensor.
● Do not modify the headlights or other lights.
SIENNA_OM_OM08035U_(U)
265
4-5. Using the driving support systems
4
Driving
266
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
PCS (Pre-Collision System)
◆ Pre-collision warning
When the system determines
that the possibility of a frontal
collision is high, a buzzer will
sound and a warning message
will be displayed on the multi-
information display to urge the
driver to take evasive action.
◆ Pre-collision brake assist
When the system determines that the possibility of a frontal colli-
sion is high, the system applies greater braking force in relation to
how strongly the brake pedal is depressed.
◆ Pre-collision braking
When the system determines that the possibility of a frontal colli-
sion is high, the system warns the driver. If the system determines
that the possibility of a frontal collision is extremely high, the brakes
are automatically applied to help avoid the collision or reduce the
collision speed.
The pre-collision system uses a radar sensor and camera sen-
sor to detect vehicles and pedestrians in front of your vehicle.
When the system determines that the possibility of a frontal col-
lision with a vehicle or pedestrian is high, a warning operates to
urge the driver to take evasive action and the potential brake
pressure is increased to help the driver avoid the collision. If the
system determines that the possibility of a frontal collision with
a vehicle or pedestrian is extremely high, the brakes are auto-
matically applied to help avoid the collision or help reduce the
impact of the collision.
The pre-collision system can be disabled/enabled and the warning
timing can be changed. (P. 269)
SIENNA_OM_OM08035U_(U)
267
4-5. Using the driving support systems
4
Driving
WARNING
■ Limitations of the pre-collision system
● The driver is solely responsible for safe driving. Always drive safely, taking
care to observe your surroundings.
Do not use the pre-collision system instead of normal braking operations
under any circumstances. This system will not prevent collisions or lessen
collision damage or injury in every situation. Do not overly rely on this
system. Failure to do so may lead to an accident, resulting in death or seri-
ous injury.
● Although this system is designed to help avoid a collision or help reduce
the impact of the collision, its effectiveness may change according to vari-
ous conditions, therefore the system may not always be able to achieve
the same level of performance.
Read the following conditions carefully. Do not overly rely on this system
and always drive carefully.
• Conditions under which the system may operate even if there is no pos-
sibility of a collision: P. 272
• Conditions under which the system may not operate properly: P. 274
● Do not attempt to test the operation of the pre-collision system yourself.
Depending on the objects used for testing (dummies, cardboard objects
imitating detectable objects, etc.), the system may not operate properly,
possibly leading to an accident.
■ Pre-collision braking
● When the pre-collision braking function is operating, a large amount of
braking force will be applied.
● If the vehicle is stopped by the operation of the pre-collision braking func-
tion, the pre-collision braking function operation will be canceled after
approximately 2 seconds. Depress the brake pedal as necessary.
● The pre-collision braking function may not operate if certain operations are
performed by the driver. If the accelerator pedal is being depressed
strongly or the steering wheel is being turned, the system may determine
that the driver is taking evasive action and possibly prevent the pre-colli-
sion braking function from operating.
● In some situations, while the pre-collision braking function is operating,
operation of the function may be canceled if the accelerator pedal is
depressed strongly or the steering wheel is turned and the system deter-
mines that the driver is taking evasive action.
● If the brake pedal is being depressed, the system may determine that the
driver is taking evasive action and possibly delay the operation timing of
the pre-collision braking function.
268
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
WARNING
■ When to disable the pre-collision system
In the following situations, disable the system, as it may not operate prop-
erly, possibly leading to an accident resulting in death or serious injury:
● When the vehicle is being towed
● When your vehicle is towing another vehicle
● When transporting the vehicle via truck, boat, train or similar means of
transportation
● When the vehicle is raised on a lift with the engine running and the tires
are allowed to rotate freely
● When inspecting the vehicle using a drum tester such as a chassis
dynamometer or speedometer tester, or when using an on vehicle wheel
balancer
● When a strong impact is applied to the front bumper or front grille, due to
an accident or other reasons
● If the vehicle cannot be driven in a stable manner, such as when the
vehicle has been in an accident or is malfunctioning
● When the vehicle is driven in a sporty manner or off-road
● When the tires are not properly inflated
● When the tires are very worn
● When tires of a size other than specified are installed
● When tire chains are installed
● When a compact spare tire or an emergency tire puncture repair kit is used
● If equipment (snow plow, etc.) that may obstruct the radar sensor or cam-
era sensor is temporarily installed to the vehicle
SIENNA_OM_OM08035U_(U)
269
4-5. Using the driving support systems
4
Driving
■ Enabling/disabling the pre-collision system
The pre-collision system can be enabled/disabled on
(P. 541) of the multi-information display.
The system is automatically enabled each time the engine switch is
turned to the “ON” position (vehicles without a smart key system) or
IGNITION ON mode (vehicles with a smart key system).
If the system is disabled, the
PCS warning light will turn on
and a message will be dis-
played on the multi-information
display.
Changing settings of the pre-collision system
270
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
■ Changing the pre-collision warning timing
The pre-collision warning timing can be changed on
(P. 541) of the multi-information display.
The operation timing setting is retained when the engine switch is
turned off.
Far
The warning will begin to
operate earlier than with the
default timing.
Middle
This is the default setting.
Near
The warning will begin to
operate later than with the
default timing.
1
2
3
SIENNA_OM_OM08035U_(U)
271
4-5. Using the driving support systems
4
Driving
■ Operational conditions
The pre-collision system is enabled and the system determines that the pos-
sibility of a frontal collision with a vehicle or pedestrian is high.
Each function is operational at the following speeds:
● Pre-collision warning:
• Vehicle speed is between approximately 7 and 110 mph (10 and 180 km/h).
(For detecting a pedestrian, vehicle speed is between approximately 7 and
50 mph [10 and 80 km/h].)
• The relative speed between your vehicle and the vehicle or pedestrian
ahead is approximately 7 mph (10 km/h) or more.
● Pre-collision brake assist:
• Vehicle speed is between approximately 20 and 110 mph (30 and 180
km/h). (For detecting a pedestrian, vehicle speed is between approxi-
mately 20 and 50 mph [30 and 80 km/h].)
• The relative speed between your vehicle and the vehicle or pedestrian
ahead is approximately 20 mph (30 km/h) or more.
● Pre-collision braking:
• Vehicle speed is between approximately 7 and 110 mph (10 and 180 km/h).
(For detecting a pedestrian, vehicle speed is between approximately 7 and
50 mph [10 and 80 km/h].)
• The relative speed between your vehicle and the vehicle or pedestrian
ahead is approximately 7 mph (10 km/h) or more.
The system may not operate in the following situations:
● If a battery terminal has been disconnected and reconnected and then the
vehicle has not been driven for a certain amount of time
● If the shift lever is in R
● If VSC is disabled (only the pre-collision warning function will be opera-
tional)
■ Pedestrian detection function
The pre-collision system detects pedestri-
ans based on the size, profile, and motion
of a detected object. However, a pedes-
trian may not be detected depending on
the surrounding brightness and the
motion, posture, and angle of the
detected object, preventing the system
from operating properly. (P. 276)
272
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
■ Cancelation of the pre-collision braking
If either of the following occur while the pre-collision braking function is oper-
ating, it will be canceled:
● The accelerator pedal is depressed strongly.
● The steering wheel is turned sharply or abruptly.
■ Conditions under which the system may operate even if there is no pos-
sibility of a collision
● In some situations such as the following, the system may determine that
there is a possibility of a frontal collision and operate.
• When passing a vehicle or pedestrian
• When changing lanes while overtaking a preceding vehicle
• When overtaking a preceding vehicle that is changing lanes
• When rapidly closing on a vehicle ahead
• If the front of the vehicle is raised or lowered, such as when the road sur-
face is uneven or undulating
• When approaching objects on the roadside, such as guardrails, utility
poles, trees, or walls
• When overtaking a preceding vehicle
that is making a left/right turn
• When passing a vehicle in an oncom-
ing lane that is stopped to make a
right/left turn
• When driving on a road where relative
location to vehicle ahead in an adja-
cent lane may change, such as on a
winding road
SIENNA_OM_OM08035U_(U)
273
4-5. Using the driving support systems
4
Driving
• When driving on a narrow path surrounded by a structure, such as in a
tunnel or on an iron bridge
• When there is a metal object (manhole cover, steel plate, etc.), steps, or a
protrusion on the road surface or roadside
• When rapidly closing on an electric toll gate barrier, parking area barrier,
or other barrier that opens and closes
• When using an automatic car wash
• When there is a vehicle, pedestrian,
or object by the roadside at the
entrance of a curve
• When a crossing pedestrian
approaches very close to the vehicle
• When passing through a place with a
low structure above the road (low ceil-
ing, traffic sign, etc.)
• When passing under an object (bill-
board, etc.) at the top of an uphill road
274
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
• When the vehicle is hit by water, snow, dust, etc. from a vehicle ahead
• When driving through steam or smoke
• When there are patterns or paint on the road or a wall that may be mis-
taken for a vehicle or pedestrian
• When driving near an object that reflects radio waves, such as a large
truck or guardrail
• When driving near a TV tower, broadcasting station, electric power plant,
or other location where strong radio waves or electrical noise may be
present
■ Situations in which the system may not operate properly
● In some situations such as the following, a vehicle may not be detected by
the radar sensor and camera sensor, preventing the system from operating
properly:
• If an oncoming vehicle is approaching your vehicle
• If a vehicle ahead is a motorcycle or bicycle
• When approaching the side or front of a vehicle
• If a preceding vehicle has a small rear end, such as an unloaded truck
• If a vehicle ahead is carrying a load which protrudes past its rear bumper
• If a vehicle ahead is irregularly shaped, such as a tractor or side car
• If the sun or other light is shining directly on a vehicle ahead
• If a vehicle cuts in front of your vehicle or emerges from beside a vehicle
• When driving through or under
objects that may contact the vehicle,
such as thick grass, tree branches, or
a banner
• If a preceding vehicle has a low rear
end, such as a low bed trailer
• If a vehicle ahead has extremely high
ground clearance
SIENNA_OM_OM08035U_(U)
275
4-5. Using the driving support systems
4
Driving
• If a vehicle ahead makes an abrupt maneuver (such as sudden swerving,
acceleration or deceleration)
• When suddenly cutting behind a preceding vehicle
• When driving in inclement weather such as heavy rain, fog, snow or a
sandstorm
• When the vehicle is hit by water, snow, dust, etc. from a vehicle ahead
• When driving through steam or smoke
• When driving in a place where the surrounding brightness changes sud-
denly, such as at the entrance or exit of a tunnel
• When a very bright light, such as the sun or the headlights of oncoming
traffic, shines directly into the camera sensor
• When the surrounding area is dim, such as at dawn or dusk, or while at
night or in a tunnel
• After the engine has started the vehicle has not been driven for a certain
amount of time
• While making a left/right turn and for a few seconds after making a left/
right turn
• While driving on a curve and for a few seconds after driving on a curve
• If your vehicle is skidding
• If the wheels are misaligned
• If a wiper blade is blocking the camera sensor
• The vehicle is wobbling.
• The vehicle is being driven at extremely high speeds.
• When driving on a hill
• If the radar sensor or camera sensor is misaligned
• When a vehicle ahead is not directly
in front of your vehicle
• If the front of the vehicle is raised or
lowered
276
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
● In some situations such as the following, sufficient braking force may not be
obtained, preventing the system from performing properly:
• If the braking functions cannot operate to their full extent, such as when
the brake parts are extremely cold, extremely hot, or wet
• If the vehicle is not properly maintained (brakes or tires are excessively
worn, improper tire inflation pressure, etc.)
• When the vehicle is being driven on a gravel road or other slippery sur-
face
● Some pedestrians such as the following may not be detected by the radar
sensor and camera sensor, preventing the system from operating properly:
• Pedestrians shorter than approximately 3.2 ft. (1 m) or taller than approx-
imately 6.5 ft. (2 m)
• Pedestrians wearing oversized clothing (a rain coat, long skirt, etc.), mak-
ing their silhouette obscure
• Pedestrians who are carrying large baggage, holding an umbrella, etc.,
hiding part of their body
• Pedestrians who are bending forward or squatting
• Pedestrians who are pushing a stroller, wheelchair, bicycle or other vehi-
cle
• Groups of pedestrians which are close together
• Pedestrians who are wearing white and look extremely bright
• Pedestrians in the dark, such as at night or while in a tunnel
• Pedestrians whose clothing appears to be nearly the same color or
brightness as their surroundings
• Pedestrians near walls, fences, guardrails, or large objects
• Pedestrians who are on a metal object (manhole cover, steel plate, etc.)
on the road
• Pedestrians who are walking fast
• Pedestrians who are changing speed abruptly
• Pedestrians running out from behind a vehicle or a large object
• Pedestrians who are extremely close to the side of the vehicle (outside
rear view mirror, etc.)
SIENNA_OM_OM08035U_(U)
277
4-5. Using the driving support systems
4
Driving
■ If the PCS warning light flashes or illuminates and a warning message is
displayed on the multi-information display
The pre-collision system may be temporarily unavailable or there may be a
malfunction in the system.
● In the following situations, the warning light will turn off, the message will
disappear and the system will become operational when normal operating
conditions return:
• When the radar sensor or camera sensor or the area around either sen-
sor is hot, such as in the sun
• When the radar sensor or camera sensor or the area around either sen-
sor is cold, such as in an extremely cold environment
• When a front sensor is dirty or covered with snow, etc.
• When the part of the windshield in front of the camera sensor is fogged up
or covered with condensation or ice (Defogging the windshield: P. 336)
• If the camera sensor is obstructed, such as when the hood is open or a
sticker is attached to the windshield near the camera sensor
● If the PCS warning light continues to flash or remains illuminated or the
warning message does not disappear even though the vehicle has returned
to normal, the system may be malfunctioning. Have the vehicle inspected by
your Toyota dealer immediately.
■ If VSC is disabled
● If VSC is disabled (P. 323), the pre-collision brake assist and pre-collision
braking functions are also disabled.
● The PCS warning light will turn on and “VSC Turned Off Pre-Collision Brake
System Unavailable” will be displayed on the multi-information display.
278
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
LDA (Lane Departure Alert with steering
control)
When driving on highways and freeways with white (yellow) lines, this
function alerts the driver when the vehicle might depart from its lane
and provides assistance by operating the steering wheel to keep the
vehicle in its lane.
The LDA system recognizes visi-
ble white (yellow) lines with the
camera sensor on the upper por-
tion of the front windshield.
◆ Lane departure alert function
When the system determines
that the vehicle might depart
from its lane, a warning is dis-
played on the multi-information
display and the warning buzzer
sounds to alert the driver.
When the warning buzzer
sounds, check the surrounding
road situation and carefully
operate the steering wheel to
move the vehicle back to the
center of the lane.
Summary of functions
Functions included in LDA system
SIENNA_OM_OM08035U_(U)
279
4-5. Using the driving support systems
4
Driving
◆ Steering control function
When the system determines
that the vehicle might depart
from its lane, the system pro-
vides assistance as necessary
by operating the steering wheel
in small amounts for a short
period of time to keep the vehi-
cle in its lane.
If the system detects that the
steering wheel has not been
operated for a fixed amount of
time or the steering wheel is not
being firmly gripped, a warning
is displayed on the multi-infor-
mation display and the function
is temporarily canceled.
◆ Vehicle sway warning function
When the vehicle is swaying or
appears as if it may depart from
its lane multiple times, the
warning buzzer sounds and a
message is displayed on the
multi-information display to alert
the driver.
280
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
WARNING
■ Before using LDA system
Do not rely solely upon the LDA system. The LDA system does not auto-
matically drive the vehicle or reduce the amount of attention that must be
paid to the area in front of the vehicle. The driver must always assume full
responsibility for driving safely by paying careful attention to the surround-
ing conditions and operating the steering wheel to correct the path of the
vehicle. Also, the driver must take adequate breaks when fatigued, such as
from driving for a long period of time.
Failure to perform appropriate driving operations and pay careful attention
may lead to an accident, resulting in death or serious injury.
■ To avoid operating LDA system by mistake
When not using the LDA system, use the LDA switch to turn the system off.
■ Situations unsuitable for LDA system
Do not use the LDA system in the following situations.
The system may not operate properly and lead to an accident, resulting in
death or serious injury.
● A spare tire, tire chains, etc. are equipped.
● When the tires have been excessively worn, or when the tire inflation pres-
sure is low.
● Tires which differ by structure, manufacturer, brand or tread pattern are
used.
● Objects or patterns that could be mistaken for white (yellow) lines are
present on the side of the road (guardrails, curbs, reflective poles, etc.).
● Vehicle is driven on a snow-covered road.
● White (yellow) lines are difficult to see due to rain, snow, fog, dust, etc.
● Asphalt repair marks, white (yellow) line marks, etc. are present due to
road repair.
● Vehicle is driven in a temporary lane or restricted lane due to construction
work.
● Vehicle is driven on a road surface which is slippery due to rainy weather,
fallen snow, freezing, etc.
● Vehicle is driven in traffic lanes other than on highways and freeways.
● Vehicle is driven in a construction zone.
● Vehicle is towing a trailer or another vehicle.
SIENNA_OM_OM08035U_(U)
281
4-5. Using the driving support systems
4
Driving
Press the LDA switch to turn the
LDA system on.
The LDA indicator illuminates and
a message is displayed on the
multi-information display.
Press the LDA switch again to turn
the LDA system off.
When the LDA system is turned on
or off, operation of the LDA system
continues in the same condition
the next time the engine is started.
WARNING
■ Preventing LDA system malfunctions and operations performed by
mistake
● Do not modify the headlights or place stickers, etc. on the surface of the
lights.
● Do not modify the suspension etc. If the suspension etc. needs to be
replaced, contact your Toyota dealer.
● Do not install or place anything on the hood or grille. Also, do not install a
grille guard (bull bars, kangaroo bar, etc.).
● If your windshield needs repairs, contact your Toyota dealer.
Turning LDA system on
282
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
LDA indicator
The illumination condition of the
indicator informs the driver of
the system operation status.
Illuminated in white:
LDA system is operating.
Illuminated in green:
Steering wheel assistance of the
steering control function is operat-
ing.
Flashing in amber:
Lane departure alert function is
operating.
Operation display of steering wheel operation support
Indicates that steering wheel assistance of the steering control
function is operating.
Lane departure alert function display
Displayed when the multi-information display is switched to the
driving assist system information screen.
Indications on multi-information display
1
2
3
Inside of displayed white lines
is white
Inside of displayed white lines
is black
Indicates that the system is recog-
nizing white (yellow) lines. When
the vehicle departs from its lane,
the white line displayed on the
side the vehicle departs from
flashes amber.
Indicates that the system is not
able to recognize white (yellow)
lines or is temporarily canceled.
SIENNA_OM_OM08035U_(U)
283
4-5. Using the driving support systems
4
Driving
■ Operation conditions of each function
● Lane departure alert function
This function operates when all of the following conditions are met.
• LDA is turned on.
• Vehicle speed is approximately 32 mph (50 km/h) or more.
• System recognizes white (yellow) lines.
• Width of traffic lane is approximately 9.8 ft. (3 m) or more.
• Turn signal lever is not operated.
• Vehicle is driven on a straight road or around a gentle curve with a radius
of more than approximately 492 ft. (150 m).
• No system malfunctions are detected. (P. 286)
● Steering control function
This function operates when all of the following conditions are met in addi-
tion to the operation conditions for the lane departure alert function.
• Setting for “Steering Assist” in on the multi-information display is
set to “On”. (P. 9 2)
• Vehicle is not accelerated or decelerated by a certain amount or more.
• Steering wheel is not operated with a steering force level suitable for
changing lanes.
• ABS, VSC, TRAC and PCS are not operating.
• TRAC or VSC is not turned off.
• Hands off steering wheel warning is not displayed.(P. 284)
● Vehicle sway warning function
This function operates when all of the following conditions are met.
• Setting for “Sway Warning” in on the multi-information display is
set to “On”. (P. 9 2)
• Vehicle speed is approximately 32 mph (50 km/h) or more.
• Width of traffic lane is approximately 9.8 ft. (3 m) or more.
• No system malfunctions are detected. (P. 286)
284
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
■ Temporary cancellation of functions
When the operation conditions are no longer met, a function may be tempo-
rarily canceled. However, when the operation conditions are met again, oper-
ation of the function is automatically restored. (P. 283)
■ Steering control function
Depending on the vehicle speed, lane departure situation, road conditions,
etc., the driver may not feel the function is operating or the function may not
operate at all.
■ Lane departure alert function
The warning buzzer may be difficult to hear due to external noise, audio play-
back, etc.
■ Hands off steering wheel warning
Depending on the vehicle and road conditions, the warning may not operate.
■ Vehicle sway warning function
Depending on the vehicle and road conditions, the warning may not operate.
■ White (yellow) lines are only on one side of road
The LDA system will not operate for the side on which white (yellow) lines
could not be recognized.
When the system determines that the
driver has removed their hands from the
steering wheel while the steering control
function is operating, a warning message
urging the driver to hold the steering
wheel and the symbol shown in the illus-
tration are displayed on the multi-
information display.
If the driver continues to keep their hands
off of the steering wheel, a warning mes-
sage and the symbol shown in the illustra-
tion are displayed on the multi-information
display, and the function is temporarily
canceled. This warning also operates in
the same way when the driver continu-
ously operates the steering wheel only a
small amount. Always keep your hands
on the steering wheel when using this
system, regardless of warnings.
When the system determines that the
vehicle is swaying while the vehicle sway
warning function is operating, a buzzer
sounds and a warning message urging
the driver to rest and the symbol shown in
the illustration are simultaneously dis-
played on the multi-information display.
SIENNA_OM_OM08035U_(U)
285
4-5. Using the driving support systems
4
Driving
■ Conditions in which functions may not operate properly
In the following situations, the camera sensor may not detect white (yellow)
lines and various functions may not operate normally.
● There are shadows on the road that run parallel with, or cover, the white
(yellow) lines.
● The vehicle is driven in an area without white (yellow) lines, such as in front
of a tollgate or checkpoint, or at an intersection, etc.
● The white (yellow) lines are cracked, “Botts’ dots”, “Raised pavement
marker” or stones are present.
● The white (yellow) lines cannot be seen or are difficult to see due to sand,
etc.
● The vehicle is driven on a road surface that is wet due to rain, puddles, etc.
● The traffic lines are yellow (which may be more difficult to recognize than
lines that are white).
● The white (yellow) lines cross over a curb, etc.
● The vehicle is driven on a bright surface, such as concrete.
● The vehicle is driven on a surface that is bright due to reflected light, etc.
● The vehicle is driven in an area where the brightness changes suddenly,
such as at the entrances and exits of tunnels, etc.
● Light from the headlights of an oncoming vehicle, the sun, etc. enters the
camera.
● The vehicle is driven where the road diverges, merges, etc.
● The vehicle is driven on a slope.
● The vehicle is driven on a road which tilts left or right, or a winding road.
● The vehicle is driven on an unpaved or rough road.
● The vehicle is driven around a sharp curve.
● The traffic lane is excessively narrow or wide.
● The vehicle is extremely tilted due to carrying heavy luggage or having
improper tire pressure.
● The distance to the preceding vehicle is extremely short.
● The vehicle is moving up and down a large amount due to road conditions
during driving (poor roads or road seams).
● The headlight lenses are dirty and emit a faint amount of light at night, or the
beam axis has deviated.
● The vehicle is struck by a crosswind.
● The vehicle has just changed lanes or crossed an intersection.
● Snow tires, etc. are equipped.
286
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
■ Warning message
If the following warning message is displayed on the multi-information display
and the LDA indicator illuminates in amber, follow the appropriate trouble-
shooting procedure.
If a different warning message is displayed, follow the instructions displayed
on the screen.
Warning message Details/Actions
“Lane Departure
Alert
Malfunction
Contact Your Dealer”
The system may not be operating properly.
Have the vehicle inspected at your Toyota
dealer.
“Front Camera
Unavailable Remove
Debris On Windshield”
Dirt, rain, condensation, ice, snow, etc. are pres-
ent on the windshield in front of the camera sen-
sor.
Turn the LDA system off, remove any dirt,
rain, condensation, ice, snow, etc. from
the windshield, and then turn the LDA
system back on.
“Front Camera
Unavailable”
The operation conditions of the camera sensor
(temperature, etc.) are not met.
When the operation conditions of the
camera sensor (temperature, etc.) are
met, the LDA system will become avail-
able. Turn the LDA system off, wait for a
little while, and then turn the LDA system
back on.
“Lane Departure
Alert Unavailable”
The LDA system is temporarily canceled due to
a malfunction in a sensor other than the camera
sensor.
Turn the LDA system off and follow the
appropriate troubleshooting procedures
for the warning message. Afterward, drive
the vehicle for a short time, and then turn
the LDA system back on.
“Lane Departure
Alert
Unavailable
Below Approx
32 MPH”
The LDA system cannot be used as the vehicle
speed is less than approximately 32 mph (50
km/h).
Drive the vehicle at approximately 32 mph
(50 km/h) or more.
SIENNA_OM_OM08035U_(U)
287
4-5. Using the driving support systems
4
Driving
■ Customization
The following settings can be changed.
For how to change settings, refer to P. 540
Function Setting details
Lane departure alert function Adjust alert sensitivity
Steering control function Turn steering wheel assistance on and off
Vehicle sway warning function
Turn function on and off
Adjust alert sensitivity
288
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
Dynamic radar cruise control
In vehicle-to-vehicle distance control mode, the vehicle automatically
accelerates and decelerates to match the speed changes of the pre-
ceding vehicle even if the accelerator pedal is not depressed. In con-
stant speed control mode, the vehicle runs at a fixed speed.
Use the dynamic radar cruise control on freeways and highways.
● Vehicle-to-vehicle distance control mode (P. 292)
● Constant speed control mode (P. 297)
Indicators
Set speed
Display
Vehicle-to-vehicle distance
switch
Cruise control switch
Summary of functions
1
2
3
4
5
SIENNA_OM_OM08035U_(U)
289
4-5. Using the driving support systems
4
Driving
WARNING
■ Before using dynamic radar cruise control
● Driving safely is the sole responsibility of the driver. Do not rely solely on
the system, and drive safely by always paying careful attention to your sur-
roundings.
● The dynamic radar cruise control provides driving assistance to reduce the
driver’s burden. However, there are limitations to the assistance provided.
Read the following conditions carefully. Do not overly rely on this system
and always drive carefully.
• When the sensor may not be correctly detecting the vehicle ahead:
P. 299
• Conditions under which the vehicle-to-vehicle distance control mode
may not function correctly: P. 3 01
● Set the speed appropriately depending on the speed limit, traffic flow, road
conditions, weather conditions, etc. The driver is responsible for checking
the set speed.
● Even when the system is functioning normally, the condition of the preced-
ing vehicle as detected by the system may differ from the condition
observed by the driver. Therefore, the driver must always remain alert,
assess the danger of each situation and drive safely. Relying solely on this
system or assuming the system ensures safety while driving can lead to
an accident, resulting in death or serious injury.
● Switch the dynamic radar cruise control off using the “ON-OFF” button
when not in use.
290
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
WARNING
■ Cautions regarding the driving assist systems
Observe the following precautions, as there are limitations to the assistance
provided by the system.
Failure to do so may cause an accident resulting in death or serious injury.
● Assisting the driver to measure following distance
The dynamic radar cruise control is only intended to help the driver in
determining the following distance between the driver’s own vehicle and a
designated vehicle traveling ahead. It is not a mechanism that allows care-
less or inattentive driving, and it is not a system that can assist the driver in
low-visibility conditions. It is still necessary for driver to pay close attention
to the vehicle’s surroundings.
● Assisting the driver to judge proper following distance
The dynamic radar cruise control determines whether the following dis-
tance between the driver’s own vehicle and a designated vehicle traveling
ahead is within a set range. It is not capable of making any other type of
judgement. Therefore, it is absolutely necessary for the driver to remain
vigilant and to determine whether or not there is a possibility of danger in
any given situation.
● Assisting the driver to operate the vehicle
The dynamic radar cruise control does not include functions which will pre-
vent or avoid collisions with vehicles ahead of your vehicle. Therefore, if
there is ever any possibility of danger, the driver must take immediate and
direct control of the vehicle and act appropriately in order to ensure the
safety of all involved.
SIENNA_OM_OM08035U_(U)
291
4-5. Using the driving support systems
4
Driving
WARNING
■ Situations unsuitable for dynamic radar cruise control
Do not use dynamic radar cruise control in any of the following situations.
Doing so may result in inappropriate speed control and could cause an acci-
dent resulting in death or serious injury.
● Roads where there are pedestrians, cyclists, etc.
● In heavy traffic
● On roads with sharp bends
● On winding roads
● On slippery roads, such as those covered with rain, ice or snow
● On steep downhills, or where there are sudden changes between sharp up
and down gradients
Vehicle speed may exceed the set speed when driving down a steep hill.
● At entrances to freeways and highways
● When weather conditions are bad enough that they may prevent the sen-
sors from detecting correctly (fog, snow, sandstorm, heavy rain, etc.)
● When there is rain, snow, etc. on the front surface of the radar sensor or
camera sensor
● In traffic conditions that require frequent repeated acceleration and decel-
eration
● When your vehicle is towing a trailer or during emergency towing
● When an approach warning buzzer is heard often
292
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
This mode employs a radar sensor to detect the presence of vehicles
up to approximately 328 ft. (100 m) ahead, determines the current
vehicle-to-vehicle following distance, and operates to maintain a suit-
able following distance from the vehicle ahead.
Note that vehicle-to-vehicle distance will close in when traveling on down-
hill slopes.
Example of constant speed cruising
When there are no vehicles ahead
The vehicle travels at the speed set by the driver. The desired vehicle-to-
vehicle distance can also be set by operating the vehicle-to-vehicle dis-
tance switch.
Example of deceleration cruising and follow-up cruising
When a preceding vehicle driving slower than the set speed
appears
When a vehicle is detected running ahead of you, the system automatically
decelerates your vehicle. When a greater reduction in vehicle speed is
necessary, the system applies the brakes (the stop lights will come on at
this time). The system will respond to changes in the speed of the vehicle
ahead in order to maintain the vehicle-to-vehicle distance set by the driver.
Approach warning warns you when the system cannot decelerate suffi-
ciently to prevent your vehicle from closing in on the vehicle ahead.
Example of acceleration
When there are no longer any preceding vehicles driving slower
than the set speed
The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.
Driving in vehicle-to-vehicle distance control mode
1
2
3
SIENNA_OM_OM08035U_(U)
293
4-5. Using the driving support systems
4
Driving
Press the “ON-OFF” button to
activate the cruise control.
Radar cruise control indicator will
come on and a message will be
displayed on the multi-information
display.
Press the button again to deacti-
vate the cruise control.
If the “ON-OFF” button is pressed
and held for 1.5 seconds or more,
the system turns on in constant
speed control mode. (P. 297)
Accelerate or decelerate, with
accelerator pedal operation, to
the desired vehicle speed (at or
above approximately 30 mph
[50 km/h]) and push the lever
down to set the speed.
Cruise control “SET” indicator will
come on.
The vehicle speed at the moment
the lever is released becomes the
set speed.
Setting the vehicle speed (vehicle-to-vehicle distance control
mode)
1
2
294
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
To change the set speed, operate the lever until the desired set speed
is displayed.
Increases the speed
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired
direction.
Large adjustment: Hold the lever
up or down to change the speed,
and release when the desired
speed is reached.
In the vehicle-to-vehicle distance control mode, the set speed will be
increased or decreased as follows:
U.S. mainland and Hawaii
Fine adjustment: By 1 mph (1.6 km/h)*
1
or 1 km/h (0.6 mph)*
2
each time
the lever is operated
Large adjustment: Increases or decreases in 1 mph (1.6 km/h)
*
1
or 1 km/h
(0.6 mph)
*
2
increments for as long as the lever is held
Canada, Samoa, Guam, Saipan and Puerto Rico
Fine adjustment: By 1 mph (1.6 km/h)*
1
or 1 km/h (0.6 mph)*
2
each time
the lever is operated
Large adjustment: Increases or decreases in 5 mph (8 km/h)
*
1
or 5 km/h
(3.1 mph)
*
2
increments for as long as the lever is held
In the constant speed control mode (P. 297), the set speed will be
increased or decreased as follows:
Fine adjustment: By 1 mph (1.6 km/h)*
1
or 1 km/h (0.6 mph)*
2
each time
the lever is operated
Large adjustment: The speed will continue to change while the lever is
held.
*
1
: When the set speed is shown in “MPH”
*
2
: When the set speed is shown in “km/h”
Adjusting the set speed
1
2
SIENNA_OM_OM08035U_(U)
295
4-5. Using the driving support systems
4
Driving
Pressing the switch changes the
vehicle-to-vehicle distance as fol-
lows:
Long
Medium
Short
The vehicle-to-vehicle distance is
set automatically to long mode
when the engine switch is turned to
the “ON” position (vehicles without
a smart key system) or IGNITION
ON mode (vehicles with a smart
key system).
If a vehicle is running ahead of you, the preceding vehicle mark will also be
displayed.
Select a distance from the table below. Note that the distances shown
correspond to a vehicle speed of 50 mph (80 km/h). Vehicle-to-vehicle
distance increases/decreases in accordance with vehicle speed.
Changing the vehicle-to-vehicle distance (vehicle-to-vehicle dis-
tance control mode)
Preceding
vehicle mark
1
2
3
Vehicle-to-vehicle distance settings (vehicle-to-vehicle distance
control mode)
Distance options Vehicle-to-vehicle distance
Long Approximately 160 ft. (50 m)
Medium Approximately 130 ft. (40 m)
Short Approximately 100 ft. (30 m)
296
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
Pulling the lever toward you
cancels the speed control.
The speed control is also canceled
when the brake pedal is
depressed.
Pushing the lever up resumes
the cruise control and returns
vehicle speed to the set speed.
However, cruise control does not resume when the vehicle speed is
approximately 25 mph (40 km/h) or less.
When your vehicle is too close to
a vehicle ahead, and sufficient
automatic deceleration via the
cruise control is not possible, the
display will flash and the buzzer
will sound to alert the driver. An
example of this would be if
another driver cuts in front of you
while you are following a vehicle.
Depress the brake pedal to
ensure an appropriate vehicle-to-
vehicle distance.
■ Warnings may not occur when
In the following instances, warnings may not occur even when the
vehicle-to-vehicle distance is small.
● When the speed of the preceding vehicle matches or exceeds
your vehicle speed
● When the preceding vehicle is traveling at an extremely slow
speed
● Immediately after the cruise control speed was set
● When depressing the accelerator pedal
Canceling and resuming the speed control
1
2
Approach warning (vehicle-to-vehicle distance control mode)
SIENNA_OM_OM08035U_(U)
297
4-5. Using the driving support systems
4
Driving
When constant speed control mode is selected, your vehicle will main-
tain a set speed without controlling the vehicle-to-vehicle distance.
Select this mode only when vehicle-to-vehicle distance control mode
does not function correctly due to a dirty radar sensor, etc.
With the cruise control off,
press and hold the “ON-OFF”
button for 1.5 seconds or more.
Immediately after the “ON-OFF”
button is pressed, the radar cruise
control indicator will come on.
Afterwards, it switches to the cruise
control indicator.
Switching to constant speed con-
trol mode is only possible when
operating the lever with the cruise
control off.
Accelerate or decelerate, with
accelerator pedal operation, to
the desired vehicle speed (at or
above approximately 25 mph
[40 km/h]) and push the lever
down to set the speed.
Cruise control “SET” indicator will
come on.
The vehicle speed at the moment
the lever is released becomes the
set speed.
Adjusting the speed setting: P. 294
Canceling and resuming the speed setting: P. 296
Selecting constant speed control mode
1
2
298
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
■ Dynamic radar cruise control can be set when
● The shift lever is in D or range 4 or higher of S has been selected.
● Vehicle speed is at or above approximately 30 mph (50 km/h).
■ Accelerating after setting the vehicle speed
The vehicle can accelerate by operating the accelerator pedal. After acceler-
ating, the set speed resumes. However, during vehicle-to-vehicle distance
control mode, the vehicle speed may decrease below the set speed in order
to maintain the distance to the preceding vehicle.
■ Automatic cancelation of vehicle-to-vehicle distance control mode
Vehicle-to-vehicle distance control mode is automatically canceled in the fol-
lowing situations:
● Actual vehicle speed falls at or below approximately 25 mph (40 km/h).
● VSC is activated.
● TRAC is activated for a period of time.
● When the VSC or TRAC system is turned off.
● The sensor cannot detect correctly because it is covered in some way.
● Pre-collision braking is activated.
If vehicle-to-vehicle distance control mode is automatically canceled for any
other reason, there may be a malfunction in the system. Contact your Toyota
dealer.
SIENNA_OM_OM08035U_(U)
299
4-5. Using the driving support systems
4
Driving
■ Automatic cancelation of constant speed control mode
Constant speed control mode is automatically canceled in the following situa-
tions:
● Actual vehicle speed is more than approximately 10 mph (16 km/h) below
the set vehicle speed.
● Actual vehicle speed falls below approximately 25 mph (40 km/h).
● VSC is activated.
● TRAC is activated for a period of time.
● When the VSC or TRAC system is turned off.
● Pre-collision braking is activated.
If constant speed control mode is automatically canceled for any other rea-
son, there may be a malfunction in the system. Contact your Toyota dealer.
■ Brake system operation sound
If the brakes are applied automatically while the vehicle is in vehicle-to-vehi-
cle distance control mode, a brake system operation sound may be heard.
This does not indicate a malfunction.
■ If “Radar Cruise Control Unavailable” is shown on the multi-information
display
The radar cruise control system cannot be used temporarily. Use the system
when it becomes available again.
■ Warning messages and buzzers for dynamic radar cruise control
Warning messages and buzzers are used to indicate a system malfunction or
to inform the driver of the need for caution while driving. If a warning message
is shown on the multi-information display, read the message and follow the
instructions.
■ When the sensor may not be correctly detecting the vehicle ahead
In the case of the following and depending on the conditions, operate the
brake pedal when deceleration of the system is insufficient or operate the
accelerator pedal when acceleration is required.
As the sensor may not be able to correctly detect these types of vehicles, the
approach warning (P. 296) may not be activated.
● Vehicles that cut in suddenly
● Vehicles traveling at low speeds
● Vehicles that are not moving in the same lane
300
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
● Vehicles with small rear ends (trailers with no load on board, etc.)
● Motorcycles traveling in the same lane
● When water or snow thrown up by the surrounding vehicles hinders the
detecting of the sensor
● When your vehicle is pointing upwards
(caused by a heavy load in the luggage
compartment, etc.)
● Preceding vehicle has an extremely high
ground clearance
SIENNA_OM_OM08035U_(U)
301
4-5. Using the driving support systems
4
Driving
■ Conditions under which the vehicle-to-vehicle distance control mode
may not function correctly
In the case of the following conditions, operate the brake pedal (or accelera-
tor pedal, depending on the situation) as necessary.
As the sensor may not be able to correctly detect vehicles ahead, the system
may not operate properly.
● When the vehicle ahead of you decelerates suddenly
● When driving on a road surrounded by a structure, such as in a tunnel or on
a bridge
● While the vehicle speed is decreasing to the set speed after the vehicle
accelerates by depressing the accelerator pedal
● When the road curves or when the lanes
are narrow
● When steering wheel operation or your
position in the lane is unstable
302
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
BSM (Blind Spot Monitor)
The Blind Spot Monitor is a system that has 2 functions:
● The BSM (Blind Spot Monitor) function
Assists the driver in making the decision when changing lanes
● The RCTA (Rear Cross Traffic Alert) function
Assists the driver when backing up
These functions use same sensors.
Multi-information display
Turning the BSM function/RCTA function on/off. (P. 303)
Outside rear view mirror indicators
BSM function:
When a vehicle is detected in a blind spot of the outside rear view mirrors
or approaching rapidly from behind into a blind spot, the outside rear view
mirror indicator on the detected side will illuminate. If the turn signal lever
is operated toward the detected side, the outside rear view mirror indicator
flashes.
RCTA function:
When a vehicle approaching from the right or left rear of the vehicle is
detected, the outside rear view mirror indicators flash.
: If equipped
Summary of the Blind Spot Monitor
1
2
SIENNA_OM_OM08035U_(U)
303
4-5. Using the driving support systems
4
Driving
“BSM” indicator/“RCTA” indicator
When the BSM function/RCTA function is turned on, the indicator illumi-
nates.
RCTA buzzer (RCTA function only)
When a vehicle approaching from the right or left rear of the vehicle is
detected, a buzzer sounds from behind the rear seat.
Press or of the meter control switches, select .
Press or of the meter control switches, select “BSM” or
“RCTA”.
Press of the meter control switch.
Each time is pressed, the function changes on/off.
■ The outside rear view mirror indicators visibility
When under strong sunlight, the outside rear view mirror indicator may be dif-
ficult to see.
■ RCTA buzzer hearing
RCTA function may be difficult to hear over loud noises such as high audio
volume.
■ When “Blind Spot Monitor Unavailable” is shown on the multi-informa-
tion display
Water, snow, mud, etc., may be built up in the vicinity of the sensor area of
bumper. (P. 305) Removing the water, snow, mud, etc., from the vicinity of
the sensor area bumper should return it to normal.
Also, the sensor may not function normally when used in extremely hot or
cold weather.
Turning the BSM function/RCTA function on/off
3
4
1
2
3
304
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
■ Certification for the Blind Spot Monitor system
For vehicles sold in the U.S.A.
For vehicles sold in Canada
SIENNA_OM_OM08035U_(U)
305
4-5. Using the driving support systems
4
Driving
WARNING
■ Handling the radar sensor
One Blind Spot Monitor sensor is installed inside the left and right side of
the vehicle rear bumper respectively. Observe the following to ensure the
Blind Spot Monitor can function correctly.
● Do not subject the sensor or surrounding area on the bumper to a strong
impact. If the sensor moves even slightly off position, the system may mal-
function and vehicles that enter the detection area may not be detected. If
the sensor or surrounding area is subject to a strong impact, always have
the area inspected by your Toyota dealer.
● Do not disassemble the sensor.
● Do not attach accessories or stickers to the sensor or surrounding area on
the bumper.
● Do not modify the sensor or surrounding area on the bumper.
● Do not paint the rear bumper any color other than an official Toyota color.
● Keep the sensor and its surrounding area
on the bumper clean at all times.
If a sensor or its surrounding area on the
rear bumper is dirty or covered with snow,
the Blind Spot Monitor may not operate
and a warning message (P. 303) will be
displayed. In this situation, clear off the
dirt or snow and drive the vehicle with the
operation conditions of the BSM function
(P. 307) satisfied for approximately 10
minutes. If the warning message does not
disappear, have the vehicle inspected by
your Toyota dealer.
306
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
The BSM function uses radar sensors to detect vehicles that are trav-
eling in an adjacent lane in the area that is not reflected in the outside
rear view mirror (the blind spot), and advises the driver of the vehicles
existence via the outside rear view mirror indicator.
The areas that vehicles can be detected in are outlined below.
The range of the detection area
extends to:
Approximately 11.5 ft. (3.5 m)
from the side of the vehicle
The first 1.6 ft. (0.5 m) from the
side of the vehicle is not in the
detection area
Approximately 9.8 ft. (3 m) from
the rear bumper
Approximately 3.3 ft. (1 m) for-
ward of the rear bumper
The BSM function
The BSM function detection areas
1
2
3
WARNING
■ Cautions regarding the use of the system
The driver is solely responsible for safe driving. Always drive safely, taking
care to observe your surroundings.
The BSM function is a supplementary function which alerts the driver that a
vehicle is present in the blind spot. Do not overly rely on the BSM function.
The function cannot judge if it is safe to change lanes, therefore over reli-
ance could cause an accident resulting in death or serious injury.
According to conditions, the system may not function correctly. Therefore
the driver’s own visual confirmation of safety is necessary.
SIENNA_OM_OM08035U_(U)
307
4-5. Using the driving support systems
4
Driving
■ The BSM function is operational when
● The BSM function is turned on
● Vehicle speed is greater than approximately 10 mph (16 km/h).
■ The BSM function will detect a vehicle when
● A vehicle in an adjacent lane overtakes your vehicle.
● Another vehicle enters the detection area when it changes lanes.
● You overtake a vehicle in adjacent lane slowly
■ Conditions under which the BSM function will not detect a vehicle
The BSM function is not designed to detect the following types of vehicles
and/or objects:
● Small motorcycles, bicycles, pedestrians etc.
*
● Vehicles traveling in the opposite direction
● Guardrails, walls, signs, parked vehicles and similar stationary objects
*
● Following vehicles that are in the same lane*
● Vehicles driving 2 lanes across from your vehicle*
● Vehicles which are being overtaken rapidly by your vehicle
*: Depending on conditions, detection of a vehicle and/or object may occur.
308
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
■ Conditions under which the BSM function may not function correctly
● The BSM function may not detect vehicles correctly in the following condi-
tions:
• When the sensor is misaligned due to a strong impact to the sensor or its
surrounding area
• When mud, snow, ice, a sticker, etc. is covering the sensor or surround-
ing area on the rear bumper
• When driving on a road surface that is wet with standing water during bad
weather, such as heavy rain, snow, or fog
• When multiple vehicles approach with only a small gap between each
vehicle
• When there is a significant difference in speed between your vehicle and
the vehicle that enters the detection area
• When a vehicle is in the detection area from a stop and remains in the
detection area as your vehicle accelerates
• When towing a trailer
• When the vehicle that enters the detection area is traveling at about the
same speed as your vehicle
• When driving up or down consecutive steep inclines, such as hills, a dip
in the road etc.
• When driving on roads with sharp bends, consecutive curves, or uneven
surfaces
• When vehicle lanes are wide, and the vehicle in the next lane is too far
away from your vehicle
• When there is a significant difference in height between your vehicle and
the vehicle that enters the detection area
• Directly after the BSM function is turned on
• When items such as a bicycle carrier are installed on the rear of the vehi-
cle
SIENNA_OM_OM08035U_(U)
309
4-5. Using the driving support systems
4
Driving
● Instances of the BSM function unnecessarily detecting a vehicle and/or
object may increase under the following conditions:
• When there is only a short distance between your vehicle and a guardrail,
wall etc.
• When there is only a short distance between your vehicle and a following
vehicle
• When driving up and down consecutive steep inclines, such as hills, dips
in the road, etc.
• When driving on roads with sharp bends, consecutive curves, or uneven
surfaces
• When vehicle lanes are narrow and a vehicle driving 2 lanes across from
your vehicle enters the detection area
• When items such as a bicycle carrier are installed on the rear of the vehi-
cle
• When the sensor is misaligned due to a strong impact to the sensor or its
surrounding area
The RCTA functions when your vehicle is in reverse. It can detect
other vehicles approaching from the right or left rear of the vehicle. It
uses radar sensors to alert the driver of the other vehicle’s existence
through flashing the outside rear view mirror indicators and sounding
a buzzer.
The RCTA function
Approaching vehicles Detection areas
1 2
310
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
The areas that vehicles can be detected in are outlined below.
To give the driver a more consistent time to react, the buzzer can alert
for faster vehicles from farther away.
Example:
WARNING
■ Cautions regarding the use of the system
The driver is solely responsible for safe driving. Always drive safely, taking
care to observe your surroundings.
The RCTA function is only an assist and is not a replacement for careful
driving. Driver must be careful when backing up, even when using RCTA
function. The driver’s own visual confirmation of behind you and your
vehicle is necessary and be sure there are no pedestrians, other vehicles
etc. before backing up. Failure to do so could cause death or serious injury.
According to conditions, the system may not function correctly. Therefore
the driver’s own visual confirmation of safety is necessary.
The RCTA function detection areas
Approaching vehicle Speed
Approximate
alert distance
Fast 18 mph (28 km/h) 65 ft. (20 m)
Slow 5 mph (8 km/h) 18 ft (5.5 m)
1
SIENNA_OM_OM08035U_(U)
311
4-5. Using the driving support systems
4
Driving
■ The RCTA function is operational when
● The RCTA function is turned on.
● The shift lever is in R.
● Vehicle speed is less than approximately 5 mph (8 km/h).
● Approaching vehicle speed is between approximately 5 mph (8 km/h) and
18 mph (28 km/h).
■ Conditions under which the RCTA function will not detect a vehicle
The RCTA function is not designed to detect the following types of vehicles
and/or objects.
● Vehicles approaching from directly behind
● Vehicles backing up in the parking space next to your vehicle
● Guardrails, walls, signs, parked vehicles and similar stationary objects
*
● Small motorcycles, bicycles, pedestrians etc.*
● Vehicles moving away from your vehicle
● Vehicles approaching from the parking spaces next to your vehicle
*
● Vehicles which suddenly accelerate or decelerate near your vehicle
*: Depending on conditions, detection of a vehicle and/or object may occur.
● Vehicles that the sensors cannot detect
due to obstructions
312
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
■ Conditions under which the RCTA function may not function correctly
● The RCTA function may not detect vehicles correctly in the following condi-
tions:
• When the sensor is misaligned due to a strong impact to the sensor or its
surrounding area
• When mud, snow, ice, a sticker, etc. is covering the sensor or surround-
ing area on the rear bumper
• When driving on a road surface that is wet with standing water during bad
weather, such as heavy rain, snow, or fog
• When multiple vehicles are approaching with only a small gap between
each vehicle
• When a vehicle is approaching at high speed
• When parking on a steep incline, such as hills, a dip in the road etc.
• Directly after the RCTA function is turned on
• Immediately after the engine is started with the RCTA function on
• When towing a trailer
• When backing up on a slope with a
sharp change in grade
• When backing out of a shallow angle
parking spot
• When a vehicle turns into the detec-
tion area
SIENNA_OM_OM08035U_(U)
313
4-5. Using the driving support systems
4
Driving
● Instances of the RCTA function unnecessarily detecting a vehicle and/or
object may increase in the following situations:
• When a vehicle passes by the side of your vehicle
■ When “Rear Cross Traffic Alert Unavailable” is shown on the multi-infor-
mation display
Water, snow, mud, etc., may be built up in the vicinity of the sensor area of
bumper. (P. 305) Removing the water, snow, mud, etc., from the vicinity of
the sensor area bumper should return it to normal.
Also, the sensor may not function normally when used in extremely hot or
cold weather.
■ Setting up BSM function/RCTA function
You can change the BSM function/RCTA function settings. (Customizable
features: P. 540)
• Vehicles that the sensors cannot
detect due to obstructions
• When the parking space faces a
street and vehicles are being driven
on the street
• When a vehicle passes by the side of
your vehicle
• When the distance between your
vehicle and metal objects, such as a
guardrail, wall, sign, or parked
vehicle, which may reflect electrical
waves toward the rear of the vehicle,
is short
314
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
Intuitive parking assist
Front corner sensors
(if equipped)
Rear corner sensors
Rear center sensors
Turns the intuitive parking assist
on/off
When on, the indicator light comes
on and the buzzer sounds to inform
the driver that the system is opera-
tional.
: If equipped
The distance from your vehicle to nearby obstacles when paral-
lel parking or maneuvering into a garage is measured by the
sensors and communicated via the multi-information display,
the audio/visual system screen and a buzzer. Always check the
surrounding area when using this system.
Types of sensors
1
2
3
Intuitive parking assist switch
SIENNA_OM_OM08035U_(U)
315
4-5. Using the driving support systems
4
Driving
When the sensors detect an obstacle, the following displays inform
the driver of the position and distance to the obstacle.
■ Multi-information display
Front corner sensor opera-
tion
Rear corner sensor operation
Rear center sensor operation
Select to mute the buzzer
sounds.
■ Audio/visual system screen
Insert display
When the rear view monitor sys-
tem is displayed.
A simplified image is displayed
on the right upper corner of the
audio/visual system screen
when an obstacle is detected.
Display
1
2
3
4
316
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
■ Muting the buzzer sound
● To mute the buzzer sound
The buzzer can be temporarily muted by pressing of the meter control
switches while an obstacle detection display is shown on the multi-informa-
tion display.
● To cancel the mute
Mute will be automatically canceled in the following situations.
• When the shift position is changed
• When the vehicle speed has reached or exceeded approximately 6 mph
(10 km/h) with the shift lever in D
• When the intuitive parking assist is turned off once and turned on again
• Vehicles without a smart key system: When the engine switch is turned
off once and turned to “ON” position again
Vehicles with a smart key system: When the engine switch is turned off
once and turned to IGNITION ON mode again
• When a sensor is malfunctioning
SIENNA_OM_OM08035U_(U)
317
4-5. Using the driving support systems
4
Driving
■ Distance display
Sensors that detect an obstacle will illuminate continuously or blink.
Sensor detection display, obstacle distance
Multi-
informatio
n
display
Insert display Approximate distance to obstacle
Toyota
parking
assist
monitor
Pan-
oramic
view
monitor
Front and rear
corner sensors
Rear center
sensors
(continu-
ous)
(blinking
slowly)
(blinking
slowly)
5.9 ft. (180 cm)
to
2.8 ft. (85 cm)
(continu-
ous)
(blinking) (blinking)
2.0 ft. (60 cm)
to
1.2 ft. (37.5 cm)
2.8 ft. (85 cm)
to
1.5 ft. (45 cm)
(continu-
ous)
(blinking
rapidly)
(blinking
rapidly)
1.2 ft. (37.5 cm)
to
0.8 ft. (25 cm)
1.5 ft. (45 cm)
to
1.1 ft. (35 cm)
(blinking) (continu-
ous)
(continu-
ous)
Less than
0.8 ft. (25 cm)
Less than
1.1 ft. (35 cm)
Far
Near
318
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
■ Buzzer operation and distance to an obstacle
A buzzer sounds when the sensors are operating.
● The buzzer sounds faster as the vehicle approaches an obstacle.
When the vehicle comes within the following distance of the
obstacle, the buzzer sounds continuously.
• Front and rear corner sensors: Approximately 0.8 ft. (25 cm)
• Rear center sensors: Approximately 1.1 ft. (35 cm)
● When 2 or more obstacles are detected simultaneously, the
buzzer system responds to the nearest obstacle. If one or both
come within the above distances, the beep will repeat a long
tone, followed by fast beeps.
Approximately 2.0 ft. (60 cm)
Approximately 2.0 ft. (60 cm)
Approximately 5.9 ft. (180 cm)
The diagram shows the detection
range of the sensors. Note that the
sensors cannot detect obstacles
that are extremely close to the
vehicle.
The range of the sensors may
change depending on the shape of
the object etc.
*: if equipped
Detection range of the sensors
*
1
2
3
SIENNA_OM_OM08035U_(U)
319
4-5. Using the driving support systems
4
Driving
■ The intuitive parking assist can be operated when
● The engine switch is in the “ON” position (vehicles without a smart key sys-
tem) or IGNITION ON mode (vehicles with a smart key system).
● Front corner sensors:
• The shift lever is not in P.
• The vehicle speed is approximately 6 mph (10 km/h) or less.
● Rear corner and rear center sensors:
The shift lever is in R.
■ Intuitive parking assist display
When an obstacle is detected while the rear view monitor system or pan-
oramic view monitor (if equipped) is in use, the warning indicator will appear
in the upper part of the screen even if the display setting has been set to off.
■ Sensor detection information
● The sensor’s detection areas are limited to the areas around the vehicle’s
bumper.
● Depending on the shape of the obstacle and other factors, the detection dis-
tance may shorten, or detection may be impossible.
● Obstacles may not be detected if they are too close to the sensor.
● There will be a short delay between obstacle detection and display. Even at
slow speeds, there is a possibility that the obstacle will come within the sen-
sor’s detection.
● Thin posts or objects lower than the sensor may not be detected when
approached, even if they have been detected once.
● It might be difficult to hear beeps due to the volume of audio/visual system
or air flow noise of the air conditioning system.
■ Certification (Canada only)
This ISM device complies with Canadian ICES-001.
Cet appareil ISM est conforme a la norme NMB-001 du Canada.
WARNING
■ When using the Intuitive parking assist-sensor
Observe the following precautions.
Failure to do so may result in the vehicle being unable to be driven safely
and possibly cause an accident.
● Do not use the sensor at speeds in excess of 6 mph (10 km/h).
● The sensors’ detection areas and reaction times are limited. When moving
forward or reversing, check the areas surrounding the vehicle (especially
the sides of the vehicle) for safety, and drive slowly, using the brake to
control the vehicle’s speed.
● Do not install accessories within the sensors’ detection areas.
320
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
WARNING
■ Sensors
Certain vehicle conditions and the surrounding environment may affect the
ability of a sensor to correctly detect an obstacle. Particular instances where
this may occur are listed below.
● There is dirt, snow or ice on the sensor. (Wiping the sensors will resolve
this problem.)
● The sensor is frozen. (Thawing the area will resolve this problem.)
In especially cold weather, if a sensor is frozen the screen may show an
abnormal display, or obstacles may not be detected.
● The sensor is covered in any way.
● The vehicle is leaning considerably to one side.
● On an extremely bumpy road, on an incline, on gravel, or on grass.
● The vicinity of the vehicle is noisy due to vehicle horns, motorcycle
engines, air brakes of large vehicles, or other loud noises producing ultra-
sonic waves.
● There is another vehicle equipped with parking assist sensors in the vicin-
ity.
● The sensor is coated with a sheet of spray or heavy rain.
● The sensor is drenched with water on a flooded road.
● The vehicle is equipped with a fender pole or wireless antenna.
● Towing eyelets are installed.
● The bumper or sensor receives a strong impact.
● The vehicle is approaching a tall or curved curb.
● The detection range is reduced due to an object such as a sign.
● In harsh sunlight or intense cold weather.
● The area directly under the bumpers is not detected.
● If obstacles draw too close to the sensor.
● A non-genuine Toyota suspension (lowered suspension, etc.) is installed.
● A backlit license plate is installed.
In addition to the examples above, there are instances in which, because of
their shape, signs and other objects may be judged by a sensor to be closer
than they are.
SIENNA_OM_OM08035U_(U)
321
4-5. Using the driving support systems
4
Driving
WARNING
■ Obstacles which may not be properly detected
The shape of the obstacle may prevent a sensor from detecting it. Pay par-
ticular attention to the following obstacles:
● Wires, fences, ropes, etc.
● Cotton, snow and other materials that absorb sound waves
● Sharply-angled objects
● Low obstacles
● Tall obstacles with upper sections projecting outwards in the direction of
your vehicle
● People may not be detected if they are wearing certain types of clothing.
● Moving objects such as people or animals
NOTICE
■ When using intuitive parking assist
In the following situations, the system may not function correctly due to a
sensor malfunction, etc. Have the vehicle checked by your Toyota dealer.
● The intuitive parking assist operation display flashes, and a buzzer sounds
when no obstacles are detected.
● If the area around a sensor collides with something, or is subjected to
strong impact.
● If the bumper collides with something.
● If the display shows continuously without beeping, except when the buzzer
volume is muted.
● If a display error occurs, first check the sensor.
If the error occurs even if there is no ice, snow or mud on the sensor, it is
likely that the sensor is malfunctioning.
■ Notes when washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.
322
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
Driving assist systems
◆ ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly,
or if the brakes are applied while driving on a slippery road surface
◆ Brake assist
Generates an increased level of braking force after the brake pedal
is depressed when the system detects a panic stop situation
◆ VSC (Vehicle Stability Control)
Helps the driver to control skidding when swerving suddenly or
turning on slippery road surfaces
◆ TRAC (Traction Control)
Helps to maintain drive power and prevent the drive wheels from
spinning when starting the vehicle or accelerating on slippery roads
◆ Hill-start assist control
Helps to reduce the backward movement of the vehicle when start-
ing on an uphill
◆ EPS (Electric Power Steering)
Employs an electric motor to reduce the amount of effort needed to
turn the steering wheel
◆ Active Torque Control 4WD (AWD models only)
Automatically switches from front-wheel drive to AWD (All-Wheel
Drive) according to driving conditions, helping to ensure reliable
handling and stability. Examples of conditions where the system will
switch to AWD are when cornering, going uphill, starting off or
accelerating, and when the road surface is slippery due to snow or
rain etc.
To keep driving safety and performance, the following systems
operate automatically in response to various driving situations.
Be aware, however, that these systems are supplementary and
should not be relied upon too heavily when operating the
vehicle.
SIENNA_OM_OM08035U_(U)
323
4-5. Using the driving support systems
4
Driving
The slip indicator light will flash
while the TRAC/VSC systems are
operating.
If the vehicle gets stuck in mud, dirt or snow, the TRAC system may
reduce power from the engine to the wheels. Pressing to turn the
system off may make it easier for you to rock the vehicle in order to
free it.
■ Turning off the TRAC system only
When the TRAC/VSC systems are operating
Disabling the TRAC system
To turn the TRAC system off, quickly
press and release .
The “Traction Control OFF” will be
shown on the multi-information display.
Press again to turn the system
back on.
324
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
■ Turning off both TRAC and VSC systems
To turn the TRAC and VSC systems off, press and hold for more than 3
seconds while the vehicle is stopped.
The VSC OFF indicator light will come on and the “Traction Control Turned
Off” will be shown on the multi-information display.
*
Press again to turn the systems back on.
*: Pre-collision brake assist and pre-collision braking will also be disabled.
The PCS warning light will come on and the message will be shown on the
multi-information display. (P. 472)
■ When the message is displayed on the multi-information display show-
ing that TRAC has been disabled even if has not been pressed
TRAC is temporary deactivated. If the information continues to show, contact
your Toyota dealer.
■ Sounds and vibrations caused by the ABS, brake assist, VSC, TRAC and
hill-start assist control systems
● A sound may be heard from the engine compartment when the brake pedal
is depressed repeatedly, when the engine is started or just after the vehicle
begins to move. This sound does not indicate that a malfunction has
occurred in any of these systems.
● Any of the following conditions may occur when the above systems are
operating.
None of these indicates that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard also after the vehicle comes to a stop.
• The brake pedal may pulsate slightly after the ABS is activated.
• The brake pedal may move down slightly after the ABS is activated.
■ EPS operation sound
When the steering wheel is operated, a motor sound (whirring sound) may be
heard. This does not indicate a malfunction.
■ Automatic reactivation of TRAC and VSC systems
After turning the TRAC and VSC systems off, the systems will be automati-
cally re-enabled in the following situations:
● When the engine switch is turned to the “LOCK” position (vehicles without a
smart key system) or off (vehicles with a smart key system)
● If only the TRAC system is turned off, the TRAC will turn on when vehicle
speed increases
If both the TRAC and VSC systems are turned off, automatic re-enabling will
not occur when vehicle speed increases.
SIENNA_OM_OM08035U_(U)
325
4-5. Using the driving support systems
4
Driving
■ Reduced effectiveness of the EPS system
The effectiveness of the EPS system is reduced to prevent the system from
overheating when there is frequent steering input over an extended period of
time. The steering wheel may feel heavy as a result. Should this occur, refrain
from excessive steering input or stop the vehicle and turn the engine off. The
EPS system should return to normal within 10 minutes.
■ Operating conditions of hill-start assist control
When the following four conditions are met, the hill-start assist control will
operate:
● The shift lever is in a position other than P or N (when starting off forward/
backward on an upward incline)
● The vehicle is stopped
● The accelerator pedal is not depressed
● The parking brake is not engaged
■ Automatic system cancelation of hill-start assist control
The hill-start assist control will turn off in any of the following situations:
● The shift lever is shifted to P or N
● The accelerator pedal is depressed
● The parking brake is engaged
● No more than 2 seconds have elapsed after the brake pedal is released
WARNING
■ The ABS does not operate effectively when
● The limits of tire gripping performance have been exceeded (such as
excessively worn tires on a snow covered road).
● The vehicle hydroplanes while driving at high speed on wet or slick roads.
■ Stopping distance when the ABS is operating may exceed that of nor-
mal conditions
The ABS is not designed to shorten the vehicle’s stopping distance. Always
maintain a safe distance from the vehicle in front of you, especially in the
following situations:
● When driving on dirt, gravel or snow-covered roads
● When driving with tire chains
● When driving over bumps in the road
● When driving over roads with potholes or uneven surfaces
326
SIENNA_OM_OM08035U_(U)
4-5. Using the driving support systems
WARNING
■ TRAC/VSC may not operate effectively when
Directional control and power may not be achievable while driving on slip-
pery road surfaces, even if the TRAC/VSC system is operating. Drive the
vehicle carefully in conditions where stability and power may be lost.
■ Hill-start assist control does not operate effectively when
● Do not overly rely on hill-start assist control. Hill-start assist control may
not operate effectively on steep inclines and roads covered with ice.
● Unlike the parking brake, hill-start assist control is not intended to hold the
vehicle stationary for an extended period of time. Do not attempt to use
hill-start assist control to hold the vehicle on an incline, as doing so may
lead to an accident.
■ When the VSC is activated
The slip indicator light flashes. Always drive carefully. Reckless driving may
cause an accident. Exercise particular care when the indicator light flashes.
■ When the TRAC/VSC systems are turned off
Be especially careful and drive at a speed appropriate to the road condi-
tions. As these are the systems to help ensure vehicle stability and driving
force, do not turn the TRAC/VSC systems off unless necessary.
■
Replacing tires
Make sure that all tires are of the specified size, brand, tread pattern
and total load capacity. In addition, make sure that the tires are inflated
to the recommended tire inflation pressure level.
The ABS, TRAC and VSC systems will not function correctly if different
tires are installed on the vehicle.
Contact your Toyota dealer for further information when replacing tires
or wheels.
■ Handling of tires and the suspension
Using tires with any kind of problem or modifying the suspension will
affect the driving assist systems, and may cause a system to malfunc-
tion.
■ Active Torque Control 4WD system (AWD models only)
● The AWD system of this vehicle is intended to ensure driving stability on
normal roads. It is not designed for use in demanding situations such as
rally driving.
● Take care when driving on slippery road surfaces.
327
SIENNA_OM_OM08035U_(U)
4-6. Driving tips
4
Driving
Winter driving tips
● Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect the condition of the battery.
● Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
Perform the following according to the driving conditions:
● Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle
328
SIENNA_OM_OM08035U_(U)
4-6. Driving tips
Accelerate the vehicle slowly, keep a safe distance between you and
the vehicle ahead, and drive at a reduced speed suitable to road con-
ditions.
● Park the vehicle and move the shift lever to P without setting the
parking brake. The parking brake may freeze up, preventing it from
being released. If the vehicle is parked without setting the parking
brake, make sure block the wheels.
Failure to do so may be dangerous because it may cause the vehi-
cle to move unexpectedly, possibly leading to an accident.
● If the vehicle is parked without setting the parking brake, confirm
that the shift lever cannot be moved out of P
*.
*: The shift lever will be locked if it is attempted to be shifted from P to any
other position without depressing the brake pedal. If the shift lever can be
shifted from P, there may be a problem with the shift lock system. Have the
vehicle inspected by your Toyota dealer immediately.
Use the tire chains of correct size and type.
Use SAE Class “S” type radial tire chains, with the exception of radial
cable chains or V-bar type chains.
Regulations regarding the use of tire chains vary depending on loca-
tion and type of road. Always check local regulations before installing
chains.
■ Tire chain installation
Observe the following precautions when installing and removing chains.
● Install and remove tire chains in a safe location.
● Install tire chains on the front tires only. Do not install tire chains on the rear
tires.
● Install tire chains on front tires as tightly as possible. Retighten chains after
driving 1/4 - 1/2 mile (0.5 - 1.0 km).
● Install tire chains following the instructions provided with the tire chains.
When driving the vehicle
When parking the vehicle
Selecting tire chains
Regulations on the use of tire chains
SIENNA_OM_OM08035U_(U)
329
4-6. Driving tips
4
Driving
WARNING
■ Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
● Use tires of the specified size.
● Maintain the recommended level of air pressure.
● Do not drive in excess of 75 mph (120 km/h), regardless of the type of
snow tires being used.
● Use snow tires on all, not just some wheels.
■ Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
● Do not drive in excess of the speed limit specified for the tire chains being
used or 30 mph (50 km/h), whichever is lower.
● Avoid driving on bumpy road surfaces or over potholes.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
● Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
NOTICE
■ Repairing or replacing snow tires
Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.
■ Fitting tire chains
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.
330
SIENNA_OM_OM08035U_(U)
4-6. Driving tips
331
SIENNA_OM_OM08035U_(U)
5
Interior features
5-1. Using the air conditioning
system and defogger
Front automatic air
conditioning system ........ 332
Rear automatic air
conditioning system ........ 341
Heated steering
wheel/seat heaters.......... 344
• Heated steering
wheel ............................ 345
• Seat heaters ................. 346
5-2. Using the interior lights
Interior lights list ................ 347
• Personal/interior light
main switch................... 348
• Personal/interior
lights ............................. 348
• Rear ceiling lights ......... 349
5-3. Using the storage features
List of storage features ..... 350
• Glove boxes.................. 351
• Console box.................. 352
• Cup holders .................. 354
• Bottle holders................ 356
• Door pockets................. 357
• Auxiliary boxes.............. 358
Luggage compartment
features........................... 361
5-4. Using the other interior
features
Other interior features ....... 363
• Sun visors..................... 363
• Vanity mirrors................ 363
• Conversation mirror ...... 364
• Power outlets................ 365
• USB charging ports....... 368
• Armrests ....................... 370
• Assist grips ................... 371
• Rear side sunshades.... 372
• Grocery bag hooks ....... 373
Garage door opener.......... 374
Compass........................... 381
Safety Connect ................. 385
332
SIENNA_OM_OM08035U_(U)
5-1. Using the air conditioning system and defogger
Front automatic air conditioning system
■ Adjusting the temperature setting
Turn the “TEMP” dial clockwise to increase the temperature and
counterclockwise to decrease the temperature.
If is not pressed, the system will blow ambient temperature
air or heated air.
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Air conditioning controls
SIENNA_OM_OM08035U_(U)
333
5-1. Using the air conditioning system and defogger
5
Interior features
■ The “SYNC” button
The air conditioning system switches between individual (indica-
tor(s) off) and simultaneous (indicators on) modes.
When the air conditioning system is in simultaneous mode, the pas-
senger and/or rear side temperature will be synchronized with
driver side’s.
The air conditioning system switches simultaneous
Press the “SYNC” button. (indicators on)
Driver side indicator
Passenger side indicator
When the indicator is on, the
passenger side temperature will
be synchronized with driver
side.
Rear side indicator
When the indicator is on*, the
rear side temperature will be
synchronized with driver side.
*: When the rear air conditioning system is on. (P. 335)
The air conditioning system switches individual
The temperature for the driver, passenger and/or rear seats side
can be adjusted separately.
When all indicators on the “SYNC” button are on:
• Press the “SYNC” button. (All indicators will turn off.)
• The “PASS TEMP” dial is turned. (The passenger side indicator
will turn off.)
• The “REAR TEMP” dial is turned. (The rear side indicator will
turn off.)
When two indicators on the “SYNC” button are on:
• Press the “SYNC” button a second time. (All indicators will turn
off.)
If both the temperature of the passenger and rear seats side are
changed, all indicators on the button will be off.
1
2
3
334
5-1. Using the air conditioning system and defogger
SIENNA_OM_OM08035U_(U)
■
Adjusting the fan speed setting
Press “” on to increase the fan speed and “” to
decrease the fan speed.
Press to turn the fan off.
■
Change the airflow mode
To change the air outlets, press
the “MODE” button.
The air outlets used are
switched each time the button is
pressed.
Air flows to the upper
body.
Air flows to the upper body
and feet.
Air flows to the feet.
Air flows to the feet and
the windshield defogger
operates.
1
2
3
4
SIENNA_OM_OM08035U_(U)
335
5-1. Using the air conditioning system and defogger
5
Interior features
Press (“AUTO” appears on the display).
Adjust the temperature setting.
To stop the operation, press .
■ Automatic mode indicator
If the fan speed setting or air flow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated is maintained.
■ Adjusting the temperature setting
Press the “REAR” button (indicator and rear temperature on the
display on).
Turn the “REAR TEMP” dial clockwise to increase the tempera-
ture and counterclockwise to decrease the temperature.
The air conditioning system switches between individual (the lower side
indicator on the “SYNC” button is off) and simultaneous (the lower side
indicator on the “SYNC” button is on) modes each time the “SYNC” but-
ton is pressed.
■
Adjusting the fan speed
Press “” on to increase the fan speed and “” to
decrease the fan speed.
Press to turn the fan off.
■
Changing the air outlets
Press the “REAR MODE” button.
The air outlets switch each time the button is pressed. (P. 342)
Using the automatic mode
Changing the rear setting
1
2
3
1
2
336
5-1. Using the air conditioning system and defogger
SIENNA_OM_OM08035U_(U)
■
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode ( appears on the
display) and recirculated air mode ( appears on the display) each
time the button is pressed.
■
Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press
.
Set to outside air mode if the recirculated air mode is used. (It
may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and
temperature up.
To return to the previous mode, press again when the wind-
shield is defogged.
■
Rear window defogger, outside rear view mirror defoggers (if
equipped) and windshield wiper de-icer (if equipped)
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors. The wind-
shield wiper de-icer is used to prevent ice from building up on the
windshield and wiper blades.
Press .
The defoggers and windshield wiper de-icer will automatically turn off
after a period of time.
Other functions
SIENNA_OM_OM08035U_(U)
337
5-1. Using the air conditioning system and defogger
5
Interior features
■ Location of air outlets
The air outlets and air volume
changes according to the
selected air flow mode.
■ Adjusting the air flow direction and opening/closing the air
outlets
Turn the knob to open or close the vent.
Direct air flow to the left or right, up or down.
Air outlets
Center outlets Right and left side outlets
1
2
338
5-1. Using the air conditioning system and defogger
SIENNA_OM_OM08035U_(U)
■ Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after is pressed.
■ When the outside temperature exceeds 75°F (24°C) and the air condition-
ing system is on
● In order to reduce the air conditioning power consumption, the air condition-
ing system may switch to recirculated air mode automatically.
This may also reduce fuel consumption.
● Recirculated air mode is selected as a default mode when the engine switch
is turned to the “ON” position (vehicles without a smart key system) or
IGNITION ON mode (vehicles with a smart key system).
● It is possible to switch to outside air mode at any time by pressing .
■ Fogging up of the windows
● The windows will easily fog up when the humidity in the vehicle is high.
Pressing on will dehumidify the air from the outlets and defog the
windshield effectively.
● If you turn “A/C” off, the windows may fog up more easily.
● The windows may fog up if the recirculated air mode is used.
■ Outside/recirculated air mode
● When driving on dusty roads such as tunnels or in heavy traffic, set
to the recirculated air mode. This is effective in preventing outside air from
entering the vehicle interior. During cooling operation, setting the recircu-
lated air mode will also cool the vehicle interior effectively.
● Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.
SIENNA_OM_OM08035U_(U)
339
5-1. Using the air conditioning system and defogger
5
Interior features
■ Temperature display
The temperature display on the multi-information display can be changed.
(P. 540)
■ When
is selected for the air outlets used
For your driving comfort, air flowing to the feet may be warmer than air flow-
ing to the upper body depending on the temperature setting.
■ When the outside temperature is low
The dehumidification function may not operate even when is pressed.
■ When “A/C ON” flashes in the display
Press and turn off the air conditioning system before turning it on once
more. There may be a problem in the air conditioning system if “A/C ON” con-
tinues to flash. Turn the air conditioning system off and have it inspected by
your Toyota dealer.
■ Ventilation and air conditioning odors
● To let fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
● To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time
immediately after the air conditioning system is started in automatic
mode.
■ Air conditioning filter
P. 434
■ Customization
Settings (e.g. linked operation) can be changed.
(Customizable features: P. 546)
340
5-1. Using the air conditioning system and defogger
SIENNA_OM_OM08035U_(U)
WARNING
■ To prevent the windshield from fogging up
● Do not use during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, block-
ing your vision.
■ To prevent burns
● Do not touch the rear view mirror surfaces when the outside rear view mir-
ror defoggers (vehicles with outside rear view mirror defoggers) are on.
● Do not touch the glass at lower part of the windshield or to the side of the
front pillars when the windshield wiper de-icer is on. (vehicles with wind-
shield wiper de-icer)
NOTICE
■ To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
● Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers
from defogging.
341
SIENNA_OM_OM08035U_(U)
5-1. Using the air conditioning system and defogger
5
Interior features
Rear automatic air conditioning system
■ Adjusting the temperature setting
Press “” on the “TEMP” button to increase the temperature and “”
to decrease the temperature.
■ Adjusting the fan speed
Press “” on to increase the fan speed and “” to decrease
the fan speed.
Press the “OFF” button to turn the fan off.
Airflow and outlets are automatically adjusted according to the
temperature setting.
Air conditioning controls
342
5-1. Using the air conditioning system and defogger
SIENNA_OM_OM08035U_(U)
■
Changing the air outlets
Press the “MODE” button.
The air flow mode switch each time the button is pressed.
Air flows to the upper body.
Air flows to the upper body
and feet.
Air flows to the feet.
Press the “AUTO” button (“AUTO” appears on the display).
Adjust the temperature setting.
To stop the operation, press the “OFF” button.
■ Automatic mode indicator
If the fan speed setting or air flow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated is maintained.
■ Location of air outlets
The air outlets and air volume
changes according to the
selected air flow mode.
1
2
3
Using automatic mode
Air outlets
1
2
3
SIENNA_OM_OM08035U_(U)
343
5-1. Using the air conditioning system and defogger
5
Interior features
■ Adjusting the position of the air outlets
Direct air flow to the front or
rear, up or down.
■ Temperature display
The temperature display on the multi-information display can be changed.
(P. 540)
■ When the front air conditioning system is in simultaneous mode
The lower side indicator on the “SYNC” button is on. The rear air conditioning
system controls will continue to function. (P. 332)
NOTICE
■ To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
344
SIENNA_OM_OM08035U_(U)
5-1. Using the air conditioning system and defogger
Heated steering wheel
/seat heaters
: If equipped
Heated steering wheel and seat heaters heat the side grips of the
steering wheel and seats, respectively.
WARNING
● Care should be taken to prevent injury if anyone in the following categories
comes in contact with the steering wheel and seats when the heater is on:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Observe the following precautions to prevent minor burns or overheating:
• Do not cover the seat with a blanket or cushion when using the seat
heater.
• Do not use seat heater more than necessary.
NOTICE
● Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
● To prevent battery discharge, do not use the functions when the engine is
not running.
SIENNA_OM_OM08035U_(U)
345
5-1. Using the air conditioning system and defogger
5
Interior features
Turns the heated steering wheel
on/off
The indicator light comes on when
the heated steering wheel is oper-
ating.
● The heated steering wheel can be used when the engine switch is in IGNI-
TION ON mode.
● The heated steering wheel will automatically turn off after about 30 minutes.
Heated steering wheel
346
5-1. Using the air conditioning system and defogger
SIENNA_OM_OM08035U_(U)
For driver’s seat
For front passenger’s seat
On
The indicator light comes on.
Adjusts the seat temperature
The further you move the dial
upward, the warmer the seat
becomes.
● The seat heaters can be used when the engine switch is in the “ON” position
(vehicles without a smart key system) or IGNITION ON mode (vehicles with
a smart key system).
● When not in use, move the dial fully downward. The indicator light turns off.
Seat heaters
1
2
3
4
347
SIENNA_OM_OM08035U_(U)
5-2. Using the interior lights
5
Interior features
Interior lights list
Rear personal/interior lights (if equipped) (P. 348)
Rear ceiling lights (if equipped) (P. 349)
Front personal/interior lights (P. 348)
Engine switch light
Front door courtesy lights (if equipped)
Outer foot lights (if equipped)
1
2
3
4
5
6
348
SIENNA_OM_OM08035U_(U)
5-2. Using the interior lights
Turns the lights on
Turns the door position on
Turns the lights off
■ Front
Turns the light on/off
■ Rear (if equipped)
Turns the light on/off
When the personal/interior light main switch is in the off position, the
rear personal lights will not turn on even if the switch is on.
Personal/interior light main switch
1
2
3
Personal/interior lights
Type A Type B
SIENNA_OM_OM08035U_(U)
349
5-2. Using the interior lights
5
Interior features
Turns the lights on/off
When the personal/interior light
main switch is in the off position,
the rear ceiling lights will not turn
on even if the switch is on.
■ Adjusting the rear personal/interior lights angle (if equipped)
■ Illuminated entry system
Vehicles without a smart key system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/ unlocked, and whether the doors are open/
closed.
Vehicles with a smart key system
The lights automatically turn on/off according to engine switch mode, the
presence of the electronic key, whether the doors are locked/unlocked, and
whether the doors are open/closed.
■ To prevent battery discharge
If the interior lights remain on when the engine switch is turned off, the lights
will go off automatically after 20 minutes.
■ Customization
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: P. 547)
Rear ceiling lights (if equipped)
Push the edge of the light lens.
NOTICE
■ Rear ceiling lights (if equipped)
Do not hang anything on the gap between the ceiling light cover and the
ceiling or pull the ceiling light cover strongly.
Doing so may cause damage.
350
SIENNA_OM_OM08035U_(U)
5-3. Using the storage features
List of storage features
Auxiliary boxes (P. 358)
Cup holders (P. 354)
Door pockets (P. 357)
Bottle holders (P. 356)
Glove boxes (P. 351)
Console box (if equipped)
(P. 352)
WARNING
● Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
• Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release
gas, causing a fire hazard.
● When driving or when the storage compartments are not in use, keep the
lids closed.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.
1
2
3
4
5
6
SIENNA_OM_OM08035U_(U)
351
5-3. Using the storage features
5
Interior features
Upper glove box
Push the button.
Open the lid.
Lower glove box
The lower glove box can be opened by pulling the lever and can be
locked and unlocked by using the master key (vehicles without a
smart key) or the mechanical key (vehicles with a smart key system).
Unlock
Lock
Open
Glove boxes
1
2
1
2
3
352
SIENNA_OM_OM08035U_(U)
5-3. Using the storage features
Press the tab.
■ Sliding the console box (type B)
From front
From rear
■ Console box light
The console box light turns on when the headlight switch is on.
Console box (if equipped)
Type A Type B
Press the tab and slide the console box.
Pull up the lever and slide the console
box.
SIENNA_OM_OM08035U_(U)
353
5-3. Using the storage features
5
Interior features
WARNING
■ Console box adjustment precaution (type B)
● Do not adjust the position of the console box while the vehicle is moving.
This may cause the driver to mishandle the vehicle and may lead to an
accident that results in death or serious injury.
● Be careful not to get hands or feet pinched between the console box and
the rear sliding console or rear seat.
● Be careful not to allow the console box to hit any passenger while adjust-
ing its position.
● After adjusting the console box, make sure it is securely locked in position.
354
SIENNA_OM_OM08035U_(U)
5-3. Using the storage features
Cup holders
Front Console box type A
(if equipped)
Press in and release the front cup
holder.
Console box type B
(if equipped)
Console box type C
(if equipped)
Pull the lid down.
Second seat (if equipped) Rear
Removing the second center seat.
(P. 157)
SIENNA_OM_OM08035U_(U)
355
5-3. Using the storage features
5
Interior features
■ Cup holder light (console box type)
The cup holder light turns on when the headlight switch is on.
WARNING
Do not place anything other than cups or beverage cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
356
SIENNA_OM_OM08035U_(U)
5-3. Using the storage features
● When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
Bottle holders
Front Rear
II63SN007
WARNING
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
Rear: Make sure items in the sliding door bottle holder will not interfere with
the motion of the door before operating the door. Items that protrude from
the bottle holder may prevent door opening or damage the vehicle.
SIENNA_OM_OM08035U_(U)
357
5-3. Using the storage features
5
Interior features
Door pockets
Front Rear
NOTICE
Rear: Make sure magazines are not bent
or protruding from the sliding door pock-
ets. Do not insert anything too big so that
the shape of the sliding door pockets is
distorted. Such objects may obstruct the
opening/closing of the sliding doors,
damage the sliding door pockets or the
vehicle body, and may result in a mal-
function.
358
SIENNA_OM_OM08035U_(U)
5-3. Using the storage features
Auxiliary boxes
Type A Type B
Push the lid. Push down the knob.
Type C (if equipped) Type D
Type E (if equipped) Type F
Lift the lid.
SIENNA_OM_OM08035U_(U)
359
5-3. Using the storage features
5
Interior features
Type G (if equipped) Type H (if equipped)
Removing the second center seat.
(P. 157)
Type I (if equipped) Type J (if equipped)
Type K (if equipped)
360
SIENNA_OM_OM08035U_(U)
5-3. Using the storage features
■ Coin holder (type B)
Nickels, quarters and dimes can be stored
separately.
WARNING
■ Maximum storage weight (type A)
Do not store items heavier than 0.4 lb. (200 g).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident.
361
SIENNA_OM_OM08035U_(U)
5-3. Using the storage features
5
Interior features
Luggage compartment features
Raise the hook to use.
The cargo hooks are provided for
securing loose items.
Raise the hook to use.
Cargo hooks
WARNING
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
Cargo net hooks
Pattern 1 Pattern 2
NOTICE
To prevent damage to the cargo net hooks, avoid hanging things other than
a cargo net on them.
362
SIENNA_OM_OM08035U_(U)
5-3. Using the storage features
Engage the latch buckle.
Storage box (if equipped)
363
SIENNA_OM_OM08035U_(U)
5-4. Using the other interior features
5
Interior features
Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
To use the side extender, place
the visor in the side position,
then slide it backward.
Open the cover.
The light turns on when the cover
is opened.
■ To prevent battery discharge
If the vanity lights remain on for 20 minutes while the engine is off, the lights
will turn off automatically.
Sun visors
1
2
3
Vanity mirrors
364
SIENNA_OM_OM08035U_(U)
5-4. Using the other interior features
Push the lid and allow the lid to
open.
Push the lid. To first locked
position.
Conversation mirror
1
2
SIENNA_OM_OM08035U_(U)
365
5-4. Using the other interior features
5
Interior features
The power outlet can be used for the following components:
12 V: Accessories that run on less than 10 A
120 V AC: Accessories that use less than 100 W
■ 12 V
Open the cover.
Power outlets
Center panel type A Center panel type B
Luggage compartment
366
SIENNA_OM_OM08035U_(U)
5-4. Using the other interior features
■ 120 V AC (if equipped)
Open the cover.
Power outlet socket console
box type A
Power outlet socket console
box type B
Power outlet socket luggage
compartment
SIENNA_OM_OM08035U_(U)
367
5-4. Using the other interior features
5
Interior features
■ The power outlet can be used when
Vehicles without a smart key system
12 V: The engine switch is in the “ACC” or “ON” position.
120 V AC: The engine switch is in the “ON” position.
Vehicles with a smart key system
12 V: The engine switch is in ACCESSORY or IGNITION ON mode.
120 V AC: The engine switch is in IGNITION ON mode.
NOTICE
■ To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent blown fuse
12 V
Do not use an accessory that uses more than 12 V 10 A.
120 V AC
Do not use a 120 V AC appliance that requires more than 100 W.
If a 120 V AC appliance that consumes more than 100 W is used, the pro-
tection circuit may cut the power supply.
■ To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not
running.
■ Appliances that may not operate properly (120 V AC)
The following 120 V AC appliances may not operate properly even if their
power consumption is under 100 W:
● Appliances with high initial peak wattage
● Measuring devices that process precise data
● Other appliances that require an extremely stable power supply
368
SIENNA_OM_OM08035U_(U)
5-4. Using the other interior features
The USB charging ports are used to supply 2.1 A of electricity at 5 V
to external devices.
The USB charging ports are for charging only. They are not designed
for data transfer or other purposes.
Depending on the external device, it may not charge properly. Refer to
the manual included with the device before using a USB charging
port.
■ Using the USB charging ports
USB charging ports
Center panel (if equipped) Console box type A
(if equipped)
Open the lid Open the lid
Console box type B
(if equipped)
Auxiliary box (third seat left-
hand side)
Open the lid Open the auxiliary box lid and
open the lid.
SIENNA_OM_OM08035U_(U)
369
5-4. Using the other interior features
5
Interior features
■ The USB charging ports can be used when
Vehicles without a smart key system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart key system
The engine switch is in ACCESSORY or IGNITION ON mode.
■ Situations in which the USB charging ports may not operate correctly
● If a device which consumes more than 2.1 A at 5 V is connected
● If a device designed to communicate with a personal computer, such as a
USB memory device, is connected
● If the connected external device is turned off (depending on device)
● If the temperature inside the vehicle is high, such as after the vehicle has
been parked in the sun
■ About connected external devices
Depending on the connected external device, charging may occasionally be
suspended and then start again. This is not a malfunction.
NOTICE
■ To prevent damage to the USB charging ports
● Do not insert foreign objects into the ports.
● Do not spill water or other liquids into the ports.
● When the USB charging ports are not in use, close the lids. If a foreign
object or liquid enters a port may cause a short circuit.
● Do not apply excessive force to or impact the USB charging ports.
● Do not disassemble or modify the USB charging ports.
■ To prevent damage to external devices
● Do not leave external devices in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to an external device.
● Do not push down on or apply unnecessary force to an external device or
the cable of an external device while it is connected.
■ To prevent battery discharge
Do not use the USB charging ports for a long period of time with the engine
stopped.
370
SIENNA_OM_OM08035U_(U)
5-4. Using the other interior features
Pull the armrest down for use.
■ Adjusting the front seat armrests with lock release button (if equipped)
Armrests
Front seat Second seat (if equipped)
Push the armrest down while pressing the
button.
NOTICE
To prevent damage to the armrest, do not apply too much load on the arm-
rest.
SIENNA_OM_OM08035U_(U)
371
5-4. Using the other interior features
5
Interior features
Assist grips
Type A Type B
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
An assist grip installed on the pil-
lar can be used when getting in
or out of the vehicle and others.
WARNING
Type A: Do not use the assist grip when getting in or out of the vehicle or ris-
ing from your seat.
NOTICE
To prevent damage to the assist grip, do not hang any heavy object or put a
heavy load on the assist grip.
372
SIENNA_OM_OM08035U_(U)
5-4. Using the other interior features
Pull the tab up.
Secure the sunshade using the hooks.
To retract the sunshade, pull the tab up slightly to unhook the sunshade,
and lower the sunshade slowly.
Rear side sunshades (if equipped)
Rear door window Rear quarter window
NOTICE
To ensure normal operation of the rear sunshades, observe the following
precautions.
● Do not place anything where it may hinder the opening/closing of the sun-
shade.
● Do not place anything on the sunshade.
1
2
SIENNA_OM_OM08035U_(U)
373
5-4. Using the other interior features
5
Interior features
The hooks are designed to hang things like a grocery bag.
Grocery bag hooks
Type A (front seatback)
(if equipped)
Type B (third seatback)
Type C (luggage compartment) Type D (luggage compartment)
Pull the hook up.
WARNING
Type C: When not in use, keep the grocery bag hook stowed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
NOTICE
Type A and B: Do not hang any object heavier than 8.8 lb. (4 kg) on the gro-
cery bag hook.
ITN38N036
374
SIENNA_OM_OM08035U_(U)
5-4. Using the other interior features
Garage door opener
The HomeLink
®
wireless control system in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming methods on the following pages to determine the
method which is appropriate for the device.
HomeLink
®
indicator light
Garage door operation indica-
tors
Buttons
■ Before programming the HomeLink
®
● During programming, it is possible that garage doors, gates, or
other devices may operate. For this reason, make sure that peo-
ple and objects are clear of the garage door or other devices to
prevent injury or other potential harm.
● It is recommended that a new battery be placed in the remote
control transmitter for more accurate programming.
● Garage door opener motors manufactured after 1995 may be
equipped with rolling code protection. If this is the case, you may
need a stepladder or other sturdy, safe device to reach the
“Learn” or “Smart” button on the garage door opener motor.
: If equipped
The garage door opener can be programmed to operate garage
doors, gates, entry doors, door locks, home lighting systems,
security systems, and other devices.
HomeLink
®
1
2
3
SIENNA_OM_OM08035U_(U)
375
5-4. Using the other interior features
5
Interior features
■ Programming the HomeLink
®
Steps through must be performed within 60 seconds, other-
wise the indicator light will stop flashing and programming will not
be able to be completed.
Press and release the HomeLink
®
button you want to program
and check that the HomeLink
®
indicator light flashes orange.
Point the remote control
transmitter for the device at
the rear view mirror, 1 to 3 in.
(25 to 75 mm) from the
HomeLink
®
buttons.
Keep the HomeLink
®
indicator
light in view while programming.
Program a device.
Programming a device other than an entry gate (for U.S.A.
owners)
Press and hold the remote control transmitter button until the
HomeLink
®
indicator light changes from slowly flashing orange to
rapidly flashing green (rolling code) or continuously lit green
(fixed code), then release the button.
Programming an entry gate (for U.S.A. owners)/Programming
a device in the Canadian market
Press and release the remote control transmitter button at 2 sec-
ond intervals, repeatedly, until the HomeLink
®
indicator light
changes from slowly flashing orange to rapidly flashing green
(rolling code) or continuously lit green (fixed code).
1 3
1
2
3
376
SIENNA_OM_OM08035U_(U)
5-4. Using the other interior features
Test the HomeLink
®
operation by pressing the newly pro-
grammed button and observing the indicator light:
● Indicator light illuminates: Programming of a fixed code device
has completed. The garage door or other device should oper-
ate when a HomeLink
®
button is pressed and released.
● Indicator light flashes rapidly: The garage door opener motor
or other device is equipped with a rolling code. To complete
programming, firmly press and hold the HomeLink
®
button for
2 seconds then release it.
● If the garage door or other device does not operate, proceed
to “Programming a rolling code system”.
Repeat the steps above to program another device for any of the
remaining HomeLink
®
buttons.
■ Programming a rolling code system
2 or more people may be necessary to complete rolling code pro-
gramming.
Locate the “Learn” or “Smart”
button on the garage door
opener motor in the garage.
This button can usually be found
where the hanging antenna wire
is attached to the unit. The
name and color of the button
may vary by manufacturer.
Refer to the Owner’s manual
supplied with the garage door
opener motor for details.
Press and release the
“Learn” or “Smart” button.
Perform within 30 sec-
onds after performing .
4
5
1
2
3
2
SIENNA_OM_OM08035U_(U)
377
5-4. Using the other interior features
5
Interior features
Press and hold the desired
HomeLink
®
button (inside the
vehicle) for 2 seconds and
release it. Repeat this
sequence (press/hold/
release) up to 3 times to
complete programming.
If the garage door opener
motor operates when the
HomeLink
®
button is
pressed, the garage door
opener motor recognizes the
HomeLink
®
signal.
■ Enabling 2-way communication with a garage door (only avail-
able for compatible devices)
When enabled, 2-way communication allows you to check the sta-
tus of the opening and closing of a garage door through indicators
in your vehicle.
2-way communication is only available if the garage door opener
motor used is a compatible device. (To check device compatibility,
refer to www.HomeLink.com.)
Within 5 seconds after programming the garage door opener has
been completed, if the garage door opener motor is trained to
HomeLink
®
, both garage door operation indicators will flash rap-
idly green and the light on the garage door opener motor will
blink twice, indicating that 2-way communication is enabled.
If the indicators do not flash, perform and within the first 10
presses of the HomeLink
®
button after programming has been
completed.
Press a programmed HomeLink
®
button to operate a garage
door.
Within 1 minute of pressing the HomeLink
®
button, after the
garage door operation has stopped, press the “Learn” or “Smart”
button on the garage door opener motor. Within 5 seconds of the
establishment of 2-way communication with the garage door
opener, both garage door operation indicators in the vehicle will
flash rapidly green and the light on the garage door opener motor
will blink twice, indicating that 2-way communication is enabled.
3
1
2 3
2
3
378
SIENNA_OM_OM08035U_(U)
5-4. Using the other interior features
■ Reprogramming a single HomeLink
®
button
When the following procedure is performed, buttons which already
have devices registered to them can be overwritten:
With one hand, press and hold the desired HomeLink
®
button.
When the HomeLink
®
indicator starts flashing orange, continue
to hold the HomeLink
®
button and perform “Programming the
HomeLink
®
” (it takes 20 seconds for the HomeLink
®
indicator
to start flashing).
Press the appropriate HomeLink
®
button. The HomeLink
®
indicator
light should turn on.
The status of the opening and
closing of a garage door is shown
by the indicators.
Opening
Closing
This function is only available if the
garage door opener motor used is
a compatible device. (To check
device compatibility, refer to
www.HomeLink.com.)
The indicators can operate within approximately 820 ft. (250 m) of the
garage door. However, if there are obstructions between the garage
door and the vehicle, such as houses and trees, feedback signals
from the garage door may not be received. To recall the previous door
operation status, press and release either HomeLink
®
buttons
and or and simultaneously. The last
recorded status will be displayed for 3 seconds.
Operating the HomeLink
®
Garage door operation indicators
1
2
1
1
2
Color Status
Orange (flashing) Currently opening/closing
Green Opening/closing has completed
Red (flashing) Feedback signals cannot be received
SIENNA_OM_OM08035U_(U)
379
5-4. Using the other interior features
5
Interior features
Press and hold the 2 outside but-
tons for 10 seconds until the
HomeLink
®
indicator light
changes from continuously lit
orange to rapidly flashing green.
If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink
®
memory.
■ Codes stored in the HomeLink
®
memory
● The registered codes are not erased even if the battery cable is discon-
nected.
● If learning failed when registering a different code to a HomeLink
®
button
that already has a code registered to it, the already registered code will not
be erased.
■ Before programming
● Install a new battery in the transmitter.
● The battery side of the transmitter must be pointed away from the
HomeLink
®
.
■ Certification for the garage door opener
For vehicles sold in the U.S.A.
FCC ID: NZLAECHL5
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
NOTE:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
REMARQUE:
Le present appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisee aux deux
conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi,
meme si le brouillage est susceptible d’en compromettre le fonctionnement.
Erasing the entire HomeLink
®
memory (all three codes)
380
SIENNA_OM_OM08035U_(U)
5-4. Using the other interior features
■ About HomeLink
®
HomeLink and HomeLink house icon are registered trademarks of Gentex
Corporation.
■ When support is necessary
For compatible products and video programming instructions, please visit
www.homelink.com/toyota
, www.youtube.com/user/HomeLinkGentex, or call
the toll-free HomeLink Hotline at 1-800-355-3515 (North America).
WARNING
■ When programming a garage door or other remote control device
The garage door or other device may operate, so ensure people and
objects are out of danger to prevent potential harm.
■ Conforming to federal safety standards
Do not use the HomeLink
®
compatible transceiver with any garage door
opener or device that lacks safety stop and reverse features as required by
federal safety standards. This includes any garage door that cannot detect
an interfering object. A door or device without these features increases the
risk of death or serious injury.
■ When operating or programming HomeLink
®
Never allow a child to operate or play with the HomeLink
®
buttons.
381
SIENNA_OM_OM08035U_(U)
5-4. Using the other interior features
5
Interior features
Compass
To turn the compass on or off,
press and hold the button for 3
seconds.
: If equipped
The compass on the inside rear view mirror indicates the direc-
tion in which the vehicle is heading.
Operation
Displays and directions
Display Direction
N North
NE Northeast
E East
SE Southeast
S South
SW Southwest
W West
NW Northwest
382
SIENNA_OM_OM08035U_(U)
5-4. Using the other interior features
The direction display deviates from the true direction determined by
the earth’s magnetic field. The amount of deviation varies according to
the geographic position of the vehicle.
If you cross over a map boundary shown in illustration, the compass will
deviate.
To obtain higher precision or perfect calibration, refer to the following.
■
Deviation calibration
Stop the vehicle.
Press and hold the button for
6 seconds.
A number (1 to 15) appears
on the compass display.
Press the button and referring to the map above, select the num-
ber of the zone where you are.
If the direction is displayed several seconds after adjustment, the cali-
bration is complete.
Calibrating the compass
Samoa: 5 Guam: 8 Saipan: 8
1
2
3
SIENNA_OM_OM08035U_(U)
383
5-4. Using the other interior features
5
Interior features
■ Circling calibration
Stop the vehicle in a place where it is safe to drive in a circle.
Press and hold the button for
9 seconds.
“C” appears on the compass
display.
Drive the vehicle at 5 mph (8
km/h) or less in a circle until
a direction is displayed.
If there is not enough space to
drive in a circle, drive around the
block until the direction is dis-
played.
■ Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
● The vehicle is stopped immediately after turning.
● The vehicle is on an inclined surface.
● The vehicle is in a place where the earth’s magnetic field is subject to inter-
ference by artificial magnetic fields (underground car park/parking lot, under
a steel tower, between buildings, roof car park/parking lot, near an intersec-
tion, near a large vehicle, etc.).
● The vehicle has become magnetized.
(There is a magnet or metal object near the inside rear view mirror.)
● The battery has been disconnected.
● A door is open.
1
2
3
WARNING
■ While driving the vehicle
Do not adjust the display. Adjust the display only when the vehicle is
stopped.
■ When doing the circling calibration
Secure a wide space, and watch out for people and vehicles in the vicinity.
Do not violate any local traffic rules while performing circling calibration.
384
SIENNA_OM_OM08035U_(U)
5-4. Using the other interior features
NOTICE
■ To avoid compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror.
Doing this may cause the compass sensor to malfunction.
■ To ensure normal operation of the compass
● Do not perform circling calibration of the compass in a place where the
earth’s magnetic field is subject to interference by artificial magnetic fields.
● During calibration, do not operate electric systems (moon roof, power win-
dows, etc.) as they may interfere with the calibration.
385
SIENNA_OM_OM08035U_(U)
5-4. Using the other interior features
5
Interior features
Safety Connect
Microphone*
LED light indicators
“SOS” button
*: The installation position of the
microphone may differ for vehicles
with moon roof.
: If equipped
Safety Connect is a subscription-based telematics service that
uses Global Positioning System (GPS) data and embedded cel-
lular technology to provide safety and security features to sub-
scribers. Safety Connect is supported by Toyota’s designated
response center, which operates 24 hours per day, 7 days per
week.
Safety Connect service is available by subscription on select,
telematics hardware-equipped vehicles.
By using the Safety Connect service, you are agreeing to be
bound by the Telematics Subscription Service Agreement and
its Terms and Conditions, as in effect and amended from time to
time, a current copy of which is available at Toyota.com in the
United States, Toyotapr.com in Puerto Rico and Toyota.ca in
Canada. All use of the Safety Connect service is subject to such
then-applicable Terms and Conditions.
System components
1
2
3
386
SIENNA_OM_OM08035U_(U)
5-4. Using the other interior features
Subscribers have the following Safety Connect services available:
● Automatic Collision Notification
*
Helps drivers receive necessary response from emergency service
providers. (P. 388)
*: U.S. Patent No. 7,508,298 B2
● Stolen Vehicle Location
Helps drivers in the event of vehicle theft. (P. 388)
● Emergency Assistance Button (SOS)
Connects drivers to response-center support. (P. 388)
● Enhanced Roadside Assistance
Provides drivers various on-road assistance. (P. 389)
After you have signed the Telematics Subscription Service Agreement
and are enrolled, you can begin receiving services.
A variety of subscription terms is available for purchase. Contact your
Toyota dealer, call the following appropriate Safety Connect response
center or push the “SOS” button in your vehicle for further subscription
details.
• The United States
1-855-405-6500
• Canada
1-888-869-6828
• Puerto Rico
1-877-855-8377
Services
Subscription
SIENNA_OM_OM08035U_(U)
387
5-4. Using the other interior features
5
Interior features
■ Safety Connect Services Information
● Phone calls using the vehicles Bluetooth
®
technology will not be possible
during Safety Connect.
● Safety Connect is available beginning Fall 2009 on select Toyota models (in
the contiguous United States only). Contact with the Safety Connect
response center is dependent upon the telematics device being in operative
condition, cellular connection availability, and GPS satellite signal reception,
which can limit the ability to reach the response center or receive emer-
gency service support. Enrollment and Telematics Subscription Service
Agreement are required. A variety of subscription terms is available;
charges vary by subscription term selected and location.
● Automatic Collision Notification, Emergency Assistance and Stolen Vehicle
Location are available in the United States, including Hawaii and Alaska,
Puerto Rico and Canada, and Enhanced Roadside Assistance are available
in the United States, Puerto Rico and Canada.
● Automatic Collision Notification, Emergency Assistance, Stolen Vehicle and
Enhanced Road Assistance are not available in the U.S. Virgin Islands.
For vehicles first sold in the U.S. Virgin Islands, no Safety Connect services
will function in or outside the U.S. Virgin Islands.
● Safety Connect services are not subject to section 255 of the Telecommuni-
cations Act and the device is not TTY compatible.
■ Languages
The Safety Connect response center will offer support in multiple languages.
The Safety Connect system will offer voice prompts in English, Spanish, and
French. Please indicate your language of choice when enrolling.
■ When contacting the response center
You may be unable to contact the response center if the network is busy.
When the engine switch is turned to the “ON” position (vehicles with-
out a smart key system) or IGNITION ON mode (vehicles with a smart
key system), the red indicator light comes on for 2 seconds then turns
off. Afterward, the green indicator light comes on, indicating that the
service is active.
The following indicator light patterns indicate specific system usage
conditions:
● Green indicator light on = Active service
● Green indicator light flashing = Safety Connect call in process
● Red indicator light (except at vehicle start-up) = System malfunction
(contact your Toyota dealer)
● No indicator light (off) = Safety Connect service not active
Safety Connect LED light Indicators
388
SIENNA_OM_OM08035U_(U)
5-4. Using the other interior features
■ Automatic Collision Notification
In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding agent receives the vehicle’s location and attempts to
speak with the vehicle occupants to assess the level of emergency.
If the occupants are unable to communicate, the agent automati-
cally treats the call as an emergency, contacts the nearest emer-
gency services provider to describe the situation, and requests that
assistance be sent to the location.
■ Stolen Vehicle Location
If your vehicle is stolen, Safety Connect can work with local author-
ities to assist them in locating and recovering the vehicle. After filing
a police report, call the Safety Connect response center at 1-855-
405-6500 in the United States, 1-877-855-8377 in Puerto Rico or 1-
888-869-6828 in Canada, and follow the prompts for Safety Con-
nect to initiate this service.
In addition to assisting law enforcement with recovery of a stolen
vehicle, Safety-Connect-equipped vehicle location data may, under
certain circumstances, be shared with third parties to locate your
vehicle. Further information is available at Toyota.com in the United
States, Toyotapr.com in Puerto Rico and Toyota.ca in Canada.
■ Emergency Assistance Button (“SOS”)
In the event of an emergency on the road, push the “SOS” button to
reach the Safety Connect response center. The answering agent
will determine your vehicle’s location, assess the emergency, and
dispatch the necessary assistance required.
If you accidentally press the “SOS” button, tell the response-center
agent that you are not experiencing an emergency.
Safety Connect services
SIENNA_OM_OM08035U_(U)
389
5-4. Using the other interior features
5
Interior features
■ Enhanced Roadside Assistance
Enhanced Roadside Assistance adds GPS data to the already
included warranty-based Toyota roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs,
such as: towing, flat tire, fuel delivery, etc. For a description of the
Enhanced Roadside Assistance services and their limitations,
please see the Safety Connect Terms and Conditions, which are
available at Toyota.com in the United States, Toyotapr.com in
Puerto Rico and Toyota.ca in Canada.
Important! Read this information before using Safety Connect.
■ Exposure to radio frequency signals
The Safety Connect system installed in your vehicle is a low-power
radio transmitter and receiver. It receives and also sends out radio
frequency (RF) signals.
In August 1996, the Federal Communications Commission (FCC)
adopted RF exposure guidelines with safety levels for mobile wire-
less phones. Those guidelines are consistent with the safety stan-
dards previously set by the following U.S. and international
standards bodies.
● ANSI (American National Standards Institute) C95.1 [1992]
● NCRP (National Council on Radiation Protection and Measure-
ment) Report 86 [1986]
● ICNIRP (International Commission on Non-Ionizing Radiation
Protection) [1996]
Those standards were based on comprehensive and periodic eval-
uations of the relevant scientific literature. Over 120 scientists, engi-
neers, and physicians from universities, and government health
agencies and industries reviewed the available body of research to
develop the ANSI Standard (C95.1).
The design of Safety Connect complies with the FCC guidelines in
addition to those standards.
Safety information for Safety Connect
390
SIENNA_OM_OM08035U_(U)
5-4. Using the other interior features
■ Certification for Safety Connect
391
SIENNA_OM_OM08035U_(U)
6
Maintenance and care
6-1. Maintenance and care
Cleaning and protecting
the vehicle exterior.......... 392
Cleaning and protecting
the vehicle interior........... 395
6-2. Maintenance
Maintenance
requirements................... 398
General maintenance........ 401
Emission inspection and
maintenance (I/M)
programs......................... 404
6-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ..................... 405
Hood ................................. 407
Positioning a floor jack ...... 409
Engine compartment......... 410
Tires .................................. 420
Tire inflation pressure ....... 429
Wheels.............................. 432
Air conditioning filter.......... 434
Wireless remote control/
electronic key battery...... 436
Checking and replacing
fuses ............................... 439
Light bulbs......................... 442
392
SIENNA_OM_OM08035U_(U)
6-1. Maintenance and care
Cleaning and protecting the vehicle exterior
● Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.
● Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
● For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.
● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
■ Automatic car washes
● Before washing the vehicle:
• Fold the mirrors.
• Turn off the power back door system. (if equipped)
• Turn off the power sliding door system. (if equipped)
Start washing from the front of the vehicle. Make sure to extend the mirrors
before driving.
● Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint.
■ High pressure car washes
● Do not allow the nozzles of the car wash to come within close proximity of
the windows.
● Before using the car wash, check that the fuel filler door on your vehicle is
closed properly.
■ When using a car wash (vehicles with a smart key system)
● If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. Place the key in a posi-
tion 6 ft. (2 m) or more separate from the vehicle while the vehicle is being
washed. (Take care to ensure that the key is not stolen.)
● If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a message may be shown on the multi-information dis-
play and a buzzer will sound outside the vehicle. To turn off the alarm, lock
all the doors.
Perform the following to protect the vehicle and maintain it in
prime condition:
SIENNA_OM_OM08035U_(U)
393
6-1. Maintenance and care
6
Maintenance and care
■ Aluminum wheels
● Remove any dirt immediately by using a neutral detergent.
● Wash detergent off with water immediately after use.
● To protect the paint from damage, make sure to observe the following pre-
cautions.
• Do not use acidic, alkaline or abrasive detergent
• Do not use hard brushes
• Do not use detergent on the wheels when they are hot, such as after driv-
ing or parking in hot weather
■ Bumpers and side moldings
Do not scrub with abrasive cleaners.
WARNING
■ When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components etc. to catch fire.
■ When cleaning the windshield (vehicles with rain-sensing windshield
wiper)
● When the upper part of the windshield where the raindrop sensor is
located is touched by hand
● When a wet rag or similar is held close to the raindrop sensor
● If something bumps against the windshield
● If you directly touch the raindrop sensor body or if something bumps into
the raindrop sensor
■ Precautions regarding the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has
cooled sufficiently, as touching a hot exhaust pipe can cause burns.
■ Precaution regarding the Blind Spot Monitor (if equipped)
If the paint of the rear bumper is chipped or scratched, the system may mal-
function. If this occurs, consult your Toyota dealer.
Set the wiper switch to off.
If the wiper switch is in “AUTO”, the wip-
ers may operate unexpectedly in the fol-
lowing situations, and may result in
hands being caught or other serious inju-
ries and cause damage to the wiper
blades.
Off
394
SIENNA_OM_OM08035U_(U)
6-1. Maintenance and care
NOTICE
■ To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels etc.)
● Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If you see dead insects, insect droppings or bird droppings on the paint
• After driving in an area contaminated with soot, oily smoke, mine dust,
iron powder or chemical substances
• If the vehicle becomes heavily soiled in dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
● If the paint is chipped or scratched, have it repaired immediately.
● To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing wheels.
■ Cleaning the exterior lights
● Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surface of the lights.
● Do not apply wax on the surfaces of the lights.
Wax may cause damage to the lenses.
■ When using an automatic car wash (vehicles with rain-sensing wind-
shield wipers)
Set the wiper switch to the off position. If the wiper switch is in “AUTO”, the
wipers may operate and the wiper blades may be damaged.
■ When using a high pressure car wash
Do not bring the nozzle tip close to boots (rubber or resin manufactured
cover), connectors or the following parts. The parts may be damaged if they
come into contact with high-pressure water.
• Traction related parts
• Steering parts
• Suspension parts
•Brake parts
395
SIENNA_OM_OM08035U_(U)
6-1. Maintenance and care
6
Maintenance and care
Cleaning and protecting the vehicle interior
● Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces
with a cloth dampened with lukewarm water.
● If dirt cannot be removed, wipe it off with a soft cloth dampened with
neutral detergent diluted to approximately 1%.
Wring out any excess water from the cloth and thoroughly wipe off
remaining traces of detergent and water.
● Remove dirt and dust using a vacuum cleaner.
● Wipe off any excess dirt and dust with a soft cloth dampened with
diluted detergent.
Use a diluted water solution of approximately 5% neutral wool detergent.
● Wring out any excess water from the cloth and thoroughly wipe off
all remaining traces of detergent.
● Wipe the surface with a dry, soft cloth to remove any remaining
moisture. Allow the leather to dry in a shaded and ventilated area.
● Remove dirt and dust using a vacuum cleaner.
● Wipe it off with a soft cloth dampened with neutral detergent diluted
to approximately 1%.
● Wring out any excess water from the cloth and thoroughly wipe off
remaining traces of detergent and water.
The following procedures will help protect your vehicle’s interior
and keep it in top condition:
Protecting the vehicle interior
Cleaning the leather areas
Cleaning the synthetic leather areas
396
SIENNA_OM_OM08035U_(U)
6-1. Maintenance and care
■ Caring for leather areas
Toyota recommends cleaning the interior of the vehicle at least twice a year to
maintain the quality of the vehicle’s interior.
■ Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a sponge
or brush to apply the foam. Rub in overlapping circles. Do not use water.
Wipe dirty surfaces and let them dry. Excellent results are obtained by keep-
ing the carpet as dry as possible.
■ Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also
check the belts periodically for excessive wear, fraying or cuts.
WARNING
■ Water in the vehicle
● Do not splash or spill liquid in the vehicle.
Doing so may cause electrical components etc. to malfunction or catch
fire.
● Do not get any of the SRS components or wiring in the vehicle interior wet.
(P. 40)
An electrical malfunction may cause the airbags to deploy or not function
properly, resulting in death or serious injury.
■ Cleaning the interior (especially instrument panel)
Do not use polish wax or polish cleaner. The instrument panel may reflect
off the windshield, obstructing the driver’s view and leading to an accident,
resulting in death or serious injury.
SIENNA_OM_OM08035U_(U)
397
6-1. Maintenance and care
6
Maintenance and care
NOTICE
■ Cleaning detergents
● Do not use the following types of detergent, as they may discolor the
vehicle interior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline,
alkaline or acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco-
hol
● Do not use polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.
■ Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces.
● Remove any dust or dirt from leather surfaces immediately.
● Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
● Do not place items made of vinyl, plastic, or containing wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
■ Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio/visual system may be damaged if water
comes into contact with electrical components such as the audio/visual
system above or under the floor of the vehicle. Water may also cause the
body to rust.
■ Cleaning the inside of the rear window and the rear quarter windows
● Do not use glass cleaner to clean the rear window and the rear quarter
windows, as this may cause damage to the rear window defogger heater
wires or antenna. Use a cloth dampened with lukewarm water to gently
wipe the windows clean. Wipe the windows in strokes running parallel to
the heater wires or antenna.
● Be careful not to scratch or damage the heater wires or antenna.
■ When cleaning the inside of the windshield
Do not allow glass cleaner to contact the lens. Also, do not touch the lens.
(P. 263)
398
SIENNA_OM_OM08035U_(U)
6-2. Maintenance
Maintenance requirements
General maintenance should be performed on a daily basis. This can
be done by yourself or by a Toyota dealer.
Scheduled maintenance should be performed at specified intervals
according to the maintenance schedule.
For details about maintenance items and schedules, refer to the “Sched-
uled Maintenance Guide” or “Owner’s Manual Supplement”.
You can perform some maintenance procedures by yourself.
Please be aware that do-it-yourself maintenance may affect warranty
coverage.
The use of Toyota Repair Manuals is recommended.
For details about warranty coverage, see the separate “Owner’s Warranty
Information Booklet” or “Owner’s Manual Supplement”.
To ensure safe and economical driving, day-to-day care and reg-
ular maintenance are essential. It is the owner’s responsibility to
perform regular checks. Toyota recommends the following main-
tenance:
General maintenance
Scheduled maintenance
Do-it-yourself maintenance
SIENNA_OM_OM08035U_(U)
399
6-2. Maintenance
6
Maintenance and care
■ Repair and replacement
It is recommended that genuine Toyota parts be used for repairs to ensure
performance of each system. If non-Toyota parts are used in replacement or if
a repair shop other than a Toyota dealer performs repairs, confirm the war-
ranty coverage.
■ Resetting the message indicating maintenance is required (U.S.A. only)
After the required maintenance is preformed according to the maintenance
schedule, please reset the message.
To reset the message, follow the procedures described below:
While the engine is running, switch the multi-information display to the
“Settings” screen. (P. 540)
Select “Maintenance Reset” on the “Settings” screen.
Select “Yes” on the “Maintenance Reset” screen.
“Maintenance Reset Complete” will be displayed on the multi-information dis-
play when the reset procedure has been completed.
■ Allow inspection and repairs to be performed by a Toyota dealer
● Toyota technicians are well-trained specialists and are kept up to date with
the latest service information. They are well informed about the operations
of all systems on your vehicle.
● Keep a copy of the repair order. It proves that the maintenance that has
been performed is under warranty coverage. If any problem should arise
while your vehicle is under warranty, your Toyota dealer will promptly take
care of it.
1
2
3
400
SIENNA_OM_OM08035U_(U)
6-2. Maintenance
WARNING
■ If your vehicle is not properly maintained
Improper maintenance could result in serious damage to the vehicle and
possible serious injury or death.
■ Handling of the battery
● Engine exhaust, some of its constituents, and a wide variety of automobile
components contain or emit chemicals known to the State of California to
cause cancer and birth defects and other reproductive harm. Work in a
well ventilated area.
● Oils, fuels and fluids contained in vehicles as well as waste produced by
component wear contain or emit chemicals known to the State of Califor-
nia to cause cancer and birth defects or other reproductive harm. Avoid
exposure and wash any affected area immediately.
● Battery posts, terminals and related accessories contain lead and lead
compounds which are known to cause brain damage. Wash your hands
after handling. (P. 416)
401
SIENNA_OM_OM08035U_(U)
6-2. Maintenance
6
Maintenance and care
General maintenance
Listed below are the general maintenance items that should be
performed at the intervals specified in the “Owner’s Warranty
Information Booklet” or “Owner’s Manual Supplement/Sched-
uled Maintenance Guide”. It is recommended that any problem
you notice should be brought to the attention of your Toyota
dealer or qualified service shop for advice.
Engine compartment
Items Check points
Battery Check connections. (P. 416)
Brake fluid
Is the brake fluid at the correct level?
(P. 415)
Engine coolant
Is the engine coolant at the correct
level? (P. 413)
Engine oil
Is the engine oil at the correct level?
(P. 411)
Exhaust system
There should not be any fumes or strange
sounds.
Radiator/condenser
The radiator and condenser should be free
from foreign objects. (P. 415)
Washer fluid Is there sufficient washer fluid? (P. 419)
402
SIENNA_OM_OM08035U_(U)
6-2. Maintenance
Vehicle interior
Items Check points
Accelerator pedal
• The accelerator pedal should move
smoothly (without uneven pedal effort or
catching).
Automatic transaxle “Park”
mechanism
• When parked on a slope with the shift
lever in P, is the vehicle securely
stopped?
Brake pedal
• Does the brake pedal move smoothly?
• Does the brake pedal have appropriate
clearance from the floor? (P. 522)
• Does the brake pedal have the correct
amount of free play? (P. 522)
Brakes
• The vehicle should not pull to one side
when the brakes are applied.
• The brakes should work effectively.
• The brake pedal should not feel spongy.
• The brake pedal should not get too close
to the floor when the brakes are applied.
Head restraints
• Do the head restraints move smoothly
and lock securely?
Indicators/buzzers
• Do the indicators and buzzers function
properly?
Lights
• Do all the lights come on?
• Are the headlights aimed correctly?
Parking brake
• Does the parking brake lever or pedal
move smoothly?
• When parked on a slope with the parking
brake on, is the vehicle securely
stopped?
Seat belts
• Do the seat belts operate smoothly?
• The seat belts should not be damaged.
Seats • Do the seat controls operate properly?
Steering wheel
• Does the steering wheel rotate
smoothly?
• Does the steering wheel have the correct
amount of free play?
• There should not be any strange sounds
coming from the steering wheel.
SIENNA_OM_OM08035U_(U)
403
6-2. Maintenance
6
Maintenance and care
Vehicle exterior
Items Check points
Doors • Do the doors operate smoothly?
Engine hood
• Does the engine hood lock system work
properly?
Fluid leaks
• There should not be any signs of fluid
leakage after the vehicle has been
parked.
Tires
• Is the tire inflation pressure correct?
• The tires should not be damaged or
excessively worn.
• Have the tires been rotated according
to the maintenance schedule?
• The wheel nuts should not be loose.
Windshield wipers/
rear window wiper
• The wiper blades should not show any
signs of cracking, splitting, wear, contam-
ination or deformation.
• The wiper blades should clear the wind-
shield/rear window without streaking or
skipping.
WARNING
■ If the engine is running
Turn the engine off and ensure that there is adequate ventilation before per-
forming maintenance checks.
404
SIENNA_OM_OM08035U_(U)
6-2. Maintenance
Emission inspection and maintenance (I/M)
programs
The OBD system determines that a problem exists somewhere in the
emission control system. Your vehicle may not pass the I/M test and
may need to be repaired. Contact your Toyota dealer to service the
vehicle.
● When the battery is disconnected or discharged
Readiness codes that are set during ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may
not be completely set.
● When the fuel tank cap is loose
The malfunction indicator lamp comes on indicating a temporary
malfunction and your vehicle may not pass the I/M test.
The error code in the OBD system will not be cleared unless the vehi-
cle is driven 40 or more times.
Contact your Toyota dealer to prepare the vehicle for re-testing.
Some states have vehicle emission inspection programs which
include OBD (On Board Diagnostics) checks. The OBD system
monitors the operation of the emission control system.
If the malfunction indicator lamp comes on
Your vehicle may not pass the I/M test in the following situations:
When the malfunction indicator lamp still remains on after sev-
eral driving trips
If your vehicle does not pass the I/M test
405
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
6
Maintenance and care
Do-it-yourself service precautions
If you perform maintenance yourself, be sure to follow the cor-
rect procedure as given in these sections.
Items Parts and tools
Battery condition
(P. 416)
•Warm water • Baking soda • Grease
• Conventional wrench (for terminal clamp bolts)
Brake fluid level
(P. 415)
• FMVSS No.116 DOT 3 or SAE J1703 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine coolant
level (P. 413)
• “Toyota Super Long Life Coolant” or similar high
quality ethylene glycol based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology.
For the U.S.A.:
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
For Canada:
“Toyota Super Long Life Coolant” is pre-mixed with
55% coolant and 45% deionized water.
• Funnel (used only for adding engine coolant)
Engine oil level
(P. 4 11)
• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (P. 439) • Fuse with same amperage rating as original
Light bulbs
(P. 442)
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver • Wrench
Radiator and con-
denser (P. 415)
Tire inflation
pressure
(P. 429)
• Tire pressure gauge
• Compressed air source
Washer fluid
(P. 419)
• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)
406
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
WARNING
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions:
■ When working on the engine compartment:
● Keep hands, clothing and tools away from the moving fan and engine
drive belt.
● Be careful not to touch the engine, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
● Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
● Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.
● Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
■ When working near the electric cooling fans or radiator grille
Be sure the engine switch is in the “LOCK” position (vehicles without a
smart key system) or off (vehicles with a smart key system). With the engine
switch in the “ON” position (vehicles without a smart key system) or IGNI-
TION ON mode (vehicles with a smart key system), the electric cooling fans
may automatically start to run if the air conditioning is on and/or the coolant
temperature is high. (P. 415)
■ Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc.
from getting in your eyes.
NOTICE
■ If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
407
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
6
Maintenance and care
Hood
Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever
and lift the hood.
Hold the hood open by inserting
the supporting rod into the slot.
Release the lock from the inside of the vehicle to open the hood.
1
2
3
408
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
WARNING
■ Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■ After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
NOTICE
■ When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod up could cause the hood to bend.
409
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
6
Maintenance and care
Positioning a floor jack
◆ Front
◆ Rear
When using a floor jack, follow the instructions in the manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause
injury.
2WD models AWD models
1 2
410
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
Engine compartment
Washer fluid tank (P. 419)
Engine oil filler cap (P. 412)
Engine oil level dipstick
(P. 411 )
Engine coolant reservoir
(P. 413)
Brake fluid reservoir (P. 415)
Fuse box (P. 439)
Battery (P. 416)
Electric cooling fans
Condenser (P. 415)
Radiator (P. 415)
1
2
3
4
5
6
7
8
9
10
SIENNA_OM_OM08035U_(U)
411
6-3. Do-it-yourself maintenance
6
Maintenance and care
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning it off, wait more than 5 minutes for the oil to drain
back into the bottom of the engine.
Holding a rag under the end,
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
Low
Normal
Excessive
The shape of the dipstick may
differ depending on the type of
vehicle or engine.
Wipe the dipstick and reinsert it fully.
Engine oil
1
2
3
4
5
1
2
3
6
412
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
■ Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
Make sure to check the oil type and prepare the items needed
before adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
■ Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
● When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine
● If low quality oil or oil of an inappropriate viscosity is used
● When driving at high engine speeds or with a heavy load, when towing, or
when driving while accelerating or decelerating frequently
● When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
Engine oil selection P. 519
Oil quantity (LowFull) 1.9 qt. (1.8 L, 1.6 Imp.qt.)
Items Clean funnel
1
2
3
SIENNA_OM_OM08035U_(U)
413
6-3. Do-it-yourself maintenance
6
Maintenance and care
The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line.
WARNING
■ Used engine oil
● Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call your Toyota dealer, service station or auto parts store for
information concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
NOTICE
■ To prevent serious engine damage
Check the oil level on a regular basis.
■ When replacing the engine oil
● Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, or the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.
Engine coolant
1
2
3
414
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
■ Coolant selection
Only use “Toyota Super Long Life Coolant” or similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water.
(Minimum temperature: -31F [-35C])
Canada:
“Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deion-
ized water.
(Minimum temperature: -44F [-42C])
For more details about engine coolant, contact your Toyota dealer.
■ If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, radiator
cap, drain cock and water pump.
If you cannot find a leak, have your Toyota dealer test the cap and check for
leaks in the cooling system.
WARNING
■ When the engine is hot
Do not remove the radiator/engine coolant reservoir cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
NOTICE
■ When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
■ If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
SIENNA_OM_OM08035U_(U)
415
6-3. Do-it-yourself maintenance
6
Maintenance and care
Check the radiator and condenser and clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of
their condition, have your vehicle inspected by your Toyota dealer.
■ Checking fluid level
The brake fluid level should be
between the “MAX” and “MIN”
lines on the tank.
“MAX” line
“MIN” line
■ Adding fluid
Lift the cover off.
Make sure to check the fluid type and prepare the necessary item.
Radiator and condenser
WARNING
■ When the engine is hot
Do not touch the radiator or condenser as they may be hot and cause seri-
ous injuries, such as burns.
Brake fluid
1
2
Fluid type FMVSS No.116 DOT 3 or SAE J1703 brake fluid
Item Clean funnel
416
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
■ Brake fluid can absorb moisture from the air
Excess moisture in the brake fluid can cause a dangerous loss of braking effi-
ciency. Use only newly opened brake fluid.
Check the battery as follows:
■ Battery exterior
Make sure that the battery terminals are not corroded and that
there are no loose connections, cracks, or loose clamps.
Terminals
Hold-down clamp
WARNING
■ When filling the reservoir
Take care as brake fluid can harm your hands and eyes and damage
painted surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with clean
water immediately.
If you still experience discomfort, see a doctor.
NOTICE
■ If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear out or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, there may be a serious problem.
Battery
1
2
SIENNA_OM_OM08035U_(U)
417
6-3. Do-it-yourself maintenance
6
Maintenance and care
■ Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following before recharging:
● If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
● Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the battery.
■ After recharging/reconnecting the battery (vehicles with a smart key sys-
tem)
● Unlocking the doors using the smart key system may not be possible imme-
diately after reconnecting the battery. If this happens, use the wireless
remote control or the mechanical key to lock/unlock the doors.
● Start the engine with the engine switch in ACCESSORY mode. The engine
may not start with the engine switch turned off. However, the engine will
operate normally from the second attempt.
● The engine switch mode is recorded by the vehicle. If the battery is recon-
nected, the vehicle will return the engine switch mode to the status it was in
before the battery was disconnected. Make sure to turn off the engine
before disconnecting the battery. Take extra care when connecting the bat-
tery if the engine switch mode prior to discharge is unknown.
If the system will not start even after multiple attempts, contact your Toyota
dealer.
■ Disconnecting the battery (vehicles with an AUTO ACCESS SEAT)
Do not disconnect the battery while operating the AUTO ACCESS SEAT. The
AUTO ACCESS SEAT will become inoperable.
For details, refer to “AUTO ACCESS SEAT OWNER’S MANUAL”.
418
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
WARNING
■ Chemicals in the battery
Batteries contain poisonous and corrosive sulfuric acid and may produce
hydrogen gas which is flammable and explosive. To reduce the risk of death
or serious injury, take the following precautions while working on or near the
battery:
● Do not cause sparks by touching the battery terminals with tools.
● Do not smoke or light a match near the battery.
● Avoid contact with eyes, skin and clothes.
● Never inhale or swallow electrolyte.
● Wear protective safety glasses when working near the battery.
● Keep children away from the battery.
■ Where to safely charge the battery
Always charge the battery in an open area. Do not charge the battery in a
garage or closed room where there is insufficient ventilation.
■ How to recharge the battery
Only perform a slow charge (5 A or less). The battery may explode if
charged at a quicker rate.
■ Emergency measures regarding electrolyte
● If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.
● If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.
● If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.
● If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.
NOTICE
■ When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all
accessories are turned off.
SIENNA_OM_OM08035U_(U)
419
6-3. Do-it-yourself maintenance
6
Maintenance and care
If any washer does not work or
“Low Windshield Washer Fluid”
appears on the multi-information
display, the washer tank may be
empty. Add washer fluid.
Washer fluid
WARNING
■ When refilling washer fluid
Do not refill washer fluid when the engine is hot or running, as washer fluid
contains alcohol and may catch fire if spilled on the engine etc.
NOTICE
■ Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces, as well as
damaging the pump leading to problems of washer fluid not spraying.
■ Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-
tle.
420
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
Tires
Check if the treadwear indicators are showing on the tires. Also check
the tires for uneven wear, such as excessive wear on one side of the
tread. Check the spare tire condition and pressure if not rotated.
New tread
Worn tread
Treadwear indicator
The location of treadwear indicators is shown by a “TWI” or “ ” mark,
etc., molded into the sidewall of each tire.
Replace the tires if the treadwear indicators are showing on a tire.
Rotate the tires in the order
shown.
To equalize tire wear and extend
tire life, Toyota recommends that
tire rotation is carried out at the
same interval as tire inspection.
Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.
Checking tires
Tire rotation
1
2
3
Front
SIENNA_OM_OM08035U_(U)
421
6-3. Do-it-yourself maintenance
6
Maintenance and care
Your vehicle is equipped with a tire pressure warning system that uses
tire pressure warning valves and transmitters to detect low tire infla-
tion pressure before serious problems arise. (P. 474)
Vehicles with compact spare tire: The compact spare tire is not
equipped with the tire pressure warning valve and transmitters.
◆ Installing tire pressure warning valves and transmitters
When replacing tires or wheels, tire pressure warning valves and
transmitters must also be installed.
When new tire pressure warning valves and transmitters are
installed, new ID codes must be registered in the tire pressure
warning computer and the tire pressure warning system must be
initialized. Have tire pressure warning valve and transmitter ID
codes registered by your Toyota dealer. (P. 422)
◆ Initializing the tire pressure warning system
When the tire size is changed, the tire pressure warning system
must be initialized.
When the tire pressure warning system is initialized, the current tire
inflation pressure is set as the benchmark pressure.
■ How to initialize the tire pressure warning system
Park the vehicle in a safe place and turn the engine switch off.
Initialization cannot be performed while the vehicle is moving.
Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. (P. 522)
Make sure to adjust the tire pressure to the specified cold tire infla-
tion pressure level. The tire pressure warning system will operate
based on this pressure level.
Turn the engine switch to the “ON” position (vehicles without a
smart key system) or IGNITION ON mode (vehicles with a smart
key system).
Tire pressure warning system
1
2
3
422
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
Press and hold the tire pres-
sure warning reset switch
until the tire pressure warn-
ing light blinks slowly 3 times.
Vehicles without a smart key system: Wait for a few minutes with
the engine switch in the “ON” position and then turn the engine
switch to the “ACC” or “LOCK” position.
Vehicles with a smart key system: Wait for a few minutes with the
engine switch in IGNITION ON mode and then turn the engine
switch off.
◆ Registering ID codes
The tire pressure warning valve and transmitter is equipped with a
unique ID code. When replacing a tire pressure warning valve and
transmitter, it is necessary to register the ID code. Have the ID code
registered by your Toyota dealer.
4
5
SIENNA_OM_OM08035U_(U)
423
6-3. Do-it-yourself maintenance
6
Maintenance and care
■ When to replace your vehicle’s tires
Tires should be replaced if:
● The treadwear indicators are showing on a tire.
● You have tire damage such as cuts, splits, cracks deep enough to
expose the fabric, and bulges indicating internal damage
● A tire goes flat repeatedly or cannot be properly repaired due to the size
or location of a cut or other damage
If you are not sure, consult with your Toyota dealer.
■ Replacing tires and wheels
If the ID code of the tire pressure warning valve and transmitter is not reg-
istered, the tire pressure warning system will not work properly. After driv-
ing for about 20 minutes, the tire pressure warning light blinks for
1 minute and stays on to indicate a system malfunction.
■ Tire life
Any tire over 6 years old must be checked by a qualified technician even
if it has seldom or never been used or damage is not obvious.
■ Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation
pressure checks. Make sure to check tire inflation pressure as part of
your routine of daily vehicle checks.
■ Maximum load of tire
Check that the number given by dividing the maximum load by 1.10 of the
replacement tire is greater than 1/2 of the Gross Axle Weight Ratings
(GAWR) of either the front axle or the rear axle, whichever is greater.
For the GAWR, see the Certification
Label. For the maximum load of the tire,
see the load limit at maximum cold tire
inflation pressure mentioned on the
sidewall of the tire. (P. 529)
424
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
■ Tire types
● Summer tires
Summer tires are high-speed performance tires best suited to highway
driving under dry conditions. Since summer tires do not have the same
traction performance as snow tires, summer tires are inadequate for
driving on snow-covered or icy roads. For driving on snow-covered
roads or icy roads, the use of snow tires is recommended. When install-
ing snow tires, be sure to replace all four tires.
● All season tires
All season tires are designed to provide better traction in snow and to
be adequate for driving in most winter conditions, as well as for use
year round. All season tires, however, do not have adequate traction
performance compared with snow tires in heavy or loose snow. Also, all
season tires fall short in acceleration and handling performance com-
pared with summer tires in highway driving.
● Snow tires
For driving on snow-covered roads or icy roads, we recommend using
snow tires. If you need snow tires, select tires of the same size, con-
struction and load capacity as the originally installed tires. Since your
vehicle has radial tires as original equipment, make sure your snow
tires also have radial construction. Do not install studded tires without
first checking local regulations for possible restriction. Snow tires
should be installed on all wheels. (P. 327)
■ If the tread on snow tires wears down below 0.16 in. (4 mm)
The effectiveness of the tires as snow tires is lost.
SIENNA_OM_OM08035U_(U)
425
6-3. Do-it-yourself maintenance
6
Maintenance and care
■ Situations in which the tire pressure warning system may not oper-
ate properly
The tire pressure warning system will be disabled in the following condi-
tions:
(When the condition becomes normal, the system will work properly.)
● If tires not equipped with tire pressure warning valves and transmitters
are used.
● If the ID code on the tire pressure warning valves and transmitters is not
registered in the tire pressure warning computer.
● If the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm
2
or bar) or
higher.
The tire pressure warning system may be disabled in the following condi-
tions:
(When the condition becomes normal, the system will work properly.)
● If electronic devices or facilities using similar radio wave frequencies are
nearby.
● If a radio set at similar frequencies is in use in the vehicle.
● If a window tint that affects the radio wave signals is installed.
● If there is a lot of snow or ice on the vehicle, in particular around the
wheels or wheel housings.
● If non-genuine Toyota wheels are used. (Even if you use Toyota wheels,
the tire pressure warning system may not work properly with some types
of tires.)
● If tire chains are used.
■ Initializing the tire pressure warning system
Initialize the system with the tire inflation pressure adjusted to the speci-
fied level.
■ If you press the tire pressure warning reset switch accidentally
If initialization is performed, adjust the tire inflation pressure to the speci-
fied level and initialize the tire pressure warning system again.
■ When the initialization of the tire pressure warning system has failed
Initialization can be completed in a few minutes. However, in the following
cases, the settings have not been recorded and the system will not oper-
ate properly. If repeated attempts to record tire inflation pressure settings
are unsuccessful, have the vehicle inspected by your Toyota dealer.
● When operating the tire pressure warning reset switch, the tire pressure
warning light does not blink 3 times.
● After driving for a certain period of time since the initialization has been
completed, the warning light comes on after blinking for 1 minute.
426
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
■ If “Check Tire Pressure Monitoring System” is shown on multi-infor-
mation display
Stop the vehicle in a safe place and turn the engine switch off then “ON”
position (vehicles without a smart key system) or IGNITION ON mode
(vehicles with a smart key system) again.
If the tire pressure warning indicator flashes for 1 minute then illuminates,
have the vehicle inspected by your Toyota dealer.
■ Tire pressure warning system certification
FCC ID:GQ4-45T
FCC ID:GQ4-37R
For vehicles sold in the U.S.A.
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
SIENNA_OM_OM08035U_(U)
427
6-3. Do-it-yourself maintenance
6
Maintenance and care
WARNING
■ When inspecting or replacing tires
Observe the following precautions to prevent accidents. Failure to do so
may cause damage to parts of the drive train, as well as dangerous han-
dling characteristics, which may lead to an accident resulting in death or
serious injury.
● Do not mix tires of different makes, models or tread patterns.
Also, do not mix tires of remarkably different treadwear.
● Do not use tire sizes other than those recommended by Toyota.
● Do not mix differently constructed tires (radial, bias-belted or bias-ply
tires).
● Do not mix summer, all season and snow tires.
● Do not use tires that have been used on another vehicle.
Do not use tires if you do not know how they were used previously.
● Vehicles with a compact spare tire: Do not tow if your vehicle has a
compact spare tire installed.
■ When initializing the tire pressure warning system
Do not operate the tire pressure warning reset switch without first
adjusting the tire inflation pressure to the specified level. Otherwise, the
tire pressure warning light may not come on even if the tire inflation
pressure is low, or it may come on when the tire inflation pressure is
actually normal.
428
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
NOTICE
■ Repairing or replacing tires, wheels, tire pressure warning valves,
transmitters and tire valve caps
● When removing or fitting the wheels, tires or the tire pressure warning
valves and transmitters, contact your Toyota dealer as the tire pres-
sure warning valves and transmitters may be damaged if not handled
correctly.
● Make sure to install the tire valve caps. If the tire valve caps are not
installed, water could enter the tire pressure warning valves and the
tire pressure warning valves could be bound.
● When replacing tire valve caps, do not use tire valve caps other than
those specified. The cap may become stuck.
■ To avoid damage to the tire pressure warning valves and transmit-
ters
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. (P. 421)
■ Driving on rough roads
Take particular care when driving on roads with loose surfaces or pot-
holes.
These conditions may cause losses in tire inflation pressure, reducing
the cushioning ability of the tires. In addition, driving on rough roads
may cause damage to the tires themselves, as well as the vehicle’s
wheels and body.
■ If tire inflation pressure of each tire becomes low while driving
Do not continue driving, or your tires and/or wheels may be ruined.
429
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
6
Maintenance and care
Tire inflation pressure
The recommended cold tire infla-
tion pressure and tire size are dis-
played on the tire and loading
information label. (P. 522)
Tire inflation pressure
430
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
Tire valve
Tire pressure gauge
Remove the tire valve cap.
Press the tip of the tire pressure gauge onto the tire valve.
Read the pressure using the gauge gradations.
If the tire inflation pressure is not at the recommended level, adjust
the pressure.
If you add too much air, press the center of the valve to deflate.
After completing the tire inflation pressure measurement and
adjustment, apply soapy water to the valve and check for leakage.
Put the tire valve cap back on.
■ Tire inflation pressure check interval
You should check tire inflation pressure every two weeks, or at least once
a month.
Do not forget to check the spare.
■ Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:
● Reduced fuel economy
● Reduced driving comfort and poor handling
● Reduced tire life due to wear
● Reduced safety
● Damage to the drive train
If a tire needs frequent inflating, have it checked by your Toyota dealer.
Inspection and adjustment procedure
1
2
1
2
3
4
5
6
SIENNA_OM_OM08035U_(U)
431
6-3. Do-it-yourself maintenance
6
Maintenance and care
■ Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
● Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been
driven for more than 1 mile or 1.5 km, you will get an accurate cold tire
inflation pressure reading.
● Always use a tire pressure gauge.
It is difficult to judge if a tire is properly inflated based only on its appear-
ance.
● It is normal for the tire inflation pressure to be higher after driving as
heat is generated in the tire. Do not reduce tire inflation pressure after
driving.
● Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle is
balanced.
WARNING
■ Proper inflation is critical to save tire performance
Keep your tires properly inflated.
If the tires are not properly inflated, the following conditions may occur
which could lead to an accident resulting in death or serious injury:
● Excessive wear
● Uneven wear
● Poor handling
● Possibility of blowouts resulting from overheated tires
● Air leaking from between tire and wheel
● Wheel deformation and/or tire damage
● Greater possibility of tire damage while driving (due to road hazards,
expansion joints, sharp edges in the road, etc.)
NOTICE
■ When inspecting and adjusting tire inflation pressure
Be sure to put the tire valve caps back on.
If a valve cap is not installed, dirt or moisture may get into the valve and
cause an air leak, resulting in decreased tire inflation pressure.
432
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
Wheels
When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset
*.
Replacement wheels are available at your Toyota dealer.
*: Conventionally referred to as “offset”.
Toyota does not recommend using the following:
● Wheels of different sizes or types
● Used wheels
● Bent wheels that have been straightened
● Use only Toyota wheel nuts and wrenches designed for use with
your aluminum wheels.
● When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1000 miles (1600 km).
● Be careful not to damage the aluminum wheels when using tire
chains.
● Use only Toyota genuine balance weights or equivalent and a plas-
tic or rubber hammer when balancing your wheels.
■ When replacing wheels
The wheels of your vehicle are equipped with tire pressure warning
valves and transmitters that allow the tire pressure warning system to
provide advanced warning in the event of a loss in tire inflation pressure.
Whenever wheels are replaced, tire pressure warning valves and trans-
mitters must be installed. (P. 421)
If a wheel is bent, cracked or heavily corroded, it should be
replaced.
Otherwise, the tire may separate from the wheel or cause a loss
of handling control.
Wheel selection
Aluminum wheel precautions
SIENNA_OM_OM08035U_(U)
433
6-3. Do-it-yourself maintenance
6
Maintenance and care
WARNING
■ When replacing wheels
● Do not use wheels that are a different size from those recommended in
the Owner’s Manual, as this may result in a loss of handling control.
● Never use an inner tube in a leaking wheel which is designed for a
tubeless tire. Doing so may result in an accident, causing death or seri-
ous injury.
■ When installing the wheel nuts
● Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened,
leading to bolt or disc wheel damage. In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing an
accident and resulting in death or serious injury. Remove any oil or
grease from the wheel bolts or wheel nuts.
■ Use of defective wheels prohibited
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air during driving, possibly causing
an accident.
NOTICE
■ Replacing tire pressure warning valves and transmitters
● Because tire repair or replacement may affect the tire pressure warn-
ing valves and transmitters, make sure to have tires serviced by your
Toyota dealer or other qualified service shop. In addition, make sure to
purchase your tire pressure warning valves and transmitters at your
Toyota dealer.
● Ensure that only genuine Toyota wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly
with non-genuine wheels.
● Be sure to install the wheel nuts with
the tapered ends facing inward.
Installing the nuts with the tapered
ends facing outward can cause the
wheel to break and eventually cause
the wheel to come off while driving,
which could lead to an accident
resulting in death or serious injury.
Tapered
portion
434
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
Air conditioning filter
Turn the engine switch to the “LOCK” position (vehicles without a
smart key system) or off (vehicles with a smart key system).
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the claws.
Remove the filter cover.
The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.
Removal method
1
2
3
4
SIENNA_OM_OM08035U_(U)
435
6-3. Do-it-yourself maintenance
6
Maintenance and care
Remove the filter and replace it
with a new one.
The“UP” marks shown on the fil-
ter should be pointing up.
■ Checking interval
Replace the air conditioning filter according to the maintenance schedule. In
dusty areas or areas with heavy traffic flow, more frequent cleaning or early
replacement may be required. (For scheduled maintenance information,
please refer to the “Scheduled Maintenance Guide” or “Owner’s Manual
Supplement”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace it if necessary.
5
NOTICE
■ When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.
436
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
Wireless remote control/electronic key
battery
● Flathead screwdriver
● Lithium battery CR2032
Vehicles without a smart key system
Remove the cover using a coin
protected with tape etc.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2
SIENNA_OM_OM08035U_(U)
437
6-3. Do-it-yourself maintenance
6
Maintenance and care
Vehicles with a smart key system
Take out the mechanical key.
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
■ Use a CR2032 lithium battery
● Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to local laws.
■ If the key battery is depleted
The following symptoms may occur.
● The smart key system (if equipped) and wireless remote control will not
function properly.
● The operational range will be reduced.
1
2
3
438
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
WARNING
■ Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
NOTICE
■ For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the remote control.
● Do not bend either of the battery terminals.
439
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
6
Maintenance and care
Checking and replacing fuses
Turn the engine switch to the “LOCK” position (vehicles without a
smart key system) or off (vehicles with a smart key system).
Open the fuse box cover.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
Engine compartment type A Engine compartment type B
Push the tab in and lift the lid off. Push the tab in and lift the lid off.
Driver’s side instrument panel
Remove the lid.
440
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
Remove the fuse.
Only type A fuses can be removed
using the pullout tool.
Check if the fuse has blown.
Normal fuse
Blown fuse
Type A and B
Replace the blown fuse with a new fuse of an appropriate amper-
age rating. The amperage rating can be found on the fuse box lid.
Type C, D and E
Contact your Toyota dealer.
3
4
1
2
Type A Type B
Type C Type D
SIENNA_OM_OM08035U_(U)
441
6-3. Do-it-yourself maintenance
6
Maintenance and care
■ After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (P. 442)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in the circuit
The fuses are designed to blow, protecting the wiring harness from damage.
Type E
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■ Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.
442
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 525)
P. 13 6
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. If necessary
bulb replacement seems difficult to perform, contact your
Toyota dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Turning off the power back door main switch
SIENNA_OM_OM08035U_(U)
443
6-3. Do-it-yourself maintenance
6
Maintenance and care
■ Front
Vehicles without daytime running lights or with bulb type daytime
running lights
Vehicles with LED type daytime running lights
Bulb locations
Headlight high beam and day-
time running lights (if equipped)
Headlight low beam
(halogen bulb)
Fog light (if equipped)
Front turn signal/parking and
front side marker lights
1
2
3
4
Front turn signal light
Headlight high beam
Fog light
Headlight low beam
(halogen bulb)
Front side marker light
1
2
3
4
5
444
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
■ Rear
Vehicles with bulb type stop/tail lights
Vehicles with LED type stop/tail lights
Rear turn signal light
Back-up light
License plate lights
Tail light
Stop/tail lights
1
2
3
4
5
Tail light
License plate lights
Back-up light
Rear turn signal light
1
2
3
4
SIENNA_OM_OM08035U_(U)
445
6-3. Do-it-yourself maintenance
6
Maintenance and care
■ Headlight low beams (halogen bulb)
For left side only:
Open the fuse box cover. (P. 439)
Unplug the connector while
pushing the lock release.
Turn the bulb base counter-
clockwise.
Replacing light bulbs
1
2
3
446
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
For left side only: Install the fuse box cover.
4
5
6
7
SIENNA_OM_OM08035U_(U)
447
6-3. Do-it-yourself maintenance
6
Maintenance and care
■ Headlight high beams and bulb type daytime running lights (if
equipped)
For left side only:
Open the fuse box cover. (P. 439)
Turn the bulb base counter-
clockwise.
Unplug the connector while
pushing the lock release.
Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
For left side only: Install the fuse box cover.
1
2
ITO43P165
3
4
5
6
448
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
■ Fog lights (if equipped)
Remove the engine under
cover bolt and pull down the
engine under cover.
Unplug the connector while
pushing the lock release.
Turn the bulb base counter-
clockwise.
1
2
3
SIENNA_OM_OM08035U_(U)
449
6-3. Do-it-yourself maintenance
6
Maintenance and care
Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn clockwise and secure
the bulb base.
Install the connector.
Shake the connector gently to
check that it is not loose, turn
the fog lights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
When installing the engine under cover, reverse the step .
4
5
6
7
1
450
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
■ Front turn signal/parking and front side marker lights (vehicles
without daytime running lights or with bulb type daytime run-
ning lights)
For left side only:
Open the fuse box cover. (P. 439)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
1
2
3
SIENNA_OM_OM08035U_(U)
451
6-3. Do-it-yourself maintenance
6
Maintenance and care
■ Front turn signal lights (vehicles with LED type daytime run-
ning lights)
For left side only:
Open the fuse box cover. (P. 439)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
1
2
3
452
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
■ Front side marker lights (vehicles with LED type daytime run-
ning lights)
For left side only:
Open the fuse box cover. (P. 439)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
1
2
3
SIENNA_OM_OM08035U_(U)
453
6-3. Do-it-yourself maintenance
6
Maintenance and care
■ Rear turn signal lights (vehicles with LED type stop/tail lights)
Remove the securing bolts
and remove the unit.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
1
2
3
454
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
■ Rear turn signal lights and stop/tail lights (vehicles with bulb
type stop/tail lights)
Remove the securing bolts
and remove the unit.
Unplug the connector while
pushing the lock release.
Turn the bulb base counter-
clockwise.
Rear turn signal lights
Stop/tail lights
Remove the light bulb.
Rear turn signal lights
Stop/tail lights
1
2
3
1
2
4
1
2
SIENNA_OM_OM08035U_(U)
455
6-3. Do-it-yourself maintenance
6
Maintenance and care
■ Tail and back-up lights
Remove the back door trim
board.
Turn the bulb base counterclockwise.
Remove the light bulb.
1
2
Vehicles with bulb type
stop/tail lights
Vehicles with LED type stop/tail
lights
Back-up light
Tail light
Tail light
Back-up light
1
2
1
2
3
Vehicles with bulb type
stop/tail lights
Vehicles with LED type stop/tail
lights
Back-up light
Tail light
Tail light
Back-up light
1
2
1
2
456
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
■ License plate lights
Remove the back door trim
board.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
■ Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlight low beams (discharge bulbs)
● Parking lights (LED type)
● Daytime running lights (LED type)
● Side turn signal light (if equipped)
● Stop/tail lights (LED type) and rear side marker lights
● High mounted stoplight
● Outer foot lights (if equipped)
1
2
3
SIENNA_OM_OM08035U_(U)
457
6-3. Do-it-yourself maintenance
6
Maintenance and care
■ Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or
may go out temporarily. The discharge bulbs will come on when normal
power is restored.
■ LED lights
The daytime running lights (LED type), parking lights (LED type), stop/tail
(LED type), side turn signal light, rear side marker lights and high mounted
stoplight consists of a number of LEDs. If any of the LEDs burn out, take your
vehicle to your Toyota dealer to have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact your Toyota dealer for more information in the
following situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
458
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
WARNING
■ Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb. Also, if the bulb is scratched
or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble the bulb, socket, electrical wiring,
or sub components. This may cause serious injury due to electric shock.
● Vehicles with discharge headlights:
While the low beam headlights are
turned on, and for a short time after they
have been turned off, metal compo-
nents at the rear of the headlight
assembly will be extremely hot. To pre-
vent burns, do not touch these metal
components until you are certain they
have cooled down.
Metal components
SIENNA_OM_OM08035U_(U)
459
6-3. Do-it-yourself maintenance
6
Maintenance and care
WARNING
■ Discharge headlights (if equipped)
● Contact your Toyota dealer before replacing the discharge headlights
(including light bulbs).
● Do not touch the discharge headlight’s high voltage socket when the head-
lights are turned on.
An extremely high voltage of 30000 V will be discharged and could result
in serious injury or death by electric shock.
● Do not attempt to take apart or repair the low beam headlight bulbs, con-
nectors, power supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
■ When replacing the rear turn signal lights or stop/tail lights
Inspect the gasket for any damage (rip, tear, hole, etc.). If there is any dam-
age, please contact your Toyota dealer and have the gasket replaced.
Improper installation of the gasket may result in water entering the rear light
unit.
■ To prevent damage or fire
● Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.
NOTICE
■ When installing the back door trim
To prevent damage, be careful not to pinch any of the wire harnesses or
connectors with the back door trim.
460
SIENNA_OM_OM08035U_(U)
6-3. Do-it-yourself maintenance
461
SIENNA_OM_OM08035U_(U)
7
When trouble arises
7-1. Essential information
Emergency flashers .......... 462
If your vehicle has to
be stopped in an
emergency ...................... 463
7-2. Steps to take in an
emergency
If your vehicle needs to
be towed ......................... 465
If you think something is
wrong .............................. 469
Fuel pump shut off
system ............................ 470
If a warning light turns on
or a warning buzzer
sounds ............................ 471
If a warning message is
displayed......................... 481
If you have a flat tire
(vehicles with a compact
spare tire)........................ 485
If you have a flat tire
(vehicles with
run-flat tires).................... 499
If the engine will not
start................................. 501
If the electronic key does
not operate properly
(vehicles with a smart
key system)..................... 503
If the battery is
discharged ...................... 505
If your vehicle
overheats ........................ 509
If the vehicle becomes
stuck ............................... 512
462
SIENNA_OM_OM08035U_(U)
7-1. Essential information
Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■ Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
463
SIENNA_OM_OM08035U_(U)
7-1. Essential information
7
When trouble arises
If your vehicle has to be stopped in an emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without a smart key
system: Stop the engine by
turning the engine switch to the
“ACC” position.
Vehicles with a smart key sys-
tem: To stop the engine, press
and hold the engine switch for 2
consecutive seconds or more,
or press it briefly 3 times or
more in succession.
Stop the vehicle in a safe place by the road.
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:
1
2
3
4
3
4
Press and hold for 2 seconds or
more or press briefly 3 times or
more
5
464
7-1. Essential information
SIENNA_OM_OM08035U_(U)
WARNING
■ If the engine has to be turned off while driving
● Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without a smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.
465
SIENNA_OM_OM08035U_(U)
7-2. Steps to take in an emergency
7
When trouble arises
If your vehicle needs to be towed
The following may indicate a problem with your transaxle. Contact
your Toyota dealer or commercial towing service before towing.
● The engine is running but the vehicle does not move.
● The vehicle makes an abnormal sound.
Do not tow with a sling-type truck
to prevent body damage.
If towing is necessary, we recommend having your vehicle
towed by your Toyota dealer or commercial towing service,
using a wheel-lift type truck or flat bed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.
2WD models: If towing your vehicle with a wheel-lift type truck
from the front, the vehicle’s rear wheels and axles must be in
good conditions. (P. 466, 467)
If they are damaged, use a towing dolly or flat bed truck.
AWD models: If towing your vehicle with a wheel-lift type truck,
use a towing dolly. (P. 466, 467)
Situations when it is necessary to contact dealers before towing
Towing with a sling-type truck
466
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45.
Do not overly tighten the tie
downs or the vehicle may be dam-
aged.
Towing with a wheel-lift type truck
From the front (2WD models) From the front (AWD models)
Release the parking brake. Use a towing dolly under the rear
wheels.
From the rear
Use a towing dolly under the front
wheels.
Using a flatbed truck
467
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
7
When trouble arises
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When towing the vehicle
■ While towing
Do not turn the engine switch to the “LOCK” position (vehicles without a
smart key system) or off (vehicles with a smart key system).
There is a possibility that the steering wheel is locked and cannot be oper-
ated.
2WD models: Be sure to transport the
vehicle with the front wheels raised or
with all four wheels raised off the ground.
If the vehicle is towed with the front
wheels contacting the ground, the
drivetrain and related parts may be dam-
aged.
AWD models: Be sure to transport the
vehicle with all four wheels raised off the
ground. If the vehicle is towed with the
tires contacting the ground, the drivetrain
or related parts may be damaged, the
vehicle may fly off the truck.
468
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
NOTICE
■ To prevent damage to the vehicle when towing using a wheel-lift type
truck
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
■ To prevent damage to the vehicle when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■ Recreational towing (behind motor home, etc.)
Never dinghy tow your vehicle to prevent
causing serious damage to the Active
Torque Control 4WD system (AWD mod-
els) and transaxle. (P. 224)
469
SIENNA_OM_OM08035U_(U)
7-2. Steps to take in an emergency
7
When trouble arises
If you think something is wrong
● Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature gauge needle continually points higher
than normal
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
● Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, spongy feeling, pedal almost touches
the floor
If you notice any of the following symptoms, your vehicle proba-
bly needs adjustment or repair. Contact your Toyota dealer as
soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms
470
SIENNA_OM_OM08035U_(U)
7-2. Steps to take in an emergency
Fuel pump shut off system
Follow the procedure below to restart the engine after the system is
activated.
Vehicles without a smart key system
Turn the engine switch to the “ACC” or “LOCK” position.
Restart the engine.
Vehicles with a smart key system
Turn the engine switch to ACCESSORY mode or turn it off.
Restart the engine.
To minimize the risk of fuel leakage when the engine stalls or
when an airbag inflates upon collision, the fuel pump shut off
system stops the supply of fuel to the engine.
NOTICE
■ Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
1
2
1
2
471
SIENNA_OM_OM08035U_(U)
7-2. Steps to take in an emergency
7
When trouble arises
If a warning light turns on or a warning
buzzer sounds
Calmly perform the following actions if any of the warning lights
comes on or flashes. If a light comes on or flashes, but then
goes off, this does not necessarily indicate a malfunction in the
system. However, if this continues to occur, have the vehicle
inspected by your Toyota dealer.
Warning light and warning buzzer list
Warning light Warning light/Details/Actions
(U.S.A.)
(Canada)
Brake system warning light (warning buzzer)*
1
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is
fully released the system is operating normally.
Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer. Continuing to drive the
vehicle may be dangerous.
Charging system warning light*
2
Indicates a malfunction in the vehicle’s charging system
Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer.
Low engine oil pressure warning light*
2
Indicates that the engine oil pressure is too low
Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer.
(U.S.A.)
(Canada)
Malfunction indicator lamp
Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transaxle control system
Have the vehicle inspected by your Toyota dealer
immediately.
472
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
Have the vehicle inspected by your Toyota dealer
immediately.
(U.S.A.)
(Canada)
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system
Have the vehicle inspected by your Toyota dealer
immediately.
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power
Steering) system
Have the vehicle inspected by your Toyota dealer
immediately.
(Flashes or
illuminates)
PCS warning light
Indicates a malfunction in the PCS (Pre-Collision System)
or that the system is temporarily unavailable due to the
vehicle being extremely hot/cold, or dirt around a front
sensor, etc. (P. 277, 481)
Follow the instructions displayed on the multi-
information display. (P. 277, 481)
If the PCS (Pre-Collision System) or VSC (Vehicle Stability
Control) system is disabled, the PCS warning light will illu-
minate.
P. 277
(Amber)
LDA indicator*
2
Indicates a malfunction in the LDA (Lane Departure Alert
with steering control)
When “Lane Departure Alert Unavailable” is dis-
played on the multi-information display, turn the LDA
system off, drive the vehicle for a short time, and
then turn the LDA system back on. (P. 281)
When a message other than above is displayed, fol-
low the instructions displayed in the message.
Warning light Warning light/Details/Actions
473
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
7
When trouble arises
Slip indicator
Indicates a malfunction in:
• The VSC (Vehicle Stability Control) system;
• The TRAC (Traction Control) system; or
• The hill-start assist control system
The light will flash when the VSC or the TRAC system is
operating.
Have the vehicle inspected by your Toyota dealer
immediately.
Low fuel level warning light
Indicates that remaining fuel is approximately 3.0 gal.
(11.4 L, 2.5 Imp.gal.) or less
Refuel the vehicle.
Seat belt reminder light (warning buzzer)*
3
Warns the driver and/or front passenger to fasten their
seat belts
Fasten the seat belt.
If the front passenger’s seat is occupied, the front
passenger’s seat belt also needs to be fastened to
make the warning light (warning buzzer) turn off.
Low engine oil level warning light*
2
Indicates that engine oil level is low (This warning light
may come on if the vehicle is stopped on a slope. Move
the vehicle to a level surface and check to see if the light
goes off.)
Check the level of engine oil and add more oil if nec-
essary.
Master warning light
A buzzer sounds and the warning light comes on and
flashes to indicate that the master warning system has
detected a malfunction.
P. 481
Warning light Warning light/Details/Actions
474
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes (P. 476)
• Flat tire (P. 485, 499)
Adjust the tire inflation pressure to the specified
level.
The light will turn off after a few minutes. In case
the light does not turn off even if the tire inflation
pressure is adjusted, have the system checked by
your Toyota dealer.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system
(P. 477)
Have the system checked by your Toyota dealer.
Low windshield washer fluid level warning light*
2
Indicates that the windshield washer fluid level is too
low.
Add washer fluid.
Third seat warning light*
4
Indicates that the third seat operation is not yet complete.
Complete the third seat operation (P. 159)
Brake Override System warning light*
2
Indicates that the accelerator and brake pedals are being
depressed simultaneously, and the Brake Override
System is operating.
Release the accelerator pedal and depress the brake
pedal.
Indicates a malfunction in the Brake Override System
(with warning buzzer)
Have the vehicle inspected by your Toyota dealer
immediately.
High coolant temperature warning light (warning
buzzer)
*
2
Changes from a flashing to a solid light when the engine
coolant temperature increases
Stop and check. (P. 509)
Warning light Warning light/Details/Actions
475
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
7
When trouble arises
*
1
: Parking brake engaged warning buzzer:
Indicates that the vehicle is being driven at 5 km/h (3 mph) or more with
the parking brake still engaged
*
2
: This light illuminates on the multi-information display.
*
3
: Driver’s seat belt buzzer:
The driver’s seat belt buzzer sounds to alert the driver that his or her seat
belt is not fastened. Once the engine switch is turned to the “ON” position
(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system), the buzzer sounds for 6 seconds. If the vehicle
reaches a speed of 12 mph (20 km/h), the buzzer sounds once. If the
seat belt is still unfastened after 30 seconds, the buzzer will sound inter-
mittently for 10 seconds. Then, if the seat belt is still unfastened, the
buzzer will sound in a different tone for 20 more seconds.
Front passenger’s seat belt buzzer:
The front passenger’s seat belt buzzer sounds to alert the front passen-
ger that his or her seat belt is not fastened. The buzzer sounds once if the
vehicle reaches a speed of 12 mph (20 km/h). If the seat belt is still unfas-
tened after 30 seconds, the buzzer will sound intermittently for 10 sec-
onds. Then, if the seat belt is still unfastened, the buzzer will sound in a
different tone for 20 more seconds.
*
4
: If equipped
476
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
■ SRS warning light
This warning light system monitors the airbag sensor assembly, front impact
sensors, side impact sensors (front door), side impact sensors (rear), driver’s
seat position sensor, driver’s seat belt buckle switch, front passenger occu-
pant classification system (ECU and sensors), “AIR BAG ON” indicator light,
“AIR BAG OFF” indicator light, front passenger’s seat belt buckle switch, seat
belt assemblies, airbags, interconnecting wiring and power sources. (P. 38)
■ Front passenger detection sensor, seat belt reminder and warning
buzzer
● If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■ If the malfunction indicator lamp comes on while driving
First check the following:
● Is the fuel tank empty?
If it is, fill the fuel tank immediately.
● Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after several trips, contact your Toyota dealer
as soon as possible.
■ Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sound.
■
When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Push-
ing the tire pressure warning reset switch will not turn off the tire pressure
warning light.
■ The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such
as natural air leaks and tire inflation pressure changes caused by tem-
perature. In this case, adjusting the tire inflation pressure will turn off the
warning light (after a few minutes).
477
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
7
When trouble arises
■ When a tire is replaced with a spare tire (vehicles with compact spare
tire)
The compact spare tire is not equipped with a tire pressure warning valve
and transmitter. If a tire goes flat, the tire pressure warning light will not
turn off even though the flat tire has been replaced with the spare tire.
Replace the spare tire with the repaired tire and adjust the tire inflation
pressure. The tire pressure warning light will go off after a few minutes.
■ Conditions that the tire pressure warning system may not function
properly
P. 425
■ If the tire pressure warning light frequently comes on after blinking
for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1
minute when the engine switch is turned to the “ON” position (vehicles
without a smart key system) or IGNITION ON mode (vehicles with a
smart key system), have it checked by your Toyota dealer.
■ Customization that can be configured at Toyota dealer
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features P. 547) However, Toyota recommends that the seat
belt reminder buzzer be operational to alert the driver and front passenger
when seat belts are not fastened.
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
478
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
WARNING
■ If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact your Toyota
dealer. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
■ When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
When steering wheel operations are heavier than usual, grip the steering
wheel firmly and operate it using more force than usual.
■
If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause a loss of vehicle control and result in death or serious injury.
Vehicles with standard tires:
● Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
● If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is probable that you have a flat tire. Check the tires.
If a tire is flat, change it with the spare tire and have the flat tire
repaired by the nearest Toyota dealer.
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
Vehicles with run-flat tires:
● Decelerate to the lowest appropriate speed as soon as possible. Do
not drive over 50 mph (80 km/h).
● Check and adjust the tire inflation pressure immediately.
● If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is probable that you have a flat tire. Have the tire
replaced by the nearest Toyota dealer.
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
479
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
7
When trouble arises
WARNING
■ Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire inflation pressure
label (tire and load information label). (If your vehicle has tires of a dif-
ferent size than the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine
the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS-tire pressure warning system) that
illuminates a low tire pressure telltale (tire pressure warning light) when
one or more of your tires is significantly under-inflated. Accordingly,
when the low tire pressure telltale (tire pressure warning light) illumi-
nates, you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency and tire tread life, and may
affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a sub-
stitute for proper tire maintenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has not reached
the level to trigger illumination of the TPMS low tire pressure telltale (tire
pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warn-
ing system) malfunction indicator to indicate when the system is not
operating properly. The TPMS (tire pressure warning system) malfunc-
tion indicator is combined with the low tire pressure telltale (tire pressure
warning light). When the system detects a malfunction, the telltale will
flash for approximately one minute and then remain continuously illumi-
nated. This sequence will continue upon subsequent vehicle start-ups
as long as the malfunction exists. When the malfunction indicator is illu-
minated, the system may not be able to detect or signal low tire pres-
sure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installation of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction telltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.
480
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
NOTICE
■ To ensure the tire pressure warning system operates properly
Do not install tires with different specifications or manufacturers, as the
tire pressure warning system may not operate properly.
481
SIENNA_OM_OM08035U_(U)
7-2. Steps to take in an emergency
7
When trouble arises
If a warning message is displayed
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
Handling method
Follow the instructions of the mes-
sage on the multi-information dis-
play.
If any of the warning messages are shown again after the following
actions have been performed, contact your Toyota dealer.
The multi-information display shows warnings of system mal-
functions, incorrectly performed operations, and messages that
indicate a need for maintenance. When a message is shown,
perform the correction procedure appropriate to the message.
1
2
3
482
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection by a dealer, have the vehicle inspected by your Toyota
dealer immediately.
The operation of the warning lights and warning buzzers may differ
from those stated. In this case, perform the correction procedure
according to the displayed message.
*: A buzzer sounds the first time a message is shown on the multi-informa-
tion display.
Messages and warnings
System
warning
light
Warning
buzzer
*
Warning
Comes on Comes on Sounds
Indicates an important situation, such
as when a system related to driving is
malfunctioning or that danger may
result if the correction procedure is not
performed
Comes on Sounds
Comes on
or flashes
Sounds
Indicates an important situation, such
as when the systems shown on the
multi- information display may be mal-
functioning
Flashes Sounds
Indicates a situation, such as when
damage to the vehicle or danger may
result
Comes on
Does not
sound
Indicates a condition, such as mal-
function of electrical components, their
condition, or indicates the need for
maintenance
Flashes
Does not
sound
Indicates a situation, such as when an
operation has been performed incor-
rectly, or indicates how to perform an
operation correctly
483
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
7
When trouble arises
■ Warning messages
The warning messages explained below may differ from the actual messages
according to operation conditions and vehicle specifications.
■ If a message that indicates the need for contacting or visiting your
TOYOTA dealer is shown
The system or part shown on the multi-information display is malfunctioning.
Have the vehicle inspected by your Toyota dealer.
■ If “Auto Power Off to Conserve Battery” is shown
Power was turned off due to the automatic power off function. Next time when
starting the engine, increase the engine speed slightly and maintain that level
for approximately 5 minutes to recharge the battery.
■ If “Shift to P Before Exiting Vehicle” is shown
The driver’s door is opened without turning the engine switch to off with the
shift lever in any position other than P. Shift the shift lever to P.
■ If “Front Camera Unavailable” or “Front Camera Unavailable Remove
Debris On Windshield” is shown
The following systems may be suspended until the problem shown in the
message is resolved.
● PCS (Pre-Collision System)
● LDA (Lane Departure Alert with steering control)
● Dynamic radar cruise control
● Automatic High Beam
■ If “AWD System Overheated 2WD Mode Engaged” or “AWD System
Overheated Switching To 2WD Mode” is shown
The Active Torque Control 4WD system has overheated. Immediately stop
the vehicle in a safe place and contact your Toyota dealer.
■ If “Low Engine Oil Add or Replace” is shown
The engine oil level is low. Check the level of engine oil, and add if necessary.
This message may appear if the vehicle is stopped on a slope. Move the
vehicle to a level surface and check to see if the message disappears.
■ If “Maintenance Required Soon” is shown
The engine oil is scheduled to be changed. Check the engine oil, and change
if necessary. After changing the engine oil, the message should be reset.
(P. 398)
484
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
■ If “Engine Coolant Temp is High” is shown
The engine coolant temperature is too high. Following the instructions,
accordingly. (P. 509)
■ If “Clean Park Sonar” is shown
The intuitive parking assist is dirty or covered with ice. Clean the sensor.
■ The messages that need for contacting your Toyota dealer
● If any of the following messages is shown on the multi-information display, it
may indicate a malfunction. Have the vehicle inspected by your Toyota
dealer immediately.
• “Check Park Sonar System”
• “Check Vehicle Stability Control System”
• “Check Steering Lock System”
● If any of the following messages is shown on the multi-information display, it
may indicate a malfunction. Immediately stop the vehicle and contact your
Toyota dealer.
• “Check Charging System”
• “Low Oil Pressure”
• “Check Brake System”
485
SIENNA_OM_OM08035U_(U)
7-2. Steps to take in an emergency
7
When trouble arises
If you have a flat tire (vehicles with a
compact spare tire)
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the engine.
● Turn on the emergency flashers. (P. 462)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 4 2 0
WARNING
■ If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle
486
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
Location of the spare tire, jack and tools
Spare tire
Jack handle
Tire bag
Jack
Wheel nut wrench
Adapter socket
Tire strap
1
2
3
4
5
6
7
487
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
7
When trouble arises
WARNING
■ Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
● Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
● Only use the tire jack that comes with this vehicle for replacing a flat
tire. Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
● Put the jack properly in its jack point.
● Do not put any part of your body under the vehicle while it is supported
by the jack.
● Do not start or run the engine while your vehicle is supported by the
jack.
● Do not raise the vehicle while someone is inside.
● When raising the vehicle, do not put an object on or under the jack.
● Do not raise the vehicle to a height greater than that required to
replace the tire.
● Use a jack stand if it is necessary to get under the vehicle.
● When lowering the vehicle, make sure that there is no-one near the
vehicle. If there are people nearby, warn them vocally before lowering.
488
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
Remove the cover.
Remove the adapter socket.
Remove the jack.
Remove the wheel nut wrench.
Taking out the jack and tools
1
2
3
4
489
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
7
When trouble arises
Slide the front passenger’s seat to the frontmost lock position and
the right side second seat to the rearmost lock position so they will
not interfere with the jack handle.
Open the right side sliding door
and you will find the flap on the
floor. Pull back the flap to find
the spare tire clamp bolt.
Attach the adapter socket over
the spare tire clamp bolt.
Connect the jack handle and
the adapter socket. Turn the
jack handle.
The tire will be lowered com-
pletely to the ground.
Take the spare tire out from
underneath the vehicle and
remove the holding bracket.
Taking out the spare tire
1
2
3
4
WARNING
■ When taking out the spare tire from under the vehicle
Do not touch the exhaust components, as they can become very hot
and burn you.
■ When storing the compact spare tire
Be careful not to catch fingers or other body parts between the compact
spare tire and the body of the vehicle.
490
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
Chock the tires.
Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion by
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
on the side of rocker moulding.
They indicate the jack point posi-
tions.
Replacing a flat tire
1
Flat tire Wheel chock positions
Front
Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear
Left-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire
2
3
A
491
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
7
When trouble arises
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
4
5
492
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
WARNING
■ Replacing a flat tire
● Observe the following precautions.
Failure to do so may result in serious injury:
• Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area
around the brakes will be extremely hot. Touching these areas with
hands, feet or other body parts while changing a tire, etc. may result
in burns.
• Remove the spare tire before jacking up the vehicle. If the spare tire
is removed after jacking up the vehicle, the tire carrier and the spare
tire may interfere with the jack and cause a serious accident.
● Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf
(103 N•m, 10.5 kgf•m) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifi-
cally designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut
threads or bolt holes of the wheel, have the vehicle inspected by
your Toyota dealer.
• When installing the wheel nuts, be sure to install them with the
tapered end facing inward. (P. 433)
● For vehicles with power sliding door and/or power back door: In cases
such as when replacing tires, make sure to turn off the power sliding
door main switch (P. 124) and/or the power back door main switch
(P. 136). Failure to do so may cause the sliding door and/or the back
door to operate unintentionally if the power sliding door switch and/or
the power back door switch is accidentally touched, resulting in hands
and fingers being caught and injured.
493
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
7
When trouble arises
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
Install the tire and loosely
tighten each wheel nut by hand
by approximately the same
amount.
Tighten the wheel nuts until the
tapered portion comes into loose
contact with the disc wheel seat.
Lower the vehicle.
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
Installing the spare tire
1
Tapered portion
Disc wheel
seat
2
3
4
5
494
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
Take out the strap and tire bag.
Place tire standing up in rear
tub, after putting the tire in the
tire bag.
Clip clasp to outboard hook.
Clip other clasp to center or
opposite hook location.
Stowing the flat tire
1
2
3
4
495
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
7
When trouble arises
Pull strap to tighten and secure
tire.
Lay down the tire with the outer
side (valve stem) facing up, and
install the holding bracket.
Turn the jack handle clockwise
to raise the tire until the tire is in
the correct position as the jack
handle skips.
Stow the tools.
5
Stowing the spare tire
Valve stem
1
2
3
496
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
■ The compact spare tire
● The compact spare tire is identified by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
● Make sure to check the tire inflation pressure of the compact spare tire.
(P. 524)
■ After completing the tire change
The tire pressure warning system must be reset. (P. 421)
■ When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
indicated by the tire pressure warning system. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the light
remains on.
■ When the compact spare tire is equipped
The vehicle becomes lower when driving with the compact spare tire
compared to when driving with standard tires
■ If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle.
Perform the following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehi-
cle.
Fit tire chains to the front tires.
1
2
3
497
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
7
When trouble arises
WARNING
■ When using the compact spare tire
● Remember that the compact spare tire provided is specifically
designed for use with your vehicle. Do not use your compact spare tire
on another vehicle.
● Do not use more than one compact spare tire simultaneously.
● Replace the compact spare tire with a standard tire as soon as possi-
ble.
● Avoid sudden acceleration, abrupt steering, sudden braking and shift-
ing operations that cause sudden engine braking.
■ When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:
Also, not only can the following system not be utilized fully, but it may
even negatively affect the drive-train components:
• AWD system (if equipped)
■ Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Fail-
ure to observe this precaution may lead to an accident causing death or
serious injury.
■ After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in
their storage location to reduce the possibility of personal injury during a
collision or sudden braking.
■ When stowing the flat tire
● Make sure the third seats are in their original position.
● Secure it using a tire strap. Otherwise, the flat tire may fly out in case
of sudden braking or an accident, resulting in death or serious injury.
• ABS & Brake assist
• VSC
•TRAC
• EPS
• Automatic High Beam
• PCS (Pre-Collision System)
*: If equipped
• Dynamic radar cruise control
• LDA (Lane Departure Alert with
steering control)
*
• BSM (Blind Spot Monitor)*
• Intuitive parking assist*
• Navigation system*
498
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
NOTICE
■ When loosening or tightening the spare tire clamp bolt
Do not use an impact wrench. Use the adapter socket and jack handle.
■ Be careful when driving over bumps with the compact spare tire
installed on the vehicle
The vehicle becomes lower when driving with the compact spare tire
compared to when driving with standard tires. Be careful when driving
over uneven road surfaces.
■ Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving
performance.
■ When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■ To avoid damage to the tire pressure warning valves and transmit-
ters
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. (P. 421)
■ After taking out or stowing the spare tire
Make sure to secure the tire carrier by tightening the clamp bolt to pre-
vent the holding bracket from hitting the under body of the vehicle
during driving.
■ Using the tire carrier
● As the tire carrier is designed for use with the compact spare tire, it
cannot be used with standard tires.
● If the spare tire is flat, do not use the tire carrier, as the tire may not be
held securely.
499
SIENNA_OM_OM08035U_(U)
7-2. Steps to take in an emergency
7
When trouble arises
If you have a flat tire (vehicles with run-flat
tires)
Take your vehicle to the nearest
Toyota dealer or authorized tire
dealer as soon as possible if any
tire goes flat.
The vehicle can be driven for a
maximum of 100 miles (160 km)
at a speed below 50 mph
(80 km/h) after the tire pressure
warning light comes on.
(P. 474)
■ In some condition (such as at high temperatures)
You cannot continue driving for up to 100 miles (160 km).
■ For the detailed information on run-flat tires
See the tire warranty booklet.
Your vehicle is not equipped with a spare tire, but instead you
can continue driving the vehicle with run-flat tires even if any
tire goes flat.
In this case, slow down and drive with extra caution.
Run-flat tires (A “RFT” or “DSST” mark is molded on the side-
wall)
500
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
NOTICE
■ When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■ When driving over bumps
If a vehicle has a flat tire, the vehicle height will be lower than usual.
Ensure that nothing strikes the bottom of the vehicle.
■ To avoid damaging the tire pressure warning valves and transmit-
ters
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. (P. 421)
501
SIENNA_OM_OM08035U_(U)
7-2. Steps to take in an emergency
7
When trouble arises
If the engine will not start
One of the following may be the cause of the problem:
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine again following correct starting procedures.
(P. 225, 228)
● There may be a malfunction in the engine immobilizer system.
(P. 77)
One of the following may be the cause of the problem:
● The battery may be discharged. (P. 505)
● The battery terminal connections may be loose or corroded.
The engine starting system may be malfunctioning due to an electrical
problem such as an electronic key battery depletion or a blown fuse.
However, an interim measure is available to start the engine.
(P. 502)
If the engine will not start even though correct starting proce-
dures are being followed (P. 225, 228), consider each of the fol-
lowing points:
The engine will not start even though the starter motor operates
normally.
The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low
volume.
The starter motor does not turn over (vehicles with a smart key
system)
502
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
One of the following may be the cause of the problem:
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. (P. 505)
● There may be a malfunction in the steering lock system (vehicle
with a smart key system).
Contact your Toyota dealer if the problem cannot be repaired, or if repair
procedures are unknown.
When the engine does not start, the following steps can be used as an
interim measure to start the engine if the engine switch is functioning
normally:
Set the parking brake.
Shift the shift lever to P.
Turn the engine switch to ACCESSORY mode.
Press and hold the engine switch for about 15 seconds while
depressing the brake pedal firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle inspected by your Toyota
dealer.
The starter motor does not turn over, the interior lights and head-
lights do not turn on, or the horn does not sound.
Emergency start function (vehicles with a smart key system)
1
2
3
4
503
SIENNA_OM_OM08035U_(U)
7-2. Steps to take in an emergency
7
When trouble arises
If the electronic key does not operate
properly (vehicles with a smart key system)
Using the mechanical key
(P. 106) in order to perform
the following operations.
Locks all the doors
Unlocks the door(s)
Turning the key rearward unlocks
the driver’s door. Turning the key
once again within 3 seconds
unlocks the other doors.
Shift the shift lever to P and apply the brakes.
Touch the Toyota emblem side
of the electronic key to the
engine switch.
An alarm will sound to indicate that
the start function cannot detect the
electronic key that is touched to the
engine switch if any of the doors is
opened and closed while the key is
touched to the switch.
Press the engine switch within 10 seconds after the buzzer sounds,
keeping the brake pedal depressed.
In the event that the engine switch cannot be operated, contact your
Toyota dealer.
If communication between the electronic key and vehicle is
interrupted (P. 119) or the electronic key cannot be used
because the battery is depleted, the smart key system and wire-
less remote control cannot be used. In such cases, the doors
can be opened or the engine can be started by following the pro-
cedure below.
Locking and unlocking the doors and key linked functions
1
2
Starting the engine
1
2
3
504
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
■ Stopping the engine
Shift the shift lever to P and press the engine switch as you normally do when
stopping the engine.
■ Replacing the key battery
As this above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery depletes.
(P. 436)
■ Alarm (if equipped)
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered. (P. 79)
■ Changing engine switch modes
Within 10 seconds of the buzzer sounding, release the brake pedal and press
the engine switch.
The engine does not start and modes will be changed each time the switch is
pressed. (P. 229)
■ When the electronic key does not work properly
● Check if the battery-saving mode is set. If it is set, cancel the function.
(P. 145)
● Make sure that the smart key system has not been deactivated in the cus-
tomization setting. If it is off, turn the function on.
(Customizable features P. 544)
505
SIENNA_OM_OM08035U_(U)
7-2. Steps to take in an emergency
7
When trouble arises
If the battery is discharged
If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.
Vehicles with an alarm system:
Confirm that the electronic key
is being carried.
When connecting the jumper
(or booster) cables, depending
on the situation, the alarm may
activate and doors locked.
(P. 81)
Open the hood. (P. 407)
Remove the engine cover.
The following procedures may be used to start the engine if the
vehicle’s battery is discharged.
You can call your Toyota dealer or qualified repair shop.
1
2
3
506
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
Connect the jumper cables according to the following procedures:
Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle
Connect the clamp on the other end of the positive cable to the
positive (+) battery terminal on the second vehicle
Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle
Connect the clamp at the other end of the negative cable to a
solid, stationary, unpainted metallic point away from the battery
and any moving parts, as shown in the illustration.
Start the engine of the second vehicle. Increase the engine speed
slightly and maintain at that level for approximately 5 minutes to
recharge the battery of your vehicle.
Vehicles with a smart key system only: Open and close any of the
doors of your vehicle with the engine switch off.
Maintain the engine speed of the second vehicle and start the
engine of your vehicle by turning the engine switch to the “ON”
position (vehicles without a smart key system) or turning the engine
switch to IGNITION ON mode (vehicles with a smart key system).
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.
To install the engine cover, conduct the removal procedure in
reverse. After installing, check that the fixed pins are inserted
securely.
Once the engine starts, have the vehicle inspected at your Toyota
dealer as soon as possible.
4
1
2
3
4
5
6
7
8
9
507
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
7
When trouble arises
■ Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■ To prevent battery discharge
● Turn off the headlights and the audio/visual system while the engine is off.
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
■ When the battery is removed or discharged
● The power sliding door (if equipped) must be initialized. (P. 128)
● The power back door (if equipped) must be initialized. (P. 138)
■ Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
508
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
WARNING
■ Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery:
● Make sure the jumper cable is connected to the correct terminal and that it
is not unintentionally in contact with any other than the intended terminal.
● Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.
● Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
● Do not smoke, use matches, cigarette lighters or allow open flame near
the battery.
■ Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following
precautions when handling the battery:
● When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.
● Do not lean over the battery.
● In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
● Always wash your hands after handling the battery support, terminals, and
other battery-related parts.
● Do not allow children near the battery.
NOTICE
■ When handling jumper cables
When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fans or belt.
■ To prevent damage to the engine cover
● When removing the cover, make sure that you pull the cover towards you
after lifting the front edge to remove the fixed pins.
● When installing the cover, do not force the cover or subject it to strong
shocks.
509
SIENNA_OM_OM08035U_(U)
7-2. Steps to take in an emergency
7
When trouble arises
If your vehicle overheats
Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled down sufficiently, inspect the hoses and
radiator core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant
leaks, immediately contact your
Toyota dealer.
The following may indicate that your vehicle is overheating.
● The needle of the engine coolant temperature gauge (P. 9 0 )
enters the red zone or a loss of engine power is experienced. (For
example, the vehicle speed does not increase.)
● “Engine Coolant Temp is High” is shown on the multi-information
display.
● Steam is coming from under the hood.
Correction procedures
1
2
3
1
2
510
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL” line
“LOW” line
Radiator cap
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the engine and turn the air conditioning system on to check
that the radiator cooling fans operate and to check for coolant leaks
from the radiator or hoses.
The fans operate when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fans are operating by checking the
fan sound and air flow. If it is difficult to check these, turn the air condition-
ing system on and off repeatedly. (The fans may not operate in freezing
temperatures.)
If the fans are not operating:
Stop the engine immediately and contact your Toyota dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Toyota dealer.
4
1
2
3
4
5
6
7
511
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
7
When trouble arises
WARNING
■ When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts. Failure to do so may cause the hands or clothing to be
caught.
● Do not loosen the radiator cap or the coolant reservoir cap while the
engine and radiator are hot. High temperature steam or coolant could
spray out.
NOTICE
■ When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additive.
512
SIENNA_OM_OM08035U_(U)
7-2. Steps to take in an emergency
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material under the tires to help
provide traction.
Restart the engine.
Shift the shift lever to the D or R and release the parking brake.
Then, while exercising caution, depress the accelerator pedal.
■ When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow:
Press to turn off TRAC. (P. 323)
1
2
3
4
5
513
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
7
When trouble arises
WARNING
■ When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damaging the transaxle and other components
● Avoid spinning the wheels and pressing the accelerator pedal more than
necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
514
7-2. Steps to take in an emergency
SIENNA_OM_OM08035U_(U)
515
SIENNA_OM_OM08035U_(U)
8
Vehicle specifications
8-1. Specifications
Maintenance data
(fuel, oil level, etc.).......... 516
Fuel information ................ 526
Tire information ................. 529
8-2. Customization
Customizable features ...... 540
8-3. Initialization
Items to initialize ............... 550
516
SIENNA_OM_OM08035U_(U)
8-1. Specifications
Maintenance data (fuel, oil level, etc.)
*
1
: Unladen vehicle
*
2
: The model code is indicated on the Certification Label. For details, see
“Vehicle identification” below.
*
3
: The towing package is required.
Toyota does not recommend towing with this vehicle without the towing
package.
Dimensions and weights
Overall length
GSL30L-PRZSHA*
2
200.4 in. (5090 mm)
Others 200.6 in. (5095 mm)
Overall width 78.1 in. (1985 mm)
Overall height*
1
GSL30L-
PRZSHA*
2
68.7 in. (1745 mm)
Others 69.5 in. (1765 mm)
Wheelbase 119.3 in. (3030 mm)
Front and rear tread 67.7 in. (1720 mm)
Vehicle capacity weight
(Occupants + luggage)
GSL30L-PFZDHA*
2
1380 lb. (625 kg)
GSL30L-PFZEHA*
2
1235 lb. (560 kg)
GSL30L-PFZQHA*
2
1145 lb. (520 kg)
GSL30L-PRZEHA*
2
1355 lb. (615 kg)
GSL30L-PRZSHA*
2
1265 lb. (575 kg)
GSL30L-PRZQHA*
2
1290 lb. (585 kg)
GSL35L-PFZEHA*
2
1210 lb. (545 kg)
GSL35L-PFZSHA*
2
1125 lb. (510 kg)
GSL35L-PFZQHA*
2
1125 lb. (510 kg)
Trailer Weight Rating
(TWR)
(Trailer weight +
cargo weight)
(with towing package
*
3
)
Without brake 1000 lb. (450 kg)
With brake 3500 lb. (1585 kg)
SIENNA_OM_OM08035U_(U)
517
8-1. Specifications
8
Vehicle specifications
■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Cer-
tification Label on the driver’s
side center pillar.
■ Engine number
The engine number is stamped
on the engine block as shown.
Vehicle identification
518
SIENNA_OM_OM08035U_(U)
8-1. Specifications
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Engine
Model 3.5L 6-cylinder (2GR-FKS)
Type 6-cylinder V type, 4-cycle, gasoline
Bore and stroke 3.70 3.27 in. (94.0 83.0 mm)
Displacement 210.9 cu.in. (3456 cm
3
)
Drive belt tension
Automatic adjustment
Valve clearance
Fuel
Fuel type Unleaded gasoline only
Octane rating 87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)
20.9 gal. (79 L, 17.4 Imp.gal.)
Lubrication system
Oil capacity
(Drain and refill reference
*)
Without filter
With filter
5.6 qt. (5.3 L, 4.7 Imp.qt.)
Vehicles with towing package
5.8 qt. (5.5 L, 4.8 Imp.qt.)
Vehicles without towing package
5.7 qt. (5.4 L, 4.8 Imp.qt.)
SIENNA_OM_OM08035U_(U)
519
8-1. Specifications
8
Vehicle specifications
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark
is added to some oil containers
to help you select the oil you
should use.
Outside temperature
520
SIENNA_OM_OM08035U_(U)
8-1. Specifications
Cooling system
Capacity
Without towing package
12.2 qt. (11.5 L, 10.1 Imp.qt.)
With towing package
12.5 qt. (11.8 L, 10.4 Imp.qt.)
Coolant type
Use either of the following.
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.
Ignition system
Spark plug
Make
Gap
DENSO FK20HBR8
0.03 in. (0.8 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.
Electrical system
Battery
Open voltage at
68F (20C):
12.3 V or more
If the voltage is lower than the standard value,
charge the battery.
(After charging the battery, turn on the high beam
headlights for 30 seconds with the engine switch in
the “LOCK” position [vehicles without smart key
system] or off [vehicles with smart key system],
and turn the headlights off.)
Charging rates 5 A max.
SIENNA_OM_OM08035U_(U)
521
8-1. Specifications
8
Vehicle specifications
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact your Toyota dealer.
Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at
the factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or
an equivalent of matching quality to satisfy the above specification. Please
contact your Toyota dealer for further details.
Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at
the factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or
an equivalent of matching quality to satisfy the above specification. Please
contact your Toyota dealer for further details.
Automatic transaxle
Fluid capacity* 7.9 qt. (7.48 L, 6.6 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■ Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration and, ultimately, damage to the vehicle’s transmission.
Transfer (AWD models)
Oil capacity 0.8 qt. (0.8 L, 0.7 Imp.qt.)
Oil type and viscosity
Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent
Rear differential (AWD models)
Oil capacity 0.5 qt. (0.5 L, 0.4 Imp.qt.)
Oil type and viscosity
Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent
522
SIENNA_OM_OM08035U_(U)
8-1. Specifications
*
1
: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,
50 kgf) while the engine is running
*
2
: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,
30.6 kgf)
17-inch tires
Brakes
Pedal clearance*
1
2.99 in. (76 mm)
Pedal free play 0.04 0.24 in. (1 6 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lining wear limit 0.04 in. (1.0 mm)
Parking brake pedal travel*
2
3 6 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3
Steering
Free play Less than 1.2 in. (30 mm)
Tires and wheels
Tire size P235/60R17 100T
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front:
35 psi (240 kPa, 2.4 kgf/cm
2
or bar)
Rear:
35 psi (240 kPa, 2.4 kgf/cm
2
or bar)
Driving at high speeds (above 100
mph [160 km/h]) (in countries where
such speeds are permitted by law)
Add 3 psi (20 kPa, 0.2 kgf/cm
2
or
bar) to the front tires and rear tires.
Never exceed the maximum cold tire
inflation pressure indicated on the
tire sidewall.
Wheel size 17 x 7J
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
SIENNA_OM_OM08035U_(U)
523
8-1. Specifications
8
Vehicle specifications
18-inch tires
19-inch tires
Tire size 235/55R18 100V, 235/55RF18 100T
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front:
36 psi (250 kPa, 2.5 kgf/cm
2
or bar)
Rear:
36 psi (250 kPa, 2.5 kgf/cm
2
or bar)
Driving at high speeds (above 100
mph [160 km/h]) (in countries where
such speeds are permitted by law)
Add 1 psi (10 kPa, 0.1 kgf/cm
2
or
bar) to the front tires and rear tires.
Never exceed the maximum cold tire
inflation pressure indicated on the
tire sidewall.
Wheel size 18 x 7J
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size P235/50R19 99V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front:
36 psi (250 kPa, 2.5 kgf/cm
2
or bar)
Rear:
36 psi (250 kPa, 2.5 kgf/cm
2
or bar)
Driving at high speeds (above 100
mph [160 km/h]) (in countries where
such speeds are permitted by law)
Add 3 psi (20 kPa, 0.2 kgf/cm
2
or
bar) to the front tires and rear tires.
Never exceed the maximum cold tire
inflation pressure indicated on the
tire sidewall.
Wheel size 19 x 7J
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
524
SIENNA_OM_OM08035U_(U)
8-1. Specifications
Compact spare tire (2WD models)
Tire size T155/80R17 101M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
60 psi (420 kPa, 4.2 kgf/cm
2
or bar)
Wheel size 17 x 4T
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
SIENNA_OM_OM08035U_(U)
525
8-1. Specifications
8
Vehicle specifications
Light bulbs
Light bulbs Bulb No. W Type
Exterior
Headlights (low beam)
Discharge bulbs
Halogen bulbs
35
55
A
B
Headlights (high beam) 9005 60 C
Fog lights
*
1
55 B
Front side marker lights
*
2
W5W 5 D
Front turn signal lights
*
2
7444NA 28/8 E
Front turn signal/parking and
front side marker lights
*
3
3457NAK 28/8 E
Rear turn signal lights WY21W 21 E
Tail lights W5W 5 D
Stop/tail lights
*
4
7443 21/5 D
Back-up lights 921 16 D
License plate lights W5W 5 D
Outer foot lights W6W 6 D
Interior
Front personal/interior lights W5W 5 D
Rear personal/interior lights W5W/168 5 D
Luggage compartment light 5D
Vanity lights 7065T2 2.8 F
Front door courtesy lights
*
1
194 5 D
A: D4S discharge bulbs
B: H11 halogen bulbs
C: HB3 halogen bulbs
D: Wedge base bulbs (clear)
E: Wedge base bulbs (amber)
F: Double end bulbs
*
1
: If equipped
*
2
: Vehicles with LED type daytime running lights
*
3
: Vehicles without daytime running lights or with bulb type daytime running
lights
*
4
: Vehicles with bulb type stop/tail lights
526
SIENNA_OM_OM08035U_(U)
8-1. Specifications
Fuel information
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.
■ Recommendation of the use of gasoline containing detergent additives
● Toyota recommends the use of gasoline that contains detergent additives to
avoid build-up of engine deposits.
● All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, EPA’s lowest additives concentra-
tion program.
● Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
You must only use unleaded gasoline in your vehicle.
Select octane rating 87 (Research Octane Number 91) or higher.
Use of unleaded gasoline with an octane rating lower than 87
may result in engine knocking. Persistent knocking can lead to
engine damage.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A..
SIENNA_OM_OM08035U_(U)
527
8-1. Specifications
8
Vehicle specifications
■ Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as
reformulated gasolines, are available in some cities. These fuels are typically
acceptable for use, providing they meet other fuel requirements.
Toyota recommends these fuels, since the formulations allow for reduced
vehicle emissions.
■ Non-recommendation of the use of blended gasoline
● If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.
● Toyota does not recommend the use of gasoline containing methanol.
■ Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT
(Methylcyclopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument panel may come on. If this
happens, contact your Toyota dealer for service.
■ If your engine knocks
● Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
● Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30, E50, E85 (which are only some
examples of fuel containing more than
15% ethanol).
DO NOT use gaso-
line containing more
than 15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)
528
SIENNA_OM_OM08035U_(U)
8-1. Specifications
NOTICE
■ Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s catalytic converters
causing the emission control system to malfunction.
● Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■ Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is
encountered after using a different type of fuel, discontinue the use of that
type of fuel.
■ When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.
529
SIENNA_OM_OM08035U_(U)
8-1. Specifications
8
Vehicle specifications
Tire information
Run-flat tire or full-size tire
Compact spare tire
Typical tire symbols
530
SIENNA_OM_OM08035U_(U)
8-1. Specifications
Tire size (P. 532)
DOT and Tire Identification Number (TIN) (P. 531)
Uniform tire quality grading
For details, see “Uniform Tire Quality Grading” that follows.
Location of treadwear indicators (P. 420)
Run-flat tire (RFT) or standard tire (P. 499)
This vehicle can be equipped with either run-flat tires (RFT) or stan-
dard tires. A “RFT” or “DSST” mark is molded on the sidewall of the
run-flat tire.
Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.
Radial tires or bias-ply tires
A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL”
is a bias-ply tire.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly put into the tire.
A tube type tire has a tube inside the tire and the tube maintains the air
pressure.
Load limit at maximum cold tire inflation pressure (P. 423)
Maximum cold tire inflation pressure (P. 522)
This means the pressure to which a tire may be inflated.
Summer tires or all season tires (P. 424)
An all season tire has “M+S” on the sidewall. A tire not marked “M+S”
is a summer tire.
“TEMPORARY USE ONLY” (P. 496)
A compact spare tire is identified by the phrase “TEMPORARY USE
ONLY” molded on its sidewall. This tire is designed for temporary
emergency use only.
1
2
3
4
5
6
7
8
9
10
11
12
SIENNA_OM_OM08035U_(U)
531
8-1. Specifications
8
Vehicle specifications
DOT symbol*
Tire Identification Number (TIN)
Tire manufacturer’s identification mark
Tire size code
Manufacturer’s optional tire type code (3 or 4 letters)
Manufacturing week
Manufacturing year
Manufacturer’s code
*: The DOT symbol certifies that the tire conforms to applicable Federal
Motor Vehicle Safety Standards.
Typical DOT and Tire Identification Number (TIN)
Type A Type B
1
2
3
4
5
6
7
8
532
SIENNA_OM_OM08035U_(U)
8-1. Specifications
■ Typical tire size information
The illustration indicates typical tire size.
■ Tire dimensions
Section width
Tire height
Wheel diameter
Tire size
Tire use
(P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 dig-
its)
Speed symbol
(alphabet with one letter)
Run-flat tire code
1
2
3
4
5
6
7
8
1
2
3
SIENNA_OM_OM08035U_(U)
533
8-1. Specifications
8
Vehicle specifications
Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer
This information has been prepared in accordance with regulations
issued by the National Highway Traffic Safety Administration of the
U.S. Department of Transportation.
It provides the purchasers and/or prospective purchasers of Toyota
vehicles with information on uniform tire quality grading.
Your Toyota dealer will help answer any questions you may have as
you read this information.
■ DOT quality grades
All passenger vehicle tires must conform to Federal Safety
Requirements in addition to these grades. Quality grades can be
found where applicable on the tire sidewall between tread shoulder
and maximum section width.
For example: Treadwear 200 Traction AA Temperature A
Tire section names
1
2
3
4
5
6
7
8
9
10
11
Uniform Tire Quality Grading
534
SIENNA_OM_OM08035U_(U)
8-1. Specifications
■ Treadwear
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a speci-
fied government test course.
For example, a tire graded 150 would wear one and a half (1-1/2)
times as well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual condi-
tions of their use. Performance may differ significantly from the norm
due to variations in driving habits, service practices and differences
in road characteristics and climate.
■ Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C,
and they represent the tire’s ability to stop on wet pavement as
measured under controlled conditions on specified government test
surfaces of asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turn-
ing) traction.
■ Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire’s resistance to the generation of heat and its ability to dissi-
pate heat when tested under controlled conditions on a specified
indoor laboratory test wheel.
Sustained high temperature can cause the material of the tire to
degenerate and reduce tire life, and excessive temperature can lead
to sudden tire failure.
Grade C corresponds to a level of performance which all passenger
car tires must meet under the Federal Motor Vehicle Safety
Standard No. 109.
Grades B and A represent higher levels of performance on the labo-
ratory test wheel than the minimum required by law.
Warning: The temperature grades of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either sepa-
rately or in combination, can cause heat buildup and possible tire
failure.
SIENNA_OM_OM08035U_(U)
535
8-1. Specifications
8
Vehicle specifications
Glossary of tire terminology
Tire related term Meaning
Cold tire inflation
pressure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressure
The maximum cold inflated pressure to which
a tire may be inflated, shown on the sidewall
of the tire
Recommended
inflation pressure
Cold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded
vehicle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant
weight
150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
*
that follows
Occupant distribution
Distribution of occupants in a vehicle as speci-
fied in the third column of Table 1
* below
Production options
weight
The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy
duty battery, and special trim
536
SIENNA_OM_OM08035U_(U)
8-1. Specifications
Rim
A metal support for a tire or a tire and tube
assembly upon which the tire beads are
seated
Rim diameter
(Wheel diameter)
Nominal diameter of the bead seat
Rim size designation Rim diameter and width
Rim type designation
The industry manufacturer’s designation for a
rim by style or code
Rim width Nominal distance between rim flanges
Vehicle capacity
weight (Total load
capacity)
The rated cargo and luggage load plus 150 lb.
(68 kg) times the vehicle’s designated seating
capacity
Vehicle maximum load
on the tire
The load on an individual tire that is deter-
mined by distributing to each axle its share of
the maximum loaded vehicle weight, and
dividing by two
Vehicle normal load
on the tire
The load on an individual tire that is deter-
mined by distributing to each axle its share of
curb weight, accessory weight, and normal
occupant weight (distributed in accordance
with Table 1
* below), and dividing by two
Weather side
The surface area of the rim not covered by the
inflated tire
Bead
The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim
Bead separation
A breakdown of the bond between compo-
nents in the bead
Bias ply tire
A pneumatic tire in which the ply cords that
extend to the beads are laid at alternate
angles substantially less than 90 degrees to
the centerline of the tread
Carcass
The tire structure, except tread and sidewall
rubber which, when inflated, bears the load
Chunking
The breaking away of pieces of the tread or
sidewall
Cord The strands forming the plies in the tire
Tire related term Meaning
SIENNA_OM_OM08035U_(U)
537
8-1. Specifications
8
Vehicle specifications
Cord separation
The parting of cords from adjacent rubber
compounds
Cracking
Any parting within the tread, sidewall, or
innerliner of the tire extending to cord material
CT
A pneumatic tire with an inverted flange tire
and rim system in which the rim is designed
with rim flanges pointed radially inward and
the tire is designed to fit on the underside of
the rim in a manner that encloses the rim
flanges inside the air cavity of the tire
Extra load tire
A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire
Groove The space between two adjacent tread ribs
Innerliner
The layer(s) forming the inside surface of a
tubeless tire that contains the inflating medium
within the tire
Innerliner separation
The parting of the innerliner from cord material
in the carcass
Intended outboard
sidewall
(a) The sidewall that contains a whitewall,
bears white lettering, or bears manufac-
turer, brand, and/or model name molding
that is higher or deeper than the same
molding on the other sidewall of the tire, or
(b) The outward facing sidewall of an asym-
metrical tire that has a particular side that
must always face outward when mounted
on a vehicle
Light truck (LT) tire
A tire designated by its manufacturer as pri-
marily intended for use on lightweight trucks
or multipurpose passenger vehicles
Load rating
The maximum load that a tire is rated to carry
for a given inflation pressure
Maximum load rating
The load rating for a tire at the maximum per-
missible inflation pressure for that tire
Maximum permissible
inflation pressure
The maximum cold inflation pressure to which
a tire may be inflated
Measuring rim
The rim on which a tire is fitted for physical
dimension requirements
Tire related term Meaning
538
SIENNA_OM_OM08035U_(U)
8-1. Specifications
Open splice
Any parting at any junction of tread, sidewall,
or innerliner that extends to cord material
Outer diameter The overall diameter of an inflated new tire
Overall width
The linear distance between the exteriors of
the sidewalls of an inflated tire, including ele-
vations due to labeling, decorations, or protec-
tive bands or ribs
Passenger car tire
A tire intended for use on passenger cars,
multipurpose passenger vehicles, and trucks,
that have a gross vehicle weight rating
(GVWR) of 10,000 lb. or less
Ply A layer of rubber-coated parallel cords
Ply separation
A parting of rubber compound between adja-
cent plies
Pneumatic tire
A mechanical device made of rubber, chemi-
cals, fabric and steel or other materials, that,
when mounted on an automotive wheel, pro-
vides the traction and contains the gas or fluid
that sustains the load
Radial ply tire
A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire
Section width
The linear distance between the exteriors of
the sidewalls of an inflated tire, excluding ele-
vations due to labeling, decoration, or protec-
tive bands
Sidewall
That portion of a tire between the tread and
bead
Sidewall separation
The parting of the rubber compound from the
cord material in the sidewall
Tire related term Meaning
SIENNA_OM_OM08035U_(U)
539
8-1. Specifications
8
Vehicle specifications
*: Table 1 Occupant loading and distribution for vehicle normal load for
various designated seating capacities
Snow tire
A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-
1136 Standard Reference Test Tire, when
using the snow traction test as described in
ASTM F-1805-00, Standard Test Method for
Single Wheel Driving Traction in a Straight
Line on Snow-and Ice-Covered Surfaces, and
which is marked with an Alpine Symbol ( )
on at least one sidewall
Test rim
The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire
Tread
That portion of a tire that comes into contact
with the road
Tread rib
A tread section running circumferentially
around a tire
Tread separation Pulling away of the tread from the tire carcass
Treadwear indicators
(TWI)
The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixture
The fixture used to hold the wheel and tire
assembly securely during testing
Tire related term Meaning
Designated seating
capacity, Number of
occupants
Vehicle normal load,
Number of occupants
Occupant distribution
in a normally loaded
vehicle
2 through 4 2 2 in front
5 through 10 3
2 in front, 1 in second
seat
11 through 15 5
2 in front, 1 in second
seat, 1 in third seat,
1 in fourth seat
16 through 20 7
2 in front, 2 in second
seat, 2 in third seat,
1 in fourth seat
540
SIENNA_OM_OM08035U_(U)
8-2. Customization
Customizable features
■ Changing using the audio/visual system screen
Press the “MENU” button.
Select “Setup” on the “MENU” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can
be changed for details.
■ Changing using the multi-information display
Use the meter control switches to select while the vehicle
is stopped, and then press the center button to display the cus-
tomize mode screen.
Select the desired item, and then press the center button.
Select the desired setting, and then press the center button.
To go back to the previous screen or exit the customize mode,
press .
Your vehicle includes a variety of electronic features that can be
personalized to your preferences. The settings of these features
can be changed using the multi-information display, the audio/
visual system screen or at your Toyota dealer.
Some function settings are changed simultaneously with other func-
tions being customized. Contact your Toyota dealer for further
details.
Customizing vehicle features
1
2
1
2
3
SIENNA_OM_OM08035U_(U)
541
8-2. Customization
8
Vehicle specifications
Settings that can be changed using the audio/visual system screen
Settings that can be changed using the multi-information display
Settings that can be changed by your Toyota dealer
Definition of symbols: O = Available,
–
= Not available
■ Gauges, meters and multi-information display (P. 92)
Customizable features
1
2
3
Function*
1
Default setting
Customized
setting
Language*
2
English
French
OO–
Spanish
Units
*
2
miles
(MPG US)
miles (MPG
Imperial)
OO–
km (km/L)
km (L/100 km)
F (Fahrenheit) C (Celsius) O O –
Drive information 1
Distance to
empty
*
3
–O–
Average fuel
economy
–O–
Drive information 2
Current fuel
economy
*
3
–O–
Average speed – O –
Drive information 3
Trip distance
*
3
–O–
Trip elapsed
time
–O–
Eco Driving Indicator Light
On
(Self-lighting)
Off – O –
switch settings
Drive
information 1
Desired status
screen
*
4
–O–
Pop-up display On Off – O –
1 2 3
542
SIENNA_OM_OM08035U_(U)
8-2. Customization
*
1
: For details about each function: P. 96
*
2
: The default setting varies according to country.
*
3
: Customized items are the following items except for default setting items:
average fuel economy, tank average fuel economy, trip average fuel econ-
omy, current fuel economy, distance to empty, trip distance, distance, trip
elapsed time, elapsed time, trip average speed, average speed, blank.
*
4
: Some status screens cannot be registered (indicated on multi-information
display).
*
5
: Speed limit display may not be available for some regions.
*
6
: If equipped
Speed limit display
*
5, 6
On with the
speed limit
caution indica-
tor (yellow)
enabled
On with the
speed limit
caution indica-
tor (yellow) not
enabled
–OO
Off
Function*
1
Default setting
Customized
setting
1
2
3
SIENNA_OM_OM08035U_(U)
543
8-2. Customization
8
Vehicle specifications
■ Door lock (P. 110, 503)
■ Smart key system* and wireless remote control (P. 105, 143)
*: If equipped
Function Default setting
Customized
setting
Unlocking using a key
Driver’s door
unlocked in
one step, all
doors unlocked
in two steps
All doors
unlocked in
one step
––O
Automatic door lock
Shifting the
shift lever to
position other
than P
Off
O — O
Vehicle speed
is approxi-
mately 12 mph
(20 km/h) or
higher
Automatic door unlock
Shifting the
shift lever to P
Off
O — O
Driver’s door is
opened
1 2 3
Function Default setting
Customized
setting
Operation signal (buzzer
volume)
Level 7
Off
O–O
Level 1 to 6
Operation signal
(Emergency flashers)
On Off O – O
Time elapsed before the
automatic door lock func-
tion is activated if door is
not opened after being
unlocked
60 seconds
Off
O–O30 seconds
120 seconds
Open door warning buzzer On Off – – O
1 2 3
544
SIENNA_OM_OM08035U_(U)
8-2. Customization
■ Smart key system* (P. 143)
*: If equipped
■
Wireless remote control (P. 105)
*: If equipped
Function Default setting
Customized
setting
Smart key system On Off O – O
Number of consecutive
door lock operations
2 times
As many as
desired
––O
1 2 3
Function Default setting
Customized
setting
Wireless remote control On Off – – O
Unlocking operation
Driver’s door
unlocked in
one step, all
doors unlocked
in two steps
All doors
unlocked in
one step
O–O
Power sliding door
operation
*
Press and hold
Off
––O
Press twice
One short
press
Power back door
operation
*
Press and hold
Off
––O
Press twice
One short
press
Alarm (panic mode) On Off – – O
1 2 3
SIENNA_OM_OM08035U_(U)
545
8-2. Customization
8
Vehicle specifications
■ Power sliding door* (P. 121)
*: If equipped
■
Driving position memory* (P. 169)
*: If equipped
Function Default setting
Customized
setting
Operation signal (buzzer) Off On – – O
Opening and closing
operation
Press and hold
Press twice
––O
One short
press
1 2 3
Function Default setting
Customized
setting
Driver’s seat movement
when exiting the vehicle
Full
Off
O–O
Partial
Selecting the door linking
driving position memory
with door unlock operation
Driver’s door All doors – – O
1 2 3
546
SIENNA_OM_OM08035U_(U)
8-2. Customization
■ Automatic light control system (P. 241)
*: U.S.A. only
■
Intuitive parking assist* (P. 314)
*: If equipped
■
Automatic air conditioning system (P. 332)
Function Default setting
Customized
setting
Light sensor sensitivity Standard -2 to 2 O – O
Time elapsed before head-
lights automatically turn off
after doors are closed
30 seconds
Off
O–O60 seconds
90 seconds
Automatic High Beam On Off – – O
Daytime running light
system
*
On Off – – O
1 2 3
Function Default setting
Customized
setting
Detection distance of the
rear center sensor
Far Near O – O
Buzzer volume Level 2 Level 1 to 3 O – O
1 2 3
Function Default setting
Customized
setting
A/C on operation linked
with “AUTO” button
On Off O – O
1 2 3
SIENNA_OM_OM08035U_(U)
547
8-2. Customization
8
Vehicle specifications
■ Illumination (P. 347)
*: If equipped
■
Seat belt reminder (P. 473)
Function Default setting
Customized
setting
Time elapsed before the
interior lights turn off
15 seconds
Off
O–O7.5 seconds
30 seconds
Operation after the engine
switch is turned to the
“LOCK” position (vehicles
without a smart key
system) or off (vehicles
with a smart key system)
On Off – – O
Operation when the doors
are unlocked
On Off – – O
Operation when you
approach the vehicle with
the electronic key on your
person
*
On Off – – O
Ambient lights
* On Off – – O
Time elapsed before the
outer foot lights turn off
*
15 seconds
Off
O–O7.5 seconds
30 seconds
Operation of the outer foot
lights when you approach
the vehicle with the elec-
tronic key on your person
*
On Off – – O
Operation of the outer foot
lights when the doors are
unlocked
*
On Off – – O
1 2 3
Function Default setting
Customized
setting
Vehicle speed linked seat
belt reminder buzzer
On Off – – O
1 2 3
548
SIENNA_OM_OM08035U_(U)
8-2. Customization
■ LDA (Lane Departure Alert with steering control) (P. 278)
■ PCS (Pre-Collision System) (P. 266)
■ BSM (Blind Spot Monitor)* (P. 302)
*: If equipped
■
RCTA (Rear Cross Traffic Alert)* (P. 302)
*: If equipped
Function Default setting
Customized
setting
Steering Assist function On Off – O –
Alert sensitivity Standard High – O –
Vehicle sway warning
function
On Off – O –
Vehicle sway warning sen-
sitivity
Standard
Low
– O –
High
1 2 3
Function Default setting
Customized
setting
PCS (Pre-Collision System) On Off – O –
Alert timing
(Middle)
(Far)
– O –
(Near)
1 2 3
Function Default setting
Customized
setting
Outside rear view mirror
indicator brightness
Bright Dim – O –
1 2 3
Function Default setting
Customized
setting
Buzzer volume 2 1 to 3 – O –
1 2 3
SIENNA_OM_OM08035U_(U)
549
8-2. Customization
8
Vehicle specifications
■ Vehicle customization
● When the speed-detecting automatic door lock and shift-linked automatic
door lock are both on, the door lock operates as follows:
• When shifting the shift position to any position other than P, all the doors
will be locked.
• If the vehicle is started with all the doors locked, the Speed linked door
locking function would not operate.
• If the vehicle is started with any door unlocked, the Speed linked door
locking function will operate.
● When the smart key system is off, the entry unlock function cannot be cus-
tomized.
● When the doors remain closed after unlocking the doors and the timer acti-
vated automatic door lock function activates, signals will be generated in
accordance with the operation buzzer volume and operational signal
(Emergency flashers) function settings.
■ When customizing on the audio/visual system screen
Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to P. Also, to prevent battery discharge, leave the engine running while
customizing the features.
WARNING
■ During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■ During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.
550
SIENNA_OM_OM08035U_(U)
8-3. Initialization
Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main-
tenance being performed on the vehicle.
Item When to initialize Reference
Power sliding door
(if equipped)
After reconnecting or changing the
battery
P. 128
Power back door
(if equipped)
After reconnecting or changing the
battery
P. 138
Message indicating
maintenance is
required (U.S.A. only)
After the maintenance is performed P. 399
Tire pressure
warning system
When changing the tire size P. 421
551
SIENNA_OM_OM08035U_(U)
9
For owners
Reporting safety defects
for U.S. owners........................ 552
Seat belt instructions for
Canadian owners
(in French) ............................... 553
SRS airbag instructions for
Canadian owners
(in French) ............................... 555
552
SIENNA_OM_OM08035U_(U)
Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual problems between you, your dealer,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov;
or write to: Administrator, NHTSA, 1200 New Jersey Ave, S.E., Wash-
ington, DC 20590. You can also obtain other information about motor
vehicle safety from http ://www.safercar.gov.
553
SIENNA_OM_OM08035U_(U)
9
For owners
Seat belt instructions for Canadian owners
(in French)
● Tirez sur la ceinture épaulière
jusqu’à ce qu’elle recouvre
entièrement l’épaule; elle ne
doit cependant pas toucher le
cou ni glisser de l’épaule.
● Placez la ceinture abdominale
le plus bas possible sur les
hanches.
● Réglez la position du dossier. Tenez-vous assis bien au fond du
siège, le dos droit.
● Ne vrillez pas la ceinture de sécurité.
The following is a French explanation of seat belt instructions
extracted from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
Utilisation adéquate des ceintures de sécurité
AVERTISSEMENT
■ Lorsque vous utilisez la ceinture du siège central de la troisième ran-
gée de sièges
N’utilisez pas la ceinture du siège central
de la troisième rangée de sièges si l’une
des boucles est détachée. Attacher une
seule boucle pourrait occasionner des
blessures graves, voire mortelles, en cas
de freinage ou de dérapage brusques, ou
d’accident.
554
SIENNA_OM_OM08035U_(U)
■
Ceintures de sécurité
Avec un chiffon ou une éponge, nettoyez à l’aide d’un savon doux
et de l’eau tiède. Vérifiez aussi les ceintures régulièrement pour
vous assurer qu’elles ne présentent pas d’usure excessive, d’effilo-
chage ou de coupures.
Entretien et soin
AVERTISSEMENT
■ Dommages et usure de la ceinture de sécurité
Vérifiez périodiquement le système de ceintures de sécurité. Vérifiez qu’il
n’y a pas de coupures, d’effilochures ni de pièces desserrées. N’utilisez pas
une ceinture de sécurité endommagée avant qu’elle ne soit remplacée. Les
ceintures de sécurité endommagées ne peuvent pas protéger les occu-
pants contre les blessures graves, voire mortelles.
555
SIENNA_OM_OM08035U_(U)
9
For owners
SRS airbag instructions for Canadian
owners (in French)
◆ Coussins gonflables SRS avant
Coussin gonflable SRS du conducteur/coussin gonflable SRS du
passager avant
Peuvent aider à protéger la tête et la poitrine du conducteur et du
passager avant contre les impacts avec des composants inté-
rieurs
Coussin gonflable SRS de protection des genoux du conducteur
Peut aider à protéger le conducteur
Coussin gonflable SRS du coussin de siège du passager avant
Peut aider à retenir le passager avant
The following is a French explanation of SRS airbag instructions
extracted from the SRS airbag section in this manual.
See the SRS airbag section for more detailed seat belt instructions
in English.
1
2
3
556
SIENNA_OM_OM08035U_(U)
◆ Coussins gonflables SRS latéraux et en rideau
Coussins gonflables SRS latéraux
Peuvent aider à protéger le torse des occupants des sièges
avant
Coussins gonflables SRS en rideau
● Peuvent aider à protéger principalement la tête des occupants
des sièges latéraux
● Peuvent empêcher les occupants d’être éjectés du véhicule en
cas de tonneaux
4
5
SIENNA_OM_OM08035U_(U)
557
9
For owners
Composants du système de coussins gonflables SRS
Coussin gonflable du passager
avant
Coussins gonflables en rideau
Coussins gonflables latéraux
Limiteurs de force et dispositifs
de tension des ceintures de
sécurité
Système de classification de
l’occupant du siège du passa-
ger avant (ECU et capteurs)
Capteurs d’impact latéral
(arrière)
Contacteur de boucle de cein-
ture de sécurité du passager
avant
Lampe témoin SRS
Coussin gonflable du conduc-
teur
Capteurs d’impact latéral (por-
tière avant)
Contacteur de boucle de cein-
ture de sécurité du conducteur
Capteur de position du siège
du conducteur
Coussin gonflable de protec-
tion des genoux du conduc-
teur
Capteurs d’impact avant
Module de capteur de coussin
gonflable
Voyants “AIR BAG ON” et
“AIR BAG OFF”
Coussin gonflable du coussin
de siège du passager avant
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
558
SIENNA_OM_OM08035U_(U)
Votre véhicule est doté de COUSSINS GONFLABLES ÉVOLUÉS
dont la conception s’appuie sur les normes de sécurité des véhicules
à moteur américains (FMVSS208). Le module de capteur de coussin
gonflable (ECU) contrôle le déploiement des coussins gonflables en
fonction des informations obtenues des capteurs et d’autres éléments
affichés dans le diagramme des composants du système ci-dessus.
Ces informations comprennent des données relatives à la gravité de
l’accident et aux occupants. Au moment du déploiement des coussins
gonflables, une réaction chimique se produit dans les gonfleurs de
coussin gonflable et les coussins gonflables se remplissent rapide-
ment d’un gaz non toxique pour aider à limiter le mouvement des
occupants.
SIENNA_OM_OM08035U_(U)
559
9
For owners
AVERTISSEMENT
■ Précautions relatives aux coussins gonflables SRS
Observez les précautions suivantes en ce qui concerne les coussins gon-
flables SRS.
Les négliger pourrait occasionner des blessures graves, voire mortelles.
● Le conducteur et tous les passagers du véhicule doivent porter leur cein-
ture de sécurité de la manière appropriée.
Les coussins gonflables SRS sont des dispositifs supplémentaires qui
doivent être utilisés avec les ceintures de sécurité.
● Le coussin gonflable SRS du conducteur se déploie avec une force consi-
dérable et peut occasionner des blessures graves, voire mortelles, notam-
ment lorsque le conducteur se trouve très près du coussin gonflable. La
National Highway Traffic Safety Administration (NHTSA), aux États-Unis,
fait les recommandations suivantes :
La zone à risque du coussin gonflable du conducteur couvre 2 à 3 in. (50
à 75 mm) de la zone de déploiement du coussin gonflable. Pour assurer
une marge de sécurité suffisante, restez à 10 in. (250 mm) du coussin
gonflable. Cette distance est mesurée depuis le centre du volant jusqu’à
votre sternum. Si maintenant vous vous tenez assis à moins de 10 in.
(250 mm), vous pouvez changer votre position de conduite de plusieurs
manières :
• Reculez votre siège à la position maximale vous permettant d’atteindre
encore aisément les pédales.
• Inclinez légèrement le dossier du siège.
Même si les véhicules sont conçus différemment, la plupart des
conducteurs peuvent maintenir une distance de 10 in. (250 mm), même
si leur siège se trouve complètement vers l’avant, simplement en incli-
nant un peu le dossier du siège vers l’arrière. Si la visibilité avant est
moindre après avoir incliné le dossier de votre siège, utilisez un coussin
ferme et non glissant pour être assis plus haut ou relevez le siège si
cette option est disponible sur votre véhicule.
• Si votre volant est réglable en hauteur, inclinez-le vers le bas. Cela
vous permet d’orienter le coussin gonflable vers votre buste plutôt que
vers votre tête et vers votre cou.
Le siège doit être réglé de la manière recommandée ci-dessus par la
NHTSA, tout en gardant le contrôle des pédales et du volant, ainsi que la
vue sur les commandes du tableau de bord.
560
SIENNA_OM_OM08035U_(U)
AVERTISSEMENT
■ Précautions relatives aux coussins gonflables SRS
● Le coussin gonflable SRS du passager avant se déploie également avec
une force considérable et peut occasionner des blessures graves, voire
mortelles, notamment lorsque le passager avant se trouve très près du
coussin gonflable. Le siège du passager avant doit se trouver le plus loin
possible du coussin gonflable et le dossier doit être réglé de manière à ce
que le passager avant soit assis bien droit.
● Le déploiement d’un coussin gonflable risque d’infliger des blessures
graves, voire mortelles, aux bébés et aux enfants mal assis et/ou mal atta-
chés. Un bébé ou un enfant trop petit pour utiliser une ceinture de sécurité
doit être correctement retenu à l’aide d’un dispositif de retenue pour
enfants. Toyota recommande vivement de placer et d’attacher correcte-
ment tous les bébés et tous les enfants sur les sièges arrière du véhicule à
l’aide de dispositifs de retenue adaptés. Les sièges arrière sont plus
sécuritaires pour les bébés et les enfants que le siège du passager avant.
● N’installez jamais un dispositif de retenue pour enfants de type dos à la
route sur le siège du passager avant, même si le voyant “AIR BAG OFF”
est allumé. En cas d’accident, la force et la vitesse de déploiement du
coussin gonflable du passager avant pourraient infliger à l’enfant des bles-
sures graves, voire mortelles, si le dispositif de retenue pour enfants de
type dos à la route était installé sur le siège du passager avant.
● Si la rallonge de ceinture de sécurité a
été reliée à la boucle des ceintures de
sécurité des sièges avant sans avoir
aussi été attachée à la plaque de blo-
cage des ceintures de sécurité, les
coussins gonflables SRS avant consi-
déreront que le conducteur et le passa-
ger avant portent tout de même leur
ceinture de sécurité même si les cein-
tures de sécurité ne sont pas attachées.
Les coussins gonflables SRS avant
peuvent alors ne pas s’activer correcte-
ment lors d’une collision, ce qui pourrait
occasionner des blessures graves,
voire mortelles, en cas de collision.
Assurez-vous de toujours porter la cein-
ture de sécurité avec la rallonge de
ceinture de sécurité.
SIENNA_OM_OM08035U_(U)
561
9
For owners
AVERTISSEMENT
■ Précautions relatives aux coussins gonflables SRS
● Ne vous asseyez pas sur le bord du
siège et ne vous appuyez pas sur la
planche de bord.
● Ne laissez pas un enfant se tenir face
au coussin gonflable SRS du passager
avant ni s’asseoir sur les genoux d’un
passager avant.
● Ne laissez pas les occupants des
sièges avant tenir des objets sur leurs
genoux.
● Ne vous appuyez pas sur la portière ou
sur le brancard de pavillon, ni sur les
montants avant, latéraux ou arrière.
● Ne laissez personne s’agenouiller face
à la portière sur le siège du passager ni
sortir la tête ou les mains à l’extérieur
du véhicule.
562
SIENNA_OM_OM08035U_(U)
AVERTISSEMENT
■ Précautions relatives aux coussins gonflables SRS
● Ne fixez et n’appuyez rien sur des
zones telles que la planche de bord, le
tampon de volant ou encore la partie
inférieure du tableau de bord.
Ces objets peuvent se transformer en
projectiles lorsque les coussins gon-
flables SRS du conducteur, du passa-
ger avant et de protection des genoux
du conducteur se déploient.
● Ne fixez rien sur des zones telles que
les portières, le pare-brise, les glaces
de portières, les montants avant ou
arrière, le brancard de pavillon et la poi-
gnée de maintien.
● Véhicules non dotés du système Smart
key : N’accrochez pas d’objets lourds,
pointus ou durs, par exemple des clés
ou des accessoires, à la clé. Ces objets
pourraient empêcher le déploiement du
coussin gonflable SRS de protection
des genoux ou être projetés violem-
ment dans l’assise du siège du conduc-
teur par la force du déploiement, et
donc présenter un danger.
SIENNA_OM_OM08035U_(U)
563
9
For owners
AVERTISSEMENT
■ Précautions relatives aux coussins gonflables SRS
● N’accrochez pas de cintres ni d’autres objets rigides sur les crochets
porte-vêtements. Tous ces objets pourraient se transformer en projectiles
et vous occasionner des blessures graves, voire mortelles, en cas de
déploiement des coussins gonflables SRS en rideau.
● Si un recouvrement de vinyle est placé sur la zone de déploiement du
coussin gonflable SRS de protection des genoux, veillez à le retirer.
● N’utilisez pas d’accessoires recouvrant les parties du siège où les cous-
sins gonflables SRS latéraux et le coussin gonflable SRS du coussin de
siège se déploient, car ces accessoires pourraient entraver le déploiement
des coussins SRS. De tels accessoires peuvent empêcher les coussins
gonflables latéraux et le coussin gonflable du coussin de siège de se
déployer correctement, rendre le système inopérant ou provoquer acci-
dentellement le déploiement des coussins gonflables latéraux et du cous-
sin gonflable du coussin de siège, occasionnant des blessures graves,
voire mortelles.
● Ne frappez pas et n’appliquez pas une pression importante à l’emplace-
ment des composants de coussins gonflables SRS.
Cela peut provoquer un mauvais fonctionnement des coussins gonflables
SRS.
● Ne touchez à aucun composant des coussins gonflables SRS immédiate-
ment après leur déploiement (gonflage), car ils pourraient être chauds.
● Si vous avez de la difficulté à respirer après le déploiement des coussins
gonflables SRS, ouvrez une portière ou une glace pour laisser entrer l’air,
ou quittez le véhicule si vous pouvez le faire en toute sécurité. Dès que
possible, nettoyez tous les résidus afin d’éviter les irritations cutanées.
● Si les emplacements de stockage des coussins gonflables SRS, tels que
le tampon de volant et les garnitures des montants avant et arrière, sont
endommagés ou fissurés, faites-les remplacer par votre concessionnaire
Toyota.
● Ne placez aucun objet, par exemple un coussin, sur le siège du passager
avant. Cela disperserait le poids du passager, ce qui empêcherait le cap-
teur de le détecter correctement. Cela pourrait empêcher le déploiement
des coussins gonflables SRS du passager avant en cas de collision.
564
SIENNA_OM_OM08035U_(U)
AVERTISSEMENT
■ Modification et mise au rebut des composants du système de coussins
gonflables SRS
Ne mettez pas votre véhicule au rebut et n’effectuez aucune des modifica-
tions suivantes sans d’abord consulter votre concessionnaire Toyota.
Les coussins gonflables SRS pourraient fonctionner de manière incorrecte
ou se déployer (gonfler) accidentellement, ce qui serait susceptible d’occa-
sionner des blessures graves, voire mortelles.
● Installation, retrait, démontage et réparation des coussins gonflables SRS
● Réparations, modifications, retrait ou remplacement du volant, du tableau
de bord, de la planche de bord, des sièges ou du capitonnage des sièges,
des montants avant, latéraux et arrière, ou des brancards de pavillon
● Réparations ou modifications de l’aile avant, du pare-chocs avant ou du
côté de l’habitacle
● Installation d’une protection de calandre (barre safari, barre kangourou,
etc.), de lames de déneigement, de treuils ou d’un porte-bagages de toit
● Modifications du système de suspension du véhicule
● Installation d’appareils électroniques tels qu’un émetteur-récepteur radio
ou un lecteur de CD
● Modifications à votre véhicule pour une personne aux capacités physiques
réduites
565
SIENNA_OM_OM08035U_(U)
Index
What to do if...
(Troubleshooting) .................... 566
Alphabetical index ..................... 570
For vehicles with an Entune Audio, Entune Audio Plus or
Entune Premium Audio, refer to the “NAVIGATION AND
MULTIMEDIA SYSTEM OWNER’S MANUAL” for information
regarding the equipment listed below.
• Navigation system
• Rear view monitor system
• Audio/visual system
• Panoramic view monitor
• Hands-free system (for cellular phone)
For details about AUTO ACCESS SEAT, refer to the “AUTO
ACCESS SEAT OWNER’S MANUAL”.
566
What to do if... (Troubleshooting)
SIENNA_OM_OM08035U_(U)
What to do if... (Troubleshooting)
● If you lose your keys or mechanical keys, new genuine keys or mechanical
keys can be made by your Toyota dealer. (P. 107)
● If you lose your keys or electronic keys, the risk of vehicle theft increases
significantly. Contact your Toyota dealer immediately. (P. 109)
● Is the key battery weak or depleted? (P. 436)
● Vehicles with a smart key system
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. (P. 229)
● Vehicles with a smart key system
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
● The function may not operate properly due to the condition of the radio
wave. (P. 107, 145)
● Is the child-protector lock set?
The sliding door cannot be opened from inside the vehicle when the lock is
set. Open the sliding door from outside and then unlock the child-protector
lock. (P. 125)
If you have a problem, check the following before contacting
your Toyota dealer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The sliding door cannot be opened
567
What to do if... (Troubleshooting)
SIENNA_OM_OM08035U_(U)
● Is the shift lever in P? (P. 225)
● Is the steering wheel unlocked? (P. 226)
● Is the battery discharged? (P. 505)
● Did you press the engine switch while firmly depressing the brake pedal?
(P. 228)
● Is the shift lever in P? (P. 228)
● Is the electronic key anywhere detectable inside the vehicle? (P. 143)
● Is the steering wheel unlocked? (P. 231)
● Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. (P. 503)
● Is the battery discharged? (P. 505)
● Is the engine switch in the “ON” position (vehicles without a smart key sys-
tem) or IGNITION ON mode (vehicles with a smart key system)?
If you cannot release the shift lever by depressing the brake
pedal with the engine switch in the “ON” position (vehicles without a smart
key system) or IGNITION ON mode (vehicles with a smart key system).
(P. 237)
If you think something is wrong
The engine does not start
(vehicles without a smart key system)
The engine does not start
(vehicles with a smart key system)
The shift lever cannot be shifted from P even if you depress
the brake pedal
568
What to do if... (Troubleshooting)
SIENNA_OM_OM08035U_(U)
● Vehicles without a smart key system:
It is locked to prevent theft of the vehicle if the key is removed from the
engine switch. (P. 226)
● Vehicles with a smart key system:
It is locked automatically to prevent theft of the vehicle. (P. 231)
● Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. (P. 184)
● The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not operating) for a period of
time. (P. 230)
● The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? (P. 473)
● The brake system warning light is on
Is the parking brake released? (P. 240)
Depending on the situation, other types of warning buzzer may also sound.
(P. 471, 481)
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches
The engine switch is turned off automatically
(vehicles with a smart key system)
A warning buzzer sounds during driving
569
What to do if... (Troubleshooting)
SIENNA_OM_OM08035U_(U)
● Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. (P. 79)
To stop the alarm, turn the engine switch to the “ON” position (vehicles with-
out a smart key system) or IGNITION ON mode (vehicles with a smart key
system) or start the engine.
● Is the message displayed on the multi-information display?
Check the message on the multi-information display. (P. 481)
● When a warning light turns on or a warning message is displayed, refer to
P. 471, 481.
● Vehicles with run-flat tires:
Slow down the vehicle, drive with extra caution, and take your vehicle
to the nearest Toyota dealer or authorized tire dealer as soon as possi-
ble to have the tire replaced. (P. 499)
● Vehicles with a compact spare tire:
Stop the vehicle in a safe place and replace the flat tire with the spare
tire. (P. 485)
● Try the procedure for when the vehicle becomes stuck in mud, dirt, or
snow. (P. 512)
An alarm is activated and the horn sounds (if equipped)
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart key system)
A warning light turns on or a warning message is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck
570
Alphabetical index
SIENNA_OM_OM08035U_(U)
Alphabetical index
A/C .................................... 332, 341
Air conditioning filter ............. 434
Front automatic air
conditioning system............332
Rear automatic air
conditioning system............341
ABS (Anti-lock Brake
System) .................................. 322
Function................................ 322
Warning light......................... 472
Active head restraint............... 150
Active Torque Control
4WD system........................... 322
Function................................ 322
Warning message................. 483
Air conditioning filter .............. 434
Air conditioning system
Air conditioning filter ............. 434
Front automatic air
conditioning system............332
Rear automatic air
conditioning system............341
Airbags ....................................... 38
Airbag operating
conditions ............................. 47
Airbag precautions
for your child......................... 41
Airbag warning light ..............472
Correct driving posture ...........28
Curtain shield airbag
operating conditions ............. 48
Curtain shield airbag
precautions...........................41
Front passenger occupant
classification system............. 52
General airbag
precautions...........................41
Locations of airbags................38
Modification and
disposal of airbags ............... 46
Side and curtain shield
airbags operating
conditions............................. 48
Side and curtain shield
airbags precautions.............. 41
SRS airbag instructions
for Canadian owners.......... 555
SRS airbags ........................... 38
Alarm
Alarm ...................................... 79
Warning buzzer .................... 471
Anchor brackets........................ 62
Antenna (smart key
system) .................................. 143
Anti-lock brake system
(ABS)...................................... 322
Function................................ 322
Warning light......................... 472
Approach warning................... 296
Armrest..................................... 370
Assist grips.............................. 371
Audio input
*
Audio visual input*
Audio/visual system*
Automatic High Beam............. 246
Warning message................. 483
Automatic light control
system.................................... 241
Automatic transaxle
Automatic transaxle .............. 233
If the shift lever cannot be
shifted from P..................... 237
S mode ................................. 235
AUX port
*
Auxiliary box........................... 358
A/V input port
*
A
571
Alphabetical index
SIENNA_OM_OM08035U_(U)
Back door................................. 133
Back-up lights
Replacing light bulbs............. 455
Wattage ................................ 525
Battery
Battery checking ................... 416
If the vehicle has
discharged battery.............. 505
Preparing and checking
before winter....................... 327
Warning light......................... 471
Warning message................. 484
Blind Spot Monitor (BSM)....... 302
Bluetooth
®
audio*
Bluetooth
®
phone*
Bottle holder ............................ 356
Brake
Fluid...................................... 415
Parking brake........................ 240
Warning light......................... 471
Warning message................. 484
Brake assist ............................. 322
Break-in tips............................. 195
Brightness control
Instrument light control ...........91
BSM (Blind Spot Monitor)....... 302
BSM function ........................ 306
RCTA function ...................... 309
Care
Aluminum wheels ................. 393
Exterior ................................. 392
Interior .................................. 395
Seat belts.............................. 396
Cargo capacity......................... 209
Cargo hooks ............................ 361
CD player
*
Chains ...................................... 328
Child restraint system............... 58
Booster seats, definition ......... 59
Booster seats, installation....... 70
Convertible seats,
definition............................... 59
Convertible seats,
installation ............................ 68
Front passenger occupant
classification system ............ 52
Infant seats, definition............. 59
Infant seats, installation .......... 68
Installing CRS with
LATCH anchors.............. 64, 66
Installing CRS with
seat belts.............................. 68
Installing CRS with
top tether strap............... 71, 72
B
C
*: Refer to “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”
572
Alphabetical index
SIENNA_OM_OM08035U_(U)
Child safety ................................ 57
Airbag precautions.................. 41
Back door precautions.......... 139
Battery precautions........ 418,508
Child restraint system ............. 58
How your child should wear
the seat belt.......................... 34
Installing child restraints ......... 62
Moon roof precautions.......... 191
Power window lock switch .... 184
Power window precautions... 186
Removed key battery
precautions......................... 438
Seat belt extender
precautions...........................37
Seat belt precautions.............. 36
Seat heater precautions........ 344
Sliding door
child-protectors................... 125
Child-protectors....................... 125
Cleaning
Aluminum wheels.................. 393
Exterior ................................. 392
Interior...................................395
Seat belts.............................. 396
Clock
*
Compass .................................. 381
Condenser................................ 415
Console box ............................. 352
Conversation mirror................ 364
Cooling system........................ 413
Engine overheating............... 509
Cruise control
Dynamic radar cruise
control................................. 288
Warning message................. 299
Cup holders.............................. 354
Curtain shield airbags............... 38
Customizable features ............ 540
Daytime running light
system.................................... 244
Defogger
Outside rear view mirrors ..... 336
Rear window......................... 336
Windshield............................ 336
Differential
Rear differential .................... 521
Dimension................................ 516
Dinghy towing.......................... 224
Display
Drive information .................... 94
Dynamic radar cruise
control ................................ 288
Fuel consumption
information ........................... 99
LDA
(Lane Departure Alert) ....... 282
Multi-information display......... 92
Warning messages............... 481
Do-it-yourself maintenance .... 405
Door courtesy lights
Door courtesy lights.............. 347
Wattage ................................ 525
Doors
Automatic door locking
and unlocking system......... 115
Back door ............................. 133
Door lock .............. 110, 121, 133
Front doors ........................... 110
Outside rear view mirrors ..... 181
Sliding door
child-protectors................... 125
Sliding doors......................... 121
D
573
Alphabetical index
SIENNA_OM_OM08035U_(U)
Driving
Break-in tips.......................... 195
Correct posture....................... 28
Procedures ........................... 194
Winter driving tips ................. 327
Driving position memory ........ 169
Driving position memory ....... 170
Memory recall function.......... 171
Power easy access
system................................169
Dynamic radar cruise control
Function................................ 288
DVD player
*
Eco Driving Indicator ................ 88
EDR (Event data recorder)........ 10
Electric power steering
(EPS)....................................... 322
Function................................ 322
Warning light......................... 472
Electronic key
Battery-saving function .........145
If your electronic key does
not operate properly ........... 503
Replacing the battery............ 436
Emergency flashers ................ 462
Emergency, in case of
If a warning buzzer
sounds................................ 471
If a warning light turns on ..... 471
If a warning message is
displayed............................ 481
If the battery is discharged ... 505
If the electronic key does
not operate properly........... 503
If the engine will not start...... 501
If you have a flat tire .... 485, 499
If you lose your keys............. 107
If you think something is
wrong ................................. 469
If your vehicle becomes
stuck................................... 512
If your vehicle has to be
stopped in an emergency... 463
If your vehicle needs to be
towed.................................. 465
If your vehicle overheats....... 509
Engine
“ACC” position ...................... 225
Accessory mode................... 229
Compartment........................ 410
Engine switch ............... 225, 228
Hood..................................... 407
How to start the
engine ........................ 225, 228
Identification number ............ 517
If the engine will not start...... 501
Ignition switch
(engine switch)........... 225, 228
Overheating.......................... 509
E
*: Refer to “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”
574
Alphabetical index
SIENNA_OM_OM08035U_(U)
Engine coolant
Capacity................................520
Checking............................... 413
Preparing and checking
before winter....................... 327
Engine coolant temperature
gauge........................................ 90
Engine immobilizer system ...... 77
Engine oil
Capacity................................518
Checking............................... 411
Oil pressure warning light ..... 471
Oil pressure warning
message............................. 484
Preparing and checking
before winter....................... 327
Engine switch .................. 225, 228
EPS (Electronic Power Steering)
Function................................ 322
Warning light......................... 472
Event data recorder (EDR)........ 10
Flat tire ............................. 485, 499
Floor mats.................................. 26
Fluid
Automatic transaxle .............. 521
Brake .................................... 415
Transfer ................................ 521
Washer ................................. 419
Fog lights
Light switch........................... 251
Replacing light bulbs ............ 448
Wattage ................................ 525
Front automatic air
conditioning system ............. 332
Front doors .............................. 110
Front passenger occupant
classification system.............. 52
Front seats............................... 149
Adjustment............................ 149
Cleaning ............................... 395
Correct driving posture ........... 28
Driver’s seat position
memory .............................. 169
Head restraints ..................... 173
Power easy access
system................................ 169
Seat heaters ......................... 344
Seat position memory........... 169
Front side marker lights
Light switch........................... 241
Replacing light bulbs .... 450, 452
Wattage ................................ 525
Front turn signal lights
Replacing light bulbs .... 450, 451
Turn signal lever................... 239
Wattage ................................ 525
F
575
Alphabetical index
SIENNA_OM_OM08035U_(U)
Fuel
Capacity................................518
Fuel gauge..............................90
Fuel pump shut off system.... 470
Gas station information......... 584
Information............................526
Refueling............................... 257
Type...................................... 518
Warning light......................... 473
Fuel consumption
information .............................. 99
Fuel filler door.......................... 257
Refueling............................... 257
Fuel pump shut off system..... 470
Fuses ........................................ 439
Garage door opener ................ 374
Gauges ....................................... 89
Glove box ................................. 351
Grocery bag hooks.................. 373
Hands-free system
(for cellular phone)
*
HDMI port*
Head restraints ........................ 173
Headlights
Automatic High Beam
system................................ 246
Discharge headlights
precautions......................... 459
Light switch........................... 241
Manual headlight leveling
dial...................................... 243
Replacing light bulbs .... 445, 447
Wattage ................................ 525
Heaters
Front automatic air
conditioning system............ 332
Heated steering wheel.......... 344
Outside rear view mirrors ..... 336
Rear automatic air
conditioning system............ 341
Seat heaters ......................... 344
Hill-start assist control ........... 322
Hood ......................................... 407
Hooks
Cargo.................................... 361
Grocery bag.......................... 373
Retaining hooks (floor mat) .... 26
Horn .......................................... 177
G
H
*: Refer to “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”
576
Alphabetical index
SIENNA_OM_OM08035U_(U)
I/M test ...................................... 404
Identification
Engine................................... 517
Vehicle..................................517
Ignition switch
(engine switch).............. 225, 228
Illuminated entry system ........ 349
Indicators ................................... 84
Initialization
Items to initialize ................... 550
Maintenance data ................. 399
Power back door................... 138
Power sliding door ................ 128
Tire pressure warning
system................................421
Inside rear view mirror............ 179
Interior lights............................ 347
Wattage ................................ 525
Intuitive parking assist............ 314
Function................................ 314
Warning message................. 484
Jack
Positioning a floor jack.......... 409
Vehicle-equipped jack...........486
Jack handle.............................. 488
Jam protection function
Moon roof.............................. 190
Power back door................... 138
Power sliding doors .............. 127
Power windows..................... 185
Keyless entry
Smart key system................. 143
Wireless remote control........ 105
Keys
Battery-saving function......... 145
Electronic key ....................... 104
Engine switch ............... 225, 228
If you lose your keys............. 107
If the electronic key does
not operate properly........... 503
Key number plate ................. 104
Keyless entry
................... 105, 110, 121, 133
Keys...................................... 104
Mechanical key..................... 104
Replacing the battery............ 436
Warning buzzer .................... 144
Wireless remote control........ 105
Knee airbags.............................. 38
Language (multi-information
display) .................................. 541
LATCH anchors ......................... 62
LDA
(Lane Departure Alert).......... 278
Lever
Auxiliary catch lever.............. 407
Hood lock release lever........ 407
Shift lever.............................. 233
Tilt and telescopic steering
lock release lever ............... 177
Turn signal lever................... 239
Wiper lever ................... 252, 256
I
J
K
L
577
Alphabetical index
SIENNA_OM_OM08035U_(U)
License plate lights
Light switch ........................... 241
Replacing light bulbs............. 456
Wattage ................................ 525
Light bulbs
Replacing.............................. 442
Wattage ................................ 525
Lights
Automatic High Beam
system................................246
Door courtesy lights.............. 347
Engine switch light................ 347
Fog light switch..................... 251
Headlight switch.................... 241
Illuminated entry system ....... 349
Interior light switch................ 348
Luggage compartment
light..................................... 137
Outer foot lights .................... 347
Personal light switch............. 348
Rear ceiling lights ................. 349
Replacing light bulbs............. 442
Turn signal lever ................... 239
Vanity lights .......................... 363
Wattage ................................ 525
Load capacity........................... 209
Lock steering column ..... 226, 231
Luggage compartment light
Switch ................................... 137
Wattage ................................ 525
Maintenance
Do-it-yourself
maintenance....................... 405
General maintenance ........... 401
Maintenance data ................. 516
Maintenance requirements... 398
Malfunction indicator lamp..... 471
Manual headlight leveling
dial.......................................... 243
Meter
Indicators ................................ 84
Instrument panel light
control..................................... 91
Meters..................................... 89
Multi-information display......... 92
Warning lights....................... 471
Warning messages............... 481
Microphone
*
Mirrors
Conversation mirror.............. 364
Inside rear view mirror .......... 179
Outside rear view mirror
defoggers ........................... 336
Outside rear view mirrors ..... 181
Vanity mirrors ....................... 363
Moon roof
Jam protection function ........ 190
Operation.............................. 189
MP3 disc
*
Multi-information display.......... 92
Drive information .................... 94
Dynamic radar cruise
control ................................ 288
Intuitive parking assist .......... 314
LDA
(Lane Departure Alert) ....... 282
Settings display .................... 541
Warning messages............... 481
M
*: Refer to “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”
578
Alphabetical index
SIENNA_OM_OM08035U_(U)
Navigation system
*
Noise from under vehicle............ 8
Odometer.................................... 90
Oil
Engine oil.............................. 518
Opener
Back door.............................. 134
Fuel filler door....................... 257
Hood ..................................... 407
Outer foot lights
Outer foot lights .................... 347
Replacing light bulbs............. 456
Outside rear view mirrors
Adjusting and folding ............ 181
BSM (Blind spot monitor)...... 302
Driving position memory ....... 169
Outside rear view mirror
defoggers ........................... 336
Outside temperature
display...................................... 90
Overhead console ................... 358
Overheating, Engine................ 509
Panoramic view monitor
*
Parking assist sensors
(intuitive parking assist)....... 314
Parking brake........................... 240
Operation.............................. 240
Parking brake
engaged warning
buzzer ................................ 471
Parking lights
Light switch........................... 241
Replacing light bulbs .... 450, 456
Wattage ................................ 525
PCS (Pre-Collision System).... 266
Enabling/disabling the
system................................ 269
Function................................ 266
Warning light......................... 472
Personal lights
Switch................................... 348
Wattage ................................ 525
Power back door ..................... 133
Power outlets........................... 365
Power windows
Jam protection function ........ 185
Operation.............................. 184
Window lock switch .............. 184
Pre-Collision System (PCS).... 266
Enabling/disabling the
system................................ 269
Function................................ 266
Warning light......................... 472
N
O
P
579
Alphabetical index
SIENNA_OM_OM08035U_(U)
Quarter windows ..................... 187
Radar cruise control
(dynamic radar cruise
control)................................... 288
Radiator.................................... 415
Radio
*
Rear automatic air
conditioning system ............. 341
Rear ceiling light...................... 349
Rear seat
Adjustment............................ 152
Folding third seats ........ 159, 160
Installing second seats ......... 158
Removing second seats ....... 156
Stowing third seats ....... 161, 163
Rear seat entertainment
system
*
Rear turn signal lights
Replacing light bulbs............. 453
Turn signal lever ................... 239
Wattage ................................ 525
Rear view mirror
Compass............................... 381
Inside rear view mirror .......... 179
Outside rear view mirrors...... 181
Rear view monitor system
*
Rear window defogger............ 336
Rear window wiper .................. 256
Replacing
Electronic key battery ........... 436
Fuses.................................... 439
Light bulbs ............................ 442
Rear seat entertainment
system control battery
*
Tires...................................... 485
Wireless remote control
battery ................................ 436
Reporting safety defects for
U.S. owners ........................... 552
Roof luggage carrier ............... 205
Resetting the message
indicating maintenance is
required.................................. 399
Safety connect......................... 385
Seat belts
Adjusting the seat belt ............ 33
Automatic Locking
Retractor .............................. 34
Child restraint system
installation ............................ 68
Cleaning and maintaining
the seat belts...................... 396
Emergency Locking
Retractor .............................. 34
How to wear your seat belt
..... 30
How your child should wear
the seat belt.......................... 34
Pregnant women,
proper seat belt use ............. 35
Reminder light ...................... 473
Seat belt extenders................. 34
Seat belt instructions for
Canadian owners ............... 553
Seat belt pretensioners........... 33
SRS warning light................. 472
Seat heaters ............................. 344
Seat position memory............. 169
Seating capacity...................... 209
Q
R
S
*: Refer to “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”
580
Alphabetical index
SIENNA_OM_OM08035U_(U)
Seats
Adjustment....................149, 152
Adjustment
precaution................... 151, 166
Child seats/child restraint
system installation................ 58
Cleaning................................ 395
Driver’s seat position
memory .............................. 169
Head restraint ....................... 173
Properly sitting in the seat ...... 28
Seat heaters ......................... 344
Sensor
Automatic headlight
system................................244
Automatic High Beam
system................................248
Inside rear view mirror .......... 180
Intuitive parking assist .......... 314
LDA
(Lane Departure Alert)........ 278
Radar sensor ........................ 262
Rain-sensing windshield
wipers................................. 254
Service reminder indicators ..... 84
Shift lever
Automatic transaxle .............. 233
If the shift lever cannot
be shifted from P ................ 237
Shift lock system ..................... 236
Side airbags ............................... 38
Side marker lights
Light switch ........................... 241
Replacing.............. 450, 452, 456
Wattage ................................ 525
Side mirrors
Adjusting and folding ............ 181
BSM (Blind Spot Monitor) ..... 302
Heaters ................................. 336
Mirror position memory......... 169
Sliding doors
Sliding doors......................... 121
Wireless remote control........ 124
Smart key system
Antenna location................... 143
Entry function........ 110, 121, 133
Starting the engine ............... 228
Warning message................. 481
Snow tires ................................ 327
Spare tire
Inflation pressure.................. 524
Storage location.................... 486
Spark plug................................ 520
Specifications .......................... 516
Speedometer.............................. 90
Steering wheel
Adjustment............................ 177
Audio switches
*
Column lock release ..... 226, 231
Heated steering wheel.......... 344
Meter control switches............ 93
Talk switch
*
Telephone switches*
Stop lights
Replacing light bulbs .... 453, 456
Wattage ................................ 525
Storage feature........................ 350
Storage precautions........ 207, 350
Stuck
If your vehicle becomes
stuck................................... 512
Sunshades
Rear door.............................. 372
Roof...................................... 190
Sun visors................................ 363
Switch
Audio remote control
switches
*
Cruise control switch ............ 288
581
Alphabetical index
SIENNA_OM_OM08035U_(U)
Door lock switch.................... 114
Driving position memory
switches.............................. 169
Emergency flashers
switch ................................. 462
Engine switch................225, 228
Fog light switch..................... 251
Garage door opener
switches.............................. 374
Heated steering wheel.......... 345
Ignition switch ............... 225, 228
Intuitive parking assist
switch ................................. 314
LDA
(Lane Departure Alert)........ 281
Light switches ....................... 241
Moon roof switches...............189
Outside rear view mirror
switches.............................. 181
Power back door................... 134
Power door lock switch.........114
Power window switch.... 184, 187
Rear window wiper and
washer switch..................... 256
Rear window and outside
rear view mirror
defoggers switch ................ 336
Seat heater switches ............344
“SOS” button......................... 385
Talk switch
*
Telephone switches*
Tire pressure warning
reset switch ........................ 421
TRAC OFF switch................. 323
Vehicle-to-vehicle distance
switch ................................. 295
Window lock switch............... 184
Wiper and washer
switch ......................... 252, 256
Tachometer ................................ 90
Tail lights
Light switch........................... 241
Replacing light
bulbs................... 453, 455, 456
Wattage ................................ 525
Talk switch
*
Telephone switch*
Theft deterrent system
Alarm ...................................... 79
Engine immobilizer system..... 77
Tire inflation pressure............. 429
Maintenance data ................. 522
Warning light......................... 474
Tire pressure warning system
Function................................ 421
Initializing.............................. 421
Installing tire pressure
warning valves and
transmitters ........................ 421
Registering ID codes ............ 422
Tire pressure warning
reset switch ........................ 421
Warning light......................... 474
T
*: Refer to “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”
582
Alphabetical index
SIENNA_OM_OM08035U_(U)
Tires
Chains................................... 328
Checking............................... 420
Glossary................................ 535
If you have a flat tire ..... 485, 499
Inflation pressure .................. 429
Information............................529
Replacing.............................. 485
Rotating tires......................... 420
Size....................................... 522
Snow tires............................. 327
Tire identification number ..... 531
Tire pressure warning
system................................421
Uniform Tire Quality
Grading............................... 533
Warning light......................... 474
Tools ......................................... 488
Total load capacity .................. 516
Towing
Dinghy towing ....................... 224
Emergency towing ................465
Trailer towing ........................ 210
Toyota Safety Sense P............ 260
Traction control ....................... 322
TRAC (Traction Control)
Function................................ 322
TRAC OFF switch................. 323
Trailer towing........................... 210
Trip meter................................... 90
Turn signal lights
Replacing light
bulbs........... 450, 451, 454, 456
Turn signal lever ................... 239
Wattage ................................ 525
USB charging ports................. 368
USB memory
*
USB port*
Valet key................................... 104
Vanity lights
Vanity lights .......................... 363
Wattage ................................ 525
Vanity mirrors.......................... 363
Vanity lights .......................... 363
Vehicle data recordings...... 9, 261
Vehicle identification
number................................... 517
Vehicle stability control
(VSC) ...................................... 322
Voice command system
*
VSC (Vehicle Stability
Control).................................. 322
Warning buzzers
Approach warning................. 296
Brake system........................ 471
Electric power steering
system................................ 472
Key reminder ........................ 226
Seat belt reminder ................ 473
U
V
W
583
Alphabetical index
SIENNA_OM_OM08035U_(U)
Warning lights
ABS....................................... 472
Brake system........................ 471
Charging system...................471
Electric power steering
system................................472
Lane departure .....................278
Low engine oil pressure........ 471
Low fuel level........................473
Malfunction indicator lamp.... 471
Master warning light.............. 473
Pre-Collision System ............ 472
Seat belt reminder light......... 473
Slip indicator light.................. 473
SRS airbags.......................... 472
Third seat warning light......... 474
Tire pressure warning
light..................................... 474
Warning messages.................. 481
Washer
Checking............................... 419
Preparing and checking
before winter....................... 327
Switch ........................... 252, 256
Washing and waxing ............... 392
Weight
Cargo capacity......................209
Load limits............................. 516
Weight................................... 516
Wheels...................................... 432
Replacing wheels..................485
Size....................................... 522
Window glasses ...................... 184
Window lock switch ................ 184
Windows
Power windows..................... 184
Quarter windows................... 187
Rear window defogger.......... 336
Washer ......................... 252, 256
Windshield wiper de-icer........ 336
Windshield wipers
Intermittent windshield
wipers................................. 252
Rain-sensing windshield
wipers................................. 253
Winter driving tips................... 327
Wireless remote control key
Battery-saving function......... 145
Locking/Unlocking ................ 105
Panic mode........................... 106
Replacing the battery............ 436
Wireless remote control........ 105
WMA disc
*
*: Refer to “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”
584
SIENNA_OM_OM08035U_(U)
GAS STATION INFORMATION
Auxiliary catch lever Fuel filler door
P. 407 P. 258
Hood lock release
lever
Fuel filler door opener
Tire inflation pressure
P. 407 P. 258 P. 522
Fuel tank capacity
(Reference)
20.9 gal. (79 L, 17.4 Imp.gal.)
Fuel type
Unleaded gasoline with an Octane Rating of 87
(Research Octane Number 91) or higher
Cold tire inflation
pressure
P. 5 22
Engine oil capacity
(Drain and refill —
reference)
qt. (L, Imp.qt.)
Without filter 5.6 (5.3, 4.7)
With filter
Vehicles with towing package 5.8 (5.5, 4.8)
Vehicles without towing package 5.7 (5.4, 4.8)
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended oil viscosity: SAE 0W-20
P. 519
