www.lg.com
Please read this manual carefully before operating
your set and retain it for future reference.
CM9950 (CM9950 , CMS9950F)
OWNER’S MANUAL
MINI HI-FI
SYSTEM
Getting Started2
Getting Started
1
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with
arrowhead symbol within an
equilateral triangle is intended to
alert the user to the presence of
uninsulated dangerous voltage
within the product’s enclosure
that may be of sucient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
CAUTION: The apparatus should not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, should be placed on the
apparatus.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not use high voltage products
around this product. (ex. Electrical swatter) This
product may malfunction due to electrical shock.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure. To prevent
direct exposure to laser beam, do not try to open
the enclosure.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing the
product on a bed, sofa, rug or other similar surface.
This product should not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
1 Getting Started
Getting Started 3
Getting Started
1
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and the
point where the cord exits the appliance.
The Power Plug is the disconnecting device. In
case of an emergency, the Power Plug must remain
readily accessible.
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the
battery from the equipment: Remove the
old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, re or the like.
Grounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground wire
to prevent possible electric shock (i.e. a Audio
with a three-prong grounded AC plug must be
connected to a three-prong grounded AC outlet).
If grounding methods are not possible, have a
qualied electrician install a separate circuit breaker.
Do not try to ground the unit by connecting it to
telephone wires, lightening rods, or gas pipes.
Getting Started4
Getting Started
1
IMPORTANT SAFETY
INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade or
the third prong are provided for your safety. If
the provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by
the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms
or when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.
Getting Started 5
Getting Started
1
FCC Compliance Statement
This device complies with part 15 of the FCC
rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference,
and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment o and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
y
Reorient or relocate the receiving antenna.
y
Increase the separation between the equipment
and receiver.
y
Connect the equipment into an outlet on a
circuit dierent from that to which the receiver is
connected.
y
Consult the dealer or an experienced radio/TV
technician for help.
CAUTION : Any changes or modications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate this equipment.
FCC WARNING: This equipment may generate
or use radio frequency energy. changes or
modications to this equipment may cause harmful
interference unless the modications are expressly
approved in the instruction manual. The user could
lose the authority to operate this equipment if an
unauthorized change or modication is made.
FCC RF Radiation Exposure Statement : This
equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment.
This equipment should be installed and operated
with minimum distance 20 cm between the
radiator and your body. End users must follow the
specic operating instructions for satisfying RF
exposure compliance. This transmitter must not be
co-located or operating in conjunction with any
other antenna or transmitter.
CAUTION: Regulations of the FCC and FAA prohibit
airborne operation of radio-frequency wireless
devices because their signals could interfere with
critical aircraft instruments.
Responsible Party :
LG Electronics USA, Inc. 1000 Sylvan Avenue
Englewood Clis, NJ 07632
TEL. : +1-800-243-0000
Table of Contents6
Table of Contents
1 Getting Started
2 Safety Information
8 Unique Features
8 Accessories
9 Playable file Requirement
9 – Music file requirement
9 – Compatible USB Devices
9 – USB device requirement

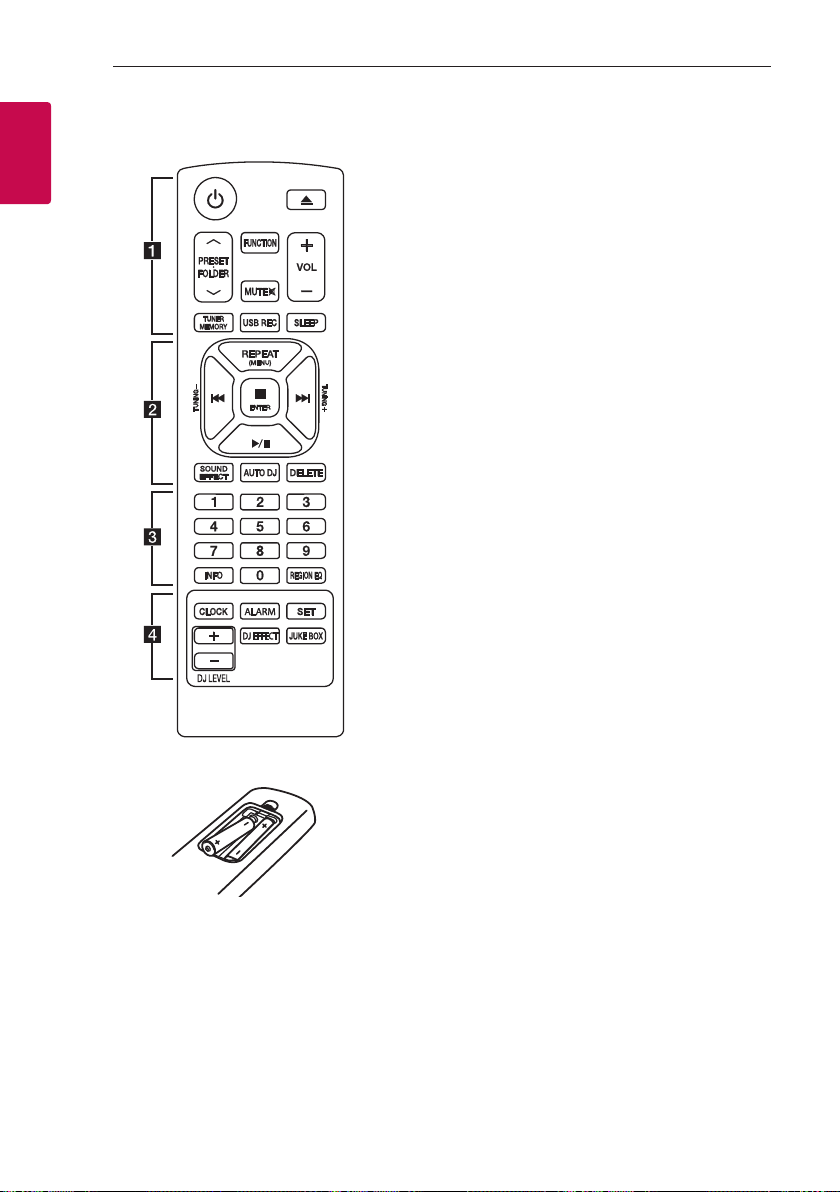

10 Remote control
12 Top panel
14 Front panel
14 Rear panel
2 Connecting
15 How to Affix the Ferrite Core
15 – Affix the Ferrite Core for speaker
cables
15 Connecting to speakers
15 – Attaching the speaker light cables to
the unit
16 Optional Equipment Connection
16 – AUX IN Connection
17 – AUX OUT Connection

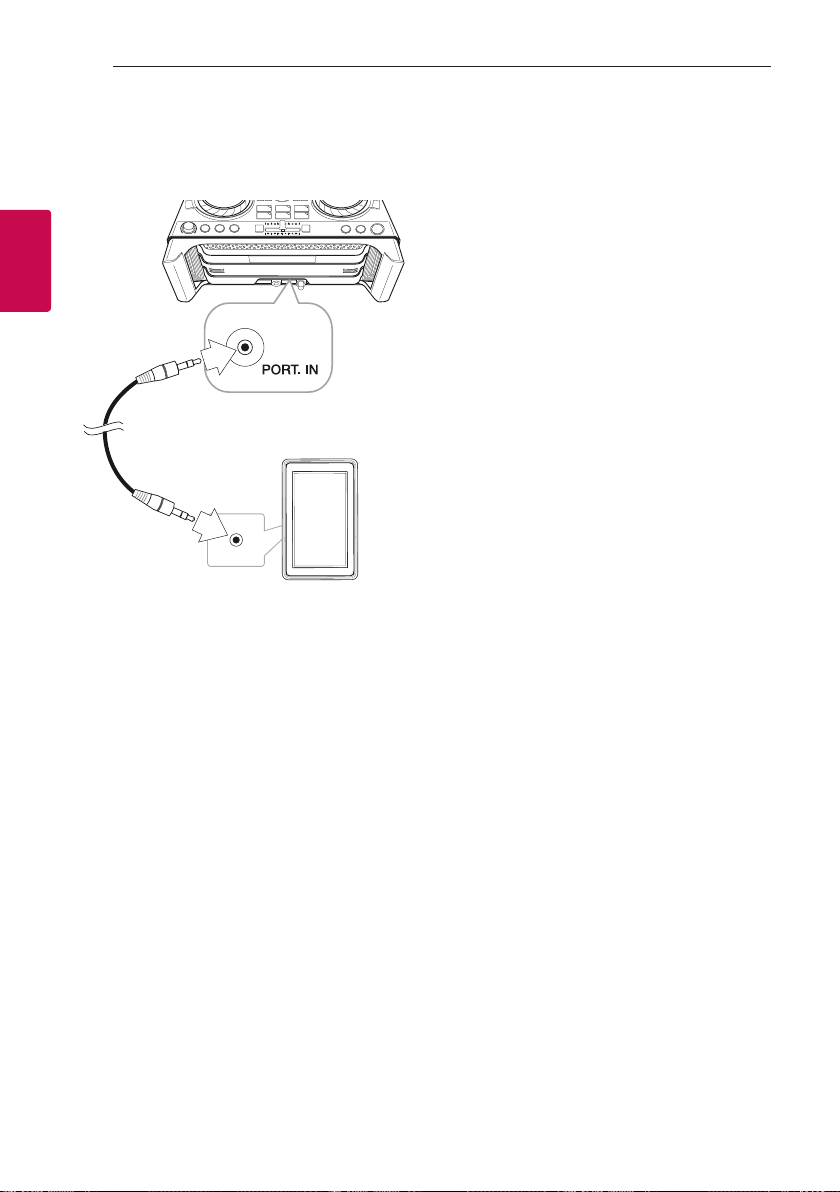

18 – PORT. IN Connection
19 – USB Connection
19 – Antenna Connection
3 Operating
20 Basic Operations
20 – CD/USB Operations
21 – Auto Play
21 – Selecting a folder and
an MP3/WMA file
22 – Deleting an MP3/WMA file
22 Playback Effect
22 – DJ EFFECT
22 – SCRATCH Effect
23 – DJ PRO
23 – AUTO DJ
23 – Adjusting TEMPO
24 – MIX
24 – AUTO SYNC
25 Using BLUETOOTH® wireless technology
25 – Listening to music stored on the
Bluetooth devices
27 – Pairing your unit and Bluetooth device
through NFC Tag
28 Using the Music Flow Bluetooth App
28 – Install “Music Flow Bluetooth” App
onto Your Bluetooth Device
29 – Activate Bluetooth with “Music Flow
Bluetooth” App
30 Radio Operations
30 – Listening to the radio
30 – Improving poor FM reception
30 – Presetting the Radio Stations
30 – Deleting all the saved stations
Table of Contents 7
1
2
3
4
5
31 Sound adjustment
31 – Setting the sound mode
31 – Setting the USER EQ
32 Advanced Operations
32 – Recording to USB
34 – DJ SHARING
34 – JUKE BOX Playback
35 Other Operations
35 – Turn off the sound temporarily
35 – CHILDSAFE Mode
36 – Displaying file information
(ID3 TAG)
36 – DEMO
36 – Using Microphone
36 – Using H/P MODE
36 – LIGHTING (X-FLASH) MODE
37 Setting the Clock
37 – Setting the Clock through “Music
Flow Bluetooth” App
37 – Using your player as an alarm clock
37 – Sleep Timer Setting
37 – Dimmer
38 Auto power down
38 – AUTO POWER On
38 – Auto function change
39 LG Sound Sync
4 Troubleshooting
40 Troubleshooting
40 – General
5 Appendix
42 General specifications
43 Speakers specifications
43 Trademarks and Licenses
44 Maintenance
44 – Notes on Discs
44 – Handling the Unit
Getting Started8
Getting Started
1
Unique Features
Bluetooth®
Listens to music stored on your Bluetooth device.
Portable In
Listens to music from your portable device. (MP3,
Notebook, etc.)
Playback effects
Listens to music with various sound and playback
eects.
USB Direct Recording
Records music to your USB device.
Music Flow Bluetooth
Music Flow Bluetooth is an App designed to let you
take control of some of LG’s latest Audio devices.
Refer to page 28.
LG Sound Sync
Controls volume level of this unit by the remote
control of your LG TV that is compatible with LG
Sound Sync.
Accessories
Please check and identify the supplied accessories.
FM Antenna (1) Batteries (2)
Remote Control (1)
Getting Started 9
Getting Started
1
Playable file
Requirement
Music file requirement
MP3/WMA le compatibility with this unit is limited
as follows.
y
Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
y
Bit rate : within 32 to 320 kbps (MP3),
40 to 192 kbps (WMA)
y
Maximum les : Data CD : 999 / USB : 2000
y
Maximum folders : Data CD : 99 / USB : 200
y
File extensions : “.mp3”/ “.wma”
y
Certain MP3/WMA les may not be played
depending on the type or format of the le.
y
CD-ROM le format : ISO 9660/ JOLIET
y
We recommend that you use Easy-CD Creator,
which creates an ISO 9660 le system.
The DTS is not supported. In case of DTS audio
format, audio is not output.
You have to set the disc format option to [Mastered]
in order to make the discs compatible with the LG
players when formatting rewritable discs. When
setting the option to Live File System, you cannot
use it on LG players.
(Mastered/Live File System : Disc format system for
Windows Vista)
Compatible USB Devices
y
MP3 Player : Flash type MP3 player.
y
USB Flash Drive :
Devices that support USB2.0 or USB1.1.
y
The USB function of this unit does not support
all USB devices.
USB device requirement
y
Devices which require additional program
installation when you have connected it to a
computer, are not supported.
y
Do not extract the USB device while in operation.
y
For a large capacity USB, it may take longer than
a few minute to be searched.
y
To prevent data loss, back up all data.
y
If you use a USB extension cable or USB hub, the
USB device is not recognized.
y
Using NTFS le system is not supported. (Only
FAT(16/ 32) le system is supported.)
y
This unit recognizes up to 2000 les.
y
External HDD, Card readers, Locked devices, or
hard type USB devices are not supported.
y
USB port of the unit cannot be connected to PC.
The unit cannot be used as a storage device.
y
Some USB may not work with this unit.
Getting Started10
Getting Started
1
Remote control
Battery Installation
Remove the battery cover on the rear of the
Remote Control, and insert two (size AAA) batteries
with
4
and
5
matched correctly.
• • • • • • • • • •
a
• • • • • • • • •
1
(Power) : Switches the unit ON or OFF.
B
(Open/Close) : Opens and closes the disc tray.
PRESETFOLDER
W
/
S
:
-
Searches for a folder of MP3/WMA les. When
a CD/USB containing MP3/WMA les in several
folders is being played, press PRESETFOLDER
W
/
S
to select the folder you want to play.
-
Chooses a preset number for a radio station.
FUNCTION : Selects the function and input source.
MUTE
@
: Mutes the sound.
VOL +/- : Adjusts speaker volume.
TUNER MEMORY :
-
Stores radio stations.
-
Deletes all the saved stations.
USB REC : USB direct recording.
SLEEP : Sets the system to turn off automatically at
a specified time.
(Dimmer : The display window will be darkened by
half.)
Getting Started 11
Getting Started
1
• • • • • • • • • •
b
• • • • • • • • •
REPEAT (MENU) : Listens to your tracks/les
repeatedly or randomly.
TUNING-/+ : Selects the radio stations.
C
/
V
(Skip/Search) :
-
Skips Fast backward or Forward.
-
Searches for a section within a track/le.
Z
ENTER :
-
Stops playback.
-
Cancels DELETE function.
d
/
M
(Play/Pause) :
-
Starts or pauses playback.
-
Selects STEREO/MONO.
SOUND EFFECT : Chooses sound impressions.
AUTO DJ : Selects the AUTO DJ mode. (For more
information refer to page 23)
DELETE :
-
Deletes MP3/WMA les. (USB only).
-
Deletes a song on the JUKE BOX list.
• • • • • • • • • •
c
• • • • • • • • •
0 to 9 numerical buttons : Selects numbered tracks,
les, or preset number.
INFO
-
Sees informations about your music. An MP3 le
often come with ID3 tag. The tag gives the Title,
Artist, Album or Time information.
-
Sees the address of connected Bluetooth device
in Bluetooth mode.
REGION EQ : Chooses region equalizer.
• • • • • • • • • •
d
• • • • • • • • •
CLOCK : Sets a clock and checks a time.
ALARM : With the ALARM function you can turn
CD, USB play and Tuner reception on at a desired
time.
SET : Conrms the setting.
DJ EFFECT : Selects DJ EFFECT mode. (Refer to
page 22)
JUKE BOX :
-
Selects JUKE BOX mode.
-
Makes your favorites list.
DJ LEVEL +/- : Adjusts the level of DJ EFFECT
sound.
Getting Started12
Getting Started
1
a
1
/
!
(Power)
DJ SHARING : Shares a song stored in a USB
device using the Music Flow Bluetooth
App.
: You can easily connect to Bluetooth
devices through NFC Tag. (Refer to page
27)
*1 - Display window
FUNCTION : Selects the function and input
source.
Bluetooth : Turns to BLUETOOTH function.
b
USB REC : Records to USB 1 (USB A
port).
*2 - USB A Port (USB 1) / *3 - USB B Port (USB
2)
: You can play or record sound files by
connecting the USB device.
DELETE : Deletes a song on the JUKE BOX
list. / Deletes MP3/WMA files. (USB only).
FOLDER : Searches folders or files.
ENTER : Selects a folder when searching a
file.
*4 - Turn clockwise or counterclockwise to
make Scratch sound or search a file or
folder.
*1
*4
*4
*5
*6
*2 *3
Top panel
Getting Started 13
Getting Started
1
c DJ EFFECT : Press a desired DJ effect button
(FLANGER, PHASER, CHORUS, DELAY)
and rotate EFFECT LEVEL to adjust the
DJ EFFECT level.
A / B TEMPO : Adjusts TEMPO in USB
function.
MASTER EQ : Adjusts BASS, MIDDLE,
TREBLE sound level when setting USER
EQ.
d
I
: Stops playback or cancels DELETE
function.
T
: Starts or pauses playback.
Y/U
: Skips Fast backward or Forward.
/ Searches for a section within a track/file.
USER EQ : Controls sound register.
*5 - MASTER VOLUME : Adjusts speaker
volume.
e DJ Pro. : Selects CLUB or FOOTBALL Sound
effect to mix. (Refer to page 23)
DJ Pro. PAD : Press a desired sound pad.
f H/P VOL./SYNC SET : Adjust Headphone
volume. / Sets Delay value in X-BOOM
PLUS mode.
H/P MODE (X-BOOM PLUS) : Press to select
a Headphone monitor mode. / Press and
hold to select X-BOOM PLUS mode.
LIGHTING MODE : Turns on/off the lighting
effects.
JUKE BOX / DEMO : Makes your favorites list.
/Switches on and off JUKE BOX. / Shows
Demo mode.
AUTO SYNC : Synchronizes audio files
*6 - Mix fader : Adjusts the sound volume of
mixing files.
MIX : Mixes audio sound.
LATIN EQ : Chooses locally special equalizer.
BASS BLAST : Selects BASS BLAST or
STANDARD effect directly.
B
EJECT : Opens and closes the disc tray.
Getting Started14
Getting Started
1
Front panel
a
Disc tray
b
HEAD PHONE
c
MIC
d
PORT. IN
e
MIC VOL.
f
Handle
Rear panel
a
Power cord
y
Connect the power cord to wall outlet
directly if possible. Or when you use an
extension cable, it is highly recommended
to use an extension cable of 110 V / 15 A
or 230 V / 15 A, otherwise the unit may not
operate properly because of the lack of
power supply.
y
Do not overload the extension cord with
excessive electrical load.
>
Caution
b
ANTENNA (FM)
c
AUX IN 1/2 (L/R)
d
AUX OUT (L/R)
e
R SPEAKERS connector : Connects Right
speaker’s cables.
f
L SPEAKERS connector : Connects Left speaker’s
cables.
g
SPEAKER LIGHTING
Connecting 15
Connecting
2
How to Affix the
Ferrite Core
Ferrite core may not be provided depending on
each nation’s regulations.
Affix the Ferrite Core for
speaker cables
You must ax a ferrite core in order to reduce or
eliminate electrical interference.
1. Pull the stopper [a] of the ferrite core to open.
2. Wind R SPEAKERS cables, L SPEAKERS cables
and SPEAKER LIGHITNG cables around the
ferrite core once.
3. Close the ferrite core until it clicks.
Connecting to
speakers
Connect the speaker cable plugs to the SPEAKERS
connector. Make sure to connect the speaker’s plug
to the corresponding colored speaker connector
when connecting the plug.
Attaching the speaker light
cables to the unit
To connect the speaker light cable to the unit,
insert the cable to SPEAKER LIGHTING connectors
on the unit.
y
Make sure that the jacks and the speakers
are matched correctly.
y
Make sure to connect the cables to
connectors tightly on the unit.
>
Caution
2 Connecting
Connecting16
Connecting
2
y
Do not try to lift the speaker alone. It needs
two persons to lift the speaker. Otherwise
it may result in the speaker malfunction
and cause personal injury and/or property
damage.
y
When you connect the speakers to the unit,
make sure to connect the speaker’s cable
and plug to the corresponding speaker
connector.
y
The speakers must be placed a minimum
of 20 cm from the unit for preventing the
vibration caused by the speakers.
20 cm
20 cm
y
Check the volume level before playing
music to prevent inrm, child, and pregnant
women from being shocked by the sudden
and loud sound from the unit.
y
Do not use the unit in a limited space.
It may damage a person’s hearing. It is
recommended to use it in a wide space.
y
Be careful to make sure children not to put
their hands or any objects into the opening
speaker duct hole.
y
The speakers contain magnet parts, so color
irregularity may occur on the TV screen or
PC monitor screen. Please use the speakers
far away from either TV screen or PC
monitor.
y
Avoid looking at the speaker lights for a
long time. It may cause damage to eyesight.
>
Caution
Optional Equipment
Connection
AUX IN Connection
Connect an output of auxiliary device (Camcorder,
TV, Player, etc) to the AUX IN 1/2 (L/R) connector.
If your device has only one output for audio
(mono), connect it to the left audio jack on the unit.
Audio cable
DVD, Blu-ray player etc.
RedWhite
Connecting 17
Connecting
2
AUX OUT Connection
Connect an input of auxiliary device to the AUX
OUT (L/R) connector.
If your device has only one input for audio(mono),
connect it to the left audio jack on the unit.
Audio cable
X-BOOM PLUS
You can connect two units to play music together.
1. Connect AUX OUT connector on a unit to the
AUX IN connector on the other unit using
Audio cable.
2. Press and hold H/P MODE (X-BOOM PLUS) on
the unit connected through AUX OUT.
X-BOOM PLUS is displayed.
3. Rotate H/P VOL./SYNC SET clockwise or
counterclockwise to adjust Delay setting.
4. Press H/P MODE (X-BOOM PLUS) to save the
Delay setting.
y
This function is available in only CD, USB 1,
USB 2, BLUTOOTH or PORTABLE Function.
y
The initial Delay is 0 ms and the Delay
becomes to 30 ms when you press and hold
H/P MODE (X-BOOM PLUS). The connected
device’s Delay may dier. If Audio Sync is
not matched, adjust Delay of X-BOOM PLUS
to synchronize sound.
y
It is available to adjust the Delay from 0
ms to 100 ms. Synchronizing tempo is not
available depending on devices.
y
Delay value is saved when the unit turns o.
,
Note
Auxiliary device
MP3 player etc.
Connecting18
Connecting
2
PORT. IN Connection
Connect an output (earphone or line out) of
portable device (MP3 or PMP etc) to the
PORT. IN connector.
Portable cable
Listening to music from your
portable player or external device
The unit can be used to play the music from many
types of portable player or external device.
1. Connect the portable player to the PORT. IN
connector on the unit.
Or
Connect the external device to the AUX IN
connector on the unit.
2. Turn the power on by pressing
1
/
!
.
3. Press FUNCTION to select the AUX 1, AUX 2 or
PORTABLE Function.
4. Turn on the portable player or external device
and start it playing.
Connecting 19
Connecting
2
USB Connection
Connect a USB device (or MP3 player, etc.) to the
USB ports on the unit.
USB device
Removing the USB device from the unit :
1. Choose a different function/mode or
press
Z
ENTER on the remote control
or
I
on the unit twice in a row.
2. Remove the USB device from the unit.
,
Note
Antenna Connection
Connect the supplied FM antenna for listening to
the radio.
Connect the FM wire antenna to the FM antenna
connector.
FM antenna
Be sure to fully extend the FM wire antenna.
,
Note
Operating20
Operating
3
Basic Operations
CD/USB Operations
1. Insert the disc by pressing
B
on the remote
control or
B
EJECT on the unit
Or connect the USB device to the USB port.
2. Select CD or USB function by pressing
FUNCTION.
To Do this
Stop
Press
Z
ENTER on the remote
control or
I
on the unit.
Playback
Press
d
/
M
on the remote control
or
T
on the unit.
Pause
Press
d
/
M
on the remote control
or
T
on the unit during playback.
Searching
for a section
within a track/
le
Press and hold
C
/
V
on the
remote control or
Y
/
U
on the
unit during playback and release it
at the point you want to listen to.
Selecting
a track/le
directly
Press 0 to 9 numerical buttons on
the remote control to go to the
desired le or track directly.
Skipping to
the next/
previous
track/le
-
In stop status,
Press
C/V
on the remote
control or
Y/U
on the unit to
go to the next/previous track/le.
-
During Playback,
By using
C/V
buttons :
Press
V
on the remote control or
U
on the unit to go to the next
track/le.
Playing less than 2 seconds, press
C
on the remote control or
Y
on the unit to go to the
previous track/le.
Playing after 3 seconds, press
C
on the remote control or
Y
on
the unit to go to the beginning of
the track/le.
Playing
repeatedly or
randomly
Press REPEAT(MENU) on the
remote control repeatedly. Refer
to the note for details about the
display change.
y
The display changes in the following order.
USB MP3/WMA CD Audio CD
REPEAT TRK
REPEAT *DIR
REPEAT ALL
RANDOM
OFF
REPEAT TRK
REPEAT DIR
REPEAT ALL
RANDOM
OFF
REPEAT TRK
-
REPEAT ALL
RANDOM
OFF
*DIR : Directory
y
When you play JUKE BOX list, only REPEAT
TRK and REPEAT ALL are available.
y
Even after restarting the unit or switching
one function to another, you can listen to
music from the point where it’s last been
played.
y
The next le name is displayed every 30
seconds. (Except RANDOM play, AUTO DJ
RANDOM play, the last le of playlist, etc.)
y
If you leave the disc tray open for 5 minutes,
it will close automatically.
,
Note
3 Operating
Operating 21
Operating
3
Auto Play
-
AUDIO/MP3/WMA CD is played automatically
after Disc tray is open and then closed.
-
Automatically switches to the CD function if Disc
tray is open and then closed when there is no
disc in Disc tray.
-
When CD or USB is inserted
-
If you press
T
on the side A of the unit,
the function is changed to CD or USB 1 and
playback starts.
-
If you press
T
on the side B of the unit, the
function is changed to USB 2 and playback
starts (except MIXER ON mode).
y
When CD or USB is inserted
-
Function is changed to CD or USB 1 if
Y
/
U
(Except Tuner Function),
I
on
the side A of the unit is pressed.
-
Function is changed to USB 2 if
Y
/
U
(Except Tuner Function),
I
on the side B
of the unit is pressed (Except MIXER ON
mode).
-
In Tuner Function, function is not changed
even you press
Y
/
U
.
,
Note
Selecting a folder and
an MP3/WMA file
On the unit
1. Press FOLDER and rotate SCRATCH/SEARCH
until a desired folder appears.
2. Press ENTER and rotate SCRATCH/SEARCH
until a desired file appears. Press
T
to play it.
On the remote control
1. Press PRESETFOLDER
W
/
S
on the remote
control repeatedly until a desired folder appears.
2. Press
d
/
M
to play it. The first file of folder will
play.
y
CD / USB Folders/Files are recognized as
below.
y
If there is no le in a folder, the folder will
not appear.
y
Folders will be presented as the following
order;
ROOT
FOLDER 1 FOLDER 3 FOLDER
7 FOLDER 8 FOLDER 5 FOLDER 6
y
File will be played from
$
le No.1 to
$
le
No.14 one by one.
y
Files and folders will be presented in order
recorded and may be presented dierently
according to the record circumstances.
y
*ROOT : The rst screen you can see when a
computer recognize the USB is “ROOT”.
,
Note
Operating22
Operating
3
Deleting an MP3/WMA file
You can delete file, folder or format by pressing
DELETE. This function is supported only in stop
status. (USB only)
1. - Select the file you want to delete and press
DELETE.
- Select the folder you want to delete by
pressing FOLDER and rotating SCRATCH/
SEARCH on the unit and press DELETE.
Or select the folder you want to delete by
pressing PRESETFOLDER
W
/
S
on the remote
control and press DELETE.
- Press and hold DELETE to format the USB
device.
Or
Press DELETE repeatedly during selecting the
MP3/WMA file.
The display changes in the following order.
- DEL FILE? : Deletes file
- DEL FOLDER? : Deletes folder
- FORMAT? : Formats USB
2. To delete file/folder or format, press
d
/
M
on the
remote control or press
T
on the unit.
If you want to exit the current mode, press
Z
ENTER on the remote control or press
I
on
the unit.
y
Do not extract the USB device during
operation. (play, delete, etc.)
y
Regular back up is recommended to
prevent data loss.
y
The delete function may not be supported
according to the USB status. (lock, etc.)
>
Caution
Playback Effect
The unit supports various sound and playback
eects : DJ EFFECT, SCRATCH, DJ PRO, AUTO DJ,
TEMPO, MIX, AUTO SYNC.
DJ EFFECT
It allows you to enjoy DJ EFFECT such as Flanger/
Phaser/Chorus/Delay sound eect.
1. Press a desired DJ EFFECT (FLANGER, PHASER,
CHORUS, DELAY) on the unit.
To cancel it, press the DJ EFFECT (FLANGER,
PHASER, CHORUS, DELAY) again.
2. Turn EFFECT LEVEL clockwise or
counterclockwise to adjust the DJ EFFECT level
between 0 to 15.
y
The DJ EFFECT mode is displayed for 3
seconds when a DJ EFFECT Key is inputted.
y
The gage starts at the beginning with an
initial 7 level.
y
The current gage level is displayed when
adjusting gage.
y
If the function changed or the unit is turned
o and on, DJ EFFECT mode with DJ EFFECT
is turned o.
y
If DJ EFFECT is turned o, you should turn it
on again to enjoy the eect.
y
You can adjust Tempo for either USB while
in USB function, when DJ EFFECT mode is
on.
,
Note
SCRATCH Effect
You can output and mix the sound eects of the
SCRATCH.
Rotating SCRATCH/SEARCH to mix the scratch
sound.
-
You can hear eect of scratch sound depending
on the direction in which you rotate SCRATCH/
SEARCH.
Operating 23
Operating
3
DJ PRO
It allows you to mix CLUB or FOOTBALL sound
eect. Each mode has up to 6 sounds eect.
1. Press DJ PRO repeatedly to select a desired DJ
PRO sound effect.
2. Press a DJ Pro. Pad of desired sound.
Display
Window
Description
DJ PRO
CLUB
You can hear CLUB sound
eects when you press DJ
Pro. Pad.
DJ PRO
FOOTBALL
You can hear FOOTBALL
sound eects when you press
DJ Pro. Pad.
y
Initial DJ Pro mode is CLUB sound eect.
y
DJ Pro mode is displayed for 3 seconds
when you press DJ PRO.
y
The DJ PRO sound is mixed when you press
a DJ Pro. Pad.
y
The currently playing DJ PRO sound is
stopped and the selected DJ PRO sound
outputs if you press a dierent DJ Pro. Pad
while DJ PRO sound is playing.
y
Display does not show Input DJ Pro. Pad.
,
Note
AUTO DJ
Auto DJ blends the end of one song into the
beginning of another for seamless playback.
It equalizes volume across tracks/les for
uninterrupted playback.
Press AUTO DJ on the remote control repeatedly,
the display changes as followings. RANDOM
(AUTO DJ RANDOM) -> REPEAT ALL (AUTO DJ
SEQUENTIAL) -> (AUTO DJ OFF)
Mode
Display
Window
Description
OFF
-
(AUTO DJ OFF)
-
RANDOM
RANDOM
(AUTO DJ
RANDOM)
The music is
played randomly
on this mode.
REPEAT
REPEAT ALL
(AUTO DJ
SEQUENTIAL)
The music is
played repeatedly
on this mode.
y
AUTO DJ mode does not support searching
for a section within a track/le or to play
repeatedly or randomly.
y
If you move to other functions or stop the
music using
I
on the unit (or
Z
ENTER
on the remote control) on AUTO DJ mode,
AUTO DJ will be disable.
y
AUTO DJ is not supported in the music le
whose length is less than 60 seconds.
y
During recording, AUTO DJ is not available.
y
Only AUTO DJ SEQUENTIAL is selected when
played JUKE BOX list.
,
Note
Adjusting TEMPO
You can adjust the Tempo for USB function 1 or 2
from 50 (MIN) to 150 (MAX).
Rotate A TEMPO to adjust the tempo for USB 1.
Rotate B TEMPO to adjust the tempo for USB 2.
y
The tempo is set as 100 if you turn the unit
o, change the function or fully stop.
y
The tempo is kept when you pause and
resume play.
,
Note
Operating24
Operating
3
MIX
You can mix audio sounds.
1. Press MIX. ‘MIXER ON’ is displayed.
Select a desired Function for side A and play it.
Mix is available in all functions except USB 2.
2. During playback, insert a USB device in USB port
(B) and play it. Side B is fixed as USB2 function.
3. Move the Mix fader to adjust the sound volume
of mixed sound. Move it to the left to lower the
volume of side B and move it to the right to
lower the volume of side A.
y
In MIXER ON mode,
-
You can adjust the Tempo for USB
function 1 or 2.
-
If you press
Y
/
U
,
I
or
T
on the
unit, it works only for each side.
-
If you press
C/V
,
d/M
or
Z
ENTER on the remote control, it works
for both sides A and B.
-
For operating, it is recommended to
use
Y
/
U
,
I
or
T
on the unit
instead of remote control’s.
-
Numerical buttons do not work.
-
You can use H/P MODE. (Refer to page
36)
y
If you turn o the unit in the middle of
mixing process, MIX mode turns to OFF.
,
Note
AUTO SYNC
When using Mixing, you can synchronize the
tempo of audio les being played in USB 1 and
USB 2 by pressing AUTO SYNC.
To stop it, press AUTO SYNC twice.
y
The tempo of music being played in USB1 is
synchronized to that in USB2.
y
A TEMPO doesn’t work when AUTO SYNC is
on.
y
If USB2 fully stops or function is changed,
AUTO SYNC function is cancelled.
y
In case of below, AUTO SYNC error may
occur depending on the sound source.
-
The silent section in the beginning of
the track.
-
Intro or bridge section in which few
musical instruments appear.
-
In cases where playback speed or tempo
of the song changes.
-
In case that the data for BPM is provided
in real time, not the beginning of the
song.
y
If the song is being played too fast or slow,
press and hold AUTO SYNC. ‘AUTO SYNC/
RE-ANALYZING’ is displayed.
y
AUTO SYNC is available only when USB 1
is selected for side A and USB 2 is selected
for side B in MIXER ON mode and both are
being played.
,
Note
Operating 25
Operating
3
Using BLUETOOTH®
wireless technology
About Bluetooth
Bluetooth® is wireless communication technology
for short range connection.
The sound may be interrupted when the
connection interfered by the other electronic wave
or you connect the bluetooth in the other rooms.
Connecting individual devices under Bluetooth®
wireless technology does not incur any charges. A
mobile phone with Bluetooth® wireless technology
can be operated via the Cascade if the connection
was made via Bluetooth® wireless technology.
Available Devices : Mobile phone, MP3, Laptop,
PDA.
Bluetooth Profiles
In order to use Bluetooth® wireless technology,
devices must be able to interpret certain proles.
This unit is compatible with following prole.
A2DP (Advanced Audio Distribution Prole)
Listening to music stored on
the Bluetooth devices
Pairing your unit and Bluetooth
device
Before you start the pairing procedure, make
sure the Bluetooth feature is activated on your
Bluetooth device. Refer to your Bluetooth device’s
user guide. Once a pairing operation is performed,
it does not need to be performed again.
1. Select the Bluetooth function by using
FUNCTION until BLUETOOTH function is
selected or pressing
Bluetooth on the unit.
“BLUETOOTH READY” appears on the display
window.
2. Operate the Bluetooth device and perform the
pairing operation. When searching for this unit
with the Bluetooth device, a list of the devices
found may appear in the Bluetooth device
display depending on the type of Bluetooth
device. Your unit appears as “LG CM9950(XX)”.
y
XX means the last two digits of Bluetooth
address. For example, if your unit has a
Bluetooth address such as 9C:02:98:4A:F7:08,
you will see “LG CM9950(08)” on your
Bluetooth device.
y
Depending on the Bluetooth device type,
some devices may have a dierent pairing
process. Enter the PIN code (0000) as
needed.
y
You can connect this unit with up to 3
Bluetooth devices simultaneously using the
same method as described above, only in
the Bluetooth function.
y
The multi pairing connection is only
supported on Android or iOS devices. (Multi
pairing connection may not be supported
depending on the connected device
specications.)
y
Removable/detachable Bluetooth devices
(Ex: Dongle etc.) will not support multi
pairing.
,
Note
Operating26
Operating
3
3. When this unit is successfully connected with
your Bluetooth device, “BLUETOOTH PAIRED”
appears on the display window and change to
Bluetooth device name soon.
y
"BLUETOOTH PAIRED” will momentarily
appear on the display when you connect
other devices for multi pairing.
y
If the device name is unavailable, “_” will be
displayed.
,
Note
4. Listen to music.
To play a music stored on your Bluetooth
device, refer to your Bluetooth device’s user
guide.
y
When using Bluetooth® technology, you
have to make a connection between the
unit and the bluetooth device as close as
possible and keep the distance.
However, it may not work well in certain
situations as described below :
-
There is a obstacle between the unit and
the bluetooth device.
-
There is a device using same frequency
with Bluetooth® technology such as a
medical equipment, a microwave or a
wireless LAN device.
y
You should connect your bluetooth device
to this unit again when you restart it.
y
Even if this unit connected up to 3 Bluetooth
devices in the Bluetooth mode, you can play
and control music by using only one of the
connected devices.
,
Note
y
When this unit connected with multiple
Bluetooth devices, only one device which
you are playing keeps Bluetooth connection
when you change the function to the
others.
y
The sound may be interrupted when the
connection has interference from other
electronic devices.
y
You may not control the Bluetooth device
with this unit.
y
Depending on the type of the device,
you may not be able to use the Bluetooth
function.
y
You can enjoy wireless system using phone,
MP3, Notebook, etc.
y
The more distance between the unit and
the bluetooth device, the lower the sound
quality becomes.
y
Bluetooth connection will be disconnected
when the unit is turned o or the Bluetooth
device gets far from the unit.
y
When Bluetooth connection is
disconnected, connect the bluetooth device
to the unit again.
y
When a Bluetooth device is not connected,
“BLUETOOTH READY” appears on the display
window.
y
When you use the BLUETOOTH function,
adjust the volume to a proper level on the
Bluetooth device.
y
If it is not in the BLUETOOTH function, only
one device can be connected.
y
If a Bluetooth device is connected when
using LG TV, LG TV is disconnected and the
Bluetooth device is connected.
y
When you connect Bluetooth device
(iOS device etc.) to this unit or operate
the device, the volume level can be
synchronized with each other.
,
Note
Operating 27
Operating
3
Pairing your unit and
Bluetooth device through NFC
Ta g
About NFC Tag
Connect to the Bluetooth by using the
Bluetooth devices that support NFC(Near Field
Communication) .
1. Activate the NFC feature of your NFC-enabled
phone.
2. Turn on the unit.
3. Tag the back of your NFC-enabled phone over
the unit.
4. “BLUETOOTH PAIRED” is displayed on the unit if
Bluetooth pairing is successful.
5. You can listen to music played on this unit using
your Bluetooth device.
y
Please use a device which has the NFC
feature.
y
NFC Recognition area may be dierent
depending on the type of Bluetooth
device. Please check the position of NFC
recognition area of the Bluetooth device
before tagging.
y
If the screen of the Bluetooth device is
locked, the device may not recognize the
NFC Tag.
y
In some cases, the device may not recognize
the NFC.
-
When the case of the Bluetooth devices is
chrome-plated material.
-
According to the material and thickness of
the case on the Bluetooth device.
-
According to the performance of the NFC
of the Bluetooth devices.
y
Android O/S : Ver 4.1.2 (or later)
y
You must activate the NFC feature of your
NFC-enabled phone.
,
Note
Operating28
Operating
3
Using the Music Flow
Bluetooth App
Only Android OS is available to use “Music Flow
Bluetooth” app with this unit.
,
Note
About “Music Flow Bluetooth” App
“Music Flow Bluetooth” app brings a suite of new
features to this unit.
To enjoy more features, you are recommended to
download and install free “Music Flow Bluetooth”
app.
Install “Music Flow Bluetooth”
App onto Your Bluetooth
Device
There are two ways to install “Music Flow Bluetooth”
App onto Your Bluetooth Device.
Install “Music Flow Bluetooth” App
through QR code
1. Install “Music Flow Bluetooth” app through QR
code. Use the scanning software to scan the QR
code.
2. Tap an icon for installation.
3. Tap an icon for downloading.
y
Make sure that your Bluetooth device is
connected to the Internet.
y
Make sure that your Bluetooth device has a
scanning software application. If you don’t
have one, download one from “Google
Android Market (Google Play Store)”.
y
Depending on the area, QR code may not
work.
,
Note
Install “Music Flow Bluetooth” App
through “Google Android Market
(Google Play Store)”
1. Tap the “Google Android Market (Google Play
Store)” icon.
2. In the search bar, type in the “Music Flow
Bluetooth” and search it.
3. In the search result list, find and tap “Music Flow
Bluetooth” to start downloading Bluetooth app.
4. Tap an icon for installation.
5. Tap an icon for downloading.
y
Make sure that your Bluetooth device is
connected to the Internet.
y
Make sure that your Bluetooth device is
equipped with “Google Android Market
(Google Play Store)”.
,
Note
Operating 29
Operating
3
Activate Bluetooth with “Music
Flow Bluetooth” App
“Music Flow Bluetooth” app helps to connect your
Bluetooth device to this unit.
1. Tap “Music Flow Bluetooth” app icon on the
home screen to open “Music Flow Bluetooth”
app, and go to the main menu.
2. Tap [Menu] and select the unit you want.
3. If you want to get more information to operate,
tap [Setting] and turn on the User guide.
y
“Music Flow Bluetooth ” app will be available
in the software version as follow;
-
Android O/S : Ver 4.0.3 (or later)
y
If you use “Music Flow Bluetooth ” app for
operation, there would be some dierences
between “Music Flow Bluetooth ” app
and the supplied remote control. Use the
supplied remote control as necessary.
y
Depending on the Bluetooth device, “Music
Flow Bluetooth ” app may not work.
y
After connection of “Music Flow Bluetooth ”
app, music may be output from your device.
In this case, try connecting procedure again.
y
If you operate the other applications or
change the settings on your Bluetooth
device while using “Music Flow Bluetooth
” app, “Music Flow Bluetooth ” app may
operate abnormally.
y
When “Music Flow Bluetooth ” app operates
abnormally, check your Bluetooth device
and the connection of “Music Flow
Bluetooth ” app and then try to connect
again.
y
Depending on the smart phone's operating
system, you have some dierences for
“Music Flow Bluetooth ” operation.
y
Check Bluetooth setting on your Bluetooth
device if “Music Flow Bluetooth ” app
connection does not work well.
,
Note
Operating30
Operating
3
Radio Operations
Be sure that FM antenna is connected. (Refer to
page 19)
Listening to the radio
1. Press FUNCTION until FM appears in the display
window.
The last received station is tuned in.
2. Auto tuning :
Press and hold TUNING-/+ on the remote
control or
Y/U
on the unit for about two
seconds until the frequency indication starts to
change, then release. Scanning stops when the
unit tunes in a station.
Or
Manual tuning :
Press TUNING-/+ on the remote control or
Y/U
on the unit repeatedly.
3. Adjust the volume by rotating volume knob on
the unit or by pressing VOL +/- on the remote
control repeatedly.
Improving poor FM reception
Press
d
/
M
on the remote control. This will change
the tuner from stereo to mono and usually improve
the reception.
Presetting the Radio Stations
You can preset 50 stations for FM.
Before tuning, make sure to turn down the volume.
1. Press FUNCTION until FM appears in the display
window.
2. Select the desired frequency by pressing
TUNING -/+ on the remote control or
Y/U
on the unit.
3. Press TUNER MEMORY on the remote control.
A preset number will blink in the display
window.
4. Press PRESETFOLDER
W
/
S
on the remote
control to select the preset number you want.
5. Press TUNER MEMORY on the remote control.
The station is stored.
6. Repeat steps 2 to 5 to store other stations.
7. To listen a preset station, press
PRESETFOLDER
W
/
S
or 0 to 9 numerical
buttons on the remote control.
Deleting all the saved stations
1. Press and hold TUNER MEMORY on the remote
control for two seconds.
“ERASE ALL?” will flash up on the unit display.
2. Press TUNER MEMORY on the remote control
to erase all the saved radio stations.
Operating 31
Operating
3
Sound adjustment
Setting the sound mode
This system has a number of pre-set surround
sound elds. You can select a sound mode you
want by using SOUND EFFECT on the remote
control.
The displayed items for the Equalizer may be
dierent depending on sound sources and eects.
On Display Description
NATURAL
You can enjoy comfortable and
natural sound.
Local
Specialization
equalizer
(Optional)
Regionally optimized sound
eect.
(FORRO/FUNK/SERTANEJO/
DANGDUT/ARABIC/PERSIAN/
INDIA/REGUETON/MERENGUE/
SALSA/SAMBA/CUMBIA/AFRO/
AXE/TECNO BREGA)
AUTO EQ
Realizes the sound equalizer that
is the most similar to the genre
of which is included in the MP3
ID3 tag of song les.
POP
CLASSIC
JAZZ
ROCK
This program lends an
enthusiastic atmosphere to the
sound, giving you the feeling
you are at an actual rock, pop,
jazz or classic concert.
BASS BLAST
Reinforces the treble, bass and
surround sound eect.
FOOTBALL
You can enjoy the sound eect
FOOTBALL STADIUM.
FLAT Provides balanced sound.
BOOST
Boosts the mid-range for sound
reinforcement.
TREBLE/BASS Reinforces the treble and bass.
STANDARD You can enjoy optimized sound.
y
On some speakers, sound may not be heard
or heard in low sound depending on the
sound mode.
y
Maybe you need to reset the sound mode,
after switching the input, sometimes even
after the sound track/le changed.
y
By pressing BASS BLAST on the unit you
can directly select STANDARD or BASS
BLAST eect.
y
By pressing LATIN EQ on the unit, you can
directly select various latin equalizers.
,
Note
Setting the USER EQ
You can adjust the sound level of Treble, Middle
and Bass as your preference.
1. Press USER EQ on the unit. “USER EQ” is
displayed.
2. Rotate MASTER EQ (BASS, MIDDLE, TREBLE) to
adjust the sound level.
3. Press USER EQ to save the setting.
Operating32
Operating
3
Advanced Operations
Recording to USB
You can record a various sound source to USB 1.
(CD, AUX, PORTABLE, Tuner, USB)
1. Connect a USB device to USB port (A) on the
unit.
2. Press FUNCTION to select a Function you want
to record.
One track/file recording - You can record to USB
after playing a track/file you want.
All tracks/files recording - You can record to USB
in full stop status.
JUKE BOX list recording - After showing the
JUKE BOX list, you can record it to USB. (Refer to
page 34)
3. Start the recording by pressing USB REC on the
remote control or
USB REC on the unit.
To stop recording, press and hold
USB
REC on the unit or USB REC on the remote
control.
Recording in MIXER ON mode
Recording is available in MIXER ON mode. If you
record in MIXER ON mode, the unit records the
mixed sound from that point when you press USB
REC.
1. Start mixing. Refer to page 24.
2. Start the recording by pressing USB REC on the
remote control or
USB REC on the unit.
To stop recording, press and hold
USB
REC on the unit or USB REC on the remote
control to stop recording. Otherwise, the
recording continues.
Pausing recording
During recording, press USB REC on the
unit or USB REC on the remote control to pause
recording. Press it again to restart recording.
(Tuner/AUX/PORTABLE and MIXER Mode only)
To select recording bit rate and
speed
1. Press and hold USB REC on the unit or
USB REC on the remote control for 3 seconds.
2. Press
C
/
V
on the remote control or
Y
/
U
on the side A of the unit to select a
bit rate.
3. Press
USB REC on the unit or USB REC on
the remote control again to set.
4. Press
C
/
V
on the remote control or
Y
/
U
on the side A of the unit to select a
desired recording speed. (AUDIO CD only)
X1 SPEED
- You can listen to music while recording it.
X2 SPEED
- You can just record the music file.
5. Press
USB REC on the unit or USB REC on
the remote control to finish the setting.
USB Copying
You can copy audio les in USB 2 to USB 1.
1. Connect a USB device including desired audio
files to USB port (B) and select USB 2 Function.
2. Connect another USB device to USB port (A).
3. Press
USB REC on the unit or USB REC on
the remote control.
To stop recording, press and hold
USB
REC on the unit or USB REC on the remote
control.
The making of unauthorized copies of copy-
protected material, including computer
programs, les, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal oense.
This equipment should not be used for such
purposes.
Be responsible
Respect copyrights
Operating 33
Operating
3
y
You can record various sound using MIC/
DJ Pro/Scratch/DJ Eect/Original Source.
(Except USB Copying)
y
You can control recorded MIC sound
according to MIC volume.
y
For stable recording, the output sound level
goes down on its own when you record
music from CD to USB.
y
You can only change volume level between
MIN and 30 during recording. (Only CD
function)
y
Do not remove the USB device or turn o
the unit during USB recording. If dose not,
an incomplete le may be made and not
deleted on PC.
y
If USB recording does not work, the
message like “NO USB”,”ERROR”,”USB FULL”
or “NO REC” is displayed on the display
window.
y
Multi card reader device or External HDD
can not be used for USB recording.
y
A le is recorded by about 512Mbyte when
you record for a long term.
y
You may not store more than 2000 les.
y
You can not record in AUTO DJ mode.
y
In case of the unsupported MP3/WMA le,
the le recording may be stopped.
y
It’ll be stored as follows.
AUDIO CD MP3/WMA MIX mode
The other
source*
Tuner
* : AUX and the like.
Tuner : The current recording frequency is
shown.
,
Note
Normal mode
y
You can check the recording percentage
rate for the USB record on the display
window during the recording. (MP3/WMA,
CD only)
y
During recording MP3/WMA, there is no
sound.
y
On CD function, sound of MIC, DJ Pro,
Scratch, DJ Eect is recorded only during
AUDIO CD X1 speed REC. It is recorded
AUDIO CD source too.
y
When you stop recording during playback,
the le that has been recorded at that time
will be stored.(Except MP3/WMA le)
MIXER ON mode
y
When Function is set to BLUETOOTH or
LG TV, recording is available in MIXER ON
mode.
,
Note
Operating34
Operating
3
DJ SHARING
DJ SHARING allows you to share a song stored in a
USB device using Music Flow Bluetooth App.
1. Connect a USB device to USB port (A).
2. Activate the Bluetooth feature of your
Bluetooth device. Make sure that “Music Flow
Bluetooth” App on your Bluetooth device is
connected with the unit.
3. Press DJ SHARING.
4. Press
Y
/
U
on the side A of the unit to
select a song to share.
5. Press DJ SHARING to share.
y
To cancel the DJ SHARING, press and hold
DJ SHARING for 3 seconds.
y
During transmission by the App,
-
Some functions may not work.
-
Key operation of the unit or remote
control does not work. (Except turning
the power o, canceling transmission,
adjusting the volume.)
y
Press and hold DJ SHARING to share the
most recently recorded mix le. If there is no
mix le, the rst audio le in USB 1 Function
will be shared.
y
If the unit turns o during sharing, the le
transfer fails.
y
The transfer speed and performance of
Bluetooth function may dier due to the
number or type of the connected Bluetooth
device or useage environment.
y
If you share the le when multiple devices
are connected to the unit in Bluetooth
mode, the le is transfered to the last
operated App.
y
You can transfer a le up to 512 Mbyte.
y
Before starting DJ SHARING, you can play
the le to check.
y
The le made by DJ Sharing is saved in
‘Bluetooth’ folder.
y
The le may not be transferred or the unit
may not work normally in below case
during DJ sharing.
-
The unit is turned o.
-
The USB device is removed.
-
Bluetooth is disconnected.
,
Note
JUKE BOX Playback
JUKE BOX function enables you to make a playlist of
your favorite tracks/les from a disc or USB device
(USB 1). A playlist of up to 100 tracks/les can be
entered.
Making JUKE BOX list
It is supported only on stop status.
1. Press and hold JUKE BOX / DEMO on the unit
to enter the edit mode.
2. Select a track/file by pressing
C/V
on
the remote control or by turning SCRATCH/
SEARCH on the side A of the unit.
3. Press JUKE BOX / DEMO to save the track/file.
4. Repeat steps 2 - 3 to store other tracks/files.
(You can modify the list by pressing PRESET
FOLDER
W
/
S
on the remote control to select
the JUKE BOX program number.)
5. Press JUKE BOX / DEMO once again.
To play the JUKE BOX list, press
d/M
after you
make the list.
y
When making or modifying the JUKE BOX
list, REPEAT mode is o.
,
Note
Enjoying JUKE BOX
Press JUKE BOX / DEMO twice on stop status. “JUKE
BOX ON” appears on the display window. To play
JUKE BOX list, press
d/M
on the remote control or
T
on the unit.
To cancel it, press JUKE BOX / DEMO twice. “JUKE
BOX OFF” appears on the display window.
Operating 35
Operating
3
Editing JUKE BOX
It is supported only on stop status.
1. Press and hold JUKE BOX / DEMO on the unit
to enter the edit mode.
2. Press PRESETFOLDER
W
/
S
on the remote
control to select a track/file to edit.
3. Press
C/V
to save the track/file.
4. Press JUKE BOX / DEMO.
5. Repeat 2 to 3 to store the other tracks/files.
6. Press JUKE BOX / DEMO once again.
To play the JUKE BOX list, press
d/M
after you edit
the list.
Deleting JUKE BOX list
Deleting function only works in the edit mode.
1. Press and hold JUKE BOX on the remote control
to enter the edit mode.
2. Select a song by pressing PRESETFOLDER
W
/
S
on the remote control repeatedly.
3. Press DELETE while a song is selected.
y
To check the status of JUKE BOX, press JUKE
BOX once. You can also check it by the word
“PROG.” on the display window.
y
If there is no JUKE BOX list, “JUKE BOX NONE”
appears on the display window when you
press JUKE BOX.
y
JUKE BOX is switched o in the case below.
-
Changing to a dierent function.
-
Turning o and on the unit.
-
Operating the numerical buttons on the
remote control.
-
Playing a le by using FOLDER and
SCRATCH/SEARCH.
y
JUKE BOX list is cleared in the case below.
-
Removing the disc or the USB device.
-
Deleting or recording music les in the
USB device.
,
Note
Other Operations
Turn off the sound temporarily
Press MUTE
@
on the remote control to mute
your unit.
You can mute your unit, for example, to answer
the telephone, the mute icon “
Q
” is blinked in the
display window.
To cancel it, press MUTE
@
again or change the
volume level.
CHILDSAFE Mode
This function helps to prevent you from being
surprised when you turn on the unit in case that
the volume of the unit is set at a high level.
To turn on CHILDSAFE mode, press and hold ENTER
on the unit when the volume of the unit is “MIN”.
In CHILDSAFE mode, the volume increase gradually.
To turn o CHILDSAFE mode, press and hold ENTER
on the unit when the volume of the unit is “MIN”
and this mode is turned on.
In case of CD, USB or BLUETOOTH function,
CHILDSAFE mode does not work after about
2 minutes from power on the unit even if this
mode is enabled.
,
Note
Operating36
Operating
3
Displaying file information
(ID3 TAG)
While playing an MP3 le containing le
information, you can display the information by
pressing INFO.
DEMO
In the power o state, press JUKE BOX / DEMO on
the unit once. The unit will power on and display
the each of functions with demo sound in the
display window. To cancel the DEMO function,
press JUKE BOX / DEMO once more.
y
While in DEMO, this unit will keep DEMO
status even if you unplug the power cord
connection.
y
You can enjoy other functions during the
DEMO, the DEMO will temporarily pause.
-
Without input key in 10 sec, the DEMO will
play back automatically.
,
Note
Using Microphone
1. Connect your microphone to the MIC jack.
2. Play the music you want.
3. Sing along with the accompaniment. Adjust
the microphone volume by rotating MIC VOL.
clockwise or counterclockwise on the unit.
y
When not using the microphone, set the
MIC VOL. to minimum or turn o the MIC
and remove the microphone from the MIC
jack.
y
If the microphone is set too near the
speaker, a howling sound may be produced.
In this case, move the microphone away
from the speaker or decrease the sound
level by using the MIC VOL..
y
If sound through the microphone is
extremely loud, it may be distorted. In this
case, rotate MIC VOL. to minimum.
,
Note
Using H/P MODE
Headphone monitoring is available.
Press H/P MODE to listen to music using
Headphone. Rotate H/P VOL. / SYNC SET to adjust
the volume.
When mixing, press H/P MODE to select a
monitoring mode. You can listen to the music
being mixed or playing in Source A or Source B.
y
It is not compatible with a 4 pole jack.
y
If you select one source output in MIXER ON
mode, the playback eects (Except TEMPO)
are not applied to the output through the
headphone.
y
If you power o or switch to MIXER OFF, the
selected H/P MODE is cancelled.
,
Note
LIGHTING (X-FLASH) MODE
The function is to create a Club like atmosphere by
operating speaker lighting.
1. Press LIGHTING MODE on the unit.
The mode changes each time you press it :
OFF
VOLCANO POLICE THUNDER
PSYCHE CAOS OFF
y
Lighting function is available in all functions.
y
Lighting mode retains its previous mode
when you rst press LIGHTING MODE,
press again to change modes.
,
Note
Operating 37
Operating
3
Setting the Clock
1. Turn the unit on.
2. Press and hold CLOCK.
3. Select time mode by pressing
C/V
on
the remote control.
- AM 12:00 (for an AM and PM display) or 0:00
(for a 24 hour display)
4. Press SET to confirm your selection.
5. Select the hours by pressing
C/V
on the
remote control.
6. Press SET.
7. Select the minutes by pressing
C/V
on
the remote control.
8. Press SET.
Setting the Clock through
“Music Flow Bluetooth” App
Install “Music Flow Bluetooth” app on your Android
device. (Refer to page 28)
Your unit’s clock will be automatically synchronized
with your device by activating Bluetooth
connection through “Music Flow Bluetooth” app.
Using your player as an alarm
clock
1. Turn the unit on.
2. Press and hold ALARM.
3. Press
C/V
on the remote control to
change the hours and minutes and press SET to
save.
4. Press
C/V
on the remote control to
select function and press SET to save.
- Press
C/V
on the remote control to
select a memory No. when you select Tuner
and then, press SET.
If there is no memory No., this step is skipped.
5. Press
C/V
on the remote control to
change the volume and press SET to save. The
clock icon “
(
” shows that the alarm is set.
y
If you set the clock time, you can check the
time by pressing CLOCK even when the
player is turned o.
y
You can set alarm after you set the clock
time.
y
If you set the clock time and alarm, you
can check the alarm icon “
(
“ by pressing
CLOCK even when the unit is turned o.
y
If you set the clock time and alarm, you
can check the alarm icon “
(
“ and setting
informaiton by pressing ALARM even when
the unit is turned o.
y
You can select ALARM ON/OFF mode by
pressing ALARM.
,
Note
Sleep Timer Setting
Press SLEEP repeatedly to select delay time
between 10 and 180 minutes. After the delay time,
the unit will be turned o.
To cancel the sleep function, press SLEEP
repeatedly until “SLEEP 10” appears, and then press
SLEEP once again while “SLEEP 10” is displayed.
y
You can check the remaining time before
the unit is turned o.
y
Press SLEEP. The remaining time appears in
the display window.
,
Note
Dimmer
Press SLEEP once. The display window will
be darkened by half. To cancel it, press SLEEP
repeatedly until dim o.
y
All the LED turns o when Dimmer is being
operated.
,
Note
Operating38
Operating
3
Auto power down
This unit will turn itself o to save electricity in the
case were the main unit is not connected to an
external device and is not used for 20 minutes.
The unit will also turn itself o after six hours if the
Main unit has been connected to another device
using the analog inputs.
How to disconnect the wireless
network connection or the wireless
device.
Turn o the unit by pressing the power button for
more than 5 seconds.
AUTO POWER On
This unit automatically turns on by an input source :
LG TV or Bluetooth
If you try to connect your Bluetooth device, this
unit turns on and connects your Bluetooth device.
You can play your music.
y
Depending on the connected device, this
function may not operate.
y
Depending on the connected device, the
unit turns on but Bluetooth function may
not be connected.
y
If you disconnect Bluetooth connection
by this unit, some Bluetooth devices try to
connect to the unit continually. Therefore
it is recommended to disconnect the
connection before turning o the unit.
y
If you try to connect to the “Music Flow
Bluetooth” app, Bluetooth function of this
unit is turned on.
y
If you turn on the unit using LG TV or
Bluetooth function, proper function of this
unit is turned on.
y
If you have already paired with this unit,
automatically this unit can turn on by an
input source when this unit is turned o.
y
If you turn o the unit by pressing the
power button for more than 5 seconds, Auto
Power On function is disabled. To activate it,
turn on the unit.
,
Note
Auto function change
This unit recognizes input signals such as
Bluetooth and LG TV and then changes suitable
function automatically.
When you try to connect Bluetooth
device
When you try to connect your Bluetooth device to
this unit, Bluetooth function is selected. Play your
music on the Bluetooth device.
When LG TV is connected
When you turn on your LG TV connected by LG
Sound Sync, this unit changes the function to LG
TV. You can hear the sound from your TV.
y
This function is not available during
recording or deleting.
y
This function only works with devices that
were previously connected.
,
Note
Operating 39
Operating
3
LG Sound Sync
You can control some functions of this unit by
your TV’s remote control with LG Sound Sync. It
is compatible with LG TV that supports LG Sound
Sync. Make sure your TV has the LG Sound Sync
logo.
Controllable function by LG TV’s remote control :
Volume up/down, mute
Refer to the TV’s instruction manual for the details
of LG Sound Sync.
y
You can also use the remote control of
this unit while using LG Sound Sync. If you
use TV’s remote control again, the unit
synchronizes with the TV.
y
If the connection fails, check the conditions
of this unit and your TV : power, function.
y
Make sure of the condition of this unit and
the connection in the cases below when
using LG Sound Sync.
-
Turn o the unit.
-
Changing to a dierent function.
-
Disconnecting the wireless connection
caused by interference or a distance.
y
The amount of time to turn o this unit is
dierent depending on your TV.
y
If you try to change the function on using
the LG TV function, volume will be change
according to the LG TV volume level.
y
Details of TV setting menu vary depending
on the manufacturers or models of your TV.
y
If you connect LG Sound Sync when “Music
Flow Bluetooth” app is connected, control
through the app is available.
y
If you turned o the unit directly by
pressing
1
/
!
(Power), LG Sound Sync will
be disconnected. To use this function again,
you should reconnect the TV and the unit.
y
If an LG TV is connected when using
Bluetooth, Bluetooth is disconnected and
the LG TV is connected.
,
Note
1. Turn on the unit by pressing
1
/
!
(Power).
2. Press FUNCTION until LG TV function is selected.
3. Set up the sound output of TV to listen to the
sound through this unit :
TV setting menu [Sound] -> [TV Sound output]
-> [LG Sound Sync (Wireless)]
When the TV is not connected, “LG TV READY”
appears on the display window.
If the TV and this unit are connected normally,
“LG TV PAIRED” will be appear on the display
window.
Troubleshooting40
Troubleshooting
4
Troubleshooting
General
Problem Cause & Solution
The unit does not work
properly.
y
Turn o the power of this unit and the connected external device (TV, Woofer,
DVD-player, Amplier, etc.) and turn it on again.
y
Disconnect the power cord of this unit and the connected external device (TV,
Woofer, DVD-player, Amplier, etc.) and then try connecting again.
y
Previous setting may not be saved when device power is shut o.
No Power.
y
The power cord is not plugged in. Plug in the power cord.
y
Check whether electricity failed.
Check the condition by operating other electronic devices.
No sound.
y
Check whether you select right function.
Press FUNCTION and check the selected function.
y
Check to see if the Speakers are connected correctly. Speaker cables
connected correctly.
The unit does not start
playback.
y
An unplayable disc is inserted. Check the playable disc.
y
No disc is inserted. Insert a disc.
y
The disc is dirty. Clean the disc. (Refer to page 44)
y
The disc is inserted upside down.
Place the disc with the label or printed side facing upwards.
Radio stations cannot be
tuned in properly.
y
The antenna is positioned or connected poorly.
Connect the antenna securely.
y
The signal strength of the radio station is too weak.
Tune to the station manually.
y
No stations have been preset or preset stations have been cleared (when
tuning by scanning preset channels).
Preset some radio stations, see page 30 for details.
4 Troubleshooting
Troubleshooting 41
Troubleshooting
4
Problem Cause & Solution
The remote control does
not work properly.
y
The remote control is too far from the unit.
Operate the remote control within about 23 ft (7 m).
y
There is an obstacle in the path of the remote control and the unit.
Remove the obstacle.
y
The batteries in the remote control are exhausted.
Replace the batteries with new ones.
No speaker light
y
Check whether the speaker light cables are connected to the unit correctly.
Connect the speaker light cables to the unit correctly.
y
Check the speaker light eects by pressing LIGHTING MODE.
LG Sound Sync does not
work.
y
Check whether your LG TV supports LG Sound Sync.
y
Check connection of LG Sound Sync.
y
Check sound setting of your TV and this unit.
Appendix42
Appendix
5
General specifications
General
Power requirements Refer to the main label.
Power consumption
Refer to the main label.
Networked standby : 0,4 W
(If all network ports are activated.)
Dimensions (W x H x D) 495 mm x 213 mm x 462 mm
Net Weight (Approx.) 8,1 kg
Operating temperature 5 °C to 35 °C (41 °F to 95 °F)
Operating humidity 60 %
Bus Power Supply (USB) 5 V
0
500 mA
Inputs
AUX IN 2,0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R)
PORT. IN 1,2 Vrms (3,5 Ø jack)
MIC 27 mV
Tuner
FM Tuning Range 87,5 to 108,0 MHz or 87,50 to 108,00 MHz
CD
Frequency Response 40 to 20 000 Hz
Signal-to-noise ratio 75 dB
Dynamic range 80 dB
Amplier
Total Output 4 400 W
Front
LOW : 1 000 W X 2 (8 Ω at 70 Hz)
MID : 850 W X 2 (8 Ω at 1 kHz)
HIGH : 350 W X 2 (6 Ω at 8 kHz)
THD 25 %
y
Design and specications are subject to change without notice.
5 Appendix
Appendix 43
Appendix
5
Speakers specifications
Front speaker
Type
LOW : 1 Way 1 Speaker
MID : 2 Way 2 Speaker
HIGH : 1 Way 1 Speaker
Impedance
LOW : 8 Ω
MID : 8 Ω
HIGH : 6 Ω
Rated Input Power
LOW : 1 000 W
MID : 850 W
HIGH : 350 W
Max. Input power
LOW : 2 000 W
MID : 1 700 W
HIGH : 700 W
Net Dimensions (W x H x D) 521 mm x 713 mm x 486 mm
Net Weight 30,2 kg
y
Design and specications are subject to change without notice.
Trademarks and Licenses
Bluetooth® wireless technology is a system which allows radio contact between electronic devices.
Connecting individual devices under Bluetooth® wireless technology does not incur any charges. A mobile
phone with Bluetooth® wireless technology can be operated via the Cascade if the connection was made
via Bluetooth® wireless technology.
The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by
LG Electronics is under license.
Other trademarks and trade names are those of their respective owners.
Appendix44
Appendix
5
Maintenance
Notes on Discs
Handling Discs
Never stick paper or tape on the disc.
Storing Discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause poor
picture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
the center to out.
Do not use strong solvents such as alcohol,
benzine, thinner, commercially available cleaners,
or anti-static spray intended for old vinyl records.
Handling the Unit
When shipping the unit
Please save the original shipping carton and
packing materials. If you need to ship the unit, for
maximum protection, re-pack the unit as it was
originally packed at the factory.
Keeping the exterior surfaces clean
Do not use volatile liquids such as insecticide spray
near the unit. Wiping with strong pressure may
damage the surface. Do not leave rubber or plastic
products in contact with the unit for a long period
of time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
unit.
Maintaining the Unit
The unit is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty
or worn, the picture quality could be diminished.
For details, please contact your nearest authorized
service center.
LG Customer Information Center
1-800-243-0000 USA, Consumer
1-888-865-3026 USA, Commercial
Register your product Online!
www.lg.com
