Whirlpool WRL767SIAM 26.5 cu. ft. Side by Side Refrigerator User Manual

THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING or

PROBLEM SOLVER, please visit our website at www.whirlpool.com for additional information. If you still need assistance, call us

at 1-800-253-1301. In Canada, visit our website at www.whirlpool.ca or call us at 1-800-807-6777.

You will need your model and serial number, located on the inside wall of the refrigerator compartment.

Table of Contents

REFRIGERATOR SAFETY.....................................................................2

Proper Disposal of Your Old Refrigerator...........................................3

INSTALLATION INSTRUCTIONS .........................................................3

Unpack the Refrigerator......................................................................3

Door Removal, Leveling and Alignment .............................................4

Handle Installation and Removal........................................................ 7

Location Requirements.......................................................................7

Electrical Requirements......................................................................8

Water Supply Requirements...............................................................8

Connect Water Supply........................................................................8

Install Air Filter...................................................................................10

REFRIGERATOR USE .........................................................................11

Using the Controls ............................................................................11

Convertible Drawer Temperature Control ........................................12

Crisper Humidity Control ..................................................................12

Chilled Door Bin ................................................................................13

Water and Ice Dispensers.................................................................13

Ice Maker and Storage Bin ...............................................................14

Water Filtration System.....................................................................15

SMART REFRIGERATOR FEATURES............................................... 16

Getting the Most from Your Smart Refrigerator............................... 16

Using Smart Grid .............................................................................. 16

Using Smart Features....................................................................... 16

REFRIGERATOR CARE ...................................................................... 17

Cleaning ............................................................................................ 17

Lights................................................................................................. 17

Vacation and Moving Care ............................................................... 17

PROBLEM SOLVER ............................................................................ 18

ACCESSORIES .................................................................................... 23

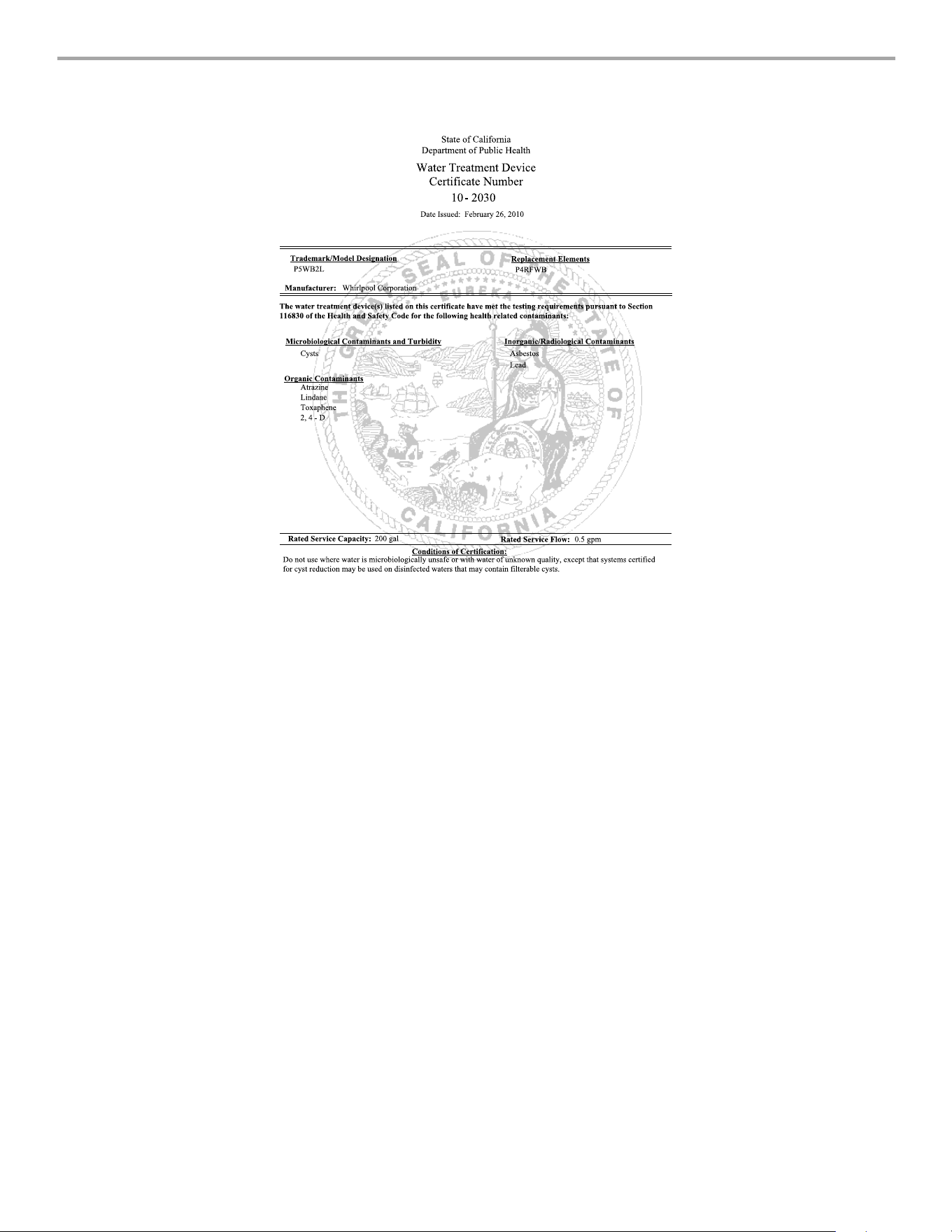

WATER FILTER CERTIFICATIONS....................................................24

PERFORMANCE DATA SHEET.......................................................... 25

WARRANTY ......................................................................................... 26

REFRIGERATOR

USER INSTRUCTIONS

W10439277C

REFRIGERATOR SAFETY

You can be killed or seriously injured if you don't immediately

You

can be killed or seriously injured if you don't

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

follow instructions.

instructions.

DANGER

WARNING

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:

SAVE THESE INSTRUCTIONS

■ Plug into a grounded 3 prong outlet.

■ Do not remove ground prong.

■ Do not use an adapter.

■ Do not use an extension cord.

■ Disconnect power before servicing.

■ Replace all parts and panels before operating.

■ Remove doors from your old refrigerator.

■ Use nonflammable cleaner.

■ Keep flammable materials and vapors, such as gasoline,

away from refrigerator.

■ Use two or more people to move and install refrigerator.

■ Disconnect power before installing ice maker (on ice maker

kit ready models only).

■ Use a sturdy glass when dispensing ice (on some models).

■ Do not hit the refrigerator glass doors (on some models).

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other

reproductive harm.

Proper Disposal of

Your Old Refrigerator

IMPORTANT: Child entrapment and suffocation are not problems

of the past. Junked or abandoned refrigerators are still dangerous,

even if they will sit for “just a few days.” If you are getting rid of

your old refrigerator, please follow these instructions to help

prevent accidents.

Before You Throw Away Your Old Refrigerator or Freezer:

■ Take off the doors.

■ Leave the shelves in place so that children may not easily

climb inside.

INSTALLATION INSTRUCTIONS

Unpack the Refrigerator

Remove packaging materials. Do not use sharp instruments,

rubbing alcohol, flammable fluids, or abrasive cleaners to remove

tape or glue. These products can damage the surface of your

refrigerator. For more information, see “Refrigerator Safety.”

WARNING

Suffocation Hazard

Remove doors from your old refrigerator.

Failure to do so can result in death or brain damage.

Important information to know about disposal of

refrigerants:

Dispose of refrigerator in accordance with Federal and Local

regulations. Refrigerants must be evacuated by a licensed,

EPA certified refrigerant technician in accordance with

established procedures.

WARNING

Excessive Weight Hazard

Use two or more people to move and install

refrigerator.

Failure to do so can result in back or other injury.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for

cleaning or service, be sure to cover the floor with

cardboard or hardboard to avoid floor damage. Always pull

the refrigerator straight out when moving it. Do not wiggle or

“walk” the refrigerator when trying to move it, as floor

damage could occur.

Important information to know about glass shelves

and covers:

Do not clean glass shelves or covers with warm water when

they are cold. Shelves and covers may break if exposed to

sudden temperature changes or impact, such as bumping.

Tempered glass is designed to shatter into many small,

pebble-size pieces. This is normal. Glass shelves and covers

are heavy. Use both hands when removing them to avoid

dropping.

Door Removal, Leveling and Alignment

Gather the required tools and parts and read all instructions before starting installation. Save these instructions for future reference.

NOTE: Before moving your product into your home, measure the doorway of your home to see whether you need to remove the

refrigerator and freezer doors. If door removal is necessary, see the instructions below.

IMPORTANT: Before you begin, turn the refrigerator control OFF or turn cooling off. Unplug refrigerator or disconnect power. Remove

food, the ice storage bin (on some models), and any adjustable door or utility bins from doors.

TOOLS NEEDED:

Bubble level, Phillips screwdriver, ³⁄₁₆" hex key, ¹⁄₄" hex-head socket wrench, ¹⁄₄" and ⁵⁄₁₆" open-ended wrenches or adjustable wrench,

internal star drive or ³⁄₈" hex-head socket wrench

WARNING

Electrical Shock Hazard

Disconnect power before removing doors.

Failure to do so can result in death or electrical shock.

Water Dispenser

Tubing Connection

(Style 1)

A. Face of Fitting

Base Grille

Wiring Connection

Bottom Hinges

(Left and Right)

B. Routing

Plate

C. Electrical

Housing

A. P-clamp D. Wiring Clip

F. Wiring

Plugs

E. Grommets

Door Removal

DCBA

Top Left Hinge

A. Do Not Remove Screws.

Top Right Hinge

Leveling

A. Bottom Hinge

B. Leveler Bracket

C. Leveling Foot

Door Alignment

(Bottom Right Hinge)

A. Alignment Screw

Lower

Raise

Raise Lower

Doors must be

open to 90˚

Water Dispenser Tubing

Connection (Style 2)

Remove the Doors

1. Unplug refrigerator or disconnect power.

2. Open both doors to 90°. Remove the base grille by removing

the two screws, then pulling out on the outside corners. See

Graphic 1.

NOTE: The doors must only be opened to 90°. If they are

opened all the way, the base grille will not come off.

IMPORTANT: The Smart Grid antenna housing is mounted on the

metal frame behind the base grille. Do not remove, open, crush,

pull, kick or step on the antenna housing. Doing so can damage

the antenna.

3. Disconnect the water tubing, located behind the base grille on

the freezer door side. The dispenser tubing runs through the

door hinge, and must be disconnected in order to remove the

door.

■ Style 1: Press the colored outer ring against the face of

fitting and pull the water tubing free. See Graphic 2A.

NOTE: Keep the water tubing connector attached to the

tube that runs underneath the freezer. The door cannot be

removed if the connector is still attached to the tube that

runs through the door hinge.

■ Style 2: Firmly pull on the clasp to release the tube, then

pull the water tubing free. See Graphic 2B.

NOTE: Keep the clasp attached to the tube that runs

underneath the freezer.

4. Disconnect the wiring, located behind the base grille on the

freezer door side. See Graphic 3.

■ Remove the P-clamp using a ¹⁄₄" hex-head socket wrench.

Remove the small wiring bundle from the P-clamp.

■ Remove the wiring clip using a ¹⁄₄" hex-head socket

wrench.

■ Pull the electrical housing out from under the refrigerator.

Disconnect the wiring plugs from the housing.

■ Gently pull the large wiring bundle (with two white plugs)

through the routing plate.

5. Close both doors and keep them closed until you are ready to

lift them free from the cabinet.

6. Use a ³⁄₁₆" hex key to remove the top left hinge screws as

shown. See Graphic 4.

IMPORTANT: Do not remove either screw A.

7. Lift freezer door straight up off bottom hinge. See Graphic 5.

The water tubing and wiring remain attached to the freezer

door and pull through the bottom left hinge.

NOTE: This may require two people - one to lift the door and

another to feed the water tubing and wiring through the hinge.

Be sure the hole in the hinge is clear of obstructions, then

gently pull one water tube through the hinge. (Avoid kinking

the tube.) Next, gently pull the other water tube through the

hinge, again avoiding kinks. Finally, gently pull the wiring

bundle (including the grommet and wiring plugs) through the

hinge.

IMPORTANT: Rest the door on its side on a soft, clean

surface, such as a towel, blanket or piece of cardboard. This

will help avoid damaging the door, water tubing and wiring.

8. Use a ³⁄₁₆" hex key to remove the top right hinge screws as

shown. See Graphic 6.

IMPORTANT: Do not remove either screw A.

9. Lift the refrigerator door straight up off bottom hinge.

IMPORTANT: Rest the door on its side on a soft, clean

surface, such as a towel, blanket or piece of cardboard. This

will help avoid damaging the door.

10. It may not be necessary to remove the bottom hinges to move

the refrigerator through a doorway. Both bottom hinges have

similar construction.

■ If necessary, use an internal star drive or a ³⁄₈" hex-head

socket wrench to remove the bottom hinges. See

Graphic 7.

IMPORTANT: The leveler brackets are mounted behind

the hinges. If you remove the hinges, make sure that the

leveler brackets are replaced when reinstalling the hinges.

Replace the Doors and Hinges

1. Replace both bottom hinges, if removed. Make sure that the

leveler brackets are assembled behind the hinges. Tighten

screws.

IMPORTANT: When the screws are tightened properly, there

should not be any gaps between the refrigerator, leveler

bracket and hinge.

NOTE: There are two wiring bundles that run underneath the

freezer - a large bundle with a large grommet and two white plugs

at the end, and a small bundle with a small grommet and one

yellow plug at the end.

A. Antenna housing

B. Metal frame

WARNING

Electrical Shock Hazard

Disconnect power before removing doors.

Failure to do so can result in death or electrical shock.

WARNING

Excessive Weight Hazard

Use two or more people to lift the freezer door.

Failure to do so can result in back or other injury.

2. Before replacing the freezer door on the bottom left hinge,

feed the small wiring bundle through the hinge. Assistance

may be needed.

IMPORTANT: Do not feed the large wiring bundle through the

hinge. This bundle is intended to run directly from the door to

the connections beneath the freezer. Forcing the large bundle

through the hinge may damage the door and/or the wiring,

and will keep the door from closing properly.

3. Feed both water tubes through the bottom left hinge, then

replace the freezer door on the hinge. Assistance may be

needed.

NOTE: Provide additional support for the doors while the top

hinges are being replaced. Do not depend on the door magnets to

hold the doors in place while you are working.

4. Align and replace the top left hinge as shown. See Graphic 4.

Tighten screws.

5. Reconnect water tubing and wiring.

IMPORTANT: Do not intertwine the water tubing and wiring

bundles when reconnecting them.

■ Water Connection Style 1: Push the larger ⁵⁄₁₆" (7.94 mm)

water tube into the blue fitting until it stops, then push the

smaller ¹⁄₄" (6.35 mm) water tube into the green fitting until

it stops. See Graphic 2A.

Water Connection Style 2: Push the black water tube

with the blue tip into the blue fitting until it stops. Close

the clasp around the tubing, making sure it snaps into

place. Repeat this process to connect the red-tipped

black water tube and the red fitting. See Graphic 2B.

■ Reinstall the P-clamp around the small wiring bundle (with

one yellow plug), then replace the P-clamp on the top

screw hole of the routing plate. See Graphic 3.

■ Gently route the large wiring bundle (with two white plugs)

through the hole in the routing plate, so that the wiring

runs behind the right side of the routing plate. See

Graphic 3.

NOTE: The large wiring bundle should always remain

below the small wiring bundle.

■ Reconnect the wiring plugs to the electrical housing, then

push the housing back under the refrigerator. Align the left

hole in the front lip of the housing with the right hole in the

refrigerator's base crossbar. See Graphic 3.

■ Reinstall the wiring clip over the grommets. First install the

smaller grommet into the top of the clip, then install the

larger grommet into the bottom of the clip (closest to the

screw hole). See Graphic 3.

■ Align the clip's screw hole with the left hole in the electrical

housing and the right hole in the crossbar, and screw in

the clip using a single screw. Tighten screw. See

Graphic 3.

IMPORTANT: Once connected, the wiring bundles should

not be taut. Some flexibility is needed to allow the freezer

door to open properly.

6. Replace the refrigerator door by lifting the door onto the

bottom right hinge.

7. Align and replace the top right hinge as shown. See Graphic 6.

Tighten screws.

8. Replace the ice storage bin (on some models) and any

adjustable door or utility bins.

9. Plug refrigerator into a grounded 3 prong outlet.

Leveling and Door Closing

Your refrigerator has two adjustable front feet — one on the right

and one on the left. In most cases, the refrigerator should be

steady when both feet are touching the floor. If your refrigerator

seems unsteady or if you want the doors to close more easily,

adjust the refrigerator's tilt using the instructions below:

1. Move the refrigerator into its final location. If necessary, open

both doors to 90° and remove the base grille. See Graphic 1.

2. The two leveling feet are located on the brackets on each side

of the product. See Graphic 8.

NOTE: Having someone push against the top of the refrigerator

takes some weight off the leveling feet. This makes it easier to

make adjustments.

3. Use a ¹⁄₄" open-ended or adjustable wrench to adjust the

leveling feet. Turn the leveling foot to the left to raise that side

of the product, or turn it to the right to lower that side of the

product.

4. Open both doors again and check that they close as easily as

you like. If not, tilt the refrigerator slightly more to the rear by

turning the leveling feet to the left. It may take several more

turns, and you should turn both leveling feet the same

amount.

5. Use a bubble level to check the leveling of the refrigerator.

NOTE: Whenever you need to move the refrigerator, turn the

leveling feet to the right until they are no longer touching the

ground. This will allow the refrigerator to roll more easily.

Door Alignment

A refrigerator that is not level from side-to-side may appear to

have doors that are not properly aligned. If the doors appear this

way, use the instructions in the previous section to check the

leveling.

The doors are designed to be slightly different heights when the

refrigerator is empty, in order to account for the weight of food

that will be placed on the doors. If the doors are still not aligned

after checking the leveling and loading the refrigerator with food,

follow the steps below to adjust the door alignment.

1. If necessary, open both doors to 90° and remove the base

grille. See Graphic 1.

2. Locate the alignment screw on the bottom hinge of the

refrigerator door. See Graphic 9.

3. Use a ⁵⁄₁₆" open-ended or adjustable wrench to turn the screw.

To raise the refrigerator door, turn the screw to the right. To

lower the door, turn the screw to the left.

4. Check that the doors are even at the top. If necessary,

continue to turn the alignment screw until the doors are

aligned.

5. Open both doors to 90°. Replace the base grille. See

Graphic 1.

WARNING

Excessive Weight Hazard

Use two or more people to lift the freezer door.

Failure to do so can result in back or other injury.

Handle Installation and Removal

PARTS INCLUDED: Door handles (2), ¹⁄₈" hex key, spare

setscrew(s)

To Install the Handles:

NOTE: The handle mounting setscrews are preinstalled in the

handle.

1. Remove the handles, which are packed inside the refrigerator.

NOTE: To avoid scratching the finish, place the handles on a

towel or other soft surface.

2. Open the freezer door. On the refrigerator door, place the

handle on the shoulder screws with the setscrews facing the

freezer.

3. Firmly push the handle toward the door until the handle base

is flush against the door.

4. While holding the handle, insert the short end of the hex key

into the upper hole and slightly rotate the hex key until it is

engaged in the setscrew.

5. Using a clockwise motion, tighten the setscrew until it begins

to contact the shoulder screw.

6. Repeat steps 4 and 5 to begin fastening the lower setscrew.

7. Once both setscrews have been partially tightened as outlined

in the previous steps, fully tighten both the upper and lower

setscrews.

IMPORTANT: When the screws feel tight, tighten them an

additional quarter-turn. The handle is not properly installed

without this extra tightening.

8. Open the refrigerator door and close the freezer door. Repeat

steps 2 through 7 to install the other handle onto the freezer

door with the setscrews facing the refrigerator.

9. Save the hex key and all instructions.

To Remove the Handles:

1. While holding the handle, insert the short end of the hex key

into the lower setscrew hole and slightly rotate the hex key

until it is engaged in the setscrew.

2. Using a counterclockwise motion, loosen the setscrew a

quarter-turn at a time.

3. Repeat steps 1 and 2 for the upper setscrew. Gently pull the

handle away from the door.

4. If necessary, use a Phillips screwdriver to remove the shoulder

screws from the door.

Location Requirements

IMPORTANT: This refrigerator is designed for indoor household

use only.

To ensure proper ventilation for your refrigerator, allow for ¹⁄₂"

(1.27 cm) of space on each side and at the top. Allow for 1"

(2.54 cm) of space behind the refrigerator. If your refrigerator has

an ice maker, allow extra space at the back for the water line

connections. When installing your refrigerator next to a fixed wall,

leave a 2" (5.08 cm) minimum space on each side (depending on

your model) to allow the doors to swing open.

NOTES:

■ This refrigerator is intended for use in a location where the

temperature ranges from a minimum of 55°F (13°C) to a

maximum of 110°F (43°C). The preferred room temperature

range for optimum performance, which reduces electricity

usage and provides superior cooling, is between 60°F (15°C)

and 90°F (32°C). It is recommended that you do not install the

refrigerator near a heat source, such as an oven or radiator.

■ Normal minimum cabinet cut-out width required for product

installation is 36" (91.44 cm). However, if the product is placed

against an extended wall and the ability to remove the crisper

pans is desired, an additional 18" (45.72 cm) of cabinet width

is required, so a total cabinet opening width of 54"

(137.16 cm) is recommended.

A. Shoulder screws

B. Setscrews inside the handle

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

2" (1.27 cm)

2" (5.08 cm)

Electrical Requirements

Before you move your refrigerator into its final location, it is

important to make sure you have the proper electrical connection.

Recommended Grounding Method

A 115 volt, 60 Hz, AC only, 15- or 20-amp fused, grounded

electrical supply is required. It is recommended that a separate

circuit serving only your refrigerator be provided. Use an outlet

that cannot be turned off by a switch. Do not use an

extension cord.

NOTE: Before performing any type of installation or cleaning, or

removing a light bulb, turn cooling off or turn the control

(Thermostat, Refrigerator or Freezer Control depending on the

model) to OFF, and then disconnect the refrigerator from the

electrical source. When you are finished, reconnect the

refrigerator to the electrical source and turn cooling on or reset the

control (Thermostat, Refrigerator or Freezer Control depending on

the model) to the desired setting. See “Using the Controls” in the

User Instructions, User Guide, or Use & Care Guide.

Water Supply Requirements

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools listed

here.

TOOLS NEEDED:

NOTE: Your refrigerator dealer has a kit available with a ¹⁄₄"

(6.35 mm) saddle-type shutoff valve, a union, and copper tubing.

Before purchasing, make sure a saddle-type valve complies with

your local plumbing codes. Do not use a piercing-type or ³⁄₁₆"

(4.76 mm) saddle valve which reduces water flow and clogs more

easily.

IMPORTANT:

■ All installations must meet local plumbing code requirements.

■ Use copper tubing and check for leaks. Install copper tubing

only in areas where the household temperatures will remain

above freezing.

Water Pressure

A cold water supply with water pressure of between 30 and

120 psi (207 and 827 kPa) is required to operate the water

dispenser and ice maker. If you have questions about your water

pressure, call a licensed, qualified plumber.

■ If your refrigerator has a water dispenser: After installation is

complete, use the water dispenser to check the water

pressure.

■ With the water filter removed, dispense 1 cup (237 mL) of

water. If 1 cup of water is dispensed in 8 seconds or less,

the water pressure to the refrigerator meets the minimum

requirement.

■ If it takes longer than 8 seconds to dispense 1 cup of

water, the water pressure to the refrigerator is lower than

recommended. See “Problem Solver” for suggestions.

Reverse Osmosis Water Supply

IMPORTANT: The pressure of the water supply coming out of a

reverse osmosis system going to the water inlet valve of the

refrigerator needs to be between 30 and 120 psi (207 and

827 kPa).

If a reverse osmosis water filtration system is connected to your

cold water supply, the water pressure to the reverse osmosis

system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

If the water pressure to the reverse osmosis system is less than

40 to 60 psi (276 to 414 kPa):

■ Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if necessary.

■ Allow the storage tank on the reverse osmosis system to refill

after heavy usage.

■ If your refrigerator has a water filter, it may further reduce the

water pressure when used in conjunction with a reverse

osmosis system. Remove the water filter. See “Water Filtration

System” in the User Instructions, User Guide, or Use & Care

Guide.

If you have questions about your water pressure, call a licensed,

qualified plumber.

Connect Water Supply

Read all directions before you begin.

IMPORTANT:

■ Plumbing shall be installed in accordance with the

International Plumbing Code and any local codes and

ordinances.

■ The gray water tubing on the back of the refrigerator (which is

used to connect to the household water line) is a PEX

(cross-linked polyethylene) tube. Copper and PEX tubing

connections from the household water line to the refrigerator

are acceptable, and will help avoid off-taste or odor in your ice

or water. Check for leaks.

If PEX tubing is used instead of copper, we recommend the

following Whirlpool Part Numbers:

W10505928RP (7 ft [2.14 m] jacketed PEX),

8212547RP (5 ft [1.52 m] PEX), or

W10267701RP (25 ft [7.62 m] PEX).

■ Install tubing only in areas where temperatures will remain

above freezing.

TOOLS NEEDED:

Gather the required tools and parts before starting installation.

■ Flat-blade screwdriver

■ ⁷⁄₁₆" and ¹⁄₂" open-end wrenches or two adjustable wrenches

■ ¹⁄₄" nut driver

■ Flat-blade screwdriver

■ ⁷⁄₁₆" and ¹⁄₂" Open-end or two

adjustable wrenches

■ ¹⁄₄" Nut driver

■ ¹⁄₄" Drill bit

■ Cordless drill

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

WARNING

Connect to Water Line

IMPORTANT: If you turn the refrigerator on before the water line is

connected, turn the ice maker OFF.

Style 1 (Recommended)

1. Unplug refrigerator or disconnect power.

2. Turn OFF main water supply. Turn ON nearest faucet long

enough to clear line of water.

3. Use a quarter-turn shutoff valve or the equivalent, served by a

¹⁄₂" copper household supply line.

NOTE: To allow sufficient water flow to the refrigerator, a

minimum ¹⁄₂" size copper household supply line is

recommended.

4. Now you are ready to connect the copper tubing to the shutoff

valve. Use ¹⁄₄" (6.35 mm) OD soft copper tubing to connect the

shutoff valve and the refrigerator.

■ Ensure that you have the proper length needed for the job.

Be sure both ends of the copper tubing are cut square.

■ Slip compression sleeve and compression nut onto

copper tubing as shown. Insert end of tubing into outlet

end squarely as far as it will go. Screw compression nut

onto outlet end with adjustable wrench. Do not

overtighten.

5. Place the free end of the tubing into a container or sink, and

turn on main water supply to flush out tubing until water is

clear. Turn off shutoff valve on the water pipe.

NOTE: Always drain the water line before making the final

connection to the inlet of the water valve, to avoid possible

water valve malfunction.

6. Bend the copper tubing to meet the water line inlet, which is

located on the back of the refrigerator cabinet as shown.

Leave a coil of copper tubing to allow the refrigerator to be

pulled out of the cabinet or away from the wall for service.

Style 2

1. Unplug refrigerator or disconnect power.

2. Turn OFF main water supply. Turn ON nearest faucet long

enough to clear line of water.

3. Locate a

¹⁄₂" (1.27 cm) to 1¹⁄₄" (3.18 cm) vertical cold water

pipe near the refrigerator.

IMPORTANT:

■ Make sure it is a cold water pipe.

■ Horizontal pipe will work, but drill on the top side of the

pipe, not the bottom. This will help keep water away from

the drill and normal sediment from collecting in the valve.

4. Determine the length of copper tubing you need. Measure

from the connection on the lower rear corner of refrigerator to

the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use ¹⁄₄"

(6.35 mm) O.D. (outside diameter) copper tubing. Be sure both

ends of copper tubing are cut square.

5. Using a cordless drill, drill a ¹⁄₄" (6.35 mm) hole in the cold

water pipe you have selected.

6. Fasten the shutoff valve to the cold water pipe with the pipe

clamp. Be sure the outlet end is solidly in the ¹⁄₄" (6.35 mm)

drilled hole in the water pipe and that the washer is under the

pipe clamp. Tighten the packing nut. Tighten the pipe clamp

screws slowly and evenly so the washer makes a watertight

seal. Do not overtighten, or you may crush the copper tubing.

7. Slip the compression sleeve and compression nut on the

copper tubing as shown. Insert the end of the tubing into the

outlet end squarely as far as it will go. Screw the compression

nut onto outlet end with adjustable wrench. Do not

overtighten.

8. Place the free end of the tubing in a container or sink, and turn

ON the main water supply. Flush the tubing until water is clear.

Turn OFF the shutoff valve on the water pipe. Coil the copper

tubing.

Connect to Refrigerator

Style 1

1. Unplug refrigerator or disconnect power.

2. Remove and discard the short, black plastic part from the end

of the water line inlet.

3. Thread the nut onto the end of the tubing. Tighten the nut by

hand. Then tighten it with a wrench two more turns. Do not

overtighten.

NOTE: To avoid rattling, be sure the copper tubing does not

touch the cabinet’s side wall or other parts inside the cabinet.

4. Install the water supply tube clamp around the water supply

line to reduce strain on the coupling.

5. Turn shutoff valve ON.

6. Check for leaks. Tighten any connections (including

connections at the valve) or nuts that leak.

A. Bulb

B. Nut

C. Copper tubing (to refrigerator)

D. Household supply line (½" minimum)

A. Compression sleeve

B. Compression nut

C. Copper tubing

B CA

A. Cold water pipe

B. Pipe clamp

C. Copper tubing

D. Compression nut

E. Compression sleeve

F. Shutoff valve

G. Packing nut

A. Household water line

B. Nut (purchased)

C. Ferrule (purchased)

D. Refrigerator water tubing

DEF

A B C

Style 2

1. Unplug refrigerator or disconnect power.

2. Remove and discard the plastic part that is attached to the

inlet of the water valve.

3. Attach the copper tube to the valve inlet using a compression

nut and sleeve as shown. Tighten the compression nut. Do not

overtighten.

4. Use the tube clamp on the back of the refrigerator to secure

the tubing to the refrigerator as shown. This will help avoid

damage to the tubing when the refrigerator is pushed back

against the wall.

5. Turn shutoff valve ON.

6. Check for leaks. Tighten any connections (including

connections at the valve) or nuts that leak.

7. On some models, the ice maker is equipped with a built-in

water strainer. If your water conditions require a second water

strainer, install it in the ¹⁄₄" (6.35 mm) water line at either tube

connection. Obtain a water strainer from your nearest

appliance dealer.

Style 3

1. Unplug refrigerator or disconnect power.

2. Remove and discard the black nylon plug from the gray water

tube on the rear of the refrigerator.

3. If the gray water tube supplied with the refrigerator is not long

enough, a ¹⁄₄" x ¹⁄₄" (6.35 mm x 6.35 mm) coupling is needed in

order to connect the water tubing to an existing household

water line. Thread the provided nut onto the coupling on the

end of the copper tubing.

NOTE: Tighten the nut by hand. Then tighten it with a wrench

two more turns. Do not overtighten.

4. Turn shutoff valve ON.

5. Check for leaks. Tighten any nuts or connections (including

connections at the valve) that leak.

Complete the Installation

1. Plug into a grounded 3 prong outlet.

2. Flush the water system. See “Water and Ice Dispensers” in the

User Instructions or User Guide.

NOTE: Allow 24 hours to produce the first batch of ice. Allow

72 hours to completely fill ice container.

Install Air Filter

(on some models)

On some models, your refrigerator's accessory packet includes

an air filter, which must be installed prior to use. On some models,

the air filter is already installed at the factory.

The air filter reduces the buildup of odors. This helps to maintain a

cleaner environment inside the refrigerator.

Installing the Air Filter (on some models)

The filter should be installed behind the vented door, which is

located (depending on your model) along either the rear or left

interior wall near the top of the refrigerator compartment.

1. Remove the air filter from its packaging.

2. Lift open the vented door.

A. Tube clamp

B. Tube clamp screw

C. Copper tubing

D. Compression nut

E. Valve inlet

A. Refrigerator water tubing

B. Nut (provided)

C. Bulb

D. Coupling (purchased)

E. Ferrule (purchased)

F. Nut (purchased)

G. Household water line

A B C D E F G

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

WARNING

3. Snap the filter into place.

4. Close the vented door.

Installing the Filter Status Indicator (on some models)

The filter comes with a status indicator, which should be activated

and installed at the same time the air filter is installed.

1. Place the indicator face-down on a firm, flat surface.

2. Apply pressure to the bubble on the back of the indicator, until

the bubble pops to activate the indicator.

3. Lift open the vented air filter door. On some models, there are

notches behind the door.

4. On models with notches:

■ Slide the indicator down into the notches, facing outward.

NOTE: The indicator will not easily slide into the notches

if the rear bubble has not been popped.

■ Close the air filter door, and check that the indicator is

visible through the rectangular hole in the door.

On models without notches:

■ Store the indicator in a visible place you will easily

remember - either inside the refrigerator, or elsewhere in

your kitchen or home.

Replacing the Air Filter

The disposable air filter should be replaced every 6 months, when

the status indicator has completely changed from white to red.

To order a replacement air filter, see “Accessories.”

1. Remove the old air filter by squeezing in on the side tabs.

2. Remove the old status indicator.

3. Install the new air filter and status indicator using the

instructions in the previous sections.

REFRIGERATOR USE

Using the Controls

The refrigerator and freezer controls are located on the dispenser

panel.

IMPORTANT: The display screen on the dispenser control panel

will turn off automatically and enter “sleep” mode when the

control buttons and dispenser pads have not been used for

2 minutes or more. While in “sleep” mode, the first press of a

control button will only reactivate the display screen, without

changing any settings.

■ Touch any control button on the dispenser panel to activate

the display screen. The home screen will appear as shown.

Adjusting the Controls

For your convenience, your refrigerator and freezer controls are

preset at the factory. When you first install your refrigerator, make

sure that the controls are still set to the “mid-settings.” The factory

recommended set points are 37°F (3°C) for the refrigerator and

0°F (-18°C) for the freezer.

IMPORTANT:

■ Wait 24 hours before you put food into the refrigerator. If you

add food before the refrigerator has cooled completely, your

food may spoil.

NOTE: Adjusting the set points to a colder than

recommended setting will not cool the compartments any

faster.

■ If the temperature is too warm or too cold in the refrigerator or

freezer, first check the air vents to be sure they are not

blocked before adjusting the controls.

■ The preset settings should be correct for normal household

usage. The controls are set correctly when milk or juice is as

cold as you like and when ice cream is firm.

■ Wait at least 24 hours between adjustments. Recheck the

temperatures before other adjustments are made.

To view and adjust the set points, press and hold the TEMP

button for 3 seconds. When adjust mode is activated, adjusting

information will appear on the display screen.

MONTHS

REPLACE

NOTE: To view Celsius temperatures, press the LIGHT button

when adjust mode is activated. To return the display setting to

Fahrenheit, press LIGHT again.

■ When adjust mode is activated, the display screen shows the

refrigerator set point and “FRIDGE” appears.

■ Press SMART GRID to raise the set point, or press FAST ICE

to lower the set point.

■ When you have finished viewing (and adjusting if desired) the

refrigerator set point, press TEMP to change the display to

show the freezer set point. When the zone has been changed,

“FREEZER” appears on the display screen.

■ Press SMART GRID to raise the set point, or press FAST ICE

to lower the set point.

■ When you have finished viewing (and adjusting if desired) both

the refrigerator and freezer set points, press FILTER to save

the settings.

NOTE: To exit without saving changes, press ICE TYPE at any

time while in adjust mode, or allow about 60 seconds of

inactivity and adjust mode will turn off automatically.

When adjusting temperature set points, use the following chart as

a guide.

The set point range for the refrigerator is 33°F to 45°F (0°C to

7°C). The set point range for the freezer is -5°F to 5°F (-21°C to

-15°C).

Cooling On/Off

Your refrigerator and freezer will not cool when cooling is

turned off.

■ To turn cooling off, press and hold the SMART GRID and

FILTER buttons at the same time for 3 seconds.

IMPORTANT: To avoid unintentionally locking the dispenser

or changing other settings, be sure to press both buttons at

exactly the same time.

When cooling is off, “COOLING OFF” will appear on the

display screen.

■ Press and hold SMART GRID and FILTER for 3 seconds again

to turn cooling back on.

Smart Grid

See “Smart Refrigerator Features” for information about setting

up Smart Grid functionality, turning it on and off, receiving

important notifications, and taking advantage of available

features.

Delay Ice

For information about the Delay Ice feature that is associated with

Smart Grid functionality, see “Smart Refrigerator Features.”

Additional Features

Fast Ice

The Fast Ice feature assists with temporary periods of heavy ice

use by increasing ice production over a 24-hour period.

IMPORTANT: This feature only works if the ice maker is turned

on. See “Ice Maker and Storage Bin.”

■ Press FAST ICE to turn on the Fast Ice feature. When the

feature is on, the Fast Ice icon will appear on the dispenser

display screen. The Fast Ice setting will remain on for 24 hours

unless manually turned off.

■ To manually turn off the Fast Ice feature, press FAST ICE again

or adjust the freezer temperature set point. The Fast Ice icon

will disappear when the feature is off.

NOTE: If increased ice production is desired at all times, change

the freezer set point to a lower setting. Setting the freezer to a

colder temperature may make some foods, such as ice cream,

harder.

Door Ajar Alarm

The Door Ajar Alarm feature sounds an alarm when the refrigerator

or freezer door is open for 5 minutes and the product cooling is

turned on. The alarm will repeat every 2 minutes. Close both

doors to turn it off. The feature then resets and will reactivate

when either door is left open again for 5 minutes.

NOTE: To mute the audible alarm while keeping the doors open,

such as while cleaning the inside of the refrigerator, press any

button on the control panel. The alarm sound will be temporarily

turned off, but the Door Ajar icon will still be displayed on the

dispenser control panel.

Convertible Drawer

Temperature Control

(on some models)

The control can be adjusted to properly chill meats or vegetables.

The air inside the pan is cooled to avoid “spot” freezing and can

be set to keep meats at the National Livestock and Meat Board

recommended storage temperatures of 28° to 32°F (-2° to 0°C).

To store meat:

Set the control to one of the three MEAT settings to store meat at

its optimal storage temperature.

To store vegetables:

Set the control to VEG to store vegetables at their optimal storage

temperatures.

NOTE: If food starts to freeze, move the control to the right (less

cold), toward the VEG setting. Remember to wait 24 hours

between adjustments.

Crisper Humidity Control

(on some models)

You can control the amount of humidity in the moisture-sealed

crisper. Adjust the control to any setting between LOW and HIGH.

LOW (open) for best storage of fruits and vegetables with skins.

HIGH (closed) for best storage of fresh, leafy vegetables.

CONDITION: TEMPERATURE

ADJUSTMENT:

REFRIGERATOR too cold REFRIGERATOR Setting

1° higher

REFRIGERATOR too warm REFRIGERATOR Setting

1° lower

FREEZER too cold FREEZER Setting

1° higher

FREEZER too warm /

Too little ice

FREEZER Setting

1° lower

Chilled Door Bin

(on some models)

Cool air from the freezer is directed to the refrigerator door bin

directly beneath the vents.

NOTE: The dairy compartment and can rack are not associated

with the Chilled Door Bin feature.

Chilled Door Bin Control

The chilled door bin control is located on the left-hand side of the

refrigerator compartment.

■ Slide the door chill control to the left to reduce the flow of cold

air to the bin and make it less cold.

■ Slide the door chill control to the right to increase the flow of

cold air to the bin and make it colder.

Water and Ice Dispensers

NOTES:

■ The dispensing system will not operate when either door

(refrigerator or freezer) is open.

■ Allow 24 hours for the refrigerator to cool down and chill

water.

■ Allow 24 hours to produce the first batch of ice. Discard the

first three batches of ice produced. Wait 72 hours for full ice

production.

■ The display screen on the dispenser control panel will turn off

automatically and enter “sleep” mode when the control

buttons and dispenser pads have not been used for 2 minutes

or more. While in “sleep” mode, the first press of a control

button will only reactivate the display screen, without

changing any settings.

Flush the Water System

Air in the water dispensing system can cause the water dispenser

to drip. After connecting the refrigerator to a water source or

replacing the water filter, flush the water system. Flushing the

water dispensing system forces air from the water line and filter,

and prepares the water filter for use.

NOTE: As air is cleared from the system, water may spurt out of

the dispenser.

1. Using a sturdy container, depress and hold the water

dispenser pad for 5 seconds, then release it for 5 seconds.

2. Repeat Step 1 until water begins to flow.

3. Once water begins to flow, continue depressing and releasing

the dispenser pad (5 seconds on, 5 seconds off) until a total of

3 gal. (12 L) has been dispensed.

Additional flushing may be required in some households.

The Water Dispenser

IMPORTANT:

■ Dispense at least 1 qt (1 L) of water every week to maintain a

fresh supply.

■ If the flow of water from the dispenser decreases, it could be

caused by low water pressure.

■ With the water filter removed, dispense 1 cup (237 mL) of

water. If 1 cup of water is dispensed in 8 seconds or less,

the water pressure to the refrigerator meets the minimum

requirement.

■ If it takes longer than 8 seconds to dispense 1 cup of

water, the water pressure to the refrigerator is lower than

recommended. See “Water Supply Requirements” or

“Problem Solver” for suggestions.

To Dispense Water:

1. Press a sturdy glass against the water dispenser pad. Hold

the glass close to the water dispenser spout to ensure that the

water dispenses into the glass.

2. Remove the glass to stop dispensing.

The Ice Dispenser

Ice dispenses from the ice maker storage bin in the freezer when

the dispenser pad is pressed. To turn off the ice maker, see “Ice

Maker and Storage Bin.”

Your ice maker can produce both crushed and cubed ice. Before

dispensing ice, select which type of ice you prefer by pressing the

ICE TYPE button.

The display screen indicates which type of ice is selected.

For crushed ice, cubes are crushed before being dispensed. This

may cause a slight delay when dispensing crushed ice. Noise

from the ice crusher is normal, and pieces of ice may vary in size.

When changing from crushed to cubed, a few ounces of crushed

ice will be dispensed along with the first cubes.

A. Chilled door bin control

A. Water dispenser spout

CRUSHED CUBED

To Dispense Ice:

1. Make sure the desired type of ice is selected. To switch

between cubed and crushed, press ICE TYPE.

2. Press a sturdy glass against the ice dispenser pad. Hold the

glass close to the ice guide to ensure that the ice dispenses

into the glass.

IMPORTANT: You do not need to apply a lot of pressure to the

pad in order to activate the ice dispenser. Pressing hard will

not make the ice dispense faster or in greater quantities.

3. Remove the glass to stop dispensing.

NOTE: Ice may continue to dispense for several seconds after

removing the glass from the pad. The dispenser may continue

to make noise for a few seconds after dispensing.

The Dispenser Light

When you use the dispenser, the light will automatically turn on.

If you want the light to be on continuously, you may choose either

ON or DIM. The display screen indicates which mode is selected.

ON: Press LIGHT to turn the dispenser light on.

DIM: Press LIGHT a second time to select DIM mode. The

dispenser light will remain on, but at a lower intensity.

OFF: Press LIGHT a third time to turn the dispenser light off.

The dispenser lights are LEDs that cannot be changed. If it

appears that your dispenser lights are not working, see “Problem

Solver” for more information.

The Dispenser Lock

The dispenser can be turned off for easy cleaning or to avoid

unintentional dispensing by small children and pets.

NOTE: The lock feature does not shut off power to the refrigerator,

to the ice maker, or to the dispenser light. It simply deactivates the

controls and dispenser pads. To turn off the ice maker, see “Ice

Maker and Storage Bin.”

■ Press and hold the TEMP and FAST ICE buttons at the same

time for 3 seconds to lock the dispenser.

IMPORTANT: To avoid unintentionally locking the dispenser

or changing other settings, be sure to press both buttons at

exactly the same time.

■ Press and hold the TEMP and FAST ICE buttons at the same

time again to unlock the dispenser.

The display screen indicates when the dispenser is locked.

Ice Maker and Storage Bin

■ Allow 24 hours to produce the first batch of ice. Discard the

first three batches of ice produced.

■ The quality of your ice will be only as good as the quality of the

water supplied to your ice maker. Avoid connecting the ice

maker to a softened water supply. Water softener chemicals

(such as salt) can damage parts of the ice maker and lead to

poor quality ice. If a softened water supply cannot be avoided,

make sure the water softener is operating properly and is well

maintained.

■ Do not use anything sharp to break up the ice in the storage

bin. This can cause damage to the ice container and the

dispenser mechanism.

■ Do not store anything on top of or in the ice maker or

storage bin.

Turning the Ice Maker On/Off

The On/Off switch can only be accessed when the ice storage bin

has been removed. The switch is located on the freezer door, on

the left side of the wall that surrounds the ice storage bin. See the

following section for bin removal instructions.

■ To turn on the ice maker, slide the control to the ON (left)

position.

■ To manually turn off the ice maker, slide the control to the

OFF (right) position.

NOTE: The ice maker has an automatic shutoff to keep the

storage bin from overfilling during normal operation. The ice

maker sensors will automatically stop ice production, but the

control will remain in the ON (left) position.

A. Ice guide

ON DIM

Cut Hazard

Use a sturdy glass when dispensing ice.

Failure to do so can result in cuts.

WARNING

Removing and Replacing the Ice Storage Bin

1. Press down the release lever and tilt the bucket outward. Use

both hands to hold the base of the storage bin, then lift it up

and out.

NOTE: It is not necessary to turn the ice maker control to the

OFF (right) position when removing the storage bin. The

sensor cover (“flipper door”), located on the right wall of the

freezer door, stops the ice maker from producing ice if the

door is open or the storage bin is removed.

2. Replace the bin by sliding it onto the door, then tilting it back

into an upright position. The release lever will click when the

bin is securely in place.

Delay Ice

Smart Grid Event notifications can affect ice production. For

information about the Delay Ice feature that is associated with

Smart Grid functionality, see “Smart Refrigerator Features.”

Water Filtration System

Water Filter Status Light

The water filter status light will help you know when to change

your water filter.

■ When the dispenser control panel’s water filter status display

changes to “ORDER,” this tells you that it is almost time to

change the water filter cartridge.

■ Replace the water filter cartridge when the water filter status

display changes to “REPLACE.”

NOTE: If water flow to your water dispenser or ice maker

decreases noticeably, change the filter sooner. The filter

should be replaced at least every 6 months, depending on

your water quality and usage.

Resetting the Filter Status

■ After changing the water filter, reset the status light by

pressing and holding the FILTER button for 3 seconds.

When the system is reset, the “ORDER” and “REPLACE”

icons will disappear from the display screen.

Changing the Water Filter

1. Locate the water filter in the top-right corner of the refrigerator

compartment.

2. Lift open the filter cover door. The filter will be released and

then be ejected as the door is opened.

3. When the door is completely open, pull the filter straight out.

NOTE: There may be some water in the filter. Some spilling

may occur. Use a towel to wipe up any spills.

4. Take the new filter out of its packaging and remove the covers

from the O-rings. Be sure the O-rings are still in place after the

covers are removed.

5. With the arrow pointing up, align the new filter with the filter

housing and slide it into place. The filter cover door will

automatically begin to close as the new filter is inserted.

6. Close the filter cover door completely in order to snap the filter

into place. You may need to press hard.

7. Flush the water system. See “Water and Ice Dispensers.”

A. Release lever

A. On/Off switch

B. Sensor cover

Do not use with water that is microbiologically unsafe or

of unknown quality without adequate disinfection before

or after the system. Systems certified for cyst reduction

may be used on disinfected waters that may contain

filterable cysts.

SMART REFRIGERATOR FEATURES

Getting the Most from Your

Smart Refrigerator

Smart Functionality

Your refrigerator offers two types of smart functionality:

Smart Grid

The Smart Grid feature allows your Smart Refrigerator to adjust or

delay certain functions during times when energy prices or

demand are the highest, which could save you money. Your Smart

Refrigerator will go into a Smart Delay until energy rates go down.

You can disable the Smart Delay and other Smart Grid Events at

any time.

Smart Features

Many features of your Smart Refrigerator can be remotely

accessed by devices such as computers, smartphones,

tablets, etc. These Smart Features allow you to remotely monitor,

manage and maintain your refrigerator.

Getting Connected

This Whirlpool

Smart Refrigerator has built-in Wi-Fi connectivity

and must be connected to the Internet through your home

wireless network. Refer to the Quick Set-Up Guide included with

your refrigerator to complete the installation.

You will also need to create an account and register the

refrigerator to your online account. Your refrigerator’s Smart

Appliance ID number (“SAID”) can be found on a label inside the

refrigerator compartment, just above the crisper on the right-hand

interior wall.

To create an online account, go to http://smart.whirlpool.com.

Using Smart Grid

This feature monitors energy price and demand information from

your utility company and sends notifications to the refrigerator to

run high energy-consuming tasks during off-peak times when

electricity costs and demand are lower. The Smart Grid icon will

appear on the dispenser display screen when the feature is active.

If the refrigerator receives a Smart Grid notification, it will

implement Smart Delay and/or Delay Ice.

Smart Delay: The Smart Delay feature adjusts cooling system

operations, the defrost cycle, and high energy-consuming

features such as Fast Ice.

Delay Ice: The Delay Ice feature temporarily stops ice production

for up to 4 hours, depending on the type of notification received.

The Delay Ice icon appears on the dispenser display screen.

■ To manually turn off the Smart Delay and Delay Ice features

and resume normal operation and ice production, press the

SMART GRID button on the dispenser control panel.

Smart Grid functionality and the Smart Delay and Delay Ice

features will turn off for 4 hours, and the Smart Grid and Delay

Ice icons will both disappear from the display screen.

NOTE: After 4 hours have passed, the Smart Grid feature will

automatically reactivate. To manually reactivate before 4 hours

have passed, press the SMART GRID button.

Using Smart Features

Following is a summary of the additional Smart Features that

make it more convenient to use your Smart Refrigerator. Some

features include the ability to receive notifications through

text (SMS) and e-mail, and require you to configure your

notification settings in your online account.

Temperature Setting Adjustment: This Smart feature allows you

to remotely adjust the temperature set point(s) of your refrigerator

and freezer.

Power Outage Notification: In the event your refrigerator loses

power, you will be notified when power is restored. This will allow

you to react appropriately in order to avoid or minimize loss of

food.

Door Ajar Notification: You will receive a notification if either

door (refrigerator or freezer) is left open for longer than

10 minutes.

Water Filter Status Notification: You will be notified when it is

time to change your water filter. The notification will provide you

with filter replacement information and the opportunity to place

the order. You can also remotely reset the status of the filter.

Energy Monitor: The Energy Monitor tracks current power usage

and also provides an overview of previous power consumption.

REFRIGERATOR CARE

Cleaning

Both the refrigerator and freezer sections defrost automatically.

However, clean both sections about once a month to avoid

buildup of odors. Wipe up spills immediately.

IMPORTANT: Because air circulates between both sections, any

odors formed in one section will transfer to the other. You must

thoroughly clean both sections to eliminate odors. To avoid odor

transfer and drying out of food, wrap or cover foods tightly.

To Clean Your Refrigerator:

NOTE: Do not use abrasive or harsh cleaners such as window

sprays, scouring cleansers, flammable fluids, cleaning waxes,

concentrated detergents, bleaches or cleansers containing

petroleum products on plastic parts, interior and door liners or

gaskets. Do not use paper towels, scouring pads, or other harsh

cleaning tools.

1. Unplug refrigerator or disconnect power.

2. Hand wash, rinse, and dry removable parts and interior

surfaces thoroughly. Use a clean sponge or soft cloth and a

mild detergent in warm water.

3. Wash stainless steel and painted metal exteriors with a clean

sponge or soft cloth and a mild detergent in warm water.

4. There is no need for routine condenser cleaning in normal

home operating environments. If the environment is

particularly greasy or dusty, or there is significant pet traffic in

the home, the condenser should be cleaned every 2 to

3 months to ensure maximum efficiency.

If you need to clean the condenser:

■ Remove the base grille. See the “Door Removal”

instructions, either in the User Instructions or the

Installation Instructions and Owner’s Manual, or in the

separate instruction sheet provided with your refrigerator.

■ Use a vacuum cleaner with a soft brush to clean the grille,

the open areas behind the grille and the front surface area

of the condenser.

■ Replace the base grille when finished.

5. Plug in refrigerator or reconnect power.

Lights

The interior and dispenser lights are LEDs that cannot be

changed.

■ If the dispenser lights do not appear to be working as

described in “Water and Ice Dispensers” (in the User

Instructions, User Guide, or Use & Care Guide) or if the interior

lights do not illuminate when either door is opened, call for

assistance or service. See either the front cover or the

Warranty for contact information.

Vacation and Moving Care

Vacations

If You Choose to Leave Refrigerator On While You Are Away:

1. Use up any perishables and freeze other items.

2. If your refrigerator has an automatic ice maker and is

connected to the household water supply, turn off the water

supply to the refrigerator. Property damage can occur if the

water supply is not turned off.

3. If you have an automatic ice maker, turn off the ice maker.

NOTE: Depending on your model, raise the wire shutoff arm to

OFF (up) position or press the switch to OFF (right).

4. Empty the ice bin.

If You Choose to Turn Refrigerator Off Before You Leave:

1. Remove all food from the refrigerator.

2. If your refrigerator has an automatic ice maker:

■ Turn off the water supply to the ice maker at least one day

ahead of time.

■ When the last load of ice drops, raise the wire shutoff arm

to the OFF (up) position or move the switch to the OFF

(right) setting.

3. Depending on the model, turn the Refrigerator Control to OFF

or turn cooling off. See “Using the Controls” in the User

Instructions, User Guide, or Use & Care Guide.

4. Clean, wipe, and dry thoroughly.

5. Tape rubber or wood blocks to the tops of both doors to prop

them open far enough for air to get in. This stops odor and

mold from building up.

Moving

When you are moving your refrigerator to a new home, follow

these steps to prepare it for the move.

1. If your refrigerator has an automatic ice maker:

■ Turn off the water supply to the ice maker at least one day

ahead of time.

■ Disconnect the water line from the back of the refrigerator.

■ When the last load of ice drops, raise the wire shutoff arm

to the OFF (up) position or move the switch to the OFF

(right) setting.

2. Remove all food from the refrigerator and pack all frozen food

in dry ice.

3. Empty the ice bin.

4. Depending on the model, turn the Refrigerator Control to OFF

or turn cooling off. See “Using the Controls” in the User

Instructions, User Guide, or Use & Care Guide.

5. Unplug refrigerator.

6. Clean, wipe, and dry thoroughly.

7. Take out all removable parts, wrap them well, and tape them

together so they don’t shift and rattle during the move.

8. Depending on the model, raise the front of the refrigerator so it

rolls more easily OR screw in the leveling legs so they don't

scrape the floor. See “Adjust the Doors” or “Door Removal,

Leveling and Alignment.”

9. Tape the doors closed and tape the power cord to the back of

the refrigerator.

When you get to your new home, put everything back and refer to

the Installation Instructions for preparation instructions. Also, if

your refrigerator has an automatic ice maker, remember to

reconnect the water supply to the refrigerator.

WARNING

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or fire.

PROBLEM SOLVER

First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions)

to possibly avoid the cost of a service call.

In the U.S.A., www.whirlpool.com In Canada, www.whirlpool.ca

GENERAL OPERATION Possible Causes and/or Recommended Solutions

Refrigerator

will not operate

■ Not connected to an electrical supply - Plug the power cord into a grounded 3 prong outlet.

Do not use an extension cord.

■ No power to the electrical outlet - Plug in a lamp to see if the outlet is working.

■ Household fuse has blown or circuit breaker has tripped - Replace the fuse or reset the circuit

breaker. If the problem continues, contact a licensed electrician.

■ Control or cooling is not turned on - Turn on the refrigerator control, or turn cooling on.

See “Using the Controls.”

■ New installation - Following installation, allow 24 hours for the refrigerator and freezer to cool

completely.

NOTE: Adjusting the temperature control(s) to the coldest setting will not cool either

compartment (refrigerator or freezer) more quickly.

Motor seems to

run too much

■ Your new refrigerator has an energy-efficient motor - The refrigerator may run longer than

you’re used to, because the compressor and fans operate at lower speeds that are more

energy-efficient. This is normal.

NOTE: Your refrigerator may run even longer if the room is warm, a large load of food is added,

the doors are opened often, or if a door has been left open.

Refrigerator seems noisy The compressor in your new refrigerator regulates temperature more efficiently and uses less energy

than older models. During various stages of operation, you may hear normal operating sounds that

are unfamiliar.

The following noises are normal:

■ Buzzing/Clicking - Heard when the water valve opens and closes to dispense water or fill the ice

maker. If the refrigerator is connected to a water line, this is normal. If the refrigerator is not

connected to a water line, turn off the ice maker.

■ Cracking/Crashing - Heard when ice is ejected from the ice maker mold.

■ Popping - Heard when the inside walls contract/expand, especially during initial cooldown.

■ Pulsating/Whirring - Heard when the fans/compressor adjust to optimize performance during

normal operation.

■ Rattling - Heard when water passes through the water line, or due to the flow of refrigerant.

Rattling may also come from items placed on top of the refrigerator.

■ Water running or gurgling - Heard when ice melts during the defrost cycle and water runs into

the drain pan.

■ Sizzling - Heard when water drips onto the heater during the defrost cycle.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

WARNING

Temperature is too warm ■ New installation - Following installation, allow 24 hours for the refrigerator and freezer to cool

completely.

NOTE: Adjusting the temperature control(s) to the coldest setting will not cool either

compartment (refrigerator or freezer) more quickly.

■ Doors are opened often or not closed completely - This allows warm air to enter the

refrigerator. Minimize door openings, keep the doors fully closed, and make sure both doors are

properly sealed.

■ Air vents are blocked - Remove items that are immediately in front of the vents.

■ Large amount of warm food recently added - Allow several hours for the refrigerator to return

to its normal temperature.

■ Controls are not set correctly for the surrounding conditions - Adjust the controls to a colder

setting. Check the temperature again in 24 hours.

Temperature is too cold ■ Controls are not set correctly for the surrounding conditions - Adjust the controls to a

warmer setting. Check the temperature again in 24 hours.

■ Top refrigerator shelf is colder than lower shelves - On some models, air from the freezer

enters the refrigerator compartment through vents near the top refrigerator shelf. As a result, the

top shelf can be slightly colder than lower shelves.

■ Air vents are blocked - Remove items that are immediately in front of the vents.

Interior moisture buildup NOTE: Some moisture buildup is normal. Clean with a soft dry cloth.

■ Room is humid - A humid environment contributes to moisture buildup. Use the refrigerator only

in an indoor location, with as little humidity as possible.

■ Doors are opened often or not closed completely - This allows humid air to enter the

refrigerator. Minimize door openings, keep the doors fully closed, and make sure both doors are

properly sealed.

Interior lights do not work

■ Doors have been open for an extended period of time - Close the doors to reset the lights.

■ Light bulb is loose in the socket or has burned out - On models with incandescent interior

light bulbs, tighten or replace the bulb. See “Lights.”

NOTE: On models with LED lights, call for assistance or service if the interior lights do not illuminate

when either door is opened. See either the front cover or the Warranty for contact information.

Dispenser lights

do not work

(on some models)

■ Dispenser light is turned off - On some models, if the dispenser light is set to OFF, the light will

turn on only when a dispenser pad/lever is pressed. If you want the dispenser light to stay on

continuously, select a different setting. See “Water and Ice Dispensers.”

■ Dispenser light is set to AUTO or NIGHT LIGHT - On some models, if the dispenser light is set

to AUTO or NIGHT LIGHT, make sure the dispenser light sensor is not blocked. See “Water and

Ice Dispensers.”

NOTE: On models with LED lights, call for assistance or service if the dispenser lights do not operate

correctly. See either the front cover or the Warranty for contact information.

GENERAL OPERATION Possible Causes and/or Recommended Solutions

DOORS AND LEVELING Possible Causes and/or Recommended Solutions

Doors are difficult to open ■ Gaskets are dirty or sticky - Clean the gaskets and contact surfaces with mild soap and warm

water. Rinse and dry with a soft cloth.

Doors will not

close completely

■ Door is blocked open - Move food packages away from the door. Make sure all bins and

shelves are in their correct positions. Make sure all packaging materials have been removed.

Doors appear to be uneven ■ Doors need to be aligned, or refrigerator needs to be leveled - See the leveling and door

alignment instructions.

Refrigerator rocks

and is not stable

■ Refrigerator is not level - To stabilize the refrigerator, remove the base grille and lower the

leveling feet until they touch the floor. See the leveling and door alignment instructions.

ICE AND WATER Possible Causes and/or Recommended Solutions

Ice maker is not

producing ice,

not producing

enough ice,

or producing

small/hollow ice

■ Refrigerator is not connected to a water supply, or the water supply shutoff valve is not fully

turned on - Connect the refrigerator to a water supply and make sure the water shutoff valve is

fully open.

■ Kink in the water source line - A kink in the water line can reduce water flow, resulting in decreased ice

production, small ice cubes, and/or hollow or irregularly-shaped ice. Straighten the water line.

■ Ice maker is not turned on - Turn on the ice maker. See “Ice Maker and Storage Bin.”

■ New installation - After connecting the refrigerator to a water source, flush the water system.

(See “Water and Ice Dispensers.”) Wait 24 hours for ice production to begin. Wait 72 hours for full ice

production. Discard the first three batches of ice produced.

■ Large amount of ice was recently removed - Allow sufficient time for the ice maker to produce

more ice.

■ Ice is jammed in the ice maker ejector arm - Remove ice from the ejector arm using a plastic utensil.

■ Inadequate water pressure - Verify that the household has adequate water pressure. See “Water

Supply Requirements.”

■ Water filter is installed incorrectly - Make sure the filter is properly installed. See “Water Filtration

System.”

■ A reverse osmosis water filtration system is connected to your cold water supply - This can

decrease water pressure. See “Water Supply Requirements.”

NOTE: If questions remain regarding water pressure, contact a licensed, qualified plumber.

WARNING

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or fire.

Cut Hazard

Use a sturdy glass when dispensing ice.

Failure to do so can result in cuts.

WARNING

Ice dispenser

will not operate

properly

■ Doors not closed completely - Make sure both doors are firmly closed. (On some models, only the

freezer door must be closed in order to operate the dispenser.)

■ New installation - After connecting the refrigerator to a water source, flush the water system.

(See “Water and Ice Dispensers.”) Wait 24 hours for ice production to begin. Wait 72 hours for full ice

production. Discard the first three batches of ice produced.

■ Ice maker is not turned on, or ice bin is not installed correctly - Turn on the ice maker and make sure

the ice storage bin is firmly in position. See “Ice Maker and Storage Bin.”

■ Ice is clogged or frozen together in the ice storage bin, or ice is blocking the ice delivery

chute - Remove or separate the clogged ice, using a plastic utensil if necessary. Clean the ice delivery

chute and the bottom of the ice storage bin using a warm damp cloth, then dry both thoroughly. To avoid

clogging and to maintain a fresh supply of ice, empty the storage bin and clean both the storage bin and

the delivery chute every 2 weeks.

■ Wrong ice has been added to the storage bin - Use only ice cubes produced by the current ice maker.

■ Dispenser is locked - Unlock the dispenser. See “Water and Ice Dispensers.”

■ Ice dispenser jams while dispensing crushed ice - For models with the ice storage bin on the door,

temporarily switch from crushed ice to cubed ice to clear the jam.

■ Dispenser pad/lever has been pressed too long - Ice will automatically stop dispensing. Wait a few

minutes for the dispenser to reset, then resume dispensing. Take large amounts of ice directly from the

ice bin, not through the dispenser.

■ Water pressure to the home is not at or above 30 psi (207 kPa) - The water pressure to the home

affects the flow from the dispenser. See “Water Supply Requirements.”

■ Water filter is clogged or incorrectly installed - Replace filter or reinstall it correctly. See “Water

Filtration System.”

Ice or water has an

off-taste, odor,

or gray color

■ New plumbing connections - New plumbing connections can result in off-flavored or discolored ice or

water. This problem should go away over time.

■ Ice has been stored too long - Discard the ice and wash the ice bin. Allow 24 hours for the ice maker to

produce new ice.

■ Odor has transferred from food - Use airtight moisture-proof packaging to store food.

■ Use of non-recommended water supply line - Odors and tastes can transfer from certain materials

used in non-recommended water supply lines. Use only a recommended water supply line. See “Water

Supply Requirements.”

■ There are minerals (such as sulfur) in the water - A water filter may need to be installed in order to

remove the minerals.

■ Water filter was recently installed or replaced - Gray or dark discoloration in ice or water indicates

that the water filtration system needs additional flushing. See “Water and Ice Dispensers.”

Water dispenser

will not operate

properly

■ Doors not closed completely - Make sure both doors are firmly closed. (On some models, only the

freezer door must be closed in order to operate the dispenser.)

■ Refrigerator is not connected to a water supply, or the water supply shutoff valve is not

turned on - Connect the refrigerator to a water supply and make sure the water shutoff valve is

fully open.

■ Kink in the water source line - A kink in the water line can reduce water flow to the dispenser.

Straighten the water line.

■ Water pressure to the home is not at or above 30 psi (207 kPa) - The water pressure to the home

affects the flow from the dispenser. See “Water Supply Requirements.”

■ New installation - After connecting the refrigerator to a water source, flush the water system.

See “Water and Ice Dispensers.”

■ Dispenser is locked - Unlock the dispenser. See “Water and Ice Dispensers.”

■ Water filter is clogged or incorrectly installed - Replace filter or reinstall it correctly. See “Water

Filtration System.”

■ A reverse osmosis water filtration system is connected to your cold water supply - This can

decrease water pressure. See “Water Supply Requirements.”

NOTE: If questions remain regarding water pressure, contact a licensed, qualified plumber.

ICE AND WATER Possible Causes and/or Recommended Solutions

Water is leaking or

dripping from the

dispenser

NOTE: After dispensing, a few additional drops of water are normal.

■ Glass was not held under the dispenser long enough - Hold the glass under the dispenser for

2 to 3 seconds after releasing the dispenser pad/lever.

■ New installation, or water filter was recently installed or replaced - Air in the water lines causes the

water dispenser to drip. Flush the water system to remove the air in the water lines. See “Water and Ice

Dispensers.”

■ Residual ice in the dispenser chute is melting - Make sure the ice chute is free of ice shavings or

pieces.

Water is leaking

from the back of the

refrigerator

■ Water line connections are not fully tightened - Make sure all connections are firmly tightened. See

“Connect Water Supply.”

Water from the

dispenser is

not cool enough

(on some models)

NOTE: Water from the dispenser is chilled to 50°F (10°C).

■ New installation - Allow 24 hours after installation for the water supply to cool completely.

■ Recently dispensed a large amount of water - Allow 24 hours for the new water supply to cool

completely.

■ Water has not been recently dispensed - The first glass of water may not be cool. Discard the first

glass of water dispensed.

■ Refrigerator is not connected to a cold water pipe - Make sure the refrigerator is connected to a cold

water pipe. See “Water Supply Requirements.”

SMART FEATURES Possible Causes and/or Recommended Solutions

Low/no ice production ■ Smart Delay and/or Delay Ice activated - The Smart Grid feature allows the refrigerator to detect

when the electric grid is in a period of peak usage or peak rates. When Smart Grid functionality is

activated, ice production may be delayed for up to 4 hours, depending on the type of Smart Grid

notification received. To return to normal ice production, press the SMART GRID button on the

dispenser control panel. Both the Smart Grid and Delay Ice icons will disappear from the

display screen.

ICE AND WATER Possible Causes and/or Recommended Solutions

ACCESSORIES

The following accessories are available for your refrigerator.

To order an accessory, call 1-800-442-9991 and ask for the part

number listed below or contact your authorized Whirlpool dealer.

In Canada, call 1-800-807-6777.

affresh

Stainless Steel Cleaner:

Order Part #W10355016

In Canada, order Part #W10355016B

affresh

Stainless Steel Wipes:

Order Part #W10355049

In Canada, order Part #W10355049B

affresh

Kitchen & Appliance Cleaner:

Order Part #W10355010

In Canada, order Part #W10355010B

Water Filter:

Order Part #W10295370A (P4RFWB)

Air Filter:

Order Part #W10311524

WATER FILTER CERTIFICATIONS

PERFORMANCE DATA SHEET

Water Filtration System

Model P5WB2L/P4RFWB Capacity 200 Gallons (757 Liters)

This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below.

The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to

the permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53.

Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.5 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa).

Temp. = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 200 gallons (757 liters).

■ It is important that operational, maintenance, and filter

replacement requirements be carried out for the product to

perform as advertised. Property damage can occur if all

instructions are not followed.

■ Use replacement filter P4RFWB, part #W10295370A.

2013 suggested retail price of $39.99 U.S.A./$49.99 Canada.

Prices are subject to change without notice.

Style 1 – When the water filter status display changes from

“GOOD” to “ORDER,” order a new filter. When the filter

indicator reads “REPLACE,” it is recommended that you

replace the filter.

Style 2 – When the filter indicator changes from green to

yellow, order a new filter. When the indicator changes from

yellow to red, it is recommended that you replace the filter.

Style 3 – When the filter indicator reads 10%, order a new

filter. When the indicator reads 0%, it is recommended that

you replace the filter.

Style 4 – Press FILTER to check the status of your water filter.

If the filter indicator light is yellow, order a new filter. If the filter

indicator light is red, it is recommended that you replace the

filter.

■ After changing the water filter, flush the water system. See

“Water and Ice Dispensers” or “Water Dispenser” in the User

Instructions or User Guide.

■ These contaminants are not necessarily in your water supply.

While testing was performed under standard laboratory

conditions, actual performance may vary.

■ The product is for cold water use only.

■ The water system must be installed in compliance with state

and local laws and regulations.

■ Do not use with water that is microbiologically unsafe or of

unknown quality without adequate disinfection before or after

the system. Systems certified for cyst reduction may be used

on disinfected waters that may contain filterable cysts.

■ Refer to the “Warranty” section (in the User Instructions or

User Guide) for the Manufacturer’s name, address and

telephone number.

■ Refer to the “Warranty” section (in the User Instructions or

User Guide) for the Manufacturer’s limited warranty.

Application Guidelines/Water Supply Parameters

System tested and certified by NSF International against NSF/ANSI

Standard 42 for the reduction of Chlorine Taste and Odor, and Particulate

Class I*; and against NSF/ANSI Standard 53 for the reduction of Live

Cysts, Asbestos, Lead, Lindane, Toxaphene, Atrazine, and 2,4 - D.

Substance Reduction

Aesthetic Effects

NSF Reduction

Requirements

Average

Influent

Influent Challenge

Concentration

Maximum

Effluent

Minimum %

Reduction

Average %

Reduction

Chlorine Taste/Odor

Particulate Class I

50% reduction

85% reduction

2.0 mg/L

7,300,000 #/mL

2.0 mg/L ± 10%

At least 10,000 particles/mL

0.20 mg/L

75,000 #/mL

97.2

99.4

Contaminant

Reduction

NSF Reduction

Requirements

Average

Influent

Influent Challenge

Concentration

Maximum

Effluent

Minimum %

Reduction

Average %

Reduction

Live Cysts

†

99.95% 160,000/L 50,000/L min. 54/L

†

99.97 99.99

Asbestos 99% 87 MFL 10

to 10

fibers/L

††

0.17 MFL 99 99

Lead: @ pH 6.5

Lead: @ pH 8.5

0.010 mg/L

0.160 mg/L

0.140 mg/L

0.15 mg/L ± 10%

0.001 mg/L

0.005 mg/L

99.4

98.6

99.4

98.6

Lindane 0.0002 mg/L 0.0019 mg/L 0.002 mg/L ± 10% 0.00002 mg/L 98.9 99

Toxaphene 0.003 mg/L 0.014 mg/L 0.015 mg/L ± 10% 0.001 mg/L 93 93

Atrazine 0.003 mg/L 0.0094 mg/L 0.009 mg/L ± 10% 0.0005 mg/L 94.5 94.7

2,4 - D 0.07 mg/L 0.220 mg/L 0.210 mg/L ± 10% 0.028 mg/L 87.5 96.1

Water Supply

Water Pressure

Water Temperature

Service Flow Rate

City or Well

30 - 120 psi (207 - 827 kPa)

33° - 100°F (0.6° - 37.8°C)

0.5 gpm (1.9 Lpm) @ 60 psi

†

††

Class I particle size: >0.5 to <1 um

Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.

Based on the use of Cryptosporidium parvum oocysts

Fibers greater than 10 um in length

® NSF is a registered trademark of NSF International.

WHIRLPOOL CORPORATION MAJOR APPLIANCE

WARRANTY

LIMITED WARRANTY

For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or

furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Parts

and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased. Service must be

provided by a Whirlpool designated service company. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY

SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. This limited warranty is valid only in the United States or Canada and applies

only when the major appliance is used in the country in which it was purchased. Proof of original purchase date is required to obtain

service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover:

1. Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is

used in a manner that is inconsistent to published user or operator instructions and/or installation instructions.

2. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or

repair house fuses, or to correct house wiring or plumbing.

3. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty

coverage.

4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in

accordance with electrical or plumbing codes, or use of products not approved by Whirlpool.

5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage

results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.

6. Any food or medicine loss due to refrigerator or freezer product failures.

7. Pickup and delivery. This major appliance is intended to be repaired in your home.

8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

9. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an

authorized Whirlpool servicer is not available.

10. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance

with Whirlpool's published installation instructions.

11. Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered or

cannot be easily determined.

12. Discoloration, rust, or oxidation of stainless steel surfaces.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR

A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces

do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This

warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN.

WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow

the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This

warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

If outside the 50 United States and Canada, contact your authorized Whirlpool dealer to determine if another warranty applies. 7/12

For additional product information, in the U.S.A., visit www.whirlpool.com.

In Canada, visit www.whirlpool.ca.

If you do not have access to the Internet and you need assistance using your product or you would like to schedule service, you may

contact Whirlpool at the number below.

Have your complete model number ready. You can find your model number and serial number on the label, located on the inside wall of

the refrigerator compartment.

For assistance or service in the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777.

If you need further assistance, you can write to Whirlpool with any questions or concerns at the address below:

In the U.S.A.:

Whirlpool Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

In Canada:

Whirlpool Brand Home Appliances

Customer eXperience Centre

200 – 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

Please keep all provided instructions and your model number information for future reference.

W10439277C

4/13

Printed in Mexico

Whirlpool WRL767SIAM 26.5 cu. ft. Side by Side Refrigerator

Product's Documents

USER INSTRUCTIONS

Specifications

Whirlpool WRL767SIAM Questions and Answers

Related Products

Whirlpool WSF26D2EXY02 26 cu. ft. Side-by-Side Refrigerator with FreshFlow™ Air Filter

Whirlpool WRS537SIAW00 26 cu. ft. Side-by-Side Refrigerator

Whirlpool WRS526SIAE00 26 cu. ft. Side-by-Side Refrigerator

Whirlpool WSF26C2EXB01 26 cu. ft. Side-by-Side Refrigerator

Whirlpool WRS346FIAT 26 cu. ft. Side-by-Side Refrigerator

Whirlpool WRS346FIAW 26 cu. ft. Side-by-Side Refrigerator
