W11160370B
INSTALLATION INSTRUCTIONS

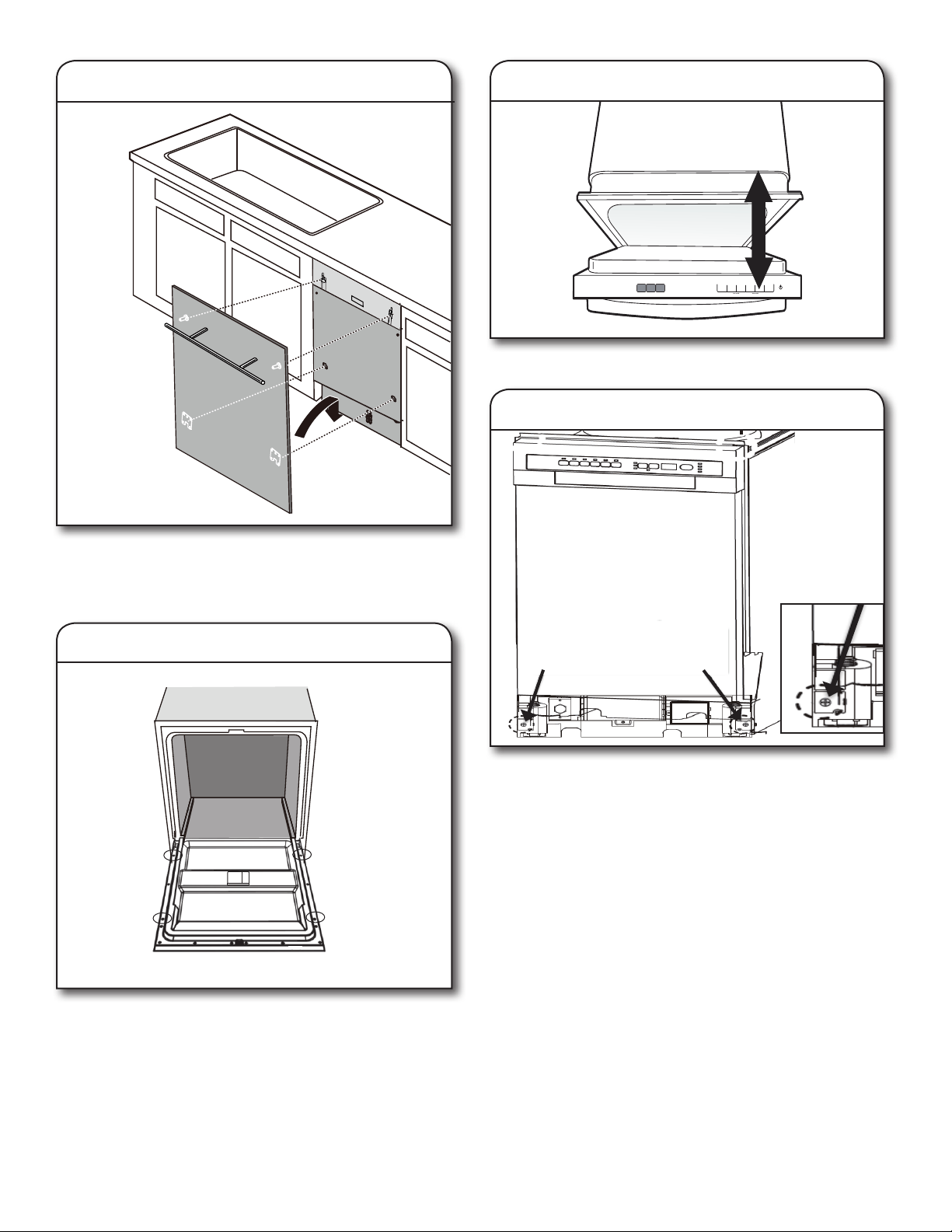

FOR CUSTOM 18" AND 24" WOOD DOOR PANEL
IMPORTANT: Before installing your dishwasher, please use this instruction sheet as a supplement to the Installation Instructions.
Custom Panel Models Only
Gather these additional tools and parts before starting attachment
of the custom panel. Read and follow the instructions provided in
this instruction sheet.
Additional Tools Needed:
Power Drill
Phillips-head screwdriver or magnetic bit
Needle nose pliers
Parts Supplied with Custom Panel Models:
■ Template (located inside Use and Care Guide
bag assembly)
NOTE: The screws supplied are used for only a 0.59" (1.5 cm)
thick wooden panel. If the wooden panel is less than 0.59"
(1.5 cm) thick, customer must purchase screws locally.
Custom Panel Dimensions
Max. 28.3" (72 cm)
17.4" (44.4 cm)
Min. 0.59" (1.5 cm)
Door
Thickness
18" Custom Panel Dimensions
Max. 28.3" (72 cm)
23.4" (59.4 cm)
Min. 0.59" (1.5 cm)
Door
Thickness
24" Custom Panel Dimensions
ST3.5X25
2
3
4
7
8
5
10
X10
9
X4
X2
X2
ST3.5X45
11
ST3.9X13
X2
ST3.5X9
XX22
6
ST4X14
