CELICA U

Part 1

OPERATION OF

INSTRUMENTS AND

CONTROLS—

Chapter 1−1

Overview of instruments

and controls

Instrument panel overview

D Instrument cluster overview

D Indicator symbols on the

instrument panel

CELICA U

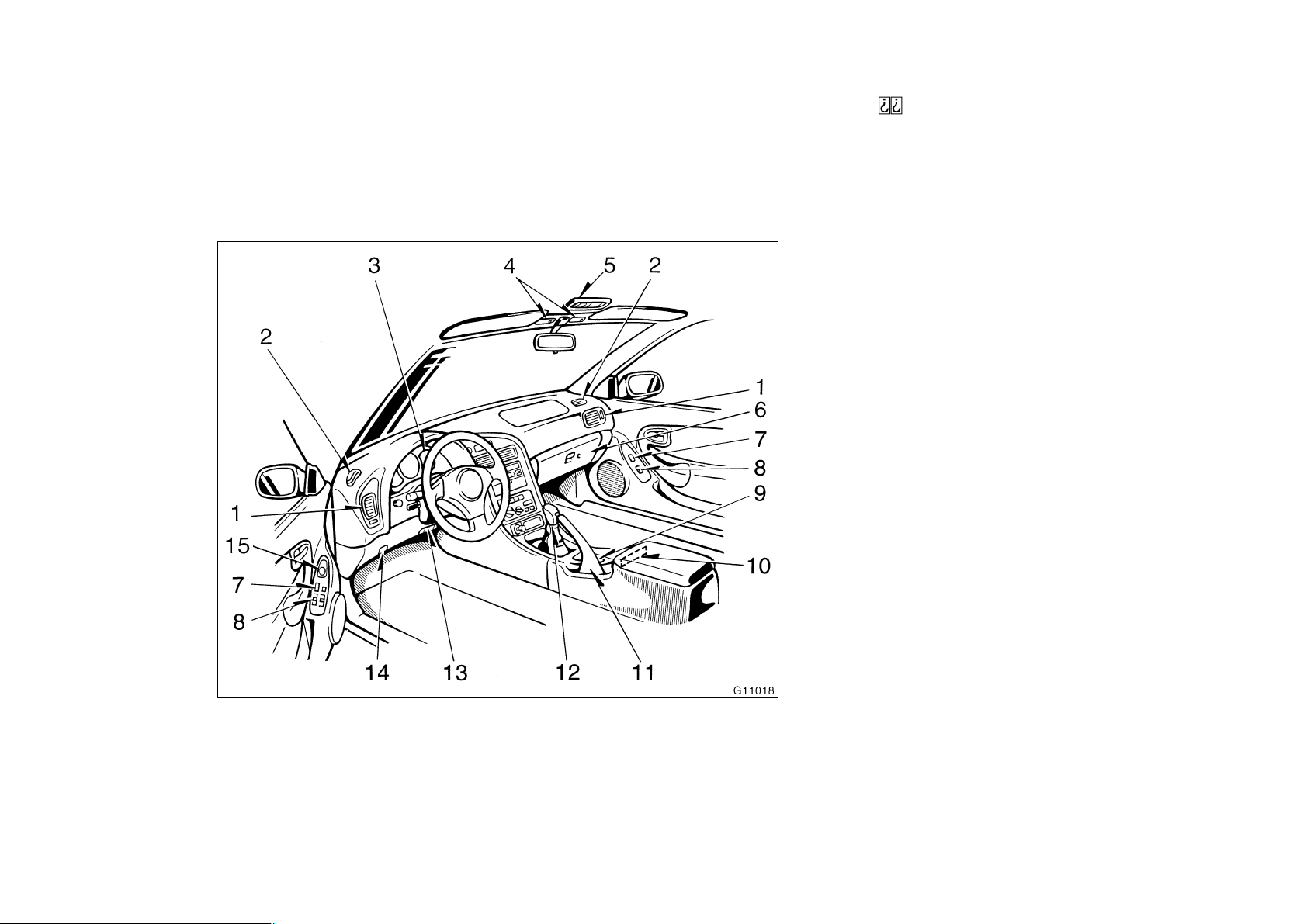

Instrument panel overview

1. Side vents

2. Side defroster outlets

3. Instrument cluster

4. Personal lights

5. Electric moon roof switches and interior

lights

6. Glovebox

7. Power door lock switches

8. Power window switches

9. Ashtray

10. Cup holder

11. Parking brake lever

12. Manual transmission gear shift lever or

automatic transmission selector lever

13. Lower vent

14. Hood lock release lever

15. Power rear view mirror control switch

(with power windows)

CELICA U

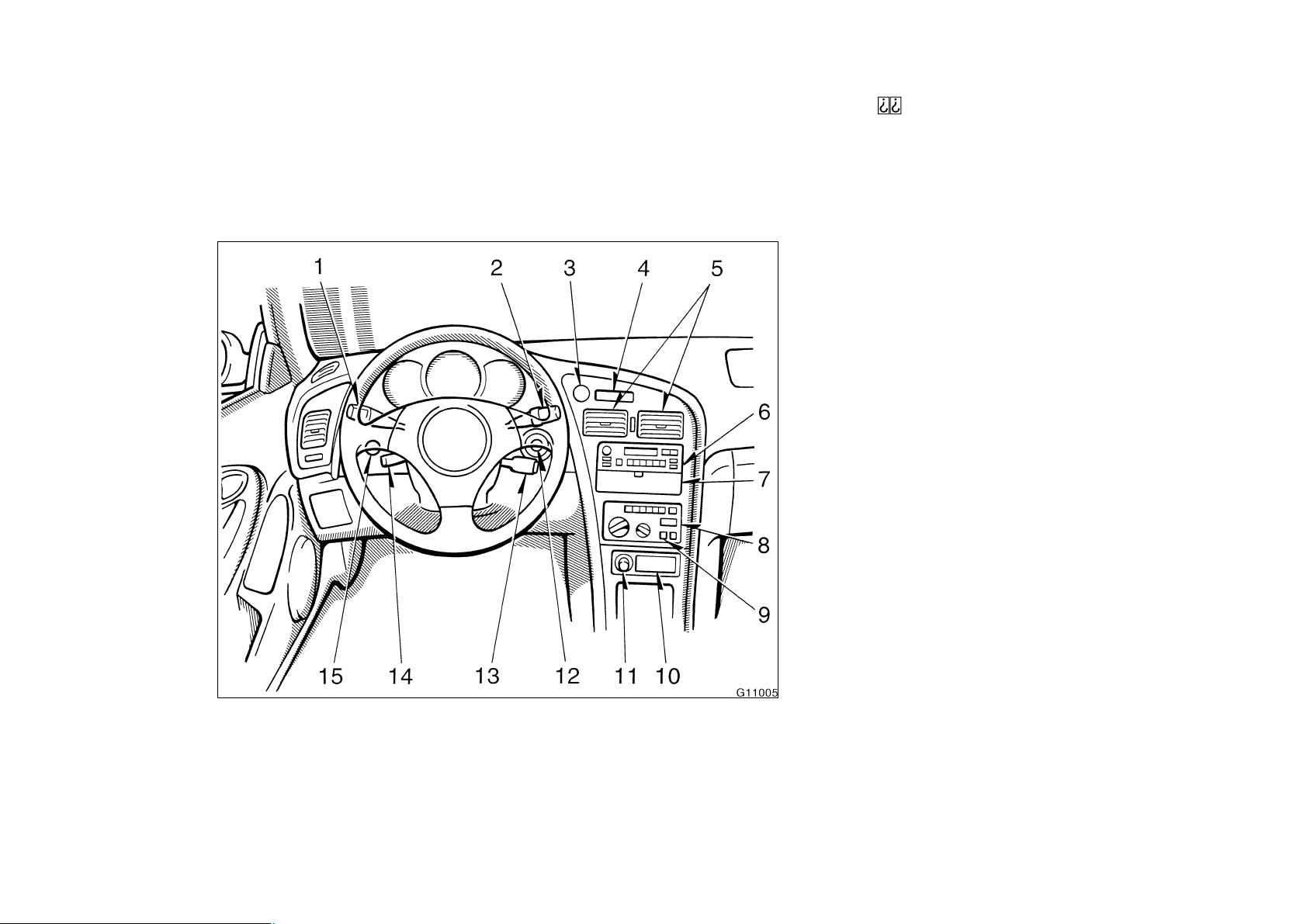

1. Headlight and turn signal switch

2. Wiper and washer switches

3. Emergency flasher switch

4. Clock

5. Center vents

6. Car audio

7. Auxiliary box

8. Air conditioning controls

9. Rear window defogger switch

10. Coupe and liftback—

Power rear view mirror control switch

(without power windows)

Convertible—

Convertible top control switch and

quarter window control switches

11. Cigarette lighter

12. Ignition switch

13. Cruise control switch

14. Tilt steering lock release lever

15. Instrument panel light control knob

CELICA U

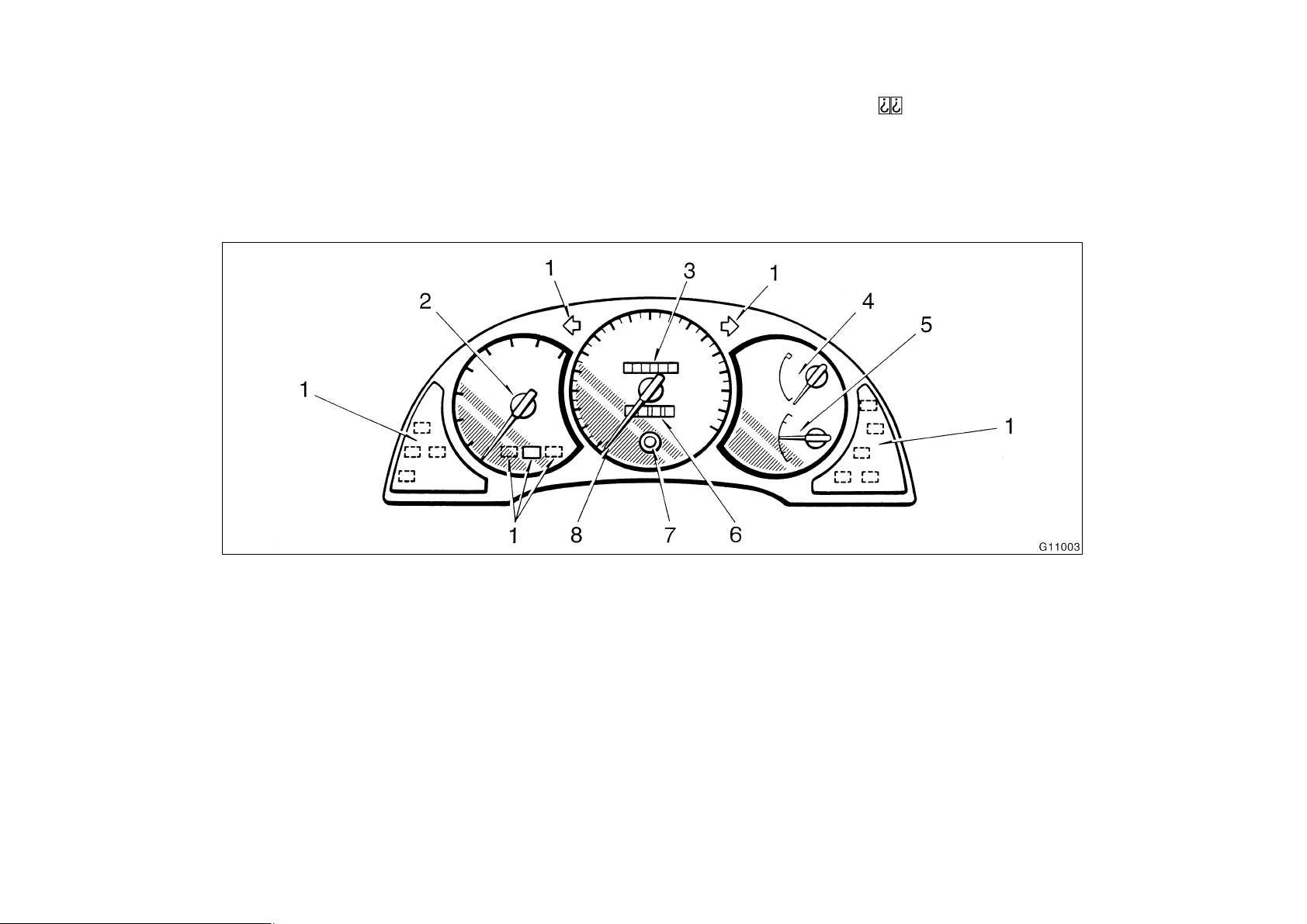

Instrument cluster overview

1. Service reminder indicators and indica-

tor lights

2. Tachometer

3. Odometer

4. Engine coolant temperature gauge

5. Fuel gauge

6. Trip meter

7. Trip meter reset knob

8. Speedometer

CELICA U

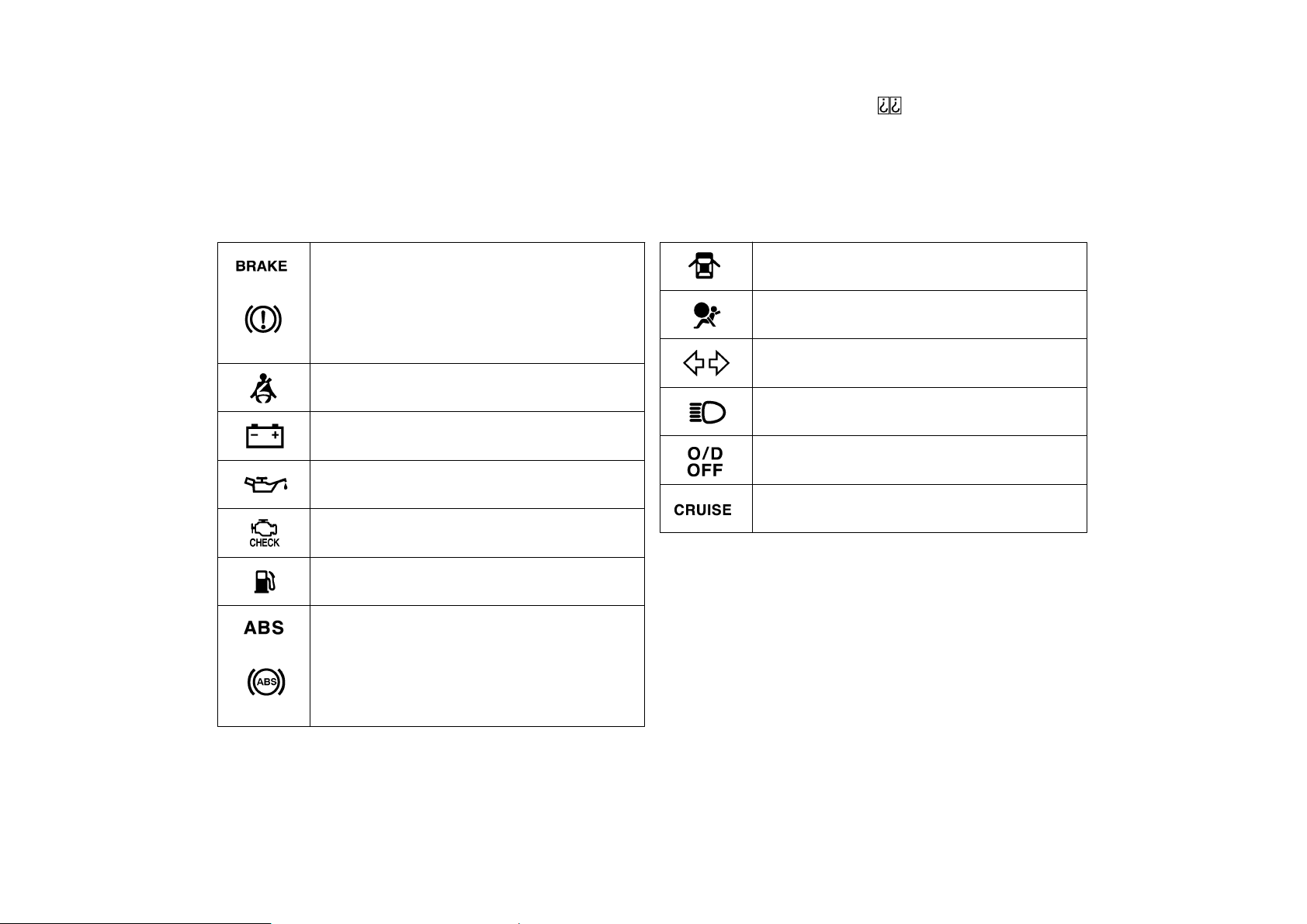

Indicator symbols on the instrument panel

(type A)

Brake system warning light

∗

Discharge warning light

∗

Low oil pressure warning light

∗

Malfunction indicator lamp

∗

Headlight high beam indicator light

Overdrive−off indicator light

SRS airbag warning light

∗

Turn signal indicator lights

Anti-lock brake system warning light

∗

Seat belt reminder light

∗

Open door warning light

∗

: For details, see ”Service reminder indicators and warning

buzzers” in Chapter 1−5.

∗

: If this light flashes, see ”Cruise control” in Chapter 1−6.

Cruise control indicator light

∗

Low fuel level warning light

∗

(type B)

CELICA U

Part 1

OPERATION OF

INSTRUMENTS AND

CONTROLS—

Chapter 1−2

Keys and Doors

Keys

D Side doors

D Power windows

D Trunk lid/Back door

Hood

D Fuel tank cap

D Electric moon roof

D Convertible top

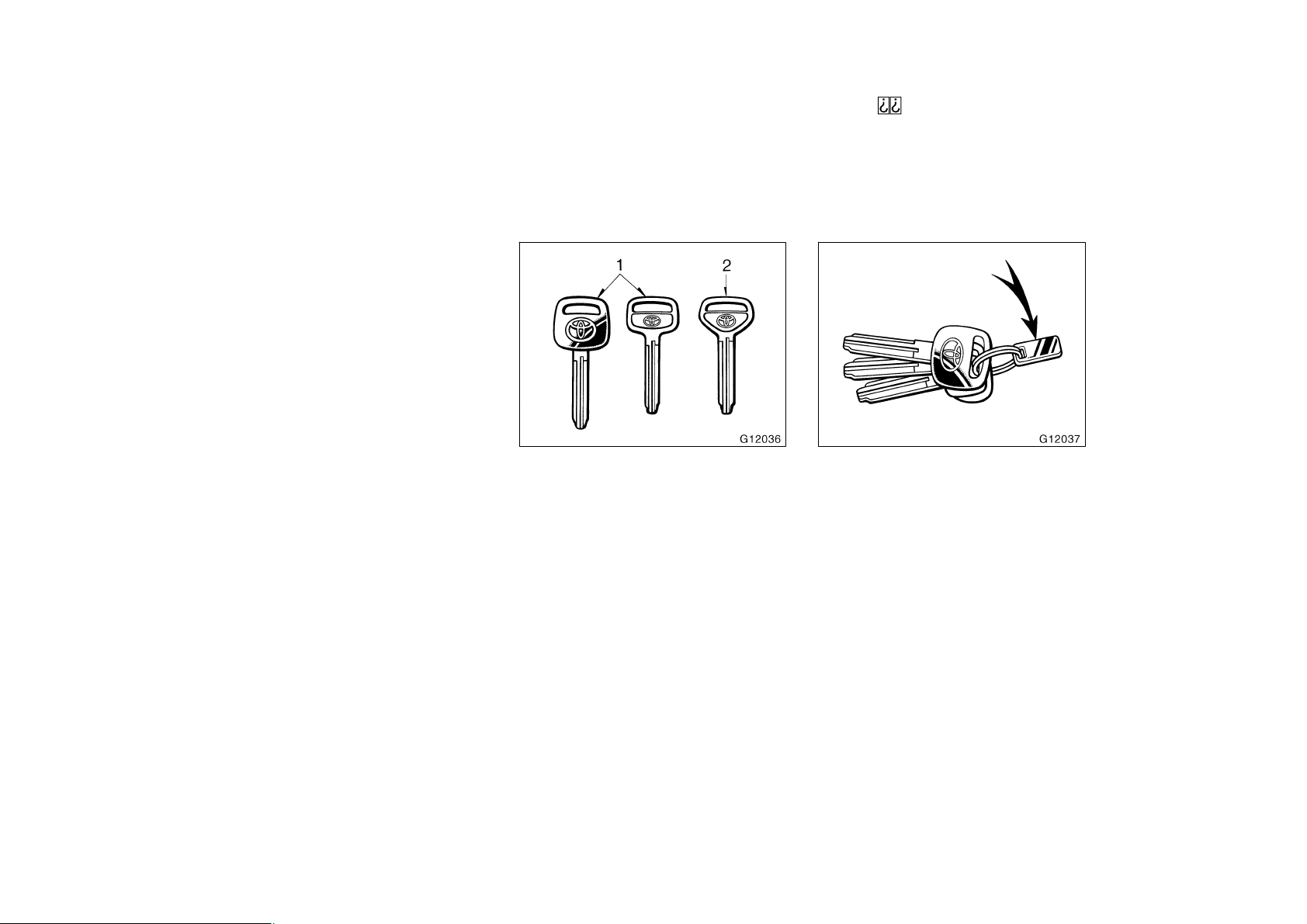

Keys

Your vehicle is supplied with two kinds

of key.

1. Master key—This key works in every

lock.

2. Subkey—This key is for side doors.

To protect things locked in the glovebox,

trunk or luggage compartment when you

have your vehicle parked, leave the sub-

key with the attendant.

Since the side doors, trunk lid and back

door can be locked without a key, you

should always carry a spare master key

in case you accidentally lock your keys

inside the vehicle.

KEY NUMBER PLATE

Your key number is shown on the plate.

Keep the plate in a safe place such as

your wallet, not in the vehicle.

If you should lose your keys or if you

need additional keys, duplicates can be

made by a Toyota dealer using the key

number.

You should also put a copy of the key

number with your important papers.

CELICA U

Side doors

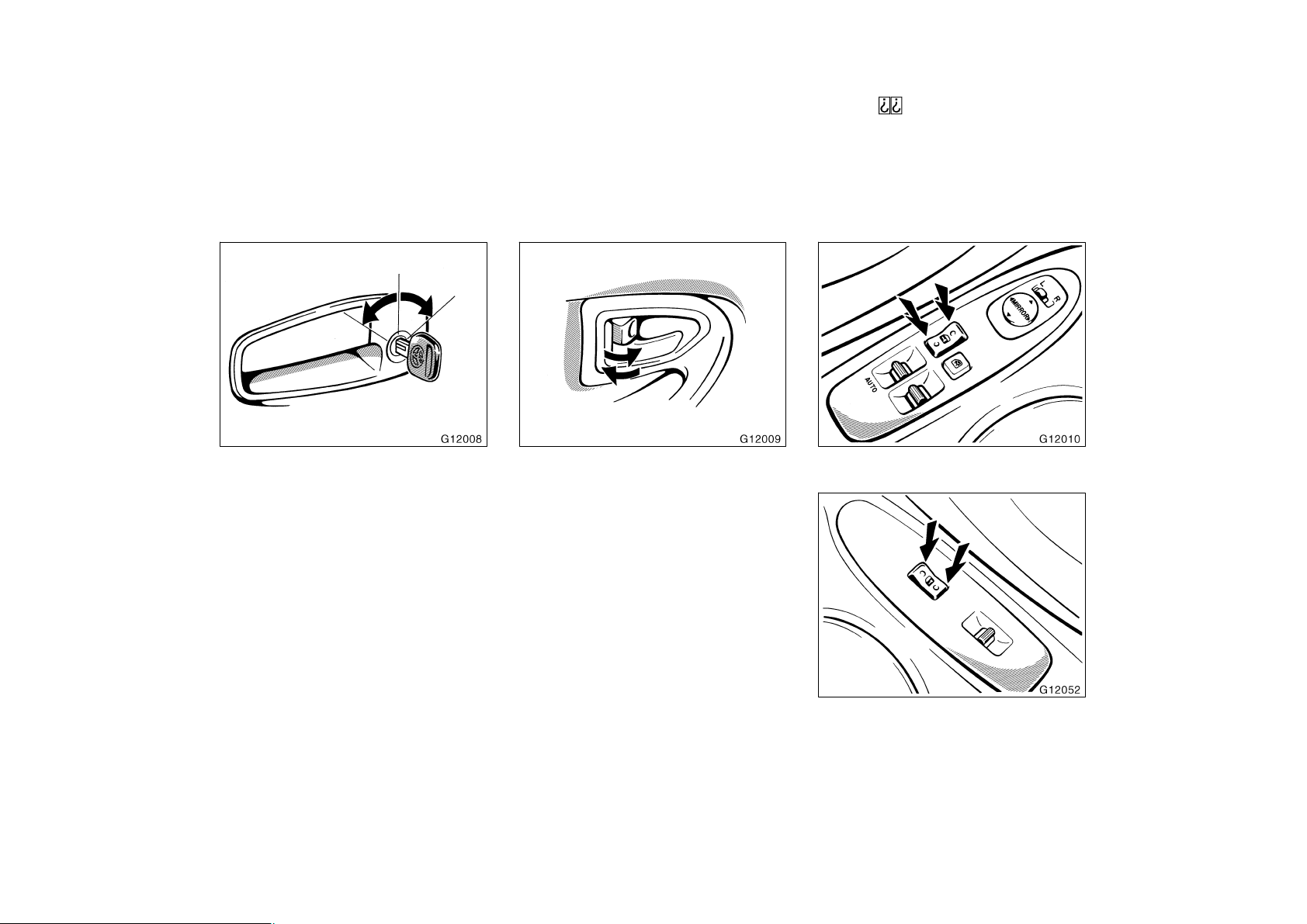

LOCKING AND UNLOCKING WITH KEY

Insert the key into the keyhole and turn

it.

To lock: Turn the key forward.

To unlock: Turn the key backward.

Both side doors lock and unlock simulta-

neously with either side door. In the driv-

er’s door lock, turning the key once will

unlock the driver’s door and twice in suc-

cession will unlock both side doors simul-

taneously.

LOCKING AND UNLOCKING WITH IN-

SIDE LOCK KNOB

Move the lock knob.

To lock: Push the knob forward.

To unlock: Pull the knob backward.

Closing the side door with the lock knob

in the lock position will also lock the side

door. Be careful not to lock your keys in

the vehicle.

Vehicles with a power door lock sys-

tem—The side door cannot be locked if

you leave the key in the ignition switch.

Driver’s side

Passenger’s side

CELICA U

LOCKING AND UNLOCKING WITH POW-

ER DOOR LOCK SWITCH

Push the switch.

To lock: Push the switch on the front side.

To unlock: Push the switch on the rear

side.

Both side doors lock or unlock simulta-

neously.

CAUTION

Before driving, be sure that the side

doors are closed and locked, espe-

cially when small children are in the

vehicle. Along with the proper use of

seat belts, locking the side doors

helps prevent the driver and passen-

gers from being thrown out from the

vehicle during an accident. It also

helps prevent the side doors from be-

ing opened unintentionally.

CAUTION

To avoid serious personal injury, you

must do the following.

D Always make sure the head, hands

and other parts of the body of all

occupants are kept completely in-

side the vehicle before you close

the power windows. If someone’s

neck, head or hands gets caught in

a closing window, it could result in

a serious injury. When anyone

closes the power windows, be sure

that they operate the windows safe-

ly.

D When small children are in the ve-

hicle, never let them use the power

window switches without supervi-

sion. Use the window lock button to

prevent them from making unex-

pected use of the switches.

D Never leave small children alone in

the vehicle, especially with the igni-

tion key still inserted. They could

use the power window switches and

get trapped in a window. Unat-

tended children can become in-

volved in serious accidents.

—Side windows

The windows can be operated with the

switch on each side door.

The power windows work when the ignition

switch is in the ”ON” position. However,

if both side doors are closed, they work

for 60 seconds even after the ignition

switch is turned off. They stop working

when either side door is opened.

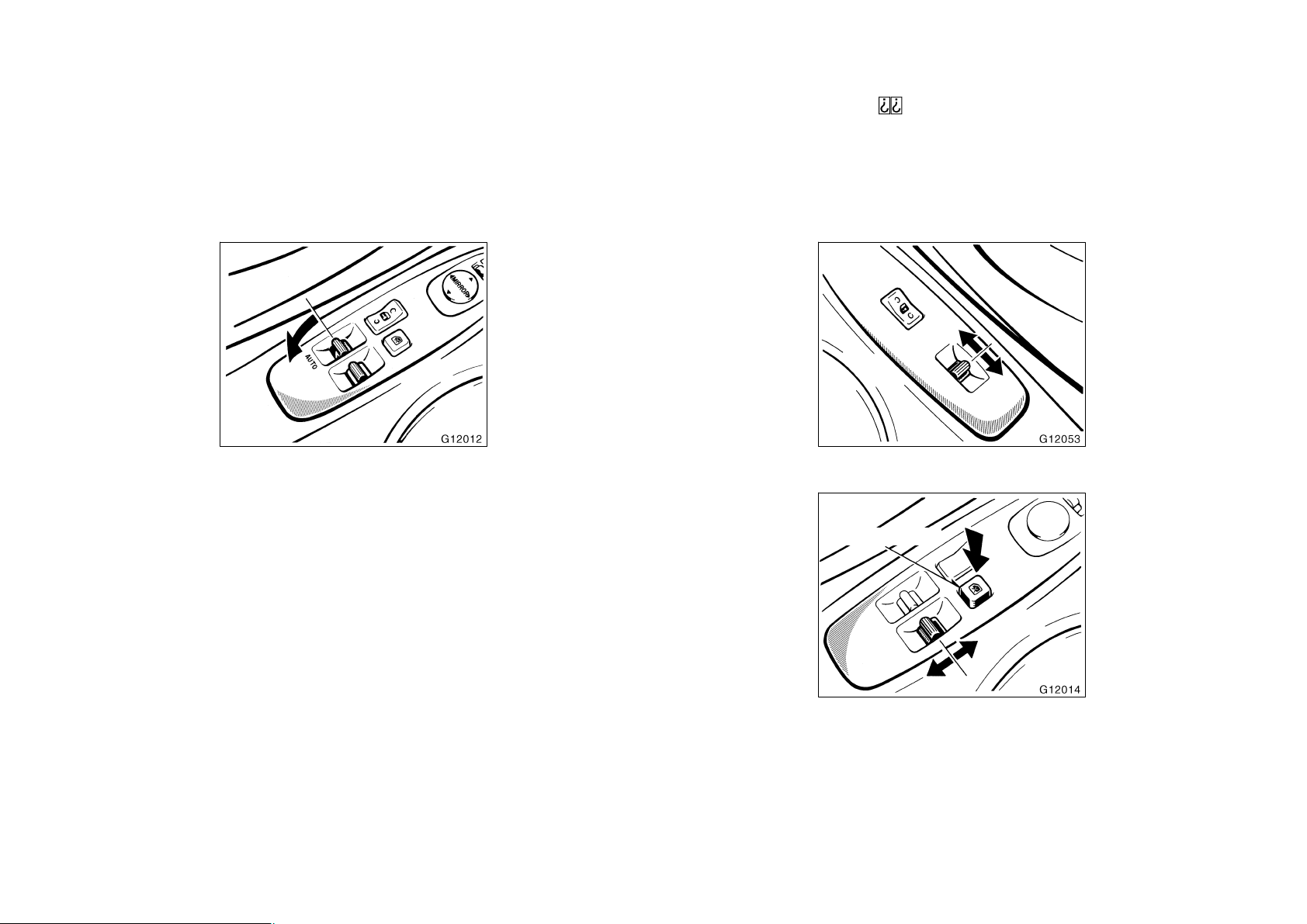

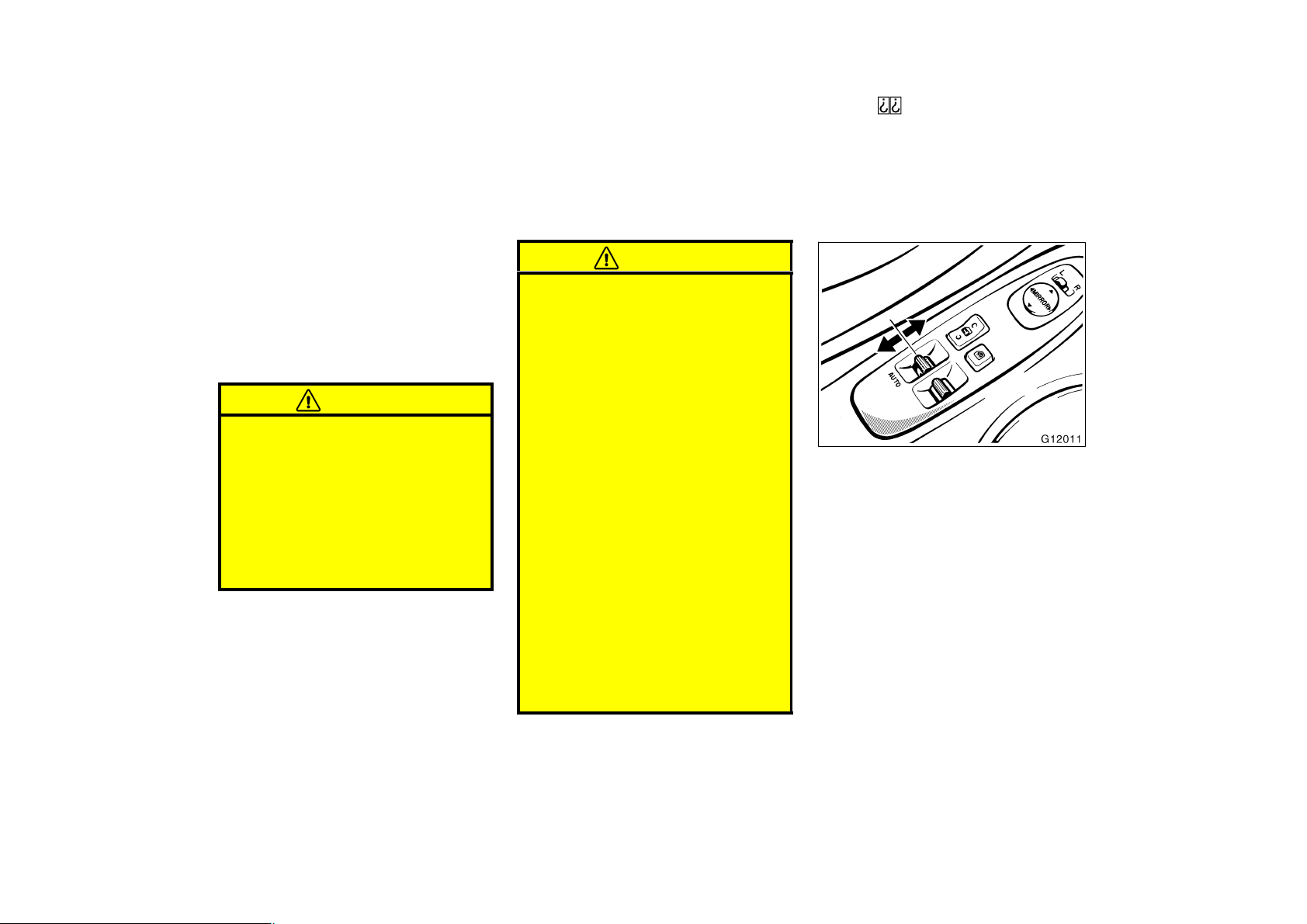

OPERATING THE DRIVER’S WINDOW

Use the switch on the driver’s door.

Normal operation: The window moves as

long as you hold the switch.

To open: Lightly pull down the switch.

To close: Push up the switch.

Power windows—

—Power window precautions

CELICA U

Automatic operation (to open only): Pull

the switch completely down and then re-

lease it. The window will fully open. To

stop the window partway, lightly push the

switch up and then release it.

OPERATING THE PASSENGER’S WIN-

DOW

Use the switch on the passenger’s

door. The driver’s door also has a

switch that controls the passenger’s

window.

The window moves as long as you hold

the switch.

To open: Pull down the switch.

To close: Push up the switch.

If you push in the window lock button on

the driver’s door, the passenger’s window

cannot be operated.

Convertible models—The window lock but-

ton also locks the quarter windows.

For front passenger’s use

Window lock button

For driver’s use

CELICA U

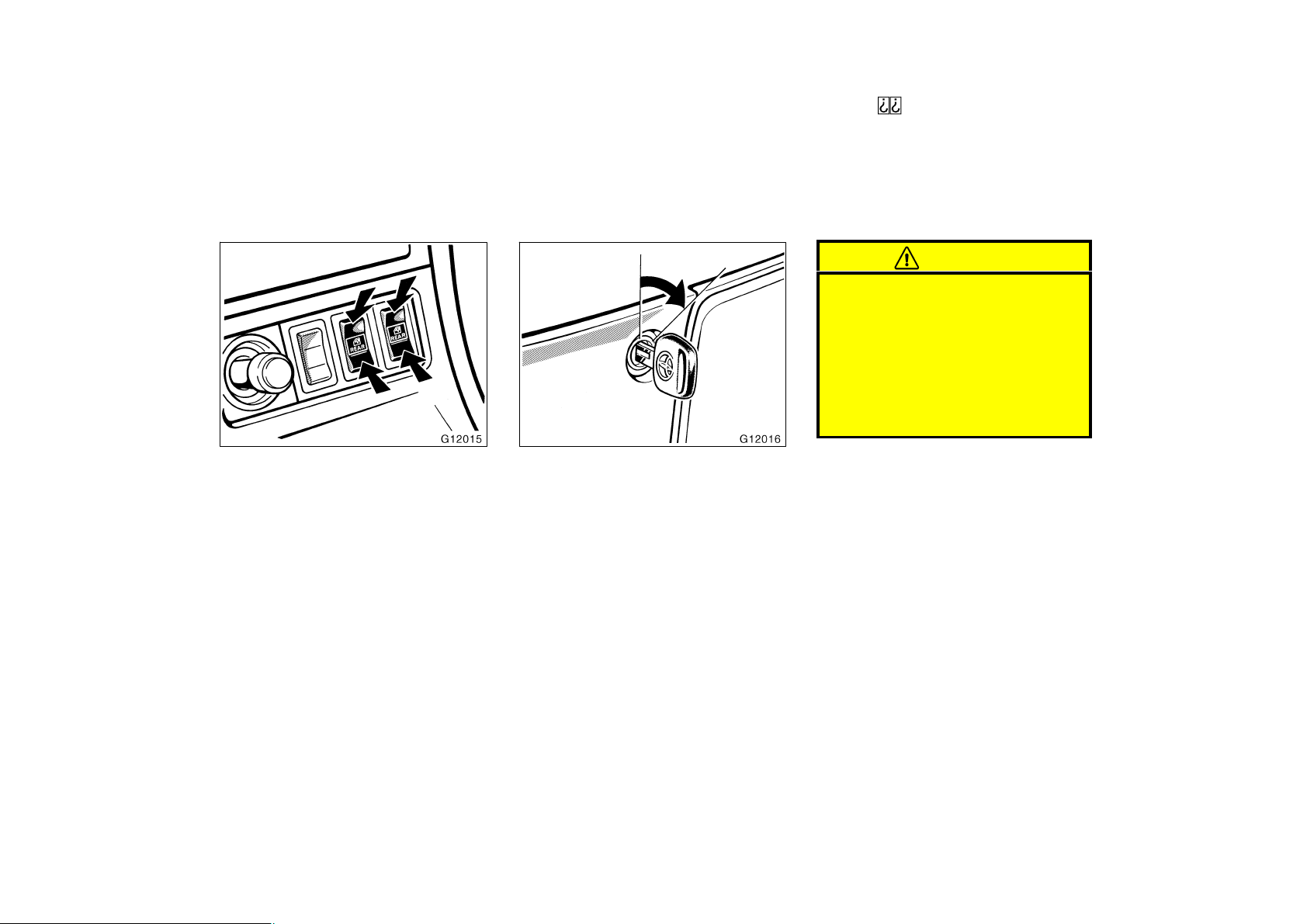

The windows can be operated with

switches on the center console.

The windows move as long as you hold

the switch.

To open: Push on the lower side of the

switch.

To close: Push on the upper side of the

switch.

To open the trunk lid or back door from

the outside, insert the master key and

turn it clockwise.

See ”Luggage stowage precautions” in

Part 2 for precautions to observe for load-

ing luggage.

To close the trunk lid, lower it and press

down on it.

To close the back door, lower it hardly.

After closing the trunk lid or back door,

try pulling it up to make sure it is secure-

ly closed and make sure that the interior

lights and open door warning light are

turned off.

CAUTION

D Keep the trunk lid or back door

closed while driving. This not only

keeps the luggage from being

thrown out but also prevents ex-

haust gases from entering the ve-

hicle.

D Lift back only: If the lock has been

half latched, the battery power will

be weaken.

—Quarter windows

(convertible)

Trunk lid

(coupe and convertible)/

Back door (liftback)—

CELICA U

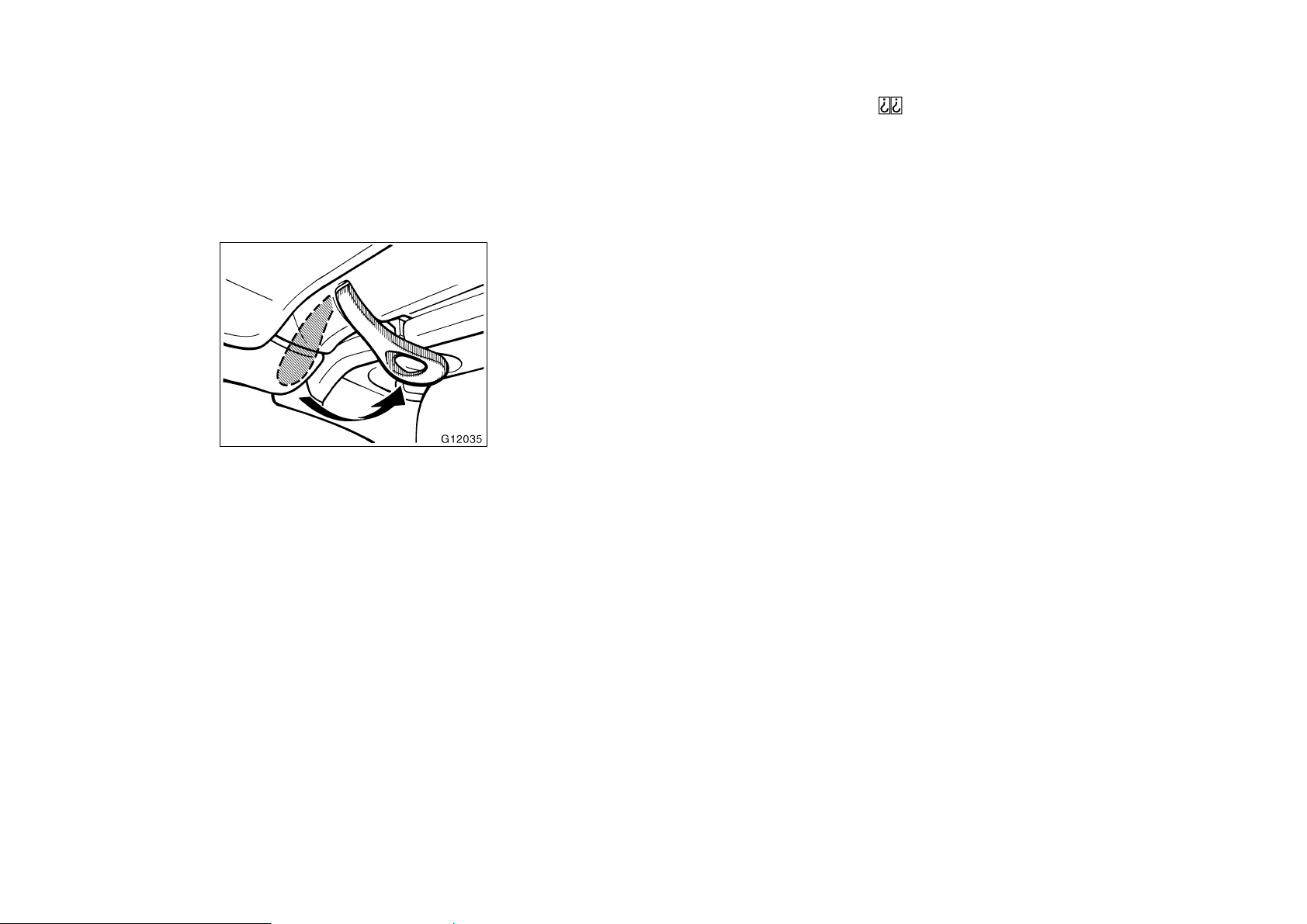

—Lock release lever

To open the trunk lid or back door from

the driver’s seat, pull up on the lock

release lever.

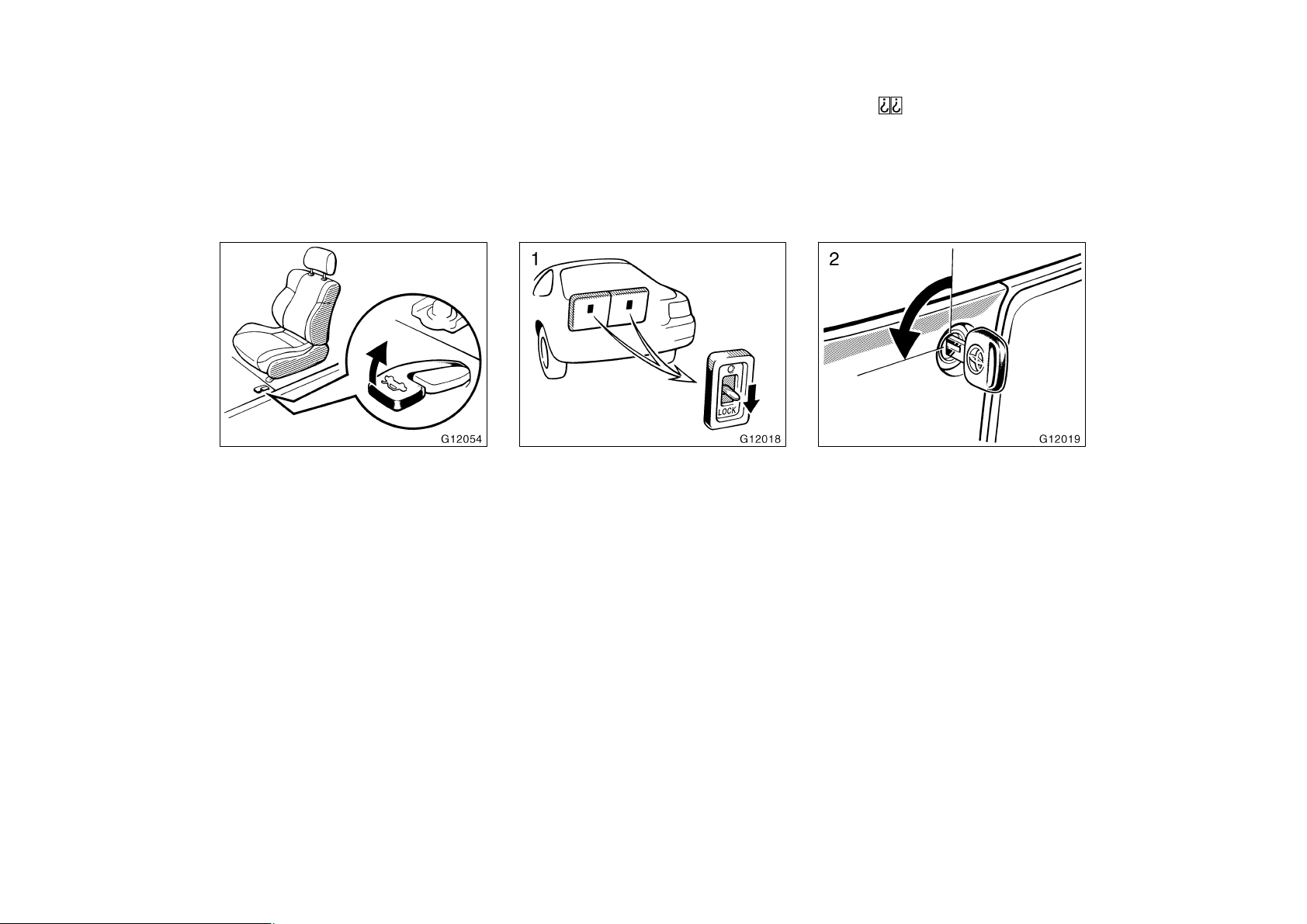

—Luggage security system

This system deactivates the lock re-

lease lever so that things locked in the

trunk or luggage compartment can be

protected.

1. (Except convertible) Push down the

security lock levers to lock the rear

seatbacks.

After locking the rear seatbacks, try fold-

ing them down to make sure they are

securely locked, otherwise someone could

get into the trunk or luggage compartment

by folding down a rear seat.

2. After closing the trunk lid or back

door, insert the master key and turn

it counterclockwise to deactivate the

lock release lever.

After closing the trunk lid or back door,

try pulling it up to make sure it is secure-

ly locked.

CELICA U

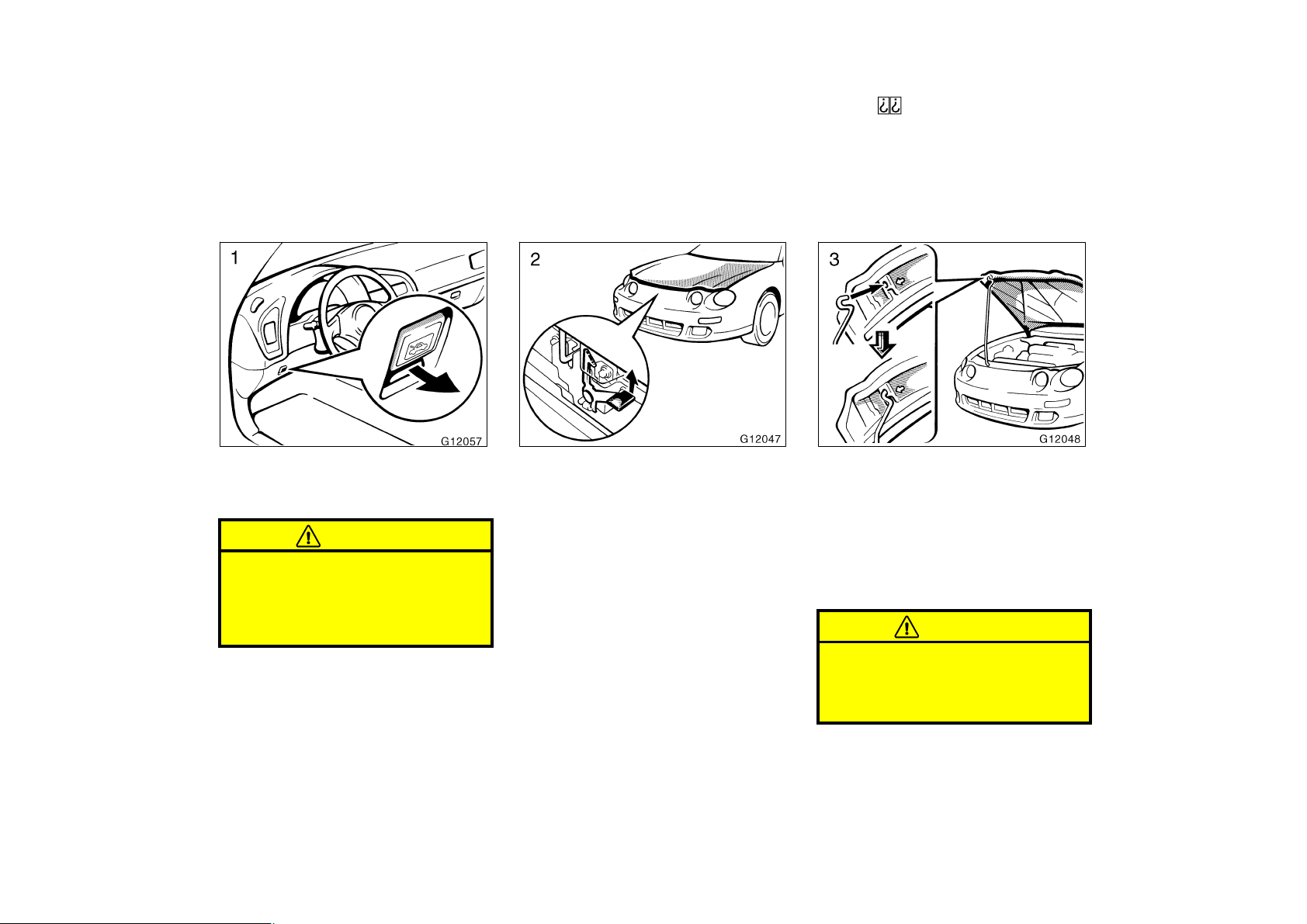

Hood

To open the hood, do the following.

1. Pull the hood lock release lever. The

hood will spring up slightly.

CAUTION

Before driving, be sure that the hood

is closed and securely locked. Other-

wise, the hood may open unexpected-

ly while driving and an accident may

occur.

2. In front of the vehicle, pull up on

the auxiliary catch lever and lift the

hood.

3. Hold the hood open by inserting the

support rod into the slot.

Before closing the hood, check to see that

you have not forgotten any tools, rags,

etc. and return the support rod to its

clip—this prevents rattles. Then lower the

hood and make sure it locks into place.

If necessary, press down gently on the

front edge to lock it.

CAUTION

After inserting the support rod into

the slot, make sure the rod supports

the hood securely from falling down

on to your head or body.

CELICA U

Fuel tank cap

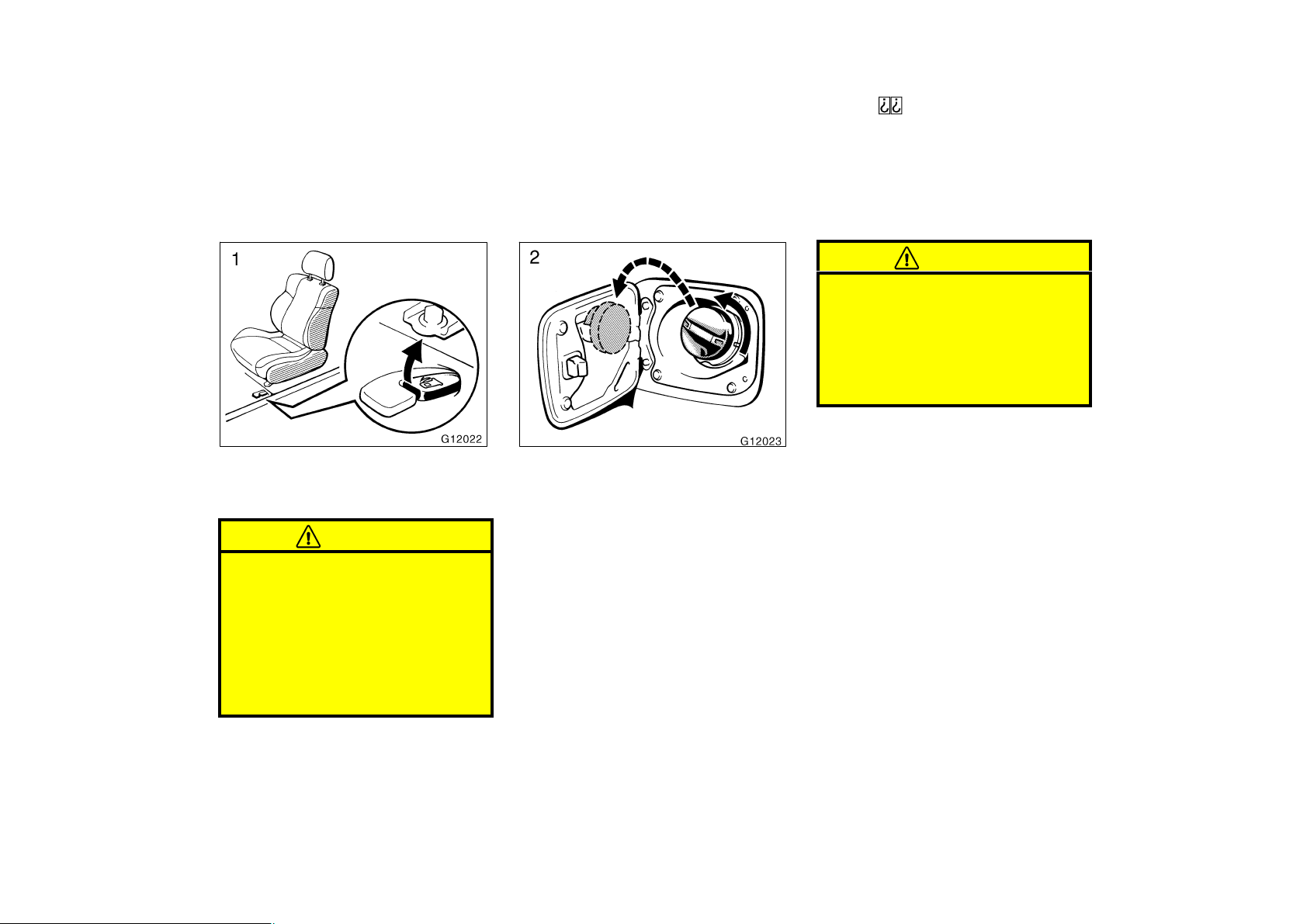

1. To open the fuel filler door, pull the

lever up.

When refueling, turn off the engine.

CAUTION

D Do not smoke, cause sparks or al-

low open flames when refueling.

The fumes are flammable.

D When opening the cap, do not re-

move the cap quickly. In hot weath-

er, fuel under pressure could cause

injury by spraying out of the filler

neck if the cap is suddenly re-

moved.

2. To remove the fuel tank cap, turn

the cap slowly counterclockwise,

then pause slightly before removing

it. After removing the cap, hang it

on the cap hanger.

It is not unusual to hear a slight swoosh

when the cap is opened. When installing,

turn the cap clockwise till you hear a

click.

If the cap is not tightened securely, the

malfunction indicator lamp comes on.

Make sure the cap is tightened securely.

The indicator lamp goes off after driving

several times. If the indicator lamp does

not go off, contact your Toyota dealer as

soon as possible.

CAUTION

D Make sure the cap is tightened se-

curely to prevent fuel spillage in

case of an accident.

D Use only a genuine Toyota fuel tank

cap for replacement. It has a built−

in check valve to reduce fuel tank

vacuum.

CELICA U

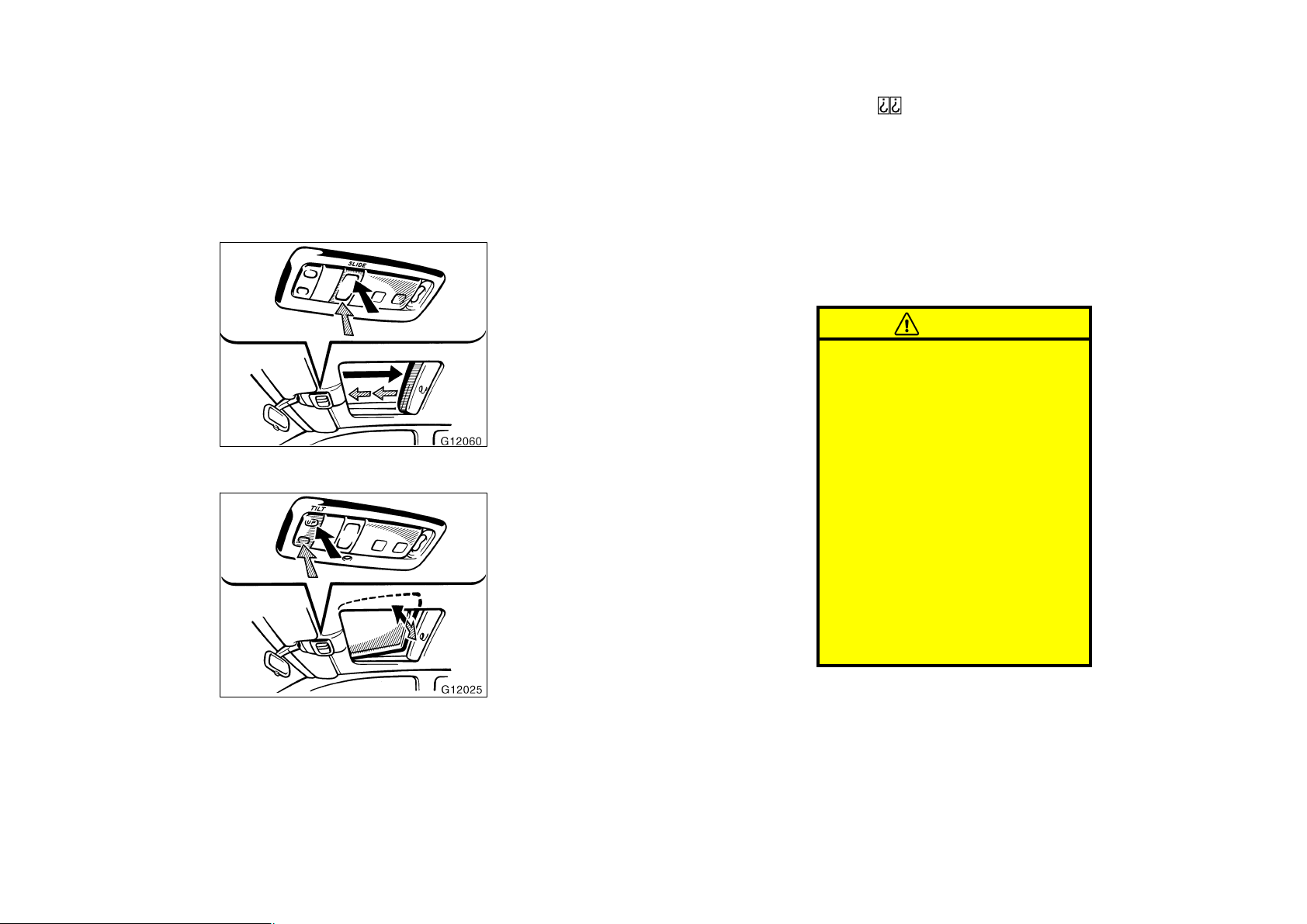

Electric moon roof

Sliding operation

Tilting operation

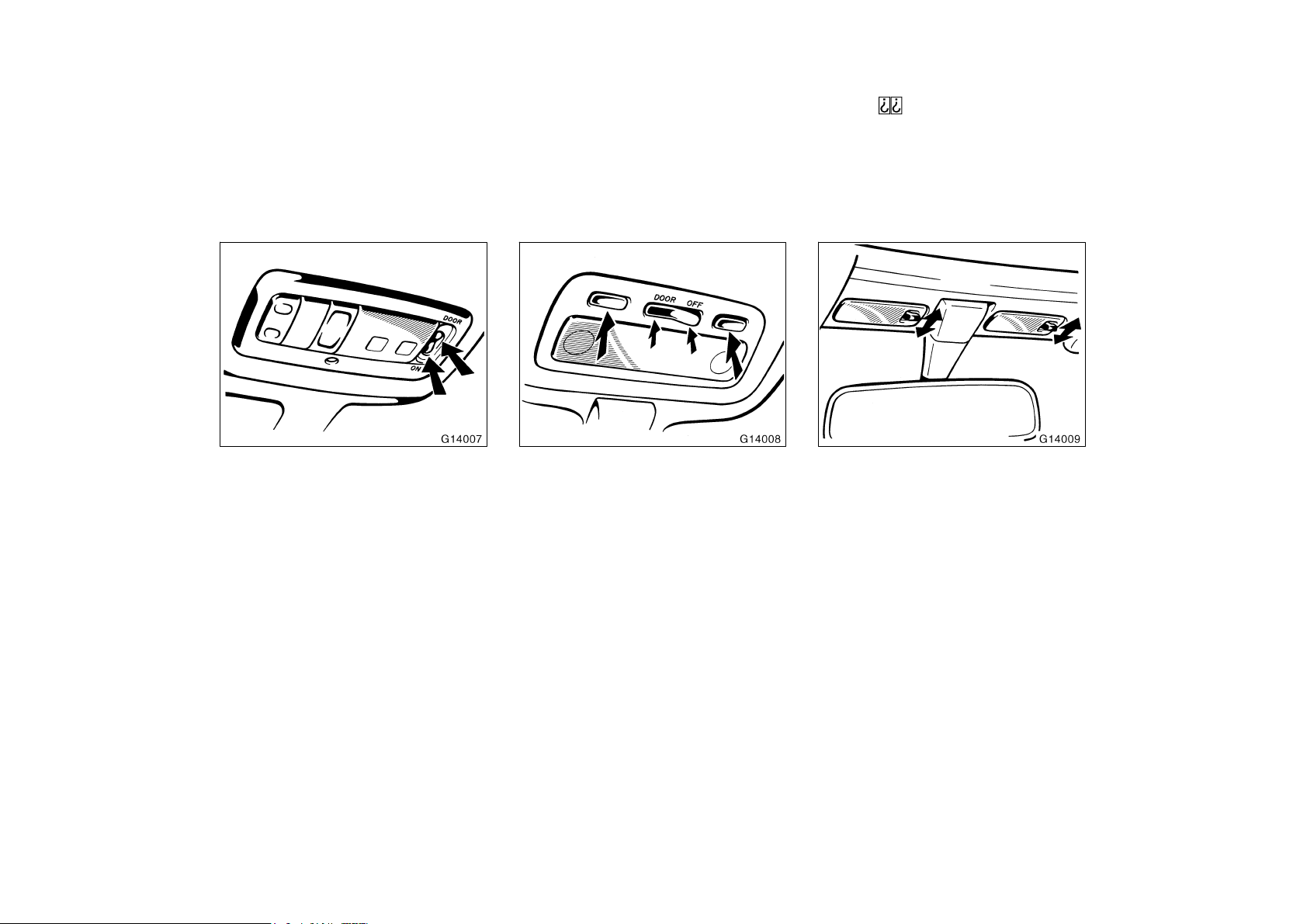

To operate the moon roof, use the

switches beside the interior light.

The moon roof works when the ignition

switch is in the ”ON” position. However,

if both side doors are closed, it works for

60 seconds even after the ignition switch

is turned off. It stops working when either

side door is opened.

Sun shade operation—

The sun shade can be opened or closed

by hand.

Sliding operation—

To open: Push the switch on the ”SLIDE”

side.

The sun shade will be opened together

with the roof.

To close: Push the switch on the opposite

side of the ”SLIDE” side.

As a precaution when closing, the roof

stops at the half closed position before

fully closing. Therefore, release the switch

and then push it again to close it com-

pletely.

Tilting operation—

To tilt up: Push the switch on the ”UP”

side.

To lower: Push the switch on the opposite

side of the ”UP” side.

You may stop the moon roof at any de-

sired position. The roof will move while

the switch is being pushed and stop when

released.

CAUTION

To avoid serious personal injury, you

must do the following.

D While the vehicle is moving, always

keep the head, hands and other

parts of the body of all occupants

away from the roof opening. Other-

wise, you could be seriously injured

if the vehicle stops suddenly or if

the vehicle is involved in an acci-

dent.

D Always make sure nobody places

his/her head, hands and other parts

of the body in the roof opening be-

fore you close the roof. If some-

one’s neck, head or hands gets

caught in the closing roof, it could

result in a serious injury. When

anyone closes the roof, first make

sure it is safe to do so.

CELICA U

D Never leave small children alone in

the vehicle, especially with the igni-

tion key still inserted. They could

use the moon roof switches and get

trapped in the roof opening. Unat-

tended children can become in-

volved in serious accidents.

D Never sit on top of the vehicle

around the roof opening.

CAUTION

D When raising or lowering the con-

vertible top, keep hands clear from

the hinges of the top side rails and

any part of the top linkage.

D The vehicle should never be driven

with the convertible top partially

lowered. Make sure the top has

been either fully latched to the

windshield frame or fully lowered

before driving.

NOTICE

z Make sure there are no items or

packages between the rear seatback

and the convertible top storage area

when raising or lowering the con-

vertible top. Even small items may

interfere with convertible top opera-

tion and can cause damage.

z Do not sit or place excessive

weight on the convertible top; when

the top is up or down, damage to

the top may result.

z Do not raise or lower the convert-

ible top when the temperature is

below 5°C (41°F), or damage to the

top material or rear window may

result. If necessary to do so, warm

the vehicle in a heated garage prior

to operating the convertible top

mechanism.

z Do not lower the convertible top if

the top is damp or wet. Possible

interior water damage, water stains

or mildew of the top material may

result.

z When the convertible top is com-

pletely lowered, keep the rear win-

dow defogger turned off to avoid

damage to the convertible top.

Convertible top—

—Convertible top precautions

CELICA U

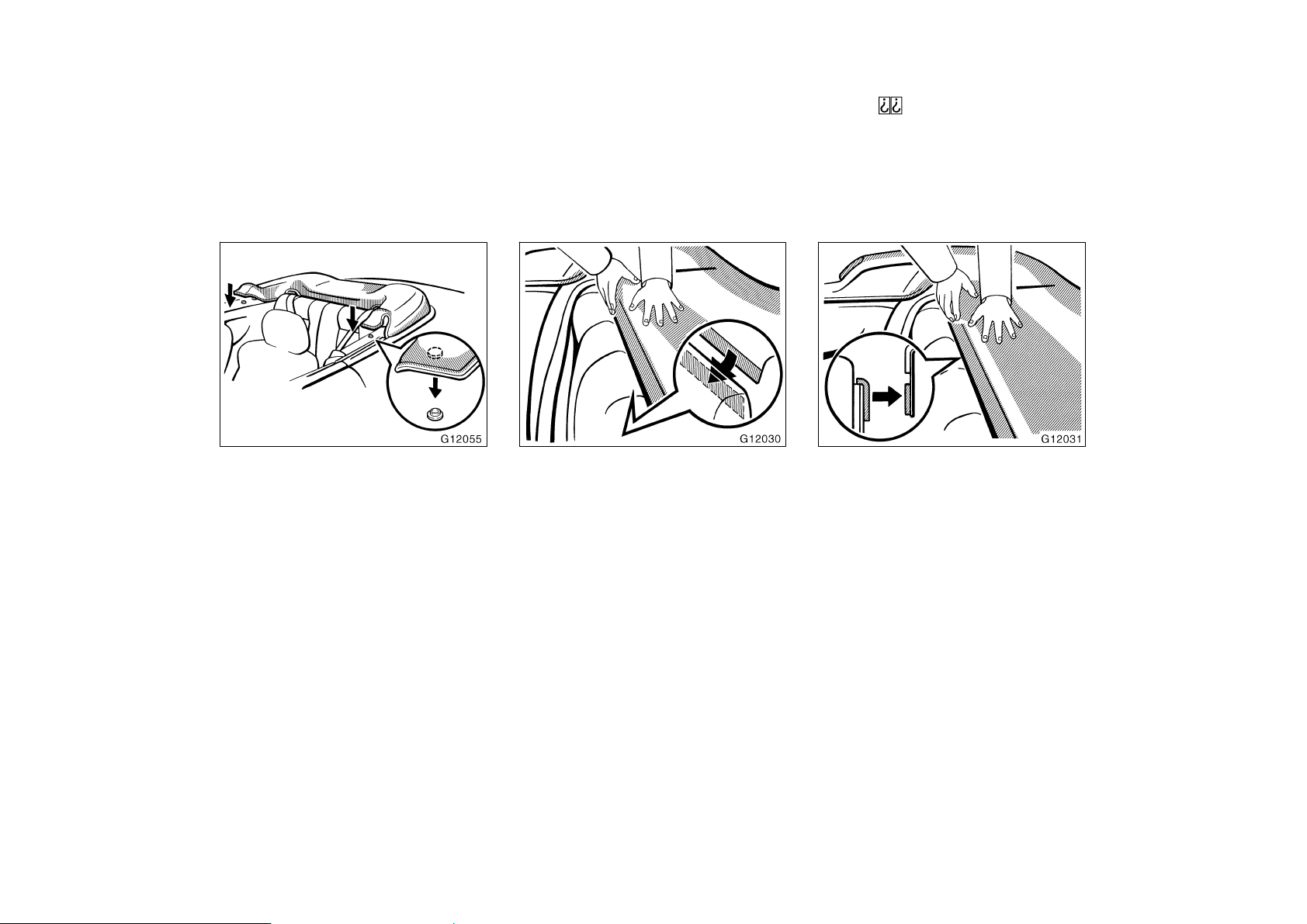

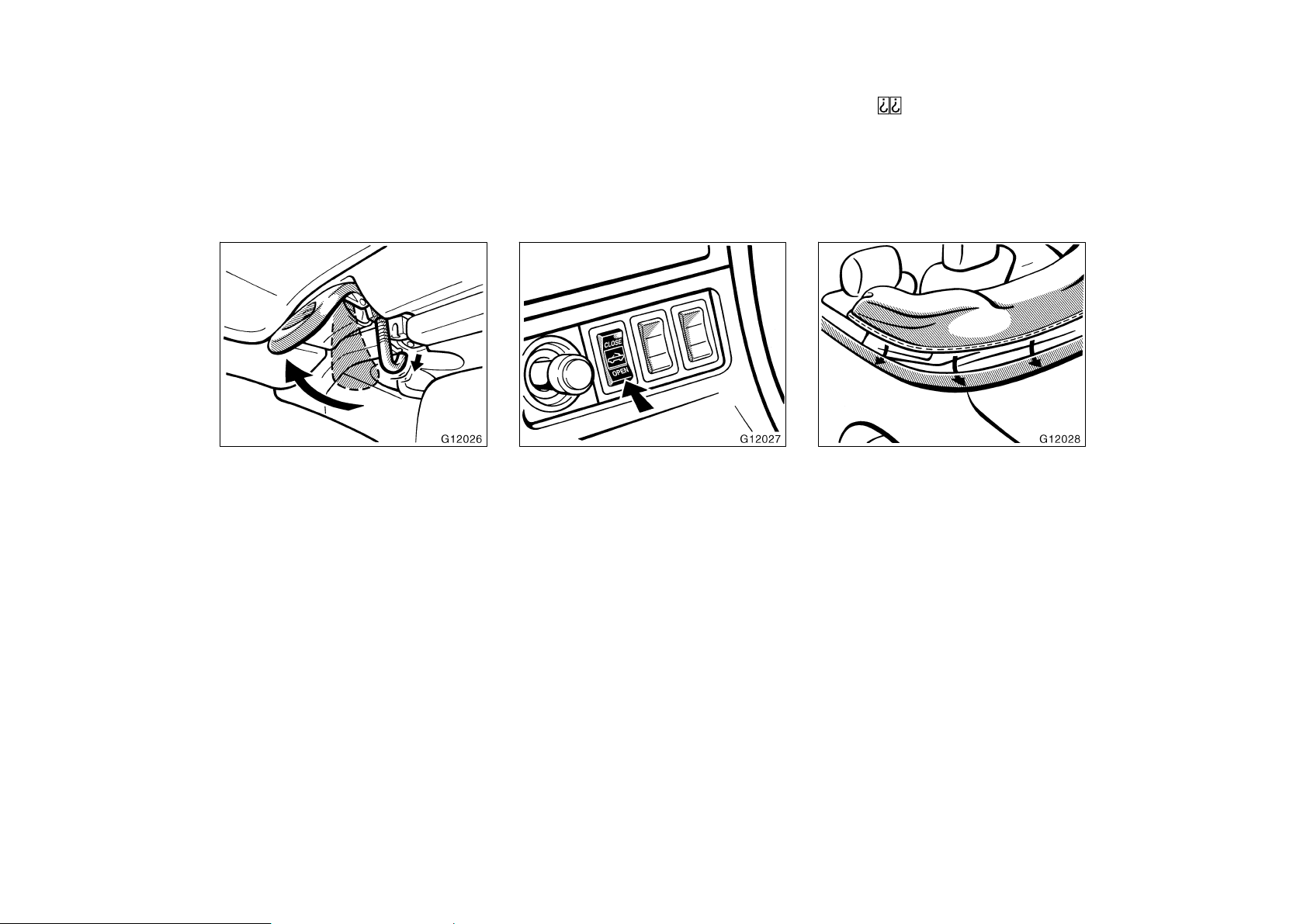

—Lowering the convertible top

LOWERING THE CONVERTIBLE TOP

The ignition switch must be in the ”ON”

position to operate the convertible top.

1. Lower all the side windows, quarter

windows, and sun visors. Then pull

the latch handles fully backward.

Before operating, make sure the manual

control switch is not in the ”MANUAL”

position. (See ”If the convertible top does

not raise or lower” in Part 4.)

2. Push and hold the convertible top

control switch on the ”OPEN” side

until the convertible top is complete-

ly lowered. Raise the sun visors.

INSTALLING THE TOP BOOT

The top boot is used to cover and conceal

the completely lowered convertible top. It

is in the trunk, and is stored in a plastic

bag.

3. Place the top boot over the lowered

convertible top. Then tuck its outer

edge under the body moldings.

CELICA U

4. Secure the top boot snaps to the

ones on the quarter trim.

5. Attach the fastener tape on the top

boot to that on the rear seatback.

—Raising the convertible top

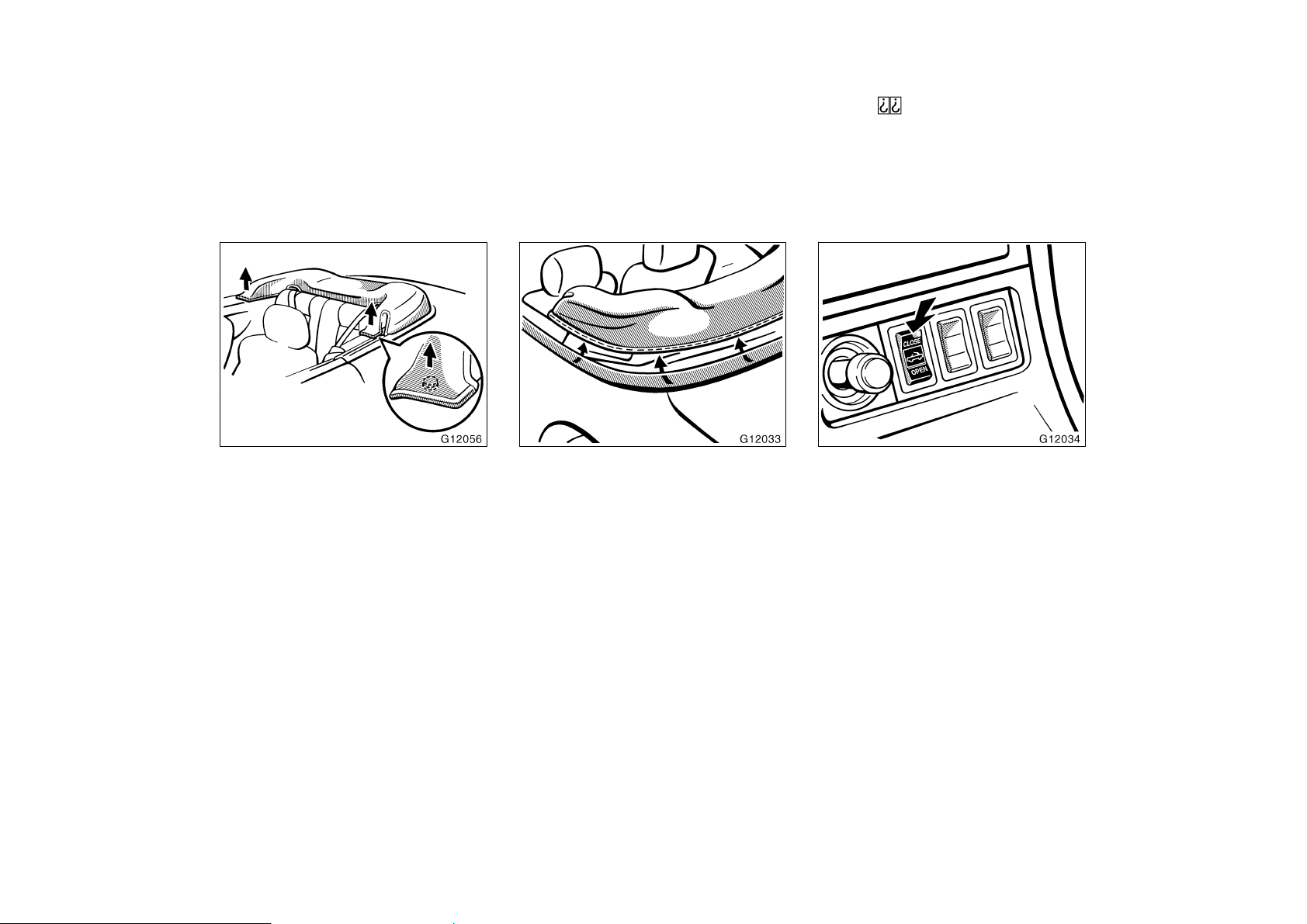

REMOVING THE TOP BOOT

1. Push the top boot backward to sepa-

rate its fastener tape from the tape

behind the rear seatback.

CELICA U

2. Release the top boot snaps from the

quarter trim.

3. Pull out the outer edge of the top

boot from under the body moldings.

Put the removed top boot in the plastic

bag and store it in the trunk.

RAISING THE CONVERTIBLE TOP

The ignition switch must be in the ”ON”

position to operate the convertible top.

4. Lower the sun visors. Check that all

the side windows and quarter win-

dows are lowered. Then push and

hold the convertible top control

switch on the ”CLOSE” side until

the top touches the windshield

frame.

CELICA U

5. Push the latch handles fully forward

till they are hooked.

Visually check that the latch handles are

fully seated in the strikers. Also, pull on

the convertible top side rails to make sure

the top is securely hooked.

6. Raise all the side windows, quarter

windows, and sun visors.

CELICA U

Part 1

OPERATION OF

INSTRUMENTS AND

CONTROLS—

Chapter 1−3

Seats, Seat belts,

Steering wheel and

Mirrors

Seats

D Front seats

D Fold−down rear seat

D Head restraints

D Seat belts

D SRS driver and front passenger

airbags

D Child restraint

D Tilt steering wheel

D Outside rear view mirrors

D Anti−glare inside rear view

mirror

Seats

While the vehicle is being driven, all ve-

hicle occupants should have the seatback

upright, sit well back in the seat and prop-

erly wear the seat belts provided.

CAUTION

D Do not drive the vehicle unless the

occupants are properly seated. Do

not allow sitting on top of a

folded−down seatback, or in the

luggage compartment. Persons not

properly seated and not property re-

strained by seat belts can be se-

verely injured in the event of emer-

gency braking or a collision.

D During driving, do not allow pas-

sengers to stand up or move

around between seats. Severe inju-

ries can occur in the event of emer-

gency braking or a collision.

Adjust the driver’s seat so that the foot

pedals, steering wheel and instrument

panel controls are within easy reach of

the driver.

CAUTION

D Adjustments should not be made

while the vehicle is moving, as the

seat may unexpectedly move and

cause the driver to lose control of

the vehicle.

D When adjusting the seat, be careful

not to hit the seat against a pas-

senger or luggage.

D After adjusting the seat position,

try sliding it forward and backward

to make sure it is locked in posi-

tion.

D After adjusting the seatback, exert

body pressure to make sure it is

locked in position.

D Do not put objects under the seats.

The objects may interfere with the

seat−lock mechanism or unexpect-

edly push up the seat position ad-

justing lever; the seat may suddenly

move, causing the driver to lose

control of the vehicle.

Front seats—

—Seat adjustment

precautions

CELICA U

D While adjusting the seat, do not put

your hands under the seat or near

the moving parts. You may jam

your hands or fingers.

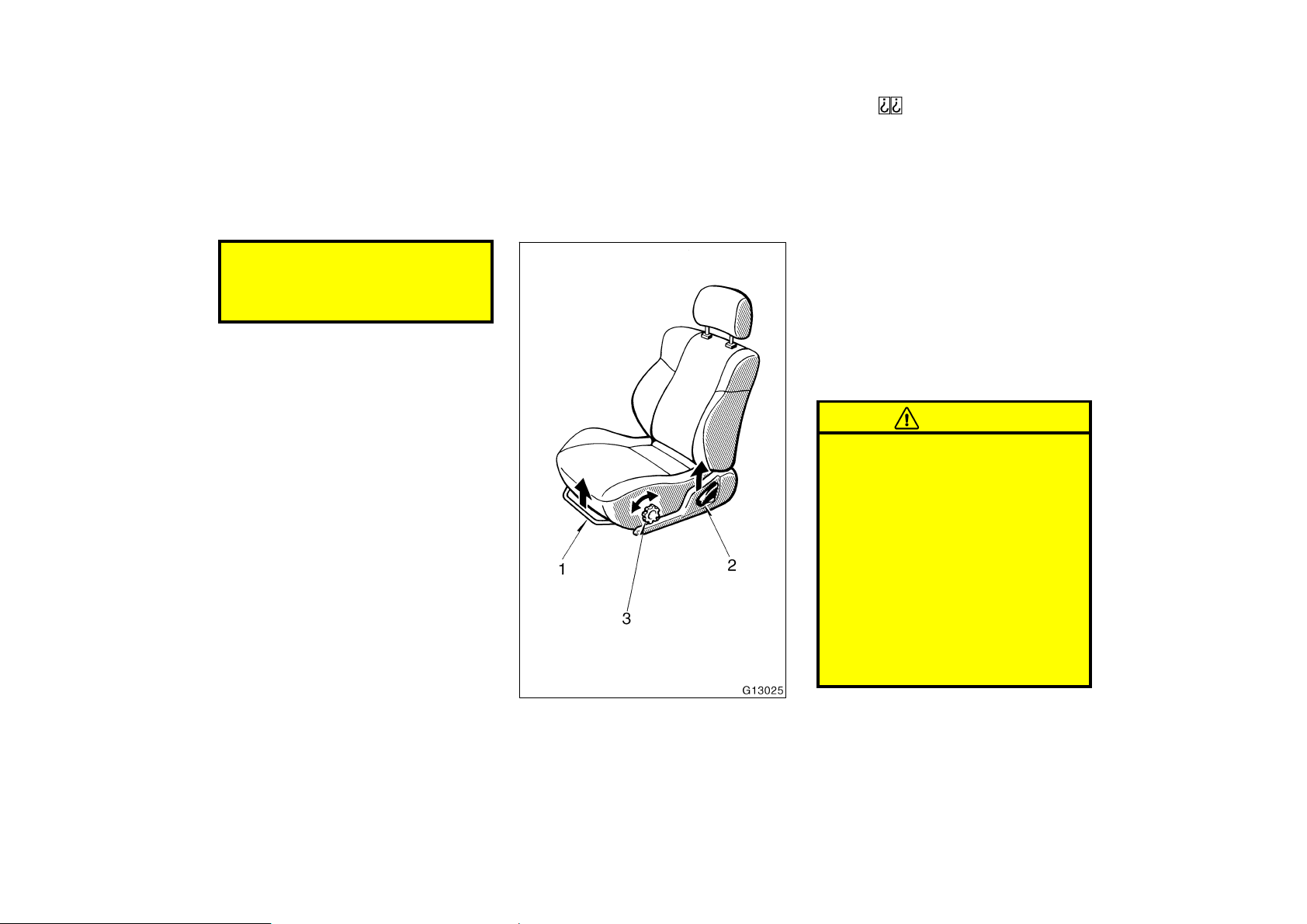

—Adjusting front seats

1. SEAT POSITION ADJUSTING LEVER

Pull the lever up. Then slide the seat

to the desired position with slight body

pressure and release the lever.

2. SEATBACK ANGLE ADJUSTING

LEVER

Lean forward and pull the lever up.

Then lean back to the desired angle

and release the lever.

CAUTION

To reduce the risk of sliding under

the lap belt during a collision, avoid

reclining the seatback any more than

needed. The seat belts provide maxi-

mum protection in a frontal or rear

collision when the driver and the pas-

senger are sitting up straight and

well back in the seats. If you are

reclined, the lap belt may slide past

your hips and apply restraint forces

directly to the abdomen. Therefore, in

the event of a frontal collision, the

risk of personal injury may increase

with increasing recline of the seat-

back.

CELICA U

3. DRIVER’S SEAT CUSHION ANGLE

ADJUSTING KNOB

Turn the knob either way.

For easy access to the rear seat, do

this.

1. Lift the seatback angle adjusting lever

or press the pedal behind the seat-

back.

The seat will slide forward.

2. Move the seat to the front−most posi-

tion.

After passengers are in, lift up the seat-

back and return the seat until it locks.

CAUTION

D After putting back the seat, try

pushing the seat forward and rear-

ward to make sure it is secured in

place.

D Never allow anyone to rest their

foot on the release pedal while the

vehicle is moving.

—Moving passenger’s seat for

rear seat entry

CELICA U

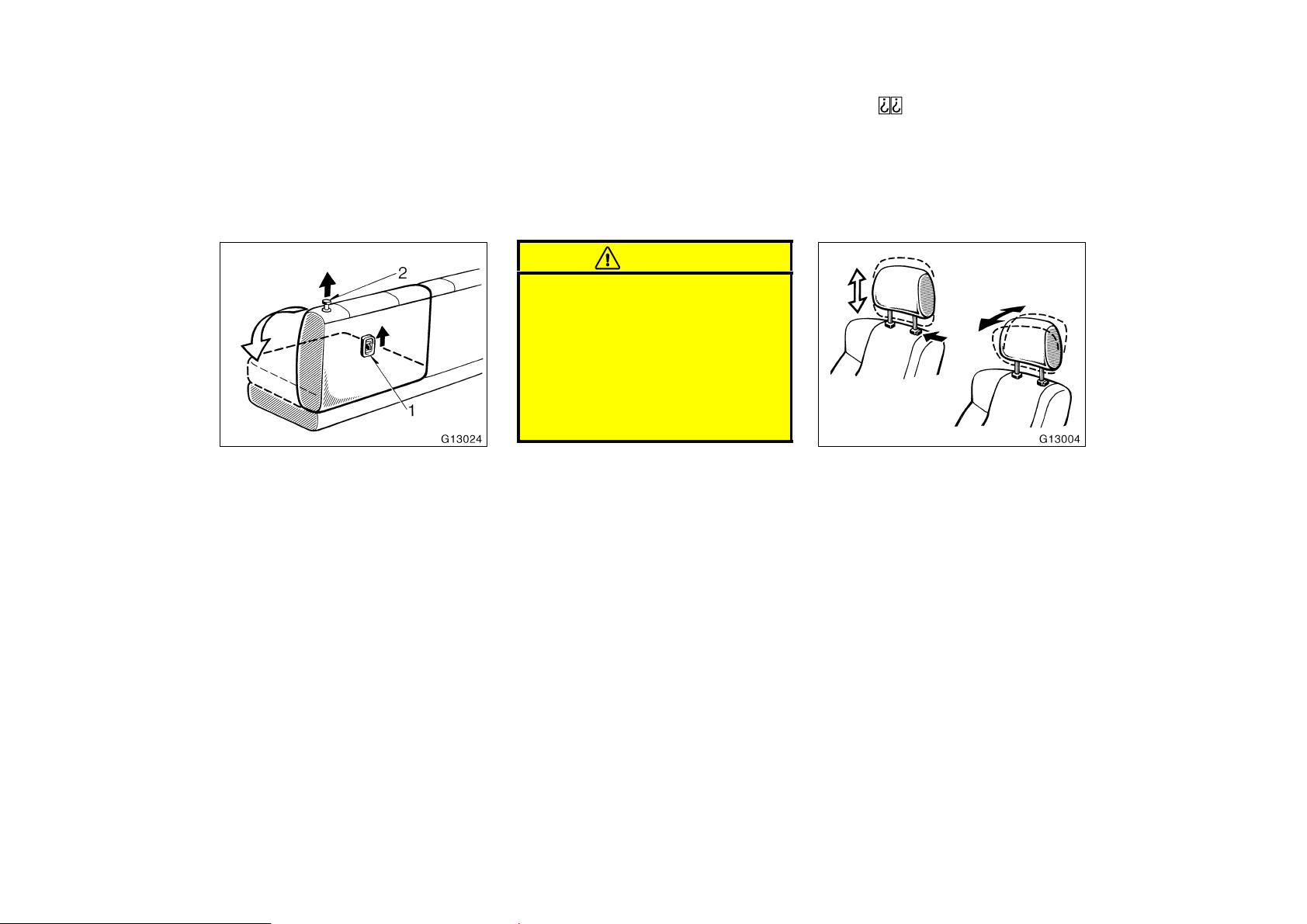

Fold−down rear seat

1. Pull up the seatback security lock

lever 1 to the unlock position.

2. Pull up the lock release button 2.

3. Fold down the seatback.

Each seatback may be folded separately.

This will enlarge the trunk (coupe) or lug-

gage compartment (liftback) as far as the

front seatbacks. See ”Luggage stowage

precautions” in Part 2 for precautions to

observe for loading luggage.

CAUTION

When returning the seatback to the

upright position:

D Make sure the seat belts are not

twisted or caught in the seatback

and are arranged in their proper

position for ready use.

D Make sure the seatback is securely

locked by pushing forward and rear-

ward on the top of the seatback.

Head restraints

For your safety, adjust the head re-

straint before driving.

To raise: Pull it up.

To lower: Push it down while pressing the

lock release button.

On some models, you can also move the

head restraint forward or backward. If

such adjustment is desired, pull or push

the head restraint.

The head restraint is most effective when

it is close to your head. Therefore, using

a cushion on the seatback is not recom-

mended.

CELICA U

CAUTION

D Adjust the center of the head re-

straint so that it is closest to the

top of your ears.

D After adjusting the head restraint,

make sure it is locked in position.

D Do not drive with the head re-

straints removed.

Toyota strongly urges that the driver and

passengers in the vehicle be properly re-

strained at all times with the seat belts

provided. Failure to do so could increase

the chance of injury and/or the severity of

injury in accidents.

Child. Use a child restraint system ap-

propriate for the child until the child be-

comes large enough to properly wear the

vehicle’s seat belts. See ”Child restraint”

for details.

If a child is too large for a child restraint

system, the child should sit in the rear

seat and must be restrained using the

vehicle’s seat belt. According to accident

statistics, the child is safer when properly

restrained in the rear seat than in the

front seat.

If a child must sit in the front seat, the

seat belts should be worn properly. If an

accident occurs and the seat belts are not

worn properly, the force of the rapid infla-

tion of the airbag may cause death or

serious injury to the child.

Do not allow the child to stand up or

kneel on either rear or front seats. An

unrestrained child could suffer serious in-

jury or death during emergency braking or

a collision. Also, do not let the child sit

on your lap. It does not provide sufficient

restraint.

Pregnant woman. Toyota recommends the

use of a seat belt. Ask your doctor for

specific recommendations. The lap belt

should be worn securely and as low as

possible over the hips and not on the

waist.

Injured person. Toyota recommends the

use of a seat belt. Depending on the inju-

ry, first check with your doctor for specific

recommendations.

CAUTION

Persons should ride in their seats

properly wearing their seat belts

whenever the vehicle is moving.

Otherwise, they are much more likely

to suffer serious bodily injury or

death in the event of sudden braking

or a collision.

When using the seat belts, observe

the following:

D Use the belt for only one person at

a time. Do not use a single belt for

two or more people—even children.

Seat belts—

—Seat belt precautions

CELICA U

D Avoid reclining the seatbacks too

much. The seat belts provide maxi-

mum protection when the seatbacks

are in the upright position. (Refer

to the seat adjustment instructions.)

D Be careful not to damage the belt

webbing or hardware. Take care that

they do not get caught or pinched

in the seat or side doors.

D Inspect the belt system periodically.

Check for cuts, fraying, and loose

parts. Damaged parts should be re-

placed. Do not disassemble or

modify the system.

D Keep the belts clean and dry. If

they need cleaning, use a mild soap

solution or lukewarm water. Never

use bleach, dye, or abrasive clean-

ers—they may severely weaken the

belts. (See “Cleaning the interior”

in Part 5.)

D Replace the belt assembly (includ-

ing bolts) if it has been used in a

severe impact. The entire assembly

should be replaced even if damage

is not obvious.

D Front passenger’s seat only—Re-

place the belt if the warning label

under the sleeve can be seen. The

warning label, ”REPLACE BELT”,

will appear if the belt receives a

severe impact or other force.

—Seat belts

Adjust the seat as needed (front seats

only) and sit up straight and well back

in the seat. To fasten your belt, pull it

out of the retractor and insert the tab

into the buckle.

You will hear a click when the tab locks

into the buckle.

The seat belt length automatically adjusts

to your size and the seat position.

The retractor will lock the belt during a

sudden stop or on impact. It also may

lock if you lean forward too quickly. A

slow, easy motion will allow the belt to

extend, and you can move around freely.

CELICA U

If the seat belt cannot be pulled out of the

retractor, firmly pull the belt and release

it. You will then be able to smoothly pull

the belt out of the retractor.

When a passenger’s shoulder belt is com-

pletely extended and is then retracted

even slightly, the belt is locked in that

position and cannot be extended. This fea-

ture is used to hold the child restraint

system securely. (For details, see ”Child

restraint” in this chapter.) To free the belt

again, fully retract the belt and then pull

the belt out once more.

CAUTION

D After inserting the tab, make sure

the tab and buckle are locked and

that the belt is not twisted.

D Do not insert coins, clips, etc. in

the buckle as this may prevent you

from properly latching the tab and

buckle.

D If the seat belt does not function

normally, immediately contact your

Toyota dealer. Do not use the seat

until the seat belt is fixed. It cannot

protect an adult occupant or your

child from injury.

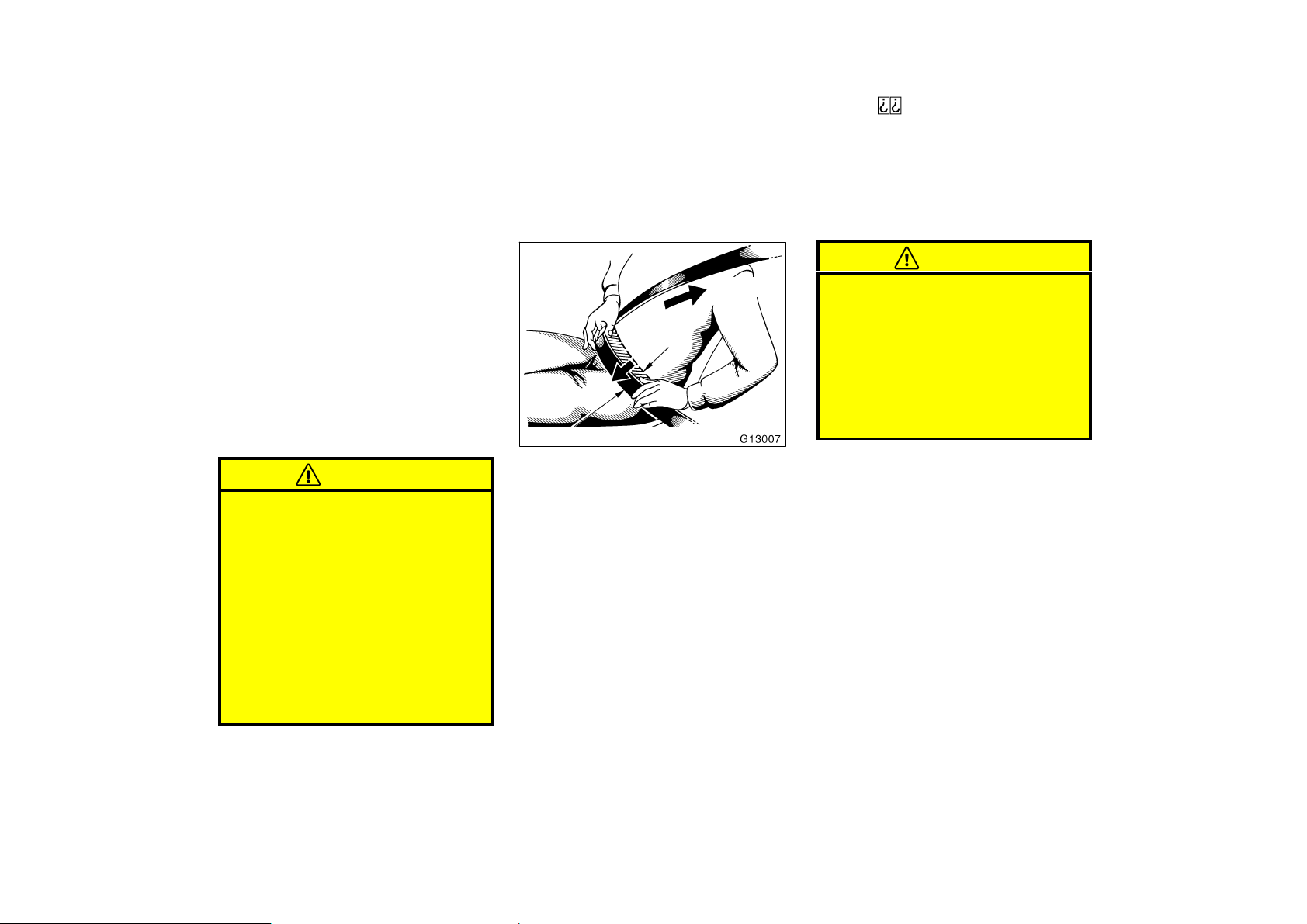

Too high

Take up slack

Keep as low on hips as possible

Adjust the position of the lap and

shoulder belts.

Position the lap belt as low as possible

on your hips—not on your waist, then ad-

just it to a snug fit by pulling the shoulder

portion upward through the latch plate.

CAUTION

D High−positioned lap belts and

loose−fitting belts both could cause

serious injuries due to sliding un-

der the lap belt during a collision

or other unintended result. Keep

the lap belt positioned as low on

hips as possible.

D For your safety, do not place the

shoulder belt under your arm.

CELICA U

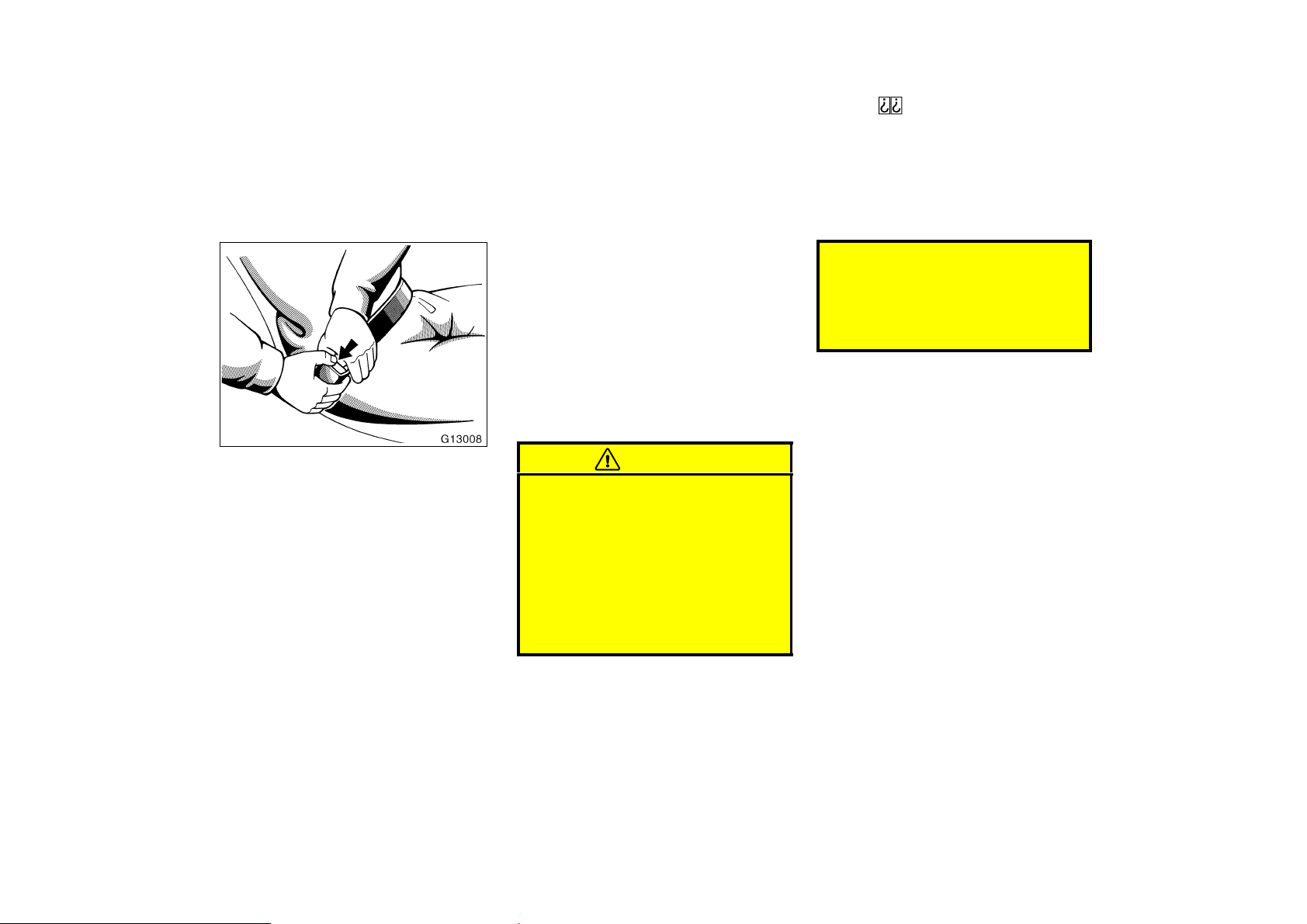

To release the belt, press the buckle−re-

lease button and allow the belt to re-

tract.

If the belt does not retract smoothly, pull

it out and check for kinks or twists. Then

make sure it remains untwisted as it re-

tracts.

—Seat belt extender

If your seat belt cannot be fastened se-

curely because it is not long enough, a

personalized seat belt extender is avail-

able from your Toyota dealer free of

charge.

Please contact your local Toyota dealer so

that the dealer can order the proper re-

quired length for the extender. Bring the

heaviest coat you expect to wear for prop-

er measurement and selection of length.

Additional ordering information is available

at your Toyota dealer.

CAUTION

When using the seat belt extender,

observe the following. Failure to fol-

low these instructions could result in

less effectiveness of the seat belt re-

straint system in case of vehicle acci-

dent, increasing the chance of per-

sonal injury.

D Never use the seat belt extender if

you can fasten the seat belt without

it.

D Remember that the extender pro-

vided for you may not be safe when

used on a different vehicle, or for

another person or at a different

seating position than the one origi-

nally intended for.

CELICA U

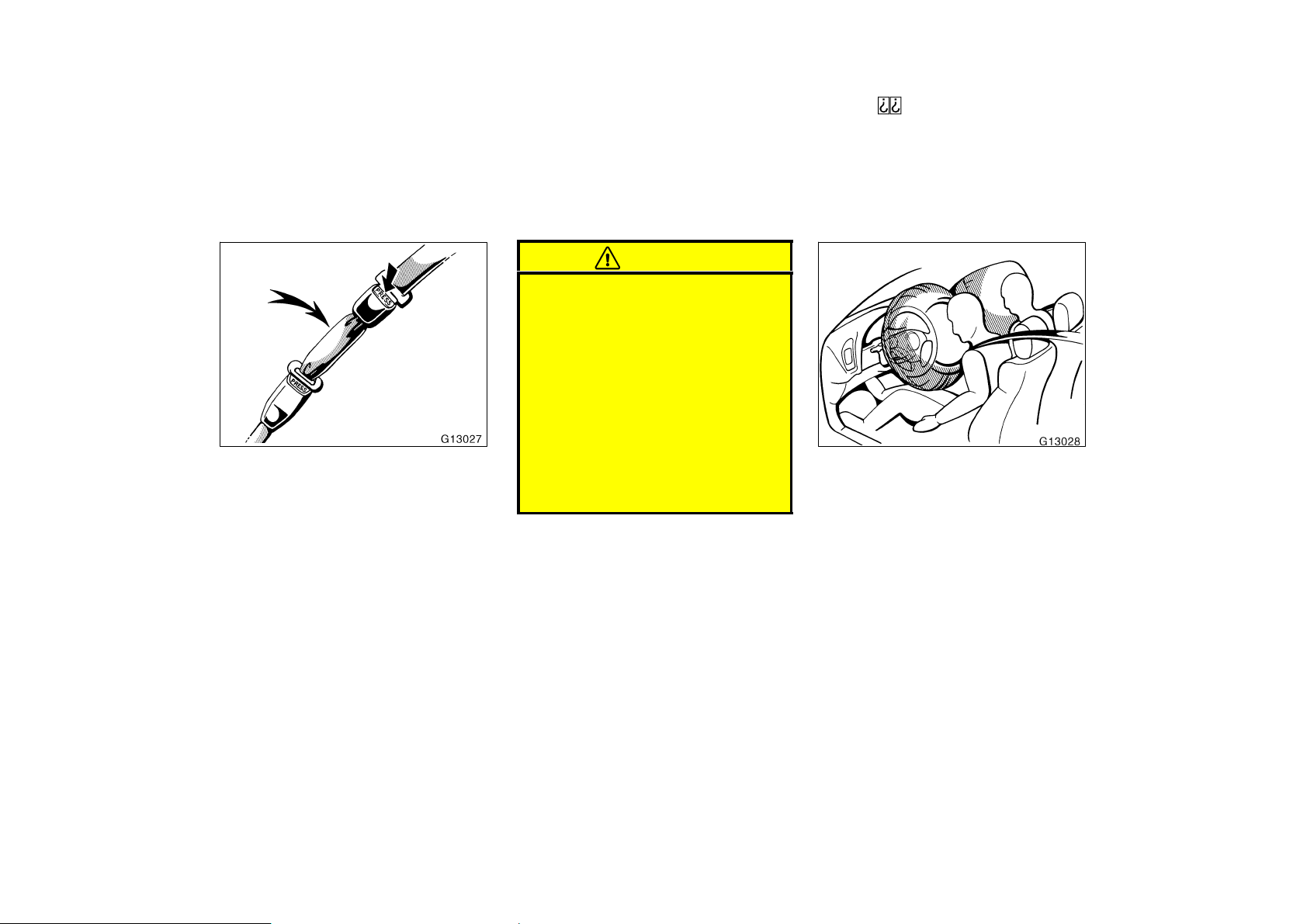

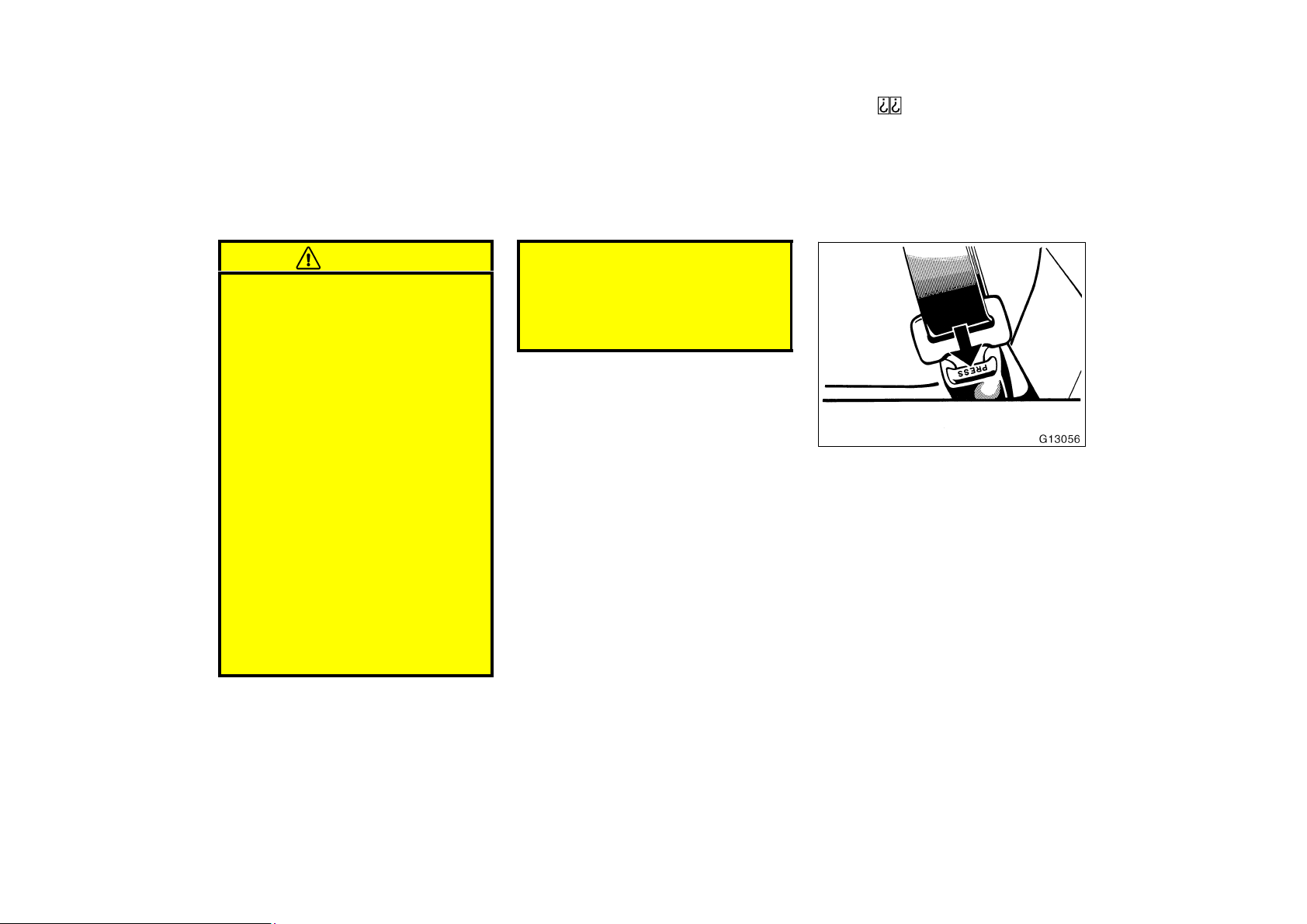

To connect the extender to the seat

belt, insert the tab into the seat belt

buckle so that the ”PRESS” signs on

the buckle−release buttons of the ex-

tender and the seat belt are both facing

outward as shown.

You will hear a click when the tab locks

into the buckle.

When releasing the seat belt, press on

the buckle−release button on the extender,

not on the seat belt. This helps prevent

damage to the vehicle interior and extend-

er itself.

When not in use, remove the extender

and store in the vehicle for future use.

CAUTION

D After inserting the tab, make sure

the tab and buckle are locked and

that the seat belt extender is not

twisted.

D Do not insert coins, clips, etc. in

the buckle as this may prevent you

from properly latching the tab and

buckle.

D If the seat belt does not function

normally, immediately contact your

Toyota dealer. Do not use the seat

until the seat belt is fixed. It cannot

protect an adult occupant or your

child from injury.

The SRS (Supplemental Restraint Sys-

tem) airbags are designed to provide

further protection for the driver and

front passenger when added to the pri-

mary protection provided by the seat

belts.

In response to a severe frontal impact,

the SRS airbags work together with the

seat belts to help prevent or reduce injury

by inflating, in order to decrease the likeli-

hood of the driver’s or front passenger’s

head or chest directly hitting the steering

wheel or dashboard. The passenger airbag

is activated together with the driver air-

bag, even with no passenger in the front

seat.

Be sure to wear your seat belt.

SRS driver and front

passenger airbags

CELICA U

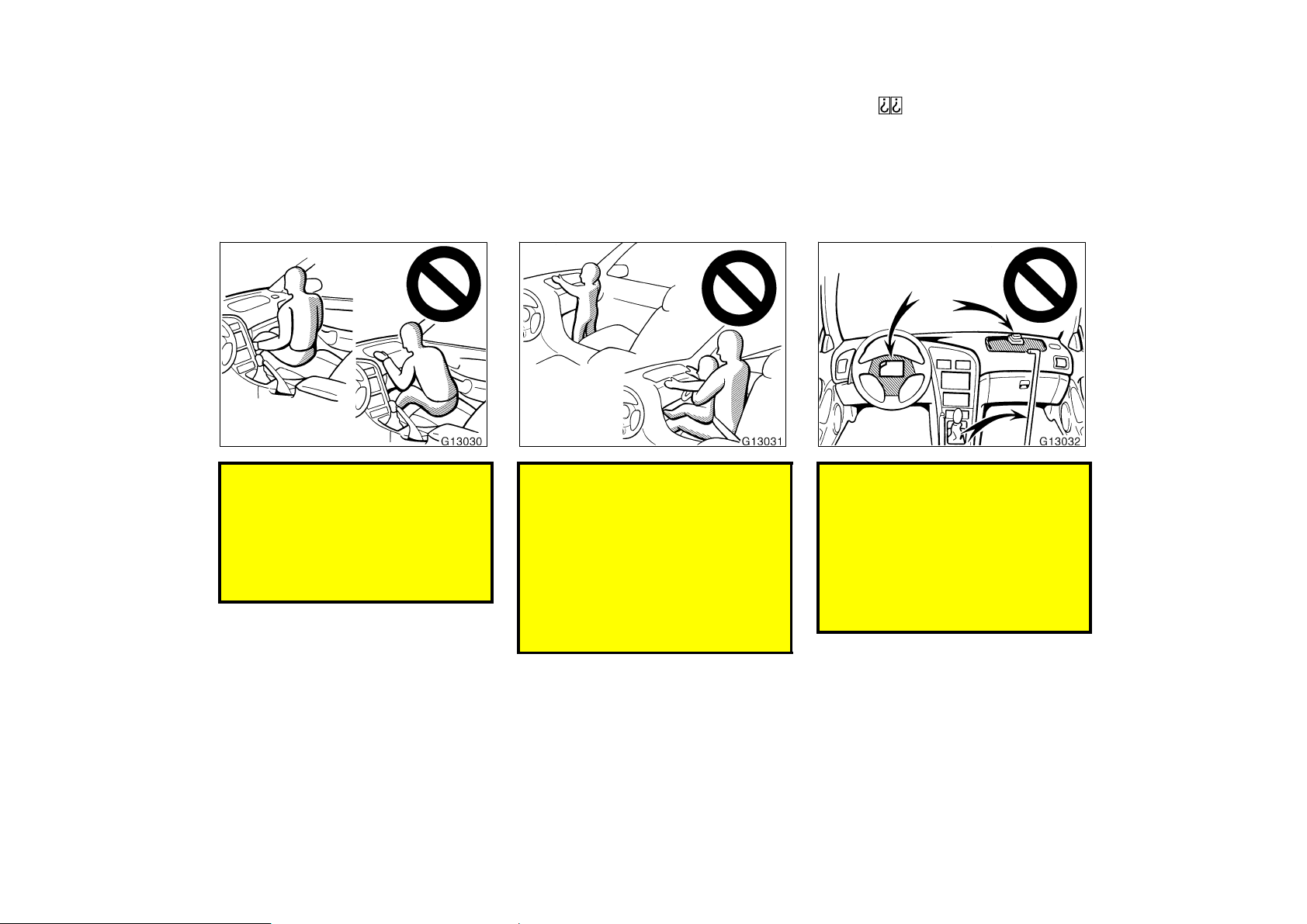

CAUTION

A driver or front passenger too close

to the steering wheel or dashboard

during airbag deployment can be

killed or seriously injured. Toyota

strongly recommends that:

D The driver sit as far back as pos-

sible from the steering wheel while

still maintaining control of the ve-

hicle.

D The front passenger sit as far back

as possible from the dashboard.

D All vehicle occupants be properly

restrained using the available seat

belts.

This indicator comes on when the igni-

tion key is turned to the ”ACC” or

”ON” position. It goes off after about

6 seconds. This means the SRS airbags

are operating properly.

The SRS airbag warning light system

monitors the airbag sensor assembly, in-

flators, warning light, interconnecting wir-

ing and power sources. (For details, see

”Service remainder indicators and warning

buzzers” in chapter 1−5.)

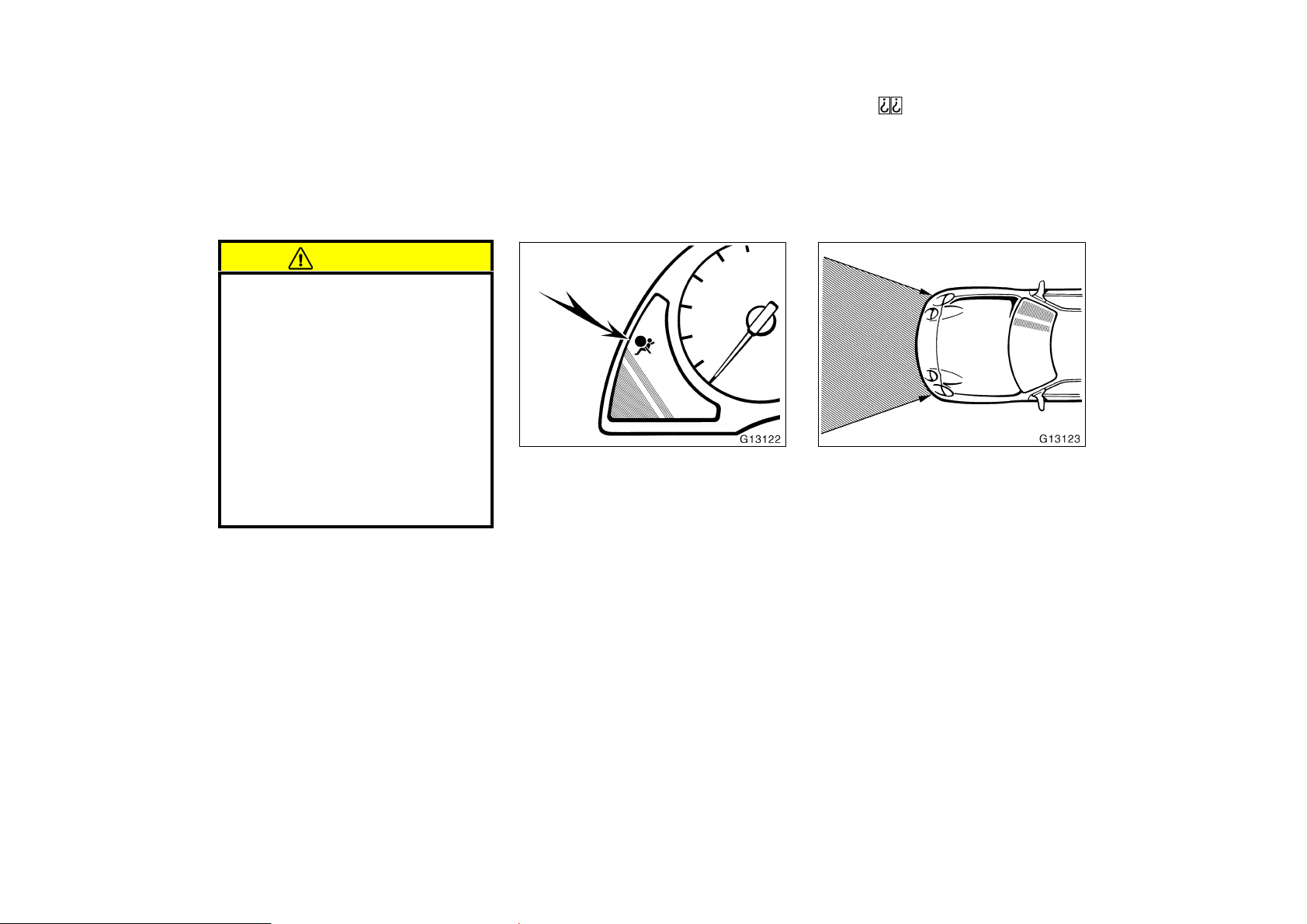

The SRS airbag system is designed to

activate in response to a severe frontal

impact within the shaded area between

the arrows in the illustration.

There may be the case that the SRS air-

bags will not activate with such an impact

in which the occupant wearing the seat

belt correctly would not get serious injury.

The SRS airbags will deploy if the severi-

ty of the impact is above the designed

threshold level, comparable to an approxi-

mate 20 km/h (14 mph) collision when

impacting straight into a fixed barrier that

does not move or deform.

If the severity of the impact is below the

above threshold level, the SRS airbags

may not deploy.

CELICA U

However, this threshold velocity will be

considerably higher if the vehicle strikes

an object, such as a parked vehicle or

sign pole, which can move or deform on

impact, or if it is involved in an underride

collision (e.g. a collision in which the nose

of the vehicle ”underrides”, or goes under,

the bed of a truck).

It is possible with collision severity at the

marginal level of airbag sensor detection

and activation that only one of your ve-

hicle’s two airbags will deploy.

For the safety of all occupants, be sure

to always wear seat belts.

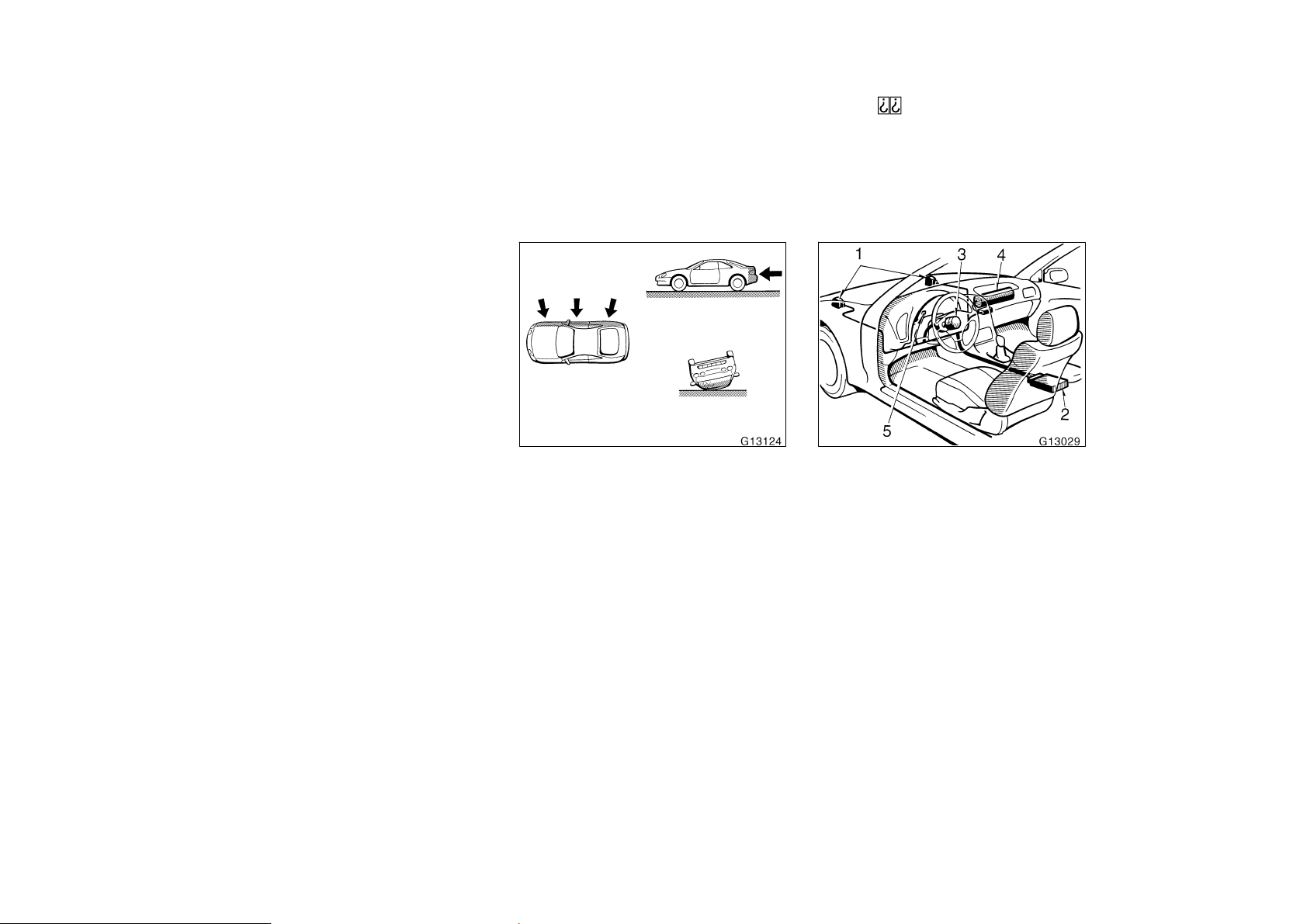

Collision from the rear

Vehicle roll−over

Collision from the side

The SRS airbags are not designed to

inflate if the vehicle is subjected to a

side or rear impact, if it rolls over, or

if it is involved in a low−speed frontal

collision.

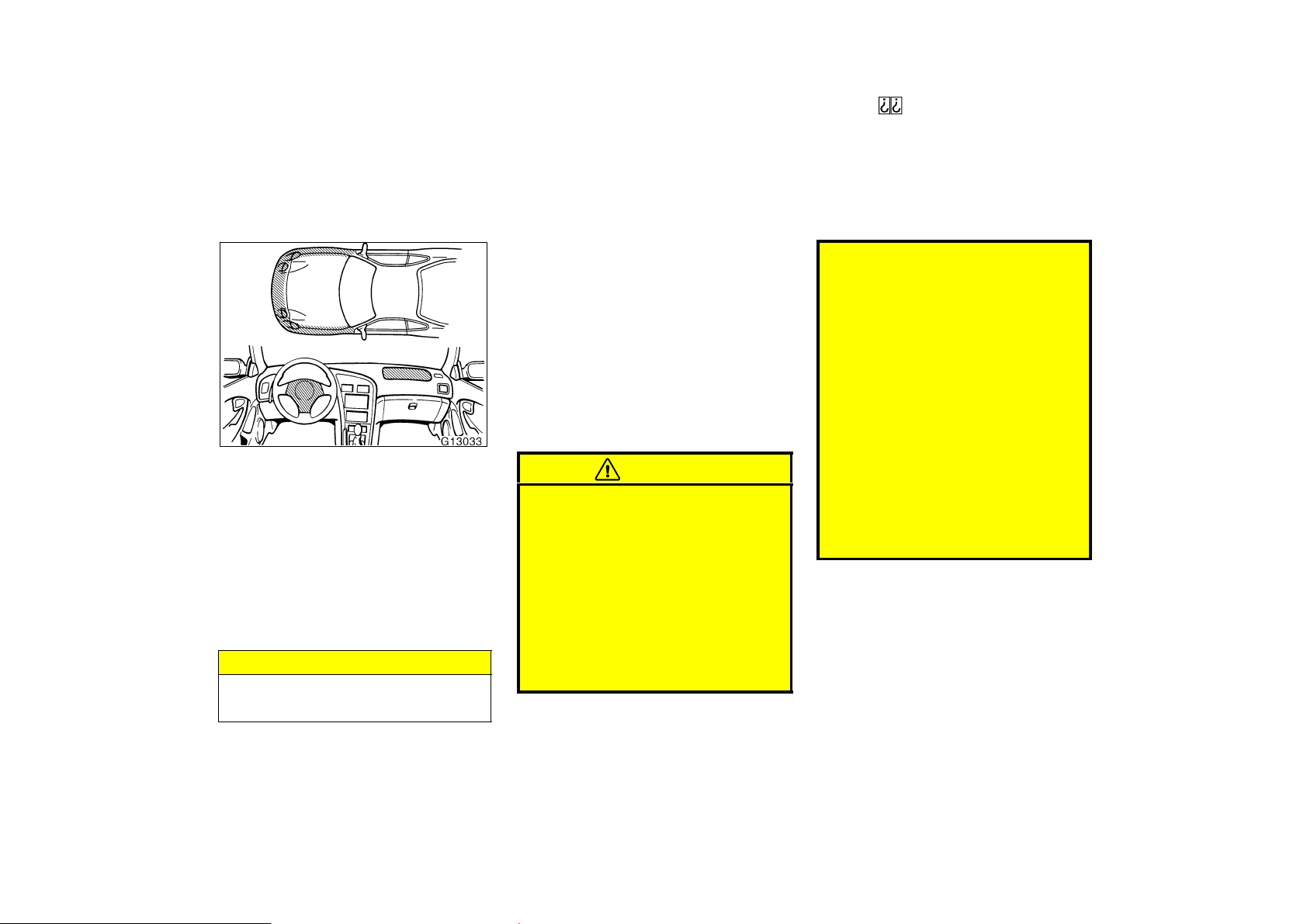

The SRS airbag system mainly consists of

the following components and their loca-

tions are shown in the illustration.

1. Front airbag sensors

2. Center airbag sensor assembly

3. Airbag module for driver (airbag and

inflator)

4. Airbag module for passenger (airbag

and inflator)

5. SRS airbag warning light

The center airbag sensor assembly con-

sists of a safing sensor and center airbag

sensor.

CELICA U

In a severe frontal impact, sensors detect

deceleration and the system triggers the

airbag inflators. Then a chemical reaction

in the inflators momentarily fills the air-

bags with non−toxic gas to help restraint

the forward motion of the occupants.

When the airbags inflate, they produce a

fairly loud noise and release some smoke

along with non−toxic gas. This does not

indicate a fire. Be sure to wash off any

residue as soon as possible to prevent

minor skin irritation.

Deployment of the airbags happen in a

fraction of a second, so the airbags must

inflate with considerable force. While the

system is designed to reduce serious inju-

ries, it may also cause minor burns or

abrasions and swellings.

Parts of the airbag module (steering wheel

hub, dashboard) may be hot for several

minutes, but the airbags themselves will

not be hot. The airbags are designed to

inflate only once.

A crash severe enough to inflate the air-

bags may break the windshield as the

vehicle buckles. In vehicles with a pas-

senger airbag the windshield may also be

damaged by absorbing some of the force

of the inflating airbag.

CAUTION

D The SRS airbag system is designed

only as a supplement to the prima-

ry protection of the driver side and

front passenger side seat belt sys-

tems. The front seat occupants can

be killed or seriously injured by an

inflating airbag if they do not wear

the available seat belts. During sud-

den braking just before a collision,

an unrestrained driver or front pas-

senger can move forward into direct

contact with or close proximity to

the airbag which may then deploy

during the collision. To obtain maxi-

mum protection in an accident, the

driver and all passengers in the ve-

hicle must wear their seat belts.

Wearing a seat belt during an acci-

dent reduces the chances of death

or serious injuries or being thrown

out of the vehicle. For instructions

and precautions concerning the seat

belt system, see ”Seat belts” in this

chapter.

D Improperly seated and/or restrained

infants and children can be killed

or seriously injured by a deploying

airbag. An infant or child who is

too small to use a seat belt should

be properly secured using a child

restraint system. Toyota strongly

recommends that all infants and

children be placed in the rear seat

of the vehicle and properly re-

strained. The rear seat is the safest

for infants and children. For in-

structions concerning the installa-

tion of a child restraint system, see

”Child restraint” in this chapter.

CELICA U

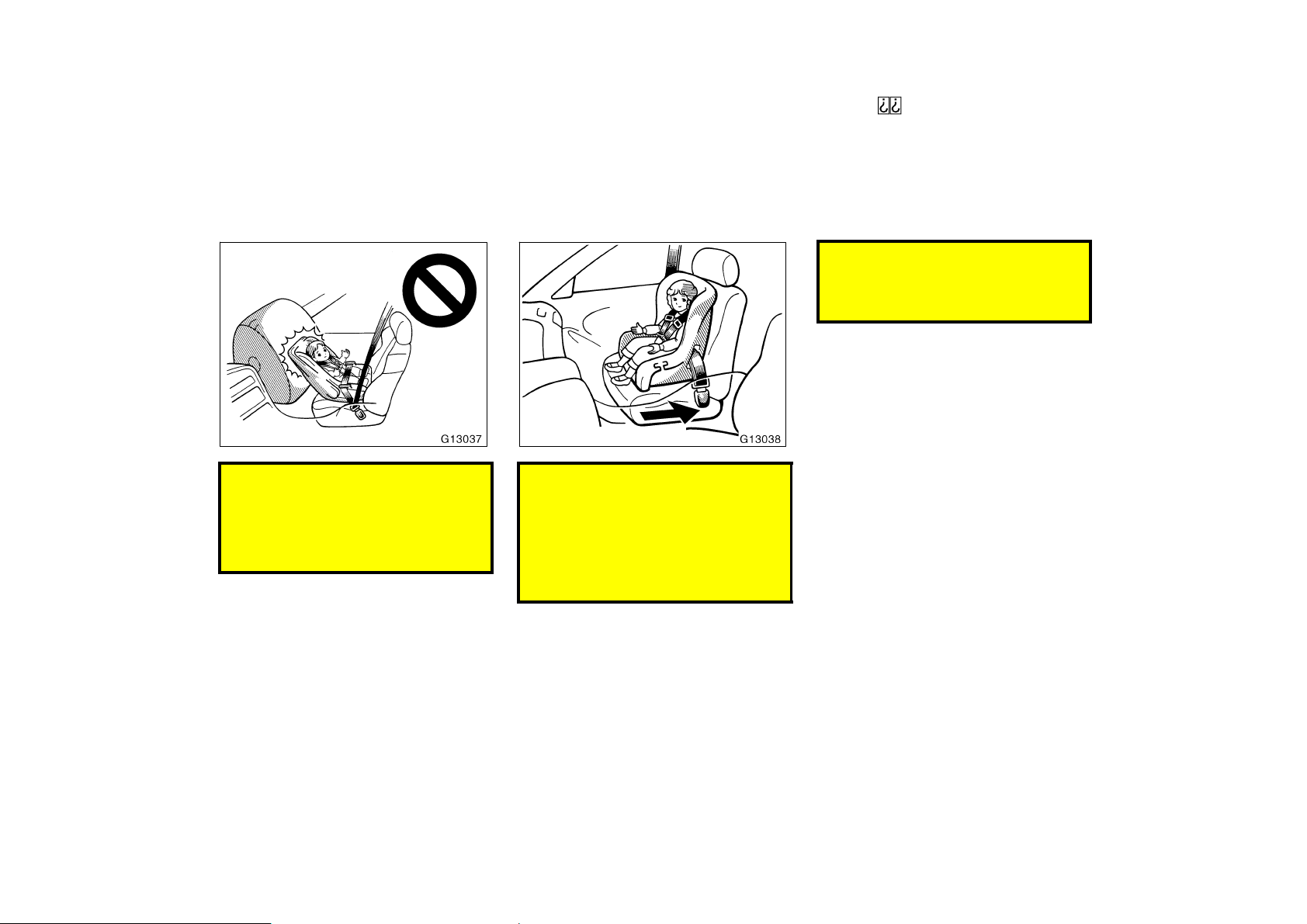

D Never put a rear−facing child re-

straint system on the front seat be-

cause the force of the rapid infla-

tion of the passenger airbag can

cause death or serious injury to the

child.

Move seat fully back

D A forward−facing child restraint sys-

tem should be allowed to put on

the front seat only when it is un-

avoidable. Always move the seat as

far back as possible, because the

force of a deploying airbag could

cause death or serious injury to the

child.

For instructions concerning the

installation of a child restraint sys-

tem, see ”Child restraint” in this

chapter.

CELICA U

D Do not sit on the edge of the seat

or lean over the dashboard when

the vehicle is in use. The airbags

inflate with considerable speed and

force; you may be killed or serious-

ly injured. Sit up straight and well

back in the seat, and always use

your seat belt.

D Do not allow a child to stand up,

or to kneel on the front passenger

seat. The airbag inflates with con-

siderable speed and force; the child

may be killed or seriously injured.

D Do not hold a child on your lap or

in your arms. Use a child restraint

system in the rear seat. For instruc-

tions concerning the installation of

a child restraint system, see ”Child

restraint” in this chapter.

D Do not put objects or your pets on

or in front of the dashboard or

steering wheel pad that houses the

airbag system. They might restrict

inflation or cause death or serious

injury as they are projected rear-

ward by the force of deploying air-

bags. Likewise, the driver and front

passenger should not hold things in

their arms or on their knees.

CELICA U

D Do not modify or remove any wir-

ing. Do not modify, remove, strike

or open any components such as

the steering wheel column cover,

front passenger airbag cover, front

passenger airbag, airbag sensor as-

sembly. Doing any of these may

cause sudden SRS airbag inflation

or disable the system, which could

result in death or serious injury.

Failure to follow these instructions

can result in death or serious inju-

ries.

NOTICE

Do not perform any of the following

changes without consulting your

Toyota dealer. Such changes can in-

terfere with proper operation of the

SRS airbag system in some cases.

z Installation of electronic items such

as a mobile two−way radio, cassette

tape player or compact disc player

z Modification of the suspension sys-

tem

z Modification of the front end struc-

ture

z Attachment of a grille guard (bull

bar, kangaroo bar, etc.), snowplow,

winches or any other equipment to

the front end

z Repairs made on or near the front

fenders, front end structure, con-

sole, steering column, steering

wheel or dashboard near the front

passenger airbag

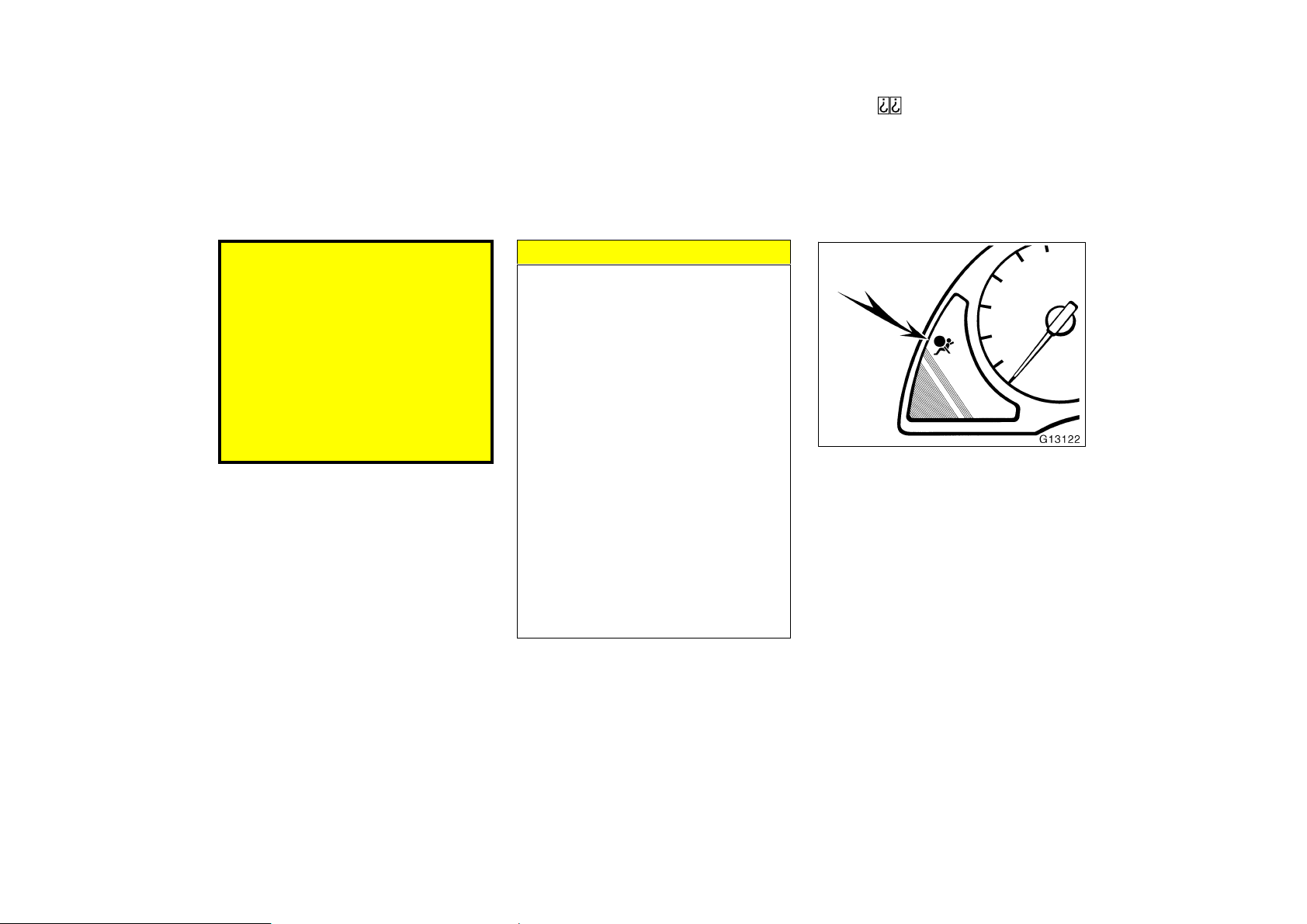

This SRS airbag system has a service

reminder indicator to inform the driver of

operating problems. If either of the follow-

ing conditions occurs, this indicates a mal-

function of the airbags. Contact your

Toyota dealer as soon as possible to ser-

vice the vehicle.

D The light does not come on when the

ignition key is turned to the ”ACC” or

”ON” position, or remains on.

D The light comes on while driving.

CELICA U

In the following cases, contact your Toyota

dealer as soon as possible:

D The SRS airbags have been inflated.

D The front part of the vehicle (shaded

in the illustration) was involved in an

accident not of the extent to cause the

SRS airbags to inflate.

D The pad section of the steering wheel

or front passenger airbag cover

(shaded in the illustration) is scratched,

cracked, or otherwise damaged.

NOTICE

Do not disconnect the battery cables

before contacting your Toyota dealer.

Toyota strongly urges the use of child

restraint systems for children small

enough to use it.

The laws of all fifty states in the U.S.A.

and Canada now require the use of a

child restraint system.

Your vehicle conforms to SAEJ1819.

If a child is too large for a child restraint

system, the child should sit in the rear

seat and must be restrained using the

vehicle’s seat belt. See ”Seat belts” for

details.

CAUTION

D For effective protection in automo-

bile accidents and sudden stops,

children must be properly re-

strained using a seat belt or child

restraint system depending on the

age and size of the child. Holding

a child in your arms is not a sub-

stitute for a child restraint system.

In an accident, the child can be

crushed against the windshield, or

between you and the vehicle’s inte-

rior.

D Toyota strongly urges use of a

proper child restraint system that

conforms to the size of the child on

the rear seat. According to accident

statistics, the child is safer when

properly restrained in the rear seat

than in the front seat.

D Vehicles with a passenger airbag:

Never put a rear−facing child re-

straint system on the front seat. In

the event of an accident, the force

of the rapid inflation of the airbag

can cause death or serious injury if

a rear−facing child restraint system

is put on the front seat.

Unless it is unavoidable, do not put

a child restraint system on the

front seat.

Child restraint—

—Child restraint precautions

CELICA U

A forward−facing child restraint sys-

tem should be allowed to put on

the front seat only when it is un-

avoidable. Always move the seat as

far back as possible, because the

force of a deploying airbag could

cause death or serious injury to the

child.

D Make sure that you have complied

with all installation instructions pro-

vided by the child restraint

manufacturer and that the system is

properly secured.

—Child restraint system

A child restraint system for a small

child or baby must itself be properly

restrained on the seat with the lap por-

tion of the lap/shoulder belt. You must

carefully consult the manufacturer’s in-

structions which accompany your child

restraint system.

To provide proper restraint, use a child

restraint system following the manufactur-

er’s instructions about the appropriate age

and size for the child for the restraint

system.

Install the child restraint system correctly

following the instructions provided by its

manufacturer of the system. General di-

rections also provided under the following

illustrations.

The child restraint system should be

installed on the rear seat. According to

accident statistics, the child is safer when

properly restrained in the rear seat than

in the front seat.

CAUTION

D Vehicles with a passenger airbag:

Never put a rear−facing child re-

straint system on the front seat. In

the event of an accident, the force

of the rapid inflation of the airbag

can cause death or serious injury if

a rear−facing child restraint system

is put on the front seat.

Unless it is unavoidable, do not put

a child restraint system on the

front seat.

A forward−facing child restraint sys-

tem should be allowed to put on

the front seat only when it is un-

avoidable. Always move the seat as

far back as possible, because the

force of a deploying airbag could

cause death or serious injury to the

child.

CELICA U

D After installing the child restraint

system, make sure it is secured in

place following the manufacturer’s

instructions. If it is not restrained

securely, it may cause death or se-

rious injury to the child in the

event of a sudden stop or accident.

When not using the child restraint system,

keep it secured with the seat belt or place

it in the trunk or somewhere other than

the passenger compartment. This will pre-

vent it from injuring passengers in the

event of a sudden stop or accident.

Coupe and liftback only—Your vehicle has

anchors for securing the top strap of a

child restraint system. The anchor nuts

are welded beneath the sheet metal to

permit installation of an anchor bracket for

a child restraint system.

To install an anchor bracket, use an 8 mm

 30 mm  1.25 mm coarse thread met-

ric bolt and a 15 mm (0.6 in.) spacer.

Note that the bolts accompanying many

child restraint systems are not metric. You

can damage the anchor nuts on your ve-

hicle if you force bolts with different

thread into the anchor nuts.

For instructions about how to install the

anchor bracket, see ”Top strap anchors

and locations”.

If your child restraint system does not

provide any of the necessary parts, you

can purchase the following items from

your Toyota dealer.

∗

CRS installation kit

(Part No. 04731−22012)

—contains 1 bolt, 3 types of spacers

and 1 locking clip.

∗

Bolt (Part No. 91511−60830)

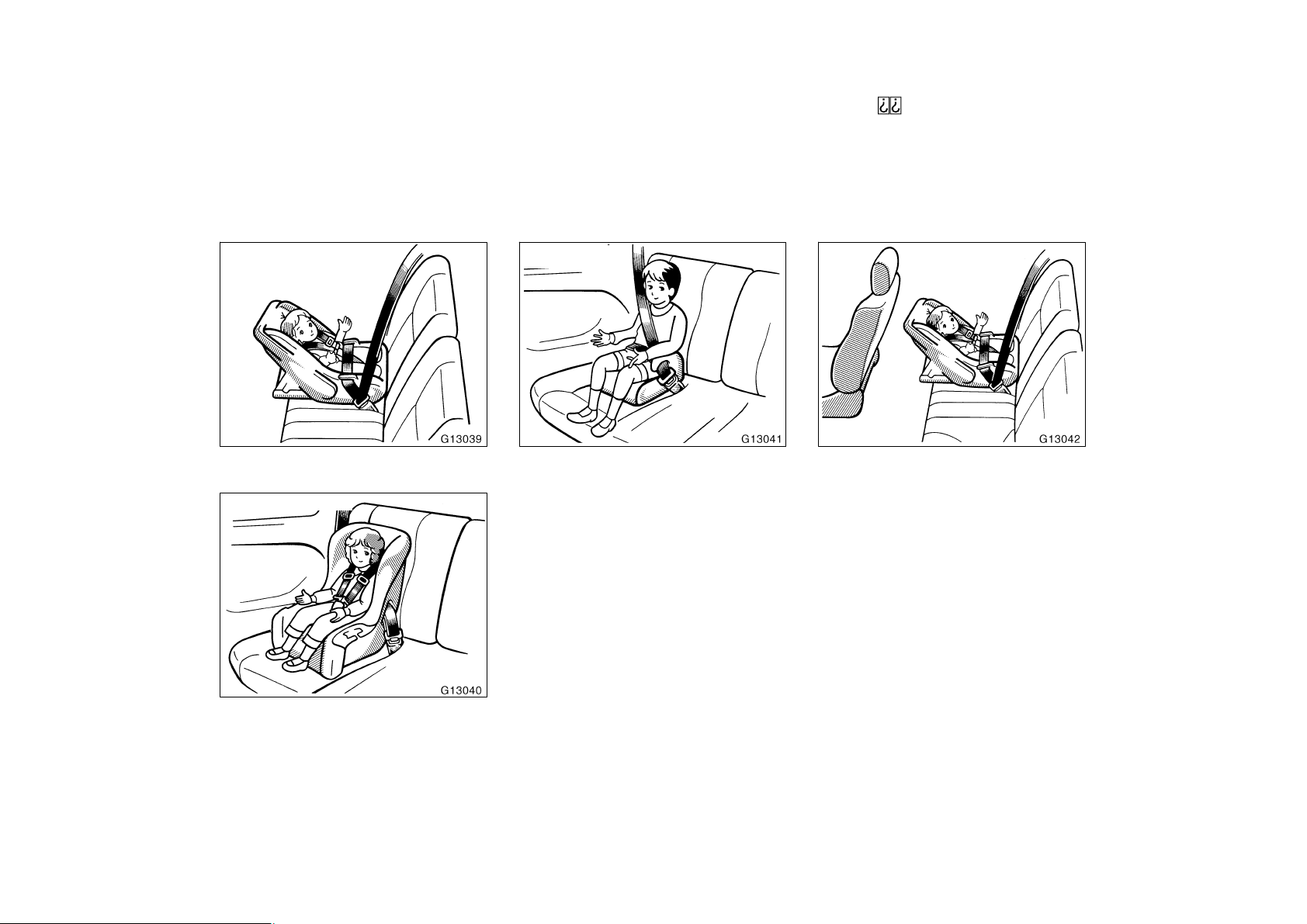

—Types of child restraint system

Child restraint systems are divided into

the following 3 types according to the

child’s age and size.

(A) Infant seat

(B) Convertible seat

Install the child restraint system following

the instructions provided by its manufac-

turer.

CELICA U

(A) Infant seat

(B) Child seat

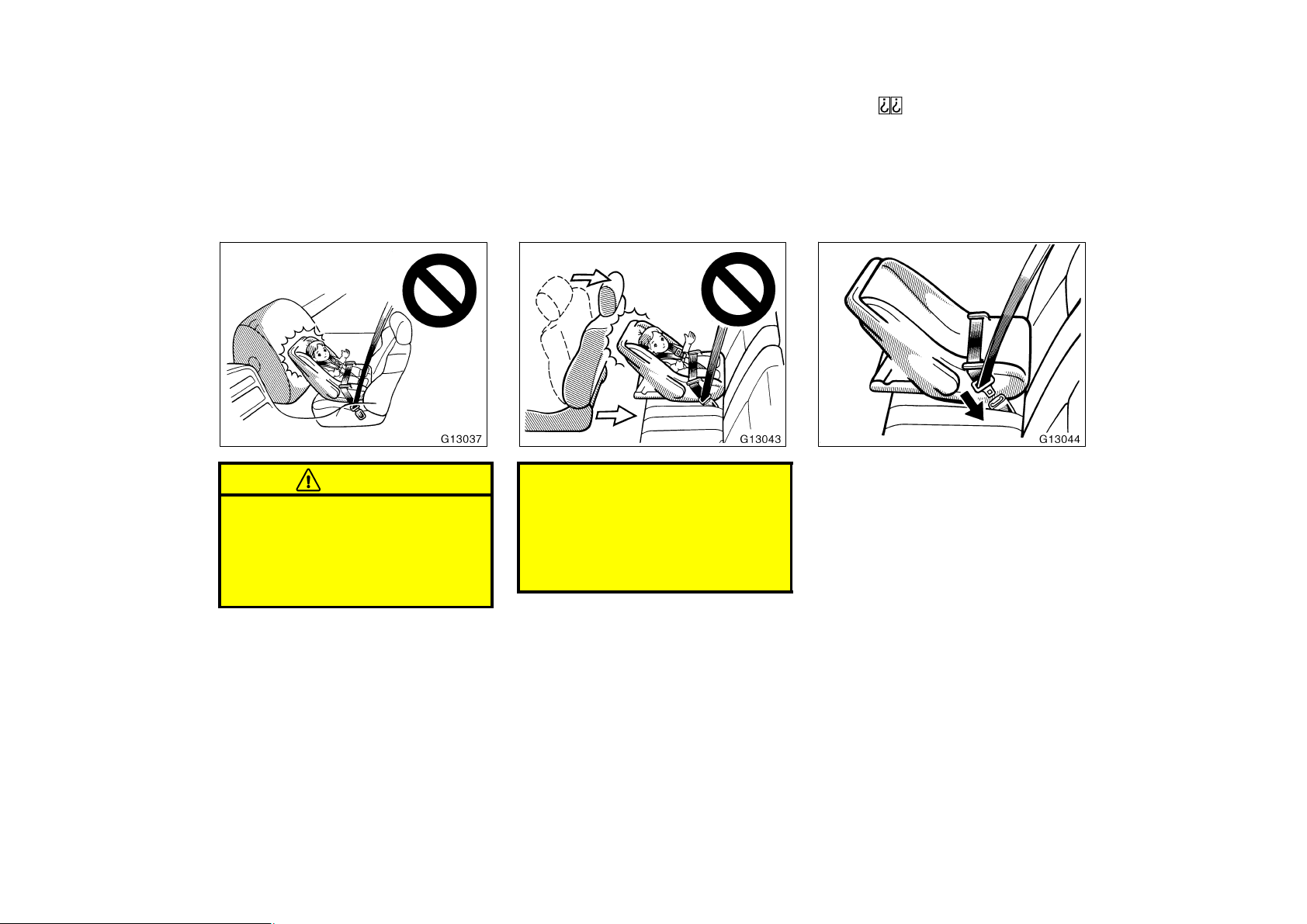

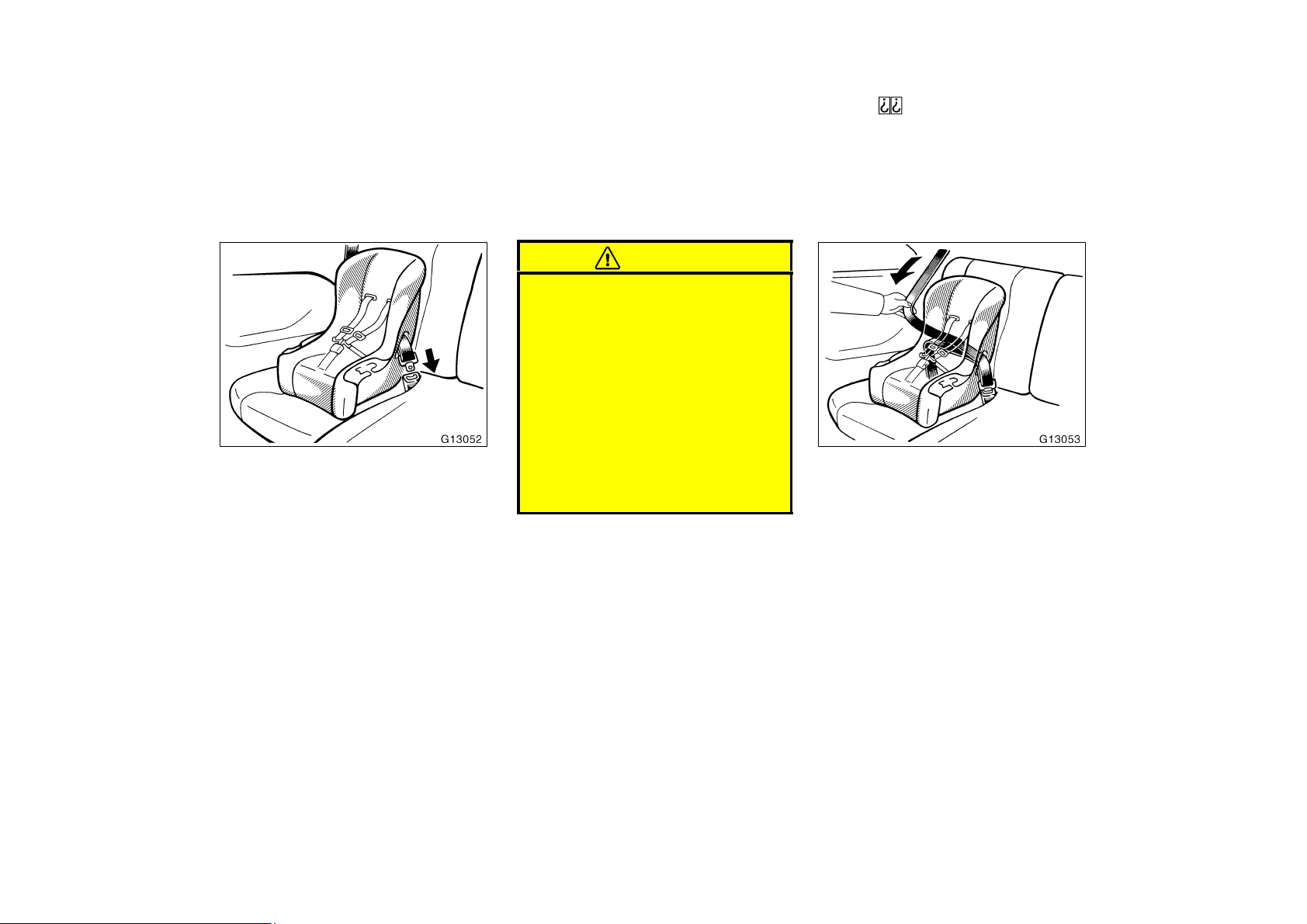

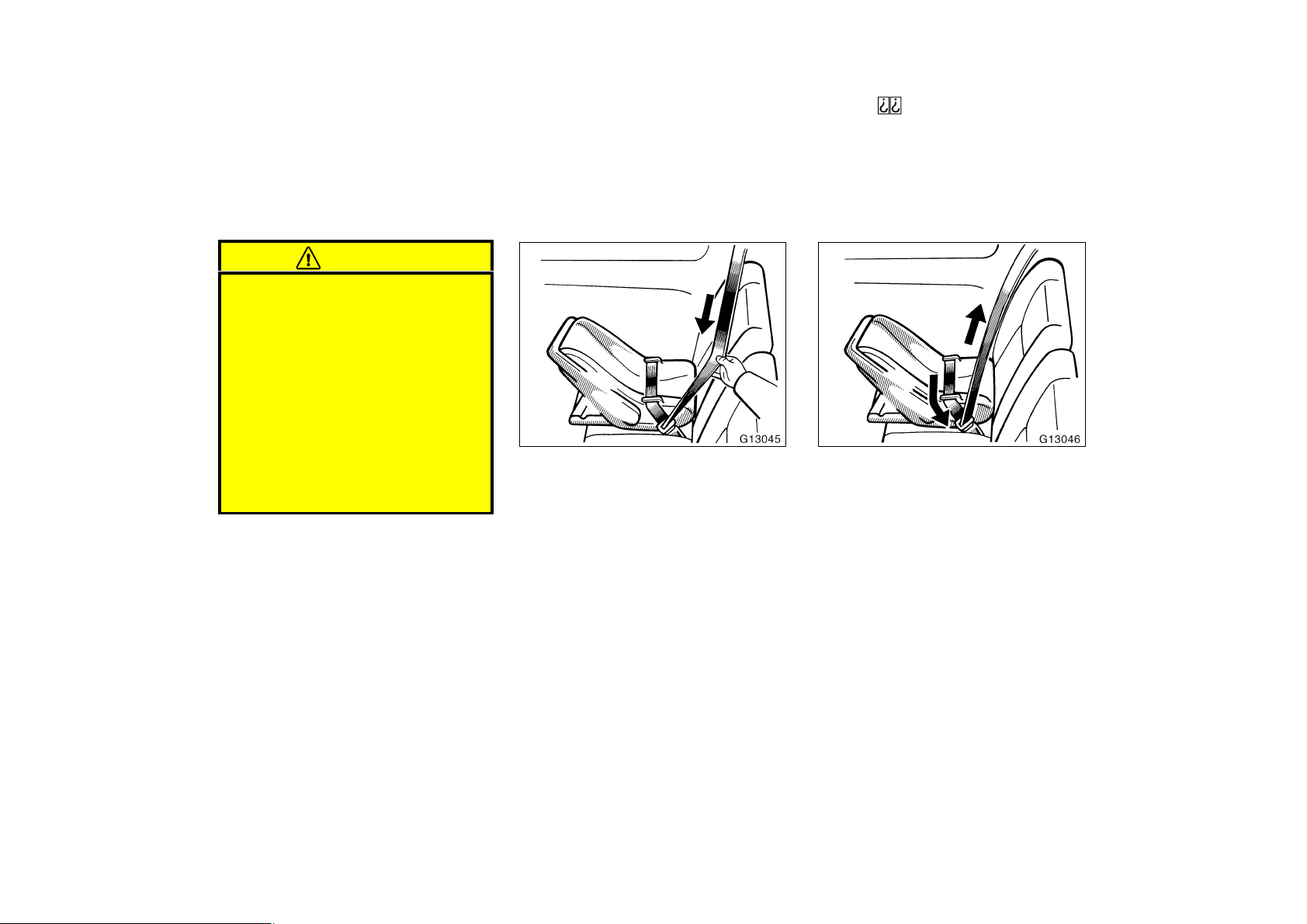

(A) INFANT SEAT INSTALLATION

An infant seat is used in rear−facing

only.

—Installation with 3−point

type seat belt

CELICA U

CAUTION

D Never put a rear−facing child re-

straint system on the front seat be-

cause the force of the rapid infla-

tion of the passenger airbag can

cause death or serious injury to the

child.

D Do not put a rear−facing child re-

straint system on the rear seat if it

interferes with the lock mechanism

of the front seats. This can cause

severe injury to the child and front

passenger in case of sudden brak-

ing or a collision.

1. Run the lap and shoulder belt through

or around the infant seat following the

instructions provided by its manufactur-

er and insert the tab into the buckle

taking care not to twist the belt. Keep

the lap portion of the belt tight.

CELICA U

CAUTION

D After inserting the tab, make sure

the tab and buckle are locked and

that the lap and shoulder portions

of the belt is not twisted.

D Do not insert coins, clips, etc. in

the buckle as this can prevent you

from properly latching the tab and

buckle.

D If the seat belt does not function

normally, it cannot protect your

child from injury. Contact your

Toyota dealer immediately. Do not

use the seat until the seat belt is

fixed.

2. Fully extend the shoulder belt to put it

in the lock mode. When the belt is

then retracted even slightly, it cannot

be extended.

To hold the infant seat securely, make

sure the belt is in the lock mode before

letting the belt retract.

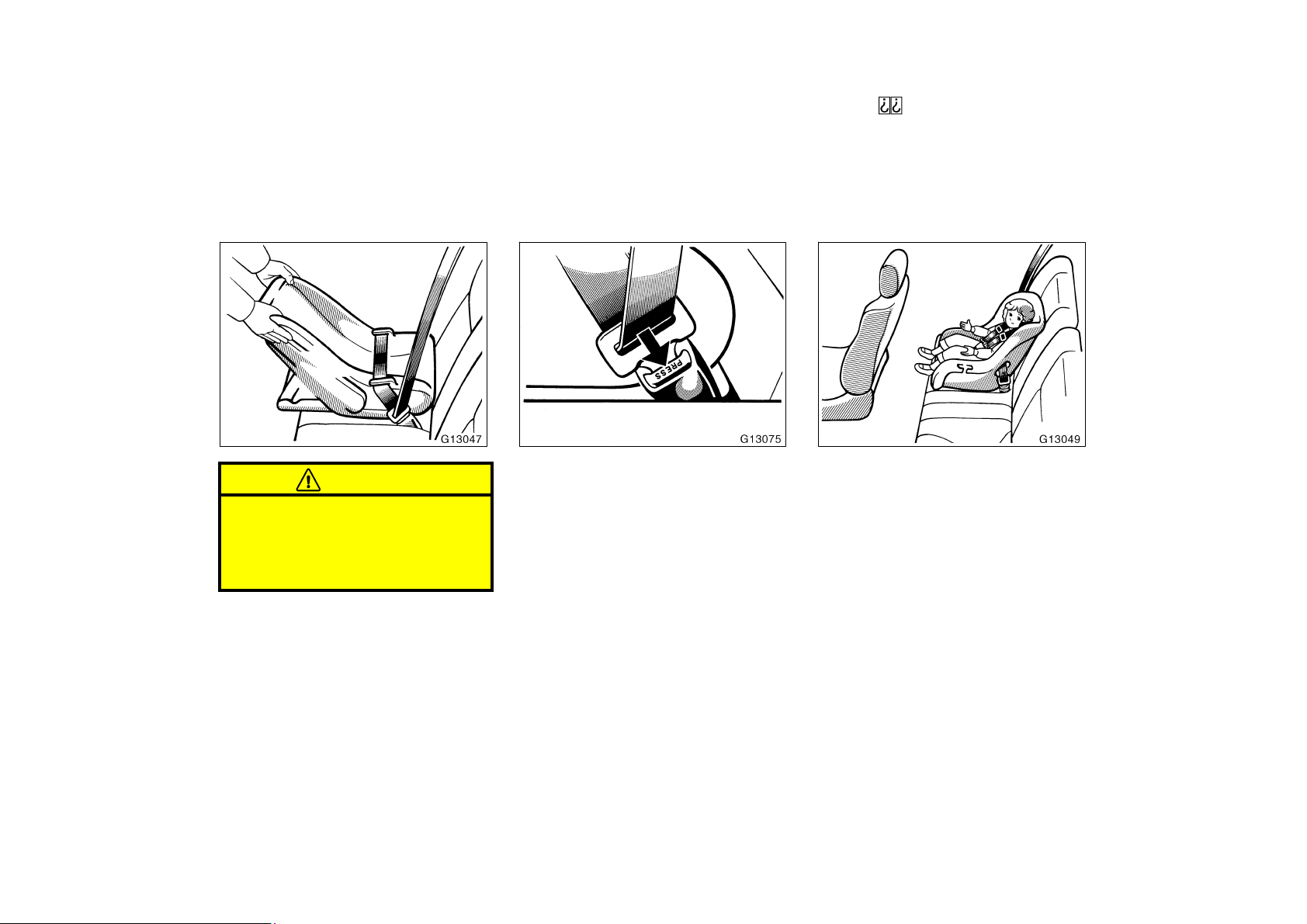

3. While pressing the infant seat firmly

against the seat cushion and seatback,

let the shoulder belt retract as far as

it will go to hold the infant seat secure-

ly.

CELICA U

CAUTION

Push and pull the child restraint sys-

tem in different directions to be sure

it is secure. Follow all the installation

instructions provided by its manufac-

turer.

4. To remove the infant seat, press the

buckle−release button and allow the

belt to retract completely. The belt

will move freely again and be ready

to work for an adult or older child

passenger.

(B) CONVERTIBLE SEAT INSTALLATION

A convertible seat is used in forward−

facing and rear−facing depending on

the child’s age and size. When instal-

ling, follow the manufacturer’s instruc-

tion about the applicable child’s age

and size as well as directions for

installing a child restraint system.

CELICA U

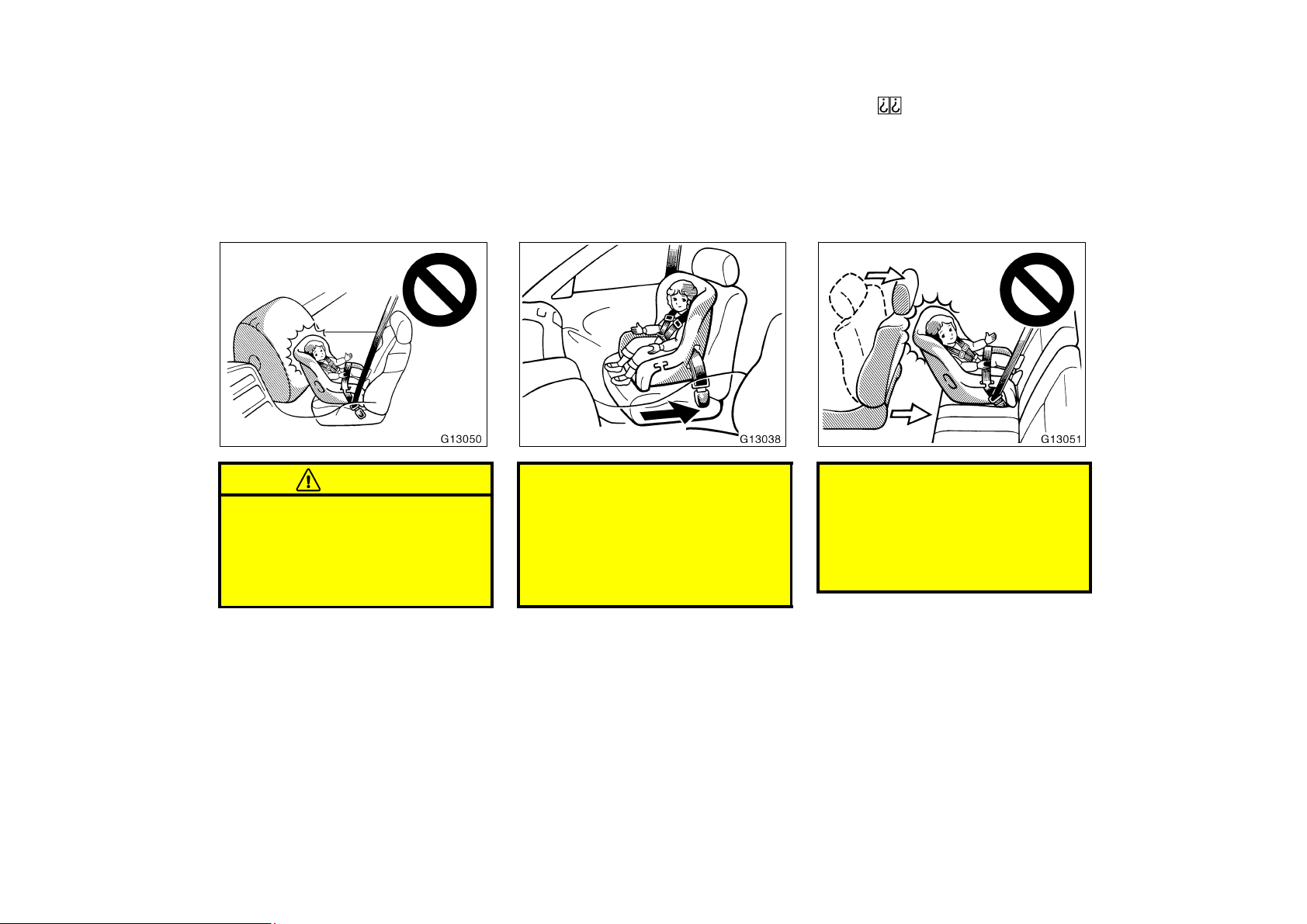

CAUTION

D Never put a rear−facing child re-

straint system in the front seat be-

cause the force of the rapid infla-

tion of the passenger airbag can

cause death or serious injury to the

child.

Move seat fully back

D A forward−facing child restraint sys-

tem should be allowed to put on

the front seat only when it is un-

avoidable. Always move the seat as

far back as possible, because the

force of a deploying airbag could

cause death or serious injury to the

child.

D Do not put a rear−facing child re-

straint system on the rear seat if it

interferes with the lock mechanism

of the front seats. This can cause

severe injury to the child and front

passenger in case of sudden brak-

ing or a collision.

CELICA U

1. Run the lap and shoulder belt through

or around the convertible seat following

the instructions provided by its

manufacturer and insert the tab into

the buckle taking care not to twist the

belt. Keep the lap portion of the belt

tight.

CAUTION

D After inserting the tab, make sure

the tab and buckle are locked and

that the lap and shoulder portions

of the belt is not twisted.

D Do not insert coins, clips, etc. in

the buckle as this may prevent you

from properly latching the tab and

buckle.

D If the seat belt does not function

normally, it cannot protect your

child from injury. Contact your

Toyota dealer immediately. Do not

use the seat until the seat belt is

fixed.

2. Fully extend the shoulder belt to put it

in the lock mode. When the belt is

then retracted slightly, it cannot be ex-

tended.

To hold the convertible seat securely,

make sure the belt is in the lock mode

before letting the belt retract.

CELICA U

3. While pressing the convertible seat

firmly against the seat cushion and

seatback, let the shoulder belt retract

as far as it will go to hold the convert-

ible seat securely.

CAUTION

Push and pull the child restraint sys-

tem in different directions to be sure

it is secure. Follow all the installation

instructions provided by its manufac-

turer.

4. To remove the convertible seat, press

the buckle−release button and allow the

belt to retract completely. The belt will

move freely again and be ready to

work for an adult or older child passen-

ger.

CELICA U

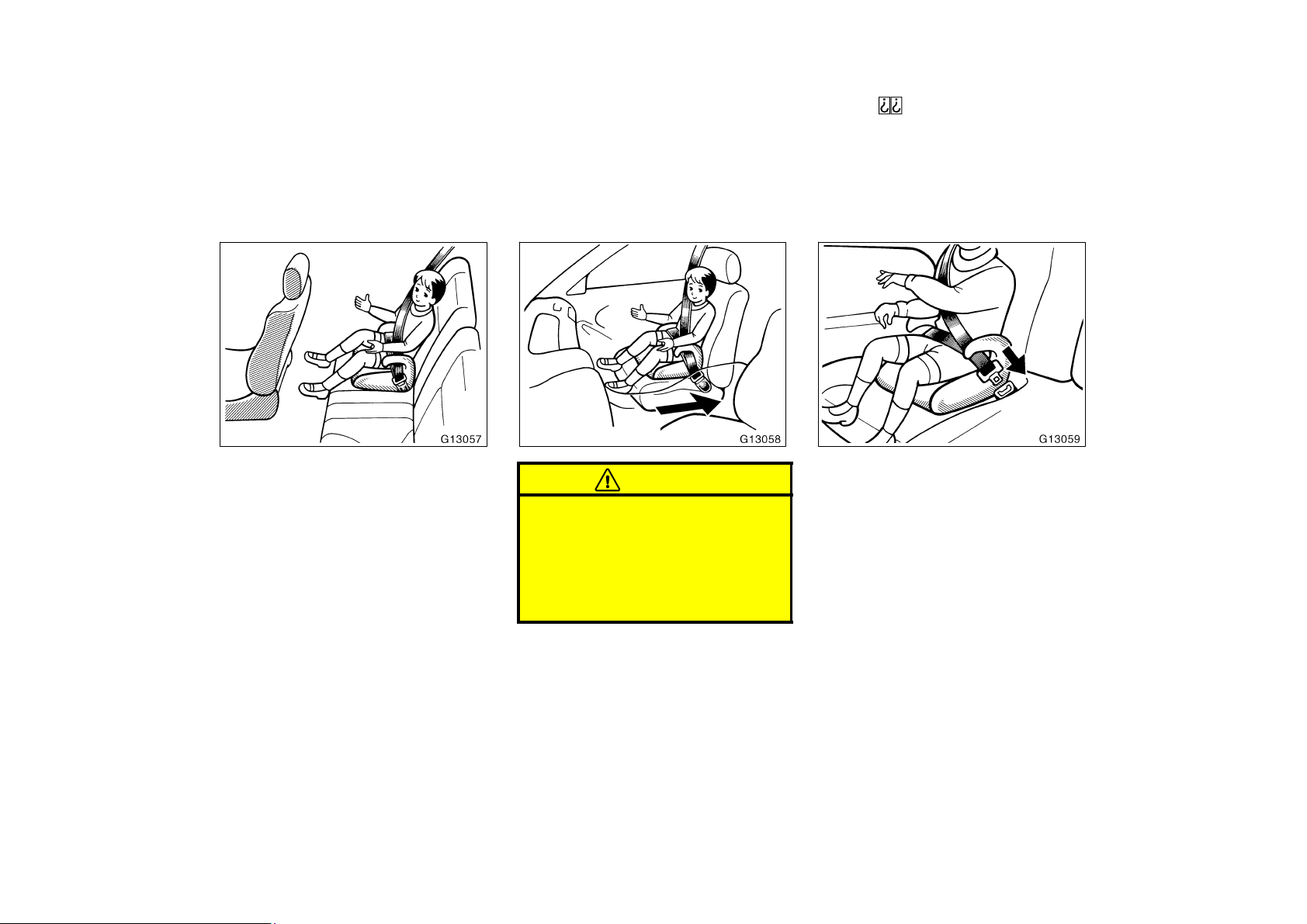

A booster seat is used in forward−fac-

ing only.

Move seat fully back

CAUTION

A forward−facing child restraint sys-

tem should be allowed to put on the

front seat only when it is unavoid-

able. Always move the seat as far

back as possible, because the force

of a deploying airbag could cause

death or serious injury to the child.

1. Sit the child on a booster seat. Run

the lap and shoulder belt through or

around the booster seat and child fol-

lowing the instructions provided by its

manufacturer and insert the tab into

the buckle taking care not to twist the

belt.

Make sure the shoulder belt is correctly

across the child’s shoulder and that the

lap belt is positioned as low as possible

on child’s hips. See ”Seat belts” for de-

tails.

CELICA U

CAUTION

D Always make sure the shoulder belt

is positioned across the center of

child’s shoulder. The belt should be

kept away from child’s neck, but

not falling off child’s shoulder. Fail-

ure to do so could reduce the

amount of protection in an accident

and increase the chance of injury.

D High−positioned lap belts and

loose−fitting belts both could in-

crease the chance of injury due to

sliding under the lap belt during an

accident. Keep the lap belt as low

on your hip bone as possible.

D For child’s safety, do not place the

shoulder belt under child’s arm.

D After inserting the tab, make sure

the tab and buckle are locked and

that the lap and shoulder portions

of the belt is not twisted.

D Do not insert coins, clips, etc. in

the buckle as this may prevent you

from properly latching the tab and

buckle.

D If the seat belt does not function

normally, it cannot protect your

child from injury. Contact your

Toyota dealer immediately. Do not

use the seat until the seat belt is

fixed.

2. To remove the child restraint system,

press the buckle−release button and al-

low the belt to retract.

CELICA U

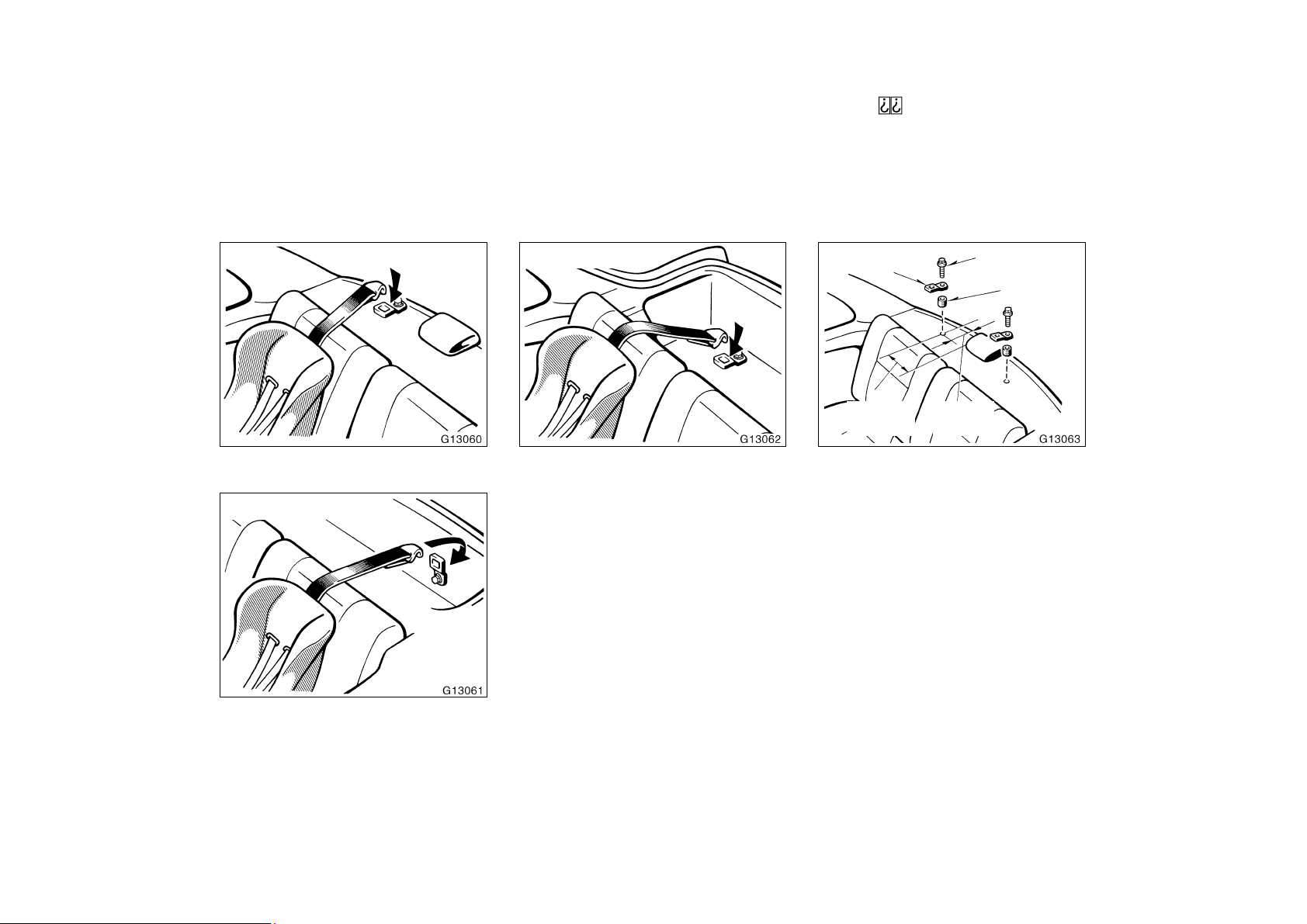

Coupe

Liftback (left seat)

Liftback (right seat)

If your child restraint system requires

the use of a top strap, latch the hook

onto the anchor bracket and tighten the

top strap.

See the following instructions to install the

anchor bracket.

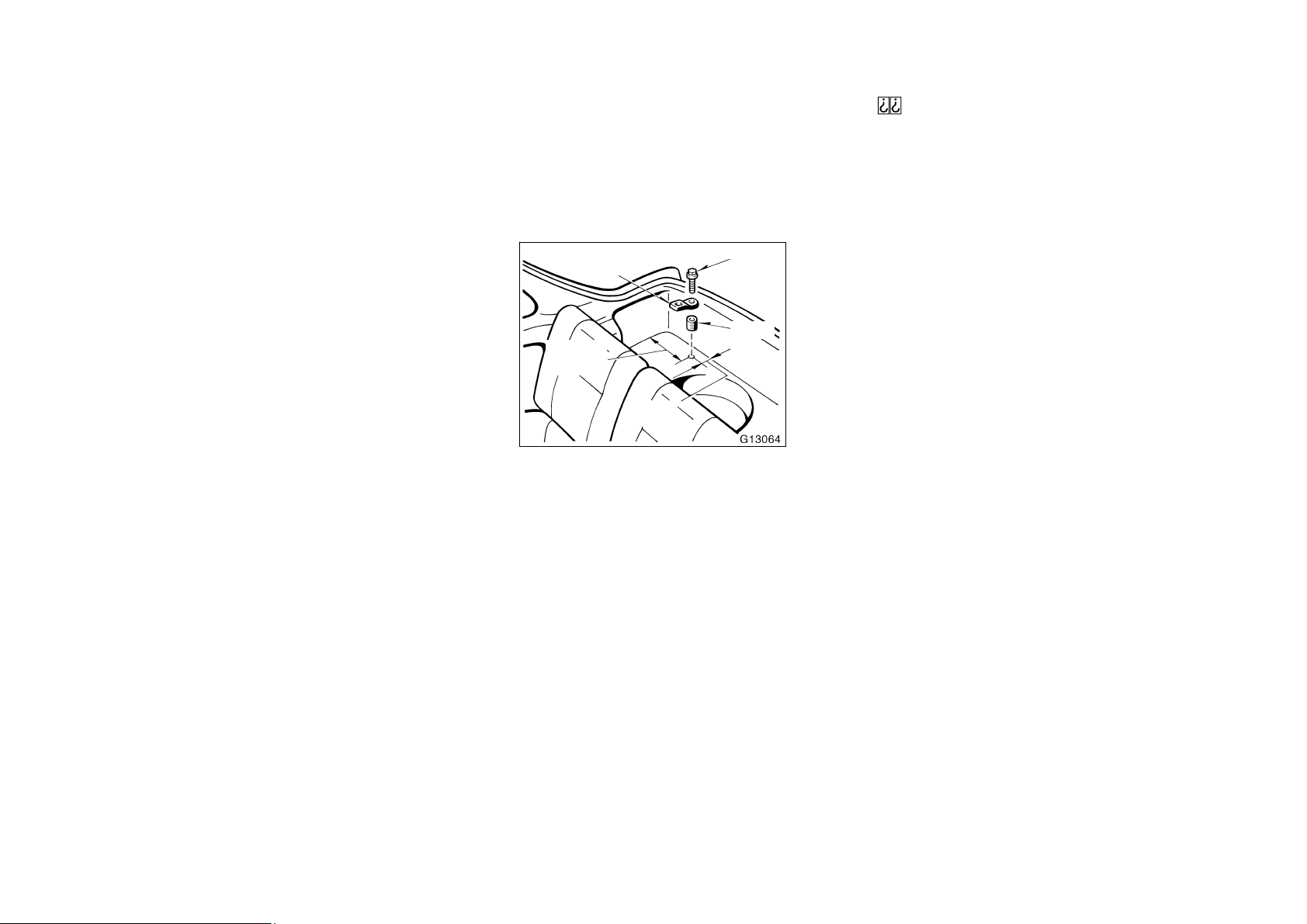

Bolt

Spacer

100 mm

(4.0 in.)

Anchor bracket

178 mm

(7.0 in.)

Coupe—On the filler panel behind the rear

seat

a. Using the illustration as a guide, run

your fingers across the trim of the filler

panel itself to locate the position of the

holes underneath.

b. Make a hole in the covering directly

above the hole in the filler panel.

c. Insert a 15 mm (0.6 in.) spacer and

tighten down the anchor bracket for your

child restraint system with a bolt. Torque

the bolt to 16.5—24.7 N·m (1.68—2.52

kgf·m, 12.2—18.2 ft·lbf).

—Top strap anchors and

locations

(coupe and liftback only)

CELICA U

To comply with Canada Motor Vehicle

Safety Standards, vehicles sold in Canada

are provided with a bracket set in the

glovebox, designed for use with any of the

2 anchor locations shown in the illustra-

tion.

If your child restraint system does not

provide any of the necessary parts, ask

your Toyota dealer. (See ”—Child restraint

system”.)

Bolt

Anchor bracket

Spacer

20 mm

(0.8

in.)

210 mm

(8.3 in.)

Liftback (right seat)—On the luggage

compartment floor

a. Using the illustration as a guide, uncov-

er the anchor by rolling back the carpet

on the luggage compartment floor. The

anchor hole is sealed.

b. Remove the seal of the anchor.

c. Insert a 15 mm (0.6 in.) spacer and

tighten down the anchor bracket for your

child restraint system with a bolt. Torque

the bolt to 16.5—24.7 N·m (1.68—2.52

kgf·m, 12.2—18.2 ft·lbf).

To comply with Canada Motor Vehicle

Safety Standards, vehicles sold in Canada

are provided with a bracket set in the

glovebox.

If you remove the anchor brackets when

the child restraint system is necessary no

longer, replace the bolts in the holes to

prevent entry of exhaust emissions, water

or dirt.

CELICA U

Spacer

Bolt

240 mm

(9.4 in.)

Anchor bracket

114 mm

(4.5 in.)

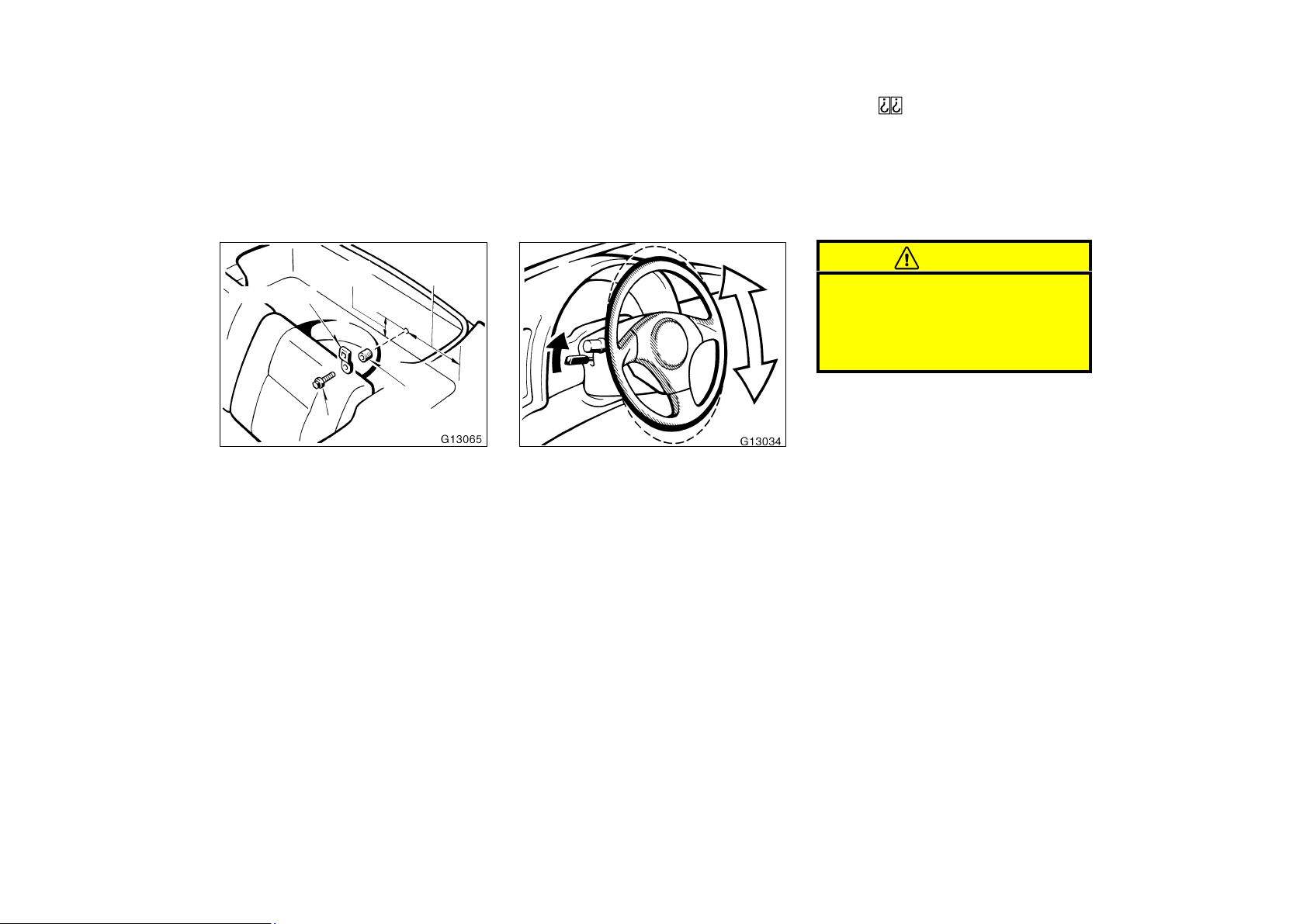

Liftback (left seat)—On the luggage

compartment wall

a. Using the illustration as a guide, re-

move the cap of the anchor.

b. Insert a 15 mm (0.6 in.) spacer and

tighten down the anchor bracket for your

child restraint system with a bolt. Torque

the bolt to 16.5—24.7 N·m (1.68—2.52

kgf·m, 12.2—18.2 ft·lbf).

To comply with Canada Motor Vehicle

Safety Standards, vehicles sold in Canada

are provided with a bracket set in the

glovebox.

Tilt steering wheel

To change the steering wheel angle,

hold the steering wheel, pull up the

lock release lever, tilt the steering

wheel to the desired angle and release

the lever.

When the steering wheel is in a low posi-

tion, it will spring up as you release the

lock release lever.

CAUTION

D Do not adjust the steering wheel

while the vehicle is moving.

D After adjusting the steering wheel,

try moving it up and down to make

sure it is locked in position.

CELICA U

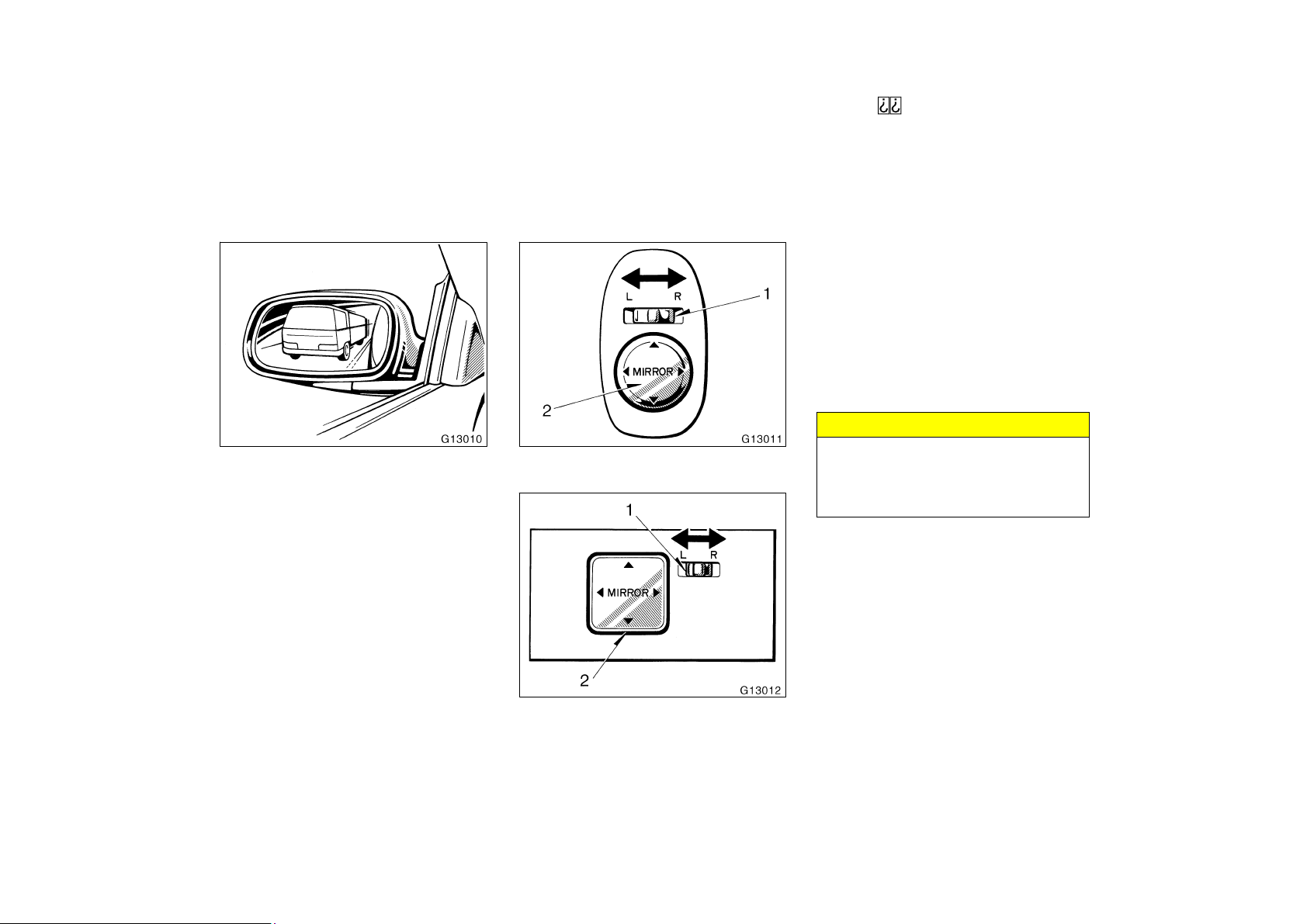

Outside rear view mirrors—

Adjust the mirror so that you can see

the side of your vehicle in the mirror.

Be careful when judging the size or dis-

tance of any object seen in the outside

rear view mirror on the passenger’s side.

It is a convex mirror with a curved sur-

face. Any object seen in a convex mirror

will look smaller and farther away than

when seen in a flat mirror.

—Power rear view mirror control

With power windows

Without power windows

To adjust a mirror, use the switches.

1. Master switch—To select the mirror to

be adjusted

Place the switch at ”L” (left) or ”R”

(right).

2. Control switch—To move the mirror

Push the switch in the desired direc-

tion.

If the engine is not running, the key must

be in the ”ACC” position.

NOTICE

If ice should jam the mirror, do not

operate the control or scrape the mir-

ror face. Use a spray de−icer to free

the mirror.

CELICA U

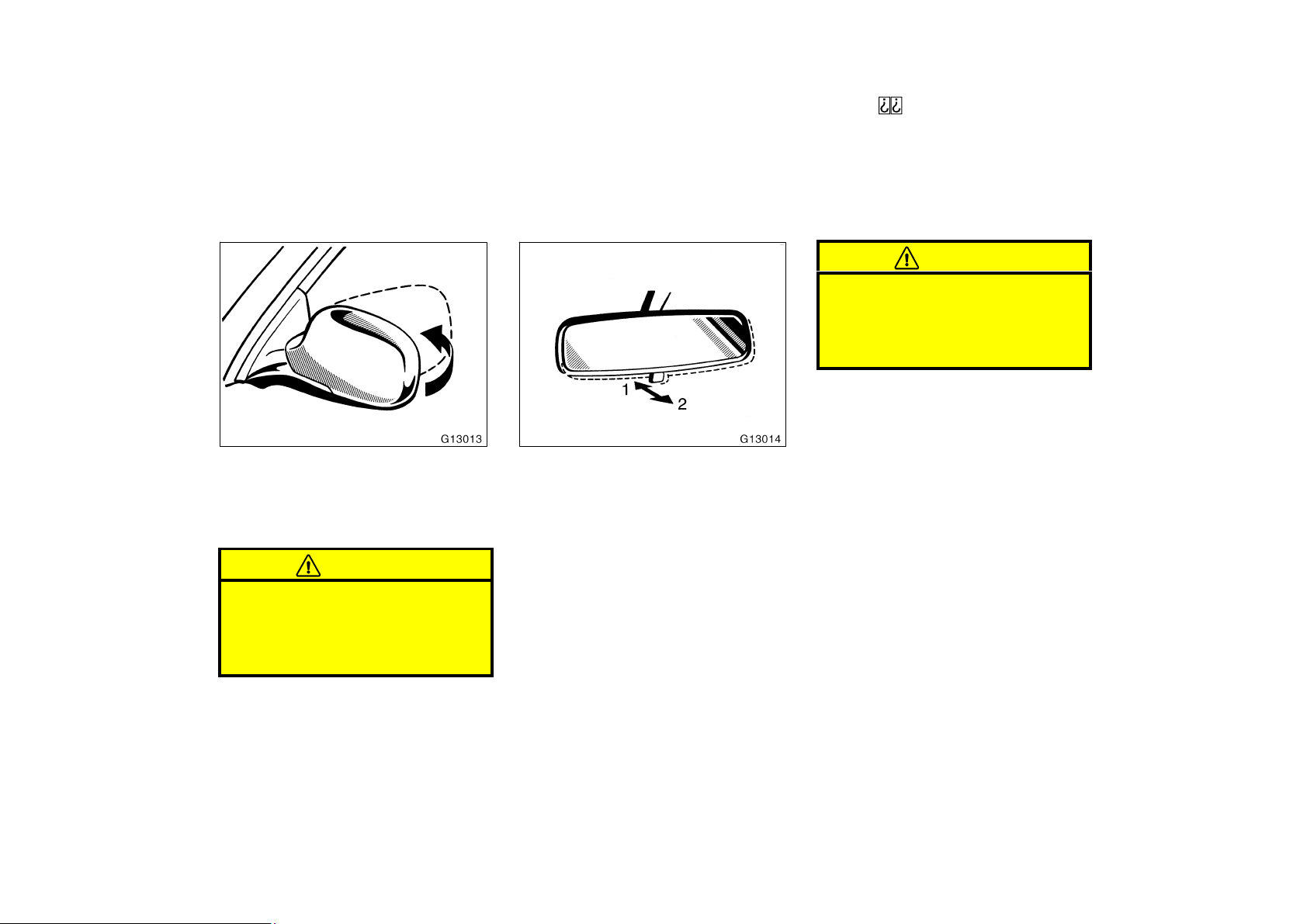

—Folding rear view mirrors

The rear view mirrors can be folded

backward for parking in restricted

areas.

To fold the rear view mirror, push back-

ward.

CAUTION

Do not drive with the mirrors folded

backward. Both the driver and pas-

senger side rear view mirrors must

be extended and properly adjusted

before driving.

Adjust the mirror so that you can just

see the rear of your vehicle in the mir-

ror.

To reduce glare from the headlights of

the vehicle behind you during night

driving, operate the lever on the lower

edge of the mirror.

Daylight driving—Lever at position 1

The reflection in the mirror has greater

clarity at this position.

Night driving—Lever at position 2

Remember that by reducing glare you also

lose some rear view clarity.

CAUTION

Do not adjust the mirror while the

vehicle is moving. It may cause the

driver to mishandle the vehicle and

an accident may occur resulting in

personal injuries.

Anti−glare inside rear view

mirror

CELICA U

Part 1

OPERATION OF

INSTRUMENTS AND

CONTROLS—

Chapter 1−4

Lights, Wipers and

Defogger

Headlights and turn signals

D Emergency flashers

D Instrument panel light control

D Front fog lights

D Interior lights

D Personal lights

D Ignition switch light

D Luggage compartment light

D Windshield wipers and washer

D Rear window wiper and washer

D Rear window defogger

Headlights and turn signals

HEADLIGHTS

To turn on the following lights: Twist

the headlight/turn signal lever knob.

Position 1—Parking, tail, license plate,

side marker and instrument panel lights

Position 2—Headlights and all of the

above

The lights automatically turn off when the

driver’s door is opened with the ignition

key turned off. To turn them on again, turn

the key to the ”ON” position or actuate

the headlight switch. If you are going to

park for over one week, make sure the

headlight switch is off.

NOTICE

To prevent the battery being dis-

charged, do not leave the lights on

for a long period when engine is not

running.

Daytime running light system (Canada

only)

The headlights turn on at reduced intensi-

ty when the parking brake is released with

the engine started, even with the light

switch in the ”OFF” position. They will not

go off until the ignition switch is turned

off.

To turn on the other exterior lights and

instrument panel lights, twist the knob to

the position 1.

Twist the knob to the position 2 to turn

to full intensity for driving at night.

CELICA U

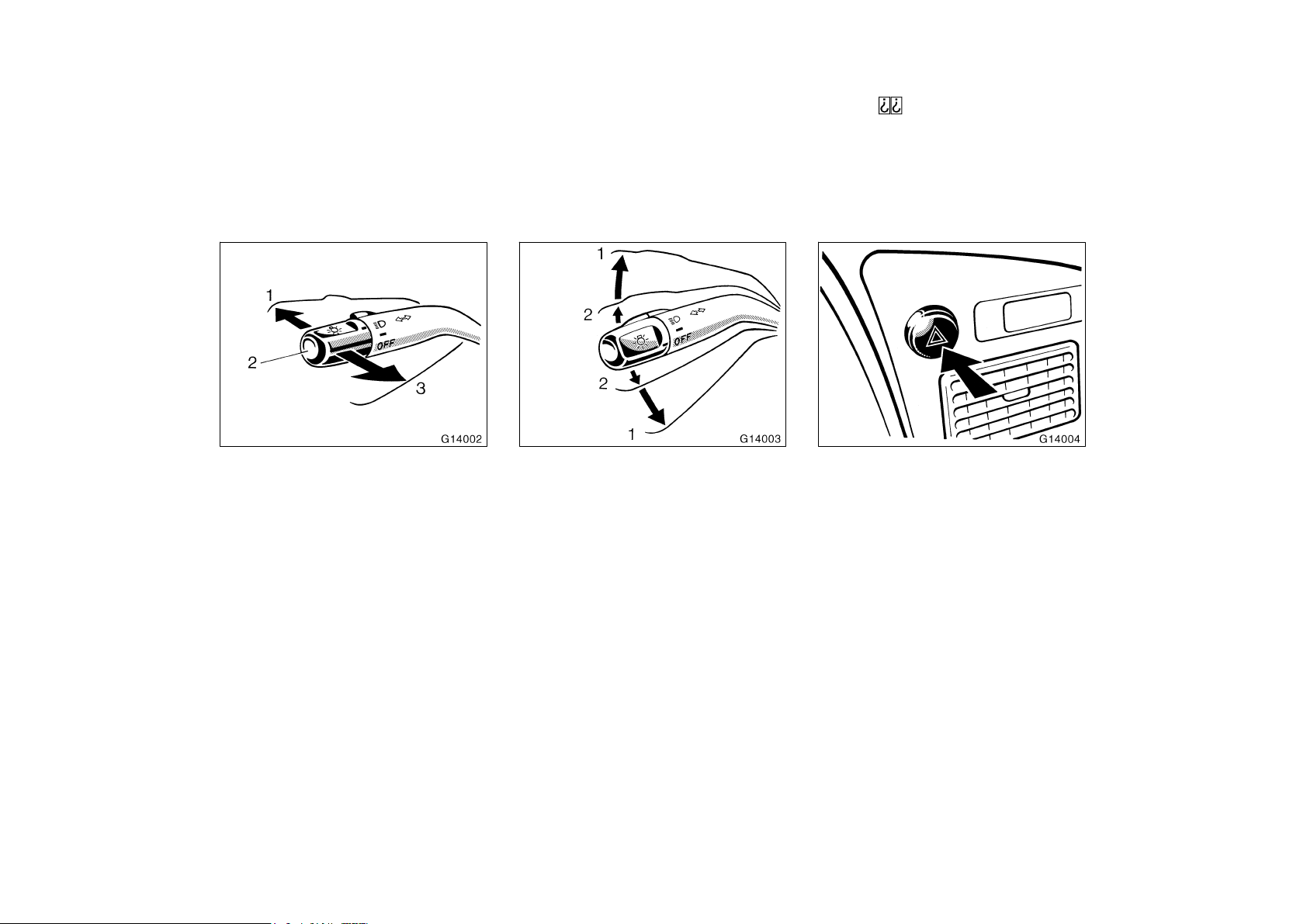

High−low beams—For high beams, turn

the headlights on and push the lever away

from you (position 1). Pull the lever to-

ward you (position 2) for low beams.

The headlight high beam indicator light

(blue light) on the instrument panel will

tell you that the high beams are on.

Flashing the high beam headlights

(position 3)—Pull the lever all the way

back. The high beam headlights turn off

when you release the lever.

You can flash the high beam headlights

with the knob turned to ”OFF”.

TURN SIGNALS

To signal a turn, push the headlight/

turn signal lever up or down to position

The key must be in the ”ON” position.

The lever automatically returns after you

make a turn, but you may have to return

it by hand after you change lanes.

To signal a lane change, move the lever

up or down to the pressure point (position

2) and hold it.

If the turn signal indicator lights (green

lights) on the instrument panel flash faster

than normal, a front or rear turn signal

bulb is burned out.

Emergency flashers

To turn on the emergency flashers,

push the switch.

All the turn signal lights will flash. To turn

them off, push the switch once again.

Turn on the emergency flashers to warn

other drivers if your vehicle must be

stopped where it might be a traffic hazard.

Always pull as far off the road as pos-

sible.

The turn signal light switch will not work

when the emergency flashers are operat-

ing.

CELICA U

NOTICE

To prevent the battery from being dis-

charged, do not leave the switch on

longer than necessary when the en-

gine is not running.

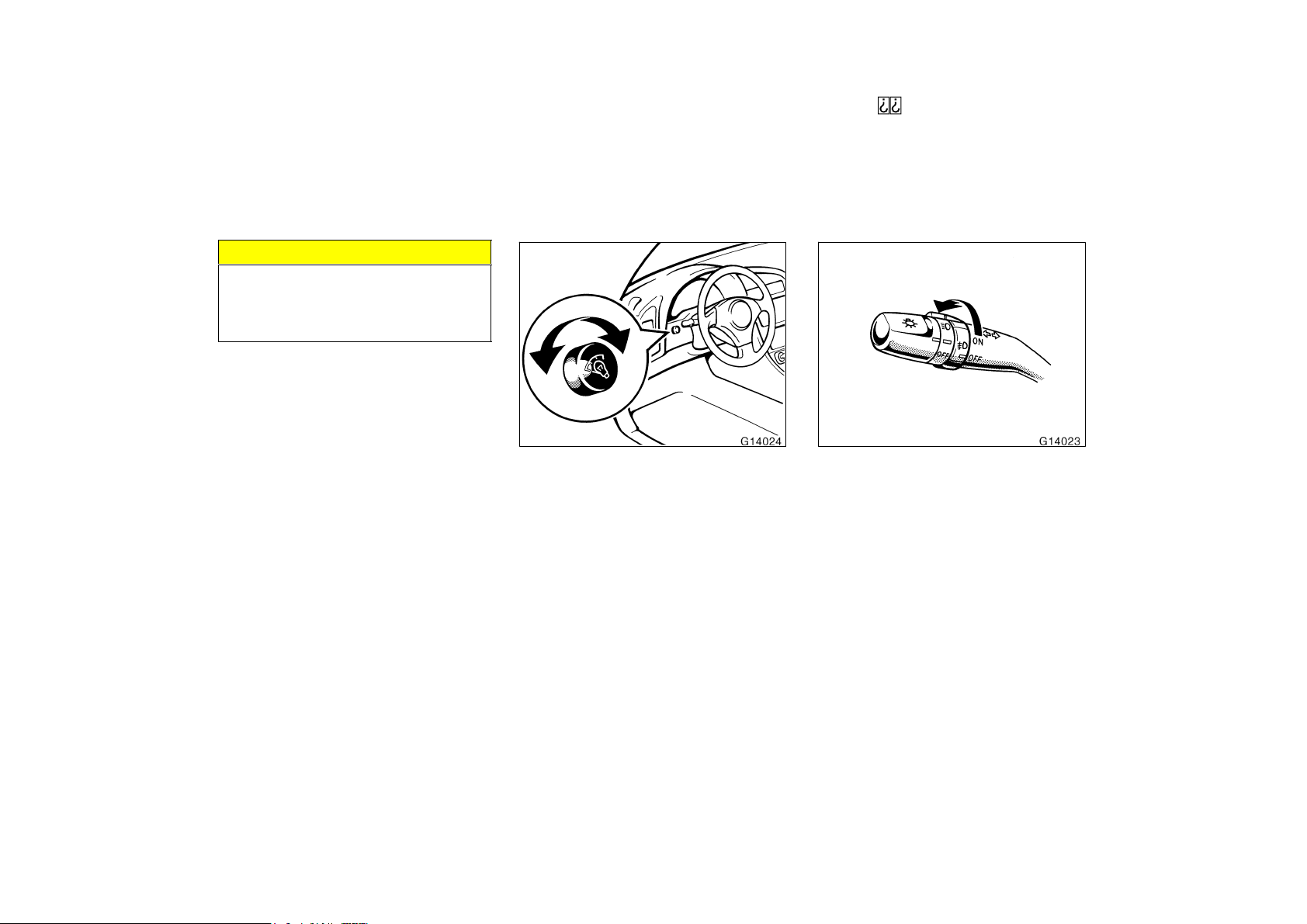

Instrument panel light control

To adjust the brightness of the instru-

ment panel lights, turn the knob.

Front fog lights

To turn on the front fog lights, twist

the band of the headlight and turn sig-

nal switch lever. They will come on

when the tail lights are turned on.

CELICA U

Interior light (with moon roof)

To turn on the interior light, push the

switch. To turn the light off, slightly

push the switch on the opposite side.

The interior light switch has the following

positions:

”ON”—Turns the light all the time.

”DOOR”—Turns the light on when either

side door or the back door is opened. The

light goes off when both side doors and

the back door are closed.

The interior lights operate separately

with each outer switch.

To turn on the light, push the switch on

your side. To turn the light off, push the

switch once again.

The center switch has the following posi-

tions:

”DOOR”—Turn both lights on when either

side door or the back door is opened. The

lights remain on for some time after both

side doors and the back door are closed.

”OFF”—The lights are off unless you oper-

ate either outside switch.

Personal lights

To operate the personal light, move the

knob.

To turn on: Push the knob forward.

To turn off: Pull the knob backward.

The light comes on when either side door

is opened.

Interior lights (without moon

roof)

CELICA U

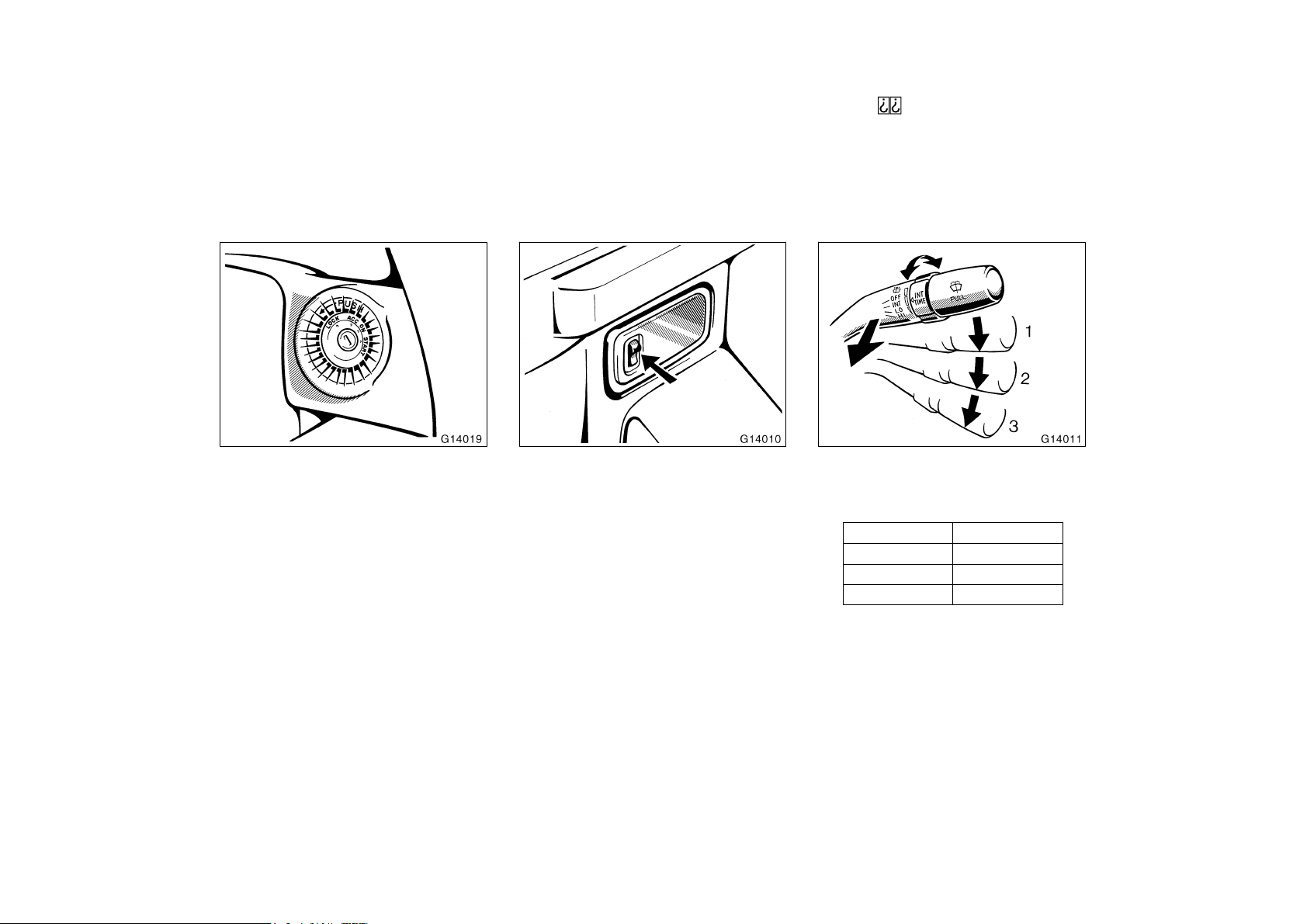

Ignition switch light

For easy access to the ignition switch,

the ignition switch light comes on when

either side door or the back door is

opened.

The light remains on for some time after

both the side doors and the back door are

closed.

To turn the luggage compartment light

on, open the back door and push the

switch. Closing the back door will turn

the light off.

Windshield wipers and washer

To turn on the windshield wipers, move

the lever to the desired setting.

The key must be in the ”ON” position.

Lever position

Speed setting

Position 1 Intermittent

Position 2 Slow

Position 3 Fast

With interval adjuster: The ”INT TIME”

band lets you adjust the wiping time inter-

val when the wiper lever is in the intermit-

tent position (position 1). Twist the band

upward to increase the time between

sweeps, and downward to decrease it.

Luggage compartment light

(liftback)

CELICA U

To squirt washer fluid, pull the lever

toward you.

If the windshield wipers are off, they will

operate a couple of times after the washer

squirts.

For instructions on adding washer fluid,

see ”Adding washer fluid” in Chapter 7−3.

In freezing weather, warm the windshield

with the defroster before using the washer.

This will help prevent the washer fluid

from freezing on your windshield, which

can block your vision.

NOTICE

Do not operate the wipers if the wind-

shield is dry. It may scratch the

glass.

Rear window wiper and washer

To turn on the rear window wiper, twist

the lever knob upward.

The key must be in the ”ON” position.

Lever position

Speed setting

Position 1 Slow

Position 2 Fast

To squirt washer fluid on the rear window,

twist the knob upward or downward as far

as it will go (position 3 or 4). The knob

automatically returns from these positions

after you release it.

For instructions on adding washer fluid,

see ”Adding washer fluid” in Chapter 7−3.

NOTICE

Do not operate the rear wiper if the

rear window is dry. It may scratch the

glass.

CELICA U

Rear window defogger

To defog or defrost the rear window,

push the switch.

The key must be in the ”ON” position.

The thin heater wires on the inside of the

rear window will quickly clear the surface.

An indicator light will illuminate to indicate

the defogger is operating.

Push the switch once again to turn the

defogger off.

The system will automatically shut off af-

ter the defogger has operated about 15

minutes.

Make sure you turn the defogger off when

the window is clear. Leaving the defogger

on for a long time could cause the battery

to discharge, especially during stop−and−

go driving. The defogger is not designed

for drying rain water or for melting snow.

NOTICE

z When cleaning the inside of the

rear window, be careful not to

scratch or damage the heater wires.

z Convertible models: When the con-

vertible top is completely lowered,

keep the rear window defogger

turned off to avoid damage to the

convertible top.

CELICA U

Part 1

OPERATION OF

INSTRUMENTS AND

CONTROLS—

Chapter 1−5

Gauges, Meters and

Service reminder

indicators

Fuel gauge

D Engine coolant temperature

gauge

D Tachometer

D Odometer and trip meter

D Service reminder indicators and

warning buzzers

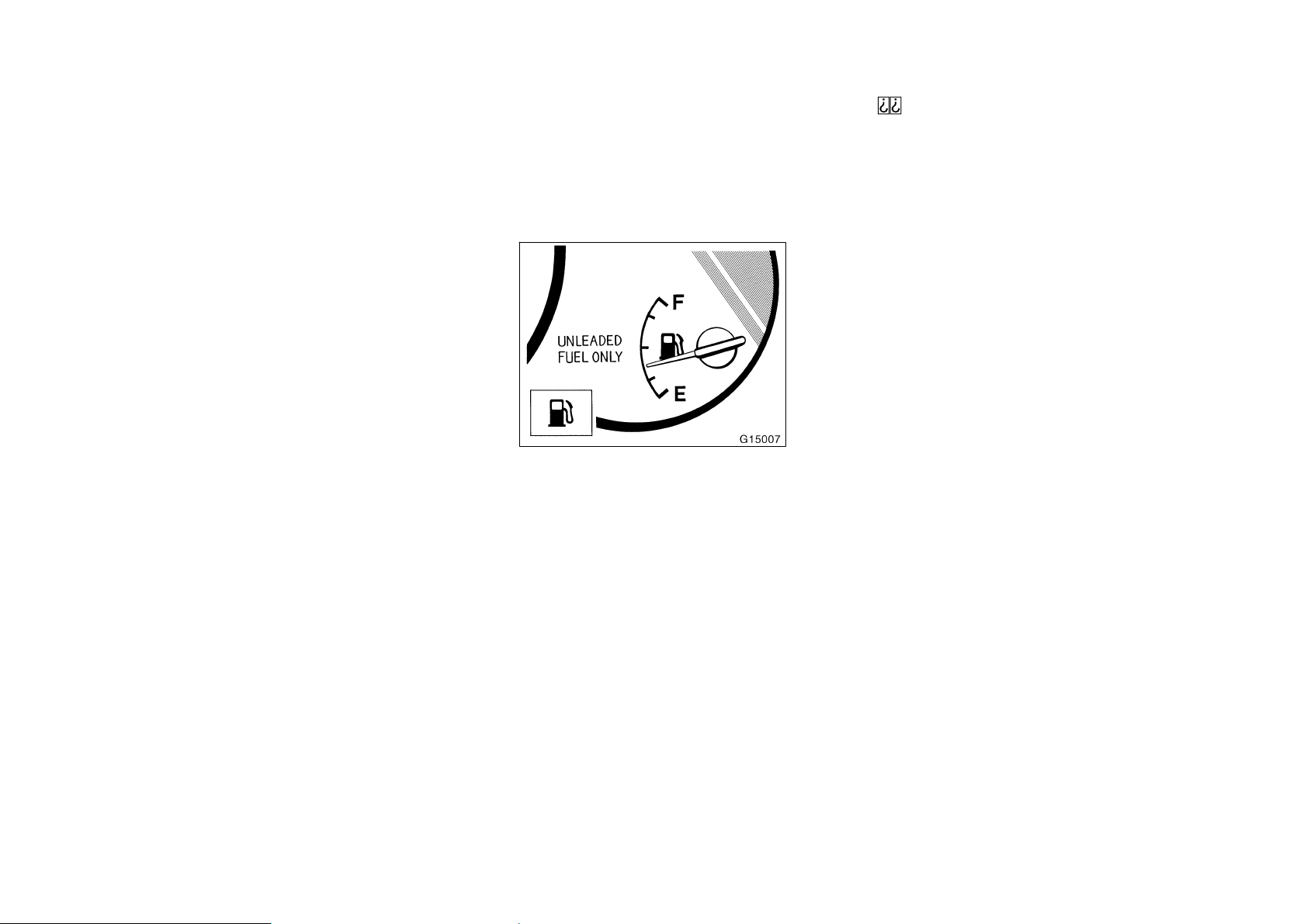

Fuel gauge

The gauge works when the ignition

switch is on and indicates the approxi-

mate quantity of fuel remaining in the

tank.

Nearly full—Needle at ”F”

Nearly empty—Needle at ”E”

It is a good idea to keep the tank over

1/4 full.

This fuel gauge has a non−return type

needle which remains at the last indicated

position when the ignition switch is turned

off.

If the fuel level approaches ”E” or the low

fuel level warning light comes on, fill the

fuel tank as soon as possible.

On inclines or curves, due to the move-

ment of fuel in the tank, the fuel gauge

needle may fluctuate or the low fuel level

warning light may come on earlier than

usual.

If the fuel tank is completely empty, the

malfunction indicator lamp comes on. Fill

the fuel tank immediately.

The indicator lamp goes off after driving

several times. If the indicator lamp does

not go off, contact your Toyota dealer as

soon as possible.

CELICA U

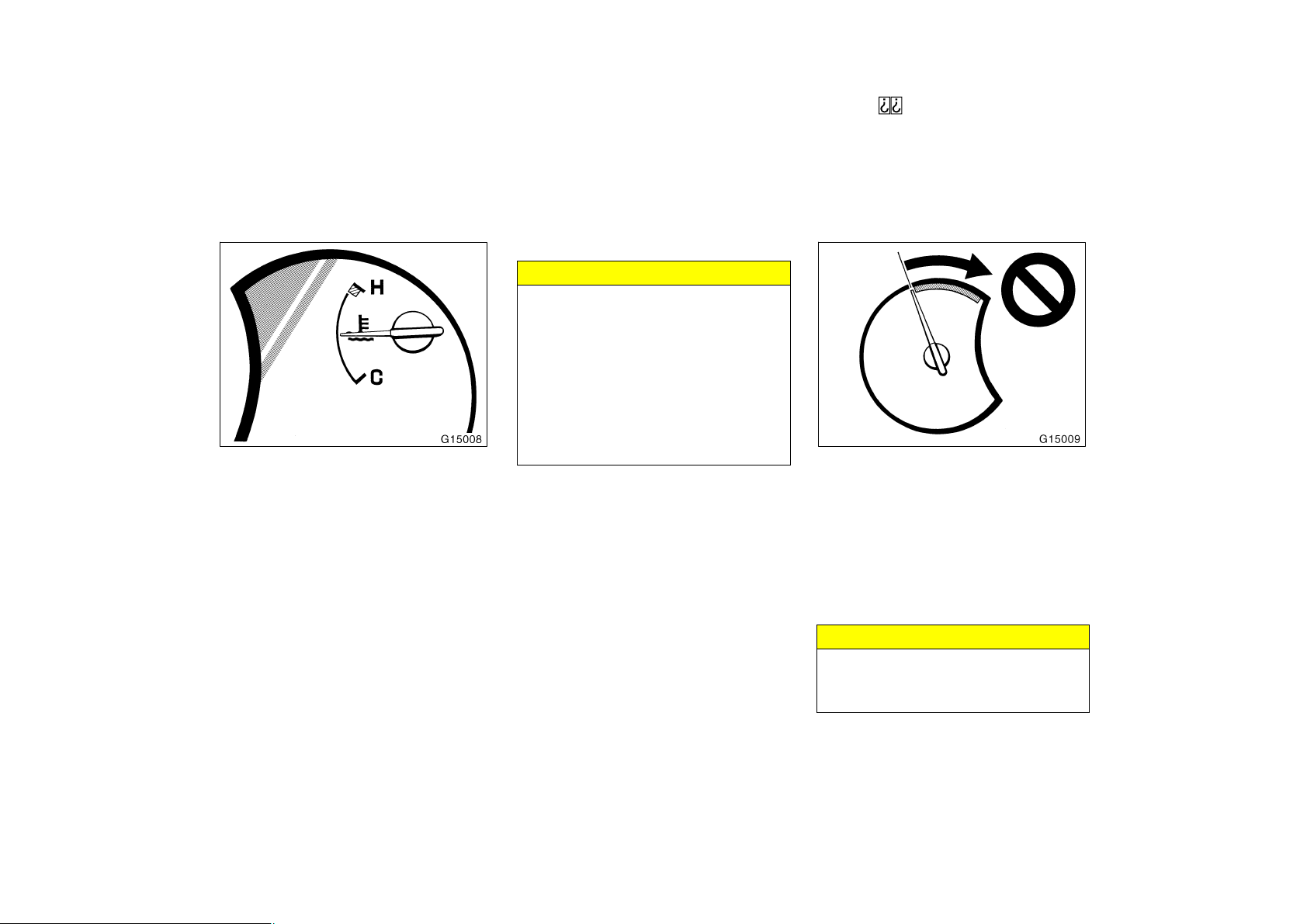

The gauge indicates the engine coolant

temperature when the ignition switch is

on. The engine operating temperature

will vary with changes in weather and

engine load.

If the needle moves into the red zone,

your engine is too hot. If your vehicle

overheats, stop your vehicle and allow the

engine to cool.

Your vehicle may overheat during severe

operating conditions, such as:

D Driving up a long hill on a hot day.

D Reducing speed or stopping after high

speed driving.

D Idling for a long period with the air

conditioning on in stop−and−go traffic.

D Towing a trailer.

NOTICE

z Do not remove the thermostat in

the engine cooling system as this

may cause the engine to overheat.

The thermostat is designed to con-

trol the flow of coolant to keep the

temperature of the engine within

the specified operating range.

z Do not continue driving with an

overheated engine. See ”If your

vehicle overheats” in Part 4.

Tachometer

The tachometer indicates engine speed

in thousands of rpm (revolutions per

minute). Use it while driving to select

correct shift points and to prevent en-

gine lugging and overrevving.

Driving with the engine running too fast

causes excessive engine wear and poor

fuel economy. Remember, in most cases

the slower the engine speed, the greater

the fuel economy.

NOTICE

Do not let the indicator needle get

into the red zone. This may cause

severe engine damage.

Engine coolant temperature

gauge

CELICA U

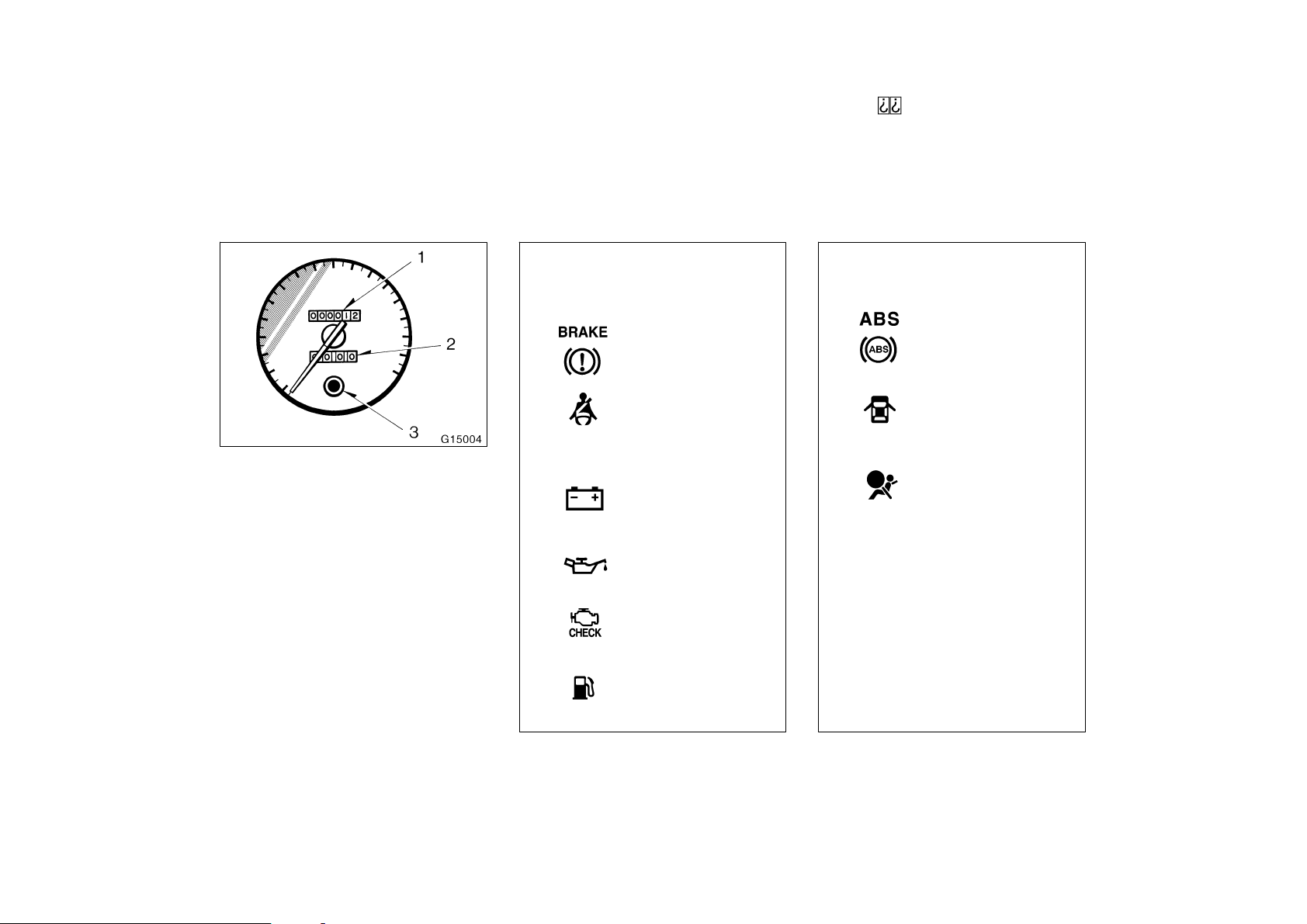

Odometer and trip meter

These meters show the running dis-

tance.

1. Odometer—It shows the total dis-

tance the vehicle has been driven.

2. Trip meter—It shows the distance driv-

en since the last time it was set to

zero.

The black digits on white indicate

tenths of kilometers or miles.

3. Trip meter reset knob

—It resets the

trip meter to zero.

To reset the trip meter, push the knob.

If the indicator

or buzzer

comes on...

Do this.

(a) (type A) If parking

brake is off,

(type B) stop and

check.

(b) Fasten seat

belts.

(Indicator and buzzer)

(d) Stop and check.

(e) Take vehicle to

Toyota dealer.

(f) Fill up tank.

10302

(j) Key reminder

buzzer

Remove key.

(i) Take vehicle to

Toyota dealer

immediately.

(h) Close both slide

doors and back

doors.

(g) (type A) Take vehicle to

Toyota dealer.

(type B)

If the indicator

or buzzer

comes on...

Do this.

10302

Service reminder indicators

and warning buzzers

CELICA U

(a) Brake System Warning Light

This light has the following functions:

Parking brake reminder

If this light is on, make sure the parking

brake is fully released. The light should

go off.

Low brake fluid level warning

If this light comes on and stays on while

you are driving, slow down and pull off

the road. Then stop the vehicle carefully.

There may be a problem somewhere in

the brake system. Check the fluid level of

the see−through reservoir.

To make sure the parking brake has not

caused the warning light to come on,

check to see that the parking brake is

fully released.

If the brake fluid level is low...

At a safe place, test your brakes by

starting and stopping.

D If you judge that the brakes still work

adequately, drive cautiously to your

nearest dealer or shop for repairs.

D If the brakes are not working, have the

vehicle towed in for repairs. (For tow-

ing information, see Part 4.)

CAUTION

It is dangerous to continue driving

normally when the brake fluid level is

low.

If the brake fluid level is correct...

Have the warning system checked by your

Toyota dealer.

(b) Seat Belt Reminder Light and Buzz-

Once the ignition key is turned to ”ON” or

”START”, the reminder light and buzzer

come on if the driver’s seat belt is not

fastened. Unless the driver fastens the

belt, the light stays on and the buzzer

sounds for about 4 to 8 seconds.

This light warns that the battery is being

discharged.

If it comes on while you are driving, there

is a problem somewhere in the charging

system.

The engine ignition will continue to oper-

ate, however, until the battery is dis-

charged. Turn off the air conditioning,

blower, radio, etc., and drive directly to

the nearest Toyota dealer or repair shop.

NOTICE

Do not continue driving if the engine

drive belt is broken or loose.

(d) Low Oil Pressure Warning Light

This light warns that the engine oil pres-

sure is too low.

If it flickers or stays on while you are

driving, pull off the road to a safe place

and stop the engine immediately. Call a

Toyota dealer or qualified repair shop for

assistance.

The light may occasionally flicker when

the engine is idling or it may come on

briefly after a hard stop. There is no

cause for concern if it then goes out when

the engine is accelerated slightly.

The light may come on when the oil level

is extremely low. It is not designed to

indicate low oil level, and the oil level

must be checked using the level dipstick.

NOTICE

Do not drive the vehicle with the

warning light on—even for one block.

It may ruin the engine.

CELICA U

(e) Malfunction indicator lamp

This lamp comes on in the following

cases.

a. The fuel tank is completely empty. (See

”Fuel gauge” in Chapter 1−5 for instruc-

tions.)

b. The fuel tank cap is not tightened se-

curely. (See ”Fuel tank cap” in Chapter

1−2 for instructions.)

c. There is a problem somewhere in your

engine or automatic transmission electrical

system.

If it comes on while you are driving in

case c, have your vehicle checked/re-

paired by your Toyota dealer as soon as

possible.

(f) Low Fuel Level Warning Light

This light comes on when the fuel level

in the tank becomes nearly empty. Fill up

the tank as soon as possible.

On inclines or curves, due to the move-

ment of fuel in the tank, the low fuel level

warning light may come on earlier than

usual.

(g) ”ABS” Warning Light

This light warns that there is a problem

somewhere in your anti−lock brake sys-

tem.

If the light comes on while you are driv-

ing, have your vehicle checked by your

Toyota dealer as soon as possible.

The light will come on when the ignition

key is turned to the ”ON” position. After

a few seconds, the light will go off.

When the ”ABS” warning light is on (and

the brake system warning light is off), the

brake system operates conventionally but

anti−lock brake system is not assisting

brake performance so that the wheels can

look−up during sudden braking or braking

on slippery road surfaces.

(h) Open Door Warning Light

This light remains on until both side doors

and back door are completely closed.

(i) SRS Airbag Warning Light

This light will come on when the igni-

tion key is turned to the ”ACC” or

”ON” position. After about 6 seconds,

the light will go off. This means the

airbag system is operating properly.

The warning light system monitors the

front airbag sensors, center airbag sensor

assembly, inflators, warning light, intercon-

necting wiring and power sources.

If either of the following conditions occurs,

this indicates a malfunction somewhere in

the parts monitored by the warning light

system. Contact your Toyota dealer as

soon as possible to service the vehicle.

D The light does not come on when the

ignition key is turned to the ”ACC” or

”ON” position or remains on.

D The light comes on while driving.

(j) Key Reminder Buzzer

This buzzer reminds you to remove the

key when you open the driver’s door with

the ignition key in the ”ACC” or ”LOCK”

position.

CHECKING SERVICE REMINDER INDICA-

TORS (except the low fuel level warning

light)

1. Apply the parking brake.

2. Open either side door or the back

door.

The open door warning light should

come

on.

3. Close the door.

The open door warning light should go

off.

4. Turn the ignition key to ”ACC”.

The SRS airbag warning light should

come on. It goes off after about 6 se-

conds.

CELICA U

5. Turn the ignition key to ”ON”, but do

not start the engine.

All the service reminder indicators except

the open door warning light and SRS air-

bag warning light should come on. The

”ABS” warning light goes off after a few

seconds.

If any service reminder indicator or warn-

ing buzzer does not function as described

above, either the bulb is burned out or the

circuit is in need of repair. Have it

checked by your Toyota dealer as soon as

possible.

CELICA U

Part 1

OPERATION OF

INSTRUMENTS AND

CONTROLS—

Chapter 1−6

Ignition switch,

Transmission and

Parking brake

Ignition switch with steering lock

D Automatic transmission

D Manual transmission

D Parking brake

D Cruise control

”START”—Starter motor on. The key

will return to the ”ON” position when

released.

For starting tips, see Part 3.

”ON”—Engine on and all accessories

on.

This is the normal driving position.

”ACC”—Accessories such as the radio

operate, but the engine is off.

If you leave the key in the ”ACC” or

”LOCK” position and open the driver’s

door, a buzzer will remind you to remove

the key.

”LOCK”—Engine is off and the steering

wheel is locked. The key can be re-

moved only at this position.

You must push in the key to turn the key

from ”ACC” to the ”LOCK” position. On

vehicles with an automatic transmission,

the selector lever must be in the ”P” posi-

tion before pushing the key.

When starting the engine, the key may

seem stuck at the ”LOCK” position. To

free it, first be sure the key is pushed all

the way in, and then rock the steering

wheel slightly while turning the key gently.

CAUTION

For manual transmission:

Never remove the key when the ve-

hicle is moving, as this will lock the

steering wheel and result in loss of

steering control.

NOTICE

Do not leave the key in the ”ON”

position if the engine is not running.

The battery will discharge and the

ignition could be damaged.

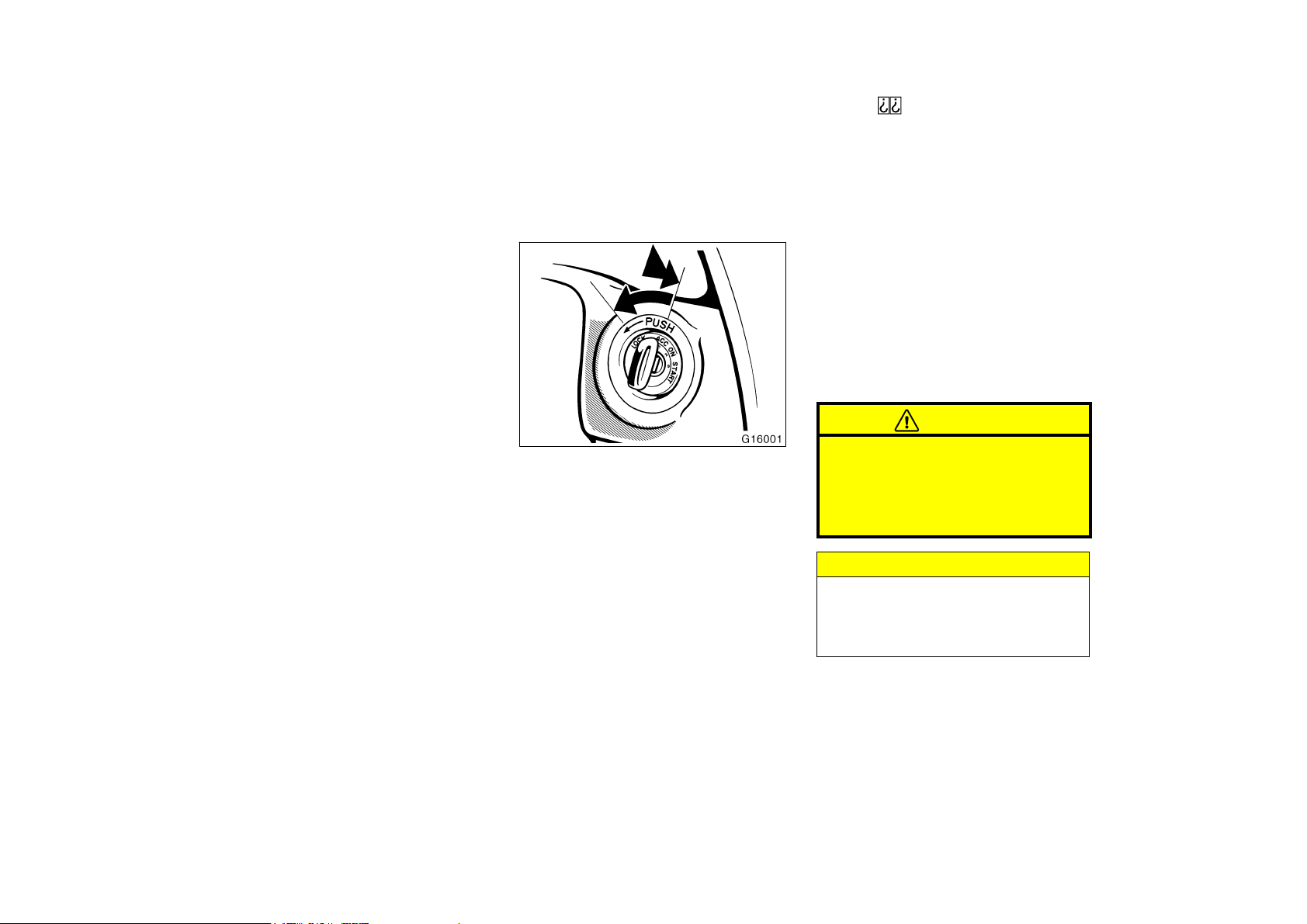

Ignition switch with steering

lock

CELICA U

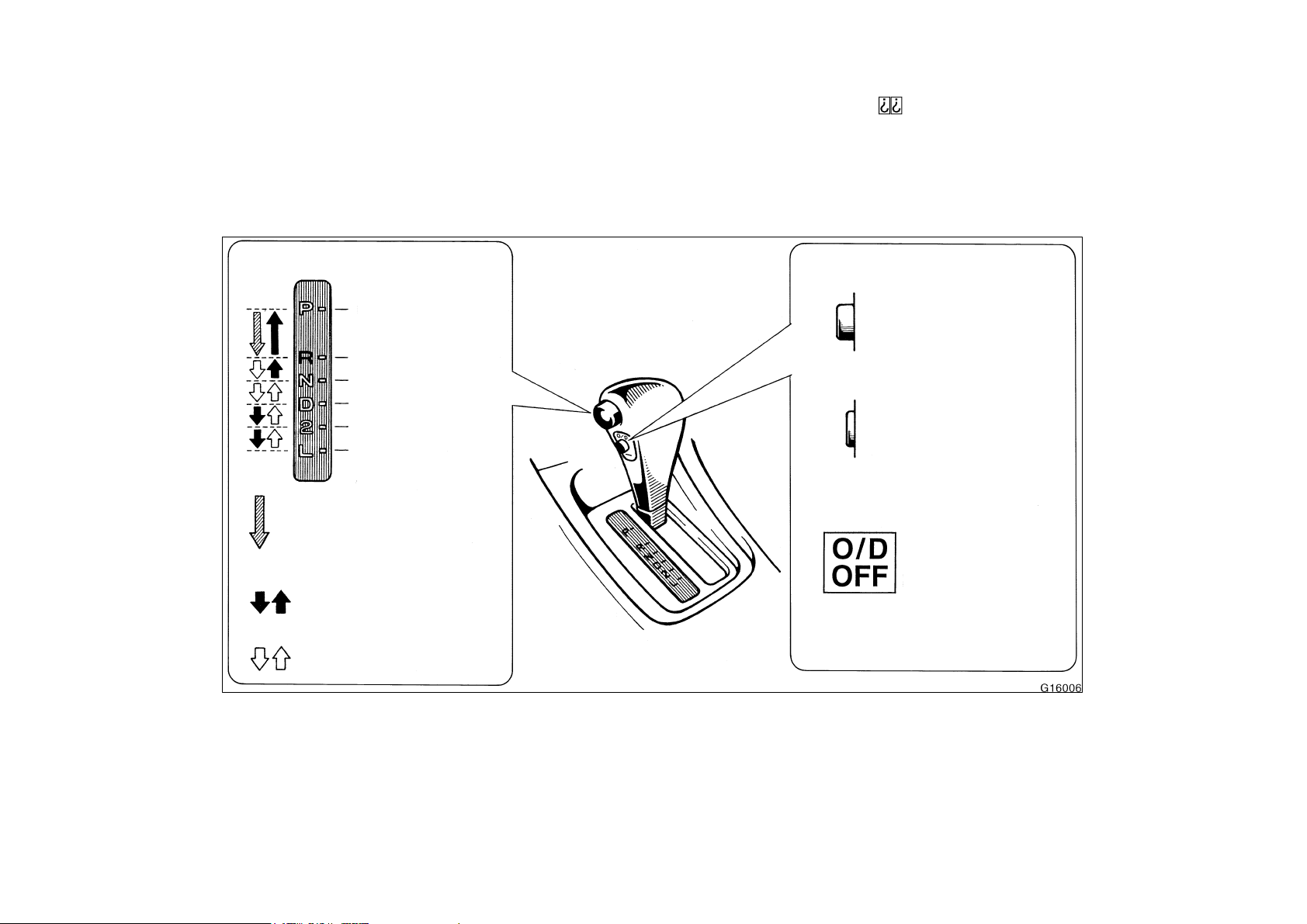

Automatic transmission

Lock release button

To prevent misshifting

Parking, engine

starting

and key removal

position

Reverse position

Neutral position

Normal driving position

Position for engine braking

Position for stronger

engine braking than

that in “2” position

With the brake pedal depressed,

shift while holding the lock re-

lease

button in. (The ignition switch

must be in “ON” position.)

Shift while holding the

lock

release button in

Shift normally

Overdrive switch

For selecting either a three−

speed or four−speed transmis-

sion

ON position

(Shifting into overdrive pos-

sible)

OFF position

(Shifting into over-

drive not possible)

”O/D OFF” indicator

light

Shows the overdrive

switch is in OFF posi-

tion

Vehicles with cruise control—When the cruise control is being used, even if you downshift the transmission by turning off the overdrive

switch, engine braking will not be applied because the cruise control is not cancelled. For ways to decrease the vehicle speed see

”Cruise control” this chapter.

CELICA U

Your automatic transmission has a shift

lock system to minimize the possibility of

incorrect operation. This means you can

only shift out of ”P” position when the

brake pedal is depressed (with the ignition

switch in ”ON” position and the lock re-

lease button depressed).

(a) Normal driving

1. Start the engine as instructed in ”How

to start the engine” in Part 3. The

transmission must be in ”P” or ”N”.

2. With your foot holding down the brake

pedal, shift the selector lever to ”D”.

In ”D” position, the automatic transmission

system will select the most suitable gear

for running conditions such as normal

cruising, hill climbing, hard towing, etc.

Always turn the overdrive switch on for

better fuel economy and quieter driving. If

the engine coolant temperature is low, the

transmission will not shift the overdrive

gear even with the overdrive switch on.

CAUTION

Never put your foot on the accelera-

tor pedal while shifting.

3. Release the parking brake and brake

pedal. Depress the accelerator pedal

slowly for smooth starting.

(b) Using engine braking

To use engine braking, you can downshift

the transmission as follows:

D Turn off the overdrive switch. The ”O/D

OFF” indicator light will come on and

the transmission will downshift to the

third gear.

D Shift into the ”2” position. The trans-

mission will downshift to the second

gear when the vehicle speed drops

down to or lower than 94 km/h (58

mph), and more powerful engine brak-

ing will be obtained.

D Shift into the ”L” position. The trans-

mission will downshift to the first gear

when the vehicle speed drops down to

or lower than 45 km/h (28 mph), and

maximum engine braking will be ap-

plied.

Vehicles with cruise control—When the

cruise control is being used, even if you

downshift the transmission by turning off

the overdrive switch, engine braking will

not be applied because the cruise control

is not cancelled. For ways to decrease

the vehicle speed, see ”Cruise control” in

this chapter.

CAUTION

Be careful downshifting on a slippery

surface. Abrupt shifting could cause

the vehicle to spin or skid.

The ”2” and ”L” positions are used for

strong engine braking as described pre-

viously.

With the selector lever in ”2” or ”L”, you

can start the vehicle in motion as with the

lever in ”D”.

With the selector lever in ”2”, the vehicle

will start in the first gear and automatical-

ly shift to the second gear.

With the selector lever in ”L”, the trans-

mission is engaged in the first gear.

CELICA U

NOTICE

z Be careful not to overrev the en-

gine. Watch the tachometer to keep

engine rpm from going into the red

zone. The approximate maximum al-

lowable speed for each position is

given below for your reference:

”2” 102km/h(63mph). . . . . . . . . . . . .

”L” 48km/h(30mph). . . . . . . . . . . . . .

z Do not continue hill climbing or

hard towing for a long time in the

”2” or ”L” position. This may cause

severe automatic transmission dam-

age from overheating. To prevent

such damage, ”D” position should

be used in hill climbing or hard

towing.

(d) Backing up

1. Bring the vehicle to a complete stop.

2. With the brake pedal held down with

your foot, shift the selector lever to the

”R” position.

NOTICE

Never shift into reverse while the ve-

hicle is moving.

(e) Parking

1. Bring the vehicle to a complete stop.

2. Pull the parking brake lever up fully to

securely apply the parking brake.

3. With the brake pedal pressed down,

shift the selector lever to the ”P” posi-

tion.

CAUTION

While the vehicle is moving, never

attempt to move the selector lever

into ”P” position under any circum-

stances. Serious mechanical damage

and loss of vehicle control may re-

sult.

(f) Good driving practice

D If the transmission is repeatedly up-

shifted and downshifted between third

gear and overdrive when climbing a

gentle slope, the overdrive switch

should be turned off. Be sure to turn

the switch on immediately afterward.

D When towing a trailer, in order to main-

tain engine braking efficiency, do not

use overdrive.

CAUTION

Always keep your foot on the brake

pedal while stopped with the engine

running. This prevents the vehicle

from creeping.

NOTICE

Do not hold the vehicle on an up-

grade with the accelerator pedal. It

can cause the transmission to over-

heat. Always use the brake pedal or

parking brake.

CELICA U

(g) Rocking your vehicle in stuck

CAUTION

If your vehicle becames stuck in

snow, mud, sand, etc., then you may

attempt to rock the vehicle free by

moving it forward and backward. Do

not attempt this procedure if people

or objects are anywhere near the ve-

hicle. During the rocking operation

the vehicle may suddenly move for-

ward or backward as it becomes un-

stuck, causing injury or damage to

nearby people or objects.

NOTICE

If you rock your vehicle, observe the

following precautions to prevent dam-

age to the transmission and other

parts.

z Do not depress the accelerator ped-

al while shifting the selector lever

or before the transmission is com-

pletely shifted to forward or reverse

gear.

z Do not race the engine and avoid

spinning the wheels.

z If your vehicle remains stuck after

rocking the vehicle several times,

consider other ways such as tow-

ing.

(h) If you cannot shift the selector le-

ver out of ”P” position

If you cannot shift the selector lever from

the ”P” position even though the brake

pedal is depressed, use the shift lock

override button. For instructions, see ”If

you cannot shift automatic transmission

selector lever” in Part 4.

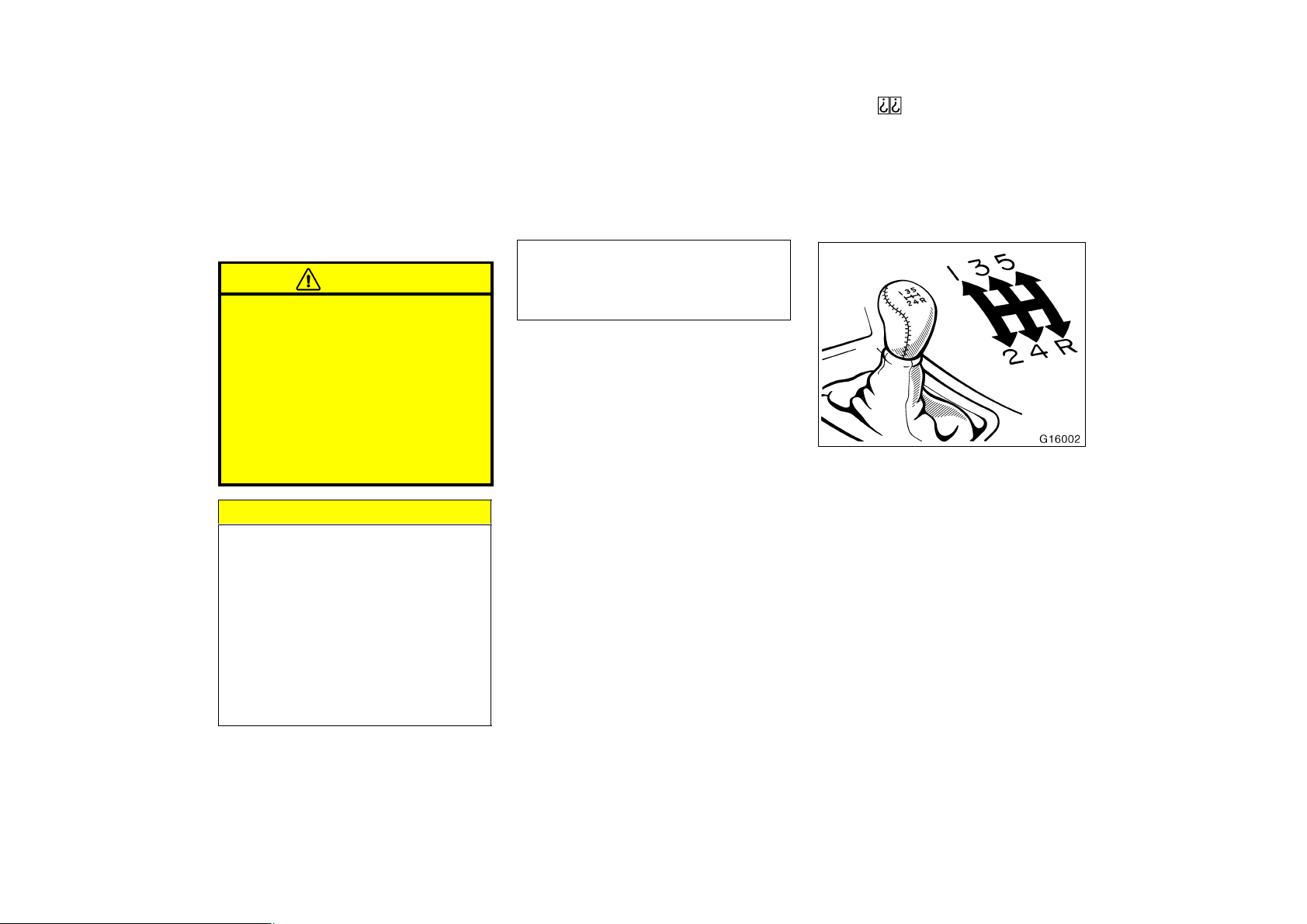

Manual transmission

The shift pattern is as shown above.

Press the clutch pedal down fully while

shifting, and then release it slowly. Do not

rest your foot on the pedal while driving,

because it will cause clutch trouble. And

do not use the clutch to hold the vehicle

when stopped on an uphill grade—use the

parking brake.

Recommended shifting speeds

The transmission is fully synchronized and

upshifting or downshifting is easy.

For the best compromise between fuel

economy and vehicle performance, you

should upshift or downshift at the following

speeds:

CELICA U

gear km/h (mph)

1to2or2to1 24 (15)

2to3or3to2 40 (25)

3to4or4to3 64 (40)

4to5or5to4 72 (45)

Downshift to the appropriate gear if accel-

eration is needed when you are cruising

below the above downshifting speeds.

Upshifting too soon or downshifting too

late will cause lugging, and possibly ping-

ing. Regularly revving the engine to maxi-

mum speed in each gear will cause ex-

cessive engine wear and high fuel

consumption.

Maximum allowable speeds

To get on a highway or to pass slower

traffic, maximum acceleration may be nec-

essary. Make sure you observe the follow-

ing maximum allowable speeds in each

gear:

gear km/h (mph)

151(32)

285(53)

3 126 (78)

4 162 (101)

NOTICE

Do not downshift if you are going

faster than the maximum allowable

speed for the next lower gear.

Good driving practice

D If it is difficult to shift into reverse, put

the transmission in neutral, release the

clutch pedal momentarily, and then try

again.

D When towing a trailer, in order to main-

tain engine braking efficiency, do not

use the fifth gear.

CAUTION

Be careful when downshifting on a

slippery surface. Abrupt shifting

could cause the vehicle to spin or

skid.

NOTICE

Make sure the vehicle is completely

stopped before shifting into reverse.

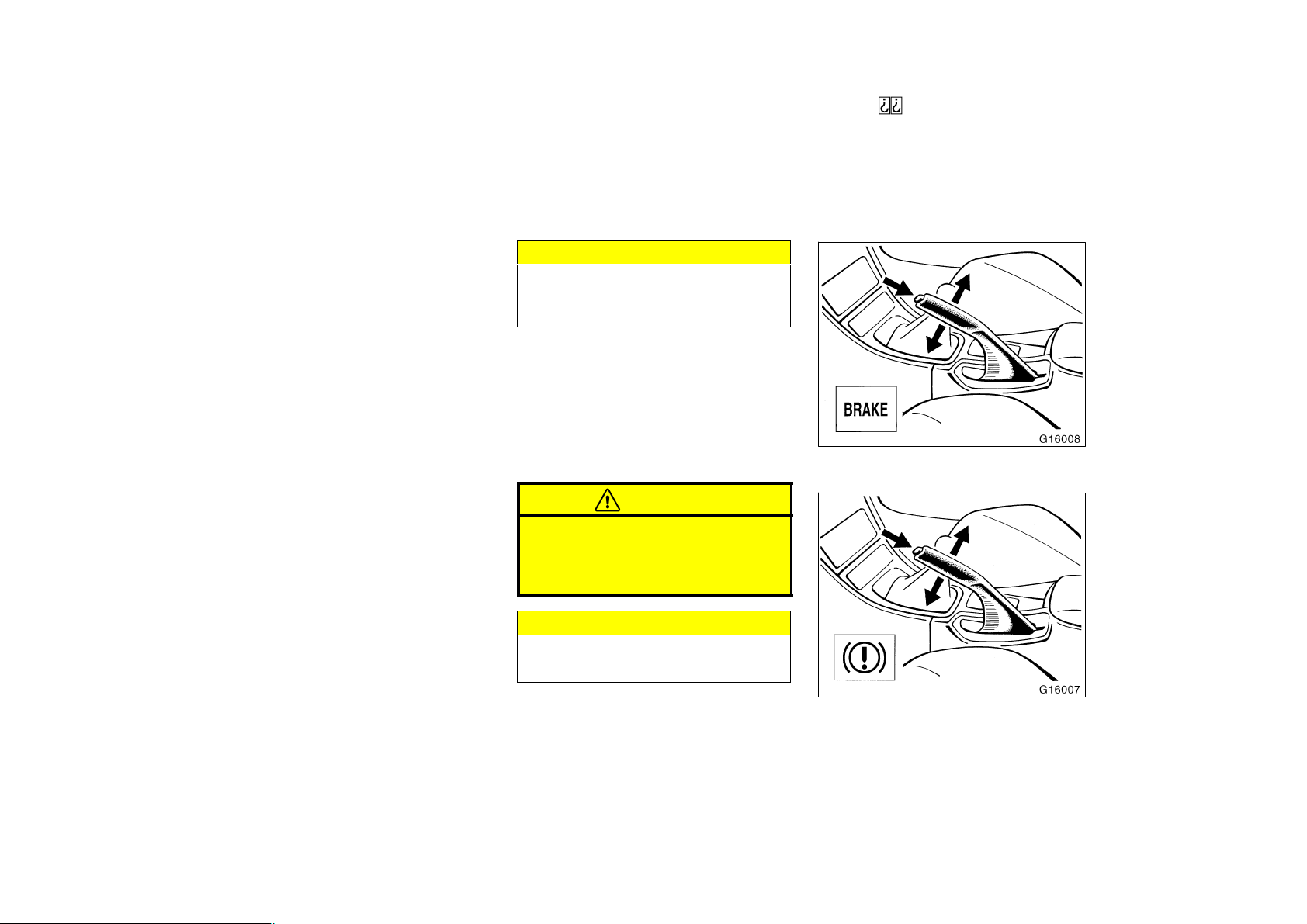

Parking brake

U.S.A.

Canada

CELICA U

When parking, firmly apply the parking

brake to avoid inadvertent creeping.

To set: Pull up the lever. For better hold-

ing power, first depress the brake pedal

and hold it while setting the brake.

To release: Pull up the lever slightly,

press the thumb button, and lower.

To remind you that the parking brake is

set, the parking brake reminder light in

the instrument panel remains on until you

release the parking brake.

CAUTION

Before driving, be sure the parking

brake is fully released and the park-

ing brake reminder light is off.

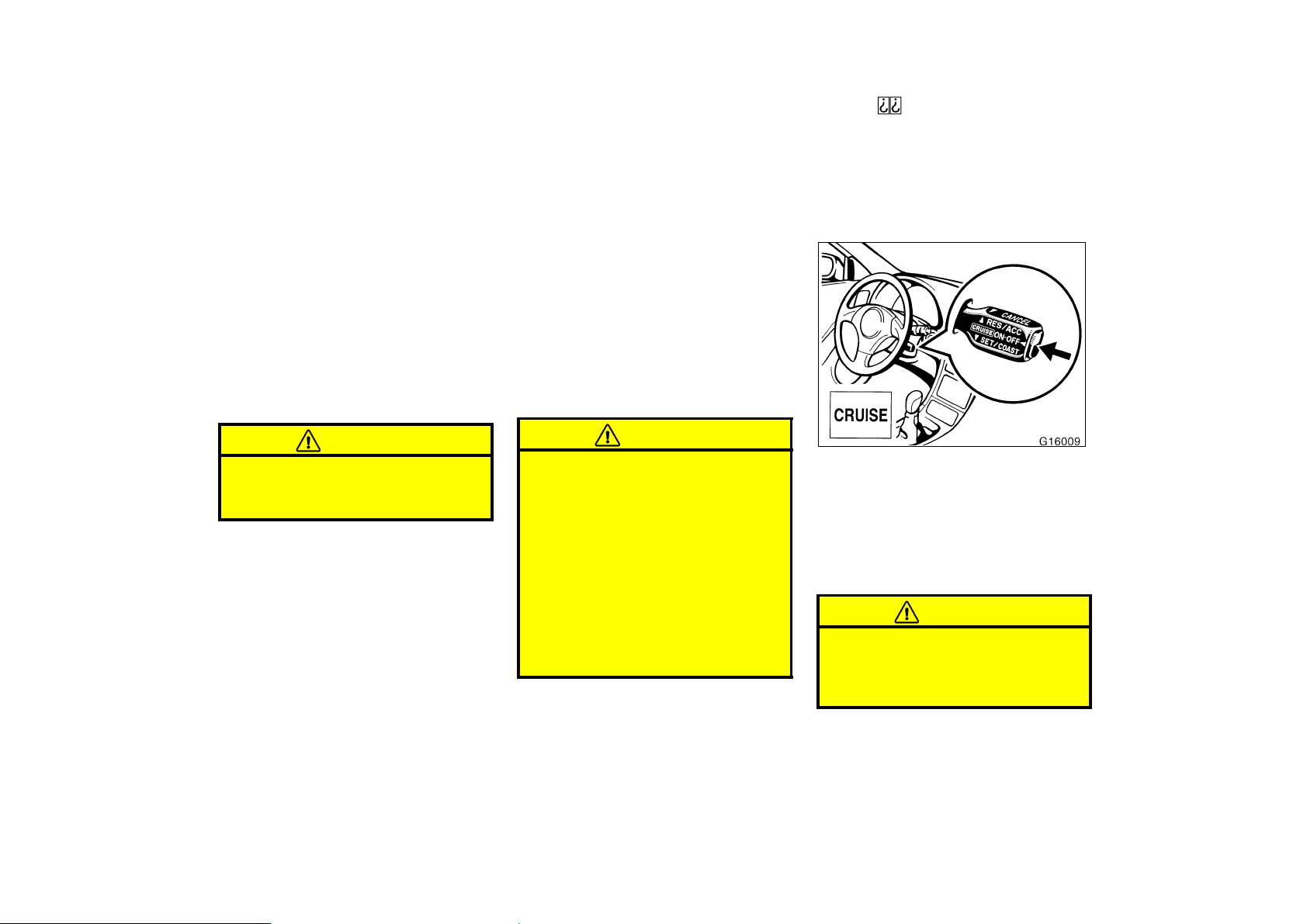

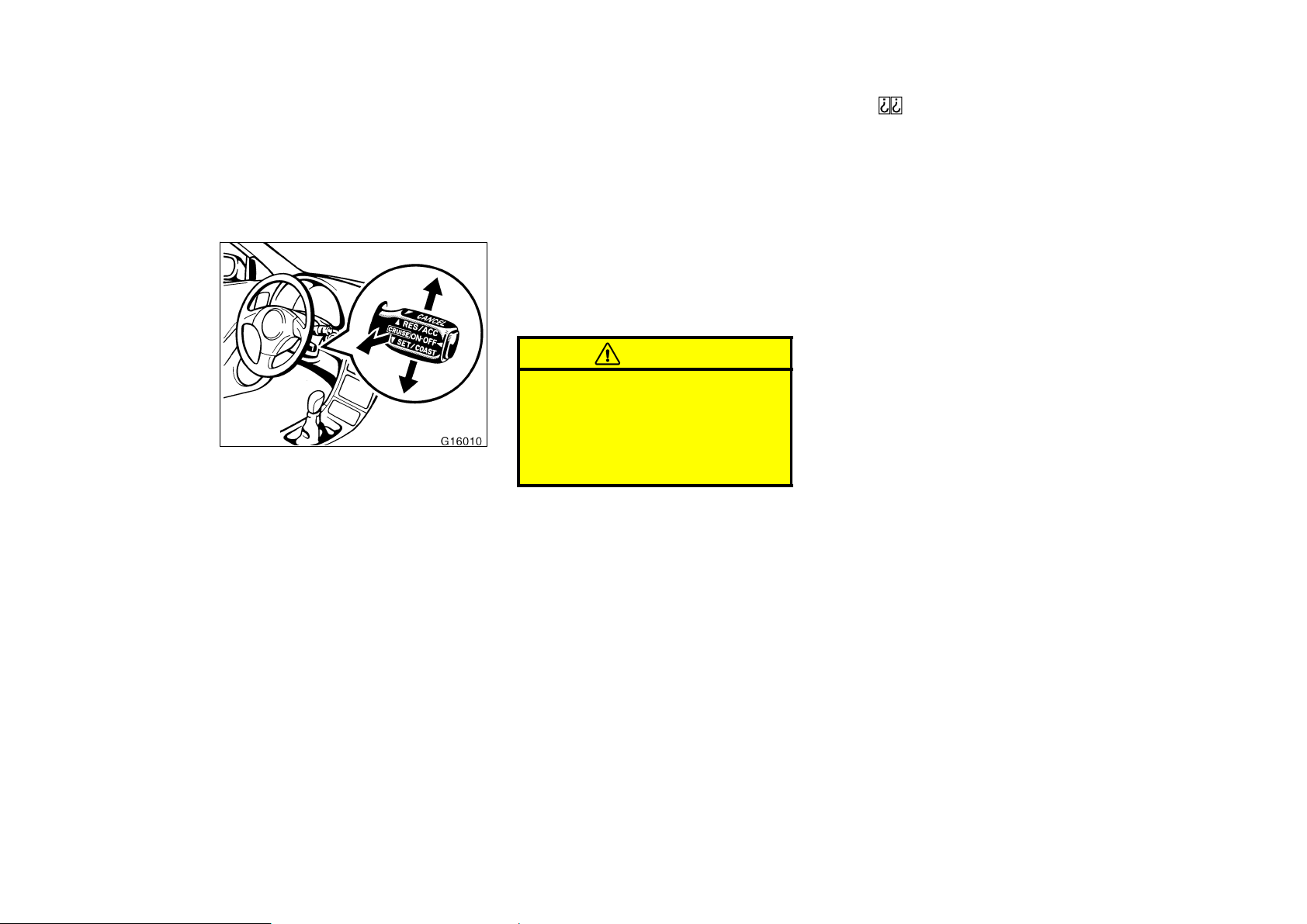

Cruise control

The cruise control allows you to cruise

the vehicle at a desired speed over 40

km/h (25 mph) even with your foot off

the accelerator pedal.

Your cruising speed can be maintained up

or down grades within the limits of engine

performance, although a slight speed

change may occur when driving up or

down the grades. On steeper hills, a

greater speed change will occur so it is

better to drive without the cruise control.

CAUTION

D To help maintain maximum control

of your vehicle, do not use the

cruise control when driving in

heavy or varying traffic, or on slip-

pery (rainy, icy or snow−covered) or

winding roads.

D Avoid vehicle speed increases when

driving downhill. If the vehicle

speed is too fast in relation to the

cruise control set speed, cancel the

cruise control then downshift the

transmission to use engine braking

to slow down.

TURNING ON THE SYSTEM

To operate the cruise control, press the

”CRUISE ON−OFF” button. This turns the

system on. The indicator light in the in-

strument panel shows that you can now

set the vehicle at a desired cruising

speed. Another press will turn the system

completely off.

CAUTION

To avoid accidental cruise control en-

gagement, keep the ”CRUISE ON−

OFF” switch off when not using the

cruise control.

CELICA U

SETTING AT A DESIRED SPEED

On vehicles with automatic transmission,

the transmission must be in ”D” before

you set the cruise control speed.

Bring your vehicle to the desired speed,

push the lever down in the ”SET/COAST”

direction and release it. This sets the ve-

hicle at that speed. If the speed is not

satisfactory, tap the lever up for a faster

speed, or tap it down for a slower speed.

Each tap changes the set speed by 1.6

km/h (1.0 mph). You can now take your

foot off the accelerator pedal.

If you need acceleration—for example,

when passing—depress the accelerator

pedal enough for the vehicle to exceed

the set speed. When you release it, the

vehicle will return to the speed set prior

to the acceleration.

CAUTION

For manual transmission:

While driving with the cruise control

on, do not shift to neutral without

depressing the clutch pedal, as this

may cause engine racing or overrev-

ving.

CANCELLING THE PRESET SPEED

You can cancel the preset speed by:

a. Pulling the lever in the ”CANCEL” di-

rection and releasing it.

b. Depressing the brake pedal.

c. Depressing the clutch pedal (manual

transmission).

If the vehicle speed falls below about 40

km/h (25 mph), the preset speed will auto-

matically cancel out.

If the vehicle speed drops 16 km/h (10

mph) below the preset speed, the preset

speed will also automatically cancel out.

If the preset speed automatically cancels

out other than for the above cases, have

your vehicle checked by your Toyota deal-

er at the earliest opportunity.

RESETTING AT A FASTER SPEED

Push the lever up in the ”RES/ACC” direc-

tion and hold it. Release the lever when

the desired speed is attained. While the

lever is held up, the vehicle will gradually

gain speed.

However, a faster way to reset is to ac-

celerate the vehicle and then push the

lever down in the ”SET/COAST” direction.

RESETTING AT A SLOWER SPEED

Push the lever down in the ”SET/COAST”

direction and hold it. Release the lever

when the desired speed is attained. While

the lever is held down, the vehicle speed

will gradually decrease.

However, a faster way to reset is to de-

press the brake pedal and then push the

lever down in the ”SET/COAST” direction.

CELICA U

On vehicles with automatic transmission,

even if you turn off the overdrive switch

with the cruise control on, engine braking

will not be applied because the cruise

control is not cancelled. To decrease the

vehicle speed, reset to a slower speed

with the cruise control lever or depress

the brake pedal. If you use the brake

pedal, cruise control is cancelled.

RESUMING THE PRESET SPEED

If the preset speed is cancelled by pulling

the control lever or by depressing the

brake pedal or clutch pedal, pushing the

lever up in the ”RES/ACC” direction will

restore the speed set prior to cancellation.

However, once the vehicle speed falls be-

low about 40 km/h (25 mph), the preset

speed will not be resumed.

CRUISE CONTROL FAILURE WARNING

If the ”CRUISE” indicator light in the in-

strument cluster flashes when using the

cruise control, press the ”CRUISE ON−

OFF” button to turn the system off and

then press it again to turn it on.

If any of the following conditions then oc-

curs, there is some trouble in the cruise

control system.

D The indicator light does not come on.

D The indicator light flashes again.

D The indicator light goes out after it

comes on.

If this is the case, contact your Toyota

dealer and have your vehicle inspected.

CELICA U

Part 1

OPERATION OF

INSTRUMENTS

AND CONTROLS—

Chapter 1−7

Car audio system

and Air conditioning

system

Car audio system

Reference

D Using your audio system:

some basics

D Using your audio system:

controls and features

D Car audio system operating hints

Air conditionig system

Controls

D Air flow selector setting

D Operating tips

D Instrument panel vents

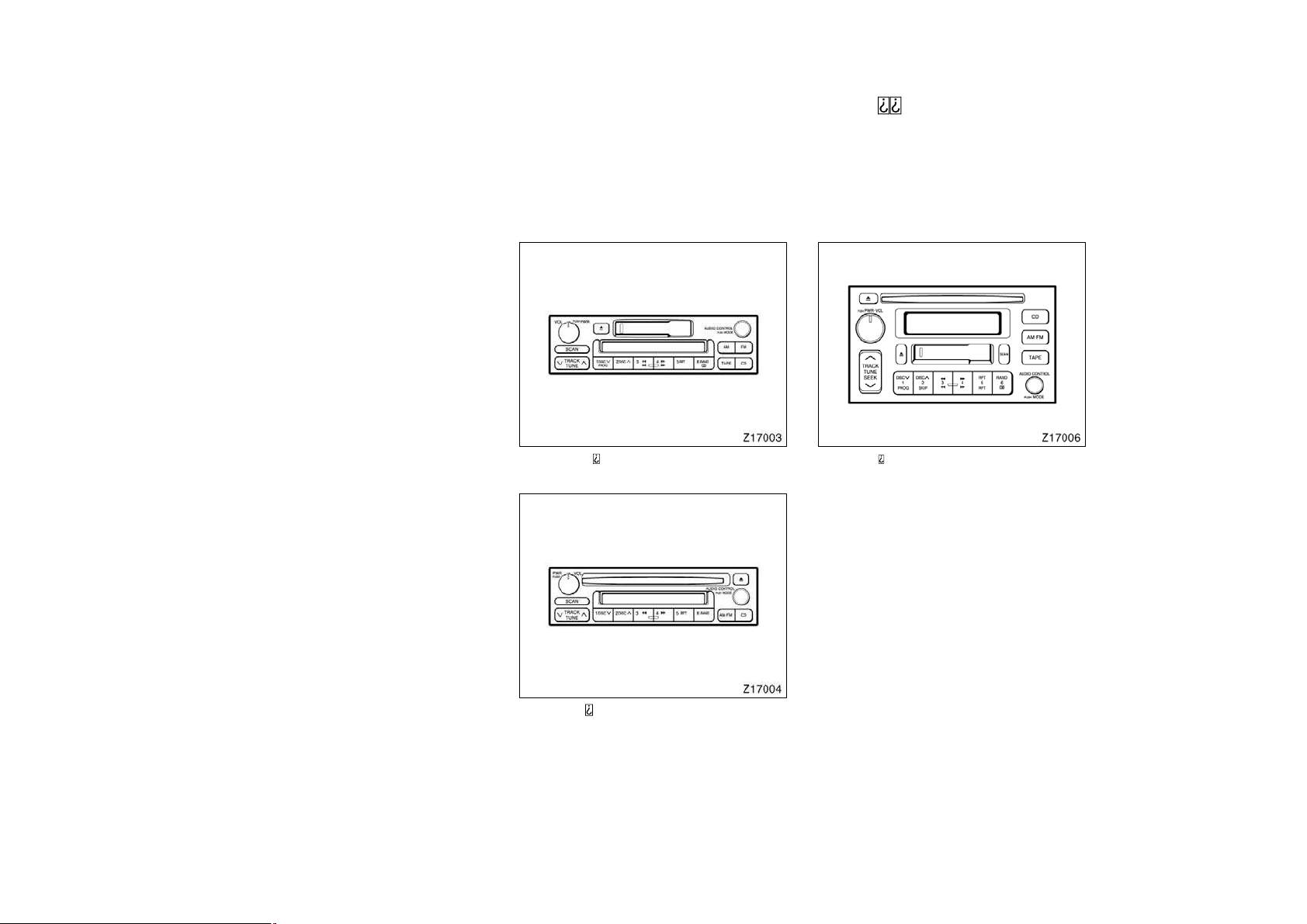

Type 1: AM F M ETR radio/cassette player/

compact disc auto changer controller

Type 2: AM F M ETR radio/compact disc play-

er/compact disc auto changer controller

Type 3: AM FM ETR radio/cassette player/compact

disc player/compact disc auto changer controller

Car audio system—

—Reference

CELICA U

This section describes some of the basic

features on Toyota audio systems. Some

information may not pertain to your sys-

tem.

Your audio system works when the ignition

key is in the “ACC” or “ON” position.

TURNING THE SYSTEM ON AND OFF

Push “PWR

VOL”, “PWR/VOL” or “VOL/

PWR” to turn the audio system on and

off.

Push “AM”, “FM”, “AM

FM”, “TAPE” or “CD”

to turn on that function without pushing

“PWR

VOL”, “PWR/VOL” or “VOL/PWR”.

You can turn on each player by inserting

a cassette tape or compact disc.

You can turn off each player by ejecting

the cassette tape or compact disc. If the

audio system was previously off, then the

entire audio system will be turned off

when you eject the cassette tape or com-

pact disc. If the another function was pre-

viously playing, it will come on again.

SWITCHING BETWEEN FUNCTIONS

Push “AM”, “FM”, “AM

FM” , “TAPE” or

“CD” if the system is already on but you

want to switch from one function to anoth-

er.

TONE AND BALANCE

For details about your system’s tone and

balance controls, see the description of

your own system.

Tone

How good an audio program sounds to

you is largely determined by the mix of

the treble, midrange, and bass levels. In

fact, different kinds of music and vocal

programs usually sound better with differ-

ent mixes of treble, midrange, and bass.

Balance

A good balance of the left and right stereo

channels and of the front and rear sound

levels is also important.

Keep in mind that if you are listening to

a stereo recording or broadcast, changing

the right/left balance will increase the vol-

ume of one group of sounds while de-

creasing the volume of another.

YOUR RADIO ANTENNA

To lower a manual antenna, carefully push

it down.

To lower a power antenna, turn off the

audio system by pushing “PWR

VOL”,

“PWR/VOL” or “VOL/PWR”, or turn the

ignition key to “LOCK”.

On some models, the power antenna auto-

matically retracts when the radio mode is

switched off to turn on the cassette tape

player.

NOTICE

To prevent damage to the antenna,

make sure it is retracted before driv-

ing your Toyota through an automatic

car wash.

—Using your audio system:

some basics

CELICA U

YOUR CASSETTE PLAYER

When you insert a cassette, the exposed

tape should be to the right.

NOTICE

Do not oil any part of the player and

do not insert anything other than cas-

sette tapes into the slot, or the tape

player may be damaged.

YOUR COMPACT DISC PLAYER

When you insert a disc, gently push it in

with the label side up. (The player will

automatically eject a disc if the label side

is down.) The compact disc player will

play from track 1 through the end of the

disc. Then it will play from track 1 again.

NOTICE

Never try to disassemble or oil any

part of the compact disc player. Do

not insert anything except a compact

disc into the slot.

8 cm (3 in.) compact disc singles

Your compact disc player does not need

an adaptor to play compact disc singles.

Compact disc singles are about 8 cm (3

in.) in diameter−smaller than standard

discs.

After you eject a compact disc single, do

not insert a standard 12 cm (5 in.) disc

until “DISC” disappears from the display.

NOTICE

Do not use an adaptor for compact

disc singlesit could cause tracking

errors or interfere with the ejection of

compact discs.

CELICA U

Details of specific buttons, controls, and

features are described in the alphabetical

listing that follows.

—Using your audio system:

controls and features

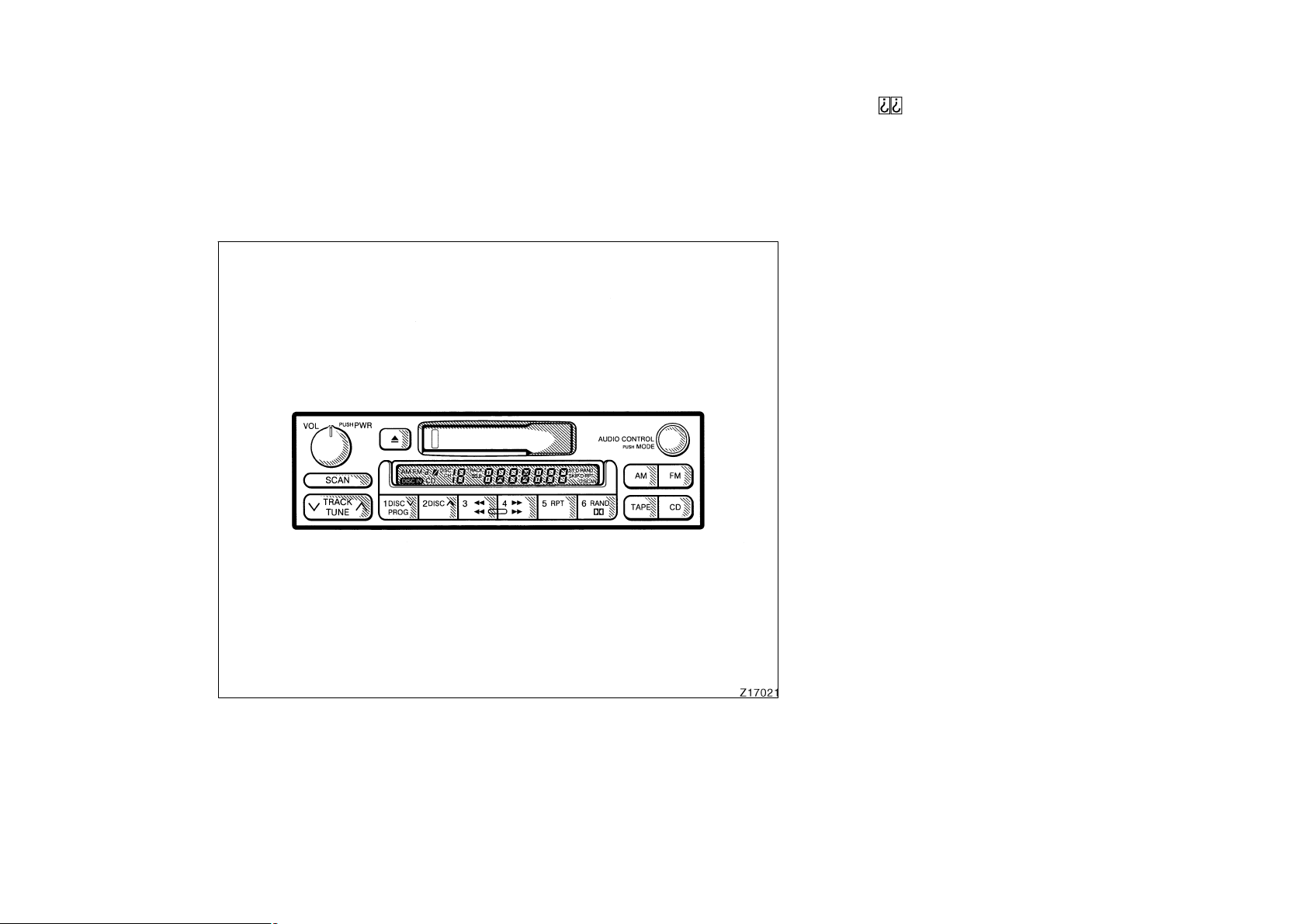

"Type 1

CELICA U

1 2 3 4 5 6 (Preset buttons)

These buttons are used to preset and

tune in radio stations.

To preset a station to a button: Tune in

the desired station (see “TUNE” button).

Push and hold down the button until you

hear a beepthis will set the station to

the button. The button number will appear

on the display.

To tune in to a preset station: Push the

button for the station you want. The but-

ton number and station frequency will ap-

pear on the display.

These systems can store one AM and two

FM stations for each button (The display

will show “AM”, “FM1” or “FM2” when you

push ”AM” or “FM”).

(Eject button)

Push this button to eject a cassette.

After you turn the ignition to “LOCK”, you

will be able to eject a cassette but you

will not be able to reinsert it.

(Reverse/Fast forward buttons)

Cassette Player

Push the fast forward button to fast for-

ward a cassette tape. “FF” will appear on

the display. Push the reverse button to

rewind a tape. “REW” will appear on the

display.

To stop the tape while it is fast forward-

ing, push the fast forward button or

“TAPE”; to stop the tape while it is re-

winding, push the reverse button or

“TAPE”.

If a tape side rewinds completely, the cas-

sette player will stop and then play that

same side. If a tape fast forwards com-

pletely, the cassette player will play the

other side of the tape, using the auto−re-

verse feature.

Compact Disc Player

If you want to fast forward or reverse

through a compact disc track, push and

hold in the fast forward or reverse button.

When you release the button, the compact

disc player will resume playing.

Push “AM” to switch the AM band. “AM”

will appear on the display.

If the audio system is off, you can turn

on the radio by pushing “AM”. Also, push

“AM” to switch from cassette or compact

disc operation to radio operation.

AUDIO CONTROL / MODE

Manual tone adjustment function—

This knob is used to adjust the tone

manually.

For low−pitch tone adjustment, push

“AUDIO CONTROL / MODE” repeatedly

until “BAS” appears on the display. Then

turn the knob to suit your preference.

The display will show the range from

“BAS −5” to “BAS 5”.

For high−pitch tone adjustment, push

“AUDIO CONTROL / MODE” repeatedly

until “TRE” appears on the display. Then

turn the knob to suit your preference.

The display will show the range from

“TRE −5” to “TRE 5”.

CELICA U

Sound balance adjustment function—

This knob is also to adjust the sound

balance between the front and rear, and

the right and left speakers.

For front/rear adjustment, push “AUDIO

CONTROL / MODE” repeatedly until “FAd”

appears on the display. Then turn the

knob to adjust the front/rear balance.

The display will show the range from “FAd

F7” to “FAd R7”.

For left/right adjustment, push “AUDIO

CONTROL / MODE” repeatedly until “BAL”

appears on the display. Then turn the

knob to adjust the left/right balance.

The display will show the range from “BAL

L7” to “BAL R7”.

CD (Compact Disc)

Push “CD” to switch from radio or cas-

sette operation to compact disc operation.

If the audio system is off, you can turn

on the compact disc player by pushing

“CD”. In both cases, a disc must already

be loaded in the player.

When the audio is set into compact disc

operation, the display shows the track or,

track and disc number currently being

played. Each time you push “CD”, the

system changes between single disc play-

er and automatic changer.

Your audio system shows six different dis-

play if the player malfunctions.

If “WAIT” appears on the display, it indi-

cates inside the player unit may be too

hot due to the very high ambient tempera-

ture. Remove the disc or magazine from

the player and allow the player to cool

down.

If “Err 1” appears on the display, it

indicates the disc is dirty, damaged, or it

was inserted up−side down. Clean the

disc or insert it correctly.

If “Err 2” appears on the display, it

indicates no disc is loaded inside the

magazine, insert a disc.

If “Err 3” or “Err 4” on the display, it

indicates there is a trouble inside the sys-

tem. Eject the disc or magazine. Set the

disc or magazine again.

If “OPEn” appears on the display, it

indicates the compact disc auto changer

lid is open. Close the compact disc auto

changer lid.

If the malfunction is not recovered, take

your vehicle to your Toyota dealer.

DISC

∨∧

Compact disc auto changer only—

By using this button, you can select a

disc you wish to listen to.

Push the either side of the button until the

number of the disc you want to listen to

appears on the display.

CELICA U

Dolbyr B NR

∗

If you are listening to a tape that was

recorded with Dolbyr B Noise Reduction,

push the button marked with the double−D

symbol. The double−D symbol will appear

on the display. Push the button again to

turn off Dolbyr B NR.

The Dolby NR mode reduces tape noise

by about 10 dB. For best sound reproduc-

tion, play your tapes with this button on

or off according to the mode used for

recording the tape.

∗

: Dolby noise reduction manufactured under license from

Dolby Laboratories Licensing Corporation. ”DOLBY” and the

double D symbol

are trademarks of Dolby Laboratories

Licensing Corporation.

Push “FM” to switch the FM band. “FM1”

or “FM2” will appear on the display. This

system allow you to set twelve FM sta-

tions, two for each button.

If the audio system is off, you can turn

on the radio by pushing “FM”. Also, push

“FM” to switch from cassette or compact

disc operation to radio operation.

PROG (Program)

Push ”PROG” to select the other side of

a cassette tape. The display indicates

which side is currently selected (”

” indi-

cates top side, ”

” indicates bottom

side).

Auto−reverse feature: After the cassette

player reaches the end of a tape side, it

automatically reverses and begins to play

the other side. This is true whether the

cassette was playing or fast forwarding.

RAND (Random)

There are two random features—you can

either listen to the tracks on all the com-

pact discs in the magazine in random or-

der, or only listen to the tracks on a

specific compact disc in random order.

Random playing for the tracks on a disc:

Quickly push and release “RAND”. “RAND”

will appear on the display and the disc

you are listening to in random order. If

you hear a beep, you held the button too

long, and the player will play all the

tracks in the magazine in random order.

To turn off the random feature, push the

“RAND” a second time.

Compact disc auto changer only—

Random playing for all the tracks in the

magazine:

Push and hold “RAND” until you hear a

beep. “D·RAND” will appear on the dis-

play and the player will perform all the

tracks on all the discs in the magazine in

random order. To turn off the random fea-

ture, push “RAND” a second time.

CELICA U

RPT (Repeat)

There are two repeat features—you can

either replay a disc track or a whole com-

pact disc.

Repeating a track:

Quickly push and release “RPT” while the

track is playing. “RPT” will appear on the

display. If you hear a beep, you held the

button too long, and the player will repeat

the whole disc. When the track ends, it

will automatically be replayed. This pro-

cess will be continued until you push the

button again to turn off the repeat feature.

Compact disc auto changer only—

Repeating a disc:

Push and hold “RPT” until you hear a

beep. “D·RPT” will appear on the display.

The player will repeat all the tracks on the

disc you are listening to. When the disc

ends, the player will automatically go back

to the top track of the disc and replay.

This process will be continued until you

push the button again to turn off the re-

peat feature.

SCAN

Radio

You can either scan all the frequencies on

a band or scan only the preset stations

for that band.

To scan all the frequencies:

Quickly push and release “SCAN”. If you

hear a beep, you held the button too long,

and the radio will scan the preset sta-

tions. The radio will find the next station

up the station band, stay there for a few

seconds, and then scan again. To select

a station, push “SCAN” a second time.

To scan the preset stations:

Push and hold “SCAN” until you hear a

beep. The radio will tune in the next pres-

et station up the band, stay there for a

few seconds, and then move to the next

preset station. To select a station, push

“SCAN” a second time.

Compact disc player

There are two scan features—you can ei-

ther scan the tracks on a specific disc or

scan the first tracks of all the discs in the

magazine.

Scanning for the tracks on a disc:

Quickly push and release “SCAN”. “SCAN”

will appear on the display and the player

will scan all the tracks on the disc you

are listening to. If you hear a beep, you

held the button too long, and the player

will scan the first tracks of all the discs

in the magazine. To select a track, push

the “SCAN” a second time. If the player

scanned all the tracks on the disc, it will

stop scanning.

Compact disc auto changer only—

Scanning for the first tracks of all the

discs in the magazine:

Push and hold “SCAN” until you hear a

beep. “D·SCAN” will appear on the display

and the player will perform the first track

of the next disc. To select a disc, push

the “SCAN” a second time. If the player

has scanned all the discs, it will stop

scanning.

CELICA U

ST (Stereo reception) display

Your radio automatically changes to stereo

reception when a stereo broadcast is re-

ceived. “ST” appears on the display. If the

signal becomes weak, the radio reduces

the amount of channel separation to prev-

ent the weak signal from creating noise.

If the signal becomes extremely weak, the

radio switches from stereo to mono recep-

tion.

TAPE

Push “TAPE” to switch from radio or com-

pact disc operation to cassette operation.

If the audio system is off, you can turn

on the cassette player by pushing “TAPE”.

In both cases, a cassette must already be

loaded in the player.

TRACK (Track up/down button):

Compact disc player

By using this button, you can skip up or

down to a different track.

Push either side of the track button until

the number of the track you want to listen

to appears on the display. If you want to

return the beginning of the current track,

push the down side of the button one

time, quickly.

TUNE

Tuning

Your Toyota has an electronic tuning radio

(ETR). Push and release the “∧” (up) or

“∨” (down) side of “TUNE” to step up or

down the station band. (If you hear a

beep, you held the button too long and

the radio will go into the seek mode.)

Seeking

In the seek mode, the radio finds and

plays the next station up or down the

station band.

To seek a station, push and hold the “∧”

or “∨” side of “TUNE” until you hear a

beep. Do this again to find another sta-

tion.

VOL/PWR (Volume/Power)

Push “VOL/PWR” to turn the audio system

on and off. Turn “VOL/PWR” to adjust the

volume.

CELICA U

"Type 2

Details of specific buttons, controls, and

features are described in the alphabetical

listing that follows.

CELICA U

1 2 3 4 5 6 (Preset buttons)

These buttons are used to preset and

tune in radio stations.

To preset a station to a button: Tune in

the desired station (see “TUNE” button).

Push and hold down the button until you

hear a beepthis will set the station to

the button. The button number will appear

on the display.

To tune in to a preset station: Push the

button for the station you want. The but-

ton number and station frequency will ap-

pear on the display.

These systems can store one AM and two

FM stations for each button (The display

will show “AM”, “FM1” or “FM2” when you

push “AM·FM”).

(Eject button)

Push this button to eject a compact disc.

After you turn the ignition to “LOCK”, you

will be able to eject a disc but you will

not be able to reinsert it.

(Reverse/Fast forward buttons)

If you want to fast forward or reverse

through a compact disc track, push and

hold in the fast forward or reverse button.

When you release the button, the compact

disc player will resume playing.

Push “AM

FM” to switch between the AM

and FM bands. “AM”, “FM1” or “FM2” will

appear on the display. These systems al-

low you to set twelve FM stations, two for

each button.

If the audio system is off, you can turn

on the radio by pushing “AM

FM”. Also,

push “AM

FM” to switch from compact disc

operation to radio operation.

AUDIO CONTROL / MODE

Manual tone adjustment function—

This knob is used to adjust the tone

manually.

For low−pitch tone adjustment, push

“AUDIO CONTROL / MODE” repeatedly

until “BAS” appears on the display. Then

turn the knob to suit your preference.

The display will show the range from

“BAS −5” to “BAS 5”.

With middle−pitch tone—

For middle−pitch tone adjustment, push

“AUDIO CONTROL / MODE” repeatedly

until “MId” appears on the display. Then

turn the knob to suit your preference.

The display will show the range from

“MId −5” to “MId 5”.

For high−pitch tone adjustment, push

“AUDIO CONTROL / MODE” repeatedly

until “TRE” appears on the display. Then

turn the knob to suit your preference.

The display will show the range from

“TRE −5” to “TRE 5”.

CELICA U

Sound balance adjustment function—

This knob is also to adjust the sound

balance between the front and rear, and

the right and left speakers.

For front/rear adjustment, push “AUDIO

CONTROL / MODE” repeatedly until “FAd”

appears on the display. Then turn the

knob to adjust the front/rear balance.

The display will show the range from “FAd

F7” to “FAd R7”.

For left/right adjustment, push “AUDIO

CONTROL / MODE” repeatedly until “BAL”

appears on the display. Then turn the

knob to adjust the left/right balance.

The display will show the range from “BAL

L7” to “BAL R7”.

CD (Compact Disc)

Push “CD” to switch from radio operation

to compact disc operation. If the audio

system is off, you can turn on the com-

pact disc player by pushing “CD”. In both

cases, a disc must already be loaded in

the player.

When the audio is set into compact disc

operation, the display shows the track or,

track and disc number currently being

played. Each time you push “CD”, the

system changes between built−in single

disc player and automatic changer.

Your audio system shows six different dis-

play if the player malfunctions.

If “WAIT” appears on the display, it indi-

cates inside the player unit may be too

hot due to the very high ambient tempera-

ture. Remove the disc or magazine from

the player and allow the player to cool

down.

If “Err 1” appears on the display, it

indicates the disc is dirty, damaged, or it

was inserted up−side down. Clean the

disc or insert it correctly.

If “Err 2” appears on the display, it

indicates no disc is loaded inside the

magazine, insert a disc.

If “Err 3” or “Err 4” on the display, it

indicates there is a trouble inside the sys-

tem. Eject the disc or magazine. Set the

disc or magazine again.

If “OPEn” appears on the display, it

indicates the compact disc auto changer

lid is open. Close the compact disc auto

changer lid.

If the malfunction is not recovered, take

your vehicle to your Toyota dealer.

DISC

∨∧

Compact disc auto changer only—

By using this button, you can select a

disc you wish to listen to.

Push the either side of the button until the

number of the disc you want to listen to

appears on the display.

PWR/VOL (Power/Volume)

Push “PWR/VOL” to turn the audio system

on and off. Turn “PWR/VOL” to adjust the

volume.

CELICA U

RAND (Random)

There are two random features—you can

either listen to the tracks on all the com-

pact discs in the magazine in random or-

der, or only listen to the tracks on a

specific compact disc in random order.

Random playing for the tracks on a disc:

Quickly push and release “RAND”. “RAND”

will appear on the display and the disc

you are listening to in random order. If

you hear a beep, you held the button too

long, and the player will play all the

tracks in the magazine in random order.

To turn off the random feature, push the

“RAND” a second time.

Compact disc auto changer only—

Random playing for all the tracks in the

magazine:

Push and hold “RAND” until you hear a

beep. “D·RAND” will appear on the dis-

play and the player will perform all the

tracks on all the discs in the magazine in

random order. To turn off the random fea-

ture, push “RAND” a second time.

RPT (Repeat)

There are two repeat features—you can

either replay a disc track or a whole com-

pact disc.

Repeating a track:

Quickly push and release “RPT” while the

track is playing. “RPT” will appear on the

display. If you hear a beep, you held the

button too long, and the player will repeat

the whole disc. When the track ends, it

will automatically be replayed. This pro-

cess will be continued until you push the

button again to turn off the repeat feature.

Compact disc auto changer only—

Repeating a disc:

Push and hold “RPT” until you hear a

beep. “D·RPT” will appear on the display.

The player will repeat all the tracks on the

disc you are listening to. When the disc

ends, the player will automatically go back

to the top track of the disc and replay.

This process will be continued until you

push the button again to turn off the re-

peat feature.

SCAN

Radio

You can either scan all the frequencies on

a band or scan only the preset stations

for that band.

To scan all the frequencies:

Quickly push and release “SCAN”. If you

hear a beep, you held the button too long,

and the radio will scan the preset sta-

tions. The radio will find the next station

up the station band, stay there for a few

seconds, and then scan again. To select

a station, push “SCAN” a second time.

To scan the preset stations:

Push and hold “SCAN” until you hear a

beep. The radio will tune in the next pres-

et station up the band, stay there for a

few seconds, and then move to the next

preset station. To select a station, push

“SCAN” a second time.

CELICA U

Compact disc player

There are two scan features—you can ei-

ther scan the tracks on a specific disc or

scan the first tracks of all the discs in the

magazine.

Scanning for the tracks on a disc:

Quickly push and release “SCAN”. “SCAN”

will appear on the display and the player

will scan all the tracks on the disc you

are listening to. If you hear a beep, you

held the button too long, and the player

will scan the first tracks of all the discs

in the magazine. To select a track, push

the “SCAN” a second time. If the player

scanned all the tracks on the disc, it will

stop scanning.

Compact disc auto changer only—

Scanning for the first tracks of all the

discs in the magazine:

Push and hold “SCAN” until you hear a

beep. “D·SCAN” will appear on the display

and the player will perform the first track

of the next disc. To select a disc, push

the “SCAN” a second time. If the player

has scanned all the discs, it will stop

scanning.

ST (Stereo reception) display

Your radio automatically changes to stereo

reception when a stereo broadcast is re-

ceived. “ST” appears on the display. If the

signal becomes weak, the radio reduces

the amount of channel separation to prev-

ent the weak signal from creating noise.

If the signal becomes extremely weak, the

radio switches from stereo to mono recep-

tion.

TRACK (Track up/down button):

Compact disc player

By using this button, you can skip up or

down to a different track.

Push either side of the track button until

the number of the track you want to listen

to appears on the display. If you want to

return the beginning of the current track,

push the down side of the button one

time, quickly.

TUNE (Tuning)

Tuning

Your Toyota has an electronic tuning radio

(ETR). Push and release the “∧” (up) or

“∨” (down) side of “TUNE” to step up or

down the station band. (If you hear a

beep, you held the button too long and

the radio will go into the seek mode.)

Seeking

In the seek mode, the radio finds and

plays the next station up or down the

station band.

To seek a station, push and hold the “∧”

or “∨” side of “TUNE” until you hear a

beep. Do this again to find another sta-

tion.

CELICA U

"Type 3

Details of specific buttons, controls, and

features are described in the alphabetical

listing that follows.

CELICA U

1 2 3 4 5 6 (Preset buttons)

These buttons are used to preset and

tune in radio stations.

To preset a station to a button: Tune in

the desired station (see “TUNE” or “SEEK”

button). Push and hold down the button

until you hear a beepthis will set the

station to the button. The button number

will appear on the display.

To tune in to a preset station: Push the

button for the station you want. The but-

ton number and station frequency will ap-

pear on the display.

These systems can store one AM and two

FM stations for each button (The display

will show “AM”, “FM1” or “FM2” when you

push “AM·FM”).

(Eject button)

Push the cassette tape eject button to

eject a cassette. Push the compact disc

eject button to eject a compact disc.

After you turn the ignition to “LOCK”, you

will be able to eject a cassette or disc but

you will not be able to reinsert it.

(Reverse/Fast forward buttons)

Cassette Player

Push the fast forward button to fast for-

ward a cassette tape. “FF” will appear on

the display. Push the reverse button to

rewind a tape. “REW” will appear on the

display.

To stop the tape while it is fast forward-

ing, push the fast forward button or

“TAPE”; to stop the tape while it is re-

winding, push the reverse button or

“TAPE”.

If a tape side rewinds completely, the cas-

sette player will stop and then play that

same side. If a tape fast forwards com-

pletely, the cassette player will play the

other side of the tape, using the auto−re-

verse feature.

Compact Disc Player

If you want to fast forward or reverse

through a compact disc track, push and

hold in the fast forward or reverse button.

When you release the button, the compact

disc player will resume playing.

Push “AM

FM” to switch between the AM

and FM bands.”AM”, “FM1” or “FM2” will

appear on the display. These systems al-

low you to set twelve FM stations, two for

each button.

If the audio system is off, you can turn

on the radio by pushing “AM

FM”. Also,

push “AM

FM” to switch from cassette or

compact disc operation to radio operation.

AUDIO CONTROL / MODE

Manual tone adjustment function—

This knob is used to adjust the tone

manually.

For low−pitch tone adjustment, push

“AUDIO CONTROL / MODE” repeatedly

until “BAS” appears on the display. Then

turn the knob to suit your preference.

The display will show the range from

“BAS −5” to “BAS 5”.

For middle−pitch tone adjustment, push

“AUDIO CONTROL / MODE” repeatedly

until “MId” appears on the display. Then

turn the knob to suit your preference.

The display will show the range from

“MId −5” to “MId 5”.

CELICA U

For high−pitch tone adjustment, push

“AUDIO CONTROL / MODE” repeatedly

until “TRE” appears on the display. Then

turn the knob to suit your preference.

The display will show the range from

“TRE −5” to “TRE 5”.

Sound balance adjustment function—

This knob is also to adjust the sound

balance between the front and rear, and

the right and left speakers.

For front/rear adjustment, push “AUDIO

CONTROL / MODE” repeatedly until “FAd”

appears on the display. Then turn the

knob to adjust the front/rear balance.

The display will show the range from “FAd

F7” to “FAd R7”.

For left/right adjustment, push “AUDIO

CONTROL / MODE” repeatedly until “BAL”

appears on the display. Then turn the

knob to adjust the left/right balance.

The display will show the range from “BAL

L7” to “BAL R7”.

CD (Compact Disc)

Push “CD” to switch from radio or cas-

sette operation to compact disc operation.

If the audio system is off, you can turn

on the compact disc player by pushing

“CD”. In both cases, a disc must already

be loaded in the player.

When the audio is set into compact disc

operation, the display shows the track or,

track and disc number currently being

played. Each time you push “CD”, the

system changes between built−in single

disc player and automatic changer.

Your audio system shows six different dis-

play if the player malfunctions.

If “WAIT” appears on the display, it indi-

cates inside the player unit may be too

hot due to the very high ambient tempera-

ture. Remove the disc or magazine from

the player and allow the player to cool

down.

If “Err 1” appears on the display, it

indicates the disc is dirty, damaged, or it

was inserted up−side down. Clean the

disc or insert it correctly.

If “Err 2” appears on the display, it

indicates no disc is loaded inside the

magazine, insert a disc.

If “Err 3” or “Err 4” on the display, it

indicates there is a trouble inside the sys-

tem. Eject the disc or magazine. Set the

disc or magazine again.

If “OPEn” appears on the display, it

indicates the compact disc auto changer

lid is open. Close the compact disc auto

changer lid.

If the malfunction is not recovered, take

your vehicle to your Toyota dealer.

DISC

∨∧

Compact disc auto changer only—

By using this button, you can select a

disc you wish to listen to.

Push the either side of the button until the

number of the disc you want to listen to

appears on the display.

CELICA U

Dolbyr B NR

∗

If you are listening to a tape that was

recorded with Dolbyr B Noise Reduction,

push the button marked with the double−D

symbol. The double−D symbol will appear

on the display. Push the button again to

turn off Dolbyr B NR.

The Dolby NR mode reduces tape noise

by about 10 dB. For best sound reproduc-

tion, play your tapes with this button on

or off according to the mode used for

recording the tape.

∗

: Dolby noise reduction manufactured under license from

Dolby Laboratories Licensing Corporation. ”DOLBY” and the

double D symbol

are trademarks of Dolby Laboratories

Licensing Corporation.

MTL (Metal) Display

If a metal or chrome equivalent cassette

tape is put in the cassette player, the

player will automatically adapt to it and

“MTL” will appear on the display.

PROG (Program)

Push “PROG” to select the other side of

a cassette tape. The display indicates

which side is currently selected (“

” indi-

cates top side, “ ” indicates bottom

side).

Auto−reverse feature: After the cassette

player reaches the end of a tape side, it

automatically reverses and begins to play

the other side. This is true whether the

cassette was playing or fast forwarding.

PWR·VOL (Power·Volume)

Push “PWR·VOL” to turn the audio system

on and off. Turn “PWR·VOL” to adjust the

volume.

RAND (Random)

There are two random features—you can

either listen to the tracks on all the com-

pact discs in the magazine in random or-

der, or only listen to the tracks on a

specific compact disc in random order.

Random playing for the tracks on a disc:

Quickly push and release “RAND”. “RAND”

will appear on the display and the disc

you are listening to in random order. If

you hear a beep, you held the button too

long, and the player will play all the

tracks in the magazine in random order.

To turn off the random feature, push the

“RAND” a second time.

Compact disc auto changer only—

Random playing for all the tracks in the

magazine:

Push and hold “RAND” until you hear a

beep. “D·RAND” will appear on the dis-

play and the player will perform all the

tracks on all the discs in the magazine in

random order. To turn off the random fea-

ture, push “RAND” a second time.

RPT (Repeat)

Cassette Player

Push “RPT” while the track is playing.

“RPT” will appear on the display. When

the track ends, it will automatically be

rewound and replayed. This process will

be continued until you push the button

again to turn off the repeat feature.

There must be at least 3 seconds of blank

space between tracks in order for the re-

peat feature to work correctly.

CELICA U

Compact Disc Player

There are two repeat features—you can

either replay a disc track or a whole com-

pact disc.

Repeating a track:

Quickly push and release “RPT” while the

track is playing. “RPT” will appear on the

display. If you hear a beep, you held the

button too long, and the player will repeat

the whole disc. When the track ends, it

will automatically be replayed. This pro-

cess will be continued until you push the

button again to turn off the repeat feature.

Compact disc auto changer only—

Repeating a disc:

Push and hold “RPT” until you hear a

beep. “D·RPT” will appear on the display.

The player will repeat all the tracks on the

disc you are listening to. When the disc

ends, the player will automatically go back

to the top track of the disc and replay.

This process will be continued until you

push the button again to turn off the re-

peat feature.

SCAN

Radio

You can either scan all the frequencies on

a band or scan only the preset stations

for that band.

To scan all the frequencies:

Quickly push and release “SCAN”. If you

hear a beep, you held the button too long,

and the radio will scan the preset sta-

tions. The radio will find the next station

up the station band, stay there for a few

seconds, and then scan again. To select

a station, push “SCAN” a second time.

To scan the preset stations:

Push and hold “SCAN” until you hear a

beep. The radio will tune in the next pres-

et station up the band, stay there for a

few seconds, and then move to the next

preset station. To select a station, push

“SCAN” a second time.

Compact disc player

There are two scan features—you can ei-

ther scan the tracks on a specific disc or

scan the first tracks of all the discs in the

magazine.

Scanning for the tracks on a disc:

Quickly push and release “SCAN”. “SCAN”

will appear on the display and the player

will scan all the tracks on the disc you

are listening to. If you hear a beep, you

held the button too long, and the player

will scan the first tracks of all the discs

in the magazine. To select a track, push

the “SCAN” a second time. If the player

scanned all the tracks on the disc, it will

stop scanning.

Compact disc auto changer only—

Scanning for the first tracks of all the

discs in the magazine:

Push “SCAN” until you hear a beep.

“D·SCAN” will appear on the display and

the player will perform the first track of

the next disc. To select a disc, push the

“SCAN” a second time. If the player has

scanned all the discs, it will stop scan-

ning.

CELICA U

SEEK (Seeking)

Radio

In the seek mode, the radio finds and

plays the next station up or down the

station band.

To seek a station, push and hold the “∧”

or “∨” side of “SEEK” until you hear a

beep. Do this again to find another sta-

tion.

Cassette Player

By using this button, you can skip up or

down to a different track.

You can skip up to nine tracks at a time.

Push the up or down side of the button.

“FF 1” or “REW 1” will appear on the

display.

Next, push either side of the track button

until the number on the display reaches

the number of tracks you want to skip. If

you push the button ten times, the skip

feature will be turned off.

When counting the number of tracks you

want to rewind, remember to count the

current track as well. For example, if you

want to rewind to a song that is two be-

fore the song you are listening to, push

on the down side of the button until “REW

3” appears on the display.

If you have pushed the track button more

than you wanted to, push the other side

of the button. The track number will be

reduced.

The track number you select is not valid

if it is higher than the number of tracks

remaining on the current cassette side.

D After the beginning of the tape is

reached, the player will automatically

start playing the same side.

D After the end of the tape is reached,

the player will automatically reverse

sides and start playing the other side.

There must be at least 3 seconds of blank

space between tracks for the track button

to work correctly. In addition, the feature

may not work well with some spoken

word, live, or classical recordings.

SKIP

The skip feature allows you to fast for-

ward past long stretches of blank tape.

This is especially useful at the end of

cassettes.

Push “SKIP”. “SKIP” will appear on the

display. The cassette player will keep

track of how much blank space it plays.

Any time it has played about 10 seconds

of blank tape, it will automatically fast

forward to the next track and begin to

play.

Push the button a second time to turn off

the skip feature.

ST (Stereo reception) display

Your radio automatically changes to stereo

reception when a stereo broadcast is re-

ceived. “ST” appears on the display. If the

signal becomes weak, the radio reduces

the amount of channel separation to prev-

ent the weak signal from creating noise.

If the signal becomes extremely weak, the

radio switches from stereo to mono recep-

tion.

CELICA U

TAPE

Push “TAPE” to switch from radio or com-

pact disc operation to cassette operation.

If the audio system is off, you can turn

on the cassette player by pushing “TAPE”.

In both cases, a cassette must already be

loaded in the player.

TRACK (Track up/down button):

Compact disc player

By using this button, you can skip up or

down to a different track.

Push either side of the track button until

the number of the track you want to listen

to appears on the display. If you want to

return the beginning of the current track,

push the down side of the button one

time, quickly.

TUNE (Tuning)

Your Toyota has an electronic tuning radio

(ETR). Push and release the “∧” (up) or

“∨” (down) side of “TUNE” to step up or

down the station band. (If you hear a

beep, you held the button too long and

the radio will go into the seek mode.)

NOTICE

To ensure the correct audio system

operation:

z Be careful not to spill beverages

over the audio system.

z Do not put anything other than a

cassette tape or Compact Disc into

the slot.

RADIO RECEPTION

Usually, a problem with radio reception

does not mean there is a problem with

your radio —it is just the normal result of

conditions outside the vehicle.

For example, nearby buildings and terrain

can interfere with FM reception. Power

lines or telephone wires can interfere with

AM signals. And of course, radio signals

have a limited range, and the farther you

are from a station, the weaker its signal

will be. In addition, reception conditions

change constantly as your vehicle moves.

Here are some common reception prob-

lems that probably do not indicate a prob-

lem with your radio:

Fading and drifting stations—Generally, the

effective range of FM is about 40 km (25

miles). Once outside this range, you may

notice fading and drifting, which increase

with the distance from the radio transmit-

ter. They are often accompanied by distor-

tion.

Multi−path—FM signals are reflective,

making it possible for two signals to reach

your antenna at the same time. If this

happens, the signals will cancel each oth-

er out, causing a momentary flutter or

loss of reception.

Static and fluttering—These occur when

signals are blocked by buildings, trees, or

other large objects. Increasing the bass

level may reduce static and fluttering.

Station swapping—If the FM signal you

are listening to is interrupted or weak-

ened, and there is another strong station

nearby on the FM band, your radio may

tune in the second station until the origi-

nal signal can be picked up again.

—Car audio system operating

hints

CELICA U

Fading—AM broadcasts are reflected by

the upper atmosphere—especially at night.

These reflected signals can interfere with

those received directly from the radio sta-

tion, causing the radio station to sound

alternately strong and weak.

Station interference—When a reflected sig-

nal and a signal received directly from a

radio station are very nearly the same

frequency, they can interfere with each

other, making it difficult to hear the broad-

cast.

Static—AM is easily affected by external

sources of electrical noise, such as high

tension power lines, lightening, or electri-

cal motors. This results in static.

CARING FOR YOUR CASSETTE PLAYER

AND TAPES

For high performance from your cassette

player and tapes:

Clean the tape head and other parts regu-

larly.

D A dirty tape head or tape path can

decrease sound quality and tangle your

cassette tapes. The easiest way to

clean them is by using a cleaning tape.

(A wet type is recommended.)

Use high−quality cassettes.

D Low−quality cassette tapes can cause

many problems, including poor sound,

inconsistent playing speed, and

constant auto−reversing. They can also

get stuck or tangled in the cassette

player.

D Do not use a cassette if it has been

damaged or tangled or if its label is

peeling off.

D Do not leave a cassette in the player

if you are not listening to it, especially

if it is hot outside.

D Store cassettes in their cases and out

of direct sunlight.

D Avoid using cassettes with a total play-

ing time longer than 100 minutes (50

minutes per side). The tape used in

these cassettes is thin and could get

stuck or tangled in the cassette player.

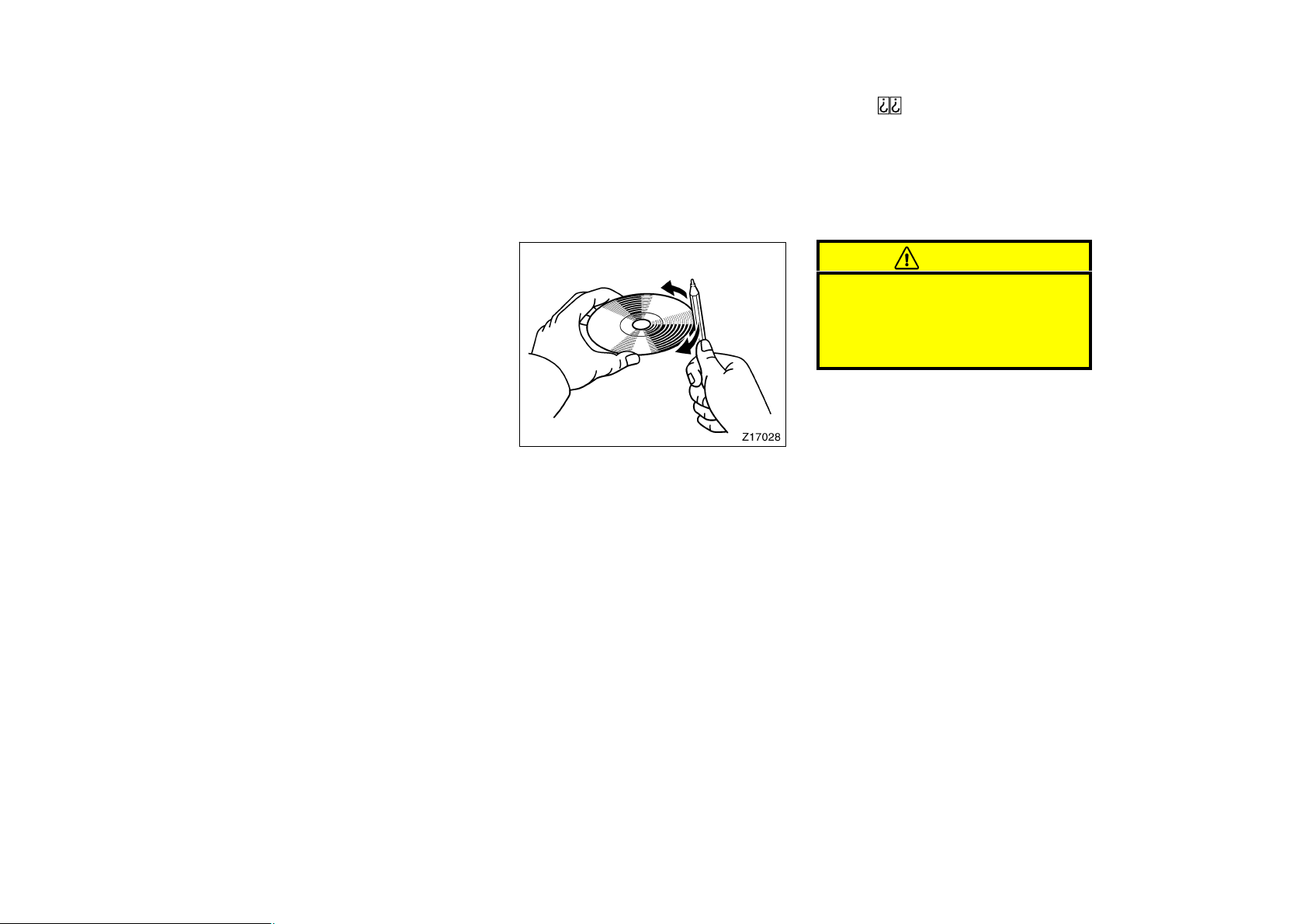

CARING FOR YOUR COMPACT DISC

PLAYER AND DISCS

D Use only compact discs labeled as

shown.

D Extremely high temperatures can keep

your compact disc player from working.

On hot days, use the air conditioning

to cool the vehicle interior before you

listen to a disc.

D Bumpy roads or other vibrations may

make your compact disc player skip.

CELICA U

D If moisture gets into your compact disc

player, you may not hear any sound

even though your compact disc player

appears to be working. Remove the

disc from the player and wait until it

dries.

D Handle compact discs carefully, espe-

cially when you are inserting them.

Hold them on the edge and do not

bend them. Avoid getting fingerprints

on them, particularly on the shiny side.

D Dirt, scrapes, warping, pin holes, or

other disc damage could cause the

player to skip or to repeat a section of

a track. (To see a pin hole, hold the

disc up to the light.)

D Remove discs from the compact disc

player when you are not listening

to them. Store them in their plastic

cases away from moisture, heat, and

direct sunlight.

To clean a compact disc: Wipe it with a

soft, lint−free cloth that has been damp-

ened with water. Wipe in a straight line

from the center to the edge of the disc

(not in circles). Dry it with another soft,

lint−free cloth. Do not use a conventional

record cleaner or anti−static device.

A new disc may have rough edges on

its inner and outer perimeter. Remove

the rough edges by pressing the side

of a ball−point pen or pencil against

the inner and outer perimeter of the

disc as shown.

If you continue to play a disc with rough

edges, flakes will fall on to the signal side

of the disc and cause sound skipping or

other problems.

CAUTION

Compact disc players use invisible la-

ser beam which could cause hazard-

ous radiation exposure if directed

outside the unit. Be sure to operate

the player correctly as instructed.

CELICA U

100

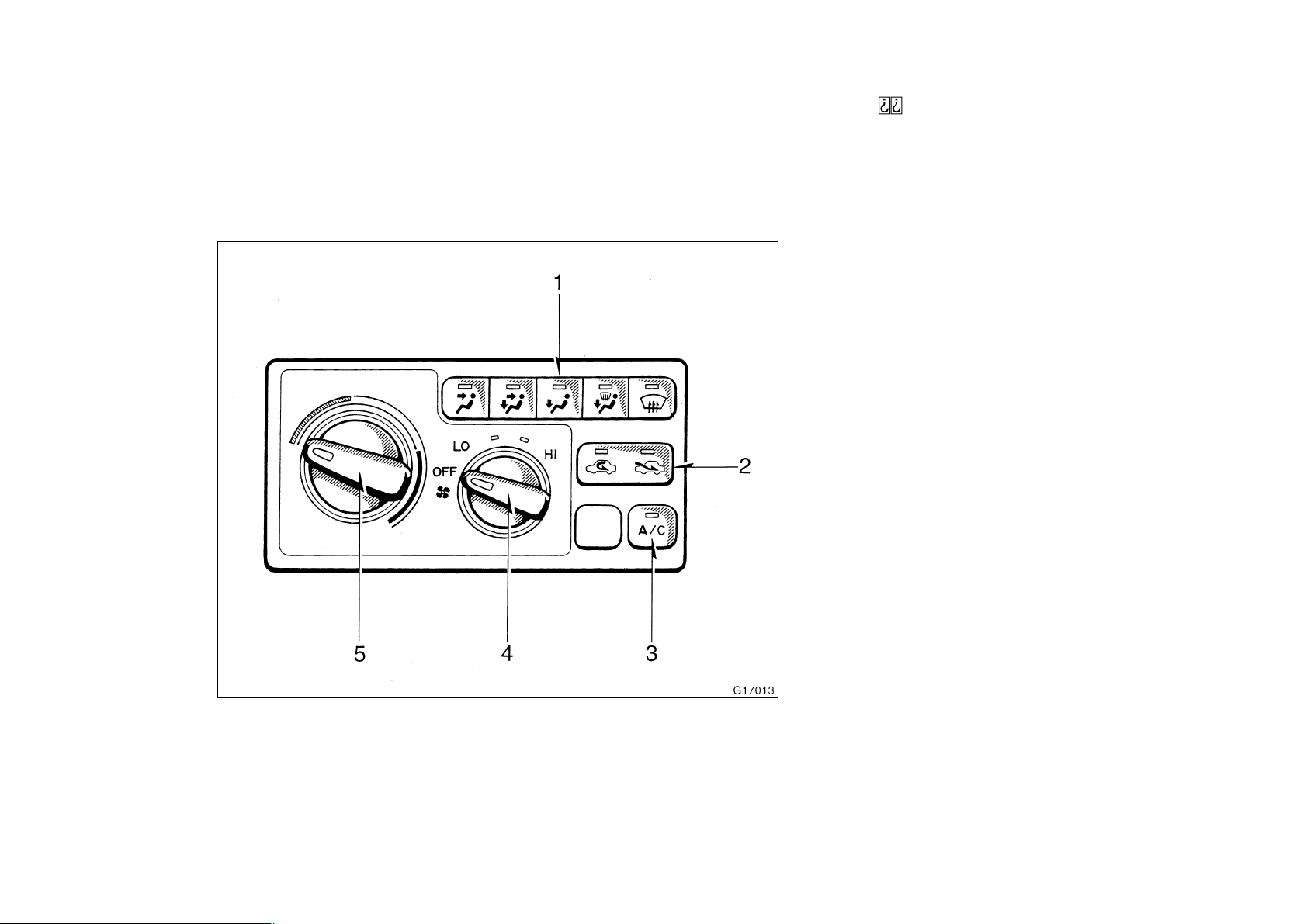

1. Air Flow Selector

2. Air Intake Selector

3. ”A/C” Button (on some models)

4. Fan Speed Selector

5. Temperature Selector

Air conditioning system—

—Controls

CELICA U

101

Fan speed selector

Turn the knob to adjust the fan speed—to

the right to increase, to the left to de-

crease.

Temperature selector

Turn the knob to adjust the tempera-

ture—to the right to warm, to the left to

cool.

Air flow selector

Press one of the buttons to select the

vents used for air flow. An indicator light

will illuminate to show which air flow

mode is being selected.

1. Panel—Air flows mainly from the in-

strument panel vents.

2. Bi−level—Air flows from both the floor

vents and the instrument panel vents.

3. Floor—Air flows mainly from the floor

vents.

4. Floor/Windshield—Air flows mainly

from the floor vents and windshield

vents.

5. Windshield—Air flows mainly from the

windshield vents.

For details about air flow selector settings,

see the illustration after ”A/C” button.

Vehicles with ”A/C” button—

Pressing the windshield button turns on

the defroster−linked air conditioning. At

this time, the ”A/C” button indicator comes

on regardless of whether or not the ”A/C”

button is pressed in. This is to clean up

the front view more quickly.

When the ”A/C” button is not pressed in,

pressing another air flow button turns off

the air conditioning.

CELICA U

102

Air intake selector

Press the button to select the air source.

An indicator light will illuminate to show

which air intake mode is being selected.

1. Recirculate—Recirculates the air inside

the vehicle.

2. Fresh—Draws outside air into the sys-

tem.

”A/C” button

To turn on the air conditioning, press the

”A/C” button. The ”A/C” button indicator

will come on. To turn the air conditioning

off, press the button again.

If the ”A/C” button indicator flashes, there

is a problem in the air conditioning system

and the air conditioning automatically

shuts off. If this happens, take your ve-

hicle to a Toyota dealer for service.

CELICA U

103

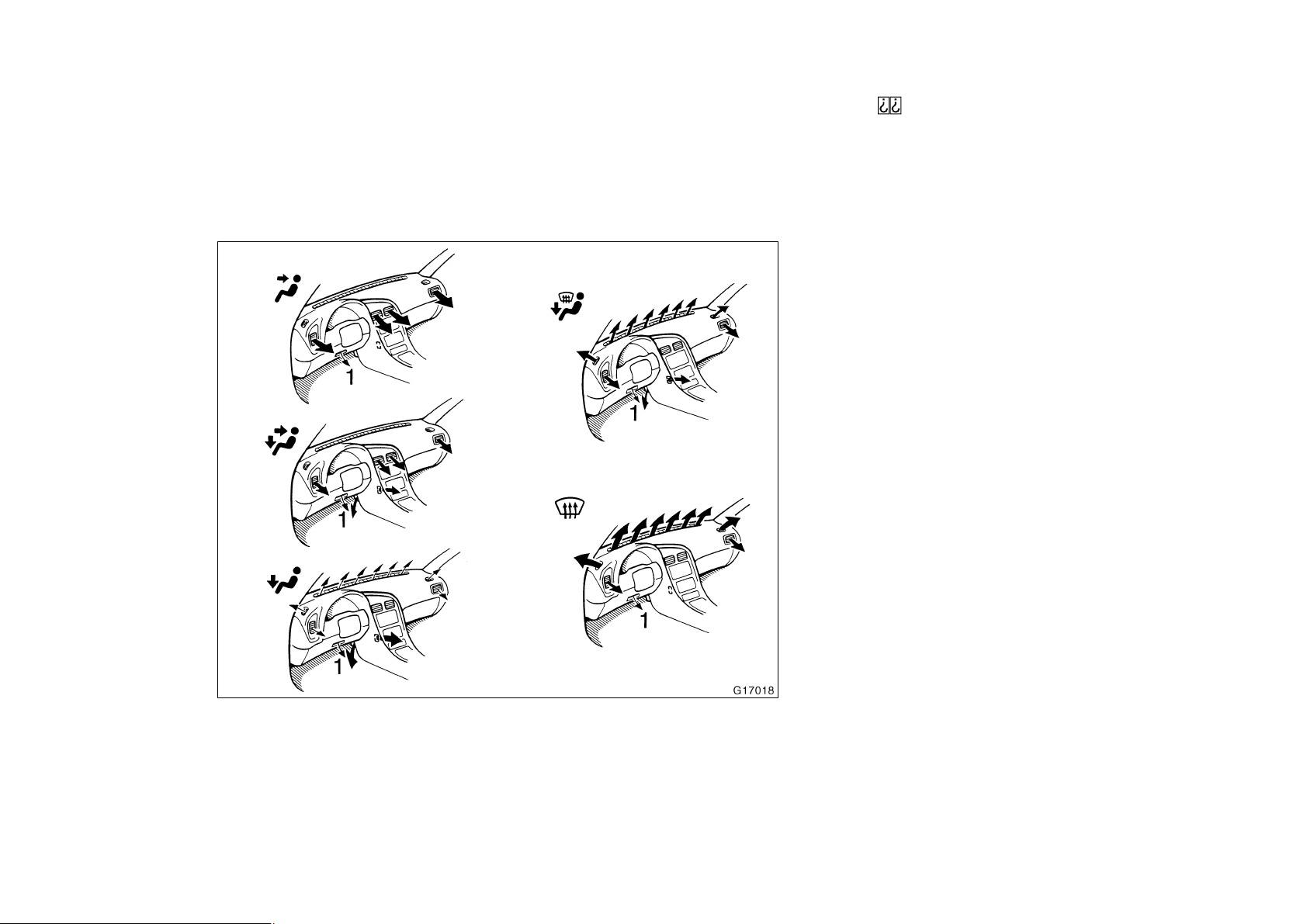

—Air flow selector settings

1. For air conditioning

—Operating tips

D To cool off your Toyota after it has

been parked in the hot sun, drive with

the windows open for a few minutes.

This vents the hot air, allowing the air

conditioning to cool the interior more

quickly.

D Make sure the air intake grilles in front

of the windshield are not blocked (by

leaves or snow, for example).

D On humid days, do not blow cold air

on the windshield. The windshield could

fog up because of the difference in air

temperature on the inside and outside

of the windshield.

D Keep the area under the front seats

clear to allow air to circulate through-

out the vehicle.

D On cold days, turn the fan speed to

”HI” for a minute to help clear the in-

take ducts of snow or moisture. This

can reduce the amount of fogging on

the windows.

CELICA U

104

Heating

For best results, set controls to:

Fan speed—Any setting except ”OFF”

Temperature—Towar ds WARM

(red zone)

Air intake—FRESH (outside air)

Air flow—FLOOR

Air conditioning—OFF

D For quick heating, select recirculated

air for a few minutes. To keep the

windows from fogging. select fresh af-

ter the vehicle interior has been

warmed.

D Press the ”A/C” button on for dehumidi-

fied heating.

D Choose floor/windshield air flow to heat

the vehicle interior while defrosting or

defogging the windshield.

Air conditioning

For best results, set controls to:

Fan speed—Any setting except ”OFF”

Temperature—Towar ds COLD

(blue zone)

Air intake—FRESH (outside air)

Air flow—PANEL

Air conditioning—ON

D For quick cooling, move the air intake

selector to recirculate for a few min-

utes.

Ventilation

For best results, set controls to:

Fan speed—Any setting except ”OFF”

Temperature—Towar ds COLD

(blue zone)

Air intake—FRESH (outside air)

Air flow—PANEL

Air conditioning—ON

Defogging and defrosting

The inside of the windshield

For best results, set controls to:

Fan speed—Any setting except ”OFF”

Temperature—Towar ds WARM

(red zone) to heat;

COLD (blue zone) to

cool

Air intake—FRESH (outside air)

Air flow—WINDSHIELD

Vehicles with ”A/C” button—

Pressing the windshield button turns on

the defroster−linked air conditioning. At

this time, the ”A/C” button indicator comes

on regardless of whether or not the ”A/C”

button is pressed in. This is to clean up

the front view more quickly.

When the ”A/C” button is not pressed in,

pressing another air flow button turns off

the air conditioning.

D On humid days, do not blow cold air

on the windshield—the difference be-

tween the outside and inside tempera-

tures could make the fogging worse.

CELICA U

105

The outside of the windshield

For best results, set controls to:

Fan speed—Any setting except ”OFF”

Temperature—Towar ds WARM

(red zone)

Air intake—FRESH (outside air)

Air flow—WINDSHIELD

Vehicles with ”A/C” button—

Pressing the windshield button turns on

the defroster−linked air conditioning. At

this time, the ”A/C” button indicator comes

on regardless of whether or not the ”A/C”

button is pressed in. This is to clean up

the front view more quickly.

When the ”A/C” button is not pressed in,

pressing another air flow button turns off

the air conditioning.

D To heat the vehicle interior while de-

frosting the windshield, choose floor/

windshield air flow.

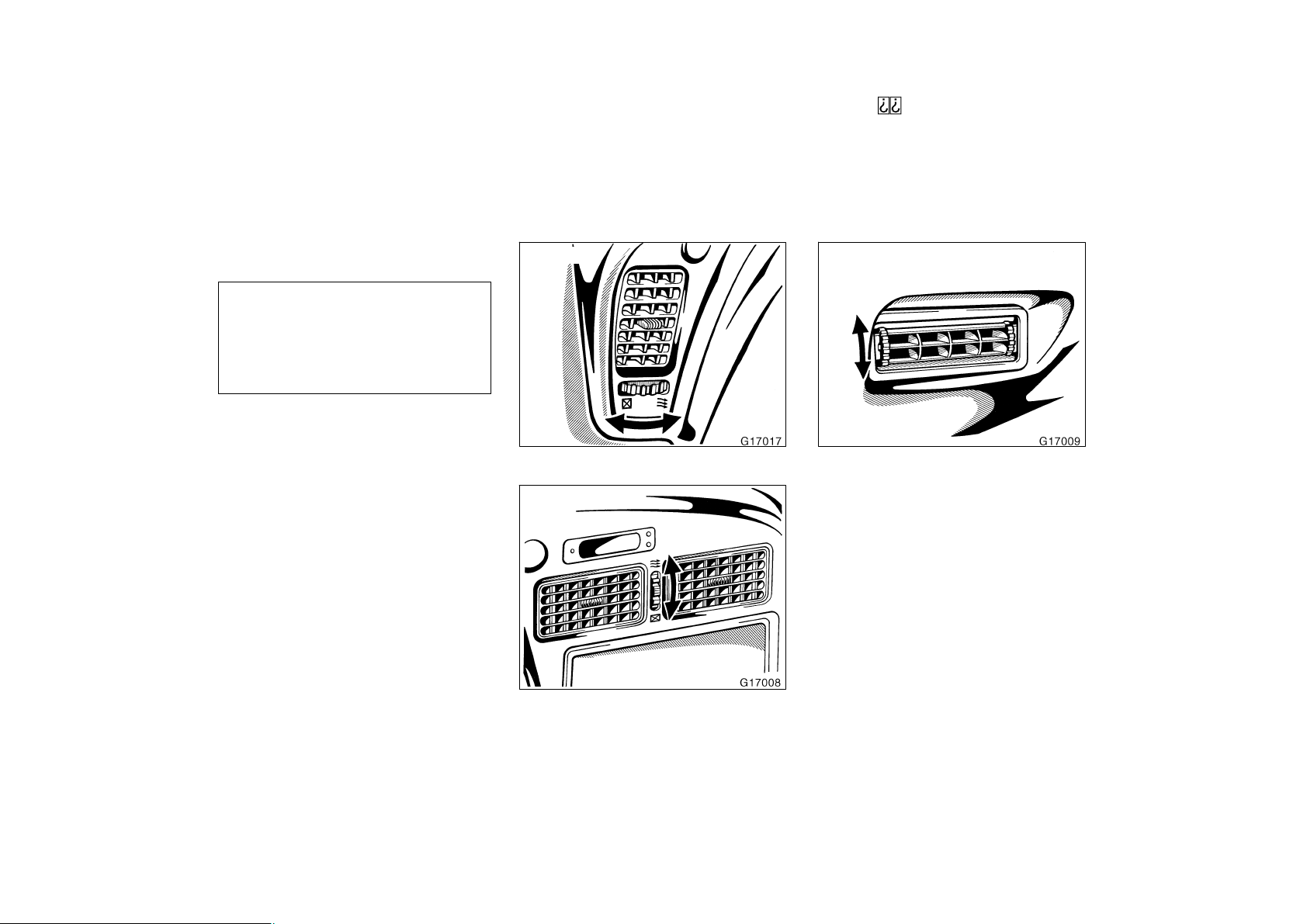

—Instrument panel vents

Side vents

Center vents

Lower vent

If air flow control is not satisfactory, check

the instrument panel vents. The instrument

panel vents may be opened or closed as

shown.

CELICA U

106

CELICA U

107

Part 1

OPERATION OF

INSTRUMENTS AND

CONTROLS—

Chapter 1−8

Other equipment

Clock

D Cigarette lighter and ashtray

D Glovebox

D Auxiliary box

D Cup holder

D Luggage cover

D Floor mat

Clock

The digital clock indicates the time.

The key must be in the ”ACC” or ”ON”

position.

To reset the hour: Push the ”H” button.

To reset the minutes: Push the ”M” button.

If quick adjustment to a full hour is de-

sired, push the ”:00” button.

For example, if the ”:00” button is de-

pressed when the time is between

1:01—1:29, the time will change to 1:00.

If the time is between 1:30—1:59, the

time will change to 2:00.

If the electrical power source has been

disconnected from the clock, the time dis-

play will automatically be set to 1:00 (one

o’clock).

When the instrument panel lights are

turned on, the brightness of the time indi-

cation will be reduced.

CELICA U

108

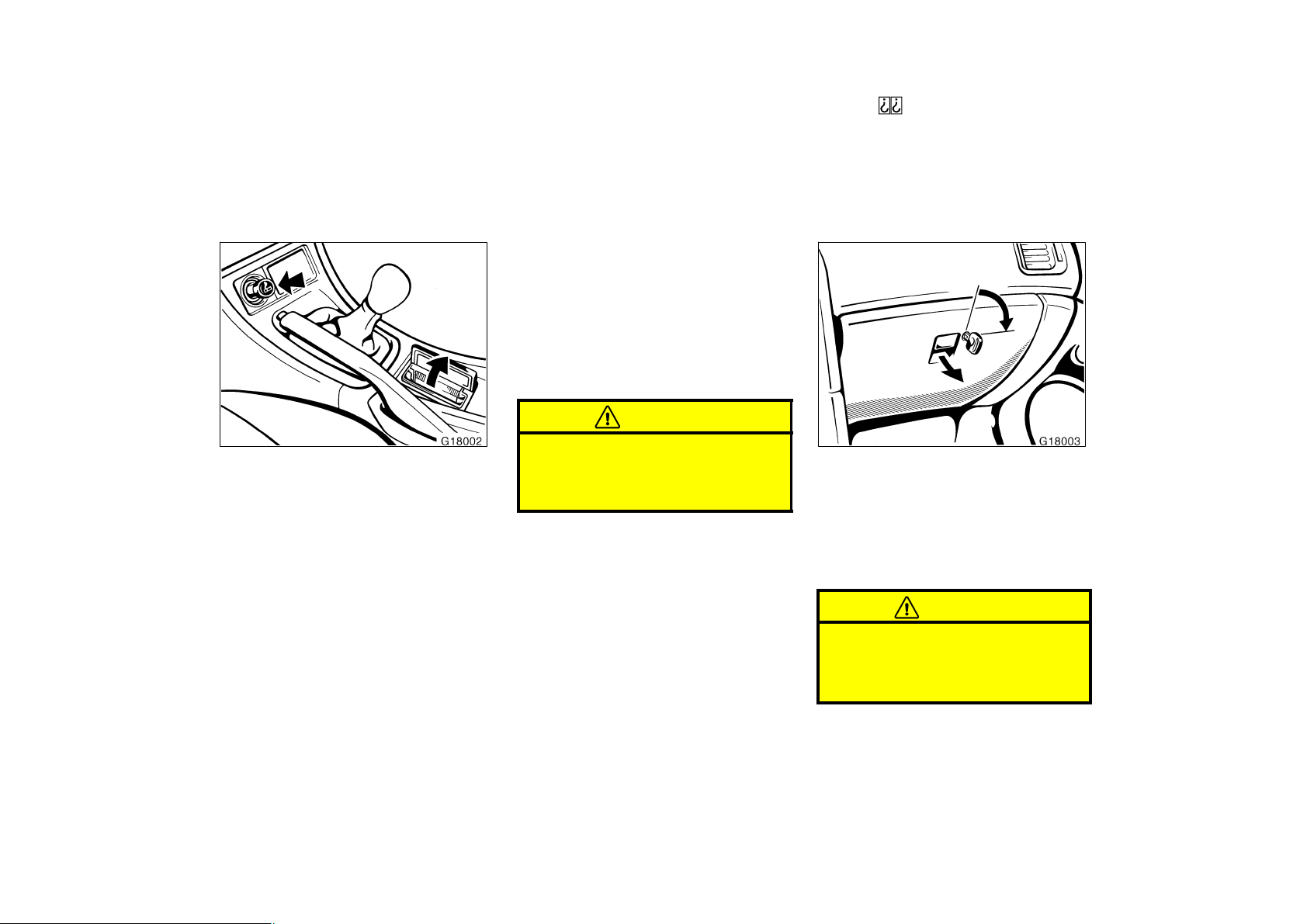

Cigarette lighter and ashtray

CIGARETTE LIGHTER

To use the cigarette lighter, press it in.

When it becomes heated, it automatical-

ly pops out ready for use.

If the engine is not running, the key must

be in the ”ACC” position.

Do not hold the cigarette lighter pressed

in.

Use a Toyota genuine cigarette lighter or

equivalent for replacement.

ASHTRAY

To use the ashtray, open the cover.

When finished with your cigarette, thor-

oughly extinguish it in the ashtray to pre-

vent other cigarette butts from catching

fire. After using the ashtray, close the

ashtray cover completely.

To remove the ashtray, open the ashtray

cover and pull it out.

CAUTION

To reduce the chance of injury in

case of an accident or sudden stop

while driving, always close the ash-

tray cover completely after using.

Glovebox

To use the glovebox, do this.

To open: Pull the lever.

With the instrument panel lights on, the

glovebox light will come on when the glo-

vebox is open.

To lock: Insert the master key and turn it

clockwise.

CAUTION

To reduce the chance of injury in

case of an accident or a sudden stop,

always keep the glovebox door closed

while driving.

CELICA U

109

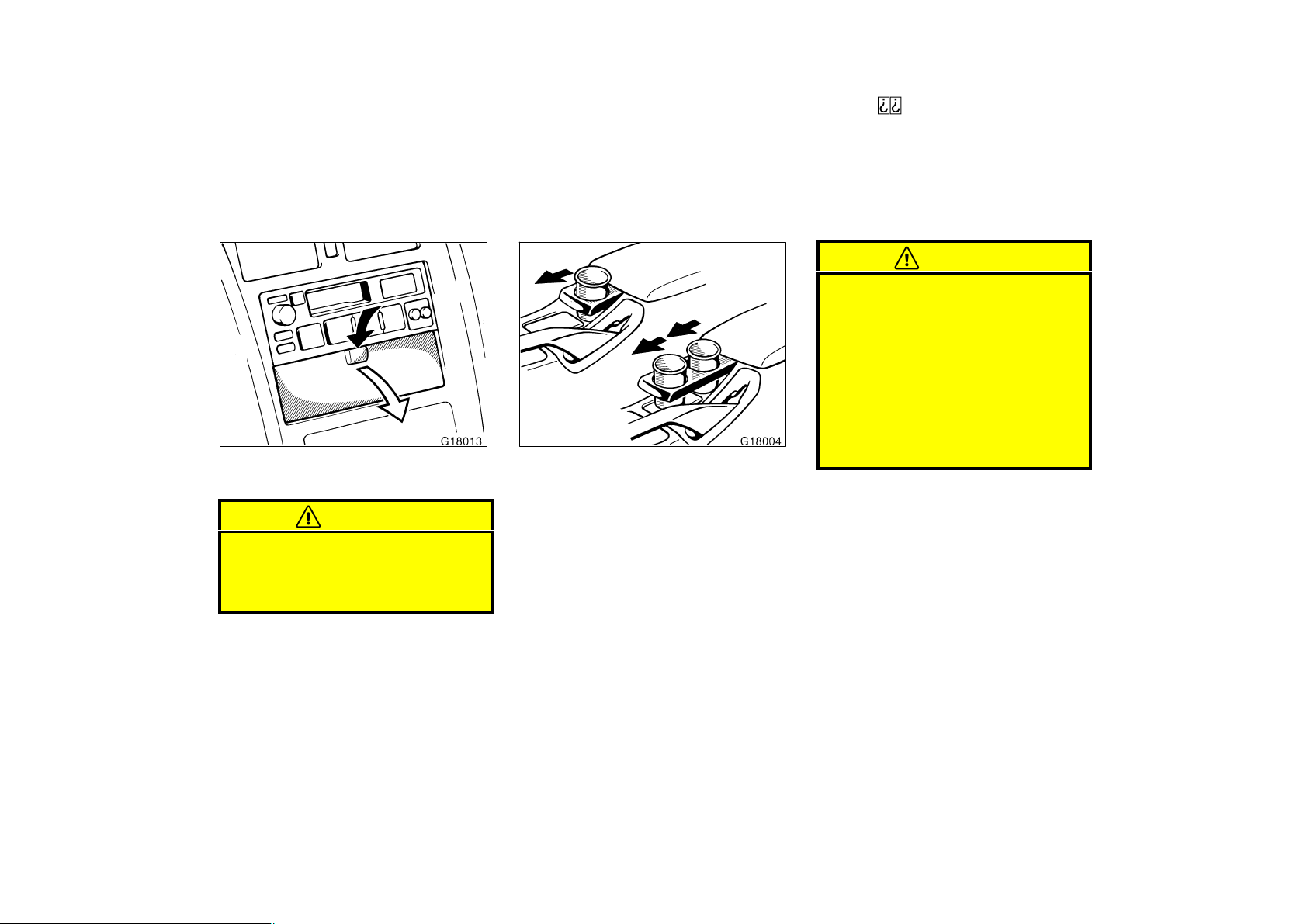

Auxiliary box

To open the auxiliary box, press on the

knob and pull out the box lid.

CAUTION

To reduce the chance of injury in

case of an accident or a sudden stop,

always keep the auxiliary box closed

while driving.

Cup holder

The cup holder is designed for holding

cups or drink−cans securely in its

holes.

To use the cup holder, pull it out.

When the cup holder is pulled out to the

first click, you can also use the ashtray.

CAUTION

D Do not place anything else on the

cup holder, as such item may be

thrown about in the compartment

and possibly injure people in the

vehicle during sudden braking or an

accident.

D To reduce the chance of injury in

case of an accident or a sudden

stop while driving, keep the cup

holder retracted when it is not in

use.

CELICA U

110

Luggage cover

When you open the back door, the lug-

gage cover tilt ups for easy access to

the luggage compartment.

For additional luggage space, unhook the

cords and lift the cover out of the retain-

ers.

Floor mat

Use a floor mat of the correct size.

If the floor carpet and floor mat have a

hole, then it is designed for use with a

locking clip. Fix the floor mat with locking

clip into the hole in the floor carpet.

CAUTION

Make sure the floor mat is properly

placed on the floor carpet. If the floor

mat slips and interferes with the

movement of the pedals during driv-

ing, it may cause an accident.

CELICA U

111

Part 2

INFORMATION

BEFORE DRIVING

YOUR TOYOTA

Break−in period

D Fuel

D Operation in foreign countries

D Three−way catalytic converters

D Engine exhaust cautions

D Facts about engine oil

consumption

D Brake system

D Brake pad wear limit indicators

D Luggage stowage precautions

D Your Toyota’s identification

D Theft prevention labels

D Suspension and chassis

D Types of tires

Break−in period

Drive gently and avoid high speeds.

Your vehicle does not need an elaborate

break−in. But following a few simple tips

for the first 1600 km (1000 miles) can add

to the future economy and long life of

your vehicle:

D Do not drive over 88 km/h (55 mph).

D Run the engine at moderate speed be-

tween 2000 and 4000 rpm.

D Avoid full−throttle starts.

D Try to avoid hard stops during the first

300 km (200 miles).

D Do not drive slowly with the transmis-

sion in a high gear.

D Do not drive for a long time at any

single speed, either fast or slow.

D Do not tow a trailer during the first 800

km (500 miles).

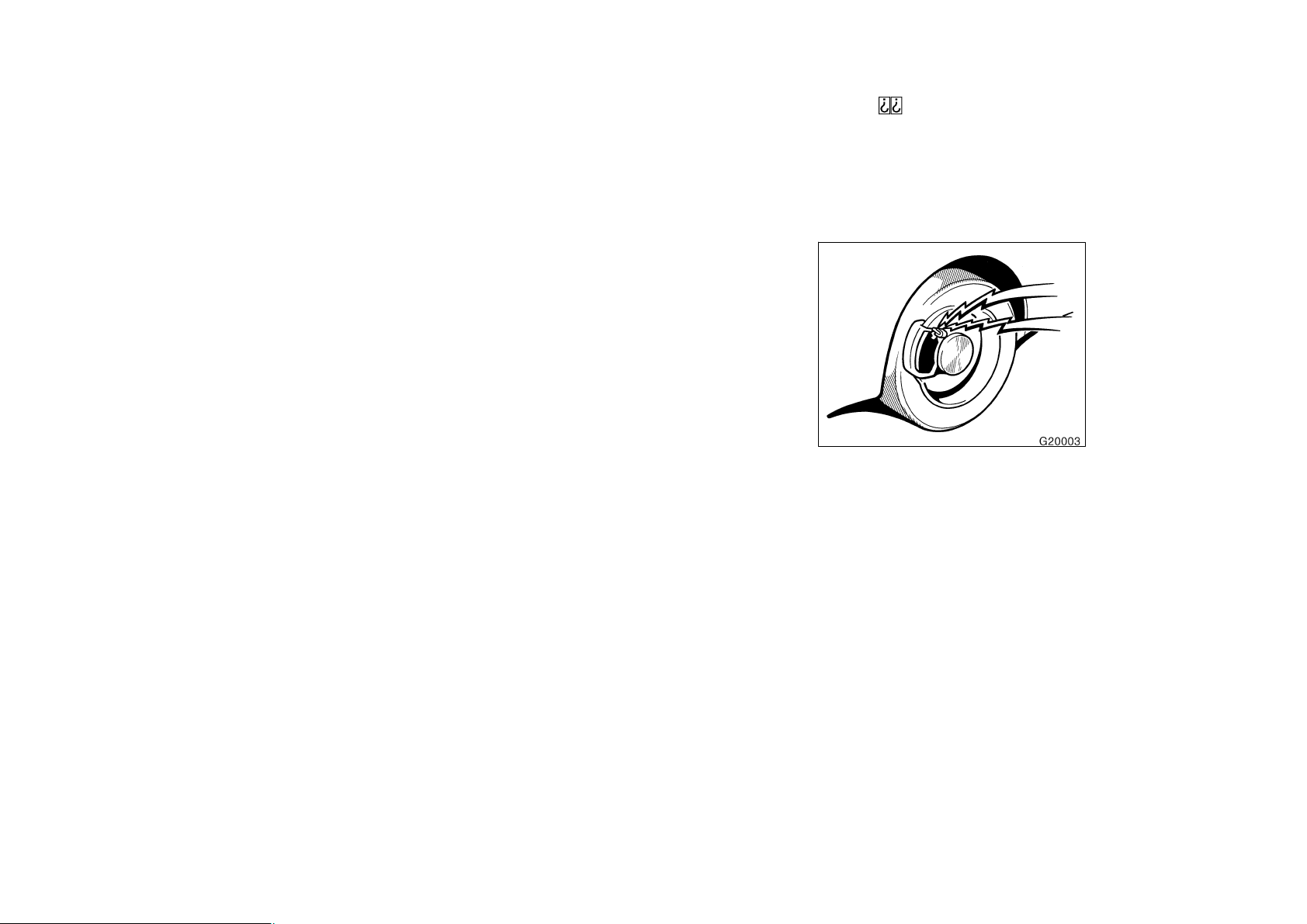

Fuel

FUEL TYPE

Your new vehicle must use only

unleaded gasoline.

To help prevent gas station mixups, your

Toyota has a new smaller fuel tank open-

ing. The special nozzle on pumps with

unleaded fuel will fit it, but the larger

standard nozzle on pumps with leaded gas

will not.

At a minimum, the gasoline you use

should meet the specifications of ASTM

D4814 in the U.S.A. and CGSB 3.5−M93

in Canada.

NOTICE

Do not use leaded gasoline. Use of

leaded gasoline will cause the three−

way catalytic converter to lose its ef-

fectiveness and the emission control

system to function improperly. Also,

this can increase maintenance costs.

OCTANE RATING

Select Octane Rating 87 (Research Oc-

tane Number 91) or higher.

CELICA U

112

Use of unleaded gasoline with an octane

rating or research octane number lower

than stated above will cause persistent

heavy knocking. If it is severe, this will

lead to engine damage.

If your engine knocks...

If you detect heavy knocking even when

using the recommended fuel, or if you

hear steady knocking while holding a

steady speed on level roads, consult your

Toyota dealer.

However, now and then, you may notice

light knocking for a short time while accel-

erating or driving up hills. This is no need

of concern.

GASOLINES CONTAINING DETERGENT

ADDITIVES

Toyota recommends use of gasolines

that contain detergent additives to

avoid build−up of engine deposits.

For further details, ask your Toyota dealer

or a local gasoline retailer.

IMPROVED GASOLINES

The American Automobile Manufacturers

Association (AAMA) has developed a

specification of improved gasolines. The

AAMA specification offers optimal fuel

information for better vehicle perfor-

mance and better protection of your en-

gine.

Toyota recommends the use of gasolines

that meet the AAMA specification, if avail-

able, for improved driveability and emis-

sion control system.

GASOLINES CONTAINING MTBE

Gasolines that contain MTBE (Methyl

Tertiary−Butyl Ether) are available in the

market. If you use a gasoline mixed

with MTBE, make certain that it does

not contain more than 15% of MTBE.

If the use of gasolines containing MTBE

causes poor driveability and/or poor fuel

economy, you should discontinue the use

of fuels containing MTBE.

GASOLINES CONTAINING MMT

Some gasolines contain an

octane−enhancing additive called MMT

(methylcyclopentadienyl manganese

tricarbonyl).

Toyota does not recommend the use of

gasolines that contain MMT. If fuels con-

taining MMT are used, your emission con-

trol system may be adversely affected.

The Malfunction Indicator Lamp on the in-

strument cluster may come on. If this hap-

pens, contact your Toyota dealer for ser-

vice.

GASOLINES CONTAINING ALCOHOL

If you use gasohol in your Toyota, be

sure that it is unleaded, has an octane

rating no lower than 87 and does not

contain more than 10% ethanol.

Gasohol is a mixture of gasoline and etha-

nol.

Toyota does not recommend the use of

gasolines containing methanol. If you use

gasoline containing methanol, use only

gasoline meeting the requirements above

and also containing less than 5% metha-

nol with cosolvents and corrosion inhibi-

tors for methanol.

NOTICE

z Do not use gasohol other than

stated above. It will cause fuel sys-

tem damage or vehicle performance

problems.

CELICA U

113

z If driveability problems occur (poor

hot starting, vaporizing, engine

knock, etc.), discontinue the use.

z Take care not to spill gasohol dur-

ing refueling. Gasohol may cause

paint damage.

FUEL TANK CAPACITY

60 L (15.9 gal., 13.2 Imp. gal.)

Operation in foreign countries

If you plan to drive your Toyota in

another country...

First, comply with the vehicle registration

laws.

Second, confirm the availability of the cor-

rect fuel (unleaded and minimum octane

number).

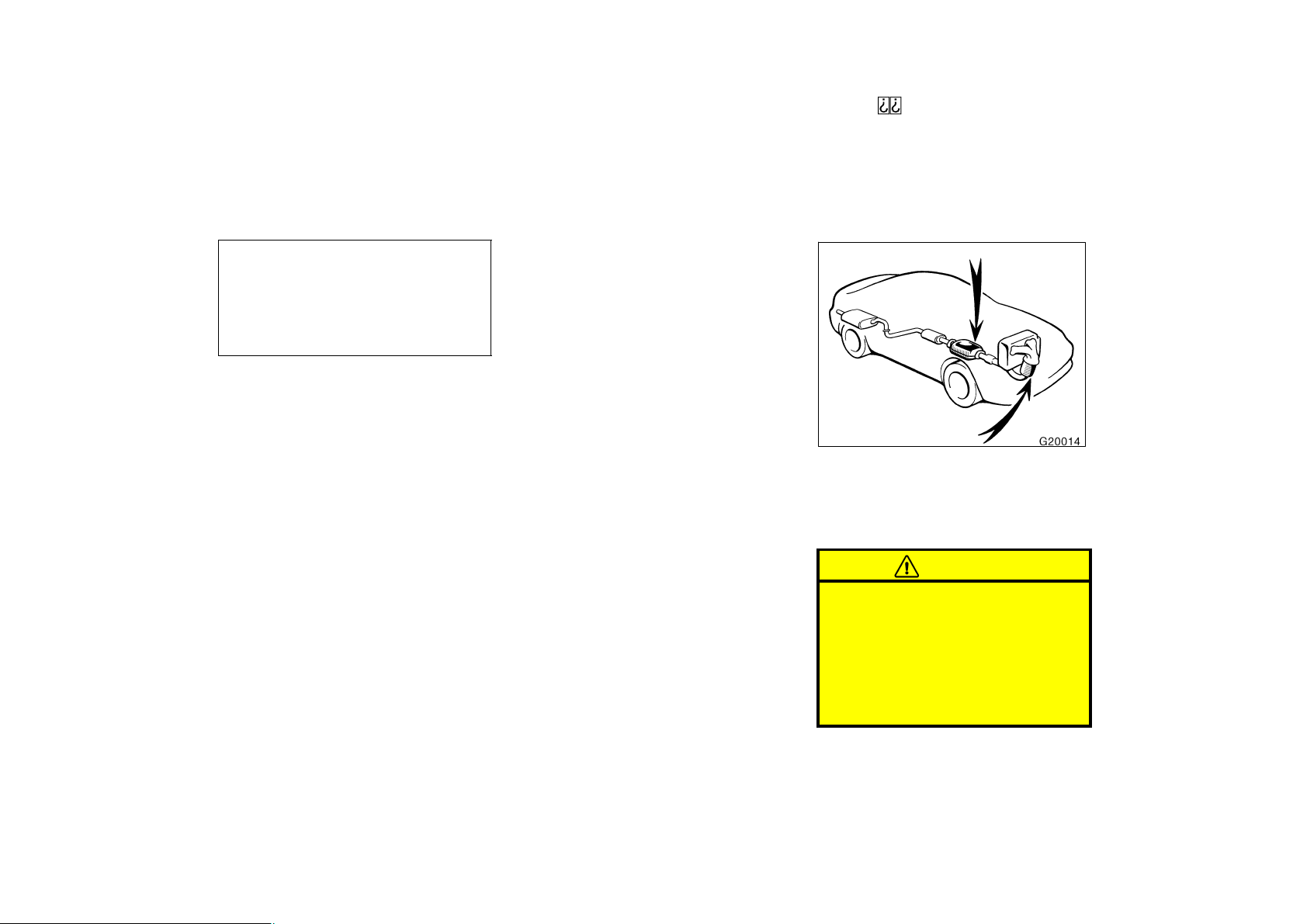

Three−way catalytic converters

The three−way catalytic converter is an

emission control device installed in the

exhaust system.

Its purpose is to reduce pollutants in the

exhaust gas.

CAUTION

D Keep people and combustible mate-

rials away from the exhaust pipe

while the engine is running. The

exhaust gas is very hot.

D Do not drive, idle or park your ve-

hicle over anything that might burn

easily such as grass, leaves, paper

or rags.

CELICA U

114

NOTICE

A large amount of unburned gases

flowing into the three−way catalytic

converter may cause it to overheat

and create a fire hazard. To prevent

this and other damage, observe the

following precautions:

z Use only unleaded gasoline.

z Do not drive with an extremely low

fuel level; running out of fuel could

cause the engine to misfire, creat-

ing an excessive load on the three−

way catalytic converter.

z Do not allow the engine to run at

idle speed for more than 20 min-

utes.

z Avoid racing the engine.

z Do not push−start or pull−start your

vehicle.

z Do not turn off the ignition while

the vehicle is moving.

z Keep your engine in good running

order. Malfunctions in the engine

electrical system, electronic ignition

system/distributor ignition system

or fuel system could cause an ex-

tremely high three−way catalytic

converter temperature.

z If the engine becomes difficult to

start or stalls frequently, take your

vehicle in for a check−up as pos-

sible. Remember, your Toyota dealer

knows your vehicle and its three−

way catalytic converter system best.

z To ensure that the three−way cata-

lytic converter and the entire emis-

sion control system operate proper-

ly, your vehicle must receive the

periodic inspections required by the

Toyota Maintenance Schedule. For

scheduled maintenance information,

refer to the separate ”Owner’s

Manual Supplement/Maintenance

schedule”.

Engine exhaust cautions

CAUTION

D Avoid inhaling the engine exhaust.

It contains carbon monoxide, which

is a colorless and odorless gas. It

can cause unconsciousness or even

death.

D Make sure the exhaust system has

no holes or loose connections. The

system should be checked from

time to time. If you hit something,

or notice a change in the sound of

the exhaust, have the system

checked immediately.

D Do not run the engine in a garage

or enclosed area except for the

time needed to drive the vehicle in

or out. The exhaust gases cannot

escape, making this a particularly

dangerous situation.

D Do not remain for a long time in a

parked vehicle with the engine run-

ning. If it is unavoidable, however,

do so only in an unconfined area

and adjust the heating or cooling

system to force outside air into the

vehicle.

CELICA U

115

D Keep the trunk lid or back door

closed while driving. An open or

unsealed trunk lid or back door

may cause exhaust gases to be

drawn into the vehicle.

D To allow proper operation of your

vehicle’s ventilation system, keep

the inlet grilles in front of the wind-

shield clear of snow, leaves, or oth-

er obstructions.

D If you smell exhaust fumes in the

vehicle, drive with the windows

open and the trunk lid or back door

closed. Have the cause immediately

located and corrected.

FUNCTIONS OF ENGINE OIL

Engine oil has the primary functions of

lubricating and cooling the inside of the

engine, and plays a major role in main-

taining the engine in proper working order.

ENGINE OIL CONSUMPTION

It is normal that an engine should con-

sume some engine oil during normal

engine operation. The causes of oil

consumption in a normal engine are as

follows.

D Oil is used to lubricate pistons, piston

rings and cylinders. A thin film of oil

is left on the cylinder wall when a pis-

ton moves downwards in the cylinder.

High negative pressure generated when

the vehicle is decelerating sucks some

of this oil into the combustion chamber.

This oil as well as some part of the oil

film left on the cylinder wall is burned

by the high temperature combustion

gases during the combustion process.

D Oil is also used to lubricate the stems

of the intake valves. Some of this oil

is sucked into the combustion chamber

together with the intake air and is

burned along with the fuel. High tem-

perature exhaust gases also burn the

oil used to lubricate the exhaust valve

stems.

The amount of engine oil consumed de-

pends on the viscosity of the oil, the

quality of the oil and the conditions the

vehicle is driven under.

More oil is consumed by high−speed driv-

ing and frequent acceleration and decel-

eration.

A new engine consumes more oil, since

its pistons, piston rings and cylinder walls

have not become conditioned.

When judging the amount of oil con-

sumption, note that the oil may become

diluted and make it difficult to judge

the true level accurately.

As an example, if a vehicle is used for

repeated short trips, and consumes a nor-

mal amount of oil, the dipstick may not

show any drop in the oil level at all, even

after 1000 km (600 miles) or more. This

is because the oil is gradually becoming

diluted with fuel or moisture, making it

appear that the oil level has not changed.

The diluting ingredients evaporate out

when the vehicle is then driven at high

speeds, as on an expressway, making it

appear that oil is excessively consumed

after driving at high speeds.

Facts about engine oil

consumption

CELICA U

116

IMPORTANCE OF ENGINE OIL LEVEL

CHECK

One of the most important points in prop-

er vehicle maintenance is to keep the en-

gine oil at the optimum level so that oil

function will not be impaired. Therefore, it

is essential that the oil level be checked

regularly. Toyota recommends that the oil

level be checked every time you refuel

the vehicle.

NOTICE

Failure to check the oil level regularly

could lead to serious engine trouble

due to insufficient oil.

For detailed information on oil level check,

see ”Checking the engine oil level” in

Chapter 7−2.

Brake system

TANDEM MASTER CYLINDER BRAKE

SYSTEM

The tandem master cylinder brake system

is a hydraulic system with two separate

sub−systems. If either sub−system should

fail, the other will still work. However, the

pedal will be harder to press, and your

stopping distance will be longer. Also, the

brake system warning light may come on.

CAUTION

Do not drive your vehicle with only a

single brake system. Have your

brakes fixed immediately.

BRAKE BOOSTER

The brake booster uses engine vacuum to

power−assist the brakes. If the engine

should quit while you are driving, you can

bring the vehicle to a stop with normal

pedal pressure. There is enough reserve

vacuum for one or two stops—but no

more!

CAUTION

D Do not pump the brake pedal if the

engine stalls. Each push on the

pedal uses up your vacuum reserve.

D Even if the power assist is com-

pletely lost, the brakes will still

work. But you will have to push the

pedal hard—much harder than nor-

mal. And your braking distance will

be longer.

ANTI−LOCK BRAKE SYSTEM

(with ”ABS” warning light)

The anti−lock brake system is designed to

automatically help prevent lock−up of the

wheels during sudden braking or braking

on slippery road surfaces. This assists in

providing directional stability and steering

performance of he vehicle under these cir-

cumstances.

The anti−lock brake system becomes op-

erative after the vehicle has accelerated

to a speed in excess of approximately 10

km/h (6 mph). It stops operating when the

vehicle decelerates to a speed below

approximately 5 km/h (3 mph).

You may hear a sound in the engine

compartment for a few seconds when the

engine is started or just after the vehicle

is started. This means that the anti−lock

brake system is in the self check mode,

and does not indicate a malfunction.

CELICA U

117

Effective way to press the ”ABS” brake

pedal: When the anti−lock brake system

function is in action, you may feel the

brake pedal pulsating and hear a noise.

In this situation, to let the anti−lock

brake system work for you, just hold the

brake pedal down more firmly. Do not

pump the brake. This will result in re-

duced braking performance.

The brake pedal pulsation caused by the

anti−lock brake system may indicate haz-

ardous road surface conditions. Although

the anti−lock brake system assists in pro-

viding vehicle control, it is still important

to drive with all due care, because the

anti−lock brake system cannot overcome

the laws of physics that act on your ve-

hicle:

D Braking capability is dependent on tire

friction with the road surface.

D Even though the anti−lock brake sys-

tem is operating, a driver cannot main-

tain full control on certain slippery road

surfaces, when cornering at high

speeds, or in violent maneuvers.

D Avoid high speeds on wet roads. The

anti−lock brake system cannot elimi-

nate the risk of hydroplaning and loss

of tire friction.

Always maintain a safe distance from the

vehicle in front of you. Compared with

vehicles not fitted with an anti−lock brake

system, your vehicle may require a longer

stopping distance in the following cases:

D Driving on rough, gravel or snow−cov-

ered roads.

D Driving with tire chains installed.

D Driving on roads where the road sur-

face is pitted or has other differences

in surface height.

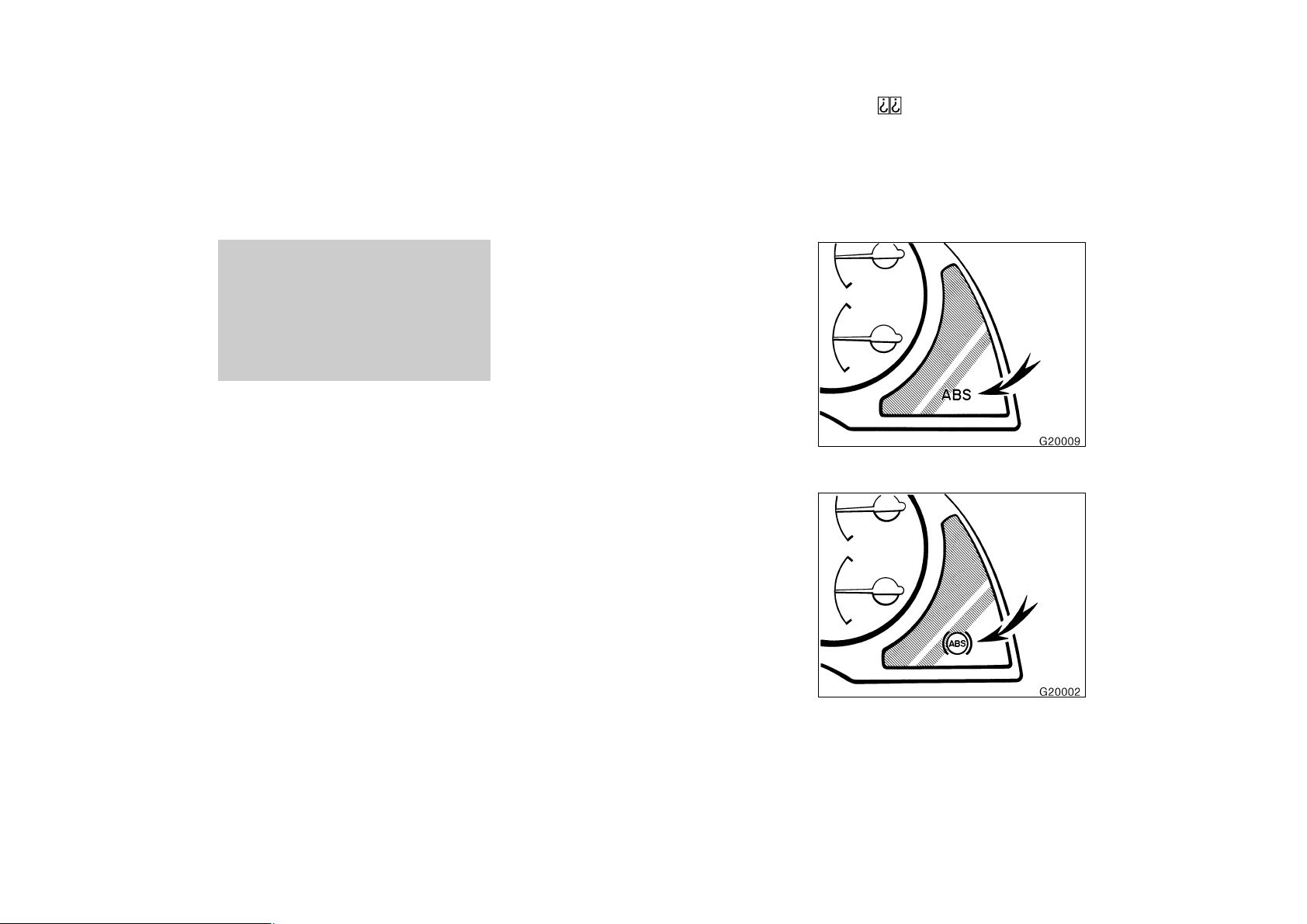

Type A

Type B

CELICA U

118

”ABS” warning light

This light comes on when the ignition key

is turned to the ”ON” position. After a few

seconds, the light will go off.

If either of the following conditions occurs,

this indicates a malfunction somewhere in

the parts monitored by the warning light

system. Contact your Toyota dealer as

soon as possible to service the vehicle.

D The light does not come on as de-

scribed above, or remains on.

D The light comes on while driving.

Even if the anti−lock brake system should

fail, the brake system will still operate

conventionally. However, when the ”ABS”

warning light is on (and the brake system

warning light is off), the anti−lock brake

system is not assisting brake performance

so that the wheels can lock−up during

sudden braking or braking on slippery

road surfaces. Have your vehicle checked

by your Toyota dealer as soon as pos-

sible.

DRUM−IN−DISC TYPE PARKING BRAKE

SYSTEM

Your vehicle has a drum−in−disc type

parking brake system. This type of brake

system needs bedding−down of the brake

shoes periodically or whenever the parking

brake shoes and/or drums are replaced.

Have your Toyota dealer perform the bed-

ding−down.

Brake pad wear limit indicators

The brake pad wear limit indicators on

your disc brakes give a warning noise

when the brake pads are worn to where

replacement is required.

If you hear a squealing or scraping noise

while driving, have the brake pads

checked and replaced by your Toyota

dealer as soon as possible. Expensive ro-

tor damage can result if the pads are not

replaced when necessary.

CELICA U

119

Luggage stowage precautions

When stowing luggage or cargo in the

vehicle, observe the following:

D Put luggage or cargo in the trunk or

luggage compartment when at all pos-

sible. Be sure all items are secured in

place.

D Be careful to keep the vehicle bal-

anced. Locating the weight as far for-

ward as possible helps maintain bal-

ance.

D For better fuel economy, do not carry

unneeded weight.

CAUTION

D To prevent luggage or packages

from sliding forward during braking,

do not stack anything in the en-

larged trunk or the luggage

compartment higher than the seat-

backs. Keep luggage or package

low, as close to the floor as pos-

sible.

D Never allow anyone to ride in the

enlarged trunk or the luggage

compartment. It is not designed for

passengers. They should ride in

their seats with their seat belts

properly fastened. Otherwise, they

are much more likely to suffer seri-

ous bodily injury, in the event of

sudden braking or a collision.

D Do not place anything on the filler

panel behind the rear seatback or

luggage cover. Such items may be

thrown about and possibly injure

people in the vehicle during sudden

braking or an accident.

D Do not drive with objects left on

top of the instrument panel. They

may interfere with the driver’s field

of view. Or they may move during

sharp vehicle acceleration or turn-

ing, and impair the driver’s control

of the vehicle. In an accident they

may injure the vehicle occupants.

NOTICE

Do not load the vehicle beyond the

vehicle capacity weight specified in

Part 8.

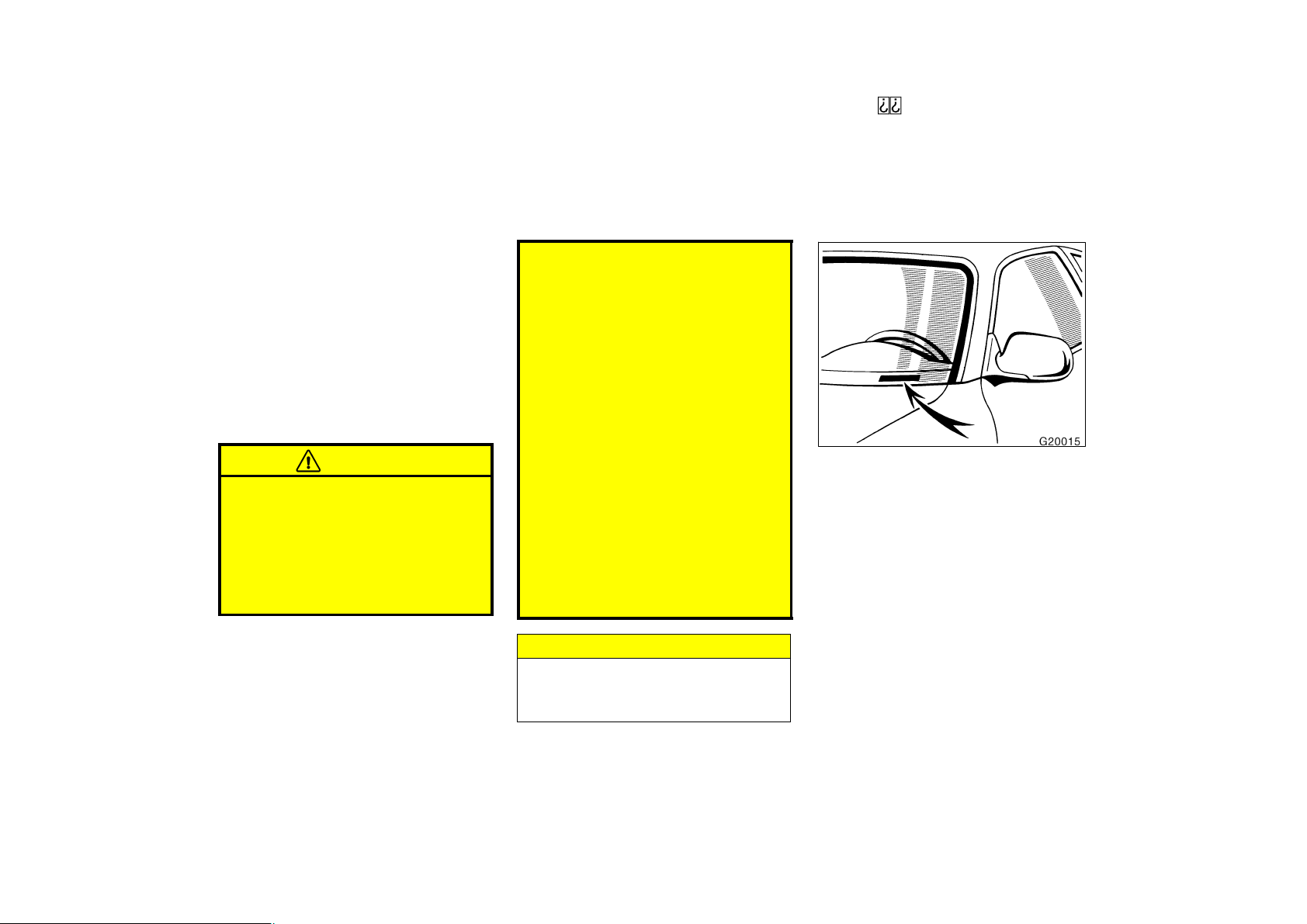

The vehicle identification number (VIN)

is the legal identifier for your vehicle.

This number is on the left top of the

instrument panel, and can be seen

through the windshield from outside.

This is the primary identification number

for your Toyota. It is used in registering

the ownership of your vehicle.

Your Toyota’s identification—

—Vehicle identification

number

CELICA U

120

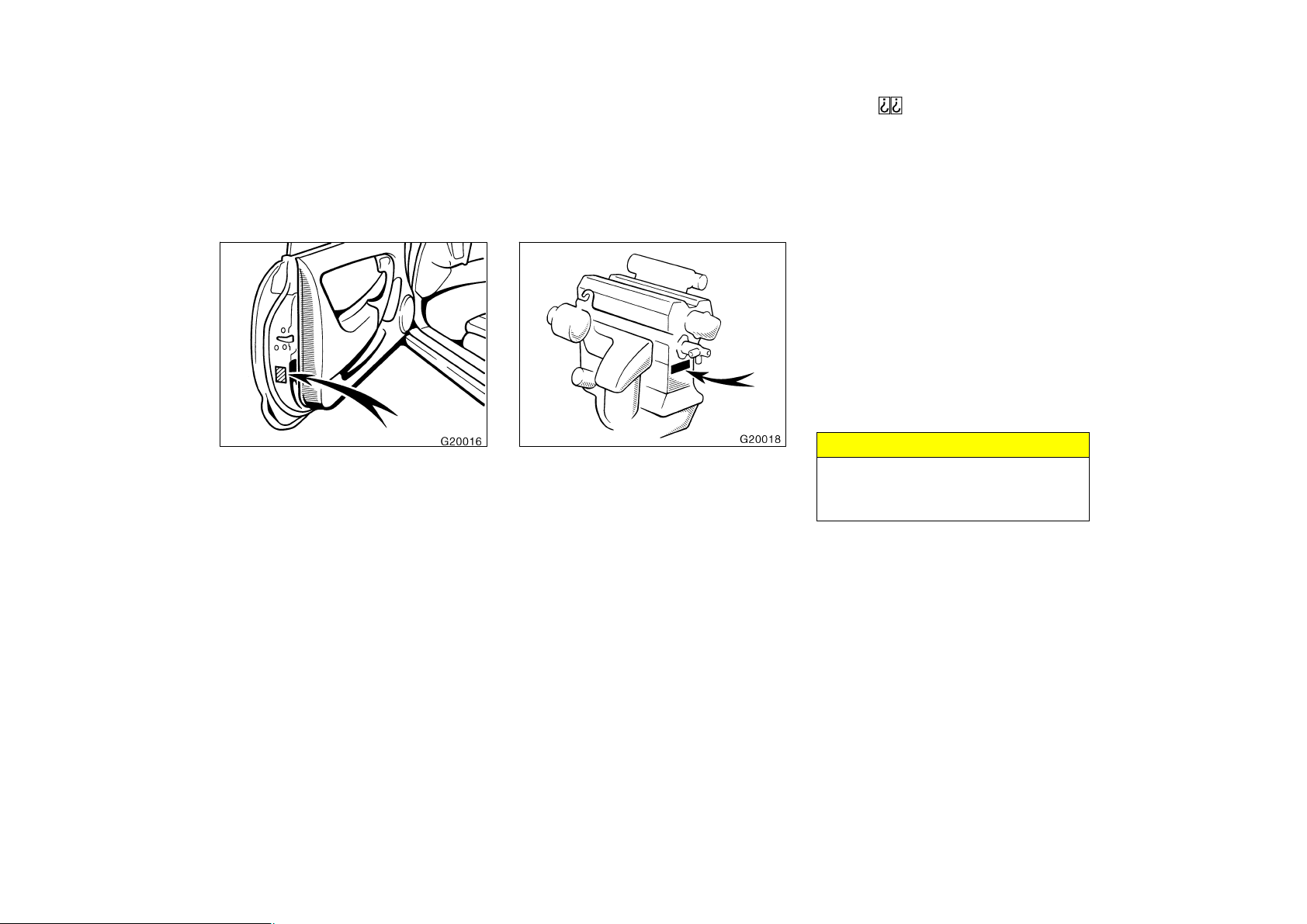

The vehicle identification number (VIN) is

also on the Certification Label.

—Engine number

The engine number is stamped on the

engine block as shown.

Your new vehicle carries theft preven-

tion labels which are approximately 56

mm (2.20 in.) by 16 mm (0.63 in.).

The purpose of these labels is to reduce

the incidence of vehicle thefts by facilitat-

ing the tracing and recovery of parts from

stolen vehicles. The label is designed so

that once it is applied to a surface, any

attempt to remove it will result in destroy-

ing the integrity of the label. Transferring

these labels intact from one part to anoth-

er, will be impossible.

NOTICE

You should not attempt to remove the

theft prevention labels as it may vio-

late certain state or federal laws.

Theft prevention labels

(except for Canada)

CELICA U

121

Suspension and chassis

CAUTION

Do not modify the suspension/chassis

with lift kits, spacers, springs, etc. It

can cause dangerous handling charac-

teristics, resulting in loss of control.

Types of tires

Determine what kind of tires your ve-

hicle is originally equipped with.

1. Summer tires

Summer tires are high−speed capability

tires best suited to highway driving under

dry conditions.

Since summer tires do not have the same

traction performance as snow tires, sum-

mer tires are inadequate for driving on

snow−covered or icy roads. For driving on

snow−covered or icy roads, we recom-

mend using snow tires. If installing snow

tires, be sure to replace all four tires.

2. All season tires

All season tires are designed to provide

better traction in snow and to be adequate

for driving in most winter conditions, as

well as for use all year round.

All season tires, however, do not have

adequate traction performance compared

with snow tires in heavy or loose snow.

Also, all season tires fall short in accel-

eration and handling performance

compared with summer tires in highway

driving.

CAUTION

D Do not mix summer and all season

tires on your vehicle as this can

cause dangerous handling charac-

teristics, resulting in loss of con-

trol.

D Do not use tires other than the

manufacture’s designated tires, and

never mix tires or wheels of the

sizes different from the originals.

CELICA U

122

CELICA U

123

Part 3

STARTING AND DRIV-

ING

Before starting the engine

D How to start the engine

D Tips for driving in various

conditions

D Winter driving tips

D Trailer towing

D How to save fuel and make your

vehicle last longer, too

Before starting the engine

1. Check the area around the vehicle be-

fore entering it.

2. Adjust seat position, seatback angle,

head restraint height and steering

wheel angle.

3. Adjust inside and outside rear view

mirrors.

4. Lock both side doors.

5. Fasten seat belts.

1. Apply the parking brake firmly.

2. Turn off unnecessary lights and acces-

sories.

3. Manual transmission: Press the clutch

pedal to the floor and shift the trans-

mission into neutral. Hold the clutch

pedal to the floor until the engine is

started. A starter safety device will pre-

vent the starter from operating if the

clutch pedal is not fully depressed.

Automatic transmission: Put the se-

lector lever in ”P”. If you need to re-

start the engine while the vehicle is

moving, put the selector lever in ”N”.

A starter safety device will prevent the

starter from operating if the selector

lever is in any drive position.

4. Automatic transmission only: De-

press the brake pedal and hold it to

the floor until driving off.

How to start the engine—

(a) Before cranking

CELICA U

124

(b) Starting the engine

Before starting the engine, be sure to

follow the instructions in ”(a) Before

cranking”.

Normal starting procedure

The multiport fuel injection system/sequen-

tial multiport fuel injection system in your

engine automatically controls the proper

air−fuel mixture for starting. You can start

a cold or hot engine as follows:

1. With your foot off the accelerator ped-

al, crank the engine by turning the key

to ”START”. Release it when the en-

gine starts.

2. After the engine runs for about 10 sec-

onds, you are ready to drive.

If the weather is below freezing, let the

engine warm up for a few minutes before

driving.

If the engine stalls...

Simply restart it, using the correct proce-

dure given in normal starting.

If the engine will not start—

See ”If your vehicle will not start” in Part

NOTICE

z Do not crank for more than 30 sec-

onds at a time. This may overheat

the starter and wiring systems.

z Do not race a cold engine.

z If the engine becomes difficult to

start or stalls frequently, have the

engine checked immediately.

D Always slow down in gusty crosswinds.

This will allow you much better control.

D Drive slowly onto curbs and, if pos-

sible, at a right angle. Avoid driving

onto high, sharp−edged objects and

other road hazards. Failure to do so

can lead to severe tire damage result-

ing in tire bursts.

D When parking on a hill, turn the front

wheels until they touch the curb so

that the vehicle will not roll. Apply the

parking brake, and place the transmis-

sion in ”P” (automatic) or in first or

reverse (manual). If necessary, block

the wheels.

D Washing your vehicle or driving through

deep water may get the brakes wet. To

see whether they are wet, check that

there is no traffic near you, and then

press the pedal lightly. If you do not

feel a normal braking force, the brakes

are probably wet. To dry them, drive

the vehicle cautiously while lightly

pressing the brake pedal with the park-

ing brake pulled. If they still do not

work safely, pull to the side of the road

and call a Toyota dealer for assistance.

Tips for driving in various

conditions

CELICA U

125

CAUTION

D Before driving off, make sure that

the parking brake is fully released

and the parking brake reminder

light is off.

D Do not leave your vehicle unat-

tended while the engine is running.

D Do not rest your foot on the brake

pedal while driving. It can cause

dangerous overheating, needless

wear, and poor fuel economy.

D To drive down a long or steep hill,

reduce your speed and downshift.

Remember, if you ride the brakes

excessively, they may overheat and

not work properly.

D Be careful when accelerating, up-

shifting, downshifting or braking on

a slippery surface. Sudden accelera-

tion or engine braking, could cause

the vehicle to spin or skid.

D Do not drive in excess of the speed

limit. Even if the legal speed limit

permits it, do not drive over 140

km/h (85 mph) unless your vehicle

has high−speed capability tires.

Driving over 140 km/h (85 mph) may

result in tire failure, loss of control

and possible injury. Be sure to con-

sult a tire dealer to determine

whether the tires on your vehicle

are high−speed capability tires or

not before driving at such speeds.

D Do not continue normal driving

when the brakes are wet. If they are

wet, your vehicle will require a lon-

ger stopping distance, and it may

pull to one side when the brakes

are applied. Also, the parking brake

will not hold the vehicle securely.

Winter driving tips

Make sure you have ethylene−glycol an-

tifreeze in the radiator.

NOTICE

Do not use alcohol type antifreeze.

Check the condition of the battery and

cables.

Cold temperatures reduce the capacity of

any battery, so it must be in top shape

to provide enough power for winter start-

ing. Chapter 7−3 tells you how to visually

inspect the battery. Your Toyota dealer

and most service stations will be pleased

to check the level of charge.

Make sure the engine oil viscosity is

suitable for the cold weather.

See Chapter 7−2 for recommended viscos-

ity. Leaving a heavy summer oil in your

vehicle during winter months may cause

harder starting. If you are not sure about

which oil to use, call your Toyota deal-

er—he will be pleased to help.

Keep the door locks from freezing.

Squirt lock de−icer or glycerine into the

locks to keep them from freezing. To open

a frozen lock, try heating the key before

inserting it.

CELICA U

126

Use a washer fluid containing an anti-

freeze solution.

This product is available at your Toyota

dealer and most auto parts stores. Follow

the manufacturer’s directions for how

much to mix with water.

NOTICE

Do not use engine antifreeze or any

other substitute because it may dam-

age your vehicle’s paint.

Do not use your parking brake when

there is a possibility it could freeze.

When parking, put the transmission into

”P” (automatic) or into first or reverse

(manual) and block the rear wheels. Do

not use the parking brake, or snow or

water accumulated in and around the

parking brake mechanism may freeze,

making it hard to release.

Keep ice and snow from accumulating

under the fenders.

Ice and snow built up under your fenders

can make steering difficult. During bad

winter driving, stop and check under the

fenders occasionally.

Depending on where you are driving,

we recommend you carry some emer-

gency equipment.

Some of the things you might put in the

vehicle are tire chains, window scraper,

bag of sand or salt, flares, small shovel,

jumper cables, etc.

Trailer towing

Your vehicle is designed primarily as a

passenger−carrying vehicle. Towing a

trailer will have an adverse effect on

handling, performance, braking, durability

and driving economy (fuel consumption,

etc.). Your safety and satisfaction depend

on the proper use of correct equipment

and cautious driving habits. For your

safety and the safety of others, you must

not overload your vehicle or trailer. Toyota

warranties do not apply to damage or

malfunction caused by towing a trailer for

commercial purposes. Ask your local

Toyota dealer for further details before

towing.

WEIGHT LIMITS

Before towing, make sure the total trailer

weight, gross vehicle weight, gross axle

weight and trailer tongue load are all with-

in the limits.

The total trailer weight and tongue load

can be measured with platform scales

found at a highway weighing station, build-

ing supply company, trucking company,

junk yard, etc.

CELICA U

127

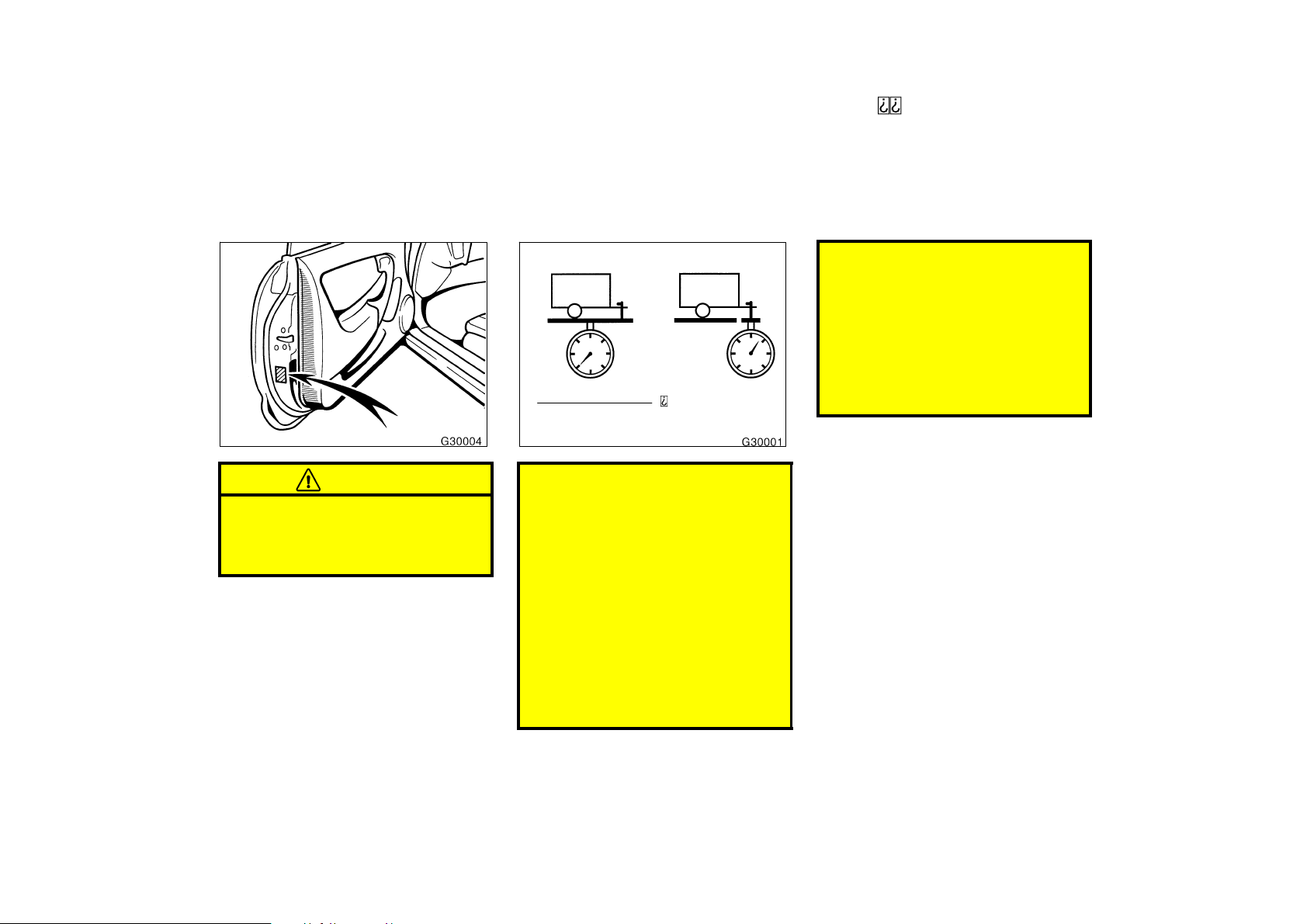

CAUTION

D The total trailer weight (trailer

weight plus its cargo load) must

not exceed 907 kg (2000 lb.). Ex-

ceeding this weight is dangerous.

Total trailer weight Tongue load

Tongue load

Total trailer weight

100=9 to 11%

D The gross vehicle weight must not

exceed the Gross Vehicle Weight

Rating (GVWR) indicated on the

Certification Label. The gross ve-

hicle weight is the sum of weights

of the unloaded vehicle, driver, pas-

sengers, luggage, hitch and trailer

tongue load. It also includes the

weight of any special equipment

installed on your vehicle.

D The load on either the front or rear

axle resulting from distribution of

the gross vehicle weight on both

axles must not exceed the Gross

Axle Weight Rating (GAWR) listed

on the Certification Label.

D The trailer cargo load should be

distributed so that the tongue load

is 9 to 11 % of the total trailer

weight, not exceeding the maximum

of 90 kg (200 lb.). Never load the

trailer with more weight in the back

than in the front. About 60 % of the

trailer load should be in the front

half of the trailer and the remaining

40 % in the rear.

HITCHES

D Use only a hitch which is recom-

mended by the hitch manufacturer and

conforms to the total trailer weight re-

quirement.

D Follow the directions supplied by the

hitch manufacturer, and bolt the hitch

securely to the rear bumper. Lubricate

the hitch ball with a light coat of

grease.

CELICA U

128

D Toyota recommends removing the trail-

er hitch whenever you are not towing

a trailer to reduce the possibility of

additional damage caused by the hitch

if your vehicle is struck from behind.

After removing the hitch, seal any

mounting holes in the vehicle body to

prevent entry of pollutants such as ex-

haust fumes, dirt, water, etc.

NOTICE

Do not use axle−mounted hitches as

they can cause damage to the axle

housing, wheel bearings, wheels or

tires. Also, never install a hitch which

may interfere with the normal function

of an Energy Absorbing Bumper.

BRAKES AND SAFETY CHAINS

D Toyota recommends trailers with

brakes that conform to any applica-

ble federal and state/provincial regu-

lations.

D A safety chain must always be used

between the towing vehicle and the

trailer. Leave sufficient slack in the

chain for turns. The chain should

cross under the trailer tongue to

prevent the tongue from dropping to

the ground in case it becomes dam-

aged or separated. For correct safety

chain procedures, follow the hitch or

trailer manufacturer’s recommenda-

tions.

CAUTION

D If the total trailer weight exceeds

453 kg (1000 lb.), trailer brakes are

required.

D Never tap into your vehicle’s hy-

draulic system as it would lower its

braking effectiveness.

D Never tow a trailer without using a

safety chain securely attached to

both the trailer and the vehicle. If

damage occurs to the coupling unit

or hitch ball, there is danger of the

trailer wandering over into another

lane.

TIRES

D Ensure that your vehicle’s tires are

properly inflated. See Chapter 7−2 for

instructions.

D The trailer tires should be inflated to

the pressure recommended by the trail-

er manufacturer in respect to the total

trailer weight.

TRAILER LIGHTS

D Trailer lights must comply with federal,

state/provincial and local regulations.

See your local recreational vehicle

dealer or rental agency for the correct

type of wiring and relays for your trail-

er. Check for correct operation of the

turn signals and stop lights each time

you hitch up. Direct splicing may dam-

age your vehicle’s electrical system

and cause a malfunction of your lights.

BREAK−IN SCHEDULE

D Toyota recommends that you do not

tow a trailer with a new vehicle or a

vehicle with any new power train com-

ponent (engine, transmission, differen-

tial, wheel bearing, etc.) for the first

800 km (500 miles) of driving.

CELICA U

129

MAINTENANCE

D If you tow a trailer, your vehicle will

require more frequent maintenance due

to the additional load. For this informa-

tion, please refer to the scheduled

maintenance information in the ”Own-

er’s Manual Supplement/Maintenance

Schedule”.

D Retighten all fixing bolts of the towing

ball and bracket after approximately

1000 km (600 miles) of trailer driving.

PRE−TOWING SAFETY CHECK

D Check that your vehicle remains a lev-

el when a loaded or unloaded trailer is

hitched. Do not drive if the vehicle has

an abnormal nose−up or nose−down

condition, and check for improper

tongue load, overload, worn suspension

or other possible causes.

D Make sure the trailer cargo is securely

loaded so that it can not shift.

D Check that your rear view mirrors con-

form to any applicable federal, state/

provincial or local regulation. If not,

install the rear view mirrors required

for towing purpose.

TRAILER TOWING TIPS

When towing a trailer, your vehicle will

handle differently than when not tow-

ing. The three main causes of vehicle−

trailer accidents are driver error, exces-

sive speed and improper trailer loading.

Keep these in mind when towing:

D Before starting out, check operation of

the lights and all vehicle−trailer connec-

tions. After driving a short distance,

stop and recheck the lights and con-

nections. Before actually towing a trail-

er, practice turning, stopping and back-

ing with a trailer in an area away from

traffic until you learn the feel.

D Backing with a trailer is difficult and

requires practice. Grip the bottom of

the steering wheel and move your hand

to the left to move the trailer to the

left. Move your hand to the right to

move the trailer to the right. (This pro-

cedure is generally opposite to that

when backing without a trailer). Also,

just turn the steering wheel a little at

a time, avoiding sharp or prolonged

turning. Have someone guide you when

backing to reduce the risk of an acci-

dent.

D Because stopping distance may be in-

creased, vehicle−to−vehicle distance

should be increased when towing a

trailer. For each 16 km/h (10 mph) of

speed, allow at least one vehicle and

trailer length between you and the ve-

hicle ahead. Avoid sudden braking as

you may skid, resulting in jackknifing

and loss of control. This is especially

true on wet or slippery surfaces.

D Avoid jerky starts or sudden accelera-

tion. If your vehicle has a manual

transmission, prevent excessive clutch

slippage by keeping engine rpm low

and not racing the engine. Always start

out in first gear.

D Avoid jerky steering and sharp turns.

The trailer could hit your vehicle in a

tight turn. Slow down before making a

turn to avoid the necessity of sudden

braking.

D Remember that when making a turn,

the trailer wheels will be closer than

the vehicle wheels to the inside of the

turn. Therefore, compensate for this by

making a larger than normal turning

radius with your vehicle.

CELICA U

130

D Crosswinds and rough roads will ad-

versely affect handling of your vehicle

and trailer, causing sway. Pay attention

to the rear from time to time to pre-

pare yourself for being passed by large

trucks or buses, which may cause your

vehicle and trailer to sway. If swaying

happens, firmly grip the steering wheel

and reduce speed immediately but

gradually. Never increase speed. Steer

straight ahead. If you make no extreme

correction with the steering or brakes,

the vehicle and trailer will stabilize.

D Be careful when passing other ve-

hicles. Passing requires considerable

distance. After passing a vehicle, do

not forget the length of your trailer and

be sure you have plenty of room be-

fore changing lanes.

D In order to maintain engine braking effi-

ciency do not use fifth gear (manual

transmission) or overdrive (automatic

transmission).

D Because of the added load of the trail-

er, your vehicle’s engine may overheat

on hot days (at temperatures over

30_C [85_F]) when going up a long or

steep grade with a trailer. If the engine

coolant temperature gauge indicates

overheating, immediately turn off the air

conditioning (if in use), pull off the road

and stop in a safe spot. Refer to ”If

your vehicle overheats” in Part 4 of

this manual.

D Always place wheel blocks under both

the vehicle and trailer wheels when

parking. Apply the parking brake firmly.

Put the transmission in ”P” (automatic)

or in first or reverse (manual). Avoid

parking on a slope with a trailer, but

if it cannot be avoided, do so only

after performing the following:

1. Apply the brakes and hold.

2. Have someone place wheel blocks un-

der both the vehicle and trailer wheels.

3. When the wheel blocks are in place,

release your brakes slowly until the

blocks absorb the load.

4. Apply the parking brake firmly.

5. Shift into first or reverse (manual) or

”P” (automatic) and turn off the engine.

When restarting out after parking on a

slope:

1. With the transmission in ”P” position

(automatic) or the clutch pedal de-

pressed (manual), start the engine.

(With an automatic transmission, be

sure to keep the brake pedal de-

pressed.)

2. Shift into gear.

3. Release the parking brake (also foot

brake on automatic transmission ve-

hicles) and slowly pull or back away

from the wheel blocks. Stop and apply

your brakes.

4. Have someone retrieve the blocks.

CAUTION

D Do not exceed 72 km/h (45 mph) or

the posted towing speed limit,

whichever is lower. Because insta-

bility (swaying) of a towing vehicle−

trailer combination usually in-

creases as the speed increases, ex-

ceeding 72 km/h (45 mph) may

cause loss of control.

D Slow down and downshift before

descending steep or long downhill

grades. Do not make sudden down-

shifts.

CELICA U

131

D Avoid holding the brake pedal down

too long or too frequently. This

could cause the brakes to overheat

and result in reduced braking effi-

ciency.

Getting more kilometers/mileage from a

liter/gallon of fuel is easy—just take it

easy. It will help make your vehicle last

longer, too. Here are some specific tips

on how to save money on both fuel and

repairs:

D Keep your tires inflated at the cor-

rect pressure. Underinflation causes

tire wear and wastes fuel. See Chapter

7−2 for instructions.

D Do not carry unneeded weight in

your vehicle. Excess weight puts a

heavier load on the engine, causing

greater fuel consumption.

D Avoid lengthy warm−up idling. Once

the engine is running smoothly, begin

driving—but gently. Remember, howev-

er, that on cold winter days this may

take a little longer.

D Accelerate slowly and smoothly.

Avoid jackrabbit starts. Get into high

gear as quickly as possible.

D Avoid long engine idling. If you have

a long wait and you are not in traffic,

it is better to turn off the engine and

start again later.

D Avoid engine lug or overrevving. Use

a gear position suitable for the road on

which you are travelling.

D Avoid continuous speeding up and

slowing down. Stop−and−go driving

wastes fuel.

D Avoid unnecessary stopping and

braking. Maintain a steady pace. Try

to time the traffic signals so you only

need to stop as little as possible or

take advantage of through streets to

avoid traffic lights. Keep a proper dis-

tance from other vehicles to avoid sud-

den braking. This will also reduce wear

on your brakes.

D Avoid heavy traffic or traffic jams

whenever possible.

D Do not rest your foot on the clutch

or brake pedal. This causes needless

wear, overheating and poor fuel econo-

my.

D Maintain a moderate speed on high-

ways. The faster you drive, the greater

the fuel consumption. By reducing your

speed, you will cut down on fuel con-

sumption.

D Keep the front wheels in proper

alignment. Avoid hitting the curb and

slow down on rough roads. Improper

alignment not only causes faster tire

wear but also puts an extra load on

the engine, which, in turn, wastes fuel.

How to save fuel and make

your vehicle last longer, too

CELICA U

132

D Keep the bottom of your vehicle free

from mud, etc. This not only lessens

weight but also helps prevent corro-

sion.

D Keep your vehicle tuned−up and in

top shape. A dirty air cleaner,

improper valve clearance, dirty plugs,

dirty oil and grease, brakes not

adjusted, etc. all lower engine perfor-

mance and contribute to poor fuel

economy. For longer life of all parts

and lower operating costs, keep all

maintenance work on schedule, and if

you often drive under severe condi-

tions, see that your vehicle receives

more frequent maintenance (For sched-

uled maintenance information, please

refer to the separate ”Owner’s Manual

Supplement/Maintenance Schedule”).

CAUTION

Never turn off the engine to coast

down hills. Your power steering and

brake booster will not function with-

out the engine running. Also, the

emission control system operates

properly only when the engine is run-

ning.

CELICA U

133

Part 4

IN CASE OF

AN EMERGENCY

If your vehicle will not start

D If your engine stalls while driving

D If your vehicle overheats

D If you have a flat tire

D If your vehicle needs to be towed

D If you cannot shift automatic

transmission selector lever

D If the convertible top does not

raise or lower

D If you lose your keys

Before making these checks, make sure

you have followed the correct starting pro-

cedure given in ”How to start the engine”

in Part 3 and that you have sufficient fuel.

If the engine is not turning over or is

turning over too slowly—

1. Check that the battery terminals are

tight and clean.

2. If the battery terminals are O.K., switch

on the interior light.

3. If the light is out, dim or goes out

when the starter is cranked, the battery

is discharged. You may try jump start-

ing. See ”(c) Jump starting” for further

instructions.

If the light is O.K., but the engine still will

not start, it needs adjustment or repair.

Call a Toyota dealer or qualified repair

shop.

NOTICE

Do not pull− or push−start the vehicle.

It may damage the vehicle or cause a

collision when the engine starts. Also

the three−way catalytic converter may

overheat and become a fire hazard.

If the engine turns over at its normal

speed but will not start—

1. Check that all the push−on connectors

are tight. (For example, connections at

the spark plugs, ignition coil and/or dis-

tributor)

2. If the connectors are O.K., the engine

may be flooded because of repeated

cranking. See ”(b) Starting a flooded

engine” for further instructions.

If your vehicle will not

start—(a) Simple checks

CELICA U

134

(b) Starting a flooded engine

If the engine will not start, your engine

may be flooded because of repeated

cranking.

If this happens, turn the key to ”START”

with the accelerator pedal held down.

Keep the key and accelerator pedal so for

15 seconds and release them. Then try

starting the engine with your foot off the

accelerator pedal.

If the engine does not start after 15 se-

conds of cranking, release the key, wait

a few minutes and try again.

If the engine still will not start, it needs

adjustment or repair. Call a Toyota dealer

or qualified repair shop for assistance.

NOTICE

Do not crank for more than 30 seconds

at a time. This may overheat the starter

and wiring systems.

To avoid serious personal injury and

damage to your vehicle which might re-

sult from battery explosion, acid burns,

electrical burns, or damaged electronic

components, these instructions must be

followed precisely.

If you are unsure about how to follow this

procedure, we strongly recommend that

you seek the help of a competent me-

chanic or towing service.

CAUTION

D Batteries contain sulfuric acid

which is poisonous and corrosive.

Wear protective safety glasses when

jump starting, and avoid spilling

acid on your skin, clothing, or ve-

hicle.

D If you should accidentally get acid

on yourself or in your eyes, remove

any contaminated clothing and flush

the affected area with water imme-

diately. Then get immediate medical

attention. If possible, continue to

apply water with a sponge or cloth

while en route to the medical office.

D The gas normally produced by a

battery will explode if a flame or

spark is brought near. Use only

standardized jumper cables and do

not smoke or light a match while

jump starting.

NOTICE

The battery used for boosting must

be 12 V. Do not jump start unless you

are sure that the booster battery is

correct.

JUMP STARTING PROCEDURE

1. If the booster battery is installed in

another vehicle, make sure the vehicles

are not touching. Turn off all unneces-

sary lights and accessories.

2. If required, remove all the vent plugs

from the booster and discharged batter-

ies. Lay a cloth over the open vents

on the batteries. (This helps reduce the

explosion hazard, personal injuries and

burns.)

CELICA U

135

3. If the engine in the vehicle with the

booster battery is not running, start it

and let it run for a few minutes. During

jump starting, run the engine at about

2000 rpm with the accelerator pedal

lightly depressed.

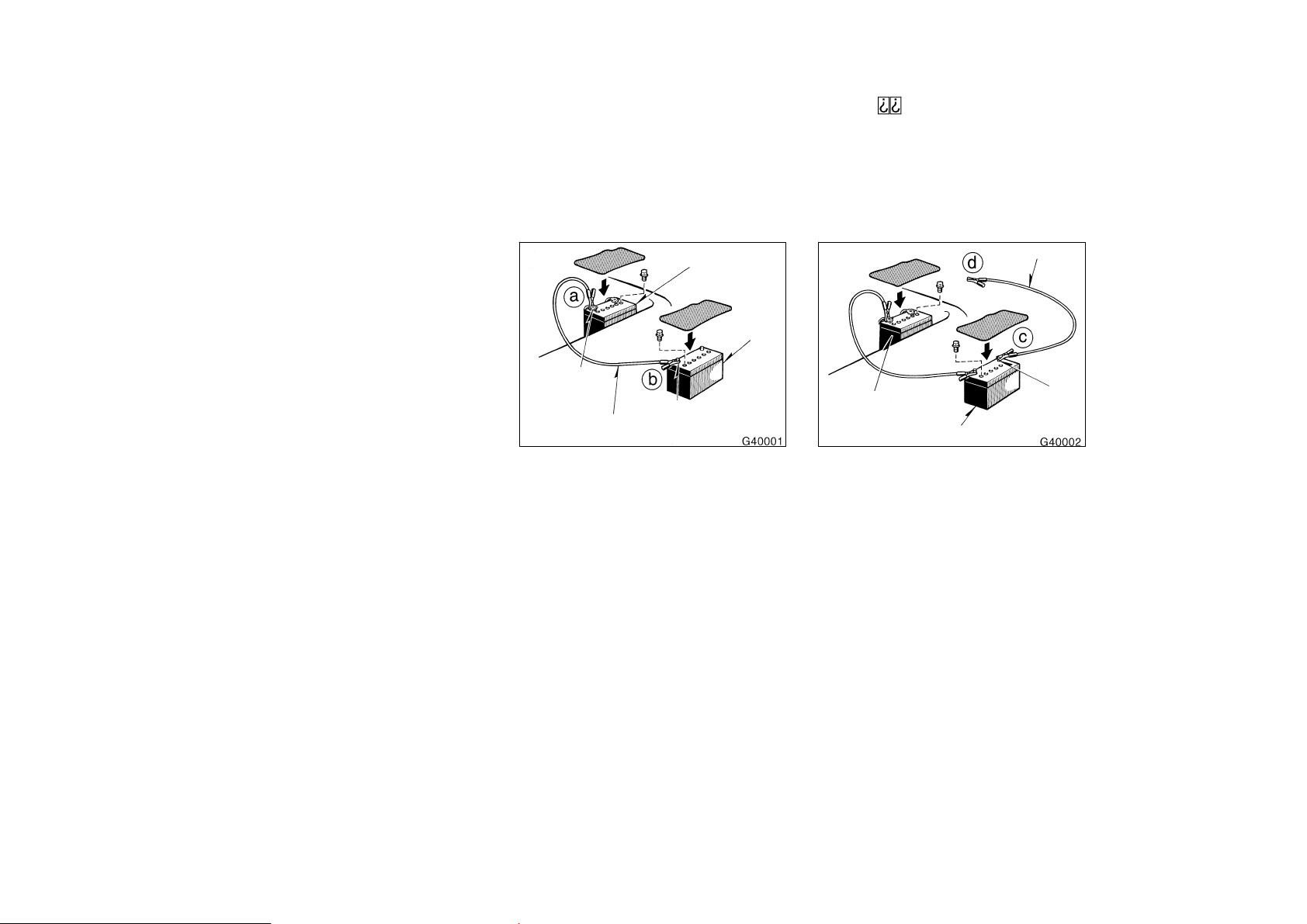

Positive

terminal

(”+”

mark)

Discharged battery

Booster battery

Jumper cable

Positive termi-

nal

(”+” mark)

4. Make the cable connections in the or-

der a, b, c, d.

a. Connect the clamp of the positive

(red) jumper cable to the positive (+)

terminal on the discharged battery.

b. Connect the clamp at the other end

of the positive (red) jumper cable to

the positive (+) terminal on the booster

battery.

Jumper cable

Booster battery

Negative

terminal

(”−” mark)

Discharged battery

c. Connect the clamp of the negative

(black) jumper cable to the negative (–)

terminal on the booster battery.

d. Connect the clamp at the other end

of the negative (black) jumper cable to

a solid, stationary, unpainted, metallic

point of the vehicle with the discharged

battery.

The recommended connecting point is

shown in the following illustration:

CELICA U

136

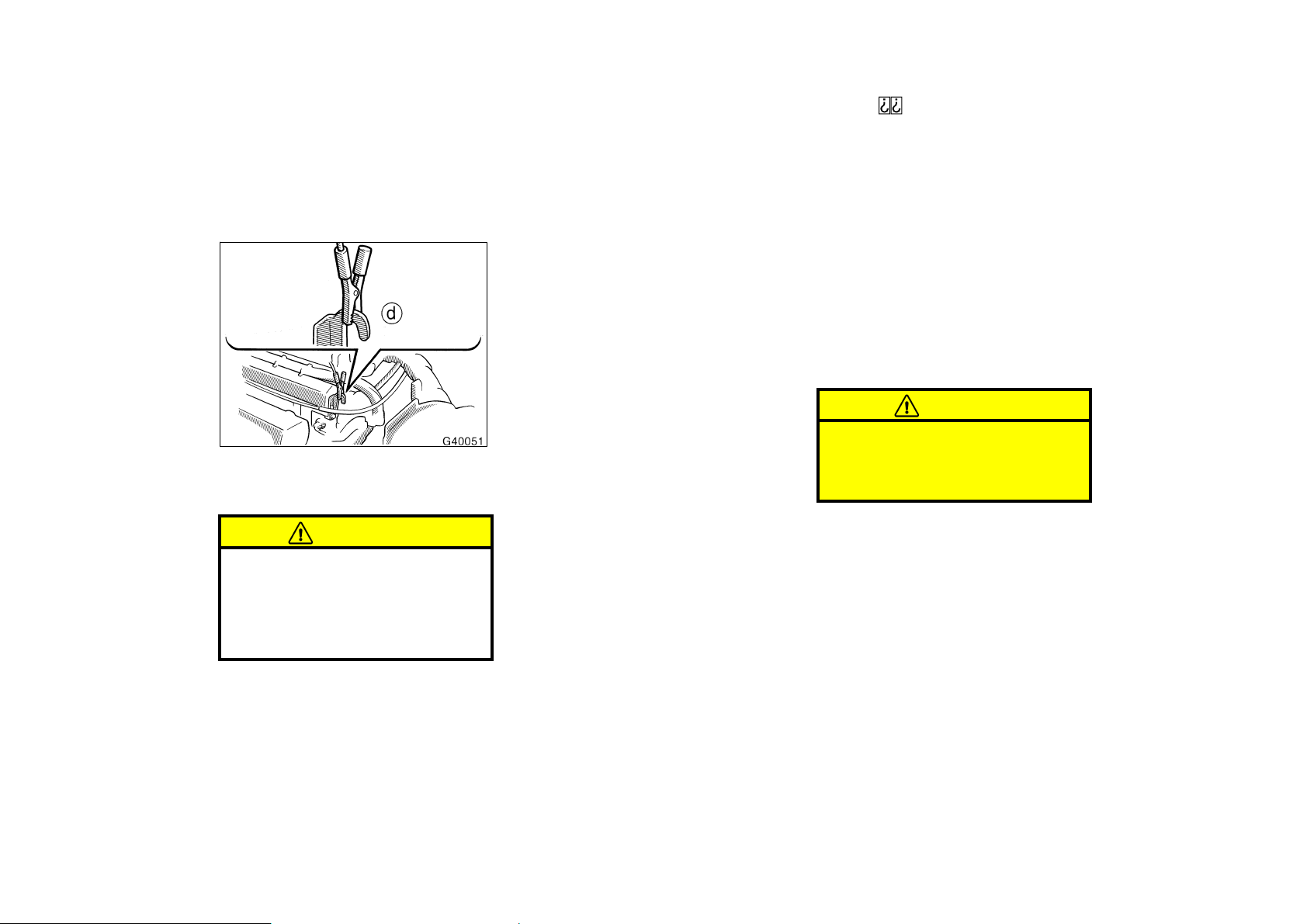

Connecting point

Do not connect the cable to or near

any part that moves when the engine

is cranked.

CAUTION

When making the connections, to

avoid serious injury, do not lean over

the battery or accidentally let the

jumper cables or clamps touch any-

thing except the correct battery termi-

nals or the ground.

5. Start your engine in the normal way.

After starting, run it at about 2000 rpm

for several minutes with the accelerator

pedal lightly depressed.

6. Carefully disconnect the cables in the

exact reverse order: the negative cable

and then the positive cable.

7. Carefully dispose of the battery cover

cloths—they may now contain sulfuric

acid.

8. If removed, replace all the battery vent

plugs.

If the cause of your battery discharging is

not apparent (for example, lights left on),

you should have it checked.

If your engine stalls while driving...

1. Reduce your speed gradually, keeping

a straight line. Move cautiously off the

road to a safe place.

2. Turn on your emergency flashers.

3. Try starting the engine again.

If the engine will not start, see ”If your

vehicle will not start”.

CAUTION

If the engine is not running, the pow-

er assist for the brakes and steering

will not work so steering and braking

will be much harder than usual.

If your engine stalls while

driving

CELICA U

137

If your vehicle overheats

If your engine coolant temperature

gauge indicates overheating, if you ex-

perience a loss of power, or if you hear

a loud knocking or pinging noise, the

engine has probably overheated. You

should follow this procedure...

1. Pull safely off the road, stop the ve-

hicle and turn on your emergency

flashers. Put the transmission in ”P”

(automatic) or neutral (manual) and ap-

ply the parking brake. Turn off the air

conditioning if it is being used.

2. If coolant or steam is boiling out of the

radiator or reservoir, stop the engine.

Wait until the steam subsides before

opening the hood. If there is no coolant

boiling over or steam, leave the engine

running and make sure the electric

cooling fan is operating. If it is not,

turn the ignition off.

CAUTION

To help avoid personal injury, keep

the hood closed until there is no

steam. Escaping steam or coolant is

a sign of very high pressure.

3. Look for obvious coolant leaks from the

radiator, hoses, and under the vehicle.

However, note that water draining from

the air conditioning is normal if it has

been used.

CAUTION

When the engine is running, keep

hands and clothing away from the

moving fan and engine drive belts.

4. If the coolant is leaking, stop the en-

gine immediately. Call a Toyota dealer

for assistance.

5. If there are no obvious leaks, check

the coolant reservoir. If it is dry, add

coolant to the reservoir while the en-

gine is running. Fill it about half full.

CAUTION

Do not attempt to remove the radiator

cap when the engine and radiator are

hot. Serious injury could result from

scalding hot fluid and steam blown

out under pressure.

6. After the engine coolant temperature

has cooled to normal, again check the

coolant level in the reservoir. If neces-

sary, bring it up to half full again. Seri-

ous coolant loss indicates a leak in the

system. You should have it checked as

soon as possible at your Toyota dealer.

CELICA U

138

If you have a flat tire—

1. Reduce your speed gradually, keeping

a straight line. Move cautiously off the

road to a safe place well away from

the traffic. Avoid stopping on the center

divider of a highway. Park on a level

spot with firm ground.

2. Stop the engine and turn on your

emergency flashers.

3. Firmly set the parking brake and put

the transmission in ”P” (automatic) or

reverse (manual).

4. Have everyone get out of the vehicle

on the side away from traffic.

5. Read the following instructions thor-

oughly.

CAUTION

When jacking, be sure to observe the

following to reduce the possibility of

personal injury:

D Follow jacking instructions.

D Do not start or run the engine while

your vehicle is supported by the

jack.

D Stop the vehicle on a level firm

ground, firmly set the parking brake

and put the transmission in ”P”

(automatic) or reverse (manual).

Block the wheel diagonally opposite

to the one being changed if neces-

sary.

D Make sure to set the jack properly

in the jack point. Raising the ve-

hicle with jack improperly posi-

tioned will damage the vehicle or

may allow the vehicle to fall off the

jack and cause personal injury.

D Never get under the vehicle when

the vehicle is supported by the jack

alone.

D Use the jack only for lifting your

vehicle during wheel changing.

D Do not raise the vehicle with some-

one in the vehicle.

D When raising the vehicle, do not

put an object on or under the jack.

D Raise the vehicle only high enough

to remove and change the tire.

NOTICE

Do not continue driving with a de-

flated tire. Driving even a short dis-

tance can damage a tire beyond re-

pair.

CELICA U

139

Compact spare tire

The compact spare tire is designed for

temporary emergency use only.

The compact spare tire is identified by the

distinctive wheel design and color and

special wording ”TEMPORARY USE ONLY”

molded into the side wall of the tire.

The standard tire should be repaired and

replaced as soon as possible.

To keep the compact spare tire noticeable,

do not hide the wheel by a wheel cover

or such.

The compact spare tire saves space in

your trunk or luggage compartment, and

its lighter weight helps to improve fuel

economy and permits easier installation in

case of a flat tire.

The compact spare tire can be used many

times, if necessary. It has tread life of up

to 4800 km (3000 miles) depending on

road conditions and your driving habits.

When tread wear indicators appear on the

tire, replace the tire.

See also the tire section in Chapter 7−2

for details on the tread wear indicators

and other service information.

CAUTION

D The compact spare tire was de-

signed especially for your Toyota.

Do not use it on any other vehicle.

D Do not exceed 80 km/h (50 mph)

when driving with the compact

spare tire.

D Avoid sudden acceleration, sudden

deceleration and sharp turns with

the compact spare tire.

NOTICE

Your ground clearance is reduced

when the compact spare tire is

installed so avoid driving over ob-

stacles and drive slowly on rough,

unpaved roads and speed bumps.

Also, do not attempt to go through an

automatic car wash as the vehicle

may get caught, resulting in damage.

CELICA U

140

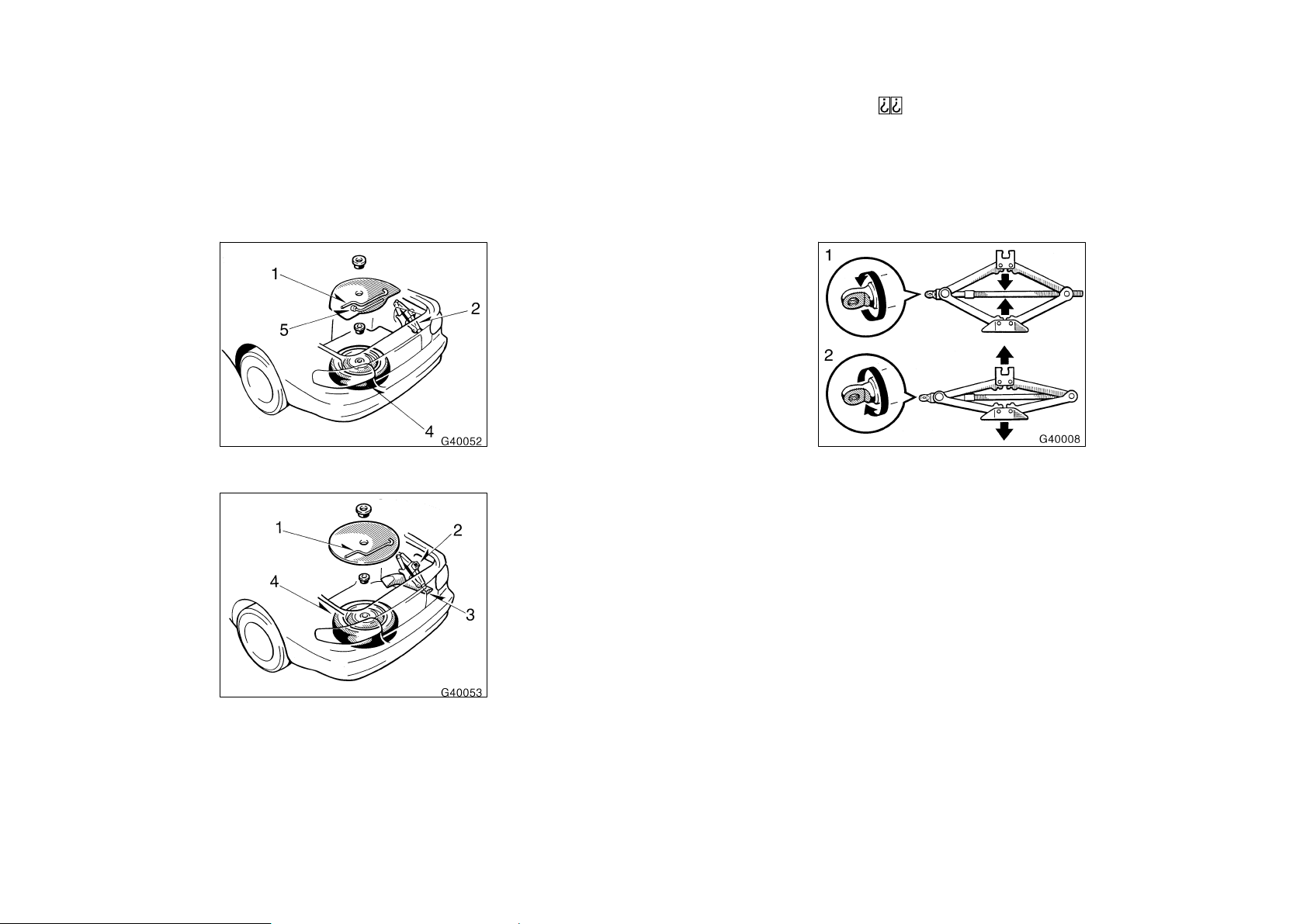

—Required tools and spare tire

With a compact spare tire

Without a compact spare tire

1. Get the required tools and spare

tire.

1 Jack handle

2Jack

3 Tool bag (Canada)

4 Spare tire

5 Wheel nut wrench (U.S.A.)

To prepare yourself for an emergency, you

should familiarize yourself with the use of

the jack, each of the tools and their stor-

age locations.

Turn the jack joint by hand.

To remove: Turn the joint in the direction

1 until the jack is free.

To store: Turn the joint in the direction 2

until the jack is firmly secured to prevent

it from flying forward during a collision or

sudden braking.

CELICA U

141

To remove the spare tire:

1. Loosen the nut and remove it.

2. Remove the spare tire cover.

3. Loosen the bolt and remove it.

4. Remove the spacer.

Then take the spare tire out of the ve-

hicle.

When storing the spare tire, put it in place

with the outer side of the wheel facing up.

Then secure the tire by repeating the

above removal steps in reverse order to

prevent it from flying forward during a

collision or sudden braking.

—Blocking the wheel

2. Block the wheel diagonally opposite

the flat tire to keep the vehicle from

rolling when it is jacked up.

When blocking the wheel, place a wheel

block from the front for the front wheels

or from the rear for the rear wheels.

3. Remove the wheel ornament.

Pry off the wheel ornament, using the

beveled end of the wheel nut wrench as

shown.

CAUTION

Do not try to pull off the ornament by

hand. Take due care in handling the

ornament to avoid unexpected person-

al injury.

—Removing wheel ornament

(steel wheels only)

CELICA U

142

—Loosening wheel nuts

4. Loosen all the wheel nuts.

Always loosen the wheel nuts before rais-

ing the vehicle.

The nuts turn counterclockwise to loosen.

To get maximum leverage, fit the wrench

to the nut so that the handle is on the

right side, as shown above. Grab the

wrench near the end of the handle and

pull up on the handle. Be careful that the

wrench does not slip off the nut.

Do not remove the nuts yet—just unscrew

them about one—half turn.

—Positioning the jack

5. Position the jack at the correct jack

point as shown.

Make sure the jack is positioned on a

level and solid place.

—Raising your vehicle

6. After making sure that no one is in

the vehicle, raise it high enough so

that the spare tire can be installed.

Remember you will need more ground

clearance when putting on the spare tire

than when removing the flat tire.

To raise the vehicle, insert the jack handle

into the jack (it is a loose fit) and turn it

clockwise. As the jack touches the vehicle

and begins to lift, double−check that it is

properly positioned.

CAUTION

Never get under the vehicle when the

vehicle is supported by the jack

alone.

CELICA U

143

—Changing wheels

7. Remove the wheel nuts and change

tires.

Lift the flat tire straight off and put it

aside.

Roll the spare wheel into position and

align the holes in the wheel with the bolts.

Then lift up the wheel and get at least the

top bolt started through its hole. Wiggle

the tire and press it back over the other

bolts.

Before putting on wheels, remove any cor-

rosion on the mounting surfaces with a

wire brush or such. Installation of wheels

without good metal−to−metal contact at the

mounting surface can cause wheel nuts to

loosen and eventually cause a wheel to

come off while driving. Therefore after the

first 1600 km (1000 miles), check to see

that the wheel nuts are tight.

—Reinstalling wheel nuts

8. Reinstall all the wheel nuts finger

tight.

Reinstall the wheel nuts (tapered end in-

ward) and tighten them as much as you

can by hand. Press back on the tire back

and see if you can tighten them more.

CELICA U

144

—Lowering your vehicle

9. Lower the vehicle completely and

tighten the wheel nuts.

Turn the jack handle counterclockwise to

lower the vehicle.

Use only the wheel nut wrench and turn

it clockwise to tighten the nuts. Do not

use other tools or any additional leverage

other than your hands, such as a hammer,

pipe or your foot. Make sure the wrench

is securely engaged over the nut.

Tighten each nut a little at a time in the

order shown. Repeat the process until all

the nuts are tight.

CAUTION

When lowering the vehicle, make sure

all portions of your body and all oth-

er persons around will not be injured

as the vehicle is lowered to the

ground.

10. Reinstall the wheel ornament.

Align the cutout of the wheel ornament

with the valve stem as shown. Then tap

it firmly with the side or heel of your hand

to snap it into place.

CAUTION

Take due care in handling the orna-

ment to avoid unexpected personal

injury.

—Reinstalling wheel

ornament

(steel wheels only)

CELICA U

145

—After changing wheels

11. Check the air pressure of the re-

placed tire.

Adjust the air pressure to the specification

designated in Part 8. If the pressure is

lower, drive slowly to the nearest service

station and fill to the correct pressure.

Do not forget to reinstall the tire inflation

valve cap as dirt and moisture could get

into the valve core and possibly cause air

leakage. If the cap is missing, have a new

one put on as soon as possible.

12. Restow all the tools, jack and flat

tire securely.

As soon as possible after changing

wheels, tighten the wheel nuts to the

torque specified in Part 8 with a torque

wrench, have a technician repair the flat

tire and replace the spare tire with it.

CAUTION

Before driving, make sure all the

tools, jack and flat tire are securely

in place in their storage location to

reduce the possibility of personal in-

jury during a collision or sudden

braking.

(a) Towing with wheel lift type truck—

—From front

—From rear

(b) Using flat bed truck

If towing is necessary, we recommend

you to have it done by your Toyota

dealer or a commercial tow truck ser-

vice. In consultation with them, have

your vehicle towed using either (a) or

(b).

Only when you cannot receive a towing

service from a Toyota dealer or

commercial tow truck service, tow your

vehicle carefully in accordance with the

instructions given in ”—Emergency

towing” in this Part.

Proper equipment will help ensure that

your vehicle is not damaged while being

towed. Commercial operators are generally

aware of the state/provincial and local

laws pertaining to towing.

Your vehicle can be damaged if it is

towed incorrectly. Although most operators

know the correct procedure, it is possible

to make a mistake. To avoid damage to

your vehicle, make sure the following few

precautions are observed. If necessary,

show this page to the tow truck driver.

TOWING PRECAUTIONS:

Use a safety chain system for all towing,

and abide by the state/provincial and local

laws. The wheels and axle on the ground

must be in good condition. If they are

damaged, use a towing dolly.

If your vehicle needs to be

towed—

CELICA U

146

(a) Towing with wheel lift type truck

From front—Release the parking brake.

NOTICE

When lifting wheels, take care to en-

sure adequate ground clearance for

towing at the opposite end of the

raised vehicle. Otherwise, the bumper

and/or underbody of the towed vehicle

will be damaged during towing.

From rear—

D Manual transmission:

We recommend using a towing dolly

under the front wheels. If you do not

use a towing dolly, place the ignition

key in the ”ACC” position and put the

transmission in neutral.

NOTICE

Do not tow with the key removed

or in the ”LOCK” position when

towing from the rear without a

towing dolly. The steering lock

mechanism is not strong enough

to hold the front wheels straight.

D Automatic transmission:

Use a towing dolly under the front

wheels.

NOTICE

Never tow a vehicle with an auto-

matic transmission from the rear

with the front wheels on the

ground, as this may cause serious

damage to the transmission.

(b) Using flat bed truck

NOTICE

Do not tow with sling type truck, ei-

ther from the front or rear. This may

cause body damage.

CELICA U

147

—Emergency towing

If towing is necessary, we recommend

you to have it done by your Toyota

dealer or a commercial tow truck ser-

vice.

If towing service is not available in an

emergency, your vehicle may be tempo-

rarily towed by a cable or chain se-

cured to one of the emergency towing

eyelets under the front of the vehicle.

Use extreme caution when towing ve-

hicles.

A driver must be in the vehicle to steer

it and operate the brakes.

Towing in this manner may be done only

on hard−surfaced roads for a short dis-

tance and at low speeds. Also, the

wheels, axles, drive train, steering and

brakes must all be in good condition.

CAUTION

Use extreme caution when towing ve-

hicles. Avoid sudden starts or erratic

driving maneuvers which would place

excessive stress on the emergency

towing hook or eyelet and towing

cable or chain. The hook or eyelet

and towing cable or chain may break

and cause serious injury or damage.

NOTICE

Use only a cable or chain specifically

intended for use in towing vehicles.

Securely fasten the cable or chain to

the towing hook or eyelet provided.

Before towing, release the parking brake

and put the transmission in neutral (manu-

al) or ”N” (automatic). The key must be

in ”ACC” (engine off) or ”ON” (engine run-

ning).

CAUTION

If the engine is not running, the pow-

er assist for the brakes and steering

will not work so steering and braking

will be much harder than usual.

CELICA U

148

If you cannot shift the selector lever

out of ”P” position to other positions

even though the brake pedal is de-

pressed, use the shift lock override but-

ton as follows:

1. Turn the ignition key to ”LOCK”

position. Make sure the parking

brake is set.

2. Pry up the cover with a flat−bladed

screwdriver or equivalent.

3. Insert the screwdriver or equivalent

into the hole to push down the shift

lock override button. You can shift

out of ”P” position only while push-

ing the button.

4. Shift into ”N” position.

5. Insert the cover.

6. Start the engine. For your safety,

keep the brake pedal depressed.

Be sure to have the system checked by

your Toyota dealer as soon as possible.

If the power mechanism for the convert-

ible top should become inoperative, you

may operate the convertible top manu-

ally. Have the system checked as soon

as possible at your Toyota dealer.

RAISING THE CONVERTIBLE TOP

MANUALLY

1. Open the trunk and remove the cov-

er from the front trim. Push the

manual control switch on the

”MANUAL” side.

2. Lower the sun visors. Check that all

the side windows and quarter win-

dows are lowered.

If the battery is discharged and the win-

dows cannot be lowered, open both side

doors.

If you cannot shift automatic

transmission selector lever

If the convertible top does not

raise or lower

CELICA U

149

3. From the rear seat, place one hand

on top of the rear seatback. With the

other hand, grasp the convertible top

edge at the center and slowly raise

the top half way.

4. Move to the front seat, grasp the

handle which is under the convert-

ible top and pull the top fully for-

ward.

5. While holding the convertible top

against the windshield frame, push

the latch handles fully forward till

they are hooked.

Visually check that the latch handles are

fully seated in the strikers. Also, pull on

the convertible top side rails to make sure

the top is securely hooked.

CELICA U

150

6. Return the manual control switch to

the opposite side of the ”MANUAL”

position, attach the cover, and close

the trunk. Raise all the side win-

dows, quarter windows, and sun vi-

sors.

LOWERING THE CONVERTIBLE TOP

MANUALLY

1. Open the trunk and remove the cov-

er from the front trim. Push the

manual control switch on the

”MANUAL” side.

2. Lower all the side windows, quarter

windows, and sun visors. Then pull

the latch handles fully backward.

If the battery is discharged and the win-

dows cannot be lowered, open both side

doors.

CELICA U

151

3. Place your palms under either front

convertible top side rail around its

center and lower the convertible top

all the way down. Raise the sun vi-

sors.

CAUTION

To prevent personal injury, do not

grasp the convertible top side rails.

4. Return the manual control switch to

the opposite side of the ”MANUAL”

position, attach the cover, and close

the trunk.

If you lose your keys

Many Toyota dealers can make a new

key if you can give them the key num-

ber.

See the suggestion given in ”Keys” in

Chapter 1−2.

If your keys are locked in the vehicle and

you cannot get a duplicate, many Toyota

dealers can still open the door for you,

using their special tools. If you must

break a window to get in, we suggest

breaking the smallest side window be-

cause it is the least expensive to replace.

Be extremely cautious to avoid cuts from

the glass.

CELICA U

152

CELICA U

153

Part 5

CORROSION

PREVENTION AND

APPEARANCE CARE

Protecting your Toyota from

corrosion

D Washing and waxing your Toyota

D Cleaning the interior

Toyota, through its diligent research, de-

sign and use of the most advanced

technology available, has done its part to

help prevent corrosion and has provided

you with the finest quality vehicle

construction. Now, it is up to you. Proper

care of your Toyota can help ensure long−

term corrosion prevention.

The most common causes of corrosion

to your vehicle are:

D The accumulation of road salt, dirt and

moisture in hard−to−reach areas under

the vehicle.

D Chipping of paint, or undercoating

caused by minor accidents or by

stones and gravel.

Care is especially important if you live

in particular areas or operate your ve-

hicle under certain environmental condi-

tions:

D Road salt or dust control chemicals will

accelerate corrosion, as will the pres-

ence of salt in the air near the sea−

coast or in areas of industrial pollution.

D High humidity accelerates corrosion es-

pecially when temperatures range just

above the freezing point.

D Wetness or dampness to certain parts

of your vehicle for an extended period

of time, may cause corrosion even

though other parts of the vehicle may

be dry.

D High temperatures will cause corrosion

to those components of the vehicle

which are prevented from quick−drying

due to lack of proper ventilation.

The above signifies the necessity to keep

your vehicle, particularly the underside, as

clean as possible and to repair any dam-

age to paint or protective coatings as

soon as possible.

To help prevent corrosion on your

Toyota, follow these guidelines:

Wash your vehicle frequently. It is, of

course, necessary to keep your vehicle

clean by regular washing, but to prevent

corrosion, the following points should be

observed:

D If you drive on salted roads in the

winter or if you live near the ocean,

you should hose off the undercarriage

at least once a month to minimize cor-

rosion.

Protecting your Toyota from

corrosion

CELICA U

154

D High pressure water or steam is effec-

tive for cleaning the vehicle’s underside

and wheel housings. Pay particular

attention to these areas as it is difficult

to see all the mud and dirt. It will do

more harm than good to simply wet the

mud and debris without removing them.

The lower edge of doors, rocker panels

and frame members have drain holes

which should not be allowed to clog

with dirt as trapped water in these

areas can cause corrosion.

D Wash the underside of the vehicle thor-

oughly when winter is over.

See ”Washing and waxing your Toyota” for

more tips.

Check the condition of your vehicle’s

paint and trim. If you find any chips or

scratches in the paint, touch them up im-

mediately to prevent corrosion from start-

ing. If the chips or scratches have gone

through the bare metal, have a qualified

body shop make the repair.

Check the interior of your vehicle. Wa-

ter and dirt can accumulate under the

floor mats and could cause corrosion. Oc-

casionally check under the mats to make

sure the area is dry. Be particularly care-

ful when transporting chemicals, cleans-

ers, fertilizers, salt, etc.; these should be

transported in proper containers. If a spill

or leak should occur, immediately clean

and dry the area.

Use mud shields on your wheels. If you

drive on salted or gravel roads, mud

shields help protect your vehicle. Full−size

shields, which come as near to the ground

as possible, are the best. We recommend

that the fittings and the area where the

shields are installed be treated to resist

corrosion. Your Toyota dealer will be

happy to assist in supplying and installing

the shields if they are recommended for

your area.

Keep your vehicle in a well ventilated

garage or a roofed place. Do not park

your vehicle in a damp, poorly venti-

lated garage. If you wash your vehicle in

the garage, or if you drive it in covered

with water or snow, your garage may be

so damp it will cause corrosion. Even if

your garage is heated, a wet vehicle can

corrode if the ventilation is poor.

Washing your Toyota

Keep your vehicle clean by regular

washing.

The following cases may cause weakness

to the paint or corrosion to the body and

parts. Wash your vehicle as soon as pos-

sible.

D When driving in a coastal area

D When driving on a road sprinkled with

antifreeze

D When having stuck of coal tar, tree

sap, bird droppings and carcass of an

insect

D When driving in the areas where there

are a lot of smoke, soot, dust, iron

dust and chemical substance

D When the vehicle becomes remarkably

dirty with dust and mud

Hand−washing your Toyota

Work in the shade and wait until the

vehicle body is not hot to the touch.

CAUTION

When cleaning under floor or chassis,

be careful not to injure your hands

Washing and waxing your

Toyota

CELICA U

155

Convertible models—For washing instruc-

tions for the convertible top, see ”Convert-

ible top”.

1. Rinse off loose dirt with a hose. Re-

move any mud or road salt from the

underside of the vehicle or in the

wheel wells.

Convertible models: Spray water on the

side windows or top seals from above, at

a 45_ angle to the ground.

NOTICE

Convertible models:

Do not spray water at side windows

and top seals in a way which may

cause water to enter the vehicle.

2. Wash with a mild car−wash soap,

mixed according to the manufacturer’s

instructions. Use a soft cotton mitt and

keep it wet by dipping it frequently into

the wash water. Do not rub hard—let

the soap and water remove the dirt.

Aluminum wheels: Use only a mild soap

or neutral detergent.

Plastic bumpers: Wash carefully. Do not

scrub with abrasive cleaners. The bumper

faces are soft.

Road tar: Remove with turpentine or

cleaners that are marked safe for painted

surfaces.

NOTICE

Do not use gasoline or strong sol-

vents, which may be toxic or cause

damage.

3. Rinse thoroughly—dried soap can

cause streaking. In hot weather you

may need to rinse each section right

after you wash it.

4. To prevent water spots, dry the vehicle

using a clean soft cotton towel. Do not

rub or press hard—you might scratch

the paint.

CELICA U

156

Automatic car wash

Coupe and liftback models may be

washed in an automatic car wash, but

remember that the paint can be scratched

by some type of brushes, unfiltered wash-

ing water, or the washing process itself.

Scratching reduces paint durability and

gloss, especially on darker colors. The

manager of the car wash should be able

to advise you whether the process is safe

for the paint on your vehicle.

NOTICE

Convertible models:

Do not run convertible models

through automatic car washes or pos-

sible damage to the convertible top

may result.

Waxing your Toyota

Polishing and waxing is recommended

to maintain the original beauty of your

Toyota’s finish.

Once a month or if the vehicle does not

repel water well, apply wax.

1. Always wash and dry the vehicle be-

fore you begin waxing, even if you are

using a combined cleaner and wax.

2. Use a good quality polish and wax. If

the finish has become extremely weath-

ered, use a car−cleaning polish, fol-

lowed by a separate wax. Carefully fol-

low the manufacturer’s instructions and

precautions. Be sure to polish and wax

the chrome trim as well as the paint.

3. Wax the vehicle again when water

does not bead but remains on the sur-

face in large patches.

NOTICE

Always remove the plastic bumpers if

your vehicle is re−painted and placed

in a high heat paint waxing booth.

High temperatures could damage the

bumpers.

Convertible top

Wash using mild soap suds, lukewarm wa-

ter and a sponge.

NOTICE

Do not use harsh or abrasive cleaners

or bleaching agents on the top mate-

rial or damage may result.

If further cleaning is required after using

soap and water, a mild foaming cleaner

can be used. First, rinse the top, then use

a mild foaming cleaner on the entire top.

Scrub with a small soft bristle handbrush.

Add water as needed until the cleaner

gets soapy. Use a cloth or sponge to

remove dirt so it will not be ground into

the top. Be careful to keep any cleaner

from drying on the body paint as it may

cause streaks.

After the top has been cleaned, rinse ve-

hicle with clean water to remove all traces

of cleaner.

After cleaning, always make sure the top

is completely dry before your lowered it.

Lowering the top while wet or damp may

cause interior water damage, water stains

or mildew of the top material.

CELICA U

157

Cleaning the interior

CAUTION

Do not wash the vehicle floor with

water, or allow water to get onto the

floor when cleaning the vehicle interi-

or or exterior. Water may get into

audio components or other electrical

components above or under the floor

carpet (or mat) and cause a malfunc-

tion; and it may cause body corro-

sion.

Vinyl interior

The vinyl upholstery may be easily

cleaned with a mild soap or detergent

and water.

First vacuum over the upholstery to re-

move loose dirt. Then, using a sponge or

soft cloth, apply the soap solution to the

vinyl. After allowing it to soak in for a few

minutes to loosen the dirt, remove the dirt

and wipe off the soap with a clean damp

cloth. If all the dirt do not come off, re-

peat the procedure. Commercial foaming−

type vinyl cleaners are also available

which work well. Follow the manufacturer’s

instructions.

NOTICE

Do not use solvent, thinner, gasoline

or window cleaner on the interior.

Carpets

Use a good foam−type shampoo to

clean the carpets.

Begin by vacuuming thoroughly to remove

as much dirt as possible. Several types of

foam cleaners are available; some are in

aerosol cans and others are powders or

liquids which you mix with water to pro-

duce a foam. To shampoo the carpets,

use a sponge or brush to apply the foam.

Rub in overlapping circles.

Do not apply water—the best results are

obtained by keeping the carpet as dry as

possible. Read the shampoo instructions

and follow them closely.

Seat belts

The seat belts may be cleaned with

mild soap and water or with lukewarm

water.

Use a cloth or sponge. As you are clean-

ing, check the belts for excessive wear,

fraying, or cuts.

NOTICE

z Do not use dye or bleach on the

belts—it may weaken them.

z Do not use the belts until they be-

come dry.

Windows

The windows may be cleaned with any

household window cleaner.

NOTICE

When cleaning the inside of the win-

dows, be careful not to scratch or

damage the heater wires on the rear

window.

Air conditioning control panel, car au-

dio, instrument panel, console panel,

and switches

Use a soft damp cloth for cleaning.

Soak a clean soft cloth in water or luke-

warm water then lightly wipe off dirt.

CELICA U

158

NOTICE

z Do not use organic substances (sol-

vents, kerosene, alcohol, gasoline,

etc.) or alkaline or acidic solutions.

These chemicals can cause discol-

oring, staining or peeling of the

surface.

z If you use cleaners or polishing

agents, make sure their ingredients

do not include the substances men-

tioned above.

z If you use a liquid car freshener, do

not spill the liquid onto the ve-

hicle’s interior surfaces. It may con-

tain the ingredients mentioned

above. Immediately clean any spill

using the method mentioned above.

Leather Interior

The leather upholstery may be cleaned

with neutral detergent for wool.

Remove dirt using a soft cloth dampened

with 5% solution of neutral detergent for

wool. Then thoroughly wipe off all traces

of detergent with a clean damp cloth.

After cleaning or whenever any part of the

leather gets wet, dry with a soft clean

cloth. Allow the leather to dry in a venti-

lated shaded area.

NOTICE

z If a stain should fail to come out

with a neutral detergent, apply a

cleaner that does not contain an

organic solvent.

z Never use organic substances such

as benzine, alcohol or gasoline or

alkaline or acid solutions for clean-

ing the leather as these could

cause discoloring.

z Use of a nylon brush or synthetic

fiber cloth, etc. may scratch the

fine grained surface of the leather.

z Mildew may develop on soiled leath-

er upholstery. Be especially careful

to avoid oil spots. Try to keep your

upholstery always clean.

z Long exposure to direct sunlight

may cause the leather surface to

harden and shrink. Keep your ve-

hicle in a shaded area, especially in

the summer.

z The interior of your vehicle is apt

to heat up on hot summer days, so

avoid placing on the upholstery

items made of vinyl or plastic or

containing wax as these tend to

stick to leather when warm.

z Improper cleaning of the leather up-

holstery could result in discolor-

ation or staining.

If you have any questions about the

cleaning of your Toyota, your local

Toyota dealer will be pleased to answer

them.

CELICA U

159

Part 6

VEHICLE

MAINTENANCE AND

CARE

Maintenance requirements

D General maintenance

D Does your vehicle need

repairing?

For scheduled maintenance

information, please refer to the

separate ”Owner’s Manual

Supplement/Maintenance

Schedule”.

Maintenance requirements

Your Toyota vehicle has been designed to

for fewer maintenance requirements with

longer service intervals to save both your

time and money. However, each regular

maintenance, as well as day−to−day care,

is more important than ever before to en-

sure smooth, and trouble−free, safe, and

economical drivings.

It is the owner’s responsibility to make

sure the specified maintenance, including

general maintenance service, is performed.

Note that both the new vehicle and emis-

sion control system warranties specify that

proper maintenance and care must be per-

formed. See Owner’s Guide, Owner’s

Manual Supplement or Warranty Booklet

for complete warranty information.

General maintenance

General maintenance items are those day−

to−day care practices that are important to

your vehicle for proper operation. It is the

owner’s responsibility to insure that the

general maintenance items are performed

regularly.

These checks or inspections can be done

either by yourself or a qualified technician,

or if you prefer, your Toyota dealer will be

pleased to do them at a nominal cost.

Scheduled maintenance

The scheduled maintenance items listed in

the ”Owner’s Manual Supplement/Mainte-

nance Schedule” are those required to be

serviced at regular intervals.

For details of your maintenance schedule,

read the separate ”Owner’s Manual Sup-

plement/Maintenance Schedule”.

It is recommended that any replacement

parts used for maintenance or for the

repair of the emission control system

be Toyota supplied.

The owner may elect to use non−Toyot a

supplied parts for replacement pur-

poses without invalidating the emission

control system warranty. However, use

of replacement parts which are not of

equivalent quality may impair the effec-

tiveness of the emission control sys-

tems.

You may also elect to have mainte-

nance, replacement, or repair of the

emission control devices and system

performed by any automotive repair es-

tablishment or individual without invali-

dating this warranty. See Owner’s

Guide, Owner’s Manual Supplement or

Warranty Booklet for complete warranty

information.

CELICA U

160

Where to go for service?

Toyota technicians are well−trained spe-

cialists and are kept up to date with the

latest service information through technical

bulletins, service tips, and in−dealership

training programs. They learn to work on

Toyotas before they work on your vehicle,

rather than while they are working on it.

You can be confident that your Toyota

dealer’s service department performs the

best job to meet the maintenance require-

ments on your vehicle—reliably and eco-

nomically.

Your copy of the repair order is proof that

all required maintenance has been per-

formed for warranty coverage. And if any

problems should arise with your vehicle

while under warranty, your Toyota dealer

will promptly take care of it. Again, be

sure to keep a copy of the repair order

for any service performed on your Toyota.

What about do−it−yourself maintenance?

Many of the maintenance items are easy

to do yourself if you have a little mechani-

cal ability and a few basic automotive

tools. Simple instructions for how to per-

form them are presented in Part 7.

If you are a skilled do−it−yourself mechan-

ic, the Toyota service manuals are recom-

mended. Please be aware that do−it−your-

self maintenance can affect your warranty

coverage. See Owner’s Guide, Owner’s

Manual Supplement or Warranty Booklet

for the details.

General maintenance

Listed below are the general maintenance

items that should be performed as fre-

quently as specified. In addition to check-

ing the items listed, if you notice any

unusual noise, smell or vibration, you

should investigate the cause or take your

vehicle to your Toyota dealer or a quali-

fied service shop immediately. It is recom-

mended that any problem you notice be

brought to the attention of your dealer or

the qualified service shop for their advice.

CAUTION

Make these checks only where ade-

quate ventilation can be obtained if

you run the engine.

OUTSIDE THE VEHICLE

Items listed below should be performed

from time to time, unless otherwise

specified.

Tire pressure

Check the pressure with a gauge every

two weeks, or at least once a month. See

Chapter 7−2 for additional information.

CELICA U

161

Tire surface and wheel nuts

Check the tires carefully for cuts, damage

or excessive wear. See Chapter 7−2 for

additional information. When checking the

tires, make sure no nuts are missing, and

check the nuts for looseness. Tighten

them if necessary.

Tire rotation

Rotate the tires every 12000 km (7500

miles). See Chapter 7−2 for additional in-

formation.

Fluid leaks

Check underneath for leaking fuel, oil, wa-

ter or other fluid after the vehicle has

been parked for a while. If you smell fuel

fumes or notice any leak, have the cause

found and corrected immediately.

Doors and engine hood

Check that all doors including trunk lid or

back door operate smoothly and all

latches lock securely. Make sure the en-

gine hood secondary latch secures the

hood from opening when the primary latch

is released.

INSIDE THE VEHICLE

Items listed below should be checked

regularly, e.g. while performing periodic

services, cleaning the vehicle, etc.

Lights

Make sure the headlights, stop lights, tail

lights, turn signal lights, and other lights

are all working. Check headlight aim.

Service reminder indicators and warning

buzzers

Check that all service reminder indicators

and warning buzzers function properly.

Steering wheel

Be alert for changes in steering condition,

such as hard steering or strange noise.

Seats

Check that all front seat controls such as

seat adjusters, seatback recliner, etc. op-

erate smoothly and that all latches lock

securely in any position. Check that the

head restraints move up and down

smoothly and that the locks hold securely

in any latched position. For folding−down

rear seatbacks, check that the latches

lock securely.

Seat belts

Check that the seat belt system such as

buckles, retractors and anchors operate

properly and smoothly. Make sure the belt

webbing is not cut, frayed, worn or dam-

aged.

Accelerator pedal

Check the pedal for smooth operation and

uneven pedal effort or catching.

Clutch pedal

Check the pedal for smooth operation.

Brake pedal

Check the pedal for smooth operation and

that the pedal has the proper clearance.

Check the brake booster function.

Brakes

At a safe place, check that the brakes do

not pull to one side when applied.

Parking brake

Check that the lever has the proper travel

and that, on a safe incline, your vehicle

is held securely with only the parking

brake applied.

Automatic transmission ”Park” mecha-

nism

Check the lock release button of the se-

lector lever for proper and smooth opera-

tion. On a safe incline, check that your

vehicle is held securely with the selector

lever in ”P” position and all brakes re-

leased.

CELICA U

162

IN THE ENGINE COMPARTMENT

Items listed below should be checked

from time to time, e.g. each time when

refueling.

Washer fluid

Make sure there is sufficient fluid in the

tank. See Chapter 7−3 for additional infor-

mation.

Engine coolant level

Make sure the coolant level is between

the ”FULL” and ”LOW” lines on the see−

through reservoir when the engine is cold.

See Chapter 7−2 for additional information.

Battery electrolyte level

Make sure the electrolyte level of all bat-

tery cells is between upper and lower lev-

el lines on the case. Add only distilled

water when replenishing. See Chapter 7−3

for additional information.

Brake fluid level

Make sure the brake fluid level is correct.

See Chapter 7−2 for additional information.

Engine oil level

Check the level on the dipstick with the

engine turned off and the vehicle parked

on a level spot. See Chapter 7−2 for addi-

tional information.

Power steering fluid level

Check the level through the reservoir. The

level should be in the ”HOT” or ”COLD”

range depending on the fluid temperature.

See Chapter 7−2 for additional information.

Exhaust system

If you notice any change in the sound of

the exhaust or smell exhaust fumes, have

the cause located and corrected immedi-

ately. (See engine exhaust cautions in

Part 2.)

Be on the alert for changes in perfor-

mance, sounds, and visual tip−offs that

indicate service is needed. Some impor-

tant clues are as follows:

D Engine missing, stumbling, or pinging

D Appreciable loss of power

D Strange engine noises

D A leak under the vehicle (however, wa-

ter dripping from the air conditioning

after use is normal.)

D Change in exhaust sound (This may

indicate a dangerous carbon monoxide

leak. Drive with the windows open and

have the exhaust system checked im-

mediately.)

D Flat−looking tire; excessive tire squeal

when cornering; uneven tire wear

D Vehicle pulls to one side when driving

straight on a level road

D Strange noises related to suspension

movement

D Loss of brake effectiveness; spongy

feeling brake or clutch pedal; pedal al-

most touches floor; vehicle pulls to one

side when braking

D Engine coolant temperature continually

higher than normal

Does your vehicle need

repairing?

CELICA U

163

If you notice any of these clues, take your

vehicle to your Toyota dealer as soon as

possible. It probably needs adjustment or

repair.

CAUTION

Do not continue driving with the ve-

hicle unchecked. It could result in se-

rious vehicle damage and possibly

personal injury.

CELICA U

164

CELICA U

165

Part 7

DO−IT−YOURSELF

MAINTENANCE—

Chapter 7−1

Introduction

Engine compartment overview

D Fuse locations

D Do−it−yourself service

precautions

D Parts and tools

CELICA U

166

Engine compartment overview

1. Power steering fluid reservoir

2. Engine oil filler cap

3. Brake fluid reservoir

4. Fuse blocks

5. Battery

6. Engine coolant reservoir

7. Electric cooling fans

8. Engine oil level dipstick

9. Windshield and rear window washer fluid

tank

CELICA U

167

Fuse locations

Spare fuses

Canada only

CELICA U

168

If you perform maintenance by yourself,

be sure to follow the correct procedure

given in this part.

You should be aware that improper or in-

complete servicing may result in operating

problems.

Performing do−it−yourself maintenance

during the warranty period may affect your

warranty coverage. Read the separate

Toyota Warranty statement for details and

suggestions.

This part gives instructions only for those

items that are relatively easy for an owner

to perform. As explained in Part 6, there

are still a number of items that must be

done by a qualified technician with special

tools.

For information on tools and parts for do−

it−yourself maintenance, see ”Parts and

tools”.

Utmost care should be taken when work-

ing on your vehicle to prevent accidental

injury. Here are a few precautions that

you should be especially careful to ob-

serve:

CAUTION

D When the engine is running, keep

hands, clothing, and tools away

from the moving fan and engine

drive belts. (Removing rings,

watches, and ties is advisable.)

D Right after driving, the engine

compartment—the engine, radiator,

exhaust manifold, power steering

fluid reservoir and spark plug

boots, etc.—will be hot. So be care-

ful not to touch them. Oil, fluids

and spark plugs may also be hot.

D If the engine is hot, do not remove

the radiator cap or loosen the drain

plugs to prevent burning yourself.

D Do not smoke, cause sparks or al-

low open flames around fuel or the

battery. Their fumes are flammable.

D Be extremely cautious when work-

ing on the battery. It contains poi-

sonous and corrosive sulfuric acid.

D Do not get under your vehicle with

just the body jack supporting it. Al-

ways use automotive jack stands or

other solid supports.

D Be sure that the ignition is off if

you work near the electric cooling

fans or radiator grille. With the

ignition on, the electric cooling fans

will automatically start to run if the

engine coolant temperature is high

and/or the air conditioning is on.

D Use eye protection whenever you

work on or under your vehicle

where you may be exposed to flying

or falling material, fluid spray, etc.

D Used engine oil contains potentially

harmful contaminants which may

cause skin disorders such as in-

flammation or skin cancer, so care

should be taken to avoid prolonged

and repeated contact with it. To re-

move used engine oil from your

skin, wash thoroughly with soap

and water.

D Do not leave used oil within the

reach of children.

D Dispose of used oil and filter only

in a safe and acceptable manner.

Do not dispose of used oil and fil-

ter in household trash, in sewers or

onto the ground. Call your dealer or

a service station for information

concerning recycling or disposal.

Do−it−yourself service

precautions

CELICA U

169

NOTICE

z Remember that battery and ignition

cables carry high currents or volt-

ages. Be careful of accidentally

causing a short circuit.

z Add only demineralized or distilled

water to fill the radiator. And if you

spill some of the coolant, be sure

to wash it off with water to prevent

it from damaging the parts or paint.

z Do not allow dirt or anything else

to fall through the spark plug holes.

z Do not pry the outer electrode of a

spark plug against the center elec-

trode.

z Use only spark plugs of the speci-

fied type. Using other types will

cause engine damage, loss of per-

formance or radio noise.

z Do not reuse platinum−tipped spark

plugs by cleaning or regapping.

z Do not overfill automatic transmis-

sion fluid, or the transmission

could be damaged.

z Do not drive with the air cleaner

filter removed, or excessive engine

wear could result. Also backfiring

could cause a fire in the engine

compartment.

z Be careful not to scratch the glass

surface with the wiper frame.

z When closing the engine hood,

check to see that you have not for-

gotten any tools, rags, etc.

Parts and tools

Here is a list of parts and tools you will

need on performing do−it−yourself mainte-

nance. Remember all Toyota parts are de-

signed in metric sizes, so your tools must

be metric.

Checking the engine oil level

Parts (if level is low):

D Engine oil API grade SH,

”Energy−Conserving II” or SJ,

”Energy−Conserving” multigrade or

ILSAC multigrade having viscosity

proper for your climate

Tools:

D Rag or paper towel

D Funnel (only for adding oil)

Checking the engine coolant level

Parts (if level is low):

D Ethylene−glycol antifreeze

D Demineralized or distilled water

Tools:

D Funnel (only for adding coolant)

Checking brake fluid

Parts (if level is low):

D SAE J1703 or FMVSS No. 116 DOT 3

brake fluid

CELICA U

170

Tools:

D Rag or paper towel

D Funnel (only for adding fluid)

Checking power steering fluid

Parts (if level is low):

D Automatic transmission fluid

DEXRONrII or III

Tools:

D Rag or paper towel

D Funnel (only for adding fluid)

Checking battery condition

Tools:

D Warm water

D Baking soda

D Grease

D Conventional wrench (for terminal

clamp bolts)

Checking and replacing fuses

Parts (if replacement is necessary):

D Fuse with same amperage rating as

original

Tools:

D Screwdriver (for passenger’s side kick

panel screw)

Adding washer fluid

Parts:

D Water

D Washer fluid containing antifreeze

(for winter use)

Tools:

D Funnel

Replacing light bulbs

Parts:

D Bulb with same number and wattage

rating as original (See charts in

”Replacing light bulbs” in Chapter 7−3.)

Tools:

D Screwdriver

D Conventional wrench

CELICA U

171

Part 7

DO−IT−YOURSELF

MAINTENANCE—

Chapter 7−2

Engine and Chassis

Checking the engine oil level

D Checking the engine coolant

level

D Checking brake fluid

D Checking power steering fluid

D Checking tire pressure

D Checking and replacing tires

D Rotating tires

D Installing snow tires and chains

D Replacing wheels

D Aluminum wheel precautions

Checking the engine oil level

Low level

Full level

Add oil O.K. Too full

With the engine at operating tempera-

ture and turned off, check the oil level

on the dipstick.

1. To get a true reading, the vehicle

should be on a level spot. After turning

off the engine, wait a few minutes for

the oil to drain back into the bottom of

the engine.

2. Pull out the dipstick, and wipe it clean

with a rag.

3. Reinsert the dipstick—push it in as far

as it will go, or the reading will not be

correct.

4. Pull the dipstick out and look at the oil

level on the end.

CAUTION

Be careful not to touch the hot ex-

haust manifold.

If the oil level is below or only slightly

above the low level, add engine oil of

the same type as already in the engine.

Remove the oil filler cap and add engine

oil in small quantities at a time, checking

the dipstick.

The approximate quantity of oil needed to

fill between the low level and the full level

on the dipstick is indicated below for ref-

erence.

When the level reaches within the correct

range, install the filler cap hand−tight.

Oil quantity, L (qt., lmp. qt.):

1.0 (1.1, 0.9)

NOTICE

z Avoid overfilling, or the engine

could be damaged.

z Check the oil level on the dipstick

once again after adding the oil.

CELICA U

172

ENGINE OIL SELECTION

Use API grade SH, ”Energy−Conserving II”

or SJ, ”Energy−Conserving” multigrade en-

gine oil or ILSAC multigrade engine oil.

Recommended viscosity (SAE):

SAE 5W−30 is the best choice for your

vehicle, for good fuel economy, and

good starting in cold weather.

If you use SAE 10W−30 engine oil in

extremely low temperatures, the engine

may become difficult to start, so SAE

5W−30 engine oil is recommended.

API service symbol

ILSAC certification mark

Oil identification marks

Either or both API registered marks are

added to some oil containers to help

you select the oil you should use.

The API Service Symbol is located any-

where on the outside of the container.

The top portion of the label shows the oil

quality by API (American Petroleum

Institute) designations such as SJ. The

center portion of the label shows the SAE

viscosity grade such as SAE 5W−30.

”Energy−Conserving” shown in the lower

portion, indicates that the oil has

fuel−saving capabilities.

The ILSAC (International Lubricant Stan-

dardization and Approval Committee) Certi-

fication Mark is displayed on the front of

the container.

CELICA U

173

Look at the see−through coolant reser-

voir when the engine is cold. The cool-

ant level is satisfactory if it is between

the ”FULL” and ”LOW” lines on the

reservoir. If the level is low, add ethyl-

ene−glycol type coolant.

The coolant level in the reservoir will vary

with engine temperature. However, if the

level is on or below the ”LOW” line, add

coolant. Bring the level up to the ”FULL”

line.

Use only ethylene−glycol type coolant.

See information in the next column.

If the coolant level drops within a short

time after replenishing, there may be a

leak in the system. Visually check the

radiator, hoses, radiator cap and drain

cock and water pump.

If you can find no leak, have your Toyota

dealer test the cap pressure and check

for leaks in the cooling system.

CAUTION

To prevent burning yourself, do not

remove the radiator cap when the en-

gine is hot.

Coolant type selection

Your coolant must contain ethylene−glycol

antifreeze. In addition to preventing freez-

ing and subsequent damage to the engine,

this will also prevent corrosion. Further

supplemental inhibitors or additives are

neither needed nor recommended.

Read the antifreeze container for informa-

tion on freeze protection. Follow the

manufacturer’s directions for how much to

mix with water. The total capacity of the

cooling system is given in Part 8. We

recommend 50% solution be used for your

Toyota, or a sufficient quantity to provide

protection to about –35°C (–31°F).

NOTICE

Do not use alcohol type antifreeze or

plain water alone.

Checking brake fluid

To check the fluid level, simply look at

the see−through reservoir. The level

should be between the ”MAX” and

”MIN” lines on the reservoir.

It is normal for the brake fluid level to go

down slightly as the brake pads wear. So

be sure to keep the reservoir filled.

If the reservoir needs frequent refilling, it

may indicate a serious mechanical prob-

lem.

Checking the engine coolant

level

CELICA U

174

If the level is low, add SAE J1703 or

FMVSS No. 116 DOT 3 brake fluid to

the brake reservoir.

Remove and replace the reservoir cover

by hand. Fill the brake fluid to the dotted

line. This brings the fluid to the correct

level when you put the cover back on.

Use only newly opened brake fluid. Once

opened, brake fluid absorbs moisture from

the air, and excess moisture can cause a

dangerous loss of braking.

CAUTION

Take care when filling the reservoir

because brake fluid can harm your

eyes and damage painted surfaces. If

fluid gets in your eyes, flush your

eyes with clean water.

NOTICE

If you spill the fluid, be sure to wash

it off with water to prevent it from

damaging the parts or paint.

If hot O.K.

If hot add

If cold O.K

If cold add

Open

Check the fluid level through the reser-

voir. If necessary, add automatic trans-

mission fluid DEXRON

II or III.

If the vehicle has been driven around 80

km/h (50 mph) for 20 minutes (a little

more in frigid temperatures), the fluid is

hot (60°C—80°C or 140°F—175°F). You

may also check the level when the fluid

is cold (about room temperature,

10°C—30°C or 50°F—85°F) if the engine

has not been run for about five hours.

Clean all dirt from outside of the reservoir

tank and look at the fluid level. If the fluid

is cold, the level should be in the ”COLD”

range. Similarly, if it is hot, the fluid level

should be in the ”HOT” range. If the level

is at the low side of either range, add

automatic transmission fluid DEXRON

or III to bring the level within the range.

To remove the filler cap, turn it counter-

clockwise and lift up. To reinstall it, turn

it clockwise. After replacing the filler cap,

visually check the steering box case, vane

pump and hose connections for leaks or

damage.

CAUTION

The reservoir tank may be hot so be

careful not to burn yourself.

NOTICE

Avoid overfilling, or the power steer-

ing could be damaged.

Checking power steering fluid

CELICA U

175

Checking tire pressure

Keep your tire pressures at the proper

level.

The recommended cold tire pressures, tire

size and the vehicle capacity weight are

given in Part 8. They are also on the tire

pressure label as shown.

You should check the tire pressures every

two weeks, or at least once a month. And

do not forget the spare!

Incorrect tire pressure can reduce tire

life and make your vehicle less safe to

drive.

Low tire pressure results in excessive

wear, poor handling, reduced fuel econo-

my, and the possibility of blowouts from

overheated tires. Also, low tire pressure

can cause poor sealing of the tire bead.

If the tire pressure is excessively low,

there is the possibility of wheel deforma-

tion and/or tire separation.

High tire pressure produces a harsh ride,

handling problems, excessive wear at the

center of the tire tread, and a greater

possibility of tire damage from road haz-

ards.

If a tire frequently needs refilling, have it

checked by your Toyota dealer.

The following instructions for checking

tire pressure should be observed:

D The pressure should be checked only

when the tires are cold. If your ve-

hicle has been packed for at least 3

hours and has not been driven for

more than 1.5 km or 1 mile since, you

will get an accurate cold tire pressure

reading.

D Always use a tire pressure gauge.

The appearance of a tire can be mis-

leading. Besides, tire pressures that

are even just a few pounds off can

degrade handling and ride.

D Take special care when adding air to

the compact spare tire. The smaller

tire size can gain pressure very quick-

ly. Add compressed air in small quanti-

ties and check the pressure often until

it reaches the specified pressure.

D Do not bleed or reduce tire pressure

after driving. It is normal for the tire

pressure to be higher after driving.

D Never exceed the vehicle capacity

weight. The passenger and luggage

weight should be located so that the

vehicle is balanced.

D Be sure to reinstall the tire inflation

valve caps. Without the valve caps,

dirt or moisture could get into the valve

core and cause air leakage. If the caps

have been lost, have new ones put on

as soon as possible.

CELICA U

176

Checking and replacing tires

Tread wear indicator

CHECKING YOUR TIRES

Check the tire tread for the tread wear

indicators. If the indicators show, re-

place the tires.

The tires on your Toyota have built−in

tread wear indicators to help you know

when the tires need replacement. When

the tread depth wears to 1.6 mm (0.06

in.) or less, the indicators will appear. If

you can see the indicators in two or more

adjacent grooves, the tire should be re-

placed. The lower the tread, the higher

the risk of skidding.

The effectiveness of snow tires is lost

if the tread wears down below 4 mm

(0.16 in.).

Check the tires regularly for damage

such as cuts, splits and cracks. If any

damage is found, consult with a techni-

cian and have the tire repaired or re-

placed.

Even if the damage does not appear seri-

ous, a qualified technician should examine

the damage. Objects which have pene-

trated the tire may have caused internal

damage.

Any tires which are over six years old

must be checked by a qualified techni-

cian even if damage is not obvious.

Tires deteriorate with age even if they

have never or seldom been used.

This also applies to the spare tire and

tires stored for future use.

REPLACING YOUR TIRES

When replacing a tire, use only the

same size and construction as original-

ly installed and with the same or great-

er load capacity.

Using any other size or type of tire may

seriously affect handling, ride, speedome-

ter/odometer calibration, ground clearance,

and clearance between the body and tires

or snow chains.

CAUTION

D Do not mix radial, bias belted, or

bias−ply tires on your vehicle. It

can cause dangerous handling char-

acteristics, resulting in loss of con-

trol.

D Do not use tires or wheels other

than the manufacturer’s recom-

mended size.

Toyota recommends all four tires, or at

least both of the front or rear tires be

replaced at a time as a set.

See ”If you have a flat tire” in Part 4 for

tire change procedure.

When a tire is replaced, the wheel

should always be balanced.

An unbalanced wheel may affect vehicle

handling and tire life. Wheels can get out

of balance with regular use and should

therefore be balanced occasionally.

When replacing a tubeless tire, the air

valve should also be replaced with a

new one.

CELICA U

177

Rotating tires

Without a compact spare tire

With a compact spare tire

To equalize tire wear and help extend

tire life, Toyota recommends that you

rotate your tires approximately every

12000 km (7500 miles). However, the

most appropriate timing for tire rotation

may vary according to your driving hab-

its and road surface conditions.

See ”If you have a flat tire” in Part 4 for

tire change procedure.

When rotating tires, check for uneven

wear and damage. Abnormal wear is usu-

ally caused by incorrect tire pressure, im-

proper wheel alignment, out−of−balance

wheels, or severe braking.

CAUTION

Do not include a compact spare tire

when rotating the tires. It is designed

for temporary use only.

WHEN TO USE SNOW TIRES OR

CHAINS

Snow tires or chains are recommended

when driving on snow or ice.

On wet or dry roads, conventional tires

provide better traction than snow tires.

SNOW TIRE SELECTION

If you need snow tires, select the same

size, construction and load capacity as

the original tires on your Toyota.

Do not use tires other than those men-

tioned above. Do not install studded tires

without first checking local regulations for

possible restrictions.

SNOW TIRE INSTALLATION

Snow tires should be installed on all

wheels.

Installing snow tires on the front wheels

only can lead to an excessive difference

in road grip capability between the front

and rear tires which could cause loss of

vehicle control.

When storing removed tires, you should

store them in a cool dry place.

Mark the direction of rotation and be sure

to install them in the same direction when

replacing.

Installing snow tires and

chains

CELICA U

178

CAUTION

D Do not drive with the snow tires

incorrectly inflated.

D Never drive over 120 km/h (75 mph)

with any type of snow tires.

TIRE CHAIN SELECTION

Use the tire chains of correct size and

type.

Use SAE Class ”S” type radial tire chains

except radial cable chains or V−bar type

chains.

Regulations regarding the use of tire

chains vary according to location or

type of road, so always check them

before installing chains.

CHAIN INSTALLATION

Install the chains on the front tires as

tightly as possible. Do not use tire

chains on the rear tires. Retighten

chains after driving 0.5—1.0 km

(1/4—1/2 mile).

When installing chains on your tires, care-

fully follow the instructions of the chain

manufacturer.

If wheel covers are used, they will be

scratched by the chain band, so remove

the covers before putting on the chains.

CAUTION

D Do not exceed 50 km/h (30 mph) or

the chain manufacturer’s recom-

mended speed limit, whichever is

lower.

D Drive carefully avoiding bumps,

holes, and sharp turns, which may

cause the vehicle to bounce.

D Avoid sharp turns or locked−wheel

braking, as use of chains may ad-

versely affect vehicle handling.

NOTICE

Do not attempt to use a tire chain on

the compact spare tire, as it may re-

sult in damage to the vehicle as well

as the tire.

Replacing wheels

WHEN TO REPLACE YOUR WHEELS

If you have wheel damage such as

bending, cracks or heavy corrosion, the

wheel should be replaced.

If you fail to replace damaged wheels, the

tire may slip off the wheel or they may

cause loss of handling control.

WHEEL SELECTION

When replacing wheels, care should be

taken to ensure that the wheels are re-

placed by ones with the same load ca-

pacity, diameter, rim width, and offset.

This must be observed on compact spare

tires, too.

Correct replacement wheels are available

at your Toyota dealer.

A wheel of a different size or type may

adversely affect handling, wheel and bear-

ing life, brake cooling, speedometer/odom-

eter calibration, stopping ability, headlight

aim, bumper height, vehicle ground clear-

ance, and tire or snow chain clearance to

the body and chassis.

CELICA U

179

Replacement with used wheels is not rec-

ommended as they may have been sub-

jected to rough treatment or high mileage

and could fail without warning. Also, bent

wheels which have been straightened may

have structural damage and therefore

should not be used. Never use an inner

tube in a leaking wheel which is designed

for a tubeless tire.

Aluminum wheel precautions

D After driving your vehicle the first 1600

km (1000 miles), check that the wheel

nuts are tight.

D If you have rotated, repaired, or

changed your tires, check that the

wheel nuts are still tight after driving

1600 km (1000 miles).

D When using tire chains, be careful not

to damage the aluminum wheels.

D Use only the Toyota wheel nuts and

wrench designed for your aluminum

wheels.

D When balancing your wheels, use only

Toyota balance weights or equivalent

and a plastic or rubber hammer.

D As with any wheel, periodically check

your aluminum wheels for damage. If

damaged, replace immediately.

CELICA U

180

CELICA U

181

Part 7

DO−IT−YOURSELF

MAINTENANCE—

Chapter 7−3

Electrical components

Checking battery condition

D Battery recharging precautions

D Checking and replacing fuses

D Adding washer fluid

D Checking headlight aims

D Replacing light bulbs

CAUTION

BATTERY PRECAUTIONS

The battery produces flammable and

explosive hydrogen gas.

D Do not cause a spark from the bat-

tery with tools.

D Do not smoke or light a match near

the battery.

The electrolyte contains poisonous

and corrosive sulfuric acid.

D Avoid contact with eyes, skin or

clothes.

D Never ingest electrolyte.

D Wear protective safety glasses when

working near the battery.

D Keep children away from the bat-

tery.

EMERGENCY MEASURES

D If electrolyte gets in your eyes,

flush your eyes with clean water

immediately and get immediate

medical attention. If possible, con-

tinue to apply water with a sponge

or cloth while en route to the medi-

cal office.

D If electrolyte gets on your skin,

thoroughly wash the contact area. If

you feel pain or burning, get medi-

cal attention immediately.

D If electrolyte gets on your clothes,

there is a possibility of its soaking

through to your skin, so immediate-

ly take off the exposed clothing and

follow the procedure above, if nec-

essary.

D If you happen to swallow electro-

lyte, drink a large quantity of water

or milk. Follow with milk of magne-

sia, beaten raw egg or vegetable

oil. Then go immediately for emer-

gency help.

Checking battery condition—

—Precautions

CELICA U

182

—Checking battery exterior

Ground cable

Terminals

Hold−down

clamp

Check the battery for corroded or loose

terminal connections, cracks, or loose

hold−down clamp.

a. If the battery is corroded, wash it off

with a solution of warm water and baking

soda. Coat the outside of the terminals

with grease to prevent further corrosion.

b. If the terminal connections are loose,

tighten their clamp nuts—but do not over-

tighten.

c. Tighten the hold−down clamp only

enough to keep the battery firmly in place.

Overtightening may damage the battery

case.

NOTICE

z Be sure the engine and all accesso-

ries are off before performing main-

tenance.

z When checking the battery, remove

the ground cable from the negative

terminal (”—” mark) first and rein-

stall it last.

z Be careful not to cause a short cir-

cuit with tools.

z Take care no solution gets into the

battery when washing it.

—Checking battery fluid

Type A

Type B

Green Dark

Clear or

light yel-

low

Blue White Red

CHECKING BY THE HYDROMETER

Check the battery condition by the

hydrometer color.

Hydrometer color

Condition

Type A Type B

GREEN BLUE Good

DARK WHITE

Charging neces-

sary. Have battery

checked by your

Toyota dealer.

CLEAR or

LIGHT

YELLOW

RED

Have battery

checked by your

Toyota dealer.

CELICA U

183

Battery recharging precautions

During recharging, the battery is pro-

ducing hydrogen gas.

Therefore, before recharging:

1. If recharging with the battery installed

on the vehicle, be sure to disconnect

the ground cable.

2. Be sure the power switch on the re-

charger is off when connecting the

charger cables to the battery and when

disconnecting them.

CAUTION

D Always charge the battery in an un-

confined area. Do not charge the

battery in a garage or closed room

where there is not sufficient ventila-

tion.

D Only do a slow charge (5 A or

less). Charging at a quicker rate is

dangerous. The battery may ex-

plode, causing personal injuries.

NOTICE

Never recharge the battery while the

engine is running. Also, be sure all

accessories are turned off.

Checking and replacing fuses

Type A

Type B

Type C

Good

Blown

If the headlights or other electrical

components do not work, check the

fuses. If any of the fuses are blown,

they must be replaced.

See ”Fuse locations” in Chapter 7−1 for

locations of the fuses.

Turn the ignition switch and inoperative

component off. Pull a suspected fuse

straight out and check it.

Determine which fuse may be causing the

problem. The lid of the fuse box shows

the name of the circuit for each fuse. See

Part 8 of this manual for the functions

controlled by each circuit.

Type A fuses can be pulled out by the

pull−out tool. The location of the pull−out

tool is shown in the illustration.

CELICA U

184

If you are not sure whether the fuse has

blown, try replacing the suspected fuse

with one that you know is good.

If the fuse has blown, push a new fuse

into the clip.

Only install a fuse with the amperage rat-

ing designated on the fuse box lid.

If you do not have a spare fuse, in an

emergency you can pull out the ”CIG &

RAD”, ”DOME” or ”HTR” fuse, which may

be dispensable for normal driving, and use

it if its amperage rating is the same.

If you cannot use one of the same amper-

age, use one that is lower, but as close

as possible to the rating. If the amperage

is lower than that specified, the fuse

might blow out again but this does not

indicate anything wrong. Be sure to get

the correct fuse as soon as possible and

return the substitute to its original clip.

It is a good idea to purchase a set of

spare fuses and keep them in your ve-

hicle for emergencies.

If the new fuse immediately blows out,

there is a problem with the electrical sys-

tem. Have your Toyota dealer correct it as

soon as possible.

CAUTION

Never use a fuse with a higher am-

perage rating, or any other object, in

place of a fuse. This may cause ex-

tensive damage and possibly a fire.

Adding washer fluid

If any washer does not work, the wash-

er tank may be empty. Add washer

fluid.

You may use plain water as washer fluid.

However, in cold areas where tempera-

tures range below freezing point, use

washer fluid containing antifreeze. This

product is available at your Toyota dealer

and most auto parts stores. Follow the

manufacturer’s directions for how much to

mix with water.

NOTICE

Do not use engine antifreeze or any

other substitute because it may dam-

age your vehicle’s paint.

CELICA U

185

Checking headlight aims

The headlights have the beam angle

gauges to check:

1. Vertical movement

2. Horizontal movement

To obtain correct gauge readings, do

these before you check the headlight

aims.

D Make sure the body around the head-

light is not deformed.

D Park the vehicle on a level spot.

D Fill up the fuel tank.

D Bounce the vehicle several times.

A passenger should sit on the driver’s

seat while checking the headlight aims.

Front

Acceptable range

Buble

Vertical movement gauges: The bubble on

the gauge should be within two marks

from center on both sides.

Mark

Acceptable range

Front

Horizontal movement gauges: The triangle

mark on the gauge should be within one

mark from the ”O” position.

If a gauge reading is not within the ac-

ceptable range, have the aiming adjusted

by your Toyota dealer.

CELICA U

186

Replacing light bulbs—

The following illustrations show how to

gain access to the bulbs. When replacing

a bulb, make sure the ignition switch and

light switch are off. Use bulbs with the

wattage ratings given in the table.

CAUTION

Halogen bulbs have pressurized gas

inside and require special handling.

They can burst or shatter if scratched

or dropped. Hold a bulb only by its

plastic or metal case. Do not touch

the glass part of a bulb with bare

hands.

NOTICE

Only use a bulb of the listed type.

Light bulbs

Bulb

No.

W Type

Headlights (low beam) 9006 55 A

Headlights (high beam) 9005 65 B

Front fog light

—

55 C

Light bulbs

Bulb

No.

W Type

Parking and front turn

signal lights

1157 27/8 C

Front side marker

lights

194 3.8 D

Rear side marker,

stop and tail lights

(coupe)

1157 27/8 C

Rear side marker

lights (liftback)

194 3.8 D

Rear turn signal lights

1156 27 C

Stop and tail lights

1157 27/8 C

Back−up lights

1156 27 C

License plate lights 168 5 D

High mounted stoplight 921 18 C

Interior light

(with moon roof)

—

10 C

Interior lights

(without moon roof)

—

8 C

Light bulbs

Bulb

No.

W Type

Personal lights

—

5 E

Glovebox light

—

1.2 D

Door courtesy lights

—

3.8 D

Luggage compartment

light

—

5 E

Trunk light

—

3.8

A: HB4 halogen bulbs

B: HB3 halogen bulbs

C: Single end bulbs

D: Wedge base bulbs

E: Double end bulbs

CELICA U

187

—Headlights

1. Unplug the connector while depress-

ing the lock release.

If the connector is tight, wiggle it.

2. Turn the bulb and remove it. 3. Install a new bulb and the connector

into the mounting hole.

Aiming is not necessary after replacing

the bulb. When aiming adjustment is nec-

essary, contact your Toyota dealer.

CELICA U

188

—Front fog lights

1. Loosen the retainer screw and take

out the beam unit.

2. Turn the cover counterclockwise and

remove it.

3. Disconnect the cords.

CELICA U

189

4. Release the bulb retaining spring

and remove the bulb. Install a new

bulb and the bulb retaining spring.

To install the bulb, align the cutouts of the

bulb with the protrusions of the mounting

hole.

5. Connect the cords, install the cover

and turn it clockwise so that two

triangle marks are aligned. Plug the

connector together. Install the beam

unit and tighten the screw.

Use a Phillips−head screwdriver.

—Parking and front turn

signal lights

CELICA U

190

—Front side marker lights

Use a Phillips−head screwdriver.

CELICA U

191

a: Rear turn signal light

b: Rear side marker, stop and tail light

c: Stop and tail light

d: Back−up light

—Rear side marker, rear turn

signal, stop and tail, and back−up

lights (coupe and convertible)

CELICA U

192

a: Rear side marker light

b: Rear turn signal light

c: Stop and tail light

d: Back−up light

—Rear side marker, rear turn

signal, stop and tail, and

back−up lights (liftback)

CELICA U

193

—License plate lights

Use a Phillips−head screw driver.

—High mounted stoplight

(coupe)

CELICA U

194

—High mounted stoplight

(liftback)

CELICA U

195

Part 8

SPECIFICATIONS

D Dimensions and weight

D Engine

D Fuel

D Service specifications

D Tires

D Fuses

CELICA U

196

Dimensions and weight

Coupe Liftback Convertible

Overall length mm (in.) 4495 (177.0) 4425 (174.2) 4495 (177.0)

Overall width mm (in.) 1750 (68.9) 1750 (68.9) 1750 (68.9)

Overall height mm (in.) 1310 (51.6)

∗

1305 (51.4)

∗

1325 (52.2)

∗

Wheelbase mm (in.) 2540 (100.0) 2540 (100.0) 2540 (100.0)

Front tread mm (in.) 1515 (59.6) 1515 (59.6) 1515 (59.6)

Rear tread mm (in.) 1495 (58.9) 1495 (58.9) 1495 (58.9)

Vehicle capacity weight

(occupants + luggage) kg (lb.)

329 (725) 329 (725) 329 (725)

∗

:Unladen vehicle

CELICA U

197

Engine

Model:

5S−FE

Type:

4 cylinder in line, 4 cycle, gasoline

Bore and stroke, mm (in.):

87.0 × 91.0 (3.43 × 3.58)

Displacement, cm

(cu. in.):

2164 (132.0)

Fuel

Fuel type:

Unleaded gasoline, Octane Rating 87

(Research Octane Number 91) or

higher

Fuel tank capacity, L (gal., Imp. gal.):

60 (15.9, 13.2)

Service specifications

ENGINE

Valve clearance (engine cold), mm (in.):

Intake 0.19—0.29 (0.007—0.011)

Exhaust 0.28—0.38 (0.011—0.015)

Spark plug type:

DENSO PK20R11

NGK BKR6EP−11

Spark plug gap, mm (in.):

1.1 (0.043)

Drive belt tension measured with Bor-

roughs drive belt tension gauge No.

BT−33−73F (used belt), lbf:

Generator belt

Vehicles with air conditioning

155  20

Vehicles without air conditioning

95  20

Power steering pump belt

80  20

ENGINE LUBRICATION

Oil capacity (drain and refill),

L (qt., Imp. qt.):

With filter 3.9 (4.1, 3.4)

Without filter 3.7 (3.9, 3.3)

CELICA U

198

Oil grade:

API grade SH, ”Energy−Conserving II”

or SJ, ”Energy−Conserving” multigrade

engine oil or ILSAC multigrade engine

oil is recommended.

Recommended oil viscosity (SAE):

COOLING SYSTEM

Total capacity, L (qt., Imp. qt.):

With manual transaxle

6.7 (7.1, 5.9)

With automatic transaxle

7.1 (7.5, 6.2)

Coolant type:

With ethylene−glycol antifreeze

(Do not use alcohol type.)

BATTERY

Open voltage

∗

at 20°C (68°F):

12.6—12.8 V Fully charged

12.2—12.4 V Half charged

11.8—12.0 V Discharged

∗

: Voltage that is checked 20 minutes af-

ter the key is removed with all the lights

turned off

Charging rates:

5 A max.

CLUTCH

Pedal freeplay, mm (in.):

5—15 (0.2—0.6)

Fluid type:

SAE J1703 or FMVSS No. 116 DOT 3

MANUAL TRANSAXLE

Oil capacity, L (qt., Imp. qt.):

2.2 (2.3, 1.9)

Oil type:

Gear oil API GL−4 or GL−5

Recommended oil viscosity:

SAE 75W−90

AUTOMATIC TRANSAXLE

Automatic transmission

Fluid capacity (drain and refill),

L (qt., Imp. qt.):

Up to 2.5 (2.6, 2.2)

Differential

Fluid capacity, L (qt., Imp. qt.):

1.6 (1.7, 1.4)

Fluid type:

Automatic transmission fluid D−II or

DEXRON



III (DEXRON



II)

BRAKES

Minimum pedal clearance when depressed

with the pressure of 490 N (50 kgf, 110

lbf) with the engine running, mm (in.):

80 (3.1)

Pedal freeplay, mm (in.):

1—6 (0.04—0.24)

Pad wear limit, mm (in.):

1.0 (0.04)

CELICA U

199

Lining wear limit, mm (in.):

1.0 (0.04)

Parking brake adjustment when pulled with

the force of 196 N (20 kgf, 44 lbf):

4—7 clicks

Fluid type:

SAE J1703 or FMVSS No. 116 DOT 3

STEERING

Wheel freeplay:

Less than 30 mm (1.2 in.)

Power steering fluid type:

Automatic transmission fluid

DEXRON



II or III

Tires

Tire size:

Spare tire

U.S.A.

T125/70D16

Canada

205/55R15 87V

P205/55R15 87V

Except spare tire

205/55R15 87V

P205/55R15 87V

Tire pressure, kPa (kgf/cm

or bar, psi):

205/55R15 87V and P205/55R15 87V

Front 230 (2.3, 33)

Rear 230 (2.3, 33)

T125/70D16 420 (4.2, 60)

Wheel size:

205/55R15 87V and P205/55R15 87V

15  6 1/2JJ

15  7JJ

T125/70D16

16  4T

Wheel nut torque, N·m (kgf·m, ft·lbf):

103 (10.5, 76)

Fuses

Engine compartment—U.S.A.

CELICA U

200

Engine compartment—Canada

Engine compartment (front)—Canada only

Fuses (type A)

1. AM2 30 A: Starting system

2. HAZARD 10 A: Emergency flashers

3. HORN 7.5 A: Horns

4. RADIO NO.1 20 A: Car audio system

5. ECU−B 15 A: Anti−lock brake system,

cruise control system

6. DOME 10 A: Interior lights, personal

lights, luggage compartment light, trunk

light, door courtesy lights, clock

7. HEAD (LH) 15 A: Left−hand headlight

8. HEAD (RH) 15 A: Right−hand headlight

Instrument panel

9. SPARE: Spare fuse

10. SPARE: Spare fuse

11. SPARE: Spare fuse

12. ALT−S 7.5 A: Charging system

13. SRS WRN 7.5 A: SRS airbag warning

light

14. EFI 15 A: Multiport fuel injection sys-

tem/sequential multiport fuel injection

system

15. HEAD (LH) LO 15 A: Left−hand head-

light (low beam)

16. HEAD (RH) LO 15 A: Right−hand

headlight (low beam)

CELICA U

201

Passenger’s side kick panel

17. HEAD−HI (RH) 15 A: Right−hand head-

light (high beam)

18. HEAD−HI (LH) 15 A: Left−hand head-

light (high beam)

19. DRL 7.5 A: Daytime running light sys-

tem

20. ECU−IG 15 A: Electronically controlled

automatic transmission system, anti−

lock brake system

21. SEAT−HTR 20 A: No circuit

22. PANEL 7.5 A: Instrument panel lights

23. STOP 15 A: Stop lights, high mounted

stoplight, multiport fuel injection sys-

tem/sequential multiport fuel injection

system, cruise control system cancel

device, electronically controlled auto-

matic transmission system, anti−lock

brake system

24. FOG 20 A: Front fog lights

25. CIG & RAD 15 A: Cigarette lighter,

digital clock display, car audio system

26. IGN 7.5 A: Charging system, discharge

warning light, multiport fuel injection

system/sequential multiport fuel injec-

tion system, SRS airbag system

27. WIPER 20 A: Windshield wipers and

washer, rear window wiper and washer

28. MIR−HTR 10 A: Multiport fuel injection

system/sequential multiport fuel injec-

tion system

29. TURN 10 A: Turn signal lights, emer-

gency flashers

30. TAIL 15 A: Tail lights, parking lights,

front side marker lights, rear side

marker lights, license plate lights

31. HTR 10 A: Air conditioning system,

rear window defogger

32. GAUGE 10 A: Gauges and meters,

power door lock system

33. ST 7.5 A: Starting system, multiport

fuel injection system/sequential multi-

port fuel injection system

34. A/C 10 A: Air conditioning system

35. OBD II 7.5 A: On−board diagnosis sys-

tem

Fuses (type B)

36. RDI 30 A: Electric cooling fan

37. CDS 30 A: Electric cooling fan

38. AM1 40 A: Electronic ignition system/

distributor ignition system

39. DOOR 30 A: Power door lock system,

convertible top control system

40. DEF 30 A: Rear window defogger

41. POWER 30 A: Power windows, electric

moon roof

Fuses (type C)

42. HTR 40 A: Air conditioning system

43. ALT 100 A: ”ALT−S”, ”TAIL”, ”DOOR”,

”DEF” and ”POWER” fuses

44. MAIN 60 A: Starting system, head-

lights, ”AM2”, ”HAZARD”, ”HORN”,

”DOME” and ”RADIO” fuses

45. ABS 50 A: Anti−lock brake system

CELICA U

202

CELICA U

203

Part 9

REPORTING SAFETY

DEFECTS FOR U.S.

OWNERS AND

UNIFORM TIRE

QUALITY GRADING

Reporting safety defects for U.S.

owners

D Uniform tire quality grading

If you believe that your vehicle has

a defect which could cause a crash

or could cause injury or death, you

should immediately inform the Na-

tional Highway Traffic Safety Ad-

ministration (NHTSA) in addition to

notifying Toyota Motor Sales,

U.S.A., Inc.

(Toll−free: 1−800−331−4331).

If NHTSA receives similar com-

plaints, it may open an investiga-

tion, and if it finds that a safety de-

fect exists in a group of vehicles, it

may order a recall and remedy

campaign. However, NHTSA cannot

become involved in individual prob-

lems between you, your dealer, or

Toyota Motor Sales, U.S.A., Inc.

To contact NHTSA, you may either

call the Auto Safety Hotline toll−free

at 1−800−424−9393 (or 366−0123 in

Washington.D.C. area) or write to:

NHTSA. U.S.Department of Trans-

portation. Washington.D.C. 20590.

You can also obtain other information

about motor vehicle safety from the

Hotline.

Reporting safety defects

for U.S. owners

CELICA U

204

Uniform tire quality grading

This information has been prepared in ac-

cordance with regulations issued by the

National Highway Traffic Safety Adminis-

tration of the U.S. Department of Trans-

portation. It provides the purchasers and/

or prospective purchasers of Toyota

vehicles with information on uniform tire

quality grading.

Your Toyota dealer will help answer any

questions you may have as you read this

information.

DOT quality grades—All passenger ve-

hicle tires must conform to Federal

Safety Requirements in addition to

these grades. These quality grades are

molded on the sidewall.

Treadwear—The treadwear grade is a

comparative rating based on the wear rate

of the tire when tested under controlled

conditions on a specified government test

course. For example, a tire graded 150

would wear one and a half (1 1/2) times

as well on the government course as a

tire graded 100. The relative performance

of tires depends upon the actual condi-

tions of their use, however, and may de-

part significantly from the norm due to

variations in driving habits, service prac-

tices and differences in road characteris-

tics and climate.

Traction A, B, C—The traction grades,

from highest to lowest, are A, B, and C,

and they represent the tire’s ability to stop

on wet pavement as measured under con-

trolled conditions on specified government

test surfaces of asphalt and concrete. A

tire marked C may have poor traction per-

formance.

Warning: The traction grade assigned to

this tire is based on braking (straight

ahead) traction tests and does not include

cornering (turning) traction.

Temperature A, B, C—The temperature

grades are A (the highest), B, and C,

representing the tire’s resistance to the

generation of heat and its ability to dissi-

pate heat when tested under controlled

conditions on a specified indoor laboratory

test wheel. Sustained high temperature

can cause the material of the tire to de-

generate and reduce tire life, and exces-

sive temperature can lead to sudden tire

failure. The grade C corresponds to a lev-

el of performance which all passenger car

tires must meet under the Federal Motor

Vehicle Safety Standard No. 109. Grades

B and A represent higher levels of perfor-

mance on the laboratory test wheel than

the minimum required by law.

Warning: The temperature grades for this

tire are established for a tire that is prop-

erly inflated and not overloaded. Exces-

sive speed, underinflation, or excessive

loading, either separately or in combina-

tion, can cause heat buildup and possible

tire failure.

Toyota 1998 Celica Car

Product's Documents

User Manual

Specifications

Toyota 1998 CELICA Questions and Answers

Related Products

Toyota 2007 TOYOTA SIENNA Car

Toyota 2005 Toyota Echo Car

Toyota 2013 Toyota Corolla Car

Toyota 2009 Toyota Corolla Car

Toyota 2010 TOYOTA COROLLA Car

2013 Toyota Camry Car
