WHIRLPOOL OF INDIA LTD
Service Manual
Top Mount
No Frost Refrigerator
REV - 00
TROUBLE DIAGNOSTIC CHART
11
12
16
19
17
2
INDEX
Sr.No. Detail Page No.
1. MODEL RANGE 3

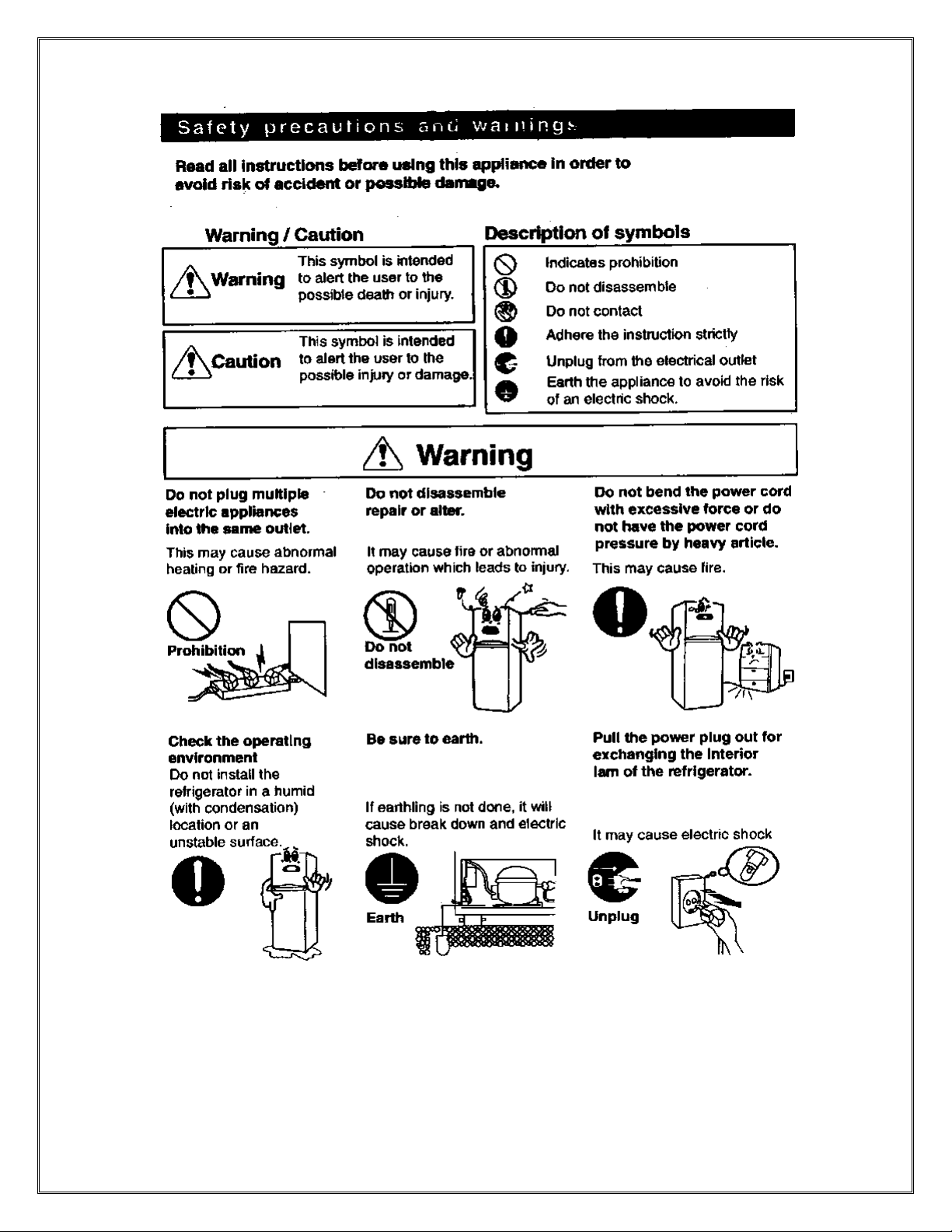

2. SAFETY PRECAUTIONS
4
-
5
3. FEATURE / TECHNICAL SPECIFICATION 6
4. ELECTRONIC CONFIGURATION AND TROUBLESHOOTING
7
5. WIRING DIAGRAM
8
6.
-
7. EXPLODED VIEWS -
8. SERVICE PART LIST -
9
3
NO FROST REFRIGERATOR
MODEL RANGE:
360L NZ SP L60 DLX ALPH STL (WRI 36FSS)
360L NZ SP L60 DLX WHITE (WRI 36FWH)
4
5
360
360
6
TECHNICAL /FEATURE SPECIFICATION:
71g
MODEL L
Type Frost free
Capacities (L) total net L
Width
620
Height 1760
Depth 675
Gross Weight (kg)
Voltage / Hz 220-240V/60Hz
Compressor
Oil Capacity
Comp. Run Capacitor
-
PTC Relay
Motor Protector
Fan motor Ohsung 4.2 Copper fan
motor
Split Diffuser NO
Deodorizer CHARCOAL
Number of Shelves 1
Type of Shelves
GLASS
Humidity Control
YES
RC Illumination BULB
FC Illumination
-
Bottle Retainer
2
Can Rack NO
Egg tray
8 EGGS
Removable Ice twister YES
Puff pastry NO
Freezer Door Bins / Trivets 2
Refrigerator Door Bins / Trivets 4
Door lock Yes
Handle SP
Electromechanical Control in
RC compartment
Yes
Fast Forward Cool Operation -
Door Alarm NO
Auto Power save mode NO
LU111CYA
5µF
QP2-15C
RSCR(PTC)
NO
DELUXE
In this type of refrigerator, there is no user Interface on freezer compartment door for setting cooling .
Electronic Configuration, Logic & Troubleshooting
GENX Controls & Electronics Configuration
Product Configuration
Product Control RC Controlled
Software
User interface NO
Auto cool mode NO
Quick Chill/Fast Forward Ice NO
Auto Power save mode NO
Door Alarm NO
RC Illumination Yes(Lamp)
Control Board NO
Defrost heater Yes (Radiant Heater 180 W)
FC Door grounding No
Compressor
Run Capacitor
Door Reversibility No
7
360L DLX
LU111CYA
5µF
8

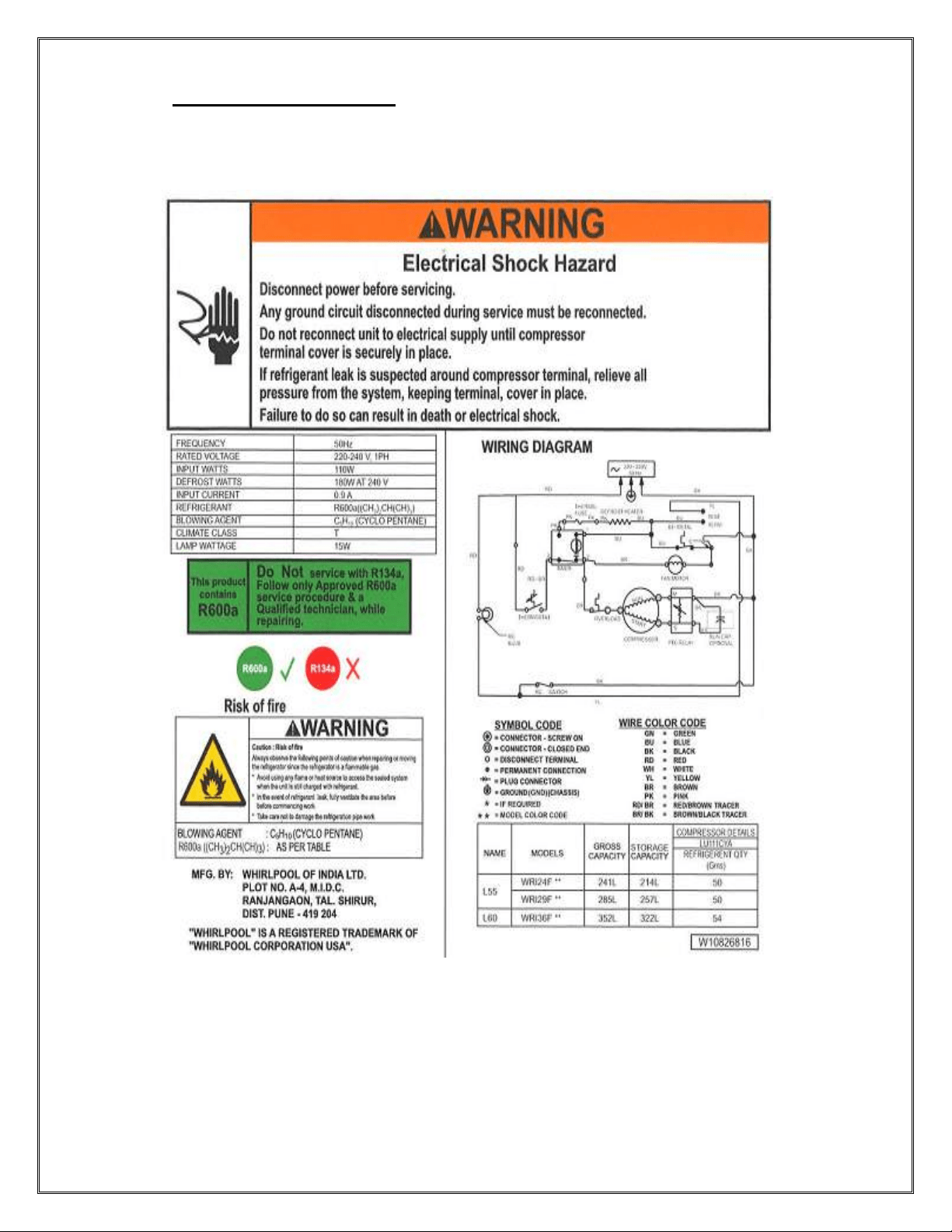

WIRING DIAGRAM:
9

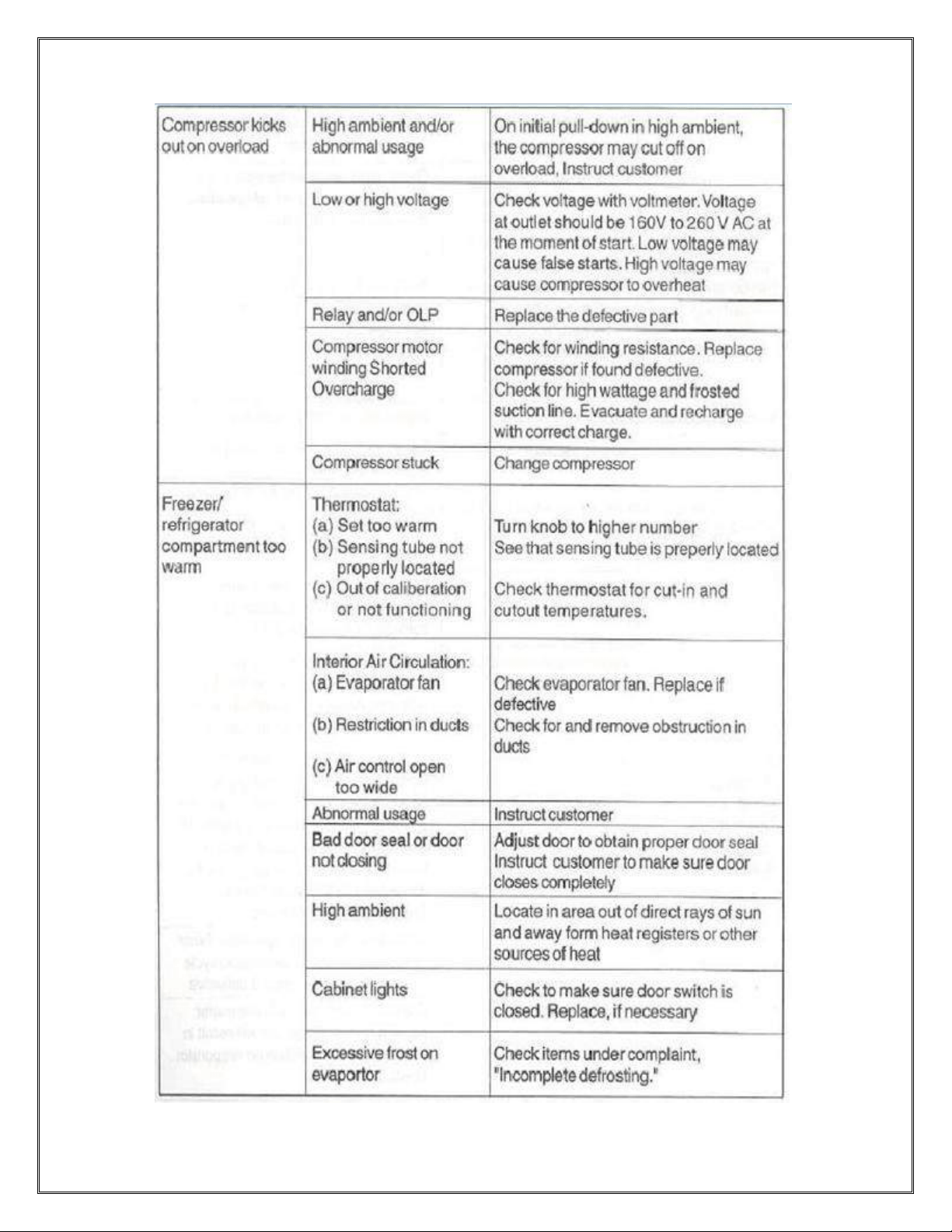

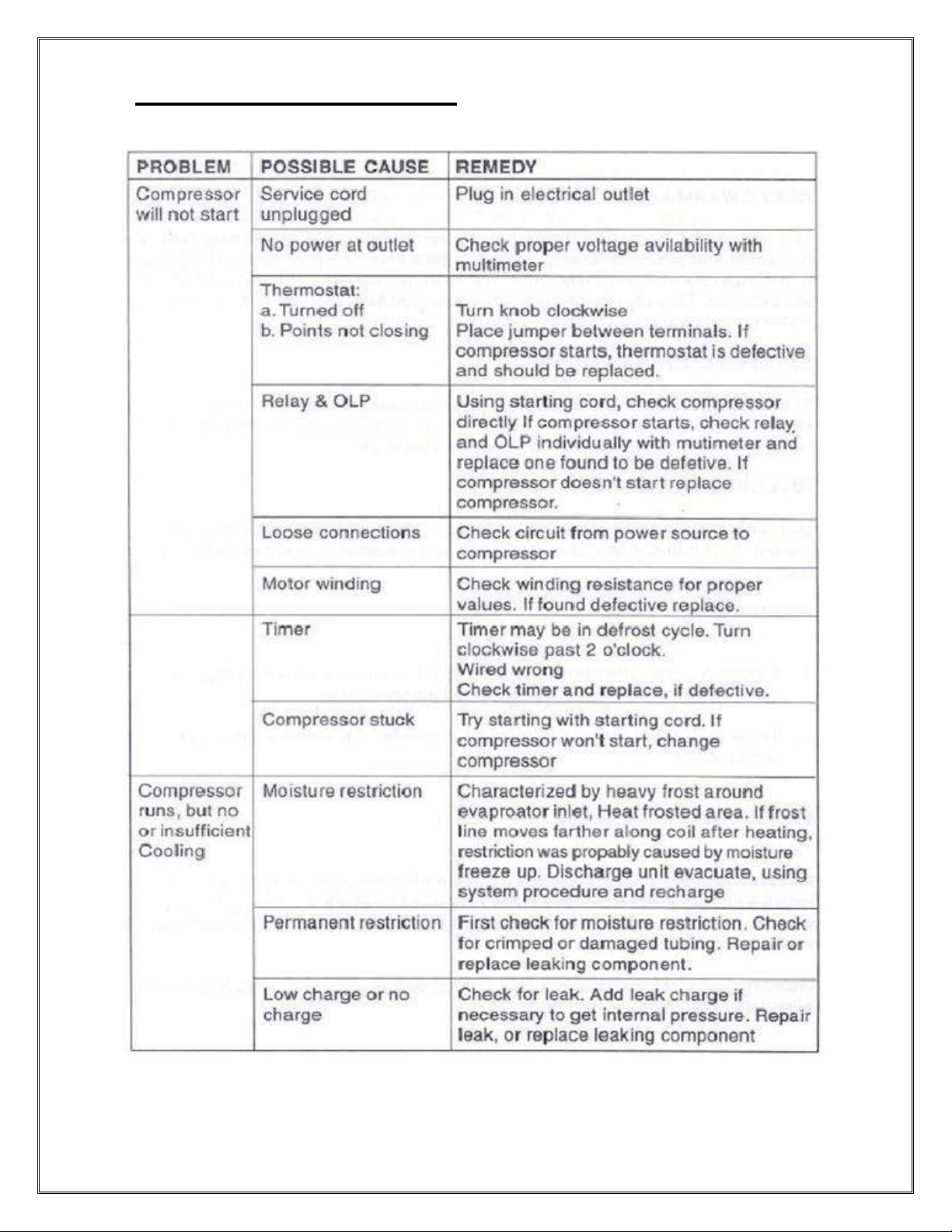

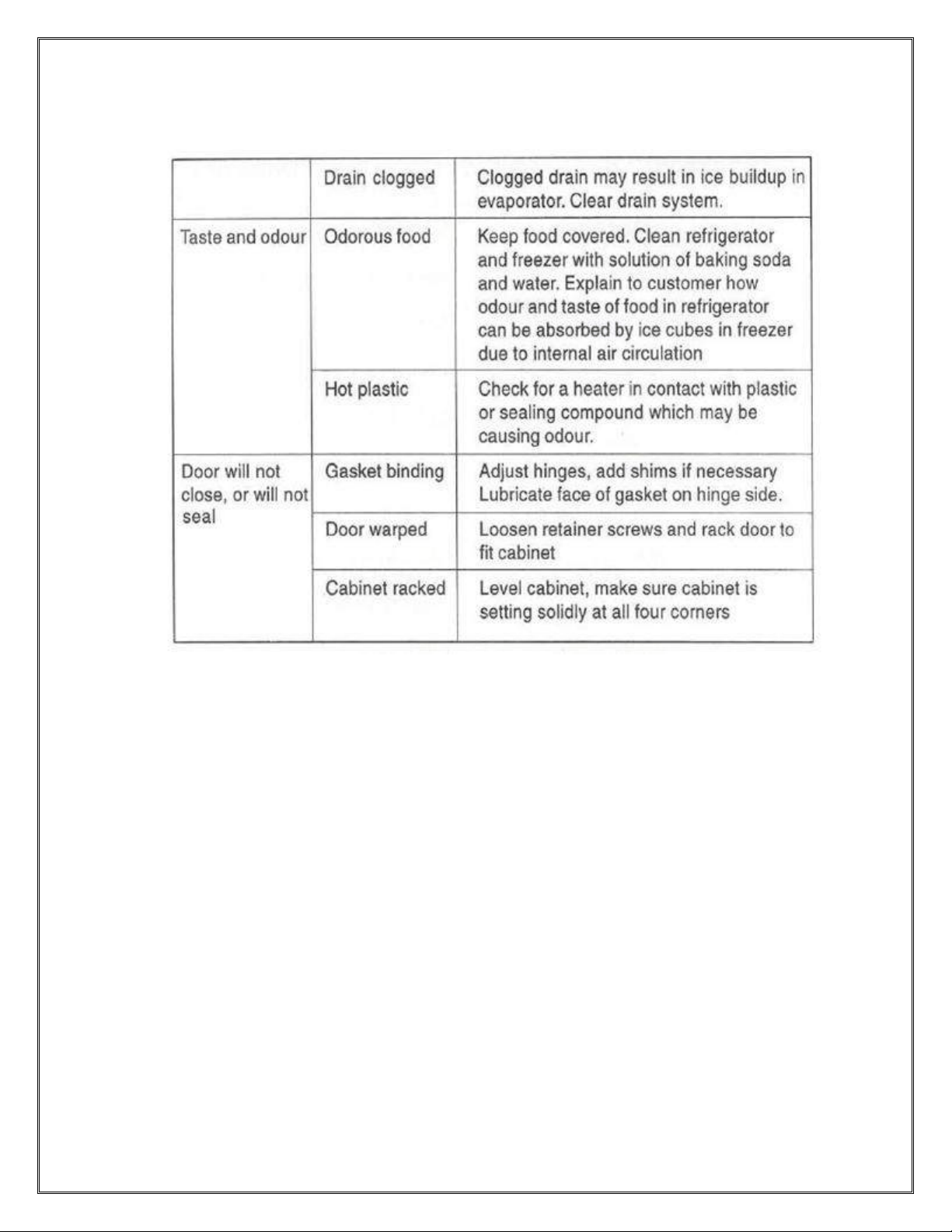

TROUBLE DIAGNOSTIC CHART
10
11
SR NO PART NO DESCRIPTION
2 W10897582 FC FOAMED DOOR-360L, ALPHA STEEL NU
3 W10897627 FC FOAMED DOOR DLX WHITE L60
77 W10781674 FC DOOR BIN (FREEZE RACK),L 60
92 W10474372 BRAND BADGE 85MM
93 W10495048 GASKET ASSEMBLY L60 FC
94 W10643808 6th SENSE DEEP FREEZE TECHNOLOGY BADGE
94
93
92
77
2,3
2,3
FC FOAMED DOOR

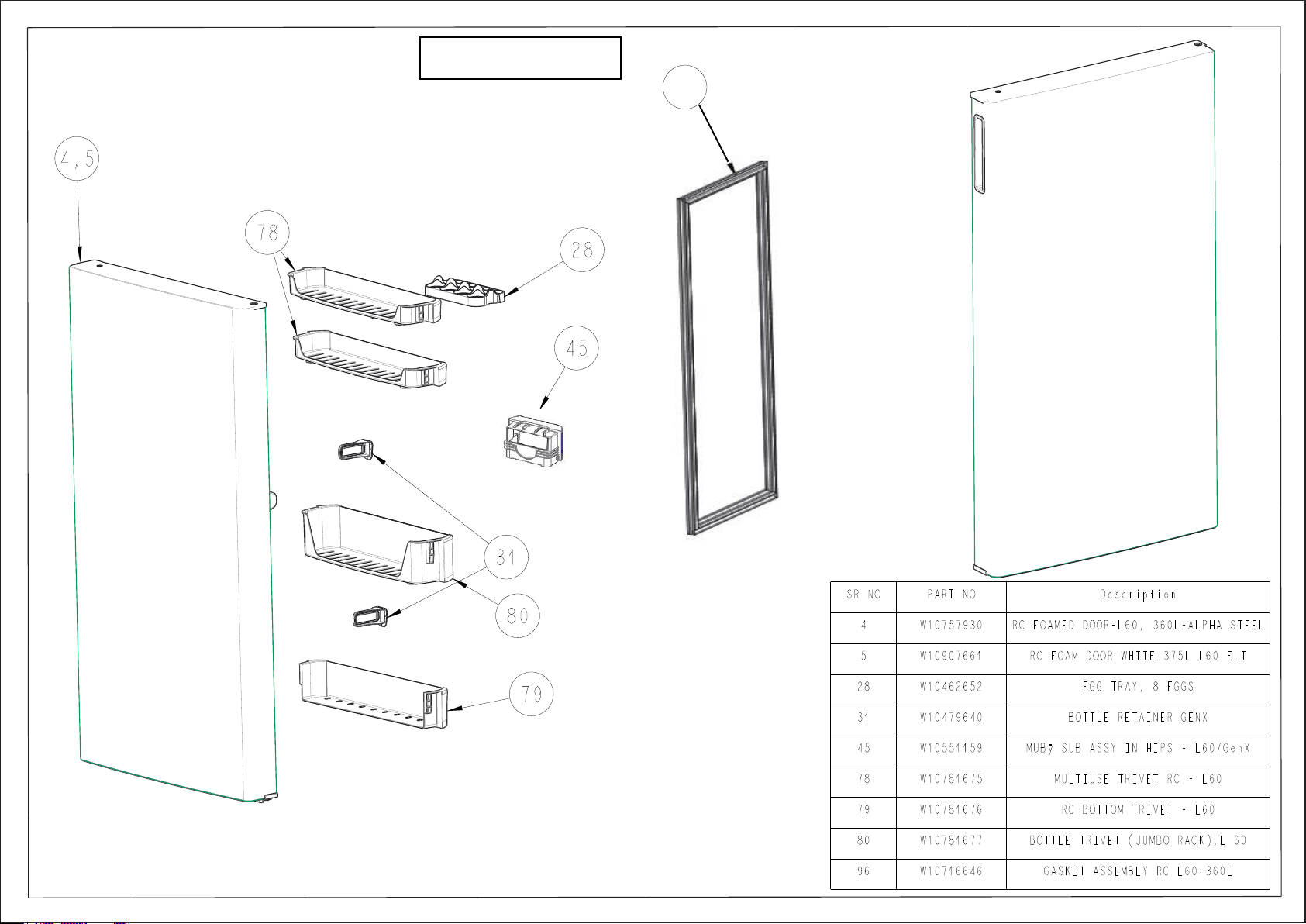

SR NO PART NO Description
4 W10757930 RC FOAMED DOOR-L60, 360L-ALPHA STEEL
5 W10907661 RC FOAM DOOR WHITE 375L L60 ELT
28 W10462652 EGG TRAY, 8 EGGS
31 W10479640 BOTTLE RETAINER GENX
45 W10551159 MUBÿ SUB ASSY IN HIPS - L60/GenX
78 W10781675 MULTIUSE TRIVET RC - L60
79 W10781676 RC BOTTOM TRIVET - L60
80 W10781677 BOTTLE TRIVET (JUMBO RACK),L 60
96 W10716646 GASKET ASSEMBLY RC L60-360L
4,5
45
31
28
80
79
78
96
RC DOOR ASSY
60
47
22
25
49
99
59,76
50
21
36
17
40
56
86
33
18

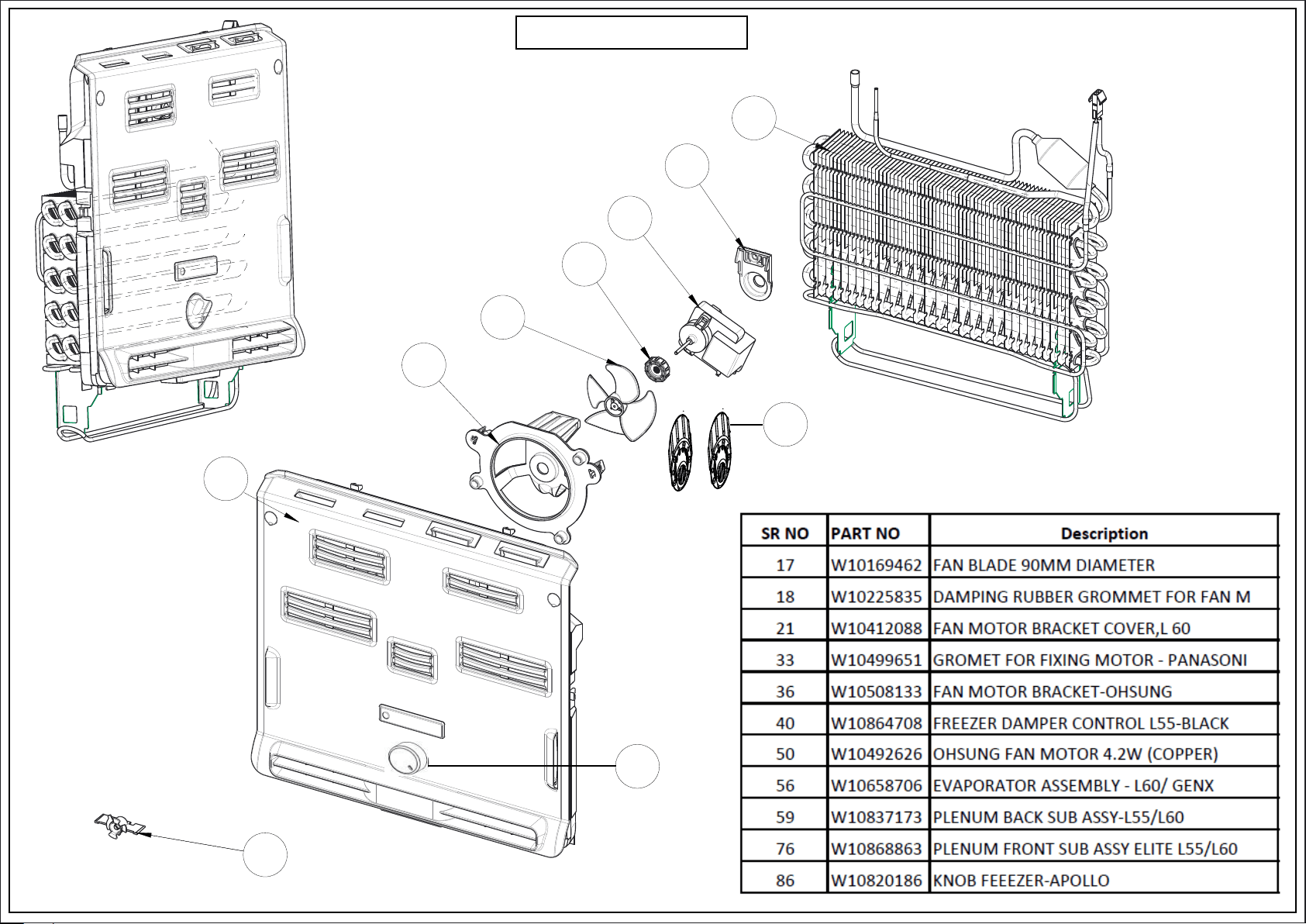

PLENUM DETAILS
A
DECK AREA 360L DLX
54
117
44
67
85
B
20
39
71
72
B
61
43
B
C
73
66
28
33,34
40
57,58
79
82
19
81
57
37
74
83
67,68
75
69
26
32,54
FOAMED CABINET 360L
SPARE PART LIST : REV - 00
MODEL NAME WRI 36FSS WRI 36FWH
COLOUR ALPHA STEEL WHITE
SAP CODE 20621 20622
DESCRIPTION
1 W10617999 LU111CYA COMPRESSOR ASSY 1 EA 1 EA
2 W10897582 FC FOAMED DOOR-360L, ALPHA STEEL NU 1 EA 0
3 W10897627 FC FOAMED DOOR DLX WHITE L60 0 1 EA
4 W10757930 RC FOAMED DOOR-L60, 360L-ALPHA STEEL 1 EA 0
5 W10907661 RC FOAM DOOR WHITE 375L L60 ELT 0 1 EA
6 W10753252 PROCESS TUBE COMMON (GNF & ONYX) 1 EA 1 EA
7 2310000005 GAS-REFRIGERANT KPL INT LTD R600A 0.06 KG 0.06 KG
8 A201354000D PHILIPS HEAD SCREW M5.5X1.8 13 EA 13 EA
9 A201356000B SCREW- PHILIPS HEAD ,M4.8 X 16 10 EA 10 EA
10 A201358000F EARTHING TERMINAL SCREW (M4X8) 3 EA 3 EA
11 A2081860000 SUPPORT BUSH, ICE TWISTER 1 EA 1 EA
12 A2221470000 BULB APPLIANCE, E14 1 EA 1 EA
13 A222376000A 4.8 X 16 SELF TAPP AB TYPE SS 4 EA 4 EA
14 A225043000A HANDLE SCREW NF-06 MATR & LENGTH CHANGE 8 EA 8 EA
15 D111155700K S.T. SCREW (8*13)/Crescendo 1 EA 1 EA
16 D111204100D HEX NYLOC NUT M6 4 EA 4 EA
17 W10169462 FAN BLADE 90MM DIAMETER 1 EA 1 EA
18 W10225835 DAMPING RUBBER GROMMET FOR FAN MOTOR 1 EA 1 EA
19 W10339873 CRISPER COVER SUB ASSY (Honey Comb) L60 1 EA 1 EA
20 W10383933 COMPRESSOR MOUNTING PLATE ASSY, BACO WOI 1 EA 1 EA
21 W10412088 FAN MOTOR BRACKET COVER,L 60 1 EA 1 EA
22 W10412110 LENS IN DIFFUSER 1 EA 1 EA
23 W10418501 SCREW TRILOBULAR M6 X 1.0 HEX HEAD 4 EA 4 EA
24 W10426650 CENTRE HINGE ASSY, L60T 1 EA 1 EA
25 W10444351 HINGE TOP ASSY- DLX 1 EA 1 EA
26 W10832118 ICE CREAM TRAY L60 NEW 1 EA 1 EA
27 W10461848 SOCKLE CAP - L60T 1 EA 1 EA
28 W10462652 EGG TRAY, 8 EGGS 1 EA 1 EA
29 W10477266 SUMP BACK PART 2 EA 2 EA
30 W10477268 FRONT COVER SUB ASSY 2 EA 2 EA
31 W10479640 BOTTLE RETAINER GENX 2 EA 2 EA
32 W10493806 GLASS - RC SHELF, L60 WOIL 1 EA 1 EA
33 W10499651 GROMET FOR FIXING MOTOR - PANASONIC 2 EA 2 EA
34 W10680992 TOP HINGE COVER GENX/ L60/ NEO- TI GREY 1 EA 0
35 W10507748 TOP HINGE COVER NEO-DLX WHITE 0 1 EA
36 W10508133 FAN MOTOR BRACKET-OHSUNG 1 EA 1 EA
37 W10511077 ICE TWISTER BRACKET WITH SUPPORT L60 1 EA 1 EA
38 W10511078 OXYGEN SCAVENGER WITH HANGING ATTACH L60 1 EA 1 EA
39 W10511085 DISCHARGE COIL EMR60 HLC L60 1 EA 1 EA
40 W10864708 FREEZER DAMPER CONTROL L55-BLACK 1 EA 1 EA
41 W10526808 EAST DRAGON TIMER WITH EPCOS CAPACITOR 1 EA 1 EA
42 W10528520 PLATE LEVELLER ASSEMBLY,GENX 1 EA 1 EA
43 W10537824 DEFROST WATER TRAY GEN X - L60 1 EA 1 EA
SR NO PART NAME
QUANTITY
17
44 W10549123 SHOULDER SCREW-ABT TYPE 2 EA 2 EA
45 W10551159 MUB SUB ASSY IN HIPS - L60/GenX 1 EA 1 EA
46 W10805785 ONYX AUSTRALIA POWER CORD 1 EA 1 EA
47 W10585381 DRAIN TUBE BOTTOM 1 EA 1 EA
48 W10612777 BOTTOM HINGE ASSY L60/GENX PH2. 1 EA 1 EA
49 W10618295 DRIER HOLDER GENX / L60 NEW 1 EA 1 EA
50 W10492626 OHSUNG FAN MOTOR 4.2W (COPPER) 1 EA 1 EA
51 W10621926 R600A CONTROL BOX HARNESS GENX/L60 1 EA 1 EA
52 W10631925 R600a-L60/GENX BULB HOLDER ASSY 1 EA 1 EA
53 W10642215 THERMOSTAT CAP 1 EA 1 EA
54 W10643889 Album cover glass shelf, hot foil-L60 1 EA 1 EA
55 W10646140 Discharge Coil - Grommet 1 EA 1 EA
56 W10658706 EVAPORATOR ASSEMBLY - L60/ GENX 1 EA 1 EA
57 W10667382 SUB ASSY BAD L60 NEW 1 EA 1 EA
58 W10673280 Heat Shield L60 - R600a 1 EA 1 EA
59 W10837173 PLENUM BACK SUB ASSY-L55/L60 1 EA 1 EA
60 W10681135 THERMAL FUSE WITH CONNECTOR 1 EA 1 EA
61 W10641426 Suction Compliment GenX/L60 R600 1 EA 1 EA
62 W10707108 BRAZING ROD 3MM ( Solder 2%) 0.005 KG 0.005 KG
63 W10729969 R600A THERMOSTAT - 360L/340L CP 1 EA 1 EA
64 W10734463 FILTER/DRIER ASSEMBLY 1 EA 1 EA
65 W10746139 BI-METAL ASSY. TOD-39TV-CP 1 EA 1 EA
66 W10837162 ACTIVE DEODRIZER COVER SUB ASSY-L55/L60 1 EA 1 EA
67 W10831735 FRUIT CRISPER PAN ASSY L-60 NEW 1 EA 1 EA
68 W10746584 FRUIT CRISPER FRAME ASSY L-60 1 EA 1 EA
69 W10752766 GLIDE TRAY ASSY,L60 1 EA 1 EA
70 W10763156 CRISPER SEPERATOR L60 1 EA 1 EA
71 W10766186 COMPRESSOR SLEEVE - R600a 4 EA 4 EA
72 W10766187 COMPRESSOR GROMMET 30 SHORE A HARDNESS 4 EA 4 EA
73 W10837180 DYNACOOL FRONT SUB ASSY-L55/L60/L70 2 EA 2 EA
74 W10831749 ICE TRAY ASSY WITH MICRO BLOCK GENX 1 EA 1 EA
75 W10831747 ICE COLLECTOR _ MICROBLOCK L55/L60 1 EA 1 EA
76 W10868863 PLENUM FRONT SUB ASSY ELITE L55/L60 1 EA 1 EA
77 W10781674 FC DOOR BIN (FREEZE RACK),L 60 2 EA 2 EA
78 W10781675 MULTIUSE TRIVET RC - L60 2 EA 2 EA
79 W10781676 RC BOTTOM TRIVET - L60 1 EA 1 EA
80 W10781677 BOTTLE TRIVET (JUMBO RACK),L 60 1 EA 1 EA
81 W10831734 CRISPER PAN 38L NEW, L60 1 EA 1 EA
82 W10798489 L55 GLIDE TRACK SCREW ANCHOR ASSY 4 EA 4 EA
83 W10868942 CVR AIR DIFFUSER SUB ASSY-BASIC-L55/L60 1 EA 1 EA
84 A229089000A SCREW - DC POWER SUPPLY, OPAL 2 EA 2 EA
85 W10826816 WIRING DIAGRAM L55-L60 DLX AUS 1 EA 1 EA
86 W10820186 KNOB FEEEZER-APOLLO 2 EA 2 EA
87 A2245960000 SPACER SUB ASSY - ONYX 1 EA 1 EA
88 W10471820 SCREW CAP- PLENUM 4 EA 4 EA
89 W10479958 CAP - CENTER RAIL WHITE TRINITY 1 EA 1 EA
90 W10579573 EARTHING WIRE WITH RING TERMINAL 1 EA 1 EA
91 W10467948 SLEEVE TOP HINGE - ONYX 1 EA 1 EA
92 W10474372 BRAND BADGE 85MM 1 EA 1 EA
93 W10495048 GASKET ASSEMBLY L60 FC 1 EA 1 EA
18
94 W10643808 6th SENSE DEEP FREEZE TECHNOLOGY BADGE 1 EA 1 EA
95 W10467972 SLEEVE CENTER HINGE - ONYX 1 EA 1 EA
96 W10716646 GASKET ASSEMBLY RC L60-360L 1 EA 1 EA
97 A2253030000 SWITCH ROCKER ARM, NC- ESBEE W WELDED 1 EA 1 EA
98 W10478024 SCREW-TRILOBULAR M6X1.0 HEX HEAD 6 EA 6 EA
99 W10844784 L60 DLX HARNESS WITH CU WDG MOTOR 1 EA 1 EA
100 W10786671 GLIDE TRAY TRACK ASSY-RH,L55/L60 1 EA 1 EA
101 W10786672 GLIDE TRAY TRACK ASSY-LH,L55/L60 1 EA 1 EA
102 W10885408 DYNACOOL HOUSING SUBASSY RH FOAMPAD 1 EA 1 EA
103 W10885405 DYNACOOL HOUSING SUBASSY LH FOAMPAD 1 EA 1 EA
19
