User Manual Bosch SHE88PZ65N 24'' Dishwasher

Documents for Bosch SHE88PZ65N

User Manual

For SHE88PZ65N. Also, The document are for others Bosch models: SHX88PZ65N, SHV88PZ63N, SHEM78ZH5N

• Table of contents3
  • en-us Operating instructions3
    • ( Safety Definitions 53
    • ( IMPORTANT SAFETY INSTRUCTIONS 63
    • ƒ Causes of Damage 113
    • * Getting Started 123
    • o Home Connect 173
    • + Water softening system / special salt 203
    • , Rinse Aid 233
    • - Loading the Dishwasher 253
    • . Detergent 373
    • / Dishwasher Cycles 393
    • 0 Dishwasher Cycle Options 403
    • 1 Operating the Dishwasher 433
    • 2 Care and Maintenance 483
    • 3 Troubleshooting 523
    • 4 Customer Service 593
    • ‡ Statement of Limited Product Warranty 603
    • ( Safety Definitions5
      • Safety Definitions5
      • 9 WARNING5
      • 9 CAUTION5
        • NOTICE5
          • Note:5
• ( IMPORTANT SAFETY INSTRUCTIONS6
  • IMPORTANT SAFETY INSTRUCTIONS6
  • READ AND SAVE THESE INSTRUCTIONS6
    • To reduce the risk of fire, electrical shock, or serious injury, observe the following:6
      • Risk of fire, electrical shock, or serious injury6
    • 9 WARNING6
      • Risk of injury or death!6
    • 9 WARNING6
      • Risk of injury!6
    • 9 WARNING6
      • Risk of electrical shock or fire!6
    • 9 WARNING7
      • RIsk of explosion!7
    • 9 WARNING7
      • Health hazard!7
      • GROUNDING INSTRUCTIONS7
    • 9 WARNING7
      • Risk of electric shock!7
      • Safe Operation8
    • 9 CAUTION8
      • 9 WARNING8
        • Risk of injury!8
      • 9 WARNING8
        • CHILD SAFETY!8
        • Proper Care and Maintenance9
          • Note:9
          • NOTICE9
        • Proposition 65 Warning:10
    • ƒ Causes of Damage11
      • Causes of Damage11
      • NOTICES11
    • * Getting Started12
      • Getting Started12
      • Appliance overview12
      • Operating panel13
      • Dishwasher interior components13
      • Display indicators13
      • Info button13
        • Info button13
        • 1. Press the Info button 8.13
        • 2. Press the wash cycle button.13
        • 3. To leave, press Info button 8.13
      • Time setting14
        • Time setting14
        • Set the time as follows:14
          • 1. Open the door.14
          • 2. Switch on On/Off switch (.14
          • 3. Press Info button 8 for 3 seconds until the following text is indicated on the display window at the top @:14
          • 4. Keep pressing button > ` until the time setting is indicated on the display window at the top @.14
          • 5. Make the setting with setting buttons + - X. If the selection buttons + - X are held down, the set values are changed in 10-minute increments.14
          • 6. Press and hold the Info button 8 for 3 seconds.14
          • Note:14
      • Switching on the appliance for the first time14
        • Change the setting as follows:14
          • 1. Keep pressing button > ` until the required setting is displayed.14
          • 2. Make the selection with setting buttons + - X.14
          • 3. Press and hold the Info button 8 for 3 seconds.14
        • Settings Switching on the appliance for the first time14
        • Factory setting14
        • Infotext by pressing Info button14
  • Settings15
    • Change the setting as follows:15
      • 1. Open the door.15
      • 2. Switch on On/Off switch (.15
      • 3. Press Info button 8 for 3 seconds until the following text is indicated on the display window at the top @:15
      • 4. Keep pressing button > ` until the required setting is displayed.15
      • 5. Make the selection with setting buttons + - X.15
      • 6. Press and hold the Info button 8 for 3 seconds.15
      • Note:15
    • Setting15
    • Factory setting15
    • Infotext by pressing Info button15
      • Notes16
    • o Home Connect17
      • Home Connect17
      • Info button17
        • Info button17
        • 1. Press the Info button 8.17
        • 2. Press the wash cycle button.17
        • 3. To leave, press Info button 8.17
      • Setting up the app17
      • Setting up Home Connect17
        • 1. Open the door.17
        • 2. Switch on the On/Off switch (.17
        • 3. Press Info button 8 for 3 seconds until the following text is indicated on the display window at the top @:17
        • 4. Keep pressing button > ` until the required setting is indicated on the display window at the top @.17
        • 5. Make the setting with setting buttons + - X. See table in section ~ "Settings" on page 1517
        • 6. Press and hold the Info button 8 for 3 seconds.17
      • Wi-Fi |17
        • Wi-Fi17
        • Notes17
      • Network login17
      • Connect to App18
      • Remote start button18
        • Note:19
        • Notes19
      • Wi-Fi without a connection to the Home Connect server ƒ19
        • Wi-Fi without a connection to the Home Connect server19
        • Note:19
      • Remote diagnosis ~19
        • Remote diagnosis19
        • Notes19
      • Declaration of Conformity y19
        • Declaration of Conformity19
    • + Water softening system / special salt20
      • Water softening system / special salt20
      • Using a “Water Hardness Test Strip”20
        • Sample test strip20
          • 1. Run the water at the kitchen sink for 5 minutes.20
          • 2. Dip the end of the test strip with the colored squares into the tap water for 1 second and shake off excess water.20
          • 3. After one minute, compare the test strip to the chart on the test strip packaging and determine the Dishwasher Water Softener setting (see below).20
          • 4. Adjust the dishwasher Water Softener setting.20
          • 5. If required, add salt to the dishwasher salt chamber as shown. ~ "Using special dishwasher salt" on page 2120
      • Water hardness table20
      • Adjusting the water softening system20
        • Set the softening system as follows:20
          • 1. Ask your local water utility company for the water hardness value of your tap water or use test strip.20
          • 2. Required setting can be found in the water hardness table.20
          • 3. Open the door.20
          • 4. Switch on On/Off switch (.20
          • 5. Press Info button 8 for 3 seconds until the following text is indicated on the display window at the top @:20
          • 6. Keep pressing button > ` until the water hardness is indicated on the display window at the top @.20
          • 7. Make the selection with setting buttons + - X.21
          • 8. Press and hold the Info button 8 for 3 seconds.21
      • Using special dishwasher salt21
        • NOTICE21
        • Top off the salt as follows:21
          • 1. Undo the screw plug on the dispenser 1b.21
          • 2. Fill the dispenser with water (required only when switching on the appliance for the first time).21

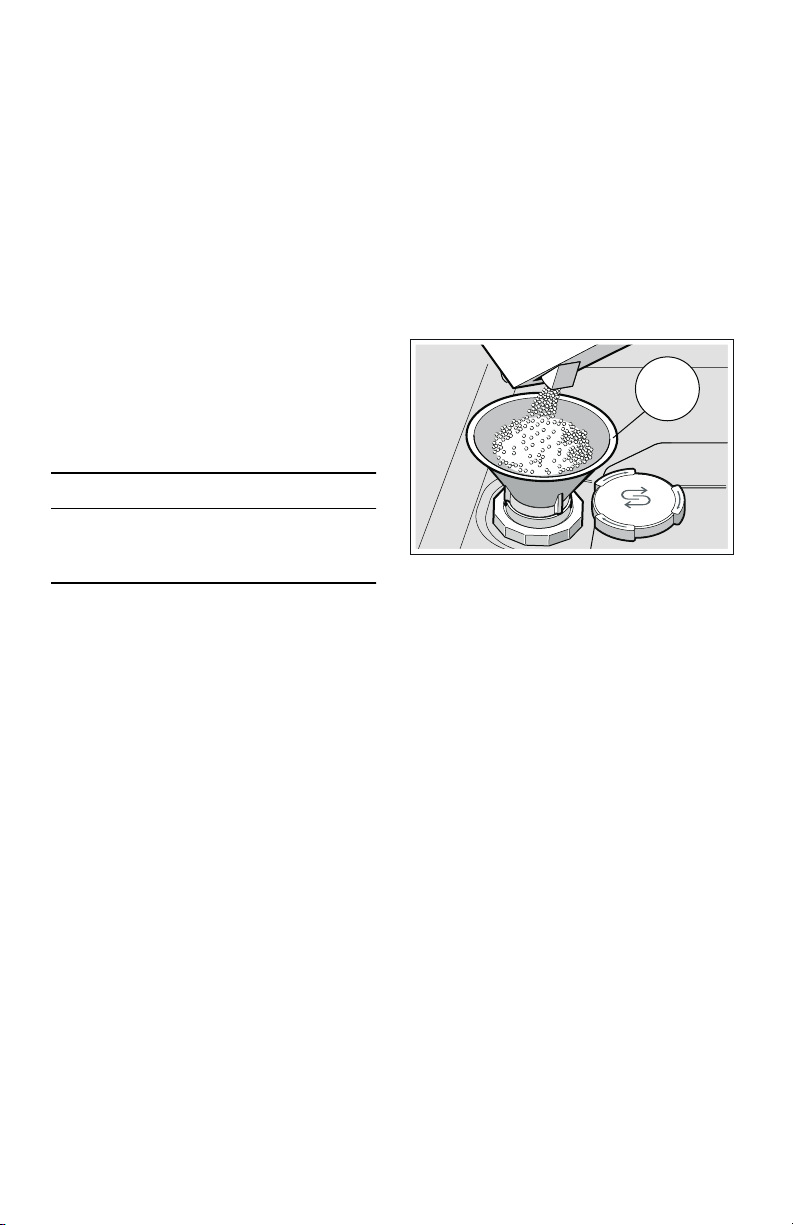

          • 3. Add salt as illustrated (do not use table salt, salt tablets or salt for use with whole house water softeners).21
      • Using detergents with salt component21
        • Detergent with a salt component21
      • Switching off low salt indicator / water softening system22
        • Switching off water softening system22
    • , Rinse Aid23
      • Rinse Aid23
      • Note:23
      • Adding rinse aid23
        • NOTICE23
          • 1. Open the rinse aid dispenser 92 by pressing on the latch of the lid and pull it open.23
          • 2. Add liquid rinse aid to the dispenser 92 until it is full. Do not overfill. Avoid spilling into air vent hole.23
          • 3. Close the lid. Lid must be fully closed until it clicks in order to seal.23
          • 4. Wipe up any excess rinse aid that may have puddled when the dispenser reservoir is full.23
        • Tip:23
          • NOTICE23
      • Setting the amount of rinse aid used24
        • Set the amount of rinse aid as follows:24
          • 1. Open the door.24
          • 2. Switch on On/Off button (.24
          • 3. Press Info button 8 for 3 seconds until the following text is indicated on the display window at the top @:24
          • 4. Keep pressing button > ` until the rinse aid dispenser is indicated on the display window at the top @.24
          • 5. Make the selection with setting buttons + - X.24
          • 6. Press and hold the Info button 8 for 3 seconds.24
      • Turning off rinse aid indicator24
        • NOTICE24
    • - Loading the Dishwasher25
      • Loading the Dishwasher25
      • Dishware material25
        • Note:25
        • Recommended25
        • Not Recommended25
      • Loading the racks26
        • For best dishwashing results, observe the following when loading the dishwasher:26
          • NOTICE26
        • Loading the upper rack26
          • Note:26
        • Loading the lower rack26

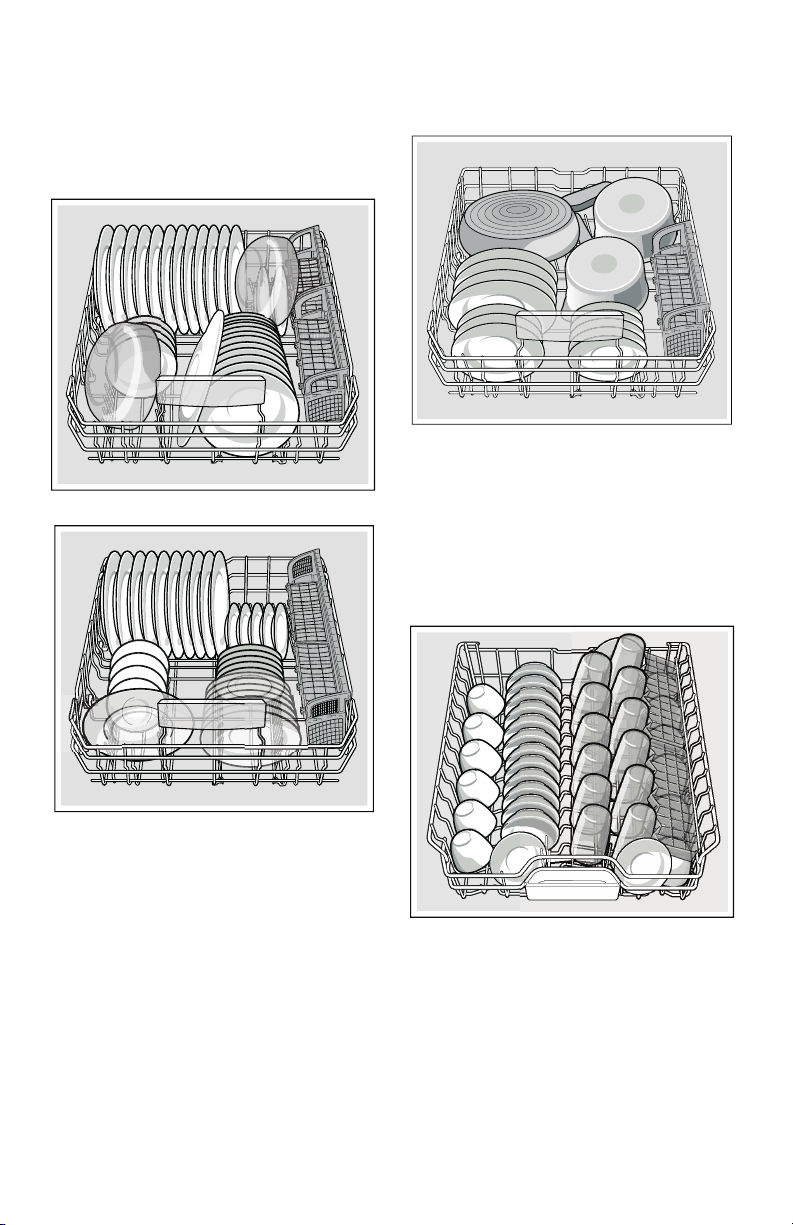

      • Loading patterns for lower rack27
        • 12 place setting suggested loading pattern27
        • Alternate loading pattern27
        • Alternate loading pattern with pots and pans27
      • Loading patterns for upper rack27
        • 12 place setting suggested loading pattern, with third rack cutlery drawer *27
        • 12 place setting suggested loading with My Way Rack™ *28
        • Alternate loading pattern28
        • Alternate loading pattern with stemware28
      • Loading patterns for third rack29
        • 12 place setting suggested loading pattern *29
        • My Way Rack™ *29

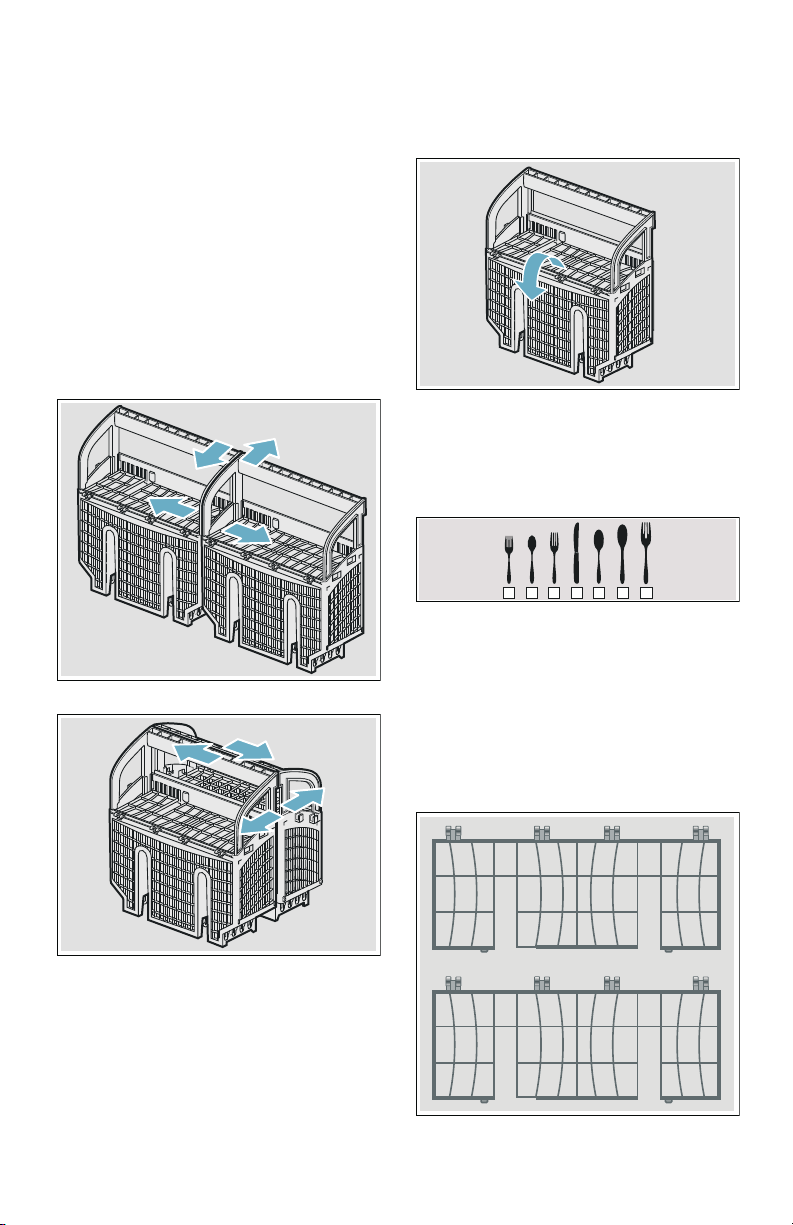

      • Loading the silverware basket29
        • 9 WARNING29
          • Risk of injury!29
          • Long silverware basket*29
            • Note:29
          • The Double Flex silverware basket *30
          • Side by side30
          • Back to back30
            • Note:30
          • Suggested loading patterns30
          • Long silverware basket30
          • Double Flex silverware basket31
      • Unloading the dishwasher31
      • 9 CAUTION31
        • Note:31
      • Adjusting the height of the rack31
        • With silverware basket31
        • Upper rack31
        • Lower rack31
    • 9.4 in (24 cm)31
    • 12.6 in (32 cm)31
    • 10.4 in (26.5 cm)31
    • 11.8 in (30 cm)31
    • 11.4 in (29 cm)31
    • 10.6 in (27 cm)31
      • With third rack31
      • Upper rack31
      • Lower rack31
    • 7 in (18 cm)31
    • 12.6 in (32 cm)31
    • 8 in (20.5 cm)31
    • 11.8 in (30 cm)31
    • 9 in (23 cm)31
    • 10.6 in (27 cm)31
      • RackMatic®32
        • 1. Pull the upper rack out of the dishwasher until it stops.32
        • 2. To lower the rack, push the RackMatic® lever inward.32
        • 3. To raise the rack, hold the basket on the sides of the upper rack and lift it up.32
        • Note:32
      • Rack accessories32
        • Flip tines32
        • Third rack33
        • My Way Rack™ *33
        • Cup shelves33
        • Extra tall item sprinkler*34
          • Note:34
          • NOTICE34

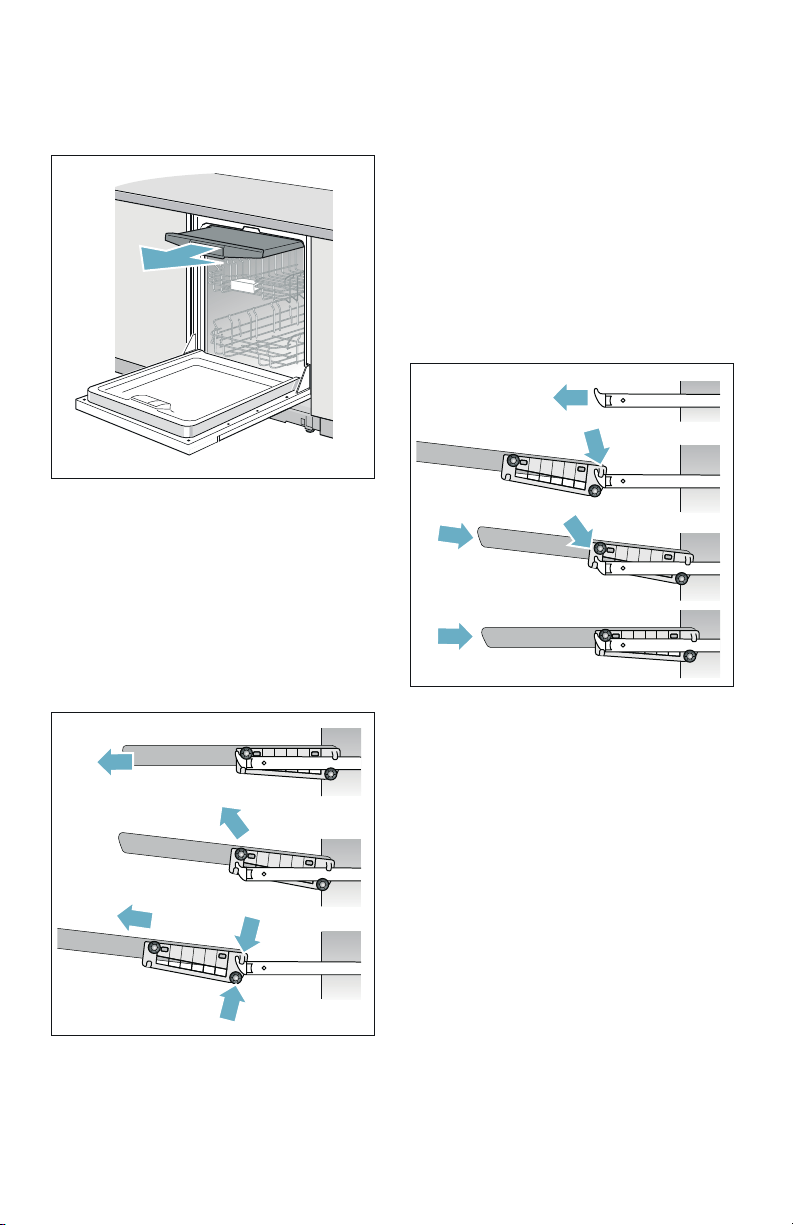

      • Removing/Installing third rack35
        • Removing third rack 1*35
          • 1. Pull out third rack all the way (1).35
          • 2. Lift upper rollers over the stopper hooks of both rails (2).35
          • 3. Pull third rack out forward and upward so that the holding hooks and the lower rollers of the rack slide over the stopper hooks of both rails (3).35
        • Installing third rack 1*35
          • 1. Pull out third rack rails all the way (1).35
          • 2. Insert third rack at an angle. Make sure that the stopper hooks of both rails slide in between the holding hooks and the lower rollers of the third rack (2).35
          • 3. Slide third rack in and lift the upper rollers over the front stopper hooks of both rails (3).35
          • 4. Push in third rack (4).35

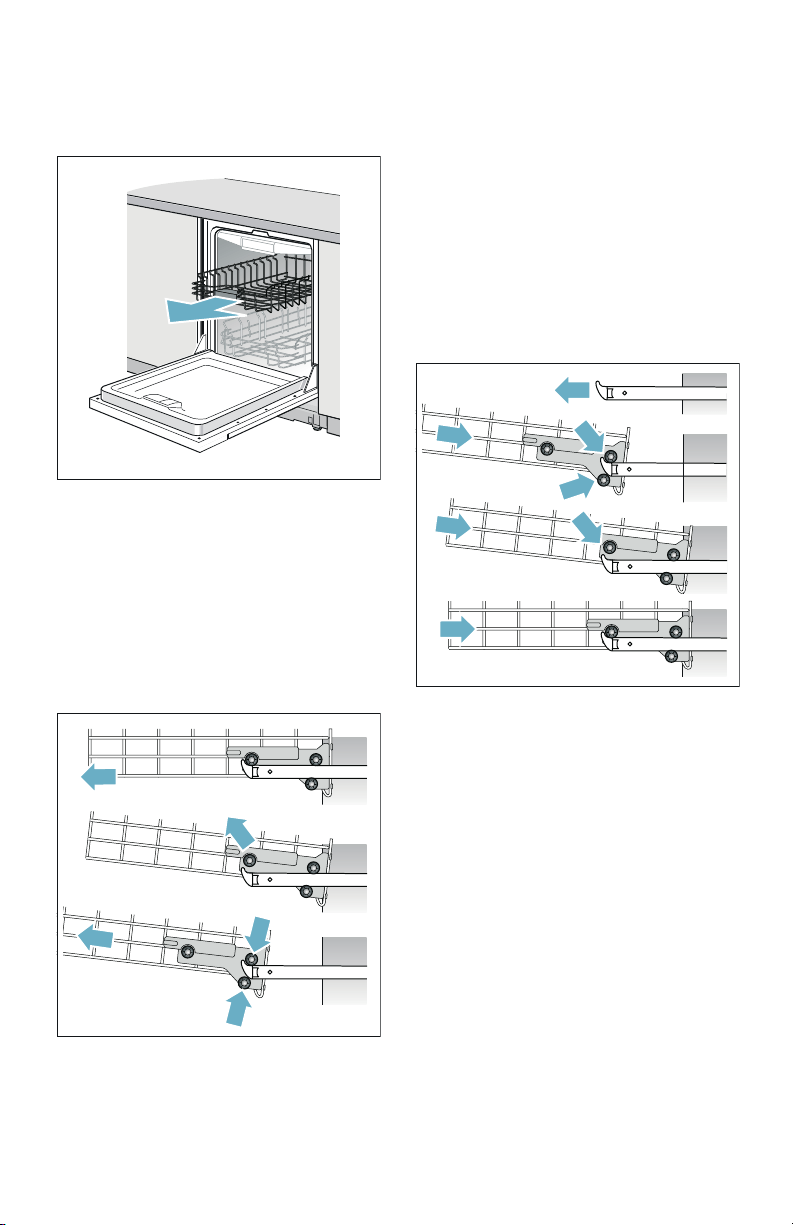

      • Removing/Installing upper rack with Rackmatic®36
        • Removing upper rack 1236
          • 1. Pull out upper rack all the way (1).36
          • 2. Lift front rollers over the stopper hook of the rail (2).36
          • 3. Pull out upper rack forwards and upwards so that the upper and lower rollers of the rack slide over the stopper hooks of both rails (3).36
        • Installing upper rack 1236
          • 1. Pull out upper rack rails all the way (1).36
          • 2. Insert upper rack at an angle. Make sure that the stopper hooks of both rails slide in between the upper and lower rollers on the rear side of the rack (2).36
          • 3. Slide upper rack in and lift the upper rollers over the front stopper hooks of both rails (3).36
          • 4. Push in upper rack (4).36
      • . Detergent37
        • Detergent37
        • NOTICE37
          • Note:37
        • Wash Cycle37
        • Hard Water/ Heavy Soil37
        • Medium Water/ Medium Soil37
        • Soft Water/ Little Soil37
        • Adding detergent38
          • 1. If the detergent dispenser 9: is still closed, push the button 9B to open it.38
          • Note:38
            • 2. When using detergent tabs, lay them such that they do not come in contact with the cover, insert a detergent tab flat, not on its side.38
          • Note:38
            • 3. Close the lid by placing the finger on the lid as shown. Slide the lid closed until it clicks.38
            • Tip:38
      • / Dishwasher Cycles39
        • Dishwasher Cycles39
        • Wash cycle39
        • Recommended use39
        • Possible wash cycle option39
        • Note:39
          • Note:39
    • The Energy Guide label was based on the Normal soil sensing cycle as follows: The unit was tested without any rinse aid (liquid) in the rinse aid dispenser 92. A single dose of detergent was inserted into the detergent dispenser 9:, with no detergent...39
      • 0 Dishwasher Cycle Options40
        • Dishwasher Cycle Options40
        • Delay40
        • SpeedPerfect™40
        • Half Load40
        • Delicate40
        • Sanitize40
        • CrystalDry™40
        • Wash Cycle Information41
          • Eco41
            • Note:42
    • Only sanitizing cycles have been designed to meet the requirements of Section 6 of the NSF/ANSI Standard for Residential Equipment for soil removal and sanitization efficacy. There is no intention, either directly or indirectly, to imply that all cyc...42
      • 1 Operating the Dishwasher43
        • Operating the Dishwasher43
        • Note:43
        • 9 WARNING43
          • Risk of injury!43
        • Protection against unintentional operation43
          • This function will be activated when:43
            • Note:43
        • Operating the touch buttons43
        • Changing the settings43
          • Change the setting as follows:43
            • 1. Open the door.43
            • 2. Switch on On/Off button (.43
            • 3. Press Info button 8 for 3 seconds until the following text is indicated in the digital display @:43
            • 4. Keep pressing button > ` until the required setting is indicated in the display window at the top @.43
            • 5. Make the selection with setting buttons + - X.43
            • 6. Press and hold the Info button 8 for 3 seconds.43
          • Tip:43
        • AquaSensor44
        • Time display44
        • Sensor setting44
        • Extra Dry44
        • Eco forecast44
        • Auto power off44
          • Possible settings are:44
        • Tone volume45
        • Button volume45
        • Greeting45
        • Factory setting45
        • Switching the appliance on45
          • 1. Turn the water supply on fully.45
          • 2. Open the door.45
          • 3. Switch on On/Off switch (.45
          • 4. Press Start button )*.45
          • 5. Close the door.45
          • Note:45
        • Delay start time45
          • 1. Open the door.45
          • 2. Switch on On/Off switch (.45
          • 3. Select wash cycle 0.45
          • 4. Press Delay start button `.45
          • 5. Keep pressing the setting buttons + - X until the displayed time corresponds with your requirements.45
          • 6. Press Start button )*, timer programming is activated.45
          • 7. To delete the Delay start time, press Start button )* for about 3 seconds.45
          • 8. Close the door.45
          • Note:45
        • InfoLight® *46
        • EmotionLight46
          • Note:46
        • Wash cycle end46
        • Switching off the appliance46
          • Short time after the end of the wash cycle:46
            • 1. Press On/Off button (.46
            • 2. Remove the dishes when they have cooled down.46
          • 9 WARNING46
            • Risk of injury!46
        • Interrupting the wash cycle46
        • 9 CAUTION46
          • 1. Open the door.46
          • 2. Switch off On/Off switch (.46
          • 3. To continue the wash cycle, switch on the On/Off switch ( again.46
          • 4. Close the door.46
          • Note:47
        • Cancel a cycle (reset)47
          • 1. Open the door and press and hold the Start button )* for approximately 3 seconds until the digital display @ shows: "Program was terminated".47
          • 2. Close the door.47
          • 3. Wait about 1 minute while the dishwasher drains.47
          • 4. Open the door and press the On/Off switch (.47
        • Changing the wash cycle47
      • 2 Care and Maintenance48
        • Care and Maintenance48
        • Cleaning the dishwasher48
          • NOTICE48
          • 9 WARNING48
            • RIsk of explosion!48
          • 9 WARNING48
        • Filters49
          • Filter components49
          • The filter system 1j consists of three parts.49
          • Cleaning intervals49
            • Your filter system may need to be cleaned when:49
          • Cleaning interval49
          • Usage49
            • Note:49
          • To check or clean the filter system:50
            • 1. Unscrew the Large Object Trap as illustrated and remove the entire filter system.50
            • 2. Remove the microfilter from the fine filter for easier cleaning.50
            • 3. Rinse the filters under running water and use a soft brush to clean.50
          • Note:50
            • 4. Reinstall the filter system in reverse sequence and lock into place by screwing the Large Object Trap until the marking arrows align.50
        • Spray arms50
          • Check spray arms 1:, 1Z for grease and limescale deposits. If you find such deposits:50
        • Drain pump51
          • Large food remnants in the rinsing water not retained by the filters may block the waste water pump. In this case:51
            • Note:51
        • Preparing your unit for vacation51
          • NOTICE51
        • Winterizing your unit51
          • NOTICE51
      • 3 Troubleshooting52
        • Troubleshooting52
        • Problem52
        • Cause52
        • Action52
        • Note:55
        • Note:55
        • Note:58
      • --------58
        • 4 Customer Service59
          • Customer Service59
          • 1. Call us at 1-800-944-290459
          • 2. Contact Customer Service from our web site: www.bosch-home.com/us or www.bosch-home.ca59
          • 3. Contact your installer or the Bosch Authorized Service Contractor in your area.59
          • 4. Write us:59
        • ‡ Statement of Limited Product Warranty60
          • Statement of Limited Product Warranty60
          • What this Warranty Covers & Who it Applies to:60
            • The limited warranty provided by BSH Home Appliances Corporation (BSH) in this Statement of Limited Product Warranty applies only to Bosch® dishwashers (“Product”) sold to you, the first using purchaser, provided that the Product was purchased:60
          • How Long the Warranty Lasts60
          • Extended Limited Warranty60
            • BSH also provides these additional limited warranties:60
          • Repair/Replace as Your Exclusive Remedy61
          • Out of Warranty Product61
          • Warranty Exclusions61
            • The warranty coverage described herein excludes all defects or damage that are not the direct fault of BSH, including without limitation, one or more of the following:61
          • How to Obtain Warranty Service63
