EN CONDENSING TANKLESS GAS WATER HEATER Use and Care Manual
SP CALENTADOR A GAS TIPO CONDENSADO Manual de uso y mantenimiento
SBB800R
Rev. 11/12
5995615118 November 2012
*SBB800R*
Models : EN19WI30LS
EP19WI30LS
EN18WI30LS
EP18WI30LS
CONDENSING TANKLESS GAS WATER HEATER
Use and Care Manual
Electrolux Home Products, Inc.
www.electroluxappliances.com
- Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
t%POPUUSZUPMJHIUBOZBQQMJBODF
t%POPUUPVDIBOZFMFDUSJDBMTXJUDIEPOPUVTFBOZQIPOFJOZPVSCVJMEJOH
t*NNFEJBUFMZDBMMZPVSHBTTVQQMJFSGSPNBOFJHICPSTQIPOF'PMMPXUIF
HBTTVQQMJFSTJOTUSVDUJPOT
t*GZPVDBOOPUSFBDIZPVSHBTTVQQMJFSDBMMUIFmSFEFQBSUNFOU
*OTUBMMBUJPOBOETFSWJDFNVTUCFQFSGPSNFECZBRVBMJmFEJOTUBMMFSTFSWJDF
agency or the gas supplier.
If the information in this manual is not followed exactly, a re or explosion
may result causing property damage, personal injury, or death.
WARNING
Thank you for purchasing this Electrolux Tankless Gas Water Heater.
Before using, please:
Read this manual completely for operation instructions.
Completely ll out the product registration/warranty card (included
separately) and mail the detachable portion to Electrolux Home
Products, lnc.
Registration can also be done online or over the phone.
See registration card for details.
Keep this manual where it can be found whenever necessary.
Installation must conform with local codes, or in the absence of local
codes, the National Fuel Gas Code, ANSI Z223.1/NFPA 54.
Electrolux Home Products, Inc. reserves the right to discontinue, or
change at any time, the designs and/or specications of its products
without notice.
FOR USE IN RESIDENTIAL APPLICATIONS IN THE UNITED STATES ONLY. NOT INTENDED FOR USE IN CANADA OR MEXICO.
Low NOx Approved
by SCAQMD
14 ng/J or 20 ppm
(Natural Gas Only)
2
Prohibited
Don’t
touch.
Don’t
disassemble
the equipment.
Don’t touch
with a wet
hand.
No ame.
High
Temperature.
To prevent damage to property and injury to the user, the icons shown below will be used to warn
of varying levels of danger.
Every indication is critical to the safe operation of the water heater and must be understood and observed.
Potential dangers from accidents during installation and use are divided into the following four
categories. Closely observe these warnings; they are critical to your safety.
Other icons
DANGER
WARNING
CAUTION
DANGER indicates an imminently hazardous situation which,
if not avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which,
if not avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which,
if not avoided, may result in minor or moderate injury.
CAUTION used without the safety alert symbol indicates a potentially
hazardous situation which, if not avoided, may result in property damage.
CAUTION
Be sure
to do.
Ground.
Electric
Shock.
DANGER
Icons warning of risk level
Important Safety Information-1
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
7BQPSTGSPNnBNNBCMFMJRVJETXJMMFYQMPEFBOEDBUDImSFDBVTJOHEFBUIPSTFWFSFCVSOT
Do not use or store ammable products such as gasoline, solvents or
adhesives in the same room or area near the water heater.
Prohibited
Keep flammable products:
1. Far away from the water
heater.
2. In approved containers.
3. Tightly closed.
0VUPGDIJMESFOTSFBDI
Vapors:
1. Cannot be seen.
2. Vapors are heavier than air.
3. Go a long way on the floor.
4. Can be carried from other rooms
to the main burner by air currents.
Hot Water Heater temperatures over 125°F (52°C) can cause severe burns
instantly or death from scalding.
Children, disabled and elderly are at the highest risk of being scalded.
Feel water temperature before bathing or showering.
Temperature limiting valves are available, ask professional person.
Prohibited
(Continued)
3
No ame.
(Continued)
WARNING
Be sure
to do.
When a gas leak is noticed:
1. Stop use immediately
2. Close the gas valve
3. Open windows and doors
If you detect abnormal combustion
or abnormal odors, or during an
FBSUIRVBLFUPSOBEPPSmSF
1. Turn off the hot water supply
2. Turn off the power to the water
heater
3. Turn off gas and water supply
valve
4. Call the nearest Electrolux agent
Be sure
to do.
Do not allow anyone to change the
water temperature while hot water
is being used.
To prevent scalding, do not change the
water temperature to a higher setting.
Prohibited
A. This water heater does not have
a pilot. It is equipped with an
ignition device that automatically
lights the burner. Do not try to
light the burner by hand.
B.
BEFORE OPERATING smell all
around the water heater area for
evidence of leaking gas. Be sure
to smell next to the floor because
some gas is heavier than air and
will settle on the floor.
WHAT TO DO IF YOU SMELL GAS.
t%POPUUSZUPMJHIUBOZ
appliance.
t%POPUUPVDIBOZFMFDUSJDBM
TXJUDIEPOPUVTFBOZQIPOFJO
your building.
t
Immediately call your gas
TVQQMJFSGSPNBOFJHICPST
QIPOF'PMMPXUIFHBTTVQQMJFST
instructions.
t
If you cannot reach your gas
TVQQMJFSDBMMUIFmSFEFQBSUNFOU
C. Use only your hand to turn
the gas valve knob. Never use
tools. If the knob will not turn by
IBOEEPOUUSZUPSFQBJSJU$BMM
BRVBMJmFETFSWJDFUFDIOJDJBO
Force or attempted repair may
SFTVMUJOBmSFPSFYQMPTJPO
D. Do not use this water heater if
any part has been under water.
MNNFEJBUFMZDBMMBRVBMJmFE
service technician to inspect the
water heater and to replace any
damaged parts.
(Continued)
Prohibited
Check the temperature
of the running hot water
before entering the
shower.
Check the temperature
before stepping into
the bath tub.
High
Temperature.
&YQMPTJPO)B[BSE
If the temperature and pressure relief
valve is dripping or leaking, have a
RVBMJmFETFSWJDFUFDIOJDJBOSFQMBDFJU
Do not plug or remove the valve.
Failure to follow these instructions can result
in re or explosion, and personal injury or
death.
Prohibited
Do not use the water
heater if the intake/
exhaust pipe is
displaced, has holes,
is clogged or is
corroded.
After the water heater has been out of
use for a long time make sure that you
mMMUIFDPOEFOTBUFUSBQXJUIXBUFS
This is to prevent dangerous exhaust
gases from entering the building.
'BJMVSFUPmMM UIFDPOEFOTBUF USBQDPVME
result in severe personal injury or death.
(Refer to page 20 for further instructions.)
Be sure
to do.
Be sure
to do.
[When supplying combustion air
from the indoors]
Check whether or not the air
supply vent is blocked with
dust, trash, a towel, or the like.
Blocking the opening may result
in incomplete combustion.
Towel
Air supply vent
4
Do not place the exhaust vent terminal
in an indoor environment by means
of
adding walls and ceiling (Do not
en
close using corrugated sheets, etc.)
Carbon monoxide poisoning or re may
occur as a result.
Important Safety Information
-
2
(Continued)
If this unit will be installed in a beauty
salon or other location where hair
spray or aerosols will be used, locate
the unit in a separate area that is
supplied with fresh air from outdoors.
Prohibited
Be sure the gas/power
supplied matches the
gas on the rating plate.
Ex. For EN19WI30LS
Installation and service must be
QFSGPSNFECZBRVBMJmFEJOTUBMMFS
service agency or the gas supplier.
Be sure
to do.
Be sure
to do.
(Continued)
Prohibited
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
Prohibited
Do not place or use a spray can
near
the water heater or the exhaust vent
terminal.
Do not use hair spray or spray
detergent in the vicinity of the
heater.
Prohibited
Prohibited
Do not place outdoors
Rain may enter the unit
or the burner fire may be
blown by the wind, causing
malfunction or re as a result.
Prohibited
Outdoor
Leave the proper clearance between
the water heater and nearby objects
(trees, timber, boxes with flammable
materials etc.).
Be sure
to do.
*
Indicates suggested clearances for maintenance.
Do not place combustibles such as
laundry, newspapers, oils etc. near the
heater or the exhaust vent terminal.
Prohibited
Do not use combustible chemicals such
as oil, gasoline, benzene etc. in the near
the heater or the exhaust vent terminal.
Prohibited
Carbon Monoxide Poisoning Hazard. Do
not install this water heater in a mobile
home, recreation vehicle or on a boat.
Prohibited
WARNING
Left side:
Min. 2" (50mm)
Right side:
Min. 2" (50mm)
Front:
Sug. 24" (600mm)
*
Sug.3" (75mm)
from vent pipe*
Upper:
Min. 12" (300mm)
Exhaust vent
terminal
Exhaust vent
terminal
Be sure
to do.
[When supplying combustion air
from the indoors]
Check the air supply opening
for dust or obstructions.
Clogged
air supply
opening!!
5
(Continued)
Do not allow small children to play
unsupervised in the bathroom.
Do not allow small children to bath unsupervised.
Do not touch the power
cord with wet hands.
Electric
Shock.
Don’t touch
with a wet
hand.
Prohibited
Contact Electrolux before using with
a solar pre-heater.
$POUBDUBRVBMJmFETFSWJDF
technician for any necessary repairs,
service or maintenance.
Consult the nearest Electrolux agent
if the water heater location needs to
be changed.
Don’t
disassemble
the equipment.
Be sure
to do.
Be sure
to do.
California Proposition 65 lists chemical substances
known to the state to cause cancer, birth defects,
death, serious illness or other reproductive harm.
This product may contain such substances,
be their origin from fuel combustion (gas, oil)
or components of the product itself.
CAUTION
Be sure to electrically ground the
unit.
Keep power cord free of dust.
Ground.
Be sure
to do.
Do not use the water heater for
other than hot water supply, shower
and bath.
Prohibited
Prohibited
Do not cover the water heater and
the exhaust vent terminal, store trash
or debris near it, or in any way block
the flow of fresh air to the unit.
Do not turn off the water heater
while someone is bathing.
Prohibited
%POPUVTFBCSPLFOPSNPEJmFEQPXFSDPSE
Do not bind, bend or stretch power cords.
Do not scratch, modify, or subject them
to impact or force.
Do not touch the exhaust vent pipe
and exhaust vent terminal during or
immediately after operation of the
water heater.
Do not install in locations where
excessive dust or debris will be
in the air.
Prohibited
Don’t
touch.
Prohibited
Be sure
to do.
To prevent burns or scalding, turn off the
power button and wait until the equipment
cools before performing maintenance.
The gas conversion kit shall be installed by a
RVBMJmFETFSWJDFBHFODZJOBDDPSEBODFXJUI
UIFNBOVGBDUVSFSTJOTUSVDUJPOTBOEBMM
applicable codes and requirements of the
authority having jurisdiction. The
information in the instructions must be
GPMMPXFEUPNJOJNJ[FUIFSJTLPGmSFPS
explosion or to prevent property damage,
QFSTPOBMJOKVSZPSEFBUI5IFRVBMJmFE
service agency is responsible for the proper
installation of this kit. The installation is not
proper and complete until the operation of
the converted appliance is checked as
TQFDJmFEJOUIFNBOVGBDUVSFSTJOTUSVDUJPOT
supplied with the kit.
Do not use condensate, discharged
from the drain pipe, for drinking or
for consumption by animals.
Prohibited
6
Important Safety Information
-
3
CAUTION
Do not drink water that has been inside the
unit for an extended period of time. Do not
ESJOLUIFmSTUVTFPGIPUXBUFSGSPNUIF
unit in the morning.
$MFBOUIFmMUFSPOUIFXBUFSJOMFUBT
frequently as required by the quality of
your local water.
Keep the area around the unit clean.
If boxes, weeds, cobwebs, cockroaches etc.
are in
the vicinity of the unit, damage or re can
result.
Do not install the equipment where the
exhaust will blow on walls or windows.
Problems resulting from scale formation
are not covered by the warranty.
This unit is only approved for installation
up to 4500 ft. (1350m) above sea level.
For installations at higher elevations, contact
Electrolux Home Products, Inc. for Instructions.
Check ignition during use and extinction
after use.
If the water supply is in excess of 12 grains
per gallon (200 mg/L) of hardness, acidic
or otherwise impure, treat the water with
approved methods in order to ensure full
warranty coverage.
Preventing damage from freezing (
p.18)
Damage can occur from frozen water within the
device and pipes even in warm environments.
Be sure to read below for appropriate measures.
Repairs for damage caused by freezing are not
covered by the warranty.
Take necessary measures to prevent
freezing of water and leakage of gas when
leaving the unit unused for long periods of
time. ( p.19, 20)
%POPUVTFQBSUTPUIFSUIBOUIPTFTQFDJmFE
for this equipment.
If it is snowing, check the exhaust vent
terminal for blockage.
Do not disassemble the remote controller.
Do not use benzene, oil or fat detergents
to clean the remote controller.
This may cause deformation.
Do not get the remote controller wet.
Although it is water resistant, too much water can
cause damage.
Do not splash water on the remote
controller. Do not expose the remote
controller to steam.
Do not locate the remote controller near stoves or
ovens, this may cause damage or failure.
Do not run water through the unit when
unit is not on.
When discharging hot water, make sure the unit is ON.
If water is run through the unit with the unit
OFF, water may condense inside the unit and cause
incomplete combustion or damage to the internal
electrical components.
For single-handle xtures or valves, discharge
water setting the handle completely
to the water side.
7
Important Safety Information ....................................................................... 2
Contents ........................................................................................................ 7
Overview of Condensing Tankless Gas Water Heater .............................. 8
General Parts
Main Unit .................................................................................................... 9
Remote Controller .................................................................................... 10
Initial Operation ............................................................................................ 11
How to Use
Setting and Using the Water Heater ........................................................ 12
Flow Meter Alarm ...................................................................................... 14
Muting the Remote Controller ................................................................. 16
Adjusting the Maximum Output Temperature ........................................ 17
Preventing Damage from Freezing ............................................................. 18
Regular Maintenance ................................................................................... 22
Troubleshooting ........................................................................................... 24
Follow-up Service ........................................................................................ 29
4QFDJmDBUJPOT ............................................................................................... 31
Limited Warranty .......................................................................................... 33
Contents
8
Cold wate
r
Cold wate
r
Gas
Gas
Hot water
Hot water
Condensate
Combustion gas
About
400˚F (200˚C)
Exhaust Exhaust
About
120˚F (49˚C)
Conventional
type
Condensing
Tankless Gas
Water Heater
Water is heated
using the exhaust
gas which is about
400˚F (200˚C)
.
Primary heat exchanger
Primary heat exchanger
Secondary heat exchanger
condensate trap
Combustion gas
About
400˚F (200˚C)
About
400˚F (200˚C)

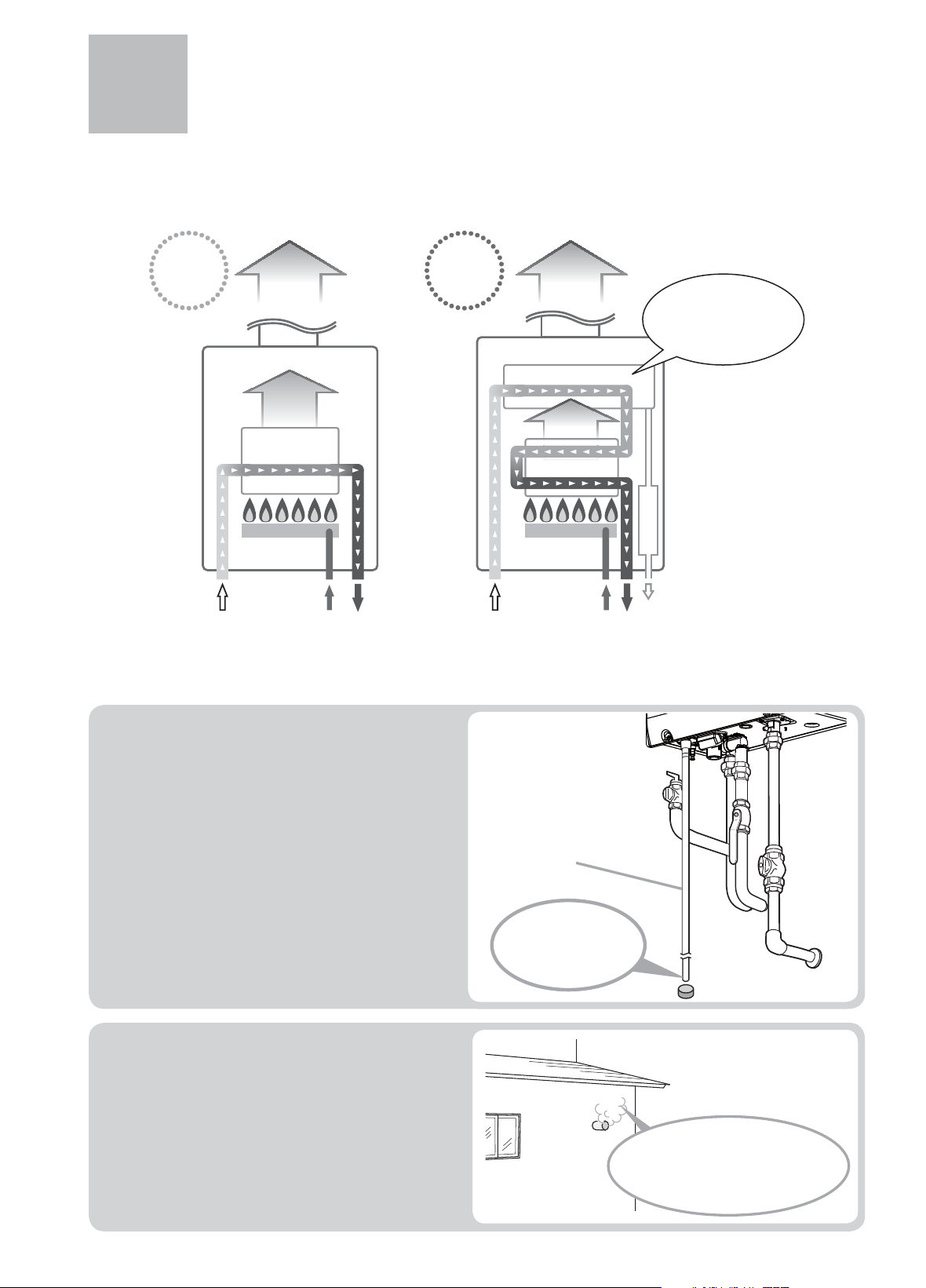

The condensing tankless gas water
heater discharges condensate.
When heat from the exhaust gas is collected within
the secondary heat exchanger, condensation occurs
from moisture in the exhaust gas and the resulting
water is discharged from the drain pipe (approx.
2 gallons/hour (7.5 liters/hour) maximum). It is not a
water leak. Do not plug or block the drain line as it
must always be allowed to freely ow.
Note : The condensate discharged is acidic with a
pH level of approximately 2-3.
A condensate neutralizer may be required by
local code prior to disposal.
Drain pipe
(Installation example)
Overview of Condensing Tankless Gas Water Heater
This water heater is a high efciency, fully condensing appliance. Unlike a traditional tankless water
heater, a condensing type captures heat from the exhaust gas and uses it to preheat the incoming
cold water as it passes through the secondary heat exchanger as illustrated below.
The condensing tankless gas
water heater tends to show
white steam.
After the exhaust gas passes through the
secondary heat exchanger, it becomes low in
temperature and moisture rich which tends to
produce steam at the vent discharge terminal.
This is a normal
occurrence.
Condensate
comes out
from here.
During combustion, white
steam may often be seen.
This is normal.
(Ex. EN18WI30LS)
9

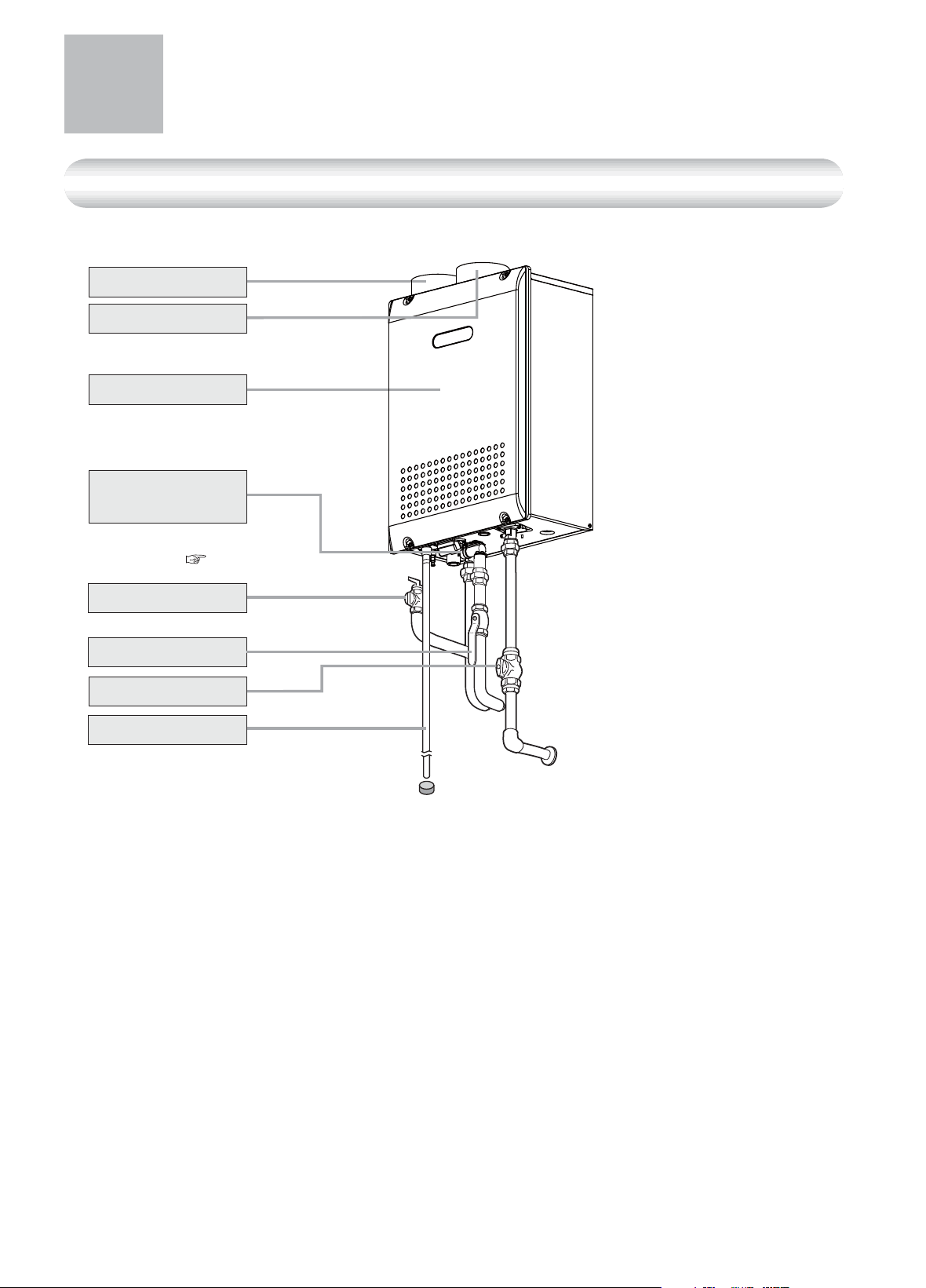

Indoor Wall Mounted, Power Vent/Sealed Model
* The above illustration shows an example of installation.
The exact installation conguration may be slightly different.
Main Unit
Front Cover
Water Supply Valve
General Parts -1
Intake Pipe
Flue Collar
Drain Pipe
Discharges the
condensate.
Gas Supply Valve
Pressure Relief Valve
Water Drain Valve
(with Water Filter)
(Inside Water Inlet)
(
p.22)
(Ex. EN18WI30LS)
10

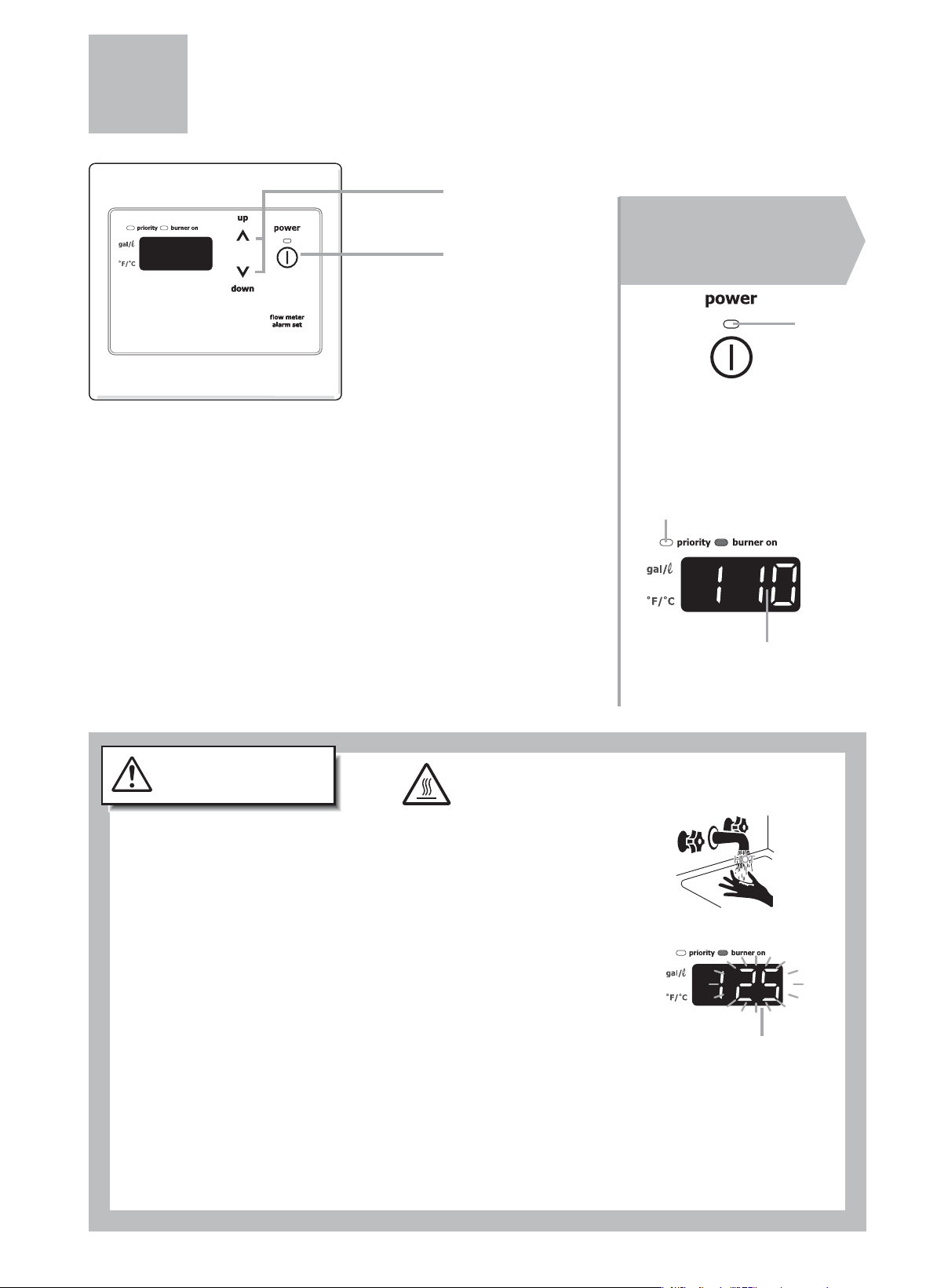

Remote Controller
For setting the hot
water temperature,
the ow meter alarm,
and other settings.
Power On/Off Button
For turning the
heater on and off.
Flow Meter Alarm Set Button
For setting the ow
meter alarm.
(
p.14 - 15)
Setting Buttons
* Before use, remove the protective sheet from the remote controller surface.
Temperature Setting
(Ex.:110°F)
Flow Meter Setting
The display will ash
after hitting the ow
meter alarm set button.
( p.15)
Error Code
When this indicator is lit,
the hot water temperature
can be set. ( p.12)
What is actually displayed depends on how the water heater is set.
A number will ash if
a failure occurs.
(
p.28)
Priority Indicator
Burner On Indicator
When burning, the
indicator is lit.
( p.13 and 15)
Note: As shipped from the factory, the remote controller is set to display in °F and gallons.
To adjust the display to °C and liters, refer to the Installation Manual.
General Parts -2
11
Initial Operation
Before the rst use of your water heater, make the following preparations.
Follow steps
1 through 4
.
1
Open the water supply valve.
Open a hot water xture to conrm that
water is available, and then close the
xture again.
3
Open the gas supply valve.
Hot water xture
2
Turn on the power.
CLOSED
4
OPEN
Do not touch with wet hands.
(Ex. EN18WI30LS)
12
Remote controller Display
Press the Power
On/Off Button.
How to Use
Setting and Using the Water Heater
Previous set
temperature
(Ex.: 110°F)
The temperature will be
displayed on the remote
control thermostat.
1
2
(Starting with the Power Off)
On
On
High Temperature
To prevent scalding:
Flashes for 10 sec
1
DANGER
Hot Water Heater temperatures over 125°F (52°C) can cause
severe burns instantly or death from scalding.
r
Children, disabled and elderly are at the highest risk of being scalded.
Feel water temperature before bathing or showering.
Temperature limiting valves are available, ask professional person.
r 8IFOTFUUJOHUIFVOJUUP'$'PSIJHIFSUIF
temperature display will ash for
10 seconds and emit a tone
as
a high temperature warning.
r
Take caution when using the unit again after setting to 125°F
(52°C) or higher. Always check the set temperature before use.
r %POPUBMMPXBOZPOFUPDIBOHFUIFXBUFSUFNQFSBUVSFXIJMF
hot water is running.
13

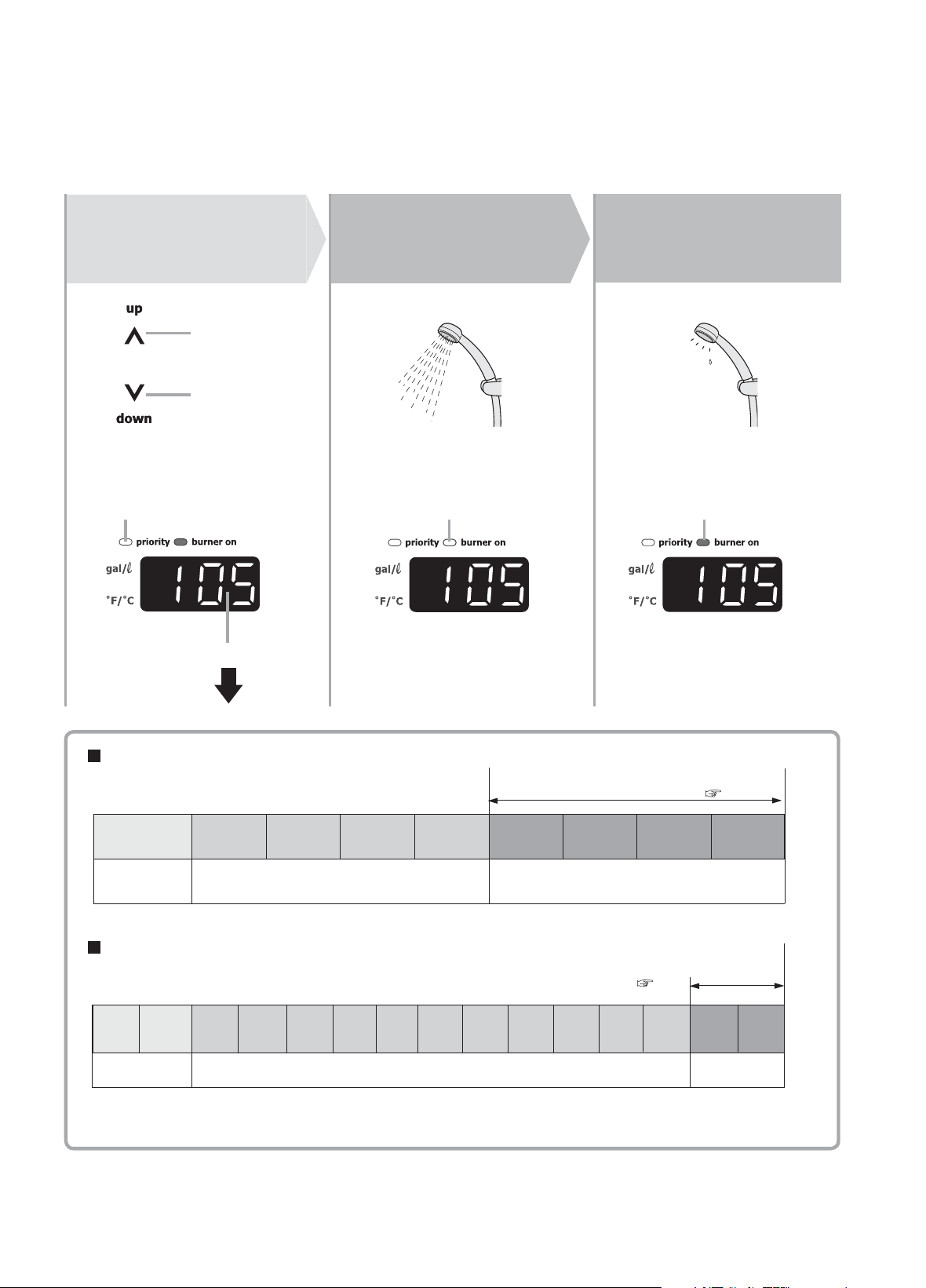

4
3
Turn on hot
water.
2
Set temperature.
Turn off the hot
water.
Always check the
temperature setting
before use.
Hot
Cold
Check the indicator lights.
Water temperature
On Off
(
°F
:
)
The temperature settings below are examples. The temperature setting
necessary depends on the usage, the length of piping and the time of year.
*Initial factory setting is 110°F
If xtures incorporate mixing valves, set the temperature higher than usual.
* For most residential applications, the recommended setting temperature is 120°F / 50°C (122°F)
or less.
* Consult local codes for minimum operating temperatures.
100 105 110 115 120 125 130 135 140
Shower, hot water supply, etc.
Washing
dishes, etc.
High temperature
The maximum output temperature
can be
set using the remote controller. ( p.17)
(
°C (°F)
:
)
The temperature settings below are examples. The temperature setting
necessary depends on the usage, the length of piping and the time of year.
*Initial factory setting is 40°C (104°F)
Shower, hot water supply, etc.
Washing
dishes, etc.
High
temperature
37 38 39 40 41 42 43 44 45 46 47 48
50 55 60
(99)
(100) (102) (104) (106) (108) (109) (111) (113) (115) (117) (118) (122) (131) (140)
The maximum output temperature
can be set using the remote
controller. ( p.17)
When using °F mode:
When using °C mode:
(
)
14
How to Use
Flow Meter Alarm
3
2,3
1
2
Set temperature.
Press the Power
On/Off Button
Plug the bath drain.
Preparation
(Starting with the power off)
Always check
temperature setting
before use.
Hot
Cold
On
The temperature will be displayed
on the remote control thermostat.
Previous set temperature (example:110°F)
On
Check the indicator lights.
Water temperature
1
If the ow meter alarm is being used to
indicate when a tub is full:
r
If any hot water is being used besides
what is going into the tub, the alarm
will sound before the tub is full.
r
If there was water in the tub before
the fill began, or if the water is not
shut off manually when the alarm
sounds, the tub may overow.
r
If there was water in the tub before
the ll began, the temperature in the
tub after it is full may be different from
the temperature setting.
On
Check the indicator lights.
Water temperature
Previous set temperature (example:40°C)
When the display
setting is in Celsius.
When the display
s
etting is in Fahrenheit.
(
)
15
An alarm will sound for
ten seconds when the ow
reaches the set level.
The water will continue to run unless
it is manually turned off.
5
Turn off the hot
water when the
alarm sounds.
4
Turn on hot
water.
3
Adjust flow meter
alarm setting.
To set the ow meter alarm:
Press the ow meter alarm set button
(the setting will ash on the display)
and adjust with the setting buttons.
Increase
Decrease
Choose the ow meter alarm setting from the following
options: 10 - 60 gallon (40 - 240L) (In 5 gallon (20L)
intervals), 70 gallon (260L), 80 gallon (300L),
90 gallon (340L), 100 gallon (380L) , 990 gallon.
Note:
The alarm will not sound if it is
set for 990 gallon.
Note:
The alarm will not sound
if it is set for 990 gallon.
On
Flow meter setting will be ashing
(ex. 45 gallon)
Off
The alarm will sound when
the set level has been
reached. Stop the water.
* The level can only be adjusted
while the indicator is ashing.
*
After ten seconds, the remote will
again display the temperature.
On
Flow meter setting will be ashing (ex. 180L)
Off
* Initial factory setting: 110°F or 40°C (104°F)
Water Temperature
The temperatures settings below are only examples. The
temperature setting necessary will depend on the usage,
the length of piping and the time of year.
(
°C (°F)
:
)
Warmer HotWarm
37 38 39 40 41 42 43 44 45 46 47 48
(99) (100) (102) (104) (106) (108) (109) (111) (113) (115) (117) (118)
100 105 110 115 120
Warmer HotWarm
The temperatures settings below are only examples. The
temperature setting necessary will depend on the usage,
the length of piping and the time of year.
(
°F
:
)
16
The remote controller will emit a sound
when any button is pushed. This sound
can be muted if it is desired.
1
How to Use
Muting the Remote Controller
* Initial factory setting is with sound.
Sound
Muted
No sound
after 5 sec.
1
Hold the Power On/Off
Button for five seconds.
Tone sounds
after 5 sec.
r5IFáPXNFUFSBMBSNDBOOPUCFNVUFE
r5IFIJHIUFNQFSBUVSFXBSOJOHUPOFXIFOTFUUJOHUIFVOJUUP'$'PSIJHIFSXJMM
not emit a sound when muted.
17
How to Use
Adjusting the Maximum Output Temperature
2
3
1
3
Change the
temperature using
the setting buttons.
Press and hold the flow
meter alarm set button until
a sound is heard (2 sec.).
Up
Down
The upper limit of the hot-water supply
temperature can be changed to
(For Fahrenheit (°F))
100°F, 105°F, 110°F, 115°F, 120°F,
125°F, 130°F, 135°F or 140°F.
(For Celsius (°C))
37°C, 38°C, 39°C, 40°C, 41°C, 42°C,
43°C, 44°C, 45°C, 46°C, 47°C, 48°C,
50°C, 55°C or 60°C.
2
Turn off the
power.
Off
1
Set the Power button to ON when continuing to use
the unit as is. Otherwise, let the unit sit for 30 sec.
4
Tone sounds
after 2 sec.
18
* Damage can occur from frozen water within the device and pipes even in warm environments.
Be sure to read below for appropriate measures.
* Repairs for damage caused by freezing are not covered by the warranty.
Freezing cannot be prevented when the power plug is unplugged. Do not remove the power
plug from the wall outlet.
Freezing will be prevented regardless of whether the operation switch is ON or OFF.
Take the measures below for extremely cold temperatures*.
Outside temperature including wind chill factor less than -30°F (-35°C).
-
When supplying combustion air from the indoors, the room temperature must be greater than
32°F (0°C) to prevent freezing and the room inside must not have negative pressure.
This method can protect not only the heater, but also the water supply, water piping and mixing valves.
1. Turn off the power.
2. Close the gas supply valve.
3. Open a hot water xture, and keep a small stream of hot water
SVOOJOHHBMMPODDNJOVUFPSBCPVUNNUIJDL
* If there is a mixing valve, set it to the highest level.
* When linking multiple units, discharge water equivalent to
HBMMPODDNJOVUFQFSVOJU
4. The ow may become unstable from time to time.
Check the ow 30 minutes later.
* In general, it is not advisable to run water through the unit when
it is OFF ( p. 6), but in this case freeze prevention is more important.
*
Remember to set mixing valves and xtures to their original levels before using the unit again
to prevent scalding.
* If there is still a risk that the unit will freeze, drain the unit as shown on the pages 19, 20.
Preventing Damage from Freezing-1
Freezing is prevented within the device automatically by the freeze-prevention heater.
If water will not flow because it is frozen
1. Close the gas and water valves.
2. Turn off the power button.
3. Open the water supply valve from time to time to check whether water is running.
4.
When the water is owing again, check for water leaks from the equipment and piping before using.
If the heater or the piping is frozen, do not use the heater or it may get damaged.
CAUTION
* In normal operation, freezing is prevented within the device automatically unless the outside
temperature without wind is below -30°F (-35°C).
- When supplying combustion air from the indoors, the room temperature must be greater than
32°F (0°C) to prevent freezing and the room inside must not have negative pressure.
* The freeze prevention heaters will not prevent the plumbing external to the unit from freezing.
Protect this plumbing with insulation, heat tape or electric heaters, solenoids, or pipe covers.
If there remains a freezing risk, contact the nearest Electrolux agent.
NN
thick
Hot Water Fixture
19

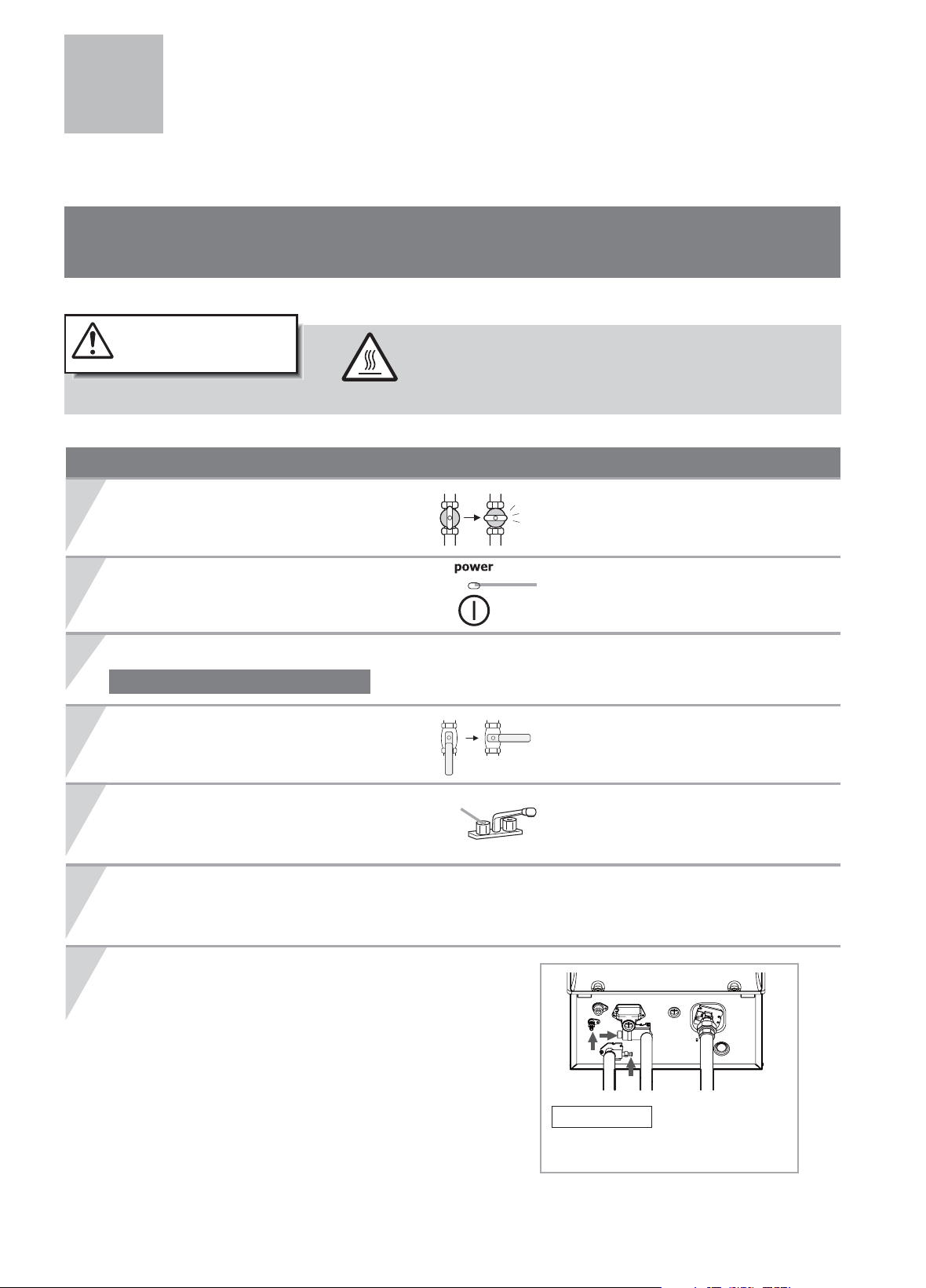

If the water heater will not be used for a long period of time,
drain the water.
Drain the water as follows:
For EN18WI30LS, EP18WI30LS
To avoid burns, wait until the equipment cools
down before draining the water. The appliance
will remain hot after it is turned off.
High Temperature
CAUTION
Fixture
Drain Plugs
Each drain plug might not be visible if
insulation is installed around the piping.
Close the water supply valve.
2
Turn off the power button.
Manual Draining
Disconnect the electrical power supplied to the unit.
3
4
5
Fully open all hot water xtures.
6
7
Close the gas valve.
1
Turn the drain plug to the left to open, and then remove.
Allow a minimum of 10 minutes for water to drain out of the unit.
Check that the water is completely drained.
When completely drained, replace all drain plugs
and close the hot water xtures.
Do not touch with wet hands.
Drain water into a bucket to prevent water damage.
Off
Preventing Damage from Freezing-2
20
Preventing Damage from Freezing-3
For EN19WI30LS, EP19WI30LS
Drain Plugs
Each drain plug might not be visible if
insulation is installed around the piping.
If the water heater will not be used for a long period of time, drain the water.
Drain the water as follows:
To avoid burns, wait until the equipment cools down
before draining the water. The appliance will remain
hot after it is turned off.
High Temperature
CAUTION
Fully open all hot water xtures.
4
Open all drain plugs and drain the water out of
the unit.
1
Close the water supply
valve.
6
Close the gas valve and disconnect
the electrical power supplied to the unit.
2
3
Fully open all
hot water xtures.
Fixture
Drainage Using the Remote Controller
2
5VSOUIFQPXFSPOPGGCVUUPOi0Ou
(2) Turn and leave open
the hot water xtures
for more than 2 minutes
and close.
* If multiple units are being used,
drain two minutes for each unit.
* An 11 Error Code may appear on
the remote controller.
This is not a malfunction of the unit.
%POPUUVSO1PXFS0/0''#VUUPO0''
Manual Draining
Close the water supply
valve and disconnect
the electrical power
supplied to the unit.
3
4
5
When the water is completely drained, replace
all drain plugs and close the hot water xtures.
5
Open all drain plugs and drain the
water out of the unit.
6
Close the gas valve.
1
When the water is completely
drained, replace all drain plugs and
close the hot water xtures.
Fixture
Fixture
(Ex. 120°F)
Do not touch with wet hands.
Do not touch with wet hands.
Drain water into a bucket to prevent water damage.
5VSOUIFQPXFSPOPGG
CVUUPOiPGGu
(2)
Press the ow meter alarm set
button for about two seconds
until the alarm sounds.
The maximum hot water
temperature will ash.
(3) Press the ow meter alarm
set button again.
(4)
Press the setting button
NBSLFEiu. The display will
DIBOHFGSPNP'UPPOBGUFS
the button is
pushed.
21
Turning the Unit Back On
1. Check that all drain plugs are inserted.
2. Check that all hot water xtures are closed.
3.
'PMMPXUIFQSPDFEVSFPOQi*OJUJBMPQFSBUJPOuTUFQTUISPVHI
4. Make sure that the area around the appliance is well ventilated; open a window or a door if necessary.
Then, operate the unit and verify that condensate is coming out of the drain pipe.
(During normal use of the water heater, condensate will begin to discharge from the drain pipe within 15
NJOVUFTPGVTF)PXFWFSEFQFOEJOHPOUIFTFBTPOBOEPSJOTUBMMBUJPOTJUFDPOEJUJPOTJUNBZUBLFMPOHFS
* If water does not appear at the end of the drain line, a qualied service technician must clean the
condensate line.
After the water heater has been out of use for a long time make sure that you ll
the condensate trap with water.
This is to prevent dangerous exhaust gases from entering the building.
Failure to ll the condensate trap could result in severe personal injury or death.
(By performing step 4 as described above, the condensate trap will automatically
ll itself with water.)
Be sure to do.
DANGER
22
Periodic Maintenance
Wipe the outside surface with a wet cloth, then dry the surface. Use a neutral detergent to clean any stains.
If an external condensate neutralizer is installed, periodic replacement of the neutralizing agent will be required.
Refer to the instructions supplied with the neutralizer for suggested replacement intervals.
r %POPUVTFCFO[FOFPJMPSGBUUZEFUFSHFOUTUPDMFBOUIFSFNPUFDPOUSPMMFS
deformation may occur.
r 5IFSFNPUFDPOUSPMMFSJTXBUFSSFTJTUBOUCVUOPUXBUFSQSPPG,FFQJUBTESZBTQPTTJCMF
Regular Maintenance
Periodic Inspection
Equipment
Remote Controller
Wipe the surface with a wet cloth.
To prevent burns or scalding, turn off the power
button and wait until the equipment cools before
performing maintenance.
CAUTION
Be sure to do.
Check
For laundry, newspaper,
timber, oil, spray cans
and other combustible
materials near the heater
or the exhaust vent
terminal.
For abnormal sounds
during operation.
For abnormalities in
external appearance,
discoloration or aws.
For water leaks from the
equipment and piping.
For dust and soot in
the exhaust vent or
exhaust vent terminal.
For proper operation of
pressure relief valve.
Check
Check
Check
Check
Check
(Ex. EN18WI30LS)
For blockage at the
drain pipe discharge.
Check
Check
For smear or blockage
with dust, oil, etc. at the
air supply vent.
If blocked, remove the
build-up with a vacuum
cleaner or damp towel.
[When supplying combustion air
from the indoors]
* Do not permanently remove the Inlet Screen.
air supply vent
23
Periodic Maintenance
If the water drain valve (with water lter) is covered with debris, the hot water may not run
smoothly, or the unit may put out cold water. Check and clean the lter as explained below.
* To avoid burns, wait until the equipment cools down before draining the water.
The appliance will remain hot after it is turned off.
Water Drain Valve (with Water Filter)
1. Close the water supply valve.
2. Open all hot water xtures.
3. With a bucket ready, remove the inlet and outlet
drain plugs (For EN18WI30LS and EP18WI30LS,
about 0.4 gallon (1.4L) will drain out.
For EN19WI30LS and EP19WI30LS,
about 0.45 gallon (1.7L) will drain out.)
4. Take the water drain valve (with water lter) out of
the inlet. (See illustration to right).
5. Clean the water drain valve (with water lter) with
a brush under running water.
6. Replace the water drain valve (with water lter)
and close the drain plugs.
(Take care not to lose the packing.)
7. Close all hot water xtures.
8. Open the water supply valve and check that
water does not leak from the drain plugs or water
drain valve (with water lter).
Optional Maintenance
* Isolation valves may be purchased as an
accessory from Electrolux.
They allow for full diagnostic testing and easy
ushing of the system.
* The kit includes two full port isolation valves
and a pressure relief valve for the hot side.
Contact Electrolux for more information.
Isolation Valves
Water Supply
Valve
Inlet
Packing
Water drain valve
(with water lter)
Water Intlet
Water Outlet
Drain
Hot Water
Service Valve
Pressure Relief Valve
Cold Water
Service Valve
(Ex. EN18WI30LS)
(Ex. EN18WI30LS)
24
Troubleshooting-1
Initial Operation
Unit does not attempt to ignite
when water is running.
r$IFDLGPSSFWFSTFEQMVNCJOHPSDSPTTFEQJQFT
r$IFDLUIFXBUFSESBJOWBMWFàMUFS
p.23)
Unit attempts to ignite but fails.
Temperature
Hot water is not available
when a xture is opened.
r"SFUIFHBTBOEXBUFSTVQQMZWBMWFTGVMMZPQFO
r*TUIFXBUFSTVQQMZDVUPGG
r*TUIFIPUXBUFSàYUVSFTVGàDJFOUMZPQFO
r
*TUIFHBTCFJOHDVUPGGCZUIFHBTNFUFS
$BOPUIFSHBTEFWJDFTTVDIBTTUPWFTCFVTFE
r'PS-1*TUIFSFFOPVHIHBTJOUIFUBOL
$BOPUIFSHBTEFWJDFTTVDIBTTUPWFTCFVTFE
r*TUIFXBUFSESBJOWBMWFàMUFSDMPHHFE
p.23)
r*TUIFQPXFSCVUUPOUVSOFEPO
r"SFUIFHBTBOEXBUFSTVQQMZWBMWFTGVMMZPQFO
r*TUIFXBUFSUFNQFSBUVSFTFUUJOHBQQSPQSJBUF
(
p.12 and p.13)
r*GUIFXBUFSTVQQMZUFNQFSBUVSFJTIJHIJUJTQPTTJCMFGPSUIF
temperature to be higher than the temperature set on the
remote controller.
r*GPOMZBTNBMMBNPVOUPGIPUXBUFSJTEFNBOEFEJU
is possible for the temperature to be higher than the
temperature set on the remote controller.
The water is too hot.
r)BWFZPVBMMPXFEFOPVHIUJNFGPSUIFDPMEXBUFSJOUIF
QJQFTUPESBJOPVU
Water takes time to become hot
when turning the hot water xture.
No water is available when
a xture is opened.
r*TUIFXBUFSTVQQMZDVUPGG
r*TUIFIFBUFSGSP[FO
The hot water is not the correct
temperature.
r*TUIFIPUXBUFSàYUVSFTVGàDJFOUMZPQFO
r3FTFUVOJUBOEUSZBHBJO5IFSFNBZCFBJSJOUIFHBTMJOF
r)BWFBQSPGFTTJPOBMDIFDLUIFHBTTVQQMZQSFTTVSF
r"SFUIFHBTBOEXBUFSTVQQMZWBMWFTGVMMZPQFO
r*TUIFXBUFSUFNQFSBUVSFTFUUJOHBQQSPQSJBUF
(
p.12 and p.13)
r*GUIFBNPVOUPGIPUXBUFSSFRVJSFEJTWFSZIJHIJU
is possible for the temperature to be lower than the
temperature set on the remote controller.
Decrease the amount of hot water passing through the unit
and the temperature should stabilize.
The water is not hot enough.
25
The water is cold when only a
single xture is open.
r5IFVOJUXJMMOPUIFBUUIFXBUFSJGUIFáPXSBUFJTMFTTUIBO
0.5 gallons (2L) per minute.
Open the xture more or open other xtures so that a
greater
ow passes through the unit, and the unit should
begin heating again.
Amount of Hot Water
The amount of hot water at a
certain xture is not constant.
r
When hot water is demanded at other xtures, the amount
available may be reduced. The maximum ow available
from
UIF&/8*-4&18*-4JT(1.-NJO
at a
45°F (25°C) temperature rise. The maximum ow available
GSPNUIF&/8*-4&18*-4JT(1.-NJOBU
a 45°F (25°C) temperature rise.
r1SFTTVSFáVDUVBUJPOTBOEPUIFSQMVNCJOHDPOEJUJPOTDBO
cause the temperature and pressure at a xture to be
unstable, but it should stabilize after a short time.
r5IFSFBSFTPNFUZQFT PGIPUXBUFS UBQTUIBUEJTDIBSHFT
large volumes of hot water at rst but stabilize after time.
r5PLFFQUIFUFNQFSBUVSFTUBCMFUIFIFBUFSMJNJUTUIF
amount of water that can ow through it to a small amount
initially, but the amount increases over time.
The amount of hot water in the tub
JTMFTTNPSFUIBOUIFTFUBNPVOU
r8IFOIPUXBUFSJTVTFEGPSPUIFSàYUVSFTXIJMFàMMJOHUIF
bath tub, the tub will not ll as much.
r
If there is water in the tub already, or when lling is stopped
and restarted, the tub will ll more.
The ow meter alarm does not
sound even when lled to the set
amount.
r5IFáPXNFUFSBMBSNJTTFUUPTPVOEXIFOIPUXBUFS
is continuously discharged for the set volume of water.
If mixing valves are used, or if cold water is mixed with hot
water at the xture, the tub will ll more than the setting
of the ow meter alarm.
Amount of hot water available
has decreased over time.
Fluctuations in hot water
temperatures.
r4FUXBUFSUFNQFSBUVSFBU°F to 120°F or 48°C (118°F) to
50°C (122°F). This will allow you to use a higher ow of hot
water thus meeting the minimum ow requirement of 0.5
(1.-NJO
r$MFBOUIFXBUFSàMUFSPGBOZEFCSJT (
p.23)
Setting temperature cannot
rise.
r
*TUIFNBYJNVNUFNQFSBUVSFTFUUJOHBQQSPQSJBUF (
p.17)
r*TUIFXBUFSàMUFSDMPHHFE
p.23)
r*GUIFTVQQMZXBUFSJTIBSEBOEIBTOPUCFFOUSFBUFE
scale can build-up in the water heater and decrease
the maximum amount of hot water available. Scale can
be removed from the water heater by ushing the unit
periodically. To prevent scale from forming in the water
heater, a water softener or scale inhibitor is recommended.
26
Remote Controller
The water temperature changes
after a power failure or when the
power is disconnected.
The light on the power button
does not come on.
r)BTUIFSFCFFOBQPXFSGBJMVSF
r*TUIFQPXFSDPOOFDUFEQSPQFSMZ
r5IFUFNQFSBUVSFTFUUJOHBOEUIFáPXNFUFSBMBSNTFUUJOH
may both need to be reset after a power outage.
The fan can be heard after
operation is stopped.
A motor can be heard when turning
the unit ON or OFF, when opening
or closing a xture, or after the unit
has been running for a while.
r5IFTFOPJTFTJOEJDBUFUIFQSPQFSPQFSBUJPOPGEFWJDFT
which are designed to let the unit reignite more quickly,
and ensure the water temperature is stable.
The Heater stops burning during
operation.
r"SFUIFHBTBOEXBUFSTVQQMZWBMWFTGVMMZPQFO
r*TUIFXBUFSTVQQMZDVUPGG
r*TUIFIPUXBUFSàYUVSFTVGàDJFOUMZPQFO
r*TUIFHBTCFJOHDVUPGGCZUIFHBTNFUFS
$BOPUIFSHBTEFWJDFTTVDIBTTUPWFTCFVTFE
r'PS-1*TUIFSFFOPVHIHBTJOUIFUBOL
$BOPUIFSHBTEFWJDFTTVDIBTTUPWFTCFVTFE
r5IJTJTOPSNBM5IFXIJUFTNPLFJTBDUVBMMZTUFBNWhite smoke comes out of the
exhaust vent on a cold day.
The hot water is turbid.
r5IJTJTIBSNMFTT4NBMMCVCCMFTBQQFBSBTUIFBJS
in the water is heated and depressurized rapidly to
atmospheric pressure.
Other
Sounds
The plastic on the surface or buttons
of the remote controller has torn,
peeled, or air bubbles inside.
r
The surface of the remote controller is afxed with a
protective sheet (to prevent surface scratching, etc.) at
time of shipment. This sheet can be removed or left as it
is. When leaving the protective sheet on, areas frequently
touched may tear or peel. However, the remote controller
will not malfunction from water entering such torn or peeled
areas. To restore the appearance of the remote controller
surface, simply remove the protective sheet.
The fan can be heard when it is
very cold outside.
rThe fan may run to prevent freezing.
Troubleshooting-2
27
åÃè·ï\é¶Ç
¼
Ç®í≤Ç◊Ç≠ÇæÇ≥Ç¢ åÃè·ï\é¶Ç
¼
Ç®í≤Ç◊Ç≠ÇæÇ≥Ç¢
Water Quality
Damage to the water heater as a result
of poor water quality is not covered by
the Limited Warranty. To ensure full
warranty coverage, treat or condition
water that exceeds the target levels
provided in this table.
Source:
EPA National Secondary Drinking Water
Regulations (40 CFR Part 143.3)
Total Hardness*
:
NH-HQHPSMFTT
"MVNJOVN UPNH-PSMFTT
$IMPSJEF NH-PSMFTT
$PQQFS NH-PSMFTT
*SPO NH-PSMFTT
.BOHBOFTF NH-PSMFTT
pH : 6.5 - 8.5
5PUBM%JTTPMWFE4PMJET NH-PSMFTT
;JOD NH-PSMFTT
4VMGBUFJPO NH-PSMFTT
3FTJEVBMDIMPSJOF NH-PSMFTT
* Maximum limit suggested by Electrolux.
The water appears blue.
5IFCBUIUVCXBTICBTJOIBTUVSOFE
blue.
r$PMPSBUJPOUPBCMVFDPMPSNBZCFOPUJDFEGSPNTNBMM
traces of copper ion contained in the water and fat
(furring). However, there are not problems concerning
IFBMUI$PMPSBUJPOPGUIFCBUIUVCXBTICBTJODBOCF
prevented by cleaning frequently.
Frequent water discharge from the
drain pipe.
r$POEFOTBUJPOGPSNTJOTJEFUIFVOJUEVSJOHPQFSBUJPO
and is discharged from the drain pipe.
28
Contact the nearest Electrolux agent.Abnormal combustion
Contact Electrolux Home Products, Inc. if:
r "OZPUIFSFSSPSDPEFBQQFBST
r "OFSSPSDPEFJTJOEJDBUFEBHBJOBGUFSUIFBCPWFBDUJPOTXFSFGPMMPXFE
r 5IFSFBSFBOZPUIFSRVFTUJPOT
Clean the air supply vent.(
p.21)
If the display continues, contact the nearest
Electrolux agent.
[
When supplying combustion
air from the indoors
]
The air supply vent may
be clogged
Have a professional check the gas supply pressure.
Contact the nearest Electrolux agent.
Abnormal combustion,
low gas supply pressure
åÃè·ï\é¶Ç
¼
Ç®í≤Ç◊Ç≠ÇæÇ≥Ç¢ åÃè·ï\é¶Ç
¼
Ç®í≤Ç◊Ç≠ÇæÇ≥Ç¢
Check for an Error Code on the Remote Controller
If there is a problem with the unit, a numerical error code will ash on the remote controller.
If this occurs, take appropriate measures as listed below.
When an error code appears, the display and the operation light will
ash together.
Error Code Cause Action
Ignition error
Check whether the gas valve is open. Press the power
button to turn the unit off, open a hot water xture,
and turn the unit back on. If the ashing number
doesn't return the problem is solved.
Flashing
Remote Controller
Check to see if the condensate drain pipe is clogged
or frozen (
p.8)
Contact the installer or Electrolux Home Products,
Inc. Technical Support for assistance.
Clogging of condensate
trap or drain pipe
29
A warranty registration card is included separately, read the content carefully.
Be sure that the plumber, date of purchase and other necessary items are lled in prior to mailing.
For repairs after the warranty period, there will be a charge on any service, and service will only be
performed if the unit is deemed repairable.
Follow-up Service-1
Requesting Service
Period of Time for Stocking Repair Parts
Warranty
First follow the instructions in the troubleshooting section ( p.24 to p.28).
If the error is not corrected, contact Electrolux Home Products, Inc. at 1-888-360-8557.
We will need to know:
The Model ................(check the rating plate)
See p.4 for the location of the label
Date of purchase ......(see the warranty)
Details of problem ....(ashing error codes, etc., in as much detail as possible)
Your name, address, and telephone number
Desired date of visit
Electrolux will stock repair and maintenance parts for this unit for the time period from the date of
the original installation as follows: twelve (12) years for the heat exchanger and ten (10) years for
remaining parts.
Reinstallation
If you want to reinstall the appliance at a different location, conrm that the gas and power supply
indicated on the rating plate are available at the new location. If you are not sure, consult the local
utility company.
30
Gas Conversion
If you move to a region that uses a different type of gas or if the local gas supply is converted,
replacement of the gas manifold and adjustment of the appliance will be necessary.
This work must be performed by either Electrolux or a qualied service agency and will be charged
for even during the warranty period. The qualied installer will also be responsible for purchasing
the gas conversion kit directly from the manufacturer.
For more information, contact Electrolux Home Products, Inc. at 1-888-360-8557.
The following parts are supplied in the conversion kit. These items will replace the existing parts
that are currently installed in the unit. Make sure that all parts are replaced and properly installed by
a qualied service agency.
* An Electrolux remote controller and a digital gas manometer are required to complete the
installation. Do not proceed if this equipment is not immediately available.
* A qualied service agency is any individual, rm, corporation, or company which either in person or
through a representative is engaged in and is responsible for the connection, utilization, repair or servicing
of gas utilization equipment or accessories; who is experienced in such work, familiar with all precautions
required, and has compiled with all of the requirements of the authority having jurisdiction.
The gas conversion kit shall be installed by a qualied service agency* in accordance with
the manufacturer’s instructions and all applicable codes and requirements of the authority
having jurisdiction. The information in the instructions must be followed to minimize the risk
of re or explosion or to prevent property damage, personal injury, or death. The qualied
service agency is responsible for the proper installation of this kit. The installation is not
proper and complete until the operation of the converted appliance is checked as specied
in the manufacturer’s instructions supplied with the kit.
Before the gas conversion is performed, verify the proper gas conversion kit with your
water heater model on the table provided below.
After the necessary parts have been replaced on the unit, the remote controller is then used to
adjust the settings on the water heater for use with the proper gas type.
The gas pressure values at both the gas supply inlet tting and at the manifold inlet on the unit are
veried by the installer. Proper adjustments will be made to ensure safe and efcient operation.
Once this is completed, a nal gas leak check will be performed to conrm that all parts have been
securely installed.
If you notice the smell of gas at any time after the installation has been completed, turn the water
heater off and contact your gas supplier immediately.
$POWFSTJPO,JU
$,
$,
$,
$,
Manifold Plate
O-Ring
$POWFSTJPO,JU-BCFM
Damper
WARNING
Conversion Type
Propane to Natural Gas
Natural Gas to Propane
Propane to Natural Gas
Natural Gas to Propane
Model
EP18WI30LS
EN18WI30LS
EP19WI30LS
EN19WI30LS
Follow-up Service-2
31
Specifications-1
r4QFDJàDBUJPOTNBZCFDIBOHFEXJUIPVUQSJPSOPUJDF
r5IFDBQBDJUZNBZEJGGFSTMJHIUMZEFQFOEJOHPOUIFXBUFSQSFTTVSF
water supply, piping conditions, and water temperature.
Specication
EN18WI30LS EP18WI30LS
Indoor Wall Mounted
Direct Ignition
15-150 psi
(1.-NJO
NNYNNYNN
58 lbs.
0.5 Gallon (1.8L)
u
u
u5ISFBEFE
120 VAC (60Hz)
73W
4UBJOMFTT4UFFM;JODJàFE4UFFM1MBUF
PVC
Copper Sheeting, Copper Tubing
Stainless Steel Sheeting, Stainless Steel Tubing
Flame Rod, Thermal Fuse, Lightning Protection
Device (ZNR), Overheat Prevention Device, Freezing
Prevention Device, Fan Rotation Detector
Remote Controller, Remote Controller Cord,
Anchoring Screws
Specifications
Performance
Item
Model Name
Type
Ignition
Operating Pressure
Minimum Flow Rate
Dimensions (Height) x (Width) x (Depth)
Weight
Water Holding Capacity
Accessories
Installation
"JS4VQQMZ&YIBVTU
Connection Sizes
Power Supply
Materials
Water Inlet
Hot Water Outlet
Gas Inlet
Condensate Drain
Safety Devices
Item
Gas
Consumption
Maximum Hot Water Capacity
Capacity Range
Temperature Settings
Default Temperature Options
NG
LP
45°F (25°C) Rise
Maximum Performance
180,000 btuh
180,000 btuh
Minimum Performance
16,000 btuh
16,000 btuh
(1.-NJO
(1.-NJO
100-140°F (In 5°F intervals) (9 Options)
Casing
Flue Collar
Primary Heat Exchanger
Secondary Heat Exchanger
Supply
Consumption
120°F (50°C), 130°F (55°C), 140°F (60°C)
(Original is 120°F (50°C))
°F Mode:
°C Mode:
37-48°C (In 1°C intervals),
50,55,60°C (In 5°C intervals) (15 Options)
Power Vented
78W
Freeze Prevention 213W
32
Specication
Direct Ignition
15-150 psi
(1.-NJO
NNYNNYNN
68 lbs.
0.5 Gallon (1.8L)
/15
/15u
/15u
u5ISFBEFE
120 VAC (60Hz)
81W
4UBJOMFTT4UFFM;JODJàFE4UFFM1MBUF
PVC
Copper Sheeting, Copper Tubing
Stainless Steel Sheeting, Stainless Steel Tubing
Flame Rod, Thermal Fuse, Lightning Protection
Device (ZNR), Overheat Prevention Device, Freezing
Prevention Device, Fan Rotation Detector
Remote Controller, Remote Controller Cord,
Anchoring Screws
Specifications
Performance
Item
Model Name
Type
Ignition
Operating Pressure
Minimum Flow Rate
Dimensions (Height) x (Width) x (Depth)
Weight
Water Holding Capacity
Accessories
Installation
"JS4VQQMZ&YIBVTU
Connection Sizes
Power Supply
Materials
Water Inlet
Hot Water Outlet
Gas Inlet
Condensate Drain
Safety Devices
Item
Gas
Consumption
Maximum Hot Water Capacity
Capacity Range
Temperature Settings
Default Temperature Options
NG
LP
45°F (25°C) Rise
Maximum Performance
199,900 btuh
199,900 btuh
Minimum Performance
16,000 btuh
16,000 btuh
(1.-NJO
(1.-NJO
100-140°F (In 5°F intervals) (9 Options)
Casing
Flue Collar
Primary Heat Exchanger
Secondary Heat Exchanger
Supply
Consumption
°F Mode:
°C Mode:
37-48°C (In 1°C intervals),
50,55,60°C (In 5°C intervals) (15 Options)
EN19WI30LS EP19WI30LS
Indoor Wall Mounted
Power Vented
83W
120°F (50°C), 135°F (57°C), 140°F (60°C)
(Original is 120°F (50°C))
Specifications-2
r4QFDJàDBUJPOTNBZCFDIBOHFEXJUIPVUQSJPSOPUJDF
r5IFDBQBDJUZNBZEJGGFSTMJHIUMZEFQFOEJOHPOUIFXBUFSQSFTTVSF
water supply, piping conditions, and water temperature.
Freeze Prevention 223W
33
Electrolux Home Products, Inc
Limited Warranty
Tankless Hot Water Heaters
!=:;=)6<<7<0-<-:5;)6,+76,1<176;;-<.7:<016<01;151<-,')::)6<A<01;D')::)6<AE4-+<:74=@75-!:7,=+<;6+D4-+<:74=@
0-:-*A?)::)6<;<7<0-7:1/16)4+76;=5-:8=:+0);-:16<0-7:1/16)44A16
;<)44-,47+)<176<0-D ?6-:<0--6+47;-,/);07<?)<-:
0-)<-:<0-D!:7,=+<E<7*-.:--.:75)6A5)<-:1)4,-.-+<;165)<-:1)4;)6,?7:35)6;018%0-:-):-67-@8:-;;?)
::)6<1-;7<0-:
<0)6<07;-+76<)16-,16<01;')::)6<A)6,)44:-8:-;-6<)<176;7:).F:5)<176;5),-*A4-+<:74=@7:)6A7<0-:8-:;76?-:-.7:
144=;<:)<1>-8=:87;-;764A7)/-6<-5847A--7::-8:-;-6<)
<1>-7.4-+<:74=@0);)6A)=<07:1<A<7*16,4-+<:74=@<7)6A).F:5)<176
:-8:-;-6<)<1767:?)::)6<A+76+-:616/<0-!:7,=+<)6,=64-;;)6).F:5)<176:-8:-;-6<)<1767:?)::)6<A5),-*A)6)/-6<
-5847A--7::-8:-;-
6<)<1>-1;;8-+1F+)44A16+4=,-,?1<016<01;')::)6<A1<?14467<*--6.7:+-)*4-*A<0- ?6-:
Required Conditions
%0- ?6-:5=;<8:7>1,-8:77.7.8=:+0);-)6,+7584-<-<0-!:7,=+<#-/1;<:)<176')::)6<A):,D#-/1;<:)<176
):,E+76<)16-,?1<016<0-41<-:)<=:-8:7>1,-,7::-/1;<-:76416-*A/716/<7-4-
+<:74=@)8841)6+-;+757:+)4416/
%0-!:7,=+<5=;<*-16;<)44-,*A)64-+<:74=@=<07:1B-,6;<)44-:16+75841)6+-?1<04-+<:74=@8=*41;0-,5)<-:1)4;
8:7>1,-,?1<0<0-!:7,=+<)6,16)++7:
,)6+-<7)4447+)484=5*16/-4-+<:1+)4)6,7:/);+7,-;
%0- ?6-:5=;<=;-<0-!:7,=+<16+75841)6+-?1<016;<:=+<176;16<0-6;<)44)<176)6=)4)6,&;-):-=1,-
?01+0)
:-16+4=,-,?1<0<0-!:7,=+<
Limited Warranty Period
%01;')::)6<A1;-@<-6,-,*A4-+<:74=@<7<0- ?6-:%01;')::)6<A<)3-;-..-+<76<0-,)<-7.16;<)44)<1767.<0-!:7,=+<*A<0-
4-+<:74=@=<07:1B-,6;<)44-:7:,)A;
).<-:<0-,)<-7.8=:+0);-?01+0->-:7++=:;F:;<)6,1;-..-+<1>-=6<14<0-;8-+1F-,
)661>-:;):A7.;=+0,)<-);.7447?;
151<-, 6-(-):)88:7>-,4)*7:
)6,:-84)+-5-6<7.,-.-+<1>-8):<;
151<-,),,1<176)47=:(-)::-84)+-5-6<A-):;<0:7=/07.,-.-+<1>-8):<;7<0-:<0)6<0-0-)<-@+0)6/-:C
)*7:67<16+4=,-,
151<-,),,1<176)44->
-6(-):
:-84)+-5-6<A-):;<0:7=/076<0-0-)<-@+0)6/-:?0-6<0-!:7,=+<1;=;-,16
);16/4-.)514A,?-4416/C)*7:67<16+4=,-,
151<-,),,1<176)44->-6(-):
:-84)+-5-6<A-):;<0:7=/076<0-0-)<-@+0)6/-:?0-6<0-!:7,=+<1;=;-,16
);16/4-.)514A,?-4416/16+762=6+<176?1<0)+76<:744-:
:-+1:+=4)<176;A;<-516;<)44-,16)++7:,)6+-?1<0<0-
6;<)44)<176)6=)4C)*7:67<16+4=,-,
151<-,),,1<176)4%?7(-)::-84)+-5-6<A-):;<0:7=/076<0-0-)<-@+0)6/-:?0-6<0-!:7
,=+<1;=;-,.7:
+755-:+1)4+)8)+1<A1.1<1;=;-,167<0-:<0)6);16/4-.)514A,?-4416/7:1.<0-!:7,=+<1;;=8841-,?1<08:-0-)<-,7:
+1:+=4)<-,?)<-:C)*7:67<16+4=,-,
)*7:?144*-8)1,<7)6=<07:1B-,4-+<:74=@$-:>1+-#-8:-;-6<)<1>-76)88:7>-,?)::)6<A:-8)1:;
%7<)4%?-4>-(-):A-):;<0:7=/07:78-:)<176)4*=:607=:;);:-+7:,-,*A<0-?)<-:0-)<-:?01+0->-:7++=:;F:;<
6)9=);<)<1;<0-51615=58=58+76<:74:-9=1:-5-6<167:,-:<75)16<)16<0-.=44:-+1:+=4)<176?)::)6<A!716<7.=;-7:D76,-5)6,E:-+1:+=4)<176;A;<-5;
?01+0):-<0-:5)44A+76<:744-,1-
