AUDIO VIDEO SURROUND RECEIVER
KRF-V4550D
INSTRUCTION MANUAL
KENWOOD CORPORATION
B60-4967-10 01 MA (E2) 0009
*4967/01-/EN 3/19/01, 6:33 PM1
2
Preparations
WARNING :
TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOIS-
TURE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS IN-
SIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL,
WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF UNINSULATED
"DANGEROUS VOLTAGE" WITHIN THE PRODUCT’S EN-
CLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO
CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Unpack the unit carefully and make sure that all accessories are put
aside so they will not be lost.
Examine the unit for any possibility of shipping damage. If your unit is
damaged or fails to operate, notify your dealer immediately. If your unit
was shipped to you directly, notify the shipping company without delay.
Only the consignee (the person or company receiving the unit) can file
a claim against the carrier for shipping damage.
We recommend that you retain the original carton and packing materi-
als for use should you transport or ship the unit in the future.
Keep this manual handy for future reference.
Before applying the power
Caution : Read this page carefully to ensure safe
operation.
Safety precautions
Unpacking

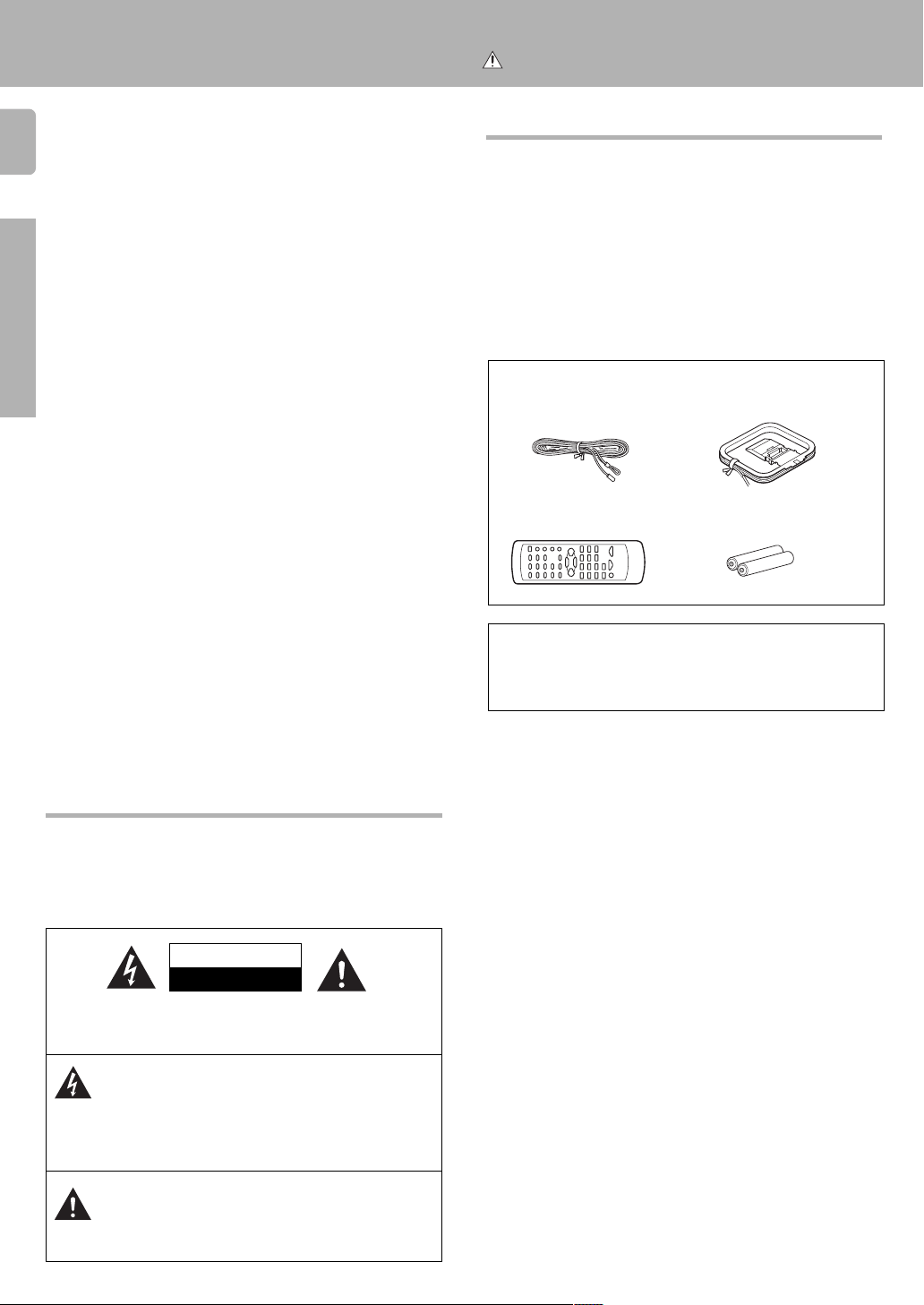

Accessories
FM indoor antenna (1)
AM loop antenna (1)
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRI-
ANGLE IS INTENDED TO ALERT THE USER TO THE PRES-
ENCE OF IMPORTANT OPERATING AND MAINTENANCE
(SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOM-
PANYING THE APPLIANCE.
Batteries (R6/AA) (2)
Remote control unit (1)
Units are designed for operation as follows.
U.S.A. and Canada ......................................................... AC 120 V only
Australia .......................................................................... AC 240 V only
Europe and U.K. ............................................................. AC 230 V only
China and Russia ............................................................ AC 220 V only
Other countries ........................................... AC 110 - 120 / 220 - 240 V
switchable*
Microcomputer malfunction
If operation is not possible or an erroneous display appears, even
though all connections have been made properly, reset the micro-
computer referring to "In case of difficulty". ⁄
*4967/01-/EN 3/19/01, 6:33 PM2
3
Preparations
Operations
Additional Informatiion
Before applying the power .............................. 2
Safety precautions ............................................. 2
Unpacking .......................................................... 2
How to use this manual ..................................... 4
Special features ................................................. 4
Names and functions of parts ......................... 5
Setting up the system ........................................ 7
Connecting audio components .......................... 8
Connecting video components .......................... 9
Connecting a DVD player (6-channel input) ..... 10
Digital connections .......................................... 11
Connecting the antennas ................................. 12
Connecting the system control ....................... 13
Connecting the speakers ................................. 14
Preparing the remote control .......................... 15
Preparing for surround sound ....................... 16
Speaker settings .............................................. 16
Normal playback.............................................. 17
Preparing for playback ..................................... 17
Listening to a source component .................... 18
Adjusting the sound ......................................... 18
Recording .......................................................... 19
Recording audio (analog sources) ................... 19
Recording video ............................................... 20
Recording audio (digital sources) .................... 20
Listening to radio broadcasts ....................... 21
Tuning (non-RDS) radio stations ...................... 21
Using RDS (Radio Data System) ..................... 21
Using the DISPLAY key ................................... 22
Presetting RDS stations
(RDS AUTO MEMORY) ................................... 22
Presetting radio stations manually .................. 23
Receiving preset stations ................................ 23
Receiving preset stations in order (P.CALL) ... 23
Tuning by program type (PTY search) ............. 24
Ambience effects ............................................. 25
Surround modes .............................................. 25
Surround play ................................................... 26
DVD 6-channel playback .................................. 27
Convenient functions ....................................... 27
Basic remote control operation for other
components ....................................................... 29
DVD player operations ..................................... 29
CASSETTE deck, CD player & MD recorder
operations ........................................................ 30
In case of difficulty .......................................... 31
Specifications .................................................. 32
Before applying the power
Contents
Operations
Preparations
Caution : Read the pages marked carefully to ensure
safe operation.
Maintenance of the unit
When the front panel or case becomes dirty, wipe with a soft, dry
cloth. Do not use thinner, benzine, alcohol, etc. for these agents may
cause discoloration.
In regard to contact cleaner
Do not use contact cleaners because it could cause a malfunction.
Be specially careful not to use contact cleaners containing oil, for
they may deform the plastic component.
Additional
Information
*4967/01-/EN 3/19/01, 6:33 PM3
4
Preparations
Special featuresHow to use this manual
This manual is divided into three sections, Preparations, Operations,
and Additional Information.
Preparations
Shows you how to connect your audio and video components to the
receiver and prepare the surround processor.
We will guide you to make setting up your system as easy as possible.
However, since this receiver works with all of your audio and video
components, connecting the system can be fairly complex.
Operations
Shows you how to operate the various functions available from the
receiver.
Additional Information
Shows you additional information such as "In case of difficulty" (trouble-
shooting) and "Specifications".
Before applying the power
Memory back up function
Please note that the following items will be deleted from the unit's
memory if the power cord is disconnected from the AC outlet for
approximately 3 days.
• Power mode.
• Input selector settings.
• Device preset.
• Picture output.
• Speaker ON/OFF
• Volume level.
•BASS, TREBLE, INPUT
level.
• Subwoofer ON/OFF.
• Dimmer level.
• Monitor ON/OFF.
• MD/TAPE settings.
• 6ch/2ch input setting.
• Listen mode setting.
• Speaker settings.
• Input mode setting.
• Midnight mode setting.
• Broadcast band.
• Frequency setting.
• Preset stations.
• Tuning mode.
True home theater sound
This receiver incorporates a wide variety of surround modes to bring
you maximum enjoyment from your video software. Select a surround
mode according to your equipment or the software you are going to
play and enjoy! ∞
Dolby Pro Logic & Dolby 3 Stereo
This surround system reproduces theater-like surround sound from
video software marked
.
The PRO LOGIC mode uses the built-in adaptive matrix circuit to
steer the Left, Center, Right and Surround channel audio signals.
The 3 STEREO mode will redirect the Surround signal to the front left
and right speakers when only the front and center speakers are used.
Dolby Digital
The DOLBY DIGITAL mode lets you enjoy full digital surround from
software processed in the Dolby Digital format. Dolby Digital provides
up to 5.1 channels of independent digital audio for better sound
quality and more powerful presence than conventional Dolby
Surround.
DVD 6-channel input
If you own a DVD player equipped with 6-channel output, this
receiver allows you to obtain the full surround sound impact of DVD
source material featuring multi-channel encoding. Since the source
signals are digital and each channel is input independently, the
resulting ambience is far superior to what can be achieved with
conventional surround sound systems.
RDS (Radio Data System) tuner
The receiver is equipped with an RDS tuner that provides several
convenient tuning functions: RDS Auto Memory, to automatically
preset up to 40 RDS stations broadcasting different programs; station
name display, to show you the name of the current broadcast station;
and PTY search to let you tune stations by program type.
PTY (Program TYpe) search
Tune the stations by specifying the type of program you want to hear.
*4967/01-/EN 3/19/01, 6:33 PM4
5
Preparations

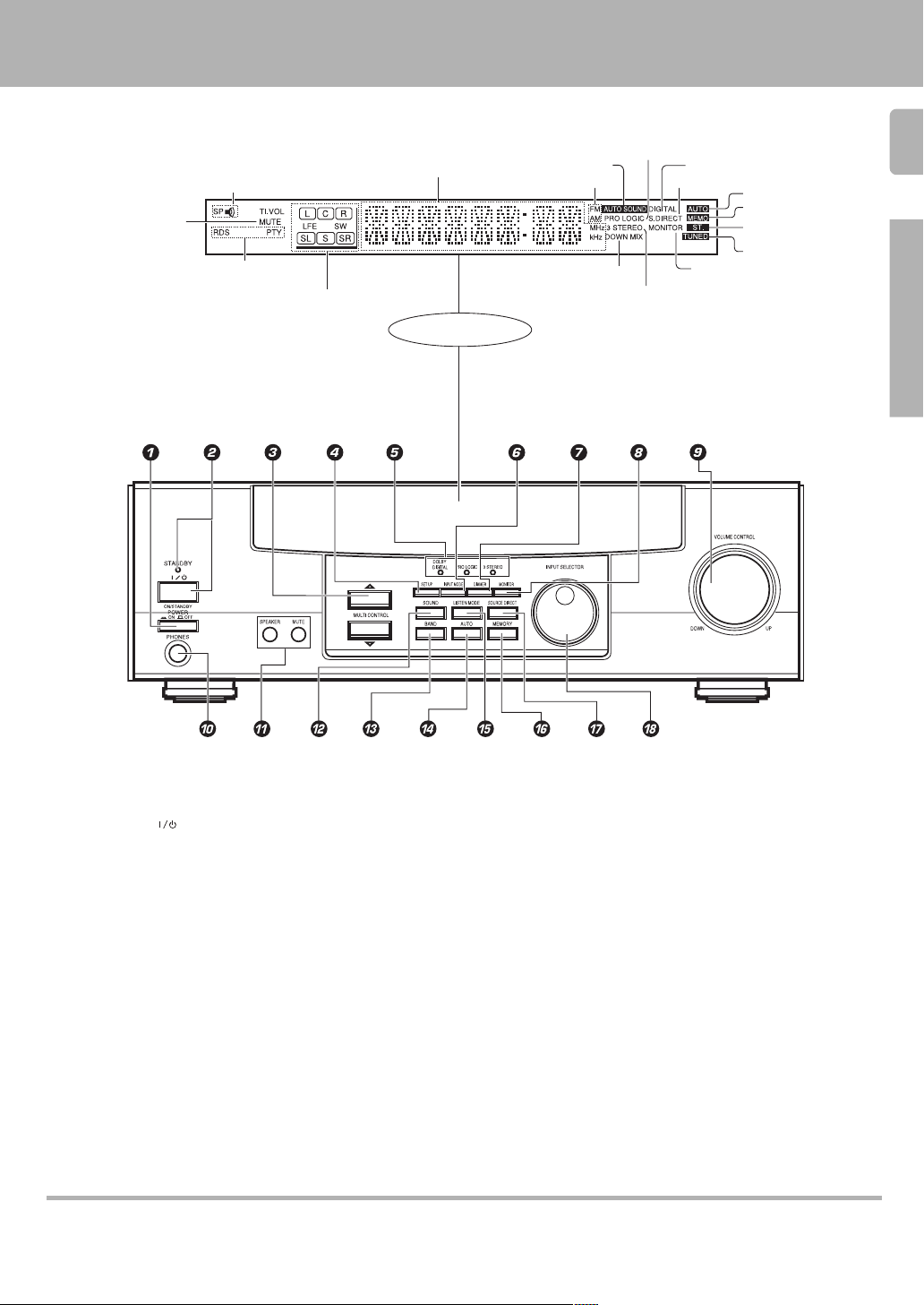

Display
Speaker selection indicators
Input channel indicators
Output channel indicators
Band indicators
AUTO indicator
MEMO. indicator
ST. indicator
TUNED indicator
3 STEREO indicator
STEREO indicator
Names and functions of parts
Frequency display,
Input display,
Preset channel display,
Surround mode display
Speakers' indicator
PRO LOGIC
indicator
S.DIRECT indicator
MONITOR indicator
MUTE indicator
AUTO SOUND indicator
DIGITAL indicator
Standby mode
While standby indicator is lit, this receiver is in standby mode and consumes a small amount of current for back-up. This system can be switched ON by using the remote
control.
1 POWER key ^
Use to switch the main power ON/OFF.
2 ON/STANDBY (
) key ^
Use to switch the power ON/STANDBY when
the POWER is turned ON.
STANDBY indicator
3 MULTI CONTROL key ^
Use to control a variety of settings.
4 SET UP key ^
Use to select speakers' settings etc.
5 Surround indicators
DOLBY DIGITAL indicator §
Lights when the receiver is in the Dolby
Digital mode.
PRO LOGIC indicator §
Lights when the receiver is in the PRO LOGIC
mode.
3 STEREO indicator §
Lights when the receiver is in the 3 STEREO
mode.
6 INPUT MODE key 7
Use to switch between the digital and analog
inputs.
7 DIMMER key )•
Use to adjust the brightness of the display.
Use to select the REC MODE.
8 MONITOR key (
Use to monitor the source that is connected
to the VIDEO2/MONITOR jack.
9 VOLUME CONTROL knob *
0 PHONES jack (
Use for headphone listening.
! SPEAKER key &
Use to turn the speaker ON/OFF.
MUTE key (
Use to temporarily mute the sound.
@ SOUND key ¶
Use to adjust the sound quality and ambience
effects.
# BAND key ¡
Use to select the broadcast band.
$ AUTO key ¡
Use to select the auto tuning mode.
% LISTEN MODE key §
Use to select the listening mode.
^ MEMORY key ™
Use to store radio stations in the preset
memory.
& SOURCE DIRECT key (
Use to pass the source material direct to the
amplifier.
* INPUT SELECTOR knob *
Use to select the input sources.
RDS indicators
DOWN MIX indicator
*4967/01-/EN 3/19/01, 6:33 PM5
6
Preparations
Names and functions of parts

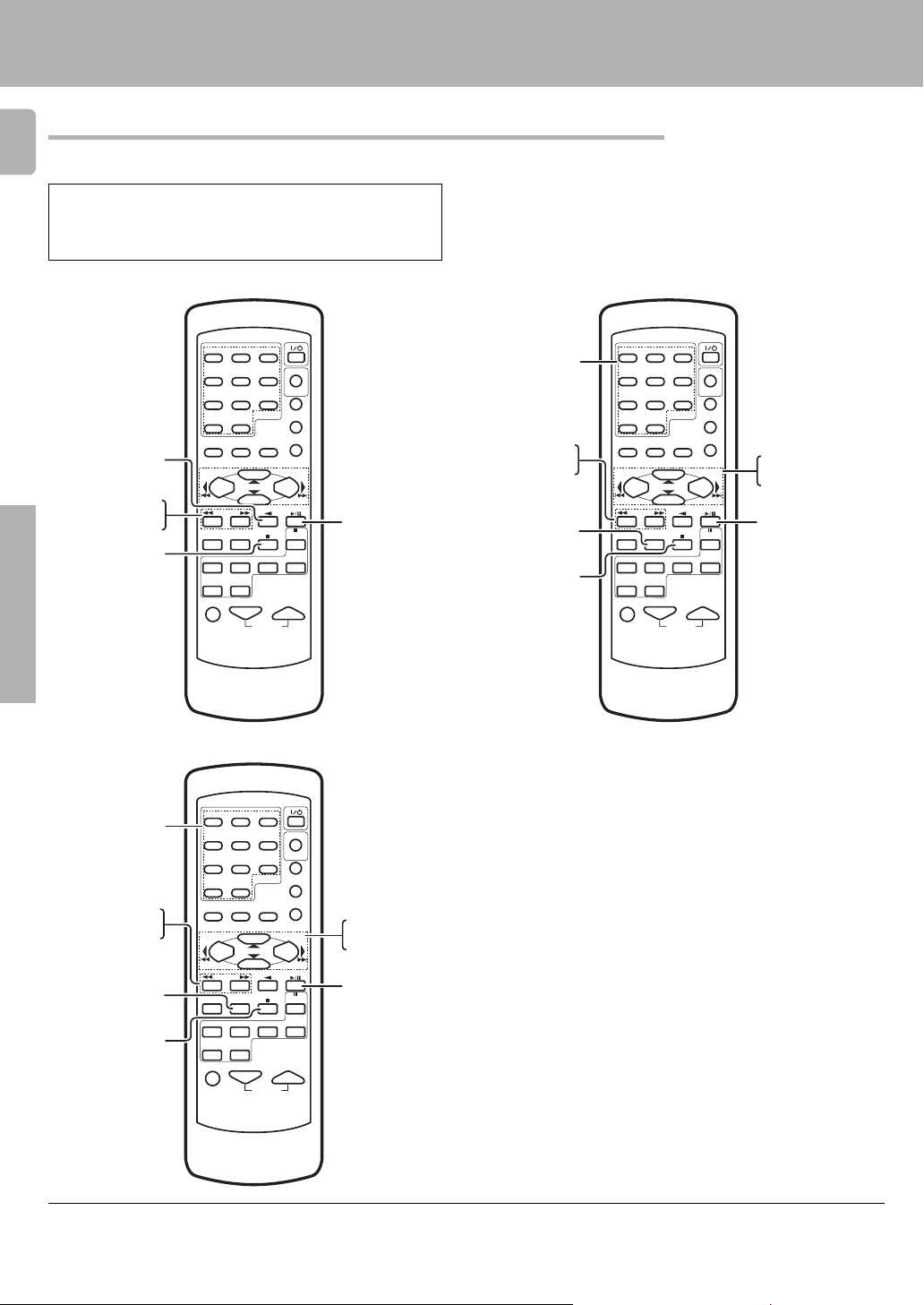

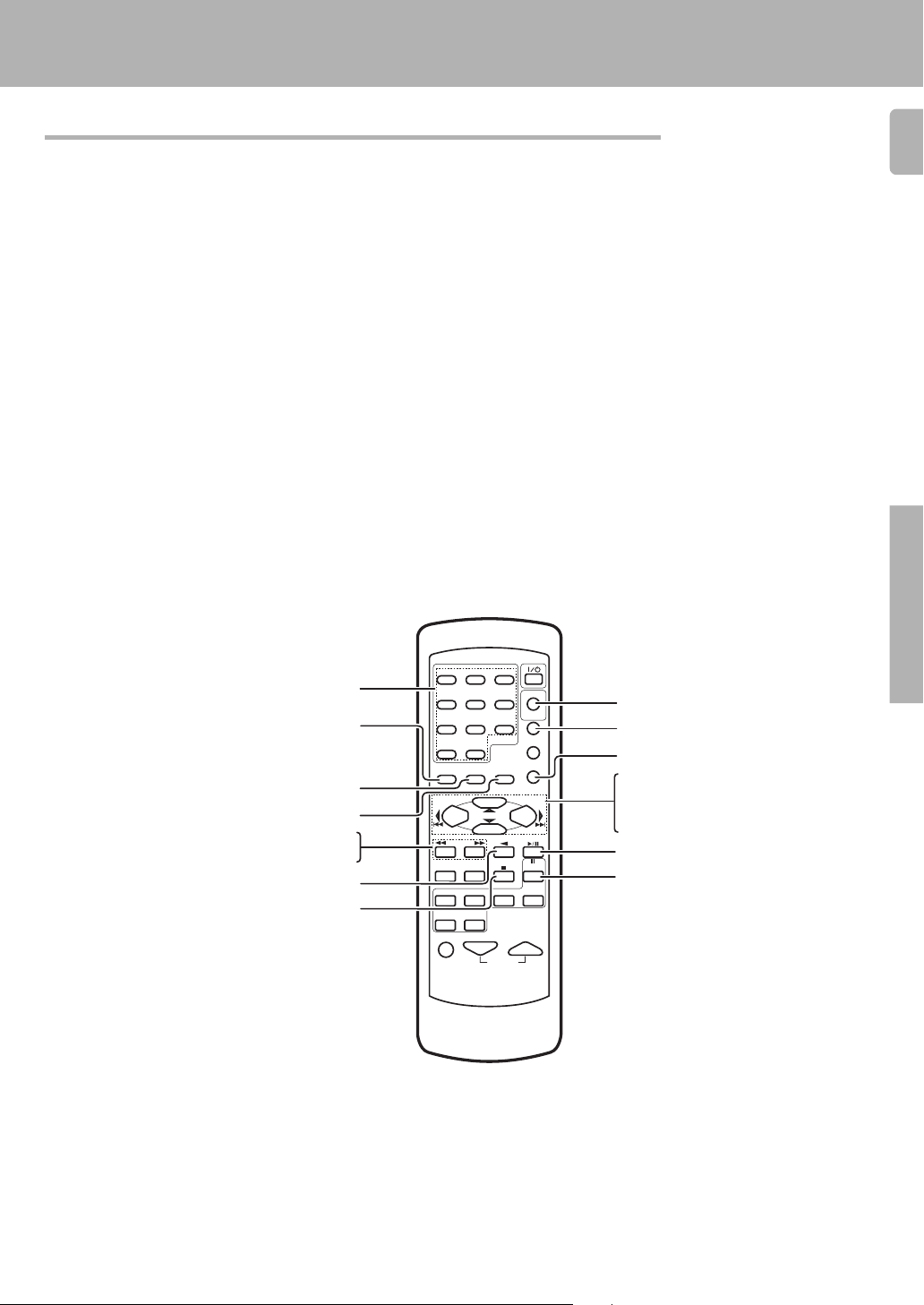

Remote control unit
7 DISC SKIP key
If CD is selected as the input source, this key
functions as the multi-CD player disc skip key.
A/B key
If TAPE is selected as the input source, this
(A and B) of a double cassette deck.
+100 key
Use to select the disc number with the
multi-CD player.
8 INPUT SELECTOR keys (DVD, PHONO,
CD/DVD, TUNER, MD/TAPE, VIDEO1,
VIDEO2) *
Selects the inputs and sets the remote
control to operate the component regis-
tered at the respective input.
9 MUTE key (
Use to temporarily mute the sound.
0 POWER (
) key ^
Use to turn the receiver on and off.
! DVD POWER key ª
Used to operate DVD player.
@ RECEIVER key
Use to return to the operation of the re-
ceiver.
# TITLE key
Use to operate other components.
RDS operation keys ™¢
Use to receive RDS broadcasts.
1 Numeric keys £
If CD or MD is selected as the input source,
these keys function as numeric keys. If
tuner is selected as the input source, these
keys are used to call up station presets.
2 SET UP key ^
Use to select speakers' settings etc.
MENU key
Use to operate other components.
3 SOUND key ¶
Use to adjust the sound quality and ambi-
ence effects.
OSD key
Use to operate other components.
4 MULTI CONTROL keys ^
Used to control a variety of settings.
P.CALL 4/¢ keys £
If tuner is selected as the input source,
these keys function as P.CALL keys.
4/¢ keys
If CD or MD is selected as the input source,
these keys function as skip keys.
5 TUNING 1/¡ keys
If tuner is selected as the input source,
these keys function as tuning keys.
If CD, MD or TAPE is selected as the input
source, these keys function as search keys.
6 BASS BOOST key *
Use to select the maximum adjustment
setting for the low frequency range.
POWER
RECEIVER
$ LISTEN MODE key §
Use to select the listening mode.
RETURN key
Use to operate other components.
% ENTER key
Use to operate other components.
2 key
If tape is selected as the input source, this
key functions as the play key for side B of the
cassette (the side facing away from the front
of the deck).
^ BAND key ¡
Use to select the broadcast band.
6 key
If CD is selected as the input source, this key
functions as the play/pause key.
If MD or TAPE is selected as the input source,
this key functions as the play key.
& 8 key
Use to operate other components.
* AUTO key ¡
Use to select the auto tuning mode.
7 key
If CD, MD or TAPE is selected as the input
source, this key functions as the stop key.
( VOLUME keys *
Use to adjust the receiver volume.
*4967/01-/EN 3/19/01, 6:33 PM6
7
Preparations
Make connections as shown in the following pages.
When connecting the related system components, be sure
to also refer to the instruction manuals supplied with the
components you are connecting.
Do not connect the power cord to a wall outlet until all
connections are completed.
Setting up the system
Analog connections
Audio connections are made using RCA pin cords. These cables transfer
stereo audio signal in an "analog" form. This means the audio signal
corresponds to the actual audio of two channels. These cables usually
have 2 plugs on each end, one red for the right channel and one white for
the left channel. These cables are usually packaged with the source unit,
or are available at your local electronics retailer.
Notes
1. Be sure to insert all connection cords securely. If their connections are
imperfect, the sound may not be produced or noise may interfere.
2. Be sure to remove the power cord from the AC outlet before plugging
or unplugging any connection cords. Plugging/unplugging connection
cords without disconnecting the power cord can cause malfunctions
and may damage the unit.
3. Do not connect power cords from components which power consump-
tion is larger than what is indicated on the AC outlet at the rear of this
unit.
VIDEO 2/MONITOR jacks
The receiver’s VIDEO 2/MONITOR jacks can be used in two different
ways. Make the appropriate setting for the component connected to
the jack when the receiver is turned on.
Use as a VIDEO 2 jack
You can connect a video deck or the like to these jacks and perform
video playback and recording. The initial factory setting is "VIDEO 2".
Use as a MONITOR jack
You can connect a cassette deck or the like to these jacks and make
use of the deck’s monitoring function during recording. Alternately,
you can connect a graphic equalizer to these jacks to apply compen-
sation to the music signal.
To use the VIDEO 2/MONITOR jacks as MONITOR jacks, hold down
the MONITOR key of the main unit for more than two seconds so that
the indication shown below appears.
• To switch the setting back to "VIDEO 2", once again hold down the
MONITOR key for two seconds or more.
STEREO
SW
RL
SP
MONITOR
MONITOR
Input mode settings
CD/DVD, DVD/6ch and VIDEO2 inputs each include jacks for digital
audio input and analog audio input.
You must select beforehand which type of input is to be used for each
connected component.
The initial factory settings is to use the digital audio signal for
playback (CD/DVD, DVD/6ch and VIDEO2).
To use the analog audio input for playback instead (if, for example, you
have connected a VCR to the VIDEO2 input), you must set the input
mode for the corresponding input to the analog mode.
After completing connections and turning on the receiver, follow the
steps below.
1 Use the INPUT SELECTOR knob to select CD/DVD or VIDEO2.
2 Press the INPUT MODE key.
Each press switches the setting as follows:
In DVD/6ch play mode
1 D-AUTO (digital input, auto sound)
2 D-MANUAL (digital input, manual sound)
3 6ch INPT (DVD/6ch input)
4 ANALOG (analog input, manual sound)
In other mode than DVD/6ch play mode
1 D-AUTO (digital input, auto sound)
2 D-MANUAL (digital input, manual sound)
3 ANALOG (analog input, manual sound)
Digital input:
Select this setting to play digital signals from a DVD, CD, or LD
player.
Analog input:
Select this setting to play analog signals from a cassette deck, VCR,
or record player.
Auto sound:
In the auto sound mode (AUTO SOUND indicator lights), the
receiver selects the listening mode automatically during playback to
match the type of input signal (Dolby Digital, PCM) and the speaker
setting. The initial factory setting is auto sound on.
To keep the receiver set to the currently selected listening mode,
use the INPUT MODE key to select "D-MANUAL" (manual sound).
However, even when this setting is selected, there may be cases in
which the listening mode is selected automatically to match a Dolby
Digital source signal depending on the combination of listening
mode and source signal.
If the INPUT MODE key is pressed quickly, sound may not be
produced.
INPUT SELECTOR
INPUT MODE
*4967/01-/EN 3/19/01, 6:33 PM7
8
Preparations

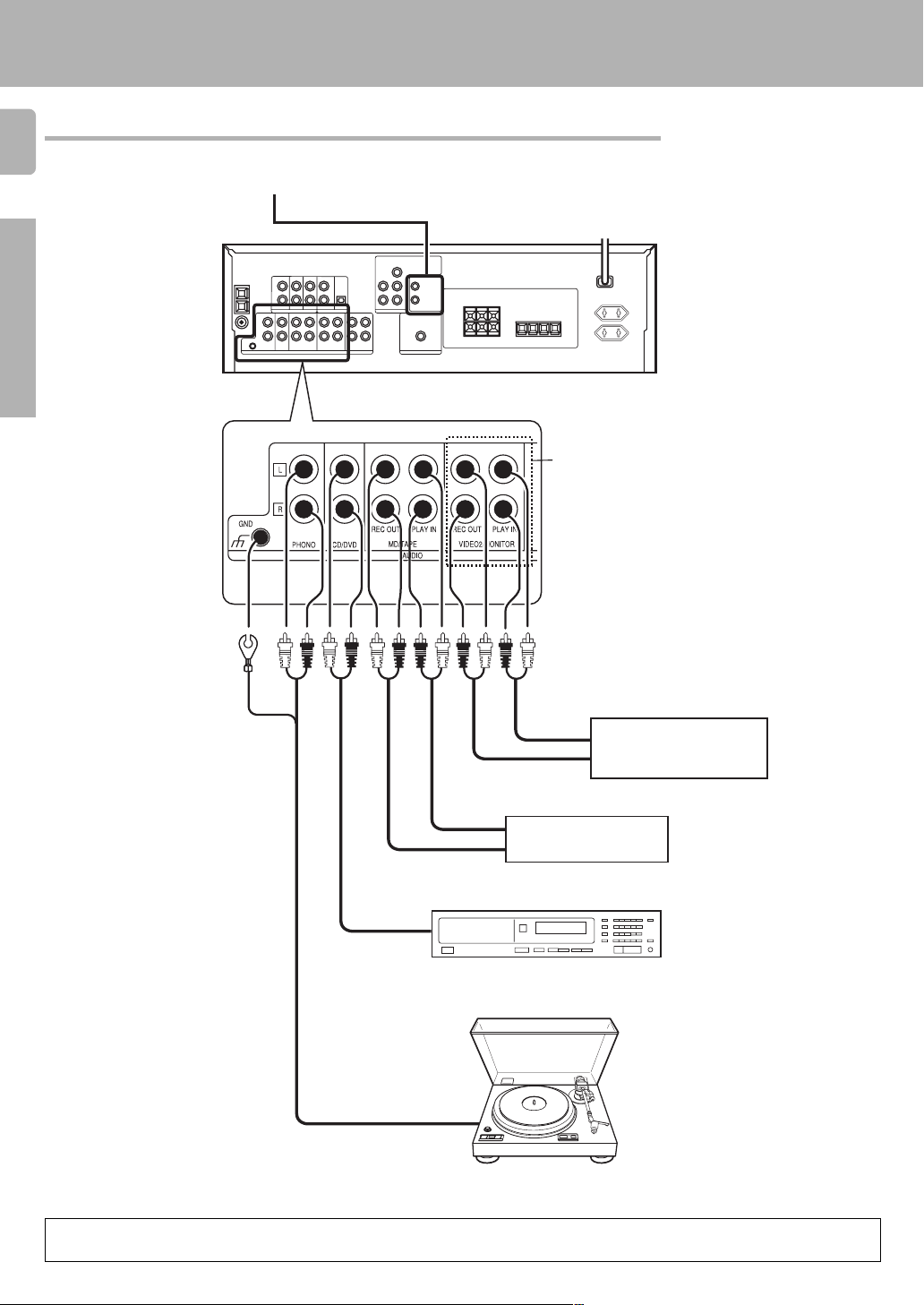

Connecting audio components
To AC wall outlet
Cassette deck or MD
recorder
CD player
IN
SYSTEM CONTROL
jacks #
Video component, 3 head
cassette deck, or Graphic
equalizer (
IN
OUT
OUT
OUT
VIDEO2/MONITOR jacks
You can connect an equal-
izer in Monitor mode, or a
video component in Video
2 mode.
Record player
OUT
Setting up the system
When you connect the video component to the VIDEO2/MONITOR jacks, connect the video cord (yellow RCA pin cords) of the connected
component to the VIDEO2 IN jack .
Moving Coil (MC) cartridge
record player cannot be used
directly from the receiver unit.
It can only be used when
another equilizer amplifier is
connected.
*4967/01-/EN 3/19/01, 6:33 PM8
9
Preparations

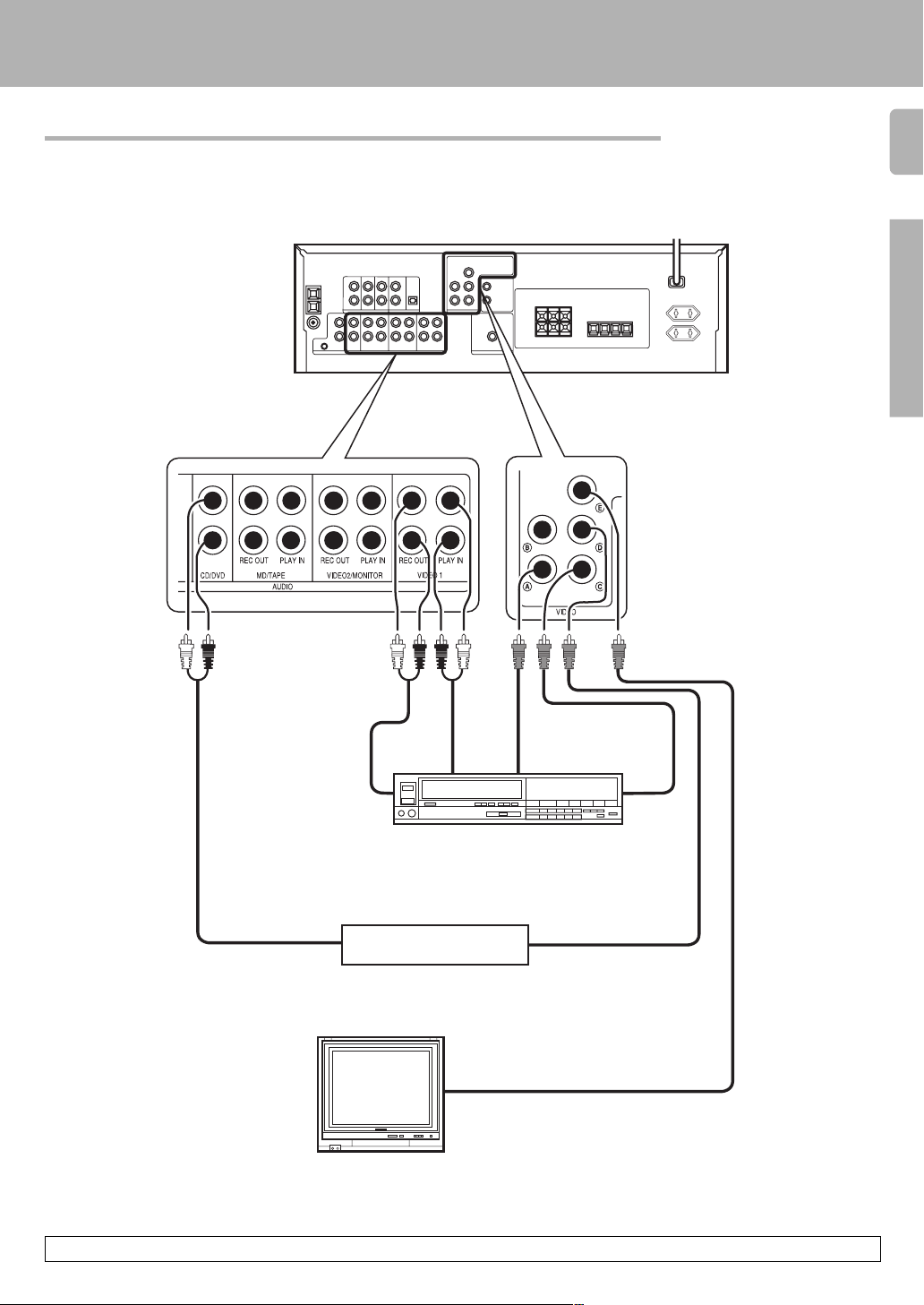

Connecting video components
Video Inputs
(Yellow RCA pin cord)
Video inputs and outputs
(Yellow RCA pin cords)
Setting up the system
Video deck
Monitor TV
OUT
Audio inputs
and outputs
VIDEO IN
DVD player or LD player
A video component with digital audio outputs should be connected to the VIDEO2 jacks.
OUT
OUT
OUT ININ
*4967/01-/EN 3/19/01, 6:33 PM9
10
Preparations

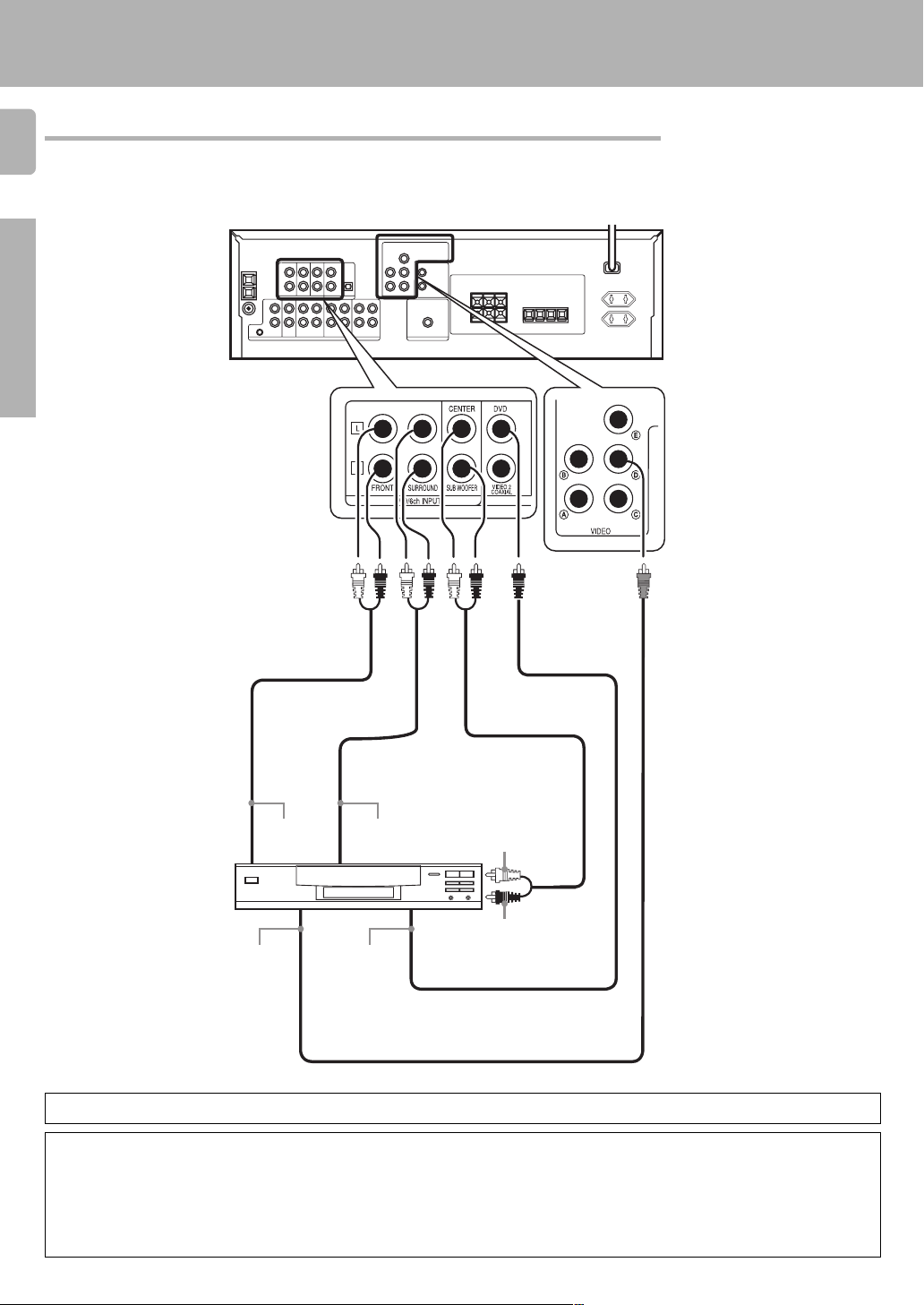

Connecting a DVD player (6-channel input)
FRONT
OUT L/R
COAXIAL
DIGITAL
OUT
(AUDIO)
DVD player
SURROUND
OUT L/R
VIDEO OUT
(Yellow RCA
pin cord)
CENTER OUT
SUBWOOFER OUT
If you have connected a DVD player to the receiver with digital connection, be sure to read the "Input mode
settings" section carefully. 7
Be sure to adhere followings or proper ventilation will be blocked causing damage or fire hazard.
• Do not place any objects impairing heat radiation onto the top of unit.
• Leave a space around the unit (from the largest outside dimension including projection) equal or greater than, shown below.
Top panel : 50 cm Side panel : 10 cm Back panel : 10 cm
CAUTION
Setting up the system
To switch the speakers off , press the MUTE key.
*4967/01-/EN 3/19/01, 6:34 PM10
11
Preparations
Digital connections
COAXIAL
DIGITAL
OUT
(AUDIO)
Optical fiber cable
Connect the video signal and analog
audio signals to the VIDEO2/MONI-
TOR jacks.
(See "Connecting video compo-
nents".)
DOLBY DIGITAL RF OUT (AUDIO)
COAXIAL DIGITAL OUT (AUDIO)
LD player
RF digital demodula-
tor (DEM-9991D)
(sold separately)
PCM OUT
CD player
Component with a Dolby Digital, or
PCM COAXIAL DIGITAL OUT
OPTICAL DIGITAL OUT
(AUDIO)
Setting up the system
The digital in jacks can accept Dolby Digital, or PCM signals. Connect components capable of outputting Dolby
Digital, or standard PCM (CD) format digital signals.
If you have connected any digital components to the receiver, be sure to read the "Input mode settings" section
carefully. 7
To connect an LD player with a DIGITAL RF OUT, connect the LD player to the KENWOOD RF digital demodulator (DEM-9991D).
Next, connect the DIGITAL OUT jacks of the demodulator to the DIGITAL IN jacks of the receiver.
Connect the video signal and analog audio signals to the VIDEO2/MONITOR jacks. (See "Connecting video components".)
*4967/01-/EN 3/19/01, 6:34 PM11
12
Preparations
Setting up the system

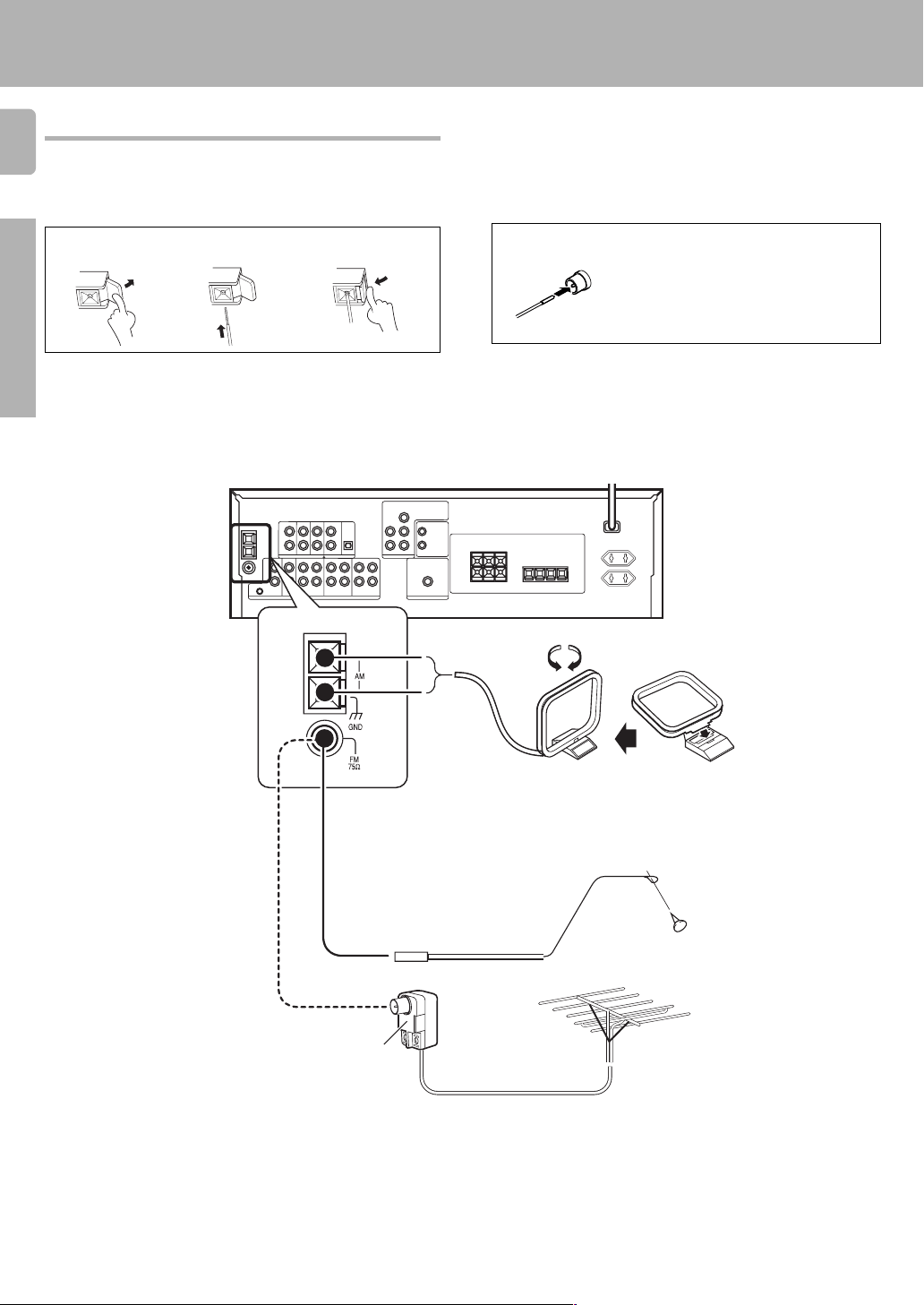

Connecting the antennas
AM antenna terminal connections
1 Push lever. 2 Insert cord.
AM loop antenna
The supplied loop antenna is used for indoors. Place it as far as possible
from the receiver, TV set, speaker cords and power cord, and adjust the
direction for best reception.
3 Return lever.
AM loop antenna
FM indoor antenna
FM outdoor antenna
Use an antenna
adaptor
(Commercially
available)
FM indoor antenna
The supplied indoor antenna is for temporary use only. For stable signal
reception we recommend using an outdoor antenna. Disconnect the
indoor antenna when you connect one outdoors.
Attach to the stand
Insert cord.
FM antenna terminal connections
FM outdoor antenna
Lead the 75Ω coaxial cable connected to the FM outdoor antenna into the
room and connect it to the FM 75Ω terminal.
*4967/01-/EN 3/19/01, 6:34 PM12
13
Preparations
Connecting the system control
SYSTEM CONTROL OPERATIONS
Remote Control
Lets you operate this unit with the system remote supplied with the
receiver.
Automatic Operation
When you start playback from a source component, the input selector
on this unit switches to that component automatically.
Synchronized Recording
Lets you synchronize recording with the start of playback when
recording from CD, MD or analog discs.
Setting up the system
Do not connect a system control cord to a cassette deck con-
nected to the VIDEO2/MONITOR jacks.
Connecting system control cords after connecting a KENWOOD
audio component system lets you take advantage of convenient
system control operations.
This unit is compatible only with the [SL-16] mode. The system
control operation is not available if the unit is connected in the
[XS8], [XS], or [XR] connection mode.
If your component has the mode select switch, set the con-
nected components to the [SL16] mode.
[
SL16]
[
SL16] [XS] [XS8] [XR]
[
SL16] [XS] [XS8]
[XS]
SYSTEM
CONTROL
cord
Receiver
Cassette deck
or MD recorder
CD player
Record player
• In order to take advantage of the system control operations, the
components must be connected to the correct jacks. To use a CD
player it must be connected to the CD jacks. To use a cassette deck
(or MD recorder) it must be connected to the MD/TAPE jacks. When
using more than one CD player (etc.) only the one connected to the
specified jacks may be connected for system control.
• Some CD players and cassette decks are not compatible with the
[SL16] system control mode. Do not make system connections with
equipment that is not [SL16] compatible.
• Some MD players are not system control compatible. You cannot
make system control connections to this kind of equipment.
Notes
1. [SL16] equipment cannot be combined with [XR], [XS], and [XS8]
equipment for system operations. If your equipment consists of
this kind of combination, please do not connect any system control
cords. Even without system control cords, normal operations can
be carried out without effecting performance.
2. Do not connect system control cords to any components other than
those specified by KENWOOD. It may cause a malfunction and
damage your equipment.
3. Be sure the system control plugs are inserted all the way in to the
system control terminals.
EXAMPLE: [SL16] mode connections
The underlined portion represents the setting of the system control
mode.
SYSTEM CONTROL
cord
SYSTEM CONTROL
• You may connect the system control cord to either the up or down
jack.
*4967/01-/EN 3/19/01, 6:34 PM13
14
Preparations
Operations
Additional Informatiion
Setting up the system
• Never short circuit the + and – speaker cords.
• If the left and right speakers are connected inversely or the speaker
cords are connected with reversed polarity, the sound will be
unnatural with ambiguous acoustic imaging. Be sure to connect the
speakers correctly.

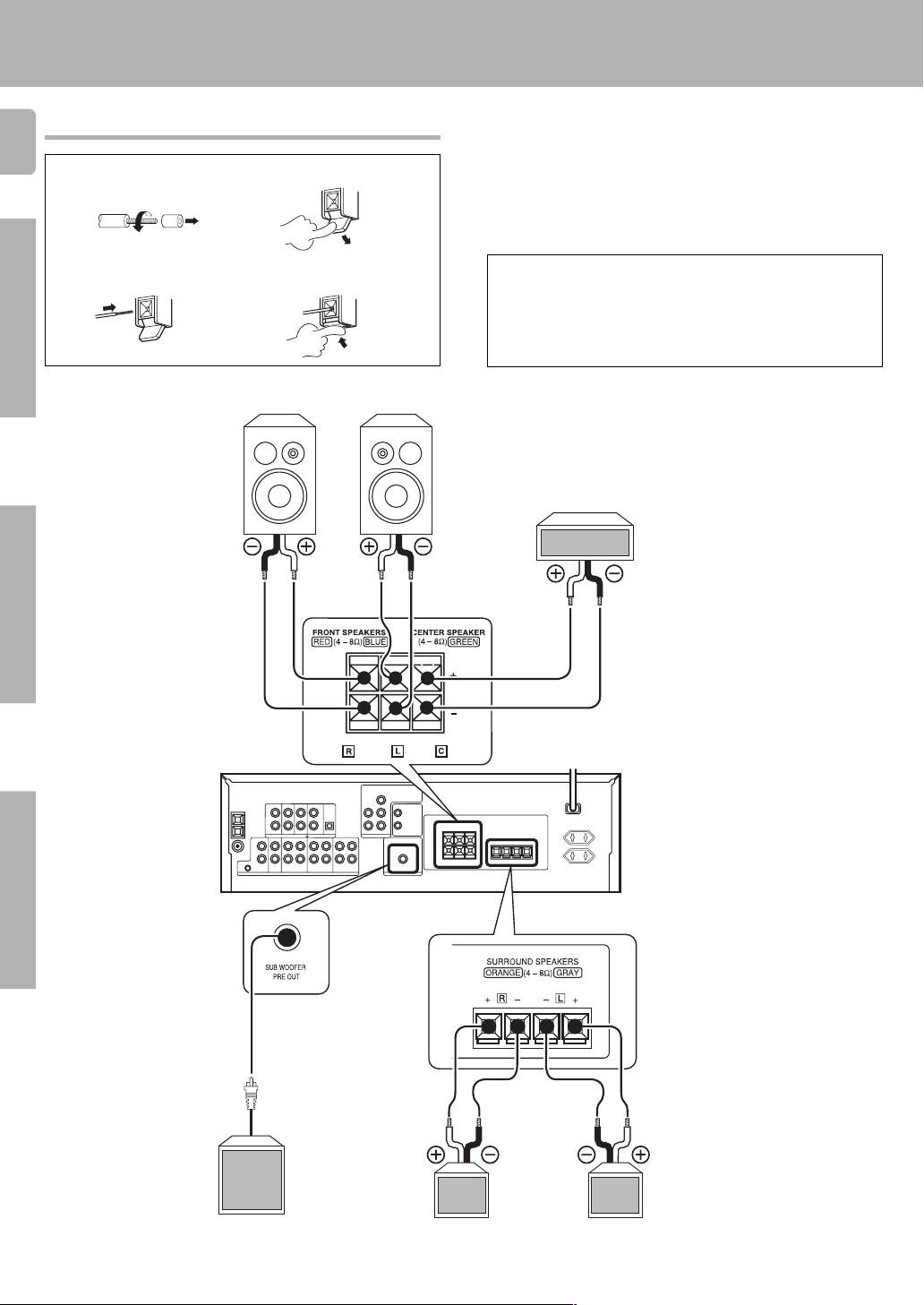

Connecting the speakers
Speaker impedance
After confirming the speaker impedance indications printed on the
rear panel of the receiver, connect speakers with matching imped-
ance ratings. Using speakers with a rated impedance other than that
indicated on the rear panel of the receiver could result in malfunctions
or damage to the speakers or receiver.
Left
Right
Surround Speakers
1 Strip coating.
2 Push the lever.
3 Insert the cord. 4 Return the lever.
Right
Front Speakers
Left
Center
Speaker
Powered
subwoofer
(Be sure to connect both surround speakers)
*4967/01-/EN 3/19/01, 6:34 PM14
15
Preparations
Operations
Additional Informatiion
Speaker placement
Subwoofer
Front speakers : Place to the front left and right of the listening
position. Front speakers are required for all surround modes.
Center speaker : Place front and center. This speaker stabilizes the
sound image and helps recreate sound motion. Be sure to connect a
center speaker when using the Dolby 3 Stereo mode.
Surround speakers : Place to the direct left and right, or slightly
behind, the listening position at even heights, approximately 1 meter
above the ears of the listeners. These speakers recreate sound
motion and atmosphere. Required for surround playback.
Subwoofer : Reproduces powerful deep bass sounds.
Front
speaker
Center speaker
Listening
position
Surround
speaker
• Although the ideal surround system consists of all the speakers
listed above, if you don't have a center speaker or a subwoofer, you
can divide those signals between the available speakers in the
speaker settings steps to obtain the best possible surround repro-
duction from the speakers you have available. ^
Setting up the system

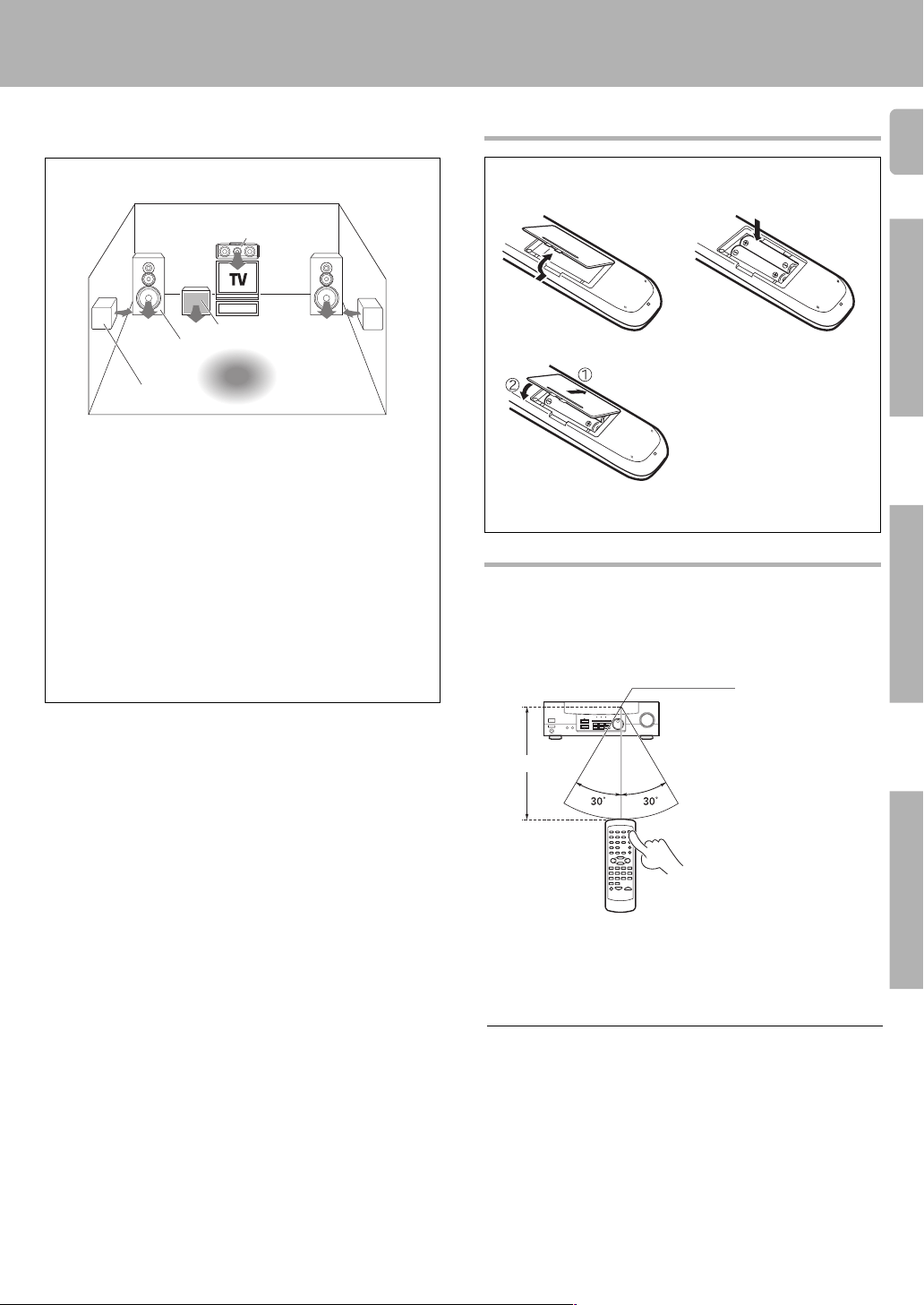

Loading the batteries
Preparing the remote control
• Insert two AA-size (R6) batteries as indicated by the polarity mark-
ings.
3 Close the cover.
2 Insert the batteries.
1 Remove the cover.
Notes
1. The supplied batteries may have shorter lives than ordinary batteries
due to use during operation checks.
2. When the remote-controllable distance gets shorter than before,
replace both batteries with new ones.
3. Placing the remote sensor in direct sunlight, or in direct light from a
high frequency fluorescent lamp may cause a malfunction.
In such a case, change the location of the system installation to
prevent malfunction.
Remote sensor
Infrared ray system
6 m
• When pressing more than one remote control key successively,
press the keys securely by leaving an interval of 1 second or more
between keys.
Operation
When the STANDBY indicator is lit, the power turns ON when you
press the POWER key on the remote control. When the power comes
ON, press the key you want to operate.
Operating range
(Approx.)
*4967/01-/EN 3/19/01, 6:34 PM15
16
Preparations
Preparing for surround sound

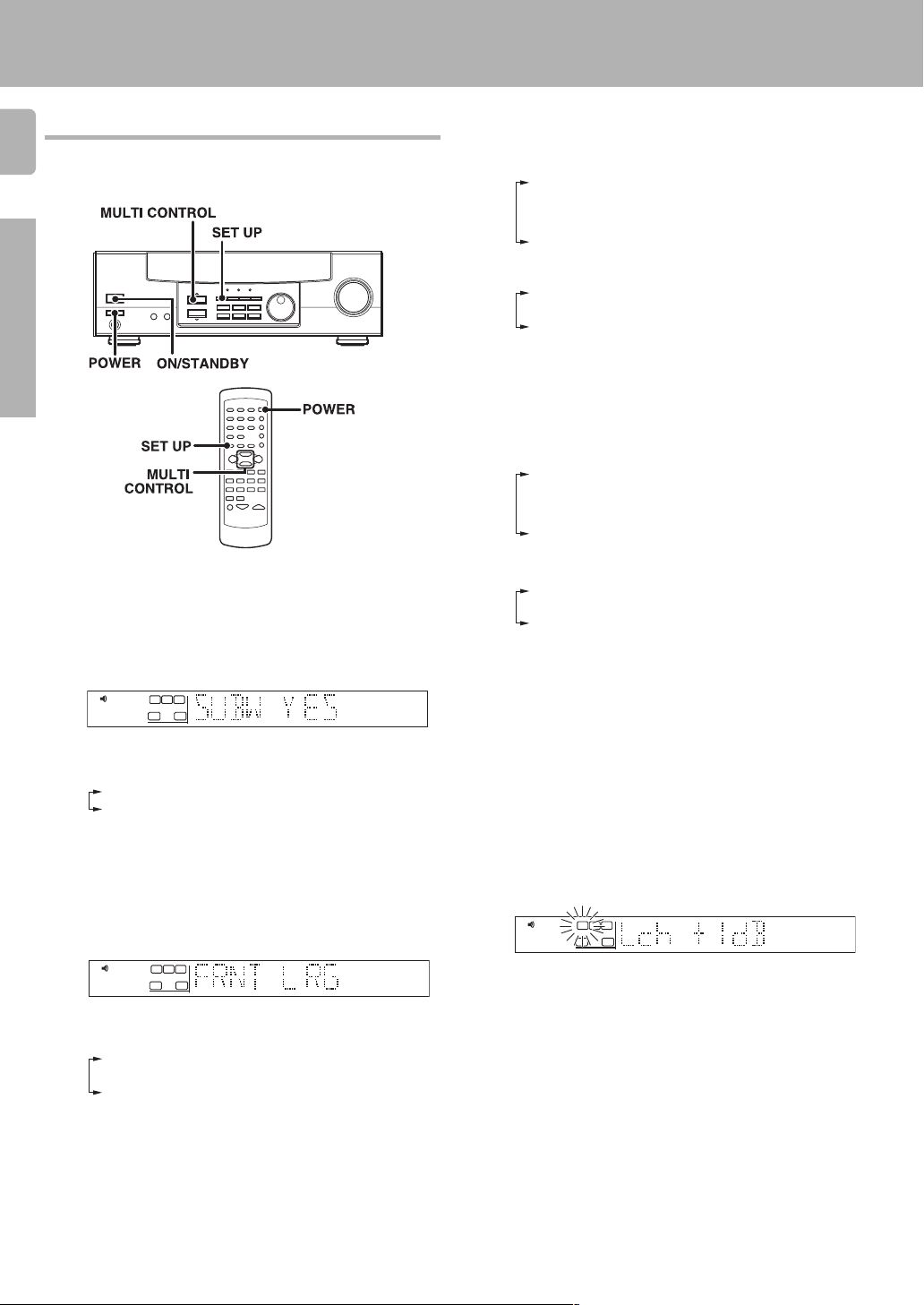

Speaker settings
If you selected other than "LRG" as the center speaker setting.
1 SURR YES: Surround speakers are connected to the re-
ceiver.
2 SURR NO: No surround speakers are connected to the
receiver.
9 Press the SET UP key to accept the setting.
• The receiver enters the speaker volume level adjustment mode.
• In steps 3 and 4, indications appear only for the selected
channels of the speakers that require adjusting.
Turn on the power to this receiver by pressing POWER and
ON/STANDBY key.
Select a speaker system.
1
2
3
1 Press the SET UP key to make the subwoofer setting indica-
tion (SUBW) appear.
2 Use the MULTI CONTROL to select the appropriate subwoofer
setting.
1 SUBW YES: A subwoofer is connected to the receiver.
2 SUBW NO: No subwoofer is connected to the receiver.
• The initial setting is "SUBW YES".
• When the setting "SUBW NO" is selected, the front speakers
automatically are set to "FRNT LRG" and the procedure skips to
step 5.
• When subwoofer output sound is required select "FRNT NML".
3 Press the SET UP key to accept the setting.
• The front speakers setting indication (FRNT) appears.
4 Use the MULTI CONTROL to select the appropriate front
speakers setting.
1 FRNT NML (normal): Average size front speakers are
connected to the receiver.
2 FRNT LRG (large): Large front speakers are
connected to the receiver.
5 Press the SET UP key to accept the setting.
• The center speaker setting indication (CNTR) appears.
Adjust the volume levels for the speakers.
Sit in your normal listening position and listen to the test tone. Adjust
the volume levels for the speakers until all speakers seem to be
equally loud.
1 Use the MULTI CONTROL to adjust the volume when the test
tone is being output from the speaker channel to be adjusted.
The test tone issues from the speakers for 2 seconds at a time
in the following sequence:
Lch = Cch = Rch = RS = LS = SW = Lch
• If you change the volume level settings for the speakers while
listening to music, the settings referred to on this page are also
changed. ¶
• If the speaker setting selects are changed, the speaker level
settings are reset.
2 Press the SET UP key.
• The receiver enters the mode for inputting the distance to the
speakers.
To enable you to obtain optimum enjoyment from the receiver’s
listening modes, make sure to complete the speaker settings
(subwoofer, front, center, and surround speakers) as described below.
Continued to next page
If you selected "NML" as the front speakers setting.
1 CNTR YES: A center speaker is connected to the
receiver.
2 CNTR NO: No center speaker is connected to the
receiver.
7 Press the SET UP key to accept the setting.
• The surround speaker setting indication (SURR) appears.
8 Use the MULTI CONTROL to select the appropriate surround
speaker setting.
If you selected "LRG" as the center speaker setting.
1 SURR LRG (large): Large surround speakers are con-
nected to the receiver.
2 SURR NML (normal): Average size surround speakers are
connected to the receiver.
3 SURR NO: No surround speakers are connected
to the receiver.
FM
AM
MHz
kHz
PRO LOGIC
3
DOWN MIX
DIGITAL
S.DIRECT
MONITOR
DSP
MEMO
ST.
TUNED
AUTO SOUND
AUTO
LFE
C
SRSLS
TI.VOLB
CLIP MUTE
RDS EON PTY
TP TA NEWS
SW
RL
SP
STEREO
STEREO
R
FM
AM
MHz
kHz
PRO LOGIC
3
DOWN MIX
DIGITAL
S.DIRECT
MONITOR
DSP
MEMO
ST.
TUNED
AUTO SOUND
AUTO
LFE
C
SRSLS
TI.VOLB
CLIP MUTE
RDS EON PTY
TP TA NEWS
SW
L
SP
FM
AM
MHz
kHz
PRO LOGIC
3
DOWN MIX
DIGITAL
S.DIRECT
MONITOR
DSP
MEMO
ST.
TUNED
AUTO SOUND
AUTO
LFE
C
SRSLS
TI.VOLB
CLIP MUTE
RDS EON PTY
TP TA NEWS
SW
RL
SP
STEREO
6 Use the MULTI CONTROL to select the appropriate center
speaker setting.
If you selected "LRG" as the front speakers setting.
1 CNTR LRG (large): A large center speaker is connected
to the receiver.
2 CNTR NML (normal): An average size center speaker is
connected to the receiver.
3 CNTR NO: No center speaker is connected to
the receiver.
The channel indication blinks while the test tone is being output.
*4967/01-/EN 3/19/01, 6:34 PM16
17
Operations
Jot down the distance to each of the speakers.
Distance to front speakers: ____ feet (meters)
Distance to center speaker: ____ feet (meters)
Distance to surround speakers: ____ feet (meters)
2 Use the MULTI CONTROL to select the distance to the front
speakers.
Input level adjustment (analog sources only)
If the input level of an analog source signal is too high, adjust the input
level.
1 Use the INPUT SELECTOR knob to select the source who’s
input level you want to adjust.
• You can store a separate input level for each input source. If the
MONITOR function is on, you can store an input level for when
MONITOR is on independently of the input levels for the input
sources.
2 Press the SOUND key several times until the "INPUT" indica-
tion appears.
3 Use the MULTI CONTROL to adjust the input level.
• The adjustment mode is displayed for approximately eight sec-
onds.
• The input level may be adjusted to any one of three settings: 0,
-3, and -6. (The initial setting is 0.)
4 Press the SOUND key to return to the input indication.
Preparing for playback
Normal playback
Some preparatory steps are needed before starting playback.
Turning on the receiver
1 Turn on the power to the related components.
2 Turn on the power to this receiver by pressing POWER and ON/
STANDBY keys.
Selecting MD/TAPE
Select the source name corresponding to the component connected to
the MD/TAPE jacks. The initial factory setting is "TAPE". To change the
source name associated with the MD/TAPE jacks to "MD," follow the
steps below:
1 Use the INPUT SELECTOR knob to select "TAPE".
2 Hold down the AUTO key for more than 2 seconds.
• The source indication changes to "MD".
• To return to the original indication, repeat the above procedure.
• You also will need to change the name input to the remote control
to "MD".
Selecting the input mode
If you have selected a component connected to the CD/DVD, DVD/
6ch or VIDEO2/MONITOR jacks, make sure that the input mode
setting is correct for the type of audio signal to be used. 7
5 Setup is complete when the input indication reappears.
Display when all speakers have been selected.
• The speakers you selected appear on the display. Confirm that all
the speakers have been correctly selected.
The speaker indicator to be adjusted blinks.
Indication in feet Indication in meters
1 Measure the distance from the listening position to each of the
speakers.
• The allowable setting range is 1 to 30 feet (0.3 to 9.0 m),
adjustable in 1 foot (0.3 m) increments.
3 Press the SET UP key.
4 Repeat steps 2 and 3 to input the distance for each of the
speakers.
LFE
C
SRSLS
TI.VOLB
CLIP MUTE
RDS EON PTY
TP TA NEWS
L
SP
R
SW
SW
STEREO
FM
AM
MHz
kHz
PRO LOGIC
3
DOWN MIX
DIGITAL
S.DIRECT
MONITOR
DSP
MEMO
ST.
TUNED
AUTO SOUND
AUTO
LFE
C
SRSLS
TI.VOLB
CLIP MUTE
RDS EON PTY
TP TA NEWS
L
SP
R
STEREO
SW
STEREO
FM
AM
MHz
kHz
PRO LOGIC
3
DOWN MIX
DIGITAL
S.DIRECT
MONITOR
DSP
MEMO
ST.
TUNED
AUTO SOUND
AUTO
LFE
C
SRSLS
TI.VOLB
CLIP MUTE
RDS EON PTY
TP TA NEWS
L
SP
R
STEREO
AUTO
INPUT MODE
POWER
ON/STANDBY
INPUT SELECTOR
SPEAKER
MUTE
LFE
C
SRSLS
TI.VOL
CLIP MUTE
RDS EON PTY
TP TA NEWS
L
SP A
R
SW
B
The speaker indicator lights.
Press the SPEAKER key to switch the speakers on and off.
Preparing for surround sound
4
Input the distance to the speakers.
*4967/01-/EN 3/19/01, 6:34 PM17

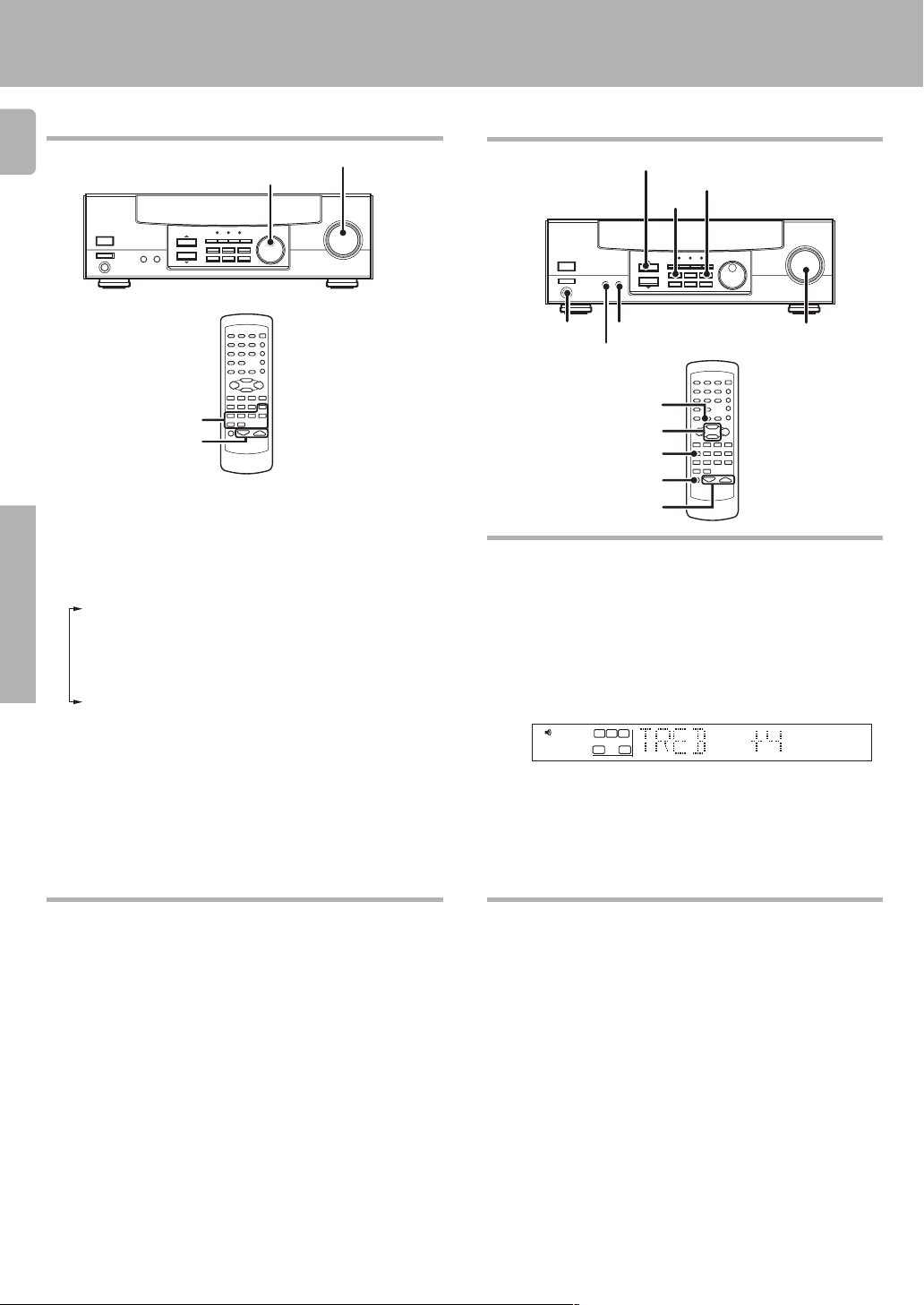

18
Operations
Normal playback
1
Listening to a source component Adjusting the sound
Adjusting the tone
You can adjust the sound quality when the receiver is in the PCM stereo
and analog stereo mode.
1 Press the SOUND key to select the tone mode to be adjusted.
• The bass and treble levels are adjustable from -10 to +10 in 2 step
increments.
• The adjustment item is displayed for approximately 8 seconds.
Use the INPUT SELECTOR to select the source you want to
listen to.
2 Use the MULTI CONTROL to adjust the sound quality.
BASS: Select this to adjust the low frequency range.
(Press the SOUND key once.)
TREB: Select this to adjust the high frequency range.
(Press the SOUND key twice.)
Once-touch low frequency emphasis (bass boost)
You can adjust the sound quality when the receiver is in the PCM stereo
and analog stereo mode.
Press the BASS BOOST key.
• Press the key once to select the maximum (+10) low frequency
emphasis setting.
• This key does not function when the receiver is in the sound quality
or ambience effects adjustment mode.
Switching back to the previous setting
Press the BASS BOOST key again.
FM
AM
MHz
kHz
PRO LOGIC
3
DOWN MIX
DIGITAL
S.DIRECT
MONITOR
DSP
MEMO
ST.
TUNED
AUTO SOUND
AUTO
LFE
C
SRSLS
TI.VOLB
CLIP MUTE
RDS EON PTY
TP TA NEWS
SW
L
SP
R
STEREO
1 "PHONO"
2 "TUNER"
3 "CD/DVD"
4 "TAPE" or "MD"
5 "VIDEO1"
6 "VIDEO2"
7 "DVD/6ch"
Selecting VIDEO 2/MONITOR
Depending on the component connected to the VIDEO 2/MONITOR
jacks, select either the "VIDEO 2" setting or the "MONITOR" setting, as
appropriate. 7
The input sources change as shown below:
Selecting a source using the INPUT SELECTOR knob
INPUT SELECTOR
VOLUME CONTROL
INPUT
SELECTOR
VOLUME
SOUND
VOLUME CONTROL
SOURCE DIRECT
PHONES
MULTI CONTROL
VOLUME
SOUND
MUTE
BASS BOOST
MULTI
CONTROL
SPEAKER
MUTE
2
3
Start playback from the selected source.
Use the VOLUME CONTROL knob (VOLUME keys) to adjust
the volume.
*4967/01-/EN 3/19/01, 6:34 PM18
19
Operations
Muting the sound
The MUTE key lets you mute the sound of the speakers.
Press the MUTE key.
To cancel
Press the MUTE key again so that the "MUTE" indicator goes off.
• Muting can also be canceled by adjusting the volume.
Blinks
SOURCE DIRECT playback (analog sources only)
Use this function to pass the source material direct to the amplifier,
bypassing any audio processing.
To cancel
Press the SOURCE DIRECT key.
• When you press the LISTEN MODE, SOUND, or SET UP keys, or
switch to another input source, SOURCE DIRECT playback will be
canceled.
Listening with headphones
1 Press the SPEAKER key so that the speaker indicator goes off.
2 Connect headphones to the PHONES jack.
• If you turn off all of the speakers when in the surround mode, the
mode is canceled as well, resulting in stereo playback.
• The speakers do not switch off during the 6ch INPUT mode.
Select the other input mode. 7
3 Use the VOLUME CONTROL (VOLUME) to adjust the volume.
1 Use the INPUT SELECTOR knob to select the source (other than
"MD/TAPE") you want to record.
2 Set the cassette deck to record.
3 Start playback, then start recording.
Recording audio (analog sources)
Recording
Recording a music source
1 Press the MONITOR key.
2 Use the INPUT SELECTOR knob to select a source other than
"MD/TAPE."
3 Start playback on the cassette deck connected to the MONITOR
jacks and start recording on the cassette deck connected to the
MD/TAPE jacks.
Recording tapes or MD (with MONITOR function)
1 Use the INPUT SELECTOR knob to select "MD/TAPE."
2 Start playback on the cassette deck connected to the MD/TAPE
jacks and start recording on the cassette deck connected to the
VIDEO2/MONITOR jacks.
MONITOR = MD/TAPE recording
MD/TAPE = MONITOR recording
• To copy tapes using a double cassette deck, refer to the instruction
manual of the double cassette deck.
MONITOR function (analog sources only)
You can connect a cassette deck or graphic equalizer to the VIDEO2/
MONITOR jacks of the receiver. If a graphic equalizer is connected,
the MONITOR key should be left in the on position. Alternately, if a
cassette deck equipped with a 3-head system is connected to the
VIDEO2/MONITOR jacks, you will be able to monitor the just-
recorded signal while making recordings on the cassette deck. By
switching the MONITOR key on and off, you can compare the sound
of the source signal and the just-recorded signal. For more informa-
tion, refer to the instruction manual of the connected component.
Press the SOURCE DIRECT key again.
• If SOURCE DIRECT playback was activated when using a surround
mode, cancelling it reactivates the previous surround mode.
Normal playback
LFE
C
SRSLS
TI.VOLB
CLIP
RDS EON PTY
TP TA NEWS
SW
L
SP
R
MUTE
INPUT SELECTOR
MONITOR
S.DIRECT
FM
AM
MHz
kHz
PRO LOGIC
3
DOWN MIX
DIGITAL
DSP
MEMO
ST.
TUNED
AUTO SOUND
AUTO
STEREO MONITOR
Make sure the SP indicators
are turned off.
When recording a music source, switch the VIDEO2/MONITOR
setting to "MONITOR" . 7
When recording a music source, switch the VIDEO2/MONITOR
setting to "MONITOR". 7
STEREO
FM
AM
MHz
kHz
PRO LOGIC
3
DOWN MIX
DIGITAL
MONITOR
DSP
MEMO
ST.
TUNED
AUTO SOUND
AUTO
S.DIRECT
SW
RL
LFE
C
SRSLS
TI.VOLB
CLIP MUTE
RDS EON PTY
TP TA NEWS
ASP
*4967/01-/EN 3/19/01, 6:34 PM19
20
Operations
1 Use the INPUT SELECTOR to select the source (CD, DVD or
VIDEO2) you want to record.
2 Set the cassette deck to record.
3 Press and hold the DIMMER key for more than 2 seconds to
select the A-REC or M-REC mode.
1 REC MODE off : The digital input record mode is
switched off.
2 A-REC MODE : The digital input signals (Dolby Digital,
or PCM) are identified automatically and
converted into stereo signals that are
ready for recording.
3 M-REC MODE : The input signal type at the moment
this mode is selected is held throughout
this mode.
Recording audio (digital sources)
Switch on the REC mode to record a digital input source.
Usually use the A-REC (Auto-Record) mode to record audio input
sources.
When the digital mode changes during recording in the A- REC mode, the
audio may be interrupted momentarily.
For M-REC mode:
4 Play the source from the beginning and start recording.
• If the audio reproduction stops in the middle due to change in
the input signals, etc., press the DIMMER key.
Recording
Recording video
1 Use the INPUT SELECTOR to select the video source (other than
"VIDEO1") you want to record.
2 Set the video deck connected to VIDEO 1 to record.
• Select the REC MODE to record a digital input source.
3 Start playback, then start recording.
• With certain video software, recording may not be normal due to
the copy guard condition. ⁄
Recording music in A-REC or M-REC mode
INPUT SELECTOR
DIMMER
• The mode changes every 2 seconds as shown below.
DIGITAL
AUTO SOUND
AM
MHz
kHz
3
DOWN MIX
S.DIRECT
MONITOR
DSP
MEMO
ST.
TUNED
AUTO
PRO LOGIC
DIGITAL
AUTO SOUND
AM
MHz
kHz
3
DOWN MIX
S.DIRECT
MONITOR
DSP
MEMO
ST.
TUNED
AUTO
PRO LOGIC
STEREO
STEREO
DIGITAL
AUTO SOUND
PRO LOGIC
DIGITAL
AUTO SOUND
PRO LOGIC
DIGITAL
AUTO SOUND
FM
AM
MHz
kHz
3
DOWN MIX
S.DIRECT
MONITOR
DSP
MEMO
ST.
TUNED
AUTO
PRO LOGIC
DIGITAL
AUTO SOUND
FM
AM
MHz
kHz
3
DOWN MIX
S.DIRECT
MONITOR
DSP
MEMO
ST.
TUNED
AUTO
PRO LOGIC
STEREO
STEREO
DIGITAL
DIGITAL
For A-REC mode:
*4967/01-/EN 3/19/01, 6:34 PM20

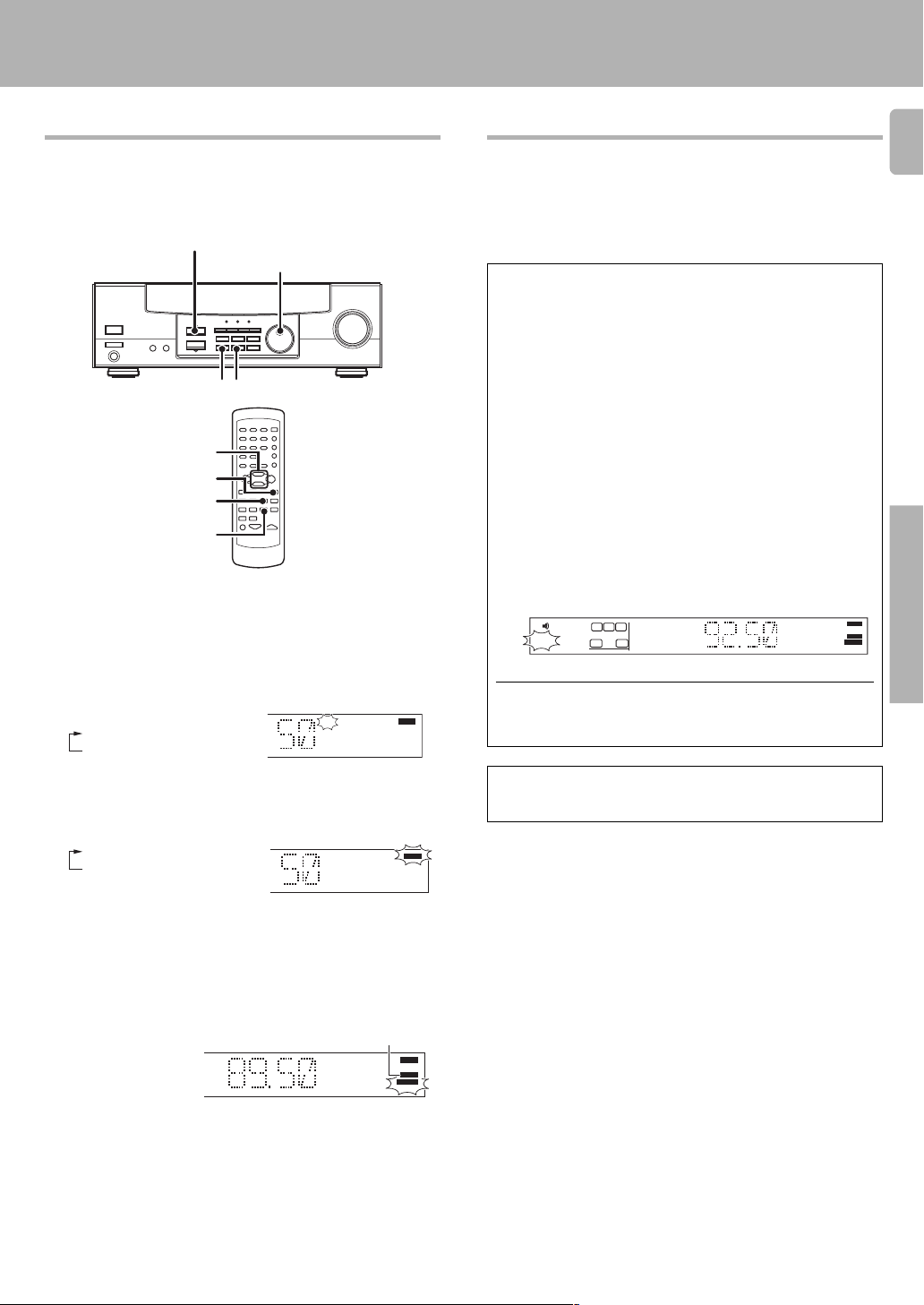

21
Operations
Listening to radio broadcasts
1
2
3
Each press switches the tuning method as follows:
4
Auto tuning : The next station is tuned automatically.
Manual tuning : Turn the knob (press the key) to select the
desired station.
Each press switches the band
as follows:
1 AUTO lit (auto tuning)
2 AUTO not lit (manual tuning)
Frequency
display
"TUNED" is displayed
when a station is received
• Normally, set to "AUTO" (auto tuning). If the radio waves are weak
and there is a lot of interference, switch to manual tuning. (With
manual tuning, stereo broadcasts will be received in monaural.)
"AM" or "FM" indicator
Use the INPUT SELECTOR or TUNER key to select the
tuner.
Use the BAND key to select the desired broadcast band.
Use the AUTO key to select the desired tuning method.
Use the MULTI CONTROL to select the station.
1 FM
2 AM
Lights when a broadcast is
being received in stereo.
AM
kHz
PRO LOGIC
3
DOWN MIX
DIGITAL
S.DIRECT
MONITOR
DSP
MEMO
ST.
TUNED
AUTO SOUND
FM
MHz
STEREO
AUTO
AM
kHz
PRO LOGIC
3
DOWN MIX
DIGITAL
S.DIRECT
MONITOR
DSP
MEMO
ST.
TUNED
AUTO SOUND
FM
MHz
STEREO
AUTO
AM
kHz
PRO LOGIC
3
DOWN MIX
DIGITAL
S.DIRECT
MONITOR
DSP
AUTO SOUND
MEMO
FM
MHz STEREO
AUTO
TUNED
ST.
RDS is a system that transmits useful information (in the form of digital
data) for FM broadcasts along with the broadcast signal. Tuners and
receivers designed for RDS reception can extract the information from
the broadcast signal for use with various functions, such as automatic
display of the station name.
RDS functions:
PTY (Program Type Identification) Search ¢
Automatically tunes to a station that is currently broadcasting the
specified program type (genre).
PS (Program Service Name) Display
Automatically displays the station name transmitted by the RDS
station.
RDS AUTO MEMORY function ™
Automatically selects and stores up to 40 RDS stations in the preset
memory.
If fewer than 40 RDS stations have been stored in the preset memory,
regular FM stations will be stored in the remaining places.
Radio Text function
Displays the radio text data transmitted by some RDS stations when
you press the RDS DISP. key. There is "NO RT" display if no text data
is transmitted.
Using RDS (Radio Data System)
The "RDS" indicator lights up when an RDS broadcast (signal) is
received.
Before using a function utilizing the RDS, be sure to perform the RDS
Auto Memory operation by referring to the description in "Presetting
RDS stations (RDS AUTO MEMORY)". ™
Note
Some functions and function names may differ for certain countries
and areas.
FM
MHz STEREO
AUTO
TUNED
ST.
SW
RL
SP
RDS
MULTI CONTROL
INPUT SELECTOR
BAND AUTO
MULTI
CONTROL
TUNER
AUTO
BAND
Tuning (non-RDS) radio stations
Radio stations can be classified into RDS (Radio Data System) stations
and other stations. To listen to or store RDS stations in the preset
memory, see the section entitled, "Using RDS".
"AUTO" indicator lights.
*4967/01-/EN 3/19/01, 6:34 PM21

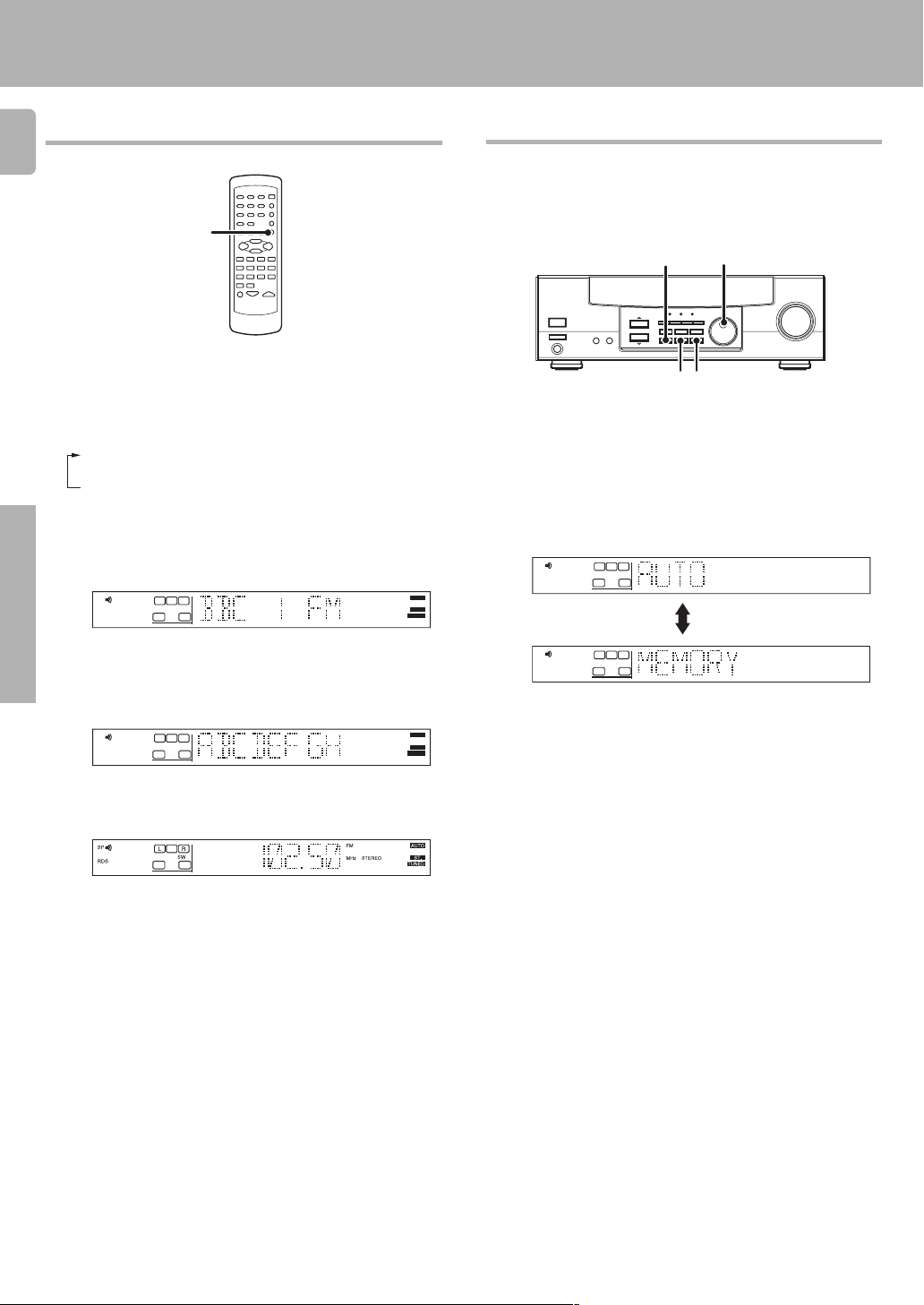

22
Operations
Each press switches the display mode as follows:
1 PS (Program Service name) display
2 RT (Radio Text) display
3 Frequency display
Using the RDS DISP. (Display) key
1 PS (Program Service name) display:
The station name is displayed automatically when an RDS broadcast
is received,
If no PS data was sent, "NO PS" is displayed.
Pressing the RDS DISP. key changes the contents of the
display.
2 RT (Radio Text) display:
Text data accompanying the RDS broadcast scrolls across the
display. "NO RT" or "RT----" is displayed if the current RDS station
does not provide RT data.
1
2
3
This function automatically stores up to 40 RDS stations in the preset
memory. In order to use the PTY function, the RDS stations must be
stored in the preset memory using the RDS AUTO MEMORY function.
Use the INPUT SELECTOR knob to select the tuner.
Use the BAND key to set the broadcast band to "FM".
Press and hold the MEMORY key for more than 2 seconds.
Presetting RDS stations
(RDS AUTO MEMORY)
• After a few minutes, up to 40 RDS stations are preset in order from
channel "01".
• Stations already stored in the preset memory may be replaced by
RDS stations. (i.e., If the RDS AUTO MEMORY function finds 15
RDS stations, the stations currently preset at numbers 01~15 are
replaced by the RDS stations.)
3 Frequency display:
Displays the frequency of the current station.
Listening to radio broadcasts
RDS DISP.
FM
STEREO
AUTO
TUNED
ST.
SW
RL
SP
RDS
FM
STEREO
AUTO
TUNED
ST.
SW
RL
SP
RDS
INPUT SELECTOR
MEMORYAUTO
BAND
STEREO
SW
RL
SP
STEREO
SW
RL
SP
*4967/01-/EN 3/19/01, 6:34 PM22

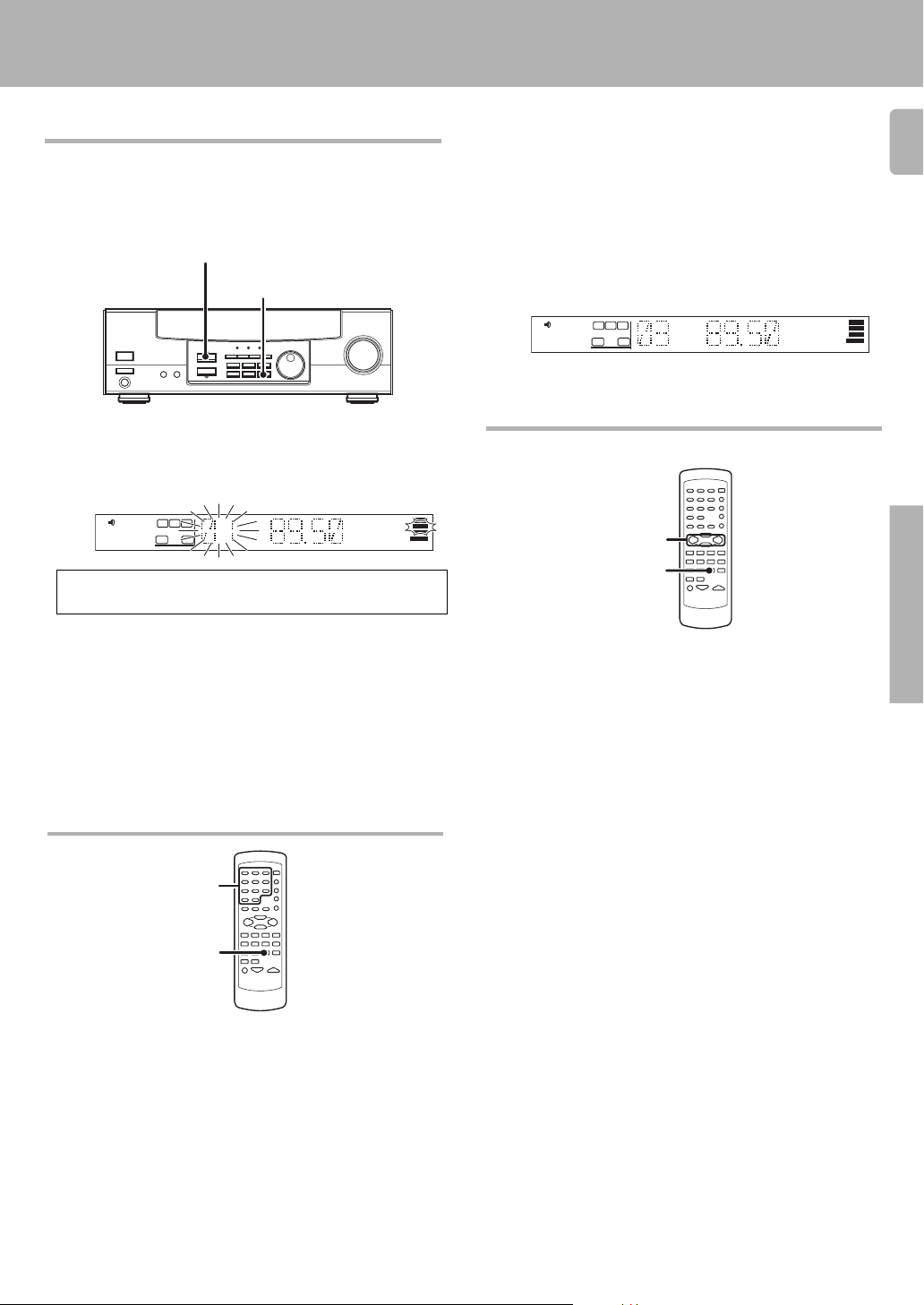

23
Operations
Presetting radio stations manually
• Repeat steps 1, 2, 3, and 4 to store as many stations as
necessary.
• If you store a station at a previously used preset, the old station will
be replaced by the new one.
Press the MEMORY key while receiving the station.
Proceed to step 3 within 5 seconds.
(If more than 5 seconds elapse, press the MEMORY key again).
Blinks for 5 seconds Lights for 5 seconds
1
2
Tune to the station you want to store.
3
4
Receiving preset stations
Enter the number of the preset you want to receive (up to
"40").
1
2
Press the numeric keys in the following order:
For "15", press .......... 0,5
For "20", press .......... 0,0,)
• If you make a mistake entering a two digit number, press the +10
key several times to return to the original display and start again.
Use the MULTI CONTROL to select one of the station
presets (1 – 40).
Press the MEMORY key to accept the setting.
Press TUNER to select the tuner as the source.
AM
kHz
PRO LOGIC
3
DOWN MIX
DIGITAL
S.DIRECT
MONITOR
DSP
AUTO SOUND
LFE
C
SRS
LS
TI.VOLB
CLIP MUTE
RDS EON PTY
TP TA NEWS
FM
MHz STEREO
AUTO
TUNED
ST.
MEMO
SW
RL
SP
AM
kHz
PRO LOGIC
3
DOWN MIX
DIGITAL
S.DIRECT
MONITOR
DSP
AUTO SOUND
LFE
C
SRS
LS
TI.VOLB
CLIP MUTE
RDS EON PTY
TP TA NEWS
FM
MHz STEREO
AUTO
TUNED
ST.
MEMO
SW
RL
SP
Listening to radio broadcasts
The RDS auto memory function assigns preset numbers to RDS
stations starting from preset number "1". Therefore, be sure to execute
the RDS auto memory function before using the following operations
to manually store AM stations and other FM stations, and RDS stations.
"Presetting RDS stations (RDS AUTO MEMORY)". ™
TUNER
Numeric keys
Receiving preset stations in order
(P.CALL)
• Each time you press the key, another preset station is received in
order.
Pressing the P.CALL (¢) key does the following:
01=02=03= ...... 38=39=40=01=02=03=
Pressing the P.CALL (4) key does the following:
01+02+03+ ...... 38+39+40+01+02+03+
Holding down the key, lets you skip through the presets, receiv-
ing each for 0.5 seconds a piece.
1
2
Press TUNER to select the tuner as the source.
Use the P.CALL keys to select the desired station.
TUNER
P.CALL 4 / ¢
MULTI CONTROL
MEMORY
*4967/01-/EN 3/19/01, 6:34 PM23
24
Operations
Listening to radio broadcasts
1
2
When an RDS broadcast is received, the program type is shown on
the display. If no PTY data is available, or if the station is not an RDS
station, "NONE" is displayed.
Program type table
Tuning by program type (PTY search)
This function lets you set the tuner to automatically search for stations
which are currently broadcasting the type of program (genre) you want
to listen to.
Preparations
• Execute the RDS auto memory procedure.
• Set the broadcast band to FM.
• Tune to an RDS station.
Program Type Name Display
News NEWS
Current Affairs AFFAIRS
Information INFO
Sport SPORT
Education EDUCATE
Drama DRAMA
Culture CULTURE
Science SCIENCE
Varied Speech VARIED
Pop Music POP M
Rock Music ROCK M
Easy Music EASY M
Light Classical Music LIGHT M
Serious Classical Music CLASSICS
Other Music OTHER M
"NO PROG" is displayed if this operation is attempted before
performing the RDS Auto Memory operation.
Under certain receiving conditions, it may take more than 1
minute to complete the search.
3
Press the PTY key to start searching.
EXAMPLE: Searching for a Rock Music broadcast.
Goes out
Station name display
Blinks
Program type name display
To select another program type
Display while searching
Display when a station is received.
• No sound is heard while "PTY" is blinking.
• If the desired program type cannot be found, "NO PROG" is
displayed, then after several seconds the display returns to the
original display.
Repeat steps 1, 2 and 3.
Press the PTY key to activate the PTY search mode.
While the "PTY" indicator is lit, use the MULTI CONTROL
or TUNING
1
/
¡
keys to select the program type of
your choice.
Program Type Name Display
Weather WEATHER
Finance FINANCE
Children’s Programmes CHILDREN
Social Affairs SOCIAL
Religion RELIGION
Phone In PHONE IN
Travel TRAVEL
Leisure LEISURE
Jazz Music JAZZ
Country Music COUNTRY
National Music NATION M
Oldies Music OLDIES
Folk Music FOLK M
Documentary DOCUMENT
TUNING
1 / ¡
MULTI
CONTROL
AUTO
MEMO
ST.
TUNED
FM
MHz
NEWS
AM
kHz
PRO LOGIC
3
DOWN MIX
DIGITAL
S.DIRECT
MONITOR
DSP
AUTO SOUND
LFE
C
SRS
LS
TI.VOLB
CLIP MUTE
EON
TP TA
STEREO
SW
RL
SP
PTYRDS
AUTO
MEMO
ST.
TUNED
MHz
NEWS
AM
kHz
PRO LOGIC
3
DOWN MIX
DIGITAL
S.DIRECT
MONITOR
DSP
AUTO SOUND
LFE
C
SRS
LS
TI.VOLB
CLIP MUTE
EON
TP TA
STEREO
SW
RL
SP
PTYRDS
FM
PTY
AUTO
MEMO
ST.
TUNED
MHz
NEWS
AM
kHz
PRO LOGIC
3
DOWN MIX
DIGITAL
S.DIRECT
MONITOR
DSP
AUTO SOUND
LFE
C
SRS
LS
TI.VOLB
CLIP MUTE
EON
TP TA
STEREO
SW
RL
SP
RDS
FM
*4967/01-/EN 3/19/01, 6:34 PM24

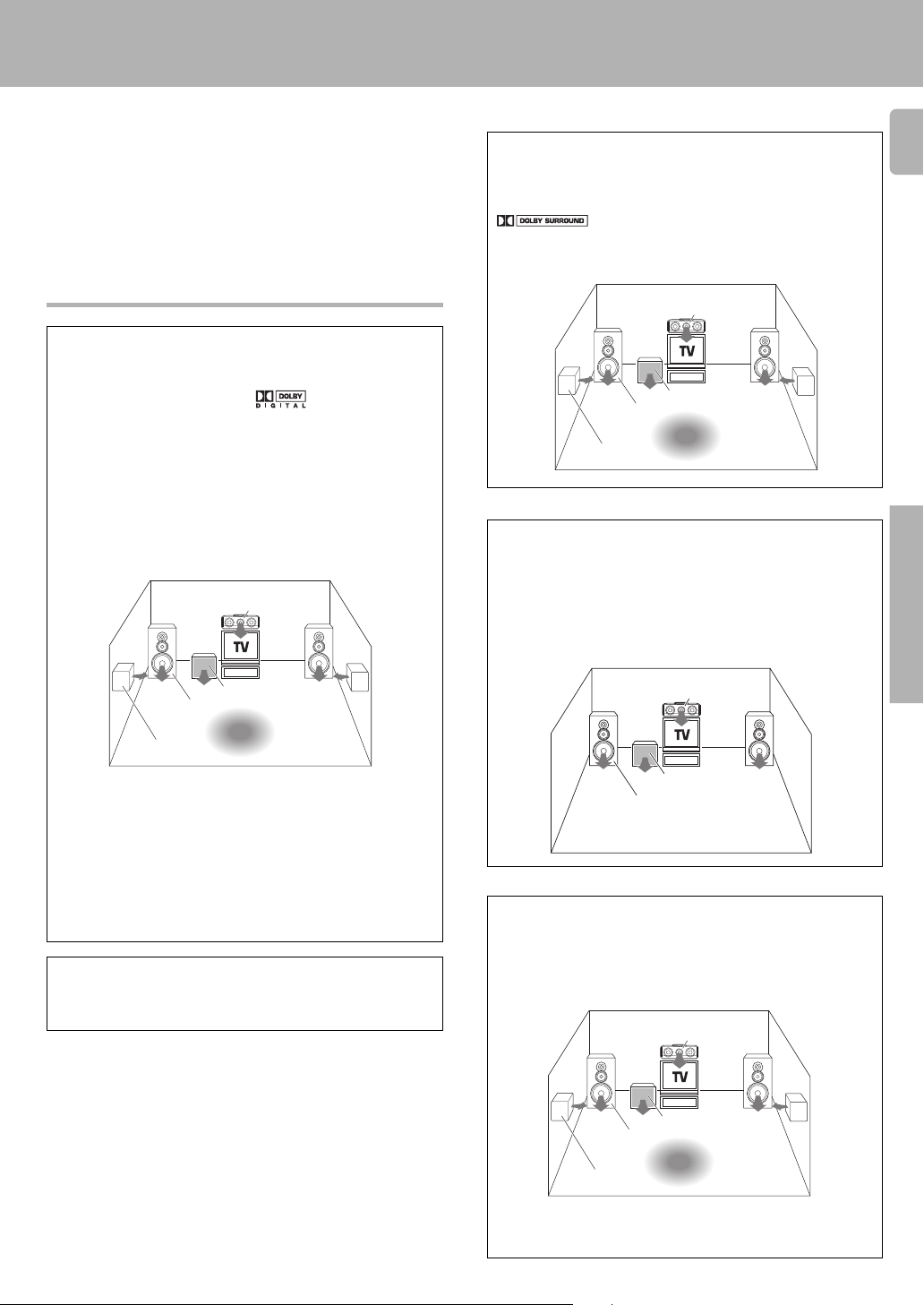

25
Operations
Ambience effects
This receiver is equipped with listening modes that allow
you to enjoy an enhanced sonic ambience with a variety of
video sources.
In order to obtain the optimum effect from the surround
modes, make sure to input the proper speaker settings
beforehand. ^
Surround modes
Dolby Digital
The Dolby Digital surround format lets you enjoy up to 5.1 channels
of digital surround sound from Dolby Digital program sources (such as
Laserdisc or DVD software marked
). Compared with previ-
ous Dolby surround, Dolby Digital provides even better sound quality,
greater spatial accuracy, and improved dynamic range.
Note
Although a full set of speakers (front left, right, and center, surround
left and right, and a subwoofer) is required for true 5.1 channel Dolby
Digital surround sound, this receiver lets you enjoy Dolby Digital (and
Dolby Surround) program sources, even if you connect only the front
speakers.
* LFE = Low Frequency Effects. This channel delivers separate non-
directional bass signals to the subwoofer for more dynamic deep bass
sound effects.
Although only Dolby Digital soundtracks incorporate a separate low
frequency channel, connecting a subwoofer will also improve deep
bass performance in the other surround modes.
The indication "LFE" appears in the display when a signal is being input
for this channel.
Front speaker (L, R)
Subwoofer (SW)*
Center speaker
Surround speakers (L, R)
Dolby Pro Logic is a specially encoded 2 channel surround format
designed to provide theater-like surround sound from Dolby Surround
encoded sources (such as video and Laserdisc software marked
). This receiver is equipped with a Dolby Pro Logic
surround decoder to let you enjoy the wide variety of currently
available Dolby Surround home video software.
Surround signal is monaural.
Dolby Pro Logic
Manufactured under license from Dolby Laboratories. "Dolby", "Pro
Logic" and the double-D symbol are trademarks of Dolby Laboratories.
Confidential Unpublished Works. ©1992-1997 Dolby Laboratories. All
rights reserved.
Front speaker (L, R)
Subwoofer (SW)
Center speaker
Dolby 3 Stereo
Dolby 3 Stereo is available for systems that do not have surround
speakers. When in the Dolby 3 Stereo mode, the surround informa-
tion is redirected to the front left and right speakers. This mode is
designed for use with Dolby Surround program sources, but can also
improve sound field unity for programs that are not Dolby Surround
encoded. Dialog positioning and sound image definition, however,
may not be as accurate when used with programs that are not Dolby
Surround encoded.
DVD 6-channel mode
Using a DVD player or the like equipped with six (5.1) output channels
and the receiver, you can enjoy multi-channel encoded DVD source
material in all its splendor. Since the source signals are digital and
each channel is input independently, the resulting sound quality,
sense of spaciousness, and dynamic range are superb.
Front speaker (L, R)
Subwoofer (SW)*
Center speaker
Surround speakers (L, R)
Front speaker (L, R)
Subwoofer (SW)
Center speaker
Surround speakers (L, R)
* LFE = Low Frequency Effects. This channel delivers separate non-
directional bass signals to the subwoofer for more dynamic deep bass
sound effects.
*4967/01-/EN 3/19/01, 6:34 PM25

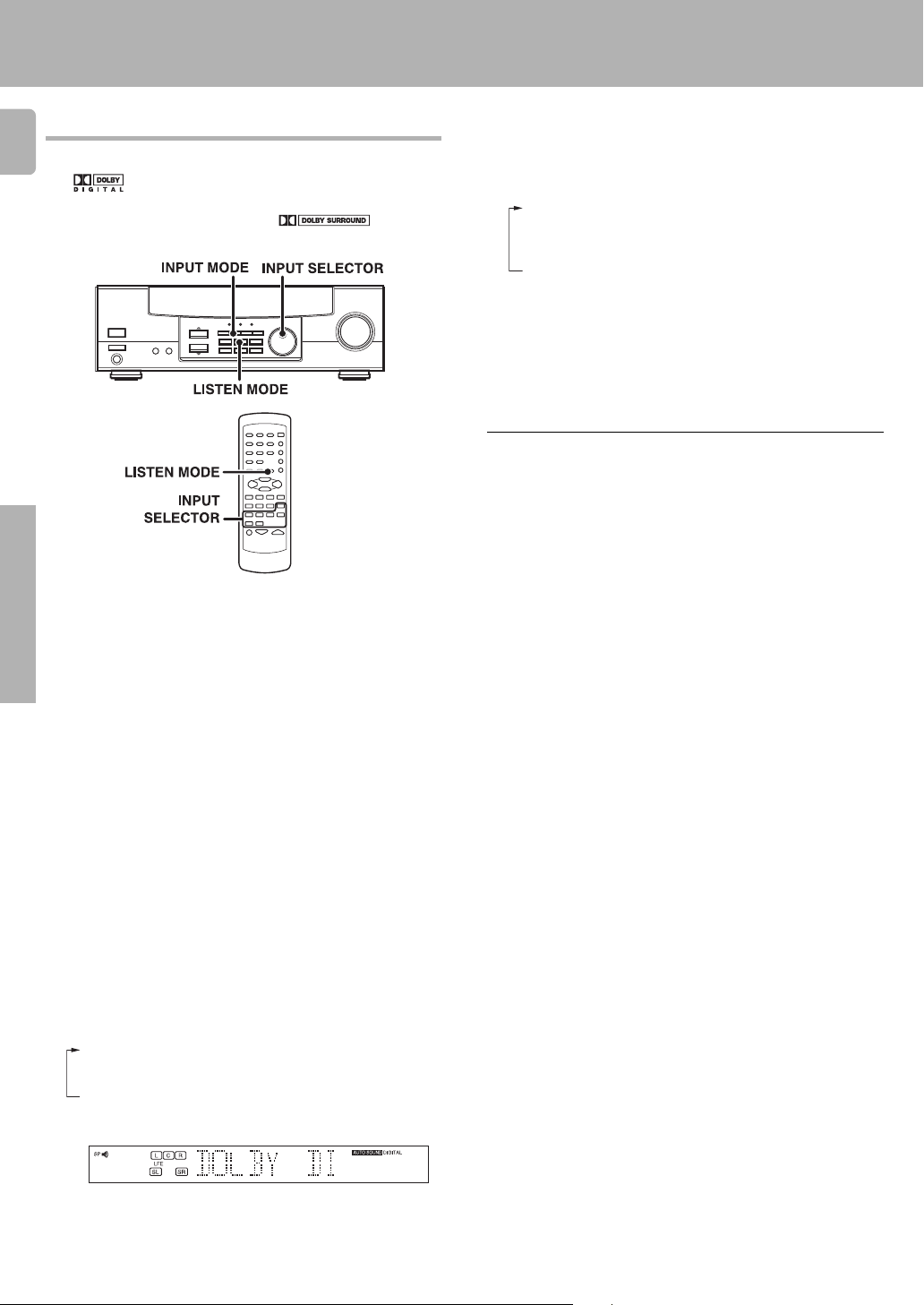

26
Operations
Ambience effects
Surround Play
DOLBY DIGITAL can be used when playing DVD or LD software bearing
the
mark and DOLBY DIGITAL format digital broadcasts (etc.).
DOLBY PRO LOGIC and DOLBY 3 STEREO can be used when playing
video, DVD, or LD software bearing the
mark.
• Turn ON related components.
• Complete "Preparing for surround sound" (speaker settings).
^
• Use the INPUT SELECTOR to select the component you wish to
playback with surround sound.
• Use the INPUT MODE key to select the input mode (analog or
digital) for the source you wish to play back. 7
Preparations
1
2
Start playing the video software.
Press the LISTEN MODE key to select the listening mode.
The listening mode settings are stored separately for each input. If
the input mode is set to digital auto ("AUTO SOUND" lights), the
receiver selects the optimal listening mode automatically based on
the type of input signal and the speaker settings.
Each press of the LISTEN MODE key switches the setting as
listed below.
The listening mode settings are different depending on the type
of input signal.
When the DOLBY DIGITAL signal is input:
(The DOLBY DIGITAL, PROLOGIC, or 3 STEREO indicator lights up.)
1 DOLBY DIGITAL: DOLBY DIGITAL surround
2 PRO LOGIC: PRO LOGIC surround
3 3 STEREO: 3-STEREO surround
4 STEREO: Normal stereo playback
When you select DOLBY DIGITAL
When the analog signal or the digital signal except for the
DOLBY DIGITAL signal is input:
1 PRO LOGIC: PRO LOGIC surround (The PRO LOGIC
indicator lights up.)
2 3 STEREO: 3-STEREO surround (The 3 STEREO indica-
tor lights up.)
3 STEREO: Normal stereo playback
Adjust the volume.
3
Notes
• Depending on the type of the signal or speaker setting, some listening
modes cannot be selected.
• When playback is started, the sound may be cut or interrupted before
the input source is confirmed as Dolby Digital.
• To enjoy Dolby Digital surround (as well as all the other listening
modes) from a single component, be sure to use a Dolby Digital
compatible source component. Connect the Dolby Digital compatible
source component's Dolby Digital format digital audio signal to one
of the DIGITAL INPUT jacks on the back of the receiver. Connect the
normal audio signal correctly to the respective component's AUDIO
jacks. 890!
• If a Dolby Digital signal having more channels than the maximum
number of playback channels available using the receiver's cur-
rent setting is input, the DOWN MIX indicator on the front panel
lights up and downmixing is performed to match the number of
avaliable channels.
*4967/01-/EN 3/19/01, 6:34 PM26

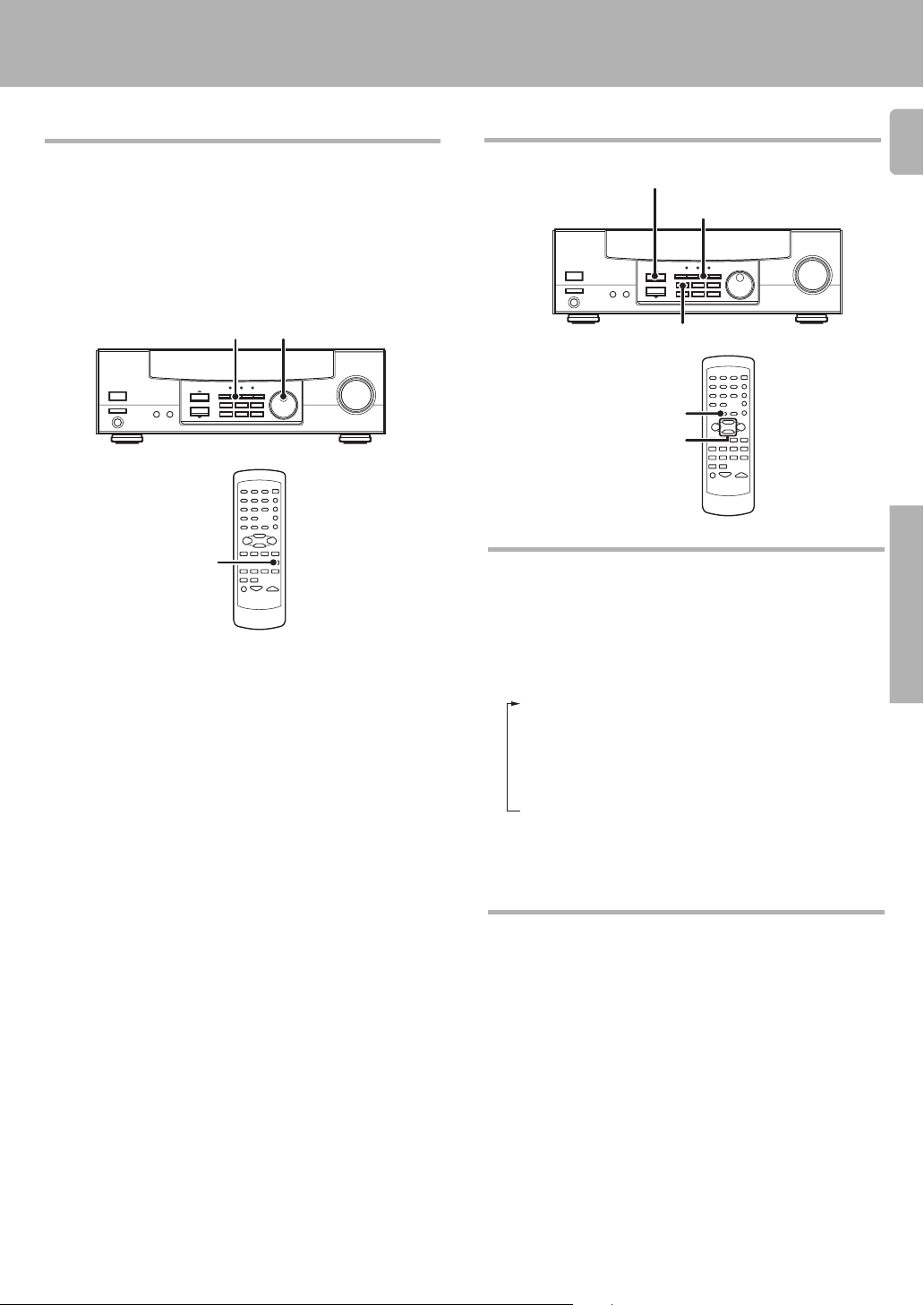

27
Operations
Ambience effects
DVD 6-channel playback
Using a DVD player or the like equipped with six (5.1) output channels
and the receiver, you can enjoy surround sound playback.
When you try to play a disc other than Dolby Digital such as CD, no
sound is produced or, noise may be heard. To avoid this situation, make
sure that you connect the component to the receiver’s DVD/6ch INPUT
jacks through a surround processor which can decode the surround
signal you want to listen to.
Connecting a DVD player which can decode the surround signal itself
is also acceptable.
Preparations
• It is not possible individually to adjust the volume level or sound
quality (SET UP, SOUND) of the separate channels when the
receiver is in the DVD/6ch mode. Adjust the volume with the
controls of the DVD player.
For the powered subwoofer, you can adjust the volume of the
subwoofer using the subwoofer’s own volume control.
• Connect your DVD player to the DVD/6ch jacks of the receiver.
• Turn on all other components that will be used.
• Complete "Preparing for surround sound". ^
INPUT SELECTOR
INPUT MODE
DVD
Continued to next page
Convenient functions
Adjusting the sound
You can make further adjustments to the sound while listening to
playback in the surround mode.
1 Press the SOUND key to select the item you want to adjust.
Each press switches the selection as listed below.
Note that some items are not displayed in certain modes.
1 BASS (low frequency range sound quality adjustment) *
2 TREB (high frequency range sound quality adjustment) *
3 Cch (center speaker level adjustment)
4 RS (right surround speaker level adjustment)
5 LS (left surround speaker level adjustment)
6 SW (subwoofer level adjustment)
7 INPUT (input level adjustment) &
8 NIGHT (midnight mode on/off)
2 Use the MULTI CONTROL to adjust the setting as desired.
• The adjustment item is displayed for approximately 8 seconds.
Midnight mode (Dolby Digital mode only)
When watching movies at night , you might not be able to raise the
volume as loud as normal. Midnight mode compresses the dynamic
range of previously specified parts of the Dolby Digital sound track (like
scenes with sudden increases in volume) to minimize the difference in
volume between the specified and non-specified parts. This makes it
easy to hear all of the sound track, even when listening at low volumes.
1 Press the SOUND key several times until "NIGHT" is displayed.
• This can be selected only if CD/DVD, DVD/6ch or VIDEO2 is
selected as the source and the listen mode is set to "DOLBY
DIGITAL."
MULTI CONTROL
DIMMER
SOUND
SOUND
MULTI
CONTROL
Select "6ch INPT" by pressing the INPUT MODE key.
2
Start playback of the DVD software.
3
• Use the INPUT SELECTOR knob to select DVD/6ch mode.
1
Select "DVD/6ch" as the input source.
Adjust the volume.
4
*4967/01-/EN 3/19/01, 6:34 PM27
28
Operations
Ambience effects
Display dimmer adjustment
The dimmer function lets you select the brightness of the receiver's
display. You might find this useful if you darken your room to watch
movies or listen to music.
• The adjustment item is displayed for approximately 8 seconds.
• Some Dolby Digital software may not be compatible with the
Midnight mode.
Each time you press the DIMMER key, the display brightness
changes among the three available settings. Select the bright-
ness level you find most pleasing.
2 Use the MULTI CONTROL to select the ON or OFF setting.
STEREO
FM
AM
MHz
kHz
PRO LOGIC
3
DOWN MIX
S.DIRECT
MONITOR
DSP
MEMO
ST.
TUNED
AUTO
S
TI.VOLB
CLIP MUTE
RDS EON PTY
TP TA NEWS
SW
SP
RCL
SR
SL
DIGITAL
AUTO SOUND
LFE
DIGITAL
AUTO SOUND
STEREO
FM
AM
MHz
kHz
3
DOWN MIX
S.DIRECT
MONITOR
DSP
MEMO
ST.
TUNED
AUTO
TI.VOLB
CLIP MUTE
RDS EON PTY
TP TA NEWS
SW
SP
RCL
SR
SL
PRO LOGIC
S
LFE
DIGITAL
AUTO SOUND
STEREO
FM
AM
MHz
kHz
3
DOWN MIX
S.DIRECT
MONITOR
DSP
MEMO
ST.
TUNED
AUTO
TI.VOLB
CLIP MUTE
RDS EON PTY
TP TA NEWS
SW
SP
RCL
SR
SL
PRO LOGIC
S
LFE
DIGITAL
AUTO SOUND
STEREO
FM
AM
MHz
kHz
3
DOWN MIX
S.DIRECT
MONITOR
DSP
MEMO
ST.
TUNED
AUTO
TI.VOLB
CLIP MUTE
RDS EON PTY
TP TA NEWS
SW
SP
RCL
SR
SL
PRO LOGIC
S
96kHz LPCM playback
The receiver is compatible with the 96kHz LPCM playback. To play a
96kHz DVD, set the listen mode to "STEREO."
• When "96kHz" appears in the display, press the LISTEN MODE key
(the listen mode changes to the STEREO mode).
*4967/01-/EN 3/19/01, 6:34 PM28
29
Operations
The remote control of this unit can control two groups of KENWOOD DVD players directly without using the
remote control supplied with the DVD player.
Group-1: DV-4900, DV-4070B, DV-2070, DV-203, DVF-9010, DVF-K7010, DVF-5010, DVF-R9030, DVF-
R7030, DVF-3530 and DV-402
Group-2: DV-4050, DV-303, DVF-R6030, DVF-K5020, DVF-5020, DVF-3020 and DVF-3030
Depending on your KENWOOD DVD model, you need to set up your receiver remote control as follows:
To set for Group-1 DVD players:
Press the numeric "1" key while pressing the "POWER" key (not the DVD Power key) on your remote
control.
To set for Group-2 DVD players:
Press the numeric "2" key while pressing the "POWER" key (not the DVD Power key) on your remote
control.
• If your DVD player is not listed in the list above, perform the set up for either Group-1 or Group-2.
When the set up is successful, then your DVD player falls into that particular group.
How to operate the DVD player with the remote control
1. Pressing the DVD Power key for more than 2 seconds turns the DVD player on or off.
2. To carry out the functions of the DVD player, first press the DVD Power key, then press each key
for each operation as explained in the DVD operation pages in the operating instructions. In this case,
the DVD operation mode is retained for 15 seconds after pressing any of those DVD operation
buttons.
(To turn the receiver operation mode within 15 seconds, press the RECEIVER key.)
DVD player operation keys
You can perform these basic operations using the keys described below when connected to KENWOOD DVD
player.
DVD player operations
1
DISC SKIP
BASS BOOST
AUTO
PHONO
CD/DVD
TUNER
MD/TAPE
VIDEO1 VIDEO2
23
POWER
DVD
POWER
RECEIVER
MENU
P.CALL
TUNING
MUTE
VOLUME
A/B+100
DVD
ENTER
BAND
P.CALL
MULTI CONTROL
456
789
0+10
SET UP
OSD
SOUND
RETURN
TITLE
LISTEN MODE
RDS DISP.
PTY
RC-R0513
DVD POWER
RECEIVER
(Receiver mode)
TITLE (Title)
6 (3 Play)
8 (Pause)
% (Cursor »)
fi (Cursor «)
@
(Cursor |)
#
(Cursor \)
7 (Stop)
ENTER (Enter)
RETURN (Return)
OSD (OSD Menu)
1 (Search)
¡ (Search)
MENU (Menu)
Numeric keys
(Select tracks)
Basic remote control operations for other components
*4967/01-/EN 3/19/01, 6:34 PM29
30
Operations
Refer to the following for the type of remote control operations available for each component. In order to
perform these operations, the components must be connected to the system control jack. #
CASSETTE deck, CD player & MD recorder operations
Basic remote control operations for other components
1 Select the input source
2 Press the keys corresponding to the operations you desire.
Refer to the following sections for details.
• When pressing keys in succession, press each key firmly and be sure to
wait at least 1 second before pressing the next key.
• Numeric keys function the same as the numeric keys on the original
remote.
Notes
1. Certain codes may only operate some of the function available on a given model.
2. The charts above show the typical functions available for each component. Some manufacturers use different key combinations to perform similar
functions. For that reason, we have programmed extra functions on some of the unused number keys to help you control your equipment.
1
DISC SKIP
BASS BOOST
AUTO
PHONO
CD/DVD
TUNER
MD/TAPE
VIDEO1 VIDEO2
23
POWER
DVD
POWER
RECEIVER
MENU
P.CALL
TUNING
MUTE
VOLUME
A/B+100
DVD
ENTER
BAND
P.CALL
MULTI CONTROL
456
789
0 +10
SET UP
OSD
SOUND
RETURN
TITLE
LISTEN MODE
RDS DISP.
PTY
RC-R0513
6 (3 Play)
7 (Stop)
2 (Play)
1 (Rewind)
¡ (Fast forward)
1
DISC SKIP
BASS BOOST
AUTO
PHONO
CD/DVD
TUNER
MD/TAPE
VIDEO1 VIDEO2
23
POWER
DVD
POWER
RECEIVER
MENU
P.CALL
TUNING
MUTE
VOLUME
A/B+100
DVD
ENTER
BAND
P.CALL
MULTI CONTROL
456
789
0+10
SET UP
OSD
SOUND
RETURN
TITLE
LISTEN MODE
RDS DISP.
PTY
RC-R0513
6 (3 Play/Pause)
Numeric keys
(Select tracks)
4 (Skip up)
¢ (Skip down)
1 (Search)
¡ (Search)
DISC SKIP
(Disc skip)
7 (Stop)
1
DISC SKIP
BASS BOOST
AUTO
PHONO
CD/DVD
TUNER
MD/TAPE
VIDEO1 VIDEO2
23
POWER
DVD
POWER
RECEIVER
MENU
P.CALL
TUNING
MUTE
VOLUME
A/B+100
DVD
ENTER
BAND
P.CALL
MULTI CONTROL
456
789
0+10
SET UP
OSD
SOUND
RETURN
TITLE
LISTEN MODE
RDS DISP.
PTY
RC-R0513
6 (3 Play)
Numeric keys
(Select tracks)
4 (Skip up)
¢ (Skip down)
1 (Search)
¡ (Search)
+100 (Select tracks)
7 (Stop)
Cassette deck operations CD player operations
MD recorder operations
*4967/01-/EN 3/19/01, 6:34 PM30
31
Additional Informatiion
Resetting the Microcomputer
The microcomputer may malfunction (unit cannot be operated,
or shows an erroneous display) if the power cord is unplugged
while the power is ON, or due to some other external factor. If
this happens, execute the following procedure to reset the
microcomputer and return the unit to its normal operating
condition.
• Please note that resetting the microcomputer will clear the con-
tents of the memory and returns the unit to the state it was in when
it left the factory.
In case of difficulty
Amplifier
Cause
• The speaker cords are disconnected.
• VOLUME is set to the minimum position.
• MUTE is ON.
• The SPEAKERS switches are set to OFF.
• Speaker cords are short-circuited.
• The speaker cord is disconnected.
• The surround speaker cords and/or the center
speaker cord is disconnected.
• A surround mode has not been engaged.
• The surround and/or center volume controls
are set to the minimum level.
• The audio cord from the turntable is not con-
nected to the PHONO jacks.
• The turntable is not grounded.
• There are many possible causes for this prob-
lem, depending on the type of DVD player
used.
• The input mode is set to digital manual.
• The software is copy-guarded.
Remedy
• Connect them properly referring to "Connect-
ing the speakers" $
• Adjust the volume to a proper level.
• Turn OFF the MUTE. (
• Set the SPEAKERS switch(es) to ON. &
• Turn the power off, eliminate the short-circuit-
ing, then turn on the power again.
• Connect it properly referring to "Connecting
the speakers". $
• Connect it properly referring to "Connecting
the speakers". $
• Select a surround mode.
• Adjust the speaker levels using the test tone.
^
• Insert the audio cord plugs securely into the
PHONO jacks.
• Connect the grounding wire to the GND termi-
nal on the rear panel.
• Set the input mode to digital manual before
starting playback of the Dolby Digital source.
7
• Press the INPUT MODE key to select to digital
auto mode. 7
• Copy-guarded video software cannot be re-
corded.
Tuner
Cause
• No antenna is connected.
• The broadcast band is not set properly.
• The frequency of the desired station is not
tuned.
• Noise due to ignition noise from an automo-
bile.
• Noise due to interference from an electric
appliance.
• Noise due to a nearby TV set.
• The preset station belongs to a frequency that
cannot be received.
• The preset memory was cleared because the
power cord had been unplugged for a long
period of time.
Remedy
• Connect an antenna. @
• Set the broadcast band properly.
• Tune the frequency of the desired station.
¡
• Install the outdoor antenna away from the
road.
• Turn off the power to the appliance.
• Install the receiver farther away from the TV.
• Preset a station with a receivable frequency.
• Preset the station again.
Symptom
Radio stations cannot be received.
Interference.
A station which was preset cannot be re-
ceived by pressing the corresponding nu-
meric key.
Symptom
No sound from the speakers.
The standby indicator blinks and sound is
not output.
Sound is not output from one of the speakers.
Sound is not output from the surround
speakers and / or the center speaker, or their
sound is very small.
A humming noise is generated when the
PHONO input selector is selected.
When playing a Dolby Digital source signal
using a DVD player, the sound is cut off soon
after it starts.
No sound is produced during playback from
a DVD player.
A video source cannot be recorded
normally.
With the power cord plugged in, turn the POWER key
OFF. Then, while holding down the ON/STANDBY key,
press POWER.
*4967/01-/EN 3/19/01, 6:34 PM31
For your records
Record the serial number, found on the back of the unit, in the spaces
designated on the warranty card, and in the space provided below. Refer
to the model and serial numbers whenever you call upon your dealer for
information or service on this product.
Model__________________ Serial Number________________________
Caution : Read this page carefully to ensure safe
operation.
AUDIO section
Rated power output during STEREO operation
DIN/IEC (DIN 1 kHz, 0.7% T.H.D. at 4Ω) ................ 80 W + 80 W
Effective power output during SURROUND operation
FRONT (1kHz, 0.7% T.H.D. at 4Ω, one channel driven)
.................................................................................. 80 W + 80 W
CENTER (1kHz, 0.7% T.H.D. at 4Ω, one channel driven)
............................................................................................... 80 W
SURROUND (1kHz, 0.7% T.H.D. at 4Ω, one channel driven)
.................................................................................. 80 W + 80 W
Total harmonic distortion
............................................................... 0.05% (1 kHz, 40W, 4Ω)
Frequency response (IHF '66)
CD ............................................. 40 Hz ~ 60 kHz, +0 dB, –3.0 dB
Signal to noise ratio (IHF’66)
PHONO (MM) ....................................................................... 74 dB
CD ......................................................................................... 90 dB
Input sensitivity / impedance
PHONO (MM) ....................................................... 2.5 mV / 27 kΩ
CD ........................................................................ 200 mV / 47 kΩ
MONITOR IN (VIDEO2/MONITOR) ................... 200 mV / 47 kΩ
DVD/6ch INPUT .................................................. 200 mV / 47 kΩ
Output level / impedance
TAPE REC .............................................................. 200 mV / 1 kΩ
MONITOR OUT (VIDEO2/MONITOR) ................. 200 mV / 1 kΩ
PRE OUT (SUBWOOFER) ........................................ 2 V / 2.2 kΩ
Tone control
BASS............................................................... ±10 dB (at 100 Hz)
TREBLE ........................................................... ±10 dB (at 10 kHz)
DIGITAL AUDIO section
Sampling frequency ...................... 32 kHz, 44.1 kHz, 48 kHz, 96kHz
Input level / impedance / wave length
Optical ............................ (-15 dBm ~ -21 dBm), 660 nm ±30nm
Coaxial ................................................................. 0.5 Vp-p / 75 Ω
VIDEO section
VIDEO inputs / outputs
VIDEO (composite) ........................................... 1 Vp-p / 75 Ω
FM tuner section
Tuning frequency range................................... 87.5 MHz ~ 108 MHz
Usable sensitivity (DIN at 75 Ω)
MONO........................ 1.3 µV/13.2 dBf (40 kHz dev. S/N 26 dB)
STEREO ...................... 45 µV/42.1 dBf (46 kHz dev. S/N 46 dB)
Total harmonic distortion (1 kHz)
MONO........................................................ 0.2% (71.2 dBf input)
STEREO ..................................................... 0.8% (71.2 dBf input)
Signal to noise ratio (DIN weighted)
MONO................................... 65 dB (40 kHz dev.71.2 dBf input)
STEREO ............................... 60 dB (46 kHz dev. 71.2 dBf input)
Stereo separation (DIN 1 kHz) .................................................. 36 dB
Selectivity (DIN±300 kHz) .......................................................... 64 dB
Frequency response ................... (30 Hz ~ 15kHz), +0.5 dB, –3.0 dB
AM tuner section
Tuning frequency range.................................... 531 kHz ~ 1,602 kHz
Usable sensitivity (30% mod. S/N 20dB)......... 16 µV / (600 µV/m)
Signal to noise ratio (30% mod. 1 mV input).......................... 50 dB
GENERAL
Power consumption .................................................................. 220 W
AC outlet
SWITCHED ...................................................... (total 90 W max.)
Dimensions ....................................................................... W : 440 mm
H : 143 mm
D : 400 mm
Weight ........................................................................................ 8.9 kg
Specifications
Notes
1. KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
2. The full performance may not be exhibited in an extremely cold location (under a water-freezing temperature).
*4967/01-/EN 3/19/01, 6:34 PM32
