Installation
February 2018
NETGEAR, Inc.
350 East Plumeria Drive
San Jose, CA 95134, USA
8-Port PoE/PoE+ Gigabit Unmanaged Switch
GS108PP
Package Content
• Switch
• Power adapter (localized to the country of sale)
• Wall installation kit
• Rubber feet
• Rack-mount kit
• Installation guide
Step 1. Connect the equipment.
Step 2. Connect to power.
GS108PP
Sample connections
Router
Internet
PoE+ security cameras
PoE+ access points
PoE VoIP phone

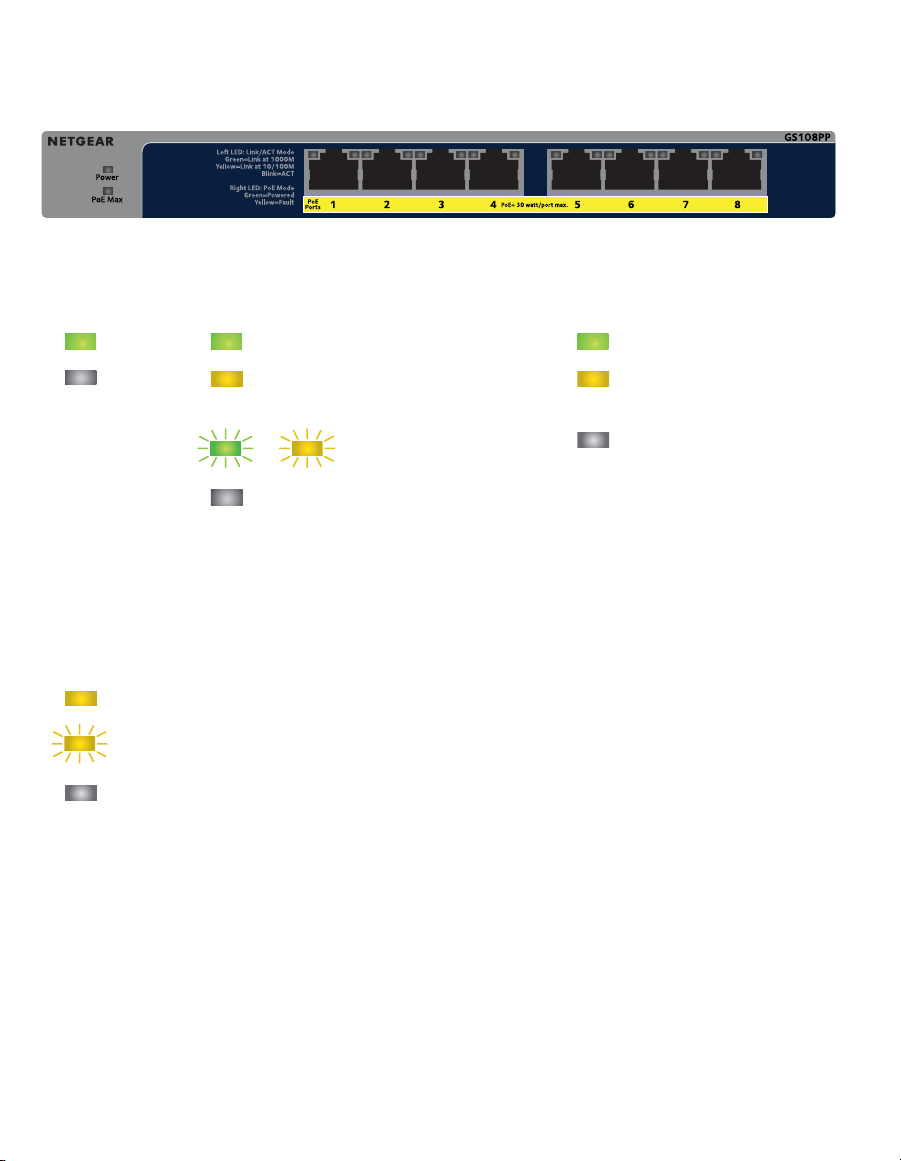

LED Status
PoE Considerations
The switch prioritizes the PoE and PoE+ power that it supplies in ascending port
order (from port 1 to port 8), with a total power budget of 123 Watts. If the
power requirements for the attached powered devices (PDs) exceed the total
power budget of the switch, the PD on the highest-numbered port is disabled
to make sure that the PDs that are connected to the higher-priority, lower
numbered ports are supported first.
Just because a PD is listed as an 802.3at PoE powered device does not
necessarily mean that it requires the maximum power limit of the specification.
Many PDs require less power, allowing all eight PoE ports to be active
simultaneously.
The following table describes the PoE classes and switch allocations.
Device
Class
Standard Class Description Minimum Power
Allocated to the
Powered Device
Range of Power
Delivered to the
Powered Device
0 PoE and PoE+ Default power (full) 0.44W 0.44W–12.95W
1 PoE and PoE+ Very low power 4.0W 0.44W–3.84W
2 PoE and PoE+ Low power 7.0W 3.84W–6.49W
3 PoE and PoE+ Mid power 15.4W 6.49W–12.95W
4 PoE+ only High power 30.0W 12.95W–25.5W
Power LED Le Port LEDs Right PoE LEDs
On 1000 Mbps link PoE in use
O
100 or 10 Mbps link
PoE halted (see PoE
Troubleshooting)
Activity (blinking)
No PoE use (o)
No link (o)
PoE Max LED
The maximum PoE power that the switch can deliver to all attached powered devices (PDs) is
123 watts total, with a maximum power to each port of 30 watts. (For more information, see
PoE Considerations.)
The PoE Max LED indicates the status of the PoE power that the switch can deliver to all
attached PDs, as follows:
Solid amber. Less than 7W of PoE power is available on the switch.
Blinking amber. The PoE Max LED was lit solid in the previous two minutes.
Sucient (more than 7W of) PoE power is available on the switch (the LED is o).
