Model : VT-830
LED GARDEN LIGHT
WEEE Number: 80133970
Thank you for selecting and buying V-TAC LED product. V-TAC will serve
you the best. Please read these instructions carefully before starting the
installing and keep this manual handy for future reference. If you have any
other query, please contact our dealer or local vendor from whom you have
purchased the product. They are trained and ready to serve you at the best.
STRUCTURE & SIZE
PRODUCT PERFORMANCE & PARAMETER
natural white cool white
lumen (lm) 400lm 420 lm 450 lm
lamp warm white
4000K 6400K
CRI ≥80
color
temperature（K)
3000K
decay rate (%) less than 3% within 1000 working hours
total power (W) 9-11W
type of LED COB LED
beam angle 72°
lighting
efficiency
100LM/W
chip quantity 20PCS
lifespan (Hrs) ≥30000Hrs
high voltage
testing
3750Vac/1min
current 300mA
input parameter 100-240VAC，50/60Hz
series-parallel
way
10C2B，
voltage 30-33V
material Cast-Aluminium
dimension Ф148*250mm
power factor 0.5
output parameter 21-42VDC 300mA±3%
IP IP65
application
hotel、home-lighting、recreation
place、supermarket、office building
cut-out 一
protection class calss Ⅱ
Qty/Ctn carton size
operating
temperature
-25℃ ～ 50℃、10% ～ 90% R.H.
storage
temperature
-30℃ ～ 85℃、0% ～ 95% R.H.
LED
parameter
N.W G.W
8PCS/Ctn
environment
parameter
structure
parameter
packing
specification
performance
parameter
driver
parameter
In case of any query/issue with the product please reach out to us at [email protected]

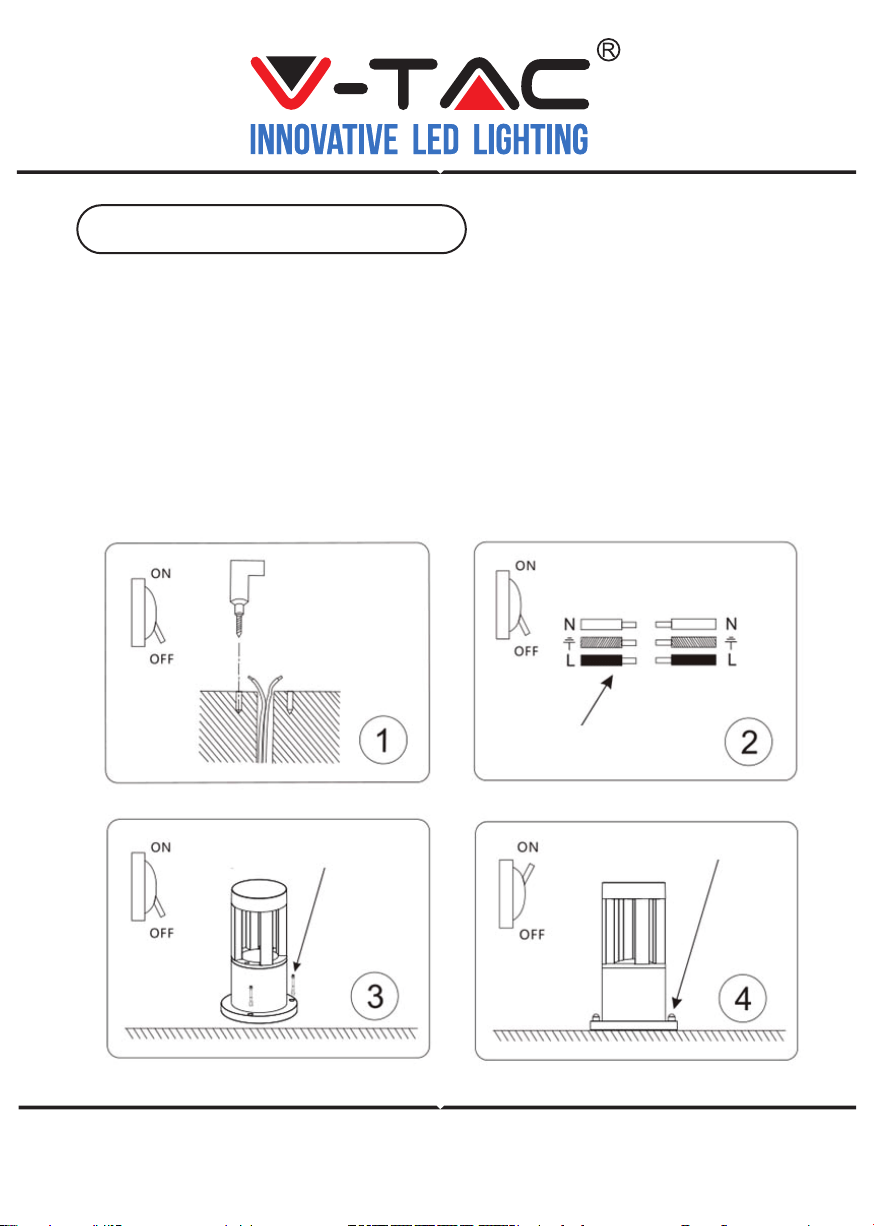

INSTALLATION INSTRUCTIONS
1. Switch off the power before installing the lamp.
2. To drill the appropriate holes on the cement floor. (Picture 1)
3. Do the wateproof measure for the wire junction and then Connect the electricity
AC:100-240V. (Picture 2)
4. Fix the lamp on the floor by screw. (Picture 3)
5. Cover the nut cap and switch on the power if above steps are done properly
without any mistakes. (Picture 4)
Do the waterproof measures for
the wire junction.
Cover the nut cap.Fix the lamp on the floor by
screw.
