Register your product and get support at
www.philips.com/welcome
Indoor wireless headphones
SHC8535
SHC8575
EN User manual
C
D
F
H
G
E
BA
c
c
a
a
b
b
d
e
f
I
a
b
SHC8535
SHC8535
C
D
F
H
G
E
BA
c
c
a
a
b
b
d
e
f
I
a
b
SHC8535
SHC8535
1
English

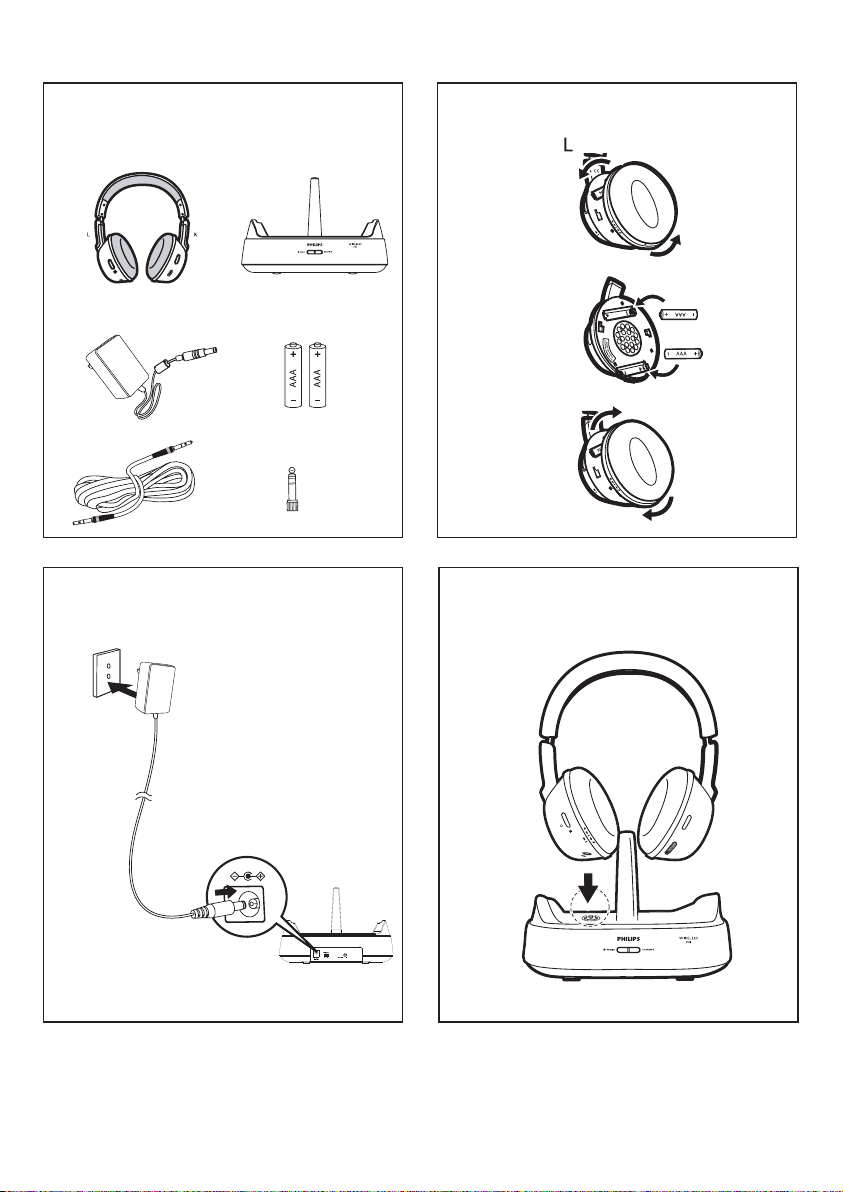

1 What’s in the
box
1) Headphones 2) Transmit ter
3) AC/DC
adapter
4) 2 x AAA rechargeable
shortened sleeve NiMH
batteries (SBC HB550L)
5) Audio cable 6) 3.5 - 6.3mm adapter
EN
2

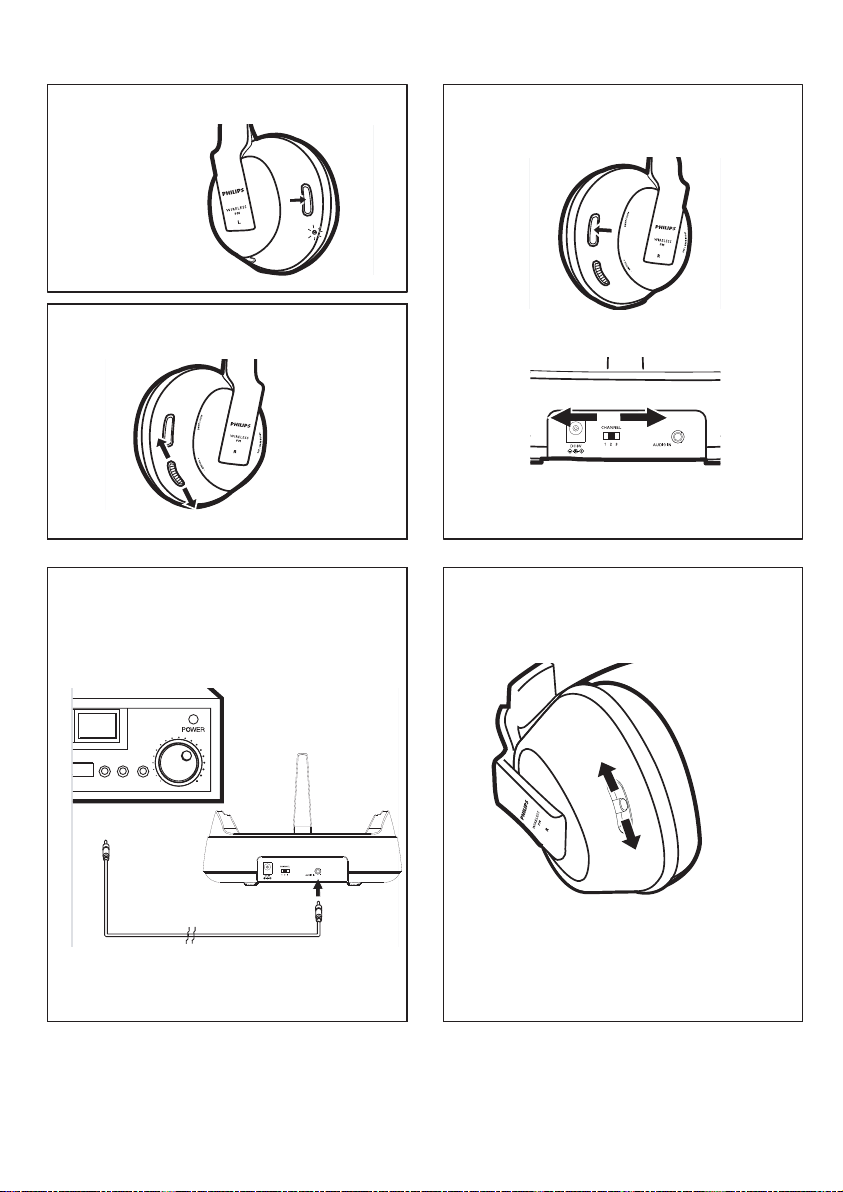

8 Connect the transmitter to an audio
device with the stereo cable (Fig. H).
» The red LED is on when it is
connected.
9 (For SHC8575 only) To enjoy the sound
enhancement features, switch the button
to ON/OFF/TREBLE (Fig. I).
2 Get started
Note
•
Before using the headphones for the rst time,
charge the supplied batteries for at least 16 hours.
• Only use Philips rechargeable shortened sleeve
NiMH batteries with your headphones. Other
types of rechargeable batteries cannot be charged
with this system.
• AAA alkaline batteries can be used to operate the
headphones, but CANNOT BE CHARGED WITH
THIS SYSTEM.
• If the volume of the audio source is insufcient, the
transmitter automatically turns off.
1 Install the supplied batteries (Fig. B).
2 Power on the transmitter (Fig. C).
» The red LED is off if no audio source is
connected at initial setup.
» The red LED is on when audio source
is connected.
» The red LED is off if no audio source is
connected for four minutes.
3 To charge the headphones, place the
headphones onto the energizing docking
station (Fig. D).
» Headphones: the red LED is off
during charging.
» Transmitter: the green LED is on
during charging and is off when the
headphones are fully charged.
4 Power on the headphones (Fig. E).
» The red LED is on.
5 Press and hold AUTO TUNING on the
headphones for one second to tune to
the correct transmission channel (Fig. F1).
6 If there is interference from other
transmitters, adjust the transmission
channel of the transmitter at the back,
then repeat step 5 (Fig. F2).
7 Adjust the volume of the headphones to
the suitable listening level (Fig. G).
EN
Philips Consumer Lifestyle
Philips Consumer Lifestyle AMB 544-9056
AQ95-56F-1312KR 2011
........................................................ ...........................................................................
(Report No. / Numéro du Rapport) (Year in which the CE mark is affixed / Année au cours
de laquelle le marquage CE a été apposé)
EC DECLARATION OF CONFORMITY
(DECLARATION DE CONFORMITE CE)
We / Nous, PHILIPS CONSUMER LIFESTYLE B.V.
(Name / Nom de l’entreprise)
TUSSENDIEPEN 4, 9206 AD DRACHTEN, THE NETHERLANDS
(address / adresse)
Declare under our responsibility that the electrical product(s):
(Déclarons sous notre propre responsabilité que le(s) produit(s) électrique(s):)
SHC8535, SHC8535/XX
..................... ................................... ... ............... ...............
PHILIPS
.........................................
SHC8575, SHC8575/XX
(brand name, nom de la marque) (Type version or model, référence ou modèle)
Wireless Headphone
..............................................................................................
_
(product description, description du produit)
To which this declaration relates is in conformity with the following harmonized standards:
(Auquel cette déclaration se rapporte, est conforme aux normes harmonisées suivantes)
(title, number and date of issue of the standard / titre, numéro et date de parution de la norme)
EN 60065:2002+A1:2006+A11:2008
EN 301 357-2 V1.4.1: 2008
_
EN 301 357-1 V1.4.1: 2008
EN 301 489-1 V1.8.1: 2008
EN 301 489-9 V1.4.1: 2007
_
EN 50371:2002
Following the provisions of :
(Conformément aux exigences essentielles et autres dispositions pertinentes de:)
1999/5/EC (R&TTE Directive) (Directive R&TTE 1999/5/CE)
2009/125/EC (ErP Directive)
- EC/1275/2008
- EC/278/2009
And are produced under a quality scheme at least in conformity with ISO 9001 or CENELEC
Permanent Documents
(Et sont fabriqués conformément à une qualité au moins conforme à la norme ISO 9001 ou aux Documents Permanents CENELEC)
The Notified Body ............ ........................... performed ................
BABT / 0168
...............................................
Notified Body Statement of Opinion
(L’Organisme Notifié) (Name and number/ nom et numéro) (a effectué) (description of intervention /
description de l’intervention)
And issued the certificate, ........ ........................ .................................
THER1 11 04 54560 384
(et a délivré le certificat) (certificate number / numéro du certificat)
Remarks:
(Remarques:)
........................................................... ............................................................................................
Drachten, The Netherlands, June 22, 2011 A.Speelman, CL Compliance Manager
(place,date / lieu, date) (signature, name and function / signature, nom et fonction)
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
Specications are subject to change without notice.Trademarks
are the property of Koninklijke Philips Electronics N.V. or their
respective owners.
SHC8535-8575_UM_10_V1.0
