Batteries

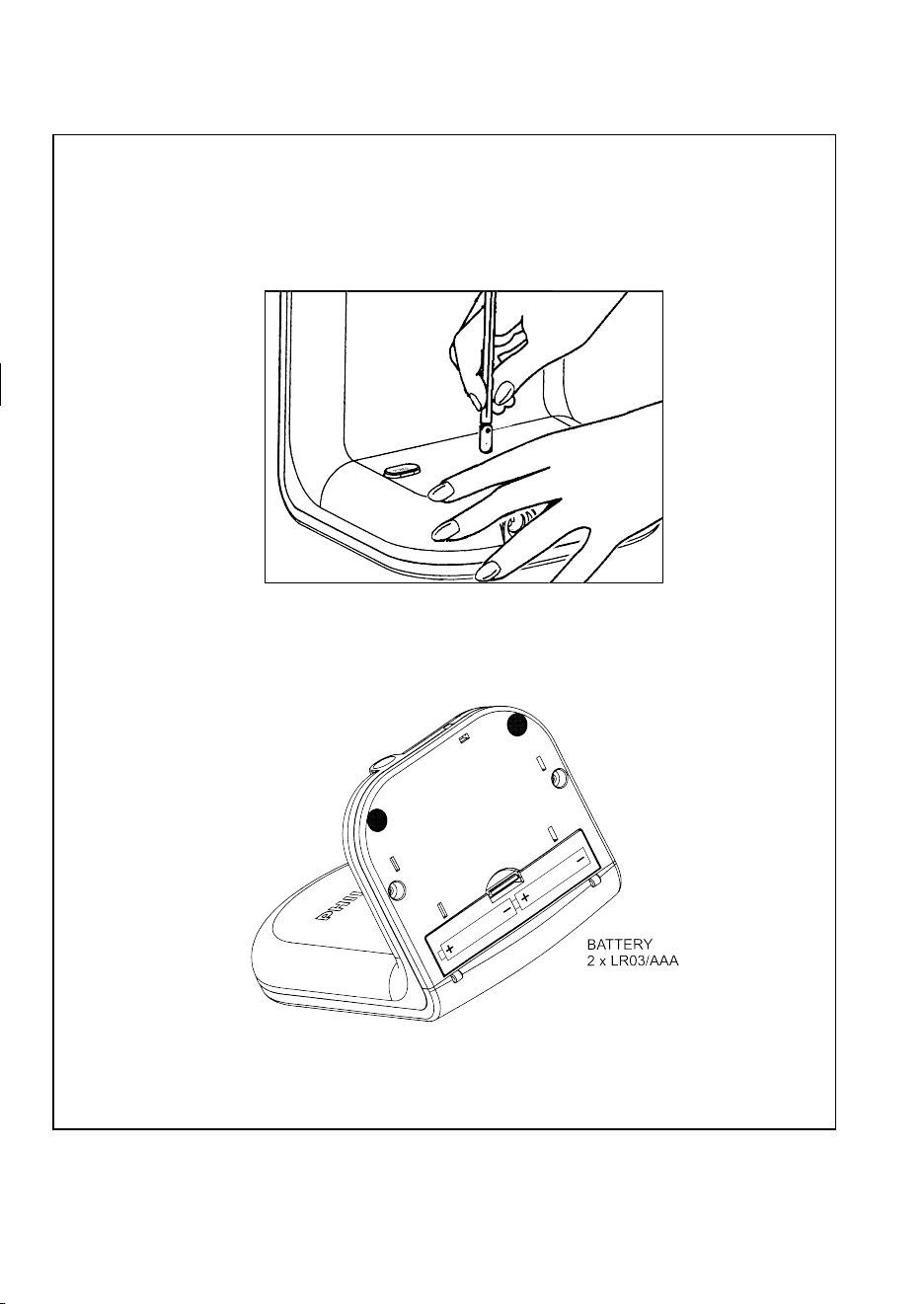

Insert two LR03 or AAA batteries as indicated.
Remove the batteries when empty or when they are not to be
used for a long time.
Note: the antenna is also fitted with a 12 VDC supply socket
for use in caravans, campers, boats, etc. (12V DC/100mA supply
required, not included).
Connect the cable of the antenna to the television antenna
socket. If there is a video recorder already installed, connect
the cable of the antenna to the antenna socket of the video
recorder.
Press the power button on the antenna. The red LED lights up.
Your television set now receives signals directly from the
TT250 antenna.
Use the instruction manual supplied with your television set to
tune to the different channels. Turn the antenna around until
optimum reception is obtained (UHF).
To obtain the best reception for VHF signals, vary the length
and angle of the telescopic aerial.
Switch off the antenna by pressing the power button. The red
LED goes out.
Instructions for use
Portable amplified indoor antenna
SBC TT250
Congratulations! The product you have just
purchased offers you exceptionally high quality
reception. Please read the following instructions
before using the indoor antenna, and retain this
booklet for future reference.
GB
Notes
The base of the antenna has four rubber pads which provide
stability and which are ideal for all surfaces.
The label containing technical data can be found at the base of
the antenna.
Technical features
• Gain (antenna + amplifier): UHF 36 3dB,
VHF 36 3dB
• Power supply: battery operated 2 x LR03 AAA
• External supply: 12 V DC (car battery) or AC/DC adapter
• Power consumption: 5mA (battery operated)
• Safety regulations according to EN 60065
2
15
1
Connect the telescopic aerial as indicated on page 15.
(See also the illustrations on page 15.)
