KSEG24XU - KSEG30XU
Installation Instructions
Use and Care Information
Instructions d'installation
Utilisez et d'entretien
Instrucciones de instalación
Información de uso y cuidado
2
READ AND SAVE THESE INSTRUCTIONS BEFORE YOU
START INSTALLING THIS RANGE HOOD
WARNING: - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings. Boilovers cause smoking and
greasy spillovers that may ignite. Heat oils slowly on low or medium setting.
E$OZD\VWXUQKRRG21ZKHQFRRNLQJDWKLJKKHDWRUZKHQÀDPEHLQJIRRGLH&UHSHV
Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan
RU¿OWHU
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.
WARNING: - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A
RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:
D6027+(5)/$0(6ZLWKDFORVH¿WWLQJOLGFRRNLHVKHHWRUPHWDOWUD\WKHQWXUQRႇWKHEXUQHU
%(&$5()8/7235(9(17%8516,IWKHÀDPHVGRQRWJRRXWLPPHGLDWHO\(9$&8$7(
AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will
result.
d) Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to operate it.
7KH¿UHLVVPDOODQGFRQWDLQHGLQWKHDUHDZKHUHLWVWDUWHG
7KH¿UHGHSDUWPHQWLVEHLQJFDOOHG
<RXFDQ¿JKWWKH¿UHZLWK\RXUEDFNWRDQH[LW
* Based on "Kitchen Firesafety Tips" published by NFPA
WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, do not use this fan
with any solid-state speed control device.
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have any
questions, contact the manufacturer.
2. %HIRUHVHUYLFLQJRUFOHDQLQJXQLWVZLWFKSRZHURႇDWVHUYLFHSDQHODQGORFNWKH
service disconnecting means to prevent power from being switched on acciden-
tally. When the service disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
CAUTION: For General Ventilating Use Only. Do Not Use To Exhaust Hazardous or
Explosive Materials and Vapors.
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
1. ,QVWDOODWLRQ:RUN$QG(OHFWULFDO:LULQJ0XVW%H'RQH%\4XDOL¿HG3HUVRQV,Q$FFRU-
dance With All Applicable Codes And Standards, Including Fire-Rated Construction.
2. 6XႈFLHQWDLULVQHHGHGIRUSURSHUFRPEXVWLRQDQGH[KDXVWLQJRIJDVHVWKURXJK
WKHÀXHFKLPQH\RIIXHOEXUQLQJHTXLSPHQWWRSUHYHQWEDFNGUDIWLQJ)ROORZWKH
heating equipment manufacturer's guideline and safety standards such as those
SXEOLVKHGE\WKH1DWLRQDO)LUH 3URWHFWLRQ$VVRFLDWLRQ1)3$ DQGWKH$PHULFDQ
6RFLHW\IRU+HDWLQJ5HIULJHUDWLRQDQG$LU&RQGLWLRQLQJ(QJLQHHUV$6+5$(DQG
the local code authorities.
3
3. When cutting or drilling into wall or ceiling, do not damage electrical wiring and
other hidden utilities.
4. Ducted fans must always be vented to the outdoors.
ALL WALL AND FLOOR OPENINGS WHERE THE RANGE HOOD IS INSTALLED
MUST BE SEALED.
This Range Hood requires at least 24" of clearance between the bottom of the Range Hood
and the cooking surface or countertop. This hood has been approved by UL at this distance
from the cooktop.
This minimum clearance may be higher depending on local building codes. For gas cooktops
and combination ranges, a minimum of 30" is recommended and may be required.
Overhead cabinets on both sides of this unit must be a minimum of 18" above the cooking surface
or countertop. Consult the cooktop or range installation instructions given by the manufacturer
before making any cutouts.
The warranty does not consider the installation of this range hood into manufactured /
mobile homes; so this product is not intended for use in manufactured / mobile home.
See Electrical Requirements.
• Venting system MUST terminate outside the home.
• DO NOT terminate the ductwork in an attic or other enclosed space.
• DO NOT use 4" laundry-type wall caps.
• Flexible-type ductwork is not recommended.
• DO NOTREVWUXFWWKHÀRZRIFRPEXVWLRQDQGYHQWLODWLRQDLU
)DLOXUHWRIROORZYHQWLQJUHTXLUHPHQWVPD\UHVXOWLQD¿UH
WARNING
!
VENTING REQUIREMENTS
Determine which venting method is best for your application. Ductwork can extend either through
the wall or the roof.
The length of the ductwork and the number of elbows should be kept to a minimum to provide ef-
¿FLHQWSHUIRUPDQFH7KHVL]HRIWKHGXFWZRUNVKRXOGEHXQLIRUP'RQRWLQVWDOOWZRHOERZVWRJHWKHU
8VHGXFWWDSHWRVHDODOOMRLQWVLQWKHGXFWZRUNV\VWHP8VHFDXONLQJWRVHDOH[WHULRUZDOORUÀRRU
opening around the cap.
Flexible ductwork is not recommended. Flexible ductwork creates back pressure and air turbulence
that greatly reduces performance.
0DNHVXUHWKHUHLVSURSHUFOHDUDQFHZLWKLQWKHZDOORUÀRRUIRUH[KDXVWGXFWEHIRUHPDNLQJFXWRXWV
Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, then a support-
ing frame must be constructed.
WARNING - To Reduce The Risk Of Fire, Use Only Metal Ductwork.
&$87,217RUHGXFHULVNRI¿UHDQGWRSURSHUO\H[KDXVWDLUEHVXUHWRGXFWDLURXWVLGH±'R
not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
Cold Weather installations
$QDGGLWLRQDOEDFNGUDIWGDPSHUVKRXOGEHLQVWDOOHGWRPLQLPL]HEDFNZDUGFROGDLUÀRZDQGDQRQPHWDO-
lic thermal break should be installed to minimize conduction of outside temperatures as part of the vent
system. The damper should be on the cold air side of the thermal break. The break should be as close
as possible to where the vent system enters the heated portion of the house.
4
• Electrical ground is required on this Range Hood.
• If cold water pipe is interrupted by plastic, nonmetallic gaskets or other materials, DO
NOT use for grounding.
• DO NOT ground to a gas pipe.
• DO NOT have a fuse in the neutral or grounding circuit. A fuse in the neutral or
grounding circuit could result in electrical shock.
&KHFNZLWKDTXDOL¿HGHOHFWULFLDQLI\RXDUHLQGRXEWDVWRZKHWKHUWKH5DQJH+RRGLV
properly grounded.
)DLOXUHWRIROORZHOHFWULFDOUHTXLUHPHQWVPD\UHVXOWLQD¿UH
WARNING
6WDWHRI&DOLIRUQLD3URSRVLWLRQ:DUQLQJ86RQO\
WARNING
This product contains chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
ELECTRICAL REQUIREMENTS
A 120 volt, 60 Hz AC-only electrical supply is required on a separate 15 amp fused circuit. A time-de-
lay fuse or circuit breaker is recommended. The fuse must be sized per local codes in accordance
ZLWKWKHHOHFWULFDOUDWLQJRIWKLVXQLWDVVSHFL¿HGRQWKHVHULDOUDWLQJSODWHORFDWHGLQVLGHWKHXQLWQHDU
WKH¿HOGZLULQJFRPSDUWPHQW
5
RANGE HOOD DIMENSIONS 21"
47 "
RANGE HOOD DIMENSIONS 28"
47 "
6
MIN. 24" OVER ELECTRIC
INSTALLATION HEIGHT REQUIREMENTS
MIN. 30" OVER GAS
THE INCA SMART IS NOT DESIGNED FOR USE OVER PRO-STYLE
COOKING SURFACES, INSTALLATIONS OVER PRO-STYLE COOKING
SURFACES WILL COMPLETELY VOID THE WARRANTY OF THIS
PRODUCT .
WARNING
!
7
MAIN PARTS
Components
Ref. Qty. Product Components
1 1 Hood Body, complete with: Controls, Light, Filters,Blower.
10 1 Damper ø 5"
Ref. Qty. Installation Components
12a 10 Screws (for hood installation)
12b 4 Screws 1/8"x1/2" (for Cover installation)
Qty. Documentation
1 Instruction Manual
H
I
H
I
H
I
12b
10
12a
12a 3R]L6FUHZV[
10
12b 3R]L6FUHZV[
4
Torx Screwdriver
Pozi Screwdriver
8

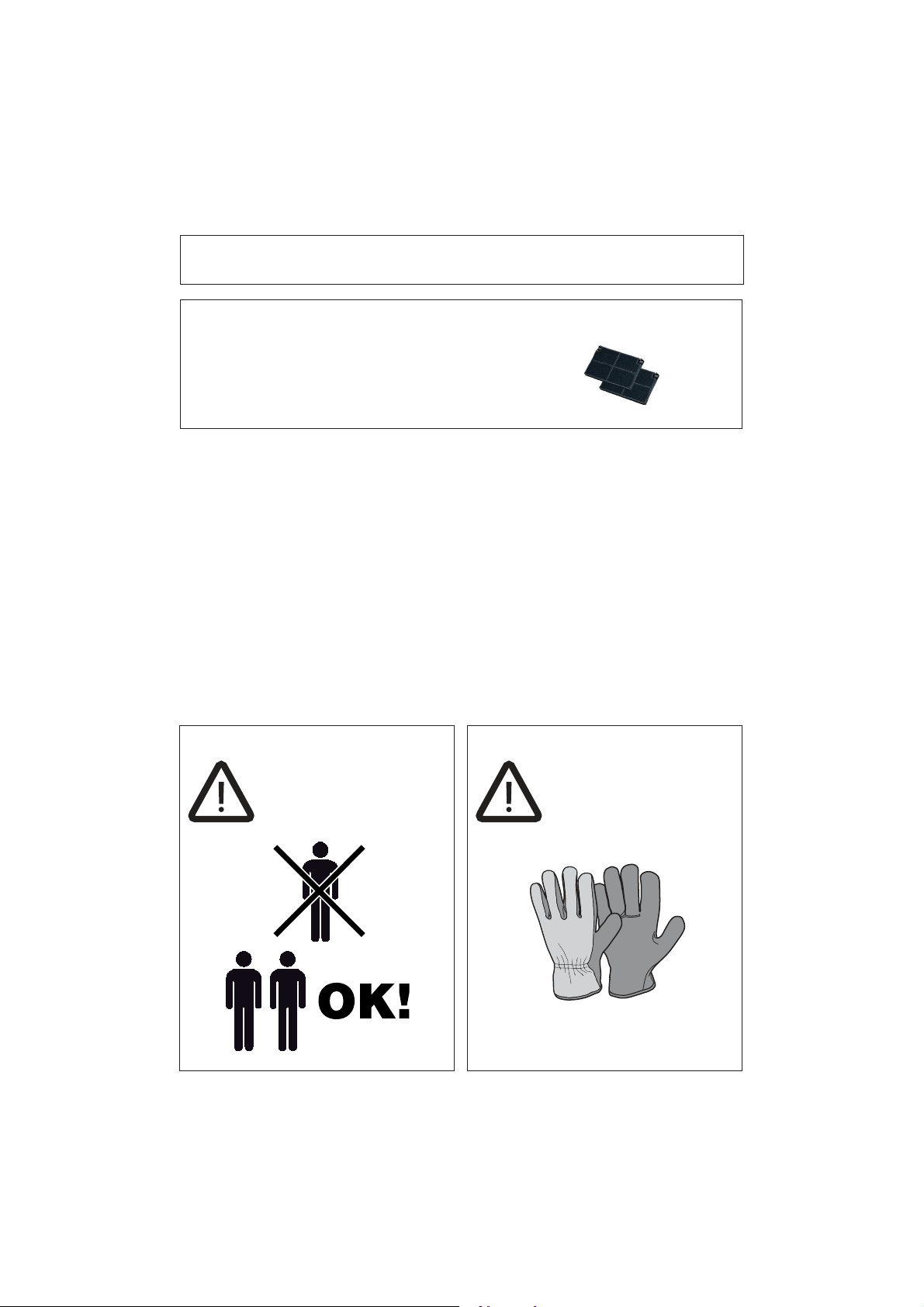

Available Accessories
Parts needed
- 5" Round Metal ductwork .
Activated Charcoal Filter sku #; KITFC142
Two men required for installation
Wear work gloves for safety
9
Choose your ducting method
Requires purchase of Activated
Charcoal Accessory #KITFC142
Rear
Top
5"
Non Ducted - RecirculationDucted Venting Installation
Remove the metal packaging
support piece from the top of the
hood before installation.
Caution: If an elbow is required,
do it as far away from the hood's
exhaust opening as possible.
Requires purchase of Grille and
screws for air outlet cover.
10
INSTALL THE RANGE HOOD
1
2
5HPRYHJUHDVH¿OWHUVDQGVHWDVLGH
Remove the bottom of the Range Hood by pulling forward as shown.
11
3
The Hood can be installed directly on the underside of the cabinet (minimum 24" for electric ranges
and 30" for gas ranges).
Create an opening in the bottom of the Cabinet, as shown.
Attention: The cabinet must be accessible so that you can access the hood cable and
plug in the future, after installing the product.
1/2”
10 1/4”
19” 9/16 - 26” 5/8
1/2”
21"
28"
12
Insert the hood until the side supports snap into place.
Lock in position by tightening the screws Vf from underneath the hood.
Fasten using the 10 screws 12a provided.
Min.9/16"
Max 1" 3/16
Vf
Attention:
KSEG24XU uses 8 screws
KSEG30XU uses 10 screws
4
5
13
Replace the bottom of the Range Hood by 4 screws 12b as shown.
3ODFHWKHJUHDVH¿OWHUVLQWKHKRRG
6
7
12b
14
CHOOSE YOUR DUCTING METHOD
Ducted Venting Installation
8
Non Ducted -
Recirculation Option
Install Damper that is included with the
Hood before connecting to the ductwork.
H
I
Install Roof or Wall Cap purchased
separately. Connect the ø 5" metal duc-
twork to the Roof or Wall Cap and then
attach ductwork.
Required Activated
Charcoal Filter Accessory
- sku # - KITFC142
8
´
For Non-Ducted Recirculation venting,
route the ductwork to a location above the
hood where the discharge is vented back
into the room.
Fit a streight tube at least 15" in lenght from
the Hood air outlet to the wall unit.
4 15/16"
12e
8
5HTXLUHVSXUFKDVHRI*ULOOHDQG
VFUHZVHORFDOO\
15
9
ELECTRICAL INSTALLATION WITH CONNECTION CABLE
Max. 33 7/16”
GROUNDING INSTRUCTIONS
This appliance must be grounded.
In the event of an electrical short circuit, grounding reduces the risk of electric shock
by providing an escape wire for the electric current.
This appliance is equipped with a cord having a grounding wire with a grounding plug.
The plug must be plugged into an outlet that is properly installed and grounded.
WARNING - Improper grounding can result in a risk of electric shock.
&RQVXOWDTXDOL¿HGHOHFWULFLDQLIWKHJURXQGLQJLQVWUXFWLRQVDUHQRWFRPSOHWHO\XQGHU-
stood, or if doubt exists as to whether the appliance is properly grounded.
'RQRWXVHDQH[WHQVLRQFRUG,IWKHSRZHUVXSSO\FRUGLVWRRVKRUWKDYHDTXDOL¿HG
electrician install an outlet near the appliance.
16
10
For Non-Ducted Recirculation Option
7KHFKDUFRDO¿OWHUVPXVWEH
LQVHUWHGEHKLQGWKHJUHDVH¿OWHUV
as indicated.
Required Activated
Charcoal Filter Accessory -
sku # - KITFC142
17
USE AND CARE INFORMATION
For Best Results
6WDUWWKH5DQJH+RRGVHYHUDOPLQXWHVEHIRUHFRRNLQJWRGHYHORSSURSHUDLUÀRZ$OORZWKH
Range Hood to operate for several minutes after cooking is complete to clear all smoke and
odors from the kitchen.
Button Function
/('LQGLFDWRUOLJKW/
/LJKW2Q2ႇ%XWWRQ
2Q2ႇVZLWFKIRUWKHOLJKWV
Press the button to turn the light ON and press again to turn it OFF.
2Q2ႇ
Move the switch to "1" to turn the blower ON and to "0" to turn the blower OFF.
Speed Control
/RZ6SHHG21
2 Medium Speed
3 High Speed
18
&OHDQLQJPHWDOJUHDVH¿OWHUV
7KHPHWDOJUHDVH¿OWHUVFDQEHFOHDQHGLQKRWGHWHUJHQW
solution or washed in the dishwasher. They should be
cleaned every 2 months use, or more frequently if use
is particularly heavy.
• 5HPRYHWKH¿OWHUSXVKLQJWKHOHYHUWRZDUGVWKHEDFN
of the unit and at the same time pulling downward.
• :DVK WKH ¿OWHU ZLWKRXW EHQGLQJ LW OHDYH LW WR GU\
WKRURXJKO\EHIRUHUHSODFLQJLIWKHVXUIDFHRIWKH¿OWHU
changes color over time, this will have absolutely no
HIIHFWRQLWVHI¿FLHQF\
• Replace, taking care to ensure that the handle faces
forward.
• &OHDQLQJ LQ GLVKZDVKHU PD\ GXOO WKH ¿QLVK RI WKH
PHWDOJUHDVH¿OWHU
• 1RZDWHUFDQEHSUHVHQWLQ¿OWHUVEHIRUHLQVWDOOLQJ
back in hood.
Cleaning Exterior surfaces
Cleaning Exterior surfaces:
Please note, abrasives and scouring agents can scratch
UDQJHKRRG¿QLVKHVDQGVKRXOGQRWEHXVHGWRFOHDQ
¿QLVKHGVXUIDFHV
6WDLQOHVV6WHHOÀQLVKFOHDQLQJLQVWUXFWLRQV
Clean exterior surfaces with a commercially available
stainless steel cleaner.
3DLQWHG*UD\ÀQLVKFOHDQLQJLQVWUXFWLRQV
Clean exterior surfaces with hot soapy water.
Replacing Activated Charcoal Filter
The Activated Charcoal Filters are not washable
and cannot be regenerated, and must be replaced
approximately every 4 months of operation, or more
frequently with heavy usage.
5HPRYHWKHJUHDVH¿OWHUV
5HPRYHWKHVDWXUDWHGFDUERQ¿OWHU
)LWWKHQHZ¿OWHUE\KRRNLQJLWLQWRLWVVHDWLQJ
5HSODFHWKHJUHDVH¿OWHUV
Caution: When used in recirculation mode, to
Reduce the Risk of Fire and Shock use only
conversion kit Model KITFC142.
19
Light Bulb Replacement
• 5HPRYHJUHDVH¿OWHUVDQGVHWDVLGH
• Remove the bottom of the Range Hood by 4 screws 12b as shown.
• Replace the lamp with a new one of the same type.
• Replace the bottom of the Range Hood by 4 screws 12b.
• 5HSODFHWKHJUHDVH¿OWHUV.
E12 self-ballasted led lamps –
OLVWHGLQDFFRUGDQFHZLWKXO
QP[MDQFHFVDF1R
1993
12b
