Kenmore®
Wall Oven
Horno de pared four encastré
* = color number, número de color, numéro de couleur
Use & Care Guide
Manual de Uso y Cuidado
Manuel d’utilisation et d’entretien
English / Español / Français
Model / Modelo / Modèle: 790.4028*
P/N A00327302 Rev. B
Sears Brands Management Corporation
Hoffman Estates, IL 60179 U.S.A.
www.kenmore.com
Sears Canada Inc.
Toronto (Ontario) Canada M5B 2C3
www.sears.ca
All rights reserved. Printed in the USA.
2
Table of Contents
Before Setting Oven Controls ...................................................................... 7
Oven Controls ................................................................................................. 8
Care and Cleaning ..................................................................................... 17
Before You Call ........................................................................................... 20
Solutions to Common Problems ..............................................................21
Please carefully read and save these instructions
This Use and Care Manual contains general operating instructions for your appliance and feature information for several models.
Your product may not have all the described features. The graphics shown are representative. The graphics on your appliance may
not look exactly like those shown. Common sense and caution must be practiced when installing, operating and maintaining any
appliance.
KENMORE LIMITED WARRANTY
FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship when it is correctly installed,
operated and maintained according to all supplied instructions.
WITH PROOF OF SALE, a defective appliance will receive free repair or replacement at option of seller.
For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty
This warranty applies for only 90 DAYS from the sale date in the United States, and is void in Canada, if this appliance is ever used for other than
private household purposes.
This warranty covers ONLY defects in material and workmanship, and will NOT pay for:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from accident or improper operation or maintenance.
3. Discoloration of cooktop surfaces resulting from normal use.
4. Expendable items that can wear out from normal use, including but not limited to filters, belts, bags or screw-in base light bulbs.
5. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation, operation and
maintenance.
6. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair problems with
house fuses, circuit breakers, house wiring, and plumbing or gas supply systems resulting from such installation.
7. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents, including
installation that was not in accord with electrical, gas or plumbing codes.
8. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and maintained
according to all supplied instructions.
9. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration, abuse, misuse
or use for other than its intended purpose.
10. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents, cleaners,
chemicals or utensils other than those recommended in all instructions supplied with the product.
11. Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.
12. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the appropriate
certification logo.
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied warranties,
including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Seller shall
not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or conse-
quential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply
to you.
This warranty applies only while this appliance is used in the United States or Canada*.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
* In-home repair service is not available in all Canadian geographical areas, nor will this warranty cover user or servicer travel and
transportation expenses if this product is located in a remote area (as defined by Sears Canada Inc.) where an authorized servicer
is not available.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3
Save these instructions for future reference.
3
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
This manual contains important safety
symbols and instructions. Pay attention to
these symbols and follow all instructions
given.
Do not attempt to install or operate your
appliance until you have read the safety
precautions in this manual. Safety items
throughout this manual are labeled with a
WARNING or CAUTION statement based on
the hazard type.
DEFINITIONS
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
Storage in or on appliance—
Flammable materials should not be stored in
an oven or near surface units. This includes
paper, plastic, and cloth items, such as cook-
books, plastic ware, and towels, as well as
flammable liquids. Do not store explosives,
such as aerosol cans, on or near the oven.
Do not leave children alone -
Children should not be left alone or unat-
tended in the area where appliance is in use.
They should never be allowed to sit or stand
on any part of the appliance.
Stepping, leaning, or sitting on
the door or drawers of an oven can result in
serious injuries and also cause damage to the
appliance.
Do not allow children to climb or
play around the oven. The weight of a child
on an open oven door may cause the oven to
tip, resulting in serious burns or other injury.
Never cover any slots, holes, or
passages in the oven bottom or cover an
entire oven rack with materials, such as
aluminum foil. Aluminum foil linings will
affect the oven’s performance and may trap
heat, causing a fire hazard.
- Indicates a potentially
hazardous situation which, if not avoided,
may result in death or serious injury.
- Indicates a potentially
hazardous situation which, if not avoided,
may result in minor or moderate injury.
Important: Indicates installation, opera-
tion, maintenance, or valuable information
that is not hazard related.
WARNING
Tip Over Hazard
• A child or adult can tip the
oven and be killed.
• Install the anti-tip device
to oven and/or structure
per installation instructions.
• Ensure the anti-tip device is
re-engaged when the oven is moved.
• Do not operate the oven without the
anti-tip device in place and engaged.
• Failure to follow these instructions can
result in death or serious burns to
children and adults.
Refer to the installation
instructions supplied with
your appliance for proper
installation.
Anti-tip mounting holes
Check for proper installation with a visual
check that the anti-tip screws are present. Test
the installation with light downward pressure
on the open oven door. The oven should not
tip forward.
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Save these instructions for future reference.
4
Wear proper apparel. Loose-
fitting or hanging garments should never be
worn while using this appliance. Do not let
clothing or other flammable materials come
into contact with hot surfaces.
Do not heat unopened food
containers. Build-up of pressure may cause
container to burst and result in injury.
When heating fat or grease,
watch it closely. Grease may catch fire if it
becomes too hot.
Do not use water or flour on
grease fires. Smother fire or flame or use dry
chemical or foam-type extinguisher. Cover
the fire with a pan lid or use baking soda.
Use dry potholders. Moist or
damp potholders on hot surfaces may result
in burns from steam. Do not let potholders
touch hot cooking areas. Do not use towels or
other bulky cloths.
Do not touch heating elements or
interior surfaces of oven. Heating elements
may be hot and can cause burns even though
they are dark in color and appear to have
cooled. Other surfaces of the appliance may
become hot enough to cause burns such as
oven vent openings, oven doors, and windows
of oven doors.
Read and follow the below
instructions and precautions for unpacking,
installing, and servicing your appliance:
• Remove all tape and packaging before
using the oven. Destroy the carton and
plastic bags after unpacking the oven.
Never allow children to play with
packaging material.
• Remove the oven door from any unused
oven if it is to be stored or discarded.
• Be sure to have an appropriate foam-type
fire extinguisher available, visible, and
easily located near the appliance.
• Proper installation—Be sure your
appliance is properly installed and
grounded by a qualified technician in
accordance with the National Electrical
Code ANSI/NFPA No. 70 latest edition
and local electrical code requirements. In
Canada, install in accordance with CSA
Standard C22.1, Canadian Electrical
code, Part 1, and local electrical code
requirements. Install only per installation
instructions provided in the literature
package for this oven.
• User servicing—Do not repair or replace
any part of the appliance unless specifi-
cally recommended in the manuals. All
other servicing should be done only by a
qualified technician. This reduces the risk
of personal injury and damage to the
oven.
• Ask your dealer to recommend a qualified
technician and an authorized repair
service. Know how to disconnect the
power to the oven at the circuit breaker or
fuse box in case of an emergency.
• Never modify or alter the construction of
an oven by removing the leveling legs,
panels, wire covers, anti-tip brackets/
screws, or any other part of the oven.
• Do not attempt to operate the oven
during a power failure. If the power fails,
always turn off the oven. If the oven is not
turned off and the power resumes, the
oven will begin to operate again. Once
the power resumes, reset the clock and
oven function.
• Cold temperatures can damage the elec-
tronic control. When using this appliance
for the first time, or when the appliance
has not been used for an extended period
of time, be sure the appliance has been in
temperatures above 32ºF (0ºC) for at
least 3 hours before turning on the power
to the appliance.
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Save these instructions for future reference.
5
IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
• Never use your appliance for warming or
heating the room.
• Use care when opening oven door. Stand
to the side of the oven when opening the
door of a hot oven. Let hot air or steam
escape before you remove or replace
food in the oven.
• Keep oven vent ducts unobstructed.
Touching surfaces in this area when the
oven is on may cause severe burns. Do not
place plastic or heat-sensitive items on or
near the oven vent. These items can melt
or ignite.
• Placement of oven racks - Always place
oven racks in desired location while oven
is cool. If rack must be moved while oven
in hot, do not let potholder contact hot
heating element in oven. Use potholders
and grasp the rack with both hands to
reposition. Remove all bakeware and
utensils before moving the rack.
• Do not use a broiler pan without its insert.
Broiler pans and inserts allow dripping fat
to drain away from the high heat of the
broiler. Do not cover the broiler insert with
aluminum foil; exposed fat and grease
could ignite.
• Protective liners - Do not use aluminum
foil or any other materials to line surface
unit drip bowls or oven bottoms, except as
suggested in the manual. Improper instal-
lation of these liners may result in a risk of
electric shock, or fire.
• Do not cook food on the oven bottom.
Always cook in proper bakeware and
always use the oven racks.
IMPORTANT INSTRUCTIONS FOR
CLEANING YOUR OVEN
Before manually cleaning any
part of the oven, be sure all controls are
turned off and the oven is cool. Cleaning a
hot oven can cause burns.
Clean the oven regularly to keep all parts
free of grease that could catch fire. Do not
allow grease to accumulate.
Always follow the manufacturer’s recom-
mended directions for use of kitchen cleaners
and aerosols. Be aware that excess residue
from cleaners and aerosols may ignite
causing damage and injury.
SELF CLEANING OVENS (some models)
• Clean only the parts listed in this manual.
Before using self clean, remove the broiler
pan, any food, utensils, and bakeware
from the oven. Remove oven racks unless
otherwise instructed.
• Do not use oven cleaners. No commercial
oven cleaner or oven liner protective
coating of any kind should be used in or
around any part of the oven.
• Do not clean door gasket. The door
gasket is essential for a good seal. Care
should be taken not to rub, damage, or
move the gasket.
• Some birds are extremely sensitive to the
fumes given off during the self clean cycle
of any oven. Move birds to another well-
ventilated room.
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Save these instructions for future reference.
6
Important Safety Notice - The California
Safe Drinking Water and Toxic Enforcement
Act requires the governor of California to
publish a list of substances known to cause
cancer, birth defects, or other reproductive
harms, and it requires businesses to warn
customers of potential exposures to such
substances.
Grounding Instructions
Avoid fire hazard or electrical
shock. Failure to follow this warning may
cause serious injury, fire, or death.
This appliance must be supplied with the
proper voltage and frequency, and
connected to an individual, properly
grounded branch circuit, protected by a
circuit breaker or fuse.
It is the responsibility and obligation of the
consumer to contact a qualified installer to
assure that the electrical installation is
adequate and is in conformance with all
local codes and ordinances.
See the installation instructions packaged
with this appliance for complete installation
and grounding instructions.
Product Registration and Customer Informa-
tion
Serial Plate Location
The serial plate is on the side of the oven
frame.
Record the date of purchase, model and
serial number of your product in the corre-
sponding space below.
Model Number:_______________________
Serial Number:_______________________
Date of Purchase: _____________________
Save your sales receipt for future reference.
7
Before Setting Oven Controls
Before Setting Oven Controls
Oven Vent Location
The oven vent is located below the control panel (Figure 1).
When the oven is on, warm air passes through this vent. This
venting is necessary for proper air circulation in the oven and
good baking results. Do not block oven vent. Steam or moisture
may appear near the oven vent. This is normal.
Protective Liners — Do not use aluminum foil to
line the oven bottom. Only use aluminum foil as recommended
in this manual. Improper installation of these liners may result in
risk of electric shock, or fire.
Do not line the oven walls, racks, bottom, or any
other parts of the range with aluminum foil. Doing so will alter
heat distribution, produce poor baking results, and may cause
permanent damage to the oven interior. During self clean
temperatures the oven will be hot enough to melt foil.
Always use pot holders or oven mitts when using
the oven. When cooking, the oven interior, exterior, and oven
racks will become very hot which can cause burns.
Important: Remove all racks and accessories from the oven
before starting a cleaning cycle.
‘

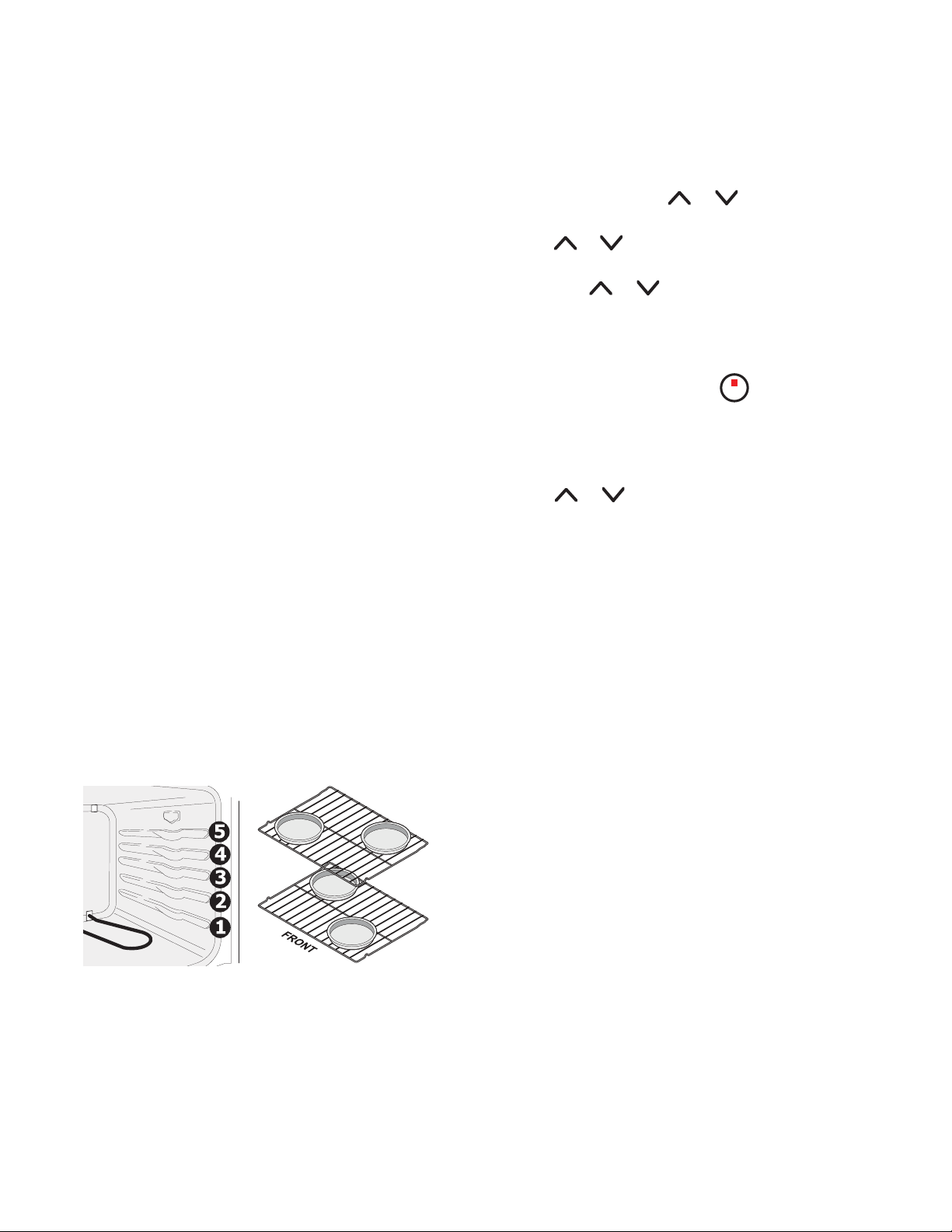

Arranging, Removing, and Replacing Racks
To arrange - always arrange the oven racks when the oven is
cool.
To remove - pull the rack forward until it stops. Lift up front of
rack and slide out.
To replace - fit oven rack onto the rack guides on both sides of
oven walls. Tilt the front of oven rack upward and slide the rack
back into place. Be sure oven racks are level before using.
Type of Oven Racks
• To maximize oven cooking space place the oven rack in the
lowest rack position for roasting large cuts of meat.
Figure 1: Oven vent location
at handle
oven rack
8
Oven Controls
Oven Controls
1. Display - Shows time and displays cooking information.
2. Clock - Use with Up/Down arrows to set the time of day
(page 9).
3. Cook Time - Use to set the time needed for cooking, and
cancels at end of set time (page 12).
4. Timer On/Off - Use to set or cancel the timer. The timer
does not start or stop the cooking process. Timer on-off is
used to set the continuous bake function (page 10).
5. Delay Start - Use with Bake to program a delayed start
bake (page 12).
6. OVEN - Indicator light glows each time the oven cycles on
to maintain the set oven temperature.
7. PREHEAT - Indicator light visible when oven is preheating.
Stays on until the oven reaches the desired temperature.
8. DOOR LOCKED - Indicator light visible when door locks or
unlocks and when oven lock is active.
9. Up / Down arrow keys- Use with the function keys to accept
settings and adjust temperature and times.
10. Bake - Use with Up/Down arrows to select a temperature
for baking selected foods (page 11).
11. Broil - Use with Up/Down arrows to select a temperature for
broiling selected foods (page 13).
12. STOP - Cancels any active oven function except clock or
timer. Use to activate or cancel OVEN LOCKOUT.
13. Self Clean - Use to select 2, 3, or 4 hour self clean cycle
(page 13).
14. OVEN LOCKOUT - Use to lock the oven door and the oven
control panel (page 10).
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Table 1: Minimum and Maximum Settings
Feature Min. Temp./Time Max. Temp./Time
Bake 170ºF (77ºC) 550ºF (288ºC)
Broil LO 400°F (205°C) HI 550°F (288°C)
Timer 1 Min. 11:59 Hr./Min.
Clock Time 1:00 Hr./Min. 12:59 Hr./Min.
Delay Start 1:00 Hr./Min. 11:59 Hr./Min.
Bake Time 1 Min. 11:59 Hr./Min.
Self Clean 2 Hours 4 Hours
9
Oven Controls
Setting the Clock
When the appliance is first powered up or when the power
supply to the appliance has been interrupted, the display will
flash 12:00.
Important: The time of day must first be set before operating the
oven. It is recommended to always set the clock for the correct
time of day when power is applied to the appliance.
To set the clock:
1. Press once (do not hold down).
2. Within 5 seconds, press and hold or until the
correct time of day appears in the display.
3. Release key.
Important note: The clock cannot be changed when the oven is
set for cooking or a self clean cycle is active.
Changing Between Continuous Bake Setting or 12-Hour
Energy Saving Feature
The oven control has a factory-preset 12-Hour Energy Saving
feature that will turn the oven off automatically if the oven is left
on for more than 12 hours. The control may be programmed to
override this feature to continuously bake.
To change to con tinuous bake mode:
1. Press and hold Timer On/Off until the control beeps once
(about 6 seconds).
- - hr will appear in display. The control
is now set for continuous cooking. The current time of day
will return to the display.
To change to 12-Hour Energy Saving feature:
1. Press and hold Timer On/Off until the control beeps once
(about 6 seconds). 12hr will now appear in display. The
control is now set for 12-Hour Energy Saving feature.
Setting the Timer
The timer allows you to track cooking times without interfering
the cooking process. The timer may be set from 1 minute to 11
hours and 59 minutes.
To set the timer:
1. Press Timer On/Off.
2. Press to increase the time in one minute increments.
Press and hold to increase the time in 10 minute incre-
ments. Release when the desired time appears in the
display. The timer will begin to count down.
3. When the set time has run out, the timer will sound with 3
beeps and will continue to beep 3 times every 60 seconds
until Timer On/Off is pressed.
To change the time remaining:
1. Press and hold or to increase or decrease any
time remaining.
2. To cancel the Timer at any time, press Timer On/Off once.
Important notes:
• The timer does not start or stop the cooking process. It
serves as an extra timer in the kitchen that will beep when
the set time has run out. The timer may be used alone or
when any other oven function is active.
• The indicator light located above the Timer On/Off key will
glow when the timer is active.
• The timer will display hours and minutes until 1 hour
remains. When less than 1 hour remains, the display will
count down in minutes and seconds. Once the timer has less
than 1 minute remaining only seconds will display.
• If the timer is active when oven cooking, the minute timer
will show in the display by default. To view information of
any other active oven function, press the key once for the
active function to view status.
10
Oven Controls
Changing Temperature Display (F or C)
The electronic oven control is set to display Fahrenheit (F) when
shipped from the factory. The display may be changed to show
either Fahrenheit or Celsius (C) oven temperatures.
To change temperature display:
1. Press
Broil. The display will show — —.
2. Press and hold until
HI appears in display.
3. Press and hold
Broil until F or C appears in the display.
4. Press either or to change to
F or C.
5. Release key when desired mode is displayed.
6. To accept selection, press any control key once. The display
will return to the time of day.
Important note:
The temperature display mode cannot be changed when the
oven is set for cooking.
Oven Lockout
The control may be programmed to lock the oven control keys
and oven door.
To activate oven lockout:
1. Be sure the door is completely closed.
2. Press and hold for 3 seconds. Loc will appear in the
display.
3. The DOOR LOCKED indicator light will flash while the
motor driven door latch begins locking the oven door. Do
not open the door during this time. Allow 15 seconds for the
door to completely lock. Once oven door is locked, the time
of day will appear in the display.
4. To cancel the oven lockout feature, press STOP and hold for
3 seconds. The control will unlock the oven door and resume
normal operation.
Do not open the oven door while the indicator
light is flashing. If any control pad is pressed with the oven lock
feature active, Loc will appear in the display until the control
pad is released.
Operating the Oven Light
The oven light will automatically turn on when the oven door is
opened. Press the rocker switch marked OVEN LIGHT on the left
side of the control panel to turn the oven light on or off
whenever the oven door is closed.
The oven light is located at the upper right rear corner of the
oven interior and is covered with a glass shield. The glass shield
protects the bulb from high temperatures and should always be
in place when the oven is in use.
Leave oven light off while baking.
To replace the interior oven light see “Replacing the Oven
Lights” on page 18.
Silent or Audible Control Mode
When selecting a function, an audible tone is heard each time a
key is pressed. If desired, the control can be programmed for
silent operation.
To set the controls for silent operation, press and hold Delay
Start for 6 seconds. The control will beep once, then release the
key.
To return to non-silent operation, press and hold Delay Start
again for 6 seconds until the control beeps once.
STOP
STOP
Figure 2: Oven light switch
11
Oven Controls
Setting Bake
Use the bake function whenever the recipe calls for baking using
normal temperatures. A reminder tone will sound when the set
bake temperature is reached. During Bake, the oven will cycle
on and off to maintain the set temperature. The bake indicator
light will turn on and off as the oven cycles.
Bake may be programmed for any temperature from 170°F to
550°F (77°C to 288°C). The factory preset bake temperature is
350°F (176°C).
For best results:
• Do not leave oven light on while baking.
• Fully preheat the oven before baking items like cookies,
cakes, biscuits, or breads.
• Use single rack for best baking results and position food in
the center of the oven on rack position 2.
• When baking cakes using 2 racks, place bakeware on oven
rack positions 2 and 4 and position pans as shown. (See
Figure 3).
• Use positions 2 and 4 when baking cookies on multiple
pans.
• Allow at least 2” (5 cm) of space between bakeware to
allow for proper air circulation.
• Dark or dull pans and glass absorb more heat than shiny
bakeware resulting in dark or over browning of foods. It
may be necessary to reduce the oven temperature or cook
time to prevent over browning of some foods. Dark pans
are recommended for pies. Shiny pans are recommended
for cakes, cookies and muffins.
• Do not open the oven door too often. Opening the door will
reduce the temperature in the oven.
To set Bake:
1. Arrange the oven racks and close the oven door.
2. Press Bake. The display shows
— — —.
3. Within 5 seconds, press or . The display will show
the default temperature of 350°F (176°C).
4. Press or as needed to adjust the oven temperature
in 5°F (1°C) increments.
5. As soon as or is released, the oven will begin
heating to the selected temperature. When the oven
temperature reaches the set temperature, the PREHEAT
indicator light will turn off and the oven control will beep 3
times.
6. To cancel bake at anytime press .
To change the oven temperature after Bake has started:
1. Press Bake. The current set oven temperature will display.
2. Press or to increase or decrease the current set
temperature to the new oven temperature.
Important: The oven will bake no longer than 12 hours. If you
wish to bake for a longer period, see “Changing Between
Continuous Bake Setting or 12-Hour Energy Saving Feature” for
detailed information.
Air Circulation in the Oven
For best air circulation when baking, allow a space of 2” to 4”
(5-10 cm) around the bakeware for proper air circulation. Be
sure pans and bakeware do not touch each other, the oven door,
sides, or back of the oven cavity.
Hot air must be able to circulate around bakeware for even
heat to reach the food.
Figure 3: Rack positions (L) and pan spacing (R)
STOP
STOP
12
Oven Controls
Setting Cook Time
Use Cook Time to set the amount of time needed for baking. The
oven will turn on immediately and stop automatically after the
set cook time ends.
Always use pot holders or oven mitts when using
the oven. When cooking the oven interior and oven racks will
become very hot which can cause burns.
To program the oven to begin baking immediately and to shut
off automatically:
1. Be sure that the clock displays the correct time of day.
2. Arrange oven racks and close oven door.
3. Press Bake. The display will show — — —.
4. Within 5 seconds, press or . The display will show
the default oven temperature of 350°F (176°C). By pressing
or , the temperature may be adjusted in 5°F (1ºC)
increments.
5. Press Cook Time. The display will show :00.
6. Press or and release when the desired cook time
appears in the display. The oven will then turn on and begin
heating.
When the oven temperature reaches the set temperature, the
PREHEAT indicator light will turn off and the oven control will
beep 3 times.
To cancel at anytime press .
When the cook time runs out End will appear in the display. The
oven control will beep 3 times every minute as a reminder until
is pressed.
To change the oven temperature or cook time after baking has
started:
1. Press Bake (for oven temperature) or Cook Time.
2. Press or and release when the desired tempera-
ture or cook time setting appears in the display.
Important notes:
• The maximum Cook Time or Delay Start setting is 11 hours
and 59 minutes.
• Cook Time and Delay Start may be set with Bake but are
not available for use with Broil.
• While baking with Cook Time, press the Cook Time key to
display any cook time remaining.
Setting Delay Start
Delay Start allows you to set a delayed starting time to the oven
baking or cleaning functions.
FOOD POISONING HAZARD: Do not let food
sit for more than 1 hour before or after cooking. Doing so can
result in food poisoning or sickness. Foods that can easily spoil
such as milk, eggs, fish, meat or poultry, should be chilled in the
refrigerator first. Even when chilled, they should not stand in the
oven for more than 1 hour before cooking begins, and should be
removed promptly when finished cooking.
To program oven for a delayed starting time and to shut off
automatically:
1. Be sure that the clock displays the correct time of day.
2. Arrange oven racks and close oven door.
3. Press Bake. The display will show
— — —.
4. Within 5 seconds, press or key. The display will
show the default oven temperature of 350°F (176°C). By
pressing or , the oven temperature may be
adjusted in 5°F (1°C) increments.
5. Press Cook Time. The display will show :00.
6. Press or and release when the desired cook time
appears in the display.
7. Press Delay Start. The time of day will appear in the display.
8. Press or until the desired starting time appears in
the display and release.
9. The oven will automatically turn on at the set delayed
starting time and begin heating. When the oven tempera-
ture reaches the set temperature, the PREHEAT light will turn
off and the oven control will beep 3 times.
10. To cancel at anytime press .
STOPSTOP
STOP
STOP
STOP
STOP
13
Oven Controls
Setting Broil
Use the Broil feature to cook meats that require direct exposure
to radiant heat for optimum browning results.
Position the rack as suggested in table 2. (See Figure 4)
Should an oven fire occur, close the oven door
and turn the oven off. If the fire continues, use a Class B/C fire
extinguisher. Do not put water or flour on fire. Flour may be
explosive. The broiler pan and insert allow grease to drain and
be kept away from the high heat of the broiler. Do not use the
pan without the insert. Do not cover the insert with aluminum
foil; the exposed grease could ignite.
Always use pot holders or oven mitts when using
the oven. When cooking the oven interior and oven racks will
become very hot which can cause burns. Always pull the rack
out to the stop position before turning or removing food.
Do not cover the broil pan insert with aluminum
foil. The exposed grease could catch fire. Do not use a roasting
rack when broiling
To set Broil:
1. Arrange the oven racks when cool.
2. Press Broil. The display will show
— —.
3. Press for HI broil or for LO broil. Most foods may
be broiled at the HI broil setting. Select the LO broil setting
to avoid excess browning or drying of foods that should be
cooked to the well-done stage.
4. For optimum browning results, preheat the oven for 2
minutes before adding food.
5. Place the insert on the broil pan, then place the food on the
broil pan insert.
6. Place the broiler pan and insert on the oven rack. Broil with
the oven door closed.
7. Broil on one side until food is browned. Turn and broil food
on second side.
8. When finished broiling or to cancel press .
Important: If a broiler pan and insert are not supplied with this
appliance, they may be purchased from Sears. Call 1-844-553-
6667 and order broiler pan kit 5304442087.
Figure 4: Rack positions
STOPSTOP
Broil pan
and Insert
Table 2: Suggested Broil Settings
Food Rack Position Setting
Cook time in minutes
1st side 2nd side
Internal
Temperature
Doneness
Steak, 1 inch thick 4th Hi 5 4 140°F (60°C)* Rare*
Steak, 1 inch thick 4th Hi 6 4 145°F (63°C)* Medium-Rare**
Steak, 1 inch thick 4th Hi 7 5 160°F (71°C) Medium-well
Steak, 1 inch thick 4th Hi 8 7 170°F (77°C) Well
Pork Chops, 3/4 inch thick 4th Hi 8 6 170°F (77°C) Well
Chicken, bone-in 3rd Lo 20 10 170°F (77°C) Well
Chicken, boneless 4th Lo 8 6 170°F (77°C) Well
Fish 4th Hi as directed Well
Shrimp 4th Hi as directed Well
Hamburger, 1 inch thick 4th Hi 5 4 140°F (60°C)* Rare*
Hamburger, 1 inch thick 4h Hi 9 7 160°F (71°C) Medium
Hamburger, 1 inch thick 4th Hi 10 8 170°F (77°C) Well
*
The U.S. Department of Agriculture states, “Rare fresh beef is popular, but you should know that cooking it to only 140°F (60°C) means some food
poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide, USDA Rev. June 1985.) **The lowest temperature recommended by the USDA is
145°F (63°C) for medium rare fresh beef. For well done 170°F (77ºC). NOTE: Broiling will produce some smoke. If smoke is excessive, place the food further away
from the broil element. Always watch food carefully to prevent burning.
14
Oven Controls
Adjusting the Oven Temperature
Your appliance has been factory calibrated and tested to ensure
an accurate baking temperature. For the first few uses, follow
your recipe times and temperature recommendations carefully.
If you think the oven is cooking too hot or too cool for your
recipe times, you may adjust the control so the oven cooks hotter
or cooler than the oven temperature displayed.
Important notes:
• Do not use oven thermometers such as those found in
grocery stores to check the temperature settings inside your
oven. These oven thermometers may vary as much as 20ºF
to 40 °F (11ºC to 23ºC) from actual temperatures.
• Oven temperature adjustments will not change the Broil or
Self Clean operating temperatures.
• The oven temperature may be changed as much as ±35°F
(±19°C) from the factory calibrated settings.
To adjust the oven temperature:
1. Press Bake.
2. Set the oven temperature to 550°F (288°C) by pressing and
holding . Release when 550°F (288°C) appears in the
display.
3. Within 3 seconds, press and hold Bake until number digits
appear.
4. Release Bake. The display now indicates the amount of
degrees offset from the original factory temperature setting
and the current temperature setting. If the control still has
the original factory calibration, the display will read 0.
5. The temperature may be adjusted up or down 35°F (19°C),
in 5°F (1ºC) increments by pressing and holding the or
keys. Adjust until the desired amount of temperature
offset appears in the display and release key.
6. Press to accept and return to normal operation.
STOP
STOP
15
Oven Controls
Self Clean Operation
A self cleaning oven cleans itself with high temperatures (well
above normal cooking temperatures) which eliminate soils
completely or reduce them to a fine powdered ash you can
wipe away afterwards with a damp cloth. The Self Clean
function offers three different cleaning times. A 2-hour time for
light soils, a default 3-hour clean time for normal soils, and a 4-
hour clean for heavier soils.
Before starting Self Clean:
Important notes: Read all the following important statements
before starting a self clean cycle:
• Completely remove all oven racks and any accessories. If
the oven racks are not removed they will lose their special
coating properties and no longer slide in and out of the
oven cavity easily.
• Remove the broiler pan and insert, all utensils and any
aluminum foil. These items cannot withstand high cleaning
temperatures and will melt.
• Do not line the oven walls, racks, oven bottom or any part
of the range with aluminum foil. Doing so will alter heat
distribution, produce poor baking results, and may cause
permanent damage to the oven interior. During a self clean
cycle the oven temperatures will be hot enough to melt foil.
• Do not spray oven cleaners or protective coatings in or
around any part of the oven interior.
• Clean any soil from the oven frame, the door liner outside
the oven door gasket and the small area at the front center
of the oven bottom. These areas heat sufficiently to burn soil
on. Clean with soap and water. These areas are shown in
white (See Figure 5).
• Do not allow food spills with high sugar or acid content
(such as milk, tomatoes, sauerkraut, fruit juices or pie
fillings) to remain on the surface as they may leave a dull
spot even after cleaning.
• Do not clean the oven gasket (See Figure 5). The woven
material in the gasket is essential for a good seal. Do not
rub, damage, or remove the oven frame gasket. Doing so
could compromise the performance of the oven.
• Remove any excessive spills. Any spills on the oven bottom
should be wiped up and removed before starting a self
clean cycle. Refer to “Cleaning Exposed Bake Ovens” on
page 18.
• Do not leave small children unattended near appliance.
During self clean cycle the outside of the oven can become
very hot and cause burns if touched.
• Do not force the oven door open. This will damage the
automatic door locking system. Use caution when opening
the oven door after the self clean cycle ends. The oven may
still be very hot and cause burns. To avoid possible burns
stand to side of oven when opening door to allow steam or
hot air to escape.
• The health of some birds is extremely sensitive to fumes
given off during the self clean cycle of any range. Move
birds to a well ventilated room.
• The oven bake and broil elements may still be hot after they
appear to have cooled. Burns may occur if these elements
are touched before they have cooled sufficiently.
Figure 5: Areas to clean or avoid on door frame
16
Oven Controls
Setting Self Clean
Self Clean allows a user to select a 2, 3, or 4 hour self clean
cycle.
To set a Self Clean cycle immediately:
1. Be sure the oven in empty and all oven racks are removed.
Be sure the oven door is completely closed.
2. Press Self Clean once. The display will show
— —.
3. Press or . The display will show 3:00 to indicate
the default 3 hour clean time is selected. To change to a 2
or a 4 hour clean time press ; until 2:00 appears
or 4:00 appears in the display then release the arrow key.
4. After selecting the clean time Self Clean will activate. The
DOOR LOCKED indicator light will light and CLn will
appear in the display. Do not attempt to open the oven
door when the DOOR LOCKED indicator light is flashing
and while self clean is active. Doing so could damage the
door locking mechanism. Allow about 15 seconds for the
oven door to completely lock.
5. Once the oven door locks, the DOOR LOCKED indicator
light will glow steady.
Use caution when opening the oven door after
self cleaning. The oven may still be very hot and can cause
burns. To avoid possible burns stand to the side of the oven when
opening the oven door to allow hot air or steam to escape.
When Self Clean is finished:
1. Once the oven has cooled down (about 1 hour) and the
DOOR LOCKED indicator light has turned off the oven door
may be opened.
2. When the oven interior has completely cooled, wipe away
any residue or powdered ash with a damp cloth or paper
towel.
Important note:
If Self Clean is active and a power failure occurs, the oven may
not have thoroughly cleaned. This would depend on how much
cleaning time had elapsed before the power failure. If needed
after power is restored, set Self Clean again.
Important notes:
• The kitchen area should be well ventilated using an open
window, ventilation fan or exhaust hood during the 1st self
clean cycle. This will help eliminate the normal odors asso-
ciated with the 1st self clean cycle.
• Do not attempt to open the oven door when the DOOR
LOCKED indicator light is flashing. Allow about 15 seconds
for the motorized door latch mechanism to completely lock
or unlock the oven door.
• When the clean time finishes the oven door will remain
locked until the range has cooled sufficiently. In addition to
the clean time that was programmed, you must allow about
1 additional hour for the oven to cool before you will be
able to open the oven door.
To start Delay Start Self clean:
1. Be sure the oven is empty and all oven racks are removed.
Be sure oven door is completely closed.
2. Be sure the clock shows the correct time of day.
3. Press Delay Start.
4. Press and hold the key to scroll to the time to start the
self clean cycle. Release the key when the desired start time
is displayed.
5. Press Self Clean key. The display will show
— — —.
6. Press or once. The display will show 3:00 to
indicate the default 3 hour clean time is selected. To change
to a 2 or a 4 hour clean time press ; until 2:00 appears
or 4:00 appears in the display then release the arrow
key.
7. After selecting the clean time Self Clean is set to activate,
the DOOR LOCKED indicator light will turn on and the oven
door will lock in advance of the starting time. Once the
starting time is reached, CLn will appear in the display and
the oven will begin the self clean cycle automatically.
If it becomes necessary to stop Self Clean when active:
1. Press .
2. If Self Clean has heated the oven to a high temperature,
allow enough time for the oven to cool and for the DOOR
LOCKED indicator light to turn off. When this indicator light
turns off the oven door may be opened.
3. Restart Self Clean if needed.
STOP
STOP
17
Care and Cleaning
Cleaning Various Parts of Your Oven
Before cleaning any part of the oven, ensure all controls are turned off and the oven is cool. Remove spills and any heavy soiling as soon as
possible. Regular cleaning will reduce the difficulty and time of major cleaning later.
Surface Type Recommendation
Aluminum, plastic, or vinyl trim
Painted body parts
Painted decorative trims
Plastic
Use hot, soapy water and dry with a clean cloth. Use a soft cloth and clean with mild dish
detergent and water or a 50/50 solution of vinegar and water. Follow by rinsing the area
with clean water; dry and polish with a soft cloth. Glass cleaners may be used if sprayed on
a soft cloth first. Do not spray liquids directly on the oven control and display area. Do not
use large amounts of water on the control panel. Excess water on the control may damage
the appliance. Do not use other liquid cleaners, abrasive cleaners, scouring pads, or paper
towels. They will damage the finish.
Control panel
Control keypad membrane
Decorative trim (some models)
Use a soft cloth and clean with mild dish detergent and water or a 50/50 solution of vinegar
and water. Follow by rinsing the area with clean water; dry and polish with a soft cloth. Glass
cleaners may be used if sprayed on a soft cloth first. Do not spray liquids directly on the oven
control and display area. Do not use large amounts of water on the control panel. Excess
water on the control area may cause damage to the appliance. Do not use other liquid
cleaners, abrasive cleaners, scouring pads, or paper towels. They will damage the finish.
Stainless Steel (some models) Only use cleaners and polishes specifically manufactured for cleaning stainless steel. Always
rub in direction of metal grain to avoid damaging. Do not use cleaners with high concentra-
tions of chlorine. Do not use harsh scrubbing cleaners. Polish with a lint-free cloth. Wipe
excess cleaner/polish off from the metal surface as bluish stains may occur during future
oven heating that cannot be removed. Clean heavier soils with hot, soapy water and a cloth
or sponge. Use clean water to rinse; use a cloth to dry.
Porcelain enamel broiler pan and
Insert (available by mail order)
Door liner and body parts
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution of
clear water and ammonia. If necessary, cover difficult spots with an ammonia-soaked paper
towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and then scrub with a
soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove all cleaners or the
porcelain may become damaged during future heating.
Oven racks Remove oven racks from the oven cavity before cleaning the oven interior. Use a mild,
abrasive cleaner following manufacturer’s instructions. Rinse with clean water and dry.
Oven door Use soap and water to thoroughly clean the top, sides, and front of the oven door. Rinse well.
You may use a glass cleaner on the outside door glass. Do not immerse the door in water. Do
not spray or allow water or the glass cleaner to enter the door vents. Do not use oven
cleaners, cleaning powders, or any harsh abrasive cleaning materials on the outside of the
oven door.The oven gasket is essential for a good seal. It is located on the inner frame of the
door and visible when the door is opened. Do not clean the oven door gasket. On self clean
models, the oven door gasket is made of a woven material. Care should be taken not to rub,
damage, or remove this gasket.
18
Care and Cleaning
General Cleaning
Before manually cleaning any part of the oven, be sure all controls are
turned off and the oven is cool. Ammonia must be rinsed before
operating the oven. Provide adequate ventilation. Wear rubber gloves
when cleaning the appliance manually. Remove spillovers and heavy
soiling as soon as possible.
Aluminum Foil, Aluminum Utensils, and Oven Liners
Never cover any slots, holes, or passages in the oven bottom or cover an
entire oven rack with materials such as aluminum foil. Doing so blocks
air flow through the oven and may cause carbon monoxide poisoning.
Aluminum foil linings may trap heat, causing a fire hazard.
Protective Liners—Do not use aluminum foil or any other oven liners or
materials to line the oven bottom. The high heat of the oven can melt
these materials to the oven cavity and ruin the oven. These types of
materials can also reduce the effectiveness of the air circulation in the
oven and produce poor baking results.
•Aluminum foil - Only use aluminum foil as recommended in this
manual. Improper installation of these liners may result in risk of
electric shock or fire.
•Oven racks - Do not use aluminum foil to cover the oven racks.
Using a liner in the oven restricts the heat and air flow needed to
obtain the best possible cooking results for any oven.
• During self clean the oven temperature can become hot enough to
melt aluminum cookware and utensils or aluminum foil if left in the
oven. This could result in permanent damage to the oven interior
and porcelain finish.
Adhere to the following precautions when using spray oven cleaners:
• Do not spray cleaner on the electrical controls or switches because
it could cause a short circuit and result in sparking or fire.
• Do not spray any cleaner on the oven door trim or gasket, broiler
drawer glides, handles or any exterior surfaces of the oven, plastic
or painted surfaces. The cleaner can damage these surfaces.
Cleaning Exposed Bake Ovens
The bake element is located in the bottom of the oven cavity
(Figure 6). Remove the bottom oven rack before raising the
element. Be careful not to raise the element more than 4 or 5
inches from the resting position to clean the oven bottom.
Broiler Pan Cleaning Tips
To prevent grease from baking on, remove the broiler pan from the
oven as soon as cooking is completed. Use hot pads because the broiler
pan is extremely hot. Pour off grease. Soak the pan in hot, soapy water.
Clean the broiler pan as soon as possible after each use. If necessary,
use soap-filled steel wool pads. Heavy scouring may scratch the grid.
Replacing the Oven Lights
The interior oven light is located at the rear of the oven cavity and
covered with a glass shield. The glass shield must be in place whenever
the oven is in use (See Figure 7).
Be sure the oven is unplugged or power is turned off and all parts are
cool before replacing oven light. Wear a leather-faced glove for
protection against possible broken glass. Do not allow your fingers to
touch the new bulb when replacing. This will shorten the life of the bulb.
Use a paper towel or cotton glove while handling the new bulb when
installing.
1. Turn electrical power off at the main source or unplug the
appliance
2. Remove interior oven light shield by turning a quarter turn counter-
clockwise.
3. Replace bulb with a new T-4 type Halogen 25 watt appliance
bulb.
4. Replace glass oven light shield by rotating clockwise.
5. Turn power back on again at the main source (or plug the
appliance back in).
6. Be sure to reset the time of day on the clock.
Figure 6: Exposed bake oven cavity
Figure 7: Halogen light
19
Care and Cleaning
Removing and Replacing the Oven Door
The door is heavy. For safe, temporary storage, lay the door flat
with the inside of the door facing down.
To prevent possible burns, do not attempt to remove the oven
door until the oven has completely cooled.
To remove the oven door:
1. Open oven door completely, horizontal with floor (Figure 8).
2. Pull down the door hinge locks located on each hinge
support toward front of the oven until the lock stops.
(Figure 9).
3. Grasp the door by the sides, and close the door until the
door frame makes contact with unlocked hinges. (Figure 10)
4. Pull the bottom of the door toward you while rotating the
top of the door toward the appliance to completely
disengage the hinge arm from the roller pins. (Figure 11).
To replace the oven door:
1. Firmly grasp both sides of oven door along the door sides.
Do not use the oven door handle (Figure 10).
2. Hold the oven door at the same angle as the removal
position. Carefully seat the hinge arms over the roller pins
until you feel the hinge levers are secure.
3. Fully open the oven door, horizontal with floor (Figure 8).
4. Push the door hinge locks up toward and into the oven
frame on both left and right oven door hinges to the locked
position (Figure 10).
5. Close the oven door.
IMPORTANT!
Special Door Care Instructions - Most oven doors contain glass
that can break.
Read the following recommendations:
• Do not close the oven door until all the oven racks are fully
in place.
• Do not hit the glass with pots, pans, or any other object.
• Scratching, hitting, jarring, or stressing the glass may
weaken its structure causing an increased risk of breakage
at a later tim
e.
Figure 8: Location of hinges
Figure 9: Hinge locks
Figure 10: Lifting door from hinge hooks
Figure 11: Remove (and replace) door
Oven door
hinge
locations
L
O
C
K
about
10°
hinge
oven
door
roller
pin
hinge
arm
20
BEFORE YOU CALL
For best cooking results, heat the oven before baking cookies, breads, cakes, pies, or pastries, etc. There is no need to preheat the
oven for roasting meat or baking casseroles.
The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance.
Baking Problems and Solutions
Baking Problems Causes Corrections
Cookies and biscuits burn
on the bottom.
• Cookies and biscuits put into oven
before the preheating time is
completed.
• Oven rack is overcrowded or
rack position too low.
• Dark pans absorb heat too fast.
• Allow oven to preheat to desired temperature before placing
food in oven.
• Choose pan sizes that will permit 2” to 4” (5.1 cm to 10.2 cm)
space on all sides when placed in the oven.
• Use a medium weight baking sheet.
Cakes too dark on top or
bottom
• Cakes put in oven before
preheating time is completed.
• Rack position too high or too low.
• Oven too hot.
• Allow oven to preheat to the selected temperature before
placing food in the oven.
• Use proper rack position for baking needs.
• Set oven temperature 25°F (13°C) lower than recommended.
Cakes not done in center • Oven too hot.
• Incorrect pan size.
• Pan not centered in oven.
• Set oven temperature 25°F (13°C) lower than recommended.
• Use pan size suggested in recipe.
• Use proper rack position and place pan so there is 2” to 4”
(5.1 cm to 10.2 cm) space on all sides of pan.
•
Cakes not level. • Oven not level.
• Pan too close to oven wall or rack
overcrowded.
• Pan warped.
• Oven light left on while baking.
• Place a marked glass measuring cup filled with water on the
center of the oven rack. If the water level is uneven, refer to
the installation instructions for leveling the oven.
• Be sure to allow 2” to 4” (5.1 cm to 10.2 cm) clearance on all
sides of each pan in the oven.
• Do not use dented or warped pans.
• Turn oven light off while baking.
Foods not done when
cooking time is over.
• Oven too cool.
• Oven overcrowded.
• Oven door opened too
frequently.
• Set oven temperature 25°F (13°C) higher than suggested and
bake for the recommended time.
• Be sure to remove all pans from the oven except the ones to
be used for baking.
• Open the oven door only after shortest recommended
baking time.
21
Before You Call
Solutions to Common Problems
Before you call for service, review the following list. It may save you time and expense. Possible solutions are provided with the
problem listed:
Problem Solution
Oven control panel beeps and
displays error codes
• Oven control has detected a fault or error condition. Press STOP to clear the error code.
• Press Bake or Broil. If the F or E code error repeats, turn off power to appliance, wait 5 minutes
and then repower appliance. Set clock with correct time of day. Press Bake or Broil again. If
fault recurs, press STOP to clear.
Poor baking results • Many factors affect baking results. Use proper oven rack position. Center food in the oven and
space pans to allow air to circulate. Preheat oven to the set temperature before placing food in
the oven. Try adjusting the recipe's recommended temperature or baking time. If you feel the
oven is too hot or cool, see “Adjusting the Oven Temperature” on page 13.
Appliance is not level. • Poor installation. Place oven rack in center of oven and place a level on the oven rack.
• Kitchen cabinet alignment may make range appear not level. Be sure cabinets are square and
have sufficient room for appliance clearance.
Cannot move appliance easily.
Appliance must be accessible
for service.
• Cabinets not square or are built in too tight to allow clearance for appliance. Contact builder or
installer to make appliance accessible.
Entire appliance does not
operate.
• Make sure power cord is connected properly into outlet. If electricity to home is working, check
fuse box or breaker. Call your local electric company for service outage information.
• Service wiring is not complete. Call 1-844-553-6667 for assistance (See back cover).
Oven portion of appliance
does not operate.
• The time of day is not set. The oven clock must first be set in order to operate the oven. See
“Setting the Clock” on page 9.
• Be sure oven controls are set properly. See “Oven Controls” beginning on page 8 to review
instructions for the desired cooking function in this manual or see “Entire appliance does not
operate” in this checklist.
Flames inside oven or smoking
from oven vent.
• Excessive spills in oven. Grease or food spilled onto oven bottom or oven cavity. Wipe up
excessive spills before starting oven. If flames or excessive smoke are present see “Setting Broil”
on page 13.
Oven light does not work. • Be sure the oven light is secure in the socket. See “Replacing the Oven Lights” on page 18.
Oven smokes excessively when
broiling
• Incorrect setting. See “Setting Broil” on page 13
.
• Meat too close to the broil element. Reposition broil rack to provide proper clearance between
the meat and broil element. Remove excess fat from meat. Cut remaining fatty edges to prevent
curling, but do not cut into lean.
• Grease build up on oven surfaces. Regular cleaning is necessary when broiling frequently.
Grease or food splatters will cause excessive smoking.
Oven racks discolored or do
not slide easily
• Clean by using a mild abrasive cleaner following manufacturer's instructions. Rinse with clean
water, dry and replace in oven.
Fan noise occurring after the
oven is turned off
• Some models are equipped with a cooling fan that runs during the cooking process to cool
internal electronic components. It is normal for this fan to continue to run for an extended
period of time, even when the oven has been turned off.
