A1
Please read these safety precautions carefully before using the product.
Precautions in installing the Product
If you ignore the caution message, you may be slightly injured or the product may be damaged
If you ignore the warning message, you may be seriously injured or there is a possibility of
accident or death.
Keep away from heat sources like electrical heaters.
- Electrical shock, fire, malfunction or deformation may occur.
Keep the packing anti-moisture material or vinyl packing out of the reach of children.
- Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the
nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
Do not put heavy objects on the product or sit upon it.
- If the product collapses or is dropped, you may be injured. Children must pay particular attention.
Do not leave the power or signal cable unattended on the pathway.
- The passerby can falter, which can cause electrical shock, fire, product breakdown or injury.
Install the product in a neat and dry place.
- Dust or moisture can cause electrical shock, fire or product damage.
If you can smell smoke or other odors or hear a strange sound unplug the power cord and contact the
service center.
- If you continue to use without taking proper measures, electrical shock or fire can occur.
If you dropped the product or the case is broken, turn off the product and unplug the power cord.
- If you continue to use without taking proper measures, electrical shock or fire can occur. Contact the service
center.
Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable
objects such as paper and matches. Children must pay particular attention.
- Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and
contact the service center.
Make sure the product ventilation hole is not blocked. Install the product in a suitably wide place (more
than 10cm from the wall)
- If you install the product too close to the wall, it may be deformed or fire can break out due to internal heat.
Do not block the ventilation hole of the product by a tablecloth or curtain.
- The product can be deformed or fire can break out due to overheating inside the product.
Install the product on a flat and stable place that has no risk of dropping the product.
- If the product is dropped, you may be injured or the product may be broken.
Install the product where no EMI occurs.
Keep the product away from direct sunlight.
- The product can be damaged.
Safety Precautions
Warning
Warning
Caution
Caution
A2A2
Electrical Power Related Precautions
Make sure to connect the power cable to the grounded current.
- You may be electrocuted or injured.
Use the rated voltage only.
- The product can be damaged, or you may be electrocuted.
During a thunder or lightning storm, unplug the power cable or signal cable.
- You may be electrocuted or a fire can break out.
Do not connect several extension cords, electrical appliances or electrical heaters to a single outlet.
Use a power bar with a grounding terminal designed for exclusive use with the computer.
- A fire can break out due to overheating.
Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry
the power plug completely or wipe dust off.
- You may be electrocuted due to excess moisture.
If you don’t intend to use the product for a long time, unplug the power cable from the product.
- Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.
Fix the power cable completely.
- If the power cable is not fixed completely, a fire can break out.
Hold the plug when pulling out the power cable. Do not bend the power cord with excessive force or put
heavy objects on the power cord.
- The power line can be damaged, which may cause electric shock or fire.
Do not insert a conductor (like a metal chopstick) into one end of the power cable while the other end is
connected to the input terminal on the wall. Additionally, do not touch the power cable right after
plugging into the wall input terminal.
- You may be electrocuted.
The power supply cord is used as the main disconnection device. Ensure that the socket-outlet is easily
accessible after installation.
Do not unplug the power cord while the product is in use.
- Electrical shock can damage the product.
Warning
Caution
ENGLISH
Precautions in Moving the Product
Warning
Make sure to turn off the product.
- You may be electrocuted or the product can be damaged.
Make sure to remove all cables before moving the product.
- You may be electrocuted or the product can be damaged.
A3
Safety Precautions
Caution
Precautions in Using the Product
Warning
Do not put or store inflammable substances near the product.
- There is a danger of explosion or fire due to careless handling of the inflammable substances.
When cleaning the brown tube surface, unplug the power cord and scrub with soft cloth to prevent
scratching. Do not clean with a wet cloth.
- The water can sink into the product, which can cause electric shock or serious malfunction.
Take a rest from time to time to protect your vision.
Keep the product clean at all times.
Take a comfortable and natural position when working with a product to relax the muscles.
Take a regular break when working with a product for a long time.
Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make
a scratch on it.
Keep the proper distance from the product.
- Your vision may be impaired if you look at the product too closely.
Set the appropriate resolution and clock by referring to the User’s Guide.
- Your vision can be impaired.
Use authorized detergent only when cleaning the product. (Do not use benzene, thinner or alcohol.)
- Product can be deformed.
Caution
Do not shock the product when moving it.
- You may be electrocuted or the product can be damaged.
Do not dispose the product-packing box. Use it when you move.
Make the panel face forward and hold it with both hands to move.
- If you drop the product, the damaged product can cause electric shock or fire. Contact with the service center
for repair.
Do not disassemble, repair or modify the product at your own discretion.
- Fire or electric shock accident can occur.
- Contact the service center for check, calibration or repair.
When cleaning the brown tube surface, unplug the power cord and scrub with soft cloth to prevent
scratching. Do not clean with a wet cloth.
Keep the product away from water.
- Fire or electric shock accident can occur.
The fluorescent lamp used in this product contains a small amount of mercury.
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of your local authority.
On Disposal
A4A4
ENGLISH

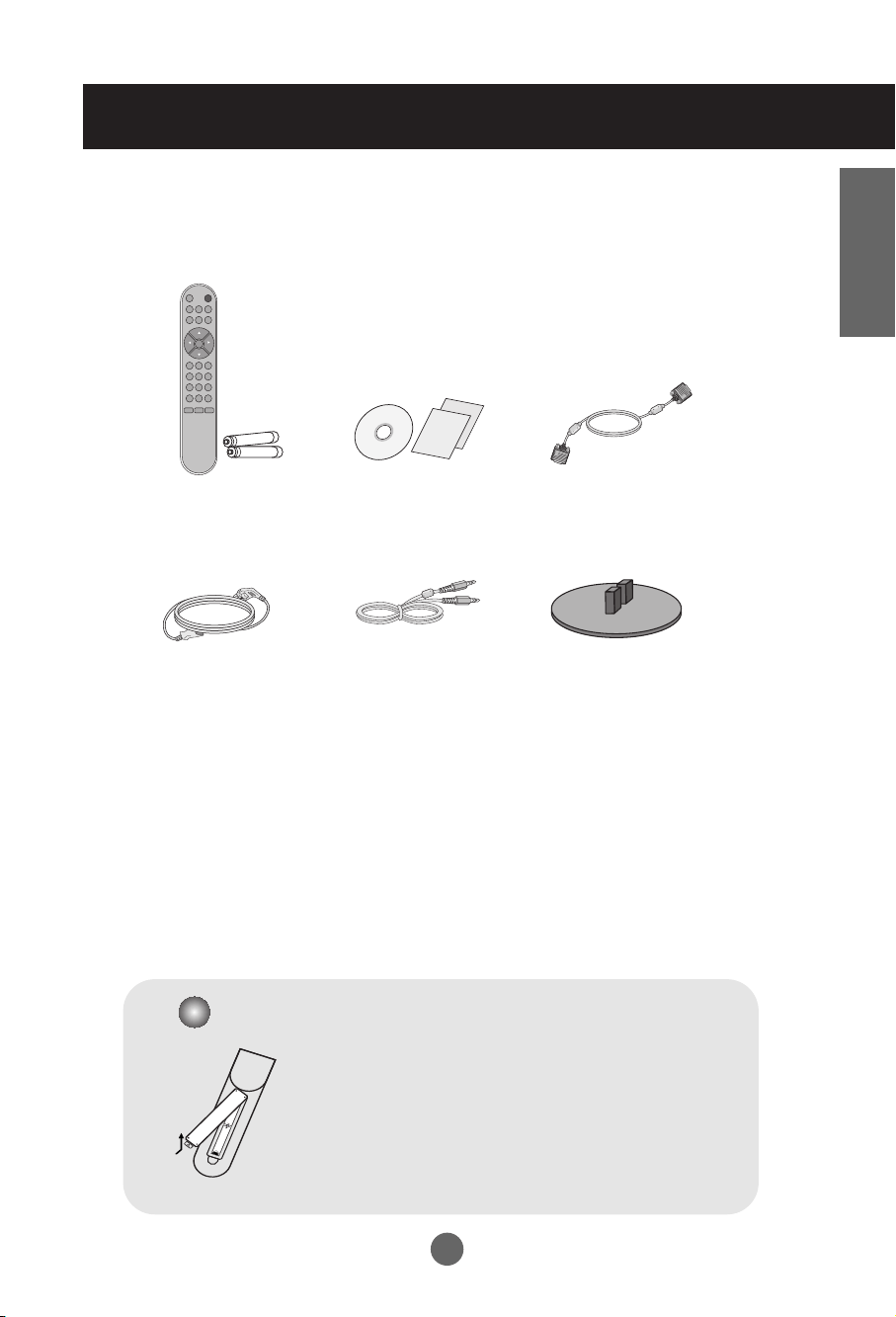

Accessories
1. Take out the battery cap.
2. Insert the batteries with correct polarity (+/-).
3. Close the battery cap.
• You can use a remote control 7 meter distance and
30 degree (left/right) within the receiving unit scope.
• Dispose of used batteries in the recycle bin to prevent
environmental pollution.
Inserting batteries into remote control.
Remote Control/Batteries
CD-ROM/
Cards
Power Cable
Audio Cable (PC)
Please check the accessories in the product package.
* The product and the accessories can be different from the figures shown here.
D-Sub Signal Cable
Stand base
A5

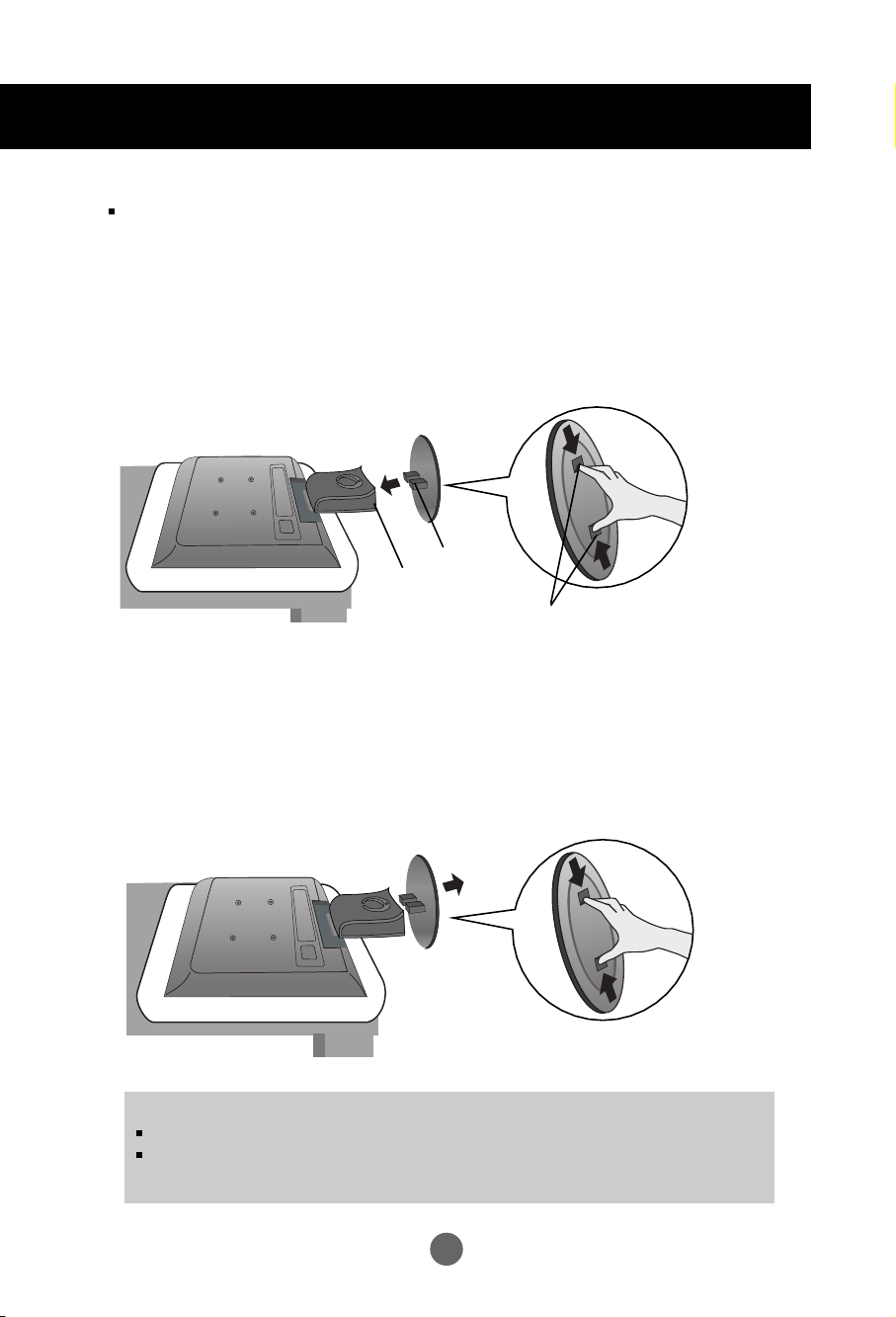

Before Connecting to the PC
Removing the stand base
1. Place the product with its front facing downward on a soft cloth.
2. To remove the stand base, hold the bottom of the stand with one hand and
pull the base bottom latch with the other hand, as shown in the figure.
Before setting up the product, ensure that the power to the product, the computer
system, and other attached devices is turned off.
Connecting the stand base
1. Place the product with its front facing downward on a soft cloth.
2. Align the hooks on the stand base with the matching slots in the base ofthe product.
3. Insert the hooks into slots.
Important
Once you connect the stand base, try not to disconnect it.
Do not carry the product upside down holding only the stand base. The product may
fall and get damaged or injure your foot.
Hook
Bottom Latch
Slot
A6
ENGLISH
Before setting up the product, ensure that the power to the product, the computer
system, and other attached devices is turned off.
Positioning your display
1. Adjust the position of the panel in various ways for maximum comfort.
Tilt Range -3˚~25˚ Swivel :345˚
A7

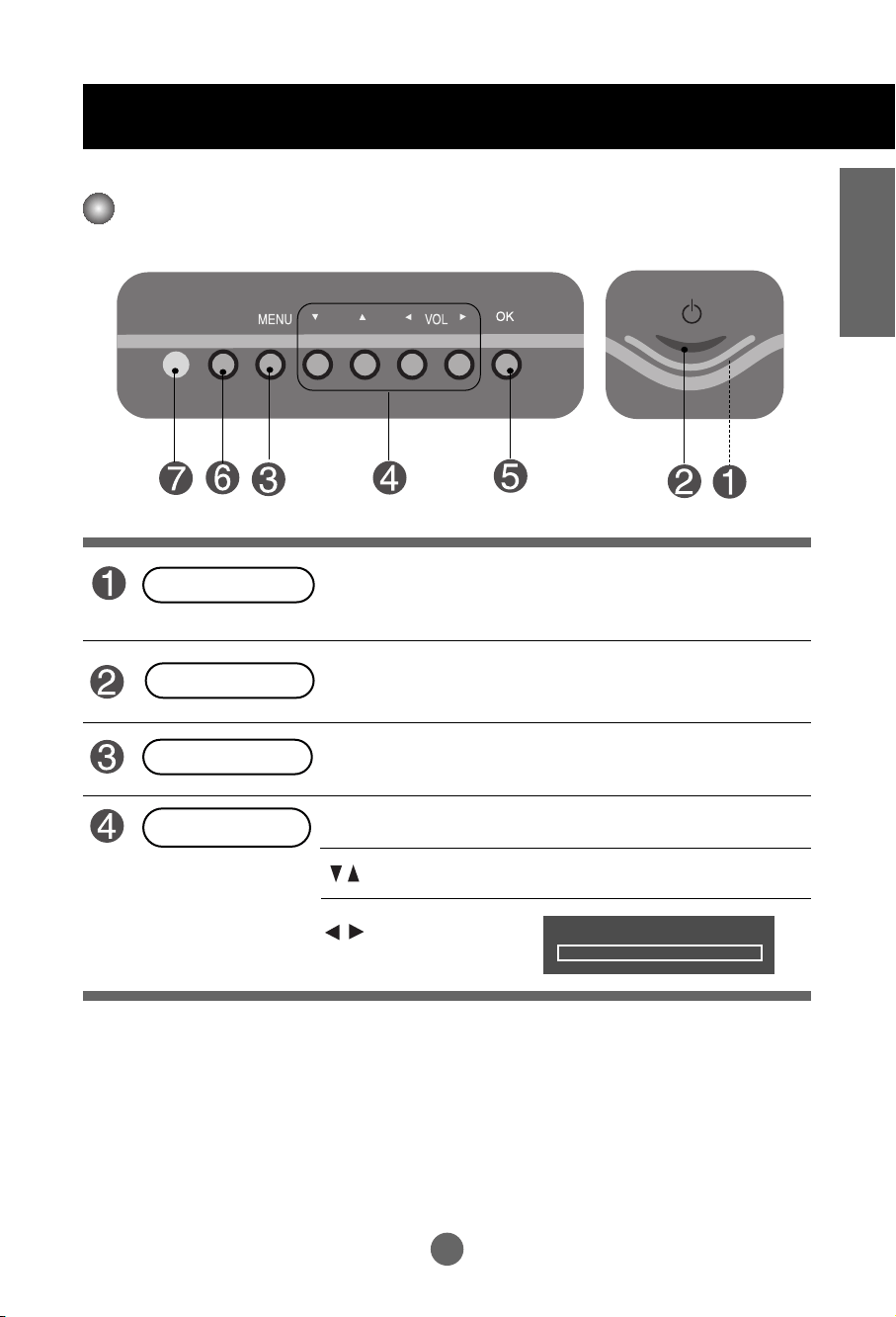

Name and Function of the Parts
Volume ( ) Button
Power On/Off Button
CH
POWERMUTE
TV MTSINPUT
FAV MENUEXIT
CC
AUDIO VIDEO
SLEEP
FLASHBK
CH
VOL
VOL
ENTER
•
Input Select Button
•
TV Button
(See next page)
SLEEP Button
When watching AV/TV/PC
-
The screen will be automatically turned
off after a certain period of time.
Press this button repetitively to select an
appropriate time duration.
VIDEO Button
When watching AV/TV
- Automatically adjusts the image.
Press this button repetitively to set the
intended screen.
CC Button
Select a closed caption
•
EXIT Button
•
MENU Button
Channel Number Select
Button
Operational at the TV mode only
Set Button
AUDIO Button
Use this button to select the sound tone.
Press repeatedly to select Flat, Music,
Movie, Sports, User sound tone.
MUTE Button

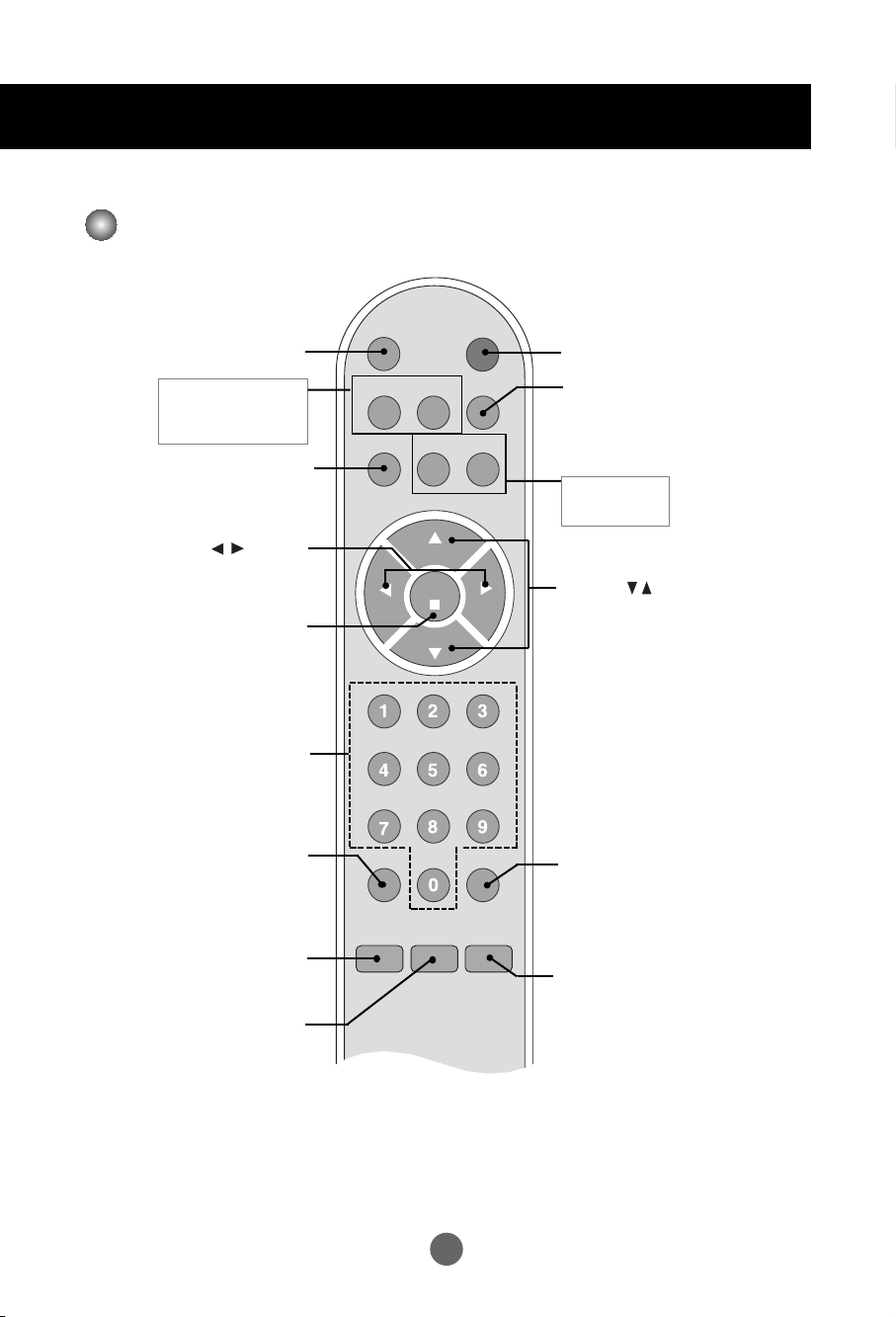

Name of the Remote Control Buttons
MTS(Sound Mode Select) Button
Press repeatedly to select Mono, Stereo,
SAP sound tone.
But Stereo, SAP mode are available only
if included on the broadcast signal.
FAV Button
Favorite channel button.
FLASH BK Button
Turn to the last channel viewed.
Channel ( ) Button
A8
ENGLISH
CH
POWERMUTE
TV MTSINPUT
FAV MENUEXIT
CC
AUDIO VIDEO
SLEEP
FLASHBK
CH
VOL
VOL
ENTER
•

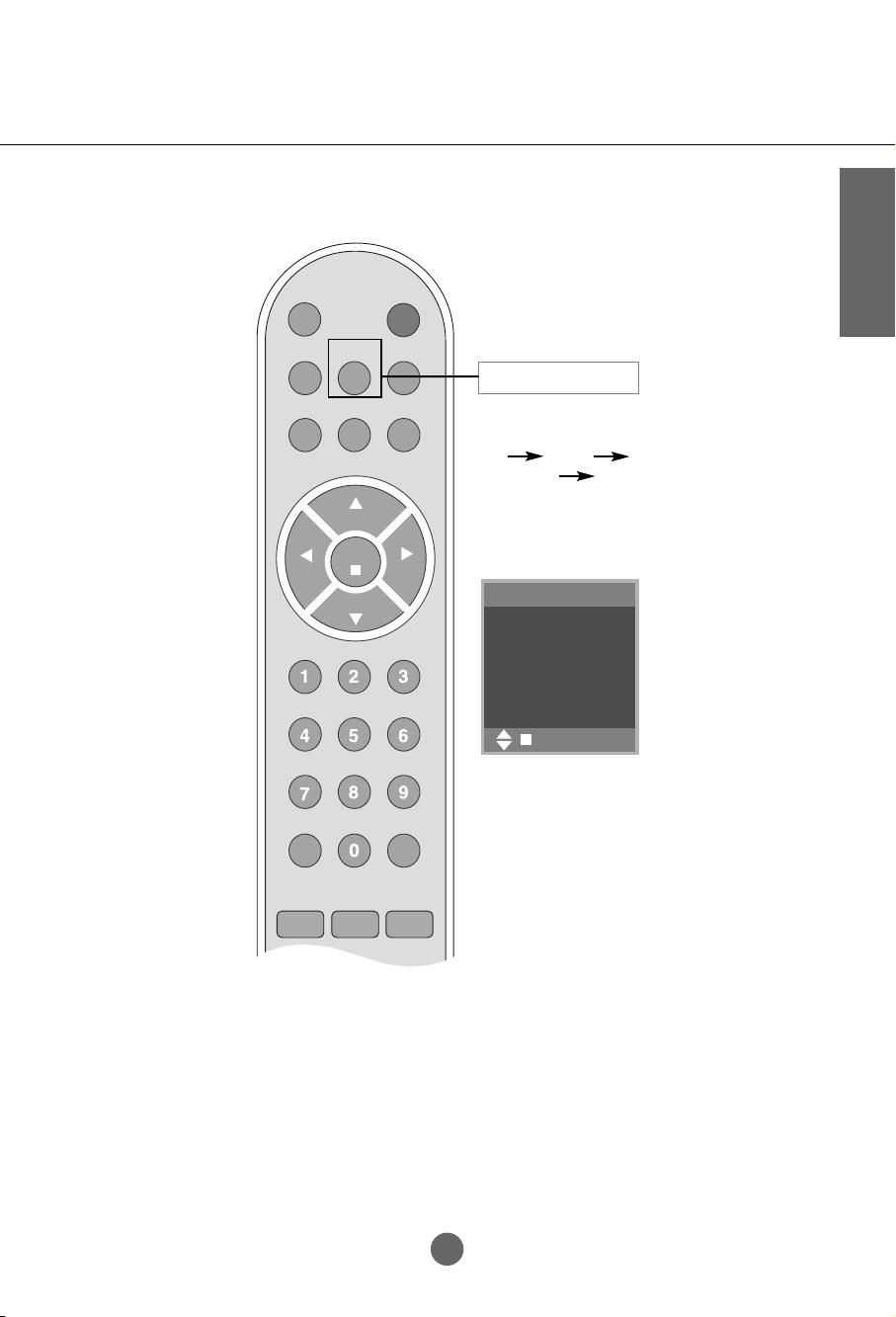

Input Select Button
Each time you press the Input
button it will change to
TV Video
RGB-DTV RGB-PC.
If nothing is inputted for
several seconds the screen
will automatically move to the
selected menu.
Input
TV
Video
RGB-DTV
RGB-PC
MENU
A9
Name and Function of the Parts
S-Video
Video
AV IN
Audio
[MONO]
Audio
H/P
ANTENNA
RGB(PC/DTV)

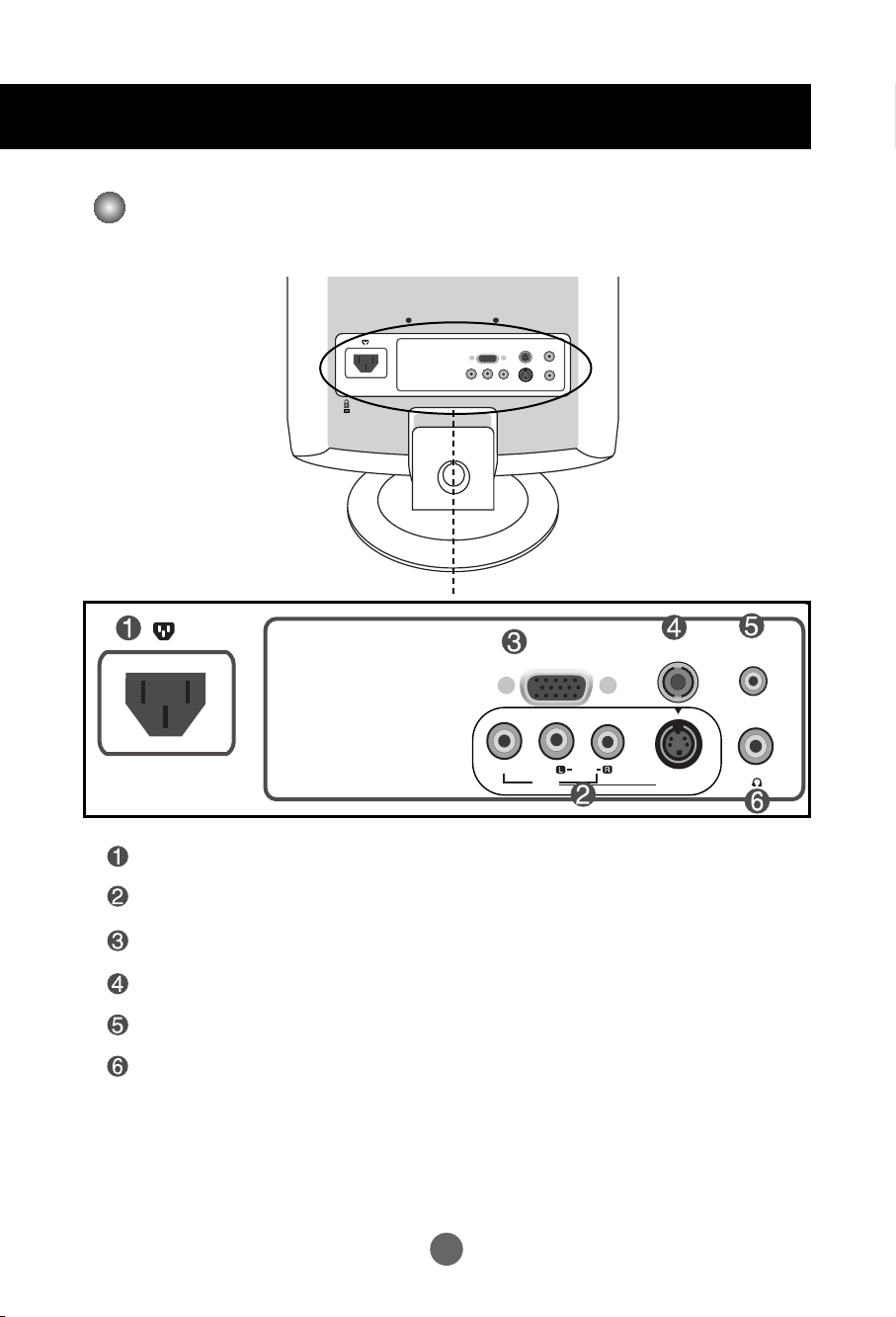

Rear View
Power Connector : Connect the power cord.
AV Input Terminal
D-Sub Analog Signal Connector
TV Tuner Jack : Connect the antenna.
PC Sound Jack : Connect to the jack in the PC sound card.
Headphone/Earphone Connection Terminal
A10
ENGLISH
•
Make sure to check the sound card connection terminal in the PC before connecting to the product.
If the PC sound card supports both Speaker Out and Line Out, change it to Line Out by setting the jumper
or the PC application. (For more details, refer to the sound card user’s guide.)
- Speaker Out : The terminal connected to the speaker that is not equipped with an amplifier.
- *Line Out : The terminal connected to the speaker equipped with an amplifier.
If Audio Out in the PC sound card has only Speaker Out, reduce the PC volume. This product is integrated
with an amplifier.

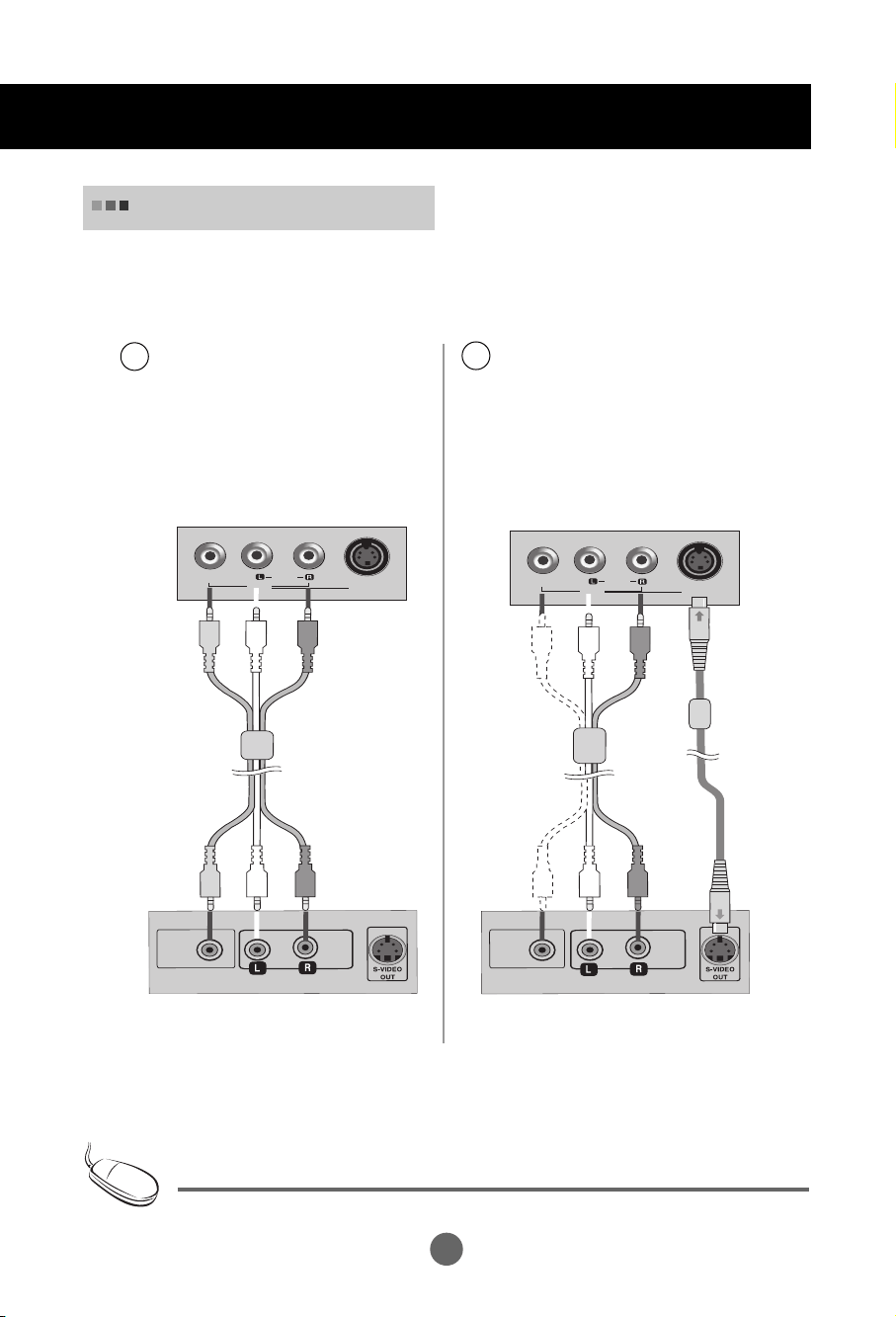

AV Input Terminal
Connecting the sound card output terminal
S-Video
Video
AV IN
Audio
[MONO]
S-Video Input Terminal
Audio Input Terminal
Video Input Terminal
A11A11
S-Video
Video
AV IN
Audio
[MONO]
Audio
H/P
ANTENNA
RGB(PC/DTV)
When Connecting to your PC
First of all, see if the computer, product and the peripherals are turned off.
Then, connect the signal input cable.
When connecting with the D-Sub signal input cable.
When connecting with the D-Sub signal input cable.
Rear side of the product.
Connecting to External Devices
B
A
PC
Macintosh
Macintosh Adapter
Use the standard Macintosh adapter since an incompatible
adapter is available in the market. (Different signaling system)
B
A
1.
Audio cable
A12
ENGLISH

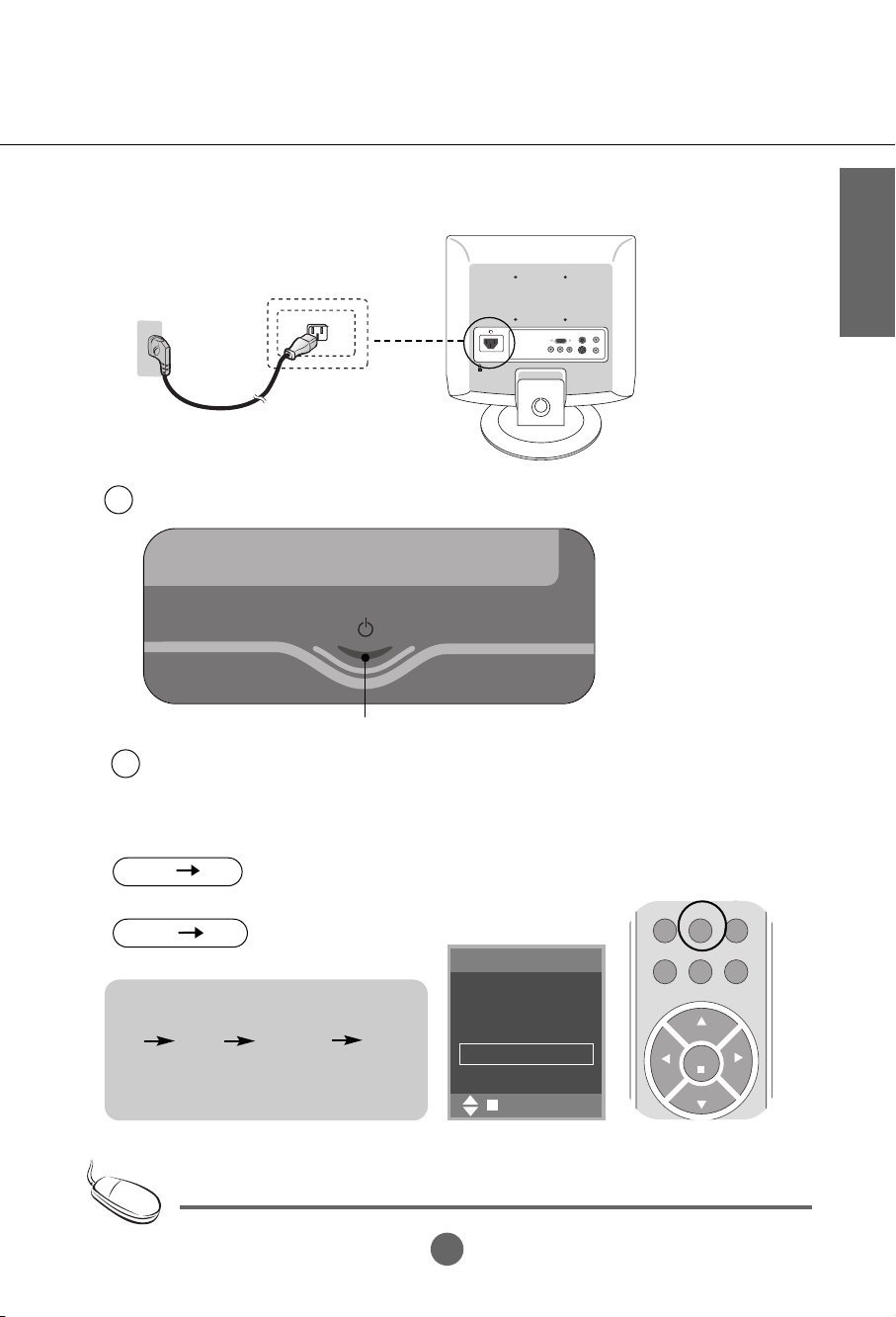

• Directly connect to a grounded power outlet on the wall or a power bar with a ground wire.
Note
Turn on the PC.
2
1
Rear side of the product.

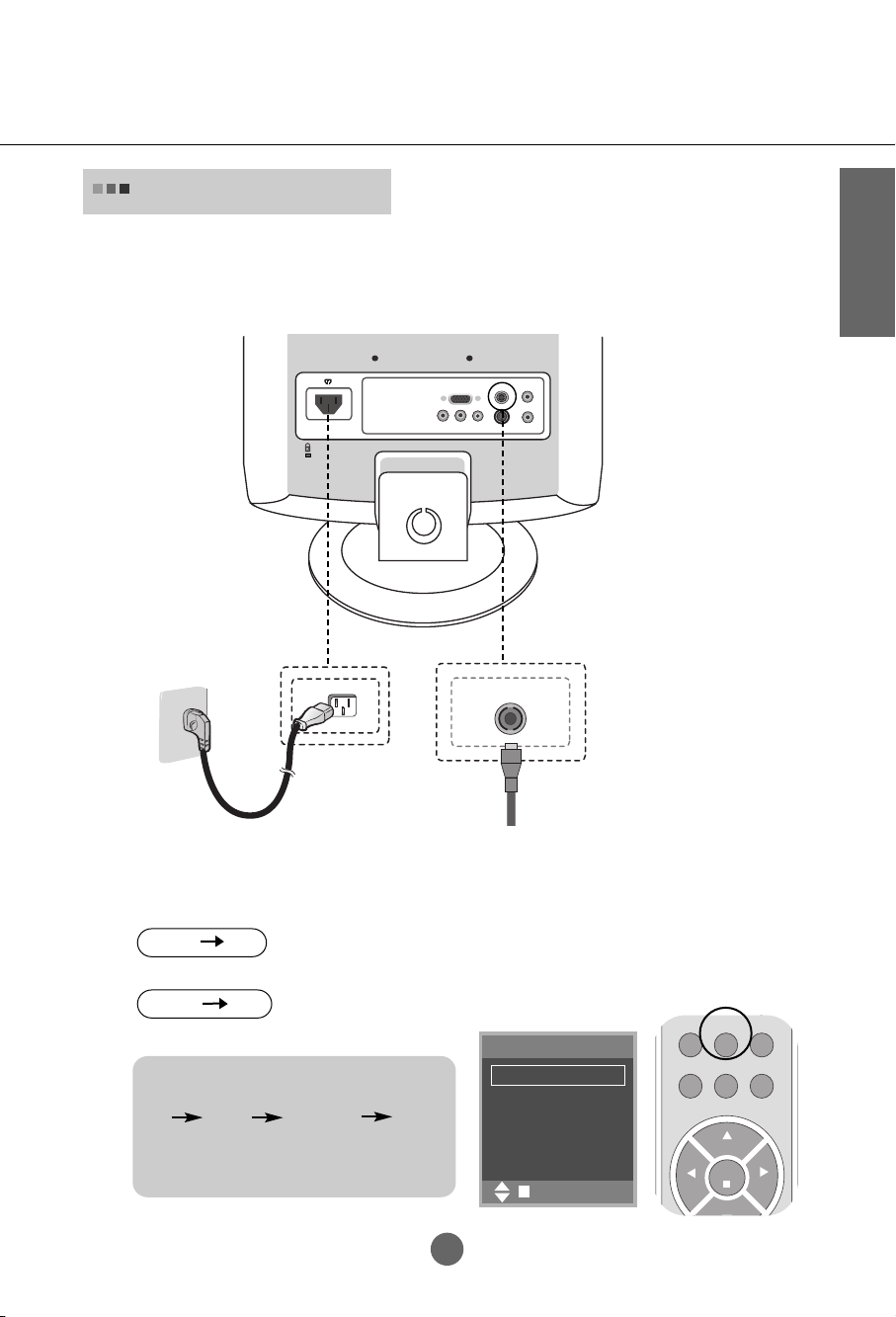

* When connecting to a wall outlet.
Connect the power cord.
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the INPUT button at the front side of the product.
CH
TV MTSINPUT
FAV MENUEXIT
CH
VOL
VOL
ENTER
Turn on power by pressing the power button on the product.
Power button
•
Select RBG-PC
2.
3.
4.
Each time you press the Input button it will
change to
TV Video RGB-DTV RGB-PC.
If nothing is inputted for several seconds the
screen will automatically move to the selected
menu.
INPUT OK
INPUT OK
Input
TV
Video
RGB-DTV
RGB-PC
MENU
A13
Connecting to External Devices
When connecting with an RCA
cable.
•
Connect the input terminal with a
proper color match.
(Video – Yellow, Sound (left) –
White, Sound (right) – Red)
When connecting with an S-Video cable.
•
Connect to the S-Video input terminal to
watch high image quality movies.
S-Video
Video
AV IN
Audio
[MONO]
VIDEO
OUT
AUDIO
OUT
Rear side of the Product
RCA Cable
Yellow
White
Red
Connect the video/audio cable as shown in the below figure and then connect the power
cord. (See page A12)
When watching VCR/DVD
VCR/DVD
W
RY
(Not included)
S-Video
Video
AV IN
Audio
[MONO]
VIDEO
OUT
AUDIO
OUT
RCA Cable
S-Video Cable
VCR/DVD
Rear side of the Product
White
W
(Not included)
(Not included)
1.
Red
R
• In case the RCA cable is connected simultaneously as S-Video cable is connected, S-Video cable is first.
Note
B
A
A14
ENGLISH
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the INPUT button at the front side of the product.
When connecting with a RCA cable.
•
Select AV
When connecting with a S-Video cable.
•
Select AV
CH
TV MTSINPUT
FAV MENUEXIT
CH
VOL
VOL
ENTER
2.
INPUT OK
INPUT OK
Each time you press the Input button it will
change to
TV Video RGB-DTV RGB-PC.
If nothing is inputted for several seconds the
screen will automatically move to the selected
menu.
Input
TV
Video
RGB-DTV
RGB-PC
MENU
B
A
A15
Connecting to External Devices

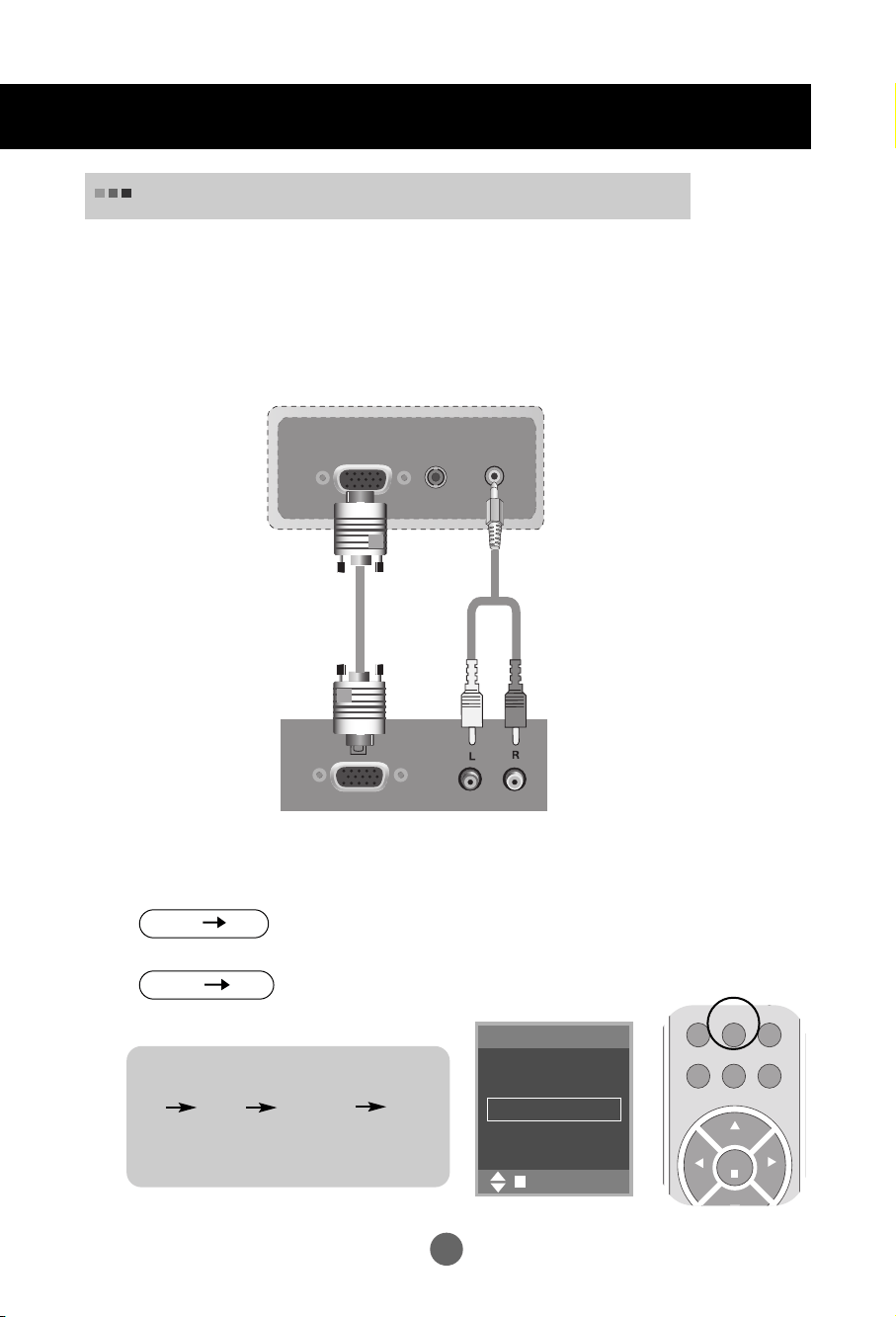

Connect the RGB output of the digital set-top box/DVD to the RGB(PC/DTV) jack
on the set.
Connect the audio outputs of the set-top box/DVD to the Audio jack on the set.
And then connect the power cord. (see page A12)
Audio
ANTENNA
RGB(PC/DTV)
[Rear side of the Product]
[Set-top Box/DVD]
D-Sub cable
RCA-PC audio cable
(Not Included)
When watching DVD/SET-TOP BOX with a D-Sub cable
W
R
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the INPUT button at the front side of the product.
•
Select RGB-DTV
2.
1.
INPUT OK
INPUT OK
CH
TV MTSINPUT
FAV MENUEXIT
CH
VOL
VOL
ENTER
Each time you press the Input button it will
change to
TV Video RGB-DTV RGB-PC.
If nothing is inputted for several seconds the
screen will automatically move to the selected
menu.
Input
TV
Video
RGB-DTV
RGB-PC
MENU
A16
ENGLISH
Rear Side of the Product
Antenna Cable
(Not included.)
See if the antenna cable is connected at the rear side of the product and
then, connect the power cord.
When watching TV
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the INPUTbutton at the front side of the product.
•
Select TV
ANTENNA
1.
2.
INPUT OK
INPUT OK
CH
TV MTSINPUT
FAV MENUEXIT
CH
VOL
VOL
ENTER
Each time you press the Input button it will
change to
TV Video RGB-DTV RGB-PC.
If nothing is inputted for several seconds the
screen will automatically move to the selected
menu.
Input
TV
Video
RGB-DTV
RGB-PC
MENU
A17

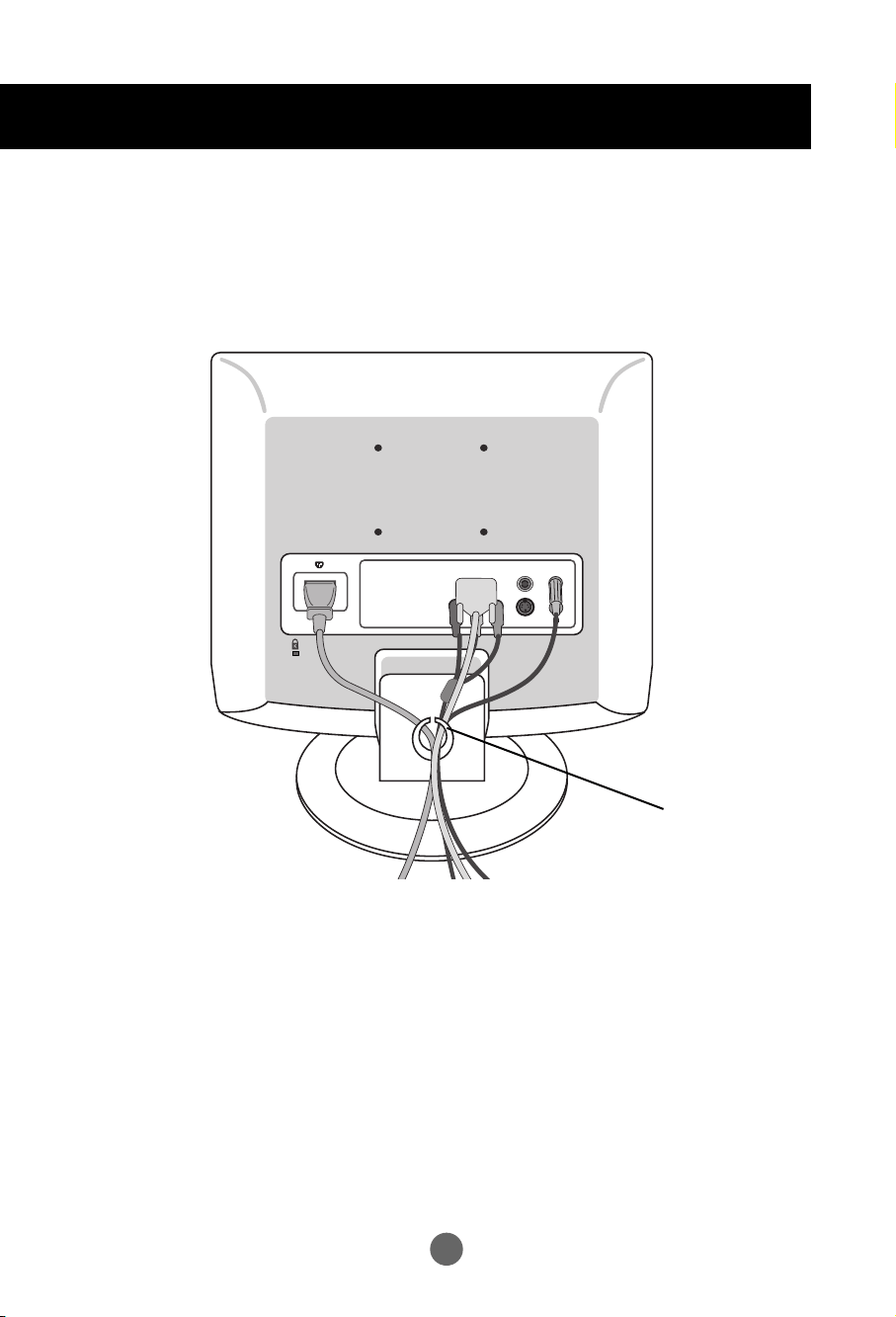

To arrange cables in order
Video
Cable Holder
Connect the signal cable, power cord and the audio cable to use in order to
arrange in the cable holder as shown in the following figure.
A18
ENGLISH
Name of the Buttons in the Screen Adjustment Unit
Power Indicator
• Adjust the volume.
• Use this button to control the channel for the TV signal.
• Use this button to show/hide the OSD (On Screen Display) menu
screen.
MENU Button
•
Use
this
button to select an icon or adjust the setting in the OSD screen.
OSD Select/Adjust Button
Selecting and Adjusting the Screen
CH
INPUT
Volume
0
• This Indicator lights up blue when the display operates normally
(On Mode). If the display is in Sleep (Energy Saving) Mode, this
indicator color changes to amber.
• Press the button to turn on the power. Press the button again to turn it off.
Power Button
A19
Selecting and Adjusting the Screen
Name of the Buttons in the Screen Adjustment Unit
OK Button
TV Television
AV CVBS, S-Video
RGB-DTV DTV
RGB-PC D-Sub analog signal
INPUT Button
• The unit that receives the signal from the remote control.
RGB-PC Information
IR Receiver
1280 X 1024 @60 Hz
• Select the icon to adjust on the OSD screen.
[For PC Analog signal]
Input
TV
Video
RGB-DTV
RGB-PC
MENU
Each time you press the Input button it will
change to
TV Video RGB-DTV RGB-PC.
If nothing is inputted for several seconds the
screen will automatically move to the selected
menu.
A20
ENGLISH
OSD(On Screen Display)
The OSD function enables you to adjust the screen status conveniently since it provides
graphical presentation.
Note
OSD (On Screen Display) Menu
Icon Function Description
CHANNEL
SOUND
TIMER
Adjusting the time function.
Adjusting the screen function. (RGB-PC, RGB-DTV only)
Adjusting the sound function.
Adjusting the picture function.
Set/Select the channel when using the TV
SPECIAL
Selecting the setup function.
SCREEN
A21
Selecting and Adjusting the Screen
OSD (On Screen Display) Scree
n Tracking Order
•
Use the remote control to adjust the OSD screen.
Pop up the
menu screen
Move where
you want to
adjust
Select a menu icon
Adjust the status
Save
adjustment
Exit from the
menu screen.
MENU MENU
ENTER ENTER
CH
CH
VOL
VOL
ENTER
CH
CH
VOL
VOL
ENTER
Press the MENU Button, then the main menu of the OSD appears.
To access a control, use the Buttons.
When the icon you want becomes highlighted, press the ENTER Button.
Use the Buttons to adjust the item to the desired level.
Accept the changes by pressing the ENTER Button.
Exit the OSD by pressing the MENU Button.
1
2
3
4
5
6
A22
ENGLISH
Set/Select the channel when using the TV
User can do manual channel selection and store or erase individual channels.
Press
button and then use button to select a channel you want to add to memory
or erase. Press the button and then use button to select Memory(add) or
Erase(delete).
Press button to start automatic programming. All available TV channels are
searched and stored automatically.
To stop auto CH progess, press the MENU or ENTER button.
• Wait for auto CH progess to complete the channel search cycle before choosing a
channel. The TV scans for over-the-air channels and then channels are provided by
a cable service.
This function lets you select your favourite channels directly.
Press the buttons to select a channel number.
* FAV Button (remote control) : Rotate Favourite channel.
Favorite channel
---- ---
---- ---
---- ---
---- ---
---- ---
---- ---
---- ---
---- ---
EZ Scan
Manual program
CHANNEL
EZ Scan
Manual program
Favorite channel
To start
Favorite
channel
MENU
MENU
A23
Selecting and Adjusting the Screen
Adjusting the picture function (TV/Video)
EZ Video
The EZ Video function automatically adjusts the
screen image quality. (It is not adjust to the RGB-PC.)
• Clear
Select this option to display with a sharp image.
• Optimum
The most general and natural screen display status.
• Soft
Select this option to display with a mild image.
• User
Select this option to use the user-defined settings.
ACC
Selecting a factory setting color set.
• Cool
Slightly purplish white.
• Normal
Slightly bluish white.
• Warm
Slightly reddish white.
• User
Select this option to use the user-defined settings.
Red / Green / Blue
Set your own color levels.
EZ Video
ACC
Contrast
Brightness
Color
Sharpness
Tint
<
Clear
Optimum
Soft
User
EZ Video
ACC
Contrast
Brightness
Color
Sharpness
Tint
<
Cool
Normal
Warm
User
MENU
MENU
Contrast : To adjust the contrast of the screen.
Brightness : To adjust the brightness of the screen.
Color : To adjust the colour to desired level.
Sharpness : To adjust the clearness of the screen.
Tint : To adjust the tint to desired level. (only 60Hz signal)
A24
ENGLISH
Adjusting the picture function (RGB-DTV, RGB-PC)
EZ Video
ACC
Contrast
Brightness
<
Cool
Normal
Warm
User
ACC
Selecting a factory setting color set.
• Cool
Slightly purplish white.
• Normal
Slightly bluish white.
• Warm
Slightly reddish white.
• User
Select this option to use the user-defined settings.
Red / Green / Blue
Set your own color levels.
Contrast
: To adjust the contrast of the screen.
Brightness
: To adjust the brightness of the screen.
MENU
A25
Selecting and Adjusting the Screen
Adjusting the sound function
EZ Audio
AVL
Balance
SOUND
EZ Audio
AVL
Balance
<
Flat
Music
Movie
Sports
User
The best sound tone quality will be selected automatically depending on the video type that
you're currently watching.
• Flat : The most commanding and natural audio.
• Music : Select this option to enjoy the original sound when listening to the music.
• Movie : Select this option to enjoy sublime sound.
• Sports : Select this option to watch sports broadcasting.
• User : Select this option to use the user-defined audio settings.
To adjust uneven sound volumes across all channels or signals automatically to the most
appropriate level. To use this feature, select On.
Use this function to balance sound from the left and right speakers.
MENU
A26
ENGLISH
Adjusting the time function
Clock
The Off timer automatically switches the set to off mode at the pre-set time.
1) Press the
menu
button and then use
button to select the
TIMER
menu.
2) Press the button and then use
button to select Off timer or On timer.
3) Press the button and then use
button to set the hour(01~12).
4) Press the button and then use
button to set the minutes(00~59).
5) Press the button and then use
button to select Run or Hold.
6) Only On timer function; Press the button and then
button to adjust volume level and
channel number
.
7) Press the
enter
/menu button to save.
Off / On timer
Auto off
You must set the time correctly before using On/Off timer function.
1) Press the
menu
button and then use
button to select the
TIMER
menu.
2) Press the button and then use
button to select the Clock menu.
3) Press button and then use button to select Manual.
4
) Press
button and then use button to set the hour(01~12).
5
) Press
button and then use button to set the minutes(00~59).
6
)
The default value is -- : -- AM(PM).
If Auto off is active and there is no input signal, the TV swithchs to off mode automatically after 10 minutes.
1) Press the
menu
button and then use
button to select the
Auto
off menu.
2) Press the button and then use
button to select On or Off.
3) Press the
enter
/menu button to save .
• In the event of power interruption (disconnection or power failure), the Clock must be reset.
• Two hours after the set is switched on by the On timer function it will automatically switch
back to off mode unless a button has been pressed.
• Once the On or Off timer is set, these functions operate daily at the preset time.
• Off timer function overrides On timer function if they are set to the same time.
• The set must be in off mode for the On timer to work.
• On timer will move on to auto off if no activity is received in 2hours after setting the On
time.
Note
TIMER
Clock
Off timer
On timer
Auto off
This function is used to set up of current time.
You must set the time correctly before using On/Off timer function.
1) Press the menu button and then use button to select the TIMER menu.
2) Press the button and then use button to select the Clock menu.
3) Press button and then use button to select Auto.
4) Press button and then use button to select the time zone for your
viewing area. Your choices are : AUTO, E.S.T(Eastern Standard Time),
C.S.T(Central Standard Time), M.S.T(Mountain Standard Time), P.S.T
(Pacific Standard Time), Alaska and Hawaii.
5) Press button and then use button to set PBS channel.
6) Press button and then use button to set D.S.T (Daylight Savings
Time) Auto, Off or On, depending in whether or not your viewing area
observes Daylight Savings Time.
7) Press enter button to save.
Auto Clock Setup
Manual Clock Setup
MENU
A27
Selecting and Adjusting the Screen
Selecting the setup function
Key lock
Power
indicator
SPECIAL
Language
Input
Key lock
Power indicator
Caption /Text
Captions
Parental
Use the buttons to select On or Off. It can be set up so that it can only be used with
the remote control. This feature can prevent unauthorized viewing.
In order to lock the OSD screen adjustment, set the Key lock tab to the 'On' position.
In order to unlock it, do the following :
Push the menu button on the remote control and set Key lock to the 'Off' position.
Use this function to set the power indicator on the front side of the product to On or
Off. If you set On at any time, the power indicator will automatically be turned on.
Use the buttons to select caption mode.
Text services give a wide variety of information on all kind of subjects(ex. captioned
program lists, weather forecasts, stock exchange topics, news for hearing-impaired....) on
up to half of the TV screen. But not all stations offer text services, even though they might
offer captioning.
In the event you are receiving a poor signal, an empty black box may appear and
disappear, even when the text mode is selected. This is a normal when receiving a poor
signal.
This TV is programmed to remember the Caption/Text mode it was last set to, when you
turn the power off.
Caption / Text
(TV input only)
Selecting the setup function
(To adjust the CAPTION & VCHIP function - US Only)
If you press the button once, the following Input Signal Window will appear. Select the
signal type you want using the button.
Input
MENU
Language
To choose the language in which the control names are displayed
.
SPECIAL
Language
Input
Key lock
Power indicator
Caption /Text
Captions
Parental
CC1
CC2
CC3
CC4
TEXT1
TEXT2
TEXT3
TEXT4
MENU
<
A28
ENGLISH
Use the buttons to select captions.
*If sound is on, the caption will be off. On the contrary, if sound is off, the caption will be on.
[Remote Control]
Press the CC button repeatedly to display the caption option as shown below. Press the
ENTER button to select the caption option.
Selecting the setup function
(To adjust the CAPTION & VCHIP function - US Only)
Captions
(TV input only)
Select the Parental menu and click button. The 'Enter code' window will appear. Once the
correct four-digit password is entered, sub-menu that allows a user to control various blocks will be
enabled. The initial password is set for '0000' and it can be changed through 'Set password' menu.
This function is used to block program viewing based on the ratings sent by the broadcast
station. The default setting is to allow all programs to be viewed. Viewing can be blocked by
the type of program and by the categories chosen to be blocked. It is also possible to block
all program viewing for a time period.
PAGE A29
Parental
(TV input
only)
Parental
Lock
Set password
MPAA
Age block
Content block
Aux block
Canadian
On
Off
Canadian only
V
Off CC1 CC2 CC3 CC4
TEXT4 TEXT3 TEXT2 TEXT1
SPECIAL
Language
Input
Key lock
Power indicator
Caption /Text
Captions
Parental
Enter code
MENU
MENU
A29
V-CHIP rating and categories
- Rating guidelines are provided by broadcast station. Most television programs and television
movies can be blocked by TV rating and/or individual categories. Movies that have been shown
at the theaters or direct-to-video movies use the Movies Rating System(MPAA) only.
1. Open the OSD. -> Press the buttons to select the SPECIAL menu, then press the button to
open the menu. -> Press the buttons to select the Parental sub-menu, then press the button to
open the sub-menu.
2. Use the number pad to enter your password when prompted.
If you have not set a password, enter 0000.
If you are unable to correct the problem yourself, contact the service center.
You control access to the parental controls with a password. The default password is '0000'. You can change
the password to any four-digit number.
3. Press the buttons to select the Set password sub-menu,
then press the button to change the setting. Use the number button
pad to enter a new four-digit password when prompted.
4. Re-enter the new four-digit password when prompted.
Setting a password
Lock On/Off
To select the VCHIP function On/Off.
Enter code
Ent. Code
Rep. Code
Selecting the setup function
(To adjust the CAPTION & VCHIP function - US Only)
Parental
Lock
Set password
MPAA
Age block
Content block
Aux block
Canadian
Parental
Lock
Set password
MPAA
Age block
Content block
Aux block
Canadian
Ent. Code _ _ _ _
Rep. Code _ _ _ _
Selecting and Adjusting the Screen
Set password
This menu is to be used to change password. Once the
correct current password is entered using the number panel
in a remote control, the window for new password will
appear. Enter your choice of new four-digit password.
MENU
MENU
On
Off
V
A30
ENGLISH
Selecting the setup function
(To adjust the CAPTION & VCHIP function - US Only)
Parental
Lock
Set password
MPAA
Age block
Content block
Aux block
Canadian
G & Above
PG & Above
PG-13 & Above
R &Above
NC-17 & Above
X
Unblocked
Parental
Lock
Set password
MPAA
Age block
Content block
Aux block
Canadian
To set
V
For movies previously shown in theaters.
MPAA
CONTENT Categories :
- Dialogue(sexual dialogue)
: Applies to TV-PG&Above, TV-14.
- Language(adult language)
: Applies to TV-PG&Above, TV-14&Above, TV-MA.
- Sex Scene(sexual situations)
: Applies to TV-PG&Above, TV-14&Above, TV-MA.
- Violence
: Applies to TV-PG&Above, TV-14&Above, TV-MA.
- F Violence(fantasy violence)
: Applies only to TV-Y7.
Content block
MOVIE Ratings :
- G&Above : General audience
- PG&Above : Parental guidance suggested
- PG-13&Above : 13 years and up
- R&Above : Restricted
- NC-17&Above : 17 years and up
- X : Adult
- Unblocked
If you set PG-13&Above, G and PG movies will be
available : PG-13, R, NC-17, and X will be blocked.
Parental
Lock
Set password
MPAA
Age block
Content block
Aux block
Canadian
To set
GENERAL TV Rating :
- TV-G&above : General audience / Individual categories
do not apply.
- TV-PG&Above : Parental guidance suggested
- TV-14&Above : 14 years and up
- TV-MA : Mature audience
- Unblocked
CHILDREN TV Rating :
- TV-Y&Above : Youth / Individual content categories
do not apply.
- TV-Y7 : Youth, 7 years and up.
- Unblocked
Age block
MENU
MENU
MENU
A31
Selecting the setup function
(To adjust the CAPTION & VCHIP function - Canadian Only)
MOVIE Ratings :
- C&Above : Under 8 years
- C8+ : 8 years and up
- G&Above : General audience
- PG&Above : Parental guidance suggested
- 14+ : 14 years and up
- 18+ : Adult
- Unblocked
English
MOVIE Ratings :
- G&Above : General audience
- 8 ans + : 8 years and up
- 13 ans + : 13 years and up
- 16 ans + : 16 years and up
- 18 ans + : 18 years and up
- Unblocked
Français
V-CHIP rating and categories - Canadian Rating System
- Rating guidelines are provided by broadcast station. Most television programs and television
movies can be blocked by TV rating and/or individual categories.
Parental
Lock
Set password
MPAA
Age block
Content block
Aux block
Canadian
To set
Canadian
Parental
Lock
Set password
MPAA
Age block
Content block
Aux block
Canadian
Unblocked
Blocked
v
Selecting the setup function
(To adjust the CAPTION & VCHIP function - US Only)
Selecting and Adjusting the Screen
Aux block
Enables you to select a source to block from the
external source devices you have hooked up.
MENU
MENU
A32
ENGLISH
Closed Captions - Not all TV broadcasts include closed caption signals.
Closed captioning is a process which converts the audio portion of a television program into written
words which then appear as subtitles on the television screen. Closed captions allow viewers to read
the dialogue and narration of television programs.
Using Closed Captions
Captions are the subtitles of the dialogue and narration of television programs. For prerecorded
programs, program dialogue can be arranged into captions in advance. It is possible to caption a live
program by using a process called real-time captioning, which creates captions instantly. Real-time
captioning is normally done by professional reporters using a machine shorthand system and computer
for translation into English.
Captioning is an effective system for the hearing-impaired, and it can also aid in teaching language
skills.
Caption Tips
1. Not all TV broadcasts include closed caption signals.
2. Sometimes TV stations broadcasts four different caption signals on the same channel. By selecting
From CC1 ~ CC4, TEXT1 ~ TEXT4 you can choose which signal you view CC1 is usually the signal
with the captions, while Another mode might show demonstration or programmimg information.
3. Your TV might not receive caption signals normally in the following situations.
Poor reception conditions are encountered :
- IGNITION :
Picture may flutter, drift, suffer from black spots, or horizontal streaking. Usually caused by
interference from automobile ignition systems, neon lamps, electrical drills, and other electrical
appliances.
- GHOSTS :
Ghosts are caused when the TV signal splits and follows two paths. One is the direct path and the
other is reflected off tall buildings, hills or other objects. Changing the direction or position of the
antenna may improve reception.
- SNOW :
If your receiver is located at the weak, fringe area of a TV signal, your picture may be marred by
small dots. It may be necessary to install a special antenna to improve the picture.
An old, bad or illegally recorded tape is playing.
Strong, random signals from a car or airplane interfere with the TV signal.
The signal from the antenna is weak.
The program wasn't captioned when it was produced, transmitted, or taped.
A33
Adjusting the screen function (RGB-PC, RGB-DTV only)
Auto
configure
Manual
configure
Reset
SCREEN
Auto configure
Manual configure
Reset
To set
This button is for the automatic adjustment of the screen Position, Clock and Phase.
This button is for the manual adjustment of the screen Position, Clock and Phase.
• H-Position
To move image left or right.
• V-Position
To move image up or down.
• Clock
To minimize any vertical bars or stripes visible on the screen background.
The horizontal screen size will also change.
• Phase
To adjust the focus of the display. This item allows you to remove any horizontal noise
and clear or sharpen the image of characters.
Use this function to reset the product to the factory default. However, language selection
will not be initialized.
Selecting and Adjusting the Screen
MENU
A34
ENGLISH
Troubleshooting
• Install the product driver, which is provided with
the product, or download it from the web site.
(http://www.lge.com)
• See if the plug&play function is supported by
referring to the video card user's guide.
●
Did you install the driver?
'Unknown Product' message appears when the product is connected.
• See if the power cord is properly connected to the
outlet.
• See if the power switch is turned on.
• Adjust brightness and contrast again.
• If the product is in power saving mode, move the
mouse or press any key.
• The signal from the PC (video card) is out of the
vertical or horizontal frequency range of the
product. Adjust the frequency range by referring to
the Specifications in this user's guide.
* Maximum resolution
17 inch : 1280 x 1024 @60Hz
19 inch : 1280 x 1024 @60Hz
• The signal cable between PC and product is not
connected. Check the signal cable.
• Press the 'INPUT' button in the remote control to
check the input signal.
● Is the product power cord
connected?
● Does the power indicator is turned
on?
● Power is on, power indicator is blue
but the screen appears extremely
dark.
● Does the power indicator look
amber?
● Does the 'Out of range' message
appear?
● Does the 'Check signal cable'
message appear?
No image is displayed
Note
* Vertical frequency: To enable the user to watch the product display, screen image should be changed tens of times
every second like a fluorescent lamp. The vertical frequency or refresh rate is the times of image display per second.
The unit is Hz.
* Horizontal frequency: The horizontal interval is the time to display one vertical line. When the 1 is divided by
horizontal interval, the number of horizontal lines displayed every second can be tabulated as the horizontal
frequency. The unit is kHz.
A35
Troubleshooting
• If you use a fixed image for a long time, the pixels
may be damaged quickly. Use the screensaver
function.
● After-image appears when the
product is turned off.
After-image appears on the product.
The screen image looks abnormal.
● Is the screen position wrong?
● Do thin lines appear on the
background screen?
● Horizontal noise appears or the
characters look blurred.
If adjustment is not satisfactory, use the Position
menu in OSD .
• See if the video card resolution and frequency
are supported by the product. If the frequency is
out of range, set to the recommended resolution
in the Control Panel – Display – Setting menu.
If adjustment is not satisfactory, use the Clock
menu in OSD.
If adjustment is not satisfactory, use the Phase
menu in OSD.
A36
ENGLISH
• Set the number of colours to more than 24 bits
(true colour)
Select Control Panel – Display – Settings
– color Table menu in Windows.
• Check the connection status of the signal cable.
Or, re-insert the PC video card.
• Several pixels (red, green, white or black colour)
may appear on the screen, which can be
attributable to the unique characteristics of the
LCD panel. It is not a malfunction of the LCD.
● Screen has poor color resolution (16
colours).
● Screen color is unstable or mono-
coloured.
● Do black spots appear on the screen?
Screen color is abnormal.
• See if the audio cable is connected properly.
• Adjust the volume.
• See if the sound is set properly.
• Adjust the volume.
● No sound?
● Sound is too low.
The audio function does not work.
• See if you have selected the proper channel
mode.
• Use the automatic channel setup function.
• See if the TV antenna is properly connected.
● The TV signal is not being received.
The TV function does not work.
A37
Specifications
The product specifications can change without prior notice for product improvement.
[17 inch]
Screen Type 17 inches (43.27 cm) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel
Visible diagonal size: 43.27 cm
Pixel Pitch 0.264 mm
Max. Resolution 1280 X 1024 @60 Hz
Recommended Resolution
1280 X 1024 @60 Hz
Horizontal Frequency 30 - 70 kHz
Vertical Frequency 56 - 75 Hz
Synchronization Type Separate
S-Video, Composite video, TV, D-Sub Analog,
Headphone, PC Audio In
Rated Voltage AC 100-240V~ 50/60Hz 1.0A
Power Consumption On Mode : 40 W
Sleep Mode ≤ 1 W
Off Mode ≤ 1 W
Tilt Range -3˚ ~ 25˚
Swivel 345˚
Size (WxLxH) 389.5 mm x 232 mmx 437.9 mm
Weight (excl. package) 5.28 kg (12.9 Ibs)
Operational Condition Temperature: 10˚C ~ 35˚C , Humidity: 10% ~ 80%
Storage Condition Temperature: -20˚C ~ 60˚C , Humidity: 5% ~ 95%
LCD Panel
Video Signal
Input Connector
Power
Tilt
Dimension/Weight
Environmental Conditions
A38
ENGLISH
The product specifications can change without prior notice for product improvement.
[19 inch]
Screen Type 19 inches (48.19 cm) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel
Visible diagonal size: 48.19 cm
Pixel Pitch 0.294 mm
Max. Resolution 1280 X 1024 @60 Hz
Recommended Resolution
1280 X 1024 @60 Hz
Horizontal Frequency 30 - 70 kHz
Vertical Frequency 56 - 75 Hz
Synchronization Type Separate
S-Video, Composite video, TV, D-Sub Analog
Headphone, PC Audio In
Rated Voltage AC 100-240V~ 50/60Hz 1.0A
Power Consumption On Mode : 45 W
Sleep Mode ≤ 1 W
Off Mode ≤ 1 W
Tilt Range -3˚ ~ 25˚
Swivel 345˚
Size (WxLxH) 443.6 mm x 232.0 mm x 475.6 mm
Weight (excl. package) 6.0 kg (13.23 Ibs)
Operational Condition Temperature: 10˚C ~ 35˚C , Humidity: 20% ~ 80%
Storage Condition Temperature: -10˚C ~ 60˚C , Humidity: 5% ~ 95%
LCD Panel
Video Signal
Input Connector
Power
Tilt
Dimension/Weight
Environmental Conditions
A39
Specifications
PC Mode – Preset Mode
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
1
2
3
4
5
6
7
640 x 350
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
832 x 624
31.469
31.468
31.469
37.500
37.879
46.875
49.725
70
70
59
75
60
75
74
VGA
VGA
VGA
VESA
VESA
VESA
MAC
8
9
10
11
12
1024 x 768
1024 x 768
1152 x 870
1152 x 900
1280 x 1024
48.363
60.123
68.681
61.805
63.981
VESA
VESA
MAC
VESA
VESA
60
75
75
65
60
[17 inch] [19 inch]
Power Indicator
Mode
Product
On Mode
Sleep Mode
Off Mode
Blue
Amber
Off
Locking Device
Use this locking cable (This has to be purchased
separately if required.) to prevent theft.
Theft prevention locking device
A40
ENGLISH
VESA wall mounting
Connected to another
object (stand type and
wall-mounted type).
This product accepts a
VESA-compliant mounting
interfacepad.(
This has to be
purchased separately if
required.
)
For further information,
refer to the VESA Wall
Mounting Instruction
Guide.

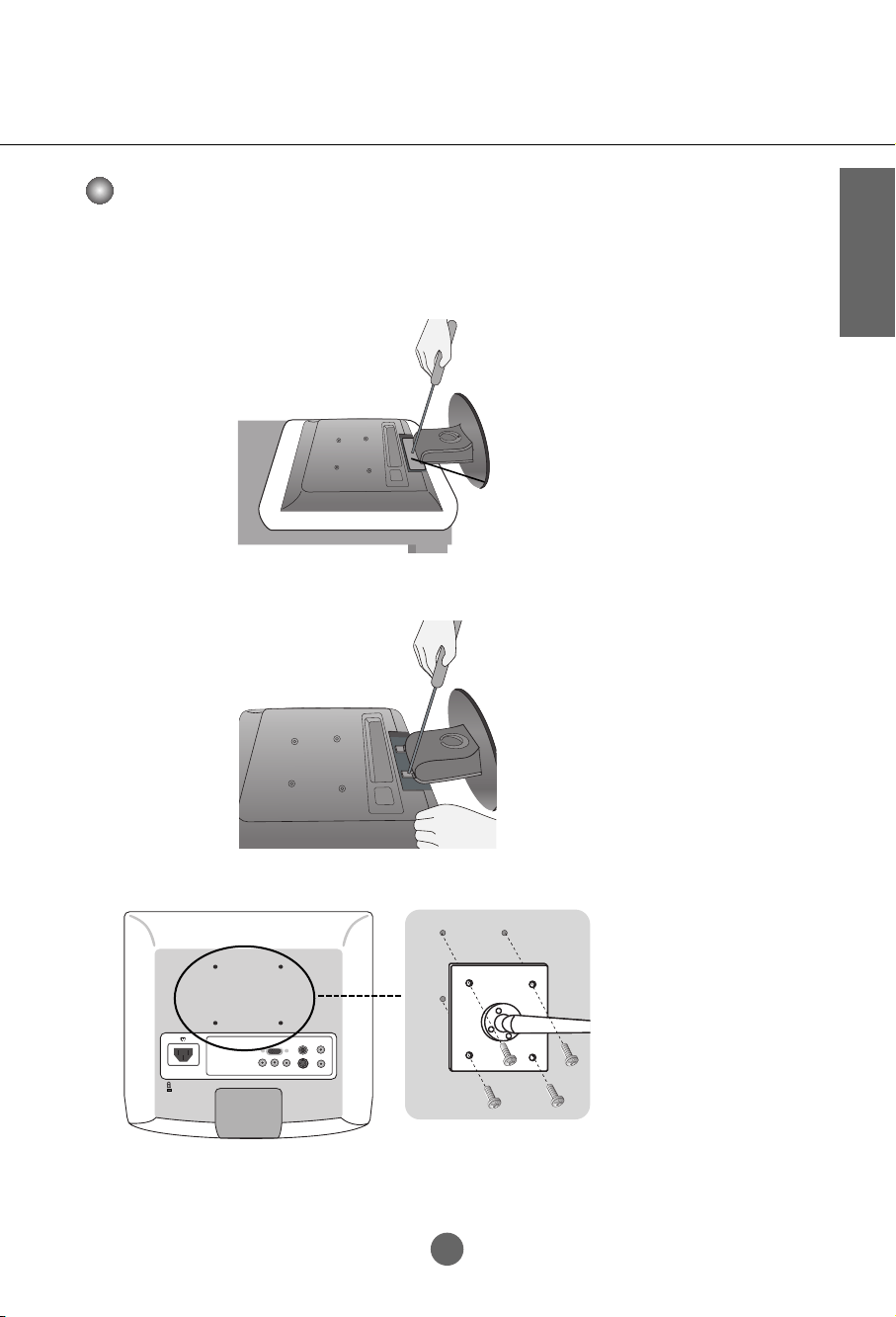

VESA wall mounting
This product meets VESA-compliant mounting interface pad specifications.
1.
Separate the Hinge Cover using a screwdriver as shown in the picture.
2.
Please the product on a piece of cloth or other soft surface with the front side facing downward.
3.
Separate the stand base using a screwdriver as shown in the picture.
4.
Install the VESA standrad wall mounting.
Hinge Cover
