All about the
Use & Care
of your
www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352
Electric Range
809216801 Rev D (April 2018)
TABLE OF CONTENTS
Product Record and Registration . . . . . . . . . . . . . . 2
Important Safety Instructions . . . . . . . . . . . . . . . . . 3
Before Setting Surface Controls . . . . . . . . . . . . . . . 9
Setting Surface Controls . . . . . . . . . . . . . . . . . . . . 12
Before Setting Oven Controls . . . . . . . . . . . . . . . . 15
Setting Oven Controls . . . . . . . . . . . . . . . . . . . . . . 16
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . 31
Before You Call . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
2
2013 Electrolux Home Products, Inc. All rights reserved. Printed in the USA
Need Help? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . .2
Product Record and Registration . . . . . . . . . . . . . . . . . 2
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . 3
Before Setting Surface Controls. . . . . . . . . . . . . . . . . . 9
Setting Surface Controls . . . . . . . . . . . . . . . . . . . . . . 12
Before Setting Oven Controls . . . . . . . . . . . . . . . . . . . 15
Setting Oven Controls . . . . . . . . . . . . . . . . . . . . . . . . . 16
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Oven Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Before You Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Need Help?
Visit the Frigidaire web site at www.frigidaire.com
Before you call for service, there are a few things you can
do to help us serve you better.
Read this Use & Care Manual
This manual contains instructions to help you use and
maintain your oven properly.
If You Received a Damaged Oven...
Immediately contact the dealer (or builder) that sold you the
oven.
Save Time and Money
Check “Solutions to Common Problems:” on page 37. This
section helps step you through some common problems
that might occur.
If you do need service, help is only a phone call away. Call
Frigidaire customer services at 1-800-944-9044.
Product Registration
Registering your product with Frigidaire enhances our
ability to serve you. You can register online at http://
www.frigidaire.com or by dropping your product registra
-
tion card in the mail.
Record model and serial numbers here
Purchase Date: _______________________________
Frigidaire model number: _______________________
Frigidaire serial number: ________________________
Serial Plate Location
PRODUCT RECORD AND REGISTRATION
Questions?
For toll-free telephone support in the U.S. and Canada call
1-800-944-9044
For online support and product information visit http://
www.frigidaire.com.
Thank you for choosing Frigidaire.
This Use & Care manual is part of our commitment to
customer satisfaction and product quality throughout the
service life of your new appliance. We view your purchase
as the beginning of a relationship. To ensure our ability to
continue serving you, please use this page to record
important product information.
3
Read all instructions before using this appliance.
This manual contains important safety symbols
and instructions. Please pay attention to these
symbols and follow all instructions given.
Do not attempt to install or operate your appliance
until you have read the safety precautions in this
manual. Safety items throughout this manual are
labeled with a WARNING or CAUTION statement
based on the risk type.
Warnings and important instructions appearing in
this guide are not meant to cover all possible
conditions and situations that may occur.
Common sense, caution, and care must be
exercised with installing, maintaining, or operating
your appliance.
DEFINITIONS
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol
to avoid possible injury or death.
Indicates a potentially hazardous situation
which, if not avoided, may result in death or
serious injury.
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury.
Indicates installation, operation, maintenance,
or valuable information that is not hazard
related.
Indicates a short, informal reference –
something written down to assist the memory or
for future reference.
WARNING
CAUTION
IMPORTANT
NOTE
Save these instructions for future reference.
WARNING
Tip Over Hazard
• A child or adult can tip
the range and be killed.
• Verify the anti-tip device
has been installed to floor
or wall.
• Ensure the anti-tip device is
re-engaged to floor or wall when the
range is moved.
• Do not operate the range without the
anti-tip device in place and engaged.
• Failure to follow these instructions can
result in death or serious burns to
children and adults.
Range
leveling
leg
Anti-tip
bracket
To check if the anti-tip bracket is installed
properly, use both arms to grasp the rear edge
of the range back. Carefully attempt to tilt
range forward. When properly installed, the
range should not tilt forward.
Refer to the anti-tip bracket installation instruc-
tions supplied with your range for proper
installation.
IMPORTANT
IMPORTANT SAFETY INSTRUCTIONS
4
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT INSTRUCTIONS FOR
UNPACKING AND INSTALLATION
IMPORTANT - Read and follow the below instruc-
tions and precautions for unpacking, installing,
and servicing your appliance:
Remove all tape and packaging before using the
appliance. Destroy the carton and plastic bags
after unpacking the appliance. Never allow
children to play with packaging material. Do not
remove the wiring label and other literature
attached to the appliance. Do not remove model/
serial number plate.
Cold temperatures can damage the electronic
control. When using this appliance for the first
time, or when the appliance has not been used
for an extended period of time, be sure the
appliance has been in temperatures above 32ºF
(0ºC) for at least 3 hours before turning on the
power to the appliance.
Never modify or alter the construction of the
appliance by removing the leveling legs, panels,
wire covers, anti-tip brackets/screws, or any other
part of the appliance.
Be sure to have an appropriate foam-type fire
extinguisher available, visible, and easily acces-
sible located near the appliance.
GROUNDING INSTRUCTIONS
Proper Installation—Be sure your appliance is
properly installed and grounded by a qualified
technician. In the United States, install in accor-
dance with the National Fuel Gas Code ANSI
Z223.1/NPFA No. 54, latest edition and National
Electrical Code NFPA No. 70 latest edition, and
local electrical code requirements. In Canada,
install in accordance with CAN/CGA B149.1 and
CAN/CGA B149.2 and CSA Standard C22.1,
Canadian Electrical code, Part 1-latest editions
and local electrical code requirements. Install only
per installation instructions provided in the litera-
ture package for this appliance.
For personal safety, this appliance must be
properly grounded. For maximum safety, the
power cord must be securely connected to an
electrical outlet or junction box that is the correct
voltage, is correctly polarized and properly
grounded, and protected by a circuit breaker in
accordance with local codes.
It is the personal responsibility of the consumer to
have the appropriate outlet or junction box with
the correct, properly grounded wall receptacle
installed by a qualified electrician. It is the respon-
sibility and obligation of the consumer to contact a
qualified installer to assure that the electrical
installation is adequate and is in conformance
with all local codes and ordinances.
See the installation instructions packaged with
this appliance for complete installation and
grounding instructions.
Avoid fire hazard or electrical shock. Failure to
follow this warning may cause serious injury,
fire, or death.
Avoid fire hazard or electrical shock. Do not use
an adapter plug, use an extension cord, or
remove grounding prong from the power cord.
Failure to follow this warning may cause serious
injury, fire, or death.
WARNING
5
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT INSTRUCTIONS FOR USING THE
APPLIANCE
Storage In or On Appliance—Flammable
materials should not be stored in an oven or
microwave, near surface burners or elements,
or in the storage or warmer drawer (if
equipped). This includes paper, plastic, and
cloth items, such as cookbooks, plastic ware,
and towels, as well as flammable liquids. Do not
store explosives, such as aerosol cans, on or
near the appliance.
Do not leave children alone - Children should
not be left alone or unattended in the area
where appliance is in use. They should never
be allowed to sit or stand on any part of the
appliance, including the storage drawer, lower
broiler drawer, warmer drawer, or lower double
oven.
Do not store items of interest to children in the
cabinets above the appliance or on the back-
guards of ranges. Children climbing on or near
the appliance to reach items could be seriously
injured.
Do not allow children to climb or play around the
appliance. The weight of a child on an open
over door may cause the appliance to tip,
resulting in serious burns or other injury. An
open drawer when hot may cause burns.
WARNING
Stepping, leaning, or sitting on the door or
drawers of this appliance can result in serious
injuries and also cause damage to the appli-
ance.
Never cover any slots, holes, or passages in the
oven bottom or cover an entire oven rack with
any materials, such as aluminum foil or after-
market oven liners. Doing so blocks air flow
through the oven and may result in carbnon
monoxide poisoning. Aluminum foil and other
liners may trap heat, causing a fire hazard.
Do not use oven or warmer drawer (if equipped)
for storage.
Never use your appliance as a space heater to
heat or warm the room. Doing so may result in
carbon monoxide poisoning and overheating of
the appliance.
When heating fat or grease, watch it closely.
Grease may catch fire if it becomes too hot.
Do not use water or flour on grease fires.
Smother fire or flame or use dry chemical or
foam-type extinguisher. Cover the fire with a
pan lid or use baking soda.
Use dry potholders. Moist or damp potholders
on hot surfaces may result in burns from steam.
Do not let potholders touch hot cooking areas.
Do not use towels or other bulky cloths.
Do not heat unopened food containers - Build-
up of pressure may cause container to burst
and result in injury.
WARNING
CAUTION
6
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT INSTRUCTIONS FOR USING
YOUR RADIANT COOKTOP
Know which knob or key controls each surface
heating area. Place cookware with food on the
cooking area before turning it on. Turn the
cooking area off before removing the cookware.
Cookware handles should be turned inward and
not extend over adjacent surface elements — To
reduce the risk of burns, ignition of flammable
materials, and spillage due to unintentional
contact with the utensil, the handle of the
cookware should be positioned so that it is turned
inward, and does not extend over other cooking
areas.
Use proper pan size - This appliance is equipped
with one or more surface units of different sizes.
Select cookware with flat bottoms that match the
surface unit size. Using the proper cookware on
the cooking area will improve efficiency.
Glazed cooking utensils— Only certain types of
glass, glass/ceramic, ceramic, earthenware, or
other glazed utensils are suitable for cooktop
service without breaking due to the sudden
change in temperature. Check the manufacturer’s
recom¬mendations for cooktop use.
Improper cookware may break due to sudden
changes in temperature. Check the cookware
manufacturer’s recommendations for cooktop
use.
Never leave surface elements unattended. Boil-
overs may cause smoking and greasy spills that
may ignite. A pan that has boiled dry could be
damaged and may damage the cooktop.
Do not use a searing grill meant for use with a
broiler pan on the cooktop. The searing grill is not
designed for use on the cooktop. Doing so may
result in a fire.
When you are flaming foods under a ventilating
hood, turn on the fan.
IMPORTANT INSTRUCTIONS FOR GLASS
AND CERAMIC COOKTOPS
Do Not Clean or Operate a Broken Cooktop. If
cooktop should break, cleaning solutions and
spillovers may penetrate the broken cooktop and
create a risk of electric shock. Contact a qualified
technician immediately.
Clean cooktop glass with caution. If a wet sponge
or cloth is used to wipe spills on a hot cooking
area, be careful to avoid a steam burn. Some
cleaners can produce harmful fumes if applied to
a hot surface.
Avoid scratching the cooktop glass with sharp
objects.
Wear proper apparel - Loose-fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other
flammable materials contact hot surfaces.
Do not touch surface burners or elements,
areas near these burners or elements, interior
surfaces of the oven, or the warmer drawer (if
equipped). Surface burners and elements may
be hot even though they appear cool. Areas
near surface burners and elements may
become hot enough to cause burns. During and
after use, do not touch, or let clothing or other
flammable materials touch these areas until
they are cool. These areas may include the
cooktop, surfaces facing the cooktop, oven vent
areas, oven door, and oven window.
Do not attempt to operate the appliance during
a power failure. If the power fails, always turn off
the appliance. If the appliance is not turned off
and the power resumes, electric surface
elements may resume operation when power is
restored. Once the power resumes, reset the
clock and the oven function.
CAUTION
7
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
Protective liners—Do not use aluminum foil, after-
market oven liners, or any other materials or
devices to line oven bottom, oven racks, or any
other part of the appliance. Only use aluminum as
recommended for baking, such as lining
cookware or as a cover placed on food. Any other
use of protective liners or aluminum foil may
result in a risk of electric shock or fire or a short
circuit.
Use care when opening oven door, lower oven
door, or warmer drawer (some models). Stand to
the side of the appliance when opening the door
of a hot oven. Let hot air or steam escape before
you remove or replace food in the oven.
Keep oven vent ducts unobstructed. Touching
surfaces in this area when the oven is on may
cause severe burns. Do not place plastic or heat-
sensitive items on or near the oven vent. These
items can melt or ignite.

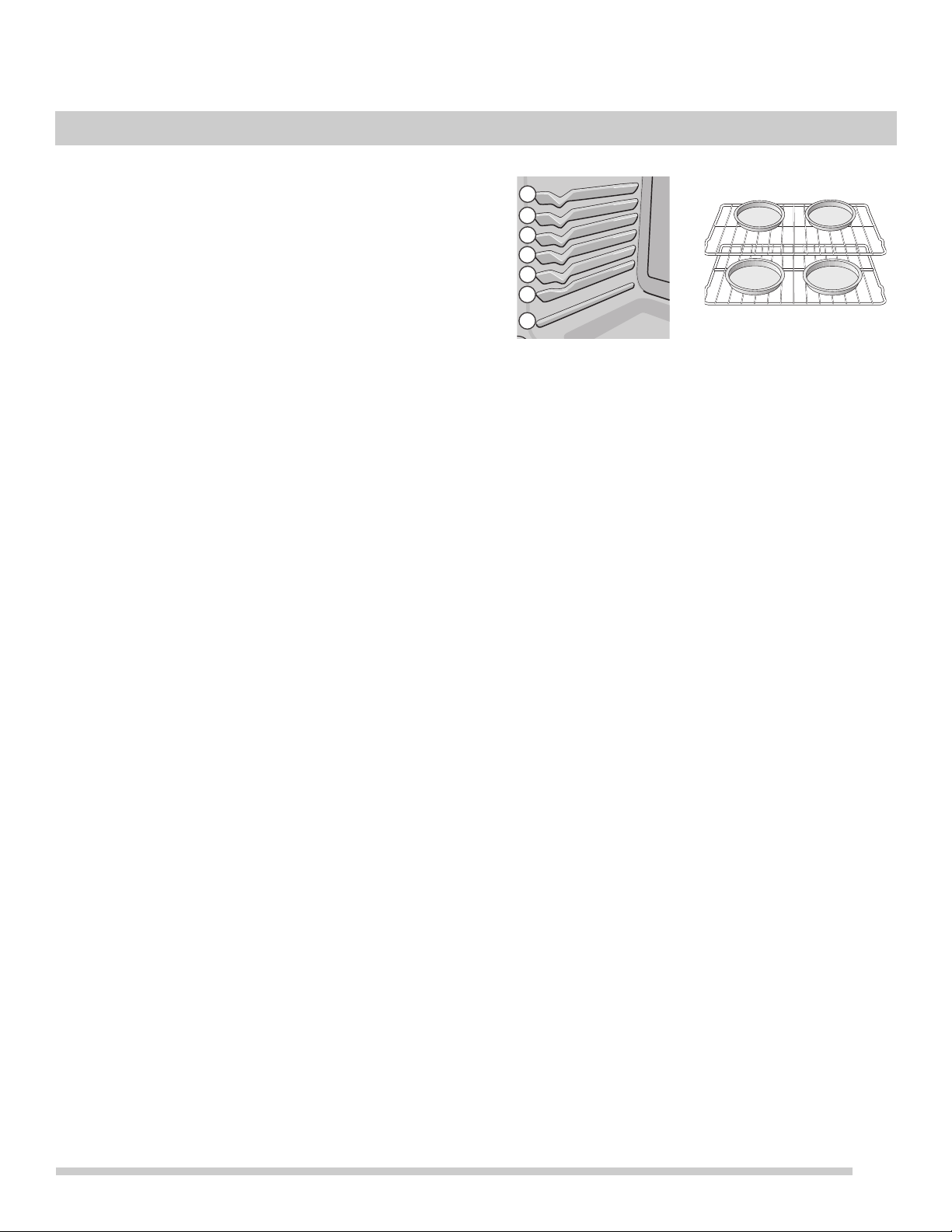

Placement of oven racks - Always place oven
racks in desired location while oven is cool. If rack
must be moved while oven is hot, do not let
potholder contact hot burner or element in oven.
Use potholders and grasp the rack with both
hands to reposition. Remove all cookware and
utensils before moving the rack.

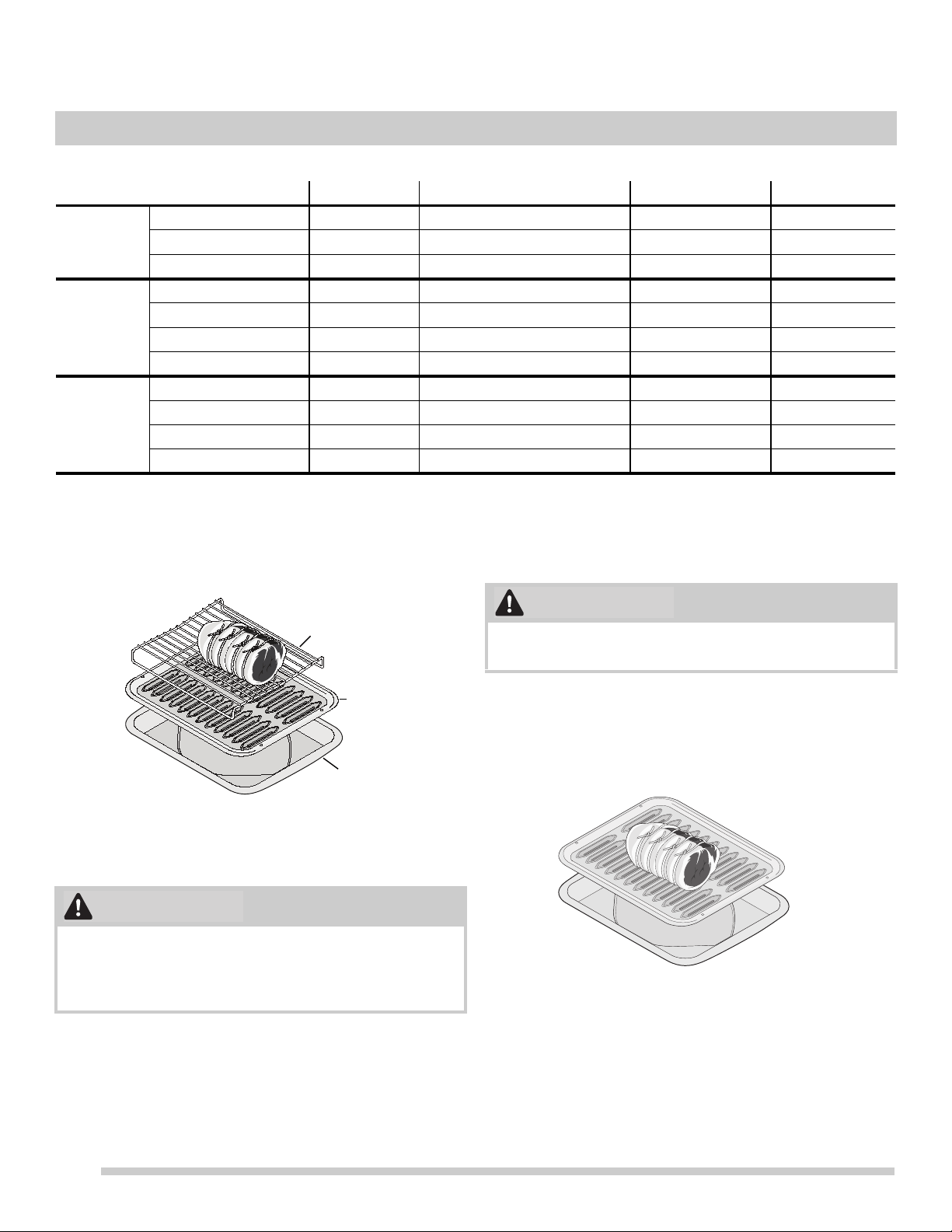

Do not use a broiler pan without its insert. Broiler
pans and inserts allow dripping fat to drain away
from the high heat of the broiler. Do not cover the
broiler insert with aluminum foil; exposed fat and
grease could ignite.
Do not cook food on the oven bottom. Always
cook in proper cookware and always use the
oven racks.
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR APPLIANCE
Clean the appliance regularly to keep all parts
free of grease that could catch fire. Do not allow
grease to accumulate. Greasy deposits in the fan
could catch fire.
Always follow the manufacturer’s recommended
directions for use of kitchen cleaners and
aerosols. Be aware that excess residue from
cleaners and aerosols may ignite causing
damage and injury.
Clean ventilating hoods frequently - Grease
should not be allowed to accumulate on hood or
filter. Follow the manufacturer’s instructions for
cleaning vent hoods.
Before manually cleaning any part of the appli-
ance, be sure all controls are turned off and the
appliance is cool. Cleaning a hot appliance can
cause burns.
CAUTION
8
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT INSTRUCTIONS FOR SELF
CLEANING OVENS
Do not clean the oven door gasket. The door
gasket is essential for a good seal. Care should
be taken not to rub, damage, or move the gasket.
Do not use oven cleaners. No commercial oven
cleaner or oven liner protective coating of any
kind should be used in or around any part of the
appliance.
Use the self clean cycle to clean only the parts
listed in this manual.
Before using self clean, remove the broiler pan,
any food, utensils, and cookware from the oven,
storage drawer or warming drawer (if equipped).
Remove oven racks unless otherwise instructed.
Some birds are extremely sensitive to the fumes
given off during the self clean cycle of any oven.
Move birds to another well-ventilated room.
IMPORTANT INSTRUCTIONS FOR SERVICE
AND MAINTENANCE
Do not repair or replace any part of the appliance
unless specifically recommended in the manuals.
All other servicing should be done only by a
qualified technician. This reduces the risk of
personal injury and damage to the appliance.
Always contact your dealer, distributor, service
agent, or manufacturer about problems or condi-
tions you do not understand.
Ask your dealer to recommend a qualified techni-
cian and an authorized repair service. Know how
to disconnect the power to the appliance at the
circuit breaker or fuse box in case of an emer-
gency.
Remove the oven door from any unused oven if it
is to be stored or discarded.
Do not touch a hot oven light bulb with a damp
cloth. Doing so could cause the bulb to break.
Handle halogen lights (if equipped) with paper
towels or soft gloves. Disconnect the appliance or
shut off the power to the appliance before
removing and replacing the bulb.
Important Safety Notice - The California Safe
Drinking Water and Toxic Enforcement Act
requires the governor of California to publish a list
of substances known to cause cancer, birth
defects, or other reproductive harms, and
requires businesses to warn customers of
potential exposures to such substances.
9
Using Proper Cookware
Check for flatness by rotating a ruler across the bottom of
the cookware (See
Figure 1). Cookware should have flat
bottoms that make good contact with the entire surface
heating element (See
Figure 2). For detailed information
about the ceramic cooktop, refer to the“Cooktop Mainte-
nance (cont’d)” on page 33.
Cookware Material Types
The cookware material determines how evenly and quickly
heat is transferred from the surface element to the pan
bottom. The most popular materials available are:
• Aluminum - Excellent heat conductor. Some types of
food will cause it to darken (Anodized aluminum
cookware resists staining and pitting). If aluminum pans
slide across the ceramic cooktop, they may leave metal
marks which will resemble scratches. Remove these
marks immediately.
• Copper - Excellent heat conductor but discolors easily
(See Aluminum).
• Stainless - Slow heat conductor with uneven cooking
results. Is durable, easy to clean and resists staining.
• Cast Iron - A slow heat conductor however will retain
heat very well. Cooks evenly once cooking temperature
is reached. Not recommended for use on ceramic
cooktops.
• Porcelain-enamel on metal - Heating characteristics will
vary depending on base material. Porcelain-enamel
coating must be smooth to avoid scratching ceramic
cooktops.
• Glass - Slow heat conductor. Not recommended for
ceramic cooktop surfaces because it may scratch the
glass.
The size and type of cook-
ware used will influence the
radiant element power level
setting needed for best cook
-
ing results. Be sure to follow
the recommendations for
using proper cookware as
illustrated in
Figure 1 and
Figure 2.
Figure 1: Testing cookware
Figure 2: Proper cookware
• Flat bottom and straight
sides.
• Tight fitting lids.
• Weight of handle does
not tilt pan. Pan is well
balanced
.
• Pan sizes match the
amount of food to be
prepared and the size
of the surface element.
• Made of material that
conducts heat well.
• Easy to clean.
• Always match pot
diameter to element
size.
• Curved and warped pans.
• Cookware larger than
cooking area marked on
cooktop by more than
one-half inch or 12mm.
• Heavy handle tilts pan.
• Pan is smaller than the
heating area marked on
cooktop.
Do not place empty aluminum, glass or porcelain-enamel
coated cookware on the ceramic cooktop! The melting
point of cookware made with these materials may be
reached quickly especially if left empty, and they may
bond to the ceramic cooktop. If the cookware melts it will
damage the cooktop. Be sure to follow all the cookware
manufacturer’s suggestions when using any type of
cookware on the ceramic cooktop.
(White glass cooktops only). Due to the high intensity of
heat generated by the surface elements, the glass
surface will turn green when the element is turned off.
This phenomenon is normal and the glass will return to its
original white color after it has completely cooled down.
IMPORTANT
NOTE
BEFORE SETTING SURFACE CONTROLS
10
BEFORE SETTING SURFACE CONTROLS
About the Ceramic Glass Cooktop
The ceramic cooktop has radiant surface elements located
below the surface of the glass. The design of the ceramic
cooktop outlines the area of the surface element under
-
neath. Be sure to match the pan size with the diameter of
the element outline on the cooktop and only flat-bottomed
cookware should be used.
The type and size of cookware, the number of surface
elements in use and their settings are all factors that will
affect the amount of heat that will spread to areas beyond
the surface elements. The areas surrounding the elements
may become hot enough to cause burns.
About the Radiant Surface Elements
The element temperature rises gradually and evenly. As the
temperature rises, the element will glow red. To maintain
the selected setting the element will cycle on and off. The
heating element retains enough heat to provide a uniform
and consistent heat during the off cycle.
For efficient cooking, turn off the element several minutes
before cooking is complete. This will allow residual heat to
complete the cooking process.
Element On and Hot Surface Indicator Lights
When a burner is turned on the ELEMENT ON indicator
light will glow. The HOT SURFACE indicator light will turn
on when the burner is hot enough to cause burns and will
remain on until the surface has cooled to a safe tempera
-
ture after the burner is turned off. The ELEMENT ON
indicator light will glow when one or more elements are
turned on. A quick glance at these indicator lights when
cooking is finished is an easy check to be sure all surface
elements are turned off.
The cooktop should not be used as a cutting board or
work surface. Dropping heavy or hard objects on the
cooktop may crack it.
Pans with rough bottoms may scratch the cooktop
surface. Placing food directly on the smoothtop surface
(without cooking utensil) is not recommended as difficult
cleaning will result and foods may smoke and cause
potential fire hazard.
Always lift cookware before moving on ceramic glass
cooktop. Any cookware that has rough or dirty bottoms
can scratch the ceramic cooktop. Always start with clean
cookware.
Do not allow aluminum foil, or any material that can melt,
to make contact with the ceramic glass cooktop. If these
items melt on the cooktop, they will damage the ceramic
cooktop.
IMPORTANT
CAUTION
Radiant elements have a limiter that allows the element to
cycle on and off, even at the HI setting. This helps to
prevent damage to the ceramic smooth top. Cycling at the
HI setting is normal and can occur if the cookware is too
small for the radiant element or if the cookware bottom is
not flat.
Be sure to read detailed instructions for ceramic glass
cooktop cleaning in the General Care & Cleaning section
and Before You Call checklist section of this Use and
Care Guide.
The element on and hot surface indicator lights will glow
when the element is turned on and will continue to glow
after the control knob is turned to the OFF position. It will
glow until the heating surface area has cooled sufficiently.
The glass surface may still be hot and burns may occur if
the glass surface is touched before the indicator light has
turned off.
NOTE
NOTE
11
BEFORE SETTING SURFACE CONTROLS
Home Canning
‘
Be sure to read and observe all the following points when
home canning with your appliance. Check with the USDA
(United States Department of Agriculture) Web site and be
sure to read all the information they have available as well
as follow their recommendations for home canning proce
-
dures.
Home Canning Do’s and Don’ts
• Use only quality flat bottom canners when home
canning.
• Use a straight-edge to check canner bottom.
• Use only a completely flat bottom canner with no ridges
that radiate from the bottom center when home
canning. Heat is spread more evenly when the bottom
surface is flat.
• Make sure the diameter of the canner does not exceed
1 inch beyond the surface element markings or burner.
• It is recommended to use smaller diameter canners on
electric coil and ceramic glass cooktops and to center
canners on the burner grates.
• Start with hot tap water to bring water to boil more
quickly.
• Use the highest heat seating when first bringing the
water to a boil. Once boiling is achieved, reduce heat to
lowest possible setting to maintain that boil.
• Use tested recipes and follow instructions carefully.
Check with your local Cooperative Agricultural
Extension Service or a manufacturer of glass jars for
the latest canning information.
• It is best to can small amounts and light loads.
• Do not leave water bath or pressure canners on high
heat for an extended amount of time.
• Alternate surface units between each batch to allow the
units and surrounding surfaces to cool down. Try to
avoid canning on the same burner unit all day.
Canning can generate large amounts of steam. Use
extreme caution to prevent burns. Always raise the lid to
vent steam away from you. Safe canning requires that
harmful micro-organisms are destroyed and the jars are
sealed completely. When canning in a water bath canner,
a gentle but steady boil must be maintained continuously
for the required time.
CAUTION
12
Surface Control Settings
The size and type of utensil used, and the amount and type
of food being cooked will influence the surface element
power level setting needed for best cooking results.
Use Table 1 to determine the correct setting for the type of
food you are preparing.
Single Radiant Surface Elements (some models)
The cooktop has two or three single radiant surface
elements: the left rear position, the right rear position. The
left rear element may also be used with the bridge element.
To operate the single radiant surface elements:
1. Place correctly sized cookware on the radiant surface
element.
2. Push in and turn the surface control knob in either
direction to the desired setting (See
Figure 3). Start
most cooking operations on a higher setting and then
turn to a lower setting to finish cooking. Each surface
element provides a constant amount of heat at each
setting. A glowing red surface heating area extending
beyond the bottom edge of the cookware indicates the
cookware is too small for the surface heating area.
3. When cooking has completed, turn the surface control
knob to OFF before removing the cookware.
The size and type of cookware used will influence the
setting needed for best cooking results.
Table 1: Recommended settings for surface elements
Setting Type of Cooking
HIGH (HI) Start most foods; bring water to a boil and
pan broiling.
MEDIUM
HIGH (8-10)
Continue a rapid boil; frying, deep fat
frying
MEDIUM (6) Maintain a slow boil; thicken sauces and
gravies; steaming vegetables
MEDIUM
LOW (2-4)
Keep foods cooking; poaching and
stewing
LOW (LO) Keep warm, melting and simmering
Start most cooking operations on a higher setting and
then turn to a lower setting to finish cooking. A glowing
red surface heating area extending beyond the bottom
edge of the cookware indicates the cookware is too small
for the surface heating area. Never straddle cookware
between two surfaces unless designed for that purpose.
Do not place plastic items such as salt and pepper
shakers, spoon holders or plastic wrappings on top of the
range when it is in use. These items could melt or ignite.
Potholders, towels or wooden spoons could catch fire if
placed too close to the surface elements.
Do not allow aluminum foil, empty glass/porcelain
cookware or any material that can melt to make contact
with the ceramic cooktop. If these items melt on the
cooktop they may damage the ceramic cooktop.
NOTE
IMPORTANT
CAUTION
Radiant surface elements may appear to have cooled
after they have been turned off. The hot surface light will
turn on and will continue to glow until the glass cooktop
has cooled down to a moderate level. The glass surface
may still be hot and burns may occur if the glass surface
is touched before the indicator light has turned off.

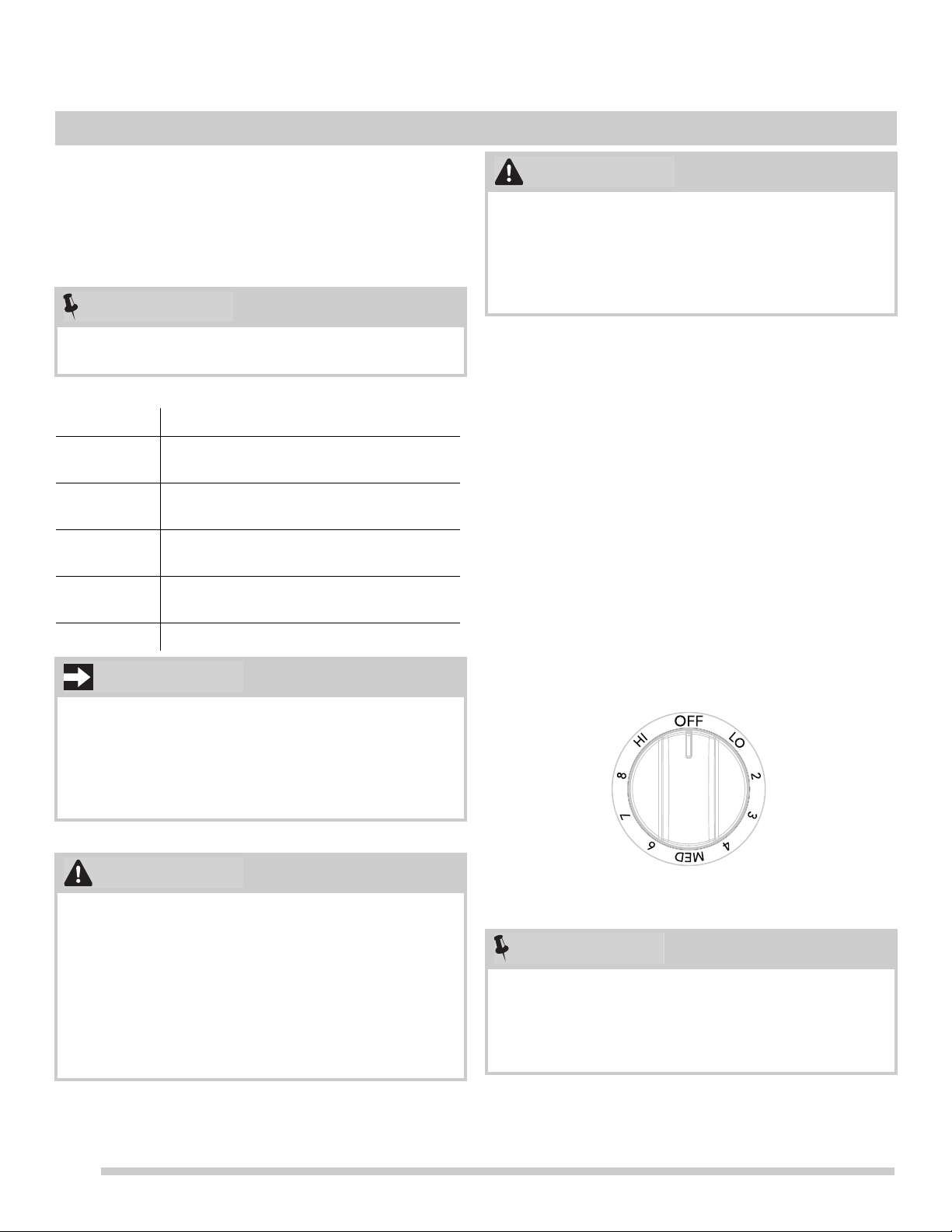

Figure 3: Control knob single surface burner
The surface control knobs do not have to be set exactly
on a particular spot. Use the graphics provided as a guide
and adjust the control knob as needed. Each surface
element provides a constant amount of heat at each
setting. Refer to
Table 1 for suggested settings.
CAUTION
NOTE
SETTING SURFACE CONTROLS
13
SETTING SURFACE CONTROLS
Dual Surface Radiant Element (some models)
The expandable burner can handle 9 inch or 12 inch
cookware. This dual burner is especially useful for bringing
large cookware to boil for canning or heating large amounts
of water.
To operate the dual surface element:
1. Place correctly sized cookware on the dual surface
element.
2. Push in and turn the control knob toward the inner
element side for smaller cookware or to the dual
element side for larger cookware (See
Figure 4).
3. Turn the knob to adjust the setting if needed. Start most
cooking operations on a higher setting and then turn to
a lower setting to finish cooking. Each surface element
provides a constant amount of heat at each setting. A
glowing red surface heating area extending beyond the
bottom edge of the cookware indicates the cookware is
too small for the surface heating area.
4. When cooking has completed, turn the surface control
knob to OFF before removing the cookware.
Warmer Zone
The purpose of the warmer zone is to keep hot cooked
foods at serving temperature. Use the feature to keep
cooked foods hot such as: vegetables, gravies, casseroles,
soups, stews, breads, pastries and oven-safe dinner plates.
Always start with hot food. Do not heat cold food on the
warmer zone. All food placed on the warmer zone should
be covered with a lid to maintain quality.
For best results, when warming pastries or breads, the
cover should have an opening to allow moisture to escape.
Do not use plastic wrap to cover food. Plastic may melt onto
the surface and be very difficult to clean. Use only plates,
utensils and cookware recommended for oven and cooktop
use on the warmer zone.
To set the keep warmer zone control:
1. Turn the warmer zone control knob clockwise to the ON
position. The warmer zone uses a pre-set temperature
designed to keep foods at serving temperature.
2. When ready to serve, turn the warmer zone control
knob to the off position. The warmer zone will remain
hot until the hot surface indicator light turns off.
Figure 4: Dual element control for 9 or 12 inch burner
Radiant surface elements may appear to have cooled
after they have been turned off. The hot surface indicator
light will turn on and will continue to glow until the glass
cooktop has cooled down to a moderate level. The glass
surface may still be hot and burns may occur if the glass
surface is touched before the indicator light has turned
off. The message may remain on even though the
controls are turned off.
CAUTION
The warmer zone will not glow red when it is hot, but
becomes hot enough to cause burns. Avoid placing
hands on or near the warmer zone until the hot surface
indicator light is off. Always use potholders or oven mitts
when removing food from the warmer zone as cookware
and plates will be hot.
Figure 5: Warmer zone control knob
Food Poisoning Hazard. Do not let food sit for more than one
hour before or after cooking. Doing so can result in food
poisoning or sickness.
CAUTION
WARMER ZONE
WARNING
14
SETTING SURFACE CONTROLS
Bridge Element
On the left side of the cooktop there are two single burners
with a bridge element between them. When turned on, the
bridge element allows for a larger cooking area by cycling at
the same temperature as the left rear element. For the
bridge to be operational, the left rear burner must be on.
When the left front burner is also on the entire left side of
the cooktop can accommodate specialized cookware.
To operate the bridge element:
1. Turn on the left rear element to the desired level of heat.
2. Turn the bridge control to the on position.
3. The bridge element will heat at the same level
as the left rear element. If the left rear control
is turned off, the bridge will also turn off. Be sure to turn
the bridge control to the off position when finished
cooking.
Figure 6: Bridge element control
Use only cookware specifically designed for use with the
bridge element.
BRIDGE
CAUTION
15
Oven Vent Location
The oven is vented as shown below. When the oven is on,
warm air is released through the vent. This venting is
necessary for proper air circulation in the oven and good
baking results. Do not block oven vent. Never close off the
openings with aluminium foil or any other material. Steam or
moisture may appear near the oven vent. This is normal.
Type of oven racks
Oven Rack Descriptions
• Flat oven racks (or the flat handle oven rack) may be
used for most cooking needs and may be placed in
most oven rack positions.
• The offset oven rack (some models) provides addi-
tional step down positions from the standard flat rack
design. The offset design positions the base of the rack
about ½ of a rack position lower than the flat rack and
may be used in most oven rack positions.
Removing, replacing, and arranging flat or offset
oven racks
To arrange - Always arrange the oven racks when the oven
is cool (prior to operating the oven).
To remove - Pull the oven rack straight forward until it
reaches the stop position. Lift up front of oven rack slightly
and slide out.
To replace - Place the oven rack on the rack guides on
both sides of oven walls. Tilt the front of oven rack upward
slightly and slide the oven rack back into place. Be sure
oven racks are level before using.
Figure 7: Do not block oven vent location

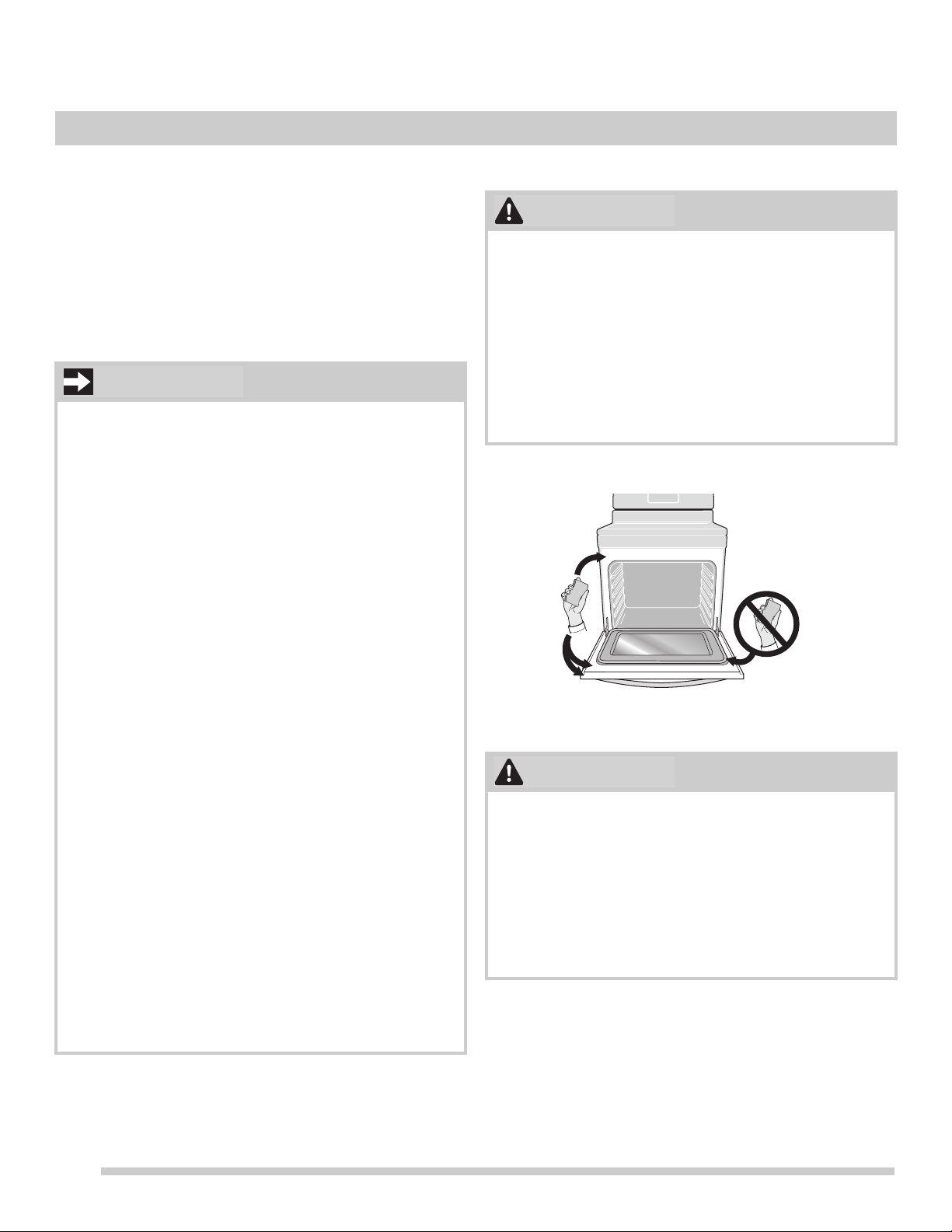

Always use pot holders or oven mitts when using the
oven. When cooking, the oven interior and exterior, oven
racks, and cooktop will become very hot which can cause
burns.
Protective Liners — Do not use aluminum foil to line the
oven bottom. Only use aluminum foil as recommended in
this manual. Improper installation of these liners may
result in risk of electric shock or fire.
All oven racks should be removed before a self clean
operation. Racks left in the oven during the high heat of
the self clean function can easily discolor.
The ability of the racks to easily slide in and out along the
rack positions may also be affected.
Remove all oven racks and clean according to instruc-
tions provided in the Care & Cleaning section of this
manual. Never pick up hot oven racks or parts.
oven vent location
CAUTION
WARNING
IMPORTANT
CAUTION
Figure 8: Oven rack types
Do not line the oven walls, racks, bottom or any other
parts of the range with aluminum foil. Doing so will alter
heat distribution and may cause permanent damage to
the oven interior. During self clean the oven temperatures
will be hot enough to melt foil.
at handle
oven rack
oset
oven rack
IMPORTANT
BEFORE SETTING OVEN CONTROLS
16
OVEN MODE SETTINGS
POWERPLUS PREHEAT - Use powerplus preheat for
single rack items only and place food in center of oven.
BAKE - Use to select bake function before setting tempera-
ture.
CLEAN - Use to select clean feature cycle before setting
clean with oven temperature selector.
CONV BAKE - Use to select convection baking before
setting oven temperature.
CONV ROAST - Use to select convection roast for beef,
lamb, pork, and poultry before setting oven temperature.
BROIL - Use to set broil feature before setting broil with
oven temperature selector.
KEEP WARM - Set BAKE, CONV BAKE, CONV ROAST, or
POWERPLUS PREHEAT mode then set keep warm with
oven temperature selector. Keep warm provides a low heat
for keeping cooked foods at serving temperature.
OVEN DISPLAY FEATURES
1. Clock - Use to set the time of day.
2. TIMER - Use to set or cancel the minute timer. The
minute timer does not start or stop any cooking function.
3. Oven light - Use to turn on the internal oven light.
OVEN TEMP SETTINGS
Before setting the oven, both the mode and temp knobs
should be set to OFF. Set both mode and temp knobs to
OFF when finished cooking.
Use to set oven temperatures between 170°F (KEEP
WARM) and 550°F. The CLEAN setting should only be used
after reading all cautions and warnings in the
“Adjusting the
Oven Temperature” sections of this manual starting on
page 27.
User Preference Settings
The default (factory) settings for sounds, energy saving,
temperature offset, and convection convert are pre-set in
the oven control. These may be changed by accessing the
user preference display while the oven is in the idle mode
and no timers are active. Once the user preference menu is
activated, the user can make changes and scroll through a
menu of options, choosing from AUd (audible control
setting), ES (energy saving), UPO (User Programmable
Offset for changing the oven temperature), Aut (automatic
convection convert), and dEF (default) setting with rSt reset
choice (which will allow all preferences to reset to default
settings).
OVEN MODE
o
OVEN DISPLAY
1
2
3
2
OVEN TEMP
o
PREHEAT
o
Oven Minimum and Maximum Control Settings
Feature Min. Temp/Time Max. Temp/Time
BAKE 170°F (77°C)
(KEEP WARM)
550°F (288°C)
POWERPLUS
PREHEAT
170°F (77°C)
(KEEP WARM)
550°F (288°C)
CONV BAKE 170°F (77°C)
(KEEP WARM)
550°F (288°C)
CONV ROAST 170°F (77°C)
(KEEP WARM)
550°F (288°C)
MEAT PROBE 140°F (60°C) 210°F (99°C)
BROIL 550°F (288°C)
TIMER 0:01 Hr 11:59
CLOCK (12hr) 1:00 Hr 12:59 Hr
SETTING OVEN CONTROLS
17
SETTING OVEN CONTROLS
Setting the Clock
The clock icon is used to access the time of day setting.
When the oven is first plugged in or if there has been an
interruption in power to the range, 12:00 will flash in the
display.
To set the correct time of day:
1. Press the clock icon.
2. The display will show a time along with a – and a + key
in the display below.
3. Press either – or + key to scroll to the correct time of
day and release the key.
4. The control will accept the new set time with a chime,
and the control will show the time of day along with the
two timers that are available.
Oven Light
The oven light will turn on automatically when the oven door
is opened. The oven light may be turned on when the door
is closed by using the oven light key located on the control
panel.
Note: Keep oven light off while baking. The oven light will
turn off during a clean cycle and not operate.
To toggle the oven lights on and off:
1. Press oven light symbol .
The interior oven light is covered with a glass shield. The
glass shield must be in place whenever the oven is in use.
To change the interior oven lights, see ““Replacing the Oven
Light” in the Care & Cleaning section.
Setting the Timer
The two minute timers in the oven display serve as extra
timers to help keep track of cooking functions. The timer
cannot be used during a self clean cycle or if the meat
probe function associated with the timer display is in use.
The minimum timer setting is 1 minute and the maximum
setting is 11:59 (HR:MIN).
To set the timer:
1. Press either TIMER key.
2. The timer display will show 0:00 and the – and + keys
on either side of the time display. NOTE: If the
– key is
pressed at this time an invalid key chime will sound.
3. Press the + key to begin to scroll to the desired setting.
If the
+ key is held, the timer value will increase rapidly.
Once the desired setting is reached, release the key
and the timer will start counting down automatically after
a short time-out.
4. The timer display will show the H:M icon if the timer is
set for more than 1 minute. If the value is under 1
minute, the timer will display the time in seconds and
the H:M icon will not appear.
5. When the timer ends, a reminder chime will sound and
repeat once every 60 seconds for a period of five
minutes. Before the user can program an expired timer
again, the timer key must be pressed.
6. To cancel the timer before the set time expires, press
the TIMER key.
The clock cannot be changed when the oven is set for
cooking or self clean is active. Only a 12 hour clock is
available on the Frigidaire Professional model.
NOTE
The minute timers will not start or stop the cooking
process. The minute timers can be used alone or while
using most of the other oven features.
NOTE
18
SETTING OVEN CONTROLS
Setting Continuous Bake or 6 Hour Energy Saving
The oven is preset to cook up to 6 hours and to shut off
automatically. For longer periods of cooking, this feature
can be changed to continuous cooking by setting the user
preference and turning the energy saving feature off.
To set the oven for continuous cooking:
1. Press and hold both the light icon and the clock icon at
the same time for a few seconds until the display
sounds an acceptance chime and the display will show
one of the user preferences.
2. Press the + key in the upper part of the display until ES
appears and ON is showing.
3. To turn the energy saving feature off, press the + or –
key in the lower part of the display and OFF will appear
in the display.
4. The control will accept the change in a few seconds and
sound the acceptance chime. The oven is now set for
continuous cooking.
5. To return to the time of day display, press and hold the
light and clock icons at the same time for a few
seconds until the display chimes and fades back to
showing the time of day in the display.
Setting Control for Silent Operation
The oven is set to operate with certain chimes and tones
(default settings) that alert the user to certain oven
functions. The silent operation feature allows the oven
control to be operated without sounds when necessary. By
accessing user preferences, this option can be later
returned to operate with normal programming sounds.
To set the oven control for silent operation:
1. Press and hold both the light icon and the clock icon at
the same time for a few seconds until the display
sounds an acceptance chime. AUd should appear in
the display.
2. If Aud is not showing, press the + key in the upper part
of the display until AUd appears and HI is showing in
the lower part of the display. This is the normal (default)
setting.
3. To turn the energy saving feature to a lower sound or
completely OFF, press the
+ or – key in the lower part
of the display until LO or OFF appears in the display.
4. When the desired setting appears in the display, release
the key and wait for an acceptance chime.
5. To return to the time of day display, press and hold both
the light and clock icons at the same time for a few
seconds until the display chimes and fades back to
showing the time of day.
Figure 9: Energy saving with ON and OFF options
Changing to continuous bake does not change how the
cooktop controls operate.
IMPORTANT
Figure 10: Default setting for oven control sounds
Figure 11:
19
SETTING OVEN CONTROLS
Setting PowerPlus™ Preheat
The PowerPlus™ Preheat feature uses the convection fan
to quickly bring the oven up to the set temperature. Use
powerplus preheat for single rack items only and place food
in center of oven.
Important: When baking delicate items like cakes and
cookies use the regular bake or convection bake mode.
To set powerplus preheat:
1. Turn the oven mode selector to POWERPLUS
PREHEAT. The oven mode light will turn on.
2. Turn the oven temperature selector to the desired
temperature. The oven temperature light will blink and
an acceptance chime will sound. The convection fan will
turn on and remain on as a convection bake. The
preheat light will stay on until preheating is finished.
Once the set temperature is reached the control will
chime alerting the user that the oven is preheated.
3. When finished baking turn both oven selectors to the
OFF position.
Setting Bake
Baking tips
For best bake results:
• Fully preheat the oven before baking items like cookies,
cakes, biscuits, and breads. When using any single
rack, position the rack so that the food is in the center of
the oven.
• The convection fan will be on during preheat and then
turn off and on occasionally as needed.
• For best results when baking cakes using two oven
racks, place racks in positions 3 with offset rack and 5
using flat rack (See
Figure 12).
• When using two oven racks, position cookware as
shown in
Figure 13. Allow at least 2-4 inches (5-10 cm)
of space between cookware for proper air circulation.
• Dark or dull bakeware absorbs more heat than shiny
bakeware. It may be necessary to reduce oven temper
-
ature and cook time to prevent overbrowning of some
foods. Dark bakeware is recommended for pies. Shiny
bakeware is recommended for cakes, cookies, and
muffins.
Important: For batter and dough-based baked goods such
as cakes, pastries, and breads, use the convection function
for best results.
Use the Bake function whenever a recipe calls for baking
using normal temperatures. When the set bake temperature
is reached the control will sound a chime to alert that the
oven is fully preheated.
Bake may be set for any temperature between 170°F
(77°C) and 550°F (288°C).
To set a bake for 350°F:
1. Be sure to arrange racks to the desired positions for the
item(s) to be baked.
2. Turn the oven mode selector to the Bake position.
3. Turn the oven temperature selector to 350°F.
4. The PREHEAT and the oven temperature light will turn
on and sound an acceptance tone. The oven will begin
heating.
5. When the set temperature is reached the PREHEAT
light will turn off and a reminder chime will sound
alerting you to place food in oven. Set either timer to
keep track of actual cooking time if necessary.
6. When finished baking, be sure to return both the
temperature selector knob and the oven mode knob to
the OFF positions.
Note: Do not open the oven door often. Doing so will
reduce the temperature in the oven and may increase the
cooking time necessary for best results.
Figure 12: Rack positions Figure 13: Pan spacing
1
5
7
6
4
3
2
20
SETTING OVEN CONTROLS
Convection Cooking
This mode of cooking enables you to obtain the best results
when baking with multiple pans and racks. The oven can be
programmed for convection baking at any temperature
between 170°F to 550°F. The convection function uses a
fan to circulate the oven heat uniformly and continuously
around the oven (
Figure 14). This improved heat distribu-
tion allows for fast, even cooking and browning results. It
also gives better baking results when using two oven racks
at the same time.
Benefits of convection cooking:
• Multiple rack baking.
• Some foods may cook faster, saving time and energy.
Convection baking tips:
• Fully preheat the oven before baking items like cookies,
cakes, biscuits, and breads.
• For single rack baking, position the rack so that food is
in the center of the oven.
• If your recipe cooking temperature has already been
converted for convection baking, there is no need to
reduce your oven temperature. If not, see “Setting
Convection Convert” on page 21 for further instructions
on temperature conversion.
• For best results when baking cakes using two oven
racks, place racks in positions 3 with offset rack and 5
using flat rack (See
Figure 14). When baking using two
oven racks, position cookware as shown in Figure 15.
Allow at least 2 inches (5 cm) of space between
cookware for proper air circulation.
• Dark or dull bakeware absorbs more heat than shiny
bakeware. It may be necessary to reduce oven temper
-
ature and cook time to prevent overbrowning of some
foods. Dark bakeware is recommended for pies. Shiny
bakeware is recommended for cakes, cookies, and
muffins.
• Do not open oven door too often. Doing so reduces
oven temperature and may extend cooking time.
• Most baked goods (except cakes) should be baked on
pans with no sides or low sides to allow air to circulate.
Setting Convection Bake
To set the oven for convection bake and temperature to
375°F:
1. Arrange interior oven racks.
2. Turn the oven mode selector to CONVECT BAKE.
3. Turn the oven temperature selector to 375°F.
The oven temperature light will blink for a few seconds
before sounding a chime confirming the setting. The
convection fan will turn on and the oven will begin heating.
Once the oven reaches the set temperature the oven will
sound a chime indicating the food items can be placed in
the oven.
When finished baking, be sure to return both the tempera-
ture selector knob and the oven mode knob to the OFF
positions.
Figure 14: Convection air flow
Figure 15: Pan spacing suggestion
1
2
3
4
5
6
7
21
SETTING OVEN CONTROLS
Setting Convection Convert
Convection convert automatically converts a standard
baking recipe for convection baking. Convection convert
may only be used with convection bake.This feature must
be set before selecting the oven mode and oven tempera
-
ture by using the user preference setting in the oven
display.
Because convection baking generally cooks food faster
than normal baking, food items should be checked for
doneness before the suggested normal recipe cook times.
To set convection convert:
1. The oven temperature selector must be in the OFF
position. Turn the oven mode selector to CONVECT
BAKE.
2. Press and hold both the oven light icon and the clock
icon for about 3 seconds until Aut° (automatic convec
-
tion convert) appears in the display.
Press either the – or + key until On appears.
Turn the oven mode selector to the OFF position. The oven
will accept the convection convert setting with an accep
-
tance chime and the control will return to display the time of
day. The convection bake function will now automatically
convert normal baking temperatures for convection baking.
To change back to regular convection baking, repeat the
same steps in this process and press the + or - key until
OFF appears. Once the control accepts the change with a
chime, turn the oven mode selector to OFF.
Setting Convection Roast
Convection roast is best for cooking tender cuts of beef,
lamb, pork, and poultry. Use this mode when cooking speed
is desired. Convection roasting gently browns the exterior
and seals in the juices. Convection roasting uses the bake
element, convection element, broil element, and fan to
circulate the heat evenly and continuously within the oven.
Convection roasting tips:
• Use a broiler pan and grid, as well as a roasting rack
(available by mail order). The broiler pan will catch
grease drippings, and the grid will help prevent spatters.
The roasting rack will hold the meat. Make sure the
roasting rack is securely seated on the grid in the broiler
pan. Do not use the broiler pan without the grid or cover
the grid with aluminum foil.
• Pull the rack out to the stop position before removing
food. Position food (fat side up) on the roasting rack.
• Do not open the oven door often. Doing so will reduce
the temperature in the oven and may increase the
cooking time necessary for best results.
• It is not recommended to roast chicken on a roasting
rack. Use a deep pan and place on rack position 1
(offset rack).
To set oven for convection roasting:
1. Place meat on roasting rack and place in oven.
2. Turn oven mode selector to CONV ROAST.
3. Turn oven temperature selector to desired roasting
temperature.
Note: Preheating the oven for convection roasting is not
necessary. At this time you may want to set TIMER as a
reminder for checking food.
Figure 16: Convection convert off (L) and on (R)
Should an oven fire occur, do not open oven door, turn off
the oven. If the fire continues, throw baking soda on the
fire or use a fire extinguisher. Do not put water or flour on
the fire. Flour may be explosive, and water can cause a
grease fire to spread and cause personal injury.
WARNING
22
SETTING OVEN CONTROLS
Important: When roasting chicken use the offset rack in the
lowest position for best results.
Table 2: Convection roasting temperature and time recommendations
Meat Weight Oven Temp Internal Temp Minutes per lb.
Beef Standing rib roast* 4 to 6 lb. 350°F (177ºC) *160ºF (71ºC) 25-30
Rib eye roast* 4 to 6 lb. 350°F (177ºC) *160ºF (71ºC) 25-30
Tenderloin roast 2 to 3 lb. 400°F (204ºC) *160ºF (71ºC) 15-25
Poultry Turkey whole** 12 to 16 lb. 325°F (163ºC) 180°F (82ºC) 8-10
Turkey whole** 16 to 20 lb 325°F (163ºC) 180°F (82ºC) 10-15
Turkey whole** 20 to 24 lb. 325°F (163ºC) 180°F (82ºC) 12-16
Chicken 3 to 4 lb. 350°F-375°F (177ºC-191ºC) 180°F (82ºC) 12-16
Pork Ham roast, fresh 4 to 6 lb. 325°F (163ºC) 160°F (71ºC) 30-40
Shoulder blade roast 4 to 6 lb. 325°F (163ºC) 160°F (71ºC) 20-30
Loin 3 to 4 lb. 325°F (163ºC) 160°F (71ºC) 20-25
Pre-cooked ham 5 to 7 lb. 325°F (163ºC) 160°F (71ºC) 30-40
* The U.S. Department of Agriculture states, “Rare fresh beef is popular, but you should know that cooking it to only 140°F (60°C) means some
food poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide, USDA Rev. June 1985.) The lowest temperature recom-
mended by the USDA is 145°F (63°C) for medium rare fresh beef. For well done 170°F (77ºC)
** Stuffed turkey requires additional roasting time. Shield legs and breast with foil to prevent over browning and drying of the skin.
Figure 17: Roast with broil pan and insert and roasting
rack
Do not use the broiler pan without the insert. A roasting rack
(some models) can be used when convection roasting. Do not
cover the broil pan or insert with aluminum foil; the exposed
grease could ignite.
Roasting rack
Insert
Broil pan
CAUTION
To prevent food from contacting the broil element and to prevent
grease splattering, do not use the roasting rack when broiling.
Figure 18: Roast with broil pan and insert
WARNING
23
SETTING OVEN CONTROLS
Using the Broil Feature
Use the broil feature to cook meats requiring direct expo-
sure to radiant heat for optimum browning results.
To set broil:
1. Arrange oven racks while oven is cool.
2. Turn the mode selector knob to broil. The corre-
sponding indicator light will flash.
3. Turn the temperature selector knob to broil. The
indicator light will turn on and remain lit. For optimum
browning results, preheat oven for 2 minutes before
adding food.
4. Place the broiler pan on the rack. Be sure to center the
broiler pan directly under the broiler element. Broil with
door open to the stop position (
Figure 20). Always pull
the oven rack out to the stop position before turning or
removing food.
5. Turn the temperature and the selector knobs to OFF
when broiling is complete or to cancel broil
.
Recommended Broiling Times
Depending on the type, the thickness, and the desired
doneness of meat, it might be necessary to increase or
decrease suggested broiling times or adjust the broiling pan
to different rack positions. If a broiler pan and insert are not
supplied with this appliance, they may be purchased from
frigidaire.com.
Table 3: Broiling Suggestions
Always use pot holders or oven mitts when working with a
hot oven. When broiling, the oven interior, oven racks and
cooktop will become hot enough to cause burns. Do not
use the broiler pan without the insert. The insert is slotted
and allows the grease to drain away from the meat and
the high heat of the broiler into the broiler pan. Do not
cover the broil pan or insert with aluminum foil; the
exposed grease could ignite.
If an oven fire occurs, close the oven door. If the fire
continues, throw baking soda on the fire or use a fire
extinguisher. Do not put water or flour on the fire. Flour
can be explosive; water can cause a grease fire to spread
possibly causing personal injury.To prevent grease splat
-
tering, use the broil pan and insert when broiling
Figure 19: Rack positions (L); and broil pan and insert (R)
CAUTION
WARNING
1
5
7
6
4
3
2
Figure 20: Door open to broil stop position
Food Rack Position Temperature
Cook time (minutes)
1st side 2nd side
Internal
Temperature
Doneness
Steak 1” thick 6th or 7th* 550F (288ºC) 6 4 145ºF (63ºC) Medium*
Steak 1” thick 6th or 7th* 550F (288ºC) 8 7 170°F (77ºC) Well
Pork Chops 3/4” thick 6th 550F (288ºC) 8 6 170°F (77ºC) Well
Chicken bone-in 5th 550F (288ºC) 20 10 170°F (77ºC) Well
Chicken boneless 5th 550F (288ºC) 8 6 170°F (77ºC) Well
Fish 4th 550F (288ºC) 13 n/a 170°F (77ºC) Well
Shrimp 4th 550F (288ºC) 5 n/a 170°F (77ºC) Well
Hamburger 1” thick 7th* 550F (288ºC) 5 5 135°F (57°C) Rare**
Hamburger 1” thick 7th* 550F (288ºC) 9 7 145ºF (63ºC) Medium
Hamburger 1” thick 7th* 550F (288ºC) 10 8 170°F (77ºC) Well
*Use offset rack in top position. The U.S. Department of Agriculture states, **Rare fresh beef is popular, but you should know that cooking it to only 140°F (60°C)
means some food poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide, USDA Rev. June 1985.) The lowest temperature recommended
by the USDA is 145°F (63°C) for medium rare fresh beef. For well done 170°F (77ºC). All cook times shown are after 2 minutes of preheating.
24
SETTING OVEN CONTROLS
Meat Probe
Use the probe feature for best results when cooking foods
such as roasts, hams or poultry, using a probe to check
internal temperature is the safest method to ensure properly
cooked food. Before using the meat probe read the
important information listed here:
Proper placement of probe in food.
• Insert the probe so that the probe tip rests inside the
center of the thickest part of meat or food (
Figure 21).
For best results, do not allow the probe to contact bone,
fat, gristle, or the cookware.
• For bone-in ham or lamb, insert the probe into the
center of lowest large muscle or joint.
• For meatloaf or casseroles, insert the probe into center
of food.
• When cooking fish, insert meat probe just above the gill.
• For whole poultry or turkey, fully insert the probe into the
thickest part of the breast.
To set probe:
1. Insert the probe into the food. Place prepared food on
the desired oven rack position and slide into the oven.
2. Plug the connector end of the probe into the probe
receptacle while the oven is still cool. The receptacle is
located on the upper left front oven cavity wall.
• The probe feature must be set before setting the
cooking mode and oven temperature.
• If a timer is running when the meat probe is plugged
in, the control will sound a triple beep once and the
timer will keep running. The timer must be canceled
before the probe temperature can be set.
• If the meat probe is unplugged during cooking
function, or plugged in during BROIL, the oven will
stop cooking and turn off.
• If the meat probe is plugged in while the oven is in a
function that allows for the meat probe, the control will
sound a triple beep indicating that the meat probe is
not allowed to be plugged in while the oven is
running. After the alert, the oven will continue to cook
to the set oven temperature.
• If no cooking mode is selected within 30 seconds of
setting the target temperature, the oven mode
indicator light will stop blinking. The display will
continue to show the meat probe settings until an
allowable cooking cycle is selected.
• When the meat probe is set correctly, the control will
signal an alert when the internal food temperature
reaches the desired set target temperature. When
active, the internal food temperature is visible in the
display during the cooking process. This eliminates
any guesswork or the need to open the oven door to
check the thermometer.
Note: If the meat probe is plugged while the oven is in a
function which allows probe cooking, it may be set the
following way:
1. Cancel the active cooking function. The display will
show the meat probe icon and temperature 000°.
2. The meat probe temperature can now be set and the
control will sound an acceptance chime. The oven
mode indicator light will blink until an allowable
cooking function is selected.
IMPORTANT
Figure 21: Placing probe in poultry
handle
probe
cable
probe
sensor
handle
receptacle
probe
connector
25
SETTING OVEN CONTROLS
Meat Probe (cont’d)
3. When the probe is inserted, an acceptance tone will
sound,
the probe icon appears in the display (See
Figure 22). Close the oven door.
4. Press the + key to set the desired probe temperature
between 140°F and 210°F. If no selection is made
within 10 seconds, the control will automatically set the
default temperature of 170°F and the display will sound
an acceptance chime.
Note: The probe must be fully set before setting the oven
mode and temperature mode.
5. Set the oven mode to POWERPLUS PREHEAT,
BAKE, CONVECT BAKE, or CONVECT ROAST.
6. Set the oven temp control to the desired cooking
temperature.The oven will begin heating.
7. During the cooking process, an up arrow and the
current meat probe temperature will appear in the
display until the meat probe target temperature is
reached.
8. When 75% of the target temperature is reached, the
control will chime and a CHECK FOOD reminder will
appear in the display. CHECK FOOD will remain in the
display and continue to chime every 60 seconds for five
minutes or until the oven door is open.
9. Once the target temperature of the food is reached, the
control will chime to signal the end of cooking. At this
time the
will turn off and the display will show the
FOOD READY and OVEN WARM messages.
Trailing Keep Warm with Meat Probe
When the meat probe reaches the target temperature, the
oven will automatically switch to keep warm (170°F) and
remain on for up to 3 hours before turning off automatically.
The display will continue to show the meat probe tempera
-
ture until either keep warm is canceled or by disconnecting
the meat probe from the receptacle. Once turned off, the
probe icon and temperature will fade from the display.
Important: If the meat probe temperature should exceed
the maximum allowable temperature, the oven control will
beep and HOT will appear in the display for 40 seconds to
notify that the probe temperature is too high.
Setting Keep Warm
Keep Warm maintains a temperature of 170°F (77°C) for
keeping oven baked foods at serving temperature until
canceled. The feature may be used with BAKE, CONVECT
BAKE, CONVECT ROAST, and POWERPLUS PREHEAT.
Keep warm tips:
• Always start with hot food. Do not use the keep warm
feature to heat cold food.
• Food in heat-safe glass and glass ceramic containers
may need higher temperature settings compared to
food in regular containers. Avoid repeated openings of
the oven, it will allow hot air to escape and the food to
cool.
• Aluminum foil may be used to cover food to increase
moisture content.
To set keep warm:
1. Arrange interior oven racks and place food in oven.
2. Turn the oven mode selector to BAKE, CONVECT
BAKE, CONVECT ROAST, or POWERPLUS
PREHEAT.
3. Set the oven temperature selector to KEEP WARM.
4. The indicator light will blink and then an acceptance
chime will sound.
5. The preheat indicator light will turn on and stay on until
the oven reaches the keep warm temperature of 170°
F.
Figure 22: Probe inserted and ready to set temperature
26
SETTING OVEN CONTROLS
Setting the Sabbath Feature
This appliance provides special settings for
use when observing the Jewish Sabbath/
Holidays. For further assistance, guidelines
for proper usage, and a complete list of
models with the Sabbath feature, please
visit the web at www.star-k.org.
Sabbath mode disables all audible tones or visual display
changes on the oven control. The Sabbath feature may only
be used with the bake function. Once the oven is properly
set using bake with the Sabbath feature active, the oven will
remain on until cancelled. The Sabbath feature overrides
the factory preset 6 hour energy saving feature.
Important: The oven light will turn off during the Sabbath
mode and remain off until the Sabbath mode is canceled.
before activating the Sabbath feature.
The meat probe feature is not available in Sabbath mode.
To set the oven for baking and activate the Sabbath
feature:
1. Be sure the clock is set to the correct time of day. Place
food in the oven.
2. Turn the oven mode selector to BAKE.
3. Turn the oven temperature selector to the desired bake
temperature.
4. An acceptance chime will sound, the oven will start
heating and the LED lights will stop blinking and remain
on.
5. To enter Sabbath mode press and hold the oven light
key and the clock key at the same time for about 3
seconds. The control will sound an acceptance chime
and SAB will appear in the display below the time of
day.
Note: During the Sabbath mode all normal sounds of the
oven control will be turned off. However the control will
allow any sounds associated with alarms.
During Sabbath operation the oven temperature may be
changed by adjusting the oven temperature selector. The
oven will remain in Sabbath until canceled by the user.
To turn off the Sabbath feature:
1. Turning the oven mode selector and the oven tempera-
ture selector to the OFF position will cancel BAKE only.
2. To turn off the Sabbath feature press and hold both the
oven light key and the clock key for about 3 seconds.
3. The acceptance chime will sound and SAB will
disappear from the display. Be sure both oven selectors
are returned to the OFF positions
Power failure while using Sabbath feature:
Should you experience a power failure or interruption, the
oven will shut off. When power is returned, SF (Sabbath
Failure) will be displayed, and the oven will not turn back on
automatically. If your food was nearly fully cooked, you may
allow the trapped heat in the oven to finish the cooking
process. Otherwise, you should remove the food when the
power failure occurs because you may only start the oven
once during the Sabbath/Jewish holidays.
After the Sabbath observance turn off the Sabbath feature.
Press and hold both the oven light and clock keys for at
least 3 seconds. SAb will disappear from the display, and
the oven may be used with all normal functions.
Food Poisoning Hazard. Do not let food sit for more than one
hour before or after cooking. Doing so can result in food
poisoning or sickness. Foods that can easily spoil such as milk,
eggs, fish, meat, or poultry should be chilled in the refrigerator
first. Even when chilled, they should not stand in the oven for
more than 1 hour before cooking begins and should be removed
promptly when finished cooking.
WARNING
Figure 23: Oven display showing Sabbath mode
27
SETTING OVEN CONTROLS
Adjusting the Oven Temperature
The temperature in the oven is pre-set at the factory. When
first using the oven, be sure to follow recipe times and
temperatures.
If you think the oven is cooking too hot or too cool for the
temperature you select, you can adjust the actual oven
temperature to be more or less than what is displayed by
accessing the UPO (User Programmable Offset).
Before adjusting, test a recipe by using a temperature
setting higher or lower than the recommended temperature.
The baking results should help you to decide how much of
an adjustment is needed.
Important: Before making a temperature adjustment, make
sure both the oven mode and oven temperature control
knobs are in the OFF position.
To adjust the oven temperature:
1. When the oven is idle, press and hold both the light icon
and the clock icon at the same time for a few seconds
until the display sounds an acceptance chime. AUd
should appear in the display.
2. Press the + key in the upper part of the display until
UPO appears and the default setting of
0° (or the last
offset temperature) is showing.
3. Using the + or - key in the bottom of the display, press
until the desired temperature change (offset) is
reached. The display will change
± 5° with each key
press to a maximum of
+ 35° or a minimum of – 35°F.
If a lower temperature offset is desired, press the – key in
the bottom of the display until the desired lower tempera
-
ture appears.
Once the new offset appears in the display, release the key
and the control will accept the change.
4. To return the display to normal, press and hold both the
oven light icon and the clock icon at the same time
until an acceptance chime sounds. The display will
return to show the time of day.
Do not use oven thermometers such as those found in
grocery stores to check the temperature settings inside
your oven. These oven thermometers may vary as much
as 20 to 40 degrees from actual temperatures.
Figure 24: UPO shown at default setting
NOTE
Figure 25: UPO shown 10° higher than default
Figure 26: UPO shown 10° lower than default
Changing the UPO will not affect the broil or self clean
temperatures.
NOTE
28
SETTING OVEN CONTROLS
Self Cleaning
A self cleaning oven cleans itself with temperatures well
above normal cooking temperatures which eliminate soils
completely or reduces them to a fine powdered ash you can
wipe away with a damp cloth.
While the oven is in operation, the oven heats to tempera-
ture much higher than those used in normal cooking.
Sounds of metal expansion and contraction are normal.
Odor is also normal because the food soil is being removed.
Smoke may appear through the oven vent.
Adhere to the following self clean precautions:
• Do not use oven cleaners or oven protective coatings
in or around any part of the oven interior.
• Do not clean the oven door gasket (Figure 27). The
woven material of the oven door gasket is essential
for a good seal. Care should be taken not to rub,
damage, or remove the gasket.
• Do not use any cleaning materials on the oven door
gasket. Doing so could cause damage.
• Remove the broiler pan and insert, all utensils, and
any aluminum foil. These items cannot withstand high
cleaning temperatures and will melt.
• Completely remove all oven racks and any accesso-
ries. If the oven racks are not removed, they will lose
their special coating properties and no longer slide in
and out of the oven cavity easily.
• Remove any excessive spills. Any spills on the oven
bottom should be wiped up and removed before
starting the self cleaning cycle. To clean, use hot,
soapy water and a cloth. Large spills can cause
heavy smoke or fire when subjected to high tempera
-
tures.
• Do not allow food spills with a high sugar or acid
content (such as milk, tomatoes, sauerkraut, fruit
juices, or pie filling) to remain on the surface as they
may leave a dull spot even after cleaning.
• Clean any soil from the oven frame, the door liner
outside the oven door gasket, and the small area at
the front center of the oven bottom. These areas heat
sufficiently to burn soil on. Clean with soap and water.
These areas are shown in white (
Figure 27).
IMPORTANT
During the self cleaning cycle, the outside of the range
can become very hot to the touch. Do not leave small
children unattended near the appliance.
The health of some birds is extremely sensitive to the
fumes given off during the self cleaning cycle of any
range. Move birds to another well ventilated room.
Do not force the oven door open. This can damage the
automatic door locking system. Use caution when
opening the door after the self cleaning cycle is complete.
The oven may still be very hot.
Figure 27: Clean around the oven door gasket
To avoid possible burns, use care when opening the oven
door after the self-cleaning cycle. Stand to the side of the
oven when opening the door to allow hot air or steam to
escape.
Do not line the oven walls, racks, bottom, or any other
part of the range with aluminum foil. Doing so will destroy
heat distribution, produce poor baking results, and cause
permanent damage to the oven interior (aluminum foil will
melt to the interior surface of the oven).
CAUTION
CAUTION
29
SETTING OVEN CONTROLS
Setting Self Clean
If you are planning to use the oven directly after a self clean
cycle, remember to allow time for the oven to cool down
and the oven door to unlock. This normally takes about one
hour. A 3 hour self clean cycle will actually take about 4
hours to complete.
It is recommended to use a 2 hour self clean cycle for light
soils, a 3 hour cycle for average soils, and a 4 hour cycle for
heavy soils.
To set the controls for a 3 hour self clean cycle and
shut off automatically:
1. Turn both the oven mode and oven temperature
selectors to CLEAN. The display will show a 3 hour
time (normal clean) and the
– and + keys.
2. If a 3 hour clean is desired, the control will accept the
time within 3 seconds. However, the user may select a
2 or 4 hour clean by using the – or + keys to change to
the desired clean time and then allow the control to
accept the change.
Once the control accepts the clean time the display will
flash a reminder for the user to REMOVE RACKS.
The
REMOVE RACKS notification will flash for a few seconds
prompting the user to remove all oven racks. If the oven
door is opened as this time the display will show CLO to
indicate that the door must be closed before the clean cycle
can begin. If the door remains open for more than 3
minutes, the clean function will be canceled.
When the oven is set to run the clean cycle, the motor door
lock will begin locking the oven door. Do not open the oven
door while the lock motor is running or when any locking
indicators or displays are showing. The oven door is
completely locked in about 15 seconds.
Figure 28: Oven set for 3 hour clean
Figure 29: Setting 2 hour clean
Figure 30: Setting 4 hour clean
Figure 31: Display prompting user to remove racks
Figure 32: Message of open door that must be closed
before oven can begin the clean cycle
30
SETTING OVEN CONTROLS
3. Once the door is closed the time of day will be visible
along with the selected clean time and the door lock
icon will be blinking in the display.
4. During the clean cycle the time of day remains in the
display and the time remaining in the clean cycle will
also be active.(
Figure 33)
5. When the clean cycle ends the oven will be too hot for
the door to unlock until the oven cools to a safe temper
-
ature. This may take up to an hour. During this time the
display will show Hot along with the door lock icon.
6. At this point CLn will appear in the display and the lock
icon will blink to signal the end of the clean cycle with a
chime. The internal oven temperature will still be hot
enough to cause burns.
Caution: Be careful when opening and stand to the side to
allow any steam and heat to escape.
Note: Once the clean cycle ends the oven will not be
available for another clean for 4 hours.
To cancel a self clean before it ends:
Turn both the oven selector knob and the oven temperature
knob to the OFF position.
Figure 33: Clean cycle in progress
Figure 34: Hot oven after clean with door still locked
Figure 35: Clean lock icon blinks as door unlocks
31
Cleaning Various Parts of Your Oven
Before cleaning any part of the oven, be sure all controls are turned off and the oven is cool. Remove spills and any
heavy soiling as soon as possible. Regular cleaning will reduce the number of major cleanings later.
Surface Type Recommendation
Aluminum and Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.
Painted and plastic control knobs
Painted body parts
Painted decorative trims
Control panel
Control knobs
Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of
vinegar and water. Follow by rinsing the area with clean water; dry and polish with a
soft cloth. Glass cleaners may be used if sprayed on a soft cloth first. Do not spray
liquids directly on the oven control and display area.
Do not use large amounts of water on the control panel - excess water on the control
area may cause damage to the appliance. Do not use other liquid cleaners, abrasive
cleaners, scouring pads, or paper towels - they will damage the finish.
To remove control knobs, turn to the OFF position; grasp firmly and pull straight off
the shaft. To replace knobs after cleaning, line up the knob markings with the
matching markings on the control panel; then push the knobs into place. On the
single burner knobs line up the OFF markings before replacing the knobs.
Stainless Steel
Smudge Proof™ Stainless Steel
(some models)
Your oven finish may be made with stainless steel (some models). Clean the
stainless with warm soapy water using a clean sponge or cloth. Rinse with clean
water and dry with a soft clean cloth.
Do not use cleaners containing any abrasive, chlorides, chlorine, or ammonia. It is
recommended to use mild dish soap and water or a 50/50 solution of water and
vinegar.
Porcelain enamel broiler pan and
insert (available by mail order)
Oven interior (Porcelain)
Door liner and body parts
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1
solution of clear water and ammonia. If necessary, cover difficult spots with an
ammonia-soaked paper towel for 30 to 40 minutes.
Rinse with clean water and a damp cloth, and then scrub with a soap-filled scouring
pad. Rinse and wipe dry with a clean cloth. Remove all cleaners or the porcelain may
become damaged during future heating.
Ceramic Cooktop For special care instructions see “Cooktop Maintenance” on page 32.
Oven racks Oven racks must be removed from oven cavity. Clean by using a mild, abrasive
cleaner following manufacturer’s instructions. Rinse with clean water and dry.
Oven door Use soap and water to thoroughly clean the top, sides, and front of the oven door.
Rinse well. You may use a glass cleaner on the outside glass of the door. Do not
immerse the door in water. Do not spray or allow water or the glass cleaner to enter
the door vents. Do not use oven cleaners, cleaning powders, or any harsh abrasive
cleaning materials on the outside of the oven door.
Do not clean the oven door gasket. On self-clean models, the oven door gasket is
made of a woven material which is essential for a good seal. Care should be taken
not to rub, damage, or remove this gasket.
CARE AND CLEANING
32
CARE AND CLEANING

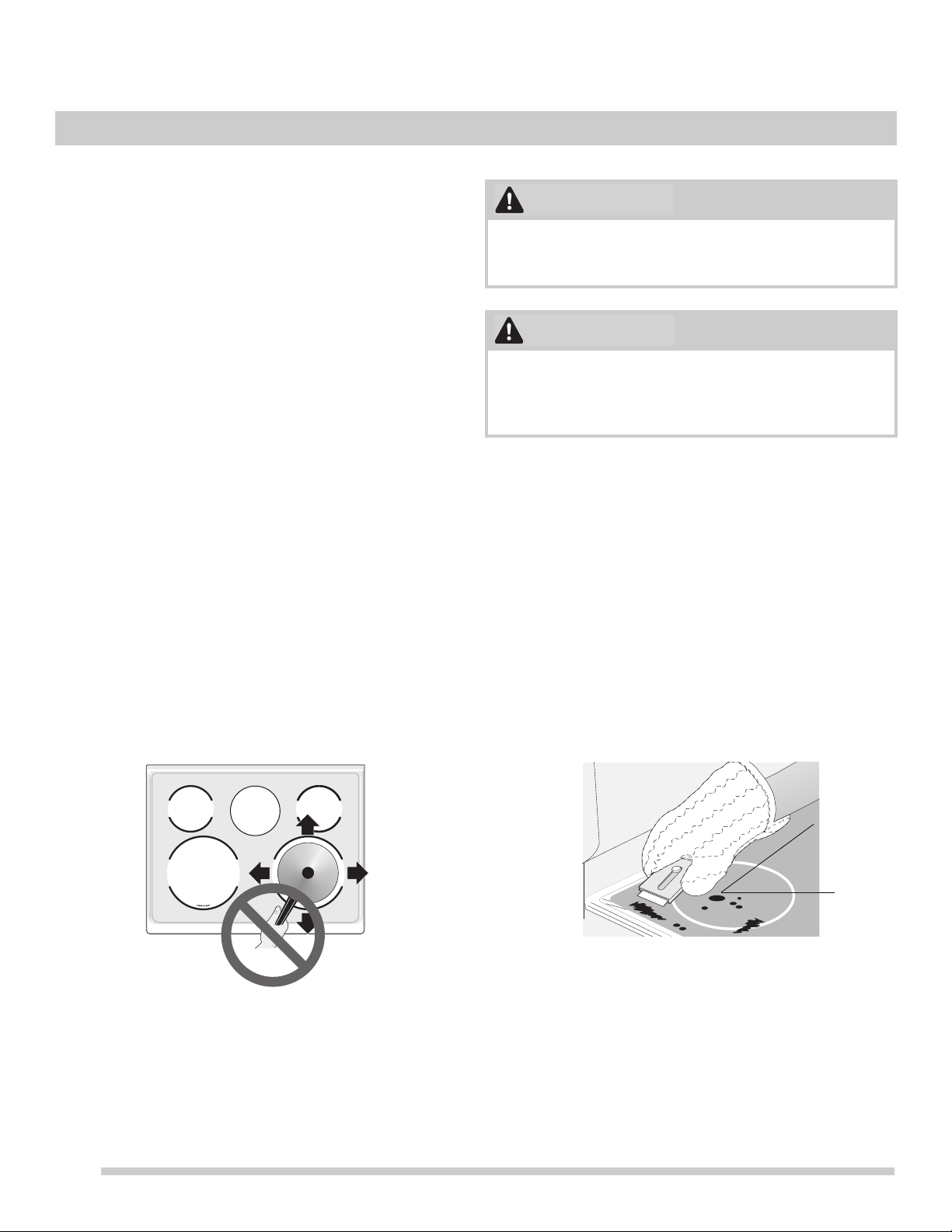

Cooktop Maintenance
Consistent and proper cleaning is essential to maintaining
your ceramic glass cooktop.
Prior to using your cooktop for the first time, apply the
recommended CookTop® Cleaning Creme to the ceramic
surface. Buff with a non-abrasive cloth or sponge. This will
make cleaning easier when soiled from cooking. The
special cooktop cleaning cream leaves a protective finish
on the glass to help prevent scratches and abrasions.
Sliding aluminum or copper clad bottom pans on the
cooktop can cause metal markings on the cooktop surface.
These marks should be removed immediately after the
cooktop has cooled using the cooktop cleaning cream.
Metal marks can become permanent if not removed prior to
future use.
Cookware (cast iron, metal, ceramic or glass) with rough
bottoms can mark or scratch the cooktop surface.
Do not:
• Slide anything metal or glass across the cooktop.
• Use cookware with dirt or dirt build up on bottom;
replace with clean cookware before using.
• Use your cooktop as a cutting board or work surface in
the kitchen.
• Cook foods directly on the cooktop surface without a
pan.
• Drop heavy or hard objects on the ceramic glass
cooktop, they may cause it to crack.
Cooktop Cleaning
For light to moderate soil:
Apply a few drops of CookTop® Cleaning Creme directly to
the cooktop. Use a paper towel or use a non-abrasive cloth
or sponge to clean the entire cooktop surface. Make sure
the cooktop is cleaned thoroughly, leaving no residue.
For heavy, burned on soil:
Apply a few drops of CookTop® Cleaning Creme directly to
the soiled area. Rub the soiled area using a non-abrasive
cleaning tool, applying pressure as needed. Do not use the
pad you use to clean the cooktop for any other purpose.
If soils remain, carefully scrape soils with a metal razor
blade scraper, holding scraper at a 30 degree angle to the
surface. Remove loosened soils with cooktop cleaning
cream and buff surface clean.
Figure 36: Cooktop care
Do not use a cooktop cleaner on a hot cooktop. The
fumes can be hazardous to your health, and can chemi
-
cally damage the ceramic-glass surface.
Before cleaning the cooktop, be sure the controls are
turned to OFF and the cooktop is cool. The glass surface
could be hot and burns may occur if the glass surface is
touched before it has cooled sufficiently.
Figure 37: Cooktop cleaning
WARNING
CAUTION
30°
33
CARE AND CLEANING

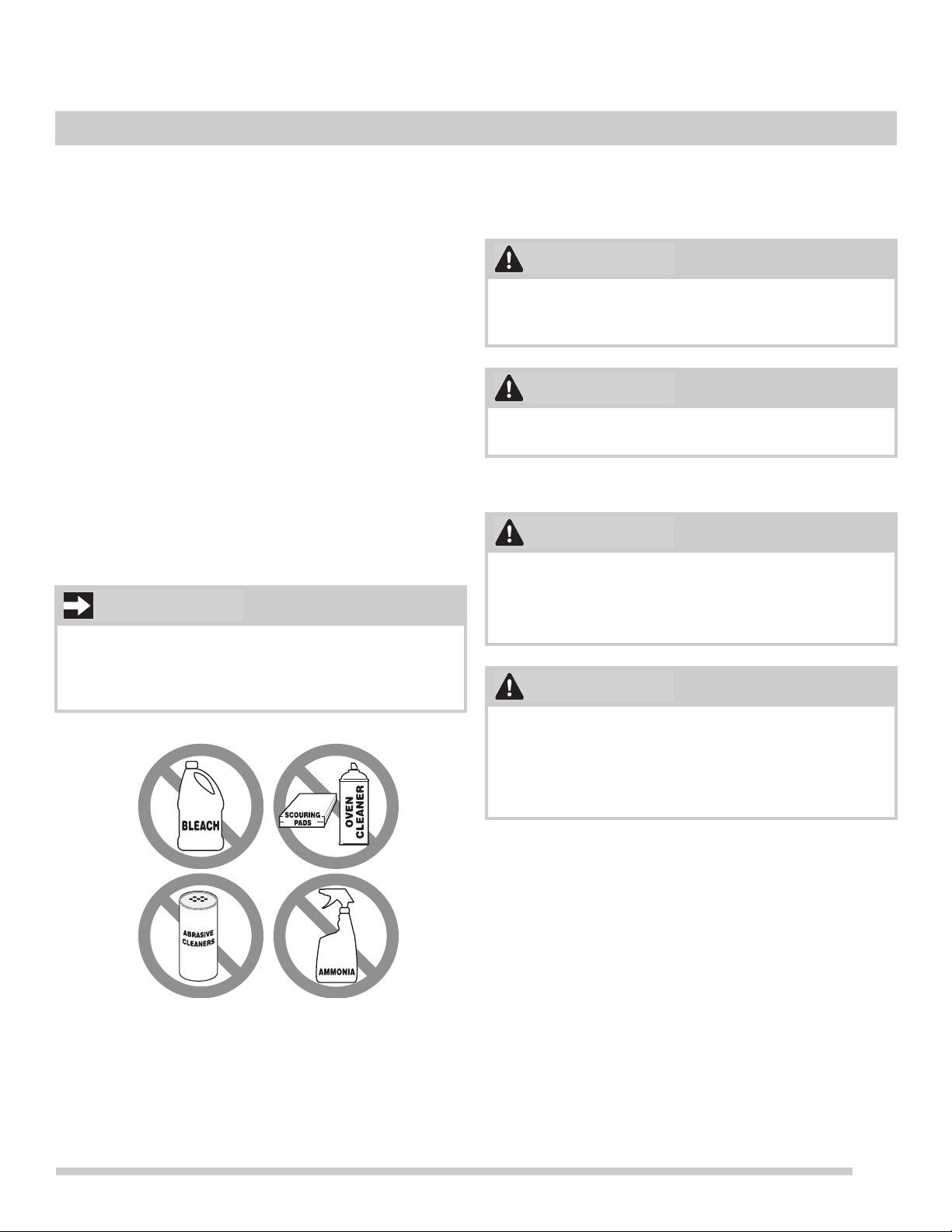

Cooktop Maintenance (cont’d)
Plastic or foods with a high sugar content need be removed
immediately if spilled or melted onto the ceramic cooktop
surface. Permanent damage (such as pitting of the cooktop
surface) may occur if not removed immediately. After
turning the surface elements off, use a razor blade scraper
or a metal spatula with a mitt and scrape the soil from the
hot surface (as illustrated). Allow the cooktop to cool, and
use the same method for heavy or burned on soils.
Do not use the following on the cooktop:
• Do not use abrasive cleaners and scouring pads, such
as metal and some nylon pads. They may scratch the
cooktop, making it more difficult to clean.
• Do not use harsh cleaners, such as chlorine bleach,
ammonia or oven cleaners, as they may etch or discolor
the cooktop.
• Do not use dirty sponges, cloths or paper towels, as
they can leave soil or lint on the cooktop which can burn
and cause discoloration.
General Cleaning
Refer to “Cleaning Various Parts of Your Oven” on page 31
for more detailed information about cleaning specific parts
of the range.
Aluminum Foil and Utensils
• Aluminum foil - Use of aluminum foil on a hot cooktop
can damage the cooktop. Do not use thin aluminum
cooking utensils or allow aluminum foil to touch the
surface elements under any circumstances.
• Aluminum utensils - The melting point of aluminum is
much lower than that of other metals. Care must be
taken when aluminum pots or pans are used on the
cooktop. If aluminum pans are allowed to boil dry when
using the cooktop, not only will the utensil be damaged
or destroyed, but it may fuse to, break, or mark the
ceramic glass surface, permanently damaging the
cooktop surface.
Damage to the ceramic glass cooktop may occur if you
use an abrasive type cleaning pad. Only use cleaning
products that have been specifically designed for ceramic
glass cooktops.
Figure 38: Cleaning products to avoid
IMPORTANT
Before manually cleaning any part of the range, be sure
all controls are turned off and the range is cool. The range
may be hot and can cause burns.
Ammonia must be rinsed before operating the oven.
Provide adequate ventilation.
Never cover any slots, holes, or passages in the
oven bottom or cover an entire oven rack with
materials such as aluminum foil. Aluminum foil
linings may trap heat, causing a fire hazard.
Protective Liners — Do not use aluminum foil to line
the oven bottom. Only use aluminum foil as recom
-
mended in this manual. Improper installation of
these liners may result in risk of electric shock, or
fire.
CAUTION
CAUTION
WARNING
WARNING
34
CARE AND CLEANING

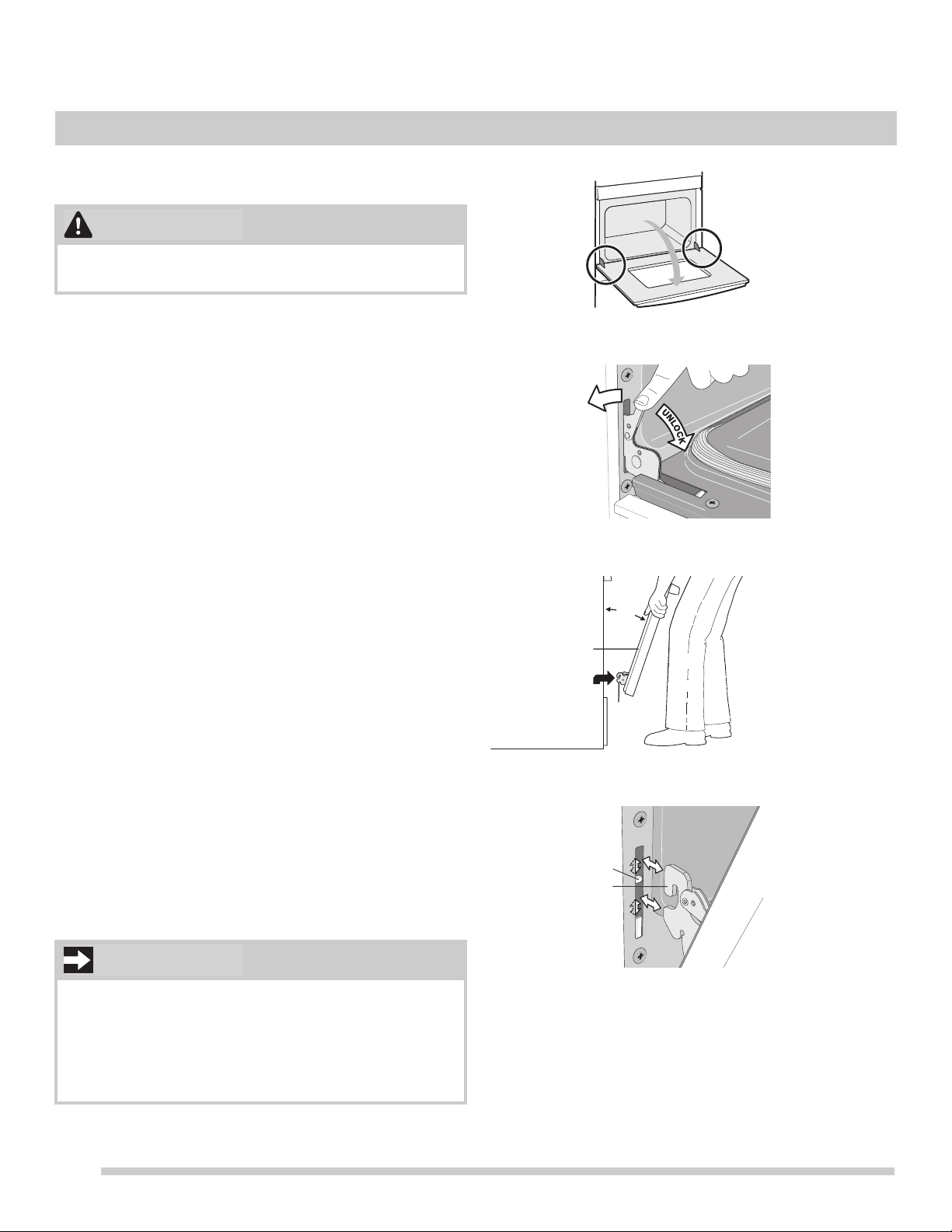

Removing and Replacing the Oven Door
To remove oven door:
1. Open oven door completely, horizontal with floor (See
Figure 39).
2. Pull the door hinge locks on both left and right door
hinges down from the oven frame completely towards
the oven door (See
Figure 40). A tool such as a small
flat-blade screwdriver may be required.
3. Firmly grasp both sides of oven door along the door
sides. Do not use the oven door handle (See
Figure 41).
4. Close the door to approximately 10 degrees from the
door frame (See
Figure 41).
5. Lift the oven door hinge arms over the roller pins
located on each side of the oven frame (See
Figure 42).
To replace oven door:
1. Firmly grasp both sides of oven door along the door
sides. Do not use the oven door handle (See
Figure 41).
2. Holding the oven door at the same angle as the removal
position, seat the hook of the hinge arm over the roller
pins located on each side of the oven door frame (See
Figure 41 and Figure 42). The hook of the hinge arms
must be fully seated onto the roller pins.
3. Fully open the oven door, horizontal with floor (See
Figure 39).
4. Push the door hinge locks up towards and into the oven
frame on both left and right oven door hinges to the
locked position (See
Figure 40).
5. Close the oven door.
The door is heavy. For safe, temporary storage, lay the
door flat with the inside of the door facing down.
Special door care instructions - Most oven doors contain
glass that can break. Do not close the oven door until all
the oven racks are fully in place. Do not hit the glass with
pots, pans, or any other object. Scratching, hitting, jarring,
or stressing the glass may weaken its structure causing
an increased risk of breakage at a later time.
CAUTION
IMPORTANT
Figure 39: Door hinge location
Figure 40: Door hinge locks
Figure 41: Holding door for removal
Figure 42: Replacement and location of hinge arm and
roller pin
Oven door
hinge
locations
L
O
C
K
about
10°
hinge
oven
door
roller
pin
hinge
arm
35
CARE AND CLEANING
Replacing the Oven Light
Replacing the oven interior light bulb:
The interior oven light is located at the rear of the oven
cavity and are covered with a glass shield. The glass shield
must be in place whenever the oven is in use (
Figure 43).
1. Turn electrical power off at the main source or unplug
the appliance.
2. Remove interior oven light shield after removing the
wire holder by carefully moving the wire to the side of
the glass shield. The tension from the wire holds the
glass shield in place.
3. Pull the shield straight out. Do not twist or turn.
4. Replace bulb with a new appliance bulb.
5. Replace glass oven light shield. Replace wire holder.
6. Turn power back on again at the main source (or plug
the appliance back in).
7. Be sure to reset the time of day on the clock.
Be sure the oven is unplugged and all parts are cool
before replacing oven light.
Figure 43: Oven light protected by glass shield
CAUTION
wire
holder
glass
shield
36
Oven Baking
For best cooking results, heat the oven before baking cookies, breads, cakes, pies, pastries, etc. There is no need to
preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a
product may vary slightly from your previously owned appliance.
Baking Problems and Solutions
Baking Problems Causes Corrections
Cookies and biscuits burn
on the bottom.
• Cookies and biscuits put
into oven before preheating
time is completed.
• Oven rack is overcrowded.
• Dark pans absorbs heat too
fast.
• Allow oven to preheat to desired temperature before
placing food in oven.
• Choose pan sizes that will permit 2” to 4” of air space
(5.1 cm o 10.2 cm) on all sides when placed in the
oven.
• Use a medium weight baking sheet.
Cakes too dark on top or
bottom
• Cakes put in oven before
preheating time is
completed.
• Rack position too high or
too low, and oven too hot.
• Allow oven to preheat to the selected temperature
before placing food in the oven.
• Use proper rack position for baking needs.
• Set oven temperature 25°F (13°C) lower than recom-
mended.
Cakes not done in center • Oven too hot.
• Incorrect pan size.
• Pan not centered in oven.
• Glass cookware slow heat
conductor.
• Set oven temperature 25°F (13°C) lower than recom-
mended.
• Use pan size suggested in recipe.
• Use proper rack position and place pan so there are 2”
to 4” (5.1 cm to 10.2 cm) of space on all sides of pan.
• Reduce temperature and increase cook time or use
shiny bakeware.
Cakes not level. • Oven not level.
• Pan too close to oven wall
or rack overcrowded.
• Pan warped.
• Oven light left on while
baking.
• Place a marked glass measuring cup filled with water
on the center of the oven rack. If the water level is
uneven, refer to the installation instructions for leveling
the oven.
• Do not leave oven light on while baking.
• Use proper rack position and place pan so there are 2”
to 4” (5.1 cm to 10.2 cm) of space on all sides of pan.
• Do not use pans that are dented or warped.
Foods not done when
cooking time is over.
• Oven too cool.
• Oven overcrowded.
• Oven door opened too
frequently.
• Set oven temperature 25°F (13°C) higher than
suggested and bake for the recommended time.
• Be sure to remove all pans from the oven except the
ones to be used for baking. Open oven door only after
shortest recommended baking time.
BEFORE YOU CALL
37
BEFORE YOU CALL
Solutions to Common Problems:
Before you call for service, review the following list. It may save you time and expense. Possible solutions are provided
with the problem listed:
Problem Solution
Poor baking results. Many factors effect baking results. Use proper oven rack position. Center food in the oven and
space pans to allow air to circulate. Preheat oven to the set temperature before placing food in
the oven. Try adjusting the recipe's recommended temperature or baking time. See “Adjusting
the Oven Temperature” on page 27 if you feel the oven is too hot or cold.
Flames inside oven or smoking from
oven vent.
Excessive spills in oven. Grease or food spilled onto oven bottom or oven cavity. Wipe up
excessive spills before starting oven. If flames or excessive smoke are present when using
broil, see
“Using the Broil Feature” on page 23.
Oven smokes excessively when
broiling.
Incorrect setting. Follow the “Using the Broil Feature” instructions on page 23.
Meat too close to the broil element. Reposition broil rack to provide proper clearance between
the meat and broil element. Remove excess fat from meat. Cut remaining fatty edges to
prevent curling, but do not cut into lean.
Grease build up on oven surfaces. Regular cleaning is necessary when broiling frequently.
Grease or food splatters will cause excessive smoking.
Flames inside oven or smoking from
oven vent.
Excessive spills in oven. Grease or food spilled onto oven bottom or oven cavity. Wipe up
excessive spills before starting oven. If flames or excessive smoke are present when using
broil, see “Using the Broil Feature” on page 23.
Self clean does not work. Oven control not set properly. See “Setting Self Clean” on page 29.
Oven racks discolored or do not slide
easily.
Oven racks left in oven cavity during self clean. Remove oven racks from oven cavity before
starting a self-clean cycle. Clean by using a mild abrasive cleaner following manufacturer's
instructions. Rinse with clean water, dry, and replace in oven.
Oven portion does not operate The time of day is not set. The oven clock must first be set in order to operate the oven. See
"Setting the Clock" on page 17.
Before setting the oven, both mode and temperature knobs should be set to OFF.
If the indicator lights above oven mode or oven temp selection knobs remain flashing, the oven
will not heat. Turn both knobs to OFF, wait 5-10 seconds, then set the oven mode and oven
temp again.
If the oven mode and oven temp combination is mismatched, the oven will not heat. For
example: bake mode with broil temperature, or clean mode with a cooking temperature. These
combinations will cause an error. Turn both knobs to OFF, wait 5-10 seconds, then set the oven
mode and oven temp again, with a correct mode and temperature. For example: broil mode
should have broil temperature selected; clean mode should have clean temperature selected.
Review the section of this manual for the cooking mode you wish to use.
Set both mode and temperature selection knobs to OFF when finished cooking.
Oven control panel beeps and
displays any F or E code error.
Oven control has detected a fault or error condition. To clear the error rotate the mode or
temperature selector to an ON position then back to OFF. Once the error code is cleared, try
the bake or broil function. If the F or E code error repeats, turn off the power to appliance, wait
5 minutes, and then repower appliance. Set clock with correct time of day. Try bake or broil
function again. If fault recurs, press the off key to clear.
Areas of discoloration with metallic
sheen on cooktop surface.
Mineral deposits from water and food. Remove using the recommended CookTop® Cleaning
Creme to the ceramic surface. Buff with a non-abrasive cloth or sponge
38
BEFORE YOU CALL
Soil not completely removed after
self clean.
Self clean was interrupted. Review instructions on “Self Cleaning” on page 28. Excessive spills
on oven bottom. Clean before starting self clean. Failure to clean soil from the oven frame, the
door liner outside the oven door gasket, and the small area at the front center of the oven
bottom. These areas are not in the self-cleaning area, but get hot enough to burn on residue.
Clean these areas before starting the self-cleaning cycle. Burned-on residue can be cleaned
with a stiff nylon brush and water or a nylon scrubber. Be careful not to damage the oven
gasket.
Oven light does not work. Be sure the oven light is secure in the socket. See “Replacing the Oven Light” on page 35.
Convection fan does not rotate. Oven door is open. Convection fan will turn off if oven door is opened when convection is
active. Close oven door.
Surface element is too hot or not hot
enough.
Incorrect surface control setting. Adjust power level setting.
Surface element does not heat or
does not heat evenly.
Be sure the correct surface control knob is turned on for element needed.
Lightweight or warped pans used. Use only flat, evenly balanced, medium or heavyweight
cookware. Flat pans heat better than warped pans. Cookware materials and weight of the
material affect heating. Heavy and medium-weight pans heat evenly. Because lightweight pans
heat unevenly, foods may burn easily.
Scratches or abrasions on cooktop
surface.
Coarse particles such as salt or hardened soils between cooktop and utensils can cause
scratches. Be sure cooktop surface and bottoms of utensils are clean before usage. Small
scratches do not affect cooking and will become less visible with time.
Cleaning materials not recommended for ceramic-glass cooktop have been used. Apply the
recommended CookTop® Cleaning Creme to the ceramic surface. Buff with a non-abrasive
cloth or sponge.
Cookware with rough bottom was used. Use smooth, flat-bottomed cookware.
Metal marks on the cooktop. Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on cooktop
surface. Apply the recommended CookTop® Cleaning Creme to the ceramic surface. Buff with
a non-abrasive cloth or sponge. For more information, see
“Cooktop Maintenance (cont’d)” on
page 33.
Brown streaks or specks on cooktop
surface.
Boil overs are cooked onto surface. Use razor blade scraper to remove soil. For more informa-
tion see “Cooktop Maintenance” on page 32.
Appliance is not level. Be sure floor is level, strong, and stable enough to adequately support range.
If floor is sagging or sloping, contact a carpenter to correct the situation.
Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust
leveling legs at base of appliance until the rack is level.
Kitchen cabinet alignment may make range appear not level. Be sure cabinets are square and
have sufficient room for appliance clearance.
Cannot move appliance easily.
Appliance must be accessible for
service.
Cabinets not square or are built in too tightly. Contact builder or installer to make appliance
accessible.
Carpet interferes with appliance. Provide sufficient space so appliance can be lifted over
carpet.
Entire appliance does not operate. Make sure power cord is plugged properly into outlet.
Electrical power outage. Check house lights to be sure. Call your local electric company for
service outage information.
39
Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove
to be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs,
handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR
OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT
BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL
EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED
WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE
LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp.
Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under
this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described
or illustrated are subject to change without notice.
If You Need
Service
Canada
1.800.265.8352
Electrolux Canada Corp
USA
1.800.944.9044
Electrolux Home Products, Inc.
WARRANTY
