2003 Sony Corporation
KDF-60XBR950
KDF-70XBR950
LCD Projection TV
HD-Monitor
Operating Instructions
4-097-520-12 (1)
LCD Projection TV KDF-60XBR950/KDF-70XBR950
KDF-70XBR950
4-097-520-12 (1)
Printed in U.S.A.
00USCOVER.fm Page 1 Tuesday, September 30, 2003 11:57 AM
2
WARNING
To prevent fire or shock hazard, do not
expose the LCD Projection TV to rain or
moisture.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION
To prevent electric shock, do not use this polarized AC
plug with an extension cord, receptacle or other outlet
unless the blades can be fully inserted to prevent blade
exposure.
Note on Caption Vision
This television receiver provides display of television
closed captioning in accordance with §15.119 of the FCC
rules.
Owner’s Record
The model and serial numbers are located at the rear of
the LCD Projection TV, below the Sony logo, on the
sticker, and also on the TV box (white label). Record
these numbers in the spaces provided below. Refer to
them whenever you call upon your Sony dealer regarding
this product.
Model No.
Serial No. ______________________
Note to CATV system installer
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building, as
close to the point of cable entry as practical.
Use of this television receiver for other than private
viewing of programs broadcast on UHF, VHF,
transmitted by cable companies or satellite for the
use of the general public may require authorization
from the broadcaster/cable company and/or
program owner.
NOTIFICATION
This equipment has been tested and found to comply with
the limits for a Class B digital device pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference with radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
❑ Reorient or relocate the receiving antennas.
❑ Increase the separation between the equipment and
receiver.
❑ Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
❑ Consult the dealer or an experienced radio/TV
technician for help.

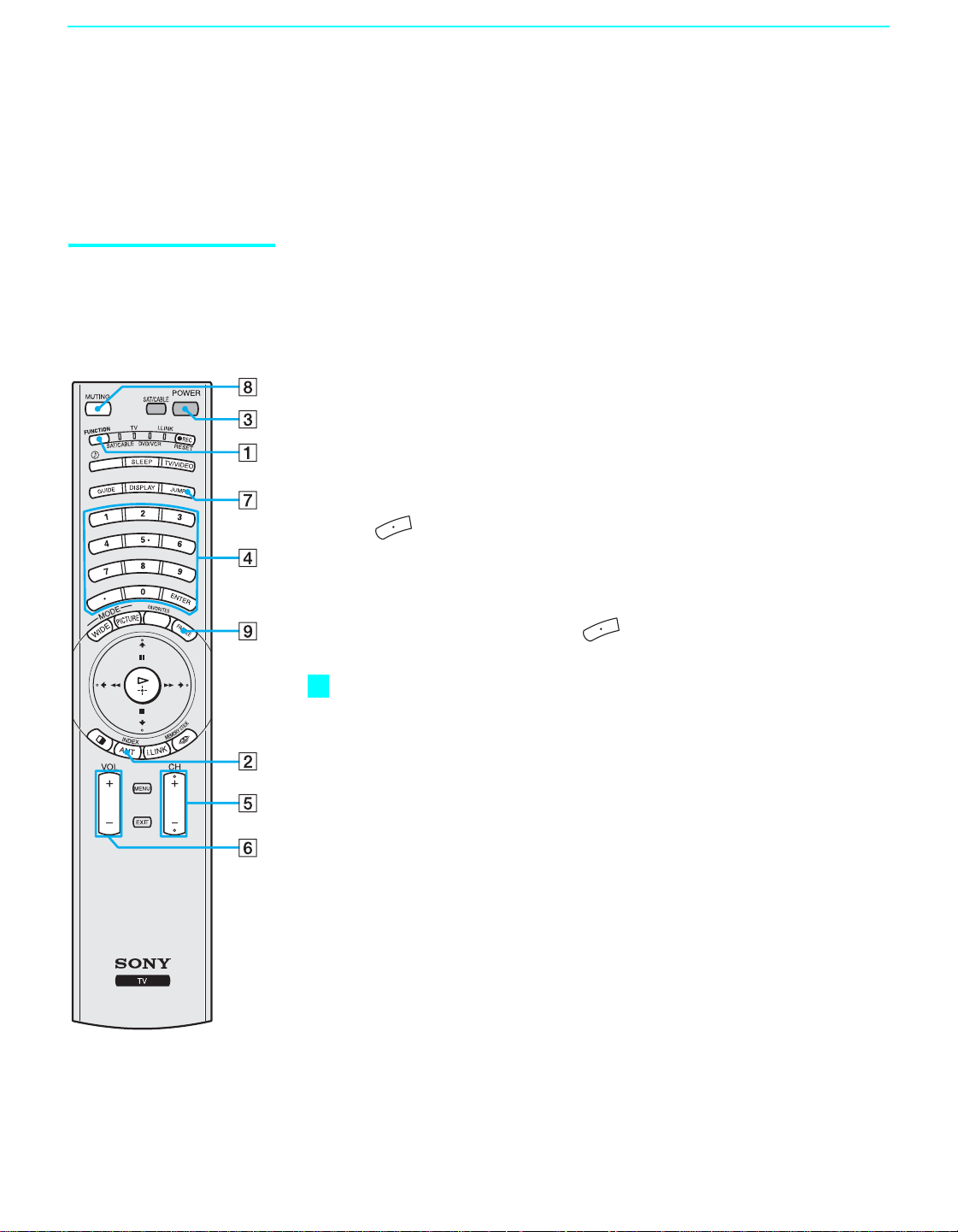

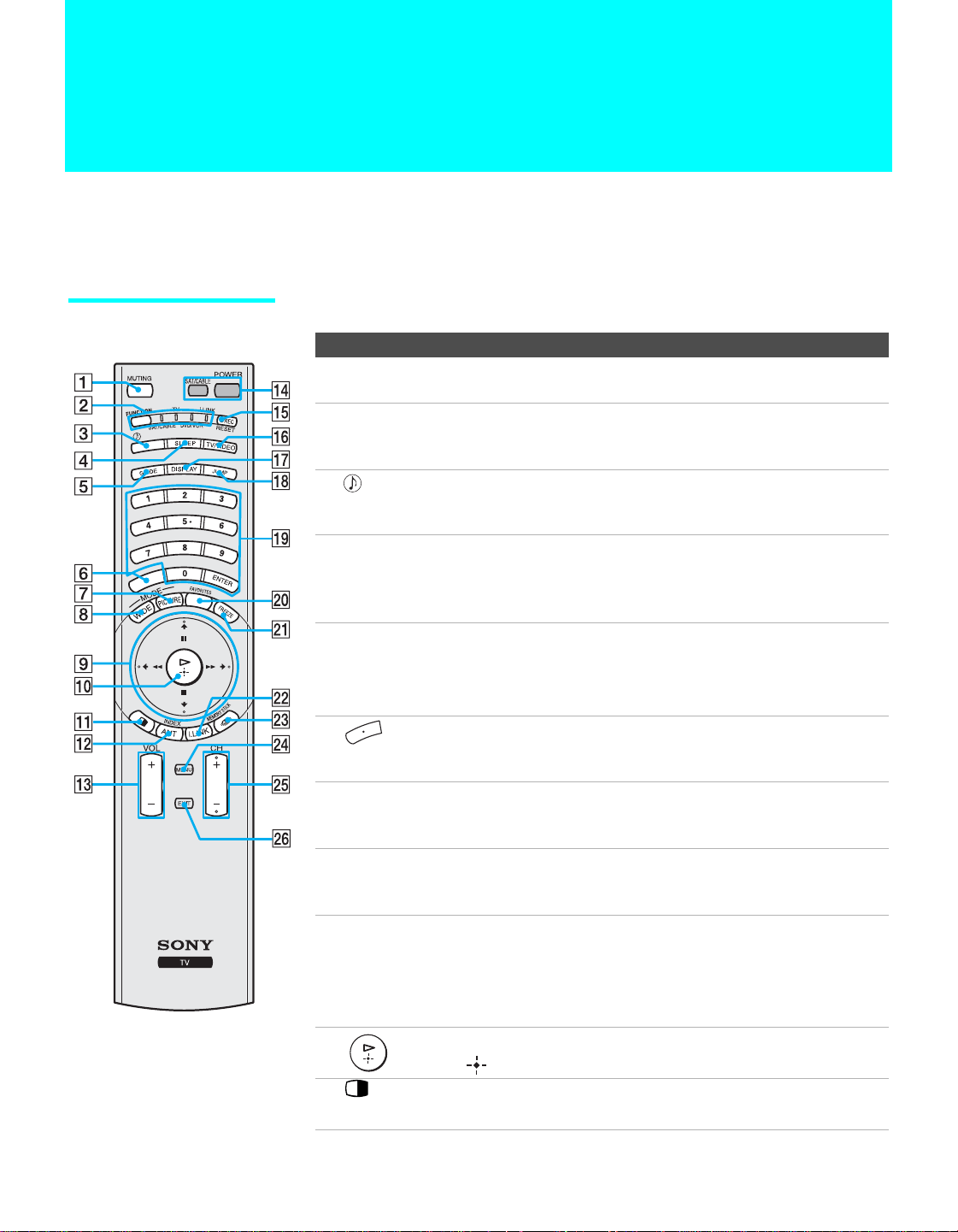

This document is for the remote control RM-Y914.
MODEL: KDF-60XBR950, KDF-70XBR950
Please keep this notice with the instruction manual.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER
(
OR BACK
)
.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
NO ABRIR
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your warranty and
your authority to operate this equipment.
3
Safety
❑ Operate the LCD Projection TV only on 120 V AC.
❑ The plug is designed, for safety purposes, to fit into
the wall outlet only one way. If you are unable to
insert the plug fully into the outlet, contact your
dealer.
❑ If any liquid or solid object should fall inside the
cabinet, unplug the LCD Projection TV immediately
and have it checked by qualified service personnel
before operating it further.
❑ If you will not be using the LCD Projection TV for
several days, disconnect the power by pulling the
plug itself. Never pull on the cord.
For details concerning safety precautions, see
“Important Safeguards” on page 4.
Installing
❑ To prevent internal heat buildup, do not block the
ventilation openings.
❑ Do not install the LCD Projection TV in a hot or
humid place, or in a place subject to excessive dust
or mechanical vibration.
❑ Avoid operating the LCD Projection TV at
temperature below 41°F (5°C).
❑ If the LCD Projection TV is transported directly
from a cold to a warm location, or if the room
temperature changes suddenly, the picture may be
blurred or show poor color. In this case, please wait
a few hours to let the moisture evaporate before
turning on the LCD Projection TV.
❑ To obtain the best picture, do not expose the screen
to direct illumination or direct sunlight. It is
recommended to use spot lighting directed down
from the ceiling or to cover the windows that face
the screen with opaque drapery. It is desirable to
install the LCD Projection TV in a room where the
floor and walls are not of a reflective material.
TruSurround, SRS and the ( )
®
symbol are trademarks
of SRS Labs, Inc.
TruSurround technology is incorporated under license
from SRS Labs, Inc.
BBE and BBE Symbol are trademarks of BBE Sound,
Inc. and are licensed by BBE Sound, Inc. under U.S.
Patent No. 4,638,258 and 4,482,866.
4

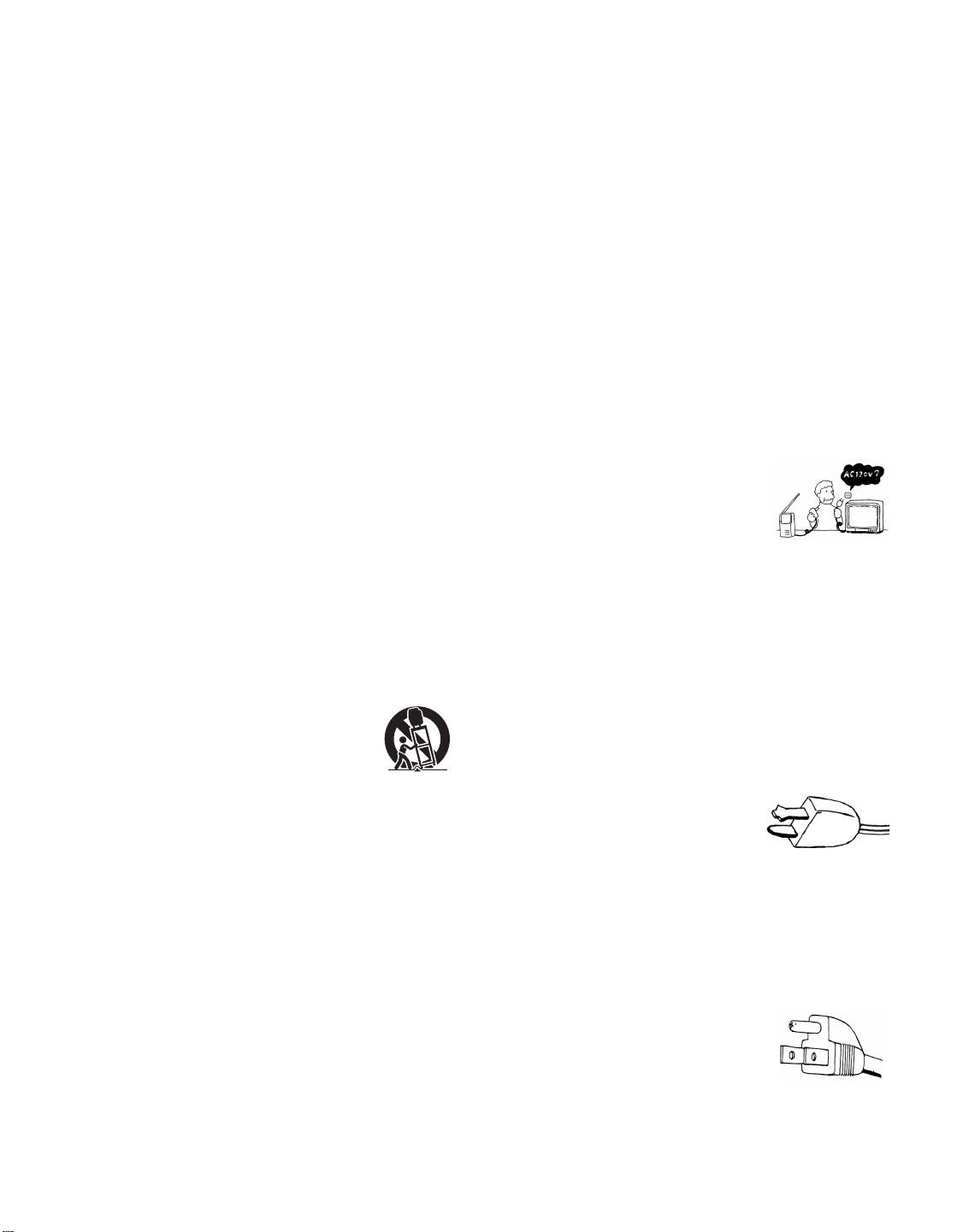

Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of
the obsolete outlet.
10) Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or
when unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
15) Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases, shall be placed on the apparatus.
Important
Safeguards
For your protection, please read these instructions
completely, and keep this manual for future reference.
Carefully observe and comply with all warnings, cautions
and instructions placed on the set or described in the
operating instructions or service manual.
WARNING
To guard against injury, the following basic safety
precautions should be observed in the installation, use
and servicing of the set.
Use
Power Sources
This set should be operated only from
the type of power source indicated on
the serial/model plate. If you are not sure
of the type of electrical power supplied
to your home, consult your dealer or
local power company. For those sets designed to operate
from battery power, refer to the operating instructions.

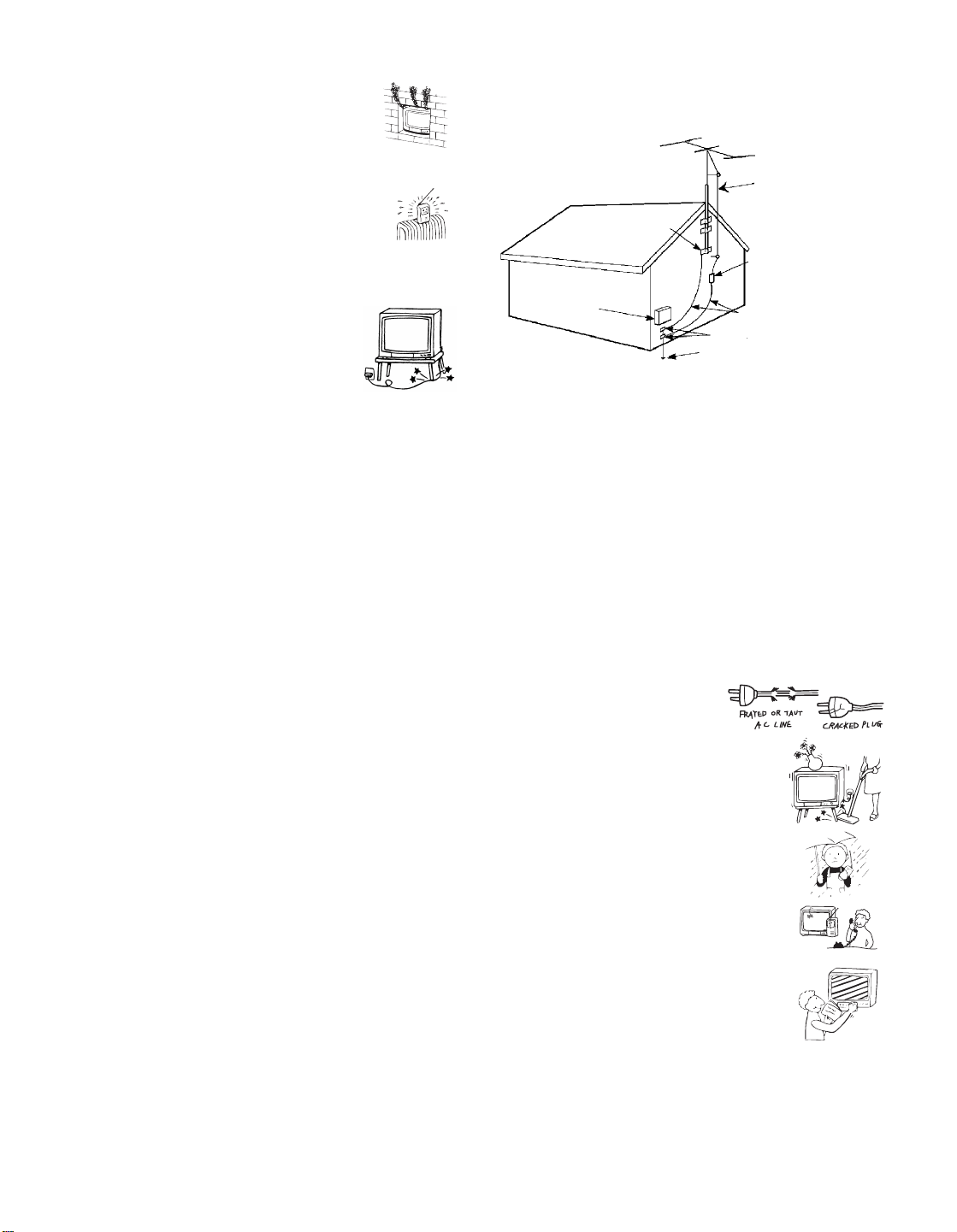

Grounding or Polarization
This set is equipped with a polarized AC power cord plug
(a plug having one blade wider than the other), or with a
three-wire grounding type plug (a plug having a third pin
for grounding). Follow the instructions below:
For the set with a polarized AC power cord
plug
This plug will fit into the power outlet
only one way. This is a safety feature.
If you are unable to insert the plug
fully into the outlet, try reversing the
plug. If the plug still fails to fit,
contact your electrician to have a suitable outlet installed.
Do not defeat the safety purpose of the polarized plug by
forcing it in.
Alternate Warning for the set with a three-
wire grounding type AC plug
This plug will only fit into a grounding-
type power outlet. This is a safety
feature. If you are unable to insert the
plug into the outlet, contact your
electrician to have a suitable outlet
installed. Do not defeat the safety purpose of the
grounding plug.
5

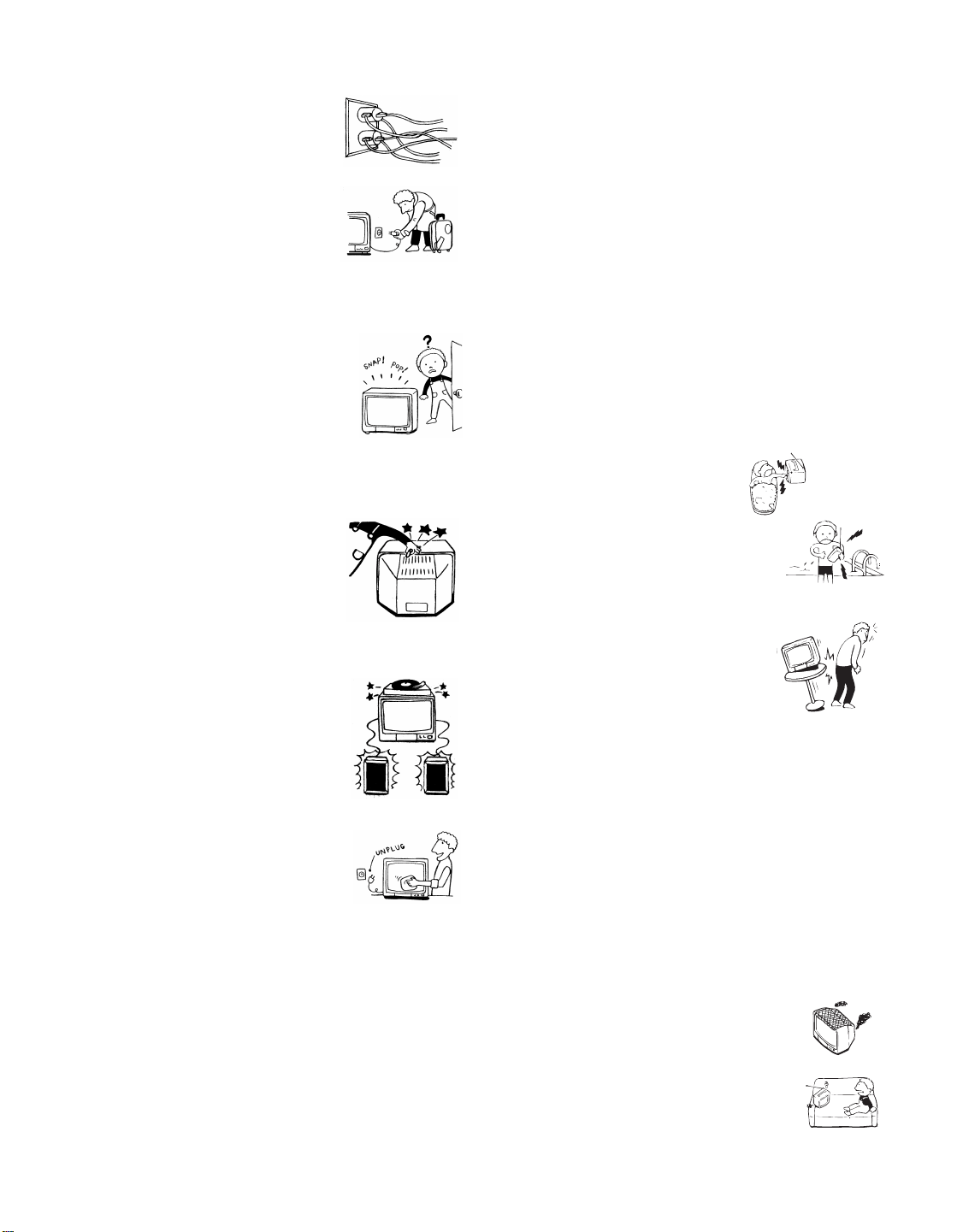

Overloading
Do not overload wall outlets, extension
cords or convenience receptacles
beyond their capacity, since this can
result in fire or electric shock.
Always turn the set off when it is not
being used. When the set is left
unattended and unused for long
periods of time, unplug it from the
wall outlet as a precaution against the
possibility of an internal malfunction that could create a
fire hazard.
If a snapping or popping sound from a TV
set is continuous or frequent while the TV
is operating, unplug the TV and consult
your dealer or service technician. It is
normal for some TV sets to make
occasional snapping or popping sounds,
particularly when being turned on or off.
Object and Liquid Entry
Never push objects of any kind into the
set through the cabinet slots as they may
touch dangerous voltage points or short
out parts that could result in a fire or
electric shock. Never spill liquid of any
kind on the set.
Attachments
Do not use attachments not
recommended by the manufacturer, as
they may cause hazards.
Cleaning
Clean the cabinet of the LCD Projection
TV with a dry soft cloth. To remove dust
from the screen, wipe it gently with a soft
cloth. Stubborn stains may be removed
with a cloth slightly dampened with
solution of mild soap and warm water. Never use strong
solvents such as thinner or benzine for cleaning.
If the picture becomes dark after using the LCD
Projection TV for a long period of time, it may be
necessary to clean the inside of the LCD Projection TV.
Consult qualified service personnel.
On contamination on the screen surface
The screen surface has a special coating to reduce a
picture displayed by reflecting. If you clean the screen
surface in the wrong way, the screen may be damaged. To
clean the screen, do as follows:
❑ Clean the screen with a soft cloth, such as the
supplied cleaning cloth or a glass cleaning cloth.
❑ To remove hard contamination, use the supplied
cleaning cloth or a glass cleaning cloth moistened
with a solution of mild detergent and water.
❑ Do not use any type of abrasive pad, alkaline
cleaner, acid cleaner, scouring powder, chemical
cloth, or solvent such as alcohol, benzene or thinner,
as these may scratch the screen's coating.
Installation
Water and Moisture
Do not use power-line operated sets
near water — for example, near a
bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or
near a swimming pool, etc.
Accessories
Do not place the set on an unstable
cart, stand, table or shelf. The set may
fall, causing serious injury to a child or
an adult and serious damage to the set.
Use only a cart or stand recommended
by the manufacturer for the specific
model of LCD Projection TV. An appliance and cart
combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the
appliance and cart combination to overturn.
Ventilation
The slots and openings in the cabinet and in the back or
bottom are provided for necessary ventilation. To ensure
reliable operation of the set, and to protect it from
overheating, these slots and openings must never be
blocked or covered.
❑ Never cover the slots and openings
with a cloth or other materials.
❑ Never block the slots and openings
by placing the set on a bed, sofa, rug
or other similar surface.
6
❑ Never place the set in a confined
space, such as a bookcase or built-in
cabinet, unless proper ventilation is
provided.
❑ Do not place the set near or over a
radiator or heat register, or where it is
exposed to direct sunlight.
Power-Cord Protection
Do not allow anything to rest on or roll
over the power cord, and do not place the
set where the power cord is subject to
wear or abuse.
Antennas
Outdoor Antenna Grounding
If an outdoor antenna is installed, follow the precautions
below. An outdoor antenna system should not be located
in the vicinity of overhead power lines or other electric
light or power circuits, or where it can come in contact
with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA
SYSTEM, EXTREME CARE SHOULD BE TAKEN TO
KEEP FROM CONTACTING SUCH POWER LINES
OR CIRCUITS AS CONTACT WITH THEM IS
ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide
some protection against voltage surges and built-up static
charges.
Section 810 of the National Electrical Code (NEC) in
USA and Section 54 of the Canadian Electrical Code in
Canada provides information with respect to proper
grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
Antenna Grounding According to the NEC
Refer to section 54-300 of Canadian Electrical Code for
Antenna Grounding.
Lightning
For added protection for this television receiver during a
lightning storm, or when it is left unattended and unused
for long periods of time, unplug it from the wall outlet
and disconnect the antenna. This will prevent damage to
the receiver due to lightning and power-line surges.
Service
Damage Requiring Service
Unplug the set from the wall outlet and refer servicing to
qualified service personnel under the following
conditions:
❑ When the power cord or
plug is damaged or frayed.
❑ If liquid has been spilled into
the set.
❑ If the set has been exposed
to rain or water.
❑ If the set has been subject to
excessive shock by being
dropped, or the cabinet has
been damaged.
❑ If the set does not operate
normally when following the
operating instructions.
Adjust only those controls
that are specified in the
operating instructions.
Improper adjustment of
other controls may result in
damage and will often require extensive work by a
qualified technician to restore the set to normal
operation.
❑ When the set exhibits a distinct change in
performance, it indicates a need for service.
Antenna lead-in wire
Ground clamps
Antenna lead-in wire
(NEC Section 810-20)
Grounding conductors
(NEC section 810-21)
Power service grounding
electrode system (NEC Art
250 Part H)
Ground clamp
Electrical
service
equipment
NEC: National
Electrical Code
7
Servicing
Do not attempt to service the set by yourself
since opening the cabinet may expose you to
dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
Replacement Parts
When replacement parts are required, be sure the service
technician certifies in writing that he has used
replacement parts specified by the manufacturer that have
the same characteristics as the original parts.
Unauthorized substitutions may result in fire, electric
shock or other hazards.
Safety Check
Upon completion of any service or repairs
to the set, ask the service technician to
perform routine safety checks (as specified
by the manufacturer) to determine that the
set is in safe operating condition, and to so
certify. When the set reaches the end of its
useful life, improper disposal could result
in a picture tube implosion. Ask a qualified
service technician to dispose of the set.
For Safety
Be careful when moving
the LCD Projection TV
When you place the LCD Projection
TV in position, be careful not to
drop it on your foot or fingers.
Watch your footing while installing the LCD Projection
TV.

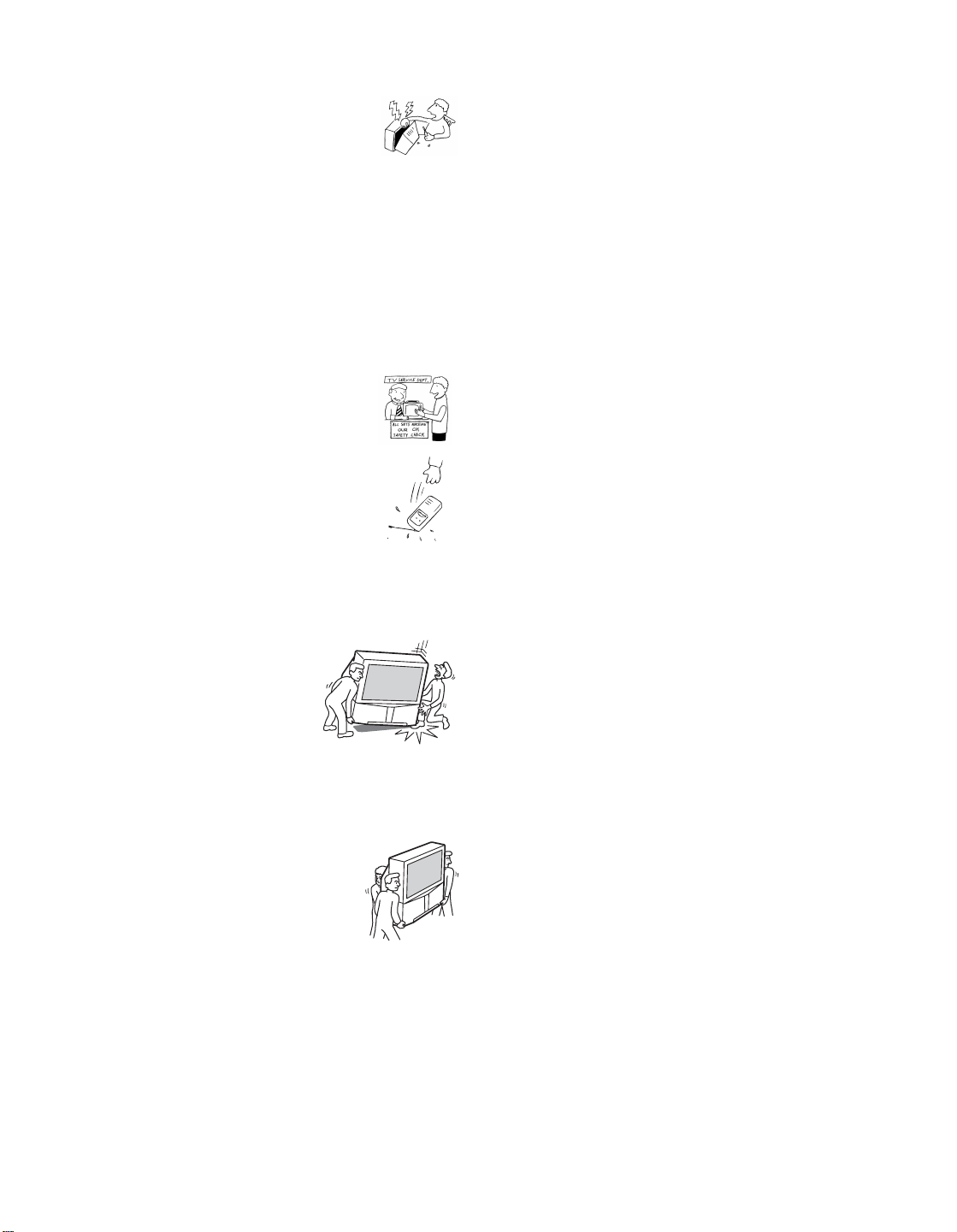

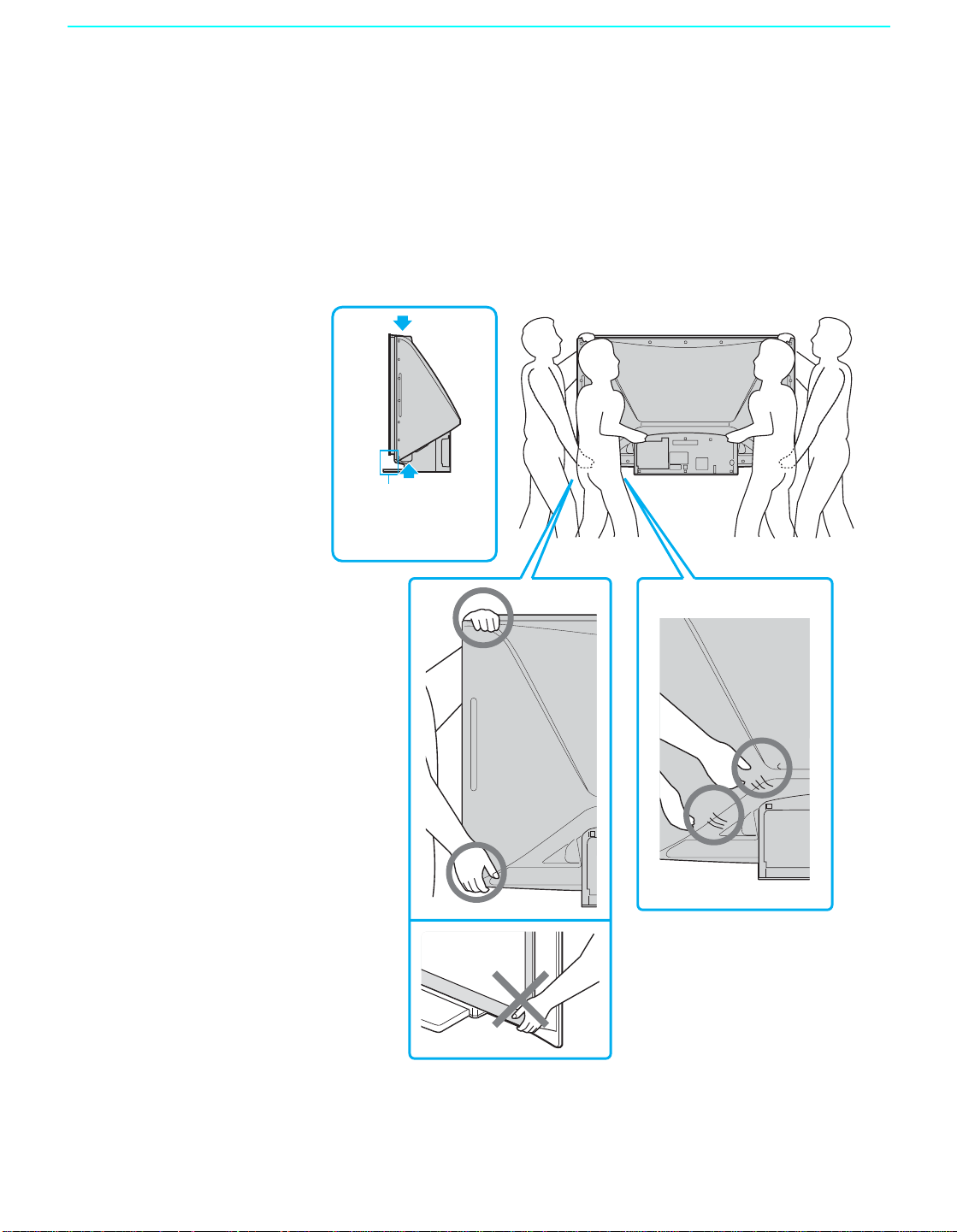

Carry the LCD Projection TV in
the specified manner
If you carry the LCD Projection TV in a
manner other than the specified manner
and without the specified number of
persons, it may drop and a serious injury
may be caused. Be sure to follow the instructions
mentioned below.
❑ Carry the LCD Projection TV with the specified
number of persons (see page 18).
❑ Do not carry the LCD Projection TV holding the
speaker grill.
❑ Hold the LCD Projection TV tightly when carrying
it.
About the LCD Projection TV
Although the LCD projection TV is made with high-
precision technology, black dots may appear or bright
points of light (red, blue, or green) may appear constantly
on the LCD screen. This is a structural property of the
LCD panel and is not a malfunction.
Installation
❑ If direct sunlight or other strong illumination shines
on the screen, part of the screen may appear white
due to reflections from behind the screen. This is a
structural property of the LCD Projection TV.
Do not expose the screen to direct illumination or
direct sunlight.
❑ The picture quality may be affected by your viewing
position. If you sit too close to the TV, you may
suffer from eye fatigue.
For the best picture quality, install your LCD
projection TV according to the operating
instructions.

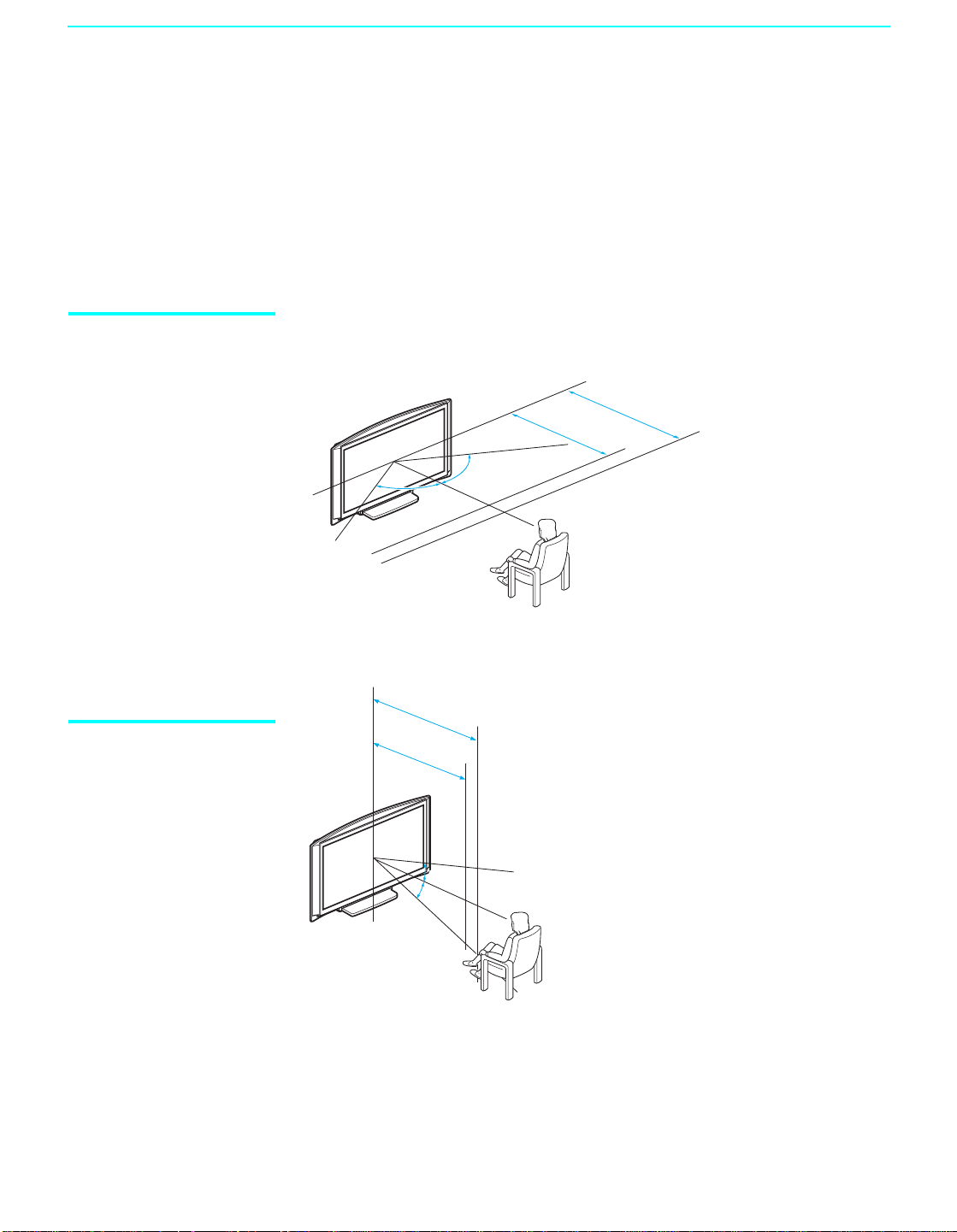

Sit at least 2.2 m (approx. 7 ft.) for KDF-60XBR950
or 2.6 m (approx. 8 ft.) for KDF-70XBR950 away
from your LCD projection TV, and within 60° of the
vertical viewing area, and 130° of the horizontal
viewing area.
❑ When installing your LCD Projection TV against a
wall, keep it at least 10 cm (4 inches) from the wall.
❑ Avoid installing the LCD projection TV near a
heater, etc.
Projection lamp
❑ Your LCD projection TV uses a projection lamp as
its light source. When the projection lamp wears out
after using the LCD projection TV for a long period
of time, the screen image becomes dark, or no image
will appear on the display. If the lamp replacement
indicator of the front panel blinks in red, replace the
lamp with a new one (not supplied). In some cases,
the bulb bursts inside the lamp unit noisily, but the
lamp unit is securely designed so that the pieces of
broken glass remain inside the lamp unit. (See
“Replacing the Lamp” on page 13.)
Cooling fan
❑ This LCD projection TV uses a cooling fan to
prevent the internal temperature from heating up.
You might hear the noise from the cooling fan,
depending on the place you install the LCD
projection TV.
8
Contents
Introducing the Sony LCD Projection
TV
Presenting the Sony LCD Projection TV.................9
Using This Manual.................................................10
Enjoying Your LCD Projection TV.......................11

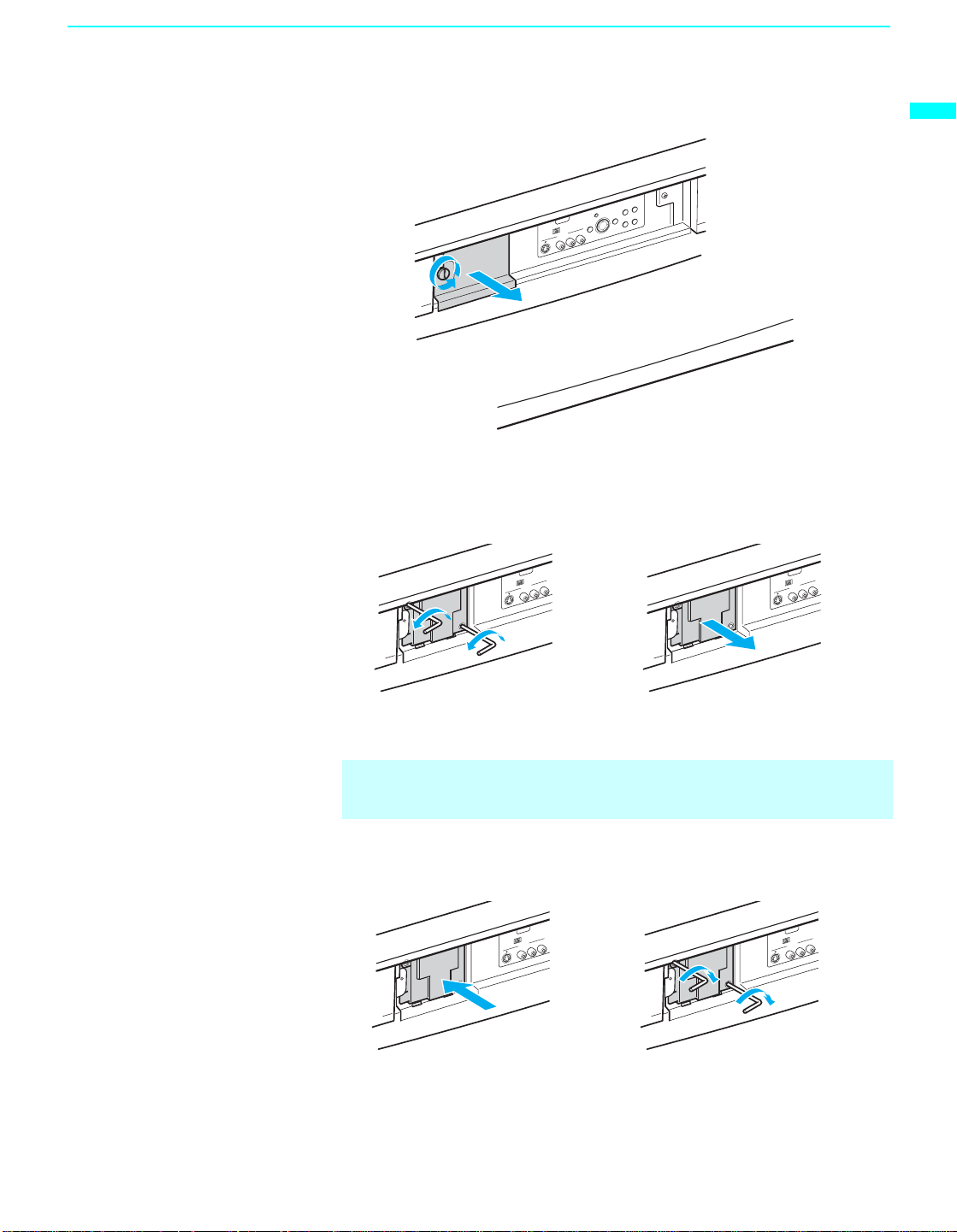

Replacing the Lamp...............................................13
Installing and Connecting the LCD
Projection TV
Contents .................................................................17

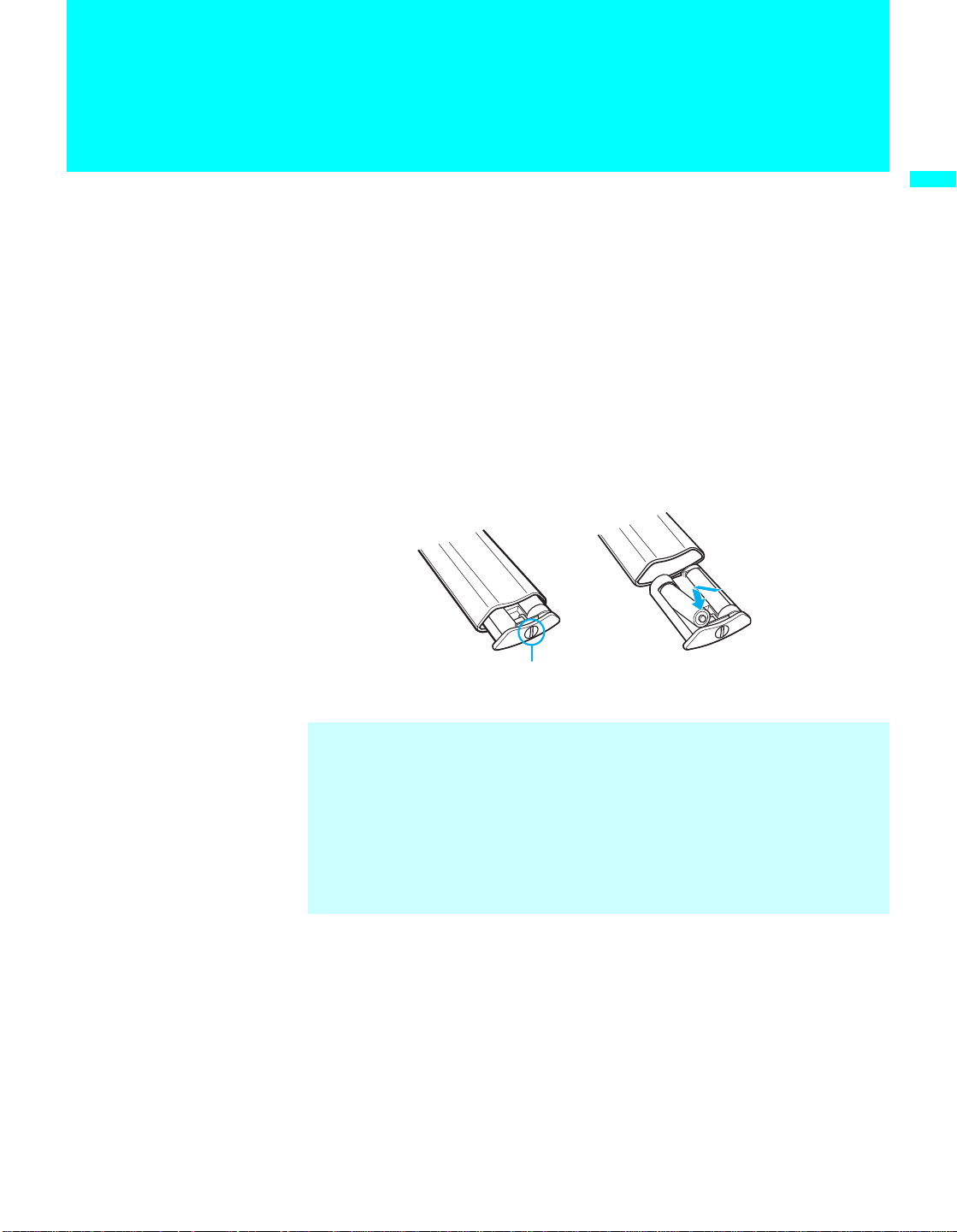

Inserting Batteries into the Remote Control ..........17
Carrying Your LCD Projection TV .......................18
To Prevent the LCD Projection TV from Falling
Down..............................................................19
When Installing Your LCD Projection TV
Against a Wall ...............................................19
Recommended Viewing Area................................20

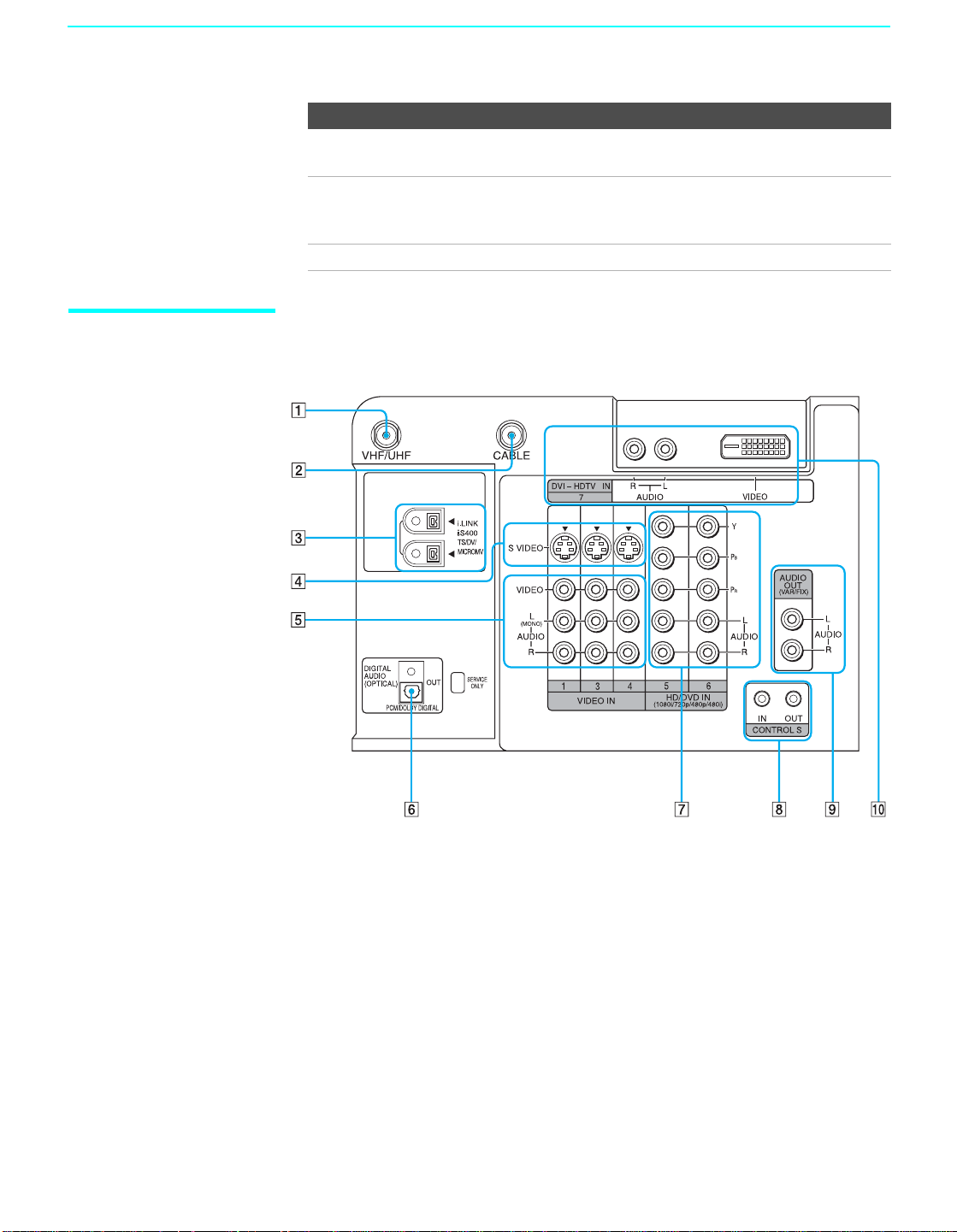

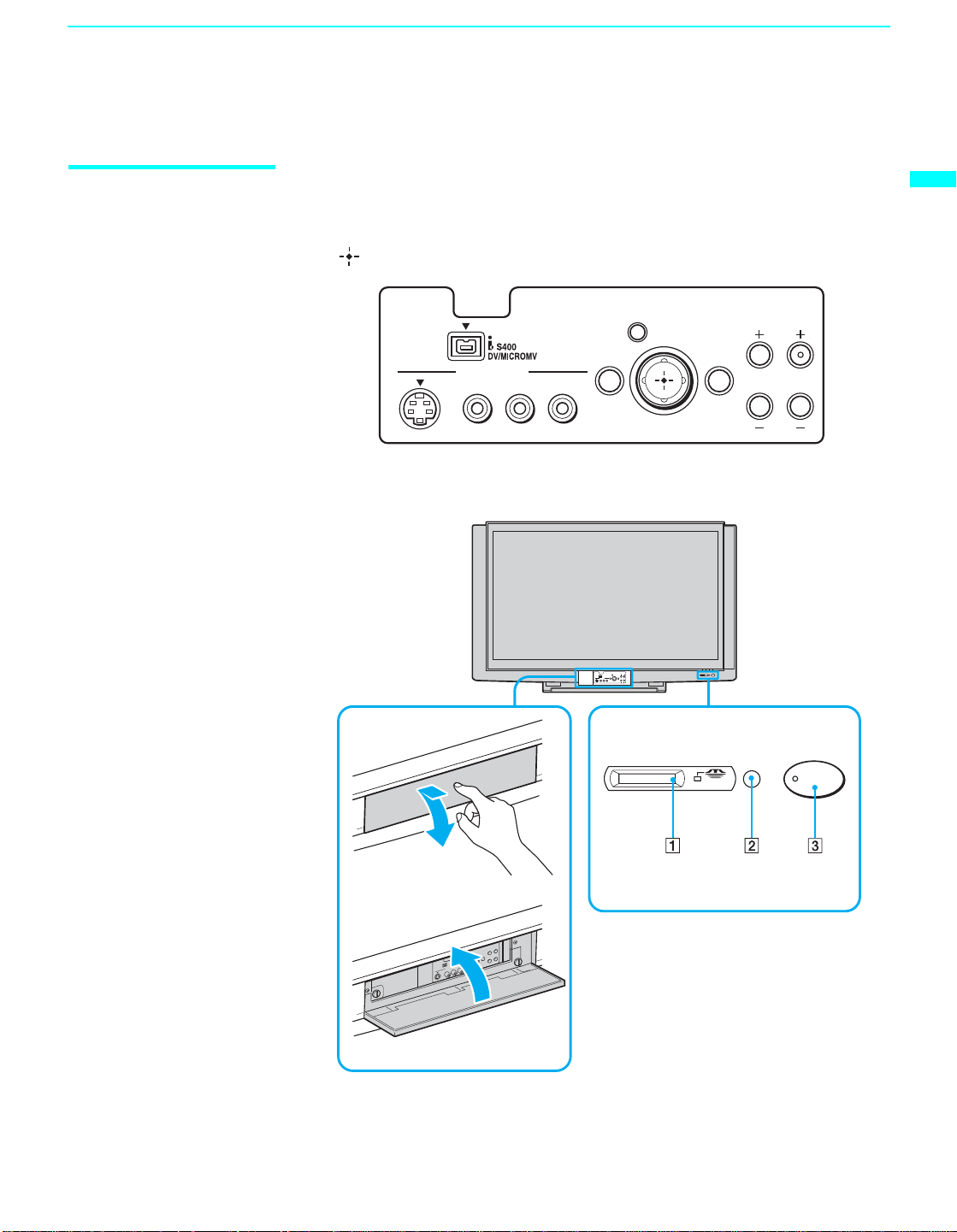

LCD Projection TV Controls and Connectors.......21

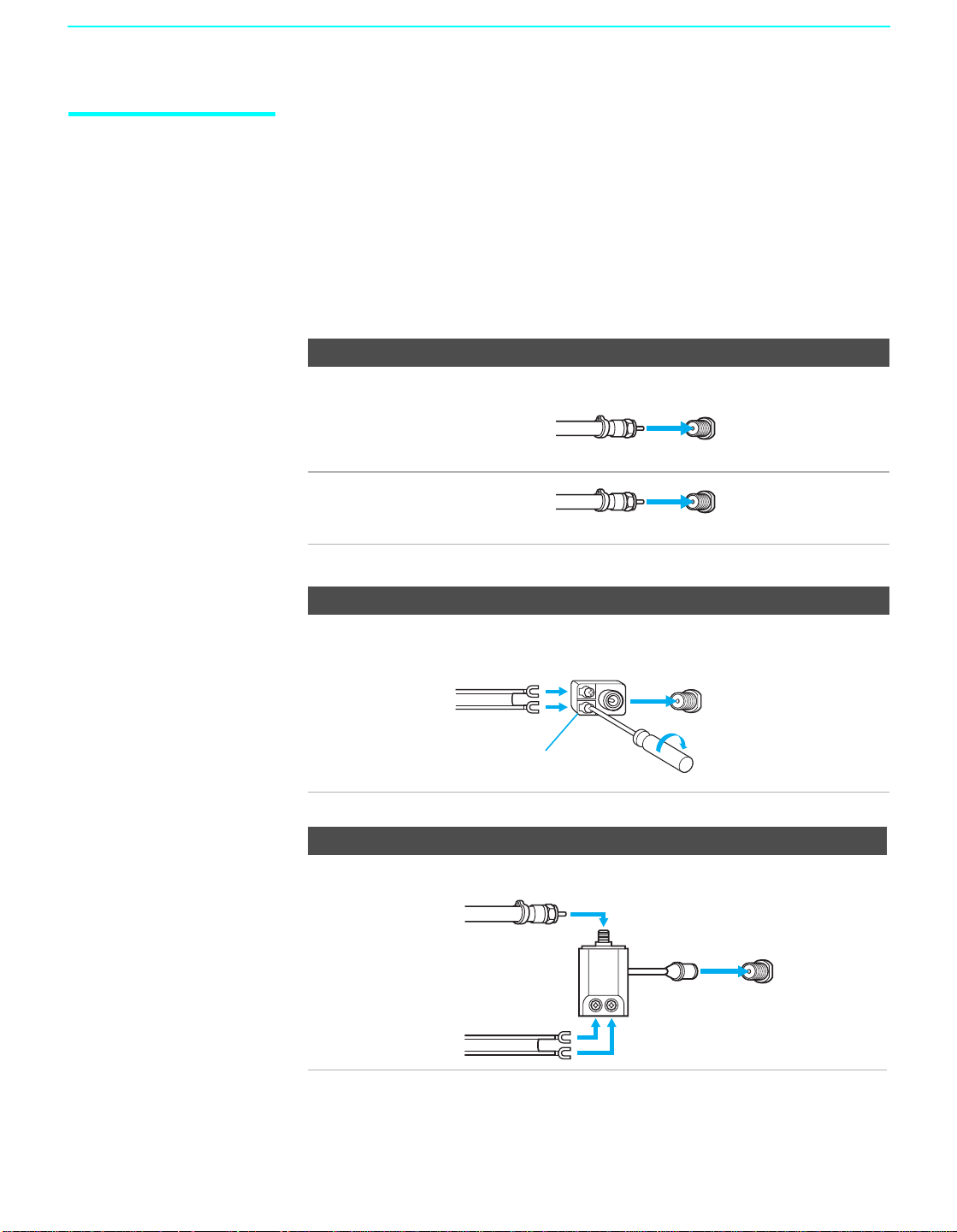

Basic Connections: Connecting a Cable or
Antenna..........................................................25

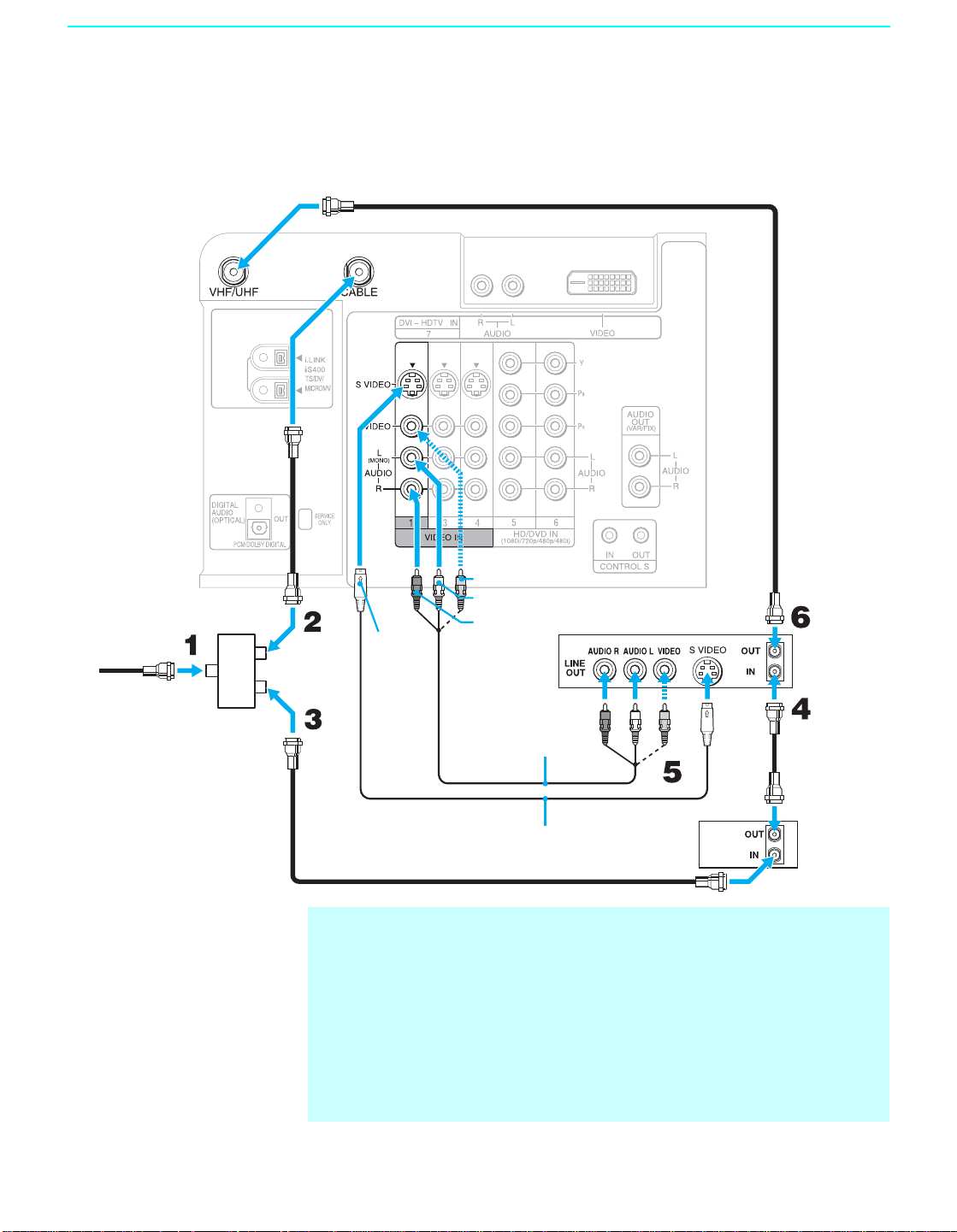

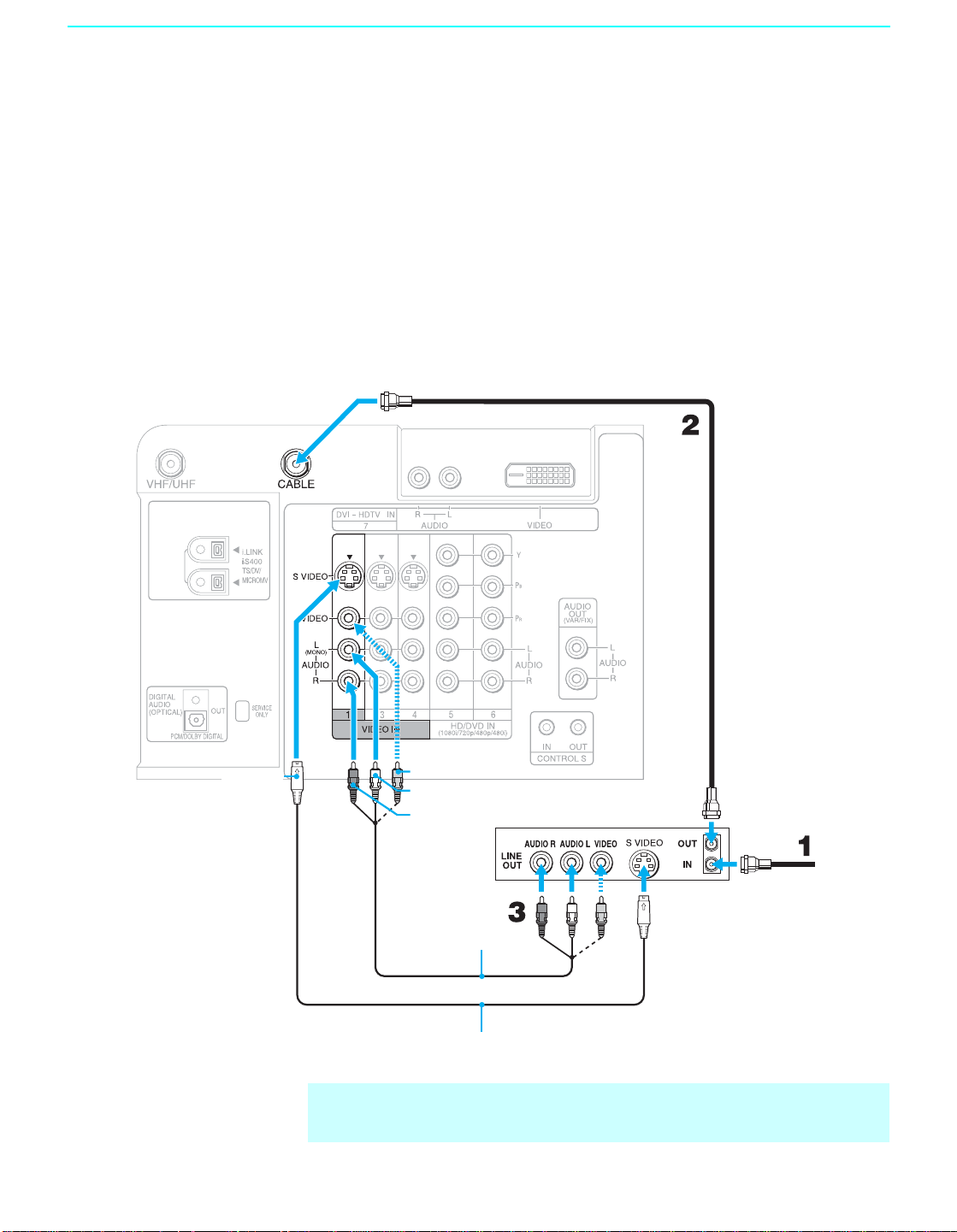

Connecting a VCR and Cable................................32
Connecting a VCR and Cable Box ........................33

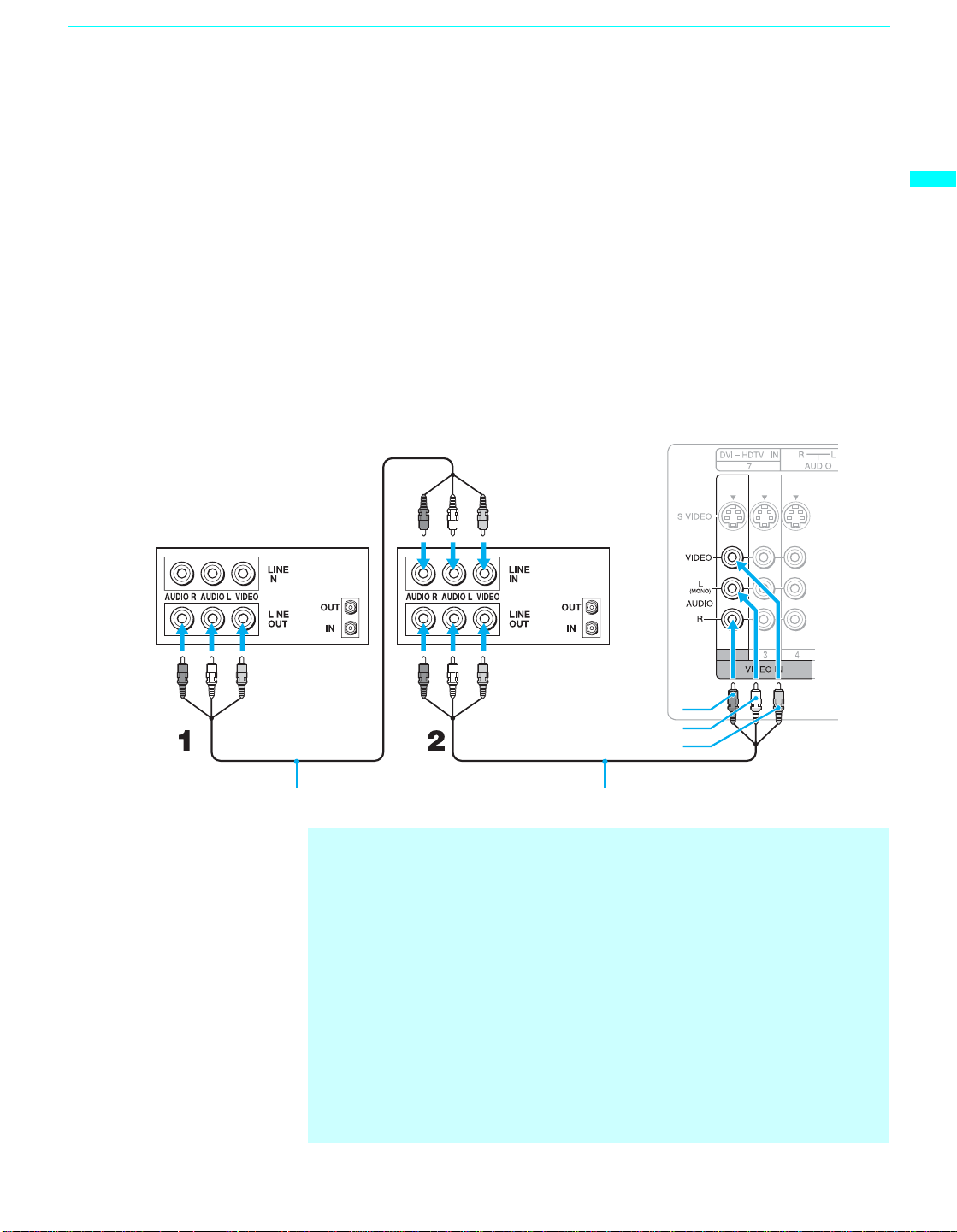

Connecting Two VCRs for Tape Editing ..............35

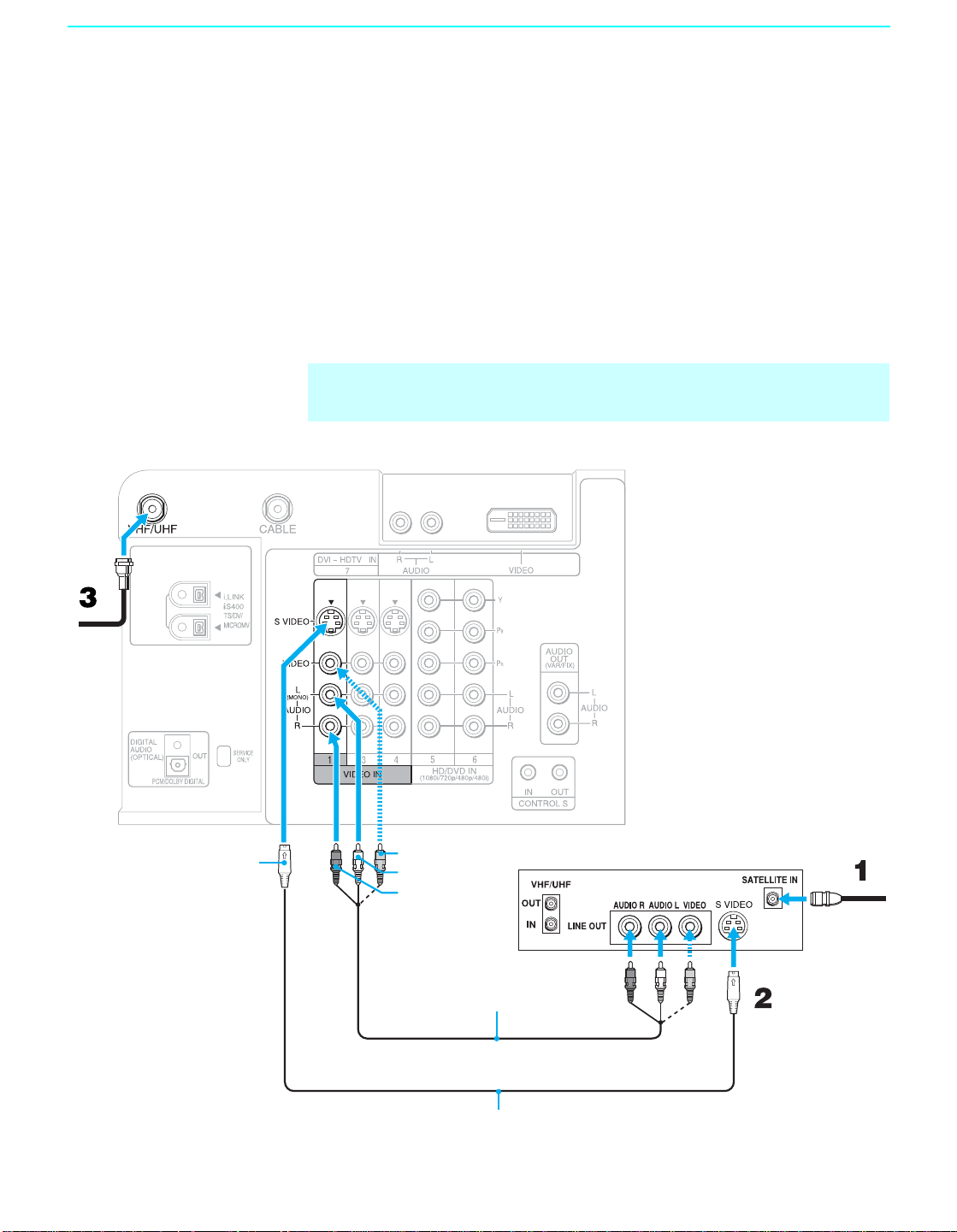

Connecting a Satellite Receiver.............................36

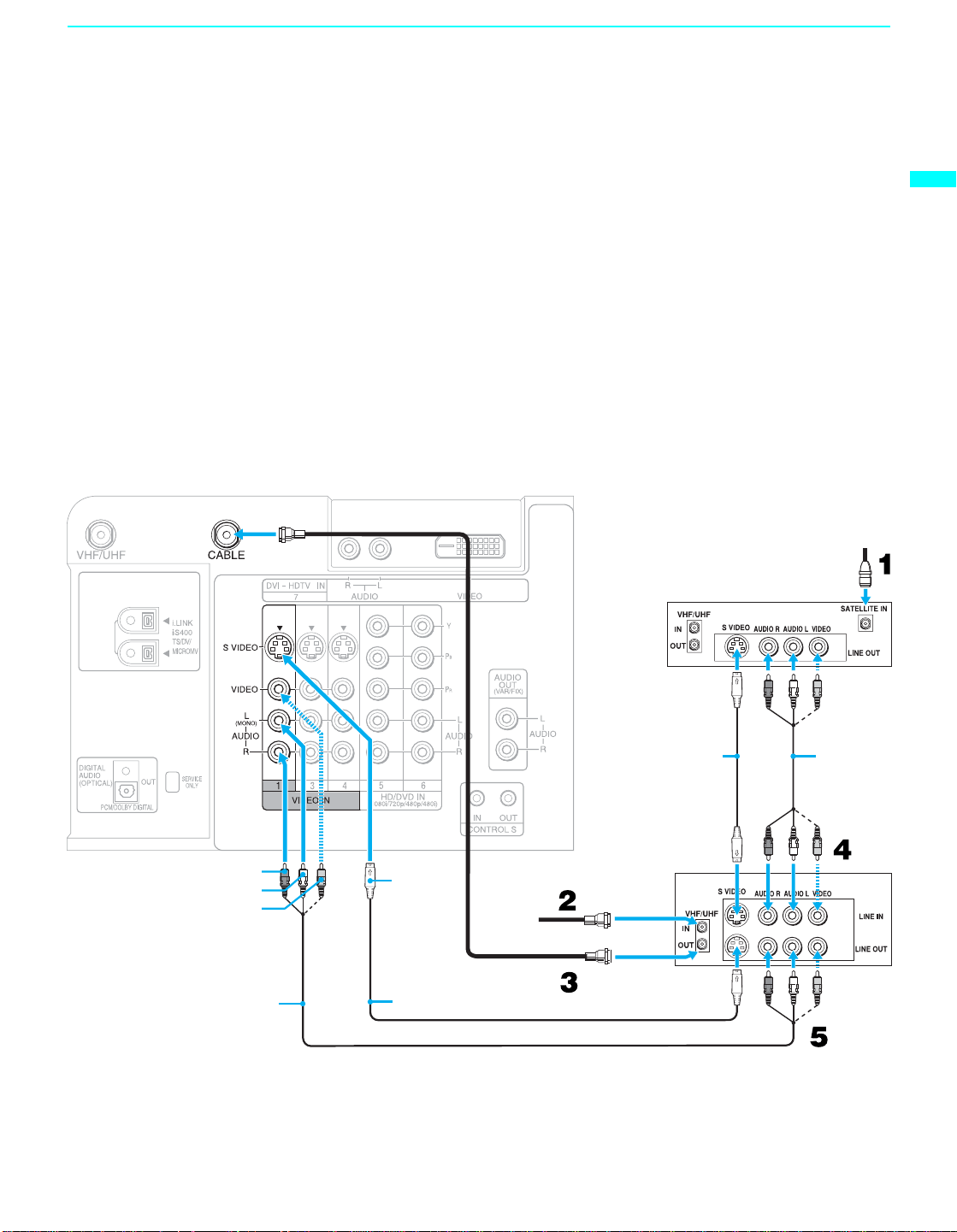

Connecting a Satellite Receiver with a VCR.........37

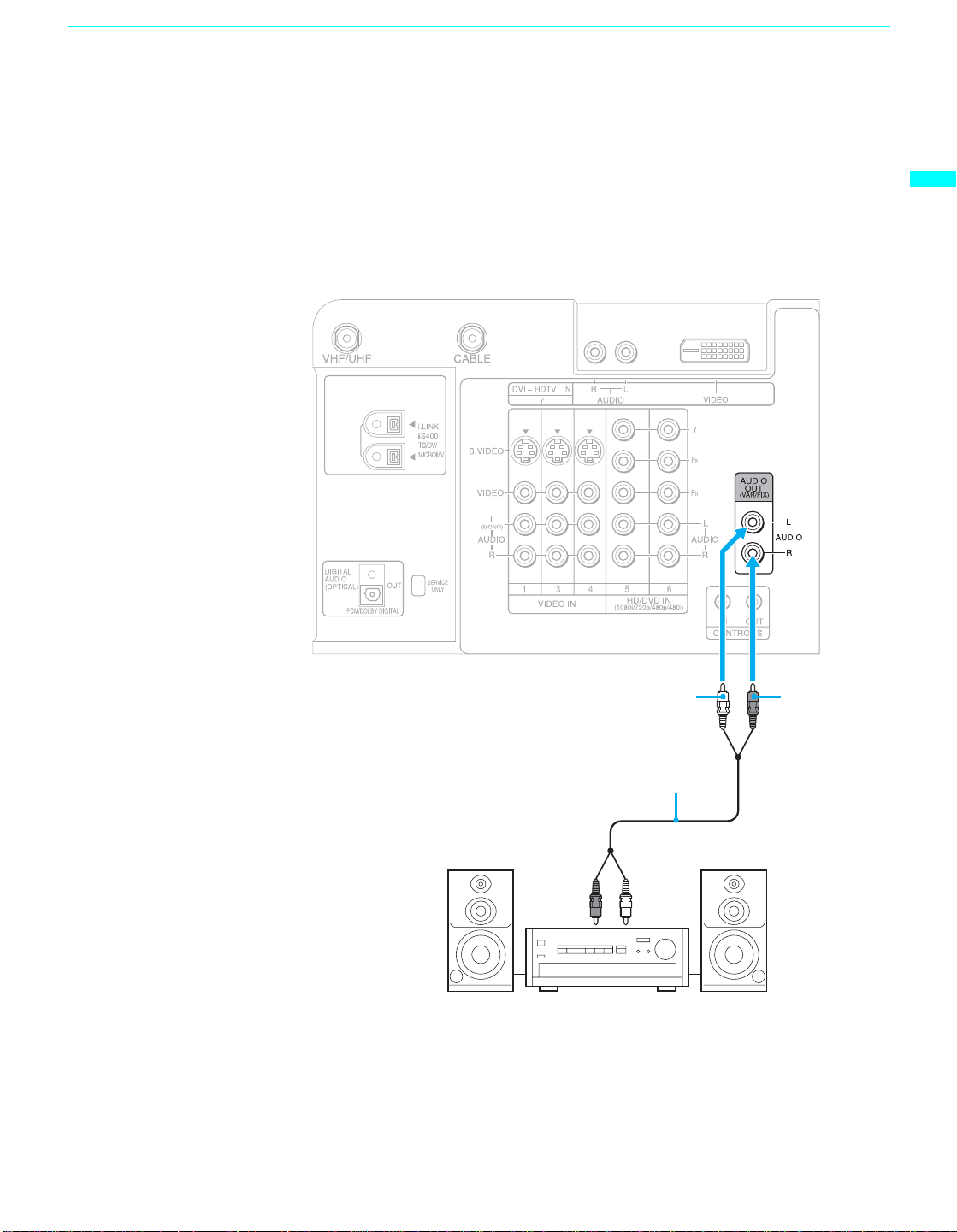

Connecting an Audio Receiver..............................39

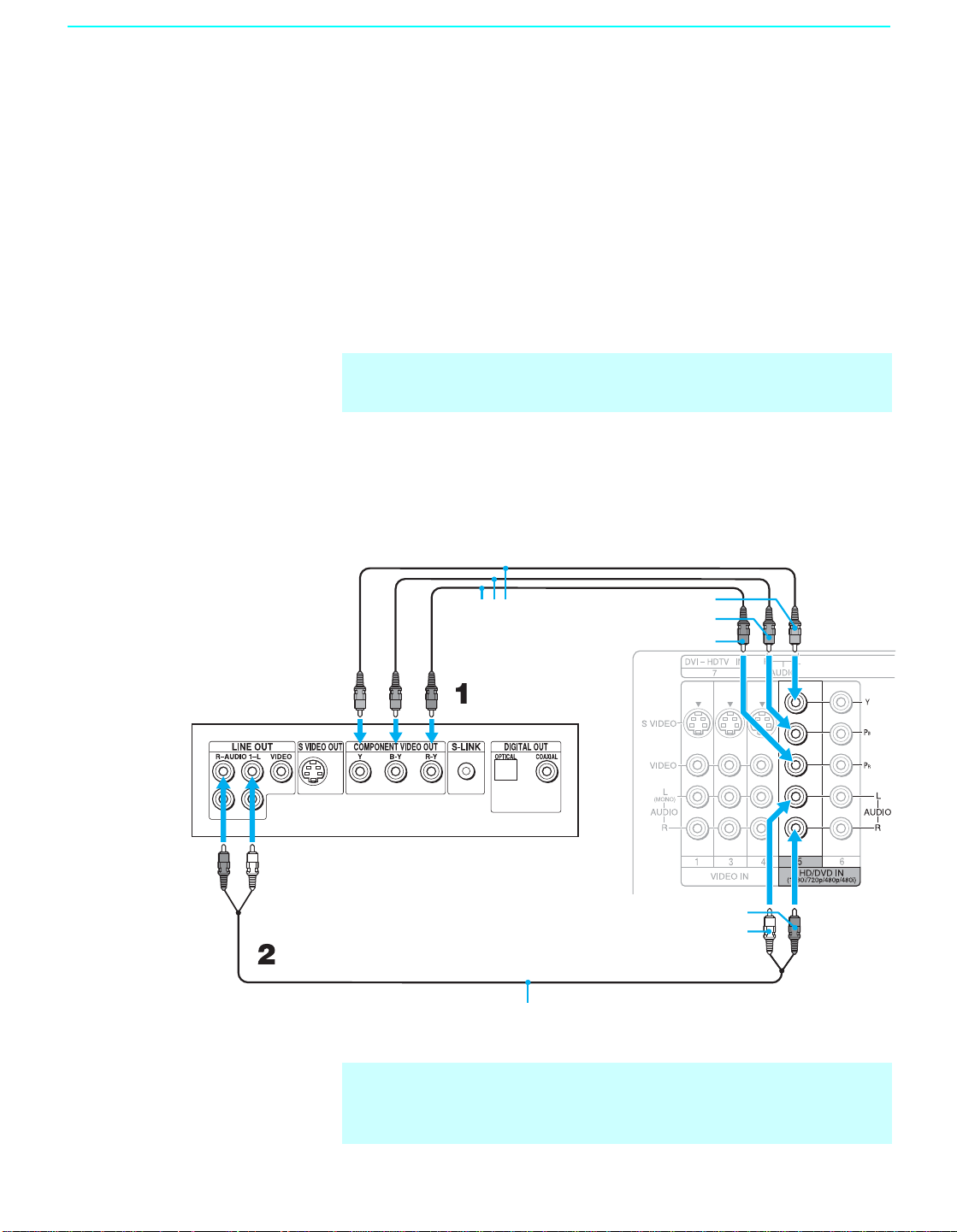

Connecting a DVD Player with Component
Video Connectors ..........................................40
Connecting a DVD Player with A/V Connectors ..41

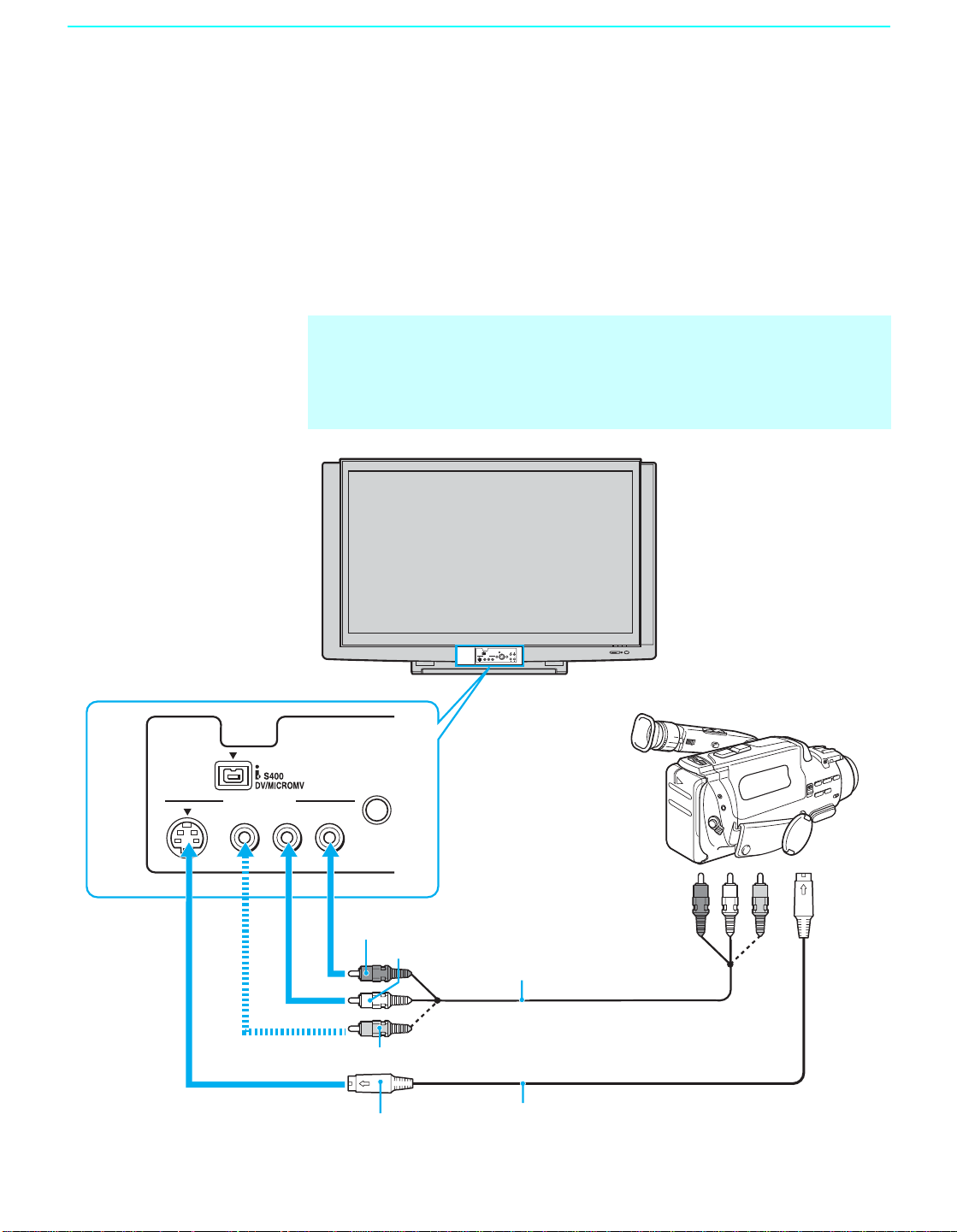

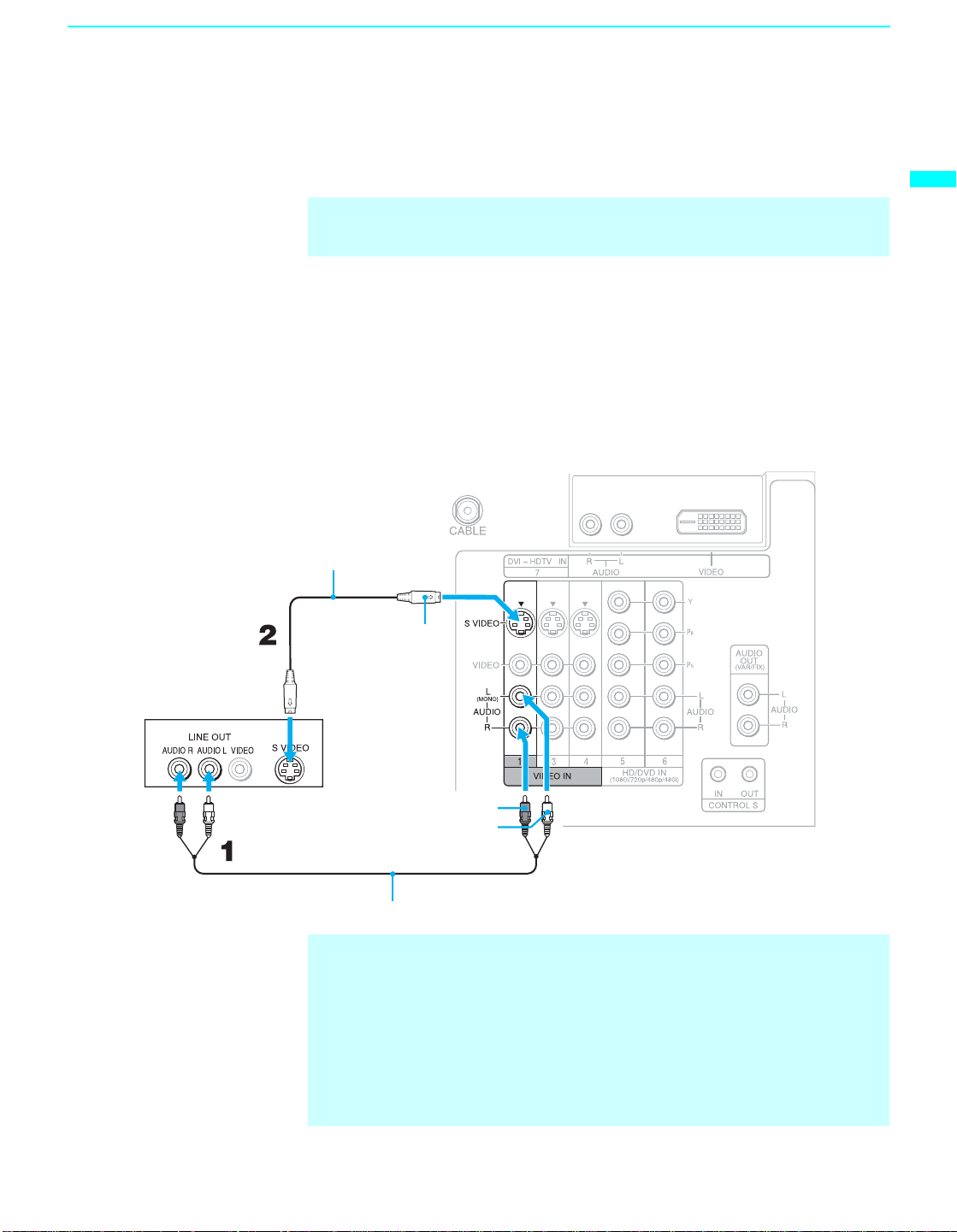

Connecting a Camcorder .......................................42

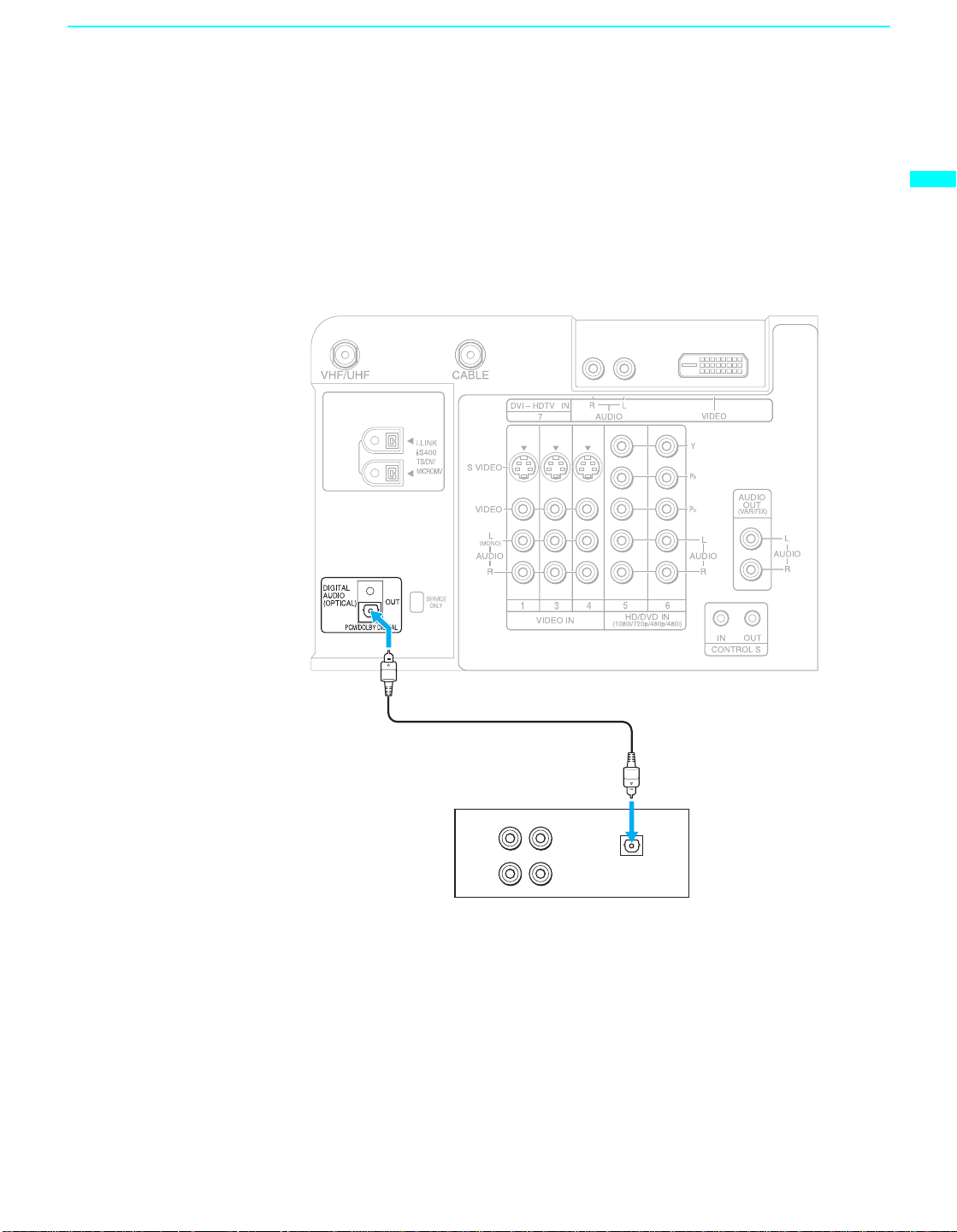

Connecting a Device with an Optical
IN Connector..................................................43

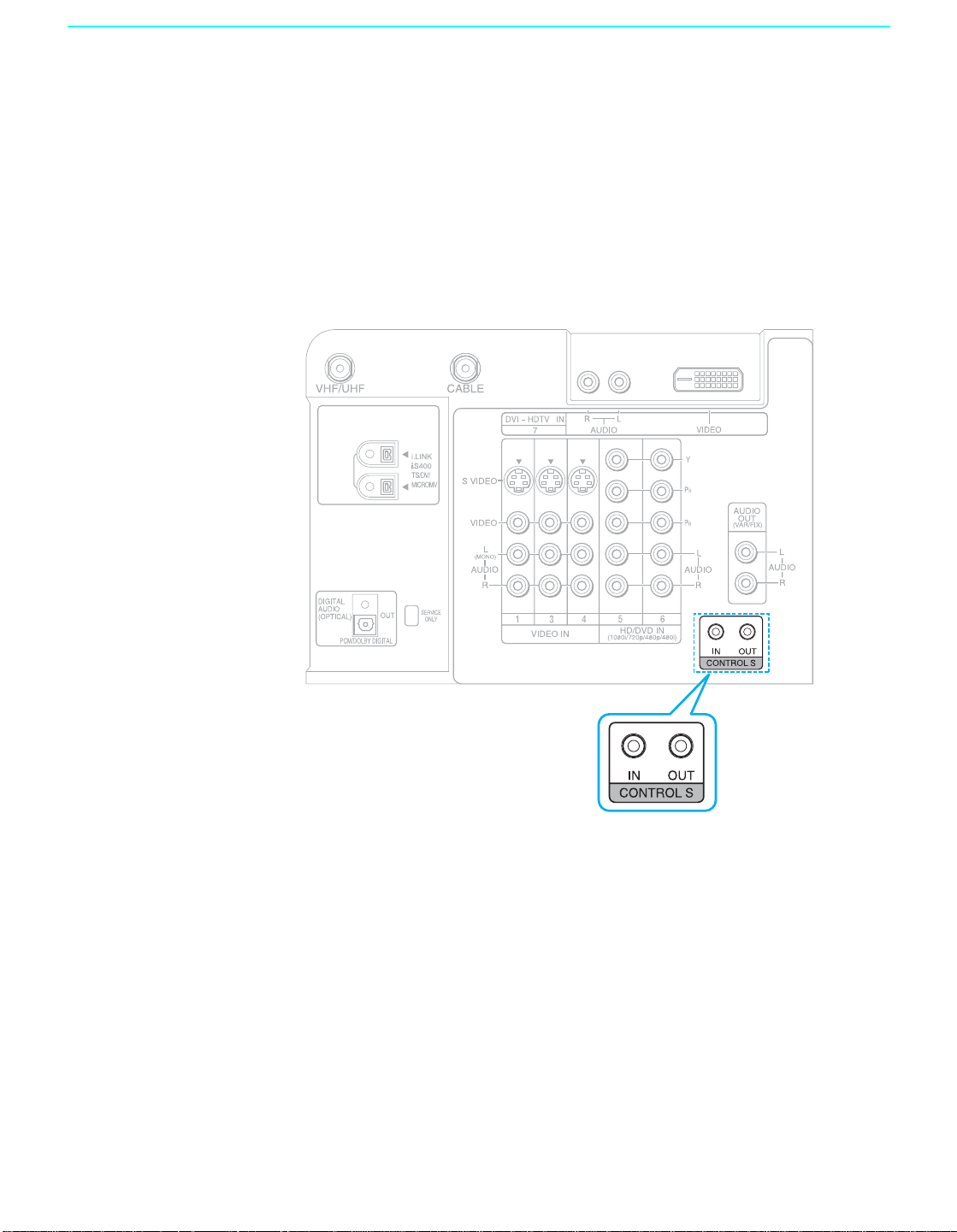

Using the CONTROL S Feature............................44
Setting Up the LCD Projection TV
Automatically.................................................45
Using the Features

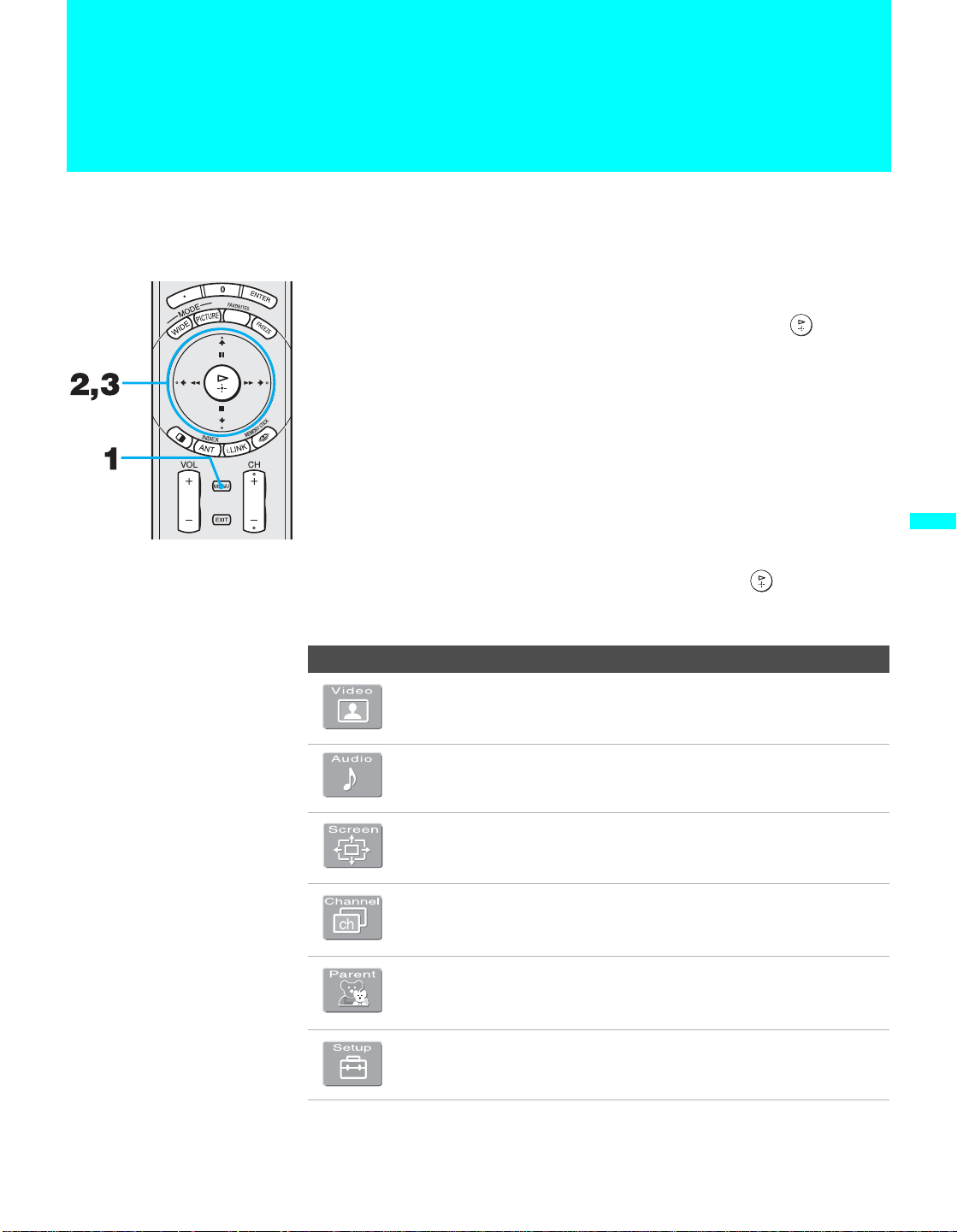

Using the Remote Control .....................................46
Programming the Remote Control.........................48
Using Other Equipment with Your LCD Projection
TV Remote Control .......................................50
Watching the TV....................................................52
Using Favorite Channels........................................54

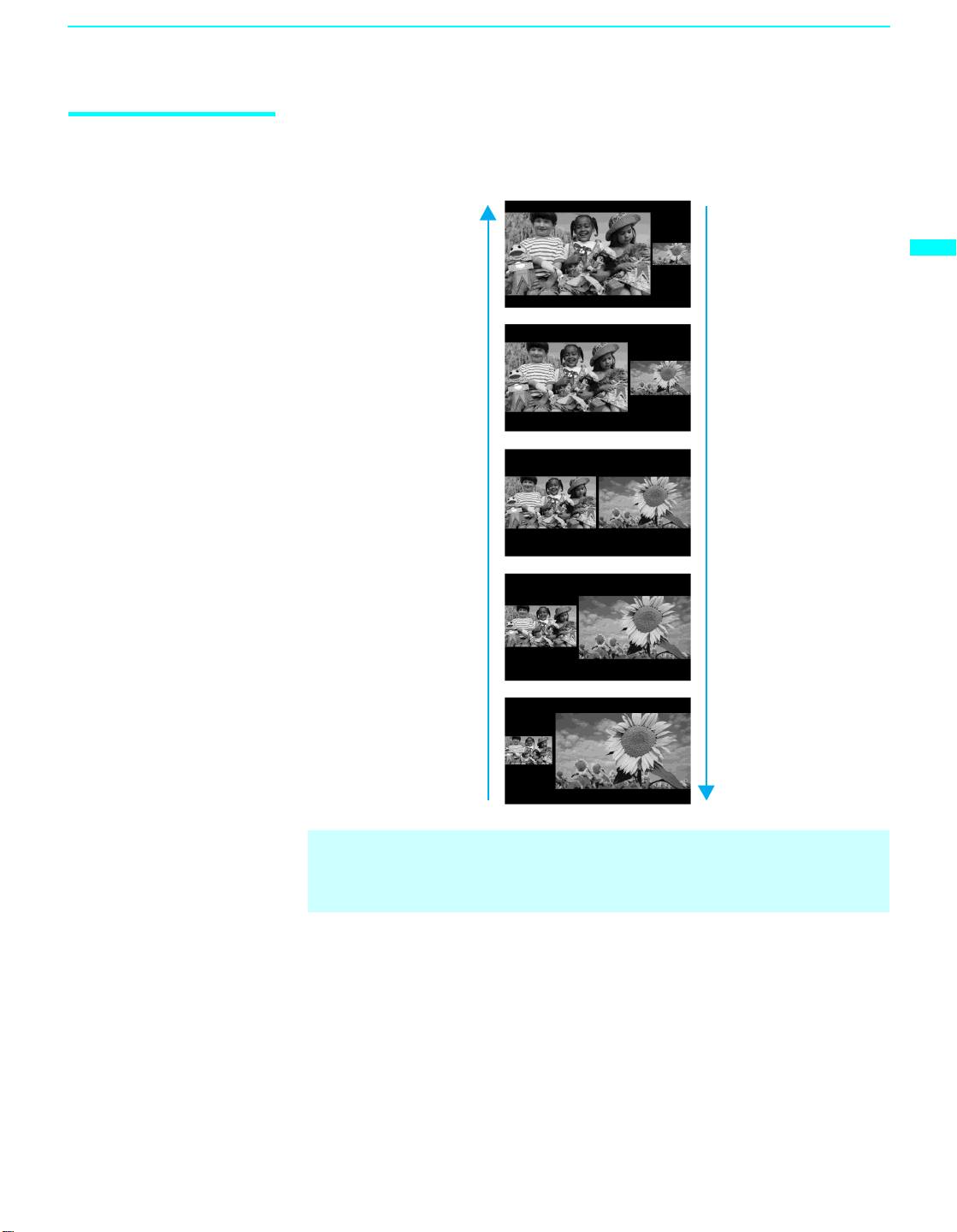

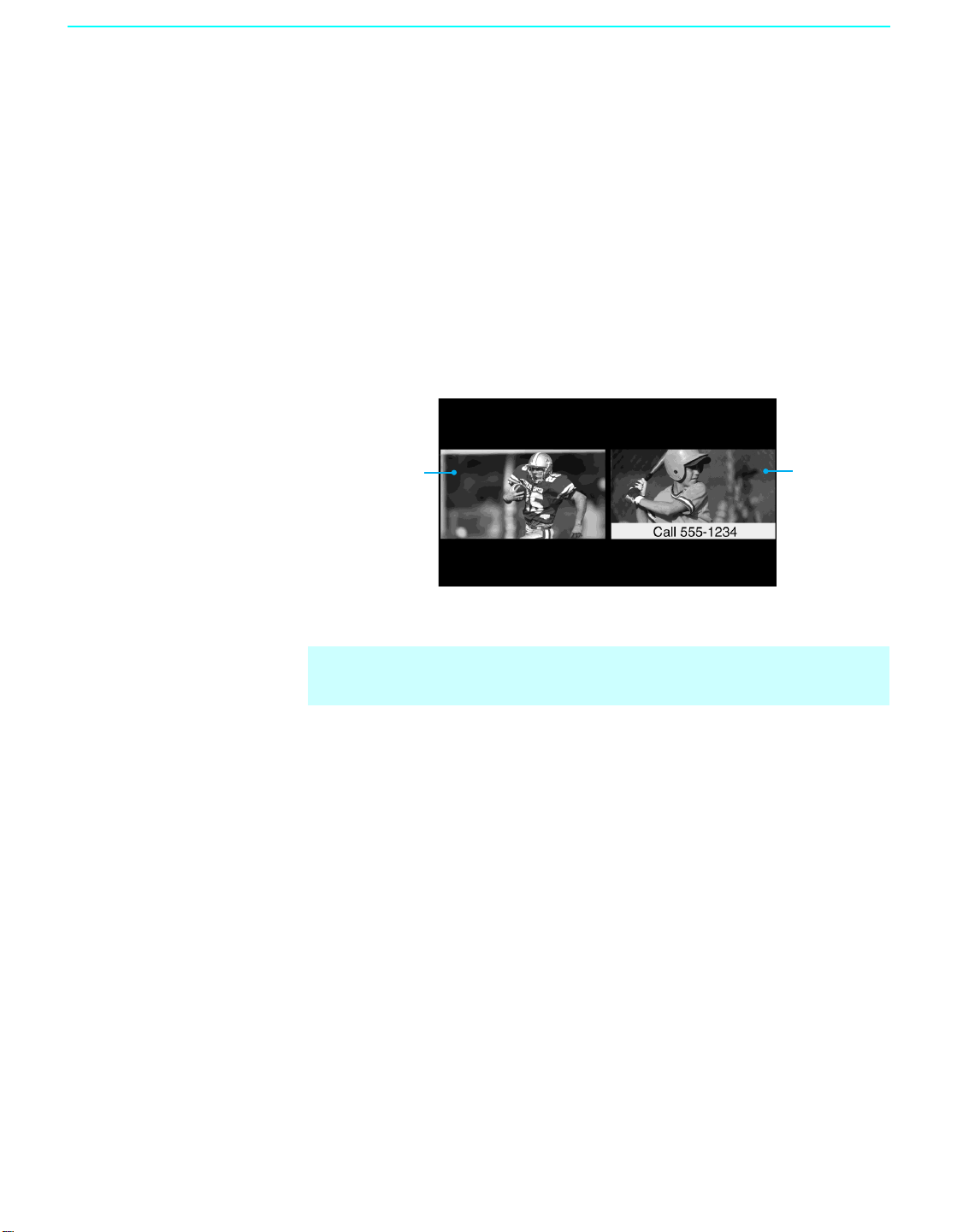

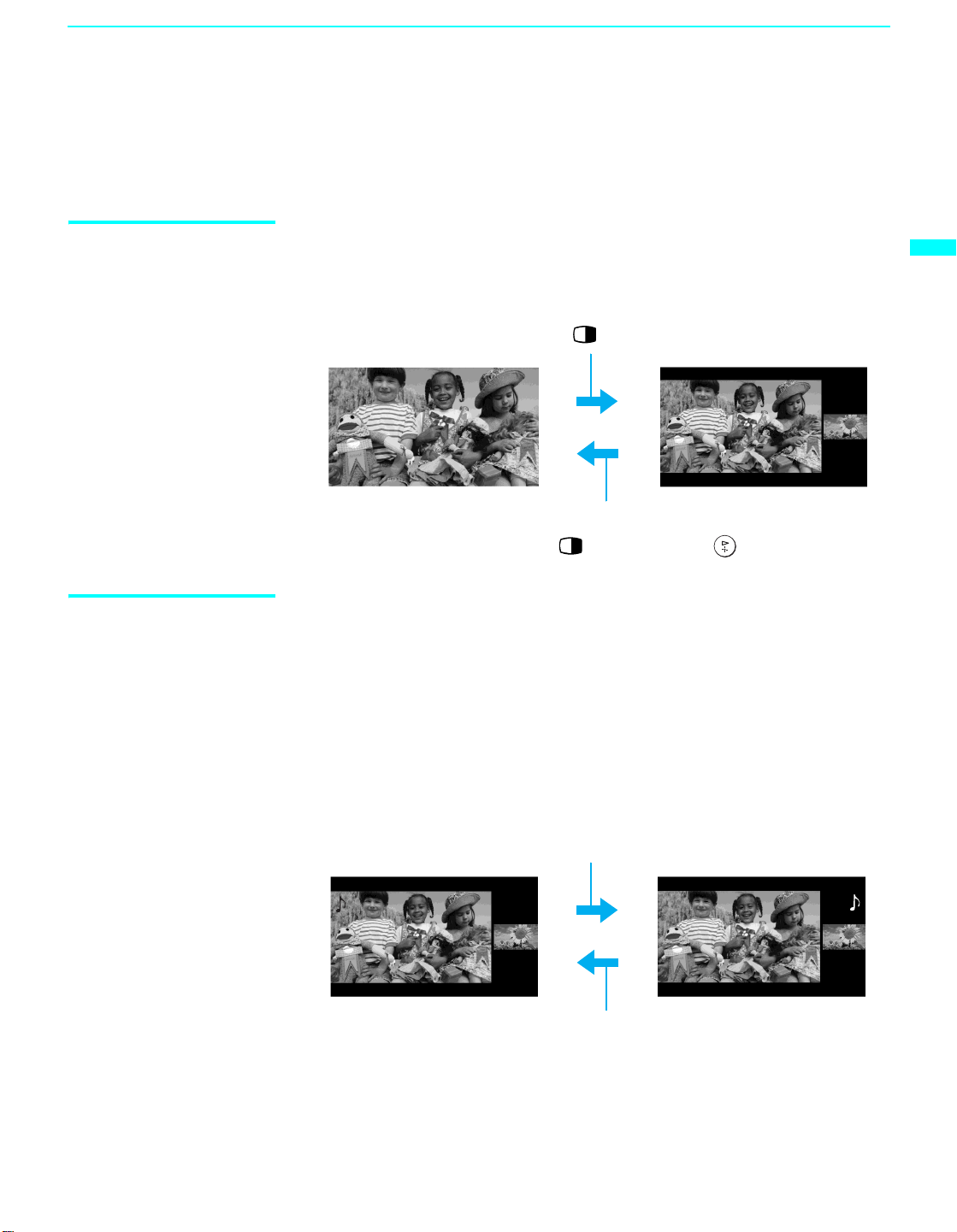

Using Twin View™...............................................55
Using the Freeze Function.....................................58

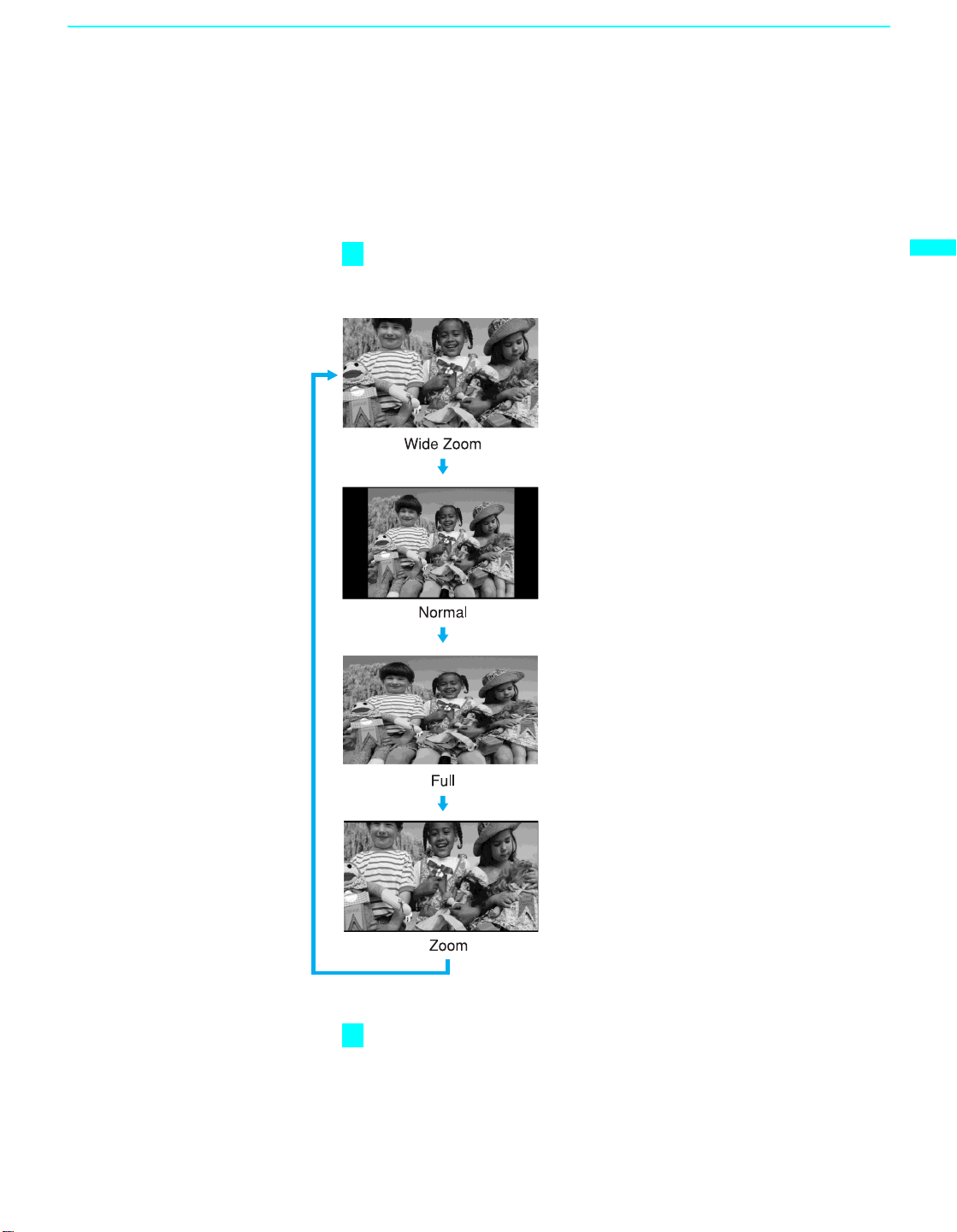

Using Wide Screen Mode......................................59

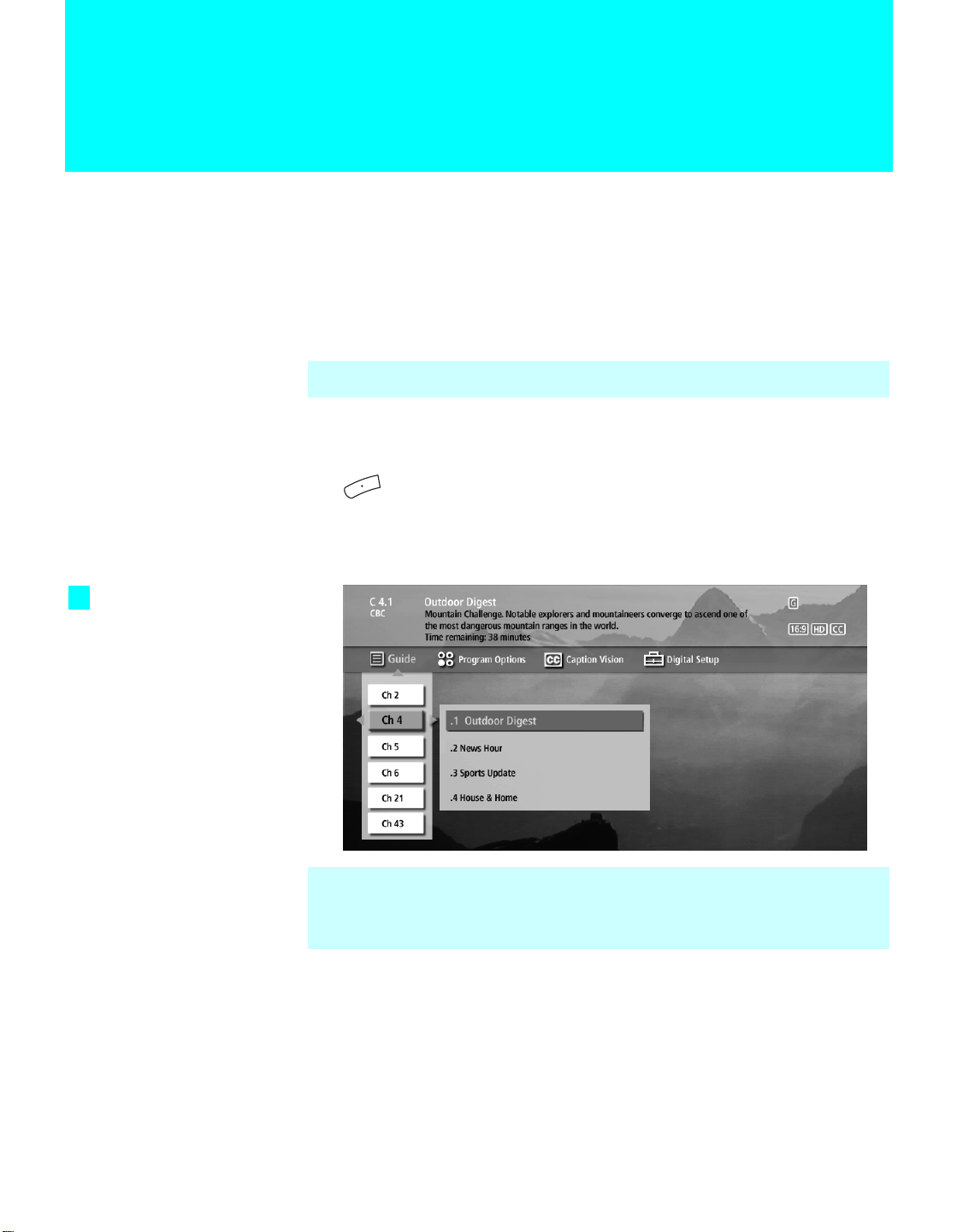

Using the Digital Program Guide

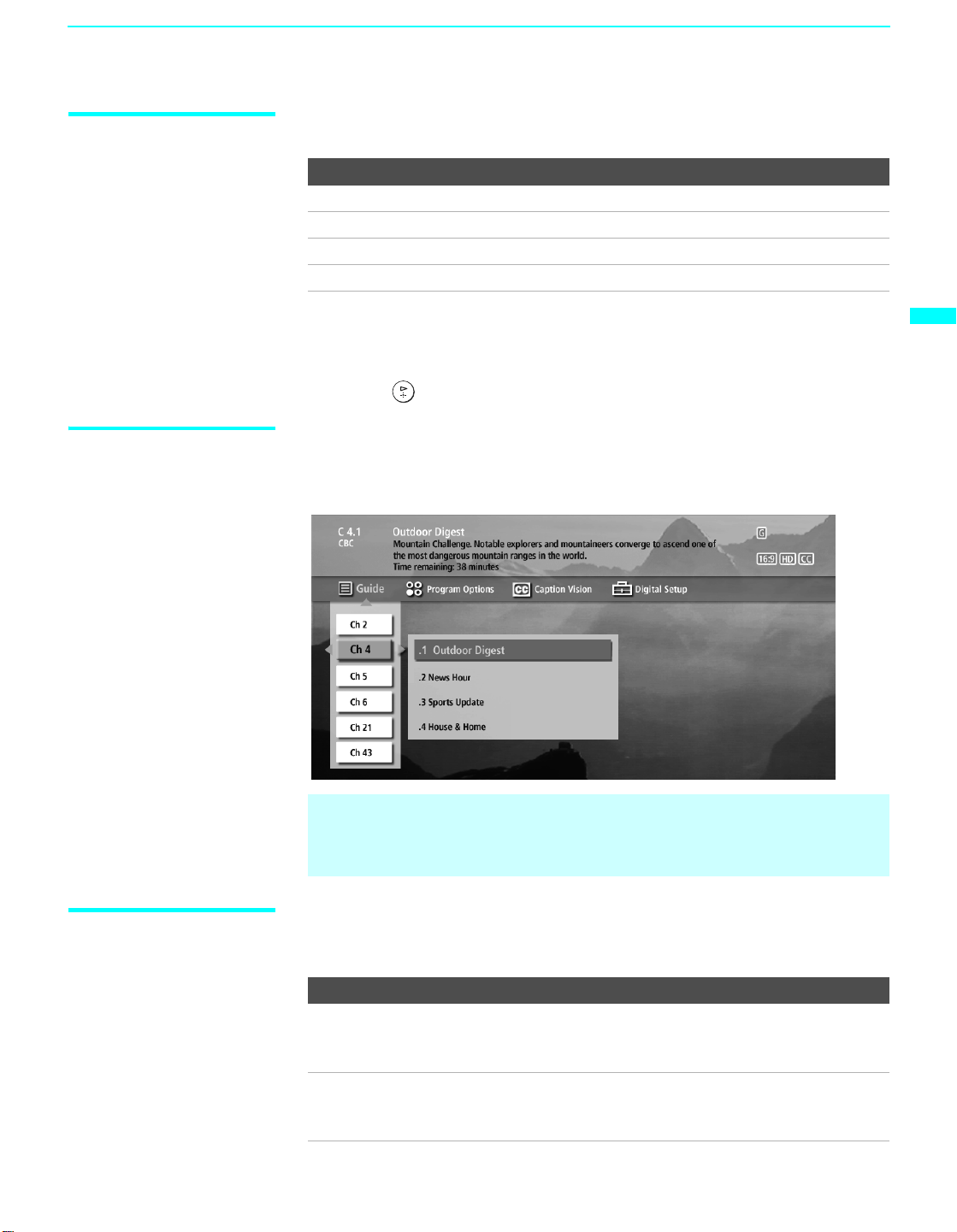

Displaying the Digital Program Guide..................60
Using the Memory Stick Viewer
About Memory Stick .............................................64

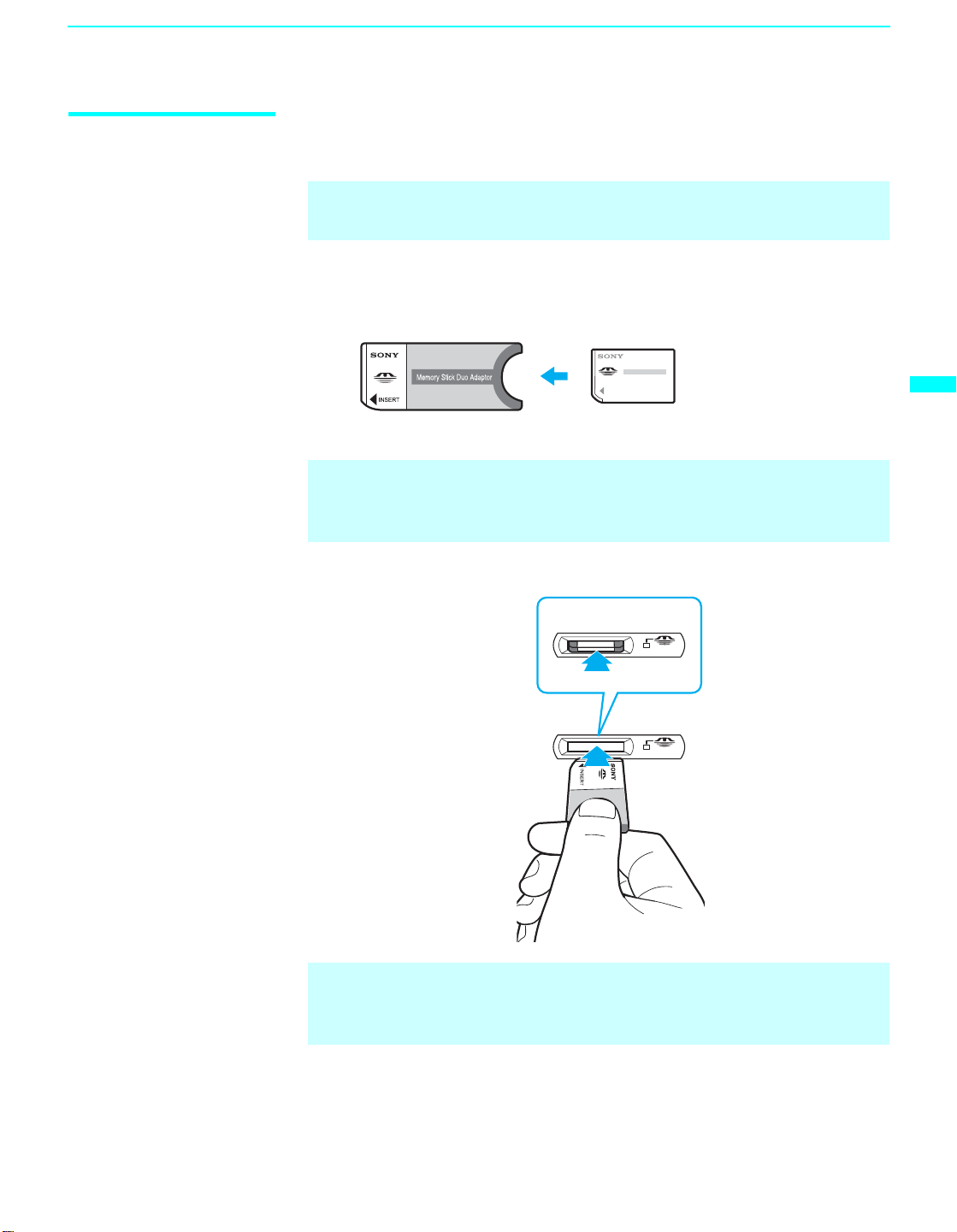

Inserting and Removing a Memory Stick..............66

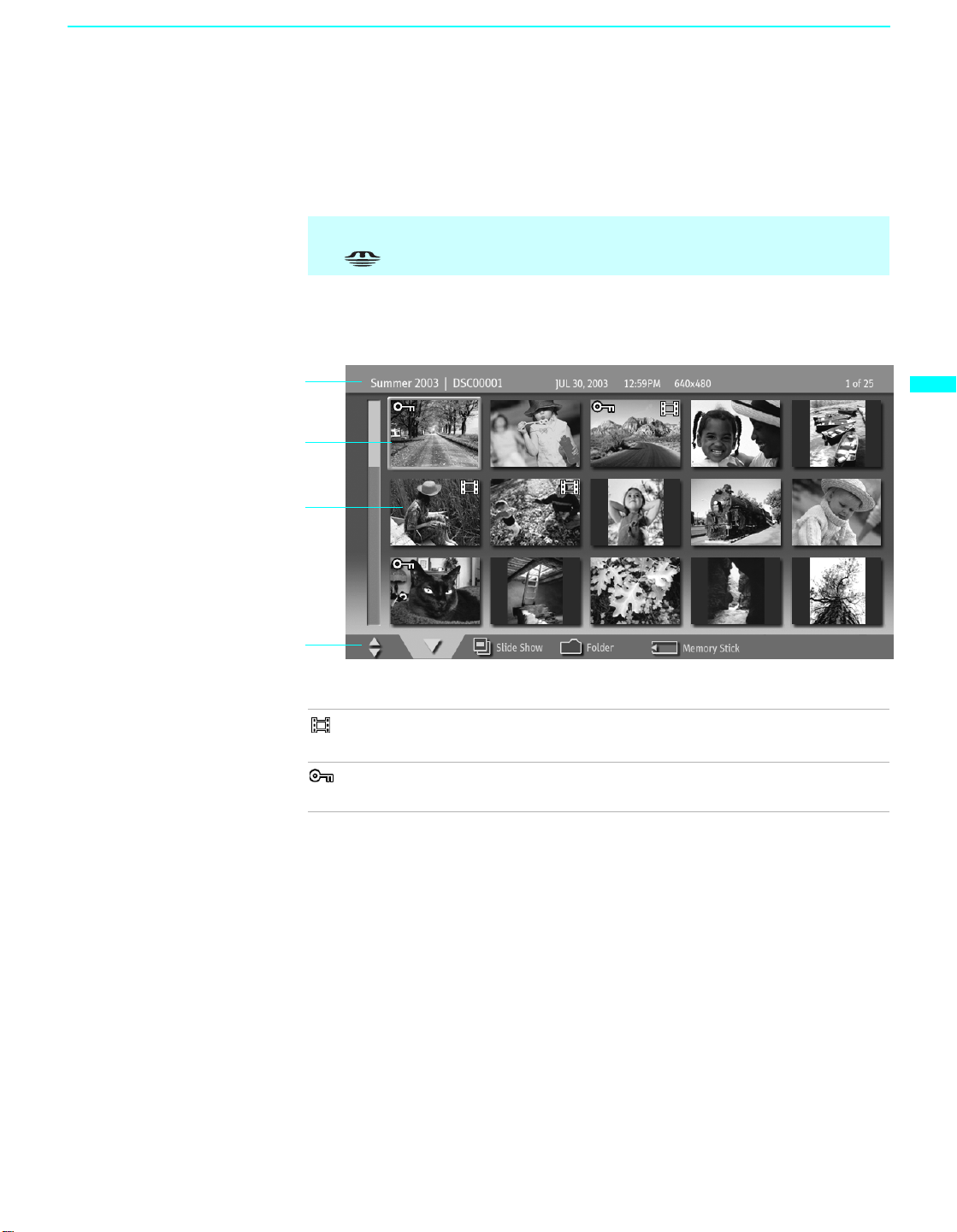

Using the Memory Stick Index..............................69

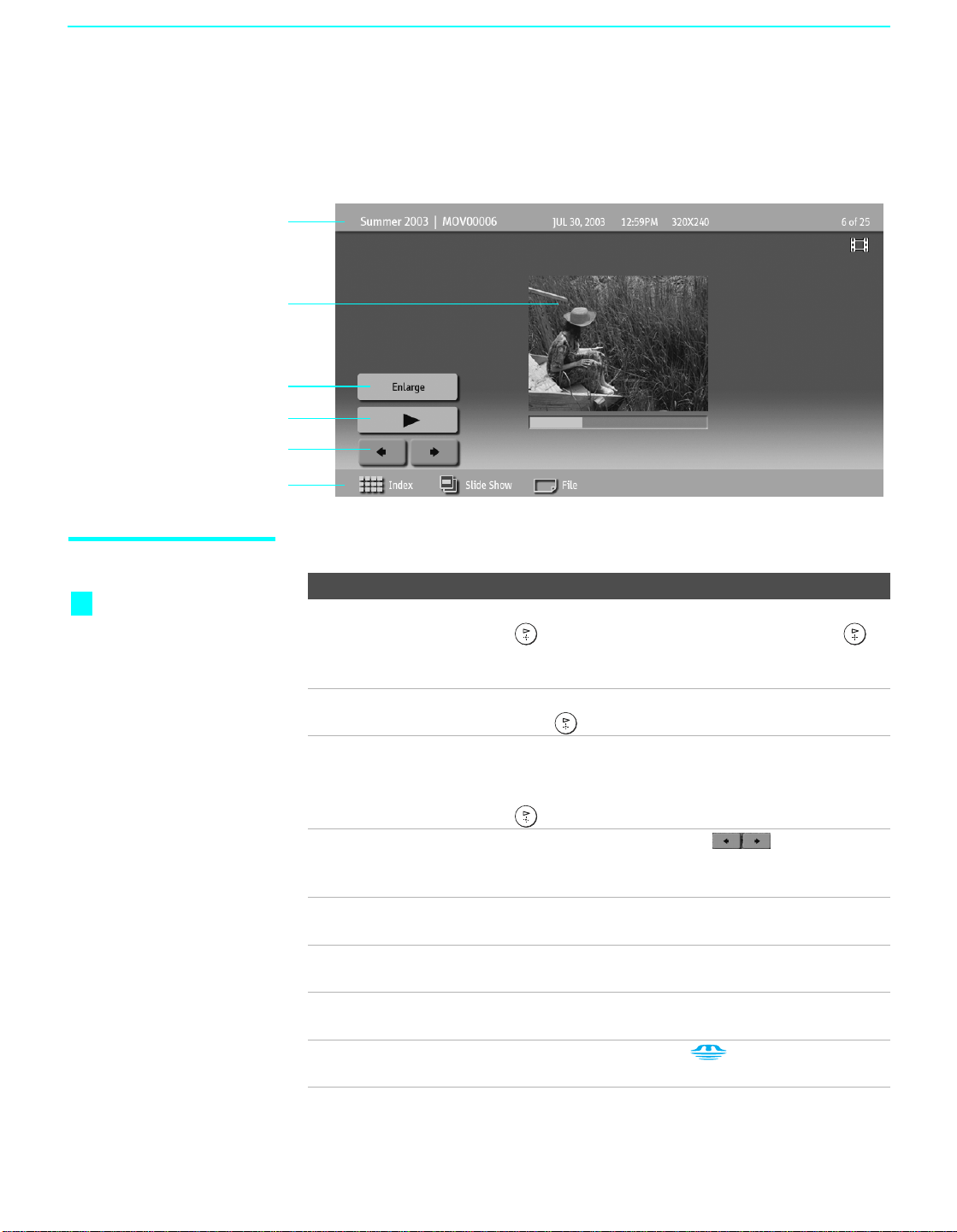

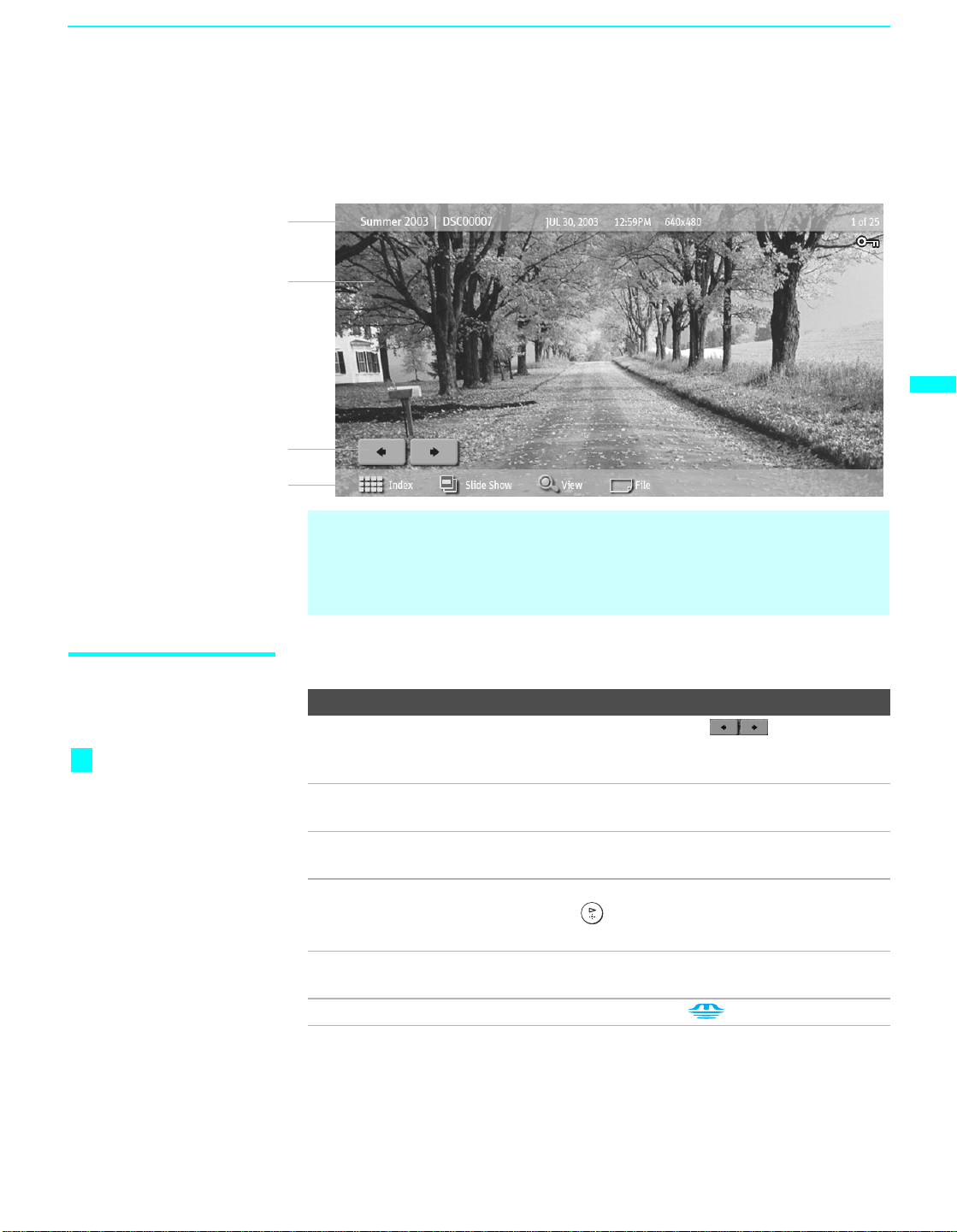

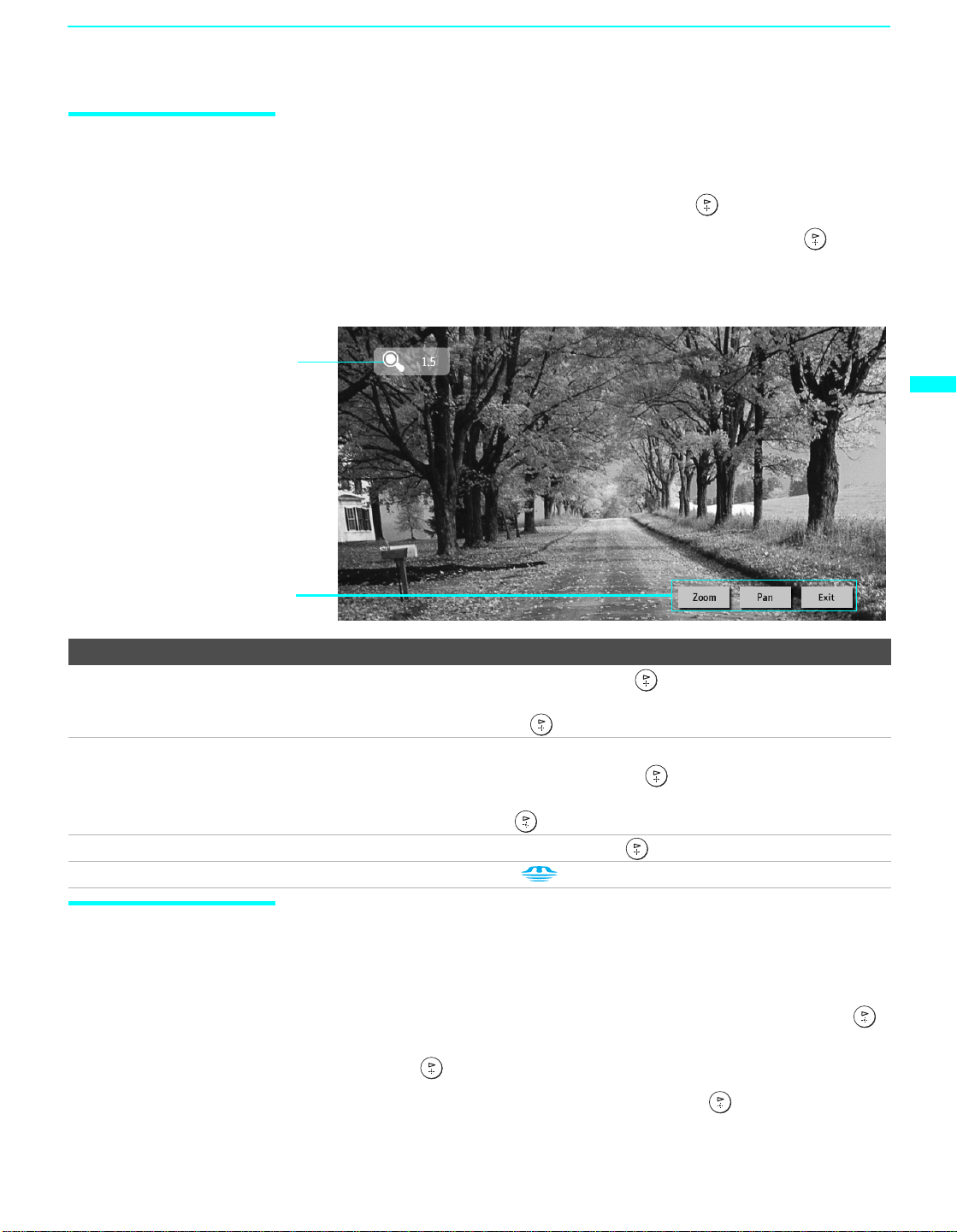

Viewing Photos......................................................71
Playing Movies ......................................................74
Memory Stick Index Menu Bar Options ...............76
Notes on Using Memory Stick Media ...................78
Using i.LINK
About i.LINK.........................................................80

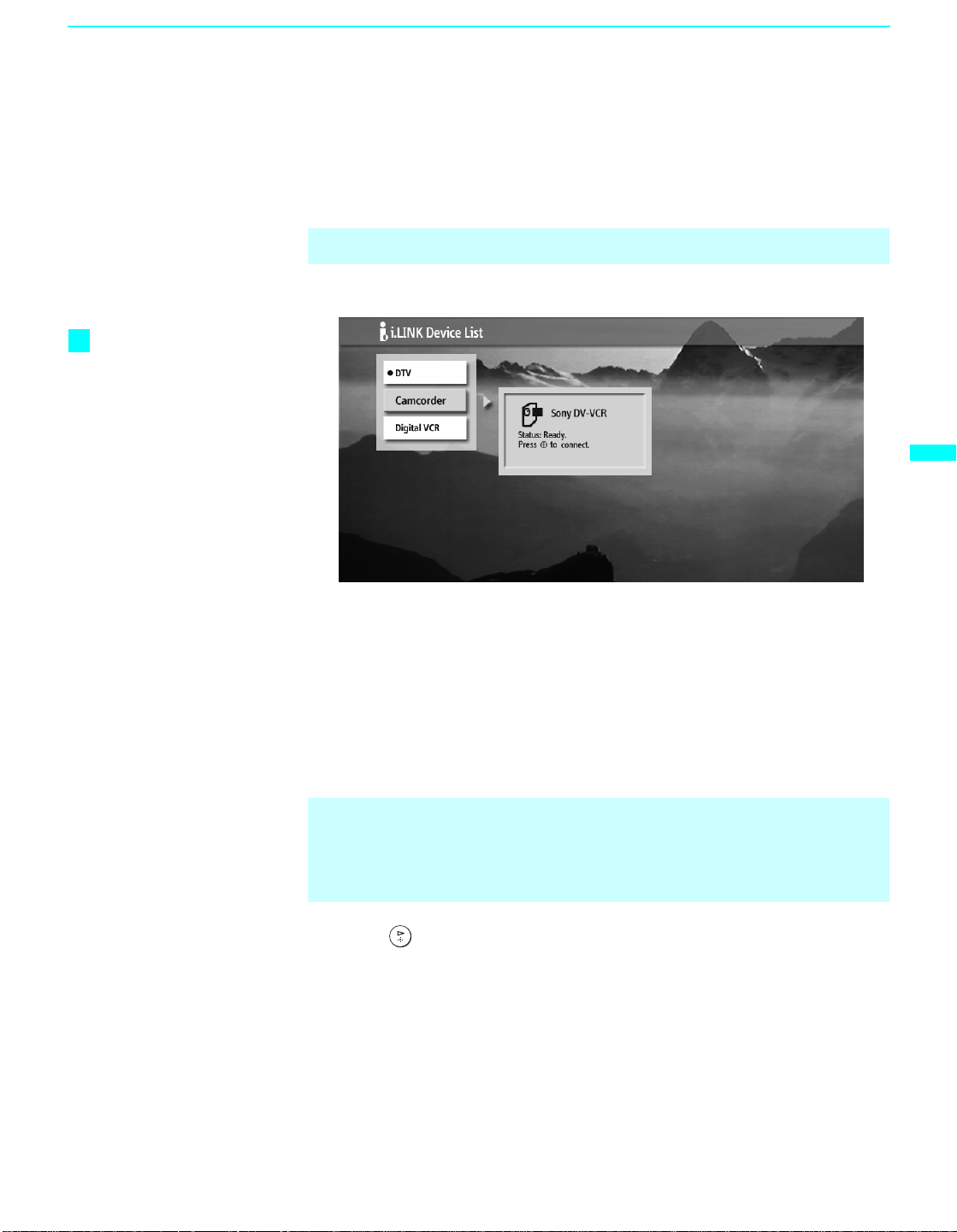

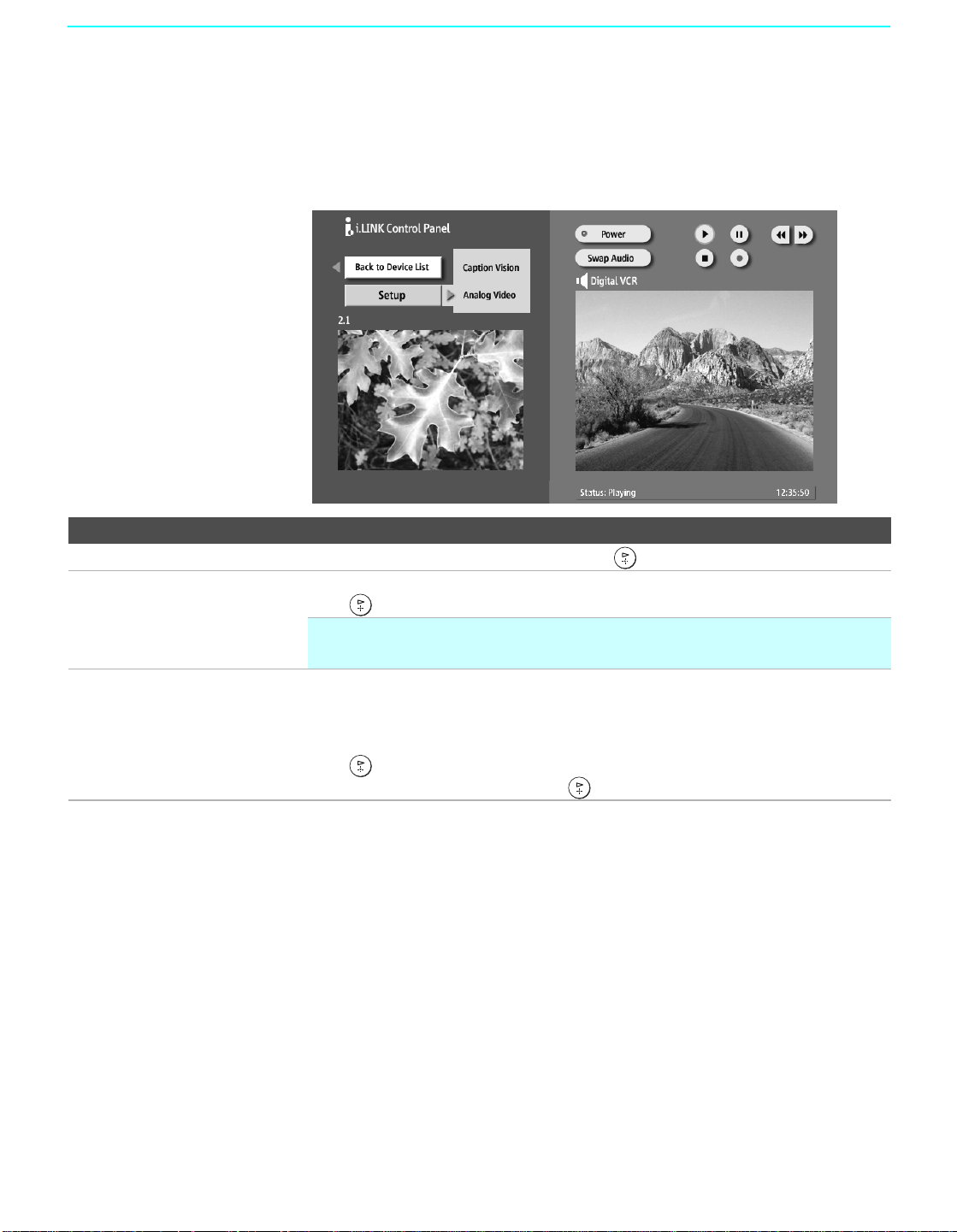

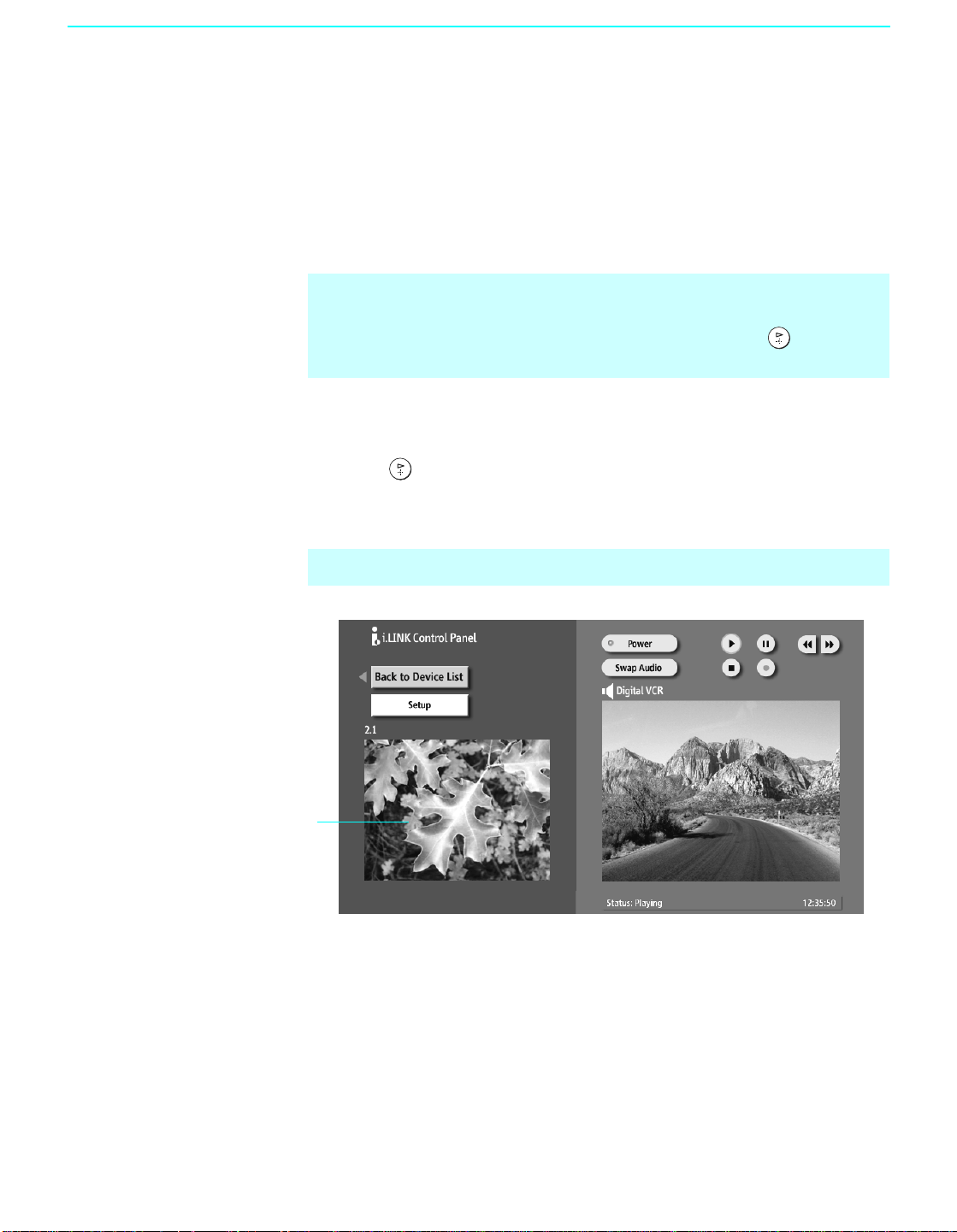

Selecting an i.LINK Device...................................83
Using the i.LINK Control Panel............................84
i.LINK Setup..........................................................86
Using the Menus
Overview................................................................87

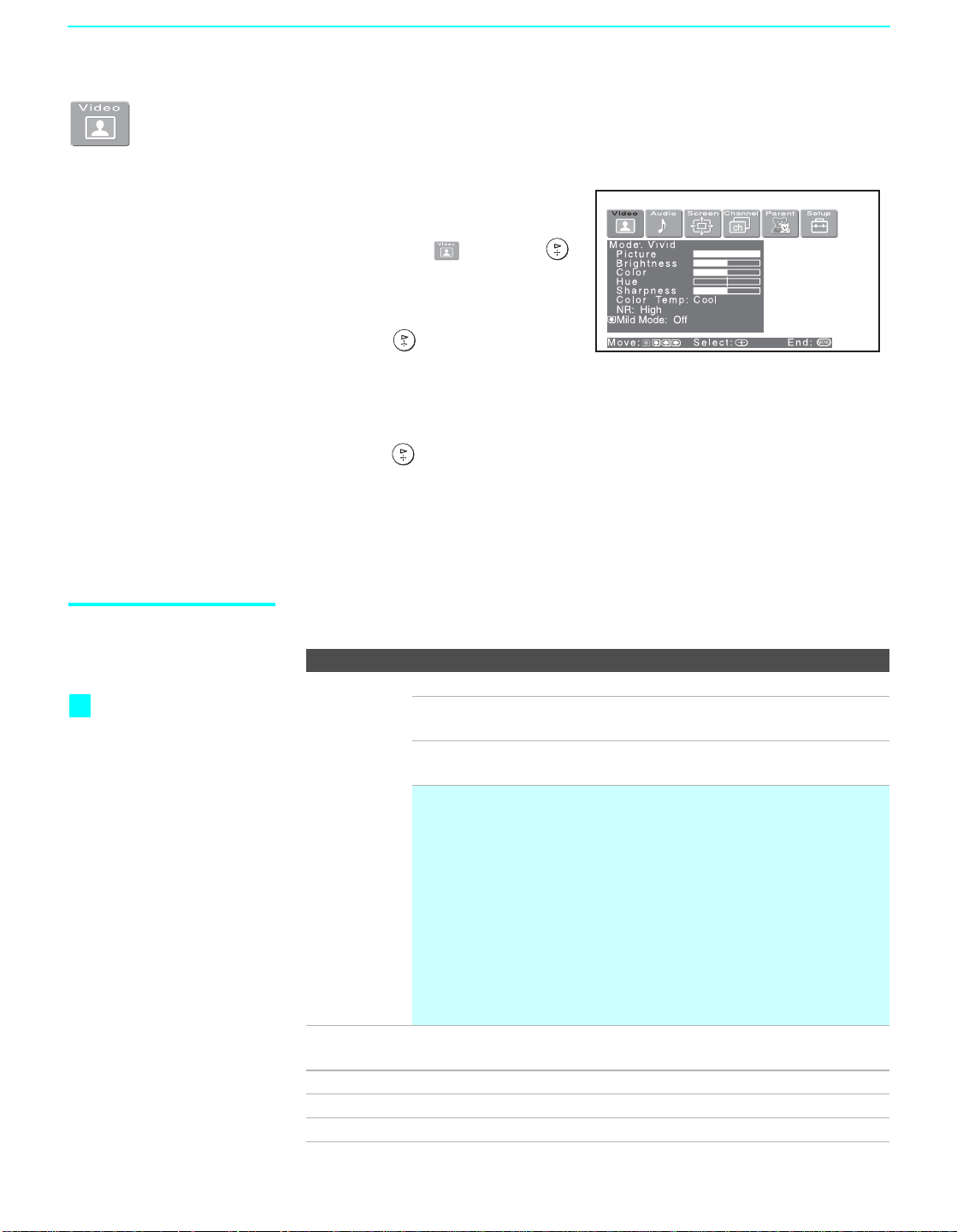

Using the Video Menu...........................................88

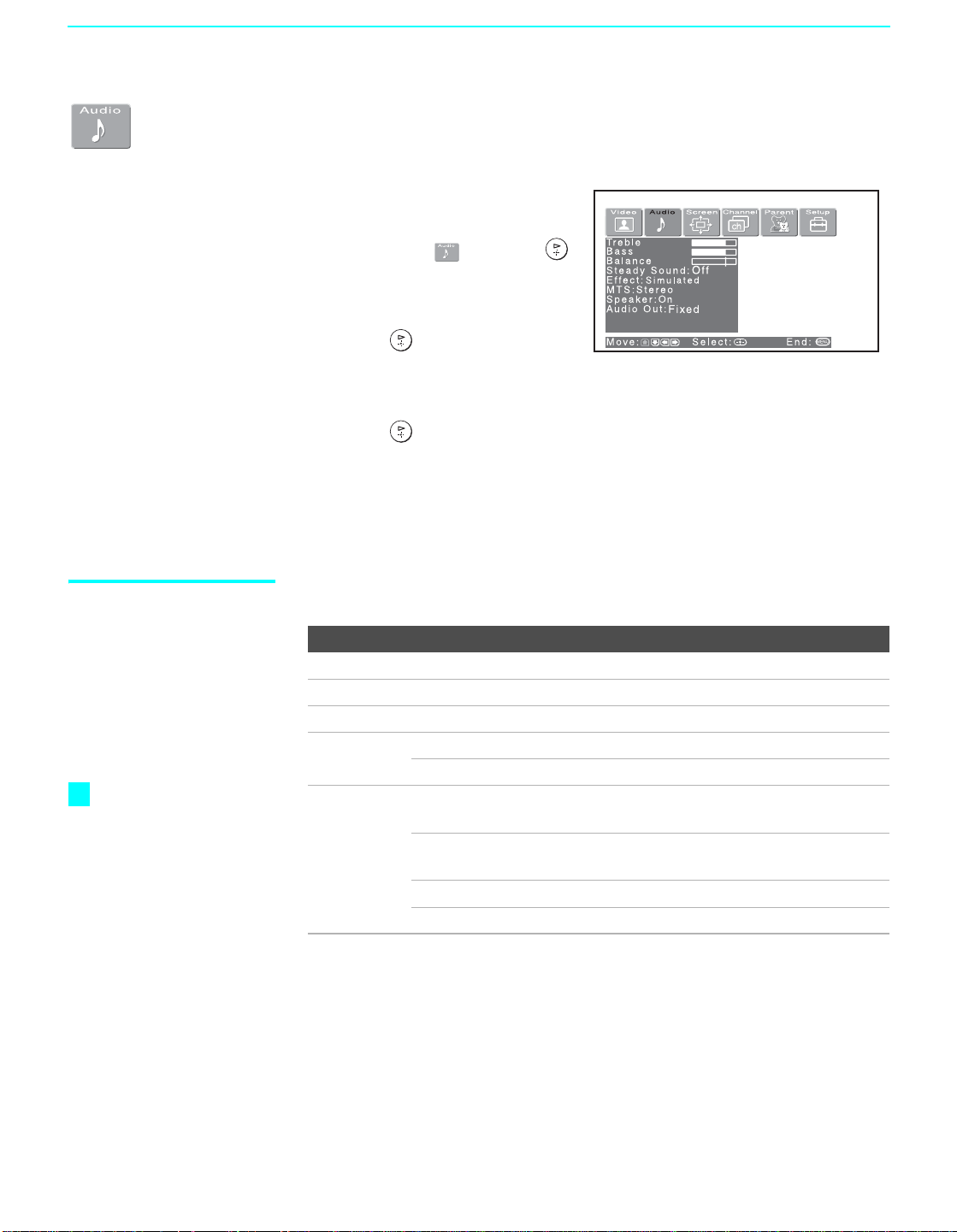

Using the Audio Menu...........................................92
Using the Screen Menu..........................................94

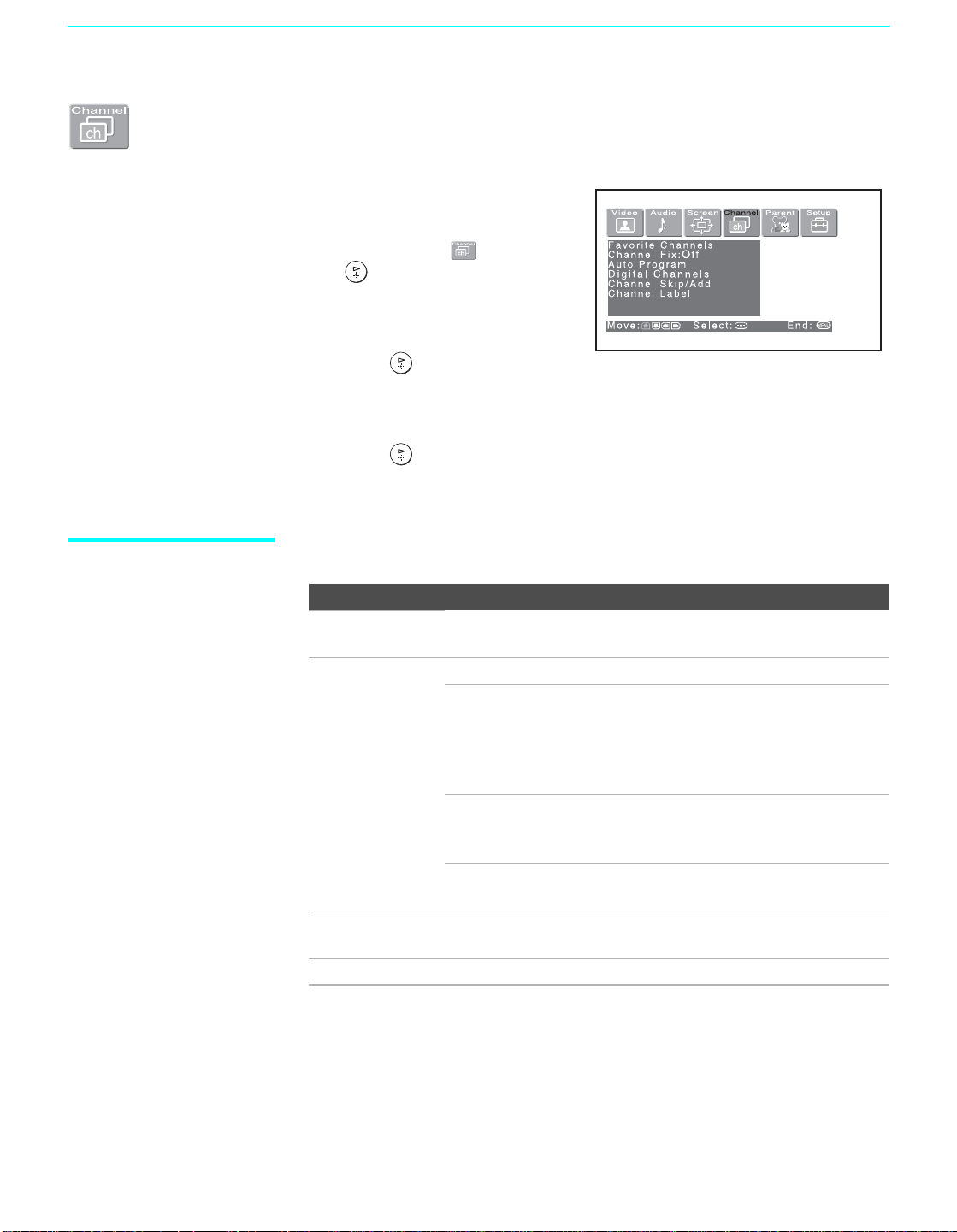

Using the Channel Menu .......................................96
Using the Parent Menu ..........................................98

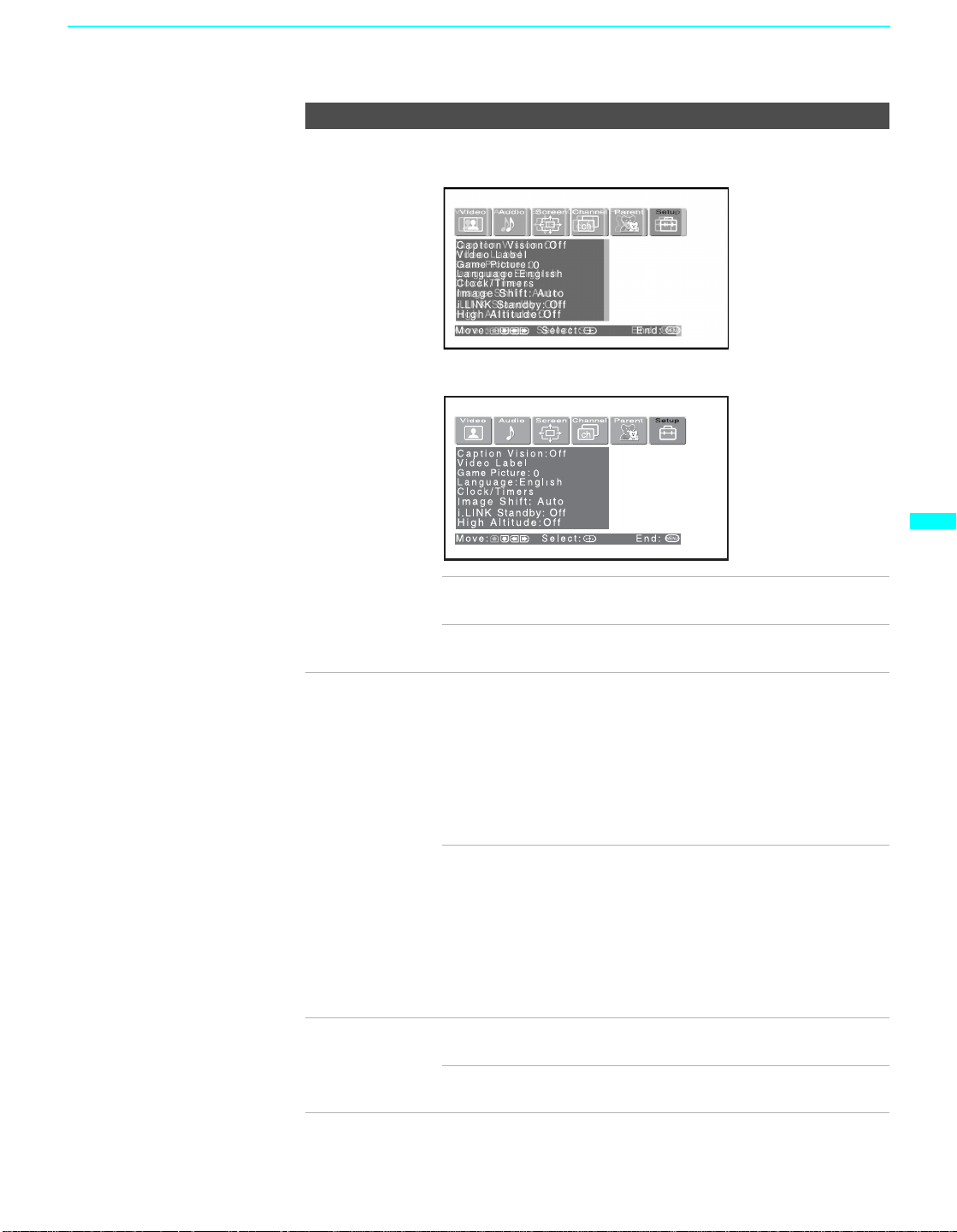

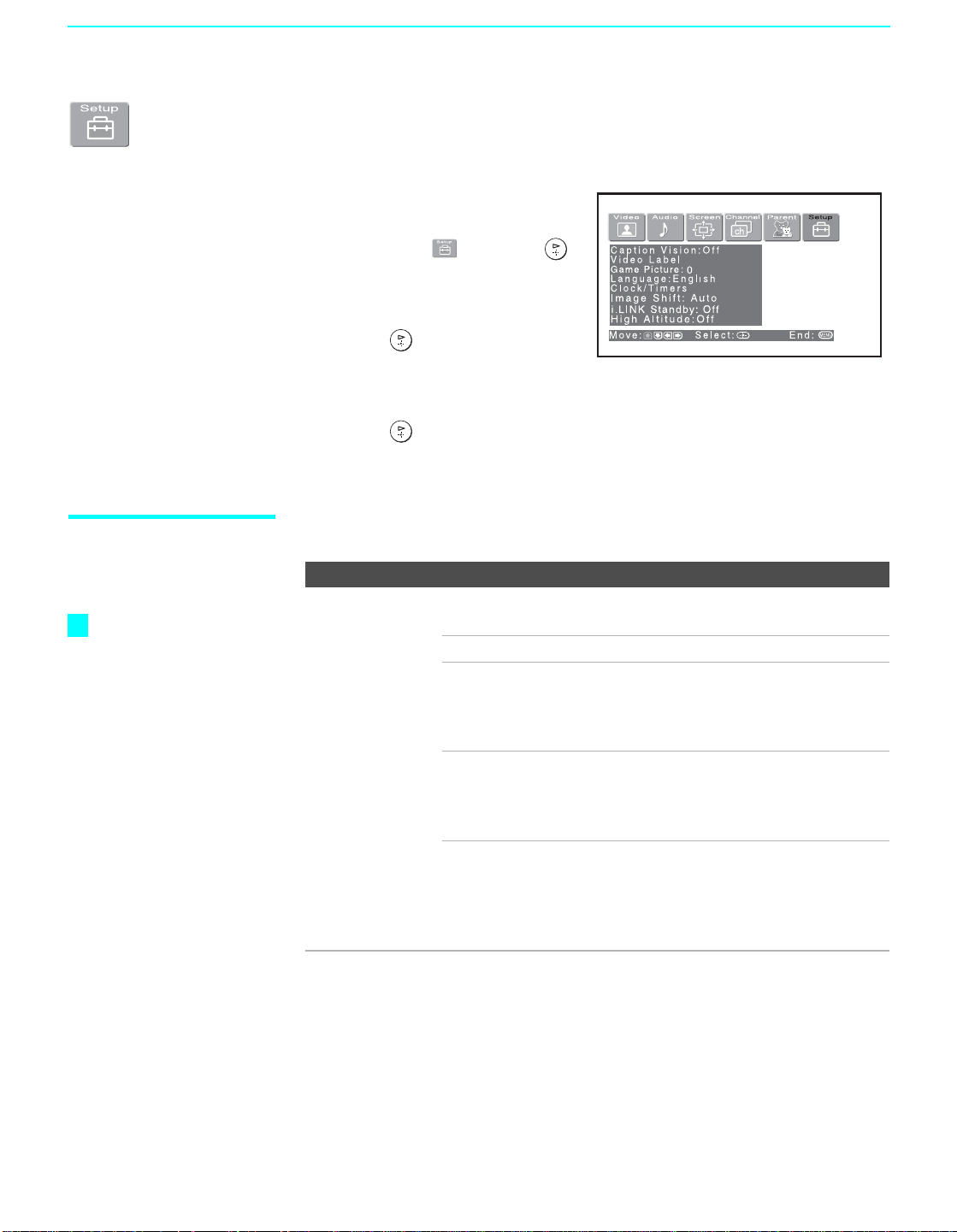

Using the Setup Menu .........................................102
Other Information
Overview..............................................................106

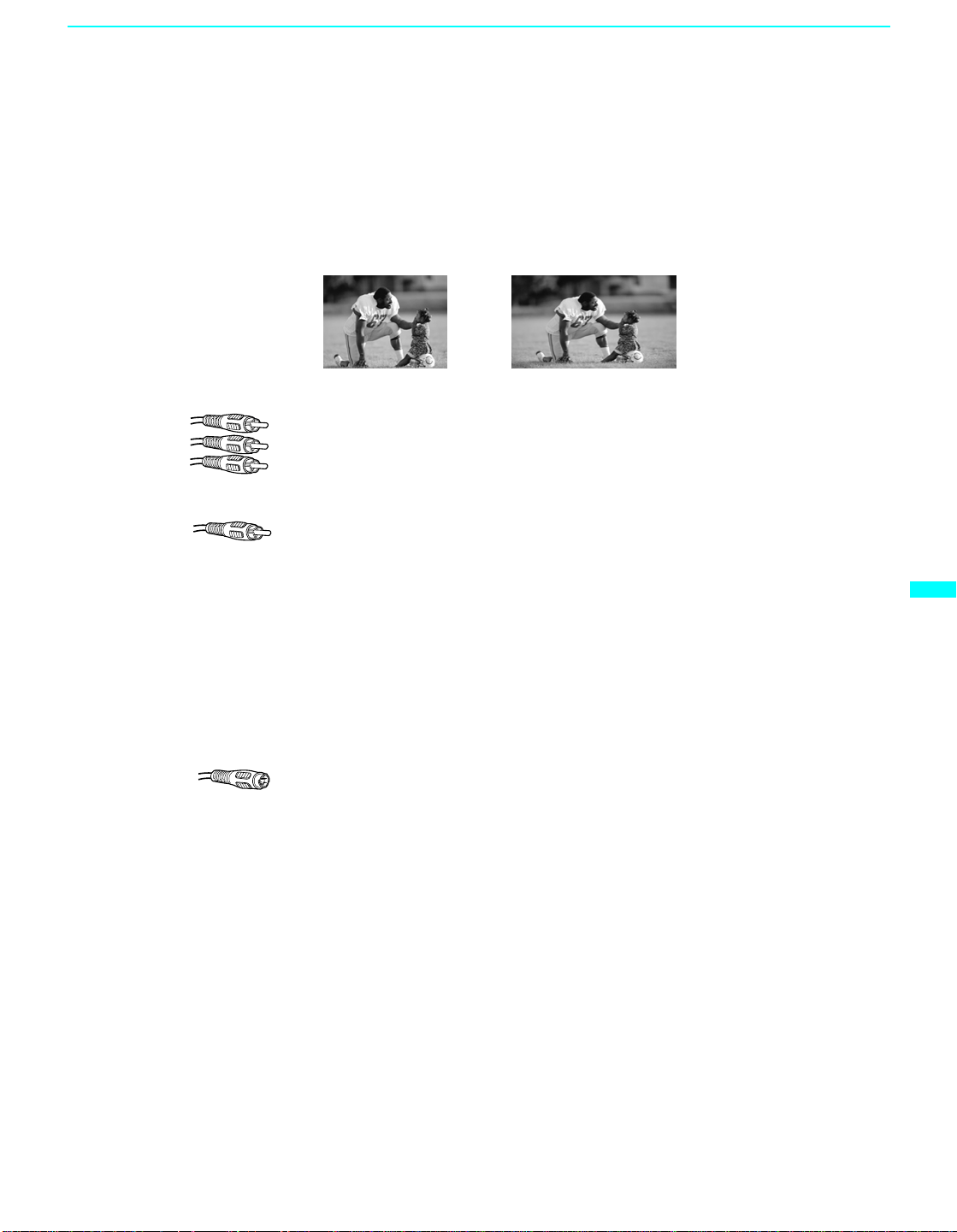

Glossary...............................................................107
Contacting Sony...................................................108
Troubleshooting...................................................108
Flashing Indicators on the Front of the Monitor..114
Specifications.......................................................115
9
Introducing the Sony LCD Projection TV
Introducing the Sony LCD Projection
TV
Presenting the Sony LCD Projection TV
Thank you for purchasing the Sony LCD Projection TV.
This manual is for models KDF-60XBR950 and KDF-70XBR950.
Features Some of the features that you will enjoy with your new LCD projection TV
include:
❑ Integrated HDTV: You can watch digital television programs and
enjoy the improved audio/video quality offered by these programs.
❑ DRC
®
(Digital Reality Creation) Multifunction V1: Unlike
conventional line doublers, the DRC feature converts frames reproduced
every 1/60th of a second in real time, minimizing the blur or ghost of the
motion images (for 480i signals only).
❑ CineMotion
™
: Using the reverse 3-2 pull down technology, the
CineMotion feature allows you to obtain a smooth picture movement
when playing back movies or other video sources on film.
❑ Twin View
™
: Using Multi-Image Driver (MID-X), Twin View allows
you to watch two programs side by side with the ability to zoom in on
one picture and listen to the program in the selected window. You can
watch pictures from two different sources (1080i, 720p, 480p or 480i)
simultaneously.

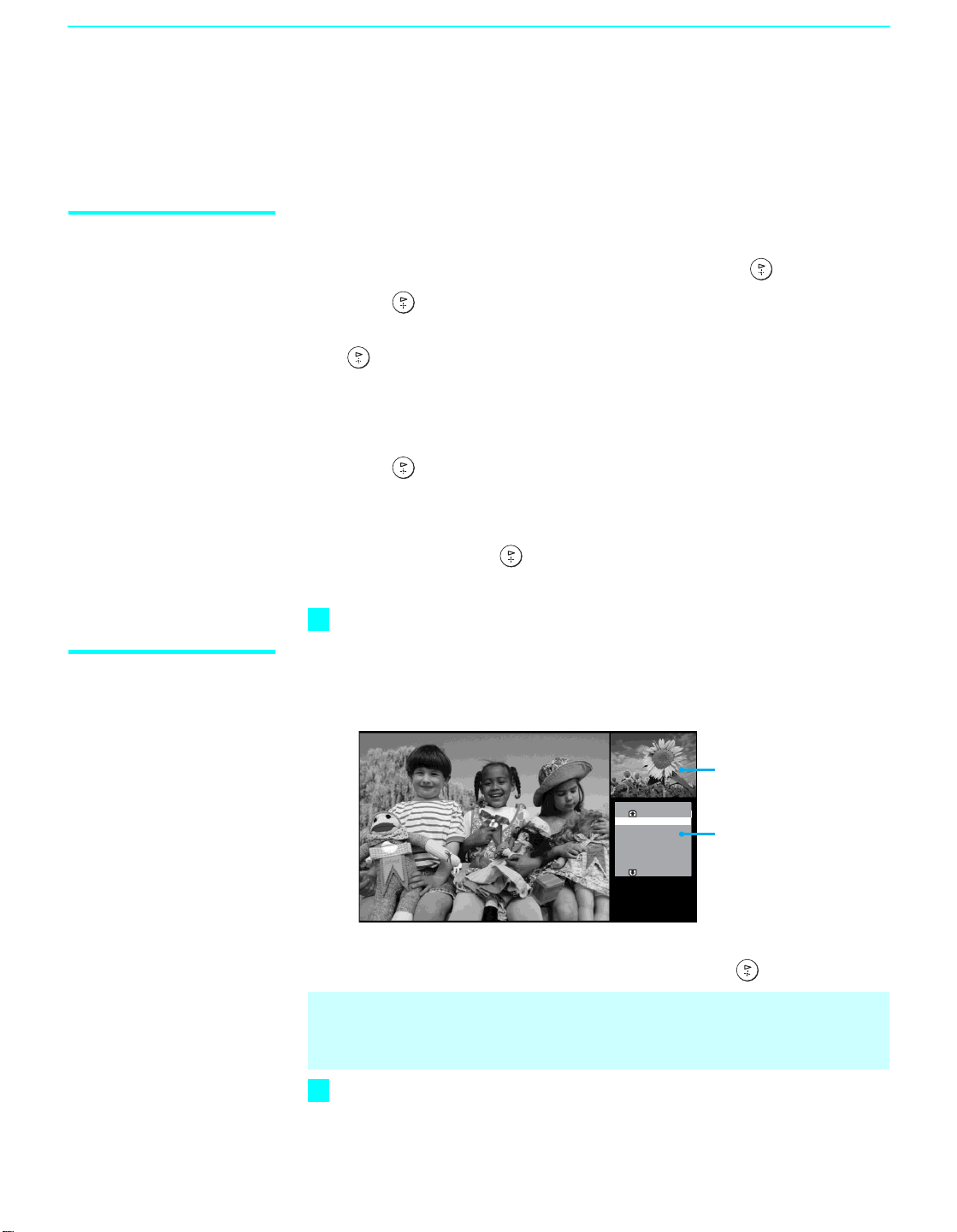

❑ Memory Stick
®
Viewer: Allows you to view on your LCD Projection
TV screen digital photos (JPEG) and movies (MPEG1) that are stored
on Memory Stick media.
❑ Parental Control: V-Chip technology allows parents to block
unsuitable programming for younger viewers.
❑ Digital Visual Interface (DVI-HDTV): Can accommodate a copy-
protected digital connection (HDCP
*
) to other devices (such as digital
set-top boxes) that have compatible interfaces. The DVI-HDTV input
terminal is compliant with the EIA-861 standard and is not intended for
use with personal computers.
* High-bandwidth Digital Content Protection
(Continued)
Introducing the Sony LCD Projection TV
10
❑ i.LINK: Provides a secure digital interface to other digital home
entertainment devices. i.LINK allows for the secure transfer of
copyright-protected high-definition content between these devices and
your LCD projection TV. The i.LINK is not compatible with personal
computers.
❑ Component Video Inputs: Offers the best video quality for DVD
(480p, 480i) and Digital Set-top box (1080i, 720p, 480p, 480i)
connections.
❑ S-VIDEO Inputs: Provides a high-quality image for connected
equipment.
❑ Favorite Channel Preview: Preview up to sixteen favorite channels
without leaving the current channel.
❑ Wide Screen Mode: Allows you to watch 4:3 normal broadcasts in
wide screen mode (16:9 aspect ratio).
❑ Auto Wide: Allows you to select the wide screen mode automatically.
Using This Manual
We recommend that you carefully review the contents of the following three
sections in the order shown to ensure that you fully understand the operation
of your new LCD projection TV.
1 Installing and Connecting the LCD Projection TV
This section guides you through your initial setup. It shows you how to
install your LCD projection TV, to connect your new components and to
connect the antenna and cable.
2 Using the Features
This section shows you how to begin using your new LCD projection

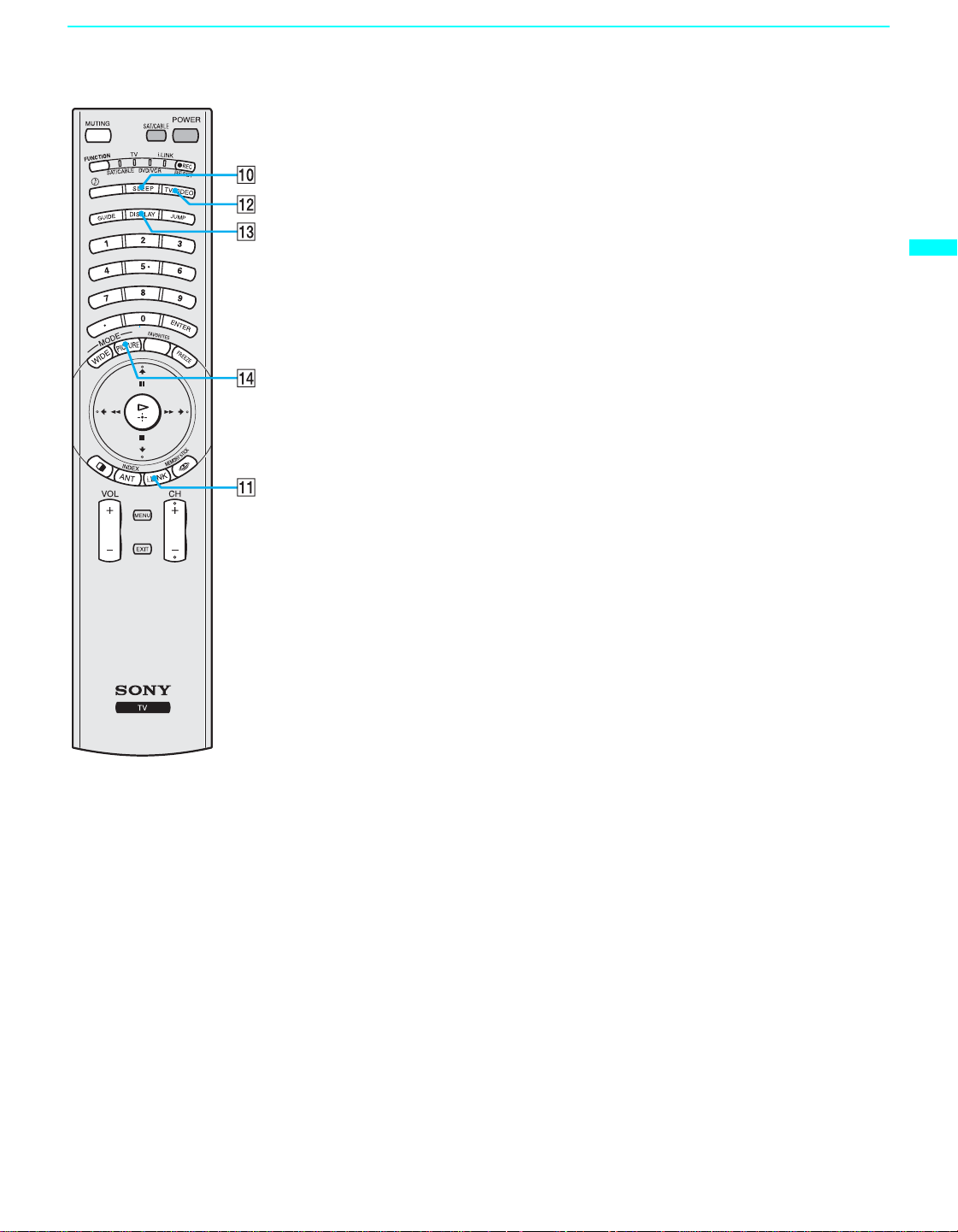

TV. It also shows you how to use your remote control functions.
3 Using the menus
This section teaches you how to access on-screen menus and adjust your
LCD projection TV settings.
Instructions in this manual are written for the remote control. Similar
controls are also found on the LCD projection TV console.
Introducing the Sony LCD Projection TV
11
Introducing the Sony LCD Projection TV
Enjoying Your LCD Projection TV
Indicators
The indicators show the current status of your LCD projection TV.
Screen
To minimize screen reflection, its surface has a special coating. Read the
instructions “Use of the Cleaning Cloth” on page 12 carefully before
cleaning.
Inappropriate cleaning methods could damage the finishing.
Projection lamp
Your LCD projection TV uses a projection lamp as its light source. Note the
following:
❑ After turning on your LCD projection TV, it may take a while before the
picture appears (1 minute or less).
❑ When the projection lamp wears out, the screen image becomes dark.
Replace the lamp with a new Sony XL-2100U replacement lamp (not
supplied).
✍ Be sure to attach the lamp cover securely; otherwise, your LCD
projection TV will not turn on. For details on lamp replacement, see
“Replacing the Lamp” on page 13.
✍ The light emitted from the lamp is quite bright when your LCD projection
TV is in use. To avoid eye discomfort or injury, do not look into the
housing when the power is on.
Screen
Projection lamp
Indicators
Introducing the Sony LCD Projection TV
12
Notes on the LCD
Projection TV
To enjoy clear pictures
❑
Be sure not to allow sunlight or light from a lamp to shine directly onto
the screen.
❑ The screen surface is easily scratched. Do not rub, touch, or tap it with a
sharp or abrasive object (see “Use of the Cleaning Cloth” below).
On moisture condensation
❑
If your LCD projection TV is transported directly from a cold to a warm
location, is placed in a humid room, or if the room temperature changes
suddenly, the picture may be blurred or show poor color. This is
because moisture has condensed on the lenses inside. If this happens,
leave the power on and let the moisture evaporate before using your
LCD projection TV.
When the LCD projection TV will not be used for a long period of time
❑
Turn off the main power on the front of your LCD projection TV before
going to sleep or going out. Disconnect the AC plug if idle for more
than 7 days.
When turning off the power
❑
Be sure to turn off the power switch on the main unit or on the remote
control. After turning off the power, the fan will continue to blow for
about two minutes. Be sure to wait for several minutes after turning the
power off when unplugging from the outlet or switching the breaker off.
When carrying the LCD Projection TV
❑
Before carrying, unplug the power cord and disconnect all cables.
Do not carry the LCD projection TV by placing hands under the front
screen.
Use of the Cleaning
Cloth
To remove dust from the front of the screen, wipe with the supplied Cleaning
Cloth.
✍ Do not use any type of abrasive pad, alkaline cleaner, scouring powder,
window cleaners or solvent such as alcohol or benzene. Otherwise, this
type of contact may result in a damaged screen.
✍ To clean the screen, please use the supplied Cleaning Cloth lightly
moistened with water diluted mild detergent solution. Do not apply heavy
press when cleaning.
✍ The supplied Cleaning Cloth is washable with warm water and a mild
detergent solution, and can be used repeatedly.
Introducing the Sony LCD Projection TV
13
Introducing the Sony LCD Projection TV
Replacing the Lamp
The projection lamp has a limited life which illuminates the picture.
If the screen becomes dark, the color looks unusual, or the LAMP indicator
on the front of the LCD projection TV flashes, it is time to replace the lamp
with a new one (not supplied).
❑ Use a Sony XL-2100U replacement lamp (not supplied) for
replacement. Failure to do so may damage the LCD projection TV.
❑ Do not remove the lamp for any purpose other than replacement.
Failure to do so may cause fire or a skin burn.
❑ Before replacing the lamp, turn the power off on the main unit, then
several minutes later, unplug the power cord. (The cooling fan will
continue to blow for about two minutes after turning the power off.)
❑ Before replacing the lamp, let it cool down completely, as the surface of
the lamp remains extremely hot for at least 30 minutes after the power
has been turned off.
❑ Do not leave the removed lamp near flammable materials or within the
reach of children.
❑ Do not pour water onto the removed lamp, or put any object inside the
lamp. Doing so may cause the lamp to burst.
❑ Do not put flammable materials and metal objects inside the lamp
receptacle of the LCD projection TV after removing the lamp. Doing so
may cause fire or electrical shock. Also, be sure not to touch the
receptacle, because it may cause a skin burn.
❑ Mount the new lamp securely, otherwise the screen may become dark,
or it may cause a fire.
❑ Do not touch the glass with your fingers on the new lamp.
The used lamp
Used lamp contains Mercury, Dispose According to Local, State or Federal
Laws.
✍ Do not touch the front glass of a new lamp or the glass of the lamp
receptacle. This may reduce picture quality or lamp life.
WARNING
Electric appliances can cause fire or high temperature, resulting in injury
or death. Be sure to follow the instructions below.
(Continued)
Introducing the Sony LCD Projection TV
14
1 Turn off the power switch on the LCD projection TV and after several
minutes, unplug the power cord.
(The cooling fan will continue to blow for about two minutes after
turning the power off.)
2 Unplug the power cord after turning off the main power. Wait at least 30
minutes to allow the lamp to cool down before replacing it.
Take the new lamp out of the box.

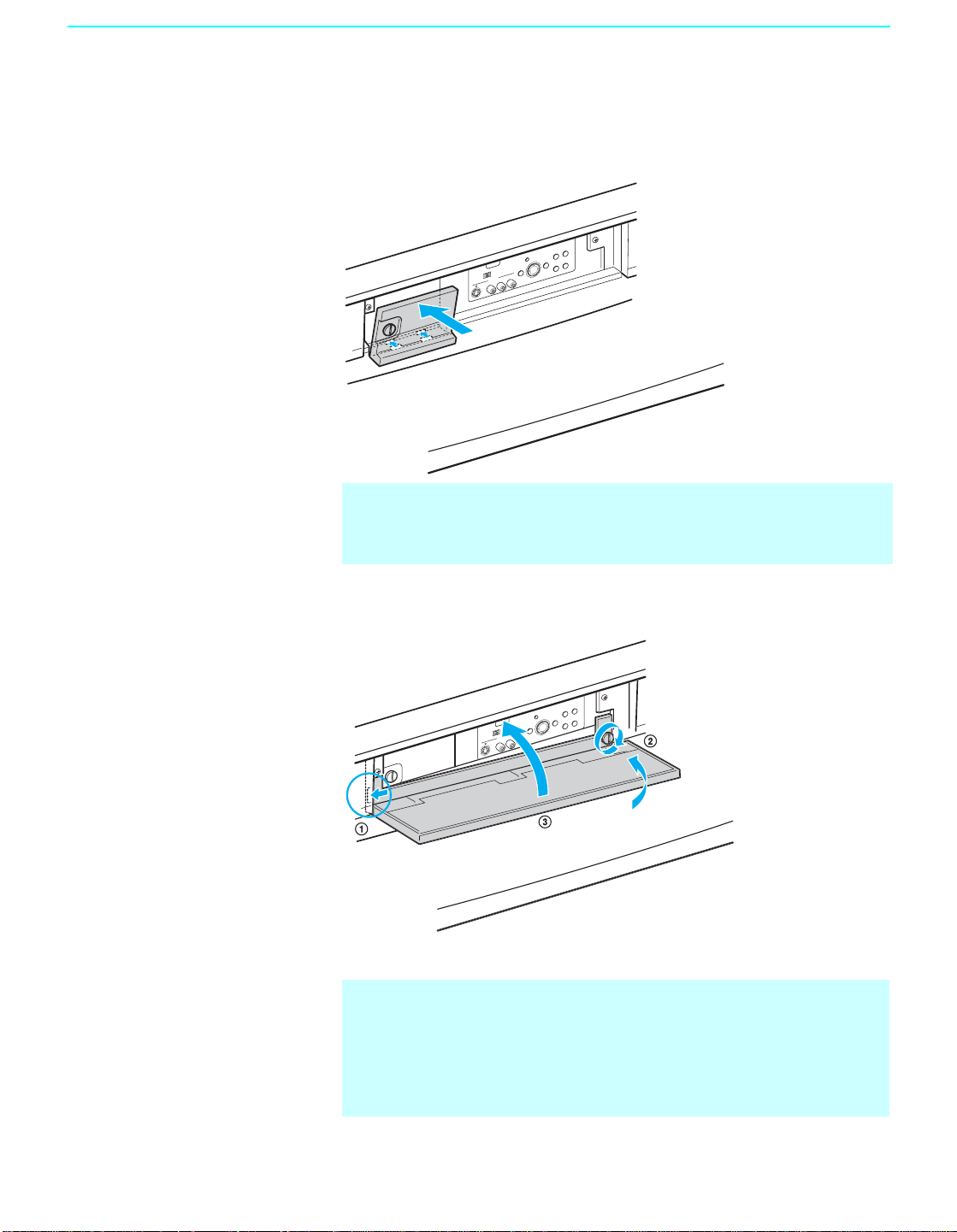

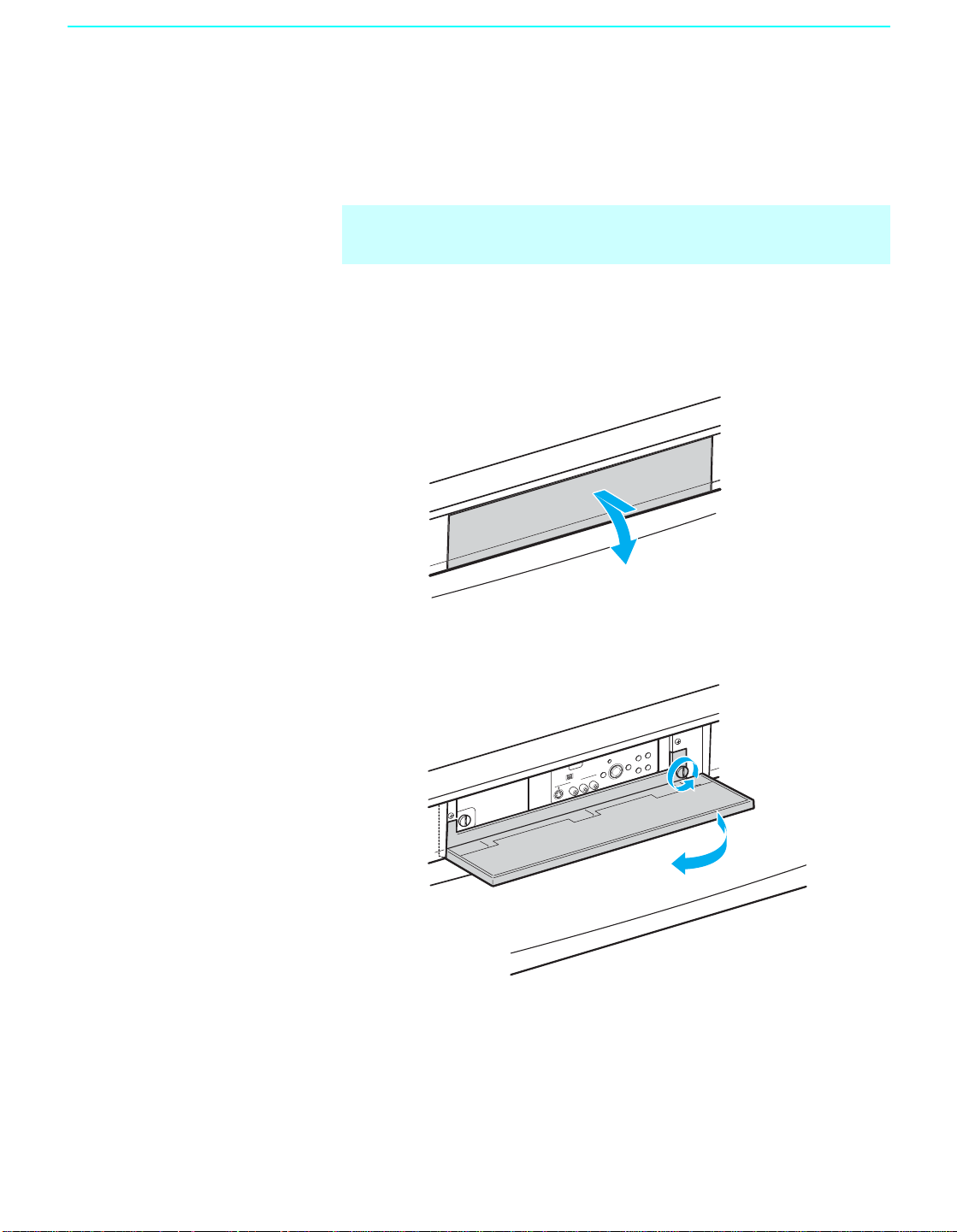

3 Remove the control panel cover.
✍ Do not touch the front glass of a new lamp or the glass of the lamp
receptacle. This may reduce picture quality or lamp life.
Loosen the screw in the right underneath with a
coin or similar object and remove the control
panel cover.
Push and release the center in the upper of the
control panel cover to open it.
Introducing the Sony LCD Projection TV
15
Introducing the Sony LCD Projection TV
4 Loosen the screw with a coin or similar object to remove the lamp cover.
5 Loosen the two screws that secure the lamp, then pull out the lamp.
The lamp is very hot immediately after use. Never touch the front glass
of the lamp or the surrounding parts.
6 Mount the new lamp.
Be sure to attach the new lamp securely.
✍ After it has cooled, place the removed lamp into the empty box of the
replacement lamp. Never put the removed lamp into a plastic bag.
Loosen the two screws as shown
in the illustration using the hex
key supplied with the lamp.
Hold the handle and pull
straight out.
Mount the new lamp securely
into the lamp receptacle.
Tighten the two screws securely as
shown in the illustration using the hex
key supplied with the lamp.
(Continued)
Introducing the Sony LCD Projection TV
16
7 Mount the lamp cover and tighten the screw.
Make sure that the lamp cover is mounted securely, otherwise the power
will not turn on.
8 Mount the front panel in the order of 1 to 3, as shown in the
illustration.
✍ If the lamp cover is not mounted securely, the self-diagnostic
function works and the POWER/STANDBY indicator flashes for three
times.
✍ Consult your Sony dealer for a Sony XL-2100U replacement lamp.
✍ Take great care when replacing the lamp or plugging in/unplugging
the connecting cords. If you handle them roughly, the LCD
projection TV may fall or be moved, and the TV stand or floor
surfaces may be scratched.
Match the projections
of the underneath of the
lamp cover with the
holes of the unit, and
replace the lamp cover
as it was.
1 Match the projection
of the left side.
2 Secure the screw of
the right side.
3 Close the front panel.
17
Installing and Connecting the LCD Projection TV
Installing and Connecting the LCD
Projection TV
Contents
The box contains your new LCD projection TV, a remote control and two
AA (R6) batteries. No peripheral cables are included. If you intend to add
additional equipment to your LCD projection TV, please check the hookup
instructions for your desired setup before you begin. You may need to
purchase cables and/or splitters to complete the hookup properly.
Inserting Batteries into the Remote Control
Insert two size AA (R6) batteries (supplied) by matching the + and – on the
batteries to the diagram inside the battery compartment.
✍ Remove the batteries to avoid damage from possible battery leakage
whenever you anticipate that the remote control will not be used for an
extended period.
✍ Handle the remote control with care. Avoid dropping it, getting it wet, or
placing it in direct sunlight, near a heater, or where the humidity is high.
✍ Your remote control can be programmed to operate most video
equipment. (See “Programming the Remote Control” on page 48.)
e
e
E
E
Coin Lock
Installing and Connecting the LCD Projection TV
18
Carrying Your LCD Projection TV
Carrying the LCD projection TV requires at least four people. Do not grasp
the pedestal or the front panel of the LCD projection TV, otherwise these
parts might break off.
When moving the LCD projection TV, support the screen bottom with one
hand while grasping the top part with the other hand, as shown in the
illustration below.
A
AB
A
BB
Do not grasp the
pedestal or the front
panel of the LCD
projection TV.
Installing and Connecting the LCD Projection TV
19
Installing and Connecting the LCD Projection TV
To Prevent the LCD Projection TV from Falling Down
Pay special attention to children around the LCD projection TV. If children
should climb onto or push the LCD projection TV or its stand SU-GW3 (not
supplied), it may fall down.
When Installing Your LCD Projection TV Against a Wall
Keep your LCD projection TV at least 10 cm (4 inches) from the wall.
Installing and Connecting the LCD Projection TV
20
Recommended Viewing Area
The picture quality may be affected by your viewing position.
For the best picture quality, install your LCD projection TV within the areas
shown below.
Sit at least 2.2 m (approx. 7 ft.) for KDF-60XBR950 or 2.6 m (approx. 8 ft.)
for KDF-70XBR950 away from your LCD projection TV, and within 60° of
the vertical viewing area, and 130° of the horizontal viewing area.
Horizontal Viewing
Area
65
65
˚
65
65
˚
65
˚
65
˚
min. X.X m (approx. X ft.)
min. X.X m (approx. X ft.)
70"
70"
min. X.X m (approx. X ft.)
min. X.X m (approx. X ft.)
60"
60"
min. 2.6 m (approx. 8 ft.)
70"
min. 2.2 m (approx. 7 ft.)
60"
30˚
60"
60"
70"
70"
min.
min.
X.X
X.X
m (approx.
m (approx.
X
ft.)
ft.)
min. X.X m (approx. X ft.)
min. X.X m (approx. X ft.)
30˚
60"
70"
min.
2.2
m (approx.
7
ft.)
min. 2.6 m (approx. 8 ft.)
Vertical Viewing
Area
Installing and Connecting the LCD Projection TV
21
Installing and Connecting the LCD Projection TV

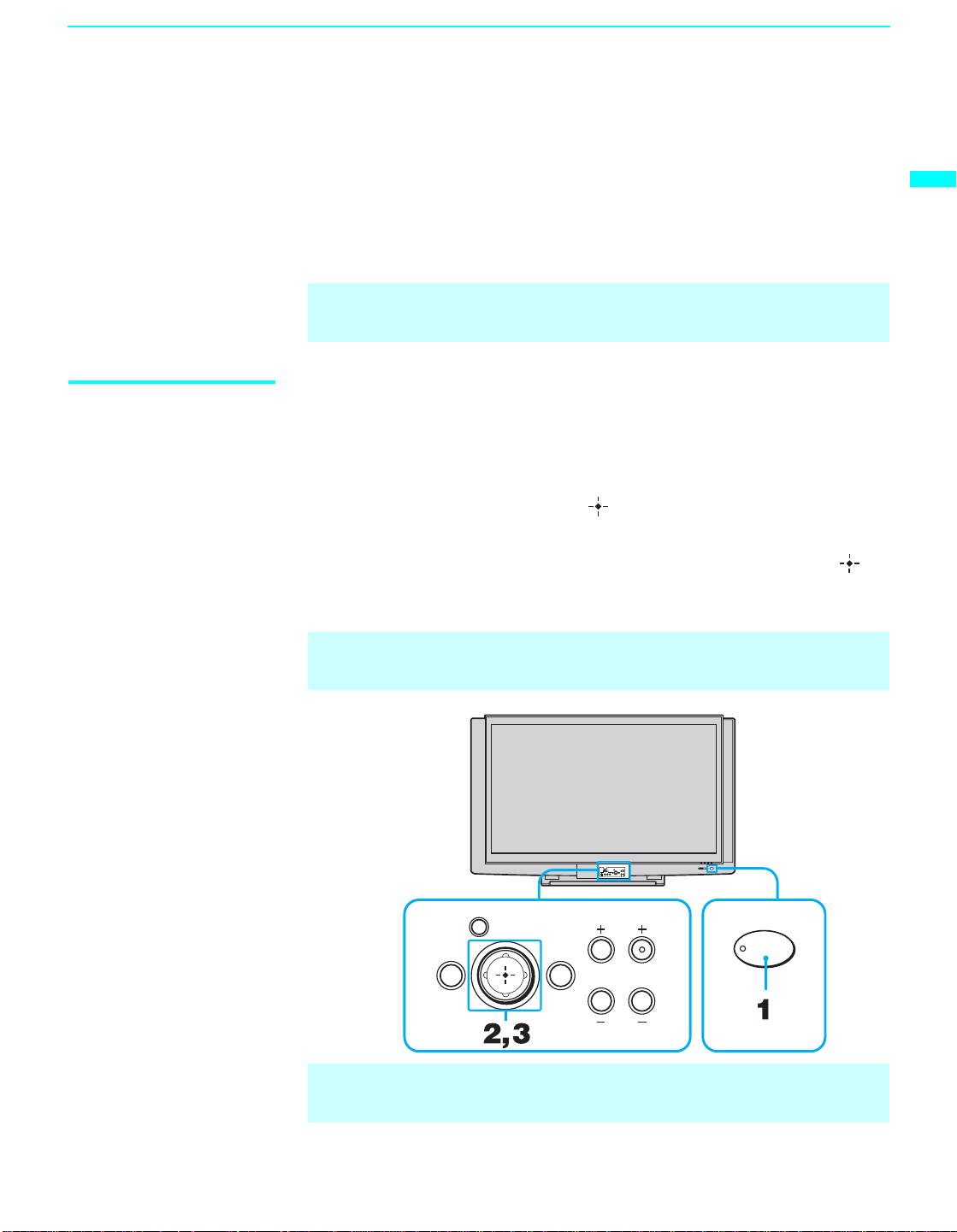

LCD Projection TV Controls and Connectors
Front Panel Menu
Controls
The front panel menu controls allow access to the on-screen menus without
using the remote control. Pressing
MENU brings up the on-screen menus.
The arrow buttons move the on-screen cursor in the menus and by pressing
the button selects the menu item.
How to open and close the front panel
MENU TV/VIDEO
S VIDEO
VIDEO
(MONO)
L–AUDIO–R
i.LINK
VOL CH
VIDEO 2 IN
POWER
PRO
To open
To close
Push and release.
(Continued)
Installing and Connecting the LCD Projection TV
22
LCD Projection TV
Rear and Front
Panel Connectors
Item Description
1 Memory Stick slot Memory Stick insertion slot. For details, see “Inserting
and Removing a Memory Stick” on page 66.
2 Memory Stick
indicator
When lit, indicates that the Memory Stick is being read.
(Do not remove the Memory Stick when the indicator is
lit.)
3 POWER Press to turn on and off the LCD projection TV.
Rear of LCD projection TV
Installing and Connecting the LCD Projection TV
23
Installing and Connecting the LCD Projection TV
Connection Description
1 VHF/UHF Connects to your VHF/UHF antenna or cable box output
jack.
2 CABLE Connects to your cable signal. This CABLE input jack, in
conjunction with the VHF/UHF input jack, lets you set up
your LCD projection TV to switch between scrambled
channels (coming through a cable box) and unscrambled
cable channels. For details, see page 28.
3 i.LINK Connects to i.LINK-compatible devices. These terminals
are not intended for connection with personal computers.
4 S VIDEO
(Front and rear)
Connects to the S VIDEO OUT jack of your VCR or other
S VIDEO-equipped video component. Provides better
picture quality than the VHF/UHF jacks or the Video IN
jack.
5 VIDEO/
(L/R) AUDIO
(Front and rear)
Connects to the audio and video OUT jacks on your VCR
or other video component. A fourth video input (VIDEO 2)
is located on the front panel of the LCD projection TV.
MENU
S VIDEO
VIDEO
(MONO)
L–AUDIO–R
VIDEO 2 IN
Front Panel of LCD projection TV
Front panel connectors are in the control panel
cover. To open and close the cover, refer to page 21.
(Continued)
Installing and Connecting the LCD Projection TV
24
*
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
**
High-bandwidth Digital Content Protection
6 DIGITAL AUDIO
(OPTICAL) OUT
(PCM/DOLBY*
DIGITAL)
Connects to the optical audio input of a digital audio
component that is PCM/Dolby digital compatible.
7 HD/DVD IN (1080i/
720p/480p/480i)
Connects to your DVD player’s or Digital Set-top box’s
component video (Y, P
B, PR) and audio (L/R) jacks.
8 CONTROL S
IN/OUT
To control other Sony equipment with the LCD projection
TV's remote control, connect the CONTROL S IN jack of
the equipment to the CONTROL S OUT jack on the LCD
projection TV with the CONTROL S cable.
To control the LCD projection TV with a remote control
for another Sony product, connect the CONTROL S OUT
jack of the equipment to the CONTROL S IN jack on the
LCD projection TV with the CONTROL S cable.
9 AUDIO OUT
(VAR/FIX)
L/R
Connects to the left and right audio inputs of your audio or
video component.
0 DVI-HDTV VIDEO
AUDIO L/R
(VIDEO 7 IN)
Can accommodate a copy-protected digital connection
(HDCP
**
) to other devices (such as digital set-top boxes)
that have compatible interfaces. The DVI-HDTV input
terminal is compliant with the EIA-861 standard and is not
intended for use with personal computers. See the
instruction manual that came with your equipment for
details about connecting and using it with the LCD
projection TV.
qa i.LINK Connects to the i.LINK jack on your i.LINK-compatible
portable device. Provides a secure digital connection
between your LCD projection TV and your i.LINK-
compatible portable device.
Connection Description
Installing and Connecting the LCD Projection TV
25
Installing and Connecting the LCD Projection TV
Basic Connections: Connecting a Cable or Antenna
The way in which you will connect your LCD projection TV varies,
depending on how your home receives a signal (cable, cable box, antenna)
and whether or not you plan to connect a VCR.
If you are connecting a VCR
❑
See the connections described on pages 32 and 33.
If You Are Connecting See Page
Cable or Antenna Only
❏ No cable box or VCR
26
Cable Box and Cable Only
❏ Cable box unscrambles only some channels
(usually premium channels)
❏ No VCR
28
Cable Box Only
❏ Cable box unscrambles all channels
❏ No VCR
30
Installing and Connecting the LCD Projection TV
26
Cable or Antenna
Only
For best results, use one of the following connections if you are
connecting a cable or an antenna and you:
❑ Do not need a cable box to unscramble channels. (If you have a cable
box, see pages 28 to 30.)
❑ Do not intend to connect a VCR. (If you have a VCR, see pages 32 and
33.)
The connection you choose depends on the cable type you have in your
home, as described below.
75-ohm coaxial cable (usually found in newer homes)
Cable Type Connect As Shown
VHF Only or
combined VHF/
UHF
Cable
300-ohm twin lead cable (usually found in older homes)
Cable Type Connect As Shown
VHF Only or
UHF Only or
combined
VHF/UHF
75-ohm coaxial and 300-ohm twin lead cable (found in some homes)
Cable Type Connect As Shown
VHF and UHF
75-ohm coaxial
cable
Rear of LCD
projection TV
VHF/UHF
75-ohm coaxial
cable
CABLE
Rear of LCD
projection TV
Rear of LCD projection TV
Antenna connector
(not supplied)
300-ohm twin lead cable
VHF/UHF
Rear of LCD
projection TV
75-ohm coaxial cable
VHF/UHF
U/V mixer
(not supplied)
300-ohm twin lead cable
Installing and Connecting the LCD Projection TV
27
Installing and Connecting the LCD Projection TV
Notes on Using This Connection
To Do This ... Do This ...
Switch the TV’s input between
the cable and antenna
Press ANT to switch back and forth between the
TV’s VHF/UHF and CABLE inputs.
✍ It is highly recommended to connect the antenna using a 75-ohm coaxial
cable to get optimum picture quality. A 300-ohm twin lead cable can be
easily affected by radio noise and the like, resulting in signal
deterioration. If you use a 300-ohm twin lead cable, keep it away as far
as possible from the LCD projection TV.
✍ Do not use an indoor antenna because it is especially susceptible to
radio noise.
Installing and Connecting the LCD Projection TV
28
Cable Box and Cable
Only
For best results, use this connection if:
❑
Your cable company scrambles some channels, such as premium
channels (which requires you to use a cable box), but does not scramble
all channels.
❑ You do not have a VCR. (If you have a VCR, see pages 32 and 33.)
With this connection you can:
❑
Use the LCD projection TV remote control to change channels coming
through the cable box to the LCD projection TV’s VHF/UHF input jack.
(You must first program the remote control for your specific cable box;
see “Programming the Remote Control” on page 48.)
❑ Use the LCD projection TV remote control to change channels coming
directly into the LCD projection TV’s CABLE input. (The LCD
projection TV’s tuner provides a better signal than the cable box.)
Notes on Using This Connection
About Using This Connection with Dual Picture (Twin View, etc.)
Features
With this connection, you can use all the dual picture features for unscrambled
channels coming directly into the LCD projection TV’s CABLE input jack.
To Do This ... Do This ...
Use the cable box Tune the LCD projection TV to the channel the
cable box is set to (usually channel 3 or 4) and
then use the cable box to switch channels.
Set up the LCD projection TV
remote control to operate the
cable box
Program the remote control. See “Programming
the Remote Control” on page 48.
Activate the remote control to
operate the cable box
Press FUNCTION repeatedly until the SAT/
CABLE indicator lights up.
IN OUT
CABLE
VHF/UHF
Splitter
CATV cable
Coaxial
cable
Rear of LCD projection TV
Coaxial cable
Cable box
Coaxial cable
Installing and Connecting the LCD Projection TV
29
Installing and Connecting the LCD Projection TV
Prevent the accidental switching
of TV channels
When using the cable box, you need the LCD
projection TV to stay on the channel the cable
box is set to (usually channel 3 or 4). You can
use the LCD projection TV’s Channel Fix
feature to lock in a specific channel. For details,
see “Using the Channel Menu” on page 96.
Switch the LCD projection TV’s
input between the cable box and
cable
Press ANT to switch back and forth between the
LCD projection TV’s VHF/UHF (scrambled
channels) and CABLE (unscrambled) inputs.
Installing and Connecting the LCD Projection TV
30
Cable Box Only For best results, use this connection if:
❑
Your cable company scrambles all channels, which requires you to use a
cable box.
❑ You do not have a VCR. (If you have a VCR, see pages 32 and 33.)
With this connection you can:
❑
Use the LCD projection TV remote control to change channels coming
through the cable box to the LCD projection TV’s VHF/UHF jack. (You
must first program the remote control for your specific cable box.)
To connect the cable box
1 Connect the CATV cable to the cable box’s input jack.
2 Use a coaxial cable to connect the cable box’s output jack to the LCD
projection TV’s VHF/UHF jack.
3 Run the Auto Setup program, as described in “Setting Up the LCD
Projection TV Automatically” on page 45.
Notes on Using This Connection
About Using This Connection with Dual Picture (Twin View, etc.)
Features
With this connection, all channels come into the LCD projection TV through your
cable box and only one unscrambled signal is sent to the LCD projection TV, so you
cannot use the dual picture features. If some of your channels are scrambled, but
others are not, consider using the “Cable Box and Cable Only” connection on page
28 instead.
To do this... Do This ...
Use the cable box Tune the LCD projection TV to the channel the cable box
is set to (usually channel 3 or 4) and then use the cable box
to switch channels.
Set up the LCD
projection TV remote
control to operate the
cable box
Program the remote control. See “Programming the
Remote Control” on pages 48.
VHF/UHF
CATV cable
Coaxial cable
Rear of LCD projection TV
Cable box
OUT
IN
Installing and Connecting the LCD Projection TV
31
Installing and Connecting the LCD Projection TV
Activate the remote
control to operate the
cable box
Press FUNCTION repeatedly until the SAT/CABLE
indicator lights up.
Prevent the accidental
switching of TV
channels
When using the cable box, you need the LCD projection
TV to stay on the channel the cable box is set to (usually
channel 3 or 4). You can use the LCD projection TV’s
Channel Fix feature to lock in a specific channel. For
details, see “Using the Channel Menu” on page 96.
Installing and Connecting the LCD Projection TV
32
Connecting a VCR and Cable
Use this hookup if:
❑ You have cable TV that does not require a cable box.
Disconnect all power sources before making any connections.
1 Connect the cable TV cable to the VCR’s IN jack.
2 Using a coaxial cable, connect the VCR’s OUT jack to the LCD
projection TV’s CABLE jack.
3 Using AUDIO and S VIDEO cables, connect the VCR’s Audio and
S Video OUT jacks to the LCD projection TV’s AUDIO and S VIDEO
IN jacks.
Coaxial cable
Rear of LCD projection TV
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)
Cable
VCR
VC-810S/
820S/830S
(not supplied)
S VIDEO
S video cable (not supplied)
✍ If your VCR is not equipped with S VIDEO, use a VIDEO cable (yellow)
instead of the S VIDEO cable.
Installing and Connecting the LCD Projection TV
33
Installing and Connecting the LCD Projection TV
Connecting a VCR and Cable Box
Use this hookup if:
❑ Your cable TV company scrambles some channels, but not all of them
(pay channels vs. regular cable channels) and you need to use a cable
box, and
❑ You want to enjoy the Twin View feature.
With this setup you can:
❑ Use the LCD projection TV remote control to change channels on your
cable box when the signal is scrambled. To program your Sony remote
control to operate your cable box, see “Programming the Remote
Control” on page 48.
❑ Use the LCD projection TV remote control to change channels using
your LCD projection TV when the signal is not scrambled. Your LCD
projection TV’s tuner provides a better signal than the cable box.
❑ Use the Twin View feature. (When all channels are routed through your
cable box, only one signal is sent to the LCD projection TV, so you
cannot use the Twin View feature.)
Disconnect all power sources before making any connections.
1 Connect the CATV cable to the single (input) jack of the splitter.
2 Use a coaxial cable to connect one of the splitter’s two output jacks to
the TV’s CABLE jack.
3 Use a coaxial cable to connect the splitter’s other output jack to the
cable box’s input jack.
4 Use a coaxial cable to connect the cable box’s output jack to the VCR’s
RF input jack.
5 Use an A/V cable to connect the VCR’s A/V output jacks to the LCD
projection TV’s A/V input jacks.
6 Use a coaxial cable to connect the VCR’s RF output jack to the LCD
projection TV’s VHF/UHF jack.
7 Run the Auto Setup program, as described in “Setting Up the LCD
Projection TV Automatically” on page 45.
✍ To view scrambled channels, set your LCD projection TV to channel 3 or
4 (depending on your cable box output). Change channels using your
cable box.
(Continued)
Installing and Connecting the LCD Projection TV
34
Cable box
VCR
Rear of LCD
projection TV
VC-810S/820S/
830S (not supplied)
Coaxial cable
S video cable
(not supplied)
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)
S VIDEO
Coaxial
cable
CATV
cable
If you are connecting a digital cable
box, you will need a special bi-
directional splitter designed to work
with your cable box.
Coaxial
cable
Splitter
✍ If your VCR is not equipped with S VIDEO, use a VIDEO cable (yellow)
instead of the S VIDEO cable.
✍ You will not be able to change channels on the VCR. Set your LCD
projection TV and VCR to channel 3 or 4, depending on your cable box
channel output.
✍ Pressing ANT on the remote control switches between the channels
coming in through the cable box (scrambled) and those coming directly
to the LCD projection TV (unscrambled).
Installing and Connecting the LCD Projection TV
35
Installing and Connecting the LCD Projection TV
Connecting Two VCRs for Tape Editing
If you connect two VCRs, you can record from one VCR to the other while
using your LCD projection TV to monitor what is being recorded.
Disconnect all power sources before making any connections.
1 Using AUDIO and VIDEO cables, connect the playback VCR’s Audio
and Video OUT jacks to the recording VCR’s Audio and Video IN
jacks.
2 Using AUDIO and VIDEO cables, connect the recording VCR’s Audio
and Video OUT jacks to the LCD projection TV’s AUDIO and VIDEO
IN jacks.
Rear of LCD projection TV
VCR (playback)
VCR (recording)
VC-810S/820S/830S (not supplied)
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
VC-810S/820S/830S (not supplied)
✍ To perform tape editing, set the LCD projection TV to the video input
intended for playback by pressing TV/VIDEO on the remote control.
✍ You may need to change the video input on your VCR. Consult your
VCR’s operating manual for instructions.
✍ If your VCRs have an S VIDEO jack: For best picture quality, use an
S VIDEO connection instead of the yellow video cable on your combined
A/V cable.
Using an S VIDEO cable, connect the playback VCR’s S VIDEO OUT jack
to the recording VCR’s S VIDEO IN jack. S VIDEO does not provide audio,
so audio cables must be connected to provide sound.
✍ You cannot record signals from equipment connected to the Y, PB, PR
input.
Installing and Connecting the LCD Projection TV
36
Connecting a Satellite Receiver
Disconnect all power sources before making any connections.
1 Connect the satellite antenna cable to the satellite receiver’s
SATELLITE IN jack.
2 Using AUDIO and S VIDEO cables, connect the satellite receiver’s
AUDIO and S VIDEO OUT jacks to the LCD projection TV’s AUDIO
and S VIDEO IN jacks.
3 Connect a coaxial cable from your cable or antenna to the LCD
projection TV’s VHF/UHF or CABLE jack.
✍ If your satellite receiver is not equipped with S VIDEO, use a VIDEO cable
(yellow) instead of the S VIDEO cable.
Coaxial
cable
Satellite receiver
VC-810S/820S/830S (not supplied)
Rear of LCD projection TV
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R (red)
Satellite
antenna
cable
S VIDEO
S video cable (not supplied)
Installing and Connecting the LCD Projection TV
37
Installing and Connecting the LCD Projection TV
Connecting a Satellite Receiver with a VCR
Disconnect all power sources before making any connections.
1 Connect the satellite antenna cable to the satellite receiver’s
SATELLITE IN jack.
2 Connect the CATV cable to the VCR’s VHF/UHF IN jack.
3 Using a coaxial cable, connect the VCR’s VHF/UHF OUT jack to the
LCD projection TV’s CABLE jack.
4 Using AUDIO and S VIDEO cables, connect the satellite receiver’s
AUDIO and S VIDEO OUT jacks to the VCR’s AUDIO and S VIDEO
IN jacks.
5 Using AUDIO and S VIDEO cables, connect the VCR’s AUDIO and S
VIDEO OUT jacks to the LCD projection TV’s AUDIO and S VIDEO
IN jacks.
Coaxial cable
Rear of LCD projection TV
S VIDEO
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
Satellite receiver
VCR
S video cable
(not supplied)
VC-810S/
820S/830S
(not
supplied)
VC-810S/820S/830S
(not supplied)
Satellite
antenna
cable
CATV Cable
S video cable (not supplied)
(Continued)
Installing and Connecting the LCD Projection TV
38
✍ Be sure your VCR’s video input is set correctly. Consult your VCR’s
operating manual for instructions.
✍ Use TV/VIDEO to select
- VIDEO 1 to watch satellite TV or the VCR (your VCR must be turned on).
- VHF/UHF to watch cable TV.
✍ If your VCR or satellite receiver is not equipped with S VIDEO, use a
VIDEO cable (yellow) instead of the S VIDEO cable.
Installing and Connecting the LCD Projection TV
39
Installing and Connecting the LCD Projection TV
Connecting an Audio Receiver
Disconnect all power sources before making any connections.
Using audio cables, connect the LCD projection TV’s AUDIO OUT (VAR/
FIX) jacks to the audio receiver’s audio LINE IN jacks.
Rear of LCD projection TV
AUDIO-L (white)
AUDIO-R
(red)
RK-C310/C320/C330
(not supplied)
Line
input
Installing and Connecting the LCD Projection TV
40
Connecting a DVD Player with Component
Video Connectors
This is the preferred hookup to use if:
❑ Your DVD player has component (Y, B-Y, R-Y) jacks.
Disconnect all power sources before making any connections.
1 Using three separate component video cables, connect the DVD player’s
Y, B-Y and R-Y jacks to the Y, P
B and PR jacks on the LCD projection
TV. Use the HD/DVD IN 5 or 6 connections.
2 Using an audio cable, connect the DVD player’s Audio OUT jacks to
the LCD projection TV’s AUDIO IN jacks. Be sure to use the same row
of inputs that you used for the video connection (HD/DVD IN 5 or 6).
✍ The Y, B-Y and R-Y jacks on your DVD player are sometimes labeled
Y, C
B and CR, or Y, PB and PR. If so, connect the cables to like colors.
VMC-10 (not supplied)
Rear of LCD projection TV
RK-C310/C320/C330 (not supplied)
DVD player
AUDIO-R (red)
AUDIO-L (white)
Y
P
B
PR
✍ To take advantage of the Wide Screen modes, set the TV’s aspect
ratio to 16:9 on your DVD player. For details, refer to the operating
instructions supplied with your DVD player.
Installing and Connecting the LCD Projection TV
41
Installing and Connecting the LCD Projection TV
Connecting a DVD Player with A/V Connectors
Use this hookup if:
❑ Your DVD player does not have component (Y, PB, PR) jacks.
Disconnect all power sources before making any connections.
1 Using audio cables, connect the DVD player’s Audio OUT jacks to the
LCD projection TV’s AUDIO IN jacks.
2 Using an S VIDEO cable, connect the DVD player’s S VIDEO jack to
the LCD projection TV’s S VIDEO jack.
✍ If your DVD player has video component output connectors: for best
picture quality use the connection described on page 40.
Rear of LCD projection TV
S video cable
(not supplied)
DVD player
RK-C310/C320/C330 (not supplied)
AUDIO-R (red)
AUDIO-L (white)
S VIDEO
✍ To take advantage of the Wide Screen modes, set the TV’s aspect ratio to
16:9 on your DVD player. For details, refer to the operating instructions
supplied with your DVD player.
✍ Use TV/VIDEO on the remote control to switch between the VCR, DVD
player and cable TV inputs.
✍ If your VCR is not equipped with S VIDEO, use a VIDEO cable (yellow)
instead of the S VIDEO cable.
Installing and Connecting the LCD Projection TV
42
Connecting a Camcorder
For easy connection of the camcorder, the LCD projection TV has front
Audio and Video inputs (shown below). However, if you prefer, you can also
connect the camcorder to the LCD projection TV’s rear AUDIO and VIDEO
IN jacks.
Using AUDIO and S VIDEO cables, connect the camcorder’s Audio and
S VIDEO OUT jacks to the LCD projection TV’s AUDIO and S VIDEO IN
jacks.
✍ If you have a mono camcorder, connect its left audio output to the LCD
projection TV’s AUDIO L (MONO) jack.
✍ If your camcorder is not equipped with S VIDEO, use a VIDEO cable
(yellow) instead of the S VIDEO cable.
MENU
S VIDEO
VIDEO
(MONO)
L–AUDIO–R
VIDEO 2 IN
VIDEO (yellow)
A/V output
AUDIO-L (white)
AUDIO-R (red)
S VIDEO
VC-810S/820S/830S
(not supplied)
S video cable (not supplied)
Installing and Connecting the LCD Projection TV
43
Installing and Connecting the LCD Projection TV
Connecting a Device with an Optical IN Connector
You can use the LCD Projection TV's DIGITAL AUDIO (OPTICAL) OUT
jack to connect a digital audio device that is PCM/Dolby digital compatible,
such as an audio amplifier.
Using an optical cable, connect the device's OPTICAL IN jack to the LCD
Projection TV's DIGITAL AUDIO (OPTICAL) OUT jack.
OPTICAL
IN
LINE
OUT
L AUDIO R
LINE
IN
Optical cable
Rear of LCD projection TV
Audio amplifier
The DIGITAL AUDIO
(OPTICAL) OUT jack is
available only when a digital
TV channel is received.
Installing and Connecting the LCD Projection TV
44
Using the CONTROL S Feature
CONTROL S allows you to control your LCD projection TV system and
other Sony equipment with one remote control. In addition to allowing you
to control multiple devices with one remote control, the CONTROL S
feature allows you to always point your remote control at your LCD
projection TV, instead of having to point it at the other equipment, which
might be hidden or out of direct line of sight.
Rear of LCD projection TV
Installing and Connecting the LCD Projection TV
45
Installing and Connecting the LCD Projection TV
Setting Up the LCD Projection TV Automatically
After you finish connecting your LCD projection TV, you need to run Auto
Setup to set up available analog and digital channels. The Auto Program
screen appears when you turn your LCD projection TV on for the first time
after installing it. If you do not want to set up the channels at this time, you
can do it later by using the Auto Program feature in the Channel menu (see
page 96).
Using Auto Setup 1 Press POWER on the front panel of your LCD projection TV to turn on
the LCD projection TV.
The Initial Setup screen appears.
2 Move the arrow button up or down to select the desired on-screen
display language, and press the button.
“Start auto program now?” appears.
3 Move the arrow button up or down to select “Yes,” and press the
button.
Auto Program automatically creates a list of receivable channels.
✍ The Auto Setup feature does not apply for installations that use a cable
box for all channel selection.
✍ Auto Program may take up to 30 minutes to complete. A progress bar is
displayed while the channel list is being created.
✍ You can run Auto Program by selecting it in the Channel menu, as
described on page 96.
MENU TV/VIDEO
i.LINK
VOL CH
POWER
MENU TV/VIDEO
S VIDEO
VIDEO L–AUDIO–R
i-LINK
VOL CH
VIDEO 2 IN
LCD projection
TV front panel
46
Using the Features
Using the Remote Control
The following table describes the buttons on the remote control that are for
more advanced functions.
Button Descriptions
Button Description
1 MUTING Press to mute the sound. Press again or press VOL + to restore
the sound.
2 FUNCTION Press repeatedly until the indicator of the equipment (TV,
SAT/CABLE, DVD/VCR, i.LINK) that you want to operate
lights up.
3 Press repeatedly to step through the available audio effect
modes: Virtual Dolby, TruSurround, Simulated, Off.
For details, see “Selecting Audio Options” on page 92.
4 SLEEP Press repeatedly until the TV displays the time in minutes (15,
30, 45, 60 or 90) that you want the LCD projection TV to
remain on before shutting off. To cancel Sleep Timer, press
SLEEP repeatedly until SLEEP OFF appears.
5 GUIDE Press to display the digital program guide.
If FUNCTION is switched on SAT/CABLE
Press to display the program guide of your satellite program
provider.
6 Use with 0-9 and ENTER buttons to select digital channels
(for example, 2.1). For details on selecting digital channels,
see page 60.
7 PICTURE Press repeatedly to step through the available video picture
modes: Vivid, Standard, Pro. Also available in the Video
menu. For details, see “Selecting Video Options” on page 88.
8 WIDE Press to step through the wide screen modes: Wide Zoom,
Normal, Full and Zoom. For details, see “Using Wide Screen
Mode” on page 59.
9 V/v/B/b
X/x/m/M
When the menu is displayed, move the on-screen cursor.
X: Pause
x: Stop
m: Rewind
M: Fast-Forward
q; H: Playback
: When the menu is displayed, select the item.
qa Turns on/off Twin View. For details, see “Using Twin
View™” on page 55.
Using the Features
47
Using the Features
qs ANT
INDEX
Changes between the VHF/UHF input and the CABLE input.
If FUNCTION is switched on SAT/CABLE
Displays index of your satellite program provider.
qd VOL +/– Adjusts the volume.
qf POWER
buttons
(Green)
Turn on and off the LCD projection TV and other audio/video
equipment you have programmed into the remote control. For
instructions, see “Programming the Remote Control” on page
48.
qg REC
RESET
Record
Press when in a menu to reset the settings to the factory
defaults.
qh TV/VIDEO
Cycles through the video equipment connected to your
LCD
projection TV
’s video inputs:
TV
,
VIDEO 1
,
VIDEO 2
,
VIDEO 3
,
VIDEO 4
,
VIDEO 5, VIDEO 6
and
VIDEO 7
.
qj DISPLAY Press once to display the current time and channel label (if set)
and channel number. Press again to turn Display off. See page
104 for details on setting the time.
qk JUMP Press to jump back and forth between two channels. The LCD
projection TV alternates between the current channel and the
last channel that was selected.
ql 0 – 9 and
ENTER
Press 0 - 9 to select a channel, the channel changes after 3
seconds. Press ENTER to select immediately.
w; FAVORITES Displays the Favorite Channels list. For details, see “Using
Favorite Channels” on page 54.
wa FREEZE Freezes the window picture. Press again to restore the picture.
ws i.LINK Press to display the i.LINK Control Panel. For information on
using the i.LINK Control Panel, see page 83.
wd
MEMORY
STICK
Press to display the Memory Stick Menu.
For details, see “Using the Memory Stick Viewer” on page 64.
wf MENU Press to display the LCD projection TV on-screen menu. Press
again to exit from the menu.
wg CH +/– Scan through channels.
To scan rapidly through the channels, press and hold
down CH+ or CH–.
wh EXIT Press to exit the on-screen menu or display and return to
normal viewing.
Button Description
z
Using the Features
48
Programming the Remote Control
The remote control is preset to operate Sony brand video equipment.
If you have video equipment other than Sony brand that you want to control
with the LCD projection TV’s remote control, use the following procedure
to program the remote control.
1 Turn to the list of “Manufacturer’s Codes” on page 49, and find the
three-digit code number for the manufacturer of your equipment. (If
more than one code number is listed, use the number listed first.)
2 Press FUNCTION repeatedly until the DVD/VCR, SAT/CABLE or
i.LINK indicator lights up.
3 Press SAT/CABLE for five seconds until the indicator of the selected
input flashes.
4 While the desired indicator is flashing, enter the three-digit
manufacturer’s code number.
5 Press ENTER.
6 To check if the code number works, aim the LCD projection TV’s
remote control at the equipment and press POWER that corresponds
with that equipment. If it responds, you are done. If not, try using
another code listed for that manufacturer.
Notes
❑
If more than one code number is listed, try entering them one by one
until you come to the correct code for your equipment.
❑ If you enter a new code number, the code number you previously
entered at that setting is erased.
❑ In some cases, you may not be able to operate your equipment with the
supplied remote control. In such cases, use the equipment’s own remote
control unit.
❑ Whenever you remove the batteries to replace them, the code numbers
may revert to the factory setting and must be reset.
Function Equipment Programmable Code
Number
DVD/VCR Sony DVD player 751
SAT/CABLE Sony DSS tuner 801
i.LINK Sony DVD player (i.LINK) 901
✍ The equipment must have infrared (IR) remote capability in order to be
used with the remote control.
✍ You must do step 5 within 10 seconds of step 4, or you must redo
steps 4 through 5.
Using the Features
49
Using the Features
Manufacturer’s Codes
VCRs
Manufacturer Code
Sony 301, 302, 303
Admiral
(M. Ward)
327
Aiwa 338, 344
Audio Dynamic 314, 337
Broksonic 319, 317
Canon 309, 308
Citizen 332
Craig 302, 332
Criterion 315
Curtis Mathes 304, 338, 309
Daewoo 341, 312, 309
DBX 314, 336, 337
Dimensia 304
Emerson 319, 320, 316,
317, 318, 341
Fisher 330, 335
Funai 338
General Electric 329, 304, 309
Go Video 322, 339, 340
Goldstar 332
Hitachi 306, 304, 305,
338
Instant Replay 309, 308
JC Penney 309, 305, 304,
330, 314, 336,
337
JVC 314, 336, 337,
345, 346, 347
Kenwood 314, 336, 332,
337
LG 332
LXI (Sears) 332, 305, 330,
335, 338
Magnavox 308, 309, 310
Marantz 314, 336, 337
Marta 332
Memorex 309, 335
Minolta 305, 304
Mitsubishi/
MGA
323, 324, 325,
326
Multitech 325, 338, 321
NEC 314, 336, 337
Olympic 309, 308
Optimus 327
Orion 317
Laserdisc Players
DVD Players
Panasonic 308, 309, 306,
307
Pentax 305, 304
Philco 308, 309
Philips 308, 309, 310
Pioneer 308
Quasar 308, 309, 306
RCA/
PROSCAN
304, 305, 308,
309, 311, 312,
313, 310, 329
Realistic 309, 330, 328,
335, 324, 338
Sansui 314
Samsung 322, 313, 321
Sanyo 330, 335
Scott 312, 313, 321,
335, 323, 324,
325, 326
Sharp 327, 328
Signature 2000
(M. Ward)
338, 327
SV2000 338
Sylvania 308, 309, 338,
310
Symphonic 338
Tashiro 332
Tatung 314, 336, 337
Teac 314, 336, 338,
337
Technics 309, 308
Toshiba 312, 311
Wards 327, 328, 335,
331, 332
Yamaha 314, 330, 336,
337
Zenith 331
Manufacturer Code
Sony 701
Panasonic 704, 710
Pioneer 702
Manufacturer Code
Sony 751
Sony (i.LINK) 901
General Electric 755
Hitachi 758
JVC 756
Manufacturer Code
Cable Boxes
Satellite Receivers
Magnavox 757
Mitsubishi 761
Oritron 759
Panasonic 753
Philips 757
Pioneer 752
RCA/Proscan 755
Samsung 758
Toshiba 754
Zenith 760
Manufacturer Code
Sony 230
Hamlin/Regal 222, 223, 224,
225, 226
Jerrold/G. I. 201, 202, 203,
204, 205, 206,
207, 208, 218
Oak 227, 228, 229
Panasonic 219, 220, 221
Pioneer 214, 215
Scientific Atlanta 209, 210, 211
Tocom 216, 217
Zenith 212, 213
Manufacturer Code
Sony 801
Dish Network 810
Echostar 810
General Electric 802
Hitachi 805
Hughes 804
Mitsubishi 809
Panasonic 803
RCA/
PROSCAN
802, 808
Toshiba 806, 807
Using the Features
50
Using Other Equipment with Your LCD Projection TV Remote
Control
All Equipment
Operating a VCR
Operating a Satellite
Receiver
To Do This ... Do This ...
Switch the LCD projection TV’s
input to the VCR, DVD player, or
other connected equipment
Press TV/VIDEO repeatedly to cycle through
the video equipment connected to the LCD
projection TV’s video inputs.
Set up the LCD projection TV
remote control to operate non-Sony
equipment
You must program the remote control the first
time you use it. See “Programming the Remote
Control” on page 48.
To Do This ... Press
Activate the remote control to
operate the VCR
FUNCTION repeatedly until the DVD/VCR
indicator lights up.
Turn on/off SAT/CABLE
Change channels CH +/–
Record z REC
Play
Stop x
Fast forward M
Rewind the tape m
Pause X
Search the picture forward or
backward
M or m during playback
(release to resume normal playback)
To Do This ... Press
Activate the remote control to
operate the satellite receiver
FUNCTION repeatedly until the SAT/CABLE
indicator lights up.
Turn on/off SAT/CABLE
Select a channel 0-9, ENTER
Change channels CH +/–
Back to previous channel JUMP
Display channel number DISPLAY
Display SAT Index INDEX
Display SAT Guide GUIDE
Display SAT Menu MENU
Move highlight (cursor) V v B b
Select item
Using the Features
51
Using the Features
Operating a Cable
Box
Operating a DVD
Player
Operating an MDP
(Laserdisc Player)
To Do This ... Press
Activate the remote control to
operate the cable box
FUNCTION repeatedly until the SAT/CABLE
indicator lights up.
Turn on/off SAT/CABLE
Select a channel 0-9, ENTER
Change channels CH +/–
Back to previous channel JUMP
To Do This ... Press
Activate the remote control to
operate the DVD
FUNCTION repeatedly until the DVD/VCR
indicator lights up.
Turn on/off SAT/CABLE
Play
Stop x
Pause X
Step through different
tracks of the disc
M to step forward or m to step backward
Step through different chapters
of a video disc
CH+ to step forward or CH– to step backward
To Do This ... Press
Activate the remote control to
operate the MDP
FUNCTION repeatedly until the indicator of the
position you programmed for the MDP player
lights up.
Turn on/off SAT/CABLE
Play
Stop x
Pause X
Search the picture forward or
backward
M or m during playback
(release to resume normal playback)
Search a chapter forward or
backward
CH +/–
Using the Features
52
Watching the TV
Many TV features can be accessed directly through the remote control. The
following will explain the function of some of the buttons found on your
remote control.
Buttons for LCD
Projection TV
Operations
1 FUNCTION
Press until the TV indicator lights up.
This activates the remote control for use with the LCD projection TV.
2 ANT
Press to change between the VHF/UHF input and the CABLE input.
3 POWER
Press to turn the LCD projection TV on and off. If a video input indication
(e.g., VIDEO 1, VIDEO 2) appears on the screen, press
TV/VIDEO or
CH +/ – until a channel number appears.
4 0-9, and ENTER
Use for direct channel selection. Press 0-9 to select an analog channel (for
example, to select channel 10, press 1 and 0). The channel will change after
3 seconds, or you can press ENTER for immediate selection.
For digital subchannels, press 0-9, , press 0-9 again, and then
ENTER.
You can also select digital channels using the digital program guide. See
page 60 for details.
5 CH +/–
Press to scan through the channels (+ up or – down).
6 VOL +/–
Press to adjust the volume (+ up or – down).
7 JUMP
Press to jump back and forth between the current channel and the last
channel selected.
8 MUTING
Press to mute the sound. “MUTING” will appear on the screen and will dim
three seconds later. To restore the sound, press again or press
VOL +.
9 FREEZE
This is useful when you need to copy down information that appears on the
LCD projection TV’s screen (see “Using the Freeze Function” on page 58).
z
Using the Features
53
Using the Features
q; SLEEP
Press repeatedly to display the time in minutes (15, 30, 45, 60 or 90) that you
want the LCD projection TV to remain on before shutting off.
To cancel Sleep Timer, press SLEEP repeatedly until SLEEP OFF appears.
qa i.LINK
Press to display a list of available i.LINK devices, and select the desired
device from the list. See page 83 for details.
qs TV/VIDEO
Press repeatedly to scroll through available video inputs: TV, VIDEO 1,
VIDEO 2, VIDEO 3, VIDEO 4, VIDEO 5, VIDEO 6 and VIDEO 7.
If you select
Skip as a Video Label in the Setup menu, your LCD projection
TV will skip the video input you selected (see “Video Label” on page 103).
qd DISPLAY
Press to display the channel number, current time and channel label (if set).
To turn the display off, press
DISPLAY again.
qf PICTURE
Press PICTURE repeatedly to directly choose one of three different video
modes that best suits the program you are watching.
Vivid: Select for enhanced picture contrast and sharpness.
Standard: Select to display a standard picture for home entertainment.
Pro: Select to display a picture with minimum enhancements.
When you select each mode, you can also adjust the picture quality (such as
Picture, Brightness, Color, etc.) to suit your taste. For details, see “Mode”
on page 88.
Using the Features
54
Using Favorite Channels
The Favorite Channel feature lets you select programs from a list of favorite
channels that you preset.
Creating a List of
Favorite Channels
1 Press MENU to display the Menu.
2 Press B or b to highlight the Channel icon and press .
3 Press to select Favorite Channels.
4 Press V or v to highlight a Favorite Channel number (1-16) and press
.
5 Press V or v to highlight a channel you want to assign to the Favorite
Channel number. A preview of the highlighted channel appears in the
upper right of the screen.
Press to select that channel as a Favorite Channel.
6 To add more channels to your favorites list, repeat steps 4-5.
To clear a Favorite Channel, press V or v to highlight the channel you
want to clear. Press and then press RESET.
7 Press MENU to exit the Menu.
For details on using the Channel Menu, see page 96.
Displaying a List of
Favorite Channels
1 Press FAVORITES.
The Favorite Channel options appear.
2 Press V or v to highlight the channel you want to watch. The program of
that channel appears in the preview window. Press to select.
To assign Channel Labels (e.g., ABC, HBO, MTV, etc.) to channel
numbers, as shown at right, use the Channel Label feature in the Channel
Menu (see page 97).
z
✍ When the remote control mode is set to other than TV function, you can
display the Favorite Channels. However, you cannot select the channel
by using V or v.
Favorites
10 ABC
20 HBO
36 MTV
6 FOX
8 CBS
37 COMED
Exit
Preview window
Favorite Channels
z
Using the Features
55
Using the Features
Using Twin View™
Twin View enables you to watch two programs at the same time. You can
also change the size of both the left and right pictures.
Activating Twin
Pictures
To display twin pictures
1 Make sure your LCD projection TV is tuned to
a working channel.
2 Press .
To cancel twin pictures
❑
Press again (or press ).
Activating the
Although two pictures appear on the screen at the same time, only one
picture is active. Change the picture size by using the V or v button. For an
active picture, you can:
❑ Change channels.
❑ Adjust the volume.
❑ Switch the input sources from VHF/UHF to cable by pressing ANT or
TV/VIDEO to switch the video input.
To activate the right picture
❑
Press b.
To activate the left picture
❑
Press B.
(Continued)
Using the Features
56
Factors Affecting Twin View
❑
If you use a cable box to view all channels, the same channel appears in
both windows because the cable box unscrambles only one channel at a
time.
❑ If you use a cable box, you can view the cable box output in one window
and view a different source (such as a VCR or DVD player) in the
second window by using the TV/VIDEO button.
❑ Digital TV channels, as well as any sources connected to the VIDEO 5,
VIDEO 6, and VIDEO 7 inputs display in the left window, but not the
right.
❑ If you are viewing a 4:3 source and a 16:9 enhanced source (such as a
DVD) side by side, the 4:3 source appears larger.
❑ Twin View does not display channels that are blocked by parental
settings (see page 98).
✍ Hookups that affect your ability to use Twin View:
- If you are viewing all channels through the cable box, the Twin
View feature will not work. The cable box only unscrambles one
signal at a time, so the right picture will be the same as the left
picture.
- You can watch a scrambled cable channel and another video
source. Be sure your DVD player, VCR or satellite receiver are
connected to one of the VIDEO IN 1-7 and antenna inputs on the
rear of the LCD projection TV. Digital TV pictures, and pictures
from equipment connected to HD/DVD IN 5 and 6, and DVI-HDTV
IN 7, will only appear in the left picture, not in the right.
✍ The active picture is indicated by the 9 icon.
Using the Features
57
Using the Features
Changing the
Picture Size
The zoom feature lets you change the size of the left and right pictures.
To enlarge the left
picture (reduce the
right)
1 Press B to
activate the left
picture (if not
already
activated).
2 Press V to
enlarge the
picture and v to
reduce the
picture.
To enlarge the right
picture (reduce the
left)
1 Press b to
activate the right
picture (if not
already
activated).
2 Press V to enlarge
the picture and v
to reduce the
picture.
✍ When you adjust the twin screen sizes, the LCD projection TV memorizes
the change. The next time you use the Twin View function, the
memorized sizes appear.
Using the Features
58
Using the Freeze Function
The FREEZE button allows you to temporarily capture a program’s picture.
You can use this feature to write down information such as phone numbers,
recipes, etc.
To use the Freeze function
1 When the program information you want to capture is displayed, press
FREEZE.
2 The LCD projection TV switches to Twin View mode and displays the
“frozen” picture on the right, while the current program continues on the
left.
3 To cancel and return to normal viewing, press FREEZE.
✍ Freeze feature is not available if you are already in Favorite Channel (see
page 54), or Twin View™ (see page 55) mode.
Freeze
Current program
in progress
Frozen picture
Using the Features
59
Using the Features
Using Wide Screen Mode
Wide Screen Mode lets you watch 4:3 normal broadcasts in several Wide
Screen Modes (16:9 aspect ratio).
❑ Press WIDE repeatedly to toggle through the following Screen Mode
settings.
You can also access the Screen Mode settings in the Screen menu.
For details, see page 94.
Wide Zoom enlarges the 4:3 picture to
fill the 16:9 screen, keeping the original
image as much as possible.
Normal returns the 4:3 picture to its
original size.
Full Mode stretches the 4:3 picture
horizontally only, to fill the 16:9 screen.
Zoom Mode enlarges the 4:3 picture
horizontally and vertically to an equal
aspect ratio that fills the 16:9 screen.
Useful for watching Letterbox movies.
When you change channels or inputs, the Screen Mode settings
revert to Wide Zoom (or the 4:3 Default setting in the Screen menu).
To retain the current Screen Mode setting as channels and inputs are
changed, set 4:3 Default to Off. For details, see page 95.
z
z
60
Using the Digital Program Guide
Displaying the Digital Program Guide
This LCD projection TV is equipped to show digital programming, if a
digital signal is present. The digital program guide and menus let you review
program information, select digital channels and subchannels, set up your
LCD projection TV’s digital programming, and enable digital closed
captioning.
To display the digital program guide:
1 Tune your LCD projection TV to a digital channel by using the 0-9,
, and
ENTER buttons.
2 Press GUIDE on the LCD projection TV’s remote control. The digital
program guide appears, with the currently selected program showing in
the background.
✍ Analog channels are not available in this guide.
✍ Program information in the guide is provided by the broadcasters. As a
result, it may sometimes include only the channel number, without a
program title or description.
The digital program
guide and menus are
not available while
using multipicture
functions (Twin View,
Freeze, i.LINK, Memory
Stick, or Favorite
Channels).
z
Using the Digital Program Guide
61
Using the Digital Program Guide
Navigating the
Digital Program
Menus
Four digital menus are available on the digital program guide.
To navigate to these menus and through the available options:
1 Press V v B b to navigate through the options.
2 Press to select the desired option.
Using the Guide
Menu
The Guide menu allows you to select digital channels and subchannels from
a dropdown list. This list also provides information about the current
program being shown on each digital channel.
Using the Program
Options Menu
The Program Options menu allows you to customize the settings of the
program on the currently tuned channel.
Digital Program Menu See Page
Using the Guide Menu 61
Using the Program Options Menu 61
Using the Caption Vision Menu 62
Using the Digital Setup Menu 62
✍ Subchannels are additional channels of programming broadcast
simultaneously. For example, channel 4 might include three subchannels
(4.1, 4.2, 4.3) that are showing programs at the same time.
Option Description
Alternate
Video
Each program has a main video stream, and may have alternate video
streams. This option allows you to switch among these alternate video
streams.
Alternate
Audio
Each program has a main audio stream (the audio that you hear when
the channel is first tuned). This option allows you to switch among
these alternate audio streams (e.g., for different languages).
Using the Digital Program Guide
62
Using the Caption
Vision Menu
The Caption Vision menu allows you to turn on/off digital closed captioning,
and to modify how digital closed captioning is shown on your LCD
projection TV. Depending on the program, digital closed captioning will be
available in a number of different languages, aspect ratios, and reading
levels.
1 Press V or v to select from the following six services. The service
description, if available, applies to the currently tuned channel.
Using the Digital
Setup Menu
The Digital Setup menu lets you change the way your digital channels are
displayed.
The following digital setup functions are available:
Option Description
Off Turns off closed captioning for digital programs
1 XXX YYY ZZZ XXX = language (English, Spanish, French, etc.)
YYY = reader level (standard*, easy)
ZZZ = aspect ratio (4:3, 16:9)
* When set to this option, the option name is not shown
2 XXX YYY ZZZ
3 XXX YYY ZZZ
4 XXX YYY ZZZ
5 XXX YYY ZZZ
6 XXX YYY ZZZ
✍ The Caption Vision menu only affects digital channels. For closed
captioning on analog channels, see “Using the Setup Menu” on page
102.
Option Description
Add Digital
Channels
This option allows you to add new digital channels for the
currently active antenna mode (Cable or VHF/UHF).
This option is useful if the number of digital channels that your
LCD projection TV is able to receive has recently been
increased, but you do not want your LCD projection TV to
perform a full Auto Setup.
Channel Show/Hide This option allows you to remove (hide) digital channels from
the Digital Program Guide’s list of channels and subchannels,
as well as from channel surfing using CHANNEL +/–. Hidden
channels can still be directly tuned using 0-9 and .
Digital Signal
Strength
Displays the current strength of the digital signal on VHF/
UHF, to allow you to adjust your antenna for optimal
reception. (Does not apply to digital cable channels.)
Digital Caption
Setup
Allows you to customize digital closed captioning (see page
63 for details).
This option is the same
as the “Digital
Channels” option. See
“Using the Channel
Menu” on page 96.
z
Using the Digital Program Guide
63
Using the Digital Program Guide
Customizing
Caption Vision
You can use the Digital Caption Setup menu to customize your LCD
projection TV’s Caption Vision.
Select from the following options to change the visual characteristics of your
LCD projection TV’s digital closed captioning. A preview window displays
a sample as you scroll through each option.
* Indicates factory default setting
Option Description
Character Size Small, Standard*, Large
Character Style Style 1-7 (Style 4*)
Character Color None, Color 1-8 (White*)
Edge Type None*, Raised, Depressed, Outline, Left Shadow, Right
Shadow
Edge Color Color 1-8 (Black*)
Background
Color
None, Color 1-8 (Teal, Transparent*)
Window Color None*, Color 1-8
64
Using the Memory Stick Viewer
About Memory Stick
Memory Stick (sold separately) is a new, compact, portable, and versatile
Integrated Circuit recording medium with a data capacity that exceeds that
of a floppy disk. Memory Stick is specially designed for sharing digital data
among Memory Stick compatible products such as digital cameras and
digital video cameras. Because it is removable, Memory Stick can also be
used for external data storage.
The Memory Stick Viewer on your LCD projection TV allows you to view
files that are stored on Memory Stick media. You can view:
❑ Digital photos (JPEG files)
❑ Movies (MPEG1 files)
You can also play slide show background music using MP3 files stored on
your Memory Stick.
For more information about handling Memory Stick media, see “Notes on
Using Memory Stick Media” on page 78.
Features With the Memory Stick Viewer, you can:
❑ View photo (JPEG) and movie (MPEG1) files in a thumbnail index or
Slide Show
❑ Set customized Slide Show options, including transitions and
background audio
❑ Pan, zoom, and rotate photos
❑ Lock (protect) or delete files on the Memory Stick
Using the Memory Stick Viewer
65
Using the Memory Stick Viewer
Memory Stick
Compatibility
This television is compatible with the following Memory Stick media types:
❑ Memory Stick Media
❑ Memory Stick Duo Media
❑ Memory Stick Media with Memory Select Function
❑ Memory Stick PRO Media
About Memory Stick PRO Media
Memory Stick PRO media features vary by and are dependent upon the
design of host hardware devices. Memory Stick Pro in this LCD projection
TV has been tested to support up to 1 GB media capacity and does not
support high-speed transfer, MagicGate copyright protection technology, or
access control security features.
File Compatibility The Memory Stick Viewer is compatible with JPEG images taken with Sony
digital still cameras and MPEG1
*
movies taken with Sony digital cameras
and camcorders. In order to be viewable in the Memory Stick Viewer, the
files must have the following file name extensions:
Trademark
Information
Memory Stick, Memory Stick PRO, and MagicGate are trademarks of Sony
Corporation.
File Type Supported File Name Extensions
JPEG .jpg
.jpeg
MPEG1 .mpg
.mpeg
* Some variations of MPEG1 movies may not play back correctly.
Using the Memory Stick Viewer
66
Inserting and Removing a Memory Stick
If you are using a Memory Stick Duo, see “Inserting the Memory Stick Duo”
on page 67.
Inserting a Memory
Stick
1 Locate the Memory Stick slot and insert the Memory Stick into the
Memory Stick slot as illustrated below. When inserted properly, it
should slide in with little resistance and click into place.
To remove the Memory Stick, see “Removing a Memory Stick” on page 68.
✍ Be sure to insert the Memory Stick in the correct direction. If the
Memory Stick is forced in the wrong way, it may become damaged.
✍ Insert only Memory Stick media into the Memory Stick slot. Attempting
to insert other objects into the slot may damage the LCD projection TV.
PRO
PRO
Using the Memory Stick Viewer
67
Using the Memory Stick Viewer
Inserting the
Memory Stick Duo
Memory Stick Duo is a new, compact version of the standard-sized Memory
Stick recording medium.
1 Before inserting a Memory Stick Duo into the LCD projection TV’s
Memory Stick slot, you must first insert the Memory Stick Duo into an
adapter (sold separately).
2 Insert the Memory Stick Duo and adapter as shown below.
To remove the Memory Stick Duo, see “Removing a Memory Stick” on
page 68.
✍ CAUTION: Inserting the Memory Stick Duo incorrectly may result in
permanent damage to the Memory Stick Duo and the LCD projection TV.
✍ CAUTION: Inserting the Memory Stick Duo into the Memory Stick slot
without the adapter may result in permanent damage to the Memory
Stick Duo and the LCD projection TV.
✍ CAUTION: Inserting the Memory Stick adapter backwards or upside
down may result in permanent damage to the Memory Stick adapter and
the LCD projection TV.
Memory Stick Duo Adapter Memory Stick Duo
PRO
PRO
Using the Memory Stick Viewer
68
Removing a Memory
Stick
1 Check that the Memory Stick indicator is off. (When the light is on, this
indicates that the LCD projection TV is reading data from the Memory
Stick.)
2 Push the Memory Stick gently into the slot, and then release it. The
Memory Stick media is ejected.
3 Pull the Memory Stick completely out of the slot.
✍ Removing the Memory Stick while a file is being accessed (when the
Memory Stick indicator on the LCD projection TV’s front panel is lit) may
damage the Memory Stick or its contents.
✍ To protect small children from injury from Memory Stick Media, remove
all Memory Stick media from the LCD projection TV’s Memory Stick slot
and store it in a safe location when it is not in use.
PRO PRO PRO
When removing the
Memory Stick, do not
attempt to just pull it
from its slot. Follow
steps 1-3 (right).
z
Using the Memory Stick Viewer
69
Using the Memory Stick Viewer
Using the Memory Stick Index
Turn on the LCD projection TV and insert a Memory Stick that contains the
photo or movie files you want to view. For how to insert a Memory Stick,
see page 66.
The Memory Stick Index appears, which displays thumbnail images of the
files stored on the Memory Stick.
About the Lock and Movie Icons on the Thumbnail Images
✍ If the Memory Stick Index does not appear, press the MEMORY STICK
button on the remote control.
Thumbnails of photos and
movies
Memory Stick menu bar
Information about the highlighted
photo or movie
Highlighted thumbnail
Indicates the thumbnail is a movie (MPEG1) file instead of a photo (JPEG)
file.
Indicates the thumbnail is locked. Locked files cannot be changed or deleted.
For details, see “Protect“ on page 77.
Using the Memory Stick Viewer
70
Using the Memory
Stick Index
The following describes how to use the Memory Stick Index.
To Do This ... Do This ...
Move the highlight to
a photo or movie ( )
thumbnail
Press V v B b.
Display the
highlighted photo or
movie file full screen
Press . For details, see “Viewing Photos” on page 71
and “Playing Movies” on page 74.
Display the next page
of thumbnails
1 Press v to select V.
2 Press
v to display the next page of thumbnails.
Display the previous
or next page of
thumbnails
1 Press v to select V.
2 Press
B to select .
3 To go to the previous page, press V.
To go to the next page, press v.
Use the Memory Stick
menu bar to access
additional options
1 Press v to select V.
2 Press B
or b to select Slide Show, Folder, or
Memory Stick.
3 Press V or v to select the option you want to
change.
For details on these options, see “Memory Stick Index
Menu Bar Options” on page 76.
Move the highlight
from the Memory
Stick menu bar back
to the thumbnails
1 Press B
or b to select V.
2 Press
V to return to the currently displayed
thumbnails, or v
to display the next page of
thumbnails.
Exit Memory Stick
Viewer
Press MEMORY STICK on the remote control.
Y
Using the Memory Stick Viewer
71
Using the Memory Stick Viewer
Viewing Photos
When you select a photo from the Memory Stick Index (described on
page 69), it displays as shown below, with the following controls.
Photo Controls
Photo menu bar
Information about
selected photo
Selected photo
Previous/next buttons
✍ JPEGs captured using a digital video camera may appear to display
motion in full screen. This is a result of the way digital video cameras
record still images, and is not a result of a malfunction with the LCD
projection TV.
To Do This ... Do This ...
Display the next or
previous file on the
Memory Stick
Press V or v to highlight the (Previous/Next)
button. Then press B
to go to the previous file, or b to
go to the next file.
Hide the Photo menu bar,
displaying only the photo
With the highlight in the Photo menu bar, press v.
Display the hidden Photo
menu bar
Press
V.
Display the Memory Stick
Index again
Press B or b to highlight Index in the Photo menu bar
and press .
For details on the Memory Stick Index, see page 70.
Access additional options
in the Photo menu bar
See “Photo Menu Bar Options” on page 72.
Exit Memory Stick Viewer Press MEMORY STICK on the remote control.
When the menu is
hidden, press B or b to
go to the previous or
next photo.
z
Using the Memory Stick Viewer
72
Photo Menu
Bar Options
The Photo menu bar lets you access additional photo viewing options.
To access the Photo menu bar
1 Press B or b to select Slide Show, View, or File.
2 Use V v B b to select the desired option.
Option Description
Index Displays the Memory Stick Index, with the highlight on the
thumbnail of the currently displayed photo. For details, see “Using
the Memory Stick Index” on page 69.
Slide Show Displays the Slide Show menu. For details, see “Slide Show Menu
Options” on page 76.
View Zoom/Pan Allows you to magnify and pan across the photo.
For details, see “Using Zoom and Pan” on page 73.
Rotate Allows you to rotate the photo in 90 degree
increments clockwise or counterclockwise. For
details, see “Using Rotate” on page 73.
File Information Allows you to turn on or off the display of file
information. Select On or Off.
Protect Allows you to protect the JPEG file from any
changes. When a JPEG file is protected, it
cannot be rotated or deleted. Select On or Off.
Delete Deletes the JPEG file from the Memory Stick.You
cannot delete a JPEG file that has been protected
(or if the Memory Stick is locked).
JPEG files that are
protected are indicated
by the Lock icon.
z
Using the Memory Stick Viewer
73
Using the Memory Stick Viewer
Using Zoom
and Pan
To Zoom and Pan a photo
1 In the Photo menu bar, press B or b to highlight View.
2 Press V or v to highlight Zoom/Pan and press .
3 Specify the zoom center point by using V v B b; then press to set
the center.
The Zoom and Pan controls are displayed.
Using Rotate To Rotate a photo
1 In the Photo menu bar, press B or b to highlight View.
2 Press V or v to highlight Rotate.
3 To rotate clockwise, press V or v to highlight Clockwise and press .
To rotate counterclockwise, press V or v to highlight
Counterclockwise
and press .
The photo is rotated 90 degrees each time you press .
To Do This ... Do This ...
Zoom in (increase magnification)
or out (decrease magnification)
Press B or b to highlight Zoom and press . Then press V to zoom in or v to
zoom out.
To stop using Zoom, press .
Pan (left, right, up, down) (You can use Pan only when the photo is magnified using Zoom.)
Press
B or b to highlight Pan and press . Then press B b V v to pan
around the photo.
To stop using Pan, press .
Exit the Zoom/Pan controls Press
B or b to highlight Exit and press .
Exit Memory Stick Viewer Press MEMORY STICK on the remote control.
Indicates Zoom increment
Zoom and Pan Controls
Using the Memory Stick Viewer
74
Playing Movies
When you select a movie from the Memory Stick Index (described on
page 69), it displays as shown below, with the following controls.
Movie Controls
Movie menu bar
Information about
selected movie
Selected movie
Previous/next buttons
Enlarge button
Play/pause button
To Do This ... Do This ...
Enlarge the movie window Press V or v to highlight Enlarge, and then press
.
To display the movie controls again, press .
When the movie playback ends, the movie controls
are displayed again.
Play the movie with the
movie controls displayed
Press V or v to highlight
B (Play) and then
press
.
Pause the movie While the movie is playing, the B button changes X
(pause) button.
Press V or v to highlight
X (Pause) and then press
.
Display the previous or next
file on the Memory Stick
Press V or v to highlight the (Previous/
Next) button. Then press B
to go to the previous file,
or b
to go to the next file.
Hide the Movie menu bar,
displaying only the movie
With the highlight in the Movie menu bar, press v.
Display the hidden Movie
menu bar
Press
V.
Access additional options in
the Movie menu bar
See “Movie Menu Bar Options” on page 75.
Exit Memory Stick Viewer Press MEMORY STICK on the remote
control.
The quality of the movie
when enlarged
depends on the
resolution of the
MPEG1 file. See your
camera’s instruction
manual for details.
z
Using the Memory Stick Viewer
75
Using the Memory Stick Viewer
Movie Menu
Bar Options
To access the Movie menu bar
1 Use V or v to highlight Index in the Movie menu bar.
2 Press B or b to select Index, Slide Show, or File.
3 Press V or v to select the desired option.
Option Description
Index Displays the Memory Stick Index, with the highlight on the thumbnail
of the currently displayed movie.
Slide
Show
Displays the Slide Show menu. For details, see “Slide Show Menu
Options” on page 76.
File Information Determines whether file information is displayed.
Select On or Off.
Protect
Allows you to protect the MPEG1 file from any
changes. When an MPEG1 file is protected, it
cannot be deleted. Select On or Off.
Delete Deletes the MPEG1 file from the Memory
Stick.You cannot delete an MPEG1 file that has
been protected (or if the Memory Stick is locked).
MPEG1 files that are
protected are indicated
by the Lock icon.
z
Using the Memory Stick Viewer
76
Memory Stick Index Menu Bar Options
Slide Show Menu
Options
The Slide Show menu includes the following options:
Option Description
Start Starts the Slide Show.
Music Allows you to select background audio to play during the Slide
Show.
Off No additional background audio is played during
the Slide Show. Audio that is associated with the
JPEG or MPEG1 files will play.
Play All Plays all MP3 files on the Memory Stick. The
Piano MP3 file is not played.
Piano Plays the MP3 file stored in the LCD projection
TV’s internal memory. (This file is indicated by a
different color than the MP3 files on the Memory
Stick.)
(List of MP3
Files)
Displays a list of all MP3 files found at the top level
(root) of the Memory Stick. To show additional
MP3 files stored in other folders on the Memory
Stick, select Complete List.
Complete
List
Displays a list of all available MP3 files. The list is
sorted in alphabetical order, grouped by folder.
Transition
Effect
Allows you to select an effect to be used when advancing to the next
file in the Slide Show.
Off Uses a quick change, or cut.
Fade Uses a cross fade.
Wipe
b
Wipe B
Wipe V
Wipe v
Uses a linear sweep that moves across the screen,
revealing the next image while covering the
previous image.
Random Randomly cycles through all Transition Effects.
Slide
Duration
Allows you to specify a timed slide advance after a selected time
interval. Select from 3 sec, 5 sec, 10 sec, 30 sec, 1 min, 5 min.
Repeat On Slide Show continuously loops.
Off Slide Show plays once through all files and ends.
The Slide Show menu
is the same whether
you select it from the
Memory Stick Index
(page 69), Photo
(page 71), or Movie
(page 74) menus.
z
When you select
Complete List, it may
take a moment to
display the list of all
MP3 files.
z
Some JPEG files may
take longer to display
than others, which may
make it seem longer
than the interval you
selected for Slide
z
Using the Memory Stick Viewer
77
Using the Memory Stick Viewer
Folder Menu
Options
The Folder menu includes the following options:
Memory Stick Menu The Memory Stick menu displays the current status of the Memory Stick,
including total capacity, used capacity, and free capacity.
Option Description
Select
Contents
Allows you to select different folders to view in the Memory Stick
Viewer.
Digital Camera
Folders
Selects all folders within the directories
defined by the DCF rules used by Sony digital
cameras (see page 78). JPEG and MPEG1
files in those directories are recognized even if
they do not conform to the DCF file naming
rules.
Select a Folder Allows you to access individual folders on the
Memory Stick.
Protect Allows you to protect files from any changes. When a file is
protected, it cannot be rotated or deleted. The Protect options affect
files currently shown in the Memory Stick Index.
Protect All Protects all files.
Protect None Unprotects all files.
File Order Allows you to change the order in which the Memory Stick files are
displayed.
Date Order Displays files in chronological order by
modification date.
Date Order
Reverse
Displays files in reverse chronological order
by modification date.
Alphabetical Displays files in alphabetical order by
filename.
Filter Allows you to selectively display specific file types within the
selected folder.
Show All Displays all readable files.
Show Photos
Only
Displays only photo (JPEG) files.
Show Movies
Only
Displays only movie (MPEG1) files.
Files that are protected
are indicated by the
Lock icon.
z
The Rotate and Protect
functions do not
change the file’s
modification date.
z
Using the Memory Stick Viewer
78
Notes on Using Memory Stick Media
About DCF File
Names
Most Sony brand digital still and video cameras automatically record still
photo and movie files using DCF compliant directory and file names.
If you selected the
Digital Camera Folders option, as described on page 77,
you might want to have your digital camera’s instruction manual handy in
order to check how files and directories are organized for your specific
model of digital camera.
DCF stands for “Design Rules for Camera File Systems,” which are
specifications established by the Japan Electronics and Information
Technology Industries Association (JEITA: former JEIDA).
Using the Memory Stick Viewer
79
Using the Memory Stick Viewer
Memory Stick
Precautions
When using Memory Stick media, follow these precautions:
❑ To avoid permanent damage to still image data, do not turn off the LCD
projection TV or remove Memory Stick media from the insertion slot
while data is being read (as indicated by the Memory Stick indicator
light being on).
❑ Avoid touching the terminal of Memory Stick media or bringing it into
contact with a metal object.
❑ Do not drop, bend, or submit Memory Stick media to external shock.
❑ Do not disassemble or modify Memory Stick media.
❑ Avoid getting liquid on Memory Stick media.
❑ Apply labels only within the designated label area.
❑ To avoid permanent damage to still image data, do not use or store
Memory Stick media in a location subject to:
❑ High temperature (such as near a heater or inside a hot car)
❑ High humidity
❑ Direct sunlight
❑ Corrosive substances
❑ Magnetic fields
❑ Excessive dust
❑ Static electricity or electric noise
❑ Electric surges
❑ Store and carry Memory Stick media in its original case to ensure
protection of stored data.
❑ Save a backup of stored data.
Label Area
80
Using i.LINK
About i.LINK
This LCD projection TV is equipped with i.LINK, which provides a secure
digital interface to other digital home entertainment devices, such as digital
VCRs, digital camcorders, set-top boxes, and other devices that also are
equipped with i.LINK. i.LINK allows for the secure transfer of copyright-
protected digital content between these devices and your digital television.
i.LINK is a trademark of Sony Corporation and used only to designate that a
product contains an IEEE 1394 connector.
All products with an i.LINK connector may not communicate with each
other.
Using i.LINK Cables This LCD projection TV has three S400 i.LINK terminals (one in the front
panel, and two in the back panel). You can use the following i.LINK cables
with this LCD projection TV:
✍ Do not use cables other than the ones listed above.
Sony Model Length
VMC-IL4415 1.5 meters
VMC-IL4435 3.5 meters
4-pin i.LINK cable
Using i.LINK
81

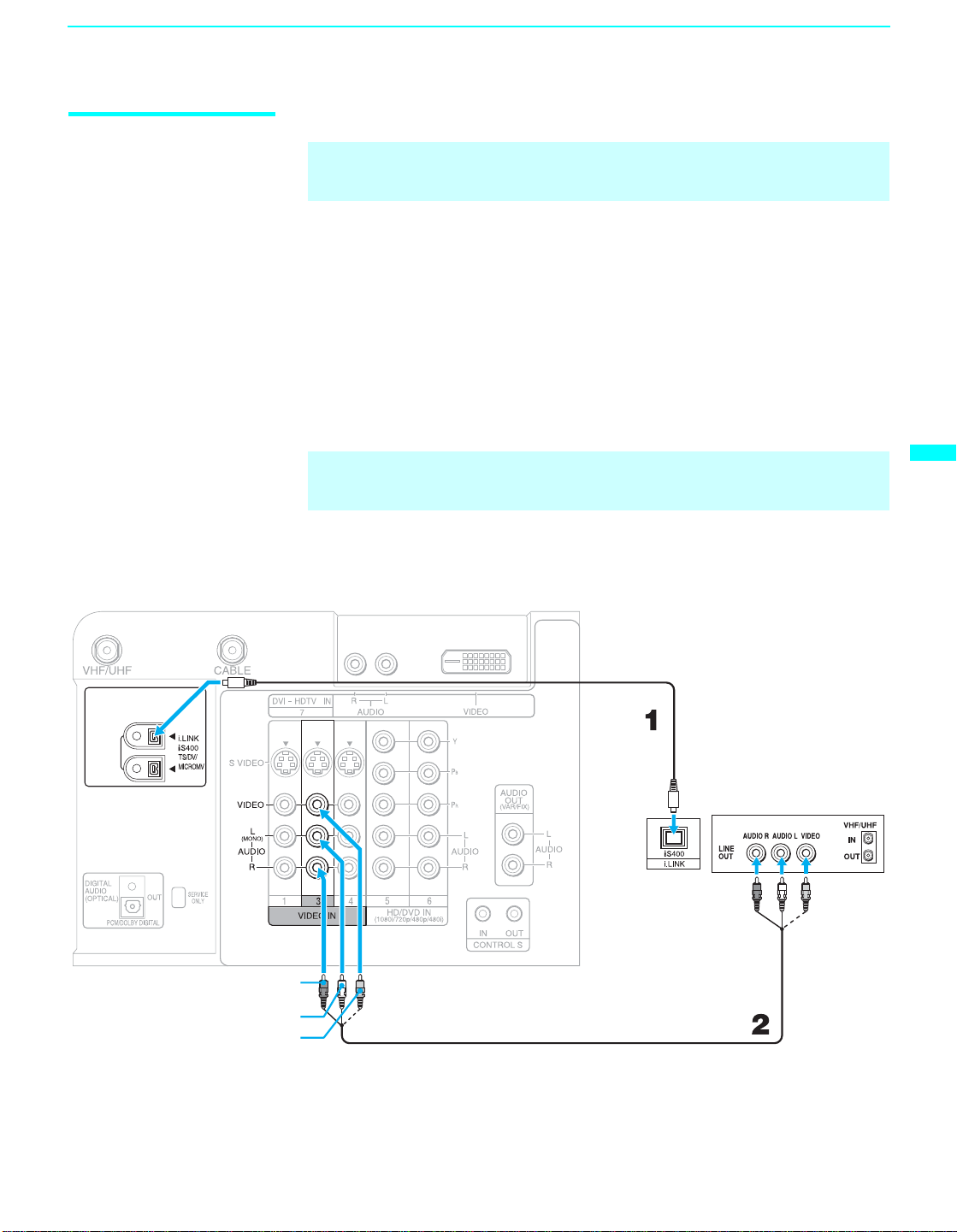

Using i.LINK
Connecting i.LINK
Devices
To connect a digital i.LINK device (using only a digital signal)
1 Using an i.LINK cable (see page 80), connect the device’s i.LINK jack
to either of the LCD projection TV’s i.LINK jacks.
To connect an i.LINK device that supports an EIA-775A connection
1 Using an i.LINK cable (see page 80), connect the device’s i.LINK jack
to either of the LCD projection TV’s i.LINK jacks.
2 Using an A/V cable, connect the i.LINK device's A/V output jacks to
the LCD projection TV's VIDEO 3 A/V input jacks.
✍ Before connecting this unit to i.LINK-compatible equipment, read the
instruction manual of the i.LINK device to be connected.
✍ Only one i.LINK cable should connect the LCD projection TV and any
given i.LINK device.
Cables are often
color-coded to
connectors.
Connect red to
red, white to
white.
Rear of the LCD projection TV
A/V cable (not supplied)
i.LINK
cable
i.LINK-equipped Device
VIDEO
AUDIO R
AUDIO L
(Continued)
Using i.LINK
82
Notes on Using This Connection
Notes on Connecting i.LINK Devices
To connect two or more i.LINK devices, use i.LINK cables to connect them
as shown below.
You can connect up to 63 i.LINK devices. However, the maximum number
of cables in any serial route is 16.
Do not connect i.LINK devices in a way that creates a loop.
Connecting non-compatible devices, such as PCs or PC peripherals, may
result in malfunctions.
To Do This ... Do This ...
Set up a digital i.LINK
device
For digital i.LINK devices (devices that require only the
i.LINK connection), no setup is necessary. The LCD
projection TV automatically recognizes the device as soon
as the connection is made.
Set up an i.LINK
device that supports an
EIA-775A analog
connection
❏ Connect analog A/V cables to the VIDEO 3
input (see page 81).
❏ Use the i.LINK Control Panel to activate the
analog connection to your i.LINK device (see
page 86).
A B C D E
i.LINK i.LINK i.LINK i.LINK
A B C D
F G
E
i.LINK i.LINK i.LINK i.LINK
i.LINK i.LINK
A B C
i.LINK i.LINK
i.LINK
Using i.LINK
83
Using i.LINK
Selecting an i.LINK Device
Before an i.LINK device can be viewed, it must first be selected via the
i.LINK Device List.
1 Connect the i.LINK device that you wish to operate.
2 Press i.LINK on the remote control.
The LCD projection TV (DTV), along with all devices connected by
i.LINK to the LCD projection TV, appear on the i.LINK Device List.
Devices that are not supported by the LCD projection TV appear on the
Device List as “Other Device,” but cannot be controlled using the LCD
projection TV's remote control or on-screen i.LINK Control Panel. For
these devices, use the remote control supplied with the device.
3 Press V or v to navigate among the i.LINK-connected devices.
4 Press to select the desired device and display the device's i.LINK
Control Panel. Use the i.LINK Control Panel to operate the selected
device. For details, see page 84.
✍ For instructions on connecting i.LINK devices, see page 81.
✍ i.LINK devices can be connected to one another and to the LCD
projection TV while the LCD projection TV is powered on. The Device List
will automatically update to include the newly-connected device. See
page 81 for more information on connecting i.LINK devices.
i.LINK functions are not
available while using the
following TV features: Twin
View, Freeze, and Memory
Stick.
z
Using i.LINK
84
Using the i.LINK Control Panel
After you select an i.LINK device using the Device List, the LCD projection
TV displays the i.LINK Control Panel, which allows you to use the LCD
projection TV's remote to control the selected i.LINK device.
1 If the i.LINK Control Panel is not already displayed, press i.LINK on the
remote control.
2 Press V v B b on the remote control to navigate through the options
available in the i.LINK Control Panel.
3 Press to select a desired option.
4 Press EXIT to exit the Control Panel and view the i.LINK device full-
screen.
The i.LINK Control Panel displays the signal from the LCD projection TV
to the left (if available), and the signal from the currently selected device to
the right.
✍ If i.LINK is pressed while the LCD projection TV is displaying an analog
or digital channel (not the i.LINK device), then the Device List will
appear. Select the desired device from the list and press to display
the Control Panel.
✍ To exit i.LINK mode, select DTV from the Device List or press CH+/–.
The DTV window appears only if the
i.LINK menus were entered while
watching a digital TV channel
Using i.LINK
85
Using i.LINK
To Do This ... Do This ...
Go to the Device List Press V v B b to highlight Back to Device List and press .
Change the audio being played from the
LCD projection TV to the current
selected device, and vice versa
Press V v B b to highlight Swap Audio and press . An icon appears next
to the window that currently has sound.
Play a recording from the selected
i.LINK camcorder or digital VCR
Press V v B b to highlight and press .
Fast-forward or rewind a recording from
the selected i.LINK camcorder or digital
VCR
Press V v B b to highlight or and press .
Record from LCD projection TV to the
selected i.LINK digital VCR
If the (record) button is available, press V v B b to highlight
and press .
Stop a recording from the selected
i.LINK digital VCR
Press V v B b to highlight and press .
Turn the selected device power on and
off
Press V v B b to highlight Power and press .
Setup the selected device Press V v B b to highlight Setup and press . For more details on Setup,
see page 86.
Notes About Controlling i.LINK Devices
❑
You can control the functions of the selected i.LINK device by using the equivalent buttons on the LCD
projection TV's remote control. To program the remote control to operate i.LINK devices, see
“Programming the Remote Control” on page 48.
❑ Some options on the i.LINK Control Panel may not be available, depending on the device being
controlled.
❑ Only i.LINK-equipped digital camcorders and digital VCRs can be controlled directly through the
i.LINK Control Panel.
❑ Not all functions are supported for all i.LINK devices.
Using i.LINK
86
i.LINK Setup
You can use the i.LINK Control Panel to access digital setup options, some
of which are also available through the Digital Program Guide (described on
page 62).
To Do This ... Do This ...
Set up the selected device Press V v B b to highlight Setup and press .
Set up Caption Vision Once i.LINK Setup has been selected, Press b then V or v to Caption Vision, and
press .
✍ For details about setting up Caption Vision , see “Customizing Caption
Vision” on page 63.
Set up i.LINK Analog Video
(Set-Top Box)
The LCD projection TV is able to accept an analog signal from a selected set-top
box. The set-top box must be EIA-775A compliant and must be connected to the
LCD projection TV’s VIDEO 3 input. To associate the device with the LCD
projection TV's analog VIDEO 3 input, press V or v to select to Analog Video and
press . All EIA-775A-compliant devices will be shown in the list. Select the
desired device from the list and press .
Notes on i.LINK
❑
The LCD projection TV can act as an i.LINK repeater, so that i.LINK signals are be relayed to another
device even when the LCD projection TV is powered off. To enable this feature, set the
i.LINK Standby
option to On using the Setup Menu as described on page 105.
❑ Parental Control settings apply to the signal from a selected device. For more details, see page 98.
87
Using the Menus
Using the Menus
Overview
Opening and choosing a menu
1 Press MENU to display the menu screen.
2 Press B or b to highlight the desired menu icon and press to select
it.
3 Use the arrow button to scroll through the features.
4 See the specific menu page for instructions on moving through the
menu.
To end a menu session
❑
Press MENU again.
To end one menu session and move to another
❑ Press V to return to the menu icons.
Press B or b to choose the next menu icon and press to select it.
The menu gives you access to the following features:
Menu Icon Description Page
Allows you to make adjustments to your picture settings.
It also allows you to customize the Picture Mode based on
the type of program you are viewing.
88
Offers enhanced audio options such as listening to second
audio programming (SAP), or customizing the Effect of
the sound on your LCD projection TV.
92
Allows you to set the wide screen mode, adjust the vertical
center and vertical size in wide mode, and set the 4:3
Default mode.
94
Allows you to set up a Favorite Channel list, run the Auto
Program function, and more.
96
Lets you control the viewing of programs based on their
ratings.
98
Provides several options for setting up your channels,
labeling your Video inputs, selecting the language of the
on-screen menus and more.
102
Using the Menus
88
Using the Video Menu
To select the Video Menu
1 Press MENU.
2 Press B or b to highlight the
Video icon and press .
3 Use the arrow button to scroll
through the features.
4 Press to select a feature.
That feature’s adjustment
appears.
5 Use the arrow button to make the desired adjustments.
6 Press to select/set.
7 Press MENU to exit the menu screen.
To restore the factory default settings for the Video settings:
❑
Press RESET on the remote control when in the Video menu.
Selecting Video
Options
The Video menu includes the following options.
Option Description
Mode
Customized
viewing
Vivid Select for enhanced picture contrast and sharpness.
Standard Select for standard picture settings. Recommended
for home entertainment.
Pro Select to display a picture with minimum
enhancements.
✍ You can alter the Video menu settings (Picture,
Brightness, Color, etc.) for each Mode.
✍ You may set up a “Picture Mode” (Vivid, Standard, Pro)
independently for each Video input (Video 1-Video 7,
including the Antenna input). Your “Picture Mode”
settings will automatically be saved after each selection.
This will enable you to customize the Picture Mode setting
for each type of signal source. Typically, Vivid should be
used for higher quality input signal sources, and Pro for
lower quality signals.
Picture Adjust to increase picture contrast and deepen the color or decrease
picture contrast and soften the color.
Brightness Adjust to brighten or darken the picture.
Color Adjust to increase or decrease color intensity.
Hue Adjust to increase or decrease the green tones.
To quickly and easily
change from one
Picture Mode to
another, use PICTURE
on the remote control.
z
Using the Menus
89
Using the Menus
Sharpness Adjust to sharpen or soften the picture.
Color Temp.
White
intensity
adjustment
Choose from three color temperatures:
Cool Select to give the white colors a blue tint.
Neutral Select to give the white colors a neutral tint.
Warm Select to give the white colors a red tint.
NR
Noise
Reduction
Select to reduce the noise level of connected equipment. It is also
effective on the signal from the VHF/UHF jack. Select from High,
Medium, Low, Off.
Mild Mode On Select for a natural, soft picture.
Off Select to turn off Mild Mode.
Advanced
Video
Select Program to choose among the options described below.
DRC Mode Creates a high-resolution picture with 4 × density, for
high quality sources (i.e., DVD player, satellite
receiver).
High Dens. Recommended for moving
pictures.
Progressive Recommended for still
images and text.
CineMotion Provides an optimized
display by automatically
detecting film content and
applying a reverse 3-2
pulldown process. Moving
pictures will appear clearer
and more natural-looking.
Option Description
DRC Mode and DRC
Palette are not
available when
watching 480p, 720p,
and 1080i sources.
z
(Continued)
Using the Menus
90
DRC
Palette
Allows you to customize the level of detail (Reality)
and smoothness (Clarity) for up to three input
sources. For example, you can create one Custom
setting to optimize your cable input's picture, and
create another to optimize your DVD player's picture.
You can switch among the three Custom settings.
1 Press the arrow button to highlight Custom 1,
Custom 2, or Custom 3 and then press .
The DRC palette appears.
2 Press the arrow button to adjust the position of
the marker (z). As you move the z higher
along the Reality axis, the picture becomes more
detailed. As you move the z to the right along
the Clarity axis, the picture becomes smoother.
3 To save the setting, press .
To return the Custom options to the default factory
settings, press the RESET button.
BN
Smoother
Select to reduce block noise caused by digital video
encoding and decoding process. It is especially
effective for watching a DVD or digital TV picture.
Select from High, Medium, Low and Off.
✍ An image may not be corrected due to the connected
equipment.
Clear
White
Select to emphasize the white colors. Select On or
Off.
Detail
Enhancer
Select to sharpen picture definition. Select from High,
Medium, Low and Off.
Color
Corrector
Select to emphasize the red and blue colors. Select
On or Off.
Black
Corrector
Select to enhance the black colors to give the picture
strong contrast. Select from High, Medium, Low and
Off.
Gamma
Corrector
Select to adjust the balance between bright and dark
areas of the picture. Select from High, Medium, Low
and Off.
Option Description
DRC Palette is not
available when Mild
Mode is set to On.
z
Custom 1
[25]
Clarity [ 1]
Reality
BN Smoother may not
be effective according
to the input equipment.
z
Clear White, Detail
Enhancer, Color
Corrector, Black
Corrector, Gamma
Corrector, White
Balance and Cinema
Black options are
available only when
Pro mode is selected.
z
Using the Menus
91
Using the Menus
White
Balance
Select to fine-adjust the white color intensity by
changing the red, green and blue levels. You can
adjust these levels by selecting R-Gain, G-Gain, B-
Gain, R-Bias, G-Bias or B-Bias. To restore the
factory default setting of White Balance, select
Initial Set.
Cinema
Black
Select to enhance the black level. Select On or Off.
Option Description
Using the Menus
92
Using the Audio Menu
To select the Audio Menu
1 Press MENU.
2 Press B or b to highlight the
Audio icon and press .
3 Use the arrow button to scroll
through the options.
4 Press to select an option.
That option’s settings appear.
5 Use the arrow button to scroll through the settings.
6 Press to select the desired setting.
7 Press MENU to exit the menu screen.
To restore the factory default settings for Treble, Bass and Balance
❑
Press RESET on the remote control when in the Audio menu.
Selecting Audio
Options
The Audio menu includes the following options:
Option Description
Treble Adjust to increase or decrease higher-pitched sounds.
Bass Adjust to increase or decrease lower-pitched sounds.
Balance Adjust to emphasize left or right speaker balance.
Steady
Sound
Auto Select to stabilize the volume.
Off Select to turn off Steady Sound.
Effect Virtual Dolby Select for Virtual Dolby surround sound (for stereo
programs only).
TruSurround Select for surround sound (for stereo programs
only).
Simulated Adds a surround-like effect to mono programs.
Off Normal stereo or mono reception.
Virtual Dolby and
TruSurround attempt to
create the same
surround effect
produced by a
multichannel system
using the left and right
speakers. Virtual Dolby
is most effective for
programs encoded in
Dolby Surround.
z
Using the Menus
93
Using the Menus
MTS
Enjoy stereo,
bilingual and
mono
programs
Stereo Select for stereo reception when viewing a program
broadcast in stereo.
Auto SAP Select to automatically switch the LCD projection
TV to second audio programs when a signal is
received. (If no SAP signal is present, the LCD
projection TV remains in Stereo mode.)
Mono Select for mono reception. (Use to reduce noise
during weak stereo broadcasts.)
Speaker On Select to turn on the LCD projection TV speakers.
Off Select to turn off the LCD projection TV speakers
and listen to the LCD projection TV's sound only
through your external audio system speakers.
Audio Out
Easy control
of volume
adjustments
Variable
This option can be set only when the Speaker
option is set to Off.
The LCD projection TV’s speakers are turned off,
but the audio output from your audio system can
still be controlled by the LCD projection TV’s
remote control.
Fixed The LCD projection TV’s speakers are turned off
and the audio output of the LCD projection TV is
fixed. Use your audio receiver’s volume control to
adjust the volume (and other setting) through your
audio system.
Option Description
Using the Menus
94
Using the Screen Menu
To select the Screen menu
1 Press MENU.
2 Press B or b to highlight the
Screen icon and press .
3 Use the arrow button to scroll
through the features.
4 Press to select a feature.
That feature’s options appear.
5 Use the arrow button to scroll through the options.
6 Press to select the desired option.
7 Press MENU to exit the menu screen.
Selecting Screen
Options
The Screen menu includes the following options:
To change from one Wide Mode to another, use WIDE MODE on the
remote control.
Option Description
Wide Mode
Select a Screen
Mode to use for
4:3 sources.
Wide Zoom Select to enlarge the 4:3 picture, to fill the 16:9
screen, keeping the original image as much as
possible.
Normal Select to return the 4:3 picture to normal
mode.
Full Select to enlarge the 4:3 picture horizontally
only, to fill the wide screen.
Zoom Select to enlarge the 4:3 picture horizontally
and vertically to an equal aspect ratio that fills
the wide screen.
z
Wide Mode is
unavailable while in
Twin View (page 55) or
Freeze (page 58)
mode.
Wide Mode is
unavailable when you
are watching 720p and
1080i sources, and
when viewing photos
from your memory stick
media.
z
z
Using the Menus
95
Using the Menus
4:3 Default
Select the default
Screen Mode to
use for 4:3
sources.
Wide Zoom Select to enlarge the 4:3 picture, to fill the 16:9
screen, keeping the original image as much as
possible.
Normal Select to return the 4:3 picture to normal
mode.
Full Select to enlarge the 4:3 picture horizontally
only, to fill the wide screen.
Zoom Select to enlarge the 4:3 picture horizontally
and vertically to an equal aspect ratio that fills
the wide screen.
Off Select to continue using the current Screen
Mode setting when the channel or input is
changed.
Vertical Center Adjust Allows you to move the position of the picture
up and down in the window. (Available only in
Wide Zoom and Zoom modes.)
Press V or v and press
to choose a
position between +25 and –25 (ZOOM mode),
and +10 and –10 (Wide Zoom mode).
Vertical Size Adjust Allows you to adjust the vertical size of the
picture. (Available only in Wide Zoom and
Zoom modes.)
Press V or v and press
to choose a
correction between +7 and –7.
Option Description
The 4:3 Default
functions only when
the LCD projection TV
receives 480i and 480p
signals.
If 4:3 Default is set to
anything but Off, the
Wide Mode setting
changes only for the
current channel. When
you change channels
(or inputs), Wide Mode
is automatically
replaced with the 4:3
Default setting. To
retain the current Wide
Mode setting as
channels and inputs
are changed, set 4:3
Default to Off.
z
z
Using the Menus
96
Using the Channel Menu
To select the Channel Menu
1 Press MENU.
2 Press B or b to highlight the
Channel icon and press
.
3 Use the arrow button to scroll
through the features.
4 Press to select a feature.
That feature’s options appear.
5 Use the arrow button to scroll through the options.
6 Press to select the desired option.
7 Press MENU to exit the menu screen.
Selecting Channel
Options
The Channel menu includes the following options:
Option Description
Favorite
Channels
Let you set up a list of your favorite channels. For details, see
“Using Favorite Channels” on page 54.
Channel Fix
Useful when you
have a cable box
or satellite
receiver connected
Off Turns off Channel Fix.
2-6 “Fix” your LCD projection TV’s channel
setting to 2-6 and use the cable box, VCR or
satellite receiver to change channels. Select one
of these settings if you have connected the
device to the VHF/UHF jack.
C 2-6 Same as 2-6, except you select one of these
settings if you have connected the device to the
CABLE jack (see page 23).
Video 1 Use when connecting a cable box. TV output
should be connected through the cable box.
Auto Program Automatically programs the LCD projection TV for all
receivable channels.
Digital Channels Add Select to add digital channels.
Using the Menus
97
Using the Menus
Channel
Skip/Add
Allows you to customize the channel list that appears when you
use the CH+/– buttons.
1 Press V or v to scroll through the channels until you find
the channel you want to skip or add. Then press to
select it.
2 Press V or v to toggle between Add or Skip. Then press
to select.
3 To add or skip more channels, repeat steps 1 and 2.
4 Press B to return to the Channel Menu, or press MENU to
exit the Menus.
Channel Label Allows you to assign labels (such as station call letters) to
channel numbers. You can label up to 40 channels.
1 Press V v B b to highlight Channel and press .
2 Press V or v to scroll through the channel numbers (1-125).
Then press to select the channel number that you want
to assign a label.
3 Press V v B b to highlight Label and press .
4 Press V or v to scroll through the label characters (A-Z, 0-
9, etc.). Then press to select the highlighted character.
5 Repeat to add up to 5 characters to the label.
6 To assign labels to more channels, repeat steps 1-4.
7 Press B to return to the Channel Menu, or press MENU to
exit the Menus.
Option Description
Channels that you set
to be skipped can be
accessed only with the
0-9 buttons.
z
Using the Menus
98
Using the Parent Menu
The Parent Menu allows you to set up the TV to block programs according
to their content and rating levels.
To select the Parent Menu
1 Press MENU.
2 Press B or b to highlight the
Parent icon and press .
3 Use the 0-9 buttons on the
remote control to enter a four-
digit password.
4 If this is the first time you are
creating this password, confirm the password by entering it again. (The
Parent Menu options appear.)
5 Press V v B b to change settings. Press to select the changed
setting.
6 Press MENU to exit the Menu.
Selecting Parent
Options
The Parent Menu includes the following options:
✍ You need your password for any future access into the Parent Menu. If
you lose your password, see “Lost password” on page 113.
Option Description
Parental Lock
Turn ratings on/off and
select a rating system
Off Parental lock is off. No programs are blocked
from viewing.
Child Maximum ratings permitted are:
US: TV-Y, TV-G, G
Canada: C, G, TV-Y
Yo u th Maximum ratings permitted are:
US: TV-PG, PG
Canada: C8+, PG, 8 ans+, TV-PG
Y. Adult Maximum ratings permitted are:
US: TV-14, PG-13
Canada: 14+, 13 ans+, TV-14
Custom Select to set ratings manually.
US: See page 100 for details.
Canada: See page 101 for details.
Using the Menus
99
Using the Menus
To deactivate the Parental Control feature
❑
Set Parental Lock to OFF when in the Parent menu.
To change the password
1 Select Change Password option when in the Parent menu using the
arrow button, and press .
2 Enter a new four-digit password using the 0-9 buttons.
3 Confirm the new password by entering it again.
4 Press MENU to exit the menu screen.
Viewing Blocked
Programs
You can view a blocked program by entering the password.
1 Press ENTER when tuned to a blocked program.
2 Enter your password using the 0-9 buttons.
Parental Control will be canceled temporarily until you turn your LCD
projection TV off.
Change Password For changing your password.
Select Country U.S.A. Select to use USA ratings (see page 100).
Canada Select to use Canadian ratings (see page 101).
Option Description
If you are not familiar
with the Parental
Guideline rating
system, you should
select Child, Yo u t h , or
Y. A d u l t to help simplify
the rating selection. To
set more restrictive
ratings, select Custom.
For descriptions of
Child, Yo u t h, and
Y. A d u l t ratings, see
page 98.
z
z
Using the Menus
100
Selecting Custom
Rating Options
US custom rating options
If you selected U.S.A. as the country of residence on page 99, the Custom
Rating Menu includes the following options. (If you selected Canada, see
page 101.)
Option Description
Movie Rating G All children and General Audience.
PG Parental Guidance suggested.
PG-13 Parental Guidance for children under 13.
R Restricted viewing, parental guidance is suggested
for children under 17.
NC-17
and X
No one 17 and under allowed.
TV Rating
Block programs
by their rating,
content or both
Age-Based Options
TV-Y All children.
TV-Y7 Directed to children age 7 and older.
TV-G General Audience.
TV-PG Parental Guidance suggested.
TV-14 Parents Strongly cautioned.
TV-MA Mature Audience only.
Content-Based Options
FV Fantasy Violence.
D Suggestive Dialogue.
L Strong Language.
S Sexual situations.
V Violence.
Unrated
Block programs
or movies that are
broadcast without
a rating
Block Blocks all programs and movies that are broadcast
without a rating.
Allow Allows programs and movies that are broadcast
without a rating.
✍ The content ratings will increase depending on the level of the age-based rating.
For example, a program with a
TV-PG V (Violence) rating may contain
moderate violence, while a
TV-14 V (Violence) rating may contain more intense
violence.
To ensure maximum
blocking capability, the
age-based ratings
should be blocked.
z
If you select Block,
please be aware that
the following programs
may be blocked:
emergency broadcasts,
political programs,
sports, news, public
service
announcements,
religious programs and
weather.
z
Using the Menus
101
Using the Menus
Canadian custom rating options
If you selected Canada as the country of residence on page 99, the Custom
Rating Menu includes the following options. (If you selected U.S.A., see
page 100.)
Option Description
English Rating C All children.
C8+ Children 8 years and older.
G General programming.
PG Parental Guidance.
14+ Viewers 14 and older.
18+ Adult programming.
French Rating G General programming.
8 ans+ Not recommended for young children.
13 ans+ Not recommended for ages under 13.
16 ans+ Not recommended for ages under 16.
18 ans+ Programming restricted to adults.
U.S.A. Rating See “TV Rating” on page 100 for details.
Using the Menus
102
Using the Setup Menu
To select the Setup Menu
1 Press MENU.
2 Press B or b to highlight the
Setup icon and press .
3 Use the arrow button to scroll
through the features.
4 Press to select a feature.
That feature’s options appear.
5 Use the arrow button to scroll through the options.
6 Press to select the desired option.
7 Press MENU to exit the menu screen.
Selecting
Setup Options
The Setup menu includes the following options:
Option Description
Caption Vision Allows you to select from three closed caption modes (for
programs that are broadcast with closed captioning).
Off Turns off Caption Vision.
CC1, CC2,
CC3, CC4
Displays a printed version of the
dialog or sound effects of a program.
(Should be set to CC1 for most
programs.)
Text1, Text2,
Text3, Text4
Displays network/station information
presented using either half or the
whole screen (if available). For closed
captioning, set to CC1.
Info Displays the program name and the
time remaining in the program (if the
broadcaster offers this service).
Displays when the channel is changed
or the DISPLAY button is pressed.
Caption Vision options
in the Setup menu
apply only to analog
programs. To set up
closed captioning for
digital progams, see
“Using the Caption
Vision Menu” on page
62.
z
Using the Menus
103
Using the Menus
Video Label Allows you to label the audio/video components you connected
to the LCD projection TV so you can identify them when using
TV/VIDEO. When in the Setup menu’s Video Label feature,
press V or v to highlight an input to label, then press to
select it. Use the arrow button to scroll through the labels. Press
to select the component you connected to each of the input
jacks on the back of your LCD projection TV. Select Skip if
you do not have a component connected to a particular set of
input jacks.
Video 1/2/3/4 VHS, DVD, Receiver, Satellite, Cable
Box, 8mm, DTV, Game, LD, Web,
Beta, Skip
Video 5/6/7 DVD, Satellite, Cable Box, DTV, HD,
Game, Skip
If you select Skip, your LCD projection TV skips this
connection when you press TV/VIDEO.
Game Picture Adjust Allows you to move the position of
the picture left and right in the
window. (Available for the picture of
connected equipment.) Select while
watching the picture to be adjusted.
The LCD projection TV stores the
position in memory for each input.
Language Select to display all on-screen menus in your language of
choice: English, Español, Français.
Option Description
(Continued)
Using the Menus
104
Clock/Timers Select to set the clock and to program your LCD projection TV
to turn on and off at two scheduled viewing times.
Sleep Allows you to select the time in
minutes (15, 30, 45, 60 or 90 min) at
you want the TV to remain on before
shutting off automatically.
Timer 1
Timer 2
You can use the Timers to program the
TV to turn on and off and tune to a
specific channel at two scheduled
viewing times.
Timer 1 and Timer 2 are not available to be set until you set the
Current Time.
1 Press V or v to highlight Timer 1 or Timer 2. To set the
timer, press b.
2 Press V or v to highlight one of the following options, then
press .
Program Select to set the Timer by day, time,
duration, and channel.
Off Select to turn off the Timer. (Your
previous settings are saved.)
3 If you selected Program in step 2, press V and v to set the
day(s), hour, minute, duration, and channel number. Press
or press b to confirm each setting and move to the
next setting.
Press B to go back to the previous setting.
4 Press MENU to exit the Menu. An LED on the front panel
will light, indicating the timer has been set.
✍ To go directly to programming Timer 1 or 2, press
instead of pressing b.
Current Time
1 Press to select Current Time.
2 Press V and v to set the current time (day, hour, and
minute). Press (or press b) to comfirm each setting
and move to the next setting. Press B to go back the
previous setting.
3 Press MENU to exit the Menu.
Option Description
Using the Menus
105
Using the Menus
Image Shift Corrects the Image on your LCD projection TV.
Before adjusting
After adjusting
Auto (Factory setting) Automatically
corrects double images.
Level 1-4 Select the value with which double
images are improved.
i.LINK Standby On Allows the i.LINK signal to pass
through to connected i.LINK devices
even when the LCD projection TV is
turned off. The front panel
i.STANDBY (i.LINK standby) LED
lights in red. The LCD projection TV
uses more standby power than when
this option is set to Off.
Off Does not allow the i.LINK signal to
pass through to connected i.LINK
devices when the LCD projection TV
is turned off. The front panel
i.STANDBY (i.LINK Standby) LED
turns off. The LCD projection TV
uses less standby power than when
this option is set to On.
High Altitude Off Select to use the LCD projection TV
at normal altitude.
On Select to use the LCD projection TV
at an altitude of 1,500 m or higher.
Option Description
Other Information
107
Other Information
Glossary
analog signal A signaling method that uses continuous changes in the amplitude or frequency of an
electronic transmission to convey information.
aspect ratio Refers to the ratio between the width and height of the screen. This LCD projection
TV has a 16:9 (widescreen) aspect ratio, as opposed to a 4:3 aspect ratio.
component video Component video is sent through three cables: two color shade (chrominance) signals
and one brightness (luminance) signal. Component video achieves greater color
accuracy than composite video or S VIDEO by splitting chrominance into two
separate portions.
composite video Composite video is sent through a single cable. Composite video combines the color
shade (chrominance) and brightness (luminance) information into one video signal.
digital television (DTV) A new technology for transmitting and receiving broadcast television signals. DTV
provides higher resolution and improved sound quality over analog television.
National Television
System Committee
(NTSC)
A unit of the Federal Communications Commission, Washington, DC, that
establishes television standards in the United States, such as NTSC Color, the
standard used in this LCD projection TV.
RF Radio Frequency. That part of the frequency spectrum that is used to transmit TV and
radio signals.
S VIDEO S VIDEO requires a single cable, which carries the brightness (luminance) and color
(chrominance) signals of the picture separately. S VIDEO provides better resolution
than composite video, which carries the signals together.
VHF/UHF VHF (Very High Frequency) is the part of the frequency spectrum from 30 to 300
megahertz. UHF (Ultra High Frequency) is the part of the frequency spectrum from
300 to 3,000 megahertz.
480i Provides 480 lines of resolution. Displays images using interlaced scanning, which
first transmits all the odd lines on the LCD projection TV screen and then the even
lines.
480p Provides 480 lines of resolution. Displays images using progressive scanning, which
transmits each line from top to bottom.
720p Provides 720 lines of resolution. Displays images using progressive scanning, which
transmits each line from top to bottom.
1080i Provides 1080 lines of resolution. Displays images using interlaced scanning, which
first transmits all the odd lines on the LCD projection TV screen and then the even
lines. 1080i is one of the formats used by HDTV (High Definition TV).
4:3 aspect ratio
16:9 aspect ratio
Other Information
108
Contacting Sony
If, after reading these operating instructions, you have additional questions
related to the use of your Sony television, please call our Customer
Information Services Center at 1-800-222-SONY (7669) (US residents only)
or (416) 499-SONY (7669) (Canadian residents only).
Troubleshooting
Twin View
Remote Control
Problem Possible Remedies
I cannot get Twin View to work ❏ If you are using a cable box to unscramble all channels (as shown on page 30),
you cannot use the Twin View feature. This is because the cable box can
unscramble only one channel at a time.
❏ You can use Twin View to view a signal from a different source that is connected
to the LCD projection TV’s A/V jacks (such as a VCR or DVD player) in the
second window by pressing TV/VIDEO while in Twin View.
❏ Sources connected to the CABLE, VIDEO 5, VIDEO 6 and VIDEO 7 inputs, as
well as digital source display in the left Twin View window, but not in the right.
There is no Twin View window,
or it is just static
❏ Be sure the Twin View window is set to a video input or channel that has a signal
airing.
❏ You might be tuned to a video input with nothing connected to it. Try cycling
through the video inputs by pressing TV/VIDEO.
Twin View cannot display
anything but TV channels
❏ Try cycling through the video inputs by pressing TV/VIDEO. Check that the
Video Label option is not set to Skip. (See the Setup Menu on page 102.)
Twin View displays the same
program in both windows
❏ Both Twin View windows might be set to the same channel. Try changing
channels in either window.
Problem Possible Remedies
Remote control does not
operate
❏ The batteries could be weak. Replace the batteries.
❏ Check the orientation of the batteries.
❏ Press FUNCTION repeatedly until the TV indicator lights up. You may have
inadvertently pressed FUNCTION, which changes the remote control to SAT or
CABLE mode.
❏ Make sure this unit’s power cord is connected securely to the wall outlet.
❏ Locate the unit at least 3-4 feet away from fluorescent lights.
Other Information
109
Other Information
Memory Stick
Cannot change channels with
the remote control
❏ If you are using the LCD projection TV to change channels, first press
FUNCTION repeatedly until the TV indicator lights up.
❏ If you are using another device to change channels, be sure you have not
inadvertently switched your LCD projection TV from the channel 3 or 4 setting.
Use the Channel Fix option to “fix” the channel based on the hookup you used
(see page 96).
❏ If you are using another device to change channels, be sure to press FUNCTION
for that device. For example, if you are using your cable box to change channels,
be sure to press FUNCTION repeatedly until the SAT/CABLE indicator lights up.
Remote control does not
operate non-Sony video
equipment
❏ If you replaced the batteries to the remote recently, the code numbers for the video
equipment may need to be reset.
❏ There may be more than one code for the equipment that you are attempting to
operate.
❏ There is a possibility that some non-Sony equipment cannot be operated by your
Sony LCD projection TV remote. You may need to use the equipment’s original
remote control.
Problem Possible Remedies
Problem Possible Remedies
Image does not display/Cannot
see all files
❏ Some variations of MPEG1 movies may not play back correctly.
❏ Make sure the image file is a JPEG (.jpg, .jpeg) file or an MPEG1 (.mpg, mpeg)
file.
❏ Make sure the Memory Stick is inserted properly (see page 66).
❏ Check the Filter option setting (see page 77).
❏ Check the Select Contents setting (see page 77) and ensure that files are either in
DCF directories if Digital Camera Folders is selected (see page 77), or in the
currently selected folder if Select a Folder is selected (see page 77).
❏ The maximum number of files the Memory Stick Viewer can display is 1,024.
JPEG image displays
undesirable motion or flicker in
full screen
❏ JPEGs captured using a digital video camera may appear to display motion in full
screen. This is a result of the way digital video cameras record still images, and is
not a result of a malfunction with the LCD projection TV.
Rotation not saved after
Memory Stick is ejected or
Memory Stick Viewer is closed
❏ The Memory Stick might be locked. Unlock the Memory Stick and try rotating the
image again.
❏ The file might not have information (EXIF data) that is usually generated when a
digital camera records a photo. In this case, it is not possible to save the rotation.
❏ There might be insufficient space on the Memory Stick to save the rotated file. Try
deleting one or more files and rotating the image again.
Cannot show (or hide) file
information in full screen or
Slide Show
❏ Set the File/Information option to On or Off (see pages 72 and 75).
Cannot see menu ❏ Press V to display the menu again.
Cannot hear audio while
using Memory Stick
❏ Check the LCD projection TV’s volume or Speaker (page 93) settings.
❏ To hear JPEG voice memo, select the Digital Camera Folders option and set the
Filter option to Show All.
❏ Check that the Music option is not to set to Off (see page 76).
(Continued)
Other Information
110
Not all MP3 files on Memory
Stick are included when the
Music /Complete List option is
selected (page 76)
❏ The maximum number of MP3 files the Memory Stick Viewer can display is 128.
❏ Make sure that the file is named with the file extension (.mp3).
MPEG1 movie does not
play back correctly
❏ Some variations of MPEG1 movies may not be compatible with the Memory Stick
Viewer.
MPEG1 quality is poor when
enlarged (page 74)
❏ The quality of the movie when enlarged depends on the resolution of the MPEG1
file. See your camera’s instruction manual for details.
MP3 files on the Memory Stick
are not listed
❏ Only MP3 files that are named with the file extension (.mp3) are displayed in the
list.
Music files are playing in wrong
order
❏ MP3 files are played in alphabetical order, according to the folder in which they
are stored. If you want to change the playlist order, rename your files
alphabetically in the order in which you want them to play.
Cannot see MP3 list to play
music
❏ MP3 files on your Memory Stick only can be played as background music during a
Slide Show (see page 76).
Error message
is displayed
❏ No Memory Stick There is no Memory Stick in the slot.
❏ Memory Stick is
Locked
The lock mechanism on the Memory Stick is
engaged.
❏ Memory Stick Error The Memory Stick in the slot might be damaged;
try a different Memory Stick.
❏ Format Error The Memory Stick may have been formatted using
a PC or other device that is not compatible with
cameras.
Error icon is displayed The file is not a valid MPEG1 or JPEG format.
The thumbnail is not DCF-compatible.
The file is a JPEG or an MPEG1, but the thumbnail
is unreadable.
The file is unreadable.
Problem Possible Remedies
Other Information
111
Other Information
Video
Problem Possible Remedies
No picture (screen not lit), no
sound
❏ If your LCD projection TV does not turn on, and a red light keeps flashing, your
LCD projection TV may need service. Call your local Sony Service Center.
❏ Make sure the power cord is plugged in.
❏ Press POWER on the front of the LCD projection TV.
❏ Press TV/VIDEO to cycle through the connected video sources.
❏ Try another channel; it could be station trouble.
Dark, poor or no picture
(screen lit), good sound
❏ Adjust the Picture option in the Video Menu (see page 88).
❏ Adjust the Brightness option in the Video Menu (see page 88).
❏ Check the antenna/cable connections.
No color ❏ Adjust the Color option in the Video Menu (see page 88).
Only snow and noise appear on
the screen
❏ Check the antenna/cable connections.
❏ Try another channel; it could be station trouble.
❏ Press ANT to change the input mode (see page 47).
Dotted lines or stripes ❏ Adjust the antenna.
❏ Move the LCD projection TV away from noise sources such as cars, neon signs,
or hair-dryers.
Double images ❏ Using a highly directional outdoor antenna or a cable may solve the problem.
❏ Set the Image Shift to an appropriate value. The default setting is Auto. If
doubled images appear with Auto, select the best value from 1 to 4 (see page
105).
“Black box” on screen ❏ You have selected a text option in the Setup Menu and no text is available. (See
page 102 to reset Setup selections.) To turn off this feature, set the Caption
Vision option to Off. If you were trying to select closed captioning, select CC1
instead of Text 1-4.
Black bands appear at the top
and bottom of the screen
❏ Some wide-screen programs are filmed in aspect ratios that are greater than 16:9
(this is especially common with theatrical releases). Your LCD projection TV will
show these programs with black bands at the top and bottom of the screen. For
more details, check the documentation that came with your DVD (or contact your
program provider).
Certain programs on DVD or
other digital sources display a
loss of detail, especially during
fast-motion or dark scenes
❏ The compression used by certain digital broadcasts and DVDs may cause your
LCD projection TV’s screen to display less detail than usual, or cause artifacts
(small blocks or dots, pixelations) to appear on your screen. This is due to your
LCD projection TV’s large screen and ability to show very fine detail, and is
normal for certain digitally recorded programs. Adjust the reality/clarity in the
DRC Palette menu (see page 90) to optimize the picture while viewing these
sources.
Other Information
112
Audio
Channels
Problem Possible Remedies
Good picture, no sound ❏ Press MUTING so that Muting disappears from the screen (see page 52).
❏ Make sure the Speaker option is set to On in the Audio Menu (see page 93).
Audio noise ❏ Communication problems may occur if the infrared communication equipment
(e.g., infrared cordless headphones) is used near the LCD projection TV. Please
use headphones other than infrared cordless headphones. Also, if you use the
infrared communication equipment other than infrared cordless headphones,
move the infrared transceiver away from the LCD projection TV until the noise is
eliminated, or move the transmitter and receiver of the infrared communication
equipment closer together.
Cannot gain enough volume
when using a cable box
❏ Increase the volume of the cable box using the cable box’s remote control. Then
press FUNCTION repeatedly until the LCD projection TV indicator lights up and
adjust the LCD projection TV’s volume.
Sound seems weak or
insufficient
❏ The LCD projection TV’s audio might be set to Auto SAP or Mono, when it
might be better set to Stereo. In the Audio Menu (see page 93), set the MTS
setting to Stereo. If already set to Stereo, switch to Mono (which may reduce
background noise during weak stereo broadcasts).
Cannot raise the volume on
external speakers
❏ If the Speaker option is set to Off and the Audio Out option is set to Fixed (in
order to output the sound to your audio system) use your audio receiver to adjust
the sound (see page 93). Or, to use the LCD projection TV remote control, set the
Audio Out option to Variable.
❏ To turn on the LCD projection TV speakers, set the Speaker option to On (see
page 93).
Problem Possible Remedies
Cannot receive upper channels
(UHF) when using an antenna
❏ Press ANT to select the VHF/UHF input (see page 47).
❏ Use Auto Program in the Channel Menu to add receivable channels that are not
presently in the LCD projection TV’s memory (see page 96).
TV is fixed to one channel ❏ Use Auto Program in the Channel Menu to add receivable channels that are not
presently in the LCD projection TV’s memory (see page 96).
❏ Check your Channel Fix settings (see page 96).
Cannot receive any channels
when using cable TV
❏ Use Auto Program in the Channel Menu to add receivable channels that are not
presently in the LCD projection TV’s memory (see page 96).
❏ Press ANT to select the CABLE input (see page 47).
Cannot receive or select
channels
❏ Use Auto Program in the Channel Menu to add receivable TV channels that are
not presently in LCD projection TV memory (see page 96).
Some digital cable channels are
not being displayed
❏ Certain cable companies have limitations on the broadcast of digital cable
channels. Check with your cable company for more information.
❏ The digital cable channel may be set to Hide in the Digital Setup Menu (see page
62).
Other Information
113
Other Information
General
Problem Possible Remedies
How to restore Video settings
to factory settings
❏ Press RESET on the remote control while in the Video Menu (see page 88).
How to restore Audio settings
to factory settings
❏ Press RESET on the remote control while in the Audio Menu (see page 92).
Cannot cycle through the other
video equipment connected to
the LCD projection TV
❏ Be sure the Video Label option is not set to Skip (see page 103).
Cannot operate Menu ❏ If a menu option appears in gray, this indicates that the menu option is not
available.
Lost password ❏ In the password screen (see page 98), enter the following master password: 4357.
The master password clears your previous password; it cannot be used to
temporarily unblock channels.
❏ The i.LINK STANDBY LED blinks when the signal from an i.LINK device is
being shown.
The signal from a selected
i.LINK device is not being
displayed
❏ If you have several i.LINK devices connected and operating at once, the LCD
projection TV may not be able to display the signal from the selected device. Turn
the other i.LINK devices off, and reselect the desired i.LINK device.
Other Information
114
Flashing Indicators on the Front of the Monitor
The POWER/STANDBY (green or red) and/or LAMP (red) indicators
indicate the conditions of the LCD projection TV and warnings by lighting
or flashing, as follows.
The POWER/STANDBY (green) indicator flashes.
❑
The lamp for the light source is ready to turn on.
The POWER/STANDBY (red) indicator flashes three times.
❑
The lamp cover is not attached securely. When you correct, the
POWER/STANDBY indicator lights in red and the LCD projection TV
enters the standby mode (see page 16).
The LAMP indicator flashes.
❑
The lamp for the light source burns out.
Replace it with new one (see page 13).
If the LCD projection TV is not recovered after correcting the problems,
contact with qualified Sony personnel.
POWER/STANDBY
LAMP TIMER i.STANDBY
Other Information
115
Other Information
Specifications
Projection System 3 LCD Panels, 1 lens projection system
LCD Panel 0.87 inch TFT LCD panel Approx. 3.28 million dots (1,042,168 pixels)
Projection Lens High Performance, large diameter hybrid lens F2.4
Antenna 75 ohm external terminal for VHF/UHF
Lamp UHP lamp, 120W
XL-2100U
Television System NTSC, American TV Standard
Screen Size (measured diagonally) KDF-60XBR950: 60 inches
KDF-70XBR950: 70 inches
Channel Coverage
VHF 2-13
UHF 14-69
DTV 1-999
CATV 1-125
Power Requirements 120V, 60 Hz
Number of Inputs/Outputs
DVI-HDTV 1 terminal, 3.3 V T.M.D.S., 50 ohms
The DVI-HDTV input terminal is compliant with the EIA-861 standard and is
not intended for use with personal computers.
Video (IN) 4 1 Vp-p, 75 ohms unbalanced, sync negative
S Video (IN) 4 Y: 1 Vp-p, 75 ohms unbalanced, sync
negative
C: 0.286 Vp-p (Burst signal), 75 ohms
Audio (IN) 6 500 mVrms (100% modulation)
Impedance: 47 kiloohms
AUDIO (VAR/FIX) OUT 1 500 mVrms at the maximum volume setting
(Variable)
500 mVrms (Fixed)
Impedance (output): 2 kiloohms
CONTROL S (IN) 1 minijack
CONTROL S (OUT) 1 minijack
Component Video Input 2 (Y, P
B, PR) Y: 1.0 Vp-p, 75 ohms unbalanced, sync
negative
P
B: 0.7 Vp-p, 75 ohms
P
R: 0.7 Vp-p, 75 ohms
RF Inputs 2
Digital Audio Optical Output
(PCM/Dolby Digital)
1 Optical Rectangular (1)
i.LINK 3 total (1 on front panel) 4-pin S400 i.LINK terminal
Speaker Output 5 W (L), 5 W (R), 20 W (Woofer)
Dimensions (W × H × D) KDF-60XBR950: 1,600 × 1,008 × 583 mm (63 × 39
3
/4 × 23 inches)
KDF-70XBR950: 1,821 × 1,143 × 647 mm (71
3
/4 × 45 × 25
1
/2 inches)
Other Information
116
Design and specifications are subject to change without notice.
Mass KDF-60XBR950: 78.5 kg (173 lbs)
KDF-70XBR950: 92.5 kg (204 lbs)
Power Consumption
In Use 250 W
In Standby Under 1 W
In i.LINK Standby Under 20 W
Supplied Accessories
Remote Control RM-Y914
AA (R6) Batteries 2 supplied for remote control
Cleaning Cloth 1
Optional Accessories
TV Stand SU-GW3
Lamp XL-2100U
AV Cable VC-810S/820S/830S
Component Video Cable VMC-10/30
i.LINK cables VMC-IL4415 (4-pin to 4-pin, 1.5 meters); VMC-IL4435 (4-pin to 4-pin, 3.5
meters)
117
Other Information
Index
A
Activating a Twin View screen 55
Add Digital Channels 62
Adding channels to the channel list 97
Adjusting audio, Steady Sound 92
Advanced Video 89
Alternate Audio 61
Alternate Video 61
Antenna, connecting 25, 26
Audio menu 87, 92
Audio receiver, connecting 39
Auto Program (channel setup) 45
Auto Setup 45
B
Balance, adjusting 92
Bass, adjusting 92
Batteries, inserting in remote 17
Bilingual audio 93
Black Corrector 90
BN Smoother 90
Brightness, adjusting 88
C
Cable
connecting 26
with VCR, connecting
32
Cable box
connecting with VCR 33
using with TV remote control
51
Camcorder, connecting 42
Caption Vision 102
Caption Vision menu, for digital channels 62
CATV. See cable
Channel menu
87, 96
Channel Show/Hide 62
Channel Skip/Add 97
Channels
Auto Program 96
creating labels
97
setting up
45
Cinema Black 91
CineMotion 89
Cleaning Cloth 12
Clear White 90
Clock/Timers 104
Closed caption modes 102
Color Corrector 90
Color temperature, adjusting 89
Color, adjusting 88
Connecting
Audio receiver 39
Cable box
32–34
Cable or antenna
25
Camcorder
42
DVD player
40, 41
Satellite receiver
36–38
VCR
32–35, 37
Contents of box 17
CONTROL S 44
D
Detail Enhancer 90
Digital Caption Setup 62
Digital Caption Setup menu 63
Digital Setup menu 62
Digital Signal Strength 62
Digital subchannels 61
DISPLAY button 47
Display, turning off 47
DRC (Digital Reality Creation) Mode, described 9
DRC Mode 89
DVD player
using with TV remote control 51
with A/V connectors, connecting
41
with component video connectors, connecting
40
E
Enlarging pictures, in Twin View 57
error messages, Memory Stick 110
F
Favorite Channel
setting up 96
using
54
FAVORITES button 47
Features 9
FREEZE button 47
Freeze, using 52, 58
118
Front Panel Controls 21
FUNCTION button 46
G
Gamma Corrector 90
GUIDE button 60
Guide menu 61
H
Hue, adjusting 88
I
i.LINK 10, 80–86
i.LINK Standby 105
Image Shift 105
Inputs, labeling 103
Installation of the projection TV 25–44
interlaced 107
J
JUMP button 47
Jump, using 52
L
Label
Channels 97
video inputs
103
Lamp, replacing 13–16
M
MDP, using with TV remote control 51
Memory Stick
Duo 67
features
64
Index
69
indicator (LED)
22
inserting
66
insertion slot
22
panning photos
73
photo options
72
playing movies
74
precautions
79
removing
68
rotating photos
73
slide show options
76
troubleshooting
109
viewing photos
71
zooming photos
73
MEMORY STICK button 47
MENU button 47
Menus
Audio 87, 92
Channel
87, 96
Parent
87, 98
Screen
87, 94
Setup
87, 102
Video
87, 88
Mild Mode 89
MODE
Pro 53, 88
Standard
53, 88
Vivid
53, 88
MTS/SAP 93
Muting, using 52
N
NR 89
P
Parental control, described 9
Password, changing 99
PICTURE button 46
Picture contrast, adjusting 88
Picture size, adjusting in Twin View 57
POWER buttons (GREEN) 47
POWER/STANDBY 114
Presetting channels 45
problems, troubleshooting 108–113
Program Guide 60
Program Options menu 61
progressive 107
R
Ratings
setting 99
viewing blocked programs
99
Rear panel controls and connections 23
Remote control
Function of buttons 52
inserting batteries
17
programming
48
Removing channels from the channel list 97
RESET button 47
Resetting
Audio options 92
Video options
88
S
SAT/CABLE function button 46
119
Other Information
SAT/CABLE power button 47
Satellite receiver
connecting 36
satellite receiver, using with TV remote control
50
Screen menu 94
Setting up channels 45
Setup menu 87, 102
Sharpness, adjusting 89
Specifications 115–116
Steady Sound
adjusting 92
Surround sound 92
T
Timer
set current 104
Timer setting 104
Treble, adjusting 92
troubleshooting 108–113
TV function button 46
TV power button 47
TV/VIDEO button 47
Twin View™
activating a picture 55
described
9
using
55
V
VCR
using with TV remote control 50
with cable box, connecting
33
with cable, connecting
32
with satellite receiver, connecting
37
Video inputs, labeling 103
Video menu 87, 88
Video Modes, selecting 88
Viewing area, recommended 20
VOL +/– button 47
W
WIDE button 46
Z
Zoom feature, with Twin View 57
