Contents
3
EN
1 Instructions 6
1.1 General safety instructions 6
1.2 Identification plate 8
1.3 Manufacturer liability 8
1.4 Appliance purpose 8
1.5 This user manual 8
1.6 How to read the user manual 8
2 Description 9
2.1 General Description 9
2.2 Cooking hob 10
2.3 Control panel 10
2.4 Other parts 11
2.5 Available accessories 11
3 Use 13
3.1 Instructions 13
3.2 First use 14
3.3 Using the accessories 15
3.4 Using the hob 17
3.5 Using the oven 18
3.6 Using the storage compartment 20
3.7 Cooking advice 20
3.8 Programmer clock 21
4 Cleaning and maintenance 26
4.1 Instructions 26
4.2 Cleaning the appliance 26
4.3 Removing the door 27
4.4 Cleaning the door glazing 28
4.5 Removing the internal glass panes 28
4.6 Vapor Clean 30
4.7 Extraordinary maintenance 31
5 Installation 33
5.1 Gas connection 33
5.2 Adaptation to different types of gas 36
5.3 Positioning 38
5.4 Electrical connection 41
5.5 For the installer 42
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com
Instructions
4
READ BEFORE USE
IMPORTANT INSTRUCTIONS
GAS/ELECTRIC COOKERS
Gas/Gas Cookers:
• To avoid overheating when the oven or
grill is being used, the glass cover must
always be up.
• The glass cover may not be cooked on,
or closed when the burners are in use
and while they are still warm.
• The gas oven and gas grill cannot be
used simultaneously.
All Cookers:
• Never place aluminium or foil at the
bottom of the oven and do not place
oven trays as this may damage the
enamel coating by overheating.
• The manufacturer declines all
responsibility for improper use.
• Never attempt to repair or install the
appliance yourself as the warranty will
become void.
• Installation must be done by a qualified
gas installer and qualified electrician.
• Retain your proof of purchase for
guarantee.
Additional installation information for
SMEG gas hobs and stoves supplied to
South Africa
All Smeg appliances comply with SANS
1539 and have been issued with Permit
numbers by the Liquefied Petroleum Gas
Safety Association of Southern Africa.
Gas Type: LPG (Note: This appliance may
have been supplied ex factory with setting
and jets for Natural Gas. Your installer must
make the necessary changes and
adjustments before handing over the
installed appliances for use).
Operating Pressure: 2.8 kPa. Note that this
appliance may only be used with a LPG
regulator of 2.8 kPa outlet pressure and that
complies with requirements of SABS 1237.
• This appliance may only be installed by
a qualified Gas Fitter that is registered
with the LPGSASA. All registered Gas
fitters are provided with an identity card,
which also carries their registration
number. Make a note of this. The Gas
Fitter should also provide you with a
written certificate after completing the
work. Before the installer hands over the
installed appliance ensure that you are
informed of the location of the isolation
or shut off valve in the gas supply line to
the appliance and how to operate it.
• Do not modify the appliance in any way
as this may make it unsafe.
Instructions
5
EN
• Note carefully that ventilation
requirements indicated in the specific
model instruction booklet. This
information is vital for the safety of the
occupants of the area in which the
appliance is installed and used.
• Never check for gas leaks with a naked
flame. Always use a soapy water
solution applied with a brush to the areas
where you suspect there may be a gas
leak. Do not use the appliance if you
suspect a gas leak.
• There are no preset service intervals for
this appliance. Refer to the section on
maintenance and cleaning in the
instruction booklet for details on how to
care for your SMEG appliance.

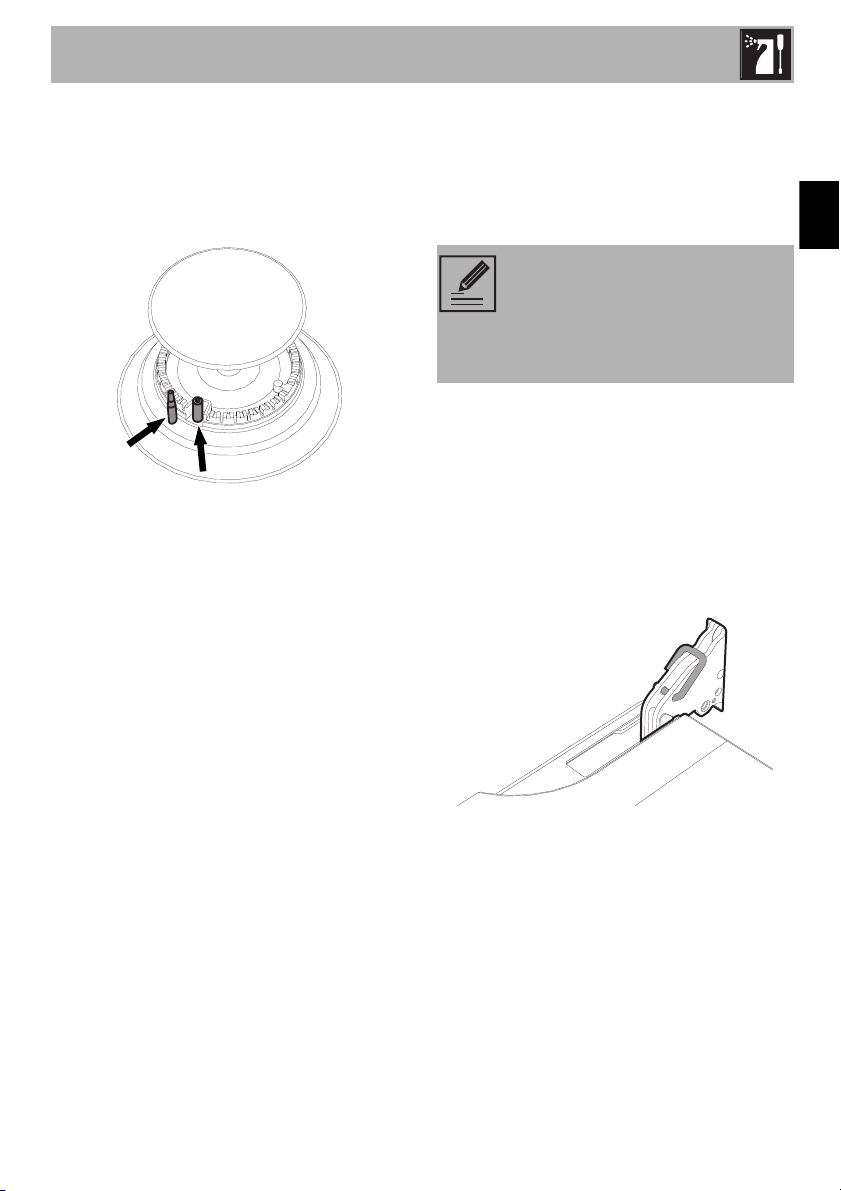

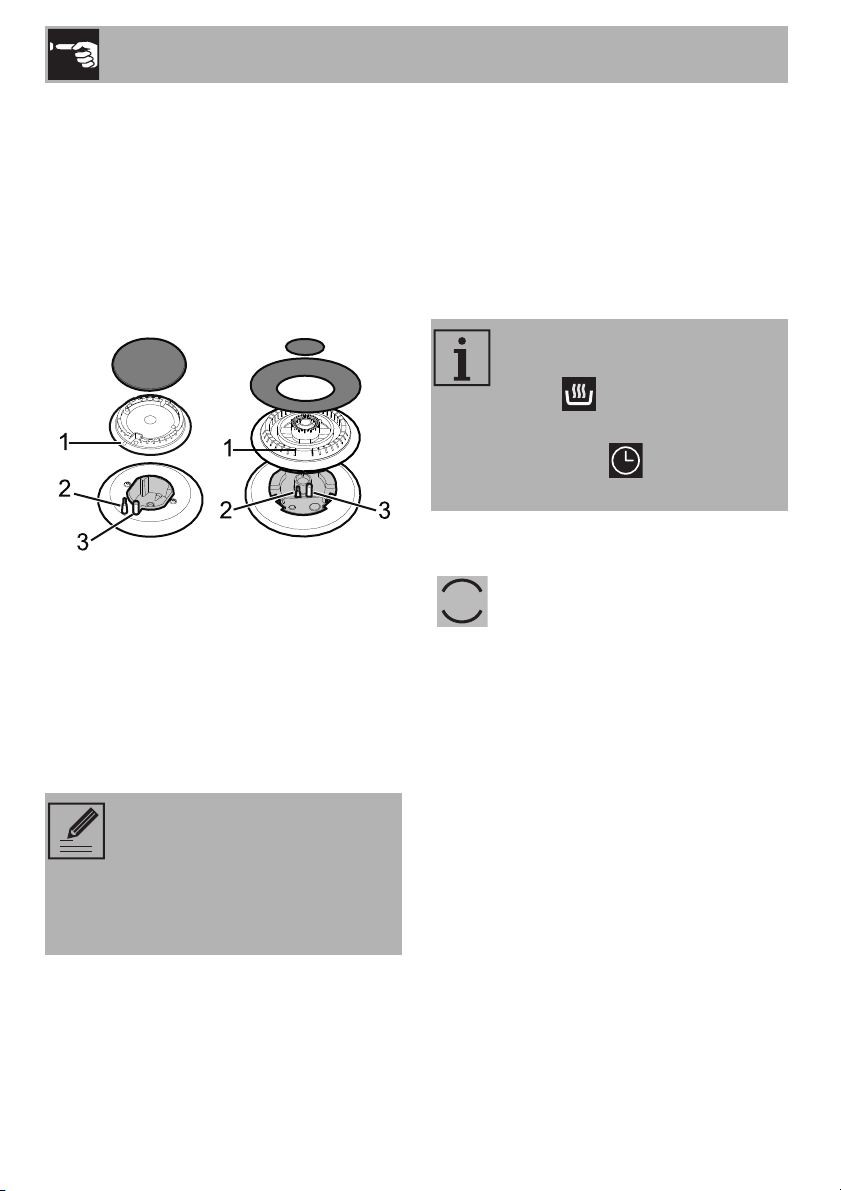

• After removing burner caps or burner
heads to clean them or the hob surface
around the burners, always take care
that the burner heads are properly
located in position and that the igniter
post and flame failure thermocouple are
not damaged in any way. It is important
that these devices fit correctly into the
location holes provided in the burner
heads. They will not function correctly if
not properly located. The burner caps
locate by means of the ridge on the
underside. Note that burners will not
work efficiently if the burner caps are not
properly located. There are drawings of
a typical burner assembly in your
instruction booklet.
Supplied in South Africa by:
S.B.S. Household Appliances,
2985 William Nicol Drive cnr Bryanston
Drive, Bryanston, JHB
tel: (011) 463 1016
e-mail: [email protected]
FOR YOUR SAFETY
IF YOU SMELL GAS:
• Turn off gas supply at bottle
• Extinguish all naked flames
• Do not operate any electrical
appliances
• Ventilate the area
• Check for leaks as detailed in this
manual
If odour persists, contact your dealer or gas
supplier immediately.
Do not tamper with the appliance.
BURN-BACK (FIRE IN BURNER TUBE OR
CHAMBER)
In the event of a burn-back, where the flame
burns back to the jet, immediately turn off
the gas supply at the control valve on the
panel. After ensuring the flame is
extinguished, wait for 1 minute and re-light
the appliance in the normal manner. Should
the appliance burn back again, close the
control valve and call a service technician.
Do not use the appliance again until the
service technician has declared that it is
safe to do so.
GAS-PRESSURE REGULATOR
This appliance requires an operating
pressure of 2,8 kPa at the appliance. A
suitable LPG regulator that complies with
the requirements of SANS 1237 must be
installed.
Instructions
6
IMPORTANT INFORMATION FOR THE
USER
This appliance may only be installed by a
registered LP Gas installer. All registered
installers are provided with a card carrying
their registration number. Ask to be shown
the card before allowing the installation
work to commence and make a note of the
Installer QCC number. Upon completion of
the installation, the installer is required to
explain the operational details of the
appliance together with the safety
instructions. You will be asked to sign
acceptance of the installation and be
provided with a completion certificate. You
should only sign for acceptance of the
installation when the installation is
completed to your satisfaction.
Note that your invoice is required in the
event that you wish make a guarantee
claim.
IMPORTANT INFORMATION FOR THE
INSTALLER.
This appliance may only be installed by a
LP gas installer registered with the Liquefied
Petroleum Gas
Association of Southern Africa. The
appliance must be installed in accordance
with the requirements of
SANS 10087-1 and any fire department
regulations and/or local bylaws
applicable to the area. If in doubt check
with the relevant authority before
undertaking the installation. Upon
completion of the installation you are
required to fully explain and demonstrate to
the user the operational details and safety
practices applicable to the appliance and
the installation.
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
• Never touch the heating elements
during use.
• Keep children under eight years
of age at a safe distance if they
are not constantly supervised.
• Children must never play with the
appliance.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, as long they
are supervised or instructed by
adults who are responsible for
their safety.
• Never rest metallic objects such
as knives, forks, spoons and lids
on the appliance during use.
• Switch the appliance off
immediately after use.
• Never try to put out a fire or
flames with water: turn off the
appliance and smother the flames
with a fire blanket or other
appropriate cover.
Instructions
7
EN
• The appliance must never be
cleaned by unsupervised children.
• Have authorised persons carry
out installation and assistance
interventions according to the
standards in force.
• Do not modify this appliance.
• Do not insert pointed metal
objects (cutlery or utensils) into the
slots in the appliance.
• Do not try to repair the appliance
yourself or without the intervention
of authorised persons.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
• Do not open the storage
compartment when the oven is on
and still hot.
• The items inside the storage
compartment could be very hot
after using the oven.
• Do not spray aerosols in the
vicinity of this appliance while it is
in operation.
• This appliance is not to be
installed in marine craft or in
caravans.
• Do not use or store flammable
materials in the appliance storage
drawer or near the appliance.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents on glass parts (e.g.
powder products, stain removers
and metallic sponges).
• Racks and trays have to be
inserted into the side guides until
they come to a complete stop.
The mechanical safety locks that
prevent the rack from being taken
out accidentally have to face
downwards and towards the
oven back.
• Use wooden or plastic utensils.
• Do not seat on the appliance.
• Do not use steam jets for cleaning
the appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released.
• Never leave objects on the
cooking surface.
• Do not use the appliance to heat
rooms for any reason.
• Remove any food residues or
large spills from previous cooking
operations from the inside of the
oven.
Instructions
8
For this appliance
• Before replacing the bulb, switch off
the power supply to the appliance.
• Do not rest any weight or sit on the
open door of the appliance.
• Take care that no objects are stuck in
the doors.
1.2 Identification plate
• The identification plate bears the
technical data, serial number and brand
name of the appliance. Do not remove
the identification plate for any reason.
1.3 Manufacturer liability
The manufacturer declines all liability for
damage to persons or property caused by:
• use of the appliance other than the one
envisaged;
• non-observance of the user manual
provisions;
• tampering with any part of the
appliance;
• use of non-original spare parts.
1.4 Appliance purpose
• This appliance is intended for cooking
food in the home environment. Every
other use is considered improper.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.5 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and in an accessible place for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.6 How to read the user manual
This user manual uses the following reading
conventions:
1. Use instruction sequence.
• Standalone use instruction.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: installation, operation
and inspection.
Safety instructions
Information
Advice
Description
9
EN
2 Description

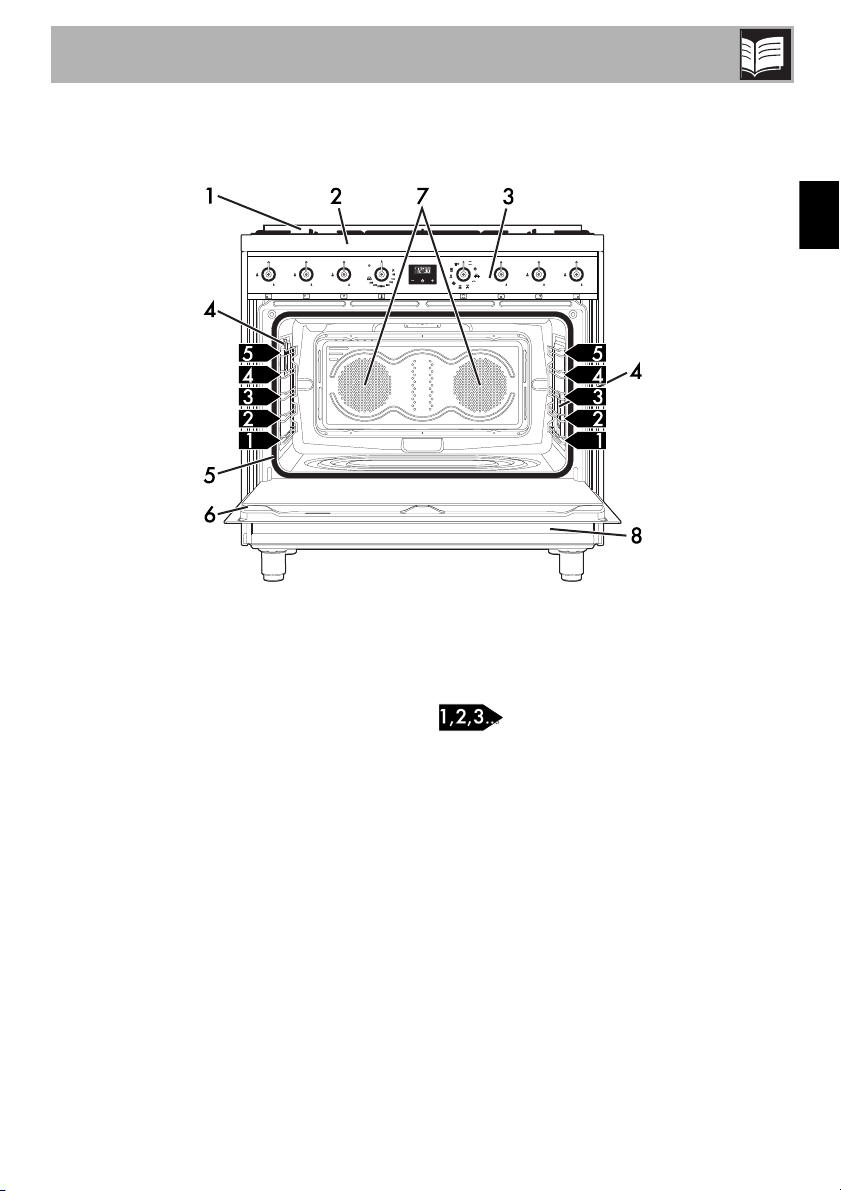

2.1 General Description
1 Upstand
2 Cooking hob
3 Control panel
4 Oven light
5 Seal
6 Door
7 Fan
8 Storage compartment
Rack/tray support frame shelf
Description
10

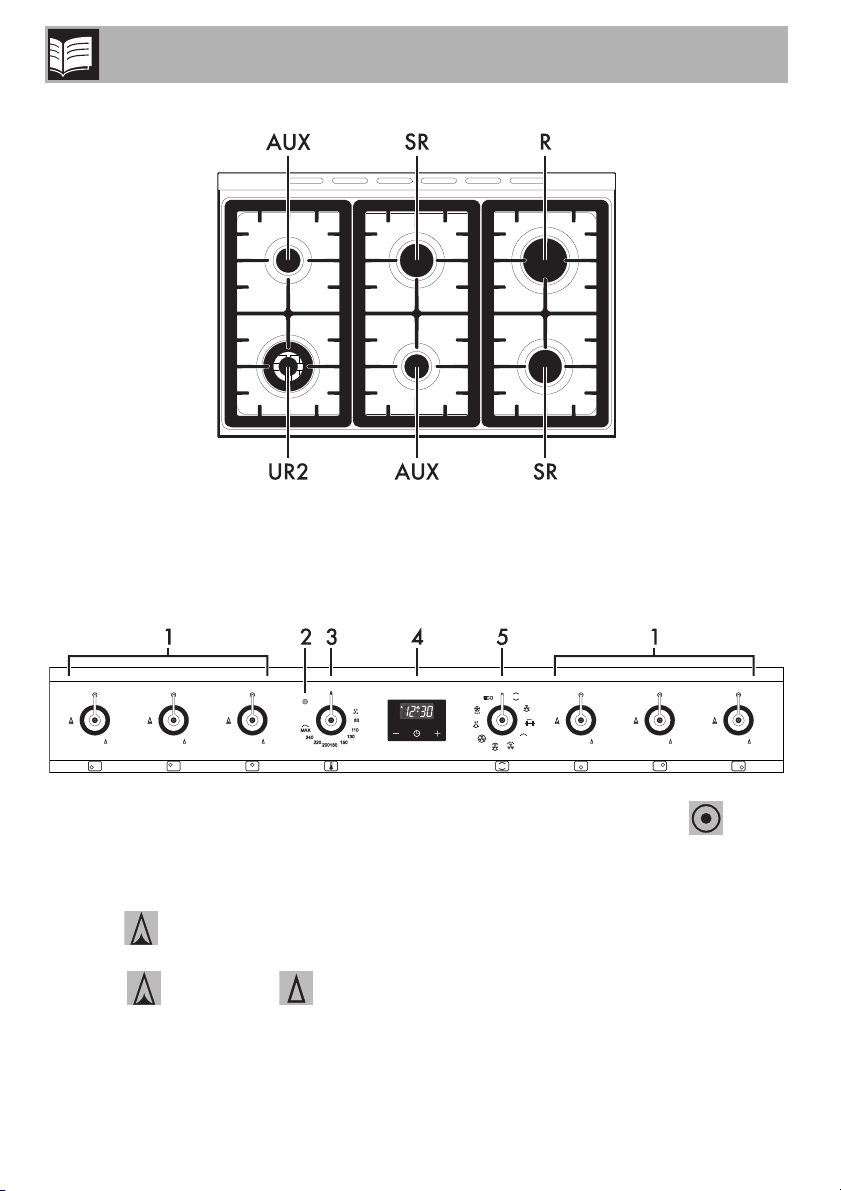

2.2 Cooking hob
AUX = Auxiliary
SR = Semi-rapid
R = Rapid
UR = Ultra rapid
2.3 Control panel
1 Hob burner knobs
Useful for lighting and adjusting the hob
burners.
Press and turn the knobs anti-clockwise to
the value to light the relative burners.
Turn the knobs to the zone between the
maximum and minimum setting to
adjust the flame.
Return the knobs to the position to turn
off the burners.
2 Indicator light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.
Description
11
EN
3 Temperature knob
This knob allows you to select the cooking
temperature.
Turn the knob clockwise to the required
value, between the minimum and maximum
setting.

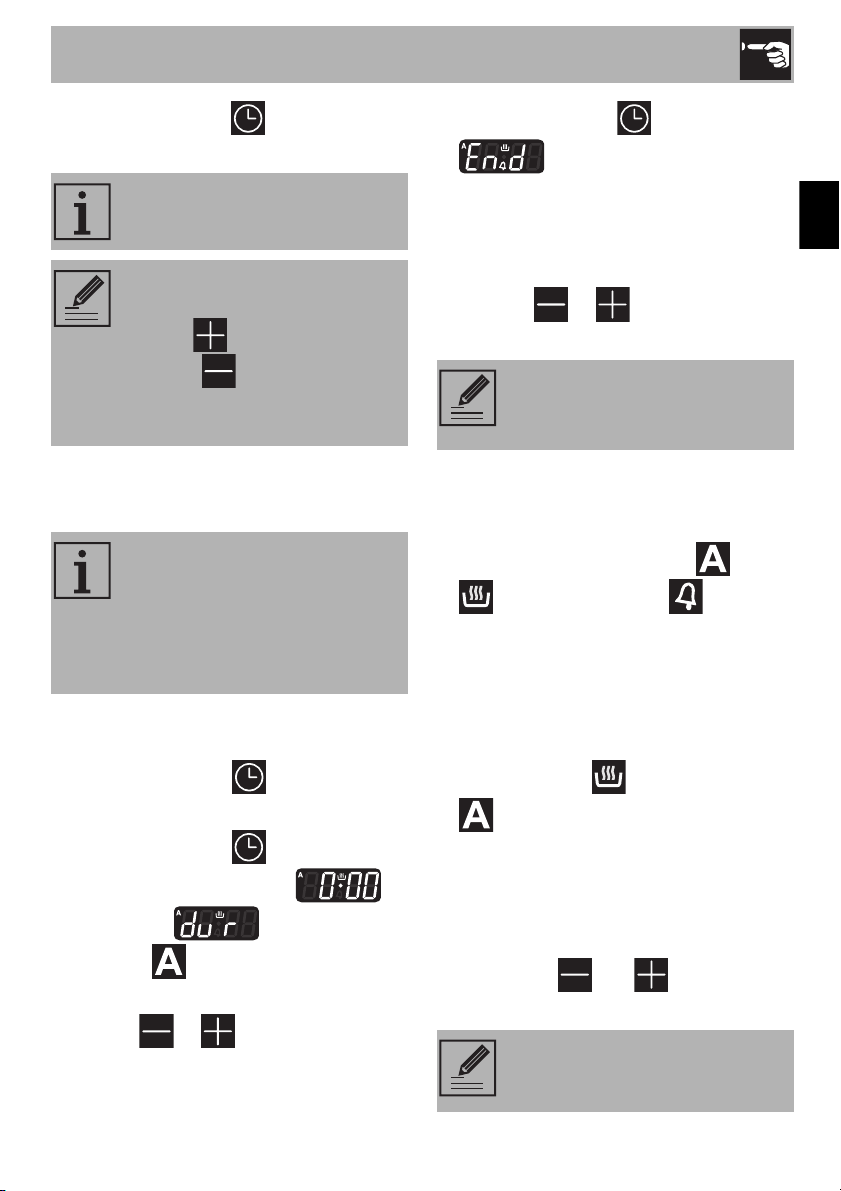

4 Programmer clock
For displaying the current time, setting
programmed cooking operations and the
minute minder timer.
5 Function knob
The oven’s various functions are suitable for
different cooking modes. After selecting the
required function, set the cooking
temperature using the temperature knob.
2.4 Other parts
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Interior lighting
The appliance’s interior lighting comes on:
• When the door is opened.
• When any function is selected, apart
from the function.
Cooling fan
The fan cools the oven and comes into
operation during cooking.
The fan causes a steady outflow of air that
exits from the rear of the appliance and
which may continue for a brief period of
time even after the appliance has been
turned off.

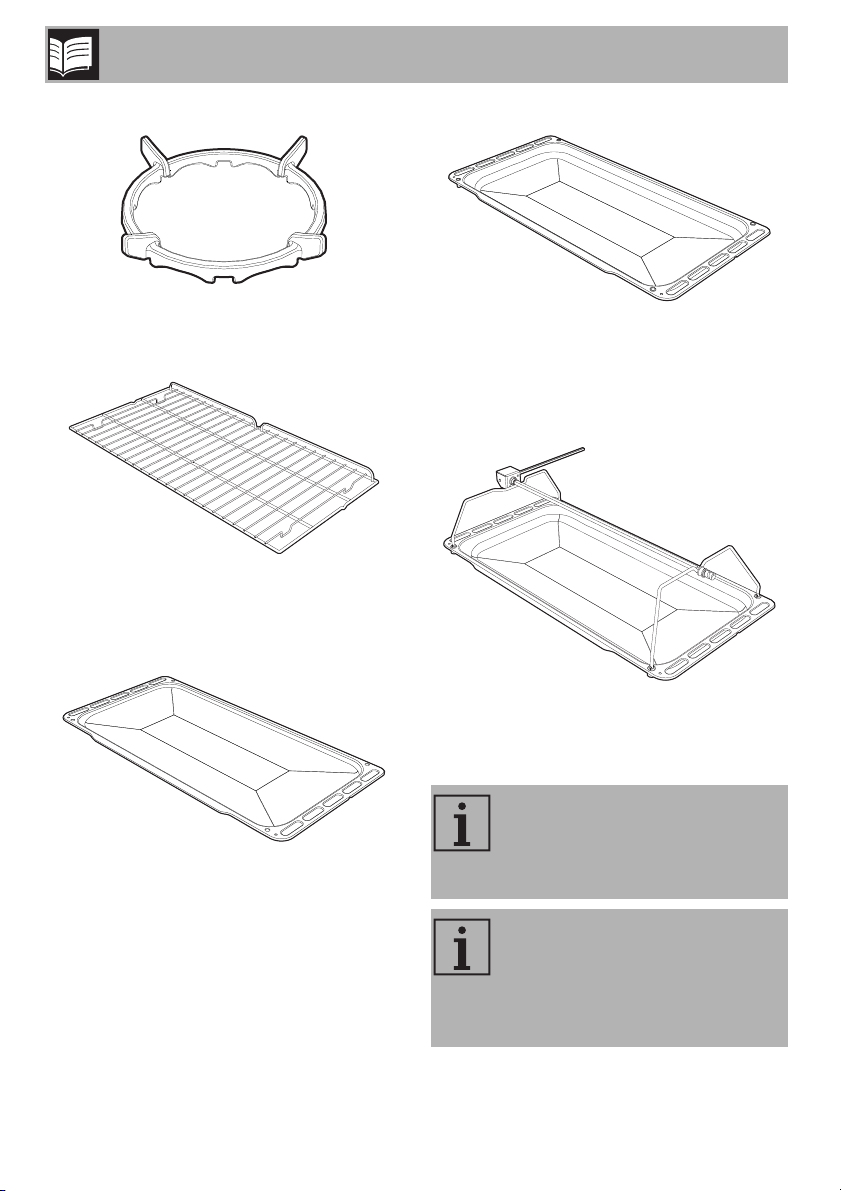

2.5 Available accessories
Ring reducers
Useful when using small cookware.
Do not obstruct ventilation
openings and heat dispersal slots.
Some models are not provided
with all accessories.
Description
12
WOK ring
Useful when using a wok.
Rack
Useful for supporting containers with food
during cooking.
Tray
Useful for collecting fat from foods placed
on the rack above.
Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Rotisserie
Useful for cooking chicken and all foods
which require uniform cooking over their
entire surface.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Supplied and optional accessories
can be requested to Authorised
Assistance Centres. Use only
original accessories supplied by
the manufacturer.
Use
13
EN
3 Use
3.1 Instructions
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands wearing heat
resistant gloves when moving food
inside the oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Keep children under the age of 8 away
from the appliance when it is in use.
• If you need to move food or at the end
of cooking, open the door 5 cm for a
few seconds, let the steam come out,
then open it fully.
Improper use
Danger of burns
• Make sure that the flame-spreader
crowns are correctly positioned in their
housings with their respective burner
caps.
• Oils and fats could catch fire if
overheated. Be very careful.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not use the open door to rest pans or
trays on the internal glass pane.
• Do not pour water directly onto very hot
trays.
• Cooking vessels or griddle plates
should be placed inside the perimeter of
the hob.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.
High temperature inside the
storage compartment
Danger of burns
• Do not open the storage compartment
when the oven is on and still hot.
• The items inside the storage
compartment could be very hot after
using the oven.
Use
14
Escaping gas may cause an explosion.
If you smell gas or notice any faults in the
gas installation:
• Immediately shut off the gas supply or
close the gas cylinder valve.
• Immediately extinguish all naked flames
and cigarettes.
• Do not use any light or appliance
switches and do not pull any plugs out of
sockets. Do not use any telephones or
mobile phones within the building.
• Open windows and ventilate the room.
• Call the aftersales service or the gas
supplier.
Abnormal operation
Any of the following are considered to be
abnormal operation and may require
service:
• Yellow tipping of the hotplate burner
flame.
• Sooting up of cooking utensils.
• Burners not igniting properly.
• Burners failing to remain alight.
• Burners extinguishing whilst in operation.
• Gas valves with are difficult to turn.
In case the appliance fails to operate
correctly, contact the Authorised Assistance
Centre in your area.
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove all the accessories from the
appliance and clean them (see 4
Cleaning and maintenance). Heat the
empty oven at the maximum temperature
to burn off any residues left by the
manufacturing process.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the oven.
• Do not use or leave flammable materials
near the oven or the storage
compartment.
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the oven unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.
Use
15
EN

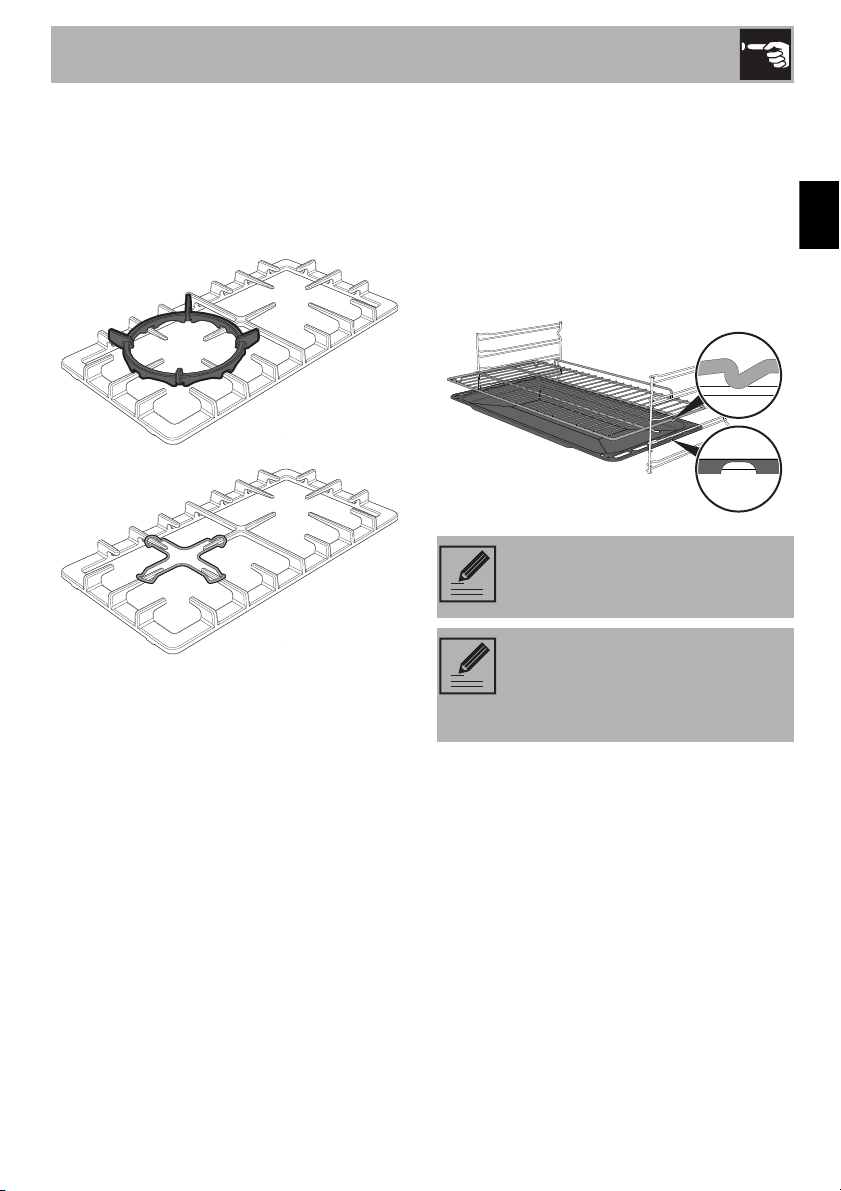

3.3 Using the accessories
Ring reducers
The ring reducers have to be placed on the
hob grids. Make sure they are placed
properly.
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
The mechanical safety locks that prevent the
rack from being taken out accidentally have
to face downwards and towards the oven
back.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.
Use
16

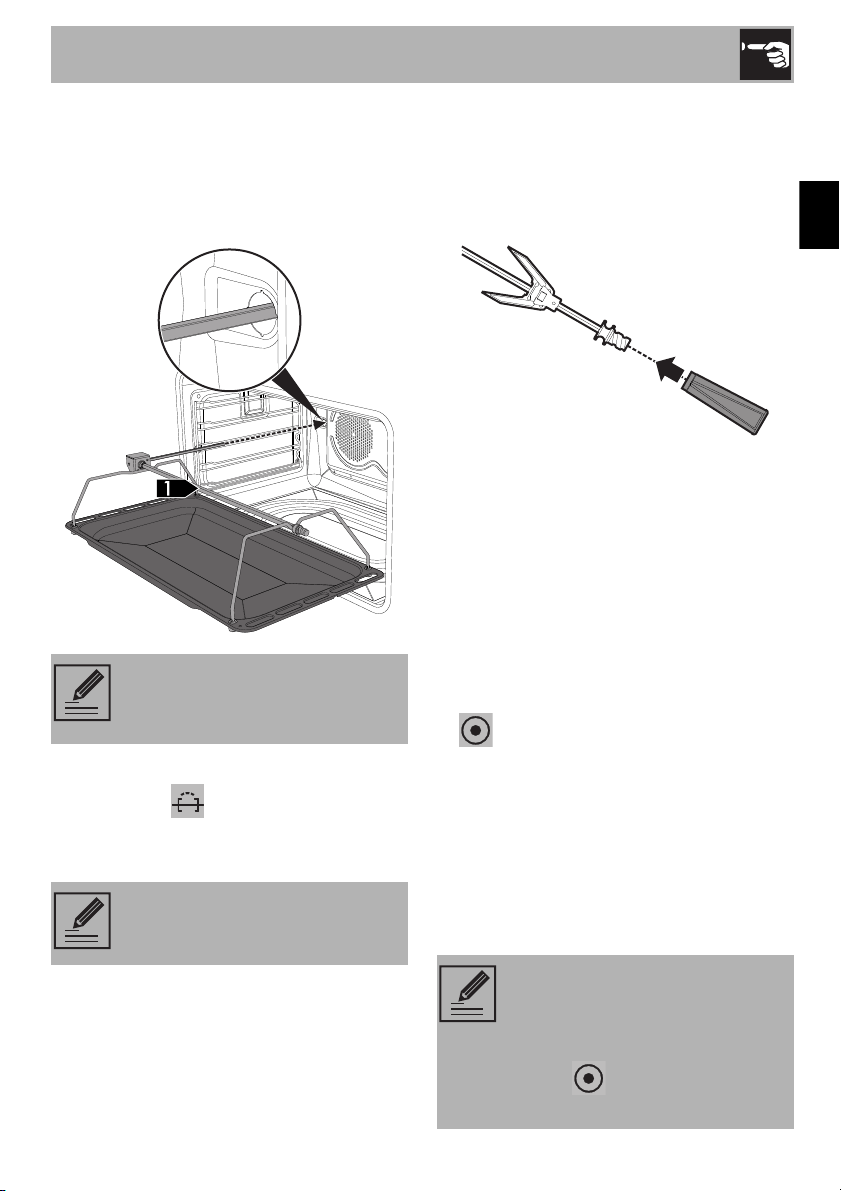

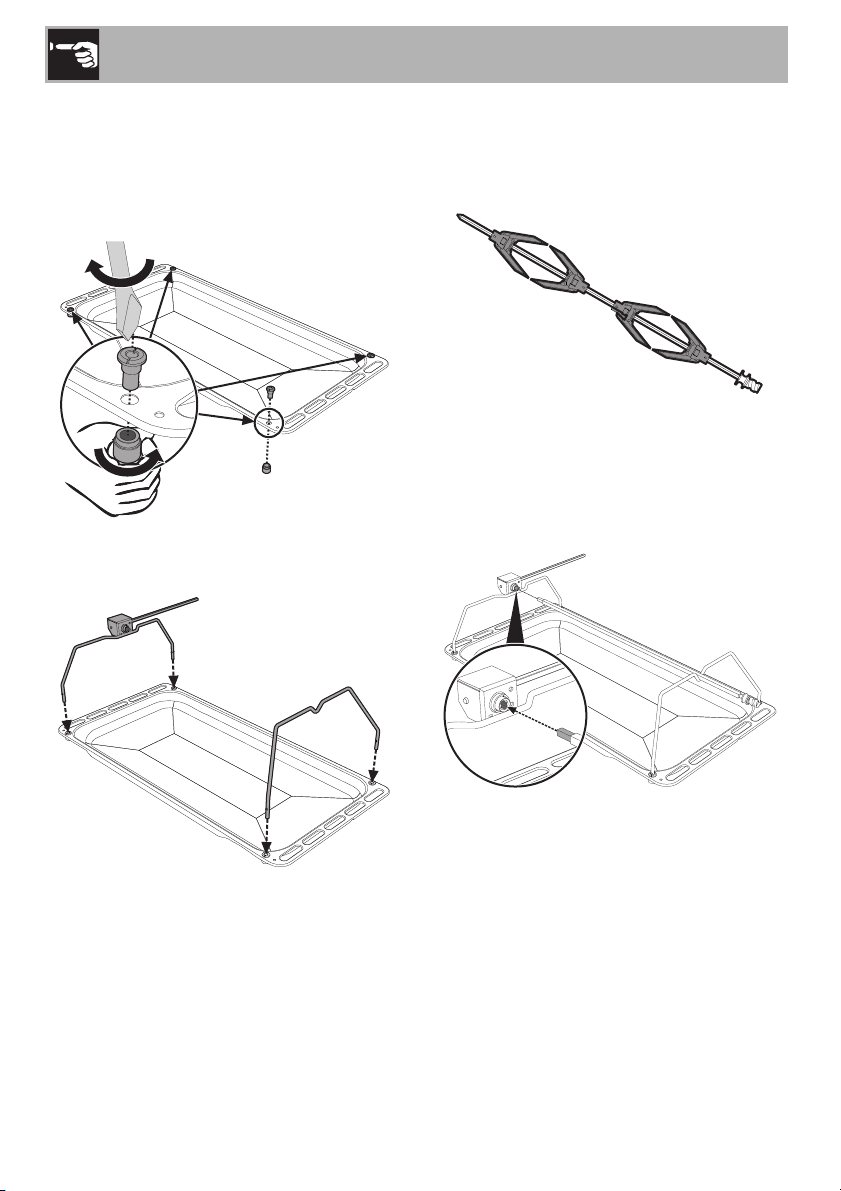

Rotisserie
1. Insert the 4 supplied bushings in the 4
corner holes of the deep tray and screw
them onto the ring nuts with a suitable
tool (such as a screwdriver).
2. Position the rotisserie supports in the
bushings as shown in the figure below.
3. Prepare the rotisserie rod with the food
using the clip forks provided. The clip
forks can be tightened using the
fastening screws.
4. Once you have prepared the rotisserie
rod, place it on the supports. Insert the tip
of the rod in the housing of the
mechanism on the left-hand support until
it stops.
Use
17
EN
5. Place the tray on the first runner (see
“General Description”).
6. Insert the tip of the rod in the rotisserie
motor housing on the left of the rear wall
of the oven.
7. To activate the rotisserie, turn the function
knob to the position and set the
cooking temperature using the
temperature knob.
8. When cooking is complete, remove the
tray with the rotisserie.
9. Screw on the handle provided so that
you can handle the rotisserie rod more
easily.
3.4 Using the hob
All the appliance’s control and monitoring
devices are located together on the front
panel. The burner controlled by each knob
is shown next to the knob. The appliance is
equipped with an electronic ignition device.
Simply press the knob and turn it anti-
clockwise to the maximum flame symbol,
until the burner ignites. If the burner does not
light in the first 15 seconds, turn the knob
to and wait 60 seconds before trying
again. After lighting, keep the knob pressed
in for a few seconds to allow the
thermocouple to heat up.
The burner may go out when the knob is
released: In this case, the thermocouple has
not heated up sufficiently. Wait a few
moments and repeat the operation. Keep
the knob pressed in longer.
These operations must be
performed with the oven off and
cold.
Pour a little water into the tray to
prevent smoke from forming.
In case of an accidental switching
off, a safety device will be tripped,
cutting off the gas supply, even if
the gas cock is open. Return the
knob to and wait at least 60
seconds before lighting it again.
Use
18
Correct positioning of the flame-
spreader crowns and burner caps
Before lighting the hob burners, make sure
that the flame-spreader crowns are
correctly positioned in their housings with
their respective burner caps. Make sure that
the holes 1 in the flame-spreader crowns
are aligned with the thermocouples 2 and
igniters 3.
Practical tips for using the hob
For better burner efficiency and to minimise
gas consumption, use pans with lids and of
suitable size for the burner, so that the
flames do not reach up the sides of the pan.
Once the contents come to the boil, turn
down the flame far enough to ensure that
the liquid does not boil over.
3.5 Using the oven
Switching on the oven
To switch on the oven:
1. Select the cooking function using the
function knob.
2. Select the temperature using the
temperature knob.
Functions list
Cookware diameters:
• Auxiliary: 12 - 14 cm.
• Semi-rapid: 16 - 24 cm.
• Rapid: 18 - 26 cm.
• Ultra-rapid: 18 - 28 cm.
Ensure that the programmer clock
shows the cooking duration
symbol , otherwise it will not
be possible to turn on the oven.
Press the key to reset the
programmer clock.
Static
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes, and in any case,
particularly suitable for fatty meats
such as goose and duck.
Use
19
EN
Fan + lower element
The combination of the fan with just
the lower heating element allows
cooking to be completed more
rapidly. This system is
recommended for sterilising or for
finishing off the cooking of foods
which are already well-cooked on
the surface, but not inside, which
therefore need a little more heat.
Perfect for any type of food.
Grill + Rotisserie
The rotisserie works in combination
with the central grill heating element
and allows food to be perfectly
browned.
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and, in combination
with the rotisserie (where fitted),
gives the food an even browning at
the end of cooking. Perfect for
sausages, spare ribs and bacon.
This function enables large
quantities of food, particularly meat,
to be grilled evenly.
Fan with grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. shin of pork).
Fan assisted
The operation of the fan, combined
with traditional cooking, ensures
consistent cooking even with
complex recipes. Perfect for biscuits
and cakes, even when
simultaneously cooked on several
levels. (For multiple-level cooking,
we recommend using the 2
nd
and
4
th
shelves).
Fan with circulaire
The combination of the fan and the
circulaire heating element
(incorporated in the rear of the
oven) allows you to cook different
foods on several levels, as long as
they need the same temperatures
and same type of cooking. Hot air
circulation ensures instant and even
distribution of heat. It will be
possible, for instance, to cook fish,
vegetables and biscuits
simultaneously (on different levels)
without odours and flavours
mingling.
Lower element
The heat coming just from the
bottom allows you to complete the
cooking of foods that require a
higher bottom temperature, without
affecting their browning. Perfect for
cakes, pies, tarts and pizzas.
Use
20
3.6 Using the storage compartment
There is a storage compartment located at
the bottom of the cooker; this can be used
to store pans or metal objects required to
use the cooker.
Press lightly on the sides of the door to open it.
3.7 Cooking advice
General advice
• Use a fan assisted function to achieve
consistent cooking at several levels.
• It is not possible to shorten cooking times
by increasing the temperature (the food
could be overcooked on the outside and
undercooked on the inside).
Advice for cooking meat
• Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
• Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is hard, it is ready; If not, it
needs another few minutes cooking.
Advice for cooking with the Grill and the
Fan with grill
• Meat can be grilled even when it is put
into the cold oven or into the preheated
oven if you wish to change the effect of
the cooking.
• With the Fan with grill function, we
recommend that you preheat the oven
before grilling.
• We recommend placing the food at the
centre of the rack.
• With the Grill function, we recommend
that you turn the temperature knob to the
maximum value near the symbol to
optimise cooking.
• Foods should be seasoned before
cooking. Foods should also be coated
with oil or melted butter before cooking.
• Use the oven tray on the first bottom shelf
to collect liquids produced by grilling.
Rapid defrost
Rapid defrost is helped by the
activation of a fan to ensure uniform
distribution of room temperature air
inside the oven. Perfect for any type
of food.
Eco
Using the grill and the lower heating
element in combination is
particularly suitable for cooking on
a single shelf, as it provides low
energy consumption. Ideal for
cooking meat, fish and vegetables.
Not recommended for desserts
which must rise.
Use
21
EN
• Grilling processes must never last more
than 60 minutes.
Advice for cooking desserts/pastries and
biscuits
• Use dark metal moulds: They help to
absorb the heat better.
• The temperature and the cooking time
depend on the quality and consistency
of the dough.
• To check whether the dessert is cooked
right through: At the end of the cooking
time, put a toothpick into the highest point
of the dessert. If the dough does not stick
to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes
out of the oven, on the next occasion
reduce the set temperature by about
10°C, selecting a longer cooking time if
necessary.
• While cooking desserts or vegetables,
excessive condensation may form on the
glass. In order to avoid this, open the
door very carefully a couple of times
while cooking.
Advice for defrosting and proving
• Place frozen foods without their
packaging in a lidless container on the
first shelf of the oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on
the second level and a tray on the first
level. In this way, the liquid from the
defrosting food drains away from the
food.
• The most delicate parts can be covered
with aluminium foil.
• For successful proving, a container of
water should be placed in the bottom of
the oven.
To save energy
• Stop cooking a few minutes before the
time normally used. Cooking will
continue for the remaining minutes with
the heat which has accumulated inside
the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the inside of the appliance clean
at all times.
3.8 Programmer clock
Value decrease key
Clock key
Value increase key
Ensure that the programmer clock
shows the cooking duration
symbol , otherwise it will not
be possible to turn on the oven.
Press the key to reset the
programmer clock.
Use
22
Setting the time
On the first use, or after a power failure, the
digits will be flashing on the
appliance’s display.
1. Hold down the clock key for two
seconds. The dot between the hours and
the minutes flashes.
2. The time can be set via the value
increase key and value decrease
key . Keep the key pressed in to
increase or decrease rapidly.
3. Wait 7 seconds. The dot between the
hours and the minutes stops flashing.
4. The symbol on the display indicates
that the appliance is ready to start
cooking.
Timed cooking
1. Keep the clock key pressed until the
symbol appears.
1. Press the clock key again. On the
display the symbol and the text
appear, alternating with the
current time.
2. Use the value increase and value
decrease keys to set the required
minutes of cooking.
3. Select a function and a cooking
temperature.
4. Wait approx. 5 seconds without pressing
any key in order for the function to
activate. The current time and the
symbols and will appear on the
display.
At the end of cooking the heating elements
will be deactivated. On the display, the
symbol turns off, the symbol
flashes and the buzzer sounds.
5. To turn the buzzer off, simply press one of
the programmer clock keys.
If the time is not set, the oven will
not switch on.
To change the time, hold down the
value increase key and value
decrease key at the same time
for two seconds, then set the time.
Timed cooking is the function
which allows a cooking operation
to be started and then ended after
a specific length of time set by the
user.
Use
23
EN
6. Press the clock key to reset the
programmer clock.
Programmed cooking
1. Set the cooking time as described in the
previous point “Timed cooking”.
2. Hold the menu key down for 2
seconds.
3. Press the menu key again. The
display will show the digits
and the text in sequence,
while the symbol flashes (for
example, the current time is 17:30)
4. Use the or key to set the
required minutes (for example 1 hour)
5. Press the menu key . The text
will appear on the display in
sequence with the pre-set cooking
duration added to the current time (for
example, the cooking end time shown is
18:30).
6. Press the or key to set the
cooking end time. (for example, 19:30).
7. Wait approx. 7 seconds without pressing
any key in order for the function to
activate. The current time will appear on
the display, and the symbols and
will turn off while the indicator
light comes on.
8. Select a cooking temperature and
function.
9. At the end of cooking the heating
elements will be deactivated. On the
display, symbol turns off, symbol
flashes and the buzzer sounds.
10. Return the function and temperature
knobs to 0.
11. To turn off the buzzer just press any key
of the programmer clock.
12. Press keys and at the same
time to reset the set program.
It is not possible to set a cooking
time of more than 10 hours.
To cancel the set programming
press and hold down the value
increase and the value
decrease keys at the same
time and then turn the oven off
manually.
Programmed cooking is the
function which allows a cooking
operation to be started at a set
time and then ended after a
specific length of time set by the
user.
Bear in mind that a few minutes for
oven preheating must be added to
the cooking time.
It is not possible to set a cooking
time of more than 10 hours.
Use
24
Minute minder timer
The minute minder timer can be activated at
any time.
1. Keep the clock key pressed for per
a few seconds. The display shows the
figures and the symbol
flashing between the hours and minutes.
2. Use the value increase and value
decrease keys to set the number of
minutes required.
3. Wait approx. 5 seconds without pressing
any key to finish setting the minute
minder. The current time and the
symbols and appear on the
display.
A buzzer will sound when the set time is
reached.
4. Press the value decrease key to turn
the buzzer off.
Modifying the set data
1. Press the clock key .
2. Use the value increase and value
decrease keys to set the number of
minutes required.
Deleting the set data
1. Press the clock key .
2. Hold down the value increase and
value decrease keys at the same
time.
3. Then switch off the oven manually if
cooking is in progress.
Selecting the buzzer
The buzzer can have 3 tones.
1. Hold down the value increase and
value decrease keys at the same
time.
2. Press the clock key .
3. Press the value decrease key to
select a different buzzer tone.
It is not possible to set a
programmed cooking time of more
than 24 hours.
After setting, hold the menu key
down for 2 seconds to
display the cooking time
remaining. Press the menu key
again. The display shows the text
and the remaining
cooking time in sequence.
The minute minder timer does not
stop the cooking operation but
rather informs the user when the set
time has run out.
The minute minder timer can be set
from 1 minute to a maximum of 23
hours and 59 minutes.
Use
25
EN
Cooking information table
Food
Weight
(Kg)
Function
Runner
position from
the bottom
Temperature
(°C)
Time (minutes)
Lasagne
3 - 4 Static 1 220 - 230 45 - 50
Pasta bake
3 - 4 Static 1 220 - 230 45 - 50
Roasted veal
2 Turbo/Fan assisted 2 180 - 190 90 - 100
Pork loin
2 Turbo/Fan assisted 2 180 - 190 70 - 80
Sausages
1.5 Fan with grill 4 MAX 15
Roast beef
1 Turbo/Fan assisted 2 200 40 - 45
Roast rabbit
1.5 Circulaire 2 180 - 190 70 - 80
Turkey breast
3 Turbo/Fan assisted 2 180 - 190 110 - 120
Roast pork neck
2 - 3 Turbo/Fan assisted 2 180 - 190 170 - 180
Roast chicken
1.2 Turbo/Fan assisted 2 180 - 190 65 - 70
1
st
surface 2
nd
surface
Pork chops
1.5 Fan with grill 4 MAX 15 5
Spare ribs
1.5 Fan with grill 4 MAX 10 10
Bacon
0.7 Grill 5 MAX 7 8
Pork fillet
1.5 Fan with grill 4 MAX 10 5
Beef fillet
1 Grill 5 MAX 10 7
Salmon trout
1.2 Turbo/Fan assisted 2 150 - 160 35 - 40
Monkfish
1.5 Turbo/Fan assisted 2 160 60 - 65
Turbot
1.5 Turbo/Fan assisted 2 160 45 - 50
Pizza
1 Turbo/Fan assisted 2 MAX 8 - 9
Bread
1 Circulaire 2 190 - 200 25 - 30
Focaccia
1 Turbo/Fan assisted 2 180 - 190 20 - 25
Bundt cake
1 Circulaire 2 160 55 - 60
Jam tart
1 Circulaire 2 160 35 - 40
Ricotta cake
1 Circulaire 2 160 - 170 55 - 60
Jam tarts
1 Turbo/Circulaire 2 160 20 - 25
Paradise cake
1.2 Circulaire 2 160 55 - 60
Profiteroles
1.2 Turbo/Circulaire 2 180 80 - 90
Sponge cake
1 Circulaire 2 150 - 160 55 - 60
Rice pudding
1 Turbo/Circulaire 2 160 55 - 60
Brioches
0.6 Circulaire 2 160 30 - 35
The times indicated in the table do not include preheating times and are provided only as a guide.
Cleaning and maintenance
26
4 Cleaning and maintenance
4.1 Instructions
4.2 Cleaning the appliance
Recommendations for cleaning the hob
To keep the surfaces in good condition,
they should be cleaned regularly after use.
Let them cool first.
Cleaning the hob
1. Pour some non-abrasive detergent on a
damp cloth and wipe the surfaces.
2. Rinse thoroughly.
3. Dry with a soft cloth or a microfibre cloth.
Cleaning the hob grids, flame-spreader
crowns and burner caps
1. Remove the components from the hob.
2. Clean with lukewarm water and non-
abrasive detergent. Make sure to
remove any encrustations.
3. Dry thoroughly with a soft cloth or a
microfibre cloth.
4. Replace the components on the hob.
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the
appliance.
• Do not use cleaning products containing
chlorine, ammonia or bleach on parts
made of steel or that have metallic
surface finishes (e.g. anodizing, nickel-
or chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring powders, stain
removers and metallic sponges) on
glass parts.
• Do not use rough or abrasive materials
or sharp metal scrapers.
• Do not wash the removable
components such as the hob grids,
flame-spreader crowns and burner caps
in a dishwasher.
We recommend the use of
cleaning products distributed by
the manufacturer.
The continuous contact between
the grids and the flame can cause
modifications to the enamel over
time in those parts exposed to
heat. This is a completely natural
phenomenon which has no effect
on the operation of this
component.
Cleaning and maintenance
27
EN
Cleaning the igniters and thermocouples
• If necessary, clean the igniters and
thermocouples with a damp cloth.
• If there is any dry residue, remove it with
a toothpick or needle.
Cleaning the oven cavity
In order to keep your oven in the best
possible condition, clean it regularly after
letting it cool down.
Avoid letting food residue dry inside the
oven cavity, as this could damage the
enamel.
Take out all removable parts before
cleaning.
For easier cleaning, we recommend
removing:
• The door;
• The rack/tray support frames;
• The seal.
4.3 Removing the door
For easier cleaning it is recommended to
remove the door and place it on a tea
towel.
To remove the door proceed as follows:
1. Open the door completely and insert two
pins into the holes on the hinges
indicated in the figure.
In the event you are using specific
cleaning products, we recommend
running the oven at maximum
temperature for 15-20 minutes in
order to eliminate any residue.
Cleaning and maintenance
28

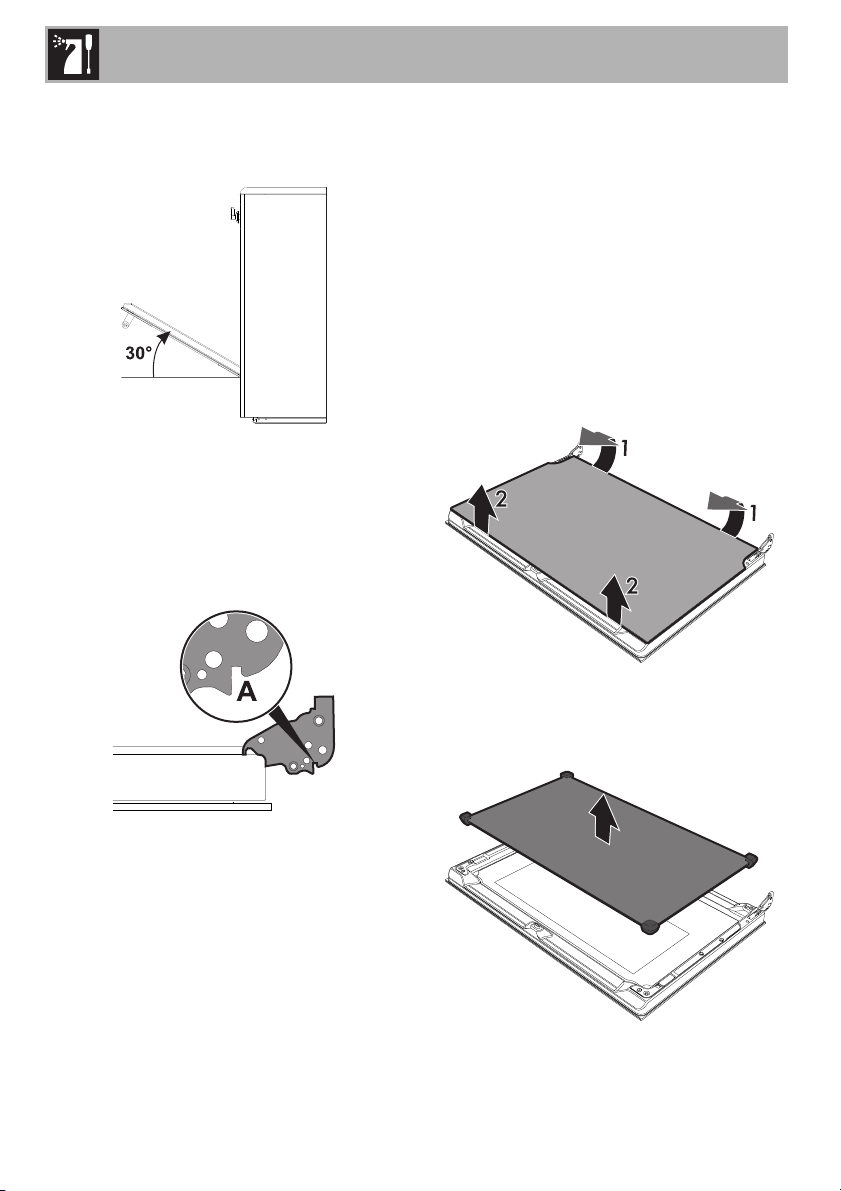

2. Grasp the door on both sides with both
hands, lift it forming an angle of around
30° and remove it.
3. To reassemble the door, put the hinges in
the relevant slots in the oven, making sure
that grooved sections A are resting
completely in the slots. Lower the door
and once it is in place remove the pins
from the holes in the hinges.
4.4 Cleaning the door glazing
The glass in the door should always be kept
thoroughly clean. Use absorbent kitchen
roll. In case of stubborn dirt, wash with a
damp sponge and an ordinary detergent.
4.5 Removing the internal glass
panes
For easier cleaning the internal glass panes
of the door can be removed.
1. Remove the internal glass pane by
pulling the rear part gently upwards,
following the movement indicated by the
arrows (1).
2. Then, pull the front part upwards (2). This
way, the 4 pins attached to the glass
detach from their housings in the oven
door.
3. Some models have an intermediate glass
pane. Remove the intermediate glass
pane by lifting it upwards.
Cleaning and maintenance
29
EN

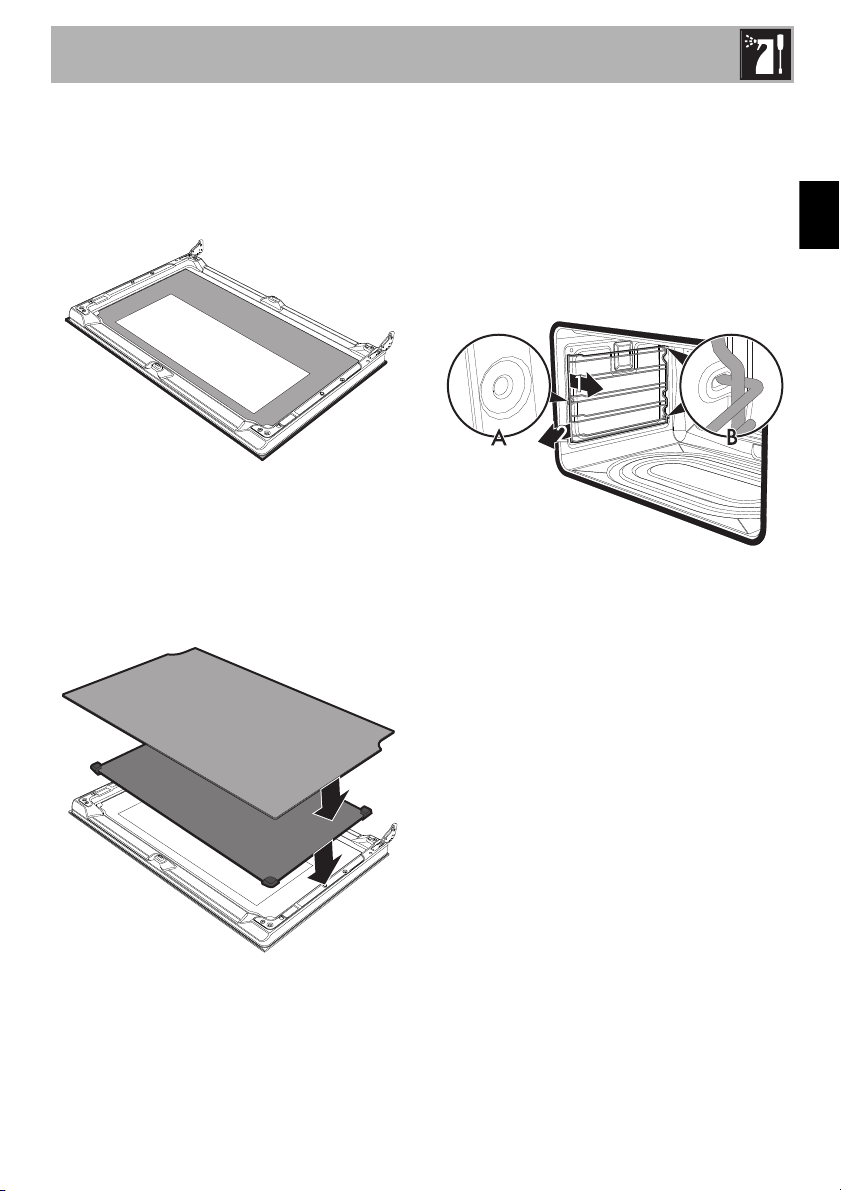

4. Clean the external glass pane and the
panes removed previously. Use
absorbent kitchen roll. In case of
stubborn dirt, wash with a damp sponge
and neutral detergent.
5. Refit the panes in the reverse order in
which they were removed.
• Reposition the internal glass pane. Take
care to centre and insert the 4 pins into
their housings in the oven door by
applying slight pressure.
Removing racks/trays support frames
Removing the rack/tray support frames
enables the sides to be cleaned more
easily.
To remove the rack/tray support frames:
• Pull the frame towards the inside of the
oven to unhook it from its groove A, then
slide it out of the seats B at the back.
• When cleaning is complete, repeat the
above procedures to put the rack/tray
support frames back in.
Cleaning and maintenance
30
4.6 Vapor Clean

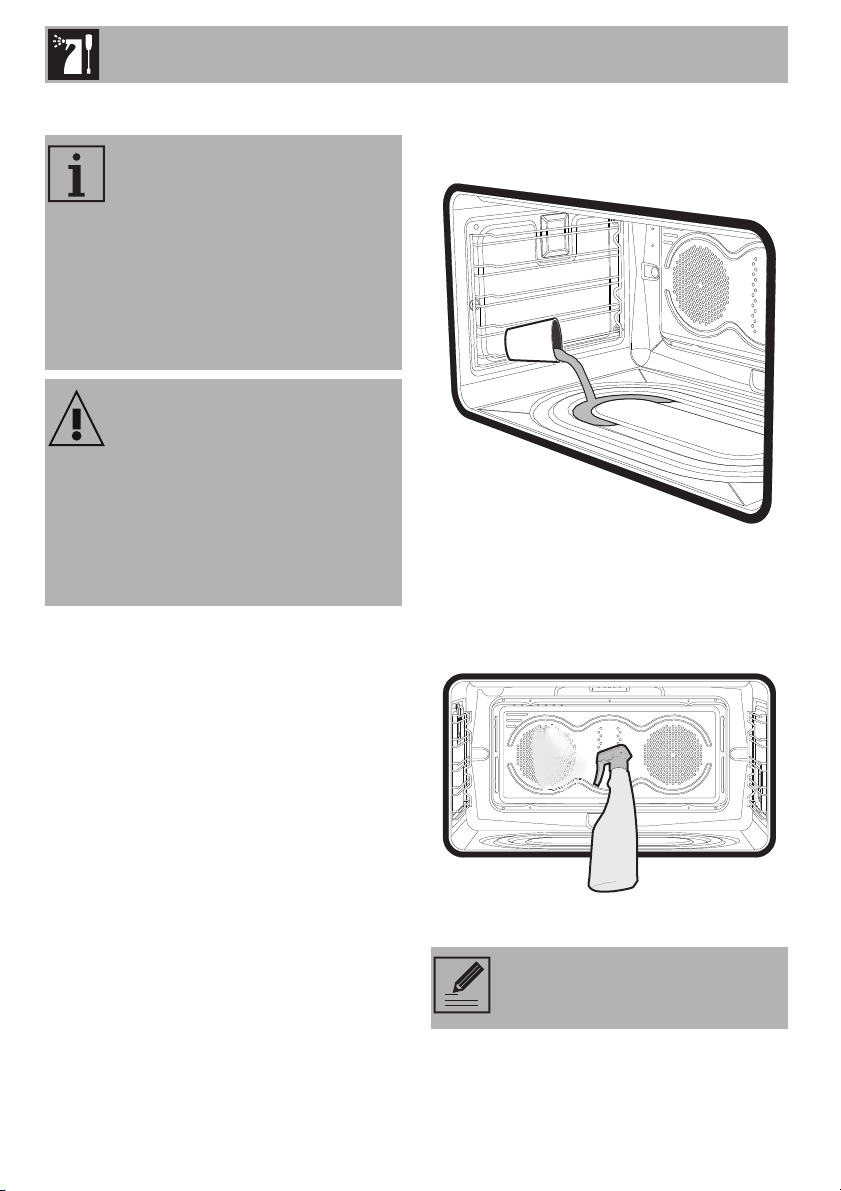

Preliminary operations
Before starting the Vapor Clean cycle:
• Completely remove all accessories from
inside the oven.
• Pour approximately 40 cc of water into
the tray. Make sure it does not overflow
out of the cavity.
• Spray a water and washing up liquid
solution inside the oven using a spray
nozzle. Direct the spray against the side
walls, upwards, downwards and
towards the deflector.
• Close the door.
Vapor Clean is an assisted
cleaning procedure which
facilitates the removal of dirt.
Thanks to this process, it is possible
to clean the inside of the oven very
easily. The dirt residues are
softened by the heat and water
vapour for easier removal
afterwards.
Improper use
Risk of damage to surfaces
• Remove any food residues or large spills
from previous cooking operations from
the inside of the oven.
• Carry out assisted oven cleaning
operations only when the oven is cold.
We recommend spraying approx.
20 times at the most.
Cleaning and maintenance
31
EN

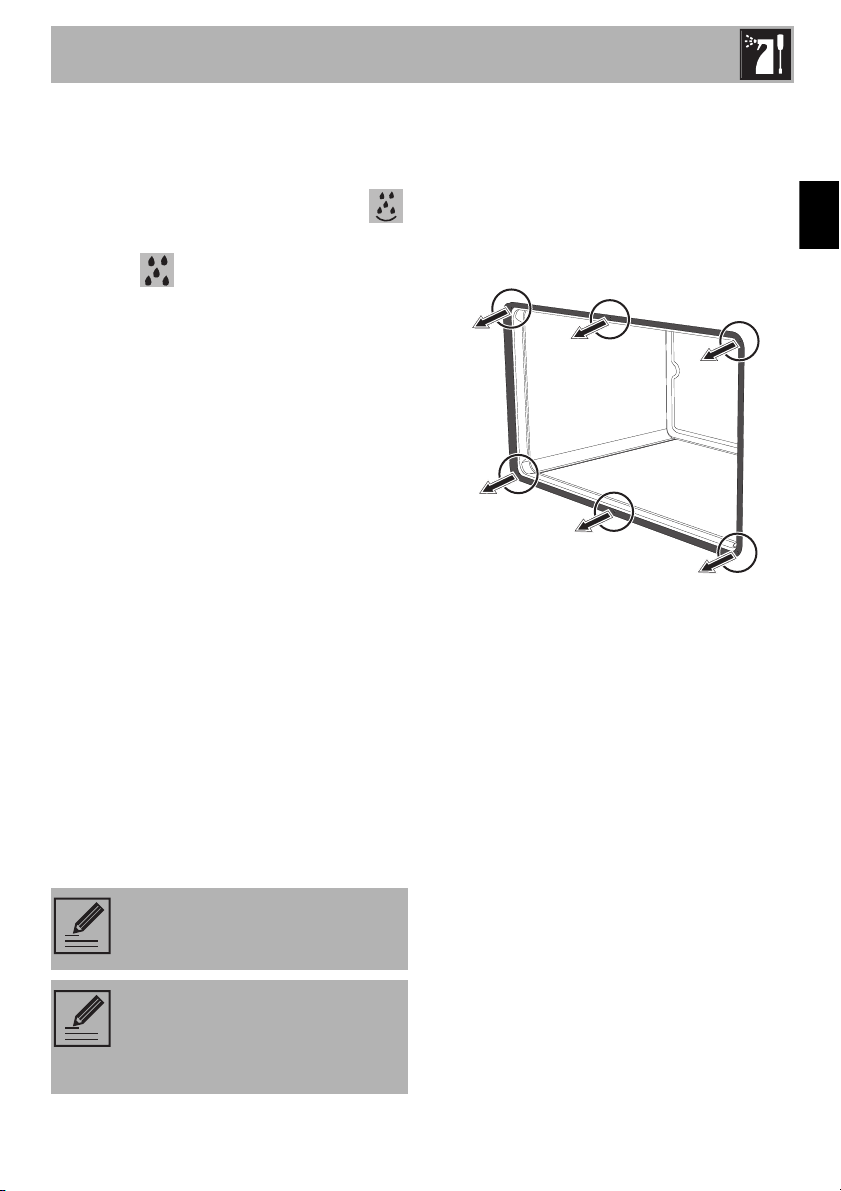

Vapor Clean cycle setting
1. Set a cooking time of 18 minutes using
the programmer clock.
2. Turn the function knob to the symbol
and the temperature knob to the
symbol .
The Vapor Clean cycle starts a few seconds
after the last press on the programmer clock
keys.
3. At the end of the Vapor Clean cycle, the
timer will deactivate the oven heating
elements, the buzzer will start to sound
and the numbers on the programmer
clock dial will flash.
End of the Vapor Clean cycle
4. Open the door and wipe away the less
stubborn dirt with a microfibre cloth.
5. Use a non-scratch sponge with brass
filaments on hard to remove deposits.
6. In case of grease residues use specific
oven cleaning products.
7. Remove the water left inside the oven.
• For improved hygiene and to avoid food
being affected by any unpleasant
odours, we recommend that the oven is
dried using a fan assisted function at
160°C for approximately 10 minutes.
4.7 Extraordinary maintenance
Installing and removing the seal
To remove the seal:
• Unhook the clips located in the 4 corners
and in the centre, then pull the seal
outwards.
To refit the seal:
• Hook the clips located in the 4 corners
and in the centre onto the seal.
Seal maintenance tips
The seal should be soft and elastic.
• To keep the seal clean, use a non-
abrasive sponge and wash with
lukewarm water.
We recommend wearing rubber
gloves for these operations.
We recommend removing the
door in order to make the manual
cleaning of the parts that are
difficult to reach easier.
Cleaning and maintenance
32

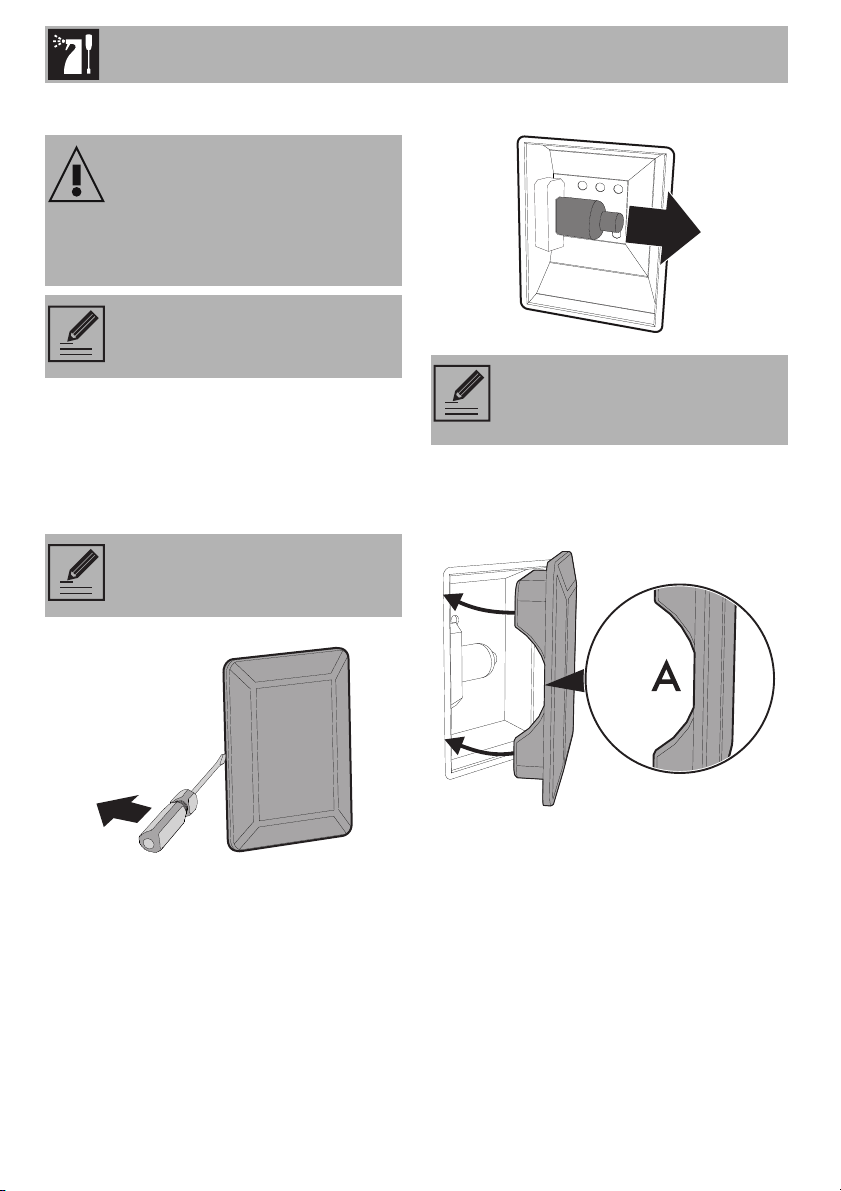

Replacing the internal light bulb
1. Completely remove all accessories from
inside the oven.
2. Remove the rack/tray support frames.
3. Remove the bulb cover using a tool (e.g.
a screwdriver).
4. Slide out and remove the light bulb.
5. Fit the new light bulb.
6. Refit the cover. Ensure the moulded part
of the glass (A) is facing the door.
7. Press the cover completely down so that
it attaches perfectly to the bulb support.
Live parts
Danger of electrocution
• Unplug the appliance.
The oven is fitted with a 40W light
bulb.
Pay attention not to scratch the
oven cavity enamel.
Do not touch the halogen light
bulb directly with your fingers, but
wrap it in insulating material.
Installation
33
EN
5 Installation
5.1 Gas connection
General information
Connection to the gas mains can be made
using a continuous wall steel hose in
compliance with the guidelines established
by the standards in force. For supplying it
with other types of gas, see chapter “5.2
Adaptation to different types of gas”. The
gas inlet connection is threaded ½”
external gas (ISO 228-1).
Connection with a rubber hose
Verify that all following conditions are met:
• the hose is fixed to the hose connection
with safety clamps;
• no part of the hose is in contact with hot
walls (max. 50 °C);
• the hose is not under traction or tension
and has no kinks or twists;
• the hose is not in contact with sharp
objects or sharp corners;
• if the hose is not perfectly airtight and
leaks gas, do not try to repair it; replace
it with a new hose.
• verify that the hose is not past its expiry
date (serigraphed on the hose itself).
Make the connection to the gas mains
using a rubber hose whose specifications
comply with current standards (verify that
the reference standard is stamped on the
hose).
Carefully screw the hose connector 3 to the
appliance’s gas connector 1 (½” thread
ISO 228-1), placing the seal 2 between
them. The hose connector 4 can also be
screwed to the hose connector 3,
depending on the diameter of the gas hose
used.
Gas leak
Danger of explosion
• After carrying out any operation, check
that the tightening torque of gas
connections is between 10 Nm and
15 Nm.
• If required, use a pressure regulator that
complies with current regulations.
• At the end of the installation, check for
any leaks with a soapy solution, never
with a flame.
• Installation using a hose must be carried
out so that the length of the hose does
not exceed 2 metres when fully
extended for steel hoses and 1.5 metres
for rubber hoses.
• The hoses should not come into contact
with moving parts and should not be
crushed in any way.
Installation
34
After having tightened the hose
connector(s), push the gas hose 6 onto the
hose connector and secure it with the clamp 5
that is compliant with the standard in force.
Connection with a steel hose
Make the connection to the gas mains
using a continuous wall steel hose whose
specifications comply with the applicable
standard.
Carefully screw the connector 3 to the gas
connector 1 of the appliance, placing the
seal 2 between them.
Connection with a steel hose with
bayonet fitting
Carry out the connection to the gas mains
using a steel hose with bayonet fitting
compliant with B.S. 669. Apply insulating
material to the thread of the gas hose
connector 4 and then tighten the adapter 3.
Screw the assembly to the movable
connector 1 of the appliance, placing the
supplied seal 2 between them.
Connection using a rubber hose
complying with current standards is
only permitted if the hose can be
inspected along its entire length.
The inside diameter of the hose
must be 8 mm for LPG and 13 mm
for Natural gas and Town gas.
Installation
35
EN
Connection with a steel hose with conical
fitting
Make the connection to the gas mains
using a continuous wall steel hose whose
specifications comply with the applicable
standard.
Carefully screw the hose connector 3 to the
appliance’s gas connector 1 (½” thread
ISO 228-1), placing the supplied seal 2
between them. Apply insulating material to
the thread of connector 3, then tighten the
steel hose 4 to the connector 3.
Connection to LPG
Use a pressure regulator and make the
connection on the gas cylinder following
the guidelines set out in the standards in force.
The supply pressure must comply with the
values indicated in the table in “Burner and
nozzle characteristics tables”.
Room ventilation
The appliance should be installed in rooms
that have a permanent air supply in
accordance with the standards in force. The
room where the appliance is installed must
have enough air flow for the regular
combustion of gas and the necessary air
change in the room itself. The air vents,
protected by grilles, must be the right size to
comply with current regulations and
positioned so that no part of them is
obstructed, not even partially.
The room must be kept adequately
ventilated in order to eliminate the heat and
humidity produced by cooking: In
particular, after prolonged use, you are
recommended to open a window or to
increase the speed of any fans.
Extraction of the combustion products
The combustion products may be extracted
by means of hoods connected to a natural
draught chimney whose efficiency is certain
or via forced extraction. An efficient
extraction system requires precision
planning by a specialist qualified in this
area and must comply with the positions
and clearances indicated by the applicable
standards.
Installation
36
When the job is complete, the installer must
issue a certificate of conformity.

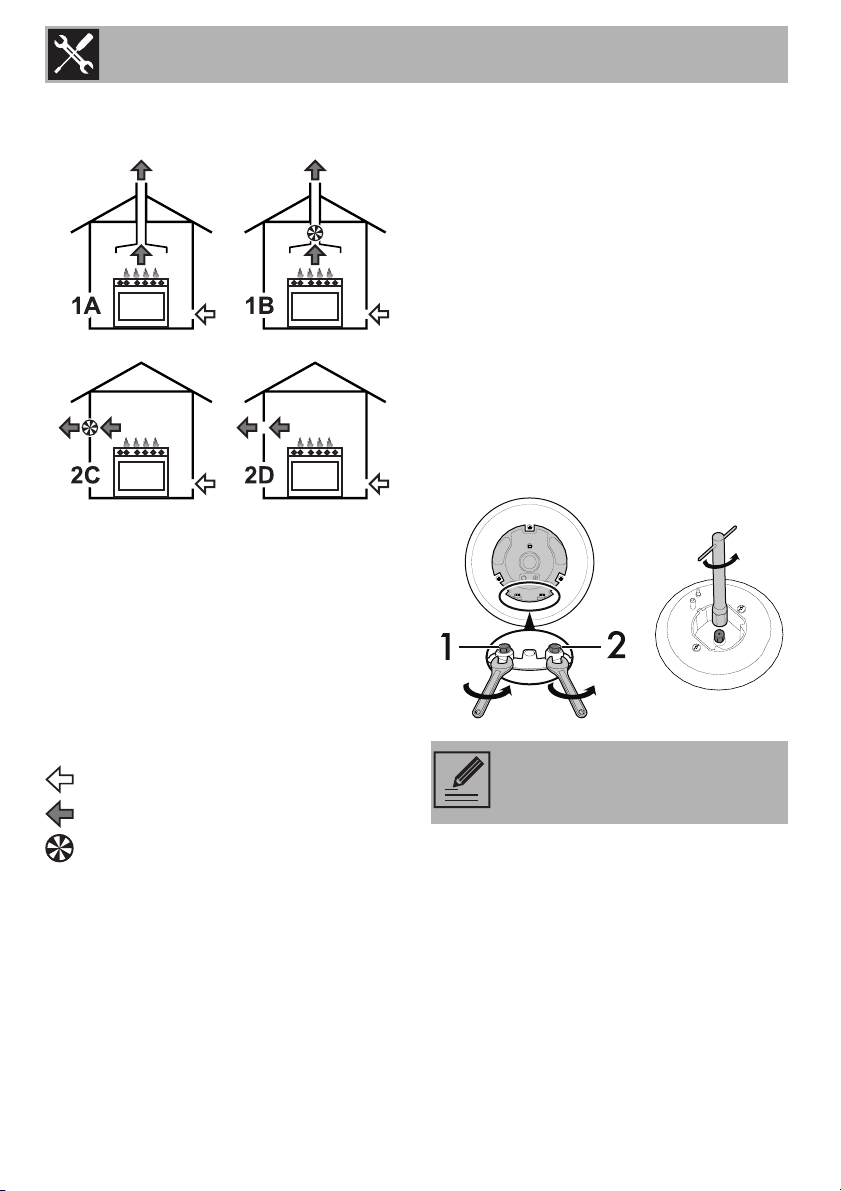

1 Extraction using a hood
2 Extraction without a hood
A Single natural draught chimney
B Single chimney with extractor fan
C Directly outdoors with wall- or window-
mounted extractor fan
D Directly outdoors through wall
Air
Combustion products
Extractor fan
5.2 Adaptation to different types of
gas
In case of operation with other types of gas,
the burner nozzles must be changed and
the minimum flame adjusted on the gas
cocks.
Replacing nozzles
1. Remove the grids, burner caps and
flame-spreader crowns to access the
burner cups.
2. Replace the nozzles using a 7 mm
spanner according to the gas to be used
(see Burner and nozzle characteristics
tables).
3. Replace the burners in their respective
housings.
1. Internal nozzle
2. External nozzle
Installation
37
EN
Adjusting the minimum setting for natural
or town gas
Light the burner and turn it to the minimum
position. Extract the gas cock knob and turn
the adjustment screw next to the tap rod
(depending on the model) until the correct
minimum flame is achieved.
Refit the knob and verify that the burner
flame is stable. Turn the knob rapidly from
the maximum to the minimum setting: The
flame should not go out. Repeat the
operation on all gas cocks.
Adjusting the minimum setting for LPG
Tighten the screw located at the side of the
tap rod clockwise all the way.
Lubricating the gas cocks
Over time the gas taps may become difficult
to turn and get blocked. Clean them
internally and replace the lubrication
grease.
Burner and nozzle characteristics tables
The nozzles not provided are available at Authorised Service Centres.
Following adjustment to a gas
other than the one originally set in
the factory, replace the gas setting
label on the appliance with the
one corresponding to the new gas.
The label is inserted inside the
nozzle pack (where present).
Lubrication of the gas taps should
be performed by a specialised
technician.
Natural Gas G20 - 20 mbar AUX SR R UR2 (int+ext)
Rated heating capacity (kW)
1.01.82.94.2
Nozzle diameter (1/100 mm)
72 94 120 75+135
Pre-chamber (printed on nozzle)
(X) (Y) (H9) (H1)+(H3)
Reduced flow rate (W)
400 500 800 1900
Liquid Gas G30/31 - 30/37 mbar AUX SR R UR2 (int+ext)
Rated heating capacity (kW)
1.01.752.9 4.2
Nozzle diameter (1/100 mm)
50 65 85 46+91
Pre-chamber (printed on nozzle)
----
Reduced flow rate (W)
400 500 800 1900
Rated flow rate G30 (g/h)
73 127 211 305
Rated flow rate G31 (g/h)
71 125 207 300
Installation
38
5.3 Positioning
General information
This appliance may be installed next to
walls, one of which must be higher than the
worktop, at a minimum distance of 50 mm
from the side of the appliance, as shown in
figures A and C relative to the installation
classes.
Any wall units positioned above the
worktop must be at a minimum distance of
at least 750 mm. If a hood is installed
above the hob, refer to the hood instruction
manual to ensure the correct clearance is
left.
Depending on the type of installation, this
appliance belongs to classes:
A - Class 1
(Free-standing appliance)
Heavy appliance
Crushing hazard
• Position the appliance into the cabinet
cutout with the help of a second person.
Pressure on the open door
Risk of damage to the appliance
• Never use the oven door to lever the
appliance into place when fitting.
• Avoid exerting too much pressure on the
oven door when open.
Heat production during appliance
operation
Risk of fire
• Veneers, adhesives or plastic coatings
on adjacent furniture should be
temperature-resistant (not less than
90°C).
Installation
39
EN

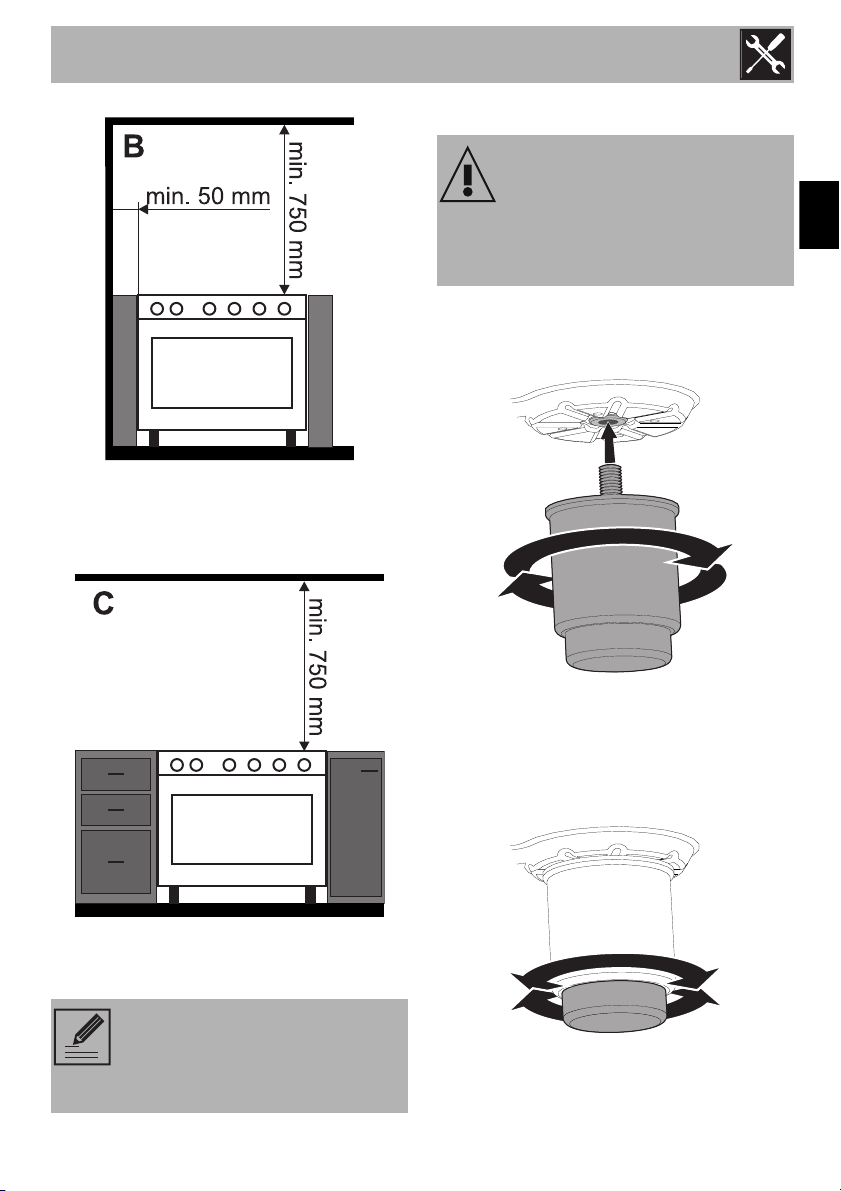

B - Class 2 subclass 1
(Built-in appliance)
C - Class 2 subclass 1
(Built-in appliance)
Positioning and levelling
• After making the gas and electrical
connections, screw on the four feet
supplied with the appliance.
The appliance must sit level on the floor to
ensure stability.
• Screw or unscrew the bottom part of the
foot until the appliance is stable and
level on the floor.
The appliance must be installed by
a qualified technician and
according to the regulations in
force.
Heavy appliance
Risk of damage to the appliance
• Insert the front feet first and then the rear
ones.
Installation
40

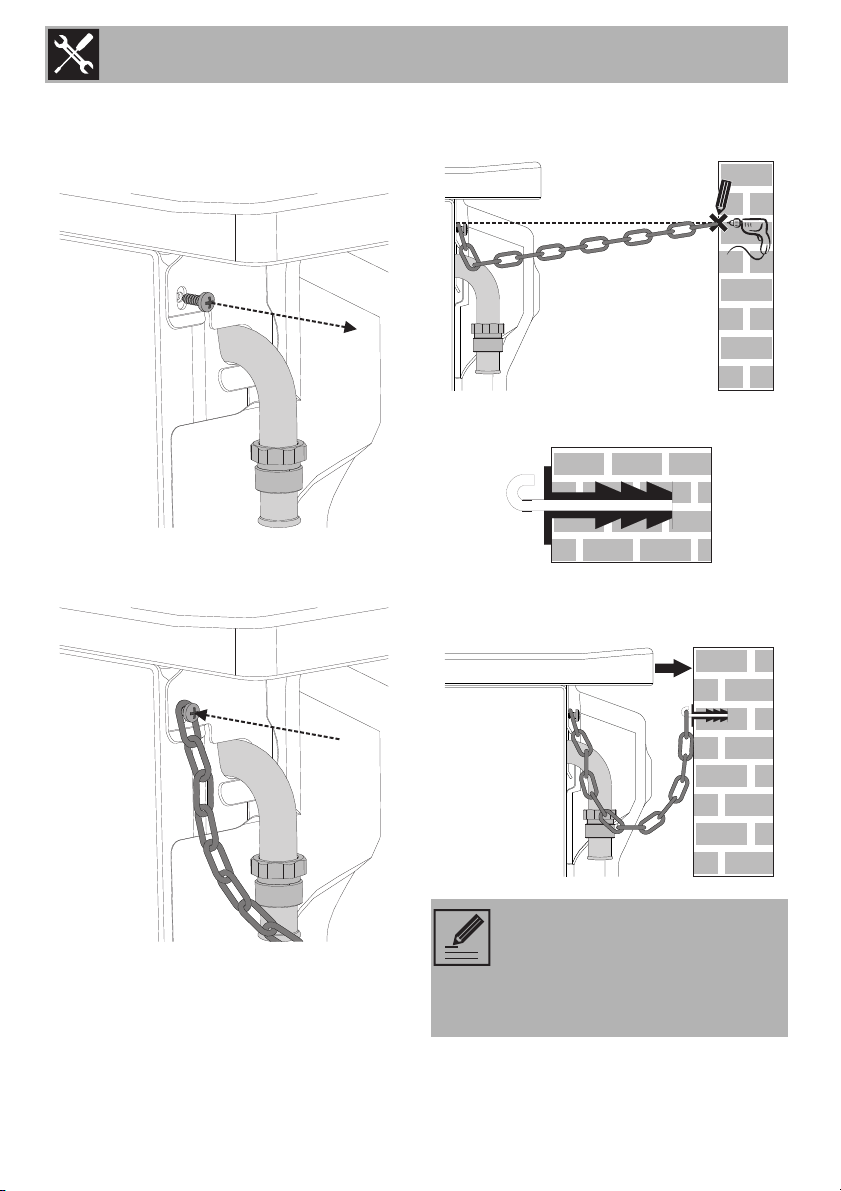

Wall fixing
1. Turn the screw placed behind the
cooktop near the gas connection.
2. Attach the chain to the cooker with the
screw just removed.
3. Stretch it out horizontally so that the other
end of the chain touches the wall.
4. Mark the wall in the position where the
hole is to be drilled.
5. Drill the hole and insert a wall plug.
6. Attach the chain and push the appliance
to the wall.
The chain length must be as short
as practicable to avoid appliance
tilting forward and also diagonal
to avoid appliance moving
sideways.
Installation
41
EN
Assembling the upstand
The upstand must always be positioned and
secured correctly on the appliance.
1. Loosen the 4 screws (A) on the back of
the hob (2 for each side) using a
screwdriver.
2. Place the upstand on the worktop.
3. Align the slots of the upstand (B) with the
screws (A).
4. Secure the upstand to the worktop by
tightening the 4 screws previously
loosened.
5.4 Electrical connection
General information
Check the grid characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
Perform the ground connection using a wire
that is 20 mm longer than the other wires.
The upstand provided is an
integral part of the product. It must
be fastened to the appliance prior
to installation.
Power voltage
Danger of electrocution
• Have the electrical connection
performed by authorised technical
personnel.
• Use personal protective equipment.
• The appliance must be connected to
earth in compliance with electrical
system safety standards.
• Disconnect the mains power supply.
• Do not pull the cable to remove the
plug.
• Use cables withstanding a temperature
of at least 90°C.
• The tightening torque of the screws of
the terminal supply wires must be 1.5 - 2
Nm.
Installation
42
The appliance can work in the following
modes:
• 220-240 V 1N~
3 x 1.5 mm² three-core cable.
Fixed connection
Fit the power line with an omnipolar circuit
breaker in compliance with installation
regulations.
The circuit breaker should be located near
the appliance and in an easily reachable
position.
Connection with plug and socket
Make sure that the plug and socket are of
the same type.
Avoid using adapters and shunts as these
could cause overheating and a risk of
burns.
5.5 For the installer
• The plug must remain accessible after the
installation is complete. Do not kink or
trap the mains connection cable.
• The appliance must be fitted according
to the installation diagrams.
• Do not attempt to turn or stress the
threaded elbow on the manifold. You risk
damage to this part of the appliance
which may void the manufacturer’s
warranty.
• Before leaving check all connections for
gas leaks with soap and water. DO
NOT use a naked flame for detecting
leaks.
• Ignite all burners individually and
concurrently to ensure correct operation
of the gas valves, burner and ignition.
• Turn the gas knobs to the low position
and observe stability of the flame for
each burner individually and all together.
• In case the appliance fails to operate
correctly after all checks have been
carried out, refer to the Authorised
Assistance Centre in your area.
• When satisfied with the appliance,
please instruct the user on the correct
method of operation.
The values indicated above refer
to the cross-section of the internal
conductor.
The aforementioned power cables
are sized taking into account the
coincidence factor (in compliance
with standard EN 60335-2-6).
